Avery Dennison ST9000 Tag Attacher Parts Book (PDF)
Text index — Avery Dennison ST9000 Tag Attacher

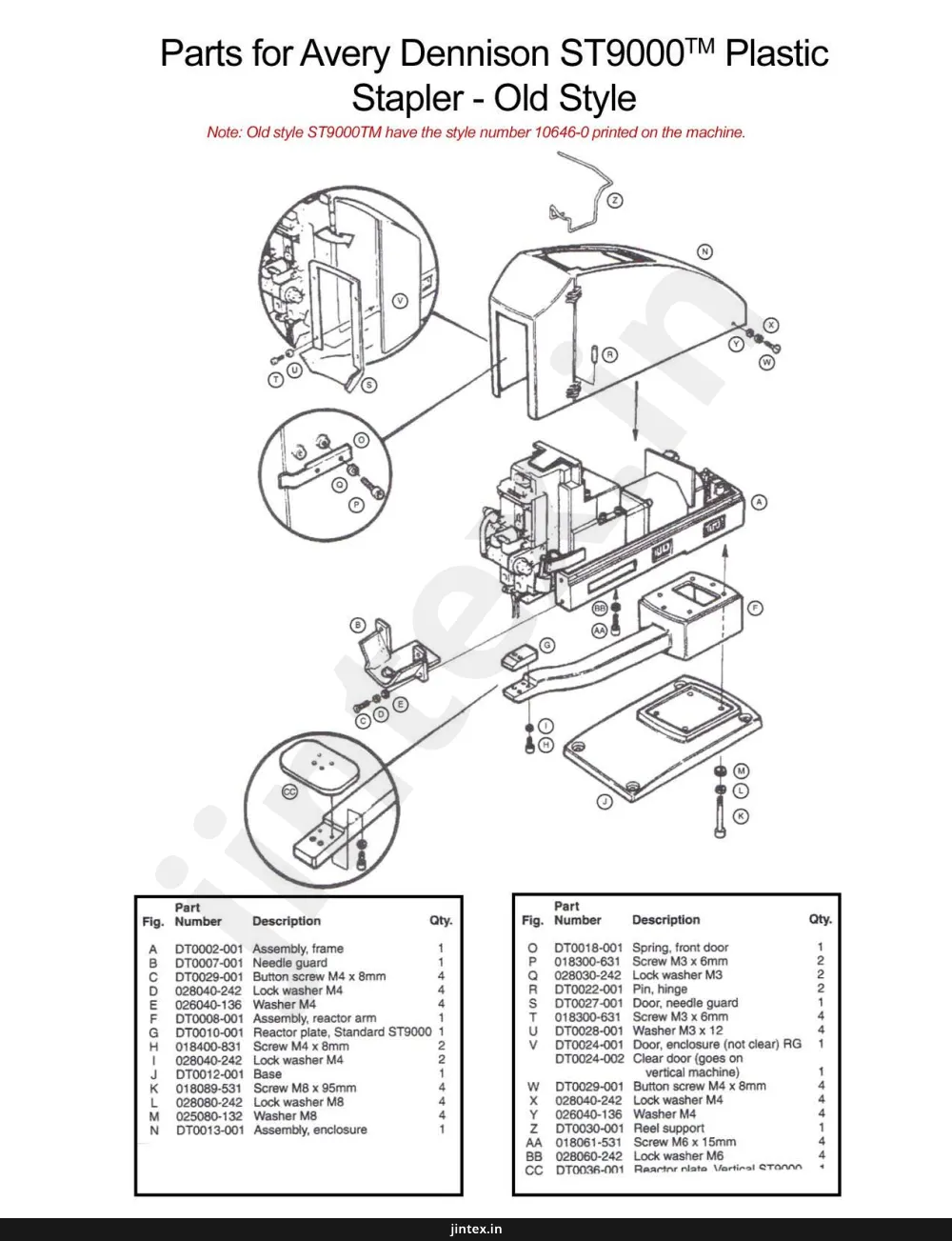

Page 1 — Parts for Avery Dennison ST9000™ Plastic Stapler - Old Style
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A | DT0002-001 | Assembly, frame | 1 |
| B | DT0007-001 | Needle guard | 1 |
| C | DT0029-001 | Button screw M4 x 8mm | 4 |
| D | 028040-242 | Lock washer M4 | 4 |
| E | 026040-136 | Washer M4 | 4 |
| F | DT0008-001 | Assembly, reactor arm | 1 |
| G | DT0010-001 | Reactor plate, Standard ST9000 | 1 |
| H | 018400-831 | Screw M4 x 8mm | 2 |
| I | 028040-242 | Lock washer M4 | 2 |
| J | DT0012-001 | Base | 1 |
| K | 018089-531 | Screw M8 x 95mm | 4 |
| L | 028080-242 | Lock washer M8 | 4 |
| M | 025080-132 | Washer M8 | 4 |
| N | DT0013-001 | Assembly, enclosure | 1 |
| O | DT0018-001 | Spring, front door | 1 |
| P | 018300-631 | Screw M3 x 6mm | 2 |
| Q | 028030-242 | Lock washer M3 | 2 |
| R | DT0022-001 | Pin, hinge | 2 |
| S | DT0027-001 | Door, needle guard | 1 |
| T | 018300-631 | Screw M3 x 6mm | 4 |
| U | DT0028-001 | Washer M3 x 12 | 4 |
| V | DT0024-001 | Door, enclosure (not clear) RG | 1 |
| DT0024-002 | Clear door (goes on vertical machine) | 1 | |
| W | DT0029-001 | Button screw M4 x 8mm | 4 |
| X | 028040-242 | Lock washer M4 | 4 |
| Y | 026040-136 | Washer M4 | 4 |
| Z | DT0030-001 | Reel support | 1 |
| AA | 018061-531 | Screw M6 x 15mm | 4 |
| BB | 028060-242 | Lock washer M6 | 4 |
| CC | DT0036-001 | Reactor plate, Vertical ST9000 | 1 |
Page 2 — Parts for Avery Dennison ST9000™ Plastic Stapler - Old Style - Head - External Parts 1
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A | DT0137-001 | Feed collar | 1 |
| B | DT0138-001 | Feed gear | 1 |
| C | DT0165-001 | Feed shaft | 1 |
| D | DT0140-001 | Key | 1 |
| E | DT0141-001 | Clutch, ratchet | 2 |
| F | 018303-031 | Screw M3 x 30mm | 2 |
| G | 026030-232 | Washer M3 | 2 |
| H | 028030-242 | Lock washer M3 | 2 |
| I | 048060-142 | C-ring 6M | 2 |
| J | DT0143-001 | Feed ratchet | 1 |
| K | DT0158-001 | Screw M3 x 8mm | 1 |
| L | DT0145-001 | Assembly, support plate right | 2 |
| M | 018401-031 | Screw M4 x 10mm | 1 |
| N | 028040-242 | Lock washer M4 | 4 |
| O | DT0147-001 | Assembly, support plate left | 1 |
| P | DT0149-001 | Pawl spring | 1 |
| Q | DT0150-001 | Anti-back, ratchet (welded together as one piece) | 1 |
| R | 018300-631 | Screw M3 x 6mm | 1 |
| S | 028030-242 | Lock washer M3 | 1 |
| T | DT0151-001 | Feed knob | 1 |
| U | DT0152-001 | Feed spring | 1 |
| V | 025060-232 | Washer M6 | 1 |
| W | DT0154-001 | Feed lever | 1 |
| X | DT0155-001 | Feed pawl | 1 |
| Y | DT0156-001 | Spacer M6 | 2 |
| Z | 018401-231 | Screw M4 x 12mm | 2 |
| AA | 028040-242 | Lock washer M4 | 2 |
| BB | 026040-136 | Washer M4 | 2 |
| CC | DT0212-001 | Feed stop | 1 |
| DD | 012502-531 | Screw M5 x 25mm | 1 |
| EE | 021500-305 | Nut M5 | 1 |
| FF | DT0229-001 | Screw M4 x 20mm | 2 |
Page 3 — Parts for Avery Dennison ST9000™ Plastic Stapler - Old Style - Head - External Parts 2
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A | DT0117-001 | Block, needle holder | 1 |
| B | 018401-031 | Screw M4 x 10mm | 4 |
| C | 028040-242 | Lock washer M4 | 4 |
| D | DT0118-001 | Knife block | 1 |
| E | 018400-831 | Screw M4 x 8mm | 2 |
| F | 028040-242 | Lock washer M4 | 2 |
| G | DT0119-001 | Knife | 1 |
| H | DT0120-001 | Assembly, needle holder | 1 |
| I | 018401-531 | Screw M4 x 15mm | 2 |
| J | 028040-242 | Lock washer M4 | 2 |
| K | DT0122-001 | Screw, needle lock | 2 |
| L | 11008 | Needles, Plastic Staple Fine Fabric | 2 |
| L | 11009 | Needles, Plastic Staple Ultra Fine Fabric | 2 |
| M | DT0125-001 | Ejector slide | 1 |
| N | 7-60-2733-01 | Ejector rod | 2 |
| O | DT0128-001 | Ejector rod washer | 1 |
| P | DT0158-001 | Screw M3 x 8mm | 1 |
| Q | DT0129-001 | Screw plate | 2 |
| R | DT0130-001 | Upper feed guide | 1 |
| S | DT0159-001 | Button screw M4 x 10mm | 4 |
| T | 026040-136 | Washer M4 | 4 |
| U | 028040-242 | Lock washer M4 | 4 |
| V | DT0131-001 | Assembly, feed guide | 1 |
| W | DT0135-001 | Guide plate | 2 |
| X | 018300-631 | Screw M3 x 6mm | 2 |
| Y | 028030-242 | Lock washer M3 | 2 |
| Z | 026030-232 | Washer M3 | 2 |
| AA | 018400-831 | Screw M4 x 8mm | 4 |
| BB | 026040-136 | Washer M4 | 4 |
| CC | 028040-242 | Lock washer M4 | 4 |
| DD | DT0224-001 | Bushing, crank | 1 |
Page 4 — Parts for Avery Dennison ST9000™ Plastic Stapler - Old Style - Head - Internal Parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A | DT0103-001 | Housing | 1 |
| B | DT0106-001 | Guide, knife lever | 2 |
| C | DT0226-001 | Screw M4 x 8mm | 2 |
| D | 047301-842 | Spring pin M3 | 1 |
| E | DT0108-001 | Gear, ejector | 1 |
| F | DT0109-001 | Shaft, gear | 1 |
| G | 048060-142 | C-Ring M6 | 2 |
| H | DT0110-001 | Assembly, knife lever | 1 |
| I | DT0112-001 | Shaft, knife roller | 1 |
| J | 048060-142 | C-Ring M6 | 2 |
| K | DT0113-001 | Knife roller | 1 |
| L | 018300-831 | Screw M3 x 8mm | 1 |
| M | 028030-242 | Lock washer M3 | 1 |
| N | 026030-232 | Washer M3 | 1 |
| O | DT0115-001 | Spring, knife lever | 1 |
| P | DT0116-001 | Shaft, knife lever | 1 |
Page 5 — Parts for Avery Dennison ST9000TM Plastic Stapler - Old Style - Head - Motor and Drive Train
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A | DT0202-001 | Subassembly, mount | 1 |
| B | DT0206-001 | Support, knife cam | 1 |
| C | DT0149-001 | Pawl spring | 1 |
| D | 150613-001 | Spring post | 2 |
| E | 012300-531 | Screw M3 x 5mm | 1 |
| F | DT0207-001 | Knife cam | 1 |
| G | DT0209-001 | Shaft, knife cam | 1 |
| H | 026040-136 | Washer M4 | 1 |
| I | 018401-031 | Screw M4 x 10mm | 3 |
| J | 028040-242 | Lock washer M4 | 3 |
| K | DT0210-001 | Rack, stationary | 1 |
| L | 018300-831 | Screw M3 x 10mm | 1 |
| M | 028030-242 | Lock washer M3 | 1 |
| N | DT0211-001 | Mount clamp | 2 |
| O | DT0226-001 | Screw M4 x 8mm | 6 |
| P | 225580-001 | Steel tie #5 | 1 |
| Q | DT0231-001 | Bracket, front safety | 1 |
| R | 018300-831 | Screw M3 x 8mm | 2 |
| S | 028030-242 | Lock washer M3 | 2 |
| T | DT0232-001 | Bracket, rear safety | 1 |
| U | DT0213-001 | Assembly, motor 100/120V | 1 |
| V | DT0216-001 | Assembly, motor 200/240V | 1 |
| W | DT0218-001 | Clutch | 1 |
| X | 047503-642 | Spring pin 5x36 | 1 |
| Y | DT0219-001 | Ring, motor support | 1 |
| Z | DT0220-001 | Assembly, crank arm | 1 |
| AA | 018501-231 | Screw M5 x 12mm | 3 |
| BB | 028050-242 | Lock washer M5 | 3 |
| CC | 018068-531 | Screw M6 x 85mm | 4 |
| DD | 028060-242 | Lock washer M6 | 4 |
| EE | DT0224-001 | Bushing, crank | 1 |
Page 6 — Parts for Avery Dennison ST9000TM Plastic Stapler - Old Style - Head - Electrical
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A | DT0234-001 | Assembly, capacitor 100/120V | 1 |
| B | DT0235-001 | Assembly, capacitor 200/240V | 1 |
| C | 138853-001 | Screw M4 x 8mm | 1 |
| D | DT0301-001 | Assembly, solenoid 100/120V (Japan) | 1 |
| E | DT0311-001 | Assembly, solenoid 200/240V (USA) | 1 |
| F | 018401-031 | Screw M4 x 10mm | 4 |
| G | 026040-136 | Washer M4 | 4 |
| H | DT0344-001 | PC board 100/120V | 1 |
| I | DT0345-001 | PC board 200/240V | 1 |
| J | 138853-001 | Screw M4 x 8mm | 3 |
| K | 026040-136 | Washer M4 | 3 |
| L | DT0346-001 | Timer 100/120V | 1 |
| M | DT0347-001 | Timer 200/240V | 1 |
| N | DT0348-001 | Fuse | 1 |
| O | DT0338-001 | On/Off switch | 1 |
| P | DT0317-001 | Assembly Plug receptacle for power cord | 1 |
| Q | DT0318-001 | Assembly, plug receptacle for foot switch | 1 |
| R | DT0320-001 | Interlock switch | 1 |
| S | DT0321-001 | Bracket, interlock switch | 1 |
| T | DT0340-001 | Cover, interlock switch | 1 |
| U | 002301-406 | Screw M3 x 14mm | 2 |
| V | 028030-242 | Lock washer M3 | 2 |
| W | 026030-232 | Washer M3 | 2 |
| X | 018400-831 | Screw M4 x 8mm | 2 |
| Y | 028040-242 | Lock washer M4 | 2 |
| Z | DT0322-001 | Assembly, work area lamp | 1 |
| AA | X50228-001 | Lamp, work area | 1 |
| BB | 002261-405 | Screw M26 x 14mm | 1 |
| CC | DT0324-001 | Lamp shade | 1 |
| DD | DT0325-001 | Lamp plate | 1 |
| EE | 018400-831 | Screw M4 x 8mm | 2 |
| FF | 028040-242 | Lock washer M4 | 2 |
| GG | DT0332-001 | Ground wire, motor | 1 |
| HH | 060400-812 | Screw M4 x 8mm | 2 |
| II | 027040-226 | Lock washer | 2 |
| JJ | 7-60-4270-01 | Power cord UL/CSA 200/240V (USA) | 1 |
| JJ | 7-60-4270-02 | Power cord IEC/EC 200/240V (Europe) | 1 |
| JJ | 7-60-4270-03 | Power cord Japan 100/120V | 1 |
| KK | DT0225-001 | Solenoid cover | 1 |
| LL | 018-300-831 | Screw M3 x 8mm | 6 |
| MM | 028030-242 | Lock washer M3 | 6 |
| NN | 026030-232 | Washer M3 | 6 |
| OO | 146315-009 | Plug, rubber | 1 |
| DT0401-001 | Shipping carton, Standard ST9000 | 1 | |
| DT0408-01 | Shipping carton, Vertical ST9000 | 1 | |
| DT0406-001 | Operator and Service Manual | 1 | |
| PP | DT0507-001 | Screw, shipping restraint & tag | 1 |
Avery Dennison ST9000 Tag Attacher — parts catalog
- Page 1 (diagram): This page contains a diagram and parts list for the Avery Dennison ST9000™ Plastic Stapler - Old Style. It includes a detailed illustration of the stapler components and a table listing part numbers, descriptions, and quantities.
- Page 2 (cover): This page is the cover of the Parts for Avery Dennison ST9000™ Plastic Stapler - Old Style - Head - External Parts 1 manual, noting that the old style ST9000TM has the style number 10646-0 printed on the machine.
- Page 3 (diagram): This page displays a diagram of external parts for the Avery Dennison ST9000™ Plastic Stapler, Old Style - Head, along with a parts list detailing part numbers, descriptions, and quantities.
- Page 4 (parts_list): This page lists internal parts for the Avery Dennison ST9000 Plastic Stapler, Old Style - Head, including part numbers, descriptions, and quantities.
- Page 5 (parts_list): This page lists parts for the Avery Dennison ST9000TM Plastic Stapler - Old Style - Head - Motor and Drive Train, including part numbers, descriptions, and quantities.
- Page 6 (diagram): This page contains a diagram and parts list for the Avery Dennison ST9000TM Plastic Stapler - Old Style - Head - Electrical, with parts listed in two tables.
