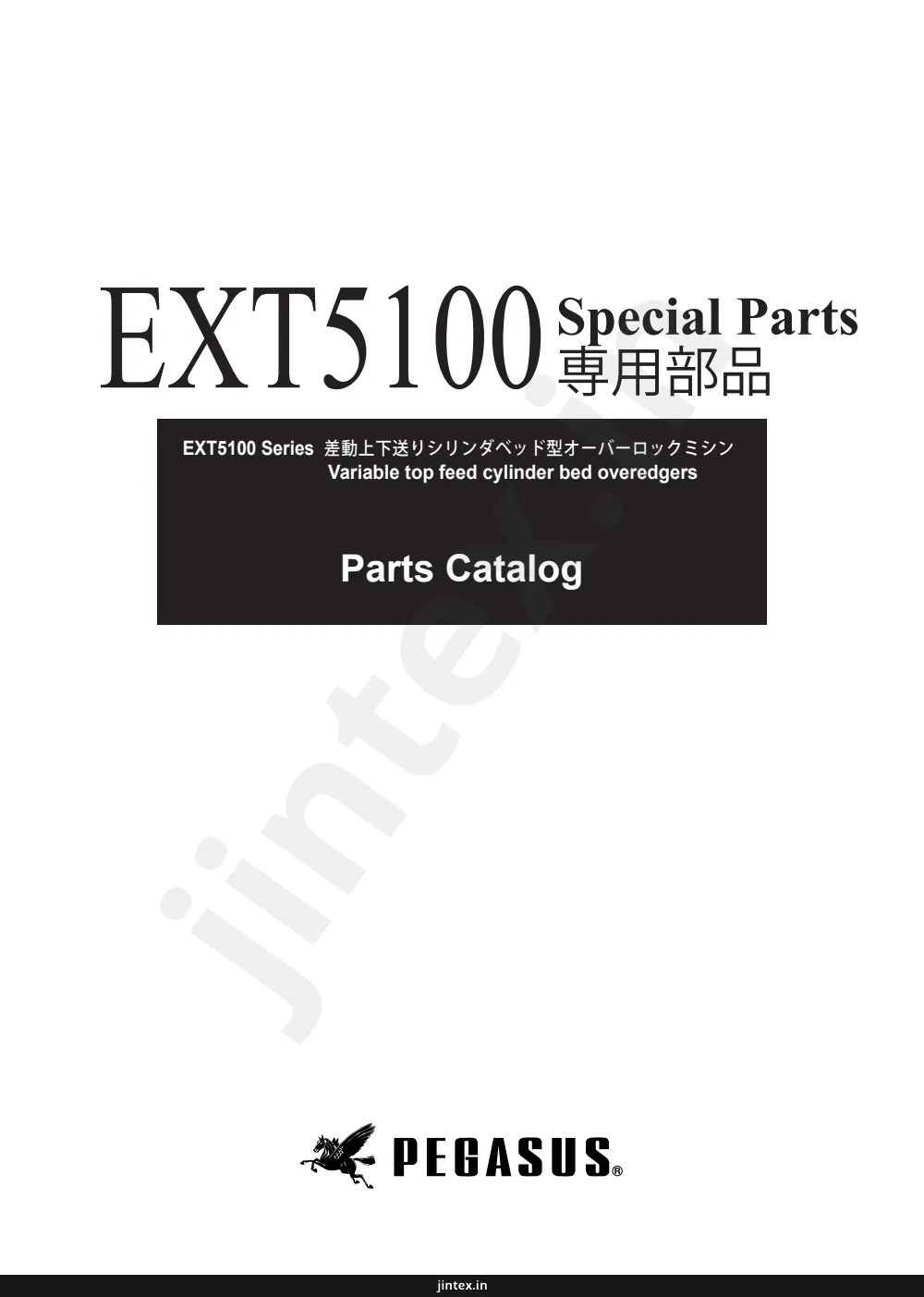

Page 1 — EXT5100 Special Parts Catalog

EXT5100 Special Parts 專用部品 EXT5100 Series 差動上下送りシリンダベッド型オーバーロックミシン Variable top feed cylinder bed overedgers Parts Catalog PEGASUS® jintex.in

Page 2 — INTRODUCTION

Pegasus EXT5100 parts on page 2
Ref	Part number	Part name	Qty
	EXT5104-02/233N
	EXT5114-03/333N
	EXT5104-04/433
	EXT5104-04/433N
	EXT5114-04/433
	EXT5114-04/433N
	EXT5105-12/223N
	EXT5104T-02/233N

パーツカタログの見方 INTRODUCTION ■このパーツカタログは、2004年2月製造中のEXT5100 シリーズミシンの専用部品のみを次の要領で編集しています。 ※専用部品以外の部品は、EX5100 シリーズと同じ部品を使用しています。EX5100 シリーズパーツブックをご覧下さい。(Cat. No. 97290) ■2~23頁には部品を機構別に収録し、左頁が部品の分解図、右頁がパーツリストになっています。また、部品分解図に付されている番号は、パーツリストのREF.NO. (参照番号)を示しています。 ■パーツリストの部品番号の表記がXXXXXXの部品は、特定の形式(サブクラス)にのみ使用されているゲージパ一ツ部品で、形式によって変わります。形式ごとの部品番号はゲージパーツ表(24~25頁)に一括して記載しています。 ■巻末には部品番号インデックスを記載し、部品番号だけで、その図解・名称などが容易に引き出せます。 ■部品を御注文いただく時は、部品番号を明示してください。なお、このパーツカタログの記載事項は改良により、予告なく変更されることがありますので、あらかじめご了承ください。 ■This parts catalog contains only special parts for the EXT5100 Series that are in the making as of February, 2004. ※Since common parts are used between the EX5100 Sereis , refer to the EX5100 Series parts book (Cat. No. 97290) for parts except special ones. ■The components of EXT5100 series are arranged according to the mechanism on pages 2-23. The illustrations are on left pages and the part numbers on right pages. The illustrated part and its part number are assigned the same reference number. ■"XXXXXX" indicates gauge part numbers which vary depending on subclasses. Please refer to the gauge part list (pages 24-25). ■The index of part numbers are listed at the back of this book for quick reference. ■To place an order for any part, please specify the part number. Note that the contents of this book are subject to change for improvement without prior notice. 掲載機種 (Models inserted) EXT5100 Series EXT5104-02/233N EXT5114-03/333N EXT5104-04/433 EXT5104-04/433N EXT5114-04/433 EXT5114-04/433N EXT5105-12/223N EXT5104T-02/233N jintex.in

Page 3 — TABLE OF CONTENTS

目次頁上送り機構(1) ……………………………… 2～3 上送り機構(2) ……………………………… 4～5 上送り機構(3) ……………………………… 6～7 ベッド,カバー機構 ………………………… 8～9 針振り,上下メス機構 ……………………… 10～11 押工機構 …………………………………… 12～13 給油機構 …………………………………… 14～15 専用部品(1) EXT5104-02,04,EXT5114-03,04,EXT5105-12 … 16～17 専用部品(2) EXT5104T-02 …………………… 18～19 専用部品(3) EXT5104T-02 …………………… 20～21 裾引き用アタッチメント …………………… 22～23 ゲージパーツ表 …………………………… 24～25 糸通し図一覧 ……………………………… 26 インデックス ……………………………… 27 TABLE OF CONTENTS page TOP FEED MECHANISM(1) ………………… 2～3 TOP FEED MECHANISM(2) ………………… 4～5 TOP FEED MECHANISM(3) ………………… 6～7 MACHINE BED FRAME, COVER …………… 8～9 NEEDLE DRIVE, KNIFE DRIVE MECHANISM … 10～11 PRESSER FOOT MECHANISM ……………… 12～13 LUBRICATION MECHANISM ………………… 14～15 SPECIFIC PARTS(1) EXT5104-02,04,EXT5114-03,04,EXT5105-12 … 16～17 SPECIFIC PARTS(2) EXT5104T-02 …………… 18～19 SPECIFIC PARTS(3) EXT5104T-02 …………… 20～21 ATTACHMENT FOR BLINDSTITCH HEMMING … 22～23 GAUGE PARTS LIST ………………………… 24～25 THREADING DIAGRAM ……………………… 26 INDEX ……………………………………… 27 1 jintex.in

Page 4

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 2 jintex.in

Page 5 — TOP FEED MECHANISM(1)

Pegasus EXT5100 parts on page 5
Ref	Part number	Part name	Qty
1	2765340	リンク	1
2	2405420	ブッシュ	1
3	2400390	座金	1
4	0070560	六角ボルト /M5X13	1
5	2765350	ブッシュ	1
6	0072330	六角ボルト /M5X17	1
7	2765260	ナット	1
8	2765330	クランク	1
9	0072060	六角ボルト /M6X22	1
10	0072070	六角ナット /M6	1
11	276536-920	カラー	1
12	0045330	六角穴ボルト /M6X12	1
13	2765380	板バネ	1
14	276527A0	クランク	1
15	2403680	ピン	1
16	2021760	給油紐	1
17	2073580	フェルト	5
18	179320-050	フェルト	1
19	2401480	球	1
20	276528-910	上送り台 (組)	1
21	2765390	油切り	1
22	2765400	油切り案内	1
23	0070070	平小ネジ /M3X3	1
24	2402940	座金	1
25	0070440	皿小ネジ /M4X10	1
26	2405420	ブッシュ	1
27	2400390	座金	1
28	0070560	六角ボルト /M5X13	1
29	2765310	上送り台案内	1
30	0045430	六角穴止ネジ /M4X4	1
31	2765320	上送り台案内	1
32	0045430	六角穴止ネジ /M4X4	1
33	XXXXXXX	上送り歯	1
34	0070140	平小ネジ /M3.5X10	1
35	276520-920	カラー	1
36	0045340	六角穴ボルト /M6X14	1
37	2082350	座金	1
38	2740350	押工棒	1
39	2402910	圧縮バネ	1
40	2740370	ナット	1
41	2740360	調節ネジ	1

上送り機構(1) TOP FEED MECHANISM(1) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 2765340 リンク LINK 1 2 2405420 ブッシュ BUSHING 1 3 2400390 座金 WASHER 1 4 0070560 六角ボルト /M5X13 BOLT 1 5 2765350 ブッシュ BUSHING 1 6 0072330 六角ボルト /M5X17 BOLT 1 7 2765260 ナット NUT 1 8 2765330 クランク CRANK 1 9 0072060 六角ボルト /M6X22 BOLT 1 10 0072070 六角ナット /M6 NUT 1 11 276536-920 カラー COLLAR 1 12 0045330 六角穴ボルト /M6X12 BOLT 1 13 2765380 板バネ FLAT SPRING 1 14 276527A0 クランク CRANKSHAFT 1 15 2403680 ピン PIN 1 16 2021760 給油紐 OIL WICK 1 17 2073580 フェルト FELT 5 18 179320-050 フェルト FELT 1 19 2401480 球 BALL 1 20 276528-910 上送り台 (組) TOP FEED BAR ASSY. 1 21 2765390 油切り OIL SEAL 1 22 2765400 油切り案内 GUIDE/FEED BAR SEAL 1 23 0070070 平小ネジ /M3X3 SCREW 1 24 2402940 座金 WASHER 1 25 0070440 皿小ネジ /M4X10 SCREW 1 26 2405420 ブッシュ BUSHING 1 27 2400390 座金 WASHER 1 28 0070560 六角ボルト /M5X13 BOLT 1 29 2765310 上送り台案内 GUIDE/TOP FEED BAR 1 30 0045430 六角穴止ネジ /M4X4 SCREW 1 31 2765320 上送り台案内 GUIDE/TOP FEED BAR 1 32 0045430 六角穴止ネジ /M4X4 SCREW 1 33 XXXXXXX 上送り歯 TOP FEED DOG 1 34 0070140 平小ネジ /M3.5X10 SCREW 1 35 276520-920 カラー COLLAR 1 36 0045340 六角穴ボルト /M6X14 BOLT 1 37 2082350 座金 WASHER 1 38 2740350 押工棒 PRESSER BAR 1 39 2402910 圧縮バネ SPRING 1 40 2740370 ナット NUT 1 41 2740360 調節ネジ SCREW 1 ● XXXXXX はゲージパーツです。部品番号は 24~25 頁のゲージパーツ表を参照してください。 "xxxxxx" represents the gauge part. Please refer to the gauge part list (page 24-25) 3 jintex.in

Page 6

4 jintex.in

Page 7 — TOP FEED MECHANISM(2)

Pegasus EXT5100 parts on page 7
Ref	Part number	Part name	Qty
1	276501A920	ロッド	1
2	007024A0	十字穴ナベ小ネジ/M4X18	2
3	276566-920	エキセン	1
4	0045140	六角穴止ネジ/M5X5	2
5	2765670	座金	1
6	276572-920	クランク	1
7	0045330	六角穴ボルト/M6X12	1
8	271003C0	軸	1
9	2082350	座金	1
10	2025770	止メ輪	1
11	276504-910	クランク(組)	1
12	0045330	六角穴ボルト/M6X12	1
13	2082350	座金	1
14	2765070	平行ピン	1
15	2016290	止メ輪	1
16	2765080	角駒	1
17	2765090	リンク	1
18	0045430	六角穴止ネジ/M4X4	2
19	2765100	ピン	1
20	0045430	六角穴止ネジ/M4X4	2
21	276511-920	クランク	1
22	0045330	六角穴ボルト/M6X12	1
23	2765120	クランク軸	1
24	2073580	フェルト	2
25	2403510	フェルト	2
26	2401480	球	3
27	276537-920	カラー	1
28	0045140	六角穴止ネジ/M5X5	1

上送り機構(2) TOP FEED MECHANISM(2) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 276501A920 ロッド CONNECTION 1 2 007024A0 十字穴ナベ小ネジ/M4X18 SCREW 2 3 276566-920 エキセン ECCENTRIC 1 4 0045140 六角穴止ネジ/M5X5 SCREW 2 5 2765670 座金 WASHER 1 6 276572-920 クランク CRANK 1 7 0045330 六角穴ボルト/M6X12 BOLT 1 8 271003C0 軸 SHAFT 1 9 2082350 座金 WASHER 1 10 2025770 止メ輪 RING 1 11 276504-910 クランク(組) CRANK ASSY. 1 12 0045330 六角穴ボルト/M6X12 BOLT 1 13 2082350 座金 WASHER 1 14 2765070 平行ピン PIN 1 15 2016290 止メ輪 RING 1 16 2765080 角駒 BLOCK 1 17 2765090 リンク LINK 1 18 0045430 六角穴止ネジ/M4X4 SCREW 2 19 2765100 ピン PIN 1 20 0045430 六角穴止ネジ/M4X4 SCREW 2 21 276511-920 クランク CRANK 1 22 0045330 六角穴ボルト/M6X12 BOLT 1 23 2765120 クランク軸 CRANKSHAFT 1 24 2073580 フェルト FELT 2 25 2403510 フェルト FELT 2 26 2401480 球 BALL 3 27 276537-920 カラー COLLAR 1 28 0045140 六角穴止ネジ/M5X5 SCREW 1 5 jintex.in

Page 8

6 jintex.in

Page 9 — TOP FEED MECHANISM(3)

Pegasus EXT5100 parts on page 9
Ref	Part number	Part name	Qty
1	276513-920	レバー	1
2	0045340	六角穴ボルト /M6X14	1
3	276514A0	レバー軸	1
4	2010220	Oリング	1
5	2402960	カラー	1
6	0045210	六角穴止ネジ /M6X10	1
7	2765730	ネジリバネ	1
8	2765170	レバー	1
9	0070770	皿小ネジ /M4X7	1
10	0070440	皿小ネジ /M4X10	1
11	2765180	調節板	1
12	0070260	平小ネジ /M4X25	3
13	2403320	スペーサ	3
14	272538A0	調節棒	1
15	2403220	シール	1
16	2005550	止メ輪	1
17	2405590	圧縮バネ	1
18	272539A0	段付ピン	2
19	179201-050	ナット	2
20	0045000	六角穴ボルト /M5X10	2
21	2400420	座金	1
22	2765240	ストッパ	1
23	2765190	ナット	1
24	0070590	段ネジ /M4.5	1
25	2113010	皿バネ	1

上送り機構(3) TOP FEED MECHANISM(3) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 276513-920 レバー LEVER 1 2 0045340 六角穴ボルト /M6X14 BOLT 1 3 276514A0 レバー軸 SHAFT 1 4 2010220 Oリング O RING 1 5 2402960 カラー COLLAR 1 6 0045210 六角穴止ネジ /M6X10 SCREW 1 7 2765730 ネジリバネ SPRING 1 8 2765170 レバー LEVER 1 9 0070770 皿小ネジ /M4X7 SCREW 1 10 0070440 皿小ネジ /M4X10 SCREW 1 11 2765180 調節板 BLADE GUIDE 1 12 0070260 平小ネジ /M4X25 SCREW 3 13 2403320 スペーサ SPACER 3 14 272538A0 調節棒 ADJUSTING BAR 1 15 2403220 シール SEAL 1 16 2005550 止メ輪 RING 1 17 2405590 圧縮バネ SPRING 1 18 272539A0 段付ピン PIN 2 19 179201-050 ナット NUT 2 20 0045000 六角穴ボルト /M5X10 BOLT 2 21 2400420 座金 WASHER 1 22 2765240 ストッパ STOPPER 1 23 2765190 ナット NUT 1 24 0070590 段ネジ /M4.5 SCREW 1 25 2113010 皿バネ SPRING 1 7 jintex.in

Page 10

8 jintex.in

Page 11 — MACHINE BED FRAME, COVER

Pegasus EXT5100 parts on page 11
Ref	Part number	Part name	Qty
1	270083A9U0	SIDE COVER ASSY.	1
2	274011-910	PRESSER BAR	1
3	2701680	FABRIC GUIDE	1
4	2700810	COVER	1
5	2109300	SPRING	1
6	0071430	SCREW	1
7	2700790	COVER	1
8	0070660	SCREW	1
9	2700670	COVER	1
10	0071540	SCREW	3

ベッド,カバー機構 MACHINE BED FRAME, COVER REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 270083A9U0 側面カバー(組) SIDE COVER ASSY. 1 2 274011-910 押工棒 PRESSER BAR 1 3 2701680 布案内 FABRIC GUIDE 1 4 2700810 カバー COVER 1 5 2109300 皿バネ SPRING 1 6 0071430 ナベ小ネジ/M4X5.5 SCREW 1 7 2700790 カバー COVER 1 8 0070660 段ネジ/M4 SCREW 1 9 2700670 カバー COVER 1 10 0071540 平小ネジ/M3X3.5 SCREW 3 9 jintex.in

Page 12

10 jintex.in

Page 13 — NEEDLE DRIVE, KNIFE DRIVE MECHANISM

Pegasus EXT5100 parts on page 13
Ref	Part number	Part name	Qty
1	271015-920	レバー	1
2	0071500	六角ボルト /M6X12	1
3	271023-910	軸 (組)	1
4	2021760	給油紐	2
5	271018C91Y0	針棒ブッシュ (組)	1
6	179009-050	フェルト	1
7	0045820	六角穴止ネジ /M4X8	1
8	2710160	リンク	1
9	0045450	六角穴止ネジ /M3X4	1
10	2710170	段付ピン	2
11	0071850	平小ネジ /M3X4	2
12	273001A920	クランク	1
13	0045330	六角穴ボルト /M6X12	1

針振り,上下メス機構 NEEDLE DRIVE, KNIFE DRIVE MECHANISM REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 271015-920 レバー LEVER 1 2 0071500 六角ボルト /M6X12 BOLT 1 3 271023-910 軸 (組) SHAFT ASSY. 1 4 2021760 給油紐 OIL WICK 2 5 271018C91Y0 針棒ブッシュ (組) BUSHING ASSY. 1 6 179009-050 フェルト FELT 1 7 0045820 六角穴止ネジ /M4X8 SCREW 1 8 2710160 リンク LINK 1 9 0045450 六角穴止ネジ /M3X4 SCREW 1 10 2710170 段付ピン PIN 2 11 0071850 平小ネジ /M3X4 SCREW 2 12 273001A920 クランク CRANK 1 13 0045330 六角穴ボルト /M6X12 BOLT 1 11 jintex.in

Page 14

12 jintex.in

Page 15 — PRESSER FOOT MECHANISM

Pegasus EXT5100 parts on page 15
Ref	Part number	Part name	Qty
1	2740440	BUSHING	1
2	274043A0	SPRING	1
3	274042-920	COLLAR	1
4	0045010	BOLT	1
5	2740550	SPRING	1
6	274045-910	LEVER	1
7	213218A920	LEVER	1
8	0045310	BOLT	1
9	274048-910	LEVER	1
10	2740540	STOPPER	1
11	2109300	SPRING	1
12	007018A0	SCREW	1
13	2740390	LEVER	1
14	2740410	LINK	1
15	0071931	SCREW	2
16	2740400	STOPPER	1
17	XXXXXX	PRESSER FOOT ASSY.	1

押工機構 REF.NO. PART NO. 1 2740440 2 274043A0 3 274042-920 4 0045010 5 2740550 6 274045-910 7 213218A920 8 0045310 9 274048-910 10 2740540 11 2109300 12 007018A0 13 2740390 14 2740410 15 0071931 16 2740400 17 XXXXXX 部品名称ブッシュネジリバネカラー六角穴ボルト /M5X14 線細エバネレバーレバー六角穴ボルト /M5X12 レバーストッパ皿バネ十字穴ナベ小ネジ /M4X6 レバーリンク段ネジ /M4 ストッパ押工(組) PRESSER FOOT MECHANISM DESCRIPTION BUSHING SPRING COLLAR BOLT SPRING LEVER LEVER BOLT LEVER STOPPER SPRING SCREW LEVER LINK SCREW STOPPER PRESSER FOOT ASSY. QT. 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 1 1 ● XXXXXX はゲージパーツです。部品番号は 24 ~ 25 頁のゲージパーツ表を参照してください。 ● "XXXXXX" represents the gauge part. Please refer to the gauge part list (page 24-25) 13 jintex.in

Page 16

EXT5100 Series 18 19 20 EXT5104T-02 21 19 20 16 17 13 14 15 9 6 7 8 10 11 5 3 2 4 1 12 14 jintex.in

Page 17 — LUBRICATION MECHANISM

Pegasus EXT5100 parts on page 17
Ref	Part number	Part name	Qty
1	274551A910	排油継手(組)	1
2	274552A910	排油継手	1
3	2041850	Oリング	1
4	2745560	フェルト	1
5	0045430	六角穴止ネジ/M4X4	1
6	2745500	カバー	1
7	2745590	当金	1
8	007018A0	十字穴ナベ小ネジ/M4X6	2
9	2745490	フェルト	1
10	2103200	銅管	1
11	2403710	チューブ	1
12	2745920	継手	1
13	2745290	フェルト	1
14	2745300	カバー	1
15	0071920	段ネジ/M4	2
16	2021760	給油紐	1
17	2401520	モール	1
18	274517B910	パイプ(組)	1
19	2400970	球	1
20	0045430	六角穴止ネジ/M4X4	1
21	274593B910	パイプ(組)	1

給油機構 LUBRICATION MECHANISM REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 274551A910 排油継手(組) JOINT ASSY. 1 2 274552A910 排油継手 JOINT 1 3 2041850 Oリング O RING 1 4 2745560 フェルト FELT 1 5 0045430 六角穴止ネジ/M4X4 SCREW 1 6 2745500 カバー COVER 1 7 2745590 当金 SPACER 1 8 007018A0 十字穴ナベ小ネジ/M4X6 SCREW 2 9 2745490 フェルト FELT 1 10 2103200 銅管 EXHAUST OIL DISTRIBUTOR 1 11 2403710 チューブ TUBE 1 12 2745920 継手 JOINT 1 13 2745290 フェルト FELT 1 14 2745300 カバー COVER 1 15 0071920 段ネジ/M4 SCREW 2 16 2021760 給油紐 OIL WICK 1 17 2401520 モール OIL WICK 1 18 274517B910 パイプ(組) PIPE ASSY. 1 19 2400970 球 BALL 1 20 0045430 六角穴止ネジ/M4X4 SCREW 1 21 274593B910 パイプ(組) PIPE ASSY. 1 15 jintex.in

Page 18

EXT5104-02,04 2 3 4 5 6 7 8 9 EXT5114-03,04 10 11 12 13 14 15 16 17 18 EXT5105-12 19 20 21 22 23 24 25 26 27 16 jintex.in

Page 19 — SPECIFIC PARTS(1)

Pegasus EXT5100 parts on page 19
Ref	Part number	Part name	Qty
1	XXXXXX	押工(組)	1
2	0070130	平小ネジ/M3.5X8	1
3	2740510	ネジリバネ	1
4	0070100	平小ネジ/M3X6	1
5	2741060	フィンガーガード	1
6	0070090	平小ネジ/M3X5	1
7	212059-B0	ピンネジ/C1	1
8	2126680	押工補助板	1
9	0050300	平ネジ/C1X2.3	1
10	XXXXXX	押工(組)	1
11	0070130	平小ネジ/M3.5X8	1
12	2740510	ネジリバネ	1
13	0070100	平小ネジ/M3X6	1
14	2741060	フィンガーガード	1
15	0070090	平小ネジ/M3X5	1
16	212059-B0	ピンネジ/C1	1
17	2126680	押工補助板	1
18	0050300	平ネジ/C1X2.3	1
19	XXXXXX	押工(組)	1
20	0070130	平小ネジ/M3.5X8	1
21	2740510	ネジリバネ	1
22	0070100	平小ネジ/M3X6	1
23	2741060	フィンガーガード	1
24	0070090	平小ネジ/M3X5	1
25	212059-B0	ピンネジ/C1	1
26	2126680	押工補助板	1
27	0050300	平ネジ/C1X2.3	1

専用部品(1) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 XXXXXX 押工(組) PRESSER FOOT ASSY. 1 2 0070130 平小ネジ/M3.5X8 SCREW 1 3 2740510 ネジリバネ SPRING 1 4 0070100 平小ネジ/M3X6 SCREW 1 5 2741060 フィンガーガード FINGER GUARD 1 6 0070090 平小ネジ/M3X5 SCREW 1 7 212059-B0 ピンネジ/C1 SCREW 1 8 2126680 押工補助板 PRESSER FOOT AUXILIARY PLATE 1 9 0050300 平ネジ/C1X2.3 SCREW 1 10 XXXXXX 押工(組) PRESSER FOOT ASSY. 1 11 0070130 平小ネジ/M3.5X8 SCREW 1 12 2740510 ネジリバネ SPRING 1 13 0070100 平小ネジ/M3X6 SCREW 1 14 2741060 フィンガーガード FINGER GUARD 1 15 0070090 平小ネジ/M3X5 SCREW 1 16 212059-B0 ピンネジ/C1 SCREW 1 17 2126680 押工補助板 PRESSER FOOT AUXILIARY PLATE 1 18 0050300 平ネジ/C1X2.3 SCREW 1 19 XXXXXX 押工(組) PRESSER FOOT ASSY. 1 20 0070130 平小ネジ/M3.5X8 SCREW 1 21 2740510 ネジリバネ SPRING 1 22 0070100 平小ネジ/M3X6 SCREW 1 23 2741060 フィンガーガード FINGER GUARD 1 24 0070090 平小ネジ/M3X5 SCREW 1 25 212059-B0 ピンネジ/C1 SCREW 1 26 2126680 押工補助板 PRESSER FOOT AUXILIARY PLATE 1 27 0050300 平ネジ/C1X2.3 SCREW 1 SPECIFIC PARTS(1) ● XXXXXX はゲージパーツです。部品番号は 24～25 頁のゲージパーツ表を参照してください。 ● "XXXXXX" represents the gauge part. Please refer to the gauge part list (page 24-25) 17 jintex.in

Page 20

EXT5104T-02 18 jintex.in

Page 21 — SPECIFIC PARTS(2)

Pegasus EXT5100 parts on page 21
Ref	Part number	Part name	Qty
1	213062B0	横カバー	1
2	3065270	平行ピン	1
3	0045540	六角穴止ネジ/M3X3	1
4	2402830	平行ピン	1
5	270522C0	クランク軸	1
6	XXXXXX	押工(組)	1
7	0070130	平小ネジ/M3.5X8	1
8	2740510	ネジリバネ	1
9	0070100	平小ネジ/M3X6	1
10	2741060	フィンガーガード	1
11	0070090	平小ネジ/M3X5	1
12	212059-B0	ピンネジ/C1	1
13	271544-91Y0	上ルーパ台セット	1
14	271542-920	レバー	1
15	0071500	六角ボルト/M6X12	1
16	2715460	平行ピン(組)	1
17	2021760	給油紐	1
18	0045450	六角穴止ネジ/M3X4	1
19	271533B910	上ルーパ台(組)	1
20	179130-050	フェルト	1
21	0070541	平小ネジ/M3.5X6.7	1
22	2330350	フェルト	1

専用部品(2) SPECIFIC PARTS(2) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 213062B0 横カバー SIDE COVER 1 2 3065270 平行ピン PIN 1 3 0045540 六角穴止ネジ/M3X3 SCREW 1 4 2402830 平行ピン PIN 1 5 270522C0 クランク軸 CRANKSHAFT 1 6 XXXXXX 押工(組) PRESSER FOOT ASSY. 1 7 0070130 平小ネジ/M3.5X8 SCREW 1 8 2740510 ネジリバネ SPRING 1 9 0070100 平小ネジ/M3X6 SCREW 1 10 2741060 フィンガーガード FINGER GUARD 1 11 0070090 平小ネジ/M3X5 SCREW 1 12 212059-B0 ピンネジ/C1 SCREW 1 13 271544-91Y0 上ルーパ台セット UPPER LOOPER HOLDER ASSY. 1 14 271542-920 レバー LEVER 1 15 0071500 六角ボルト/M6X12 BOLT 1 16 2715460 平行ピン(組) PIN ASSY. 1 17 2021760 給油紐 OIL WICK 1 18 0045450 六角穴止ネジ/M3X4 SCREW 1 19 271533B910 上ルーパ台(組) UPPER LOOPER HOLDER ASSY. 1 20 179130-050 フェルト FELT 1 21 0070541 平小ネジ/M3.5X6.7 SCREW 1 22 2330350 フェルト FELT 1 ● XXXXXX はゲージパーツです。部品番号は 24～25 頁のゲージパーツ表を参照してください。 ● "XXXXXX" represents the gauge part. Please refer to the gauge part list (page 24-25) 19 jintex.in

Page 22

EXT5104T-02 10 9 8 7 1 2 6 5 10 9 8 7 3 4 6 5 3 1 11 12 17 13 14 15 16 20 jintex.in

Page 23 — SPECIFIC PARTS(3)

Pegasus EXT5100 parts on page 23
Ref	Part number	Part name	Qty
1	210529A9T0	TENSION SPRING ASSY.	1
2	201086B0	SPRING	1
3	210531-9T0	TENSION SPRING ASSY.	2
4	21010680	SPRING (LIGHT)	1
5	263543-TA0	KNOB	1
6	2084480	RATCHET	1
7	263544-TA0	SPRING SHIELD	1
8	2103190	DISC	2
9	2084490	FELT	1
10	005082A0	SCREW STUD	1
11	275015B0	BRACKET	1
12	2750070	THREAD GUIDE	1
13	2750200	THREAD TAKE-UP	1
14	2750450	THREAD GUIDE	1
15	0070070	SCREW	1
16	275531-910	NEEDLE COOLER	1
17	2756140	FELT	1

専用部品 (3) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 210529A9T0 糸調子(組) TENSION SPRING ASSY. 1 2 201086B0 円錐バネ SPRING 1 3 210531-9T0 糸調子(組) TENSION SPRING ASSY. 2 4 21010680 円錐バネ(弱) SPRING (LIGHT) 1 5 263543-TA0 ツマミ KNOB 1 6 2084480 ラチェット RATCHET 1 7 263544-TA0 受皿 SPRING SHIELD 1 8 2103190 調子皿 DISC 2 9 2084490 フェルト FELT 1 10 005082A0 調子棒/C5 SCREW STUD 1 11 275015B0 ブラケット BRACKET 1 12 2750070 糸道 THREAD GUIDE 1 13 2750200 糸繰り THREAD TAKE-UP 1 14 2750450 糸道 THREAD GUIDE 1 15 0070070 平小ネジ/M3X3 SCREW 1 16 275531-910 針冷却器 NEEDLE COOLER 1 17 2756140 フェルト FELT 1 SPECIFIC PARTS(3) 21 jintex.in

Page 24 — 裾引き(Blindstitch hemming) EXT5105-12

裾引き(Blindstitch hemming) EXT5105-12 30 40mm 32 31 34 33 14 26 23 25 24 29 15 16 17 27 28 22 21 19 20 18 1 2 7 8 3 9 10 11 4 5 6 13 12 22 jintex.in

Page 25 — ATTACHMENT FOR BLINDSTITCH HEMMING

Pegasus EXT5100 parts on page 25
Ref	Part number	Part name
1	2106850	BRACKET ASSY.
2	2106800	BRACKET
3	2106810	HINGE
4	0051840	SCREW
5	2011910	SPRING
6	0030440	NUT
7	2106820	WASHER
8	0050530	SCREW
9	2106830	PIN
10	2106840	FLAT SPRING
11	0029060	SCREW
12	0070200	SCREW
13	2012520	WASHER
14	210691A910	CLOTH GUIDE ASSY.
15	205361A0	CLOTH GUIDE
16	0050570	SCREW
17	2106890	BRACKET
18	0051570	SCREW
19	0024300	SCREW
20	2106900	BRACKET
21	0050880	BOLT
22	1670660	WASHER
23	0029050	SCREW
24	1371420	WASHER
25	2106920	STOPPER
26	0012060	SCREW
27	2130950	AUXILIARY PLATE
28	0012290	SCREW
29	0050570	SCREW
30	201211C910	GUIDE ASSY. (40mm)
31	2058350	GUIDE
32	0052990	SCREW
33	303312A0	STOPPER
34	3033130	CLAMP

裾引き用アタッチメント REF.NO. PART NO. 1 2106850 2 2106800 3 2106810 4 0051840 5 2011910 6 0030440 7 2106820 8 0050530 9 2106830 10 2106840 11 0029060 12 0070200 13 2012520 14 210691A910 15 205361A0 16 0050570 17 2106890 18 0051570 19 0024300 20 2106900 21 0050880 22 1670660 23 0029050 24 1371420 25 2106920 26 0012060 27 2130950 28 0012290 29 0050570 30 201211C910 31 2058350 32 0052990 33 303312A0 34 3033130 ATTACHMENT FOR BLINDSTITCH HEMMING DESCRIPTION ブラケット (組) ブラケットヒンジ段ネジ /C5 皿バネ六角ナット /C5 座金平小ネジ /C4X4.8 ピン板バネ平小ネジ /C4X2.6 平小ネジ /M4X10 バネ座金定規台 (セット) 定規台平小ネジ /C3X5 ブラケット平小ネジ /C3X4.5 段ネジ /C3 ブラケット六角ボルト /C4X7.5 座金平小ネジ /C5X4.5 座金ストッパ平小ネジ /C4X5.3 補助板平小ネジ /C3X4.5 平小ネジ /C3X5 案内 (組) (40mm) 定規平小ネジ /C3X2.6 ストッパクランプ BRACKET ASSY. BRACKET HINGE SCREW SPRING NUT WASHER SCREW PIN FLAT SPRING SCREW SCREW WASHER CLOTH GUIDE ASSY. CLOTH GUIDE SCREW BRACKET SCREW SCREW BRACKET BOLT WASHER SCREW WASHER STOPPER SCREW AUXILIARY PLATE SCREW SCREW GUIDE ASSY. (40mm) GUIDE SCREW STOPPER CLAMP QT. 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 1 1 2 2 1 1 1 1 1 2 1 1 1 1 1 1 23 jintex.in

Page 26 — EXT5100 GAUGE PARTS LIST(1)

Pegasus EXT5100 parts on page 26
Ref	Part number	Part name	Qty
	213110-300	NEEDLE PLATE
	213110-400	NEEDLE PLATE
	277408-16F0	MAIN FEED DOG ASSY.
	(277403-16F0)	MAIN FEED DOG
	(213103-160)	AUX. FEED DOG
	277404-16F0	DIFF. FEED DOG
	2773440	TOP FEED DOG
	277286A300	PRESSER FOOT ASSY.
	277286A400	PRESSER FOOT ASSY.
	277062A0	UPPER LOOPER
	2770600	LOWER LOOPER
	213110-500	NEEDLE PLATE
	277286A500	PRESSER FOOT ASSY.
	213112-300	NEEDLE PLATE
	277287A300	PRESSER FOOT ASSY.
	213112-400	NEEDLE PLATE
	277408-16F0	MAIN FEED DOG ASSY.
	(277403-16F0)	MAIN FEED DOG
	(213103-160)	AUX. FEED DOG
	277404-16F0	DIFF. FEED DOG
	2773440	TOP FEED DOG
	277287A400	PRESSER FOOT ASSY.
	277062B0	UPPER LOOPER
	2770010	LOWER LOOPER
	213112-500	NEEDLE PLATE
	277287A500	PRESSER FOOT ASSY.
	213111-300	NEEDLE PLATE
	277286A300	PRESSER FOOT ASSY.
	213111-400	NEEDLE PLATE
	277409-16F0	MAIN FEED DOG ASSY.
	(277403-16F0)	MAIN FEED DOG
	(213117-160)	AUX. FEED DOG
	277404-16F0	DIFF. FEED DOG
	2773440	TOP FEED DOG
	277286A400	PRESSER FOOT ASSY.
	2770630	UPPER LOOPER
	2770600	LOWER LOOPER
	213111-500	NEEDLE PLATE
	277286A500	PRESSER FOOT ASSY.
	213110-300	NEEDLE PLATE
	277286A300	PRESSER FOOT ASSY.
	213110-400	NEEDLE PLATE
	277408-16F0	MAIN FEED DOG ASSY.
	(277403-16F0)	MAIN FEED DOG
	(213103-160)	AUX. FEED DOG
	277404-16F0	DIFF. FEED DOG
	2773440	TOP FEED DOG
	277286A400	PRESSER FOOT ASSY.
	2770630	UPPER LOOPER
	2770600	LOWER LOOPER
	213110-500	NEEDLE PLATE
	277286A500	PRESSER FOOT ASSY.
	213108A0	LOWER KNIFE
	201121A0	UPPER KNIFE
	2131080	LOWER KNIFE
	2131070	NEEDLE GUARD FRONT
	2770610	NEEDLE GUARD REAR
	179630-920	NEEDLE HOLDER
	DCX27 #9	NEEDLE
	2131080	LOWER KNIFE
	201121A0	UPPER KNIFE
	2131080	LOWER KNIFE
	2131070	NEEDLE GUARD FRONT
	2770610	NEEDLE GUARD REAR
	277022-920	NEEDLE HOLDER
	DCX27 #9	NEEDLE
	213108A0	LOWER KNIFE
	201121A0	UPPER KNIFE
	2131080	LOWER KNIFE
	2131070	NEEDLE GUARD FRONT
	2770610	NEEDLE GUARD REAR
	179630-920	NEEDLE HOLDER
	DCX27 #11	NEEDLE
	2131080	LOWER KNIFE
	213108A0	LOWER KNIFE
	201121A0	UPPER KNIFE
	2131080	LOWER KNIFE
	2131070	NEEDLE GUARD FRONT
	2770610	NEEDLE GUARD REAR
	179630-920	NEEDLE HOLDER
	DCX27 #11	NEEDLE
	2131080	LOWER KNIFE

EXT5100 ゲージパーツ (1) EXT5100 GAUGE PARTS LIST(1) ミシン形式ゲージ針板主送リ歯 (組) 主送リ歯本体補助送リ歯差動送リ歯上送リ歯押工 (組) 上ルーパ下ルーパ MACHINE TYPE GAUGE NEEDLE MAIN FEED MAIN FEED AUX. FEED DIFF. FEED TOP FEED PRESSER UPPER LOWER /SPEC NG SW PLATE DOG ASSY. DOG DOG DOG DOG FOOT ASSY. LOOPER LOOPER 3 213110-300 277286A300 EXT5104-02/233N - 4 213110-400 277408-16F0 (277403-16F0) (213103-160) 277404-16F0 2773440 277286A400 277062A0 #15 2770600 5 213110-500 277286A500 3 213112-300 277287A300 EXT5114-03/333N 2 4 213112-400 277408-16F0 (277403-16F0) (213103-160) 277404-16F0 2773440 277287A400 277062B0 #18 2770010 5 213112-500 277287A500 3 213111-300 277286A300 EXT5104-04/433 - 4 213111-400 277409-16F0 (277403-16F0) (213117-160) 277404-16F0 2773440 277286A400 2770630 #19 2770600 5 213111-500 277286A500 3 213110-300 277286A300 EXT5104-04/433N - 4 213110-400 277408-16F0 (277403-16F0) (213103-160) 277404-16F0 2773440 277286A400 2770630 #19 2770600 5 213110-500 277286A500 jintex.in 24 ミシン形式ゲージ上メス下メス針受針留針 MACHINE TYPE GAUGE UPPER LOWER NEEDLE GUARD NEEDLE /SPEC NG SW KNIFE KNIFE FRONT REAR HOLDER NEEDLE 3 213108A0 EXT5104-02/233N - 4 201121A0 2131070 2770610 179630-920 DCX27 #9 5 2131080 3 EXT5114-03/333N 2 4 201121A0 2131080 2131070 2770610 277022-920 DCX27 #9 5 3 213108A0 EXT5104-04/433 - 4 201121A0 2131070 2770610 179630-920 DCX27 #11 5 2131080 3 213108A0 EXT5104-04/433N - 4 201121A0 2131070 2770610 179630-920 DCX27 #11 5 2131080

Page 27 — EXT5100 GAUGE PARTS(2)

Pegasus EXT5100 parts on page 27
Ref	Part number	Part name	Qty
	213113-300	NEEDLE PLATE
	277409-16F0	MAIN FEED DOG ASSY.
	(277403-16F0)	MAIN FEED DOG
	(213117-16F0)	AUX.FEED DOG
	277404-16F0	DIFF.FEED DOG
	2773440	TOP FEED DOG
	277287A300	PRESSER FOOT
	277287A400	PRESSER FOOT
	2770630 #19	UPPER LOOPER
	2770600	LOWER LOOPER
	213113-400	NEEDLE PLATE
	277287A500	PRESSER FOOT
	213113-500	NEEDLE PLATE
	213112-300	NEEDLE PLATE
	277408-16F0	MAIN FEED DOG ASSY.
	(277403-16F0)	MAIN FEED DOG
	(213103-16F0)	AUX.FEED DOG
	277404-16F0	DIFF.FEED DOG
	2773440	TOP FEED DOG
	277287A300	PRESSER FOOT
	277287A400	PRESSER FOOT
	2770630 #19	UPPER LOOPER
	2770600	LOWER LOOPER
	213112-400	NEEDLE PLATE
	277287A500	PRESSER FOOT
	213112-500	NEEDLE PLATE
	213100-400	NEEDLE PLATE
	277407-16F1	MAIN FEED DOG ASSY.
	(277401-16F0)	MAIN FEED DOG
	(213103-16F0)	AUX.FEED DOG
	277402-16F0	DIFF.FEED DOG
	2773580	TOP FEED DOG
	277181-400	PRESSER FOOT
	2770620 #15	UPPER LOOPER
	2770600	LOWER LOOPER
	277588-300	NEEDLE PLATE
	277408-16F0	MAIN FEED DOG ASSY.
	(277403-16F0)	MAIN FEED DOG
	(213103-16F0)	AUX.FEED DOG
	277404-16F0	DIFF.FEED DOG
	2773440	TOP FEED DOG
	278011-300	PRESSER FOOT
	2770200 #21	UPPER LOOPER
	2770210	LOWER LOOPER
	201121A0	UPPER KNIFE
	2131080	LOWER KNIFE
	2131070	NEEDLE GUARD FRONT
	2770610	NEEDLE GUARD REAR
	277022-920	NEEDLE HOLDER
	DCX27 #11	NEEDLE
	201121A0	UPPER KNIFE
	2131080	LOWER KNIFE
	2131070	NEEDLE GUARD FRONT
	2770610	NEEDLE GUARD REAR
	277022-920	NEEDLE HOLDER
	DCX27 #11	NEEDLE
	201121A0	UPPER KNIFE
	2131080	LOWER KNIFE
	2131070	NEEDLE GUARD FRONT
	2770610	NEEDLE GUARD REAR
	179630-920	NEEDLE HOLDER
	DCX27 #9	NEEDLE
	201121A0	UPPER KNIFE
	213108A0	LOWER KNIFE
	2131070	NEEDLE GUARD FRONT
	2770610	NEEDLE GUARD REAR
	179630-920	NEEDLE HOLDER
	DCX27 #9	NEEDLE

EXT5100 ゲージパーツ (2) EXT5100 GAUGE PARTS(2) ミシン形式ゲージ針板主送り歯 (組) 主送り歯本体補助送り歯差動送り歯上送り歯押工上ルーパ下ルーパ MACHINE TYPE GAUGE NEEDLE MAIN FEED MAIN FEED AUX.FEED DIFF.FEED TOP FEED PRESSER UPPER LOWER /SPEC NG SW PLATE DOG ASSY. DOG DOG DOG FOOT LOOPER LOOPER 3 213113-300 277287A300 EXT5114-04/433 2 4 213113-400 277409-16F0 (277403-16F0) (213117-16F0) 277404-16F0 2773440 277287A400 2770630 #19 2770600 5 213113-500 277287A500 3 213112-300 277287A300 EXT5114-04/433N 2 4 213112-400 277408-16F0 (277403-16F0) (213103-16F0) 277404-16F0 2773440 277287A400 2770630 #19 2770600 5 213112-500 277287A500 EXT5105-12/223N - 4 213100-400 277407-16F1 (277401-16F0) (213103-16F0) 277402-16F0 2773580 277181-400 2770620 #15 2770600 EXT5104T-02/233N - 3 277588-300 277408-16F0 (277403-16F0) (213103-16F0) 277404-16F0 2773440 278011-300 2770200 #21 2770210 jintex.in 25 ミシン形式ゲージ上メス下メス針受針留針 MACHINE TYPE GAUGE UPPER LOWER FRONT REAR NEEDLE NEEDLE /SPEC NG SW KNIFE KNIFE HOLDER 3 EXT5114-04/433 2 4 201121A0 2131080 2131070 2770610 277022-920 DCX27 #11 5 3 EXT5114-04/433N 2 4 201121A0 2131080 2131070 2770610 277022-920 DCX27 #11 5 EXT5105-12/223N - 4 201121A0 2131080 2131070 2770610 179630-920 DCX27 #9 EXT5104T-02/233N - 3 201121A0 213108A0 2131070 2770610 179630-920 DCX27 #9

Page 28 — THREADING DIAGRAM

Pegasus EXT5100 parts on page 28
Ref	Part number	Part name	Qty
1	9A01150
1	9A01160

糸通し図一覧 THREADING DIAGRAM REF.NO. 部番 PART NO. 適用機種 APPRLICABLE MACHINE 1 9A01150 EXT5104-02, 04 EXT5105-12 1 9A01160 EXT5114-03, 04 26 jintex.in

Page 29 — インデックス

Pegasus EXT5100 parts on page 29
Ref	Part number	Part name	Qty
26	0012060
28	0012290
19	0024300
23	0029050
11	0029060
6	0030440
20	0045000
4	0045010
4	0045140
28	0045140
6	0045210
8	0045310
12	0045330
7	0045330
12	0045330
22	0045330
13	0045330
36	0045340
2	0045340
30	0045430
32	0045430
18	0045430
20	0045430
5	0045430
20	0045430
9	0045450
18	0045450
3	0045540
7	0045820
9	0050300
18	0050300
27	0050300
8	0050530
16	0050570
29	0050570
10	005082A0
21	0050880
18	0051570
4	0051840
32	0052990
23	0070070
15	0070070
6	0070090
15	0070090
24	0070090
11	0070090
4	0070100
13	0070100
22	0070100
9	0070100
2	0070130
11	0070130
20	0070130
7	0070130
34	0070140
12	007018A0
8	007018A0
12	0070200
2	007024A0
12	0070260
25	0070440
10	0070440
21	0070541
4	0070560
28	0070560
24	0070590
8	0070660
9	0070770
6	0071430
2	0071500
15	0071500
10	0071540
11	0071850
15	0071920
15	0071931
9	0072060
10	0072070
6	0072330
24	1371420
22	1670660
6	179009-050
20	179130-050
19	179201-050
18	179320-050
16	2005550
4	2010220
2	201086B0
5	2011910
30	201211C910
13	2012520
15	2016290
16	2021760
4	2021760
16	2021760
17	2021760
10	2025770
23	2041850
15	205361A0
31	2058350
17	2073580
24	2073580
37	2082350
9	2082350
13	2082350
6	2084480
9	2084490
4	21010680
8	2103190
10	2103200
1	210529A910
3	210531-9T0
2	2106800
7	2106810
9	2106820
10	2106830
1	2106840
17	2106850
20	2106890
14	2106900
25	210691A910
5	2106920
5	2109300
11	2109300
25	2113010
7	212059-B0
16	212059-B0
25	212059-B0
12	212059-B0
8	2126680
17	2126680
26	2126680
1	213062B0
27	2130950
7	213218A920
22	2330350
3	2400390
27	2400390
21	2400420
19	2400970
19	2401480
26	2401480
17	2401520
4	2402830
39	2402910
24	2402940
5	2402960
15	2403220
13	2403320
25	2403510
15	2403680
11	2403710
2	2405420
26	2405420
17	2405590
5	263543-TA0
7	263544-TA0
9	2700670
7	2700790
4	2700810
1	270083A9U0
3	2701680
5	270522C0
8	271003C0
1	271015-920
8	2710160
10	2710170
5	271018C91Y0
3	271023-910
19	271533B910
14	271542-920
13	271544-91Y0
16	2715460
14	272538A0
18	272539A0
12	273001A920
2	274011-910
38	2740350
41	2740360
40	2740370
13	2740390
16	2740400
14	2740410
3	274042-920
2	274043A0
1	2740440
6	274045-910
9	274048-910
3	2740510
12	2740510
21	2740510
8	2740510
10	2740540
5	2740550
5	2741060
14	2741060
23	2741060
10	2741060
18	274517B910
13	2745290
14	2745300
9	2745490
6	2745500
1	274551A910
2	274552A910
4	2745560
7	2745590
12	2745920
21	274593B910
12	2750070
11	275015B0
13	2750200
14	2750450
16	275531-910
17	2756140
1	276501A920
11	276504-910
14	2765070
16	2765080
17	2765090
19	2765100
21	276511-920
23	2765120
1	276513-920
3	276514A0
8	2765170
11	2765180
23	2765190
35	276520-920
22	2765240
7	2765260
14	276527A0
20	276528-910
29	2765310
31	2765320
8	2765330
1	2765340
5	2765350
11	276536-920
27	276537-920
13	2765380
21	2765390
22	2765400
3	276566-920
5	2765670
6	276572-920
7	2765730
33	303312A0
34	3033130
2	3065270

インデックス INDEX PART NO. PAGE REF.NO. PART NO. PAGE REF.NO. PART NO. PAGE REF.NO. 0012060 23 26 2016290 5 15 2740400 13 16 0012290 23 28 2021760 3 16 2740410 13 14 0024300 23 19 2021760 11 4 274042-920 13 3 0029050 23 23 2021760 15 16 274043A0 13 2 0029060 23 11 2021760 19 17 2740440 13 1 0030440 23 6 2025770 5 10 274045-910 13 6 0045000 7 20 2041850 15 23 274048-910 13 9 0045010 13 4 205361A0 23 15 2740510 17 3 0045140 5 4 2058350 23 31 2740510 17 12 0045140 5 28 2073580 3 17 2740510 17 21 0045210 7 6 2073580 5 24 2740510 19 8 0045310 13 8 2082350 3 37 2740540 13 10 0045330 3 12 2082350 5 9 2740550 13 5 0045330 5 7 2082350 5 13 2741060 17 5 0045330 5 12 2084480 21 6 2741060 17 14 0045330 5 22 2084490 21 9 2741060 17 23 0045330 11 13 21010680 21 4 2741060 19 10 0045340 3 36 2103190 21 8 274517B910 15 18 0045340 7 2 2103200 15 10 2745290 15 13 0045430 3 30 210529A910 21 1 2745300 15 14 0045430 5 32 210531-9T0 23 3 2745490 15 9 0045430 5 18 2106800 23 2 2745500 15 6 0045430 5 20 2106810 23 7 274551A910 15 1 0045430 15 5 2106820 23 9 274552A910 15 2 0045430 15 20 2106830 23 10 2745560 15 4 0045450 11 9 2106840 23 1 2745590 15 7 0045450 19 18 2106850 23 17 2745920 15 12 0045540 19 3 2106890 23 20 274593B910 15 21 0045820 11 7 2106900 23 14 2750070 21 12 0050300 17 9 210691A910 23 25 275015B0 21 11 0050300 17 18 2106920 23 5 2750200 21 13 0050300 17 27 2109300 9 5 2750450 21 14 0050530 23 8 2109300 13 11 275531-910 21 16 0050570 23 16 2113010 7 25 2756140 21 17 0050570 23 29 212059-B0 17 7 276501A920 5 1 005082A0 21 10 212059-B0 17 16 276504-910 5 11 0050880 23 21 212059-B0 17 25 2765070 5 14 0051570 23 18 212059-B0 19 12 2765080 5 16 0051840 23 4 2126680 17 8 2765090 5 17 0052990 23 32 2126680 17 17 2765100 5 19 0070070 3 23 2126680 17 26 276511-920 5 21 0070070 21 15 213062B0 19 1 2765120 5 23 0070090 17 6 2130950 23 27 276513-920 7 1 0070090 17 15 213218A920 13 7 276514A0 7 3 0070090 17 24 2330350 19 22 2765170 7 8 0070090 19 11 2400390 3 3 2765180 7 11 0070100 17 4 2400390 3 27 2765190 7 23 0070100 17 13 2400420 7 21 276520-920 3 35 0070100 17 22 2400970 15 19 2765240 7 22 0070100 19 9 2401480 3 19 2765260 3 7 0070130 17 2 2401480 5 26 276527A0 3 14 0070130 17 11 2401520 15 17 276528-910 3 20 0070130 17 20 2402830 19 4 2765310 3 29 0070130 19 7 2402910 3 39 2765320 3 31 0070140 3 34 2402940 3 24 2765330 3 8 007018A0 13 12 2402960 7 5 2765340 3 1 007018A0 15 8 2403220 7 15 2765350 3 5 0070200 23 12 2403320 7 13 276536-920 3 11 007024A0 5 2 2403510 5 25 276537-920 3 27 0070260 7 12 2403680 3 15 2765380 3 13 0070440 3 25 2403710 15 11 2765390 3 21 0070440 7 10 2405420 3 2 2765400 3 22 0070541 19 21 2405420 3 26 276566-920 5 3 0070560 3 4 2405590 7 17 2765670 5 5 0070560 3 28 263543-TA0 21 5 276572-920 5 6 0070590 7 24 263544-TA0 21 7 2765730 7 7 0070660 9 8 2700670 9 9 303312A0 23 33 0070770 7 9 2700790 9 7 3033130 23 34 0071430 9 6 2700810 9 4 3065270 19 2 0071500 11 2 270083A9U0 9 1 0071500 19 15 2701680 9 3 0071540 9 10 270522C0 19 5 0071850 11 11 271003C0 5 8 0071920 15 15 271015-920 11 1 0071931 13 15 2710160 11 8 0072060 3 9 2710170 11 10 0072070 3 10 271018C91Y0 11 5 0072330 3 6 271023-910 11 3 1371420 23 24 271533B910 19 19 1670660 23 22 271542-920 19 14 179009-050 11 6 271544-91Y0 19 13 179130-050 19 20 2715460 19 16 179201-050 7 19 272538A0 7 14 179320-050 3 18 272539A0 7 18 2005550 7 16 273001A920 11 12 2010220 7 4 274011-910 9 2 201086B0 21 2 2740350 3 38 2011910 23 5 2740360 3 41 201211C910 23 30 2740370 3 40 2012520 23 13 2740390 13 13 27 jintex.in

Page 30

jintex.in

Page 31

jinte x.in jintex.in

Page 32

ペガサスミシン製造株式会社本社〒 553-0002 大阪市福島区鷺洲 5-7-2 TEL (06)6458-4739 FAX (06)6454-8785 PEGASUS SEWING MACHINE MFG. CO., LTD. 5-7-2, Sagisu, Fukushima-ku, Osaka 553-0002, Japan. Phone : (06)6458-4739 Telefax: (06)6454-8785 Cat. No. 97300 February 2004 © 1996 PEGASUS SEWING MACHINE MFG. CO., LTD. このパーツカタログに記載されている内容は、改良のため予告なく変更することがあります。 The description in this PARTS CATALOG is subject to change without prior notice. jintex.in

Part Books

Search
