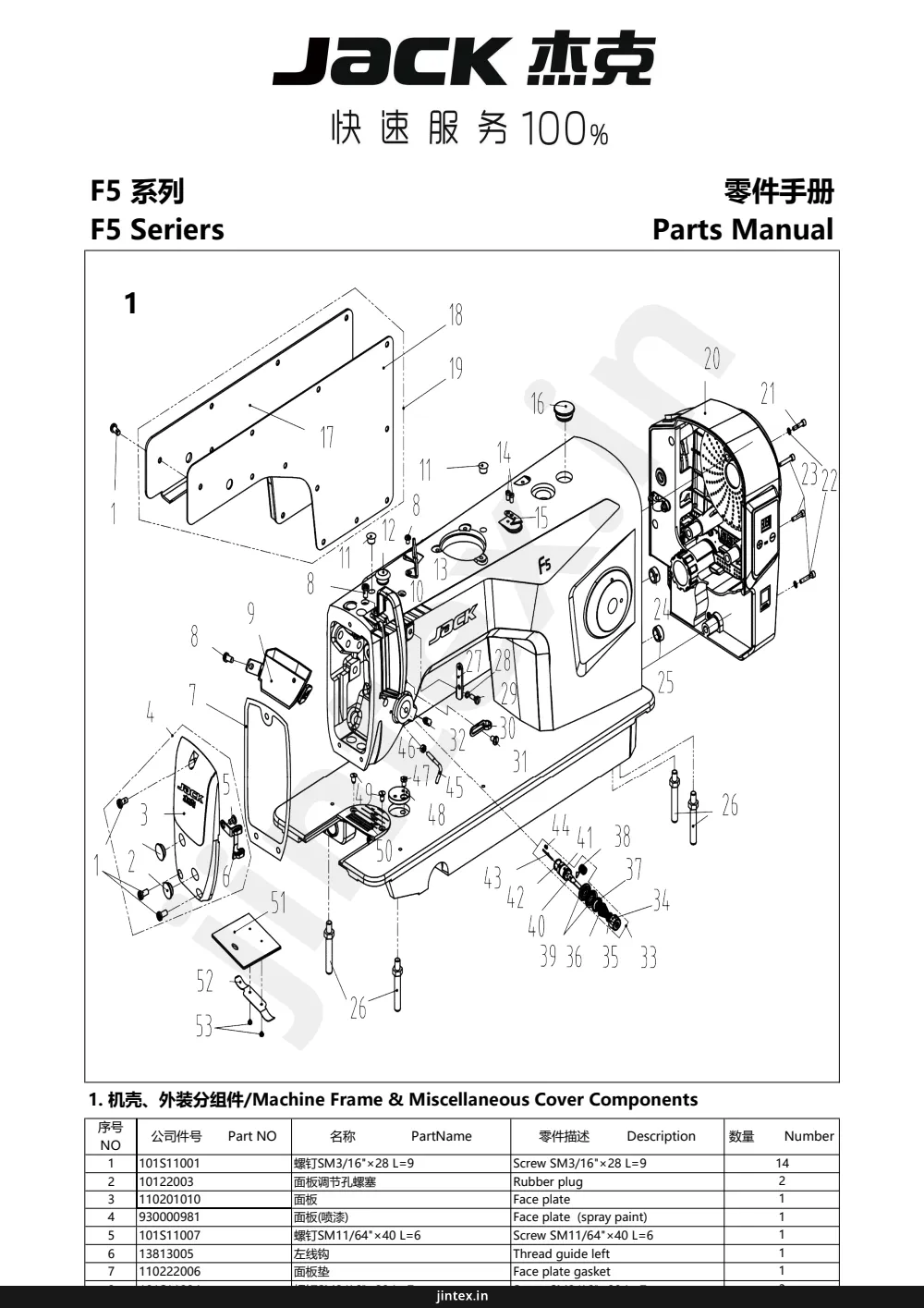

Page 1 — 1. 机壳、外装分组件/Machine Frame & Miscellaneous Cover Components
JACK 杰克
快速服务100%
零件手册
F5 系列
Parts Manual
F5 Seriers
1
18
19
16
20
21
17
14
11
8
13
15
12
8
10
F5
24
23 22
26
4
7
5
3
2
51
48
46
47
45
50
49
44
41
43
42
40
39
36
35
34
33
37
38
31
30
29
28
27
32
25
26
1. 机壳、外装分组件/Machine Frame & Miscellaneous Cover Components
序号
NO
公司件号
Part NO
名称
PartName
零件描述
Description
数量
Number
1
101S11001
螺钉SM3/16"×28 L=9
Screw SM3/16"×28 L=9
14
2
10122003
面板调节孔螺塞
Rubber plug
2
3
110201010
面板
Face plate
1
4
9300000981
面板(喷漆)
Face plate (spray paint)
1
5
101S11007
螺钉SM11/64"×40 L=6
Screw SM11/64"×40 L=6
1
6
13813005
左线钩
Thread guide left
1
7
110222006
面板垫
Face plate gasket
1
jintex.in
Page 2
9
11023000900
LED开关灯组件
Auto reverse feed switch asm
1
10
13812018
挑线杆防护罩
Thread take-up lever cover
1
11
10122005
挑线连销孔塞
Rubber plug
2
12
10122004
针杆曲柄孔塞
Rubber plug
1
13
13512004
三孔线勾
3-hole thread guide
1
14
114S11015
螺钉SM9/64"×40 L=6
Screw SM9/64"×40 L=6
2
15
11419001
割线刀
Knife
1
16
20722002
油塞
Rubber plug
1
17
110212007
后窗板
Side plate
1
18
110222005
后窗板垫
Side plate gasket
1
19
930000982
后窗板(喷漆)
Side plate (spray paint)
1
20
11013002900
平缝一体机控制器(T19)
Electronic control box
1
21
114S13001
螺钉M5 L=20
Screw M5 L=20
1
22
W01009
垫圈5
Washer 5
4
23
114S30001
螺栓M5 L=25
Screw M5 L=25
3
24
10122006
送料调节器孔塞
Rubber plug
1
25
10122007
下轴工艺孔塞
Rubber plug
1
26
101S12001
底板支柱
Machine head stud Electronic
1
27
10113041
二眼线勾
2-hole thread guide
1
28
W06001
双面垫圈
Washer
1
29
206S11002
螺钉SM9/64"×40 L=10
Screw SM9/64"×40 L=10
1
30
10113004
右线勾
Thread guide right
1
31
101S15010
螺钉SM15/64"×28 L=10.5
Screw SM15/64"×28 L=10.5
1
32
101S11007
螺钉SM11/64"×40 L=6
Screw SM11/64"×40 L=6
1
33
1381300500
夹线器组件
Thread tension asm
1
1381300700
夹线器组件(厚料)
Thread tension asm (H)
1
34
138S16013
夹线螺母
Thread tension nut
1
35
10112007
夹线制动板
Thread disk rotating stopper
1
10127002
夹线弹簧
Thread tension spring
1
36
11427050
夹线弹簧(厚料)
Thread tension spring (H)
1
37
10112006
松线板
Disk stopper
1
38
10127001
挑线簧
Thread take-up spring
1
10127031
挑线簧(厚料)
Thread take-up spring (H)
1
39
10112005
夹线板
Thread tension disk
2
40
101S30002
夹线螺钉
Thread tension post
1
41
10103011
挑线簧调节座
Thread tension base
1
42
10122014
挑线簧调节座O型圈
Rubber ring
1
43
10126030
松线针
Tension release pin
1
44
101S15005
螺钉SM9/64"×40 L=5.5
Screw SM9/64"×40 L=5.5
1
45
11413011
固定式缓线勾
Thread guide
1
46
401S16001
螺母SM9/64"×40
Nut SM9/64"×40
1
47
101S11002
螺钉SM11/64"×40 L=5.5
Screw SM11/64"×40 L=5.5
1
48
13812111
卷边器座
Ruler stop seat
2
49
101S17002
螺钉SM11/64"×40 L=5
Screw SM11/64"×40 L=5
1
11414006
针板
Needle plate
1
10815001
针板(-7)
Needle plate (-7)
1
11315001
针板(厚料)
Needle plate (H)
1
13615003
针板(HL-7)
Needle plate (HL-7)
1
50
10115002
推板
Slide plate
1
51
10127009
推板簧
Slide plate spring
1
52
101S11019
螺钉SM3/32"×56 L=2
Screw SM3/32"×56 L=2
2
Page 3 — 2. 上轴挑线分组件/Main Shaft & Thread Take-up Components
2. 上轴挑线分组件/Main Shaft & Thread Take-up Components
序号
NO
公司件号
Part NO
名称
PartName
零件描述
Description
数量
Number
1
10126001
11326013
挑线连杆销 (厚料)
挑线连杆销
Thread take-up connecting rod pin (H
Thread take-up connecting rod pin
1
1
11326010
挑线连杆销 (-7)
Thread take-up connecting rod pin (-7)
1
2
101S15001
螺钉SM15/64"x28 L=15
Screw SM15/64"x28 L=15
1
3
10105001
11305010
挑线连杆 (厚料)
挑线连杆
Thread take-up connecting rod (H)
Thread take-up rod
1
1
4
H05013
挡圈6
Snap ring 6
1
5
11328010
垫片
Washer
1
6
10112003
针杆曲柄护板
Needle bar crank protecting plate
1
7
1013800100
1133800200
挑线杆分组件
挑线杆组件 (厚料、-7)
Thread take-up lever asm
Thread take-up lever asm (H & -7)
1
1
8
10124001
挑线杆滚针轴承
Needle bearing
1
9
11310012
1011000400
11310010
挑线曲柄分部件
挑线曲柄分部件 (厚料)
挑线曲柄分部件 (-7)
Thread take-up crank
Thread take-up crank (H)
Thread take-up crank (-7)
1
1
1
10
10105002
挑线连杆
Needle bar connecting rod
1
11
101S17001
螺钉SM9/64"x40 (左旋) L=4.8
Screw SM9/64"x40 (left hand) L=4.8
1
12
101S15004
螺钉SM9/32"x28 L=16
Screw SM9/32"x28 L=16
1
13
101S11003
螺钉SM9/32"x28 L=16
Screw SM9/32"x28 L=16
1
14
113804014
针杆曲柄
Needle bar crank
1
11404035
针杆曲柄 (厚料、-7)
Needle bar crank (H & -7)
1
15
101S15002
螺钉SM1/4"x40 L=6
Screw SM1/4"x40 L=6
2
16
11380302600
上轴前曲柄组件
Main shaft bushing front
1
1010300400
上轴前曲柄组件 (厚料)
Main shaft bushing front (H)
1
17
101S15010
螺钉SM15/64"x28 L=10.5
Screw SM15/64"x28 L=10.5
1
18
10403023
主轴中轴套
Main shaft bushing mid
1
19
101S14001
螺钉SM1/4"x40 L=6
Screw SM1/4"x40 L=6
2
20
10108001
上轴挡圈
Main shaft thrust collar
1
21
H03002
挡圈20
Snap ring 20
1
22
11310014
送料偏心轮
Feed eccentric cam
1
400006
送料偏心轮 (厚料)
Feed eccentric cam (H)
1
23
10112017
送料偏心轮盖板
Cover plate
1
jintex.in
Page 4
25 113S11003 螺钉SM9/64"x40 L=5 Screw SM9/64"x40 L=5 2
26 12803014 上轴后轴套 Main shaft bushing rear 1
27 10122008 上轴后套挡油封 Oil seal 1
28 H03001 挡圈15 Snap ring 15 1
29 10102026 上轴 Main shaft 1
30 303560 手轮 Handwheel 1
31 110233016 平缝一体机电机 Motor 1
32 W03002 弹垫5 Spring washer 5 3
33 114S13001 螺钉M5 L=20 Screw M5 L=20 3
34 S05218 螺钉M5 L=22 Screw M5 L=22 1
35 W03002 弹垫5 Spring washer 5 1
36 10122012 上轴孔塞 Rubber plug 1
37 1013800300 挑线杆大组件(HL专用) Thread take-up lever asm (HL) 1
38 1011001100 抬牙凸轮组件(HL专用) Cam (HL) 1
39 1011001200 送料凸轮组件(HL专用) Cam (HL) 6
40 135S15007 螺钉SM11/64"x40 (HL专用) Screw SM11/64"x40 (HL) 1
41 13528002 凸轮隔离片(HL专用) Cam plate (HL) 1
42 14422008 挑线杆断油橡胶 Thread take-up lever rubber 1
3 1
12 13
14
2
15
3
16
17
18
19
4
5
10
6
7
8
9
22
21
20
30
29
31
32
33
34
35
36
37
23
24
25
26
27
28
38
39
Jinte.in
Page 5
4. 压料分组件/Presser Bar Components
序号
NO
公司件号
Part NO
名称
Name
零件描述
Description
数量
Number
1
101S11010
螺钉SM9/64"x40 L=11
Screw SM9/64"x40 L=11
1
2
10128002
压脚扳手螺钉垫圈
Washer
1
3
13811029
压脚扳手
Hand lifter
1
4
001004
O型圈
Rubber ring
1
5
1011000200
压脚扳手凸轮分部件
Hand lifter cam asm.
2
6
101S20001
前杠杆螺纹销
Screw
2
7
10128015
螺纹销橡胶垫圈
Washer
1
8
1011200100
抬压脚前杠杆分部件
Lift front lever component
1
9
10112013
抬压脚拉杆
Knee lifter pull rod
1
10
H05003
挡圈5
Snap ring 5
2
11
10112010
压脚升降板
Lifting plate
1
13
101S20004
螺钉SM3/16"x32
Hinge Screw SM3/16"x32
1
14
101S20003
螺钉SM15/64"x28
Hinge screw SM15/64"x28
1
15
10112014
抬压脚后杠杆
Knee lifter back lever
1
16
10112015
抬压脚顶杆
Knee lifter connecting rod
1
17
1011200200
抬压脚前杠杆组件
Knee lifter lever asm
1
18
11381101800
调压螺钉组件
Presser regulating screw nut asm
1
19
1138NS30003
调压螺钉(厚料)
Press regulating screw (H)
1
20
1138NS16005
调压螺母(厚料)
Press regulating nut (H)
1
21
10102003
调压导杆
Press regulating guide bar
1
22
10127010
调压弹簧
Press regulating spring
1
23
13809030
调压簧(厚料)
Press regulating spring (H)
1
24
101S15007
压杆导架
Presser bar guide bracket
1
25
10122112
螺钉SM1/4"x40 L=8
Screw SM1/4"x40 L=8
1
26
10103012
压杆防油套
Pressure bar oil cover
1
27
10102004
压杆衬套
Presser bar bushing
1
28
101S11009
压杆
Presser bar
1
29
1131600600
压脚组件
Presser foot asm
1
1131600100
压脚组件(厚料)
Presser foot asm (H)
1
1131600300
压脚组件(HL)
Presser foot asm (HL)
1
30
11329020
挡圈5
Snap ring 5
5
31
101S20002
松线顶板螺纹销
Wire release plate pin
1
32
10128015
螺纹销橡胶垫圈
Washer
1
33
10112012
松线顶板
Wire release plate asm
1
34
10126003
松线辅衬
Thread release supporting pin
1
35
H05012
松线辅衬挡圈
Snap ring
1
jintex.in
Page 6 — 3. 针杆、竖轴、下轴部件/Needle bar & Upright Shaft & Hook Driving Shaft Components
37 10127003 松线辅钉弹簧 Spring 1
38 H05003 挡圈5 Snap ring 5 2
39 10127008 松线顶板复位簧 Spring 1
40 1011900100 割线刀组件 Knife 1
3. 针杆、竖轴、下轴部件/Needle bar & Upright Shaft & Hook Driving Shaft Components
序号
NO
公司件号
Part NO
名称
PartName
零件描述
Description
数量
Number
1 10122013 针杆上衬套孔塞 Rubber plug 1
2 10103009 针杆上衬套 Needle bar bushing upper 1
3 10102002 针杆 Needle bar 1
10102021 针杆 (厚料) Needle bar (H) 1
4 10138002 针杆连接柱 Needle bar connecting rod 1
13505003 针杆连接柱 (HL) Needle bar connecting rod (HL) 1
5 101S11005 螺钉SM9/64"x40 L=6 Screw SM9/64"x40 L=6 1
110103002 针杆下衬套 Needle bar bushing lower 1
6 10103023 针杆下衬套 (厚料、-7) Needle bar bushing lower (H & -7) 1
10113002 针杆线勾 Needle bar thread guide 1
7 11412063 针杆线勾 (厚料) Needle bar thread guide (H) 1
10117001 机针DB×1#14 Needle DB×1#14 1
8 10117002 机针DP×5#21 (厚料) Needle DP×5#21 (H) 1
10119009 针杆下衬套线勾 Lower bushing thread guide 1
9 10113009 针杆下轴套线勾 (厚料、-7) Lower bushing thread guide (H & -7) 1
10 101S11006 螺钉SM1/8"x44 L=4.5 Screw SM1/8"x44 L=4.5 1
11 10109001 针杆连接滑块 Slide block 2
12 101S11008 螺钉SM11/64"x40 L=8 Screw SM11/64"x40 L=8 1
13 10109002 针杆接头滑导轨 Needle bar guide 1
14 10425004 上轴伞齿轮 Upper shaft bevel gear 1
15 10425003 竖轴上伞齿轮 Upper small bevel gear asm 1
16 10425002 竖轴下伞齿轮 lower large bevel gear asm 1
17 101S15007 螺钉SM1/4"x40 L=7 Screw SM1/4"x40 L=7 2
18 10425001 下轴伞齿轮 Hook drive shaft bevel gear 1
19 101S15007 螺钉SM1/4"x40 L=7 Screw SM1/4"x40 L=7 2
20 101S15007 螺钉SM1/4"x40 L=7 Screw SM1/4"x40 L=7 2
21 101S15007 螺钉SM1/4"x40 L=7 Screw SM1/4"x40 L=7 2
22 101S15006 螺钉SM15/64"x28 L=4.7 Screw SM15/64"x28 L=4.7 1
23 10403014 竖轴上轴套 Upright shaft bushing upper 1
24 10102007 竖轴 Upright shaft 1
25 10403013 竖轴下轴套 Upright shaft bushing lower 1
26 10103079 下轴后轴套 Hook driving shaft bushing back 1
27 10108002 下轴挡圈 Hook driving shaft snap ring 1
28 10122015 下轴油封 Thust collar 1
10102006 下轴 Hook driving shaft 1
29 12202003 下轴 (HL) Hook driving shaft (HL) 1
30 10103078 下轴前轴套 Hook driving shaft bushing front 1
31 10123009 下轴限油芯 Oil wick 1
32 101S30005 下轴限油螺钉SM3/16"x32 set screw SM3/16"x32 1
10118006 旋梭 Hook asm 1
33 10118007 旋梭 (厚料) Hook asm (H) 1
10118003 梭心 Bobbin 1
34 10118003 梭心 Bobbin 1
1018501 大梭心 (HL) Bobbin (HL) 1
35 1018021 梭壳 Bobbin case asm 1
1018502 梭壳 (HL) Bobbin case asm (HL) 1
36 10112016 旋梭定位钩 Finger postioner 1
10112032 旋梭定位钩 (厚料) Finger postioner (H) 1
37 101S11011 螺钉SM11/64"x40 L=13 Screw SM11/64"x40 L=13 1
38 101S11012 螺钉SM11/64"x40 L=4.8 Screw SM11/64"x40 L=4.8 2
39 101S15006 螺钉SM1/4"x40 L=7 Screw SM1/4"x40 L=7 1
jintex.in
Page 8
27 10102023 倒缝送料轴 Reverse feed shaft 1
28 10122017 倒送料轴O形圈 Rubber ring 1
29 10108003 送料轴挡圈 Feed rocker shaft snap ring 4
30 101S15002 螺钉SM1/4"x40 L=6 Screw SM1/4"x40 L=6 2
31 10403015 轴套 Bushing 1
32 H03001 挡圈15 Snap ring 15 2
33 10108003 送料轴挡圈 Feed rocker shaft snap ring 1
34 101S15002 螺钉SM1/4"x40 L=6 Screw SM1/4"x40 L=6 2
35 10403015 轴套 Bushing 1
36 H03001 挡圈15 Snap ring 15 1
37 10104007 拾牙叉形曲柄 Driving shaft crank 1
10804003 拾牙叉形曲柄 (厚料、-7) Driving shaft crank (H & -7) 1
38 116S11005 螺钉SM11/64"x40 L=13 Screw SM11/64"x40 L=13 1
101S11020 螺钉SM11/64"x40 L=10.5 (厚料、-7) Screw SM11/64"x40 L=10.5 (H & -7) 1
11414002 送料牙 Feed dog 1
11314001 送料牙 (厚料、-H-7) Feed dog (H & -H-7) 1
10814001 送料牙 (-7) Feed dog (-7) 1
10114051 送料牙 (HL) Feed dog (HL) 1
40 470060 牙架 Feed bar asm 1
41 101S11016 螺钉SM3/16"x28 L=14 Screw SM3/16"x28 L=14 1
42 10128003 牙架螺钉垫圈 Washer 1
43 101S11025 螺钉SM11/64"x40 L=7 Screw SM11/64"x40 L=7 1
44 10401007 牙架销 Feed bar pin 1
45 480095 牙架座 Feed bar bed 1
46 11380700300 牙架组件(成品) Feed bar asm 1
47 101S11018 螺钉SM1/8"x44 L=6 Screw SM1/8"x44 L=6 2
48 101S15010 螺钉SM15/64"x28 L=10.5 Screw SM15/64"x28 L=10.5 1
49 10126009 送料摆动板左销 Left pin 1
50 10126007 短摆动板连杆 Connecting pin 1
51 10100204 送料摆动板右销 Right pin 1
52 10109004 送料长摆动板 Feed short shaking plate 1
53 10126007 短摆动板连杆 Connecting pin 1
54 10100200 送料摆动板座组件 Feed shaking plate bed components 1
55 10126010 送料摆动板右销 Right pin 1
56 101S15010 螺钉SM15/64"x28 L=10.5 Screw SM15/64"x28 L=10.5 1
57 11427011 送料调节弹簧 Spring 1
58 11329020 挡圈5 Snap ring 5 1
59 11412081 拉簧固定板 Pull spring fixing plate 1
60 10127011 倒送料拉簧 Reverse feed pull spring 1
1140402700 倒送料曲柄组体 Feed reverse crank asm 1
1130402800 倒送料曲柄组体 (-7) Feed reverse crank asm (-7) 1
62 11321005 油管 Tube 1
63 114S30007 螺钉SM11/64"x40 L=7.5 Screw SM11/64"x40 L=7.5 1
64 114S16004 螺母SM11/64"x40 L=3 Nut SM11/64"x40 L=3 1
65 S01102 螺钉SM3/16"x28 L=18 Screw SM3/16"x28 L=18 1
66 11329020 挡圈5 Snap ring 5 1
67 10126015 送料距销合销 Pin 1
68 10127010 送料距销合簧 Spring 1
Page 9 — 6. 润滑、油量检测组件/Oil Lubrication & Oil Measuring Components
6. 润滑、油量检测组件/Oil Lubrication & Oil Measuring Components
序号
NO
公司件号
Part NO
名称
PartName
零件描述
Description
数量
Number
1
11211004
油窗
Oil sight window
1
2
10122019
油窗O形圈
Rubber ring
1
3
11421008
上轴供油管
Main shaft oil tube
1
4
101S30008
油泵连接螺柱
Oil pump connecting stud
1
5
11329010
开口挡圈10
Snap ring 10
1
6
10121001
下轴供油管
Hook driving shaft oil tube
1
7
10112020
油泵安装板
Oil pump installing base
1
8
W03002
弹垫
Spring washer
1
9
101S11011
螺钉SM11/64"×40 L=9.5
Screw SM11/64"×40 L=9.5
1
10
10103022
油泵体衬套
Oil pump bushing
1
11
101S30007
柱塞螺钉
Plunger Screw
1
12
10127013
柱塞
Plunger
1
13
10122018
回油柱塞
Plunger
1
14
10120001
油泵体
Oil pump
1
15
S04093
螺钉M3 L=6
Screw M3 L=6
3
16
10111003
油泵叶轮
Oil pump impeller
1
17
10112021
油泵叶轮托板
Oil pump impeller cover
1
18
10111007
油泵盖
Lubricating oil pump cover
1
19
101S30006
螺钉ST2.9 L=10
Screw ST2.9 L=10
1
20
1012000100
油泵分部件
Lubricating oil pump component
1
21
101S11026
螺钉SM15/64"×28 L=9
Screw SM15/64"×28 L=9
1
22
10136001
供油管接头
Rubber joint
1
23
W02004
弹垫M6
Spring Washer M6
1
24
10121009
供油管
Hook oil tube
1
25
10112022
旋梭供油管压板
Tube holder
1
26
10127014
油量调节螺钉弹簧
Spring
1
27
101S30009
油量调节螺钉
Oil volume adjusting screw
1
28
10423005
油线
Oil wick
1
jintex.in
Page 10
30 10123006 回油毡 Oil felt 1
31 101S11004 螺钉SM3/16"×28 L=7 Screw SM3/16"×28 L=7 1
32 10127015 回油毡夹 Oil tube clamp 1
33 11502100100 回油管部件 Oil return tube component 1
34 101S11026 螺钉SM15/64"×28 L=9 Screw SM15/64"×28 L=9 1
35 10112025 油线固定板 Oil wick fixing plate 1
36 101S11010 螺钉SM9/64"×40 L=11 Screw SM9/64"×40 L=11 2
37 10123010 油线 Oil wick 1
7
1
2
3
4
5
6
9
10
11
12
16
17
18
19
20
21
22
23
14
15
31
30
24
25
26
27
28
29
jintex.in
Page 11 — 7. 绕线器组件/ Bobbin Components
7. 绕线器组件/ Bobbin Components
序号
NO
公司件号
Part NO
名称
PartName
零件描述
Description
数量
Number
1
1383103900
绕线器组件
Bobbin winder asm
1
2
114S11008
螺钉M4 L=6
Screw M4 L=6
1
3
W01142
垫圈4
Washer 4
1
4
10113030
压线控制板
Thread press control plate
1
5
10111120
绕线衬垫
Winding pad
1
6
13831101
绕线器装置主座
Bobbin winder bed
1
7
H05006
开口挡圈5
Snap ring
1
8
10127061
复位板拉簧
Spring
1
9
13812110
调节板
Regulating plate
1
10
10110030
绕线凸轮
Bobbin winder cam
1
11
S09045
螺钉M5 L=5
Screw M5 L=5
1
12
1380510600
绕线器连杆组件
Bobbin winder connecting rod
1
13
13827103
满线复位簧
Spring
1
14
10127060
弹簧
Spring
1
15
H05909
开口挡圈4
Snap ring 4
1
16
13802111
绕线器主轴
Bobbin winder mian shaft
1
17
13802026
绕线凸轮轴
Bobbin winder cam shaft
1
18
S09103
螺钉M4 L=4
Screw M4 L=4
2
19
13831102
绕线轮
Bobbin winder wheel
1
20
001110
O型圈
Ring
1
21
11422062
密封垫
Washer
3
22
1102NS11001
螺钉SM3/16"×28 L=10
Screw SM3/16"×28 L=10
1
23
1381300600
底线线夹器
Bobbin thread tension asm.
1
24
138S16019
夹线螺母
Thread tension nut
1
25
11427006
小夹线弹簧
Spring
1
26
10112005
夹线板
Thread tension disk
2
27
11413022
夹线过线板
Thread tension guide plate
1
28
112S13004
夹线螺钉
Screw
1
29
114S16001
螺母SM11/64"×40
Nut SM11/64"×40
1
30
11435013
绕线器驱动轮
Driving wheel
1
31
S10009
螺钉M6 L=8
Screw M6 L=8
2
jintex.in
Page 12 — C. 油盘、膝盖升降组件/Oil Reservoir & Knee Lifter Components
C. 油盘、膝盖升降组件/Oil Reservoir & Knee Lifter Components
序号
NO
公司件号
Part NO
名称
Name
零件描述
Description
数量
Number
1
10122022
油盘座垫
Oil reservoir rubber cushion
2
2
110201011
油盘
Oil reservoir
1
3
10111005
抬压脚顶杆
Knee lifter push rod
1
4
10122020
油盘垫
Oil Reservoir gasket
1
5
10122021
O形圈
Rubber ring
1
6
101S11028
螺钉SM5/16"×24 L=7
Screw SM5/16"×24 L=7
1
7
10131001
油盘磁铁
Oil reservoir magnet
1
8
10122023
油盘支架
Oil reservoir rubber cushion
2
9
10112027
抬压脚双向曲柄
Knee lifter crank
1
10
10127016
双向曲柄扭簧
Knee lifter spring
1
11
H05010
挡圈10
Snap ring 10
1
12
10102011
抬压脚轴
Knee lifter shaft
1
13
101S15012
螺钉M6 L=20
Screw M6 L=20
2
14
101S16004
螺母M6 L=4
Nut M6 L=4
2
15
101S12002
螺钉M6 L=26
Screw M6 L=26
1
16
10101008
抬牙脚操纵杆节头
Bearing bracket
1
17
101S12003
螺钉M8 L=16
Screw M8 L=16
1
18
1011202800
操纵杆组件
Knee press plate asm
1
19
101S12004
螺钉M6 L=11
Screw M6 L=11
1
20
10112030
操纵杆节头
Knee press plate holder
1
21
10112029
操纵板
Knee press plate
1
22
10112028
操纵杆
Knee press plate rod
1
23
10122025
操纵杆垫
Rubber
1
24
10122024
操纵板软垫
Knee press plate cover
1
9 (1)
jintex.in
Page 13 — 9. 机头附件 (1) /Machine Head Accessories (1)
9. 机头附件 (1) /Machine Head Accessories (1)
序号
NO
公司件号
20131019
S04050
W01047
N01034
13831022
10113011
10113010
13831019
13831021
13831020
10122106
W01052
N02008
S04051
N01034
W03002
13831023
13831024
20131010
20131006
13831025
1383100300
Part NO
名称
棒帽
螺栓M5 L=16
平垫圈5
螺母M5
上线架过线杆
过线圈(内)
过线圈(外)
线架杆上节
线架杆接头
线架杆下节
橡胶垫圈
平垫圈16
螺母M16
螺栓M5 L=31.5
螺母M5
弹簧垫圈5
下线架过线杆
线盘
线盘垫
线拖棒
线固定套
线架组件
零件描述
Description
Stick cap
Screw M5 L=16
Washer 5
Nut M5
Spool rest arm upper
Thread guide ring
Thread guide ring
Spool rest rod upper
Spool rest rod joint
Spool rest rod lower
Spool rest rod rubber ring
Washer 16
Nut M16
Screw M5 L=31.5
Nut M5
Spring washer 5
Spool rest arm lower
Spool rest
Spool rest cushion
Spool support rod
Spool fixed seat
Thread stand asm.
数量
Number
1
3
2
4
1
2
2
1
1
1
2
2
1
1
2
2
1
2
2
2
1
9 (2)
9. 机头附件 (2) /Machine Head Accessories (2)
序号
NO
公司件号
Part NO
名称
PartName
零件描述
Description
数量
Number
1
1011203100
机头连接部件
Hinge component
2
2
10122060
机头连接钩座
Head connecting rubber cushion
2
3
10117012
机针 DBx1#14
Needle DBx1#14
10
4
10117002
机针 DPx5#21 (厚料)
Needle DPx5#21 (H)
4
5
101S30010
机头连接座钉 (P19)
Shoe spike (p19)
6
6
10118003
梭心
Bobbin
1
7
10818501
大梭心(HL)
Big Bobbin (HL)
1
8
115011003
机头支柱
Machine head rest pin
1
9
20731047
螺丝刀(大)
Screw driver (large)
1
10
10131003
螺丝刀(中)
Screw driver (medium)
1
11
10131004
螺丝刀(小)
Screw driver (small)
1
12
110211011
油袋
Oiler bladders
1
jintex.in
Page 14
JIEKE TECHNOLOGY CO., LTD.
杰克缝纫机
全球销量遥遥领先
公司地址(Address of Company) :
中国浙江省台州市椒江区三甲海大道东段1008号
NO.1008, DONGHAI AVENUE EAST, JIAOJIANG DISTRICT,TAIZHOU CITY, ZHEJIANG
邮编(Zip Code): 318000
国内销售部(Domestic Trade Department):
电话(TEL): 0086-0576-88177788 88177789
传真(FAX): 0086-0576-88177758
国贸销售部(International Trade Department):
电话(TEL): 0086-0576-88177782 8817774
传真(FAX): 0086-0576-88177787
服务热线: 400-8876858
http://www.chinajack.com
资料如有更改,恕不另行通知,以实物为准。
You will be not informed if the file has been revised.Please set sample as standard.
日期: 2022.04
请您扫下杰克服务号
jintex.in
