Parts index — Jack F4tap a row to open its page

Page 1 — 1. 机架、外机壳体及Miscellaneous Cover Components

Jack F4 parts on page 1
RefPart numberPart nameQty
101511001后侧盖螺钉SM3/16"x28 L=9
10126001后侧盖螺钉
10122003胶垫
302893面板(侧盖)
10151007左侧钩
10151007右侧钩螺钉SM1/64"x40 L=6
10122114面盖板
10151007面盖板螺钉SM1/8"x44 L=3.4
10120027面盖油封
11412082面部油封(油料)
10123002衬杆上垫圈
10122005衬杆油孔螺钉
10122005衬杆油孔螺钉
10151004衬杆油孔螺钉SM3/16"x28 L=7
13812018衬杆护罩
10151004衬杆护罩螺钉SM3/16"x28 L=7
13512004三孔线夹
10122005衬杆油孔螺钉
11451015线夹螺钉SM9/64"x40 L=6
11410001机针
20722002后侧盖
10122113后侧盖板
302892后侧盖(侧盖)
11453001JK-8990-0126螺钉(内六角)
11453001后侧盖螺钉SM3/16"x40 L=6
11453001后侧盖螺钉
10122009送线电子控制盒(带插头)
10122007送线孔
10151001送线孔
10120001送线孔
11410041双面垫圈
GB/T93-1987弹簧垫5
20653002螺钉
10151004右线勾
10151007右线勾螺钉SM1/64"x40 L=6
10151006松线钩
10126030松线钩调节圈
10150005线夹螺钉SM9/64"x40 L=5.5
10127001线夹
10127001线夹
10130011线夹调节盘
11412005线夹板
10112006线夹螺钉
10127002线夹弹簧(厚料)
10127050线夹弹簧(厚料)
10112007线夹制动版
138516013线夹螺母
1011300800线夹组件
11413101固定式线夹勾
4015160001螺母SM9/64"x40
138511002卷边盖
13812019卷边盖
104517002衬套(进口)
11414006针板(光亮款)
11513101针板(厚料)
10103026针板
10115002推板
10127009推板
10151019LED灯组件
1013001900后侧板灯组件
11453001后侧板螺钉SM3/16"x28 L=9
1019331电线压痕
W02015GB/T93-1987 弹簧垫5

Page 2 — 6. 润滑组件/Oil Lubrication Components 7. 绕线器组件/Bobbin Components 9. 机件附件(1)-线架组件/Machine Head Accessories(1)-Thread Stand Components 9. 机件附件(2)/Machine Head Accessories(2)-Thread Stand Components

Jack F4 parts on page 2
RefPart numberPart nameQty
11211004油圈
10122019油圈D形圈
11421008上链供油管
101530008油泵连接螺柱
11329010开口挡圈10
10121001油泵安装座
10120020油泵安装座
WD30002弹垫
101511011压脚螺钉SM3/16"x64"x40 L=9.5
10103022油泵体衬套
101530007柱塞螺钉
10122013油泵柱塞
10120018油泵柱塞
1012001油泵体
S040009螺钉
10110034油泵叶轮
10120021油泵叶轮衬套
101530006螺钉
101200100油泵分组件
101510026螺钉SM15/64"x28 L=9
10136001油泵衬套
WD20004GB/T93-1987弹垫M6
10121006供油管
10122022油管连接座压板
10127014油盘调节螺钉
101530009螺钉
10423005油盘调节螺钉
10127015油盘夹线
10151004油盘夹线
10123006回油管
101511004回油管夹
10121007回油管组件
10151004螺钉SM15/64"x28 L=9
10151026油线固定板
10151010压脚螺钉SM9/64"x40 L=11
10151010油线
10121053油线夹
1383103900绕线器组件
GB/T 896-1986开孔挡圈5
11451008螺钉M4x6
GB/T 197.1垫圈4
10110030压线控制板
10111120绕线衬垫
13831101绕线器装置主座
GB/T 896-1986开孔挡圈5
10127061旋钮定位翼
13812004调节板
10103020绕线凸轮
10103042螺钉
1380510600绕线器连接件
13827103弹簧
GB/T 896-1986开孔挡圈4
13802111绕线器主轴
13802026绕线凸轮轴
S09103螺钉
13831102绕线轮钉
001110O型圈
11422062密封垫
11451003螺钉SM3/16"x28 L=10
1381300600压线夹线器
11381004下线架螺母
11427006小支线弹簧
1012005下线架齿轮
11413022夹线过线板
112513004夹线螺钉
11451601螺母SM11/64"x40
11435013绕线器驱动轮
S10009螺钉M6x8
20131019线架防滑胶皮
S04050螺钉SM5 L=16
WD1047垫圈M5
N01034螺母M5
13831022上绕线架上杆
1301301过线圈(内)
13813010过线圈(外)
13831019线架上杆
13831020线架接头
13831021线架下杆
1022106绕线圈
WD1048垫圈M16
N02004螺母M16
S04051螺钉M16
N01034螺母M5
WD2027弹簧垫圈M5
13831023下线架臂
13831024线盘
20131010线盘垫
20131006线盘钉
13831025线架固定件
138310300线架组件
10122022油盘座
10103006油盘
10111005压脚挡块
10122020油盘
10122021O型圈
101511028螺钉SM5/16"x24 L=7
10131001油盘支架
10122023油盘支架
10112027压轮曲柄
10127016Knee lifter spring
H05010Snap ring 10
10102011Knee lifter shaft
101515012螺钉M6 L=30
101516004双向曲柄螺钉M6 L=30
101512002双向曲柄螺钉M6 L=26
10101008Bearing bracket
101512003螺钉M8 L=16
1011202800Knee press plate asm.
10112030螺钉M6 L=11
10112030Knee press plate holder
10112029Knee press plate
10112028操纵杆
10122025操纵板垫
10122024操纵板垫套

Jack F4 — parts catalog

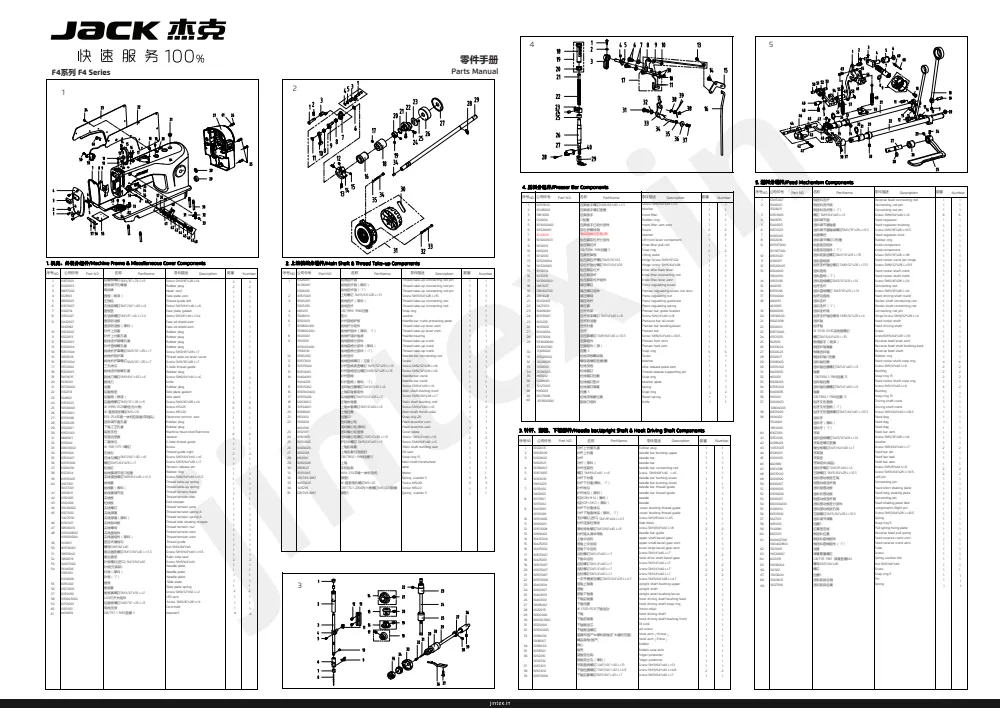

Page 1 — 1. 机架、外机壳体及Miscellaneous Cover Components

JACK 杰克 快速服务 100% F4系列 F4 Series 1. 机架、外机壳体及Miscellaneous Cover Components 序号 NO. 公司件号 Part No. 名称 PartName 零件描述 Description 数量 Number 1 101511001 后侧盖螺钉SM3/16"x28 L=9 Screw SM3/16"x28 L=9 3 3 2 10126001 后侧盖螺钉 Screw 2 2 3 10122003 胶垫 Rubber plug 2 2 4 302893 面板(侧盖) Face plate asm. 1 1 5 10151007 左侧钩 Thread guide 1 1 6 10151007 右侧钩螺钉SM1/64"x40 L=6 Screw SM1/64"x40 L=6 4 4 7 10122114 面盖板 Face plate gasket 1 1 8 10151007 面盖板螺钉SM1/8"x44 L=3.4 Screw SM1/8"x44 L=3.4 4 4 9 10120027 面盖油封 Face oil shield asm. 1 1 10 11412082 面部油封(油料) Face oil shield asm. 1 1 11 10123002 衬杆上垫圈 Rubber plug 1 1 12 10122005 衬杆油孔螺钉 Rubber plug 1 1 13 10122005 衬杆油孔螺钉 Rubber plug 1 1 14 10151004 衬杆油孔螺钉SM3/16"x28 L=7 Screw SM3/16"x28 L=7 1 1 15 13812018 衬杆护罩 Thread take-up lever cover 1 1 16 10151004 衬杆护罩螺钉SM3/16"x28 L=7 Screw SM3/16"x28 L=7 1 1 17 13512004 三孔线夹 3-hole thread guide 1 1 18 10122005 衬杆油孔螺钉 Rubber plug 1 1 19 11451015 线夹螺钉SM9/64"x40 L=6 Screw SM9/64"x40 L=6 2 2 20 11410001 机针 Knife 1 1 21 20722002 后侧盖 Side plate 1 1 22 10122113 后侧盖板 Side plate gasket 1 1 23 302892 后侧盖(侧盖) Side plate 1 1 24 11453001 JK-8990-0126螺钉(内六角) Screw SM3/16"x28 L=9 3 3 25 11453001 后侧盖螺钉SM3/16"x40 L=6 Screw SM3/16"x40 L=6 3 3 26 11453001 后侧盖螺钉 Screw SM3/16"x40 L=6 3 3 27 10122009 送线电子控制盒(带插头) Electronic control box 1 1 28 10122007 送线孔 Rubber plug 1 1 29 10151001 送线孔 Rubber plug 1 1 30 10120001 送线孔 Washer 4 4 31 11410041 双面垫圈 2-hole thread guide 1 1 32 GB/T93-1987 弹簧垫5 Spring washer 5 3 3 33 20653002 螺钉 Screw 5 5 34 10151004 右线勾 Thread guide 2 2 35 10151007 右线勾螺钉SM1/64"x40 L=6 Screw SM1/64"x40 L=6 2 2 36 10151006 松线钩 Tension release pin 1 1 37 10126030 松线钩调节圈 Rubber ring 1 1 38 10150005 线夹螺钉SM9/64"x40 L=5.5 Screw SM9/64"x40 L=5.5 4 4 39 10127001 线夹 Thread take-up spring 1 1 40 10127001 线夹 Thread take-up spring 1 1 41 10130011 线夹调节盘 Thread tension base 1 1 42 11412005 线夹板 Disk stopper 1 1 43 10112006 线夹螺钉 Thread tension post 1 1 44 10127002 线夹弹簧(厚料) Thread tension spring A 1 1 45 10127050 线夹弹簧(厚料) Thread tension spring A 1 1 46 10112007 线夹制动版 Thread disk rotating stopper 1 1 47 138516013 线夹螺母 Thread tension nut 1 1 48 1011300800 线夹组件 Thread tension asm. 1 1 49 11413101 固定式线夹勾 Thread guide 1 1 50 4015160001 螺母SM9/64"x40 Nut SM9/64"x40 1 1 51 138511002 卷边盖 Screw SM11/64"x40 L=5.5 2 2 52 13812019 卷边盖 Screw SM11/64"x40 L=7 1 1 53 104517002 衬套(进口) Screw SM11/64"x40 L=7 2 2 54 11414006 针板(光亮款) Needle plate 1 1 55 11513101 针板(厚料) Needle plate 1 1 56 10103026 针板 Slide plate 1 1 57 10115002 推板 Slide plate spring 1 1 58 10127009 推板 Slide plate spring 2 2 59 10151019 LED灯组件 LED assembly 1 1 60 1013001900 后侧板灯组件 LED assembly 1 1 61 11453001 后侧板螺钉SM3/16"x28 L=9 Screw SM3/16"x28 L=9 4 4 62 1019331 电线压痕 Cord hold 1 1 63 W02015 GB/T93-1987 弹簧垫5 Washer 5 1 1

Page 2 — 6. 润滑组件/Oil Lubrication Components 7. 绕线器组件/Bobbin Components 9. 机件附件(1)-线架组件/Machine Head Accessories(1)-Thread Stand Components 9. 机件附件(2)/Machine Head Accessories(2)-Thread Stand Components

6 6. 润滑组件/Oil Lubrication Components 序号NO. 公司件号 Part NO. 名称 PartName 零件描述 Description 数量 Number 1 11211004 油圈 Oil circle 1 2 10122019 油圈D形圈 Rubber ring 1 3 11421008 上链供油管 Main shaft oil tube 1 4 101530008 油泵连接螺柱 Oil pump connecting stud 1 5 11329010 开口挡圈10 Snap ring 10 1 6 10121001 油泵安装座 Oil pump installing base 1 7 10120020 油泵安装座 Oil pump installing base 1 8 WD30002 弹垫 Spring washer 1 9 101511011 压脚螺钉SM3/16"x64"x40 L=9.5 Screw SM3/16"x64"x40 L=9.5 1 10 10103022 油泵体衬套 Oil pump bushing 1 11 101530007 柱塞螺钉 Plunger screw 1 12 10122013 油泵柱塞 Plunger spring 1 13 10120018 油泵柱塞 Plunger 1 14 1012001 油泵体 Oil pump 1 15 S040009 螺钉 Screw 1 16 10110034 油泵叶轮 Oil pump impeller 1 17 10120021 油泵叶轮衬套 Oil pump bushing cover 1 18 101530006 螺钉 Screw 1 19 101200100 油泵分组件 Lubricating oil pump component 1 20 101510026 螺钉SM15/64"x28 L=9 Screw SM15/64"x28 L=9 1 21 10136001 油泵衬套 Rubber joint 1 22 WD20004 GB/T93-1987弹垫M6 Spring Washer M6 1 23 10121006 供油管 Hook oil tube 1 24 10122022 油管连接座压板 Tube holder (lower) 1 25 10127014 油盘调节螺钉 Spring 1 26 101530009 螺钉 Screw 1 27 10423005 油盘调节螺钉 Oil wick 1 28 10127015 油盘夹线 Oil felt clamp 1 29 10151004 油盘夹线 Oil felt clamp 1 30 10123006 回油管 Screw SM3/16"x28 L=7 1 31 101511004 回油管夹 Screw SM3/16"x28 L=7 1 32 10121007 回油管组件 Oil return tube component 1 33 10151004 螺钉SM15/64"x28 L=9 Screw SM15/64"x28 L=9 1 34 10151026 油线固定板 Oil wick fixing plate 1 35 10151010 压脚螺钉SM9/64"x40 L=11 Screw SM9/64"x40 L=11 1 36 10151010 油线 Oil wick 1 37 10121053 油线夹 Wick clip 1 7 7. 绕线器组件/Bobbin Components 序号NO. 公司件号 Part NO. 名称 PartName 零件描述 Description 数量 Number 1 1383103900 绕线器组件 Bobbin winder asm. 1 2 GB/T 896-1986 开孔挡圈5 Snap ring 1 3 11451008 螺钉M4x6 Screw M4x6 1 4 GB/T 197.1 垫圈4 Washer 1 5 10110030 压线控制板 Thread press control plate 1 6 10111120 绕线衬垫 Winding pad 1 7 13831101 绕线器装置主座 Bobbin winder bed 1 8 GB/T 896-1986 开孔挡圈5 Snap ring 1 9 10127061 旋钮定位翼 Regulating plate 1 10 13812004 调节板 Regulating plate 1 11 10103020 绕线凸轮 Bobbin winder cam 1 12 10103042 螺钉 Screw 1 13 1380510600 绕线器连接件 Bobbin winder connecting rod 1 14 13827103 弹簧 Spring 1 15 GB/T 896-1986 开孔挡圈4 Snap ring 1 16 13802111 绕线器主轴 Bobbin winder main shaft 1 17 13802026 绕线凸轮轴 Bobbin winder cam shaft 1 18 S09103 螺钉 Screw 2 19 13831102 绕线轮钉 Bobbin winder wheel 1 20 001110 O型圈 O-ring 1 21 11422062 密封垫 Washer 1 22 11451003 螺钉SM3/16"x28 L=10 Screw SM3/16"x28 L=10 3 23 1381300600 压线夹线器 Bobbin thread tension asm. 1 24 11381004 下线架螺母 Thread tension nut 1 25 11427006 小支线弹簧 Spring 1 26 1012005 下线架齿轮 Thread tension disk 1 27 11413022 夹线过线板 Thread tension guide plate 1 28 112513004 夹线螺钉 Screw 1 29 11451601 螺母SM11/64"x40 Nut SM11/64"x40 1 30 11435013 绕线器驱动轮 Driving wheel 1 31 S10009 螺钉M6x8 Screw M6x8 2 9. 机件附件(1)-线架组件/Machine Head Accessories(1)-Thread Stand Components 序号NO. 公司件号 Part NO. 名称 PartName 零件描述 Description 数量 Number 1 20131019 线架防滑胶皮 Spool rest rod rubber cap 1 2 S04050 螺钉SM5 L=16 Screw SM5 L=16 1 3 WD1047 垫圈M5 Washer M5 1 4 N01034 螺母M5 Nut M5 1 5 13831022 Spool rest rod upper 6 1301301 过线圈(内) Thread guide ring 1 7 13813010 过线圈(外) Thread guide ring 1 8 13831019 Spool rest rod upper 9 13831020 Spool rest rod joint 10 13831021 Spool rest rod lower 11 1022106 Spool rest rod rubber ring 12 WD1048 垫圈M16 Washer M16 1 13 N02004 螺钉M16 Spool rest rod nut M16 1 14 S04051 螺钉M16 Spool rest rod lower screw M5 1 15 N01034 螺母M5 Nut M5 1 16 WD2027 弹簧垫圈M5 Spring Washer M5 1 17 13831023 Spool rest arm lower 18 13831024 Spool rest 19 20131010 Spool rest cushion 20 20131006 Spool pin 1 21 13831025 Spool retainer 22 138310300 Thread stand asm. 9 (2) 9. 机件附件(2)/Machine Head Accessories(2)-Thread Stand Components 序号NO. 公司件号 Part NO. 名称 PartName 零件描述 Description 数量 Number 1 10122022 油盘座 Oil reservoir rubber cushion 2 2 10103006 油盘 Oil Reservoir 1 3 10111005 压脚挡块 Knee press rod cushion 4 10122020 油盘 Oil Reservoir gasket 1 5 10122021 O型圈 Rubber ring 1 6 101511028 螺钉SM5/16"x24 L=7 Screw SM5/16"x24 L=7 1 7 10131001 油盘支架 Oil reservoir magnet 1 8 10122023 油盘支架 Oil reservoir rubber cushion 2 9 10112027 压轮曲柄 Knee lifter crank 1 10 10127016 Knee lifter spring 1 11 H05010 Snap ring 10 1 12 10102011 Knee lifter shaft 1 13 101515012 螺钉M6 L=30 Screw M6 L=30 1 14 101516004 双向曲柄螺钉M6 L=30 Screw M6 L=30 2 15 101512002 双向曲柄螺钉M6 L=26 Screw M6 L=26 1 16 10101008 Bearing bracket 17 101512003 螺钉M8 L=16 Screw M8 L=16 1 18 1011202800 Knee press plate asm. 19 10112030 螺钉M6 L=11 Screw M6 L=11 1 20 10112030 Knee press plate holder 21 10112029 Knee press plate 22 10112028 操纵杆 Knee press plate rod 23 10122025 操纵板垫 Rubber 24 10122024 操纵板垫套 Knee press plate cover 杰克缝纫机股份有限公司 JACK SEWING MACHINE CO.LTD. 公司地址(Address of Company): No.15 RD Airport South, Jiaojiang District Taizhou City, Zhejiang, P.R.C 邮编(Zip Code): 318000 国内销售部(Domestic Trade Department): 电话(TEL): 0086-0576-88177788 88177789 传真(FAX): 0086-0576-88177758 国际贸易部(International Trade Department): 电话(TEL): 0086-0576-88177782 88177774 传真(FAX): 0086-0576-88177787 服务热线: 400-8876858 http://www.chinajack.com 资料如有更改,恕不另行通知,以实物为准。 You will not be informed if the file has been revised.Please set sample as standard. 2016年11月版
