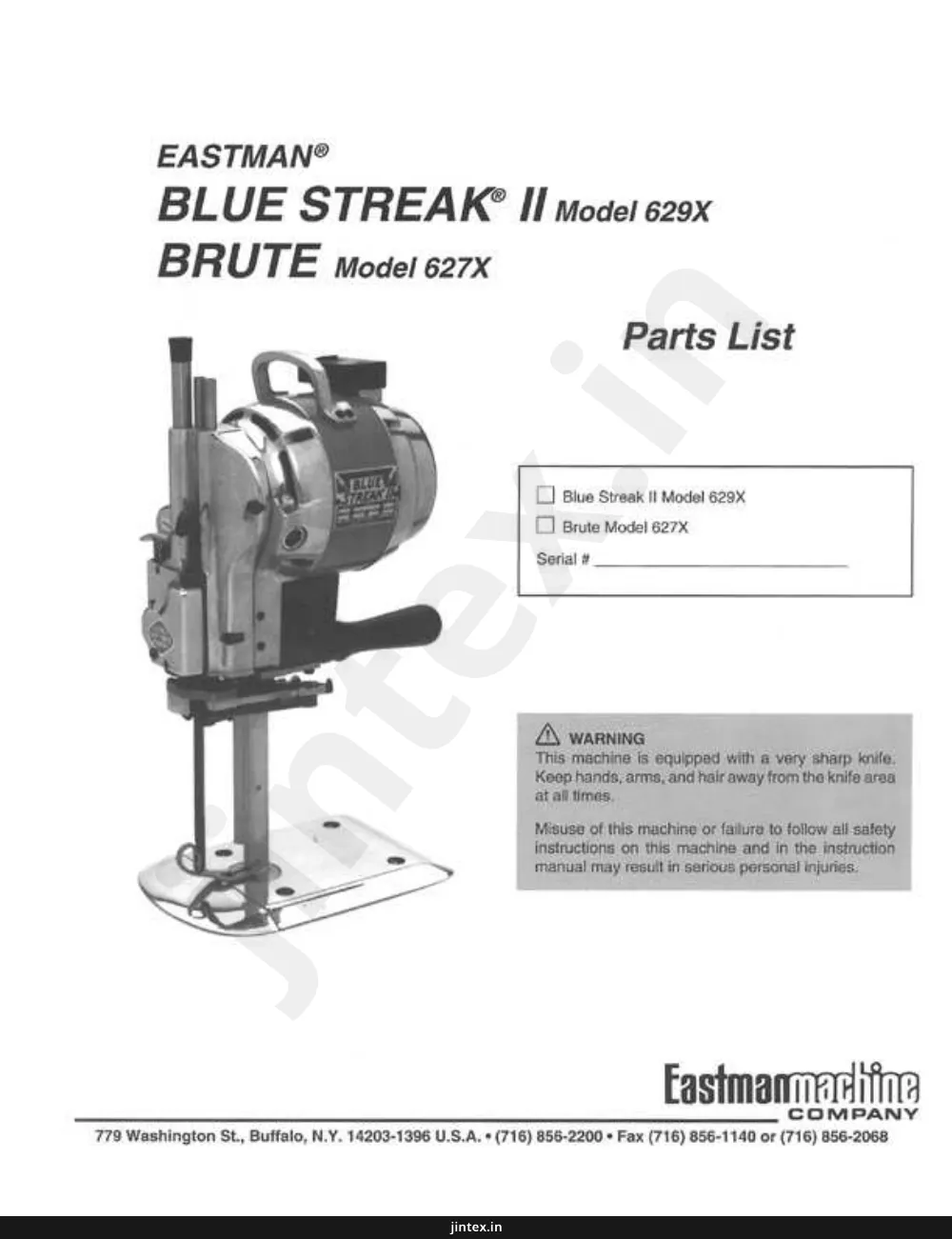

Page 1 — Parts List
EASTMAN®
BLUE STREAK® II Model 629X
BRUTE Model 627X
Parts List
WARNING
This machine is equipped with a very sharp knife.
Keep hands, arms, and hair away from the knife area
at all times.
Misuse of this machine or failure to follow all safety
instructions on this machine and in the instruction
manual may result in serious personal injuries.
Eastmanmachine
COMPANY
779 Washington St., Buffalo, N.Y. 14203-1396 U.S.A. (716) 856-2200 Fax (716) 856-1140 or (716) 856-2068
jintex.in
Page 2 — Illustrated Parts List
EASTMAN
Illustrated Parts List
Your Eastman Straight Knife has been carefully designed to provide many hours of trouble-free operation. The comprehensive exploded parts illustrations have been carefully prepared to enable you to easily order replacement parts. Replacement parts for this machine may be ordered through your nearest Eastman Machine Company representative or directly from the Eastman factory.
Note: Please specify the model and serial number of your machine when ordering parts. Always specify class number and serial number when ordering parts for faster, more efficient service.
Exploded Parts Illustrations
The exploded parts illustrations and parts lists in this section have been divided into major assemblies as follows:
Motor Assemblies
Single-Phase, Single-Speed
Single-Phase, Dual-Speed
Three-Phase, Single-Speed
Three-Phase, Dual-Speed
Front Bearing Housing Assembly
See pages 26 and 27.
Sharpener Housing Assembly
Front view, see pages 28 and 29.
Rear view, see pages 30 and 31.
Lower Gear Bracket Assembly
See pages 32 and 33.
Note: Four different abrasive belt grits (designed to provide you with a selection of edges) may be ordered for this machine. See pages 19 and 21 of the instructions section for more information.
Standard and Baseplate Assembly
See pages 34 and 35.
Note: Knife slides and standard heights indicated on pages 34 and 35 are based on the length of the knife and do not refer to physical dimensions. Thus, a 6" knife slide accommodates a 6" knife. Ordering information and part numbers for knives on pages 12 and 13 of the instructions section.
FASTENERS REQUIRED TO ASSEMBLE
MAJOR COMPONENTS
PART NO.
NO. REQ'D
Class
DESCRIPTION
627
4C1-99
3
3
Sharpener Hold-Down Nut
4C1-150
1
1
Sharpener Hold-Down Nut
4C1-179
4
4
Front-to-Rear Bearing Nut
4C2-2
1
1
Plate Bolt Nut
20C3-29
0
0
Front-to-Rear Bearing Screw
20C3-35
4
0
Front-to-Rear Bearing Screw
20C13-96
4
0
Standard-to-Bearing Screw
24C4
1
1
Plate Bolt
Pages 22, 23
Pages 22, 23
Pages 24, 25
Pages 24, 25
20
jintex.in
Page 3 — Figure 20. Standard and Baseplate Assembly (Exploded View)
SHARPENER HOUSING ASSEMBLY (FRONT VIEW) SEE PAGES 28 AND 29 SHARPENER HOUSING ASSEMBLY (REAR VIEW) SEE PAGES 30 AND 31 4C1-179 4C1-99 4C1-150 FOR KNIFE SEE PAGES 10 AND 11 OF INSTRUCTIONS MOTOR ASSEMBLIES SEE PAGES 22, 23, 24 AND 25 20C13-96 24C4 FRONT BEARING HOUSING ASSEMBLY SEE PAGES 26 AND 27 STANDARD and BASEPLATE ASSEMBLY SEE PAGES 34 AND 35 FOR REPLACEMENT BELTS SEE PAGES 17 AND 18 OF INSTRUCTIONS LOWER GEAR BRACKET ASSEMBLY SEE PAGES 32 AND 33 4C2-2 Figure 20. Standard and Baseplate Assembly (Exploded View) Eastmanmachine COMPANY 21
Page 5 — Figure 22. Single/Dual-Phase Motor Assembly (Exploded View)
STATOR WITH BAND
SINGLE-PHASE SINGLE-SPEED
(See Page 22 for Ratings)
514C5-109
514C5-110
514C5-113
514C5-117
514C5-119
514C5-120
514C5-121
514C5-122
514C5-124
514C5-127
STATOR WITH BAND
SINGLE-PHASE DUAL-SPEED
(See Page 22 for Ratings)
514C5-114
514C5-115
514C5-118
514C5-123
514C5-126
514C5-129
514C5-128
514C5-130
514C5-131
514C5-132
514C5-133
514C5-134
514C5-135
514C5-136
514C5-137
514C5-138
514C5-139
514C5-140
514C5-141
514C5-142
514C5-143
514C5-144
514C5-145
514C5-146
514C5-195
300C12-6
22C1-24
73C7-121
47C4-60
254C1
73C7-121
(1 1/2" Long)
305C8-1
301C8-1
514C5-139
514C5-132
514C5-150
514C5-194
514C5-196
784C1-3
12C1-02
305C10-1
90C6-46
513C3-206
513C3-226
401-145
L.H.
402-87
L.H.
10C1-41
73C7-121
(3/4" Long)
BC5-10
12C1-12
90C1-146
18C6-16
301C8-1
59C7-36
WARNING
Attach ground wire to ground
terminal "E" on Terminal block.
Failure to ground Terminal block may
result in electrocution or other
serious personal injuries.
Note: L.H. indicates left-
hand thread. All others are
right-hand.
Attachment Plug
Terminal Block
Refer to Back Cover
For Detailed Parts List
CUTOUT SWITCH
580C1-192 Single Speed
580C1-191 Dual Speed
6012-4
301C12-3
CUTOUT
SINGLE SPEED
597C2-14 60Hz 3600 R.P.M.
597C2-15 60Hz 3000 R.P.M.
597C2-16 60Hz 1800 R.P.M.
597C2-17 50Hz 1500 R.P.M.
DUAL SPEED
597C2-25 60 CY. 1800/3600 R.P.M.
597C2-18 50 CY. 1500/3000 R.P.M.
13C1-9
34C1-51
Figure 22. Single/Dual-Phase Motor Assembly (Exploded View)
Eastmanmachine
COMPANY
23
Page 7 — Figure 24. Three-Phase Motor Assembly (Exploded View)
STATOR WITH BAND
THREE-PHASE SINGLE-SPEED
(See Page 24 for Ratings)
514C5-116
514C5-130
514C5-135
514C5-143
514C5-144
514C5-146
514C5-147
514C5-151
514C5-152
STATOR WITH BAND
THREE-PHASE DUAL-SPEED
(See Page 24 for Ratings)
514C5-145
514C5-148
514C5-150
514C5-158
514C5-171
514C5-173
WARNING
Attach ground wire to ground
terminal "E" on Terminal block.
Failure to ground Terminal block may
result in electrocution or other
serious personal injuries.
Note: L.H. Indicates left-
hand thread. All others
are right-hand.
Attachment Plug
Terminal Block
Refer to Back Cover
For Detailed Parts List
73C7-121
300C12-3
783C1-3
12C1-32
305C10-1
1C4-8
67C1-10
12C1-12
90C6-46
90C1-146
300C12-6
22C1-24
79C7-121
513C3-206
513C3-225
79C2-26
254C1
199C1-23
79C7-121
53C7-35
13C1-9
4C1-145
34C1-51
L.H.
305C8-1
16C6-16
4C2-87
L.H.
10C1-41
30C1-8
Figure 24. Three-Phase Motor Assembly (Exploded View)
Eastmanmachine
COMPANY
25
Page 8 — EASTMAN
Front Bearing Housing
(90C2-162) with Oiler
Assembly
EASTMAN
Front Bearing Housing
(90C2-162) with Oiler
Assembly
Note: Please specify model and serial
number of machine when ordering parts.
Part No.
No. Req'd
CLASS 627
CLASS 629
Description
62C1-140
1
1
Handle Bracket
71C9-18
1
1
Front Ball Bearing Retainer
72C4-26
1
1
Oil Hole Cover
73C7-203
1
1
Oil Tube, Clear
73C7-204
1
1
Oiler Tube
85C1-52
1
1
Crank-1-1/8 Stroke
85C1-46
1
1
Crank-1-1/4 Stroke
85C1-45
1
1
Crank-1-1/2 Stroke
85C1-44
1
1
Crank-1-3/4 Stroke
90C2-162
1
1
Front Bearing Housing
90C6-38
1
1
Front Ball Bearing
90C6-46
1
1
Sealed Crank Ball Bearing
91C4-25
2
2
Rivett Crosshead
4C1-111
1
1
Operating Handle Lock Nut
4C1-132
1
1
Ball Bearing Lock Nut
4C1-100
1
1
Lock Nut for Shaft
4C2-91
3
3
Nut for Guide Screw
4C2-110
1
1
Stop Nut
4C3-8
3
3
Guide Adjustment Nut
11C12-92
1
1
Shaft for Ball Bearing
12C1-21
2
2
Shakeproof Washer
12C1-24
1
1
Knife Lock Washer
12C10-2
3
3
Washer
12C15-14
6
6
Guide Washer
15C19-23
2
2
Connecting Rod Upper
15C19-54
1
1
Stud, Upper R.H. Mounting
15C19-59
1
1
Stud, Lower R.H. Mounting
17C4-6
1
1
Lock Ring
18C6-79
1
1
Lock Ring
18C6-80
2
2
O-Ring
20C5-17
2
2
Connecting Rod Clamp Screw
20C12-62
1
1
Front Housing Plug Screw
24C1-3
1
1
Screw for Handle Bracket
34C10-142
1
1
Spring for Capacitor
52C5-194
1
1
Switch Plate (Dual-Speed Three-Phase)
52C5-816
1
1
Switch Plate (Single-Speed)
52C5-111
1
1
Switch Plate (Dual-Speed Single-Phase)
53C6-2
1
1
Switch Cover
53C11-81
1
1
Oil Tube Cover
54C4-32
1
1
Capacitor Cover
Wrist Pin Plug
Part No.
No. Req'd
CLASS 627
CLASS 629
Description
141C1-40
1
1
Gauge, Clear
191C1-38
1
1
Cross Head Felt Pad
191C1-42
1
1
Oil Felt Pad
191C1-43
1
1
Oil Felt Wicking, Long
191C1-45
1
1
Oil Felt Wicking, Short
201C1-11
1
1
RTV Sealer
222C1-7
1
1
Eyelet
300C3-2
4
4
Screw
302C8-2
1
1
Screw, Flat Head 4-40 x 1/4
300C10-4
2
2
Screw, 6-32 x 3/8 Long Round Head
305C8-1
7
7
Screw, 6-32 x 5/16 Flat Head
305C8-1
7
7
Screw, 4-40 x 1/4 Binding Head
307C18-1
1
1
Screw
308C12-1
3
3
Screw, 8-32 x 3/8 Socket Head
309C14-1
0
0
Guide Hold Down Screw
309C15-5
3
3
Guide Adjustment Screw
525C1-4
1
1
L.H. & R.H. Guides 1-3/4 Stroke
525C1-5
1
1
L.H. & R.H. Guides 1-1/2 Stroke
525C1-6
1
1
L.H. & R.H. Guides 1-1/4 Stroke
525C1-7
1
1
L.H. & R.H. Guides 1-1/8 Stroke
531C1-75
1
1
(ea. machine class)
Cushion Grip Handle
570C1-1
1
1
Cross Head (With Wrist Pin, Lock Washer & Bolt)
580C1-100
1
1
Switch - Dual-Speed 3-Phase
580C1-198
1
1
Switch - Dual-Speed 1-Phase
580C1-199
1
1
Switch - Dual-Speed 1-Phase
607C1-35
1
1
Oiling Device
664C1-6
1
1
Connecting Rod 1-1/8 Stroke
664C1-4
1
1
Connecting Rod 1-1/4 Stroke
664C1-4
1
1
Connecting Rod 1-1/2 Stroke
664C1-4
1
1
Connecting Rod 1-3/4 Stroke
706C1-0
0
1
Capacitor 110 Volt
706C1-13
1
0
Capacitor 220 Volt
706C1-16
1
0
Capacitor 110 Volt
706C1-18
1
0
Capacitor 220 Volt
26
jintex.in
Page 9 — Figure 25. Front Bearing Housing with Oiler Assembly (Exploded View)
Note: Certain 220 volt machines will use these capacitors. Please check the capacitor number on label of your machine to order.
706C1-4 110 Volt
706C1-6 220 Volt
706C1-13 110 Volt
706C1-18 220 Volt
305C8-1
305C12-1
305C8-1
53C11-91
53C2-111
20C12-62
65C1-52 Crank 1 1/8 Stroke
65C1-46 Crank 1 1/4 Stroke
65C1-45 Crank 1 1/2 Stroke
65C1-44 Crank 1 3/4 Stroke
664C1-6 1 1/8 Stroke
664C1-5 1 1/4 Stroke
664C1-4 1 1/2 Stroke
664C1-3 1 3/4 Stroke
12C10-2
71C3-18
9006-38
305C10-4
15C13-33 15C13-39
11C12-92
4C1-190
305C8-1
305C12-1
20C12-122
91C4-25
12C15-14
12C1-21
54C4-32
20C5-17
525C1-7 1 1/8 Stroke
525C1-6 1 1/4 Stroke
525C1-5 1 1/2 Stroke
525C1-4 1 3/4 Stroke
191C1-32
17C4-6
191C1-36
12C1-24
24C1-3
4C2-110
15C13-23
15C13-34 15C13-39
Dual Speed 3 Phase
305C8-1
680C1-100
52C5-194
305C10-4
307C18-1
72C4-28
62C1-140
20C12-79
18C6-80
141C1-46
4C1-111
18C6-79
Single Speed
1 & 3 Phase
305C8-1
52C5-235
680C1-190
300C3-2
191C1-42
53C6-2
191C1-49
201C1-11
73C7-203
300C2-2
73C7-204
222C1-7
191C1-45
607C1-35
Dual Speed
1 Phase
52C5-236
680C1-199
WARNING
220/3-phase dual-speed only switch
must be grounded. Failure to ground
this switch may cause electrocution
or serious personal injuries.
Notes: L.H. indicates left-hand thread. All others are right-hand.
Slip large lug over switch before replacing switch base. Secure switch to
base tightly to ensure positive ground.
Figure 25. Front Bearing Housing with Oiler Assembly (Exploded View)
Eastmanmachine
COMPANY
27
jintex.in
Page 11 — Figure 27. Sharpener Housing Assembly (Exploded, Front View)
"THESE PARTS SOLD ONLY IN ASSEMBLIES AS FOLLOWS.
713C4-4 Screw Shaft with Extension, R. & L. Hand Nuts 5"-8"
713C4-5 Screw Shaft with Extension, R. & L. Hand Nuts 9"-10"
713C4-6 Screw Shaft with Extension, R. & L. Hand Nuts 11 1/2"
713C4-7 Screw Shaft with Extension, R. & L. Hand Nuts 13"
For
Spacer
Chart
(See
Sharpenor
Housing
Assembly
Drawing)
(Rear View)
Page 30
86C7-34
4C1-149
71C3-15
12C15-91
12C15-91
4C2-113
12C15-74
71C3-15
12C15-74
4C2-112
12C15-74
71C3-15
12C15-74
Note: L.H. indicates left-hand thread.
All others are right-hand.
Screw Shaft
732C1-11 5"-8" Knife
732C1-12 9"-10" Knife
732C1-20 11 1/2" Knife
732C1-17 13" Knife
12C15-57
20C12-156
300C10-1
621C1-7
97C3-95
309C15-7
34C10-107
20C12-113
17C1-16
55C1-7
4C1-161
55C4-49
34C10-20
11C12-54
34C8-12
302C10-4
12C15-69
300C10-4
34C10-179 5'-13" Knife
20C4-17
53C11-72
302C10-8
20C12-117
66C1-192 5'-13" Knife All Strokes
Figure 27. Sharpener Housing Assembly (Exploded, Front View)
Eastmanmachine
COMPANY
29
Page 12 — Figure 28. Sharpener Housing Assembly
(Assembled, Rear View)
EASTMAN
Sharpener Housing Assembly
(Rear View)
Part No.
No. Req'd
For both
627 & 629
Description
402-85
1
Lock Nut for Shaft
402-85
1
R.H. Follower Nut
11C12-58
1
R.H. Square Shaft 5'-6' Knife
11C12-59
1
R.H. Square Shaft 9'-10' Knife
11C12-61
1
R.H. Square Shaft 11-1/2' Knife
11C12-63
1
R.H. Square Shaft 13' Knife
11C12-58
1
L.H. Square Shaft 5'-6' Knife
11C12-59
1
L.H. Square Shaft 9'-10' Knife
11C12-61
1
L.H. Square Shaft 11-1/2' Knife
11C12-63
1
L.H. Square Shaft 13' Knife
11C12-64
1
Shaft for Crank
12C11-74
1
Thrust Washer
13C16-29
2
Thrust Washer
13C16-30
2
Thrust Washer for Bell Crank
17C15-78
1
Pin for Bell Crank
17C15-103
1
Roll Pin for Push Rod
17C15-113
1
Spreader Pin
18C6-81
1
Retaining Ring for Shaft
18C6-26
1
Retaining Ring for Bell Crank
34C10-69
1
Spring for Bell Crank
55C6-75
1
Spacer for Ball Bearings
62C16-151
1
Sharpener Housing (Only)
71C1-10
1
Oil Pad & Holder
71C1-10
1
Oil Retainer Idler Gear
73C7-46
1
Tube for Square Shaft 5'-6' Knife
73C7-47
1
Tube for Square Shaft 9'-10' Knife
73C7-48
1
Tube for Square Shaft 11-1/2' Knife
73C7-68
1
Tube for Square Shaft 13' Knife
73C7-69
1
Tube for Screw Shaft 5'-6' Knife
73C7-49
1
Tube for Screw Shaft 9'-10' Knife
73C7-50
1
Tube for Screw Shaft 11-1/2' Knife
73C7-67
1
Tube for Screw Shaft 13' Knife
73C7-163
1
Bottom Plate, Sharpener Housing
85C3-6E
1
Bell Crank (Only)
87C3-8
1
Spiral Gear
87C3-44
2
Spur Gear
87C3-63
1
Gear and Shaft
90C4-29
2
Bearing for Drive Shaft (Lower)
90C4-33
2
Bearing for Gears
90C4-34
1
Bearing for Bell Crank
90C4-42
1
Bearing for Drive Shaft
90C4-46
1
Bearing for Drive Shaft (Upper)
90C4-58
1
Bearing for Screw Shaft
90C6-24
2
Ball Bearing for Crank
142C1-7
1
Key for Gear
191C1-21
1
Felt Pad for Cross Head
300C10-1
2
Screw, #6-32 x 3/16 Round Head
302C10-6
1
Screw, #6-32 x 1/2 Flat Head
302C10-3
2
Screw, #6-32 x 5/8 Flat Head
584C2-3
1
Bell Crank with Pin & Bearing (Only)
584C3-16
1
Bell Crank Complete with Lever
602C1-7
1
Slow Speed Driver Assembly
602C1-9
1
Driver Pulley with Driver
627G1-10
1
Idler Gear & Bushing
715C1-12
1
Driver Shaft with Gear
727C1-6
1
Oil Pad & Holder
Figure 28. Sharpener Housing Assembly
(Assembled, Rear View)
Note: Please specify model and serial number
of machine when ordering parts.
30
jintex.in
Page 13 — Figure 29. Sharpener Housing Assembly (Exploded, Rear View)
LH. 402-86 402-85 LH. 62016-151 402-2 191C1-21 7101-10 3000C7-1 3000C7-2 17C15-82 90C4-33 87C3-44 12C15-30 90C4-33 87C3-44 12C15-30 65C6-75 17C15-103 70C12-123 727C1-6 300C10-1 716C1-12 R.H. SQUARE SHAFTS 11C12-58 11C12-59 11C12-61 11C12-85 TUBES FOR SQUARE SHAFTS 73C7-46 73C7-47 73C7-86 73C7-88 TUBES FOR SCREW SHAFTS 73C7-46 73C7-47 73C7-86 73C7-87 5-8 Knife 6-10 Knife 11 1/2 Knife 13 Knife 5-8 Knife 9-10 Knife 11 1/2 Knife 13 Knife L.H. SQUARE SHAFTS 11C12-56 11C12-57 11C12-00 11C12-64 5-8 Knife 9-10 Knife 11 1/2 Knife 13 Knife 143C1-7 11C12-64 90C4-42 90C4-29 12C15-29 87C3-8 12C15-29 90C4-48 90C4-33 17C15-78 90C6-24 50C4-41 18C6-26 90C4-34 602C1-7 602C1-9 L.H. 18C6-26 NOTE: FOR SPECIAL SHOES, IF THE MACHINE IS NOT AN 1800 RPM OR A DUAL SPEED UNIT, IT MUST BE EQUIPPED WITH A 5504C3-14 SLOW-SPEED DRIVER, INCLUDING THE FOLLOWING PARTS: 67C3-42 Gear Shaft 502C1-7 Slow-Speed Driver Assy. 504C2-1 Bell Crank 110C6-24 Bearings 401-143 Retainer 5504-41 Spacer for Ball Bearings 5504C3-16 Bell Crank Complete 504C2-3 Bell Crank with Pin & Brg. Only 65C3-6 Bell Crank Only 17C15-113 70C12-10-6 Figure 29. Sharpener Housing Assembly (Exploded, Rear View) Eastmanmachine COMPANY 31 SPACER CHART For Automatic Sharpeners STROKE SIZE KNIFE SPACER NUMBER SPACER LENGTH 1 1/8-1 1/4 5 73C7-55 3 7/8 1 1/8-1 1/4 5 73C7-56 4 1/4 1 1/8-1 1/4 6 73C7-57 3 1/4 1 1/8-1 1/4 6 73C7-58 3 1/4 1 1/8-1 1/4 7 73C7-59 1 7/8 1 1/8-1 1/4 7 73C7-60 2 1/4 1 1/4-1 3/4 8 1C13-12 15/16 1 1/4-1 3/4 8 1C13-13 1 1/4 1 1/8-1 1/4 9 73C7-58 1 7/8 1 1/8-1 1/4 9 73C7-59 1 7/8 1 1/8-1 1/4 10 1C13-12 15/16 1 1/8-1 1/4 10 1C13-13 1 1/4 1 1/8-1 1/4 11 1/2 1C13-12 15/16 1 1/8-1 1/4 11 1/2 1C13-13 1 1/4 1 1/8-1 1/4 13 1C13-12 15/16 1 1/8-1 1/4 13 1C13-13 1 1/4 Note: L.H. indicates left-hand thread. All others are right-hand.
Page 14 — Figure 30. Lower Gear Bracket Assembly
(Assembled View)
EASTMAN
Lower Gear Bracket
Assembly
Illustrated Parts List
Complete Sharpener Assembly Numbers: 637C10-*
Machine Stroke
Height of Machine
1-1/8"
1-1/4"
1-1/2"
1-3/4"
5"
-20,
-21,
-22,
-23,
6"
-24,
-25,
-26,
-27,
7"
-28,
-29,
-30,
-31,
8"
-32,
-33,
-34,
-35,
9"
-36,
-37,
-38,
-39,
10"
-40,
-41,
-42,
-43,
11-1/2"
-45,
-46,
-47,
13"
-48,
-49,
-50,
-51
Part No.
No. Req'd
Description
54C10-148
1
L.H. Sharpener Shoe Spring
34C10-149
1
R.H. Sharpener Shoe Spring
35C7-28
1
Clamping Arm for Shoe
63C4-78
1
Gear Cover
54C4-35
1
Oil Hole Plug
62C8-31
1
Bracket, Lower Gear
70C4-32
1
Guide Back of Standard
70C12-216
2
Wear Plate
8703-60
1
Gear on Screw Shaft
90C4-47
1
Intermediate Gear
90C4-47
1
Bearing for Intermediate Gear
90C4-59
1
Bearing for Screw Shaft
90C4-59
2
Bearing for Shaft Extension
147C1-28
1
R.H. Shaft Extension
147C1-29
1
L.H. Shaft Extension
152C1-19
2
Front Pulley for Bolt
209C1
2
Neoprene Band for Pulley
300C7-3
2
Screw, #4-36 x 1/4 Round Head
300D10-2
2
Screw, #8-32 x 1/4 Round Head
300D10-6
2
Screw, #8-32 x 1/2 Round Head
301C7-8
2
Screw, #4-36 x 3/16 Filler Head
301C10-3
1
Screw, #8-32 x 3/8 Filler Head
309C12-2
1
Stop Screw, L.H. Shoe
712C1
1
R.H. Slide with Pulley
712C1-1
1
L.H. Slide with Pulley
715C1-19
1
Lower Gear Bracket with Cover
715C1-23
1
Brgs., Screws & Wear Plate
57-10 Knite
728C1-5
2
Lower Gear Bracket (Complete)
743C1-26
1
Stabilizer Assembly
743C1-27
1
R.H. Shoe (Wave Knife Only)
743C1-28
1
L.H. Shoe (Wave Knife Only)
743C1-29
1
R.H. Pre-set Sharpener Shoe (Only)
820C1-7
1
L.H. Pre-set Sharpener Shoe (Only)
820C1-8
1
R.H. Complete Shoe Assembly
Figure 30. Lower Gear Bracket Assembly
(Assembled View)
Part No.
No. Req'd
Description
4C1-189
1
Jam Nut, #8-32
4C2-63
2
Nut for Sharpener Shoe Screw
16C15-93
2
Washer, Shoe
17C15-100
2
Roll Pin (For Pulley 152C1-19)
20C6-25
1
Adjusting Screw
20C12-57
2
Screw for Sharpener Shoe
20C12-143
2
(Wave Knife Only)
Screw for Clamping Arm
20C12-153
2
Screw for Sharpener Shoe
21C14-14
2
Bushing for Sharpener Shoe
34C10-45
2
L.H. Sharpener Shoe Spring
34C10-47
1
Spring for Arm
34C10-57
1
L.H. Sharpener Shoe Spring
(Wave Knife Only)
34C10-123
1
Spring for Arm
Note: Please specify model and serial number
of machine when ordering parts.
32
Page 15 — Figure 31. Lower Gear Bracket Assembly (Exploded View)
300C10-2
70C4-52
Note: L.H. indicates left-hand thread.
All others are right-hand.
300C10-6
147C1-29
L.H. 147C1-28
20C6-25
301C10-3
34C10-123
63C4-78
300C7-3
728C1-5
87C5-13
87C3-50
64C4-35
62C6-31
715C1-19
90C4-61
90C4-47
90C4-59
152C1-19
17C15-106
209C1
4C1-189
62C1-7
300C7-3
728C1-5
34C10-45
712C1-1
79C12-219
62C1-6
12C15-93
743C1-26
21C14-14
12C15-93
34C10-149
20C12-153
17C15-106
309C12-2
12C15-93
743C1-29
21C14-14
12C15-93
34C10-148
20C12-153
35C7-28
34C10-123
20C12-143
WAVE KNIVES
REQUIRE SPECIAL SHOES AND
RELATED PARTS LISTED BELOW
743C1-27
34C10-47
20C12-143
L.H. Shoe
L.H. Spring
Screw
(For Shoe)
743C1-26
R.H. Shoe
34C10-57
R.H. Spring
20C12-57
Screw
(For Shoe)
WHEN USING THESE SPECIAL SHOES THE
FOLLOWING PARTS MUST BE REMOVED FROM
THE LOWER GEAR BRACKET
35C7-26
34C10-123
20C12-143
Clamping Arm
Spring
Screw
SEE PAGE 31 FOR SLOW SPEED DRIVE NOTE
209C1
FOR BELT LISTING
See Page 18
715C1-23 Lower Gear Bracket Assembly Complete
Figure 31. Lower Gear Bracket Assembly (Exploded View)
Eastmanmachine
COMPANY
33
Page 16 — Figure 32. Standard and Baseplate Assembly
EASTMAN
Standard and
Baseplate Assembly
Part No.
No. Req'd
Description
For both
627 & 629
1201-56
12015-77
1701-4
1705-9
2008-12
200C12-19
20013-51
3401-57
6001-55
6001-56
79C4-12
79C4-24
21301-1
302012-3
505C3-224
505C3-225
505C3-226
505C3-243
505C3-244
528C1-110
528C1-123
528C1-120
528C1-122
528C1-121
528C1-115
528C1-116
528C1-124
528C1-125
532C2-1
532C2-5
532C2-7
643C1-44
643C1-41
643C1-42
643C1-43
643C1-46
643C1-47
643C1-53
643C1-45
619C1-32
4
1
2
2
1
1
4
2
1
1
1
1
6
3
1
1
1
1
1
1
1
1
1
1
1
1
4
4
4
1
1
1
1
1
1
1
1
2
Lock Washer, #8
Washer for Micro Fog Standard
Tapered Pin 80 x 3/4
Hinge Pin
Clamp Screw for Rollers
Knife Slide Screw
Hinge Pin Clamp Screw
Plate Wing Tension Spring
Plate Wing (For Small Plates)
Plate Wing (For Large Plates)
Throat Plates with Screws and Pins
Tapered & Relieved Throat Plates Assembly
Fiber Shim
Screw, #8-32 x 3/8 Flat Head
Small Plate Base Complete (5-6" Knife)
Large Plate Base Complete (9'-13' Knife)
Small Plate Base Complete (5'-6' Knife)
For 50 Cycle 1500 R.P.M. & Dual-Speed Only
Large Plate Base Complete (9'-13' Knife)
For 50 Cycle 1500 R.P.M. & Dual-Speed Only
Small Plate Base Complete (5'-6' Knife)
Used with Swivel Roller Assembly Only
Micro Fog Standard (Complete with Slides and Throat Plates) 6' Knife
Standard (Complete with Slides and Throat Plates) 5" Knife
Standard (Complete with Slides and Throat Plates) 6' Knife
Standard (Complete with Slides and Throat Plates) 7' Knife
Standard (Complete with Slides and Throat Plates) 8' Knife
Standard (Complete with Slides and Throat Plates) 9' Knife
Standard (Complete with Slides and Throat Plates) 10' Knife
Standard (Complete with Slides and Throat Plates) 11-1/2' Knife
Standard (Complete with Slides and Throat Plates) 13' Knife
Rubber Mounted Roller (Complete)
Rubber Mounted Roller (Complete)
Rubber Mounted Roller (Complete)
Knife Slides (Complete with Screws) 5" Knife
Knife Slides (Complete with Screws) 6" Knife
Knife Slides (Complete with Screws) 7' Knife
Knife Slides (Complete with Screws) 8' Knife
Knife Slides (Complete with Screws) 9' Knife
Knife Slides (Complete with Screws) 10' Knife
Knife Slides (Complete with Screws) 11-1/2' Knife
Knife Slides (Complete with Screws) 13' Knife
Knife Slides (Complete with Screws) 6' Micro Fog
Swivel Roller Assembly
Figure 32. Standard and Baseplate Assembly
(Assembled View)
Note: Please specify model and serial number of
machine when ordering parts.
34
jintex.in
Page 17 — Figure 33. Standard and Baseplate Assembly (Exploded View)
STANDARDS COMPLETE W/SLIDES
528C1-123
528C1-120
528C1-122
528C1-121
528C1-116
528C1-116
528C1-124
528C1-125
5" Standard
6" Standard
7" Standard
8" Standard
9" Standard
10" Standard
11-1/2" Standard
13" Standard
INSTRUCTIONS
FOR REMOVING WORN
PLATE ROLLER SHELL
Figure 34. Removing a Worn Plate Roller Shell
628C1-112
Micro Fog
6" Standard
12C15-77
20C12-19
79C4-12
79C4-24
302C12-3
17C1-4
CAUTION
Do not oil the plate roller shells or you may dam-
age them.
Place the plate on blocks and press out the roller
shell from the ring assembly (Figure 34).
NOTE: A roller shell (complete with shaft and
bearings) may be ordered as required. Specify
part number 619C1-30.
To install a new roller shell, invert the baseplate
and press the roller shell into the ring assembly.
KNIFE SLIDES
643C1-44
643C1-41
643C1-42
643C1-43
643C1-46
643C1-47
643C1-53
643C1-45
643C1-51
5" Knife
6" Knife
7" Knife
8" Knife
9" Knife
10" Knife
11-1/2" Knife
13" Knife
6" Micro Fog
OPTIONAL
213C1-1 (2)
17C6-9
213C1-1
619C1-32
Swivel Roller Assembly
20C5-12
532C2-3
Rubber Mounted Wide
Roller
532C2-5
Rubber Mounted Roller
(For All Machines Except
Noted Below)
34C1-57
213C1-1
Fibre Shim
532C2-7
Rubber Mounted Roller
(For 50 Cycle 1500 R.P.M.
and Dual Speed Machines Only)
619C1-31
505C3-223
Small Plate for 5"-8" Knives
505C3-224
Large Plate for 9"-13" Knives
FOR 50 CYCLE 1500 R.P.M. & DUAL SPEED
MACHINES ONLY
20C12-19
505C3-226
Small Plate for 5"-8" Knives
505C3-227
Large Plate for 9"-13" Knives
FOR PLATES WITH SWIVEL ROLLERS
12C1-35
20C13-51
505C3-243
Small Plate for 5"-8" Knives
505C3-244
Large Plate for 9"-13" Knives
Figure 33. Standard and Baseplate Assembly (Exploded View)
Eastmanmachine
COMPANY
35
