Page 5 — Machine Frame & Covers Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B4672-640-000 | Arm Side Cover | 1 |
| 2 | B4540-640-000 | Arm Side Cover Set Screw | 1 |
| 3 | B4686-640-000 | Arm Side Cover Positioning Screw | 2 |
| 4 | B4673-640-000 | Arm Side Cover Plate | 1 |
| 5 | SS-7620810-SM | Arm Side Cover Plate Screw | 2 |
| 6 | B4671-640-000-A | Arm Rear Cover Plate | 1 |
| 7 | SS-7090640-SM | Arm Rear Cover Plate Screw | 2 |
| 8 | B4749-640-000-A | Arm Top Cover Plate | 1 |
| 9 | SS-7090640-SM | Arm Top Cover Plate Screw | 2 |
| 10 | TA-1050504-R0 | Arm Top Rubber Cap | 1 |
| 11 | B4309-640-000-A | Machine Frame | 1 |
| 12 | B4751-640-000 | Arm Small Cover Plate | 1 |
| 13 | SS-7090550-SM | Arm Small Cover Plate Screw | 1 |
| 14 | B4674-640-000-A | End Cover | 1 |
| 15 | SS-7111150-SP | End Cover Set Screw | 1 |
| 16 | B4691-640-000 | Machine Base Rubber | 1 |
| 17 | B4690-640-000 | Machine Base Oil Felt | 1 |
| 18 | B4750-640-000 | Machine Base Oil Pan | 1 |
| 19 | B4675-640-000 | Machine Base Felt Pad | 1 |
| 20 | SM-90690530-SP | Machine Base Clamp Screw | 1 |
| 21 | B4692-640-000 | Machine Base Rubber Ring | 1 |
| 22 | WP-0841601-SD | Machine Base Washer | 1 |
| 23 | NM-6060012-SD | Machine Base Nut | 1 |
Page 7 — Main Shaft Mechanism Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B4631-640-000 | Main Shaft Bushing (Front) | 1 |
| 2 | SS-8151410-SP | Main Shaft Bushing Set Screw | 2 |
| 3 | B4682-640-000 | Oiling Felt | 2 |
| 4 | B4680-640-000 | Oil Cap (Large) | 1 |
| 5 | B4635-640-000 | Counterweight | 1 |
| 6 | SS-8140610-SP | Counterweight Set Screw (w/Flat Point) | 1 |
| 7 | SS-8140710-TP | Counterweight Set Screw (w/Sharp Point) | 1 |
| 8 | B4632-640-000 | Main Shaft Bushing (Rear) | 1 |
| 9 | B4711-640-000 | Main Shaft | 1 |
| 10 | B4702-640-000 | Eccentric Bushing | 1 |
| 11 | SS-8140810-TP | Eccentric Bushing Set Screw (w/Sharp Point) | 1 |
| 12 | SS-8140610-SP | Eccentric Bushing Set Screw (w/Flat Point) | 1 |
| 13 | B4712-640-000 | Connecting Rod | 1 |
| 14 | B4638-640-000 | Connecting Rod Stud | 1 |
| 15 | B4704-640-000 | Eccentric Sleeve | 1 |
| 16 | B4707-640-000 | Eccentric Sleeve Pin | 1 |
| 17 | B4354-640-000 | Main Shaft Gear (Large) | 1 |
| 18 | B4706-640-000 | Main Shaft Gear (Small) | 1 |
| 19 | SS-8140310-TP | Main Shaft Gear Set Screw | 2 |
| 20 | B4355-640-000 | Idler Gear & Shaft | 1 |
| 21 | B4708-640-000 | Idler Gear Shaft Bushing | 1 |
| 22 | SS-8151410-SP | Idler Gear Shaft Bushing Set Screw | 1 |
| 23 | CS-0950711-SH | Idler Gear Shaft Collar | 1 |
| 24 | SS-8110340-SP | Idler Gear Shaft Collar Set Screw | 2 |
| 25 | B4633-640-000-A | Hand Wheel (Pulley) | 1 |
| 26 | SS-8151410-SP | Hand Wheel Set Screw | 2 |
| 27 | B4562-640-000 | Hand Wheel Rubber Cap | 1 |
Page 9 — Needle Carrier & Feed Dog Mechanism Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B4681-640-000 | Arm Top Oil Cap (Small) | 2 |
| 2 | B4684-640-000 | Oiling Felt | 1 |
| 3 | B4683-640-000 | Oiling Felt | 1 |
| 4 | B4385-640-000 | Needle Carrier | 1 |
| 5 | SS-9621710-SP | Needle Carrier Set Screw | 1 |
| 6 | B4383-640-000 | Needle Carrier Shaft | 1 |
| 7 | CS-1110621-SP | Needle Carrier Shaft Collar | 1 |
| 8 | SS-8110340-SP | Needle Carrier Shaft Collar Set Screw | 2 |
| 9 | B4641-640-000 | Needle Carrier Shaft Bushing (Front) | 1 |
| 10 | B4642-640-000 | Needle Carrier Shaft Bushing (Rear) | 1 |
| 11 | SS-8110630-SH | Needle Carrier Shaft Bushing Set Screw | 2 |
| 12 | B4381-640-000 | Needle Carrier Shaft Crank | 1 |
| 13 | SS-9660813-SP | Needle Carrier Shaft Crank Set Screw | 2 |
| 14 | SS-7111520-SP | Needle Carrier Shaft Crank Clamp Screw | 1 |
| 15 | B4689-640-000 | Needle Clamp Set Screw | 1 |
| 16 | SS-7090820-SM | Needle Clamp Set Screw | 1 |
| 17 | MLW-6T0B1100 | Needle (System LW x 6T) | 1 |
| 18 | B4356-640-0A0 | Needle Driving Eccentric w/Rod, Regulator & Screws (Ref. Nos. 19-22) | 1 |
| 19 | SS-7110920-SP | Ball Connecting Rod Set Screw (Short) | 1 |
| 20 | SS-7111320-SP | Ball Connecting Rod Set Screw (Long) | 1 |
| 21 | SS-8141210-TH | Needle Driving Eccentric Set Screw | 1 |
| 22 | SS-6060420-SP | Stitch Regulator Screw | 3 |
| 23 | B4375-640-000 | Stitch Regulator Ball | 1 |
| 24 | B4377-640-000 | Stitch Regulator Spring | 1 |
| 25 | B4379-640-000 | Ball Connecting Rod Cap | 1 |
| 26 | SS-7080530-SP | Ball Connecting Rod Cap Set Screw | 2 |
| 27 | B4353-640-000 | Stitch Length Regulating Plunger | 1 |
| 28 | SS-8110630-SH | Stitch Length Regulating Plunger Set Screw | 1 |
| 29 | B4827-640-000 | Feed Link Clamp Screw | 1 |
| 30 | B4501-640-000 | Feed Dog | 1 |
| 31 | WT-0530001-KH | Feed Dog Washer | 2 |
| 32 | SS-7620820-SP | Feed Dog Set Screw | 2 |
| 33 | B3457-640-000 | Feed Link & Stud | 1 |
| 34 | SD-0620421-SP | Feed Link Calmp Screw | 1 |
| 35 | SS-8621810-SP | Feed Link Stud Set Screw | 1 |
| 36 | B4830-640-000 | Feed Dog Height Adjusting Stud | 1 |
| 37 | B4829-640-000 | Feed Dog Height Adjusting Stud Eccentric Sleeve | 1 |
| 38 | B4828-640-000 | Feed Dog Height Adjusting Stud Bushing | 1 |
| 39 | SS-8110340-SP | Feed Dog Height Adjusting Stud Bushing Set Screw | 1 |
| 40 | B4375-640-000 | Feed Dog Height Adjusting Ball | 1 |
| 41 | B4626-640-000 | Feed Dog Height Adjusting Spring | 1 |
| 42 | B4831-640-000 | Feed Dog Height Adjusting Knob | 1 |
| 43 | SS-8150420-SP | Feed Dog Height Adjusting Knob Set Screw | 2 |
| 44 | B4832-640-000 | Feed Dog Height Adjusting Indicator | 1 |
Page 11 — Looper Drive Mechanism & Presser Foot Parts Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B4351-640-0A0 | Looper Drive Crank Complete w/Looper Yoke & Screws (Ref. Nos. 2-8) | 1 |
| 2 | SS8151710-SP | Looper Drive Crank Set Screw | 2 |
| 3 | NS-6680420-SD | Looper Drive Crank Stud Nut | 1 |
| 4 | SS-8110340-SP | Looper Drive Crank Stud Collar Set Screw | 1 |
| 5 | B4387-640-000 | Looper Yoke | 1 |
| 6 | SS-7091010-SP | Looper Yoke Set Screw | 1 |
| 7 | B4389-640-000 | Looper Yoke Pin | 1 |
| 8 | SS-7110620-SP | Looper Yoke Pin Set Screw | 1 |
| 9 | B4352-640-0A0 | Looper Carrier w/Ball Joint & Screws (Ref. Nos. 10-15) | 1 |
| 10 | B4390-640-000 | Looper Carrier | 1 |
| 11 | NS-6640410-SP | Looper Carrier Nut | 1 |
| 12 | SS-7090810-SH | Looper Carrier Ball Joint Set Screw | 1 |
| 13 | SS-7141610-SP | Looper Carrier Ball Joint Clamp Screw | 1 |
| 14 | SS-8100610-TP | Looper Carrier Ball Spot Screw | 1 |
| 15 | SS-7080820-SP | Looper Clamp Screw | 1 |
| 16 | B4815-640-000 | Looper | 1 |
| 17 | B4346-640-000 | Eccentric Sleeve & Pin | 1 |
| 18 | SS-9152813-SP | Eccentric Sleeve Clamp Screw | 1 |
| 19 | B4314-640-0A0 | Presser Foot Complete (Ref. Nos. 20-35) | 1 |
| 20 | B4504-640-000 | Plain Presser Foot | 1 |
| 21 | B4514-640-000 | Chaining Finger | 1 |
| 22 | SS-7060320-SP | Chaining Finger Set Screw | 1 |
| 23 | B4506-640-000 | Needle Guide | 1 |
| 24 | SS-5090210-SP | Needle Guide Set Screw | 1 |
| 25 | B4511-640-000 | Cloth Retainer | 1 |
| 26 | SS-7060320-SP | Cloth Retainer Screw | 1 |
| 27 | B4512-640-000 | Cloth Retainer Spring | 1 |
| 28 | B4509-640-000 | Cloth Retainer Eccentric Stud | 1 |
| 29 | SS-8080420-SP | Cloth Retainer Eccentric Stud Set Screw | 1 |
| 30 | B4508-640-000 | Cloth Retainer Eccentric Stud Bushing | 1 |
| 31 | SS-8090310-SP | Cloth Retainer Eccentric Stud Bushing Set Screw | 1 |
| 32 | B4513-640-000 | Cloth Retainer Stopper | 1 |
| 33 | SS-7090420-SP | Cloth Retainer Stopper Set Screw | 1 |
| 34 | B4515-640-000 | Edge Guide | 1 |
| 35 | SS-7060320-SP | Edge Guide Set Screw | 1 |
| 36 | SD-0610151-SP | Presser Foot Set Screw | 1 |
| 37 | B4517-640-000 | Presser Foot Bracket | 2 |
| 38 | B4518-640-000 | Presser Foot Bracket Adjusting Screw | 2 |
| 39 | SS-7091220-SM | Presser Foot Bracket Holding Screw | 2 |
| 40 | WP-0450836-SD | Presser Foot Bracket Washer | 2 |
| 41 | SS-7080620-SP | Presser Foot Holding Screw | 2 |
Page 13 — Disc Oscillating Mechanism Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | CS-1000911-SH | Disc Oscillating Shaft Collar (Small) | 1 |
| 2 | SS-8150420-SP | Disc Oscillating Shaft Collar Set Screw | 2 |
| 3 | B4716-640-000 | Disc Locking Latch Block | 1 |
| 4 | SS-8150810-SP | Disc Locking Latch Block Set Screw | 2 |
| 5 | B4734-640-000 | Disc Locking Latch Block Stop Screw | 1 |
| 6 | NS-6150340-SD | Disc Locking Latch Block Nut | 1 |
| 7 | B4358-640-000 | Disc Oscillating Gear (Small) | 1 |
| 8 | B4713-640-000 | Disc Oscillating Rod | 2 |
| 9 | SS-8150810-SP | Disc Oscillating Rod Stud Set Screw | 2 |
| 10 | B4714-640-000 | Disc Oscillating Eccentric Sleeve | 1 |
| 11 | CS-1200911-SH | Disc Oscillating Shaft Collar (Large) | 1 |
| 12 | SS-8150420-SP | Disc Oscillating Shaft Collar Set Screw | 2 |
| 13 | B4715-640-000 | Disc Oscillating Shaft | 1 |
| 14 | B4719-640-000 | Skip-Stitch Selecting Plate | 1 |
| 15 | SS-1110910-SP | Skip-Stitch Selecting Plate Set Screw | 2 |
| 16 | B4720-640-000 | Skip-Stitch Selecting Knob | 1 |
| 17 | SS-8150810-SP | Skip-Stitch Selecting Knob Set Screw | 2 |
| 18 | SS-6060420-SP | Skip-Stitch Selecting Knob Stop Screw | 2 |
| 19 | B4721-640-000 | Skip-Stitch Selecting Indicator | 1 |
| 20 | B4722-640-000 | Skip-Stitch Selecting Spring Holder | 1 |
| 21 | B4376-640-000 | Skip-Stitch Selecting Spring | 1 |
| 22 | B4375-640-000 | Skip-Stitch Selecting Ball | 1 |
| 23 | B4727-640-000 | Disc Oscillating Crank | 1 |
| 24 | SS-7111160-SP | Disc Oscillating Crank Set Screw | 1 |
| 25 | B4726-640-000 | Disc Oscillating Crank Connecting Pin | 1 |
| 26 | NS-6110330-SD | Disc Oscillating Crank Connecting Pin Nut | 1 |
| 27 | B4724-640-000 | Disc Oscillating Ball Joint | 1 |
| 28 | SD-0500652-SH | Disc Oscillating Ball Joint Stud | 1 |
| 29 | WS-0510002-KH | Disc Oscillating Ball Joint Stud Washer | 1 |
| 30 | NS-6110330-SD | Disc Oscillating Ball Joint Stud Nut | 1 |
| 31 | B4723-640-000 | Disc Oscillating Lever | 1 |
| 32 | SS-9151530-SP | Disc Oscillating Lever Clamp Screw | 2 |
| 33 | WT-0640001-KH | Disc Oscillating Lever Washer | 2 |
Page 15 — Ridge Forming Disc & Feed Plate Mechanism Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B4710-640-000 | Ridge Forming Disc | 1 |
| 2 | WT-0640001-KH | Ridge Forming Disc Washer | 1 |
| 3 | B4563-640-000 | Ridge Forming Disc Nut | 1 |
| 4 | PS-0300122-MZ | Ridge Forming Disc Positioning Pin | 1 |
| 5 | B4535-640-000 | Ridge Forming Disc Shaft | 1 |
| 6 | B4621-640-000 | Ridge Forming Disc Shaft Collar | 1 |
| 7 | SS-7111160-SP | Ridge Forming Disc Shaft Collar Set Screw | 1 |
| 8 | B4643-640-000 | Ridge Forming Disc Shaft Sleeve | 1 |
| 9 | B4531-640-000 | Disc Adjusting Holder | 1 |
| 10 | B4644-640-000 | Disc Adjusting Holder Pivot Bearing Screw | 1 |
| 11 | SS-8150810-SP | Disc Adjusting Holder Pivot Bearing Screw Set Screw | 1 |
| 12 | B4645-640-000 | Disc Adjusting Holder Pivot Bearing Pin | 1 |
| 13 | B4646-640-000 | Disc Adjusting Holder Pivot Bearing Pin Set Screw | 1 |
| 14 | B4532-640-000 | Disc Adjusting Holder Spring | 1 |
| 15 | B4533-640-000 | Disc Adjusting Holder Spring Screw | 1 |
| 16 | B4534-640-000 | Disc Adjusting Holder Spring Nut | 1 |
| 17 | B4647-640-000 | Disc Adjusting Holder Spring Stud | 1 |
| 18 | NS-6090320-SD | Disc Adjusting Holder Spring Stud Nut | 1 |
| 19 | B4662-640-000 | Feed Plate Shaft | 1 |
| 20 | B4639-640-000 | Feed Plate Shaft Bushing | 1 |
| 21 | SS-8150810-SP | Feed Plate Shaft Bushing Set Screw | 1 |
| 22 | CS-0790711-SD | Feed Plate Shaft Collar | 1 |
| 23 | SS-8110340-SP | Feed Plate Shaft Collar Set Screw | 1 |
| 24 | B4348-640-000 | Feed Plate Complete (Left & Right) | 1 |
| 25 | SS-2111510-SP | Feed Plate Taper Bearing Screw | 1 |
| 26 | NS-6110340-SD | Feed Plate Nut | 1 |
| 27 | SD-0791272-SP | Feed Plate Shoulder Bearing Screw | 2 |
| 28 | B4526-640-000 | Feed Plate Spring | 2 |
| 29 | B4527-640-000 | Feed Plate Spring Screw | 2 |
| 30 | B4528-640-000 | Feed Plate Spring Adjusting Nut | 2 |
| 31 | B4664-640-000 | Feed Plate Bracket | 1 |
| 32 | SS-6110910-SP | Feed Plate Bracket Set Screw | 1 |
| 33 | B4654-640-000 | Disc Adjusting Dial | 1 |
| 34 | SS-1080710-SM | Disc Adjusting Dial Set Screw | 2 |
| 35 | B4350-640-000 | Disc Adjusting Regulator Complete | 1 |
| 36 | B4375-640-000 | Disc Adjusting Regulator Ball | 1 |
| 37 | B4376-640-000 | Disc Adjusting Regulator Spring | 1 |
| 38 | SS-6080630-SH | Disc Adjusting Regulator Base Set Screw | 2 |
Page 17 — Disc Locking Mechanism & Knee Press Shaft Parts Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B4732-640-000 | Disc Locking Latch | 1 |
| 2 | SS-8110340-SP | Disc Locking Latch Set Screw | 2 |
| 3 | B4733-640-000 | Disc Locking Latch Spring | 1 |
| 4 | B4665-640-000 | Disc Locking Latch Spring Pin | 1 |
| 5 | B4728-640-000 | Disc Locking Latch Shaft | 1 |
| 6 | B4730-640-000 | Disc Locking Latch Shaft Collar | 1 |
| 7 | SS-8110340-SP | Disc Locking Latch Shaft Collar Set Screw | 2 |
| 8 | RE-0500000-KO | Disc Locking Latch Shaft Ring | 1 |
| 9 | B4731-640-000 | Disc Locking Latch Releasing Lever | 1 |
| 10 | SS-8110340-SP | Disc Locking Latch Releasing Lever Set Screw | 2 |
| 11 | B4359-640-000 | Disc Oscillating Gear (Large) | 1 |
| 12 | B4739-640-000 | Disc Oscillating Gear Bracket | 1 |
| 13 | SS-7151220-SP | Disc Oscillating Gear Bracket Set Screw | 2 |
| 14 | B4740-640-000 | Disc Oscillating Gear Shaft Collar | 1 |
| 15 | SS-8141010-TP | Disc Oscillating Gear Shaft Collar Set Screw | 2 |
| 16 | B4741-640-000 | Disc Oscillating Gear Shaft Collar Spring | 1 |
| 17 | B4742-640-000 | Disc Oscillating Gear Shaft Collar Spring Pin | 1 |
| 18 | B4650-640-000 | Disc Oscillating Gear Shaft Collar Link | 1 |
| 19 | SD-0640281-SP | Disc Oscillating Gear Shaft Collar Lin Bearing Screw | 1 |
| 20 | B4648-640-000 | Disc Oscillating Roller | 1 |
| 21 | SD-0550651-SP | Disc Oscillating Roller Shoulder Bearing Screw | 1 |
| 22 | NS-6110340-SD | Disc Oscillating Roller Nut | 1 |
| 23 | B4661-640-000 | Feed Plate Depressing Crank | 1 |
| 24 | SS-7141010-TP | Feed Plate Depressing Crank Set Screw | 1 |
| 25 | B4738-640-000 | Feed Plate Depressing Crank Connecting Plate | 1 |
| 26 | SD-0640483-SP | Feed Plate Depressing Crank Connecting Plate Shoulder Screw | 1 |
| 27 | B4737-640-000 | Roller Engaging Block | 1 |
| 28 | SS-1090940-SP | Roller Engaging Block Set Screw | 2 |
| 29 | B4735-640-000 | Disc Locking Latch Releasing Crank | 1 |
| 30 | SS-7111160-SP | Disc Locking Latch Releasing Crank Stop Screw | 1 |
| 31 | SS-7111210-SP | Disc Locking Latch Releasing Crank Set Screw | 1 |
| 32 | B4736-640-000 | Knee Press Shaft Crank | 1 |
| 33 | SS-9151720-SP | Knee Press Shaft Crank Set Screw | 1 |
| 34 | B4657-640-000 | Knee Press Shaft Sleeve | 1 |
| 35 | B4659-640-000 | Knee Press Shaft Stop Lever | 1 |
| 36 | SS-7141010-TP | Knee Press Shaft Stop Lever Set Screw | 1 |
| 37 | B4656-640-000 | Knee Press Shaft Bushing | 1 |
| 38 | SS-8110630-SH | Knee Press Shaft Bushing Set Screw | 1 |
| 39 | B4655-640-000 | Knee Press Shaft | 1 |
| 40 | B4541-640-000 | Knee Press Rod Sleeve | 1 |
| 41 | SS-9151010-SP | Knee Press Rod Sleeve Set Screw | 1 |
| 42 | B4652-640-000 | Knee Press Shaft Spring | 1 |
| 43 | B4653-640-000 | Knee Press Shaft Spring Pin | 1 |
| 44 | B4658-640-000 | Knee Press Shaft Spring Collar | 1 |
| 45 | SS-9110613-SP | Knee Press Shaft Spring Collar Set Screw | 1 |
| 46 | B4743-640-000 | Knee Press Shaft Washer | 1 |
Page 19 — Thread Tension & Nipper Parts Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B4688-640-000 | Thread Guide with Ceramic | 1 |
| 2 | SS-6110910-SP | Thread Guide Set Screw | 1 |
| 3 | B4561-640-000 | Thread Guide | 1 |
| 4 | SS-6110910-SP | Thread Guide Set Screw | 1 |
| 5 | B4328-640-000 | Thread Tension Nut | 1 |
| 6 | B4327-640-000 | Thread Tension Spring | 1 |
| 7 | B4326-640-000 | Thread Tension Washer | 1 |
| 8 | B4600-640-000 | Thread Tension Disc | 2 |
| 9 | B4760-640-000 | Thread Tension Disc Pin | 1 |
| 10 | B4564-640-000 | Thread Tension Staff | 1 |
| 11 | NS-6150340-SD | Thread Tension Staff Nut | 1 |
| 12 | B4748-640-000 | Thread Tension Releasing Pin | 1 |
| 13 | B4752-640-000 | Thread Tension Releasing Pin Spring | 1 |
| 14 | B4747-640-000 | Thread Tension Releasing Pin Bushing | 1 |
| 15 | SS-8150810-SP | Thread Tension Releasing Pin Bushing Set Screw | 1 |
| 16 | B4745-640-000 | Thread Tension Releasing Eccentric | 1 |
| 17 | SS-8150420-SP | Thread Tension Releasing Eccentric Set Screw | 2 |
| 18 | NS-6150340-SD | Thread Nipper Nut | 2 |
| 19 | B4560-640-000 | Thread Nipper Spring | 1 |
| 20 | B4755-640-000 | Thread Nipper Disc | 1 |
| 21 | B4754-640-000 | Thread Nipper Staff | 1 |
| 22 | NS-6150340-SD | Thread Nipper Staff Nut | 1 |
| 23 | B4699-640-000 | Thread Nipper Releasing Pin | 1 |
| 24 | CS-0310611-SD | Thread Nipper Releasing Pin Collar | 1 |
| 25 | SS-8090310-SP | Thread Nipper Releasing Pin Collar Set Screw | 1 |
| 26 | B4744-640-000 | Thread Nipper Releasing Pin Prop | 1 |
| 27 | NS-6150340-SD | Thread Nipper Releasing Pin Prop Nut | 1 |
| 28 | B4659-640-000 | Thread Nipper Releasing Pin Lever | 1 |
| 29 | SS-7141010-TP | Thread Nipper Releasing Pin Lever Set Screw | 1 |
Page 21 — Work Plate, Knee Press & Belt Cover Parts Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B4666-640-000-A | Work Plate | 1 |
| 2 | B4670-640-000 | Work Plate Latch | 1 |
| 3 | SS-9151110-SP | Work Plate Latch Set Screw | 1 |
| 4 | B4687-640-000 | Work Plate Shaft | 1 |
| 5 | B4330-640-000 | Work Plate Shaft Screwed Cap | 1 |
| 6 | CS-1270811-SH | Work Plate Shaft Collar | 1 |
| 7 | SS-8140610-SP | Work Plate Shaft Collar Set Screw | 2 |
| 8 | SS-9151110-SP | Work Plate Shaft Set Screw | 2 |
| 9 | B4667-640-000-A | Work Plate Bracket | 1 |
| 10 | SS-9152510-SP | Work Plate Bracket Set Screw | 2 |
| 11 | B4549-640-000 | Work Plate Bracket Spring Pin | 1 |
| 12 | B4668-640-000 | Work Plate Bracket Leaf Spring (Long) | 1 |
| 13 | B4669-640-000 | Work Plate Bracket Leaf Spring (Short) | 1 |
| 14 | SS-9151110-SP | Work Plate Bracket Leaf Spring Set Screw | 1 |
| 15 | B4544-640-000 | Knee Press Rod | 1 |
| 16 | B4545-640-000 | Knee Press Plate | 1 |
| 17 | SS-9151010-SP | Knee Press Plate Set Screw | 1 |
| 18 | B4566-640-000 | Knee Press Pad | 1 |
| *19 | B4360-640-0A0-A | Belt Cover Complete (Ref. Nos. 20-27) | 1 |
| *20 | B4756-640-000-A | Belt Cover (Left) | 1 |
| *21 | B4757-640-000-A | Belt Cover (Right) | 1 |
| *22 | B4758-640-000-A | Belt Cover (Top) | 1 |
| *23 | SS-7090640-SM | Belt Cover Set Screw | 3 |
| *24 | WP-0450836-SD | Belt Cover Washer | 3 |
| *25 | B4759-640-000-A | Belt Cover Bracket | 2 |
| *26 | SS-7090640-SM | Belt Cover Bracket Set Screw | 2 |
| *27 | SK-3452500-SH | Belt Cover Wood Screw | 2 |
Page 23 — Standard Accessories
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B4548-640-000 | Thread Guide | 1 |
| 2 | SS-8110630-SH | Thread Guide Set Screw | 1 |
| 3 | B4308-640-000-A | Plastic Cap | 1 |
| 4 | B4547-640-000 | Spool Pin | 1 |
| 5 | B4546-640-000-A | Cotton Stand Base | 1 |
| 6 | SK-1452500-SZ | Cotton Stand Base Wood Screw | 2 |
| 7 | B4301-640-000 | Screw Driver (large) | 1 |
| 8 | B4302-640-000 | Screw Driver (Medium) | 1 |
| 9 | B4303-640-000 | Screw Driver (Small) | 1 |
| 10 | MLW-6T0B1100 | Needle (System LW x 6T) | 1 |
| 11 | B4304-640-000 | Oiler | 1 |
| 12 | B4305-640-000 | Oil | 1 |
| 13 | B4306-640-000 | Accessory Box | 1 |

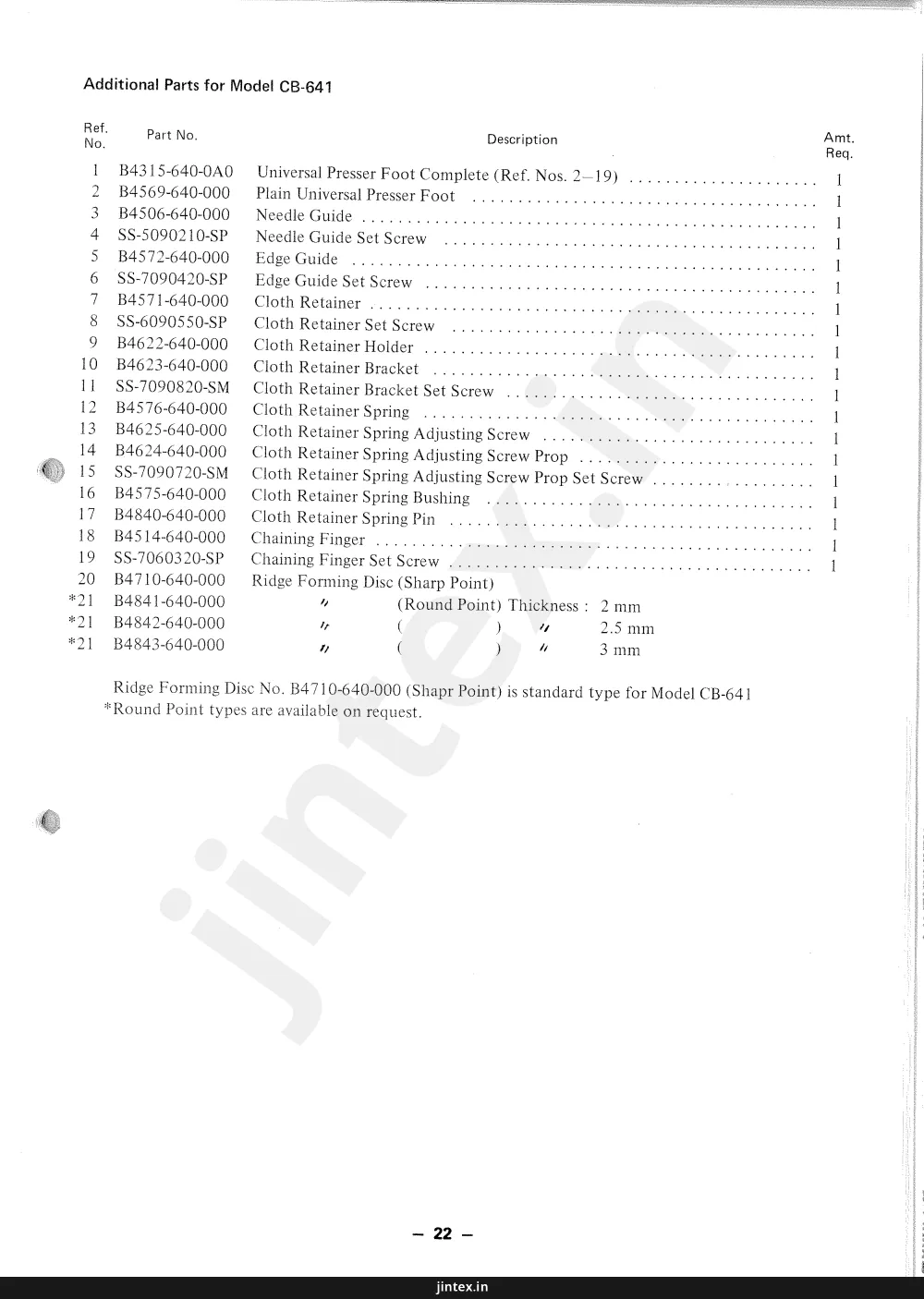

Page 25 — Additional Parts for Model CB-641
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B4315-640-0A0 | Universal Presser Foot Complete (Ref. Nos. 2-19) | 1 |
| 2 | B4569-640-000 | Plain Universal Presser Foot | 1 |
| 3 | B4506-640-000 | Needle Guide | 1 |
| 4 | SS-5090210-SP | Needle Guide Set Screw | 1 |
| 5 | B4572-640-000 | Edge Guide | 1 |
| 6 | SS-7090420-SP | Edge Guide Set Screw | 1 |
| 7 | B4571-640-000 | Cloth Retainer | 1 |
| 8 | SS-6090550-SP | Cloth Retainer Set Screw | 1 |
| 9 | B4622-640-000 | Cloth Retainer Holder | 1 |
| 10 | B4623-640-000 | Cloth Retainer Bracket | 1 |
| 11 | SS-7090820-SM | Cloth Retainer Bracket Set Screw | 1 |
| 12 | B4576-640-000 | Cloth Retainer Spring | 1 |
| 13 | B4625-640-000 | Cloth Retainer Spring Adjusting Screw | 1 |
| 14 | B4624-640-000 | Cloth Retainer Spring Adjusting Screw Prop | 1 |
| 15 | SS-7090720-SM | Cloth Retainer Spring Adjusting Screw Prop Set Screw | 1 |
| 16 | B4575-640-000 | Cloth Retainer Spring Bushing | 1 |
| 17 | B4840-640-000 | Cloth Retainer Spring Pin | 1 |
| 18 | B4514-640-000 | Chaining Finger | 1 |
| 19 | SS-7060320-SP | Chaining Finger Set Screw | 1 |
| 20 | B4710-640-000 | Ridge Forming Disc (Sharp Point) | 1 |
| *21 | B4841-640-000 | (Round Point) Thickness : 2 mm | |
| *21 | B4842-640-000 | Ridge Forming Disc (Round Point) Thickness: 2.5 mm | |
| *21 | B4843-640-000 | Ridge Forming Disc (Round Point) Thickness: 3 mm |
Page 27 — Additional Parts for Model CB-643
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| *1 | B4323-640-0A0 | Presser Foot Complete (Ref. Nos. 2-26) | 1 |
| 2 | B4781-640-000 | Plain Presser Foot | 1 |
| 3 | B4514-640-000 | Chaining Finger | 1 |
| 4 | SS-7060320-SP | Chaining Finger Set Screw | 1 |
| 5 | B4506-640-000 | Needle Guide | 1 |
| 6 | SS-5090210-SP | Needle Guide Set Screw | 1 |
| 7 | B4785-640-000 | Cloth Retainer | 1 |
| 8 | SS-6090310-SP | Cloth Retainer Set Screw | 1 |
| 9 | B4782-640-000 | Presser Foot Bridge | 1 |
| 10 | SS-6091010-SH | Presser Foot Bridge Set Screw | 2 |
| *11 | B4784-640-000 | Cloth Guide Folder (20m/m & 25 m/m) | 1 |
| 12 | B4579-640-000 | Folder Bracket | 1 |
| 13 | SS-7620820-SP | Folder Bracket Set Screw | 1 |
| 14 | B4783-640-000 | Folder Bracket Base | 1 |
| 15 | SS-7090720-SM | Folder Bracket Base Set Screw | 2 |
| 16 | CS-0500611-SD | Folder Collar | 1 |
| 17 | SS-8090310-SP | Folder Collar Set Screw | 1 |
| 18 | B4595-640-000 | Folder Spring | 1 |
| 19 | B4528-640-000 | Folder Spring Nut | 1 |
| 20 | B4527-640-000 | Folder Spring Screw | 1 |
| 21 | B4580-640-000 | Folder Spring Bracket | 1 |
| 22 | SS-9621313-SP | Folder Spring Bracket Clamp Screw | 1 |
| 23 | B4583-640-000 | Folder Adjusting Lever | 1 |
| 24 | SS-6060420-SP | Folder Adjusting Lever Stop Screw | 1 |
| 25 | B4582-640-000 | Folder Adjusting Screw | 1 |
| 26 | B4581-640-000 | Folder Adjusting Screw Base | 1 |
Page 29 — Additional Parts for Models CB-644 & 645
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B4711-640-000 | Main Shaft | 1 |
| 2 | B4702-640-000 | Eccentric Bushing | 1 |
| 3 | SS-8140810-TP | Eccentric Bushing Set Screw (w/Sharp Point) | 1 |
| 4 | SS-8140610-SP | Eccentric Bushing Set Screw (w/Flat Point) | 1 |
| 5 | B4712-640-000 | Connecting Rod | 1 |
| 6 | B4638-640-000 | Connecting Rod Stud | 1 |
| 7 | B4704-640-000 | Eccentric Sleeve | 1 |
| 8 | B4707-640-000 | Eccentric Sleeve Pin | 1 |
| 9 | B4362-640-000 | Main Shaft Gear (Large) | 1 |
| 10 | B4706-640-000 | Main Shaft Gear (Small) | 1 |
| 11 | SS-8140310-TP | Main Shaft Gear Set Screw | 2 |
| 12 | B4363-640-000 | Idler Gear | 1 |
| 13 | B4715-640-000 | Disc Oscillating Shaft | 1 |
| 14 | B4719-640-000 | Skip-Stitch Selecting Plate | 1 |
| 15 | SS-1110910-SP | Skip-Stitch Selecting Plate Set Screw | 2 |
| 16 | B4720-640-000 | Skip-Stitch Selecting Knob | 1 |
| 17 | SS-8150810-SP | Skip-Stitch Selecting Knob Set Screw | 2 |
| 18 | SS-6060420-SP | Skip-Stitch Selecting Knob Stop Screw | 2 |
| 19 | B4777-640-000 | Skip-Stitch Selecting Indicator | 1 |
| 20 | B4722-640-000 | Skip-Stitch Selecting Spring Holder | 1 |
| 21 | B4376-640-000 | Skip-Stitch Selecting Spring | 1 |
| 22 | B4375-640-000 | Skip-Stitch Selecting Ball | 1 |
Page 31 — Additional Parts for Model CB-638
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B4312-640-0A0-A | Machine Frame | 1 |
| 2 | B4701-640-000 | Rubber Cap | 1 |
| 3 | B4538-640-000-A | End Cover | 1 |
| 4 | B4598-640-000 | End Cover Washer | 2 |
| 5 | SS-9111313-SP | End Cover Set Screw | 2 |
| 6 | B4636-640-000 | Eccentric Bushing | 1 |
| 7 | B4762-640-000 | Connecting Rod | 1 |
| 8 | B4637-640-000 | Eccentric Bushing Plate | 1 |
| 9 | SS-7080820-SP | Eccentric Bushing Plate Set Screw | 2 |
| 10 | CS-1270811-SH | Main Shaft Collar | 1 |
| 11 | SS-8140610-SP | Main Shaft Collar Set Screw | 2 |
| 12 | B4319-640-0A0 | Presser Foot Complete (Ref. Nos. 13-30) | 1 |
| 13 | B4503-640-000 | Plain Presser Foot | 1 |
| 14 | B4516-640-000 | Roll Forming Plate | 1 |
| 15 | SS-6060430-SM | Roll Forming Plate Set Screw | 2 |
| 16 | B4506-640-000 | Needle Guide | 1 |
| 17 | SS-5090210-SP | Needle Guide Set Screw | 1 |
| 18 | B4510-640-000 | Cloth Retainer | 1 |
| 19 | SS-7060320-SP | Chaining Finger Set Screw | 1 |
| 20 | B4512-640-000 | Cloth Retainer Spring | 1 |
| 21 | B4509-640-000 | Cloth Retainer Eccentric Stud | 1 |
| 22 | SS-8080420-SP | Cloth Retainer Eccentric Stud Set Screw | 1 |
| 23 | B4508-640-000 | Cloth Retainer Eccentric Stud Bushing | 1 |
| 24 | SS-8090310-SP | Cloth Retainer Eccentric Stud Bushing Set Screw | 1 |
| 25 | B4513-640-000 | Cloth Retainer Stopper | 1 |
| 26 | SS-7090420-SP | Cloth Retainer Stopper Set Screw | 1 |
| 27 | B4514-640-000 | Chaining Finger | 1 |
| 28 | SS-7060320-SP | Chaining Finger Set Screw | 1 |
| 29 | B4515-640-000 | Edge Guide | 1 |
| 30 | SS-7060320-SP | Edge Guide Set Screw | 1 |
| 31 | B4763-640-000 | Disc Oscillating Shaft | 1 |
| 32 | B4764-640-000 | Disc Oscillating Shaft Plate | 1 |
| 33 | SS-1110910-SP | Disc Oscillating Shaft Plate Set Screw | 2 |
| 34 | SS-9151313-SP | Disc Oscillating Shaft Clamp Screw | 1 |
| 35 | WS-0610002-KP | Disc Oscillating Shaft Spring Washer | 1 |
| 36 | B4663-640-000 | Feed Plate Shaft | 1 |
| 37 | B4347-640-0A0 | Feed Plate Complete | 1 |
| 38 | B4525-640-000 | Feed Plate Spring | 1 |
| 39 | B4536-640-000 | Ridge Forming Disc (Sharp Point) | |
| *40 | B4778-640-000 | Ridge Forming Disc (Sharp Point) Thicknes; 2 mm | |
| *40 | B4779-640-000 | Ridge Forming Disc (Sharp Point) Thicknes; 2.5 mm | |
| *40 | B4780-640-000 | Ridge Forming Disc (Sharp Point) Thicknes; 3 mm |
Page 32 — ATTACHMENT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B4365-640-0A0 | Uncurling Guide Complete (Ref. Nos. 2-6) | 1 |
| 2 | B4775-640-000 | Edge Guide | 1 |
| 3 | SS-7060320-SP | Edge Guide Set Screw | 1 |
| 4 | B4776-640-000 | Uncurling Guide (Right) | 1 |
| 5 | SS-7111150-SP | Uncurling Guide (Right) Set Screw | 1 |
| 6 | B4372-640-000 | Uncurling Guide (Right) Washer | 2 |
Page 33 — Thread Controller
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B4364-640-0A0 | Thread Controller Complete (Ref. Nos. 2-11) | 1 |
| 2 | B4770-640-000 | Thread Tension Staff | 1 |
| 3 | SS-7060320-SP | Thread Tension Staff Set Screw | 1 |
| 4 | B4769-640-000 | Thread Tension Staff Screwed Pin | 1 |
| 5 | CS-1110611-SP | Needle Carrier Shaft Collar | 1 |
| 6 | SS-8110340-SP | Needle Carrier Shaft Collar Set Screw | 2 |
| 7 | SD-0730301-SP | Thread Tension Regulating Lever Set Screw | 1 |
| 8 | WZ-0760450-KP | Thread Tension Regulating Lever Spring Washer | 1 |
| 9 | B4772-640-000 | Thread Tension Regulating Lever | 1 |
| 10 | B4598-640-000 | Thread Tension Regulating Lever Washer | 1 |
| 11 | B4774-640-000 | Thread Tension Indicating Label | 1 |
Page 34 — Auto-Open Hemmer
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B4366-640-0A0 | Auto-Open Hemmer Complete (30 m/m) | 1 |
| B4367-640-0A0 | Auto-Open Hemmer Complete (35 m/m) | 1 | |
| B4368-640-0A0 | Auto-Open Hemmer Complete (40 m/m) | 1 | |
| 2 | B4786-640-000 | Auto-Open Hemmer | 1 |
| 3 | B4787-640-000 | Auto-Open Hemmer Spring | 1 |
| 4 | SS-7111150-SP | Auto-Open Hemmer Set Screw | 1 |
| 5 | WP-0841601-SD | Auto-Open Hemmer Washer | 1 |
Page 35 — Manual Thread Cutter (TMC-10)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B4325-640-0A0 | Manual Thread Cutter Complete (Ref. Nos. 2-8) | 1 |
| 2 | B4839-640-000 | Knife | 1 |
| 3 | SS-7080820-SP | Knife Set Screw | 2 |
| 4 | B4629-640-000 | Rubber Cap | 1 |
| 5 | SS-7091610-SP | Knife Bracket Set Screw | 1 |
| 6 | WS-0410002-KH | Knife Bracket Spring Washer | 1 |
| 7 | WP-0450836-SD | Knife Bracket Washer | 1 |
| 8 | B4840-640-000 | Cloth Retainer Spring Pin | 1 |
Page 36 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 29 | B4515-640-000 | B4515-640-000 | 28 |
| 19 | B4662-640-000 | B4662-640-000 | 12 |
| 12 | B4751-640-000 | B4751-640-000 | 16 |
| 7 | B4301-640-000 | B4301-640-000 | 20 |
| 14 | B4516-640-000 | B4516-640-000 | 28 |
| 36 | B4663-640-000 | B4663-640-000 | 28 |
| 13 | B4752-640-000 | B4752-640-000 | 16 |
| 8 | B4302-640-000 | B4302-640-000 | 20 |
| 38 | B4517-640-000 | B4517-640-000 | 8 |
| 14 | B4664-640-000 | B4664-640-000 | 12 |
| 21 | B4753-640-000 | B4753-640-000 | 16 |
| 9 | B4303-640-000 | B4303-640-000 | 20 |
| 38 | B4518-640-000 | B4518-640-000 | 28 |
| 4 | B4665-640-000 | B4665-640-000 | 18 |
| 20 | B4754-640-000 | B4754-640-000 | 16 |
| 11 | B4304-640-000 | B4304-640-000 | 20 |
| 28 | B4525-640-000 | B4525-640-000 | 12 |
| 18 | B4666-640-000 | B4666-640-000 | 18 |
| 21 | B4755-640-000 | B4755-640-000 | 16 |
| 12 | B4305-640-000 | B4305-640-000 | 20 |
| 28 | B4526-640-000 | B4526-640-000 | 12 |
| 18 | B4667-640-000 | B4667-640-000 | 18 |
| 21 | B4756-640-000 | B4756-640-000 | 16 |
| 13 | B4306-640-000 | B4306-640-000 | 20 |
| 20 | B4527-640-000 | B4527-640-000 | 24 |
| 18 | B4668-640-000 | B4668-640-000 | 18 |
| 24 | B4757-640-000 | B4757-640-000 | 18 |
| 19 | B4308-640-000 | B4308-640-000 | 20 |
| 30 | B4528-640-000 | B4528-640-000 | 12 |
| 2 | B4669-640-000 | B4669-640-000 | 2 |
| 24 | B4758-640-000 | B4758-640-000 | 18 |
| 11 | B4309-640-000 | B4309-640-000 | 2 |
| 19 | B4531-640-000 | B4531-640-000 | 12 |
| 6 | B4670-640-000 | B4670-640-000 | 2 |
| 25 | B4759-640-000 | B4759-640-000 | 18 |
| 1 | B4312-640-0AO | B4312-640-0AO | 28 |
| 14 | B4532-640-000 | B4532-640-000 | 12 |
| 6 | B4671-640-000 | B4671-640-000 | 2 |
| 9 | B4760-640-000 | B4760-640-000 | 16 |
| 19 | B4314-640-0AO | B4314-640-0AO | 8 |
| 15 | B4533-640-000 | B4533-640-000 | 12 |
| 6 | B4672-640-000 | B4672-640-000 | 2 |
| 7 | B4761-640-000 | B4761-640-000 | 28 |
| 12 | B4319-640-0AO | B4319-640-0AO | 22 |
| 16 | B4535-640-000 | B4535-640-000 | 12 |
| 1 | B4673-640-000 | B4673-640-000 | 2 |
| 31 | B4762-640-000 | B4762-640-000 | 28 |
| 1 | B4323-640-0AO | B4323-640-0AO | 24 |
| 5 | B4536-640-000 | B4536-640-000 | 12 |
| 4 | B4674-640-000 | B4674-640-000 | 2 |
| 31 | B4763-640-000 | B4763-640-000 | 28 |
| 7 | B4325-640-0AO | B4325-640-0AO | 16 |
| 3 | B4538-640-000 | B4538-640-000 | 28 |
| 3 | B4680-640-000 | B4680-640-000 | 4 |
| 32 | B4764-640-000 | B4764-640-000 | 28 |
| 6 | B4326-640-000 | B4326-640-000 | 16 |
| 2 | B4540-640-000 | B4540-640-000 | 14 |
| 3 | B4681-640-000 | B4681-640-000 | 6 |
| 4 | B4769-640-000 | B4769-640-000 | 30 |
| 5 | B4327-640-000 | B4327-640-000 | 16 |
| 40 | B4541-640-000 | B4541-640-000 | 14 |
| 3 | B4682-640-000 | B4682-640-000 | 6 |
| 9 | B4770-640-000 | B4770-640-000 | 30 |
| 5 | B4328-640-000 | B4328-640-000 | 16 |
| 15 | B4544-640-000 | B4544-640-000 | 18 |
| 2 | B4683-640-000 | B4683-640-000 | 6 |
| 11 | B4772-640-000 | B4772-640-000 | 30 |
| 17 | B4346-640-000 | B4346-640-000 | 8 |
| 5 | B4546-640-000 | B4546-640-000 | 20 |
| 6 | B4684-640-000 | B4684-640-000 | 2 |
| 11 | B4774-640-000 | B4774-640-000 | 29 |
| 37 | B4347-640-0AO | B4347-640-0AO | 28 |
| 4 | B4547-640-000 | B4547-640-000 | 20 |
| 4 | B4686-640-000 | B4686-640-000 | 18 |
| 11 | B4775-640-000 | B4775-640-000 | 29 |
| 24 | B4348-640-000 | B4348-640-000 | 12 |
| 1 | B4548-640-000 | B4548-640-000 | 20 |
| 16 | B4687-640-000 | B4687-640-000 | 16 |
| 19 | B4776-640-000 | B4776-640-000 | 26 |
| 1 | B4351-640-000 | B4351-640-000 | 8 |
| 19 | B4560-640-000 | B4560-640-000 | 16 |
| 16 | B4688-640-000 | B4688-640-000 | 16 |
| 19 | B4777-640-000 | B4777-640-000 | 26 |
| 9 | B4352-640-000 | B4352-640-000 | 8 |
| 17 | B4561-640-000 | B4561-640-000 | 16 |
| 2 | B4689-640-000 | B4689-640-000 | 2 |
| 40 | B4778-640-000 | B4778-640-000 | 28 |
| 27 | B4353-640-000 | B4353-640-000 | 6 |
| 27 | B4562-640-000 | B4562-640-000 | 4 |
| 17 | B4690-640-000 | B4690-640-000 | 2 |
| 40 | B4779-640-000 | B4779-640-000 | 28 |
| 17 | B4354-640-000 | B4354-640-000 | 4 |
| 3 | B4563-640-000 | B4563-640-000 | 12 |
| 16 | B4691-640-000 | B4691-640-000 | 2 |
| 2 | B4780-640-000 | B4780-640-000 | 24 |
| 20 | B4355-640-000 | B4355-640-000 | 4 |
| 16 | B4564-640-000 | B4564-640-000 | 12 |
| 23 | B4692-640-000 | B4692-640-000 | 16 |
| 9 | B4781-640-000 | B4781-640-000 | 24 |
| 6 | B4356-640-000 | B4356-640-000 | 10 |
| 18 | B4566-640-000 | B4566-640-000 | 18 |
| 10 | B4700-640-000 | B4700-640-000 | 28 |
| 14 | B4782-640-000 | B4782-640-000 | 24 |
| 7 | B4358-640-000 | B4358-640-000 | 10 |
| 18 | B4569-640-000 | B4569-640-000 | 18 |
| 10 | B4701-640-000 | B4701-640-000 | 26 |
| 11 | B4783-640-000 | B4783-640-000 | 24 |
| 11 | B4359-640-000 | B4359-640-000 | 14 |
| 18 | B4571-640-000 | B4571-640-000 | 18 |
| 15 | B4702-640-000 | B4702-640-000 | 26 |
| 11 | B4784-640-000 | B4784-640-000 | 24 |
| 19 | B4360-640-000 | B4360-640-000 | 18 |
| 2 | B4572-640-000 | B4572-640-000 | 22 |
| 26 | B4703-640-000 | B4703-640-000 | 4 |
| 7 | B4785-640-000 | B4785-640-000 | 24 |
| 9 | B4362-640-000 | B4362-640-000 | 26 |
| 16 | B4575-640-000 | B4575-640-000 | 22 |
| 26 | B4704-640-000 | B4704-640-000 | 4 |
| 2 | B4786-640-000 | B4786-640-000 | 31 |
| 12 | B4363-640-000 | B4363-640-000 | 26 |
| 12 | B4576-640-000 | B4576-640-000 | 22 |
| 26 | B4705-640-000 | B4705-640-000 | 4 |
| 3 | B4787-640-000 | B4787-640-000 | 31 |
| 1 | B4364-640-0AO | B4364-640-0AO | 30 |
| 21 | B4579-640-000 | B4579-640-000 | 24 |
| 26 | B4706-640-000 | B4706-640-000 | 4 |
| 16 | B4815-640-000 | B4815-640-000 | 8 |
| 1 | B4365-640-0AO | B4365-640-0AO | 29 |
| 25 | B4580-640-000 | B4580-640-000 | 24 |
| 26 | B4707-640-000 | B4707-640-000 | 4 |
| 29 | B4827-640-000 | B4827-640-000 | 6 |
| 1 | B4366-640-0AO | B4366-640-0AO | 31 |
| 10 | B4581-640-000 | B4581-640-000 | 26 |
| 10 | B4708-640-000 | B4708-640-000 | 10 |
| 38 | B4828-640-000 | B4828-640-000 | 6 |
| 1 | B4367-640-0AO | B4367-640-0AO | 31 |
| 4 | B4583-640-000 | B4583-640-000 | 28 |
| 10 | B4709-640-000 | B4709-640-000 | 10 |
| 37 | B4829-640-000 | B4829-640-000 | 6 |
| 1 | B4368-640-0AO | B4368-640-0AO | 31 |
| 18 | B4595-640-000 | B4595-640-000 | 24 |
| 12 | B4710-640-000 | B4710-640-000 | 12 |
| 44 | B4830-640-000-A | B4830-640-000-A | 6 |
| 36 | B4372-640-000 | B4372-640-000 | 12 |
| 10 | B4598-640-000 | B4598-640-000 | 30 |
| 5 | B4711-640-000 | B4711-640-000 | 26 |
| 44 | B4831-640-000 | B4831-640-000 | 6 |
| 40 | B4375-640-000 | B4375-640-000 | 6 |
| 4 | B4598-640-000 | B4598-640-000 | 28 |
| 13 | B4712-640-000 | B4712-640-000 | 10 |
| 1 | B4832-640-000 | B4832-640-000 | 32 |
| 22 | B4375-640-000 | B4375-640-000 | 10 |
| 8 | B4600-640-000 | B4600-640-000 | 16 |
| 10 | B4713-640-000 | B4713-640-000 | 10 |
| 1 | B4839-640-000 | B4839-640-000 | 32 |
| 22 | B4375-640-000 | B4375-640-000 | 26 |
| 6 | B4621-640-000 | B4621-640-000 | 12 |
| 10 | B4714-640-000 | B4714-640-000 | 10 |
| 17 | B4840-640-000 | B4840-640-000 | 22 |
| 23 | B4375-640-000 | B4375-640-000 | 6 |
| 9 | B4622-640-000 | B4622-640-000 | 22 |
| 10 | B4715-640-000 | B4715-640-000 | 26 |
| 8 | B4840-640-000 | B4840-640-000 | 32 |
| 37 | B4376-640-000 | B4376-640-000 | 12 |
| 10 | B4623-640-000 | B4623-640-000 | 22 |
| 10 | B4716-640-000 | B4716-640-000 | 10 |
| 21 | B4841-640-000 | B4841-640-000 | 22 |
| 21 | B4376-640-000 | B4376-640-000 | 10 |
| 14 | B4624-640-000 | B4624-640-000 | 22 |
| 10 | B4719-640-000 | B4719-640-000 | 10 |
| 21 | B4842-640-000 | B4842-640-000 | 22 |
| 21 | B4376-640-000 | B4376-640-000 | 26 |
| 13 | B4625-640-000 | B4625-640-000 | 22 |
| 10 | B4720-640-000 | B4720-640-000 | 26 |
| 21 | B4843-640-000 | B4843-640-000 | 22 |
| 24 | B4377-640-000 | B4377-640-000 | 6 |
| 14 | B4626-640-000 | B4626-640-000 | 22 |
| 10 | B4720-640-000 | B4720-640-000 | 10 |
| 24 | CS-0310611-SD | CS-0310611-SD | 16 |
| 25 | B4379-640-000 | B4379-640-000 | 6 |
| 1 | B4629-640-000 | B4629-640-000 | 32 |
| 10 | B4721-640-000 | B4721-640-000 | 10 |
| 16 | CS-0500611-SD | CS-0500611-SD | 24 |
| 12 | B4381-640-000 | B4381-640-000 | 6 |
| 1 | B4631-640-000 | B4631-640-000 | 4 |
| 10 | B4722-640-000 | B4722-640-000 | 26 |
| 22 | CS-0790711-SD | CS-0790711-SD | 12 |
| 4 | B4383-640-000 | B4383-640-000 | 6 |
| 25 | B4632-640-000 | B4632-640-000 | 4 |
| 10 | B4723-640-000 | B4723-640-000 | 10 |
| 23 | CS-0950711-SH | CS-0950711-SH | 4 |
| 4 | B4385-640-000 | B4385-640-000 | 6 |
| 5 | B4633-640-000 | B4633-640-000 | 4 |
| 10 | B4724-640-000 | B4724-640-000 | 10 |
| 1 | CS-1000911-SH | CS-1000911-SH | 10 |
| 7 | B4387-640-000 | B4387-640-000 | 8 |
| 6 | B4635-640-000 | B4635-640-000 | 28 |
| 27 | B4726-640-000 | B4726-640-000 | 10 |
| 5 | CS-1110611-SP | CS-1110611-SP | 30 |
| 10 | B4389-640-000 | B4389-640-000 | 8 |
| 6 | B4636-640-000 | B4636-640-000 | 28 |
| 27 | B4727-640-000 | B4727-640-000 | 10 |
| 7 | CS-1110621-SH | CS-1110621-SH | 6 |
| 10 | B4390-640-000 | B4390-640-000 | 8 |
| 14 | B4637-640-000 | B4637-640-000 | 28 |
| 14 | B4728-640-000 | B4728-640-000 | 14 |
| 11 | CS-1200911-SH | CS-1200911-SH | 10 |
| 30 | B4501-640-000 | B4501-640-000 | 6 |
| 14 | B4638-640-000 | B4638-640-000 | 4 |
| 14 | B4730-640-000 | B4730-640-000 | 14 |
| 10 | CS-1270811-SH | CS-1270811-SH | 28 |
| 13 | B4503-640-000 | B4503-640-000 | 28 |
| 12 | B4639-640-000 | B4639-640-000 | 20 |
| 14 | B4731-640-000 | B4731-640-000 | 14 |
| 6 | CS-1270811-SH | CS-1270811-SH | 18 |
| 20 | B4504-640-000 | B4504-640-000 | 8 |
| 9 | B4641-640-000 | B4641-640-000 | 6 |
| 14 | B4732-640-000 | B4732-640-000 | 14 |
| 17 | MLW-6T0B1100 | MLW-6T0B1100 | 6 |
| 23 | B4506-640-000 | B4506-640-000 | 28 |
| 6 | B4642-640-000 | B4642-640-000 | 12 |
| 14 | B4733-640-000 | B4733-640-000 | 14 |
| 10 | MLW-6T0B1100 | MLW-6T0B1100 | 20 |
| 28 | B4508-640-000 | B4508-640-000 | 8 |
| 10 | B4643-640-000 | B4643-640-000 | 12 |
| 14 | B4734-640-000 | B4734-640-000 | 14 |
| 21 | B4509-640-000 | B4509-640-000 | 28 |
| 8 | B4644-640-000 | B4644-640-000 | 12 |
| 14 | B4735-640-000 | B4735-640-000 | 14 |
| 25 | B4509-640-000 | B4509-640-000 | 28 |
| 10 | B4645-640-000 | B4645-640-000 | 12 |
| 14 | B4736-640-000 | B4736-640-000 | 14 |
| 18 | B4510-640-000 | B4510-640-000 | 28 |
| 17 | B4647-640-000 | B4647-640-000 | 14 |
| 14 | B4737-640-000 | B4737-640-000 | 14 |
| 20 | B4511-640-000 | B4511-640-000 | 28 |
| 20 | B4648-640-000 | B4648-640-000 | 14 |
| 14 | B4738-640-000 | B4738-640-000 | 14 |
| 27 | B4512-640-000 | B4512-640-000 | 8 |
| 18 | B4650-640-000 | B4650-640-000 | 14 |
| 14 | B4739-640-000 | B4739-640-000 | 14 |
| 32 | B4513-640-000 | B4513-640-000 | 8 |
| 43 | B4653-640-000 | B4653-640-000 | 14 |
| 14 | B4740-640-000 | B4740-640-000 | 14 |
| 18 | B4514-640-000 | B4514-640-000 | 22 |
| 33 | B4654-640-000 | B4654-640-000 | 12 |
| 14 | B4741-640-000 | B4741-640-000 | 14 |
| 21 | B4514-640-000 | B4514-640-000 | 28 |
| 39 | B4655-640-000 | B4655-640-000 | 14 |
| 14 | B4742-640-000 | B4742-640-000 | 14 |
| 3 | B4514-640-000 | B4514-640-000 | 24 |
| 37 | B4656-640-000 | B4656-640-000 | 14 |
| 16 | B4743-640-000 | B4743-640-000 | 16 |
| 34 | B4515-640-000 | B4515-640-000 | 8 |
| 34 | B4657-640-000 | B4657-640-000 | 14 |
| 16 | B4744-640-000 | B4744-640-000 | 16 |
| 44 | B4658-640-000 | B4658-640-000 | 14 |
| 16 | B4745-640-000 | B4745-640-000 | 16 |
| 35 | B4659-640-000 | B4659-640-000 | 14 |
| 12 | B4747-640-000 | B4747-640-000 | 16 |
| 28 | B4659-640-000 | B4659-640-000 | 16 |
| 2 | B4748-640-000 | B4748-640-000 | 16 |
| 23 | B4661-640-000 | B4661-640-000 | 14 |
| 23 | NM-6060012-SD | NM-6060012-SD | 2 |
| 18 | NS-6090320-SD | NS-6090320-SD | 12 |
| 30 | NS-6110330-SD | NS-6110330-SD | 10 |
| 26 | NS-6110340-SD | NS-6110340-SD | 10 |
| 22 | NS-6150340-SD | NS-6150340-SD | 16 |
| 27 | NS-6150340-SD | NS-6150340-SD | 16 |
| 18 | NS-6150340-SD | NS-6150340-SD | 16 |
| 11 | NS-6640410-SP | NS-6640410-SP | 8 |
| 3 | NS-6680420-SD | NS-6680420-SD | 8 |
| 4 | PS-0300122-MZ | PS-0300122-MZ | 12 |
Page 37 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| RE-0500000-KO | SNAP RING | ||
| SD-0500652-SH | SCREW | ||
| SD-0550651-SP | SCREW | ||
| SD-0610151-SP | SCREW | ||
| SD-0620421-SP | SCREW | ||
| SD-0640281-SP | SCREW | ||
| SD-0640483-SP | SCREW | ||
| SD-0730301-SP | SCREW | ||
| SK-1452500-SZ | SCREW | ||
| SM-9069053-SP | SCREW | ||
| SS-1080710-SM | SCREW | ||
| SS-1090940-SP | SCREW | ||
| SS-1110910-SP | SCREW | ||
| SS-1110910-SP | SCREW | ||
| SS-1110910-SP | SCREW | ||
| SS-2111510-SP | SCREW | ||
| SS-5090210-SP | SCREW | ||
| SS-5090210-SP | SCREW | ||
| SS-5090210-SP | SCREW | ||
| SS-5090210-SP | SCREW | ||
| SS-6060420-SP | SCREW | ||
| SS-6060420-SP | SCREW | ||
| SS-6060420-SP | SCREW | ||
| SS-6060420-SP | SCREW | ||
| SS-6060430-SM | SCREW | ||
| SS-6080630-SH | SCREW | ||
| SS-6090310-SP | SCREW | ||
| SS-6090550-SP | SCREW | ||
| SS-6091010-SH | SCREW | ||
| SS-6110910-SP | SCREW | ||
| SS-6110910-SP | SCREW | ||
| SS-6110910-SP | SCREW | ||
| SS-7060320-SP | SCREW | ||
| SS-7060320-SP | SCREW | ||
| SS-7060320-SP | SCREW | ||
| SS-7060320-SP | SCREW | ||
| SS-7060320-SP | SCREW | ||
| SS-7060320-SP | SCREW | ||
| SS-7060320-SP | SCREW | ||
| SS-7080530-SP | SCREW | ||
| SS-7080620-SP | SCREW | ||
| SS-7080820-SP | SCREW | ||
| SS-7080820-SP | SCREW | ||
| SS-7080820-SP | SCREW | ||
| SS-7090420-SP | SCREW | ||
| SS-7090420-SP | SCREW | ||
| SS-7090420-SP | SCREW | ||
| SS-7090550-SM | SCREW | ||
| SS-7090640-SM | SCREW | ||
| SS-7090640-SM | SCREW | ||
| SS-7090640-SM | SCREW | ||
| SS-7090720-SM | SCREW | ||
| SS-7090720-SM | SCREW | ||
| SS-7090810-SH | SCREW | ||
| SS-7090820-SM | SCREW | ||
| SS-7091010-SM | SCREW | ||
| SS-7091220-SM | SCREW | ||
| SS-7110620-SP | SCREW | ||
| SS-7110920-SP | SCREW | ||
| SS-7111150-SP | SCREW | ||
| SS-7111150-SP | SCREW | ||
| SS-7111160-SP | SCREW | ||
| SS-7111160-SP | SCREW | ||
| SS-7111160-SP | SCREW | ||
| SS-7111210-SP | SCREW | ||
| SS-7111320-SP | SCREW | ||
| SS-7111520-SP | SCREW | ||
| SS-7141010-TP | SCREW | ||
| SS-7141010-TP | SCREW | ||
| SS-7141010-TP | SCREW | ||
| SS-7141610-SP | SCREW | ||
| SS-7151220-SP | SCREW | ||
| SS-7620810-SM | SCREW | ||
| SS-7620820-SP | SCREW | ||
| SS-8080420-SP | SCREW | ||
| SS-8090310-SP | SCREW | ||
| SS-8090310-SP | SCREW | ||
| SS-8090310-SP | SCREW | ||
| SS-8100610-TP | SCREW | ||
| SS-8100610-TP | SCREW | ||
| SS-8110340-SP | SCREW | ||
| SS-8110340-SP | SCREW | ||
| SS-8110340-SP | SCREW | ||
| SS-8110340-SP | SCREW | ||
| SS-8110340-SP | SCREW | ||
| SS-8110340-SP | SCREW | ||
| SS-8110340-SP | SCREW | ||
| SS-8110340-SP | SCREW | ||
| SS-8110340-SP | SCREW | ||
| SS-8110630-SH | SCREW | ||
| SS-8110630-SH | SCREW | ||
| SS-8110630-SH | SCREW | ||
| SS-8110630-SH | SCREW | ||
| SS-8140310-TP | SCREW | ||
| SS-8140310-TP | SCREW | ||
| SS-8140610-SP | SCREW | ||
| SS-8140610-SP | SCREW | ||
| SS-8140610-SP | SCREW | ||
| SS-8140610-SP | SCREW | ||
| SS-8140610-SP | SCREW | ||
| SS-8140710-TP | SCREW | ||
| SS-8140810-TP | SCREW | ||
| SS-8140810-TP | SCREW | ||
| SS-8141010-TP | SCREW | ||
| SS-8141210-TH | SCREW | ||
| SS-8150420-SP | SCREW | ||
| SS-8150420-SP | SCREW | ||
| SS-8150420-SP | SCREW | ||
| SS-8150420-SP | SCREW | ||
| SS-8150810-SP | SCREW | ||
| SS-8150810-SP | SCREW | ||
| SS-8150810-SP | SCREW | ||
| SS-8150810-SP | SCREW | ||
| SS-8150810-SP | SCREW | ||
| SS-8150810-SP | SCREW | ||
| SS-8150810-SP | SCREW | ||
| SS-8151410-SP | SCREW | ||
| SS-8151410-SP | SCREW | ||
| SS-8151410-SP | SCREW | ||
| SS-8151710-SP | SCREW | ||
| SS-8621810-SP | SCREW | ||
| SS-9110613-SP | SCREW | ||
| SS-9111313-SP | SCREW | ||
| SS-9151010-SP | SCREW | ||
| SS-9151010-SP | SCREW | ||
| SS-9151110-SP | SCREW | ||
| SS-9151110-SP | SCREW | ||
| SS-9151110-SP | SCREW | ||
| SS-9151313-SP | SCREW | ||
| SS-9151530-SP | SCREW | ||
| SS-9151720-SP | SCREW | ||
| SS-9152510-SP | SCREW | ||
| SS-9152813-SP | SCREW | ||
| SS-9621313-SP | SCREW | ||
| SS-9621710-SP | SCREW | ||
| SS-9660813-SP | SCREW | ||
| WP-0450836-SD | WASHER | ||
| WP-0450836-SD | WASHER | ||
| WP-0450836-SD | WASHER | ||
| WP-0841601-SD | WASHER | ||
| WP-0841601-SD | WASHER | ||
| WS-0410002-KH | WASHER | ||
| WS-0410002-KH | WASHER | ||
| WT-0530001-KH | WASHER | ||
| WT-0640001-KH | WASHER | ||
| WT-0640001-KH | WASHER | ||
| WZ-0760450-KP | WASHER | ||
| TA-1050504-RO | PLUG |
Juki CB-630 / CB-640 — parts catalog
- Page 1 (cover): This is the cover page for the JUKI Chainstitch Blindstitch Sewing Machine (Skip Stitch) CB-630 CB-640 Series Parts List. The document number is BE-064030P-JA.
- Page 2 (unknown): This page contains a watermark and no other discernible text or parts information.
- Page 3 (toc): This page is a table of contents listing various machine components and their corresponding page numbers, including sections for machine frame, shafts, mechanisms, thread control, and attachments.
- Page 4 (diagram): This page displays a diagram of machine frame and miscellaneous cover components, with numbered parts for identification.
- Page 5 (parts_list): This page lists components for the Machine Frame & Covers, including part numbers, descriptions, and quantities required.
- Page 6 (diagram): This page displays a diagram of various machine parts, including shafts, gears, springs, and housings, each identified by a reference number.
- Page 7 (parts_list): This page lists the main shaft mechanism components, including part numbers, descriptions, and quantities required.
- Page 8 (diagram): This page displays a diagram of various sewing machine components, including screws, springs, shafts, and specialized parts, each identified by a reference number.
- Page 9 (parts_list): This page lists components for Needle Carrier & Feed Dog Mechanism, including part numbers, descriptions, and quantities required.
- Page 10 (diagram): This page displays a diagram of various sewing machine parts, including screws, brackets, and other components, each identified by a reference number.
- Page 11 (parts_list): This page lists components for the Looper Drive Mechanism & Presser Foot Parts, including part numbers, descriptions, and quantities required.
- Page 12 (diagram): This page displays a diagram of various machine components, including levers, shafts, screws, and nuts, with reference numbers for each part.
- Page 13 (parts_list): This page lists components for the Disc Oscillating Mechanism, including part numbers, descriptions, and quantities required.
- Page 14 (diagram): This page displays a diagram of various machine parts, including levers, shafts, screws, nuts, springs, and a bobbin case assembly, each identified by a reference number.
- Page 15 (parts_list): This page lists components for the Ridge Forming Disc & Feed Plate Mechanism, including part numbers, descriptions, and quantities required.
- Page 16 (diagram): This page displays a diagram of various sewing machine parts, including levers, springs, screws, and shafts, each identified by a reference number.
- Page 17 (parts_list): This page lists parts for the Disc Locking Mechanism & Knee Press Shaft Components, including part numbers, descriptions, and quantities required.
- Page 18 (diagram): This page displays a diagram of various sewing machine parts, numbered from 1 to 29, illustrating their components and assembly.
- Page 19 (parts_list): This page lists thread tension and nipper parts, including their part numbers, descriptions, and quantities required.
- Page 20 (diagram): This page displays a diagram of various sewing machine components, including a top plate, support arm, screws, and other miscellaneous parts, each identified by a reference number.
- Page 21 (parts_list): This page lists components for the Work Plate, Knee Press & Belt Cover, including part numbers, descriptions, and quantities required.
- Page 22 (diagram): This page displays a diagram of various machine parts, including screwdrivers, a rod, a base plate, screws, a connector, and two boxes, with reference numbers indicating their positions.
- Page 23 (parts_list): This page lists standard accessories for the sewing machine, including part numbers, descriptions, and quantities required.
- Page 24 (diagram): This page displays a diagram of various sewing machine parts, with reference numbers indicating their positions. It includes parts labeled from 1 to 21.
- Page 25 (parts_list): Parts list of additional parts for Model CB-641 with reference numbers, part numbers, descriptions and amounts required, including universal presser foot, edge guide, cloth retainer and ridge forming discs.
- Page 26 (diagram): This page displays a diagram of various sewing machine parts, with reference numbers indicating their positions. It includes items labeled 1 through 26, such as screws, springs, and mechanical components.
- Page 27 (parts_list): This page lists additional parts for Model CB-643, including presser feet, chaining fingers, needle guides, cloth retainers, folder brackets, collars, springs, and adjusting levers, with their corresponding part numbers and quantities.
- Page 28 (diagram): This page displays a diagram of various machine components, including shafts, gears, and housings, with corresponding reference numbers for identification.
- Page 29 (parts_list): This page lists additional parts for models CB-644 & 645, including part numbers, descriptions, and quantities required.
- Page 30 (diagram): This page displays a diagram of various sewing machine components, including the main frame, cover, and smaller parts like screws, springs, and levers, each identified by a reference number.
- Page 31 (parts_list): This page lists additional parts for Model CB-638, including machine frame components, covers, screws, bushings, and forming discs, with their respective part numbers, descriptions, and quantities.
- Page 32 (diagram): This page displays a diagram and parts list for an Uncurling Guide attachment, including part numbers, descriptions, and quantities required.
- Page 33 (parts_list): This page lists parts for the Thread Controller, including part numbers, descriptions, and quantities required. It also includes a diagram illustrating the components.
- Page 34 (diagram): This page displays a diagram of the Auto-Open Hemmer attachment for industrial sewing machines, along with a parts list detailing part numbers, descriptions, and quantities required.
- Page 35 (parts_list): This page contains a parts list for the Manual Thread Cutter (TMC-10), detailing 8 parts with their respective part numbers, descriptions, and quantities required.
- Page 36 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, corresponding page numbers, and reference numbers.
- Page 37 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, corresponding page numbers, and reference numbers from diagrams. It includes sections for SNAP RING, SCREW, WASHER, and PLUG.
- Page 38 (cover): This is the cover page for a JUKI Corporation parts catalog, featuring contact information for their head and business offices in Tokyo, Japan, and a note about the catalog's publication date.
