Page 3 — CONTENTS

Juki MS-1261 (32 pages) parts on page 3
Ref	Part number	Part name	Qty
	1	FRAME & MISCELLANEOUS COVER COMPONENTS
	2	LOOPER THREAD GUIDE COMPONENTS
	3	NEEDLE BAR & MAIN SHAFT COMPONENTS
	4	PRESSER BAR & LOWER SHAFT COMPONENTS
	5	FEED MECHANISM COMPONENTS
	6	LOOPER & FEED DOG COMPONENTS
	7	KNEE LIFTER COMPONENTS
	8	THREAD STAND COMPONENTS
	9	FRAME & COVER COMPONENTS
	10	DRIVE COMPONENTS
	11	CLUTCH COMPONENTS
	12	ROLLER DRIVE COMPONENTS
	13	PRESSER COMPONENTS
	14	TABLE OF EXCHANGING GAUGE PARTS
	NUMERICAL INDEX OF PARTS	索引

Page 4 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS

Juki MS-1261 (32 pages) parts on page 4
Ref	Part number	Part name	Qty
	1	COVER COMPONENT
	2	COVER COMPONENT
	3	COVER COMPONENT
	4	COVER COMPONENT
	5	COVER COMPONENT
	6	COVER COMPONENT
	7	COVER COMPONENT
	8	COVER COMPONENT
	9	COVER COMPONENT
	10	COVER COMPONENT
	11	COVER COMPONENT
	12	COVER COMPONENT
	13	COVER COMPONENT
	14	COVER COMPONENT
	15	COVER COMPONENT
	16	COVER COMPONENT
	17	COVER COMPONENT
	18	COVER COMPONENT
	19	COVER COMPONENT
	20	COVER COMPONENT
	21	COVER COMPONENT
	22	COVER COMPONENT
	23	COVER COMPONENT
	24	COVER COMPONENT
	25	COVER COMPONENT
	26	COVER COMPONENT
	27	COVER COMPONENT
	28	COVER COMPONENT
	29	COVER COMPONENT
	30	COVER COMPONENT
	31	COVER COMPONENT
	32	COVER COMPONENT
	33	COVER COMPONENT
	34	COVER COMPONENT
	35	COVER COMPONENT
	36	COVER COMPONENT
	37	COVER COMPONENT
	38	COVER COMPONENT
	39	COVER COMPONENT
	40	COVER COMPONENT
	41	COVER COMPONENT
	42	COVER COMPONENT
	43	COVER COMPONENT
	44	COVER COMPONENT
	45	COVER COMPONENT
	46	COVER COMPONENT
	47	COVER COMPONENT
	48	COVER COMPONENT
	49	COVER COMPONENT
	50	COVER COMPONENT
	51	COVER COMPONENT
	52	COVER COMPONENT
	53	COVER COMPONENT
	54	COVER COMPONENT
	55	COVER COMPONENT
	56	COVER COMPONENT
	57	COVER COMPONENT
	58	COVER COMPONENT
	59	COVER COMPONENT
	60	COVER COMPONENT
	61	COVER COMPONENT
	62	COVER COMPONENT
	63	COVER COMPONENT
	64	COVER COMPONENT
	65	COVER COMPONENT
	66	COVER COMPONENT
	67	COVER COMPONENT
	68	COVER COMPONENT
	69	COVER COMPONENT
	70	COVER COMPONENT
	71	COVER COMPONENT
	72	COVER COMPONENT
	73	COVER COMPONENT
	74	COVER COMPONENT
	75	COVER COMPONENT
	76	COVER COMPONENT
	77	COVER COMPONENT
	78	COVER COMPONENT
	79	COVER COMPONENT
	80	COVER COMPONENT
	81	COVER COMPONENT
	82	COVER COMPONENT
	83	COVER COMPONENT
	84	COVER COMPONENT
	85	COVER COMPONENT

Page 5

Juki MS-1261 (32 pages) parts on page 5
Ref	Part number	Part name	Qty
	129-50705	FACE PLATE
	110-00403	PLATE
	129-21003	FACE PLATE GASKET
	129-50804	FACE PLATE SIDE PLATE
	SS-6110610-TP	SCREW 11/64-40 L=6
	SS-4120915-SP	SCREW 3/16-28 L=9
	TA-1250406-RO	RUBBER PLUG
	B1162-026-0A0	TENSION RELEASE ARM ASM.
	SS-4091010-SP	SCREW 9/64-40 L=10
	B1161-026-000	CONNECTING LINK
	SS-7090710-SP	SCREW 9/64-40 L=6.5
	129-23207	TENSION COVER
	SS-4110815-SP	SCREW 11/64-40 L=8
	SS-7090710-SP	SCREW 9/64-40 L=6.8
	129-66800	UPPER THREAD GUIDE
	129-51000	SPROCKET WHEEL COVER
	129-67501	LOWER THREAD TUBE (A)
	SS-6122030-SP	SCREW 3/16-28 L=20
	129-21508	WHEEL COVER GASKET
	129-21409	SPROCKET WHEEL COVER
	B1219-019-000	TIMING BELT
	SS-7151210-SP	SCREW 15/64-28 L=12
	SS-4091010-SP	SCREW 9/64-40 L=10
	B1128-804-000	THREAD GUIDE
	129-21607	RUBBER PLUG
	B1130-026-000	CHAIN CUTTER BLADE (A)
	SS-3060710-SP	SCREW 3/32-56 L=6.8
	B1131-026-000	CHAIN CUTTER BLADE (B)
	129-52552	LEFT GATE LOOPER COVER ASM.
	129-52255	RIGHT GATE LOOPER COVER ASM.
	B1157-019-000	LOOPER THREAD TUBE (C)
	129-50507	THREAD INDICATION LABEL
	129-55803	THREAD TENSION DISC HOLDER
	SS-7090910-SP	SCREW 9/64-40 L=8.5
	B1134-850-000-A	THREAD TENSION DISC
	B1135-850-000	TENSION SPRING (A)
	SD-0380551-SL	HINGE SCREW D=3.80 H=5.5
	B1130-051-000	FRAME THREAD GUIDE, MIDDLE
	SS-3090610-SP	SCREW 9/64-40 L=6
	129-65703	THREAD TAKE-UP TENSION LEVER
	WP-0450801-SD	WASHER 4.5X10.0X0.8
	SS-5091020-SP	SCREW 9/64-40 L=9.5
	129-66909	TENSION RELEASE LEVER SHAFT
	129-67006	TENSION RELEASE LEVER
	129-67105	NEEDLE THREAD TENSION GUIDE
	SS-6090540-SP	SCREW 9/64-40 L=5
	SS-7090710-SP	SCREW 9/64-40 L=6.8
	B1805-019-000	FRONT BUSHING COVER
	B1806-019-000	GASKET
	SS-6090620-SP	SCREW 9/64-40 L=6
	SS-7740740-SP	SCREW 3/8-28 L=6.5
	129-22605	GASKET
	107-04203	OIL POT WINDOW
	B1633-191-000	CAP RETAINER
	RE-0400000-KO	E-SHAPED SNAP RING (4MM)
	B1634-191-000	GASKET
	B1630-191-000	PUSH BUTTON GUIDE
	SS-711120-SP	SCREW 11/64-40 L=10.5
	B1632-191-000	SPRING
	B1631-191-000	FEED ECCENTRIC ADJUSTING KNOB
	B1156-019-000	RUBBER CUSHION, C
	110-18603	ARM THREAD GUIDE B
	SS-7110710-SP	SCREW 11/64-40 L=7
	129-40102	LOOPER THREAD GUIDE PLATE
	SS-7110710-SP	SCREW 11/64-40 L=7
	B1104-191-0A0	BELT COVER ASM.
	B1104-191-00A	BELT COVER
	B1104-191-00B	TOP COVER
	B1104-191-00C	BELT COVER PLATE
	SS-6110480-SP	SCREW 11/64-40 L=4.3
	SS-7151210-SP	SCREW 15/64-28 L=12
	B1106-191-000	CUSHION
	129-43700	BELT GUARD INSTALLING BASE
	SS-9284043-CP	SCREW 7/16-16 L=40
	129-51950	BED COVER ASM.
	129-52008	BED COVER GASKET
	SS-5110810-SP	SCREW 11/64-40 L=8
	SS-5820540-SP	SCREW 1/2-28 L=5.0
	B1140-019-000	GASKET
	129-70406	FELT A
	B3513-261-000	FELT, B
	B3526-226-000	FELT, C
	129-43205	MAGNET SUPPORT PLATE
	B8228-125-000	OIL RESERVOIR MAGNET
	SS-7110710-SP	SCREW 11/64-40 L=7

Page 6 — 2. LOOPER THREAD GUIDE COMPONENTS

Juki MS-1261 (32 pages) parts on page 6
Ref	Part number	Part name
1	1	BRACKET
2	2	PIN
3	3	SCREW
4	4	WASHER
5	5	SLEEVE
6	6	GUIDE
7	7	SPRING
8	8	CAP
9	9	SHAFT
10	10	COLLAR
11	11	SCREW
12	12	BRACKET
13	13	SCREW
14	14	SCREW
15	15	BRACKET
16	16	PLATE
17	17	SCREW
18	18	BRACKET
19	19	PIN
20	20	SCREW
21	21	PLATE
22	22	SCREW
23	23	SCREW
24	24	PLATE
25	25	SCREW
26	26	BRACKET
27	27	SCREW
28	28	PIN
29	29	COVER
30	30	BRACKET
31	31	SCREW
32	32	PIN
33	33	ROD
34	34	BRACKET
35	35	SPRING
36	36	WASHER
37	37	SCREW
38	38	SPRING
39	39	WASHER
40	40	SPRING
41	41	BRACKET
42	42	SPRING
43	43	SCREW
44	44	BRACKET
45	45	PLATE
46	46	SCREW
47	47	BRACKET
48	48	SPRING
49	49	COVER
50	50	SCREW
51	51	BRACKET
52	52	SPRING
53	53	BRACKET
54	54	PLATE
55	55	SPRING
56	56	WASHER
57	57	COLLAR
58	58	WASHER
59	59	BEARING
60	60	SCREW
61	61	BRACKET
62	62	BRACKET
63	63	BRACKET
64	64	SCREW
65	65	SCREW
66	66	BRACKET
67	67	RING
68	68	SPRING
69	69	WASHER
70	70	SCREW

Page 7

Juki MS-1261 (32 pages) parts on page 7
Ref	Part number	Part name	Qty
	115-50308	THREAD GUIDE
	B2310-019-000	TENSION RELEASING PIN
	129-38205	TENSION POST
	B3126-012-000	THREAD TENSION DISK
	B3107-804-000	THREAD TENSION DISK PRESSER
	129-38304	TENSION SPRING
	B3112-704-000	TENSION SPRING BUSHING
	119-57008	THREAD TENSION KNOB
	129-66602	TENSION RELEASING SHAFT
	SS-8111160-SP	SCREW 11/64-40 L=11.0
	NS-6110310-SP	NUT 11/64-40
	B2301-261-00A	THREAD TENSION ROD BASE
	129-66701	LOWER THREAD GUIDE (LEFT)
	SS-7090510-SP	SCREW 9/64-40 L=4.6
	129-67600	THREAD GUIDE MOUNTING BRACKET
	B2402-019-000	THREAD GUIDE
	SS-7060510-SP	SCREW 3/32-56 L=4.8
	SS-4622340-SP	SCREW 3/16-32 L=23
	B2421-019-000	THREAD EYELET
	SS-7090510-SP	SCREW 9/64-40 L=4.6
	129-67305	THREAD GUIDE FITTING PLATE
	SS-2060510-SP	SCREW 3/32-56 L=4.5
	SS-5060410-SP	SCREW 3/32-56 L=3.5
	129-67204	THREAD GUIDE BRACKET
	SS-7090710-SP	SCREW 9/64-40 L=6.8
	129-67402	THREAD GUIDE BRACKET SUPPORT
	SS-7090520-SP	SCREW 9/64-40 L=4.5
	SS-4091010-SP	SCREW 9/64-40 L=10
	129-36803	LOOPER THREAD TAKE-UP COVER
	B2208-019-000	LOOPER THREAD TAKE-UP COVER SP
	SS-6060210-SP	SCREW 3/32-56 L=1.9
	PS-0500202-KP	SPRING PIN 5X20
	129-36902	LOOPER THREAD TAKE-UP PIN
	129-35516	TENSION TAKE-UP STRIPPER PLATE
	129-66305	LOOPER THREAD GUIDE (C)
	WP-0371016-SD	WASHER 3.7X8X1
	SS-7090510-SP	SCREW 9/64-40 L=4.5
	129-66206	LOOPER THREAD GUIDE (B)
	129-66107	LOOPER THREAD GUIDE (A)
	129-66008	LOOPER THREAD CAM PRESSER
	129-35607	CAM HOLDER BRACKET
	SS-7090530-SP	SCREW 9/64-40 L=4.5
	SS-7090850-SP	SCREW 9/64-40 L=8
	129-36217	FELT
	SS-5090420-SP	SCREW 9/64-40 L=3.5
	SS-7110840-SP	LOOPER THREAD GUIDE
	129-35805	SCREW 11/64-40 L=7.8
	SS-7111410-SP	SCREW 11/64-40 L=14
	129-36506	STRIPPER PLATE BRACKET
	SS-7110710-SP	SCREW 11/64-40 L=7
	129-22803	COVER SPRING
	SS-6110610-TP	SCREW 11/64-40 L=6
	129-67758	LOOPER THREAD TENSION ASM.
	129-39500	TENSION BASE PLATE
	129-39609	TENSION DISC
	129-39708	LOOPER THREAD TENSION SPRING
	129-67709	TENSION NUT
	129-39906	NUT 11/64-40
	NS-6110350-SP	SCREW 11/64-40 L=7
	SS-7110710-SP	LOOPER THREAD TUBE COVER
	129-51505	LOOPER THREAD TUBE COVER HING
	129-21904	LOOPER THREAD TUBE COVER HING
	129-22001	HINGE SCREW
	B1534-816-000	SCREW 11/64-40 L=7.8
	SS-7110840-SP	VIBRATION-PROOF PLUG B
	SS-7110840-SP	LOOPER THREAD GUIDE
	115-03604	WASHER 3.7X8X1
	129-35904	SCREW 9/64-40 L=4.5

Page 8 — 3. NEEDLE BAR & MAIN SHAFT COMPONENTS

Juki MS-1261 (32 pages) parts on page 8
Ref	Part number	Part name	Qty
	1	NEEDLE BAR & MAIN SHAFT COMPONENTS
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31
	32
	33
	34
	35
	36
	37
	38
	39
	40
	41
	42
	43
	44
	45
	46
	47
	48
	49
	50
	51
	52
	53
	54
	55
	56
	57
	58
	59
	60
	61
	62
	63
	64

Page 9

Juki MS-1261 (32 pages) parts on page 9
Ref	Part number	Part name	Qty
	B1207-026-0AO	COUNTERWEIGHT ASM.
	B1209-019-0AO	NEEDLE BAR CRANK PIN ASM.
	B1236-125-BAO	NEEDLE BUSHING ASM.
	B1408-038-000	NEEDLE BAR CRANK ROD, B
	B1208-019-000	WASHER
	B1207-026-000	COUNTERWEIGHT
	SS-8660610-TP	SCREW 1/4-40 L=6
	SS-6151220-SP	SCREW 15/64-28 L=11.5
	B1202-512-000	MAIN SHAFT BUSHING, FRONT
	B3510-019-000	OIL FELT
	B3541-012-000	OIL WICK
	B1411-039-000	SLIDE BLOCK GUIDE
	B1411-039-000	SLIDE BLOCK GUIDE
	SS-7120910-SP	SCREW 3/16-28 L=9
	129-43106	OIL WICK PRESERER
	SS-7090530-SP	SCREW 9/64-40 L=4.5
	SS-7740740-SP	SCREW 3/8-28 L=6.5
	B1222-019-000	PACKING
	129-24502	MAIN SHAFT
	129-24809	METAL DRESSER
	SS-6111610-SP	SCREW 11/64-40 L=16
	129-24759	BUSHING REAR ASM.
	B1203-512-000	MAIN SHAFT BUSHING, REAR
	129-24700	BUSHING
	SS-8150710-SP	SCREW 15/64-28 L=7
	B1214-019-000	SPROCKET RING
	B1211-019-000	SPROCKET WHEEL (A)
	SS-8660522-TP	SCREW 1/4-40 L=4.5
	129-25004	PULLEY PLATE
	SS-1090510-SP	SCREW 9/64-40 L=5
	129-55209	HAND WHEEL
	SS-8152030-SP	SCREW 15/64-28 L=20
	129-55308	HAND WHEEL SCALE PLATE
	B1161-227-000	RIVET
	RO-0982401-00	RUBBER RING
	B3501-019-0AO	OIL CUP BODY ASM.
	B3504-019-000	OIL CUP BODY CAP RETAINER
	B3502-019-000	OIL CUP BODY CAP
	B3503-019-000	OIL CUP BODY CAP GASKET
	B3508-019-000	WASHER
	SS-5660440-SP	SCREW 1/4-40 L=4.0
	B3501-019-000	OIL CUP BODY
	SS-6092120-SP	SCREW 9/64-40 L=21.2
	CQ-2520000-00	OIL WICK
	B1402-026-BOG	NEEDLE BAR BUSHING, UPPER
	SS-8150310-SP	SCREW 15/64-28 L=3.4
	CQ-3000000-00	OIL WICK
	B1901-026-000	THREAD TAKE-UP
	SS-7090910-TP	SCREW 9/64-40 L=8.5
	B1409-019-0BO	NEEDLE BAR CLAMP ASM.
	B1418-019-000	FELT
	SS-8080310-TP	SCREW 9/64-40 L=8.5
	B1404-026-BOG	NEEDLE BAR BUSHING, LOWER
	B1404-026-000	NEEDLE BAR
	SS-8080610-SP	SCREW 1/4-44 L=2.8
	SS-8080610-TP	SCREW 1/4-44 L=5.5
	MC-3800013-00	NEEDLE UY128GAS NM130
	SS-2110920-TP	SCREW 11/64-40 L=8.5
	129-53204	NEEDLE PLATE XH (1/4")
	129-25954	NEEDLE CLAMP 3/16 ASM.
	129-53204	SCREW 1/8-44 L=2.8
	SS-8080310-TP	NEEDLE UY128GAS NM120
	MC-3800012-00	NEEDLE PLATE MH (3/16")

Page 10 — 4. PRESSER BAR & LOWER SHAFT COMPONENTS

Juki MS-1261 (32 pages) parts on page 10
Ref	Part number	Part name
2	2	SCREW
1	1	PRESSER BAR
6	6	WASHER
5	5	WASHER
4	4	SPRING
9	9	COLLAR
10	10	SPRING
11	11	PRESSER BAR GUIDE
12	12	SCREW
13	13	SCREW
14	14	LINK
15	15	SCREW
16	16	COLLAR
17	17	PRESSER BAR
18	18	LOWER SHAFT
19	19	BRACKET
7	7	SPRING
8	8	SCREW
25	25	KNOB
26	26	SPRING
24	24	SCREW
23	23	BRACKET
22	22	PRESSER BAR
21	21	BRACKET
20	20	BRACKET
29	29	BRACKET
30	30	BRACKET
33	33	SCREW
32	32	BRACKET
31	31	BRACKET
34	34	SCREW
47	47	BRACKET
56	56	SCREW
48	48	BRACKET
55	55	SCREW
53	53	SPRING
54	54	BRACKET
52	52	SCREW
51	51	BRACKET
49	49	BRACKET
50	50	BRACKET
57	57	BRACKET
35	35	BRACKET
45	45	BRACKET
44	44	SCREW
36	36	BRACKET
43	43	SCREW
41	41	BRACKET
42	42	SPRING
40	40	BRACKET
39	39	BRACKET
38	38	BRACKET
76	76	SCREW
77	77	SPRING
70	70	BRACKET
75	75	SCREW
74	74	GEAR
73	73	SHAFT
69	69	COLLAR
72	72	COLLAR
68	68	BEARING
67	67	BRACKET
66	66	COLLAR
65	65	BEARING
64	64	COLLAR
63	63	COLLAR
62	62	SHAFT
61	61	BEARING
60	60	COLLAR
59	59	SCREW

Page 11

Juki MS-1261 (32 pages) parts on page 11
Ref	Part number	Part name	Qty
	129-68103	FITTING SHAFT	1
	SS-7091410-SP	SCREW 9/64-40 L=13.5	1
	129-68202	LOOPER THREAD EYELET	1
	SS-6110610-TP	SCREW 11/64-40 L=6	1
	WP-0450000-SD	WASHER 4.5X8X0.5	1
	R0-0481901-00	RUBBER RING	1
	B1127-026-000	LOOPER GATE RETAINING SPRING	2
	SS-7090710-SP	SCREW 9/64-40 L=6.8	1
	B1502-019-000	PRESSER BAR UPPER BUSHING	1
	SS-8150310-SP	PRESSER BAR	2
	B1411-552-0A0	NEEDLE ROD HOLDER ASM.	1
	B1411-552-000	NEEDLE BAR CLAMP	1
	SS-6090670-TP	SCREW 9/64-40 L=6	(1)
	B1504-019-0A0	PRESSER BAR GUIDE BRACKET ASM.	1
	SS-7111110-TP	SCREW 11/64-40 L=10.5	(1)
	129-58609	BUSHING, LOWER	1
	129-58559	PRESSER BAR ASM.	(1)
	129-58500	PRESSER BAR	(1)
	B1506-019-000	PRESSER BAR STEEL BALL	1
	129-58807	PRESSER LIFTER SPRING	1
	129-59052	UPPER SPRING ASM.	1
	129-59003	PRESSER LIFTER UPPER SPRING	(1)
	129-59102	PRESSER LIFTER SETSCREW	(1)
	A1161-001-00B	RIVET	(1)
	B2326-019-000	PRESSER REGULATING SCREW NUT (	(1)
	B2324-261-000	PRESSER REGULATING SCREW	1
	NS-6120310-SP	NUT 3/16-28	1
	B2328-019-000	PRESSER BAR SPRING PIN	1
#01	MAM-2990BBBA	HOLDER 1/4XH ASM.	1
#01	MAM-2970CCBA	HOLDER 3/16 MH	1
	129-59300	PRESSER FOOT GUIDE (A)	1
	129-59409	PRESSER FOOT GUIDE (B)	1
	SM-6061202-TP	SCREW M6 L=12	2
	SS-7110910-TP	SCREW 11/64-40 L=8.5	2
#01	129-60050	PRESSER 1/4" ASM.	1
	129-60803	PRESSER FOOT (7/32",1/4")	(1)
	129-60001	PRESSER (1/4")	(1)
	129-62007	ADJUSTING PRESSER XH	(1)
	129-62106	PRESSER ADJUSTING PLATE (A)	(1)
	SS-5060410-SP	SCREW 3/32-56 L=3.5	(2)
	B1534-816-000	HINGE SCREW	(2)
	129-62205	PRESSER SPRING	(1)
	SS-6060410-TP	SCREW 3/32-56 L=3.5	(1)
	SS-6150810-SP	SCREW 15/64-28 L=8	(1)
#01	129-60068	PRESSER 1/4" (ASM) EXPORT	1
	129-62304	NEEDLE GUARD	(1)
#01	129-78250	PRESSER MH (3/16") ASM.	1
	129-78409	PRESSER FOOT (3/16")	(1)
	129-78201	PRESSER MH (3/16")	(1)
	129-78508	ADJUSTING PRESSER MH	(1)
	129-73608	PRESSER ADJUSTING PLATE (C)	(1)
	SS-5060410-SP	SCREW 3/32-56 L=3.5	(2)
	B1534-816-000	HINGE SCREW	(2)
	129-62205	PRESSER SPRING	(1)
	SS-6060410-TP	SCREW 3/32-56 L=3.5	(1)
	SS-6150810-SP	SCREW 15/64-28 L=8	(1)
#01	129-78268	PRESSER MH (3/16") ASM. EXPORT	1
	129-62304	NEEDLE GUARD	(1)
	SS-7110830-SP	SCREW 11/64-40 L=7.5	1
	B1802-019-000	BALL BEARING, FRONT	1
	B1803-019-0A0	BALL BEARING, INTERMEDIATE	1
	B1808-019-0A0	SLEEVE ASM.	1
	SS-8110310-SP	SCREW 11/64-40 L=2.8	2
	129-66552	LOOPER THREAD CAM ASM.	(1)
	129-66503	LOOPER THREAD CAM	(1)
	SS-8110310-SP	SCREW 11/64-40 L=2.8	2
	129-24759	BUSHING REAR ASM.	(1)
	B1203-512-000	MAIN SHAFT BUSHING REAR	(1)
	129-24700	BUSHING	(1)
	SS-8150710-SP	SCREW 15/64-28 L=7	(2)
	129-65505	LOWER SHAFT	1
	RC-1200001-KP	C-SHAPED SNAP RING	1
	B1214-019-000	SPROCKET RING	1
	B1212-019-B00	SPROCKET WHEEL B	1
	SS-9151440-CP	SCREW 15/64-28 L=14	2
	129-24809	METAL PRESSER	3
	SS-6111610-SP	SCREW 11/64-40 L=16	3

Page 12 — 5. FEED MECHANISM COMPONENTS

Juki MS-1261 (32 pages) parts on page 12
Ref	Part number	Part name	Qty
	8	8
	9	9
	10	10
	3	3
	2	2
	1	1
	6	6
	5	5
	4	4
	7	7
	11	11
	12	12
	13	13
	27	27
	28	28
	29	29
	30	30
	31	31
	37	37
	39	39
	40	40
	41	41
	42	42
	43	43
	45.46	45.46
	48	48
	47	47
	49	49
	67	67
	68	68
	70	70
	69	69
	15	15
	16	16
	14	14
	17.18	17.18
	19	19
	25	25
	26	26
	21	21
	22	22
	24	24
	23	23
	20	20
	35	35
	36	36
	34	34
	33	33
	32	32
	38	38
	51	51
	52	52
	53	53
	66	66
	65	65
	64	64
	57	57
	56	56
	55	55
	54	54
	59	59
	58	58
	60	60
	63	63
	61	61
	62	62

Page 13

Juki MS-1261 (32 pages) parts on page 13
Ref	Part number	Part name	Qty
	129-68558	LOOPER L (1) ASM.
	129-68855	LOOPER R (1) ASM.
	129-69150	LOOPER C (1) ASM.
	129-63351	FEED DOG XH(1/4") ASM.
	129-79258	LOOPER L (3) ASM.
	129-79357	LOOPER R (2) ASM.
	129-78755	FEED DOG MH(3/16") ASM.
	B2502-019-000	BUSHING, FRONT
	SS-8151150-SP	SCREW 15/64-28 L=10.5
	129-68004	FEED ROCKER ASM.
	B2123-026-0AO	FEED ROCKER ASM.
	SS-7111110-TP	SCREW 11/64-40 L=10.5
	NS-6150310-SP	NUT 15/64-28
	B2505-019-0AO	CONNECTION CRANK ASM.
	SS-7111110-TP	SCREW 11/64-40 L=10.5
	B2115-191-000	FEED ROCKER CONNECTING LINK
	B2116-019-00A	FEED CONNECTING LINK PIN
	B2116-019-00B	FEED CONNECTING LINK PIN
	CQ-2020000-00	OIL WICK
	B2102-026-0AO	FEED ROCKER ASM.
	SS-7090920-SP	SCREW 9/64-40 L=8.5
	SS-7080510-TP	SCREW 1/8-44 L=4.5
	B2107-019-000	FEED ROCKER SHAFT
	SS-8150710-SP	SCREW 15/64-28 L=7
	B2122-019-000	WASHER
	SS-7110830-SP	SCREW 11/64-40 L=7.5
	B2002-026-000	LOOPER AVOIDING SHAFT BRACKET
	B2503-019-000	LOOPER ROCKER SHAFT BUSHING, R
	SS-8150310-SP	SCREW 15/64-28 L=3.4
	B2003-026-000	LOOPER AVOIDING SHAFT BUSHING
	SS-8150410-SP	SCREW 15/64-28 L=4
	B2006-019-0AO	LOOPER AVOIDING ECCENTRIC CAM
	SS-8110410-TP	SCREW 11/64-40 L=3.5
	B1635-191-000	SLIDE BLOCK
	B2001-261-0AO	LOOPER AVOIDING SHAFT ASM.
	SS-7111110-TP	SCREW 11/64-40 L=10.5
	SS-7621040-SP	SCREW 3/16-32 L=9.5
	B1601-026-000	FEED BAR
	B1610-019-000	SLIDE BLOCK
	129-62809	ADJUSTING SHAFT
	RO-0611801-00	RUBBER RING
	SS-8110422-TP	SCREW 11/64-40 L=4
	B2108-026-000	SLIDE BLOCK STOPPER
	SS-8110510-SP	SCREW 11/64-40 L=5
	B2105-019-000	FEED ROCKER SLIDE BLOCK
	B2105-019-00A	FEED ROCKER SLIDE BLOCK
	B2101-261-000-A	FEED ROCKER DRIVING LEVER
	SS-7080510-TP	SCREW 1/8-44 L=4.5
	B2103-261-0AO	FEED ECCENTRIC CAM
	SS-8660612-TP	SCREW 1/4-40 L=6.0
	SS-7111110-TP	SCREW 11/64-40 L=10.5
	129-31903	BODY CAP
	129-63062	FEED ECCENTRIC BASE ASM.
	B1624-191-000	RATCHET PAWL
	PS-0250081-TP	SPRING PIN 2.5X8
	B1626-191-000	SCREW
	B1625-191-000	FEED PAWL SPRING
	B1623-191-000	RATCHET GEAR
	129-63005	FEED ECCENTRIC
	129-31606	SCREW
	SS-8110410-TP	FEED ECCENTRIC BODY
	B1621-261-000	FEED ECCENTRIC GUIDE
	129-31705	SCREW
	B1606-191-000	FEED ECCENTRIC SLIDE BLOCK
	B1602-019-000	FEED LIFTING FORKED CONNECTION
	129-62601	FEED ECCENTRIC CAM
	SS-8660612-TP	SCREW 3/16-32 L=20
	B2106-026-000	SLIDE BLOCK PIN
	RO-0952001-30	RUBBER RING
	SS-6122030-SP	SCREW 3/16-28 L=20

Page 14 — 6. LOOPER & FEED DOG COMPONENTS

Juki MS-1261 (32 pages) parts on page 14
Ref	Part number	Part name
4	4	Screw
5	5	Screw
10	10	Looper
11	11	Looper
8	8	Looper
7	7	Looper
2	2	Looper
3	3	Looper
1	1	Looper
16	16	Feed dog
14	14	Feed dog
15	15	Feed dog
13	13	Feed dog
22	22	Feed dog
17	17	Feed dog
18	18	Feed dog
23	23	Feed dog
20	20	Screw
21	21	Screw
24	24	Screw
19	19	Screw
31	31	Looper
28	28	Screw
29	29	Screw
32	32	Looper
27	27	Looper
26	26	Looper
37	37	Feed dog
35	35	Feed dog
36	36	Feed dog
34	34	Feed dog
44	44	Screw
41	41	Screw
40	40	Screw
39	39	Screw
42	42	Feed dog
38	38	Feed dog
43	43	Feed dog

Page 15

Juki MS-1261 (32 pages) parts on page 15
Ref	Part number	Part name
1	129-68558	LOOPER L (1) ASM.
2	129-68509	LOOPER L (1)
3	129-42009	LOOPER HOLDER,2
4	SS-7080510-TP	SCREW 1/8-44 L=4.5
5	SS-6090910-TP	SCREW 9/64-40 L=9
6	129-68855	LOOPER R (1) ASM.
7	129-68806	LOOPER R (1)
8	129-69309	LOOPER HOLDER (3)
9	129-69150	LOOPER C (1) ASM.
10	129-69101	LOOPER C (1)
11	129-41100	LOOPER HOLDER,1
12	129-63351	FEED DOG XH(1/4") ASM.
13	129-63302	FEED DOG XH(1/4")
14	129-64201	ADJUSTING FEED DOG XH
15	129-64102	FEED DOG ADJUSTING PLATE (A)
16	129-64300	ADJUSTING FEED DOG SETSCREW
17	129-64409	NEEDLE HOLDER ADJUSTING BASE
18	129-64805	NEEDLE HOLDER (A)
19	129-64508	NEEDLE HOLDER (LEFT)
20	129-64607	NEEDLE HOLDER (INSIDE)
21	129-64706	NEEDLE HOLDER (RIGHT)
22	SS-7090510-SP	SCREW 9/64-40 L=4.6
23	SS-7091110-TP	SCREW 9/64-40 L=10.5
24	SS-6090910-TP	SCREW 9/64-40 L=9
25	129-79258	LOOPER L (3) ASM.
26	129-79209	LOOPER L (3)
27	129-42009	LOOPER HOLDER,2
28	SS-7080510-TP	SCREW 1/8-44 L=4.5
29	SS-6090910-TP	SCREW 9/64-40 L=9
30	129-79357	LOOPER R (2) ASM.
31	129-79308	LOOPER C (2)
32	129-41100	LOOPER HOLDER,1
33	129-78755	FEED DOG MH(3/16") ASM.
34	129-78706	FEED DOG MH(3/16")
35	129-64102	ADJUSTING FEED DOG MH
36	129-64300	FEED DOG ADJUSTING PLATE (A)
37	129-64409	ADJUSTING FEED DOG SETSCREW
38	129-79001	NEEDLE HOLDER ADJUSTING BASE
39	129-78805	NEEDLE HOLDER (B)
40	129-78904	NEEDLE HOLDER (LEFT)
41	129-78904	NEEDLE HOLDER (RIGHT)
42	SS-7090510-SP	SCREW 9/64-40 L=4.6
43	SS-7091110-TP	SCREW 9/64-40 L=10.5
44	SS-6090670-TP	SCREW 9/64-40 L=6

Page 16 — 7. KNEE LIFTER COMPONENTS

Juki MS-1261 (32 pages) parts on page 16
Ref	Part number	Part name
1	1	BOLT
2	2	BRACKET
3	3	BOLT
4	4	LINK
5	5	ROD
6	6	SCREW
7	7	BRACKET
8	8	BOLT
9	9	SPRING
10	10	BRACKET
11	11	BRACKET
12	12	BOLT
13	13	BASE
14	14	SPRING
15	15	BRACKET
16	16	BOLT
17	17	BRACKET
18	18	BRACKET
19	19	BRACKET
20	20	BOLT
21	21	SHAFT
22	22	SCREW
23	23	BRACKET
24	24	BRACKET
25	25	WHEEL
26	26	BOLT
27	27	ROD

Page 17

Juki MS-1261 (32 pages) parts on page 17
Part number	Part name	Qty
B2322-019-000	PRESSER BAR LIFTING BRACKET LI	1
SD-0790431-SP	HINGE SCREW D= 7.94 H= 4.3	1
B3701-019-000	HINGE SCREW	1
B2319-191-00A	PRESSER BAR LIFTING LEVER	1
B2315-019-000	TENSION RELEASING CONNECTING L	1
SD-0450211-SP	HINGE SCREW D= 4.50 H= 2.1	2
B2317-019-000	TENSION RELEASING SHAFT CRANK	1
SS-7110710-SP	SCREW 11/64-40 L=7	1
B2321-019-000	PRESSER BAR LIFTING LEVER SPRI	1
B8101-191-0A0	KNEE LIFTER ASM.	1
B8102-191-0A0	KNEE LIFTER LEVER ASM.	(1)
SS-9151210-TP	SCREW 15/64-28 L=11.8	(1)
B8101-180-000	KNEE DRIVING SHAFT MOUNTING	(1)
B8111-180-000	SPRING	(1)
B3426-122-000	KNEE PRESS ROD THRUST BLOCK	(1)
SS-9182010-SN	SCREW 9/32-20 L=20	(2)
B8514-180-000	STOP BLOCK	(1)
SS-9661120-CP	SCREW 1/4-40 L=10.5	(1)
B3427-122-000	KNEE PRESS ROD MOUNTING BRACKE	(1)
SS-9182010-SN	SCREW 9/32-20 L=20	(2)
B3421-012-000	KNEE PRESS ROD	(1)
SK-3482500-SC	WOOD SCREW D=4.8 L=25	4
B3419-552-0A0-A	KNEE LIFTER PLATE ROD ASM.	1
B3430-552-000	KNEE PRESS PLATE ASM.	(1)
B3431-552-000-A	KNEE PRESS PLATE COVER	(1)
SS-9661120-CP	SCREW 1/4-40 L=10.5	(1)
B3419-122-000	KNEE LIFTER PLATE ROD	(1)

Page 18 — 8. THREAD STAND COMPONENTS

Juki MS-1261 (32 pages) parts on page 18
Ref	Part number	Part name
1	1	THREAD STAND COMPONENTS
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
25	25	25
26	26	26
27	27	27

Page 19

Juki MS-1261 (32 pages) parts on page 19
Part number	Part name	Qty
B3301-026-LAA	THREAD STAND ASM.	1
119-57602	THREAD GUIDE ARM, A	(2)
B3318-704-L00	THREAD GUIDE ARM JOINT	(4)
SM-6061200-SE	SCREW M6 L=12	(4)
111-84108	SPOOL REST ROD RUBBER CAP	(1)
119-57503	SPOOL REST ROD, UPPER	(1)
111-84207	SPOOL REST ROD JOINT	(1)
SM-4051405-SE	SCREW M5X0.8 L=14	(2)
NM-6050001-SE	NUT M5X0.8	(2)
119-57404	SPOOL REST ROD, LOWER	(1)
111-84009	SPOOL RETAINER	(6)
B3320-704-L00	SPOOL PIN	(6)
B3311-012-000	SPOOL REST CUSHION	(6)
111-83902	SPOOL REST	(6)
119-57602	THREAD GUIDE ARM, A	(2)
SM-4061201-SE	SCREW M6 L=12	(2)
B3321-704-L0B	SPOOL REST ARM SUPPORT, B	(1)
SK-3382001-SE	SCREW D=3.8 L=20	(2)
NM-6060001-SE	NUT M6	(2)
B3321-704-L00	SPOOL REST ARM SUPPORT, A	(1)
B3317-704-000	NUT C15	(2)
WS-1643202-KR	SPRING WASHER	(1)
WP-1702600-SO	WASHER 17X30X2.6	(2)
MA0-1152000	CORD STAPLE	(3)
WS-0510002-KN	SPRING WASHER	(6)
NM-6050001-SE	NUT M5X0.8	(6)
B3319-704-L00	THREAD GUIDE	(6)

Page 20 — 9. FRAME & COVER COMPONENTS

Juki MS-1261 (32 pages) parts on page 20
Ref	Part number	Part name	Qty
1	MAV-04501000	MAIN BASE	1
2	MAV-04502000	CLUTCH BASE	1
3	SM-6062002-TP	SCREW M6 L=20	2
4	WP-0641600-SC	WASHER 6.4X12.5X1.6	2
5	SM-6061850-SC	SCREW M6 L=18	4
6	WP-0641600-SC	WASHER 6.4X12.5X1.6	4
7	MAV-04503000	ROLLER COVER	1
8	SM-5030355-SE	SCREW	2
9	MAV-04504000	INTERMEDIATE PULLEY COVER	1
10	SM-5040655-SN	SCREW	3
11	PS-0300242-KO	SPRING PIN 3.0X24	1
12	PS-0300102-KO	SPRING PIN 3.0X10	1
13	SM-6031202-TP	SCREW M3X0.5 L=12	1
14	NM-6030003-SC	NUT	1
15	MAV-04505000	CLUTCH COVER A	1
16	MAV-04506000	CLUTCH COVER B	1
17	SM-5040655-SN	SCREW	5
18	MAV-04507000	MODEL PLATE	1

Page 21 — 10. DRIVE COMPONENTS

Juki MS-1261 (32 pages) parts on page 21
Part number	Part name	Qty
MAV-04515000	ROCKING SHAFT	1
SB-2120001-00	BEARING	1
CS-1201010-SH	THRUST COLLAR ASM. D=12 W=10	2
SB-1120005-00	BEARING	2
RC-1200001-KP	C-SHAPED SNAP RING	1
WP-1221016-SP	WASHER	1
MAV-04516000	ROCKING CRANK	1
SM-6051002-TP	SCREW M5X0.8 L=10	1
MAV-045170A0	ECCENTRIC SHAFT ASM.	1
MAV-04517000	ECCENTRIC SHAFT	(1)
SB-1350003-00	BEARING	(1)
SM-8060602-TP	SCREW M6X6	2
WP-0841601-SC	WASHER 8.4X17.4X1.6	1
MAV-045180A0	ROCKING CRANK HOUSING ASM.	1
MAV-04518000	ROCKING CRANK HOUSING	(1)
SB-1080006-00	BEARING	(2)
NM-6080003-SC	NUT M8	2
SM-8082502-TP	SCREW	1
MAV-04519000	ROCKING ROD	1
SM-6061602-TP	SCREW M6 L=16	1
SD-0801606-SH	STEP-SCREW	1
NM-6060003-SC	NUT M6	1
MAV-04520000	ADJUSTING ROD	1
SM-6061602-TP	SCREW M6 L=16	1
MAV-045210A0	JOINT ROD ASM.	1
MAV-04521000	JOINT ROD	(1)
SB-1060002-00	BEARING 6X17	(2)
SD-0600756-TP	STEP-SCREW	1
WP-0641600-SC	WASHER 6.4X12.5X1.6	1
MAV-04522000	ADJUSTING PIN	1
WZ-1200200-KP	WAVED WASHER	1

Page 22 — 11 CLUTCH COMPONENTS

Juki MS-1261 (32 pages) parts on page 22
Part number	Part name	Qty
MAV-045250A0	CLUTCH CASE ASM.	1
MAV-04525000	CLUTCH CASE	(1)
SB-3200003-00	BALL BEARING	(1)
SB-3200004-00	BALL BEARING	(1)
MAV-04534000	CLUTCH OIL SHIEL	(2)
MAV-04526000	CLUTCH ROCKING SHAFT	(1)
SB-3100003-00	BALL BEARING	(2)
SB-3100007-00	BALL BEARING	(1)
RC-1851217-KP	C-RING	(3)
SD-0600596-SH	STEP-SCREW	1
NM-6040003-SC	NUT M4	1
MAV-04527000	CLUTCH SHAFT	1
SM-8050602-TP	SCREW M5 L=6	2
MAV-04528000	BRAKE PLATE	2
MAV-04529000	BRAKE WASHER	2
MAV-04529000	BRAKE SPRING	1
MAV-04531000	CLUTCH BRAKE COLLER	1
SM-8040602-TP	SCREW M4X0.7 L=6	2
MAV-04532000	CLUTCH PULLEY	1
SM-8040302-TP	SETSCREW	2
MAV-04533000	CLUTCH TIMING BELT	1

Page 23 — ROLLER DRIVE COMPONENTS

Juki MS-1261 (32 pages) parts on page 23
Ref	Part number	Part name	Qty
	MAV-045350A0	ROLLER BASE ASM.
	MAV-04535000	ROLLER BASE
	SB-3070005-00	BEARING
	SB-3070004-00	BEARING
	MAV-04546000	ROLLER SHAFT OIL SHIEL
	MAV-045360A0	ECCENTRIC COLLER ASM.
	MAV-04536000	ROLLER BASE ECCENTRIC COLLER
	SB-3070004-00	BEARING
	SM-8040402-TP	SCREW M4X0.7 L=4
	MAV-045470A0	ROLLER SHAFT PLATE ASM.
	MAV-04547000	ROLLER SHAFT PLATE
	SB-1070001-00	BEARING
	SM-6040802-TP	SCREW M4X0.7 L=8
	MAV-04537000	PULLEY SHAFT
	SM-8050502-TP	SCREW M5 L=5
	RC-0650811-KP	RETAINING RING
	MAV-045380B0	INTERMEDIATE PULLEY ASM.
	MAV-045380A0	INTERMEDIATE PULLEY ASM.
	SB-3070004-00	BEARING
	MAV-04541000	ROLLER TIMING BELT
	MAV-04542000	SUPPORT PLATE
	SM-6040802-TP	SCREW M4X0.7 L=8
	MAV-04543000	ROLLER SHAFT
	MAV-04544000	ROLLER PULLEY
	SM-8040602-TP	SCREW M4X0.7 L=6
	MAV-04545000	STEEL ROLLER
	MAV-045500A0	URETHANE ROLLER ASM.
	SM-8040402-TP	SCREW M4X0.7 L=4
	SM-6060002-TP	SCREW M6 L=20
	NM-6060003-SC	NUT M6

Page 24 — 13. PRESSER COMPONENTS

Juki MS-1261 (32 pages) parts on page 24
Ref	Part number	Part name
27	27	27
26	26	26
33	33	33
31	31	31
28	28	28
30	30	30
32	32	32
34	34	34
29	29	29
1	1	1
9	9	9
4	4	4
2	2	2
3	3	3
7	7	7
8	8	8
6	6	6
5	5	5
35	35	35
20	20	20
18	18	18
10	10	10
21	21	21
22	22	22
13	13	13
19	19	19
24	24	24
11	11	11
16	16	16
14	14	14
23	23	23
15	15	15
17	17	17
25	25	25
37	37	37
38	38	38
36	36	36

Page 25

Juki MS-1261 (32 pages) parts on page 25
Part number	Part name	Qty
MAV-04555000	PRESSER LIFTING LEVER	1
MAV-04556000	PRESSER LIFTING LEVER COLLER	1
MAV-04557000	PRESSER LIFTING SHAFT	1
SM-8060602-TP	SCREW M6X6	2
MAV-04558000	PRESSER LIFTING CAM PLATE	1
SM-6040802-TP	SCREW M4X0.7 L=8	1
D2587-L8W-B00	ROLLER	1
SD-0550451-SP	HINGE SCREW	1
SM-6041002-TP	SCREW M4 L=10	2
MAV-04559000	PRESSER LIFTING PLATE	1
SD-0640325-SP	HINGE SCREW	1
SD-0600361-SP	HINGE SCREW	1
MAV-04560000	PRESSER LIFTING JOINT PLATE	1
SD-0640321-TP	HINGE SCREW	1
SD-0640751-SP	HINGE SCREW D= 6.35 H= 7.5	1
B2056-781-000	BLOCKING ARM SPRING	1
WP-0651056-SH	WASHER 6.5X11X1	1
MAV-04561000	PRESSER LIFTING ROD	1
MAV-04616000	PRESSER LIFTING LINK	1
SD-0600402-TP	HINGE SCREW D= 6 H= 4	2
NS-6620310-SP	NUT 3/16-32	2
WP-0480856-SP	WASHER 4.8X8.4X0.8	1
MAV-04562000	KNEE LIFTER LEVER COLLER	1
SD-0600271-SP	HINGE SCREW D= 6 H= 2.7	1
NS-6110430-SP	NUT 11/64-40	1
MAV-04564000	PRESSER LIFTING BASE	1
SM-6061002-TP	SCREW M6 L=10	2
MAV-04565000	SPRING PLATE COVER	2
B1506-352-000	TENSION SPRING RACK B	2
MAV-04566000	SPRING PLATE	1
MAV-04567000	PRESSER ADJUSTING SCREW	1
NM-6080001-SC	NUT M8X1.25	1
MAV-04568000	PRESSER ADJUSTING KNOB	1
MAV-04569000	PRESSER SPRING	2
MAV-04563000	PRESSER LIFTING LEVER SPRING	1
135-15606	SPRING	1
SM-6031402-TP	SCREW	1
NM-6030003-SC	NUT	1

Page 26 — 14. TABLE OF EXCHANGING GAUGE PARTS

Juki MS-1261 (32 pages) parts on page 26
Ref	Part number	Part name	Qty
	12953352	Gauge set
	12953360	Gauge set (with finger guard)
	12953303	Throat plate
	12956355	Needle clamp asm.
	12960159	Presser foot asm.
	12953252	Gauge set
	12953261	Gauge set (with finger guard)
	12953204	Throat plate
	12956256	Needle clamp asm.
	12960050	Presser foot asm.
	12953451	Gauge set
	12953469	Gauge set (with finger guard)
	12953402	Throat plate
	12956454	Needle clamp asm.
	12960258	Presser foot asm.
	12953550	Gauge set
	12953568	Gauge set (with finger guard)
	12953501	Throat plate
	12956553	Needle clamp asm.
	12960357	Presser foot asm.
	12953659	Gauge set
	12953667	Gauge set (with finger guard)
	12953600	Throat plate
	12956652	Needle clamp asm.
	12960456	Presser foot asm.
	12960167	Presser foot asm. (with finger guard)
	12963450	Feed dog asm.
	12968558	Looper asm. (L)
	12968855	Looper asm. (R)
	12969150	Looper asm. (C)
	12960068	Presser foot asm. (with finger guard)
	12963351	Feed dog asm.
	12963559	Looper asm. (L)
	12963658	Looper asm. (R)
	12963757	Looper asm. (C)
	12960266	Presser foot asm. (with finger guard)
	12963559	Feed dog asm.
	12968558	Looper asm. (L)
	12968954	Looper asm. (R)
	12969150	Looper asm. (C)
	12960365	Presser foot asm. (with finger guard)
	12963658	Feed dog asm.
	12968657	Looper asm. (L)
	12968954	Looper asm. (R)
	12969150	Looper asm. (C)
	12960464	Presser foot asm. (with finger guard)
	12963757	Feed dog asm.
	12968657	Looper asm. (L)
	12968954	Looper asm. (R)
	12969150	Looper asm. (C)
	12972253	Gauge set
	12972204	Throat plate
	12974259	Feed dog asm.
	12972154	Gauge set
	12972105	Throat plate
	12974150	Feed dog asm.
	12972352	Gauge set
	12972303	Throat plate
	12974358	Feed dog asm.
	12972451	Gauge set
	12972402	Throat plate
	12974457	Feed dog asm.
	12972550	Gauge set
	12972501	Throat plate
	12974556	Feed dog asm.

Page 27

Juki MS-1261 (32 pages) parts on page 27
Ref	Part number	Part name	Qty
	12977955	12977963
	12925954	12978250
	12972956	12972907
	12972857	12972808
	12973053	12973004
	12973152	12973103
	12973251	12973202
3	12978755	12979258
	2	B1130051000
	12975058
	12974952
	12975157
	12975256
	12975355
	12973509	Adjusting plate B 押さえ調節板 B	2
	SS5060310SP	Adjusting plate B 押さえ調節板 B	2
	12973608	Adjusting plate C 押さえ調節板 C	2
	SS5060310SP	Adjusting plate C 押さえ調節板 C	2
	12973707	Adjusting plate D 押さえ調節板 D
	12973806	Adjusting plate E 押さえ調節板 E
	12975702	Adjusting plate B 送り歯調節板 B
	12975801	Adjusting plate C 送り歯調節板 C
	12975900	Adjusting plate D 送り歯調節板 D

Page 28

Juki MS-1261 (32 pages) parts on page 28
Ref	Part number	Part name	Qty
	MAM2970CCBA	D
	MAM2980AABA	D
	MAM2990AABA	D
	MAM2970DDBA	E
	MAM2980BBBA	E
	MAM2990BBBA	E
	MAM2970EEBA	F
	MAM2980CCBA	F
	MAM2990CCBA	F
	MAM2970FFBA	G
	MAM2980DDBA	G
	MAM2990DDBA	G
	MAM2970GGBBA	H
	MAM2980EEBA	H
	MAM2990EEBA	H
	MAM2970HHBA	K
	MAV045450A0	D
	MAV045500B0	D

Page 31 — NUMERICAL INDEX OF PARTS

Juki MS-1261 (32 pages) parts on page 31
Ref	Part number	Part name	Qty
5	129-79258
25	129-79258
31	129-79308
6	129-79357
30	129-79357
36	135-15606

Juki MS-1261 (32 pages) — parts catalog

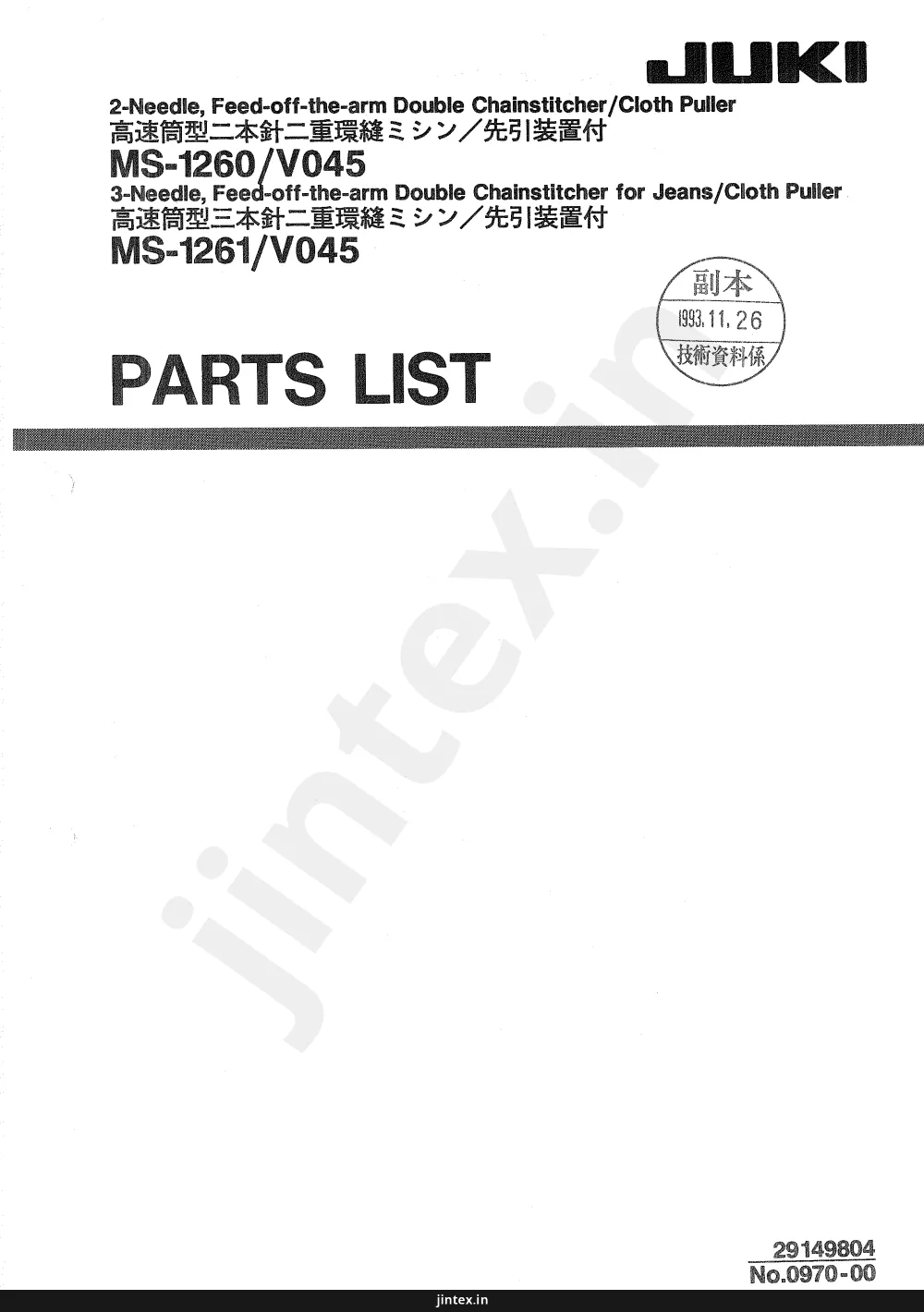

Page 1 — PARTS LIST

JUKI 2-Needle, Feed-off-the-arm Double Chainstitcher/Cloth Puller 高速筒型二本針二重環縫ミシン/先引装置付 MS-1260/V045 3-Needle, Feed-off-the-arm Double Chainstitcher for Jeans/Cloth Puller 高速筒型三本針二重環縫ミシン/先引装置付 MS-1261/V045 副本 1993.11.26 技術資料係 PARTS LIST jintex.in 29149804 No.0970-00

Page 2

HOW TO MAKE USE OF THIS PARTS LIST 1. An asterisk (*) means that the corresponding part is changed from the previous parts list or is newly added. 2. As to "#01" and "#02," refer to the "Note" given at the bottom of the respective pages. 3. Codes on the "Q ty" column • Each numeral indicates the number of parts required. • "0.1" and "2.0" indicate the length (in meters) of the respective parts. 4. Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 5. Dotted lines on the Figures indicate assembly parts. パーツリストご利用に際して 1. Note欄に記載されているリストページの*印は、前回の内容に対して、今回変更または追加された部品であることを意味します。 2. リストページの#01、#02等の印は、ページ下の“注記”の説明をご参照ください。 3. ・数量覧の数字は、個数を表し、0.1、2.0等の数値は、長さ(単位メートル)を表します。 4. 数量覧の( )は、組立部品を構成している子部品であることを意味します。 5. イラストページの―――――枠は、組構成であることを意味します。

Page 3 — CONTENTS

CONTENTS 目次 SEWING MACHINE COMPILATION ミシン編 1. FRAME & MISCELLANEOUS COVER COMPONENTS 頭部・外装関係 2. LOOPER THREAD GUIDE COMPONENTS カム案内関係 3. NEEDLE BAR & MAIN SHAFT COMPONENTS 針棒・上軸関係 4. PRESSER BAR & LOWER SHAFT COMPONENTS 押さえ棒・下軸関係 5. FEED MECHANISM COMPONENTS 送り関係 6. LOOPER & FEED DOG COMPONENTS ルーパ・送り歯関係 7. KNEE LIFTER COMPONENTS 膝上げ関係 8. THREAD STAND COMPONENTS 糸立装置関係 V045 COMPILATION V045編 9. FRAME & COVER COMPONENTS フレーム・カバー関係 10. DRIVE COMPONENTS 駆動関係 11. CLUTCH COMPONENTS クラッチ関係 12. ROLLER DRIVE COMPONENTS ローラー駆動関係 13. PRESSER COMPONENTS 押さえ関係 14. TABLE OF EXCHANGING GAUGE PARTS 交換ゲージ一覧表 NUMERICAL INDEX OF PARTS 索引 1 3 5 7 9 11 13 15 17 18 19 20 21 23 26

Page 4 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS

SEWING MACHINE COMPILATION ミシン編 1. FRAME & MISCELLANEOUS COVER COMPONENTS 頭部・外装関係 18 15 14 13 12 11 8 9 1 3 7 6 2 7 27 28 26 30 32 33 34 35 36 37 39 31 29 40 41 42 43 44 45 46 47 16 17 22 23 24 21 19 20 25 64 65 66 61 54 55 56 57 58 59 60 70 71 72 73 74 80 75 48 49 50 52 51 78 79 76 81 83 84 81 82 62 63 68 67 69 70 - 1 - jintex.in

Page 5

REF.NO NOTE PART NO. D E S C R I P T I O N ヒンメイ Qty 1 129-50705 FACE PLATE メンハ 2 110-00403 PLATE メンイタケショウイタ 3 129-21003 FACE PLATE GASKET メンイタパッキン 4 129-50804 FACE PLATE SIDE PLATE メンイタクツクメンイタ 5 SS-6110610-TP SCREW 11/64-40 L=6 ヒラネジ 11/64-40 L=6 6 SS-4120915-SP SCREW 3/16-28 L=9 ナベネジ 3/16-28 L=9 7 TA-1250406-RO RUBBER PLUG トメセン D=12.5 L=4 8 B1162-026-0A0 TENSION RELEASE ARM ASM. チューカンイタメウデクミ 9 SS-4091010-SP SCREW 9/64-40 L=10 ナベネジ 9/64-40 L=10 10 B1161-026-000 CONNECTING LINK チューカンリンク 11 SS-7090710-SP SCREW 9/64-40 L=6.5 トラスネジ 9/64-40 L=6.5 12 129-23207 TENSION COVER テンピンカバー 13 SS-4110815-SP SCREW 11/64-40 L=8 ナベネジ 11/64-40 L=8 14 SS-7090710-SP SCREW 9/64-40 L=6.8 マルヒラネジ 9/64-40 L=6.8 15 129-66800 UPPER THREAD GUIDE チュウカンウワイトイトアンナイ 16 129-51000 SPROCKET WHEEL COVER スプロケットハゲカバー 17 129-67501 LOWER THREAD TUBE (A) シタイトウカン (A) 18 SS-6122030-SP SCREW 3/16-28 L=20 ヒラネジ 3/16-28 L=20 19 129-21508 WHEEL COVER GASKET ハグルマカバーパッキン 20 129-21409 SPROCKET WHEEL COVER スプロケットハグルマカバーフタ 21 B1219-019-000 TIMING BELT タイミングベルト 22 SS-7151210-SP SCREW 15/64-28 L=12 マルヒラネジ 15/64-28 L=12 23 SS-4091010-SP SCREW 9/64-40 L=10 ナベネジ 9/64-40 L=10 24 B1128-804-000 THREAD GUIDE イトミチ 25 129-21607 RUBBER PLUG ハグルマフタセン 26 B1130-026-000 CHAIN CUTTER BLADE (A) イトキリ A 27 SS-3060710-SP SCREW 3/32-56 L=6.8 マルネジ 3/32-56 L=6.8 28 B1131-026-000 CHAIN CUTTER BLADE (B) イトキリ B 29 129-52552 LEFT GATE LOOPER COVER ASM. ヒタガワリルーバーカバー(クミ) 30 129-52255 RIGHT GATE LOOPER COVER ASM. ミギガワルーバーカバー(クミ) 31 B1157-019-000 LOOPER THREAD TUBE (C) シタイトウカン C 32 129-50507 THREAD INDICATION LABEL ハリヒョウジヨウシシート 33 129-55803 THREAD TENSION DISC HOLDER ハリイトチョウジサクラゲ 34 SS-7090910-SP SCREW 9/64-40 L=8.5 マルヒラネジ 9/64-40 L=8.5 35 B1134-850-000-A THREAD TENSION DISC ハリイトチョージサラ 36 B1135-850-000 TENSION SPRING (A) ハリイトバネ 37 SD-0380551-SL HINGE SCREW D=3.80 H=5.5 ダンネジ D=3.8 H=5.5 38 B1130-051-000 FRAME THREAD GUIDE, MIDDLE イトアンナイ 39 SS-3090610-SP SCREW 9/64-40 L=6 マルネジ 9/64-40 L=6 40 129-65703 THREAD TAKE-UP TENSION LEVER テンピンイトチョウシレバー 41 WP-0450801-SD WASHER 4.5X10.0X0.8 ヒラザガネ 4.5X10.0X0.8 42 SS-5091020-SP SCREW 9/64-40 L=9.5 トラスネジ 9/64-40 L=9.5 43 129-66909 TENSION RELEASE LEVER SHAFT チュウカンイトエルメルメジク 44 129-67006 TENSION RELEASE LEVER チュウカンイトエルメレバー 45 129-67105 NEEDLE THREAD TENSION GUIDE ハリイトチョウシイトアンナイ 46 SS-6090540-SP SCREW 9/64-40 L=5 ヒラネジ 9/64-40 L=5 47 SS-7090710-SP SCREW 9/64-40 L=6.8 マルヒラネジ 9/64-40 L=6.8 48 B1805-019-000 FRONT BUSHING COVER シタジククミマエメルタフタ 49 B1806-019-000 GASKET シタジククミマエメルタパッキン 50 SS-6090620-SP SCREW 9/64-40 L=6 ヒラネジ 9/64-40 L=6 51 SS-7740740-SP SCREW 3/8-28 L=6.5 マルネジ 3/8-28 L=6.5 52 129-22605 GASKET テンレンパッキン 53 107-04203 OIL POT WINDOW オイルポットマド 54 B1633-191-000 CAP RETAINER オシボタンジククカバー 55 RE-0400000-KO E-SHAPED SNAP RING (4MM) Eガタトツメワ 4 56 B1634-191-000 GASKET オシボタンジククパッキン 57 B1630-191-000 PUSH BUTTON GUIDE オシボタンジククウケ 58 SS-711120-SP SCREW 11/64-40 L=10.5 マルヒラネジ 11/64-40 L=10.5 59 B1632-191-000 SPRING オシボタンバネ 60 B1631-191-000 FEED ECCENTRIC ADJUSTING KNOB オシボタンジクク 61 B1156-019-000 RUBBER CUSHION, C ボーシンゴム C 62 110-18603 ARM THREAD GUIDE B アームイトアンナイ B 63 SS-7110710-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 64 129-40102 LOOPER THREAD GUIDE PLATE シタイトアンナイタ 65 SS-7110710-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 66 B1104-191-0A0 BELT COVER ASM. ベルトカバー(クミ) 67 B1104-191-00A BELT COVER ベルトカバー 68 B1104-191-00B TOP COVER トップカバー 69 B1104-191-00C BELT COVER PLATE ベルトカバーフタ 70 SS-6110480-SP SCREW 11/64-40 L=4.3 ヒラネジ 11/64-40 L=4.3 71 SS-7151210-SP SCREW 15/64-28 L=12 マルヒラネジ 15/64-28 L=12 72 B1106-191-000 CUSHION ベルトルケクツシヨンザ 73 129-43700 BELT GUARD INSTALLING BASE ベルトヨケダイ 74 SS-9284043-CP SCREW 7/16-16 L=40 ロツカクボルト 7/16-16 L=40 75 129-51950 BED COVER ASM. ベツトマドイタ(クミ) 76 129-52008 BED COVER GASKET マトイタパッキン 77 SS-5110810-SP SCREW 11/64-40 L=8 トラスネジ 11/64-40 L=8 78 SS-5820540-SP SCREW 1/2-28 L=5.0 トラスネジ 1/2-28 L=5.0 79 B1140-019-000 GASKET アブフタラタメパツキン 80 129-70406 FELT A エボウフエルト A 81 B3513-261-000 FELT, B エボウフエルト B 82 B3526-226-000 FELT, C エボウフエルト C 83 129-43205 MAGNET SUPPORT PLATE マクネットジジイタ 84 B8228-125-000 OIL RESERVOIR MAGNET ジシヤク 85 SS-7110710-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 Note (注記 )#01...FOR MS-1261 MS-1261 用 #02...FOR MS-1260 MS-1260 用 - 2 - jintex.in

Page 6 — 2. LOOPER THREAD GUIDE COMPONENTS

2. LOOPER THREAD GUIDE COMPONENTS カム糸案内関係 - 3 - jintex.in

Page 7

REF.NO NOTE PART NO. DESCRIPTION HINMEI Qty 1 115-50308 THREAD GUIDE チョーサライトアンナイ 3 2 B2310-019-000 TENSION RELEASING PIN イトエルメピン (3) 3 129-38205 TENSION POST イトチョウシホウ 3 4 B3126-012-000 THREAD TENSION DISK イトチョウシサラ (6) 5 B3107-804-000 THREAD TENSION DISK PRESSER イトチョーシサラオサエ 3 6 129-38304 TENSION SPRING バネブッシュ 3 7 B3112-704-000 TENSION SPRING BUSHING イトチョウシハネ 3 8 119-57008 THREAD TENSION KNOB イトチョウシツマミ (ムショク) 3 9 129-66602 TENSION RELEASING SHAFT イトエルメジク 1 10 SS-8111160-SP SCREW 11/64-40 L=11.0 トメネジ 11/64-40 L=11 1 11 NS-6110310-SP NUT 11/64-40 ロツカクナット 11/64-40 1 12 B2301-261-00A THREAD TENSION ROD BASE イトチョウシホウダイ 1 13 129-66701 LOWER THREAD GUIDE (LEFT) シタイトアンナイ (ヒダリ) 1 14 SS-7090510-SP SCREW 9/64-40 L=4.6 マルヒラネジ 9/64-40 L=4.6 1 15 129-67600 THREAD GUIDE MOUNTING BRACKET ウワイトアンナイタイ 1 16 B2402-019-000 THREAD GUIDE オオギイタイトアンナイ 6 17 SS-7060510-SP SCREW 3/32-56 L=4.8 マルヒラネジ 3/32-56 L=4.8 4 18 SS-4622340-SP SCREW 3/16-32 L=23 ナベネジ 3/16-32 L=23 1 19 B2421-019-000 THREAD EYELET ウワイトアンナイ 1 20 SS-7090510-SP SCREW 9/64-40 L=4.6 マルヒラネジ 9/64-40 L=4.6 1 21 129-67305 THREAD GUIDE FITTING PLATE イトアンナイフイツテイングタイ 1 22 SS-2060510-SP SCREW 3/32-56 L=4.5 マルヒラネジ 3/32-56 L=4.5 2 23 SS-5060410-SP SCREW 3/32-56 L=3.5 マルヒラネジ 3/32-56 L=3.5 8 24 129-67204 THREAD GUIDE BRACKET オオギイタ 4 25 SS-7090710-SP SCREW 9/64-40 L=6.8 マルヒラネジ 9/64-40 L=6.8 1 26 129-67402 THREAD GUIDE BRACKET SUPPORT オオギイタイトアンナイサエ 1 27 SS-7090520-SP SCREW 9/64-40 L=4.5 マルヒラネジ 9/64-40 L=4.5 1 28 SS-4091010-SP SCREW 9/64-40 L=10 ナベネジ 9/64-40 L=10 1 29 129-36803 LOOPER THREAD TAKE-UP COVER カムカバー 1 30 B2208-019-000 LOOPER THREAD TAKE-UP COVER SP カムカバーバネ 1 31 SS-6060210-SP SCREW 3/32-56 L=1.9 ヒラネジ 3/32-56 L=1.9 1 32 PS-0500202-KP SPRING PIN 5X20 スプリングピン 5.0X20 1 33 129-36902 LOOPER THREAD TAKE-UP PIN カムカバーピン 1 34 129-35516 TENSION TAKE-UP STRIPPER PLATE イトチョウシカムイタ 1 35 129-66305 LOOPER THREAD GUIDE (C) カムイトアンナイ (C) 1 36 WP-0371016-SD WASHER 3.7X8X1 ヒラサカバネ 3.7X8X1 3 37 SS-7090510-SP SCREW 9/64-40 L=4.5 マルヒラネジ 9/64-40 L=4.5 3 38 129-66206 LOOPER THREAD GUIDE (B) カムイトアンナイ (B) 1 39 129-66107 LOOPER THREAD GUIDE (A) カムイトアンナイ (A) 1 40 129-66008 LOOPER THREAD CAM PRESSER シタイトカムオサエ 1 41 129-35607 CAM HOLDER BRACKET シタイトカムオサエトリツケダイ 1 42 SS-7090530-SP SCREW 9/64-40 L=4.5 マルヒラネジ 9/64-40 L=4.5 1 43 SS-7090850-SP SCREW 9/64-40 L=8 マルヒラネジ 9/64-40 L=8 1 44 129-36217 FELT ユホウフェルト 1 45 SS-5090420-SP SCREW 9/64-40 L=3.5 トラスネジ 9/64-40 L=3.5 1 46 SS-7110840-SP LOOPER THREAD GUIDE シタイトカムイトアンナイ (D) 1 47 129-35805 SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 1 48 SS-7111410-SP SCREW 11/64-40 L=14 マルヒラネジ 11/64-40 L=14 1 49 129-36506 STRIPPER PLATE BRACKET カムイタトリツケダイ 1 50 SS-7110710-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 1 51 129-22803 COVER SPRING シタイトカバースプリング 1 52 SS-6110610-TP SCREW 11/64-40 L=6 ヒラネジ 11/64-40 L=6 2 53 129-67758 LOOPER THREAD TENSION ASM. シタイトチョウシ (クミ) 1 54 129-39500 TENSION BASE PLATE シタイトチョウシトリツケダイ 1 55 129-39609 TENSION DISC シタイトチョウシサラ (1) 56 129-39708 LOOPER THREAD TENSION SPRING シタイトチョウシバネ (3) 57 129-67709 TENSION NUT シタイトチョウンダイヤル (3) 58 129-39906 NUT 11/64-40 ロツカクナット 11/64-40 (3) 59 NS-6110350-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 2 60 SS-7110710-SP LOOPER THREAD TUBE COVER シタイトドウカンカバー 1 61 129-51505 LOOPER THREAD TUBE COVER HING シタイトカバーヒンジ A 1 62 129-21904 LOOPER THREAD TUBE COVER HING シタイチカバーヒンジ B 1 63 129-22001 HINGE SCREW ダンタイオサエヒンジネジ 2 64 B1534-816-000 SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 2 65 SS-7110840-SP VIBRATION-PROOF PLUG B ヌノダイイボーシンセン B 2 66 SS-7110840-SP LOOPER THREAD GUIDE シタイトカムアンナイボウ 1 67 115-03604 WASHER 3.7X8X1 ヒラサカバネ 3.7X8X1 1 68 129-35904 SCREW 9/64-40 L=4.5 マルヒラネジ 9/64-40 L=4.5 1 69 WP-0371016-SD - 4 - 70 SS-7090530-SP jinte.in

Page 8 — 3. NEEDLE BAR & MAIN SHAFT COMPONENTS

3. NEEDLE BAR & MAIN SHAFT COMPONENTS 針棒・上軸関係 1 2 3 6 7 5 4 8 9 15 16 13 14 12 10 11 19 21 20 25 22 23 24 31 32 33 34 35 46 17 18 45 47 48 49 52 51 50 53 54 59 26 27 29 28 44 41 40 43 42 37 36 38 39 55 56 57 58 60 64 61 62 63 - 5 - jintex.in

Page 9

REF.NO NOTE PART NO. DESCRIPTION HIN MEI Qty 1 B1207-026-0AO COUNTERWEIGHT ASM. ツリアオモリクミ 1 2 B1209-019-0AO NEEDLE BAR CRANK PIN ASM. ハリボークランクピンクミ (1) 3 #01 B1236-125-BAO NEEDLE BUSHING ASM. ニードルベアリング (1) 4 B1408-038-000 NEEDLE BAR CRANK ROD, B ハリボークランクロッド B (1) 5 B1208-019-000 WASHER ハリボークランクロッドザガネ (1) 6 B1207-026-000 COUNTERWEIGHT ツリアオモリ (1) 7 SS-8660610-TP SCREW 1/4-40 L=6 トメネジ 1/4-40 L=6 (2) 8 SS-6151220-SP SCREW 15/64-28 L=11.5 ヒラネジ 15/64-28 L=11.5 (2) 9 B1202-512-000 MAIN SHAFT BUSHING, FRONT ウワジクマエベアリング 1 10 B3510-019-000 OIL FELT カンリューフエルト 1 11 B3541-012-000 OIL WICK カンリューユシン 1 12 B1411-039-000 SLIDE BLOCK GUIDE コロアンナイダイ 1 13 B1411-039-000 SLIDE BLOCK GUIDE ハリボーダーキアンナイコロ 1 14 SS-7120910-SP SCREW 3/16-28 L=9 マルヒラネジ 3/16-28 L=9 2 15 129-43106 OIL WICK PRESERER ユシンオサエ 1 16 SS-7090530-SP SCREW 9/64-40 L=4.5 マルヒラネジ 9/64-40 L=4.5 (1) 17 SS-7740740-SP SCREW 3/8-28 L=6.5 マルヒラネジ 3/8-28 L=6.5 (1) 18 B1222-019-000 PACKING ウワジクアブライドメカワパッキン 1 19 129-24502 MAIN SHAFT ウワジク 1 20 129-24809 METAL DRESSER メタルオサエ 3 21 SS-6111610-SP SCREW 11/64-40 L=16 ヒラネジ 11/64-40 L=16 (3) 22 129-24759 BUSHING REAR ASM. ウシロメタル (クミ) 1 23 B1203-512-000 MAIN SHAFT BUSHING, REAR ウワジクウシロベアリング (1) 24 129-24700 BUSHING メタルブツシュ (1) 25 SS-8150710-SP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 (2) 26 B1214-019-000 SPROCKET RING スプロケットリング 2 27 B1211-019-000 SPROCKET WHEEL (A) スプロケット A 1 28 SS-8660522-TP SCREW 1/4-40 L=4.5 トメネジ 1/4-40 L=4.5 (2) 29 129-25004 PULLEY PLATE プーリープレート 1 30 SS-1090510-SP SCREW 9/64-40 L=5 サラネジ 9/64-40 L=5 3 31 129-55209 HAND WHEEL ハズミクルマ 1 32 SS-8152030-SP SCREW 15/64-28 L=20 トメネジ 15/64-28 L=20 2 33 129-55308 HAND WHEEL SCALE PLATE ハズミクルマメモリタイ 1 34 B1161-227-000 RIVET トメビョー (ギンイロ) 2 35 RO-0982401-00 RUBBER RING Oリング 1 36 B3501-019-0AO OIL CUP BODY ASM. オイルカップクミ 1 37 B3504-019-000 OIL CUP BODY CAP RETAINER オイルカップフタ (1) 38 B3502-019-000 OIL CUP BODY CAP オイルカップマトイタ (1) 39 B3503-019-000 OIL CUP BODY CAP GASKET オイルカップマトイタパッキン (1) 40 B3508-019-000 WASHER アブラチユーニューネジパッキン (1) 41 SS-5660440-SP SCREW 1/4-40 L=4.0 トラスネジ 1/4-40 L=4 (1) 42 B3501-019-000 OIL CUP BODY オイルカップタイ (1) 43 SS-6092120-SP SCREW 9/64-40 L=21.2 ヒラネジ 9/64-40 L=21.2 (4) 44 CQ-2520000-00 OIL WICK ユシン 1 45 B1402-026-BOG NEEDLE BAR BUSHING, UPPER ハリボウワメタル 1 46 SS-8150310-SP SCREW 15/64-28 L=3.4 トメネジ 15/64-28 L=3.4 2 47 CQ-3000000-00 OIL WICK ユシン 0.1 48 B1901-026-000 THREAD TAKE-UP テンビン 1 49 SS-7090910-TP SCREW 9/64-40 L=8.5 マルヒラネジ 9/64-40 L=8.5 1 50 B1409-019-0BO NEEDLE BAR CLAMP ASM. ハリボーダーキクミ 1 51 B1418-019-000 FELT ハリボーダーキキユーエフエルト (1) 52 SS-8080310-TP SCREW 9/64-40 L=8.5 マルヒラネジ 9/64-40 L=8.5 (1) 53 B1404-026-BOG NEEDLE BAR BUSHING, LOWER ハリボーシタメタル 1 54 B1404-026-000 NEEDLE BAR ハリボー 1 55 SS-8080610-SP SCREW 1/4-44 L=2.8 トメネジ 1/4-44 L=2.8 (2) 56 SS-8080610-TP SCREW 1/4-44 L=5.5 トメネジ 1/4-44 L=5.5 (1) 57 MC-3800013-00 NEEDLE UY128GAS NM130 ハリ UY128GAS NM130 3 58 SS-2110920-TP SCREW 11/64-40 L=8.5 マルサラネジ 11/64-40 L=8.5 3 59 129-53204 NEEDLE PLATE XH (1/4") ハリイタ XH (1/4") 1 60 #03 129-25954 NEEDLE CLAMP 3/16 ASM. ハリドメ (クミ) 1 61 #04 129-53204 SCREW 1/8-44 L=2.8 トメネジ 1/8-44 L=2.8 (2) 62 SS-8080310-TP NEEDLE UY128GAS NM120 ハリ UY128GAS NM120 2 63 #04 MC-3800012-00 NEEDLE PLATE MH (3/16") ハリイタ MH (3/16") 1 64 #04 129-77906 Note ( 注記 )#01...SELECTIVE PART 選択部品 #02...FOR MS-1261 MS-1261 用 #03...REFER TO THE TABLE OF EXCHANGING 23 ページの交換部品一覧表を PARTS ON P.23 ご参照下さい。 #04...FOR MS-1260 MS-1260 用 -6- jintex.in

Page 10 — 4. PRESSER BAR & LOWER SHAFT COMPONENTS

4. PRESSER BAR & LOWER SHAFT COMPONENTS 押さえ棒・下軸関係 2 1 6 5 4 9 10 11 12 13 14 15 16 10 17 18 19 7 7 8 25 26 24 23 22 21 20 29 30 33 32 31 34 47 56 48 55 53 54 52 51 49 50 57 35 45 44 36 43 41 42 40 39 38 76 77 70 75 74 73 69 68 67 66 65 64 63 62 61 60 59 - 7 - jintex.in

Page 11

REF.NO NOTE PART NO. D E S C R I P T I O N ヒンメイ Qty 1 129-68103 FITTING SHAFT シタイトアンイトリツケシク 1 2 SS-7091410-SP SCREW 9/64-40 L=13.5 マルヒラネジ 9/64-40 L=13.5 1 3 129-68202 LOOPER THREAD EYELET ルーハーパーイトアンナイ 1 4 SS-6110610-TP SCREW 11/64-40 L=6 ヒラネジ 11/64-40 L=6 1 5 WP-0450000-SD WASHER 4.5X8X0.5 ヒラサカガネ 4.5X8X0.5 1 6 R0-0481901-00 RUBBER RING Oリング 1 7 B1127-026-000 LOOPER GATE RETAINING SPRING ルーハーパーゲートオサエ 2 8 SS-7090710-SP SCREW 9/64-40 L=6.8 マルヒラネジ 9/64-40 L=6.8 1 9 B1502-019-000 PRESSER BAR UPPER BUSHING オサエボーウワメタ儿 1 10 SS-8150310-SP PRESSER BAR 15/64-28 L=3.4 トメネジ 15/64-28 L=3.4 2 11 B1411-552-0A0 NEEDLE ROD HOLDER ASM. ハリボーダーケクミ 1 12 B1411-552-000 NEEDLE BAR CLAMP ハリボーダー 1 13 SS-6090670-TP SCREW 9/64-40 L=6 ヒラネジ 9/64-40 6=6 (1) 14 B1504-019-0A0 PRESSER BAR GUIDE BRACKET ASM. オサエボーダーケクミ 1 15 SS-7111110-TP SCREW 11/64-40 L=10.5 マルヒラネジ 11/64-40 L=10.5 (1) 16 129-58609 BUSHING, LOWER オサエボーウ 1 17 129-58559 PRESSER BAR ASM. オサエボーウ (クミ) (1) 18 129-58500 PRESSER BAR オサエボーウ (1) 19 B1506-019-000 PRESSER BAR STEEL BALL オサエボーウタマ 1 20 129-58807 PRESSER LIFTER SPRING オサエアゲバネ 1 21 129-59052 UPPER SPRING ASM. オサエアゲウエバネ (クミ) 1 22 129-59003 PRESSER LIFTER UPPER SPRING オサエアゲウエバネ (1) 23 129-59102 PRESSER LIFTER SETSCREW オサエアゲハネドメネジ (1) 24 A1161-001-00B RIVET トメネジヨ (キイロ) (1) 25 B2326-019-000 PRESSER REGULATING SCREW NUT ( オサエチョーセツネジツケ (1) 26 B2324-261-000 PRESSER REGULATING SCREW オサエチョーセツネジ 1 27 NS-6120310-SP NUT 3/16-28 ロツカクナット 3/16-28 1 28 B2328-019-000 PRESSER BAR SPRING PIN オサエアゲハネピン 1 29 #01 MAM-2990BBBA HOLDER 1/4XH ASM. ホルター 1/4XH (ソウクミ) 1 30 #01 MAM-2970CCBA HOLDER 3/16 MH ホルター 3/16 MH 1 31 129-59300 PRESSER FOOT GUIDE (A) オサエアシガイド (A) 1 32 129-59409 PRESSER FOOT GUIDE (B) オサエアシガイド (B) 1 33 SM-6061202-TP SCREW M6 L=12 ロツカクアナボルト M6 L=12 2 34 SS-7110910-TP SCREW 11/64-40 L=8.5 マルヒラネジ 11/64-40 L=8.5 2 35 #01 129-60050 PRESSER 1/4" ASM. オサエ 1/4" (クミ) 1 36 129-60803 PRESSER FOOT (7/32",1/4") オサエアシ (7/32",1/4") (1) 37 129-60001 PRESSER (1/4") オサエ (1/4") (1) 38 129-62007 ADJUSTING PRESSER XH チョウセツオサエ MH (1) 39 129-62106 PRESSER ADJUSTING PLATE (A) オサエチョウセツツイタ (A) (1) 40 SS-5060410-SP SCREW 3/32-56 L=3.5 トラスネジ 3/32-56 L=3.5 (2) 41 B1534-816-000 HINGE SCREW ターンメイオサエヒンジネジ (2) 42 129-62205 PRESSER SPRING オサエアバネ (1) 43 SS-6060410-TP SCREW 3/32-56 L=3.5 ヒラネジ 3/32-56 L=3.5 (1) 44 SS-6150810-SP SCREW 15/64-28 L=8 ヒラネジ 15/64-28 L=8 (1) 45 #01 129-60068 PRESSER 1/4" (ASM) EXPORT オサエ 1/4" (クミ)ユシユツヨウ 1 46 129-62304 NEEDLE GUARD ニードルガード (1) 47 #01 129-78250 PRESSER MH (3/16") ASM. オサエ MH (3/16") (クミ) 1 48 129-78409 PRESSER FOOT (3/16") オサエアシ (3/16") (1) 49 129-78201 PRESSER MH (3/16") オサエ MH (3/16") (1) 50 129-78508 ADJUSTING PRESSER MH チョウセツオサエ MH (1) 51 129-73608 PRESSER ADJUSTING PLATE (C) オサエチョウセツツイタ (C) (1) 52 SS-5060410-SP SCREW 3/32-56 L=3.5 トラスネジ 3/32-56 L=3.5 (2) 53 B1534-816-000 HINGE SCREW ターンメイオサエヒンジネジ (2) 54 129-62205 PRESSER SPRING オサエアバネ (1) 55 SS-6060410-TP SCREW 3/32-56 L=3.5 ヒラネジ 3/32-56 L=3.5 (1) 56 SS-6150810-SP SCREW 15/64-28 L=8 ヒラネジ 15/64-28 L=8 (1) 57 #01 129-78268 PRESSER MH (3/16") ASM. EXPORT オサエ MH (3/16") (クミ)ユシユツヨウ 1 58 129-62304 NEEDLE GUARD ニードルガード (1) 59 SS-7110830-SP SCREW 11/64-40 L=7.5 マルヒラネジ 11/64-40 L=7.5 1 60 B1802-019-000 BALL BEARING, FRONT シタジククマイベアリング 1 61 B1803-019-0A0 BALL BEARING, INTERMEDIATE シタジクナカメタルブツシククミ 1 62 B1808-019-0A0 SLEEVE ASM. シタジクナカメタルブツシク 1 63 SS-8110310-SP SCREW 11/64-40 L=2.8 トメネジ 11/64-40 L=2.8 2 64 129-66552 LOOPER THREAD CAM ASM. シタイトカム (クミ) (1) 65 129-66503 LOOPER THREAD CAM シタイトカム (1) 66 SS-8110310-SP SCREW 11/64-40 L=2.8 トメネジ 11/64-40 L=2.8 2 67 129-24759 BUSHING REAR ASM. ウシロメタル (クミ) (1) 68 B1203-512-000 MAIN SHAFT BUSHING REAR ウシロジクウシロベアリング (1) 69 129-24700 BUSHING メタルブツシユ (1) 70 SS-8150710-SP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 (2) 71 129-65505 LOWER SHAFT シタジク 1 72 RC-1200001-KP C-SHAPED SNAP RING Cガタトメワ 1 73 B1214-019-000 SPROCKET RING スプロケットリング 1 74 B1212-019-B00 SPROCKET WHEEL B スプロケットハグマ B 1 75 SS-9151440-CP SCREW 15/64-28 L=14 ロツカクボルト 15/64-28 L=14 2 76 129-24809 METAL PRESSER メタルオサエ 3 77 SS-6111610-SP SCREW 11/64-40 L=16 ヒラネジ 11/64-40 L=16 3 Note ( 注記 )#01..REFER TO THE TABLE OF EXCHANGING 23 ページの交換部品一覧表を PARTS ON P.23 ご参照下さい。

Page 12 — 5. FEED MECHANISM COMPONENTS

5. FEED MECHANISM COMPONENTS 送り関係 8 9 10 3 2 1 6 5 4 7 11 12 13 27 28 29 30 31 37 39 40 41 42 43 45.46 48 47 49 67 68 70 69 15 16 14 17.18 19 25 26 21 22 24 23 20 35 36 34 33 32 38 51 52 53 66 65 64 57 56 55 54 59 58 60 63 61 62 -9- jintex.in

Page 13

REF.NO NOTE PART NO. D E S C R I P T I O N ヒンメイ Qty 1 #01 129-68558 LOOPER L (1) ASM. ルーパ- L (1) (クミ) 1 2 #01 129-68855 LOOPER R (1) ASM. ルーパ- R (1) (クミ) 1 3 #01 129-69150 LOOPER C (1) ASM. ルーパ- C (1) (クミ) 1 4 #01 129-63351 FEED DOG XH(1/4") ASM. オクリバ- XH(1/4") (クミ) 1 5 #02 129-79258 LOOPER L (3) ASM. ルーパ- L (3) (クミ) 1 6 #02 129-79357 LOOPER R (2) ASM. ルーパ- R (2) (クミ) 1 7 #02 129-78755 FEED DOG MH(3/16") ASM. オクリバ- MH(3/16") (クミ) 1 8 B2502-019-000 BUSHING, FRONT ルーパ-パジクマエメタル 1 9 SS-8151150-SP SCREW 15/64-28 L=10.5 トメネジ 15/64-28 L=10.5 1 10 129-68004 FEED ROCKER ASM. ルーパ-ジク 1 11 B2123-026-0AO FEED ROCKER ASM. ヨードーウデクミ 1 12 SS-7111110-TP SCREW 11/64-40 L=10.5 マルヒラネジ 11/64-40 L=10.5 (1) 13 NS-6150310-SP NUT 15/64-28 ロツカクナット 15/64-28 1 14 B2505-019-0AO CONNECTION CRANK ASM. セビンコウオサエカナグクミ 1 15 SS-7111110-TP SCREW 11/64-40 L=10.5 マルヒラネジ 11/64-40 L=10.5 (1) 16 B2115-191-000 FEED ROCKER CONNECTING LINK ヨードーウデレンケツツウデ 2 17 #03 B2116-019-00A FEED CONNECTING LINK PIN レンケツツデピン 2 18 #03 B2116-019-00B FEED CONNECTING LINK PIN レンケツツデピン 0.1 19 CQ-2020000-00 OIL WICK ユシン 2 20 B2102-026-0AO FEED ROCKER ASM. ヨードーカンクミ 1 21 SS-7090920-SP SCREW 9/64-40 L=8.5 マルヒラネジ 9/64-40 L=8.5 (4) 22 SS-7080510-TP SCREW 1/8-44 L=4.5 マルヒラネジ 1/8-44 L=4.5 2 23 B2107-019-000 FEED ROCKER SHAFT ヨードーカンジク 1 24 SS-8150710-SP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 1 25 B2122-019-000 WASHER ヨードーカンジクサガネ 1 26 SS-7110830-SP SCREW 11/64-40 L=7.5 マルヒラネジ 11/64-40 L=7.5 1 27 B2002-026-000 LOOPER AVOIDING SHAFT BRACKET ルーパ-アボイデイングブラケツト 1 28 B2503-019-000 LOOPER ROCKER SHAFT BUSHING, R ルーパ-ロツカーシャフトブツシング、R 1 29 SS-8150310-SP SCREW 15/64-28 L=3.4 トメネジ 15/64-28 L=3.4 1 30 B2003-026-000 LOOPER AVOIDING SHAFT BUSHING ルーパ-アボイデイングブツシング 1 31 SS-8150410-SP SCREW 15/64-28 L=4 セビンコウメタル 1 32 B2006-019-0AO LOOPER AVOIDING ECCENTRIC CAM ルーパ-アボイデイングエキセントリックカム 1 33 SS-8110410-TP SCREW 11/64-40 L=3.5 トメネジ 11/64-40 L=3.5 (2) 34 B1635-191-000 SLIDE BLOCK ルーパ-アボイデイングスライドブロック 1 35 B2001-261-0AO LOOPER AVOIDING SHAFT ASM. セビンコウオクリヘンシンカムクミ 1 36 SS-7111110-TP SCREW 11/64-40 L=10.5 マルヒラネジ 11/64-40 L=10.5 (1) 37 SS-7621040-SP SCREW 3/16-32 L=9.5 スイヘイオクリフタマタサヤ 1 38 B1601-026-000 FEED BAR ユーミトメネジ 1 39 B1610-019-000 SLIDE BLOCK スイヘイオクリフタマタサヤ 1 40 129-62809 ADJUSTING SHAFT ジヨーダオクリフタマタ 1 41 RO-0611801-00 RUBBER RING ウエシタオクリヘンシンカム 1 42 SS-8110422-TP SCREW 11/64-40 L=4 トメネジ 1/4-40 L=6 2 43 B2108-026-000 SLIDE BLOCK STOPPER ククツバンヘンシンカム 1 44 SS-8110510-SP SCREW 11/64-40 L=5 トメネジ 11/64-40 L=5 1 45 #03 B2105-019-000 FEED ROCKER SLIDE BLOCK ヨードーカンカクゴマ (1) 46 #03 B2105-019-00A FEED ROCKER SLIDE BLOCK ヨードーカンカクゴマ (1) 47 B2101-261-000-A FEED ROCKER DRIVING LEVER マルヒラネジ 1/8-44 L=4.5 1 48 SS-7080510-TP SCREW 1/8-44 L=4.5 クトウカンヘンシンカムクミ 1 49 B2103-261-0AO FEED ECCENTRIC CAM トメネジ 1/4-40 L=6 1 50 SS-8660612-TP SCREW 1/4-40 L=6.0 マルヒラネジ 11/64-40 L=10.5 2 51 SS-7111110-TP SCREW 11/64-40 L=10.5 チョウセツタイアデイタ 1 52 129-31903 BODY CAP オクリリヨウチョウセツタイ (ソウクミ) 1 53 129-63062 FEED ECCENTRIC BASE ASM. ラチエツトオサエ (1) 54 B1624-191-000 RATCHET PAWL スプリングピン (1) 55 PS-0250081-TP SPRING PIN 2.5X8 ラチエツトオサエバネトメネジ (1) 56 B1626-191-000 SCREW ラチエツトオサエバネ (1) 57 B1625-191-000 FEED PAWL SPRING ラチエツトギヤ (1) 58 B1623-191-000 RATCHET GEAR オクリリヨウチョウセツタイ (1) 59 129-63005 FEED ECCENTRIC オクリリヨウチョウセツタイトメネジ (1) 60 129-31606 SCREW 61 SS-8110410-TP FEED ECCENTRIC BODY 62 B1621-261-000 FEED ECCENTRIC GUIDE 63 129-31705 SCREW 64 B1606-191-000 FEED ECCENTRIC SLIDE BLOCK 65 B1602-019-000 FEED LIFTING FORKED CONNECTION 66 129-62601 FEED ECCENTRIC CAM 67 SS-8660612-TP SCREW 3/16-32 L=20 68 B2106-026-000 SLIDE BLOCK PIN 69 RO-0952001-30 RUBBER RING 70 SS-6122030-SP SCREW 3/16-28 L=20 Note ( 注記 ) #01...FOR MS-1261 REFER TO THE TABLE OF EXCHANGING PARTS ON P.23 #02...FOR MS-1260 REFER TO THE TABLE OF EXCHANGING PARTS ON P.23 #03...SELECTIVE PART MS-1261 用 23 ページの交換部品一覧表をご参照下さい。 MS-1260 用 23 ページの交換部品一覧表をご参照下さい。選択部品 - 10 - jintex.in

Page 14 — 6. LOOPER & FEED DOG COMPONENTS

6. LOOPER & FEED DOG COMPONENTS ルーパ・送り歯関係 9 6 10 4 7 5 11 5 8 4 3 1 2 12 16 14 15 13 22 19 20 24 21 18 17 23 30 25 28 31 26 29 32 27 33 37 35 36 34 44 41 42 40 39 38 43 - 11 - jintex.in

Page 15

REF.NO NOTE PART NO. D E S C R I P T I O N ヒンメイ Qty 1 129-68558 LOOPER L (1) ASM. ルーパ- L (1) (1) 2 129-68509 LOOPER L (1) ルーパ- L (1) (1) 3 129-42009 LOOPER HOLDER,2 ルーパ- シジウデ (2) (1) 4 SS-7080510-TP SCREW 1/8-44 L=4.5 マルヒラネジ 1/8-44 L=4.5 (3) 5 SS-6090910-TP SCREW 9/64-40 L=9 ヒラネジ 9/64-40 L=9 (3) 6 #01 129-68855 LOOPER R (1) ASM. ルーパ- R (1) (クミ) 1 7 129-68806 LOOPER R (1) ルーパ- R (1) (1) 8 129-69309 LOOPER HOLDER (3) ルーパ- シジウデ (3) (1) 9 #01 129-69150 LOOPER C (1) ASM. ルーパ- C (1) (クミ) 1 10 129-69101 LOOPER C (1) ルーパ- C (1) (1) 11 129-41100 LOOPER HOLDER,1 ルーパ- シジウデ (1) (1) 12 #01 129-63351 FEED DOG XH(1/4") ASM. オクリバ XH(1/4") (クミ) 1 13 129-63302 FEED DOG XH(1/4") オクリバ XH(1/4") (1) 14 129-64201 ADJUSTING FEED DOG XH チョウセツオクリバ XH (1) 15 129-64102 FEED DOG ADJUSTING PLATE (A) オクリバチョウセツイタ (A) (1) 16 129-64300 ADJUSTING FEED DOG SETSCREW チョウセツオクリバトメネジ (2) 17 129-64409 NEEDLE HOLDER ADJUSTING BASE ハリウケチョウセツタイ (1) 18 129-64805 NEEDLE HOLDER (A) ハリウケジタイ (A) (1) 19 129-64508 NEEDLE HOLDER (LEFT) ハリウケ (ヒダリ) (1) 20 129-64607 NEEDLE HOLDER (INSIDE) ハリウケ (ナカ) (1) 21 129-64706 NEEDLE HOLDER (RIGHT) ハリウケ (ミギ) (1) 22 SP SS-7090510-SP SCREW 9/64-40 L=4.6 マルヒラネジ 9/64-40 L=4.6 (1) 23 SS-7091110-TP SCREW 9/64-40 L=10.5 マルヒラネジ 9/64-40 L=10.5 (1) 24 SS-6090910-TP SCREW 9/64-40 L=9 ヒラネジ 9/64-40 L=9 (1) 25 #02 129-79258 LOOPER L (3) ASM. ルーパ- L (3) (クミ) 1 26 129-79209 LOOPER L (3) ルーパ- L (3) (1) 27 129-42009 LOOPER HOLDER,2 ルーパ- シジウデ (2) (1) 28 SS-7080510-TP SCREW 1/8-44 L=4.5 マルヒラネジ 1/8-44 L=4.5 (2) 29 SS-6090910-TP SCREW 9/64-40 L=9 ヒラネジ 9/64-40 L=9 (2) 30 #02 129-79357 LOOPER R (2) ASM. ルーパ- R (2) (クミ) 1 31 129-79308 LOOPER C (2) ルーパ- C (2) (1) 32 129-41100 LOOPER HOLDER,1 ルーパ- シジウデ (1) (1) 33 #02 129-78755 FEED DOG MH(3/16") ASM. オクリバ MH(3/16") (クミ) 1 34 129-78706 FEED DOG MH(3/16") オクリバ MH(3/16") (1) 35 129-64102 ADJUSTING FEED DOG MH チョウセツオクリバ MH (1) 36 129-64300 FEED DOG ADJUSTING PLATE (A) オクリバチョウセツイタ (A) (1) 37 129-64409 ADJUSTING FEED DOG SETSCREW チョウセツオクリバトメネジ (2) 38 129-79001 NEEDLE HOLDER ADJUSTING BASE ハリウケチョウセツタイ (1) 39 129-78805 NEEDLE HOLDER (B) ハリウケジタイ (B) (1) 40 129-78904 NEEDLE HOLDER (LEFT) ハリウケ (ヒダリ) (1) 41 129-78904 NEEDLE HOLDER (RIGHT) ハリウケ (ミギ) (1) 42 SP SS-7090510-SP SCREW 9/64-40 L=4.6 マルヒラネジ 9/64-40 L=4.6 (1) 43 SS-7091110-TP SCREW 9/64-40 L=10.5 マルヒラネジ 9/64-40 L=10.5 (1) 44 SS-6090670-TP SCREW 9/64-40 L=6 ヒラネジ 9/64-40 6=6 (1) Note ( 注記 )#01...FOR MS-1261 MS-1261 用 REFER TO THE TABLE OF EXCHANGING 23 ページの交換部品一覧表を PARTS ON P.23 ご参照下さい。 #02...FOR MS-1260 MS-1260 用 REFER TO THE TABLE OF EXCHANGING 23 ページの交換部品一覧表を PARTS ON P.23 ご参照下さい。 - 12 - jintex.in

Page 16 — 7. KNEE LIFTER COMPONENTS

7. KNEE LIFTER COMPONENTS 膝上げ関係 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 13 jintex.in

Page 17

REF.NO NOTE PART NO. DESCRIPTION HIN MEI Qty 1 B2322-019-000 PRESSER BAR LIFTING BRACKET LI オサエアゲテ 1 2 SD-0790431-SP HINGE SCREW D= 7.94 H= 4.3 ダンネジ D=7.94 H=4.3 1 3 B3701-019-000 HINGE SCREW ヒラアゲテダンネジ 1 4 B2319-191-00A PRESSER BAR LIFTING LEVER ヒラアゲテ 1 5 B2315-019-000 TENSION RELEASING CONNECTING L イトユルメレバー 1 6 SD-0450211-SP HINGE SCREW D= 4.50 H= 2.1 ダンネジ D=4.5 H=2.1 2 7 B2317-019-000 TENSION RELEASING SHAFT CRANK イトユルメウデ 1 8 SS-7110710-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 1 9 B2321-019-000 PRESSER BAR LIFTING LEVER SPRI ヒラアゲテハネ 1 10 B8101-191-0A0 KNEE LIFTER ASM. ヒラアゲテソーチトリツケダイクミ 1 11 B8102-191-0A0 KNEE LIFTER LEVER ASM. ヒラアゲテレバークミ (1) 12 SS-9151210-TP SCREW 15/64-28 L=11.8 ロツカクボルト 15/64-28 (1) 13 B8101-180-000 KNEE DRIVING SHAFT MOUNTING ヒラアゲテソーチトリツケダイ (1) 14 B8111-180-000 SPRING ヒラアゲバネ (1) 15 B3426-122-000 KNEE PRESS ROD THRUST BLOCK ヒラアゲカイテンドメ (1) 16 SS-9182010-SN SCREW 9/32-20 L=20 ロツカクボルト 9/32-20 L=20 (2) 17 B8514-180-000 STOP BLOCK ネジツキストツパー (1) 18 SS-9661120-CP SCREW 1/4-40 L=10.5 ロツカクボルト 1/4-40 L=10.5 (1) 19 B3427-122-000 KNEE PRESS ROD MOUNTING BRACKE ヒラアゲテジクトリツケウデ (1) 20 SS-9182010-SN SCREW 9/32-20 L=20 ロツカクボルト 9/32-20 L=20 (2) 21 B3421-012-000 KNEE PRESS ROD ヒラアテヨコジク (1) 22 SK-3482500-SC WOOD SCREW D=4.8 L=25 マルモクネジ D=4.8 L=25 4 23 B3419-552-0A0-A KNEE LIFTER PLATE ROD ASM. ヒラアゲタテジククミ 1 24 B3430-552-000 KNEE PRESS PLATE ASM. ヒラアゲタイタクミ (1) 25 B3431-552-000-A KNEE PRESS PLATE COVER ヒラアゲタイタカバー (1) 26 SS-9661120-CP SCREW 1/4-40 L=10.5 ロツカクボルト 1/4-40 L=10.5 (1) 27 B3419-122-000 KNEE LIFTER PLATE ROD ヒラアゲタテジク (1) - 14 - jintex.in

Page 18 — 8. THREAD STAND COMPONENTS

8. THREAD STAND COMPONENTS 糸立装置関係 1 2 4 3 5 2 27 6 11 7 12 9 8 13 10 14 3 4 15 16 21 19 25 23 18 17 22 21 22 19 18 20 26 - 15 - jintex.in

Page 19

REF.NO NOTE PART NO. DESCRIPTION HIN MEI Qty 1 B3301-026-LAA THREAD STAND ASM. イトタテソウチ (クミ) 1 2 119-57602 THREAD GUIDE ARM, A イトタテウデ (A) (2) 3 B3318-704-L00 THREAD GUIDE ARM JOINT イトタテイトアンナイシメカナグ (4) 4 SM-6061200-SE SCREW M6 L=12 ヒラタコネシ M6 L=12 (4) 5 111-84108 SPOOL REST ROD RUBBER CAP イトタテボウホゴゴム (1) 6 119-57503 SPOOL REST ROD, UPPER イトタテボウツナギテ (1) 7 111-84207 SPOOL REST ROD JOINT イトタテボウツナギテ (1) 8 SM-4051405-SE SCREW M5X0.8 L=14 ナベコネシ M5X0.8 L=14 (2) 9 NM-6050001-SE NUT M5X0.8 ロツカクナツト M5X0.8 1シュ (2) 10 119-57404 SPOOL REST ROD, LOWER イトタテボウ (シタ) (1) 11 111-84009 SPOOL RETAINER イトマキフレトメ (6) 12 B3320-704-L00 SPOOL PIN イトマキウケボー (6) 13 B3311-012-000 SPOOL REST CUSHION イトマキウケケザ (6) 14 111-83902 SPOOL REST イトマキウケザラ (6) 15 119-57602 THREAD GUIDE ARM, A イトタテウデ (A) (2) 16 SM-4061201-SE SCREW M6 L=12 ナベコネシ M6 L=12 (2) 17 B3321-704-L0B SPOOL REST ARM SUPPORT, B イトタテウデササエ B (1) 18 SK-3382001-SE SCREW D=3.8 L=20 マルモクネジ D=3.8 L=20 (2) 19 NM-6060001-SE NUT M6 ロツカクナツト M6 1シュ (2) 20 B3321-704-L00 SPOOL REST ARM SUPPORT, A イトタテウデササエ A (1) 21 B3317-704-000 NUT C15 イトタテホートメナツト (2) 22 WS-1643202-KR SPRING WASHER ハネサガネ 16.4X26.6X3.2 (1) 23 WP-1702600-SO WASHER 17X30X2.6 ヒラサガネ 17X30X2.6 (2) 24 MA0-1152000 CORD STAPLE コードステツプル (3) 25 WS-0510002-KN SPRING WASHER ハネサガネ 5.1X9.2X1.3 (6) 26 NM-6050001-SE NUT M5X0.8 ロツカクナツト M5X0.8 1シュ (6) 27 B3319-704-L00 THREAD GUIDE イトミチ (6) - 16 - jintex.in

Page 20 — 9. FRAME & COVER COMPONENTS

V045 COMPILATION V 0 4 5 編 9. FRAME & COVER COMPONENTS フレーム・カバー関係 REF. NO. NOTE PART NO. DESCRIPTION ヒンメイ Qty 1 MAV-04501000 MAIN BASE メインベース 1 2 MAV-04502000 CLUTCH BASE クラッチベース 1 3 SM-6062002-TP SCREW M6 L=20 ロツクアナボルト M6 L=20 2 4 WP-0641600-SC WASHER 6.4X12.5X1.6 ヒラサガネ 2 5 SM-6061850-SC SCREW M6 L=18 ロツクボルト M6 L=18 4 6 WP-0641600-SC WASHER 6.4X12.5X1.6 ヒラサガネ 4 7 MAV-04503000 ROLLER COVER ローラーカバー 1 8 SM-5030355-SE SCREW イントネジ 2 9 MAV-04504000 INTERMEDIATE PULLEY COVER チューンクプーリーカバー 1 10 SM-5040655-SN SCREW イントネジ 3 11 PS-0300242-KO SPRING PIN 3.0X24 スプリングピン 3.0X24 1 12 PS-0300102-KO SPRING PIN 3.0X10 スプリングピン 3.0X10 1 13 SM-6031202-TP SCREW M3X0.5 L=12 ロツクアナボルト 1 14 NM-6030003-SC NUT ロツクナット M3X0.5 3シュ 1 15 MAV-04505000 CLUTCH COVER A クラッチカバー A 1 16 MAV-04506000 CLUTCH COVER B クラッチカバー B 1 17 SM-5040655-SN SCREW イントネジ 5 18 MAV-04507000 MODEL PLATE モデルメハン 1 - 17 - jintex.in

Page 21 — 10. DRIVE COMPONENTS

10. DRIVE COMPONENTS 駆動関係 REF.NO NOTE PART NO. 1 MAV-04515000 2 SB-2120001-00 3 CS-1201010-SH 4 SB-1120005-00 5 RC-1200001-KP 6 WP-1221016-SP 7 MAV-04516000 8 SM-6051002-TP 9 MAV-045170A0 10 MAV-04517000 11 SB-1350003-00 12 SM-8060602-TP 13 WP-0841601-SC 14 MAV-045180A0 15 MAV-04518000 16 SB-1080006-00 17 NM-6080003-SC 18 SM-8082502-TP 19 MAV-04519000 20 SM-6061602-TP 21 SD-0801606-SH 22 NM-6060003-SC 23 MAV-04520000 24 SM-6061602-TP 25 MAV-045210A0 26 MAV-04521000 27 SB-1060002-00 28 SD-0600756-TP 29 WP-0641600-SC 30 MAV-04522000 31 WZ-1200200-KP DESCRIPTION ROCKING SHAFT BEARING THRUST COLLAR ASM. D=12 W=10 BEARING C-SHAPED SNAP RING WASHER ROCKING CRANK SCREW M5X0.8 L=10 ECCENTRIC SHAFT ASM. ECCENTRIC SHAFT BEARING SCREW M6X6 WASHER 8.4X17.4X1.6 ROCKING CRANK HOUSING ASM. ROCKING CRANK HOUSING BEARING NUT M8 SCREW ROCKING ROD SCREW M6 L=16 STEP-SCREW NUT M6 ADJUSTING ROD SCREW M6 L=16 JOINT ROD ASM. JOINT ROD BEARING 6X17 STEP-SCREW WASHER 6.4X12.5X1.6 ADJUSTING PIN WAVED WASHER ヒンメイヨウドウシャフトコロカリジクウケスラストウケ D=12 W=10 クミコロカリジクウケ Cガタトメワヒラサガネヨウドウクランクトメナゲナボルト M5X0.8 L=10 ヘンシンジク (クミ) ヘンシンジクコロカリジクウケトメネジ M6 L=6 ヒラサガネミカギマル M8 ヨウドウクランクハウジングクミヨウドウクランクハウジングコロカリジクウケロツカクアナボルト M8 3シュトメネジヨウドウロツドロツカクアナボルトダンネジロツカクアナツト M6 3シュアシヤストロツドロツカクアナボルトジヨイントロツド (クミ) ジヨイントロツドベアリング 6X17 ダンネジヒラサガネアシヤストピンナミサガネ Qty 1 1 2 2 1 1 1 1 1 (1) (1) 2 1 1 (1) (2) 1 1 1 1 1 1 1 1 1 (1) (2) 1 1 1 1 - 18 - jintex.in

Page 22 — 11 CLUTCH COMPONENTS

11 CLUTCH COMPONENTS クラッチ関係 REF. NO. NOTE PART NO. DESCRIPTION ヒンメイ Qty 1 MAV-045250A0 CLUTCH CASE ASM. クラッチケースクミ 1 2 MAV-04525000 CLUTCH CASE クラッチケース (1) 3 SB-3200003-00 BALL BEARING コロガリシウケ (1) 4 SB-3200004-00 BALL BEARING コロガリシウケ (1) 5 MAV-04534000 CLUTCH OIL SHIEL クラッチオイルシール (2) 6 MAV-04526000 CLUTCH ROCKING SHAFT クラッチヨウトウジク (1) 7 SB-3100003-00 BALL BEARING コロガリシウケ (2) 8 SB-3100007-00 BALL BEARING コロガリシウケ (1) 9 RC-1851217-KP C-RING Cガタトメワ (3) 10 SD-0600596-SH STEP-SCREW ダンネジ 1 11 NM-6040003-SC NUT M4 ロッカクナット M4X0.7 ヨンシュ 1 12 MAV-04527000 CLUTCH SHAFT クラッチシャフト 1 13 SM-8050602-TP SCREW M5 L=6 ネジ M5X0.8 L=6 2 14 MAV-04528000 BRAKE PLATE ブレーキイタ 2 15 MAV-04529000 BRAKE WASHER ブレーキワッシャ 2 16 MAV-04529000 BRAKE SPRING ブレーキシハネ 1 17 MAV-04531000 CLUTCH BRAKE COLLER クラッチブレーキカラー 1 18 SM-8040602-TP SCREW M4X0.7 L=6 ネジ 2 19 MAV-04532000 CLUTCH PULLEY クラッチプーリー 1 20 SM-8040302-TP SETSCREW トメネジ 2 21 MAV-04533000 CLUTCH TIMING BELT クラッチタイミングベルト 1 - 19 - jintex.in

Page 23 — ROLLER DRIVE COMPONENTS

12. ROLLER DRIVE COMPONENTS ローラー駆動関係 REF.NO NOTE PART NO. DESCRIPTION ヒンメイ Qty 1 MAV-045350A0 ROLLER BASE ASM. ローラーベースクミ 1 2 MAV-04535000 ROLLER BASE ローラーベース (1) 3 SB-3070005-00 BEARING コロガリジクウケ (1) 4 SB-3070004-00 BEARING コロガリジクウケ (1) 5 MAV-04546000 ROLLER SHAFT OIL SHIEL ローラーシャフトオイルシール (2) 6 MAV-045360A0 ECCENTRIC COLLER ASM. ローラーベースヘンシンカラークミ 1 7 MAV-04536000 ROLLER BASE ECCENTRIC COLLER ローラーベースヘンシンカラー (1) 8 SB-3070004-00 BEARING コロガリジクウケ (1) 9 SM-8040402-TP SCREW M4X0.7 L=4 トメネジ M4X0.7 L=4 1 10 MAV-045470A0 ROLLER SHAFT PLATE ASM. ローラージクプレートクミ 1 11 MAV-04547000 ROLLER SHAFT PLATE ローラージクプレート (1) 12 SB-1070001-00 BEARING コロガリジクウケ (1) 13 SM-6040802-TP SCREW M4X0.7 L=8 ロツカアナボルト 2 14 MAV-04537000 PULLEY SHAFT プーリーシャフト 1 15 SM-8050502-TP SCREW M5 L=5 トメネジ 2 16 RC-0650811-KP RETAINING RING Cガタトメワリ 1 17 MAV-045380B0 INTERMEDIATE PULLEY ASM. チュウカンプーリーソウクミ 1 18 MAV-045380A0 INTERMEDIATE PULLEY ASM. チュウカンプーリー (クミ) (2) 19 SB-3070004-00 BEARING コロガリジクウケ (1) 20 MAV-04541000 ROLLER TIMING BELT ローラータイミングベルト 1 21 MAV-04542000 SUPPORT PLATE サポートプレート 1 22 SM-6040802-TP SCREW M4X0.7 L=8 ロツカアナボルト 2 23 MAV-04543000 ROLLER SHAFT ローラーシャフト 1 24 MAV-04544000 ROLLER PULLEY ローラープーリー 1 25 SM-8040602-TP SCREW M4X0.7 L=6 トメネジ 2 26 #01 MAV-04545000 STEEL ROLLER スチールローラー (クサビガタ) 1 27 #01 MAV-045500A0 URETHANE ROLLER ASM. ウレタンローラー (クミ) 1 28 SM-8040402-TP SCREW M4X0.7 L=4 トメネジ M4X0.7 L=4 2 29 SM-6060002-TP SCREW M6 L=20 ロツカアナボルト M6 L=20 1 30 NM-6060003-SC NUT M6 ロツカクナット M6 3シュ 1 Note (注記 )#01...SELECTIVE PART 選択部品 - 20 - jintex.in

Page 24 — 13. PRESSER COMPONENTS

13. PRESSER COMPONENTS 押さえ関係 27 26 33 27 31 28 30 28 32 34 29 34 1 9 4 9 2 4 3 7 8 6 5 35 20 18 10 21 22 20 19 13 24 11 16 14 23 15 17 25 37 38 36 - 21 - jintex.in

Page 25

REF.NO NOTE PART NO. DESCRIPTION HIN MEI Qty 1 MAV-04555000 PRESSER LIFTING LEVER オサエアゲレバー 1 2 MAV-04556000 PRESSER LIFTING LEVER COLLER オサエアゲレバーカラー 1 3 MAV-04557000 PRESSER LIFTING SHAFT オサエアゲシヤフト 1 4 SM-8060602-TP SCREW M6X6 トメネジ M6 L=6 2 5 MAV-04558000 PRESSER LIFTING CAM PLATE オサエアゲカムイタ 1 6 SM-6040802-TP SCREW M4X0.7 L=8 ロツカクアナボルト 1 7 D2587-L8W-B00 ROLLER クト゛ーカムコロ 1 8 SD-0550451-SP HINGE SCREW タ゛ンネジ 1 9 SM-6041002-TP SCREW M4 L=10 ロツカクアナボルト M4X0.7 L=10 2 10 MAV-04559000 PRESSER LIFTING PLATE オサエアゲプレート 1 11 SD-0640325-SP HINGE SCREW タ゛ンネジ 1 12 SD-0600361-SP HINGE SCREW タ゛ンネジ 1 13 MAV-04560000 PRESSER LIFTING JOINT PLATE オサエアゲシ゛ヨイントプレート 1 14 SD-0640321-TP HINGE SCREW タ゛ンネジ 1 15 SD-0640751-SP HINGE SCREW D= 6.35 H= 7.5 タ゛ンネジ D= 6.35 H=7.5 1 16 B2056-781-000 BLOCKING ARM SPRING ソシウテ゛バネ 1 17 WP-0651056-SH WASHER 6.5X11X1 ヒラサ゛カ゛ネ 6.5X11X1 1 18 MAV-04561000 PRESSER LIFTING ROD オサエアゲロツト゛ 1 19 MAV-04616000 PRESSER LIFTING LINK オサエアゲリンク 1 20 SD-0600402-TP HINGE SCREW D= 6 H= 4 タ゛ンネジ D=6 H=4 2 21 NS-6620310-SP NUT 3/16-32 ロツカクアナツト 3/16-32 2 22 WP-0480856-SP WASHER 4.8X8.4X0.8 ヒラサ゛カ゛ネ 4.8X8.4X0.8 1 23 MAV-04562000 KNEE LIFTER LEVER COLLER ヒサ゛アケ゛テ゛コラー 1 24 SD-0600271-SP HINGE SCREW D= 6 H= 2.7 タ゛ンネジ D=6 H=2.7 1 25 NS-6110430-SP NUT 11/64-40 ロツカクアナツト 11/64-40 1 26 MAV-04564000 PRESSER LIFTING BASE オサエアゲ゛ヘ゛ース 1 27 SM-6061002-TP SCREW M6 L=10 ロツカクアナホ゛ルト M6 L=10 2 28 MAV-04565000 SPRING PLATE COVER ハ゛ネフ゜レート゛カハ゛ー 2 29 B1506-352-000 TENSION SPRING RACK B ヒツフ゜リハ゛ネカケ゛ B 2 30 MAV-04566000 SPRING PLATE ハ゛ネフ゜レート 1 31 MAV-04567000 PRESSER ADJUSTING SCREW オサエアゲ゛セツツネジ 1 32 NM-6080001-SC NUT M8X1.25 ロツカクアナツト M8 1シュ 1 33 MAV-04568000 PRESSER ADJUSTING KNOB オサエアゲ゛セツツマミ 1 34 MAV-04569000 PRESSER SPRING オサエアゲ゛ハ゛ネ 2 35 MAV-04563000 PRESSER LIFTING LEVER SPRING オサエアゲレバーハ゛ネ 1 36 135-15606 SPRING イト゛キリホ゛シ゛ヨカムモト゛シハ゛ネ 1 37 SM-6031402-TP SCREW ロツカクアナホ゛ルト 1 38 NM-6030003-SC NUT ロツカクアナツト M3X0.5 3シュ 1 - 22 - jintex.in

Page 26 — 14. TABLE OF EXCHANGING GAUGE PARTS

14. TABLE OF EXCHANGING GAUGE PARTS 交換ゲージ一覧表 MS-1261/V045 (For Extra heavy-weight) MS-1261/V045 (極厚物用) 1 2 3 4 5 Description 品名 Gauge set ゲージセット Gauge set (with finger guard) (指カード付) Throat plate 針板 Needle clamp 針留 Presser foot asm. 押さえ (組) Needle gauge size 針幅 Code ゲージ記号 inch mm 12953352 12953360 12953303 12956355 12960159 E 7/32 5.6 F 1/4 6.4 12953252 12953261 12953204 12956256 12960050 G 9/32 7.2 12953451 12953469 12953402 12956454 12960258 H 5/16 8.0 12953550 12953568 12953501 12956553 12960357 K 3/8 9.5 12953659 12953667 12953600 12956652 12960456 6 7 8 9 10 Description 品名 Presser foot asm. (with finger guard) 押さえ (組) (指カード付) Feed dog asm. 送り歯 (組) Looper asm. (L) ルーパ (L) (組) Looper asm. (R) ルーパ (R) (組) Looper asm. (C) ルーパ (C) (組) Needle gauge size 針幅 Hack Hack Hack Hack Code ゲージ記号 inch mm 12960167 12963450 12968558 1 12968855 1 12969150 1 E 7/32 5.6 F 1/4 6.4 12960068 12963351 1 1 1 1 G 9/32 7.2 12960266 12963559 1 1 1 1 H 5/16 8.0 12960365 12963658 12968657 2 12968954 2 1 K 3/8 9.5 12960464 12963757 2 1 2 1 MS-1261/V045 (For Heavy-weight) - Option MS-1261/V045 (厚物用) オプション 1 2 3 Description 品名 Gauge set ゲージセット Throat plate 針板 Feed dog asm. 送り歯 (組) Needle gauge size 針幅 Code ゲージ記号 inch mm E 7/32 5.6 12972253 12972204 12974259 F 1/4 6.4 12972154 12972105 12974150 G 9/32 7.2 12972352 12972303 12974358 H 5/16 8.0 12972451 12972402 12974457 K 3/8 9.5 12972550 12972501 12974556 - 23 - jintex.in

Page 27

MS-1260 1261/V045 (For Medium-weight) - Option MS-1260 1261/V045 (中厚物用) - オプション 1 2 3 4 5 6 Description Gauge set Gauge set (with finger guard) Throat plate Needle clamp asm. Presser foot asm. Presser foot asm. (with finger guard) 品名ゲージセットゲージセット (指ガード付) 針板針留(組) 押さえ(組) 押さえ(組) (指ガード付) Model 機種 Needle gauge size 針幅 Code ゲージ記号 inch mm MS-1260 /V045 D 3/16 4.8 12977955 12977963 12977906 12925954 12978250 12978268 E 7/32 5.6 12972956 12972907 F 1/4 6.4 12972857 12972808 MS-1261 /V045 G 9/32 7.2 12973053 12973004 H 5/16 8.0 12973152 12973103 K 3/8 9.5 12973251 12973202 7 8 9 10 11 Description Feed dog asm. Looper asm. (L) Looper asm. (R) Looper asm. (C) Thread guide 品名送り歯(組) ルーパ(L)(組) ルーパ(R)(組) ルーパ(C)(組) 針糸案内 Model 機種 Needle gauge size 針幅 Mark Mark Code ゲージ記号 inch mm Mark No. No. MS-1260 /V045 D 3/16 4.8 12978755 12979258 3 12979357 2 B1130051000 E 7/32 5.6 12975058 F 1/4 6.4 12974952 MS-1261 /V045 G 9/32 7.2 12975157 H 5/16 8.0 12975256 K 3/8 9.5 12975355 12. Spacer for presser feet スペーサ用押さえ用 Screw for spacer スペーサ取付ねじ 13. Spacer for feed dog 送り歯用スペーサ No Thickness 板厚(mm) Part No. 品番 Description 品名 Qty 個数 No Thickness 板厚(mm) Part No. 品番 Description 品名 (1) 0.3 12973509 Adjusting plate B 押さえ調節板 B SS5060310SP 2 (1) 0.3 12975702 Adjusting plate B 送り歯調節板 B (2) 0.5 12973608 Adjusting plate C 押さえ調節板 C SS5060310SP 2 (2) 0.8 12975801 Adjusting plate C 送り歯調節板 C (3) 0.8 12973707 Adjusting plate D 押さえ調節板 D (3) 1.0 12975900 Adjusting plate D 送り歯調節板 D (4) 1.2 12973806 Adjusting plate E 押さえ調節板 E The spacer and installing screws are not included in gauge set. スペーサおよびスペーサ取付ねじは、ゲージセットには含まれません。 The spacer is not included in gauge set. スペーサーは, ゲージセットには含まれません。 - 24 - jintex.in

Page 28

14 15 16 Description Folder asm. 品名フォルダ (組) Needle gauge size M297 M298 M299 針幅 Mark MH H XH Code ゲージ Mark 記号 inch mm D 3/16 4.8 MAM2970CCBA MAM2980AABA MAM2990AABA E 7/32 5.6 MAM2970DDBA MAM2980BBBA MAM2990BBBA F 1/4 6.4 MAM2970EEBA MAM2980CCBA MAM2990CCBA G 9/32 7.2 MAM2970FFBA MAM2980DDBA MAM2990DDBA H 5/16 8.0 MAM2970GGBBA MAM2980EEBA MAM2990EEBA K 3/8 9.5 MAM2970HHBA The folder is not included in gauge set. フォルダは、ゲージセットには含まれません。 Folder mark フォルダ記号 Medium-weight 中厚物用 M297 Heavy-weight 厚物用 M298 Extra heavy-weight (MS-1261/V045 極厚物用 (MS-1261/V045 標準装備) Standard equipment) 17 18 Description Roller asm. 品名先引きローラ (組) Needle gauge size Steel roller Urethane roller 針幅スチールローラウレタンローラ Code ゲージ inch mm 記号 D 3/16 4.8 MAV045450A0 MAV045500B0 E 7/32 5.6 ↑ ↑ F 1/4 6.4 ↑ ↑ G 9/32 7.2 ↑ ↑ H 5/16 8.0 ↑ ↑ K 3/8 9.5 ↑ ↑ The cloth roller is not included in gauge set. 先引きローラは、ゲージセットには含まれません。 The kind of roller 先引きローラ種類 Steel roller Heavy & extra heavy-weight (MS-1261/V045 Standard equipment) スチールローラ厚物・極厚物用 (MS-1261/V045 標準装備) Urethane roller Medium-weight ウレタンローラ中厚物用 - 25 - jintex.in

Page 31 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF 品番頁 NO 129-79258 10 5 129-79258 12 25 129-79308 12 31 129-79357 10 6 129-79357 12 30 135-15606 22 36 PART NO PAGE REF 品番頁 NO PART NO PAGE REF 品番頁 NO - 28 - jintex.in

Page 32

JUKI JUKI CORPORATION JUKI株式会社お買い求め、ご相談は To order or for further information, please contact : ※このパーツリストは商品改良のため予告なく変更する事があります。 ※ The description covered in this parts list is subject to change for improvement of the commodity without notice ※このパーツリストは、1993年11月現在の商品仕様で編集・印刷したものです。 * This parts list is edited and printed in accordance with the product specifications as of November 1993. jintex.in Printed in Japan

Page 3 — CONTENTS

Page 4 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS

Page 5

Page 6 — 2. LOOPER THREAD GUIDE COMPONENTS

Page 7

Page 8 — 3. NEEDLE BAR & MAIN SHAFT COMPONENTS

Page 9

Page 10 — 4. PRESSER BAR & LOWER SHAFT COMPONENTS

Page 11

Page 12 — 5. FEED MECHANISM COMPONENTS

Page 13

Page 14 — 6. LOOPER & FEED DOG COMPONENTS

Page 15

Page 16 — 7. KNEE LIFTER COMPONENTS

Page 17

Page 18 — 8. THREAD STAND COMPONENTS

Page 19

Page 20 — 9. FRAME & COVER COMPONENTS

Page 21 — 10. DRIVE COMPONENTS

Page 22 — 11 CLUTCH COMPONENTS

Page 23 — ROLLER DRIVE COMPONENTS

Page 24 — 13. PRESSER COMPONENTS

Page 25

Page 26 — 14. TABLE OF EXCHANGING GAUGE PARTS

Page 27

Page 28

Page 31 — NUMERICAL INDEX OF PARTS

Part Books

Search

Ref	Part number	Part name
27	27	27
26	26	26
33	33	33
31	31	31
28	28	28
30	30	30
32	32	32
34	34	34
29	29	29
1	1	1
9	9	9
4	4	4
2	2	2
3	3	3
7	7	7
8	8	8
6	6	6
5	5	5
35	35	35
20	20	20
18	18	18
10	10	10
21	21	21
22	22	22
13	13	13
19	19	19
24	24	24
11	11	11
16	16	16
14	14	14
23	23	23
15	15	15
17	17	17
25	25	25
37	37	37
38	38	38
36	36	36

Ref	Part number	Part name
27	27	27
26	26	26
33	33	33
31	31	31
28	28	28
30	30	30
32	32	32
34	34	34
29	29	29
1	1	1
9	9	9
4	4	4
2	2	2
3	3	3
7	7	7
8	8	8
6	6	6
5	5	5
35	35	35
20	20	20
18	18	18
10	10	10
21	21	21
22	22	22
13	13	13
19	19	19
24	24	24
11	11	11
16	16	16
14	14	14
23	23	23
15	15	15
17	17	17
25	25	25
37	37	37
38	38	38
36	36	36

Ref	Part number	Part name
27	27	27
26	26	26
33	33	33
31	31	31
28	28	28
30	30	30
32	32	32
34	34	34
29	29	29
1	1	1
9	9	9
4	4	4
2	2	2
3	3	3
7	7	7
8	8	8
6	6	6
5	5	5
35	35	35
20	20	20
18	18	18
10	10	10
21	21	21
22	22	22
13	13	13
19	19	19
24	24	24
11	11	11
16	16	16
14	14	14
23	23	23
15	15	15
17	17	17
25	25	25
37	37	37
38	38	38
36	36	36
