Siruba F007K / F858K Parts Book (PDF)
Text index — Siruba F007K / F858K

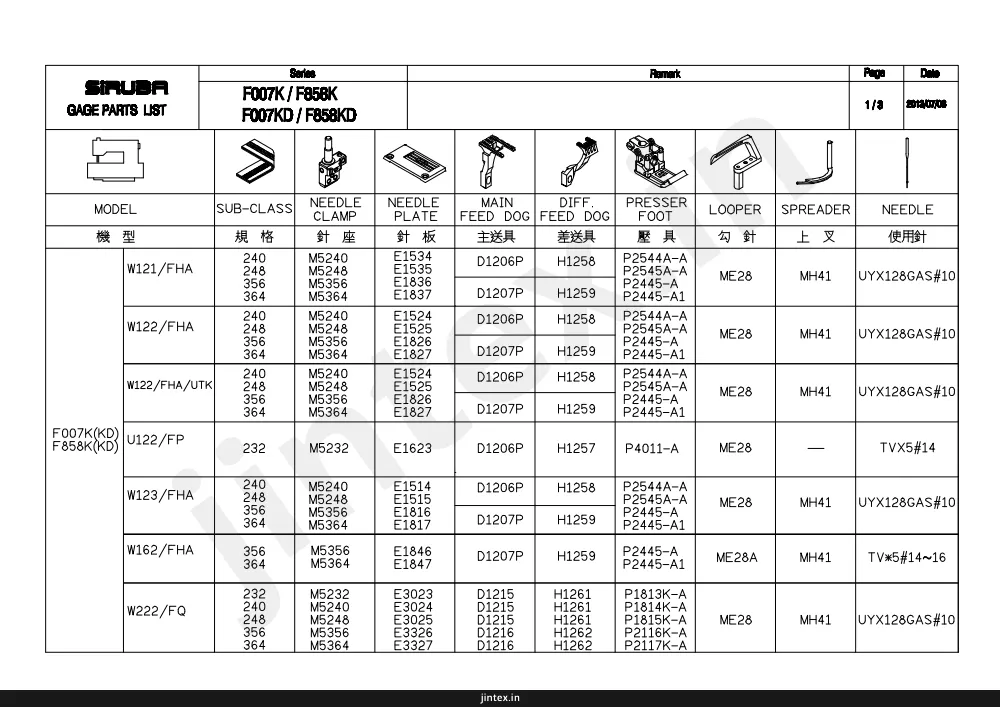

Page 1 — GAGE PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D1206P | MAIN FEED DOG | ||
| D1207P | MAIN FEED DOG | ||
| E1534 E1535 E1836 E1837 | M5240 | M5248 | 240 248 356 364 |
| UYX128GAS#10 | ME28 | MH41 | |
| D1206P | M5232 | E1623 | 232 |
| TVX5#14 | P4011-A | ME28 | |
| E1846 E1847 | M5356 | M5364 | 356 364 |
| P1813K-A P1814K-A P1815K-A | D1215 | H1261 | |
| P2116K-A P2117K-A | D1216 | H1262 |
Page 2
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 240 | M5240 | NEEDLE CLAMP | 240 |
| 248 | M5248 | NEEDLE CLAMP | 248 |
| 356 | M5356 | NEEDLE CLAMP | 356 |
| 364 | M5364 | NEEDLE CLAMP | 364 |
| 240 | E3024 | NEEDLE PLATE | 240 |
| 248 | E3025 | NEEDLE PLATE | 248 |
| 356 | E3326 | NEEDLE PLATE | 356 |
| 364 | E3327 | NEEDLE PLATE | 364 |
| 240 | D1215 | MAIN FEED DOG | 240 |
| 248 | D1216 | MAIN FEED DOG | 248 |
| 356 | D1216 | MAIN FEED DOG | 356 |
| 364 | D1216 | MAIN FEED DOG | 364 |
| 240 | H1261 | DIFF. FEED DOG | 240 |
| 248 | H1261 | DIFF. FEED DOG | 248 |
| 356 | H1262 | DIFF. FEED DOG | 356 |
| 364 | H1262 | DIFF. FEED DOG | 364 |
| 240 | P2314K-A | PRESSER FOOT | 240 |
| 248 | P2315K-A | PRESSER FOOT | 248 |
| 356 | P2616K-A | PRESSER FOOT | 356 |
| 364 | P2617K-A | PRESSER FOOT | 364 |
| 240 | UYX128GAS#10 | NEEDLE | 240 |
| 240 | M5240 | NEEDLE CLAMP | 240 |
| 248 | M5248 | NEEDLE CLAMP | 248 |
| 356 | M5356 | NEEDLE CLAMP | 356 |
| 364 | M5364 | NEEDLE CLAMP | 364 |
| 240 | E3024 | NEEDLE PLATE | 240 |
| 248 | E3025 | NEEDLE PLATE | 248 |
| 356 | E3326 | NEEDLE PLATE | 356 |
| 364 | E3327 | NEEDLE PLATE | 364 |
| 240 | D1215 | MAIN FEED DOG | 240 |
| 248 | D1216 | MAIN FEED DOG | 248 |
| 356 | D1216 | MAIN FEED DOG | 356 |
| 364 | D1216 | MAIN FEED DOG | 364 |
| 240 | H1261 | DIFF. FEED DOG | 240 |
| 248 | H1261 | DIFF. FEED DOG | 248 |
| 356 | H1262 | DIFF. FEED DOG | 356 |
| 364 | H1262 | DIFF. FEED DOG | 364 |
| 240 | P1814K-A | PRESSER FOOT | 240 |
| 248 | P1815K-A | PRESSER FOOT | 248 |
| 356 | P2116K-A | PRESSER FOOT | 356 |
| 364 | P2117K-A | PRESSER FOOT | 364 |
| 240 | UYX128GAS#10 | NEEDLE | 240 |
| 248 | UYX128GAS#10 | NEEDLE | 248 |
| 240-4 | M5240P | NEEDLE CLAMP | 240-4 |
| 248-4 | M5248P | NEEDLE CLAMP | 248-4 |
| 364-4 | M5364P | NEEDLE CLAMP | 364-4 |
| 240-4 | E3724 | NEEDLE PLATE | 240-4 |
| 248-4 | E3725 | NEEDLE PLATE | 248-4 |
| 364-4 | E3727 | NEEDLE PLATE | 364-4 |
| 240-4 | D1516 | MAIN FEED DOG | 240-4 |
| 240-4 | H1262 | DIFF. FEED DOG | 240-4 |
| 240-4 | P2714-A | PRESSER FOOT | 240-4 |
| 248-4 | P2715-A | PRESSER FOOT | 248-4 |
| 364-4 | P2717-A | PRESSER FOOT | 364-4 |
| 240-4 | UYX128GAS#10 | NEEDLE | 240-4 |
| 356 | M5356 | NEEDLE CLAMP | 356 |
| 364 | M5364 | NEEDLE CLAMP | 364 |
| 356 | E4826K | NEEDLE PLATE | 356 |
| 364 | E4827K | NEEDLE PLATE | 364 |
| 356 | D1207P | MAIN FEED DOG | 356 |
| 356 | H1359K | DIFF. FEED DOG | 356 |
| 356 | P2445-A | PRESSER FOOT | 356 |
| 356 | P2445-A1 | PRESSER FOOT | 356 |
| 356 | UYX128GAS#10 | NEEDLE | 356 |
| 364 | UYX128GAS#10 | NEEDLE | 364 |
| 356 | M5356 | NEEDLE CLAMP | 356 |
| 364 | M5364 | NEEDLE CLAMP | 364 |
| 356 | E4836K | NEEDLE PLATE | 356 |
| 364 | E4837K | NEEDLE PLATE | 364 |
| 356 | D1207P | MAIN FEED DOG | 356 |
| 356 | H1459-E | DIFF. FEED DOG | 356 |
| 356 | P2445-A | PRESSER FOOT | 356 |
| 356 | P2445-A1 | PRESSER FOOT | 356 |
| 356 | UYX128GAS#10 | NEEDLE | 356 |
| 364 | UYX128GAS#10 | NEEDLE | 364 |
| 240 | M5240 | NEEDLE CLAMP | 240 |
| 248 | M5248 | NEEDLE CLAMP | 248 |
| 356 | M5356 | NEEDLE CLAMP | 356 |
| 364 | M5364 | NEEDLE CLAMP | 364 |
| 240 | E1524 | NEEDLE PLATE | 240 |
| 248 | E1525 | NEEDLE PLATE | 248 |
| 356 | E1826 | NEEDLE PLATE | 356 |
| 364 | E1827 | NEEDLE PLATE | 364 |
| 240 | D1206P | MAIN FEED DOG | 240 |
| 248 | D1207P | MAIN FEED DOG | 248 |
| 356 | D1207P | MAIN FEED DOG | 356 |
| 364 | D1207P | MAIN FEED DOG | 364 |
| 240 | H1258 | DIFF. FEED DOG | 240 |
| 248 | H1258 | DIFF. FEED DOG | 248 |
| 356 | H1259 | DIFF. FEED DOG | 356 |
| 364 | H1259 | DIFF. FEED DOG | 364 |
| 240 | P2914-A | PRESSER FOOT | 240 |
| 248 | P2915-A | PRESSER FOOT | 248 |
| 356 | P3216-A | PRESSER FOOT | 356 |
| 364 | P3217-A | PRESSER FOOT | 364 |
| 240 | UYX128GAS#10 | NEEDLE | 240 |
| 248 | UYX128GAS#10 | NEEDLE | 248 |
| 240 | M5240 | NEEDLE CLAMP | 240 |
| 248 | M5248 | NEEDLE CLAMP | 248 |
| 356 | M5356 | NEEDLE CLAMP | 356 |
| 364 | M5364 | NEEDLE CLAMP | 364 |
| 240 | E1524 | NEEDLE PLATE | 240 |
| 248 | E1525 | NEEDLE PLATE | 248 |
| 356 | E1826 | NEEDLE PLATE | 356 |
| 364 | E1827 | NEEDLE PLATE | 364 |
| 240 | D1206P | MAIN FEED DOG | 240 |
| 248 | D1206P | MAIN FEED DOG | 248 |
| 356 | D1207P | MAIN FEED DOG | 356 |
| 364 | D1207P | MAIN FEED DOG | 364 |
| 240 | H1258 | DIFF. FEED DOG | 240 |
| 248 | H1258 | DIFF. FEED DOG | 248 |
| 356 | H1259 | DIFF. FEED DOG | 356 |
| 364 | H1259 | DIFF. FEED DOG | 364 |
| 240 | P3414-A | PRESSER FOOT | 240 |
| 248 | P3415-A | PRESSER FOOT | 248 |
| 356 | P3716-A | PRESSER FOOT | 356 |
| 364 | P3717-A | PRESSER FOOT | 364 |
| 240 | UYX128GAS#10 | NEEDLE | 240 |
| 248 | UYX128GAS#10 | NEEDLE | 248 |
Page 3 — GAGE PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M5232 | E6023 | ||
| M5240 | E6024 | ||
| M5248 | E6025 | ||
| M5356 | E6326 | ||
| M5364 | E6327 | ||
| M5232 | E6023R | ||
| M5240 | E6024R | ||
| M5248 | E6025R | ||
| M5356 | E1836L | ||
| M5364 | E1837L | ||
| M5264 | E5827 | ||
| M5264 | E5827 | ||
| M5264 | E5927 | ||
| M5496 | E5496 | ||
| M5411 | E5411 | ||
| M5264 | E5827 | ||
| M4388 | E6828 | ||
| M5456K | E1828Q | ||
| M5460K | E1838Q | ||
| M5464K | E1848Q | ||
| M5452 | E1818 | ||
| M5456 | E1828 | ||
| M5460 | E1838 | ||
| M5464 | E1848 |
Page 4 — GAGE PARTS LIST F007KD
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D1206P | MAIN FEED DOG | ||
| D1207P | MAIN FEED DOG | ||
| D1206P | MAIN FEED DOG | ||
| D1207P | MAIN FEED DOG | ||
| D1206P | MAIN FEED DOG | ||
| D1207P | MAIN FEED DOG | ||
| D1206P | MAIN FEED DOG | ||
| D1207P | MAIN FEED DOG | ||
| 差送具 | H1258 | DIFF. FEED DOG | 240 248 356 364 |
| 差送具 | H1259 | DIFF. FEED DOG | 240 248 356 364 |
| 上送具 | F7240N | TOP FEED DOG | 240 248 356 364 |
| 上送具 | F7356N | TOP FEED DOG | 240 248 356 364 |
| 壓 具 | P7240N-A | PRESSER FOOT | 240 248 356 364 |
| 壓 具 | P7248N-A | PRESSER FOOT | 240 248 356 364 |
| 壓 具 | P7356N-A | PRESSER FOOT | 240 248 356 364 |
| 壓 具 | P7364N-A | PRESSER FOOT | 240 248 356 364 |
| 勾 針 | ME28 | LOOPER | 240 248 356 364 |
| 上 叉 | MH41 | SPREADER | 240 248 356 364 |
| 使用針 | UYX128GAS#10 | NEEDLE | 240 248 356 364 |
| 針 座 | M5240 | NEEDLE CLAMP | 240 248 356 364 |
| 針 座 | M5248 | NEEDLE CLAMP | 240 248 356 364 |
| 針 座 | M5356 | NEEDLE CLAMP | 240 248 356 364 |
| 針 座 | M5364 | NEEDLE CLAMP | 240 248 356 364 |
| 針 板 | E1534 | NEEDLE PLATE | 240 248 356 364 |
| 針 板 | E1535 | NEEDLEPLATE | 240 248 356 364 |
| 針 板 | E1836 | NEEDLEPLATE | 240 248 356 364 |
| 針 板 | E1837 | NEEDLEPLATE | 240 248 356 364 |
| 針 板 | E1524 | NEEDLEPLATE | 240 248 356 364 |
| 針 板 | E1525 | NEEDLEPLATE | 240 248 356 364 |
| 針 板 | E1826 | NEEDLEPLATE | 240 248 356 364 |
| 針 板 | E1827 | NEEDLEPLATE | 240 248 356 364 |
Page 5 — GAGE PARTS LIST 2/2
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| W131/FFT/FHA | MODEL | ||
| 針 座 | M5240 | NEEDLE CLAMP | 240 |
| 針 座 | M5248 | NEEDLE CLAMP | 248 |
| 針 座 | M5356 | NEEDLE CLAMP | 356 |
| 針 座 | M5364 | NEEDLE CLAMP | 364 |
| 針 板 | E7240FL | NEEDLE PLATE | 240 |
| 針 板 | E7248FL | NEEDLE PLATE | 248 |
| 針 板 | E7356FL | NEEDLE PLATE | 356 |
| 針 板 | E7364FL | NEEDLE PLATE | 364 |
| 主送具 | D7240F | MAIN FEED DOG | 240 |
| 主送具 | D7356F | MAIN FEED DOG | 248 |
| 差送具 | H7240F | DIFF. FEED DOG | 240 |
| 差送具 | H7356F | DIFF. FEED DOG | 248 |
| 上送具 | F7240F | TOP FEED DOG | 240 |
| 上送具 | F7356F | TOP FEED DOG | 248 |
| 壓 具 | P7240F-A | PRESSER FOOT | 240 |
| 壓 具 | P7248F-A | PRESSER FOOT | 248 |
| 壓 具 | P7356F-A | PRESSER FOOT | 356 |
| 壓 具 | P7364F-A | PRESSER FOOT | 364 |
| 勾針 | ME28 | LOOPER | 240 |
| 上 叉 | MH41 | SPREADER | 240 |
| 使用針 | UYX128GAS#10 | NEEDLE | 240 |
| 針 板 | E7240FM | NEEDLE PLATE | 240 |
| 針 板 | E7248FM | NEEDLE PLATE | 248 |
| 針 板 | E7356FM | NEEDLE PLATE | 356 |
| 針 板 | E7364FM | NEEDLE PLATE | 364 |
| 壓 具 | P7248U-A | PRESSER FOOT | 248 |
| 壓 具 | P7256U-A | PRESSER FOOT | 256 |
| 壓 具 | P7264U-A | PRESSER FOOT | 264 |
Page 6 — MA-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MA110-A | |||
| MA110 | |||
| KC67 | |||
| KC58 | |||
| SM438 | 7 | ||
| SM132 | 2 | ||
| MA09H | |||
| MA89 | |||
| #SM4054 | 4 | ||
| #SM4401 | 4 | ||
| #MA105 | |||
| MA07D | |||
| MA08KF | |||
| MA12K | |||
| MA04K | |||
| SM439 | 4 | ||
| PP2092 | |||
| SM404 | |||
| PM413 | |||
| MA03 | |||
| MA109 | |||
| MA51K | |||
| MA16K | |||
| SM444 | 3 | ||
| SM432 | |||
| MB33 | |||
| MG21K | |||
| MA86K | |||
| NM410 | |||
| WM641 | 2 | ||
| SM497 | |||
| MA86K-A | |||
| MA86K-A1 | |||
| SM235 | 4 | ||
| MA14 | 4 | ||
| MA13K-1 | |||
| MA13K | |||
| SM460 | 2 | ||
| MA13K-E | |||
| MA11K-1 | 4 | ||
| MA11K-1 | 3 | ||
| SM134 | 2 | ||
| Δ SM330 | 3 | ||
| Δ SM330 | 4 | ||
| MA11K | |||
| MA10K-E | |||
| MA11K-E1 | |||
| MA11K-E | |||
| MA10K-A1 | |||
| MA10K-A | |||
| SM432 |
Page 7 — MA-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM033 | 2 | ||
| MA47K | |||
| SM480 | |||
| MA46K | |||
| MA44K | |||
| SM438 | 2 | ||
| SM412 | |||
| SM410 | |||
| MA41K | |||
| SM438 | 2 | ||
| SM460 | |||
| WM641 | |||
| WM601 | |||
| NM410 | |||
| SM538 | |||
| MA56K | |||
| KP46 | 2 | ||
| SM402 | 2 | ||
| SM438 | |||
| SM438 | |||
| PM506 | |||
| NM410 | |||
| SM438 | |||
| MA19 | |||
| SM132 | |||
| SM488 | |||
| PP3052 | |||
| SM539 | 2 | ||
| MA100K | |||
| WM504 | 2 | ||
| SM476 | |||
| SM4105 | 2 | ||
| SM4402 | |||
| KP46 | 2 | ||
| SM402 | 2 | ||
| MA23K | |||
| MA21K | |||
| MA19K | |||
| SM132 | |||
| PP3052 | 2 | ||
| MA104 | |||
| PM305 | |||
| WM400 | |||
| SM432 | |||
| SM033*2 | SM033*2 | SCREW | |
| MA44K-A | COVER | ||
| SM438*2 | SCREW | ||
| MA55K-A | BRACKET | ||
| SM402*2 | SCREW | ||
| KP46*2 | PIN | ||
| MA55K | BRACKET | ||
| SM539*2 | SCREW | ||
| WM504*2 | WASHER | ||
| MA21K-A1 | BRACKET | ||
| SM4105*2 | SCREW |

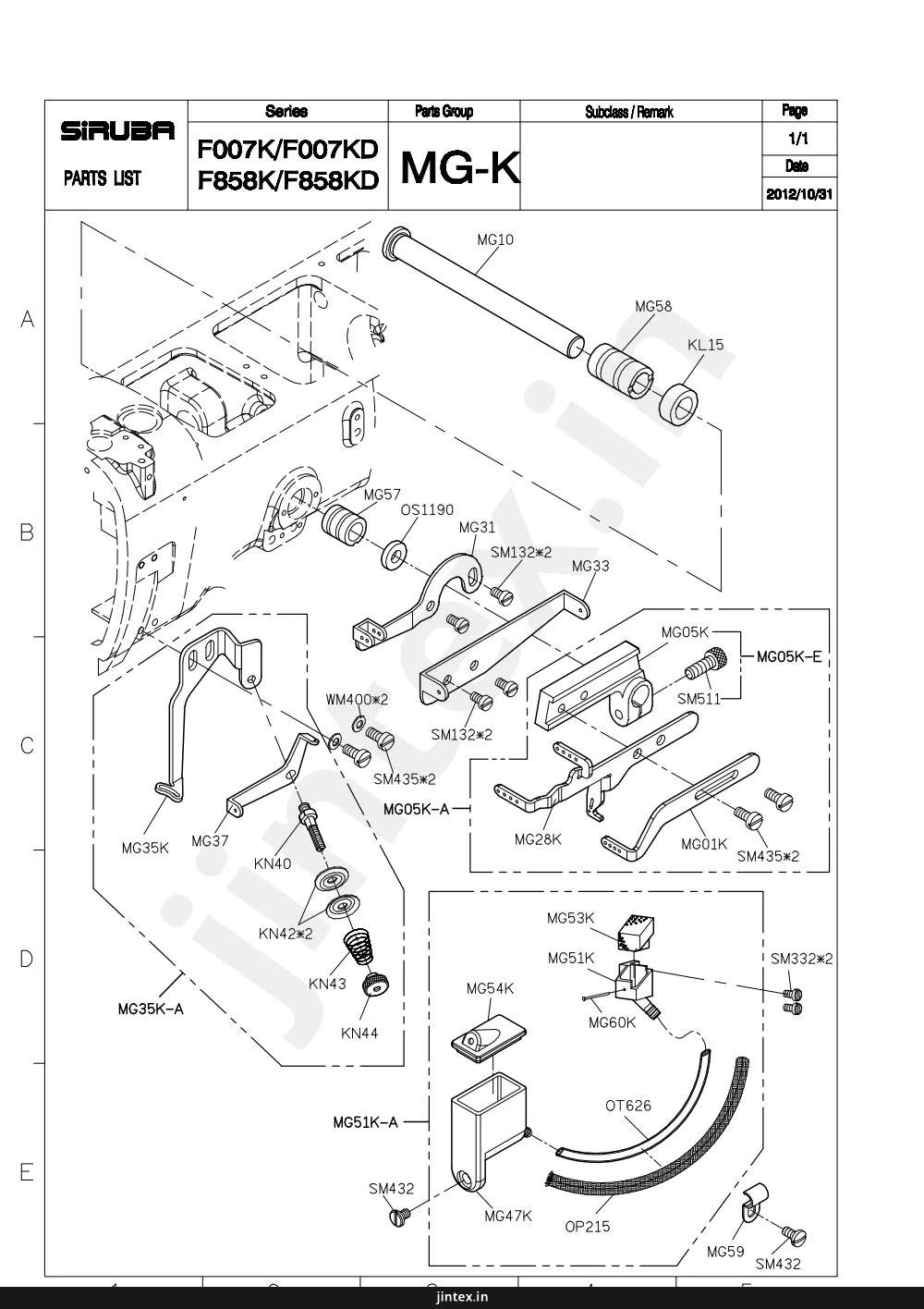

Page 8 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM432 | 4 | ||
| MC86K | |||
| MC87K | |||
| MB01K | |||
| OR050 | |||
| WM504 | |||
| EM030 | |||
| MB01K-A | |||
| MB02K | |||
| SM432 | 2 | ||
| MB04 | |||
| SM4550 | 2 | ||
| MB05D | |||
| PP6190 | |||
| PP2076 | |||
| PP2076 | |||
| OS3150 | |||
| MB34 | |||
| PP2076 | |||
| MB08K | |||
| KA33 | 2 | ||
| OS3150 | |||
| SM513 | 4 | ||
| WM510 | 4 | ||
| WM600 | 4 | ||
| WM60H | 4 | ||
| #T501HEF | |||
| #MS63H-E | |||
| #MS63H-A | |||
| #MS63H | |||
| SM603B | 2 | ||
| PM510 | 2 | ||
| SM910 | 4 | ||
| KA33 | 2 | ||
| MB10K | |||
| MB07K | |||
| #MB107K | |||
| MB108K | |||
| #MB109K | |||
| KA33 | 2 | ||
| MB91K | |||
| MB45 | |||
| EM164 | |||
| KA40 | |||
| MZ02K-1 | |||
| PP6190 | |||
| PP2076 | |||
| KC40 | |||
| KA40 | |||
| EM164 | |||
| MB45 | |||
| OS1190 | |||
| MZ02K-2 | |||
| SM887 | 2 | ||
| SM881 | 2 | ||
| WK23 | 2 | ||
| SM812 | 2 | ||
| SM611 | 2 | ||
| MB27K | |||
| SM432 | 2 | ||
| SM432*4 | SCREW | ||
| SM432*2 | SCREW | ||
| SM4550*2 | SCREW | ||
| KA33*2 | SCREW | ||
| SM881*2 | SCREW | ||
| SM812*2 | SCREW | ||
| WK23*2 | WASHER | ||
| SM611*2 | SCREW | ||
| SM887*2 | SCREW | ||
| #SM513*4 | SCREW | ||
| #WM510*4 | WASHER | ||
| #WM600*4 | WASHER | ||
| #WM60H*4 | WASHER | ||
| #SM603B*2 | SCREW | ||
| PM510*2 | PIN | ||
| SM910*4 | SCREW |
Page 9 — MC-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MC04K-A | |||
| MC06-C | |||
| MC101 | |||
| SM516 | |||
| MC06 | |||
| MC04K | |||
| MC105 | |||
| MC12K-A | |||
| MC17K-E | |||
| SM134*2 | 2 | ||
| MC17K | |||
| SM492 | |||
| MC10K | |||
| MC12K | |||
| PP3160 | |||
| OR080 | |||
| MC13K | |||
| SM450 | 2 | ||
| SM432 | 3 | ||
| MC24K | 2 | ||
| KP43 | 2 | ||
| SM438 | 2 | ||
| SK250 | 2 | ||
| MC22K | |||
| MC18K | |||
| KP60 | |||
| KP39 | |||
| WM402 | 2 | ||
| SK399 | |||
| SM450*2 | SM450*2 | ||
| SM432*3 | SM432*3 | ||
| MC24K*2 | MC24K*2 | ||
| KP43*2 | KP43*2 | ||
| SM438*2 | SM438*2 | ||
| SK250*2 | SK250*2 | ||
| WM402*2 | WM402*2 |
Page 10 — MC-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MC193K-1 | |||
| SM402 | |||
| SM350 | 2 | ||
| MC93K-2 | |||
| SM034 | |||
| MC93K-3 | |||
| MC193K-4 | |||
| SM533 | 2 | ||
| MC99K | |||
| MC100K | |||
| MC86K | |||
| MC97K | |||
| MC64K | |||
| MC68 | |||
| MC95K | |||
| PM207 | |||
| SM502 | |||
| MC83K | |||
| MC81K | |||
| EM075 | |||
| MC81K-E | |||
| WK01 | |||
| NK26 | |||
| OR050 | |||
| WM504 | |||
| MC87K | |||
| EM030 | |||
| BR4170B | |||
| MC66K | |||
| MC167 | |||
| MC169 | |||
| SM373 | |||
| MC71K | 5 | ||
| MC72K | |||
| SM502B | |||
| MC73K | |||
| MC104K-A | |||
| MC104K | |||
| SM402 | |||
| SM502 | |||
| MC103K | |||
| MC51 | |||
| SK509 | |||
| SK510 | |||
| PM200 | |||
| MC41/44K-E | |||
| MC41 | |||
| MC44K | |||
| KQ17 | |||
| SM353 | |||
| MC76 | |||
| MC77 | |||
| WK01 | |||
| NK26 | |||
| PM200 | |||
| DXXXX | |||
| SK576 | |||
| HXXXX | |||
| SK576 | |||
| SM435 | 2 | ||
| MC60 | |||
| SM432 | 2 | ||
| MC56K | |||
| MC54K | |||
| MC63 | |||
| BR4120 | |||
| MC64K-A | |||
| MC66K-C1 | |||
| MC193K-C | |||
| SM350*2 | SM350*2 | ||
| MC193K-3 | MC193K-3 | ||
| SM533*2 | SM533*2 | ||
| MC71K*5 | MC71K*5 | ||
| SM432*2 | SM432*2 | ||
| SM435*2 | SM435*2 |
Page 11 — MD-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MD11K | |||
| MD10K | |||
| MD102 | |||
| PM111 | |||
| MD102-E | |||
| MD102-A | |||
| KJ06B | |||
| SM110 | |||
| MD04 | |||
| MD04-E | |||
| SM139 | 4 | ||
| MD08K | |||
| MD08K-E | |||
| SM612 | |||
| SM101 | |||
| #MS63H-E | |||
| SM601 | |||
| #MS66K | |||
| MD30J | |||
| SM6000 | 3 | ||
| SM6000 | 2 | ||
| SM6000 | 2 | ||
| MD27K | |||
| MD28K | |||
| OR430 | 2 | ||
| MD26K-3 | |||
| MD26K-A | |||
| #SM602 | 2 | ||
| MD23-3 | |||
| OR150 | |||
| OR390 | 2 | ||
| MD23-A | |||
| SM604 | |||
| MD41 | |||
| MD22K-E | |||
| SM502 | 2 | ||
| MD22K | |||
| MD15K-A | |||
| OR150 | |||
| SM502 | 2 | ||
| OR390 | 2 | ||
| MD15K-3 | |||
| #SM602 | 3 | ||
| SM432 | 2 | ||
| MD36K | |||
| MD34 | |||
| MD31K-2 | |||
| EM498 | |||
| MD31K-A | |||
| #SM602 | 2 | ||
| MD37-E | |||
| #MF35K-E1 | |||
| SM604 | |||
| MD37 | |||
| SM603 | |||
| SM502*2 | SM502*2 | ||
| OR390*2 | OR390*2 | ||
| SM602*3 | SM602*3 | ||
| SM139*4 | SM139*4 | ||
| SM6000*3 | SM6000*3 | ||
| SM6000*2 | SM6000*2 | ||
| SM602*2 | SM602*2 | ||
| #MD136K | #MD136K | ||
| #MS64 | #MS64 | ||
| OR430*2 | OR430*2 | ||
| #MF35K | #MF35K | ||
| SM432*2 | SM432*2 |
Page 12 — ME-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| ME04 | |||
| WMA07 | |||
| EM070 | |||
| ME16 | |||
| ME01K | |||
| SM137 | 2 | ||
| ME14K | |||
| SM502 | 2 | ||
| ME05K | |||
| EM050 | |||
| ME89 | |||
| ME18K | |||
| ME11K | |||
| SM139 | 2 | ||
| ME85K | |||
| WM504 | |||
| SM502 | |||
| NM511 | |||
| ME84K | |||
| ME87K | |||
| ME87K | |||
| OS1190 | |||
| SM031 | |||
| ME29 | |||
| ME28 | |||
| PM10E | |||
| PM200 | |||
| SM511 | |||
| SM136 | |||
| WM510 | |||
| ME30 | |||
| SM631 | |||
| ME67 | |||
| ME70K | |||
| SM418 | |||
| SM510 | |||
| EM050 | |||
| WK04 | |||
| ME75K | |||
| OR060 | |||
| PP2072 | |||
| ME77K | |||
| ME78K | 2 | ||
| ME79K | |||
| SM502 | |||
| ME76K | |||
| SM432 | 3 | ||
| ME78K*2 | ME 78K*2 | ||
| ME76K-A | ME 76K-A | ||
| ME79K-E | ME 79K-E | ||
| SM137*2 | SM137*2 | ||
| SM502*2 | SM502*2 | ||
| ME14K-E | ME 14K-E | ||
| ME11K-E | ME 11K-E | ||
| SM139*2 | SM139*2 | ||
| ME28-E | ME 28-E | ||
| ME30-E | ME 30-E | ||
| ME67K-A | ME 67K-A | ||
| ME70K-E | ME 70K-E | ||
| SM432*3 | SM432*3 | ||
| ME30-A1 | ME30-A1 |
Page 13 — MF-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MF37K | MF37K | ||
| SM448 | SM448 | ||
| SM605B | SM605B | ||
| SM542*2 | SM542*2 | ||
| PM213 | PM213 | ||
| MF101-1 | MF101-1 | ||
| MF101-E | MF101-E | ||
| BRB170 | BRB170 | ||
| SM801*2 | SM801*2 | ||
| MF101-A | MF101-A | ||
| MF107-E | MF107-E | ||
| MF107 | MF107 | ||
| MF09 | MF09 | ||
| SM139*4 | SM139*4 | ||
| SM502*2 | SM502*2 | ||
| MF15 | MF15 | ||
| SM612 | SM612 | ||
| MF13 | MF13 | ||
| SM602*4 | SM602*4 | ||
| MF23J | MF23J | ||
| OR430*2 | OR430*2 | ||
| MF21K-2 | MF21K-2 | ||
| SM602*2 | SM602*2 | ||
| MF21K-A1 | MF21K-A1 | ||
| MF30 | MF30 | ||
| #MF130 | #MF130 | ||
| SM604 | SM604 | ||
| MD41 | MD41 | ||
| SM602*3 | SM602*3 | ||
| SM604 | SM604 | ||
| MF21K-2 | MF21K-2 | ||
| MF129K | MF129K | ||
| #MF131K | #MF131K | ||
| #UT817-2*2 | #UT817-2*2 | ||
| #SM602*2 | #SM602*2 | ||
| #MF35K | #MF35K | ||
| *MF35K-E | *MF35K-E | ||
| SM603 | SM603 | ||
| SM602 | SM602 | ||
| MF23K-A | MF23K-A | ||
| #MF130K-A | #MF130K-A |
Page 14 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MG10 | |||
| MG58 | |||
| KL15 | |||
| MG57 | |||
| OS1190 | |||
| MG31 | |||
| SM132 | 2 | ||
| MG33 | |||
| WM400 | 2 | ||
| SM435 | 2 | ||
| MG35K | |||
| MG37 | |||
| KN40 | |||
| KN42 | 2 | ||
| KN43 | |||
| KN44 | |||
| SM132 | 2 | ||
| MG05K | |||
| SM511 | |||
| MG28K | |||
| MG01K | |||
| SM435 | 2 | ||
| MG53K | |||
| MG51K | |||
| SM332 | 2 | ||
| MG60K | |||
| MG54K | |||
| OT626 | |||
| MG47K | |||
| SM432 | |||
| MG59 | |||
| SM432 | |||
| OP215 | |||
| SM132*2 | SM132*2 | ||
| WM400*2 | WM400*2 | ||
| SM435*2 | SM435*2 | ||
| MG05K-A | MG05K-A | ||
| MG05K-E | MG05K-E | ||
| KN42*2 | KN42*2 | ||
| SM332*2 | SM332*2 | ||
| MG35K-A | MG35K-A | ||
| MG51K-A | MG51K-A |
Page 15 — MH-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MH49E-C | |||
| OS3170 | |||
| MH58 | |||
| MH76 | |||
| EM08Q | |||
| WMCO7 | |||
| MH81 | |||
| MH64K-C | |||
| MH56E-A1 | |||
| MH56E | |||
| SM612 | |||
| NM511 | |||
| MH55 | |||
| MH52E-E | |||
| SM602 | 2 | ||
| MH52E | |||
| SM311 | |||
| MH60K | |||
| MH64K | |||
| MH64K-1 | |||
| WM400 | |||
| SK243 | |||
| SM502 | 2 | ||
| MH66 | |||
| MH66-E | |||
| MV24 | |||
| MH50E | |||
| OP101 | 8 | ||
| MH49E | |||
| MH16K | |||
| MH75 | |||
| MH46 | |||
| MH48-E | |||
| MH48 | |||
| MH08 | |||
| MH107-E | |||
| MH107 | |||
| SK277 | |||
| OR100 | |||
| KL11 | |||
| MH85-E | |||
| MH85 | |||
| SM402 | 2 | ||
| MH03K | |||
| MH03K-E | |||
| OS2122 | |||
| EM106 | |||
| SM534 | |||
| SM137 | |||
| MH43-E | |||
| MH43 | |||
| MH41 | |||
| M5XXX | |||
| M5XXX-E | |||
| SK216 | 4 | ||
| MA91K | |||
| SK219 | |||
| MH70 | |||
| MH71 | |||
| MH72K | |||
| SK531 | |||
| MH05 | |||
| XXXXXXXX | |||
| M5XXX-A | |||
| SM439 | 2 | ||
| MH114 | |||
| MH109K | |||
| OP307 | |||
| BR4080B | |||
| MH110 | |||
| MH86 | |||
| SM4553 | |||
| MH14D | |||
| MH14D-C | |||
| SM131 | |||
| MH13 | |||
| MH79K | |||
| SK539 | 2 | ||
| EXXXX | |||
| SM432 | 2 | ||
| MH20 | 2 | ||
| SM432 | |||
| PP3053 | |||
| MH19K | |||
| MH19K-E | |||
| MH68 | MH68 | ||
| MH712K | MH712K |
Page 16 — MJ-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| #MJ105 | |||
| MJ05 | |||
| MJ01 | |||
| MJ02H | |||
| SM415 | 2 | ||
| MJ03 | |||
| MJ08 | |||
| PM310 | |||
| MJ04 | |||
| SK265 | |||
| SK518 | |||
| SK518 | |||
| MJ06 | |||
| MJ12 | |||
| MJ13 | |||
| MJ14 | |||
| OS2141 | |||
| MJ15D | |||
| MJ56 | |||
| SM332 | |||
| MJ18 | |||
| PXXXX-A | |||
| MJ27K | |||
| KS22 | |||
| SM612 | |||
| MJ28 | |||
| MJ43 | |||
| MJ29K | |||
| SM540 | |||
| NM511 | |||
| SM520 | |||
| NM511 | |||
| MJ37K | |||
| SM6104 | 2 | ||
| WM600 | 2 | ||
| MJ53 | |||
| SM6104 | |||
| KP60 | |||
| MJ34K | |||
| MJ35K | |||
| MJ54K | |||
| SM492 | |||
| OS2141 | |||
| *MJ39 | |||
| SK216 | 2 | ||
| P2436-2C | |||
| P2466K-8 | |||
| P2436-2D | |||
| MJ01-A | MJ01-A | ||
| SM415*2 | SM415*2 | ||
| MJ04-A | MJ04-A | ||
| KS22-E | KS22-E | ||
| SM6104*2 | SM6104*2 | ||
| WM600*2 | WM600*2 | ||
| MJ37K-E | MJ37K-E | ||
| SK216*2 | SK216*2 | ||
| PXXXXX-A | PXXXXX-A |
Page 17 — MK-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MK95 | |||
| SM432 | |||
| KN44 | |||
| KN43 | |||
| KN42 | 2 | ||
| KN40 | |||
| SM495 | |||
| MK131 | |||
| SM034 | 2 | ||
| WM002 | 2 | ||
| MK08K | 2 | ||
| SM450 | 2 | ||
| SM330 | |||
| MK04K | |||
| MK01K | |||
| MK12K | |||
| EM030 | |||
| MK14K | |||
| NK26 | |||
| MK13K | |||
| EM030 | |||
| SM301 | |||
| WM400 | |||
| SM432 | |||
| MK15K | |||
| OR050 | 2 | ||
| MK16K | |||
| MK17K | |||
| SM4105 | |||
| SM410 | |||
| SM381 | |||
| MK20K | |||
| MK21K | |||
| MK19K | |||
| SM301 | 2 | ||
| MK15K-A | MK15K-A | ||
| KN42*2 | KN42*2 | ||
| SM450*2 | SM450*2 | ||
| SM034*2 | SM034*2 | ||
| WM002*2 | WM002*2 | ||
| MK01K-A | MK01K-A | ||
| MK08K*2 | MK08K*2 | ||
| OR050*2 | OR050*2 | ||
| SM301*2 | SM301*2 |
Page 18 — MK-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MK35J | |||
| MK37H | 2 | ||
| MK94 | 2 | ||
| SM432 | 2 | ||
| SM430 | 2 | ||
| MK35J-A | |||
| MK41K-E | |||
| MK41K | |||
| SM511 | |||
| MK39K | |||
| MK38H-E | |||
| MK38H | |||
| VJ01-3 | |||
| SM4105 | |||
| MK40 | |||
| SM4803 | |||
| SM432 | 2 | ||
| MK28H | |||
| MK28J-A | |||
| VK02J | 5 | ||
| VK10 | 5 | ||
| MK27H | |||
| VK09-R1 | |||
| VK09-E1 | |||
| VK09-Y1 | |||
| VK09-G1 | |||
| VK09-B1 | |||
| VK05 | |||
| KG07K | 2 | ||
| KG08 | |||
| VK09 | |||
| KG06E | |||
| KG68 | |||
| KG05 | |||
| KG04F | |||
| VK05 | |||
| KG07K | 2 | ||
| KG08 | |||
| VK09 | |||
| KG06E | |||
| KG97 | |||
| KG05 | |||
| KG04F | |||
| VK09-G1 | |||
| VK09-B1 |
Page 19 — ML-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MB37 | |||
| SM432 | *3 | ||
| ML186K | |||
| OR30A | |||
| KT14-A | |||
| KT15 | |||
| SM432 | *2 | ||
| NM615 | |||
| WM601 | |||
| ML88 | |||
| ML88-A | |||
| OT624 | |||
| SG105 | |||
| WM601 | |||
| ML43K- | |||
| SG105 | |||
| ML66 | |||
| OR030 | |||
| SM404 | |||
| PP3071 | |||
| ML49 | |||
| ML49-E | |||
| ML30-E | |||
| OP233 | |||
| ML30 | |||
| ML83 | |||
| OT534 | |||
| ML83-A | |||
| SM432 | |||
| ML32J | |||
| ML39K-A | |||
| ML39 | |||
| OT618 | |||
| SG105 | |||
| OT621-A | |||
| OT621 | |||
| OT627 | |||
| SG105 | |||
| SG105 | *2 | ||
| KT24 | *5 | ||
| SK304 | *2 | ||
| SK312 | |||
| ML162K | |||
| ML59K-A | |||
| SM812 | |||
| ML59K | |||
| SM432 | |||
| KT58 | |||
| KT57 | |||
| OS4140 | |||
| SK310 | |||
| ALT087S | |||
| OT634 | |||
| JA201 | |||
| SG103 | |||
| ML05D-A | |||
| SM6104 | *2 | ||
| ML06 | |||
| ML07 | |||
| ML11K | |||
| ML12 | |||
| ML74 | |||
| ML75 | |||
| ML08 | |||
| ML04 | |||
| ML02 | |||
| SM401 | *2 | ||
| ML16 | |||
| NA03 | |||
| ML05D | |||
| SM413 | *2 | ||
| SM414 | *2 | ||
| SK304*2 | SK312 | ||
| SM6104*2 | ALT087S | ||
| SG105*2 | KT24*5 |
Page 20 — Semi-submerged
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| F007K-T | |||
| F007K-T1(FR) | |||
| KX05 | 4 | ||
| KX206 | 3 | ||
| TXXXXXX-A- | |||
| MN02K-E | |||
| MN09 | |||
| MN02K | 2 | ||
| SM531 | 2 | ||
| MN12 | |||
| MN12-E | 4 | ||
| MN15 | |||
| MN17 | 4 | ||
| MN14-A | |||
| KX08 | 4 | ||
| MN13 | 4 | ||
| MN16 | 4 | ||
| KX08 | 4 | ||
| MN14 | 4 |
Page 21 — MN-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| F007K-T3-1 | |||
| MN10 | |||
| MN11 | 8 | ||
| F007K-T3 | |||
| F007K-T3-3 | |||
| F007K-T3-2 | |||
| KX05 | 5 | ||
| KX05 | 4 | ||
| KX08 | 5 | ||
| WM810*5 | 5 | ||
| NM810*5 | 5 | ||
| SM892 | 5 | ||
| NM810 | 5 | ||
| WM810 | 5 | ||
| KX08 | 5 | ||
| KX08 | 5 | ||
| WM810 | 5 | ||
| NM810 | 5 | ||
| SM531 | 2 | ||
| MN09 | |||
| MN02K-E | |||
| MN02K | 2 | ||
| MN12-E | 4 | ||
| MN12 | |||
| MN15 | |||
| MN17 | 4 | ||
| KX08 | 4 | ||
| MN13 | 4 | ||
| MN16 | 4 | ||
| KX08 | 4 | ||
| MN14*4 | 4 | ||
| MN14-A | |||
| SM892-A1 | |||
| MN11*8 | MN11*8 | F007K-T3 | |
| KX05*5 | KX05*5 | F007K-T3-1 | |
| KX08*5 | KX08*5 | F007K-T3-1 | |
| SM892*5 | SM892*5 | F007K-T3-1 | |
| KX05*4 | KX05*4 | F007K-T3-2 | |
| SM852-A1 | SM852-A1 | F007K-T3-2 | |
| SM531*2 | SM531*2 | MN02K-E | |
| MN02K*2 | MN02K*2 | MN02K-E | |
| MN17*4 | MN17*4 | MN12-E*4 | |
| KX08*4 | KX08*4 | MN14-A | |
| MN13*4 | MN13*4 | MN14-A | |
| MN16*4 | MN16*4 | MN14-A |
Page 22
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MY01 | |||
| KY03 | |||
| KY04 | |||
| KY05-A | |||
| KY23-A | |||
| KY09 | |||
| MY10-A | |||
| KY14 | |||
| LY33-A | |||
| MY21-E | |||
| KY18 | |||
| KY20D-A | |||
| KY201 | |||
| KZ03 | |||
| KT14-A | |||
| UYX128GAS#10 | 5 | ||
| FR40K | |||
| MY42K | |||
| MY43K | |||
| MY44K (UT973K) | |||
| KY23(6/7mm) | KY23(6/7mm) | ||
| MY09 | MY09 | ||
| KY10 | KY10 | ||
| MY10 | MY10 | ||
| MY11 | MY11 | ||
| MY12 | MY12 | ||
| KY11 | KY11 | ||
| LY33 | LY33 | ||
| LY34 | LY34 | ||
| KY21-1*2 | KY21-1*2 | ||
| MY21 | MY21 | ||
| UYX128GAS#10*5 | UYX128GAS#10*5 | ||
| MY44K | (UT973K) | ||
| UT973K | UTK/UTH UTG/UTJ |
Page 23 — PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MZ15K | #MZ115K | ||
| MZ14K-1 | |||
| MZ17K | (UT用) | ||
| MZ27 | |||
| KY02F-A | |||
| MZ17K | |||
| MZ13K | |||
| MZ14K-2 | |||
| MZ22K | #MZ122K-(FOR F007K/KD) | ||
| MZ80K | #MZ81K-(FOR F858K/KD) |
Siruba F007K / F858K — parts catalog
- Page 1 (parts_list): This page lists parts for Siruba sewing machines, specifically models F007K/F858K and F007KD/F858KD. It includes part numbers, descriptions, and applicable models for various components like needle clamps, plates, feed dogs, presser feet, and needles.
- Page 2 (parts_list): This page is a model compare list for Siruba sewing machines, specifically for the F007K/F858K and F007KD/F858KD series. It details various parts like needle clamps, plates, feed dogs, presser feet, loopers, spreaders, and needles, comparing their part numbers and associated models.
- Page 3 (parts_list): This page contains a parts list for Siruba Gage Parts List, Series F007K/F858K, F007KD/F858KD, with columns for Model, Sub-Class, Needle Clamp, Needle Plate, Main Feed Dog, Diff. Feed Dog, Presser Foot, Looper, Spreader, and Needle. It includes part numbers, descriptions, and some remarks.
- Page 4 (parts_list): This page lists parts for the Siruba F007KD series, specifically for FFT models, including various components like needle clamps, feed dogs, presser feet, and needles, along with their corresponding part numbers and applicable sub-classes.
- Page 5 (parts_list): This page lists parts for the Siruba F007KD series, specifically for the USE FOR FFT models. It includes part numbers, descriptions, and applicable sub-classes for various components like needle clamps, plates, feed dogs, presser feet, loopers, and needles.
- Page 6 (diagram): This page displays a diagram of the MA-K parts group for the F007K/F007KD and F858K/F858KD sewing machine series, with part numbers and references indicated. It also includes the date 2015/01/13 and page number 1/2.
- Page 7 (diagram): This page displays a diagram of machine parts for the SIRUBA MA-K series, specifically F007K/F007KD and F858K/F858KD models. It includes various components labeled with part numbers and reference indicators.
- Page 8 (diagram): This page displays a diagram of parts for the SIRUBA F007K/F007KD F858K/F858KD MB-K series sewing machine, detailing various components and their assembly.
- Page 9 (diagram): This page displays a diagram of sewing machine parts for the MC-K series, including various screws, springs, and mechanical components with their corresponding part numbers and references.
- Page 10 (parts_list): This page lists parts for the MC-K series sewing machines, including part numbers, descriptions, and quantities, with diagrams illustrating their placement.
- Page 11 (diagram): This page displays a diagram of machine parts for the SIRUBA F007K/F858KD MD-K series, with part numbers and labels indicated.
- Page 12 (diagram): This page displays a diagram of the ME-K parts group for Siruba sewing machines, specifically models F007K/F007KD and F858K/F858KD. It includes various components with their respective part numbers and reference labels.
- Page 13 (diagram): This page displays a diagram of the MF-K parts for the F007K/F007KD and F858K/F858KD sewing machine models, with a parts list including part numbers, names, and quantities.
- Page 14 (diagram): This page displays a diagram of machine parts for the Siruba F007K/F007KD, F858K/F858KD series, specifically the MG-K parts group.
- Page 15 (diagram): This page displays a diagram of the MH-K parts group for Siruba sewing machines, specifically models F007K/F858K/F858KD, with part numbers and descriptions indicated.
- Page 16 (parts_list): This page contains a parts list for the SIRUBA F007K/F007KD F858K/F858KD MJ-K series sewing machine, with parts numbered MJ01 through SK216.
- Page 17 (diagram): This page displays a diagram of sewing machine parts for the MK-K series, including components like MK01K, MK15K, and various screws and washers.
- Page 18 (diagram): This page displays a diagram of various machine parts for the SIRUBA MK-K series, including components like MK35J, MK41K-E, MK40, MK28H, and VK09 series parts, along with their associated part numbers and quantities.
- Page 19 (diagram): This page displays a diagram of various machine parts for the SIRUBA F007K/F007KD F858K/F858KD ML-K series, including components like filters, screws, and gaskets, with part numbers and labels for identification.
- Page 20 (diagram): This page displays a diagram of the "MN-K" parts group for the F007K/F007KD and F858K/F858KD series sewing machines, showing various components with their part numbers and quantities.
- Page 21 (diagram): This page displays a diagram of the MN-K parts group for the F007K/F007KD and F858K/F858KD series sewing machines, with detailed part callouts and references.
- Page 22 (parts_list): This page contains a parts list for the SIRUBA MY-K series, specifically for models F007K/F007KD and F858K/F858KD. It includes various tools and components such as wrenches, screwdrivers, Allen keys, a filter, and instruction books, categorized by mechanism type.
- Page 23 (diagram): This page displays a diagram of sewing machine parts for the MZ-K series, specifically for models F007K/F007KD and F858K/F858KD. It includes part numbers and their corresponding labels within the diagram.
- Page 24 (diagram): This page displays a diagram of the table cut-out for Siruba sewing machines, including dimensions and specifications for models F007K/F007KD and F858K/F858KD.
- Page 25 (diagram): This page contains a diagram of the SIRUBA TABLE CUT - OUT F007K/F007KD F858K/F858KD F007K-T1 series, semi-submerged mounting, with dimensions and specifications.
- Page 26 (diagram): This page contains a diagram of the F007K/F007KD F858K/F858KD TABLE CUT-OUT, with dimensions and specifications for the SIRUBA sewing machine.
- Page 27 (diagram): This page contains a diagram of the F007K/F007KD F858K/F858KD table cut-out, with dimensions and mounting information.
- Page 28 (diagram): This page contains a diagram of the Siruba F007K/F007KD F858K/F858KD series table cut-out, fully-submerged mounting type, with dimensions and specifications.
