Typical GN2000-3 Parts Book (PDF)
Text index — Typical GN2000-3
Page 17 — 1. MACHINE ARM PARTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S150220005 | Screw | 4 / 4 / 4 / 4 |
| 2 | 155100001 | Frame side cover | 1 / 1 / 1 / 1 |
| 3 | S150215011 | Screw(L) | 1 / 1 / 1 / 1 |
| 4 | S150215009 | Screw(S) | 3 / 3 / 3 / 3 |
| 6 | S8A3104007 | Spring pin | 2 / 2 / 2 / 2 |
| 7 | 155100002 | Thread guide pipe | 2 / 2 / 2 / 2 |
| 8 | 022120003 | Rivet | 2 / 2 / 2 / 2 |
| 10 | 160100001 | Model plate | 1 (model 3) |
| 159100007 | Model plate | 1 (model 4/4H) | |
| 155100037 | Model plate | 1 (model 5) | |
| 155100038 | Model plate | 1 (model 5H) | |
| 11 | S8A3104007 | Spring pin | 1 / 1 / 1 / 1 |
| 12 | S150220016 | Screw | 2 / 2 / 2 / 2 |
| 13 | S8A3104007 | Spring pin | 1 / 1 / 1 / 1 |
| 14 | 159100001 | Needle plate support bracket | 1 (model 3) / 1 (model 4/4H) |
| 155100003 | Needle plate support bracket | 1 (model 5) / 1 (model 5H) | |
| 15 | 155100005 | Screw | 4 / 4 / 4 / 4 |
Page 19 — 2. MACHINE ARM PART(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 155100010 | Oil guide plate | 3:1 4/4H:1 5:1 5H:1 |
| 2 | S150215008 | Screw | 3:1 4/4H:1 5:1 5H:1 |
| 3 | 155100031 | Packing | 3:1 4/4H:1 5:1 5H:1 |
| 4 | 155100030 | Oil monitor | 3:1 4/4H:1 5:1 5H:1 |
| 5 | S150215011 | Screw | 3:4 4/4H:4 5:4 5H:4 |
| 6 | 155100008 | Top cover | 3:1 4/4H:1 5:1 5H:1 |
| 7 | 155100009 | Oil gusket | 3:1 4/4H:1 5:1 5H:1 |
| 8 | 155100016 | Belt cover | 3:1 4/4H:1 5:1 5H:1 |
| 9 | S150215014 | Screw | 3:3 4/4H:3 5:3 5H:3 |
| 10 | S150215001 | Screw | 3:2 4/4H:2 5:2 5H:2 |
| 11 | 155100015 | Cooling fan guard | 3:1 4/4H:1 5:1 5H:1 |
| 12 | 155100013 | Plate spring | 3:1 4/4H:1 5:1 5H:1 |
| 13 | S150215008 | Screw | 3:1 4/4H:1 5:1 5H:1 |
| 14 | 155100014 | Cover | 3:1 4/4H:1 5:1 5H:1 |
| 15 | S150215001 | Screw | 3:3 4/4H:3 5:3 5H:3 |
| 16 | 155100034 | Screw | 3:1 4/4H:1 5:1 5H:1 |
| 17 | 159140000 | Cloth guide | 3:1 4/4H:1 |
| 155150000 | Cloth guide | 5:1 5H:1 | |
| 18 | 155100033 | Screw | 3:1 4/4H:1 5:1 5H:1 |
| 19 | S150215001 | Screw | 3:2 4/4H:2 5:2 5H:2 |
| 20 | 159120001 | Front cover | 3:1 4/4H:1 |
| 155120004 | Front cover | 5:1 5H:1 | |
| 21 | S150215008 | Screw | 3:2 4/4H:2 5:2 5H:2 |
| 23 | 155120007 | Front cover hinge stopper | 3:1 4/4H:1 5:1 5H:1 |
| 24 | S150215008 | Screw | 3:1 4/4H:1 5:1 5H:1 |
| 25 | 155120005 | Stopper plate | 3:1 4/4H:1 5:1 5H:1 |
| 26 | S120202007 | Screw | 3:1 4/4H:1 5:1 5H:1 |
| 27 | 155120002 | Front cover hinge shaft | 3:1 4/4H:1 5:1 5H:1 |
| 28 | B12400432 | Screw | 3:2 4/4H:2 5:2 5H:2 |
| 29 | 155120001 | Front cover(L) | 3:1 4/4H:1 5:1 5H:1 |
| 30 | 155120003 | Spring | 3:1 4/4H:1 5:1 5H:1 |
| 31 | 155120006 | Front cover hinge | 3:1 4/4H:1 5:1 5H:1 |
| 32 | S150215010 | Screw | 3:3 4/4H:3 5:3 5H:3 |
| 33 | 155100012 | Oil seal | 3:1 4/4H:1 5:1 5H:1 |
| 34 | 160DQZ005 | Decorative brand | 3:1 4/4H:1 5:1 5H:1 |
| 35 | 160DHZ001 | Decorative brand | 3:1 4/4H:1 5:1 5H:1 |
Page 21 — 3. MACHINE ARM PART (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S150215009 | Screw | 4 / 4 / 4 / 4 |
| 2 | 155100017 | Back cover for feed mechanism | 1 / 1 / 1 / 1 |
| 3 | 155100033 | Screw | 4 / 4 / 4 / 4 |
| 4 | 155100018 | Feed bar cover | 1 / 1 / 1 / 1 |
| 5 | B12400432 | Screw | 1 / 1 / 1 / 1 |
| 6 | S150215008 | Screw | 1 / 1 / 1 / 1 |
| 7 | 155100021 | Plate spring | 1 / 1 / 1 / 1 |
| 8 | 155100020 | shaft for needle thread cover | 1 / 1 / 1 / 1 |
| 9 | 155100019 | Needle thread cover | 1 / 1 / 1 / 1 |
| 10 | 160DQZ002 | Trade mark plate | 1 / 1 / 1 / 1 |
| 11 | 155100024 | Screw | 1 / 1 / 1 / 1 |
| 12 | 155100025 | Wave spring | 2 / 2 / 2 / 2 |
| 13 | 155100023 | Eye guard support plate | 1 / 1 / 1 / 1 |
| 14 | 159100004 | Eye guard | 1 / 1 |
| 155100026 | Eye guard | 1 / 1 | |
| 15 | S8A3103002 | Washer | 2 / 2 / 2 / 2 |
| 16 | S120202007 | Screw | 2 / 2 / 2 / 2 |
| 17 | 155100027 | Rubber plug | 1 / 1 / 1 / 1 |
| 18 | 155100029 | Needle bar seal cover | 1 / 1 / 1 / 1 |
| 19 | 155100022 | Screw | 1 / 1 / 1 / 1 |
| 20 | 155100034 | Screw | 1 / 1 / 1 / 1 |
| 21 | S150215005 | Screw | 1 / 1 / 1 / 1 |
| 22 | S150559002 | Nut | 1 / 1 / 1 / 1 |
| 23 | S150218005 | Screw | 2 / 2 / 2 / 2 |
| 24 | 155140001 | Direction guide plate | 1 / 1 / 1 / 1 |
| 25 | 155140002 | Plate spring | 1 / 1 / 1 / 1 |
| 26 | S150217008 | Screw | 1 / 1 / 1 / 1 |
| 27 | 155100027 | Rubber plug | 3 / 3 / 3 / 3 |
| 28 | 155130006 | Nut | 1 / 1 / 1 / 1 |
| 29 | 159131001 | Cloth plate | 1 / 1 |
| 155131001 | Cloth plate | 1 / 1 | |
| 30 | B12400432 | Screw | 1 / 1 / 1 / 1 |
| 31 | 155130001 | Cloth plate shaft bush | 1 / 1 / 1 / 1 |
| 32 | 155100025 | Wave spring | 1 / 1 / 1 / 1 |
| 33 | 155100024 | Screw | 1 / 1 / 1 / 1 |
| 34 | 155130005 | Screw | 1 / 1 / 1 / 1 |
| 35 | 155130004 | Spring | 1 / 1 / 1 / 1 |
| 36 | 155130003 | Latch lever for cloth plate | 1 / 1 / 1 / 1 |
| 37 | S150215008 | Screw | 2 / 2 / 2 / 2 |
| 38 | 155130008 | Washer | 2 / 2 / 2 / 2 |
| 39 | 155130007 | Side cover | 1 / 1 / 1 / 1 |
| 40 | 155100027 | Rubber plug | 1 / 1 / 1 / 1 |
| 41 | 155130009 | Plate spring | 1 / 1 / 1 / 1 |
| 42 | S120202004 | Screw | 1 / 1 / 1 / 1 |
| 43 | S4B3000010 | Spring washer | 1 / 1 / 1 / 1 |
| 44 | S150215015 | Screw(L) | 1 / 1 / 1 / 1 |
| 45 | 116400008 | Screw | 1 / 1 / 1 / 1 |
Page 23 — 4. NEEDLE BAR DRIVE PARTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 155200001 | Crank shaft extension | 3:- 4/4H:- 5:1 5H:1 |
| 2 | S150224007 | Screw | 3:2 4/4H:2 5:- 5H:- |
| 3 | 159200001 | Bearing cap | 3:1 4/4H:1 5:- 5H:- |
| 155200002 | Bearing cap | 3:- 4/4H:- 5:1 5H:1 | |
| 4 | S150215009 | Screw | 3:3 4/4H:3 5:- 5H:- |
| S150215009 | Screw | 3:- 4/4H:- 5:1 5H:1 | |
| 5 | S120205003 | Screw | 3:- 4/4H:- 5:2 5H:2 |
| 6 | 155200004 | Rubber ring | 3:1 4/4H:1 5:1 5H:1 |
| 7 | B12500532 | Screw | 3:1 4/4H:1 5:1 5H:1 |
| 8 | 155220000 | Ball bearing(L), assy | 3:1 4/4H:1 5:1 5H:1 |
| 9 | S150224006 | Screw | 3:1 4/4H:1 5:1 5H:1 |
| 10 | 155200005 | Crank shaftbush(M) | 3:1 4/4H:1 5:1 5H:1 |
| 11 | SFB0201004 | Screw | 3:2 4/4H:2 5:2 5H:2 |
| 12 | 155230001 | Stopper bush | 3:1 4/4H:1 5:1 5H:1 |
| 13 | 155200006 | Screw | 3:1 4/4H:1 5:1 5H:1 |
| 14 | 155210001 | Crank shaft | 3:1 4/4H:1 5:1 5H:1 |
| 15 | 006301008 | Screw | 3:2 4/4H:2 5:2 5H:2 |
| 16 | 028260003 | Screw | 3:1 4/4H:1 5:1 5H:1 |
| 17 | S150215009 | Screw | 3:3 4/4H:3 5:3 5H:3 |
| 18 | 155200011 | Bearing presser | 3:1 4/4H:1 5:1 5H:1 |
| 19 | 155200018 | O - type ring | 3:1 4/4H:1 5:1 5H:1 |
| 20 | 155200010 | Packing | 3:1 4/4H:1 5:1 5H:1 |
| 21 | 052200036 | Ball bearing(right) | 3:1 4/4H:1 5:1 5H:1 |
| 22 | 155200009 | Collar | 3:1 4/4H:1 5:1 5H:1 |
| 23 | 155200008 | Spring washer | 3:4 4/4H:4 5:4 5H:4 |
| 24 | S150866046 | Ball bearing(middle) | 3:1 4/4H:1 5:1 5H:1 |
| 25 | B12500532 | Screw | 3:1 4/4H:1 5:1 5H:1 |
| 26 | 155200007 | Worm | 3:1 4/4H:1 5:1 5H:1 |
| 27 | 155200012 | Crank shaft oil reject | 3:1 4/4H:1 5:1 5H:1 |
| 28 | S150656004 | O - type ring | 3:1 4/4H:1 5:1 5H:1 |
| 29 | 155200013 | Cooling fan | 3:1 4/4H:1 5:1 5H:1 |
| 30 | S150225003 | Screw | 3:1 4/4H:1 5:1 5H:1 |
| 31 | S150224003 | Screw | 3:1 4/4H:1 5:1 5H:1 |
| 32 | 155200014 | Belt wheel | 3:1 4/4H:1 5:1 5H:1 |
| 33 | 155200016 | Washer | 3:1 4/4H:1 5:1 5H:1 |
| 34 | S150220005 | Screw | 3:1 4/4H:1 5:1 5H:1 |
| 35 | 155200017 | Machine pulley | 3:1 4/4H:1 5:1 5H:1 |
| 36 | S150215012 | Screw | 3:3 4/4H:3 5:3 5H:3 |
Page 25 — 5. NEEDLE BAR DRIVE PARTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 060410014 | Retaining ring | 1 1 1 1 1 |
| 2 | 155300006 | Washer | 1 1 1 1 1 |
| 3 | 155300005 | Bush | 1 1 1 1 1 |
| 4 | B12400432 | Screw | 2 2 2 2 2 |
| 5 | 155300004 | Set collar | 1 1 1 1 1 |
| 6 | 155310000 | Upper shaft crank complete | 1 1 - 1 - |
| 155370000 | Upper shaft crank complete | - - 1 - 1 | |
| 7 | 155300017 | Screw | 1 1 1 1 1 |
| 8 | 155330000 | Needle drive crank rod assy | 1 1 1 1 1 |
| 9 | B62401612 | Screw | 2 2 2 2 2 |
| 10 | 155300023 | Pin | 1 1 1 1 1 |
| 11 | S150225008 | Screw | 1 1 1 1 1 |
| 12 | 155300002 | Bush | 1 1 1 1 1 |
| 13 | 155300003 | Oil seal | 1 1 1 1 1 |
| 14 | 155300001 | Upper shaft | 1 1 1 1 1 |
| 15 | 155300007 | Needle bar crank | 1 1 1 1 1 |
| 16 | 155400010 | Screw | 1 1 1 1 1 |
| 17 | S150225005 | Screw | 1 1 1 1 1 |
| 18 | 155320000 | Pin | 2 2 2 2 2 |
| 19 | 155300008 | Link for needle bar | 1 1 1 1 1 |
| 20 | 155300012 | Oil wick pin | 1 1 1 1 1 |
| 21 | S150653005 | O-type ring | 1 1 1 1 1 |
| 22 | 155300014 | Upper bush needle bar | 1 1 1 1 1 |
| 23 | B12400432 | Screw | 1 1 1 1 1 |
| 24 | 155300013 | Bush | 1 1 1 1 1 |
| 25 | 155300010 | Needle connector | 1 1 1 1 1 |
| 26 | 155300030 | Screw | 1 1 1 1 1 |
| 27 | S150225005 | Screw | 1 1 1 1 1 |
| 28 | 155300015 | Bush | 1 1 1 1 1 |
| 29 | 155300016 | Needle bar oil ervoir | 1 1 1 1 1 |
| 30 | S150215008 | Screw | 1 1 1 1 1 |
| 31 | 155350001 | Needle bar | 1 1 1 1 1 |
| 32 | 160320001 | Needle holder | 1 - - - - |
| 159320001 | Needle holder | - 1 1 - - | |
| 155350002 | Needle holder | - - - 1 1 | |
| 33 | 182610010 | Screw | 1 2 2 2 2 |
| 34 | 159300007 | Needle | 1 - - - - |
| 159300007 | Needle | - 2 2 - - | |
| 028280109 | Needle | - - - 2 - | |
| 077200401 | Needle | - - - - 2 | |
| 35 | 155300021 | Screw | 2 2 2 2 2 |
| 36 | 155300020 | Set plate for oil felt | 1 1 1 1 1 |
| 37 | 155300019 | Oil felt | 1 1 1 1 1 |
| 38 | 155300022 | Oil reservoir | 1 1 1 1 1 |
| 15530014 | Upper bush needle bar | 1 |
Page 27 — 6. NEEDLE BAR DRIVE PARTS (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 160300001 | Needle plate | 1 (Qty 3) |
| 160300003 | Needle plate | 1 (Qty 3) | |
| 159310001 | Needle plate | 1 (Qty 4/4H) | |
| 155340001 | Needle plate | 1 (Qty 5) | |
| 155380001 | Needle plate | 1 (Qty 5H) | |
| 2 | 159310003 | Screw | 1 (Qty 4/4H) |
| 039230003 | Screw | 1 (Qty 5) 1 (Qty 5H) | |
| 3 | 159300006 | Screw | 2 (Qty 3) 2 (Qty 4/4H) |
| 028200050 | Screw | 2 (Qty 5) 2 (Qty 5H) | |
| 4 | 159310002 | Needle plate fitting(S) | 1 (Qty 4/4H) |
| 155340002 | Needle plate fitting | 1 (Qty 5) | |
| 155380002 | Needle plate fitting | 1 (Qty 5H) | |
| 5 | 155100027 | Rubber plug | 1 (Qty 3) 1 (Qty 4/4H) 1 (Qty |
| 6 | B62400812 | Screw | 2 (Qty 3) 2 (Qty 4/4H) |
| B62400812 | Screw | 1 (Qty 5) 1 (Qty 5H) | |
| 7 | 159330000 | Needle plate baracket(rear) | 1 (Qty 3) 1 (Qty 4/4H) |
| 155300029 | Needle plate baracket(rear) | 1 (Qty 5) 1 (Qty 5H) | |
| 8 | B62401012 | Screw | 2 (Qty 3) 2 (Qty 4/4H) |
| B62401012 | Screw | 2 (Qty 5) 2 (Qty 5H) | |
| 9 | 159300004 | Needle plate bracket(front) | 1 (Qty 3) 1 (Qty 4/4H) |
| 155300028 | Needle plate bracket(front) | 1 (Qty 5) 1 (Qty 5H) | |
| 10 | 155300027 | Chain stitch needle guard (front) | 1 (Qty 5) 1 (Qty 5H) |
| 11 | S150217002 | Screw | 1 (Qty 5) 1 (Qty 5H) |
| 12 | S120202001 | Screw | 2 (Qty 5) 2 (Qty 5H) |
| 13 | 155300026 | Chain stitch needle guard (rear) | 1 (Qty 5) 1 (Qty 5H) |
| 14 | S150217002 | Screw | 2 (Qty 5) 2 (Qty 5H) |
| 15 | 155300025 | Needle guard | 1 (Qty 5) 1 (Qty 5H) |
| 16 | 028200054 | Screw | 1 (Qty 3) 1 (Qty 4/4H) 1 (Qty |
| 17 | Q58600008 | Washer | 1 (Qty 3) 1 (Qty 4/4H) 1 (Qty |
| 18 | 155300024 | Movalbe needle guard | 1 (Qty 3) 1 (Qty 4/4H) 1 (Qty |
| 19 | 110550005 | Screw | 2 (Qty 3) 2 (Qty 4/4H) |
| 20 | 159300002 | Needle guard bracket | 1 (Qty 3) 1 (Qty 4/4H) |
| 21 | 159300001 | Needle guard | 1 (Qty 3) 1 (Qty 4/4H) |
| 22 | SFB0201003 | Screw | 1 (Qty 3) 1 (Qty 4/4H) |
| 23 | 159300005 | Needle plate guide plate | 1 (Qty 3) 1 (Qty 4/4H) |
| 24 | SFB0201004 | Screw | 2 (Qty 3) 2 (Qty 4/4H) |
| 25 | S8A3103002 | Washer | 1 (Qty 3) 1 (Qty 4/4H) |
Page 29 — 7. UPPER AND LOWER LOOPER DRIVE PART(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 155400006 | Rubber plug | 3:1 4:1 4H:1 5:1 5H:1 |
| 2 | S150204002 | Screw | 3:2 4:2 4H:2 5:2 5H:2 |
| 3 | S8A3103012 | Spring washer | 3:2 4:2 4H:2 5:2 5H:2 |
| 4 | 155400005 | Washer | 3:1 4:1 4H:1 5:1 5H:1 |
| 5 | 155400004 | Bush | 3:1 4:1 4H:1 5:1 5H:1 |
| 6 | 155400001 | Washer | 3:2 4:2 4H:2 5:2 5H:2 |
| 7 | 155410000 | looper ball link complete | 3:1 4:1 4H:1 5:1 5H:1 |
| 8 | B62401612 | Screw | 3:4 4:4 4H:4 5:4 5H:4 |
| 10 | 155420000 | Upper looper ball crank complete | 3:1 4:1 5:1 |
| 159400002 | Upper looper ball crank complete | 4H:1 5H:1 | |
| 11 | 155400021 | Screw | 3:2 4:2 4H:2 5:2 5H:2 |
| 12 | 155400003 | Bushing | 3:1 4:1 4H:1 5:1 5H:1 |
| 13 | 028330001 | Oil seal | 3:1 4:1 4H:1 5:1 5H:1 |
| 14 | 155400002 | Upper/lower looper shaft | 3:1 4:1 4H:1 5:1 5H:1 |
| 15 | 155400009 | Upper looper crank | 3:1 4:1 4H:1 5:1 5H:1 |
| 16 | 155400010 | Screw | 3:1 4:1 4H:1 5:1 5H:1 |
| 17 | S150225005 | Screw | 3:1 4:1 4H:1 5:1 5H:1 |
| 18 | 155430000 | Pin complete | 3:1 4:1 4H:1 5:1 5H:1 |
| 19 | S150215008 | Screw | 3:1 4:1 4H:1 5:1 5H:1 |
| 20 | 155400014 | Oil reservoir | 3:1 4:1 4H:1 5:1 5H:1 |
| 21 | B12400432 | Screw | 3:1 4:1 4H:1 5:1 5H:1 |
| 22 | 155440000 | Pin complete | 3:1 4:1 4H:1 5:1 5H:1 |
| 23 | S8A3105006 | Small ball plug | 3:1 4:1 4H:1 5:1 5H:1 |
| 24 | 160400001 | Upper looper | 3:1 |
| 159400001 | Upper looper | 4:1 4H:1 | |
| 155400015 | Upper looper | 5:1 | |
| 155400025 | Upper looper | 5H:1 | |
| 25 | 028100007 | Screw | 3:1 4:1 4H:1 5:1 5H:1 |
| 26 | 155400011/12 | Upper looper tension shaft and guide | 3:1 4:1 4H:1 5:1 5H:1 |
| 27 | 155400013 | Oil felt | 3:1 4:1 4H:1 5:1 5H:1 |
| 28 | S150218001 | Screw | 3:1 4:1 4H:1 5:1 5H:1 |
| 29 | S150217011 | Screw | 3:1 4:1 4H:1 5:1 5H:1 |
| 30 | 155400016 | Over looper guide cover | 3:1 4:1 4H:1 5:1 5H:1 |
| 31 | S150220005 | Screw | 3:2 4:2 4H:2 5:2 5H:2 |
| 32 | 155400007 | Over looper mechanism | 3:1 4:1 4H:1 5:1 5H:1 |
| 33 | 155400008 | Oil felt | 3:1 4:1 4H:1 5:1 5H:1 |
Page 31 — 8. UPPER AND LOWER LOOPER DRIVE PART(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S150204002 | Screw | 1 / 1 / 1 / 1 |
| 2 | S8A3103012 | Spring washer | 1 / 1 / 1 / 1 |
| 3 | 155400005 | Washer | 1 / 1 / 1 / 1 |
| 4 | 155400020 | Bush | 1 / 1 / 1 / 1 |
| 5 | 155410000 | Looper ball link complete | 1 / 1 / 1 / 1 |
| 6 | B62401612 | Screw | 4 / 4 / 4 / 4 |
| 8 | 155400001 | Washer | 2 / 2 / 2 / 2 |
| 9 | 159400002 | Lower looper ball crank | - / 1 / - / - |
| 155400019 | Lower looper ball crank | - / - / 1 / 1 | |
| 155420000 | Lower looper ball crank | 1 / - / - / - | |
| 10 | 155400021 | Screw | 2 / 2 / 2 / 2 |
| 11 | 155400002 | Upper/lower looper shaft | 1 / 1 / 1 / 1 |
| 12 | 155400003 | Bush | 1 / 1 / 1 / 1 |
| 13 | 028330001 | Oil seal | 1 / 1 / 1 / 1 |
| 14 | 155451000 | Lower looper holder complete | 1 / 1 / 1 / 1 |
| 15 | 028300043 | Pin | 1 / 1 / 1 / 1 |
| 16 | 155400010 | Screw | 1 / 1 / 1 / 1 |
| 17 | 028300046 | Pin | 1 / 1 / 1 / 1 |
| 18 | 155450002 | Lower looper | 1 / 1 / 1 / 1 |
| 19 | 028100027 | Screw | 1 / 1 / 1 / 1 |
Page 33 — 9. FEED DOG LIFT PART(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 155530000 | Feed drive cam holder complete | 1/1/1/1 |
| 2 | B12500532 | Screw | 2/2/2/2 |
| 3 | 028400082 | Pin | 1/1/1/1 |
| 4 | 028400080 | Roller | 1/1/1/1 |
| 5 | S150224015 | Screw | 2/2/2/2 |
| 6 | 155500026 | Feed drive cam | 1/1/1/1 |
| 7 | 155500027 | Plate spring | 1/1/1/1 |
| 8 | 155500028 | Link for feed drive | 1/1/1/1 |
| 9 | S150225008 | Screw | 1/1/1/1 |
| 10 | 155540000 | Needle bearing | 1/1/1/1 |
| 11 | 155300023 | Pin | 1/1/1/1 |
| 12 | 155500029 | Crank for feed drive | 1/1/1/1 |
| 13 | 155300017 | Screw | 1/1/1/1 |
| 14 | 155500030 | Stitch length adjust stopper | 1/1/1/1 |
| 15 | 155500032 | Screw | 1/1/1/1 |
| 16 | 155500031 | Spring | 1/1/1/1 |
| 17 | 155550000 | Stitch length cam complete | 1/1/1/1 |
| 18 | S150446010 | Spring pin | 2/2/2/2 |
| 19 | S8A3103018 | Retaining ring | 1/1/1/1 |
| 20 | S4A0604005 | O-type ring | 2/2/2/2 |
| 21 | 155500035 | Washer | 2/2/2/2 |
| 22 | 155500034 | Spring | 1/1/1/1 |
| 23 | 155500033 | Push | 1/1/1/1 |
| 24 | 155560000 | Diff. Feed crank complete | 1/1/1/1 |
| 25 | 155560002 | Differential feed dog holder | 1/1/1/1 |
| 26 | 155560001 | Diff. feed crank | 1/1/1/1 |
| 27 | 155300017 | Screw | 1/1/1/1 |
| 28 | 155560003 | Cover for differential feed dog holder | 1/1/1/1 |
| 29 | S150217012 | Screw | 2/2/2/2 |
| 30 | 155500037 | Screw | 2/2/2/2 |
| 31 | 155500036 | Diff. Feed regulating link | 1/1/1/1 |
| 32 | 155500038 | Differential feed adjust link crank | 1/1/1/1 |
| 33 | 155300017 | Screw | 1/1/1/1 |
| 34 | 155500040 | Bush | 1/1/1/1 |
| 35 | S4A0604005 | O-type ring | 1/1/1/1 |
| 36 | 155500039 | Diff. feed regulating shaft | 1/1/1/1 |
| 37 | 155500041 | Diff. Feed regulating | 1/1/1/1 |
| 38 | 155500042 | Spring | 1/1/1/1 |
| 39 | 155500043 | Screw | 1/1/1/1 |
| 40 | 155500044 | Stopper plate | 2/2/2/2 |
| 41 | 155500045 | Differential stitch control | 1/1/1/1 |
| 42 | S150215010 | Screw | 2/2/2/2 |
| 43 | 028400044 | Washer | 1/1/1/1 |
| 44 | 155500046 | Nut | 1/1/1/1 |
| 45 | 155500047 | Screw | 1/1/1/1 |
Page 35 — 10. FEED DOG LIFT PART(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 028310001 | Oil seal | 1/1/1/1 |
| 2 | 060410014 | Retaining ring | 1/1/1/1 |
| 3 | 155500001 | Feed shaft | 1/1/1/1 |
| 4 | 155300006 | Washer | 2/2/2/2 |
| 5 | 155500003 | Left bush for feed shaft | 1/1/1/1 |
| 6 | 155500005 | Feed crank | 1/1/1/1 |
| 7 | 155300017 | Screw | 1/1/1/1 |
| 8 | 155500006 | Pin | 1/1/1/1 |
| 9 | 155500010 | Washer | 1/1/1/1 |
| 10 | S120503010 | Nut | 1/1/1/1 |
| 11 | 155500004 | Right bush for feed shaft | 1/1/1/1 |
| 12 | 028400023 | Screw | 1/1/1/1 |
| 13 | 155500010 | Washer | 1/1/1/1 |
| 14 | 028400021 | Roller for feed dog holder link | 1/1/1/1 |
| 15 | 155500008 | Link for feed dog holder | 1/1/1/1 |
| 16 | 155500019 | Slide block for feed dog | 1/1/1/1 |
| 17 | 155500014 | Eccentric shaft bush | 1/1/1/1 |
| 18 | B12400432 | Screw | 2/2/2/2 |
| 19 | 028400055 | Eccentric shaft | 1/1/1/1 |
| 20 | 155500012 | Slide block | 1/1/1/1 |
| 21 | 155510001 | Feed dog holder | 1/1/1/1 |
| 22 | 155510002 | Differential feed dog holder | 1/1/1/1 |
| 23 | 028400058 | Washer | 1/1/1/1 |
| 24 | 028400059 | Screw | 1/1/1/1 |
| 25 | 155500017 | Oil seal | 1/1/1/1 |
Page 37 — 10. FEED DOG LIFT PART (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 26 | 028400023 | Screw | 3:1 4/4H:1 5:1 5H:1 |
| 27 | 155500010 | Washer | 3:1 4/4H:1 5:1 5H:1 |
| 28 | 155500018 | Link for differential feed dog holder | 3:1 4/4H:1 5:1 5H:1 |
| 29 | 028400021 | Roller for feed dog holder link | 3:1 4/4H:1 5:1 5H:1 |
| 30 | 028200056 | Screw | 5:1 5H:1 |
| 028100027 | Screw | 3:1 4/4H:1 | |
| 31 | 155500021 | Differential feed dog | 5:1 |
| 155500050 | Differential feed dog | 5H:1 | |
| 160500001 | Differential feed dog | 3:1 | |
| 159500001 | Differential feed dog | 4/4H:1 | |
| 159500001 | Differential feed dog | 3:1 | |
| 32 | 155580000 | Main feed dog complete | 5H:1 |
| 155580001 | Main feed dog | 5H:1 | |
| 155520002 | Auxible feed dog | 5H:1 | |
| 32 | 155520000 | Main feed dog complete | 5:1 |
| 155520001 | Main feed dog | 5:1 | |
| 155520002 | Auxible feed dog | 5:1 | |
| 32 | 159510000 | Main feed dog complete | 4/4H:1 |
| 159510001 | Main feed dog | 4/4H:1 | |
| 159510002 | Auxible feed dog | 4/4H:1 | |
| 32 | 160510000 | Main feed dog complete | 3:1 |
| 160510001 | Mian feed dog | 3:1 | |
| 159510000 | Main feed dog complete | 3:1 | |
| 33 | 028400004 | Screw | 3:1 4/4H:1 5:1 5H:1 |
| 34 | 028100027 | Screw | 3:1 4/4H:1 5:1 5H:1 |
| 35 | S150215001 | Screw | 3:4 4/4H:4 5:4 5H:4 |
| 36 | 155500023 | Differential feed guide bracket | 3:1 4/4H:1 5:1 5H:1 |
| 37 | S120202007 | Screw | 3:4 4/4H:4 5:4 5H:4 |
| 38 | 155500024 | Differential feed seal guide plate | 3:1 4/4H:1 5:1 5H:1 |
| 39 | 155500025 | Differential feed seal plate | 3:2 4/4H:2 5:2 5H:2 |
Page 39 — 11. CUTTER DRIVE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 155300023 | Pin | 1 / 1 / 1 / 1 |
| 2 | 155600001 | Crank for upper cutter drive | 1 / 1 / 1 / 1 |
| 3 | 155300017 | Screw | 1 / 1 / 1 / 1 |
| 4 | 155600002 | Washer | 1 / 1 / 1 / 1 |
| 5 | 155600005 | Right bush for upper cutter bar | 1 / 1 / 1 / 1 |
| 6 | 155600004 | Left bush for upper cutter bar | 1 / 1 / 1 / 1 |
| 7 | 155600003 | Upper knife bar | 1 / 1 / 1 / 1 |
| 8 | 155600006 | Pin | - / - / 1 / 1 |
| 159600001 | Pin | 1 / 1 / - / - | |
| 9 | 155600013 | Screw | 1 / 1 / 1 / 1 |
| 10 | 155600008 | Upper knife | 1 / 1 / 1 / 1 |
| 11 | 159600002 | Upper knife holder | 1 / 1 / - / - |
| 155600007 | Upper knife holder | - / - / 1 / 1 | |
| 12 | B60350812 | Screw | 2 / 2 / 2 / 2 |
| 13 | 155610000 | Link for upper knife drive complete | 1 / 1 / 1 / 1 |
| 14 | B62401612 | Screw | 2 / 2 / 2 / 2 |
| 15 | S150225008 | Screw | 1 / 1 / 1 / 1 |
| 16 | 028300027 | Screw | 1 / 1 / 1 / 1 |
| 17 | 028500013 | Clamp for lower cutter | 1 / 1 / 1 / 1 |
| 18 | 159600004 | Lower knife | 1 / 1 / - / - |
| 155600011 | Lower knife | - / - / 1 / 1 | |
| 19 | S150215001 | Screw | 1 / 1 / 1 / 1 |
| 20 | 159600003 | Lower knife holder | 1 / 1 / - / - |
| 155600009 | Lower knife holder | - / - / 1 / 1 | |
| 21 | 155600010 | Spring | 1 / 1 / 1 / 1 |
| 22 | S150215010 | Screw | 2 / 2 / 2 / 2 |
| 23 | 155600012 | Needle guard holder | - / - / 1 / 1 |
| 159600005 | Needle guard holder | 1 / 1 / - / - |
Page 41 — 12. PRESSER FOOT LIFT PARTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 155800011 | Link for foot lift lever | 1 / 1 / 1 / 1 |
| 2 | 155800010 | Screw | 1 / 1 / 1 / 1 |
| 3 | 155800008 | Foot lift lever | 1 / 1 / 1 / 1 |
| 4 | 155800009 | Spring | 1 / 1 / 1 / 1 |
| 5 | 155800007 | Set collar for foot lift shaft | 1 / 1 / 1 / 1 |
| 6 | 155300017 | Screw | 1 / 1 / 1 / 1 |
| 7 | 155800005 | Lever | 1 / 1 / 1 / 1 |
| 8 | 155800006 | Spring | 1 / 1 / 1 / 1 |
| 9 | 155800004 | Bush for presser foot lift | 1 / 1 / 1 / 1 |
| 10 | B12400432 | Screw | 1 / 1 / 1 / 1 |
| 11 | 155800012 | Stopper plate | 1 / 1 / 1 / 1 |
| 12 | S150215009 | Screw | 2 / 2 / 2 / 2 |
| 13 | S150215013 | Screw | 1 / 1 / 1 / 1 |
| 14 | S120503010 | Nut | 1 / 1 / 1 / 1 |
| 15 | S120210015 | Screw | 1 / 1 / 1 / 1 |
| 16 | 155800003 | Press arm shaft | 1 / 1 / 1 / 1 |
| 17 | 155800001 | Press arm | 1 / 1 / 1 / 1 |
| 18 | 155800002 | Press arm pin | 1 / 1 / 1 / 1 |
| S120202004 | Screw | 1 / 1 / 1 / 1 | |
| 19 | S120202007 | Screw | 1 / 1 / 1 / 1 |
| 20 | 155800020 | Knife | 1 / 1 / 1 / 1 |
| 21 | 159700001 | Finger guard | 1 / 1 / 0 / 0 |
| 155800019 | Finger guard | 0 / 0 / 1 / 1 | |
| 22 | 160710000 | Presser foot complete | 1 / 0 / 0 / 0 |
| 160730000 | Presser foot complete | 1 / 0 / 0 / 0 | |
| 159710000 | Presser foot complete | 0 / 1 / 0 / 0 | |
| 039720000 | Presser foot complete | 0 / 0 / 1 / 0 | |
| 77T7-001A | Presser foot complete | 0 / 0 / 0 / 1 | |
| 23 | 155800018 | Screw | 1 / 1 / 1 / 1 |
| 24 | 155800017 | Spring | 1 / 1 / 1 / 1 |
| 25 | 155800016 | Press bar lifter | 1 / 1 / 1 / 1 |
| 26 | 155800013 | Screw | 1 / 1 / 1 / 1 |
| 27 | 155800014 | Spring | 1 / 1 / 1 / 1 |
| 28 | 155800015 | Press arm stopper | 1 / 1 / 1 / 1 |
| 29 | S150215008 | Screw | 1 / 1 / 1 / 1 |
| 30 | 155810000 | Presser bar complete | 1 / 1 / 1 / 1 |
| 31 | 155810002 | Cushion | 1 / 1 / 1 / 1 |
| 32 | S150446011 | Spring pin | 1 / 1 / 1 / 1 |
Page 43 — 13. PRESSER FOOT LIFT PARTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S120202004 | Screw | 1 |
| 2 | 155800021 | Spring | 1 |
| 3 | 039720000 | Presser foot complete | 1 |
| 39T7-003B2 | Main presser foot | 1 | |
| 39T7-003B3 | Auxible presser foot | 1 | |
| 39T7-003B1 | Bracket for presser foot | 1 | |
| 4 | 39T7-001A3 | Screw | 1 |
| 5 | 39T7-001A6 | Screw | 1 |
| 6 | 28T1-007 | Screw | 1 |
| 7 | 39T7-001A5 | Fabric guard | 1 |
| 8 | 39T7-001A4 | Screw | 1 |
| 9 | 39T7-001A10 | Spring | 1 |
| 10 | 77T7-001A4 | Pin | 1 |
| 1 | 155A20006 | Screw | 1 |
| 2 | 155800025 | Spring | 1 |
| 3 | 77T7-001A | Presser foot complete | 1 |
| 77T7-001A1 | Main presser foot | 1 | |
| 77T7-001A2 | Aauxible presser foot | 1 | |
| 77T7-001A3 | Bracket for presser foot | 1 | |
| 77T7-001A5 | Link for presser foot | 1 | |
| 5 | 6A2-14 | Screw | 1 |
| 6 | 28T1-007 | Screw | 1 |
| 7 | 77T7-001A6 | Fabric guard | 1 |
| 10 | 77T7-001A4 | Pin | 3 |
| 1 | S120202004 | Screw | 1 1 |
| 2 | 159700002 | Stopper | 1 1 |
| 3 | 159710000 | Presser foot complete | 1 |
| 12 | 159710007 | Bracket for presser foot | 1 1 |
| 13 | 028100007 | Screw | 1 1 |
| 14 | 39T7-001A6 | Screw | 1 1 |
| 15 | 28T6-019A1 | Presser foot fitting piece | 1 |
| 16 | GB97-76 | Washer | 1 |
| 17 | 159710002 | Presser foot fitting piece | 1 |
| 18 | 159710001 | Main presser foot | 1 |
| 19 | 159710006 | Guide | 1 |
| 20 | 159710005 | Set presser for presser foot | 1 1 |
| 21 | 28T1-041 | Screw | 1 1 |
| 3 | 160710000 | Presser foot complete | 1 |
| 160730000 | Presser foot complete | 1 |
Page 45 — 14. FRONT LOOPER PARTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 155500017 | Rubber cap | 1 / 1 (Qt 5 / 5H) |
| 2 | 155700003 | Pin shaft | 1 / 1 (Qt 5 / 5H) |
| 3 | B12500532 | Screw | 1 / 1 (Qt 5 / 5H) |
| 4 | 155700002 | Sliding bush | 1 / 1 (Qt 5 / 5H) |
| 5 | 155700001 | Fork | 1 / 1 (Qt 5 / 5H) |
| 6 | B12500532 | Screw | 1 / 1 (Qt 5 / 5H) |
| 7 | 155700004 | Connector | 1 / 1 (Qt 5 / 5H) |
| 8 | 155700005 | Pin | 1 / 1 (Qt 5 / 5H) |
| 9 | 155700006 | Slide block holder | 1 / 1 (Qt 5 / 5H) |
| 10 | B12500532 | Screw | 1 / 1 (Qt 5 / 5H) |
| 11 | 155700008 | Bush | 1 / 1 (Qt 5 / 5H) |
| 12 | 155700010 | Crank for front looper | 1 / 1 (Qt 5 / 5H) |
| 13 | 155300017 | Screw | 1 / 1 (Qt 5 / 5H) |
| 14 | 039400009 | Link for front looper | 1 / 1 (Qt 5 / 5H) |
| 15 | 039400010 | Pin | 1 / 1 (Qt 5 / 5H) |
| 16 | S150237030 | Screw | 2 / 2 (Qt 5 / 5H) |
| 17 | 155700007 | Shaft for looper drive | 1 / 1 (Qt 5 / 5H) |
| 18 | 155700008 | Bush | 1 / 1 (Qt 5 / 5H) |
| 19 | 028330001 | Oil seal | 1 / 1 (Qt 5 / 5H) |
| 20 | 155710000 | Front looper holder complete | 1 (Qt 5) |
| 155730000 | Front looper holder complete | 1 (Qt 5H) | |
| 21 | 155400010 | Screw | 1 / 1 (Qt 5 / 5H) |
| 22 | 006300018 | Screw | 1 / 1 (Qt 5 / 5H) |
| 23 | 155710002 | Front looper | 1 (Qt 5) |
| 155730001 | Front looper | 1 (Qt 5H) |
Page 47 — 15. FRONT LOOPER PARTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 039400037 | Long thread pipe | 1 / 1 |
| 2 | 116250002 | Tube clamp | 3 / 3 |
| 3 | S150215001 | Screw | 1 / 1 |
| 4 | 155A00011 | Short thread pipe | 1 / 1 |
| 5 | 155A41000 | Nut | 1 / 1 |
| 6 | 039400042 | Spring | 1 / 1 |
| 7 | 039400041 | Thread guide disc | 2 / 2 |
| 8 | 155A40004 | Screw | 1 / 1 |
| 9 | 155A40003 | Left thread guide | 1 / 1 |
| 10 | S150217009 | Screw | 2 / 2 |
| 11 | 155A40002 | Right thread guide | 1 / 1 |
| 12 | S150215007 | Screw | 1 / 1 |
| 13 | 155A00009 | Thread guide plate | 1 / 1 |
| 14 | 155100024 | Screw | 1 / 1 |
| 15 | 155100025 | Washer | 2 / 2 |
| 16 | 155A40001 | Lower thread guide bracket | 1 / 1 |
| 17 | 155A00010 | Spring | 1 / 1 |
| 18 | 155A00008 | Thread guide plate | 1 / 1 |
| 19 | S150215001 | Screw | 1 / 1 |
| 20 | 039410N | Thread takeup cam complete | 1 / 1 |
| 21 | 182610010 | Screw | 2 / 2 |
Page 49 — 16. THREAD EYELETS(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 159900002 | Needle thread guide plate | 1 1 |
| 155A00002 | Needle thread guide plate | 1 1 (5, 5H) | |
| 2 | 155100034 | Screw | 3 3 3 3 |
| 4 | 159900001 | Thread guide plate for thread takeup plate | 1 1 |
| 155A00001 | Thread guide plate for thread takeup plate | 1 1 (5, 5H) | |
| 155A20000 | Thread takeup lever complete | 1 1 (5, 5H) | |
| 159910000 | Thread takeup lever complete | 1 1 (3, 4/4H) | |
| 5 | S150217008 | Screw | 2 2 2 2 |
| 6 | 155A20007 | Thread guide | 1 1 (5, 5H) |
| 7 | 155A20002 | Thread takeup lever | 1 1 1 1 |
| 8 | 155A20001 | Thread takeup lever bracket | 1 1 1 1 |
| 9 | S120203019 | Screw | 1 1 1 1 |
| 10 | 155A20004 | Bracket | 1 1 1 1 |
| 11 | 155A20003 | Thread retaining plate | 1 1 (5, 5H) |
| 159910001 | Thread retaining plate | 1 1 (3, 4/4H) | |
| 12 | 155A20005 | Spring | 1 1 1 1 |
| 13 | 155A20006 | Screw | 1 1 1 1 |
| 14 | 155450003 | Thread guide | 1 1 1 1 |
| 15 | 155A00003 | Thread guide plate | 1 1 1 1 |
| 16 | S150215008 | Screw | 1 1 1 1 |
| 17 | 155A00004 | Thread guide | 1 1 1 1 |
| 18 | S150215001 | Screw | 1 1 1 1 |
| 19 | S150215008 | Screw | 2 2 2 2 |
| 20 | 155A00005 | Thread guide plate | 1 1 1 1 |
| 21 | 155400018 | Thread guide | 1 1 1 1 |
| 22 | 155A00006 | Upper looper thread takeup(big) | 1 1 1 1 |
| 23 | 155A00007 | Upper looper thread takeup(small) | 1 1 1 1 |
| 24 | S150215001 | Screw | 1 1 1 1 |
| 25 | S120202004 | Screw | 1 1 1 1 |
| 26 | S8A3103003 | Washer | 1 1 1 1 |
Page 51 — 17. THREAD EYELETS(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 155A10003 | Post | 3 / 4 / 4 / 4 |
| 2 | 28T2-060H7 | Felt | 3 / 4 / 4 / 4 |
| 3 | 22T1-012F5 | Tension disc. | 6 / 8 / 8 / 8 |
| 4 | 155A10008 | Cup | 3 / 4 / 4 / 4 |
| 5 | 155A10005 | Tension spring | 1 / 2 / 2 / 2 |
| 6 | 155A10004 | Tension spring(upper looper) | 1 / 1 / 1 / 1 |
| 7 | 155A10006 | Tension spring(lower looper) | 1 / 1 / 1 / 1 |
| 8 | 155A10007 | Spring bushing | 3 / 4 / 4 / 4 |
| 9 | 155A10009 | Post nut | 3 / 4 / 4 / 4 |
| 13 | 116400008 | Screw | 2 / 2 / 2 / 2 |
| 14 | 28T2-060H8 | Tension guide plate | 3 / 3 / 3 / 3 |
| 15 | 155A10000 | Thread guide plate complete | 1 / 1 / 1 |
| 160910000 | Thread guide plate complete | 1 | |
| 16 | 155A10002 | Thread guide plate | 1 / 1 / 1 |
| Tension nut complete | Tension nut complete | 1 | |
| Tension nut complete(upper looper) | Tension nut complete(upper looper) | 1 | |
| Tension nut complete(lower looper) | Tension nut complete(lower looper) | 1 |
Page 53 — 18. LUBRICATING PARTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 155900019 | Oil guide | 1 / 1 / 1 / 1 |
| 2 | 155920003 | Oil felt | 1 / 1 / 1 / 1 |
| 3 | 155920001 | Upper silicone oil reservoir | 1 / 1 / 1 / 1 |
| 4 | 155920002 | Cover for upper silicone oil reservoir | 1 / 1 / 1 / 1 |
| 5 | 155900018 | Thread guide | 1 / 1 / 1 / 1 |
| 6 | S150215009 | Screw | 1 / 1 / 1 / 1 |
| 7 | 155930002 | Felt | - / - / 1 / 1 |
| 155930003 | Felt | - / - / 1 / 1 | |
| 159810002 | Felt | 1 / 1 / - / - | |
| 9 | 159810001 | Needle cooler | 1 / 1 / - / - |
| 155930001 | Needle cooler | - / - / 1 / 1 | |
| 10 | S150215001 | Screw | 2 / 2 / 2 / 2 |
| 11 | S8A3105006 | Ball plug | 1 / 1 / 1 / 1 |
| 12 | 155900020 | Oil tube | 1 / 1 / 1 / 1 |
| 13 | 155900023 | Cover for upper silicone oil reservoir | 1 / 1 / 1 / 1 |
| 14 | 155900022 | Cover for upper silicone oil reservoir | 1 / 1 / 1 / 1 |
| 15 | S8A3103003 | Washer | 1 / 1 / 1 / 1 |
| 16 | S150215009 | Screw | 1 / 1 / 1 / 1 |
| 17 | 028700011 | Pipe clamp | 2 / 2 / 2 / 2 |
Page 55 — 19. LUBRICATING PARTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S150215007 | Screw | 1 / 1 / 1 / 1 |
| 2 | 155900007 | Oil pipe for oil gauhe window | 1 / 1 / 1 / 1 |
| 3 | 028700010 | Oil splash connector | 2 / 2 / 2 / 2 |
| 4 | S150237007 | Screw | 3 / 3 / 3 / 3 |
| 5 | 028700011 | Oil splash connecto clamp | 2 / 2 / 2 / 2 |
| 6 | 155900005 | Screw | 3 / 3 / 3 / 3 |
| 7 | S150215005 | Screw | 1 / 1 / 1 / 1 |
| 8 | 155900006 | Oil distributor | 1 / 1 / 1 / 1 |
| 10 | 155900010 | Oil return pipe connector | 1 / 1 / 1 / 1 |
| 11 | 155900008 | Bronze oil pipe | 1 / 1 / 1 / 1 |
| 14 | 155940000 | Pump complete | 1 / 1 / 1 / 1 |
| 15 | 155910001 | Worm wheel | 1 / 1 / 1 / 1 |
| 16 | B12500532 | Screw | 1 / 1 / 1 / 1 |
| 17 | S150220003 | Screw | 2 / 2 / 2 / 2 |
| 18 | 155940002 | Cover for oil pump | 1 / 1 / 1 / 1 |
| 19 | S150217010 | Screw | 3 / 3 / 3 / 3 |
| 20 | 155910006 | Oil filter flange | 1 / 1 / 1 / 1 |
| 21 | S150217012 | Screw | 1 / 1 / 1 / 1 |
| 22 | S150559001 | Screw | 1 / 1 / 1 / 1 |
| 23 | 155910004 | Oil filter | 1 / 1 / 1 / 1 |
| 24 | 155910005 | Oil filter | 1 / 1 / 1 / 1 |
| 25 | 155900013 | Packing | 1 / 1 / 1 / 1 |
| 26 | 155900017 | Washer | 4 / 4 / 4 / 4 |
| 27 | S150220015 | Screw | 4 / 4 / 4 / 4 |
| 28 | 155900012 | Oil reservoir | 1 / 1 / 1 / 1 |
| 29 | 28T7-025H | Packing | 1 / 1 / 1 / 1 |
| 30 | 028700026 | Screw | 1 / 1 / 1 / 1 |
| 31 | 155900031 | The cover of oil basin | 1 / 1 / 1 / 1 |
| 32 | 155900032 | Rubber ring | 1 / 1 / 1 / 1 |
| 33 | 028770001 | Filter | 1 / 1 / 1 / 1 |
| 34 | 155900030 | Oil basin | 1 / 1 / 1 / 1 |
| 35 | 155900033 | Oil storage connector | 1 / 1 / 1 / 1 |
| 36 | S150218015 | Screw | 1 / 1 / 1 / 1 |
| 37 | 155900027 | Oil level gauge | 1 / 1 / 1 / 1 |
Page 57 — 20. ACCESSORIES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 28T8-001 | Machine rest board | 1 / 1 / 1 / 1 |
| 2 | 28T8-004A | Rubber cushion | 3 / 3 / 3 / 3 |
| 3 | 28T8-005 | Rubber cushion | 1 / 1 / 1 / 1 |
| 4 | 28T8-002 | Bolt | 4 / 4 / 4 / 4 |
| 5 | 155F00001 | Table | 1 / 1 / 1 / 1 |
| 6 | 110F10008 | Rubber cushion | 20 / 20 / 20 / 20 |
| 7 | S150630001 | Washer | 4 / 4 / 4 / 4 |
| 8 | S150671001 | Washer | 4 / 4 / 4 / 4 |
| 9 | 28T8-006 | Wastes chute mouth | 1 / 1 / 1 / 1 |
| 10 | GB100-76 | Screw | 3 / 3 / 3 / 3 |
| 11 | 28T8-007 | Wastes chute(upper) | 1 / 1 / 1 / 1 |
| 12 | 28T8-008 | Wastes chute(lower) | 1 / 1 / 1 / 1 |
| 13 | GB99-76 | screw | 4 / 4 / 4 / 4 |
| 18 | DC x 27 | Needle | 1 / 1 / 1 / 1 |
| 20 | 39T10-005 | Double open-end | - / - / 1 / 1 |
| 21 | 39T10-001 | Threading wire | - / - / 1 / 1 |
| 155F00002 | Oil can | 1 | |
| 22T9-001 | Oil pot | 1 | |
| GB1171-74 | Belt | 1 | |
| 159F00001 | Tape guide holder (upper) | 1 | |
| 159F00002 | Tape guide holder (lower) | 1 | |
| 110F00005 | Hndled hex driver | 1 | |
| S150220027 | Screw | 1 |
Page 59 — 20. ACCESSORIES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 35 | GXJ-3B | Spool stand for three | 1 |
| 36 | GXJ-4B | Spool stand for four | 1 |
| 37 | GXJ-5B | Spool stand for five | 1 |
Page 60 — Special – use parts for 2000-4H-A
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 159600006 | Upper knife | 1 |
| 2 | 159600007 | Upper knife holder | 1 |
| 3 | 159600008 | Screw | 1 |
| 4 | S150217009 | Screw M3 x4 | 1 |
| 5 | 155600014 | Guide board | 1 |
| 6 | 155600015 | Fixed board | 1 |
| 7 | 155600017 | Pin | 1 |
| 8 | S8A3103003 | Washer 4 | 1 |
Page 61 — Special - use parts for 2000 - 5H - A
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 155600019 | Upper knife holder | 1 |
| 2 | 155600014 | Guide board | 1 |
| 3 | 155600015 | Fixed board | 1 |
| 4 | 155600016 | Upper knife | 1 |
| 5 | 155600017 | Pin | 1 |
| 6 | 155600018 | Screw | 1 |
| 7 | S150217009 | Screw M3x4 | 1 |
| 8 | S8A3103003 | Washer 4 | 1 |
Page 63 — Special - use parts for 2000-3C-2000-4C
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 159A41000 | Needle plate complete | 3C: none; 4C: 1 |
| 2 | 109210009 | Screw | 3C: 1; 4C: 1 |
| 3 | 159A40005 | Cutter protect plate | 3C: 1; 4C: 1 |
| 4 | 028400059 | Screw | 3C: 2; 4C: 2 |
| 5 | 159A40003 | Thread cut guide plate | 3C: 1; 4C: 1 |
| 6 | 028400059 | Screw | 3C: 2; 4C: 2 |
| 7 | 159A40001 | Needle plate guide plate | 3C: 1; 4C: 1 |
| 8 | 109210010 | Spring | 3C: 1; 4C: 1 |
| 9 | 109210011 | Nut | 3C: 1; 4C: 1 |
| 10 | 109210005 | Knife support bracket | 3C: 2; 4C: 2 |
| 11 | 109210006 | Block | 3C: 1; 4C: 1 |
| 12 | 109210007 | Screw | 3C: 1; 4C: 1 |
| 13 | 159A40002 | Needle plate block (Front) | 3C: 1; 4C: 1 |
| 14 | 020101035 | Knife (width 9mm) | 3C: 1; 4C: 1 |
| 15 | 159A40004 | Screw | 3C: 2; 4C: 2 |
| 16 | 159A00002 | Sewing plate complete | 3C: 1; 4C: 1 |
| 17 | 159A30003 | Screw | 3C: 1; 4C: 1 |
| 18 | 159A23006 | Washer | 3C: 1; 4C: 1 |
| 19 | 159A30001 | Plate | 3C: 1; 4C: 1 |
| 20 | 159A30002 | Screw | 3C: 1; 4C: 1 |
| 21 | S120501011 | Nut M6 | 3C: 1; 4C: 1 |
| 22 | S150633001 | Washer 6 | 3C: 1; 4C: 1 |
| 23 | 159A30004 | Screw | 3C: 1; 4C: 1 |
| 24 | S150217013 | Screw M6 10 | 3C: 1; 4C: 1 |
| 25 | 159A00003 | Thread support plate | 3C: 2; 4C: 2 |
| 26 | 182610010 | Screw | 3C: 1; 4C: 1 |
| 27 | 159A00004 | Block | 3C: 1; 4C: 1 |
| 28 | 159A22000 | Soft thread complete | 3C: 1; 4C: 1 |
| 29 | 028100035 | Nut | 3C: 1; 4C: 1 |
| 30 | 159A23001 | Thread lease rack | 3C: 1; 4C: 1 |
| 31 | 159A23006 | Washer | 3C: 1; 4C: 1 |
| 32 | 159A23004 | Screw | 3C: 1; 4C: 1 |
| 33 | 159A23002 | Screw | 3C: 1; 4C: 1 |
| 34 | 159A23005 | Spring | 3C: 1; 4C: 1 |
| 35 | 159A23003 | Block | 3C: 1; 4C: 1 |
| 36 | 028100035 | Nut | 3C: 1; 4C: 1 |
| 37 | 159A21001 | Thread guide plate | 3C: 1; 4C: 1 |
| 38 | 159A10001 | Drawing | 3C: 1; 4C: 1 |
| 39 | 160510000 | Mainfeed dog complete | 3C: 1; 4C: 1 |
| 40 | 160500001 | Differential feed dog | 3C: 1; 4C: 1 |
| 41 | 160A30000 | Needle plate complete | 3C: 1; 4C: none |
Page 64 — Special use parts for 2000 4G
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 155E10000 | Cover | 1 |
| 2 | 155E00002 | Edge binder support bracket | 1 |
| 3 | 155E20002 | Front cover | 1 |
| 4 | 155E20001 | Front cover(L) | 1 |
| 5 | 155E00011 | Pin | 1 |
| 6 | 155E00009 | Upper knife bar | 1 |
| 7 | 155E00010 | Upper knife holder | 1 |
| 8 | 028500032 | Screw | 1 |
| 9 | 155E00012 | Upper knife | 1 |
| 10 | 155E00004 | Needle guard (rear) | 1 |
| 11 | 155E00005 | Chain stitch needle guard (rear) | 1 |
| 12 | 155E00003 | Needle guard (front) | 1 |
| 13 | 028400004 | Screw | 1 |
| 14 | 155E00006 | Plate | 1 |
| 15 | S150215001 | Screw | 1 |
| 16 | 028200061 | Screw | 1 |
| 17 | 155E60000 | Edge binder complete | 1 |
| 18 | 155E00007 | Washer | 1 |
| 19 | SFB0201020 | Screw | 1 |
| 20 | 155E70000 | Needle plate baracket | 1 |
Page 65 — Special - use parts for 2000 - 4G
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 21 | 028200061 | Screw | 1 |
| 22 | 028400004 | Washer | 1 |
| 23 | 155E70002 | Needle cloth guide | 1 |
| 24 | 155E70001 | Needle plate | 1 |
| 25 | 155E80000 | Main feed dog complete | 1 |
| 26 | 155E80002 | Auxible feed dog | 1 |
| 27 | 155E80001 | Main feed dog | 1 |
| 28 | 155Eg0000 | Belt plate dig complete | 1 |
| 29 | 155Eg0006 | Felt | 1 |
| 30 | 155Eg1000 | Belt plat small complete | 1 |
| 31 | 155Eg0003 | Rack | 1 |
| 32 | 155Eg0005 | Bush | 1 |
| 33 | S120501011 | Nut | 1 |
| 34 | S150237006 | Screw | 1 |
| 35 | 155Eg0004 | Screw | 1 |
| 36 | 155Eg0002 | Support rack | 1 |
| 37 | W050101002 | Screw | 1 |
| 38 | 155Eg0001 | Base mechanism | 1 |
| 39 | 155E00008 | Differential feed dog | 1 |
| 40 | 155E50001 | Needle holder | 1 |
| 41 | 155E00016 | Upper looper shaft | 1 |
| 42 | 022500005 | Oil seal | 2 |
| 43 | 155E00014 | Lower knife | 1 |
| 44 | 155Ea0000 | Presser foot complete | 1 |
| 45 | 155E90001 | Small looper | 1 |
| 46 | 155E90002 | Front loopler holder | 1 |
| 47 | 028100007 | Screw | 1 |
| 48 | 155Ee0000 | Double short thread pipe | 1 |
| 49 | 155Ed0000 | Double long thread pipe | 1 |
| 50 | 155E00015 | Thread guide plate | 1 |
| 51 | 155Eh0002 | Right thread guide | 1 |
| 52 | 155Eh0001 | Lower thread guide bracket | 1 |
| 53 | 028160001 | Upper looper oil seal | 1 |
Page 66 — Special – use parts for 2000 – 4XH
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 159350000 | Needle plate asm | 1 |
| 2 | 159400003 | Lower looper | 1 |
| 3 | 159500002 | Differential feed dog | 1 |
| 4 | 159520000 | Main feed dog asm | 1 |
| 5 | 159400004 | Upper looper | 1 |
| 6 | 159150000 | Cloth guide asm | 1 |
| 1 | 155500052 | Differential feed dog | 1 |
| 2 | 155590000 | Main feed dog asm | 1 |
| 3 | 155590001 | Main feed dog | 1 |
| 4 | 155590002 | Auxible feed dog | 1 |
Page 67 — Special – use parts for 2000 – 5 / BB
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 155K00002 | Strap guide holder | 1 |
| 2 | S150215010 | Screw M4 x12 | 1 |
| 3 | 155900017 | Washer | 1 |
| 4 | 155K00003 | Block | 1 |
| 5 | 159600008 | Screw | 2 |
| 6 | 155K00004 | Edge fomer | 1 |
| 7 | 155K00005 | Block | 1 |
| 8 | S150215001 | Screw | 3 |
| 9 | 155K00006 | Lower knife holder | 1 |
| 10 | 155K00007 | Front cover | 1 |
| 11 | 155E20001 | Front cover(L) | 1 |
| 12 | 155K20000 | Presser foot complete | 1 |
| 13 | 159600004 | Lower knife | 1 |
| 14 | 155K30000 | Needle plate complete | 1 |
| 15 | 155Eg0000 | Edge rotating plate complete | 1 |
| 16 | S150632001 | Washer | 3 |
Page 68 — Special – use parts for 2000 – 6
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 155G10000 | Needle plate complete | 1 |
| 2 | 155G10001 | Needle plate fitting | 1 |
| 3 | 155G40002 | Thread guide plate | 1 |
| 4 | 1555a0000 | Main feed dog complete | 1 |
| 5 | 155500051 | Differential feed dog | 1 |
| 6 | 155G40001 | Thread guide plate(S) | 1 |
| 7 | 155370001 | Upper shaft crank | 1 |
| 8 | 155G00003 | Needle thread guide plate | 1 |
| 9 | 155G20000 | Needle holder | 1 |
| 10 | 155G00002 | Upper looper | 1 |
| 11 | 155G30000 | Presser foot complete | 1 |
Page 69 — Special -use parts for 2000 -3B
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 160100003 | Model plate | 1 |
| 2 | 160300004 | Needle plate | 1 |
| 3 | 028280009 | Needle (DCX27 ) | 1 |
| 4 | 160500003 | Differential feed dog | 1 |
| 5 | 160520000 | Main feed dog complete | 1 |
| 6 | 160520001 | Main feed dog | 1 |
| 7 | 160520002 | Auxible feed dog | 1 |
| 8 | 160600001 | Lower knife | 1 |
| 9 | 160740000 | Presser foot complete | 1 |
| 1 | 160100004 | Model plate | 1 |
| 2 | 160300004 | Needle plate | 1 |
| 3 | 028280009 | Needle (DCX27 ) | 1 |
| 4 | 160500004 | Differential feed dog | 1 |
| 5 | 160530000 | Main feed dog complete | 1 |
| 6 | 160530001 | Main feed dog | 1 |
| 7 | 160530002 | Auxible feed dog | 1 |
| 8 | 160750000 | Presser foot complete | 1 |
Page 70 — 2000 SERIES GAUGE PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 155390000 | NEEDLE PLATE | ||
| 155390002 | NEEDLE PLATE FINGER | ||
| 155590000 | MAIN FEED DOG ASSM | ||
| 155590001 | MAIN FEED DOG | ||
| 155590002 | AUX. FEED DOG | ||
| 155500052 | DIFF. FEED DOG | ||
| 03971 | PRESSER FOOT ASS. | ||
| 155400015 | UPPER LOOPER | ||
| 155450002 | LOWER LOOPER | ||
| 155710002 | CHAINSTITCH LOOPER | ||
| 155600008 | UPPER KNIFE | ||
| 155600011 | LOWER KNIFE | ||
| 155300025 | OVERLOCK NEEDLE GUARD FRONT | ||
| 155300024 | OVERLOCK NEEDLE GUARD REAR | ||
| 155300031 | OVERLOCK NEEDLE GUARD FRONT | ||
| 155300032 | OVERLOCK NEEDLE GUARD REAR | ||
| 155360000 | NEEDLE BAR ASSM | ||
| 155360002 | NEEDLE HOLDER | ||
| DC x 27 11# | NEEDLE | ||
| 155300027 | OVERLOCK NEEDLE GUARD FRONT | ||
| 155300026 | OVERLOCK NEEDLE GUARD REAR | ||
| 155350000 | NEEDLE BAR ASSM | ||
| 155350002 | NEEDLE HOLDER | ||
| 1555a0000 | MAIN FEED DOG ASSM | ||
| 1555a0001 | MAIN FEED DOG | ||
| 1555a0002 | AUX FEED DOG | ||
| 155500051 | DIFF. FEED DOG | ||
| NG | 1553a0000 | NEEDLE PLATE | 3 |
| SW | 155340002 | NEEDLE PLATE FINGER | 5 |
| NG | 155340000 | NEEDLE PLATE | 5 |
| 155520000 | MAIN FEED DOG ASSM | ||
| 155520001 | MAIN FEED DOG | ||
| 155520002 | AUX FEED DOG | ||
| 155500021 | DIFF. FEED DOG | ||
| 039720000 | PRESSER FOOT ASS. | ||
| NG | 155380000 | NEEDLE PLATE | 5 |
| SW | 155380002 | NEEDLE PLATE FINGER | 6 |
| 155580000 | MAIN FEED DOG ASSM | ||
| 155580001 | MAIN FEED DOG | ||
| 155500050 | DIFF. FEED DOG | ||
| 07771 | PRESSER FOOT ASS. | ||
| 155730001 | CHAINSTITCH LOOPER |
Page 71
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 160300001 | NEEDLE PLATE | ||
| 160510000 | MAIN FEED DOG ASSM | ||
| 160320000 | NEEDLE BAR ASSM | ||
| 160320001 | NEEDLE HOLDER | ||
| 160300003 | GAUGE | 4 | |
| 160300004 | SW | 1.5 | |
| 159310000 | PLATE | 2 | |
| 160400001 | UPPER LOOPER | 2 | |
| 155450002 | LOWER LOOPER | 2 | |
| 155600008 | MACHINE | 4 | |
| 155300024 | NEEDLE GUARD REAR | 2 |
Typical GN2000-3 — parts catalog

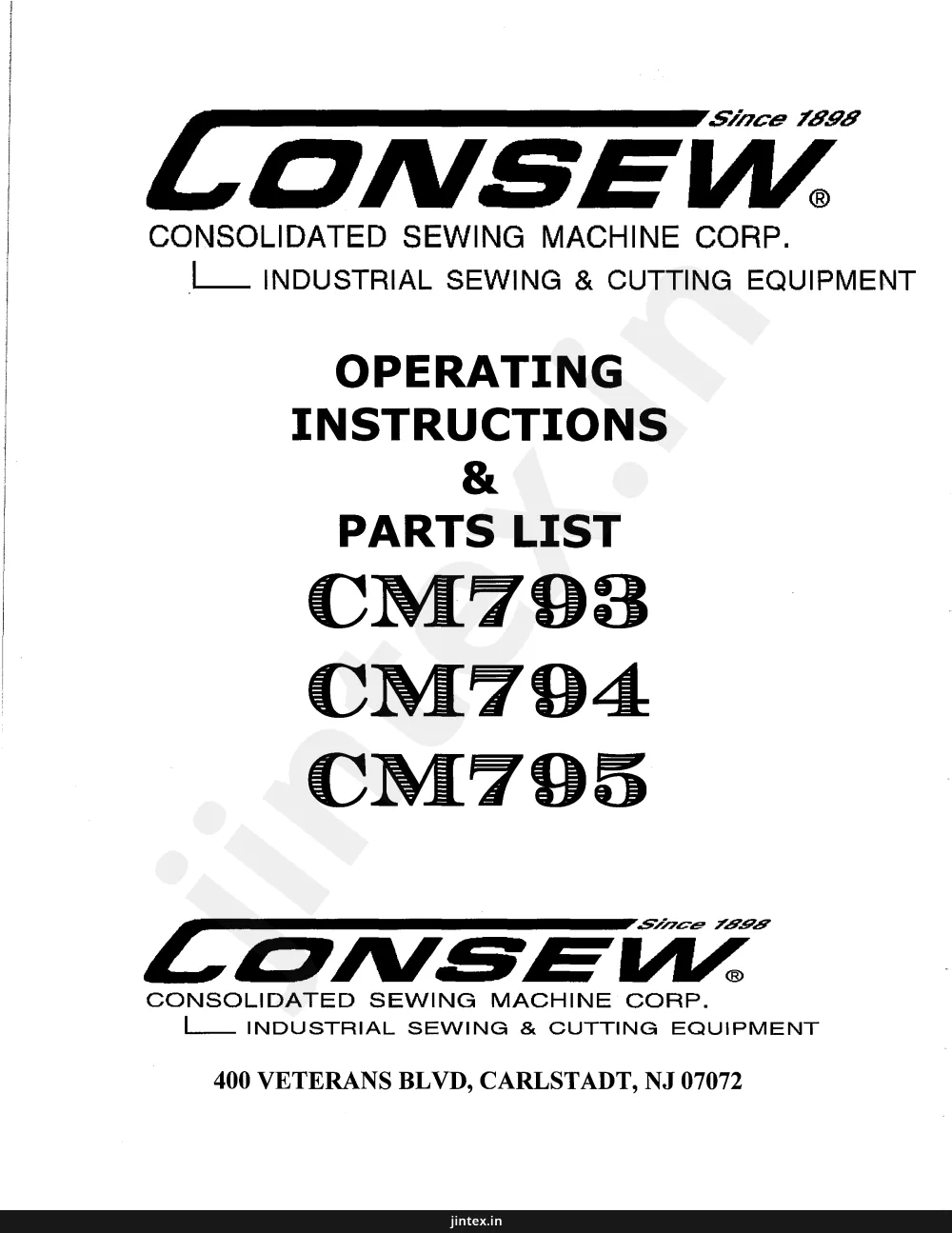

- Page 1 (cover): This is the cover page for the CONSEW Operating Instructions & Parts List for models CM793, CM794, and CM795. It includes the company logo, address, and contact information.
- Page 2 (unknown): This page contains a watermark and no other discernible content.
- Page 3 (text): This page contains an introduction to the 2000 Series sewing machine and important safety precautions to observe before operating the machine, including notes on power supply and pedal usage.
- Page 4 (toc): This page contains the table of contents for the manual, detailing sections such as 'BEFORE OPERATING', 'TEST SEWING', and 'MAINTENANCE DURING USE', along with their corresponding page numbers.
- Page 5 (diagram): This page contains a schematic diagram of a machine table with various dimensions and labels, including standard dimensions for sections A-A and B-B.
- Page 6 (text): This page provides instructions for installing the machine head and details the machine speed and turning direction, including a table of model numbers and their corresponding maximum sewing speeds.
- Page 7 (text): This page describes lubrication procedures for the sewing machine, including oil level checks and manual oil application for initial use or after periods of disuse.
- Page 8 (text): This page contains instructions for filling the HR device with silicon oil and threading the machine, along with diagrams illustrating these steps.
- Page 9 (text): This page contains instructions for threading the machine, including needle thread and looper thread, and adjusting the presser foot pressure. It also includes a diagram illustrating the threading process and a diagram for adjusting presser foot pressure.
- Page 10 (text): This page describes how to adjust the differential feed ratio and stitch length on a sewing machine, with accompanying diagrams illustrating the relevant parts.
- Page 11 (text): This page provides instructions on adjusting thread tension and cleaning the machine, with diagrams illustrating the process.
- Page 12 (text): This page contains instructions for replacing the needle and checking oil circulation on a sewing machine, along with diagrams illustrating these procedures.
- Page 13 (text): This page contains maintenance instructions for replacing the oil and the lower knife, including diagrams and specific angles for resharpening.
- Page 14 (diagram): This page illustrates the process of replacing the lower knife on an industrial sewing machine, including diagrams and step-by-step instructions.
- Page 15 (text): This page contains tables detailing adjustment dimensions for various sewing machine models, including 2000-5L, 2000-5, 2000-5(5x5), 2000-5H, 2000-3, 2000-3B, 2000-3E, 2000-4, and 2000-4H, along with a table for "2000 Standard needle" specifications.
- Page 16 (diagram): This page displays a diagram of machine components, with numbered parts and associated part numbers and descriptions.
- Page 17 (parts_list): This page lists machine arm parts with their corresponding retention numbers, descriptions, and quantities for different models.
- Page 18 (diagram): This page displays a diagram of various machine components, including covers, brackets, and fasteners, with reference numbers and some part numbers indicated.
- Page 19 (parts_list): This page lists parts for the machine arm, including screws, covers, oil seals, and decorative brands, with quantities specified for different models.
- Page 20 (diagram): This page displays a diagram of various sewing machine components, including screws, plates, covers, and other mechanical parts, with reference numbers for identification.
- Page 21 (parts_list): This page lists parts for Machine Arm Part (3), including part numbers, descriptions, and quantities for different models.
- Page 22 (diagram): This page displays a diagram of various components, including screws, shafts, pulleys, and housings, with corresponding reference numbers for identification.
- Page 23 (parts_list): This page lists parts for the Needle Bar Drive, including part numbers, descriptions, and quantities for different machine models.
- Page 24 (diagram): This page displays a diagram of various machine parts, including components labeled with reference numbers from 1 to 38, and sub-assemblies identified as 2000-3, 2000-4, and 2000-5 (5x5).
- Page 25 (parts_list): This page lists parts for the needle bar drive, including retaining rings, washers, screws, set collars, upper shaft components, needle bars, and oil seals, with quantities specified for different machine models.
- Page 26 (diagram): This page displays diagrams of parts for models 2000-5 (5x5), 2000-3, and 2000-4, with numbered references for each component.
- Page 27 (parts_list): This page lists needle bar drive parts, including needle plates, screws, rubber plugs, and brackets, with their corresponding part numbers and quantities for different machine models.
- Page 28 (diagram): This page displays a diagram of various machine components, including part numbers and reference numbers for identification.
- Page 29 (parts_list): This page lists parts for the upper and lower looper drive, including part numbers, descriptions, and quantities for different models.
- Page 30 (diagram): This page displays a diagram of various machine components, including screws, washers, and other mechanical parts, with reference numbers and some part numbers like 2000-5, 2000-3, and 2000-4.
- Page 31 (parts_list): This page lists parts for the upper and lower looper drive, including screws, washers, bushings, oil seals, and pins, with quantities specified for different machine models.
- Page 32 (diagram): This page displays a diagram of various sewing machine parts, numbered from 1 to 45, illustrating their assembly and placement within the machine.
- Page 33 (parts_list): This page lists parts for the Feed Dog Lift (1) with part numbers, descriptions, and quantities for different models.
- Page 34 (diagram): This page displays a diagram of various machine components, with parts numbered from 1 to 39, illustrating their assembly and placement within the machine structure.
- Page 35 (parts_list): This page lists parts for the Feed Dog Lift, including part numbers, descriptions, and quantities for different models.
- Page 36 (diagram): This page displays a diagram of various machine parts, numbered from 1 to 39, illustrating their assembly and placement within the machine.
- Page 37 (parts_list): This page lists parts for the feed dog lift, including screws, washers, links, rollers, and differential feed dogs, with quantities specified for different machine models.
- Page 38 (diagram): This page displays a diagram of various machine parts, including screws, washers, shafts, and brackets, with corresponding reference numbers and part numbers.
- Page 39 (parts_list): This page lists parts for the cutter drive, including pins, screws, washers, bushes, knives, and needle guards, with quantities specified for different models.
- Page 40 (diagram): This page displays a diagram of various sewing machine components, including levers, springs, screws, and a housing unit, with reference numbers for each part.
- Page 41 (parts_list): This page lists parts for the presser foot lift, including part numbers, descriptions, and quantities for different models.
- Page 42 (diagram): This page displays diagrams of sewing machine parts for models 2000-5 (5x5), 2000-5H, and 2000-3,4, with numbered components indicated.
- Page 43 (parts_list): This page lists parts for the presser foot lift, including screws, springs, brackets, and pins, with quantities specified for different machine models.
- Page 44 (diagram): This page displays a diagram of sewing machine parts, with numbered components and their corresponding references.
- Page 45 (parts_list): This page lists parts for the front looper, including part numbers, descriptions, and quantities for different machine models.
- Page 46 (diagram): This page displays a diagram of various machine parts, numbered 1 through 21, with a reference code "2000-5" at the top left.
- Page 47 (parts_list): This page lists parts for the front looper, including part numbers, descriptions, and quantities for different models.
- Page 48 (diagram): This page displays diagrams of various machine parts, labeled with reference numbers and part numbers, including components for models 2000-5 and 2000-3,-4.
- Page 49 (parts_list): This page lists thread eyelet parts for sewing machines, including part numbers, descriptions, and quantities for different models.
- Page 50 (diagram): This page displays diagrams of various machine parts, including assemblies for models 2000-3 and 2000-4,-5, with numbered references for each component.
- Page 51 (parts_list): This page lists thread eyelets, including part numbers, descriptions, and quantities for different machine models.
- Page 52 (diagram): This page displays a diagram of various sewing machine parts, including components labeled with reference numbers and associated part numbers like 2000-3, 2000-4, and 2000-5.
- Page 53 (parts_list): This page lists lubricating parts for a sewing machine, including oil guides, felt parts, screws, and pipe clamps, with quantities specified for different models (3, 4/4H, 5, 5H).
- Page 54 (diagram): This page displays a diagram of various machine components, including a filter assembly, a gearbox, and a base plate with associated hardware, each labeled with reference numbers for identification.
- Page 55 (parts_list): This page lists lubricating parts for a sewing machine, including screws, oil pipes, filters, and washers, with their respective part numbers and quantities for different models.
- Page 56 (diagram): This page displays a diagram of various machine parts, including screws, brackets, tools, and accessories, with reference numbers for identification.
- Page 57 (parts_list): This page lists accessories for the sewing machine, including various screws, washers, tools, and maintenance items, with quantities specified for different machine models.
- Page 58 (diagram): This page contains diagrams of thread spool holders and related components, with reference numbers 35, 36, and 37.
- Page 59 (parts_list): This page lists accessories for sewing machines, including spool stands with part numbers GXJ-3B, GXJ-4B, and GXJ-5B, along with their descriptions and quantities.
- Page 60 (parts_list): This page lists special use parts for model 2000-4H-A, including upper knife, upper knife holder, screws, guide board, fixed board, pin, and washer.
- Page 61 (parts_list): This page lists special use parts for the 2000-5H-A model, including part numbers, descriptions, and quantities.
- Page 62 (diagram): This page displays a diagram of various sewing machine parts, with reference numbers indicating their positions. It includes a list of parts with their corresponding part numbers and names.
- Page 63 (parts_list): This page lists special use parts for 2000-3C/4C sewing machines, including part numbers, descriptions, and quantities for models 3C and 4C.
- Page 64 (parts_list): This page lists special use parts for the 2000-4G model sewing machine, including part numbers, descriptions, and quantities.
- Page 65 (parts_list): This page lists special use parts for 2000-4G sewing machines, including screws, washers, needle plates, feed dogs, belts, and more, with their corresponding part numbers and quantities.
- Page 66 (parts_list): This page lists special use parts for sewing machine models 2000-4XH and 2000-5L, including part numbers, descriptions, and quantities.
- Page 67 (parts_list): This page lists special use parts for 2000-5/BB models, including various screws, washers, holders, and covers, with their corresponding part numbers and quantities.
- Page 68 (parts_list): This page lists special use parts for models 2000-6, including needle plates, feed dogs, needle holders, upper loopers, and presser feet, with their corresponding part numbers and quantities.
- Page 69 (parts_list): This page lists special use parts for sewing machine models 2000-3B and 2000-3E, including part numbers, descriptions, and quantities.
- Page 70 (parts_list): This page lists parts for the 2000 Series Gauge Parts, including machine type/spec, gauge, needle plate, needle plate finger, main feed dog assm, main feed dog, aux feed dog, diff. feed dog, presser foot ass., upper looper, lower looper, chainstitch looper, overlock needle guard front, overlock needle guard rear, needle bar assm, needle holder, and needle.
- Page 71 (parts_list): This page lists parts for various machine types including 2000-3, 2000-3B, 2000-3E, 2000-4, 2000-4M, 2000-4H, and 2000-4H-A, detailing components such as needle plates, feed dogs, loopers, and needles.
- Page 72 (unknown): This page contains a watermark and no other discernible text or parts information.
- Page 73 (unknown): This page contains a watermark and the website address "jinte.in" at the bottom.
- Page 74 (cover): This page is the cover of the CONSEW CM793, CM794, CM795 industrial sewing machine parts catalog. It includes the company logo, contact information, and model numbers.
