Jack JK-2030G Parts Book (PDF)
Text index — Jack JK-2030G

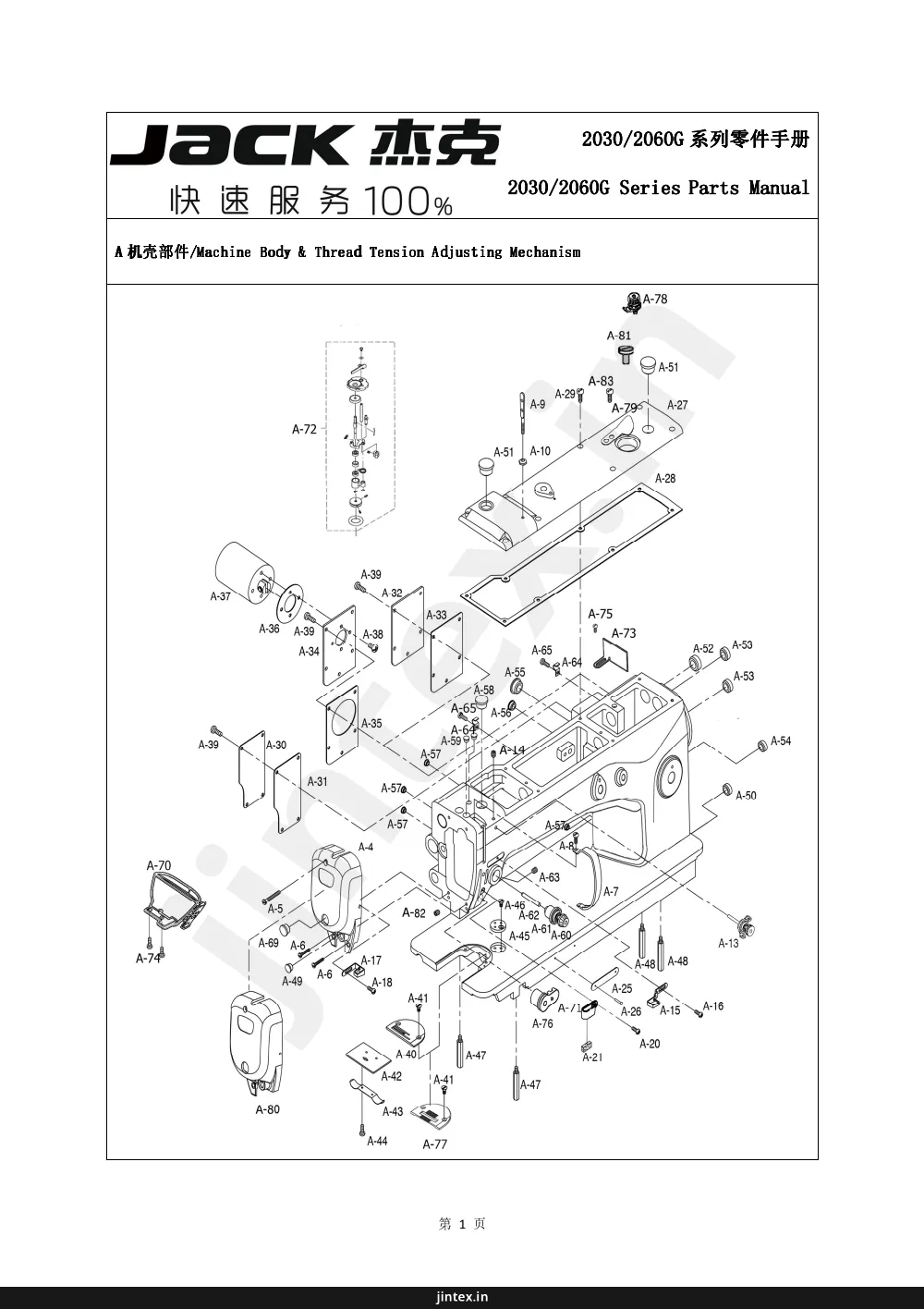

Page 2 — A 机壳部件/Machine Body & Thread Tension Adjusting Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A-4 | 14201001 | Face Plate | 1 |
| A-5 | 142S11001 | Screw For Face Plate(Upper) | 1 |
| A-6 | 135S11047 | Screw(11/64" n=40) | 2 |
| A-7 | 14212001 | Thread Take Up Cover | 1 |
| A-8 | 401S11031 | Screw(11/64" n=40) | 1 |
| A-9 | 14213001 | Upper Thread Guide Pin | 1 |
| A-10 | 142S16001 | Nut For A-9 | 1 |
| A-13 | 1351300100 | Sub Upper Thread Tension | 1 |
| A-14 | 135S15001 | Screw(11/64" n=40) | 1 |
| A-15 | 14213004 | Arm Thread Guide | 1 |
| A-16 | 101S11005 | Screw(9/64" n=40) | 1 |
| A-17 | 14213005 | Face Plate Thread Guide | 1 |
| A-18 | 101S11005 | Screw(9/64" n=40) | 1 |
| A-20 | 101S11005 | Screw(9/64" n=40) | 1 |
| A-21 | 14223001 | Upper Thread Oil Felt | 1 |
| A-23 | 14237001 | Model Mark | 1 |
| A-24 | 14237002 | Model Mark | 1 |
| A-25 | 14237003 | Machine Number Plate | 1 |
| A-26 | 14226001 | Pin For A-25 | 2 |
| A-27 | 14201002 | Top Cover | 1 |
| A-28 | 14222001 | Gasket For Top Cover | 1 |
| A-29 | 201S11020 | Screw(11/64" n=40) | 8 |
| A-30 | 14212002 | Back Cover(A) | 1 |
| A-31 | 14222002 | Gasket For Back Cover(A) | 1 |
| A-32 | 14212003 | Rear cover Plate | 1 |
| A-33 | 14222003 | Rear COVER PLATE Gasket | 1 |
| A-34 | 14212004 | B/T Solenoid Bracket | 1 |
| A-35 | 14222004 | Gasket for B/T Solenoid | 1 |
| A-36 | 14212005 | Gasket for B/T Solenoid | 1 |
| A-37 | 14230001 | B/T Solenoid Asm | 1 |
| A-38 | 406S11009 | Screw(11/64" n=40) | 4 |
| A-39 | 402S11003 | Screw(11/64" n=40) | 9 |
| A-40 | 14215001 | Needle Plate | 1 |
| A-4 | 14201001 | Face Plate | 1 |
| A-42 | 14215002 | Slide Plate | 1 |
| A-43 | 14227001 | Slide Plate Spring | 1 |
| A-44 | 101S11019 | Screw For A-43 | 2 |
| A-45 | 13812111 | Gauge Plate | 1 |
| A-46 | 101S11002 | Screw(11/64" n=40) | 2 |
| A-47 | 142S30002 | Bed Base(Front) | 2 |
| A-48 | 142S30003 | Bed Base(Rear) | 2 |
| A-49 | 12922001 | Face Plate Rubber Cap | 3 |
| A-50 | 13522008 | Bed Rubber Cap | 1 |
| A-51 | 14222007 | Top Cover Rubber Cap | 3 |
| A-52 | 14222008 | Feed Regulator Shaft Rubber | 1 |
| A-53 | 14222009 | Climb Device Adjusting Shaft | 2 |
Page 4 — A 机壳部件/Machine Body & Thread Tension Adjusting Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A-54 | 14222010 | Feed Adjusting Shaft Rubber | 30-3Q:1 60-3Q:1 |
| A-55 | 13522008 | Arm Back Part Rubber | 30-3Q:1 60-3Q:1 |
| A-56 | 12922001 | Arm Back Part Rubber | 30-3Q:1 60-3Q:1 |
| A-57 | 10122005 | Arm Back Part Rubber | 30-3Q:6 60-3Q:6 |
| A-58 | 14222014 | Arm Upper Part Rubber | 30-3Q:1 60-3Q:1 |
| A-59 | 10122013 | Arm Upper Part Rubber | 30-3Q:1 |
| A-60 | 11421300100 | Thread Tension Control | 30-3Q:1 60-3Q:1 |
| A-61 | 14222016 | Rubber Cap For A-60 | 30-3Q:1 60-3Q:1 |
| A-62 | 14226002 | Tension Release Pin | 30-3Q:1 60-3Q:1 |
| A-63 | 135S11001 | Screw(15/64" n=28) | 30-3Q:1 60-3Q:1 |
| A-64 | 14212007 | Cable Holder | 30-3Q:3 60-3Q:3 |
| A-65 | 101S11002 | Screw(11/64" n=40) | 30-3Q:3 60-3Q:3 |
| A-66 | 14212008 | Holder for Upper Thread Oil | 30-3Q:1 60-3Q:1 |
| A-69 | 14222007 | Rubber Cap | 30-3Q:1 60-3Q:1 |
| A-70 | 1423001000 | Reverse Feed Assembly | 30-3Q:1 60-3Q:1 |
| A-71 | 14213011 | Arm Thread Guide Plate(L) | 30-3Q:1 60-3Q:1 |
| A-72 | 1423102600 | Bobbin Winder Assembly | 30-3Q:1 60-3Q:1 |
| A-73 | 14212067 | Keep off Plate | 30-3Q:1 60-3Q:1 |
| A-74 | 421S13061 | Screw（M3） | 30-3Q:2 60-3Q:2 |
| A-75 | 421S13038 | Screw（M4） | 30-3Q:2 60-3Q:2 |
| A-76 | 1423001100 | Electronic Thread Clamp | 30-3Q:1 60-3Q:1 |
| A-77 | 14215003 | Needle plate (triple sync) | 60-3Q:1 |
| A-78 | 4031360100 | Tension control Component | 30-3Q:1 60-3Q:1 |
| A-79 | 11419001 | Thread Cutter | 30-3Q:1 60-3Q:1 |
| A-80 | 14201014 | Panel (triple Sync) | 60-3Q:1 |
| A-81 | 114S11003 | Screw | 30-3Q:3 60-3Q:3 |
| A-82 | S10008 | Screw（M4） | 30-3Q:1 60-3Q:1 |
| A-83 | 114S11015 | Screw（9/64"×40） | 30-3Q:2 60-3Q:2 |
Page 6 — B 上轴针杆部件/Upper Shaft & Needle Bar Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B-1 | 14202001 | Upper Shaft | 30-3Q:1 60-3Q:1 |
| B-2 | 14226003 | Oil Adjusting Pin For B-1 | 30-3Q:1 60-3Q:1 |
| B-3 | 114222002 | O-Ring For B-2 | 30-3Q:2 60-3Q:2 |
| B-4 | 10123003 | Spring for B-2 | 30-3Q:1 60-3Q:1 |
| B-5 | 14228001 | Washer for B-6 | 30-3Q:1 60-3Q:1 |
| B-6 | 14223003 | Upper Shaft Felt | 30-3Q:1 60-3Q:1 |
| B-7 | 14228002 | Upper Shaft Urethan Washer | 30-3Q:1 60-3Q:1 |
| B-8 | 14204001 | Link Cam | 30-3Q:1 60-3Q:1 |
| B-9 | 142S30004 | Screw(9/32" n=28) | 30-3Q:1 60-3Q:1 |
| B-10 | 114222002 | O-Ring for B-9 | 30-3Q:1 60-3Q:1 |
| B-11 | 402S30005 | Screw(9/32" n=28) | 30-3Q:1 60-3Q:1 |
| B-12 | 14203001 | Upper Shaft Front Bushing | 30-3Q:1 60-3Q:1 |
| B-13 | 14210001 | Balance Cam | 30-3Q:1 60-3Q:1 |
| B-14 | 409S14001 | Screw(1/4" n=40) | 30-3Q:2 60-3Q:2 |
| B-15 | 14203002 | Upper Shaft Middle Bushing | 30-3Q:1 60-3Q:1 |
| B-16 | 135S15008 | Screw(15/64" n=28) | 30-3Q:1 60-3Q:1 |
| B-17 | 14208001 | Upper Shaft Collar | 30-3Q:1 60-3Q:1 |
| B-18 | 101S15007 | Screw(1/4" n=40) | 30-3Q:2 60-3Q:2 |
| B-19 | 1422500100 | Upper Shaft Gear Ass'y | 30-3Q:1组 60-3Q:1组 |
| B-20 | 101S15002 | Screw(1/4" n=40) | 30-3Q:2 60-3Q:2 |
| B-21 | 14203003 | Upper Shaft Rear Bushing | 30-3Q:1 60-3Q:1 |
| B-22 | 14222020 | Oil Seal for B-21 | 30-3Q:1 60-3Q:1 |
| B-23 | 14201003 | Pulley | 30-3Q:1 60-3Q:1 |
| B-24 | 14237005 | plate with trademark | 30-3Q:1 60-3Q:1 |
| B-25 | S10009 | Screw(15/64" n=28) | 30-3Q:2 60-3Q:2 |
| B-26 | 101S11005 | Screw(9/64" n=40) | 30-3Q:1 60-3Q:1 |
| B-27 | 1423800100 | Thread Take-Up Lever | 30-3Q:1组 60-3Q:1组 |
| B-28 | 101S15002 | Screw(1/4" n=40) | 30-3Q:2 60-3Q:2 |
| B-29 | 136S14002 | Screw(15/64" n=28) | 30-3Q:1 60-3Q:1 |
| B-30 | 14208002 | Protection Plate for B-8 | 30-3Q:1 60-3Q:1 |
| B-31 | 14202002 | Needle Bar | 30-3Q:1 60-3Q:1 |
| B-32 | 14203004 | Needle Bar Upper Bushing | 30-3Q:1 |
| B-33 | 14203005 | Needle Bar Lower Bushing | 30-3Q:1 |
| B-34 | 14209001 | Needle Bar Guide Slide Block | 30-3Q:1 |
| B-35 | 13513011 | Needle Bar Thread Guide | 30-3Q:1 60-3Q:1 |
| B-36 | 101S11006 | Screw(1/8" n=44) | 30-3Q:1 60-3Q:1 |
| B-37 | 1420302800 | Coupling (type d) | 30-3Q:1 60-3Q:1 |
| B-38 | S10018 | Screw(M6) | 30-3Q:6 60-3Q:6 |
| B-39 | 13523001 | Upper Shaft Felt | 30-3Q:1 |
| B-43 | 14235001 | Winding wheel | 30-3Q:1 60-3Q:2 |
Page 8 — C 竖轴下轴部件/Upright Shaft & Lower Shaft Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C-1 | 14202003 | Upright Shaft | 1 / 1 |
| C-2 | 14225002 | Upright Shaft Upper Gear Asm | 1 / 1 |
| C-3 | 101S15002 | Screw(1/4" n=40) | 2 / 2 |
| C-4 | 14203006 | Upright Shaft Upper Bushing | 1 / 1 |
| C-5 | 135S15008 | Screw(15/64" n=28) | 1 / 1 |
| C-6 | 14203007 | Upright Shaft Lower Bushing | 1 / 1 |
| C-7 | 135S15008 | Screw(15/64" n=28) | 1 / 1 |
| C-8 | 14225003 | Upright Shaft Lower Gear Asm | 1 / 1 |
| C-9 | 101S15002 | Screw(1/4" n=40) | 2 / 2 |
| C-10 | 14202004 | Lower Shaft | 1 / 1 |
| C-11 | 14225004 | Lower Shaft Gear Asm | 1 / 1 |
| C-12 | 10123003 | Lower Shaft Felt | 1 / 1 |
| C-13 | 135S20007 | Cap Screw for Lower Shaft Oil | 1 / 1 |
| C-14 | 101S15002 | Screw(1/4" n=40) | 2 / 2 |
| C-15 | 14203008 | Lower Shaft Rear Bushing | 1 / 1 |
| C-16 | 135S15009 | Screw(15/64" n=28) | 1 / 1 |
| C-17 | 14203009 | Lower Shaft Middle Bushing | 1 / 1 |
| C-18 | 14203010 | Lower Shaft Front Bushing | 30-4Q:1 / 60-4Q:1 |
| C-19 | 14203011 | Lower Shaft Front Bushing | 1 / 1 |
| C-20 | 135S15008 | Screw(15/64" n=28) | 1 / 1 |
| C-21 | 142S30007 | Screw(3/16" n=32) | 1 / 1 |
| C-22 | 14227002 | Spring for C-23 | 1 / 1 |
| C-23 | 10108002 | Lower Shaft Collar | 1 / 1 |
| C-24 | 101S11012 | Screw(11/64" n=40) | 2 / 2 |
| C-25 | 13618003 | Rotary Hook Asm | 1 / 1 |
| C-26 | 10818001 | Rotary Hook Asm | 30-4Q:1 / 60-4Q:1 |
| C-27 | 10818501 | Bobbin | 1 / 1 |
| C-29 | 13618001 | Bobbin Case Asm | |
| C-30 | 10818502 | Bobbin Case Asm | 30-4Q:1 / 60-4Q:1 |
| C-31 | 13612005 | Inner Bobbin Stopper | 1 / 1 |
| C-32 | 201S11020 | Screw(11/64" n=40) | 1 / 1 |
Page 10 — D 针距调节部件/Lower Feed Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D-1 | 142S30008 | Feed Regulator Dial Shaft | 1 |
| D-2 | 14222021 | O-Ring For D-1 | 1 |
| D-3 | 1421100100 | Dial | 1 |
| D-4 | 101S11022 | Screw(3/16" n=28) | 1 |
| D-5 | 11426022 | Stopper pin | 1 |
| D-6 | 11427034 | Spring for stopper pin | 1 |
| D-8 | 14201006 | Feed Regulator | 1 |
| D-9 | 14226005 | Feed Adjusting Shaft | 1 |
| D-10 | 136S14002 | Screw(15/64" n=28) | 1 |
| D-11 | H05032 | E-Ring For D-8 | 1 |
| D-12 | 14227004 | Spring For D-8 | 1 |
| D-13 | 14212013 | Holder For D-12 | 1 |
| D-14 | 402S11003 | Screw(11/64" n=40) | 2 |
| D-15 | 14202005 | Reverse feed lever shaft | 1 |
| D-16 | 001137 | O-Ring For D-15 | 1 |
| D-18 | 1420400300 | Reverse Feed Lever Crank | 1组 |
| D-19 | 409S11015 | Screw(3/16" n=28) | 1 |
| D-20 | 201S11020 | Screw(11/64" n=40) | 1 |
| D-21 | 14227005 | Return Spring For D-17, D-18 | 1 |
| D-24 | 14205001 | Connecting Rod For Feed | 1 |
| D-25 | 14226006 | Pin For D-24 | 1 |
| D-26 | S09006 | Screw(M4) | 1 |
| D-28 | 14205002 | B/T Solenoid Crank | 1 |
| D-29 | 14226007 | Pin For D-28 | 1 |
| D-30 | H05029 | E-Ring For D-29 | 1 |
| D-31 | 14212064 | B/T Solenoid Crank Spacer | 1 |
| D-32 | 14202023 | Feed Regulator Shaft | 1 |
| D-33 | 14203025 | Feed Regulator Shaft Bushing | 1 |
| D-34 | 135S15008 | Screw(15/64" n=28) | 1 |
| D-35 | 14208001 | Stopper Collar For D-32 | 1 |
| D-36 | 101S15007 | Screw(1/4" n=40) | 2 |
| D-37 | 14212065 | Slide Block Guide Plate | 2 |
| D-38 | 101S11008 | Screw(11/64" n=40) | 4 |
| D-39 | 14209012 | Slide Block | 2 |
| D-40 | 14202024 | Slide Block Shaft | 1 |
| D-41 | 14202025 | Reverse Shaft For D-32 | 1 |
| D-42 | 14226020 | Connecting Pin For D-41 | 1 |
| D-43 | 136S14002 | Screw(15/64" n=28) | 1 |
| D-44 | 14210006 | Feed Cam | 1 |
| D-45 | 101S15007 | Screw(1/4" n=40) | 2 |
| D-46 | H04003 | C-Ring For D-44 | 1 |
| D-47 | 14205012 | Connecting Rod For D-44 | 1 |
| D-48 | 14226023 | Pin For D-47 | 1 |
| D-49 | 406S11009 | Screw(11/64" n=40) | 1 |
| D-50 | 14205013 | Feed Connecting Rod | 1 |
| D-51 | 14226021 | Pin For D-50 | 1 |
Page 12 — D 针距调节部件/Lower Feed Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D-52 | 135S11009 | Screw(15/64" n=28) | 1 / 1 |
| D-53 | 14204021 | Level Feed Shaft Crank(Rear) | 1 / 1 |
| D-54 | 135S13002 | Screw(15/64" n=28) | 1 / 1 |
| D-55 | 14205014 | Crank Rod | 1 / 1 |
| D-56 | 14226022 | Connecting Pin for D-55 | 1 / 1 |
| D-57 | 135S11048 | Screw(3/16" n=32) | 1 / 1 |
| D-58 | 14204022 | Feed Lifting Shaft Crank(Rear) | 1 / 1 |
| D-59 | 135S11048 | Screw(3/16" n=32) | 1 / 1 |
| D-60 | 13531001 | Reverse feed lever | 1 / 1 |
| D-62 | 135S11009 | Screw(15/64" n=28) | 2 / 2 |
| D-63 | 135S11022 | Screw(3/16" n=28) | 1 / 1 |
| D-64 | 14202006 | Level Feed Shaft | 1 / 1 |
| D-65 | 14203012 | Level Feed Shaft Bushing | 1 / 1 |
| D-66 | 409S15004 | Screw(15/64" n=28) | 1 / 1 |
| D-67 | 10108003 | Collar for D-64 | 1 / 1 |
| D-68 | 135S15004 | Screw(1/4" n=40) | 2 / 2 |
| D-69 | H03001 | C-Ring for D-64 | 1 / 1 |
| D-70 | 14204004 | Feed Bar Crank | 1 / 1 |
| D-71 | 101S11016 | Screw(3/16" n=28) | 2 / 2 |
| D-72 | 14202007 | Feed Bar Shaft | 1 / 1 |
| D-73 | 13528004 | Washer For D-72 | 1 / 1 |
| D-74 | 406S11009 | Screw(11/64" n=40) | 1 / 1 |
| D-76 | 10423005 | Oil wick | 2 / 2 |
| D-79 | 14214001 | Feed Dog | 1 / |
| D-80 | 101S11018 | Screw(1/8" n=44) | 2 / 2 |
| D-83 | 14203025 | Feed Lifting Shaft Bushing | 1 / 1 |
| D-84 | 135S15009 | Screw(15/64" n=28) | 1 / 1 |
| D-85 | 10108003 | Collar for D-89 | 1 / 1 |
| D-86 | 135S15004 | Screw(1/4" n=40) | 2 / 2 |
| D-87 | 14212018 | Washer for D-89 | 1 / 1 |
| D-88 | H03001 | C-Ring for D-89 | 1 / 1 |
| D-89 | 14202008 | Feed Lifting Shaft | 1 / 1 |
| D-90 | 142S20001 | Stud Screw for D-91 | 1 / 1 |
| D-91 | 14222023 | Upper Stopper Rubber for | 1 / 1 |
| D-92 | 14203014 | Lifting tooth feeding shaft | 2 / 2 |
| D-94 | 409S15004 | Screw(15/64" n=28) | 1 / 1 |
| D-95 | 135S15009 | Screw(15/64" n=28) | 1 / 1 |
| D-96 | 14206002 | Feed bar asm | 1 / 1 |
| D-97 | 1420600100 | Crank assembly | 1 组 / 1 组 |
| D-97-1 | 14205003 | Lift crank | 1 / 1 |
| D-97-2 | 14209002 | Lifting block | 1 / 1 |
| D-97-3 | 14202009 | Lift shaft | 1 / 1 |
| D-97-4 | 406S11009 | Screw | 1 / 1 |
| D-97-5 | 101S11016 | Screw | 1 / 1 |
| D-98 | 14212068 | Feed regulator key-press | 1 / 1 |
| D-99 | 13527009 | Dial spring for stopper pin | 1 / 1 |
| D-100 | 14214002 | Send Bougat (triple sync) | / 1 |
| D-101 | 1420202300 | Feed Regulator Shaft Asm. | 1 / 1 |
Page 14 — E 剪线部件/Thread Trimmer Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| E-1 | 13619001 | Fixed Mes | 30-3Q:1 60-3Q:1 |
| E-2 | 136S17001 | Screw(9/64" n=40) | 30-3Q:1 60-3Q:1 |
| E-3 | 113S15002 | Screw(1/8" n=40) | 30-3Q:1 60-3Q:1 |
| E-4 | 402S16007 | Nut(1/8" n=40) | 30-3Q:1 60-3Q:1 |
| E-5 | 14212019 | Thread Retaining Plate | 30-3Q:1 60-3Q:1 |
| E-6 | 406S11009 | Screw(11/64" n=40) | 30-3Q:1 60-3Q:1 |
| E-7 | 42128003 | Washer for E-5 | 30-3Q:1 60-3Q:1 |
| E-8 | 13619002 | Rotary Mes | 30-3Q:1 60-3Q:1 |
| E-9 | 136S17003 | Screw(11/64" n=40) | 30-3Q:2 60-3Q:2 |
| E-10 | 14204005 | Thread Trimming Holder | 30-3Q:1 60-3Q:1 |
| E-11 | 14212021 | Thread Trimming Holder | 30-3Q:1 60-3Q:1 |
| E-12 | 136S17001 | Screw(9/64" n=40) | 30-3Q:3 60-3Q:3 |
| E-13 | 14205004 | Thread Trimming Lever | 30-3Q:1 60-3Q:1 |
| E-14 | 142S20002 | Stud Screw for E-13 | 30-3Q:2 60-3Q:2 |
| E-15 | 116S16006 | Nut for E-14 | 30-3Q:2 60-3Q:2 |
| E-16 | 14204006 | Thread Trimming Lever | 30-3Q:1 60-3Q:1 |
| E-17 | 413S13023 | Screw(M6) | 30-3Q:1 60-3Q:1 |
| E-18 | 14202010 | Thread Trimming Shaft | 30-3Q:1 60-3Q:1 |
| E-19 | 14203015 | Thread Trimming Shaft | 30-3Q:1 60-3Q:1 |
| E-20 | W02001 | Spring Washer | 30-3Q:2 60-3Q:2 |
| E-21 | 13601010 | Guide Bush for Return Spring | 30-3Q:1 60-3Q:1 |
| E-22 | 13627005 | Slide Arm Return Spring | 30-3Q:1 60-3Q:1 |
| E-23 | 14204007 | Slide Arm | 30-3Q:1 60-3Q:1 |
| E-24 | 14208007 | Roller | 30-3Q:2 60-3Q:2 |
| E-25 | 142S20003 | Stud Screw for E-24 | 30-3Q:2 60-3Q:2 |
| E-26 | 142S16005 | Nut(3/16" n=32) | 30-3Q:2 60-3Q:2 |
| E-27 | 14204008 | Cam Follower Crank | 30-3Q:1 60-3Q:1 |
| E-28 | 136S14002 | Screw(15/64" n=28) | 30-3Q:2 60-3Q:2 |
| E-29 | 14227007 | Return Spring | 30-3Q:1 60-3Q:1 |
| E-30 | 14204009 | Stopper Lever | 30-3Q:1 60-3Q:1 |
| E-31 | 136S14002 | Screw(15/64" n=28) | 30-3Q:2 60-3Q:2 |
| E-32 | 20108001 | Collar for E-18 | 30-3Q:1 60-3Q:1 |
| E-33 | 201S14002 | Screw(11/64" n=40) | 30-3Q:2 60-3Q:2 |
| E-34 | 14209003 | Stopper | 30-3Q:1 60-3Q:1 |
| E-35 | 135S11048 | Screw(3/16" n=32) | 30-3Q:2 60-3Q:2 |
| E-36 | 40928020 | Washer | 30-3Q:2 60-3Q:2 |
| E-37 | 14222024 | Stopper Lever Cushion Rubber | 30-3Q:1 60-3Q:1 |
| E-38 | 13610003 | Mes Cam | 30-3Q:1 60-3Q:1 |
| E-39 | 116S14005 | Screw(1/4" n=40) | 30-3Q:2 60-3Q:2 |
| E-40 | 14212023 | Clutch Lever | 30-3Q:1 60-3Q:1 |
| E-41 | 142S20004 | Stud Screw for E-38 | 30-3Q:1 60-3Q:1 |
| E-42 | 409S16020 | Nut(15/64" n=28) | 30-3Q:1 60-3Q:1 |
| E-43 | 142S30009 | Stud Screw for E-38 | 30-3Q:1 60-3Q:1 |
| E-44 | 409S16020 | Nut(15/64" n=28) | 30-3Q:1 60-3Q:1 |
| E-45 | 142S20005 | Stud Screw for E-47 | 30-3Q:1 60-3Q:1 |
| E-46 | 116S16006 | Nut(3/16" n=32) | 30-3Q:1 60-3Q:1 |
Page 16 — E 剪线部件/Thread Trimmer Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| E-47 | 14212024 | Base Plate | 1 / 1 |
| E-48 | 417S30306 | Screw(M5) | 3 / 3 |
| E-49 | 13628003 | Washer For E-39 | 2 / 2 |
| E-50 | N01001 | Screw(M4) | 2 / 2 |
| E-51 | 14205005 | Solenoid Connecting Link | 1 / 1 |
| E-52 | 14226008 | Solenoid Pin | 1 / 1 |
| E-53 | 402S11003 | Screw(11/64" n=40) | 1 / 1 |
| E-54 | 125S15003 | Screw(11/64" n=40) | 1 / 1 |
| E-55 | N01004 | Nut(M5) | 1 / 1 |
| E-56 | 1423000500 | Thread Trimming Solenoid | 1 / 1 |
| E-57 | 14212027 | Base for E-51 | 1 / 1 |
| E-58 | W02004 | Washer | 2 / 2 |
| E-59 | 401S13001 | Screw(15/64" n=28) | 2 / 2 |
| E-60 | W01001 | Washer | 2 / 2 |
| E-61 | W02018 | Spring Washer | 2 / 2 |
Page 18 — F Upper Feed/Thread Trimmer Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| F-1 | 14202011 | Climb Device Adjusting Shaft | 1 / 1 |
| D-33 | 14203025 | Climb Device Adjusting Shaft | 1 / 1 |
| F-3 | 14203018 | Climb Device Adjusting Shaft | 1 / 1 |
| F-4 | 125S15003 | Screw(11/64" n=40) | 1 / 1 |
| F-5 | 10108003 | Collar for F-1 | 2 / 2 |
| F-6 | 135S15004 | Screw(1/4" n=40) | 4 / 4 |
| F-7 | 14227008 | Return Spring for F-1 | 1 / 1 |
| F-8 | 142S30010 | Holder for F-7 | 2 / 2 |
| F-9 | 14210003 | Upper Feed Driving | 1 / 1 |
| F-10 | 101S15007 | Screw(1/4" n=40) | 2 / 2 |
| F-11 | 14204010 | Upper Feed Driving | 1 / 1 |
| F-12 | 14226009 | Connecting Pin for F-11 | 1 / 1 |
| F-13 | 14204011 | Connecting Link for F-11 | 1 / 1 |
| F-14 | 14202012 | Upper Feed Driving Control | 1 / 1 |
| F-15 | 101S11016 | Screw(3/16" n=40) | 4 / 4 |
| F-16 | 14202013 | Connecting Shaft for F-14 | 1 / 1 |
| F-17 | H05011 | C-Ring for F-16 | 1 / 1 |
| F-18 | 14205006 | Upper Feed Driving | 1 / 1 |
| F-19 | 113S14002 | Screw(11/64" n=40) | 2 / 2 |
| F-20 | 14204012 | Upper Feed Driving Crank | 1 / 1 |
| F-21 | 401S11009 | Screw(15/64" n=28) | 1 / 1 |
| F-22 | 14226010 | Connecting Pin for F-20 | 1 / 1 |
| F-23 | 14202014 | Upper Feed Driving Shaft | 1 / 1 |
| F-24 | 14203019 | Upper Feed Driving Shaft | 1 / 1 |
| F-25 | 14203020 | Upper Feed Driving Shaft | 1 / 1 |
| F-26 | 135S15008 | Screw(15/64" n=28) | 2 / 2 |
| F-27 | 14205007 | Upper Feed Driving Rod | 1 / 1 |
| F-28 | 14212029 | Upper Feed Driving Rod | 1 / 1 |
| F-29 | 101S11005 | Screw(9/64" n=40) | 1 / 1 |
| F-30 | 142S20006 | Hinge Screw for Upper Feed | 1 / 1 |
| F-31 | 14204013 | Upper Feed Connecting Link | 2 / 2 |
| F-32 | 14202015 | Upper Feed Connecting Link | 1 / 1 |
| F-33 | H05031 | E-Ring for F-32 | 2 / 2 |
| F-34 | 14204014 | Upper Feed Lever Rock | 1 / 1 |
| F-35 | 14204015 | Upper Feed Lever Rock | 1 / 1 |
| F-36 | 135S15009 | Screw(15/64" n=28) | 1 / 1 |
| F-37 | 14203021 | Upper Feed Lever | 1 / 1 |
| F-38 | 142S20007 | Upper Feed Lever Driving | 1 / 1 |
| F-39 | 409S16020 | Nut(15/64" n=28) | 1 / 1 |
| F-40 | 14205008 | Presser Bar Bracket | 1 / 1 |
| F-41 | 142S20006 | Hinge Screw for F-40 | 1 / 1 |
| F-42 | 14226011 | Pin for F-40 | 1 / 1 |
| F-43 | 1421600100 | Upper Feed Presser Foot | 1 |
| F-44 | 14205009 | Upper Feed Lever | 1 |
| F-45 | 135S11030 | Screw(9/64" n=40) | 1 / 1 |
| F-46 | 14205010 | Upper Feed Lever Level | 1 / 1 |
| F-47 | 14204016 | Upper Feed Lever Level | 1 / 1 |
| F-48 | 135S13002 | Screw(15/64" n=28) | 1 / 1 |
Page 20 — F 上送料部件/Thread Trimmer Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| F-49 | 142S20009 | Screw(9/32″ n=28) | 30-3Q:1 60-3Q:1 |
| F-50 | 135S16006 | Nut(9/32″ n=28) | 30-3Q:1 60-3Q:1 |
| F-51 | 14202016 | Upper Feed Lever Level | 30-3Q:1 60-3Q:1 |
| D-92 | 14203014 | Upper Feed Lever Level | 30-3Q:1 60-3Q:1 |
| F-53 | 135S15008 | Screw(15/64″ n=28) | 30-3Q:1 60-3Q:1 |
| F-54 | 14203023 | Upper Feed Lever Level | 30-3Q:1 60-3Q:1 |
| F-55 | 409S15004 | Screw(15/64″ n=28) | 30-3Q:1 60-3Q:1 |
| F-56 | 001046 | O-Ring for F-51 | 30-3Q:1 60-3Q:1 |
| F-57 | 1421100200 | Climb Device Dial Ass’y(Top | 30-3Q:1 60-3Q:1 |
| F-58 | 14210004 | Climb Device Eccentric | 30-3Q:1 60-3Q:1 |
| F-59 | 1421100300 | Climb Device Dial Ass’y(Arm) | 30-3Q:1 60-3Q:1 |
| F-60 | 14210005 | Climb Device Eccentric | 30-3Q:1 60-3Q:1 |
| F-61 | 101S15010 | Screw(15/64″ n=28) | 30-3Q:4 60-3Q:4 |
| F-62 | 14226012 | Pin for F-57, F-59 | 30-3Q:2 60-3Q:2 |
| F-63 | 14227009 | Spring for F-62 | 30-3Q:2 60-3Q:2 |
| F-64 | 14212031 | Climb Device Dial Support | 30-3Q:2 60-3Q:2 |
| F-65 | 13504008 | Upper Feed Lever Level | 30-3Q:1 60-3Q:1 |
| F-66 | 135S11032 | Screw(15/64″ n=28) | 30-3Q:1 60-3Q:1 |
| F-67 | 1420900400 | Upper Feed Level Adjusting | |
| F-67 | 142S30011 | Upper Feed Level Adjusting | 30-3Q:1 60-3Q:1 |
| F-68 | 11628005 | Washer for F-67 | 30-3Q:1 60-3Q:1 |
| F-69 | 413S16005 | Nut(M6) | 30-3Q:1 60-3Q:1 |
| F-70 | 14209004 | Block for F-67 | 30-3Q:1 60-3Q:1 |
| F-71 | H05029 | E-Ring for F-67 | 30-3Q:1 60-3Q:1 |
| F-72 | 14204018 | Upper Feed Level Driving Link | 30-3Q:1 60-3Q:1 |
| F-73 | 14202017 | Hinge Shaft for F-72 | 30-3Q:1 60-3Q:1 |
| F-74 | 142S11044 | Set Screw for F-72 | 30-3Q:1 60-3Q:1 |
| F-75 | 135S15008 | Screw(15/64″ n=28) | 30-3Q:1 60-3Q:1 |
| F-76 | 14205011 | Upper Feed Level Driving Rod | 30-3Q:1 60-3Q:1 |
| F-77 | 142S20006 | Hinge Screw for F-76 | 30-3Q:2 60-3Q:2 |
| F-78 | 14204019 | Upper Feed Level Holder | 30-3Q:1 60-3Q:1 |
| F-79 | 101S11005 | Screw(9/64″ n=40) | 30-3Q:2 60-3Q:2 |
| F-80 | 14212034 | Upper Feed Lever Support | 30-3Q:1 |
| F-81 | 14209005 | Upper Feed Lever Support | 30-3Q:2 60-3Q:2 |
| F-82 | 116S11005 | Screw(11/64″ n=40) | 30-3Q:2 60-3Q:2 |
| F-83 | 14209006 | Frame for Upper Feed | 30-3Q:1 60-3Q:1 |
| F-84 | 201S11020 | Screw(11/64″ n=40) | 30-3Q:2 60-3Q:2 |
| F-85 | 135S30007 | Screw(9/32″ n=28) | 30-3Q:1 60-3Q:1 |
| F-86 | 135S16006 | Nut(9/32″ n=28) | 30-3Q:1 60-3Q:1 |
| F-87 | 14227010 | Upper Feed Pressure | 30-3Q:1 60-3Q:1 |
| F-88 | 1350202100 | Upper Feed Pressure | 30-3Q:1 60-3Q:1 |
| F-89 | 13502027 | Fulcrum for F-87 | 30-3Q:1 60-3Q:1 |
| F-90 | 14209009 | Fulcrum for F-88 | 30-3Q:1 60-3Q:1 |
| F-91 | 135S11036 | Hinge Screw for F-90 | 30-3Q:1 60-3Q:1 |
| F-92 | 14227011 | Needle Bar Safety Guide | 30-3Q:1 60-3Q:1 |
| F-93 | 14216005 | Internal pressure foot (triple | 60-3Q:1 |
| F-94 | 14205015 | Pin Rod (triple sync) | 60-3Q:1 |
| F-95 | 14212062 | Pin-Lever guide plate (triple | 60-3Q:1 |
Page 22 — G 压脚调节部件/Presser Foot&Tension Release Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| G-1 | 14202018 | Presser bar | 30-3Q:1, 60-3Q:1 |
| G-2 | 14203024 | Presser bar bushing | 30-3Q:1, 60-3Q:1 |
| G-3 | 135S30004 | Pressure Adjusting Screw | 30-3Q:1, 60-3Q:1 |
| G-4 | 135S16003 | Nut for Pressure Adjusting | 30-3Q:1, 60-3Q:1 |
| G-5 | 135S30005 | Sub Pressure Adjusting | 30-3Q:1, 60-3Q:1 |
| G-6 | 14227012 | Pressure Adjusting Spring | 30-3Q:1, 60-3Q:1 |
| G-7 | 13527012 | Sub Pressure Adjusting | 30-3Q:1, 60-3Q:1 |
| G-8 | 14216002 | Sub Press Foot | 30-3Q:1 |
| G-9 | 135S11030 | Screw(9/64" n=40) | 30-3Q:1, 60-3Q:1 |
| G-10 | 14209010 | Presser Bar Bracket | 30-3Q:1, 60-3Q:1 |
| G-11 | 135S11001 | Screw(15/64" n=28) | 30-3Q:1, 60-3Q:1 |
| G-12 | 14213009 | Thread Guide Plate | 30-3Q:1, 60-3Q:1 |
| G-13 | 401S11031 | Screw(11/64" n=40) | 30-3Q:1, 60-3Q:1 |
| G-14 | 14216003 | Presser Bar Lifter | 30-3Q:1, 60-3Q:1 |
| G-15 | 409S15004 | Screw | 30-3Q:2, 60-3Q:2 |
| G-16 | 14202019 | Presser Bar Lifter Shaft | 30-3Q:1, 60-3Q:1 |
| G-17 | 14222018 | O-Ring for G-16 | 30-3Q:1, 60-3Q:1 |
| G-18 | H05013 | E-Ring for G-16 | 30-3Q:1, 60-3Q:1 |
| G-19 | 14227014 | Torsion Spring for G-14 | 30-3Q:1, 60-3Q:1 |
| G-20 | 14209011 | Presser Lifter Cam | 30-3Q:1, 60-3Q:1 |
| G-21 | 135S15004 | Screw(1/4" n=40) | 30-3Q:1, 60-3Q:1 |
| G-22 | 14212036 | Knee control lifting Lever | 30-4Q:1, 60-4Q:1 |
| G-23 | 14212037 | Knee Control lifting Lever | 30-3Q:1, 60-3Q:1 |
| G-24 | 14212038 | Loose WIRE CAM Plate | 30-4Q:1, 60-4Q:1 |
| G-25 | 402S11003 | Screw(11/64" n=40) | 30-4Q:1, 60-4Q:1 |
| G-26 | 14212039 | Pine Board components | 30-3Q:1, 60-3Q:1 |
| G-26- | 14212069 | Pine Board floor | 30-3Q:1, 60-3Q:1 |
| G-26- | 14202031 | Loose wire connection sha | 30-3Q:1, 60-3Q:1 |
| G-27 | 14226013 | Pivot PIN SHAFT | 30-4Q:1, 60-4Q:1 |
| G-28 | H05013 | 30-4Q:1, 60-4Q:1 | |
| G-29 | 125S15003 | Screw(11/64" n=40) | 30-3Q:1, 60-3Q:1 |
| G-30 | H05033 | 30-3Q:1, 60-3Q:1 | |
| G-31 | 14227015 | Spring for G-26 | 30-3Q:1, 60-3Q:1 |
| G-32 | 14202020 | Shaft for G-26 | 30-3Q:1, 60-3Q:1 |
| G-33 | 41728005 | Washer for G-32 | 30-3Q:1, 60-3Q:1 |
| G-34 | H05006 | 30-3Q:1, 60-3Q:1 | |
| G-35 | 14212044 | Presser Bar Lifting Link | 30-3Q:1, 60-3Q:1 |
| G-36- | 135S11027 | Hinge Screw for Presser | 30-3Q:1, 60-3Q:1 |
| G-36- | 142S11052 | Hinge Screw for Presser | 30-3Q:1, 60-3Q:1 |
| G-37 | 14212045 | Knee Lifting Link | 30-3Q:1, 60-3Q:1 |
| G-38 | 142S11053 | Hinge Screw for G-37 | 30-3Q:1, 60-3Q:1 |
| G-39 | 14227016 | Spring for G-37 | 30-3Q:1, 60-3Q:1 |
| G-40 | 14226014 | Connecting Screw for G-39 | 30-3Q:1, 60-3Q:1 |
| G-41 | 13526005 | Holder for G-39 | 30-3Q:1, 60-3Q:1 |
| G-42 | 14226016 | Stopper Pin for G-20 | 30-3Q:1, 60-3Q:1 |
Page 24 — G 压脚调节部件/Presser Foot&Tension Release Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| G-43 | 14212046 | Knee Lifting Bar Stick | 1 / 1 |
| G-44 | 14213010 | Tension Release Cable Ass'y | 1 / 1 |
| G-46 | 14212047 | Tension Release Cable | 1 / 1 |
| G-47 | 101S11005 | Screw | 1 / 1 |
| G-48 | 14226017 | Connecting Bolt for G-44 | 1 / 1 |
| G-49 | N01004 | Nut A for G-44 | 1 / 1 |
| G-50 | 142S16017 | Nut B for G-44 | 1 / 1 |
| G-51 | 14212048 | Tension Release Cable | 1 / 1 |
| G-52 | 402S11003 | Screw | 1 / 1 |
| G-53 | 14212049 | Bracket for G-51 | 1 / 1 |
| G-54 | 421S10012 | Screw for G-53 | 2 / 2 |
| G-55 | 40928021 | Washer for G-53 | 2 / 2 |
| G-57 | 14216004 | External pressure foot | 1 |
Page 26 — H 电控电机部件/Electronic Control Unit
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| H-1 | 114233003 | Electronic control asm | 1 / 1 |
| H-2 | 114S13001 | Screw(M5) | 4 / 4 |
| W02001 | Spring Washer | 3 / 3 | |
| 13628013 | Washer | 3 / 3 | |
| H-3 | 136S13001 | Screw(M5) | 3 / 3 |
Page 28 — I 供油部件/Lubrication
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| I-1 | 10111004 | Oil Gauge Window | 1 |
| I-2 | 10122019 | O-Ring | 1 |
| I-3-1 | 12921002 | Oil Return Tube | 1 |
| I-3-2 | 13523003 | Oil Return Felter | 1 |
| I-4 | 14227018 | Oil Return Felter Holder | 1 |
| I-5 | 1422100200 | Oil pipe complete for upper | 1 |
| I-6 | 14221003 | Oil pipe for shaft | 1 |
| I-7 | 1422000100 | Oil pump asm | 1 |
| I-7-1 | 14220002 | Oil pump body | 1 |
| I-7-2 | 14221004 | Nipple for Oil Return Tube | 1 |
| I-7-3 | 14221005 | Nipple for Lower Shaft Oil | 1 |
| I-7-4 | 14220003 | Impeller | 1 |
| I-7-5 | 14220004 | Piston | 1 |
| I-7-6 | 14227019 | Piston Spring | 1 |
| I-7-7 | 14226019 | Piston Spring Pin | 1 |
| I-7-8 | 142S11061 | Piston Spring Pin Screw | 1 |
| I-7-9 | 14212055 | Oil Pump Cover | 1 |
| I-7-10 | 14212056 | Oil Pump Cap | 1 |
| I-7-11 | 14212057 | Magnetic Holder | 1 |
| I-7-12 | 402S11010 | Screw(9/64" n=40) | 4 |
| I-7-13 | 14208011 | Collar for Impeller Shaft | 1 |
| I-7-14 | 413S14006 | Screw(M4) | 2 |
| I-7-15 | 14202030 | Impeller Axis | 1 |
| I-8 | 206S11002 | Screw(9/64" n=40) | 3 |
| I-9 | W02002 | Oil Pump Body Washer | 3 |
| I-10 | 14212059 | Oil Pump Bracket | 1 |
| I-11 | 409S11003 | Screw(3/16" n=28) | 1 |
| I-12 | 14227020 | Oil Pump Connecting Spring | 1 |
| I-13 | 14208012 | Oil Pump Connecting Collar | 1 |
| I-14 | 125S15003 | Screw(11/64" n=40) | 2 |
| I-15 | 40111005 | Nylon Clib | 2 |
Page 30 — K 自动抬压脚部件/Automatic presser Foot Parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| K-1 | 207S11026 | Screw M6x16 | 1 (30-4Q), 1 (60-4Q) |
| K-2 | 14204024 | Presser Foot Crank | 1 (30-4Q), 1 (60-4Q) |
| K-3 | 1423103600 | Lever Assembly | 1 (30-4Q), 1 (60-4Q) |
| K-4 | 1423001200 | Pressure-carryingfoot | 1 (30-4Q), 1 (60-4Q) |
| K-5 | 101S30014 | Screw M4x20 | 8 (30-4Q), 8 (60-4Q) |
Page 32 — K 气动抬压脚部件/Pneumatic presser Foot Parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| K-1 | 413S13023 | Screw M6x12 | 1 / 1 |
| K-2 | 114204002 | Presser Foot Crank | 1 / 1 |
| K-3 | 114208001 | Retaining ring | 1 / 1 |
| K-4 | 114203001 | Pressure-carrying foot | 1 / 1 |
| K-5 | 10122015 | Oil seal | 1 / 1 |
| K-6 | 114202001 | Lifting foot shaft | 1 / 1 |
| K-7 | H05013 | Open retaining ring 6 | 4 / 4 |
| K-8 | 114204001 | Lifting foot connecting rod | 1 / 1 |
| K-9 | 114226002 | Connection pin | 2 / 2 |
| K-10 | 114205001 | Cylinder joint connecting rod | 1 / 1 |
| K-11 | 207S11026 | Screw M6x16 | 1 / 1 |
| K-12 | 114236003 | Cylinder joint | 1 / 1 |
| K-13 | W02023 | Spring washer ϕ8 | 1 / 1 |
| K-14 | S05007 | Screw M8x20 | 4 / 4 |
| K-15 | 114212002 | Cylinder mounting plate | 1 / 1 |
| K-16 | S05079 | Screw M8x12 | 2 / 2 |
| K-17 | 1142450010 | Lifting foot cylinder assembly | 1 / 1 |
| K-19 | 142312006 | Valve mounting plate | 1 / 1 |
| K-20 | N01013 | Nut M3 | 2 / 2 |
| K-21 | 114245004 | Gas source processing | 1 / 1 |
| K-22 | S05005 | Screw M5x12 | 2 / 2 |
| K-23 | 407S04053 | Screw M3x25 | 2 / 2 |
| K-24 | 114245005 | The electromagnetic valve | 1 / 1 |
Jack JK-2030G — parts catalog
- Page 1 (diagram): This page displays a diagram of machine body and thread tension adjusting mechanism components for the JACK 2030/2060G series sewing machines, with various parts labeled with reference numbers.
- Page 2 (parts_list): This page lists parts for the A machine body and thread tension adjusting mechanism, including part numbers, descriptions, and quantities for different models.
- Page 4 (parts_list): This page lists parts for the A Machine Body & Thread Tension Adjusting Mechanism, including part numbers, descriptions, and quantities for different models.
- Page 5 (diagram): This page displays a diagram of the Upper Shaft & Needle Bar Mechanism, with various parts labeled with reference numbers and part numbers.
- Page 6 (parts_list): This page lists parts for the Upper Shaft & Needle Bar Mechanism, including part numbers, descriptions, and quantities for different machine models.
- Page 7 (diagram): This page displays a diagram of the upright shaft and lower shaft mechanism, with various components labeled with part numbers such as C-1 through C-32.
- Page 8 (parts_list): This page lists parts for the Upright Shaft & Lower Shaft Mechanism, including part numbers, descriptions, and quantities for various models.
- Page 9 (diagram): This page displays a diagram of the lower feed mechanism, with various parts labeled with reference numbers and part numbers.
- Page 10 (parts_list): This page lists parts for the D needle distance adjustment component/lower feed mechanism, including part numbers, descriptions, and quantities for different models.
- Page 12 (parts_list): This page lists parts for the D needle distance adjustment component/Lower Feed Mechanism, including part numbers, descriptions, and quantities for different machine models.
- Page 13 (diagram): This page displays a diagram of the thread trimmer mechanism, with various components labeled with reference numbers and part numbers.
- Page 14 (parts_list): This page lists parts for the E 剪线部件/Thread Trimmer Mechanism, including part numbers, descriptions, and quantities for different models.
- Page 15 (diagram): This page displays a diagram of the thread trimmer mechanism, with various parts labeled with reference numbers and part numbers.
- Page 16 (parts_list): This page lists parts for the E Thread Trimmer Mechanism, including part numbers, descriptions, and quantities for different models.
- Page 17 (diagram): This page displays a diagram of the F thread trimmer mechanism, illustrating various components with their corresponding reference numbers.
- Page 18 (parts_list): This page lists parts for the F Upper Feed/Thread Trimmer Mechanism, including part numbers, descriptions, and quantities for different models.
- Page 19 (diagram): This page displays a diagram of the F thread trimmer mechanism, illustrating various components with their corresponding reference numbers.
- Page 20 (parts_list): This page lists parts for the F Upper Feed Mechanism/Thread Trimmer Mechanism, including part numbers, descriptions, and quantities for different machine models.
- Page 21 (diagram): This page displays a diagram of the Presser Foot & Tension Release Mechanism, with various parts labeled with reference numbers and part numbers.
- Page 22 (parts_list): This page lists parts for the G Presser Foot & Tension Release Mechanism, including part numbers, descriptions, and quantities for various models.
- Page 23 (diagram): This page displays a diagram of the G Presser Foot & Tension Release Mechanism, illustrating various components with their corresponding reference numbers.
- Page 24 (parts_list): This page lists parts for the G Presser Foot & Tension Release Mechanism, including part numbers, names, descriptions, and quantities for different models.
- Page 25 (diagram): This page displays a diagram of the Electronic Control Unit, with components labeled H-1, H-2, and H-3.
- Page 26 (parts_list): This page lists parts for the Electronic Control Unit, including part numbers, descriptions, and quantities for different models.
- Page 27 (diagram): This page displays a diagram of lubrication components for an industrial sewing machine, with various parts labeled with reference numbers.
- Page 28 (parts_list): This page lists lubrication parts for a machine, including part numbers, descriptions, and quantities for different models.
- Page 29 (diagram): This page displays a diagram of automatic presser foot parts, labeled K-1 through K-5, illustrating the components of the presser foot mechanism on an industrial sewing machine.
- Page 30 (parts_list): This page lists parts for automatic presser foot, including part numbers, descriptions, and quantities for different models.
- Page 31 (diagram): This page displays a diagram of automatic presser foot parts, with numbered components indicated by reference numbers.
- Page 32 (parts_list): This page lists pneumatic presser foot parts, including part numbers, descriptions, and quantities for different models.
