Jack JK-2030G Parts Book PDF — View & Download | Jintex
Parts index — Jack JK-2030Gtap a row to open its page

Page 1 — A 机壳部件/Machine Body & Thread Tension Adjusting Mechanism

Jack JK-2030G parts on page 1
RefPart numberPart nameQty
A-78A-78
A-81A-81
A-51A-51
A-72A-72
A-83A-83
A-29A-29
A-79A-79
A-27A-27
A-51A-51
A-10A-10
A-28A-28
A-39A-39
A-32A-32
A-33A-33
A-37A-37
A-36A-36
A-38A-38
A-34A-34
A-65A-65
A-75A-75
A-73A-73
A-52A-52
A-53A-53
A-58A-58
A-55A-55
A-59A-59
A-14A-14
A-57A-57
A-53A-53
A-35A-35
A-30A-30
A-39A-39
A-31A-31
A-57A-57
A-57A-57
A-50A-50
A-54A-54
A-4A-4
A-57A-57
A-8A-8
A-63A-63
A-7A-7
A-5A-5
A-69A-69
A-6A-6
A-46A-46
A-62A-62
A-61A-61
A-60A-60
A-13A-13
A-17A-17
A-45A-45
A-48A-48
A-48A-48
A-18A-18
A-25A-25
A-49A-49
A-76A-76
A-15A-15
A-16A-16
A-7A-7
A-41A-41
A-20A-20
A-47A-47
A-40A-40
A-42A-42
A-41A-41
A-47A-47
A-21A-21
A-43A-43
A-77A-77
A-44A-44
A-80A-80
A-70A-70
A-74A-74

Page 2 — A 机壳部件/Machine Body & Thread Tension Adjusting Mechanism

Jack JK-2030G parts on page 2
RefPart numberPart nameQty
14201001面板
142S11001面板上螺钉
135S11047面板下螺钉
14212001绕线杆防护罩
401S11031绕线杆防护罩螺钉
14213001针杆上过线
142S16001针杆上过线锁紧螺
1351300100小夹线器组件
135S15001小夹线器支头螺钉
14213004机壳线勾
101S11005机壳线勾螺钉
14213005面板线勾
101S11005面板线勾螺钉
101S11005线勾螺钉
14223001机线过线油毡
14237001机器型号牌
14237002机器型号牌
14237003机器机号牌
14226001机号牌铆钉
14201002上盖
14222001上盖密封垫
201S11020上盖螺钉
14212002后盖板
14222002后盖板密封垫
14212003后盖板
14222003后盖板密封垫
14212004电磁铁盖板
14222004电磁铁盖板密封垫
14212005电磁铁连接垫板
14230001倒缝电磁铁组件
406S11009螺钉 11/64×40×8
402S11003螺钉 11/64×40×10
14215001针板
14201001面板
14215002推板
14227001推板簧
101S11019推板簧螺钉
13812111夹边座
101S11002夹边座螺钉
142S30002机头前支撑杆
142S30003机头后支撑杆
12922001橡胶塞
13522008下轴后端橡胶塞
14222007上盖橡胶塞
14222008倒缝架后孔橡胶塞
14222009压脚摆动轴后橡胶

Page 4 — A 机壳部件/Machine Body & Thread Tension Adjusting Mechanism

Jack JK-2030G parts on page 4
RefPart numberPart nameQty
14222010倒缝后支点橡皮塞
13522008后大橡皮塞
12922001橡皮塞
10122005机壳后左橡皮塞
14222014倒缝电磁铁电线橡
10122013针杆上套橡皮塞
1142130100夹线器组件
14222016夹线器防油圈
14226002松线钉
135S11001夹线器紧固螺钉
14212007电线夹
101S11002电线夹螺钉
14212008侧盖板电线夹
14222007侧橡皮塞
1423001000倒送料开关组件
14213011下过线勾
1423102600绕线器组件
14212067挡油板
421S13061开关固定螺钉
421S13038螺钉 M3×6
1423001100电子夹线器
14215003针板(三同步)
4031360100张力控制组件
11419001割线刀
14201014面板(三同步)
114S11003绕线器螺钉
S10008内六角支头螺钉
114S11015螺钉

Page 5 — B 上 轴 针杆 部件/Upper Shaft & Needle Bar Mechanism

Jack JK-2030G parts on page 5
RefPart numberPart nameQty
B-1Upper Shaft & Needle Bar Mechanism
B-2
B-3
B-4
B-5
B-6
B-7
B-8
B-9
B-10
B-11
B-12
B-13
B-14
B-15
B-16
B-18
B-19
B-20
B-21
B-22
B-23
B-24
B-25
B-26
B-27
B-28
B-29
B-30
B-31
B-32
B-33
B-34
B-35
B-36
B-37
B-38
B-39
B-43
B-44

Page 6 — B 上轴针杆部件/Upper Shaft & Needle Bar Mechanism

Jack JK-2030G parts on page 6
RefPart numberPart nameQty
14202001上轴
14226003上轴油量调节销
11422002调节销 O 型圈
10123003油芯
14228001油量调节销平面垫
14223003油量调节销滤油毡
14228002油量调节销橡胶垫
14204001针杆曲柄
142S30004针杆曲柄定位螺钉
11422002针杆曲柄定位o型圈
402S30005针杆曲柄紧固螺钉
14203001上轴前轴套
14210001上轴平衡块
409S14001上轴平衡块螺钉
14203002上轴中轴套
135S15008上轴中轴套支头螺钉
14208001上轴紧圈
101S15007上轴紧圈螺钉
1422500100上轴齿轮组件
101S15002上轴齿轮螺钉
14203003上轴后轴套
14222020上轴后轴套油封
14201003手轮
14237005商标牌
S10009手轮紧固螺钉
101S11005螺钉
1423800100挑线杆组件
101S15002挑线曲柄定位螺钉
136S14002挑线杆销紧固螺钉
14208002挑线杆组件后定位
14202002针杆
14203004针杆上轴套
14203005针杆下轴套
14209001针杆接头滑块
13513011针杆过线环
101S11006针杆过线环螺钉
1420302800联轴器组件
S10018联轴器螺钉
14230001羊毛毡
14235001绕线驱动轮

Page 7 — C 竖轴下轴部件/Upright Shaft & Lower Shaft Mechanism

Jack JK-2030G parts on page 7
RefPart numberPart nameQty
C-1Shaft
C-2Gear
C-3Screw
C-4Shaft
C-5Screw
C-6Shaft
C-7Screw
C-8Gear
C-9Screw
C-10Shaft
C-11Gear
C-12Screw
C-13Screw
C-14Screw
C-15Shaft
C-16Screw
C-17Shaft
C-18Shaft
C-19Shaft
C-20Screw
C-21Screw
C-22Screw
C-23Shaft
C-24Screw
C-25Hook
C-26Hook
C-27Washer
C-29Hook
C-30Hook
C-31Lever
C-32Screw

Page 8 — C 竖轴下轴部件/Upright Shaft & Lower Shaft Mechanism

Jack JK-2030G parts on page 8
RefPart numberPart nameQty
14202003竖轴
14225002竖轴上齿轮组件
101S15002竖轴上齿轮螺钉
14203006竖轴上轴套
135S15008竖轴上轴套紧固螺
14203007竖轴下轴套
135S15008竖轴下轴套紧固螺
14225003竖轴下齿轮组件
101S15002竖轴下齿轮螺钉
14202004下轴
14225004下轴齿轮
10123003下轴滤油塞
135S20007下轴滤油塞螺钉
101S15002下轴齿轮紧固螺钉
14203008下轴后轴套
135S15009下轴后轴套紧固螺
14203009下轴中轴套
14203010下轴前轴套
14203011下轴前轴套
135S15008下轴前轴套紧固螺
142S30007下轴油量调节螺钉
14227002下轴调节弹簧
10108002下轴紧圈
101S11012下轴紧圈螺钉
13618003旋梭组件
10818001旋梭组件
10818501梭心
13618001梭心套组件
10818502梭心套组件
13612005旋梭定位勾
201S11020旋梭定位勾螺钉

Page 9 — D 针距调节部件/Lower Feed Mechanism

Jack JK-2030G parts on page 9
RefPart numberPart nameQty
D-31D-31
D-43D-43
D-28D-28
D-30D-30
D-10D-10
D-26D-26
D-24D-24
D-9D-9
D-27D-27
D-29D-29
D-33D-33
D-34D-34
D-35D-35
D-36D-36
D-32D-32
D-101D-101
D-42D-42
D-41D-41
D-37D-37
D-33D-33
D-39D-39
D-40D-40
D-49D-49
D-48D-48
D-50D-50
D-47D-47
D-44D-44
D-45D-45
D-46D-46
D-55D-55
D-54D-54
D-53D-53
D-51D-51
D-52D-52
D-95D-95
D-94D-94
D-56D-56
D-57D-57
D-58D-58
D-59D-59
D-72D-72
D-74D-74
D-71D-71
D-64D-64
D-65D-65
D-66D-66
D-67D-67
D-68D-68
D-69D-69
D-70D-70
D-76D-76
D-89D-89
D-17D-17
D-18D-18
D-16D-16
D-15D-15
D-60D-60
D-62D-62
D-63D-63
D-90D-90
D-91D-91
D-88D-88
D-87D-87
D-86D-86
D-85D-85
D-83D-83
D-84D-84
D-97-3D-97-3
D-97-4D-97-4
D-97-1D-97-1
D-97D-97
D-97-5D-97-5
D-2D-2
D-1D-1
D-99D-99
D-98D-98
D-5D-5
D-6D-6
D-3D-3
D-4D-4
D-20D-20
D-21D-21
D-19D-19
D-92D-92
D-94D-94
D-95D-95

Page 10 — D 针距调节部件/Lower Feed Mechanism

Jack JK-2030G parts on page 10
RefPart numberPart nameQty
142S30008针距调节螺杆
14222021针距调节螺杆 O 型
1421100100针距标盘
101S11022针距标盘螺钉
11426022止动销
11427034止动销簧
14201006针距座
14226005针距销
136S14002针距座销叉头螺钉
H05032针距座销开口挡圈
14227004针距拉簧
14212013针距座拉簧板
402S11003针距座拉簧板螺钉
14202005倒旋扳手轴
001137O型圈
1420400300倒旋扳手柄组件
409S11015倒旋扳手柄夹紧
201S11020倒旋扳手柄支头
14227005倒旋扳手柄拉簧
14205001针距连杆
14226006针距连杆销
S09006螺钉 M4×4
14205002针距连杆
14226007针距连杆销
H05029针距连杆开口挡
14212064针距连杆垫圈
14202023倒缝台
14203025倒缝台轴套
135S15008倒缝台轴套紧固螺
14208001倒缝台紧固
101S15007倒缝台紧固螺钉
14212065倒缝台滑块导板
101S11008滑块导轨螺钉
14209012倒缝台滑块
14202024倒缝台滑块轴
14202025倒缝台支承轴
14226020倒缝台支承轴销
136S14002支承轴紧固螺钉
14210006拾牙送布凸轮
101S15007拾牙送布凸轮螺钉
H04003送布凸轮开口挡圈
14205012送布连杆
14226023送布连杆销
406S11009送布连杆销螺钉
14205013送布轴连杆
14226021送布轴连杆下连杆

Page 12 — D 针距调节部件/Lower Feed Mechanism

Jack JK-2030G parts on page 12
RefPart numberPart nameQty
135S11009下连杆销支头螺钉
14204021送布连杆下曲柄
135S13002送布连杆下曲柄
14205014抬牙连杆
14226022抬牙连杆销
135S11048抬牙连杆销支头螺
14204022抬牙后曲柄
135S11048抬牙后曲柄紧螺
13531001倒缝扳手(301763)
135S11009倒缝扳手夹紧螺钉
135S11022倒缝扳手螺钉
14202006送布轴
14203012送布轴左轴套
409S15004送布轴左轴套紧固
10108003送布轴紧固
135S15004送布轴紧固螺钉
H03001送布轴开口挡圈
14204004牙架曲柄
101S11016牙架曲柄夹紧螺钉
14202007牙架偏心轴
13528004牙架偏心轴垫圈
406S11009牙架偏心轴螺钉
10423005送布牙油线
14214001送布牙
101S11018送布牙螺钉
14203025抬牙轴左轴套
135S15009抬牙轴左轴套螺钉
10108003抬牙轴紧固
135S15004抬牙轴紧固螺钉
14212018抬牙轴左轴套垫圈
H03001抬牙轴开口挡圈
14202008抬牙轴
142S20001倒缝扳手定位圈
14222023倒缝扳手定位圈
14203014抬牙送布右轴套
409S15004送布右轴套螺钉
135S15009抬牙轴右轴套螺钉
14206002牙架
1420600100抬牙曲柄组件
14205003抬牙曲柄
14209002抬牙滑块
14202009抬牙滑块轴
406S11009抬牙销钉
101S11016抬牙曲柄螺钉
14212068按键
13527009按键簧
14214002送布牙(三同步)
1420202300倒缝台组件

Page 13 — E 剪线部件/Thread Trimmer Mechanism

Jack JK-2030G parts on page 13
RefPart numberPart nameQty
E-9E-9
E-8E-8
E-12E-12
E-11E-11
E-10E-10
E-14E-14
E-13E-13
E-15E-15
E-16E-16
E-17E-17
E-18E-18
E-5E-5
E-38E-38
E-39E-39
E-49E-49
E-7E-7
E-6E-6
E-2E-2
E-1E-1
E-4E-4
E-3E-3
E-26E-26
E-24E-24
E-20E-20
E-27E-27
E-28E-28
E-26E-26
E-19E-19
E-21E-21
E-22E-22
E-23E-23
E-25E-25
E-34E-34
E-36E-36
E-35E-35
E-43E-43
E-40E-40
E-44E-44
E-46E-46
E-45E-45
E-51E-51
E-52E-52
E-53E-53
E-42E-42
E-47E-47
E-48E-48
E-55E-55
E-56E-56
E-54E-54
E-37E-37
E-30E-30
E-29E-29
E-31E-31
E-32E-32
E-33E-33
E-50E-50
E-61E-61
E-60E-60
E-58E-58
E-59E-59

Page 14 — E 剪线部件/Thread Trimmer Mechanism

Jack JK-2030G parts on page 14
RefPart numberPart nameQty
13619001定刀
136S17001定刀螺钉
113S15002定刀压力调节螺钉
402S16007压力调节螺钉锁紧
14212019分线板
406S11009分线板螺钉
42128003分线板螺钉垫圈
13619002动刀
136S17003动刀螺钉
14204005动刀架
14212021动刀架压板
136S17001动刀架压板螺钉
14205004切刀连杆
142S20002切刀连杆轴位螺钉
116S16006切刀连杆轴位螺母
14204006切刀驱动柄
413S13023切刀驱动柄夹紧
14202010切刀驱动轴
14203015切刀驱动轴轴套
W02001弹簧垫圈
13601010切线凸轮轴曲柄端
13627005切线凸轮轴复位
14204007凸轮右曲柄
14208007凸轮左曲柄滚柱
142S20003滚柱轴位螺钉
142S16005滚柱轴位螺母
14204008凸轮左曲柄
136S14002凸轮左曲柄螺钉
14227007驱动轴复位簧
14204009驱动轴复位块
136S14002驱动轴复位块螺钉
20108001驱动轴紧固圈
201S14002驱动轴紧固螺钉
14209003驱动轴限位块
135S11048驱动轴限位块螺钉
40928020驱动轴限位块螺钉
14222024限位块缓冲块
13610005切线凸轮
116S14005切线凸轮螺钉
14212023电磁铁连杆杠杆
142S20004杠杆中轴位螺钉
409S16020限位调节螺母
142S30009杠杆限位调节螺钉
409S16020限位调节螺母
142S20005电磁铁连杆轴位螺
116S16006电磁铁连杆轴位螺

Page 15 — E 剪线部件/Thread Trimmer Mechanism

Jack JK-2030G parts on page 15
RefPart numberPart nameQty
E-9E-9
E-8E-8
E-12E-12
E-11E-11
E-10E-10
E-13E-13
E-14E-14
E-15E-15
E-16E-16
E-17E-17
E-18E-18
E-3E-3
E-4E-4
E-5E-5
E-7E-7
E-6E-6
E-38E-38
E-39E-39
E-49E-49
E-2E-2
E-1E-1
E-34E-34
E-42E-42
E-47E-47
E-36E-36
E-35E-35
E-43E-43
E-25E-25
E-27E-27
E-28E-28
E-26E-26
E-24E-24
E-20E-20
E-21E-21
E-19E-19
E-22E-22
E-23E-23
E-40E-40
E-44E-44
E-45E-45
E-46E-46
E-51E-51
E-52E-52
E-53E-53
E-54E-54
E-37E-37
E-30E-30
E-29E-29
E-31E-31
E-32E-32
E-33E-33
E-55E-55
E-56E-56
E-57E-57
E-58E-58
E-59E-59
E-60E-60
E-61E-61
E-50E-50

Page 16 — E 剪线部件/Thread Trimmer Mechanism

Jack JK-2030G parts on page 16
RefPart numberPart nameQty
14212024连杆杠杆连接板
417S30306螺钉带垫 M5x15
13628003切线凸轮螺钉垫圈
N01001螺母 M4
14205005电磁铁连杆
14226008电磁铁连杆销
402S11003电磁铁连杆销螺钉
125S15003电磁铁连杆销紧固
N01004电磁铁连杆销螺母
1423000500切刀电磁铁组件
14212027电磁铁固定架
W02004电磁铁固定架弹簧
401S13001电磁铁固定架螺钉
W01001垫圈
W02018弹簧垫圈

Page 17 — F Thread Trimmer Mechanism

Jack JK-2030G parts on page 17
RefPart numberPart nameQty
F-57Gear
F-61Screw
F-64Washer
F-62Pin
F-26Screw
F-22Pin
F-25Bush
F-24Bush
F-23Lever
F-11Fork
F-9Collar
F-6Washer
D-33Collar
F-5Washer
F-4Screw
F-10Shaft
F-12Pin
F-13Link
F-20Lever
F-18Lever
F-17Screw
F-19Pin
F-21Screw
F-14Housing
F-15Screw
F-4Screw
F-3Roller
F-1Shaft
F-8Screw
F-60Bolt
F-63Pin
F-62Pin
F-61Screw
F-59Gear
F-64Washer
F-37Shaft
F-44Bracket
F-94Bracket
F-45Screw
F-30Screw
F-27Link
F-31Lever
F-28Screw
F-29Screw
F-32Pin
F-33Spring
F-85Screw
F-84Screw
F-40Lever
F-41Screw
F-38Shaft
F-34Lever
F-35Shaft
F-36Screw
F-39Screw
F-65Lever
F-80Screw
F-81Nut
F-51Shaft
F-53Bush
F-66Screw
F-71Spring
F-68Lever
F-69Washer
F-87Spring
F-88Rod
F-89Screw
F-90Bracket
F-91Screw
F-72Lever
F-73Shaft
F-74Screw
F-70Block
F-76Link
F-77Screw
F-79Screw
F-78Bracket
F-75Shaft
F-56Ring
F-55Screw
F-54Bush
F-47Lever
F-48Screw
F-49Screw
F-46Rod
F-92Clip
F-93Foot
F-43Bracket

Page 18 — F Upper Feed/Thread Trimmer Mechanism

Jack JK-2030G parts on page 18
RefPart numberPart nameQty
14202011压脚提升调节轴
14203025压脚提升调节轴左轴
14203018压脚提升调节轴右轴
125S15003压脚提升轴轴套
10108003紧固圈
135S15004紧固螺钉
14227008压脚提升复位簧
142S30010压脚提升轴销
14210003送料左曲柄凸轮
101S15007送料左曲柄凸轮螺钉
14204010送料左曲柄
14226009送料左曲柄销
14204011压脚提升支架曲柄
14202012压脚提升轴支架
101S11016压脚提升轴支架螺钉
14202013压脚提升轴支架轴
H05011支架开口挡圈
14205006压脚曲柄连杆
113S14002提升轴调节柄连杆
14204012提升轴调节曲柄
401S11009提升轴调节曲柄夹紧
14226010提升轴调节曲柄销
14202014压脚提升轴组件
14203019压脚提升轴左轴套
14203020压脚提升轴右轴套
135S15008提升轴左曲柄套螺钉
14205007压脚送料曲柄连杆
14202029压脚送料曲柄连杆油
101S11005连杆油线夹紧螺钉
142S20006压脚送料曲柄连杆
14204013压脚送料曲柄
14202015送料曲柄铰链轴
H05031送料曲柄铰链开口
14204014压脚送料曲柄支架
14204015压脚曲柄轴
135S15009送料曲柄轴螺钉
14203021压脚连杆销套
142S20007送布曲柄连杆轴位
409S15020送布曲柄连杆轴位螺
14205008送料曲柄连杆
142S20006送料曲柄连杆轴位螺
14226011送布曲柄铰链销
142160100压脚组件
14205009压脚连杆
135S11030压脚螺钉
14205010压脚摆动轴右曲柄连
14204016压脚摆动轴右曲柄
135S13002压脚摆动轴右曲柄夹

Page 19 — F 上送料部件/Thread Trimmer Mechanism

Jack JK-2030G parts on page 19
RefPart numberPart nameQty
F-57F-57
F-61F-61
F-64F-64
F-62F-62
F-21F-21
F-22F-22
F-20F-20
F-26F-26
F-18F-18
F-17F-17
F-19F-19
F-14F-14
F-15F-15
F-4F-4
F-25F-25
F-13F-13
F-16F-16
F-3F-3
F-24F-24
F-23F-23
F-1F-1
F-8F-8
F-11F-11
F-10F-10
F-9F-9
F-6F-6
F-5F-5
D-33D-33
F-7F-7
F-60F-60
F-63F-63
F-61F-61
F-62F-62
F-64F-64
F-59F-59
F-37F-37
F-44F-44
F-94F-94
F-93F-93
F-45F-45
F-33F-33
F-32F-32
F-31F-31
F-27F-27
F-28F-28
F-29F-29
F-30F-30
F-42F-42
F-41F-41
F-40F-40
F-83F-83
F-84F-84
F-85F-85
F-87F-87
F-38F-38
F-34F-34
F-35F-35
F-36F-36
F-39F-39
F-95F-95
F-80F-80
F-81F-81
F-51F-51
F-82F-82
F-88F-88
F-89F-89
F-90F-90
F-91F-91
F-56F-56
F-55F-55
F-54F-54
F-50F-50
F-47F-47
F-48F-48
F-46F-46
F-49F-49
F-75F-75
F-73F-73
F-72F-72
F-74F-74
F-76F-76
F-70F-70
F-67F-67
F-71F-71
F-65F-65
F-66F-66
F-68F-68
F-69F-69
F-77F-77
F-78F-78
F-79F-79
F-53F-53
F-92F-92

Page 20 — F 上送料部件/Thread Trimmer Mechanism

Jack JK-2030G parts on page 20
RefPart numberPart nameQty
142S20009右曲柄连杆轴位螺
135S16006右曲柄连杆轴位螺
14202016压脚摆动轴
14203014拾牙送布轴右轴套
135S15008压脚摆动轴左轴套
14203023压脚摆动轴右轴套
409S15004压脚摆动轴右轴套
001046压脚摆动轴 O型圈
1421100200压脚调节上盖标盘
14210004上盖标盘调节凸轮
1421100300压脚调节机头标盘
101S15010机头标盘调节凸轮
15215005调节凸轮支架螺钉
14226012标盘止动销
14227009标盘止动销
14212031调节凸轮垫片
13504008压脚摆动轴左曲柄
135S11032压脚摆动轴左曲柄
1420900400摆动轴左曲柄调节
142S30011摆动轴左曲柄调节
11628005曲柄调节柱滑块
413S16005曲柄调节柱开口挡
14209004曲柄调节柱滑块
H05029曲柄调节柱开口挡
14204018提升压脚摆动曲柄
14202017提升压脚摆动曲柄
142S11044提升压脚摆动曲柄
135S15008曲柄支点轴螺钉
14205011摆动曲柄连杆
142S20006摆动曲柄连杆轴位
14204019摆动曲柄连杆座
101S11005摆动曲柄连杆座螺
14212034压脚连杆导板
14209005压脚连杆导板垫块
116S11005压脚连杆导板螺钉
14209006提升压脚调节架
201S11020提升压脚调节架螺
135S30007提升压脚调节螺钉
135S16006提升压脚调节螺钉
14227010提升压脚簧
1350202100压脚簧柱
14208017压脚簧柱头
14209009压脚簧柱导向块
135S11036压脚簧柱导向块
14227011护指簧
14216005内压脚(三同步)
14205015压脚连杆(三同步)
14212062压脚连杆导板(三同

Page 21 — G 压脚调节部件/Presser Foot & Tension Release Mechanism

Jack JK-2030G parts on page 21
RefPart numberPart nameQty
G-5G-5
G-7G-7
G-3G-3
G-4G-4
G-6G-6
G-36-2G-36-2
G-10G-10
G-12G-12
G-13G-13
G-11G-11
G-1G-1
G-2G-2
G-25G-25
G-27G-27
G-8G-8
G-9G-9
G-35G-35
G-36-1G-36-1
G-41G-41
G-39G-39
G-38G-38
G-40G-40
G-37G-37
G-43G-43
G-21G-21
G-20G-20
G-42G-42
G-19G-19
G-18G-18
G-16G-16
G-17G-17
G-14G-14
G-15G-15
G-44G-44
G-22G-22
G-23G-23
G-24G-24
G-28G-28
G-30G-30
G-32G-32
G-29G-29
G-33G-33
G-31G-31
G-34G-34
G-53G-53
G-55G-55
G-54G-54
G-51G-51
G-48G-48
G-49G-49
G-50G-50
G-52G-52

Page 22 — G 压脚调节部件/Presser Foot&Tension Release Mechanism

Jack JK-2030G parts on page 22
RefPart numberPart nameQty
14202018压紧杆
14203024压紧杆轴套
135S30004调压螺钉
135S16003调压螺钉锁紧螺母
135S30005小压脚调节螺钉
14227012调压簧
13527012小压脚调节螺钉簧
14216002小压脚
135S11030小压脚螺钉
14209010压紧杆导架
135S11001压紧杆导架螺钉
14213009大线勾
401S11031大线勾螺钉
14216003压脚扳手
409S15004压脚扳手螺钉
14202019压脚扳手轴
14222018压脚扳手轴 O型圈
H05013压脚扳手轴开口挡圈
14227014压脚扳手轴扭簧
14209011压脚扳手凸轮
135S15004压脚扳手凸轮螺钉
14212036膝控提升杠杆(左)
14212037膝控提升杠杆(右)
14214003松线凸轮板
402S11003膝控提升杠杆左螺钉
14212039松线板组件
14212069松线板底板
14202031松线板连接轴
14226013支点销轴
H05013支点销轴开口挡圈
125S15003支点销轴螺钉
H05033钢绳上开口挡圈
14227015钢绳上挡圈
14202020膝控提升杠杆(左)支
41728005支点轴垫圈
H05006支点轴开口挡圈
14212044膝控提升杠杆
135S11027膝控提升杠杆轴位螺钉
142S11052膝控提升杠杆轴位螺钉
14212045膝控提升杠杆(右)
142S11053膝控提升杠杆(右)螺钉
14227016膝控提升杠杆(右)拉簧
14226014拉簧下勾销
13526005拉簧上勾销
14226016限位销

Page 23 — G 压脚调节部件/Presser Foot&Tension Release Mechanism

Jack JK-2030G parts on page 23
RefPart numberPart nameQty
G-5G-5
G-7G-7
G-3G-3
G-4G-4
G-6G-6
G-36-2G-36-2
G-10G-10
G-12G-12
G-13G-13
G-11G-11
G-1G-1
G-2G-2
G-25G-25
G-27G-27
G-22G-22
G-23G-23
G-24G-24
G-28G-28
G-29G-29
G-32G-32
G-30G-30
G-31G-31
G-34G-34
G-36-1G-36-1
G-35G-35
G-42G-42
G-20G-20
G-21G-21
G-19G-19
G-46G-46
G-47G-47
G-44G-44
G-43G-43
G-37G-37
G-38G-38
G-40G-40
G-41G-41
G-39G-39
G-14G-14
G-15G-15
G-16G-16
G-17G-17
G-18G-18
G-53G-53
G-55G-55
G-54G-54
G-51G-51
G-48G-48
G-49G-49
G-50G-50
G-52G-52
G-9G-9
G-8G-8

Page 24 — G 压脚调节部件/Presser Foot&Tension Release Mechanism

Jack JK-2030G parts on page 24
RefPart numberPart nameQty
14212046抬压脚顶杆
14213010松线钢绳组件
14212047钢绳上固定架
101S11005钢绳上固定架螺钉
14226017钢绳松紧调节柱
N01004调节柱左锁紧螺母
142S16017调节柱右锁紧螺母
14212048钢绳下固定架
402S11003钢绳下固定架螺钉
14212049松线钢绳下固定架
421S10012钢绳下固定架螺钉
40928021钢绳固定架螺钉垫圈
14216004外压脚(三同步)

Page 25 — H 电控电机部件/Electronic Control Unit

Jack JK-2030G parts on page 25
RefPart numberPart nameQty
H-1Electronic Control Unit
H-2Motor
H-3Fasteners

Page 26 — H 电控电机部件/Electronic Control Unit

Jack JK-2030G parts on page 26
RefPart numberPart nameQty
1142330032030G 琦星电控(中
114S13001电机安装螺钉
W02001弹簧垫圈
13628013电机垫圈
136S13001电机安装螺钉

Page 27 — I 供油部件/Lubrication

Jack JK-2030G parts on page 27
RefPart numberPart nameQty
I-1I-1
I-2I-2
I-3-1I-3-1
I-3-2I-3-2
I-4I-4
I-5I-5
I-6I-6
I-7I-7
I-8I-8
I-9I-9
I-10I-10
I-11I-11
I-12I-12
I-13I-13
I-14I-14
I-15I-15
I-7-1I-7-1
I-7-2I-7-2
I-7-3I-7-3
I-7-4I-7-4
I-7-5I-7-5
I-7-6I-7-6
I-7-7I-7-7
I-7-8I-7-8
I-7-9I-7-9
I-7-10I-7-10
I-7-11I-7-11
I-7-12I-7-12
I-7-13I-7-13
I-7-14I-7-14

Page 28 — I 供油部件/Lubrication

Jack JK-2030G parts on page 28
RefPart numberPart nameQty
10111004油窗
10122019油窗密封垫 O 型圈
12921002上回油管
13523003上回油管吸油毡
14227018上回油管吸油毡压
1422100200上输油管组件
14221003下输油管
1422000100油泵组件
14220002油泵体
14221004下输油嘴
14221005上输油嘴
14220003油泵叶轮
14220004柱塞
14227019柱塞弹簧
14226019柱塞弹簧销
14211061柱塞弹簧螺钉
14212055油泵体盖板
14212056油泵过滤网
14212057油泵磁铁夹
402S11010油泵体盖板螺钉
14208014油泵体上盖
413S14006油泵体上盖紧圈
14202030油泵叶轮安装轴
206S11002油泵体连接螺钉
W02002油泵体连接螺钉垫
14212059油泵体连接支架
409S11003油泵体连接支架螺
14227020竖轴弹簧
14208012竖轴紧圈
125S15003竖轴紧圈螺钉
40111005油管定位扎带

Page 29 — K 自动抬压脚部件/Automatic presser Foot Parts

Jack JK-2030G parts on page 29
RefPart numberPart nameQty
K-1K-1
K-2K-2
K-3K-3
K-4K-4
K-5K-5

Page 30 — K 自动抬压脚部件/Automatic presser Foot Parts

Jack JK-2030G parts on page 30
RefPart numberPart nameQty
207S11026螺钉 M6×16
14204024抬压脚曲柄
1423103600拉杆组件
1423001200抬压脚带电磁铁组件
101S30014绕线器木螺钉 M4×20

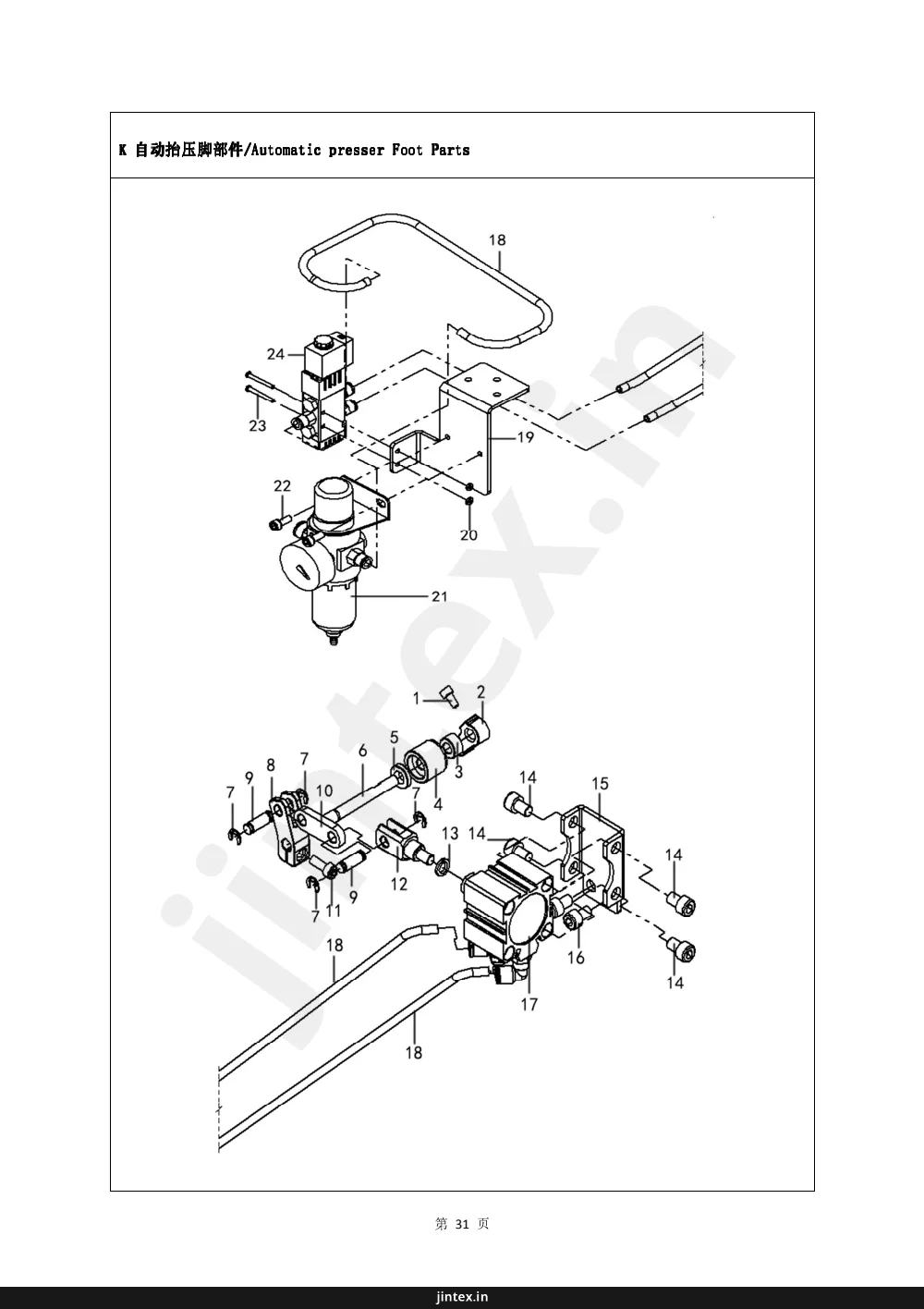

Page 31 — K 自动抬压脚部件/Automatic presser Foot Parts

Jack JK-2030G parts on page 31
RefPart numberPart nameQty
11Screw
22Lever
33Shaft
44Shaft
55Shaft
66Shaft
77Spring
88Lever
99Lever
1010Lever
1111Lever
1212Lever
1313Washer
1414Screw
1515Bracket
1616Bracket
1717Bracket
1818Tube
1919Bracket
2020Washer
2121Filter
2222Screw
2323Screw
2424Valve

Page 32 — K 气动抬压脚部件/Pneumatic presser Foot Parts

Jack JK-2030G parts on page 32
RefPart numberPart nameQty
413S13023螺钉 M6×12
114204002气动抬压脚曲柄
114208001挡圈
114203001气动抬压脚轴套
10122015油封
114202001气动抬压脚轴
H05013开口挡圈 6
114204001气动抬压脚连杆
114226002连接销
114205001气缸接头连杆
207S11026螺钉 M6×16
114236003气缸接头
W02023GB/T 93 标准型弹簧
S05007螺钉 M8×20
114212002气缸安装板
S05079螺钉 M8×12
1142450010抬压脚气缸
1142450010气管
142312006气压阀安装板
N01013GB/T6170-1986 螺母
1142450004气源处理元件
S05005螺钉 M5×12
407S04053十字半圆头螺钉
114245005电磁阀

Jack JK-2030G — parts catalog

Page 1 — A 机壳部件/Machine Body & Thread Tension Adjusting Mechanism

JACK 杰克 2030/2060G 系列零件手册 快速服务 100% 2030/2060G Series Parts Manual A 机壳部件/Machine Body & Thread Tension Adjusting Mechanism A-78 A-81 A-51 A-72 A-83 A-29 A-79 A-27 A-51 A-10 A-28 A-39 A-32 A-33 A-37 A-36 A-38 A-34 A-65 A-75 A-73 A-52 A-53 A-58 A-55 A-59 A-14 A-57 A-53 A-35 A-30 A-39 A-31 A-57 A-57 A-50 A-54 A-4 A-57 A-8 A-63 A-7 A-5 A-69 A-6 A-46 A-62 A-61 A-60 A-13 A-17 A-45 A-48 A-48 A-18 A-25 A-49 A-76 A-15 A-16 A-7 A-41 A-20 A-47 A-40 A-42 A-41 A-47 A-21 A-43 A-77 A-44 A-80 A-70 A-74 第 1 页 jintex.in

Page 2 — A 机壳部件/Machine Body & Thread Tension Adjusting Mechanism

A 机壳部件/Machine Body & Thread Tension Adjusting Mechanism 序号 NO 公司件号 Company Part No. 名称 PartName 零件描述 Description 数量 30-3Q 30-4Q 60-3Q 60-4Q A-4 14201001 面板 Face Plate 1 1 A-5 142S11001 面板上螺钉 Screw For Face Plate(Upper) 1 1 A-6 135S11047 面板下螺钉 Screw(11/64" n=40) 2 2 A-7 14212001 绕线杆防护罩 Thread Take Up Cover 1 1 A-8 401S11031 绕线杆防护罩螺钉 Screw(11/64" n=40) 1 1 A-9 14213001 针杆上过线 Upper Thread Guide Pin 1 1 A-10 142S16001 针杆上过线锁紧螺 Nut For A-9 1 1 A-13 1351300100 小夹线器组件 Sub Upper Thread Tension 1 1 A-14 135S15001 小夹线器支头螺钉 Screw(11/64" n=40) 1 1 A-15 14213004 机壳线勾 Arm Thread Guide 1 1 A-16 101S11005 机壳线勾螺钉 Screw(9/64" n=40) 1 1 A-17 14213005 面板线勾 Face Plate Thread Guide 1 1 A-18 101S11005 面板线勾螺钉 Screw(9/64" n=40) 1 1 A-20 101S11005 线勾螺钉 Screw(9/64" n=40) 1 1 A-21 14223001 机线过线油毡 Upper Thread Oil Felt 1 1 A-23 14237001 机器型号牌 Model Mark 1 1 A-24 14237002 机器型号牌 Model Mark 1 1 A-25 14237003 机器机号牌 Machine Number Plate 1 1 A-26 14226001 机号牌铆钉 Pin For A-25 2 2 A-27 14201002 上盖 Top Cover 1 1 A-28 14222001 上盖密封垫 Gasket For Top Cover 1 1 A-29 201S11020 上盖螺钉 Screw(11/64" n=40) 8 8 A-30 14212002 后盖板 Back Cover(A) 1 1 A-31 14222002 后盖板密封垫 Gasket For Back Cover(A) 1 1 A-32 14212003 后盖板 Rear cover Plate 1 1 A-33 14222003 后盖板密封垫 Rear COVER PLATE Gasket 1 1 A-34 14212004 电磁铁盖板 B/T Solenoid Bracket 1 1 A-35 14222004 电磁铁盖板密封垫 Gasket for B/T Solenoid 1 1 A-36 14212005 电磁铁连接垫板 Gasket for B/T Solenoid 1 1 A-37 14230001 倒缝电磁铁组件 B/T Solenoid Asm 1 1 A-38 406S11009 螺钉 11/64×40×8 Screw(11/64" n=40) 4 4 A-39 402S11003 螺钉 11/64×40×10 Screw(11/64" n=40) 9 9 A-40 14215001 针板 Needle Plate 1 A-4 14201001 面板 Face Plate 1 1 A-42 14215002 推板 Slide Plate 1 1 A-43 14227001 推板簧 Slide Plate Spring 1 1 A-44 101S11019 推板簧螺钉 Screw For A-43 2 2 A-45 13812111 夹边座 Gauge Plate 1 1 A-46 101S11002 夹边座螺钉 Screw(11/64" n=40) 1 1 A-47 142S30002 机头前支撑杆 Bed Base(Front) 2 2 A-48 142S30003 机头后支撑杆 Bed Base(Rear) 2 2 A-49 12922001 橡胶塞 Face Plate Rubber Cap 3 4 A-50 13522008 下轴后端橡胶塞 Bed Rubber Cap 1 1 A-51 14222007 上盖橡胶塞 Top Cover Rubber Cap 3 3 A-52 14222008 倒缝架后孔橡胶塞 Feed Regulator Shaft Rubber 1 1 A-53 14222009 压脚摆动轴后橡胶 Climb Device Adjusting Shaft 2 2 第 2 页 jintex.in

Page 4 — A 机壳部件/Machine Body & Thread Tension Adjusting Mechanism

A 机壳部件/Machine Body & Thread Tension Adjusting Mechanism 序号 NO 公司件号 PartNumber 名称 PartName 零件描述 Description 数量 30-3Q 30-4Q 60-3Q 60-4Q A-54 14222010 倒缝后支点橡皮塞 Feed Adjusting Shaft Rubber 1 1 A-55 13522008 后大橡皮塞 Arm Back Part Rubber 1 1 A-56 12922001 橡皮塞 Arm Back Part Rubber 1 1 A-57 10122005 机壳后左橡皮塞 Arm Back Part Rubber 6 6 A-58 14222014 倒缝电磁铁电线橡 Arm Upper Part Rubber 1 1 A-59 10122013 针杆上套橡皮塞 Arm Upper Part Rubber 1 1 A-60 1142130100 夹线器组件 Thread Tension Control 1 1 A-61 14222016 夹线器防油圈 Rubber Cap For A-60 1 1 A-62 14226002 松线钉 Tension Release Pin 1 1 A-63 135S11001 夹线器紧固螺钉 Screw(15/64" n=28) 1 1 A-64 14212007 电线夹 Cable Holder 3 3 A-65 101S11002 电线夹螺钉 Screw(11/64" n=40) 3 3 A-66 14212008 侧盖板电线夹 Holder for Upper Thread Oil 1 1 A-69 14222007 侧橡皮塞 Rubber Cap 1 1 A-70 1423001000 倒送料开关组件 Reverse Feed Assembly 1 1 A-71 14213011 下过线勾 Arm Thread Guide Plate(L) 1 1 A-72 1423102600 绕线器组件 Bobbin Winder Assembly 1 1 A-73 14212067 挡油板 Keep off Plate 1 1 A-74 421S13061 开关固定螺钉 Screw (M3) 2 2 A-75 421S13038 螺钉 M3×6 Screw (M4) 2 2 A-76 1423001100 电子夹线器 Electronic Thread Clamp 1 1 A-77 14215003 针板(三同步) Needle plate (triple sync) 1 1 A-78 4031360100 张力控制组件 Tension control Component 1 1 A-79 11419001 割线刀 Thread Cutter 1 1 A-80 14201014 面板(三同步) Panel (triple Sync) 1 1 A-81 114S11003 绕线器螺钉 Screw 3 3 A-82 S10008 内六角支头螺钉 Screw (M4) 1 1 A-83 114S11015 螺钉 Screw (9/64"×40) 2 2 第 4 页 jintex.in

Page 5 — B 上 轴 针杆 部件/Upper Shaft & Needle Bar Mechanism

B 上 轴 针杆 部件/Upper Shaft & Needle Bar Mechanism B-25 B-24 B-23 B-1 B-38 B-20 B-37 B-21 B-18 B-19 B-43 B-16 B-14 B-15 B-44 B-13 B-10 B-12 B-2 B-3 B-4 B-5 B-6 B-7 B-9 B-27 B-8 B-11 B-28 B-30 B-29 B-31 B-36 B-34 B-33 B-26 B-35 第 5 页 jintex.in

Page 6 — B 上轴针杆部件/Upper Shaft & Needle Bar Mechanism

B 上轴针杆部件/Upper Shaft & Needle Bar Mechanism 序号 NO 公司件号 Part Number 名称 PartName 零件描述 Description 数量 Quantity 30-30 30-40 60-30 60-40 B-1 14202001 上轴 Upper Shaft 1 1 B-2 14226003 上轴油量调节销 Oil Adjusting Pin For B-1 1 1 B-3 11422002 调节销 O 型圈 O-Ring For B-2 2 2 B-4 10123003 油芯 Spring for B-2 1 1 B-5 14228001 油量调节销平面垫 Washer for B-6 1 1 B-6 14223003 油量调节销滤油毡 Upper Shaft Felt 1 1 B-7 14228002 油量调节销橡胶垫 Upper Shaft Urethan Washer 1 1 B-8 14204001 针杆曲柄 Link Cam 1 1 B-9 142S30004 针杆曲柄定位螺钉 Screw(9/32 " n=28) 1 1 B-10 11422002 针杆曲柄定位o型圈 O-Ring for B-9 1 1 B-11 402S30005 针杆曲柄紧固螺钉 Screw(9/32 " n=28) 1 1 B-12 14203001 上轴前轴套 Upper Shaft Front Bushing 1 1 B-13 14210001 上轴平衡块 Balance Cam 1 1 B-14 409S14001 上轴平衡块螺钉 Screw(1/4 " n=40) 2 2 B-15 14203002 上轴中轴套 Upper Shaft Middle Bushing 1 1 B-16 135S15008 上轴中轴套支头螺钉 Screw(15/64 " n=28) 2 2 B-17 14208001 上轴紧圈 Upper Shaft Collar 1 1 B-18 101S15007 上轴紧圈螺钉 Screw(1/4 " n=40) 1 1 B-19 1422500100 上轴齿轮组件 Upper Shaft Gear Ass' y 1组 1组 B-20 101S15002 上轴齿轮螺钉 Screw(1/4 " n=40) 2 2 B-21 14203003 上轴后轴套 Upper Shaft Rear Bushing 1 1 B-22 14222020 上轴后轴套油封 Oil Seal for B-21 1 1 B-23 14201003 手轮 Pulley 1 1 B-24 14237005 商标牌 plate with trademark 1 1 B-25 S10009 手轮紧固螺钉 Screw(15/64 " n=28) 2 2 B-26 101S11005 螺钉 Screw(9/64 " n=40) 1 1 B-27 1423800100 挑线杆组件 Thread Take-Up Lever 1组 1组 B-28 101S15002 挑线曲柄定位螺钉 Screw(1/4 " n=40) 2 2 B-29 136S14002 挑线杆销紧固螺钉 Screw(15/64 " n=28) 1 1 B-30 14208002 挑线杆组件后定位 Protection Plate for B-8 1 1 B-31 14202002 针杆 Needle Bar 1 1 B-32 14203004 针杆上轴套 Needle Bar Upper Bushing 1 1 B-33 14203005 针杆下轴套 Needle Bar Lower Bushing 1 1 B-34 14209001 针杆接头滑块 Needle Bar Guide Slide Block 1 1 B-35 13513011 针杆过线环 Needle Bar Thread Guide 1 1 B-36 101S11006 针杆过线环螺钉 Screw(1/8 " n=44) 1 1 B-37 1420302800 联轴器组件 Coupling (type d) 1 1 B-38 S10018 联轴器螺钉 Screw(M6) 6 6 B-39 14230001 羊毛毡 Upper Shaft Felt 1 1 B-43 14235001 绕线驱动轮 Winding wheel 1 2 第 6 页 jintex.in

Page 7 — C 竖轴下轴部件/Upright Shaft & Lower Shaft Mechanism

C 竖轴下轴部件/Upright Shaft & Lower Shaft Mechanism C-2 C-3 C-3 C-4 C-5 C-1 C-25 C-27 C-29 C-30 C-26 C-31 C-32 C-10 C-6 C-7 C-11 C-14 C-12 C-13 C-19 C-22 C-21 C-20 C-15 C-24 C-16 C-23 C-24 C-17 C-18 第 7 页 jintex.in

Page 8 — C 竖轴下轴部件/Upright Shaft & Lower Shaft Mechanism

C 竖轴下轴部件/Upright Shaft & Lower Shaft Mechanism 序号 NO 公司件号 PartNo 名称 PartName 零件描述 Description 数量 30-3Q 30-4Q 60-3Q 60-4Q C-1 14202003 竖轴 Upright Shaft 1 1 C-2 14225002 竖轴上齿轮组件 Upright Shaft Upper Gear Asm 1 1 C-3 101S15002 竖轴上齿轮螺钉 Screw(1/4" n=40) 2 2 C-4 14203006 竖轴上轴套 Upright Shaft Upper Bushing 1 1 C-5 135S15008 竖轴上轴套紧固螺 Screw(15/64" n=28) 1 1 C-6 14203007 竖轴下轴套 Upright Shaft Lower Bushing 1 1 C-7 135S15008 竖轴下轴套紧固螺 Screw(15/64" n=28) 1 1 C-8 14225003 竖轴下齿轮组件 Upright Shaft Lower Gear Asm 1 1 C-9 101S15002 竖轴下齿轮螺钉 Screw(1/4" n=40) 2 2 C-10 14202004 下轴 Lower Shaft 1 1 C-11 14225004 下轴齿轮 Lower Shaft Gear Asm 1 1 C-12 10123003 下轴滤油塞 Lower Shaft Felt 1 1 C-13 135S20007 下轴滤油塞螺钉 Cap Screw for Lower Shaft Oil 1 1 C-14 101S15002 下轴齿轮紧固螺钉 Screw(1/4" n=40) 2 2 C-15 14203008 下轴后轴套 Lower Shaft Rear Bushing 1 1 C-16 135S15009 下轴后轴套紧固螺 Screw(15/64" n=28) 1 1 C-17 14203009 下轴中轴套 Lower Shaft Middle Bushing 1 1 C-18 14203010 下轴前轴套 Lower Shaft Front Bushing 1 1 C-19 14203011 下轴前轴套 Lower Shaft Front Bushing 1 1 C-20 135S15008 下轴前轴套紧固螺 Screw(15/64" n=28) 1 1 C-21 142S30007 下轴油量调节螺钉 Screw(3/16" n=32) 1 1 C-22 14227002 下轴调节弹簧 Spring for C-23 1 1 C-23 10108002 下轴紧圈 Lower Shaft Collar 1 1 C-24 101S11012 下轴紧圈螺钉 Screw(11/64" n=40) 2 2 C-25 13618003 旋梭组件 Rotary Hook Asm 1 1 C-26 10818001 旋梭组件 Rotary Hook Asm 1 1 C-27 10818501 梭心 Bobbin 1 1 C-29 13618001 梭心套组件 Bobbin Case Asm 1 1 C-30 10818002 梭心套组件 Bobbin Case Asm 1 1 C-31 13612005 旋梭定位勾 Inner Bobbin Stopper 1 1 C-32 201S11020 旋梭定位勾螺钉 Screw(11/64" n=40) 1 1 第8页 jintex.in

Page 9 — D 针距调节部件/Lower Feed Mechanism

D 针距调节部件/Lower Feed Mechanism D-31 D-43 D-28 D-30 D-10 D-26 D-24 D-9 D-27 D-29 D-33 D-34 D-35 D-36 D-32 D-101 D-42 D-41 D-37 D-33 D-39 D-40 D-49 D-48 D-50 D-47 D-44 D-45 D-46 D-55 D-54 D-53 D-51 D-52 D-95 D-94 D-56 D-57 D-58 D-59 D-72 D-74 D-71 D-64 D-65 D-66 D-67 D-68 D-69 D-70 D-76 D-89 D-17 D-18 D-16 D-15 D-60 D-62 D-63 D-90 D-91 D-88 D-87 D-86 D-85 D-83 D-84 D-97-3 D-97-4 D-97-1 D-97 D-97-5 D-2 D-1 D-99 D-98 D-5 D-6 D-3 D-4 D-20 D-21 D-19 D-92 D-94 D-95 第 9 页 jintex.in

Page 10 — D 针距调节部件/Lower Feed Mechanism

D 针距调节部件/Lower Feed Mechanism 序号 NO 公司件号 Part Number 名称 PartName 零件描述 Description 数量 Quantity 30-30 30-40 60-30 60-40 D-1 142S30008 针距调节螺杆 Feed Regulator Dial Shaft 1 1 D-2 14222021 针距调节螺杆 O 型 O-Ring For D-1 1 1 D-3 1421100100 针距标盘 Dial 1 1 D-4 101S11022 针距标盘螺钉 Screw(3/16 " n=28) 1 1 D-5 11426022 止动销 Stopper pin 1 1 D-6 11427034 止动销簧 Spring for stopper pin 1 1 D-8 14201006 针距座 Feed Regulator 1 1 D-9 14226005 针距销 Feed Adjusting Shaft 1 1 D-10 136S14002 针距座销叉头螺钉 Screw(15/64 " n=28) 1 1 D-11 H05032 针距座销开口挡圈 E-Ring For D-8 1 1 D-12 14227004 针距拉簧 Spring For D-8 1 1 D-13 14212013 针距座拉簧板 Holder For D-12 1 1 D-14 402S11003 针距座拉簧板螺钉 Screw(11/64 " n=40) 2 2 D-15 14202005 倒旋扳手轴 Reverse feed lever shaft 1 1 D-16 001137 O型圈 O-Ring For D-15 1 1 D-18 1420400300 倒旋扳手柄组件 Reverse Feed Lever Crank 1组 1组 D-19 409S11015 倒旋扳手柄夹紧 Screw(3/16 " n=28) 1 1 D-20 201S11020 倒旋扳手柄支头 Screw(11/64 " n=40) 1 1 D-21 14227005 倒旋扳手柄拉簧 Return Spring For D-17, D-18 1 1 D-24 14205001 针距连杆 Connecting Rod For Feed 1 1 D-25 14226006 针距连杆销 Pin For D-24 1 1 D-26 S09006 螺钉 M4×4 Screw(M4) 1 1 D-28 14205002 针距连杆 B/T Solenoid Crank 1 1 D-29 14226007 针距连杆销 Pin For D-28 1 1 D-30 H05029 针距连杆开口挡 E-Ring For D-29 1 1 D-31 14212064 针距连杆垫圈 B/T Solenoid Crank Spacer 1 1 D-32 14202023 倒缝台 Feed Regulator Shaft 1 1 D-33 14203025 倒缝台轴套 Feed Regulator Shaft Bushing 1 1 D-34 135S15008 倒缝台轴套紧固螺 Screw(15/64 " n=28) 1 1 D-35 14208001 倒缝台紧固 Stopper Collar For D-32 1 1 D-36 101S15007 倒缝台紧固螺钉 Screw(1/4 " n=40) 2 2 D-37 14212065 倒缝台滑块导板 Slide Block Guide Plate 2 2 D-38 101S11008 滑块导轨螺钉 Screw(11/64 " n=40) 4 4 D-39 14209012 倒缝台滑块 Slide Block 2 2 D-40 14202024 倒缝台滑块轴 Slide Block Shaft 1 1 D-41 14202025 倒缝台支承轴 Reverse Shaft For D-32 1 1 D-42 14226020 倒缝台支承轴销 Connecting Pin For D-41 1 1 D-43 136S14002 支承轴紧固螺钉 Screw(15/64 " n=28) 1 1 D-44 14210006 拾牙送布凸轮 Feed Cam 1 1 D-45 101S15007 拾牙送布凸轮螺钉 Screw(1/4 " n=40) 2 2 D-46 H04003 送布凸轮开口挡圈 C-Ring For D-44 1 1 D-47 14205012 送布连杆 Connecting Rod For D-44 1 1 D-48 14226023 送布连杆销 Pin For D-47 1 1 D-49 406S11009 送布连杆销螺钉 Screw(11/64 " n=40) 1 1 D-50 14205013 送布轴连杆 Feed Connecting Rod 1 1 D-51 14226021 送布轴连杆下连杆 Pin For D-50 1 1 第 10 页 jintex.in

Page 12 — D 针距调节部件/Lower Feed Mechanism

D 针距调节部件/Lower Feed Mechanism 序号 NO. 公司件号 名称 PartName 零件描述 Description 数量 30-3Q 30-4Q 60-3Q 60-4Q D-52 135S11009 下连杆销支头螺钉 Screw(15/64" n=28) 1 1 D-53 14204021 送布连杆下曲柄 Level Feed Shaft Crank(Rear) 1 1 D-54 135S13002 送布连杆下曲柄 Screw(15/64" n=28) 1 1 D-55 14205014 抬牙连杆 Crank Rod 1 1 D-56 14226022 抬牙连杆销 Connecting Pin for D-55 1 1 D-57 135S11048 抬牙连杆销支头螺 Screw(3/16" n=32) 1 1 D-58 14204022 抬牙后曲柄 Feed Lifting Shaft Crank(Rear) 1 1 D-59 135S11048 抬牙后曲柄紧螺 Screw(3/16" n=32) 1 1 D-60 13531001 倒缝扳手(301763) Reverse feed lever 1 1 D-62 135S11009 倒缝扳手夹紧螺钉 Screw(15/64" n=28) 2 2 D-63 135S11022 倒缝扳手螺钉 Screw(3/16" n=28) 1 1 D-64 14202006 送布轴 Level Feed Shaft 1 1 D-65 14203012 送布轴左轴套 Level Feed Shaft Bushing 1 1 D-66 409S15004 送布轴左轴套紧固 Screw(15/64" n=28) 1 1 D-67 10108003 送布轴紧固 Collar for D-64 1 1 D-68 135S15004 送布轴紧固螺钉 Screw(1/4" n=40) 2 2 D-69 H03001 送布轴开口挡圈 C-Ring for D-64 1 1 D-70 14204004 牙架曲柄 Feed Bar Crank 1 1 D-71 101S11016 牙架曲柄夹紧螺钉 Screw(3/16" n=28) 1 1 D-72 14202007 牙架偏心轴 Feed Bar Shaft 1 1 D-73 13528004 牙架偏心轴垫圈 Washer For D-72 2 2 D-74 406S11009 牙架偏心轴螺钉 Screw(11/64" n=40) 1 1 D-76 10423005 送布牙油线 Oil wick 2 2 D-79 14214001 送布牙 Feed Dog 1 1 D-80 101S11018 送布牙螺钉 Screw(1/8" n=44) 2 2 D-83 14203025 抬牙轴左轴套 Feed Lifting Shaft Bushing 1 1 D-84 135S15009 抬牙轴左轴套螺钉 Screw(15/64" n=28) 1 1 D-85 10108003 抬牙轴紧固 Collar for D-89 1 1 D-86 135S15004 抬牙轴紧固螺钉 Screw(1/4" n=40) 2 2 D-87 14212018 抬牙轴左轴套垫圈 Washer for D-89 1 1 D-88 H03001 抬牙轴开口挡圈 C-Ring for D-89 1 1 D-89 14202008 抬牙轴 Feed Lifting Shaft 1 1 D-90 142S20001 倒缝扳手定位圈 Stud Screw for D-91 1 1 D-91 14222023 倒缝扳手定位圈 Upper Stopper Rubber for 1 1 D-92 14203014 抬牙送布右轴套 Lifting tooth feeding shaft 1 1 D-94 409S15004 送布右轴套螺钉 Screw(15/64" n=28) 2 2 D-95 135S15009 抬牙轴右轴套螺钉 Screw(15/64" n=28) 1 1 D-96 14206002 牙架 Feed bar asm. 1 1 D-97 1420600100 抬牙曲柄组件 Crank assembly 1组 1组 D-97-1 14205003 抬牙曲柄 Lift crank 1 1 D-97-2 14209002 抬牙滑块 Lifting block 1 1 D-97-3 14202009 抬牙滑块轴 Lift shaft 1 1 D-97-4 406S11009 抬牙销钉 Screw 1 1 D-97-5 101S11016 抬牙曲柄螺钉 Screw 1 1 D-98 14212068 按键 Feed regulator key-press 1 1 D-99 13527009 按键簧 Dial spring for stopper pin 1 1 D-100 14214002 送布牙(三同步) Send Bougat (triple sync) 1 1 D-101 1420202300 倒缝台组件 Feed Regulator Shaft Asm. 1 1 第12页 jintex.in

Page 13 — E 剪线部件/Thread Trimmer Mechanism

E 剪线部件/Thread Trimmer Mechanism E-9 E-8 E-12 E-11 E-10 E-14 E-13 E-15 E-16 E-17 E-18 E-5 E-38 E-39 E-49 E-7 E-6 E-2 E-1 E-4 E-3 E-26 E-24 E-20 E-27 E-28 E-26 E-19 E-21 E-22 E-23 E-25 E-34 E-36 E-35 E-43 E-40 E-44 E-46 E-45 E-51 E-52 E-53 E-42 E-47 E-48 E-55 E-56 E-54 E-37 E-30 E-29 E-31 E-32 E-33 E-50 E-61 E-60 E-58 E-59 第 13 页 jintex.in

Page 14 — E 剪线部件/Thread Trimmer Mechanism

E 剪线部件/Thread Trimmer Mechanism 序号 NO 公司件号 Part Number 名称 PartName 零件描述 Description 数量 Quantity 30-3Q 30-4Q 60-3Q 60-4Q E-1 13619001 定刀 Fixed Mes 1 1 E-2 136S17001 定刀螺钉 Screw(9/64 " n=40) 1 1 E-3 113S15002 定刀压力调节螺钉 Screw(1/8 " n=40) 1 1 E-4 402S16007 压力调节螺钉锁紧 Nut(1/8 " n=40) 1 1 E-5 14212019 分线板 Thread Retaining Plate 1 1 E-6 406S11009 分线板螺钉 Screw(11/64 " n=40) 1 1 E-7 42128003 分线板螺钉垫圈 Washer for E-5 1 1 E-8 13619002 动刀 Rotary Mes 1 1 E-9 136S17003 动刀螺钉 Screw(11/64 " n=40) 2 2 E-10 14204005 动刀架 Thread Trimming Holder 1 1 E-11 14212021 动刀架压板 Thread Trimming Holder 1 1 E-12 136S17001 动刀架压板螺钉 Screw(9/64 " n=40) 3 3 E-13 14205004 切刀连杆 Thread Trimming Lever 1 1 E-14 142S20002 切刀连杆轴位螺钉 Stud Screw for E-13 1 1 E-15 116S16006 切刀连杆轴位螺母 Nut for E-14 2 2 E-16 14204006 切刀驱动柄 Thread Trimming Lever 1 1 E-17 413S13023 切刀驱动柄夹紧 Screw(M6) 1 1 E-18 14202010 切刀驱动轴 Thread Trimming Shaft 1 1 E-19 14203015 切刀驱动轴轴套 Thread Trimming Shaft 1 1 E-20 W02001 弹簧垫圈 Spring Washer 2 2 E-21 13601010 切线凸轮轴曲柄端 Guide Bush for Return Spring 1 1 E-22 13627005 切线凸轮轴复位 Slide Arm Return Spring 1 1 E-23 14204007 凸轮右曲柄 Slide Arm 1 1 E-24 14208007 凸轮左曲柄滚柱 Roller 2 2 E-25 142S20003 滚柱轴位螺钉 Stud Screw for E-24 2 2 E-26 142S16005 滚柱轴位螺母 Nut(3/16 " n=32) 2 2 E-27 14204008 凸轮左曲柄 Cam Follower Crank 1 1 E-28 136S14002 凸轮左曲柄螺钉 Screw(15/64 " n=28) 2 2 E-29 14227007 驱动轴复位簧 Return Spring 1 1 E-30 14204009 驱动轴复位块 Stopper Lever 1 1 E-31 136S14002 驱动轴复位块螺钉 Screw(15/64 " n=28) 2 2 E-32 20108001 驱动轴紧固圈 Collar for E-18 1 1 E-33 201S14002 驱动轴紧固螺钉 Screw(11/64 " n=40) 2 2 E-34 14209003 驱动轴限位块 Stopper 1 1 E-35 135S11048 驱动轴限位块螺钉 Screw(3/16 " n=32) 2 2 E-36 40928020 驱动轴限位块螺钉 Washer 1 1 E-37 14222024 限位块缓冲块 Stopper Lever Cushion Rubber 1 1 E-38 13610005 切线凸轮 Mes Cam 1 1 E-39 116S14005 切线凸轮螺钉 Screw(1/4 " n=40) 2 2 E-40 14212023 电磁铁连杆杠杆 Clutch Lever 1 1 E-41 142S20004 杠杆中轴位螺钉 Stud Screw for E-38 1 1 E-42 409S16020 限位调节螺母 Nut(15/64 " n=28) 1 1 E-43 142S30009 杠杆限位调节螺钉 Stud Screw for E-38 1 1 E-44 409S16020 限位调节螺母 Nut(15/64 " n=28) 1 1 E-45 142S20005 电磁铁连杆轴位螺 Stud Screw for E-47 1 1 E-46 116S16006 电磁铁连杆轴位螺 Nut(3/16 " n=32) 1 1 第 14 页 jintex.in

Page 15 — E 剪线部件/Thread Trimmer Mechanism

E 剪线部件/Thread Trimmer Mechanism E-9 E-8 E-12 E-11 E-10 E-13 E-14 E-15 E-16 E-17 E-18 E-3 E-4 E-5 E-7 E-6 E-38 E-39 E-49 E-2 E-1 E-34 E-42 E-47 E-36 E-35 E-43 E-25 E-27 E-28 E-26 E-24 E-20 E-21 E-19 E-22 E-23 E-40 E-44 E-45 E-46 E-51 E-52 E-53 E-54 E-37 E-30 E-29 E-31 E-32 E-33 E-55 E-56 E-57 E-58 E-59 E-60 E-61 E-50 第 15 页 jintex.in

Page 16 — E 剪线部件/Thread Trimmer Mechanism

E 剪线部件/Thread Trimmer Mechanism 序号 公司件号 名称 PartName 零件描述 Description 数量 30-3Q 30-4Q 60-3Q 60-4Q E-47 14212024 连杆杠杆连接板 Base Plate 1 1 E-48 417S30306 螺钉带垫 M5x15 Screw(M5) 3 3 E-49 13628003 切线凸轮螺钉垫圈 Washer For E-39 2 2 E-50 N01001 螺母 M4 Nut(M4) 2 2 E-51 14205005 电磁铁连杆 Solenoid Connecting Link 1 1 E-52 14226008 电磁铁连杆销 Solenoid Pin 1 1 E-53 402S11003 电磁铁连杆销螺钉 Screw(11/64" n=40) 1 1 E-54 125S15003 电磁铁连杆销紧固 Screw(11/64" n=40) 1 1 E-55 N01004 电磁铁连杆销螺母 Nut(M5) 1 1 E-56 1423000500 切刀电磁铁组件 Thread Trimming Solenoid 1 1 E-57 14212027 电磁铁固定架 Base for E-51 1 1 E-58 W02004 电磁铁固定架弹簧 Washer 2 2 E-59 401S13001 电磁铁固定架螺钉 Screw(15/64" n=28) 2 2 E-60 W01001 垫圈 Washer 2 2 E-61 W02018 弹簧垫圈 Spring Washer 2 2 第16页 jintex.in

Page 17 — F Thread Trimmer Mechanism

F 上送料部件/Thread Trimmer Mechanism F-57 F-61 F-64 F-62 F-61 F-26 F-22 F-25 F-24 F-23 F-11 F-9 F-6 D-33 F-5 F-4 F-10 F-12 F-13 F-20 F-18 F-17 F-19 F-21 F-14 F-15 F-4 F-3 F-1 F-8 F-60 F-63 F-62 F-61 F-59 F-64 F-37 F-44 F-94 F-45 F-30 F-27 F-31 F-28 F-29 F-32 F-33 F-85 F-84 F-40 F-41 F-38 F-34 F-35 F-36 F-39 F-65 F-80 F-81 F-51 F-53 F-66 F-71 F-68 F-69 F-87 F-88 F-89 F-90 F-91 F-72 F-73 F-74 F-70 F-76 F-77 F-79 F-78 F-75 F-56 F-55 F-54 F-47 F-48 F-49 F-46 F-92 F-93 F-43 第 17 页 jintex.in

Page 18 — F Upper Feed/Thread Trimmer Mechanism

F 上送料部件/Thread Trimmer Mechanism 序号 公司件号 名称 PartName 零件描述 Description 数量 NO 30-3Q 30-4Q 60-3Q 60-4Q F-1 14202011 压脚提升调节轴 Climb Device Adjusting Shaft 1 1 D-33 14203025 压脚提升调节轴左轴 Climb Device Adjusting Shaft 1 1 F-3 14203018 压脚提升调节轴右轴 Climb Device Adjusting Shaft 1 1 F-4 125S15003 压脚提升轴轴套 Screw(11/64 " n=40) 1 1 F-5 10108003 紧固圈 Collar for F-1 2 2 F-6 135S15004 紧固螺钉 Screw(1/4 " n=40) 4 4 F-7 14227008 压脚提升复位簧 Return Spring for F-1 1 1 F-8 142S30010 压脚提升轴销 Holder for F-7 2 2 F-9 14210003 送料左曲柄凸轮 Upper Feed Driving 1 1 F-10 101S15007 送料左曲柄凸轮螺钉 Screw(1/4 " n=40) 2 2 F-11 14204010 送料左曲柄 Upper Feed Driving 1 1 F-12 14226009 送料左曲柄销 Connecting Pin for F-11 1 1 F-13 14204011 压脚提升支架曲柄 Connecting Link for F-11 1 1 F-14 14202012 压脚提升轴支架 Upper Feed Driving Control 1 1 F-15 101S11016 压脚提升轴支架螺钉 Screw(3/16 " n=40) 4 4 F-16 14202013 压脚提升轴支架轴 Connecting Shaft for F-14 1 1 F-17 H05011 支架开口挡圈 C-Ring for F-16 1 1 F-18 14205006 压脚曲柄连杆 Upper Feed Driving 1 1 F-19 113S14002 提升轴调节柄连杆 Screw(11/64 " n=40) 2 2 F-20 14204012 提升轴调节曲柄 Upper Feed Driving Crank 1 1 F-21 401S11009 提升轴调节曲柄夹紧 Screw(15/64 " n=28) 1 1 F-22 14226010 提升轴调节曲柄销 Connecting Pin for F-20 1 1 F-23 14202014 压脚提升轴组件 Upper Feed Driving Shaft 1 1 F-24 14203019 压脚提升轴左轴套 Upper Feed Driving Shaft 1 1 F-25 14203020 压脚提升轴右轴套 Upper Feed Driving Shaft 1 1 F-26 135S15008 提升轴左曲柄套螺钉 Screw(15/64 " n=28) 2 2 F-27 14205007 压脚送料曲柄连杆 Upper Feed Driving Rod 1 1 F-28 14202029 压脚送料曲柄连杆油 Upper Feed Driving Rod 1 1 F-29 101S11005 连杆油线夹紧螺钉 Screw(9/64 " n=40) 1 1 F-30 142S20006 压脚送料曲柄连杆 Hinge Screw for Upper Feed 1 1 F-31 14204013 压脚送料曲柄 Upper Feed Connecting Link 2 2 F-32 14202015 送料曲柄铰链轴 Upper Feed Connecting Link 1 1 F-33 H05031 送料曲柄铰链开口 E-Ring for F-32 2 2 F-34 14204014 压脚送料曲柄支架 Upper Feed Lever Rock 1 1 F-35 14204015 压脚曲柄轴 Upper Feed Lever Rock 2 2 F-36 135S15009 送料曲柄轴螺钉 Screw(15/64 " n=28) 1 1 F-37 14203021 压脚连杆销套 Upper Feed Lever 1 1 F-38 142S20007 送布曲柄连杆轴位 Upper Feed Lever Driving 1 1 F-39 409S15020 送布曲柄连杆轴位螺 Nut(15/64 " n=28) 1 1 F-40 14205008 送料曲柄连杆 Presser Bar Bracket 1 1 F-41 142S20006 送料曲柄连杆轴位螺 Hinge Screw for F-40 1 1 F-42 14226011 送布曲柄铰链销 Pin for F-40 1 1 F-43 142160100 压脚组件 Upper Feed Presser Foot 1 1 F-44 14205009 压脚连杆 Upper Feed Lever 1 1 F-45 135S11030 压脚螺钉 Screw(9/64 " n=40) 1 1 F-46 14205010 压脚摆动轴右曲柄连 Upper Feed Lever Level 1 1 F-47 14204016 压脚摆动轴右曲柄 Upper Feed Lever Level 1 1 F-48 135S13002 压脚摆动轴右曲柄夹 Screw(15/64 " n=28) 1 1 第 18 页 jintex.in

Page 19 — F 上送料部件/Thread Trimmer Mechanism

F 上送料部件/Thread Trimmer Mechanism 第 19 页 jintex.in

Page 20 — F 上送料部件/Thread Trimmer Mechanism

F 上送料部件/Thread Trimmer Mechanism 序号 NO 公司件号 Part Number 名称 PartName 零件描述 Description 数量 Quantity 30-3Q 30-4Q 60-3Q 60-4Q F-49 142S20009 右曲柄连杆轴位螺 Screw(9/32" n=28) 1 1 F-50 135S16006 右曲柄连杆轴位螺 Nut(9/32" n=28) 1 1 F-51 14202016 压脚摆动轴 Upper Feed Lever Level 1 1 D-92 14203014 拾牙送布轴右轴套 Upper Feed Lever Level 1 1 F-53 135S15008 压脚摆动轴左轴套 Screw(15/64" n=28) 1 1 F-54 14203023 压脚摆动轴右轴套 Upper Feed Lever Level 1 1 F-55 409S15004 压脚摆动轴右轴套 Screw(15/64" n=28) 1 1 F-56 001046 压脚摆动轴 O型圈 O-Ring for F-51 1 1 F-57 1421100200 压脚调节上盖标盘 Climb Device Dial Ass' y(Top 1 1 F-58 14210004 上盖标盘调节凸轮 Climb Device Eccentric 1 1 F-59 1421100300 压脚调节机头标盘 Climb Device Dial Ass' y(Arm) 1 1 F-60 101S15010 机头标盘调节凸轮 Climb Device Eccentric 1 1 F-61 15215005 调节凸轮支架螺钉 Screw(15/64" n=28) 4 4 F-62 14226012 标盘止动销 Pin for F-57, F-59 2 2 F-63 14227009 标盘止动销 Spring for F-62 2 2 F-64 14212031 调节凸轮垫片 Climb Device Dial Support 2 2 F-65 13504008 压脚摆动轴左曲柄 Upper Feed Lever Level 1 1 F-66 135S11032 压脚摆动轴左曲柄 Screw(15/64" n=28) 1 1 F-67 1420900400 摆动轴左曲柄调节 Upper Feed Level Adjusting 1 1 F-67 142S30011 摆动轴左曲柄调节 Upper Feed Level Adjusting 1 1 F-68 11628005 曲柄调节柱滑块 Block for F-67 1 1 F-69 413S16005 曲柄调节柱开口挡 E-Ring for F-67 1 1 F-70 14209004 曲柄调节柱滑块 Block for F-67 1 1 F-71 H05029 曲柄调节柱开口挡 E-Ring for F-67 1 1 F-72 14204018 提升压脚摆动曲柄 Upper Feed Level Driving Link 1 1 F-73 14202017 提升压脚摆动曲柄 Hinge Shaft for F-72 1 1 F-74 142S11044 提升压脚摆动曲柄 Set Screw for F-72 1 1 F-75 135S15008 曲柄支点轴螺钉 Screw(15/64" n=28) 1 1 F-76 14205011 摆动曲柄连杆 Upper Feed Level Driving Rod 1 1 F-77 142S20006 摆动曲柄连杆轴位 Hinge Screw for F-76 2 2 F-78 14204019 摆动曲柄连杆座 Upper Feed Level Holder 1 1 F-79 101S11005 摆动曲柄连杆座螺 Screw(9/64" n=40) 2 2 F-80 14212034 压脚连杆导板 Upper Feed Lever Support 1 1 F-81 14209005 压脚连杆导板垫块 Upper Feed Lever Support 2 2 F-82 116S11005 压脚连杆导板螺钉 Screw(11/64" n=40) 1 1 F-83 14209006 提升压脚调节架 Frame for Upper Feed 2 2 F-84 201S11020 提升压脚调节架螺 Screw(11/64" n=40) 2 2 F-85 135S30007 提升压脚调节螺钉 Screw(9/32" n=28) 1 1 F-86 135S16006 提升压脚调节螺钉 Nut(9/32" n=28) 1 1 F-87 14227010 提升压脚簧 Upper Feed Pressure 1 1 F-88 1350202100 压脚簧柱 Upper Feed Pressure 1 1 F-89 14208017 压脚簧柱头 Fulcrum for F-87 1 1 F-90 14209009 压脚簧柱导向块 Fulcrum for F-88 1 1 F-91 135S11036 压脚簧柱导向块 Hinge Screw for F-90 1 1 F-92 14227011 护指簧 Needle Bar Safety Guide 1 1 F-93 14216005 内压脚(三同步) Internal pressure foot (triple 1 1 F-94 14205015 压脚连杆(三同步) Pin Rod (triple sync) 1 1 F-95 14212062 压脚连杆导板(三同 Pin-Lever guide plate (triple 1 1 第 20 页 jintex.in

Page 21 — G 压脚调节部件/Presser Foot & Tension Release Mechanism

G 压脚调节部件/Presser Foot & Tension Release Mechanism G-5 G-7 G-3 G-4 G-6 G-36-2 G-10 G-12 G-13 G-11 G-1 G-2 G-25 G-27 G-8 G-9 G-35 G-36-1 G-41 G-39 G-38 G-40 G-37 G-43 G-21 G-20 G-42 G-19 G-18 G-16 G-17 G-14 G-15 G-44 G-22 G-23 G-24 G-28 G-30 G-32 G-29 G-33 G-31 G-34 G-53 G-55 G-54 G-51 G-48 G-49 G-50 G-52 第 21 页 jintex.in

Page 22 — G 压脚调节部件/Presser Foot&Tension Release Mechanism

G 压脚调节部件/Presser Foot&Tension Release Mechanism 序号 NO 公司件号 Part Number 名称 Part Name 零件描述 Description 数量 Quantity 30-30 30-40 60-30 60-40 G-1 14202018 压紧杆 Presser bar 1 1 G-2 14203024 压紧杆轴套 Presser bar bushing 1 1 G-3 135S30004 调压螺钉 Pressure Adjusting Screw 1 1 G-4 135S16003 调压螺钉锁紧螺母 Nut for Pressure Adjusting 1 1 G-5 135S30005 小压脚调节螺钉 Sub Pressure Adjusting 1 1 G-6 14227012 调压簧 Pressure Adjusting Spring 1 1 G-7 13527012 小压脚调节螺钉簧 Sub Pressure Adjusting 1 1 G-8 14216002 小压脚 Sub Press Foot 1 1 G-9 135S11030 小压脚螺钉 Screw(9/64 " n=40) 1 1 G-10 14209010 压紧杆导架 Presser Bar Bracket 1 1 G-11 135S11001 压紧杆导架螺钉 Screw(15/64 " n=28) 1 1 G-12 14213009 大线勾 Thread Guide Plate 1 1 G-13 401S11031 大线勾螺钉 Screw(11/64 " n=40) 1 1 G-14 14216003 压脚扳手 Presser Bar Lifter 1 1 G-15 409S15004 压脚扳手螺钉 Screw 2 2 G-16 14202019 压脚扳手轴 Presser Bar Lifter Shaft 1 1 G-17 14222018 压脚扳手轴 O型圈 O-Ring for G-16 1 1 G-18 H05013 压脚扳手轴开口挡圈 E-Ring for G-16 1 1 G-19 14227014 压脚扳手轴扭簧 Torsion Spring for G-14 1 1 G-20 14209011 压脚扳手凸轮 Presser Lifter Cam 1 1 G-21 135S15004 压脚扳手凸轮螺钉 Screw(1/4 " n=40) 1 1 G-22 14212036 膝控提升杠杆(左) Knee control lifting Lever 1 1 G-23 14212037 膝控提升杠杆(右) Knee Control lifting Lever 1 1 G-24 14214003 松线凸轮板 Loose Wire CAM Plate 1 1 1 G-25 402S11003 膝控提升杠杆左螺钉 Screw(11/64 " n=40) 1 1 1 G-26 14212039 松线板组件 Pine Board components 1 1 G-26- 14212069 松线板底板 Pine Board floor 1 1 G-26 14202031 松线板连接轴 Loose wire connection sha 1 1 G-27 14226013 支点销轴 Pivot PIN SHAFT 1 1 G-28 H05013 支点销轴开口挡圈 1 1 G-29 125S15003 支点销轴螺钉 Screw(11/64 " n=40) 1 1 G-30 H05033 钢绳上开口挡圈 1 1 G-31 14227015 钢绳上挡圈 Spring for G-26 1 1 G-32 14202020 膝控提升杠杆(左)支 Shaft for G-26 1 1 G-33 41728005 支点轴垫圈 Washer for G-32 1 1 G-34 H05006 支点轴开口挡圈 1 1 G-35 14212044 膝控提升杠杆 Presser Bar Lifting Link 1 1 G-36 135S11027 膝控提升杠杆轴位螺钉 Hinge Screw for Presser 1 1 G-36- 142S11052 膝控提升杠杆轴位螺钉 Hinge Screw for Presser 1 1 G-37 14212045 膝控提升杠杆(右) Knee Lifting Link 1 1 G-38 142S11053 膝控提升杠杆(右)螺钉 Hinge Screw for G-37 1 1 G-39 14227016 膝控提升杠杆(右)拉簧 Spring for G-37 1 1 G-40 14226014 拉簧下勾销 Connecting Screw for G-39 1 1 G-41 13526005 拉簧上勾销 Holder for G-39 1 1 G-42 14226016 限位销 Stopper Pin for G-20 1 1 第 22 页 jintex.in

Page 23 — G 压脚调节部件/Presser Foot&Tension Release Mechanism

G 压脚调节部件/Presser Foot&Tension Release Mechanism G-5 G-7 G-3 G-4 G-6 G-36-2 G-10 G-12 G-13 G-11 G-1 G-2 G-25 G-27 G-22 G-23 G-24 G-28 G-29 G-32 G-30 G-31 G-34 G-36-1 G-35 G-42 G-20 G-21 G-19 G-46 G-47 G-44 G-43 G-37 G-38 G-40 G-41 G-39 G-14 G-15 G-16 G-17 G-18 G-53 G-55 G-54 G-51 G-48 G-49 G-50 G-52 G-9 G-8 第 23 页 jintex.in

Page 24 — G 压脚调节部件/Presser Foot&Tension Release Mechanism

G 压脚调节部件/Presser Foot&Tension Release Mechanism 序号 NO 公司件号 Company Part No. 名称 PartName 零件描述 Description 数量 Quantity 30-3Q 30-4Q 60-3Q 60-4Q G-43 14212046 抬压脚顶杆 Knee Lifting Bar Stick 1 1 G-44 14213010 松线钢绳组件 Tension Release Cable Ass' y 1 1 G-46 14212047 钢绳上固定架 Tension Release Cable 1 1 G-47 101S11005 钢绳上固定架螺钉 Screw 1 1 G-48 14226017 钢绳松紧调节柱 Connecting Bolt for G-44 1 1 G-49 N01004 调节柱左锁紧螺母 Nut A for G-44 1 1 G-50 142S16017 调节柱右锁紧螺母 Nut B for G-44 1 1 G-51 14212048 钢绳下固定架 Tension Release Cable 1 1 G-52 402S11003 钢绳下固定架螺钉 Screw 1 1 G-53 14212049 松线钢绳下固定架 Bracket for G-51 1 1 G-54 421S10012 钢绳下固定架螺钉 Screw for G-53 2 2 G-55 40928021 钢绳固定架螺钉垫圈 Washer for G-53 2 2 G-57 14216004 外压脚(三同步) External pressure foot 1 第 24 页 jintex.in

Page 25 — H 电控电机部件/Electronic Control Unit

H 电控电机部件/Electronic Control Unit H-1 H-2 H-3 第 25 页 jintex.in

Page 26 — H 电控电机部件/Electronic Control Unit

H 电控电机部件/Electronic Control Unit 序号 NO 公司件号 Part Number 名称 PartName 零件描述 Description 数量 Quantity 30-3Q 30-4Q 60-3Q 60-4Q H-1 114233003 2030G 琦星电控(中 Electronic control asm 1 1 H-2 114S13001 电机安装螺钉 Screw(M5) 4 4 W02001 弹簧垫圈 Spring Washer 3 3 13628013 电机垫圈 Washer 3 3 H-3 136S13001 电机安装螺钉 Screw(M5) 3 3 第 26 页 jintex.in

Page 27 — I 供油部件/Lubrication

I 供油部件/Lubrication I-1 I-2 I-3-1 I-3-2 I-4 I-5 I-6 I-7 I-8 I-9 I-7-2 I-7-1 I-7-13 I-7-14 I-7-5 I-7-6 I-7-3 I-7-4 I-7-7 I-7-8 I-7-9 I-7-10 I-7-11 I-7-12 I-10 I-11 I-15 第 27 页 jintex.in

Page 28 — I 供油部件/Lubrication

I 供油部件/Lubrication 序号 NO 公司件号 Part Number 名称 PartName 零件描述 Description 数量 30-3Q 30-4Q 60-3Q 60-4Q I-1 10111004 油窗 Oil Gauge Window 1 1 I-2 10122019 油窗密封垫 O 型圈 O-Ring 1 1 I-3-1 12921002 上回油管 Oil Return Tube 1 1 I-3-2 13523003 上回油管吸油毡 Oil Return Felter 1 1 I-4 14227018 上回油管吸油毡压 Oil Return Felter Holder 1 1 I-5 1422100200 上输油管组件 Oil pipe complete for upper 1 1 I-6 14221003 下输油管 Oil pipe for shaft 1 1 I-7 1422000100 油泵组件 Oil pump asm 1 1 I-7-1 14220002 油泵体 Oil pump body 1 1 I-7-2 14221004 下输油嘴 Nipple for Oil Return Tube 1 1 I-7-3 14221005 上输油嘴 Nipple for Lower Shaft Oil 1 1 I-7-4 14220003 油泵叶轮 Impeller 1 1 I-7-5 14220004 柱塞 Piston 1 1 I-7-6 14227019 柱塞弹簧 Piston Spring 1 1 I-7-7 14226019 柱塞弹簧销 Piston Spring Pin 1 1 I-7-8 14211061 柱塞弹簧螺钉 Piston Spring Pin Screw 1 1 I-7-9 14212055 油泵体盖板 Oil Pump Cover 1 1 I-7-10 14212056 油泵过滤网 Oil Pump Cap 1 1 I-7-11 14212057 油泵磁铁夹 Magnetic Holder 1 1 I-7-12 402S11010 油泵体盖板螺钉 Screw(9/64 " n=40) 4 4 I-7-13 14208014 油泵体上盖 Collar for Impeller Shaft 1 1 I-7-14 413S14006 油泵体上盖紧圈 Screw(M4) 2 2 I-7-15 14202030 油泵叶轮安装轴 Impeller Axis 1 1 I-8 206S11002 油泵体连接螺钉 Screw(9/64 " n=40) 3 3 I-9 W02002 油泵体连接螺钉垫 Oil Pump Body Washer 3 3 I-10 14212059 油泵体连接支架 Oil Pump Bracket 1 1 I-11 409S11003 油泵体连接支架螺 Screw(3/16 " n=28) 1 1 I-12 14227020 竖轴弹簧 Oil Pump Connecting Spring 1 1 I-13 14208012 竖轴紧圈 Oil Pump Connecting Collar 1 1 I-14 125S15003 竖轴紧圈螺钉 Screw(11/64 " n=40) 2 2 I-15 40111005 油管定位扎带 Nylon Clib 2 2 第 28 页 jintex.in

Page 29 — K 自动抬压脚部件/Automatic presser Foot Parts

K 自动抬压脚部件/Automatic presser Foot Parts K-1 K-2 K-3 K-4 K-5 第 29 页 jintex.in

Page 30 — K 自动抬压脚部件/Automatic presser Foot Parts

K 自动抬压脚部件/Automatic presser Foot Parts 序号 NO 公司件号 Company Part No. 名称 PartName 零件描述 Description 数量 Quantity 30-3Q 30-4Q 60-3Q 60-4Q K-1 207S11026 螺钉 M6×16 Screw M6x16 1 1 K-2 14204024 抬压脚曲柄 Presser Foot Crank 1 1 K-3 1423103600 拉杆组件 Lever Assembly 1 1 K-4 1423001200 抬压脚带电磁铁组件 Pressure-carryingfoot 1 1 K-5 101S30014 绕线器木螺钉 M4×20 Screw M4x20 8 8 第 30 页 jintex.in

Page 31 — K 自动抬压脚部件/Automatic presser Foot Parts

K 自动抬压脚部件/Automatic presser Foot Parts 18 24 23 19 22 20 21 1 2 5 6 3 7 8 7 10 13 12 9 11 18 14 15 16 14 17 14 第 31 页 jintex.in

Page 32 — K 气动抬压脚部件/Pneumatic presser Foot Parts

K 气动抬压脚部件/Pneumatic presser Foot Parts 序号 NO 公司件号 Company Part No. 名称 PartName 零件描述 Description 数量 Quantity 30-30 30-40 60-30 60-40 K-1 413S13023 螺钉 M6×12 Screw M6×12 1 1 K-2 114204002 气动抬压脚曲柄 Presser Foot Crank 1 1 K-3 114208001 挡圈 Retaining ring 1 1 K-4 114203001 气动抬压脚轴套 Pressure-carrying foot 1 1 K-5 10122015 油封 Oil seal 1 1 K-6 114202001 气动抬压脚轴 Lifting foot shaft 1 1 K-7 H05013 开口挡圈 6 Open retaining ring 6 4 4 K-8 114204001 气动抬压脚连杆 Lifting foot connecting rod 1 1 K-9 114226002 连接销 Connection pin 2 2 K-10 114205001 气缸接头连杆 Cylinder joint connecting rod 1 1 K-11 207S11026 螺钉 M6×16 Screw M6×16 1 1 K-12 114236003 气缸接头 Cylinder joint 1 1 K-13 W02023 GB/T 93 标准型弹簧 Spring washer φ8 1 1 K-14 S05007 螺钉 M8×20 Screw M8×20 4 4 K-15 114212002 气缸安装板 Cylinder mounting plate 1 1 K-16 S05079 螺钉 M8×12 Screw M8×12 2 2 K-17 1142450010 抬压脚气缸 Lifting foot cylinder assembly 1 1 K-18 气管 Trachea 1 1 K-19 142312006 气压阀安装板 Valve mounting plate 1 1 K-20 N01013 GB/T6170-1986 螺母 Nut M3 2 2 K-21 1142450004 气源处理元件 Gas source processing 1 1 K-22 S05005 螺钉 M5×12 Screw M5×12 2 2 K-23 407S04053 十字半圆头螺钉 Screw M3×25 2 2 K-24 114245005 电磁阀 The electromagnetic valve 1 1 第 32 页 jintex.in
