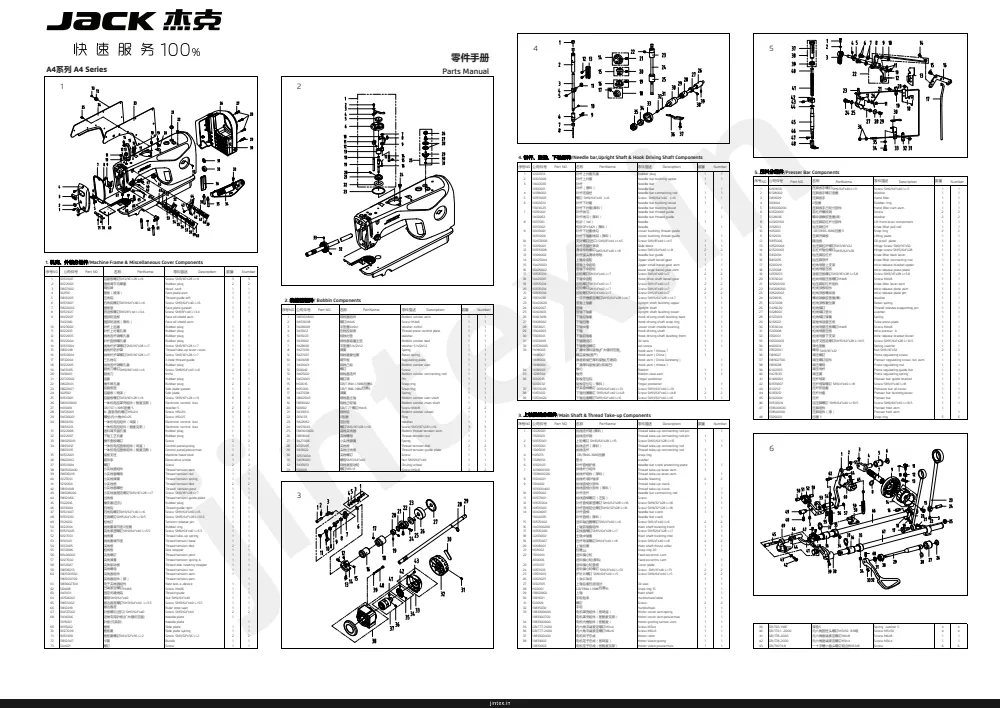

Page 1 — 1. 机壳、外装件/Machine Frame & Miscellaneous Cover Components
Jack A4 parts on page 1| Ref | Part number | Part name | Qty |
|---|
| 101511001 | 后面板螺钉SM3/16"x28 L=9 | |
| 138310800 | 后面板 | |
| 302591 | 商标牌 | |
| 13813005 | 面板(贴图) | |
| 10151007 | 左线钩 | |
| 10151007 | 右线钩螺钉SM1/64"x40 L=6 | |
| 13820005 | 面版垫片 | |
| 10151007 | 面版垫片 | |
| 10151007 | 面版垫片 | |
| 10151007 | 面版垫片 | |
| 10151007 | 面版垫片 | |
| 10151007 | 面版垫片 | |
| 10151007 | 面版垫片 | |
| 10151004 | 后面板螺钉SM3/16"x28 L=7 | |
| 13512004 | 下盖锁扣 | |
| 10151004 | 后面板螺钉SM3/16"x28 L=7 | |
| 13512004 | 三孔线夹 | |
| 10151005 | 后面板螺钉 | |
| 11451001 | 车刀 | |
| 20722002 | 油壶 | |
| 13822001 | 后面板 | |
| 13822001 | 后面板 | |
| 13825007 | 后面板(贴图) | |
| 10151001 | 后面板(贴图) | |
| 101511001 | 后面板螺钉SM3/16"x28 L=9 | |
| 138103000 | 一体机电控器组件(插线夹) | |
| W01009 | Washer 5 | |
| 11451001 | 螺钉M4x5 | |
| 11451001 | 螺钉M4x5 | |
| 13833001 | 电子线盒组件 | |
| 10151001 | 电子线盒组件 | |
| 10122007 | 操作面板定影膏 | |
| 1385050001 | 螺钉 | |
| 13833012 | 一体机电控面板组件(插线夹) | |
| 10151001 | 底座支柱 | |
| 13822002 | 装饰件 | |
| 10151004 | 螺钉 | |
| 138100400 | 小夹线器组件 | |
| 138100400 | 小夹线器组件 | |
| 11270004 | 小夹线器组件 | |
| 1381008 | 小夹线器组件 | |
| 138508006 | 小夹线器固定螺钉SM3/16"x28 L=7 | |
| 13812066 | 过线板 | |
| 13812066 | 过线板 | |
| 10151007 | 右线钩 | |
| 10151007 | 右线钩螺钉SM1/64"x40 L=6 | |
| 10151007 | 右线钩螺钉SM1/64"x40 L=6 | |
| 101515010 | 右线钩螺钉SM1/64"x40 L=10.5 | |
| 11326012 | 松线钩 | |
| 10122014 | 松线钩 | |
| 10151505 | 夹线螺钉SM9/64"x40 L=5.5 | |
| 10127009 | 夹线螺钉 | |
| 10151011 | 夹线螺钉 | |
| 10122005 | 夹线螺钉 | |
| 10122006 | 松线钩 | |
| 101530002 | 夹线螺钉 | |
| 10122014 | 夹线螺钉 | |
| 10127007 | 夹线制动盘 | |
| 13815G013 | 夹线螺母 | |
| 1381300500 | 夹线螺钉 | |
| 1381300700 | 夹线螺钉 | |
| 510008 | 圆盘垫圈M4x6 | |
| 1383002700 | 固定螺钉SM3/16"x28 L=7 | |
| 13812066 | 过线板 | |
| 10151001 | 固定螺钉 | |
| 11451002 | 螺钉SM3/16"x40 | |
| 10457002 | 压杆导架螺钉SM1/64"x40 L=8 | |
| 11414006 | 压杆导架 | |
| 115001 | 压杆 | |
| 10127009 | 压杆 | |
| 10151019 | 推盖螺钉 | |
| 13812007 | 卡簧 | |
| 504021 | 螺钉 | |
1. 机壳、外装件/Machine Frame & Miscellaneous Cover Components
序号NO.
公司件号
Part NO.
名称
PartName
零件描述
Description
数量
Number
1
101511001
后面板螺钉SM3/16"x28 L=9
Screw SM3/16"x28 L=9
3
3
2
138310800
后面板
Rubber plug
2
2
3
302591
商标牌
Head card
1
1
4
13813005
面板(贴图)
Face plate asm.
1
1
5
10151007
左线钩
Thread guide left
1
1
6
10151007
右线钩螺钉SM1/64"x40 L=6
Screw SM1/64"x40 L=6
1
1
7
13820005
面版垫片
Face plate gasket
1
1
8
10151007
面版垫片
Face plate gasket
1
1
9
10151007
面版垫片
Face plate gasket
1
1
10
10151007
面版垫片
Face plate gasket
1
1
11
10151007
面版垫片
Face plate gasket
1
1
12
10151007
面版垫片
Face plate gasket
1
1
13
10151007
面版垫片
Face plate gasket
1
1
14
10151004
后面板螺钉SM3/16"x28 L=7
Screw SM3/16"x28 L=7
1
1
15
13512004
下盖锁扣
Take-up lever cover
1
1
16
10151004
后面板螺钉SM3/16"x28 L=7
Screw SM3/16"x28 L=7
1
1
17
13512004
三孔线夹
3-hole thread guide
1
1
18
10151005
后面板螺钉
Rubber plug
1
1
19
11451001
车刀
Knife
1
1
20
20722002
油壶
Oil pot
1
1
21
13822001
后面板
Rubber plug
2
2
22
13822001
后面板
Rubber plug
2
2
23
13825007
后面板(贴图)
Side plate gasket
1
1
24
10151001
后面板(贴图)
Side plate gasket
1
1
25
101511001
后面板螺钉SM3/16"x28 L=9
Screw SM3/16"x28 L=9
1
1
26
138103000
一体机电控器组件(插线夹)
Electronic control box
1
1
27
W01009
Washer 5
1
2
28
11451001
螺钉M4x5
Screw M4x5
3
3
29
11451001
螺钉M4x5
Screw M4x5
3
3
30
13833001
电子线盒组件
Electronic control box
1
1
31
10151001
电子线盒组件
Electronic control box
1
1
32
10122007
操作面板定影膏
Control panel, qixing
2
2
33
1385050001
螺钉
Screw
2
2
34
13833012
一体机电控面板组件(插线夹)
Control panel,qixing
1
1
35
10151001
底座支柱
Machine head stud
4
4
36
13822002
装饰件
Decorative article
1
1
37
10151004
螺钉
Screw
1
1
38
138100400
小夹线器组件
Thread tension nut
1
1
39
138100400
小夹线器组件
Thread tension nut
1
1
40
11270004
小夹线器组件
Thread tension spring
1
1
41
1381008
小夹线器组件
Thread tension post
1
1
42
138508006
小夹线器固定螺钉SM3/16"x28 L=7
Screw SM3/16"x28 L=7
1
1
43
13812066
过线板
Thread guide plate
1
1
44
13812066
过线板
Rubber plug
1
1
45
10151007
右线钩
Thread guide right
1
1
46
10151007
右线钩螺钉SM1/64"x40 L=6
Screw SM1/64"x40 L=6
1
1
47
10151007
右线钩螺钉SM1/64"x40 L=6
Screw SM1/64"x40 L=6
1
1
48
101515010
右线钩螺钉SM1/64"x40 L=10.5
Screw SM1/64"x40 L=10.5
1
1
49
11326012
松线钩
Tension release pin
1
1
50
10122014
松线钩
Rubber ring
1
1
51
10151505
夹线螺钉SM9/64"x40 L=5.5
Screw SM9/64"x40 L=5.5
1
1
52
10127009
夹线螺钉
Thread take-up spring
1
1
53
10151011
夹线螺钉
Thread tension base
1
1
54
10122005
夹线螺钉
Thread tension disk
2
2
55
10122006
松线钩
Thread tension post
1
1
56
101530002
夹线螺钉
Thread tension post
1
1
57
10122014
夹线螺钉
Thread tension Spring A
1
1
58
10127007
夹线制动盘
Thread disk rotating stopper
1
1
59
13815G013
夹线螺母
Thread tension nut
1
1
60
1381300500
夹线螺钉
Thread tension asm.
1
1
61
1381300700
夹线螺钉
Thread tension asm.
1
1
62
510008
圆盘垫圈M4x6
Nest less e-device
1
1
63
1383002700
固定螺钉SM3/16"x28 L=7
Screw SM3/16"x28 L=7
1
1
64
13812066
过线板
Thread guide plate
1
1
65
10151001
固定螺钉
Nut
1
1
66
11451002
螺钉SM3/16"x40
Screw SM3/16"x40
1
1
67
10457002
压杆导架螺钉SM1/64"x40 L=8
Screw SM1/64"x40 L=8
2
2
68
11414006
压杆导架
Needle plate
1
1
69
115001
压杆
Needle plate
1
1
70
10127009
压杆
Side plate spring
1
1
71
10151019
推盖螺钉
Screw SM3/32"x56 L=2
1
2
72
13812007
卡簧
Buckle
1
1
73
504021
螺钉
Screw
1
1
Page 2
Jack A4 parts on page 2| Ref | Part number | Part name | Qty |
|---|
| 11355002 | 剪刀螺钉SM1/8"x44 L=9.5 | |
| 11313004 | 弹簧 | |
| 11317001 | 螺钉SM9/64"x40 | |
| 11312003 | 护料片 | |
| 11651009 | 螺钉SM9/64"x40 L=5.5 | |
| 11351001 | 螺钉SM11/64"x40 L=12 | |
| 10128003 | 牙架固定螺钉SM1/8"x44 L=9.5 | |
| 11312004 | 刀架压板组件 | |
| 11312032 | 偏心连接杆 | |
| 11303012 | 短套 | |
| 11351002 | 螺钉SM11/64"x40 L=4.4 | |
| 11319002 | 动力刀(厚料长槽) | |
| 11319003 | 动力刀(厚料长槽) | |
| 11352001 | 螺钉SM11/64"x40 | |
| 11312005 | 连杆 | |
| 11351004 | 螺钉SM11/64"x40 | |
| 11614004 | 螺母SM1/4"x40 | |
| 138300300 | 完刀螺钉下压块 | |
| 11327003 | 弹簧 | |
| 11312007 | 旋线座 | |
| 113520002 | 螺钉SM1/8"x28 | |
| 11326005 | 销子 | |
| P04001 | 开口销GB/T91-1986 | |
| 11326006 | 电磁铁接头 | |
| 113516004 | 法兰螺母MB | |
| 1383001200 | 电磁铁组件 | |
| 101511001 | 后盖板螺钉SM3/16"x28 L=9 | |
| 20131019 | 螺钉SM1/8"x44 L=9.5 | |
| 3040050 | 绕线架保护盖 | |
| W010047 | 垫圈M5 | |
| W01034 | 螺母M5 | |
| 13812040 | 上线架过线柱 | |
| 10113011 | 进线架导线 | |
| 10113001 | 过线圈(月) | |
| 10131001 | 进线架上节 | |
| 20131003 | 线架接头 | |
| 20131002 | 线架下节 | |
| W010048 | 垫圈M16 | |
| 10122106 | 螺母M16 | |
| 10151016 | 进线架曲柄 | |
| 11352005 | 螺钉SM11/64"x40 | |
| 10122027 | 弹簧垫圈M5 | |
| 11614004 | 螺母SM1/4"x40 | |
| 13812001 | 完刀螺钉下压块 | |
| 11322004 | 螺钉SM5x14 | |
| 11405015 | 倒送料连杆 | |
| 11426021 | 连杆销 | |
| 10151005 | 螺钉SM9/64"x40 L=6 | |
| 11401015 | 送料调节器 | |
| 11403043 | 送料器脚踏板 | |
| 10151023 | 螺钉SM3/16"x28 L=6.5 | |
| 13826005 | 标准送料件 | |
| 10122016 | 倒送料连杆C形圈 | |
| 13810008 | 固定压块 | |
| H05018 | 弹片 | |
| 13812009 | 拨盘定位销 | |
| 13812002 | 拨盘定位销 | |
| 13812010 | 上限位片 | |
| 138100700 | 升降压脚片 | |
| 10151022 | 螺钉SM3/16"x28 L=18 | |
| 10126011 | 送料曲柄销 | |
| 10152001 | 拍牙连杆销 | |
| 10104002 | 送料螺钉 | |
| 10151016 | 螺钉SM3/16"x28 L=14 | |
| 4000093 | 送料牙 | |
| 10104004 | 送料牙连杆 | |
| 13802003 | 倒送料连杆销 | |
| 13801020 | 倒送料连杆 | |
| 10151003 | 螺钉SM9/32"x28 | |
| 10151023 | 送料连杆销SM3/16"x28 L=6.5 | |
| 13803021 | 倒送料连杆后盖件 | |
| 13822003 | 倒送料连杆形圈 | |
| 1383003600 | 倒送料连杆组件 | |
| 13801030 | 倒送料连杆中盖油封 | |
| 13830320 | 倒送料连杆中盖油封 | |
| 13822056 | 倒送料连杆塞盖 | |
| 13851010 | 螺钉SM5x8 | |
| 10151002 | 螺钉SM1/4"x40 L=6 | |
| 11211004 | 油管 | |
| 13822019 | 油管 | |
| 11351004 | 油管连接管 | |
| 11325005 | 开口销GB/T91-1986 | |
| 10113007 | 柱塞销 | |
| 11351001 | 油管架 | |
| 10121001 | 油管架 | |
| W030202 | 弹簧垫圈 | |
| 209512001 | 压紧螺钉SM1/64"x40 L=10.5 | |
| 10103022 | 油管泵衬套 | |
| 10153007 | 柱塞销 | |
| 10127013 | 油管架 | |
| 10122001 | 油管压盖 | |
| 10126001 | 油管压盖 | |
| 500009 | 油管 | |
| 10111003 | 油泵叶轮 | |
| 10112021 | 油泵叶轮托板 | |
| 10113007 | 油泵盖 | |
| 10111004 | 油管 | |
| 101200100 | 油管管件 | |
| 11653003 | 螺钉SM5/64"x28 L=14.5 | |
| 10136001 | 橡胶接头 | |
| W020004 | 弹簧垫圈M6 | |
| 11321004 | 油管架 | |
| 11327001 | 弹簧 | |
| 11327004 | 油管盖 | |
| 10127015 | 油管压盖 | |
| 10123006 | 油管压盖 | |
| 10151004 | 螺钉SM3/16"x28 L=7 | |
| 10121023 | 油管夹 | |
| 10121007 | 油管管件 | |
| 10121008 | 油管管件 | |
| 10111004 | 油管 | |
| 10151010 | 螺钉SM9/64"x40 L=11 | |
| 10112025 | 油管固定板 | |
| 10123010 | 油管 | |
| S05254 | 螺钉M2.5x4 | |
| 1383004000 | 螺钉SM9/64"x40 L=7.7 | |
| 20151019 | 压线板 | |
| 13812022 | 橡皮套(角形) | |
| 101511004 | 螺钉SM3/16"x28 L=7 | |
| 1383003600 | 双牙开关组件 | |
| W020004 | 弹簧垫圈M6 | |
| 11653003 | 螺钉SM15/64"x64 L=14.5 | |
| 11628005 | 牙牙固定螺钉SM1/64"x28 | |
| 1383001200 | 自动送料反向磁铁 | |
| 11226005 | 连杆销 | |
| H05012 | 弹片 | |
| 13802004 | 压脚垫片 | |
| 13803031 | 垫片 | |
| 11727006 | 自动送料反向弹簧 | |
| 11312009 | 自动送料反向连杆 | |
| 112520002 | 弹簧 | |
| 11251007 | 连杆销 | |
| 11204003 | 自动倒送料螺钉 | |
| 11616008 | 螺钉SM11/64"x40 | |
| 113250001 | 螺钉SM1/4"x28 | |
| 11292020 | 自动送料拉杆 | |
| 11211005 | 尼龙扎带 | |
| 10122022 | 油盘座 | |
| 13801020 | 油盘 | |
| 10111005 | 压脚顶杆 | |
| 10122020 | 油盘垫 | |
| 101511028 | 弹簧 | |
| 10131001 | 油盘磁铁 | |
| 10122023 | 油盘座 | |
| 10112027 | 压脚顶杆 | |
| 10127016 | 压脚顶杆 | |
| 10151001 | 螺钉SM3/16"x28 L=30 | |
| 13810001 | 压脚头 | |
| H05010 | 弹片 | |
| 10151016 | 螺钉SM3/16"x28 L=6 | |
| 10152002 | 螺母M6 | |
| 1011203100 | 机头连接螺钉 | |
| 10122060 | 机头连接座 | |
| 10117001 | 机针(14#) | |
| 10117002 | 机针(14#) | |
| 101530010 | 针杆连接座 | |
| 10118003 | 机头连接座 | |
| 10131001 | 螺丝刀(大) | |
| 10131002 | 螺丝刀(中) | |
| 10131003 | 螺丝刀(小) | |
| 10131004 | 螺丝刀(小) | |
| 1011101200 | 油箱 | |
| 138310101B | 防尘罩 | |
7. 切线调整部件/Thread Trimmer Components
序号NO. 公司件号Part No. 名称Name零件描述Description数量Number
1 11355002 剪刀螺钉SM1/8"x44 L=9.5 完刀Screw SM1/8"x44 L=9.5 1 1
2 11313004 弹簧 Spring 1 1
3 11317001 螺钉SM9/64"x40 完刀Screw SM9/64"x40 1 1
4 11312003 护料片 Needle guard patch 1 1
5 11651009 螺钉SM9/64"x40 L=5.5 完刀Screw SM9/64"x40 L=5.5 1 1
6 11351001 螺钉SM11/64"x40 L=12 完刀Screw SM11/64"x40 L=12 2 2
7 10128003 牙架固定螺钉SM1/8"x44 L=9.5 垫圈Washer 1 1
8 11312004 刀架压板组件 Knife bracket press component 1 1
9 11312032 偏心连接杆 Eccentric connecting rod 1 1
10 11303012 短套 Short bushing 2 2
11 11351002 螺钉SM11/64"x40 L=4.4 完刀Screw SM11/64"x40 L=4.4 2 2
12 11319002 动力刀(厚料长槽) Motorial knife 1 1
13 11319003 动力刀(厚料长槽) Motorial knife 1 1
14 11352001 螺钉SM11/64"x40 完刀Screw SM11/64"x40 1 1
15 11312005 连杆 连杆Hinge 2 2
16 11351004 螺钉SM11/64"x40 完刀Screw SM11/64"x40 1 1
17 11614004 螺母SM1/4"x40 完刀Nut SM1/4"x40 1 1
18 1138300300 完刀螺钉下压块 Thread trimmer solenoid asm. 1 1
19 11327003 弹簧 Spring 1 1
20 11312007 旋线座 Thread release bed 1 1
21 113520002 螺钉SM1/8"x28 完刀Screw SM1/8"x28 1 1
10. 自动抬压脚组件/Auto Lifter Components
序号NO. 公司件号Part No. 名称Name零件描述Description数量Number
1 11326005 销子Pin 1 1
2 P04001 开口销GB/T91-1986 挡圈Cotter pin 1 1
3 11326006 电磁铁接头 Solenoid connector 1 1
4 113516004 法兰螺母MB Flange nuts MB 1 1
5 1383001200 电磁铁组件 Solenoid asm. 1 1
6 101511001 后盖板螺钉SM3/16"x28 L=9 后盖板螺钉screw SM3/16"x28 L=9 4 4
12 (1) 12 (1)
10
12 (2) 12 (2)
12. 机头附件(1)-线架组件/Machine Head Accessories(1)-Thread Stand Components
序号NO. 公司件号Part No. 名称Name零件描述Description数量Number
1 20131019 螺钉SM1/8"x44 L=9.5 完刀螺钉SM1/8"x44 L=9.5 1 1
2 3040050 绕线架保护盖 Screw M5 L=16 1 1
3 W010047 垫圈M5 Washer M5 3 2
4 W01034 螺母M5 Nut M5 4 1
5 13812040 上线架过线柱 Spool rest arm upper 4 1
6 10113011 进线架导线 Thread guide ring 2 2
7 10113001 过线圈(月) Washer 2 2
8 10131001 进线架上节 Spool rest rod upper 1 1
9 20131003 线架接头 Spool rest rod joint 1 1
10 20131002 线架下节 Spool rest rod lower 1 1
11 W010048 垫圈M16 Washer M16 2 2
12 10122106 螺母M16 Nut M16 1 1
13 10151016 进线架曲柄 Hinge keeper crank 1 1
14 11352005 螺钉SM11/64"x40 完刀Screw SM11/64"x40 2 2
15 10122027 弹簧垫圈M5 Spring washer M5 2 2
16 11614004 螺母SM1/4"x40 Nut SM1/4"x40 1 1
17 13812001 完刀螺钉下压块 Crank driver stopper block 1 1
18 11322004 螺钉SM5x14 Screw SM5x14 1 1
6. 送料分件/Feed Mechanism Components
序号NO. 公司件号Part No. 名称Name零件描述Description数量Number
1 11405015 倒送料连杆 Reverse feed connecting rod 1 1
2 11426021 连杆销 Connecting rod pin 1 1
3 10151005 螺钉SM9/64"x40 L=6 完刀Screw SM9/64"x40 L=6 6 6
4 11401015 送料调节器 Feed regulator 1 1
5 11403043 送料器脚踏板 Feed regulator stud 1 1
6 10151023 螺钉SM3/16"x28 L=6.5 完刀Screw SM3/16"x28 L=6.5 1 1
7 13826005 标准送料件 Standard feed regulator 1 1
8 10122016 倒送料连杆C形圈 Rubber ring 1 1
9 13810008 固定压块 Fixing dial plate 1 1
10 H05018 弹片 Spring ring 3.5 2 2
11 13812009 拨盘定位销 Dial plate button 1 1
12 13812002 拨盘定位销 Spring 1 1
13 13812010 上限位片 Upper limit patch 1 1
14 138100700 升降压脚片 Knob component 1 1
15 10151022 螺钉SM3/16"x28 L=18 完刀Screw SM3/16"x28 L=18 1 1
16 10126011 送料曲柄销 Hinge feed crank pin 1 1
17 10152001 拍牙连杆销 Hinge feed shaft connecting rod 1 1
18 10104002 送料螺钉 Feed rocker shaft 1 1
19 10151016 螺钉SM3/16"x28 L=14 完刀Screw SM3/16"x28 L=14 1 1
20 4000093 送料牙 牙Feed dog 1 1
21 10104004 送料牙连杆 Feed driving shaft 1 1
22 13802003 倒送料连杆销 Reverse feed shaft 1 1
23 13801020 倒送料连杆 Reverse feed shaft bushing mid 1 1
24 10151003 螺钉SM9/32"x28 完刀Screw SM9/32"x28 1 1
25 10151023 送料连杆销SM3/16"x28 L=6.5 完刀Screw SM3/16"x28 L=6.5 1 1
26 13803021 倒送料连杆后盖件 Reverse feed shaft bushing back 1 1
27 13822003 倒送料连杆形圈 Rubber ring 1 1
28 1383003600 倒送料连杆组件 Reverse feed shaft 1 1
29 13801030 倒送料连杆中盖油封 Mid bushing oil seal 1 1
30 13830320 倒送料连杆中盖油封 Mid bushing oil seal 1 1
31 13822056 倒送料连杆塞盖 Reverse feed lever asm. 1 1
32 13851010 螺钉SM5x8 Screw M5x8 1 1
34 10151002 螺钉SM1/4"x40 L=6 完刀Screw SM1/4"x40 L=6 4 4
8. 润滑油件/Oil Lubrication Components
序号NO. 公司件号Part No. 名称Name零件描述Description数量Number
1 11211004 油管 Rubber joint 1 1
2 13822019 油管 Oil tube 1 1
3 11351004 油管连接管 Oil pump connecting stud 1 1
4 11325005 开口销GB/T91-1986 挡圈Snap ring 1 1
5 10113007 柱塞销 Plunger spring 1 1
6 11351001 油管架 Hook driving shaft oil tube 1 1
7 10121001 油管架 Oil pump installing base 1 1
8 W030202 弹簧垫圈 Spring washer 1 1
9 209512001 压紧螺钉SM1/64"x40 L=10.5 完刀Screw SM1/64"x40 L=10.5 1 1
10 10103022 油管泵衬套 Oil pump bushing 1 1
11 10153007 柱塞销 Plunger spring 1 1
12 10127013 油管架 Oil pump installing 1 1
13 10122001 油管压盖 Oil felt 1 1
14 10126001 油管压盖 Oil felt 1 1
15 500009 油管 Oil pump 3 3
16 10111003 油泵叶轮 Oil pump impeller 3 3
17 10112021 油泵叶轮托板 Oil pump impeller cover 1 1
18 10113007 油泵盖 Oil pump cover 1 1
19 10111004 油管 Oil tube 1 1
20 101200100 油管管件 Oil return tube component 1 1
21 11653003 螺钉SM5/64"x28 L=14.5 完刀Screw SM5/64"x28 L=14.5 3 3
22 10136001 橡胶接头 Rubber joint 1 1
23 W020004 弹簧垫圈M6 Spring Washer M6 1 1
24 11321004 油管架 Hook oil tube 1 1
25 11327001 弹簧 Spring 1 1
26 11327004 油管盖 Oil shield cover 1 1
27 10127015 油管压盖 Oil felt clamp 1 1
28 10123006 油管压盖 Oil felt clamp 1 1
29 10151004 螺钉SM3/16"x28 L=7 完刀Screw SM3/16"x28 L=7 1 1
30 10121023 油管夹 Oil tube clamp 1 1
31 10121007 油管管件 Oil return tube component 1 1
32 10121008 油管管件 Oil return tube 1 1
34 10111004 油管 Oil tube 1 1
35 10151010 螺钉SM9/64"x40 L=11 完刀Screw SM9/64"x40 L=11 2 2
36 10112025 油管固定板 Oil wick fixing plate 1 1
37 10123010 油管 Oil wick 1 1
9. 自动倒送料开关组件/Automatic Reverse Feed Components
序号NO. 公司件号Part No. 名称Name零件描述Description数量Number
1 S05254 螺钉M2.5x4 Screw M2.5x4 1 1
2 1383004000 螺钉SM9/64"x40 L=7.7 完刀Screw SM9/64"x40 L=7.7 1 1
3 20151019 压线板 Wire press plate 1 1
4 13812022 橡皮套(角形) Rubber plug 1 1
5 101511004 螺钉SM3/16"x28 L=7 完刀Screw SM3/16"x28 L=7 1 1
6 1383003600 双牙开关组件 Auto reverse feed switch asm. 1 1
7 1383003600 双牙开关组件 Auto reverse feed switch asm. 2 2
8 W020004 弹簧垫圈M6 GB/T93-1987弹垫M6 Spring washer M6 2 2
9 11653003 螺钉SM15/64"x64 L=14.5 完刀Screw SM15/64"x64 L=14.5 2 2
10 11628005 牙牙固定螺钉SM1/64"x28 完刀Screw SM1/64"x28 2 2
11 1383001200 自动送料反向磁铁 Auto reverse feed solenoid 1 1
12 11226005 连杆销 Connecting rod pin 1 1
13 H05012 弹片 Spring ring 1 1
14 13802004 压脚垫片 Rubber plunger 1 1
15 13803031 垫片 Gasket 1 1
16 11727006 自动送料反向弹簧 Plunger spring 1 1
17 11312009 自动送料反向连杆 Auto reverse feed connecting rod 1 1
18 112520002 弹簧 Spring 1 1
19 11251007 连杆销 Hinge feed crank pin 1 1
20 11251007 连杆销 Hinge feed crank pin 1 1
21 11204003 自动倒送料螺钉 Auto reverse feed crank 1 1
22 11616008 螺钉SM11/64"x40 Snap ring 1 1
23 113250001 螺钉SM1/4"x28 Snap ring 1 1
24 11292020 自动送料拉杆 Auto reverse feed pull shaft 1 1
25 11292020 摆动环 Snap ring 5 1 1
26 11211005 尼龙扎带 Cable band 1 1
11. 油、齿轮、压脚组分组件/Oil Cersorvoir,Knee Lifter Components
序号NO. 公司件号Part No. 名称Name零件描述Description数量Number
1 10122022 油盘座 Oil reservoir rubber cushion 2 2
2 13801020 油盘 Oil Reservoir 1 1
3 10111005 压脚顶杆 Knee lifter push rod 1 1
4 10122020 油盘垫 Oil reservoir gasket 1 1
5 101511028 弹簧 Spring 1 1
6 10131001 油盘磁铁 Oil reservoir magnet 1 1
7 10122023 油盘座 Oil reservoir rubber cushion 2 2
8 10112027 压脚顶杆 Knee lifter crank 1 1
9 10127016 压脚顶杆 Knee lifter spring 1 1
10 10151001 螺钉SM3/16"x28 L=30 完刀Screw SM3/16"x28 L=30 1 1
11 13810001 压脚头 Knee lifter craft 1 1
12 H05010 弹片 Spring 1 1
13 10151016 螺钉SM3/16"x28 L=6 完刀Screw SM3/16"x28 L=6 2 2
14 10152002 螺母M6 Nut M6 L=6 2 2
11. 油、齿轮、压脚组分组件/Oil Cersorvoir,Knee Lifter Components
序号NO. 公司件号Part No. 名称Name零件描述Description数量Number
1 10122022 油盘座 Oil reservoir rubber cushion 2 2
2 13801020 油盘 Oil Reservoir 1 1
3 10111005 压脚顶杆 Knee lifter push rod 1 1
4 10122020 油盘垫 Oil reservoir gasket 1 1
5 101511028 弹簧 Spring 1 1
6 10131001 油盘磁铁 Oil reservoir magnet 1 1
7 10122023 油盘座 Oil reservoir rubber cushion 2 2
8 10112027 压脚顶杆 Knee lifter crank 1 1
9 10127016 压脚顶杆 Knee lifter spring 1 1
10 10151001 螺钉SM3/16"x28 L=30 完刀Screw SM3/16"x28 L=30 1 1
11 13810001 压脚头 Knee lifter craft 1 1
12 H05010 弹片 Spring 1 1
13 10151016 螺钉SM3/16"x28 L=6 完刀Screw SM3/16"x28 L=6 2 2
14 10152002 螺母M6 Nut M6 L=6 2 2
12 (2) 12 (2)
12. 机头附件(2)/Machine Head Accessories(2)
序号NO. 公司件号Part No. 名称Name零件描述Description数量Number
1 1011203100 机头连接螺钉 Head connecting rubber cushion 2 2
2 10122060 机头连接座 Head connecting rubber cushion 2 2
3 10117001 机针(14#) Needle 4 4
4 10117002 机针(14#) Needle 4 4
5 101530010 针杆连接座 Nail 4 4
6 10118003 机头连接座 Nail 4 4
7 10131001 螺丝刀(大) Screw driver,large 1 1
8 10131002 螺丝刀(中) Screw driver,medium 1 1
9 10131003 螺丝刀(小) Screw driver,small 1 1
10 10131004 螺丝刀(小) Screw driver,small 1 1
11 1011101200 油箱 Oil component 1 1
12 138310101B 防尘罩 Dust cover 1 1
杰克缝纫机股份有限公司
杰克缝纫机
全球销量遥遥领先
公司地址:台州市椒江区机场南路十五号
邮编:318000
国内销售部:
电话:0086-0576-88177788 88177789
传真:0086-0576-88177758
国际贸易部:
电话:0086-0576-88177782 88177774
传真:0086-0576-88177787
免费售后服务电话:400-8876858
http://www.chinajack.com
资料如有更改,恕不另行通知,以实物为准。
2015.08.19
