Juki LBH-781 Parts Book (PDF)
Text index — Juki LBH-781

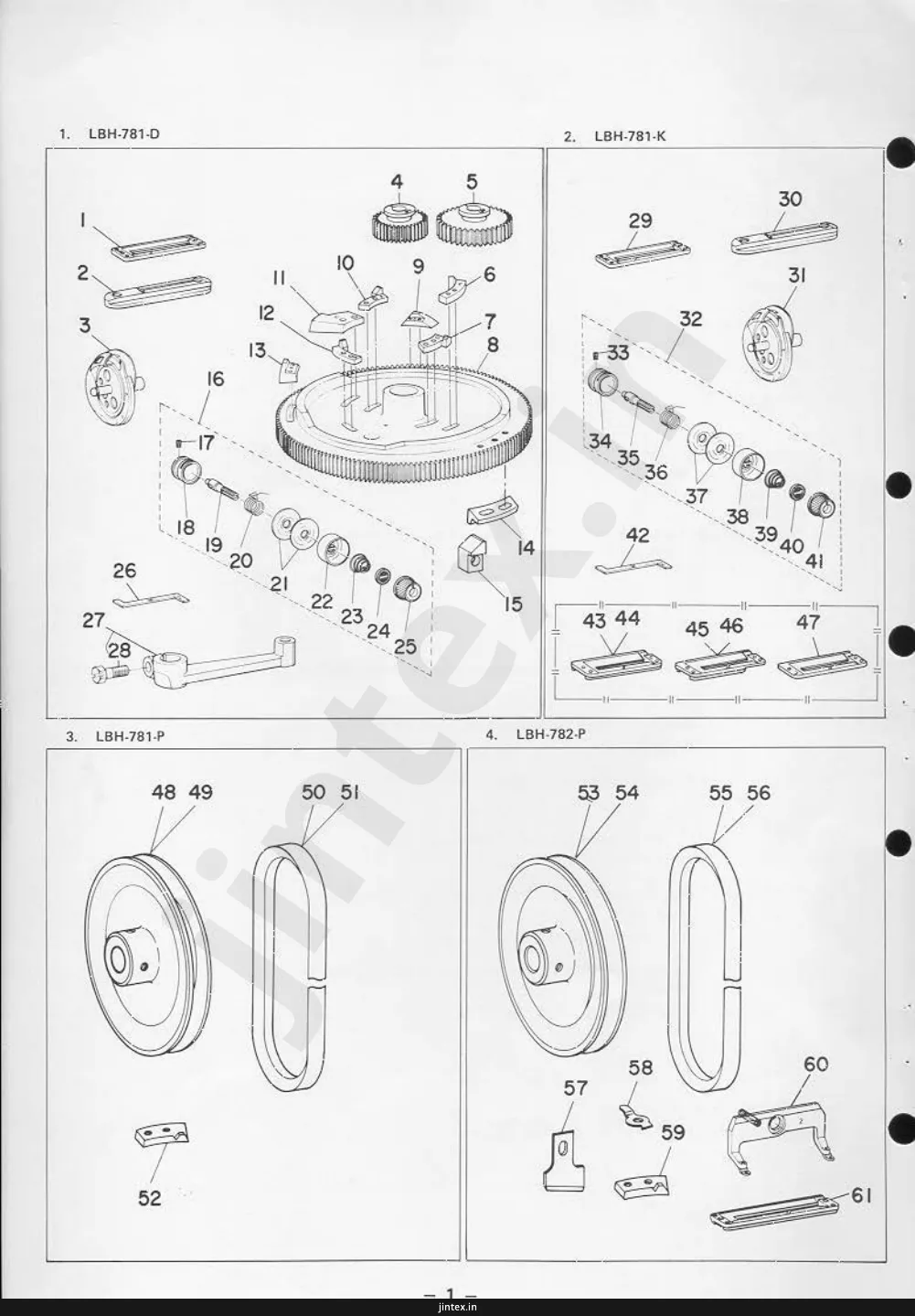

Page 2 — LBH-781-D, LBH-781-K, LBH-781-P, LBH-782-P
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | D1508-771-X00 | WORK CLAMP CHECK (K) | 1 |
| 2 | D2402-772-K00 | THROAT PLATE (K) | 1 |
| 3 | B1808-761-0AB | HOOK ASM. | 1 |
| 4 | B2952-761-000 | SPUR GEAR (105) | 1 |
| 5 | B2953-761-000 | SPUR GEAR (180) | 1 |
| 6 | D2906-761-000 | TENSION RELEASING GEAR NO.4 | 1 |
| 7 | D2908-761-D00 | TENSION RELEASING GEAR NO.1 | 1 |
| 8 | D2901-772-V00 | FEED CAM V | 1 |
| 9 | D2903-762-V00 | BAR TRIPPING SEGMENT 2V | 1 |
| 10 | D2905-761-000 | TENSION RELEASING GEAR NO.3 | 1 |
| 11 | D2904-762-V00 | KNIFE TRIPPING SEGMENT (2V) | 1 |
| 12 | D9302-762-V00 | GIMP GUIDE TRIPPING SEGMENT NO.2 | 1 |
| 13 | D2902-762-V00 | BAR TRIPPING SEGMENT 2V | 1 |
| 14 | D2907-762-V00 | STOP TRIPPING SEGMENT (2V) | 1 |
| 15 | D2615-762-V00 | LATCH (C) | 1 |
| 16 | D3110-772-TA0 | TENSION CONTROLLER ASM. | 1 |
| 17 | SS-8090670-SP | SCREW 9/64-40 L=5.5 | (1) |
| 18 | B3110-771-000 | TENSION POST SOCKET | (1) |
| 19 | B3111-761-000 | TENSION POST NO.3 | (1) |
| 20 | B3112-761-000 | THREAD TAKE-UP SPRING | (1) |
| 21 | B3126-012-000 | TENSION DISC | (2) |
| 22 | B3107-804-000 | TENSION DISC PRESSER TUBE | (1) |
| 23 | B3129-012-A00 | TENSION SPRING | (1) |
| 24 | B3120-125-000 | TENSION DISC STOPPER | (1) |
| 25 | B3119-771-000 | TENSION NUT | (1) |
| 26 | D9101-771-K00 | HOOK TIMING GAUGE (K) | 1 |
| 27 | D1601-762-VA0 | LENGTH REGULATING SHAFT CRANK ASM. | 1 |
| 28 | SS-9151630-CP | SCREW 15/64-28 L=15.5 | (1) |
| 29 | D1508-771-K00 | WORK CLAMP CHECK (K) | 1 |
| 30 | D2402-772-K00 | THROAT PLATE (K) | 1 |
| 31 | B1808-761-0AR | HOOK ASM. | 1 |
| 32 | D3110-772-TA0 | TENSION CONTROLLER ASM. | 1 |
| 33 | SS-8090670-SP | SCREW 9/64-40 L=5.5 | (1) |
| 34 | B3110-771-000 | TENSION POST SOCKET | (1) |
| 35 | B3111-761-000 | TENSION POST NO.3 | (1) |
| 36 | B3112-761-000 | THREAD TAKE-UP SPRING | (1) |
| 37 | B3126-012-000 | TENSION DISC | (2) |
| 38 | B3107-804-000 | TENSION DISC PRESSER TUBE | (1) |
| 39 | B3129-012-A00 | TENSION SPRING | (1) |
| 40 | B3120-125-000 | TENSION DISC STOPPER | (1) |
| 41 | B3119-771-000 | TENSION NUT | (1) |
| 42 | D9101-771-K00 | HOOK TIMING GAUGE (K) | 1 |
| 43 | D1508-771-K0B | WORK CLAMP CHECK 5/8" | 1 |
| 44 | D1508-771-K0C | WORK CLAMP CHECK 1/2" | 1 |
| 45 | D1508-771-K0E | WORK CLAMP CHECK 5/8" | 1 |
| 46 | D1508-771-K0F | WORK CLAMP CHECK 1/2" | 1 |
| 47 | D1508-771-K0H | WORK CLAMP CHECK | 1 |
| 48 | B7258-731-000 | MOTOR PULLEY FOR 50HZ 2800 | 1 |
| 49 | B7259-721-000 | MOTOR PULLEY FOR 60HZ 2800 | 1 |
| 50 | MTJ-VM004200 | V-BELT, 42 INCH | 1 |
| 51 | MTJ-VM004100 | V-BELT, 41 INCH | 1 |
| 52 | D2905-771-P00 | TENSION RELEASING GEAR NO.7 | 1 |
| 53 | B7258-781-000 | MOTOR PULLEY FOR 50HZ 2800 | 1 |
| 54 | B7259-781-000 | MOTOR PULLEY FOR 60HZ 2800 | 1 |
| 55 | MTJ-VM004200 | V-BELT, 42 INCH | 1 |
| 56 | MTJ-VM004100 | V-BELT, 41 INCH | 1 |
| 57 | B2702-047-000 | KNIFE 1" | 1 |
| 58 | B1608-772-000 | LENGTH REGULATING SHAFT GUIDE | 1 |
| 59 | D2905-771-P00 | TENSION RELEASING GEAR NO.7 | 1 |
| 60 | B1511-772-080 | WORK CLAMP CHECK HOLDER ASM. | 1 |
| 61 | B1552-782-000 | WORK CLAMP CHECK (2) | 1 |
Page 4 — LBH-782-D, LBH-782-E
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2702-047-000 | KNIFE 1" | 1 |
| 1 | 82702-047-000 | KNIFE 1" | |
| 2 | B1608-772-000 | LENGTH REGULATING SHAFT GUIDE | 1 |
| 3 | B2945-761-000 | SPUR GEAR 252 | 1 |
| 4 | B2944-761-000 | SPUR GEAR (74) | 1 |
| 5 | D3110-772-TAO | TENSION CONTROLLER ASM. | 1 |
| 6 | SS-8090670-SP | SCREW 9/64-40 L=5.5 | (1) |
| 7 | B3110-771-000 | TENSION POST SOCKET | (1) |
| 8 | B3111-761-000 | TENSION POST NO.3 | (1) |
| 9 | B3112-761-000 | THREAD TAKE-UP SPRING | (1) |
| 10 | B3126-012-000 | TENSION DISC | (2) |
| 11 | B3107-804-000 | TENSION DISC PRESSER TUBE | (1) |
| 12 | B3129-012-A00 | TENSION SPRING | (1) |
| 13 | B3120-125-000 | TENSION DISC STOPPER | (1) |
| 14 | B3119-771-000 | TENSION NUT | (1) |
| 15 | B1511-772-0B0 | WORK CLAMP CHECK HOLDER ASM. | 1 |
| 16 | D1508-772-K00 | WORK CLAMP CHECK (2K) | 1 |
| 17 | D2402-772-K00 | THROAT PLATE (K) | 1 |
| 18 | D2902-762-V00 | BAR TRIPPING SEGMENT 2V | 1 |
| 19 | D9302-762-V00 | GIMP GUIDE TRIPPING SEGMENT NO.2 | 1 |
| 20 | D2904-762-V00 | KNIFE TRIPPING SEGMENT (2V) | 1 |
| 21 | D2905-761-B00 | TENSION RELEASING GEAR NO.3 | 1 |
| 22 | D2903-762-V00 | BAR TRIPPING SEGMENT 2V | 1 |
| 23 | D2906-761-B00 | TENSION RELEASING GEAR NO.4 | 1 |
| 24 | D2905-761-D00 | TENSION RELEASING GEAR NO.1 | 1 |
| 25 | D2901-772-V00 | FEED CAM V | 1 |
| 26 | D2615-762-V00 | LATCH (C) | 1 |
| 27 | D2907-762-V00 | STOP TRIPPING SEGMENT (2V) | 1 |
| 28 | D1601-762-VAO | LENGTH REGULATING SHAFT CRANK ASM. | 1 |
| 29 | SS-9151630-CP | SCREW 15/64-28 L=15.5 | (1) |
| 30 | D9101-771-K00 | HOOK TIMING GAUGE (K) | 1 |
| 31 | B1808-761-0AB | HOOK ASM. | 1 |
| 32 | D1508-772-E00 | WORK CLAMP CHECK (2E) | 1 |
| 33 | B1511-772-0B0 | WORK CLAMP CHECK HOLDER ASM. | 1 |
| 34 | B1608-772-E00-A | LENGTH REGULATING SHAFT GUIDE | 1 |
| 35 | B2702-047-000 | KNIFE 1" | 1 |
| 36 | D2402-772-E00 | THROAT PLATE (E) | 1 |
| 37 | D1613-773-E00 | WORK CLAMP CARRIER | 1 |
| 38 | D2903-772-E00 | BAR TRIPPING SEGMENT NO.2 | 1 |
| 39 | D2904-772-F00 | KNIFE TRIPPING SEGMENT (E) | 1 |
| 40 | D2901-772-E00 | FEED CAM (E) | 1 |
| 41 | B1423-761-0A0 | NEEDLE THROW REPOSITIONING SHAFT | 1 |
| 42 | SS-6121210-SP | SCREW 3/16-28 L=12 | (1) |
Page 6 — LBH-782-T & V (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1113-761-000-A | LEFT SIDE COVER | 1 |
| 2 | MAO-91003000 | BSW PRESSER PLATE WASHER | 1 |
| 3 | D9322-773-100 | WORK CLAMP ARM | 1 |
| 4 | D9323-773-100 | SPACER | 3 |
| 5 | SS-6111110-SP | SCREW 11/64-40 L=11.0 | 2 |
| 6 | B2039-373-000 | THREAD GUIDE NO.1 | 1 |
| 7 | D1514-773-TOO-A | WORK CLAMP ARM | 1 |
| 8 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | 4 |
| 9 | SS-6622112-TP | SCREW 3/16-32 L=21 | 4 |
| 10 | D9319-762-TAO | GIMP GUIDE SHAFT TENSION SPRING | 1 |
| 11 | D9320-772-TOO-A | GIMP GUIDE HOLDER | 1 |
| 12 | D9321-772-TOO | SPRING | 1 |
| 13 | SS-8150410-SP | SCREW 15/64-28 L=4 | 2 |
| 14 | SS-8150710-SP | SCREW 15/64-28 L=7 | 1 |
| 15 | B2009-761-000 | UNIVERSAL JOINT | 1 |
| 16 | D9311-772-TAO | GIMP GUIDE SHAFT CRANK ASH. | 1 |
| 17 | SS-8151110-SP | SCREW 15/64-28 L=11.0 | 1 |
| 18 | D9310-772-TOO | GIMP GUIDE SHAFT | 1 |
| 19 | B1511-772-0B0 | WORK CLAMP CHECK HOLDER ASH. | 1 |
| 20 | D9335-762-TAO | GIMP TRIMMER BLADE ASH. (R) | (1) |
| 22 | D9336-762-TOO | SPRING B | (1) |
| 23 | WP-0250516-SD | WASHER 2.5X6X0.5 | (1) |
| 24 | SS-5060410-SP | SCREW 3/32-56 L=3.5 | (1) |
| 25 | SS-7060310-SP | SCREW 3/32-56 L=3 | 1 |
| 27 | D1508-772-K00 | WORK CLAMP CHECK (PX) | 1 |
| 28 | D2402-772-K00 | THROAT PLATE (K) | 1 |
| 29 | D9322-762-TOO | GIMP GUIDE SHAFT CRANK PRESSER HOOK | 1 |
| 30 | D9318-762-TOO | GIMP GUIDE SHAFT THRUST RING | 1 |
| 31 | WP-1002066-SZ | WASHER 10.0X17.0X2.0 | 1 |
| 32 | D9317-762-TOO | GIMP GUIDE SHAFT SPRING | 2 |
| 33 | D9316-762-TOO | GIMP GUIDE SHAFT COLLAR | 2 |
| 34 | D9303-762-TOO | GIMP REPOSITIONING SCREW, RIGHT | 2 |
| 35 | NS-6110420-SP | NUT 11/64-40 | 2 |
| 36 | D9301-772-TAO | GIMP GUIDE SHAFT MOUNTING BASE ASH. | 1 |
| 37 | D9302-762-TOO | GIMP GUIDE SHAFT STOP BRACKET | 1 |
| 38 | SS-7110740-TP | SCREW 11/64-40 L=7 | 2 |
| 39 | SD-0640751-SP | SCREW D=6.35 H=7.5 | 1 |
| 40 | D9308-762-TOO | GIMP GUIDE HOLDER CRANK PIN | 1 |
| 41 | D9309-762-TOO | GIMP GUIDE HOLDER CRANK ROLLER | 1 |
| 42 | D9307-762-TOO | GIMP GUIDE HOLDER CRANK | 1 |
| 43 | D9324-773-TOO | WORK CLAMP ARM RETAINER | 1 |
| 45 | SS-9111010-SP | SCREW 11/64-40 L=9.5 | 1 |
| 46 | D9315-762-TOO | GIMP GUIDE | 1 |
| 47 | SS-6090510-SP | SCREW 9/64-40 L=5 | 1 |
| 48 | D9314-762-TOO | GIMP GUIDE HOLDER | 1 |
| 49 | D9313-762-TAO | GIMP GUIDE SHAFT BRACKET ASH. | 1 |
| 50 | SS-7110710-SP | SCREW 11/64-40 L=7 | (2) |
| 51 | SS-7110810-SP | SCREW 11/64-40 L=8.5 | (1) |
| 52 | P2037-372-000 | NIPPER BAR BLOCK SPRING | 1 |
| 53 | NS-6120310-SP | NUT 3/16-28 | 1 |
| 55 | PS-0200102-KH | SPRING PIN 2.0X10 | 2 |
Page 8 — LBH-782-T & V (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 82930-761-000 | SPUR GEAR (100) | 1 |
| 2 | 82931-761-000 | SPUR GEAR (190) | 1 |
| 3 | B2413-761-000 | CONNECTING LINK | 1 |
| 4 | NS-6680410-SP | NUT 9/32-28 | 2 |
| 5 | D9332-762-T00 | DRIVING ROD TENSION SPRING | 1 |
| 6 | SS-7090520-SL | SCREW 9/64-40 L= 4.5 | 1 |
| 7 | D9333-762-T00 | GIMP SPOOL REST ROD | 1 |
| 8 | D9101-771-K00 | HOOK TIMING GAUGE (K) | 1 |
| 9 | D9334-762-T00 | GIMP SPOOL REST ROD EXTENSION GUIDE | 1 |
| 10 | D1129-772-T00 | FRAME SIDE COVER A | 1 |
| 11 | NS-6700420-SP | NUT 5/16-24 | 1 |
| 12 | SS-8661030-SP | SCREW 1/4-40 L=10 | 1 |
| 13 | D9331-762-T00 | SLIDE BLOCK | 1 |
| 14 | D9333-762-T00 | GIMP SPOOL REST ROD | 1 |
| 15 | B3117-352-000 | THREAD TENSION POST NUT | 2 |
| 16 | B3118-352-000 | THREAD TENSION SPRING | 1 |
| 17 | B3126-012-000 | TENSION DISC | 2 |
| 18 | B3119-352-000 | THREAD TENSION POST | 1 |
| 19 | B3107-352-000 | NEEDLE THREAD GUIDE | 1 |
| 20 | WP-0612516-SD | WASHER 6.1X15.2X2.5 | 1 |
| 21 | NS-6150310-SP | NUT 15/64-28 | 1 |
| 22 | B2702-047-000 | KNIFE 1" | 1 |
| 22 | B1805-761-0AB | HOOK ASM. | |
| 23 | B1808-761-0AB | HOOK ASM. | 1 |
| 24 | B1608-772-000 | LENGTH REGULATING SHAFT GUIDE | 1 |
| 25 | D9329-762-T00 | GIMP GUIDE TRIPPING SEGMENT NO.2 | 1 |
| 26 | D9328-762-T00 | GIMP GUIDE TRIPPING SEGMENT NO.1 | 1 |
| 27 | D2902-762-T00 | BAR TRIPPING SEGMENT 2T | 1 |
| 28 | D3110-772-TAO | TENSION CONTROLLER ASM. | 1 |
| 29 | SS-8090670-SP | SCREW 9/64-40 L= 5.5 | (1) |
| 30 | B3110-771-000 | TENSION POST SOCKET | (1) |
| 31 | B3111-761-000 | TENSION POST NO.3 | (1) |
| 32 | B3112-761-000 | THREAD TAKE-UP SPRING | (1) |
| 33 | B3126-012-000 | TENSION DISC | (2) |
| 33 | B3127-012-000 | TENSION DISC PRESSER TUBE | |
| 34 | B3107-804-000 | TENSION DISC PRESSER TUBE | (1) |
| 35 | B3129-012-A00 | TENSION SPRING | (1) |
| 36 | B3120-125-000 | TENSION DISC STOPPER | (1) |
| 37 | B3119-771-000 | TENSION NUT | (1) |
| 38 | D2902-762-V00 | BAR TRIPPING SEGMENT 2V | 1 |
| 39 | D9302-762-V00 | GIMP GUIDE TRIPPING SEGMENT NO.2 | 1 |
| 40 | D2904-762-V00 | KNIFE TRIPPING SEGMENT (2V) | 1 |
| 41 | D9301-762-V00 | GIMP GUIDE TRIPPING SEGMENT NO.1,4 | 2 |
| 42 | D2903-762-V00 | BAR TRIPPING SEGMENT 2V | 1 |
| 43 | D9303-762-V00 | GIMP GUIDE TRIPPING SEGMENT NO.3 | 1 |
| 44 | D2901-772-V00 | FEED CAM V | 1 |
| 45 | D2907-762-V00 | STOP TRIPPING SEGMENT (2V) | 1 |
| 46 | D2615-762-V00 | LATCH (C) | 1 |
| 47 | D1601-762-VA0 | LENGTH REGULATING SHAFT CRANK ASM. | 1 |
| 48 | SS-9151630-CP | SCREW 15/64-28 L=15.5 | (1) |

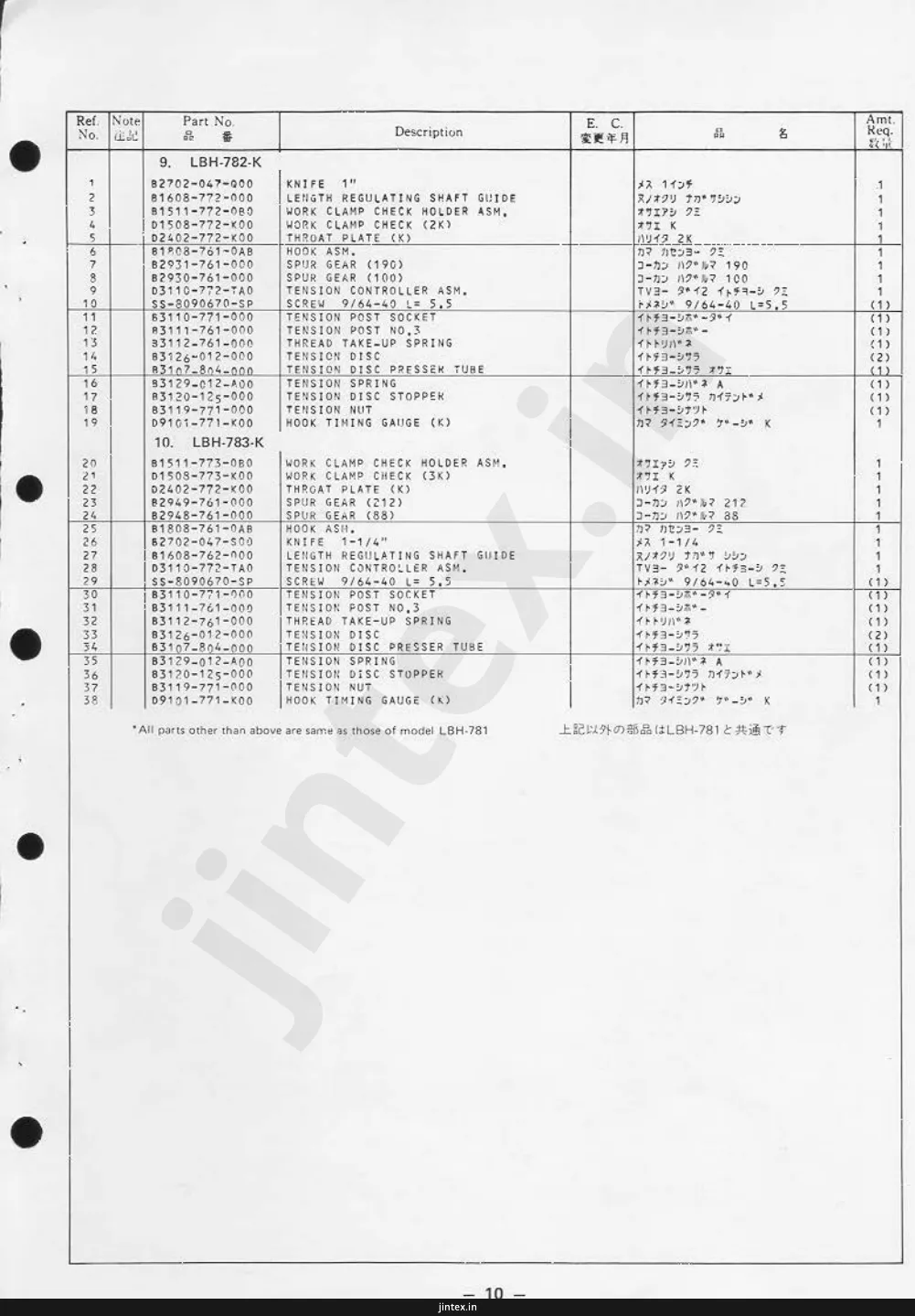

Page 10 — 9. LBH-782-K; 10. LBH-783-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2702-047-000 | KNIFE 1" | 1 |
| 2 | B1608-772-000 | LENGTH REGULATING SHAFT GUIDE | 1 |
| 3 | B1511-772-080 | WORK CLAMP CHECK HOLDER ASM. | 1 |
| 4 | D1508-772-K00 | WORK CLAMP CHECK (2K) | 1 |
| 5 | D2402-772-K00 | THROAT PLATE (K) | 1 |
| 6 | B1808-761-0AB | HOOK ASM. | 1 |
| 7 | B2931-761-000 | SPUR GEAR (190) | 1 |
| 8 | B2930-761-000 | SPUR GEAR (100) | 1 |
| 9 | D3110-772-TAO | TENSION CONTROLLER ASM. | 1 |
| 10 | SS-8090670-SP | SCREW 9/64-40 L=5.5 | (1) |
| 11 | B3110-771-000 | TENSION POST SOCKET | (1) |
| 12 | B3111-761-000 | TENSION POST NO.3 | (1) |
| 13 | B3112-761-000 | THREAD TAKE-UP SPRING | (1) |
| 14 | B3126-012-000 | TENSION DISC | (2) |
| 15 | B3107-804-000 | TENSION DISC PRESSER TUBE | (1) |
| 16 | B3129-012-A00 | TENSION SPRING | (1) |
| 17 | B3120-125-000 | TENSION DISC STOPPER | (1) |
| 18 | B3119-771-000 | TENSION NUT | (1) |
| 19 | D9101-771-K00 | HOOK TIMING GAUGE (K) | 1 |
| 20 | B1511-773-0B0 | WORK CLAMP CHECK HOLDER ASM. | 1 |
| 21 | D1508-773-K00 | WORK CLAMP CHECK (3K) | 1 |
| 22 | D2402-772-K00 | THROAT PLATE (K) | 1 |
| 23 | B2949-761-000 | SPUR GEAR (212) | 1 |
| 24 | B2948-761-000 | SPUR GEAR (88) | 1 |
| 25 | B1808-761-0AB | HOOK ASM. | 1 |
| 26 | B2702-047-S00 | KNIFE 1-1/4" | 1 |
| 27 | B1608-762-000 | LENGTH REGULATING SHAFT GUIDE | 1 |
| 28 | D3110-772-TAO | TENSION CONTROLLER ASM. | 1 |
| 29 | SS-8090670-SP | SCREW 9/64-40 L=5.5 | (1) |
| 30 | B3110-771-000 | TENSION POST SOCKET | (1) |
| 31 | B3111-761-000 | TENSION POST NO.3 | (1) |
| 32 | B3112-761-000 | THREAD TAKE-UP SPRING | (1) |
| 33 | B3126-012-000 | TENSION DISC | (2) |
| 34 | B3107-804-000 | TENSION DISC PRESSER TUBE | (1) |
| 35 | B3129-012-A00 | TENSION SPRING | (1) |
| 36 | B3120-125-000 | TENSION DISC STOPPER | (1) |
| 37 | B3119-771-000 | TENSION NUT | (1) |
| 38 | D9101-771-K00 | HOOK TIMING GAUGE (K) | 1 |
Page 12 — 11. LBH-783-D; 12. LBH-783-E
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | D2902-762-V00 | BAR TRIPPING SEGMENT 2V | 1 |
| 2 | D9302-762-V00 | GIMP GUIDE TRIPPING SEGMENT NO.2 | 1 |
| 3 | D2904-762-V00 | KNIFE TRIPPING SEGMENT (2V) | 1 |
| 4 | D2905-761-D00 | TENSION RELEASING GEAR NO.3 | 1 |
| 5 | D2903-762-V00 | BAR TRIPPING SEGMENT 2V | 1 |
| 6 | D2906-761-D00 | TENSION RELEASING GEAR NO.4 | 1 |
| 7 | D2908-761-D00 | TENSION RELEASING GEAR NO.1 | 1 |
| 8 | D2901-772-V00 | FEED CAM V | 1 |
| 9 | D2907-762-V00 | STOP TRIPPING SEGMENT (2V) | 1 |
| 10 | D2615-762-V00 | LATCH (C) | 1 |
| 11 | D3110-772-TA0 | TENSION CONTROLLER ASM. | 1 |
| 12 | SS-8090670-SP | SCREW 9/64-40 L= 5.5 | (1) |
| 13 | B3110-771-000 | TENSION POST SOCKET | (1) |
| 14 | B3111-761-000 | TENSION POST NO.3 | (1) |
| 15 | B3112-761-000 | THREAD TAKE-UP SPRING | (1) |
| 16 | B3126-012-000 | TENSION DISC | (2) |
| 17 | B3107-804-000 | TENSION DISC PRESSER TUBE | (1) |
| 18 | B3129-012-A00 | TENSION SPRING | (1) |
| 19 | B3120-125-000 | TENSION DISC STOPPER | (1) |
| 20 | B3119-771-000 | TENSION NUT | (1) |
| 21 | B1511-773-0B0 | WORK CLAMP CHECK HOLDER ASM. | 1 |
| 22 | D1508-773-K00 | WORK CLAMP CHECK (3K) | 1 |
| 23 | D1601-762-VA0 | LENGTH REGULATING SHAFT CRANK ASM. | 1 |
| 24 | SS-9151630-CP | SCREW 15/64-28 L=15.5 | (1) |
| 25 | B1608-762-000 | LENGTH REGULATING SHAFT GUIDE | 1 |
| 26 | D9101-772-K00 | HOOK TIMING GAUGE (K) | 1 |
| 27 | B2939-761-000 | SPUR GEAR (300) | 1 |
| 28 | B2938-761-000 | SPUR GEAR (63) | 1 |
| 29 | B1808-761-0AB | HOOK ASM. | 1 |
| 30 | B2702-047-S00 | KNIFE 1-1/4" | 1 |
| 31 | B1423-761-0A0 | NEEDLE THROW REPOSITIONING SHAFT | 1 |
| 32 | SS-6121210-SP | SCREW 3/16-28 L=12 | (2) |
| 33 | B1511-773-0B0 | WORK CLAMP CHECK HOLDER ASM. | 1 |
| 34 | D1508-773-E00 | WORK CLAMP CHECK | 1 |
| 35 | D2903-772-E00 | BAR TRIPPING SEGMENT NO.2 | 1 |
| 36 | D2904-772-E00 | KNIFE TRIPPING SEGMENT (E) | 1 |
| 37 | D2901-773-E00 | FEED CAM | 1 |
| 38 | D2402-772-E00 | THROAT PLATE (E) | 1 |
| 39 | B2702-047-S00 | KNIFE 1-1/4" | 1 |
| 40 | D1613-773-E00 | WORK CLAMP CARRIER | 1 |
| 41 | B2948-761-000 | SPUR GEAR (88) | 1 |
| 42 | B2949-761-000 | SPUR GEAR (212) | 1 |
| 43 | D1608-773-E00 | LENGTH REGULATING SHAFT GUIDE | 1 |
Page 14 — LBH-783-T & V (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1113-761-000-A | LEFT SIDE COVER | 1 |
| 2 | MAO-91003000 | BSW PRESSER PLATE WASHER | 1 |
| 3 | D9322-773-T00 | WORK CLAMP ARM | 1 |
| 4 | D9323-773-T00 | SPACER | 1 |
| 5 | SS-6111110-SP | SCREW 11/64-40 L=11.0 | 2 |
| 6 | B2039-373-000 | THREAD GUIDE NO.1 | 1 |
| 7 | D1514-773-T00-A | WORK CLAMP ARM | 1 |
| 8 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | 4 |
| 9 | SS-6622112-TP | SCREW 3/16-32 L=21 | 4 |
| 10 | D9319-762-T00 | GIMP GUIDE SHAFT TENSION SPRING | 1 |
| 10 | D9322-772-T00 | GIMP GUIDE HOLDER | 2 |
| 11 | D9322-772-T00-A | GIMP GUIDE HOLDER | 2 |
| 12 | D9321-772-T00 | SPRING | 1 |
| 13 | SS-8150410-SP | SCREW 15/64-28 L=4 | 2 |
| 14 | SS-8150750-SP | SCREW 15/64-28 L=7 | 1 |
| 15 | SS-8151160-SP | SCREW 15/64-28 L=11.0 | 1 |
| 16 | B2009-761-000 | UNIVERSAL JOINT | 1 |
| 17 | D9310-772-T00 | GIMP GUIDE SHAFT | 1 |
| 18 | B1511-773-0B0 | WORK CLAMP CHECK HOLDER ASM. | 1 |
| 19 | D9335-762-TAO | GIMP TRIMMER BLADE ASM. (R) | 1 |
| 20 | D9335-762-T00 | GIMP TRIMMER BLADE (B) | (1) |
| 21 | D9336-762-T00 | SPRING B | (1) |
| 22 | WP-0250516-SD | WASHER 2.5X6X0.5 | (1) |
| 23 | SS-5060410-SP | SCREW 3/32-56 L=3.5 | (1) |
| 24 | SS-7060310-SP | SCREW 3/32-56 L=3 | 1 |
| 25 | SS-6060410-TP | SCREW 3/32-56 L= 3.5 | 1 |
| 26 | D1508-773-K00 | WORK CLAMP CHECK (3K) | 1 |
| 27 | B2702-047-S00 | KNIFE 1-1/4" | 1 |
| 28 | D9318-762-T00 | GIMP GUIDE SHAFT THRUST RING | 1 |
| 29 | WP-1002066-SZ | WASHER 10.0X17.0X2.0 | 1 |
| 30 | D9317-762-T00 | GIMP GUIDE SHAFT SPRING | 2 |
| 31 | D9316-762-T00 | GIMP GUIDE SHAFT COLLAR | 2 |
| 32 | D9311-772-TAO | GIMP GUIDE SHAFT CRANK ASM. | 1 |
| 33 | D9303-762-T00 | GIMP REPOSITIONING SCREW, RIGHT | 2 |
| 34 | NS-6110420-SP | NUT 11/64-40 | 2 |
| 35 | SS-7110740-TP | SCREW 11/64-40 L=7 | 2 |
| 36 | D9302-762-T00 | GIMP GUIDE SHAFT STOP BRACKET | 1 |
| 37 | D9301-772-TAO | GIMP GUIDE SHAFT MOUNTING BASE ASM. | 1 |
| 38 | SS-9111010-SP | SCREW 11/64-40 L=9.5 | 2 |
| 39 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | 2 |
| 40 | D9324-773-T00 | WORK CLAMP ARM RETAINER | 1 |
| 41 | SD-0640751-SP | HINGE SCREW D= 6.35 H= 7.5 | 1 |
| 42 | D9313-762-TAO | GIMP GUIDE SHAFT BRACKET ASM. | 1 |
| 43 | SS-7110910-TP | SCREW 11/64-40 L= 8.5 | (2) |
| 44 | SS-7110910-SP | SCREW 11/64-40 L= 8.5 | (1) |
| 45 | D9314-762-T00 | GIMP GUIDE HOLDER | 1 |
| 46 | D9315-762-T00 | GIMP GUIDE | 1 |
| 47 | SS-6090510-SP | SCREW 9/64-40 L=5 | 1 |
| 48 | B1808-761-0AB | HOOK ASM. | 1 |
| 49 | D2402-772-K00 | THROAT PLATE (K) | 1 |
| 50 | D9322-772-V00 | GIMP GUIDE SHAFT CRANK PRESSER HOOK | 1 |
| 51 | B1608-762-000 | LENGTH REGULATING SHAFT GUIDE | 1 |
| 52 | D9307-762-T00 | GIMP GUIDE HOLDER CRANK | 1 |
| 53 | D9309-762-T00 | GIMP GUIDE HOLDER CRANK ROLLER | 1 |
| 54 | D9308-762-T00 | GIMP GUIDE HOLDER CRANK PIN | 1 |
| 55 | B2037-372-000 | NIPPER BAR BLOCK SPRING | 1 |
| 56 | NS-6120310-SP | NUT 3/16-28 | 1 |
| 57 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | 4 |
| 58 | PS-0200102-KH | SPRING PIN 2.0X10 | 2 |
Page 15
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2948-761-000 | SPUR GEAR (88) | 1 |
| 2 | B2949-761-000 | SPUR GEAR (212) | 1 |
| 3 | B2413-761-000 | CONNECTING LINK | 1 |
| 4 | SS-7090520-SL | SCREW 9/64-40 L=4.5 | 1 |
| 5 | D9101-771-K00 | HOOK TIMING GAUGE (K) | 1 |
| 6 | D9334-762-T00 | GIMP SPOOL REST ROD EXTENSION GUIDE | 1 |
| 7 | NS-6680410-SP | NUT 9/32-28 | 2 |
| 8 | D9333-762-T00 | GIMP SPOOL REST ROD | 1 |
| 9 | D9332-762-T00 | DRIVING ROD TENSION SPRING | 1 |
| 10 | D9331-762-T00 | SLIDE BLOCK | 1 |
| 11 | D9330-762-T00-A | POSITIONING SHAFT DRIVING ROD | 1 |
| 12 | NS-6700420-SP | NUT 5/16-24 | 1 |
| 13 | B3117-352-000 | THREAD TENSION POST NUT | 1 |
| 14 | B3118-352-000 | THREAD TENSION SPRING | 1 |
| 15 | B3119-352-000 | TENSION DISC | 2 |
| 16 | B3126-012-000 | TENSION POST | 1 |
| 18 | B3107-352-000 | NEEDLE THREAD GUIDE | 1 |
| 19 | WP-0612516-SD | WASHER 6.1X15.2X2.5 | 1 |
| 20 | NS-6150310-SP | NUT 15/64-28 | 1 |
| 21 | D2902-762-T00 | BAR TRIPPING SEGMENT 2T | 1 |
| 22 | D9328-762-T00 | GIMP GUIDE TRIPPING SEGMENT NO.1 | 1 |
| 23 | D9329-762-T00 | GIMP GUIDE TRIPPING SEGMENT NO.2 | 1 |
| 24 | D1129-772-T00 | FRAME SIDE COVER A | 1 |
| 25 | D3110-772-TAO | TENSION CONTROLLER ASM. | 1 |
| 26 | SS-8090670-SP | SCREW 9/64-40 L=5.5 | (1) |
| 27 | B3110-771-000 | TENSION POST SOCKET | (1) |
| 28 | B3111-761-000 | TENSION POST NO.3 | (1) |
| 29 | B3112-761-000 | THREAD TAKE-UP SPRING | (1) |
| 31 | B3107-804-000 | TENSION DISC PRESSER TUBE | (1) |
| 32 | B3129-012-A00 | TENSION SPRING | (1) |
| 33 | B3120-125-000 | TENSION DISC STOPPER | (1) |
| 34 | B3119-771-000 | TENSION NUT | (1) |
| 35 | D2902-762-V00 | BAR TRIPPING SEGMENT 2V | 1 |
| 36 | D9302-762-V00 | GIMP GUIDE TRIPPING SEGMENT NO.2 | 1 |
| 37 | D2904-762-V00 | KNIFE TRIPPING SEGMENT (2V) | 1 |
| 38 | D9301-762-V00 | GIMP GUIDE TRIPPING SEGMENT NO.1,4 | 2 |
| 39 | D9303-762-V00 | GIMP GUIDE TRIPPING SEGMENT NO.3 | 1 |
| 40 | D2901-772-V00 | FEED CAM V | 1 |
| 41 | D2907-762-V00 | STOP TRIPPING SEGMENT (2V) | 1 |
| 42 | D2615-762-V00 | LATCH (C) | 1 |
| 43 | B2939-761-000 | SPUR GEAR (300) | 1 |
| 44 | B2938-761-000 | SPUR GEAR (63) | 1 |
| 45 | D1601-762-VAO | LENGTH REGULATING SHAFT CRANK ASM. | 1 |
| 46 | SS-9151630-CP | SCREW 15/64-28 L=15.5 | (1) |
Page 17
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 81513-774-000 | WORK CLAMP BRACKET | 1 |
| 2 | 81551-784-000 | WORK CLAMP ARM | 1 |
| 3 | 81609-774-000 | WORK CLAMP ARM SLIDE ROD | 1 |
| 4 | 81608-761-0AB | HOOK ASH. | 1 |
| 5 | D9101-771-K00 | HOOK TIMING GAUGE (K) | 1 |
| 6 | 81606-774-000 | WORK CLAMP CARRIER PITMAN | 1 |
| 7 | SD-0870401-SP | HINGE SCREW D= 8.73 H= 4 | 1 |
| 8 | 81605-774-000 | FEED ADJUSTING SHAFT | 1 |
| 9 | 82745-774-00B | KNIFE 1-1/2" | 1 |
| 10 | B2745-774-00A | KNIFE 1-3/8" | 1 |
| 11 | D1508-774-K00 | WORK CLAMP CHECK | 1 |
| 12 | B1613-774-000 | WORK CLAMP CARRIER | 1 |
| 13 | B1612-774-000 | WORK CLAMP ARM BRACKET GUIDE | 1 |
| 14 | B1516-774-000 | WORK CLAMP ARM BEARING BRACKET | 1 |
| 15 | B1611-774-0A0 | WORK CLAMP ARM BRACKET ASM. | 1 |
| 16 | SS-6151440-SP | SCREW 15/64-28 L=14 | (1) |
| 17 | B1608-774-000 | LENGTH REGULATING SHAFT GUIDE | 1 |
| 18 | B1603-774-0A0 | LENGTH REGULATING ARM ASM. | 1 |
| 19 | 82944-761-000 | SPUR GEAR (74) | 1 |
| 19 | B2944-761-000 | SPUR GEAR (74) | |
| 20 | 82945-761-000 | SPUR GEAR 252 | 1 |
| 21 | D3110-772-TAO | TENSION CONTROLLER ASM. | 1 |
| 22 | SS-8090670-SP | SCREW 9/64-40 L= 5.5 | (1) |
| 23 | B3110-771-000 | TENSION POST SOCKET | (1) |
| 24 | 83111-761-000 | TENSION POST NO.3 | (1) |
| 25 | 83112-761-000 | THREAD TAKE-UP SPRING | (1) |
| 26 | 83126-012-000 | TENSION DISC | (2) |
| 27 | B3107-804-000 | TENSION DISC PRESSER TUBE | (1) |
| 28 | B3129-012-A00 | TENSION SPRING | (1) |
| 29 | B3120-12G-000 | TENSION DISC STOPPER | (1) |
| 30 | B3119-771-000 | TENSION NUT | (1) |
| 31 | D2401-774-KCO | NEEDLE PLATE ASM. | 1 |
| 32 | SS-2090530-SP | SCREW 9/64-40 L= 4.8 | (2) |
| 33 | D2402-774-K00 | THROAT PLATE 4K | (1) |
| 34 | B2401-774-0A0 | THROAT PLATE BASE ASM. | (1) |
| 35 | B2406-771-0A0 | BOBBIN THPEAD TRIMMER BLADE ASM. | (1) |
| 36 | SS-5090320-SP | SCREW 9/64-40 L= 3.2 | (1) |
| 37 | B2408-771-000-A | COUNTER KNIFE | (1) |
| 38 | SS-4080310-SP | SCREW 1/8-44 L=3.4 | (2) |
| 39 | 82405-771-000 | BOBBIN THREAD PULLER | (1) |
| 39 | B2405-771-000 | BOBBIN THREAD PULLER | |
| 40 | SS-6090440-SP | SCREW 9/64-40 L= 4.0 | (2) |
| 41 | B2404-771-000 | BOBBIN THREAD TRIMMER LEVER | (1) |
| 42 | WP-0451016-SP | WASHER 4.5X20X1 | (1) |
| 43 | SS-5090320-SP | SCREW 9/64-40 L= 3.2 | (1) |
Page 19 — LBH-784-T & V (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2039-373-000 | THREAD GUIDE NO.1 | 1 |
| 2 | B1513-774-000 | WORK CLAMP BRACKET | 1 |
| 3 | MAO-91003000 | BSW PRESSER PLATE WASHER | 1 |
| 4 | D9323-774-T00 | SPACING PLATE | 2 |
| 5 | SS-6111110-SP | SCREW 11/64-40 L=11.0 | 2 |
| D1508-774-K00 | WORK CLAMP CHECK | 1 | |
| D1514-774-T00 | WORK CLAMP ARM | 1 | |
| D9322-772-T00-A | GIMP GUIDE HOLDER | 2 | |
| WP-0480856-SP | WASHER 4.8X8.4X0.8 | 4 | |
| SS-6622112-TP | SCREW 3/16-32 L=21 | 4 | |
| D9310-772-T00 | GIMP GUIDE SHAFT TENSION SPRING | 1 | |
| SS-8150410-SP | SCREW 15/64-28 L=4 | 2 | |
| SS-8150750-SP | SCREW 15/64-28 L=7 | 1 | |
| SS-8151110-SP | SCREW 15/64-28 L=11.0 | 1 | |
| B2009-761-000 | UNIVERSAL JOINT | 1 | |
| D9321-772-T00 | SPRING | 1 | |
| D9322-774-T00 | GIMP GUIDE FEED PLATE | 1 | |
| B1511-774-0A0 | WORK CLAMP CHECK HOLDER ASM. | 1 | |
| D9335-762-T00 | GIMP TRIMMER BLADE ASM. (B) | (1) | |
| D9336-762-T00 | SPRING B | (1) | |
| WP-0250516-SD | WASHER 2.5X6X0.5 | (1) | |
| SS-5060410-SP | SCREW 3/32-56 L=3.5 | (1) | |
| SS-7060310-SP | SCREW 3/32-56 L=3 | (1) | |
| SS-6060410-SP | SCREW 9/64-40 L=3.5 | 1 | |
| D2401-774-KCO | NEEDLE PLATE ASM. | (2) | |
| SS-2090530-SP | SCREW 9/64-40 L=4.8 | (2) | |
| D2402-774-K00 | THROAT PLATE 4K | (1) | |
| B2401-774-0A0 | THROAT PLATE BASE ASM. | (1) | |
| B2406-771-0A0 | BOBBIN THREAD TRIMMER BLADE ASM. | (1) | |
| SS-5090320-SP | SCREW 9/64-40 L=3.2 | (1) | |
| B2408-771-000-A | COUNTER KNIFE | (1) | |
| SS-4080310-SP | SCREW 1/8-44 L=3.4 | (2) | |
| B2405-771-000 | BOBBIN THREAD PULLER | (1) | |
| SS-6090440-SP | SCREW 9/64-40 L=4.0 | (2) | |
| B2404-771-000 | BOBBIN THREAD TRIMMER LEVER | (1) | |
| WP-0451016-SP | WASHER 4.5X20X1 | (1) | |
| D9318-762-T00 | GIMP GUIDE SHAFT THRUST RING | 1 | |
| WP-1002066-SZ | WASHER 10.0X17.0X2.0 | 1 | |
| D9317-762-T00 | GIMP GUIDE SHAFT SPRING | 2 | |
| D9316-762-T00 | GIMP GUIDE SHAFT COLLAR | 2 | |
| D9311-772-TAO | GIMP GUIDE SHAFT CRANK ASM. | 1 | |
| D9303-762-T00 | GIMP REPOSITIONING SCREW, RIGHT | 2 | |
| SS-7110710-TP | SCREW 11/64-40 L=7 | 2 | |
| NS-6110420-SP | NUT 11/64-40 | 2 | |
| D9302-762-T00 | GIMP GUIDE SHAFT STOP BRACKET | 1 | |
| B1113-761-000-A | LEFT SIDE COVER | 1 | |
| D9324-774-T00 | WORK CLAMP ARM RETAINER | 1 | |
| SS-9111010-SP | SCREW 11/64-40 L=9.5 | 2 | |
| D9315-762-T00 | GIMP GUIDE | 1 | |
| SS-6090510-SP | SCREW 9/64-40 L=5 | 1 | |
| B1603-774-0A0 | LENGTH REGULATING ARM ASM. | 1 | |
| B1606-774-000 | WORK CLAMP CARRIER PITMAN | 1 | |
| SD-0870401-SP | HINGE SCREW D= 8.73 H= 4 | 1 | |
| B1605-774-000 | FEED ADJUSTING SHAFT | 1 | |
| B1608-774-000 | LENGTH REGULATING SHAFT GUIDE | 1 | |
| D9314-762-T00 | GIMP GUIDE HOLDER | 1 | |
| D9307-762-T00 | GIMP GUIDE HOLDER CRANK | 1 | |
| D9309-762-T00 | GIMP GUIDE HOLDER CRANK ROLLER | 1 | |
| D9308-762-T00 | GIMP GUIDE HOLDER CRANK PIN | 1 | |
| D9313-774-TAO | GIMP GUIDE SHAFT BRACKET ASM. | 1 | |
| SS-7110710-SP | SCREW 11/64-40 L=7 | (1) | |
| SS-7110910-SP | SCREW 11/64-40 L=8.5 | (1) | |
| SD-0640751-SP | HINGE SCREW D= 6.35 H= 7.5 | 1 | |
| B2037-372-000 | NIPPER BAR BLOCK SPRING | 1 | |
| B1611-774-0A0 | WORK CLAMP ARM BRACKET ASM. | 1 | |
| SS-6151440-SP | SCREW 15/64-28 L=14 | (1) | |
| NS-6120310-SP | NUT 3/16-28 | 1 | |
| D9301-772-TAO | GIMP GUIDE SHAFT MOUNTING BASE ASM. | 1 | |
| PS-0200102-KH | SPRING PIN 2.0X10 | 2 | |
| B1510-774-000 | WORK CLAMP ARM BEARING BRACKET | 1 | |
| B1609-774-000 | WORK CLAMP ARM SLIDE ROD | 1 | |
| B1613-774-000 | WORK CLAMP CARRIER | 1 |
Page 21 — LBH-784-T & V (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2944-761-000 | SPUR GEAR (74) | 1 |
| 2 | 82945-761-000 | SPUR GEAR 252 | 1 |
| 3 | B2413-761-000 | CONNECTING LINK | 1 |
| 4 | NS-6680410-SP | NUT 9/32-28 | 2 |
| 5 | SS-7090520-SL | SCREW 9/64-40 L=4.5 | 1 |
| 6 | D9334-762-T00 | GIMP SPOOL REST ROD EXTENSION GUIDE | 1 |
| 7 | D9333-762-T00 | GIMP SPOOL REST ROD | 1 |
| 8 | D1129-772-T00 | FRAME SIDE COVER A | 1 |
| 9 | NS-6700420-SP | NUT 5/16-24 | 1 |
| 10 | SS-8661030-SP | SCREW 1/4-40 L=10 | 1 |
| 11 | D9331-762-T00 | SLIDE BLOCK | 1 |
| 12 | D9330-762-T00-A | POSITIONIG SHAFT DRIVING ROD | 1 |
| 13 | D9332-762-T00 | DRIVING ROD TENSION SPRING | 1 |
| 14 | D9101-771-K00 | HOOK TIMING GAUGE (K) | 1 |
| 15 | B3117-352-000 | THREAD TENSION POST NUT | 2 |
| 16 | B3118-352-000 | THREAD TENSION SPRING | 2 |
| 17 | B3126-012-000 | TENSION DISC | 2 |
| 18 | B3119-352-000 | THREAD TENSION POST | 1 |
| 19 | B3107-352-000 | NEEDLE THREAD GUIDE | 1 |
| 20 | WP-0612516-SD | WASHER 6.1X15.2X2.5 | 1 |
| 21 | NS-6150310-SP | NUT 15/64-28 | 1 |
| 22 | B2745-774-00B | KNIFE 1-1/2" | 1 |
| 23 | B2745-774-00A | KNIFE 1-3/8" | 1 |
| 24 | D2902-762-T00 | BAR TRIPPING SEGMENT 2T | 1 |
| 25 | D9328-762-T00 | GIMP GUIDE TRIPPING SEGMENT NO.1 | 1 |
| 26 | D9329-762-T00 | GIMP GUIDE TRIPPING SEGMENT NO.2 | 1 |
| 27 | D9322-772-V00 | GIMP GUIDE SHAFT CRANK PRESSER HOOK | 1 |
| 28 | B1808-761-0AB | HOOK ASH. | 1 |
| 29 | B3110-772-TAO | TENSION CONTROLLER ASH. | 1 |
| 30 | SS-8090670-SP | SCREW 9/64-40 L=5.5 | (1) |
| 31 | B3110-771-000 | TENSION POST SOCKET | (1) |
| 32 | B3111-761-000 | TENSION POST NO.3 | (1) |
| 33 | B3112-761-000 | THREAD TAKE-UP SPRING | (1) |
| 35 | B3107-804-000 | TENSION DISC PRESSER TUBE | (1) |
| 36 | B3129-012-A00 | TENSION SPRING | (1) |
| 37 | B3120-125-000 | TENSION DISC STOPPER | (1) |
| 38 | B3119-771-000 | TENSION NUT | (1) |
| 39 | D2901-772-V00 | FEED CAM V | 1 |
| 40 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | 16 |
| 41 | D2902-762-V00 | BAR TRIPPING SEGMENT 2V | 1 |
| 42 | D9302-762-V00 | GIMP GUIDE TRIPPING SEGMENT NO.2 | 1 |
| 43 | SS-6111610-SP | SCREW 11/64-40 L=16 | 8 |
| 44 | D2904-762-V00 | KNIFE TRIPPING SEGMENT (2V) | 1 |
| 45 | D9301-762-V00 | GIMP GUIDE TRIPPING SEGMENT NO.1,4 | 2 |
| 46 | D2903-762-V00 | BAR TRIPPING SEGMENT 2V | 1 |
| 47 | D9303-762-V00 | GIMP GUIDE TRIPPING SEGMENT NO.3 | 1 |
| 48 | D2907-762-V00 | STOP TRIPPING SEGMENT (2V) | 1 |
| 49 | D2615-762-V00 | LATCH (C) | 1 |
| 50 | B2937-761-000 | SPUR GEAR (345) | 1 |
| 51 | B2936-761-000 | SPUR GEAR (54) | 1 |
| 52 | B1601-762-VAO | LENGTH REGULATING SHAFT CRANK ASM. | 1 |
| 53 | SS-9151630-CP | SCREW 15/64-28 L=15.5 | (1) |
| 54 | D9101-772-B00 | HOOK TIMING GAUGE VB | 1 |
Page 23 — THREAD STAND COMPONENTS (FOR T & V) (SPECIAL ORDER PARTS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | D3301-772-TAO | THREAD STAND ASM. | 1 |
| 2 | B3311-704-000 | SPOOL REST ROD RUBBER CAP | (2) |
| 3 | NM-6160511-SE | NUT M16x1.5 | (4) |
| 4 | WP-1702600-SO | WASHER 17X30X2.6 | (3) |
| 5 | D3306-555-B00 | THREAD GUIDE STOPPER PLATE | (1) |
| 6 | 83307-704-000 | THREAD GUIDE A | (1) |
| 7 | B3313-704-GAO | SPOOL REST ROD ASM., UPPER | (1) |
| 8 | 83305-704-000-A | SPOOL REST ROD JOINT | (1) |
| 9 | SM-6041410-SC | SCREW M4X0.7 L=14 | (2) |
| 10 | NM-6040000-SN | NUT M4 | (2) |
| 11 | 83301-704-000-A | SPOOL REST ROD, LOWER | (1) |
| 11 | B3301-704-000-A | SPOOL REST ROD, LOWER | |
| 12 | 83312-012-000 | SPOOL RETAINER | (3) |
| 13 | 83305-012-000 | SPOOL PIN | (3) |
| 14 | WP-0560860-SE | WASHER 5.6X12X0.8 | (3) |
| 15 | 83311-012-000 | SPOOL REST CUSHION | (3) |
| 16 | 83303-704-000 | SPOOL REST | (3) |
| 17 | WS-0521010-KN | SPRING WASHER 5.2X8.2X1 | (3) |
| 18 | NS-6120310-SP | NUT 3/16-28 | (3) |
| 19 | SM-9050813-SE | SCREW M5X0.8 L=8 | (3) |
| 20 | WS-0521010-KN | SPRING WASHER 5.2X8.2X1 | (3) |
| 21 | WP-0520656-SA | WASHER 5.2X9.5X0.6 | (3) |
| 22 | D3302-772-TAO | SPOOL REST BRACKET | (1) |
| 23 | SM-9061080-SE | SCREW M6 L=10 | (2) |
| 24 | D3302-555-B00 | BRACKET | (1) |
| 25 | WS-1643202-KN | SPRING WASHER 16.4X26.6X3.7 | (1) |
| 26 | MAO-11532000 | STAPLE | (3) |
Page 24 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 14 | B1113-761-000-A | EXCLUSIVE PARTS "B" 専用部品 "B" | 1 |
| 41 | B1423-761-0A0 | EXCLUSIVE PARTS "B" 専用部品 "B" | 4 |
| 31 | B1423-761-0A0 | EXCLUSIVE PARTS "B" 専用部品 "B" | 17 |
| 60 | B1511-772-0B0 | EXCLUSIVE PARTS "B" 専用部品 "B" | 2 |
| 15 | B1511-772-0B0 | EXCLUSIVE PARTS "B" 専用部品 "B" | 4 |
| 33 | B1511-772-0B0 | EXCLUSIVE PARTS "B" 専用部品 "B" | 4 |
| 19 | B1511-772-0B0 | EXCLUSIVE PARTS "B" 専用部品 "B" | 6 |
| 3 | B1511-772-0B0 | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 21 | B1511-772-0B0 | EXCLUSIVE PARTS "B" 専用部品 "B" | 12 |
| 20 | B1511-773-0B0 | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 33 | B1511-773-0B0 | EXCLUSIVE PARTS "B" 専用部品 "B" | 12 |
| 18 | B1511-773-0B0 | EXCLUSIVE PARTS "B" 専用部品 "B" | 14 |
| 19 | B1511-774-0A0 | EXCLUSIVE PARTS "B" 専用部品 "B" | 20 |
| 1 | B1513-774-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 2 | B1513-774-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 20 |
| 14 | B1516-774-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 75 | B1516-774-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 20 |
| 2 | B1551-784-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 61 | B1552-782-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 18 | B1603-774-0A0 | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 55 | B1603-774-0A0 | EXCLUSIVE PARTS "B" 専用部品 "B" | 20 |
| 8 | B1605-774-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 58 | B1605-774-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 20 |
| 6 | B1606-774-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 56 | B1606-774-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 20 |
| 27 | B1608-762-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 25 | B1608-762-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 12 |
| 51 | B1608-762-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 14 |
| 58 | B1608-772-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 7 |
| 24 | B1608-772-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 4 |
| 2 | B1608-774-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 17 | B1608-774-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 59 | B1608-774-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 20 |
| 3 | B1609-774-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 76 | B1609-774-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 20 |
| 15 | B1611-774-0A0 | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 69 | B1611-774-0A0 | EXCLUSIVE PARTS "B" 専用部品 "B" | 20 |
| 13 | B1612-774-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 12 | B1613-774-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 77 | B1613-774-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 20 |
| 3 | B1808-761-0AB | EXCLUSIVE PARTS "B" 専用部品 "B" | 2 |
| 31 | B1808-761-0AB | EXCLUSIVE PARTS "B" 専用部品 "B" | 2 |
| 31 | B1808-761-0AB | EXCLUSIVE PARTS "B" 専用部品 "B" | 4 |
| 23 | B1808-761-0AB | EXCLUSIVE PARTS "B" 専用部品 "B" | 8 |
| 6 | B1808-761-0AB | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 25 | B1808-761-0AB | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 29 | B1808-761-0AB | EXCLUSIVE PARTS "B" 専用部品 "B" | 12 |
| 48 | B1808-761-0AB | EXCLUSIVE PARTS "B" 専用部品 "B" | 14 |
| 4 | B1808-761-0AB | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 28 | B1808-761-0AB | EXCLUSIVE PARTS "B" 専用部品 "B" | 22 |
| 15 | B2009-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 6 |
| 16 | B2009-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 14 |
| 16 | B2009-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 20 |
| 52 | B2037-372-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 6 |
| 55 | B2037-372-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 14 |
| 68 | B2037-372-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 20 |
| 6 | B2039-373-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 6 |
| 6 | B2039-373-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 14 |
| 1 | B2039-373-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 20 |
| 34 | B2401-774-0A0 | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 30 | B2401-774-0A0 | EXCLUSIVE PARTS "B" 専用部品 "B" | 20 |
| 41 | B2404-771-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 37 | B2404-771-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 20 |
| 39 | B2405-771-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 36 | B2405-771-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 20 |
| 35 | B2406-771-0A0 | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 31 | B2406-771-0A0 | EXCLUSIVE PARTS "B" 専用部品 "B" | 20 |
| 37 | B2408-771-000-A | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 33 | B2408-771-000-A | EXCLUSIVE PARTS "B" 専用部品 "B" | 20 |
| 3 | B2413-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 8 |
| 3 | B2413-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 16 |
| 3 | B2413-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 22 |
| 57 | B2702-047-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 2 |
| 1 | B2702-047-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 4 |
| 35 | B2702-047-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 4 |
| 22 | B2702-047-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 8 |
| 26 | B2702-047-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 76 | B2702-047-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 30 | B2702-047-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 12 |
| 39 | B2702-047-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 12 |
| 77 | B2702-047-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 14 |
| 10 | B2745-774-00A | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 23 | B2745-774-00A | EXCLUSIVE PARTS "B" 専用部品 "B" | 22 |
| 9 | B2745-774-00B | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 22 | B2745-774-00B | EXCLUSIVE PARTS "B" 専用部品 "B" | 27 |
| 1 | B2930-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 8 |
| 7 | B2930-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 28 | B2931-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 45 | B2931-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 16 |
| 27 | B2931-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 17 |
| 44 | B2931-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 16 |
| 4 | B2931-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 4 |
| 19 | B2931-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 2 | B2931-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 22 |
| 3 | B2936-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 4 |
| 24 | B2936-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 41 | B2937-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 17 |
| 1 | B2937-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 16 |
| 23 | B2937-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 42 | B2937-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 17 |
| 2 | B2944-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 16 |
| 4 | B2944-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 7 |
| 5 | B2944-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 7 |
| 19 | B2945-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 8 |
| 14 | B2945-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 16 |
| 19 | B2945-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 22 |
| 41 | B2948-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 43 | B2948-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 17 |
| 23 | B2949-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 44 | B2949-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 17 |
| 1 | B2952-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 16 |
| 2 | B2952-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 16 |
| 1 | B2953-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 16 |
| 19 | B3107-352-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 8 |
| 14 | B3107-352-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 16 |
| 19 | B3107-352-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 22 |
| 22 | B3107-804-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 2 |
| 38 | B3107-804-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 2 |
| 34 | B3107-804-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 4 |
| 15 | B3107-804-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 34 | B3107-804-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 17 | B3107-804-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 17 |
| 31 | B3107-804-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 16 |
| 27 | B3107-804-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 35 | B3107-804-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 22 |
| 18 | B3110-771-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 2 |
| 34 | B3110-771-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 2 |
| 7 | B3110-771-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 4 |
| 30 | B3110-771-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 8 |
| 11 | B3110-771-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 30 | B3110-771-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 13 | B3110-771-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 12 |
| 27 | B3110-771-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 16 |
| 23 | B3110-771-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 31 | B3110-771-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 22 |
| 19 | B3111-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 2 |
| 35 | B3111-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 7 |
| 8 | B3111-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 4 |
| 31 | B3111-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 4 |
| 12 | B3111-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 31 | B3111-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 14 | B3111-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 12 |
| 28 | B3111-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 16 |
| 24 | B3111-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 32 | B3111-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 22 |
| 20 | B3112-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 2 |
| 36 | B3112-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 7 |
| 9 | B3112-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 4 |
| 32 | B3112-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 8 |
| 13 | B3112-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 32 | B3112-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 15 | B3112-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 12 |
| 29 | B3112-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 16 |
| 25 | B3112-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 33 | B3112-761-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 22 |
| 15 | B3117-352-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 8 |
| 14 | B3117-352-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 16 |
| 15 | B3117-352-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 22 |
| 16 | B3118-352-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 8 |
| 15 | B3118-352-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 16 |
| 16 | B3118-352-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 22 |
| 17 | B3119-352-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 18 | B3119-352-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 22 |
| 25 | B3119-352-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 2 |
| 41 | B3119-771-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 2 |
| 4 | B3119-771-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 2 |
| 14 | B3119-771-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 14 |
| 37 | B3119-771-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 8 |
| 10 | B3119-771-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 37 | B3119-771-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 20 | B3119-771-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 12 |
| 30 | B3119-771-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 38 | B3119-771-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 22 |
| 24 | B3120-125-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 2 |
| 40 | B3120-125-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 2 |
| 13 | B3120-125-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 4 |
| 36 | B3120-125-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 4 |
| 17 | B3120-125-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 36 | B3120-125-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 19 | B3120-125-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 12 |
| 33 | B3120-125-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 16 |
| 29 | B3120-125-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 37 | B3120-125-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 22 |
| 21 | B3126-012-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 2 |
| 37 | B3126-012-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 2 |
| 10 | B3126-012-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 4 |
| 17 | B3126-012-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 4 |
| 33 | B3126-012-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 8 |
| 14 | B3126-012-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 33 | B3126-012-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 16 | B3126-012-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 12 |
| 16 | B3126-012-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 16 |
| 30 | B3126-012-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 16 |
| 26 | B3126-012-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 17 | B3126-012-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 22 |
| 34 | B3126-012-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 22 |
| 23 | B3129-012-A00 | EXCLUSIVE PARTS "B" 専用部品 "B" | 2 |
| 39 | B3129-012-A00 | EXCLUSIVE PARTS "B" 専用部品 "B" | 2 |
| 11 | B3129-012-A00 | EXCLUSIVE PARTS "B" 専用部品 "B" | 4 |
| 18 | B3129-012-A00 | EXCLUSIVE PARTS "B" 専用部品 "B" | 4 |
| 10 | B3129-012-A00 | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 38 | B3129-012-A00 | EXCLUSIVE PARTS "B" 専用部品 "B" | 10 |
| 17 | B3129-012-A00 | EXCLUSIVE PARTS "B" 専用部品 "B" | 12 |
| 32 | B3129-012-A00 | EXCLUSIVE PARTS "B" 専用部品 "B" | 16 |
| 28 | B3129-012-A00 | EXCLUSIVE PARTS "B" 専用部品 "B" | 18 |
| 36 | B3129-012-A00 | EXCLUSIVE PARTS "B" 専用部品 "B" | 22 |
| 12 | B3301-704-000-A | EXCLUSIVE PARTS "B" 専用部品 "B" | 24 |
| 11 | B3303-704-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 24 |
| 16 | B3305-012-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 24 |
| 13 | B3305-704-000-A | EXCLUSIVE PARTS "B" 専用部品 "B" | 24 |
| 15 | B3307-704-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 24 |
| 2 | B3311-012-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 24 |
| 14 | B3311-704-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 24 |
| 7 | B3312-012-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 24 |
| 48 | B3313-704-0A0 | EXCLUSIVE PARTS "B" 専用部品 "B" | 24 |
| 53 | B7258-781-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 2 |
| 49 | B7258-781-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 2 |
| 54 | B7259-781-000 | EXCLUSIVE PARTS "B" 専用部品 "B" | 2 |
| 10 | D1129-772-T00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 8 |
| 24 | D1129-772-T00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 16 |
| 8 | D1129-772-T00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 22 |
| 43 | D1129-772-T00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 2 |
| 44 | D1508-771-K0B | EXCLUSIVE PARTS "D" 専用部品 "D" | 2 |
| 45 | D1508-771-K0C | EXCLUSIVE PARTS "D" 専用部品 "D" | 2 |
| 46 | D1508-771-K0E | EXCLUSIVE PARTS "D" 専用部品 "D" | 2 |
| 47 | D1508-771-K0F | EXCLUSIVE PARTS "D" 専用部品 "D" | 2 |
| 29 | D1508-771-K0H | EXCLUSIVE PARTS "D" 専用部品 "D" | 2 |
| 32 | D1508-771-K00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 4 |
| 27 | D1508-771-K00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 6 |
| 4 | D1508-772-E00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 10 |
| 34 | D1508-772-E00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 10 |
| 21 | D1508-772-E00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 12 |
| 10 | D1508-772-K00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 10 |
| 12 | D1508-772-K00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 17 |
| 10 | D1508-773-K00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 10 |
| 12 | D1508-773-K00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 12 |
| 26 | D1508-773-K00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 14 |
| 11 | D1508-774-K00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 18 |
| 6 | D1508-774-K00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 20 |
| 17 | D1508-774-K00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 18 |
| 7 | D1514-773-T00-A | EXCLUSIVE PARTS "D" 専用部品 "D" | 6 |
| 7 | D1514-773-T00-A | EXCLUSIVE PARTS "D" 専用部品 "D" | 14 |
| 7 | D1514-774-T00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 20 |
| 27 | D1601-762-VA0 | EXCLUSIVE PARTS "D" 専用部品 "D" | 2 |
| 28 | D1601-762-VA0 | EXCLUSIVE PARTS "D" 専用部品 "D" | 4 |
| 47 | D1601-762-VA0 | EXCLUSIVE PARTS "D" 専用部品 "D" | 8 |
| 73 | D1601-762-VA0 | EXCLUSIVE PARTS "D" 専用部品 "D" | 17 |
| 46 | D1601-762-VA0 | EXCLUSIVE PARTS "D" 専用部品 "D" | 16 |
| 52 | D1601-762-VA0 | EXCLUSIVE PARTS "D" 専用部品 "D" | 22 |
| 34 | D1608-773-E00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 4 |
| 43 | D1608-773-E00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 12 |
| 37 | D1613-773-E00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 4 |
| 40 | D1613-773-E00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 12 |
| 31 | D2401-774-KCO | EXCLUSIVE PARTS "D" 専用部品 "D" | 18 |
| 27 | D2401-774-KCO | EXCLUSIVE PARTS "D" 専用部品 "D" | 20 |
| 36 | D2402-772-E00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 4 |
| 38 | D2402-772-E00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 12 |
| 2 | D2402-772-K00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 2 |
| 30 | D2402-772-K00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 2 |
| 17 | D2402-772-K00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 4 |
| 28 | D2402-772-K00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 6 |
| 5 | D2402-772-K00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 10 |
| 22 | D2402-772-K00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 10 |
| 49 | D2402-772-K00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 14 |
| 33 | D2402-772-K00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 18 |
| 29 | D2402-774-K00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 20 |
| 15 | D2615-762-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 2 |
| 26 | D2615-762-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 4 |
| 46 | D2615-762-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 8 |
| 10 | D2615-762-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 12 |
| 43 | D2615-762-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 16 |
| 49 | D2615-762-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 22 |
| 40 | D2901-772-E00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 4 |
| 8 | D2901-772-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 2 |
| 25 | D2901-772-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 4 |
| 44 | D2901-772-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 8 |
| 41 | D2901-772-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 12 |
| 39 | D2901-772-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 16 |
| 37 | D2901-773-E00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 17 |
| 27 | D2902-762-T00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 8 |
| 21 | D2902-762-T00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 16 |
| 24 | D2902-762-T00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 22 |
| 13 | D2902-762-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 2 |
| 18 | D2902-762-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 4 |
| 38 | D2902-762-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 8 |
| 1 | D2902-762-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 12 |
| 35 | D2902-762-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 16 |
| 41 | D2902-762-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 22 |
| 9 | D2903-762-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 2 |
| 22 | D2903-762-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 4 |
| 42 | D2903-762-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 8 |
| 5 | D2903-762-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 12 |
| 39 | D2903-762-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 16 |
| 46 | D2903-762-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 22 |
| 38 | D2903-773-E00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 4 |
| 35 | D2903-773-E00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 12 |
| 11 | D2904-762-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 2 |
| 20 | D2904-762-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 4 |
| 40 | D2904-762-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 8 |
| 3 | D2904-762-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 12 |
| 37 | D2904-762-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 16 |
| 44 | D2904-762-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 22 |
| 39 | D2904-772-E00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 4 |
| 36 | D2904-772-E00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 12 |
| 10 | D2905-761-000 | EXCLUSIVE PARTS "D" 専用部品 "D" | 2 |
| 21 | D2905-761-000 | EXCLUSIVE PARTS "D" 専用部品 "D" | 4 |
| 52 | D2905-761-000 | EXCLUSIVE PARTS "D" 専用部品 "D" | 12 |
| 59 | D2905-771-P00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 2 |
| 6 | D2906-761-000 | EXCLUSIVE PARTS "D" 専用部品 "D" | 2 |
| 23 | D2906-761-000 | EXCLUSIVE PARTS "D" 専用部品 "D" | 4 |
| 6 | D2906-761-000 | EXCLUSIVE PARTS "D" 専用部品 "D" | 12 |
| 14 | D2907-762-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 2 |
| 27 | D2907-762-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 4 |
| 45 | D2907-762-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 8 |
| 9 | D2907-762-V00 | EXCLUSIVE PARTS "D" 専用部品 "D" | 12 |
Page 25
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 42 | D2907-762-V00 | ||
| 43 | D2907-762-V00 | ||
| 7 | D2908-761-000 | ||
| 24 | D2908-761-000 | ||
| 19 | D2908-761-000 | ||
| 16 | D3110-772-TA0 | ||
| 15 | D3110-772-TA0 | ||
| 5 | D3110-772-TA0 | ||
| 28 | D3110-772-TA0 | ||
| 11 | D3110-772-TA0 | ||
| 25 | D3110-772-TA0 | ||
| 21 | D3110-772-TA0 | ||
| 1 | D3110-772-TA0 | ||
| 20 | D3110-772-TA0 | ||
| 74 | D3307-772-TA0 | ||
| 74 | D3307-555-B00 | ||
| 74 | D3307-772-T00 | ||
| 74 | D3306-555-B00 | ||
| 76 | D9101-771-K00 | ||
| 47 | D9101-771-K00 | ||
| 10 | D9101-771-K00 | ||
| 10 | D9101-771-K00 | ||
| 10 | D9101-771-K00 | ||
| 29 | D9101-771-K00 | ||
| 12 | D9101-771-K00 | ||
| 22 | D9101-771-K00 | ||
| 27 | D9101-771-K00 | ||
| 44 | D9101-771-K00 | ||
| 44 | D9101-772-B00 | ||
| 26 | D9101-772-K00 | ||
| 49 | D9101-762-V00 | ||
| 78 | D9301-762-V00 | ||
| 45 | D9301-762-V00 | ||
| 30 | D9301-762-TA0 | ||
| 37 | D9301-762-TA0 | ||
| 72 | D9301-762-TA0 | ||
| 17 | D9302-762-T00 | ||
| 36 | D9302-762-T00 | ||
| 19 | D9302-762-V00 | ||
| 19 | D9302-762-V00 | ||
| 19 | D9302-762-V00 | ||
| 36 | D9302-762-V00 | ||
| 42 | D9302-762-V00 | ||
| 34 | D9303-762-T00 | ||
| 33 | D9303-762-T00 | ||
| 45 | D9303-762-T00 | ||
| 43 | D9303-762-V00 | ||
| 40 | D9303-762-V00 | ||
| 47 | D9303-762-V00 | ||
| 47 | D9307-762-T00 | ||
| 57 | D9307-762-T00 | ||
| 61 | D9307-762-T00 | ||
| 40 | D9308-762-T00 | ||
| 54 | D9308-762-T00 | ||
| 63 | D9308-762-T00 | ||
| 41 | D9309-762-T00 | ||
| 53 | D9309-762-T00 | ||
| 62 | D9309-762-T00 | ||
| 18 | D9310-772-T00 | ||
| 17 | D9310-772-T00 | ||
| 15 | D9310-772-T00 | ||
| 16 | D9311-772-TA0 | ||
| 15 | D9311-772-TA0 | ||
| 14 | D9311-772-TA0 | ||
| 14 | D9311-772-TA0 | ||
| 44 | D9311-772-TA0 | ||
| 49 | D9313-762-TA0 | ||
| 42 | D9313-762-TA0 | ||
| 48 | D9313-774-T00 | ||
| 48 | D9314-762-T00 | ||
| 45 | D9314-762-T00 | ||
| 46 | D9314-762-T00 | ||
| 46 | D9315-762-T00 | ||
| 46 | D9315-762-T00 | ||
| 47 | D9315-762-T00 | ||
| 37 | D9316-762-T00 | ||
| 31 | D9316-762-T00 | ||
| 32 | D9316-762-T00 | ||
| 32 | D9317-762-T00 | ||
| 30 | D9317-762-T00 | ||
| 47 | D9317-762-T00 | ||
| 30 | D9318-762-T00 | ||
| 28 | D9318-762-T00 | ||
| 40 | D9318-762-T00 | ||
| 10 | D9319-762-T00 | ||
| 11 | D9319-762-T00 | ||
| 11 | D9319-762-T00 | ||
| 17 | D9321-772-T00 | ||
| 12 | D9321-772-T00 | ||
| 17 | D9321-772-T00-A | ||
| 11 | D9322-772-T00 | ||
| 11 | D9322-772-T00 | ||
| 11 | D9322-772-T00 | ||
| 11 | D9322-772-T00-A | ||
| 11 | D9322-772-T00-A | ||
| 3 | D9323-773-T00 | ||
| 3 | D9323-773-T00 | ||
| 16 | D9323-773-T00 | ||
| 4 | D9323-773-T00 | ||
| 4 | D9324-773-T00 | ||
| 4 | D9324-773-T00 | ||
| 43 | D9324-773-T00 | ||
| 40 | D9324-773-T00 | ||
| 26 | D9328-762-T00 | ||
| 22 | D9328-762-T00 | ||
| 23 | D9328-762-T00 | ||
| 25 | D9329-762-T00 | ||
| 25 | D9329-762-T00 | ||
| 23 | D9330-762-T00 | ||
| 23 | D9330-762-T00 | ||
| 26 | D9330-762-T00-A | ||
| 13 | D9330-762-T00-A | ||
| 13 | D9331-762-T00 | ||
| 10 | D9331-762-T00 | ||
| 11 | D9331-762-T00 | ||
| 17 | D9332-762-T00 | ||
| 16 | D9332-762-T00 | ||
| 17 | D9332-762-T00 | ||
| 7 | D9332-762-T00 | ||
| 7 | D9333-762-T00 | ||
| 7 | D9333-762-T00 | ||
| 7 | D9333-762-T00 | ||
| 6 | D9334-762-T00 | ||
| 6 | D9334-762-T00 | ||
| 21 | D9335-762-T00 | ||
| 20 | D9335-762-T00 | ||
| 21 | D9335-762-T00 | ||
| 22 | D9335-762-T00 | ||
| 22 | D9336-762-T00 | ||
| 21 | D9336-762-T00 | ||
| 22 | D9336-762-T00 | ||
| 22 | D9336-762-T00 | ||
| 22 | D9336-762-T00 | ||
| 70 | MA0-11522000 | ||
| 2 | MA0-91003000 | ||
| 2 | MA0-91003000 | ||
| 3 | MA0-91003000 | ||
| 51 | MTJ-VM004100 | ||
| 56 | MTJ-VM004100 | ||
| 50 | MTJ-VM004200 | ||
| 55 | MTJ-VM004200 | ||
| 52 | MTJ-VM004300 | ||
| 57 | MTJ-VM004300 | ||
| 53 | MTJ-VM004400 | ||
| 58 | MTJ-VM004400 | ||
| 54 | MTJ-VM004500 | ||
| 59 | MTJ-VM004500 | ||
| 10 | NM-6040200-SN | NUT | |
| 11 | NM-6160511-SE | ||
| 15 | NS-6110420-SP | ||
| 14 | NS-6110420-SP | ||
| 47 | NS-6110420-SP | ||
| 17 | NS-6120310-SP | ||
| 16 | NS-6120310-SP | ||
| 71 | NS-6120310-SP | ||
| 18 | NS-6120310-SP | ||
| 71 | NS-6150310-SP | ||
| 70 | NS-6150310-SP | ||
| 4 | NS-6680410-SP | ||
| 7 | NS-6680410-SP | ||
| 4 | NS-6680410-SP | ||
| 11 | NS-6700420-SP | ||
| 13 | NS-6700420-SP | ||
| 9 | NS-6700420-SP | ||
| 53 | PS-0200102-KH | PIN | |
| 58 | PS-0200102-KH | ||
| 74 | PS-0200102-KH | ||
| 30 | SD-0640751-SP | HINGE SCREW | |
| 30 | SD-0640751-SP | ||
| 30 | SD-0640751-SP | ||
| 18 | SD-0870401-SP | ||
| 57 | SD-0870401-SP | ||
| 30 | SM-604141C-SC | SCREW | |
| 31 | SM-9050513-SE | ||
| 32 | SM-9061080-SE | ||
| 28 | SS-2080710-SP | ||
| 28 | SS-2080710-SP | ||
| 29 | SS-2090710-SP | ||
| 29 | SS-2090710-SP | ||
| 29 | SS-4080710-SP | ||
| 29 | SS-4080710-SP | ||
| 25 | SS-5060410-SP | ||
| 25 | SS-5060410-SP | ||
| 25 | SS-5060410-SP | ||
| 26 | SS-5090220-SP | ||
| 26 | SS-5090220-SP | ||
| 26 | SS-5090320-SP | ||
| 26 | SS-5090320-SP | ||
| 6 | SS-6060410-SP | ||
| 6 | SS-6060410-SP | ||
| 6 | SS-6060410-TP | ||
| 1 | SS-6090440-SP | ||
| 1 | SS-6090440-SP | ||
| 6 | SS-6090510-SP | ||
| 6 | SS-6090510-SP | ||
| 7 | SS-6111110-SP | ||
| 7 | SS-6111110-SP | ||
| 7 | SS-6111110-SP | ||
| 4 | SS-6111610-SP | ||
| 2 | SS-6121210-SP | ||
| 2 | SS-6121210-SP | ||
| 2 | SS-6121210-SP | ||
| 18 | SS-6151440-SP | ||
| 18 | SS-6151440-SP | ||
| 18 | SS-6151440-SP | ||
| 20 | SS-6622112-TP | ||
| 20 | SS-6622112-TP | ||
| 21 | SS-6622112-TP | ||
| 22 | SS-7060310-SP | ||
| 21 | SS-7060310-SP | ||
| 22 | SS-7060310-SP | ||
| 9 | SS-7090520-SL | ||
| 9 | SS-7090520-SL | ||
| 9 | SS-7090520-SL | ||
| 4 | SS-7110710-SP | ||
| 4 | SS-7110710-SP | ||
| 4 | SS-7110710-SP | ||
| 20 | SS-7110740-TP | ||
| 20 | SS-7110740-TP | ||
| 20 | SS-7110740-TP | ||
| 20 | SS-7110910-SP | ||
| 20 | SS-7110910-SP | ||
| 20 | SS-7110910-SP | ||
| 7 | SS-8090670-SP | ||
| 4 | SS-8090670-SP | ||
| 10 | SS-8090670-SP | ||
| 10 | SS-8090670-SP | ||
| 29 | SS-8090670-SP | ||
| 12 | SS-8090670-SP | ||
| 16 | SS-8090670-SP | ||
| 22 | SS-8090670-SP | ||
| 13 | SS-8090670-SP | ||
| 6 | SS-8150410-SP | ||
| 6 | SS-8150410-SP | ||
| 6 | SS-8150410-SP | ||
| 6 | SS-8150750-SP | ||
| 14 | SS-8150750-SP | ||
| 13 | SS-8150750-SP | ||
| 17 | SS-8151160-SP | ||
| 15 | SS-8151160-SP | ||
| 14 | SS-8151160-SP | ||
| 12 | SS-8661030-SP | ||
| 11 | SS-8661030-SP | ||
| 10 | SS-8661030-SP | ||
| 45 | SS-9111010-SP | ||
| 38 | SS-9111010-SP | ||
| 52 | SS-9111010-SP | ||
| 28 | SS-9151630-CP | ||
| 48 | SS-9151630-CP | ||
| 47 | SS-9151630-CP | ||
| 57 | SS-9151630-CP | ||
| 73 | WP-0250716-SD | WASHER | |
| 72 | WP-0250716-SD | ||
| 73 | WP-0250716-SD | ||
| 47 | WP-0451016-SP | ||
| 58 | WP-0451016-SP | ||
| 44 | WP-0480856-SP | ||
| 54 | WP-0480856-SP | ||
| 8 | WP-0480856-SP | ||
| 57 | WP-0480856-SP | ||
| 36 | WP-0480856-SP | ||
| 39 | WP-0480856-SP | ||
| 51 | WP-0480856-SP | ||
| 73 | WP-0480856-SP | ||
| 40 | WP-0480856-SP | ||
| 71 | WP-0520656-SA | ||
| 14 | WP-0560R00-SE | ||
| 20 | WP-061216-SD | ||
| 19 | WP-061216-SD | ||
| 20 | WP-061216-SD | ||
| 31 | WP-1002066-SZ | ||
| 79 | WP-1002066-SZ | ||
| 41 | WP-1002066-SZ | ||
| 4 | WP-1702600-S0 | ||
| 17 | WS-0521010-KN | ||
| 20 | WS-0521010-KN | ||
| 25 | WS-1643202-KN |
Juki LBH-781 — parts catalog
- Page 1 (diagram): This page illustrates various components for LBH-781-D, LBH-781-K, LBH-781-P, and LBH-782-P models, including gears, plates, pulleys, and belts.
- Page 2 (parts_list): This page lists parts for LBH-781-D, LBH-781-K, LBH-781-P, and LBH-782-P models, including work clamps, throat plates, hooks, gears, tension components, and motors.
- Page 3 (diagram): This page displays two diagrams, LBH-782-D and LBH-782-E, illustrating various components of a sewing machine with reference numbers.
- Page 4 (parts_list): This page lists parts for models LBH-782-D and LBH-782-E, including knives, shafts, gears, screws, and various tension and work clamp components.
- Page 5 (diagram): This page displays a detailed diagram of components for the LBH-782-T & V (1) sewing machine, showing various parts with reference numbers.
- Page 6 (parts_list): This page is a parts list detailing various components for a sewing machine, including covers, washers, screws, springs, and guides, with their respective part numbers, descriptions, and quantities.
- Page 7 (diagram): This page displays two diagrams related to LBH-782-T & V (2) and LBH-782-V models, showing various components with reference numbers.
- Page 8 (parts_list): This page is a parts list detailing various components for sewing machines, including gears, springs, nuts, and guides, with part numbers, descriptions, and quantities.
- Page 9 (diagram): This page displays two diagrams, one for LBH-782-K and another for LBH-783-K, showing various components and their reference numbers.
- Page 10 (parts_list): This page lists parts for models LBH-782-K and LBH-783-K, including knives, shafts, work clamps, gears, screws, and tension components.
- Page 11 (diagram): This page illustrates parts for LBH-783-D and LBH-783-E models, showing various components such as feed dogs, gears, and plates with corresponding reference numbers.
- Page 12 (parts_list): This page lists parts for LBH-783-D and LBH-783-E models, including various tripping segments, tension components, work clamp parts, and knife parts.
- Page 13 (diagram): This page displays an exploded diagram of components for LBH-783-T & V (1) sewing machines, showing various parts and their reference numbers.
- Page 14 (parts_list): This page lists various parts for an industrial sewing machine, including covers, washers, screws, springs, and other components, with their part numbers, descriptions, and required quantities.
- Page 15 (parts_list): This page lists parts for LBH-783-T and LBH-783-V models, including various gears, screws, nuts, tension components, and tripping segments.
- Page 16 (diagram): This page displays a diagram of various parts for the LBH-784-K model, including components for the machine's frame, tension assembly, and other mechanisms.
- Page 17 (parts_list): This page lists parts for a sewing machine, including work clamp components, tension parts, and bobbin-related items, with part numbers, descriptions, and quantities.
- Page 18 (diagram): This page displays a detailed diagram of various components for LBH-784-T & V (1) sewing machines, with reference numbers indicating individual parts.
- Page 19 (parts_list): This page is a parts list detailing various components for an industrial sewing machine, including thread guides, work clamp parts, screws, washers, and other related assemblies.
- Page 20 (diagram): This page illustrates various components for LBH-784-T & V (2) and LBH-784-V models, including gears, shafts, springs, and other mechanical parts.
- Page 21 (parts_list): This page lists parts for LBH-784.T and LBH-784.V models, including spur gears, connecting links, screws, nuts, gimp spool rest rods, frame side covers, slide blocks, position shafts, driving rods, tension springs, hook timing gauges, thread tension post nuts, tension discs, needle thread guides, washers, knives, bar tripping segments, gimp guides, hook assemblies, tension controllers, feed cams, and length regulating shaft crank assemblies.
- Page 22 (diagram): This page illustrates the components of a thread stand, including various nuts, washers, rods, and discs, with a focus on special order parts for T & V models.
- Page 23 (parts_list): This page lists various parts including thread stand assembly, spool rest rod rubber cap, nuts, washers, thread guides, screws, and springs, with their corresponding part numbers and quantities.
- Page 24 (parts_list): This page is a numerical index of parts, listing part numbers, their corresponding page numbers, and reference numbers.
- Page 25 (index): This page is an index of part numbers, their corresponding page numbers, and reference numbers.
