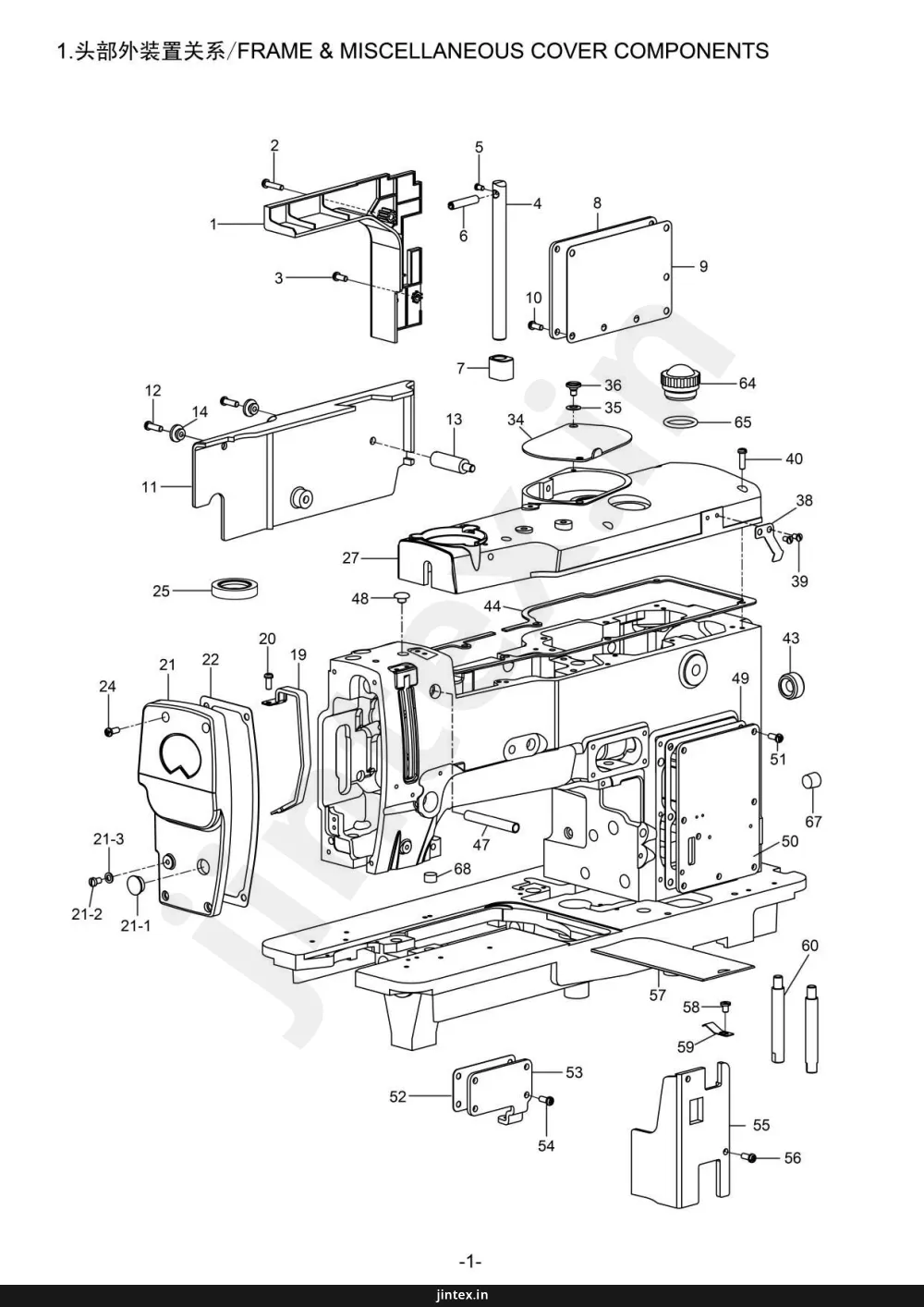

Page 1 — 1.头部外装置关系/FRAME & MISCELLANEOUS COVER COMPONENTS
1.头部外装置关系/FRAME & MISCELLANEOUS COVER COMPONENTS -1- jintex.in
Parts index — Jack JK-781Dtap a row to open its page
Page 1 — 1.头部外装置关系/FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | FRAME | ||
| 2 | BRACKET | ||
| 3 | BRACKET | ||
| 4 | POST | ||
| 5 | PIN | ||
| 6 | PIN | ||
| 7 | BUSHING | ||
| 8 | COVER | ||
| 9 | COVER | ||
| 10 | SCREW | ||
| 11 | BRACKET | ||
| 12 | SCREW | ||
| 13 | CYLINDER | ||
| 14 | WASHER | ||
| 19 | BRACKET | ||
| 20 | BRACKET | ||
| 21 | COVER | ||
| 21-1 | COVER | ||
| 21-2 | SCREW | ||
| 21-3 | WASHER | ||
| 22 | COVER | ||
| 24 | SCREW | ||
| 25 | RING | ||
| 27 | BRACKET | ||
| 34 | COVER | ||
| 35 | WASHER | ||
| 36 | SCREW | ||
| 38 | BRACKET | ||
| 39 | BRACKET | ||
| 40 | SCREW | ||
| 43 | BRACKET | ||
| 44 | COVER | ||
| 47 | ROD | ||
| 48 | SCREW | ||
| 49 | COVER | ||
| 50 | COVER | ||
| 51 | SCREW | ||
| 52 | BRACKET | ||
| 53 | BRACKET | ||
| 54 | SCREW | ||
| 55 | BRACKET | ||
| 56 | SCREW | ||
| 57 | BRACKET | ||
| 58 | SCREW | ||
| 59 | BRACKET | ||
| 60 | BRACKET | ||
| 64 | KNOB | ||
| 65 | RING | ||
| 67 | BRACKET | ||
| 68 | BRACKET |
Page 2
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40211001 | 机头侧盖 | ||
| 402S11001 | 螺钉 | ||
| 402S11003 | 螺钉 | ||
| 40202001 | 机头支撑臂 | ||
| 402S11002 | 螺钉 | ||
| 40226001 | 弹性圆柱销 | ||
| 40222001 | 橡胶缓冲垫 | ||
| 40212001 | 侧盖板 | ||
| 40222002 | 侧盖板衬垫 | ||
| 402S11003 | 螺钉 | ||
| 40201001 | 机壳侧盖 | ||
| 402S11031 | 螺钉 | ||
| 402S30001 | 螺钉 | ||
| 40222003 | 缓冲垫 | ||
| 40212002 | 挑线杆防护罩 | ||
| 402S11004 | 螺钉 | ||
| 40201064 | 面板 | ||
| 40222005 | 面板塞 | ||
| 402S11036 | 螺钉 | ||
| 40228008 | 垫片 | ||
| 40222038 | 面板衬垫 | ||
| 402S11003 | 螺钉 | ||
| 40222007 | 油封 | ||
| 40201061 | 顶盖 | ||
| 40212003 | 齿轮箱盖 | ||
| 40228001 | 碟形弹片 | ||
| 402S20001 | 轴位螺钉 | ||
| 40212004 | 手动钩 | ||
| 402S11014 | 螺钉 | ||
| 402S11001 | 螺钉 | ||
| 40222009 | 橡胶插塞 | ||
| 40222037 | 上顶盖衬垫 | ||
| 40203001 | 停刀杆轴导向管 | ||
| 40222011 | 橡胶插塞 | ||
| 40222012 | 右侧盖板衬垫 | ||
| 40212008 | 左侧盖板 | ||
| 402S11003 | 螺钉 | ||
| 40222013 | 油视窗衬垫 | ||
| 40212006 | 侧盖 | ||
| 402S11003 | 螺钉 | ||
| 40222014 | 侧盖板 | ||
| 402S11003 | 螺钉 | ||
| 40212007 | 推板 | ||
| 403S11001 | 螺钉 | ||
| 40227041 | 推板簧 | ||
| 402S30003 | 底板支撑螺钉 | ||
| 40211003 | 油视窗 | ||
| 40222014 | 油视窗垫片 | ||
| 40222016 | 盲孔塞 | ||
| 40223001 | 油毡 |
Page 3 — 2.上轴关系/MAIN SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | SCREW | |
| 2 | 2 | WASHER | |
| 3 | 3 | BRACKET | |
| 10 | 10 | SHAFT | |
| 11 | 11 | BEARING | |
| 12 | 12 | SHAFT | |
| 13 | 13 | CONNECTING ROD | |
| 14 | 14 | SCREW | |
| 15 | 15 | WASHER | |
| 17 | 17 | BEARING | |
| 18 | 18 | SHAFT | |
| 19 | 19 | SHAFT | |
| 20 | 20 | BRACKET | |
| 22 | 22 | SCREW | |
| 23 | 23 | BEARING | |
| 24 | 24 | BEARING | |
| 25 | 25 | WASHER | |
| 26 | 26 | GEAR | |
| 27 | 27 | CONNECTING ROD | |
| 28 | 28 | SHAFT | |
| 29 | 29 | BEARING | |
| 30 | 30 | BEARING | |
| 30-1 | 30-1 | BEARING | |
| 32 | 32 | SCREW | |
| 33 | 33 | SCREW | |
| 35 | 35 | PULLEY | |
| 36 | 36 | BELT | |
| 37 | 37 | PULLEY | |
| 38-1 | 38-1 | GEAR | |
| 38-2 | 38-2 | GEAR | |
| 38-3 | 38-3 | GEAR | |
| 39 | 39 | FAN COVER | |
| 40 | 40 | SCREW | |
| 41 | 41 | SHAFT | |
| 42 | 42 | SHAFT | |
| 43 | 43 | WASHER | |
| 44 | 44 | SCREW | |
| 45 | 45 | SCREW | |
| 8 | 8 | SHAFT |
Page 4
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40226002 | 铰链销 | ||
| 402S14001 | 螺钉 | ||
| 12923018 | 油线 | ||
| 40202054 | 上轴 | ||
| 4053800200 | 挑战连杆 | ||
| 40204001 | 挑战杆组件 | ||
| 40205001 | 针杆曲柄 | ||
| 402S30004 | 针杆曲柄连杆 | ||
| 402S30004 | 滚针轴承 | ||
| 402S30004 | 左旋螺钉 | ||
| 40228002 | 止推垫圈 | ||
| 402S30005 | 螺钉 | ||
| 40204002 | 平衡块 | ||
| 402S14002 | 螺钉 | ||
| 101S11003 | 螺钉 | ||
| B04009 | 轴承 | ||
| 40203003 | 轴套 | ||
| H03012 | 挡圈25 | ||
| B07016 | 滚动轴承 | ||
| 40205002 | 刀杆驱动连杆 | ||
| 40210001 | 刀杆传动偏心凸轮 | ||
| B02004 | 螺钉 | ||
| 402S14006 | 螺钉 | ||
| 409S14001 | 螺钉 | ||
| 402S14003 | 螺钉 | ||
| 40225001 | 蜗杆 | ||
| 4023503000 | 同步带轮组件 | ||
| 40235003 | 同步带 | ||
| 40224006 | 轴承 | ||
| 40201063 | 联轴器 | ||
| 40101018 | 联轴器传动块2 | ||
| 40122023 | 减震橡胶 | ||
| 40235027 | 手轮 | ||
| 40230001 | 主轴电机 | ||
| 402S13012 | 电机安装螺钉 | ||
| 40235028 | 绕线轮 | ||
| 403S14012 | 绕线轮螺钉 | ||
| 413S14001 | 螺钉 | ||
| 207S14006 | 螺钉 |
Page 5 — 3.下轴关系/HOOK DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | ||
| 10 | 10 | ||
| 11 | 11 | ||
| 12 | 12 | ||
| 13 | 13 | ||
| 14 | 14 | ||
| 15 | 15 | ||
| 16 | 16 | ||
| 17 | 17 | ||
| 18 | 18 | ||
| 19 | 19 | ||
| 22 | 22 | ||
| 23 | 23 | ||
| 24 | 24 | ||
| 25 | 25 | ||
| 26 | 26 | ||
| 27 | 27 | ||
| 28 | 28 | ||
| 29 | 29 | ||
| 30 | 30 | ||
| 31 | 31 | ||
| 32 | 32 | ||
| 33 | 33 | ||
| 34 | 34 | ||
| 35 | 35 | ||
| 36 | 36 | ||
| 37 | 37 | ||
| 38 | 38 | ||
| 39 | 39 | ||
| 40 | 40 | ||
| 41 | 41 | ||
| 42 | 42 | ||
| 43 | 43 | ||
| 44 | 44 | ||
| 45 | 45 | ||
| 46 | 46 | ||
| 47 | 47 | ||
| 48 | 48 | ||
| 49 | 49 | ||
| 50 | 50 | ||
| 51 | 51 | ||
| 52 | 52 | ||
| 53 | 53 | ||
| 54 | 54 | ||
| 55 | 55 | ||
| 56 | 56 | ||
| 57 | 57 | ||
| 58 | 58 | ||
| 59 | 59 |
Page 6
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 4021800100 | 梭壳组件 | ||
| 4021800200 | 梭子 | ||
| 4021800500 | 梭壳组件 | ||
| 40212010 | 梭壳定位板 | ||
| 402S11006 | 螺钉 | ||
| 4020300700 | 旋梭筒组件 | ||
| 413S14011 | 螺钉 | ||
| 40123016 | 油线 | ||
| N01008 | 螺母 | ||
| 40228002 | 垫圈 | ||
| 40203009 | 下轴前套 | ||
| 12923018 | 油线 | ||
| 40225002 | 蜗杆 | ||
| 40225003 | 小齿轮 | ||
| 201S14002 | 螺钉 | ||
| H01009 | 挡圈 | ||
| B04012 | 轴承 | ||
| 20108001 | 挡圈 | ||
| 402S14006 | 螺钉 | ||
| 4023500700 | 皮带轮链轮组件 | ||
| 40224004 | 轴承 | ||
| 40208001 | 轴承固定挡圈 | ||
| 20628006 | 垫圈 | ||
| 402S13001 | 内六角平头螺钉 | ||
| S05038 | 螺钉 | ||
| H01009 | 挡圈 | ||
| B04012 | 轴承 | ||
| 40235008 | 皮带张紧轮 | ||
| 40226005 | 调节杠杆销 | ||
| 40205023 | 张紧连杆 | ||
| 40212102 | 调节配件 | ||
| 40204037 | 连接接头 | ||
| 40228031 | 垫片 | ||
| 40226051 | 连接销 | ||
| 40205024 | 调节连杆 | ||
| 40212103 | 固定板 | ||
| 40223005 | 油毡 | ||
| 402S30009 | 旋梭调节润滑螺钉 | ||
| 402S16002 | 螺母 | ||
| 40221005 | 油管 | ||
| 400122 | 调节润滑螺钉座 | ||
| 40221004 | 调节润滑螺钉座架 | ||
| 402S11004 | 十字槽盘头螺钉 | ||
| 40202039 | 下轴 | ||
| 40226006 | 调节销 | ||
| 402S16026 | 调节螺母 | ||
| 40208014 | 挡圈 | ||
| 41303002 | 挡圈 | ||
| 413S14004 | 螺钉 | ||
| S05004 | 固定板安装螺钉 |
Page 7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | PRESSER BAR | ||
| 2 | PRESSER BAR GUIDE | ||
| 3 | SPRING | ||
| 4 | PRESSER BAR HOLDER | ||
| 6 | BRACKET | ||
| 7 | SCREW | ||
| 8 | WASHER | ||
| 9 | SCREW | ||
| 10 | BRACKET | ||
| 11 | PIN | ||
| 13 | SCREW | ||
| 14 | BRACKET | ||
| 14-1 | BRACKET | ||
| 15 | SCREW | ||
| 16 | SCREW | ||
| 17 | SCREW | ||
| 18 | SCREW | ||
| 19 | BRACKET | ||
| 20 | BRACKET | ||
| 21 | BRACKET | ||
| 22 | SCREW | ||
| 23 | BRACKET | ||
| 24 | SCREW | ||
| 25 | SCREW | ||
| 26 | SCREW | ||
| 27 | BRACKET | ||
| 28 | BRACKET | ||
| 30 | BASE PLATE | ||
| 31 | BASE PLATE | ||
| 32 | SCREW | ||
| 33 | BRACKET | ||
| 34 | BRACKET | ||
| 35 | BRACKET | ||
| 36 | SCREW | ||
| 37 | SHAFT | ||
| 38 | BRACKET | ||
| 39 | SCREW | ||
| 40 | SHAFT | ||
| 41 | PIN | ||
| 42 | BRACKET | ||
| 43 | BRACKET | ||
| 44 | SCREW | ||
| 45 | SCREW | ||
| 46 | BRACKET | ||
| 47 | BRACKET | ||
| 48 | NUT | ||
| 49 | BRACKET | ||
| 50 | BRACKET | ||
| 51 | SCREW | ||
| 52 | COLLAR | ||
| 53 | SCREW | ||
| 54 | NUT |
Page 8
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 402S30010 | 压簧调节手柄 | ||
| 40202004 | 压棒 | ||
| 40227002 | 压簧 | ||
| 40212013 | 导向支架 | ||
| 40209003 | 压棒定位架 | ||
| 409S14001 | 内六角平端紧定螺钉 | ||
| 40203010 | 套管 | ||
| 40209004 | 滑动滚轮 | ||
| 40226007 | 滑动滚销 | ||
| 40209005 | 支架 | ||
| 40212014 | 安全防护 | ||
| 402S30011 | 压棒螺钉 | ||
| 402S11030 | 螺钉 | ||
| 402S11036 | 螺钉 | ||
| 40212015 | 导向支架 | ||
| 206S11002 | 螺钉 | ||
| 206S11002 | 螺钉 | ||
| 101S11020 | 螺钉 | ||
| 40212016 | 面线剪断器导架 | ||
| 40212017 | 面线剪断器导架 | ||
| 40216001 | 压脚板座 | ||
| 40227003 | 压脚板座弹簧销 | ||
| 40212018 | 压脚弹簧板 | ||
| 40226008 | 压脚弹簧定位销 | ||
| 402S20002 | 轴位螺钉 | ||
| 101S11019 | 螺钉 | ||
| 40216002 | 压脚板 | ||
| 4021600300 | 压脚板座组件 | ||
| 40212019 | 送布拖板 | ||
| 4021202000 | 支架盖板组件 | ||
| 402S11007 | 螺钉 | ||
| 40201004 | 送料支架 | ||
| 401S12001 | 螺钉 | ||
| 40205004 | 压脚背支架 | ||
| 402S20003 | 轴位螺钉 | ||
| 40202005 | 压脚背滑杆 | ||
| 40212023 | 送布拖板支架导块 | ||
| 402S11028 | 螺钉 | ||
| 40201033 | 送布支架 | ||
| 40226010 | 连接销 | ||
| 402S11009 | 螺钉 | ||
| 40204031 | 拖架 | ||
| 402S14006 | 螺钉 | ||
| 402S30016 | 螺钉 | ||
| 402S30013 | 螺钉 | ||
| 40212024 | 调节送料长度导板 | ||
| 402S16003 | 螺母 | ||
| 4020400400 | 调节送料长度刻度盘组件 | ||
| 40205005 | 送料臂 | ||
| S05040 | 螺钉M6×16 | ||
| 40209006 | 滚子 | ||
| 40226012 | 曲柄滚子销 | ||
| 402S16003 | 螺母 |
Page 9 — 5. NEEDLE BAR FRAME COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | NUT | |
| 2 | 2 | WASHER | |
| 3 | 3 | SCREW | |
| 4 | 4 | COLLAR | |
| 5 | 5 | PIN | |
| 6 | 6 | NEEDLE BAR CONNECTING ROD | |
| 7 | 7 | NEEDLE BAR CONNECTING ROD | |
| 8 | 8 | SHAFT | |
| 9 | 9 | COLLAR | |
| 10 | 10 | NEEDLE BAR FRAME | |
| 13 | 13 | SHAFT | |
| 14 | 14 | SCREW | |
| 16 | 16 | SCREW | |
| 17 | 17 | LINK | |
| 18 | 18 | NEEDLE BAR CONNECTING ROD | |
| 19 | 19 | BRACKET | |
| 20 | 20 | SCREW | |
| 21 | 21 | SCREW | |
| 22 | 22 | SCREW | |
| 23 | 23 | SCREW | |
| 24 | 24 | SCREW | |
| 25 | 25 | COLLAR | |
| 26 | 26 | COLLAR | |
| 27 | 27 | COLLAR | |
| 28 | 28 | SHAFT | |
| 29 | 29 | COLLAR | |
| 30 | 30 | COLLAR | |
| 31 | 31 | COLLAR | |
| 32 | 32 | SCREW | |
| 33 | 33 | WASHER | |
| 34 | 34 | SCREW | |
| 35 | 35 | NEEDLE BAR FRAME | |
| 36 | 36 | BRACKET | |
| 37 | 37 | SCREW | |
| 38 | 38 | BRACKET | |
| 39 | 39 | LEVER | |
| 40 | 40 | SHAFT | |
| 41 | 41 | NEEDLE BAR CONNECTING ROD | |
| 41-1 | 41-1 | NEEDLE BAR CONNECTING ROD | |
| 43 | 43 | BRACKET | |
| 44 | 44 | BRACKET | |
| 45 | 45 | BRACKET | |
| 46 | 46 | BRACKET | |
| 47 | 47 | BRACKET | |
| 48 | 48 | BRACKET | |
| 49 | 49 | SCREW | |
| 50 | 50 | BRACKET | |
| 51 | 51 | BRACKET | |
| 53 | 53 | BRACKET | |
| 54 | 54 | BRACKET | |
| 55 | 55 | SHAFT |
Page 10
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 400123 | 针杆架滑块 | ||
| 402S30014 | 滑块销钉 | ||
| 402S16003 | 螺母 | ||
| 40203011 | 摇杆后轴套 | ||
| 402S14001 | 螺钉 | ||
| 40222019 | 0形圈 | ||
| 40223023 | 油芯 | ||
| 4020200700 | 摆杆轴组件 | ||
| 40204006 | 摆杆后轴衬 | ||
| 40203012 | 摆杆曲柄 | ||
| 40204007 | 摆杆后柄 | ||
| 402S13002 | 螺钉 | ||
| 402S20004 | 轴位螺钉 | ||
| 402S16004 | 螺母 | ||
| 40204008 | 针杆摇杆 | ||
| 400132 | 摆杆连接导板 | ||
| S05049 | 螺钉M4×14 | ||
| 402S30015 | 螺钉 | ||
| 402S16005 | 螺母 | ||
| 4022500400 | 针齿驱动轮组件 | ||
| 40208002 | 挡圈 | ||
| 402S14006 | 螺钉 | ||
| 40203013 | 切刀驱动轴 | ||
| 12923018 | 油线 | ||
| 402S30016 | 螺钉 | ||
| 40208003 | 挡圈 | ||
| 402S14006 | 螺钉 | ||
| 4020100600 | 针杆架组件 | ||
| 402S14001 | 螺钉 | ||
| 40226014 | 铰链销 | ||
| 12923018 | 油线 | ||
| 40212027 | 左固定片 | ||
| 402S11010 | 螺钉 | ||
| 40223009 | 油毡 | ||
| 40212028 | 油线高端固定板 | ||
| 402S11022 | 螺钉 | ||
| 40205006 | 针杆连接杆 | ||
| 402S11010 | 螺钉 | ||
| 40212029 | 油线底端固定板 | ||
| 40202009 | 针杆 | ||
| 40213001 | 针杆导线架 | ||
| 101S11006 | 螺钉 | ||
| 40217002 | 机针12# | ||
| 40212030 | 右固定片 | ||
| 402S11010 | 螺钉 | ||
| 400124 | 固定导片 | ||
| 40203014 | 针杆套筒 | ||
| 40203015 | 针杆套筒 | ||
| 40211005 | 油毡架 | ||
| 40226015 | 轴心 | ||
| 40223010 | 油毡 |
Page 11 — 6. 针摆幅调节关系/OVEREDGING WIDTH ADJUSTING COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | BOLT | |
| 2 | 2 | BOLT | |
| 3 | 3 | NUT | |
| 4 | 4 | NUT | |
| 5 | 5 | BOLT | |
| 6 | 6 | BOLT | |
| 7-1 | 7-1 | PIN | |
| 7 | 7 | BOLT | |
| 8 | 8 | BOLT | |
| 9 | 9 | NUT | |
| 10 | 10 | BOLT | |
| 11 | 11 | PIN | |
| 12 | 12 | BOLT | |
| 13 | 13 | BOLT | |
| 14 | 14 | BRACKET | |
| 15 | 15 | BOLT | |
| 16 | 16 | WASHER | |
| 17 | 17 | BOLT | |
| 18 | 18 | BRACKET | |
| 19 | 19 | BRACKET | |
| 20 | 20 | BRACKET | |
| 21 | 21 | BRACKET | |
| 22 | 22 | BRACKET | |
| 23 | 23 | BOLT | |
| 24 | 24 | BRACKET | |
| 25 | 25 | BOLT | |
| 26 | 26 | BRACKET | |
| 27 | 27 | BRACKET | |
| 28 | 28 | BOLT | |
| 29 | 29 | BOLT | |
| 30 | 30 | BOLT | |
| 31 | 31 | SHAFT | |
| 32 | 32 | BRACKET | |
| 33 | 33 | BRACKET | |
| 34 | 34 | BRACKET | |
| 35 | 35 | BRACKET | |
| 36 | 36 | BRACKET | |
| 37 | 37 | BRACKET | |
| 38 | 38 | NUT | |
| 39 | 39 | BOLT | |
| 40 | 40 | BRACKET | |
| 41 | 41 | BRACKET | |
| 42 | 42 | SPRING | |
| 43 | 43 | PIN | |
| 44 | 44 | BRACKET | |
| 45 | 45 | SPRING | |
| 46 | 46 | BOLT | |
| 47 | 47 | BOLT | |
| 48 | 48 | BRACKET | |
| 49 | 49 | BOLT |
Page 12
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 402S30017 | 螺钉 | ||
| 402S11034 | 螺钉 | ||
| 402S16006 | 母 | ||
| N01008 | 母M8 | ||
| 40201008 | 复位杆 | ||
| 101S11021 | 螺钉 | ||
| 40202010 | 离合杆 | ||
| 40211006 | 止动橡皮 | ||
| 402S30018 | 螺钉M5×8 | ||
| B04013 | 轴承605Z | ||
| 402S30019 | 调节杆螺钉 | ||
| 40205007 | 调节杆连接板 | ||
| 40226016 | 调节销 | ||
| 402S20005 | 轴位螺钉 | ||
| 40204009 | 指示曲柄 | ||
| 40209008 | 滚轮 | ||
| 402S20006 | 轴位螺钉 | ||
| 402S16005 | 母 | ||
| 402S30015 | 螺钉 | ||
| 40212031 | 刻度指示针 | ||
| 101S11006 | 螺钉 | ||
| 40201009 | 调节叉杆 | ||
| 40227004 | 弹簧板 | ||
| 101S11006 | 螺钉 | ||
| 40204038 | 调节叉杆座 | ||
| 401S13001 | 螺钉 | ||
| 40202011 | 调节杆轴 | ||
| 12923018 | 油线 | ||
| 40204011 | 轴承座 | ||
| 402S16005 | 母 | ||
| 402S30015 | 紧定螺钉 | ||
| 40202012 | 针摆复位轴 | ||
| 402S11012 | 螺钉 | ||
| 40226017 | 连接销 | ||
| 12923018 | 油线 | ||
| 40204012 | 叉形连杆 | ||
| 40226018 | 连接销 | ||
| 12923018 | 油线 | ||
| 402S30015 | 螺钉 | ||
| 402S16005 | 母 | ||
| 40226019 | 连接销 | ||
| 12923018 | 油线 | ||
| 40227005 | 弹簧 | ||
| 402S30021 | 悬挂螺钉 | ||
| 40204013 | 叉形连杆 | ||
| 40227006 | 拉簧 | ||
| 402S16003 | 母 | ||
| 402S30019 | 调节限位螺钉 | ||
| 40212032 | 缝宽指示针 | ||
| 101S11006 | 螺钉 |
Page 13 — 7.上 线 切 刀 关 系 / NEEDLE THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | ||
| 7 | 7 | ||
| 8 | 8 | ||
| 9 | 9 | ||
| 10 | 10 | ||
| 11 | 11 | ||
| 12 | 12 | ||
| 13 | 13 | ||
| 14 | 14 | ||
| 15 | 15 | ||
| 16 | 16 | ||
| 17 | 17 | ||
| 18 | 18 | ||
| 19 | 19 | ||
| 20 | 20 | ||
| 21 | 21 | ||
| 22 | 22 | ||
| 23 | 23 | ||
| 24 | 24 | ||
| 26 | 26 | ||
| 28 | 28 | ||
| 29 | 29 | ||
| 30 | 30 | ||
| 31 | 31 | ||
| 32 | 32 | ||
| 33 | 33 | ||
| 34 | 34 | ||
| 35 | 35 | ||
| 36 | 36 | ||
| 37 | 37 | ||
| 39 | 39 | ||
| 40 | 40 | ||
| 41 | 41 | ||
| 42 | 42 | ||
| 43 | 43 | ||
| 44 | 44 | ||
| 46 | 46 | ||
| 47 | 47 | ||
| 48 | 48 | ||
| 49 | 49 |
Page 15 — 8. 下线切刀关系/BOBBIN THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 3 | 3 | Screw | |
| 2 | 2 | Base | |
| 13 | 13 | Screw | |
| 4 | 4 | Base | |
| 5 | 5 | Bracket | |
| 6 | 6 | Screw | |
| 7 | 7 | Lever | |
| 8 | 8 | Spring | |
| 9 | 9 | Shaft | |
| 10-1 | 10-1 | Screw | |
| 10 | 10 | Washer | |
| 11 | 11 | Nut | |
| 12 | 12 | Lever | |
| 13-1 | 13-1 | Screw | |
| 14 | 14 | Spring | |
| 15 | 15 | Lever | |
| 16 | 16 | Screw | |
| 17 | 17 | Bracket | |
| 18 | 18 | Screw | |
| 19 | 19 | Shaft | |
| 20 | 20 | Screw | |
| 21 | 21 | Shaft | |
| 21-1 | 21-1 | Screw | |
| 30 | 30 | Screw | |
| 32 | 32 | Lever | |
| 33 | 33 | Shaft | |
| 34 | 34 | Nut | |
| 35 | 35 | Shaft | |
| 36 | 36 | Pin | |
| 37 | 37 | Lever | |
| 38 | 38 | Screw | |
| 39 | 39 | Shaft | |
| 40 | 40 | Nut |
Page 16
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 4021500100 | 剪底线器组件 | ||
| 40215002 | 针板组件 | ||
| 402S17001 | 螺钉 | ||
| 4021500300 | 针板座组件 | ||
| 4021900500 | 剪底线动力 | ||
| 402S30023 | 螺钉 | ||
| 40219007 | 底线切刀固定刀 | ||
| 402S11016 | 螺钉 | ||
| 40204016 | 底线切刀杆 | ||
| 402S11017 | 螺钉 | ||
| 40228009 | 垫圈 | ||
| 40219008 | 底线拉杆 | ||
| 402S11018 | 螺钉 | ||
| 402S11030 | 螺钉 | ||
| 402S11036 | 螺钉 | ||
| 40227012 | 压板 | ||
| 40212044 | 剪底线连杆 | ||
| 402S20012 | 铰链螺钉 | ||
| 40227013 | 底线导向板 | ||
| 402S11022 | 螺钉 | ||
| 40205008 | 剪底线传动杆 | ||
| 402S20013 | 螺钉 | ||
| 40210004 | 套筒 | ||
| S05042 | 螺钉 | ||
| 402S16003 | 螺母 | ||
| 40205019 | 凸轮连杆 | ||
| 402S30058 | 止动限位螺钉 | ||
| 402S16008 | 螺母 | ||
| 40226026 | 铰链螺栓 | ||
| 402S14001 | 内六角凹端紧定螺钉 | ||
| 40205010 | 底线剪刀驱动杆 | ||
| 402S20014 | 轴位螺钉 | ||
| 402S30025 | 球形螺钉 | ||
| 402S16003 | 螺母 |
Page 17 — 9.刀棒关系/KNIFE BAR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | PLATE | ||
| 2 | SCREW | ||
| 3 | WASHER | ||
| 4 | KNIFE BAR | ||
| 5 | SCREW | ||
| 6 | SPRING | ||
| 7 | PIN | ||
| 8 | SCREW | ||
| 8-1 | WASHER | ||
| 9 | SUPPORT | ||
| 9-1 | COLLAR | ||
| 10 | SLEEVE | ||
| 11 | SCREW | ||
| 12-1 | LINK | ||
| 12-2 | PIN | ||
| 13 | LINK | ||
| 13-1 | PIN | ||
| 14 | SPRING | ||
| 15 | BRACKET | ||
| 16 | SLEEVE | ||
| 17 | BRACKET | ||
| 18 | BRACKET | ||
| 20 | SCREW | ||
| 20-1 | WASHER | ||
| 21 | BRACKET | ||
| 22 | SCREW | ||
| 23 | WASHER | ||
| 24 | KNIFE BAR | ||
| 25 | SCREW | ||
| 26 | SPRING | ||
| 27 | PIN | ||
| 28 | BOLT | ||
| 28-1 | WASHER | ||
| 29 | NUT | ||
| 29-1 | NUT | ||
| 30 | COLLAR | ||
| 31 | NUT | ||
| 32 | SCREW | ||
| 33 | SCREW | ||
| 34 | WASHER | ||
| 37 | BOLT | ||
| 37-1 | WASHER | ||
| 38 | ARM | ||
| 39 | SPRING | ||
| 40 | SPRING | ||
| 41 | PIN | ||
| 42 | SCREW | ||
| 43 | BRACKET | ||
| 44 | SHAFT | ||
| 46 | BRACKET | ||
| 47 | SCREW | ||
| 48 | WASHER | ||
| 49 | BOLT | ||
| 50 | SPRING | ||
| 51 | SCREW | ||
| 52 | PIN | ||
| 53 | BRACKET | ||
| 54 | LEVER | ||
| 55 | BRACKET | ||
| 56 | BRACKET | ||
| 56-1 | PIN | ||
| 57 | SPRING | ||
| 58 | BRACKET | ||
| 59 | BRACKET | ||
| 60 | SPRING | ||
| 61 | HOOK | ||
| 62 | BRACKET | ||
| 63 | BASE | ||
| 64 | PIN | ||
| 65 | PIN | ||
| 66 | WASHER | ||
| 68 | SCREW | ||
| 69 | GEAR | ||
| 70 | WASHER | ||
| 5-1 | SCREW |
Page 18
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40212045 | 停刀架平衡块 | ||
| 40228008 | 垫片 | ||
| 402S11036 | 螺钉 | ||
| 4021204600 | 停刀架组件 | ||
| 402S11006 | 螺钉 | ||
| 206S11002 | 螺钉 | ||
| 40202005 | 停刀架铰链螺栓 | ||
| 40213002 | 线检测钢丝 | ||
| 402S11003 | 螺钉 | ||
| W01013 | 垫片 | ||
| 40202016 | 刀杆 | ||
| 40222020 | 橡胶塞 | ||
| 40203021 | 刀杆套筒 | ||
| 402S13009 | 螺钉 | ||
| 40226027 | 连杆销 | ||
| 40226028 | 连杆销 | ||
| 40205011 | 刀杆连杆 | ||
| 40222021 | 垫片 | ||
| 402S30052 | 螺钉 | ||
| 40201011 | 刀杆定位架 | ||
| 40203022 | 套筒 | ||
| 40219009 | 刀杆导引 | ||
| 40209013 | 刀固定架 | ||
| 402S13005 | 螺钉 | ||
| 40228010 | 垫片 | ||
| 40219009 | 刀片1/2" | ||
| 40228010 | 垫片 | ||
| 402S11020 | 螺钉 | ||
| 40201012 | 刀杆传动杆 | ||
| S05077 | 螺钉 | ||
| 40227014 | 拉簧 | ||
| 402S30026 | 铰链销螺钉 | ||
| 402S30027 | 止动垫 | ||
| 40222022 | 垫片 | ||
| 402S16002 | 螺母 | ||
| 402S16021 | 螺母 | ||
| 40202046 | 刀杆传动轴 | ||
| 402S16009 | 螺母 | ||
| 402S20015 | 轴位螺钉 | ||
| S05049 | 螺钉 | ||
| 402S16010 | 刀杆传动曲柄螺母 | ||
| 402S11013 | 螺钉 | ||
| 40228011 | 垫片 | ||
| 40204017 | 刀杆传动曲柄 | ||
| 12923018 | 油线 | ||
| 40212026 | 油线支架 | ||
| 402S11004 | 螺钉 | ||
| S05025 | 螺钉M6×18 | ||
| 402S20016 | 铰链螺钉 | ||
| 40204018 | 刀杆传动曲柄轴 | ||
| 40201013 | 刀杆传动杆 | ||
| 402S30028 | 螺钉 | ||
| 402S16005 | 螺母 | ||
| 402S20017 | 轴位螺钉 | ||
| 402S16011 | 螺母 | ||
| 40226029 | 偏心销 | ||
| 40226030 | 铰链螺栓 | ||
| 402S14001 | 螺钉 | ||
| 40227015 | 扎簧 | ||
| 40210005 | 棘轮爪(B) | ||
| 40210006 | 棘轮爪(A) | ||
| 402S30029 | 弹簧悬置螺钉 | ||
| 40227016 | 拉簧 | ||
| 402S20018 | 轴位螺钉 | ||
| 40202018 | 传动杆 | ||
| 40227017 | 拉簧 | ||
| 402S30030 | 悬挂螺钉 | ||
| 40212048 | 指形板 | ||
| 40203023 | 传动杆定位架 | ||
| P01008 | 销4×18 | ||
| P03030 | 销3×18 | ||
| 40222023 | 止推垫圈 | ||
| 40209014 | 刀座固定架 | ||
| 402S14006 | 螺钉 | ||
| 402S30031 | 螺钉 |
Page 19 — 10.送布凸轮关系/FEED CAM & TRIPPING SEGMENT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | GEAR | |
| 2 | 2 | CAM | |
| 3 | 3 | PIN | |
| 4 | 4 | SCREW | |
| 5 | 5 | PIN | |
| 6 | 6 | PIN | |
| 7 | 7 | COLLAR | |
| 8 | 8 | SPRING | |
| 9 | 9 | GEAR | |
| 10 | 10 | SHAFT | |
| 11 | 11 | COLLAR | |
| 12 | 12 | SHAFT | |
| 13 | 13 | GEAR | |
| 14 | 14 | CAM | |
| 15 | 15 | GEAR | |
| 16 | 16 | PIN | |
| 17 | 17 | COLLAR | |
| 18 | 18 | COLLAR | |
| 19 | 19 | SHAFT | |
| 20 | 20 | COLLAR | |
| 21 | 21 | COLLAR | |
| 22 | 22 | COLLAR | |
| 23 | 23 | COLLAR | |
| 24 | 24 | PIN | |
| 25 | 25 | GEAR | |
| 26 | 26 | CAM | |
| 27 | 27 | NUT | |
| 28 | 28 | WASHER | |
| 29 | 29 | SHAFT | |
| 30 | 30 | PIN | |
| 31 | 31 | PIN | |
| 32 | 32 | PIN | |
| 33 | 33 | CAM | |
| 35 | 35 | WASHER | |
| 36 | 36 | SCREW | |
| 37 | 37 | CAM | |
| 38 | 38 | CAM | |
| 39 | 39 | CAM | |
| 41 | 41 | CAM | |
| 45 | 45 | PIN | |
| 46 | 46 | BRACKET | |
| 47 | 47 | SCREW | |
| 48 | 48 | SCREW | |
| 48-1 | 48-1 | WASHER | |
| 49 | 49 | CAM | |
| 49-1 | 49-1 | CAM | |
| 50 | 50 | CAM | |
| 51 | 51 | BRACKET | |
| 52 | 52 | PIN | |
| 53 | 53 | PIN |
Page 20
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40225006 | 直齿轮 | ||
| 4020800400 | 正齿轮轴套组件 | ||
| 40226031 | 正齿轮定位销 | ||
| 402S14006 | 螺钉 | ||
| 40203024 | 离合环 | ||
| 402S14006 | 螺钉 | ||
| 40203025 | 固定套管 | ||
| 40227018 | 离合器弹簧 | ||
| 40225007 | 传动蜗轮 | ||
| 40202019 | 传动蜗轮轴 | ||
| 40223016 | 油毡 | ||
| 40202020 | 送布凸轮传动蜗轮轴 | ||
| 40225008 | 直齿轮 | ||
| 40225009 | 手摇曲柄左齿轮 | ||
| 40225010 | 手摇曲柄右齿轮 | ||
| S09002 | 螺钉 | ||
| 40208006 | 挡圈 | ||
| 402S14006 | 螺钉 | ||
| 40202021 | 手摇曲柄轴 | ||
| 40204019 | 手摇曲柄 | ||
| 402S14006 | 螺钉 | ||
| 402S15002 | 螺钉 | ||
| 40211007 | 手柄 | ||
| 40202022 | 手柄轴 | ||
| 40225011 | 送布凸轮传动齿轮 | ||
| 409S14001 | 螺钉M6×6 | ||
| N01010 | 螺母M12 | ||
| 40228012 | 垫片 | ||
| 40202023 | 送布凸轮轴 | ||
| 40210007 | 送布凸轮 | ||
| 40228013 | 垫片 | ||
| 402S11027 | 螺钉 | ||
| 40209015 | 加固离合块 | ||
| 40228008 | 垫片 | ||
| 402S11001 | 螺钉 | ||
| 40209016 | 切刀离合块 | ||
| 40212049 | 松线离合块 | ||
| 40212050 | 松线离合块 | ||
| 40209015 | 加固离合块 | ||
| 402S11031 | 螺钉 | ||
| 40209020 | 齿轮定位架 | ||
| S05031 | 螺钉 | ||
| S05031 | 螺钉 | ||
| 40228017 | 垫片 | ||
| 40209038 | 低速感应块 | ||
| 40230006 | 磁铁 | ||
| 40212119 | 传感器 | ||
| 40212119 | 传感器安装板 | ||
| 413S13016 | 螺钉 | ||
| S01015 | 传感器安装螺钉 |
Page 21 — 11、电控关系/CONTROL BOX COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40230007 | 电控组件 | ||
| 413S13020 | 螺钉M4×16 | ||
| 40222039 | 橡胶垫圈 | ||
| 701S13010 | 螺钉M5×60 |
Page 22 — 12.安全保护关系/SAFE PROTECTION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 4021212200 | 起动架 | ||
| 40226030 | 安全底座 | ||
| 40212054 | 轴位螺钉 | ||
| 40210008 | 螺母 | ||
| 402S16003 | 电磁铁 | ||
| 40230003 | 电磁铁安装螺钉 | ||
| 413S11002 | 电池盖 | ||
| 40211023 | 螺钉 | ||
| 413S13001 | 电池盖 | ||
| 40204033 | 连接器 | ||
| 114S14001 | 螺钉 | ||
| 40226049 | 连接销A | ||
| 40204034 | 连接接头 | ||
| 402S20036 | 螺钉 | ||
| 402S16017 | 螺母 | ||
| 40226050 | 连接销B | ||
| 40224005 | 杆端关节轴承 | ||
| 402S11038 | 螺钉 | ||
| 41728024 | 平垫片 | ||
| W02002 | 弹簧垫片 | ||
| 402S14001 | 螺钉 | ||
| 402S13010 | 螺钉 | ||
| 413S16002 | 螺母 |
Page 23 — 13.压脚提升架、绕线器组件/LIFTING LEVER & BOBBIN WINDER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | ||
| 2 | 2 | ||
| 3 | 3 | ||
| 4 | 4 | ||
| 5 | 5 | ||
| 6 | 6 | ||
| 48 | 48 | ||
| 7 | 7 | ||
| 8 | 8 | ||
| 9 | 9 | ||
| 10 | 10 | ||
| 11 | 11 | ||
| 12 | 12 | ||
| 13 | 13 | ||
| 14 | 14 | ||
| 15 | 15 | ||
| 19 | 19 | ||
| 36 | 36 | ||
| 37 | 37 | ||
| 32 | 32 | ||
| 28 | 28 | ||
| 29 | 29 | ||
| 34 | 34 | ||
| 18 | 18 | ||
| 27 | 27 | ||
| 20 | 20 | ||
| 35 | 35 | ||
| 33 | 33 | ||
| 24 | 24 | ||
| 25 | 25 | ||
| 38 | 38 | ||
| 21 | 21 | ||
| 29 | 29 | ||
| 24 | 24 | ||
| 30 | 30 | ||
| 38 | 38 | ||
| 23 | 23 | ||
| 31 | 31 | ||
| 40 | 40 | ||
| 39 | 39 | ||
| 41 | 41 | ||
| 45 | 45 | ||
| 44 | 44 | ||
| 43 | 43 | ||
| 42 | 42 | ||
| 46 | 46 | ||
| 17 | 17 |
Page 24
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40205012 | 压杆提升拉杆 | ||
| 402S20020 | 螺钉 | ||
| 402S20021 | 轴位螺钉 | ||
| 40205013 | 前杠杆板 | ||
| 40204022 | 链环 | ||
| 40229001 | 开口销2×11 | ||
| 40205014 | 后杠杆板 | ||
| 40205015 | 压杆提升拉杆 | ||
| 40226036 | 离合杆铰链销 | ||
| 402S14001 | 螺钉 | ||
| 402S30035 | 提升杆限位螺钉 | ||
| 40212095 | 压杆提升杆 | ||
| 402S30036 | 悬挂螺钉 | ||
| 40227024 | 弹簧 | ||
| 402S30032 | 悬挂螺钉 | ||
| 402S11037 | 绕线器安装螺钉 | ||
| 4023101300 | 绕线器组件 | ||
| 4021102200 | 绕线器安装座组件 | ||
| 40211020 | 梭心垫片 | ||
| 40202041 | 绕线器轴 | ||
| 4020403500 | 转动曲柄组件 | ||
| 40210010 | 转动凸轮 | ||
| 40235025 | 转轮 | ||
| B04025 | 轴承686Z | ||
| 40208013 | 挡圈 | ||
| 40227045 | 弹簧 | ||
| 40222034 | 缓冲橡胶 | ||
| 40201062 | 梭心压杆 | ||
| H05003 | E型卡簧5 | ||
| 40228029 | 垫片 | ||
| 40222033 | 橡皮圈 | ||
| 40212100 | 绕线调节板 | ||
| 40202042 | 梭心压杆轴 | ||
| 40228030 | 压杆轴垫片 | ||
| 40227044 | 卡紧弹簧 | ||
| 402S11039 | 螺钉 | ||
| 402S11040 | 螺钉 | ||
| 402S14007 | 紧定螺钉11/64×40 | ||
| 11419001 | 割线刀 | ||
| 403S11020 | 螺钉 | ||
| 1141300200 | 夹线器组件 | ||
| 1143100300 | 过线销 | ||
| 11413003 | 夹线片 | ||
| 11427006 | 夹线簧 | ||
| 11411004 | 夹线螺母 | ||
| 114S16001 | 固定螺母 | ||
| 40203030 | 拉杆套管 | ||
| 402S16003 | 螺母 |
Page 25 — 14.夹线器关系/THREAD TENSION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | THREAD TENSION ASSEMBLY | ||
| 1-1 | SPRING | ||
| 2 | BRACKET | ||
| 3 | SCREW | ||
| 4 | WASHER | ||
| 5 | SPRING | ||
| 6 | PIN | ||
| 7 | SPRING | ||
| 8 | PIN | ||
| 9 | SPRING | ||
| 10 | BRACKET | ||
| 11 | SPRING | ||
| 13 | SCREW | ||
| 14 | BRACKET | ||
| 15 | SCREW | ||
| 16 | SPRING | ||
| 17 | SCREW | ||
| 18 | BRACKET | ||
| 19 | SCREW | ||
| 20 | SPRING | ||
| 21 | SHAFT | ||
| 22 | SCREW | ||
| 23 | SPRING | ||
| 24 | SPRING | ||
| 25 | SPRING | ||
| 26 | SPRING | ||
| 27 | SPRING | ||
| 28 | SPRING | ||
| 29 | SPRING | ||
| 30 | SPRING | ||
| 31 | SPRING | ||
| 32 | SPRING | ||
| 33 | SPRING | ||
| 34 | SPRING | ||
| 35 | SHAFT | ||
| 36 | SPRING | ||
| 36-1 | SPRING | ||
| 37 | SPRING | ||
| 38 | THREAD TENSION ASSEMBLY | ||
| 39 | SPRING CAP | ||
| 40 | SPRING WASHER | ||
| 41 | SPRING WASHER | ||
| 42 | SPRING | ||
| 43 | SPRING | ||
| 44 | SPRING | ||
| 45 | SCREW | ||
| 46 | WASHER | ||
| 47 | SPRING | ||
| 48 | SPRING | ||
| 49 | SCREW | ||
| 50 | BRACKET | ||
| 51 | SPRING | ||
| 52 | SPRING | ||
| 53 | SPRING | ||
| 54 | ROD | ||
| 55 | SPRING | ||
| 56 | SCREW | ||
| 57 | SCREW | ||
| 58 | SPRING | ||
| 59 | SPRING | ||
| 60 | SPRING | ||
| 61 | SPRING | ||
| 61-1 | SPRING | ||
| 62 | SPRING | ||
| 63 | SPRING | ||
| 64 | SPRING | ||
| 65 | BRACKET | ||
| 66 | PLATE | ||
| 67 | BRACKET | ||
| 68 | SPRING | ||
| 69 | SPRING |
Page 26
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40212104 | 松线连杆 | ||
| 40230005 | 磁铁 | ||
| 402S20025 | 轴位螺钉 | ||
| 40205017 | 螺钉 | ||
| 409S14001 | 螺钉 | ||
| 402S20025 | 轴位螺钉 | ||
| 40212062 | 连杆板 | ||
| 402S20025 | 轴位螺钉 | ||
| 40127020 | 弹簧1850-0809 | ||
| 402S20021 | 轴位螺钉 | ||
| 40212063 | 杠杆板 | ||
| 40228018 | 垫圈 | ||
| 402S16001 | 螺母 | ||
| 4021206400 | 松线杆 | ||
| 402S11023 | 螺钉 | ||
| 40208009 | 挡圈 | ||
| 201S14002 | 螺钉 | ||
| 40204023 | 松线杆曲柄 | ||
| 402S20028 | 轴位螺钉 | ||
| 402S16017 | 螺钉 | ||
| 40202028 | 松线杆 | ||
| S05049 | 螺钉 | ||
| 40226037 | 松线杆 | ||
| S09011 | 螺钉 | ||
| 4021300400 | 夹线器2号组件 | ||
| 40211008 | 夹线调节手柄 | ||
| 40211009 | 夹线弹簧轴套 | ||
| 40227030 | 夹线弹簧 | ||
| 40212066 | 夹线盘压板 | ||
| 40213005 | 夹线盘 | ||
| 402S30040 | 夹线柱 | ||
| 40227031 | 挑线簧 | ||
| 402S1024 | 夹线柱座 | ||
| 40203032 | 螺钉 | ||
| 40202029 | 松线杆轴 | ||
| 402S11003 | 螺钉 | ||
| W01013 | 垫圈 | ||
| 40213006 | 拉线钢丝 | ||
| 4021300700 | 1号夹线器组件 | ||
| 40211010 | 夹线螺母 | ||
| 40211011 | 垫片 | ||
| 40227032 | 夹线弹簧 | ||
| 40212067 | 夹线压板 | ||
| 40226038 | 夹线盘 | ||
| 402S20026 | 松线销 | ||
| 402S30041 | 松线杆 | ||
| 402S16018 | 螺钉 | ||
| 40212068 | 松线臂 | ||
| 402S30042 | 螺钉 | ||
| 402S11013 | 螺钉 | ||
| 40913010 | 导线板 | ||
| 40227023 | 弹簧 | ||
| 40208010 | 挡圈 | ||
| 402S11022 | 螺钉 | ||
| 40202030 | 松线柱 | ||
| P03030 | 销3×18 | ||
| 201S14002 | 螺钉 | ||
| 40213009 | 二眼线钩 | ||
| 40213010 | 右线钩 | ||
| 206S11002 | 螺钉 | ||
| 40212070 | 针杆过线钩 | ||
| 402S11003 | 螺钉 | ||
| W01013 | 垫圈 | ||
| 40213011 | 第二紧线钩 | ||
| 40213012 | 挑线过线钩 | ||
| 402S16017 | 螺母 | ||
| 40203033 | 定位架 | ||
| 40230004 | 传感器 | ||
| 40212120 | 传感器安装板 | ||
| 413S13016 | 螺钉 | ||
| S01015 | 螺钉 |
Page 27 — 15. 给油装置关系 / LUBRICATION MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 10 | 10 | SCREW | |
| 10-1 | 10-1 | SCREW | |
| 11 | 11 | BRACKET | |
| 12 | 12 | BRACKET | |
| 13 | 13 | BRACKET | |
| 14 | 14 | BRACKET | |
| 15 | 15 | WASHER | |
| 16 | 16 | SCREW | |
| 20 | 20 | BRACKET | |
| 21 | 21 | BRACKET | |
| 25 | 25 | BRACKET | |
| 26 | 26 | BRACKET | |
| 27 | 27 | BRACKET | |
| 47 | 47 | BASE | |
| 49 | 49 | COVER | |
| 50 | 50 | SCREW | |
| 51 | 51 | BRACKET | |
| 52 | 52 | PIN | |
| 53 | 53 | SCREW | |
| 53-1 | 53-1 | SCREW | |
| 54 | 54 | WASHER | |
| 55 | 55 | SCREW | |
| 56 | 56 | WASHER | |
| 70 | 70 | BLOCK | |
| 71 | 71 | ROD | |
| 72 | 72 | WASHER | |
| 77 | 77 | BRACKET | |
| 77-1 | 77-1 | WASHER | |
| 80 | 80 | BRACKET | |
| 80-1 | 80-1 | BRACKET | |
| 81 | 81 | BRACKET | |
| 86 | 86 | BRACKET | |
| 86-1 | 86-1 | BRACKET | |
| 87 | 87 | BRACKET | |
| 88 | 88 | BRACKET | |
| 89 | 89 | WASHER |
Page 28
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40223017 | 回油毡 | ||
| 40221003 | 回油管 | ||
| 40212071 | 油管压板 | ||
| 402S11003 | 螺钉 | ||
| 40212072 | 油毡 | ||
| 40223019 | 螺钉 | ||
| 402S11003 | 螺钉 | ||
| 206S11002 | 螺钉 | ||
| 4021207300 | 盛油盘组件 | ||
| 400128 | 调节润滑螺钉座 | ||
| 4022000100 | 油泵座组件 | ||
| 40225012 | 油泵驱动蜗轮 | ||
| 201S14002 | 螺钉 | ||
| S05003 | 螺钉M5×10 | ||
| 40227035 | 弹簧 | ||
| 40212076 | 油泵板 | ||
| 40212077 | 油罩 | ||
| 40212078 | 油罩 | ||
| 40212079 | 油罩 | ||
| 40201066 | 油盘 | ||
| 40222026 | 橡胶缓冲垫 | ||
| 402S11003 | 螺钉 | ||
| 40201026 | 铰链座300849 | ||
| P03031 | 销P6×28 | ||
| S05016 | 螺钉M6×25 | ||
| 40228014 | 垫圈 | ||
| 402S11026 | 螺钉 | ||
| 40222027 | 垫片 | ||
| 40222028 | 油盘缓冲垫 | ||
| 402S30048 | 油盘螺栓 | ||
| 40228019 | 垫圈 | ||
| 40226039 | 连接销 | ||
| 40222031 | 橡胶垫圈 | ||
| 40212081 | 油管固定板 | ||
| 206S11002 | 螺钉 | ||
| 40212082 | 油管导架 | ||
| 206S11002 | JK788-1175-3螺钉 | ||
| 40212099 | 油线固定夹 | ||
| 20626004 | 油线销 | ||
| 401S16002 | 螺母 |
Jack JK-781D — parts catalog
- Page 1 (diagram): This page displays a diagram of frame and miscellaneous cover components for an industrial sewing machine, with numbered parts indicated.
- Page 2 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including screws, covers, pins, and gaskets, with their corresponding part numbers and quantities.
- Page 3 (diagram): This page displays a diagram of main shaft components, with numbered parts and their corresponding references.
- Page 4 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including screws, bearings, shafts, and belts, with their corresponding part numbers and quantities.
- Page 5 (diagram): This page displays a diagram of hook driving shaft components, with numbered parts indicated for identification and assembly purposes.
- Page 6 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, and quantities. It covers items from number 1 to 59.
- Page 7 (diagram): This page displays a diagram of presser bar, work clamp carrier components, with numbered parts and their corresponding details.
- Page 8 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including brackets, screws, and regulators, with part numbers, descriptions, and quantities.
- Page 9 (diagram): This page displays a diagram of needle bar frame components, with numbered parts indicated for identification.
- Page 10 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, and quantities. It contains items such as needle bar connection slide blocks, screws, nuts, and oil wicks.
- Page 11 (diagram): This page displays a diagram of overedging width adjusting components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 12 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, and quantities. It contains 49 items.
- Page 13 (diagram): This page displays a diagram of needle thread trimmer components, with numbered parts and their corresponding references.
- Page 15 (diagram): This page displays a diagram of bobbin thread trimmer components, with numbered parts and their corresponding references.
- Page 16 (parts_list): This page lists parts for a sewing machine, including various screws, plates, and assemblies, with their corresponding part numbers, descriptions, and quantities.
- Page 17 (diagram): This page displays a diagram of knife bar components, with numbered parts and their corresponding references.
- Page 18 (parts_list): This page contains a parts list for the machine, detailing part numbers, descriptions, and quantities for various components.
- Page 19 (diagram): This page displays a diagram of feed cam and tripping segment components, with numbered parts and their corresponding references.
- Page 20 (parts_list): This page contains a parts list for the sewing machine, detailing part numbers, descriptions, and quantities for various components.
- Page 21 (diagram): This page displays a diagram of control box components, with a table listing part numbers, descriptions, and quantities for items such as the control box assembly, screws, and rubber washers.
- Page 22 (diagram): This page displays a diagram of safe protection components for an industrial sewing machine, along with a detailed parts list including part numbers, descriptions, and quantities.
- Page 23 (diagram): This page displays a diagram of lifting lever and bobbin winder components, with numbered parts and their corresponding details.
- Page 24 (parts_list): This page lists parts for an industrial sewing machine, including screws, levers, springs, and various assemblies, with their corresponding part numbers, descriptions, and quantities.
- Page 25 (diagram): This page displays a diagram of thread tension components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 26 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It contains items such as screws, nuts, springs, and various specialized components like tension release levers and thread guides.
- Page 27 (diagram): This page displays a diagram of lubrication mechanism components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 28 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including screws, oil-related parts, and holders, with their corresponding part numbers, descriptions, and quantities.
Page 2
序号 NO. 注解 Note 件号 Part NO. 名称 Description 数量 Qty 1 40211001 机头侧盖 FRAME SIDE COVER 1 2 402S11001 螺钉 SCREW 1 3 402S11003 螺钉 SCREW 1 4 40202001 机头支撑臂 MACHINE ARM SUPPORT ROD 1 5 402S11002 螺钉 SCREW 1 6 40226001 弹性圆柱销 PIN 1 7 40222001 橡胶缓冲垫 RUBBER CUSHION 1 8 40212001 侧盖板 SIDE COVER 1 9 40222002 侧盖板衬垫 SIDE COVER GASKET 1 10 402S11003 螺钉 SCREW 7 11 40201001 机壳侧盖 FRAME SIDE COVER 1 12 402S11031 螺钉 SCREW 2 13 402S30001 螺钉 SCREW 1 14 40222003 缓冲垫 CUSHION 2 15 0 16 0 17 0 18 0 19 40212002 挑线杆防护罩 THREAD TAKE-UP LEVER OIL GUARD 1 20 402S11004 螺钉 SCREW 2 21-1 40201064 面板 FACE COVER COMPLETE 1 21-2 40222005 面板塞 FACE COVER COMPLETE PLUG 1 21-3 402S11036 螺钉 SCREW 1 22 40228008 垫片 SPACER 1 23 40222038 面板衬垫 GASKET 1 24 0 25 402S11003 螺钉 SCREW 4 27 40222007 油封 OIL SEAL 2 29 40201061 顶盖 TOP COVER 0 30 0 33 0 34 40212003 齿轮箱盖 GEAR CASE COVER 1 35 40228001 碟形弹片 DISC SPRING 1 36 402S20001 轴位螺钉 HINGE SCREW 1 38 40212004 手动钩 HAND STOP LATCH 1 39 402S11014 螺钉 SCREW 2 40 402S11001 螺钉 SCREW 6 41 0 42 0 43 40222009 橡胶插塞 RUBBER PLUG 1 44 40222037 上顶盖衬垫 TOP COVER GASKET REAR 1 45 0 46 0 47 40203001 停刀杆轴导向管 KNIFE STOP LEVER SHAFT GUIDE 1 48 40222011 橡胶插塞 RUBBER PLUG 1 49 40222012 右侧盖板衬垫 SIDE COVER GASKET 1 50 40212008 左侧盖板 SIDE COVER 3 51 402S11003 螺钉 SCREW 1 52 40222013 油视窗衬垫 GASKET 1 53 40212006 侧盖 SIDE COVER 7 54 402S11003 螺钉 SCREW 1 55 40222014 侧盖板 SIDE COVER 4 56 402S11003 螺钉 SCREW 1 57 40212007 推板 BED SLIDE 1 58 403S11001 螺钉 SCREW 1 59 40227041 推板簧 BED SLIDE SPRING 2 60 402S30003 底板支撑螺钉 BED SCREW STUD 0 61 0 62 0 64 40211003 油视窗 OIL SIGHT WINDOW 1 65 40222014 油视窗垫片 OIL SIGHT WINDOW GASKET 1 67 40222016 盲孔塞 RUBBER PLUG 5 68 40223001 油毡 OIL FELT 2 -2- jintex.in
Page 3 — 2.上轴关系/MAIN SHAFT COMPONENTS
2.上轴关系/MAIN SHAFT COMPONENTS -3- jintex.in
Page 4
序号 Note Part NO. 名称 Description 数量 Qty 1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 30-1 31 32 33 34 35 36 37 38 38-1 38-2 38-3 39 40 41 42 43 44 45 40226002 402S14001 12923018 40202054 4053800200 40204001 40205001 402S30004 40228002 402S30005 40204002 402S14002 101S11003 B04009 40203003 H03012 B07016 40205002 40210001 B02004 402S14006 409S14001 402S14003 40225001 4023503000 40235003 40224006 40201063 40101018 40122023 40235027 40230001 402S13012 40235028 403S14012 413S14001 207S14006 铰链销 螺钉 油线 上轴 挑战连杆 挑战杆组件 针杆曲柄 针杆曲柄连杆 滚针轴承 左旋螺钉 止推垫圈 螺钉 平衡块 螺钉 螺钉 轴承 轴套 挡圈25 滚动轴承 刀杆驱动连杆 刀杆传动偏心凸轮 螺钉 螺钉 螺钉 蜗杆 同步带轮组件 同步带 轴承 联轴器 联轴器传动块1 联轴器传动块2 减震橡胶 手轮 主轴电机 电机安装螺钉 绕线轮 绕线轮螺钉 螺钉 螺钉 HINGE STUD SCREW OIL WICK MAIN SHAFT THREAD TAKE UP CRANK LINK TAKE UP NEEDLE BAR CRANK NEEDLE BAR CRANK CONNECTING ROD NEEDLE BEARING END SCREW LEFT THRUST WASHER SCREW COUNTER WEIGHT SCREW SCREW BALL BEARING BALL BEARING THRUST COLLAR ROLLER BEARING KNIFE BAR DRIVING CONNECTING ROD KNIFE BAR DRIVING ECCENTRIC CAM SCREW SCREW SCREW WORM SHAFT SPROCKET TIMING BELT BEARING COUPLING 1 COUPLING 2 DAMPING RUBBER HAND WHEEL SERVO MOTOR SCREW BOBBIN WINDER DRIVING WHEEL SCREW SCREW SCREW 1 1 1 0 0 0 0 1 1 2 1 0 1 1 1 2 1 1 1 1 1 6 2 0 2 1 0 1 1 1 1 1 1 1 4 1 2 6 2 -4- jintex.in
Page 5 — 3.下轴关系/HOOK DRIVING SHAFT COMPONENTS
3.下轴关系/HOOK DRIVING SHAFT COMPONENTS jintex.in
Page 6
序号 Note 件号 Part NO. 名称 Description 数量 Qty 1 4021800100 梭壳组件 BOBBIN CASE ASM. 1 10 4021800200 梭子 BOBBIN 1 11 4021800500 梭壳组件 HOOK C ASM. 1 12 40212010 梭壳定位板 BOBBIN CASE POSITIONING PLATE 1 13 402S11006 螺钉 SCREW 2 14 4020300700 旋梭筒组件 OIL SLEEVE ASM. 1 15 413S14011 螺钉 SCREW 4 16 40123016 油线 OIL WICK 1 17 N01008 螺母 NUT 1 18 40228002 垫圈 THRUST WASHER 1 19 40203009 下轴前套 BUSHING ASM 1 20 12923018 油线 OIL WICK 1 21 2 22 40225002 蜗杆 WORM LEVER 1 23 40225003 小齿轮 PINION 1 24 201S14002 螺钉 SCREW 6 25 H01009 挡圈 THRUST COLLAR 1 26 B04012 轴承 BALL BEARING 1 27 20108001 挡圈 THRUST COLLAR 1 28 402S14006 螺钉 SCREW 2 29 4023500700 皮带轮链轮组件 BELT SPROCKET 1 30 40224004 轴承 BALL BEARING 1 31 40208001 轴承固定挡圈 COLLAR 1 32 20628006 垫圈 WASHER 1 33 402S13001 内六角平头螺钉 SCREW 1 34 S05038 螺钉 SCREW 1 35 H01009 挡圈 THRUST COLLAR 1 36 B04012 轴承 BALL BEARING 1 37 40235008 皮带张紧轮 TENSION PULLEY 1 38 40226005 调节杠杆销 ADJUSTING LEVER PIN 1 39 40205023 张紧连杆 TENSION PULLEY LINK 1 40 40212102 调节配件 ADJUSTING GUIDE 1 41 40204037 连接接头 CONNECTOR 1 42 40228031 垫片 SPACER 1 43 40226051 连接销 CONNECTION PIN 1 44 40205024 调节连杆 ADJUSTING LINK 1 45 40212103 固定板 FIXED PLATE 2 46 40223005 油毡 OIL FELT 2 47 402S30009 旋梭调节润滑螺钉 HQOK OIL ADJUSTING SCREW 1 48 402S16002 螺母 NUT 1 49 40221005 油管 OIL TUBE 0 50 400122 调节润滑螺钉座 OIL ADJUSTING SCREW BASE 1 51 40221004 调节润滑螺钉座架 OIL ADJUSTING SCREW BRACKET 1 52 402S11004 十字槽盘头螺钉 SCREW 2 53 40202039 下轴 HQOK DRIVING SHAFT 1 54 40226006 调节销 ADJUSTING PIN 1 55 402S16026 调节螺母 NUT 1 56 40208014 挡圈 THRUST COLLAR 1 57 41303002 挡圈 THRUST COLLAR 1 58 413S14004 螺钉 SCREW 2 59 S05004 固定板安装螺钉 SCREW 2 -6- jintex.in
Page 7
4. 压脚棒、送布板关系/PRESSER BAR. WORK CLAMP CARRIER COMPONENTS jintex.in
Page 8
序号 Note No. 件号 Part NO. 名称 Description 数量 Qty 1 402S30010 压簧调节手柄 PRESSER SPRING REGULATOR 1 2 40202004 压棒 PRESSER BAR 1 3 40227002 压簧 PRESSER SPRING 1 4 40212013 导向支架 GUIDE BRACKET 1 6 40209003 压棒定位架 PRESSER BAR POSITION BRACKET 1 7 409S14001 内六角平端紧定螺钉 SCREW 1 8 40203010 套管 COLLAR 1 9 40209004 滑动滚轮 SLIDE ROLLER 1 10 40226007 滑动滚销 CONNECTING PIN 1 11 40209005 支架 BRACKET 1 12 40212014 安全防护 SAFE DEFEND GUIDE 1 13 402S30011 压棒螺钉 SCREW 1 14 402S11030 螺钉 SCREW 1 14-1 402S11036 螺钉 SCREW 1 15 40212015 导向支架 GUIDE BRACKET 1 16 206S11002 螺钉 SCREW 2 17 206S11002 螺钉 SCREW 2 18 101S11020 螺钉 SCREW 1 19 40212016 面线剪断器导架 NEEDLETHREAD TRIMMER GUIDE 1 20 40212017 面线剪断器导架 NEEDLETHREAD TRIMMER GUIDE 1 21 40216001 压脚板座 WORK CLAMP CHECK HOLDER 1 22 40227003 压脚板座弹簧销 WORK CLAMP CHECK HOLDER SPRING 1 23 40212018 压脚弹簧板 WORK CLAMP CHECK SPRING 2 24 40226008 压脚弹簧定位销 WORK CLAMP CHECK SPRING SET PIN 2 25 402S20002 轴位螺钉 HINGE SCREW 1 26 101S11019 螺钉 SCREW 1 27 40216002 压脚板 WORK CLAMP CHECK 1 28 4021600300 压脚板座组件 WORK CLAMP CHECK HOLDER ASM. 1 30 40212019 送布拖板 STITCH PLATE 1 31 4021202000 支架盖板组件 BRACKET COVER 0 32 402S11007 螺钉 SCREW 2 33 40201004 送料支架 WORK CLAMP ARM BRACKET ASM 1 34 401S12001 螺钉 SCREW 1 35 40205004 压脚背支架 WORK CLAMP CARRIER BRACKET PITMAN 1 36 402S20003 轴位螺钉 HINGE SCREW 1 37 40202005 压脚背滑杆 WORK CLAMP ARM SLIDE ROD 1 38 40212023 送布拖板支架导块 WORK CLAMP CARRIER BRACKET GUIDE 1 39 402S11028 螺钉 SCREW 2 40 40201033 送布支架 WORK CLAMP BRACKET 1 41 40226010 连接销 CONNECTION PIN 1 42 402S11009 螺钉 SCREW 1 43 40204031 拖架 BEARING ARM 1 44 402S14006 螺钉 SCREW 1 45 402S30016 螺钉 SCREW 1 46 402S30013 螺钉 SCREW 1 47 40212024 调节送料长度导板 LENGTH REGULATING SHAFT GUIDE 1 48 402S16003 螺母 NUT 1 49 4020400400 调节送料长度刻度盘组件 LENGTH REGULATING SCALE ASM. 1 50 40205005 送料臂 BELL CRANK 1 51 S05040 螺钉M6×16 SCREW 1 52 40209006 滚子 ROLLER 1 53 40226012 曲柄滚子销 BELL CRANK ROLLER STUD 1 54 402S16003 螺母 NUT 1 -8- jintex.in
Page 9 — 5. NEEDLE BAR FRAME COMPONENTS
5. 针棒揺动台关系/NEEDLE BAR FRAME COMPONENTS 6 7 10 2 3 1 32 33 34 35 49 36 37 50 31 45 46 49 40 39 41 41-1 43 38 38 51 53 54 44 9 5 4 8 13 55 14 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 5. 针棒揺动台关系/NEEDLE BAR FRAME COMPONENTS jintex.in
Page 10
序号 NO. 注解 Note 件号 Part NO. 名称 Description 数量 Qty 1 400123 针杆架滑块 NEEDLE BAR CONNECTION SLIDE BLOCK 1 2 402S30014 滑块销钉 STUD 1 3 402S16003 螺母 NUT 1 4 40203011 摇杆后轴套 FRAME ROCK SHAFT BUSHING FRONT 1 5 402S14001 螺钉 SCREW 6 6 40222019 0形圈 RUBBER 1 7 40223023 油芯 OIL WICK 1 8 4020200700 摆杆轴组件 FRAME ROCK SHAFT 1 9 40204006 摆杆后轴衬 FRAME ROCK SHAFT BUSHING REAR 1 10 40203012 摆杆曲柄 FRAME ROCK SHAFT CRANK 1 13 40204007 摆杆后柄 FRAME ROCK SHAFT CRANK FRONT 1 14 402S13002 螺钉 SCREW 1 15 16 402S20004 轴位螺钉 HINGE SCREW 1 17 402S16004 螺母 NUT 1 18 40204008 针杆摇杆 NEEDLE BAR PITMAN 1 19 400132 摆杆连接导板 ROCK SHAFT CONNECTION GUIDE 1 20 S05049 螺钉M4×14 SCREW 2 21 402S30015 螺钉 SCREW 1 22 402S16005 螺母 NUT 1 23 4022500400 针齿驱动轮组件 NEEDLE DRIVING GEAR 1 24 40208002 挡圈 THRUST COLLAR 1 25 402S14006 螺钉 SCREW 2 26 0 27 40203013 切刀驱动轴 CAM SHAFT 1 28 12923018 油线 OIL WICK 1 29 402S30016 螺钉 SCREW 1 30 40208003 挡圈 THRUST COLLAR 1 31 402S14006 螺钉 SCREW 1 32 4020100600 针杆架组件 NEEDLE BAR FRAME 1 33 402S14001 螺钉 SCREW 1 34 40226014 铰链销 HINGE STUD 1 35 12923018 油线 OIL WICK 1 36 40212027 左固定片 RETAINER LEFT 1 37 402S11010 螺钉 SCREW 2 38 40223009 油毡 FELT 2 39 40212028 油线高端固定板 OIL FELT RETAINER HIGH 1 40 402S11022 螺钉 SCREW 2 41 40205006 针杆连接杆 NEEDLE BAR CONNECTION 1 41-1 402S11010 螺钉 SCREW 1 42 0 43 40212029 油线底端固定板 OIL FELT RETAINER LOWER 1 44 40202009 针杆 NEEDLE BAR 1 45 40213001 针杆导线架 NEEDLE BAR BOBBIN THREAD GUIDE 1 46 101S11006 螺钉 SCREW 1 47 40217002 机针12# NEEDLE DP×5 5 48 40212030 右固定片 RETAINER RIGHT 1 49 402S11010 螺钉 SCREW 2 50 400124 固定导片 POSITION BRACKET 1 51 40203014 针杆套筒 NEEDLE BAR BUSHING 1 52 0 53 40203015 针杆套筒 NEEDLE BAR BUSHING 1 54 40211005 油毡架 OIL FELT RETAINER 1 55 40226015 轴心 SHAFT 1 56 40223010 油毡 OIL FELT 1 -10- jintex.in
Page 11 — 6. 针摆幅调节关系/OVEREDGING WIDTH ADJUSTING COMPONENTS
6. 针摆幅调节关系/OVEREDGING WIDTH ADJUSTING COMPONENTS 1 2 6 5 7-1 7 8 9 11 12 13 14 15 16 17 18 3 4 10 21 20 19 22 23 43 42 40 41 39 38 44 36 35 33 34 27 26 24 25 32 31 30 29 45 46 47 48 49 -11- jintex.in
Page 12
序号 注解 件号 名称 数量 NO. Note Part NO. Description Qty 1 402S30017 螺钉 STITCH WIDTH REGULATING SCREW 3 2 402S11034 螺钉 SCREW 1 3 402S16006 母 NUT 1 4 N01008 母M8 NUT 3 5 40201008 复位杆 REPOSITIONING LEVER 1 6 101S11021 螺钉 SCREW 2 7 40202010 离合杆 TRIPPING ROD 1 7-1 40211006 止动橡皮 STOP RUBBER 1 8 402S30018 螺钉M5×8 SCREW 1 9 B04013 轴承605Z BALL BEARING 1 10 402S30019 调节杆螺钉 REGULATING LEVER STOPPER 1 11 40205007 调节杆连接板 REGULATING LEVER CORRECTION 1 12 40226016 调节销 HINGE PIN 1 13 402S20005 轴位螺钉 HINGE SCREW 1 14 40204009 指示曲柄 BELL CRANK 1 15 40209008 滚轮 ROLLER 1 16 402S20006 轴位螺钉 HINGE SCREW 1 17 402S16005 母 NUT 1 18 402S30015 螺钉 SCREW 1 19 40212031 刻度指示针 BARRED WIDTH INDICATOR 1 20 101S11006 螺钉 SCREW 2 21 40201009 调节叉杆 REGULATING LEVER 1 22 40227004 弹簧板 SPRING 1 23 101S11006 螺钉 SCREW 2 24 40204038 调节叉杆座 REGULATING LEVER BRACKET 1 25 401S13001 螺钉 SCREW 2 26 40202011 调节杆轴 REGULATING LEVER SHAFT 1 27 12923018 油线 OIL WICK 1 28 40204011 轴承座 BEARING BRACKET 1 29 402S16005 母 NUT 2 30 402S30015 紧定螺钉 SCREW 2 31 40202012 针摆复位轴 NEEDLE THROW REPOSITIONING SHAFT 1 32 402S11012 螺钉 SCREW 2 33 40226017 连接销 BEARING BRACKET 2 34 12923018 油线 OIL WICK 2 35 40204012 叉形连杆 REPOSITIONING LEVER LINK 1 36 40226018 连接销 CONNECTING FORKED LINK PIN 1 37 12923018 油线 OIL WICK 1 38 402S30015 螺钉 SCREW 2 39 402S16005 母 NUT 2 40 40226019 连接销 CONNECTING STUD 1 41 12923018 油线 OIL WICK 1 42 40227005 弹簧 SPRING 1 43 402S30021 悬挂螺钉 SUSPENSION SCREW 2 44 40204013 叉形连杆 CONNECTING FORKED LINK 1 45 40227006 拉簧 SPRING 1 46 402S16003 母 NUT 1 47 402S30019 调节限位螺钉 REGULATING LEVER STOPPER 1 48 40212032 缝宽指示针 SEAM WIDTH INDICATOR 1 49 101S11006 螺钉 SCREW 2 -12- jintex.in
Page 13 — 7.上 线 切 刀 关 系 / NEEDLE THREAD TRIMMER COMPONENTS
7.上 线 切 刀 关 系 / NEEDLE THREAD TRIMMER COMPONENTS 1 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 26 24 26 28 29 30 31 32 33 34 35 36 37 39 40 41 42 43 44 46 47 48 49 -13- jintex.in
Page 15 — 8. 下线切刀关系/BOBBIN THREAD TRIMMER COMPONENTS
8. 下线切刀关系/BOBBIN THREAD TRIMMER COMPONENTS 1 2 3 4 5 6 7 8 9 10-1 10 11 12 13 13-1 14 15 16 17 18 19 20 21 21-1 30 32 33 34 35 36 37 38 39 40 15 jintex.in
Page 16
序号 注解 件号 名称 数量 NO. Note Part NO. Description Qty 1 4021500100 剪底线器组件 BOBBIN THREAD TRIMMER ASM. 1 2 40215002 针板组件 NEEDLE PLATE 1 3 402S17001 螺钉 SCREW 2 4 4021500300 针板座组件 THROAT PLATE BASE 1 5 4021900500 剪底线动力 BOBBIN THREAD TRIMMER 1 6 402S30023 螺钉 SCREW 1 7 40219007 底线切刀固定刀 COUNTER KNIFE 1 8 402S11016 螺钉 SCREW 2 9 40204016 底线切刀杆 BOBBIN THREAD TRIMMER LEVER 1 10 402S11017 螺钉 SCREW 1 10-1 40228009 垫圈 WASHER 1 11 40219008 底线拉杆 BOBBIN THREAD PULLER 1 12 402S11018 螺钉 SCREW 2 13 402S11030 螺钉 SCREW 4 13-1 402S11036 螺钉 SCREW 1 14 40227012 压板 PRESSER PLATE 1 15 40212044 剪底线连杆 BOBBIN THREAD TRIMMER LINK 1 16 402S20012 铰链螺钉 SCREW 1 17 40227013 底线导向板 BOBBIN THREAD GUIDE 1 18 402S11022 螺钉 SCREW 2 19 40205008 剪底线传动杆 BOBBIN THREAD TRIMMER DRIVING LEVE 1 20 402S20013 螺钉 HINGE SCREW 1 21 40210004 套筒 SLEEVE 1 21-1 S05042 螺钉 SCREW 1 22 23 24 25 26 27 28 29 30 402S16003 螺母 NUT 1 31 0 32 40205019 凸轮连杆 CONNECTING LINK 1 33 402S30058 止动限位螺钉 STOP SCREW 1 34 402S16008 螺母 NUT 1 35 40226026 铰链螺栓 HINGE STUD 1 36 402S14001 内六角凹端紧定螺钉 SCREW 1 37 40205010 底线剪刀驱动杆 BOBBIN THREAD TRIMMER DRIVING ARM 1 38 402S20014 轴位螺钉 HINGE SCREW 1 39 402S30025 球形螺钉 BALL SCREW 1 40 402S16003 螺母 NUT 1 -16- jintex.in
Page 17 — 9.刀棒关系/KNIFE BAR COMPONENTS
9.刀棒关系/KNIFE BAR COMPONENTS 1 2 3 4 5 6 7 8-1 8 9-1 9 10 12-1 13 12-2 13-1 14 15 16 69 70 20-1 21 22 23 24 25 26 27 28 29 28-1 30 31 32 33 34 37 37-1 38 39 40 41 42 43 44 56-1 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 5-1 63 64 65 66 jintex.in
Page 18
序号 Note 件号 Part NO. 名称 Description 数量 Qty 1 40212045 停刀架平衡块 KNIFE STOP LEVER BRACKET 1 2 40228008 垫片 WASHER 3 3 402S11036 螺钉 SCREW 2 4 4021204600 停刀架组件 KNIFE STOP LEVER 1 5 402S11006 螺钉 SCREW 2 5-1 206S11002 螺钉 SCREW 2 6 40202005 停刀架铰链螺栓 KNIFE STOP LEVER HINGE STUD 1 7 40213002 线检测钢丝 THREAD CHECK WIRE 1 8 402S11003 螺钉 SCREW 1 8-1 W01013 垫片 SPACER 1 9 40202016 刀杆 KNIFE BAR 1 9-1 40222020 橡胶塞 RUBBER PLUG 1 10 40203021 刀杆套筒 KNIFE BAR BUSHING 1 11 402S13009 螺钉 SCREW 1 12-1 40226027 连杆销 CONNECTING LINK PIN 1 12-2 40226028 连杆销 CONNECTING LINK PIN 1 13 40205011 刀杆连杆 KNIFE BAR CONNECTING LINK 1 13-1 40222021 垫片 SPACER 1 14 402S30052 螺钉 SCREW 2 15 40201011 刀杆定位架 KNIFE BAR POSITION BRACKET 1 16 40203022 套筒 KNIFE BAR BUSHING 1 17 40219009 刀杆导引 KNIFE BAR GUIDE 1 18 40209013 刀固定架 KNIFE HOLDER 1 19 0 20 402S13005 螺钉 SCREW 2 20-1 40228010 垫片 WASHER 1 21 40219009 刀片1/2" KNIFE1/2" 1 22 40228010 垫片 WASHER 1 23 402S11020 螺钉 SCREW 1 24 40201012 刀杆传动杆 KNIFE BAR DRIVING LEVER 1 25 S05077 螺钉 SCREW 2 26 40227014 拉簧 SPRING 1 27 402S30026 铰链销螺钉 HINGE SCREW 1 28 402S30027 止动垫 ADJUSTING SCREW 1 28-1 40222022 垫片 SPACER 1 29 402S16002 螺母 NUT 1 29-1 402S16021 螺母 NUT 1 30 40202046 刀杆传动轴 KNIFE BAR DRIVING LEVER SHAFT 1 31 402S16009 螺母 NUT 1 32 402S20015 轴位螺钉 HINGE SCREW 1 33 S05049 螺钉 SCREW 2 34 402S16010 刀杆传动曲柄螺母 KNIFE BAR DRIVING CRANK NUT 1 37 402S11013 螺钉 SCREW 1 37-1 40228011 垫片 SPACER 1 38 40204017 刀杆传动曲柄 KNIFE BAR DRIVING CRANK 1 39 12923018 油线 OIL WICK 1 40 40212026 油线支架 OIL WICK HOLDER 1 41 402S11004 螺钉 SCREW 1 42 S05025 螺钉M6×18 SCREW 1 43 402S20016 铰链螺钉 HINGE SCREW 1 44 40204018 刀杆传动曲柄轴 KNIFE BAR DRIVING CRANK SHAFT 1 46 40201013 刀杆传动杆 KNIFE BAR DRIVING LEVER BELL CRANK 1 47 402S30028 螺钉 SCREW 1 48 402S16005 螺母 NUT 1 49 402S20017 轴位螺钉 HINGE SCREW 1 50 402S16011 螺母 NUT 1 51 40226029 偏心销 PIN 1 52 40226030 铰链螺栓 HINGE STUD 1 53 402S14001 螺钉 SCREW 1 54 40227015 扎簧 TENSION SPRING 1 55 40210005 棘轮爪(B) RATCHET PAWL (B) 1 56 40210006 棘轮爪(A) RATCHET PAWL (A) 1 56-1 402S30029 弹簧悬置螺钉 SCREW 1 57 40227016 拉簧 TENSION SPRING 1 58 402S20018 轴位螺钉 HINGE SCREW 1 59 40202018 传动杆 DRIVING ROD 1 60 40227017 拉簧 TENSION SPRING 1 61 402S30030 悬挂螺钉 SUSPENSION SCREW 1 62 40212048 指形板 FINGER 1 63 40203023 传动杆定位架 DRIVING ROD POSITION BRACKET 1 64 P01008 销4×18 POSITION PIN 1 65 P03030 销3×18 SPRING PIN 1 66 40222023 止推垫圈 THRUST WASHER 1 67 40209014 刀座固定架 KNIFE HOLDER POST POSITION BRACKET 1 68 402S14006 螺钉 SCREW 0 69 1 70 402S30031 螺钉 SCREW 1 -18- jintex.in
Page 19 — 10.送布凸轮关系/FEED CAM & TRIPPING SEGMENT COMPONENTS
10.送布凸轮关系/FEED CAM & TRIPPING SEGMENT COMPONENTS 1 2 3 4 11 6 7 5 8 9 10 12 47 48 48-1 46 13 15 16 18 20 21 19 14 8 5 22 23 24 25 26 27 28 29 37 35 36 33 35 36 35 39 41 38 35 36 30 31 32 45 49 50 51 49-1 53 52 19 jintex.in
Page 20
序号 Note Part NO. 名称 Description 数量 Qty 1 40225006 直齿轮 SPUR GEAR 1 2 4020800400 正齿轮轴套组件 SPUR GEAR BUSHING 2 3 40226031 正齿轮定位销 SPUR GEAR BUSHING PIN 4 4 402S14006 螺钉 SCREW 5 40203024 离合环 CLUTCH COLLAR 2 6 402S14006 螺钉 SCREW 4 7 40203025 固定套管 POSITION BUSHING 1 8 40227018 离合器弹簧 CLUTCH SPRING 2 9 40225007 传动蜗轮 FEED CAM DRIVING WORM WHEEL 1 10 40202019 传动蜗轮轴 FEED CAM DRIVING WORM WHEEL SHAFT 1 11 40223016 油毡 COLLAR 1 12 40202020 送布凸轮传动蜗轮轴 FEED CAM DRIVING SHAFT 1 13 40225008 直齿轮 SPUR GEAR 1 14 40225009 手摇曲柄左齿轮 HANDLE CRANK BEVEL GEAR LEFT 1 15 40225010 手摇曲柄右齿轮 HANDLE CRANK BEVEL GEAR RIGHT 1 16 S09002 螺钉 SCREW 2 17 40208006 挡圈 THRUST COLLAR 1 18 402S14006 螺钉 SCREW 2 19 40202021 手摇曲柄轴 HANDLE CRANK SHAFT 1 20 40204019 手摇曲柄 HANDLE CRANK 1 21 402S14006 螺钉 SCREW 2 22 402S15002 螺钉 SCREW 1 23 40211007 手柄 HANDLE SHAFT 1 24 40202022 手柄轴 HANDLE SHAFT 1 25 40225011 送布凸轮传动齿轮 FEED CAM DRIVING GEAR 1 26 409S14001 螺钉M6×6 SCREW 2 27 N01010 螺母M12 NUT 1 28 40228012 垫片 THRUST WASHER 1 29 40202023 送布凸轮轴 FEED CAM SHAFT 1 30 40210007 送布凸轮 FEED CAM 1 31 40228013 垫片 WASHER 1 32 402S11027 螺钉 SCREW 1 33 40209015 加固离合块 BAR TRIPPING SEGMENT 1 34 0 35 40228008 垫片 WASHER 6 36 402S11001 螺钉 SCREW 6 37 40209016 切刀离合块 KNIFE TRIPPING SEGMENT 1 38 40212049 松线离合块 TENSION RELEASE TRIPPING SEGMENT 1 39 40212050 松线离合块 TENSION RELEASE TRIPPING SEGMENT 1 40 0 41 40209015 加固离合块 BAR TRIPPING SEGMENT 1 42 0 45 402S11031 螺钉 SCREW 8 46 40209020 齿轮定位架 GEAR POSITION BRACKET 1 47 S05031 螺钉 SCREW 2 48 S05031 螺钉 SCREW 1 48-1 40228017 垫片 SPACER 3 49 40209038 低速感应块 MAGNET 1 49-1 40230006 磁铁 MAGNET 1 50 40212119 传感器 SENSOR 1 51 40212119 传感器安装板 SENSOR FITTING PLATE 1 52 413S13016 螺钉 SCREW 1 53 S01015 传感器安装螺钉 SCREW 1 -20- jintex.in
Page 21 — 11、电控关系/CONTROL BOX COMPONENTS
11、电控关系/CONTROL BOX COMPONENTS 1 2 3 4 3 4 序号 NO. 注解 Note 件号 Part NO. 名称 Description 数量 Qty 1 40230007 电控组件 CONTROL BOX ASM 1 2 413S13020 螺钉M4×16 SCREW 2 3 40222039 橡胶垫圈 RUBBER WASHER 2 4 701S13010 螺钉M5×60 SCREW 3 -21- jintex.in
Page 22 — 12.安全保护关系/SAFE PROTECTION COMPONENTS
12.安全保护关系/SAFE PROTECTION COMPONENTS 注解 Note 件号 Part NO. 名称 Description 数量 Qty 数量 Qty 1 4021212200 起动架 STARTING LINK 1 2 40226030 安全底座 SAFETY BASE 1 3 40212054 轴位螺钉 HINGE SCREW 1 4 40210008 螺母 NUT 2 5 402S16003 电磁铁 SOLENOID 1 6 40230003 电磁铁安装螺钉 SCREW 2 7 413S11002 电池盖 SOLENOID COVER 1 8 40211023 螺钉 SCREW 2 9 413S13001 电池盖 SOLENOID COVER 1 10 40204033 连接器 CONNECTOR 2 11 114S14001 螺钉 SCREW 1 12 40226049 连接销A CONNECTING LINK PIN A 1 13 40204034 连接接头 CONNECTION 1 14 402S20036 螺钉 SCREW 1 15 402S16017 螺母 NUT 1 16 40226050 连接销B CONNECTING LINK PIN B 1 17 40224005 杆端关节轴承 BEARING 1 18 402S11038 螺钉 SCREW 1 19 41728024 平垫片 WASHER 1 20 W02002 弹簧垫片 SPRING WASHER 1 21 402S14001 螺钉 SCREW 2 22 402S13010 螺钉 SCREW 1 23 413S16002 螺母 NUT 1 -22- jintex.in
Page 23 — 13.压脚提升架、绕线器组件/LIFTING LEVER & BOBBIN WINDER COMPONENTS
13.压脚提升架、绕线器组件/LIFTING LEVER & BOBBIN WINDER COMPONENTS 1 2 3 4 5 6 48 7 8 9 10 11 12 13 14 15 19 36 37 32 28 29 34 18 27 20 35 33 24 25 38 21 29 24 30 38 23 31 40 39 41 45 44 43 42 46 17 -23- jintex.in
Page 24
Note Part NO. 名称 Description 数量 Qty 数量 Qty 1 40205012 压杆提升拉杆 PRESSER BAR LIFTING ROD LONG 1 2 402S20020 螺钉 SCREW 2 3 402S20021 轴位螺钉 HINGE SCREW 2 4 40205013 前杠杆板 LEVER FRONT 1 5 40204022 链环 LINK 1 6 40229001 开口销2×11 SPLIT PIN 2 7 40205014 后杠杆板 LEVER REAR 1 8 40205015 压杆提升拉杆 PRESSER BAR LIFTING ROD 1 9 40226036 离合杆铰链销 TRIPPING LEVER HINGE PIN 1 10 402S14001 螺钉 SCREW 1 11 402S30035 提升杆限位螺钉 LIFTING LEVER STOPPER 1 12 40212095 压杆提升杆 PRESSER BAR LIFTING LEVER 1 13 402S30036 悬挂螺钉 SUSPENSION SCREW 1 14 40227024 弹簧 PRESSER FOOT LIFTING SPRING 1 15 402S30032 悬挂螺钉 SUSPENSION SCREW 1 16 402S11037 绕线器安装螺钉 SCREW 3 17 4023101300 绕线器组件 BOBBIN WINDER ASM. 1 18 4021102200 绕线器安装座组件 BOBBIN WINDER BASE 1 19 40211020 梭心垫片 WASHER 1 20 40202041 绕线器轴 BTW SHAFT 1 21 4020403500 转动曲柄组件 BTW SHAFT BASE 1 22 40210010 转动凸轮 BTW CAM LEVER 1 23 40235025 转轮 BTW WHEEL 1 24 B04025 轴承686Z BEARING 2 25 40208013 挡圈 BOBBIN BEARING SPACER 1 26 40227045 弹簧 SPRING 1 27 40222034 缓冲橡胶 RUBBER 1 28 40201062 梭心压杆 BTW LEVER 1 29 H05003 E型卡簧5 E-RING 2 30 40228029 垫片 WASHER 2 31 40222033 橡皮圈 BTW WHEEL RUBBER 1 32 40212100 绕线调节板 ADJUSTING PLATE 1 33 40202042 梭心压杆轴 BTW LEVER SHAFT 1 34 40228030 压杆轴垫片 WASHER 2 35 40227044 卡紧弹簧 SPRING 1 36 402S11039 螺钉 SCREW 1 37 402S11040 螺钉 SCREW 1 38 402S14007 紧定螺钉11/64×40 SCREW 3 39 11419001 割线刀 THREAD CUTTER 1 40 403S11020 螺钉 SCREW 2 41 1141300200 夹线器组件 BOBBIN THREAD TENSION ASM. 1 42 1143100300 过线销 BOBBIN THREAD TENSION ROD ASM 1 43 11413003 夹线片 THREAD TENSION DISK 2 44 11427006 夹线簧 CONNECTING ROD SPRING 1 45 11411004 夹线螺母 THREAD TENSION NUT 1 46 114S16001 固定螺母 NUT 11/64-40 1 47 0 48 40203030 拉杆套管 TUBE 1 49 402S16003 螺母 NUT 1 -24- jintex.in
Page 25 — 14.夹线器关系/THREAD TENSION COMPONENTS
14.夹线器关系/THREAD TENSION COMPONENTS -25- jintex.in
Page 26
注解 Note 件号 Part NO. 名称 Description 数量 Qty 数量 Qty 1 40212104 松线连杆 TENSION RELEASE LINK 1 1-1 40230005 磁铁 MAGNET 1 2 402S20025 轴位螺钉 HINGE SCREW 1 3 40205017 螺钉 TENSION RELEASE LEVER 1 4 409S14001 螺钉 SCREW 2 5 402S20025 轴位螺钉 HINGE SCREW 1 6 40212062 连杆板 BLOCKING LINK 1 7 402S20025 轴位螺钉 HINGE SCREW 1 8 40127020 弹簧1850-0809 BLOCKING ARM SPRING 1 9 402S20021 轴位螺钉 HINGE SCREW 1 10 40212063 杠杆板 BLOCKING ARM 1 11 40228018 垫圈 WASHER 1 12 0 13 402S16001 螺母 NUT 1 14 4021206400 松线杆 TENSION RELEASE LEVER 1 15 402S11023 螺钉 SCREW 2 16 40208009 挡圈 THRUST COLLAR 1 17 201S14002 螺钉 SCREW 1 18 40204023 松线杆曲柄 TENSION RELEASE LEVER CRANK 1 19 402S20028 轴位螺钉 HINGE SCREW 1 20 402S16017 螺钉 SCREW 1 21 40202028 松线杆 TENSION RELEASE ROD 1 22 S05049 螺钉 SCREW 2 23 40226037 松线杆 TENSION RELEASE PIN 1 24 S09011 螺钉 SCREW 1 25 4021300400 夹线器2号组件 TENSION CONTROLLER NO. 2 ASM 1 26 40211008 夹线调节手柄 TENSION NUT 1 27 40211009 夹线弹簧轴套 THREAD PULLING WIRE 1 28 40227030 夹线弹簧 TENSION SPRING 1 29 40212066 夹线盘压板 TENSION DISC PRESSER TUBE 1 30 40213005 夹线盘 TENSION DISC 2 31 402S30040 夹线柱 TENSION POST 1 32 40227031 挑线簧 THREAD TAKE-UP SPRING 1 33 402S1024 夹线柱座 THREAD POST SOCKET 1 34 40203032 螺钉 SCREW 1 35 40202029 松线杆轴 TENSION RELEASE LEVER SHAFT 1 36 402S11003 螺钉 SCREW 1 36-1 W01013 垫圈 WASHER 1 37 40213006 拉线钢丝 THREAD PULLING WIRE 1 38 4021300700 1号夹线器组件 TENSION CONTROLLER NO. 1 ASM. 1 39 40211010 夹线螺母 TENSION NUT 1 40 40211011 垫片 TENSION DISC STOPPER 1 41 40227032 夹线弹簧 TENSION SPRING 1 42 40212067 夹线压板 TENSION DISC PRESSER TUBE 1 43 40226038 夹线盘 TENSION DISC 2 44 402S20026 松线销 TENSION RELEASE PIN 1 45 402S30041 松线杆 TENSION POST 1 46 402S16018 螺钉 NUT 1 47 40212068 松线臂 TENSION RELEASE ARM 1 48 402S30042 螺钉 SCREW 1 49 402S11013 螺钉 SCREW 1 50 40913010 导线板 THREAD GUIDE PLATE 1 51 40227023 弹簧 SPRING 1 52 40208010 挡圈 THRUST COLLAR 1 53 402S11022 螺钉 SCREW 1 54 40202030 松线柱 TENSION RELEASE ROD 1 55 P03030 销3×18 SPRING PIN 1 56 201S14002 螺钉 SCREW 1 57 40213009 二眼线钩 THREAD EYELET 1 58 40213010 右线钩 FRAME THREAD GUIDE 1 59 206S11002 螺钉 SCREW 1 60 40212070 针杆过线钩 NEEDLE BAR THREAD GUIDE 1 61 402S11003 螺钉 SCREW 1 61-1 W01013 垫圈 WASHER 1 62 40213011 第二紧线钩 TENSION THREAD GUIDE 1 63 40213012 挑线过线钩 TAKE-UP THREAD GUIDE 1 64 402S16017 螺母 NUT 2 65 40203033 定位架 POSITION BRACKET 1 66 40230004 传感器 SENSOR 1 67 40212120 传感器安装板 SENSOR FITTING PLATE 1 68 413S13016 螺钉 SCREW 1 69 S01015 螺钉 SCREW 1 -26- jintex.in
Page 27 — 15. 给油装置关系 / LUBRICATION MECHANISM COMPONENTS
15. 给油装置关系 / LUBRICATION MECHANISM COMPONENTS 10 9 8 88 87 1 2 3 4 5 6 86-1 86 80 80-1 10 20 11 12 26 27 15 14 13 16 21 77 77-1 52 53 53-1 54 51 50 49 47 70 71 72 89 70 71 72 89 70 71 72 89 25 10-1 50 55 56 77 77-1 52 53 53-1 54 51 50 49 47 70 71 72 89 70 71 72 89 70 71 72 89 jintex.in
Page 28
注 解 Note 件号 Part NO. 名称 Description 数量 Qty 数量 Qty 1 40223017 回油毡 OIL RETURN FELT 0 2 40221003 回油管 OIL RETURN TUBE 1 3 40212071 油管压板 CABLE HOLDER 1 4 402S11003 螺钉 SCREW 1 5 油线 OIL WICK 1 6 油管导架 PIPE GUIDE 0 7 储油器 OIL RECEIVER 1 8 40212072 油毡 OIL FELT 2 9 40223019 螺钉 SCREW 2 10 402S11003 螺钉 SCREW 5 10-1 206S11002 螺钉 SCREW 5 11 4021207300 盛油盘组件 OIL RECEIVER 1 12 400128 调节润滑螺钉座 OIL ADJUSTING SCREW BASE 1 13 4022000100 油泵座组件 OIL PUMP 1 14 40225012 油泵驱动蜗轮 OIL PUMP DRIVING WORM GEAR 1 15 201S14002 SCREW 2 16 S05003 螺钉M5×10 SCREW 2 17 油毡导架 OIL FELT GUIDE 0 18 螺钉 SCREW 0 19 油量调节螺钉 HOOK OIL ADJUSTING SCREW 0 20 40227035 弹簧 SPRING 1 21 40212076 油泵板 OIL PUMP PLATE 1 22 0 25 40212077 油罩 OIL SHIELD 1 26 40212078 油罩 OIL SHIELD 1 27 40212079 油罩 OIL SHIELD 1 47 40201066 油盘 OIL RESERVOIR 1 49 40222026 橡胶缓冲垫 RUBBER CUSHION 4 50 402S11003 螺钉 SCREW 4 51 40201026 铰链座300849 HINGE HOLDER 2 52 P03031 销P6×28 PIN 2 53 S05016 螺钉M6×25 SCREW 4 54 40228014 垫圈 WASHER 4 55 402S11026 螺钉 SCREW 1 56 40222027 垫片 1 68 拔叉传动销 0 69 橡胶套 0 70 40222028 油盘缓冲垫 MACHINE BASE FELT PAD 4 71 402S30048 油盘螺栓 MACHINE BASE SCREW STUD 4 72 40228019 垫圈 WASHER 4 77 40226039 连接销 CONNECTION STUD 2 77-1 40222031 橡胶垫圈 RUBBER WASHER 2 78 油池 0 79 O型环 0 80 40212081 油管固定板 PIPE RETAINER 1 80-1 206S11002 螺钉 SCREW 2 86 40212082 油管导架 PIPE GUIDE 1 86-1 206S11002 JK788-1175-3螺钉 SCREW 2 87 40212099 油线固定夹 OIL WICK LATCH 1 88 20626004 油线销 OIL WICK PIN 1 89 401S16002 螺母 NUT 4 -28- jintex.in
