Jack JK-781D — parts catalog
- Page 1 (diagram): This page displays a diagram of frame and miscellaneous cover components for an industrial sewing machine, with numbered parts indicated.
- Page 2 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including screws, covers, pins, and gaskets, with their corresponding part numbers and quantities.
- Page 3 (diagram): This page displays a diagram of main shaft components, with numbered parts and their corresponding references.
- Page 4 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including screws, bearings, shafts, and belts, with their corresponding part numbers and quantities.
- Page 5 (diagram): This page displays a diagram of hook driving shaft components, with numbered parts indicated for identification and assembly purposes.
- Page 6 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, and quantities. It covers items from number 1 to 59.
- Page 7 (diagram): This page displays a diagram of presser bar, work clamp carrier components, with numbered parts and their corresponding details.
- Page 8 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including brackets, screws, and regulators, with part numbers, descriptions, and quantities.
- Page 9 (diagram): This page displays a diagram of needle bar frame components, with numbered parts indicated for identification.
- Page 10 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, and quantities. It contains items such as needle bar connection slide blocks, screws, nuts, and oil wicks.
- Page 11 (diagram): This page displays a diagram of overedging width adjusting components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 12 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, and quantities. It contains 49 items.
- Page 13 (diagram): This page displays a diagram of needle thread trimmer components, with numbered parts and their corresponding references.
- Page 15 (diagram): This page displays a diagram of bobbin thread trimmer components, with numbered parts and their corresponding references.
- Page 16 (parts_list): This page lists parts for a sewing machine, including various screws, plates, and assemblies, with their corresponding part numbers, descriptions, and quantities.
- Page 17 (diagram): This page displays a diagram of knife bar components, with numbered parts and their corresponding references.
- Page 18 (parts_list): This page contains a parts list for the machine, detailing part numbers, descriptions, and quantities for various components.
- Page 19 (diagram): This page displays a diagram of feed cam and tripping segment components, with numbered parts and their corresponding references.
- Page 20 (parts_list): This page contains a parts list for the sewing machine, detailing part numbers, descriptions, and quantities for various components.

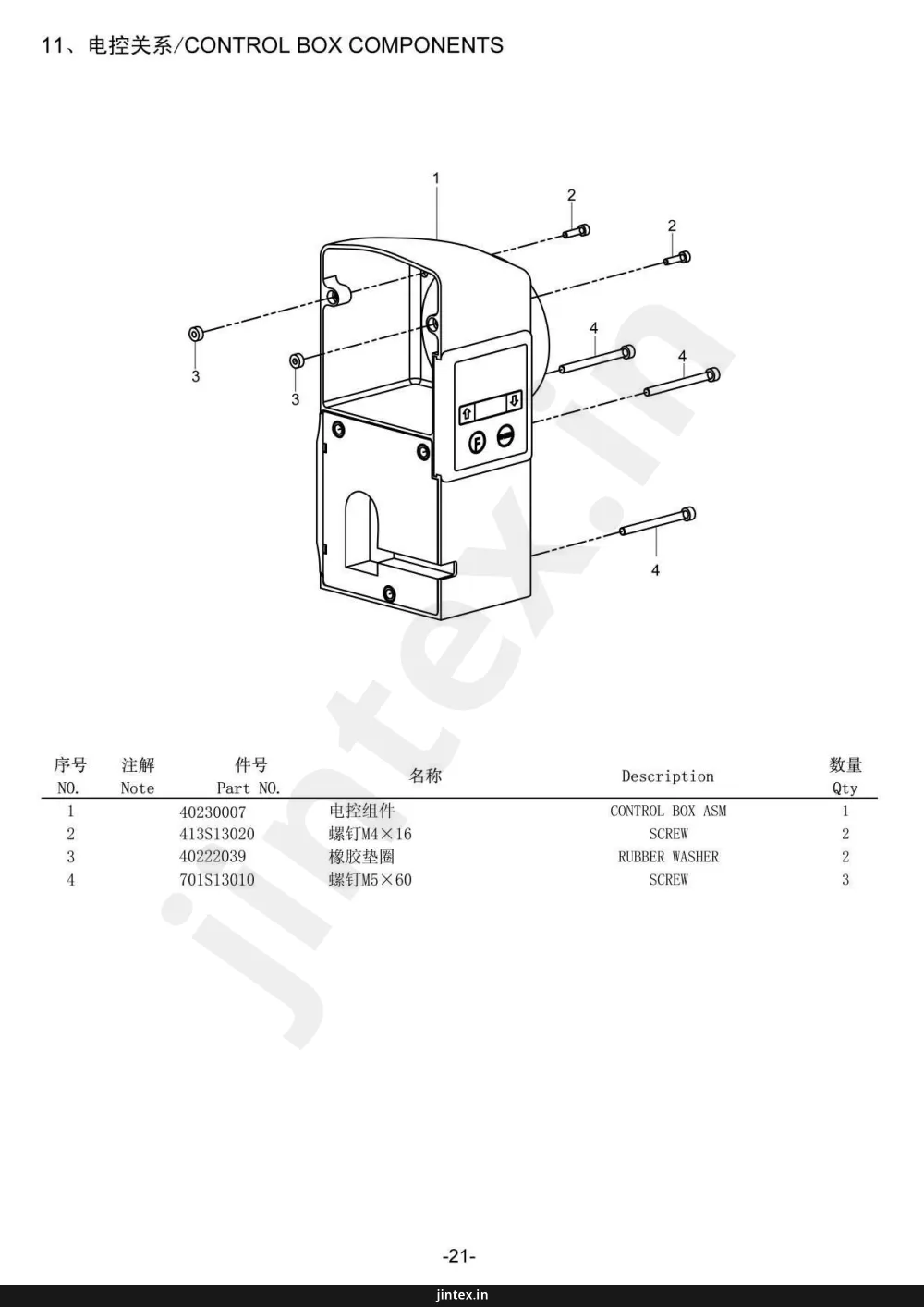

- Page 21 (diagram): This page displays a diagram of control box components, with a table listing part numbers, descriptions, and quantities for items such as the control box assembly, screws, and rubber washers.
- Page 22 (diagram): This page displays a diagram of safe protection components for an industrial sewing machine, along with a detailed parts list including part numbers, descriptions, and quantities.
- Page 23 (diagram): This page displays a diagram of lifting lever and bobbin winder components, with numbered parts and their corresponding details.
- Page 24 (parts_list): This page lists parts for an industrial sewing machine, including screws, levers, springs, and various assemblies, with their corresponding part numbers, descriptions, and quantities.
- Page 25 (diagram): This page displays a diagram of thread tension components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 26 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It contains items such as screws, nuts, springs, and various specialized components like tension release levers and thread guides.
- Page 27 (diagram): This page displays a diagram of lubrication mechanism components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 28 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including screws, oil-related parts, and holders, with their corresponding part numbers, descriptions, and quantities.
Page 1 — 1.头部外装置关系/FRAME & MISCELLANEOUS COVER COMPONENTS
Jack JK-781D parts on page 1| Ref | Part number | Part name | Qty |
|---|
| 1 | FRAME | |
| 2 | BRACKET | |
| 3 | BRACKET | |
| 4 | POST | |
| 5 | PIN | |
| 6 | PIN | |
| 7 | BUSHING | |
| 8 | COVER | |
| 9 | COVER | |
| 10 | SCREW | |
| 11 | BRACKET | |
| 12 | SCREW | |
| 13 | CYLINDER | |
| 14 | WASHER | |
| 19 | BRACKET | |
| 20 | BRACKET | |
| 21 | COVER | |
| 21-1 | COVER | |
| 21-2 | SCREW | |
| 21-3 | WASHER | |
| 22 | COVER | |
| 24 | SCREW | |
| 25 | RING | |
| 27 | BRACKET | |
| 34 | COVER | |
| 35 | WASHER | |
| 36 | SCREW | |
| 38 | BRACKET | |
| 39 | BRACKET | |
| 40 | SCREW | |
| 43 | BRACKET | |
| 44 | COVER | |
| 47 | ROD | |
| 48 | SCREW | |
| 49 | COVER | |
| 50 | COVER | |
| 51 | SCREW | |
| 52 | BRACKET | |
| 53 | BRACKET | |
| 54 | SCREW | |
| 55 | BRACKET | |
| 56 | SCREW | |
| 57 | BRACKET | |
| 58 | SCREW | |
| 59 | BRACKET | |
| 60 | BRACKET | |
| 64 | KNOB | |
| 65 | RING | |
| 67 | BRACKET | |
| 68 | BRACKET | |
1.头部外装置关系/FRAME & MISCELLANEOUS COVER COMPONENTS
-1-
jintex.in
Page 2
Jack JK-781D parts on page 2| Ref | Part number | Part name | Qty |
|---|
| 40211001 | 机头侧盖 | |
| 402S11001 | 螺钉 | |
| 402S11003 | 螺钉 | |
| 40202001 | 机头支撑臂 | |
| 402S11002 | 螺钉 | |
| 40226001 | 弹性圆柱销 | |
| 40222001 | 橡胶缓冲垫 | |
| 40212001 | 侧盖板 | |
| 40222002 | 侧盖板衬垫 | |
| 402S11003 | 螺钉 | |
| 40201001 | 机壳侧盖 | |
| 402S11031 | 螺钉 | |
| 402S30001 | 螺钉 | |
| 40222003 | 缓冲垫 | |
| 40212002 | 挑线杆防护罩 | |
| 402S11004 | 螺钉 | |
| 40201064 | 面板 | |
| 40222005 | 面板塞 | |
| 402S11036 | 螺钉 | |
| 40228008 | 垫片 | |
| 40222038 | 面板衬垫 | |
| 402S11003 | 螺钉 | |
| 40222007 | 油封 | |
| 40201061 | 顶盖 | |
| 40212003 | 齿轮箱盖 | |
| 40228001 | 碟形弹片 | |
| 402S20001 | 轴位螺钉 | |
| 40212004 | 手动钩 | |
| 402S11014 | 螺钉 | |
| 402S11001 | 螺钉 | |
| 40222009 | 橡胶插塞 | |
| 40222037 | 上顶盖衬垫 | |
| 40203001 | 停刀杆轴导向管 | |
| 40222011 | 橡胶插塞 | |
| 40222012 | 右侧盖板衬垫 | |
| 40212008 | 左侧盖板 | |
| 402S11003 | 螺钉 | |
| 40222013 | 油视窗衬垫 | |
| 40212006 | 侧盖 | |
| 402S11003 | 螺钉 | |
| 40222014 | 侧盖板 | |
| 402S11003 | 螺钉 | |
| 40212007 | 推板 | |
| 403S11001 | 螺钉 | |
| 40227041 | 推板簧 | |
| 402S30003 | 底板支撑螺钉 | |
| 40211003 | 油视窗 | |
| 40222014 | 油视窗垫片 | |
| 40222016 | 盲孔塞 | |
| 40223001 | 油毡 | |
序号
NO.
注解
Note
件号
Part NO.
名称
Description
数量
Qty
1
40211001
机头侧盖
FRAME SIDE COVER
1
2
402S11001
螺钉
SCREW
1
3
402S11003
螺钉
SCREW
1
4
40202001
机头支撑臂
MACHINE ARM SUPPORT ROD
1
5
402S11002
螺钉
SCREW
1
6
40226001
弹性圆柱销
PIN
1
7
40222001
橡胶缓冲垫
RUBBER CUSHION
1
8
40212001
侧盖板
SIDE COVER
1
9
40222002
侧盖板衬垫
SIDE COVER GASKET
1
10
402S11003
螺钉
SCREW
7
11
40201001
机壳侧盖
FRAME SIDE COVER
1
12
402S11031
螺钉
SCREW
2
13
402S30001
螺钉
SCREW
1
14
40222003
缓冲垫
CUSHION
2
15
0
16
0
17
0
18
0
19
40212002
挑线杆防护罩
THREAD TAKE-UP LEVER OIL GUARD
1
20
402S11004
螺钉
SCREW
2
21-1
40201064
面板
FACE COVER COMPLETE
1
21-2
40222005
面板塞
FACE COVER COMPLETE PLUG
1
21-3
402S11036
螺钉
SCREW
1
22
40228008
垫片
SPACER
1
23
40222038
面板衬垫
GASKET
1
24
0
25
402S11003
螺钉
SCREW
4
27
40222007
油封
OIL SEAL
2
29
40201061
顶盖
TOP COVER
0
30
0
33
0
34
40212003
齿轮箱盖
GEAR CASE COVER
1
35
40228001
碟形弹片
DISC SPRING
1
36
402S20001
轴位螺钉
HINGE SCREW
1
38
40212004
手动钩
HAND STOP LATCH
1
39
402S11014
螺钉
SCREW
2
40
402S11001
螺钉
SCREW
6
41
0
42
0
43
40222009
橡胶插塞
RUBBER PLUG
1
44
40222037
上顶盖衬垫
TOP COVER GASKET REAR
1
45
0
46
0
47
40203001
停刀杆轴导向管
KNIFE STOP LEVER SHAFT GUIDE
1
48
40222011
橡胶插塞
RUBBER PLUG
1
49
40222012
右侧盖板衬垫
SIDE COVER GASKET
1
50
40212008
左侧盖板
SIDE COVER
3
51
402S11003
螺钉
SCREW
1
52
40222013
油视窗衬垫
GASKET
1
53
40212006
侧盖
SIDE COVER
7
54
402S11003
螺钉
SCREW
1
55
40222014
侧盖板
SIDE COVER
4
56
402S11003
螺钉
SCREW
1
57
40212007
推板
BED SLIDE
1
58
403S11001
螺钉
SCREW
1
59
40227041
推板簧
BED SLIDE SPRING
2
60
402S30003
底板支撑螺钉
BED SCREW STUD
0
61
0
62
0
64
40211003
油视窗
OIL SIGHT WINDOW
1
65
40222014
油视窗垫片
OIL SIGHT WINDOW GASKET
1
67
40222016
盲孔塞
RUBBER PLUG
5
68
40223001
油毡
OIL FELT
2
-2-
jintex.in
Page 3 — 2.上轴关系/MAIN SHAFT COMPONENTS
Jack JK-781D parts on page 3| Ref | Part number | Part name | Qty |
|---|
| 1 | 1 | SCREW | |
| 2 | 2 | WASHER | |
| 3 | 3 | BRACKET | |
| 10 | 10 | SHAFT | |
| 11 | 11 | BEARING | |
| 12 | 12 | SHAFT | |
| 13 | 13 | CONNECTING ROD | |
| 14 | 14 | SCREW | |
| 15 | 15 | WASHER | |
| 17 | 17 | BEARING | |
| 18 | 18 | SHAFT | |
| 19 | 19 | SHAFT | |
| 20 | 20 | BRACKET | |
| 22 | 22 | SCREW | |
| 23 | 23 | BEARING | |
| 24 | 24 | BEARING | |
| 25 | 25 | WASHER | |
| 26 | 26 | GEAR | |
| 27 | 27 | CONNECTING ROD | |
| 28 | 28 | SHAFT | |
| 29 | 29 | BEARING | |
| 30 | 30 | BEARING | |
| 30-1 | 30-1 | BEARING | |
| 32 | 32 | SCREW | |
| 33 | 33 | SCREW | |
| 35 | 35 | PULLEY | |
| 36 | 36 | BELT | |
| 37 | 37 | PULLEY | |
| 38-1 | 38-1 | GEAR | |
| 38-2 | 38-2 | GEAR | |
| 38-3 | 38-3 | GEAR | |
| 39 | 39 | FAN COVER | |
| 40 | 40 | SCREW | |
| 41 | 41 | SHAFT | |
| 42 | 42 | SHAFT | |
| 43 | 43 | WASHER | |
| 44 | 44 | SCREW | |
| 45 | 45 | SCREW | |
| 8 | 8 | SHAFT | |
2.上轴关系/MAIN SHAFT COMPONENTS
-3-
jintex.in
Page 4
Jack JK-781D parts on page 4| Ref | Part number | Part name | Qty |
|---|
| 40226002 | 铰链销 | |
| 402S14001 | 螺钉 | |
| 12923018 | 油线 | |
| 40202054 | 上轴 | |
| 4053800200 | 挑战连杆 | |
| 40204001 | 挑战杆组件 | |
| 40205001 | 针杆曲柄 | |
| 402S30004 | 针杆曲柄连杆 | |
| 402S30004 | 滚针轴承 | |
| 402S30004 | 左旋螺钉 | |
| 40228002 | 止推垫圈 | |
| 402S30005 | 螺钉 | |
| 40204002 | 平衡块 | |
| 402S14002 | 螺钉 | |
| 101S11003 | 螺钉 | |
| B04009 | 轴承 | |
| 40203003 | 轴套 | |
| H03012 | 挡圈25 | |
| B07016 | 滚动轴承 | |
| 40205002 | 刀杆驱动连杆 | |
| 40210001 | 刀杆传动偏心凸轮 | |
| B02004 | 螺钉 | |
| 402S14006 | 螺钉 | |
| 409S14001 | 螺钉 | |
| 402S14003 | 螺钉 | |
| 40225001 | 蜗杆 | |
| 4023503000 | 同步带轮组件 | |
| 40235003 | 同步带 | |
| 40224006 | 轴承 | |
| 40201063 | 联轴器 | |
| 40101018 | 联轴器传动块2 | |
| 40122023 | 减震橡胶 | |
| 40235027 | 手轮 | |
| 40230001 | 主轴电机 | |
| 402S13012 | 电机安装螺钉 | |
| 40235028 | 绕线轮 | |
| 403S14012 | 绕线轮螺钉 | |
| 413S14001 | 螺钉 | |
| 207S14006 | 螺钉 | |
序号
Note
Part NO.
名称
Description
数量
Qty
1
2
3
4
5
6
7
8
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30-1
31
32
33
34
35
36
37
38
38-1
38-2
38-3
39
40
41
42
43
44
45
40226002
402S14001
12923018
40202054
4053800200
40204001
40205001
402S30004
40228002
402S30005
40204002
402S14002
101S11003
B04009
40203003
H03012
B07016
40205002
40210001
B02004
402S14006
409S14001
402S14003
40225001
4023503000
40235003
40224006
40201063
40101018
40122023
40235027
40230001
402S13012
40235028
403S14012
413S14001
207S14006
铰链销
螺钉
油线
上轴
挑战连杆
挑战杆组件
针杆曲柄
针杆曲柄连杆
滚针轴承
左旋螺钉
止推垫圈
螺钉
平衡块
螺钉
螺钉
轴承
轴套
挡圈25
滚动轴承
刀杆驱动连杆
刀杆传动偏心凸轮
螺钉
螺钉
螺钉
蜗杆
同步带轮组件
同步带
轴承
联轴器
联轴器传动块1
联轴器传动块2
减震橡胶
手轮
主轴电机
电机安装螺钉
绕线轮
绕线轮螺钉
螺钉
螺钉
HINGE STUD
SCREW
OIL WICK
MAIN SHAFT
THREAD TAKE UP CRANK
LINK TAKE UP
NEEDLE BAR CRANK
NEEDLE BAR CRANK CONNECTING ROD
NEEDLE BEARING
END SCREW LEFT
THRUST WASHER
SCREW
COUNTER WEIGHT
SCREW
SCREW
BALL BEARING
BALL BEARING
THRUST COLLAR
ROLLER BEARING
KNIFE BAR DRIVING CONNECTING ROD
KNIFE BAR DRIVING ECCENTRIC CAM
SCREW
SCREW
SCREW
WORM
SHAFT SPROCKET
TIMING BELT
BEARING
COUPLING 1
COUPLING 2
DAMPING RUBBER
HAND WHEEL
SERVO MOTOR
SCREW
BOBBIN WINDER DRIVING WHEEL
SCREW
SCREW
SCREW
1
1
1
0
0
0
0
1
1
2
1
0
1
1
1
2
1
1
1
1
1
6
2
0
2
1
0
1
1
1
1
1
1
1
4
1
2
6
2
-4-
jintex.in
Page 5 — 3.下轴关系/HOOK DRIVING SHAFT COMPONENTS
Jack JK-781D parts on page 5| Ref | Part number | Part name | Qty |
|---|
| 1 | 1 | |
| 10 | 10 | |
| 11 | 11 | |
| 12 | 12 | |
| 13 | 13 | |
| 14 | 14 | |
| 15 | 15 | |
| 16 | 16 | |
| 17 | 17 | |
| 18 | 18 | |
| 19 | 19 | |
| 22 | 22 | |
| 23 | 23 | |
| 24 | 24 | |
| 25 | 25 | |
| 26 | 26 | |
| 27 | 27 | |
| 28 | 28 | |
| 29 | 29 | |
| 30 | 30 | |
| 31 | 31 | |
| 32 | 32 | |
| 33 | 33 | |
| 34 | 34 | |
| 35 | 35 | |
| 36 | 36 | |
| 37 | 37 | |
| 38 | 38 | |
| 39 | 39 | |
| 40 | 40 | |
| 41 | 41 | |
| 42 | 42 | |
| 43 | 43 | |
| 44 | 44 | |
| 45 | 45 | |
| 46 | 46 | |
| 47 | 47 | |
| 48 | 48 | |
| 49 | 49 | |
| 50 | 50 | |
| 51 | 51 | |
| 52 | 52 | |
| 53 | 53 | |
| 54 | 54 | |
| 55 | 55 | |
| 56 | 56 | |
| 57 | 57 | |
| 58 | 58 | |
| 59 | 59 | |
3.下轴关系/HOOK DRIVING SHAFT COMPONENTS
jintex.in
Page 6
Jack JK-781D parts on page 6| Ref | Part number | Part name | Qty |
|---|
| 4021800100 | 梭壳组件 | |
| 4021800200 | 梭子 | |
| 4021800500 | 梭壳组件 | |
| 40212010 | 梭壳定位板 | |
| 402S11006 | 螺钉 | |
| 4020300700 | 旋梭筒组件 | |
| 413S14011 | 螺钉 | |
| 40123016 | 油线 | |
| N01008 | 螺母 | |
| 40228002 | 垫圈 | |
| 40203009 | 下轴前套 | |
| 12923018 | 油线 | |
| 40225002 | 蜗杆 | |
| 40225003 | 小齿轮 | |
| 201S14002 | 螺钉 | |
| H01009 | 挡圈 | |
| B04012 | 轴承 | |
| 20108001 | 挡圈 | |
| 402S14006 | 螺钉 | |
| 4023500700 | 皮带轮链轮组件 | |
| 40224004 | 轴承 | |
| 40208001 | 轴承固定挡圈 | |
| 20628006 | 垫圈 | |
| 402S13001 | 内六角平头螺钉 | |
| S05038 | 螺钉 | |
| H01009 | 挡圈 | |
| B04012 | 轴承 | |
| 40235008 | 皮带张紧轮 | |
| 40226005 | 调节杠杆销 | |
| 40205023 | 张紧连杆 | |
| 40212102 | 调节配件 | |
| 40204037 | 连接接头 | |
| 40228031 | 垫片 | |
| 40226051 | 连接销 | |
| 40205024 | 调节连杆 | |
| 40212103 | 固定板 | |
| 40223005 | 油毡 | |
| 402S30009 | 旋梭调节润滑螺钉 | |
| 402S16002 | 螺母 | |
| 40221005 | 油管 | |
| 400122 | 调节润滑螺钉座 | |
| 40221004 | 调节润滑螺钉座架 | |
| 402S11004 | 十字槽盘头螺钉 | |
| 40202039 | 下轴 | |
| 40226006 | 调节销 | |
| 402S16026 | 调节螺母 | |
| 40208014 | 挡圈 | |
| 41303002 | 挡圈 | |
| 413S14004 | 螺钉 | |
| S05004 | 固定板安装螺钉 | |
序号
Note
件号
Part NO.
名称
Description
数量
Qty
1
4021800100
梭壳组件
BOBBIN CASE ASM.
1
10
4021800200
梭子
BOBBIN
1
11
4021800500
梭壳组件
HOOK C ASM.
1
12
40212010
梭壳定位板
BOBBIN CASE POSITIONING PLATE
1
13
402S11006
螺钉
SCREW
2
14
4020300700
旋梭筒组件
OIL SLEEVE ASM.
1
15
413S14011
螺钉
SCREW
4
16
40123016
油线
OIL WICK
1
17
N01008
螺母
NUT
1
18
40228002
垫圈
THRUST WASHER
1
19
40203009
下轴前套
BUSHING ASM
1
20
12923018
油线
OIL WICK
1
21
2
22
40225002
蜗杆
WORM LEVER
1
23
40225003
小齿轮
PINION
1
24
201S14002
螺钉
SCREW
6
25
H01009
挡圈
THRUST COLLAR
1
26
B04012
轴承
BALL BEARING
1
27
20108001
挡圈
THRUST COLLAR
1
28
402S14006
螺钉
SCREW
2
29
4023500700
皮带轮链轮组件
BELT SPROCKET
1
30
40224004
轴承
BALL BEARING
1
31
40208001
轴承固定挡圈
COLLAR
1
32
20628006
垫圈
WASHER
1
33
402S13001
内六角平头螺钉
SCREW
1
34
S05038
螺钉
SCREW
1
35
H01009
挡圈
THRUST COLLAR
1
36
B04012
轴承
BALL BEARING
1
37
40235008
皮带张紧轮
TENSION PULLEY
1
38
40226005
调节杠杆销
ADJUSTING LEVER PIN
1
39
40205023
张紧连杆
TENSION PULLEY LINK
1
40
40212102
调节配件
ADJUSTING GUIDE
1
41
40204037
连接接头
CONNECTOR
1
42
40228031
垫片
SPACER
1
43
40226051
连接销
CONNECTION PIN
1
44
40205024
调节连杆
ADJUSTING LINK
1
45
40212103
固定板
FIXED PLATE
2
46
40223005
油毡
OIL FELT
2
47
402S30009
旋梭调节润滑螺钉
HQOK OIL ADJUSTING SCREW
1
48
402S16002
螺母
NUT
1
49
40221005
油管
OIL TUBE
0
50
400122
调节润滑螺钉座
OIL ADJUSTING SCREW BASE
1
51
40221004
调节润滑螺钉座架
OIL ADJUSTING SCREW BRACKET
1
52
402S11004
十字槽盘头螺钉
SCREW
2
53
40202039
下轴
HQOK DRIVING SHAFT
1
54
40226006
调节销
ADJUSTING PIN
1
55
402S16026
调节螺母
NUT
1
56
40208014
挡圈
THRUST COLLAR
1
57
41303002
挡圈
THRUST COLLAR
1
58
413S14004
螺钉
SCREW
2
59
S05004
固定板安装螺钉
SCREW
2
-6-
jintex.in
Page 7
Jack JK-781D parts on page 7| Ref | Part number | Part name | Qty |
|---|
| 1 | PRESSER BAR | |
| 2 | PRESSER BAR GUIDE | |
| 3 | SPRING | |
| 4 | PRESSER BAR HOLDER | |
| 6 | BRACKET | |
| 7 | SCREW | |
| 8 | WASHER | |
| 9 | SCREW | |
| 10 | BRACKET | |
| 11 | PIN | |
| 13 | SCREW | |
| 14 | BRACKET | |
| 14-1 | BRACKET | |
| 15 | SCREW | |
| 16 | SCREW | |
| 17 | SCREW | |
| 18 | SCREW | |
| 19 | BRACKET | |
| 20 | BRACKET | |
| 21 | BRACKET | |
| 22 | SCREW | |
| 23 | BRACKET | |
| 24 | SCREW | |
| 25 | SCREW | |
| 26 | SCREW | |
| 27 | BRACKET | |
| 28 | BRACKET | |
| 30 | BASE PLATE | |
| 31 | BASE PLATE | |
| 32 | SCREW | |
| 33 | BRACKET | |
| 34 | BRACKET | |
| 35 | BRACKET | |
| 36 | SCREW | |
| 37 | SHAFT | |
| 38 | BRACKET | |
| 39 | SCREW | |
| 40 | SHAFT | |
| 41 | PIN | |
| 42 | BRACKET | |
| 43 | BRACKET | |
| 44 | SCREW | |
| 45 | SCREW | |
| 46 | BRACKET | |
| 47 | BRACKET | |
| 48 | NUT | |
| 49 | BRACKET | |
| 50 | BRACKET | |
| 51 | SCREW | |
| 52 | COLLAR | |
| 53 | SCREW | |
| 54 | NUT | |
4. 压脚棒、送布板关系/PRESSER BAR. WORK CLAMP CARRIER COMPONENTS
jintex.in
Page 8
Jack JK-781D parts on page 8| Ref | Part number | Part name | Qty |
|---|
| 402S30010 | 压簧调节手柄 | |
| 40202004 | 压棒 | |
| 40227002 | 压簧 | |
| 40212013 | 导向支架 | |
| 40209003 | 压棒定位架 | |
| 409S14001 | 内六角平端紧定螺钉 | |
| 40203010 | 套管 | |
| 40209004 | 滑动滚轮 | |
| 40226007 | 滑动滚销 | |
| 40209005 | 支架 | |
| 40212014 | 安全防护 | |
| 402S30011 | 压棒螺钉 | |
| 402S11030 | 螺钉 | |
| 402S11036 | 螺钉 | |
| 40212015 | 导向支架 | |
| 206S11002 | 螺钉 | |
| 206S11002 | 螺钉 | |
| 101S11020 | 螺钉 | |
| 40212016 | 面线剪断器导架 | |
| 40212017 | 面线剪断器导架 | |
| 40216001 | 压脚板座 | |
| 40227003 | 压脚板座弹簧销 | |
| 40212018 | 压脚弹簧板 | |
| 40226008 | 压脚弹簧定位销 | |
| 402S20002 | 轴位螺钉 | |
| 101S11019 | 螺钉 | |
| 40216002 | 压脚板 | |
| 4021600300 | 压脚板座组件 | |
| 40212019 | 送布拖板 | |
| 4021202000 | 支架盖板组件 | |
| 402S11007 | 螺钉 | |
| 40201004 | 送料支架 | |
| 401S12001 | 螺钉 | |
| 40205004 | 压脚背支架 | |
| 402S20003 | 轴位螺钉 | |
| 40202005 | 压脚背滑杆 | |
| 40212023 | 送布拖板支架导块 | |
| 402S11028 | 螺钉 | |
| 40201033 | 送布支架 | |
| 40226010 | 连接销 | |
| 402S11009 | 螺钉 | |
| 40204031 | 拖架 | |
| 402S14006 | 螺钉 | |
| 402S30016 | 螺钉 | |
| 402S30013 | 螺钉 | |
| 40212024 | 调节送料长度导板 | |
| 402S16003 | 螺母 | |
| 4020400400 | 调节送料长度刻度盘组件 | |
| 40205005 | 送料臂 | |
| S05040 | 螺钉M6×16 | |
| 40209006 | 滚子 | |
| 40226012 | 曲柄滚子销 | |
| 402S16003 | 螺母 | |
序号
Note
No.
件号
Part NO.
名称
Description
数量
Qty
1
402S30010
压簧调节手柄
PRESSER SPRING REGULATOR
1
2
40202004
压棒
PRESSER BAR
1
3
40227002
压簧
PRESSER SPRING
1
4
40212013
导向支架
GUIDE BRACKET
1
6
40209003
压棒定位架
PRESSER BAR POSITION BRACKET
1
7
409S14001
内六角平端紧定螺钉
SCREW
1
8
40203010
套管
COLLAR
1
9
40209004
滑动滚轮
SLIDE ROLLER
1
10
40226007
滑动滚销
CONNECTING PIN
1
11
40209005
支架
BRACKET
1
12
40212014
安全防护
SAFE DEFEND GUIDE
1
13
402S30011
压棒螺钉
SCREW
1
14
402S11030
螺钉
SCREW
1
14-1
402S11036
螺钉
SCREW
1
15
40212015
导向支架
GUIDE BRACKET
1
16
206S11002
螺钉
SCREW
2
17
206S11002
螺钉
SCREW
2
18
101S11020
螺钉
SCREW
1
19
40212016
面线剪断器导架
NEEDLETHREAD TRIMMER GUIDE
1
20
40212017
面线剪断器导架
NEEDLETHREAD TRIMMER GUIDE
1
21
40216001
压脚板座
WORK CLAMP CHECK HOLDER
1
22
40227003
压脚板座弹簧销
WORK CLAMP CHECK HOLDER SPRING
1
23
40212018
压脚弹簧板
WORK CLAMP CHECK SPRING
2
24
40226008
压脚弹簧定位销
WORK CLAMP CHECK SPRING SET PIN
2
25
402S20002
轴位螺钉
HINGE SCREW
1
26
101S11019
螺钉
SCREW
1
27
40216002
压脚板
WORK CLAMP CHECK
1
28
4021600300
压脚板座组件
WORK CLAMP CHECK HOLDER ASM.
1
30
40212019
送布拖板
STITCH PLATE
1
31
4021202000
支架盖板组件
BRACKET COVER
0
32
402S11007
螺钉
SCREW
2
33
40201004
送料支架
WORK CLAMP ARM BRACKET ASM
1
34
401S12001
螺钉
SCREW
1
35
40205004
压脚背支架
WORK CLAMP CARRIER BRACKET PITMAN
1
36
402S20003
轴位螺钉
HINGE SCREW
1
37
40202005
压脚背滑杆
WORK CLAMP ARM SLIDE ROD
1
38
40212023
送布拖板支架导块
WORK CLAMP CARRIER BRACKET GUIDE
1
39
402S11028
螺钉
SCREW
2
40
40201033
送布支架
WORK CLAMP BRACKET
1
41
40226010
连接销
CONNECTION PIN
1
42
402S11009
螺钉
SCREW
1
43
40204031
拖架
BEARING ARM
1
44
402S14006
螺钉
SCREW
1
45
402S30016
螺钉
SCREW
1
46
402S30013
螺钉
SCREW
1
47
40212024
调节送料长度导板
LENGTH REGULATING SHAFT GUIDE
1
48
402S16003
螺母
NUT
1
49
4020400400
调节送料长度刻度盘组件
LENGTH REGULATING SCALE ASM.
1
50
40205005
送料臂
BELL CRANK
1
51
S05040
螺钉M6×16
SCREW
1
52
40209006
滚子
ROLLER
1
53
40226012
曲柄滚子销
BELL CRANK ROLLER STUD
1
54
402S16003
螺母
NUT
1
-8-
jintex.in
Page 9 — 5. NEEDLE BAR FRAME COMPONENTS
Jack JK-781D parts on page 9| Ref | Part number | Part name | Qty |
|---|
| 1 | 1 | NUT | |
| 2 | 2 | WASHER | |
| 3 | 3 | SCREW | |
| 4 | 4 | COLLAR | |
| 5 | 5 | PIN | |
| 6 | 6 | NEEDLE BAR CONNECTING ROD | |
| 7 | 7 | NEEDLE BAR CONNECTING ROD | |
| 8 | 8 | SHAFT | |
| 9 | 9 | COLLAR | |
| 10 | 10 | NEEDLE BAR FRAME | |
| 13 | 13 | SHAFT | |
| 14 | 14 | SCREW | |
| 16 | 16 | SCREW | |
| 17 | 17 | LINK | |
| 18 | 18 | NEEDLE BAR CONNECTING ROD | |
| 19 | 19 | BRACKET | |
| 20 | 20 | SCREW | |
| 21 | 21 | SCREW | |
| 22 | 22 | SCREW | |
| 23 | 23 | SCREW | |
| 24 | 24 | SCREW | |
| 25 | 25 | COLLAR | |
| 26 | 26 | COLLAR | |
| 27 | 27 | COLLAR | |
| 28 | 28 | SHAFT | |
| 29 | 29 | COLLAR | |
| 30 | 30 | COLLAR | |
| 31 | 31 | COLLAR | |
| 32 | 32 | SCREW | |
| 33 | 33 | WASHER | |
| 34 | 34 | SCREW | |
| 35 | 35 | NEEDLE BAR FRAME | |
| 36 | 36 | BRACKET | |
| 37 | 37 | SCREW | |
| 38 | 38 | BRACKET | |
| 39 | 39 | LEVER | |
| 40 | 40 | SHAFT | |
| 41 | 41 | NEEDLE BAR CONNECTING ROD | |
| 41-1 | 41-1 | NEEDLE BAR CONNECTING ROD | |
| 43 | 43 | BRACKET | |
| 44 | 44 | BRACKET | |
| 45 | 45 | BRACKET | |
| 46 | 46 | BRACKET | |
| 47 | 47 | BRACKET | |
| 48 | 48 | BRACKET | |
| 49 | 49 | SCREW | |
| 50 | 50 | BRACKET | |
| 51 | 51 | BRACKET | |
| 53 | 53 | BRACKET | |
| 54 | 54 | BRACKET | |
| 55 | 55 | SHAFT | |
5. 针棒揺动台关系/NEEDLE BAR FRAME COMPONENTS
6
7
10
2
3
1
32
33
34
35
49
36
37
50
31
45
46
49
40
39
41
41-1
43
38
38
51
53
54
44
9
5
4
8
13
55
14
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
5. 针棒揺动台关系/NEEDLE BAR FRAME COMPONENTS
jintex.in
Page 10
Jack JK-781D parts on page 10| Ref | Part number | Part name | Qty |
|---|
| 400123 | 针杆架滑块 | |
| 402S30014 | 滑块销钉 | |
| 402S16003 | 螺母 | |
| 40203011 | 摇杆后轴套 | |
| 402S14001 | 螺钉 | |
| 40222019 | 0形圈 | |
| 40223023 | 油芯 | |
| 4020200700 | 摆杆轴组件 | |
| 40204006 | 摆杆后轴衬 | |
| 40203012 | 摆杆曲柄 | |
| 40204007 | 摆杆后柄 | |
| 402S13002 | 螺钉 | |
| 402S20004 | 轴位螺钉 | |
| 402S16004 | 螺母 | |
| 40204008 | 针杆摇杆 | |
| 400132 | 摆杆连接导板 | |
| S05049 | 螺钉M4×14 | |
| 402S30015 | 螺钉 | |
| 402S16005 | 螺母 | |
| 4022500400 | 针齿驱动轮组件 | |
| 40208002 | 挡圈 | |
| 402S14006 | 螺钉 | |
| 40203013 | 切刀驱动轴 | |
| 12923018 | 油线 | |
| 402S30016 | 螺钉 | |
| 40208003 | 挡圈 | |
| 402S14006 | 螺钉 | |
| 4020100600 | 针杆架组件 | |
| 402S14001 | 螺钉 | |
| 40226014 | 铰链销 | |
| 12923018 | 油线 | |
| 40212027 | 左固定片 | |
| 402S11010 | 螺钉 | |
| 40223009 | 油毡 | |
| 40212028 | 油线高端固定板 | |
| 402S11022 | 螺钉 | |
| 40205006 | 针杆连接杆 | |
| 402S11010 | 螺钉 | |
| 40212029 | 油线底端固定板 | |
| 40202009 | 针杆 | |
| 40213001 | 针杆导线架 | |
| 101S11006 | 螺钉 | |
| 40217002 | 机针12# | |
| 40212030 | 右固定片 | |
| 402S11010 | 螺钉 | |
| 400124 | 固定导片 | |
| 40203014 | 针杆套筒 | |
| 40203015 | 针杆套筒 | |
| 40211005 | 油毡架 | |
| 40226015 | 轴心 | |
| 40223010 | 油毡 | |
序号
NO.
注解
Note
件号
Part NO.
名称
Description
数量
Qty
1
400123
针杆架滑块
NEEDLE BAR CONNECTION SLIDE BLOCK
1
2
402S30014
滑块销钉
STUD
1
3
402S16003
螺母
NUT
1
4
40203011
摇杆后轴套
FRAME ROCK SHAFT BUSHING FRONT
1
5
402S14001
螺钉
SCREW
6
6
40222019
0形圈
RUBBER
1
7
40223023
油芯
OIL WICK
1
8
4020200700
摆杆轴组件
FRAME ROCK SHAFT
1
9
40204006
摆杆后轴衬
FRAME ROCK SHAFT BUSHING REAR
1
10
40203012
摆杆曲柄
FRAME ROCK SHAFT CRANK
1
13
40204007
摆杆后柄
FRAME ROCK SHAFT CRANK FRONT
1
14
402S13002
螺钉
SCREW
1
15
16
402S20004
轴位螺钉
HINGE SCREW
1
17
402S16004
螺母
NUT
1
18
40204008
针杆摇杆
NEEDLE BAR PITMAN
1
19
400132
摆杆连接导板
ROCK SHAFT CONNECTION GUIDE
1
20
S05049
螺钉M4×14
SCREW
2
21
402S30015
螺钉
SCREW
1
22
402S16005
螺母
NUT
1
23
4022500400
针齿驱动轮组件
NEEDLE DRIVING GEAR
1
24
40208002
挡圈
THRUST COLLAR
1
25
402S14006
螺钉
SCREW
2
26
0
27
40203013
切刀驱动轴
CAM SHAFT
1
28
12923018
油线
OIL WICK
1
29
402S30016
螺钉
SCREW
1
30
40208003
挡圈
THRUST COLLAR
1
31
402S14006
螺钉
SCREW
1
32
4020100600
针杆架组件
NEEDLE BAR FRAME
1
33
402S14001
螺钉
SCREW
1
34
40226014
铰链销
HINGE STUD
1
35
12923018
油线
OIL WICK
1
36
40212027
左固定片
RETAINER LEFT
1
37
402S11010
螺钉
SCREW
2
38
40223009
油毡
FELT
2
39
40212028
油线高端固定板
OIL FELT RETAINER HIGH
1
40
402S11022
螺钉
SCREW
2
41
40205006
针杆连接杆
NEEDLE BAR CONNECTION
1
41-1
402S11010
螺钉
SCREW
1
42
0
43
40212029
油线底端固定板
OIL FELT RETAINER LOWER
1
44
40202009
针杆
NEEDLE BAR
1
45
40213001
针杆导线架
NEEDLE BAR BOBBIN THREAD GUIDE
1
46
101S11006
螺钉
SCREW
1
47
40217002
机针12#
NEEDLE DP×5
5
48
40212030
右固定片
RETAINER RIGHT
1
49
402S11010
螺钉
SCREW
2
50
400124
固定导片
POSITION BRACKET
1
51
40203014
针杆套筒
NEEDLE BAR BUSHING
1
52
0
53
40203015
针杆套筒
NEEDLE BAR BUSHING
1
54
40211005
油毡架
OIL FELT RETAINER
1
55
40226015
轴心
SHAFT
1
56
40223010
油毡
OIL FELT
1
-10-
jintex.in
Page 11 — 6. 针摆幅调节关系/OVEREDGING WIDTH ADJUSTING COMPONENTS
Jack JK-781D parts on page 11| Ref | Part number | Part name | Qty |
|---|
| 1 | 1 | BOLT | |
| 2 | 2 | BOLT | |
| 3 | 3 | NUT | |
| 4 | 4 | NUT | |
| 5 | 5 | BOLT | |
| 6 | 6 | BOLT | |
| 7-1 | 7-1 | PIN | |
| 7 | 7 | BOLT | |
| 8 | 8 | BOLT | |
| 9 | 9 | NUT | |
| 10 | 10 | BOLT | |
| 11 | 11 | PIN | |
| 12 | 12 | BOLT | |
| 13 | 13 | BOLT | |
| 14 | 14 | BRACKET | |
| 15 | 15 | BOLT | |
| 16 | 16 | WASHER | |
| 17 | 17 | BOLT | |
| 18 | 18 | BRACKET | |
| 19 | 19 | BRACKET | |
| 20 | 20 | BRACKET | |
| 21 | 21 | BRACKET | |
| 22 | 22 | BRACKET | |
| 23 | 23 | BOLT | |
| 24 | 24 | BRACKET | |
| 25 | 25 | BOLT | |
| 26 | 26 | BRACKET | |
| 27 | 27 | BRACKET | |
| 28 | 28 | BOLT | |
| 29 | 29 | BOLT | |
| 30 | 30 | BOLT | |
| 31 | 31 | SHAFT | |
| 32 | 32 | BRACKET | |
| 33 | 33 | BRACKET | |
| 34 | 34 | BRACKET | |
| 35 | 35 | BRACKET | |
| 36 | 36 | BRACKET | |
| 37 | 37 | BRACKET | |
| 38 | 38 | NUT | |
| 39 | 39 | BOLT | |
| 40 | 40 | BRACKET | |
| 41 | 41 | BRACKET | |
| 42 | 42 | SPRING | |
| 43 | 43 | PIN | |
| 44 | 44 | BRACKET | |
| 45 | 45 | SPRING | |
| 46 | 46 | BOLT | |
| 47 | 47 | BOLT | |
| 48 | 48 | BRACKET | |
| 49 | 49 | BOLT | |
6. 针摆幅调节关系/OVEREDGING WIDTH ADJUSTING COMPONENTS
1
2
6
5
7-1
7
8
9
11
12
13
14
15
16
17
18
3
4
10
21
20
19
22
23
43
42
40
41
39
38
44
36
35
33
34
27
26
24
25
32
31
30
29
45
46
47
48
49
-11-
jintex.in
Page 12
Jack JK-781D parts on page 12| Ref | Part number | Part name | Qty |
|---|
| 402S30017 | 螺钉 | |
| 402S11034 | 螺钉 | |
| 402S16006 | 母 | |
| N01008 | 母M8 | |
| 40201008 | 复位杆 | |
| 101S11021 | 螺钉 | |
| 40202010 | 离合杆 | |
| 40211006 | 止动橡皮 | |
| 402S30018 | 螺钉M5×8 | |
| B04013 | 轴承605Z | |
| 402S30019 | 调节杆螺钉 | |
| 40205007 | 调节杆连接板 | |
| 40226016 | 调节销 | |
| 402S20005 | 轴位螺钉 | |
| 40204009 | 指示曲柄 | |
| 40209008 | 滚轮 | |
| 402S20006 | 轴位螺钉 | |
| 402S16005 | 母 | |
| 402S30015 | 螺钉 | |
| 40212031 | 刻度指示针 | |
| 101S11006 | 螺钉 | |
| 40201009 | 调节叉杆 | |
| 40227004 | 弹簧板 | |
| 101S11006 | 螺钉 | |
| 40204038 | 调节叉杆座 | |
| 401S13001 | 螺钉 | |
| 40202011 | 调节杆轴 | |
| 12923018 | 油线 | |
| 40204011 | 轴承座 | |
| 402S16005 | 母 | |
| 402S30015 | 紧定螺钉 | |
| 40202012 | 针摆复位轴 | |
| 402S11012 | 螺钉 | |
| 40226017 | 连接销 | |
| 12923018 | 油线 | |
| 40204012 | 叉形连杆 | |
| 40226018 | 连接销 | |
| 12923018 | 油线 | |
| 402S30015 | 螺钉 | |
| 402S16005 | 母 | |
| 40226019 | 连接销 | |
| 12923018 | 油线 | |
| 40227005 | 弹簧 | |
| 402S30021 | 悬挂螺钉 | |
| 40204013 | 叉形连杆 | |
| 40227006 | 拉簧 | |
| 402S16003 | 母 | |
| 402S30019 | 调节限位螺钉 | |
| 40212032 | 缝宽指示针 | |
| 101S11006 | 螺钉 | |
序号 注解 件号 名称 数量
NO. Note Part NO. Description Qty
1 402S30017 螺钉 STITCH WIDTH REGULATING SCREW 3
2 402S11034 螺钉 SCREW 1
3 402S16006 母 NUT 1
4 N01008 母M8 NUT 3
5 40201008 复位杆 REPOSITIONING LEVER 1
6 101S11021 螺钉 SCREW 2
7 40202010 离合杆 TRIPPING ROD 1
7-1 40211006 止动橡皮 STOP RUBBER 1
8 402S30018 螺钉M5×8 SCREW 1
9 B04013 轴承605Z BALL BEARING 1
10 402S30019 调节杆螺钉 REGULATING LEVER STOPPER 1
11 40205007 调节杆连接板 REGULATING LEVER CORRECTION 1
12 40226016 调节销 HINGE PIN 1
13 402S20005 轴位螺钉 HINGE SCREW 1
14 40204009 指示曲柄 BELL CRANK 1
15 40209008 滚轮 ROLLER 1
16 402S20006 轴位螺钉 HINGE SCREW 1
17 402S16005 母 NUT 1
18 402S30015 螺钉 SCREW 1
19 40212031 刻度指示针 BARRED WIDTH INDICATOR 1
20 101S11006 螺钉 SCREW 2
21 40201009 调节叉杆 REGULATING LEVER 1
22 40227004 弹簧板 SPRING 1
23 101S11006 螺钉 SCREW 2
24 40204038 调节叉杆座 REGULATING LEVER BRACKET 1
25 401S13001 螺钉 SCREW 2
26 40202011 调节杆轴 REGULATING LEVER SHAFT 1
27 12923018 油线 OIL WICK 1
28 40204011 轴承座 BEARING BRACKET 1
29 402S16005 母 NUT 2
30 402S30015 紧定螺钉 SCREW 2
31 40202012 针摆复位轴 NEEDLE THROW REPOSITIONING SHAFT 1
32 402S11012 螺钉 SCREW 2
33 40226017 连接销 BEARING BRACKET 2
34 12923018 油线 OIL WICK 2
35 40204012 叉形连杆 REPOSITIONING LEVER LINK 1
36 40226018 连接销 CONNECTING FORKED LINK PIN 1
37 12923018 油线 OIL WICK 1
38 402S30015 螺钉 SCREW 2
39 402S16005 母 NUT 2
40 40226019 连接销 CONNECTING STUD 1
41 12923018 油线 OIL WICK 1
42 40227005 弹簧 SPRING 1
43 402S30021 悬挂螺钉 SUSPENSION SCREW 2
44 40204013 叉形连杆 CONNECTING FORKED LINK 1
45 40227006 拉簧 SPRING 1
46 402S16003 母 NUT 1
47 402S30019 调节限位螺钉 REGULATING LEVER STOPPER 1
48 40212032 缝宽指示针 SEAM WIDTH INDICATOR 1
49 101S11006 螺钉 SCREW 2
-12-
jintex.in
Page 13 — 7.上
线
切
刀
关
系
/
NEEDLE
THREAD
TRIMMER
COMPONENTS
Jack JK-781D parts on page 13| Ref | Part number | Part name | Qty |
|---|
| 1 | 1 | |
| 7 | 7 | |
| 8 | 8 | |
| 9 | 9 | |
| 10 | 10 | |
| 11 | 11 | |
| 12 | 12 | |
| 13 | 13 | |
| 14 | 14 | |
| 15 | 15 | |
| 16 | 16 | |
| 17 | 17 | |
| 18 | 18 | |
| 19 | 19 | |
| 20 | 20 | |
| 21 | 21 | |
| 22 | 22 | |
| 23 | 23 | |
| 24 | 24 | |
| 26 | 26 | |
| 28 | 28 | |
| 29 | 29 | |
| 30 | 30 | |
| 31 | 31 | |
| 32 | 32 | |
| 33 | 33 | |
| 34 | 34 | |
| 35 | 35 | |
| 36 | 36 | |
| 37 | 37 | |
| 39 | 39 | |
| 40 | 40 | |
| 41 | 41 | |
| 42 | 42 | |
| 43 | 43 | |
| 44 | 44 | |
| 46 | 46 | |
| 47 | 47 | |
| 48 | 48 | |
| 49 | 49 | |
7.上
线
切
刀
关
系
/
NEEDLE
THREAD
TRIMMER
COMPONENTS
1
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
26
24
26
28
29
30
31
32
33
34
35
36
37
39
40
41
42
43
44
46
47
48
49
-13-
jintex.in
Page 15 — 8. 下线切刀关系/BOBBIN THREAD TRIMMER COMPONENTS
Jack JK-781D parts on page 15| Ref | Part number | Part name | Qty |
|---|
| 3 | 3 | Screw | |
| 2 | 2 | Base | |
| 13 | 13 | Screw | |
| 4 | 4 | Base | |
| 5 | 5 | Bracket | |
| 6 | 6 | Screw | |
| 7 | 7 | Lever | |
| 8 | 8 | Spring | |
| 9 | 9 | Shaft | |
| 10-1 | 10-1 | Screw | |
| 10 | 10 | Washer | |
| 11 | 11 | Nut | |
| 12 | 12 | Lever | |
| 13-1 | 13-1 | Screw | |
| 14 | 14 | Spring | |
| 15 | 15 | Lever | |
| 16 | 16 | Screw | |
| 17 | 17 | Bracket | |
| 18 | 18 | Screw | |
| 19 | 19 | Shaft | |
| 20 | 20 | Screw | |
| 21 | 21 | Shaft | |
| 21-1 | 21-1 | Screw | |
| 30 | 30 | Screw | |
| 32 | 32 | Lever | |
| 33 | 33 | Shaft | |
| 34 | 34 | Nut | |
| 35 | 35 | Shaft | |
| 36 | 36 | Pin | |
| 37 | 37 | Lever | |
| 38 | 38 | Screw | |
| 39 | 39 | Shaft | |
| 40 | 40 | Nut | |
8. 下线切刀关系/BOBBIN THREAD TRIMMER COMPONENTS
1
2
3
4
5
6
7
8
9
10-1
10
11
12
13
13-1
14
15
16
17
18
19
20
21
21-1
30
32
33
34
35
36
37
38
39
40
15
jintex.in
Page 16
Jack JK-781D parts on page 16| Ref | Part number | Part name | Qty |
|---|
| 4021500100 | 剪底线器组件 | |
| 40215002 | 针板组件 | |
| 402S17001 | 螺钉 | |
| 4021500300 | 针板座组件 | |
| 4021900500 | 剪底线动力 | |
| 402S30023 | 螺钉 | |
| 40219007 | 底线切刀固定刀 | |
| 402S11016 | 螺钉 | |
| 40204016 | 底线切刀杆 | |
| 402S11017 | 螺钉 | |
| 40228009 | 垫圈 | |
| 40219008 | 底线拉杆 | |
| 402S11018 | 螺钉 | |
| 402S11030 | 螺钉 | |
| 402S11036 | 螺钉 | |
| 40227012 | 压板 | |
| 40212044 | 剪底线连杆 | |
| 402S20012 | 铰链螺钉 | |
| 40227013 | 底线导向板 | |
| 402S11022 | 螺钉 | |
| 40205008 | 剪底线传动杆 | |
| 402S20013 | 螺钉 | |
| 40210004 | 套筒 | |
| S05042 | 螺钉 | |
| 402S16003 | 螺母 | |
| 40205019 | 凸轮连杆 | |
| 402S30058 | 止动限位螺钉 | |
| 402S16008 | 螺母 | |
| 40226026 | 铰链螺栓 | |
| 402S14001 | 内六角凹端紧定螺钉 | |
| 40205010 | 底线剪刀驱动杆 | |
| 402S20014 | 轴位螺钉 | |
| 402S30025 | 球形螺钉 | |
| 402S16003 | 螺母 | |
序号 注解 件号 名称 数量
NO. Note Part NO. Description Qty
1 4021500100 剪底线器组件 BOBBIN THREAD TRIMMER ASM. 1
2 40215002 针板组件 NEEDLE PLATE 1
3 402S17001 螺钉 SCREW 2
4 4021500300 针板座组件 THROAT PLATE BASE 1
5 4021900500 剪底线动力 BOBBIN THREAD TRIMMER 1
6 402S30023 螺钉 SCREW 1
7 40219007 底线切刀固定刀 COUNTER KNIFE 1
8 402S11016 螺钉 SCREW 2
9 40204016 底线切刀杆 BOBBIN THREAD TRIMMER LEVER 1
10 402S11017 螺钉 SCREW 1
10-1 40228009 垫圈 WASHER 1
11 40219008 底线拉杆 BOBBIN THREAD PULLER 1
12 402S11018 螺钉 SCREW 2
13 402S11030 螺钉 SCREW 4
13-1 402S11036 螺钉 SCREW 1
14 40227012 压板 PRESSER PLATE 1
15 40212044 剪底线连杆 BOBBIN THREAD TRIMMER LINK 1
16 402S20012 铰链螺钉 SCREW 1
17 40227013 底线导向板 BOBBIN THREAD GUIDE 1
18 402S11022 螺钉 SCREW 2
19 40205008 剪底线传动杆 BOBBIN THREAD TRIMMER DRIVING LEVE 1
20 402S20013 螺钉 HINGE SCREW 1
21 40210004 套筒 SLEEVE 1
21-1 S05042 螺钉 SCREW 1
22
23
24
25
26
27
28
29
30 402S16003 螺母 NUT 1
31 0
32 40205019 凸轮连杆 CONNECTING LINK 1
33 402S30058 止动限位螺钉 STOP SCREW 1
34 402S16008 螺母 NUT 1
35 40226026 铰链螺栓 HINGE STUD 1
36 402S14001 内六角凹端紧定螺钉 SCREW 1
37 40205010 底线剪刀驱动杆 BOBBIN THREAD TRIMMER DRIVING ARM 1
38 402S20014 轴位螺钉 HINGE SCREW 1
39 402S30025 球形螺钉 BALL SCREW 1
40 402S16003 螺母 NUT 1
-16-
jintex.in
Page 17 — 9.刀棒关系/KNIFE BAR COMPONENTS
Jack JK-781D parts on page 17| Ref | Part number | Part name | Qty |
|---|
| 1 | PLATE | |
| 2 | SCREW | |
| 3 | WASHER | |
| 4 | KNIFE BAR | |
| 5 | SCREW | |
| 6 | SPRING | |
| 7 | PIN | |
| 8 | SCREW | |
| 8-1 | WASHER | |
| 9 | SUPPORT | |
| 9-1 | COLLAR | |
| 10 | SLEEVE | |
| 11 | SCREW | |
| 12-1 | LINK | |
| 12-2 | PIN | |
| 13 | LINK | |
| 13-1 | PIN | |
| 14 | SPRING | |
| 15 | BRACKET | |
| 16 | SLEEVE | |
| 17 | BRACKET | |
| 18 | BRACKET | |
| 20 | SCREW | |
| 20-1 | WASHER | |
| 21 | BRACKET | |
| 22 | SCREW | |
| 23 | WASHER | |
| 24 | KNIFE BAR | |
| 25 | SCREW | |
| 26 | SPRING | |
| 27 | PIN | |
| 28 | BOLT | |
| 28-1 | WASHER | |
| 29 | NUT | |
| 29-1 | NUT | |
| 30 | COLLAR | |
| 31 | NUT | |
| 32 | SCREW | |
| 33 | SCREW | |
| 34 | WASHER | |
| 37 | BOLT | |
| 37-1 | WASHER | |
| 38 | ARM | |
| 39 | SPRING | |
| 40 | SPRING | |
| 41 | PIN | |
| 42 | SCREW | |
| 43 | BRACKET | |
| 44 | SHAFT | |
| 46 | BRACKET | |
| 47 | SCREW | |
| 48 | WASHER | |
| 49 | BOLT | |
| 50 | SPRING | |
| 51 | SCREW | |
| 52 | PIN | |
| 53 | BRACKET | |
| 54 | LEVER | |
| 55 | BRACKET | |
| 56 | BRACKET | |
| 56-1 | PIN | |
| 57 | SPRING | |
| 58 | BRACKET | |
| 59 | BRACKET | |
| 60 | SPRING | |
| 61 | HOOK | |
| 62 | BRACKET | |
| 63 | BASE | |
| 64 | PIN | |
| 65 | PIN | |
| 66 | WASHER | |
| 68 | SCREW | |
| 69 | GEAR | |
| 70 | WASHER | |
| 5-1 | SCREW | |
9.刀棒关系/KNIFE BAR COMPONENTS
1
2
3
4
5
6
7
8-1
8
9-1
9
10
12-1
13
12-2
13-1
14
15
16
69
70
20-1
21
22
23
24
25
26
27
28
29
28-1
30
31
32
33
34
37
37-1
38
39
40
41
42
43
44
56-1
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
5-1
63
64
65
66
jintex.in
Page 18
Jack JK-781D parts on page 18| Ref | Part number | Part name | Qty |
|---|
| 40212045 | 停刀架平衡块 | |
| 40228008 | 垫片 | |
| 402S11036 | 螺钉 | |
| 4021204600 | 停刀架组件 | |
| 402S11006 | 螺钉 | |
| 206S11002 | 螺钉 | |
| 40202005 | 停刀架铰链螺栓 | |
| 40213002 | 线检测钢丝 | |
| 402S11003 | 螺钉 | |
| W01013 | 垫片 | |
| 40202016 | 刀杆 | |
| 40222020 | 橡胶塞 | |
| 40203021 | 刀杆套筒 | |
| 402S13009 | 螺钉 | |
| 40226027 | 连杆销 | |
| 40226028 | 连杆销 | |
| 40205011 | 刀杆连杆 | |
| 40222021 | 垫片 | |
| 402S30052 | 螺钉 | |
| 40201011 | 刀杆定位架 | |
| 40203022 | 套筒 | |
| 40219009 | 刀杆导引 | |
| 40209013 | 刀固定架 | |
| 402S13005 | 螺钉 | |
| 40228010 | 垫片 | |
| 40219009 | 刀片1/2" | |
| 40228010 | 垫片 | |
| 402S11020 | 螺钉 | |
| 40201012 | 刀杆传动杆 | |
| S05077 | 螺钉 | |
| 40227014 | 拉簧 | |
| 402S30026 | 铰链销螺钉 | |
| 402S30027 | 止动垫 | |
| 40222022 | 垫片 | |
| 402S16002 | 螺母 | |
| 402S16021 | 螺母 | |
| 40202046 | 刀杆传动轴 | |
| 402S16009 | 螺母 | |
| 402S20015 | 轴位螺钉 | |
| S05049 | 螺钉 | |
| 402S16010 | 刀杆传动曲柄螺母 | |
| 402S11013 | 螺钉 | |
| 40228011 | 垫片 | |
| 40204017 | 刀杆传动曲柄 | |
| 12923018 | 油线 | |
| 40212026 | 油线支架 | |
| 402S11004 | 螺钉 | |
| S05025 | 螺钉M6×18 | |
| 402S20016 | 铰链螺钉 | |
| 40204018 | 刀杆传动曲柄轴 | |
| 40201013 | 刀杆传动杆 | |
| 402S30028 | 螺钉 | |
| 402S16005 | 螺母 | |
| 402S20017 | 轴位螺钉 | |
| 402S16011 | 螺母 | |
| 40226029 | 偏心销 | |
| 40226030 | 铰链螺栓 | |
| 402S14001 | 螺钉 | |
| 40227015 | 扎簧 | |
| 40210005 | 棘轮爪(B) | |
| 40210006 | 棘轮爪(A) | |
| 402S30029 | 弹簧悬置螺钉 | |
| 40227016 | 拉簧 | |
| 402S20018 | 轴位螺钉 | |
| 40202018 | 传动杆 | |
| 40227017 | 拉簧 | |
| 402S30030 | 悬挂螺钉 | |
| 40212048 | 指形板 | |
| 40203023 | 传动杆定位架 | |
| P01008 | 销4×18 | |
| P03030 | 销3×18 | |
| 40222023 | 止推垫圈 | |
| 40209014 | 刀座固定架 | |
| 402S14006 | 螺钉 | |
| 402S30031 | 螺钉 | |
序号
Note
件号
Part NO.
名称
Description
数量
Qty
1
40212045
停刀架平衡块
KNIFE STOP LEVER BRACKET
1
2
40228008
垫片
WASHER
3
3
402S11036
螺钉
SCREW
2
4
4021204600
停刀架组件
KNIFE STOP LEVER
1
5
402S11006
螺钉
SCREW
2
5-1
206S11002
螺钉
SCREW
2
6
40202005
停刀架铰链螺栓
KNIFE STOP LEVER HINGE STUD
1
7
40213002
线检测钢丝
THREAD CHECK WIRE
1
8
402S11003
螺钉
SCREW
1
8-1
W01013
垫片
SPACER
1
9
40202016
刀杆
KNIFE BAR
1
9-1
40222020
橡胶塞
RUBBER PLUG
1
10
40203021
刀杆套筒
KNIFE BAR BUSHING
1
11
402S13009
螺钉
SCREW
1
12-1
40226027
连杆销
CONNECTING LINK PIN
1
12-2
40226028
连杆销
CONNECTING LINK PIN
1
13
40205011
刀杆连杆
KNIFE BAR CONNECTING LINK
1
13-1
40222021
垫片
SPACER
1
14
402S30052
螺钉
SCREW
2
15
40201011
刀杆定位架
KNIFE BAR POSITION BRACKET
1
16
40203022
套筒
KNIFE BAR BUSHING
1
17
40219009
刀杆导引
KNIFE BAR GUIDE
1
18
40209013
刀固定架
KNIFE HOLDER
1
19
0
20
402S13005
螺钉
SCREW
2
20-1
40228010
垫片
WASHER
1
21
40219009
刀片1/2"
KNIFE1/2"
1
22
40228010
垫片
WASHER
1
23
402S11020
螺钉
SCREW
1
24
40201012
刀杆传动杆
KNIFE BAR DRIVING LEVER
1
25
S05077
螺钉
SCREW
2
26
40227014
拉簧
SPRING
1
27
402S30026
铰链销螺钉
HINGE SCREW
1
28
402S30027
止动垫
ADJUSTING SCREW
1
28-1
40222022
垫片
SPACER
1
29
402S16002
螺母
NUT
1
29-1
402S16021
螺母
NUT
1
30
40202046
刀杆传动轴
KNIFE BAR DRIVING LEVER SHAFT
1
31
402S16009
螺母
NUT
1
32
402S20015
轴位螺钉
HINGE SCREW
1
33
S05049
螺钉
SCREW
2
34
402S16010
刀杆传动曲柄螺母
KNIFE BAR DRIVING CRANK NUT
1
37
402S11013
螺钉
SCREW
1
37-1
40228011
垫片
SPACER
1
38
40204017
刀杆传动曲柄
KNIFE BAR DRIVING CRANK
1
39
12923018
油线
OIL WICK
1
40
40212026
油线支架
OIL WICK HOLDER
1
41
402S11004
螺钉
SCREW
1
42
S05025
螺钉M6×18
SCREW
1
43
402S20016
铰链螺钉
HINGE SCREW
1
44
40204018
刀杆传动曲柄轴
KNIFE BAR DRIVING CRANK SHAFT
1
46
40201013
刀杆传动杆
KNIFE BAR DRIVING LEVER BELL CRANK
1
47
402S30028
螺钉
SCREW
1
48
402S16005
螺母
NUT
1
49
402S20017
轴位螺钉
HINGE SCREW
1
50
402S16011
螺母
NUT
1
51
40226029
偏心销
PIN
1
52
40226030
铰链螺栓
HINGE STUD
1
53
402S14001
螺钉
SCREW
1
54
40227015
扎簧
TENSION SPRING
1
55
40210005
棘轮爪(B)
RATCHET PAWL (B)
1
56
40210006
棘轮爪(A)
RATCHET PAWL (A)
1
56-1
402S30029
弹簧悬置螺钉
SCREW
1
57
40227016
拉簧
TENSION SPRING
1
58
402S20018
轴位螺钉
HINGE SCREW
1
59
40202018
传动杆
DRIVING ROD
1
60
40227017
拉簧
TENSION SPRING
1
61
402S30030
悬挂螺钉
SUSPENSION SCREW
1
62
40212048
指形板
FINGER
1
63
40203023
传动杆定位架
DRIVING ROD POSITION BRACKET
1
64
P01008
销4×18
POSITION PIN
1
65
P03030
销3×18
SPRING PIN
1
66
40222023
止推垫圈
THRUST WASHER
1
67
40209014
刀座固定架
KNIFE HOLDER POST POSITION BRACKET
1
68
402S14006
螺钉
SCREW
0
69
1
70
402S30031
螺钉
SCREW
1
-18-
jintex.in
Page 19 — 10.送布凸轮关系/FEED CAM & TRIPPING SEGMENT COMPONENTS
Jack JK-781D parts on page 19| Ref | Part number | Part name | Qty |
|---|
| 1 | 1 | GEAR | |
| 2 | 2 | CAM | |
| 3 | 3 | PIN | |
| 4 | 4 | SCREW | |
| 5 | 5 | PIN | |
| 6 | 6 | PIN | |
| 7 | 7 | COLLAR | |
| 8 | 8 | SPRING | |
| 9 | 9 | GEAR | |
| 10 | 10 | SHAFT | |
| 11 | 11 | COLLAR | |
| 12 | 12 | SHAFT | |
| 13 | 13 | GEAR | |
| 14 | 14 | CAM | |
| 15 | 15 | GEAR | |
| 16 | 16 | PIN | |
| 17 | 17 | COLLAR | |
| 18 | 18 | COLLAR | |
| 19 | 19 | SHAFT | |
| 20 | 20 | COLLAR | |
| 21 | 21 | COLLAR | |
| 22 | 22 | COLLAR | |
| 23 | 23 | COLLAR | |
| 24 | 24 | PIN | |
| 25 | 25 | GEAR | |
| 26 | 26 | CAM | |
| 27 | 27 | NUT | |
| 28 | 28 | WASHER | |
| 29 | 29 | SHAFT | |
| 30 | 30 | PIN | |
| 31 | 31 | PIN | |
| 32 | 32 | PIN | |
| 33 | 33 | CAM | |
| 35 | 35 | WASHER | |
| 36 | 36 | SCREW | |
| 37 | 37 | CAM | |
| 38 | 38 | CAM | |
| 39 | 39 | CAM | |
| 41 | 41 | CAM | |
| 45 | 45 | PIN | |
| 46 | 46 | BRACKET | |
| 47 | 47 | SCREW | |
| 48 | 48 | SCREW | |
| 48-1 | 48-1 | WASHER | |
| 49 | 49 | CAM | |
| 49-1 | 49-1 | CAM | |
| 50 | 50 | CAM | |
| 51 | 51 | BRACKET | |
| 52 | 52 | PIN | |
| 53 | 53 | PIN | |
10.送布凸轮关系/FEED CAM & TRIPPING SEGMENT COMPONENTS
1
2
3
4
11
6
7
5
8
9
10
12
47
48
48-1
46
13
15
16
18
20
21
19
14
8
5
22
23
24
25
26
27
28
29
37
35
36
33
35
36
35
39
41
38
35
36
30
31
32
45
49
50
51
49-1
53
52
19
jintex.in
Page 20
Jack JK-781D parts on page 20| Ref | Part number | Part name | Qty |
|---|
| 40225006 | 直齿轮 | |
| 4020800400 | 正齿轮轴套组件 | |
| 40226031 | 正齿轮定位销 | |
| 402S14006 | 螺钉 | |
| 40203024 | 离合环 | |
| 402S14006 | 螺钉 | |
| 40203025 | 固定套管 | |
| 40227018 | 离合器弹簧 | |
| 40225007 | 传动蜗轮 | |
| 40202019 | 传动蜗轮轴 | |
| 40223016 | 油毡 | |
| 40202020 | 送布凸轮传动蜗轮轴 | |
| 40225008 | 直齿轮 | |
| 40225009 | 手摇曲柄左齿轮 | |
| 40225010 | 手摇曲柄右齿轮 | |
| S09002 | 螺钉 | |
| 40208006 | 挡圈 | |
| 402S14006 | 螺钉 | |
| 40202021 | 手摇曲柄轴 | |
| 40204019 | 手摇曲柄 | |
| 402S14006 | 螺钉 | |
| 402S15002 | 螺钉 | |
| 40211007 | 手柄 | |
| 40202022 | 手柄轴 | |
| 40225011 | 送布凸轮传动齿轮 | |
| 409S14001 | 螺钉M6×6 | |
| N01010 | 螺母M12 | |
| 40228012 | 垫片 | |
| 40202023 | 送布凸轮轴 | |
| 40210007 | 送布凸轮 | |
| 40228013 | 垫片 | |
| 402S11027 | 螺钉 | |
| 40209015 | 加固离合块 | |
| 40228008 | 垫片 | |
| 402S11001 | 螺钉 | |
| 40209016 | 切刀离合块 | |
| 40212049 | 松线离合块 | |
| 40212050 | 松线离合块 | |
| 40209015 | 加固离合块 | |
| 402S11031 | 螺钉 | |
| 40209020 | 齿轮定位架 | |
| S05031 | 螺钉 | |
| S05031 | 螺钉 | |
| 40228017 | 垫片 | |
| 40209038 | 低速感应块 | |
| 40230006 | 磁铁 | |
| 40212119 | 传感器 | |
| 40212119 | 传感器安装板 | |
| 413S13016 | 螺钉 | |
| S01015 | 传感器安装螺钉 | |
序号
Note
Part NO.
名称
Description
数量
Qty
1
40225006
直齿轮
SPUR GEAR
1
2
4020800400
正齿轮轴套组件
SPUR GEAR BUSHING
2
3
40226031
正齿轮定位销
SPUR GEAR BUSHING PIN
4
4
402S14006
螺钉
SCREW
5
40203024
离合环
CLUTCH COLLAR
2
6
402S14006
螺钉
SCREW
4
7
40203025
固定套管
POSITION BUSHING
1
8
40227018
离合器弹簧
CLUTCH SPRING
2
9
40225007
传动蜗轮
FEED CAM DRIVING WORM WHEEL
1
10
40202019
传动蜗轮轴
FEED CAM DRIVING WORM WHEEL SHAFT
1
11
40223016
油毡
COLLAR
1
12
40202020
送布凸轮传动蜗轮轴
FEED CAM DRIVING SHAFT
1
13
40225008
直齿轮
SPUR GEAR
1
14
40225009
手摇曲柄左齿轮
HANDLE CRANK BEVEL GEAR LEFT
1
15
40225010
手摇曲柄右齿轮
HANDLE CRANK BEVEL GEAR RIGHT
1
16
S09002
螺钉
SCREW
2
17
40208006
挡圈
THRUST COLLAR
1
18
402S14006
螺钉
SCREW
2
19
40202021
手摇曲柄轴
HANDLE CRANK SHAFT
1
20
40204019
手摇曲柄
HANDLE CRANK
1
21
402S14006
螺钉
SCREW
2
22
402S15002
螺钉
SCREW
1
23
40211007
手柄
HANDLE SHAFT
1
24
40202022
手柄轴
HANDLE SHAFT
1
25
40225011
送布凸轮传动齿轮
FEED CAM DRIVING GEAR
1
26
409S14001
螺钉M6×6
SCREW
2
27
N01010
螺母M12
NUT
1
28
40228012
垫片
THRUST WASHER
1
29
40202023
送布凸轮轴
FEED CAM SHAFT
1
30
40210007
送布凸轮
FEED CAM
1
31
40228013
垫片
WASHER
1
32
402S11027
螺钉
SCREW
1
33
40209015
加固离合块
BAR TRIPPING SEGMENT
1
34
0
35
40228008
垫片
WASHER
6
36
402S11001
螺钉
SCREW
6
37
40209016
切刀离合块
KNIFE TRIPPING SEGMENT
1
38
40212049
松线离合块
TENSION RELEASE TRIPPING SEGMENT
1
39
40212050
松线离合块
TENSION RELEASE TRIPPING SEGMENT
1
40
0
41
40209015
加固离合块
BAR TRIPPING SEGMENT
1
42
0
45
402S11031
螺钉
SCREW
8
46
40209020
齿轮定位架
GEAR POSITION BRACKET
1
47
S05031
螺钉
SCREW
2
48
S05031
螺钉
SCREW
1
48-1
40228017
垫片
SPACER
3
49
40209038
低速感应块
MAGNET
1
49-1
40230006
磁铁
MAGNET
1
50
40212119
传感器
SENSOR
1
51
40212119
传感器安装板
SENSOR FITTING PLATE
1
52
413S13016
螺钉
SCREW
1
53
S01015
传感器安装螺钉
SCREW
1
-20-
jintex.in
Page 21 — 11、电控关系/CONTROL BOX COMPONENTS
Jack JK-781D parts on page 21| Ref | Part number | Part name | Qty |
|---|
| 40230007 | 电控组件 | |
| 413S13020 | 螺钉M4×16 | |
| 40222039 | 橡胶垫圈 | |
| 701S13010 | 螺钉M5×60 | |
11、电控关系/CONTROL BOX COMPONENTS
1
2
3
4
3
4
序号
NO.
注解
Note
件号
Part NO.
名称
Description
数量
Qty
1
40230007
电控组件
CONTROL BOX ASM
1
2
413S13020
螺钉M4×16
SCREW
2
3
40222039
橡胶垫圈
RUBBER WASHER
2
4
701S13010
螺钉M5×60
SCREW
3
-21-
jintex.in
Page 22 — 12.安全保护关系/SAFE PROTECTION COMPONENTS
Jack JK-781D parts on page 22| Ref | Part number | Part name | Qty |
|---|
| 4021212200 | 起动架 | |
| 40226030 | 安全底座 | |
| 40212054 | 轴位螺钉 | |
| 40210008 | 螺母 | |
| 402S16003 | 电磁铁 | |
| 40230003 | 电磁铁安装螺钉 | |
| 413S11002 | 电池盖 | |
| 40211023 | 螺钉 | |
| 413S13001 | 电池盖 | |
| 40204033 | 连接器 | |
| 114S14001 | 螺钉 | |
| 40226049 | 连接销A | |
| 40204034 | 连接接头 | |
| 402S20036 | 螺钉 | |
| 402S16017 | 螺母 | |
| 40226050 | 连接销B | |
| 40224005 | 杆端关节轴承 | |
| 402S11038 | 螺钉 | |
| 41728024 | 平垫片 | |
| W02002 | 弹簧垫片 | |
| 402S14001 | 螺钉 | |
| 402S13010 | 螺钉 | |
| 413S16002 | 螺母 | |
12.安全保护关系/SAFE PROTECTION COMPONENTS
注解
Note
件号
Part NO.
名称
Description
数量
Qty
数量
Qty
1
4021212200
起动架
STARTING LINK
1
2
40226030
安全底座
SAFETY BASE
1
3
40212054
轴位螺钉
HINGE SCREW
1
4
40210008
螺母
NUT
2
5
402S16003
电磁铁
SOLENOID
1
6
40230003
电磁铁安装螺钉
SCREW
2
7
413S11002
电池盖
SOLENOID COVER
1
8
40211023
螺钉
SCREW
2
9
413S13001
电池盖
SOLENOID COVER
1
10
40204033
连接器
CONNECTOR
2
11
114S14001
螺钉
SCREW
1
12
40226049
连接销A
CONNECTING LINK PIN A
1
13
40204034
连接接头
CONNECTION
1
14
402S20036
螺钉
SCREW
1
15
402S16017
螺母
NUT
1
16
40226050
连接销B
CONNECTING LINK PIN B
1
17
40224005
杆端关节轴承
BEARING
1
18
402S11038
螺钉
SCREW
1
19
41728024
平垫片
WASHER
1
20
W02002
弹簧垫片
SPRING WASHER
1
21
402S14001
螺钉
SCREW
2
22
402S13010
螺钉
SCREW
1
23
413S16002
螺母
NUT
1
-22-
jintex.in
Page 23 — 13.压脚提升架、绕线器组件/LIFTING LEVER & BOBBIN WINDER COMPONENTS
Jack JK-781D parts on page 23| Ref | Part number | Part name | Qty |
|---|
| 1 | 1 | |
| 2 | 2 | |
| 3 | 3 | |
| 4 | 4 | |
| 5 | 5 | |
| 6 | 6 | |
| 48 | 48 | |
| 7 | 7 | |
| 8 | 8 | |
| 9 | 9 | |
| 10 | 10 | |
| 11 | 11 | |
| 12 | 12 | |
| 13 | 13 | |
| 14 | 14 | |
| 15 | 15 | |
| 19 | 19 | |
| 36 | 36 | |
| 37 | 37 | |
| 32 | 32 | |
| 28 | 28 | |
| 29 | 29 | |
| 34 | 34 | |
| 18 | 18 | |
| 27 | 27 | |
| 20 | 20 | |
| 35 | 35 | |
| 33 | 33 | |
| 24 | 24 | |
| 25 | 25 | |
| 38 | 38 | |
| 21 | 21 | |
| 29 | 29 | |
| 24 | 24 | |
| 30 | 30 | |
| 38 | 38 | |
| 23 | 23 | |
| 31 | 31 | |
| 40 | 40 | |
| 39 | 39 | |
| 41 | 41 | |
| 45 | 45 | |
| 44 | 44 | |
| 43 | 43 | |
| 42 | 42 | |
| 46 | 46 | |
| 17 | 17 | |
13.压脚提升架、绕线器组件/LIFTING LEVER & BOBBIN WINDER COMPONENTS
1
2
3
4
5
6
48
7
8
9
10
11
12
13
14
15
19
36
37
32
28
29
34
18
27
20
35
33
24
25
38
21
29
24
30
38
23
31
40
39
41
45
44
43
42
46
17
-23-
jintex.in
Page 24
Jack JK-781D parts on page 24| Ref | Part number | Part name | Qty |
|---|
| 40205012 | 压杆提升拉杆 | |
| 402S20020 | 螺钉 | |
| 402S20021 | 轴位螺钉 | |
| 40205013 | 前杠杆板 | |
| 40204022 | 链环 | |
| 40229001 | 开口销2×11 | |
| 40205014 | 后杠杆板 | |
| 40205015 | 压杆提升拉杆 | |
| 40226036 | 离合杆铰链销 | |
| 402S14001 | 螺钉 | |
| 402S30035 | 提升杆限位螺钉 | |
| 40212095 | 压杆提升杆 | |
| 402S30036 | 悬挂螺钉 | |
| 40227024 | 弹簧 | |
| 402S30032 | 悬挂螺钉 | |
| 402S11037 | 绕线器安装螺钉 | |
| 4023101300 | 绕线器组件 | |
| 4021102200 | 绕线器安装座组件 | |
| 40211020 | 梭心垫片 | |
| 40202041 | 绕线器轴 | |
| 4020403500 | 转动曲柄组件 | |
| 40210010 | 转动凸轮 | |
| 40235025 | 转轮 | |
| B04025 | 轴承686Z | |
| 40208013 | 挡圈 | |
| 40227045 | 弹簧 | |
| 40222034 | 缓冲橡胶 | |
| 40201062 | 梭心压杆 | |
| H05003 | E型卡簧5 | |
| 40228029 | 垫片 | |
| 40222033 | 橡皮圈 | |
| 40212100 | 绕线调节板 | |
| 40202042 | 梭心压杆轴 | |
| 40228030 | 压杆轴垫片 | |
| 40227044 | 卡紧弹簧 | |
| 402S11039 | 螺钉 | |
| 402S11040 | 螺钉 | |
| 402S14007 | 紧定螺钉11/64×40 | |
| 11419001 | 割线刀 | |
| 403S11020 | 螺钉 | |
| 1141300200 | 夹线器组件 | |
| 1143100300 | 过线销 | |
| 11413003 | 夹线片 | |
| 11427006 | 夹线簧 | |
| 11411004 | 夹线螺母 | |
| 114S16001 | 固定螺母 | |
| 40203030 | 拉杆套管 | |
| 402S16003 | 螺母 | |
Note
Part NO.
名称
Description
数量
Qty
数量
Qty
1
40205012
压杆提升拉杆
PRESSER BAR LIFTING ROD LONG
1
2
402S20020
螺钉
SCREW
2
3
402S20021
轴位螺钉
HINGE SCREW
2
4
40205013
前杠杆板
LEVER FRONT
1
5
40204022
链环
LINK
1
6
40229001
开口销2×11
SPLIT PIN
2
7
40205014
后杠杆板
LEVER REAR
1
8
40205015
压杆提升拉杆
PRESSER BAR LIFTING ROD
1
9
40226036
离合杆铰链销
TRIPPING LEVER HINGE PIN
1
10
402S14001
螺钉
SCREW
1
11
402S30035
提升杆限位螺钉
LIFTING LEVER STOPPER
1
12
40212095
压杆提升杆
PRESSER BAR LIFTING LEVER
1
13
402S30036
悬挂螺钉
SUSPENSION SCREW
1
14
40227024
弹簧
PRESSER FOOT LIFTING SPRING
1
15
402S30032
悬挂螺钉
SUSPENSION SCREW
1
16
402S11037
绕线器安装螺钉
SCREW
3
17
4023101300
绕线器组件
BOBBIN WINDER ASM.
1
18
4021102200
绕线器安装座组件
BOBBIN WINDER BASE
1
19
40211020
梭心垫片
WASHER
1
20
40202041
绕线器轴
BTW SHAFT
1
21
4020403500
转动曲柄组件
BTW SHAFT BASE
1
22
40210010
转动凸轮
BTW CAM LEVER
1
23
40235025
转轮
BTW WHEEL
1
24
B04025
轴承686Z
BEARING
2
25
40208013
挡圈
BOBBIN BEARING SPACER
1
26
40227045
弹簧
SPRING
1
27
40222034
缓冲橡胶
RUBBER
1
28
40201062
梭心压杆
BTW LEVER
1
29
H05003
E型卡簧5
E-RING
2
30
40228029
垫片
WASHER
2
31
40222033
橡皮圈
BTW WHEEL RUBBER
1
32
40212100
绕线调节板
ADJUSTING PLATE
1
33
40202042
梭心压杆轴
BTW LEVER SHAFT
1
34
40228030
压杆轴垫片
WASHER
2
35
40227044
卡紧弹簧
SPRING
1
36
402S11039
螺钉
SCREW
1
37
402S11040
螺钉
SCREW
1
38
402S14007
紧定螺钉11/64×40
SCREW
3
39
11419001
割线刀
THREAD CUTTER
1
40
403S11020
螺钉
SCREW
2
41
1141300200
夹线器组件
BOBBIN THREAD TENSION ASM.
1
42
1143100300
过线销
BOBBIN THREAD TENSION ROD ASM
1
43
11413003
夹线片
THREAD TENSION DISK
2
44
11427006
夹线簧
CONNECTING ROD SPRING
1
45
11411004
夹线螺母
THREAD TENSION NUT
1
46
114S16001
固定螺母
NUT 11/64-40
1
47
0
48
40203030
拉杆套管
TUBE
1
49
402S16003
螺母
NUT
1
-24-
jintex.in
Page 25 — 14.夹线器关系/THREAD TENSION COMPONENTS
Jack JK-781D parts on page 25| Ref | Part number | Part name | Qty |
|---|
| 1 | THREAD TENSION ASSEMBLY | |
| 1-1 | SPRING | |
| 2 | BRACKET | |
| 3 | SCREW | |
| 4 | WASHER | |
| 5 | SPRING | |
| 6 | PIN | |
| 7 | SPRING | |
| 8 | PIN | |
| 9 | SPRING | |
| 10 | BRACKET | |
| 11 | SPRING | |
| 13 | SCREW | |
| 14 | BRACKET | |
| 15 | SCREW | |
| 16 | SPRING | |
| 17 | SCREW | |
| 18 | BRACKET | |
| 19 | SCREW | |
| 20 | SPRING | |
| 21 | SHAFT | |
| 22 | SCREW | |
| 23 | SPRING | |
| 24 | SPRING | |
| 25 | SPRING | |
| 26 | SPRING | |
| 27 | SPRING | |
| 28 | SPRING | |
| 29 | SPRING | |
| 30 | SPRING | |
| 31 | SPRING | |
| 32 | SPRING | |
| 33 | SPRING | |
| 34 | SPRING | |
| 35 | SHAFT | |
| 36 | SPRING | |
| 36-1 | SPRING | |
| 37 | SPRING | |
| 38 | THREAD TENSION ASSEMBLY | |
| 39 | SPRING CAP | |
| 40 | SPRING WASHER | |
| 41 | SPRING WASHER | |
| 42 | SPRING | |
| 43 | SPRING | |
| 44 | SPRING | |
| 45 | SCREW | |
| 46 | WASHER | |
| 47 | SPRING | |
| 48 | SPRING | |
| 49 | SCREW | |
| 50 | BRACKET | |
| 51 | SPRING | |
| 52 | SPRING | |
| 53 | SPRING | |
| 54 | ROD | |
| 55 | SPRING | |
| 56 | SCREW | |
| 57 | SCREW | |
| 58 | SPRING | |
| 59 | SPRING | |
| 60 | SPRING | |
| 61 | SPRING | |
| 61-1 | SPRING | |
| 62 | SPRING | |
| 63 | SPRING | |
| 64 | SPRING | |
| 65 | BRACKET | |
| 66 | PLATE | |
| 67 | BRACKET | |
| 68 | SPRING | |
| 69 | SPRING | |
14.夹线器关系/THREAD TENSION COMPONENTS
-25-
jintex.in
Page 26
Jack JK-781D parts on page 26| Ref | Part number | Part name | Qty |
|---|
| 40212104 | 松线连杆 | |
| 40230005 | 磁铁 | |
| 402S20025 | 轴位螺钉 | |
| 40205017 | 螺钉 | |
| 409S14001 | 螺钉 | |
| 402S20025 | 轴位螺钉 | |
| 40212062 | 连杆板 | |
| 402S20025 | 轴位螺钉 | |
| 40127020 | 弹簧1850-0809 | |
| 402S20021 | 轴位螺钉 | |
| 40212063 | 杠杆板 | |
| 40228018 | 垫圈 | |
| 402S16001 | 螺母 | |
| 4021206400 | 松线杆 | |
| 402S11023 | 螺钉 | |
| 40208009 | 挡圈 | |
| 201S14002 | 螺钉 | |
| 40204023 | 松线杆曲柄 | |
| 402S20028 | 轴位螺钉 | |
| 402S16017 | 螺钉 | |
| 40202028 | 松线杆 | |
| S05049 | 螺钉 | |
| 40226037 | 松线杆 | |
| S09011 | 螺钉 | |
| 4021300400 | 夹线器2号组件 | |
| 40211008 | 夹线调节手柄 | |
| 40211009 | 夹线弹簧轴套 | |
| 40227030 | 夹线弹簧 | |
| 40212066 | 夹线盘压板 | |
| 40213005 | 夹线盘 | |
| 402S30040 | 夹线柱 | |
| 40227031 | 挑线簧 | |
| 402S1024 | 夹线柱座 | |
| 40203032 | 螺钉 | |
| 40202029 | 松线杆轴 | |
| 402S11003 | 螺钉 | |
| W01013 | 垫圈 | |
| 40213006 | 拉线钢丝 | |
| 4021300700 | 1号夹线器组件 | |
| 40211010 | 夹线螺母 | |
| 40211011 | 垫片 | |
| 40227032 | 夹线弹簧 | |
| 40212067 | 夹线压板 | |
| 40226038 | 夹线盘 | |
| 402S20026 | 松线销 | |
| 402S30041 | 松线杆 | |
| 402S16018 | 螺钉 | |
| 40212068 | 松线臂 | |
| 402S30042 | 螺钉 | |
| 402S11013 | 螺钉 | |
| 40913010 | 导线板 | |
| 40227023 | 弹簧 | |
| 40208010 | 挡圈 | |
| 402S11022 | 螺钉 | |
| 40202030 | 松线柱 | |
| P03030 | 销3×18 | |
| 201S14002 | 螺钉 | |
| 40213009 | 二眼线钩 | |
| 40213010 | 右线钩 | |
| 206S11002 | 螺钉 | |
| 40212070 | 针杆过线钩 | |
| 402S11003 | 螺钉 | |
| W01013 | 垫圈 | |
| 40213011 | 第二紧线钩 | |
| 40213012 | 挑线过线钩 | |
| 402S16017 | 螺母 | |
| 40203033 | 定位架 | |
| 40230004 | 传感器 | |
| 40212120 | 传感器安装板 | |
| 413S13016 | 螺钉 | |
| S01015 | 螺钉 | |
注解
Note
件号
Part NO.
名称
Description
数量
Qty
数量
Qty
1
40212104
松线连杆
TENSION RELEASE LINK
1
1-1
40230005
磁铁
MAGNET
1
2
402S20025
轴位螺钉
HINGE SCREW
1
3
40205017
螺钉
TENSION RELEASE LEVER
1
4
409S14001
螺钉
SCREW
2
5
402S20025
轴位螺钉
HINGE SCREW
1
6
40212062
连杆板
BLOCKING LINK
1
7
402S20025
轴位螺钉
HINGE SCREW
1
8
40127020
弹簧1850-0809
BLOCKING ARM SPRING
1
9
402S20021
轴位螺钉
HINGE SCREW
1
10
40212063
杠杆板
BLOCKING ARM
1
11
40228018
垫圈
WASHER
1
12
0
13
402S16001
螺母
NUT
1
14
4021206400
松线杆
TENSION RELEASE LEVER
1
15
402S11023
螺钉
SCREW
2
16
40208009
挡圈
THRUST COLLAR
1
17
201S14002
螺钉
SCREW
1
18
40204023
松线杆曲柄
TENSION RELEASE LEVER CRANK
1
19
402S20028
轴位螺钉
HINGE SCREW
1
20
402S16017
螺钉
SCREW
1
21
40202028
松线杆
TENSION RELEASE ROD
1
22
S05049
螺钉
SCREW
2
23
40226037
松线杆
TENSION RELEASE PIN
1
24
S09011
螺钉
SCREW
1
25
4021300400
夹线器2号组件
TENSION CONTROLLER NO. 2 ASM
1
26
40211008
夹线调节手柄
TENSION NUT
1
27
40211009
夹线弹簧轴套
THREAD PULLING WIRE
1
28
40227030
夹线弹簧
TENSION SPRING
1
29
40212066
夹线盘压板
TENSION DISC PRESSER TUBE
1
30
40213005
夹线盘
TENSION DISC
2
31
402S30040
夹线柱
TENSION POST
1
32
40227031
挑线簧
THREAD TAKE-UP SPRING
1
33
402S1024
夹线柱座
THREAD POST SOCKET
1
34
40203032
螺钉
SCREW
1
35
40202029
松线杆轴
TENSION RELEASE LEVER SHAFT
1
36
402S11003
螺钉
SCREW
1
36-1
W01013
垫圈
WASHER
1
37
40213006
拉线钢丝
THREAD PULLING WIRE
1
38
4021300700
1号夹线器组件
TENSION CONTROLLER NO. 1 ASM.
1
39
40211010
夹线螺母
TENSION NUT
1
40
40211011
垫片
TENSION DISC STOPPER
1
41
40227032
夹线弹簧
TENSION SPRING
1
42
40212067
夹线压板
TENSION DISC PRESSER TUBE
1
43
40226038
夹线盘
TENSION DISC
2
44
402S20026
松线销
TENSION RELEASE PIN
1
45
402S30041
松线杆
TENSION POST
1
46
402S16018
螺钉
NUT
1
47
40212068
松线臂
TENSION RELEASE ARM
1
48
402S30042
螺钉
SCREW
1
49
402S11013
螺钉
SCREW
1
50
40913010
导线板
THREAD GUIDE PLATE
1
51
40227023
弹簧
SPRING
1
52
40208010
挡圈
THRUST COLLAR
1
53
402S11022
螺钉
SCREW
1
54
40202030
松线柱
TENSION RELEASE ROD
1
55
P03030
销3×18
SPRING PIN
1
56
201S14002
螺钉
SCREW
1
57
40213009
二眼线钩
THREAD EYELET
1
58
40213010
右线钩
FRAME THREAD GUIDE
1
59
206S11002
螺钉
SCREW
1
60
40212070
针杆过线钩
NEEDLE BAR THREAD GUIDE
1
61
402S11003
螺钉
SCREW
1
61-1
W01013
垫圈
WASHER
1
62
40213011
第二紧线钩
TENSION THREAD GUIDE
1
63
40213012
挑线过线钩
TAKE-UP THREAD GUIDE
1
64
402S16017
螺母
NUT
2
65
40203033
定位架
POSITION BRACKET
1
66
40230004
传感器
SENSOR
1
67
40212120
传感器安装板
SENSOR FITTING PLATE
1
68
413S13016
螺钉
SCREW
1
69
S01015
螺钉
SCREW
1
-26-
jintex.in
Page 27 — 15. 给油装置关系 / LUBRICATION MECHANISM COMPONENTS
Jack JK-781D parts on page 27| Ref | Part number | Part name | Qty |
|---|
| 10 | 10 | SCREW | |
| 10-1 | 10-1 | SCREW | |
| 11 | 11 | BRACKET | |
| 12 | 12 | BRACKET | |
| 13 | 13 | BRACKET | |
| 14 | 14 | BRACKET | |
| 15 | 15 | WASHER | |
| 16 | 16 | SCREW | |
| 20 | 20 | BRACKET | |
| 21 | 21 | BRACKET | |
| 25 | 25 | BRACKET | |
| 26 | 26 | BRACKET | |
| 27 | 27 | BRACKET | |
| 47 | 47 | BASE | |
| 49 | 49 | COVER | |
| 50 | 50 | SCREW | |
| 51 | 51 | BRACKET | |
| 52 | 52 | PIN | |
| 53 | 53 | SCREW | |
| 53-1 | 53-1 | SCREW | |
| 54 | 54 | WASHER | |
| 55 | 55 | SCREW | |
| 56 | 56 | WASHER | |
| 70 | 70 | BLOCK | |
| 71 | 71 | ROD | |
| 72 | 72 | WASHER | |
| 77 | 77 | BRACKET | |
| 77-1 | 77-1 | WASHER | |
| 80 | 80 | BRACKET | |
| 80-1 | 80-1 | BRACKET | |
| 81 | 81 | BRACKET | |
| 86 | 86 | BRACKET | |
| 86-1 | 86-1 | BRACKET | |
| 87 | 87 | BRACKET | |
| 88 | 88 | BRACKET | |
| 89 | 89 | WASHER | |
15. 给油装置关系 / LUBRICATION MECHANISM COMPONENTS
10
9
8
88
87
1
2
3
4
5
6
86-1
86
80
80-1
10
20
11
12
26
27
15
14
13
16
21
77
77-1
52
53
53-1
54
51
50 49
47
70
71
72
89
70
71
72
89
70
71
72
89
25
10-1
50
55
56
77
77-1
52
53
53-1
54
51
50 49
47
70
71
72
89
70
71
72
89
70
71
72
89
jintex.in
Page 28
Jack JK-781D parts on page 28| Ref | Part number | Part name | Qty |
|---|
| 40223017 | 回油毡 | |
| 40221003 | 回油管 | |
| 40212071 | 油管压板 | |
| 402S11003 | 螺钉 | |
| 40212072 | 油毡 | |
| 40223019 | 螺钉 | |
| 402S11003 | 螺钉 | |
| 206S11002 | 螺钉 | |
| 4021207300 | 盛油盘组件 | |
| 400128 | 调节润滑螺钉座 | |
| 4022000100 | 油泵座组件 | |
| 40225012 | 油泵驱动蜗轮 | |
| 201S14002 | 螺钉 | |
| S05003 | 螺钉M5×10 | |
| 40227035 | 弹簧 | |
| 40212076 | 油泵板 | |
| 40212077 | 油罩 | |
| 40212078 | 油罩 | |
| 40212079 | 油罩 | |
| 40201066 | 油盘 | |
| 40222026 | 橡胶缓冲垫 | |
| 402S11003 | 螺钉 | |
| 40201026 | 铰链座300849 | |
| P03031 | 销P6×28 | |
| S05016 | 螺钉M6×25 | |
| 40228014 | 垫圈 | |
| 402S11026 | 螺钉 | |
| 40222027 | 垫片 | |
| 40222028 | 油盘缓冲垫 | |
| 402S30048 | 油盘螺栓 | |
| 40228019 | 垫圈 | |
| 40226039 | 连接销 | |
| 40222031 | 橡胶垫圈 | |
| 40212081 | 油管固定板 | |
| 206S11002 | 螺钉 | |
| 40212082 | 油管导架 | |
| 206S11002 | JK788-1175-3螺钉 | |
| 40212099 | 油线固定夹 | |
| 20626004 | 油线销 | |
| 401S16002 | 螺母 | |
注 解
Note
件号
Part NO.
名称
Description
数量
Qty
数量
Qty
1
40223017
回油毡
OIL RETURN FELT
0
2
40221003
回油管
OIL RETURN TUBE
1
3
40212071
油管压板
CABLE HOLDER
1
4
402S11003
螺钉
SCREW
1
5
油线
OIL WICK
1
6
油管导架
PIPE GUIDE
0
7
储油器
OIL RECEIVER
1
8
40212072
油毡
OIL FELT
2
9
40223019
螺钉
SCREW
2
10
402S11003
螺钉
SCREW
5
10-1
206S11002
螺钉
SCREW
5
11
4021207300
盛油盘组件
OIL RECEIVER
1
12
400128
调节润滑螺钉座
OIL ADJUSTING SCREW BASE
1
13
4022000100
油泵座组件
OIL PUMP
1
14
40225012
油泵驱动蜗轮
OIL PUMP DRIVING WORM GEAR
1
15
201S14002
SCREW
2
16
S05003
螺钉M5×10
SCREW
2
17
油毡导架
OIL FELT GUIDE
0
18
螺钉
SCREW
0
19
油量调节螺钉
HOOK OIL ADJUSTING SCREW
0
20
40227035
弹簧
SPRING
1
21
40212076
油泵板
OIL PUMP PLATE
1
22
0
25
40212077
油罩
OIL SHIELD
1
26
40212078
油罩
OIL SHIELD
1
27
40212079
油罩
OIL SHIELD
1
47
40201066
油盘
OIL RESERVOIR
1
49
40222026
橡胶缓冲垫
RUBBER CUSHION
4
50
402S11003
螺钉
SCREW
4
51
40201026
铰链座300849
HINGE HOLDER
2
52
P03031
销P6×28
PIN
2
53
S05016
螺钉M6×25
SCREW
4
54
40228014
垫圈
WASHER
4
55
402S11026
螺钉
SCREW
1
56
40222027
垫片
1
68
拔叉传动销
0
69
橡胶套
0
70
40222028
油盘缓冲垫
MACHINE BASE FELT PAD
4
71
402S30048
油盘螺栓
MACHINE BASE SCREW STUD
4
72
40228019
垫圈
WASHER
4
77
40226039
连接销
CONNECTION STUD
2
77-1
40222031
橡胶垫圈
RUBBER WASHER
2
78
油池
0
79
O型环
0
80
40212081
油管固定板
PIPE RETAINER
1
80-1
206S11002
螺钉
SCREW
2
86
40212082
油管导架
PIPE GUIDE
1
86-1
206S11002
JK788-1175-3螺钉
SCREW
2
87
40212099
油线固定夹
OIL WICK LATCH
1
88
20626004
油线销
OIL WICK PIN
1
89
401S16002
螺母
NUT
4
-28-
