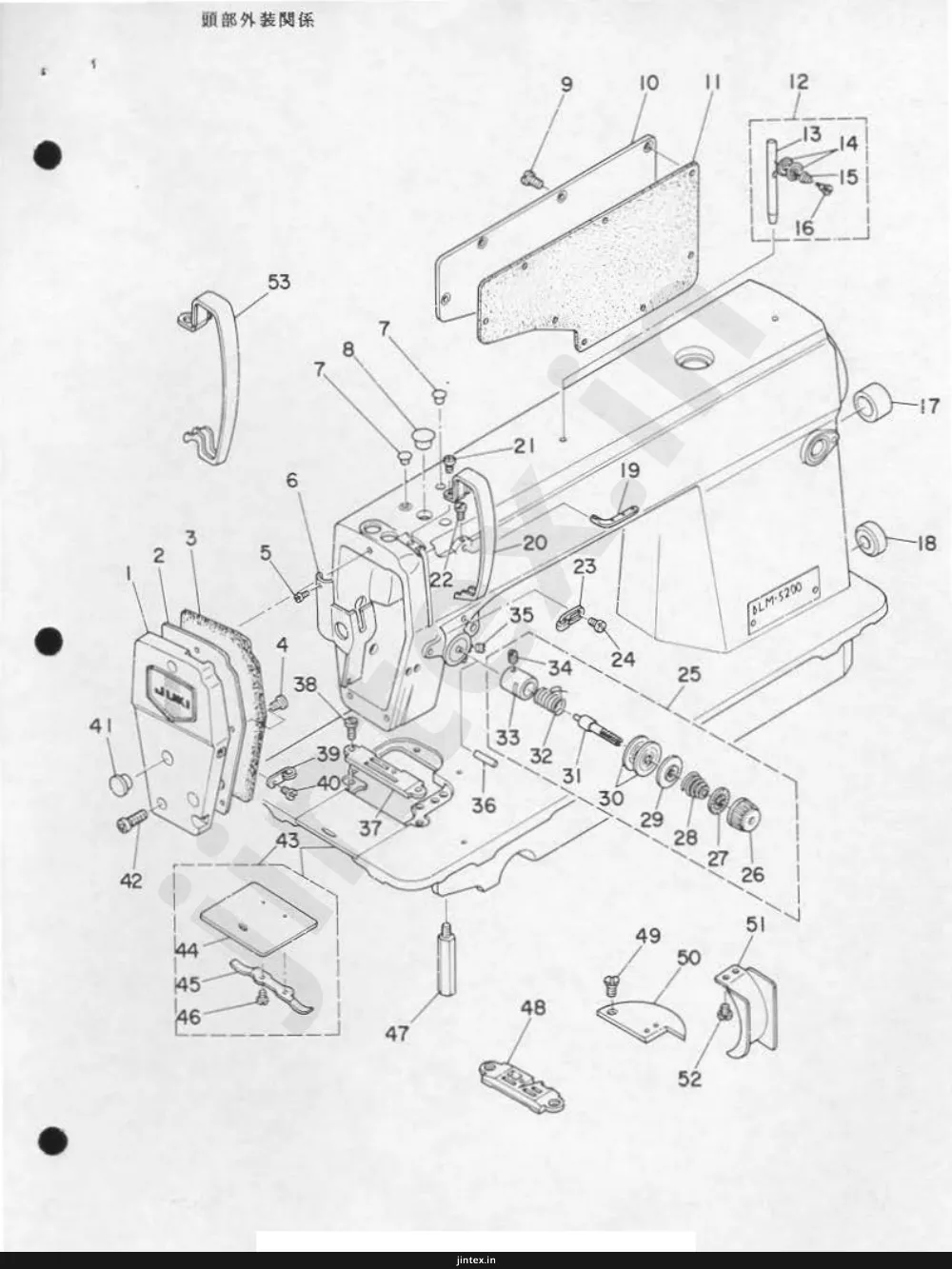

Page 2 — 頭部外装関係
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 113-30552 | FACE PLATE ASM. | 1 |
| 2 | 110-00304 | FACE PLATE GASKET | 1 |
| 3 | SS-6080410-SP | SCREW 1/8-44 L=4 | 1 |
| 4 | SS-1110840-SP | SCREW 11/64-40 L=8 | 3 |
| 5 | SS-6080410-SP | SCREW 1/8-44 L=4 | 1 |
| 6 | 110-00858 | ARM OIL SHIELD ASM. | 1 |
| 7 | TA-0850604-RO | RUBBER PLUG | 2 |
| 8 | TA-1250705-RO | RUBBER PLUG | 1 |
| 9 | SS-4120915-SP | SCREW 12/64-28 L=9 | 8 |
| 10 | 110-00510 | SIDE PLATE | 1 |
| 11 | 110-00619 | GASKET | 1 |
| 12 | B1113-155-0A0 | NEEDLE THREAD GUIDE PIN ASM. | 1 |
| 13 | B1113-155-000 | NEEDLE THREAD GUIDE PIN | (1) |
| 14 | B3148-123-000 | TENSION DISC | (2) |
| 15 | B3149-123-A00 | TENSION SPRING | (1) |
| 16 | SD-0380552-SL | HINGE SCREW D=3.8 H=5.5 | (1) |
| 17 | TA-2000502-RO | RUBBER PLUG | 1 |
| 18 | TA-2101002-RO | RUBBER PLUG | 1 |
| 19 | 110-18702 | THREE-HOLE THREAD EYELET | 1 |
| 20 | 110-00700 | THREAD TAKE-UP LEVER COVER | 1 |
| 21 | SS-4120615-SP | SCREW 3/16-28 L=6 | 1 |
| 22 | SS-4120615-SP | SCREW 3/16-28 L=6 | 1 |
| 23 | 110-18504 | ARM THREAD GUIDE A | 1 |
| 24 | 110-01500 | SCREW | 1 |
| 25 | 110-18959 | THREAD TENSION ASM. | 1 |
| 26 | 110-18900 | TENSION NUT | (1) |
| 27 | B3120-125-000 | TENSION DISC STOPPER | (1) |
| 28 | B3129-012-A00 | TENSION SPRING | (1) |
| 29 | B3132-552-000 | TENSION DISC HOLDER | (1) |
| 30 | B3126-012-000 | TENSION DISC | (2) |
| 31 | B3115-552-000 | TENSION POST | (1) |
| 32 | B3128-012-000 | TAKE-UP SPRING | (1) |
| 33 | B3111-552-B00 | TENSION POST SOCKET | (1) |
| 34 | SS-8090670-SP | SCREW 9/64-40 L= 5.5 | (1) |
| 35 | SS-8150710-SP | SCREW 15/64-28 L=7 | 1 |
| 36 | B3118-552-E00 | THREAD RELEASE PIN | 1 |
| 37 | B1190-522-S00 | GAUGE PLATE 1/8 S | 1 |
| 38 | SS-2110915-SP | SCREW 11/64-40 L=6.8 | 2 |
| 39 | 113-31402 | THREAD GUIDE B | 1 |
| 40 | SS-6110610-TP | SCREW 11/64-40 L=6 | 1 |
| 41 | TA-1250406-RO | RUBBER PLUG | 2 |
| 42 | SS-4121615-SP | SCREW | 3 |
| 43 | 110-01658 | BED SLIDE ASM. | 1 |
| 44 | B1110-012-000 | SLIDE PLATE | (1) |
| 45 | 110-01609 | BRED SLIDE SPRING | (1) |
| 46 | SS-6060210-SP | SCREW 3/32-56 L= 1.9 | (2) |
| 47 | 110-01104 | BED SCREW STUD | 4 |
| 48 | B1190-523-000 | GAUGE PLATE | 1 |
| 49 | SS-2110915-SP | SCREW 11/64-40 L=6.8 | 1 |
| 50 | 113-40304 | THROAT PLATE | 1 |
| 51 | B1191-523-000 | WASTE MATERIAL GUARD | 1 |
| 52 | SS-4080310-SP | SCREW 1/8-44 L=3.4 | 2 |
| 53 | 111-41801 | THREAD TAKE UP LEVER COVER | 1 |
Page 4 — 2. MAIN SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SS-8151150-SP | SCREW 15/64-28 L=10.5 | 1 |
| 2 | 110-17209 | THREAD TAKE-UP CRANK SHAFT | 1 |
| 3 | CQ-3500000-FO | OIL FELT | 0.1 |
| 4 | 110-39070 | THREAD TAKE-UP LEVER ASM. | 1 |
| 5 | 110-39062 | THREAD TAKE-UP LEVER ASM. | (1) |
| 6 | B1905-541-B00 | NEEDLE BEARING, B | (1) |
| 7 | 110-05204 | NEEDLE BAR CRANK | (1) |
| 8 | B1408-552-000 | NEEDLE BAR CRANK ROD | (1) |
| 9 | B1903-552-000 | END SCREW LEFT | (1) |
| 10 | B1909-505-000 | RUBBER | (1) |
| 11 | SS-8081650-TP | SCREW 9/32-28 L=16 | 1 |
| 12 | SS-8660610-TP | SCREW 1/4-40 L=6 | 1 |
| 12 | SS-8060610-TP | SCREW 1/4-40 L=6 | 1 |
| 13 | B1212-552-A00 | COUNTERWEIGHT PROTECTING PLATE | 1 |
| 14 | RO-0442401-00 | RUBBER RING | 1 |
| 15 | SS-7681650-TP | SCREW 9/32-28 L=16 | 1 |
| 16 | 113-49107 | BUSHING, FRONT | 1 |
| 17 | B1177-522-000 | BALANCER | 1 |
| 18 | SS-7150940-SP | SCREW 15/64-28 L=9 | 2 |
| 19 | SS-8150912-TH | SCREW | 1 |
| 20 | 110-02300 | BUSHING, INTERMEDIATE | 1 |
| 21 | CS-147121A-SH | THRUST COLLAR ASM. D=14.72 W=12 | 1 |
| 22 | SS-8660610-TP | SCREW 1/4-40 L=6 | (2) |
| 23 | 110-08059 | FEED DRIVE ECCENTRIC CAM ASM. | 1 |
| 24 | SS-6661110-SP | SCREW 1/4-40 L=11 | (2) |
| 25 | 110-08000 | FEED DRIVE ECCENTRIC CAM | (1) |
| 26 | 110-08109 | THRUST COLLAR | (1) |
| 27 | SS-6090670-TP | SCREW 9/64-40 L=6 | (2) |
| 28 | RC-1850001-KP | SNAP RING 18.5 | 1 |
| 29 | 110-02409 | MAIN SHAFT BUSHING, REAR | 1 |
| 30 | 110-02508 | OIL SEAL | 1 |
| 31 | 113-49008 | MAIN SHAFT | 1 |
| 32 | 110-02607 | HAND WHEEL | 1 |
| 33 | SS-8151550-SP | SCREW 15/64-28 L=15 | 2 |
| 34 | B1213-552-0A0-A | OIL AMOUNT ADJUSTING PIN ASM. | 1 |
| 35 | RO-0291801-00 | RUBBER RING | (1) |
| 36 | 110-02904 | ROLLER FELT | 1 |
| 37 | 113-46400 | WASTE MATERIAL GUIDE | 1 |
| 38 | SS-4080310-SP | SCREW 1/8-44 L=3.4 | 2 |
| 39 | B1193-530-000 | WASTE MATERIAL GUARD PLATE | 1 |
| 40 | 113-46905 | WASTE MATERIAL GUARD, E | 1 |
| 41 | 113-46004 | NEEDLE PLATE, A | 1 |
| 42 | SS-2110915-SP | SCREW 11/64-40 L=6.8 | 2 |
| 43 | SS-4080310-SP | SCREW 1/8-44 L=3.4 | 2 |
| 44 | B1115-530-00F | THROAT PLATE COVER F | 1 |
| 45 | B1115-522-000-A | OPEN COVER SPRING | 1 |
| 46 | SS-6080320-SP | SCREW 1/8-44 L= 2.5 | 1 |
| 47 | 113-31154 | COUNTERWEIGHT ASM. | 1 |
Page 6 — 3. UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1405-012-000 | CAP | 1 |
| 2 | B1402-552-000-A | NEEDLE BAR BUSHING, UPPER | 1 |
| 3 | B1401-522-A00-A | NEEDLE BAR (A) | 1 |
| 4 | B1414-555-000 | SLIDE BLOCK | 1 |
| 5 | B1411-552-0A0 | NEEDLE BAR CONNECTION ASM. | 1 |
| 6 | SS-6090670-TP | SCREW 9/64-40 L=6 | (1) |
| 7 | 110-05105 | NEEDLE BAR BUSHING, LOWER | 1 |
| 8 | SS-7080510-TP | SCREW 1/8-44 L=4.5 | 1 |
| 9 | 113-31204 | NEEDLE BAR THREAD GUIDE | 1 |
| 10 | MDB-100B1400 | NEEDLE DBX1 #14 | 1 |
| 11 | B1306-155-OCO | GEAR & PINION ASM. | 1 |
| 12 | B1306-155-OBO | GEAR & PINION ASM., UPPER | (1) |
| 13 | B1305-012-0A0 | GEAR ASM. | 1 |
| 14 | SS-8660810-TP | SCREW 1/4-40 L=8 | 2 |
| 15 | B1306-155-OAO | PINION ASM. | 1 |
| 16 | SS-8660810-TP | SCREW 1/4-40 L=8 | 2 |
| 17 | B1307-155-OBO | GEAR & PINION ASM., LOWER | 1 |
| 18 | B1307-155-OAO | GEAR ASM. LARGE | 1 |
| 19 | SS-8660810-TP | SCREW 1/4-40 L=8 | 2 |
| 20 | B1308-155-OAO | PINION ASM. | 1 |
| 21 | SS-8660810-TP | SCREW 1/4-40 L=8 | 2 |
| 22 | 110-04009 | UPRIGHT SHAFT | 1 |
| 23 | SS-4120915-SP | SCREW 12/64-28 L=9 | 1 |
| 24 | 110-04306 | BUSHING, UPPER | 1 |
| 25 | 110-04207 | UPRIGHT SHAFT BUSHING, LOWER | 1 |
| 26 | 110-15807 | BUSHING, REAR | 1 |
| 27 | SS-4120915-SP | SCREW 12/64-28 L=9 | 1 |
| 28 | CS-079101A-SH | THRUST COLLAR ASM. D=7.94 W=10 | 1 |
| 29 | SS-6110420-TP | SCREW 11/64-40 L=4.8 | (2) |
| 30 | 110-15005 | HOOK DRIVING SHAFT | 1 |
| 31 | 110-15609 | POSITIONING FINGER | 1 |
| 32 | SS-6111010-SP | SCREW 11/64-40 L= 9.5 | 1 |
| 33 | B1808-552-0A0 | OIL SEAL SCREW ASM. | 1 |
| 34 | B1810-552-000 | OIL WICK | (1) |
| 35 | B1830-127-0A0 | HOOK ASM. | 1 |
| 36 | B9117-012-000 | BOBBIN | 1 |
| 37 | B1837-012-0A0 | BOBBIN CASE ASM. | 1 |
| 38 | CS-079073A-SH | THRUST COLLAR | 1 |
| 39 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | (2) |
| 40 | 110-15104 | BUSHING ASM., FRONT | 1 |
| 41 | SS-8150432-TH | SCREW | 1 |
| 42 | TA-0180401-M0 | PIN | 1 |
| 43 | B1835-523-000 | POSITIONING FINGER | 1 |
| 44 | B1401-522-B00-A | NEEDLE BAR(B) | 1 |
| 45 | MC-2005007-50 | NEEDLE 134 75 | 1 |
| 46 | MDP-500B1400 | NEEDLE DPX5 #14 | 1 |
| 47 | 113-31303 | NEEDLE BAR THREAD GUIDE | 1 |
Page 8 — 4. HAND LIFTER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1520-552-000-A | HAND LIFTER | 1 |
| 2 | B1521-555-000 | SCREW | 1 |
| 3 | R0-0371801-00 | RUBBER RING | 1 |
| 4 | 110-92558 | HAND LIFTER CAM ASM. | 1 |
| 5 | 110-06350 | HAND LIFTER LINK | 1 |
| 6 | RE-0500000-KO | E-RING | 1 |
| 7 | 110-06509 | LINK SHAFT | 2 |
| 8 | 110-06808 | GASKET | 3 |
| 9 | RE-0500000-KO | E-RING | 3 |
| 10 | 110-06202 | LIFTING LEVER | 1 |
| 11 | 110-07309 | LIFTING LEVER RING | 1 |
| 12 | 110-07101 | HINGE SCREW | 1 |
| 13 | 110-06905 | LIFTING LEVER CONNECTING ROD | 1 |
| 14 | 110-07200 | CONNECTING ROD VERTICAL | 1 |
| 15 | 110-07002 | LIFTING LEVER LINK | 1 |
| 16 | SD-0720332-SP | HINGE SCREW D= 7.24 H= 3.3 | 1 |
| 17 | RE-0500000-KO | E-RING | 2 |
| 18 | 110-18207 | TENSION RELEASE RETURN SPRING | 1 |
| 19 | 110-18405 | TENSION RELEASE PIN SPRING | 1 |
| 20 | RE-0400000-KO | E-RING | 1 |
| 21 | 110-18300 | TENSION RELEASE SUPPORTING PIN | 1 |
| 22 | 110-18009 | TENSION RELEASE PLATE | 1 |
| 23 | 110-18108 | TENSION RELEASE SHAFT | 1 |
| 24 | B1509-555-000 | PRESSER SPRING REGULATOR | 1 |
| 25 | B1511-555-000 | NUT 1/2-28 | 1 |
| 26 | B1510-227-000 | PRESSER GUIDE BAR | 1 |
| 27 | B1505-227-000 | PRESSER SPRING | 1 |
| 28 | 110-06004 | NEEDLE BAR GUIDE BRACKET | 1 |
| 29 | B1501-522-000 | PRESSER BAR | 1 |
| 30 | 110-06103 | PRESSER BAR THREAD GUIDE | 1 |
| 31 | SS-8660810-TP | SCREW 1/4-40 L=8 | 1 |
| 32 | SS-7000910-SP | SCREW 9/64-40 L= 8.5 | 2 |
| 33 | B1502-541-000 | PRESSER BAR BUSHING, LOWER | 1 |
| 34 | SS-7091110-SP | SCREW 9/64-40 L=10.5 | 1 |
| 35 | B1524-522-NAO-A | PRESSER FOOT ASM., N | 1 |
| 36 | B1524-522-NBO-A | PRESSER FOOT ASM. | 1 |
| 37 | B1524-523-OAO | PRESSER FOOT ASM. | 1 |
| 38 | WP-0460556-SD | WASHER 4.6X7.5X0.5 | (1) |
| 39 | SD-0450401-SP | HINGE SCREW D= 4.5 H= 4 | (1) |
| 40 | B1524-523-00E | SPRING | (1) |
| 41 | B1421-523-000 | FINGER PROTECTOR | 1 |
| 42 | CQ-2020000-00 | OIL WICK | 0.2 |
| 43 | 110-19007 | WASHER PLATE | 1 |
Page 10 — FEED MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 110-09503 | FEED REGULATOR CONNECTING ROD | 1 |
| 2 | 110-09602 | FEED REGULATOR PIN | 1 |
| 3 | SS-6090670-TP | SCREW 9/64-40 L=6 | 2 |
| 4 | 110-09701 | FEED REGULATOR | 1 |
| 5 | 110-09800 | FEED REGULATOR BUSHING | 1 |
| 6 | SS-7120770-SH | SCREW | 1 |
| 7 | 110-09909 | FEED REGULATOR SCREW | 1 |
| 8 | B1148-555-000 | SPRING | 1 |
| 9 | 110-52701 | PIN | 1 |
| 10 | 110-10006 | FEED DIAL | 1 |
| 11 | SS-6120930-TP | SCREW 3/16-28 L=9.0 | 1 |
| 12 | 110-08208 | ROCKER SHAFT CONNECTING ROD | 1 |
| 13 | 110-09206 | WALKING FOOT PIN C | 1 |
| 14 | SS-6090620-TP | SCREW | 1 |
| 15 | 110-14008 | CONNECTING ROD | 1 |
| 16 | RO-0922702-00 | RUBBER RING | 1 |
| 16 | R0-092702-00 | RUBBER RING | |
| 17 | 110-10303 | FEED REVERSE SPRING | 1 |
| 18 | RE-0500000-KO | E-RING | 1 |
| 19 | 110-10154 | FEED REVERSE ARM ASM. | 1 |
| 20 | 110-10410 | FEED REVERSE ARM SCREW | 1 |
| 21 | RE-0500000-KO | E-RING | 1 |
| 22 | 110-09404 | ADGUSTING LINK SPRING | 1 |
| 23 | 110-09008 | WALKING FOOT PIN A | 2 |
| 24 | 110-08703 | WALKING FOOT LINK | 2 |
| 25 | 110-08604 | CONNECTING LINK A | 2 |
| 26 | 110-08455 | WALKING FOOT ADJUSTING LINK | 1 |
| 27 | 110-08802 | ADGUSTING LINK FULCRUM SHAFT A | 2 |
| 28 | SS-8150710-SP | SCREW 15/64-28 L=7 | 2 |
| 29 | SS-6090620-TP | SCREW | 2 |
| 30 | 110-11103 | FEED BAR SHAFT | 1 |
| 31 | RC-1381001-KP | RETAINING RING | 1 |
| 32 | B1613-522-N00-A | FEED DOG | 1 |
| 33 | SS-4080620-TP | SCREW 1/8-44 L=6 | 2 |
| 34 | 110-11251 | FEED BAR ASH. | 1 |
| 35 | 110-09305 | ADGUSTING LINK SPRING GUIDE | 1 |
| 36 | SS-7110510-SP | SCREW 11/64-40 L=5 | 2 |
| 37 | 110-11301 | FEED SPRING HOOK | 1 |
| 38 | 110-10808 | FEED ROCKER SHAFT | 1 |
| 39 | 110-09107 | WALKING FOOT PIN B | 1 |
| 40 | SS-6090620-TP | SCREW | 1 |
| 41 | NS-6680410-SP | NUT 9/32-28 | 1 |
| 42 | 110-08356 | FEED ROCKER SHAFT CRANK ASM. | 1 |
| 43 | SS-6121610-SP | SCREW 3/16-28 L=15.5 | 1 |
| 44 | 110-14156 | REAR CRANK ASM. | 1 |
| 45 | SS-6121210-SP | SCREW 3/16-28 L=12 | 1 |
| 46 | SD-1000801-SH | HINGE SCREW | 1 |
| 47 | 110-14206 | FEED DRIVING SHAFT | 1 |
| 48 | CS-147121A-SH | THRUST COLLAR ASM. D=14.72 W=12 | 1 |
| 49 | SS-8660610-TP | SCREW 1/4-40 L=6 | 1 |
| 50 | 110-10907 | FEED ROCKER SHAFT BUSHING | 1 |
| 51 | SS-8150432-TH | SCREW | 1 |
| 52 | SS-7110740-TP | SCREW 11/64-40 L=7 | 1 |
| 53 | RC-1381001-KP | RETAINING RING | 1 |
| 54 | 110-11004 | FEED ROCKER | 1 |
| 55 | SS-7121410-TP | SCREW 3/16-28 L=14 | 1 |
| 56 | WP-0480856-SP | MAGNET BASE SPRING WASHER | 1 |
| 57 | 110-14354 | DRIVING SHAFT CRANK ASM.,FRONT | 1 |
| 58 | SS-7111120-SP | SCREW 11/64-40 L=10.5 | 1 |
| 58 | SS-7111220-SP | SCREW 11/64-40 L=10.5 | |
| 59 | SS-4120915-SP | SCREW 12/64-28 L=9 | 1 |
| 60 | 110-10907 | FEED ROCKER SHAFT BUSHING | 1 |
| 61 | CS-147121A-SH | THRUST COLLAR ASM. D=14.72 W=12 | 1 |
| 62 | SS-8660610-TP | SCREW 1/4-40 L=6 | 2 |
| 63 | R0-0781901-00 | RUBBER RING | 1 |
| 64 | 110-10519 | FEED REVERSE SHAFT | 1 |
| 65 | 110-10709 | FEED LEVER METAL | 1 |
| 66 | SS-8660810-TP | SCREW 1/4-40 L=8 | 1 |
| 67 | SS-8661040-TP | SCREW 1/4-40 L=10 | 1 |
| 68 | 110-10600 | REVERSE FEED CONTROL LEVER | 1 |
| 69 | 110-37009 | FEED DIAL | 1 |
| 70 | B1613-523-000 | FEED DOG | 1 |
Page 12
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 113-32400 | KNIFE POSITIONING PLATE | 1 |
| 2 | B4131-522-000 | FELT | 1 |
| 3 | SS-4090815-SP | SCREW 9/64-40 L=8 | 1 |
| 4 | B4133-522-000 | TENSION SPRING | 1 |
| 5 | NS-6090310-SP | NUT 9/64-40 | 1 |
| 6 | SS-4090815-SP | SCREW 9/64-40 L=8 | 1 |
| 7 | NS-6090310-SP | NUT 9/64-40 | 1 |
| 8 | NS-6120310-SP | NUT 3/16-28 | 1 |
| 9 | B4119-522-000 | TENSION SPRING | 1 |
| 10 | SS-6121010-SP | SCREW 3/16-28 L=10 | 1 |
| 11 | SS-6111010-SP | SCREW 11/64-40 L= 9.5 | 1 |
| 12 | NS-6110420-SP | NUT 11/64-40 | 1 |
| 13 | SS-4080610-SP | SCREW 1/8-44 L=6.4 | 2 |
| 14 | B4122-522-000 | WASHER | 1 |
| 15 | B4121-522-000 | KNIFE | 1 |
| 16 | B4120-522-000 | KNIFE HOLDER | 1 |
| 17 | SS-6110810-TP | SCREW 11/64-40 L=8 | 1 |
| 18 | B4113-522-0B0 | KNIFE DRIVING BLOCK ASM. | 1 |
| 19 | B4117-522-000 | BUSHING | (1) |
| 20 | SS-8110510-SP | SCREW 11/64-40 L=5 | (1) |
| 21 | B4114-522-000 | KNIFE DRIVING BLOCK STUD | 1 |
| 22 | B4115-522-000 | GUIDE STUD FOR KNIFE DRIVING BLOCK | 1 |
| 23 | WP-0480856-SP | MAGNET BASE SPRING WASHER | 2 |
| 24 | SS-9121010-TP | SCREW | 2 |
| 25 | B4111-522-000 | KNIFE DRIVING ROD CLUTCH PIN | 1 |
| 26 | B4125-522-000 | SPRING | 1 |
| 27 | RE-0200000-KO | E-RING | 2 |
| 28 | B4124-522-000 | KNIFE RELEASE LEVER | 1 |
| 29 | B4126-522-000 | PIN | 1 |
| 30 | B4103-522-000 | KNIFE DRIVING ROD CLUTCH RETAINER | 1 |
| 31 | B4116-530-000 | BUSHING | 1 |
| 32 | B4102-522-000 | KNIFE DRIVING STUD | 1 |
| 33 | SS-6090810-TP | SCREW 9/64-40 L=7.5 | 1 |
| 34 | 113-32202 | KNIFE DRIVING STUD CONNECTION | 1 |
| 35 | 113-32301 | KNIFE DRIVING ROD | 1 |
| 36 | B4123-522-000 | KNIFE NEEDLE BEARING | 1 |
| 37 | B4106-522-000-B | KNIFE CAM | 1 |
| 38 | B4132-522-000-A | THRUST PLATE | 1 |
| 39 | B4107-522-000 | PIN | 1 |
| 40 | B4108-522-000 | SLIDE BLOCK GUIDE | 1 |
| 41 | SS-6121060-SP | SCREW | 2 |
| 42 | B1414-555-000 | SLIDE BLOCK | 1 |
| 43 | B4109-522-000 | KNOB | 1 |
| 44 | NS-6110310-SP | NUT 11/64-40 | 1 |
| 45 | B4112-522-000 | CAP | 1 |
| 46 | B4110-522-000 | SPRING | 1 |
| 47 | B4121-523-000 | KNIFE | 1 |
| 48 | B4135-523-000 | CUTTING CLOTH SEPARATER | 1 |
| 49 | SS-5060410-SP | SCREW 3/32-56 L=3.5 | 2 |
Page 14 — 7. OIL LUBRICATION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B3530-555-000 | OIL SIGHT WINDOW | 1 |
| 2 | R0-1952401-00 | RUBBER RING | 1 |
| 3 | 110-21201 | MAIN SHAFT OIL TUBE | 1 |
| 4 | 110-21607 | TUBE HOLDER (UPPER) | 1 |
| 5 | SS-4120415-SP | SCREW | 1 |
| 6 | SS-4120615-SP | SCREW 3/16-28 L=6 | 1 |
| 7 | B3529-226-000 | OIL FELT PRESSER | 1 |
| 8 | 113-31758 | OIL RETURN TUBE ASM. | 1 |
| 9 | B3536-122-000 | HOLDER B | 1 |
| 10 | CQ-2520000-00 | OIL WICK | 0.3 |
| 11 | 110-21300 | OIL TUBE | 1 |
| 12 | 110-21706 | TUBE HOLDER (LOWER) | 1 |
| 13 | SS-4150915-SP | SCREW 15/64-28 L=9 | 1 |
| 14 | B2615-372-000 | SPRING | 1 |
| 15 | B3514-412-000 | OIL ADJUSTING SCREW | 1 |
| 16 | 110-20054 | LUBRICATING OIL PUMP ASM. | 1 |
| 17 | 110-20302 | OIL PUMP INSTALLING BASE | (1) |
| 18 | SL-4030851-SF | SCREW | (3) |
| 19 | 110-20005 | OIL PUMP | (1) |
| 20 | 110-20708 | OIL PUMP IMPELLER | (1) |
| 21 | SE-4301041-SR | SCREW | (3) |
| 22 | 110-20203 | LUBRICATING OIL PUMP COVER | (1) |
| 23 | 110-20807 | OIL PUMP IMPELLER COVER | (1) |
| 24 | 110-20401 | PLUNGER | (1) |
| 25 | 110-20609 | PLUNGER SPRING | (1) |
| 26 | 110-20500 | PLUNGER SCREW | (1) |
| 27 | 110-20906 | HOOK DRIVING SHAFT OIL TUBE | (1) |
| 28 | SS-6111010-TP | SCREW 11/64-40 L= 9.5 | 1 |
| 29 | 110-21003 | OIL PUMP SUPPORT | 1 |
| 30 | SS-4150915-SP | SCREW 15/64-28 L=9 | 1 |
| 31 | 110-21409 | RUBBER JOINT | 1 |
Page 16 — 油溜関係
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 113-32855 | OIL RESERVOIR ASM. | 1 |
| 2 | 113-60708 | OIL RESERVOIR | (1) |
| 3 | 110-23108 | GASKET | (1) |
| 4 | 110-23207 | RUBBER CUSHION | (4) |
| 5 | SS-6700710-SH | SCREW | (1) |
| 6 | R0-0982401-00 | RUBBER RING | (1) |
| 7 | 110-24007 | CONNECTING ROD, VERTICAL | (1) |
| 8 | 110-24106 | SPRING | (1) |
| 9 | RE-1000000-KO | E-RING | (1) |
| 10 | 110-24502 | KNEE PRESS LOD BEARING BRACKET | (1) |
| 11 | SS-9182010-SN | SCREW 9/32-20 L=20 | (2) |
| 12 | NS-6150430-SR | NUT 15/64-28 | (2) |
| 13 | SS-8153010-SR | SCREW 15/64-28 L=30 | (2) |
| 14 | SS-9151610-SR | SCREW 15/64-28 L=16 | (1) |
| 15 | 110-24205 | KNEE PRESS ROD | (1) |
| 16 | 110-23751 | KNEE PRESS PLATE ASM. | 1 |
| 17 | B3431-552-000-A | KNEE PRESS PLATE COVER | (1) |
| 18 | B3419-122-000 | KNEE LIFTER PLATE ROD | (1) |
| 19 | 110-24403 | RUBBER | (1) |
| 20 | 110-23702 | KNEE PRESS PLATE | (1) |
| 21 | 110-23801 | KNEE PRESS PLATE HOLDER | (1) |
| 22 | SS-9151540-SR | SCREW 15/64-28 L=15 | (1) |
| 23 | 110-24304 | KNEE PRESS LIFTER ROD | 1 |
| 24 | 113-61003 | OIL PUSH GUIDE | 1 |
| 25 | SS-4110715-SP | SCREW 11/64-40 L=7 | 2 |
| 26 | B8226-522-000 | WASTE MATERIAL CHUTE HOLDER | 1 |
| 27 | SK-3412000-SC | WOOD SCREW D=4.1 L=20 | 3 |
| 28 | SS-7090610-SP | SCREW 9/64-40 L=6 | 4 |
| 29 | NS-6090310-SP | NUT 9/64-40 | 8 |
| 30 | B8224-523-000 | WASTE MATERIAL CHUTE(LARGE) | 1 |
| 31 | B8225-522-000 | WASTE MATERIAL CHUTE, SMALL | 1 |
| 32 | 113-41708 | HOOK OIL COVER | 1 |
| 33 | SS-4110715-SP | SCREW 11/64-40 L=7 | 2 |
| 34 | 113-41807 | WASTE MATERIAL CHUTE | 1 |
| 35 | SS-4110515-SP | SCREW 11/64-40 L=5 | 2 |
| 36 | 113-41559 | OIL RESERVOIR ASM. | 1 |
| 37 | 113-41500 | OIL RESERVOIR | (1) |
| 37 | 113-41550 | OIL RESERVOIR | (1) |
| 38 | 110-23108 | GASKET | (1) |
| 39 | 110-23207 | RUBBER CUSHION | (1) |
| 40 | 110-24007 | CONNECTING ROD, VERTICAL | (1) |
| 41 | 110-24106 | SPRING | (1) |
| 42 | RE-1000000-KO | E-RING | (1) |
| 43 | 110-24502 | KNEE PRESS LOD BEARING BRACKET | (1) |
| 44 | SS-9182010-SN | SCREW 9/32-20 L=20 | (2) |
| 45 | NS-6150430-SR | NUT 15/64-28 | (2) |
| 46 | SS-8153010-SR | SCREW 15/64-28 L=30 | (2) |
| 47 | SS-9151610-SR | SCREW 15/64-28 | (1) |
| 48 | 110-24205 | KNEE PRESS ROD | (1) |
| 49 | SS-7091110-SP | SCREW 9/64-40 L=10.5 | 4 |
| 49 | SS-7051110-SP | SCREW 9/64-40 L=10.5 | 4 |
Page 17 — 9. BELT COVER & BOBBIN WINDER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 110-23363 | BELT COVER ASM. | 1 |
| 2 | 110-23355 | BELT COVER ASM. | (1) |
| 3 | 110-23396 | BELT COVER A | (1) |
| 3 | 110-23306 | BELT COVER A | (1) |
| 4 | SS-7701010-SP | SCREW 5/16-24 L=10 | (2) |
| 5 | 110-23405 | BELT COVER B | (1) |
| 6 | 110-23504 | BELT COVER SUPPORT | (1) |
| 7 | SS-7120640-SP | SCREW 3/16-28 L=6 | (1) |
| 8 | 110-23603 | BELT COVER COLLAR | (2) |
| 9 | D3201-555-DAO | BOBBIN WINDER ASM. | (1) |
| 10 | D3213-555-DAO | THREAD TENSION BRACKET ASM. | (1) |
| 11 | SS-4110515-SP | SCREW 11/64-40 L=5 | (1) |
| 12 | B3126-012-000 | TENSION DISC | (2) |
| 13 | B3129-012-B00 | TENSION SPRING B | (1) |
| 14 | B3125-012-000 | THREAD TENSION STUD NUT | (1) |
| 15 | SS-7110350-SP | SCREW 11/64-40 L=3 | (1) |
| 16 | B3212-555-000 | PRESSER PLATE | (1) |
| 17 | B3211-555-000 | RUBBER BRAKE | (1) |
| 18 | B3209-555-000 | POSITIONING FINGER | (1) |
| 19 | SD-0490261-SP | HINGE SCREW D=4.9 H=2.6 | (1) |
| 20 | SS-7081310-SP | SCREW 1/8-44 L=12.5 | (1) |
| 21 | WP-0501016-SD | WASHER 5X10.5X1 | (2) |
| 22 | SK-3482500-SC | WOOD SCREW D=4.8 L=25 | (2) |
Page 18 — ※立装置関係
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 111-81054 | THREAD STAND ASM. | 1 |
| 2 | 111-81062 | THREAD STAND ASM. | 1 |
| 3 | B3307-012-000 | THREAD GUIDE | (2) |
| 4 | B3310-012-000 | POSITION CUP SET SCREW | (1) |
| 5 | WS-0641560-KR | SPRING WASHER 6.4X11.9X1.5 | (1) |
| 6 | B3309-012-000 | POSITION CUP | (1) |
| 7 | B3308-012-000 | ROD WASHER | (1) |
| 8 | B3306-012-000 | SPOOL ROD | (1) |
| 9 | NM-6061051-SE | NUT M6 | (1) |
| 10 | B3302-012-000 | SPOOL REST ROD | (1) |
| 11 | 111-81906 | SPOOL RETAINER | (2) |
| 12 | B3320-704-L00-A | SPOOL PIN | (2) |
| 13 | B3311-012-000 | SPOOL REST CUSHION | (2) |
| 14 | 111-81153 | SPOOL REST ASM. | (1) |
| 15 | WP-0560860-SE | WASHER 5.6X12X0.8 | (2) |
| 16 | WS-0531060-KR | SPRING WASHER 5.3X8.3X1 | (2) |
| 17 | NS-6123881-SE | NUT 3/16-28 | (2) |
| 18 | SM-9061080-SE | SCREW M6 L=10 | (1) |
| 19 | NM-6100663-SE | NUT M10 | (2) |
| 20 | SK-3452000-SE | WOOD SCREW D=4.5 L=20 | (3) |
| 21 | 111-81005 | THREAD STAND | (1) |
| 22 | WS-1002560-KR | SPRING WASHER 10X18X2.5 | (1) |
Page 19 — 11. FOLDER COMPONENTS (EXCLUSIVE PARTS FOR DLM-5210)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | MAT-11801NAO | BINDER ASM. | 1 |
| 2 | MAN-011010AO | SINGLE FOLD BIAS FOLDER ASM. | 1 |
| 3 | MAT-11803NOA | TAPE GUIDE | 1 |
| 4 | SS-7000510-SP | SCREW 9/64-40 L= 4.6 | 2 |
| 5 | WP-0450000-SD | WASHER 4.5X8X0.5 | 2 |
| 6 | SS-7090710-SP | SCREW 9/64-40 L= 6.8 | 2 |
| 7 | WP-0371020-SD | WASHER 3.7X7X1 | 2 |
| 8 | MAT-11901NAO | BINDER ASM. | 1 |
| 9 | MAN-015010AO | DOUBLE FOLD BIAS FOLDER ASM. | 1 |
| 10 | MAT-11903NOA | TAPE GUIDE B | 1 |
| 11 | SS-7090510-SP | SCREW 9/64-40 L= 4.6 | 2 |
| 12 | WP-0450000-SD | WASHER 4.5X8X0.5 | 2 |
| 13 | SS-7090710-SP | SCREW 9/64-40 L= 6.8 | 2 |
| 14 | WP-0371026-SD | WASHER 3.7X7X1 | 2 |
Page 20 — TABLE OF EXCHANGING GAUGES FOR DLM-5200
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 5 | B1190523000 | Gauge | |
| 5 | 11340304 | Throat plate | |
| 5 | B1191523000 | Throat plate chip guard | |
| 5 | B15245230A0 | Hinging presser (asm) | |
| 5 | B1613523000 | Feed dog | |
| 5 | B4121523000 | Knit | |
| 5 | MAT11801NA0 | Semi-fold binder | |
| 5 | MAT11901NA0 | Clean finish top and bottom | |
| 6 | B1190523B00 | Gauge | |
| 6 | B1524523BA0 | Hinging presser (asm) | |
| 6 | MAN0110F0A0 | Semi-fold binder | |
| 6 | MAN0150F0A0 | Clean finish top and bottom | |
| 7 | B1190523C00 | Gauge | |
| 7 | B1524523CA0 | Hinging presser (asm) | |
| 7 | MAN0110G0A0 | Semi-fold binder | |
| 7 | MAN0150G0A0 | Clean finish top and bottom | |
| 9.5 | B1190523E00 | Gauge | |
| 9.5 | B1524523EA0 | Hinging presser (asm) | |
| 9.5 | B4121523B00 | Knit | |
| 9.5 | MAN0150J0A0 | Clean finish top and bottom | |
| D | 11346004 | Throat plate | |
| D | B11155300AD | Throat plate cover (asm) | |
| D | B1190522S00 | Gauge | |
| D | 11346905 | Throat plate chip guard | |
| D | 11346400 | Chip guide | |
| D | B1524522NA0A | Hinging presser (asm) | |
| D | B1524522NB0A | Hinging presser (asm) (With finger guard) | |
| D | B1613522N00A | Feed dog | |
| D | B4121522000 | Knife | |
| CA | B1190522Y0A | Gauge | |
| C | B1190522X00 | Gauge | |
| E | B11155300AF | Throat plate cover (asm) | |
| E | B1190522Y00 | Gauge | |
| F | B1190522T00 | Gauge | |
| H | B1190522U00 | Gauge | |
| H | 11347101 | Throat plate chip guard | |
| H | 11346509 | Chip guide | |
| H | B15240120A0 | Hinging presser (asm) | |
| H | B15240120BA | Hinging presser (asm) With fingerguard | |
| H | B1613522W00A | Feed dog | |
| HA | B11155300AM | Throat plate cover (asm) | |
| HA | B1190522U0A | Gauge | |
| HA | B1613522A0A | Feed dog | |
| K | 11346103 | Throat plate | |
| K | B1190522Y0B | Gauge | |
| M | B1190522V00 | Gauge | |
| M | 11347309 | Throat plate chip guard |
Page 21 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 44 | B1110-012-000 | 2 | |
| 12 | B1113-155-0A0 | 2 | |
| 13 | B1113-155-000 | 2 | |
| 45 | B1115-522-000-A | 4 | |
| 2-C | B1115-530-0AD | 20 | |
| 2-CA | B1115-530-0AD | 20 | |
| 2-D | B1115-530-0AD | 20 | |
| 2-F | B1115-530-0AD | 20 | |
| 2-H | B1115-530-0AF | 20 | |
| 2-K | B1115-530-0AF | 20 | |
| 2-M | B1115-530-0AF | 20 | |
| 2-HA | B1115-530-0AF | 20 | |
| 2-MA | B1115-530-0AM | 20 | |
| 2-E | B1115-530-0AN | 20 | |
| 44 | B1115-530-00F | 4 | |
| 8 | B1148-555-000 | 10 | |
| 37 | B1177-522-000 | 4 | |
| 37 | B1190-522-S00 | 2 | |
| 3-D | B1190-522-S00 | 20 | |
| 3-F | B1190-522-S00 | 20 | |
| 3-MA | B1190-522-U0A | 20 | |
| 3-C | B1190-522-U00 | 20 | |
| 3-M | B1190-522-V00 | 20 | |
| 3-H | B1190-522-X00 | 20 | |
| 3-C | B1190-522-Y0A | 20 | |
| 3-E | B1190-522-Y0B | 20 | |
| 3-E | B1190-522-Y00 | 20 | |
| 3-K | B1190-522-Y00 | 20 | |
| 48 | B1190-523-000 | 2 | |
| 51 | B1191-523-000 | 2 | |
| 39 | B1193-530-000 | 4 | |
| 13 | B1212-552-0A0 | 4 | |
| 34 | B1213-552-0A0-A | 4 | |
| 13 | B1305-012-0A0 | 6 | |
| 15 | B1306-155-0A0 | 6 | |
| 12 | B1306-155-0B0 | 6 | |
| 11 | B1306-155-0C0 | 6 | |
| 18 | B1307-155-0A0 | 6 | |
| 17 | B1307-155-0B0 | 6 | |
| 20 | B1308-155-0A0 | 6 | |
| 3 | B1401-522-A00-A | 6 | |
| 44 | B1401-522-B00-A | 6 | |
| 2 | B1402-522-000-A | 6 | |
| 1 | B1405-012-000 | 6 | |
| 8 | B1408-552-000 | 4 | |
| 5 | B1411-552-0A0 | 6 | |
| 4 | B1414-555-000 | 6 | |
| 42 | B1414-555-000 | 12 | |
| 41 | B1421-523-000 | 8 | |
| 29 | B1501-522-000 | 8 | |
| 33 | B1502-541-000 | 8 | |
| 27 | B1505-227-000 | 8 | |
| 24 | B1509-555-000 | 8 | |
| 26 | B1510-227-000 | 8 | |
| 25 | B1511-555-000 | 8 | |
| 1 | B1520-552-000-A | 8 | |
| 2 | B1521-555-000 | 8 | |
| 6-H | B1524-012-0A0 | 20 | |
| 6-HA | B1524-012-0A0 | 20 | |
| 6-K | B1524-012-0A0 | 20 | |
| 7-H | B1524-012-0A0 | 20 | |
| 7-K | B1524-012-0BA | 20 | |
| 7-M | B1524-012-0BA | 20 | |
| 7-HA | B1524-012-0BA | 20 | |
| 7-F | B1524-012-0BA | 20 | |
| 35 | B1524-522-NA0-A | 8 | |
| 6-C | B1524-522-NA0-A | 20 | |
| 6-CA | B1524-522-NA0-A | 20 | |
| 6-D | B1524-522-NA0-A | 20 | |
| 6-E | B1524-522-NA0-A | 20 | |
| 6-F | B1524-522-NA0-A | 20 | |
| 36 | B1524-522-NB0-A | 8 | |
| 7-C | B1524-522-NB0-A | 20 | |
| 7-CA | B1524-522-NB0-A | 20 | |
| 7-D | B1524-522-NB0-A | 20 | |
| 7-E | B1524-522-NB0-A | 20 | |
| 7-F | B1524-522-NB0-A | 20 | |
| 7-M | B1524-522-NB0-A | 20 | |
| 37 | B1524-523-0A0 | 8 | |
| 40 | B1524-523-00E | 8 | |
| 8-HA | B1613-522-A0A | 20 | |
| 32 | B1613-522-W00-A | 10 | |
| 8-C | B1613-522-W00-A | 20 | |
| 8-CA | B1613-522-W00-A | 20 | |
| 8-D | B1613-522-W00-A | 20 | |
| 8-E | B1613-522-W00-A | 20 | |
| 8-F | B1613-522-W00-A | 20 | |
| 8-H | B1613-522-W00-A | 20 | |
| 8-K | B1613-522-W00-A | 20 | |
| 8-M | B1613-522-W00-A | 20 | |
| 70 | B1613-523-000 | 10 | |
| 33 | B1808-552-0A0 | 6 | |
| 34 | B1810-552-000 | 6 | |
| 35 | B1830-127-0A0 | 6 | |
| 43 | B1835-523-000 | 6 | |
| 37 | B1837-012-0A0 | 6 | |
| 9 | B1903-552-000 | 4 | |
| 6 | B1905-541-B00 | 4 | |
| 10 | B1909-505-000 | 4 | |
| 14 | B2016-372-000 | 14 | |
| 33 | B3111-552-B00 | 2 | |
| 31 | B3115-552-000 | 2 | |
| 36 | B3118-552-E00 | 2 | |
| 27 | B3120-125-000 | 2 | |
| 14 | B3125-012-000 | 17 | |
| 30 | B3126-012-000 | 2 | |
| 12 | B3126-012-000 | 17 | |
| 32 | B3128-012-000 | 2 | |
| 28 | B3129-012-A00 | 2 | |
| 13 | B3129-012-B00 | 17 | |
| 29 | B3132-552-000 | 2 | |
| 14 | B3148-123-000 | 2 | |
| 15 | B3149-123-A00 | 2 | |
| 18 | B3200-555-000 | 17 | |
| 17 | B3211-555-000 | 17 | |
| 16 | B3212-555-000 | 17 | |
| 10 | B3302-012-000 | 18 | |
| 8 | B3306-012-000 | 18 | |
| 3 | B3307-012-000 | 18 | |
| 7 | B3308-012-000 | 18 | |
| 6 | B3309-012-000 | 18 | |
| 4 | B3310-012-000 | 18 | |
| 13 | B3311-012-000 | 18 | |
| 12 | B3320-704-L00-A | 18 | |
| 18 | B3410-122-000 | 16 | |
| 17 | B3431-552-000-A | 16 | |
| 15 | B3514-412-000 | 14 | |
| 7 | B3529-226-000 | 14 | |
| 1 | B3530-555-000 | 14 | |
| 9 | B3536-122-000 | 14 | |
| 32 | B4102-522-000 | 12 | |
| 30 | B4103-522-000 | 12 | |
| 37 | B4106-522-000-B | 12 | |
| 39 | B4107-522-000 | 12 | |
| 40 | B4108-522-000 | 12 | |
| 43 | B4109-522-000 | 12 | |
| 46 | B4110-522-000 | 12 | |
| 25 | B4111-522-000 | 12 | |
| 45 | B4112-522-000 | 12 | |
| 18 | B4113-522-0B0 | 12 | |
| 21 | B4114-522-000 | 12 | |
| 22 | B4115-522-000 | 12 | |
| 31 | B4116-530-000 | 12 | |
| 19 | B4117-522-000 | 12 | |
| 9 | B4119-522-000 | 12 | |
| 16 | B4120-522-000 | 12 | |
| 15 | B4121-522-000 | 12 | |
| 9-C | B4121-522-000 | 20 | |
| 9-CA | B4121-522-000 | 20 | |
| 9-D | B4121-522-000 | 20 | |
| 9-E | B4121-522-000 | 20 | |
| 9-F | B4121-522-000 | 20 | |
| 9-H | B4121-522-000 | 20 | |
| 9-HA | B4121-522-000 | 20 | |
| 9-K | B4121-522-000 | 20 | |
| 9-M | B4121-522-000 | 20 | |
| 47 | B4121-523-000 | 12 | |
| 14 | B4122-522-000 | 12 | |
| 36 | B4123-522-000 | 12 | |
| 28 | B4124-522-000 | 12 | |
| 26 | B4125-522-000 | 12 | |
| 29 | B4126-522-000 | 12 | |
| 2 | B4131-522-000 | 12 | |
| 38 | B4132-522-000-A | 12 | |
| 4 | B4133-522-000 | 12 | |
| 48 | B4135-523-000 | 12 | |
| 30 | B8224-523-000 | 16 | |
| 31 | B8225-522-000 | 16 | |
| 26 | B8226-522-000 | 16 | |
| 36 | B9117-012-000 | 6 | |
| 42 | CQ-2020000-00 | 8 | |
| 10 | CQ-2520000-00 | 14 | |
| 3 | CQ-3500000-00 | 4 | |
| 38 | CS-079073A-SH | 6 | |
| 28 | CS-079101A-SH | 6 | |
| 21 | CS-147121A-SH | 4 | |
| 48 | CS-147121A-SH | 10 | |
| 61 | CS-147121A-SH | 10 | |
| 9 | D3201-555-BA0 | 17 | |
| 10 | D3213-555-DA0 | 17 | |
| 2 | HAN-011010A0 | 19 | |
| 9 | HAN-015010A0 | 19 | |
| 1 | MAT-11801NA0 | 19 | |
| 3 | MAT-11801NA0 | 19 | |
| 8 | MAT-11901NA0 | 19 | |
| 45 | MC-2005007-S0 | 6 | |
| 10 | MDB-100B1400 | 6 | |
| 46 | MDP-500B1400 | 6 | |
| 9 | NH-6061061-SE | 18 | |
| 19 | NM-6100063-SE | 18 | |
| 5 | NS-6090310-SP | 12 | |
| 7 | NS-6090310-SP | 12 | |
| 29 | NS-6090310-SP | 16 | |
| 44 | NS-6090310-SP | 12 | |
| 12 | NS-6110310-SP | 12 | |
| 8 | NS-6110310-SP | 12 | |
| 17 | NS-610420-SP | 16 | |
| 12 | NS-6123881-SP | 16 | |
| 45 | NS-6150430-SP | 16 | |
| 41 | NS-6680410-SP | 10 | |
| 31 | RC-1381001-KP | 10 | |
| 53 | RC-1381001-KP | 10 | |
| 28 | RE-0200000-KO | 4 | |
| 27 | RE-0200000-KO | 12 | |
| 20 | RE-0200000-KO | 8 | |
| 6 | RE-0500000-KO | 8 | |
| 9 | RE-0500000-KO | 8 | |
| 17 | RE-0500000-KO | 8 | |
| 21 | RE-0500000-KO | 10 | |
| 9 | RE-0500000-KO | 16 | |
| 42 | RE-0500000-KO | 16 | |
| 35 | RE-1000000-00 | 4 | |
| 3 | RE-1000000-00 | 8 | |
| 14 | RO-0442401-00 | 4 | |
| 63 | RO-0761901-00 | 10 | |
| 15 | RO-0922702-00 | 10 | |
| 6 | RO-0982401-00 | 16 | |
| 2 | RO-1952401-00 | 14 | |
| 16 | SD-0380552-SL | 2 | |
| 39 | SD-0450401-SP | 8 | |
| 19 | SD-0490261-SP | 17 | |
| 16 | SD-0720332-SP | 8 | |
| 46 | SD-1000801-SH | 10 | |
| 21 | SE-4301041-SR | 14 | |
| 27 | SK-3412000-SC | 16 | |
| 20 | SK-3452000-SE | 18 | |
| 22 | SK-3482500-SC | 17 | |
| 18 | SL-4030851-SP | 14 | |
| 18 | SM-9061080-SE | 18 | |
| 4 | SS-1110840-SP | 2 | |
| 38 | SS-2110015-SP | 2 | |
| 49 | SS-2110915-SP | 2 | |
| 42 | SS-2110915-SP | 4 | |
| 52 | SS-4080310-SP | 2 | |
| 38 | SS-4080310-SP | 4 | |
| 43 | SS-4080310-SP | 4 | |
| 13 | SS-4080610-SP | 12 | |
| 33 | SS-4080620-TP | 10 | |
| 3 | SS-4090815-SP | 12 | |
| 6 | SS-4090815-SP | 12 | |
| 35 | SS-4110515-SP | 16 | |
| 11 | SS-4110515-SP | 17 | |
| 25 | SS-4110715-SP | 16 | |
| 33 | SS-4110715-SP | 16 | |
| 5 | SS-4120415-SP | 14 | |
| 21 | SS-4120615-SP | 2 | |
| 22 | SS-4120615-SP | 2 | |
| 6 | SS-4120615-SP | 14 | |
| 9 | SS-4120915-SP | 2 | |
| 23 | SS-4120915-SP | 6 | |
| 27 | SS-4120915-SP | 6 | |
| 59 | SS-4120915-SP | 10 | |
| 42 | SS-4121615-SP | 2 | |
| 13 | SS-4150915-SP | 14 | |
| 30 | SS-4150915-SP | 14 | |
| 49 | SS-5060410-SP | 12 | |
| 40 | SS-6060210-SP | 2 | |
| 46 | SS-6080320-SP | 4 | |
| 3 | SS-6080410-SP | 2 | |
| 5 | SS-6080410-SP | 2 | |
| 14 | SS-6090620-TP | 10 | |
| 29 | SS-6090620-TP | 10 | |
| 40 | SS-6090620-TP | 10 | |
| 27 | SS-6090670-TP | 4 | |
| 6 | SS-6090670-TP | 6 | |
| 3 | SS-6090670-TP | 10 | |
| 33 | SS-6090810-TP | 12 | |
| 29 | SS-6110420-TP | 6 | |
| 40 | SS-6110610-TP | 2 | |
| 17 | SS-6110810-TP | 12 | |
| 32 | SS-6111010-SP | 6 | |
| 11 | SS-6111010-SP | 12 | |
| 28 | SS-6111010-SP | 14 | |
| 11 | SS-6120930-TP | 10 | |
| 10 | SS-6121010-SP | 12 | |
| 41 | SS-6121060-SP | 12 | |
| 45 | SS-6121210-SP | 10 | |
| 43 | SS-6121610-SP | 10 | |
| 24 | SS-6661110-SP | 4 | |
| 5 | SS-6700710-SH | 16 | |
| 8 | SS-7080510-TP | 6 | |
| 20 | SS-7081310-SP | 17 | |
| 28 | SS-7090510-SP | 16 | |
| 4 | SS-7090510-SP | 19 | |
| 6 | SS-7090710-SP | 19 | |
| 13 | SS-7090710-SP | 10 | |
| 32 | SS-7090910-SP | 19 | |
| 34 | SS-7091110-SP | 8 | |
| 49 | SS-7091110-SP | 16 | |
| 38 | SS-7110510-SP | 10 | |
| 52 | SS-7110740-TP | 10 | |
| 58 | SS-7111120-SP | 10 | |
| 7 | SS-7120640-SP | 17 | |
| 6 | SS-7120770-SH | 10 | |
| 55 | SS-7121410-TP | 10 | |
| 18 | SS-7150940-SP | 4 | |
| 15 | SS-7681650-TP | 4 | |
| 4 | SS-7701010-SP | 17 | |
| 34 | SS-8090670-SP | 2 | |
| 39 | SS-8110410-TP | 6 |
Page 22 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20 | SS-8110510-SP | ||
| 41 | SS-8150432-TH | ||
| 51 | SS-8150432-TH | ||
| 35 | SS-8150710-SP | ||
| 28 | SS-8150710-SP | ||
| 19 | SS-8150912-TH | ||
| 1 | SS-8151150-SP | ||
| 33 | SS-8151550-SP | ||
| 13 | SS-8153010-SR | ||
| 46 | SS-8153010-SR | ||
| 12 | SS-8660610-TP | ||
| 22 | SS-8660610-TP | ||
| 49 | SS-8660610-TP | ||
| 62 | SS-8660610-TP | ||
| 14 | SS-8660810-TP | ||
| 16 | SS-8660810-TP | ||
| 19 | SS-8660810-TP | ||
| 21 | SS-8660810-TP | ||
| 31 | SS-8660810-TP | ||
| 66 | SS-8660810-TP | ||
| 67 | SS-8661040-TP | ||
| 11 | SS-8581650-TP | ||
| 24 | SS-9121010-TP | ||
| 22 | SS-9151540-SR | ||
| 14 | SS-9151610-SR | ||
| 47 | SS-9151610-SR | ||
| 11 | SS-9182010-SN | ||
| 44 | SS-9182010-SN | ||
| 42 | TA-0180401-MO | ||
| 7 | TA-0850604-RO | ||
| 41 | TA-1250406-RO | ||
| 8 | TA-1250705-RO | ||
| 17 | TA-2000502-RO | ||
| 18 | TA-2101002-RO | ||
| 7 | VP-0371020-SD | ||
| 14 | VP-0371020-SD | ||
| 5 | VP-0450000-SD | ||
| 12 | VP-0450000-SD | ||
| 38 | WP-0460556-SD | ||
| 56 | WP-0480856-SP | ||
| 23 | WP-0480856-SP | ||
| 21 | WP-0501016-SD | ||
| 15 | WP-0560860-SE | ||
| 16 | WS-0531060-KR | ||
| 5 | WS-0641560-KR | ||
| 22 | WS-1002560-KR | ||
| 2 | 110-00304 | ||
| 10 | 110-00510 | ||
| 11 | 110-00619 | ||
| 20 | 110-00700 | ||
| 6 | 110-00858 | ||
| 47 | 110-01104 | ||
| 24 | 110-01500 | ||
| 45 | 110-01600 | ||
| 43 | 110-01658 | ||
| 20 | 110-02300 | ||
| 29 | 110-02409 | ||
| 30 | 110-02508 | ||
| 32 | 110-02607 | ||
| 38 | 110-02904 | ||
| 22 | 110-04009 | ||
| 25 | 110-04207 | ||
| 24 | 110-04306 | ||
| 7 | 110-05105 | ||
| 7 | 110-05204 | ||
| 28 | 110-06004 | ||
| 30 | 110-06103 | ||
| 10 | 110-06202 | ||
| 5 | 110-06350 | ||
| 7 | 110-06509 | ||
| 8 | 110-06608 | ||
| 13 | 110-06905 | ||
| 15 | 110-07002 | ||
| 12 | 110-07101 | ||
| 14 | 110-07200 | ||
| 11 | 110-07309 | ||
| 25 | 110-08000 | ||
| 23 | 110-08059 | ||
| 26 | 110-08109 | ||
| 12 | 110-08208 | ||
| 42 | 110-08356 | ||
| 26 | 110-08455 | ||
| 25 | 110-08604 | ||
| 24 | 110-08703 | ||
| 27 | 110-08802 | ||
| 23 | 110-09008 | ||
| 39 | 110-09107 | ||
| 13 | 110-09206 | ||
| 35 | 110-09305 | ||
| 22 | 110-09404 | ||
| 1 | 110-09503 | ||
| 2 | 110-09602 | ||
| 4 | 110-09701 | ||
| 5 | 110-09800 | ||
| 7 | 110-09909 | ||
| 10 | 110-10006 | ||
| 19 | 110-10154 | ||
| 17 | 110-10303 | ||
| 20 | 110-10410 | ||
| 64 | 110-10519 | ||
| 68 | 110-10600 | ||
| 65 | 110-10709 | ||
| 38 | 110-10808 | ||
| 50 | 110-10907 | ||
| 60 | 110-10907 | ||
| 54 | 110-11004 | ||
| 30 | 110-11103 | ||
| 34 | 110-11251 | ||
| 37 | 110-11301 | ||
| 15 | 110-14008 | ||
| 44 | 110-14156 | ||
| 47 | 110-14206 | ||
| 57 | 110-14354 | ||
| 30 | 110-15005 | ||
| 40 | 110-15104 | ||
| 31 | 110-15609 | ||
| 26 | 110-15807 | ||
| 2 | 110-17209 | ||
| 22 | 110-18009 | ||
| 23 | 110-18108 | ||
| 18 | 110-18207 | ||
| 21 | 110-18300 | ||
| 19 | 110-18405 | ||
| 23 | 110-18504 | ||
| 19 | 110-18702 | ||
| 26 | 110-18900 | ||
| 25 | 110-18959 | ||
| 43 | 110-19007 | ||
| 19 | 110-20005 | ||
| 16 | 110-20054 | ||
| 22 | 110-20203 | ||
| 17 | 110-20302 | ||
| 24 | 110-20401 | ||
| 26 | 110-20500 | ||
| 25 | 110-20609 | ||
| 20 | 110-20708 | ||
| 23 | 110-20807 | ||
| 27 | 110-20906 | ||
| 29 | 110-21003 | ||
| 3 | 110-21201 | ||
| 11 | 110-21300 | ||
| 31 | 110-21409 | ||
| 4 | 110-21607 | ||
| 12 | 110-21706 | ||
| 3 | 110-23108 | ||
| 38 | 110-23108 | ||
| 4 | 110-23207 | ||
| 39 | 110-23207 | ||
| 3 | 110-23306 | ||
| 2 | 110-23355 | ||
| 1 | 110-23363 | ||
| 5 | 110-23405 | ||
| 6 | 110-23504 | ||
| 8 | 110-23603 | ||
| 20 | 110-23702 | ||
| 16 | 110-23751 | ||
| 21 | 110-23801 | ||
| 7 | 110-24007 | ||
| 40 | 110-24007 | ||
| 8 | 110-24106 | ||
| 41 | 110-24106 | ||
| 15 | 110-24205 | ||
| 48 | 110-24205 | ||
| 23 | 110-24304 | ||
| 19 | 110-24403 | ||
| 10 | 110-24502 | ||
| 43 | 110-24502 | ||
| 69 | 110-37009 | ||
| 5 | 110-39062 | ||
| 4 | 110-39070 | ||
| 9 | 110-52701 | ||
| 4 | 110-92558 | ||
| 53 | 111-41801 | ||
| 21 | 111-81005 | ||
| 1 | 111-81054 | ||
| 2 | 111-81062 | ||
| 14 | 111-81153 | ||
| 11 | 111-81906 | ||
| 1 | 113-30552 | ||
| 47 | 113-31154 | ||
| 9 | 113-31204 | ||
| 47 | 113-31303 | ||
| 39 | 113-31402 | ||
| 8 | 113-31758 | ||
| 34 | 113-32202 | ||
| 35 | 113-32301 | ||
| 1 | 113-32400 | ||
| 1 | 113-32855 | ||
| 50 | 113-40304 | ||
| 37 | 113-41500 | ||
| 36 | 113-41559 | ||
| 32 | 113-41708 | ||
| 34 | 113-41807 | ||
| 41 | 113-46004 | ||
| 1-C | 113-46004 | ||
| 1-CA | 113-46004 | ||
| 1-D | 113-46004 | ||
| 1-E | 113-46004 | ||
| 1-F | 113-46004 | ||
| 1-H | 113-46004 | ||
| 1-HA | 113-46004 | ||
| 1-K | 113-46004 | ||
| 1-M | 113-46103 | ||
| 37 | 113-46103 | ||
| 5-C | 113-46400 | ||
| 5-CA | 113-46400 | ||
| 5-D | 113-47400 | ||
| 5-E | 113-47400 | ||
| 5-F | 113-47500 | ||
| 5-H | 113-47509 | ||
| 5-HA | 113-47509 | ||
| 5-K | 113-46509 | ||
| 5-M | 113-46509 | ||
| 40 | 113-46905 | ||
| 4-C | 113-46905 | ||
| 4-CA | 113-46905 | ||
| 4-D | 113-46905 | ||
| 4-E | 113-46905 | ||
| 4-H | 113-47101 | ||
| 4-HA | 113-47101 | ||
| 4-K | 113-47101 | ||
| 31 | 113-47309 | ||
| 16 | 113-49008 | ||
| 2 | 113-49107 | ||
| 24 | 113-60708 | ||
| 4-F | 113-61003 | ||
| 4-F | 133-46905 |
Juki DLM-5200 — parts catalog
- Page 1 (diagram): This page displays an exploded view diagram of the head exterior components of a Juki sewing machine, with various parts labeled with reference numbers.
- Page 2 (parts_list): This page lists parts for a sewing machine, including screws, plugs, plates, and tension components, with their part numbers, descriptions, and quantities.
- Page 3 (diagram): This page displays an exploded diagram of the main shaft components for an industrial sewing machine.
- Page 4 (parts_list): This page lists various parts for a sewing machine, including screws, shafts, bearings, and other components, with their part numbers, descriptions, and quantities.
- Page 5 (diagram): This page displays an exploded diagram of the upright shaft and hook driving shaft components for an industrial sewing machine.
- Page 6 (parts_list): This page lists parts for a sewing machine, including needle bar components, gears, screws, bushings, and other miscellaneous parts, with their part numbers, descriptions, and quantities.
- Page 7 (diagram): This page displays a diagram of hand lifter components for an industrial sewing machine.
- Page 8 (parts_list): This page lists parts for a sewing machine, including hand lifters, E-rings, link shafts, lifting levers, tension release components, presser parts, screws, washers, and a finger protector.
- Page 9 (diagram): This page displays a detailed diagram of the feed mechanism components for an industrial sewing machine, with various parts labeled with reference numbers.
- Page 10 (parts_list): This page lists parts for a sewing machine, including feed regulators, screws, springs, links, shafts, and other components, with their part numbers, descriptions, and quantities.
- Page 11 (diagram): This page displays a detailed diagram of various components, likely for a sewing machine, with parts numbered from 1 to 49.
- Page 12 (parts_list): This page lists parts for a sewing machine, including knife components, springs, screws, and other related hardware, with part numbers, descriptions, and quantities.
- Page 13 (diagram): This page displays a diagram of oil lubrication components with numbered parts.
- Page 14 (parts_list): This page lists parts for an industrial sewing machine, including oil sight window, rubber ring, various tubes, screws, springs, oil pump components, and a rubber joint.
- Page 15 (diagram): This page displays a diagram of oil pan related parts for an industrial sewing machine, showing various components and their reference numbers.
- Page 16 (parts_list): This page lists parts for an industrial sewing machine, including oil reservoir components, knee press parts, and waste material chute components, with part numbers, descriptions, and quantities.
- Page 17 (parts_list): This page illustrates and lists parts for the belt cover and bobbin winder components, including various screws, covers, and tension parts.
- Page 18 (parts_list): This page displays a diagram and a corresponding parts list for a thread stand assembly, including various components like thread guides, washers, nuts, and screws.
- Page 19 (parts_list): This page displays a diagram and a list of folder components, including various binder assemblies, tape guides, screws, and washers, with their respective part numbers and descriptions.
- Page 20 (parts_list): This page provides a table of exchangeable gauges for DLM-5200 and DLM-5210 models, listing various parts such as throat plates, gauges, chip guides, hinging pressers, feed dogs, and knives with their corresponding part numbers based on gauge width specifications.
- Page 21 (index): This page provides a numerical index of parts, listing part numbers, corresponding page numbers, and reference numbers.
- Page 22 (index): This page provides a numerical index of parts, listing part numbers with their corresponding page and reference numbers.
