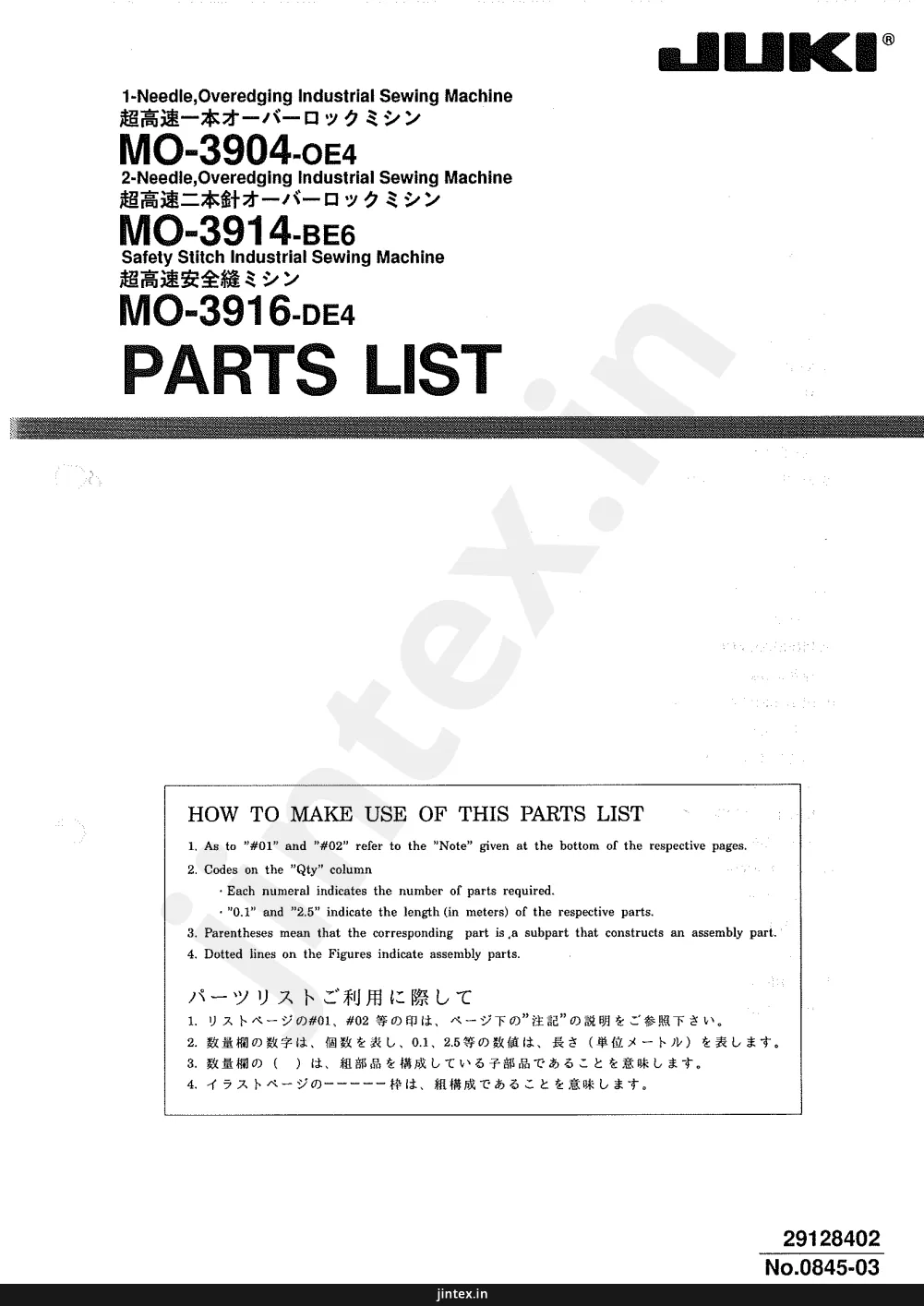

Juki MO-3916 Parts Book (PDF)
Text index — Juki MO-3916
Page 5 — 1. FRAME COMPONENTS(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 121-05359 | CLOTH PLATE ASM. | 1 |
| 2 | 121-02752 | CLOTH PLATE ASM. | (1) |
| 3 | 115-01301 | ECCENTRIC BUSHING | (1) |
| 4 | WZ-0420350-KP | DISC SPRING | (1) |
| 5 | CS-0400671-SD | THRUST HOLDER | (1) |
| 6 | SM-8040302-TP | SETSCREW | (1) |
| 7 | 121-05458 | CLOTH PLATE ASM. | 1 |
| 8 | 121-04550 | CLOTH PLATE ASM. | (1) |
| 9 | 115-01301 | ECCENTRIC BUSHING | (1) |
| 10 | WZ-0420350-KP | DISC SPRING | (1) |
| 11 | CS-0400671-SD | THRUST HOLDER | (1) |
| 12 | SM-8040302-TP | SETSCREW | (1) |
| 13 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | 1 |
| 14 | 119-49005 | CLOTH BASE COVER | 1 |
| 15 | 119-49104 | CLOTH BASE COVER | 1 |
| 16 | 118-02204 | RUBBER PLUG | 1 |
| 17 | 118-02402 | SPRING | 1 |
| 18 | NS-6110420-SP | NUT 11/64-40 | 1 |
| 19 | SS-6111440-SP | SCREW 11/64-40 L=14.0 | 1 |
| 20 | 121-03305 | STOPPER | 1 |
| 21 | SS-7110710-SP | SCREW 11/64-40 L=7 | 2 |
| 22 | SS-4091015-SP | SCREW 9/64-40 L=10 | 2 |
| 23 | 121-01655 | CLOTH PLATE SIDE COVER ASM. | 1 |
| 24 | SS-4120615-SP | SCREW 3/16-28 L=6 | 2 |
| 25 | 122-50510 | FEED MECHANISM COVER | 1 |
| 26 | SM-1040801-SC | SCREW M4X0.7 L=8 | 1 |
| 27 | SM-4040855-SP | SCREW | 4 |
| 28 | SS-7091410-SP | SCREW 9/64-40 L=13.5 | 1 |
| 29 | 122-50601 | GASKET | 1 |
| 30 | 119-51100 | COVER | 1 |
| 31 | 118-04309 | GASKET | 1 |
| 32 | SM-4040855-SP | SCREW | 4 |
| 33 | 121-02307 | CHIP GUARD COVER, LEFT | 1 |
| 34 | 121-02406 | CHIP GUARD COVER, LEFT | 1 |
| 35 | SS-7110510-SP | SCREW 11/64-40 L=5 | 2 |
| 36 | 121-47203 | CLOTH WASTE COVER | 1 |
| 37 | 121-47807 | CLOTH WASTE COVER | 1 |
| 38 | SS-2090520-SL | SCREW 9/64-40 L=5 | 1 |
| 39 | 121-01515 | CROTH WASTE COVER STOPPER | 1 |
| 40 | NS-6090310-SN | NUT 9/64-40 | 1 |
| 41 | SS-3090610-SP | SCREW 9/64-40 L=6 | 2 |
| 42 | 121-01309 | LOOPER COVER | 1 |
| 43 | 118-03004 | LOOPER COVER HINGE PIN | 1 |
| 44 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | 1 |
| 45 | 121-01200 | LOOPER COVER BRACKET | 1 |
| 46 | SM-4041055-SP | SCREW | 3 |
| 47 | 121-03404 | LOOPER COVER PRESSER SPRING | 1 |
| 48 | SM-4040655-SP | SCREW | 1 |
| 49 | SS-7090530-SP | SCREW 9/64-40 L= 4.5 | 1 |
| 50 | 121-03206 | LOOPER COVER PRESSER PLATE | 1 |
| 51 | 121-01408 | GUIDE PLATE | 1 |
| 52 | SS-7090610-SP | SCREW 9/64-40 L=6 | 1 |
| 53 | B1140-716-000 | SPRING | 1 |
| 54 | 121-03511 | CROTH PLATE SUPPORTER | 1 |
| 55 | CM-3002000-01 | ATTENTION SEAL | 1 |
Page 7 — 2. FRAME COMPONENTS(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 121-00418 | UPPER COVER | 1 |
| 2 | 115-00808 | GASKET | 1 |
| 3 | 121-00608 | OIL CAP | 1 |
| 4 | SM-4051255-SP | SCREW.,M5 L=12. | 6 |
| 5 | 121-00806 | OIL DRAIN SCREW | 1 |
| 6 | RO-0781901-00 | RUBBER RING | 1 |
| 7 | 121-01952 | BELT COVER ASM. | 1 |
| 8 | 121-01960 | BELT COVER ASM. | 1 |
| 9 | CM-3002000-A1 | CAUTION LABEL(16) | (1) |
| 10 | 121-01903 | BELT COVER | (1) |
| 11 | 121-01903 | BELT COVER | (1) |
| 12 | CM-5002000-01 | DIRECTION LABEL. | (1) |
| 13 | CM-5002000-01 | DIRECTION LABEL. | (1) |
| 14 | SS-4151215-SP | SCREW 15/64-28 L=12 | 3 |
| 15 | 121-01804 | COOLING FAN PLATE | 1 |
| 16 | SM-1040801-SC | SCREW M4X0.7 L=8 | 1 |
| 17 | SM-4040855-SP | SCREW | 2 |
| 18 | 121-00517 | UPPER COVER GASKET | 1 |
| 19 | 122-50205 | SIDE COVER | 1 |
| 20 | 121-00301 | SIDE COVER GASKET | 1 |
| 21 | 122-58000 | BUSH | 1 |
| 22 | SM-4040855-SP | SCREW | 3 |
| 23 | SM-1040801-SC | SCREW M4X0.7 L=8 | 1 |
| 24 | 121-02661 | BRAND LABEL ASM. | 1 |
| 25 | SM-4040601-SC | SCREW M4X0.7 L=6 | 2 |
| 26 | TA-2050805-RO | RUBBER PLUG | 1 |
| 27 | SS-9151210-TP | SCREW 15/64-28 L=11.8 | 1 |
| 28 | 118-05207 | THREAD GUIDE, LARGE | 2 |
| 29 | TA-1871602-RO | RUBBER PLUG | 1 |
| 30 | SS-5110710-SP | SCREW 11/64-40 L=7 | 1 |
| 31 | WZ-0850302-KO | WAVED WASHER 8.5X12.5X0.3 | 1 |
| 32 | B3013-141-HOA | WASHER | 1 |
| 33 | 121-02000 | SAFETY PLATE BRACKET | 1 |
| 34 | SS-7090611-SL | SCREW 9/64-40 L=6.1 | 2 |
| 35 | 121-02109 | SAFETY PLATE | 1 |
| 36 | 115-03703 | SCREW STUD | 4 |
| 37 | WP-0751576-SD | WASHER 7.5X19X1.5 | 4 |
| 38 | WS-0822010-KP | SPRING WASHER 8.2X15X2 | 4 |
| 39 | NS-6680410-SP | NUT 9/32-28 | 4 |
| 40 | 115-03910 | OIL RESERVOIR GASKET | 1 |
| 41 | 115-03885 | OIL RESERVOIR ASM. | 1 |
| 42 | RO-0742401-00 | RUBBER RING | (1) |
| 43 | SM-0081001-SD | SCREW | (1) |
| 44 | 115-03810 | OIL RESERVOIR | (1) |
| 45 | TA-0750704-RO | RUBBER PLUG | 1 |
| 46 | TA-1701107-RO | RUBBER PLUG | 1 |
| 47 | 121-04907 | SAFETY PLATE | 1 |
| 48 | 121-05201 | BELT COVER | 1 |
| 49 | SK-3412000-SC | WOOD SCREW D=4.1 L=20 | 3 |
| 50 | PS-0300132-KH | SPRING PIN 3X13 | 1 |
| 51 | CM-3002001-01 | SAFETY LABEL, 1(SMALL). | 1 |
| 52 | CM-3002001-A1 | SAFETY LABEL.,3 (SMALL). | 1 |
| 53 | 100-04109 | GROUND MARK | 1 |
Page 9 — 3. CRANKSHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 121-08213 | CRANKSHAFT BUSHING D | 1 |
| 2 | SM-4040855-SP | SCREW | 3 |
| 3 | SM-4040855-SP | SCREW | 3 |
| 4 | 121-08304 | CRANKSHAFT BUSHING D | 1 |
| 5 | 121-08403 | GASKET | 1 |
| 6 | B1215-804-000 | BALL BEARING D | 1 |
| 7 | SB-1100003-00 | BALL BEARING | 1 |
| 8 | 121-08007 | CRANKSHAFT BUSHING C | 1 |
| 9 | 121-24509 | STOPPER (R) | 2 |
| 10 | 121-07108 | CRANKSHAFT | 1 |
| 11 | 121-32155 | KNIFE DRIVING ROD ASM. | 1 |
| 12 | 121-32106 | KNIFE DRIVING ROD | (1) |
| 13 | SS-7111810-TP | SCREW 11/64-40 L=18 | (2) |
| 14 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 1 |
| 15 | 121-09153 | CONNECTING ROD ASM. | 1 |
| 16 | 121-09104 | CONNECTING ROD | (1) |
| 17 | SS-7111810-TP | SCREW 11/64-40 L=18 | (2) |
| 18 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 1 |
| 19 | B1212-704-000 | BEARING RETAINER | 1 |
| 20 | B1211-804-000 | BALL BEARING B | 1 |
| 21 | 121-22362 | UPPER LOOPER ROD ASM. | 1 |
| 22 | SS-7111810-TP | SCREW 11/64-40 L=18 | (2) |
| 23 | 121-22107 | LOOPER DRIVING ROD | (1) |
| 24 | SS-7111410-TP | SCREW 11/64-40 L=14 | (2) |
| 25 | 121-22313 | UPPER LOOPER ARM | (1) |
| 26 | SM-6061202-TP | SCREW M6 L=12 | (1) |
| 27 | 121-24400 | STOPPER (L) | 2 |
| 28 | 121-23360 | LOWER LOOPER ROD ASM., A | 1 |
| 29 | SM-6061202-TP | SCREW M6 L=12 | (2) |
| 30 | 121-22107 | LOOPER DRIVING ROD | (1) |
| 31 | SS-7111410-TP | SCREW 11/64-40 L=14 | (2) |
| 32 | 121-23311 | LOWER LOOPER ARM A | (1) |
| 33 | SM-6061202-TP | SCREW M6 L=12 | (1) |
| 34 | 121-20150 | LOWER LOOPER ROD ASM., B | 1 |
| 35 | SS-7111810-TP | SCREW 11/64-40 L=18 | (2) |
| 36 | 121-22107 | LOOPER DRIVING ROD | (1) |
| 37 | SS-7111410-TP | SCREW 11/64-40 L=14 | (2) |
| 38 | 121-20101 | LOWER LOOPER ARM B | (1) |
| 39 | B1211-804-000 | BALL BEARING B | 1 |
| 40 | 115-10609 | WASHER | 1 |
| 41 | WZ-2640310-KH | WAVED WASHER 26.4X33.9X3.5 | 1 |
| 42 | RO-3473501-00 | RUBBER RING | 1 |
| 43 | 121-07702 | THRUST HOLDER | 1 |
| 44 | SM-4050855-SP | SCREW | 3 |
| 45 | 121-07801 | OIL SHIELD | 1 |
| 46 | 118-11619 | COOLING FAN | 1 |
| 47 | 121-07611 | FLYWHEEL A | 1 |
| 48 | SS-8151150-SP | SCREW 15/64-28 L=10.5 | 2 |
| 49 | WP-0764016-SP | WASHER | 1 |
| 50 | SS-9681610-TP | SCREW 9/32-28 L=16 | 1 |
| 51 | 119-56505 | HANDWHEEL C | 1 |
| 52 | SS-7111810-SP | SCREW 11/64-40 L=18 | 3 |
| 53 | 121-07900 | BALANCER | 1 |
| 54 | SS-4080620-TP | SCREW 1/8-44 L=6 | 2 |
| 55 | 121-08106 | OIL ADJUSTING BAR | 1 |
| 56 | SS-5080212-TP | SCREW 1/8-44 L=2 | 5 |
Page 11 — 4. NEEDLE DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 121-09666 | NEEDLE DRIVING ARM ASM. | 1 |
| 2 | 121-09617 | NEEDLE DRIVING ARM | (1) |
| 3 | SM-6061402-TP | SCREW M6 L=14 | (1) |
| 4 | SS-8090530-TP | SCREW 9/64-40 L= 5.0 | 2 |
| 5 | 121-09302 | NEEDLE DRIVING SHAFT | 1 |
| #09 | MC-0336007-50 | NEEDLE B-27 NM75 | |
| 121-09500 | BUSHING, REAR | 1 | |
| CS-1201010-SH | THRUST COLLAR ASM, D=12 W=10 | 2 | |
| SM-6061202-TP | SCREW M6 L=12 | ||
| CQ-2520000-00 | OIL WICK | ||
| 122-52904 | NEEDLE DRIVING LINK | 1 | |
| 122-53050 | NEEDLE HOLDER ASM. | 1 | |
| 121-10219 | NEEDLE HOLDER | ||
| 122-53100 | NEEDLE HOLDER BUSHING | ||
| SS-8110710-SP | SCREW 11/64-40 L=6.5 | 1 | |
| #05 | 121-11209 | NEEDLE THREAD GUIDE | |
| SS-4110515-SP | SCREW 11/64-40 L=5 | 1 | |
| #03 | 121-11308 | THREAD GUIDE, 2-NEEDLE | |
| #05 | 121-11803 | TAKE-UP LEVER GUIDE | |
| SM-4040855-SP | SCREW | 1 | |
| #04 | 121-12009 | TAKE-UP LEVER GUIDE, CHAIN LOOP | |
| SS-8080310-TP | SCREW 1/8-44 L=7 | 1 | |
| 122-80608 | NEEDLE CAAMP. | 1 | |
| #06 | 121-10607 | NEEDLE THREAD PRESSER GUIDE, A | |
| 121-10904 | NEEDLE THREAD PRESSER PLATE | 1 | |
| 121-10805 | NEEDLE THREAD PRESSER SPRING | 2 | |
| SD-0280401-SL | HINGE SCREW D=2.8 H=4 | 1 | |
| #04 | 121-10706 | NEEDLE THREAD PRESSER GUIDE, B | |
| SS-6090670-TP | SCREW 9/64-40 L=6 | 2 | |
| #03 | 121-11605 | TAKE-UP LEVER, 2-NEEDLE | |
| #04 | 121-11704 | TAKE-UP LEVER, CHAIN LOOPER | |
| #02 | MDC-270B1100 | NEEDLE DCX27 #11 | |
| 121-12306 | FELT A | 1 | |
| 121-12405 | FELT B | 1 | |
| BT-0600402-EA | OIL TUBE | 0.2 | |
| TA-0951301-RO | RUBBER PLUG | 1 | |
| #03 | 121-48706 | NEEDLE CLAMP, 2-NEEDLE | |
| #04 | 121-49803 | NEEDLE CLAMP, CHAIN LOOPER |
Page 13 — 5. FEED MECHANISM COMPONENTS(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 118-24067 | MAIN FEED ROCKER ASM. | 1 |
| 2 | 115-30110 | MAIN FEED ROCKER | (1) |
| 3 | SM-6051202-TP | SCREW M5X0.8 L=12 | (1) |
| 4 | 118-24018 | PIN | (1) |
| 5 | NS-6620320-SP | NUT 3/16-32 | (1) |
| 6 | 119-48601 | WASHER B | (1) |
| 7 | TA-1030402-RO | RUBBER PLUG D=10.3 L=4 | 1 |
| 8 | 118-24109 | MAIN FEED LINK | 1 |
| 9 | B1620-804-000 | COLLAR | 1 |
| 10 | B2107-816-000 | WASHER | 1 |
| 11 | SS-6121220-TP | SCREW 3/16-28 L=11.5 | 1 |
| 12 | 118-23804 | CRANK PIN C | 1 |
| 13 | 121-17206 | FEED ROCKER SHAFT BUSHING, FRO | 1 |
| 14 | TA-2050416-RO | RUBBER PLUG | 1 |
| 15 | B1611-804-0AO-A | FORKED LINK ASM. | 1 |
| 16 | B1611-804-000-A | FORKED CRANK | (1) |
| 17 | SM-6061202-TP | SCREW M6 L=12 | (1) |
| 18 | CS-095081A-SH | THRUST COLLAR ASM. D=9.53 W=8 | 2 |
| 19 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | (4) |
| 20 | 121-17305 | FEED ROCKER SHAFT BUSHING, REA | 1 |
| 21 | 121-18907 | FEED SHAFT | 1 |
| 22 | 121-16174 | FEED ECCENTRIC BODY ASM. | 1 |
| 23 | 121-18808 | RATCHET GEAR | (1) |
| 24 | SS-8110750-SP | SCREW 11/64-40 L= 6.5 | (1) |
| 25 | SS-6110710-TP | SCREW 11/64-40 L= 6.5 | (1) |
| 26 | SD-0260271-SP | HINGE SCREW D= 2.60 H= 2.7 | (1) |
| 27 | B1604-704-000 | RATCHET PAWL | (1) |
| 28 | PS-0300132-KH | SPRING PIN 3X13 | (2) |
| 29 | 121-16117 | FEED ECCENTRIC BODY | (1) |
| 30 | SS-7110810-SP | SCREW 11/64-40 L= 8.0 | (2) |
| 31 | 121-16307 | FEED CAM BLOCK | (1) |
| 32 | 121-16216 | FEED CAM | (1) |
| 33 | SS-6080320-SP | SCREW 1/8-44 L= 2.5 | (1) |
| 34 | 121-16406 | FEED ADJUSTING CAM | (1) |
| 35 | B1606-704-000 | RATCHET PAWL SPRING | (1) |
| 36 | 121-17107 | RATCHET GEAR SPRING | (1) |
| 37 | 121-16703 | NEEDLE BEARING B | 1 |
| 38 | 121-16505 | CRANK ROD | 1 |
| 39 | 118-28704 | SLIDE BLOCK | 1 |
| 40 | 121-18600 | OIL SHEET | 1 |
| 41 | SS-7110910-TP | SCREW 11/64-40 L= 8.5 | 1 |
| 42 | B1652-704-000 | SPRING | 1 |
| 43 | 121-18501 | PUSH BUTTON STUD | 1 |
| 44 | SM-4041455-SN | SCREW M4 L=14 | 1 |
Page 15 — 6. FEED MECHANISM COMPONENTS(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 118-24505 | FEED BAR SHAFT | 1 |
| 2 | SM-4040855-SP | SCREW | 1 |
| 3 | TA-0800504-R0 | PLUG D=8 L=4.5 | 1 |
| 4 | R0-0781901-00 | RUBBER RING | 1 |
| 5 | 118-24653 | THRUST COLLAR ASM. | 1 |
| 6 | SS-8660330-SP | SCREW 1/4-40 L= 3.0 | (1) |
| 7 | 115-29914 | WASHER | 1 |
| 8 | B1624-704-000 | SLIDE BLOCK | 1 |
| 9 | 118-28050 | COLLAR ASM. | 1 |
| 10 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | (1) |
| 11 | 118-82107 | MAIN FEED DOG | 1 |
| 12 | 119-49807 | MAIN FEED DOG | 1 |
| 13 | 118-82800 | MAIN FEED DOG | 1 |
| 14 | SS-9111050-SP | SCREW 11/64-40 L=9.5 | 1 |
| 15 | 118-87106 | AUXILIARY FEED DOG | 1 |
| 16 | 118-87403 | AUXILIARY FEED DOG | 1 |
| 17 | SS-4080610-SP | SCREW 1/8-44 L=6.4 | 1 |
| 18 | 121-17461 | MAIN FEED BAR ASM. | 1 |
| 19 | 121-17511 | DIFFERENTIAL FEED BAR | (1) |
| 20 | 121-17412 | MAIN FEED BAR | (1) |
| 21 | B1657-804-00T | DIFFERENTIAL FEED DOG | 1 |
| 22 | 119-49906 | DIFFERENTIAL FEED DOG | 1 |
| 23 | 121-72805 | DIFFERENTIAL FEED DOG | 1 |
| 24 | SS-9111010-SP | SCREW 11/64-40 L=9.5 | 1 |
| 25 | RE-0500000-KO | E-RING | 1 |
| 26 | 118-26310 | ADJUSTING LINK | 1 |
| 27 | SD-0720271-SP | HINGE SCREW D=7.2 H=2.7 | 1 |
| 28 | 118-28563 | DIFFERENTIAL FEED ROCKER ASM. | 1 |
| 29 | 118-25304 | PIN | (1) |
| 30 | 118-26401 | PIN COVER | (1) |
| 31 | SS-6080410-SP | SCREW 1/8-44 L=4 | (2) |
| 32 | 118-28514 | DIFFERENTIAL FEED ROCKER ASM. | (1) |
| 33 | SM-6051202-TP | SCREW M5X0.8 L=12 | (1) |
| 34 | B1414-555-000 | SLIDE BLOCK | 1 |
| 35 | 118-28605 | DIFFERENTIAL FEED ROCKER | 1 |
| 36 | SS-6661110-SP | SCREW 1/4-40 L=11 | 1 |
| 37 | SS-7060310-SP | SCREW 3/32-56 L=3 | 6 |
| 38 | 121-19756 | RUBBER PLATE ASM. | 1 |
| 39 | 121-19806 | RUBBER PREESSER PLATE | 1 |
| 40 | 121-19608 | OIL SHIELD RUBBER | 1 |
| 41 | 121-19905 | RUBBER COVER | 1 |
| 42 | 121-20002 | RUBBER BASE PLATE | 1 |
| 43 | SS-7090620-TP | SCREW 9/64-40 L=6.1 | 2 |
| 44 | 121-19400 | RUBBER CASE | 1 |
| 45 | 118-27607 | OIL SHIELD RUBBER,LOWER | 1 |
| 46 | SS-7060510-SP | SCREW 3/32-56 L=4.8 | 2 |
| 47 | 118-24703 | FEED BAR SUPPORT | 2 |
| 48 | 121-19509 | RUBBER | 1 |
| 49 | 118-27904 | RUBBER | 1 |
| 50 | R0-4801201-00 | RUBBER RING | 1 |
| 51 | 118-28308 | SUPPORT THROAT PLATE | 1 |
| 52 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | 4 |
| 53 | SM-4041055-SP | SCREW | 4 |
| 54 | SS-6090620-SP | SCREW 9/64-40 L=6 | 4 |
| 55 | RE-0300000-KO | E-RING 3 | 1 |
| 56 | 118-26104 | DIFFERENTIAL FEED SCREW | 1 |
| 57 | 118-25908 | DIFFERENTIAL FEED GRADUATION | 1 |
| 58 | WP-0371016-SD | WASHER 3.7X8X1 | 2 |
| 59 | SL-4051231-SC | SCREW M5 L=12 | 2 |
| 60 | SS-4090515-SP | SCREW 9/64-40 L=5 | 2 |
| 61 | WP-0621016-SD | WASHER 6.2X13X1 | 1 |
| 62 | B1647-704-000-A | DIFFERENTIAL FEED LOCK NUT | 1 |
| 63 | B1646-704-000-A | DIFFERENTIAL FEED HINGE SCREW | 1 |
| 64 | 118-26005 | DIFFERENTIAL FEED BLOCK | 1 |
| 65 | WP-0460556-SD | WASHER 4.6X7.5X0.5 | 1 |
| 66 | 118-26203 | SPRING | 1 |
| 67 | 121-18709 | ROCKER SHAFT METAL | 1 |
| 68 | R0-0601501-00 | RUBBER RING | 1 |
| 69 | 119-91502 | SPRING | 1 |
| 70 | 118-25858 | ROCKER SHAFT ASM. | 1 |
| 71 | 115-29005 | STOPPER | 2 |
| SS-7660310-SP | SCREW 3/32-56 L=3 | 1 |
Page 17 — 7. UPPER & LOWER LOOPER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 121-22610 | LOOPER SHAFT REAR METAL | 2 |
| 2 | CS-1031210-SH | THRUST COLLAR ASM. D=10.32 W=1 | 2 |
| 3 | SS-8660610-TP | SCREW 1/4-40 L=6 | (4) |
| 4 | 121-22511 | LOOPER SHAFT FLONT METAL | 2 |
| 5 | 121-22404 | UPPER LOOPER SHAFT | 1 |
| 6 | SM-6061200-SP | SCREW | 2 |
| 7 | 121-23055 | UPPER LOOPER GUIDE ASM. | 1 |
| 8 | 121-23006 | UPPER LOOPER GUIDE SUPPORT | (1) |
| 9 | 121-23204 | UPPER LOOPER GUIDE | (1) |
| 10 | 121-22909 | UPPER LOOPER HOLDER | (1) |
| 11 | 121-23154 | UPPER LOOPER GUIDE ASM., B | 1 |
| 12 | 121-23105 | UPPER LOOPER GUIDE SUPPORT, B | (1) |
| 13 | 121-23204 | UPPER LOOPER GUIDE | (1) |
| 14 | 121-22909 | UPPER LOOPER HOLDER | (1) |
| 15 | SS-9090410-TP | SCREW | 1 |
| 16 | 118-33704 | UPPER LOOPER GUIDE COVER | 1 |
| 17 | B2515-704-00B | UPPER LOOPER GUIDE COVER B | 1 |
| 18 | SS-7060610-SP | SCREW 3/32-56 L= 5.5 | 2 |
| 19 | 118-33308 | UPPER LOOPER THREAD GUIDE | 1 |
| 20 | SS-4090615-SP | SCREW 9/64-40 L=6 | 1 |
| 21 | 118-31757 | PIN ASM. | 1 |
| 22 | 115-17000 | PIN C | (1) |
| 23 | 118-31708 | OIL WICK STOPPER BALL | (1) |
| 24 | CQ-2020000-00 | OIL WICK | (0.1) |
| 25 | CQ-2000000-00 | OIL WICK | (0.1) |
| 26 | 121-22750 | UPPER LOOPER ARM A ASM. | 1 |
| 27 | 121-22701 | UPPER LOOPER ARM A | (1) |
| 28 | SS-9151210-TP | SCREW 15/64-28 L=11.8 | (1) |
| 29 | 121-22859 | UPPER LOOPER ARM B ASM. | 1 |
| 30 | 121-22800 | UPPER LOOPER ARM B | (1) |
| 31 | SS-9151210-TP | SCREW 15/64-28 L=11.8 | (1) |
| 32 | 121-76004 | UPPER LOOPER | 1 |
| 33 | 118-88104 | UPPER LOOPER | 1 |
| 34 | 119-99208 | UPPER LOOPER | 1 |
| 35 | 118-33506 | LOWER LOOPER THREAD TAKE-UP | 1 |
| 36 | 121-24004 | THREAD TAKE-UP, RIGHT | 1 |
| 37 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 1 |
| 38 | SS-6080410-SP | SCREW 1/8-44 L=4 | 1 |
| 39 | 118-31906 | PIN | 1 |
| 40 | 118-31807 | GAUGE | 1 |
| 41 | 119-91809 | GAUGE | 1 |
| 42 | RO-0371801-00 | RUBBER RING | 1 |
| 43 | 121-23907 | THREAD GUIDE, RIGHT | 1 |
| 44 | SS-3090610-SP | SCREW 9/64-40 L=6 | 1 |
| 45 | 121-23808 | LOOPER THREAD TAKE-UP COVER | 1 |
| 46 | SM-4040655-SP | SCREW | 2 |
| 47 | 118-33407 | LOWER LOOPER THREAD GUIDE | 1 |
| 48 | SS-3090610-SP | SCREW 9/64-40 L=6 | 1 |
| 49 | 121-23667 | OIL SHIELD ASM. | 1 |
| 50 | SS-9090610-TP | SCREW 9/64-40 L=5.5 | 1 |
| 51 | B2530-704-000 | UPPER LOOPER SHAFT RUBBER RING | 1 |
| 52 | SS-6090630-SP | SCREW 9/64-40 L=6 | 4 |
| 53 | 118-33100 | LOOPER THREAD GUIDE | 1 |
| 54 | SS-7090850-SP | SCREW 9/64-40 L=8 | 1 |
| 55 | 118-90001 | TRAVELING NEEDLE GUARD | 1 |
| 56 | SS-6060440-TP | SCREW 3/32-56 L=3.5 | 2 |
| 57 | 119-99307 | LOWER LOOPER | 1 |
| 58 | SS-6090620-TP | SCREW | 1 |
| 59 | 121-24103 | LOOPER THREAD TAKE-UP, LEFT | 1 |
| 60 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 1 |
| 61 | 121-23550 | LOWER LOOPER SUPPORT ARM ASM. | 1 |
| 62 | 121-23501 | LOWER LOOPER SUPPORT ARM | (1) |
| 63 | PS-0300062-KH | SPRING PIN 3X6 | (1) |
| 64 | B2531-704-000 | WASHER | (1) |
| 65 | SS-9151210-TP | SCREW 15/64-28 L=11.8 | (1) |
| 66 | B2508-704-000 | OIL SEAL | 1 |
| 67 | 121-23410 | LOWER LOOPER SHAFT | 1 |
| 68 | CS-1031210-SH | THRUST COLLAR ASM. D=10.32 W=1 | 1 |
| 69 | SS-8660610-TP | SCREW 1/4-40 L=6 | (2) |
| 70 | SS-6090630-TP | SCREW 9/64-40 L=6 | 1 |
| 71 | 121-24608 | COLLAR | 1 |
| 72 | SS-9090610-TP | SCREW 9/64-40 L=5.5 | 1 |
| B2503-704-000 | SCREW 9/64-40 L=5.5 | 1 |
Page 18 — 8. CHAIN LOOPER COMPONENTS(FOR MO-3916)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 118-29900 | CHAIN LOOPER SHAFT SLIDE ARM | 1 |
| 2 | SS-7111120-TP | SCREW | 1 |
| 3 | 118-29751 | CHAIN LOOPER SLIDE BLOCK PIN | 1 |
| 4 | B2105-816-000 | CHAIN LOOPER SLIDE BLOCK | (1) |
| 5 | WP-0612066-SP | WASHER 6.1X11X2 | 1 |
| 6 | WP-0450846-SP | WASHER | 1 |
| 7 | B2102-816-000-A | CHAIN LOOPER ROD (22MM) | 1 |
| 8 | SD-0720803-TH | STEP-SCREW D=7.24 H=8 | 1 |
| 9 | B2119-816-B00 | BEARING B | 1 |
| 10 | 121-20466 | BRACKET ASM. | 1 |
| 11 | 121-20416 | BRACKET | (1) |
| 12 | SM-6051202-TP | SCREW M5X0.8 L=12 | (1) |
| 13 | B2111-716-000 | BUSHING, REAR | 1 |
| 14 | 121-20507 | CHAIN LOOPER SHAFT | 1 |
| 15 | 115-39061 | CHAIN LOOPER SHAFT DRIVING ARM | 1 |
| 16 | 115-39012 | CHAIN LOOPER SHAFT DRIVING ARM | (1) |
| 17 | SM-6051202-TP | SCREW M5X0.8 L=12 | (1) |
| 18 | SS-4080610-SP | SCREW 1/8-44 L=6.4 | 2 |
| 19 | SD-0720332-SP | HINGE SCREW D=7.24 H=3.3 | 1 |
| 20 | 118-29801 | CHAIN LOOPER SHAFT DRIV. LINK | 1 |
| 21 | SS-6090920-SP | SCREW | 1 |
| 22 | 121-21612 | DRIVING BALL ARM BRACKET | 1 |
| 23 | SS-6110710-TP | SCREW 11/64-40 L= 6.5 | 3 |
| 24 | 121-22008 | BUSHING, FRONT | 1 |
| 25 | B2525-352-000 | OIL SEAL RING | 1 |
| 26 | 121-20705 | CHAIN LOOPER | 1 |
| 27 | SS-6090620-TP | SCREW | 1 |
| 28 | 121-21554 | CHAIN LOOPER DRIVING ARM ASM. | 1 |
| 29 | 121-21513 | CHAIN LOOPER DRIVING ARM | (1) |
| 30 | SS-9151210-TP | SCREW 15/64-28 L=11.8 | (1) |
| 31 | B2531-704-000 | WASHER | (1) |
| 32 | PS-0250062-KH | SPRING PIN 2.5X6 | (1) |
| 33 | 122-58208 | PIN,LONG | 1 |
| 34 | 122-58307 | PIN,LONG | 1 |
| 35 | 122-58406 | PIN,LONG | 1 |
| 36 | 122-58505 | PIN,LONG | 1 |
| 37 | 122-58604 | PIN,LONG | 1 |
| 38 | 122-58703 | PIN,SHORT | 1 |
| 39 | 122-58802 | PIN,SHORT | 1 |
| 40 | 122-58901 | PIN,SHORT | 1 |
| 41 | 122-59008 | PIN,SHORT | 1 |
| 42 | 122-59107 | PIN,SHORT | 1 |
| B2119-816-000 | BEARING B | 1 |
Page 19 — 9. PRESSER FOOT COMPONENTS(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 121-15069 | PRESSER LIFTING LEVER BASE ASM | 1 |
| 2 | 121-15002 | FOOT LIFTING LEVER STAND | (1) |
| 3 | 121-15119 | PRESSER FOOT LIFTING LEVER | (1) |
| 4 | 121-15200 | STOPPER | (1) |
| 5 | SS-7110510-SP | SCREW 11/64-40 L=5 | (2) |
| 6 | SD-0640241-SP | HINGE SCREW D=6.35 H=2.4 | (1) |
| 7 | PS-0300142-XH | SPRING PIN 0.3 X 14 | (1) |
| 8 | 121-15309 | SPRING | (1) |
| 9 | SS-6080340-SP | SCREW 1/8-44 L=2.9 | (1) |
| 10 | SS-4110715-SP | SCREW 11/64-40 L=7 | 2 |
| 11 | 121-14716 | PRESSER REGULATOR SCREW | 1 |
| 12 | 121-15903 | PRESSER SPRING | 1 |
| 13 | 121-14807 | PRESSER REGULATOR NUT | 1 |
| 14 | 121-14609 | PRESSER REGULATOR SCREW WASHER | 1 |
| 15 | SM-8040402-TP | SCREW M4X0.7 L=4 | 1 |
| 16 | RO-1100901-00 | RUBBER RING | 1 |
| 17 | 121-14906 | PRESSER BAR COVER | 1 |
| 18 | RO-1100901-00 | RUBBER RING | 2 |
| 19 | 121-14302 | PRESSER BAR BUSHING | 1 |
| 20 | 121-14468 | PRESSER BAR ASM. | 1 |
| 21 | SS-8110520-TP | SCREW 11/64-40 L=4.5 | 1 |
| 22 | B1534-804-000 | PRESSER FOOT ARM HINGE SHAFT | 1 |
| 23 | 121-13205 | PRESSER FOOT SHAFT | 1 |
| 24 | 121-13304 | BUSHING | 1 |
| 25 | SS-4121215-SP | SCREW 3/16-28 L=12 | 1 |
| 26 | 118-19414 | LIFTING HOOK | 1 |
| 27 | SM-6061200-SP | SCREW | 1 |
| 28 | NM-6060003-SC | NUT M6 | 1 |
| 29 | 118-19703 | PRESSER FOOT ARM SPRING | 1 |
| 30 | 121-13502 | LIFTING ARM | 1 |
| 31 | SS-6110710-TP | SCREW 11/64-40 L=6.5 | 1 |
| 32 | 121-13858 | PRESSER FOOT SHAFT THRUST ASM. | 1 |
| 33 | 121-13403 | LIFTING ARM | (1) |
| 34 | SS-9151210-TP | SCREW 15/64-28 L=11.8 | (1) |
| 35 | SS-7161040-SP | SCREW 1/4-24 L=9.5 | 1 |
| 36 | 118-19315 | LIFTING LEVER | 1 |
| 37 | 118-19109 | LIFTING LEVER SCREW | 1 |
| 38 | 118-19208 | LIFTING LEVER SPRING | 1 |
| 39 | NS-6110420-SP | NUT 11/64-40 | 1 |
| 40 | SS-7111410-SP | SCREW 11/64-40 L=14 | 1 |
| 41 | B1529-804-000 | PRESSER FOOT LIFTING LEVER STO | 1 |
| PS-0300142-KH | SPRING PIN 0.3 X 14 | (1) |
Page 21 — 10. PRESSER FOOT COMPONENTS(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 122-53811 | PRESSER FOOT ARM | 1 |
| 2 | B1528-804-000-A | THREAD TRIMMER | 1 |
| 3 | SS-7060510-SP | SCREW 3/32-56 L=4.8 | 1 |
| 4 | 118-76166 | PRESSER FOOT ASM. | 1 |
| 5 | 118-72009 | PRESSER FOOT HINGE | (1) |
| SS-6090650-SP | SCREW 9/64-40 L=6 | ||
| B1530-804-000 | STOPPER | ||
| WP-0250516-SD | WASHER 2.5X6X0.5 | ||
| SS-6060210-SP | SCREW 3/32-56 L=1.9 | ||
| B1507-804-C00 | PRESSER FOOT | ||
| SS-7080520-SP | SCREW 1/8-44 L=4.9 | ||
| B1508-804-00B | SPRING | ||
| B1509-804-C00 | STITCH TONGUE | ||
| SS-6060440-TP | SCREW 3/32-56 L=3.5 | ||
| B1510-814-000 | CURL GUARD | ||
| 118-20701 | FINGER GUARD | ||
| B1507-814-00P | PRESSER FOOT | ||
| 121-53763 | PRESSER FOOT ASM. | ||
| 121-56907 | PRESSER FOOT HINGE | ||
| 121-64802 | REAR PRESSER FOOT | ||
| 121-67409 | HINGE PIN | ||
| 121-67607 | PRESSER FOOT ARM SPRING | ||
| 121-67508 | HINGE SCREW | ||
| SS-6060340-SP | SCREW 3/32-56 L=2.5 | ||
| B1514-816-000 | SCREW | ||
| 121-15408 | FINGER GUARD | ||
| B1539-804-000 | PRESSER FOOT FIXING PLATE | ||
| SS-6060410-TP | SCREW 3/32-56 L=3.5 | ||
| 118-76869 | PRESSER FOOT ASM. | ||
| B1509-814-00P | STITCH TONGUE |
Page 23 — 11. THREAD TENSION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SM-4050855-SP | SCREW | 1 |
| 2 | B3113-352-000 | MOUNTING BRACKET | 1 |
| 3 | B2401-816-000 | LOOPER THREAD GUIDE TUBE | 1 |
| 4 | B2402-716-000 | LOOPER THREAD GUIDE TUBE GUIDE | 1 |
| 5 | SS-5150510-SP | SCREW 15/64-28 L=5 | 1 |
| 6 | 115-50852 | TENSION CONTROLLER ASM. | 1 |
| 7 | B2314-019-000 | TENSION POST NUT | (1) |
| 8 | B3120-125-000 | ROTATING STOPPER | (1) |
| 9 | B2017-372-000 | TENSION SPRING NO.1 | (1) |
| 10 | B3126-012-000 | THREAD TENSION DISK | (2) |
| 11 | B3120-352-000 | THREAD TENSION SPRING FELT | (1) |
| 12 | 115-50803 | THREAD TENSION POST | (1) |
| 13 | 115-50308 | THREAD GUIDE | (1) |
| 14 | 121-20903 | THREAD GUIDE A | 1 |
| 15 | SS-4090415-SP | SCREW 9/64-40 L=4 | 3 |
| 16 | 121-21000 | THREAD GUIDE B | 1 |
| 17 | 121-20804 | THREAD GUIDE BASE | 1 |
| 18 | 121-21109 | THREAD GUIDE HOOK | 1 |
| 19 | SD-0600341-TP | HINGE SCREW D=6.0 H=3.4 | 1 |
| 20 | PS-0200052-KH | SPRING PIN 2.3X5 | 1 |
| 21 | B2201-816-000 | THREAD CAM | 1 |
| 22 | B2202-816-000 | SHAFT | 1 |
| 23 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | 2 |
| 24 | 121-21208 | THREAD GUIDE | 1 |
| 25 | SS-4110515-SP | SCREW 11/64-40 L=5 | 1 |
| 26 | 121-21307 | THREAD GUIDE SPRING | 1 |
| 27 | WZ-0640312-KO | WAVED WASHER | 1 |
| 28 | SS-4090415-SP | SCREW 9/64-40 L=4 | 1 |
| 29 | 121-80162 | THREAD GUIDE PLATE ASM. | 1 |
| 30 | 121-80261 | THREAD GUIDE PLATE ASM. | 1 |
| 31 | 121-26207 | THREAD GUIDE PLATE | (1) |
| 32 | 121-26967 | KNOB ASM.,YELLOW | (2) |
| 33 | 121-26918 | KNOB ,YELLOW | (1) |
| 34 | B3112-704-000 | TENSION SPRING BUSHING | (1) |
| 35 | B3101-804-000 | TENSION SPRING, RED | (1) |
| 36 | 121-26702 | TESION DISK PRESSER | (1) |
| 37 | B3120-704-000 | THREAD TENSION SPRING FELT | (1) |
| 38 | B3126-012-000 | THREAD TENSION DISK | (2) |
| 39 | B3120-352-000 | THREAD TENSION SPRING FELT | (1) |
| 40 | 121-26405 | THREAD TENSION BAR | (1) |
| 41 | 121-26868 | KNOB ASM.,RED | (1) |
| 42 | 121-26819 | KNOB ,RED | (1) |
| 43 | B3112-704-000 | TENSION SPRING BUSHING | (1) |
| 44 | B3101-804-000 | TENSION SPRING, RED | (1) |
| 45 | 121-26702 | TESION DISK PRESSER | (1) |
| 46 | B3120-704-000 | THREAD TENSION SPRING FELT | (1) |
| 47 | B3126-012-000 | THREAD TENSION DISK | (2) |
| 48 | B3120-352-000 | THREAD TENSION SPRING FELT | (1) |
| 49 | 121-26405 | THREAD TENSION BAR | (1) |
| 50 | 121-27064 | KNOB ASM.,BLUE | (1) |
| 51 | 121-27015 | KNOB ,BLUE | (1) |
| 52 | B3112-704-000 | TENSION SPRING BUSHING | (1) |
| 53 | B3103-804-000 | TENSION SPRING, BLUE | (1) |
| 54 | 121-26702 | TESION DISK PRESSER | (1) |
| 55 | B3120-704-000 | THREAD TENSION SPRING FELT | (1) |
| 56 | B3126-012-000 | THREAD TENSION DISK | (2) |
| 57 | B3120-352-000 | THREAD TENSION SPRING FELT | (1) |
| 58 | 121-26405 | THREAD TENSION BAR | (1) |
| 59 | 121-27403 | SCALE SHAFT | (1) |
| 60 | 121-27502 | SCALE SHAFT PIN | (1) |
| 61 | 121-27601 | SCALE GEAR | (1) |
| 62 | 121-27700 | GEAR | (1) |
| 63 | 121-27809 | GEAR SHAFT | (1) |
| 64 | 121-27957 | SCALE CASE ASM. | (1) |
| 65 | 121-26504 | NEEDLE THREAD GUIDE | (1) |
| 66 | 121-28203 | SCALE SIDE PLATE | (1) |
| 67 | 121-28302 | THREAD LOOPER GUIDE | (1) |
| 68 | TA-0620504-RO | CAP | (1) |
| 69 | SS-2090830-SL | SCREW | (1) |
| 70 | NS-6090310-SP | NUT 9/64-40 | (1) |
| 71 | SS-7110740-TL | SCREW 11/64-40 L= 7.0 | (1) |
| 72 | SM-4041455-SN | SCREW M4 L=14 | 2 |
| 73 | PS-0300132-KH | SPRING PIN 3X13 | 1 |
| 74 | SS-7110910-TP | SCREW 11/64-40 L= 8.5 | 1 |
| 75 | 121-26108 | CENTER THREAD GUIDE | 1 |
| 76 | 121-80659 | THREAD GUIDE PLATE ASM. | 1 |
| 121-28202 | SCALE SIDE PLATE | (1) |
Page 25 — 12. LOWER KNIFE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SS-2110910-SL | SCREW 11/64-40 L=9 | 2 |
| 2 | R4200-JOE-DAO | THROAT PLATE ASM. | 1 |
| 3 | R4200-JOE-DOO | THROAT PLATE | (1) |
| 4 | 118-06304 | PLUG | (2) |
| 5 | R4305-JOE-EAO | THROAT PLATE ASM. | 1 |
| 6 | R4305-JOE-EOO | THROAT PLATE | (1) |
| 7 | 118-06304 | PLUG | (2) |
| 8 | R4508-JOE-DAO | THROAT PLATE ASM. | 1 |
| 9 | R4508-JOE-DOO | THROAT PLATE | (1) |
| 10 | 118-06304 | PLUG | (2) |
| 11 | 118-04408 | THROAT PLATE BASE B RETAINER | 1 |
| 12 | SM-4051055-SP | SCREW | 2 |
| 13 | 121-33658 | LOWER KNIFE BRACKET ASM. | 1 |
| 14 | 121-33666 | LOWER KNIFE BRACKET ASM. | 1 |
| 15 | 121-33211 | SPRING STOPPER | (1) |
| 16 | 118-06304 | PLUG | (1) |
| 17 | SS-7110720-SP | SCREW 11/64-40 L=7 | (1) |
| 18 | 118-46607 | SPRING | (1) |
| 19 | 121-32619 | LOWER KNIFE BRACKET | (1) |
| 20 | 121-02208 | THROAT PLATE BASE A | (1) |
| 21 | SS-6110610-TP | SCREW 11/64-40 L=6 | (2) |
| 22 | 121-03701 | RUBBER PLUG B | (1) |
| 23 | 121-03602 | RUBBER PLUG A | (1) |
| 24 | 121-32700 | LOWER KNIFE SLIDE STUD | (1) |
| 25 | SS-9111010-SP | SCREW 11/64-40 L=9.5 | (1) |
| 26 | 121-33104 | LEVER SHAFT ASM. | (1) |
| 27 | 121-02810 | LEVER SHAFT | (1) |
| 28 | 121-32908 | ROTATING STOPPER | (1) |
| 29 | SS-7090710-SP | SCREW 9/64-40 L= 6.8 | (2) |
| 30 | 121-32809 | LOWER KNIFE SLIDE STUD | (1) |
| 31 | 121-33005 | ROTATING STOPPER | (1) |
| 32 | 121-33708 | HOLDER PIN | (3) |
| 33 | 121-03107 | RUBBER PLUG | (1) |
| 34 | SS-7151120-SP | SCREW 15/64-28 L=11 | (1) |
| 35 | 121-02950 | LEVER ASM. | (1) |
| 36 | 118-02006 | LEVER SPRING | (1) |
| 37 | SS-6110610-TP | SCREW 11/64-40 L=6 | 2 |
| 38 | 118-47902 | THROAT PLATE BASE B | 1 |
| 39 | 118-46003 | LOWER KNIFE | 1 |
| 40 | SS-6151440-SP | SCREW 15/64-28 L=14 | 2 |
| 41 | 118-47100 | NEEDLE GUARD HOLDER | 1 |
| 42 | 118-90100 | NEEDLE GUARD | 1 |
| 43 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 1 |
| 44 | SS-7090610-SP | SCREW 9/64-40 L=6 | 1 |
| 45 | 118-90308 | NEEDLE GUARD | 1 |
| 46 | 120-15301 | NEEDLE HOLDER | 1 |
| 47 | 120-15400 | NEEDLE HOLDER | 1 |
| 48 | SS-7060510-SP | SCREW 3/32-56 L=4.8 | 2 |
| 49 | 121-77903 | NEEDLE HOLDER | 1 |
| 50 | SS-7090510-SP | SCREW 9/64-40 L= 4.6 | 1 |
Page 26 — 13. UPPER KNIFE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 118-23804 | CRANK PIN C | 1 |
| 2 | 121-32262 | FEED FORKED ARM ASM. | 1 |
| 3 | 121-32213 | UPPER KNIFE DRIVING ARM | (1) |
| 4 | SM-6061202-TP | SCREW M6 L=12 | (1) |
| 5 | 121-32502 | BUSHING, REAR | 1 |
| 6 | CS-111101E-SH | COLLAR ASM. D=11.11 W=10 | 1 |
| 7 | SS-8660330-SP | SCREW 1/4-40 L=3.0 | (2) |
| 8 | 121-32304 | KNIFE DRIVING ARM SHAFT | 1 |
| 9 | SS-4060310-SP | SCREW 3/32-56 L=2.5 | 1 |
| 10 | 115-65801 | UPPER KNIFE GUIDE SHAFT | 1 |
| 11 | 115-66809 | OIL SEAL | 1 |
| 12 | 121-32403 | BUSHING, FRONT | 1 |
| 13 | SS-6111040-SP | SCREW 11/64-40 L= 9.5 | 1 |
| 14 | 121-33302 | UPPER KNIFE SUPPORT A | 1 |
| 15 | 118-45609 | KNIFE | 1 |
| 16 | SS-9090813-TP | SCREW 9/64-40 L=8 | 1 |
| 17 | WP-0370316-SD | WASHER 3.7X8X0.3 | 1 |
| 18 | 118-45708 | KNIFE | 1 |
| 19 | 121-33401 | UPPER KNIFE SUPPORT | 1 |
| 20 | SS-6111610-SP | SCREW 11/64-40 L=16 | 1 |
| 21 | 115-98000 | UPPER KNIFE SUPPORT | 1 |
| 22 | 118-45807 | UPPER KNIFE | 1 |
| 23 | 115-65702 | WASHER | 1 |
| 24 | SS-4060310-SP | SCREW 3/32-56 L=2.5 | 1 |
| 25 | 115-65504 | UPPER KNIFE PRESSER PLATE | 1 |
| 26 | 118-48405 | UPPER KNIFE COVER | 1 |
| 27 | SS-9111610-SP | SCREW 11/64-40 L=16 | 1 |
| 28 | 118-45500 | UPPER KNIFE SUPPORT | 1 |
| 29 | 118-45906 | UPPER KNIFE | 1 |
| 30 | SS-9112310-SP | SCREW 11/64-40 L=23 | 1 |
Page 27 — 14. NEEDLE COOLING MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 118-55954 | NEEDLE COOLER UNIT ASM. (OVER) | 1 |
| 2 | 118-55970 | NEEDLE COOLER ASM. (OVER) | (1) |
| 3 | 118-55905 | NEEDLE COOLER (OVER) | (1) |
| 4 | 118-56101 | NEEDLE COOLER PIN | (1) |
| 5 | 118-56200 | NEEDLE COOLER FELT | (1) |
| 6 | BT-0700500-EA | TUBE | (0.1) |
| 7 | 118-56507 | TANK COVER | (1) |
| 8 | SS-4091015-SP | SCREW 9/64-40 L=10 | (1) |
| 9 | WP-0371026-SD | WASHER 3.7X7X1 | (1) |
| 10 | 118-56309 | SUPPORT | (1) |
| 11 | SS-7090610-SP | SCREW 9/64-40 L=6 | (1) |
| 12 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | (1) |
| 13 | 118-56408 | TANK | (1) |
| 14 | 118-56051 | NEEDLE COOLER UNIT ASM.(INTER) | 1 |
| 15 | 118-56077 | NEEDLE COOLER ASM. (INTER) | (1) |
| 16 | 118-56002 | NEEDLE COOLER (INTER) | (1) |
| 17 | 118-56101 | NEEDLE COOLER PIN | (1) |
| 18 | 118-56200 | NEEDLE COOLER FELT | (1) |
| 19 | BT-0700500-EA | TUBE | (0.1) |
| 20 | 118-56309 | SUPPORT | (1) |
| 21 | SS-7090610-SP | SCREW 9/64-40 L=6 | (1) |
| 22 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | (1) |
| 23 | 118-56408 | TANK | (1) |
| 24 | 118-56507 | TANK COVER | (1) |
| 25 | SS-4091015-SP | SCREW 9/64-40 L=10 | (1) |
| 26 | WP-0371026-SD | WASHER 3.7X7X1 | (1) |
| 27 | SM-4040855-SP | SCREW | 1 |
| 28 | 121-38400 | PRESSER | 1 |
| 29 | 121-38152 | SILICON TANK ASM. | 1 |
| 30 | 121-38301 | FELT | 1 |
| 31 | TA-0950806-R0 | RUBBER PLUG | 1 |
Page 29 — 15. LUBRICATION MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 118-43208 | CARTRIDGE FILTER | 1 |
| 2 | 121-29706 | FILTER GUIDE | 1 |
| 3 | RO-2182401-00 | RUBBER RING | 1 |
| 4 | TA-0290301-MO | PLUG 2.9X3.2X3 | 2 |
| 5 | SM-4051601-SC | SCREW M5X0.8 L=16 | 1 |
| 6 | SQ-1110451-MZ | CONNECTING SCREW | 2 |
| 7 | SQ-1150451-MZ | CONNECTING SCREW | 1 |
| 8 | BT-0500300-EG | OIL TUBE | 0.2 |
| 9 | 101-26803 | OIL TUBE HOLDER | 2 |
| 10 | BT-0500300-EA | OIL TUBE | 0.3 |
| 11 | BT-0500300-EA | OIL TUBE | 0.16 |
| 12 | SQ-0000451-MZ | CONNECTING SCREW | 1 |
| 13 | SQ-1150441-SD | CONNECTING SCREW | 1 |
| 14 | SQ-1150454-SD | CONNECTING SCREW | 2 |
| 15 | 121-29458 | OIL PIPE ASM. | 1 |
| 16 | 121-29102 | WORM | 1 |
| 17 | 121-29250 | OIL PUMP ASM. | 1 |
| 18 | SQ-1110451-MZ | CONNECTING SCREW | (1) |
| 19 | SS-4110615-SP | SCREW 11/64-40 L=6 | (2) |
| 20 | NS-6110310-SP | NUT 11/64-40 | (1) |
| 21 | 121-29318 | CONNECTING SCREW BRACKET | (1) |
| 22 | 118-41707 | WORM GEAR | (1) |
| 23 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | (2) |
| 24 | 118-41806 | GEAR PUMP SHAFT, LARGE | (1) |
| 25 | 118-40303 | OIL PUMP PINION | (2) |
| 26 | 118-40402 | GEAR PUMP SHAFT | (1) |
| 27 | 121-29201 | OIL PUMP | (1) |
| 28 | 118-43406 | COVER | (1) |
| 29 | SS-6090650-SP | SCREW 9/64-40 L=6 | (3) |
| 30 | SM-6061802-TP | SCREW M6 L=18 | 2 |
| 31 | WP-0651056-SD | WASHER 6.5X11X1 | 2 |
| 32 | 121-30100 | OIL GAUGE | 1 |
| 33 | 121-30209 | RUBBER PACKING | 1 |
| 34 | SM-4050855-SP | SCREW | 1 |
| 35 | 122-55907 | OILING EXIT SUPPORT | 1 |
| 36 | NS-6110310-SP | NUT 11/64-40 | 1 |
| 37 | SQ-1110451-MZ | CONNECTING SCREW | 1 |
| 38 | 121-29854 | FLOAT ASM. | 1 |
| 39 | 121-29904 | OIL GAUGE BAR | (1) |
| 40 | 121-30001 | FLOAT SUPPORT | (1) |
| 41 | 121-29805 | FLOAT | (1) |
| 42 | SM-4060801-SE | SCREW | 1 |
| 43 | 121-30803 | OIL FELT | 1 |
| 44 | 121-30704 | FELT HOLDER | 1 |
| 45 | SS-7060310-SP | SCREW 3/32-56 L=3 | 1 |
| 46 | CQ-2020000-00 | OIL WICK | 0.1 |
| 47 | SM-8050402-TP | SCREW | 1 |
| 48 | 121-30308 | OILING PIN | 1 |
| 49 | 121-30407 | OIL FELT | 1 |
| 50 | TA-0400301-MO | PLUG D=4X4.5 L=3 | 1 |
| 51 | 121-30506 | OILING PIN | 1 |
| 52 | 121-30605 | OIL FELT | 1 |
| 53 | TA-0400301-MO | PLUG D=4X4.5 L=3 | 1 |
| 54 | SS-6121020-SP | SCREW 3/16-28 L= 9.5 | 1 |
Page 30 — 16. SEMI-SUNKEN TYPE TABLE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 119-59400 | TABLE (SEMI-SUNKEN) | 1 |
| 2 | 119-66702 | BOLT A | 4 |
| 3 | 115-71601 | BOLT A | 4 |
| 4 | 119-60150 | CLOTH WASTE CHUTE ASM.(BENCH) | 1 |
| 5 | 119-60101 | CLOTH WASTE CHUTE,UPPER(BENCH) | (1) |
| 6 | 119-60002 | CLOTH WASTE CHUTE,LOWER(BENCH) | (1) |
| 7 | SK-2351600-SC | WOOD SCREW D=3.5 L=16 | 3 |
| 8 | SS-6090630-SP | SCREW 9/64-40 L=6 | 5 |
| 9 | SS-5110710-SP | SCREW 11/64-40 L=7 | 2 |
| 10 | SK-2351600-SC | WOOD SCREW D=3.5 L=16 | 3 |
| 11 | 118-50815 | CASE SPONGE | 1 |
| 12 | 118-49411 | COOLING FAN CASE | 1 |
| 13 | 115-71403 | RUBBER CUSHION | 4 |
| 14 | 118-49601 | SPACER | 4 |
| 15 | 118-49361 | FRAME SUPPORT PLATE ASM. | 1 |
| 16 | WP-1102016-SC | WASHER 11X21X2 | 4 |
| 17 | WS-1002560-KR | SPRING WASHER 10X18X2.5 | 4 |
| 18 | NS-6240630-SN | NUT 3/8-18 | 4 |
| 19 | 111-55108 | DRAWER | 1 |
| 20 | 111-55207 | DRAWER SUPPORT | 2 |
| 21 | SK-3311500-SC | WOOD SCREW D=3.1 L=15 | 6 |
| 22 | D8204-555-D00 | DRAWER STOPPER | 1 |
| 23 | 121-35554 | CLOTH WASTE CHUTE ASM. | 1 |
| 24 | 121-35505 | CLOTH WASTE CHUTE SUPPORT | (1) |
| 25 | 119-62800 | CLOTH WASTE CHUTE INLET | (1) |
| 26 | 119-62909 | CLOTH WASTE CHUTE, UPPER | (1) |
| 27 | SS-5090610-SP | SCREW 9/64-40 L=6 | (3) |
| 28 | NS-6090310-SP | NUT 9/64-40 | (3) |
| 29 | 119-60002 | CLOTH WASTE CHUTE,LOWER(BENCH) | 1 |
Page 31 — 17. FULLY-SUNKEN TYPE TABLE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 119-59558 | TABLE ASM. | 1 |
| 2 | 115-71809 | BOLT C | 2 |
| 3 | 115-71908 | BOLT D | 2 |
| 4 | WP-1102016-SC | WASHER 11X21X2 | 12 |
| 5 | WS-1002560-KR | SPRING WASHER 10X18X2.5 | 4 |
| 6 | NS-6240630-SN | NUT 3/8-18 | 12 |
| 7 | 115-71403 | RUBBER CUSHION | 4 |
| 8 | 118-49379 | FRAME SUPPORT PLATE ASM. | 1 |
| 9 | 118-49361 | FRAME SUPPORT PLATE ASM. | (1) |
| 10 | 118-50906 | FRAME SUPPORT AUXILIARY PLATE | (1) |
| 11 | SM-9082513-CF | SCREW M8 L=25 | (4) |
| 12 | NM-6080600-SM | NUT M8 | (4) |
| 13 | WP-0850002-SC | WASHER 8.5X18X1.6 | (4) |
| 14 | 119-60259 | CLOTH CHUTE ASM. | 1 |
| 15 | 119-60200 | CLOTH WASTE CHUTE | (1) |
| 16 | ST-6030821-OA | SCREW D=3-24 L=8 | (2) |
| 17 | 118-50401 | CLOTH WASTE CHUTE INLET LEVER | (1) |
| 18 | 119-60309 | CLOTH WASTE CHUTE HOLE | (1) |
| 19 | SS-6090420-SP | SCREW 9/64-40 L= 4.0 | (2) |
| 20 | 118-50609 | RUBBER | (1) |
| 21 | 118-50500 | SPRING | (1) |
| 22 | WP-0370316-SD | WASHER 3.7X8X0.3 | (1) |
| 23 | ST-6030821-OA | SCREW D=3-24 L=8 | (1) |
| 24 | SS-5110710-SP | SCREW 11/64-40 L=7 | 2 |
| 25 | 118-49411 | COOLING FAN CASE | 1 |
| 26 | 118-50815 | CASE SPONGE | 1 |
| 27 | SS-5110710-SP | SCREW 11/64-40 L=7 | 2 |
| 28 | SK-2351600-SC | WOOD SCREW D=3.5 L=16 | 3 |
| 29 | SS-6090630-SP | SCREW 9/64-40 L=6 | 5 |
| 30 | 111-55108 | DRAWER | 1 |
| 31 | 111-55207 | DRAWER SUPPORT | 2 |
| 32 | SK-3311500-SC | WOOD SCREW D=3.1 L=15 | 6 |
| 33 | D8204-555-D00 | DRAWER STOPPER | 1 |
| 34 | 121-35554 | CLOTH WASTE CHUTE ASM. | 1 |
| 35 | 121-35505 | CLOTH WASTE CHUTE SUPPORT | (1) |
| 36 | 119-62800 | CLOTH WASTE CHUTE INLET | (1) |
| 37 | 119-62909 | CLOTH WASTE CHUTE, UPPER | (1) |
| 38 | SS-5090610-SP | SCREW 9/64-40 L=6 | (3) |
| 39 | NS-6090310-SP | NUT 9/64-40 | (3) |
| 40 | 119-60002 | CLOTH WASTE CHUTE,LOWER(BENCH) | 1 |
| NS-6240630-SR | NUT 3/8-18 | 12 |
Page 33 — 18. THREAD STAND COMPONENTS (FOR MO-3904,MO-3914)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 119-69458 | THREAD STANDING DEVICE ASM. | 1 |
| 2 | 111-85352 | THREAD GUIDE ASM. | (2) |
| 3 | 111-85402 | THREAD GUIDE ARM JOINT | (4) |
| 4 | NM-6050001-SE | NUT M5 | (4) |
| 5 | B3311-704-000 | SPOOL REST ROD CAP | (1) |
| 111-85204 | SPOOL REST ROD,UPPER | (1) | |
| B3305-704-000-A | SPOOL REST ROD JOINT | (1) | |
| SM-4051405-SE | SCREW M5 L=14 | (2) | |
| B3309-704-000 | THREAD GUIDE ARM ASM. | (1) | |
| B3311-804-000 | LOWER THREAD GUIDE | (1) | |
| SS-7110540-SP | SCREW 11/64-40 L=5 | (1) | |
| B3304-704-000-A | THREAD GUIDE ARM HOLDER | (1) | |
| SM-6053000-SE | SCREW M5X0.8 L=30 | (1) | |
| 111-85105 | SPOOL REST ROD, LOWER | (1) | |
| 111-85501 | SPOOL RETAINER | (4) | |
| B3320-704-L00-A | SPOOL PIN | (4) | |
| B3311-012-000 | SPOOL REST CUSHION | (4) | |
| 111-85006 | SPOOL REST | (2) | |
| B3317-704-000 | NUT | (1) | |
| WP-1612616-SE | WASHER 16X30X2.6 | (2) | |
| 119-69953 | THREAD STANDING DEVICE ASM. | 1 | |
| SK-3382001-SE | SCREW D=3.8 L=20 | (2) | |
| B3318-704-L00-A | THREAD GUIDE ARM JOINT | (4) | |
| SM-6061610-SC | SCREW M6 L=16 | (4) | |
| 119-69573 | SPOOL REST ARM A ASM. | (2) | |
| B3319-704-L00 | THREAD GUIDE | (4) | |
| B3309-704-0AO | THREAD GUIDE ARM ASM. | (1) | |
| 119-66504 | SPOOL REST | (4) | |
| 119-69508 | SPOOL REST ARM A | (2) | |
| B3321-704-L00 | SPOOL REST ARM SUPPORT, A | (1) | |
| SM-4061201-SE | SCREW M6 L=12 | (2) | |
| B3321-704-L0B | SPOOL REST ARM SUPPORT, B | (1) |
Page 35 — 19. THREAD STAND COMPONENTS (FOR MO-3916)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 119-69557 | THREAD STANDING DEVICE ASM. | 1 |
| 2 | SK-3382001-SE | SCREW D=3.8 L=20 | (1) |
| 3 | 119-69565 | SPOOL REST ARM A ASM. | (1) |
| 4 | B3319-704-L00 | THREAD GUIDE | (3) |
| 5 | B3318-704-L00-A | THREAD GUIDE ARM JOINT | (4) |
| 6 | SM-6061610-SC | SCREW M6 L=16 | (4) |
| 7 | B3311-704-000 | SPOOL REST ROD CAP | (1) |
| 8 | 119-69466 | THREAD GUIDE ARM B ASM. | (1) |
| 9 | B3319-704-L00 | THREAD GUIDE | (2) |
| 10 | 111-85204 | SPOOL REST ROD,UPPER | (1) |
| 11 | B3305-704-000-A | SPOOL REST ROD JOINT | (1) |
| 12 | NM-6050001-SE | NUT M5 | (2) |
| 13 | SM-4051405-SE | SCREW M5 L=14 | (2) |
| 14 | B3309-704-0AO | THREAD GUIDE ARM ASM. | (1) |
| 15 | B3311-804-000 | LOWER THREAD GUIDE | (1) |
| 16 | SS-7110540-SP | SCREW 11/64-40 L=5 | (1) |
| 17 | B3309-704-000 | THREAD GUIDE ARM | (1) |
| 18 | B3304-704-000-A | THREAD GUIDE ARM HOLDER | (1) |
| 19 | SM-6053000-SE | SCREW M5X0.8 L=30 | (1) |
| 20 | NM-6050001-SE | NUT M5 | (1) |
| 21 | 111-85105 | SPOOL REST ROD,LOWER | (1) |
| 22 | 111-85501 | SPOOL RETAINER | (5) |
| 23 | B3320-704-L00-A | SPOOL PIN | (5) |
| 24 | B3311-012-000 | SPOOL REST CUSHION | (5) |
| 25 | 119-66504 | SPOOL REST | (5) |
| 26 | 119-69409 | THREAD GUIDE ARM B | (1) |
| 27 | NM-6050001-SE | NUT M5 | (5) |
| 28 | 119-69508 | SPOOL REST ARM A | (1) |
| 29 | B3317-704-000 | NUT | (1) |
| 30 | WP-1612616-SE | WASHER 16X30X2.6 | (2) |
| 31 | B3321-704-L00 | SPOOL REST ARM SUPPORT, A | (1) |
| 32 | SM-4061201-SE | SCREW M6 L=12 | (1) |
| 33 | NM-6060001-SE | NUT M6 | (1) |
| 34 | MA0-11532000 | CORD STAPLE | (3) |
| 35 | 119-70050 | THREAD STANDING DEVICE ASM. | 1 |
| 36 | 119-69474 | THREAD GUIDE ARM B ASM. | (1) |
| 37 | B3319-704-L00 | THREAD GUIDE | (1) |
| 38 | 119-69573 | SPOOL REST ARM A ASM. | (2) |
| 39 | B3319-704-L00 | THREAD GUIDE | (4) |
| 40 | 119-69409 | THREAD GUIDE ARM B | (1) |
| 41 | 119-69508 | SPOOL REST ARM A | (2) |
| 42 | B3318-704-L00-A | THREAD GUIDE ARM JOINT | (6) |
| 43 | SM-6061610-SC | SCREW M6 L=16 | (6) |
| 44 | B3311-704-000 | SPOOL REST ROD CAP | (1) |
| 45 | 111-85204 | SPOOL REST ROD,UPPER | (1) |
| 46 | B3305-704-000-A | SPOOL REST ROD JOINT | (1) |
| 47 | NM-6050001-SE | NUT M5 | (2) |
| 48 | SM-4051405-SE | SCREW M5 L=14 | (2) |
| 49 | B3309-704-0AO | THREAD GUIDE ARM ASM. | (1) |
| 50 | B3311-804-000 | LOWER THREAD GUIDE | (1) |
| 51 | SS-7110540-SP | SCREW 11/64-40 L=5 | (1) |
| 52 | B3309-704-000 | THREAD GUIDE ARM | (1) |
| 53 | B3304-704-000-A | THREAD GUIDE ARM HOLDER | (1) |
| 54 | SM-6053000-SE | SCREW M5X0.8 L=30 | (1) |
| 55 | NM-6050001-SE | NUT M5 | (1) |
| 56 | 111-85105 | SPOOL REST ROD,LOWER | (1) |
| 57 | 111-85501 | SPOOL RETAINER | (5) |
| 58 | B3320-704-L00-A | SPOOL PIN | (5) |
| 59 | B3311-012-000 | SPOOL REST CUSHION | (5) |
| 60 | 119-66504 | SPOOL REST | (5) |
| 61 | NM-6050001-SE | NUT M5 | (5) |
| 62 | B3317-704-000 | NUT | (1) |
| 63 | WP-1612616-SE | WASHER 16X30X2.6 | (2) |
| 64 | B3321-704-L00 | SPOOL REST ARM SUPPORT, A | (1) |
| 65 | SM-4061201-SE | SCREW M6 L=12 | (2) |
| 66 | NM-6060001-SE | NUT M6 | (2) |
| 67 | B3321-704-LOB | SPOOL REST ARM SUPPORT, B | (1) |
| 68 | MA0-11532000 | CORD STAPLE | (3) |
| 69 | SK-3382001-SE | SCREW D=3.8 L=20 | (2) |
Page 36 — 20. SPECIAL ORDER PARTS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 119-64509 | CERAMIC LOWER KNIFE | 1 |
| 2 | SS-8080322-TP | SCREW 1/8-44 L=3.2 | 1 |
| 3 | SS-8080322-TP | SCREW 1/8-44 L=3.2 | 2 |
| 4 | B9112-804-000 | SPANNER | 1 |
| 5 | B2519-804-000 | UPPER LOOPER | 1 |
| 6 | B2519-814-000 | UPPER LOOPER | 1 |
| 7 | 115-44756 | UPPER LOOPER SUPPORT ARM ASM. | 1 |
| 8 | SS-6080410-SP | SCREW 1/8-44 L=4 | (1) |
| 9 | 118-98103 | PRESSER FOOT AUXILIARY PLATE | 1 |
| 10 | SS-4080620-TP | SCREW 1/8-44 L=6 | 1 |
| 11 | B2521-804-000 | LOWER LOOPER | 1 |
| 12 | 118-47605 | LOWER KNIFE | 1 |
| 13 | 119-92005 | LOWER KNIFE | 1 |
| 14 | 119-96907 | LOWER KNIFE GAUGE | 1 |
| 15 | B9135-123-0BO | SILICON OIL LUBRICANT ASM. (30 | 1 |
| 16 | 121-23758 | LOWER LOOPER SUPPORT ARM ASM. | 1 |
| 17 | 121-23709 | LOWER LOOPER SUPPORT ARM | (1) |
| 18 | PS-0300062-KH | SPRING PIN 3X6 | (1) |
| 19 | B2531-704-000 | WASHER | (1) |
| 20 | SS-9151210-TP | SCREW 15/64-28 L=11.8 | (1) |
Page 40 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 9 | 121-24509 | 6 | |
| 71 | 121-24608 | 14 | |
| 75 | 121-26108 | 20 | |
| 31 | 121-26207 | 20 | |
| 40 | 121-26405 | 20 | |
| 49 | 121-26405 | 20 | |
| 58 | 121-26405 | 20 | |
| 36 | 121-26702 | 20 | |
| 45 | 121-26702 | 20 | |
| 54 | 121-26702 | 20 | |
| 42 | 121-26819 | 20 | |
| 41 | 121-26868 | 20 | |
| 33 | 121-26918 | 20 | |
| 32 | 121-26967 | 20 | |
| 51 | 121-27015 | 20 | |
| 50 | 121-27064 | 20 | |
| 59 | 121-27403 | 20 | |
| 60 | 121-27502 | 20 | |
| 61 | 121-27700 | 20 | |
| 62 | 121-27706 | 20 | |
| 63 | 121-27809 | 20 | |
| 64 | 121-27957 | 20 | |
| 66 | 121-28203 | 20 | |
| 67 | 121-28302 | 20 | |
| 16 | 121-29102 | 26 | |
| 27 | 121-29201 | 26 | |
| 28 | 121-29201 | 26 | |
| 17 | 121-29250 | 26 | |
| 21 | 121-29318 | 26 | |
| 15 | 121-29458 | 26 | |
| 2 | 121-29706 | 26 | |
| 41 | 121-29805 | 26 | |
| 38 | 121-29854 | 26 | |
| 39 | 121-29904 | 26 | |
| 40 | 121-30001 | 26 | |
| 32 | 121-30100 | 26 | |
| 33 | 121-30209 | 26 | |
| 48 | 121-30308 | 26 | |
| 49 | 121-30407 | 26 | |
| 51 | 121-30506 | 26 | |
| 52 | 121-30605 | 26 | |
| 44 | 121-30704 | 26 | |
| 43 | 121-30803 | 26 | |
| 12 | 121-32106 | 6 | |
| 11 | 121-32155 | 6 | |
| 3 | 121-32213 | 23 | |
| 2 | 121-32262 | 23 | |
| 8 | 121-32304 | 23 | |
| 12 | 121-32403 | 23 | |
| 5 | 121-32502 | 23 | |
| 19 | 121-32619 | 22 | |
| 24 | 121-32700 | 22 | |
| 30 | 121-32809 | 22 | |
| 28 | 121-32908 | 22 | |
| 31 | 121-33005 | 22 | |
| 26 | 121-33104 | 22 | |
| 15 | 121-33211 | 22 | |
| 14 | 121-33302 | 23 | |
| 19 | 121-33401 | 23 | |
| 13 | 121-33658 | 22 | |
| 14 | 121-33666 | 22 | |
| 32 | 121-33708 | 22 | |
| 24 | 121-35505 | 27 | |
| 35 | 121-35505 | 28 | |
| 23 | 121-35554 | 27 | |
| 34 | 121-35554 | 28 | |
| 29 | 121-38152 | 24 | |
| 30 | 121-38301 | 24 | |
| 28 | 121-38400 | 24 | |
| 36 | 121-47203 | 2 | |
| 37 | 121-47807 | 2 | |
| 58 | 121-48607 | 8 | |
| 59 | 121-48706 | 8 | |
| 60 | 121-49803 | 8 | |
| 19 | 121-52468 | 18 | |
| 34 | 121-53763 | 18 | |
| 35 | 121-56907 | 18 | |
| 30 | 121-60008 | 18 | |
| 41 | 121-62202 | 18 | |
| 37 | 121-64802 | 18 | |
| 40 | 121-67409 | 18 | |
| 43 | 121-67508 | 18 | |
| 42 | 121-67607 | 18 | |
| 46 | 121-67706 | 18 | |
| 38 | 121-67805 | 18 | |
| 23 | 121-72805 | 12 | |
| 32 | 121-76004 | 14 | |
| 29 | 121-80162 | 20 | |
| 30 | 121-80261 | 20 | |
| 76 | 121-80659 | 20 | |
| 19 | 122-50205 | 4 | |
| 25 | 122-50510 | 2 | |
| 29 | 122-50601 | 2 | |
| 6 | 122-52805 | 8 | |
| 21 | 122-52904 | 8 | |
| 22 | 122-53050 | 8 | |
| 24 | 122-53100 | 8 | |
| 1 | 122-53811 | 18 | |
| 35 | 122-55907 | 26 | |
| 21 | 122-58000 | 4 | |
| 33 | 122-58208 | 15 | |
| 34 | 122-58307 | 15 | |
| 35 | 122-58406 | 15 | |
| 36 | 122-58505 | 15 | |
| 37 | 122-58604 | 15 | |
| 38 | 122-58703 | 15 | |
| 39 | 122-58802 | 15 | |
| 40 | 122-58901 | 15 | |
| 41 | 122-59008 | 15 | |
| 42 | 122-59107 | 15 | |
| 38 | 122-80608 | 8 |
Juki MO-3916 — parts catalog
- Page 1 (cover): This is the cover page for a JUKI industrial sewing machine parts catalog, listing models MO-3904-OE4, MO-3914-BE6, and MO-3916-DE4.
- Page 2 (toc): This page is a table of contents for a parts catalog, listing various machine components and their corresponding page numbers. It includes sections like Frame Components, Crankshaft Components, Feed Mechanism Components, and more, with both English and Japanese titles.
- Page 3 (toc): This page contains a table of contents for sections 18 through 20, including "THREAD STAND COMPONENTS" and "SPECIAL ORDER PARTS COMPONENTS", along with a "NUMERICAL INDEX OF PARTS".
- Page 4 (diagram): This page displays a diagram of frame components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 5 (parts_list): This page lists parts for industrial sewing machines, including part numbers, descriptions, quantities, and notes, with specific entries for models MO-3904, MO-3914, MO-3916, and JE.
- Page 6 (diagram): This page displays a diagram of frame components (2) for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 7 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, quantities, and notes.
- Page 8 (diagram): This page displays a diagram of crankshaft components, including various parts like the crankshaft itself, connecting rods, bearings, and related hardware, each identified by a reference number.
- Page 9 (parts_list): This page lists parts for a sewing machine, including screws, bearings, and various assemblies, with their corresponding part numbers, descriptions, and quantities.
- Page 10 (diagram): This page displays a diagram of needle driving shaft components, with numbered parts and their corresponding references.
- Page 11 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and notes. It details various screws, needles, links, and other components, with specific notes for different machine models like MO-3904, MO-3914, MO-3916, and JE models.
- Page 12 (diagram): This page displays a diagram of the feed mechanism components, labeled with reference numbers for identification.
- Page 13 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and notes. It details various screws, washers, pins, and assemblies like the main feed rocker and feed eccentric body.
- Page 14 (diagram): This page displays a diagram of feed mechanism components, with numbered parts and their corresponding references.
- Page 15 (parts_list): This page contains a parts list for the FEED BAR SHAFT, including part numbers, descriptions, quantities, and notes.
- Page 16 (diagram): This page displays a diagram of upper and lower looper components, with numbered parts and their corresponding references.
- Page 17 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It also includes notes and references for specific parts.
- Page 18 (diagram): This page displays a diagram of chain looper components for model MO-3916, along with a parts list detailing part numbers, descriptions, and quantities.
- Page 19 (parts_list): This page lists components for the presser foot, including part numbers, descriptions, and quantities.
- Page 20 (diagram): This page displays diagrammatic representations of presser foot components, with numbered parts and their corresponding references.
- Page 21 (parts_list): This page lists parts for sewing machines, including part numbers, descriptions, quantities, and remarks. It covers items from reference number 1 to 64.
- Page 22 (diagram): This page displays a diagram of thread tension components, including part numbers and reference numbers for various parts.
- Page 23 (parts_list): This page lists parts for the sewing machine, including screws, brackets, guides, springs, and knobs, with their corresponding part numbers and descriptions. It also includes notes indicating which models specific parts are for.
- Page 24 (diagram): This page displays a diagram of lower knife components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 25 (parts_list): This page lists parts for sewing machine models MO-3904, MO-3914, and MO-3916, including screws, plates, brackets, and holders, with their corresponding part numbers and descriptions.
- Page 26 (parts_list): This page lists upper knife components with part numbers, descriptions, and quantities, including notes on part selection and usage.
- Page 27 (diagram): This page displays a diagram of needle cooling mechanism components, along with a detailed parts list including part numbers, descriptions, and quantities.
- Page 28 (diagram): This page displays a diagram of lubrication mechanism components, with numbered parts and their corresponding references.
- Page 29 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It contains items such as cartridge filters, filter guides, rubber rings, screws, oil tubes, and various pump components.
- Page 30 (diagram): This page displays a diagram of semi-sunken type table components, with a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 31 (parts_list): This page lists components for the fully-sunken type table, including part numbers, descriptions, and quantities.
- Page 32 (diagram): This page displays a diagram of thread stand components for models MO-3904 and MO-3914, with numbered parts for identification.
- Page 33 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and notes. It details items such as thread standing devices, spool rest rods, screws, nuts, and washers.
- Page 34 (diagram): This page displays a diagram of thread stand components for the MO-3916 model, with numbered parts and their corresponding references.
- Page 35 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It contains items such as thread standing devices, screws, spool rest arms, and thread guides.
- Page 36 (parts_list): This page lists special order parts components for JUKI sewing machines, including part numbers, descriptions, and usage notes.
- Page 40 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, page references, and reference numbers.
- Page 41 (text): This page contains the heading "MEMO" and is otherwise blank, intended for notes. It also includes a page number and website address at the bottom.
- Page 42 (text): This page contains the heading "MEMO" and is otherwise blank with horizontal lines for writing notes. It also includes a page number and website at the bottom.
- Page 43 (unknown): This page contains a watermark and a website address at the bottom.
- Page 44 (cover): This is the cover page for a JUKI CORPORATION parts list. It includes contact information for orders and inquiries, and notes that the parts list is subject to change without notice and was edited according to specifications as of September 1995. The page also indicates it was Printed in Japan.
