Page 1 — PARTS LIST
JUKI 2-Needle, Needle-feed, Lockstitch Machine with Organized Split Needle Bar and an Autmatic Thread Trimmer (without Thread Trimmer) 二本針本縫針送り角縫い付き自動糸切りミシン LH-3568-7 LH-3568 (糸切り無) PARTS LIST 40036443 No.1447-02 jintex.in
Juki LH-3568 — parts catalog

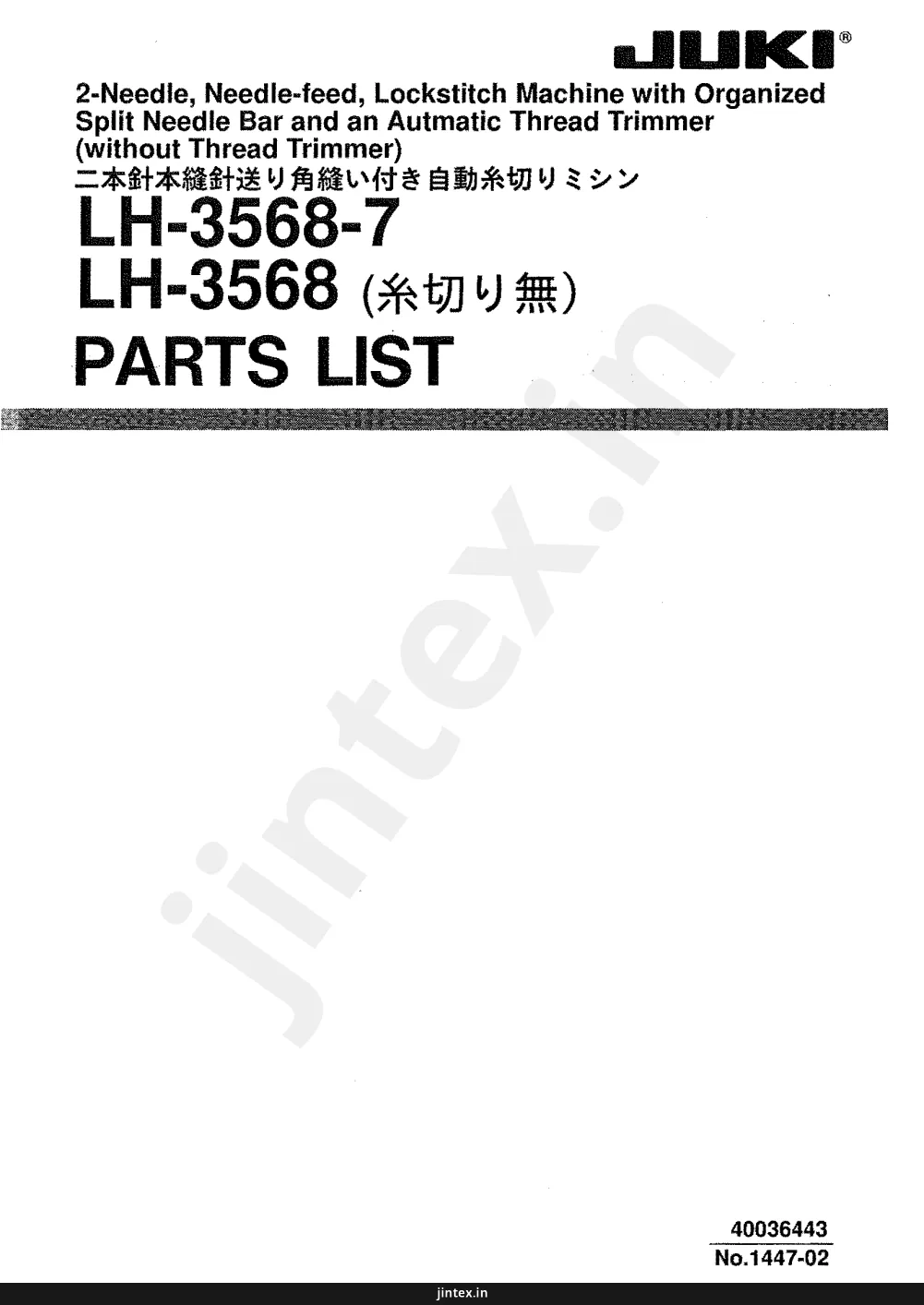

- Page 1 (cover): This is the cover page for the JUKI LH-3568-7 and LH-3568 parts list, detailing a 2-Needle, Needle-feed, Lockstitch Machine with Organized Split Needle Bar and an Automatic Thread Trimmer (without Thread Trimmer).
- Page 2 (unknown): This page is blank except for a watermark and a footer.
- Page 3 (text): This page provides an explanation of codes and symbols used in the parts list, including how to interpret part changes, quantity column values, subparts, assembly parts, consumable parts, and optional parts.
- Page 4 (toc): This page is a table of contents for a sewing machine parts catalog, listing 17 sections with their corresponding page numbers. The sections cover various components like frame, shafts, needle bar, feed mechanism, and accessories.
- Page 5 (toc): This page is a table of contents listing sections related to exchanging gauge parts for models LH-3568 and LH-3568-7, information on changes, and a numerical index of parts.
- Page 6 (diagram): This page displays a diagram of the frame and miscellaneous cover components for an industrial sewing machine.
- Page 7 (parts_list): This page lists various parts including screws, plugs, holders, washers, labels, and other components with their part numbers, descriptions, and quantities.
- Page 8 (diagram): This page illustrates the main shaft and thread take-up components of an industrial sewing machine, showing an exploded view of various parts and their reference numbers.
- Page 9 (parts_list): This page lists various parts including plugs, pins, wicks, screws, shafts, sprockets, bearings, and other components, along with their part numbers, descriptions, and quantities.
- Page 10 (diagram): This page illustrates the components of the needle bar assembly for an industrial sewing machine, showing various parts and their reference numbers.
- Page 11 (parts_list): This page lists various parts including rollers, felts, needles, screws, spacers, and other components for a machine, with their corresponding part numbers and quantities.
- Page 12 (diagram): This page illustrates the tension post components of an industrial sewing machine, showing an exploded view of various parts and their reference numbers.
- Page 13 (parts_list): This page lists parts related to the thread tension and repositioning mechanisms, including screws, springs, levers, and other components, with their part numbers, descriptions, and quantities.
- Page 14 (diagram): This page illustrates the components of the hook and hook driving shaft, showing various parts with their corresponding reference numbers.
- Page 15 (parts_list): This page lists parts for a sewing machine, including hook upper bush, hook lower bush, cap hook, and various screws and washers, with part numbers, descriptions, and quantities.
- Page 16 (diagram): This page displays a diagram of hook and hook driving shaft components, with various parts numbered for identification.
- Page 17 (parts_list): This page lists parts for sewing machines, including part numbers, descriptions, quantities, and notes, with specific parts designated for LH-3568 and LH-3568-7 models.
- Page 18 (diagram): This page displays a diagram of the feed mechanism components, including various levers, shafts, springs, and fasteners, with reference numbers for each part.
- Page 19 (parts_list): This page lists parts for the sewing machine, including screws, pins, shafts, and various adjusting components, with their corresponding part numbers and descriptions.
- Page 20 (diagram): This page displays a diagram of presser bar and tension release components, with numbered parts and their corresponding references.
- Page 21 (parts_list): This page lists parts for the LH-3568 and LH-3568-7 models, including hand lifters, screws, plates, and springs, with their corresponding part numbers and descriptions.
- Page 22 (diagram): This page displays a diagram of thread trimmer mechanism components for the LH-3568-7 model, with numbered parts and their corresponding details.
- Page 23 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It details components such as screws, washers, and various assemblies like the knife base and driving arms.
- Page 24 (diagram): This page displays a diagram of the automatic reverse feed mechanism components for the LH-3568-7 model, with numbered parts indicated.
- Page 25 (parts_list): This page lists parts for a sewing machine, including various screws, switches, covers, and links, with their corresponding part numbers and descriptions.
- Page 26 (diagram): This page displays a diagram of wiper mechanism components for the LH-3568-7 model, with numbered parts indicated.
- Page 27 (parts_list): This page lists parts for a wiper system, including solenoids, covers, screws, springs, and washers, with their corresponding part numbers and descriptions.
- Page 28 (diagram): This page displays a diagram of lubrication components, including various parts like filters, tubes, and fittings, with corresponding reference numbers.
Page 2
jintex.in
Page 3 — HOW TO MAKE USE OF THIS PARTS LIST
HOW TO MAKE USE OF THIS PARTS LIST 1. Explanation of codes 1) "*" mark................means this part is changed from the previous parts book. As to the details of the change,refer to "List for information of change". 2) "01"......................refer to "Note" explanation at bottom of page. 2. Codes on the "Qty" column - Each numeral indicates the number of parts required. - "0.1" and "2.5" indicate the length (in meters) of the respective parts. 3. Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 4. Dotted lines on the Figures indicate assembly parts. 5. As to the parts with marks of "☆"(consumable parts) and "◎" (optional parts) on the respective parts, it is recommended to prepare spares. パーツリストご利用に際して 1. "注記" 欄の記号説明 1) "*" 印 ............前回のパーツブックに比較して今回変更された部品を意味します。 変更内容は"変更情報リスト" を参照してください。 2) "01" ............ページ下の"注記" の説明を参照してください。 2. 数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ(単位メートル)を表します。 3. 数量欄の( )は、組部品を構成している子部品であることを意味します。 4. イラストページの---- ---- ----枠は、組構成であることを意味します。 5. リストページの"☆" (消耗部品)、"◎" (オプション部品) の印が付いた部品は、 予備を準備しておくことをお奨めします。 jintex.in
Page 4 — CONTENTS
CONTENTS 目 次 1. FRAME & MISCELLANEOUS COVER COMPONENTS 頭部・外装関係 1 2. MAIN SHAFT & THREAD TAKE-UP COMPONENTS 上軸・天秤関係 3 3. NEEDLE BAR COMPONENTS 針棒関係 5 4. TENSION POST COMPONENTS 糸調子関係 7 5. HOOK & HOOK DRIVING SHAFT COMPONENTS (1) 釜・下軸関係 (1) 9 6. HOOK & HOOK DRIVING SHAFT COMPONENTS (2) 釜・下軸関係 (2) 11 7. FEED MECHANISM COMPONENTS 送り関係 13 8. PRESSER BAR & TENSION RELEASE COMPONENTS 押さえ棒・糸ゆるめ関係 15 9. THREAD TRIMMER MECHANISM COMPONENTS (FOR LH-3568-7) 糸切り装置関係 (LH-3568-7用) 17 10. AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3568-7) 自動送り関係 (LH-3568-7用) 19 11. WIPER MECHANISM COMPONENTS (FOR LH-3568-7) ワイパー装置関係 (LH-3568-7用) 21 12. LUBRICATION COMPONENTS 給油関係 23 13. BELT COVER & BOBBIN WINDER COMPONENTS ベルトカバー・糸巻き装置関係 25 14. BOTTOM COVER COMPONENTS ボトムカバー関係 26 15. AK DEVICE COMPONENTS A K装置関係 27 16. THREAD STAND COMPONENTS 糸立装置関係 29 17. ACCESSORIE PARTS COMPONENTS 付属品関係 31 jintex.in
Page 5
18. TABLE OF EXCHANGING GAUGE PARTS (FOR LH-3568) 交換ゲージ部品一覧表(LH-3568用) 19. TABLE OF EXCHANGING GAUGE PARTS (FOR LH-3568-7) 交換ゲージ部品一覧表(LH-3568-7用) 20. LIST FOR INFORMATION OF CHANGE 変更情報リスト NUMERICAL INDEX OF PARTS 索引 33 34 35 38
Page 6 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS
1. FRAME & MISCELLANEOUS COVER COMPONENTS 頭部・外装関係 1 2 48 50 47 62 63 10 72 10 11 13 74 12 58 68 69 10 11 10 11 72 57 72 14 16 67 15 26 20 60 23 21 55 56 73 27 28 51 44 42 43 70 30 73 73 33 34 19 19 71 22 24 25 45 31 32 35 36 37 38 39 40 9 59 18 18 17 6 46 29 49 52 53 54 66 65 64 49 61 41 - 1 - jintex.in
Page 7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SM-4051055-SP | SCREW | |
| 2 | 400-28766 | REAR_PLATE | |
| 3 | D2112-555-B00 | CORD HOLDER, LARGE | |
| 4 | SM-4050855-SP | SCREW | |
| 5 | 236-01057 | EARTH CORD ASM. | |
| 6 | SM-4050855-SP | SCREW | |
| 7 | WT-0530002-KS | TOOTHED WASHER D=5.3 | |
| 8 | 226-19100 | CAP | |
| 9 | TA-0800504-RO | RUBBER PLUG D=8 L=4.5 | |
| 10 | TA-1250406-RO | RUBBER PLUG D=12.5 L=4 | |
| 11 | TA-1250406-RO | RUBBER PLUG D=12.5 L=4 | |
| 12 | SM-6060800-SP | SCREW M6 L=8 | |
| 13 | 400-28245 | THREAD_TAKE_UP_LEVER_COVER | |
| 14 | 400-30299 | ASSY_FACE_COVER_68 | |
| 15 | TA-1600406-RO | PLUG | |
| 16 | 400-29972 | FACE_COVER_68 | |
| 17 | TA-1250705-RO | RUBBER PLUG | |
| 18 | 229-20706 | TWO EYEL ET | |
| 19 | SM-8050412-TP | SCREW M5 L=4 | |
| 20 | 400-29078 | THREAD_GUIDE_UPPER | |
| 21 | SM-1040750-TP | SCREW M4 L=7 | |
| 22 | 400-29347 | THREAD_GUIDE_WIRE | |
| 23 | SM-8040402-TP | SCREW M4X0.7 L=4 | |
| 24 | 400-28707 | THREAD_GUIDE_LOWER | |
| 25 | SM-1040750-TP | SCREW M4 L=7 | |
| 26 | B1104-051-000 | THROAT PLATE PIN | |
| 27 | 400-28731 | PLATE | |
| 28 | SM-9040603-SC | SCREW M4 L=6 | |
| 29 | 229-01805 | GROUND MARK | |
| 30 | SM-1040750-TP | SCREW M4 L=7 | |
| 31 | SM-6040655-TP | SCREW M4 L=6 | |
| 32 | SM-2040750-TP | SCREW M4 L=7.4 | |
| 33 | 226-01058 | BED SLIDE LEFT, ASM., A | |
| 34 | 400-25247 | ASSY_SLIDE_PLATE-L-A | |
| 35 | 226-25503 | THROAT PLATE 1/4 | |
| 36 | 400-25492 | THROAT_PLATE_TRIM-1/4 | |
| 37 | 226-00555 | BED SLIDE RIGHT, ASM., A | |
| 38 | 400-25235 | ASSY_SLIDE_PLATE-R-A | |
| 39 | 400-42880 | ASSY_SLIDE_PLATE_F | |
| 40 | 400-42874 | ASSY_SLIDE_PLATE_F_STANDARD | |
| 41 | 400-28555 | STUD | |
| 42 | 400-34675 | THREAD_GUIDE_ASM_E | |
| 43 | 400-32896 | THREAD_GUIDE_FELT | |
| 44 | 226-03708 | FELT | |
| 45 | 400-28706 | AUXILIARY_COVER | |
| 46 | 226-57803 | RUBBER PLUG | |
| 47 | 400-34053 | RESISTANCE PACK AA ASM. | |
| 48 | SM-4041055-SP | SCREW | |
| 49 | CM-3002001-A1 | SAFETY LABEL.,3 (SMALL). | |
| 50 | WP-0430800-SD | WASHER M4 | |
| 51 | 400-35180 | BED_SCREW_STUD_B | |
| 52 | CM-2002002-01 | LABEL_02_C | |
| 53 | CM-2002002-02 | LABEL_02 | |
| 54 | CM-1001000-01 | OIL INJECTION PROHIBITION LABE | |
| 55 | CM-3011001-02 | LABEL_03 | |
| 56 | CM-3011001-01 | LABEL_03_C | |
| 57 | TA-1470704-RO | RUBBER PLUG | |
| 58 | TA-0950806-RO | RUBBER PLUG | |
| 59 | TA-1650406-RO | PRUG | |
| 60 | 400-26811 | THREADING_DIAGRAM | |
| 61 | 400-36690 | WASHER | |
| 62 | EA-9502B02-00 | CABLE CLIP C | |
| 63 | SM-6040552-TP | SCREW M4 L=4.5 | |
| 64 | 236-01305 | AIR-DISCHARGING CAP | |
| 65 | 236-29900 | AIR-DISCHARGING | |
| 66 | RO-0801502-00 | RUBBER RING | |
| 67 | SM-4051055-SP | SCREW | |
| 68 | CM-2001001-02 | LABEL_01 | |
| 69 | CM-2001001-01 | LABEL_01_C | |
| 70 | CM-3002000-01 | ATTENTION SEAL | |
| 71 | TA-1030402-RO | RUBBER PLUG D=10.3 L=4 | |
| 72 | TA-0750704-RO | RUBBER PLUG | |
| 73 | TA-1250406-RO | RUBBER PLUG D=12.5 L=4 | |
| 74 | 400-06323 | JUKI GREASE A TUBE | |
| 75 | 400-22407 | CORD HOLDER |
REF. NO. NOTE PART NO. DESCRIPTION Qty 1 * SM-4051055-SP SCREW 6 2 400-28766 REAR_PLATE 1 3 02 D2112-555-B00 CORD HOLDER, LARGE 3 4 02 SM-4050855-SP SCREW 4 5 02 236-01057 EARTH CORD ASM. 1 6 02 SM-4050855-SP SCREW 1 7 02 WT-0530002-KS TOOTHED WASHER D=5.3 1 8 01 226-19100 CAP 1 9 01 TA-0800504-RO RUBBER PLUG D=8 L=4.5 2 10 08 TA-1250406-RO RUBBER PLUG D=12.5 L=4 6 11 07 TA-1250406-RO RUBBER PLUG D=12.5 L=4 5 12 SM-6060800-SP SCREW M6 L=8 2 13 400-28245 THREAD_TAKE_UP_LEVER_COVER 1 14 400-30299 ASSY_FACE_COVER_68 1 15 TA-1600406-RO PLUG (2) 16 400-29972 FACE_COVER_68 (1) 17 TA-1250705-RO RUBBER PLUG 1 18 229-20706 TWO EYEL ET 2 19 SM-8050412-TP SCREW M5 L=4 2 20 400-29078 THREAD_GUIDE_UPPER 1 21 SM-1040750-TP SCREW M4 L=7 1 22 400-29347 THREAD_GUIDE_WIRE 1 23 SM-8040402-TP SCREW M4X0.7 L=4 1 24 400-28707 THREAD_GUIDE_LOWER 1 25 SM-1040750-TP SCREW M4 L=7 1 26 B1104-051-000 THROAT PLATE PIN 1 27 400-28731 PLATE 1 28 SM-9040603-SC SCREW M4 L=6 2 29 229-01805 GROUND MARK 1 30 02 SM-1040750-TP SCREW M4 L=7 2 31 SM-6040655-TP SCREW M4 L=6 1 32 SM-2040750-TP SCREW M4 L=7.4 1 33 03 226-01058 BED SLIDE LEFT, ASM., A 1 34 04 400-25247 ASSY_SLIDE_PLATE-L-A 1 35 03 226-25503 THROAT PLATE 1/4 1 36 04 400-25492 THROAT_PLATE_TRIM-1/4 1 37 03 226-00555 BED SLIDE RIGHT, ASM., A 1 38 04 400-25235 ASSY_SLIDE_PLATE-R-A 1 39 *02 400-42880 ASSY_SLIDE_PLATE_F 1 40 *01 400-42874 ASSY_SLIDE_PLATE_F_STANDARD 1 41 400-28555 STUD 3 42 05 400-34675 THREAD_GUIDE_ASM_E 1 43 06 400-32896 THREAD_GUIDE_FELT 1 44 06 226-03708 FELT 1 45 02 400-28706 AUXILIARY_COVER 1 46 02 226-57803 RUBBER PLUG 1 47 02 400-34053 RESISTANCE PACK AA ASM. 1 48 02 SM-4041055-SP SCREW 1 49 02 CM-3002001-A1 SAFETY LABEL.,3 (SMALL). 2 50 02 WP-0430800-SD WASHER M4 1 51 400-35180 BED_SCREW_STUD_B 1 52 07 CM-2002002-01 LABEL_02_C 1 53 08 CM-2002002-02 LABEL_02 1 54 08 CM-1001000-01 OIL INJECTION PROHIBITION LABE 1 55 08 CM-3011001-02 LABEL_03 1 56 07 CM-3011001-01 LABEL_03_C 1 57 TA-1470704-RO RUBBER PLUG 1 58 TA-0950806-RO RUBBER PLUG 1 59 TA-1650406-RO PRUG 1 60 400-26811 THREADING_DIAGRAM 1 61 400-36690 WASHER 1 62 EA-9502B02-00 CABLE CLIP C 2 63 SM-6040552-TP SCREW M4 L=4.5 2 64 236-01305 AIR-DISCHARGING CAP 1 65 236-29900 AIR-DISCHARGING 1 66 RO-0801502-00 RUBBER RING 1 67 * SM-4051055-SP SCREW 3 68 08 CM-2001001-02 LABEL_01 1 69 07 CM-2001001-01 LABEL_01_C 1 70 CM-3002000-01 ATTENTION SEAL 1 71 * TA-1030402-RO RUBBER PLUG D=10.3 L=4 1 72 TA-0750704-RO RUBBER PLUG 2 73 TA-1250406-RO RUBBER PLUG D=12.5 L=4 3 74 400-06323 JUKI GREASE A TUBE 1 75 400-22407 CORD HOLDER 1 NOTE (注記) 01....FOR LH-3568 02....FOR LH-3568-7 03....EXCHANGING GAUGE PARTS FOR LH-3568(SEE P.33) 04....EXCHANGING GAUGE PARTS FOR LH-3568-7(SEE P.34) 05....OPTIONAL PARTS 06....TYPE A(ACCESSORIE PARTS) 07....FOR CHINA 08....EXCEPT CHINA - 2 - jintex.in
Page 8 — 2. MAIN SHAFT & THREAD TAKE-UP COMPONENTS
2. MAIN SHAFT & THREAD TAKE-UP COMPONENTS 上軸・天秤関係 9 4 5 2 3 6 8 49 35 38 36 37 39 18 13 40 16 17 40 15 14 20 42 11 12 48 19 20 10 47 34 23 33 28 27 32 - 3 - jintex.in 21 22 41 43 46 44 45 30 31 29 26 25 24
Page 9
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | TA-0750404-R0 | PLUG D=7.5 L=3.5 | 1 |
| 2 | 226-05307 | THREAD TAKE-UP LEVER PIN | 1 |
| 3 | CQ-2020000-00 | OIL WICK | 0.15 |
| 4 | 400-24093 | THREAD TAKE_UP_LEVER_C | 1 |
| 5 | CQ-2020000-00 | OIL WICK | 0.04 |
| 6 | 400-22678 | TAKE_UP_LEVER_THRUST_PIN | 1 |
| 7 | CQ-2520000-00 | OIL WICK | 0.02 |
| 8 | 228-10907 | RUBBER PLUG | 1 |
| 9 | SM-8060612-TP | SCREW M6 L=6 | 2 |
| 10 | 226-22401 | SYNCRO FRNGE | 1 |
| 11 | 400-29964 | NEEDLE_BAR_CRANK_PIN | 1 |
| 12 | CQ-3030000-00 | OIL WICK | 0.02 |
| 13 | 400-31864 | ASSY_COUNTER_WEIGHT | 1 |
| 14 | SM-8060552-TP | SCREW M6 L=5 | (1) |
| 15 | SM-8060612-TP | SCREW M6 L=6 | (1) |
| 16 | 400-04171 | COUNTER_WEIGHT_SCREW | (1) |
| 17 | SM-8081652-TP | SCREW M8 L=16 | (1) |
| 18 | 400-24436 | MAINSHAFT | 1 |
| 19 | 400-28117 | LOWER_SPROCKET | 1 |
| 20 | SM-6061010-TP | SCREW M6 L=10 | 2 |
| 21 | 400-32987 | HAND_WHEEL | 1 |
| 22 | SM-8061550-TP | SCREW M6 L=15 | 2 |
| 23 | 400-32993 | COMP_HAND_WHEEL_TRIM | 1 |
| 24 | 400-32994 | ASSY_HAND_WHEEL_TRIM | (1) |
| 25 | 400-27099 | HAND_WHEEL | (1) |
| 26 | M4002-110-000 | GENERATOR ROTOR | (1) |
| 27 | 400-17624 | MAGNET FITTING BASE A ASM. | (1) |
| 28 | 400-17625 | MAGNET FITTING BASE B ASM. | (1) |
| 29 | SM-8061550-TP | SCREW M6 L=15 | (2) |
| 30 | SS-6111210-SP | SCREW 11/64-40 L=12 | (2) |
| 31 | WP-0450801-SD | WASHER 4.5X10X0.8 | (2) |
| 32 | 229-37965 | DYNAMO STATOR | 1 |
| 33 | SL-4051001-MZ | SCREW M5 L=9.6 | 2 |
| 34 | 400-32142 | SENSOR_SUPPORT_SHAFT_ASM | 1 |
| 35 | 400-29048 | ASSY_MAINSHAFT_BEARING_2 | 1 |
| 36 | 400-28116 | MAIN_SHAFT_SPROCKET | (1) |
| 37 | SB-1200025-00 | BEARING | (1) |
| 38 | SM-8060612-TP | SCREW M6 L=6 | (2) |
| 39 | 400-29047 | ASSY_MAINSHAFT_BEARING | 1 |
| 40 | SM-8060612-TP | SCREW M6 L=6 | (2) |
| 41 | 400-28652 | TIMING_BELT | 1 |
| 42 | TA-0490601-R0 | PLUG D=4.9X5.5 L=6 | 1 |
| 43 | 400-29049 | ASSY_MAINSHAFT_BEARING_3 | 1 |
| 44 | 400-33667 | BEARING_BUSH_C_ASM | (1) |
| 45 | SM-8060812-TP | SCREW M6 L=8 | (2) |
| 46 | SB-1200020-00 | BEARING | (1) |
| 47 | 400-26920 | SYNCHRONIZER ASM | 1 |
| 48 | TA-0500301-R0 | PLUG 5X5.8 L=3 | 1 |
| 49 | TA-0370301-R0 | PLUG D=3.7X4.4 L=3 | 1 |
REF. NO. NOTE PART NO. DESCRIPTION Qty 1 TA-0750404-R0 PLUG D=7.5 L=3.5 1 2 226-05307 THREAD TAKE-UP LEVER PIN 1 3 CQ-2020000-00 OIL WICK 0.15 4 400-24093 THREAD TAKE_UP_LEVER_C 1 5 CQ-2020000-00 OIL WICK 0.04 6 400-22678 TAKE_UP_LEVER_THRUST_PIN 1 7 CQ-2520000-00 OIL WICK 0.02 8 228-10907 RUBBER PLUG 1 9 SM-8060612-TP SCREW M6 L=6 2 10 03 226-22401 SYNCRO FRNGE 1 11 400-29964 NEEDLE_BAR_CRANK_PIN 1 12 CQ-3030000-00 OIL WICK 0.02 13 400-31864 ASSY_COUNTER_WEIGHT 1 14 SM-8060552-TP SCREW M6 L=5 (1) 15 SM-8060612-TP SCREW M6 L=6 (1) 16 400-04171 COUNTER_WEIGHT_SCREW (1) 17 SM-8081652-TP SCREW M8 L=16 (1) 18 400-24436 MAINSHAFT 1 19 400-28117 LOWER_SPROCKET 1 20 * SM-6061010-TP SCREW M6 L=10 2 21 01 400-32987 HAND_WHEEL 1 22 01 SM-8061550-TP SCREW M6 L=15 2 23 02 400-32993 COMP_HAND_WHEEL_TRIM 1 24 400-32994 ASSY_HAND_WHEEL_TRIM (1) 25 400-27099 HAND_WHEEL (1) 26 M4002-110-000 GENERATOR ROTOR (1) 27 400-17624 MAGNET FITTING BASE A ASM. (1) 28 400-17625 MAGNET FITTING BASE B ASM. (1) 29 * SM-8061550-TP SCREW M6 L=15 (2) 30 SS-6111210-SP SCREW 11/64-40 L=12 (2) 31 WP-0450801-SD WASHER 4.5X10X0.8 (2) 32 229-37965 DYNAMO STATOR 1 33 SL-4051001-MZ SCREW M5 L=9.6 2 34 03 400-32142 SENSOR_SUPPORT_SHAFT_ASM 1 35 400-29048 ASSY_MAINSHAFT_BEARING_2 1 36 400-28116 MAIN_SHAFT_SPROCKET (1) 37 SB-1200025-00 BEARING (1) 38 SM-8060612-TP SCREW M6 L=6 (2) 39 400-29047 ASSY_MAINSHAFT_BEARING 1 40 SM-8060612-TP SCREW M6 L=6 (2) 41 400-28652 TIMING_BELT 1 42 TA-0490601-R0 PLUG D=4.9X5.5 L=6 1 43 400-29049 ASSY_MAINSHAFT_BEARING_3 1 44 400-33667 BEARING_BUSH_C_ASM (1) 45 SM-8060812-TP SCREW M6 L=8 (2) 46 * SB-1200020-00 BEARING (1) 47 03 400-26920 SYNCHRONIZER ASM 1 48 TA-0500301-R0 PLUG 5X5.8 L=3 1 49 TA-0370301-R0 PLUG D=3.7X4.4 L=3 1 NOTE (注記) 01....FOR LH-3568 LH-3568用 02....FOR LH-3568-7 LH-3568-7用 03....OPTIONAL PARTS(FOR LH-3568) オプション部品(LH-3568用) - 4 - jintex.in
Page 10 — 3. NEEDLE BAR COMPONENTS
3. NEEDLE BAR COMPONENTS 針棒関係 9 28 37 8 2 1 10~14 15 16 18 17 19 20 21 22 23 36 30 32 31 29 38 34 42 35 34 43 42 34 34 77 83 84 3 5 6 24 25 26 27 39 41 40 47~54 73 74 76 75 78 33 78 33 79 80 81 82 44~46 55 72 56 57 59 58 70 60 61 62 71 63 65 64 66 67 68 69 - 5 - jintex.in
Page 11
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-03702 | ROLLER FELT | 2 |
| 2 | 226-81209 | FELT COVER | 1 |
| 3 | 400-26402 | NEEDLE BAR ROCKING BASE ASM | 1 |
| 4 | 400-26401 | NEEDLE ROD ROCKING BASE | (1) |
| 5 | 400-25329 | NEEDLE BAR SHAFT | (1) |
| 6 | PT-0502700-SO | TAPERED PIN | (1) |
| 7 | 226-82702 | NEEDLE BAR SWIVEL STOPPER | 1 |
| 8 | 226-81712 | STOPPER SCREW | 2 |
| 9 | 400-35629 | FELT | 1 |
| 10 | 226-81951 | SLIDER BLOCK ASM. A | 1 |
| 11 | 226-82058 | SLIDER BLOCK ASM. B | 1 |
| 12 | 226-82157 | SLIDE BLOCK | 1 |
| 13 | 226-82256 | SLIDER BLOCK ASM. D | 1 |
| 14 | 226-82355 | SLIDER BLOCK ASM. E | 1 |
| 15 | 226-81803 | SLIDE BLOCK GUIDE PLATE | 1 |
| 16 | SS-4090715-SP | SCREW 9/64-40 L=7 | 2 |
| 17 | 226-85503 | FELT GUIDE | 1 |
| 18 | WP-0450000-SD | WASHER 4.5X8X0.5 | 1 |
| 19 | SS-7110710-SP | SCREW 11/64-40 L=7 | 1 |
| 20 | 226-86000 | NEEDLE BAR OIL SEAL FELT, A | 1 |
| 21 | 226-85804 | NEEDLE BAR OIL SEAL PLATE | 1 |
| 22 | SS-6060510-TP | SCREW 3/32-56 L=4.5 | 1 |
| 23 | 226-86109 | NEEDLE BAR OIL SEAL FELT, B | 2 |
| 24 | 226-81407 | NEEDLE BAR STOPPER | 2 |
| 25 | 226-81506 | SPRING | 2 |
| 26 | 226-81310 | STOPPER SPRING COVER | 1 |
| 27 | SS-6080410-SP | SCREW 1/8-44 L=4 | 1 |
| 28 | SS-4090415-SP | SCREW 9/64-40 L=4 | 1 |
| 29 | 400-26983 | NEEDLE BAR ASM. LEFT | (1) |
| 30 | 400-26982 | NEEDLE BAR LEFT | (1) |
| 31 | 226-85200 | SEESAW PLATE | (1) |
| 32 | 226-85408 | NEEDLE BAR PIN | (1) |
| 33 | 131-02702 | THROAT PLATE COVER | 2 |
| 34 | B1425-526-000 | SCREW 1/8-44 L=6 | 4 |
| 35 | 400-39561 | ASSY NEEDLE CLAMP L(1/4) | 1 |
| 36 | 400-28668 | RING A | 4 |
| 37 | SS-4090715-SP | SCREW 9/64-40 L=7 | 2 |
| 38 | 400-26984 | NEEDLE BAR ASM. RIGHT | (1) |
| 39 | 400-26981 | NEEDLE BAR RIGHT | (1) |
| 40 | 226-85200 | SEESAW PLATE | (1) |
| 41 | 226-85408 | NEEDLE BAR PIN | 2 |
| 42 | 226-82504 | SPRING BEARING | 1 |
| 43 | B1402-528-FAR-A | NEEDLE CLAMP ASM. 1/4 | 1 |
| 44 | 232-04506 | ROCKING ROD SQUARE BLOCK A | 1 |
| 45 | 232-04605 | ROCKING ROD SQUARE BLOCK B | 1 |
| 46 | 232-04704 | ROCKING ROD SQUARE BLOCK C | 1 |
| 47 | 226-06206 | SPACER X | 1 |
| 48 | 226-06305 | SPACER Y | 1 |
| 49 | 226-07600 | SPACER A | 1 |
| 50 | 226-07709 | SPACER B | 1 |
| 51 | B1438-512-B00 | WASHER 17.1X28X1.5 | 1 |
| 52 | 226-07808 | SPACER D | 1 |
| 53 | 226-07907 | SPACER E | 1 |
| 54 | 226-06404 | SPACER F | 1 |
| 55 | 400-32147 | NEEDLE BAR CONNECTION ASM | (1) |
| 56 | 226-83205 | RELEASE PIN COVER | (1) |
| 57 | 226-83304 | SPRING | (1) |
| 58 | 400-24473 | RELEASE PIN | (2) |
| 59 | 226-83809 | SPRING | (1) |
| 60 | 400-28679 | NEEDLE BAR CONNECTION | (2) |
| 61 | 226-83403 | NEEDLE BAR CONNECTION PIN | (1) |
| 62 | 226-84104 | SPRING | (2) |
| 63 | SS-8080340-SP | SCREW 1/8-44 L=2.9 | (2) |
| 64 | 226-84203 | SPRING BRACKET | (1) |
| 65 | 226-83908 | CLUTCH STOPPER, LEFT | (1) |
| 66 | 226-84005 | CLUTCH STOPPER, RIGHT | (1) |
| 67 | 400-24064 | NEEDLE BAR CLUTCH | (2) |
| 68 | B1795-850-000 | STOPPER PIN | (2) |
| 69 | 226-83601 | CLUTCH LEVER | (2) |
| 70 | CQ-2520000-00 | OIL WICK | (0.03) |
| 71 | 400-15144 | NEEDLE BAR CONNECTION PIN | (1) |
| 72 | SS-7060310-SP | SCREW 3/32-56 L=3 | (1) |
| 73 | 400-23568 | BUSHING | 1 |
| 74 | 400-23569 | BUSHING | 1 |
| 75 | 400-33669 | ASSY REAR ARM | 1 |
| 76 | SM-6062502-TP | SCREW M6 L=25 | (1) |
| 77 | 226-85705 | OIL GUARD RUBBER | 2 |
| 78 | 400-26482 | SHOULDER SCREW | 1 |
| 79 | 400-32124 | DRIVING ROD ASM | 1 |
| 80 | 400-28853 | ASSY DRIVING ARM | (1) |
| 81 | SM-6051600-SP | SCREW M5 L=16 | (1) |
| 82 | 400-28200 | NEEDLE BAR CRANK ROD | 1 |
| 83 | MDP-50081400 | NEEDLE DPX5 #14 | 2 |
| 84 | MDP-17082100 | NEEDLE DPX17 #21 | 2 |
REF. NO. NOTE PART NO. DESCRIPTION Qty 1 229-03702 ROLLER FELT 2 2 226-81209 FELT COVER 1 3 400-26402 NEEDLE BAR ROCKING BASE ASM 1 4 400-26401 NEEDLE ROD ROCKING BASE (1) 5 400-25329 NEEDLE BAR SHAFT (1) 6 PT-0502700-SO TAPERED PIN (1) 7 226-82702 NEEDLE BAR SWIVEL STOPPER 1 8 226-81712 STOPPER SCREW 2 9 400-35629 FELT 1 10 01 226-81951 SLIDER BLOCK ASM. A 1 11 01 226-82058 SLIDER BLOCK ASM. B 1 12 01 226-82157 SLIDE BLOCK 1 13 01 226-82256 SLIDER BLOCK ASM. D 1 14 01 226-82355 SLIDER BLOCK ASM. E 1 15 226-81803 SLIDE BLOCK GUIDE PLATE 1 16 SS-4090715-SP SCREW 9/64-40 L=7 2 17 226-85503 FELT GUIDE 1 18 WP-0450000-SD WASHER 4.5X8X0.5 1 19 SS-7110710-SP SCREW 11/64-40 L=7 1 20 226-86000 NEEDLE BAR OIL SEAL FELT, A 1 21 226-85804 NEEDLE BAR OIL SEAL PLATE 1 22 SS-6060510-TP SCREW 3/32-56 L=4.5 1 23 226-86109 NEEDLE BAR OIL SEAL FELT, B 2 24 226-81407 NEEDLE BAR STOPPER 2 25 226-81506 SPRING 2 26 226-81310 STOPPER SPRING COVER 1 27 SS-6080410-SP SCREW 1/8-44 L=4 1 28 SS-4090415-SP SCREW 9/64-40 L=4 1 29 400-26983 NEEDLE BAR ASM. LEFT (1) 30 400-26982 NEEDLE BAR LEFT (1) 31 226-85200 SEESAW PLATE (1) 32 226-85408 NEEDLE BAR PIN (1) 33 131-02702 THROAT PLATE COVER 2 34 B1425-526-000 SCREW 1/8-44 L=6 4 35 02 400-39561 ASSY NEEDLE CLAMP L(1/4) 1 36 400-28668 RING A 4 37 SS-4090715-SP SCREW 9/64-40 L=7 2 38 400-26984 NEEDLE BAR ASM. RIGHT (1) 39 400-26981 NEEDLE BAR RIGHT (1) 40 226-85200 SEESAW PLATE (1) 41 226-85408 NEEDLE BAR PIN 2 42 226-82504 SPRING BEARING 1 43 02 B1402-528-FAR-A NEEDLE CLAMP ASM. 1/4 1 44 01 232-04506 ROCKING ROD SQUARE BLOCK A 1 45 01 232-04605 ROCKING ROD SQUARE BLOCK B 1 46 01 232-04704 ROCKING ROD SQUARE BLOCK C 1 47 *01 226-06206 SPACER X 1 48 *01 226-06305 SPACER Y 1 49 *01 226-07600 SPACER A 1 50 *01 226-07709 SPACER B 1 51 *01 B1438-512-B00 WASHER 17.1X28X1.5 1 52 *01 226-07808 SPACER D 1 53 *01 226-07907 SPACER E 1 54 *01 226-06404 SPACER F 1 55 400-32147 NEEDLE BAR CONNECTION ASM (1) 56 226-83205 RELEASE PIN COVER (1) 57 226-83304 SPRING (1) 58 400-24473 RELEASE PIN (2) 59 226-83809 SPRING (1) 60 400-28679 NEEDLE BAR CONNECTION (2) 61 226-83403 NEEDLE BAR CONNECTION PIN (1) 62 226-84104 SPRING (2) 63 SS-8080340-SP SCREW 1/8-44 L=2.9 (2) 64 226-84203 SPRING BRACKET (1) 65 226-83908 CLUTCH STOPPER, LEFT (1) 66 226-84005 CLUTCH STOPPER, RIGHT (1) 67 400-24064 NEEDLE BAR CLUTCH (2) 68 B1795-850-000 STOPPER PIN (2) 69 226-83601 CLUTCH LEVER (2) 70 CQ-2520000-00 OIL WICK (0.03) 71 400-15144 NEEDLE BAR CONNECTION PIN (1) 72 SS-7060310-SP SCREW 3/32-56 L=3 (1) 73 400-23568 BUSHING 1 74 400-23569 BUSHING 1 75 400-33669 ASSY REAR ARM 1 76 * SM-6062502-TP SCREW M6 L=25 (1) 77 226-85705 OIL GUARD RUBBER 2 78 400-26482 SHOULDER SCREW 1 79 400-32124 DRIVING ROD ASM 1 80 400-28853 ASSY DRIVING ARM (1) 81 SM-6051600-SP SCREW M5 L=16 (1) 82 400-28200 NEEDLE BAR CRANK ROD 1 83 * 01 MDP-50081400 NEEDLE DPX5 #14 2 84 * 01 MDP-17082100 NEEDLE DPX17 #21 2 NOTE (注記) 01....SELECTIVE PARTS 02....EXCHANGING GAUGE PARTS (SEE.P.33,34) 選択部品 交換ゲージ部品 (33,34ページを参照下さい。) - 6 - jintex.in
Page 12 — 4. TENSION POST COMPONENTS
4. TENSION POST COMPONENTS 糸調子関係 68 69 66 67 54 53 56 62 63 65 64 57 59 61 60 47 52 59 58 50 51 48 49 55 70 28 33 28 24 46 45 41 37 36 35 31 42 43 40 31 3 29 31 32 21 27 39 25 38 23 30 21 23 22 34 44 1 2 4 8 7 6 5 20 11 16 12 15 19 17 18 14 13 9 10 26 20 11 16 12 15 19 17 18 14 13 9 10 - 7 - jintex.in
Page 13
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-32710 | COMP. THREAD TENSION 68S | 1 |
| 2 | 400-32711 | COMP. THREAD TENSION 68G | 1 |
| 3 | 400-28250 | ASSY. TENSION BASE PLATE | (1) |
| 4 | 400-52366 | ASSY. THREAD TENSION | (2) |
| 5 | 110-72402 | THREAD TENSION NUT | (1) |
| 6 | 229-45505 | THREAD TENSION SPRING | (1) |
| 7 | B3214-047-000 | BOBBIN WINDER TENSION DISC | (2) |
| 8 | 225-29473 | BOBBIN WINDER TENSION ROD ASM. | (1) |
| 9 | 236-26054 | THREAD TENSION ASM. | (2) |
| 10 | 236-26062 | THREAD TENSION ASM., H | (2) |
| 11 | 229-45907 | THREAD TENSION POST BASE | (1) |
| 12 | 229-21209 | THREAD TENSION POST | (1) |
| 13 | 236-26003 | THREAD TENSION NUT | (1) |
| 14 | 229-21407 | ROTATION STOPPER | (1) |
| 15 | 229-21506 | THREAD TENSION DISK | (2) |
| 16 | 229-21505 | THREAD TAKE-UP SPRING | (1) |
| 17 | 229-21704 | THREAD TENSION SPRING, A | (1) |
| 18 | 229-62005 | THREAD TENSION SPRING | (1) |
| 19 | 229-21803 | DISK STOPPER | (1) |
| 20 | SS-8090670-SP | SCREW 9/64-40 L= 5.5 | (1) |
| 21 | B1118-512-000-A | THREAD GUIDE, A | (2) |
| 22 | 228-11301 | THREAD GUIDE(UPPER), RIGHT | (1) |
| 23 | 232-03201 | TAKE-UP THREAD GUIDE | (2) |
| 24 | 400-34660 | DISK RELEASE PLATE | (1) |
| 25 | 232-03300 | THREAD GUIDE COLLAR | (2) |
| 26 | B3118-552-D00 | TENSION RELEASE PIN, NO.2 | (1) |
| 27 | B3118-416-000 | TENSION RELEASE PIN | (1) |
| 28 | SD-0470318-TP | SHOULDER SCREW D=4.7 H=3.1 | (3) |
| 29 | SM-8050612-TP | SCREW M5X6 | (2) |
| 30 | SS-5091020-SP | SCREW 9/64-40 L= 9.5 | (2) |
| 31 | NS-6080210-SP | NUT 1/8-44 | (3) |
| 32 | NS-6110310-SP | NUT 11/64-40 | (2) |
| 33 | 400-34840 | RELEASE LEVER | (1) |
| 34 | SS-6090520-SP | SCREW 9/64-40 L= 5.0 | (1) |
| 35 | 400-09222 | PRESSER PLATE ADJUSTING SPRING | (1) |
| 36 | WP-0350516-SD | WASHER 3.5X6X0.5 | (1) |
| 37 | 400-15699 | SPRING GUIDE | (1) |
| 38 | 400-28258 | REPOSITIONING LEVER BASE | (1) |
| 39 | SM-7050850-TP | SCREW M5 L=8 | (2) |
| 40 | 400-28262 | REPOSITIONING RELEASE LEVER | (1) |
| 41 | SD-0601171-SP | HINGE SCREW D=6 H=11.7 | (1) |
| 42 | B1449-526-000 | REPOSITIONING LEVER SPRING | (1) |
| 43 | WP-0450801-SP | WASHER | (1) |
| 44 | 400-35441 | LABEL | (1) |
| 45 | 400-28843 | LEVER PIN SCREW | 1 |
| 46 | NM-6050001-SP | NUT M5 | 1 |
| 47 | SM-4050855-SP | SCREW | 2 |
| 48 | 400-28259 | ASSY. REPOSITIONING LEVER | 1 |
| 49 | SM-6050450-TP | SCREW M5 L=4 | 1 |
| 50 | SM-4040855-SP | SCREW | 1 |
| 51 | SM-8040412-TP | SET SCREW M4 L=4 | 1 |
| 52 | 400-28844 | REPOSITIONING LEVER SHAFT | 1 |
| 53 | 400-32327 | ASSY. REPOSITIONING ARM | 1 |
| 54 | SM-6051202-TP | SCREW M5X0.8 L=12 | (1) |
| 55 | CM-3004009-02 | LABEL 02 | 1 |
| 56 | SD-0640752-TP | HINGE SCREW D= 6.35 H= 7.5 | 1 |
| 57 | 226-87503 | SPRING | 2 |
| 58 | 226-87701 | SPRING SHAFT | 1 |
| 59 | RE-0700000-K0 | E-RING 7 | 2 |
| 60 | 226-87602 | SPRING BASE | 1 |
| 61 | SM-4050855-SP | SCREW | 2 |
| 62 | 226-87107 | REPOSITIONING PLATE | 1 |
| 63 | SD-0640247-TP | SHOULDER SCREW D=6.35 H=2.4 | 2 |
| 64 | 226-87008 | LEAF SPRING | 1 |
| 65 | SS-9110460-CP | SCREW 11/64-40 L=4 | 1 |
| 66 | 400-28641 | ADJUSTING SPRING | 1 |
| 67 | 226-15702 | OIL ADJUSTING BALL | 1 |
| 68 | SM-8061212-TP | SCREW M6X12 | 1 |
| 69 | NM-6060001-CP | NUT M6 | 1 |
| 70 | CM-3004009-01 | LABEL 01 | 1 |
REF. NO. NOTE PART NO. DESCRIPTION Qty. 1 01 400-32710 COMP. THREAD TENSION 68S 1 2 02 400-32711 COMP. THREAD TENSION 68G 1 3 400-28250 ASSY. TENSION BASE PLATE (1) 4 * 400-52366 ASSY. THREAD TENSION (2) 5 * 110-72402 THREAD TENSION NUT (1) 6 229-45505 THREAD TENSION SPRING (1) 7 B3214-047-000 BOBBIN WINDER TENSION DISC (2) 8 225-29473 BOBBIN WINDER TENSION ROD ASM. (1) 9 01 236-26054 THREAD TENSION ASM. (2) 10 02 236-26062 THREAD TENSION ASM., H (2) 11 229-45907 THREAD TENSION POST BASE (1) 12 229-21209 THREAD TENSION POST (1) 13 236-26003 THREAD TENSION NUT (1) 14 229-21407 ROTATION STOPPER (1) 15 229-21506 THREAD TENSION DISK (2) 16 229-21505 THREAD TAKE-UP SPRING (1) 17 01 229-21704 THREAD TENSION SPRING, A (1) 18 02 229-62005 THREAD TENSION SPRING (1) 19 229-21803 DISK STOPPER (1) 20 SS-8090670-SP SCREW 9/64-40 L= 5.5 (1) 21 B1118-512-000-A THREAD GUIDE, A (2) 22 228-11301 THREAD GUIDE(UPPER), RIGHT (1) 23 232-03201 TAKE-UP THREAD GUIDE (2) 24 400-34660 DISK RELEASE PLATE (1) 25 232-03300 THREAD GUIDE COLLAR (2) 26 * B3118-552-D00 TENSION RELEASE PIN, NO.2 (1) 27 * B3118-416-000 TENSION RELEASE PIN (1) 28 SD-0470318-TP SHOULDER SCREW D=4.7 H=3.1 (3) 29 SM-8050612-TP SCREW M5X6 (2) 30 SS-5091020-SP SCREW 9/64-40 L= 9.5 (2) 31 NS-6080210-SP NUT 1/8-44 (3) 32 NS-6110310-SP NUT 11/64-40 (2) 33 400-34840 RELEASE LEVER (1) 34 SS-6090520-SP SCREW 9/64-40 L= 5.0 (1) 35 400-09222 PRESSER PLATE ADJUSTING SPRING (1) 36 WP-0350516-SD WASHER 3.5X6X0.5 (1) 37 400-15699 SPRING GUIDE (1) 38 400-28258 REPOSITIONING LEVER BASE (1) 39 SM-7050850-TP SCREW M5 L=8 (2) 40 400-28262 REPOSITIONING RELEASE LEVER (1) 41 SD-0601171-SP HINGE SCREW D=6 H=11.7 (1) 42 B1449-526-000 REPOSITIONING LEVER SPRING (1) 43 WP-0450801-SP WASHER (1) 44 400-35441 LABEL (1) 45 400-28843 LEVER PIN SCREW (1) 46 NM-6050001-SP NUT M5 (1) 47 SM-4050855-SP SCREW (2) 48 400-28259 ASSY. REPOSITIONING LEVER (1) 49 SM-6050450-TP SCREW M5 L=4 (1) 50 SM-4040855-SP SCREW (1) 51 SM-8040412-TP SET SCREW M4 L=4 (1) 52 400-28844 REPOSITIONING LEVER SHAFT (1) 53 400-32327 ASSY. REPOSITIONING ARM (1) 54 SM-6051202-TP SCREW M5X0.8 L=12 (1) 55 04 CM-3004009-02 LABEL 02 (1) 56 SD-0640752-TP HINGE SCREW D= 6.35 H= 7.5 (1) 57 226-87503 SPRING (2) 58 226-87701 SPRING SHAFT (1) 59 RE-0700000-K0 E-RING 7 (2) 60 226-87602 SPRING BASE (1) 61 SM-4050855-SP SCREW (2) 62 226-87107 REPOSITIONING PLATE (1) 63 SD-0640247-TP SHOULDER SCREW D=6.35 H=2.4 (2) 64 226-87008 LEAF SPRING (1) 65 SS-9110460-CP SCREW 11/64-40 L=4 (1) 66 400-28641 ADJUSTING SPRING (1) 67 226-15702 OIL ADJUSTING BALL (1) 68 SM-8061212-TP SCREW M6X12 (1) 69 NM-6060001-CP NUT M6 (1) 70 03 CM-3004009-01 LABEL 01 (1) NOTE (注記) 01....TYPE S 02....TYPE G 03....FOR CHINA 04....EXCEPT CHINA - 8 - jintex.in
Page 14 — 5. HOOK & HOOK DRIVING SHAFT COMPONENTS (1)
5. HOOK & HOOK DRIVING SHAFT COMPONENTS (1) 釜・下軸関係 (1) 3 4 19 16 18 15 17 20 6 7 11 8 9 12 14 5 33 29 10 31 28 13 32 21 30 34 36 22~26 27 1 35 41~46 47 2 37 38 39 40 33 29 31 28 32 30 34 36 22~26 27 1 41~46 35 47 2 - 9 - jintex.in
Page 15
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 400-42121 | HOOK_UPPER_BUSH | 2 | |
| 400-28491 | HOOK_LOWER_BUSH | 2 | |
| 400-36684 | ASSY-CAP HOOK | 2 | |
| 400-36685 | ASSY-CAP HOOK TRIM | 2 | |
| 400-36687 | OUTER HOOK TRIM | (1) | |
| 226-12709 | BOBBIN BASKET | (1) | |
| 400-39391 | CAP_INNERHOOK | (1) | |
| 226-12204 | HOOK GIB | (1) | |
| 400-36689 | HOOK_GIB_TRIM | (1) | |
| 226-12303 | NEEDLE POSITIONER | (1) | |
| 101-12803 | SCREW | (2) | |
| 400-12085 | OIL PLUG | (1) | |
| 101-12902 | SCREW | (2) | |
| 110-15906 | OIL WICK | (1) | |
| 226-88105 | BOBBIN CASE | (1) | |
| 226-88402 | TENSION ADJUSTING SPRING | (1) | |
| 226-88204 | SPRING | (1) | |
| 101-10500 | TENSION SPRING INSTALLING SCRE | (1) | |
| 226-12907 | TENSION ADJUSTING SCREW | (1) | |
| SS-6560150-SH | SCREW 3/32-80 L=1.3 | (1) | |
| TA-0290301-MO | PLUG | (1) | |
| 226-14001 | THRUST WASHER, A | 2 | |
| 226-14101 | THRUST WASHER, B | 2 | |
| 226-14200 | SPACER, C | 2 | |
| 101-12905 | THRUST WASHER 1.7 | 2 | |
| 101-12704 | THRUST WASHER 1.8 | 2 | |
| B1822-051-000 | OPENING LEVER CRANK | 2 | |
| B1820-563-000 | BOBBIN CASE OPENING LEVER LINK | 2 | |
| B1821-051-000 | CRANK SCREW STUD | 2 | |
| 226-13509 | BOBBIN CASE OPENING LEVER | 2 | |
| SS-6090810-TP | SCREW 9/64-40 L=7.5 | 2 | |
| WP-0371016-SD | WASHER 3.7X8X1 | 2 | |
| CQ-2020000-00 | OIL WICK | 0.3 | |
| CQ-2020000-00 | OIL WICK | 0.3 | |
| NS-6110420-SP | NUT 11/64-40 | 2 | |
| B1823-051-000 | OPENING LEVER CRANK PIN | 2 | |
| B9117-051-000 | BOBBIN | 2 | |
| 102-10805 | HARD ALUMITE BOBBIN | 2 | |
| 226-53802 | SHEET | 2 | |
| 101-11508 | SPRING | 2 | |
| 400-28560 | HOOK SHAFT GEAR-A | 2 | |
| 400-28561 | HOOK SHAFT GEAR-B | 2 | |
| 400-28562 | HOOK SHAFT GEAR-C | 2 | |
| 400-28563 | HOOK SHAFT GEAR-D | 2 | |
| 400-40549 | HOOK SHAFT GEAR-E | 2 | |
| 400-40550 | HOOK SHAFT GEAR-F | 2 | |
| SM-8060550-TP | SCREW M6 L=4.5 | 6 |
REF. NO NOTE PART NO. DESCRIPTION Qty 1 400-42121 HOOK_UPPER_BUSH カマシ クウリメタル 2 2 400-28491 HOOK_LOWER_BUSH カマシ クシタメタル 2 3 02 400-36684 ASSY-CAP HOOK カタハリツカマ (クミ) 2 4 03 400-36685 ASSY-CAP HOOK TRIM イトキリタカマ (クミ) 2 5 * 400-36687 OUTER HOOK TRIM イトキリツカマ (1) 6 *02 226-12709 BOBBIN BASKET キャップ ナカマ (1) 7 *03 400-39391 CAP_INNERHOOK CAP_INNERHOOK (1) 8 *02 226-12204 HOOK GIB ナカマ マオサエ (1) 9 *03 400-36689 HOOK_GIB_TRIM ナカマオサエ (イトキリ) (1) 10 * 226-12303 NEEDLE POSITIONER ハリウツク (1) 11 * 101-12803 SCREW オサエトメネジ (2) 12 * 400-12085 OIL PLUG オイルプラグ (1) 13 * 101-12902 SCREW ハリウツク トメネジ (2) 14 * 110-15906 OIL WICK シモジ クマエトメネジ ユシン (1) 15 * 226-88105 BOBBIN CASE ボビン ケース (カタハリ リヨウ) (1) 16 * 226-88402 TENSION ADJUSTING SPRING シタイトチョウセツネ (0.3) (1) 17 * 226-88204 SPRING シタイトキュウシュウバネ (1) 18 * 101-10500 TENSION SPRING INSTALLING SCRE Tシタイトチョウセツバネ トメネジ (1) 19 * 226-12907 TENSION ADJUSTING SCREW シタイトチョウセツクミセネジ (1) 20 * SS-6560150-SH SCREW 3/32-80 L=1.3 ヒラネジ 3/32-80 L=13.2 (1) 21 * TA-0290301-MO PLUG トメネジ D=2.9X3.2 L=3 (1) 22 01 226-14001 THRUST WASHER, A カマシ クシヨウメタルスペーサ A 2 23 01 226-14101 THRUST WASHER, B カマシ クシヨウメタルスペーサ B 2 24 01 226-14200 SPACER, C カマシ クシヨウメタルスペーサ C 2 25 01 101-12905 THRUST WASHER 1.7 カマシ クウリメタル スラストライタ 1.7 2 26 01 101-12704 THRUST WASHER 1.8 カマシ クウリメタル スラストライタ 1.8 2 27 B1822-051-000 OPENING LEVER CRANK ナカガマ アンナイテヅク 2 28 B1820-563-000 BOBBIN CASE OPENING LEVER LINK ナカガマ アンナイリンク 2 29 B1821-051-000 CRANK SCREW STUD ナカガマ アンナイ クランクピン 2 30 226-13509 BOBBIN CASE OPENING LEVER ナカガマ アンナイ (ユカマ) 2 31 SS-6090810-TP SCREW 9/64-40 L=7.5 ヒラネジ 9/64-40 L=7.5 2 32 WP-0371016-SD WASHER 3.7X8X1 ヒラダネ 3.7X8X1 2 33 CQ-2020000-00 OIL WICK ユシン 0.3 34 CQ-2020000-00 OIL WICK ユシン 0.3 35 NS-6110420-SP NUT 11/64-40 ロツカクナツト 11/64-40 2 36 B1823-051-000 OPENING LEVER CRANK PIN ナカガマ アンナイテヅク 2 37 * 02 B9117-051-000 BOBBIN ボビン 2 38 * 03 102-10805 HARD ALUMITE BOBBIN コウシグアルマイト ボビン 2 39 * 03 226-53802 SHEET クウテンボ ウシヤト 2 40 * 03 101-11508 SPRING クーテンボ シヤネ 2 41 01 400-28560 HOOK SHAFT GEAR-A カマシ クネシ ハグルマA 2 42 01 400-28561 HOOK SHAFT GEAR-B カマシ クネシ ハグルマB 2 43 01 400-28562 HOOK SHAFT GEAR-C カマシ クネシ ハグルマC 2 44 01 400-28563 HOOK SHAFT GEAR-D カマシ クネシ ハグルマD 2 45 01 400-40549 HOOK SHAFT GEAR-E カマシ クネシ ハグルマE 2 46 01 400-40550 HOOK SHAFT GEAR-F カマシ クネシ ハグルマF 2 47 SM-8060550-TP SCREW M6 L=4.5 トメネジ M6 L=4.5 6 NOTE (注記) 01...SELECTIVE PARTS 選択部品 02...FOR LH-3568 LH-3568用 03...FOR LH-3568-7 LH-3568-7用 - 10 - jintex.in
Page 16 — 6. HOOK & HOOK DRIVING SHAFT COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 21 | 21 | ||
| 22 | 22 | ||
| 26~29 | 26~29 | ||
| 37 | 37 | ||
| 36 | 36 | ||
| 37 | 37 | ||
| 2 | 2 | ||
| 20 | 20 | ||
| 23 | 23 | ||
| 39 | 39 | ||
| 19 | 19 | ||
| 12 | 12 | ||
| 14 | 14 | ||
| 15 | 15 | ||
| 13 | 13 | ||
| 25 | 25 | ||
| 24 | 24 | ||
| 15 | 15 | ||
| 18 | 18 | ||
| 32 | 32 | ||
| 33 | 33 | ||
| 34 | 34 | ||
| 34 | 34 | ||
| 37 | 37 | ||
| 36 | 36 | ||
| 30 | 30 | ||
| 16 | 16 | ||
| 17 | 17 | ||
| 25 | 25 | ||
| 31 | 31 | ||
| 6 | 6 | ||
| 4 | 4 | ||
| 5 | 5 | ||
| 5 | 5 | ||
| 3 | 3 | ||
| 38 | 38 | ||
| 1 | 1 | ||
| 41-2 | 41-2 | ||
| 41 | 41 | ||
| 40 | 40 | ||
| 42 | 42 | ||
| 43 | 43 | ||
| 45 | 45 | ||
| 44 | 44 | ||
| 43 | 43 | ||
| 35 | 35 | ||
| 7 | 7 | ||
| 42 | 42 |
6. HOOK & HOOK DRIVING SHAFT COMPONENTS (2) 釜・下軸関係 (2) 21 22 26~29 37 36 37 2 20 23 39 19 12 14 15 13 25 24 15 18 32 33 34 34 37 36 30 16 17 25 31 6 4 5 5 3 38 1 41-2 41 40 42 43 45 44 43 35 7 42 - 11 - jintex.in
Page 17
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 400-28271 | LOWER SHAFT | 1 | |
| 400-28851 | LOWER SHAFT BUSH-F | 1 | |
| 400-30915 | LOWER SHAFT BUSH-M | 1 | |
| 400-31351 | ASSY-LOWER SHAFT COLLAR | 1 | |
| SM-8060612-TP | SCREW MG L=6 | (2) | |
| 400-13061 | THRUST WASHER | 1 | |
| 236-18804 | OIL SEAL | 1 | |
| 01 | 400-28485 | HOOK SHAFT BASE-L | |
| 02 | 400-28487 | HOOK SHAFT BASE-L-TRIM | |
| 03 | 400-34969 | HOOK SHAFT BASE L | |
| 04 | 400-34971 | HOOK SHAFT BASE L-TRIM | |
| 400-22589 | BOTTOM COVER | 2 | |
| 400-22590 | BOTTOM COVER GASKET | 2 | |
| SM-4050855-SP | SCREW M5 L=8 | 8 | |
| SQ-2050453-MZ | CONNECTING SCREW | 4 | |
| 400-42141 | OIL ADJUSTING SCREW | 2 | |
| RO-0442401-00 | RUBBER RING | 2 | |
| 400-29570 | OIL ADJUSTING SPRING | 2 | |
| TA-0290301-MO | PLUG | 6 | |
| SM-8051002-TP | SCREW M5 L=10 | 2 | |
| 101-09908 | SADDLE INSTALLING BLOCK, UPPER | 2 | |
| 101-12407 | SADDLE INSTALLING BLOCK, LOWER | 2 | |
| SS-6153040-SP | SCREW 15/64-28 L=30 | 2 | |
| SM-6063502-SP | SCREW M6 L=35 | 2 | |
| WP-0621016-SD | WASHER 6.2X13X1 | 2 | |
| 01 | 400-28486 | HOOK SHAFT BASE-R | |
| 02 | 400-28488 | HOOK SHAFT BASE-R-TRIM | |
| 03 | 400-34970 | HOOK SHAFT BASE R | |
| 04 | 400-34972 | HOOK SHAFT BASE R-TRIM | |
| TA-0290301-MO | PLUG | 6 | |
| SM-6062502-TP | SCREW M6 L=25 | 1 | |
| 400-28495 | GEAR GUIDE-L | 1 | |
| 400-28496 | GEAR GUIDE-R | 1 | |
| SM-4050655-SP | SCREW M5 L=6 | 4 | |
| SQ-2060451-MZ | CONNECTING SCREW | 2 | |
| 400-28489 | LOWER SHAFT GEAR | 2 | |
| SM-8060610-TP | SCREW M6 L=6 | 4 | |
| SM-8060612-TP | SCREW M6 L=6 | 1 | |
| SM-8060612-TP | SCREW M6 L=6 | 1 | |
| 400-28656 | ASSY-LOWER SHAFT BEARING | 1 | |
| SM-8060612-TP | SCREW M6 L=6 | (2) | |
| RO-2573501-00 | O-RING | 1 | |
| 228-88507 | OIL SEAL | 2 | |
| 400-11947 | LOWER PLUNGER BUSH | 1 | |
| SQ-2050453-MZ | CONNECTING SCREW | 2 |
REF. NO NOTE PART NO. DESCRIPTION Qty. 1 400-28271 LOWER SHAFT シモジク 1 2 400-28851 LOWER SHAFT BUSH-F シモジク クメメタル 1 3 400-30915 LOWER SHAFT BUSH-M シモジク クナメメタル 1 4 400-31351 ASSY-LOWER SHAFT COLLAR シモジク クラスラトカラー (クミ) 1 5 SM-8060612-TP SCREW MG L=6 トメネジ M6 L=6 (2) 6 400-13061 THRUST WASHER スラストワッシャー 1 7 236-18804 OIL SEAL ショウゲ オクリシ・クウシロオイルシール 1 8 01 400-28485 HOOK SHAFT BASE-L カマシ クタダイ (ヒダリ) 1 9 02 400-28487 HOOK SHAFT BASE-L-TRIM イトキリ・カマシ クタダイ (ヒダリ) 1 10 03 400-34969 HOOK SHAFT BASE L カマシ クタダイ (ヒダリ) コカマ 1 11 04 400-34971 HOOK SHAFT BASE L-TRIM イトキリ・カマシ クタダイ (ヒダリ) コカマ 1 12 400-22589 BOTTOM COVER カマシ クタダイフタ 2 13 400-22590 BOTTOM COVER GASKET カマシ クタダイパッキン 2 14 SM-4050855-SP SCREW M5 L=8 トメネジ M5 L=8 8 15 SQ-2050453-MZ CONNECTING SCREW ハノイブレ・レンケツ・ネジ 4 16 400-42141 OIL ADJUSTING SCREW オイルチョウセツ・ネジ 2 17 RO-0442401-00 RUBBER RING Oリング 2 18 400-29570 OIL ADJUSTING SPRING ユリコウチョウ・スプリング 2 19 TA-0290301-MO PLUG トメセン D=2.9X3.2 L=3 6 20 SM-8051002-TP SCREW M5 L=10 トメネジ 2 21 101-09908 SADDLE INSTALLING BLOCK, UPPER カマシ クタダイ・メウエ 2 22 101-12407 SADDLE INSTALLING BLOCK, LOWER カマシ クタダイ・メシタ 2 23 SS-6153040-SP SCREW 15/64-28 L=30 ヒラネジ 15/64-28 L=30 2 24 SM-6063502-SP SCREW M6 L=35 ヒラネジ M6 L=35 2 25 WP-0621016-SD WASHER 6.2X13X1 ヒラザガネ 6.2X13X1 2 26 01 400-28486 HOOK SHAFT BASE-R カマシ クタダイ (ミギ) 1 27 02 400-28488 HOOK SHAFT BASE-R-TRIM イトキリ・カマシ クタダイ (ミギ) 1 28 03 400-34970 HOOK SHAFT BASE R カマシ クタダイ (ミギ) コカマ 1 29 04 400-34972 HOOK SHAFT BASE R-TRIM イトキリ・カマシ クタダイ (ミギ) コカマ 1 30 TA-0290301-MO PLUG トメセン D=2.9X3.2 L=3 6 31 SM-6062502-TP SCREW M6 L=25 ロツカクアナボルト M6 L=25 1 32 400-28495 GEAR GUIDE-L ギヤ・ガイ ド (ヒダリ) 1 33 400-28496 GEAR GUIDE-R ギヤ・ガイ ド (ミギ) 1 34 SM-4050655-SP SCREW M5 L=6 ナベ・コネジ M5 L=6 4 35 SQ-2060451-MZ CONNECTING SCREW ハノイブレ・レンケツ・ネジ 2 36 400-28489 LOWER SHAFT GEAR シモジク クミ・ギヤ 2 37 SM-8060610-TP SCREW M6 L=6 トメネジ M6 L=6 4 38 SM-8060612-TP SCREW M6 L=6 トメネジ M6 L=6 1 39 SM-8060612-TP SCREW M6 L=6 トメネジ M6 L=6 1 40 400-28656 ASSY-LOWER SHAFT BEARING シモジク クベア・リング (クミ) 1 41 SM-8060612-TP SCREW M6 L=6 トメネジ M6 L=6 (2) 42 RO-2573501-00 O-RING Oリング 1 43 228-88507 OIL SEAL オクリレバ・クウシロオイルシール 2 44 400-11947 LOWER PLUNGER BUSH シモジク プランジャー・メタル 1 45 SQ-2050453-MZ CONNECTING SCREW ハノイブレ・レンケツ・ネジ 2 NOTE (注記) 01....FOR LH-3568(EXCEPT CHINA) LH-3568 (中国を除く) 用 02....FOR LH-3568-7(EXCEPT CHINA) LH-3568-7 (中国を除く) 用 03....FOR LH-3568(CHINA) LH-3568 (中国) 用 04....FOR LH-3568-7(CHINA) LH-3568-7 (中国) 用 - 12 jinte.in
Page 18 — 7. FEED MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | ||
| 2 | 2 | ||
| 3 | 3 | ||
| 4 | 4 | ||
| 5 | 5 | ||
| 6 | 6 | ||
| 7 | 7 | ||
| 8 | 8 | ||
| 9 | 9 | ||
| 10 | 10 | ||
| 11 | 11 | ||
| 12 | 12 | ||
| 13 | 13 | ||
| 14 | 14 | ||
| 15 | 15 | ||
| 16 | 16 | ||
| 17 | 17 | ||
| 18 | 18 | ||
| 19 | 19 | ||
| 20 | 20 | ||
| 21 | 21 | ||
| 22 | 22 | ||
| 23 | 23 | ||
| 24 | 24 | ||
| 25 | 25 | ||
| 26 | 26 | ||
| 27 | 27 | ||
| 28 | 28 | ||
| 29 | 29 | ||
| 30 | 30 | ||
| 31 | 31 | ||
| 32 | 32 | ||
| 33 | 33 | ||
| 34 | 34 | ||
| 35 | 35 | ||
| 36 | 36 | ||
| 37 | 37 | ||
| 38 | 38 | ||
| 39 | 39 | ||
| 40 | 40 | ||
| 41 | 41 | ||
| 42 | 42 | ||
| 43 | 43 | ||
| 44 | 44 | ||
| 45 | 45 | ||
| 46 | 46 | ||
| 47 | 47 | ||
| 48 | 48 | ||
| 49 | 49 | ||
| 50 | 50 | ||
| 51 | 51 | ||
| 52 | 52 | ||
| 53 | 53 | ||
| 54 | 54 | ||
| 55 | 55 | ||
| 56 | 56 | ||
| 57 | 57 | ||
| 58 | 58 | ||
| 59 | 59 | ||
| 60 | 60 | ||
| 61 | 61 | ||
| 62 | 62 | ||
| 63 | 63 | ||
| 64 | 64 | ||
| 65 | 65 | ||
| 66 | 66 | ||
| 67 | 67 | ||
| 68 | 68 | ||
| 69 | 69 | ||
| 70 | 70 | ||
| 71 | 71 | ||
| 72 | 72 | ||
| 73 | 73 | ||
| 74 | 74 | ||
| 75 | 75 | ||
| 76 | 76 | ||
| 77 | 77 | ||
| 78 | 78 | ||
| 79 | 79 | ||
| 80 | 80 | ||
| 81 | 81 | ||
| 82 | 82 | ||
| 83 | 83 | ||
| 84 | 84 | ||
| 85 | 85 | ||
| 86 | 86 | ||
| 87 | 87 | ||
| 88 | 88 | ||
| 89 | 89 | ||
| 90 | 90 | ||
| 91 | 91 |
7. FEED MECHANISM COMPONENTS 送り関係 13 14 15 10 70 11 10 70 71 85 9 86 87 86 90 2 B 68 5 82 89 69 8 83 1 84 B 3 A 20 21 91 26 27 28 29 22 33 32 47 17 18 19 31 50 23 58 63 65 75 76 50 54 64 51 52 45 43 45 46 44 39 57 60 59 66 48 49 62 61 80 81 7 34 25 77 79 35 36 12 37 41 40 67 58 - 13 - jintex.in
Page 19
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM-6050800-SP | SCREW M5 L=8 | 2 | |
| 400-28293 | FEED REGULATOR ROD PIN | ||
| 400-28284 | FEED REGULATOR ROD | ||
| SD-0900426-TP | SHOULDER SCREW D=9 H=4.2 | ||
| 400-28894 | ASSY FEED REGULATOR | ||
| SM-6051800-SP | SCREW M5 L=16 | (1) | |
| 400-11935 | VERTICAL FEED LINK | ||
| 226-10307 | FEED REGULATOR SPRING | ||
| 400-28286 | REVERSE FEED SHAFT | ||
| 400-32269 | THRUST COLLAR | ||
| SM-6050412-TP | SCREW M5 L=16 | (2) | |
| 400-26673 | VERTICAL F_LINK_SHAFT_M | ||
| RE-0900000-KO | E-RING 9 | ||
| SM-6051000-SP | SCREW L=10 | ||
| 400-32995 | REVERSE FEED LEVER | ||
| 235-34566 | FEED DIAL SPRING | ||
| 235-34506 | FEED DIAL | ||
| 400-36433 | SCREW 3/16-28 L=18 | ||
| SS-6121860-SP | SPRING PIN 3X12 | ||
| 400-29079 | BRACKET | ||
| SM-6050800-SP | SCREW M5 L=8 | 2 | |
| 400-32293 | ASSY FEED ROCKER ROD | ||
| SM-6040112-TP | SCREW M4 L=6 | (1) | |
| B1653-470-000 | PIN | ||
| SM-6750690-TP | SCREW M3.5 L=6 | (1) | |
| 400-31318 | ASSY FEED ECCENTRIC CAM | ||
| SM-6051255-SP | SCREW M5 L=12 | (1) | |
| SM-6050001-SP | NUT M5 | (1) | |
| SM-6051150-SP | SCREW M6 L=11 | (2) | |
| FS-0300122-KM | SPRING PIN 3X12 | ||
| SM-4040655-SP | SCREW M4 L=6 | 2 | |
| 400-11906 | FD CAM LID | ||
| B1636-681-500 | NEEDLE BEARING B | ||
| SM-6030672-TP | SCREW M3 L=6 | ||
| 400-11946 | FEED BASE | ||
| 400-11931 | FEED BASE | ||
| 400-11932 | FEED BASE SHAFT | ||
| SM-8040612-TP | SCREW M4 L=6 | ||
| 400-28279 | FEED ROCKER SHAFT | ||
| 400-31349 | ASSY FEED BASE ARM | ||
| SM-6051400-SP | SCREW | ||
| 235-33805 | FEED ADJUSTING SHAFT | ||
| 400-11939 | FEED SHAFT BUSH F | ||
| SM-8060612-TP | SCREW M5 L=6 | ||
| 400-32268 | THRUST COLLAR | ||
| SM-8050112-TP | SCREW M5 L=4 | (2) | |
| 235-34019 | FEED ADJUSTING BASE | ||
| SM-7050850-TP | SCREW M5 L=8 | 4 | |
| 400-28277 | FEED ADJUSTING PLATE | ||
| 400-35704 | FEED ADJUSTING BLOCK | ||
| 400-29852 | ASSY FEED ROCKER ARM | (1) | |
| SM-6051600-SP | SCREW M5 L=16 | ||
| SM-2040750-TP | SCREW M4 L=4 | 2 | |
| 229-52501 | NUT M6 | ||
| SM-6060001-CP | NUT M6 | ||
| SD-0900706-TP | SHOULDER SCREW D=9 R=7 | ||
| 400-28274 | FEED ROCKER ARM RUD | ||
| 400-28275 | ASSY FEED ADJUSTING | ||
| 400-28276 | FEED ADJUSTING | ||
| SM-7050850-TP | FEED ADJUSTING ARM | (1) | |
| SM-6050800-SP | SCREW M5 L=8 | ||
| 400-28281 | FEED ADJUSTING STOPPER | ||
| 400-23280 | FEED SHAFT OIL SEAL A | ||
| 400-13352 | FEED SHAFT OIL SEAL A | ||
| 400-25316 | FEED ADJUSTING OIL SEAL | ||
| 400-28291 | FEED ADJUSTING CAP | ||
| 400-28294 | SPRING HOOK | ||
| 400-11926 | SPRING HOOK B | ||
| NR-6040001-SP | NUT M4X0.7 | ||
| 400-28287 | REVERSE FEED SHAFT BUSH | ||
| SM-6050550-TP | SCREW M5 L=6 | (1) | |
| 400-28855 | ASSY REVERSE FEED ARM | (1) | |
| 133-19405 | MAIN FEED SHAFT | ||
| SM-6051600-SP | SCREW M5 L=16 | ||
| 400-31350 | ASSY FEED BASE SHAFT COLLAR | ||
| SM-8040412-TP | SET SCREW M4X0.7 | ||
| SM-8031512-TP | SET SCREW | ||
| WP-1751616-SD | WASHER 17.5X24X1.6 | 2 | |
| WP-6030001-SD | NUT | ||
| 400-33689 | ASSY VERTICAL FEED CAM | ||
| SM-8060552-TP | SCREW M5 L=5 | ||
| 400-29295 | FEED REGULATOR SHAFT | ||
| SM-6051850-TP | SCREW M5 L=18 | ||
| 229-52501 | BACK LEVER STOPPER | ||
| SM-4050655-SP | SCREW M5 L=6 | ||
| 226-56003 | SPRING SUSPENSION | ||
| 400-40924 | SPRING HOOK_B | ||
| 400-29257 | NUT M5 | ||
| NM-6050001-SP | WASHER 5.2X9.5X0.6 | 0.09 | |
| BT-0500300-EA | OIL TUBE |
REF. NO NOTE PART NO. DESCRIPTION E Qty 1 SM-6050800-SP SCREW M5 L=8 2 2 400-28293 FEED REGULATOR ROD PIN 1 3 400-28284 FEED REGULATOR ROD 1 4 SD-0900426-TP SHOULDER SCREW D=9 H=4.2 1 5 400-28894 ASSY FEED REGULATOR 1 6 SM-6051800-SP SCREW M5 L=16 (1) 7 400-11935 VERTICAL FEED LINK 1 8 226-10307 FEED REGULATOR SPRING 1 9 400-28286 REVERSE FEED SHAFT 1 10 400-32269 THRUST COLLAR 1 11 SM-6050412-TP SCREW M5 L=16 (2) 12 400-26673 VERTICAL F_LINK_SHAFT_M 1 13 RE-0900000-KO E-RING 9 1 14 02 D1 SM-6051000-SP SCREW L=10 1 15 400-32995 REVERSE FEED LEVER 1 16 235-34566 FEED DIAL SPRING 1 17 235-34506 FEED DIAL 1 18 400-36433 SCREW 3/16-28 L=18 1 19 SS-6121860-SP SPRING PIN 3X12 1 20 400-29079 BRACKET 1 21 SM-6050800-SP SCREW M5 L=8 2 22 400-32293 ASSY FEED ROCKER ROD 1 23 SM-6040112-TP SCREW M4 L=6 (1) 24 B1653-470-000 PIN 1 25 SM-6750690-TP SCREW M3.5 L=6 (1) 26 400-31318 ASSY FEED ECCENTRIC CAM 1 27 SM-6051255-SP SCREW M5 L=12 (1) 28 SM-6050001-SP NUT M5 (1) 29 SM-6051150-SP SCREW M6 L=11 (2) 30 FS-0300122-KM SPRING PIN 3X12 1 31 SM-4040655-SP SCREW M4 L=6 2 32 400-11906 FD CAM LID 1 33 B1636-681-500 NEEDLE BEARING B 1 34 SM-6030672-TP SCREW M3 L=6 1 35 400-11946 FEED BASE 1 36 01 02 400-11931 FEED BASE 1 37 400-11932 FEED BASE SHAFT 1 38 SM-8040612-TP SCREW M4 L=6 1 39 400-28279 FEED ROCKER SHAFT 1 40 400-31349 ASSY FEED BASE ARM 1 41 SM-6051400-SP SCREW 1 42 235-33805 FEED ADJUSTING SHAFT 1 43 400-11939 FEED SHAFT BUSH F 1 44 SM-8060612-TP SCREW M5 L=6 1 45 400-32268 THRUST COLLAR 1 46 SM-8050112-TP SCREW M5 L=4 (2) 47 235-34019 FEED ADJUSTING BASE 1 48 SM-7050850-TP SCREW M5 L=8 4 49 400-28277 FEED ADJUSTING PLATE 2 50 400-35704 FEED ADJUSTING BLOCK 2 51 400-29852 ASSY FEED ROCKER ARM (1) 52 SM-6051600-SP SCREW M5 L=16 1 53 SM-2040750-TP SCREW M4 L=4 2 54 229-52501 NUT M6 1 55 SM-6060001-CP NUT M6 1 56 SD-0900706-TP SHOULDER SCREW D=9 R=7 1 57 400-28274 FEED ROCKER ARM RUD 1 58 400-28275 ASSY FEED ADJUSTING 1 59 400-28276 FEED ADJUSTING 1 60 SM-7050850-TP FEED ADJUSTING ARM (1) 61 SM-6050800-SP SCREW M5 L=8 1 62 400-28281 FEED ADJUSTING STOPPER 1 63 400-23280 FEED SHAFT OIL SEAL A 1 64 400-13352 FEED SHAFT OIL SEAL A 1 65 400-25316 FEED ADJUSTING OIL SEAL 1 66 400-28291 FEED ADJUSTING CAP 1 67 400-28294 SPRING HOOK 1 68 400-11926 SPRING HOOK B 1 69 NR-6040001-SP NUT M4X0.7 1 70 400-28287 REVERSE FEED SHAFT BUSH 1 71 SM-6050550-TP SCREW M5 L=6 (1) 72 400-28855 ASSY REVERSE FEED ARM (1) 73 133-19405 MAIN FEED SHAFT 1 74 SM-6051600-SP SCREW M5 L=16 1 75 400-31350 ASSY FEED BASE SHAFT COLLAR 1 76 SM-8040412-TP SET SCREW M4X0.7 1 77 SM-8031512-TP SET SCREW 1 78 WP-1751616-SD WASHER 17.5X24X1.6 2 79 WP-6030001-SD NUT 1 80 400-33689 ASSY VERTICAL FEED CAM 1 81 SM-8060552-TP SCREW M5 L=5 1 82 400-29295 FEED REGULATOR SHAFT 1 83 SM-6051850-TP SCREW M5 L=18 1 84 229-52501 BACK LEVER STOPPER 1 85 SM-4050655-SP SCREW M5 L=6 1 86 226-56003 SPRING SUSPENSION 1 87 400-40924 SPRING HOOK_B 1 88 400-29257 NUT M5 1 89 NM-6050001-SP WASHER 5.2X9.5X0.6 0.09 90 BT-0500300-EA OIL TUBE 1 NOTE (注記) 01...FOR LN-3568 02...FOR LN-3568-7 - 14 - jintex.in
Page 20 — 8. PRESSER BAR & TENSION RELEASE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | PRESSER BAR & TENSION RELEASE COMPONENTS | |
| 2 | 2 | SCREW | |
| 3 | 3 | WASHER | |
| 4 | 4 | PIN | |
| 5 | 5 | BRACKET | |
| 6 | 6 | BRACKET | |
| 7 | 7 | SPRING | |
| 8 | 8 | SPRING | |
| 9 | 9 | LEVER | |
| 10 | 10 | SPRING | |
| 11 | 11 | SHAFT | |
| 12 | 12 | SPRING | |
| 13 | 13 | SPRING | |
| 14 | 14 | SCREW | |
| 15 | 15 | SCREW | |
| 16 | 16 | BRACKET | |
| 17 | 17 | ROD | |
| 18 | 18 | PIN | |
| 19 | 19 | SPRING | |
| 20 | 20 | PIN | |
| 21 | 21 | BRACKET | |
| 22 | 22 | WIRE | |
| 23 | 23 | BRACKET | |
| 24 | 24 | WIRE | |
| 25 | 25 | WIRE | |
| 26 | 26 | WIRE | |
| 27 | 27 | NUT | |
| 28 | 28 | SCREW | |
| 29 | 29 | SCREW | |
| 30 | 30 | BRACKET | |
| 31 | 31 | SCREW | |
| 32 | 32 | ROD | |
| 33 | 33 | SCREW | |
| 34 | 34 | NUT | |
| 35 | 35 | PIN | |
| 36 | 36 | SPRING | |
| 37 | 37 | BRACKET | |
| 38 | 38 | SCREW | |
| 39 | 39 | SCREW | |
| 40 | 40 | PIN | |
| 41 | 41 | ROD | |
| 42 | 42 | BRACKET | |
| 43 | 43 | SCREW | |
| 44 | 44 | SCREW | |
| 45 | 45 | BRACKET | |
| 46 | 46 | BRACKET |
8. PRESSER BAR & TENSION RELEASE COMPONENTS 押さえ棒・糸ゆるめ関係 1 2 3 4 12 5 40 18 33 34 35 36 38 39 41 42 43 7 8 9 10 11 13 13 20 13 13 13 19 32 21 13 14 15 16 17 22 23 24 25 26 27 29 30 31 45 46 28 44 - 15 - jintex.in
Page 21
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 229-07802 | HAND LIFTER | ||
| B1521-555-000 | SCREW | ||
| RO-0371801-00 | RUBBER RING | ||
| 400-35394 | HAND LIFTER CAM ASM. | ||
| 400-28868 | ASSY_LIFTING_CONNECT ROD | ||
| 236-09605 | PLATE | ||
| SM-6040602-TP | SCREW M4 L=6 | ||
| 400-28264 | ASSY HAND LIFTER LINK | ||
| 229-08008 | LIFTING PLATE | ||
| RE-0500000-KO | E-RING | ||
| 400-35151 | LIFTING CONNECTING ROD | ||
| 400-28545 | LINK SHAFT | ||
| RE-0500000-KO | E-RING | ||
| SD-0640357-TP | SHOULDER SCREW D=9 H=3.5 | ||
| SD-0900356-TP | SHOULDER SCREW D=9 H=3.5 | ||
| 400-35181 | LIFTING LEVER LINK | ||
| 400-28268 | CONNECTING ROD-A | ||
| SM-8050612-TP | SCREW M5X6 | ||
| 229-20201 | RETURN SPRING | ||
| 400-28546 | TENSION RELEASE SHAFT | ||
| 400-35298 | TENSION RELEASE PLATE | ||
| 400-35828 | ASSY_TENSION_RELEASE_PLATE | ||
| 400-35298 | TENSION RELEASE PLATE | ||
| 400-33434 | THREAD_TENSION_RELEASE_WIRE | ||
| 400-33435 | WIRE TUBE | ||
| 229-44904 | SET SCREW | ||
| NS-6620310-SP | NUT 3/16-32 | ||
| SM-4040855-SP | SCREW | ||
| SS-4110715-SP | SCREW 11/64-40 L=7 | ||
| SS-4111215-SP | SCREW 11/64-40 L=12 | ||
| 400-34974 | TENSION RELEASE SHAFT | ||
| 236-09209 | PRESSER SPRING REGULATOR | ||
| 229-07604 | PRESSER SPRING REGULATOR NUT | ||
| 229-07703 | PRESSER GUIDE BAR | ||
| 229-07406 | PRESSER SPRING | ||
| B1501-581-000 | PRESSER BAR | ||
| 400-32272 | ASSY_PRESSER BAR HOLDER | ||
| SM-6060800-SP | SCREW M6 L=8 | ||
| 400-28269 | LIFTER ADJUSTING PIN | ||
| 236-09001 | BUSHING | ||
| 226-40551 | PRESSER FOOT ASM. | ||
| SS-7090910-TP | SCREW 9/64-40 L=8.5 | ||
| SM-4040655-SP | SCREW M4 L=6 | ||
| D3164-555-B00 | OUTER PRESSER PLATE | ||
| 400-50314 | OUTER_HOLDER_BASE |
REF. NO NOTE PART NO. DESCRIPTION Qty. 1 229-07802 HAND LIFTER オエアク レバー 1 2 B1521-555-000 SCREW オエアク レバー トメネジ 1 3 RO-0371801-00 RUBBER RING Oリング 1 4 400-35394 HAND LIFTER CAM ASM. オエアク カムクミ 1 5 400-28868 ASSY_LIFTING_CONNECT ROD ヒキアゲ ヨコホ ウ ウクミ 1 6 236-09605 PLATE イトエルメキリカエタ 1 7 SM-6040602-TP SCREW M4 L=6 ロツカクアナツキ M4X0.7 L=6 (1) 8 400-28264 ASSY HAND LIFTER LINK ヒキアゲ リンククミ (1) 9 229-08008 LIFTING PLATE ヒキアゲ イタ (1) 10 RE-0500000-KO E-RING Eガタ タトメツ (2) 11 400-35151 LIFTING CONNECTING ROD ヒキアゲ コネクテイング ロツド (1) 12 400-28545 LINK SHAFT ヒキアゲ リンクシヤフト (1) 13 RE-0500000-KO E-RING Eガタ タトメツ 2 14 SD-0640357-TP SHOULDER SCREW D=9 H=3.5 ダンネジ D=9 H=3.5 1 15 SD-0900356-TP SHOULDER SCREW D=9 H=3.5 ダンネジ D=9 H=3.5 1 16 400-35181 LIFTING LEVER LINK ヒキアゲ レバー リンク 1 17 400-28268 CONNECTING ROD-A ヒキアゲ レングホウ (1) 18 SM-8050612-TP SCREW M5X6 トメネジ M5X0.8 L=6 (1) 19 229-20201 RETURN SPRING イトエルメイ タモト シヤネ 1 20 400-28546 TENSION RELEASE SHAFT イトエルメイ タクミ 1 21 01 400-35298 TENSION RELEASE PLATE イトエルメイ タクミ 1 22 400-35828 ASSY_TENSION_RELEASE_PLATE イトエルメイ タクミ (1) 23 400-35298 TENSION RELEASE PLATE イトエルメイ タクミ (1) 24 400-33434 THREAD_TENSION_RELEASE_WIRE ワイヤーケープ ルクツヨウク (1) 25 400-33435 WIRE TUBE ワイヤーチューブ (1) 26 229-44904 SET SCREW ワイヤーセツトネジ (1) 27 02 NS-6620310-SP NUT 3/16-32 ロツカクアナツト 3/16-32 2 28 *02 SM-4040855-SP SCREW ナベネジ 1 29 02 SS-4110715-SP SCREW 11/64-40 L=7 ナベネジ 11/64-40 L=7 1 30 02 SS-4111215-SP SCREW 11/64-40 L=12 ナベネジ 11/64-40 L=12 2 31 02 SS-4111215-SP SCREW 11/64-40 L=12 ナベネジ 11/64-40 L=12 1 32 400-34974 TENSION RELEASE SHAFT サラウカンオシ 1 33 236-09209 PRESSER SPRING REGULATOR オサエチヨウセツメネジ ナブト 1 34 229-07604 PRESSER SPRING REGULATOR NUT オサエチヨウセツメネジ ナブト 1 35 229-07703 PRESSER GUIDE BAR オサエアンナイウ 1 36 * 229-07406 PRESSER SPRING オサエチヨウセツバネ 1 37 B1501-581-000 PRESSER BAR オサエバー 1 38 400-32272 ASSY_PRESSER BAR HOLDER オサエバ ホルダー クミ (1) 39 SM-6060800-SP SCREW M6 L=8 ヒラネジ M6 L=8 (1) 40 400-28269 LIFTER ADJUSTING PIN ピンリヨウオサエチヨウセツピン 1 41 236-09001 BUSHING オサエボ ウクスタル 1 42 03 226-40551 PRESSER FOOT ASM. サキフレシユウオサエ(タミ) 1/4"(6.4 1 43 SS-7090910-TP SCREW 9/64-40 L=8.5 マルヒラネジ 9/64-40 L=8.5 1 44 *02 SM-4040655-SP SCREW M4 L=6 ナベネジ M4 L=6 2 45 02 D3164-555-B00 OUTER PRESSER PLATE アウターオサエド タイ 1 46 *02 400-50314 OUTER_HOLDER_BASE アウターオサエド タイ 1 NOTE (注記) 01... FOR LH-3568 LH-3568用 02... FOR LH-3568-7 LH-3568-7用 03... EXCHANGING GAUGE PARTS 交換ゲージ部品 (SEE.P.33,34) (33,34ページをご参照下さい。) - 16 - jintex.in
Page 22 — 9. THREAD TRIMMER MECHANISM COMPONENTS (FOR LH-3568-7)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | BASE | ||
| 2 | SHAFT | ||
| 3 | WASHER | ||
| 4 | BRACKET | ||
| 5 | SCREW | ||
| 6 | SCREW | ||
| 7 | WASHER | ||
| 8 | SHAFT | ||
| 9 | BRACKET | ||
| 10 | ARM | ||
| 11 | WASHER | ||
| 12 | SPRING | ||
| 13 | LEVER | ||
| 14 | PIN | ||
| 15 | PIN | ||
| 16 | COLLAR | ||
| 17 | WASHER | ||
| 18 | NUT | ||
| 19 | ARM | ||
| 20 | SHAFT | ||
| 21 | SCREW | ||
| 22 | WASHER | ||
| 23 | SPRING | ||
| 24 | BRACKET | ||
| 25 | ARM | ||
| 26 | SCREW | ||
| 27 | SPRING | ||
| 28 | SCREW | ||
| 29 | SHAFT | ||
| 30 | SHAFT | ||
| 31 | SCREW | ||
| 32 | WASHER | ||
| 33 | BRACKET | ||
| 34 | SCREW | ||
| 35 | PIN | ||
| 36 | BRACKET | ||
| 37 | SCREW | ||
| 38 | SHAFT | ||
| 39 | BRACKET | ||
| 40 | BRACKET | ||
| 41 | SCREW | ||
| 42 | BRACKET | ||
| 43 | BRACKET | ||
| 44 | SCREW | ||
| 45 | BASE | ||
| 46 | BASE | ||
| 47 | SCREW | ||
| 48 | SCREW | ||
| 49 | ARM | ||
| 50 | SCREW | ||
| 51 | ARM | ||
| 52 | ARM | ||
| 53 | SCREW | ||
| 54 | SCREW | ||
| 55 | ARM | ||
| 56 | SCREW | ||
| 57 | SCREW | ||
| 58 | BRACKET | ||
| 59 | ROD | ||
| 60 | COVER | ||
| 61 | SCREW | ||
| 62 | SCREW | ||
| 63 | BRACKET | ||
| 64 | SCREW | ||
| 65 | SCREW | ||
| 66 | WASHER |
9. THREAD TRIMMER MECHANISM COMPONENTS (FOR LH-3568-7) 糸切り装置関係 (LH-3568-7用) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 - 17 - jintex.in
Page 23
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 400-17353 | ASSY_BASE_PLATE | 1 | |
| 400-17394 | ASSY_TRM_PUSH_LINK | 1 | |
| RC-0650811-KP | RETAINING RING | 1 | |
| 400-36359 | THREAD_TRIMMER_SOLENOID | 1 | |
| SM-4040601-SC | SCREW M4X0.7 L=6 | 4 | |
| 235-42418 | CLUTCH LINK PIN | 1 | |
| NH-6030001-SC | NUT M3 | 2 | |
| 400-17399 | ASSY_TRM_ROLLER_ARM | 1 | |
| 400-10434 | THRUST_COLLAR_ASM | 1 | |
| 110-40854 | KNIFE_DRIVING_ARM ASM. | 1 | |
| RE-0600000-KO | E-RING 6 | 1 | |
| 400-17400 | ROLLER_ARM_SPRING | 1 | |
| 400-17361 | TRM_DRIVING_ARM_STOPPER | 1 | |
| SM-4050855-SP | SCREW | 2 | |
| 400-17401 | TRM_DRIVING_LINK_PIN | 1 | |
| 400-17402 | TRM_DRIVING_LINK_BUSH | 1 | |
| WP-0621046-SP | WASHER | 1 | |
| NH-6060003-SC | NUT M6 | 1 | |
| 400-12505 | CONNECTING_ROD_B | 1 | |
| 400-12506 | CONNECTING_ROD_C | 1 | |
| SM-9050850-SP | SCREW | 2 | |
| WP-0531000-SD | WASHER M5 | 2 | |
| 400-17403 | TRM_DRIVING_ARM_SPRING | 1 | |
| 400-15669 | ASSY_THREAD_RELEASE_ARM | 1 | |
| 400-17362 | RELEASE_ARM_STOPPER | 1 | |
| SM-4050855-SP | SCREW | 2 | |
| 113-05901 | SPRING | 1 | |
| SM-6061200-SP | SCREW | 2 | |
| 400-12504 | CONNECTING_ROD_A | 1 | |
| 400-12505 | CONNECTING_ROD_B | 1 | |
| SM-9050850-SP | SCREW | 2 | |
| WP-0531000-SD | WASHER M5 | 2 | |
| 400-31352 | ASSY_KNIFE_DRIVING_ARM_R | 1 | |
| SM-6051202-TP | SCREW M5X0.8 L=12 | (1) | |
| 400-12503 | KNIFE_DRIVING_ARM_PIN | 2 | |
| 400-36446 | ASSY_KNIFE_DRIVING_ARM_L | 1 | |
| SM-6051202-TP | SCREW M5X0.8 L=12 | (1) | |
| 400-12497 | ASSY_KNIFE_BASE_SHAFT | 2 | |
| 400-12492 | D_KNIFE_BASE_GUIDE_R | 1 | |
| 400-21883 | D_KNIFE_BASE_GUIDE_L | 1 | |
| SM-1030501-SN | SCREW M3 L=5 | 4 | |
| 400-21899 | D_KNIFE_SUPPORT_R | 1 | |
| 400-21898 | D_KNIFE_SUPPORT_L | 1 | |
| SM-1030501-SN | SCREW M3 L=5 | 4 | |
| 400-12488 | DRIVING_KNIFE_BASE_R | 1 | |
| 400-12487 | DRIVING_KNIFE_BASE_L | 1 | |
| SS-1090520-TP | SCREW 9/64-40 L=5 | 6 | |
| SS-6090580-TP | SCREW 9/64-40 L=4.5 | 2 | |
| 400-12403 | DRIVING_KNIFE | 2 | |
| 400-12495 | CLAMP_SPRING_BASE | 2 | |
| 400-44393 | CLAMP | 2 | |
| 400-33160 | CLAMP_SPRING | 2 | |
| SM-6850400-SP | SCREW M2.5 L=4 | 6 | |
| SM-8030312-TP | SCREW M3 L=3 | 2 | |
| 400-12489 | FIXED_KNIFE_BASE | 2 | |
| 400-12496 | FIXED_KNIFE_BASE_ADJUST | 2 | |
| SM-9051263-CP | SCREW M5 L=12 | 2 | |
| 400-12404 | FIXED_KNIFE | 2 | |
| EA-9500B01-00 | CABLE BAND | 2 | |
| 400-13316 | THREAD_TRIMMER_CAM | 1 | |
| SM-8061010-TP | SCREW M6 L=10 | 2 | |
| SM-6052502-TP | SCREW | 1 | |
| B3538-112-000 | OIL RETURN_TUBE HOLDER | 1 | |
| SM-6040552-TP | SCREW M4 L=4.5 | 1 | |
| SD-0700346-TP | SHOULDER_SCREW D=7 H=3.4 | 3 | |
| WP-0531000-SD | WASHER M5 | 2 |
REF. NO NOTE PART NO. DESCRIPTION QTY. 1 400-17353 ASSY_BASE_PLATE 1 2 400-17394 ASSY_TRM_PUSH_LINK 1 3 RC-0650811-KP RETAINING RING 1 4 400-36359 THREAD_TRIMMER_SOLENOID 1 5 SM-4040601-SC SCREW M4X0.7 L=6 4 6 235-42418 CLUTCH LINK PIN 1 7 NH-6030001-SC NUT M3 2 8 400-17399 ASSY_TRM_ROLLER_ARM 1 9 400-10434 THRUST_COLLAR_ASM 1 10 110-40854 KNIFE_DRIVING_ARM ASM. 1 11 RE-0600000-KO E-RING 6 1 12 400-17400 ROLLER_ARM_SPRING 1 13 400-17361 TRM_DRIVING_ARM_STOPPER 1 14 SM-4050855-SP SCREW 2 15 400-17401 TRM_DRIVING_LINK_PIN 1 16 400-17402 TRM_DRIVING_LINK_BUSH 1 17 WP-0621046-SP WASHER 1 18 NH-6060003-SC NUT M6 1 19 400-12505 CONNECTING_ROD_B 1 20 400-12506 CONNECTING_ROD_C 1 21 SM-9050850-SP SCREW 2 22 WP-0531000-SD WASHER M5 2 23 400-17403 TRM_DRIVING_ARM_SPRING 1 24 400-15669 ASSY_THREAD_RELEASE_ARM 1 25 400-17362 RELEASE_ARM_STOPPER 1 26 SM-4050855-SP SCREW 2 27 113-05901 SPRING 1 28 SM-6061200-SP SCREW 2 29 400-12504 CONNECTING_ROD_A 1 30 400-12505 CONNECTING_ROD_B 1 31 SM-9050850-SP SCREW 2 32 WP-0531000-SD WASHER M5 2 33 400-31352 ASSY_KNIFE_DRIVING_ARM_R 1 34 SM-6051202-TP SCREW M5X0.8 L=12 (1) 35 400-12503 KNIFE_DRIVING_ARM_PIN 2 36 400-36446 ASSY_KNIFE_DRIVING_ARM_L 1 37 SM-6051202-TP SCREW M5X0.8 L=12 (1) 38 400-12497 ASSY_KNIFE_BASE_SHAFT 2 39 400-12492 D_KNIFE_BASE_GUIDE_R 1 40 400-21883 D_KNIFE_BASE_GUIDE_L 1 41 SM-1030501-SN SCREW M3 L=5 4 42 400-21899 D_KNIFE_SUPPORT_R 1 43 400-21898 D_KNIFE_SUPPORT_L 1 44 SM-1030501-SN SCREW M3 L=5 4 45 400-12488 DRIVING_KNIFE_BASE_R 1 46 400-12487 DRIVING_KNIFE_BASE_L 1 47 SS-1090520-TP SCREW 9/64-40 L=5 6 48 SS-6090580-TP SCREW 9/64-40 L=4.5 2 49 400-12403 DRIVING_KNIFE 2 50 400-12495 CLAMP_SPRING_BASE 2 51☆ * 400-44393 CLAMP 2 52☆ * 400-33160 CLAMP_SPRING 2 53 SM-6850400-SP SCREW M2.5 L=4 6 54 SM-8030312-TP SCREW M3 L=3 2 55 400-12489 FIXED_KNIFE_BASE 2 56 400-12496 FIXED_KNIFE_BASE_ADJUST 2 57☆ * SM-9051263-CP SCREW M5 L=12 2 58☆ 400-12404 FIXED_KNIFE 2 59 EA-9500B01-00 CABLE BAND 2 60 400-13316 THREAD_TRIMMER_CAM 1 61☆ * SM-8061010-TP SCREW M6 L=10 2 62 SM-6052502-TP SCREW 1 63 B3538-112-000 OIL RETURN_TUBE HOLDER 1 64 SM-6040552-TP SCREW M4 L=4.5 1 65 SD-0700346-TP SHOULDER_SCREW D=7 H=3.4 3 66 * WP-0531000-SD WASHER M5 2 - 18 - jintex.in
Page 24 — 10. AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3568-7)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | AUTOMATIC REVERSE FEED MECHANISM COMPONENTS | ||
| 2 | COVER | ||
| 3 | SCREW | ||
| 4 | BRACKET | ||
| 5 | SHAFT | ||
| 6 | SPRING | ||
| 7 | SCREW | ||
| 8 | ROD | ||
| 9 | ROD | ||
| 10 | SWITCH | ||
| 11 | BRACKET | ||
| 12 | LEVER | ||
| 13 | TERMINAL | ||
| 14 | SCREW | ||
| 15 | SCREW | ||
| 16 | WASHER | ||
| 17 | COVER | ||
| 18 | BRACKET | ||
| 19 | TERMINAL | ||
| 20 | SCREW | ||
| 21 | WASHER | ||
| 22 | PIN | ||
| 23 | CLIP | ||
| 24 | SCREW | ||
| 25 | WASHER | ||
| 26 | WASHER | ||
| 27 | ROLLER | ||
| 28 | BRACKET | ||
| 29 | SCREW | ||
| 30 | WASHER | ||
| 31 | WASHER | ||
| 32 | BRACKET | ||
| 33 | LEVER | ||
| 34 | SPRING | ||
| 35 | SCREW | ||
| 36 | BRACKET | ||
| 37 | NUT | ||
| 38 | CONNECTOR |
10. AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3568-7) 自動逆送り関係 (LH-3568-7用) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 36 20 21 22 23 24 25 26 27 28 30 29 31 32 33 34 35 37 37 19 38 - 19 - jintex.in
Page 25
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 400-35167 | ASSY. REVERSE_FEED_SWITCH_68 | 1 | |
| 229-54606 | REVERSE FEED SWITCH COVER | (1) | |
| SS-4110615-SP | SCREW 11/64-40 L=6 | (1) | |
| 226-56508 | REVERSE FEED SWITCH BASE | (1) | |
| 229-54200 | REVERSE FEED SWITCH SHAFT | (1) | |
| 229-54309 | REVERSE FEED SWITCH SPRING | (1) | |
| SM-4041655-SP | SCREW M4 L=16 | (1) | |
| SM-4031501-SC | SCREW M3 L=15 | (2) | |
| HW-5000700-00 | 2-CORE CABTYRE CORD | (1.2) | |
| HA-00190000-00 | MICROSWITCH | (1) | |
| 229-54408 | STOPPER PLATE | (1) | |
| 400-35168 | REVERSE_FEED_SWITCH_LEVER_68 | (1) | |
| HK-0346400-0B | PIN CONTACT | (2) | |
| SM-4050855-SP | SCREW | (2) | |
| SS-7110710-SP | SCREW 11/64-40 L=7 | 4 | |
| WP-0501016-SD | WASHER 5X10.5X1 | 4 | |
| 101-61305 | SOLENOID COVER | 1 | |
| 400-36360 | REVERSE_FEED_SOLENOID | 1 | |
| HK-0346400-0B | PIN CONTACT | (2) | |
| WP-0501016-SD | WASHER 5X10.5X1 | 4 | |
| SS-9111010-SP | SCREW 11/64-40 L=9.5 | 4 | |
| D2464-555-B00 | LINK DRIVING MAGNET PIN | 1 | |
| RE-0400000-KO | E-RING 4 | 2 | |
| SM-6061002-TP | SCREW M6 L=10 | 2 | |
| WS-0631510-KP | SPRING WASHER | 2 | |
| WP-0621016-SD | WASHER 6.2X13X1 | 2 | |
| 400-30856 | LINK FULCULUM | 1 | |
| 400-29350 | REVERSE_FEED_LINK_L | 1 | |
| SM-6063002-TP | SCREW M6 L=30 | 1 | |
| WS-0610002-KP | SPRING WASHER | 1 | |
| WP-0612056-SD | WASHER 6.1X18.5X2 | 1 | |
| 400-35278 | REVERSE_FEED_LINK_B | 1 | |
| 400-35277 | REVERSE_FEED_LINK_A | 1 | |
| SD-0700328-TP | SHOULDER SCREW D=7 H=3.2 | 2 | |
| SM-6050650-TP | SCREW M5 L=6 | 1 | |
| 101-19204 | SOLENOID INSTALLING PLATE | 1 | |
| NM-6050001-SP | NUT M5 | 2 | |
| HK-0346101-40 | HOUSING 14P | 1 |
REF. NO. NOTE PART NO. DESCRIPTION QTY. 1 400-35167 ASSY. REVERSE_FEED_SWITCH_68 1 2 229-54606 REVERSE FEED SWITCH COVER (1) 3 SS-4110615-SP SCREW 11/64-40 L=6 (1) 4 226-56508 REVERSE FEED SWITCH BASE (1) 5 229-54200 REVERSE FEED SWITCH SHAFT (1) 6 229-54309 REVERSE FEED SWITCH SPRING (1) 7 SM-4041655-SP SCREW M4 L=16 (1) 8 SM-4031501-SC SCREW M3 L=15 (2) 9 HW-5000700-00 2-CORE CABTYRE CORD (1.2) 10 HA-00190000-00 MICROSWITCH (1) 11 229-54408 STOPPER PLATE (1) 12 400-35168 REVERSE_FEED_SWITCH_LEVER_68 (1) 13 HK-0346400-0B PIN CONTACT (2) 14 SM-4050855-SP SCREW (2) 15 SS-7110710-SP SCREW 11/64-40 L=7 4 16 WP-0501016-SD WASHER 5X10.5X1 4 17 101-61305 SOLENOID COVER 1 18 400-36360 REVERSE_FEED_SOLENOID 1 19 HK-0346400-0B PIN CONTACT (2) 20 WP-0501016-SD WASHER 5X10.5X1 4 21 SS-9111010-SP SCREW 11/64-40 L=9.5 4 22 D2464-555-B00 LINK DRIVING MAGNET PIN 1 23 RE-0400000-KO E-RING 4 2 24 SM-6061002-TP SCREW M6 L=10 2 25 WS-0631510-KP SPRING WASHER 2 26 WP-0621016-SD WASHER 6.2X13X1 2 27 400-30856 LINK FULCULUM 1 28 400-29350 REVERSE_FEED_LINK_L 1 29 SM-6063002-TP SCREW M6 L=30 1 30 WS-0610002-KP SPRING WASHER 1 31 WP-0612056-SD WASHER 6.1X18.5X2 1 32 400-35278 REVERSE_FEED_LINK_B 1 33 400-35277 REVERSE_FEED_LINK_A 1 34 SD-0700328-TP SHOULDER SCREW D=7 H=3.2 2 35 SM-6050650-TP SCREW M5 L=6 1 36 101-19204 SOLENOID INSTALLING PLATE 1 37 NM-6050001-SP NUT M5 2 38 HK-0346101-40 HOUSING 14P 1 - 20 - jintex.in
Page 26 — 11. WIPER MECHANISM COMPONENTS (FOR LH-3568-7)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | BRACKET | ||
| 2 | COVER | ||
| 3 | SCREW | ||
| 4 | SCREW | ||
| 5 | BRACKET | ||
| 6 | SCREW | ||
| 7 | BUSH | ||
| 8 | SPRING | ||
| 9 | NUT | ||
| 10 | WASHER | ||
| 11 | BUSH | ||
| 12 | MOTOR | ||
| 13 | SHAFT | ||
| 14 | BRACKET | ||
| 15 | BRACKET | ||
| 16 | BRACKET | ||
| 17 | BRACKET | ||
| 18 | SCREW | ||
| 19 | BUSH | ||
| 20 | HARNESS | ||
| 21 | SCREW | ||
| 22 | NUT | ||
| 23 | BRACKET | ||
| 24 | BRACKET | ||
| 25 | BRACKET | ||
| 26 | BRACKET | ||
| 27 | BRACKET | ||
| 28 | BRACKET | ||
| 29 | SCREW | ||
| 30 | WASHER | ||
| 31 | WASHER | ||
| 32 | WASHER | ||
| 33 | WASHER | ||
| 34 | WASHER | ||
| 35 | NUT | ||
| 36 | NUT |
11. WIPER MECHANISM COMPONENTS (FOR LH-3568-7) ワ イパー装置関係 (LH-3568-7用) 1 2 3 21 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 22 24 25 26 27 28 29 30 31 32 33 34 35 36 - 21 - jintex.in
Page 27
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 400-33437 | WIPER SOLENOID ASM | 1 | |
| 229-55504 | WIPER COVER | (1) | |
| SL-4030631-SC | SCREW M3X6 | (1) | |
| SD-0650321-TP | HINGE SCREW D=6.5 H=3.2 | (1) | |
| 226-57209 | WIPER LINK, A | (1) | |
| 400-09196 | SUSPENSION SCREW | (1) | |
| 229-56205 | WIPER HINGE SCREW COLLAR | (1) | |
| 226-57308 | WIPER SPRING | (1) | |
| NS-6110310-SP | NUT 11/64-40 | (1) | |
| 229-55900 | WIPER RUBBER A | (1) | |
| 229-56007 | WIPER RUBBER B | (1) | |
| 400-30956 | WIPER SOLENOID | (1) | |
| 229-57104 | WIPER SOLENOID SHAFT | (1) | |
| HW-0005900-00 | POWER SWITCH | (1) | |
| HW-2003000-00 | ELECTRIC WIRE | (0.04) | |
| HW-5000700-00 | 2-CORE CABTYRE CORD | (1.04) | |
| 400-42151 | WIPER SOLENOID BASE | (1) | |
| SL-4030641-SE | SCREW | (3) | |
| 229-57203 | WIPER LINK COLLAR | (1) | |
| HK-0346400-0B | PIN CONTACT | (2) | |
| SM-4050855-SP | SCREW | 2 | |
| NS-6090310-SP | NUT 9/64-40 | 1 | |
| SD-0500301-SP | HINGE SCREW D=5 H=3 | 1 | |
| 400-28797 | ASSY WIPER LINK 2 | 1 | |
| 400-28799 | ASSY WIPER BASE | 1 | |
| SM-6050802-TP | SCREW M5X0.8 L=8 | 2 | |
| RE-0300000-KO | E-RING 3 | 2 | |
| 102-08700 | WIPER LINK SHAFT | 1 | |
| SS-7090610-SP | SCREW 9/64-40 L=6 | 2 | |
| WP-0371016-SD | WASHER 3.7X8X1 | 2 | |
| 102-09203 | WIPER | 1 | |
| 102-09500 | WIPER | 1 | |
| 102-09807 | WIPER | 1 | |
| 102-09906 | WIPER | 1 | |
| WP-0531000-SD | WASHER M5 | 2 | |
| WS-0410002-KP | SPRING WASHER | 2 |
REF. NO. NOTE PART NO. DESCRIPTION E. E. E. Qty. 1 400-33437 WIPER SOLENOID ASM ワイパーソルノイドクミ 1 2 229-55504 WIPER COVER ワイパーカバー (1) 3 SL-4030631-SC SCREW M3X6 ザガネツキ M3 L=6 (1) 4 SD-0650321-TP HINGE SCREW D=6.5 H=3.2 ダツネツキ D=6.5 H=3.2 (1) 5 226-57209 WIPER LINK, A ワイパーリンク A (1) 6 400-09196 SUSPENSION SCREW ウツイトキリネツカケ (1) 7 229-56205 WIPER HINGE SCREW COLLAR ワイパーダーツネツキカラー (1) 8 226-57308 WIPER SPRING ワイパーバネ (1) 9 NS-6110310-SP NUT 11/64-40 ロツカクナット 11/64-40 (1) 10 229-55900 WIPER RUBBER A ワイパーゴム AA (1) 11 229-56007 WIPER RUBBER B ワイパーゴム AB (1) 12 400-30956 WIPER SOLENOID ワイパーソルノイド (1) 13 229-57104 WIPER SOLENOID SHAFT ワイパーソルノイドシヤフト (1) 14 HW-0005900-00 POWER SWITCH ボツクススイツチ (1) 15 HW-2003000-00 ELECTRIC WIRE ビニールコードシン 17-0.16 シロ (0.04) 16 HW-5000700-00 2-CORE CABTYRE CORD 2ツヨリキヤブタイヤコード (1.04) 17 * 400-42151 WIPER SOLENOID BASE ワイパーソルノイドベース (1) 18 SL-4030641-SE SCREW ザガネツキネツキ (3) 19 229-57203 WIPER LINK COLLAR ワイパーリンクカラー (1) 20 HK-0346400-0B PIN CONTACT ピンコンタクト (2) 21 SM-4050855-SP SCREW ナベネジ M5 L=8 2 22 NS-6090310-SP NUT 9/64-40 ロツカクナット 9/64-40 1 23 SD-0500301-SP HINGE SCREW D=5 H=3 ダンネツキ D=5 H=3 1 24 400-28797 ASSY WIPER LINK 2 ワイパーリンククミ2 1 25 400-28799 ASSY WIPER BASE ワイパーベースクミ 1 26 SM-6050802-TP SCREW M5X0.8 L=8 ロツカクアナボルト M5X0.7 L=8 2 27 * RE-0300000-KO E-RING 3 Eカトメツキ 3 2 28 102-08700 WIPER LINK SHAFT ワイパーリンクシヤフト 1 29 * SS-7090610-SP SCREW 9/64-40 L=6 マルヒラネジ 9/64-40 L=6 2 30 WP-0371016-SD WASHER 3.7X8X1 ヒラザガネ 3.7X8X1 2 31 01 102-09203 WIPER ワイパー - 1 32 01 102-09500 WIPER ワイパー - 1 33 01 102-09807 WIPER ワイパー - 1 34 01 102-09906 WIPER ワイパー - 1 35 WP-0531000-SD WASHER M5 ヒラザガネコガタM5 2 36 * WS-0410002-KP SPRING WASHER ハネツキ M4 2 NOTE (注記) 01...SELECTIVE PARTS 選択部品 - 22 - jintex.in
Page 28 — 12. LUBRICATION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 13 | |||
| 14 | |||
| 15 | |||
| 16 | |||
| 47 | |||
| 46 | |||
| 83 | |||
| 48 | |||
| 63 | |||
| 43-9 | |||
| 18 | |||
| 17 | |||
| 19 | |||
| 20 | |||
| 22 | |||
| 23 | |||
| 24 | |||
| 79 | |||
| 80 | |||
| 8 | |||
| 42 | |||
| 72 | |||
| 41 | |||
| 51 | |||
| 34 | |||
| 50 | |||
| 70 | |||
| 66 | |||
| 71 | |||
| 12 | |||
| 51 | |||
| 50 | |||
| 45 | |||
| 69 | |||
| 76 | |||
| 78 | |||
| 77 | |||
| 56 | |||
| 57 | |||
| 55 | |||
| 12 | |||
| 67 | |||
| 12 | |||
| 68 | |||
| 67 | |||
| 64 | |||
| 64 | |||
| 54 | |||
| 37 | |||
| 36 | |||
| 34 | |||
| 35 | |||
| 34 | |||
| 33 | |||
| 30 | |||
| 29 | |||
| 31 | |||
| 27 | |||
| 28 | |||
| 26 | |||
| 12 | |||
| 25 | |||
| 52 | |||
| 53 | |||
| 81 | |||
| 12 | |||
| 58 | |||
| 59 | |||
| 60 | |||
| 59 | |||
| 61 | |||
| 62 | |||
| 12 | |||
| 49 | |||
| 12 | |||
| 11 | |||
| 12 | |||
| A | |||
| 2 | |||
| 3 | |||
| B | |||
| 4 | |||
| 10 | |||
| 12 | |||
| A | |||
| B |
12. LUBRICATION COMPONENTS 給油関係 13 47 46 14 83 15 48 16 63 43-9 18 20 24 23 22 79 80 8 19 17 42 72 41 51 34 50 70 66 71 12 51 50 45 69 76 78 77 56 57 55 12 67 68 67 64 64 37 36 34 35 34 33 30 29 31 27 28 26 12 25 52 53 81 12 58 59 60 59 61 62 12 49 12 11 12 A 2 3 B 4 10 A B - 23 - jintex.in
