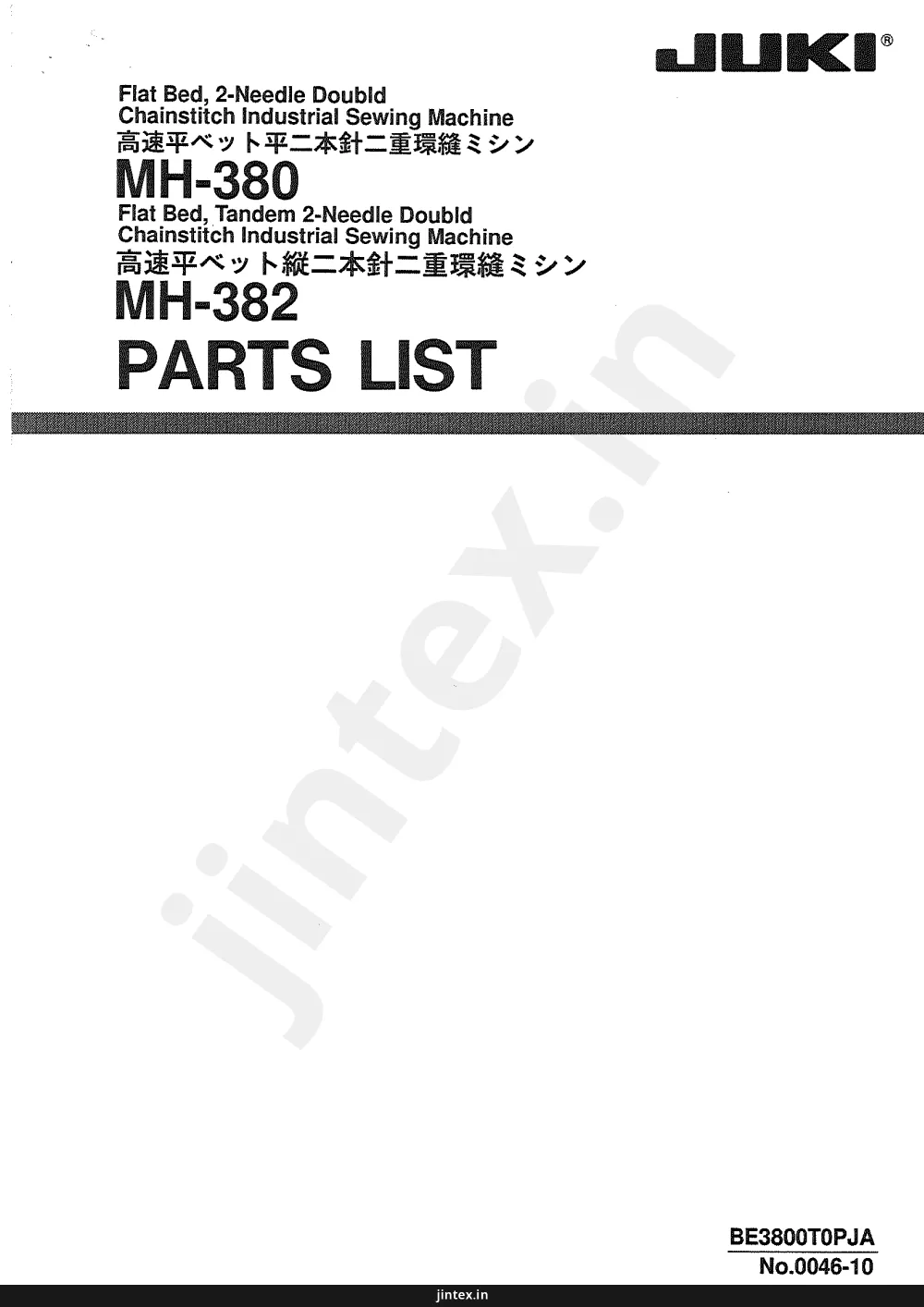

Juki MH-380 Parts Book PDF — View & Download

Parts index — Juki MH-380tap a row to open its page

Page 4 — 1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Juki MH-380 parts on page 4
Ref	Part number	Part name
3	3	SCREW
1	1	COVER
69	69	COVER
2	2	COVER
21	21	SCREW
20	20	BRACKET
17	17	SCREW
18	18	SCREW
16	16	WASHER
14	14	BRACKET
15	15	BRACKET
70	70	COVER
19	19	SCREW
72	72	COVER
4	4	COVER
77	77	COVER
3	3	SCREW
9	9	BRACKET
5	5	BRACKET
11	11	RING
13	13	PLUG
6	6	COVER
7	7	COVER
23	23	SCREW
22-71	22-71	BRACKET
24	24	BRACKET
26	26	BRACKET
25	25	SCREW
73-74	73-74	COVER
27	27	COVER
28	28	SCREW
68	68	COVER
30	30	BRACKET
29	29	BRACKET
75-76	75-76	COVER
31	31	RING
12	12	RING
78	78	RING
10	10	BRACKET
8	8	BRACKET
50	50	SCREW
48	48	PLATE
32	32	RING
33	33	RING
35	35	BRACKET
36	36	SCREW
34	34	BRACKET
36	36	SCREW
37	37	SCREW
38	38	SCREW
43	43	BRACKET
46	46	BRACKET
45	45	BRACKET
44	44	BRACKET
47	47	SCREW
42	42	SPRING
40	40	SPRING
41	41	BRACKET
39	39	BRACKET
49	49	PLATE
58	58	BRACKET
51	51	BRACKET
64	64	BRACKET
65	65	BRACKET
59	59	BRACKET
52	52	BRACKET
60	60	BRACKET
61	61	BRACKET
53	53	BRACKET
57	57	BRACKET
56	56	BRACKET
55	55	BRACKET
54	54	BRACKET
55	55	BRACKET
63	63	BRACKET
62	62	BRACKET
67	67	SCREW
66	66	BRACKET

Page 5

Juki MH-380 parts on page 5
Part number	Part name	Qty
B1121-552-0AO	FACE PLATE ASM.	1
B1122-552-000	FACE PLATE GASKET	1
SS-4111015-SP	SCREW 11/64-40 L=10	3
TA-1250406-RO	RUBBER PLUG D=12.5 L=4	1
B1130-481-0AO	ARM OIL SHIELD ASM.	1
B1130-481-000-A	ARM OIL SHIELD	1
B1131-481-000	NON-WOVEN FABRIC	(1)
B1132-481-000	OIL WICK	(1)
SS-6080320-SP	SCREW 1/8-44 L=2.5	1
SS-4110515-SP	SCREW 11/64-40 L=5	1
TA-1250705-RO	RUBBER PLUG	1
TA-0750704-RO	RUBBER PLUG	2
TA-1050504-RO	RUBBER PLUG	2
B1118-481-000	SIDE PLATE	1
B1119-481-000	GASKET	1
D3111-481-C00-A	TENSION RELEASE SHAFT BUSHING	1
SS-6090630-SP	SCREW 9/64-40 L=6	2
B3534-012-000	RUBBER PLUG	1
SS-4110815-SP	SCREW 11/64-40 L=8	8
B3122-481-000	FRAME THREAD GUIDE	1
SS-4110515-SP	SCREW 11/64-40 L=5	1
B1904-481-000	THREAD TAKE-UP LEVER GUARD	2
SS-4110515-SP	SCREW 11/64-40 L=5	1
B1903-481-000	TAKE-UP THREAD TENSION LEVER	2
SS-4110515-SP	SCREW 11/64-40 L=5	1
WP-0480856-SP	WASHER 4.8X8.4X0.8	1
B1905-380-000	FRAME THREAD EYELET	1
SS-4110515-SP	SCREW 11/64-40 L=5	1
110-52701	PIN	1
229-12109	FEED REGULATOR PIN SPRING	1
TA-2101002-RO	RUBBER PLUG	1
TA-2351305-RO	RUBBER PLUG	2
TA-2351004-RO	RUBBER PLUG	1
B1134-481-000	BED OIL SHIELD (B)	1
B1135-481-000	BED OIL SHIELD (B)	1
SS-7110510-SP	SCREW 11/64-40 L=5	4
B1106-122-000	BED SUPPORT PLATE	(1)
SS-9151120-CP	SCREW 15/54-28 L=11	2
B1110-481-000-A	CAM COVER LATCH	(1)
B1111-481-000	SPRING	(1)
B1112-481-000-A	SPRING SUSPENSION	(1)
SS-6080320-SP	SCREW 1/8-44 L=2.5	1
B1111-380-0AO	ATTACHMENT INSTALLING PLATE AS	1
B1111-380-000	ATTACHMENT INSTALLING PLATE	1
B1112-380-000	SPRING	(2)
SS-6060220-SP	SCREW 3/32-56 L=1.9	(1)
SS-8150310-SP	SCREW 15/64-28 L=3.4	(1)
B1103-380-F00	THROAT PLATE 1/4"	1
B1103-382-000	THROAT PLATE	1
SS-2110920-TP	SCREW 11/64-40 L=8.5	2
B1108-380-BAO	CAM COVER ASM.	(1)
B1108-380-B00	CAM COVER	(1)
B1108-481-000	CAM COVER SUPPORT	(1)
B1109-481-000	SPRING	(4)
SS-6060210-SP	SCREW 3/32-56 L=1.9	(1)
B1107-481-000	CAM COVER GUIDE	(1)
SS-6060340-SP	SCREW 3/32-56 L=2.5	(1)
B1104-380-AAO	BED SLIDE ASM.	(1)
B1104-380-A00	BED SLIDE	(1)
B1115-380-000	SPRING	(2)
SS-6060210-SP	SCREW 3/32-56 L=1.9	(1)
B1107-380-000	BED SLIDE GUIDE	(1)
SS-6060340-SP	SCREW 3/32-56 L=2.5	(1)
B1105-380-000	BED SLIDE STOPPER	(1)
B1106-380-000	LATCH	1
SS-4080415-SP	SCREW 1/8-44 L=4	1
SS-4110515-SP	SCREW 11/64-40 L=5	2
TA-1750502-RO	RUBBER PLUG D=17.5 L=5	1
B1121-552-00A	FACE PLATE	1
B1118-481-00A	SIDE PLATE	1
B1904-481-00A	THREAD TAKE-UP LEVER COVER	1
TA-2050406-RO	RUBBER PLUG	1
CM-3002000-B1	ATTENTION SEAL	(1)
CM-3002001-01	SAFETY LABEL, 1 (SMALL).	(1)
CM-3002001-A1	SAFETY LABEL, 3 (SMALL).	(1)
CM-3002000-C1	CAUTION LABEL	1
100-04109	GROUND MARK	1

Page 6 — 2. MAIN SHAFT & NEEDLE BAR COMPONENTS

Juki MH-380 parts on page 6
Ref	Part number	Part name
32	32	SCREW
31	31	BEARING
30	30	CONNECTING ROD
26	26	CRANK SHAFT
25	25	BEARING
27	27	SPRING
29	29	WASHER
28	28	SPRING
33	33	SHAFT
36	36	COLLAR
35	35	SCREW
34	34	SHAFT
37	37	SCREW
38	38	BEARING
39	39	COLLAR
40	40	BEARING
41	41	WASHER
42	42	CIR-CLIP
8	8	WHEEL
44	44	WHEEL
45	45	SCREW
24	24	MAIN SHAFT
46	46	SCREW
23	23	COLLAR
19	19	SCREW
15	15	BRACKET
14	14	BRACKET
22	22	SHAFT
21	21	CAP
18	18	SCREW
17	17	SPRING
16	16	BRACKET
13	13	SPRING
12	12	NEEDLE BAR
20	20	NEEDLE BAR
9	9	CONNECTING ROD
10-6	10-6	SCREW
11	11	BRACKET
7	7	NEEDLE BAR
2	2	SLEEVE
6	6	SPRING
3	3	NEEDLE BAR
4	4	SCREW
1	1	NEEDLE

Page 7

Juki MH-380 parts on page 7
Part number	Part name	Qty
MTV-700B1400	NEEDLE TVX7 #14	2
B1401-380-000	NEEDLE BAR	1
B1406-019-FAO	NEEDLE CLAMP ASM. 1/4"	1
SS-8110310-SP	SCREW 11/64-40 L= 2.8	(2)
D1406-038-BAO	NEEDLE CLAMP ASM.	1
B1419-380-000	NEEDLE BAR THREAD GUIDE	1
B1403-380-000	NEEDLE BAR BUSHING, LOWER	1
B1217-490-00A	HAND WHEEL	1
B1411-481-0AO	NEEDLE BAR CONNECTION ASM.	1
SS-6090670-TP	SCREW 9/64-40 L=6	(1)
B1414-555-000	SLIDE BLOCK	1
B1902-481-000-B	THREAD TAKE-UP LEVER ASM.	(1)
SS-6091210-TP	SCREW 9/64-40 L=12	1
B1901-380-0AO	THREAD TAKE-UP ASM.	(1)
B1901-380-000-A	THREAD TAKE-UP	(1)
B1908-481-000-A	THREAD TENSION REGULATING PLAT	(1)
D1910-481-C00	TENSION SPRING	(1)
B1909-481-000-A	THREAD TENSION REGULATING STUD	(1)
SS-6090670-TP	SCREW 9/64-40 L=6	2
229-06101	NEEDLE BAR BUSHING, UPPER	(1)
B1405-012-000	CAP	1
B1201-481-000-A	MAIN SHAFT	1
B1226-552-000	ROLLER FELT	1
B1206-481-0AO	COUNTERWEIGHT ASM.	(1)
B1206-481-0B0	COUNTERWEIGHT ASM.	(1)
SS-8150710-SP	SCREW 15/64-28 L=7	(1)
SS-7681650-TP	SCREW 9/32-28 L=16	(1)
SS-8681650-TP	SCREW 9/32-28 L=16	(1)
RO-0442401-00	RUBBER RING	(1)
B1408-481-000	NEEDLE BAR CRANK ROD	(1)
B1905-541-B00	NEEDLE BEARING	(1)
B1903-552-000	LEFT SCREW	(1)
B1202-481-000	BUSHING, FRONT	(1)
B1203-481-B00	BUSHING, INTERMEDIATE	(1)
SS-7151120-SP	SCREW 15/64-28 L=11	1
CS-147121E-SH	THRUST COLLAR ASM. D=14.72 W=12	2
SS-8660810-TP	SCREW 1/4-40 L=8	(4)
D1204-555-DAO	MAIN SHAFT BUSHING, REAR ASM.	1
D1204-555-D00	MAIN SHAFT BUSHING, REAR	(1)
D1230-555-B00	NEEDLE BEARING	(2)
D1231-555-B00	WASHER	(2)
D1232-555-B00	SNAP RING	(2)
D1208-555-D00	OIL SEAL	1
B1217-490-000	HAND WHEEL	1
SS-8151550-SP	SCREW 15/64-28 L=15	2
B1213-552-0A0-A	OIL AMOUNT ADJUSTING PIN ASM.	1

Page 8 — 3. PRESSER BAR, UPRIGHT SHAFT & LOWER SHAFT COMPONENTS

Juki MH-380 parts on page 8
Ref	Part number	Part name	Qty
	21	PRESSER BAR, UPRIGHT SHAFT & LOWER SHAFT COMPONENTS
	22	押え棒・立軸・下軸関係
	30
	32
	31
	33
	37
	35
	34
	20
	23
	24
	62
	36
	41
	42
	39
	39
	15
	9
	10
	16
	17
	19
	18
	29
	28
	63
	27
	26
	40
	46
	47
	49
	14
	13
	11
	12
	38
	43
	39
	45
	44
	39
	9
	8
	7
	6
	4
	3
	5
	2
	1
	53
	54
	59
	58
	57
	56
	55
	52
	51
	50
	60
	61

Page 9

Juki MH-380 parts on page 9
Ref	Part number	Part name	Qty
	B1509-038-FB0	PRESSER FOOT ASM. 1/4"
	B1524-382-0B0	PRESSER FOOT
	B1528-380-0A0	THREAD KNIFE ASM.
	B1529-380-000	THREAD KNIFE GUIDE
	SS-5060310-SP	SCREW 3/32-56 L=2.8
	SS-7091110-TP	SCREW 9/64-40 L=10.5
	B1501-380-000	PRESSER BAR
	229-07109	PRESSER BAR BUSHING, LOWER
	110-71602	PRESSER SPRING REGULATOR
	110-71701	NUT
	101-78705	PRESSER BAR GUIDE BRACKET
	SS-8660610-TP	SCREW 1/4-40 L=6
	229-07406	PRESSER GUIDE BAR
	229-07406	PRESSER SPRING
	B1509-555-000	NUT
	B1515-555-000	LIFTING LEVER
	B1515-552-000	HINGE SCREW D= 6.35 H= 2.7
	SD-0630275-SP	HINGE SCREW D=6.35 H=3
	SD-0630301-SP	LIFTING LEVER LINK
	B1517-552-000	HINGE PIN
	B3431-581-000	LIFTING LEVER GASKET
	B1523-226-000	SNAP RING
	RE-0600000-KO	E-RING 6
	B1518-555-0A0	HAND LIFTER CAM ASM.
	RO-0371801-00	RUBBER RING
	WP-0740516-SP	WASHER 7.4X11.8X0.5
	B1520-552-000-A	HAND LIFTER
	B1521-555-000	SCREW
	B3412-415-000	LIFTING LEVER CONNECTING ROD
	B3416-552-000	CONNECTING ROD HINGE SCREW
	RE-0500000-KO	E-RING
	B3414-415-000-A	LIFTING LEVER LINK, RIGHT
	B3416-415-000-A	SWIVEL
	SD-0600322-SD	HINGE SCREW D=6 H=3.2
	B3415-481-000	CONNECTING ROD, VERTICAL
	NS-6620310-SP	NUT 3/16-32
	B1308-481-0C0	GEAR LOWER ASM.
	SS-8660810-TP	SCREW 1/4-40 L=8
	B1306-155-0B0	GEAR & PINION ASM., UPPER
	B1305-012-0A0	GEAR ASM.
	B1306-155-0A0	PINION ASM.
	B1308-481-0B0	GEAR & PINION ASM.
	B1308-481-0A0	GEAR LOWER(LARGE)ASM.
	B1306-155-0A0	PINION ASM.
	B1301-481-000-A	UPRIGHT SHAFT
	B1302-552-B00	BUSHING, UPPER
	110-04207	UPRIGHT SHAFT BUSHING, LOWER
	SS-8151150-SP	SCREW 15/64-28 L=10.5
	B1801-380-0A0	LOWER SHAFT ASM.
	B1607-352-000	BUSHING, REAR
	SS-8151150-SP	SCREW 15/64-28 L=10.5
	B1432-027-000	OIL PAD ROLLER
	CS-111121A-SH	THRUST COLLAR ASM. D=11.11 W=1
	SS-8660810-TP	SCREW 1/4-40 L=8
	B1803-481-000	BUSHING, INTERMEDIATE
	SS-8151150-SP	SCREW 15/64-28 L=10.5
	B1802-481-000	BUSHING, FRONT
	SS-8151150-SP	SCREW 15/64-28 L=10.5
	B1813-481-000	LOOPER THREAD GUARD BUSHING
	B2226-481-000	HINGE SCREW
	110-07101	HAND LIFTER
	110-71800	HAND LIFTER

Page 10

Juki MH-380 parts on page 10
Ref	Part number	Part name	Qty
	10	10
	5	5
	7	7
	6	6
	11	11
	12	12
	4	4
	3	3
	1	1
	28	28
	2	2
	14	14
	13	13
	8	8
	9	9
	15	15
	16	16
	17	17
	51	51
	52	52
	56	56
	58	58
	55	55
	54	54
	53	53
	29	29
	23	23
	24	24
	25	25
	45	45
	41	41
	42	42
	39	39
	40	40
	38	38
	34	34
	35	35
	32	32
	30	30
	37	37
	36	36
	33	33
	27	27
	61	61
	59	59
	57	57
	60	60
	62	62
	31	31

Page 11

Juki MH-380 parts on page 11
Part number	Part name	Qty
B1623-555-000-A	FEED REGULATOR DIAL
SS-6120930-SP	SCREW 3/16-28 L=9
B1634-555-000-B	STITCH LENGTH REGULATING SCREW
RO-0742401-00	RUBBER RING
B1620-481-000	FEED REGULATOR
B1622-555-000	HINGE PIN
SS-8150710-SP	SCREW 15/64-28 L=7
B1625-555-000	FEED REGULATOR CONNECTING ROD
B1626-555-000	FEED REGULATOR CONNECTING ROD
SS-8110510-SP	SCREW 11/64-40 L=5
SS-7110710-SP	SCREW 11/64-40 L=7
B1610-380-0AO	FEED ECCENTRIC CAM ASM.
SS-2090710-SP	SCREW 9/64-40 L=7	(2)
SS-2110930-SP	SCREW 11/64-40 L=8.75	(3)
SS-6661110-SP	SCREW 1/4-40 L=11	(2)
B1636-581-000	FEED ROCKER SHAFT CONNECTING R
B1636-581-BOO	NEEDLE BEARING B
B1621-555-000-A	CONTROL LEVER SHAFT
B1627-555-0AO	CRANK ASM.
SS-6121210-SP	SCREW 3/16-28 L=12	(1)
SS-8150710-SP	SCREW 15/64-28 L=7
SS-7110910-SP	SCREW 11/64-40 L=8.5
SS-7620750-SP	SCREW 3/16-32 L=6.5
B1628-555-000	TENSION SPRING SUSPENSION STUD
B1646-555-000	TENSION SPRING
B1636-555-000	SUSPENSION BRACKET
SS-7111120-SP	SCREW 11/64-40 L=10.5
B1623-555-A00	FEED REGULATOR DIAL
B1624-380-00A	REVERSE FEED CONTROL LEVER
B1617-555-000	FEED DRIVING ROCKER
WP-0621016-SD	WASHER 6.2X13X1
SS-8620610-SP	SCREW 3/16-32 L=6
B1615-555-000	FEED DRIVING ROCKER HINGE PIN
B1619-555-000	FEED DRIVING ROCKER HINGE PIN
SS-7111120-SP	SCREW 11/64-40 L=10.5
B1618-161-000	FEED DRIVING ROCKER ARM HINGE
SS-8150710-SP	SCREW 15/64-28 L=7
B1614-555-000	FEED DRIVING ROCKER ARM
B1633-555-000	ROCKER ARM CONNECTING PIN
SS-7111260-SP	SCREW 1/4-40 L=12
B1608-481-000	FEED ROCKER SHAFT CRANK ARM
SS-6121610-TP	SCREW 3/16-28 L=15.5	(1)
B1606-481-000	CONNECTING ROD
SD-1020701-SP	HINGE SCREW D=10.2 H=7
NS-6680320-SP	NUT 9/32-28
B1630-555-000	ROCKER ARM CONNECTING ROD
SD-0500401-SP	HINGE SCREW D=5 H=4
WZ-0541510-KP	WAVED WASHER 5.4X9.0X0.3
NS-6120310-SP	NUT 3/16-28
B1629-555-0AO	CONTROL LEVER CRANK ASM.
SS-6121210-SP	SCREW 3/16-28 L=12	(1)
SS-8150710-SP	SCREW 15/64-28 L=7
B1624-380-000	REVERSE FEED CONTROL LEVER
SS-8661040-TP	SCREW 1/4-40 L=10
SS-8660810-TP	SCREW 1/4-40 L=8
RO-0691801-00	RUBBER RING
SS-8090540-SP	SCREW 9/64-40 L=5
WZ-1052010-KP	WAVED WASHER 5.4X14.5X0.3
B1660-380-000	LEVER STOPPER
B1661-481-000	SCREW
B1662-481-000	LEVER STOPPER RUBBER CAP
NS-6150430-SP	NUT 15/64-28

Page 12 — 5. FEED MECHANISM COMPONENTS (2)

Juki MH-380 parts on page 12
Ref	Part number	Part name
1	1	FEED DOG
2	2	FEED DOG
3	3	SCREW
4	4	WASHER
5	5	SCREW
6	6	FEED DOG ADJUSTING SCREW
7	7	SCREW
8	8	SCREW
9	9	FEED ROCK SHAFT
10	10	FEED ROCK SHAFT BRACKET
11	11	SCREW
12	12	NUT
13	13	BRACKET
14	14	BRACKET
15	15	FEED ROCK SHAFT
16	16	ROLLER
17	17	SHAFT
18	18	SPRING PIN
19	19	COLLAR
20	20	COLLAR
21	21	FEED ROCK SHAFT
22	22	COLLAR
23	23	CIR CLIP
24	24	SPRING
25	25	FEED ROCK SHAFT
26	26	FEED ROCK SHAFT BRACKET
27	27	SCREW
28	28	SCREW
29	29	BRACKET
30	30	FEED ROCK SHAFT
31	31	BRACKET
32	32	FEED ROCK SHAFT
33	33	BRACKET
34	34	SCREW
35	35	SCREW
36	36	COLLAR
37	37	COLLAR
38	38	COLLAR
39	39	COLLAR
40	40	SCREW
41	41	BRACKET
42	42	FEED ROCK LEVER
43	43	NEEDLE ROLLER BEARING
44	44	SCREW
45	45	WASHER

Page 13

Juki MH-380 parts on page 13
Part number	Part name	Qty
B1613-380-F00	FEED DOG (1/4)	1
B1613-382-000	FEED DOG	1
SS-1111410-TP	SCREW 11/64-40 L=14	1
WP-0480856-SP	WASHER 4.8X8.4X0.8	1
B1602-481-000-A	FEED BAR	1
B1604-486-000	FEED BAR SHAFT	1
B1715-481-000	COUNTER-SUNK WASHER	1
SS-1080510-SP	SCREW 1/8-44 L=5	1
B1603-486-0AO	FEED ROCKER ASM.	1
NS-6120310-SP	NUT 3/16-28	(1)
WP-0480856-SP	WASHER 4.8X8.4X0.8	(1)
SS-6121840-SP	SCREW 3/16-28 L=18	(1)
SS-6090810-SP	SCREW 9/64-40 L=7.5	2
CQ-3030000-00	OIL WICK	0.3
B1601-555-000	FEED ROCKER SHAFT	1
B1605-555-000	BUSHING, FRONT	1
CS-1470712-SH	THRUST COLLAR D=14.72 W=7	1
SS-8110410-TP	SCREW 11/64-40 L=3.5	2
229-04155	MAIN SHAFT THRUST COLLAR ASM.	1
SS-8660610-TP	SCREW 1/4-40 L=6	(2)
CQ-3030000-00	OIL WICK	0.3
B1702-155-000	BUSHING, REAR	1
RC-0150001-KP	RETAINING RING 13.8	1
SS-8150710-SP	SCREW 15/64-28 L=7	1
B1701-481-000	FEED DRIVING SHAFT	1
B1604-155-000	FEED ROCKER SHAFT BUSHING, FRO	1
B4103-352-0AO	FEED ROCKER SHAFT CRANK ASM.	1
SS-6621220-SP	SCREW 3/16-32 L=12	(2)
B1713-380-000-A	FEED BAR LINK	1
CS-0640860-SH	THRUST COLLAR ASM. D=6.35 W=8	1
SS-8110510-SP	SCREW 11/64-40 L=5	(2)
CQ-3030000-00	OIL WICK	0.2
B1604-155-000	FEED ROCKER SHAFT BUSHING, FRO	1
SS-8151150-SP	SCREW 15/64-28 L=10.5	2
CQ-3030000-00	OIL WICK	0.2
229-04155	MAIN SHAFT THRUST COLLAR ASM.	1
SS-8660610-TP	SCREW 1/4-40 L=6	(2)
B1702-155-000	BUSHING, REAR	1
SS-8150710-SP	SCREW 15/64-28 L=7	1
B1703-155-0AO	FEED DRIVING SHAFT CRANK ASM.,	1
SS-6121610-SP	SCREW 3/16-28 L=15.5	(1)
B1708-481-000	FEED DRIVING SHAFT CONNECTING	1
B1712-481-00B	NEEDLE BEARING	1
SD-1020701-SP	HINGE SCREW D=10.2 H=7	1
NS-6680410-SP	NUT 9/32-28	1

Page 14 — 6. LOOPER & NEEDLE GUARD COMPONENTS

Juki MH-380 parts on page 14
Ref	Part number	Part name
1	1	BASE
2	2	BOLT
3	3	NEEDLE GUARD
4	4	LOOPER
5	5	BRACKET
6	6	SCREW
7	7	SCREW
8	8	PIN
9	9	SCREW
10	10	ROLLER
11	11	SCREW
12	12	BRACKET
13	13	SCREW
14	14	BOLT
15	15	BOLT
16	16	COVER
17	17	SCREW
18	18	WASHER
19	19	SHAFT
20	20	SHAFT
21	21	COLLAR
22	22	COLLAR
23	23	SPRING
24	24	SHAFT
25	25	CYLINDER
26	26	SCREW
27	27	ROLLER
28	28	COLLAR
29	29	SCREW
30	30	GEAR
31	31	SCREW
32	32	GEAR
33	33	SCREW
34	34	COLLAR
35	35	SPRING
36	36	COLLAR
37	37	PIN
38	38	SPRING
39	39	SPRING
40	40	COLLAR
41	41	SCREW
42	42	COLLAR
43	43	COLLAR
44	44	SHAFT
45	45	SCREW
46	46	BRACKET
47	47	BRACKET
48	48	SHAFT
49	49	SCREW
50	50	BRACKET
51	51	BRACKET
52	52	SCREW
53	53	BRACKET
54	54	BRACKET
55	55	BRACKET
56	56	SCREW

Page 15

Juki MH-380 parts on page 15
Part number	Part name	Qty
B2013-481-000-A	LOOPER MOUNTING BASE	1
SM-6062002-TP	SCREW M6 L=20	4
B2030-380-000	LOOPER (LEFT)	1
B2031-380-000	LOOPER (RIGHT)	1
B2007-380-0A0	LOOPER HOLDER ASM.,LEFT	1
SS-6121610-TP	SCREW 3/16-28 L=15.5	(2)
SS-7090520-TP	SCREW 9/64-40 L=4.5	2
B2006-380-0A0	LOOPER HOLDER ASM., RIGHT	1
SS-6121610-TP	SCREW 3/16-28 L=15.5	(1)
B2012-481-000	BUSHING, REAR	2
SS-8110410-TP	SCREW 11/64-40 L=3.5	(2)
B2010-481-0A0	LOOPER ROCKER SHAFT ASM.	1
SS-7090910-TP	SCREW 9/64-40 L=8.5	(4)
CQ-2520000-00	OIL WICK	0.2
B2008-481-000	TRUNNION	1
B2014-481-0A0	LOOPER CRANK COVER ASM.	1
SS-6092120-SP	SCREW 9/64-40 L=21.2	(3)
TA-1050504-RO	RUBBER PLUG	1
BT-0500300-EA	OIL TUBE	0.1
B2032-481-000	LOOPER DRIVING LINK SET RING	1
B2005-380-0A0	LOOPER CRANK ASM.	1
SS-8660810-TP	SCREW 1/4-40 L=8	(2)
B2007-481-000	LOOPER CRANK ADJUSTING SCREW	1
B2001-481-000-A	LOOPER CRANK DRIVING SHAFT	1
B2002-481-000	BUSHING, FRONT	1
SS-8150710-SP	SCREW 15/64-28 L=7	2
B1803-481-000	BUSHING, INTERMEDIATE	1
CS-111121A-SH	THRUST COLLAR ASM. D=11,11 W=1	1
SS-8660810-TP	SCREW 1/4-40 L=8	(2)
B2004-481-0A0	GEAR, UPPER	1
SS-8660810-TP	SCREW 1/4-40 L=8	(2)
B2005-481-0AB	GEAR, LOWER	1
SS-6660610-TP	SCREW 1/4-40 L=6	(2)
B2301-380-0A0	NEEDLE GUARD CAM ASM.	1
SS-8150710-TP	SCREW 15/64-28 L=7	(2)
B2302-481-000	NEEDLE GUARD CRANK ROD	1
SS-8110410-TP	SCREW 11/64-40 L=3.5	1
B1610-430-0A0	PIN ASM.	1
CQ-3030000-00	OIL WICK	(0.1)
B2304-481-0A0	REAR NEEDLE GUARD ROCKER FORK	1
SS-7111310-TP	SCREW 11/64-40 L=12.8	(1)
B2306-380-0A0	NEEDLE GUARD DRIVING SHAFT ASM	1
CQ-3030000-00	OIL WICK	(0.1)
B2307-481-000	BUSHING	1
SS-8150710-SP	SCREW 15/64-28 L=7	1
B2311-380-E00	REAR MOVING NEEDLE GUARD	1
B2311-382-000	NEEDLE GUARD	1
B2309-481-0A0	REAR NEEDLE GUARD ROCKER ARM	1
SS-6121220-TP	SCREW 3/16-28 L=11.5	(1)
SS-7090910-TP	SCREW 9/64-40 L=8.5	(1)
B2313-380-000-A	NEEDLE GUARD BASE	1
SS-7110710-SP	SCREW 11/64-40 L=7	2
B2312-380-000	LEFT FIX NEEDLE GUARD	1
B2315-380-000	RIGHT FIX NEEDLE GUARD	1
B2312-382-000	NEEDLE GUARD	1
SS-6090510-TP	SCREW 9/64-40 L=5.0	2

Page 16 — 7. THREAD TENSION CONTROLLER COMPONENTS

Juki MH-380 parts on page 16
Ref	Part number	Part name
1	1	THREAD TENSION CONTROLLER COMPONENTS
2	2	SPRING
3	3	SPRING
4	4	SPRING
5	5	WASHER
6	6	SPRING
7	7	SPRING
8	8	SPRING
9	9	SPRING
10	10	SPRING
11	11	SCREW
12	12	SCREW
13	13	SCREW
14	14	SHAFT
15	15	SPRING
16	16	SPRING
17	17	SPRING
18	18	SPRING
19	19	SPRING
20	20	SPRING
21	21	BRACKET
22	22	SCREW
23	23	SHAFT
24	24	SPRING
25	25	SPRING
26	26	SPRING
27	27	SPRING
28	28	SPRING
29	29	BRACKET
30	30	BRACKET
31	31	WASHER
32	32	SCREW
33	33	WASHER
34	34	WASHER
35	35	SPRING
36	36	SPRING
37	37	SPRING
38	38	SPRING
39	39	SPRING
40	40	SPRING
41	41	SPRING
42	42	SPRING
43	43	BRACKET
44	44	SPRING
45	45	SCREW
46	46	SPRING
47	47	SPRING
48	48	BRACKET
49	49	SPRING
50	50	SCREW
51	51	SPRING
52	52	SPRING
53	53	SPRING
54	54	SPRING
55	55	SCREW
56	56	SPRING
57	57	SPRING
58	58	SPRING
59	59	SPRING
60	60	SPRING
61	61	SPRING
62	62	SPRING
63	63	SCREW
64	64	SCREW
65	65	SPRING
66	66	SCREW

Page 17

Juki MH-380 parts on page 17
Part number	Part name	Qty
B3101-380-BA0	LOWER THREAD TENSION ASM.	1
110-72204	TENSION NUT	(2)
B3106-481-000	LOOPER THREAD TENSION SPRING	(2)
B3120-125-000	ROTATING STOPPER	(2)
B3126-352-000	TENSION DISC	(4)
B3104-481-000	LOOPER THREAD TENSION POST	(2)
PS-0200102-KH	SPRING PIN 2.0 X 10	(2)
B3106-380-000	THREAD GUIDE	(2)
B3103-481-000	LOOPER THREAD TENSION CONTROL	(2)
B3101-380-000	TENSION INSTALLING PLATE	(2)
SS-4110715-SP	SCREW 11/64-40 L=7	1
B3121-380-000	LOOPER THREAD RELEASE LATCH	1
SS-6110420-TP	SCREW 11/64-40 L=4.8	1
B3135-481-000	LOOPER THREAD RELEASE SHAFT	1
D3136-481-CAO	TENSION RELEASE ARM ASM.	1
NS-6110310-SP	NUT 11/64-40	(1)
RO-0371801-00	RUBBER RING	1
D3130-481-CAO	TENSION RELEASE ARM ASM.	1
SS-6110710-TP	SCREW 11/64-40 L= 6.5	(1)
D3134-481-C00	SPRING	1
D3133-481-C00	SUSPENSION BRACKET	1
SS-4110715-SP	SCREW 11/64-40 L=7	1
D3110-481-C00	TENSION RELEASE SHAFT	1
B1522-552-000	OIL SEAL RING	1
B3115-481-000	TENSION RELEASE SHAFT SPACER	1
B3116-481-000	SPACER (A), FOR INSTALLING PLAT	1
B3117-481-000	SPACER (B), FOR INSTALLING PLAT	1
B3101-380-AA0	NEEDLE THREAD TENSION ASM.	1
B3101-380-000	TENSION INSTALLING PLATE	(1)
B3102-481-000	NEEDLE THREAD TENSION GUIDE PL	(2)
B2306-019-000	TENSION THREAD GUIDE	(2)
B3104-481-000	LOOPER THREAD TENSION POST	(2)
B3126-012-000	THREAD TENSION DISK	(2)
B3107-704-000	TENSION DISC PRESSER TUBE	(2)
B3129-012-A00	TENSION SPRING	(2)
B3120-125-000	ROTATING STOPPER	(2)
B3119-771-000	THREAD TENSION NUT	(2)
SS-4112515-SP	SCREW 11/64-40 L=25	1
SS-4111415-SP	SCREW 11/64-40 L=14	1
RE-0600000-KO	E-SHAPED SNAP RING (6MM)	1
B3120-380-000	NEEDLE THREAD RELEASE LATCH	1
SS-6110420-TP	SCREW 11/64-40 L=4.8	1
B3122-481-000	FRAME THREAD GUIDE	1
B2201-481-000-A	LOOPER THREAD GUIDE	1
SS-1110710-SP	SCREW 1/8-44 L=7	1
B2202-481-000	LOOPER THREAD GUIDE TUBE	1
B2210-481-0AO	LOOPER THREAD GUIDE ASM.	1
B2210-481-000	THREAD GUIDE PLATE	(1)
B2210-481-000	LOOPER THREAD GUIDE (B)	(1)
SS-6080320-SP	SCREW 1/8-44 L= 2.5	(1)
B2218-481-000	CAST-OFF WIRE	(1)
SS-6080410-SP	SCREW 1/8-44 L=4	(2)
VP-0371026-SD	WASHER 3.7X7X1	(2)
B2217-481-000	THREAD GUIDE STOPPER SPRING	(1)
SS-6080320-SP	SCREW 1/8-44 L= 2.5	(1)
B2216-481-000	THREAD GUIDE STUD	1
B2214-481-000	THREAD GUIDE STUD	(1)
NS-6110310-SP	NUT 11/64-40	(1)
B2213-481-000	CAST-OFF PLATE	(1)
B2212-481-000	LOOPER THREAD GUIDE. RIGHT	(1)
B2211-481-000	LOOPER THREAD GUIDE. LEFT	(1)
B2215-481-000	COLLAR	(1)
SS-7081310-SP	SCREW 1/8-44 L=12.5	2
SS-4110515-SP	SCREW 11/64-40 L=5	1
B2220-481-0AO	LOOPER THREAD TAKE-UP	1
B2225-481-000	SCREW	1

Page 18 — 8. OIL LUBRICATION MECHANISM COMPONENTS

Juki MH-380 parts on page 18
Ref	Part number	Part name
1	B3526-552-0A0	OIL RETURN TUBE ASM.
2	229-25101	OIL FELT PRESSER
3	B3536-555-B00	OIL RETURN TUBE PRESSER PLATE
4	SS-4110715-SP	SCREW 11/64-40 L=7
5	B3534-155-000	PLUNGER
6	B1214-038-000	PLUNGER SPRING
7	SQ-1110401-MZ	CONNECTING SCREW
8	B3530-555-000	OIL SIGHT WINDOW
9	R0-1952401-00	RUBBER RING
10	B3527-415-000	RUBBER JOINT
11	B2657-771-000	GUIDE
12	SS-4110715-SP	SCREW 11/64-40 L=7
13	B3553-481-000	GEAR OIL PIPE
14	B3545-122-000	OIL GUARD
15	B3554-481-000	HOLDER
16	B3552-481-000	OIL PUMP INSTALLING COLLAR
17	B3513-481-000-A	UPPER SHAFT LUBRICATING PIPE
18	B3501-555-0A0	LUBRICATING OIL PUMP ASM.
19	B3503-555-000	OIL PUMP INSTALLING BASE
20	B3505-555-000	RUBBER JOINT
21	B3506-555-000	RUBBER JOINT
22	B3507-555-000	OIL PUMP IMPELLER
23	B3508-555-000	OIL PUMP IMPELLER COVER
24	SM-4031001-SC	SCREW M3X0.5 L=10
25	WT-0320002-KZ	WASHER
26	NM-6030000-0E	NUT M3X0.5
27	B3502-555-000-A	LUBRICATING OIL PUMP COVER
28	SE-4301031-SR	SCREW 3/16-28 L=30.0
29	SS-6123010-SP	SCREW 3/16-28 L=30.0
30	SS-6122510-SP	SCREW 3/16-28 L=25
31	B3521-481-000-A	LUBRICATING OIL PIPE
32	EA-9500B00-00	CLIP CV-70S

Page 19 — 9. OIL RESERVOIR & KNEE LIFTER COMPONENTS

Juki MH-380 parts on page 19
Part number	Part name	Qty
B8217-481-AD0	OIL RESERVOIR ASM.	1
B8217-481-AC0	OIL RESERVOIR ASM.	(1)
B8217-481-000	OIL RESERVOIR	(1)
B8235-481-000	GASKET A	(2)
B8237-481-000	GASKET C	(1)
D8227-555-E00	FELT CUSHION	(4)
SS-7701010-SP	SCREW 5/16-24 L=10	(2)
RO-0681901-00	RUBBER RING	(2)
NM-6060001-SE	NUT M6	(2)
B3420-555-000	KNEE PRESS ROD	(1)
229-32453	BRACKET ASM.	(1)
SM-8063012-TR	SCREW M6 L=30	(1)
B3426-552-000	THRUST RING	(1)
110-24106	SPRING	(1)
B3425-555-000-A	KNEE LIFTER ROTATION ARM	(1)
SM-9061853-SR	SCREW M6 L=17.5	(1)
SM-8063012-TR	SCREW M6 L=30	(1)
B3421-555-000	KNEE PRESS LIFTER ROD	1
B8228-125-000	OIL RESERVOIR MAGNET	1
229-34251	KNEE PAD PLATE ASM.	1
229-34301	KNEE PAD PLATE SUPPORT	(1)
SM-9061203-SE	SCREW M6 L=12	(1)
229-34509	KNEE PAD PLATE COVER	(1)
229-34608	KNEE PAD UPRIGHT SHAFT	(1)
229-34400	KNEE PAD PLATE RUBBER	(1)
229-34202	KNEE PAD PLATE	(1)

Page 20 — THREAD STAND COMPONENTS

Juki MH-380 parts on page 20
Ref	Part number	Part name
1	1	THREAD STAND COMPONENTS
2	2	POST
3	3	POST
4	4	BRACKET
5	5	BRACKET
6	6	BRACKET
7	7	CLIP
8	8	ROD
9	9	ROD
10	10	CAP
11	11	ROD
12	12	BASE
13	13	BASE
14	14	CAP
15	15	NUT
16	16	BRACKET
17	17	WASHER
18	18	SCREW
19	19	NUT
20	20	SCREW
21	21	SCREW
22	22	SCREW
23	23	SCREW
24	24	CLIP

Page 21

Juki MH-380 parts on page 21
Part number	Part name	Qty
B3301-380-0A0	THREAD STAND ASM.	(1)
111-85105	SPOOL REST ROD,LOWER	(1)
111-85204	SPOOL REST ROD,UPPER	(1)
119-69409	THREAD GUIDE ARM B	(4)
B3304-704-000-A	THREAD GUIDE ARM HOLDER	(1)
B3305-704-000-A	SPOOL REST ROD JOINT	(1)
B3318-704-L00-A	THREAD GUIDE ARM JOINT	(4)
B3309-704-000	THREAD GUIDE ARM	(1)
B3311-804-000	LOWER THREAD GUIDE	(1)
B3311-704-000	SPOOL REST ROD RUBBER CAP	(1)
B3320-704-L00-A	SPOOL PIN	(4)
119-66504	SPOOL REST	(4)
B3311-012-000	SPOOL REST CUSHION	(4)
111-85501	SPOOL RETAINER	(1)
B3317-704-000	NUT C15	(4)
B3319-704-L00	THREAD GUIDE	(2)
WP-1612616-SE	WASHER 16X30X2.6	(2)
SM-4051405-SE	SCREW M5X0.8 L=14	(2)
NM-6050001-SE	NUT M5X0.8	(2)
SM-6053000-SE	SCREW M5X0.8 L=30	(1)
SM-6061610-SC	SCREW M6 L=16	(4)
SS-7110540-SP	SCREW 11/64-40 L=5	(1)
NM-6050001-SE	NUT M5X0.8	(4)
MA0-11532000	CORD STAPLE	(2)

Page 22 — 11. SILICON OIL LUBRICANT & BELT COVER COMPONENTS

Juki MH-380 parts on page 22
Part number	Part name	Qty
B1161-481-0B0	SILICONE OIL LUBRICANT ASM.	(1)
B1161-481-000-A	SILICONE OIL CASE	(1)
TA-1050504-R0	RUBBER PLUG	(1)
B1162-481-000	SILICONE OIL FELT	(1)
B1166-481-000	SILICONE OIL FELT	(5)
B1167-481-000	SILICONE THREAD GUIDE	(2)
B1168-481-000	SCREW	(1)
SD-0640231-SP	HINGE SCREW D= 6.35 H= 2.3	(1)
WZ-0641510-KP	WAVED WASHER 6.4X11X0.3	(1)
B9135-123-0B0	SILICONE OIL LUBRICANT ASM. (30	1
SS-4150915-SP	SCREW 15/64-28 L=9	1
WP-0621016-SD	WASHER 6.2X13X1	1
D8230-555-E00	BELT COVER	1
D8230-380-0A0	BELT COVER	1
CM-5003000-01	DIRECTION LABEL	1
D8231-555-E00	BELT COVER TOP	1
D8231-555-E0B	BELT COVER TOP	1
SS-4110815-SP	SCREW 11/64-40 L=5	1
D8232-555-B00	BELT COVER SUPPORT PLATE	1
D8232-555-E00	THREAD WINDER COVER	1
D8232-555-E0A	BOBBIN WINDER COVER	1
SS-4110515-SP	SCREW 11/64-40 L=5	7
B8231-380-000	BELT COVER	1
101-63152	BELT COVER SUPPORT PLATE ASM.	(1)
101-63152	BELT COVER SUPPORT PLATE	(1)
WP-0501016-SC	WASHER 5X10.5X1	(1)
SK-3482500-SC	WOOD SCREW D=4.8 L=25	(1)

Page 24 — TABLE OF EXCHANGING GAUGE SETS FOR MH-380 & 382

Juki MH-380 parts on page 24
Ref	Part number	Part name
A	1103-380-B00	Throat plate
A	1103-380-C00	Throat plate
A	1103-380-D00	Throat plate
A	1103-380-E00	Throat plate
B	B1406-019-BA0	Needle clamp asm. (針カバー付)
B	B1406-019-CA0	Needle clamp asm. (針カバー付)
B	B1406-019-DAO	Needle clamp asm. (針カバー付)
B	B1406-019-EA0	Needle clamp asm. (針カバー付)
B	B1406-019-FA0	Needle clamp asm. (針カバー付)
C	B1509-038-BB0	Presser foot asm. (with finger guard) 押工 (粗) (針カバー付)
C	B1509-038-CB0	Presser foot asm. (with finger guard) 押工 (粗) (針カバー付)
C	B1509-038-DB0	Presser foot asm. (with finger guard) 押工 (粗) (針カバー付)
C	B1509-038-EB0	Presser foot asm. (with finger guard) 押工 (粗) (針カバー付)
C	B1509-038-F80	Presser foot asm. (with finger guard) 押工 (粗) (針カバー付)
D	B1613-380-B00	Feed dog 送り歯
D	B1613-380-D00	Feed dog 送り歯
D	B1613-380-F00	Feed dog 送り歯
D	B1613-380-H00	Feed dog 送り歯
D	B1613-380-K00	Feed dog 送り歯
D	B1613-380-L00	Feed dog 送り歯
E	B2311-380-B00	Rear moving needle guard
E	B2311-380-C00	Rear moving needle guard
E	B2311-380-D00	Rear moving needle guard
E	B2311-380-E00	Rear moving needle guard
E	B2311-380-F00	Rear moving needle guard
E	B2311-380-H00	Rear moving needle guard
E	B2311-380-K00	Rear moving needle guard
E	B2311-380-L00	Rear moving needle guard
F	B2315-380-000	Right needle guard
G	B2312-380-000	Left needle guard 左側固定針受
G	D1406-038-BA0	Left needle guard 左側固定針受
G	B2311-382-000	Left needle guard 左側固定針受

Page 25 — 14. LIST FOR INFORMATION OF CHANGE

Juki MH-380 parts on page 25
Ref	Part number	Part name	Qty
30	B1148-555-000
38	SS-9151440-CP
20	B1402-552-000-A
8	B1502-541-000
13	B1510-227-000
14	B1505-227-000-A
41	B1608-555-000
19	CS-147121A-SH
36	CS-147121A-SH
41	SS-6121610-TP
2	B3523-226-000
9	B3420-555-0A0
11	B3427-122-000
12	SS-9182010-SN
14	B3429-555-000
15	B3425-555-000
16	SS-9151810-SR
17	SS-8153010-SR
18	NS-6150430-SR
19	SS-8152080-SR
22	110-23751
30	229-12109
38	SS-9151120-CP
20	229-06101
8	229-07109
13	229-07703
14	229-07406
41	B1608-481-000
19	229-04155
36	229-04155
41	SS-6121610-SP
2	229-25101
33	EA-9500B00-00
11	229-32453
14	110-24106
15	B3425-555-000-A
16	SM-9061853-SR
17	SM-8063012-TR
9	NM-6060001-SE
12	SM-8063012-TR
20	229-34251

Page 27 — NUMERICAL INDEX OF PARTS

Juki MH-380 parts on page 27
Ref	Part number	Part name
13	DB230-555-E00	SS-4110815-SP
17	DB231-555-E00	SS-4110815-SP
16	DB231-555-E00	SS-4111015-SP
19	DB232-555-B00	SS-4111415-SP
21	DB232-555-E0A	SS-4112515-SP
20	DB232-555-E00	SS-4150915-SP
33	EA-9500B00-00	SS-5060310-SP
24	MAC-11532000	SS-6060210-SP
1	MTV-700B1400	SS-6060220-SP
27	NM-6030000-0E	SS-6060340-SP
19	NM-6030000-SE	SS-6060340-SP
23	NM-6030001-SE	SS-6080320-SP
9	NM-6060001-SE	SS-6080320-SP
16	NS-6110310-SP	SS-6080410-SP
58	NS-6110310-SP	SS-6090510-TP
49	NS-6120310-SP	SS-6090630-SP
10	NS-6120310-SP	SS-6090670-TP
62	NS-6150430-SP	SS-6090670-TP
37	NS-6620310-SP	SS-6090810-SP
45	NS-6680320-SP	SS-6091210-TP
45	NS-6680410-SP	SS-6091210-TP
7	PS-0200102-KH	SS-6110420-TP
23	RC-0150001-KP	SS-6110420-TP
32	RE-0500000-KO	SS-6110710-TP
24	RE-0600000-KO	SS-6120930-SP
26	RO-0371801-00	SS-6121210-SP
17	RO-0371801-00	SS-6121210-SP
29	RO-0442401-00	SS-6121220-SP
8	RO-0681901-00	SS-6121610-SP
56	RO-0691801-00	SS-6121610-TP
4	RO-0742401-00	SS-6121610-TP
9	RO-1952401-00	SS-6121840-SP
47	SD-0500401-SP	SS-6122510-SP
35	SD-0600322-SD	SS-6621220-SP
18	SD-0630275-SP	SS-6660610-TP
19	SD-0630301-SP	SS-6661110-SP
8	SD-0640231-SP	SS-7081310-SP
44	SD-1020701-SP	SS-7090520-TP
29	SE-4301031-SR	SS-7090910-TP
27	SK-3482500-SC	SS-7090910-TP
25	SM-4031001-SC	SS-710540-SP
18	SM-4051405-SE	SS-7110510-SP
20	SM-6053000-SE	SS-7110540-SP
21	SM-6061610-SC	SS-7110710-SP
2	SM-6062002-TP	SS-7110710-SP
12	SM-8063012-TR	SS-7110910-SP
17	SM-8063012-TR	SS-7111120-SP
22	SM-9061203-SE	SS-7111120-SP
16	SM-9061853-SR	SS-7111260-SP
7	SQ-1110401-MZ	SS-7111310-TP
8	SS-1080510-SP	SS-7111410-TP
45	SS-1110710-SP	SS-7151120-SP
13	SS-2090710-SP	SS-7620750-SP
50	SS-2110920-TP	SS-7681650-TP
14	SS-2110930-SP	SS-7701010-SP
66	SS-4080415-SP	SS-8090540-SP
10	SS-4110515-SP	SS-8110310-SP
14	SS-4110515-SP	SS-8110410-TP
21	SS-4110515-SP	SS-8110410-TP
23	SS-4110515-SP	SS-8110510-SP
25	SS-4110515-SP	SS-8110510-SP
28	SS-4110515-SP	SS-8150310-SP
67	SS-4110515-SP	SS-8150710-SP
64	SS-4110515-SP	SS-8150710-SP
22	SS-4110715-SP	SS-8150710-SP
11	SS-4110715-SP	SS-8150710-SP
22	SS-4110715-SP	SS-8150710-SP
4	SS-4110715-SP	SS-8150710-SP
12	SS-4110715-SP	SS-8150710-SP
45	SS-8150710-SP	SS-8150710-SP
35	SS-8150710-TP	SS-8150710-TP
52	SS-8151150-SP	SS-8151150-SP
59	SS-8151150-SP	SS-8151150-SP
55	SS-8151150-SP	SS-8151150-SP
52	SS-8151150-SP	SS-8151150-SP
59	SS-8151150-SP	SS-8151150-SP
55	SS-8151150-SP	SS-8151150-SP
45	SS-8151550-SP	SS-860610-TP
37	SS-8620610-SP	SS-860610-TP
37	SS-8660610-TP	SS-860610-TP
39	SS-8660610-TP	SS-860610-TP
39	SS-8660610-TP	SS-860610-TP
55	SS-8660610-TP	SS-860810-TP
22	SS-8660610-TP	SS-860810-TP
29	SS-8661040-TP	SS-860810-TP
31	SS-8681650-TP	SS-860810-TP
38	SS-9151120-CP	SS-8661040-TP
12	TA-0750704-RO	SS-8681650-TP
18	TA-1050504-RO	SS-9151120-CP
3	TA-1050504-RO	TA-0750704-RO
4	TA-1250406-RO	TA-1050504-RO
11	TA-1250504-RO	TA-1050504-RO
58	TA-1750502-RO	TA-1250406-RO
72	TA-2050406-RO	TA-1250504-RO
31	TA-2101002-RO	TA-1750502-RO
33	TA-2351004-RO	TA-2050406-RO
32	TA-2351305-RO	TA-2101002-RO
53	WP-0371026-SD	TA-2351004-RO
4	WP-0480856-SP	TA-2351305-RO
4	WP-0480856-SP	WP-0371026-SD
26	WP-0501016-SC	WP-0480856-SP
12	WP-0621016-SD	WP-0480856-SP
12	WP-0621016-SD	WP-0501016-SC
27	WP-0740516-SP	WP-0621016-SD
17	WP-1612616-SE	WP-0621016-SD
28	WT-0320002-KZ	WP-0740516-SP
58	WZ-0541510-KP	WP-1612616-SE
58	WZ-0641510-KP	WT-0320002-KZ
58	WZ-1052010-KP	WZ-0541510-KP
78	100-04109	WZ-0641510-KP
25	101-63103	WZ-1052010-KP
24	101-63152	100-04109
11	110-78705	101-63103
48	110-04207	101-63152
62	110-07101	110-78705
14	110-24106	110-04207
9	110-52701	110-07101
10	110-71602	110-24106
10	110-71701	110-52701
63	110-71800	110-71602
3	110-72204	110-71701
12	111-85105	110-71800
3	111-85204	110-72204
12	111-85501	111-85105
12	119-66504	111-85204
4	119-69409	111-85501
19	229-04155	119-66504
36	229-04155	119-69409
20	229-06101	229-04155
8	229-07109	229-04155
14	229-07406	229-06101
13	229-07703	229-07109
30	229-12101	229-07406
2	229-25101	229-07703
11	229-32453	229-12101

Juki MH-380 — parts catalog

Page 1 — PARTS LIST

JUKI Flat Bed, 2-Needle Doubled Chainstitch Industrial Sewing Machine 高速平ベット平二本針二重環縫ミシン MH-380 Flat Bed, Tandem 2-Needle Doubled Chainstitch Industrial Sewing Machine 高速平ベット縦二本針二重環縫ミシン MH-382 PARTS LIST BE3800TOPJA No.0046-10 jintex.in

Page 2 — HOW TO MAKE USE OF THIS PARTS LIST

HOW TO MAKE USE OF THIS PARTS LIST 1. Explanation of codes 1) "*" mark...means this part is changed from the previous parts book. As to the details of the change, refer to "List for information of change". 2) "01"...refer to "Note" explanation at bottom of page. 2. Codes on the "Qty" column Each numeral indicates the number of parts required. - "0.1" and "2.5" indicate the length (in meters) of the respective parts. 3. Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 4. Dotted lines on the Figures indicate assembly parts. パーツリストご利用に際して 1. "注記" 欄の記号説明 1) "*"印...前回のパーツブックに比較して今回変更された部品を意味します。変更内容は"変更情報リスト"を参照してください。 2) "01"...ページ下の"注記"の説明を参照してください。 2. 数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ(単位メートル)を表します。 3. 数量欄の( )は、組部品を構成している子部品であることを意味します。 4. イラストページのー－－－－－枠は、組構成であることを意味します。 jintex.in

Page 3 — CONTENTS

CONTENTS 目次 1. MACHING FRAME & MISCELLANEOUS COVER COMPONENTS .................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................------------------------------------------------................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................----------------................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................* 1. MACHING FRAME & MISCELLANEOUS COVER COMPONENTS 頭部外装関係 2. MAIN SHAFT & NEEDLE BAR COMPONENTS 上軸・針棒関係 3. PRESSER BAR UPRIGHT SHAFT & LOWER SHAFT COMPONENTS 押え棒・立軸・下軸関係 4. FEED MECHANISM COMPONENTS (1) 送り関係 (1) 5. FEED MECHANISM COMPONENTS (2) 送り関係 (2) 6. LOOPER & NEEDLE GUARD COMPONENTS ルーパ・針受関係 7. THREAD TENSION CONTROLLER COMPONENTS 糸調子関係 8. OIL LUBRICATION MECHANISM COMPONENTS 給油関係 9. OIL RESERVOIR & KNEE LIFTER COMPONENTS 油溜・膝上げ関係 10. THREAD STAND COMPONENTS 糸立て装置関係 11. SILICON OIL LUBRICANT & BELT COVER COMPONENTS エスレン装置・ベルトカバー関係 12. TABLE OF EXCHANGING GAUGE SETS FOR MH-380 & 382 MH-380・382 ゲージセット一覧表 (1) 13. TABLE OF EXCHANGING GAUGE SETS FOR MH-380 & 382 MH-380・382 ゲージセット一覧表 (2) 14. LIST FOR INFORMATION OF CHANGE 変更情報リスト NUMERICAL INDEX OF PARTS 索引 1 3 5 7 9 11 13 15 16 17 19 20 21 22 23

Page 4 — 1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS 頭部外装関係 3 1 69 2 21 17 18 16 14 15 72 20 19 70 4 77 3 9 5 11 13 6 23 22-71 24 26 25 73-74 30 29 75-76 31 12 78 68 32 33 35 36 34 37 38 48 39 41 40 42 47 44 45 43 46 49 58 51 64 65 59 52 60 61 53 57 55 54 55 56 67 66 63 62 -1- jintex.in

Page 5

REF. NO. NOTE PART NO. DESCRIPTION Qty. 1 B1121-552-0AO FACE PLATE ASM. 1 2 B1122-552-000 FACE PLATE GASKET 1 3 SS-4111015-SP SCREW 11/64-40 L=10 3 4 TA-1250406-RO RUBBER PLUG D=12.5 L=4 1 5 B1130-481-0AO ARM OIL SHIELD ASM. 1 6 B1130-481-000-A ARM OIL SHIELD 1 7 B1131-481-000 NON-WOVEN FABRIC (1) 8 B1132-481-000 OIL WICK (1) 9 SS-6080320-SP SCREW 1/8-44 L=2.5 1 10 SS-4110515-SP SCREW 11/64-40 L=5 1 11 TA-1250705-RO RUBBER PLUG 1 12 TA-0750704-RO RUBBER PLUG 2 13 TA-1050504-RO RUBBER PLUG 2 14 B1118-481-000 SIDE PLATE 1 15 B1119-481-000 GASKET 1 16 D3111-481-C00-A TENSION RELEASE SHAFT BUSHING 1 17 SS-6090630-SP SCREW 9/64-40 L=6 2 18 B3534-012-000 RUBBER PLUG 1 19 SS-4110815-SP SCREW 11/64-40 L=8 8 20 B3122-481-000 FRAME THREAD GUIDE 1 21 SS-4110515-SP SCREW 11/64-40 L=5 1 22 B1904-481-000 THREAD TAKE-UP LEVER GUARD 2 23 SS-4110515-SP SCREW 11/64-40 L=5 1 24 B1903-481-000 TAKE-UP THREAD TENSION LEVER 2 25 SS-4110515-SP SCREW 11/64-40 L=5 1 26 WP-0480856-SP WASHER 4.8X8.4X0.8 1 27 B1905-380-000 FRAME THREAD EYELET 1 28 SS-4110515-SP SCREW 11/64-40 L=5 1 29 110-52701 PIN 1 30 229-12109 FEED REGULATOR PIN SPRING 1 31 TA-2101002-RO RUBBER PLUG 1 32 TA-2351305-RO RUBBER PLUG 2 33 TA-2351004-RO RUBBER PLUG 1 34 B1134-481-000 BED OIL SHIELD (B) 1 35 B1135-481-000 BED OIL SHIELD (B) 1 36 SS-7110510-SP SCREW 11/64-40 L=5 4 37 B1106-122-000 BED SUPPORT PLATE (1) 38 SS-9151120-CP SCREW 15/54-28 L=11 2 39 B1110-481-000-A CAM COVER LATCH (1) 40 B1111-481-000 SPRING (1) 41 B1112-481-000-A SPRING SUSPENSION (1) 42 SS-6080320-SP SCREW 1/8-44 L=2.5 1 43 B1111-380-0AO ATTACHMENT INSTALLING PLATE AS 1 44 B1111-380-000 ATTACHMENT INSTALLING PLATE 1 45 B1112-380-000 SPRING (2) 46 SS-6060220-SP SCREW 3/32-56 L=1.9 (1) 47 SS-8150310-SP SCREW 15/64-28 L=3.4 (1) 48 B1103-380-F00 THROAT PLATE 1/4" 1 49 B1103-382-000 THROAT PLATE 1 50 SS-2110920-TP SCREW 11/64-40 L=8.5 2 51 B1108-380-BAO CAM COVER ASM. (1) 52 B1108-380-B00 CAM COVER (1) 53 B1108-481-000 CAM COVER SUPPORT (1) 54 B1109-481-000 SPRING (4) 55 SS-6060210-SP SCREW 3/32-56 L=1.9 (1) 56 B1107-481-000 CAM COVER GUIDE (1) 57 SS-6060340-SP SCREW 3/32-56 L=2.5 (1) 58 B1104-380-AAO BED SLIDE ASM. (1) 59 B1104-380-A00 BED SLIDE (1) 60 B1115-380-000 SPRING (2) 61 SS-6060210-SP SCREW 3/32-56 L=1.9 (1) 62 B1107-380-000 BED SLIDE GUIDE (1) 63 SS-6060340-SP SCREW 3/32-56 L=2.5 (1) 64 B1105-380-000 BED SLIDE STOPPER (1) 65 B1106-380-000 LATCH 1 66 SS-4080415-SP SCREW 1/8-44 L=4 1 67 SS-4110515-SP SCREW 11/64-40 L=5 2 68 TA-1750502-RO RUBBER PLUG D=17.5 L=5 1 69 B1121-552-00A FACE PLATE 1 70 B1118-481-00A SIDE PLATE 1 71 B1904-481-00A THREAD TAKE-UP LEVER COVER 1 72 TA-2050406-RO RUBBER PLUG 1 73 CM-3002000-B1 ATTENTION SEAL (1) 74 CM-3002001-01 SAFETY LABEL, 1 (SMALL). (1) 75 CM-3002001-A1 SAFETY LABEL, 3 (SMALL). (1) 76 CM-3002000-C1 CAUTION LABEL 1 77 100-04109 GROUND MARK 1 NOTE (注記) 01....FOR MH-380 02....FOR MH-382 03....FOR URBAN WHITE 04....FOR JE 05....EXCEPT JE & JAPAN 06....FOR JAPAN -2- jintex.in

Page 6 — 2. MAIN SHAFT & NEEDLE BAR COMPONENTS

2. MAIN SHAFT & NEEDLE BAR COMPONENTS 上軸・針棒関係 32 31 30 26 25 27 29 28 33 36 35 34 36 38 24 46 23 37 43 8 44 45 19 15 14 22 21 18 17 16 13 12 20 9 10-6 11 7 2 6 3 5 4 1 -3- jintex.in

Page 7

REF. NO. NOTE PART NO. DESCRIPTION Qty 1 MTV-700B1400 NEEDLE TVX7 #14 2 2 B1401-380-000 NEEDLE BAR 1 3 01 B1406-019-FAO NEEDLE CLAMP ASM. 1/4" (1) 4 01 SS-8110310-SP SCREW 11/64-40 L= 2.8 (2) 5 02 D1406-038-BAO NEEDLE CLAMP ASM. 1 6 B1419-380-000 NEEDLE BAR THREAD GUIDE 1 7 B1403-380-000 NEEDLE BAR BUSHING, LOWER 1 8 03 B1217-490-00A HAND WHEEL 1 9 B1411-481-0AO NEEDLE BAR CONNECTION ASM. 1 10 SS-6090670-TP SCREW 9/64-40 L=6 (1) 11 B1414-555-000 SLIDE BLOCK 1 12 B1902-481-000-B THREAD TAKE-UP LEVER ASM. (1) 13 SS-6091210-TP SCREW 9/64-40 L=12 1 14 B1901-380-0AO THREAD TAKE-UP ASM. (1) 15 B1901-380-000-A THREAD TAKE-UP (1) 16 B1908-481-000-A THREAD TENSION REGULATING PLAT (1) 17 D1910-481-C00 TENSION SPRING (1) 18 B1909-481-000-A THREAD TENSION REGULATING STUD (1) 19 SS-6090670-TP SCREW 9/64-40 L=6 2 20 * 229-06101 NEEDLE BAR BUSHING, UPPER (1) 21 B1405-012-000 CAP 1 22 B1201-481-000-A MAIN SHAFT 1 23 B1226-552-000 ROLLER FELT 1 24 B1206-481-0AO COUNTERWEIGHT ASM. (1) 25 B1206-481-0B0 COUNTERWEIGHT ASM. (1) 26 SS-8150710-SP SCREW 15/64-28 L=7 (1) 27 SS-7681650-TP SCREW 9/32-28 L=16 (1) 28 SS-8681650-TP SCREW 9/32-28 L=16 (1) 29 RO-0442401-00 RUBBER RING (1) 30 B1408-481-000 NEEDLE BAR CRANK ROD (1) 31 B1905-541-B00 NEEDLE BEARING (1) 32 B1903-552-000 LEFT SCREW (1) 33 B1202-481-000 BUSHING, FRONT (1) 34 B1203-481-B00 BUSHING, INTERMEDIATE (1) 35 SS-7151120-SP SCREW 15/64-28 L=11 1 36 CS-147121E-SH THRUST COLLAR ASM. D=14.72 W=12 2 37 SS-8660810-TP SCREW 1/4-40 L=8 (4) 38 D1204-555-DAO MAIN SHAFT BUSHING, REAR ASM. 1 39 D1204-555-D00 MAIN SHAFT BUSHING, REAR (1) 40 D1230-555-B00 NEEDLE BEARING (2) 41 D1231-555-B00 WASHER (2) 42 D1232-555-B00 SNAP RING (2) 43 D1208-555-D00 OIL SEAL 1 44 B1217-490-000 HAND WHEEL 1 45 SS-8151550-SP SCREW 15/64-28 L=15 2 46 B1213-552-0A0-A OIL AMOUNT ADJUSTING PIN ASM. 1 NOTE (注記) 01...FOR MH-380 MH-380 02...FOR MH-382 MH-382用 03...FOR URBAN WHITE アーバンホワイト用 - 4 - jintex.in

Page 8 — 3. PRESSER BAR, UPRIGHT SHAFT & LOWER SHAFT COMPONENTS

3. PRESSER BAR, UPRIGHT SHAFT & LOWER SHAFT COMPONENTS 押え棒・立軸・下軸関係 21 22 30 32 31 33 37 35 34 20 23 24 62 36 41 42 39 39 15 9 10 16 17 19 18 29 28 27 63 26 40 46 47 49 14 13 11 12 38 43 39 45 44 39 9 8 7 6 4 3 5 2 1 53 54 59 58 57 56 55 52 51 50 60 61 -5- jintex.in

Page 9

REF. NO. NOTE PART NO. DESCRIPTION Qty. 1 01 B1509-038-FB0 PRESSER FOOT ASM. 1/4" オサエ 1/4 (ハリカニ-ツキ) クミ 1 2 02 B1524-382-0B0 PRESSER FOOT オサエクミ 1 3 B1528-380-0A0 THREAD KNIFE ASM. イトキリハクミ 1 4 B1529-380-000 THREAD KNIFE GUIDE イトキリハガイド 1 5 SS-5060310-SP SCREW 3/32-56 L=2.8 トラスネジ 3/32-56 L=2.8 (1) 6 SS-7091110-TP SCREW 9/64-40 L=10.5 マルヒラネジ 9/64-40 L=10.5 1 7 B1501-380-000 PRESSER BAR オサエバ- 8 * 229-07109 PRESSER BAR BUSHING, LOWER オサエバ- ウシタメタル 1 9 03 110-71602 PRESSER SPRING REGULATOR オサエチョウセツネジ 1 10 03 110-71701 NUT オサエチョウセツネジナット 1 11 101-78705 PRESSER BAR GUIDE BRACKET オサエバ- ウデケ 1 12 SS-8660610-TP SCREW 1/4-40 L=6 トメネジ 1/4-40 L=6 1 13 * 229-07406 PRESSER GUIDE BAR オサエアンナイポウ 1 14 * 229-07406 PRESSER SPRING オサエチョウセツハネ 1 15 B1509-555-000 NUT オサエチョウセツハネ 1 16 B1515-555-000 LIFTING LEVER ヒキアゲイタ 1 17 B1515-552-000 HINGE SCREW D= 6.35 H= 2.7 ダンネジ D= 6.35 H=2.7 1 18 SD-0630275-SP HINGE SCREW D=6.35 H=3 ダンネジ D= 6.35 H=3 1 19 SD-0630301-SP LIFTING LEVER LINK ヒキアゲイタリンク 1 20 B1517-552-000 HINGE PIN ヒキアゲリングダク 1 21 B3431-581-000 LIFTING LEVER GASKET ハツキン 1 22 B1523-226-000 SNAP RING トメワ B 1 23 RE-0600000-KO E-RING 6 Eガタトメワ 6 1 24 B1518-555-0A0 HAND LIFTER CAM ASM. オサエアゲカムクミ 1 25 RO-0371801-00 RUBBER RING Oリング (1) 26 WP-0740516-SP WASHER 7.4X11.8X0.5 ヒラサカ 7.4X11.8X0.5 1 27 B1520-552-000-A HAND LIFTER オサエアゲレバ- 28 B1521-555-000 SCREW オサエアゲレバ- トメネジ 1 29 B3412-415-000 LIFTING LEVER CONNECTING ROD ヒキアゲヨコボ- ダンネジ 1 30 B3416-552-000 CONNECTING ROD HINGE SCREW Eガタトメワ 5 1 31 RE-0500000-KO E-RING ヒキアゲリングウデ 1 32 B3414-415-000-A LIFTING LEVER LINK, RIGHT ツリガエ-ダマ 1 33 B3416-415-000-A SWIVEL ダンネジ D=6 H=3.2 1 34 SD-0600322-SD HINGE SCREW D=6 H=3.2 ヒキアゲレンケツボ- 1 35 B3415-481-000 CONNECTING ROD, VERTICAL 1 36 B3415-481-000 NUT 3/16-32 ロツカクナット 3/16-32 1 37 NS-6620310-SP GEAR LOWER ASM. ハグクルマクミ 1 38 B1308-481-0C0 SCREW 1/4-40 L=8 トメネジ 1/4-40 L=8 (8) 39 SS-8660810-TP GEAR & PINION ASM., UPPER ウワサカハグルマクミ (1) 40 B1306-155-0B0 GEAR ASM. ウワサカハグルマダイクミ (1) 41 B1305-012-0A0 PINION ASM. ウワサカハグルマシヨ-クミ (1) 42 B1306-155-0A0 GEAR & PINION ASM. カタハグルマクミ (1) 43 B1308-481-0B0 GEAR LOWER(LARGE)ASM. シタハグルマダイクミ (1) 44 B1308-481-0A0 PINION ASM. シタハグルマシヨ-クミ (1) 45 B1306-155-0A0 UPIGHT SHAFT 1 46 B1301-481-000-A BUSHING, UPPER タテジク 1 47 B1302-552-B00 BUSHING, UPPER タテジクウワメタル 1 48 110-04207 UPRIIGHT SHAFT BUSHING, LOWER タテジクカンメタル 1 49 SS-8151150-SP SCREW 15/64-28 L=10.5 トメネジ 15/64-28 L=10.5 2 50 B1801-380-0A0 LOWER SHAFT ASM. シタジククミ 1 51 B1607-352-000 BUSHING, REAR オクリリククミウシロメタル 1 52 SS-8151150-SP SCREW 15/64-28 L=10.5 トメネジ 15/64-28 L=10.5 1 53 B1432-027-000 OIL PAD ROLLER ハリボーヨート-ダイフエルト 1 54 CS-111121A-SH THRUST COLLAR ASM. D=11.11 W=1 スラストウケ D=11.11 W=12 クミ 1 55 SS-8660810-TP SCREW 1/4-40 L=8 トメネジ 1/4-40 L=8 (2) 56 B1803-481-000 BUSHING, INTERMEDIATE シタジクナカメタル 1 57 SS-8151150-SP SCREW 15/64-28 L=10.5 トメネジ 15/64-28 L=10.5 1 58 B1802-481-000 BUSHING, FRONT シタジクマエメタルオイルシール 1 59 SS-8151150-SP SCREW 15/64-28 L=10.5 1 60 B1813-481-000 LOOPER THREAD GUARD BUSHING ヒサアゲヨコウネシ 1 61 B2226-481-000 HINGE SCREW オサエアゲレバ- 1 62 110-07101 HAND LIFTER 1 63 03 110-71800 1 NOTE (注記) 01...FOR MH-380 MH-380用 02...FOR MH-382 MH-382用 03...FOR URBAN WHITE アーハンケイト用 -6- jintex.in

Page 10

4. FEED MECHANISM COMPONENTS (1) 送り関係 (1) 10 5 7 6 11 12 4 3 1 28 2 14 13 8 9 15 16 17 51 52 56 58 55 54 53 29 23 24 25 45 41 42 39 40 38 34 35 32 30 37 36 33 27 61 59 57 60 62 31 -7- jintex.in

Page 11

REF. NO. NOTE PART NO. DESCRIPTION QTY. 1 B1623-555-000-A FEED REGULATOR DIAL メモリイタ 1 2 SS-6120930-SP SCREW 3/16-28 L=9 ヒラネジ 3/16-28 L=9 1 3 B1634-555-000-B STITCH LENGTH REGULATING SCREW オクリチョーセツネジ 1 4 RO-0742401-00 RUBBER RING Oリング 1 5 B1620-481-000 FEED REGULATOR オクリチョーセツタイ 1 6 B1622-555-000 HINGE PIN 1 7 SS-8150710-SP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 1 8 B1625-555-000 FEED REGULATOR CONNECTING ROD オクリチョーセツキロッド 1 9 B1626-555-000 FEED REGULATOR CONNECTING ROD オクリチョーセツキロッド 1 10 SS-8110510-SP SCREW 11/64-40 L=5 トメネジ 11/64-40 L=5 1 11 SS-7110710-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 1 12 B1610-380-0AO FEED ECCENTRIC CAM ASM. オクリヘンシンカムクミ 1 13 SS-2090710-SP SCREW 9/64-40 L=7 マルサラネジ 9/64-40 L=7 (2) 14 SS-2110930-SP SCREW 11/64-40 L=8.75 マルサラネジ 11/64-40 L=8.75 (3) 15 SS-6661110-SP SCREW 1/4-40 L=11 ヒラネジ 1/4-40 L=11 (2) 16 B1636-581-000 FEED ROCKER SHAFT CONNECTING R スイヘイオクリロッド 1 17 01 B1636-581-BOO NEEDLE BEARING B ニードルベアリング B 1 18 B1621-555-000-A CONTROL LEVER SHAFT オクリチョーセツレバーシク 1 19 B1627-555-0AO CRANK ASM. ヒツパリハネクケチョーセツキクミ 1 20 SS-6121210-SP SCREW 3/16-28 L=12 ヒラネジ 3/16-28 L=12 (1) 21 SS-8150710-SP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 1 22 SS-7110910-SP SCREW 11/64-40 L=8.5 マルヒラネジ 11/64-40 L=8.5 1 23 SS-7620750-SP SCREW 3/16-32 L=6.5 マルヒラネジ 3/16-32 L=6.5 2 24 B1628-555-000 TENSION SPRING SUSPENSION STUD ヒツパリハネクク 1 25 B1646-555-000 TENSION SPRING ヒツパリハネ 1 26 B1636-555-000 SUSPENSION BRACKET ヒツハリハネケ 1 27 SS-7111120-SP SCREW 11/64-40 L=10.5 マルヒラネジ 11/64-40 L=10.5 1 28 02 B1623-555-A00 FEED REGULATOR DIAL メモリイタ 1 29 02 B1624-380-00A REVERSE FEED CONTROL LEVER オクリレバー 1 30 B1617-555-000 FEED DRIVING ROCKER オクリチョーセツリンク 1 31 WP-0621016-SD WASHER 6.2X13X1 ヒラサガネ 6.2X13X1 1 32 SS-8620610-SP SCREW 3/16-32 L=6 トメネジ 3/16-32 L=6 2 33 B1615-555-000 FEED DRIVING ROCKER HINGE PIN オクリチョーセツフタマタリンクピン 1 34 B1619-555-000 FEED DRIVING ROCKER HINGE PIN オクリチョーセツリンクサチエピン 1 35 SS-7111120-SP SCREW 11/64-40 L=10.5 マルヒラネジ 11/64-40 L=10.5 1 36 B1618-161-000 FEED DRIVING ROCKER ARM HINGE オクリチョーセツアームヒンジ 1 37 SS-8150710-SP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 1 38 B1614-555-000 FEED DRIVING ROCKER ARM オクリチョーセツアーム 1 39 B1633-555-000 ROCKER ARM CONNECTING PIN スイヘイオクリロッドピン 1 40 SS-7111260-SP SCREW 1/4-40 L=12 ヒラネジ 1/4-40 L=12 1 41 * B1608-481-000 FEED ROCKER SHAFT CRANK ARM 1 42 SS-6121610-TP SCREW 3/16-28 L=15.5 ヒラネジ 3/16-28 L=15.5 (1) 43 B1606-481-000 CONNECTING ROD スイヘイオクリレンケツカン 1 44 SD-1020701-SP HINGE SCREW D=10.2 H=7 タンネジ D=10.2 H=7 1 45 NS-6680320-SP NUT 9/32-28 ロツカクナット 9/32-28 1 46 B1630-555-000 ROCKER ARM CONNECTING ROD オクリチョーセツロッド 1 47 SD-0500401-SP HINGE SCREW D=5 H=4 タンネジ D=5 H=4 1 48 WZ-0541510-KP WAVED WASHER 5.4X9.0X0.3 ナミガタサガネ 5.4X9X0.3 1 49 NS-6120310-SP NUT 3/16-28 ロツカクナット 3/16-28 1 50 B1629-555-0AO CONTROL LEVER CRANK ASM. オクリチョーセツデクミ 1 51 SS-6121210-SP SCREW 3/16-28 L=12 ヒラネジ 3/16-28 L=12 (1) 52 SS-8150710-SP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 1 53 B1624-380-000 REVERSE FEED CONTROL LEVER オクリレバー 1 54 SS-8661040-TP SCREW 1/4-40 L=10 トメネジ 1/4-40 L=10 1 55 SS-8660810-TP SCREW 1/4-40 L=8 オクリレバー 1 56 RO-0691801-00 RUBBER RING Oリング 1 57 SS-8090540-SP SCREW 9/64-40 L=5 トメネジ 9/64-40 L=5 1 58 WZ-1052010-KP WAVED WASHER 5.4X14.5X0.3 ナミガタサガネ 5.4X14.5X0.3 1 59 B1660-380-000 LEVER STOPPER レバーストツパー 1 60 B1661-481-000 SCREW レバーストツパーネジ 1 61 B1662-481-000 LEVER STOPPER RUBBER CAP レバーストツパーゴム 1 62 NS-6150430-SP NUT 15/64-28 ロツカクナット 15/64-28 1 NOTE (注記) 01...SELECTIVE PART 選択部品 02...FOR URBAN WHITE アーバンホワイト用 -8- jintex.in

Page 12 — 5. FEED MECHANISM COMPONENTS (2)

5. FEED MECHANISM COMPONENTS (2) 送り関係 (2) -9- jintex.in

Page 13

REF. NO NOTE PART NO. D E S C R I P T I O N ヒンメイ Qty 1 01 B1613-380-F00 FEED DOG (1/4) オクリハ 1/4 1 2 02 B1613-382-000 FEED DOG オクリハ (タテ2ホン) 1 3 SS-1111410-TP SCREW 11/64-40 L=14 マルヒラネジ 11/64-40 L=14 1 4 WP-0480856-SP WASHER 4.8X8.4X0.8 ヒラサガネ 4.8X8.4X0.8 1 5 B1602-481-000-A FEED BAR オクリダイ 1 6 B1604-486-000 FEED BAR SHAFT オクリダイイシク 1 7 B1715-481-000 COUNTER-SUNK WASHER ピンサラザガネ 1 8 SS-1080510-SP SCREW 1/8-44 L=5 チラネジ 1/8-44 L=5 1 9 B1603-486-0AO FEED ROCKER ASM. オクリダイウデクミ 1 10 NS-6120310-SP NUT 3/16-28 ロツカクナット 3/16-28 (1) 11 WP-0480856-SP WASHER 4.8X8.4X0.8 ヒラサガネ 4.8X8.4X0.8 (1) 12 SS-6121840-SP SCREW 3/16-28 L=18 ヒラネジ 3/16-28 L=18 (1) 13 SS-6090810-SP SCREW 9/64-40 L=7.5 ヒラネジ 9/64-40 L=7.5 2 14 CQ-3030000-00 OIL WICK ユシン 0.3 15 B1601-555-000 FEED ROCKER SHAFT スイヘイオクリシンク 1 16 B1605-555-000 BUSHING, FRONT オクリシンクマエメタル 1 17 CS-1470712-SH THRUST COLLAR D=14.72 W=7 スラストウケ D=14.72 W=7 1 18 SS-8110410-TP SCREW 11/64-40 L=3.5 トメネジ 11/64-40 L=3.5 2 19 * 229-04155 MAIN SHAFT THRUST COLLAR ASM. ウワシククラストウケ(クミ) 1 20 SS-8660610-TP SCREW 1/4-40 L=6 トメネジ 1/4-40 L=6 (2) 21 CQ-3030000-00 OIL WICK ユシン 0.3 22 B1702-155-000 BUSHING, REAR オクリシンクメタル 1 23 RC-0150001-KP RETAINING RING 13.8 C タトメツ 13.8 1 24 SS-8150710-SP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 1 25 B1701-481-000 FEED DRIVING SHAFT シーヨーゲオクリシンク 1 26 B1604-155-000 FEED ROCKER SHAFT BUSHING, FRO オクリシンクマエメタル 1 27 B4103-352-0AO FEED ROCKER SHAFT CRANK ASM. ウワメスフタマタクランククミ 1 28 SS-6621220-SP SCREW 3/16-32 L=12 ヒラネジ 3/16-32 L=12 (2) 29 B1713-380-000-A FEED BAR LINK シーヨーゲオクリリンク 1 30 CS-0640860-SH THRUST COLLAR ASM. D=6.35 W=8 ウワシククラストウケクミ 1 31 SS-8110510-SP SCREW 11/64-40 L=5 トメネジ 11/64-40 L=5 (2) 32 CQ-3030000-00 OIL WICK ユシン 0.2 33 B1604-155-000 FEED ROCKER SHAFT BUSHING, FRO オクリシンクマエメタル 1 34 SS-8151150-SP SCREW 15/64-28 L=10.5 トメネジ 15/64-28 L=10.5 2 35 CQ-3030000-00 OIL WICK ユシン 0.2 36 * 229-04155 MAIN SHAFT THRUST COLLAR ASM. ウワシククラストウケ(クミ) 1 37 SS-8660610-TP SCREW 1/4-40 L=6 トメネジ 1/4-40 L=6 (2) 38 B1702-155-000 BUSHING, REAR オクリシンクメタル 1 39 SS-8150710-SP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 1 40 B1703-155-0AO FEED DRIVING SHAFT CRANK ASM., シーヨーゲオクリデクミ 1 41 * SS-6121610-SP SCREW 3/16-28 L=15.5 ヒラネジ 3/16-28 L=15.5 (1) 42 03 B1708-481-000 FEED DRIVING SHAFT CONNECTING シーヨーゲオクリロツト 1 43 B1712-481-00B NEEDLE BEARING シーヨーゲオクリヘアリング 1 44 SD-1020701-SP HINGE SCREW D=10.2 H=7 ダンネジ D=10.2 H=7 1 45 NS-6680410-SP NUT 9/32-28 ロツカクナット 9/32-28 1 NOTE (注記) 01....FOR MH-380 MH-380用 02....FOR MH-382 MH-382用 03....SELECTIVE PART 選択部品 - 10 - jintex.in

Page 14 — 6. LOOPER & NEEDLE GUARD COMPONENTS

6. LOOPER & NEEDLE GUARD COMPONENTS ルーパ・針受関係 17 19 25 16 18 21 22 23 26- 24 15 13 12 14 20 10 7 11 9 6 27 26 28 29 30 31 32 33 36 35 34 46 37 39 38 40 44 45 43 42 41 55 47 52 51 56 53 54 50 48 49 - 11 - jintex.in

Page 15

REF. NO NOTE PART NO. D E S C R I P T I O N ヒンメイ Qty 1 B2013-481-000-A LOOPER MOUNTING BASE ルーパ・ダイ 1 2 SM-6062002-TP SCREW M6 L=20 ロッカクアナボルト M6 L=20 4 3 B2030-380-000 LOOPER (LEFT) ヒダリルーパ 1 4 B2031-380-000 LOOPER (RIGHT) ミギルーパ 1 5 B2007-380-0A0 LOOPER HOLDER ASM.,LEFT ヒダリルーパウデクミ 1 6 SS-6121610-TP SCREW 3/16-28 L=15.5 ヒラネジ 3/16-28 L=15.5 (2) 7 SS-7090520-TP SCREW 9/64-40 L=4.5 マルヒラネジ 9/64-40 L=4.5 2 8 B2006-380-0A0 LOOPER HOLDER ASM., RIGHT ミギルーパウデクミ 1 9 SS-6121610-TP SCREW 3/16-28 L=15.5 ヒラネジ 3/16-28 L=15.5 (1) 10 B2012-481-000 BUSHING, REAR ルーパリングメタル 2 11 SS-8110410-TP SCREW 11/64-40 L=3.5 トメネジ 11/64-40 L=3.5 (2) 12 B2010-481-0A0 LOOPER ROCKER SHAFT ASM. ルーパリングクミ 1 13 SS-7090910-TP SCREW 9/64-40 L=8.5 マルヒラネジ 9/64-40 L=8.5 (4) 14 CQ-2520000-00 OIL WICK ユシン 0.2 15 B2008-481-000 TRUNNION トラニオン 1 16 B2014-481-0A0 LOOPER CRANK COVER ASM. クランクカバークミ 1 17 SS-6092120-SP SCREW 9/64-40 L=21.2 ヒラネジ 9/64-40 L=21.2 (3) 18 TA-1050504-RO RUBBER PLUG トメセン 1 19 BT-0500300-EA OIL TUBE ウレタンチューブ 0.1 20 B2032-481-000 LOOPER DRIVING LINK SET RING ルーパリンクトメワ 1 21 B2005-380-0A0 LOOPER CRANK ASM. ルーパクランクシクミ 1 22 SS-8660810-TP SCREW 1/4-40 L=8 トメネジ 1/4-40 L=8 (2) 23 B2007-481-000 LOOPER CRANK ADJUSTING SCREW クランクチョーセザネジ 1 24 B2001-481-000-A LOOPER CRANK DRIVING SHAFT ルーパシク 1 25 B2002-481-000 BUSHING, FRONT ルーパジクマエメタル 1 26 SS-8150710-SP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 2 27 B1803-481-000 BUSHING, INTERMEDIATE シタジクナカメタル 1 28 CS-111121A-SH THRUST COLLAR ASM. D=11,11 W=1 スラストウケ D=11.11 W=12 クミ 1 29 SS-8660810-TP SCREW 1/4-40 L=8 トメネジ 1/4-40 L=8 (2) 30 B2004-481-0A0 GEAR, UPPER ルーパハクルマウエクミ 1 31 SS-8660810-TP SCREW 1/4-40 L=8 トメネジ 1/4-40 L=8 (2) 32 B2005-481-0AB GEAR, LOWER ルーパギヤーシタ B クミ 1 33 SS-6660610-TP SCREW 1/4-40 L=6 ヒラネジ 1/4-40 L=6 (2) 34 B2301-380-0A0 NEEDLE GUARD CAM ASM. ハリウケカムクミ 1 35 SS-8150710-TP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 (2) 36 B2302-481-000 NEEDLE GUARD CRANK ROD ハリウケロツド 1 37 SS-8110410-TP SCREW 11/64-40 L=3.5 トメネジ 11/64-40 L=3.5 1 38 B1610-430-0A0 PIN ASM. フタマタウデピンクミ 1 39 CQ-3030000-00 OIL WICK ユシン (0.1) 40 B2304-481-0A0 REAR NEEDLE GUARD ROCKER FORK ウシロカワハリウケアタマウデクミ 1 41 SS-7111310-TP SCREW 11/64-40 L=12.8 マルヒラネジ 11/64-40 L=12.8 (1) 42 B2306-380-0A0 NEEDLE GUARD DRIVING SHAFT ASM ハリウケシクミ 1 43 CQ-3030000-00 OIL WICK ユシン (0.1) 44 B2307-481-000 BUSHING ハリウケジクメタル 1 45 SS-8150710-SP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 1 46 01 B2311-380-E00 REAR MOVING NEEDLE GUARD ヨードハリウケ 1 47 02 B2311-382-000 NEEDLE GUARD ヨードハリウケ 1 48 B2309-481-0A0 REAR NEEDLE GUARD ROCKER ARM ウシロカワハリウケアタマウデクミ 1 49 SS-6121220-TP SCREW 3/16-28 L=11.5 ヒラネジ 3/16-28 L=11.5 (1) 50 SS-7090910-TP SCREW 9/64-40 L=8.5 マルヒラネジ 9/64-40 L=8.5 (1) 51 B2313-380-000-A NEEDLE GUARD BASE ハリウケトリツケダイ 1 52 SS-7110710-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 2 53 01 B2312-380-000 LEFT FIX NEEDLE GUARD コテイハリウケヒタリ 1 54 01 B2315-380-000 RIGHT FIX NEEDLE GUARD コテイハリウケミギ 1 55 02 B2312-382-000 NEEDLE GUARD コテイハリウケ 1 56 SS-6090510-TP SCREW 9/64-40 L=5.0 ヒラネジ 9/64-40 L=5 2 NOTE (注記) 01...FOR MH-380 MH-380用 02...FOR MH-382 MH-382用 -- 12 -- jintex.in

Page 16 — 7. THREAD TENSION CONTROLLER COMPONENTS

7. THREAD TENSION CONTROLLER COMPONENTS 糸調子関係 11 13 12 2 4 3 5 6 7 8 9 10 14 17 15 19 23 20 24 27 21 22 26 25 30 31 32 33 34 35 36 37 28 39 40 41 42 43 45 46 61 62 59 60 58 57 56 49 50 48 63 55 54 52 53 51 64 47 65 66 - 13 - jintex.in

Page 17

REF.NO NOTE PART NO. D E S C R I P T I O N ヒンメイ Qty 1 B3101-380-BA0 LOWER THREAD TENSION ASM. シタイトチョウシクミ 1 2 110-72204 TENSION NUT イトチョウシナット (2) 3 B3106-481-000 LOOPER THREAD TENSION SPRING イトチョーシハネ (2) 4 B3120-125-000 ROTATING STOPPER イトチョーシカイデントメ (2) 5 B3126-352-000 TENSION DISC イトチョーシオラ (4) 6 B3104-481-000 LOOPER THREAD TENSION POST イトチョーシマ (2) 7 PS-0200102-KH SPRING PIN 2.0 X 10 スプリングピン 2.0X10 (2) 8 B3106-380-000 THREAD GUIDE シタイトチョウシアンナイ (2) 9 B3103-481-000 LOOPER THREAD TENSION CONTROL イトチョーシアンナイタイ (2) 10 B3101-380-000 TENSION INSTALLING PLATE イトチョーシトリツケダイ (2) 11 SS-4110715-SP SCREW 11/64-40 L=7 シタイトエルメジク 1 12 B3121-380-000 LOOPER THREAD RELEASE LATCH シタイトエルメジククデクミ 1 13 SS-6110420-TP SCREW 11/64-40 L=4.8 ロウカクナット 11/64-40 1 14 B3135-481-000 LOOPER THREAD RELEASE SHAFT Dリンク (1) 15 D3136-481-CAO TENSION RELEASE ARM ASM. ウワイトエルメジククミ 1 16 NS-6110310-SP NUT 11/64-40 ヒラネジ 11/64-40 L=6.5 (1) 17 RO-0371801-00 RUBBER RING ヒダアゲリンクウデハネ (1) 18 D3130-481-CAO TENSION RELEASE ARM ASM. ヒサアゲリンクウデハネカケ 1 19 SS-6110710-TP SCREW 11/64-40 L= 6.5 ナベネジ 11/64-40 L=7 2 20 D3134-481-C00 SPRING イトエルメジク 1 21 D3133-481-C00 SUSPENSION BRACKET オテアエジクオイルシール 1 22 SS-4110715-SP SCREW 11/64-40 L=7 イトエルメジクカラー 1 23 D3110-481-C00 TENSION RELEASE SHAFT イトチョーシトリツケダイカラー A 1 24 B1522-552-000 OIL SEAL RING イトチョーシトリツケダイカラー B 1 25 B3115-481-000 TENSION RELEASE SHAFT SPACER ウワイトチョウシクミ 1 26 B3116-481-000 SPACER (A), FOR INSTALLING PLAT イトチョーシトリツケダイ (1) 27 B3117-481-000 SPACER (B), FOR INSTALLING PLAT ウワイトチョウシアンナイタイ (2) 28 B3101-380-AA0 NEEDLE THREAD TENSION ASM. イトチョーシアンナイタイ (2) 29 B3101-380-000 TENSION INSTALLING PLATE イトチョーシオラ (4) 30 B3102-481-000 NEEDLE THREAD TENSION GUIDE PL イトチョーシオラ (2) 31 B2306-019-000 TENSION THREAD GUIDE イトチョーシオラ (2) 32 B3104-481-000 LOOPER THREAD TENSION POST イトチョーシオラ (2) 33 B3126-012-000 THREAD TENSION DISK イトチョーシオラ (2) 34 B3107-704-000 TENSION DISC PRESSER TUBE イトチョーシオラ (2) 35 B3129-012-A00 TENSION SPRING イトチョーシオラ (2) 36 B3120-125-000 ROTATING STOPPER イトチョーシカイデントメ (2) 37 B3119-771-000 THREAD TENSION NUT イトチョーシナット (2) 38 SS-4112515-SP SCREW 11/64-40 L=25 ナベネジ 11/64-40 L=25 1 39 SS-4111415-SP SCREW 11/64-40 L=14 ナベネジ 11/64-40 L=14 1 40 RE-0600000-KO E-SHAPED SNAP RING (6MM) Eカトタメワ 6 1 41 B3120-380-000 NEEDLE THREAD RELEASE LATCH ウワイトエルメ 1 42 SS-6110420-TP SCREW 11/64-40 L=4.8 ヒラネジ 11/64-40 L=4.8 1 43 B3122-481-000 FRAME THREAD GUIDE イトアンナイ 1 44 B2201-481-000-A LOOPER THREAD GUIDE シタイトアンナイ 1 45 SS-1110710-SP SCREW 1/8-44 L=7 サラネジ 11/64-40 L=7 1 46 B2202-481-000 LOOPER THREAD GUIDE TUBE シタイトドーカン 1 47 B2210-481-0AO LOOPER THREAD GUIDE ASM. カムイトアンナイクミ 1 48 B2210-481-000 THREAD GUIDE PLATE カムイトアンナイタイ (1) 49 B2210-481-000 LOOPER THREAD GUIDE (B) シタイトアンナイ B (1) 50 SS-6080320-SP SCREW 1/8-44 L= 2.5 ヒラネジ 1/8-44 L=2.5 (1) 51 B2218-481-000 CAST-OFF WIRE カムイトワイヤー (1) 52 SS-6080410-SP SCREW 1/8-44 L=4 ヒラネジ 1/8-44 L=4 (2) 53 VP-0371026-SD WASHER 3.7X7X1 ヒラサガネ 3.7X7X1 (2) 54 B2217-481-000 THREAD GUIDE STOPPER SPRING カムイトアンナイディンバネ (1) 55 SS-6080320-SP SCREW 1/8-44 L= 2.5 ヒラネジ 1/8-44 L=2.5 (1) 56 B2216-481-000 THREAD GUIDE STUD カムイトジク 1 57 B2214-481-000 THREAD GUIDE STUD カムイトジク (1) 58 NS-6110310-SP NUT 11/64-40 ロウカクナット 11/64-40 (1) 59 B2213-481-000 CAST-OFF PLATE カムイトツメ (1) 60 B2212-481-000 LOOPER THREAD GUIDE. RIGHT カムイトアンナイミギ (1) 61 B2211-481-000 LOOPER THREAD GUIDE. LEFT カムイトアンナイヒダリ (1) 62 B2215-481-000 COLLAR マルヒラネジ 1/8-44 L=12.5 (1) 63 SS-7081310-SP SCREW 1/8-44 L=12.5 ナベネジ 11/64-40 L=5 2 64 SS-4110515-SP SCREW 11/64-40 L=5 シタイトオムクミ 1 65 B2220-481-0AO LOOPER THREAD TAKE-UP シタイトオムトメジク 1 66 B2225-481-000 SCREW - 14 - jintex.in

Page 18 — 8. OIL LUBRICATION MECHANISM COMPONENTS

8. OIL LUBRICATION MECHANISM COMPONENTS 給油関係 REF. NO. NOTE PART NO. DESCRIPTION Qty 1 B3526-552-0A0 OIL RETURN TUBE ASM. カンジュウフェルト 1 2 229-25101 OIL FELT PRESSER カンジュウフェルトオサエ 1 3 B3536-555-B00 OIL RETURN TUBE PRESSER PLATE カンジュウーバイプオサエ 1 4 SS-4110715-SP SCREW 11/64-40 L=7 ナベネジ 11/64-40 L=7 1 5 B3534-155-000 PLUNGER アランジヤー 1 6 B1214-038-000 PLUNGER SPRING アランジヤーオサエ 2 7 SQ-1110401-MZ CONNECTING SCREW チューブレンケツネジ 1 8 B3530-555-000 OIL SIGHT WINDOW 0リング 1 9 R0-1952401-00 RUBBER RING 0リング 2 10 B3527-415-000 RUBBER JOINT キューーバイプ 1 11 B2657-771-000 GUIDE ケーブルアンナイ 1 12 SS-4110715-SP SCREW 11/64-40 L=7 ナベネジ 11/64-40 L=7 2 13 B3553-481-000 GEAR OIL PIPE ハグルマキユー 1 14 B3545-122-000 OIL GUARD キユーガード 1 15 B3554-481-000 HOLDER ホールド 1 16 B3552-481-000 OIL PUMP INSTALLING COLLAR ポンプタイカラ 3 17 B3513-481-000-A UPPER SHAFT LUBRICATING PIPE ウワジクキユーパイプ (1) 18 B3501-555-0A0 LUBRICATING OIL PUMP ASM. キユーポンプタイクミ (1) 19 B3503-555-000 OIL PUMP INSTALLING BASE キユーポンプインストールベース (1) 20 B3505-555-000 RUBBER JOINT ポンプトツリケイタ (1) 21 B3506-555-000 RUBBER JOINT キユーバイプダキテ (1) 22 B3507-555-000 OIL PUMP IMPELLER キユーポンプイペラ (1) 23 B3508-555-000 OIL PUMP IMPELLER COVER ハネグルマ (1) 24 SM-4031001-SC SCREW M3X0.5 L=10 ナベコネジ M3X0.5 L=10 (3) 25 WT-0320002-KZ WASHER ハツキザガネ (3) 26 NM-6030000-0E NUT M3X0.5 ロツカクナット M3X0.5 1シュ (3) 27 B3502-555-000-A LUBRICATING OIL PUMP COVER キユウスポンプフタ (1) 28 SE-4301031-SR SCREW 3/16-28 L=30.0 タツプタイトネジ 3X10 (5) 29 SS-6123010-SP SCREW 3/16-28 L=30.0 ヒラネジ 3/16-28 L=30.0 2 30 SS-6122510-SP SCREW 3/16-28 L=25 ヒラネジ 3/16-28 L=25 1 31 B3521-481-000-A LUBRICATING OIL PIPE シタジキユウスバイプ 1 32 EA-9500B00-00 CLIP CV-70S クツゾクパント 60 1 -15- jintex.in

Page 19 — 9. OIL RESERVOIR & KNEE LIFTER COMPONENTS

9. OIL RESERVOIR & KNEE LIFTER COMPONENTS 油溜・膝上げ関係 REF. NO. NOTE PART NO. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 B8217-481-AD0 B8217-481-AC0 B8217-481-000 B8235-481-000 B8237-481-000 D8227-555-E00 SS-7701010-SP RO-0681901-00 NM-6060001-SE B3420-555-000 229-32453 SM-8063012-TR B3426-552-000 110-24106 B3425-555-000-A SM-9061853-SR SM-8063012-TR B3421-555-000 B8228-125-000 229-34251 229-34301 SM-9061203-SE 229-34509 229-34608 229-34400 229-34202 DESCRIPTION OIL RESERVOIR ASM. OIL RESERVOIR ASM. OIL RESERVOIR GASKET A GASKET C FELT CUSHION SCREW 5/16-24 L=10 RUBBER RING NUT M6 KNEE PRESS ROD BRACKET ASM. SCREW M6 L=30 THRUST RING SPRING KNEE LIFTER ROTATION ARM SCREW M6 L=17.5 SCREW M6 L=30 KNEE PRESS LIFTER ROD OIL RESERVOIR MAGNET KNEE PAD PLATE ASM. KNEE PAD PLATE SUPPORT SCREW M6 L=12 KNEE PAD PLATE COVER KNEE PAD UPRIGHT SHAFT KNEE PAD PLATE RUBBER KNEE PAD PLATE - 16 - jintex.in Qty. 1 (1) (1) (2) (1) (4) (2) (2) (2) (1) (1) (1) (1) (1) (1) (1) (1) 1 1 1 (1) (1) (1) (1) (1)

Page 20 — THREAD STAND COMPONENTS

10. THREAD STAND COMPONENTS 糸立装置関係 1 20 5 8 22 21 9 2 14 11 4 13 12 21 23 17 15 10 16 21 3 19 6 7 18 24 - 17 - jintex.in

Page 21

REF. NO NOTE PART NO. DESCRIPTION ヒンメイ Qty 1 B3301-380-0A0 THREAD STAND ASM. イトタテソウチクミ (1) 2 111-85105 SPOOL REST ROD,LOWER イトタテボウミタ (1) 3 111-85204 SPOOL REST ROD,UPPER イトタテボウウエ (1) 4 119-69409 THREAD GUIDE ARM B イトタテウデ B (4) 5 B3304-704-000-A THREAD GUIDE ARM HOLDER イトアンナイウデホルダー (1) 6 B3305-704-000-A SPOOL REST ROD JOINT イトタテボウーヅキデ (1) 7 B3318-704-L00-A THREAD GUIDE ARM JOINT イトタテウデシメカク゛ (4) 8 B3309-704-000 THREAD GUIDE ARM イトタテアンナイウデ (1) 9 B3311-804-000 LOWER THREAD GUIDE イトタテアンナイシタ (1) 10 B3311-704-000 SPOOL REST ROD RUBBER CAP イトタテボウホコ゛キヤツフ° (1) 11 B3320-704-L00-A SPOOL PIN イトマキケホウク (4) 12 119-66504 SPOOL REST イトマキケサ゛ラ (4) 13 B3311-012-000 SPOOL REST CUSHION イトマキケサ゛ラ (4) 14 111-85501 SPOOL RETAINER イトマキフ°レトメ (1) 15 B3317-704-000 NUT C15 イトタテボートメナツト (4) 16 B3319-704-L00 THREAD GUIDE イトミチ (2) 17 WP-1612616-SE WASHER 16X30X2.6 ヒラサ゛カ゛ーネ (2) 18 SM-4051405-SE SCREW M5X0.8 L=14 ナヘ゛コネジ M5X0.8 L=14 (2) 19 NM-6050001-SE NUT M5X0.8 ロウカクナツト M5X0.8 1シュ (2) 20 SM-6053000-SE SCREW M5X0.8 L=30 ヒラコネジ M5X0.8 30 (1) 21 SM-6061610-SC SCREW M6 L=16 ヒラコネジ M6 L=15 (4) 22 SS-7110540-SP SCREW 11/64-40 L=5 マルヒラネジ 11/64-40 L=5 (1) 23 NM-6050001-SE NUT M5X0.8 ロウカクナツト M5X0.8 1シュ (4) 24 MA0-11532000 CORD STAPLE コート゛ステツフ°ル (2) - 18 - jintex.in

Page 22 — 11. SILICON OIL LUBRICANT & BELT COVER COMPONENTS

11. SILICON OIL LUBRICANT & BELT COVER COMPONENTS エスレン装置・ベルトカバー関係 REF. NO NOTE PART NO. DESCRIPTION Qty 1 02 B1161-481-0B0 SILICONE OIL LUBRICANT ASM. エスレンケースクミ (1) 2 02 B1161-481-000-A SILICONE OIL CASE エスレンケース (1) 3 02 TA-1050504-R0 RUBBER PLUG トメセン (1) 4 02 B1162-481-000 SILICONE OIL FELT エスレンフエルト (1) 5 02 B1166-481-000 SILICONE OIL FELT エスレンホキユーフエルト (5) 6 02 B1167-481-000 SILICONE THREAD GUIDE エスレンイトアンナイ (2) 7 02 B1168-481-000 SCREW エスレンイトアンナイトメネジ (1) 8 02 SD-0640231-SP HINGE SCREW D= 6.35 H= 2.3 ダンネジ D= 6.35 H= 2.3 (1) 9 02 WZ-0641510-KP WAVED WASHER 6.4X11X0.3 ナミガタサガネ 6.4X11X0.3 (1) 10 02 B9135-123-0B0 SILICONE OIL LUBRICANT ASM. (30 エスレンヨ-キ (30CC) 1 11 TT SS-4150915-SP SCREW 15/64-28 L=9 ナベネジ 15/64-28 L=9 1 12 WP-0621016-SD WASHER 6.2X13X1 ビラザガネ 6.2X13X1 1 13 D8230-555-E00 BELT COVER ベルトカバー 1 14 01 D8230-380-0A0 BELT COVER ベルトカバー-(ラベルツキ) 1 15 01 CM-5003000-01 DIRECTION LABEL ネウコクワラベル 1 16 D8231-555-E00 BELT COVER TOP ベルトカバー-フタ 1 17 01 D8231-555-E0B BELT COVER TOP ベルトカバー-フタ 1 18 SS-4110815-SP SCREW 11/64-40 L=5 ナベネジ 11/64-40 L=5 1 19 D8232-555-B00 BELT COVER SUPPORT PLATE ベルトカバー-シチュウ 1 20 D8232-555-E00 THREAD WINDER COVER イトマキカバー 1 21 01 D8232-555-E0A BOBBIN WINDER COVER イトマキカバー 1 22 SS-4110515-SP SCREW 11/64-40 L=5 ナベネジ 11/64-40 L=5 7 23 04 B8231-380-000 BELT COVER ベルトカバー 1 24 03 101-63152 BELT COVER SUPPORT PLATE ASM. ベルトカバー-ホジシヨウタイタ(クミ) (1) 25 101-63152 BELT COVER SUPPORT PLATE ベルトカバー-ホジシヨウタイタ (1) 26 WP-0501016-SC WASHER 5X10.5X1 ヒラザガネ 5X10.5X1 (1) 27 SK-3482500-SC WOOD SCREW D=4.8 L=25 マルモクネジ D=4.8 L=25 (1) NOTE (注記) 01....FOR URBAN WHITE 7-ンホワイト用 02....SPECIAL ORDER PART 特別注文部品 03....FOR JE JE用 04....FOR JE & JAPAN JE, 日本用 - 19 - jintex.in

Page 24 — TABLE OF EXCHANGING GAUGE SETS FOR MH-380 & 382

12. TABLE OF EXCHANGING GAUGE SETS FOR MH-380 & 382 MH-380・382 ゲージセット一覧表 (1) jintex.in -20- MH-380 Description 品名 Gauge components ゲージ関係 Throat plate 針板 A Needle clamp asm. 針筒 (粗) (針カバー付) B Presser foot asm. (with finger guard) 押工 (粗) (針カバー付) C Feed dog 送り歯 D Rear moving needle guard E Right needle guard 左側固定針受 F G B1103-380-B00 B1106-019-BA0 B1106-019-CA0 B1106-019-DAO B1106-019-EA0 B1106-038-F80 B1106-038-H00 B1106-038-K00 B1106-038-L00 B1103-380-C00 B1103-380-D00 B1103-380-E00 B1106-019-FA0 B1106-038-F80 B1106-038-H00 B1106-038-K00 B1106-038-L00 B1509-038-BB0 B1509-038-CB0 B1509-038-DB0 B1509-038-EB0 B2311-380-B00 B2311-380-C00 B2311-380-D00 B2311-380-E00 B2311-380-F00 B2311-380-H00 B2311-380-K00 B2311-380-L00 B2315-380-000 B2312-380-000 1 2 3 4 5 6 7 8 9 1/8" (3.2mm) 5/32" (4.0mm) 3/16" (4.8mm) 7/32" (5.6mm) 1/4" (6.4mm) 5/16" (7.9mm) 3/8" (9.5mm) 1/2" (12.7mm) B1103-380-B00 D1406-038-BA0 B2311-382-000

Page 25 — 14. LIST FOR INFORMATION OF CHANGE

14. LIST FOR INFORMATION OF CHANGE 変更情報リスト As to the place changed, refer to the corresponding Rev.No. When previous parts (Obsoleted parts) and new parts (Added parts) are not interchangeable with each other: In this case, even obsolete parts (D.) can be ordered with the obsoleted part number, so select the parts with changed dates and place your orders. 変更箇所は、該当Rev.No.版をご参照ください。部品の互換性がない変更の場合は、削除された品番でも、ご注文できます。 BE3800TOPJA No.0046-10 Rev.No. *A: Added parts追加部品/D: Obsoleted parts削除部品/E: Erratum訂正 Rev. Page Ref. Parts No. Rev. Page Ref. Parts No. No. 頁 No. 品番 No. 頁 No. 品番 * D 09 2 30 B1148-555-000 A 10 2 30 229-12109 D 09 2 38 SS-9151440-CP A 10 2 38 SS-9151120-CP D 09 4 20 B1402-552-000-A A 10 4 20 229-06101 D 09 6 8 B1502-541-000 A 10 6 8 229-07109 D 09 6 13 B1510-227-000 A 10 6 13 229-07703 D 09 6 14 B1505-227-000-A A 10 6 14 229-07406 D 09 8 41 B1608-555-000 A 10 8 41 B1608-481-000 D 09 10 19 CS-147121A-SH A 10 10 19 229-04155 D 09 10 36 CS-147121A-SH A 10 10 36 229-04155 D 09 10 41 SS-6121610-TP A 10 10 41 SS-6121610-SP D 09 15 2 B3523-226-000 A 10 15 2 229-25101 A 10 15 33 EA-9500B00-00 D 09 16 9 B3420-555-0A0 D 09 16 11 B3427-122-000 A 10 16 11 229-32453 D 09 16 12 SS-9182010-SN D 09 16 14 B3429-555-000 A 10 16 14 110-24106 D 09 16 15 B3425-555-000 A 10 16 15 B3425-555-000-A D 09 16 16 SS-9151810-SR A 10 16 16 SM-9061853-SR D 09 16 17 SS-8153010-SR A 10 16 17 SM-8063012-TR D 09 16 18 NS-6150430-SR A 10 16 9 NM-6060001-SE D 09 16 19 SS-8152080-SR A 10 16 12 SM-8063012-TR D 09 16 22 110-23751 A 10 16 20 229-34251 - 22 - jintex.in

Page 27 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO PART NO PAGE REF NO PART NO PAGE REF NO DB230-555-E00 19 13 SS-4110815-SP 2 19 SS-8150710-SP 12 45 229-54202 16 26 DB231-555-E00 19 17 SS-4110815-SP 19 18 SS-8150710-TP 12 35 229-54202 16 25 DB231-555-E00 19 16 SS-4111015-SP 2 3 SS-8151150-SP 6 52 229-54401 16 24 DB232-555-B00 19 19 SS-4111415-SP 14 39 SS-8151150-SP 6 59 229-54409 16 20 DB232-555-E0A 19 21 SS-4112515-SP 14 38 SS-8151150-SP 6 55 229-54409 16 23 DB232-555-E00 19 20 SS-4150915-SP 19 11 SS-8151150-SP 6 52 229-54608 16 24 EA-9500B00-00 15 33 SS-5060310-SP 6 51 SS-8151150-SP 6 59 MAC-11532000 18 24 SS-6060210-SP 2 55 SS-8151150-SP 6 55 MTV-700B1400 4 1 SS-6060220-SP 2 46 SS-860610-TP 4 45 NM-6030000-0E 15 27 SS-6060340-SP 2 63 SS-860610-TP 12 37 NM-6030000-SE 18 19 SS-6060340-SP 2 63 SS-860610-TP 10 37 NM-6030001-SE 18 23 SS-6080320-SP 2 42 SS-860610-TP 6 39 NM-6060001-SE 16 9 SS-6080320-SP 14 55 SS-860610-TP 6 39 NS-6110310-SP 14 16 SS-6080410-SP 14 52 SS-860810-TP 8 55 NS-6110310-SP 14 58 SS-6090510-TP 12 56 SS-860810-TP 12 22 NS-6120310-SP 8 49 SS-6090630-SP 2 17 SS-860810-TP 12 29 NS-6120310-SP 10 10 SS-6090670-TP 4 10 SS-860810-TP 12 31 NS-6150430-SP 8 62 SS-6090670-TP 4 19 SS-8661040-TP 2 54 NS-6620310-SP 6 37 SS-6090810-SP 10 13 SS-9151120-CP 2 38 NS-6680320-SP 8 45 SS-6091210-TP 4 13 NS-6680410-SP 10 45 SS-6091210-TP 12 17 PS-0200102-KH 14 7 SS-6110420-TP 14 13 TA-0750704-RO 2 12 SS-6110420-TP 14 42 TA-1050504-RO 12 18 RC-0150001-KP 10 23 SS-6110710-TP 14 19 TA-1050504-RO 19 3 RE-0500000-KO 6 32 SS-6120930-SP 8 2 TA-1250406-RO 2 4 RE-0600000-KO 6 24 SS-6121210-SP 8 20 TA-1250504-RO 2 11 RO-0371801-00 6 26 SS-6121210-SP 8 51 TA-1750502-RO 2 58 RO-0371801-00 14 17 SS-6121220-SP 12 49 TA-2050406-RO 2 72 RO-0442401-00 4 29 SS-6121610-SP 10 41 TA-2101002-RO 2 31 RO-0681901-00 16 8 SS-6121610-TP 8 42 TA-2351004-RO 2 33 RO-0691801-00 8 56 SS-6121610-TP 12 6 TA-2351305-RO 2 32 RO-0742401-00 8 4 SS-6121610-TP 12 9 RO-1952401-00 15 9 SS-6121840-SP 10 12 WP-0371026-SD 14 53 SD-0500401-SP 8 47 SS-6122510-SP 15 30 WP-0480856-SP 10 4 SD-0600322-SD 6 35 SS-6621220-SP 10 28 WP-0480856-SP 10 4 SD-0630275-SP 6 18 SS-6660610-TP 12 33 WP-0501016-SC 19 26 SD-0630301-SP 19 8 SS-6661110-SP 8 15 WP-0621016-SD 19 12 SD-0640231-SP 19 8 SS-7081310-SP 14 63 WP-0621016-SD 19 12 SD-1020701-SP 10 44 SS-7090520-TP 12 7 WP-0740516-SP 16 27 SE-4301031-SR 15 29 SS-7090910-TP 12 13 WP-1612616-SE 16 17 SK-3482500-SC 19 27 SS-7090910-TP 12 50 WT-0320002-KZ 15 28 SM-4031001-SC 15 25 SS-710540-SP 6 6 WZ-0541510-KP 15 28 SM-4051405-SE 18 18 SS-7110510-SP 2 36 WZ-0641510-KP 15 58 SM-6053000-SE 18 20 SS-7110540-SP 18 22 WZ-1052010-KP 15 58 SM-6061610-SC 18 21 SS-7110710-SP 8 11 SM-6062002-TP 12 2 SS-7110710-SP 12 52 100-04109 2 78 SM-8063012-TR 16 12 SS-7110910-SP 8 22 101-63103 19 25 SM-8063012-TR 16 17 SS-7111120-SP 8 27 101-63152 19 24 SM-9061203-SE 16 22 SS-7111120-SP 8 35 110-78705 6 11 SM-9061853-SR 16 16 SS-7111260-SP 8 40 110-04207 6 48 SQ-1110401-MZ 15 7 SS-7111310-TP 12 41 110-07101 6 62 SS-1080510-SP 10 8 SS-7111410-TP 10 3 110-24106 6 14 SS-1110710-SP 14 45 SS-7151120-SP 4 35 110-52701 2 9 SS-2090710-SP 8 13 SS-7620750-SP 4 23 110-71602 6 10 SS-2110920-TP 2 50 SS-7681650-TP 4 27 110-71701 6 10 SS-2110930-SP 8 14 SS-7701010-SP 16 7 110-71800 6 63 SS-4080415-SP 2 66 SS-8090540-SP 8 57 110-72204 14 3 SS-4110515-SP 2 10 SS-8110310-SP 4 4 111-85105 18 12 SS-4110515-SP 2 14 SS-8110410-TP 10 18 111-85204 18 3 SS-4110515-SP 2 21 SS-8110410-TP 12 11 111-85501 18 12 SS-4110515-SP 2 23 SS-8110510-SP 8 10 119-66504 18 12 SS-4110515-SP 2 25 SS-8110510-SP 10 31 119-69409 18 4 SS-4110515-SP 2 28 SS-8150310-SP 2 47 SS-4110515-SP 2 67 SS-8150710-SP 4 26 229-04155 10 19 SS-4110515-SP 14 64 SS-8150710-SP 8 7 229-04155 10 36 SS-4110715-SP 19 22 SS-8150710-SP 8 21 229-06101 4 20 SS-4110715-SP 14 11 SS-8150710-SP 8 37 229-07109 6 8 SS-4110715-SP 14 22 SS-8150710-SP 8 52 229-07703 6 14 SS-4110715-SP 15 4 SS-8150710-SP 10 24 229-12101 6 13 SS-4110715-SP 15 12 SS-8150710-SP 10 39 229-25101 15 11 SS-4110715-SP 15 4 SS-8150710-SP 12 26 229-32453 16 11 - 24 - jintex.in

Page 28

JUKI JUKI CORPORATION JUKI 株式会社お買い求め、ご相談は To order or for further information, please contact : Copyright © 1998-2001 JUKI CORP. 本書の内容を無断で転載、複写することを禁じます。 All rights reserved throughout the world. ※このパーツリストは商品改良のため予告なく変更する事があります。 *The description covered in this parts list is subject to change for improvement of the commodity without notice. ※このパーツリストは、2001年6月現在の商品仕様で編集したものです。 *This parts list is edited in accordance with the product specifications as of June 2001. jintex.in 2001. 6. Printed in Japan (E)

Page 4 — 1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Page 5

Page 6 — 2. MAIN SHAFT & NEEDLE BAR COMPONENTS

Page 7

Page 8 — 3. PRESSER BAR, UPRIGHT SHAFT & LOWER SHAFT COMPONENTS

Page 9

Page 10

Page 11

Page 12 — 5. FEED MECHANISM COMPONENTS (2)

Page 13

Page 14 — 6. LOOPER & NEEDLE GUARD COMPONENTS

Page 15

Page 16 — 7. THREAD TENSION CONTROLLER COMPONENTS

Page 17

Page 18 — 8. OIL LUBRICATION MECHANISM COMPONENTS

Page 19 — 9. OIL RESERVOIR & KNEE LIFTER COMPONENTS

Page 20 — THREAD STAND COMPONENTS

Page 21

Page 22 — 11. SILICON OIL LUBRICANT & BELT COVER COMPONENTS

Page 24 — TABLE OF EXCHANGING GAUGE SETS FOR MH-380 & 382

Page 25 — 14. LIST FOR INFORMATION OF CHANGE

Page 27 — NUMERICAL INDEX OF PARTS
