Juki MH-380 Parts Book (PDF)
Text index — Juki MH-380
Page 5 — 1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1121-552-0AO | FACE PLATE ASM. | 1 |
| 2 | B1122-552-000 | FACE PLATE GASKET | 1 |
| 3 | SS-4111015-SP | SCREW 11/64-40 L=10 | 3 |
| 4 | TA-1250406-RO | RUBBER PLUG D=12.5 L=4 | 1 |
| 5 | B1130-481-0AO | ARM OIL SHIELD ASM. | 1 |
| 6 | B1130-481-000-A | ARM OIL SHIELD | (1) |
| 7 | B1131-481-000 | NON-WOVEN FABRIC | (1) |
| 8 | B1132-481-000 | OIL WICK | (1) |
| 9 | SS-6080320-SP | SCREW 1/8-44 L= 2.5 | 1 |
| 10 | SS-4110515-SP | SCREW 11/64-40 L=5 | 1 |
| 11 | TA-1250705-RO | RUBBER PLUG | 1 |
| 12 | TA-0750704-RO | RUBBER PLUG | 2 |
| 13 | TA-1050504-RO | RUBBER PLUG | 2 |
| 14 | B1118-481-000 | SIDE PLATE | 1 |
| 15 | B1119-481-000 | GASKET | 1 |
| 16 | D3111-481-C00-A | TENSION RELEASE SHAFT BUSHING | 1 |
| 17 | SS-6090630-SP | SCREW 9/64-40 L=6 | 2 |
| 18 | B3534-012-000 | GASKET | 2 |
| 19 | SS-4110815-SP | SCREW 11/64-40 L=8 | 8 |
| 20 | B3122-481-000 | FRAME THREAD GUIDE | 1 |
| 21 | SS-4110515-SP | SCREW 11/64-40 L=5 | 1 |
| 22 | B1904-481-000 | THREAD TAKE-UP LEVER GUARD | 1 |
| 23 | SS-4110515-SP | SCREW 11/64-40 L=5 | 2 |
| 24 | B1903-481-000 | TAKE-UP THREAD TENSION LEVER | 1 |
| 25 | SS-4110515-SP | SCREW 11/64-40 L=5 | 1 |
| 26 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | 1 |
| 27 | B1905-380-000 | FRAME THREAD EYELET | 1 |
| 28 | SS-4110515-SP | SCREW 11/64-40 L=5 | 1 |
| 29 | 110-52701 | PIN | 1 |
| 30 | 229-12109 | FEED REGULATOR PIN SPRING | 1 |
| 31 | TA-2101002-RO | RUBBER PLUG | 1 |
| 32 | TA-2351305-RO | RUBBER PLUG | 2 |
| 33 | TA-2351004-RO | RUBBER PLUG | 1 |
| 34 | B1134-481-000 | BED OIL SHIELD | 1 |
| 35 | B1135-481-000 | BED OIL SHIELD (B) | 1 |
| 36 | SS-7110510-SP | SCREW 11/64-40 L=5 | 4 |
| 37 | B1106-122-000 | BED SUPPORT PLATE | 1 |
| 38 | SS-9151120-CP | SCREW 15/64-28 L=11 | 2 |
| 39 | B1110-481-000-A | CAM COVER LATCH | 1 |
| 40 | B1111-481-000 | SPRING | 1 |
| 41 | B1112-481-000-A | SPRING SUSPENSION | 1 |
| 42 | SS-6080320-SP | SCREW 1/8-44 L= 2.5 | 1 |
| 43 | B1111-380-0AO | ATTACHMENT INSTALLING PLATE AS | 1 |
| 44 | B1111-380-000 | ATTACHMENT INSTALLING PLATE | (1) |
| 45 | B1112-380-000 | SPRING | (1) |
| 46 | SS-6060220-SP | SCREW 3/32-56 L= 2.0 | (2) |
| 47 | SS-8150310-SP | SCREW 15/64-28 L= 3.4 | 1 |
| 48 | B1103-380-F00 | THROAT PLATE 1/4" | 1 |
| 49 | B1103-382-000 | THROAT PLATE | 1 |
| 50 | SS-2110920-TP | SCREW 11/64-40 L=8.5 | 2 |
| 51 | B1108-380-BAO | CAM COVER ASM. | 1 |
| 52 | B1108-380-B00 | CAM COVER | (1) |
| 53 | B1108-481-000 | CAM COVER SUPPORT | (1) |
| 54 | B1109-481-000 | SPRING | (1) |
| 55 | SS-6060210-SP | SCREW 3/32-56 L= 1.9 | (4) |
| 56 | B1107-481-000 | CAM COVER GUIDE | (1) |
| 57 | SS-6060340-SP | SCREW 3/32-56 L= 2.5 | (1) |
| 58 | B1104-380-AAO | BED SLIDE ASM. | 1 |
| 59 | B1104-380-A00 | BED SLIDE | (1) |
| 60 | B1115-380-000 | SPRING | (1) |
| 61 | SS-6060210-SP | SCREW 3/32-56 L= 1.9 | (2) |
| 62 | B1107-380-000 | BED SLIDE GUIDE | (1) |
| 63 | SS-6060340-SP | SCREW 3/32-56 L= 2.5 | (1) |
| 64 | B1105-380-000 | BED SLIDE STOPPER | 1 |
| 65 | B1106-380-000 | LATCH | 1 |
| 66 | SS-4080415-SP | SCREW 1/8-44 L=4 | 1 |
| 67 | SS-4110515-SP | SCREW 11/64-40 L=5 | 2 |
| 68 | TA-1750502-RO | RUBBER PLUG D=17.5 L=5 | 1 |
| 69 | B1121-552-00A | FACE PLATE | 1 |
| 70 | B1118-481-00A | SIDE PLATE | 1 |
| 71 | B1904-481-00A | THREAD TAKE-UP LEVER COVER | 1 |
| 72 | TA-2050406-RO | RUBBER PLUG | 1 |
| 73 | CM-3002000-01 | ATTENTION SEAL | 1 |
| 74 | CM-3002000-B1 | LABEL(16) | 1 |
| 75 | CM-3002001-01 | SAFETY LABEL. 1(SMALL). | 1 |
| 76 | CM-3002001-A1 | SAFETY LABEL. 3 (SMALL). | 1 |
| 77 | CM-3002000-C1 | CAUTION LABEL | 1 |
| 78 | 100-04109 | GROUND MARK | 1 |
Page 7 — 2. MAIN SHAFT & NEEDLE BAR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | MTV-700B1400 | NEEDLE TVX7 #14 | 2 |
| 2 | B1401-380-000 | NEEDLE BAR | 1 |
| 3 | B1406-019-FAO | NEEDLE CLAMP ASM. 1/4" | 1 |
| 4 | SS-8110310-SP | SCREW 11/64-40 L= 2.8 | (2) |
| 5 | D1406-038-BAO | NEEDLE CLAMP ASM. | 1 |
| 6 | B1419-380-000 | NEEDLE BAR THREAD GUIDE | 1 |
| 7 | B1403-380-000 | NEEDLE BAR BUSHING, LOWER | 1 |
| 8 | B1217-490-00A | HAND WHEEL | 1 |
| 9 | B1411-481-0AO | NEEDLE BAR CONNECTION ASM. | 1 |
| 10 | SS-6090670-TP | SCREW 9/64-40 L=6 | (1) |
| 11 | B1414-555-000 | SLIDE BLOCK | 1 |
| 12 | B1902-481-0A0-B | THREAD TAKE-UP LEVER ASM. | 1 |
| 13 | SS-6091210-TP | SCREW 9/64-40 L=12 | (1) |
| 14 | B1901-380-0AO | THREAD TAKE-UP ASM. | 1 |
| 15 | B1901-481-000-A | THREAD TAKE-UP | (1) |
| 16 | B1908-481-000-A | THREAD TENSION REGULATING PLAT | (1) |
| 17 | D1910-481-C00 | TENSION SPRING | (1) |
| 18 | B1909-481-000-A | THREAD TENSION REGULATING STUD | (1) |
| 19 | SS-6090670-TP | SCREW 9/64-40 L=6 | 2 |
| 20 | 229-06101 | NEEDLE BAR BUSHING, UPPER | 1 |
| 21 | B1405-012-000 | CAP | 1 |
| 22 | B1201-481-000-A | MAIN SHAFT | 1 |
| 23 | B1226-552-000 | ROLLER FELT | 1 |
| 24 | B1206-481-0AO | COUNTERWEIGHT ASM. | 1 |
| 25 | B1206-481-0B0 | COUNTERWEIGHT ASM. | (1) |
| 26 | SS-8150710-SP | SCREW 15/64-28 L=7 | (1) |
| 27 | SS-7681650-TP | SCREW 9/32-28 L=16 | (1) |
| 28 | SS-8681650-TP | SCREW 9/32-28 L=16 | (1) |
| 29 | RO-0442401-00 | RUBBER RING | (1) |
| 30 | B1408-481-000 | NEEDLE BAR CRANK ROD | (1) |
| 31 | B1905-541-B00 | NEEDLE BEARING | (1) |
| 32 | B1903-552-000 | LEFT SCREW | (1) |
| 33 | B1202-481-000 | BUSHING,FRONT | 1 |
| 34 | B1203-481-B00 | BUSHING, INTERMEDIATE | 1 |
| 35 | SS-7151120-SP | SCREW 15/64-28 L=11 | 1 |
| 36 | CS-147121E-SH | THRUST COLLAR ASM.D=14.72 W=12 | 2 |
| 37 | SS-8660810-TP | SCREW 1/4-40 L=8 | (4) |
| 38 | D1204-555-DAO | MAIN SHAFT BUSHING, REAR ASM. | 1 |
| 39 | D1204-555-D00 | MAIN SHAFT BUSHING, REAR | (1) |
| 40 | D1230-555-B00 | NEEDLE BEARING | (2) |
| 41 | D1231-555-B00 | WASHER | (2) |
| 42 | D1232-555-B00 | SNAP RING | (2) |
| 43 | D1208-555-D00 | OIL SEAL | 1 |
| 44 | B1217-490-000 | HAND WHEEL | 1 |
| 45 | SS-8151550-SP | SCREW 15/64-28 L=15 | 2 |
| 46 | B1213-552-0A0-A | OIL AMOUNT ADJUSTING PIN ASM. | 1 |
Page 9 — 3. PRESSER BAR, UPRIGHT SHAFT & LOWER SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1509-038-FB0 | PRESSER FOOT ASM. 1/4" | 1 |
| 2 | B1524-382-0B0 | PRESSER FOOT | 1 |
| 3 | B1528-380-0A0 | THREAD KNIFE ASM. | 1 |
| 4 | B1529-380-000 | THREAD KNIFE GUIDE | (1) |
| 5 | SS-5060310-SP | SCREW 3/32-56 L=2.8 | (1) |
| 6 | SS-7091110-TP | SCREW 9/64-40 L=10.5 | 1 |
| 7 | B1501-380-000 | PRESSER BAR | 1 |
| 8 | 229-07109 | PRESSER BAR BUSHING, LOWER | 1 |
| 9 | 110-71602 | PRESSER SPRING REGULATOR | 1 |
| 10 | 110-71701 | NUT | 1 |
| 11 | 101-78705 | PRESSER BAR GUIDE BRACKET | 1 |
| 12 | SS-8660610-TP | SCREW 1/4-40 L=6 | 1 |
| 13 | 229-07703 | PRESSER GUIDE BAR | 1 |
| 14 | 229-07406 | PRESSER SPRING | 1 |
| 15 | B1509-555-000 | PRESSER SPRING REGULATOR | 1 |
| 16 | B1511-555-000 | NUT | 1 |
| 17 | B1515-552-000 | LIFTING LEVER | 1 |
| 18 | SD-0630275-SP | HINGE SCREW D= 6.35 H= 2.7 | 1 |
| 19 | SD-0630301-SP | HINGE SCREW D=6.35 H=3 | 1 |
| 20 | B1516-552-000 | LIFTING LEVER LINK | 1 |
| 21 | B1517-552-000 | HINGE PIN | 1 |
| 22 | B3431-581-000 | LIFTING LEVER GASKET | 1 |
| 23 | B1523-226-000 | SNAP RING | 1 |
| 24 | RE-0600000-KO | E-RING 6 | 1 |
| 25 | B1518-555-0A0 | HAND LIFTER CAM ASM. | 1 |
| 26 | RO-0371801-00 | RUBBER RING | (1) |
| 27 | WP-0740516-SP | WASHER 7.4X11.8X0.5 | 1 |
| 28 | B1520-552-000-A | HAND LIFTER | 1 |
| 29 | B1521-555-000 | SCREW | 1 |
| 30 | B3412-415-000 | LIFTING LEVER CONNECTING ROD | 1 |
| 31 | B3416-552-000 | CONNECTING ROD HINGE SCREW | 1 |
| 32 | RE-0500000-KO | E-RING | 1 |
| 33 | B3414-415-000-A | LIFTING LEVER LINK, RIGHT | 1 |
| 34 | B3416-415-000-A | SWIVEL | 1 |
| 35 | SD-0600322-SD | HINGE SCREW D=6 H=3.2 | 1 |
| 36 | B3415-481-000 | CONNECTING ROD, VERTICAL | 1 |
| 37 | NS-6620310-SP | NUT 3/16-32 | 1 |
| 38 | B1308-481-0C0 | GEAR LOWER ASM. | 1 |
| 39 | SS-8660810-TP | SCREW 1/4-40 L=8 | (8) |
| 40 | B1306-155-0B0 | GEAR & PINION ASM., UPPER | (1) |
| 41 | B1305-012-0A0 | GEAR ASM. | (1) |
| 42 | B1306-155-0A0 | PINION ASM. | (1) |
| 43 | B1308-481-0B0 | GEAR & PINION ASM. | (1) |
| 44 | B1308-481-0A0 | GEAR LOWER(LARGE)ASM. | (1) |
| 45 | B1306-155-0A0 | PINION ASM. | (1) |
| 46 | B1301-481-000-A | UPPIGHT SHAFT | 1 |
| 47 | B1302-552-B00 | BUSHING, UPPER | 1 |
| 48 | 110-04207 | UPRIGHT SHAFT BUSHING, LOWER | 1 |
| 49 | SS-8151150-SP | SCREW 15/64-28 L=10.5 | 2 |
| 50 | B1801-380-0A0 | LOWER SHAFT ASM. | 1 |
| 51 | B1607-352-000 | BUSHING, REAR | 1 |
| 52 | SS-8151150-SP | SCREW 15/64-28 L=10.5 | 1 |
| 53 | B1432-027-000 | OIL PAD ROLLER | 1 |
| 54 | CS-111121A-SH | THRUST COLLAR ASM. D=11.11 W=1 | 1 |
| 55 | SS-8660810-TP | SCREW 1/4-40 L=8 | (2) |
| 56 | B1803-481-000 | BUSHING,INTERMEDIATE | 1 |
| 57 | SS-8151150-SP | SCREW 15/64-28 L=10.5 | 1 |
| 58 | B1802-481-000 | BUSHING,FRONT | 1 |
| 59 | SS-8151150-SP | SCREW 15/64-28 L=10.5 | 1 |
| 60 | B1813-481-000 | OIL SEAL | 1 |
| 61 | B2226-481-000 | LOOPER THREAD GUARD BUSHING | 1 |
| 62 | 110-07101 | HINGE SCREW | 1 |
| 63 | 110-71800 | HAND LIFTER | 1 |
Page 11
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1623-555-000-A | FEED REGULATOR DIAL | 1 |
| 2 | SS-6120930-SP | SCREW 3/16-28 L=9 | 1 |
| 3 | B1634-555-000-B | STITCH LENGTH REGULATING SCREW | 1 |
| 4 | RO-0742401-00 | RUBBER RING | 1 |
| 5 | B1620-481-000 | FEED REGULATOR | 1 |
| B1622-555-000 | HINGE PIN | ||
| SS-8150710-SP | SCREW 15/64-28 L=7 | ||
| B1625-555-000 | FEED REGULATOR CONNECTING ROD | ||
| B1626-555-000 | FEED REGULATOR CONNECTING ROD | ||
| SS-8110510-SP | SCREW 11/64-40 L=5 | ||
| SS-7110710-SP | SCREW 11/64-40 L=7 | ||
| B1610-380-0AO | FEED ECCENTRIC CAM ASM. | ||
| SS-2090710-SP | SCREW 9/64-40 L=7 | (2) | |
| SS-2110930-SP | SCREW 11/64-40 L=8.75 | (3) | |
| SS-6661110-SP | SCREW 1/4-40 L=11 | (2) | |
| B1636-581-000 | FEED ROCKER SHAFT CONNECTING R | ||
| B1636-581-BOO | NEEDLE BEARING B | ||
| B1621-555-000-A | CONTROL LEVER SHAFT | ||
| B1627-555-0AO | CRANK ASM. | ||
| SS-6121210-SP | SCREW 3/16-28 L=12 | (1) | |
| SS-7110910-SP | SCREW 11/64-40 L=8.5 | ||
| SS-7620750-SP | SCREW 3/16-32 L=6.5 | ||
| B1628-555-000 | TENSION SPRING SUSPENSION STUD | ||
| B1646-555-000 | TENSION SPRING | ||
| B1636-555-000 | SUSPENSION BRACKET | ||
| SS-7111120-SP | SCREW 11/64-40 L=10.5 | ||
| B1623-555-A00 | FEED REGULATOR DIAL | ||
| B1624-380-00A | REVERSE FEED CONTROL LEVER | ||
| B1617-555-000 | FEED DRIVING ROCKER | ||
| WP-0621016-SD | WASHER 6.2X13X1 | ||
| SS-8620610-SP | SCREW 3/16-32 L=6 | ||
| B1615-555-000 | FEED DRIVING ROCKER HINGE PIN | ||
| B1619-555-000 | FEED DRIVING ROCKER HINGE PIN | ||
| B1618-161-000 | FEED DRIVING ROCKER ARM HINGE | ||
| B1614-555-000 | FEED DRIVING ROCKER ARM | ||
| B1633-555-000 | ROCKER ARM CONNECTING PIN | ||
| SS-7111260-SP | SCREW 1/4-40 L=12 | ||
| B1608-481-000 | FEED ROCKER SHAFT CRANK ARM | ||
| SS-6121610-TP | SCREW 3/16-28 L=15.5 | (1) | |
| B1606-481-000 | CONNECTING ROD | ||
| SD-1020701-SP | HINGE SCREW D=10.2 H=7 | ||
| NS-6680320-SP | NUT 9/32-28 | ||
| B1630-555-000 | ROCKER ARM CONNECTING ROD | ||
| SD-0500401-SP | HINGE SCREW D=5 H=4 | ||
| WZ-0541510-KP | WAVED WASHER 5.4X9.0X0.3 | ||
| NS-6120310-SP | NUT 3/16-28 | ||
| B1629-555-0AO | CONTROL LEVER CRANK ASM. | ||
| B1624-380-000 | REVERSE FEED CONTROL LEVER | ||
| SS-8661040-TP | SCREW 1/4-40 L=10 | ||
| SS-8660810-TP | SCREW 1/4-40 L=8 | ||
| RO-0691801-00 | RUBBER RING | ||
| SS-8090540-SP | SCREW 9/64-40 L=5 | ||
| WZ-1052010-KP | WAVED WASHER 5.4X14.5X0.3 | ||
| B1660-380-000 | LEVER STOPPER | ||
| B1661-481-000 | SCREW | ||
| B1662-481-000 | LEVER STOPPER RUBBER CAP | ||
| NS-6150430-SP | NUT 15/64-28 |
Page 13 — 5. FEED MECHANISM COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1613-380-F00 | FEED DOG (1/4) | 1 |
| 2 | B1613-382-000 | FEED DOG | 1 |
| 3 | SS-7111410-TP | SCREW 11/64-40 L=14 | 1 |
| 4 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | 1 |
| 5 | B1602-481-000-A | FEED BAR | 1 |
| 6 | B1604-486-000 | FEED BAR SHAFT | 1 |
| 7 | B1715-481-000 | COUNTER-SUNK WASHER | 1 |
| 8 | SS-1080510-SP | SCREW 1/8-44 L=5 | 1 |
| 9 | B1603-486-0AO | FEED ROCKER ASM. | 1 |
| 10 | NS-6120310-SP | NUT 3/16-28 | (1) |
| 11 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | (1) |
| 12 | SS-6121840-SP | SCREW 3/16-28 L=18 | (1) |
| 13 | SS-6090810-SP | SCREW 9/64-40 L= 7.5 | 2 |
| 14 | CQ-3030000-00 | OIL WICK | 0.3 |
| 15 | B1601-555-000 | FEED ROCKER SHAFT | 1 |
| 16 | B1605-555-000 | BUSHING, FRONT | 1 |
| 17 | CS-1470712-SH | THRUST COLLAR D=14.72 W=7 | 1 |
| 18 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | 2 |
| 19 | 229-04155 | MAIN SHAFT THRUST COLLAR ASM. | 1 |
| 20 | SS-8660610-TP | SCREW 1/4-40 L=6 | (2) |
| 21 | CQ-3030000-00 | OIL WICK | 0.3 |
| 22 | B1702-155-000 | BUSHING, REAR | 1 |
| 23 | RC-0150001-KP | RETAINING RING 13.8 | 1 |
| 24 | SS-8150710-SP | SCREW 15/64-28 L=7 | 1 |
| 25 | B1701-481-000 | FEED DRIVING SHAFT | 1 |
| 26 | B1604-155-000 | FEED ROCKER SHAFT BUSHING, FRO | 1 |
| 27 | B4103-352-0AO | FEED ROCKER SHAFT CRANK ASM. | 1 |
| 28 | SS-6621220-SP | SCREW 3/16-32 L=12 | (2) |
| 29 | B1713-380-000-A | FEED BAR LINK | 1 |
| 30 | CS-0640860-SH | THRUST COLLAR ASM. D=6.35 W=8 | 1 |
| 31 | SS-8110510-SP | SCREW 11/64-40 L=5 | (2) |
| 32 | CQ-3030000-00 | OIL WICK | 0.2 |
| 33 | B1604-155-000 | FEED ROCKER SHAFT BUSHING, FRO | 1 |
| 34 | SS-8151150-SP | SCREW 15/64-28 L=10.5 | 2 |
| 35 | CQ-3030000-00 | OIL WICK | 0.2 |
| 36 | 229-04155 | MAIN SHAFT THRUST COLLAR ASM. | 1 |
| 37 | SS-8660610-TP | SCREW 1/4-40 L=6 | (2) |
| 38 | B1702-155-000 | BUSHING, REAR | 1 |
| 39 | SS-8150710-SP | SCREW 15/64-28 L=7 | 1 |
| 40 | B1703-155-0AO | FEED DRIVING SHAFT CRANK ASM., | 1 |
| 41 | SS-6121610-SP | SCREW 3/16-28 L=15.5 | (1) |
| 42 | B1708-481-000 | FEED DRIVING SHAFT CONNECTING | 1 |
| 43 | B1712-481-00B | NEEDLE BEARING | 1 |
| 44 | SD-1020701-SP | HINGE SCREW D=10.2 H=7 | 1 |
| 45 | NS-6680410-SP | NUT 9/32-28 | 1 |
Page 15 — 6. LOOPER & NEEDLE GUARD COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2013-481-000-A | LOOPER MOUNTING BASE | 1 |
| 2 | SM-6062002-TP | SCREW M6 L=20 | 4 |
| 3 | B2030-380-000 | LOOPER (LEFT) | 1 |
| 4 | B2031-380-000 | LOOPER (RIGHT) | 1 |
| 5 | B2007-380-0A0 | LOOPER HOLDER ASM.,LEFT | 1 |
| 6 | SS-6121610-TP | SCREW 3/16-28 L=15.5 | (2) |
| 7 | SS-7090520-TP | SCREW 9/64-40 L= 4.5 | 2 |
| 8 | B2006-380-0A0 | LOOPER HOLDER ASM.,RIGHT | 1 |
| 9 | SS-6121610-TP | SCREW 3/16-28 L=15.5 | (1) |
| 10 | B2012-481-000 | BUSHING,REAR | 2 |
| 11 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | (2) |
| 12 | B2010-481-0A0 | LOOPER ROCKER SHAFT ASM. | 1 |
| 13 | SS-7090910-TP | SCREW 9/64-40 L= 8.5 | (4) |
| 14 | CQ-2520000-00 | OIL WICK | 0.2 |
| 15 | B2008-481-000 | TRUNNION | 1 |
| 16 | B2014-481-0A0 | LOOPER CRANK COVER ASM. | 1 |
| 17 | SS-6092120-SP | SCREW 9/64-40 L=21.2 | (3) |
| 18 | TA-1050504-RO | RUBBER PLUG | 1 |
| 19 | BT-0500300-EA | OIL TUBE | 0.1 |
| 20 | B2032-481-000 | LOOPER DRIVING LINK SET RING | 1 |
| 21 | B2005-380-0A0 | LOOPER CRANK ASM. | 1 |
| 22 | SS-8660810-TP | SCREW 1/4-40 L=8 | (2) |
| 23 | B2007-481-000 | LOOPER CRANK ADJUSTING SCREW | (1) |
| 24 | B2001-481-000-A | LOOPER CRANK DRIVING SHAFT | 1 |
| 25 | B2002-481-000 | BUSHING,FRONT | 1 |
| 26 | SS-8150710-SP | SCREW 15/64-28 L=7 | 2 |
| 27 | B1803-481-000 | BUSHING,INTERMEDIATE | 1 |
| 28 | CS-111121A-SH | THRUST COLLAR ASM. D=11.11 W=1 | 1 |
| 29 | SS-8660810-TP | SCREW 1/4-40 L=8 | (2) |
| 30 | B2004-481-0A0 | GEAR,UPPER | 1 |
| 31 | SS-8660810-TP | SCREW 1/4-40 L=8 | (2) |
| 32 | B2005-481-0AB | GEAR, LOWER | 1 |
| 33 | SS-6660610-TP | SCREW 1/4-40 L=6 | (2) |
| 34 | B2301-380-0A0 | NEEDLE GUARD CAM ASM. | 1 |
| 35 | SS-8150710-TP | SCREW 15/64-28 L=7 | (2) |
| 36 | B2302-481-000 | NEEDLE GUARD CRANK ROD | 1 |
| 37 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | 1 |
| 38 | B1610-430-0A0 | PIN ASM. | 1 |
| 39 | CQ-3030000-00 | OIL WICK | (0.1) |
| 40 | B2304-481-0A0 | REAR NEEDLE GUARD ROCKER FORK | 1 |
| 41 | SS-7111310-TP | SCREW 11/64-40 L=12.8 | (1) |
| 42 | B2306-380-0A0 | NEEDLE GUARD DRIVING SHAFT ASM | 1 |
| 43 | CQ-3030000-00 | OIL WICK | (0.1) |
| 44 | B2307-481-000 | BUSHING | 1 |
| 45 | SS-8150710-SP | SCREW 15/64-28 L=7 | 1 |
| 46 | B2311-380-E00 | REAR MOVING NEEDLE GUARD | 1 |
| 47 | B2311-382-000 | NEEDLE GUARD | 1 |
| 48 | B2309-481-0A0 | REAR NEEDLE GUARD ROCKER ARM | 1 |
| 49 | SS-6121220-TP | SCREW 3/16-28 L=11.5 | (1) |
| 50 | SS-7090910-TP | SCREW 9/64-40 L= 8.5 | (1) |
| 51 | B2313-380-000-A | NEEDLE GUARD BASE | 1 |
| 52 | SS-7110710-SP | SCREW 11/64-40 L=7 | 2 |
| 53 | B2312-380-000 | LEFT FIX NEEDLE GUARD | 1 |
| 54 | B2315-380-000 | RIGHT FIX NEEDLE GUARD | 1 |
| 55 | B2312-382-000 | NEEDLE GUARD | 1 |
| 56 | SS-6090510-TP | SCREW 9/64-40 L= 5.0 | 2 |
Page 17 — 7. THREAD TENSION CONTROLLER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B3101-380-BA0 | LOWER THREAD TENSION ASM. | 1 |
| 2 | 110-72204 | TENSION NUT | (2) |
| 3 | B3106-481-000 | LOOPER THREAD TENSION SPRING | (2) |
| 4 | B3120-125-000 | ROTATING STOPPER | (2) |
| 5 | B3126-352-000 | TENSION DISC | (4) |
| 6 | B3104-481-000 | LOOPER THREAD TENSION POST | (2) |
| 7 | PS-0200102-KH | SPRING PIN 2.0 X 10 | (2) |
| 8 | B3106-380-000 | THREAD GUIDE | (2) |
| 9 | B3103-481-000 | LOOPER THREAD TENSION CONTROL | (2) |
| 10 | B3101-380-000 | TENSION INSTALLING PLATE | (2) |
| 11 | SS-4110715-SP | SCREW 11/64-40 L=7 | 2 |
| 12 | B3121-380-000 | LOOPER THREAD RELEASE LATCH | 1 |
| 13 | SS-6110420-TP | SCREW 11/64-40 L=4.8 | 1 |
| 14 | B3135-481-000 | LOOPER THREAD RELEASE SHAFT | 1 |
| 15 | D3136-481-CAO | TENSION RELEASE ARM ASM. | 1 |
| 16 | NS-6110310-SP | NUT 11/64-40 | 1 |
| 17 | RO-0371801-00 | RUBBER RING | 1 |
| 18 | D3130-481-CAO | TENSION RELEASE ARM ASM. | 1 |
| 19 | SS-6110710-TP | SCREW 11/64-40 L= 6.5 | (1) |
| 20 | D3134-481-C00 | SPRING | 1 |
| 21 | D3133-481-C00 | SUSPENSION BRACKET | 1 |
| 22 | SS-4110715-SP | SCREW 11/64-40 L=7 | 2 |
| 23 | D3110-481-C00 | TENSION RELEASE SHAFT | 1 |
| 24 | B1522-552-000 | OIL SEAL RING | 1 |
| 25 | B3115-481-000 | TENSION RELEASE SHAFT SPACER | 1 |
| 26 | B3116-481-000 | SPACER(A), FOR INSTALLING PLAT | 1 |
| 27 | B3117-481-000 | SPACER(B), FOR INSTALLING PLAT | 1 |
| 28 | B3101-380-AA0 | NEEDLE THREAD TENSION ASM. | 1 |
| 29 | B3101-380-000 | TENSION INSTALLING PLATE | (1) |
| 30 | B3102-481-000 | NEEDLE THREAD TENSION GUIDE PL | (2) |
| 31 | B2306-019-000 | TENSION THREAD GUIDE | (2) |
| 32 | B3104-481-000 | LOOPER THREAD TENSION POST | (2) |
| 33 | B3126-012-000 | THREAD TENSION DISK | (4) |
| 34 | B3107-704-000 | TENSION DISC PRESSER TUBE | (2) |
| 35 | B3129-012-A00 | TENSION SPRING | (2) |
| 36 | B3120-125-000 | ROTATING STOPPER | (2) |
| 37 | B3119-771-000 | THREAD TENSION NUT | (2) |
| 38 | SS-4112515-SP | SCREW 11/64-40 L=25 | 1 |
| 39 | SS-4111415-SP | SCREW 11/64-40 L=14 | 1 |
| 40 | RE-0600000-KO | E-SHAPED SNAP RING (6MM) | 1 |
| 41 | B3120-380-000 | NEEDLE THREAD RELEASE LATCH | 1 |
| 42 | SS-6110420-TP | SCREW 11/64-40 L=4.8 | 1 |
| 43 | B3122-481-000 | FRAME THREAD GUIDE | 1 |
| 44 | B2201-481-000-A | LOOPER THREAD GUIDE | 1 |
| 45 | SS-1110710-SP | SCREW 11/64-40 L=7 | 1 |
| 46 | B2202-481-000 | LOOPER THREAD GUIDE TUBE | 1 |
| 47 | B2210-481-0AO | LOOPER THREAD GUIDE ASM. | 1 |
| 48 | B2210-481-000 | THREAD GUIDE PLATE | (1) |
| 49 | B2203-481-000 | LOOPER THREAD GUIDE(B) | (1) |
| 50 | SS-6080320-SP | SCREW 1/8-44 L= 2.5 | (1) |
| 51 | B2218-481-000 | CAST-OFF WIRE | (1) |
| 52 | SS-6080410-SP | SCREW 1/8-44 L=4 | (2) |
| 53 | WP-0371026-SD | WASHER 3.7X7X1 | (2) |
| 54 | B2217-481-000 | THREAD GUIDE STOPPER SPRING | (1) |
| 55 | SS-6080320-SP | SCREW 1/8-44 L= 2.5 | (2) |
| 56 | B2216-481-000 | THREAD GUIDE SPRING | (1) |
| 57 | B2214-481-000 | THREAD GUIDE STUD | (1) |
| 58 | NS-6110310-SP | NUT 11/64-40 | (1) |
| 59 | B2213-481-000 | CAST-OFF PLATE | (1) |
| 60 | B2212-481-000 | LOOPER THREAD GUIDE,RIGHT | (1) |
| 61 | B2211-481-000 | LOOPER THREAD GUIDE,LEFT | (1) |
| 62 | B2215-481-000 | COLLAR | (2) |
| 63 | SS-7081310-SP | SCREW 1/8-44 L=12.5 | (1) |
| 64 | SS-4110515-SP | SCREW 11/64-40 L=5 | 2 |
| 65 | B2220-481-0AO | LOOPER THREAD TAKE-UP | 1 |
| 66 | B2225-481-000 | SCREW | 1 |
Page 18 — 8. OIL LUBRICATION MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B3526-552-0A0 | OIL RETURN TUBE ASM. | 1 |
| 2 | 229-25101 | OIL FELT PRESSER | 1 |
| 3 | D3536-555-B00 | OIL RETURN TUBE PRESSER PLATE | 1 |
| 4 | SS-4110715-SP | SCREW 11/64-40 L=7 | 1 |
| 5 | B3534-155-000 | PLUNGER | 1 |
| 6 | B1214-038-000 | PLUNGER SPRING | 1 |
| 7 | SQ-1110401-MZ | CONNECTING SCREW | 2 |
| 8 | B3530-555-000 | OIL SIGHT WINDOW | 1 |
| 9 | R0-1952401-00 | RUBBER RING | 1 |
| 10 | B3527-415-000 | RUBBER JOINT | 2 |
| 11 | B2657-771-000 | GUIDE | 1 |
| 12 | SS-4110715-SP | SCREW 11/64-40 L=7 | 2 |
| 13 | B3553-481-000 | GEAR OIL PIPE | 1 |
| 14 | B3545-122-000 | OIL GUARD | 1 |
| 15 | B3554-481-000 | HOLDER | 1 |
| 16 | B3552-481-000 | OIL PUMP INSTALLING COLLAR | 3 |
| 17 | B3513-481-000-A | UPPER SHAFT LUBRICATING PIPE | 1 |
| 18 | B3501-555-0A0 | LUBRICATING OIL PUMP ASM. | 1 |
| 19 | B3503-555-000 | OIL PUMP INSTALLING BASE | (1) |
| 20 | B3505-555-000 | RUBBER JOINT | (1) |
| 21 | B3506-555-000 | RUBBER JOINT | (1) |
| 22 | B3501-555-000 | LUBRICATING OIL PUMP | (1) |
| 23 | B3507-555-000 | OIL PUMP IMPELLER | (1) |
| 24 | B3508-555-000 | OIL PUMP IMPELLER COVER | (1) |
| 25 | SM-4031001-SC | SCREW M3X0.5 L=10 | (3) |
| 26 | WT-0320002-KZ | WASHER | (3) |
| 27 | NM-6030000-0E | NUT M3X0.5 | (3) |
| 28 | B3502-555-000-A | LUBRICATING OIL PUMP COVER | (1) |
| 29 | SE-4301031-SR | SCREW | (5) |
| 30 | SS-6123010-SP | SCREW 3/16-28 L=30.0 | 2 |
| 31 | SS-6122510-SP | SCREW 3/16-28 L=25 | 1 |
| 32 | B3521-481-000-A | LUBRICATING OIL PIPE | 1 |
| 33 | EA-9500B00-00 | CLIP CV-70S | 1 |
Page 19 — 9. OIL RESERVOIR & KNEE LIFTER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B8217-481-AD0 | OIL RESERVOIR ASM. | 1 |
| 2 | B8217-481-AC0 | OIL RESERVOIR ASM. | (1) |
| 3 | B8217-481-000 | OIL RESERVOIR | (1) |
| 4 | B8235-481-000 | GASKET A | (2) |
| 5 | B8237-481-000 | GASKET C | (1) |
| 6 | D8227-555-E00 | FELT CUSHION | (4) |
| 7 | SS-7701010-SP | SCREW 5/16-24 L=10 | (2) |
| 8 | RO-0681901-00 | RUBBER RING | (2) |
| 9 | NM-6060001-SE | NUT M6 | (2) |
| 10 | B3420-555-000 | KNEE PRESS ROD | (1) |
| 11 | 229-32453 | BRACKET ASM. | (1) |
| 12 | SM-8063012-TR | SCREW M6 L=30 | (1) |
| 13 | B3426-552-000 | THRUST RING | (1) |
| 14 | 110-24106 | SPRING | (1) |
| 15 | B3425-555-000-A | KNEE LIFTER ROTATION ARM | (1) |
| 16 | SM-9061853-SR | SCREW M6 L=17.5 | (1) |
| 17 | SM-8063012-TR | SCREW M6 L=30 | (1) |
| 18 | B3421-555-000 | KNEE PRESS LIFTER ROD | 1 |
| 19 | B8228-125-000 | OIL RESERVOIR MAGNET | 1 |
| 20 | 229-34251 | KNEE PAD PLATE ASM. | 1 |
| 21 | 229-34301 | KNEE PAD PLATE SUPPORT | (1) |
| 22 | SM-9061203-SE | SCREW M6 L=12 | (1) |
| 23 | 229-34509 | KNEE PAD PLATE COVER | (1) |
| 24 | 229-34608 | KNEE PAD UPRIGHT SHAFT | (1) |
| 25 | 229-34400 | KNEE PAD PLATE RUBBER | (1) |
| 26 | 229-34202 | KNEE PAD PLATE | (1) |
Page 21 — THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B3301-380-0A0 | THREAD STAND ASM. | 1 |
| 2 | 111-85105 | SPOOL REST ROD,LOWER | (1) |
| 3 | 111-85204 | SPOOL REST ROD,UPPER | (1) |
| 4 | 119-69409 | THREAD GUIDE ARM B | (4) |
| 5 | B3304-704-000-A | THREAD GUIDE ARM HOLDER | (1) |
| 6 | B3305-704-000-A | SPOOL REST ROD JOINT | (1) |
| 7 | B3318-704-L00-A | THREAD GUIDE ARM JOINT | (4) |
| 8 | B3309-704-000 | THREAD GUIDE ARM | (1) |
| 9 | B3311-804-000 | LOWER THREAD GUIDE | (1) |
| 10 | B3311-704-000 | SPOOL REST ROD RUBBER CAP | (1) |
| 11 | B3320-704-L00-A | SPOOL PIN | (4) |
| 12 | 119-66504 | SPOOL REST | (4) |
| 13 | B3311-012-000 | SPOOL REST CUSHION | (4) |
| 14 | 111-85501 | SPOOL RETAINER | (4) |
| 15 | B3317-704-000 | NUT C15 | (1) |
| 16 | B3319-704-L00 | THREAD GUIDE | (4) |
| 17 | WP-1612616-SE | WASHER 16X30X2.6 | (2) |
| 18 | SM-4051405-SE | SCREW M5X0.8 L=14 | (2) |
| 19 | NM-6050001-SE | NUT M5X0.8 | (2) |
| 20 | SM-6053000-SE | SCREW M5X0.8 L=30 | (1) |
| 21 | SM-6061610-SC | SCREW M6 L=16 | (4) |
| 22 | SS-7110540-SP | SCREW 11/64-40 L=5 | (1) |
| 23 | NM-6050001-SE | NUT M5X0.8 | (4) |
| 24 | MA0-11532000 | CORD STAPLE | (2) |
Page 22 — 11. SILICON OIL LUBRICANT & BELT COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1161-481-0B0 | SILICONE OIL LUBRICANT ASM. | 1 |
| 2 | B1161-481-000-A | SILICON OIL CASE | (1) |
| 3 | TA-1050504-R0 | RUBBER PLUG | (1) |
| 4 | B1162-481-000 | SILICON OIL FELT | (5) |
| 5 | B1166-481-000 | SILICON OIL FELT | (2) |
| 6 | B1167-481-000 | SILICON THREAD GUIDE | (1) |
| 7 | B1168-481-000 | SCREW | (1) |
| 8 | SD-0640231-SP | HINGE SCREW D= 6.35 H= 2.3 | (1) |
| 9 | WZ-0641510-KP | WAVED WASHER 6.4X11X0.3 | (1) |
| 10 | B9135-123-0B0 | SILICON OIL LUBRICANT ASM. (30CC) | 1 |
| 11 | SS-4150915-SP | SCREW 15/64-28 L=9 | 1 |
| 12 | WP-0621016-SD | WASHER 6.2X13X1 | 1 |
| 13 | D8230-555-E00 | BELT COVER | 1 |
| 14 | B8230-380-0A0 | BELT COVER | 1 |
| 15 | CM-5003000-01 | DIRECTION LABEL | 1 |
| 16 | D8231-555-E00 | BELT COVER TOP | 1 |
| 17 | D8231-555-E0B | BELT COVER TOP | 1 |
| 18 | SS-4110815-SP | SCREW 11/64-40 L=8 | 1 |
| 19 | D8232-555-B00 | BELT COVER SUPPORT | 1 |
| 20 | D8232-555-E00 | THREAD WINDER COVER | 1 |
| 21 | D8232-555-E0A | BOBBIN WINDER COVER | 1 |
| 22 | SS-4110515-SP | SCREW 11/64-40 L=5 | 7 |
| 23 | B8231-380-000 | BELT COVER TOP | 1 |
| 24 | 101-63152 | BELT COVER SUPPORT PLATE ASM. | 1 |
| 25 | 101-63103 | BELT COVER SUPPORT PLATE | (1) |
| 26 | WP-0501016-SC | WASHER 5X10.5X1 | (1) |
| 27 | SK-3482500-SC | WOOD SCREW D=4.8 L=25 | (1) |
| D8230-380-0A0 | BELT COVER | 1 |
Page 23 — TABLE OF EXCHANGING GAUGE SETS FOR MH-380 & 382 / MH-380・382 ゲージセット一覧表（2）
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2030-380-000 | Right looper | |
| 2 | B2030-380-000 | Right looper |
Page 24 — TABLE OF EXCHANGING GAUGE SETS FOR MH-380 & 382
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1103-380-B00 | Throat plate | |
| 1 | B1406-019-BA0 | Needle clamp asm. | |
| 1 | B1509-038-BB0 | Presser foot asm. (with finger guard) | |
| 1 | B1613-380-B00 | Feed dog | |
| 2 | B1103-380-C00 | Throat plate | |
| 2 | B1406-019-CA0 | Needle clamp asm. | |
| 2 | B1509-038-CB0 | Presser foot asm. (with finger guard) | |
| 2 | B1613-380-B00 | Feed dog | |
| 3 | B1103-380-D00 | Throat plate | |
| 3 | B1406-019-DAO | Needle clamp asm. | |
| 3 | B1509-038-DB0 | Presser foot asm. (with finger guard) | |
| 3 | B1613-380-D00 | Feed dog | |
| 4 | B1103-380-E00 | Throat plate | |
| 4 | B1406-019-EA0 | Needle clamp asm. | |
| 4 | B1509-038-EB0 | Presser foot asm. (with finger guard) | |
| 4 | B1613-380-F00 | Feed dog | |
| 5 | B1103-380-F00 | Throat plate | |
| 5 | B1406-019-FA0 | Needle clamp asm. | |
| 5 | B1509-038-FB0 | Presser foot asm. (with finger guard) | |
| 5 | B1613-380-F00 | Feed dog | |
| 6 | B1103-380-H00 | Throat plate | |
| 6 | B1406-038-HA0 | Needle clamp asm. | |
| 6 | B1509-038-HB0 | Presser foot asm. (with finger guard) | |
| 6 | B1613-380-H00 | Feed dog | |
| 7 | B1103-380-K00 | Throat plate | |
| 7 | B1406-038-KA0 | Needle clamp asm. | |
| 7 | B1509-038-KB0 | Presser foot asm. (with finger guard) | |
| 7 | B1613-380-K00 | Feed dog | |
| 8 | B1103-380-L00 | Throat plate | |
| 8 | B1406-038-LA0 | Needle clamp asm. | |
| 8 | B1509-038-LB0 | Presser foot asm. (with finger guard) | |
| 8 | B1613-380-L00 | Feed dog | |
| A | 1103-380-B00 | Throat plate | |
| A | 1103-380-C00 | Throat plate | |
| A | 1103-380-D00 | Throat plate | |
| A | 1103-380-E00 | Throat plate | |
| C | B1509-038-F80 | Presser foot asm. (with finger guard) 押工 (粗) (針カバー付) | |
| E | B2311-380-B00 | Rear moving needle guard | |
| E | B2311-380-C00 | Rear moving needle guard | |
| E | B2311-380-D00 | Rear moving needle guard | |
| E | B2311-380-E00 | Rear moving needle guard | |
| E | B2311-380-F00 | Rear moving needle guard | |
| E | B2311-380-H00 | Rear moving needle guard | |
| E | B2311-380-K00 | Rear moving needle guard | |
| E | B2311-380-L00 | Rear moving needle guard | |
| F | B2315-380-000 | Right needle guard | |
| G | B2312-380-000 | Left needle guard 左側固定針受 | |
| G | D1406-038-BA0 | Left needle guard 左側固定針受 | |
| G | B2311-382-000 | Left needle guard 左側固定針受 |
Page 25 — 14. LIST FOR INFORMATION OF CHANGE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 30 | B1148-555-000 | ||
| 38 | SS-9151440-CP | ||
| 20 | B1402-552-000-A | ||
| 8 | B1502-541-000 | ||
| 13 | B1510-227-000 | ||
| 14 | B1505-227-000-A | ||
| 41 | B1608-555-000 | ||
| 19 | CS-147121A-SH | ||
| 36 | CS-147121A-SH | ||
| 41 | SS-6121610-TP | ||
| 2 | B3529-226-000 | ||
| 9 | B3420-555-0A0 | ||
| 11 | B3427-122-000 | ||
| 12 | SS-9182010-SN | ||
| 14 | B3429-555-000 | ||
| 15 | B3425-555-000 | ||
| 16 | SS-9151810-SR | ||
| 17 | SS-8153010-SR | ||
| 18 | NS-6150430-SR | ||
| 19 | SS-8152080-SR | ||
| 22 | 110-23751 | ||
| 30 | 229-12109 | ||
| 38 | SS-9151120-CP | ||
| 20 | 229-06101 | ||
| 8 | 229-07109 | ||
| 13 | 229-07703 | ||
| 14 | 229-07406 | ||
| 41 | B1608-481-000 | ||
| 19 | 229-04155 | ||
| 36 | 229-04155 | ||
| 41 | SS-6121610-SP | ||
| 2 | 229-25101 | ||
| 33 | EA-9500B00-00 | ||
| 11 | 229-32453 | ||
| 14 | 110-24106 | ||
| 15 | B3425-555-000-A | ||
| 16 | SM-9061853-SR | ||
| 17 | SM-8063012-TR | ||
| 9 | NM-6060001-SE | ||
| 12 | SM-8063012-TR | ||
| 20 | 229-34251 |
Page 27 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 13 | DB230-555-E00 | SS-4110815-SP | |
| 17 | DB231-555-E00 | SS-4110815-SP | |
| 16 | DB231-555-E00 | SS-4111015-SP | |
| 19 | DB232-555-B00 | SS-4111415-SP | |
| 21 | DB232-555-E0A | SS-4112515-SP | |
| 20 | DB232-555-E00 | SS-4150915-SP | |
| 33 | EA-9500B00-00 | SS-5060310-SP | |
| 24 | MAC-11532000 | SS-6060210-SP | |
| 1 | MTV-700B1400 | SS-6060220-SP | |
| 27 | NM-6030000-0E | SS-6060340-SP | |
| 19 | NM-6030000-SE | SS-6060340-SP | |
| 23 | NM-6030001-SE | SS-6080320-SP | |
| 9 | NM-6060001-SE | SS-6080320-SP | |
| 16 | NS-6110310-SP | SS-6080410-SP | |
| 58 | NS-6110310-SP | SS-6090510-TP | |
| 49 | NS-6120310-SP | SS-6090630-SP | |
| 10 | NS-6120310-SP | SS-6090670-TP | |
| 62 | NS-6150430-SP | SS-6090670-TP | |
| 37 | NS-6620310-SP | SS-6090810-SP | |
| 45 | NS-6680320-SP | SS-6091210-TP | |
| 45 | NS-6680410-SP | SS-6091210-TP | |
| 7 | PS-0200102-KH | SS-6110420-TP | |
| 23 | RC-0150001-KP | SS-6110420-TP | |
| 32 | RE-0500000-KO | SS-6110710-TP | |
| 24 | RE-0600000-KO | SS-6120930-SP | |
| 26 | RO-0371801-00 | SS-6121210-SP | |
| 17 | RO-0371801-00 | SS-6121210-SP | |
| 29 | RO-0442401-00 | SS-6121220-SP | |
| 8 | RO-0681901-00 | SS-6121610-SP | |
| 56 | RO-0691801-00 | SS-6121610-TP | |
| 4 | RO-0742401-00 | SS-6121610-TP | |
| 9 | RO-1952401-00 | SS-6121840-SP | |
| 47 | SD-0500401-SP | SS-6122510-SP | |
| 35 | SD-0600322-SD | SS-6621220-SP | |
| 18 | SD-0630275-SP | SS-6660610-TP | |
| 19 | SD-0630301-SP | SS-6661110-SP | |
| 8 | SD-0640231-SP | SS-7081310-SP | |
| 44 | SD-1020701-SP | SS-7090520-TP | |
| 29 | SE-4301031-SR | SS-7090910-TP | |
| 27 | SK-3482500-SC | SS-7090910-TP | |
| 25 | SM-4031001-SC | SS-710540-SP | |
| 18 | SM-4051405-SE | SS-7110510-SP | |
| 20 | SM-6053000-SE | SS-7110540-SP | |
| 21 | SM-6061610-SC | SS-7110710-SP | |
| 2 | SM-6062002-TP | SS-7110710-SP | |
| 12 | SM-8063012-TR | SS-7110910-SP | |
| 17 | SM-8063012-TR | SS-7111120-SP | |
| 22 | SM-9061203-SE | SS-7111120-SP | |
| 16 | SM-9061853-SR | SS-7111260-SP | |
| 7 | SQ-1110401-MZ | SS-7111310-TP | |
| 8 | SS-1080510-SP | SS-7111410-TP | |
| 45 | SS-1110710-SP | SS-7151120-SP | |
| 13 | SS-2090710-SP | SS-7620750-SP | |
| 50 | SS-2110920-TP | SS-7681650-TP | |
| 14 | SS-2110930-SP | SS-7701010-SP | |
| 66 | SS-4080415-SP | SS-8090540-SP | |
| 10 | SS-4110515-SP | SS-8110310-SP | |
| 14 | SS-4110515-SP | SS-8110410-TP | |
| 21 | SS-4110515-SP | SS-8110410-TP | |
| 23 | SS-4110515-SP | SS-8110510-SP | |
| 25 | SS-4110515-SP | SS-8110510-SP | |
| 28 | SS-4110515-SP | SS-8150310-SP | |
| 67 | SS-4110515-SP | SS-8150710-SP | |
| 64 | SS-4110515-SP | SS-8150710-SP | |
| 22 | SS-4110715-SP | SS-8150710-SP | |
| 11 | SS-4110715-SP | SS-8150710-SP | |
| 22 | SS-4110715-SP | SS-8150710-SP | |
| 4 | SS-4110715-SP | SS-8150710-SP | |
| 12 | SS-4110715-SP | SS-8150710-SP | |
| 45 | SS-8150710-SP | SS-8150710-SP | |
| 35 | SS-8150710-TP | SS-8150710-TP | |
| 52 | SS-8151150-SP | SS-8151150-SP | |
| 59 | SS-8151150-SP | SS-8151150-SP | |
| 55 | SS-8151150-SP | SS-8151150-SP | |
| 52 | SS-8151150-SP | SS-8151150-SP | |
| 59 | SS-8151150-SP | SS-8151150-SP | |
| 55 | SS-8151150-SP | SS-8151150-SP | |
| 45 | SS-8151550-SP | SS-860610-TP | |
| 37 | SS-8620610-SP | SS-860610-TP | |
| 37 | SS-8660610-TP | SS-860610-TP | |
| 39 | SS-8660610-TP | SS-860610-TP | |
| 39 | SS-8660610-TP | SS-860610-TP | |
| 55 | SS-8660610-TP | SS-860810-TP | |
| 22 | SS-8660610-TP | SS-860810-TP | |
| 29 | SS-8661040-TP | SS-860810-TP | |
| 31 | SS-8681650-TP | SS-860810-TP | |
| 38 | SS-9151120-CP | SS-8661040-TP | |
| 12 | TA-0750704-RO | SS-8681650-TP | |
| 18 | TA-1050504-RO | SS-9151120-CP | |
| 3 | TA-1050504-RO | TA-0750704-RO | |
| 4 | TA-1250406-RO | TA-1050504-RO | |
| 11 | TA-1250504-RO | TA-1050504-RO | |
| 58 | TA-1750502-RO | TA-1250406-RO | |
| 72 | TA-2050406-RO | TA-1250504-RO | |
| 31 | TA-2101002-RO | TA-1750502-RO | |
| 33 | TA-2351004-RO | TA-2050406-RO | |
| 32 | TA-2351305-RO | TA-2101002-RO | |
| 53 | WP-0371026-SD | TA-2351004-RO | |
| 4 | WP-0480856-SP | TA-2351305-RO | |
| 4 | WP-0480856-SP | WP-0371026-SD | |
| 26 | WP-0501016-SC | WP-0480856-SP | |
| 12 | WP-0621016-SD | WP-0480856-SP | |
| 12 | WP-0621016-SD | WP-0501016-SC | |
| 27 | WP-0740516-SP | WP-0621016-SD | |
| 17 | WP-1612616-SE | WP-0621016-SD | |
| 28 | WT-0320002-KZ | WP-0740516-SP | |
| 58 | WZ-0541510-KP | WP-1612616-SE | |
| 58 | WZ-0641510-KP | WT-0320002-KZ | |
| 58 | WZ-1052010-KP | WZ-0541510-KP | |
| 78 | 100-04109 | WZ-0641510-KP | |
| 25 | 101-63103 | WZ-1052010-KP | |
| 24 | 101-63152 | ||
| 11 | 110-78705 | ||
| 48 | 110-04207 | ||
| 62 | 110-07101 | ||
| 14 | 110-24106 | ||
| 9 | 110-52701 | ||
| 10 | 110-71602 | ||
| 10 | 110-71701 | ||
| 63 | 110-71800 | ||
| 3 | 110-72204 | ||
| 12 | 111-85105 | ||
| 3 | 111-85204 | ||
| 12 | 111-85501 | ||
| 12 | 119-66504 | ||
| 4 | 119-69409 | ||
| 19 | 229-04155 | ||
| 36 | 229-04155 | ||
| 20 | 229-06101 | ||
| 8 | 229-07109 | ||
| 14 | 229-07406 | ||
| 13 | 229-07703 | ||
| 30 | 229-12101 | ||
| 2 | 229-25101 | ||
| 11 | 229-32453 |
Juki MH-380 — parts catalog
- Page 1 (cover): This is the cover page for the JUKI MH-380 and MH-382 industrial sewing machine parts list. It includes the JUKI logo and the model numbers.
- Page 2 (text): This page provides instructions on how to use the parts list, explaining codes and symbols used in the catalog, including how to interpret part numbers, quantity, and references.

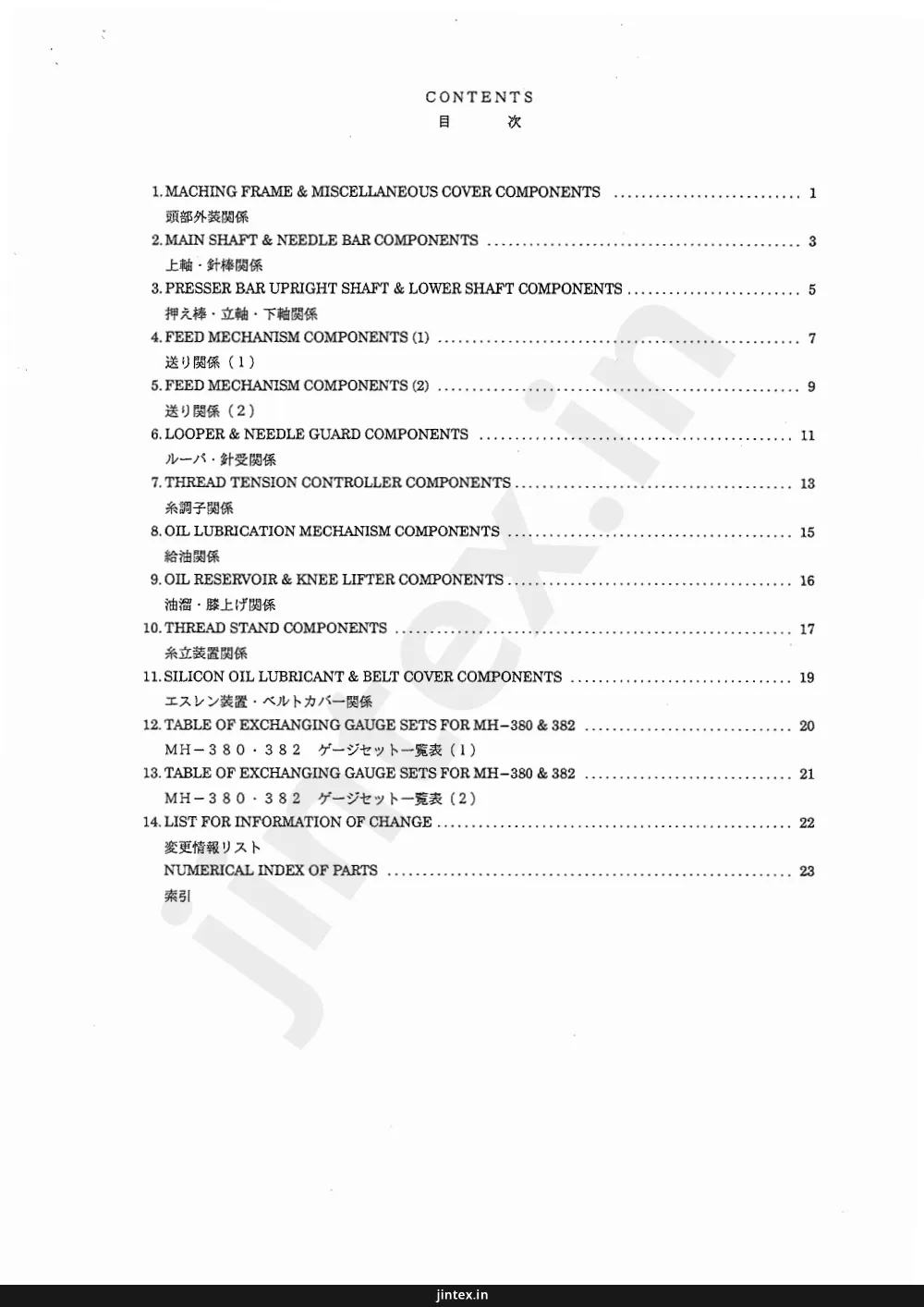

- Page 3 (toc): This page is a table of contents for a parts catalog, listing sections from "MACHINING FRAME & MISCELLANEOUS COVER COMPONENTS" to "NUMERICAL INDEX OF PARTS" with corresponding page numbers.
- Page 4 (diagram): This page displays a diagram of machine frame and miscellaneous cover components, with various parts numbered for identification.
- Page 5 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, quantities, and remarks. It covers items from reference number 1 to 78, with additional notes at the bottom.
- Page 6 (diagram): This page displays a diagram of main shaft and needle bar components, with numbered parts and their corresponding references.
- Page 7 (parts_list): This page contains a parts list for various sewing machine components, including needles, screws, bushings, and other hardware, with part numbers, descriptions, and quantities.
- Page 8 (diagram): This page displays a diagram of presser bar, upright shaft, and lower shaft components, with numbered parts for identification.
- Page 9 (parts_list): This page lists parts for sewing machines, including part numbers, descriptions, and quantities. It also includes notes indicating which models each part applies to.
- Page 10 (diagram): This page displays a diagram of the feed mechanism components (1) for an industrial sewing machine, with numbered parts for identification.
- Page 11 (parts_list): This page lists parts for a sewing machine, including screws, pins, rings, and various assemblies, with their corresponding part numbers, descriptions, and quantities.
- Page 12 (diagram): This page displays a diagram of feed mechanism components, labeled with reference numbers and part numbers for identification.
- Page 13 (parts_list): This page lists parts for sewing machines, including feed dogs, screws, washers, and various shafts and bushings, with their corresponding part numbers and descriptions.
- Page 14 (diagram): This page displays a diagram of looper and needle guard components, with numbered parts and their corresponding references.
- Page 15 (parts_list): This page lists parts for sewing machines, including screws, loopers, bushings, and guards, with their corresponding part numbers, descriptions, and quantities. It also includes notes for specific machine models MH-380 and MH-382.
- Page 16 (diagram): This page displays a diagram of thread tension controller components, with numbered parts and their corresponding references.
- Page 17 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities, with Japanese descriptions also provided.
- Page 18 (diagram): This page displays a diagram of the oil lubrication mechanism components for an industrial sewing machine, along with a corresponding parts list.
- Page 19 (parts_list): This page lists parts for the Oil Reservoir & Knee Lifter Components, including part numbers, descriptions, and quantities.
- Page 20 (diagram): This page displays a diagram of thread stand components, with numbered parts and their corresponding references.
- Page 21 (parts_list): This page lists parts for an industrial sewing machine, including thread stand assemblies, spool rests, thread guides, screws, nuts, and cord staples, with their corresponding part numbers and quantities.
- Page 22 (parts_list): This page lists silicon oil lubricant and belt cover components, including part numbers, descriptions, and quantities.
- Page 23 (parts_list): Table of exchanging gauge sets for MH-380 and MH-382 listing gauge component part numbers by description (right looper, left looper, bed slide, cam cover, folder) against gauge sizes 1/8 inch to 1/2 inch.
- Page 24 (parts_list): This page contains a parts list for gauge sets for MH-380 and MH-382 sewing machines, detailing various components with their part numbers and descriptions.
- Page 25 (parts_list): This page lists parts for change, including added and obsolete parts, with their corresponding part numbers, page references, and revision numbers.
- Page 27 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, page references, and reference numbers in diagrams.
- Page 28 (cover): This is the cover page of a JUKI Corporation parts list, dated June 2001. It includes copyright information and contact details for ordering or further information.
