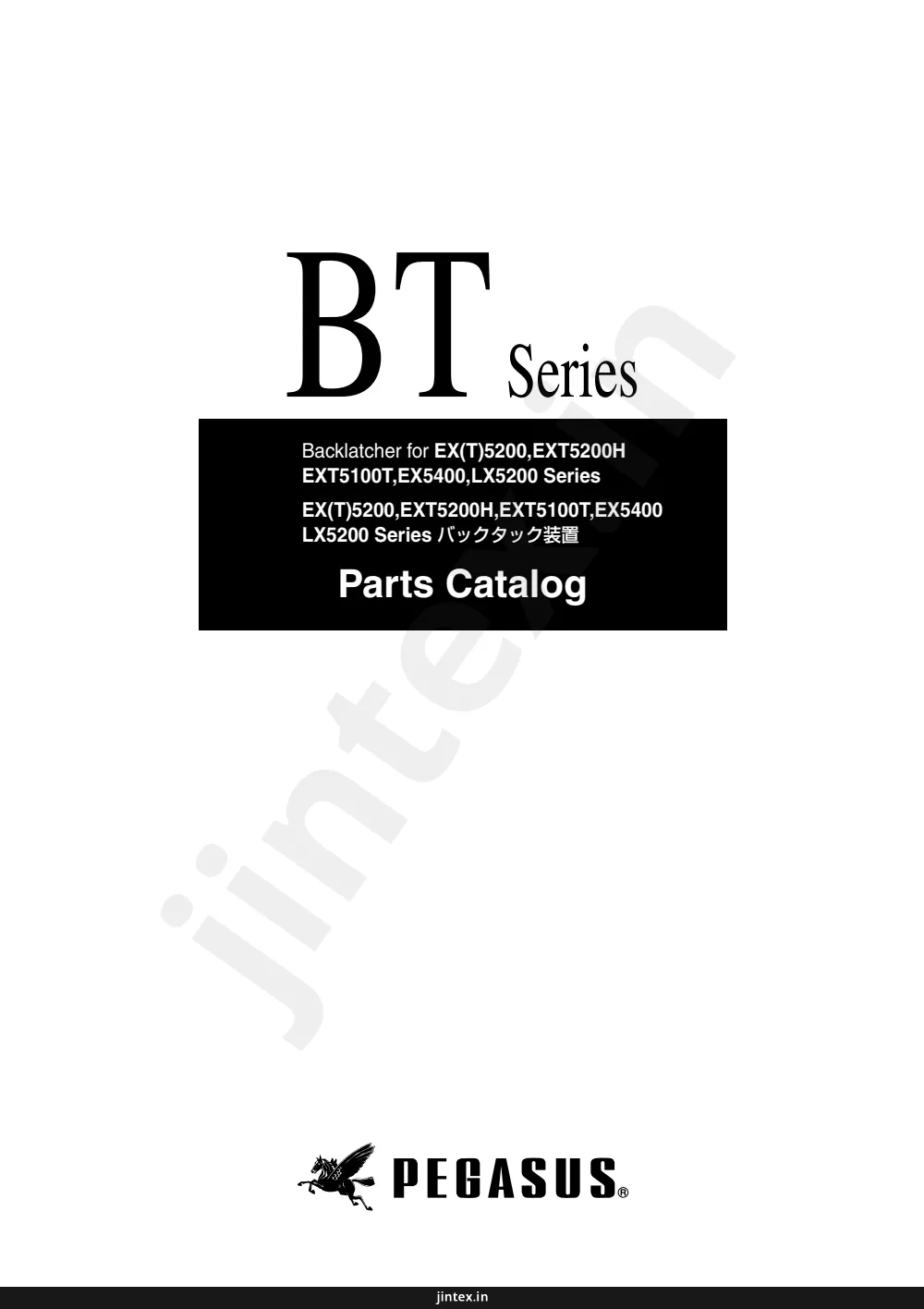

Pegasus BT Series Backlatcher (EX, EXT, LX) Parts Book (PDF)
Text index — Pegasus BT Series Backlatcher (EX, EXT, LX)
Page 5 — KNIFE & CLAMP & FINGER DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 308083-91 | KNIFE ASSEMBLY | 1 |
| 2 | 308334 | KNIFE GUIDE | 1 |
| 3 | 007041 | SCREW | 2 |
| 4 | 308332 | BRACKET | 1 |
| 5 | 007041 | SCREW | 2 |
| 6 | 308088 | LATCH | 1 |
| 7 | 007119 | SCREW | 1 |
| 8 | 308333 | THREAD CHAIN CLAMP | 1 |
| 9 | 005536 | SCREW | 1 |
| 10 | 301902 | SPRING | 1 |
| 11 | 005605 | NUT | 1 |
| 12 | 308490 | KNIFE | 1 |
| 13 | 308084-91 | KNIFE ASSEMBLY | 1 |
| 14 | 308335 | KNIFE GUIDE | 1 |
| 15 | 302059-9U | CHAINING-FINGER DRIVE SET | 1 |
| 16 | 811035 | SOLENOID | 1 |
| 17 | 302060-UD | BRACKET | 1 |
| 18 | 005345 | SCREW | 1 |
| 19 | 001174 | SCREW | 1 |
| 20 | 303896 | BRACKET | 1 |
| 21 | 001216 | SCREW | 2 |
| 22 | 303897 | LEVER | 1 |
| 23 | 002193 | SCREW | 1 |
| 24 | 001170 | SCREW | 2 |
| 25 | 003091 | NUT | 2 |
| 26 | 303899 | COVER | 1 |
| 27 | 005142 | SCREW | 3 |
| 28 | 301870 | HOOK | 1 |
| 29 | 210307 | WASHER | 1 |
| 30 | 005604 | SCREW | 1 |
| 31 | 742108 | RELAY CORD | 1 |
| 32 | 308086 | RETRACTABLE FINGER | 1 |
Page 7 — FINGER DRIVE MECHANISM & FILTER/REGULATOR & SOLENOID VALVE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 308480-91 | FINGER DRIVE ASSEMBLY | 1 |
| 2 | 308481 | BRACKET | 1 |
| 3 | 513076 | AIR CYLINDER | 1 |
| 4 | 007029 | SCREW | 2 |
| 5 | 601097A | JOINT | 1 |
| 6 | 527006 | SPEED CONTROLLER | 1 |
| 7 | 755043 | NUMBERED LABEL | 1 |
| 8 | 755044 | NUMBERED LABEL | 1 |
| 9 | 302902 | LEVER | 1 |
| 10 | 001222 | SCREW | 2 |
| 11 | 308482-91 | LEVER (B) | 1 |
| 12 | 002918 | SCREW | 2 |
| 13 | 202875 | WASHER | 2 |
| 14 | 005142 | SCREW | 1 |
| 15 | 004009-1 | SCREW | 1 |
| 16 | 308086 | RETRACTABLE FINGER | 1 |
| 17 | 308502-D | RETRACTABLE FINGER | 1 |
| 18 | 562066-91 | SOLENOID VALVE ASSEMBLY | 1 |
| 19 | 562066A91 | SOLENOID VALVE ASSEMBLY | 1 |
| 20 | 562065-91 | SOLENOID VALVE | 1 |
| 21 | 601115 | JOINT | 1 |
| 22 | 600100A | TUBE | 1 |
| 23 | 755045 | NUMBERED LABEL | 1 |
| 24 | 755046 | NUMBERED LABEL | 1 |
| 25 | 601196 | JOINT | 2 |
| 26 | 755043 | NUMBERED LABEL | 1 |
| 27 | 755044 | NUMBERED LABEL | 1 |
| 28 | 600147 | TUBE | 4 |
| 29 | 004920 | SCREW | 2 |
| 30 | 601107 | JOINT | 2 |
| 31 | 600147 | TUBE | 2 |
| 32 | 522007 | FILTER REGULATOR ASSEMBLY | 1 |
| 33 | 522032 | FILTER REGULATOR | 1 |
| 34 | 300590 | BRACKET | 1 |
| 35 | 601053 | JOINT | 1 |
| 36 | 601049 | CONNECTOR | 1 |
| 37 | 608002 | HOSE CLIP | 1 |
| 38 | 004910 | SCREW | 2 |
| 39 | 004304 | BOLT | 2 |
| 40 | 004806 | NUT | 2 |
| 41 | 210061 | WASHER | 2 |
Page 9 — THREAD TENSION MECHANISM(1-NEEDLE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 308094-9U | TENSION SPRING ASSEMBLY | 1 |
| 2 | 210529-9U | TENSION SPRING ASSEMBLY | 1 |
| 3 | 005082A | SCREW STUD | 1 |
| 4 | 208449 | FELT | 1 |
| 5 | 210319 | TENSION DISC | 2 |
| 6 | 208450-UA | CUP | 2 |
| 7 | 208448 | RATCHET | 2 |
| 8 | 208447-UA | NUT | 2 |
| 9 | 201037 | SPRING (HEAVY) | 1 |
| 10 | 210530-9U | TENSION SPRING ASSEMBLY | 1 |
| 11 | 201086 | SPRING (MEDIUM) | 1 |
| 12 | 202849 | TENSION GUIDE | 3 |
| 13 | 254010C9U | TENSION SPRING ASSEMBLY (LIGHT) | 1 |
| 14 | 001817-2A | SCREW STUD | 1 |
| 15 | 201068 | SPRING (LIGHT) | 1 |
| 16 | 254010A9U | TENSION SPRING ASSEMBLY | 1 |
| 17 | 208449 | FELT | 3 |
| 18 | 202849 | TENSION GUIDE | 3 |
| 19 | 308096 | PLATE ASSEMBLY | 1 |
| 20 | 308097 | TENSION RELEASE PLATE | 1 |
| 21 | 007149 | SCREW | 2 |
| 22 | 308098 | LEVER | 1 |
| 23 | 007149 | SCREW | 1 |
| 24 | 005105 | SCREW | 1 |
| 25 | 302852 | FLAT SPRING | 1 |
| 26 | 007007 | SCREW | 2 |
| 27 | 308099 | NAME PLATE | 1 |
Page 11 — THREAD TENSION MECHANISM(1-NEEDLE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 308081-9U | TENSION SPRING ASSEMBLY | 1 |
| 2 | 210529-9U | TENSION SPRING ASSEMBLY | 1 |
| 3 | 005082A | SCREW STUD | 1 |
| 4 | 208449 | FELT | 1 |
| 5 | 210319 | TENSION DISC | 2 |
| 6 | 208450-UA | CUP | 1 |
| 7 | 208448 | RATCHET | 1 |
| 8 | 208447-UA | NUT | 1 |
| 9 | 201037 | SPRING (HEAVY) | 1 |
| 10 | 210530-9U | TENSION SPRING ASSEMBLY | 2 |
| 11 | 201086 | SPRING (MEDIUM) | 2 |
| 12 | 202849 | TENSION GUIDE | 3 |
| 13 | 254010C9U | TENSION SPRING ASSEMBLY (LIGHT) | 1 |
| 14 | 001817-2A | SCREW STUD | 1 |
| 15 | 201068 | SPRING (LIGHT) | 1 |
| 16 | 254010A9U | TENSION SPRING ASSEMBLY (HEAVY) | 2 |
| 17 | 208449 | FELT | 3 |
| 18 | 202849 | TENSION GUIDE | 3 |
| 19 | 302848A91 | PLATE ASSEMBLY | 1 |
| 20 | 302849 | TENSION RELEASE PLATE | 1 |
| 21 | 007149 | SCREW | 2 |
| 22 | 302854-91 | LEVER | 1 |
| 23 | 005548 | SCREW | 1 |
| 24 | 302856 | LEVER | 1 |
| 25 | 007149 | SCREW | 1 |
| 26 | 005105 | SCREW | 1 |
| 27 | 811070-91 | SOLENOID ASSEMBLY | 1 |
| 28 | 302851 | BRACKET | 1 |
| 29 | 007018A | SCREW | 3 |
| 30 | 302853 | LEVER | 1 |
| 31 | 004524 | BOLT | 1 |
| 32 | 748005 | NYLON GRIP | 1 |
| 33 | 007018A | SCREW | 1 |
| 34 | 302852 | FLAT SPRING | 1 |
| 35 | 007007 | SCREW | 2 |
| 36 | 742096 | RELAY CORD (SOLENOID) | 1 |
| 37 | 302857 | THREAD GUIDE LABEL | 1 |
| 38 | 308422 | SAFETY COVER | 1 |
| 39 | 007018A | SCREW | 3 |
Page 13 — THREAD TENSION MECHANISM(1-NEEDLE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 308484-9U | THREAD TENSION ASSEMBLY | 1 |
| 2 | 210529-9U | TENSION SPRING ASSEMBLY | 1 |
| 3 | 005082A | SCREW STUD | 1 |
| 4 | 208449 | FELT | 1 |
| 5 | 210319 | TENSION DISC | 2 |
| 6 | 208450-UA | CUP | 1 |
| 7 | 208448 | RATCHET | 1 |
| 8 | 208447-UA | NUT | 1 |
| 9 | 201037 | SPRING (HEAVY) | 1 |
| 10 | 210530-9U | TENSION SPRING ASSEMBLY | 2 |
| 11 | 201086 | SPRING (MEDIUM) | 1 |
| 12 | 202849 | TENSION GUIDE | 3 |
| 13 | 254010C9U | TENSION SPRING ASSEMBLY (LIGHT) | 1 |
| 14 | 001817-2A | SCREW STUD | 1 |
| 15 | 201068 | SPRING (LIGHT) | 1 |
| 16 | 254010A9U | TENSION SPRING ASSEMBLY (HEAVY) | 2 |
| 17 | 208449 | FELT | 3 |
| 18 | 202849 | TENSION GUIDE | 3 |
| 19 | 302848A91 | PLATE ASSEMBLY | 1 |
| 20 | 302849 | TENSION RELEASE PLATE | 1 |
| 21 | 007149 | SCREW | 2 |
| 22 | 308521 | LABEL | 1 |
| 23 | 513126 | AIR CYLINDER | 1 |
| 24 | 308485 | BRACKET | 1 |
| 25 | 007018A | SCREW | 2 |
| 26 | 601097A | JOINT | 1 |
| 27 | 755046 | NUMBERED LABEL | 1 |
| 28 | 527006 | SPEED CONTROLLER | 1 |
| 29 | 755045 | NUMBERED LABEL | 1 |
| 30 | 308486 | KNUCKLE | 1 |
| 31 | 308487-91 | LEVER | 1 |
| 32 | 005548 | SCREW | 1 |
Page 15 — THREAD TENSION MECHANISM(2-NEEDLE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 308081A9U | TENSION SPRING ASSEMBLY | 1 |
| 2 | 210529-9U | TENSION SPRING ASSEMBLY | 2 |
| 3 | 005082A | SCREW STUD | 1 |
| 4 | 208449 | FELT | 1 |
| 5 | 210319 | TENSION DISC | 2 |
| 6 | 208450-UA | CUP | 1 |
| 7 | 208448 | SPRING BUSHING | 1 |
| 8 | 208447-UA | NUT | 1 |
| 9 | 201037 | SPRING (HEAVY) | 1 |
| 10 | 210531-9U | TENSION SPRING ASSEMBLY | 1 |
| 11 | 201068 | SPRING (LIGHT) | 1 |
| 12 | 210530A9U | TENSION SPRING ASSEMBLY | 1 |
| 13 | 201086A | SPRING (MEDIUM) | 1 |
| 14 | 202849 | TENSION GUIDE | 4 |
| 15 | 254010C9U | TENSION SPRING ASSEMBLY (LIGHT) | 2 |
| 16 | 001817-2A | SCREW STUD | 1 |
| 17 | 254010A9U | TENSION SPRING ASSEMBLY (HEAVY) | 2 |
| 18 | 208449 | FELT | 4 |
| 19 | 202849 | TENSION GUIDE | 4 |
| 20 | 302848A91 | PLATE ASSEMBLY | 1 |
| 21 | 302849 | TENSION RELEASE PLATE | 1 |
| 22 | 007149 | SCREW | 2 |
| 23 | 302854-91 | LEVER | 1 |
| 24 | 005548 | SCREW | 1 |
| 25 | 302856 | LEVER | 1 |
| 26 | 007149 | SCREW | 1 |
| 27 | 005105 | SCREW | 1 |
| 28 | 811070-91 | SOLENOID ASSEMBLY | 1 |
| 29 | 302851 | BRACKET | 1 |
| 30 | 007018A | SCREW | 3 |
| 31 | 302853 | LEVER | 1 |
| 32 | 004524 | BOLT | 1 |
| 33 | 748005 | NYLON GRIP | 1 |
| 34 | 007018A | SCREW | 1 |
| 35 | 302852 | FLAT SPRING | 1 |
| 36 | 007007 | SCREW | 2 |
| 37 | 742096 | RELAY CORD (SOLENOID) | 1 |
| 38 | 302857 | THREAD GUIDE LABEL | 1 |
| 39 | 308422 | SAFETY COVER | 1 |
| 40 | 007018A | SCREW | 3 |
Page 17 — THREAD TENSION MECHANISM(2-NEEDLE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 308484A9U | THREAD TENSION ASSEMBLY | 1 |
| 2 | 308484B9U | THREAD TENSION ASSEMBLY | 1 |
| 3 | 210529-9U | TENSION SPRING ASSEMBLY | 1 |
| 4 | 005082A | SCREW STUD | 1 |
| 5 | 208449 | FELT | 1 |
| 6 | 210319 | TENSION DISC | 2 |
| 7 | 208450-UA | CUP | 1 |
| 8 | 201037 | SPRING (HEAVY) | 1 |
| 9 | 208448 | RATCHET | 1 |
| 10 | 208447-UA | NUT | 1 |
| 11 | 210531-9U | TENSION SPRING ASSEMBLY | 1 |
| 12 | 201068 | SPRING (LIGHT) | 1 |
| 13 | 210530A9U | TENSION SPRING ASSEMBLY | 1 |
| 14 | 201086A | SPRING (MEDIUM) | 1 |
| 15 | 202849 | TENSION GUIDE | 4 |
| 16 | 254010C9U | TENSION SPRING ASSEMBLY (LIGHT) | 2 |
| 17 | 001817-2A | SCREW STUD | 1 |
| 18 | 254010A9U | TENSION SPRING ASSEMBLY (HEAVY) | 2 |
| 19 | 208449 | FELT | 4 |
| 20 | 202849 | TENSION GUIDE | 4 |
| 21 | 302848A91 | PLATE ASSEMBLY | 1 |
| 22 | 302849 | TENSION RELEASE PLATE | 1 |
| 23 | 007149 | SCREW | 2 |
| 24 | 308521 | LABEL | 1 |
| 25 | 513126 | AIR CYLINDER | 1 |
| 26 | 308485 | BRACKET | 1 |
| 27 | 007018A | SCREW | 2 |
| 28 | 601097A | JOINT | 1 |
| 29 | 755046 | NUMBERED LABEL | 1 |
| 30 | 527006 | SPEED CONTROLLER | 1 |
| 31 | 755045 | NUMBERED LABEL | 1 |
| 32 | 308486 | KNUCKLE | 1 |
| 33 | 308487-91 | LEVER | 1 |
| 34 | 005548 | SCREW | 1 |
Page 19 — BT103A,220,220A,250,250A SENSOR SET & SPECIFIC PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 308018-91 | SENSOR SET | 1 |
| 2 | 712011B91 | CLOTH EDGE DETECTING SENSOR | 1 |
| 3 | 007162 | SCREW | 2 |
| 4 | 308043 | BRACKET | 1 |
| 5 | 007018A | SCREW | 2 |
| 6 | 007156 | SCREW | 2 |
| 7 | 748005 | NYLON GRIP | 2 |
| 8 | 007018A | SCREW | 2 |
| 9 | 742294-91 | RELAY CORD | 1 |
| 10 | 716007 | ROTATION DETECTOR | 1 |
| 11 | 007018A | SCREW | 1 |
| 12 | 748005 | NYLON GRIP | 2 |
| 13 | 007018A | SCREW | 2 |
| 14 | 742095 | RELAY CORD (ROTATION DETECTOR) | 1 |
| 15 | 748002 | BAND | 2 |
| 16 | 277528-30 | NEEDLE PLATE | 1 |
| 17 | 277528-40 | NEEDLE PLATE | 1 |
| 18 | 277528-50 | NEEDLE PLATE | 1 |
| 19 | 277529-30 | NEEDLE PLATE | 1 |
| 20 | 277529-40 | NEEDLE PLATE | 1 |
| 21 | 277529-50 | NEEDLE PLATE | 1 |
| 22 | 270037D | CLOTH PLATE (NARROW) | 1 |
| 23 | 270505B | FAN | 1 |
| 24 | 350188A | SPACER | 2 |
| 25 | 007072 | SCREW | 2 |
| 26 | 308177-91 | WASTE CHUTE SET | 1 |
| 27 | 276002AUA | WASTE CHUTE TOP | 1 |
| 28 | 004904 | SCREW | 3 |
| 29 | 276003-UA | WASTE CHUTE EXTENSION | 1 |
| 30 | 276004 | BRACKET | 1 |
| 31 | 004109 | SCREW | 2 |
| 32 | 240104 | WASHER | 2 |
Page 21 — BT220,220A,250,250A BT CONTROLLER & PIN
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 760168-9J | BT CONTROLLER | 1 |
| 2 | 760168A9J | BT CONTROLLER | 1 |
| 3 | 9A3068 | ELECTRIC CAUTION LABEL | 1 |
| 4 | 303500 | BRACKET ASSEMBLY | 1 |
| 5 | 748045 | CABLE STOPPER | 3 |
| 6 | 004920 | SCREW | 4 |
| 7 | 748042 | BAND | 6 |
| 8 | 748045 | CABLE STOPPER | 4 |
| 9 | 748002 | BAND | 2 |
| 10 | 748004 | BAND | 3 |
| 11 | 771003 | FUSE (1A) | 1 |
| 12 | 742257A91 | POWER SOURCE CORD | 1 |
| 13 | 742257-91 | POWER SOURCE CORD | 1 |
| 14 | 742257B91 | POWER SOURCE CORD | 1 |
| 15 | 742257C91 | POWER SOURCE CORD | 1 |
| 16 | 308243-91 | PIN ASSEMBLY | 1 |
| 17 | 308244 | PIN | 1 |
| 18 | 208949 | O RING | 2 |
| 19 | 9A3053 | INDICATION LABEL | 1 |
| 20 | 302511 | INDICATION PLATE | 1 |
Page 23 — BT184 THREAD RELEASER MECHANISM & SPECIFIC PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 308567-91 | THREAED RELEASER ASSEMBLY | 1 |
| 2 | 304305 | BRACKET | 1 |
| 3 | 005117 | SCREW | 1 |
| 4 | 304306 | BLADE | 1 |
| 5 | 007193 | SCREW | 1 |
| 6 | 304307 | BRACKET | 1 |
| 7 | 004832 | NUT | 1 |
| 8 | 212435 | CABLE | 1 |
| 9 | 240570 | SPRING | 1 |
| 10 | 212436 | CABLE SUPPORT | 2 |
| 11 | 004806 | NUT | 1 |
| 12 | 275523 | BRACKET | 1 |
| 13 | 007022 | SCREW | 2 |
| 14 | 275522 | LATCH | 1 |
| 15 | 007164 | SCREW | 1 |
| 16 | 179765-15 | NUT | 1 |
| 17 | 240104 | WASHER | 1 |
| 18 | 007099 | SCREW | 1 |
| 19 | 004806 | NUT | 1 |
| 20 | 202433 | WASHER | 1 |
| 21 | 200098 | WASHER | 1 |
| 22 | 277116 | PRESSER FOOT FINGER | 1 |
| 23 | 277109 | PRESSER FOOT FINGER | 1 |
Page 25 — CLOTH PLATE & SPECIFIC PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 308563-91 | CLOTH PLATE ASSEMBLY | 1 |
| 2 | 270170B91 | CLOTH PLATE | 1 |
| 3 | 204218 | FLAT SPRING | 1 |
| 4 | 200162A | WASHER | 1 |
| 5 | 005053 | SCREW | 2 |
| 6 | 005121A | SCREW | 1 |
| 7 | 003091 | NUT | 1 |
| 8 | 270173 | BRACKET | 1 |
| 9 | 204888 | SPRING WASHER | 2 |
| 10 | 004808 | NUT | 2 |
| 11 | 007022A | SCREW | 2 |
| 12 | 303448 | WASHER | 2 |
| 13 | 308564 | KNIFE GUIDE ASSEMBLY | 1 |
| 14 | 007008 | SCREW | 2 |
| 15 | 308490 | KNIFE | 1 |
| 16 | 308088 | LATCH | 1 |
| 17 | 007119 | SCREW | 1 |
| 18 | 308332B | BRACKET | 1 |
| 19 | 007041 | SCREW | 2 |
| 20 | 308333AD | THREAD CHAIN CLAMP | 1 |
| 21 | 005536 | SCREW | 1 |
| 22 | 301902 | SPRING | 1 |
| 23 | 005605 | NUT | 1 |
| 24 | 308565-91 | BRACKET | 1 |
| 25 | 007008 | SCREW | 2 |
| 26 | 277589-30 | PRESSER FOOT | 1 |
| 27 | 277408B16F | MAIN FEED DOG ASSEMBLY | 1 |
| 28 | 277403A16F | MAIN FEED DOG | 1 |
| 29 | 213103-16 | AUXILIARY FEED DOG | 1 |
| 30 | 005492 | SCREW | 1 |
| 31 | 277404A16F | DIFFERENTIAL FEED DOG | 1 |
Page 26 — INDEX
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 24 | 001170 | ||
| 19 | 001174 | ||
| 21 | 001216 | ||
| 10 | 001222 | ||
| 14 | 001817-2A | ||
| 14 | 001817-2A | ||
| 14 | 001817-2A | ||
| 16 | 001817-2A | ||
| 17 | 001817-2A | ||
| 23 | 002193 | ||
| 12 | 002918 | ||
| 25 | 003091 | ||
| 7 | 003091 | ||
| 15 | 004009-1 | ||
| 31 | 004109 | ||
| 39 | 004304 | ||
| 31 | 004524 | ||
| 32 | 004524 | ||
| 40 | 004806 | ||
| 11 | 004806 | ||
| 19 | 004806 | ||
| 10 | 004832 | ||
| 7 | 004832 | ||
| 28 | 004904 | ||
| 38 | 004910 | ||
| 29 | 004920 | ||
| 6 | 004920 | ||
| 5 | 005053 | ||
| 3 | 005082A | ||
| 3 | 005082A | ||
| 3 | 005082A | ||
| 3 | 005082A | ||
| 4 | 005082A | ||
| 24 | 005105 | ||
| 26 | 005105 | ||
| 27 | 005105 | ||
| 3 | 005117 | ||
| 6 | 005121A | ||
| 27 | 005142 | ||
| 14 | 005142 | ||
| 18 | 005345 | ||
| 30 | 005492 | ||
| 9 | 005536 | ||
| 21 | 005536 | ||
| 23 | 005548 | ||
| 23 | 005548 | ||
| 32 | 005548 | ||
| 24 | 005548 | ||
| 34 | 005548 | ||
| 30 | 005604 | ||
| 11 | 005605 | ||
| 23 | 005605 | ||
| 26 | 007007 | ||
| 35 | 007007 | ||
| 36 | 007007 | ||
| 14 | 007008 | ||
| 25 | 007008 | ||
| 29 | 007018A | ||
| 33 | 007018A | ||
| 39 | 007018A | ||
| 25 | 007018A | ||
| 30 | 007018A | ||
| 34 | 007018A | ||
| 40 | 007018A | ||
| 27 | 007018A | ||
| 5 | 007018A | ||
| 8 | 007018A | ||
| 11 | 007018A | ||
| 13 | 007018A | ||
| 13 | 007022 | ||
| 11 | 007022A | ||
| 4 | 007029 | ||
| 5 | 007041 | ||
| 19 | 007041 | ||
| 25 | 007072 | ||
| 25 | 007072 | ||
| 18 | 007099 | ||
| 7 | 007119 | ||
| 17 | 007119 | ||
| 21 | 007149 | ||
| 23 | 007149 | ||
| 21 | 007149 | ||
| 25 | 007149 | ||
| 21 | 007149 | ||
| 22 | 007149 | ||
| 26 | 007149 | ||
| 23 | 007149 | ||
| 6 | 007156 | ||
| 3 | 007162 | ||
| 15 | 007164 | ||
| 5 | 007193 | ||
| 16 | 179765-15 | ||
| 21 | 200098 | ||
| 4 | 200162A | ||
| 9 | 201037 | ||
| 9 | 201037 | ||
| 9 | 201037 | ||
| 9 | 201037 | ||
| 8 | 201037 | ||
| 15 | 201068 | ||
| 15 | 201068 | ||
| 15 | 201068 | ||
| 14 | 201068 | ||
| 12 | 201068 | ||
| 11 | 201086 | ||
| 11 | 201086 | ||
| 11 | 201086 | ||
| 13 | 201086 | ||
| 14 | 201086A | ||
| 20 | 202433 | ||
| 12 | 202849 | ||
| 18 | 202849 | ||
| 12 | 202849 | ||
| 18 | 202849 | ||
| 18 | 202849 | ||
| 18 | 202849 | ||
| 14 | 202849 | ||
| 19 | 202849 | ||
| 15 | 202849 | ||
| 20 | 202849 | ||
| 13 | 202875 | ||
| 3 | 204218 | ||
| 9 | 204888 | ||
| 8 | 208447-UA | ||
| 8 | 208447-UA | ||
| 10 | 208447-UA | ||
| 10 | 208447-UA | ||
| 10 | 208447-UA | ||
| 7 | 208448 | ||
| 7 | 208448 | ||
| 7 | 208448 | ||
| 7 | 208448 | ||
| 7 | 208448 | ||
| 4 | 208449 | ||
| 17 | 208449 | ||
| 17 | 208449 | ||
| 17 | 208449 | ||
| 17 | 208449 | ||
| 23 | 208449 | ||
| 16 | 208450-UA | ||
| 16 | 208450-UA | ||
| 16 | 208450-UA | ||
| 16 | 208450-UA | ||
| 18 | 208450-UA | ||
| 14 | 208450-UA | ||
| 4 | 208949 | ||
| 21 | 210061 | ||
| 29 | 210307 | ||
| 5 | 210319 | ||
| 5 | 210319 | ||
| 5 | 210319 | ||
| 5 | 210319 | ||
| 5 | 210319 | ||
| 2 | 210529-9U | ||
| 2 | 210529-9U | ||
| 2 | 210529-9U | ||
| 2 | 210529-9U | ||
| 2 | 210529-9U | ||
| 10 | 210530-9U | ||
| 10 | 210530-9U | ||
| 10 | 210530-9U | ||
| 10 | 210530A9U | ||
| 10 | 210530A9U | ||
| 11 | 210531-9U | ||
| 8 | 212435 | ||
| 10 | 212436 | ||
| 29 | 213103-16 | ||
| 32 | 240104 | ||
| 17 | 240104 | ||
| 9 | 240570 | ||
| 16 | 254010A9U | ||
| 16 | 254010A9U | ||
| 16 | 254010A9U | ||
| 17 | 254010A9U | ||
| 18 | 254010A9U | ||
| 13 | 254010C9U | ||
| 13 | 254010C9U | ||
| 15 | 254010C9U | ||
| 16 | 254010C9U | ||
| 2 | 270170B91 | ||
| 8 | 270173 | ||
| 23 | 270505B | ||
| 14 | 275522 | ||
| 12 | 275523 | ||
| 27 | 276002AUA | ||
| 29 | 276003-UA | ||
| 30 | 276004 | ||
| 23 | 277109 | ||
| 22 | 277116 | ||
| 28 | 277403A16F | ||
| 31 | 277404A16F | ||
| 27 | 277408B16F | ||
| 16 | 277528-30 | ||
| 17 | 277528-40 | ||
| 18 | 277528-50 | ||
| 19 | 277529-30 | ||
| 20 | 277529-40 | ||
| 21 | 277529-50 | ||
| 26 | 277589-30 | ||
| 34 | 300590 | ||
| 28 | 301870 | ||
| 10 | 301902 | ||
| 15 | 302059-9U | ||
| 17 | 302060-UD | ||
| 20 | 302511 | ||
| 19 | 302848A91 | ||
| 19 | 302848A91 | ||
| 20 | 302848A91 | ||
| 20 | 302849 | ||
| 20 | 302849 | ||
| 21 | 302849 | ||
| 22 | 302849 | ||
| 28 | 302851 | ||
| 29 | 302851 | ||
| 25 | 302852 | ||
| 34 | 302852 | ||
| 35 | 302852 | ||
| 30 | 302853 | ||
| 31 | 302853 | ||
| 22 | 302854-91 | ||
| 23 | 302854-91 | ||
| 24 | 302856 | ||
| 25 | 302856 | ||
| 37 | 302857 | ||
| 38 | 302857 | ||
| 9 | 302902 | ||
| 12 | 303448 | ||
| 4 | 303500 | ||
| 20 | 303896 | ||
| 22 | 303897 | ||
| 26 | 303899 | ||
| 2 | 304305 | ||
| 4 | 304306 | ||
| 6 | 304307 | ||
| 1 | 308018-91 | ||
| 4 | 308043 | ||
| 1 | 308081-9U | ||
| 1 | 308083-91 | ||
| 13 | 308084-91 | ||
| 16 | 308086 | ||
| 6 | 308086 | ||
| 16 | 308086 | ||
| 1 | 308094-9U | ||
| 19 | 308096 | ||
| 20 | 308097 | ||
| 22 | 308098 | ||
| 27 | 308099 | ||
| 26 | 308177-91 | ||
| 16 | 308243-91 | ||
| 17 | 308244 | ||
| 4 | 308332 | ||
| 18 | 308332B | ||
| 8 | 308333 | ||
| 20 | 308333AD | ||
| 2 | 308334 | ||
| 14 | 308335 | ||
| 39 | 308422 | ||
| 1 | 308480-91 | ||
| 2 | 308481 | ||
| 11 | 308482-91 | ||
| 1 | 308484-9U | ||
| 1 | 308484A9U | ||
| 2 | 308484B9U | ||
| 24 | 308485 | ||
| 26 | 308485 | ||
| 30 | 308486 | ||
| 32 | 308486 | ||
| 31 | 308487-91 | ||
| 12 | 308490 | ||
| 15 | 308490 | ||
| 17 | 308502-D | ||
| 22 | 308521 | ||
| 24 | 308521 | ||
| 1 | 308563-91 | ||
| 13 | 308564 | ||
| 24 | 308565-91 | ||
| 1 | 308567-91 | ||
| 24 | 350188A | ||
| 3 | 513076 | ||
| 23 | 513126 | ||
| 25 | 513126 | ||
| 32 | 522007 | ||
| 33 | 522032 | ||
| 6 | 527006 | ||
| 28 | 527006 | ||
| 30 | 527006 | ||
| 20 | 562065-91 | ||
| 18 | 562066-91 | ||
| 19 | 562066A91 | ||
| 22 | 600100A | ||
| 28 | 600147 | ||
| 31 | 600147 | ||
| 36 | 601049 | ||
| 35 | 601053 | ||
| 5 | 601097A | ||
| 26 | 601097A | ||
| 28 | 601097A | ||
| 30 | 601107 | ||
| 21 | 601115 | ||
| 25 | 601196 | ||
| 37 | 608002 | ||
| 2 | 712011B91 | ||
| 10 | 716007 | ||
| 11 | 716007 | ||
| 36 | 742095 | ||
| 37 | 742096 | ||
| 31 | 742096 | ||
| 13 | 742108 | ||
| 12 | 742257-91 | ||
| 14 | 742257B91 | ||
| 15 | 742257C91 | ||
| 9 | 742294-91 | ||
| 5 | 748002 | ||
| 32 | 748004 | ||
| 33 | 748005 | ||
| 7 | 748005 | ||
| 9 | 748005 | ||
| 10 | 748005 | ||
| 7 | 748042 | ||
| 5 | 748045 | ||
| 8 | 748045 | ||
| 7 | 755043 | ||
| 26 | 755044 | ||
| 8 | 755044 | ||
| 27 | 755045 | ||
| 29 | 755045 | ||
| 31 | 755045 | ||
| 24 | 755046 | ||
| 27 | 755046 | ||
| 29 | 755046 | ||
| 1 | 760168-9J | ||
| 2 | 760168A9J | ||
| 11 | 771003 | ||
| 16 | 811035 | ||
| 27 | 811070-91 | ||
| 28 | 811070-91 | ||
| 19 | 9A3053 | ||
| 3 | 9A3068 |
Pegasus BT Series Backlatcher (EX, EXT, LX) — parts catalog
- Page 1 (cover): This is the cover page for the BT Series Parts Catalog for Backlatcher models EX(T)5200, EXT5200H, EXT5100T, EX5400, and LX5200.
- Page 2 (toc): This page provides an introduction to the parts catalog, explaining how to use it and listing the models covered by the catalog, including EX5200, EXT5200, EXT5200H, EXT5100T, EX5400, and LX5200 series.
- Page 3 (toc): This page is a table of contents for a parts catalog, listing various mechanisms and parts with their corresponding page numbers.
- Page 4 (diagram): This page displays diagrams of various components for different sewing machine models, including parts for BT103, BT103A, BT184, BT220, BT220A, BT250, and BT250A models, with some parts indicated as packed in accessory.
- Page 5 (parts_list): This page lists parts for the Knife & Clamp & Finger Drive Mechanism for BT103, 103A, 184, 220, 220A, 250, 250A models, including part numbers, descriptions in both Japanese and English, and quantities.
- Page 6 (diagram): This page displays diagrams of various components for EX5200, EXT5200, EXT5200H, BT250A, and BT220A models, including parts packed as accessories.
- Page 7 (parts_list): This page lists parts for the finger drive mechanism, filter/regulator, and solenoid valve for BT220A and BT250A models, including part numbers, descriptions, and quantities.
- Page 8 (diagram): This page displays an exploded view diagram of various components for the BT103A (EX5200) model, including several sub-assemblies and individual parts.
- Page 9 (parts_list): This page lists parts for the BT103A Thread Tension Mechanism (1-Needle), including tension springs, screws, nuts, and other components, with their part numbers, descriptions, and quantities.
- Page 10 (diagram): This page illustrates various components for the BT220 (EX5200) model, including parts for tension assemblies, a spring, and a larger assembly with multiple attached components.
- Page 11 (parts_list): This page lists parts for the BT220 Thread Tension Mechanism (1-Needle), including tension springs, screws, levers, and other components.
- Page 12 (diagram): This page displays several exploded view diagrams of components for the BT220A(EX5200) model, including various springs, washers, and other parts, with some parts indicated as packed in accessory.
- Page 13 (parts_list): This page lists parts for the BT220A Thread Tension Mechanism (1-Needle), including various tension springs, guides, screws, and other related components.
- Page 14 (diagram): This page displays an exploded view diagram of various components for BT250 (EX5200, EXT5200) models, including springs, washers, and other assembly parts.
- Page 15 (parts_list): This page lists parts for the BT250 Thread Tension Mechanism (2-Needle), including tension springs, screws, levers, and other components, with their part numbers, descriptions, and quantities.
- Page 16 (diagram): This page illustrates various components for BT250A (EX5200, EXT5200) and BT250A (EXT5200H) models, including springs, washers, and other parts, with specific diagrams for different series.
- Page 17 (parts_list): This page lists parts for the BT250A thread tension mechanism (2-needle), including tension assemblies, springs, screws, and labels.
- Page 18 (diagram): This page displays diagrams of various components for BT220, 220A, BT250, BT250A, BT103A, and EX5200 series machines, including cables, covers, and mounting hardware.
- Page 19 (parts_list): This page lists sensor sets and specific parts for BT103A, 220, 220A, 250, 250A models, including various screws, grips, cords, needle plates, and waste chute components.
- Page 20 (diagram): This page illustrates various components and accessories for BT220, BT220A, BT250, BT250A models, including specifications for different voltages and regions, and packed accessories.
- Page 21 (parts_list): This page lists parts for BT220, 220A, 250, 250A BT Controller & Pin, including controllers, labels, brackets, cable stoppers, screws, bands, fuses, power source cords, pin assemblies, O-rings, and indication labels/plates.
- Page 22 (diagram): This page displays a diagram of BT184 specific parts for EX5200, EX5400, and LX5200 series machines, including various components and their reference numbers.
- Page 23 (parts_list): This page lists parts for the BT184 thread releaser mechanism and specific parts, including part numbers, descriptions in both Japanese and English, and quantities.
- Page 24 (diagram): This page displays an exploded view diagram of various components for the BT104(EXT5100T) model, including parts packed in accessories and other individual components.
- Page 25 (parts_list): This page lists parts for the cloth plate and specific components, including part numbers, descriptions, and quantities.
- Page 26 (index): This page is an index listing part numbers, their corresponding page numbers, and reference numbers.
- Page 27 (unknown): This page is blank except for a watermark and a footer with a website address.
- Page 28 (cover): This page is the cover of a parts catalog for Pegasus Sewing Machine Mfg. Co., Ltd., indicating it was printed in March 2001 and includes contact information.
