Siruba L918-BM1 — parts catalog
- Page 1 (parts_list): This page is a conversion chart for Siruba DL918-BM/BH sewing machines, listing various parts like needle plates, feed dogs, presser feet, hooks, bobbins, needles, hand wheels, and motors, along with their corresponding codes and applicable models.
- Page 2 (parts_list): This page lists and compares parts for the SIRUBA DL918/DL7000 sewing machine models BM1/BH1, including various springs, needle bars, thread guides, and adjusting knobs.
- Page 4 (diagram): This page displays a diagram of various sewing machine parts, including screws, washers, and other components, with their corresponding part numbers and labels.
- Page 5 (diagram): This page displays a diagram of parts for the Siruba DL918-BM1/BH1 sewing machine, specifically for the LB parts group, with a date of 2012/11/01.
- Page 6 (diagram): This page displays a diagram of various sewing machine parts for the DL918-BM1/BH1 model, specifically for the LC parts group. It includes part numbers, names, and their visual representation within the assembly.
- Page 7 (diagram): This page displays a diagram of various parts for the Siruba DL918-BM1/BH1 sewing machine, specifically for the 'LD' parts group. It includes part numbers, reference designators, and some quantity indicators.
- Page 8 (diagram): This page displays a diagram of parts for the Siruba DL918-BM1/BH1 sewing machine, specifically for the 'LE' parts group. It includes various components labeled with part numbers and references.
- Page 9 (diagram): This page displays a diagram of parts for the Siruba DL918-BM1/BH1 sewing machine, specifically for the LG parts group, with part numbers and references indicated.
- Page 10 (diagram): This page displays a diagram of parts for the Siruba DL918-BM1/BH1 LH series, including various components like bearings, shafts, and fasteners, with their corresponding part numbers and labels.
- Page 11 (diagram): This page displays a diagram of various machine parts for the Siruba DL918-BM1/BH1, with parts labeled with their respective codes such as WK23, SK639, LL09, and others.
- Page 12 (diagram): This page displays a diagram of various machine parts, including components labeled LU254-A1, LU251, LU252, LU253, LU264, LU711, LU714, LU715, LU258, LU258-A, LU257, LU25-4, WM600, SW04*2, NM410*2, SM630, LU261, LU260, LU260-E, SM613, LU706, SM511, LU254, LU255, LU707, SM502, LU709, LU713, LU265, SM606*2, LU263-A, LU263-E, LU759, LU32, LU763, LU718, SM4850, LU262, LN70, LU79, LU79-E, LU256, LU259, LB251, LB53, SM430, SK630, SK233, SK257, SK708*2, LU701D, NK26, LU269, JC73, EM060, NM410.
- Page 13 (diagram): This page displays a diagram of various machine parts labeled with part numbers such as LL100, SK609, CP104, ALT104S*3, LU35, SM332, WK06, LU36, SK610, LU34, LU41, LU46, LU47, NK23, LU80, PP2041, LU48, LU45, SK666, LU39, WM606, SM332*4, NK26, LU32, EM025, LU44, EM050, LU42, SK665.
- Page 14 (diagram): This page displays a diagram of various machine parts including connectors, switches, screws, and brackets, labeled with part numbers such as LU79, LU32, SM3055, LU51, LU53, LU55, LU54, SK250*2, SK609, WM500, LU78, LU51-1, LU52, JC021, JC72P, LU772, SM3051*2, SM5054*2, LU507, LU506, LU508, LU504E, and LU507-1.
- Page 16 (diagram): This page displays a diagram of parts for the LU group, specifically for the DL918-BM1/BH1 series, with part numbers like LU69, LU66, LU68, EM040, and NK63.
- Page 17 (diagram): This page displays a diagram of various components for the SIRUBA DL918-BM1/BH1 LU series sewing machine, including parts like LU92, LU53, LU36, LU277-A, CS101-A2, TML01-A, LU64D, CP102, and CP104, along with a table detailing their usage in different machine models.
- Page 18 (parts_list): This page contains a parts list for the DL918-BM1/BH1 LU series, detailing control panel components and their features like auto thread trimmer, reverse feeding, wiper, and auto lifer.
- Page 19 (diagram): This page displays a diagram of parts for the Siruba DL918-BM1/BH1 sewing machine, specifically for the LW parts group. It includes part numbers and visual representations of various components.
- Page 20 (parts_list): This page is a parts list for the SIRUBA DL918-BM1/BH1 sewing machine, part group LY. It displays various parts with their corresponding labels and illustrations, including tools and manuals.
- Page 21 (diagram): This page displays a diagram of parts for the Siruba DL918-BM1/BH1 LZ series sewing machine, with various components labeled with part numbers and references.
- Page 22 (diagram): This page contains a diagram of the DL7000T-T1 table cut-out, detailing dimensions and part references for various components, including radii and hole sizes.
Page 1 — DL918-BM/BH规格件表
Siruba L918-BM1 parts on page 1| Ref | Part number | Part name | Qty |
|---|
| E704 | D701 | |
| E704D | D702 | |
| E711 | D711 | |
| LH500-E | T50D8S11 | |
SIRUBA
GAGE PARTS LIST
Series
DL918
Remark
BM1/BH1
Page
1/1
Date
2012/11/01

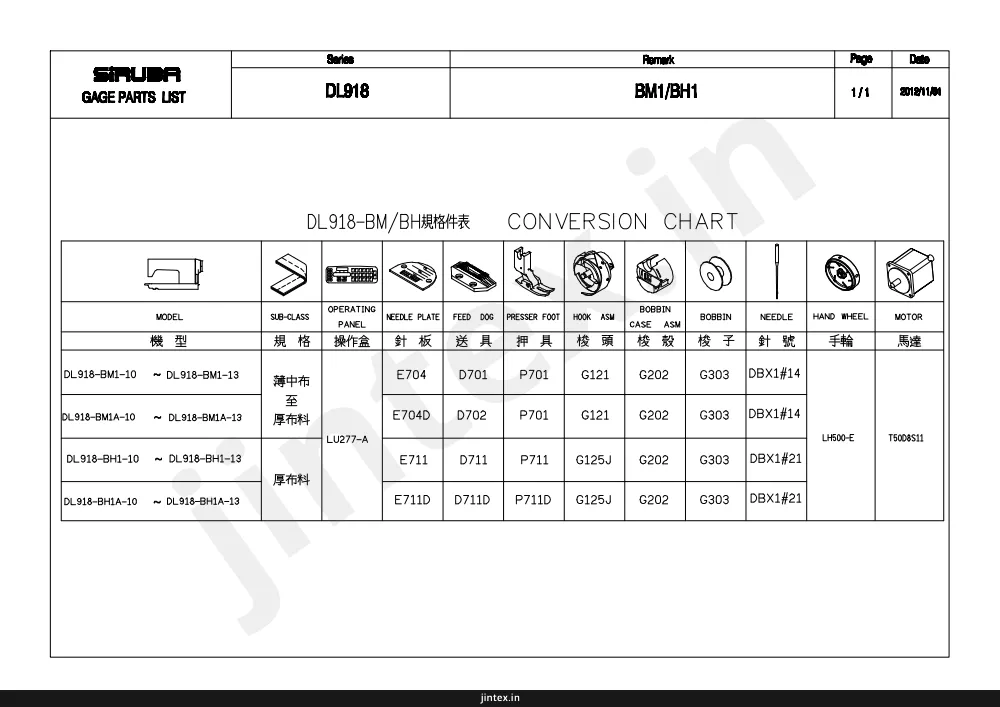

DL918-BM/BH规格件表
CONVERSION CHART
MODEL
SUB-CLASS
OPERATING
PANEL
NEEDLE PLATE
FEED DOG
PRESSER FOOT
HOOK ASM
BOBBIN
CASE ASM
BOBBIN
NEEDLE
HAND WHEEL
MOTOR
機 型
規格
操作盒
針 板
送 具
押 具
梭 頭
梭 殼
梭 子
針 號
手輪
馬達
DL918-BM1-10
~
DL918-BM1-13
薄中布
至
E704
D701
P701
G121
G202
G303
DBX1#14
厚布料
DL918-BM1A-10
~
DL918-BM1A-13
E704D
D702
P701
G121
G202
G303
DBX1#14
LU277-A
DL918-BH1-10
~
DL918-BH1-13
E711
D711
P711
G125J
G202
G303
DBX1#21
LH500-E
T50D8S11
厚布料
DL918-BH1A-10
~
DL918-BH1A-13
E711D
D711D
P711D
G125J
G202
G303
DBX1#21
Page 2 — DL918/DL7000 型别件表
Siruba L918-BM1 parts on page 2| Ref | Part number | Part name | Qty |
|---|
| LA31 | LG104H
LG04 | |
| LA22 | LG07 | |
| LG09 | LC623G | |
| LA131 | LG104 | |
| LA122 | LG107 | |
| LG113 | NK23 | |
| WK09 | LG109 | |
| LC600G | | |
SIRUBA
MODEL COMPARE LIST
Series
DL918/DL7000
Remark
BM1/BH1
Page
1/2
Date
2012/11/01
DL918/DL7000 型别件表
MODEL
SUB-CLASS
SPRING
SPRING
NEEDLE BAR
BUSING
THREAD TAKE
UP LEVER
THREAD GUIDE
THREAD GUIDE BAR
ADJUSTING KNOB
機型
规格
控線彈簧
控線彈簧
針棒
襯套
天秤
導線片
導線桿
導線環片
調整旋鈕
BM-XX
薄布料
~
中厚料
LA31
LA22
LG104H
LG04
LG07
LG13
A
B
LB06
SK241
LG09
LC623G
BH-XX
中厚料
~
厚布料
LA131
LA122
LG104
LG107
LG113
A
B
C
D
LB100
LB106
NK23
WK09
LG109
LC600G
jintex.in
Page 4
Siruba L918-BM1 parts on page 4| Ref | Part number | Part name | Qty |
|---|
| A | SM4071 | SCREW | |
| A | WM40H | WASHER | |
| A | LA535 | PIN | |
| A | LA531 | BRACKET | |
| A | LA526 | CAP | |
| A | LA524 | SHAFT | |
| B | LA520 | DRUM | |
| B | LA527 | PIN | |
| B | LA522 | BRACKET | |
| B | LA518 | BRACKET | |
| B | SM502 | SCREW | |
| B | LA530 | SPRING | |
| B | LA534 | SPRING | |
| B | EM057 | WASHER | |
| B | LA519 | SHAFT | |
| C | BR1051 | BEARING | |
| C | LA521 | SLEEVE | |
| C | LA521-1 | SLEEVE | |
| C | BR1051 | BEARING | |
| C | EM040 | SPRING | |
| C | LA523 | WASHER | |
| C | OR257 | RING | |
| C | SK609*2 | SCREW | |
| C | WM503*2 | WASHER | |
| D | LA33 | KNOB | |
| D | LA32 | WASHER | |
| D | LA720 | SPRING | |
| D | LA718*2 | WASHER | |
| D | LA512-E | SHAFT | |
| D | NK31B | NUT | |
SIRUBA
PARTS LIST
DL918-BM1/BH1
Series
LA
Parts Group
Subclass / Remark
Page
2/2
Date
2012/11/01
LA526
LA524
SM4071
WM40H
LA535
LA531
LA520
LA33
LA32
LA720
LA718*2
LA512-E
LA527
LA522
LA518
SM502
LA530
LA534
EM057
LA519
BR1051
LA521
LA521-1
BR1051
EM040
LA523
OR257 SK609*2
WM503*2
jintex.in
Page 5
Siruba L918-BM1 parts on page 5| Ref | Part number | Part name | Qty |
|---|
| SK604 | SK604 | |
| LB09 | LB09 | |
| OR040 | OR040 | |
| LB12 | LB12 | |
| SK624B*2 | SK624B*2 | |
| LB13 | LB13 | |
| LB13-A | LB13-A | |
| EM050 | EM050 | |
| SK616 | SK616 | |
| LB15 | LB15 | |
| EM050 | EM050 | |
| SK635 | SK635 | |
| LB16 | LB16 | |
| LB14 | LB14 | |
| EM050 | EM050 | |
| SK630 | SK630 | |
| LB53 | LB53 | |
| LB17 | LB17 | |
| LB04 | LB04 | |
| EM050 | EM050 | |
| LB18D | LB18D | |
| SK607 | SK607 | |
| EM050 | EM050 | |
| LB05 | LB05 | |
| SK643B | SK643B | |
| LB06 | LB06 | |
| LB106 | LB106 | |
| SK241*2 | SK241*2 | |
| LB01 | LB01 | |
| EM050 | EM050 | |
| LB54 | LB54 | |
| SK316 | SK316 | |
| LB02 | LB02 | |
| LB19 | LB19 | |
| LB21 | LB21 | |
| LB70 | LB70 | |
| LB07 | LB07 | |
| LB20 | LB20 | |
| LB03 | LB03 | |
| LB08 | LB08 | |
| PXXX | PXXX | |
| SK621 | SK621 | |
| LB22 | LB22 | |
| NK60*2 | NK60*2 | |
SIRUBA
PARTS LIST
DL918-BM1/BH1
LB
#:
Use for BH1
Page
1/1
Date
2012/11/01
SK604
LB13-A
SK616
LB09
SK624B*2
LB15
OR040
LB13
EM050
SK635
LB16
LB12
EM050
SK630
LB17
LB53
LB14
EM050
EM050
LB04
LB18D
EM050
SK607
EM050
LB05
SK643B
#LB106
LB06
SK241*2
LB01
EM050
LB54
LB21
SK316
LB02
LB19
LB70
LB07
LB20
LB03
LB08
PXXX
SK621
LB22
NK60*2
1
2
3
4
5
jintex.in
Page 6
Siruba L918-BM1 parts on page 6| Ref | Part number | Part name | Qty |
|---|
| LC19-E1 | LC19-E1 | |
| LC20 | LC20 | |
| SK619 | SK619 | |
| SK233*2 | SK233*2 | |
| LC18D | LC18D | |
| LC19 | LC19 | |
| LC25 | LC25 | |
| LC24 | LC24 | |
| LC21 | LC21 | |
| OR115 | OR115 | |
| LC623D | LC623D | |
| WK27 | WK27 | |
| SK930 | SK930 | |
| LC623D-A | #:LC600G-A | |
| LC550-E | LC550-E | |
| SK622 | SK622 | |
| LC02 | LC02 | |
| SK945 | SK945 | |
| LC55D-E | LC55D-E | |
| SK596 | SK596 | |
| LC55D | LC55D | |
| LC54 | LC54 | |
| OR085 | OR085 | |
| LC06 | LC06 | |
| EM050 | EM050 | |
| LC501-E | LC501-E | |
| LC62P | LC62P | |
| LC501 | LC501 | |
| SK646 | SK646 | |
| LD17 | LD17 | |
| LD18 | LD18 | |
| LD09 | LD09 | |
| LC14 | LC14 | |
| LC15 | LC15 | |
| LC16*2 | LC16*2 | |
| LC14 | LC14 | |
| LC15 | LC15 | |
| LC500D | LC500D | |
| LC13 | LC13 | |
| EM050 | EM050 | |
| LC05 | LC05 | |
| SK302B | SK302B | |
| #:LC613 | #:LC613 | |
| LC13 | LC13 | |
| LC201A | LC201A | |
| SK461*2 | SK461*2 | |
| LC11 | LC11 | |
| SK629B*2 | SK629B*2 | |
| SK302B | SK302B | |
| LC201A-E | LC201A-E | |
| LC09 | LC09 | |
| SK691 | SK691 | |
SIRUBA
PARTS LIST
DL918-BM1/BH1
LC
# :Use for BH1
Page
1/1
Date
2013/04/01
LC19-E1
LC20
SK619
SK233*2
LC18D
LC19
LC25
LC24
LC21
OR115
LC623D
WK27
SK930
LC623D-A
# :LC600G-A
LC550-E
SK622
LC02
SK945
LC55D-E
SK596
LC55D
LC54
OR085
LC06
EM050
LC501-E
LC62P LC501
LC04
LC04
LD17
LD18
LD09
LC14
LC15
LC16*2
LC14
LC15
LC13
EM050
LC500D
SK302B
LC05
# :LC613
LC13
LC201A
SK461*2
LC11
SK629B*2
SK302B
LC201A-E
LC09
SK691
1
2
3
4
5
jintex.in
Page 7
Siruba L918-BM1 parts on page 7| Ref | Part number | Part name | Qty |
|---|
| LD18 | LD18 | |
| SK230 | SK230 | |
| LD03-E1 | LD03-E1 | |
| LU266 | LU266 | |
| LD17 | LD17 | |
| SK612 | SK612 | |
| LD03 | LD03 | |
| LD17-E | LD17-E | |
| LD02 | LD02 | |
| EM153 | EM153 | |
| LH606 | LH606 | |
| LD11 | LD11 | |
| LD12 | LD12 | |
| WK27 | WK27 | |
| SK611 | SK611 | |
| SK437 | SK437 | |
| LD09 | LD09 | |
| LD12-E | LD12-E | |
| WM40A | WM40A | |
| LD13 | LD13 | |
| LD08 | LD08 | |
| LD15 | LD15 | |
| LD14 | LD14 | |
| LD13-A | LD13-A | |
| SK627 | SK627 | |
| LD08 | LD08 | |
| LD10 | LD10 | |
| LD06-E | LD06-E | |
| NK61 | NK61 | |
| LD06 | LD06 | |
| SK612 | SK612 | |
| LD21 | LD21 | |
| LD03-E1 | LD03-E1 | |
| LD03 | LD03 | |
| SK60A*2 | SK60A*2 | |
| LD02 | LD02 | |
| EM153 | EM153 | |
| LD01P | LD01P | |
| SK277 | SK277 | |
| LD01P-E | LD01P-E | |
SIRUBA
PARTS LIST
DL918-BM1/BH1
Series
LD
Parts Group
Subclass / Remark
Page
1/1
Date
2012/11/01
LD18
SK230
LD03-E1
LU266
LD17
SK612
LD03
LD17-E
LD02
EM153
LH606
LD11
LD12
WK27
SK611
SK437
LD09
LD12-E
WM40A
LD13
LD08
LD15
LD14
A
LD13-A
SK627
LD08
LD10
SK230
LD06-E
NK61
LD06
SK612
LD21
LD03-E1
LD03
SK60A*2
LD02
EM153
LD01P
SK277
LD01P-E
1
2
3
4
5
jintex.in
Page 8 — DL918-BM1/BH1
Siruba L918-BM1 parts on page 8| Ref | Part number | Part name | Qty |
|---|
| LE01 | LE01-E | |
| LE02 | LE02-E | |
| LE03 | LE04 | |
| LE05 | LE06-E | |
| LE06 | LE07 | |
| LE09-A | LE08H | |
| LE07 | LE07-E | |
| LE09 | LE09-E | |
| G1XX | G2XX | |
| G3XX | LR158 | |
| SK265 | SK610 | |
| LE251 | LE13 | |
| LE10 | LE13-E | |
| LE101 | LE15D | |
SIRUBA
PARTS LIST
DL918-BM1/BH1
LE
Series
Parts Group
Subclass / Remark
Page
1/1
Date
2013/01/10
LE01
LE01-E
SK882*2
LE02
LE02-E
SK882*2
LE03
LE04
LE05
SK882*2
LE06-E
LE06
LE09-A
LE07
WM80G
SK650*2
LE08H
LE07-E
LE09
SK882*2
SK610
G1XX
LE101
G2XX
G3XX
LR158
LE10
SK265
LE09-E
LE251
MF37K
LE15D
SK687*2
LE13
LE09
LE13-E
1
2
3
4
5
jintex.in
Page 9 — PARTS LIST
Siruba L918-BM1 parts on page 9| Ref | Part number | Part name | Qty |
|---|
| PP2082 | PP2082 | PP2082 | |
| OP207 | OP207 | OP207 | |
| SK219 | SK219 | SK219 | |
| LG01 | LG01 | |
| LG04 | LG04 | |
| LG13-C | LG13-C | LG13-C | |
| LG12 | LG12 | LG12 | |
| LG11 | LG11 | LG11 | |
| BR4080 | BR4080 | BR4080 | |
| LG16 | LG16 | LG16 | |
| LG15 | LG15 | |
| LG06 | LG06 | LG06 | |
| LG05-E | LG05-E | LG05-E | |
| SK241 | SK241 | SK241 | |
| LG05 | LG05 | LG05 | |
| LG07 | LG07 | |
| LG09 | LG09 | |
| LG108 | LG108 | LG108 | |
| SK926 | SK926 | SK926 | |
| DB1 | DB1 | DB1 | |
| LG13 | LG13 | |
| LG10 | LG10 | LG10 | |
| LH10 | LH10 | LH10 | |
| WM803 | WM803 | WM803 | |
| LG13-4 | LG13-4 | LG13-4 | |
| LG03 | LG03 | LG03 | |
SIRUBA
PARTS LIST
DL918-BM1/BH1
Series
LG
Parts Group
#Use for BH1
Subclass / Remark
Page
1/1
Date
2012/11/01
A
PP2082
OP207
SK219
LG01
#LG101
B
LG05-E
SK241
LG07
#LG107
LG09
#LG109
C
D
E
LG03
LG04
#LG104
LG13-C
LG12
LG11
BR4080
LG16
SK636
LG10
LH10
WM803
LG13-4
LG15
#LG615
LG06
LG05
LG108
SK926
DB1
1
2
3
4
5
jintex.in
Page 10 — DL918-BM1/BH1 LH
Siruba L918-BM1 parts on page 10| Ref | Part number | Part name | Qty |
|---|
| LD03-E | LD03 | |
| SK600*2 | SK600 | |
| SM606*2 | SM606 | |
| LH509-E | LH509 | |
| LH509 | LH509 | |
| SK617 | SK617 | |
| SK834*2 | SK834 | |
| LH10-E | LH10 | |
| LH10 | LH10 | |
| OR05A | OR05A | |
| SK637 | SK637 | |
| EM203 | EM203 | |
| LE01 | LE01 | |
| LD20-E | LD20 | |
| LD20 | LD20 | |
| SK834*2 | SK834 | |
| LH515-E | LH515 | |
| LH512-E | LH512 | |
| SM504B*2 | SM504B | |
| LH512 | LH512 | |
| LH515 | LH515 | |
| SM504B*2 | SM504B | |
| LH606-E | LH606 | |
| SK601*2 | SK601 | |
| LH606 | LH606 | |
| LH05 | LH05 | |
| LH14 | LH14 | |
| LH13 | LH13 | |
| OR035 | OR035 | |
| LH11 | LH11 | |
| #:LH111 | LH111 | |
| LH500-E | LH500 | |
| LH500 | LH500 | |
| SM502*2 | SM502 | |
| OS1550 | OS1550 | |
| LH07K | LH07K | |
| BR1350 | BR1350 | |
| WM510*4 | WM510 | |
| WM504*4 | WM504 | |
| SM513*4 | SM513 | |
| T505HE | T505HE | |
| T50D8S11 | T50D8S11 | |
SIRUBA
PARTS LIST
DL918-BM1/BH1
LH
Series
Parts Group
Subclass / Remark
Page
1/1
Date
2012/11/01
# :Use for BH1
A
B
C
D
E
LD03-E
LD03
SK600*2
SM606*2
LH509-E
LH509
SK617
SK834*2
LH10-E
LH10
OR05A
SK637
EM203
LE01
LD20-E
LD20
SK834*2
LH515-E
LH512-E
SM504B*2
LH512
LH515
SM504B*2
LH606-E
LH606
SK601*2
LH14
LH13
OR035
LH11
# :LH111
LH500-E
LH500
SM502*2
OS1550
SK618*2
LH07K
BR1350
WM510*4
WM504*4
SM513*4
E T505HE
T T50D8S11
1
2
3
4
5
jintex.in
Page 11 — DL918-BM1/BH1 LL
Siruba L918-BM1 parts on page 11| Ref | Part number | Part name | Qty |
|---|
| WK23 | WK23 | |
| SK639 | SK639 | |
| LL09 | LL09 | |
| LL10 | LL10 | |
| LL17 | LL17 | |
| LL16D | LL16D | |
| LL30 | LL30 | |
| SM384*3 | SM384*3 | |
| LL13 | LL13 | |
| LL14 | LL14 | |
| SK647*3 | SK647*3 | |
| LL11-A2 | LL11-A2 | |
| SK634 | SK634 | |
| LL18 | LL18 | |
| LL04-2 | LL04-2 | |
| SK607 | SK607 | |
| LL04-3 | LL04-3 | |
| OP222 | OP222 | |
| LL01F | LL01F | |
| KC58 | KC58 | |
| LL19 | LL19 | |
| LL102 | LL102 | |
| WK01 | WK01 | |
| LL03 | LL03 | |
| LL04-1 | LL04-1 | |
| LU267 | LU267 | |
| LU268 | LU268 | |
| OP214 | OP214 | |
| LL23E | LL23E | |
| LL22 | LL22 | |
| LL55 | LL55 | |
| SK606 | SK606 | |
| OR10C | OR10C | |
| SM607 | SM607 | |
| NM610 | NM610 | |
| SM697 | SM697 | |
| NM610 | NM610 | |
| LM22 | LM22 | |
| LM23 | LM23 | |
| EM100 | EM100 | |
| SM626 | SM626 | |
| LM24 | LM24 | |
| WM603 | WM603 | |
| SM625 | SM625 | |
| LM16 | LM16 | |
| LL121 | LL121 | |
| LM21 | LM21 | |
| LM20 | LM20 | |
| LM19 | LM19 | |
| LM18 | LM18 | |
| SM621 | SM621 | |
| LM17 | LM17 | |
| LM20-A | LM20-A | |
SIRUBA
Series
PARTS LIST
DL918-BM1/BH1
WK23
SK639
LL09
LL10
LL17
LL16D
LL30
SM384*3
LL13
LL14
SK647*3
LL11-A2
Parts Group
LL
SK634
LL18
LL04-2
SK607
LL04-3
OP222
Subclass / Remark
Page
Date
2013/03/20
LL01F
KC58
LL19
LL102
WK01
LU267
LU268
OP214
LL03
LL04-1
C
LL23E
LL22
LL55
SK606
OR10C
SM607
NM610
SM697
NM610
LM22
LM23
EM100
SM626
LM24
WM603
LM24-E
SM625
LM16
LL121
LM21
LM20
LM19
LM18
SM621
LM17
LM20-A
E
1
2
3
4
5
jintex.in
Page 12
Siruba L918-BM1 parts on page 12| Ref | Part number | Part name | Qty |
|---|
| LU254-A1 | A | |
| LU251 | | |
| LU252 | | |
| WK27*2 | | |
| SK273*2 | | |
| LU253 | | |
| LU264 | | |
| LU711 | | |
| SK257 | | |
| SK233 | | |
| LU714 | | |
| LU715 | | |
| LU258-A | D | |
| LU257 | | |
| LU25-4 | | |
| WM600 | | |
| SW04*2 | | |
| NM410*2 | | |
| SM630 | | |
| LU261 | B | |
| LU260 | | |
| SM613 | | |
| LU260-E | | |
| SK708*2 | | |
| LU701D | | |
| LU265 | | |
| SM606*2 | | |
| LU265-E | | |
| NK26 | | |
| LU706 | | |
| SM511 | | |
| LU254 | | |
| LU255 | | |
| LU707 | | |
| SM502 | | |
| LU709 | | |
| LU713 | | |
| LU263-A | | |
| LU263-E | | |
| LU759 | | |
| LU32 | | |
| LU763 | | |
| LU718 | | |
| SM4850 | | |
| LU262 | | |
| LN70 | | |
| LU79 | | |
| LU79-E | | |
| LU256 | | |
| LU258 | | |
| SM404 | | |
| JC73 | | |
| LU269 | | |
| LU259 | | |
| LB251 | | |
| LB53 | | |
| SM430 | | |
| SK630 | | |
| EM060 | | |
| NM410 | | |
SIRUBA
Series
PARTS LIST
DL918-BM1/BH1
LU
Page
1/7
Date
2012/11/01
LU254-A1
A
LU251
LU252
SK708*2
LU701D
LU265
SM606*2
LU265-E
NK26
LU706
SM511
LU707
LU713
SM502
LU253
LU255
LU709
WK27*2
SK273*2
LU254
LU263-A
LU264
LU711
LU263-E
LU759
LU32
SK257
EM060
NM410
C
SK233
LU763
SM606
LU718
LU262
SM4850
LU715
LU714
LU258
LU79
LU258-A
LU257
LU25-4
LU79-E
WM600
SM404
JC73
LU269
D
SW04*2
NM410*2
SM630
LU259
LB251
LB53
B
LU261
SM430
LU260
SM613
LU260-E
SK630
E
1
2
3
4
5
jintex.in
Page 13
Siruba L918-BM1 parts on page 13| Ref | Part number | Part name | Qty |
|---|
| LL100 | LL100 | |
| SK609 | SK609 | |
| CP104 | CP104 | |
| ALT104S*3 | ALT104S*3 | |
| LU35 | LU35 | |
| SM332 | SM332 | |
| WK06 | WK06 | |
| SM332 | SM332 | |
| WK06 | WK06 | |
| SK667 | SK667 | |
| LU36 | LU36 | |
| SK610 | SK610 | |
| LU39 | LU39 | |
| LU34 | LU34 | |
| LU41 | LU41 | |
| LU46 | LU46 | |
| LU47 | LU47 | |
| PP2041 | PP2041 | |
| LU80 | LU80 | |
| LU48 | LU48 | |
| SK609 | SK609 | |
| LU45 | LU45 | |
| SK666 | SK666 | |
| LU44 | LU44 | |
| WM606 | WM606 | |
| SM332*4 | SM332*4 | |
| NK26 | NK26 | |
| LU32 | LU32 | |
| EM025 | EM025 | |
| EM050 | EM050 | |
| LU42 | LU42 | |
| SK665 | SK665 | |
SIRUBA
Series
PARTS LIST
DL918-BM1/BH1
LL100
SK609
CP104
LU35
SM332
WK06
SM332
WK06
SK667
Parts Group
LU
Subclass / Remark
* 不加裝接線
裝置時使用
ALT104S*3
LU36
SK610
LU39
LU41
LU46
LU47
PP2041
LU80
LU48
LU45
SK609
B
SK666
EM025
LU44
Page
2/7
Date
2012/11/01
WM606
SM332*4
NK26
LU32
EM050
LU42
SK665
1
2
3
4
5
jintex.in
Page 14 — DL918-BM1/BH1 LU
Siruba L918-BM1 parts on page 14| Ref | Part number | Part name | Qty |
|---|
| LU79 | LU79 | |
| LU32 | LU32 | |
| LU53 | LU53 | |
| SK250*2 | SK250*2 | |
| SK609 | SK609 | |
| WM500 | WM500 | |
| LU78 | LU78 | |
| LU51 | LU51 | |
| SM3055 | SM3055 | |
| LU55 | LU55 | |
| EM030 | EM030 | |
| LU77 | LU77 | |
| LU51-1 | LU51-1 | |
| LU52 | LU52 | |
| LU54 | LU54 | |
| JC021 | JC021 | |
| JC72P | JC72P | |
| LU772 | LU772 | |
| SM3051*2 | SM3051*2 | |
| SM5054*2 | SM5054*2 | |
| LU507 | LU507 | |
| LU506 | LU506 | |
| LU508 | LU508 | |
| LU504E | LU504E | |
| LU507-1 | LU507-1 | |
SIRUBA
PARTS LIST
DL918-BM1/BH1
Series
LU
Parts Group
Subclass / Remark
Page
3/7
Date
2012/11/01
LU79
LU32
LU53
SK250*2
SK609
WM500
LU78
LU51
SM3055
LU55
EM030
LU77
LU51-1
LU52
LU54
JC021
JC72P
LU772
SM3051*2
SM5054*2
LU507
LU508
LU506
LU504E
LU507-1
1
2
3
4
5
jintex.in
Page 16 — PARTS LIST
Siruba L918-BM1 parts on page 16| Ref | Part number | Part name | Qty |
|---|
| LU69 | LU69 | |
| LU66 | LU66 | |
| LU68 | LU68 | |
| EM040 | EM040 | |
| EM040 | EM040 | |
| #LU67 | LU67F | |
| #SK438 | SK630 | |
| WK23 | WK23 | |
| #LU64D | LU64F | |
| #LU65 | LU65F | |
| SK4100 | SK4100 | |
| EM080 | EM080 | |
| SM4051 | SM4051*2 | |
| WMA01 | WMA01 | |
| WM402 | WM402*2 | |
| OS2141 | OS2141 | |
| LU71 | LU71 | |
| WK23 | WK23 | |
| LU230 | LU230 | |
| LU73 | LU73 | |
| NK65 | NK65 | |
| WM607 | WM607 | |
| SK640 | SK640 | |
| NMG11 | NMG11 | |
| LU74 | LU74 | |
| SK629 | SK629 | |
| WM607 | WM607 | |
| NK65 | NK65 | |
| LU75 | LU75 | |
| LU76 | LU76 | |
| SK610 | SK610 | |
| EM050 | EM050 | |
| SK684 | SK684 | |
| LB16 | LB16 | |
| SK685 | SK685 | |
SIRUBA
PARTS LIST
DL918-BM1/BH1
#:LU64D-A1
LU64F-A1
Series
LU
Parts Group
Subclass / Remark
#:Use for BH1
Page
5/7
Date
2012/11/01
UT550
LU69
LU66
EM040
NK63
LU68
EM040
#LU67
LU67F
#SK438
SK630
WK23
#LU64D
LU64F
#LU65
LU65F
SK4100
EM080
SM4051*2
WMA01
WM402*2
OS2141
LU71
WK23
LU230
LU73
NK65
WM607
SK640
NMG11
LU74
SK629
WM607
NK65
LU75
LU76
SK610
EM050
SK684
LB16
SK685
jintex.in
Page 17
Siruba L918-BM1 parts on page 17| Ref | Part number | Part name | Qty |
|---|
| CS101-A2 | CS101-A2 | |
| TML01-A | TML01-A | |
| LU64D | LU64D | |
| LU92 | LU92 | |
| CP102 | CP102 | |
| CP104 | CP104 | |
| LU277-A | LU277-A | |
| LU53 | LU53 | |
| LU36 | LU36 | |
| LU262 | LU262 | |
| DL918-XX-10(30) | DL918-XX-10(30) | 1 |
| DL918-XX-11(31) | DL918-XX-11(31) | |
| DL918-XX-12(32) | DL918-XX-12(32) | 1 |
| DL918-XX-13(33) | DL918-XX-13(33) | |
SIRUBA
PARTS LIST
Series
DL918-BM1/BH1
Parts Group
LU
Subclass / Remark
Page
6/7
Date
2012/11/01
T 牌 用
CS101-A2
TML01-A
LU64D
LU92
CP102
CP104
LU277-A
LU53
LU36
LU262
機 型
DL918-XX-10(30)
DL918-XX-11(31)
DL918-XX-12(32)
DL918-XX-13(33)
CP102 使用數量
1
0
1
0
CP104 使用數量
1
2
1
2
1
2
3
4
5
jintex.in
Page 18
Siruba L918-BM1 parts on page 18| Ref | Part number | Part name | Qty |
|---|
| LU277-A | Control Panel | 1 |
SIRUBA
PARTS LIST
DL918-BM1/BH1
LU
Series
Parts Group
Subclass / Remark
Page
7/7
Date
2012/11/01
SM4070*3
LU232
SM432
LU277-A
註:此部份置於配件箱內
代碼
NO.
操作面板
Control Panel
自動切線
Auto THREAD
Trimmer
快速倒縫
Reverse
Feeding
撥線桿
Wiper
自動抬押具
Auto Lifer
1
LU277-A
0
V
V
1
V
V
2
V
V
3
V
V
V
1
2
3
4
5
jintex.in
Page 19
Siruba L918-BM1 parts on page 19| Ref | Part number | Part name | Qty |
|---|
| KW36B | KW36B | |
| LW08 | LW08 | |
| KW03E | KW03E | |
| LW07 | LW07 | |
| KW42 | KW42 | |
| KW28E | KW28E | |
| KW32E*2 | KW32E*2 | |
| KW09D*2 | KW09D*2 | |
| KW16*2 | KW16*2 | |
| KW12H*2 | KW12H*2 | |
| LW10D | LW10D | |
| SK421S | SK421S | |
| KW42 | KW42 | |
| WK25B | WK25B | |
| WMG10 | WMG10 | |
| NMG11 | NMG11 | |
| SW05*2 | SW05*2 | |
| NK52*2 | NK52*2 | |
| LW07-A | LW07-A | |
SIRUBA
PARTS LIST
DL918-BM1/BH1
Series
Parts Group
LW
Subclass / Remark
Page
1/1
Date
2013/04/10
KW36B
LW08
KW03E
LW07
KW42
KW28E
KW32E*2
KW09D*2
KW16*2
KW12H*2
LW10D
SK421S
KW42
WK25B
WMG10
NMG11
SW05*2
NK52*2
LW07-A
1
2
3
4
5
jintex.in
Page 20
Siruba L918-BM1 parts on page 20| Ref | Part number | Part name | Qty |
|---|
| LY01 | LY01 | |
| LY02 | LY02 | |
| YM04*2 | YM04*2 | |
| LY05*2 | LY05*2 | |
| YM102*2 | YM102*2 | |
| LY501 | LY501 | |
| LY529 | LY529 | |
| LY37-A | LY37-A | |
| YM103*2 | YM103*2 | |
| MY09 | MY09 | |
| G3XX | G3XX | |
| 針*2 | 針*2 | |
| LY38 | LY38 | |
| MY12 | MY12 | |
| KZ03*1 | KZ03*1 | |
| LY33 | LY33 | |
| LY34 | LY34 | |
| LY35 | LY35 | |
| KY201 | KY201 | |
SIRUBA
PARTS LIST
DL918-BM1/BH1
LY
Series
Parts Group
Subclass / Remark
Page
1/1
Date
2012/11/01
LY01
LY02
YM04*2
LY05*2
YM102*2
A
LY501
LY529
LY37-A
YM103*2
B
INSTRUCTION
PARTS LIST
KAULIN MFG. CO.,LTD.
MY09
G3XX
C
針*2
LY38
MY12
KZ03*1
D
4 mm
LY33
LY34
LY35
KY201
E
1
2
3
4
5
jintex.in
Page 21
Siruba L918-BM1 parts on page 21| Ref | Part number | Part name | Qty |
|---|
| A | (TML01-A) | TML01-A | |
| B | (LZ506-3) | LZ506-3 | |
| LZ52 | LZ52 | |
| LZ53D | LZ53D | |
| LZ504 | LZ504 | |
| C | LZ500D-2 | LZ500D-2 | |
| (LZ506-2) | LZ506-2 | |
| LZ500D-1 | LZ500D-1 | |
| (LZ506-1) | LZ506-1 | |
| D | LZ502D | LZ502D | |
| (CS101-A2) | CS101-A2 | |
| (LU277-A) | LU277-A | |
SIRUBA
PARTS LIST
DL918-BM1/BH1
Series
LZ
Parts Group
Subclass / Remark
Page
1/1
Date
2012/12/22
*(TML01-A)
*(LZ506-3)
LZ504
LZ52
LZ53D
LZ504
LZ500D-2
*(LZ506-2)
LZ500D-1
*(LZ506-1)
DL918
SIRUBA
INDUSTRIAL SEWING MACHINE
LZ502D
*(CS101-A2)
*(LU277-A)
1
2
3
4
5
jintex.in
Page 22
Siruba L918-BM1 parts on page 22| Ref | Part number | Part name | Qty |
|---|
| DL7000T-T1 | TABLE CUT - OUT | |
SIRUBA
Series
DL720/DL6800/DL6900
DL7000/DL7200/DL7300
DL7400/DL7500/DL3860
DL380
TABLE
CUT - OUT
Item Code
DL7000T-T1
Subclass / Remark
Mounting
Fully-submerged
Date
2021/04/26
黑色刻度線
28
296
325
397
1020
775
480+1.8
32
B
32
2-R30
2-R26
4-R10
8-R10
75.4
4
B
340±1
15.6
2-R10
218
215
4-R10/4-R9
C
36
116
67
40
43.5
15
140
200
2-R18
3-015
540
490
355.5
25±0.5
115
C2 C2
2-R30
4
A
27
R30
R2
B-B剖面
322
283
20
70
58
0
C-C剖面
19±0.5
25±0.5
40
0
A-A剖面
單位/UNIT:mm
單針高速直驅式平縫車
所有尺寸公差/DIFFERENCE:±2
長度(L):1070/重量:10kg±5%
DL7000T-T1:1070
長度(L):1200/重量:11.4kg±5%
DL7000T-T1
DL7000T-T1
全封邊/嚴格紋光面台
Jinte.in
