Page 2 — CONTENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 2

Ref	Part number	Part name	Qty
	1	BUTTON CLAMP MECHANISM COMPONENTS
	3	ARM & MISCELLANEOUS COVER COMPONENTS
	7	LOOPER SHAFT MECHANISM COMPONENTS
	9	NIPPER & THREAD TENSION PARTS COMPONENTS
	13	FEED PLATE COMPONENTS
	17	BUTTON CLAMP LIFTER COMPONENT
	21	NEEDLE DRIVING PULLEY SHAFT COMPONENTS
	23	NEEDLE BAR DRIVING MECHANISM COMPONENTS
	25	STOP MOTION MECHANISM COMPONENTS
	27	STITCH SELECTING PARTS COMPONENTS
	29	THREAD BIND NOTCH COMPONENTS (FOR MB-1377)
	31	THREAD STAND COMPONENTS
	33	TABLE & STAND COMPONENTS
	35	ACCESSORIE PARTS COMPONENTS
	37	SPECIAL ORDER SPEC COMPONENTS
	39	SUBCLASS COMPONENTS(FOR MB-1373-11)
	41	HOW TO MAKE USE OF THIS PARTS LIST

Page 3

Juki MB-1373 / MB-1377 (47 pages) parts on page 3

Ref	Part number	Part name	Qty
	1	BUTTON CLAMP MECHANISM COMPONENTS
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31
	32

Page 4 — BUTTON CLAMP MECHANISM COMPONENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 4

Ref	Part number	Part name	Qty
	26026856	PICK-UP DEVICE ASM.	1
	40041058	BUTTON CLAMP LIFTING HOOK	1
	SS7150940SP	SCREW 15/64-28 L=9	1
	SS9621413SP	SCREW 3/16-32 L=13.5	2
	WP0501016SD	WASHER 5X10.5X1	2
	26025502	BUTTON CLAMP HOLDER	1
	SS7090410SP	SCREW 9/64-40 L= 3.5	1
	SD0550301SP	HINGE SCREW D=5.5 H=3	1
	26025403	JAW HOLDER	1
	SD0550181SP	HINGE SCREW D=5.50 H= 1.8	1
	26025809	CLAMP SCREW A	1
	26025700	SNAP FASTENER CLAMP STOP LEVER	1
	26026005	NUT	1
	26025908	BUTTON CLAMP SLIDE	1
	26026609	BUTTON CLAMP STOP PIN	2
	26026104	BUTTON CLAMP LEVER JAW (LEFT)	1
	26026203	BUTTON HOLDING SPRING, LEFT	1
	SD0640391TP	HINGE SCREW D= 6.35 H= 3.9	2
	SS7090410SP	SCREW 9/64-40 L= 3.5	1
	26026708	BUTTON CLAMP SPRING	1
	26026302	BUTTON CLAMP LEVER JAW RIGHT	1
	26026401	BUTTON HOLDING SPRING, RIGHT	1
	SS7150940SP	SCREW 15/64-28 L=9	1
	40040938	BUTTON CLAMP PRESSURE ADJUSTIN	1
	26027102	PRESSURE ADJUSTING SPRING	1
	NM6060001CP	NUT M6	2
	26027409	FINGER GUARD	1
	40041069	SPRING HOLDING PLATE	1
	26025205	HINGE PIN	1
	B2541372000	SNAP RING	1
	NM6060001CP	NUT M6	1
	40040937	PICK-UP DEVICE STOPPER PIN	1

Page 5 — ARM & MISCELLANEOUS COVERS COMPONENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 5

Ref	Part number	Part name	Qty
1	1	PLATE
2	2	SCREW
3	3	WASHER
4	4	BOLT
5	5	SPRING
6	6	SPRING
7	7	BRACKET
8	8	SCREW
9	9	WASHER
10	10	SCREW
11	11	BRACKET
12	12	SCREW
13	13	WASHER
14	14	SCREW
15	15	RING
16	16	COVER
17	17	LABEL
18	18	BRACKET
19	19	SCREW
20	20	BRACKET
21	21	SCREW
22	22	PIN
23	23	BOLT
24	24	BRACKET
25	25	SCREW
26	26	COVER
27	27	COVER
28	28	COVER
29	29	WASHER
30	30	COVER
31	31	BRACKET
32	32	BRACKET
33	33	SCREW
34	34	SCREW
35	35	COVER
36	36	SCREW
37	37	COVER
38	38	COVER
39	39	COVER
40	40	SCREW
41	41	BASE
42	42	BRACKET
43	43	PIN
44	44	BRACKET
45	45	BRACKET
46	46	COVER
47	47	SCREW
48	48	WASHER
49	49	RING
50	50	BUSHING
51	51	SCREW

Page 6 — ARM & MISCELLANEOUS COVERS COMPONENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 6

Ref	Part number	Part name	Qty
	40038426	FACE_PLATE_COMPL.	1
	SM4040855SP	SCREW	4
	26021600	TENSION SPRING	1
	26032003	NIPPER RELEASING STUD	1
	SM6040650TP	SCREW	1
	26031203	THREAD GUIDE NO.4	1
	26031351	THREAD TENSION NO.3 ASM.	1
	26031302	TENSION ADJUSTING BASE NO.3
	26031401	THREAD PRESSER PLATE
	26031500	TENSION SPRING B
	26031609	THREAD TENSION STUD
	26031708	THREAD TENSION NUT
	RE0200000K0	E-RING 2
	SM4040855SP	SCREW	8
	TA2050406R0	RUBBER PLUG	1
	40040931	SIDE_COVER_RIGHT	1
	CM301300001	SAFETY LABEL	1
	40040932	SIDE_COVER_LEFT	1
	SM6083042CH	SCREW M8 L=30	4
	26033704	STOPPER	1
	SM6050800SP	SCREW M5 L=8	2
	26011205	GUIDE PIN	2
	40038483	SET_SCREW	1
	40038431	BED_OIL_SHIELD	1
	SM8060610TP	SCREW	1
	40041022	BUTTON_TRAY_ASM.	1
	26022608	CAM INDICATING PIN A
	26022707	CAM INDICATING PIN B
	WS0650389KP	SPRING WASHER 6.5X14.0X17	1
	40038425	SIDE_COVER_LEFT	1
	40038430	LOOPER_COVER	1
	40041067	SIDE_COVER_SPRING	2
	SM6040600SP	SCREW M4 L=6	2
	SM4040855SP	SCREW	2
	40038173	OIL_DRIP_FELT	1
	SD0600277TP	SHOULDER SCREW D=6 H=2.7	1
	40038424	SIDE_COVER_RIGHT	2
	40040936	SIDE_COVER_HINGE_SHAFT_RIGHT	1
	40040935	SIDE_COVER_HINGE_SHAFT_LEFT	1
	SM8060612TP	SCREW M6 L=6	1
	40038446	MACHINE_SUB_BASE	1
	SM8060612TP	SCREW M6 L=6	1
	40038471	SUSPENSION_SCREW_B	1
	40054729	ASSY SAFETY PLATE
	40054730	SAFETY PLATE INSTALLING BASE
	26037200	SAFETY PLATE
	SM4040655SP	SCREW M4 L=6	2

Page 7 — ARM & MISCELLANEOUS COVERS COMPONENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 7

Ref	Part number	Part name	Qty
1	1	PLATE
2	2	SCREW
3	3	WASHER
4	4	BOLT
5	5	SPRING
6	6	SPRING
7	7	BRACKET
8	8	SCREW
9	9	WASHER
10	10	SCREW
11	11	BRACKET
12	12	SCREW
13	13	WASHER
14	14	SCREW
15	15	RING
16	16	COVER
17	17	LABEL
18	18	BRACKET
19	19	SCREW
20	20	BRACKET
21	21	SCREW
22	22	PIN
23	23	BOLT
24	24	BRACKET
25	25	SCREW
26	26	SEAT
27	27	COVER
28	28	COVER
29	29	WASHER
30	30	COVER
31	31	BRACKET
32	32	BRACKET
33	33	SCREW
34	34	SCREW
35	35	SEAT
36	36	SCREW
37	37	COVER
38	38	COVER
39	39	COVER
40	40	SCREW
41	41	BASE
42	42	COVER
43	43	PIN
44	44	BRACKET
45	45	BRACKET
46	46	COVER
47	47	SCREW
48	48	SCREW
49	49	WASHER
50	50	BUSHING
51	51	WASHER

Page 8 — ARM & MISCELLANEOUS COVERS COMPONENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 8

Ref	Part number	Part name	Qty
	WP0430800SD	WASHER M4	2
	TA1250406R0	RUBBER PLUG D=12.5 L=4	2
	PS0500102KH	SPRING PIN 5.0X10	1
	RE0320000K0	E-RING 3.2	1

Page 9 — LOOPER SHAFT MECHANISM COMPONENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 9

Ref	Part number	Part name	Qty
4	4	SCREW
9	9	LOOPER SHAFT
5	5	BRACKET
6	6	LOOPER SHAFT GUIDE
7	7	SCREW
8	8	BASE
10	10	CONNECTING ROD
11	11	NUT
12	12	SCREW
36	36	PLATE
15	15	SCREW
14	14	BRACKET
20	20	LEVER
21	21	NUT
16	16	SPRING
17	17	SCREW
18	18	SCREW
19	19	NUT
37	37	GEAR
33	33	WASHER
35	35	COLLAR
38	38	BEARING
31	31	SHAFT
29	29	BEARING
22	22	SHAFT
24	24	COLLAR
1	1	SPRING
3	3	SPRING
2	2	BEARING
23	23	COLLAR
26	26	SHAFT
27	27	COLLAR
25	25	BEARING
28	28	BEARING
30	30	BEARING
34	34	COLLAR
32	32	LOOPER SHAFT
46	46	LOOPER
13	13	COLLAR
43	43	COLLAR
42	42	BEARING
45	45	BEARING
41	41	COLLAR
39	39	WASHER
40	40	BEARING
44	44	GEAR

Page 10 — LOOPER SHAFT MECHANISM COMPONENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 10

Ref	Part number	Part name	Qty
	CS079072ATH	THRUST COLLAR ASM.	1
	CS0790721TH	THRUST COLLAR D=7.94 W=7
	SS7090620TP	SCREW 9/64-40 L=6.1
	SM6040800SP	SCREW
	40038484	NEEDLE_GUARD
	26013607	POSITIONING FINGER YOKE SLIDE
	SM1040950TP	SCREW M4 L=9	2
	26013409	YOKE SLIDE INSERT
	26013805	YOKE SLIDE
	40038400	ASSY_LOOP_POSITIONING_FINGER_LEVER
	40038403	LOOP_POSITIONING_FINGER_CAM_ROLL
	SD0640246SP	HINGE SCREW D=6.35 H=2.4
	SM8061010TP	SCREW
	B12413770B0	THROAT PLATE SET
	B12413770A0	THROAT PLATE ASM.
	B27033770A0	THREAD BIND PLATE ASM.
	B2702377000	THREAD BIND SUPPORT PLATE
	B2410373000	COUNTER KNIFE
	SS7080310SP	SCREW 1/8-44 L=3.0
	B24063730A0	MOVING KNIFE ASM.
	SD0600095TH	HINGE SCREW D=6 H=0.85
	40041106	ASSY_LOOP_POSITIONING_FINGER_CAM
	26003103	LOOP POSITIONING FINGER CAM
	SS8110410TP	SCREW 11/64-40 L=3.5
	40038482	ASSY_CAM_AND_LOOPER_SLEEVE
	26015503	CAM AND LOOPER SLEEVE
	SS8150410TP	SCREW 15/64-28 L=4.0
	26015404	LOOP POSITIONING FINGER CAM
	SS8110310SP	SCREW 11/64-40 L=2.8
	26015305	LOOPER SHAFT BUSHING FRONT
	SM8061010TP	SCREW
	40038111	LOOPER SHAFT
	40098872	COLLER ASSY
	40097991	COLLER
	SS8110422TP	SCREW 11/64-40 L=4
	SM1040870TP	SCREW
	B10042700A0	LOOPER SHAFT DRIVEN GEAR ASM.
	SS860612TP	SCREW 1/4-40 L=6
	B1215372A00	THRUST BALL BEARING
	26013102	LOOPER SHAFT BUSHING REAR
	B121373NA0	WORM WHEEL ASM.
	B1221373N00	WORM
	SS660712TP	SCREW 1/4-40 L=7.0
	B1220372000	CAM SHAFT DRIVEN GEAR
	SS860612TP	SCREW 1/4-40 L=6
	B1239372000	LOOPER

Page 11 — NIPPER & THREAD TENSION PARTS COMPONENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 11

Ref	Part number	Part name	Qty
	1	SCREW
	2	BRACKET
	3	SCREW
	4	NUT
	5	PIN
	6	LEVER
	7	PIN
	8	SPRING
	9	PIN
	10	SCREW
	11	SPRING
	12	BLOCK
	13	SCREW
	14	SPRING
	15	PIN
	16	BRACKET
	17	PIN
	18	PIN
	19	SCREW
	20	WASHER
	21	BRACKET
	22	BRACKET
	23	ROD
	24	SPRING
	25	CAP
	26	CAP
	27	WASHER
	28	SPRING
	29	SPRING
	30	SPRING
	31	SHAFT
	32	SHAFT
	33	NUT
	34	PIN
	35	SCREW
	36	BRACKET
	37	BRACKET
	38	CAP
	39	SPRING
	40	SPRING
	41	SHAFT
	42	SHAFT
	43	PIN
	44	PLATE
	45	NUT
	46	SCREW
	47	BRACKET
	48	PIN
	49	WASHER
	50	SCREW
	51	SCREW
	52	SPRING
	53	PIN
	54	NUT
	55	SCREW
	56	NUT
	57	BRACKET
	58	BRACKET
	59	SCREW
	60	WASHER

Page 12 — NIPPER & THREAD TENSION PARTS COMPONENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 12

Ref	Part number	Part name	Qty
	SM4061255SP	SCREW M6 L=12	1
	40038205	NEEDLE_BAR_GUARD	1
	SD0791276TP	SHOULDER SCREW	1
	NM6030001SN	NUT	2
	26020602	NUT	1
	26000950	NIPPER COMPL.	1
	26020503	LOOPER SHAFT BUSHING REAR	1
	40041077	NIPPER_BAR_BLOCK_SPRING	1
	40038492	NIPPER_BAR_BLOCK_SPRING_SCREW	1
	SD0402001TP	HINGE SCREW D=4 H=20	1
	26020404	NIPPER SLIDE BLOCK SPRING	1
	26020305	NIPPER BLOCK	1
	SD0791506TP	SHOULDER SCREW D=7.94 H=15	1
	40038476	THREAD_PULL_OFF_LEVER_ASM	1
	SD0790806TP	SHOULDER SCREW D=7.94 H=8	1
	26000455	NIPPER BAR ACTUATING LEVER ASM	1
	26020206	THREAD GUIDE PIN	2
	26019406	NIPPER BAR BLOCK SPRING PIN	1
	SM6040800SP	SCREW	1
	WP0450801SP	WASHER	1
	26019307	NIPPER BAR BLOCK	1
	26019208	TENSION LEVER ROCKING PIECE	2
	40038479	NIPPER BAR	1
	SM6040800SP	SCREW	1
	40038208	TENSION_POST_ASM NO.2	1
	40038214	TENSION_NUT	1
	22921407	ROTATION STOPPER	1
	26019901	THREAD TENSION SPRING	1
	26020107	THREAD TENSION DISK PRESSER	2
	26005207	THREAD_TENSION_DISK_NO.1	1
	40038210	TENSION_POST_NO.2	1
	26019802	TENSION_RELEASE_PIN	1
	NM6060001CP	NUT M6	1
	PS0300162KH	SPRING PIN 3X16	1
	SM6040800SP	SCREW	1
	WP0450801SP	WASHER	1
	26019109	THREAD TENSION RELEASING LEVER	1
	40038404	ASSY_THREAD_TENSION_NO.1	1
	40038408	THREAD_TENSION_NUT	1
	26005306	FIRST THREAD TENSION SPRING	1
	26005207	THREAD_TENSION_DISK_NO.1	2
	40038405	THREAD_TENSION_POST_NO.1	1
	26019505	THREAD GUIDE	1
	26021402	THREAD GUIDE NO.1	1
	NM6040002SN	NUT M4	1
	SM4061255SP	SCREW M6 L=12	1
	40038396	NIPPER_BAR_BEARING_BLOCK	1

Page 13 — NIPPER & THREAD TENSION PARTS COMPONENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 13

Ref	Part number	Part name	Qty
1	1	SCREW
2	2	BRACKET
3	3	PIN
4	4	NUT
5	5	SLEEVE
6	6	LEVER
7	7	PIN
8	8	SPRING
9	9	PIN
10	10	SCREW
11	11	SPRING
12	12	BLOCK
13	13	PIN
14	14	SPRING
15	15	SHAFT
16	16	BRACKET
17	17	PIN
18	18	SPRING
19	19	WASHER
20	20	NUT
21	21	BRACKET
22	22	BRACKET
23	23	SHAFT
24	24	SPRING
25	25	CAP
26	26	CAP
27	27	WASHER
28	28	SPRING
29	29	SPRING
30	30	CAP
31	31	SHAFT
32	32	SHAFT
33	33	NUT
34	34	PIN
35	35	SCREW
36	36	WASHER
37	37	BRACKET
38	38	CAP
39	39	CAP
40	40	SPRING
41	41	SHAFT
42	42	SHAFT
43	43	PIN
44	44	BRACKET
45	45	NUT
46	46	SCREW
47	47	BRACKET
48	48	SHAFT
49	49	WASHER
50	50	SCREW
51	51	SCREW
52	52	SPRING
53	53	SHAFT
54	54	NUT
55	55	BOLT
56	56	NUT
57	57	BRACKET
58	58	BRACKET
59	59	SCREW

Page 14 — NIPPER & THREAD TENSION PARTS COMPONENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 14

Ref	Part number	Part name	Qty
	40038206	ADJUSTING_SCREW	1
	WP0550800SP	WASHER 5.5X10X0.8	1
	SM7051460TP	SCREW M5 L=14	1
	SM6051400SP	SCREW	1
	26019000	THREAD TENSION SPRING	1
	40038207	NIPPER_BAR_SPRING_SCREW	1
	WP0450846SP	WASHER	1
	SM9061403CP	SCREW M6 L=14	1
	NM6060001SE	NUT M6	1
	26021105	THREAD GUIDE	1
	40038320	LEVER	1
	SM6040600SP	SCREW M4 L=6	1
	WP0501016SD	WASHER 5X10.5X1	1

Page 15 — FEED PLATE COMPONENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 15

Ref	Part number	Part name	Qty
66	66	PIN
63	63	PLATE
64	64	PIN
61	61	SCREW
37-38	37-38	BRACKET
44	44	BRACKET
43	43	NUT
39-40	39-40	COVER
65	65	PIN
42	42	SCREW
41	41	ARM
35	35	COVER
36	36	SCREW
45	45	ARM
26~28	26~28	BRACKET
18	18	SPRING
14	14	POST
15	15	BRACKET
16	16	ARM
13	13	PIN
17	17	SCREW
11	11	PLATE
25	25	SCREW
6	6	NUT
5	5	BUSHING
8	8	BRACKET
7	7	BRACKET
4	4	PLATE
3	3	PLATE
2	2	SCREW
30	30	WASHER
1-29	1-29	PLATE
19	19	BRACKET
20	20	PLATE
53	53	SCREW
22	22	SCREW
21	21	PLATE
24	24	PLATE
13	13	PIN
17	17	SCREW
18	18	SPRING
26~28	26~28	BRACKET
18	18	SPRING
32	32	BRACKET
31	31	BRACKET
33	33	ARM
13	13	PIN
34	34	PLATE
17	17	SCREW
13	13	PIN
60	60	SPRING
48-49	48-49	PULLEY
47	47	SHAFT
50	50	COLLAR
23	23	SCREW
51	51	PULLEY
60	60	SPRING
58	58	WASHER
52	52	PULLEY
54	54	SPRING
55	55	COLLAR
57	57	PIN
56	56	COLLAR
59	59	BUSHING
54	54	SPRING

Page 16 — FEED PLATE COMPONENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 16

Ref	Part number	Part name	Qty
	B2529373000	FEED PLATE, SMALL BUTTON	1
	SS9120643TP	SCREW 3/16-28 L=6	2
	26024604	INDICATOR PIN BEARING BLOCK	1
	26024901	CROSSWISE FEED INDICATOR	1
	26024703	CROSSWISE FEED INDICATOR PIN	1
	NM6060001CP	NUT M6	1
	40038498	SLIDE_PLATE_CONNECTING_LINK	1
	SD0640481SP	HINGE SCREW D= 6.35 H= 4.8	1
	40038499	STUD	1
	26024208	INTERMEDI CONNECTING LINK	1
	40041052	CROSSWISE_FEED_GRADVATED_PLATE	1
	NM6050001SP	NUT M5	1
	26023200	CAM ROLL	2
	40041030	LENGTHWISE_FEED_LEVER_ARM_1373	1
	40038439	LENGTHWISE_FEED_LEVER_SLIDE	1
	40041029	FEED_LEVER_1373	1
	40038496	CAM_ROLL_SCREW_STUD	1
	SM8061212TP	SCREW M6X12	1
	26025106	SPACER PLATE	2
	40038463	FEED_PLATE	1
	26024208	INTERMEDI CONNECTING LINK	1
	SD0640481SP	HINGE SCREW D= 6.35 H= 4.8	1
	40098330	HINGE_SCREW_FOW_CROSSWISE_FEED	1
	40038453	CROSSWISE_FEED_LEVER	1
	B1161227000	RIVET	2
	40041055	FEED_STUD_A
	40041056	FEED_STUD_B
	40041057	FEED_STUD_C
	D2529373B00A	FEED PLATE,SMALLBUTTON	1
	WP0501016SD	WASHER 5X10.5X1	2
	40038469	LENGTHWISE_FEED_LEVER_ARM
	40038439	LENGTHWISE_FEED_LEVER_SLIDE
	40038432	FEED_LEVER_L
	40038433	FEED_LEVER_R
	40041061	FEED_KNOB_GUIDE_PLATE	2
	SM9050813SE	SCREW M5X0.8 L=8	1
	40042279	PLATE_BASE_(MB-1373)
	40038436	PLATE_BASE_(MB-1377)
	40038313	GRADUATE_PLATE(MB-1373)
	40038314	GRADUATE_PLATE(MB-1377)
	40042281	HANDLE_AND_INDICATOR_SPRING	1
	SM4040655SP	SCREW M4 L=6	2
	SM4050855SP	SCREW	2
	40038442	KNOB	1
	40040965	INDICATOR_SPRING_CONNECTING_LINK	1
	SD0640976TP	SHOULDER SCREW D=6.35 H=9.7	2
	40038444	CAM_SHAFT	1

Page 17

Juki MB-1373 / MB-1377 (47 pages) parts on page 17

Ref	Part number	Part name	Qty
	66	PIN
	63	FEED PLATE
	64	PIN
	61	SCREW
	37-38	BRACKET
	44	BRACKET
	43	SCREW
	39-40	COVER
	65	PIN
	42	SCREW
	41	LINK
	35	COVER
	36	SCREW
	45	LINK
	26~28	SCREW
	18	SPRING
	14	BRACKET
	15	BRACKET
	13	PIN
	16	LINK
	17	SCREW
	11	PLATE
	25	SCREW
	6	NUT
	5	WASHER
	8	SCREW
	7	PLATE
	4	BRACKET
	3	BRACKET
	2	SCREW
	30	WASHER
	1-29	BRACKET
	10	BRACKET
	9	BRACKET
	22	SCREW
	53	SCREW
	21	BRACKET
	19	BRACKET
	20	PLATE
	24	BRACKET
	23	SCREW
	48-49	PULLEY
	60	SPRING
	47	SHAFT
	50	COLLAR
	51	PULLEY
	52	PULLEY
	54	SPRING
	55	BRACKET
	57	SCREW
	56	COLLAR
	59	COLLAR
	58	WASHER
	31	BRACKET
	32	BRACKET
	33	LINK
	34	BRACKET

Page 18 — FEED PLATE COMPONENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 18

Ref	Part number	Part name	Qty
	40041032	LENGTHWISE_FEED_CAM(X)
	B2506373000A	LONGITUDINAL_FEED_CAM
	26022509	CAM SHAFT BUSHING.LEFT
	40041033	LATERAL_FEED_CAM
	40041025	LONGITUDINAL_FEED_CAM_A
	SD0640486TP	SHOULDER SCREW D=6.35 H=4.8
	SS8681412TP	SCREW 9/32-28 L=13.5
	40040964	THRUST_COLLAR ASSY
	40040961	THRUST_COLLAR
	SM8060552TP	SCREW M6 L=5
	40042081	SPACER
	26022400	CAM SHAFT BUSHING.RIGHT
	SS8681412TP	SCREW 9/32-28 L=13.5
	SM6050800SP	SCREW M5 L=8
	40041045	OIL_RETAINING_FELT
	40041044	FEED_SHOULDER_SCREW_FELT
	CQ252000000	OIL WICK
	CQ3000000F0	OIL FELT
	EA9500B0100	CABLE BAND
	CQ252000000	OIL WICK

Page 19

Juki MB-1373 / MB-1377 (47 pages) parts on page 19

Ref	Part number	Part name	Qty
	1	LINK
	2	SHAFT
	3	PIN
	4	WASHER
	5	WASHER
	6~8	WASHER
	9	WASHER
	10	WASHER
	11	WASHER
	12	WASHER
	13	SPRING
	14	WASHER
	15	LEVER
	16	SHAFT
	17	COLLAR
	18	COLLAR
	19	SHAFT
	20	COLLAR
	21	SCREW
	22	SCREW
	23	SHAFT
	24	COLLAR
	25	COLLAR
	26	SCREW
	27	SHAFT
	28	COLLAR
	29	BRACKET
	30	BRACKET
	31	BRACKET
	32	SCREW
	33	SCREW
	34	WASHER
	35	COLLAR
	36	SHAFT
	37	SCREW
	38	LEVER
	39	SCREW
	40	ROD END
	41	WASHER
	42	NUT
	43	SPRING
	44	NUT
	45	NUT
	46	SCREW
	47	SCREW
	48	NUT
	49	NUT
	50	BRACKET
	51	SCREW
	53	BRACKET
	54	SCREW
	55	LINK
	56	PIN
	57	SPRING
	58	COLLAR

Page 20 — BUTTON CLAMP LIFTER COMPONENT

Juki MB-1373 / MB-1377 (47 pages) parts on page 20

Ref	Part number	Part name	Qty
	40038119	LIFTING LEVER	1
	26018101	BUSHING	1
	40038116	NEEDLE_BAR_LEVER	1
	WP0851216SC	WASHER 8.5X18.0X1.2	1
	B4420373000	CUSHION	1
	WP0851216SC	WASHER 8.5X18.0X1.2
	WP0751576SD	WASHER 7.5X19X1.5
	10510808	WASHER
	WP0751576SD	WASHER 7.5X19X1.5	1
	WP0751576SD	WASHER 7.5X19X1.5	1
	B4420373000	CUSHION	1
	WP0703516SP	WASHER 7X20X3.5	1
	26033407	SPRING	1
	26033308	WASHER	1
	B4411373000	BUTTON CLAMP LIFTING LINK	1
	40040962	ASSY_SLIDING_ROLLER	1
	40040953	SLIDING_ROLLER
	SM8060612TP	SCREW M6 L=6
	40038321	ECCENTRIC_CAM	1
	40038398	ECCENTRIC_CAM
	SM8060612TP	SCREW M6 L=6
	SD0640481SP	HINGE SCREW D= 6.35 H= 4.8	1
	40120628	BUTTON_CLAMP_LIFTING_LINK	1
	CS0950810SH	THRUST COLLAR ASM. D=9.5 W=8	2
	CS0950816SH	THRUST COLLAR D=9.5 W=8
	SS8110410TP	SCREW 11/64-40 L= 3.5
	40038445	LEVER_SHAFT	1
	SM8061010TP	SCREW	2
	26032508	LIFTING_LINK	1
	40038414	LIFTING_PLATE_GUIDE_ROD_ASM	1
	40038413	LIFTING_PLATE_GUIDE_ROD
	SM6051600SP	SCREW M5 L=16
	SD0640211SP	HINGE SCREW D= 6.35 H= 2.1	1
	WP0330501SB	WASHER M3	1
	40038283	L_TYPE_LIFTING_BAR_ROLLER	1
	40038502	BUTTON_CLAMP_LIFTING_ROD_A	1
	SM6061002TP	SCREW M6 L=10	1
	40038428	CONNECTING_LINK_FRONT	1
	26022202	JOINT STUD	1
	B1632180000	FEED ADJUSTING JOINT	1
	WP0510516SD	WASHER 5.1X7.5X0.5	1
	NM6050001SP	NUT M5	2
	40038219	CONNECTING_SCREW	1
	NM6080021SP	NUT M8 TYPE1	2
	40038429	CONNECTING_LINK_REAR	1
	SD0640323TP	HINGE SCREW D= 6.35 H= 3.2	1
	SD0790402TP	HINGE SCREW D= 7.94 H= 4	1

Page 21 — BUTTON CLAMP LIFTER COMPONENT

Juki MB-1373 / MB-1377 (47 pages) parts on page 21

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6~8	6~8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51
	53	53
	54	54
	55	55
	56	56
	57	57
	58	58

Page 22 — BUTTON CLAMP LIFTER COMPONENT

Juki MB-1373 / MB-1377 (47 pages) parts on page 22

Ref	Part number	Part name	Qty
48	NS6620310SP	NUT 3/16-32	1
49	NS6150310SP	NUT 15/64-28	1
50	40038397	THREAD TRIMMING LEVER	1
51	SD0790316TP	SHOULDER SCREW D=7.94 H=3.1	1
52	NM6050001SP	NUT M5	1
53	40038495	THREAD_TRIM_LEVER_BASE	1
54	SM7051460TP	SCREW M5 L=14	2
55	26021709	THREAD TRIMMING LINK	1
56	SD0641322TP	HINGE SCREW D=6.35 H=13.2	1
57	26033605	SPRING	1
58	SM6030402TP	SCREW M3X0.5 L=4	1

Page 23 — NEEDLE DRIVING PULLEY SHAFT COMPONENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 23

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31

Page 24 — NEEDLE DRIVING PULLEY SHAFT COMPONENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 24

Ref	Part number	Part name	Qty
	B1203372000	BALL LARGE	1
	26012401	PULLEY INSERT	1
	40038203	BALL_SMALL	1
	26012500	SPRING	1
	40038169	DRIVING_PULLEY_ASM.	1
	40038175	DRIVING PULLEY
	SM8040612TP	SCREW M4 L=6
	40038449	NEEDLE DRIVING PULLEY SHAFT	1
	B1243372000	NEEDLE BEARING	2
	26012609	GREASE RTETAINING WICK	1
	26012708	RETAINING WASHER	1
	SM6062450TP	SCREW M6 L=23.5	2
	WP0621026SP	WASHER 6.2X9.5X1	2
	B1208372000	NEEDLE DRIVING PULLEY CLUTCH D	1
	40038137	STOP.MOTION.DISC.ASM.	1
	40038135	STOP.MOTION.DISC.LATCH.A
	40038136	STOP.MOTION.DISC.LATCH.B
	40038138	STOP.MOTION.DISC
	40038139	STOP.MOTION.PAWL.SHAFT
	40038140	STOP.MOTION.DISC.WASHER
	SM6060550TP	SCREW M6 L=4.5
	CM500200001	DIRECTION LABEL.	1
	SM8080812TP	SCREW M8X8	1
	SM8081752TP	SCREW M8 L=17	1
	NM6060003SP	NUT M6 TYPE3	2
	B1215372B00	THRUST BALL BEARING	1
	SM8061010TP	SCREW	1
	40038461	PULLEY.SHAFT.BUSHING.RIGHT	1
	40042148	PULLEY.SHAFT.BUSHING.LEFT	1
	B12173720BA	DRIVING GEAR (A) ASM.	1
	26018309	OIL WICK	1

Page 25 — NEEDLE BAR DRIVING MECHANISM COMPONENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 25

Ref	Part number	Part name	Qty
1	1	NEEDLE BAR
2	2	NEEDLE BAR BUSH
3	3	NEEDLE BAR BUSH
4	4	CLAMP
5	5	CLAMP
6	6	SCREW
7	7	NEEDLE BAR CONNECTING ROD
8~10	8~10	CONNECTING ROD BUSH
11	11	NEEDLE BAR CONNECTING ROD
12	12	CONNECTING ROD
13	13	SCREW
14	14	SCREW
15	15	WASHER
16	16	NEEDLE BAR CONNECTING ROD
17	17	SCREW
18	18	ECCENTRIC DISC
19	19	CONNECTING ROD
20	20	ECCENTRIC WHEEL
21	21	SCREW
22	22	SCREW
23	23	NEEDLE BAR CONNECTING ROD
24	24	WASHER
25	25	WASHER

Page 26 — NEEDLE BAR DRIVING MECHANISM COMPONENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 26

Ref	Part number	Part name	Qty
	SS7080510TP	SCREW 1/8-44 L=4.5	1
	14606107	NEEDLE ROD	1
	26017707	NEEDLE BAR BUSHING LOWER	1
	40040951	NEEDLE BAR BALANCE	1
	40040952	NEEDLE BAR CLAMP	1
	SM6041200SP	SCREW M4 L=12	1
	40038142	NEEDLE BAR BUSHING UPPER
	40038120	NEEDLE BAR SLIDE BLOCK A
	40038121	NEEDLE BAR SLIDE BLOCK B
	40038122	NEEDLE BAR SLIDE BLOCK C
	MTQ100B1600	NEEDLE TQX1 #16	1
	40038117	NEEDLE BAR DRIVING LEVER	1
	SM9061403CP	SCREW M6 L=14	2
	SD0950804TP	SHOULDER SCREW D=9.53 H=8	1
	26018705	WASHER	0.1
	CQ202000000	OIL WICK	2
	SS2110920TP	SCREW 11/64-40 L=8.5	1
	26018606	THRUST HOLDER	1
	26018408	CRANK ROD	1
	26018507	ECCENTRIC CAM	1
	SS860612TP	SCREW 1/4-40 L=6	1
	SS860942TP	SCREW 1/4-40 L=8.5	1
	26018309	OIL WICK	1
	40041045	OIL RETAINING FELT	1
	CQ2500000F0	OIL WICK	0.01

Page 27 — STOP MOTION MECHANISM COMPONENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 27

Ref	Part number	Part name	Qty
	1	SHAFT
	2	NUT
	3	BRACKET
	4	WASHER
	5	BRACKET
	6	WASHER
	7	SPRING
	8	COLLAR
	9	WASHER
	10	NUT
	11	SHAFT
	12	SCREW
	13	SCREW
	14	NUT
	15	SCREW
	16	NUT
	17	BUSHING
	18	COLLAR
	19	WASHER
	20	NUT
	21	PIN
	22	LEVER
	23	BRACKET
	24	SCREW
	25	SPRING
	26	SPRING
	27	PIN
	28	SPRING
	29	BRACKET
	30	LEVER

Page 28 — STOP MOTION MECHANISM COMPONENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 28

Ref	Part number	Part name	Qty
	26027805	STOP MOTION PLUNGER ROD	1
	NM6060003SP	NUT M6 TYPE3	1
	40038118	CROSSING HOOK	1
	SM6061150TP	SCREW M6 L=11	1
	40038270	STOP_MOTION_PLUNGER_LEVER	1
	26229104	WASHER	2
	40038110	STOP MOTION SPRING	30
	B2608280000	RUBBER CUSHION	4
	26030601	WASHER	1
	NS6680410SP	NUT 9/32-28	2
	40038448	STOP_MOTION_SHAFT	1
	40042437	SCREW	1
	SS8151570SP	SCREW 15/64-28 L=15.0	1
	NS6150310SP	NUT 15/64-28	1
	SD0680276TP	SHOULDER SCREW D=6.8 H=2.7	1
	NM6060001CP	NUT M6	1
	SD0800706TP	SHOULDER SCREW D=8 H=7	1
	40087058	STITCH ADJUSTING ROLLER	1
	WP0612066SP	WASHER 6.1X11X2	1
	26019604	WASHER	1
	SM9061003CP	SCREW M6 L=10	1
	40038160	STOP_MOTION_TRIP_LEVER	1
	26028308	STOP_MOTION_TRIP_LEVER_BRACKET	1
	SM9061250TP	SCREW M6 L=12	2
	22924906	OIL REGULATOR SCREW SPRING	1
	13160304	S SHAPED HOOK	1
	26028001	STOP MOTION LEVER SPRING PIN	1
	40038410	STOP_MOTION_LEVER_SPRING	1
	40040940	SCREW_STUD	1
	B2611373N00	PRESSURE APPLYING LEVER	1

Page 29 — STITCH SELECTING PARTS COMPONENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 29

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38

Page 30

Juki MB-1373 / MB-1377 (47 pages) parts on page 30

Ref	Part number	Part name	Qty
	SD1270346TP	SHOULDER SCREW D=12.7 H=3.4	1
	26030304	SPRING FOR FRICTION PLATE	1
	26030007	FRICTION PLATE ROTATING SHAFT	1
	WP0850002SP	WASHER 8.5X18X1.6	1
	26030908	SPEED SLOWING LEVER	1
	26031005	FITTING PLATE	1
	26030106	FRICTION PLATE HOLDER	1
	B2640372000	SPEED SLOWING FRICTION PLATE	1
	B321123000	POSITIONING PIN	2
	NS6110310SP	NUT 11/64-40	1
	SD0710706TP	SHOULDER SCREW D=7.14 H=7	1
	B2629372000	STITCH SELECTING SPUR GEAR	1
	40040943	INTERMEDIATE_GEAR_SHAFT	1
	40040942	ASSY_SPEED_SLOWING_FRICTION_WHEEL	2
	SM8061010TP	SCREW
	40040944	SPEED_SLOWING_FRICTION_WHEEL
	B2630372000A	GEAR,LARGE	1
	B2631372000	SCREW	1
	B2632372000A	ROLLER	1
	40040946	THREAD_BIND_NOTCH	1
	26030809	SPACER	2
	SM6040560TP	SCREW M4X0.5 L=4.5	1
	SM6050800SP	SCREW M6 L=8	2
	SD0800341SP	HINGE SCREW D=8 H=3.4	1
	40038269	STITCH ADJUSTING ARM ASM.	1
	40038271	STITCH ADJUSTING ARM	1
	SM6061602TN	SCREW M6 L=16
	26029207	STITCH ADJUSTING ROLLER
	40041046	STITCH ADJUSTING CAM A ASSY	1
	40041054	STITCH ADJUSTING CAM A ASM.
	40041050	NUT
	40038304	SCREW
	SM6040502TP	SCREW M4X0.7 L=5
	SS7090910TP	SCREW 9/64-40 L= 8.5
	SM8060812TP	SCREW M6 L=8
	40041048	SPACER
	40041049	STITCH_CAM_A
	40041051	STOP MOTION CAM SHOE	1

Page 31 — THREAD BIND NOTCH COMPONENTS(FOR MB-1377)

Juki MB-1373 / MB-1377 (47 pages) parts on page 31

Ref	Part number	Part name	Qty
	1	BASE PLATE
	2	LINK
	3	SCREW
	4	LINK
	5	WASHER
	6	SCREW
	7	SCREW
	8	PIN
	9	WASHER
	10	RING
	11	PIN
	12	NUT
	13	BRACKET
	14	NUT
	15	SPRING
	16	SPRING
	17	SCREW
	18	NUT
	19	SCREW
	20	NUT
	21	SCREW
	22	SPRING
	23	SLEEVE
	24	BRACKET

Page 32 — THREAD BIND NOTCH COMPONENTS(FOR MB-1377)

Juki MB-1373 / MB-1377 (47 pages) parts on page 32

Ref	Part number	Part name	Qty
	40038488	THREAD BIND LEVER	1
	40038452	CONNECTING PLATE,LARGE	1
	SD0640328TP	SHOULDER SCREW D=6.35 H=3.2	1
	40038486	CONNECTING PLATE,SMALL	1
	WP0430800SD	WASHER M4	2
	SM6040650TP	SCREW	2
	SD0720336SP	SHOULDER SCREW	1
	D2509282A00	WORK CAMP FOOT BALL LINK	1
	40038489	THREAD BIND LINK,SHAFT	1
	WP0621026SP	WASHER 6.2X9.5X1	2
	RC0560711KP	RETAINING RING	2
	NM6050001SP	NUT M5	1
	40038456	THREAD BIND ARM B	1
	NM6050001SP	NUT M5	1
	40038494	THREAD BIND ARM SPRING RAC	1
	26017103	SPRING	1
	SD0901806TP	SHOULDER SCREW	1
	26017301	ROLLER	1
	SD0460576TP	SHOULDER SCREW D=4.6 H=5.7	1
	NM6040001SP	NUT M4X0.7	1
	SD0481456TP	SHOULDER SCREW D=4.8 H=14.5	1
	40038306	SPRING	1
	40038305	STITCH ADJUSTING CAM KNOB	1
	40038455	ASS THREAD BIND ARM A	1

Page 33 — THREAD STAND COMPONENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 33

Ref	Part number	Part name	Qty
1	1	CAP
2	2	POST
3	3	TUBE
4	4	BRACKET
5	5	BRACKET
6	6	BASE
7	7	BASE
8	8	ROD
9	9	HOLDER
10	10	CLAMP
11	11	SCREW
12	12	SCREW
13	13	WASHER
14	14	NUT
15	15	WASHER
16	16	WASHER
17	17	SCREW
18	18	SCREW
19	19	SCREW
20	20	SCREW
21	21	WASHER
22	22	WASHER
23	23	SCREW
24	24	SCREW

Page 34 — THREAD STAND COMPONENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 34

Ref	Part number	Part name	Qty
	40096354	THREAD STAND ASM.	1
	40085784	SPOOL REST ROD LOWER	1
	40085785	SPOOL REST ROD UPPER	1
	40085786	SPOOL REST ARM LOWER	1
	40085787	SPOOL REST ARM UPPER	1
	40085788	SPOOL REST	2
	40085789	SPOOL REST CUSHION	2
	40085790	SPOOL PIN	2
	40085791	SPOOL RETAINER	2
	40085792	SPOOL REST ROD JOINT	1
	40085793	SPOOL REST ROD RUBBER CAP	1
	40085794	THREAD GUIDE	2
	40085795	THREAD GUIDE BUSHING	2
	40096325	SPOOL REST ROD NUT	1
	WP1612616SE	WASHER 16X30X2.6	2
	40085796	SPOOL REST ROD RUBBER CUSHION	2
	40096326	SPOOL REST ARM LOWER SCREW	1
	NM6050001SE	NUT M5	2
	40096327	SPOOL REST ARM UPPER SCREW	1
	NM6050001SE	NUT M5	2
	WS0510002KN	SPRING WASHER M5	2
	WP0531001SC	WASHER M5	2
	SM4051405SE	SCREW M5 L=14	2
	NM6050001SE	NUT M5	2

Page 35 — TABLE & STAND COMPONENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 35

Ref	Part number	Part name	Qty
1	1	TABLE TOP
2	2	STAND
3	3	DRAWER
4	4	DRAWER SLIDE
5	5	DRAWER HANDLE
6	6	BRACKET
7	7	CASTER

Page 36 — TABLE & STAND COMPONENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 36

Ref	Part number	Part name	Qty
	40040971	TABLE	1
	11159365	T STAND JUNCTION	1
	11155108	DRAWER	1
	11155207	DRAWER SUPPORT	2
	D8204555D00	DRAWER STOPPER	1
	SK3311600SE	WOOD SCREW D=3.1 L=16	6
	SK3483200SE	WOOD SCREW D=4.8 L=32	4

Page 37 — ACCESSORIE PARTS COMPONENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 37

Ref	Part number	Part name	Qty
1	1	Accessory parts components
2	2	Screwdriver
3	3	Needle
4	4	Screw
5	5	Washer
6	6	Screw
7	7	Washer
8	8	Washer
9	9	Accessory parts components
10	10	Screwdriver
11-12	11-12	Wrench
13	13	Bobbin case
14	14	Presser foot holder
15	15	Screw
16	16	Presser foot
17	17	Screw
18	18	Presser foot
19	19	Screw
20	20	Bracket
21	21	Needle plate
22	22	Oil can
23	23	Accessory parts components
24	24	Allen wrench
25	25	Belt
26	26	Bobbin winder spool
27	27	Screw
28	28	Bobbin winder spool
29	29	Screw
30	30	Accessory parts components
31	31	Screw
32	32	Washer
33	33	Washer
34	34	Ring
35	35	Washer
36	36	Washer
37	37	Washer
38	38	Bracket

Page 38

Juki MB-1373 / MB-1377 (47 pages) parts on page 38

Ref	Part number	Part name	Qty
	22933303	VINYL COVER	1
	22933306	SCREW DRIVER,LARGE	1
	MTQ700B1802	NEEDLE TQX7#18-2	1
	40041072	BASE_SCREW_SET	1
	40038174	RUBBER_CUSHION
	SS9156830SP	SCREW 15/64-28 L=68
	WP0612056SD	WASHER 6.1X18.5X2
	NS6150310SP	NUT 15/64-28
	40041073	ACCESSORIE_BAG_ASM.	1
	22933105	SCREW DRIVER,MIDDLE	1
	26233700	WRENCH	1
	26034801	WRENCH	1
	40033327	FRAME_SUPPORT_BAR	1
	40038459	STITCH_NUMBER_LEVER	1
	26030809	SPACER	1
	40040946	THREAD_BIND_NOTCH	1
	SM6040560TP	SCREW M4X0.5 L=4.5	2
	13160304	S SHAPED HOOK	2
	SD0600346TP	SHOULDER SCREW D=6 H=3.4	1
	40038205	NEEDLE_BAR_GUARD	1
	26037903	CHAIN	1
	J1067000000	OILER	1
	22932800	ACCESSORIE BAG	1
	40055591	HEXAGONAL WRENCH KYE	1
	MTJVM00000C	V ROPE 820MM (LACING)	1
	40038286	MOTOR_PULLEY_60HZ_1300RPM_ASM.	1
	SM8061010TP	SCREW
	40038285	MOTOR_PULLEY_50HZ_1300RPM_ASM.	1
	SM8061010TP	SCREW
	40112426	THREAD_TENSION_NO3_ASSY	1
	SM4042501SC	SCREW M4X0.7 L=25	1
	WP0430801SE	WASHER 4.3X9X0.8
	40112427	SPRING_BASE
	B3105377B00	THREAD_TAKE-UP_SPRING
	40040243	SPRING_HOOK
	WP0451016SP	WASHER 4.5X20X1
	D2063772B00	LOCKING CAM PLATE HOLDER
	40041085	GAUGE	1

Page 39 — SPECIAL ORDER SPEC COMPONENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 39

Ref	Part number	Part name	Qty
2	2	Component
7	7	Component
1	1	Component
3.5	3.5	Component
4.6	4.6	Component

Page 40 — SPECIAL ORDER SPEC COMPONENTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 40

Ref	Part number	Part name	Qty
	MAZ201010A0	PICK-UP DEVICE ASM. L BUTTON	1
	40038290	MOTOR PULLEY 50HZ 1500RPM ASM	1
	B25563720AA	BUTTON CLAMP JAW LEVER ASM., L	1
	B25583720AA	BUTTON CLAMP JAW LEVER ASM., R	1
	D2556372CAA	BUTTON CLAMP JAW LEVER ASM., L	1
	D2558372CAA	BUTTON CLAMP JAW LEVER ASM., R	1
	D2529373C00A	FEED PLATE, LARGE BUTTON	1

Page 41 — SUBCLASS COMPONENTS(FOR MB-1373-11)

Juki MB-1373 / MB-1377 (47 pages) parts on page 41

Ref	Part number	Part name	Qty
1	1

Page 42 — SUBCLASS COMPONENTS(FOR MB-1373-11)

Juki MB-1373 / MB-1377 (47 pages) parts on page 42

Ref	Part number	Part name	Qty
1	40041032	LENGTHWAISE_FEED_CAM(X)	1

Page 44 — NUMERICAL INDEX OF PARTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 44

Ref	Part number	Part name	Qty
6~8	10510808	10510808
3	11155108	11155108
4	11155207	11155207
2	11159365	11159365
26	13160304	13160304
18	13160304	13160304
2	14606107	14606107
27	22921407	22921407
25	22924906	22924906
23	22932800	22932800
2	22933006	22933006
10	22933105	22933105
1	22933303	22933303
16	26000455	26000455
6	26000950	26000950
23	26003103	26003103
41	26005207	26005207
40	26005306	26005306
22	26011205	26011205
2	26012401	26012401
4	26012500	26012500
10	26012609	26012609
11	26012708	26012708
40	26013102	26013102
6	26013409	26013409
6	26013607	26013607
30	26013805	26013805
8	26015305	26015305
26	26015404	26015404
26	26015503	26015503
16	26017103	26017103
26	26017301	26017301
3	26017707	26017707
2	26018101	26018101
31	26018309	26018309
23	26018309	26018309
19	26018408	26018408
20	26018507	26018507
18	26018606	26018606
15	26018705	26018705
52	26019000	26019000
37	26019109	26019109
22	26019208	26019208
21	26019307	26019307
18	26019406	26019406
43	26019505	26019505
20	26019604	26019604
32	26019802	26019802
28	26019901	26019901
29	26020107	26020107
17	26020206	26020206
12	26020305	26020305
11	26020404	26020404
7	26020503	26020503
5	26020602	26020602
57	26021105	26021105
44	26021402	26021402
3	26021600	26021600
55	26021709	26021709
39	26022202	26022202
59	26022400	26022400
50	26022509	26022509
27~28	26022608	26022608
27~28	26022707	26022707
13	26023200	26023200
21	26024206	26024206
3	26024604	26024604
5	26024703	26024703
4	26024901	26024901
19	26025106	26025106
29	26025205	26025205
9	26025403	26025403
6	26025502	26025502
12	26025700	26025700
11	26025809	26025809
14	26025908	26025908
13	26026005	26026005
16	26026104	26026104
17	26026203	26026203
21	26026302	26026302
22	26026401	26026401
15	26026609	26026609
20	26026708	26026708
1	26026856	26026856
25	26027102	26027102
27	26027409	26027409
1	26027805	26027805
27	26028001	26028001
23	26028308	26028308
28	26029207	26029207
3	26030007	26030007
7	26030106	26030106
2	26030304	26030304
9	26030601	26030601
21	26030809	26030809
15	26030809	26030809
5	26030908	26030908
6	26031005	26031005
6	26031203	26031203
8	26031302	26031302
7	26031351	26031351
9	26031401	26031401
10	26031500	26031500
11	26031609	26031609
12	26031708	26031708
4	26032003	26032003
29	26032508	26032508
14	26033308	26033308
13	26033407	26033407
57	26033605	26033605
20	26033704	26033704
11~12	26034801	26034801
46	26037200	26037200
21	26037903	26037903
6	26229104	26229104
11~12	26233700	26233700
13	40033327	40033327
7	40038110	40038110
32	40038111	40038111
3	40038116	40038116
12	40038117	40038117
3	40038118	40038118
1	40038119	40038119
8~10	40038120	40038120
8~10	40038121	40038121
8~10	40038122	40038122
16	40038135	40038135
17	40038136	40038136
15	40038137	40038137
18	40038138	40038138
19	40038139	40038139
20	40038140	40038140
7	40038142	40038142
22	40038160	40038160
5	40038169	40038169

Page 45

Juki MB-1373 / MB-1377 (47 pages) parts on page 45

Ref	Part number	Part name	Qty
35	40038173
5	40038174
6	40038175
2	40038203
3	40038205
20	40038205
48	40038206
53	40038207
25	40038208
31	40038210
26	40038214
43	40038219
25	40038269
5	40038270
26	40038271
35	40038283
28	40038285
26	40038286
2	40038304
32	40038305
23	40038306
22	40038306
39-40	40038313
39-40	40038314
58	40038320
19	40038321
47	40038396
50	40038397
20	40038398
10	40038400
11	40038403
38	40038404
42	40038405
39	40038408
28	40038410
31	40038413
30	40038414
37	40038424
30	40038425
1	40038426
38	40038428
45	40038429
31	40038430
24	40038431
33	40038432
34	40038433
37-38	40038436
32	40038439
44	40038442
47	40038444
27	40038445
41	40038446
11	40038448
8	40038449
2	40038452
24	40038453
24	40038455
13	40038456
14	40038459
28	40038461
20	40038463
31	40038469
43	40038471
14	40038476
23	40038479
25	40038482
23	40038483
5	40038484
4	40038486
1	40038488
9	40038489
9	40038492
15	40038494
53	40038495
17	40038496
7	40038498
9	40038499
36	40038502
35	40040243
16	40040931
18	40040932
39	40040935
38	40040936
32	40040937
24	40040938
29	40040940
14	40040942
13	40040943
16	40040944
20	40040946
16	40040946
4	40040951
5	40040952
17	40040953
56	40040960
16	40040962
55	40040964
45	40040965
1	40040971
26	40041022
52	40041025
16	40041029
14	40041030
48-49	40041032
1	40041032
51	40041033
63	40041044
62	40041045
24	40041045
29	40041048
36	40041048
37	40041049
31	40041050
38	40041051
11	40041052
30	40041054
26~28	40041055
26~28	40041056
26~28	40041057
2	40041058
35	40041061
32	40041067
28	40041069
4	40041072
9	40041073
8	40041077
38	40041085
22	40041106
58	40042081
29	40042148
37-38	40042279
41	40042281
12	40042437
44	40054729
45	40054730

Page 46 — NUMERICAL INDEX OF PARTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 46

Ref	Part number	Part name	Qty
14	40055591	NM6050001SP
4-6	40085784	B25583720AA
8	40085785	B2608280000
30	40085786	B2611373N00
12	40085787	B2629372000
17	40085788	B2630372000A
18	40085789	B2631372000
19	40085790	B2632372000A
8	40085791	B2640372000
17	40085792	B2702377000
16	40085793	B27033770A0
34	40085794	B3105377B00
9	40085795	B3211232000
15	40085796	B4411373000
11	40087058	B4420373000
17	40096325	CM301300001
22	40096326	CM500200001
16	40096327	CQ202000000
25	40096354	CQ2500000F0
67	40097991	CQ252000000
65	40098330	CQ3000000F0
2	40098872	CS0790721TH
1	40112426	CS079072ATH
24	40112427	CS0950810SH
25	40120628	CS0950816SH
37	B1161227000	D2063772B00
8	B1203372000	D2509282A00
1-29	B1208372000	D2529373B00A
7	B1215372A00	D2529373C00A
3-5	B1215372B00	D2556372CAA
4-6	B12173720BA	D2558372CAA
5	B1220372000	D8204555D00
66	B1221373N00	EA9500B0100
22	B1221373NA0	J1067000000
1	B1243720A0	MAZ201010A0
25	B1239372000	MTJVM00000C
11	B12413770A0	MTG100B1600
3	B12413770B0	MTQ700B1802
4	B1243372000	NM6030001SN
20	B1632180000	NM6040001SP
45	B24063730A0	NM6040002SN
24	B2410373000	NM6050001SE
12	B2506373000A	NM6050001SP
52	B2529373000	NM6050001SP
52	B2541372000	NM6050001SP
31	NM6060001CP	NM6060001CP
33	NM6060001CP	NM6060001CP
6	NM6060001CP	NM6060001CP
16	NM6060001CP	NM6060001CP
56	NM6060001SE	NM6060001SE
25	NM6060003SP	NM6060003SP
2	NM6060003SP	NM6060003SP
44	NM6080021SP	NM6080021SP
10	NS6110310SP	NS6110310SP
49	NS6150310SP	NS6150310SP
14	NS6150310SP	NS6150310SP
8	NS6150310SP	NS6150310SP
48	NS6620310SP	NS6620310SP
10	NS6680410SP	NS6680410SP
34	PS0300162KH	PS0300162KH
50	PS0500102KH	PS0500102KH
11	RC0560711KP	RC0560711KP
13	RE020000K0	RE020000K0
51	RE032000K0	RE032000K0
10	SD04002001TP	SD04002001TP
19	SD0460576TP	SD0460576TP
21	SD0481456TP	SD0481456TP
10	SD0550181SP	SD0550181SP
8	SD0550301SP	SD0550301SP
21	SD0600095TH	SD0600095TH
36	SD0600277TP	SD0600277TP
19	SD0600346TP	SD0600346TP
33	SD0640211SP	SD0640211SP
12	SD0640246SP	SD0640246SP
46	SD0640323TP	SD0640323TP
3	SD0640328TP	SD0640328TP
18	SD0640391TP	SD0640391TP
22	SD0640481SP	SD0640481SP
22	SD0640481SP	SD0640481SP
53	SD0640976TP	SD0640976TP
46	SD0640976TP	SD0640976TP
56	SD0641322TP	SD0641322TP
15	SD0680276TP	SD0680276TP
11	SD0710706TP	SD0710706TP
7	SD0720336SP	SD0720336SP
51	SD0790316TP	SD0790316TP
47	SD0790402TP	SD0790402TP
15	SD0790806TP	SD0790806TP
3	SD0791276TP	SD0791276TP

Page 47 — NUMERICAL INDEX OF PARTS

Juki MB-1373 / MB-1377 (47 pages) parts on page 47

Ref	Part number	Part name	Qty
13	SD0791506TP	SM8060612TP
24	SD0800341SP	SM8060812TP
17	SD0800706TP	SM8061010TP
17	SD0901806TP	SM8061010TP
14	SD0950804TP	SM8061010TP
1	SD1270346TP	SM8061010TP
6	SK3311600SE	SM8061010TP
7	SK3483200SE	SM8061212TP
36	SM1040870TP	SM8080812TP
7	SM1040950TP	SM8081752TP
47	SM4040655SP	SM9050813SE
42	SM4040655SP	SM9061003CP
34	SM4040855SP	SM9061250TP
31	SM4042501SC	SM9061403CP
43	SM4050855SP	SM9061403CP
23	SM4051405SE	SS2110920TP
46	SM4061255SP	SS6660712TP
58	SM6030402TP	SS7080310SP
33	SM6040502TP	SS7080510TP
22	SM6040560TP	SS7090410SP
17	SM6040560TP	SS7090620TP
33	SM6040600SP	SS7090910TP
59	SM6040600SP	SS7150940SP
5	SM6040650TP	SS8110310SP
6	SM6040650TP	SS8110410TP
4	SM6040800SP	SS8110410TP
35	SM6040800SP	SS8110422TP
6	SM6041200SP	SS8150410TP
21	SM6050800SP	SS8151570SP
61	SM6050800SP	SS8660612TP
23	SM6050800SP	SS8660612TP
51	SM6051400SP	SS8660942TP
32	SM6051600SP	SS8681412TP
21	SM6060550TP	SS9120643TP
37	SM6061002TP	SS9156830SP
4	SM6061150TP	SS9621413SP
27	SM6061602TN	TA1250406R0
12	SM6062450TP	TA2050406R0
19	SM6083042CH	WP0330501SB
50	SM7051460TP	WP0430800SD
54	SM7051460TP	WP0430800SD
7	SM8040612TP	WP0430801SE
57	SM8060552TP	WP0450801SP
25	SM8060610TP	WP0450846SP
42	SM8060612TP	WP0451016SP
21	WP0501016SD	SM8060612TP
35	WP0501016SD	SM8060812TP
31	WP0501016SD	SM8061010TP
28	WP0510516SD	SM8061010TP
27	WP0531001SC	SM8061010TP
15	WP0550800SP	SM8061010TP
29	WP0612066SD	SM8061010TP
18	WP0612066SP	SM8061212TP
23	WP0621026SP	SM8080812TP
24	WP0621026SP	SM8081752TP
36	WP0703516SP	SM9050813SE
21	WP0751576SD	SM9061003CP
24	WP0850002SP	SM9061250TP
55	WP0851216SC	SM9061403CP
13	WP1612616SE	SM9061403CP
17	WS0510002KN	SS2110920TP
43	WS0650389KP	SS6660712TP
5	WP0501016SD	SM8060612TP
60	WP0501016SD	SM8060812TP
30	WP0501016SD	SM8061010TP
41	WP0510516SD	SM8061010TP
22	WP0531001SC	SM8061010TP
49	WP0550800SP	SM8061010TP
7	WP0612066SD	SM8061010TP
19	WP0612066SP	SM8061212TP
13	WP0621026SP	SM8080812TP
10	WP0621026SP	SM8081752TP
12	WP0703516SP	SM9050813SE
10	WP0751576SD	SM9061003CP
4	WP0850002SP	SM9061250TP
6~8	WP0851216SC	SM9061403CP
15	WP1612616SE	SM9061403CP
21	WS0510002KN	SS2110920TP
29	WS0650389KP	SS6660712TP
19	SS7080310SP	SM8060612TP
1	SS7080510TP	SM8060812TP
19	SS7090410SP	SM8061010TP
3	SS7090620TP	SM8061010TP
34	SS7090910TP	SM8061010TP
23	SS7150940SP	SM8061212TP
29	SS8110310SP	SM8080812TP
24	SS8110410TP	SM8081752TP
26	SS8110410TP	SM9050813SE
35	SS8110422TP	SM9061003CP
27	SS8150410TP	SM9061250TP
13	SS8151570SP	SM9061403CP
45	SS8660612TP	SM9061403CP
21	SS8660612TP	SS2110920TP
22	SS8660942TP	SS6660712TP
60	SS8681412TP	SS7080310SP
2	SS9120643TP	SS7080510TP
6	SS9156830SP	SS7090410SP
4	SS9621413SP	SS7090620TP
49	TA1250406R0	SS7090910TP
15	TA2050406R0	SS7150940SP
34	WP0330501SB	SS8110310SP
48	WP0430800SD	SS8110410TP
5	WP0430800SD	SS8110410TP
32	WP0430801SE	SS8110422TP
36	WP0450801SP	SS8150410TP
54	WP0450846SP	SS8151570SP
36	WP0451016SP	SS8660612TP

Part BooksPartsSearchNotes

Part Books

×

Search

×

Juki MB-1373 / MB-1377 (47 pages) — parts catalog

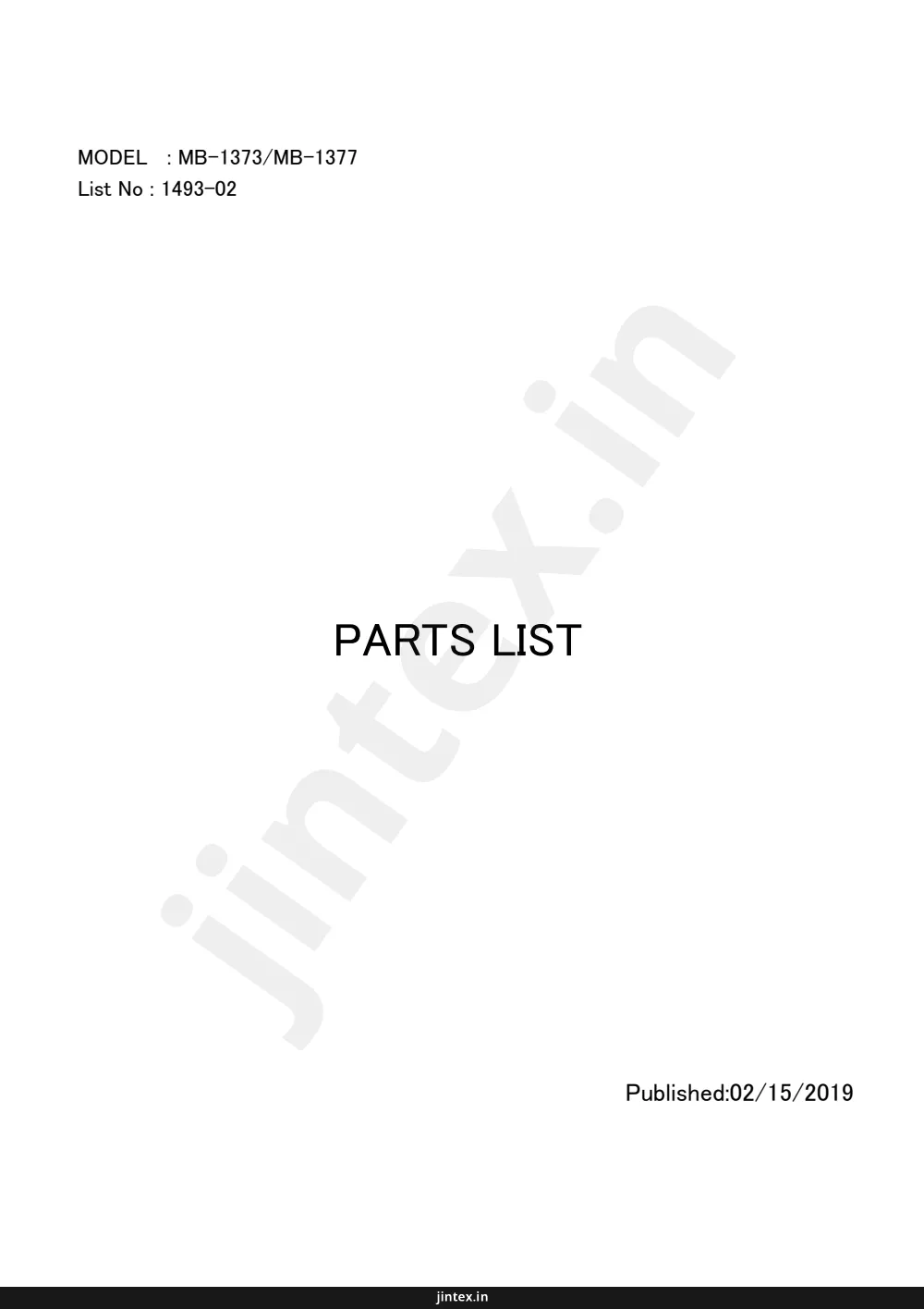

• Page 1 (cover): This is the cover page for a parts list for model MB-1373/MB-1377, list number 1493-02, published on February 15, 2019.
• Page 2 (toc): This page contains the table of contents for the parts catalog, listing various component sections and their corresponding page numbers.
• Page 3 (diagram): This page displays a diagram of the button clamp mechanism components, with numbered parts and their corresponding references.
• Page 4 (parts_list): This page lists components for the Button Clamp Mechanism, including part numbers, descriptions, and quantities.
• Page 5 (diagram): This page displays a diagram of arm and miscellaneous cover components for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 6 (parts_list): This page lists miscellaneous cover components for an industrial sewing machine, including screws, springs, studs, nuts, and plates, with their corresponding part numbers and quantities.
• Page 7 (diagram): This page displays a diagram of arm and miscellaneous cover components for an industrial sewing machine, with numbered parts for identification.
• Page 8 (parts_list): This page lists components for arm and miscellaneous covers, including part numbers, descriptions, and quantities.
• Page 9 (diagram): This page displays a diagram of the looper shaft mechanism components, with various parts numbered for identification.
• Page 10 (parts_list): This page lists components for the Looper Shaft Mechanism, including part numbers, descriptions, and quantities.
• Page 11 (diagram): This page displays a diagram of nipper and thread tension parts components, with numbered parts for identification.
• Page 12 (parts_list): This page lists parts for the Nipper & Thread Tension components, including part numbers, descriptions, and quantities.
• Page 13 (diagram): This page displays a diagram of nipper and thread tension parts, with numbered components and their corresponding part numbers and descriptions.
• Page 14 (parts_list): This page lists parts for the Nipper & Thread Tension components, including part numbers, names, and quantities.
• Page 15 (diagram): This page displays a diagram of feed plate components, illustrating various parts with reference numbers and some part numbers.
• Page 16 (parts_list): This page lists components for the feed plate, including part numbers, names, and quantities.
• Page 17 (diagram): This page displays a diagram of feed plate components, illustrating various parts with reference numbers and some part numbers.
• Page 18 (parts_list): This page lists components for the feed plate, including part numbers, names, remarks, and quantities.
• Page 19 (diagram): This page displays a diagram of the button clamp lifter component, with numbered parts and their corresponding details.
• Page 20 (parts_list): This page lists components for the Button Clamp Lifter, including part numbers, descriptions, and quantities.
• Page 21 (diagram): This page displays a diagram of button clamp lifter components, with numbered parts and their corresponding references.
• Page 22 (parts_list): This page lists parts for the BUTTON CLAMP LIFTER COMPONENT, including part numbers, descriptions, and quantities.
• Page 23 (diagram): This page displays a diagram of needle driving pulley shaft components, with numbered parts and their corresponding references.
• Page 24 (parts_list): This page lists components for the Needle Driving Pulley Shaft, including part numbers, names, and quantities.
• Page 25 (diagram): This page displays a diagram of the needle bar driving mechanism components, with numbered parts indicated.
• Page 26 (parts_list): This page lists components for the needle bar driving mechanism, including screws, rods, bushings, and washers, with their respective part numbers and quantities.
• Page 27 (diagram): This page displays a diagram of the stop motion mechanism components, with numbered parts for identification.
• Page 28 (parts_list): This page lists components for the STOP MOTION MECHANISM, including part numbers, descriptions, and quantities.
• Page 29 (diagram): This page displays a diagram of stitch selecting parts components for an industrial sewing machine, with numbered parts for identification.
• Page 30 (parts_list): This page lists stitch selecting parts components, including part numbers, descriptions, and quantities.
• Page 31 (diagram): This page displays a diagram of thread bind notch components for model MB-1377, with numbered parts indicated.
• Page 32 (parts_list): This page lists thread bind notch components for model MB-1377, including part numbers, descriptions, and quantities.
• Page 33 (diagram): This page displays a diagram of thread stand components, with numbered parts and their corresponding references.
• Page 34 (parts_list): This page lists thread stand components, including part numbers, descriptions, and quantities.
• Page 35 (diagram): This page displays a diagram of table and stand components for an industrial sewing machine, with numbered parts indicated.
• Page 36 (parts_list): This page lists the components for the table and stand, including part numbers, descriptions, and quantities.
• Page 37 (diagram): This page displays a diagram of accessory parts and components for an industrial sewing machine, with numbered items indicating specific parts.
• Page 38 (parts_list): This page lists accessory parts for an industrial sewing machine, including part numbers, names, remarks, and quantities.
• Page 39 (diagram): This page displays a diagram of special order specific components for an industrial sewing machine, with parts labeled with reference numbers.
• Page 40 (parts_list): This page lists special order specification components for a sewing machine, including part numbers, descriptions, and quantities.
• Page 41 (diagram): This page displays a diagram of subclass components for model MB-1373-11, showing a single part labeled with reference number 1.
• Page 42 (parts_list): This page lists subclass components for MB-1373-11, including part number 40041032, described as LENGTHWAISE_FEED_CAM(X), with a quantity of 1.
• Page 43 (text): This page provides instructions on how to use the parts list, including explanations for reference numbers, quantity codes, and symbols used in the diagrams.
• Page 44 (parts_list): This page contains a numerical index of parts for the industrial sewing machine, listing part numbers, corresponding page numbers, and reference numbers.
• Page 45 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, page references, and reference numbers.
• Page 46 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, page references, and reference numbers from diagrams.
• Page 47 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, page numbers, and reference numbers.

Page 1 — PARTS LIST

MODEL : MB-1373/MB-1377 List No : 1493-02 PARTS LIST Published:02/15/2019 jintex.in

Page 2 — CONTENTS

CONTENTS BUTTON CLAMP MECHANISM COMPONENTS ARM & MISCELLANEOUS COVER COMPONENTS LOOPER SHAFT MECHANISM COMPONENTS NIPPER & THREAD TENSION PARTS COMPONENTS FEED PLATE COMPONENTS BUTTON CLAMP LIFTER COMPONENT NEEDLE DRIVING PULLEY SHAFT COMPONENTS NEEDLE BAR DRIVING MECHANISM COMPONENTS STOP MOTION MECHANISM COMPONENTS STITCH SELECTING PARTS COMPONENTS THREAD BIND NOTCH COMPONENTS (FOR MB-1377) THREAD STAND COMPONENTS TABLE & STAND COMPONENTS ACCESSORIE PARTS COMPONENTS SPECIAL ORDER SPEC COMPONENTS SUBCLASS COMPONENTS(FOR MB-1373-11) HOW TO MAKE USE OF THIS PARTS LIST TOC - 1 jintex.in 1 3 7 9 13 17 21 23 25 27 29 31 33 35 37 39 41

Page 3

BUTTON CLAMP MECHANISM COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 jintex.in

Page 4 — BUTTON CLAMP MECHANISM COMPONENTS

BUTTON CLAMP MECHANISM COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 26026856 PICK-UP DEVICE ASM. 1 2 40041058 BUTTON CLAMP LIFTING HOOK * 1 3 SS7150940SP SCREW 15/64-28 L=9 * 1 4 SS9621413SP SCREW 3/16-32 L=13.5 * 2 5 WP0501016SD WASHER 5X10.5X1 * 2 6 26025502 BUTTON CLAMP HOLDER * 1 7 SS7090410SP SCREW 9/64-40 L= 3.5 * 1 8 SD0550301SP HINGE SCREW D=5.5 H=3 * 1 9 26025403 JAW HOLDER * 1 10 SD0550181SP HINGE SCREW D=5.50 H= 1.8 * 1 11 26025809 CLAMP SCREW A * 1 12 26025700 SNAP FASTENER CLAMP STOP LEVER * 1 13 26026005 NUT * 1 14 26025908 BUTTON CLAMP SLIDE * 1 15 26026609 BUTTON CLAMP STOP PIN * 2 16 26026104 BUTTON CLAMP LEVER JAW (LEFT) * 1 17 26026203 BUTTON HOLDING SPRING, LEFT * 1 18 SD0640391TP HINGE SCREW D= 6.35 H= 3.9 * 2 19 SS7090410SP SCREW 9/64-40 L= 3.5 * 1 20 26026708 BUTTON CLAMP SPRING * 1 21 26026302 BUTTON CLAMP LEVER JAW RIGHT * 1 22 26026401 BUTTON HOLDING SPRING, RIGHT * 1 23 SS7150940SP SCREW 15/64-28 L=9 * 1 24 40040938 BUTTON CLAMP PRESSURE ADJUSTIN 1 25 26027102 PRESSURE ADJUSTING SPRING 1 26 NM6060001CP NUT M6 2 27 26027409 FINGER GUARD 1 28 40041069 SPRING HOLDING PLATE 1 29 26025205 HINGE PIN 1 30 B2541372000 SNAP RING 1 31 NM6060001CP NUT M6 1 32 40040937 PICK-UP DEVICE STOPPER PIN 1

Page 5 — ARM & MISCELLANEOUS COVERS COMPONENTS

ARM & MISCELLANEOUS COVERS COMPONENTS 30 33 32 14 49 50 42 39 2 1 4 3 5 6 2 11 12 13 10 9 8 7 48 47 46 45 44 27 28 31 29 36 24 34 21 20 43 35 37 40 38 26 41 25 jintex.in

Page 6 — ARM & MISCELLANEOUS COVERS COMPONENTS

ARM & MISCELLANEOUS COVERS COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40038426 FACE_PLATE_COMPL. 1 2 SM4040855SP SCREW 4 3 26021600 TENSION SPRING 1 4 26032003 NIPPER RELEASING STUD 1 5 SM6040650TP SCREW 1 6 26031203 THREAD GUIDE NO.4 1 7 26031351 THREAD TENSION NO.3 ASM. 1 8 26031302 TENSION ADJUSTING BASE NO.3 * 1 9 26031401 THREAD PRESSER PLATE * 1 10 26031500 TENSION SPRING B * 1 11 26031609 THREAD TENSION STUD * 1 12 26031708 THREAD TENSION NUT * 2 13 RE0200000K0 E-RING 2 * 1 14 SM4040855SP SCREW 8 15 TA2050406R0 RUBBER PLUG 1 16 40040931 SIDE_COVER_RIGHT 1 17 CM301300001 SAFETY LABEL 1 18 40040932 SIDE_COVER_LEFT 1 19 SM6083042CH SCREW M8 L=30 4 20 26033704 STOPPER 1 21 SM6050800SP SCREW M5 L=8 2 22 26011205 GUIDE PIN 2 23 40038483 SET_SCREW 1 24 40038431 BED_OIL_SHIELD 1 25 SM8060610TP SCREW 1 26 40041022 BUTTON_TRAY_ASM. 1 27 26022608 CAM INDICATING PIN A SELECTIVE PARTS 2 28 26022707 CAM INDICATING PIN B SELECTIVE PARTS 2 29 WS0650389KP SPRING WASHER 6.5X14.0X17 1 30 40038425 SIDE_COVER_LEFT 1 31 40038430 LOOPER_COVER 1 32 40041067 SIDE_COVER_SPRING 2 33 SM6040600SP SCREW M4 L=6 2 34 SM4040855SP SCREW 2 35 40038173 OIL_DRIP_FELT 1 36 SD0600277TP SHOULDER SCREW D=6 H=2.7 1 37 40038424 SIDE_COVER_RIGHT 2 38 40040936 SIDE_COVER_HINGE_SHAFT_RIGHT 1 39 40040935 SIDE_COVER_HINGE_SHAFT_LEFT 1 40 SM8060612TP SCREW M6 L=6 1 41 40038446 MACHINE_SUB_BASE 1 42 SM8060612TP SCREW M6 L=6 1 43 40038471 SUSPENSION_SCREW_B 1 44 40054729 ASSY SAFETY PLATE * 1 45 40054730 SAFETY PLATE INSTALLING BASE * 1 46 26037200 SAFETY PLATE * 1 47 SM4040655SP SCREW M4 L=6 2 jintex.in

Page 7 — ARM & MISCELLANEOUS COVERS COMPONENTS

ARM & MISCELLANEOUS COVERS COMPONENTS 30 33 32 14 49 50 16 23 22 19 14 18 15 39 42 1 2 4 3 5 6 2 51 27 28 32 33 17 37 38 40 31 29 36 24 34 48 45 47 46 44 21 20 43 35 26 41 25 jintex.in

Page 8 — ARM & MISCELLANEOUS COVERS COMPONENTS

ARM & MISCELLANEOUS COVERS COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 WP0430800SD WASHER M4 * 2 49 TA1250406R0 RUBBER PLUG D=12.5 L=4 2 50 PS0500102KH SPRING PIN 5.0X10 1 51 RE0320000K0 E-RING 3.2 1

Page 9 — LOOPER SHAFT MECHANISM COMPONENTS

LOOPER SHAFT MECHANISM COMPONENTS 4 9 5 6 7 8 10 11 12 36 15 14 20 21 37 33 35 38 38 31 29 22 24 1 3 2 23 26 27 25 30 34 35 32 46 13 43 42 45 41 39 40 44 45 jintex.in

Page 10 — LOOPER SHAFT MECHANISM COMPONENTS

LOOPER SHAFT MECHANISM COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 CS079072ATH THRUST COLLAR ASM. 1 2 CS0790721TH THRUST COLLAR D=7.94 W=7 * 1 3 SS7090620TP SCREW 9/64-40 L=6.1 * 1 4 SM6040800SP SCREW 1 5 40038484 NEEDLE_GUARD 1 6 26013607 POSITIONING FINGER YOKE SLIDE 1 7 SM1040950TP SCREW M4 L=9 2 8 26013409 YOKE SLIDE INSERT 1 9 26013805 YOKE SLIDE 1 10 40038400 ASSY_LOOP_POSITIONING_FINGER_LEVER 1 11 40038403 LOOP_POSITIONING_FINGER_CAM_ROLL 1 12 SD0640246SP HINGE SCREW D=6.35 H=2.4 * 1 13 SM8061010TP SCREW 1 14 B12413770B0 THROAT PLATE SET 1 15 B12413770A0 THROAT PLATE ASM. * 1 16 B27033770A0 THREAD BIND PLATE ASM. * 1 17 B2702377000 THREAD BIND SUPPORT PLATE * 1 18 B2410373000 COUNTER KNIFE * 1 19 SS7080310SP SCREW 1/8-44 L=3.0 * 2 20 B24063730A0 MOVING KNIFE ASM. * 1 21 SD0600095TH HINGE SCREW D=6 H=0.85 * 1 22 40041106 ASSY_LOOP_POSITIONING_FINGER_CAM 1 23 26003103 LOOP POSITIONING FINGER CAM 1 24 SS8110410TP SCREW 11/64-40 L=3.5 * 2 25 40038482 ASSY_CAM_AND_LOOPER_SLEEVE 1 26 26015503 CAM AND LOOPER SLEEVE * 1 27 SS8150410TP SCREW 15/64-28 L=4.0 * 2 28 26015404 LOOP POSITIONING FINGER CAM 1 29 SS8110310SP SCREW 11/64-40 L=2.8 1 30 26015305 LOOPER SHAFT BUSHING FRONT 2 31 SM8061010TP SCREW 1 32 40038111 LOOPER SHAFT 1 33 40098872 COLLER ASSY 1 34 40097991 COLLER 1 35 SS8110422TP SCREW 11/64-40 L=4 * 1 36 SM1040870TP SCREW * 2 37 B10042700A0 LOOPER SHAFT DRIVEN GEAR ASM. 3 38 SS860612TP SCREW 1/4-40 L=6 * 1 39 B1215372A00 THRUST BALL BEARING 2 40 26013102 LOOPER SHAFT BUSHING REAR 1 41 B121373NA0 WORM WHEEL ASM. 1 42 B1221373N00 WORM * 1 43 SS660712TP SCREW 1/4-40 L=7.0 * 2 44 B1220372000 CAM SHAFT DRIVEN GEAR * 1 45 SS860612TP SCREW 1/4-40 L=6 * 2 46 B1239372000 LOOPER 1 jintex.in

Page 11 — NIPPER & THREAD TENSION PARTS COMPONENTS

NIPPER & THREAD TENSION PARTS COMPONENTS 26 25 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 2 57 58 59 50 49 51 48 55 56 47 46 44 1 3 4 5 6 7 8 9 10 11 12 13 14 17 52 53 15 54 45 16 18 19 20 21 22 23 jintex.in

Page 12 — NIPPER & THREAD TENSION PARTS COMPONENTS

NIPPER & THREAD TENSION PARTS COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 SM4061255SP SCREW M6 L=12 1 2 40038205 NEEDLE_BAR_GUARD 1 3 SD0791276TP SHOULDER SCREW 1 4 NM6030001SN NUT 2 5 26020602 NUT 1 6 26000950 NIPPER COMPL. 1 7 26020503 LOOPER SHAFT BUSHING REAR 1 8 40041077 NIPPER_BAR_BLOCK_SPRING 1 9 40038492 NIPPER_BAR_BLOCK_SPRING_SCREW 1 10 SD0402001TP HINGE SCREW D=4 H=20 1 11 26020404 NIPPER SLIDE BLOCK SPRING 1 12 26020305 NIPPER BLOCK 1 13 SD0791506TP SHOULDER SCREW D=7.94 H=15 1 14 40038476 THREAD_PULL_OFF_LEVER_ASM 1 15 SD0790806TP SHOULDER SCREW D=7.94 H=8 1 16 26000455 NIPPER BAR ACTUATING LEVER ASM 1 17 26020206 THREAD GUIDE PIN 2 18 26019406 NIPPER BAR BLOCK SPRING PIN 1 19 SM6040800SP SCREW 1 20 WP0450801SP WASHER 1 21 26019307 NIPPER BAR BLOCK 1 22 26019208 TENSION LEVER ROCKING PIECE 2 23 40038479 NIPPER BAR 1 24 SM6040800SP SCREW 1 25 40038208 TENSION_POST_ASM NO.2 1 26 40038214 TENSION_NUT 1 27 22921407 ROTATION STOPPER 1 28 26019901 THREAD TENSION SPRING 1 29 26020107 THREAD TENSION DISK PRESSER 2 30 26005207 THREAD_TENSION_DISK_NO.1 1 31 40038210 TENSION_POST_NO.2 1 32 26019802 TENSION_RELEASE_PIN 1 33 NM6060001CP NUT M6 1 34 PS0300162KH SPRING PIN 3X16 1 35 SM6040800SP SCREW 1 36 WP0450801SP WASHER 1 37 26019109 THREAD TENSION RELEASING LEVER 1 38 40038404 ASSY_THREAD_TENSION_NO.1 1 39 40038408 THREAD_TENSION_NUT 1 40 26005306 FIRST THREAD TENSION SPRING 1 41 26005207 THREAD_TENSION_DISK_NO.1 2 42 40038405 THREAD_TENSION_POST_NO.1 1 43 26019505 THREAD GUIDE 1 44 26021402 THREAD GUIDE NO.1 1 45 NM6040002SN NUT M4 1 46 SM4061255SP SCREW M6 L=12 1 47 40038396 NIPPER_BAR_BEARING_BLOCK 1 jintex.in

Page 13 — NIPPER & THREAD TENSION PARTS COMPONENTS

NIPPER & THREAD TENSION PARTS COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 53 54 55 56 57 58 59 jintex.in

Page 14 — NIPPER & THREAD TENSION PARTS COMPONENTS

NIPPER & THREAD TENSION PARTS COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 40038206 ADJUSTING_SCREW 1 49 WP0550800SP WASHER 5.5X10X0.8 1 50 SM7051460TP SCREW M5 L=14 1 51 SM6051400SP SCREW 1 52 26019000 THREAD TENSION SPRING 1 53 40038207 NIPPER_BAR_SPRING_SCREW 1 54 WP0450846SP WASHER 1 55 SM9061403CP SCREW M6 L=14 1 56 NM6060001SE NUT M6 1 57 26021105 THREAD GUIDE 1 58 40038320 LEVER 1 59 SM6040600SP SCREW M4 L=6 1 60 WP0501016SD WASHER 5X10.5X1 1 jintex.in

Page 15 — FEED PLATE COMPONENTS

FEED PLATE COMPONENTS MB-1373 MB-1377 jintex.in

Page 16 — FEED PLATE COMPONENTS

FEED PLATE COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 B2529373000 FEED PLATE, SMALL BUTTON 1 2 SS9120643TP SCREW 3/16-28 L=6 2 3 26024604 INDICATOR PIN BEARING BLOCK 1 4 26024901 CROSSWISE FEED INDICATOR 1 5 26024703 CROSSWISE FEED INDICATOR PIN 1 6 NM6060001CP NUT M6 1 7 40038498 SLIDE_PLATE_CONNECTING_LINK 1 8 SD0640481SP HINGE SCREW D= 6.35 H= 4.8 1 9 40038499 STUD 1 10 26024208 INTERMEDI CONNECTING LINK 1 11 40041052 CROSSWISE_FEED_GRADVATED_PLATE 1 12 NM6050001SP NUT M5 1 13 26023200 CAM ROLL 2 14 40041030 LENGTHWISE_FEED_LEVER_ARM_1373 1 15 40038439 LENGTHWISE_FEED_LEVER_SLIDE 1 16 40041029 FEED_LEVER_1373 1 17 40038496 CAM_ROLL_SCREW_STUD 1 18 SM8061212TP SCREW M6X12 1 19 26025106 SPACER PLATE 2 20 40038463 FEED_PLATE 1 21 26024208 INTERMEDI CONNECTING LINK 1 22 SD0640481SP HINGE SCREW D= 6.35 H= 4.8 1 23 40098330 HINGE_SCREW_FOW_CROSSWISE_FEED 1 24 40038453 CROSSWISE_FEED_LEVER 1 25 B1161227000 RIVET 2 26 40041055 FEED_STUD_A SELECTIVE PARTS 1 27 40041056 FEED_STUD_B SELECTIVE PARTS 1 28 40041057 FEED_STUD_C SELECTIVE PARTS 1 29 D2529373B00A FEED PLATE,SMALLBUTTON 1 30 WP0501016SD WASHER 5X10.5X1 2 31 40038469 LENGTHWISE_FEED_LEVER_ARM FOR MB-1377 1 32 40038439 LENGTHWISE_FEED_LEVER_SLIDE 1 33 40038432 FEED_LEVER_L 1 34 40038433 FEED_LEVER_R 1 35 40041061 FEED_KNOB_GUIDE_PLATE 2 36 SM9050813SE SCREW M5X0.8 L=8 1 37 40042279 PLATE_BASE_(MB-1373) FOR MB-1377 1 38 40038436 PLATE_BASE_(MB-1377) FOR MB-1377 1 39 40038313 GRADUATE_PLATE(MB-1373) FOR MB-1373 1 40 40038314 GRADUATE_PLATE(MB-1377) FOR MB-1377 1 41 40042281 HANDLE_AND_INDICATOR_SPRING 1 42 SM4040655SP SCREW M4 L=6 2 43 SM4050855SP SCREW 2 44 40038442 KNOB 1 45 40040965 INDICATOR_SPRING_CONNECTING_LINK 1 46 SD0640976TP SHOULDER SCREW D=6.35 H=9.7 2 47 40038444 CAM_SHAFT 1 jintex.in

Page 17

FEED PLATE COMPONENTS MB-1373 MB-1377

Page 18 — FEED PLATE COMPONENTS

FEED PLATE COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 40041032 LENGTHWISE_FEED_CAM(X) FOR MB-1373 1 49 B2506373000A LONGITUDINAL_FEED_CAM 1 50 26022509 CAM SHAFT BUSHING.LEFT 1 51 40041033 LATERAL_FEED_CAM 1 52 40041025 LONGITUDINAL_FEED_CAM_A FOR MB-1377 1 53 SD0640486TP SHOULDER SCREW D=6.35 H=4.8 1 54 SS8681412TP SCREW 9/32-28 L=13.5 FOR MB-1377 2 55 40040964 THRUST_COLLAR ASSY FOR MB-1373 1 56 40040961 THRUST_COLLAR * 1 57 SM8060552TP SCREW M6 L=5 * 2 58 40042081 SPACER FOR MB-1377 1 59 26022400 CAM SHAFT BUSHING.RIGHT 1 60 SS8681412TP SCREW 9/32-28 L=13.5 4 61 SM6050800SP SCREW M5 L=8 1 62 40041045 OIL_RETAINING_FELT 1 63 40041044 FEED_SHOULDER_SCREW_FELT 1 64 CQ252000000 OIL WICK 0.06 65 CQ3000000F0 OIL FELT 0.06 66 EA9500B0100 CABLE BAND 4 67 CQ252000000 OIL WICK 0.3 jintex.in

Page 19

BUTTON CLAMP LIFTER COMPONENT 1 2 3 4 5 6~8 9 10 11 12 13 14 15 16 17 18 19 20 21 21 22 23 24 25 26 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 53 54 55 56 57 58 jintex.in

Page 20 — BUTTON CLAMP LIFTER COMPONENT

BUTTON CLAMP LIFTER COMPONENT No. Parts No. Parts name Remarks Level Cons Qty 1 40038119 LIFTING LEVER 1 2 26018101 BUSHING 1 3 40038116 NEEDLE_BAR_LEVER 1 4 WP0851216SC WASHER 8.5X18.0X1.2 1 5 B4420373000 CUSHION 1 6 WP0851216SC WASHER 8.5X18.0X1.2 SELECTIVE PARTS (USE OF ONE PARTS) 1 7 WP0751576SD WASHER 7.5X19X1.5 SELECTIVE PARTS (USE OF ONE PARTS) 1 8 10510808 WASHER SELECTIVE PARTS (USE OF ONE PARTS) 1 9 WP0751576SD WASHER 7.5X19X1.5 1 10 WP0751576SD WASHER 7.5X19X1.5 1 11 B4420373000 CUSHION 1 12 WP0703516SP WASHER 7X20X3.5 1 13 26033407 SPRING 1 14 26033308 WASHER 1 15 B4411373000 BUTTON CLAMP LIFTING LINK 1 16 40040962 ASSY_SLIDING_ROLLER 1 17 40040953 SLIDING_ROLLER * 1 18 SM8060612TP SCREW M6 L=6 * 1 19 40038321 ECCENTRIC_CAM 1 20 40038398 ECCENTRIC_CAM * 1 21 SM8060612TP SCREW M6 L=6 * 2 22 SD0640481SP HINGE SCREW D= 6.35 H= 4.8 1 23 40120628 BUTTON_CLAMP_LIFTING_LINK 1 24 CS0950810SH THRUST COLLAR ASM. D=9.5 W=8 2 25 CS0950816SH THRUST COLLAR D=9.5 W=8 * 1 26 SS8110410TP SCREW 11/64-40 L= 3.5 * 2 27 40038445 LEVER_SHAFT 1 28 SM8061010TP SCREW 2 29 26032508 LIFTING_LINK 1 30 40038414 LIFTING_PLATE_GUIDE_ROD_ASM 1 31 40038413 LIFTING_PLATE_GUIDE_ROD * 1 32 SM6051600SP SCREW M5 L=16 * 1 33 SD0640211SP HINGE SCREW D= 6.35 H= 2.1 1 34 WP0330501SB WASHER M3 1 35 40038283 L_TYPE_LIFTING_BAR_ROLLER 1 36 40038502 BUTTON_CLAMP_LIFTING_ROD_A 1 37 SM6061002TP SCREW M6 L=10 1 38 40038428 CONNECTING_LINK_FRONT 1 39 26022202 JOINT STUD 1 40 B1632180000 FEED ADJUSTING JOINT 1 41 WP0510516SD WASHER 5.1X7.5X0.5 1 42 NM6050001SP NUT M5 2 43 40038219 CONNECTING_SCREW 1 44 NM6080021SP NUT M8 TYPE1 2 45 40038429 CONNECTING_LINK_REAR 1 46 SD0640323TP HINGE SCREW D= 6.35 H= 3.2 1 47 SD0790402TP HINGE SCREW D= 7.94 H= 4 1 jintex.in

Page 21 — BUTTON CLAMP LIFTER COMPONENT

BUTTON CLAMP LIFTER COMPONENT 1 2 3 4 5 6~8 9 10 11 12 13 14 15 16 17 18 19 20 21 21 22 23 24 25 26 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 53 54 55 56 57 58 jintex.in

Page 22 — BUTTON CLAMP LIFTER COMPONENT

BUTTON CLAMP LIFTER COMPONENT No. Parts No. Parts name Remarks Level Cons Qty 48 NS6620310SP NUT 3/16-32 1 49 NS6150310SP NUT 15/64-28 1 50 40038397 THREAD TRIMMING LEVER 1 51 SD0790316TP SHOULDER SCREW D=7.94 H=3.1 1 52 NM6050001SP NUT M5 1 53 40038495 THREAD_TRIM_LEVER_BASE 1 54 SM7051460TP SCREW M5 L=14 2 55 26021709 THREAD TRIMMING LINK 1 56 SD0641322TP HINGE SCREW D=6.35 H=13.2 1 57 26033605 SPRING 1 58 SM6030402TP SCREW M3X0.5 L=4 1 jintex.in

Page 23 — NEEDLE DRIVING PULLEY SHAFT COMPONENTS

NEEDLE DRIVING PULLEY SHAFT COMPONENTS 8 29 30 21 20 19 16 18 15 25 24 23 14 13 12 11 10 9 6 5 7 22 4 3 2 1 26 27 28 31

Page 24 — NEEDLE DRIVING PULLEY SHAFT COMPONENTS

NEEDLE DRIVING PULLEY SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 B1203372000 BALL LARGE 1 2 26012401 PULLEY INSERT 1 3 40038203 BALL_SMALL 1 4 26012500 SPRING 1 5 40038169 DRIVING_PULLEY_ASM. 1 6 40038175 DRIVING PULLEY * 1 7 SM8040612TP SCREW M4 L=6 * 1 8 40038449 NEEDLE DRIVING PULLEY SHAFT 1 9 B1243372000 NEEDLE BEARING 2 10 26012609 GREASE RTETAINING WICK 1 11 26012708 RETAINING WASHER 1 12 SM6062450TP SCREW M6 L=23.5 2 13 WP0621026SP WASHER 6.2X9.5X1 2 14 B1208372000 NEEDLE DRIVING PULLEY CLUTCH D 1 15 40038137 STOP.MOTION.DISC.ASM. 1 16 40038135 STOP.MOTION.DISC.LATCH.A * 1 17 40038136 STOP.MOTION.DISC.LATCH.B * 1 18 40038138 STOP.MOTION.DISC * 1 19 40038139 STOP.MOTION.PAWL.SHAFT * 2 20 40038140 STOP.MOTION.DISC.WASHER * 1 21 SM6060550TP SCREW M6 L=4.5 * 1 22 CM500200001 DIRECTION LABEL. 1 23 SM8080812TP SCREW M8X8 1 24 SM8081752TP SCREW M8 L=17 1 25 NM6060003SP NUT M6 TYPE3 2 26 B1215372B00 THRUST BALL BEARING 1 27 SM8061010TP SCREW 1 28 40038461 PULLEY.SHAFT.BUSHING.RIGHT 1 29 40042148 PULLEY.SHAFT.BUSHING.LEFT 1 30 B12173720BA DRIVING GEAR (A) ASM. 1 31 26018309 OIL WICK 1

Page 25 — NEEDLE BAR DRIVING MECHANISM COMPONENTS

NEEDLE BAR DRIVING MECHANISM COMPONENTS jintex.in

Page 26 — NEEDLE BAR DRIVING MECHANISM COMPONENTS

NEEDLE BAR DRIVING MECHANISM COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 SS7080510TP SCREW 1/8-44 L=4.5 1 2 14606107 NEEDLE ROD 1 3 26017707 NEEDLE BAR BUSHING LOWER 1 4 40040951 NEEDLE BAR BALANCE 1 5 40040952 NEEDLE BAR CLAMP 1 6 SM6041200SP SCREW M4 L=12 1 7 40038142 NEEDLE BAR BUSHING UPPER SELECTIVE PARTS 1 8 40038120 NEEDLE BAR SLIDE BLOCK A SELECTIVE PARTS 1 9 40038121 NEEDLE BAR SLIDE BLOCK B SELECTIVE PARTS 1 10 40038122 NEEDLE BAR SLIDE BLOCK C SELECTIVE PARTS 1 11 MTQ100B1600 NEEDLE TQX1 #16 1 12 40038117 NEEDLE BAR DRIVING LEVER 1 13 SM9061403CP SCREW M6 L=14 2 14 SD0950804TP SHOULDER SCREW D=9.53 H=8 1 15 26018705 WASHER 0.1 16 CQ202000000 OIL WICK 2 17 SS2110920TP SCREW 11/64-40 L=8.5 1 18 26018606 THRUST HOLDER 1 19 26018408 CRANK ROD 1 20 26018507 ECCENTRIC CAM 1 21 SS860612TP SCREW 1/4-40 L=6 1 22 SS860942TP SCREW 1/4-40 L=8.5 1 23 26018309 OIL WICK 1 24 40041045 OIL RETAINING FELT 1 25 CQ2500000F0 OIL WICK 0.01 jintex.in

Page 27 — STOP MOTION MECHANISM COMPONENTS

STOP MOTION MECHANISM COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 jintex.in

Page 28 — STOP MOTION MECHANISM COMPONENTS

STOP MOTION MECHANISM COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 26027805 STOP MOTION PLUNGER ROD 1 2 NM6060003SP NUT M6 TYPE3 1 3 40038118 CROSSING HOOK 1 4 SM6061150TP SCREW M6 L=11 1 5 40038270 STOP_MOTION_PLUNGER_LEVER 1 6 26229104 WASHER 2 7 40038110 STOP MOTION SPRING 30 8 B2608280000 RUBBER CUSHION 4 9 26030601 WASHER 1 10 NS6680410SP NUT 9/32-28 2 11 40038448 STOP_MOTION_SHAFT 1 12 40042437 SCREW 1 13 SS8151570SP SCREW 15/64-28 L=15.0 1 14 NS6150310SP NUT 15/64-28 1 15 SD0680276TP SHOULDER SCREW D=6.8 H=2.7 1 16 NM6060001CP NUT M6 1 17 SD0800706TP SHOULDER SCREW D=8 H=7 1 18 40087058 STITCH ADJUSTING ROLLER 1 19 WP0612066SP WASHER 6.1X11X2 1 20 26019604 WASHER 1 21 SM9061003CP SCREW M6 L=10 1 22 40038160 STOP_MOTION_TRIP_LEVER 1 23 26028308 STOP_MOTION_TRIP_LEVER_BRACKET 1 24 SM9061250TP SCREW M6 L=12 2 25 22924906 OIL REGULATOR SCREW SPRING 1 26 13160304 S SHAPED HOOK 1 27 26028001 STOP MOTION LEVER SPRING PIN 1 28 40038410 STOP_MOTION_LEVER_SPRING 1 29 40040940 SCREW_STUD 1 30 B2611373N00 PRESSURE APPLYING LEVER 1

Page 29 — STITCH SELECTING PARTS COMPONENTS

STITCH SELECTING PARTS COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 jintex.in

Page 30

STITCH SELECTING PARTS COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 SD1270346TP SHOULDER SCREW D=12.7 H=3.4 1 2 26030304 SPRING FOR FRICTION PLATE 1 3 26030007 FRICTION PLATE ROTATING SHAFT 1 4 WP0850002SP WASHER 8.5X18X1.6 1 5 26030908 SPEED SLOWING LEVER 1 6 26031005 FITTING PLATE 1 7 26030106 FRICTION PLATE HOLDER 1 8 B2640372000 SPEED SLOWING FRICTION PLATE 1 9 B321123000 POSITIONING PIN 2 10 NS6110310SP NUT 11/64-40 1 11 SD0710706TP SHOULDER SCREW D=7.14 H=7 1 12 B2629372000 STITCH SELECTING SPUR GEAR 1 13 40040943 INTERMEDIATE_GEAR_SHAFT 1 14 40040942 ASSY_SPEED_SLOWING_FRICTION_WHEEL 2 15 SM8061010TP SCREW * 1 16 40040944 SPEED_SLOWING_FRICTION_WHEEL * 1 17 B2630372000A GEAR,LARGE 1 18 B2631372000 SCREW 1 19 B2632372000A ROLLER 1 20 40040946 THREAD_BIND_NOTCH 1 21 26030809 SPACER 2 22 SM6040560TP SCREW M4X0.5 L=4.5 1 23 SM6050800SP SCREW M6 L=8 2 24 SD0800341SP HINGE SCREW D=8 H=3.4 1 25 40038269 STITCH ADJUSTING ARM ASM. 1 26 40038271 STITCH ADJUSTING ARM 1 27 SM6061602TN SCREW M6 L=16 * 1 28 26029207 STITCH ADJUSTING ROLLER * 1 29 40041046 STITCH ADJUSTING CAM A ASSY 1 30 40041054 STITCH ADJUSTING CAM A ASM. * 1 31 40041050 NUT * 2 32 40038304 SCREW * 1 33 SM6040502TP SCREW M4X0.7 L=5 * 1 34 SS7090910TP SCREW 9/64-40 L= 8.5 * 2 35 SM8060812TP SCREW M6 L=8 * 2 36 40041048 SPACER * 1 37 40041049 STITCH_CAM_A * 1 38 40041051 STOP MOTION CAM SHOE 1 jintex.in 29

Page 31 — THREAD BIND NOTCH COMPONENTS(FOR MB-1377)

THREAD BIND NOTCH COMPONENTS(FOR MB-1377) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 jintex.in

Page 32 — THREAD BIND NOTCH COMPONENTS(FOR MB-1377)

THREAD BIND NOTCH COMPONENTS(FOR MB-1377) No. Parts No. Parts name Remarks Level Cons Qty 1 40038488 THREAD BIND LEVER 1 2 40038452 CONNECTING PLATE,LARGE 1 3 SD0640328TP SHOULDER SCREW D=6.35 H=3.2 1 4 40038486 CONNECTING PLATE,SMALL 1 5 WP0430800SD WASHER M4 2 6 SM6040650TP SCREW 2 7 SD0720336SP SHOULDER SCREW 1 8 D2509282A00 WORK CAMP FOOT BALL LINK 1 9 40038489 THREAD BIND LINK,SHAFT 1 10 WP0621026SP WASHER 6.2X9.5X1 2 11 RC0560711KP RETAINING RING 2 12 NM6050001SP NUT M5 1 13 40038456 THREAD BIND ARM B 1 14 NM6050001SP NUT M5 1 15 40038494 THREAD BIND ARM SPRING RAC 1 16 26017103 SPRING 1 17 SD0901806TP SHOULDER SCREW 1 18 26017301 ROLLER 1 19 SD0460576TP SHOULDER SCREW D=4.6 H=5.7 1 20 NM6040001SP NUT M4X0.7 1 21 SD0481456TP SHOULDER SCREW D=4.8 H=14.5 1 22 40038306 SPRING 1 23 40038305 STITCH ADJUSTING CAM KNOB 1 24 40038455 ASS THREAD BIND ARM A 1 jintex.in

Page 33 — THREAD STAND COMPONENTS

THREAD STAND COMPONENTS 1 9 8 7 6 9 8 19 13 12 24 17 22 21 20 11 5 18 3 10 23 4 2 18 15 16 16 15 14 jintex.in

Page 34 — THREAD STAND COMPONENTS

THREAD STAND COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40096354 THREAD STAND ASM. 1 2 40085784 SPOOL REST ROD LOWER * 1 3 40085785 SPOOL REST ROD UPPER * 1 4 40085786 SPOOL REST ARM LOWER * 1 5 40085787 SPOOL REST ARM UPPER * 1 6 40085788 SPOOL REST * 2 7 40085789 SPOOL REST CUSHION * 2 8 40085790 SPOOL PIN * 2 9 40085791 SPOOL RETAINER * 2 10 40085792 SPOOL REST ROD JOINT * 1 11 40085793 SPOOL REST ROD RUBBER CAP * 1 12 40085794 THREAD GUIDE * 2 13 40085795 THREAD GUIDE BUSHING * 2 14 40096325 SPOOL REST ROD NUT * 1 15 WP1612616SE WASHER 16X30X2.6 * 2 16 40085796 SPOOL REST ROD RUBBER CUSHION * 2 17 40096326 SPOOL REST ARM LOWER SCREW * 1 18 NM6050001SE NUT M5 * 2 19 40096327 SPOOL REST ARM UPPER SCREW * 1 20 NM6050001SE NUT M5 * 2 21 WS0510002KN SPRING WASHER M5 * 2 22 WP0531001SC WASHER M5 * 2 23 SM4051405SE SCREW M5 L=14 * 2 24 NM6050001SE NUT M5 * 2

Page 35 — TABLE & STAND COMPONENTS

TABLE & STAND COMPONENTS jintex.in

Page 36 — TABLE & STAND COMPONENTS

TABLE & STAND COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40040971 TABLE 1 2 11159365 T STAND JUNCTION 1 3 11155108 DRAWER 1 4 11155207 DRAWER SUPPORT 2 5 D8204555D00 DRAWER STOPPER 1 6 SK3311600SE WOOD SCREW D=3.1 L=16 6 7 SK3483200SE WOOD SCREW D=4.8 L=32 4

Page 37 — ACCESSORIE PARTS COMPONENTS

ACCESSORIE PARTS COMPONENTS 9 11-12 JUKI 10 2 3 25 26 27 28 29 1 13 24 14 15 18 16 17 19 20 21 22 23 30 31 32 33 34 35 36 37 4 5 6 7 8 jintex.in

Page 38

ACCESSORIE PARTS COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 22933303 VINYL COVER 1 2 22933306 SCREW DRIVER,LARGE 1 3 MTQ700B1802 NEEDLE TQX7#18-2 1 4 40041072 BASE_SCREW_SET 1 5 40038174 RUBBER_CUSHION * 4 6 SS9156830SP SCREW 15/64-28 L=68 * 4 7 WP0612056SD WASHER 6.1X18.5X2 * 4 8 NS6150310SP NUT 15/64-28 * 4 9 40041073 ACCESSORIE_BAG_ASM. 1 10 22933105 SCREW DRIVER,MIDDLE 1 11 26233700 WRENCH 1 12 26034801 WRENCH 1 13 40033327 FRAME_SUPPORT_BAR 1 14 40038459 STITCH_NUMBER_LEVER 1 15 26030809 SPACER 1 16 40040946 THREAD_BIND_NOTCH 1 17 SM6040560TP SCREW M4X0.5 L=4.5 2 18 13160304 S SHAPED HOOK 2 19 SD0600346TP SHOULDER SCREW D=6 H=3.4 1 20 40038205 NEEDLE_BAR_GUARD 1 21 26037903 CHAIN 1 22 J1067000000 OILER 1 23 22932800 ACCESSORIE BAG 1 24 40055591 HEXAGONAL WRENCH KYE 1 25 MTJVM00000C V ROPE 820MM (LACING) 1 26 40038286 MOTOR_PULLEY_60HZ_1300RPM_ASM. 1 27 SM8061010TP SCREW * 2 28 40038285 MOTOR_PULLEY_50HZ_1300RPM_ASM. 1 29 SM8061010TP SCREW * 2 30 40112426 THREAD_TENSION_NO3_ASSY 1 31 SM4042501SC SCREW M4X0.7 L=25 1 32 WP0430801SE WASHER 4.3X9X0.8 * 1 33 40112427 SPRING_BASE * 1 34 B3105377B00 THREAD_TAKE-UP_SPRING * 1 35 40040243 SPRING_HOOK * 1 36 WP0451016SP WASHER 4.5X20X1 * 1 37 D2063772B00 LOCKING CAM PLATE HOLDER * 1 38 40041085 GAUGE 1 jintex.in

Page 39 — SPECIAL ORDER SPEC COMPONENTS

SPECIAL ORDER SPEC COMPONENTS 2 7 1 3.5 4.6 jintex.in

Page 40 — SPECIAL ORDER SPEC COMPONENTS

SPECIAL ORDER SPEC COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 MAZ201010A0 PICK-UP DEVICE ASM. L BUTTON 1 2 40038290 MOTOR PULLEY 50HZ 1500RPM ASM 1 3 B25563720AA BUTTON CLAMP JAW LEVER ASM., L 1 4 B25583720AA BUTTON CLAMP JAW LEVER ASM., R 1 5 D2556372CAA BUTTON CLAMP JAW LEVER ASM., L 1 6 D2558372CAA BUTTON CLAMP JAW LEVER ASM., R 1 7 D2529373C00A FEED PLATE, LARGE BUTTON 1

Page 41 — SUBCLASS COMPONENTS(FOR MB-1373-11)

SUBCLASS COMPONENTS(FOR MB-1373-11) 1 jintex.in

Page 42 — SUBCLASS COMPONENTS(FOR MB-1373-11)

SUBCLASS COMPONENTS(FOR MB-1373-11) No. Parts No. Parts name Remarks Level Cons Qty 1 40041032 LENGTHWAISE_FEED_CAM(X) 1 jintex.in

Page 43 — HOW TO MAKE USE OF THIS PARTS LIST

HOW TO MAKE USE OF THIS PARTS LIST 1.As to "#01" and "#02" refer to the "Note" given at the bottom of the respective pages. 2.Codes on the "Qty" column • Each numeral indicates the number of parts required. • "0.1" and "2.5" indicate the length (in meters) of the respective parts. 3.Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 4.Dotted lines on the Figures indicate assembly parts. 1. リストページの#01、#02の印は、ページ下の“注記”の説明を参照下さい。 2. 数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ(単位メートル)を表します。 3. 数量欄の（ ）は、組部品を構成している子部品であることを意味します。 4. イラストページのーーー一枠は、組構成であることを意味します。 jintex.in

Page 44 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 10510808 18 6~8 26019505 10 43 26030007 28 3 11155108 34 3 26019604 26 20 26030106 28 7 11155207 34 4 26019802 10 32 26030304 28 2 11159365 34 2 26019901 10 28 26030601 26 9 13160304 26 26 26020107 10 29 26030809 28 21 13160304 36 18 26020206 10 17 26030809 36 15 14606107 24 2 26020305 10 12 26030908 28 5 22921407 10 27 26020404 10 11 26031005 28 6 22924906 26 25 26020503 10 7 26031203 4 6 22932800 36 23 26020602 10 5 26031302 4 8 22933006 36 2 26021105 12 57 26031351 4 7 22933105 36 10 26021402 10 44 26031401 4 9 22933303 36 1 26021600 4 3 26031500 4 10 26000455 10 16 26021709 20 55 26031609 4 11 26000950 10 6 26022202 18 39 26031708 4 12 26003103 8 23 26022400 16 59 26032003 4 4 26005207 10 41 26022509 16 50 26032508 18 29 26005306 10 40 26022608 4 27~28 26033308 18 14 26011205 4 22 26022707 4 27~28 26033407 18 13 26012401 22 2 26023200 14 13 26033605 20 57 26012500 22 4 26024206 14 21 26033704 4 20 26012609 22 10 26024604 14 3 26034801 36 11~12 26012708 22 11 26024703 14 5 26037200 4 46 26013102 8 40 26024901 14 4 26037903 36 21 26013409 8 6 26025106 14 19 26229104 26 6 26013607 8 6 26025205 2 29 26233700 36 11~12 26013805 8 30 26025403 2 9 40033327 36 13 26015305 8 28 26025502 2 6 40038110 26 7 26015404 8 26 26025700 2 12 40038111 8 32 26015503 8 26 26025809 2 11 40038116 18 3 26017103 30 16 26025908 2 14 40038117 24 12 26017301 30 26 26026005 2 13 40038118 26 3 26017707 24 3 26026104 2 16 40038119 18 1 26018101 18 2 26026203 2 17 40038120 24 8~10 26018309 22 31 26026302 2 21 40038121 24 8~10 26018309 24 23 26026401 2 22 40038122 24 8~10 26018408 24 19 26026609 2 15 40038135 22 16 26018507 24 20 26026708 2 20 40038136 22 17 26018606 24 18 26026856 2 1 40038137 22 15 26018705 24 15 26027102 2 25 40038138 22 18 26019000 12 52 26027409 2 27 40038139 22 19 26019109 10 37 26027805 26 1 40038140 22 20 26019208 10 22 26028001 26 27 40038142 24 7 26019307 10 21 26028308 26 23 40038160 26 22 26019406 10 18 26029207 28 28 40038169 22 5 INDEX - 1 jintex.in

Page 45

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 40038173 4 35 40038433 14 34 40040946 36 16 40038174 36 5 40038436 14 37-38 40040951 24 4 40038175 22 6 40038439 14 32 40040952 24 5 40038203 22 2 40038442 14 44 40040953 18 17 40038205 10 3 40038444 14 47 40040960 16 56 40038205 36 20 40038445 18 27 40040962 18 16 40038206 12 48 40038446 4 41 40040964 16 55 40038207 12 53 40038448 26 11 40040965 14 45 40038208 10 25 40038449 22 8 40040971 34 1 40038210 10 31 40038452 30 2 40041022 4 26 40038214 10 26 40038453 14 24 40041025 16 52 40038219 18 43 40038455 30 24 40041029 14 16 40038269 28 25 40038456 30 13 40041030 14 14 40038270 26 5 40038459 36 14 40041032 16 48-49 40038271 28 26 40038461 22 28 40041032 40 1 40038283 18 35 40038463 14 20 40041033 16 51 40038285 36 28 40038469 14 31 40041044 16 63 40038286 36 26 40038471 4 43 40041045 16 62 40038304 28 2 40038476 10 14 40041045 24 24 40038305 30 32 40038479 10 23 40041048 28 29 40038306 30 23 40038482 8 25 40041048 28 36 40038306 30 22 40038483 4 23 40041049 28 37 40038313 14 39-40 40038484 8 5 40041050 28 31 40038314 14 39-40 40038486 30 4 40041051 28 38 40038320 12 58 40038488 30 1 40041052 14 11 40038321 18 19 40038489 30 9 40041053 28 30 40038396 10 47 40038492 10 9 40041055 14 26-28 40038397 20 50 40038494 30 15 40041056 14 26-28 40038398 18 20 40038495 20 53 40041057 14 26-28 40038400 8 10 40038496 14 17 40041058 2 2 40038403 8 11 40038498 14 7 40041061 14 35 40038404 10 38 40038499 14 9 40041067 4 32 40038405 10 42 40038502 18 36 40041069 2 28 40038408 10 39 40040243 36 35 40041072 36 4 40038410 26 28 40040931 4 16 40041073 36 9 40038413 18 31 40040932 4 18 40041077 10 8 40038414 18 30 40040935 4 39 40041085 36 38 40038424 4 37 40040936 4 38 40041106 8 22 40038425 4 30 40040937 2 32 40042081 16 58 40038426 4 1 40040938 2 24 40042148 22 29 40038428 18 38 40040940 26 29 40042279 14 37-38 40038429 18 45 40040942 28 14 40042281 14 41 40038430 4 31 40040943 28 13 40042437 26 12 40038431 4 24 40040944 28 16 40054729 4 44 40038432 14 33 40040946 28 20 40054730 4 45 INDEX - 2 jintex.in

Page 46 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 40055591 36 24 B25563720AA 38 3-5 NM6050001SP 30 14 40085784 32 2 B25583720AA 38 4-6 NM6060001CP 2 31 40085785 32 3 B2608280000 26 8 NM6060001CP 10 33 40085786 32 4 B2611373N00 26 30 NM6060001CP 14 6 40085787 32 5 B2629372000 28 12 NM6060001CP 26 16 40085788 32 6 B2630372000A 28 17 NM6060001SE 12 56 40085789 32 7 B2631372000 28 18 NM6060003SP 22 25 40085790 32 8 B2632372000A 28 19 NM6060003SP 26 2 40085791 32 9 B2640372000 28 8 NM6080021SP 18 44 40085792 32 10 B2702377000 8 17 NS6110310SP 28 10 40085793 32 11 B27033770A0 8 16 NS6150310SP 20 49 40085794 32 12 B3105377B00 36 34 NS6150310SP 26 14 40085795 32 13 B3211232000 28 9 NS6150310SP 36 8 40085796 32 14 B4411373000 18 15 NS6620310SP 20 48 40087058 26 18 B4420373000 18 11 NS6680410SP 26 10 40096325 32 14 CM301300001 4 17 PS0300162KH 10 34 40096326 32 17 CM500200001 22 22 PS0500102KH 6 50 40096327 32 19 CQ202000000 24 16 RC0560711KP 30 11 40096354 32 1 CQ2500000F0 24 25 RE020000K0 4 13 40097991 8 23 CQ252000000 16 67 RE032000K0 6 51 40098330 14 34 CQ3000000F0 16 65 SD04002001TP 10 10 40098872 8 33 CS0790721TH 8 2 SD0460576TP 30 19 40112426 36 30 CS079072ATH 8 1 SD0481456TP 30 21 40112427 36 33 CS0950810SH 18 24 SD0550181SP 2 10 40120628 18 25 CS0950816SH 18 25 SD0550301SP 2 8 B1161227000 14 23 D2063772B00 36 37 SD0600095TH 8 21 B1203372000 22 1 D2509282A00 30 8 SD0600277TP 4 36 B1208372000 22 14 D2529373B00A 14 1-29 SD0600346TP 36 19 B1215372A00 8 39 D2529373C00A 38 7 SD0640211SP 18 33 B1215372B00 22 26 D2556372CAA 38 3-5 SD0640246SP 8 12 B12173720BA 22 30 D2558372CAA 38 4-6 SD0640323TP 18 46 B1220372000 8 44 D8204555D00 34 5 SD0640328TP 30 3 B1221373N00 8 42 EA9500B0100 16 66 SD0640391TP 2 18 B1221373NA0 8 41 J1067000000 36 22 SD0640481SP 14 22 B1243720A0 8 37 MAZ201010A0 38 1 SD0640481SP 18 22 B1239372000 8 46 MTJVM00000C 36 25 SD0640976TP 16 53 B12413770A0 8 15 MTG100B1600 24 11 SD0640976TP 14 46 B12413770B0 8 14 MTQ700B1802 36 3 SD0641322TP 20 56 B1243372000 22 9 NM6030001SN 10 4 SD0680276TP 26 15 B1632180000 18 40 NM6040001SP 30 20 SD0710706TP 28 11 B24063730A0 8 20 NM6040002SN 10 45 SD0720336SP 30 7 B2410373000 8 40 NM6050001SE 32 24 SD0790316TP 20 51 B2506373000A 16 48-49 NM6050001SP 14 12 SD0790402TP 18 47 B2529373000 14 1-29 NM6050001SP 18 52 SD0790806TP 10 15 B2541372000 2 30 NM6050001SP 20 52 SD0791276TP 10 3 INDEX - 3 jintex.in

Page 47 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. SD0791506TP 10 13 SM8060612TP 18 21 WP0501016SD 2 5 SD0800341SP 28 24 SM8060812TP 28 35 WP0501016SD 12 60 SD0800706TP 26 17 SM8061010TP 8 31 WP0501016SD 14 30 SD0901806TP 30 17 SM8061010TP 18 28 WP0510516SD 18 41 SD0950804TP 24 14 SM8061010TP 22 27 WP0531001SC 32 22 SD1270346TP 28 1 SM8061010TP 28 15 WP0550800SP 12 49 SK3311600SE 34 6 SM8061010TP 36 29 WP0612066SD 36 7 SK3483200SE 34 7 SM8061212TP 14 18 WP0612066SP 26 19 SM1040870TP 8 36 SM8080812TP 22 23 WP0621026SP 22 13 SM1040950TP 8 7 SM8081752TP 22 24 WP0621026SP 30 10 SM4040655SP 4 47 SM9050813SE 14 36 WP0703516SP 18 12 SM4040655SP 14 42 SM9061003CP 26 21 WP0751576SD 18 10 SM4040855SP 4 34 SM9061250TP 26 24 WP0850002SP 28 4 SM4042501SC 36 31 SM9061403CP 12 55 WP0851216SC 18 6~8 SM4050855SP 14 43 SM9061403CP 24 13 WP1612616SE 32 15 SM4051405SE 32 23 SS2110920TP 24 17 WS0510002KN 32 21 SM4061255SP 10 46 SS6660712TP 8 43 WS0650389KP 4 29 SM6030402TP 20 58 SS7080310SP 8 19 SM6040502TP 28 33 SS7080510TP 24 1 SM6040560TP 28 22 SS7090410SP 2 19 SM6040560TP 36 17 SS7090620TP 8 3 SM6040600SP 4 33 SS7090910TP 28 34 SM6040600SP 12 59 SS7150940SP 2 23 SM6040650TP 4 5 SS8110310SP 8 29 SM6040650TP 30 6 SS8110410TP 8 24 SM6040800SP 8 4 SS8110410TP 18 26 SM6040800SP 10 35 SS8110422TP 8 35 SM6041200SP 24 6 SS8150410TP 8 27 SM6050800SP 4 21 SS8151570SP 26 13 SM6050800SP 16 61 SS8660612TP 8 45 SM6050800SP 28 23 SS8660612TP 24 21 SM6051400SP 12 51 SS8660942TP 24 22 SM6051600SP 18 32 SS8681412TP 16 60 SM6060550TP 22 21 SS9120643TP 14 2 SM6061002TP 18 37 SS9156830SP 36 6 SM6061150TP 26 4 SS9621413SP 2 4 SM6061602TN 28 27 TA1250406R0 6 49 SM6062450TP 22 12 TA2050406R0 4 15 SM6083042CH 4 19 WP0330501SB 18 34 SM7051460TP 12 50 WP0430800SD 6 48 SM7051460TP 20 54 WP0430800SD 30 5 SM8040612TP 22 7 WP0430801SE 36 32 SM8060552TP 16 57 WP0450801SP 10 36 SM8060610TP 4 25 WP0450846SP 12 54 SM8060612TP 4 42 WP0451016SP 36 36 INDEX - 4 jintex.in
