Page 1 — PARTS LIST
MODEL : MB-1373/MB-1377 List No : 1493-02 PARTS LIST Published:02/15/2019 jintex.in
Juki MB-1373 / MB-1377 (47 pages) — parts catalog
- Page 1 (cover): This is the cover page for a parts list for model MB-1373/MB-1377, list number 1493-02, published on February 15, 2019.
- Page 2 (toc): This page contains the table of contents for the parts catalog, listing various component sections and their corresponding page numbers.
- Page 3 (diagram): This page displays a diagram of the button clamp mechanism components, with numbered parts and their corresponding references.
- Page 4 (parts_list): This page lists components for the Button Clamp Mechanism, including part numbers, descriptions, and quantities.
- Page 5 (diagram): This page displays a diagram of arm and miscellaneous cover components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 6 (parts_list): This page lists miscellaneous cover components for an industrial sewing machine, including screws, springs, studs, nuts, and plates, with their corresponding part numbers and quantities.
- Page 7 (diagram): This page displays a diagram of arm and miscellaneous cover components for an industrial sewing machine, with numbered parts for identification.
- Page 8 (parts_list): This page lists components for arm and miscellaneous covers, including part numbers, descriptions, and quantities.
- Page 9 (diagram): This page displays a diagram of the looper shaft mechanism components, with various parts numbered for identification.
- Page 10 (parts_list): This page lists components for the Looper Shaft Mechanism, including part numbers, descriptions, and quantities.
- Page 11 (diagram): This page displays a diagram of nipper and thread tension parts components, with numbered parts for identification.
- Page 12 (parts_list): This page lists parts for the Nipper & Thread Tension components, including part numbers, descriptions, and quantities.
- Page 13 (diagram): This page displays a diagram of nipper and thread tension parts, with numbered components and their corresponding part numbers and descriptions.
- Page 14 (parts_list): This page lists parts for the Nipper & Thread Tension components, including part numbers, names, and quantities.
- Page 15 (diagram): This page displays a diagram of feed plate components, illustrating various parts with reference numbers and some part numbers.
- Page 16 (parts_list): This page lists components for the feed plate, including part numbers, names, and quantities.
- Page 17 (diagram): This page displays a diagram of feed plate components, illustrating various parts with reference numbers and some part numbers.
- Page 18 (parts_list): This page lists components for the feed plate, including part numbers, names, remarks, and quantities.
- Page 19 (diagram): This page displays a diagram of the button clamp lifter component, with numbered parts and their corresponding details.
- Page 20 (parts_list): This page lists components for the Button Clamp Lifter, including part numbers, descriptions, and quantities.
- Page 21 (diagram): This page displays a diagram of button clamp lifter components, with numbered parts and their corresponding references.
- Page 22 (parts_list): This page lists parts for the BUTTON CLAMP LIFTER COMPONENT, including part numbers, descriptions, and quantities.
- Page 23 (diagram): This page displays a diagram of needle driving pulley shaft components, with numbered parts and their corresponding references.
- Page 24 (parts_list): This page lists components for the Needle Driving Pulley Shaft, including part numbers, names, and quantities.
- Page 25 (diagram): This page displays a diagram of the needle bar driving mechanism components, with numbered parts indicated.
- Page 26 (parts_list): This page lists components for the needle bar driving mechanism, including screws, rods, bushings, and washers, with their respective part numbers and quantities.
- Page 27 (diagram): This page displays a diagram of the stop motion mechanism components, with numbered parts for identification.
- Page 28 (parts_list): This page lists components for the STOP MOTION MECHANISM, including part numbers, descriptions, and quantities.
- Page 29 (diagram): This page displays a diagram of stitch selecting parts components for an industrial sewing machine, with numbered parts for identification.
Page 2 — CONTENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | BUTTON CLAMP MECHANISM COMPONENTS | ||
| 3 | ARM & MISCELLANEOUS COVER COMPONENTS | ||
| 7 | LOOPER SHAFT MECHANISM COMPONENTS | ||
| 9 | NIPPER & THREAD TENSION PARTS COMPONENTS | ||
| 13 | FEED PLATE COMPONENTS | ||

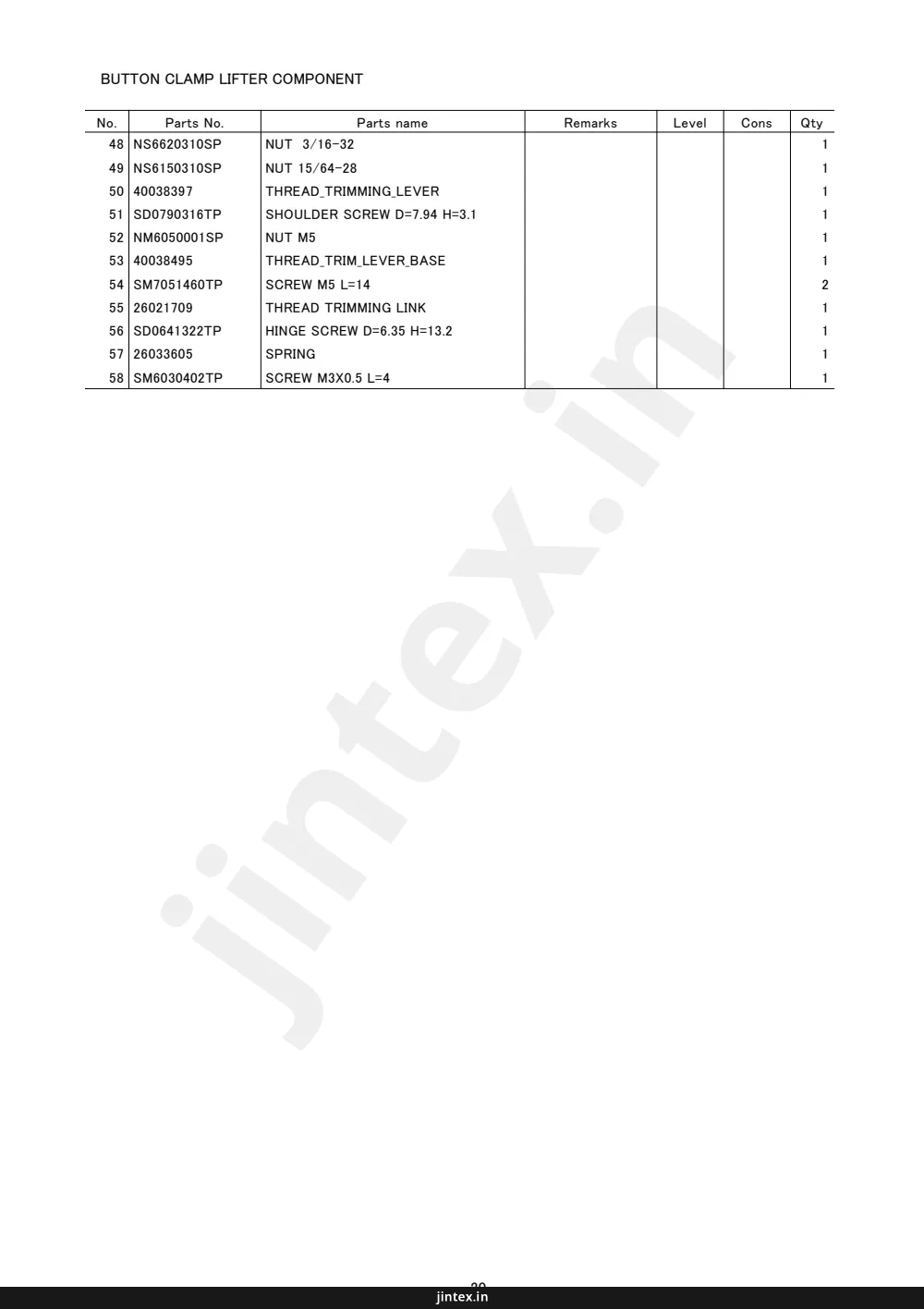

| 17 | BUTTON CLAMP LIFTER COMPONENT | ||
| 21 | NEEDLE DRIVING PULLEY SHAFT COMPONENTS | ||
| 23 | NEEDLE BAR DRIVING MECHANISM COMPONENTS | ||
| 25 | STOP MOTION MECHANISM COMPONENTS | ||
| 27 | STITCH SELECTING PARTS COMPONENTS | ||
| 29 | THREAD BIND NOTCH COMPONENTS (FOR MB-1377) | ||
| 31 | THREAD STAND COMPONENTS | ||
| 33 | TABLE & STAND COMPONENTS | ||
| 35 | ACCESSORIE PARTS COMPONENTS | ||
| 37 | SPECIAL ORDER SPEC COMPONENTS | ||
| 39 | SUBCLASS COMPONENTS(FOR MB-1373-11) | ||
| 41 | HOW TO MAKE USE OF THIS PARTS LIST |
CONTENTS BUTTON CLAMP MECHANISM COMPONENTS ARM & MISCELLANEOUS COVER COMPONENTS LOOPER SHAFT MECHANISM COMPONENTS NIPPER & THREAD TENSION PARTS COMPONENTS FEED PLATE COMPONENTS BUTTON CLAMP LIFTER COMPONENT NEEDLE DRIVING PULLEY SHAFT COMPONENTS NEEDLE BAR DRIVING MECHANISM COMPONENTS STOP MOTION MECHANISM COMPONENTS STITCH SELECTING PARTS COMPONENTS THREAD BIND NOTCH COMPONENTS (FOR MB-1377) THREAD STAND COMPONENTS TABLE & STAND COMPONENTS ACCESSORIE PARTS COMPONENTS SPECIAL ORDER SPEC COMPONENTS SUBCLASS COMPONENTS(FOR MB-1373-11) HOW TO MAKE USE OF THIS PARTS LIST TOC - 1 jintex.in 1 3 7 9 13 17 21 23 25 27 29 31 33 35 37 39 41
Page 3
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | BUTTON CLAMP MECHANISM COMPONENTS | ||
| 2 | |||
| 3 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 | |||
| 8 | |||
| 9 | |||
| 10 | |||
| 11 | |||
| 12 | |||
| 13 | |||
| 14 | |||
| 15 | |||
| 16 | |||
| 17 | |||
| 18 | |||
| 19 | |||
| 20 | |||
| 21 | |||
| 22 | |||
| 23 | |||
| 24 | |||
| 25 | |||
| 26 | |||
| 27 | |||
| 28 | |||
| 29 | |||
| 30 | |||
| 31 | |||
| 32 |
BUTTON CLAMP MECHANISM COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 jintex.in
Page 4 — BUTTON CLAMP MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 26026856 | PICK-UP DEVICE ASM. | 1 | |
| 40041058 | BUTTON CLAMP LIFTING HOOK | 1 | |
| SS7150940SP | SCREW 15/64-28 L=9 | 1 | |
| SS9621413SP | SCREW 3/16-32 L=13.5 | 2 | |
| WP0501016SD | WASHER 5X10.5X1 | 2 | |
| 26025502 | BUTTON CLAMP HOLDER | 1 | |
| SS7090410SP | SCREW 9/64-40 L= 3.5 | 1 | |
| SD0550301SP | HINGE SCREW D=5.5 H=3 | 1 | |
| 26025403 | JAW HOLDER | 1 | |
| SD0550181SP | HINGE SCREW D=5.50 H= 1.8 | 1 | |
| 26025809 | CLAMP SCREW A | 1 | |
| 26025700 | SNAP FASTENER CLAMP STOP LEVER | 1 | |
| 26026005 | NUT | 1 | |
| 26025908 | BUTTON CLAMP SLIDE | 1 | |
| 26026609 | BUTTON CLAMP STOP PIN | 2 | |
| 26026104 | BUTTON CLAMP LEVER JAW (LEFT) | 1 | |
| 26026203 | BUTTON HOLDING SPRING, LEFT | 1 | |
| SD0640391TP | HINGE SCREW D= 6.35 H= 3.9 | 2 | |
| SS7090410SP | SCREW 9/64-40 L= 3.5 | 1 | |
| 26026708 | BUTTON CLAMP SPRING | 1 | |
| 26026302 | BUTTON CLAMP LEVER JAW RIGHT | 1 | |
| 26026401 | BUTTON HOLDING SPRING, RIGHT | 1 | |
| SS7150940SP | SCREW 15/64-28 L=9 | 1 | |
| 40040938 | BUTTON CLAMP PRESSURE ADJUSTIN | 1 | |
| 26027102 | PRESSURE ADJUSTING SPRING | 1 | |
| NM6060001CP | NUT M6 | 2 | |
| 26027409 | FINGER GUARD | 1 | |
| 40041069 | SPRING HOLDING PLATE | 1 | |
| 26025205 | HINGE PIN | 1 | |
| B2541372000 | SNAP RING | 1 | |
| NM6060001CP | NUT M6 | 1 | |
| 40040937 | PICK-UP DEVICE STOPPER PIN | 1 |
BUTTON CLAMP MECHANISM COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 26026856 PICK-UP DEVICE ASM. 1 2 40041058 BUTTON CLAMP LIFTING HOOK * 1 3 SS7150940SP SCREW 15/64-28 L=9 * 1 4 SS9621413SP SCREW 3/16-32 L=13.5 * 2 5 WP0501016SD WASHER 5X10.5X1 * 2 6 26025502 BUTTON CLAMP HOLDER * 1 7 SS7090410SP SCREW 9/64-40 L= 3.5 * 1 8 SD0550301SP HINGE SCREW D=5.5 H=3 * 1 9 26025403 JAW HOLDER * 1 10 SD0550181SP HINGE SCREW D=5.50 H= 1.8 * 1 11 26025809 CLAMP SCREW A * 1 12 26025700 SNAP FASTENER CLAMP STOP LEVER * 1 13 26026005 NUT * 1 14 26025908 BUTTON CLAMP SLIDE * 1 15 26026609 BUTTON CLAMP STOP PIN * 2 16 26026104 BUTTON CLAMP LEVER JAW (LEFT) * 1 17 26026203 BUTTON HOLDING SPRING, LEFT * 1 18 SD0640391TP HINGE SCREW D= 6.35 H= 3.9 * 2 19 SS7090410SP SCREW 9/64-40 L= 3.5 * 1 20 26026708 BUTTON CLAMP SPRING * 1 21 26026302 BUTTON CLAMP LEVER JAW RIGHT * 1 22 26026401 BUTTON HOLDING SPRING, RIGHT * 1 23 SS7150940SP SCREW 15/64-28 L=9 * 1 24 40040938 BUTTON CLAMP PRESSURE ADJUSTIN 1 25 26027102 PRESSURE ADJUSTING SPRING 1 26 NM6060001CP NUT M6 2 27 26027409 FINGER GUARD 1 28 40041069 SPRING HOLDING PLATE 1 29 26025205 HINGE PIN 1 30 B2541372000 SNAP RING 1 31 NM6060001CP NUT M6 1 32 40040937 PICK-UP DEVICE STOPPER PIN 1
Page 5 — ARM & MISCELLANEOUS COVERS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | PLATE | |
| 2 | 2 | SCREW | |
| 3 | 3 | WASHER | |
| 4 | 4 | BOLT | |
| 5 | 5 | SPRING | |
| 6 | 6 | SPRING | |
| 7 | 7 | BRACKET | |
| 8 | 8 | SCREW | |
| 9 | 9 | WASHER | |
| 10 | 10 | SCREW | |
| 11 | 11 | BRACKET | |
| 12 | 12 | SCREW | |
| 13 | 13 | WASHER | |
| 14 | 14 | SCREW | |
| 15 | 15 | RING | |
| 16 | 16 | COVER | |
| 17 | 17 | LABEL | |
| 18 | 18 | BRACKET | |
| 19 | 19 | SCREW | |
| 20 | 20 | BRACKET | |
| 21 | 21 | SCREW | |
| 22 | 22 | PIN | |
| 23 | 23 | BOLT | |
| 24 | 24 | BRACKET | |
| 25 | 25 | SCREW | |
| 26 | 26 | COVER | |
| 27 | 27 | COVER | |
| 28 | 28 | COVER | |
| 29 | 29 | WASHER | |
| 30 | 30 | COVER | |
| 31 | 31 | BRACKET | |
| 32 | 32 | BRACKET | |
| 33 | 33 | SCREW | |
| 34 | 34 | SCREW | |
| 35 | 35 | COVER | |
| 36 | 36 | SCREW | |
| 37 | 37 | COVER | |
| 38 | 38 | COVER | |
| 39 | 39 | COVER | |
| 40 | 40 | SCREW | |
| 41 | 41 | BASE | |
| 42 | 42 | BRACKET | |
| 43 | 43 | PIN | |
| 44 | 44 | BRACKET | |
| 45 | 45 | BRACKET | |
| 46 | 46 | COVER | |
| 47 | 47 | SCREW | |
| 48 | 48 | WASHER | |
| 49 | 49 | RING | |
| 50 | 50 | BUSHING | |
| 51 | 51 | SCREW |
ARM & MISCELLANEOUS COVERS COMPONENTS 30 33 32 14 49 50 42 39 2 1 4 3 5 6 2 11 12 13 10 9 8 7 48 47 46 45 44 27 28 31 29 36 24 34 21 20 43 35 37 40 38 26 41 25 jintex.in
Page 6 — ARM & MISCELLANEOUS COVERS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40038426 | FACE_PLATE_COMPL. | 1 | |
| SM4040855SP | SCREW | 4 | |
| 26021600 | TENSION SPRING | 1 | |
| 26032003 | NIPPER RELEASING STUD | 1 | |
| SM6040650TP | SCREW | 1 | |
| 26031203 | THREAD GUIDE NO.4 | 1 | |
| 26031351 | THREAD TENSION NO.3 ASM. | 1 | |
| 26031302 | TENSION ADJUSTING BASE NO.3 | ||
| 26031401 | THREAD PRESSER PLATE | ||
| 26031500 | TENSION SPRING B | ||
| 26031609 | THREAD TENSION STUD | ||
| 26031708 | THREAD TENSION NUT | ||
| RE0200000K0 | E-RING 2 | ||
| SM4040855SP | SCREW | 8 | |
| TA2050406R0 | RUBBER PLUG | 1 | |
| 40040931 | SIDE_COVER_RIGHT | 1 | |
| CM301300001 | SAFETY LABEL | 1 | |
| 40040932 | SIDE_COVER_LEFT | 1 | |
| SM6083042CH | SCREW M8 L=30 | 4 | |
| 26033704 | STOPPER | 1 | |
| SM6050800SP | SCREW M5 L=8 | 2 | |
| 26011205 | GUIDE PIN | 2 | |
| 40038483 | SET_SCREW | 1 | |
| 40038431 | BED_OIL_SHIELD | 1 | |
| SM8060610TP | SCREW | 1 | |
| 40041022 | BUTTON_TRAY_ASM. | 1 | |
| 26022608 | CAM INDICATING PIN A | ||
| 26022707 | CAM INDICATING PIN B | ||
| WS0650389KP | SPRING WASHER 6.5X14.0X17 | 1 | |
| 40038425 | SIDE_COVER_LEFT | 1 | |
| 40038430 | LOOPER_COVER | 1 | |
| 40041067 | SIDE_COVER_SPRING | 2 | |
| SM6040600SP | SCREW M4 L=6 | 2 | |
| SM4040855SP | SCREW | 2 | |
| 40038173 | OIL_DRIP_FELT | 1 | |
| SD0600277TP | SHOULDER SCREW D=6 H=2.7 | 1 | |
| 40038424 | SIDE_COVER_RIGHT | 2 | |
| 40040936 | SIDE_COVER_HINGE_SHAFT_RIGHT | 1 | |
| 40040935 | SIDE_COVER_HINGE_SHAFT_LEFT | 1 | |
| SM8060612TP | SCREW M6 L=6 | 1 | |
| 40038446 | MACHINE_SUB_BASE | 1 | |
| SM8060612TP | SCREW M6 L=6 | 1 | |
| 40038471 | SUSPENSION_SCREW_B | 1 | |
| 40054729 | ASSY SAFETY PLATE | ||
| 40054730 | SAFETY PLATE INSTALLING BASE | ||
| 26037200 | SAFETY PLATE | ||
| SM4040655SP | SCREW M4 L=6 | 2 |
ARM & MISCELLANEOUS COVERS COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40038426 FACE_PLATE_COMPL. 1 2 SM4040855SP SCREW 4 3 26021600 TENSION SPRING 1 4 26032003 NIPPER RELEASING STUD 1 5 SM6040650TP SCREW 1 6 26031203 THREAD GUIDE NO.4 1 7 26031351 THREAD TENSION NO.3 ASM. 1 8 26031302 TENSION ADJUSTING BASE NO.3 * 1 9 26031401 THREAD PRESSER PLATE * 1 10 26031500 TENSION SPRING B * 1 11 26031609 THREAD TENSION STUD * 1 12 26031708 THREAD TENSION NUT * 2 13 RE0200000K0 E-RING 2 * 1 14 SM4040855SP SCREW 8 15 TA2050406R0 RUBBER PLUG 1 16 40040931 SIDE_COVER_RIGHT 1 17 CM301300001 SAFETY LABEL 1 18 40040932 SIDE_COVER_LEFT 1 19 SM6083042CH SCREW M8 L=30 4 20 26033704 STOPPER 1 21 SM6050800SP SCREW M5 L=8 2 22 26011205 GUIDE PIN 2 23 40038483 SET_SCREW 1 24 40038431 BED_OIL_SHIELD 1 25 SM8060610TP SCREW 1 26 40041022 BUTTON_TRAY_ASM. 1 27 26022608 CAM INDICATING PIN A SELECTIVE PARTS 2 28 26022707 CAM INDICATING PIN B SELECTIVE PARTS 2 29 WS0650389KP SPRING WASHER 6.5X14.0X17 1 30 40038425 SIDE_COVER_LEFT 1 31 40038430 LOOPER_COVER 1 32 40041067 SIDE_COVER_SPRING 2 33 SM6040600SP SCREW M4 L=6 2 34 SM4040855SP SCREW 2 35 40038173 OIL_DRIP_FELT 1 36 SD0600277TP SHOULDER SCREW D=6 H=2.7 1 37 40038424 SIDE_COVER_RIGHT 2 38 40040936 SIDE_COVER_HINGE_SHAFT_RIGHT 1 39 40040935 SIDE_COVER_HINGE_SHAFT_LEFT 1 40 SM8060612TP SCREW M6 L=6 1 41 40038446 MACHINE_SUB_BASE 1 42 SM8060612TP SCREW M6 L=6 1 43 40038471 SUSPENSION_SCREW_B 1 44 40054729 ASSY SAFETY PLATE * 1 45 40054730 SAFETY PLATE INSTALLING BASE * 1 46 26037200 SAFETY PLATE * 1 47 SM4040655SP SCREW M4 L=6 2 jintex.in
Page 7 — ARM & MISCELLANEOUS COVERS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | PLATE | |
| 2 | 2 | SCREW | |
| 3 | 3 | WASHER | |
| 4 | 4 | BOLT | |
| 5 | 5 | SPRING | |
| 6 | 6 | SPRING | |
| 7 | 7 | BRACKET | |
| 8 | 8 | SCREW | |
| 9 | 9 | WASHER | |
| 10 | 10 | SCREW | |
| 11 | 11 | BRACKET | |
| 12 | 12 | SCREW | |
| 13 | 13 | WASHER | |
| 14 | 14 | SCREW | |
| 15 | 15 | RING | |
| 16 | 16 | COVER | |
| 17 | 17 | LABEL | |
| 18 | 18 | BRACKET | |
| 19 | 19 | SCREW | |
| 20 | 20 | BRACKET | |
| 21 | 21 | SCREW | |
| 22 | 22 | PIN | |
| 23 | 23 | BOLT | |
| 24 | 24 | BRACKET | |
| 25 | 25 | SCREW | |
| 26 | 26 | SEAT | |
| 27 | 27 | COVER | |
| 28 | 28 | COVER | |
| 29 | 29 | WASHER | |
| 30 | 30 | COVER | |
| 31 | 31 | BRACKET | |
| 32 | 32 | BRACKET | |
| 33 | 33 | SCREW | |
| 34 | 34 | SCREW | |
| 35 | 35 | SEAT | |
| 36 | 36 | SCREW | |
| 37 | 37 | COVER | |
| 38 | 38 | COVER | |
| 39 | 39 | COVER | |
| 40 | 40 | SCREW | |
| 41 | 41 | BASE | |
| 42 | 42 | COVER | |
| 43 | 43 | PIN | |
| 44 | 44 | BRACKET | |
| 45 | 45 | BRACKET | |
| 46 | 46 | COVER | |
| 47 | 47 | SCREW | |
| 48 | 48 | SCREW | |
| 49 | 49 | WASHER | |
| 50 | 50 | BUSHING | |
| 51 | 51 | WASHER |
ARM & MISCELLANEOUS COVERS COMPONENTS 30 33 32 14 49 50 16 23 22 19 14 18 15 39 42 1 2 4 3 5 6 2 51 27 28 32 33 17 37 38 40 31 29 36 24 34 48 45 47 46 44 21 20 43 35 26 41 25 jintex.in
Page 8 — ARM & MISCELLANEOUS COVERS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| WP0430800SD | WASHER M4 | 2 | |
| TA1250406R0 | RUBBER PLUG D=12.5 L=4 | 2 | |
| PS0500102KH | SPRING PIN 5.0X10 | 1 | |
| RE0320000K0 | E-RING 3.2 | 1 |
ARM & MISCELLANEOUS COVERS COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 WP0430800SD WASHER M4 * 2 49 TA1250406R0 RUBBER PLUG D=12.5 L=4 2 50 PS0500102KH SPRING PIN 5.0X10 1 51 RE0320000K0 E-RING 3.2 1
Page 9 — LOOPER SHAFT MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 4 | 4 | SCREW | |
| 9 | 9 | LOOPER SHAFT | |
| 5 | 5 | BRACKET | |
| 6 | 6 | LOOPER SHAFT GUIDE | |
| 7 | 7 | SCREW | |
| 8 | 8 | BASE | |
| 10 | 10 | CONNECTING ROD | |
| 11 | 11 | NUT | |
| 12 | 12 | SCREW | |
| 36 | 36 | PLATE | |
| 15 | 15 | SCREW | |
| 14 | 14 | BRACKET | |
| 20 | 20 | LEVER | |
| 21 | 21 | NUT | |
| 16 | 16 | SPRING | |
| 17 | 17 | SCREW | |
| 18 | 18 | SCREW | |
| 19 | 19 | NUT | |
| 37 | 37 | GEAR | |
| 33 | 33 | WASHER | |
| 35 | 35 | COLLAR | |
| 38 | 38 | BEARING | |
| 31 | 31 | SHAFT | |
| 29 | 29 | BEARING | |
| 22 | 22 | SHAFT | |
| 24 | 24 | COLLAR | |
| 1 | 1 | SPRING | |
| 3 | 3 | SPRING | |
| 2 | 2 | BEARING | |
| 23 | 23 | COLLAR | |
| 26 | 26 | SHAFT | |
| 27 | 27 | COLLAR | |
| 25 | 25 | BEARING | |
| 28 | 28 | BEARING | |
| 30 | 30 | BEARING | |
| 34 | 34 | COLLAR | |
| 32 | 32 | LOOPER SHAFT | |
| 46 | 46 | LOOPER | |
| 13 | 13 | COLLAR | |
| 43 | 43 | COLLAR | |
| 42 | 42 | BEARING | |
| 45 | 45 | BEARING | |
| 41 | 41 | COLLAR | |
| 39 | 39 | WASHER | |
| 40 | 40 | BEARING | |
| 44 | 44 | GEAR |
LOOPER SHAFT MECHANISM COMPONENTS 4 9 5 6 7 8 10 11 12 36 15 14 20 21 37 33 35 38 38 31 29 22 24 1 3 2 23 26 27 25 30 34 35 32 46 13 43 42 45 41 39 40 44 45 jintex.in
Page 10 — LOOPER SHAFT MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| CS079072ATH | THRUST COLLAR ASM. | 1 | |
| CS0790721TH | THRUST COLLAR D=7.94 W=7 | ||
| SS7090620TP | SCREW 9/64-40 L=6.1 | ||
| SM6040800SP | SCREW | ||
| 40038484 | NEEDLE_GUARD | ||
| 26013607 | POSITIONING FINGER YOKE SLIDE | ||
| SM1040950TP | SCREW M4 L=9 | 2 | |
| 26013409 | YOKE SLIDE INSERT | ||
| 26013805 | YOKE SLIDE | ||
| 40038400 | ASSY_LOOP_POSITIONING_FINGER_LEVER | ||
| 40038403 | LOOP_POSITIONING_FINGER_CAM_ROLL | ||
| SD0640246SP | HINGE SCREW D=6.35 H=2.4 | ||
| SM8061010TP | SCREW | ||
| B12413770B0 | THROAT PLATE SET | ||
| B12413770A0 | THROAT PLATE ASM. | ||
| B27033770A0 | THREAD BIND PLATE ASM. | ||
| B2702377000 | THREAD BIND SUPPORT PLATE | ||
| B2410373000 | COUNTER KNIFE | ||
| SS7080310SP | SCREW 1/8-44 L=3.0 | ||
| B24063730A0 | MOVING KNIFE ASM. | ||
| SD0600095TH | HINGE SCREW D=6 H=0.85 | ||
| 40041106 | ASSY_LOOP_POSITIONING_FINGER_CAM | ||
| 26003103 | LOOP POSITIONING FINGER CAM | ||
| SS8110410TP | SCREW 11/64-40 L=3.5 | ||
| 40038482 | ASSY_CAM_AND_LOOPER_SLEEVE | ||
| 26015503 | CAM AND LOOPER SLEEVE | ||
| SS8150410TP | SCREW 15/64-28 L=4.0 | ||
| 26015404 | LOOP POSITIONING FINGER CAM | ||
| SS8110310SP | SCREW 11/64-40 L=2.8 | ||
| 26015305 | LOOPER SHAFT BUSHING FRONT | ||
| SM8061010TP | SCREW | ||
| 40038111 | LOOPER SHAFT | ||
| 40098872 | COLLER ASSY | ||
| 40097991 | COLLER | ||
| SS8110422TP | SCREW 11/64-40 L=4 | ||
| SM1040870TP | SCREW | ||
| B10042700A0 | LOOPER SHAFT DRIVEN GEAR ASM. | ||
| SS860612TP | SCREW 1/4-40 L=6 | ||
| B1215372A00 | THRUST BALL BEARING | ||
| 26013102 | LOOPER SHAFT BUSHING REAR | ||
| B121373NA0 | WORM WHEEL ASM. | ||
| B1221373N00 | WORM | ||
| SS660712TP | SCREW 1/4-40 L=7.0 | ||
| B1220372000 | CAM SHAFT DRIVEN GEAR | ||
| SS860612TP | SCREW 1/4-40 L=6 | ||
| B1239372000 | LOOPER |
LOOPER SHAFT MECHANISM COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 CS079072ATH THRUST COLLAR ASM. 1 2 CS0790721TH THRUST COLLAR D=7.94 W=7 * 1 3 SS7090620TP SCREW 9/64-40 L=6.1 * 1 4 SM6040800SP SCREW 1 5 40038484 NEEDLE_GUARD 1 6 26013607 POSITIONING FINGER YOKE SLIDE 1 7 SM1040950TP SCREW M4 L=9 2 8 26013409 YOKE SLIDE INSERT 1 9 26013805 YOKE SLIDE 1 10 40038400 ASSY_LOOP_POSITIONING_FINGER_LEVER 1 11 40038403 LOOP_POSITIONING_FINGER_CAM_ROLL 1 12 SD0640246SP HINGE SCREW D=6.35 H=2.4 * 1 13 SM8061010TP SCREW 1 14 B12413770B0 THROAT PLATE SET 1 15 B12413770A0 THROAT PLATE ASM. * 1 16 B27033770A0 THREAD BIND PLATE ASM. * 1 17 B2702377000 THREAD BIND SUPPORT PLATE * 1 18 B2410373000 COUNTER KNIFE * 1 19 SS7080310SP SCREW 1/8-44 L=3.0 * 2 20 B24063730A0 MOVING KNIFE ASM. * 1 21 SD0600095TH HINGE SCREW D=6 H=0.85 * 1 22 40041106 ASSY_LOOP_POSITIONING_FINGER_CAM 1 23 26003103 LOOP POSITIONING FINGER CAM 1 24 SS8110410TP SCREW 11/64-40 L=3.5 * 2 25 40038482 ASSY_CAM_AND_LOOPER_SLEEVE 1 26 26015503 CAM AND LOOPER SLEEVE * 1 27 SS8150410TP SCREW 15/64-28 L=4.0 * 2 28 26015404 LOOP POSITIONING FINGER CAM 1 29 SS8110310SP SCREW 11/64-40 L=2.8 1 30 26015305 LOOPER SHAFT BUSHING FRONT 2 31 SM8061010TP SCREW 1 32 40038111 LOOPER SHAFT 1 33 40098872 COLLER ASSY 1 34 40097991 COLLER 1 35 SS8110422TP SCREW 11/64-40 L=4 * 1 36 SM1040870TP SCREW * 2 37 B10042700A0 LOOPER SHAFT DRIVEN GEAR ASM. 3 38 SS860612TP SCREW 1/4-40 L=6 * 1 39 B1215372A00 THRUST BALL BEARING 2 40 26013102 LOOPER SHAFT BUSHING REAR 1 41 B121373NA0 WORM WHEEL ASM. 1 42 B1221373N00 WORM * 1 43 SS660712TP SCREW 1/4-40 L=7.0 * 2 44 B1220372000 CAM SHAFT DRIVEN GEAR * 1 45 SS860612TP SCREW 1/4-40 L=6 * 2 46 B1239372000 LOOPER 1 jintex.in
Page 11 — NIPPER & THREAD TENSION PARTS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SCREW | ||
| 2 | BRACKET | ||
| 3 | SCREW | ||
| 4 | NUT | ||
| 5 | PIN | ||
| 6 | LEVER | ||
| 7 | PIN | ||
| 8 | SPRING | ||
| 9 | PIN | ||
| 10 | SCREW | ||
| 11 | SPRING | ||
| 12 | BLOCK | ||
| 13 | SCREW | ||
| 14 | SPRING | ||
| 15 | PIN | ||
| 16 | BRACKET | ||
| 17 | PIN | ||
| 18 | PIN | ||
| 19 | SCREW | ||
| 20 | WASHER | ||
| 21 | BRACKET | ||
| 22 | BRACKET | ||
| 23 | ROD | ||
| 24 | SPRING | ||
| 25 | CAP | ||
| 26 | CAP | ||
| 27 | WASHER | ||
| 28 | SPRING | ||
| 29 | SPRING | ||
| 30 | SPRING | ||
| 31 | SHAFT | ||
| 32 | SHAFT | ||
| 33 | NUT | ||
| 34 | PIN | ||
| 35 | SCREW | ||
| 36 | BRACKET | ||
| 37 | BRACKET | ||
| 38 | CAP | ||
| 39 | SPRING | ||
| 40 | SPRING | ||
| 41 | SHAFT | ||
| 42 | SHAFT | ||
| 43 | PIN | ||
| 44 | PLATE | ||
| 45 | NUT | ||
| 46 | SCREW | ||
| 47 | BRACKET | ||
| 48 | PIN | ||
| 49 | WASHER | ||
| 50 | SCREW | ||
| 51 | SCREW | ||
| 52 | SPRING | ||
| 53 | PIN | ||
| 54 | NUT | ||
| 55 | SCREW | ||
| 56 | NUT | ||
| 57 | BRACKET | ||
| 58 | BRACKET | ||
| 59 | SCREW | ||
| 60 | WASHER |
NIPPER & THREAD TENSION PARTS COMPONENTS 26 25 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 2 57 58 59 50 49 51 48 55 56 47 46 44 1 3 4 5 6 7 8 9 10 11 12 13 14 17 52 53 15 54 45 16 18 19 20 21 22 23 jintex.in
Page 12 — NIPPER & THREAD TENSION PARTS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM4061255SP | SCREW M6 L=12 | 1 | |
| 40038205 | NEEDLE_BAR_GUARD | 1 | |
| SD0791276TP | SHOULDER SCREW | 1 | |
| NM6030001SN | NUT | 2 | |
| 26020602 | NUT | 1 | |
| 26000950 | NIPPER COMPL. | 1 | |
| 26020503 | LOOPER SHAFT BUSHING REAR | 1 | |
| 40041077 | NIPPER_BAR_BLOCK_SPRING | 1 | |
| 40038492 | NIPPER_BAR_BLOCK_SPRING_SCREW | 1 | |
| SD0402001TP | HINGE SCREW D=4 H=20 | 1 | |
| 26020404 | NIPPER SLIDE BLOCK SPRING | 1 | |
| 26020305 | NIPPER BLOCK | 1 | |
| SD0791506TP | SHOULDER SCREW D=7.94 H=15 | 1 | |
| 40038476 | THREAD_PULL_OFF_LEVER_ASM | 1 | |
| SD0790806TP | SHOULDER SCREW D=7.94 H=8 | 1 | |
| 26000455 | NIPPER BAR ACTUATING LEVER ASM | 1 | |
| 26020206 | THREAD GUIDE PIN | 2 | |
| 26019406 | NIPPER BAR BLOCK SPRING PIN | 1 | |
| SM6040800SP | SCREW | 1 | |
| WP0450801SP | WASHER | 1 | |
| 26019307 | NIPPER BAR BLOCK | 1 | |
| 26019208 | TENSION LEVER ROCKING PIECE | 2 | |
| 40038479 | NIPPER BAR | 1 | |
| SM6040800SP | SCREW | 1 | |
| 40038208 | TENSION_POST_ASM NO.2 | 1 | |
| 40038214 | TENSION_NUT | 1 | |
| 22921407 | ROTATION STOPPER | 1 | |
| 26019901 | THREAD TENSION SPRING | 1 | |
| 26020107 | THREAD TENSION DISK PRESSER | 2 | |
| 26005207 | THREAD_TENSION_DISK_NO.1 | 1 | |
| 40038210 | TENSION_POST_NO.2 | 1 | |
| 26019802 | TENSION_RELEASE_PIN | 1 | |
| NM6060001CP | NUT M6 | 1 | |
| PS0300162KH | SPRING PIN 3X16 | 1 | |
| SM6040800SP | SCREW | 1 | |
| WP0450801SP | WASHER | 1 | |
| 26019109 | THREAD TENSION RELEASING LEVER | 1 | |
| 40038404 | ASSY_THREAD_TENSION_NO.1 | 1 | |
| 40038408 | THREAD_TENSION_NUT | 1 | |
| 26005306 | FIRST THREAD TENSION SPRING | 1 | |
| 26005207 | THREAD_TENSION_DISK_NO.1 | 2 | |
| 40038405 | THREAD_TENSION_POST_NO.1 | 1 | |
| 26019505 | THREAD GUIDE | 1 | |
| 26021402 | THREAD GUIDE NO.1 | 1 | |
| NM6040002SN | NUT M4 | 1 | |
| SM4061255SP | SCREW M6 L=12 | 1 | |
| 40038396 | NIPPER_BAR_BEARING_BLOCK | 1 |
NIPPER & THREAD TENSION PARTS COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 SM4061255SP SCREW M6 L=12 1 2 40038205 NEEDLE_BAR_GUARD 1 3 SD0791276TP SHOULDER SCREW 1 4 NM6030001SN NUT 2 5 26020602 NUT 1 6 26000950 NIPPER COMPL. 1 7 26020503 LOOPER SHAFT BUSHING REAR 1 8 40041077 NIPPER_BAR_BLOCK_SPRING 1 9 40038492 NIPPER_BAR_BLOCK_SPRING_SCREW 1 10 SD0402001TP HINGE SCREW D=4 H=20 1 11 26020404 NIPPER SLIDE BLOCK SPRING 1 12 26020305 NIPPER BLOCK 1 13 SD0791506TP SHOULDER SCREW D=7.94 H=15 1 14 40038476 THREAD_PULL_OFF_LEVER_ASM 1 15 SD0790806TP SHOULDER SCREW D=7.94 H=8 1 16 26000455 NIPPER BAR ACTUATING LEVER ASM 1 17 26020206 THREAD GUIDE PIN 2 18 26019406 NIPPER BAR BLOCK SPRING PIN 1 19 SM6040800SP SCREW 1 20 WP0450801SP WASHER 1 21 26019307 NIPPER BAR BLOCK 1 22 26019208 TENSION LEVER ROCKING PIECE 2 23 40038479 NIPPER BAR 1 24 SM6040800SP SCREW 1 25 40038208 TENSION_POST_ASM NO.2 1 26 40038214 TENSION_NUT 1 27 22921407 ROTATION STOPPER 1 28 26019901 THREAD TENSION SPRING 1 29 26020107 THREAD TENSION DISK PRESSER 2 30 26005207 THREAD_TENSION_DISK_NO.1 1 31 40038210 TENSION_POST_NO.2 1 32 26019802 TENSION_RELEASE_PIN 1 33 NM6060001CP NUT M6 1 34 PS0300162KH SPRING PIN 3X16 1 35 SM6040800SP SCREW 1 36 WP0450801SP WASHER 1 37 26019109 THREAD TENSION RELEASING LEVER 1 38 40038404 ASSY_THREAD_TENSION_NO.1 1 39 40038408 THREAD_TENSION_NUT 1 40 26005306 FIRST THREAD TENSION SPRING 1 41 26005207 THREAD_TENSION_DISK_NO.1 2 42 40038405 THREAD_TENSION_POST_NO.1 1 43 26019505 THREAD GUIDE 1 44 26021402 THREAD GUIDE NO.1 1 45 NM6040002SN NUT M4 1 46 SM4061255SP SCREW M6 L=12 1 47 40038396 NIPPER_BAR_BEARING_BLOCK 1 jintex.in
Page 13 — NIPPER & THREAD TENSION PARTS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | SCREW | |
| 2 | 2 | BRACKET | |
| 3 | 3 | PIN | |
| 4 | 4 | NUT | |
| 5 | 5 | SLEEVE | |
| 6 | 6 | LEVER | |
| 7 | 7 | PIN | |
| 8 | 8 | SPRING | |
| 9 | 9 | PIN | |
| 10 | 10 | SCREW | |
| 11 | 11 | SPRING | |
| 12 | 12 | BLOCK | |
| 13 | 13 | PIN | |
| 14 | 14 | SPRING | |
| 15 | 15 | SHAFT | |
| 16 | 16 | BRACKET | |
| 17 | 17 | PIN | |
| 18 | 18 | SPRING | |
| 19 | 19 | WASHER | |
| 20 | 20 | NUT | |
| 21 | 21 | BRACKET | |
| 22 | 22 | BRACKET | |
| 23 | 23 | SHAFT | |
| 24 | 24 | SPRING | |
| 25 | 25 | CAP | |
| 26 | 26 | CAP | |
| 27 | 27 | WASHER | |
| 28 | 28 | SPRING | |
| 29 | 29 | SPRING | |
| 30 | 30 | CAP | |
| 31 | 31 | SHAFT | |
| 32 | 32 | SHAFT | |
| 33 | 33 | NUT | |
| 34 | 34 | PIN | |
| 35 | 35 | SCREW | |
| 36 | 36 | WASHER | |
| 37 | 37 | BRACKET | |
| 38 | 38 | CAP | |
| 39 | 39 | CAP | |
| 40 | 40 | SPRING | |
| 41 | 41 | SHAFT | |
| 42 | 42 | SHAFT | |
| 43 | 43 | PIN | |
| 44 | 44 | BRACKET | |
| 45 | 45 | NUT | |
| 46 | 46 | SCREW | |
| 47 | 47 | BRACKET | |
| 48 | 48 | SHAFT | |
| 49 | 49 | WASHER | |
| 50 | 50 | SCREW | |
| 51 | 51 | SCREW | |
| 52 | 52 | SPRING | |
| 53 | 53 | SHAFT | |
| 54 | 54 | NUT | |
| 55 | 55 | BOLT | |
| 56 | 56 | NUT | |
| 57 | 57 | BRACKET | |
| 58 | 58 | BRACKET | |
| 59 | 59 | SCREW |
NIPPER & THREAD TENSION PARTS COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 53 54 55 56 57 58 59 jintex.in
Page 14 — NIPPER & THREAD TENSION PARTS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40038206 | ADJUSTING_SCREW | 1 | |
| WP0550800SP | WASHER 5.5X10X0.8 | 1 | |
| SM7051460TP | SCREW M5 L=14 | 1 | |
| SM6051400SP | SCREW | 1 | |
| 26019000 | THREAD TENSION SPRING | 1 | |
| 40038207 | NIPPER_BAR_SPRING_SCREW | 1 | |
| WP0450846SP | WASHER | 1 | |
| SM9061403CP | SCREW M6 L=14 | 1 | |
| NM6060001SE | NUT M6 | 1 | |
| 26021105 | THREAD GUIDE | 1 | |
| 40038320 | LEVER | 1 | |
| SM6040600SP | SCREW M4 L=6 | 1 | |
| WP0501016SD | WASHER 5X10.5X1 | 1 |
NIPPER & THREAD TENSION PARTS COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 40038206 ADJUSTING_SCREW 1 49 WP0550800SP WASHER 5.5X10X0.8 1 50 SM7051460TP SCREW M5 L=14 1 51 SM6051400SP SCREW 1 52 26019000 THREAD TENSION SPRING 1 53 40038207 NIPPER_BAR_SPRING_SCREW 1 54 WP0450846SP WASHER 1 55 SM9061403CP SCREW M6 L=14 1 56 NM6060001SE NUT M6 1 57 26021105 THREAD GUIDE 1 58 40038320 LEVER 1 59 SM6040600SP SCREW M4 L=6 1 60 WP0501016SD WASHER 5X10.5X1 1 jintex.in
Page 15 — FEED PLATE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 66 | 66 | PIN | |
| 63 | 63 | PLATE | |
| 64 | 64 | PIN | |
| 61 | 61 | SCREW | |
| 37-38 | 37-38 | BRACKET | |
| 44 | 44 | BRACKET | |
| 43 | 43 | NUT | |
| 39-40 | 39-40 | COVER | |
| 65 | 65 | PIN | |
| 42 | 42 | SCREW | |
| 41 | 41 | ARM | |
| 35 | 35 | COVER | |
| 36 | 36 | SCREW | |
| 45 | 45 | ARM | |
| 26~28 | 26~28 | BRACKET | |
| 18 | 18 | SPRING | |
| 14 | 14 | POST | |
| 15 | 15 | BRACKET | |
| 16 | 16 | ARM | |
| 13 | 13 | PIN | |
| 17 | 17 | SCREW | |
| 11 | 11 | PLATE | |
| 25 | 25 | SCREW | |
| 6 | 6 | NUT | |
| 5 | 5 | BUSHING | |
| 8 | 8 | BRACKET | |
| 7 | 7 | BRACKET | |
| 4 | 4 | PLATE | |
| 3 | 3 | PLATE | |
| 2 | 2 | SCREW | |
| 30 | 30 | WASHER | |
| 1-29 | 1-29 | PLATE | |
| 19 | 19 | BRACKET | |
| 20 | 20 | PLATE | |
| 53 | 53 | SCREW | |
| 22 | 22 | SCREW | |
| 21 | 21 | PLATE | |
| 24 | 24 | PLATE | |
| 13 | 13 | PIN | |
| 17 | 17 | SCREW | |
| 18 | 18 | SPRING | |
| 26~28 | 26~28 | BRACKET | |
| 18 | 18 | SPRING | |
| 32 | 32 | BRACKET | |
| 31 | 31 | BRACKET | |
| 33 | 33 | ARM | |
| 13 | 13 | PIN | |
| 34 | 34 | PLATE | |
| 17 | 17 | SCREW | |
| 13 | 13 | PIN | |
| 60 | 60 | SPRING | |
| 48-49 | 48-49 | PULLEY | |
| 47 | 47 | SHAFT | |
| 50 | 50 | COLLAR | |
| 23 | 23 | SCREW | |
| 51 | 51 | PULLEY | |
| 60 | 60 | SPRING | |
| 58 | 58 | WASHER | |
| 52 | 52 | PULLEY | |
| 54 | 54 | SPRING | |
| 55 | 55 | COLLAR | |
| 57 | 57 | PIN | |
| 56 | 56 | COLLAR | |
| 59 | 59 | BUSHING | |
| 54 | 54 | SPRING |
FEED PLATE COMPONENTS MB-1373 MB-1377 jintex.in
Page 16 — FEED PLATE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B2529373000 | FEED PLATE, SMALL BUTTON | 1 | |
| SS9120643TP | SCREW 3/16-28 L=6 | 2 | |
| 26024604 | INDICATOR PIN BEARING BLOCK | 1 | |
| 26024901 | CROSSWISE FEED INDICATOR | 1 | |
| 26024703 | CROSSWISE FEED INDICATOR PIN | 1 | |
| NM6060001CP | NUT M6 | 1 | |
| 40038498 | SLIDE_PLATE_CONNECTING_LINK | 1 | |
| SD0640481SP | HINGE SCREW D= 6.35 H= 4.8 | 1 | |
| 40038499 | STUD | 1 | |
| 26024208 | INTERMEDI CONNECTING LINK | 1 | |
| 40041052 | CROSSWISE_FEED_GRADVATED_PLATE | 1 | |
| NM6050001SP | NUT M5 | 1 | |
| 26023200 | CAM ROLL | 2 | |
| 40041030 | LENGTHWISE_FEED_LEVER_ARM_1373 | 1 | |
| 40038439 | LENGTHWISE_FEED_LEVER_SLIDE | 1 | |
| 40041029 | FEED_LEVER_1373 | 1 | |
| 40038496 | CAM_ROLL_SCREW_STUD | 1 | |
| SM8061212TP | SCREW M6X12 | 1 | |
| 26025106 | SPACER PLATE | 2 | |
| 40038463 | FEED_PLATE | 1 | |
| 26024208 | INTERMEDI CONNECTING LINK | 1 | |
| SD0640481SP | HINGE SCREW D= 6.35 H= 4.8 | 1 | |
| 40098330 | HINGE_SCREW_FOW_CROSSWISE_FEED | 1 | |
| 40038453 | CROSSWISE_FEED_LEVER | 1 | |
| B1161227000 | RIVET | 2 | |
| 40041055 | FEED_STUD_A | ||
| 40041056 | FEED_STUD_B | ||
| 40041057 | FEED_STUD_C | ||
| D2529373B00A | FEED PLATE,SMALLBUTTON | 1 | |
| WP0501016SD | WASHER 5X10.5X1 | 2 | |
| 40038469 | LENGTHWISE_FEED_LEVER_ARM | ||
| 40038439 | LENGTHWISE_FEED_LEVER_SLIDE | ||
| 40038432 | FEED_LEVER_L | ||
| 40038433 | FEED_LEVER_R | ||
| 40041061 | FEED_KNOB_GUIDE_PLATE | 2 | |
| SM9050813SE | SCREW M5X0.8 L=8 | 1 | |
| 40042279 | PLATE_BASE_(MB-1373) | ||
| 40038436 | PLATE_BASE_(MB-1377) | ||
| 40038313 | GRADUATE_PLATE(MB-1373) | ||
| 40038314 | GRADUATE_PLATE(MB-1377) | ||
| 40042281 | HANDLE_AND_INDICATOR_SPRING | 1 | |
| SM4040655SP | SCREW M4 L=6 | 2 | |
| SM4050855SP | SCREW | 2 | |
| 40038442 | KNOB | 1 | |
| 40040965 | INDICATOR_SPRING_CONNECTING_LINK | 1 | |
| SD0640976TP | SHOULDER SCREW D=6.35 H=9.7 | 2 | |
| 40038444 | CAM_SHAFT | 1 |
FEED PLATE COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 B2529373000 FEED PLATE, SMALL BUTTON 1 2 SS9120643TP SCREW 3/16-28 L=6 2 3 26024604 INDICATOR PIN BEARING BLOCK 1 4 26024901 CROSSWISE FEED INDICATOR 1 5 26024703 CROSSWISE FEED INDICATOR PIN 1 6 NM6060001CP NUT M6 1 7 40038498 SLIDE_PLATE_CONNECTING_LINK 1 8 SD0640481SP HINGE SCREW D= 6.35 H= 4.8 1 9 40038499 STUD 1 10 26024208 INTERMEDI CONNECTING LINK 1 11 40041052 CROSSWISE_FEED_GRADVATED_PLATE 1 12 NM6050001SP NUT M5 1 13 26023200 CAM ROLL 2 14 40041030 LENGTHWISE_FEED_LEVER_ARM_1373 1 15 40038439 LENGTHWISE_FEED_LEVER_SLIDE 1 16 40041029 FEED_LEVER_1373 1 17 40038496 CAM_ROLL_SCREW_STUD 1 18 SM8061212TP SCREW M6X12 1 19 26025106 SPACER PLATE 2 20 40038463 FEED_PLATE 1 21 26024208 INTERMEDI CONNECTING LINK 1 22 SD0640481SP HINGE SCREW D= 6.35 H= 4.8 1 23 40098330 HINGE_SCREW_FOW_CROSSWISE_FEED 1 24 40038453 CROSSWISE_FEED_LEVER 1 25 B1161227000 RIVET 2 26 40041055 FEED_STUD_A SELECTIVE PARTS 1 27 40041056 FEED_STUD_B SELECTIVE PARTS 1 28 40041057 FEED_STUD_C SELECTIVE PARTS 1 29 D2529373B00A FEED PLATE,SMALLBUTTON 1 30 WP0501016SD WASHER 5X10.5X1 2 31 40038469 LENGTHWISE_FEED_LEVER_ARM FOR MB-1377 1 32 40038439 LENGTHWISE_FEED_LEVER_SLIDE 1 33 40038432 FEED_LEVER_L 1 34 40038433 FEED_LEVER_R 1 35 40041061 FEED_KNOB_GUIDE_PLATE 2 36 SM9050813SE SCREW M5X0.8 L=8 1 37 40042279 PLATE_BASE_(MB-1373) FOR MB-1377 1 38 40038436 PLATE_BASE_(MB-1377) FOR MB-1377 1 39 40038313 GRADUATE_PLATE(MB-1373) FOR MB-1373 1 40 40038314 GRADUATE_PLATE(MB-1377) FOR MB-1377 1 41 40042281 HANDLE_AND_INDICATOR_SPRING 1 42 SM4040655SP SCREW M4 L=6 2 43 SM4050855SP SCREW 2 44 40038442 KNOB 1 45 40040965 INDICATOR_SPRING_CONNECTING_LINK 1 46 SD0640976TP SHOULDER SCREW D=6.35 H=9.7 2 47 40038444 CAM_SHAFT 1 jintex.in
Page 17
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 66 | PIN | ||
| 63 | FEED PLATE | ||
| 64 | PIN | ||
| 61 | SCREW | ||
| 37-38 | BRACKET | ||
| 44 | BRACKET | ||
| 43 | SCREW | ||
| 39-40 | COVER | ||
| 65 | PIN | ||
| 42 | SCREW | ||
| 41 | LINK | ||
| 35 | COVER | ||
| 36 | SCREW | ||
| 45 | LINK | ||
| 26~28 | SCREW | ||
| 18 | SPRING | ||
| 14 | BRACKET | ||
| 15 | BRACKET | ||
| 13 | PIN | ||
| 16 | LINK | ||
| 17 | SCREW | ||
| 11 | PLATE | ||
| 25 | SCREW | ||
| 6 | NUT | ||
| 5 | WASHER | ||
| 8 | SCREW | ||
| 7 | PLATE | ||
| 4 | BRACKET | ||
| 3 | BRACKET | ||
| 2 | SCREW | ||
| 30 | WASHER | ||
| 1-29 | BRACKET | ||
| 10 | BRACKET | ||
| 9 | BRACKET | ||
| 22 | SCREW | ||
| 53 | SCREW | ||
| 21 | BRACKET | ||
| 19 | BRACKET | ||
| 20 | PLATE | ||
| 24 | BRACKET | ||
| 23 | SCREW | ||
| 48-49 | PULLEY | ||
| 60 | SPRING | ||
| 47 | SHAFT | ||
| 50 | COLLAR | ||
| 51 | PULLEY | ||
| 52 | PULLEY | ||
| 54 | SPRING | ||
| 55 | BRACKET | ||
| 57 | SCREW | ||
| 56 | COLLAR | ||
| 59 | COLLAR | ||
| 58 | WASHER | ||
| 31 | BRACKET | ||
| 32 | BRACKET | ||
| 33 | LINK | ||
| 34 | BRACKET |
FEED PLATE COMPONENTS MB-1373 MB-1377
Page 18 — FEED PLATE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40041032 | LENGTHWISE_FEED_CAM(X) | ||
| B2506373000A | LONGITUDINAL_FEED_CAM | ||
| 26022509 | CAM SHAFT BUSHING.LEFT | ||
| 40041033 | LATERAL_FEED_CAM | ||
| 40041025 | LONGITUDINAL_FEED_CAM_A | ||
| SD0640486TP | SHOULDER SCREW D=6.35 H=4.8 | ||
| SS8681412TP | SCREW 9/32-28 L=13.5 | ||
| 40040964 | THRUST_COLLAR ASSY | ||
| 40040961 | THRUST_COLLAR | ||
| SM8060552TP | SCREW M6 L=5 | ||
| 40042081 | SPACER | ||
| 26022400 | CAM SHAFT BUSHING.RIGHT | ||
| SS8681412TP | SCREW 9/32-28 L=13.5 | ||
| SM6050800SP | SCREW M5 L=8 | ||
| 40041045 | OIL_RETAINING_FELT | ||
| 40041044 | FEED_SHOULDER_SCREW_FELT | ||
| CQ252000000 | OIL WICK | ||
| CQ3000000F0 | OIL FELT | ||
| EA9500B0100 | CABLE BAND | ||
| CQ252000000 | OIL WICK |
FEED PLATE COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 40041032 LENGTHWISE_FEED_CAM(X) FOR MB-1373 1 49 B2506373000A LONGITUDINAL_FEED_CAM 1 50 26022509 CAM SHAFT BUSHING.LEFT 1 51 40041033 LATERAL_FEED_CAM 1 52 40041025 LONGITUDINAL_FEED_CAM_A FOR MB-1377 1 53 SD0640486TP SHOULDER SCREW D=6.35 H=4.8 1 54 SS8681412TP SCREW 9/32-28 L=13.5 FOR MB-1377 2 55 40040964 THRUST_COLLAR ASSY FOR MB-1373 1 56 40040961 THRUST_COLLAR * 1 57 SM8060552TP SCREW M6 L=5 * 2 58 40042081 SPACER FOR MB-1377 1 59 26022400 CAM SHAFT BUSHING.RIGHT 1 60 SS8681412TP SCREW 9/32-28 L=13.5 4 61 SM6050800SP SCREW M5 L=8 1 62 40041045 OIL_RETAINING_FELT 1 63 40041044 FEED_SHOULDER_SCREW_FELT 1 64 CQ252000000 OIL WICK 0.06 65 CQ3000000F0 OIL FELT 0.06 66 EA9500B0100 CABLE BAND 4 67 CQ252000000 OIL WICK 0.3 jintex.in
Page 19
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | LINK | ||
| 2 | SHAFT | ||
| 3 | PIN | ||
| 4 | WASHER | ||
| 5 | WASHER | ||
| 6~8 | WASHER | ||
| 9 | WASHER | ||
| 10 | WASHER | ||
| 11 | WASHER | ||
| 12 | WASHER | ||
| 13 | SPRING | ||
| 14 | WASHER | ||
| 15 | LEVER | ||
| 16 | SHAFT | ||
| 17 | COLLAR | ||
| 18 | COLLAR | ||
| 19 | SHAFT | ||
| 20 | COLLAR | ||
| 21 | SCREW | ||
| 22 | SCREW | ||
| 23 | SHAFT | ||
| 24 | COLLAR | ||
| 25 | COLLAR | ||
| 26 | SCREW | ||
| 27 | SHAFT | ||
| 28 | COLLAR | ||
| 29 | BRACKET | ||
| 30 | BRACKET | ||
| 31 | BRACKET | ||
| 32 | SCREW | ||
| 33 | SCREW | ||
| 34 | WASHER | ||
| 35 | COLLAR | ||
| 36 | SHAFT | ||
| 37 | SCREW | ||
| 38 | LEVER | ||
| 39 | SCREW | ||
| 40 | ROD END | ||
| 41 | WASHER | ||
| 42 | NUT | ||
| 43 | SPRING | ||
| 44 | NUT | ||
| 45 | NUT | ||
| 46 | SCREW | ||
| 47 | SCREW | ||
| 48 | NUT | ||
| 49 | NUT | ||
| 50 | BRACKET | ||
| 51 | SCREW | ||
| 53 | BRACKET | ||
| 54 | SCREW | ||
| 55 | LINK | ||
| 56 | PIN | ||
| 57 | SPRING | ||
| 58 | COLLAR |
BUTTON CLAMP LIFTER COMPONENT 1 2 3 4 5 6~8 9 10 11 12 13 14 15 16 17 18 19 20 21 21 22 23 24 25 26 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 53 54 55 56 57 58 jintex.in
Page 20 — BUTTON CLAMP LIFTER COMPONENT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40038119 | LIFTING LEVER | 1 | |
| 26018101 | BUSHING | 1 | |
| 40038116 | NEEDLE_BAR_LEVER | 1 | |
| WP0851216SC | WASHER 8.5X18.0X1.2 | 1 | |
| B4420373000 | CUSHION | 1 | |
| WP0851216SC | WASHER 8.5X18.0X1.2 | ||
| WP0751576SD | WASHER 7.5X19X1.5 | ||
| 10510808 | WASHER | ||
| WP0751576SD | WASHER 7.5X19X1.5 | 1 | |
| WP0751576SD | WASHER 7.5X19X1.5 | 1 | |
| B4420373000 | CUSHION | 1 | |
| WP0703516SP | WASHER 7X20X3.5 | 1 | |
| 26033407 | SPRING | 1 | |
| 26033308 | WASHER | 1 | |
| B4411373000 | BUTTON CLAMP LIFTING LINK | 1 | |
| 40040962 | ASSY_SLIDING_ROLLER | 1 | |
| 40040953 | SLIDING_ROLLER | ||
| SM8060612TP | SCREW M6 L=6 | ||
| 40038321 | ECCENTRIC_CAM | 1 | |
| 40038398 | ECCENTRIC_CAM | ||
| SM8060612TP | SCREW M6 L=6 | ||
| SD0640481SP | HINGE SCREW D= 6.35 H= 4.8 | 1 | |
| 40120628 | BUTTON_CLAMP_LIFTING_LINK | 1 | |
| CS0950810SH | THRUST COLLAR ASM. D=9.5 W=8 | 2 | |
| CS0950816SH | THRUST COLLAR D=9.5 W=8 | ||
| SS8110410TP | SCREW 11/64-40 L= 3.5 | ||
| 40038445 | LEVER_SHAFT | 1 | |
| SM8061010TP | SCREW | 2 | |
| 26032508 | LIFTING_LINK | 1 | |
| 40038414 | LIFTING_PLATE_GUIDE_ROD_ASM | 1 | |
| 40038413 | LIFTING_PLATE_GUIDE_ROD | ||
| SM6051600SP | SCREW M5 L=16 | ||
| SD0640211SP | HINGE SCREW D= 6.35 H= 2.1 | 1 | |
| WP0330501SB | WASHER M3 | 1 | |
| 40038283 | L_TYPE_LIFTING_BAR_ROLLER | 1 | |
| 40038502 | BUTTON_CLAMP_LIFTING_ROD_A | 1 | |
| SM6061002TP | SCREW M6 L=10 | 1 | |
| 40038428 | CONNECTING_LINK_FRONT | 1 | |
| 26022202 | JOINT STUD | 1 | |
| B1632180000 | FEED ADJUSTING JOINT | 1 | |
| WP0510516SD | WASHER 5.1X7.5X0.5 | 1 | |
| NM6050001SP | NUT M5 | 2 | |
| 40038219 | CONNECTING_SCREW | 1 | |
| NM6080021SP | NUT M8 TYPE1 | 2 | |
| 40038429 | CONNECTING_LINK_REAR | 1 | |
| SD0640323TP | HINGE SCREW D= 6.35 H= 3.2 | 1 | |
| SD0790402TP | HINGE SCREW D= 7.94 H= 4 | 1 |
BUTTON CLAMP LIFTER COMPONENT No. Parts No. Parts name Remarks Level Cons Qty 1 40038119 LIFTING LEVER 1 2 26018101 BUSHING 1 3 40038116 NEEDLE_BAR_LEVER 1 4 WP0851216SC WASHER 8.5X18.0X1.2 1 5 B4420373000 CUSHION 1 6 WP0851216SC WASHER 8.5X18.0X1.2 SELECTIVE PARTS (USE OF ONE PARTS) 1 7 WP0751576SD WASHER 7.5X19X1.5 SELECTIVE PARTS (USE OF ONE PARTS) 1 8 10510808 WASHER SELECTIVE PARTS (USE OF ONE PARTS) 1 9 WP0751576SD WASHER 7.5X19X1.5 1 10 WP0751576SD WASHER 7.5X19X1.5 1 11 B4420373000 CUSHION 1 12 WP0703516SP WASHER 7X20X3.5 1 13 26033407 SPRING 1 14 26033308 WASHER 1 15 B4411373000 BUTTON CLAMP LIFTING LINK 1 16 40040962 ASSY_SLIDING_ROLLER 1 17 40040953 SLIDING_ROLLER * 1 18 SM8060612TP SCREW M6 L=6 * 1 19 40038321 ECCENTRIC_CAM 1 20 40038398 ECCENTRIC_CAM * 1 21 SM8060612TP SCREW M6 L=6 * 2 22 SD0640481SP HINGE SCREW D= 6.35 H= 4.8 1 23 40120628 BUTTON_CLAMP_LIFTING_LINK 1 24 CS0950810SH THRUST COLLAR ASM. D=9.5 W=8 2 25 CS0950816SH THRUST COLLAR D=9.5 W=8 * 1 26 SS8110410TP SCREW 11/64-40 L= 3.5 * 2 27 40038445 LEVER_SHAFT 1 28 SM8061010TP SCREW 2 29 26032508 LIFTING_LINK 1 30 40038414 LIFTING_PLATE_GUIDE_ROD_ASM 1 31 40038413 LIFTING_PLATE_GUIDE_ROD * 1 32 SM6051600SP SCREW M5 L=16 * 1 33 SD0640211SP HINGE SCREW D= 6.35 H= 2.1 1 34 WP0330501SB WASHER M3 1 35 40038283 L_TYPE_LIFTING_BAR_ROLLER 1 36 40038502 BUTTON_CLAMP_LIFTING_ROD_A 1 37 SM6061002TP SCREW M6 L=10 1 38 40038428 CONNECTING_LINK_FRONT 1 39 26022202 JOINT STUD 1 40 B1632180000 FEED ADJUSTING JOINT 1 41 WP0510516SD WASHER 5.1X7.5X0.5 1 42 NM6050001SP NUT M5 2 43 40038219 CONNECTING_SCREW 1 44 NM6080021SP NUT M8 TYPE1 2 45 40038429 CONNECTING_LINK_REAR 1 46 SD0640323TP HINGE SCREW D= 6.35 H= 3.2 1 47 SD0790402TP HINGE SCREW D= 7.94 H= 4 1 jintex.in
Page 21 — BUTTON CLAMP LIFTER COMPONENT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | ||
| 2 | 2 | ||
| 3 | 3 | ||
| 4 | 4 | ||
| 5 | 5 | ||
| 6~8 | 6~8 | ||
| 9 | 9 | ||
| 10 | 10 | ||
| 11 | 11 | ||
| 12 | 12 | ||
| 13 | 13 | ||
| 14 | 14 | ||
| 15 | 15 | ||
| 16 | 16 | ||
| 17 | 17 | ||
| 18 | 18 | ||
| 19 | 19 | ||
| 20 | 20 | ||
| 21 | 21 | ||
| 21 | 21 | ||
| 22 | 22 | ||
| 23 | 23 | ||
| 24 | 24 | ||
| 25 | 25 | ||
| 26 | 26 | ||
| 26 | 26 | ||
| 27 | 27 | ||
| 28 | 28 | ||
| 29 | 29 | ||
| 30 | 30 | ||
| 31 | 31 | ||
| 32 | 32 | ||
| 33 | 33 | ||
| 34 | 34 | ||
| 35 | 35 | ||
| 36 | 36 | ||
| 37 | 37 | ||
| 38 | 38 | ||
| 39 | 39 | ||
| 40 | 40 | ||
| 41 | 41 | ||
| 42 | 42 | ||
| 43 | 43 | ||
| 44 | 44 | ||
| 45 | 45 | ||
| 46 | 46 | ||
| 47 | 47 | ||
| 48 | 48 | ||
| 49 | 49 | ||
| 50 | 50 | ||
| 51 | 51 | ||
| 53 | 53 | ||
| 54 | 54 | ||
| 55 | 55 | ||
| 56 | 56 | ||
| 57 | 57 | ||
| 58 | 58 |
BUTTON CLAMP LIFTER COMPONENT 1 2 3 4 5 6~8 9 10 11 12 13 14 15 16 17 18 19 20 21 21 22 23 24 25 26 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 53 54 55 56 57 58 jintex.in
Page 22 — BUTTON CLAMP LIFTER COMPONENT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | NS6620310SP | NUT 3/16-32 | 1 |
| 49 | NS6150310SP | NUT 15/64-28 | 1 |
| 50 | 40038397 | THREAD TRIMMING LEVER | 1 |
| 51 | SD0790316TP | SHOULDER SCREW D=7.94 H=3.1 | 1 |
| 52 | NM6050001SP | NUT M5 | 1 |
| 53 | 40038495 | THREAD_TRIM_LEVER_BASE | 1 |
| 54 | SM7051460TP | SCREW M5 L=14 | 2 |
| 55 | 26021709 | THREAD TRIMMING LINK | 1 |
| 56 | SD0641322TP | HINGE SCREW D=6.35 H=13.2 | 1 |
| 57 | 26033605 | SPRING | 1 |
| 58 | SM6030402TP | SCREW M3X0.5 L=4 | 1 |
BUTTON CLAMP LIFTER COMPONENT No. Parts No. Parts name Remarks Level Cons Qty 48 NS6620310SP NUT 3/16-32 1 49 NS6150310SP NUT 15/64-28 1 50 40038397 THREAD TRIMMING LEVER 1 51 SD0790316TP SHOULDER SCREW D=7.94 H=3.1 1 52 NM6050001SP NUT M5 1 53 40038495 THREAD_TRIM_LEVER_BASE 1 54 SM7051460TP SCREW M5 L=14 2 55 26021709 THREAD TRIMMING LINK 1 56 SD0641322TP HINGE SCREW D=6.35 H=13.2 1 57 26033605 SPRING 1 58 SM6030402TP SCREW M3X0.5 L=4 1 jintex.in
Page 23 — NEEDLE DRIVING PULLEY SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | ||
| 2 | 2 | ||
| 3 | 3 | ||
| 4 | 4 | ||
| 5 | 5 | ||
| 6 | 6 | ||
| 7 | 7 | ||
| 8 | 8 | ||
| 9 | 9 | ||
| 10 | 10 | ||
| 11 | 11 | ||
| 12 | 12 | ||
| 13 | 13 | ||
| 14 | 14 | ||
| 15 | 15 | ||
| 16 | 16 | ||
| 17 | 17 | ||
| 18 | 18 | ||
| 19 | 19 | ||
| 20 | 20 | ||
| 21 | 21 | ||
| 22 | 22 | ||
| 23 | 23 | ||
| 24 | 24 | ||
| 25 | 25 | ||
| 26 | 26 | ||
| 27 | 27 | ||
| 28 | 28 | ||
| 29 | 29 | ||
| 30 | 30 | ||
| 31 | 31 |
NEEDLE DRIVING PULLEY SHAFT COMPONENTS 8 29 30 21 20 19 16 18 15 25 24 23 14 13 12 11 10 9 6 5 7 22 4 3 2 1 26 27 28 31
Page 24 — NEEDLE DRIVING PULLEY SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B1203372000 | BALL LARGE | 1 | |
| 26012401 | PULLEY INSERT | 1 | |
| 40038203 | BALL_SMALL | 1 | |
| 26012500 | SPRING | 1 | |
| 40038169 | DRIVING_PULLEY_ASM. | 1 | |
| 40038175 | DRIVING PULLEY | ||
| SM8040612TP | SCREW M4 L=6 | ||
| 40038449 | NEEDLE DRIVING PULLEY SHAFT | 1 | |
| B1243372000 | NEEDLE BEARING | 2 | |
| 26012609 | GREASE RTETAINING WICK | 1 | |
| 26012708 | RETAINING WASHER | 1 | |
| SM6062450TP | SCREW M6 L=23.5 | 2 | |
| WP0621026SP | WASHER 6.2X9.5X1 | 2 | |
| B1208372000 | NEEDLE DRIVING PULLEY CLUTCH D | 1 | |
| 40038137 | STOP.MOTION.DISC.ASM. | 1 | |
| 40038135 | STOP.MOTION.DISC.LATCH.A | ||
| 40038136 | STOP.MOTION.DISC.LATCH.B | ||
| 40038138 | STOP.MOTION.DISC | ||
| 40038139 | STOP.MOTION.PAWL.SHAFT | ||
| 40038140 | STOP.MOTION.DISC.WASHER | ||
| SM6060550TP | SCREW M6 L=4.5 | ||
| CM500200001 | DIRECTION LABEL. | 1 | |
| SM8080812TP | SCREW M8X8 | 1 | |
| SM8081752TP | SCREW M8 L=17 | 1 | |
| NM6060003SP | NUT M6 TYPE3 | 2 | |
| B1215372B00 | THRUST BALL BEARING | 1 | |
| SM8061010TP | SCREW | 1 | |
| 40038461 | PULLEY.SHAFT.BUSHING.RIGHT | 1 | |
| 40042148 | PULLEY.SHAFT.BUSHING.LEFT | 1 | |
| B12173720BA | DRIVING GEAR (A) ASM. | 1 | |
| 26018309 | OIL WICK | 1 |
NEEDLE DRIVING PULLEY SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 B1203372000 BALL LARGE 1 2 26012401 PULLEY INSERT 1 3 40038203 BALL_SMALL 1 4 26012500 SPRING 1 5 40038169 DRIVING_PULLEY_ASM. 1 6 40038175 DRIVING PULLEY * 1 7 SM8040612TP SCREW M4 L=6 * 1 8 40038449 NEEDLE DRIVING PULLEY SHAFT 1 9 B1243372000 NEEDLE BEARING 2 10 26012609 GREASE RTETAINING WICK 1 11 26012708 RETAINING WASHER 1 12 SM6062450TP SCREW M6 L=23.5 2 13 WP0621026SP WASHER 6.2X9.5X1 2 14 B1208372000 NEEDLE DRIVING PULLEY CLUTCH D 1 15 40038137 STOP.MOTION.DISC.ASM. 1 16 40038135 STOP.MOTION.DISC.LATCH.A * 1 17 40038136 STOP.MOTION.DISC.LATCH.B * 1 18 40038138 STOP.MOTION.DISC * 1 19 40038139 STOP.MOTION.PAWL.SHAFT * 2 20 40038140 STOP.MOTION.DISC.WASHER * 1 21 SM6060550TP SCREW M6 L=4.5 * 1 22 CM500200001 DIRECTION LABEL. 1 23 SM8080812TP SCREW M8X8 1 24 SM8081752TP SCREW M8 L=17 1 25 NM6060003SP NUT M6 TYPE3 2 26 B1215372B00 THRUST BALL BEARING 1 27 SM8061010TP SCREW 1 28 40038461 PULLEY.SHAFT.BUSHING.RIGHT 1 29 40042148 PULLEY.SHAFT.BUSHING.LEFT 1 30 B12173720BA DRIVING GEAR (A) ASM. 1 31 26018309 OIL WICK 1
Page 25 — NEEDLE BAR DRIVING MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | NEEDLE BAR | |
| 2 | 2 | NEEDLE BAR BUSH | |
| 3 | 3 | NEEDLE BAR BUSH | |
| 4 | 4 | CLAMP | |
| 5 | 5 | CLAMP | |
| 6 | 6 | SCREW | |
| 7 | 7 | NEEDLE BAR CONNECTING ROD | |
| 8~10 | 8~10 | CONNECTING ROD BUSH | |
| 11 | 11 | NEEDLE BAR CONNECTING ROD | |
| 12 | 12 | CONNECTING ROD | |
| 13 | 13 | SCREW | |
| 14 | 14 | SCREW | |
| 15 | 15 | WASHER | |
| 16 | 16 | NEEDLE BAR CONNECTING ROD | |
| 17 | 17 | SCREW | |
| 18 | 18 | ECCENTRIC DISC | |
| 19 | 19 | CONNECTING ROD | |
| 20 | 20 | ECCENTRIC WHEEL | |
| 21 | 21 | SCREW | |
| 22 | 22 | SCREW | |
| 23 | 23 | NEEDLE BAR CONNECTING ROD | |
| 24 | 24 | WASHER | |
| 25 | 25 | WASHER |
NEEDLE BAR DRIVING MECHANISM COMPONENTS jintex.in
Page 26 — NEEDLE BAR DRIVING MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SS7080510TP | SCREW 1/8-44 L=4.5 | 1 | |
| 14606107 | NEEDLE ROD | 1 | |
| 26017707 | NEEDLE BAR BUSHING LOWER | 1 | |
| 40040951 | NEEDLE BAR BALANCE | 1 | |
| 40040952 | NEEDLE BAR CLAMP | 1 | |
| SM6041200SP | SCREW M4 L=12 | 1 | |
| 40038142 | NEEDLE BAR BUSHING UPPER | ||
| 40038120 | NEEDLE BAR SLIDE BLOCK A | ||
| 40038121 | NEEDLE BAR SLIDE BLOCK B | ||
| 40038122 | NEEDLE BAR SLIDE BLOCK C | ||
| MTQ100B1600 | NEEDLE TQX1 #16 | 1 | |
| 40038117 | NEEDLE BAR DRIVING LEVER | 1 | |
| SM9061403CP | SCREW M6 L=14 | 2 | |
| SD0950804TP | SHOULDER SCREW D=9.53 H=8 | 1 | |
| 26018705 | WASHER | 0.1 | |
| CQ202000000 | OIL WICK | 2 | |
| SS2110920TP | SCREW 11/64-40 L=8.5 | 1 | |
| 26018606 | THRUST HOLDER | 1 | |
| 26018408 | CRANK ROD | 1 | |
| 26018507 | ECCENTRIC CAM | 1 | |
| SS860612TP | SCREW 1/4-40 L=6 | 1 | |
| SS860942TP | SCREW 1/4-40 L=8.5 | 1 | |
| 26018309 | OIL WICK | 1 | |
| 40041045 | OIL RETAINING FELT | 1 | |
| CQ2500000F0 | OIL WICK | 0.01 |
NEEDLE BAR DRIVING MECHANISM COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 SS7080510TP SCREW 1/8-44 L=4.5 1 2 14606107 NEEDLE ROD 1 3 26017707 NEEDLE BAR BUSHING LOWER 1 4 40040951 NEEDLE BAR BALANCE 1 5 40040952 NEEDLE BAR CLAMP 1 6 SM6041200SP SCREW M4 L=12 1 7 40038142 NEEDLE BAR BUSHING UPPER SELECTIVE PARTS 1 8 40038120 NEEDLE BAR SLIDE BLOCK A SELECTIVE PARTS 1 9 40038121 NEEDLE BAR SLIDE BLOCK B SELECTIVE PARTS 1 10 40038122 NEEDLE BAR SLIDE BLOCK C SELECTIVE PARTS 1 11 MTQ100B1600 NEEDLE TQX1 #16 1 12 40038117 NEEDLE BAR DRIVING LEVER 1 13 SM9061403CP SCREW M6 L=14 2 14 SD0950804TP SHOULDER SCREW D=9.53 H=8 1 15 26018705 WASHER 0.1 16 CQ202000000 OIL WICK 2 17 SS2110920TP SCREW 11/64-40 L=8.5 1 18 26018606 THRUST HOLDER 1 19 26018408 CRANK ROD 1 20 26018507 ECCENTRIC CAM 1 21 SS860612TP SCREW 1/4-40 L=6 1 22 SS860942TP SCREW 1/4-40 L=8.5 1 23 26018309 OIL WICK 1 24 40041045 OIL RETAINING FELT 1 25 CQ2500000F0 OIL WICK 0.01 jintex.in
Page 27 — STOP MOTION MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SHAFT | ||
| 2 | NUT | ||
| 3 | BRACKET | ||
| 4 | WASHER | ||
| 5 | BRACKET | ||
| 6 | WASHER | ||
| 7 | SPRING | ||
| 8 | COLLAR | ||
| 9 | WASHER | ||
| 10 | NUT | ||
| 11 | SHAFT | ||
| 12 | SCREW | ||
| 13 | SCREW | ||
| 14 | NUT | ||
| 15 | SCREW | ||
| 16 | NUT | ||
| 17 | BUSHING | ||
| 18 | COLLAR | ||
| 19 | WASHER | ||
| 20 | NUT | ||
| 21 | PIN | ||
| 22 | LEVER | ||
| 23 | BRACKET | ||
| 24 | SCREW | ||
| 25 | SPRING | ||
| 26 | SPRING | ||
| 27 | PIN | ||
| 28 | SPRING | ||
| 29 | BRACKET | ||
| 30 | LEVER |
STOP MOTION MECHANISM COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 jintex.in
Page 28 — STOP MOTION MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 26027805 | STOP MOTION PLUNGER ROD | 1 | |
| NM6060003SP | NUT M6 TYPE3 | 1 | |
| 40038118 | CROSSING HOOK | 1 | |
| SM6061150TP | SCREW M6 L=11 | 1 | |
| 40038270 | STOP_MOTION_PLUNGER_LEVER | 1 | |
| 26229104 | WASHER | 2 | |
| 40038110 | STOP MOTION SPRING | 30 | |
| B2608280000 | RUBBER CUSHION | 4 | |
| 26030601 | WASHER | 1 | |
| NS6680410SP | NUT 9/32-28 | 2 | |
| 40038448 | STOP_MOTION_SHAFT | 1 | |
| 40042437 | SCREW | 1 | |
| SS8151570SP | SCREW 15/64-28 L=15.0 | 1 | |
| NS6150310SP | NUT 15/64-28 | 1 | |
| SD0680276TP | SHOULDER SCREW D=6.8 H=2.7 | 1 | |
| NM6060001CP | NUT M6 | 1 | |
| SD0800706TP | SHOULDER SCREW D=8 H=7 | 1 | |
| 40087058 | STITCH ADJUSTING ROLLER | 1 | |
| WP0612066SP | WASHER 6.1X11X2 | 1 | |
| 26019604 | WASHER | 1 | |
| SM9061003CP | SCREW M6 L=10 | 1 | |
| 40038160 | STOP_MOTION_TRIP_LEVER | 1 | |
| 26028308 | STOP_MOTION_TRIP_LEVER_BRACKET | 1 | |
| SM9061250TP | SCREW M6 L=12 | 2 | |
| 22924906 | OIL REGULATOR SCREW SPRING | 1 | |
| 13160304 | S SHAPED HOOK | 1 | |
| 26028001 | STOP MOTION LEVER SPRING PIN | 1 | |
| 40038410 | STOP_MOTION_LEVER_SPRING | 1 | |
| 40040940 | SCREW_STUD | 1 | |
| B2611373N00 | PRESSURE APPLYING LEVER | 1 |
STOP MOTION MECHANISM COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 26027805 STOP MOTION PLUNGER ROD 1 2 NM6060003SP NUT M6 TYPE3 1 3 40038118 CROSSING HOOK 1 4 SM6061150TP SCREW M6 L=11 1 5 40038270 STOP_MOTION_PLUNGER_LEVER 1 6 26229104 WASHER 2 7 40038110 STOP MOTION SPRING 30 8 B2608280000 RUBBER CUSHION 4 9 26030601 WASHER 1 10 NS6680410SP NUT 9/32-28 2 11 40038448 STOP_MOTION_SHAFT 1 12 40042437 SCREW 1 13 SS8151570SP SCREW 15/64-28 L=15.0 1 14 NS6150310SP NUT 15/64-28 1 15 SD0680276TP SHOULDER SCREW D=6.8 H=2.7 1 16 NM6060001CP NUT M6 1 17 SD0800706TP SHOULDER SCREW D=8 H=7 1 18 40087058 STITCH ADJUSTING ROLLER 1 19 WP0612066SP WASHER 6.1X11X2 1 20 26019604 WASHER 1 21 SM9061003CP SCREW M6 L=10 1 22 40038160 STOP_MOTION_TRIP_LEVER 1 23 26028308 STOP_MOTION_TRIP_LEVER_BRACKET 1 24 SM9061250TP SCREW M6 L=12 2 25 22924906 OIL REGULATOR SCREW SPRING 1 26 13160304 S SHAPED HOOK 1 27 26028001 STOP MOTION LEVER SPRING PIN 1 28 40038410 STOP_MOTION_LEVER_SPRING 1 29 40040940 SCREW_STUD 1 30 B2611373N00 PRESSURE APPLYING LEVER 1
Page 29 — STITCH SELECTING PARTS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | ||
| 2 | 2 | ||
| 3 | 3 | ||
| 4 | 4 | ||
| 5 | 5 | ||
| 6 | 6 | ||
| 7 | 7 | ||
| 8 | 8 | ||
| 9 | 9 | ||
| 10 | 10 | ||
| 11 | 11 | ||
| 12 | 12 | ||
| 13 | 13 | ||
| 14 | 14 | ||
| 15 | 15 | ||
| 16 | 16 | ||
| 17 | 17 | ||
| 18 | 18 | ||
| 19 | 19 | ||
| 20 | 20 | ||
| 21 | 21 | ||
| 22 | 22 | ||
| 23 | 23 | ||
| 24 | 24 | ||
| 25 | 25 | ||
| 26 | 26 | ||
| 27 | 27 | ||
| 28 | 28 | ||
| 29 | 29 | ||
| 30 | 30 | ||
| 31 | 31 | ||
| 32 | 32 | ||
| 33 | 33 | ||
| 34 | 34 | ||
| 35 | 35 | ||
| 36 | 36 | ||
| 37 | 37 | ||
| 38 | 38 |
STITCH SELECTING PARTS COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 jintex.in
