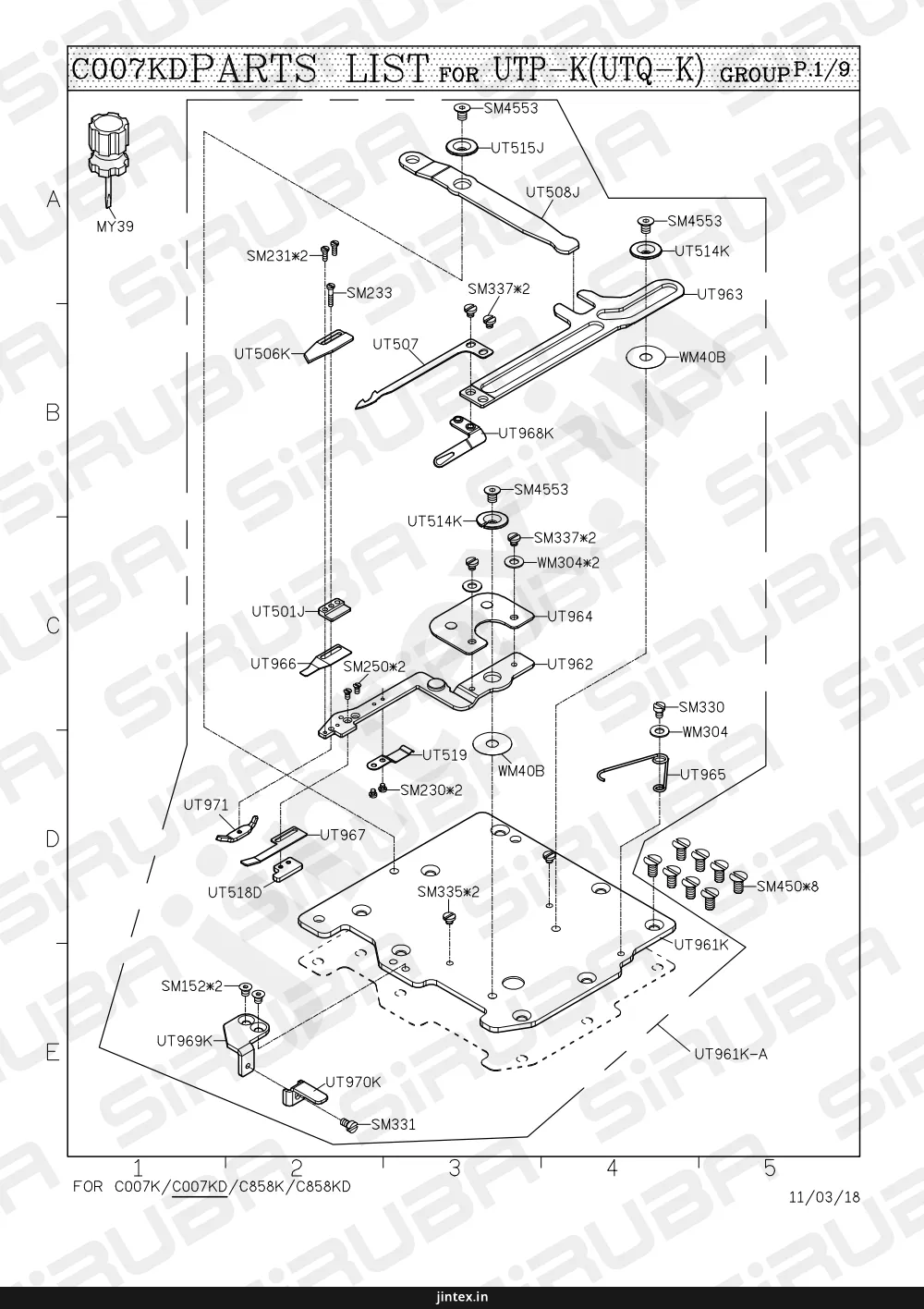

Page 1 — C007KDPARTS LIST FOR UTP-K(UTQ-K) GROUP P.1/9
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MY39 | |||
| SM4553 | |||
| UT515J | |||
| UT508J | |||
| SM4553 | |||
| UT514K | |||
| SM231 | *2 | ||
| SM233 | |||
| SM337 | *2 | ||
| UT963 | |||
| UT506K- | |||
| UT507 | |||
| WM40B | |||
| UT968K | |||
| SM4553 | |||
| UT514K | |||
| SM337 | *2 | ||
| WM304 | *2 | ||
| UT501J | |||
| UT964 | |||
| UT966 | |||
| SM250 | *2 | ||
| UT962 | |||
| SM330 | |||
| WM304 | |||
| UT519 | |||
| SM230 | *2 | ||
| WM40B | |||
| UT965 | |||
| UT971 | |||
| UT967 | |||
| SM335 | *2 | ||
| UT518D | |||
| SM450 | *8 | ||
| UT961K | |||
| SM152 | *2 | ||
| UT969K- | |||
| UT970K | |||
| SM331 | |||
| UT961K-A | |||
| A | SM231*2 | SM231*2 | |
| A | SM337*2 | SM337*2 | |
| A | WM304*2 | WM304*2 | |
| A | SM250*2 | SM250*2 | |
| A | SM230*2 | SM230*2 | |
| A | SM335*2 | SM335*2 | |
| A | SM450*8 | SM450*8 | |
| A | SM152*2 | SM152*2 |
Page 2 — C007KDPARTS LIST FOR UTP-K(UTQ-K) GROUPP.2/9
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM432 | |||
| CP103 | |||
| JA012 | *2 | ||
| AC211 | |||
| AP453 | |||
| AP452 | |||
| UT41K | |||
| WM600 | *2 | ||
| SM611 | *2 | ||
| SM492 | |||
| AC211-3 | |||
| AC211-4 | |||
| UT43 | |||
| MB34 | |||
| LA58 | |||
| UT109 | |||
| SM432 | |||
| SM438 | *2 | ||
| UT828 | |||
| UT47P | |||
| UT40 | |||
| SM432 | *2 | ||
| SM410 | *2 | ||
| UT803K | |||
| WM406 | *2 | ||
| SM430 | |||
| UT831 | |||
| UT535K | |||
| SM132 | *2 | ||
| SM404 | |||
| UT259 | |||
| SM516 | |||
| UT807K | |||
| WM510 | |||
| UT829 | |||
| AC211-3 | |||
| UT103E | |||
| UT103P | |||
| AC033 | |||
| UT530K | |||
| WM405 | |||
| SM432 | |||
| UT804K | |||
| UT805K | |||
| SM484 | |||
| SM510 | |||
| UT802K | |||
| UT825K | |||
| PM307 | |||
| JA041 | *2 | ||
| AC211-3 | |||
| UT524K | |||
| AP454 | |||
| AP455 | |||
| WM810 | *2 | ||
| SM815 | *2 |
Page 3 — C007KDPARTS LIST FOR UTP-K(UTQ-K) GROUP P.3/9
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| UT54J-2 | |||
| SK392 | 2 | ||
| ALT104S | 5 | ||
| ALT255S | 1 | ||
| JA025 | |||
| JA014 | |||
| UT54J | |||
| AP604 | |||
| JA062 | 3 | ||
| UT950 | |||
| UT950P | |||
| AP453 | |||
| JA018 | |||
| AP453 | |||
| JA018 | |||
| JA013 | |||
| JA053 | 2 | ||
| SM413 | 4 | ||
| AP454 | |||
| JA021 | |||
| JA021 | |||
| AP454 | |||
| AP456 | |||
| JA042 | |||
| JA021 | |||
| AP457 | |||
| A | SK392*2 | SK392*2 | |
| A | ALT104S*5 | ALT104S*5 | |
| A | ALT255S*1 | ALT255S*1 | |
| A | JA062*3 | JA062*3 | |
| A | SM413*4 | SM413*4 | |
| A | JA053*2 | JA053*2 |
Page 4 — C007KDPARTS LIST FOR UTP-K(UTQ-K) GROUPP.4/9
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | C007K/C007KD | C007K/C007KD | |
| 2 | H牌馬達(HVP-20) | H牌馬達(HVP-20) | |
| UT54J-2 | |||
| ALT104S | 5 | ||
| ALT255S | 1 | ||
| SK392 | |||
| SM413 | 4 | ||
| UT261K | |||
| UT261K | |||
| UT955-A | |||
| UT955 | |||
| GUT54J | |||
| JA025 | |||
| JA014 | |||
| AP604 | |||
| AP434 | |||
| AP613 | |||
| AP430 | |||
| JA071 | |||
| AP435 | |||
| AP433 | |||
| JA021 | |||
| JA019 | |||
| JA062 | |||
| JA062 | |||
| JA062 | |||
| JA053 | |||
| JA053 | |||
| JA013 | |||
| JC150-A | |||
| JC300-A | |||
| EP107 | |||
| JA042 | |||
| JA192 | |||
| AP437 | |||
| JA071 | |||
| JA019 | |||
| JA021 | |||
| AP430 | |||
| AP432 | |||
| AP436 | |||
| JA047 | |||
| JA021 | |||
| SM435 | 4 | ||
| TU20P-E | |||
| CRL141K | |||
| CRL169 | |||
| CR322 | |||
| CR321 | |||
| TU20P-1 | |||
| TU20P-4 | |||
| TU20P-2 | |||
| TU20P-3 | |||
| A | ALT104S*5 | ALT104S*5 | |
| A | ALT255S*1 | ALT255S*1 | |
| SM413*4 | SM413*4 | SM413*4 | |
| D | CRL-K 系列 | CRL-K 系列 | |
| SM435*4 | SM435*4 | SM435*4 |
Page 5 — C007KDPARTS LIST FOR UTP-K(UTQ-K) GROUP P.5/9
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| UT28K | |||
| SM511 | |||
| UT28K-E | |||
| UT34H | |||
| EM040 | |||
| VJ01-3 | |||
| SM447 | |||
| UT34H-E | |||
| UT37-1 | |||
| UT37-2 | 7 | ||
| UT37 | 3 | ||
| SM430 | 2 | ||
| UT35H-1 | 2 | ||
| UT35H | |||
| SM330*2 | 2 | ||
| UT35J-A | |||
| UT34-3 | |||
| SM404 | |||
| UT38 | 2 | ||
| SK216*12 | 12 | ||
| UT37-2*7 | UT37-2*7 | UT37-2*7 | |
| UT37*3 | UT37*3 | UT37*3 | |
| SM430*2 | SM430*2 | SM430*2 | |
| UT35H-1*2 | UT35H-1*2 | UT35H-1*2 | |
| UT38*2 | UT38*2 | UT38*2 |
Page 6 — C007KDPARTS LIST FOR UTQ-K
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| UT235H | |||
| UT236H | |||
| UT235H-A | |||
| WM402 | 4 | ||
| SM446 | 4 | ||
| A | WM402*4 | WM402*4 | 4 |
| A | SM446*4 | SM446*4 | 4 |
Page 7 — C007KD PARTS LIST FOR UTP-K(UTQ-K) GROUP P.7/9
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MF131-E | |||
| MF131 | |||
| SM604 | |||
| SM603 | |||
| UT817-2 | 2 | ||
| TXxxxx-A (電控箱組) | |||
| SM438 | |||
| WM405 | |||
| UT815 | |||
| SM432 | |||
| CP101 | |||
| F-10 | |||
| T999 | |||
| UT817-2*2 | UT817-2*2 | ||
| EIF-10 (迷你選針盒) | EIF-10 (迷你選針盒) |
Page 8 — C007KDPARTS LIST FOR UTP-K(UTQ-K) GROUP P.8/9
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM604 | |||
| MF131K-E | |||
| SM603 | |||
| UT817-2 | 2 | ||
| MF131K | |||
| SM432 | |||
| CP101 | |||
| SM4054 | |||
| WM405 | |||
| UT815 | |||
| TXXXXXX-A | |||
| TXXXXXX | |||
| T999 | |||
| UT817-2*2 | UT817-2*2 | ||
| TXXXXX-A | TXXXXX-A (電控箱組) |
Page 9 — C007KDPARTS LIST FOR UTP-K(UTQ-K) GROUP P.9/9
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM604 | |||
| UT817-2 | 2 | ||
| MF131-E | |||
| MF131 | |||
| SM603 | |||
| SM432 | |||
| CP101 | |||
| SM438 | |||
| WM405 | |||
| UT815P | |||
| TXxxxx-A | |||
| TXXXXX | |||
| T999 | |||
| UT817-2*2 | UT817-2*2 |
Page 10 — C007KD PARTS LIST FOR UTR-K(UTS-K) GROUP P.1/8
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MY39 | |||
| SM4553 | |||
| UT515J | |||
| UT508J | |||
| SM4553 | |||
| UT514K | |||
| UT963 | |||
| WM40B | |||
| SM231 | 2 | ||
| SM233 | |||
| SM337 | 2 | ||
| UT507 | |||
| UT506K | |||
| UT968K | |||
| SM4553 | |||
| UT514K | |||
| SM337 | 2 | ||
| WM304 | 2 | ||
| UT964 | |||
| UT501J | |||
| UT966 | |||
| SM250 | 2 | ||
| UT962 | |||
| UT519 | |||
| WM40B | |||
| SM230 | 2 | ||
| SM330 | |||
| WM304 | |||
| UT965 | |||
| UT971 | |||
| UT967 | |||
| UT518D | |||
| SM335 | 2 | ||
| UT961K | |||
| SM450 | 8 | ||
| SM152 | 2 | ||
| UT969K | |||
| UT970K | |||
| SM331 | |||
| UT961K-A |
Page 11 — C007KD PARTS LIST FOR UTR-K(UTS-K) GROUP P.2/8
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM492 | |||
| KP60 | |||
| SM484 | |||
| SM510 | |||
| UT805K | |||
| SM510 | 3 | ||
| UT802K | |||
| UT825K | |||
| UT534K-4 | |||
| UT801K | |||
| WM810 | 2 | ||
| SM815 | 2 | ||
| CP104 | |||
| SM432 | |||
| SM410 | 2 | ||
| WM406 | 2 | ||
| UT803K | |||
| SM432 | |||
| WM405 | |||
| UT530K | |||
| UT550 | |||
| UT804K | |||
| UT826 | |||
| PM307 | |||
| UT534K | |||
| UT80K-A | |||
| SM438 | 2 | ||
| UT828 | |||
| UT47 | |||
| UT40 | |||
| SM432 | 2 | ||
| UT255 | |||
| SM430 | |||
| GUT103E | |||
| GUT103P | |||
| UT535K | |||
| SM510 | 2 | ||
| SM132 | 2 | ||
| MS21-E | |||
| MS21 | |||
| SM301 | |||
| SM404 | |||
| SM516 | |||
| WM510 | |||
| UT807K | |||
| UT829 | |||
| SM510*3 | SM510*3 | SCREW | |
| WM810*2 | WM810*2 | WASHER | |
| SM815*2 | SM815*2 | SCREW | |
| WM406*2 | WM406*2 | WASHER | |
| SM438*2 | SM438*2 | SCREW | |
| SM432*2 | SM432*2 | SCREW | |
| SM510*2 | SM510*2 | SCREW | |
| SM132*2 | SM132*2 | SCREW |
Page 12 — C007KDPARTS LIST FOR UTR-K(UTS-K) GROUP P.3/8
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MB34 | |||
| LA58 | |||
| SM432 | |||
| UT109 | |||
| ALT104S | *5 | ||
| ALT255S | *1 | ||
| UT810K-A | |||
| UT548K | |||
| UT550 | |||
| UT810K | |||
| WM600 | *2 | ||
| SM611 | *2 | ||
| UT811 | |||
| SM516 | *3 |
Page 13 — C007KD PARTS LIST FOR UTR-K(UTS-K) GROUP P.4/8
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| UT218J | |||
| UT776 | |||
| CP112 | |||
| UT226D | |||
| UT226P | |||
| UT534K | |||
| GUT103E | |||
| GUT103P | |||
| SM630 | |||
| EP107 | |||
| UT810K |
Page 14 — C007KD PARTS LIST FOR UTR-K(UTS-K) GROUP P.5/8
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| UT218J | UTK 系列 | ||
| UT776 | CP112 | ||
| UT226D | TO WIPER | ||
| UT534K | TO UNDER TRIMMER | ||
| EP107 | SM630 | ||
| GUT103E | TO SAFETY.S.W | ||
| T999 | TO MAIN POWER | ||
| UT810K | TO SYNCHRONIZER | ||
| TXXXXXX | TO PRESSER FOOT | ||
| HVP-20 | FOR H牌馬達 |
Page 15 — C007KD PARTS LIST FOR UTP-K(UTQ-K) GROUP P.6/8
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM604 | |||
| MF131-E | |||
| SM603 | |||
| UT817-2 | 2 | ||
| MF131 | |||
| TXxxxx-A (電控箱組) | |||
| UT815 | |||
| WM405 | |||
| SM438 | |||
| SM432 | |||
| CP101 | |||
| F-10 | |||
| T999 | |||
| UT817-2*2 | UT817-2*2 | ||
| EIF-10 (迷你選針盒) | EIF-10 (迷你選針盒) |
Page 16 — C007KDPARTS LIST FOR UTP-K(UTQ-K) GROUP P.7/8
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM604 | |||
| MF131-E | |||
| SM603 | |||
| UT817-2 | 2 | ||
| MF131 | |||
| SM432 | |||
| CP101 | |||
| SM438 | |||
| WM405 | |||
| UT815 | |||
| TXXXXX-A | |||
| TXXXXX | |||
| T999 | |||
| UT817-2*2 | UT817-2*2 | ||
| TXXXX-A | TXXXX-A (電控箱組) |
Page 17 — C007KDPARTS LIST FOR UTP-K(UTQ-K) GROUP P.8/8
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MF131-E | |||
| SM604 | |||
| SM603 | |||
| MF131 | |||
| UT817-2 | 2 | ||
| SM438 | |||
| WM405 | |||
| UT815P | |||
| SM432 | |||
| CP101 | |||
| TXXXXX-A | Electric control box assembly | ||
| TXXXXX | Speed controller | ||
| T999 | |||
| UT817-2*2 | UT817-2*2 |
Siruba UT Parts — parts catalog
- Page 1 (diagram): This page displays a diagram of parts for the UTP-K(UTQ-K) GROUP P.1/9, including various screws, washers, brackets, and plates with their corresponding part numbers.
- Page 2 (diagram): This page displays a diagram of various machine parts for the UTP-K (UTQ-K) group, including screws, nuts, fittings, and brackets, with part numbers and descriptions.
- Page 3 (diagram): This page displays a diagram of various components for the UTP-K(UTQ-K) machine, including part numbers like UT54J-2, JA025, ALT104S, and others, along with their descriptions and quantities.
- Page 4 (diagram): This page displays a diagram of parts for the UTP-K(UTQ-K) sewing machine, specifically Group P.4/9, detailing components like air filters, solenoids, and electrical connectors.
- Page 5 (parts_list): This page lists parts for UTP-K(UTQ-K) GROUP P.5/9, including various UT and SM part numbers with associated diagrams and quantities.
- Page 6 (parts_list): This page lists parts for the UTQ-K machine, specifically for the left side, including part numbers like UT235H, UT236H, UT235H-A, WM402*4, and SM446*4.
- Page 7 (diagram): This page displays a diagram of various components for the UTP-K (UTQ-K) GROUP, including part numbers like SM604, UT817-2*2, MF131-E, SM603, SM432, CP101, UT815, WM405, SM438, T999, and EIF-10 (迷你選針盒).
- Page 8 (diagram): This page displays a diagram of parts for the UTP-K(UTQ-K) GROUP, including components like SM604, MF131K-E, UT817-2*2, WM405, SM4054, SM603, SM432, CP101, UT815, TXXXXX-A (電控箱組), and T999.
- Page 9 (diagram): This page displays a diagram of parts for the UTP-K (UTQ-K) group, including components like SM604, MF131, WM405, SM438, and a TXxxxx-A control box.
- Page 10 (diagram): This page displays a diagram of various parts for the UTR-K(UTS-K) group, including screws, washers, brackets, and plates, with their corresponding part numbers and quantities.
- Page 11 (diagram): This page displays a diagram of various machine parts for UTR-K (UTS-K) GROUP P.2/8, including part numbers like SM492, KP60, UT805K, and others, along with their corresponding labels and some quantity indicators.
- Page 12 (parts_list): This page lists parts for UTR-K(UTS-K) Group P.3/8, including various components like UT548K, UT550, LA58, MB34, UT109, SM432, UT810K, UT811, WM600*2, SM611*2, SM516*3, ALT104S*5, and ALT255S*1.
- Page 13 (diagram): This page displays a diagram of various components for the UTR-K (UTS-K) group, including parts like UTK, UT218J, UT776, UT534K, UT226D, UT226P, SM630, EP107, UT810K, GUT103E, and GUT103P, with connections indicated to the wiper, safety switch, and presser foot.
- Page 14 (diagram): This page displays a diagram of electrical components for UTR-K (UTS-K) Group P.5/8, including parts like UTK series, UT218J, UT776, UT534K, UT226D, SM630, GUT103E, EP107, UT810K, and T999, along with connections to main power, wiper, safety switch, synchronizer, and presser foot.
- Page 15 (diagram): This page displays a diagram of various components for the UTP-K (UTQ-K) machine, including part numbers like SM604, MF131-E, UT817-2*2, SM432, CP101, UT815, SM438, WM405, T999, and EIF-10 (迷你選針盒).
- Page 16 (diagram): This page displays a diagram of parts for the UTP-K(UTQ-K) GROUP, including components like SM604, UT817-2*2, MF131, SM603, MF131-E, UT815, WM405, SM438, SM432, CP101, TXXXX-A, T999, and a control box.
- Page 17 (diagram): This page displays a diagram of various components for the UTP-K(UTQ-K) GROUP P.8/8, including screws, washers, and a control box.
