Siruba C007J Attachments — Part Book

Siruba C007J Attachments — parts catalog

Page 1 (diagram): This page displays a diagram of various sewing machine parts including a needle bar mechanism, feed plate, presser foot components, and a feed dog, with part numbers like MXXXX, PXXXX, EXXXX, MQ35, MQ33, CE04, CE05, SK339, CE04-A, DXXXX, and HXXXX.
Page 2 (diagram): This page displays a diagram of various sewing machine parts including a needle bar assembly, needle plate, and feed dog, with associated part numbers like MXXXX, PXXXX, EXXXX, DXXXX, HXXXX, SM031, E4826-1, E3626-3, and E3626-3-E.
Page 3 (diagram): This page displays a diagram of sewing machine parts, including components labeled MXXXX, PXXXX, EXXXX, MQ35, MQ33, DXXXX, HXXXX, CE01, CE02, CE04, CE05, and SK339, with a date of 10/06/05.
Page 4 (diagram): This page displays a diagram of sewing machine parts, including components labeled MXXXX, PXXXX, EXXX, MQ35, CE02, CE01, SK339, CE01-A, CE04-A, CE05, CE04, DXXXX, and HXXXX.
Page 5 (diagram): This page displays a diagram of sewing machine parts for the CHA-J GROUP, including parts labeled MXXXX, PXXXX, EXXXX, MQ35, SM031, E3826Q-2, DXXXX, and HXXXX.
Page 6 (diagram): This page displays a diagram of various machine parts, including components labeled CRL42, WM641, MXXXX, PXXXX, EXXXX, DXXXX, HXXXX, CHJ-A, CH87-A, CH87, BF331, CH88, CH89, SM3650, SM132, MA19J, MA19, and MQ36. It also indicates that these parts are for C007J/C007JD/C858J/C858JD models.
Page 7 (diagram): This page displays a diagram of sewing machine parts for the CH-J GROUP P.1/1, including components labeled MXXXX, PXXXX, EXXXX, DXXXX, HXXXX, CH88, CH89, CH87-A, CH87, BF 331, and SM3650.
Page 8 (diagram): This page displays a diagram of various parts for the C007J group, including screws, bolts, housings, shafts, and other components, with part numbers and labels for identification.
Page 9 (diagram): This page displays a diagram of parts for the CL-H Group P.2/2, including various components labeled with part numbers and descriptions.
Page 10 (parts_list): This page lists parts for the C007J, CQA-J Group P.1/2, including part numbers like WM641, CRL42, MA09H, CQA08, CQA10, CQA14, SM131*2, SM620, SK250, CQA13, CQA09-A, CQA09, SM516, CQ09H, CQA12, SM411, WM400, SM435, CQA06, SM132, MA19, MA19J, and CQA07.
Page 11 (diagram): This page displays a diagram of various sewing machine parts for the CQA-J group, including components like MXXXX, SM031, CH03, PXXXX, EXXXX, MT01A, WM40D, SM132, MA19, MA19J, HXXXX, MA81, and CQA01. It also indicates that these parts are for models C007J/C007JD/C858J/C858JD.
Page 12 (diagram): This page displays a diagram of sewing machine parts, including components labeled CRL42, WM641, CQ08J, SM331, SM620, FQ06, CQ09H, CQ10H, SM435, SM446, SM132, MA19J, WM400, CQ03J, MA19, SK250, CQ11H, CQ15-A, FQ11*2, FQ12*2, SM512, FQ04, CQ15, NM511*2, SM501*4.
Page 13 (diagram): This page displays a diagram of parts for CRA-H GROUP P.1/2, listing various components with their respective part numbers and labels.
Page 14 (diagram): This page displays a diagram of CRA-H GROUP P.2/2, showing various parts and their connections with labels like CR10J, OT2602, FD165-2, TU20P-1, and others.
Page 15 (diagram): This page displays a diagram of parts for the CRB-J Group P.1/2, including various components like covers, brackets, screws, and shafts, with part numbers and reference labels.
Page 16 (parts_list): This page lists parts for the CRB-J GROUP, including screws, brackets, and covers, with part numbers like SK391, KX10E, and KX05.
Page 17 (diagram): This page displays a diagram of sewing machine parts, including various screws, brackets, and covers, with part numbers and references indicated.
Page 18 (diagram): This page displays a diagram of various parts for the CRL-J group, including components like MU01, MV37H, SM501, and CRL145-A, along with their corresponding labels and references.
Page 19 (diagram): This page displays a diagram of various machine parts, including screws, nuts, and components labeled with part numbers such as CR47D, FD161-1-E, and TU20P-1.
Page 20 (diagram): This page displays a diagram of various parts for the CR-J GROUP, including components labeled CRL42, SM4850, MQ17H, MQ18, CR14J, MQ19H, SM131, MV123, MV32, SM402, CR111-A, CRL11, OP312, CR109, CR111, SM102, SK269, MS12-4, OP204, WM504, SM540, FR40J, CR104, SK265, SM404, OP209, CR26J, SM332, CR28, CR105, CR110, SM499, CR112, CR131, CR114, CR116, SM4650, CR118, SM4652, CR119, SM4650, SM401, FR31, FR32, WM804-3, CR120, SM513, CR120-A, CR107, SM151, CR102, MA19, MA19J, SM132, WM401, SM410, CR103, CR201, CR101, MQ01J, WM641.
Page 21 (diagram): This page displays a diagram of various parts for the CR-J GROUP, including components like CR110, FD165-2, NM615, SW01, TU20P-1, TU20P-2, TU20P-3, TU20P-4, TU20P-E, FD161-1, FD161-1-E, SK270*2, CR43, CR41, CR46, JA023, ALT104S, UT54J-2, UT54J, SK392, JA014, JA025, AP604, CR47D-A, CR47D, CR46-1, CR46-2*2, SM412, CR42, SM502, JA013, and OT2602.
Page 22 (diagram): This page displays a diagram of various sewing machine parts, including components labeled GFW11, SM134, GFW07, FW06, GFW09, MA10K-E, GFW10E, SM460, PXXXX, SM160, SM630, FW14K, EXXXX, MXXXX, GMH05, DXXXX, HXXXX, and MT01B. The diagram is for models C007J/C007JD/C858J/C858JD.
Page 23 (diagram): This page displays a diagram of various machine parts, including components labeled FW05J, MK37H, KN37, SM430, SM4803, SM432, MK40, FW01H, VK05, KG07, KG09, KG06E, KG97, KG05, KG04F, VK09-B1, KG05-G1, FW04H, VK09-R1(H), VK09-E1(H), VK09-Y1(H), KG05-G1(H), VK02J, VK10, and VK09-B1(M).
Page 24 (diagram): This page displays a diagram of parts for the C007J sewing machine, specifically for group P.3/3, model GKW40E-A3. It illustrates various components including screws, brackets, poles, and bases with their corresponding part numbers and quantities.
Page 25 (diagram): This page displays a diagram of various sewing machine parts, including screws, brackets, and other components, with their corresponding part numbers and labels.
Page 26 (diagram): This page displays a diagram of parts for the CX-A group, including various screws, shafts, and components labeled with part numbers and reference indicators.
Page 27 (parts_list): This page displays a parts list for the CX-A series, specifically for models C007JD, C858JD, and C007H, with part numbers and descriptions.
Page 28 (parts_list): This page lists parts for the CX-A Group, Series 3, including various screws, nuts, cylinders, and fittings.
Page 29 (diagram): This page displays a diagram of sewing machine parts for the CX-B group, including various components labeled with part numbers like CX14, SM502, and FE36.
Page 30 (diagram): This page displays a diagram of parts for the CX-J GROUP, including components like CX108, CX109, SM502, CX114, CX17, CX107, CX106, SM501, CX115, LF24C, SM402, CX12, CX116, SM352, CR118, and NM511.
Page 31 (diagram): This page displays a diagram of parts for the CY-H (CHP-H) Group, Figure 1, showing various components and their assembly. It includes part numbers, names, and references within the diagram.
Page 32 (diagram): This page displays a diagram of parts for the CY (CHP) group, including components like TU20P-1, TU20P-4, TU20P-2, TU20P-3, FD185-2, NM615, FD165-1, SW01, NK74, CRL18, CRL19, JA082, AP605, CY113-3, CY113-2, JA016, CY113-1, JA026, CY113-E, CY109, SM623, CY102, CY103, CY101, and FD165-A.
Page 33 (diagram): This page displays a diagram of various parts for the CY (CHP) group, including components like CY110, CY107, CY111-A, CY106, CY111, CY104, CY108, CY112, CY114-2, CY114-3, CY114-E, WM600*2, SK392, SM415, NM410, SM438, WM400, JA011*2, CY114-1, JA016, and EM060*2.
Page 34 (diagram): This page displays a diagram of parts for the CY-H(CHP-H) group, specifically section P.4/4, with various components labeled with part numbers and descriptions.
Page 35 (diagram): This page displays a diagram of parts for the CZ-J group, including components like CRL42, WM641, SM183, CZ06, CZ07, SM533, CZ09, CZ08J-A, SM151, MA19J, CZ04J, MA19, CZ01J, CZ10, CZ03J, MQ17H, MQ18, CZ18J, CZ02, SM410, FD161-1-E, SK270, FD161-1, CZ11, CZ12, AC151, CZ15, SM510, MQ19H, SM131, AC151-1, SM136, CY102, AC151-1, A840C, JA043, AP407, AP406, CZ13.
Page 36 (parts_list): This page displays a parts list for the C007J group, featuring various components like CY110, WM600, SK392, SM415, NM410, SM438, WM400*2, CY107, CY106, CY108, EM060*2, CY112, CY111-A, CY114-2, CY114-3, JA011*2, CY114-1, JA016, and CY114-E.
Page 37 (diagram): This page displays a diagram of parts for the CZ-J group, specifically part 3/3, with various components labeled with part numbers and reference indicators.
Page 38 (diagram): This page displays a diagram of parts for the CZP-J Group P.1/2, with various components labeled with part numbers and reference designators.
Page 39 (diagram): This page displays a diagram of parts for the CZP-J Group, specifically Group P.2/2, with various components labeled with part numbers and reference indicators.
Page 40 (diagram): This page displays a diagram of parts for group P.1/12, including various screws, washers, and brackets labeled with part numbers like UT508J, UT515J, and SM4553B.
Page 41 (diagram): This page displays a diagram of various parts for the C007J group, including components labeled A through E, with part numbers such as SM4819, UT514, NM511, UT526, UT531, AP412, JA041, AC040, UT524, OR12B, UT29H, SM532*2, WM510*2, WM500*2, SM511, UT28H, UT34H, PM504, UT30, UT30-E, SM810*2, WM800*2, SM430, SM441, UT535, UT523F, SM516*2, SM510, SK216*2, UT529, MJ39-E, MJ39, UT530P, UT525-E, UT525, SM502, WM801, NM810.
Page 42 (diagram): This page displays a diagram of various machine parts, including components for C007J and C007JD models, with part numbers and descriptions.
Page 43 (parts_list): This page lists parts for the C007J group, specifically for UTP-J(UTQ-J) models, with part numbers, names, and quantities.
Page 44 (diagram): This page displays a diagram of various parts for the C007J group, including components like UT54J-2, JA014, JA025, and others, with reference numbers and part names.
Page 45 (diagram): This page displays a diagram of various parts for the C007J group, including components like UT54J-2, JA014, JA025, and others, with reference numbers and part names.

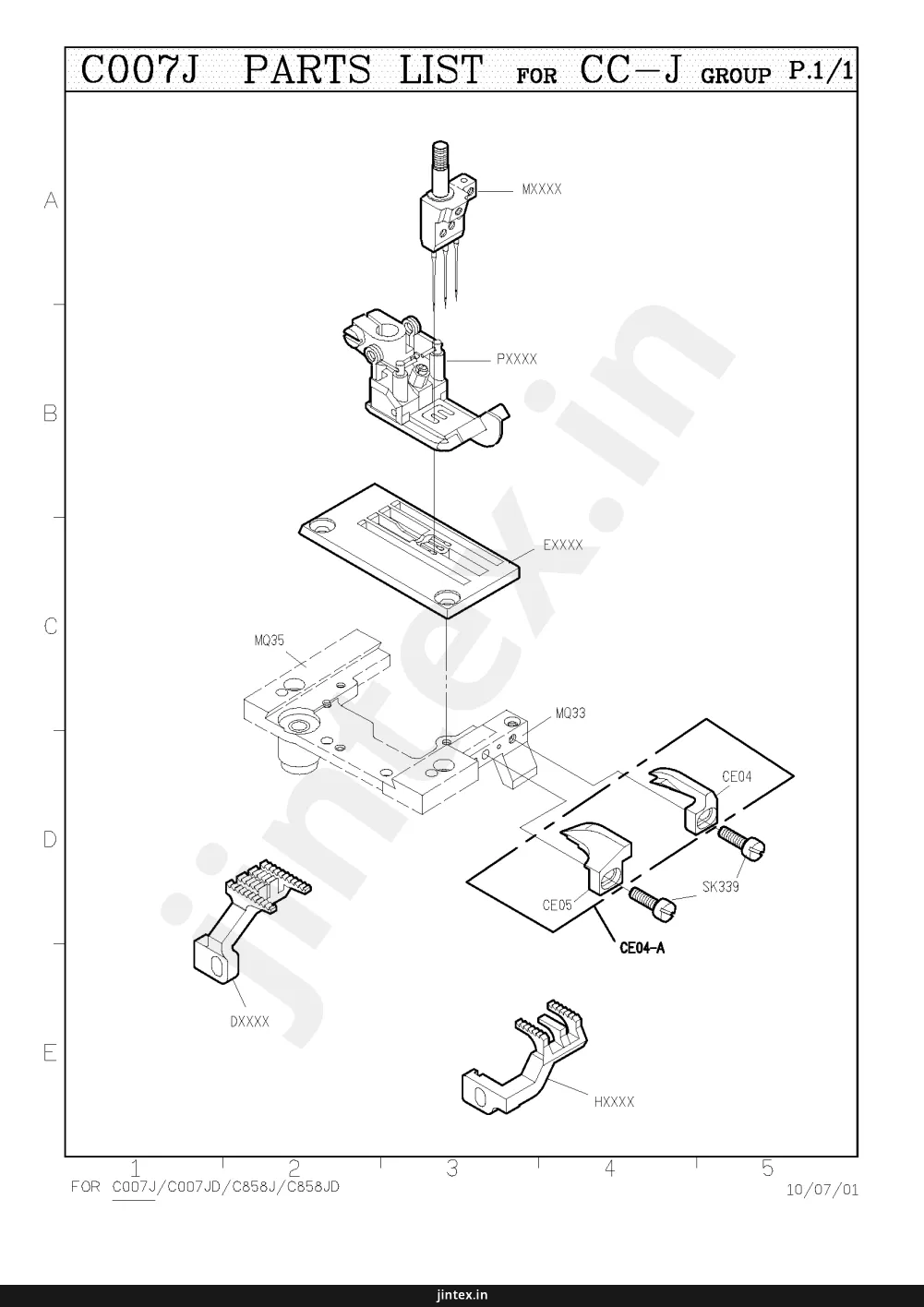

Page 1 — C007J PARTS LIST FOR CC-J GROUP P.1/1

Siruba C007J Attachments parts on page 1
Ref	Part number	Part name	Qty
	MXXXX	Needle bar mechanism
	PXXXX	Needle bar mechanism
	EXXXX	Feed plate
	MQ35	Presser foot bar support
	MQ33	Presser foot bar support
	CE04	Presser foot
	SK339	Screw
	CE05	Presser foot
	CE04-A	Presser foot
	DXXXX	Feed dog
	HXXXX	Feed dog

C007J PARTS LIST FOR CC-J GROUP P.1/1 MXXXX PXXXX EXXXX MQ35 MQ33 CE04 SK339 CE05 CE04-A DXXXX HXXXX FOR C007J/C007JD/C858J/C858JD 1 2 3 4 5 10/07/01 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 2 — C007J PARTS LIST FOR CD-J GROUP P.1/1

Siruba C007J Attachments parts on page 2
Ref	Part number	Part name	Qty
	MXXXX	MXXXX
	PXXXX	PXXXX
	EXXXX	EXXXX
	SM031	SM031
	E4826-1	E4826-1
	E3626-3	E3626-3
	E3626-3-E	E3626-3-E
	MQ35	MQ35
	DXXXX	DXXXX
	HXXXX	HXXXX

C007J PARTS LIST FOR CD-J GROUP P.1/1 MXXXX PXXXX EXXXX SM031 E4826-1 E3626-3 E3626-3-E MQ35 DXXXX HXXXX 1 FOR C007J/C007JD/C858J/C858JD 2 3 4 5 10/07/01 From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 3 — C007J PARTS LIST FOR CE-J GROUP P.1/1

Siruba C007J Attachments parts on page 3
Ref	Part number	Part name	Qty
	MXXXX	MXXXX
	PXXXX	PXXXX
	EXXXX	EXXXX
	MQ35	MQ35
	MQ33	MQ33
	DXXXX	DXXXX
	HXXXX	HXXXX
	CE01	CE01
	SK339	SK339
	CE02	CE02
	CE01-A	CE01-A
	SK339	SK339
	CE04-A	CE04-A
	CE05	CE05
	CE04	CE04

C007J PARTS LIST FOR CE-J GROUP P.1/1 MXXXX PXXXX EXXXX MQ35 MQ33 DXXXX HXXXX CE01 SK339 CE02 CE01-A SK339 CE04-A CE05 CE04 1 FOR C007J/C007JD/C858J/C858JD 2 3 4 5 10/06/05 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 4 — C007J PARTS LIST FOR CF-J GROUP P.1/1

Siruba C007J Attachments parts on page 4
Ref	Part number	Part name	Qty
	MXXXX	MXXXX
	PXXXX	PXXXX
	EXXX	EXXX
	MQ35	MQ35
	CE02	CE02
	CE01	CE01
	SK339	SK339
	CE01-A	CE01-A
	SK339	SK339
	CE04-A	CE04-A
	CE05	CE05
	CE04	CE04
	DXXXX	DXXXX
	HXXXX	HXXXX

C007J PARTS LIST FOR CF-J GROUP P.1/1 MXXXX PXXXX EXXX MQ35 CE02 CE01 SK339 CE01-A SK339 CE04-A CE05 CE04 DXXXX HXXXX 1 2 3 4 5 FOR C007J/C007JD/C858J/C858JD 10/07/01 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 5 — C007J PARTS LIST FOR CHA-J GROUP P.1/1

Siruba C007J Attachments parts on page 5
Ref	Part number	Part name	Qty
	MXXXX	MXXXX
	PXXXX	PXXXX
	EXXXX	EXXXX
	MQ35	MQ35
	SM031	SM031
	E3826Q-2	E3826Q-2
	DXXXX	DXXXX
	HXXXX	HXXXX

C007J PARTS LIST FOR CHA-J GROUP P.1/1 MXXXX PXXXX SM031 E3826Q-2 EXXXX MQ35 DXXXX HXXXX 1 FOR C007J/C007JD/C858J/C858JD 2 3 4 5 10/07/01 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 6 — C007J PARTS LIST FOR CHE-J GROUP P.1/1

Siruba C007J Attachments parts on page 6
Ref	Part number	Part name	Qty
	WM641	WM641
	CRL42	CRL42
	MXXXX	MXXXX
	PXXXX	PXXXX
	EXXXX	EXXXX
	DXXXX	DXXXX
	HXXXX	HXXXX
	CHJ-A	CHJ-A
	SM435*2	SM435*2
	CH87-A	CH87-A
	CH87	CH87
	BF331	BF331
	CH88	CH88
	CH89	CH89
	SM3650	SM3650
	SM132	SM132
	MA19J	MA19J
	MA19	MA19
	MQ36	MQ36

C007J PARTS LIST FOR CHE-J GROUP P.1/1 A WM641 CRL42 B MXXXX PXXXX EXXXX C DX CHJ-A SM435*2 CH87-A HXXXX CH87 BF331 D CH88 SM132 MA19J MA19 CH89 SM3650 E MQ36 1 2 3 4 5 FOR C007J/C007JD/C858J/C858JD 10/07/01 From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 7 — C007J PARTS LIST FOR CH-J GROUP P.1/1

Siruba C007J Attachments parts on page 7
Ref	Part number	Part name	Qty
	MX XXXX	MX XXXX
	PXXXX	PXXXX
	EXXXX	EXXXX
	DXXXX	DXXXX
	HXXXX	HXXXX
	SM135*2	SM135*2
	CHJ-A	CHJ-A
	CH87-A	CH87-A
	CH87	CH87
	BF 331	BF 331
	CH88	CH88
	CH89	CH89
	SM3650	SM3650

C007J PARTS LIST FOR CH-J GROUP P.1/1 A B C DXXXX HXXXX MX XXXX PXXXX EXXXX SM135*2 CHJ-A CH87-A CH87 BF 331 CH88 CH89 SM3650 E 1 FOR C007J/C007JD/C858J/C858JD 2 3 4 5 10/07/01 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 8 — C007J PARTS LIST FOR CL. H GROUP P.1/2

Siruba C007J Attachments parts on page 8
Ref	Part number	Part name
A	SM615	SCREW
A	PP6410	WASHER
A	CL08E	COVER
A	CL10	SHAFT
A	CL12	SHAFT
A	OS3210	BEARING
A	EM100	CIR-CLIP
B	SM612	SCREW
B	CL09	COLLAR
B	OS2170	BEARING
B	CL07	GASKET
B	SM603	SCREW
B	MH73	COLLAR
B	SM502	SCREW
B	CL06	COLLAR
B	SM604	SCREW
B	SM602	SCREW
B	CL46	LEVER
C	SM491	SCREW
C	CL31	WASHER
C	NM511	NUT
C	WM600	WASHER
C	CL05	COLLAR
C	NM410	NUT
C	CL22	SHAFT
C	CL21	SHAFT
C	SM438	SCREW
C	CL01	HOUSING
C	CL02	BEARING
C	SM603*2	SCREW
D	NM410	NUT
D	CL19	GEAR
D	CL19R	GEAR
D	CL20P	GEAR
D	SM6104	SCREW
D	SM502	SCREW
D	CL16E	SPRING
D	CL15E	BRACKET
D	PM401	BRACKET
D	SM147	SCREW
D	CL17E	BRACKET
D	CL18E	BRACKET
E	CL52P	PULLEY
E	CL52R	PULLEY
E	CL53	PULLEY
E	CL20P	PULLEY
E	CL19R	PULLEY
E	CL19	PULLEY
E	CZ/CZP	REMARKS
C	BR4243	BEARING
C	EM243	CIR-CLIP

C007J PARTS LIST FOR CL. H GROUP P.1/2 CL13 OS3210 EM100 SM615 PP6410 CL08E CL10 CL12 SM612 CL09 OS2170 CL07 SM603 MH73 SM502 CL06 SM604 SM602 CL46 SM491 NM511 WM600 CL01 SM603*2 CL31 SM438 CL02 NM410 BR4243 EM243 CL21 SM147 CL17E CL22 CL19 CL18E NM410 CL19R CL20P SM502 SM6104 CL15E ★ 輕輪使用方式上波輪代號 CL52P CL52R CL53 下波輪代號 CL20P CL19R CL19 備註欄 CZ/CZP FOR C007J/C007JD/C858J/C858JD 1 2 3 4 5 2011/07/21 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 9 — C007J PARTS LIST FOR CL-H GROUP P.2/2

Siruba C007J Attachments parts on page 9
Ref	Part number	Part name
CL31	SM492	SCREW
CL32	SM681	PIN
CL30	SM492	SCREW
CL33	CL33	BRACKET
CL33	NM410	NUT
CL33	SM472	SPRING
CL34	CL34	PIN
CL34	SM682	PIN
CL28E	SM440	SCREW
CL28E	NM410	NUT
CL29	SM611	SCREW
CL25	CL25	COVER
CL25	SM611	SCREW
CL25	SM432	WASHER
CL25	CP103	CLAMP
CL59	CL59	BRACKET
CL28E	CL28E	SPRING
CL29	CL29	BRACKET
PM301	PM301	BRACKET
PM401	PM401	BRACKET
CL24E	CL24E	BRACKET
CL26	CL26	COLLAR
CL35	CL35	PLATE
CL35	SM520	SCREW
B	SM139*2	SCREW
B	VCL41	BRACKET
B	OR070	O-RING
C	HE37	BRACKET
C	NM610	NUT
CL48	CL48	WASHER
CL46	CL46	BRACKET
CL47	CL47	PIN
CL49	CL49	SPRING
FR57	BR4081	GEAR
FR57	FR57	NUT
LF210*3	NM511	NUT
LF211*6	NM511	NUT
LF210*3	LF210*3	SCREW
LF211*6	LF211*6	SCREW
LF209*6	LF209*6	SCREW
LF210*3	LF210*3	SCREW
LF211*6	LF211*6	SCREW
LF209*6	LF209*6	SCREW
CL37F	CL37F	BRACKET
CL38	CL38	FAN
SK373	SK373	SCREW
CL45F	CL45F	PLATE
LF208	LF208	BRACKET
CL44	CL44	CYLINDER
CL52P	CL52P	GEAR
CL52R	CL52R	GEAR
CL52P	SM461*3	SCREW
CL52P	SM402*3	SCREW
CL53	SM461*3	SCREW
CL53	SM402*3	SCREW
CL53	CL53	GEAR
CL27	CL27	SHAFT
CL27	EM123	CIRCLIP
CL36	CL36	COLLAR
CL63	NM810	NUT
CL63	CL63	COLLAR
CL64	CL64	COLLAR
CL64	WM800	WASHER
CL39H	CL39H	BRACKET
SM617	SM617	SCREW
SM502	SM502	SCREW
SM502	SM502*2	SCREW
SM470	SM470	BRACKET
CL65	CL65	COLLAR
SM531	SM531	SCREW
EM090	EM090	CIRCLIP
CL42	CL42	SHAFT
CL43	CL43	BRACKET
CL40H	CL40H	SHAFT

C007J PARTS LIST FOR CL-H GROUP P.2/2 SM492 SM681 CL31 SM492 CL30 A CL33 NM410 SM472 B CL34 SM682 SM440 NM410 SM611 A CL28E CL29 B PM301 CL25 SM611 *SM432 CP103 PM401 CL24E CL26 CL35 SM520 CL46 CL47 CL48 CL49 C NM610 CL37F CL27 EM123 CL36 NM810 CL63 CL64 WM800 CL39H SM502 SM617 SM502*2 SM470 CL65 SM531 EM090 CL42 CL43 CL40H SM139*2 VCL41 OR070 C HE37 FR57 BR4081 NM511 NM511 LF210*3 LF211*6 LF209*6 LF210*3 LF211*6 LF209*6 D LF208 CL44 LF208 CL52P CL52R SM461*3 SM402*3 SK373 SM402*3 SM461*3 CL53 E 1 2 3 4 5 11/11/14 FOR C007J/C007JD/C858J/C858JD * USE FOR UTP, UTR, UTS From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 10 — C007J PARTS LIST FOR CQA-J GROUP P.1/2

Siruba C007J Attachments parts on page 10
Ref	Part number	Part name	Qty
	WM641	WM641
	CRL 42	CRL 42
	MA09H	MA09H
	CQA08	CQA08
	CQA10	CQA10
	CQA14	CQA14
	SM131*2	SM131*2
	SM620	SM620
	SK250	SK250
	CQA13	CQA13
	CQA09-A	CQA09-A
	CQA09	CQA09
	SM132	SM132
	CQA06	CQA06
	MA19J	MA19J
	MA19	MA19
	WM400	WM400
	SM435	SM435
	CQA07	CQA07
	SM516	SM516
	CQ09H	CQ09H
	CQA12	CQA12
	SM411	SM411

C007J PARTS LIST FOR CQA-J GROUP P.1/2 WM641 CRL 42 MA09H CQA08 CQA10 CQA14 SM131*2 SM620 SK250 CQA13 CQA09-A CQA09 SM132 CQA06 MA19J MA19 WM400 SM435 CQA07 SM516 CQ09H CQA12 SM411 1 2 3 4 5 FOR C007J/C007JD/C858J/C858JD 10/07/01 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 11 — C007J PARTS LIST FOR CQA-J GROUP P.2/2

Siruba C007J Attachments parts on page 11
Ref	Part number	Part name	Qty
	MXXXX	MXXXX
	SM031	SM031
	CH03	CH03
	PXXXX	PXXXX
	EXXXX	EXXXX
	MT01A	MT01A
	WM40D	WM40D
	SM132	SM132
	MA19	MA19
	MA19J	MA19J
	HXXXX	HXXXX
	MA81	MA81
	CQA01	CQA01
	SM432	SM432

C007J PARTS LIST FOR CQA-J GROUP P.2/2 A B C D E MXXXX SM031 CH03 PXXXX EXXXX MT01A WM40D HXXXX SM132 MA19 MA19J MA81 CQA01 1 FOR C007J/C007JD/C858J/C858JD 2 3 4 5 10/07/01 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 12 — C007J PARTS LIST FOR CQ-J GROUP P.1/1

Siruba C007J Attachments parts on page 12
Ref	Part number	Part name	Qty
	CRL42	CRL42
	WM641	WM641
	CQ08J	CQ08J
	SM131*2	SM131*2
	SM331	SM331
	SM620	SM620
	FQ06	FQ06
	CQ09H	CQ09H
	CQ10H	CQ10H
	SM435	SM435
	SM446	SM446
	WM400	WM400
	CQ03J	CQ03J
	MA19	MA19
	SM132	SM132
	MA19J	MA19J
	WM400	WM400
	SK250	SK250
	CQ11H	CQ11H
	CQ15-A	CQ15-A
	FQ11*2	FQ11*2
	FQ12*2	FQ12*2
	SM512	SM512
	FQ04	FQ04
	CQ15	CQ15
	NM511*2	NM511*2
	SM501*4	SM501*4

C007J PARTS LIST FOR CQ-J GROUP P.1/1 WM641 CRL42 CQ08J SM131*2 SM331 SM620 FQ06 CQ09H CQ10H SM435 FOR C007J/C007JD/C858J/C858JD 1 2 3 4 5 10/11/08 SM446 WM400 CQ03J MA19 CQ11H CQ15-A FQ13*2 SM512 FQ04 CQ15 NM511*2 SM132 MA19J WM400 FQ12*2 SM501*4 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 13 — C007J PARTS LIST FOR CRA-H GROUP P.1/2

Siruba C007J Attachments parts on page 13
Ref	Part number	Part name
WM641	WM641	SCREW
SM151	SM151	COVER
CR30	CR30	BRACKET
CRL42	CRL42	COVER
MA19	MA19	BRACKET
SM132	SM132	BRACKET
MA19J	MA19J	BRACKET
MQ01J	MQ01J	BRACKET
MQ17H	MQ17H	SPRING
MQ18	MQ18	SCREW
CR14J	CR14J	BRACKET
SM441	SM441	SCREW
MQ19H	MQ19H	BRACKET
WM400	WM400	SPRING
SM131	SM131	BRACKET
CR12J	CR12J	LEVER
SM150	SM150	SCREW
CR03J	CR03J	COVER
SM441	SM441	SCREW
CR11J	CR11J	BRACKET
SM432	SM432	SCREW
CR10J	CR10J	PIPE
CR51	CR51	BRACKET
* CR151	* CR151	BRACKET
SM430	SM430	SCREW
CR17J	CR17J	BRACKET
CR31	CR31	BRACKET
SK265	SK265	SCREW
FR40J	FR40J	PLATE
CR04J	CR04J	BRACKET
WM501	WM501	SCREW
CR02J	CR02J	BRACKET
CR28	CR28	SHAFT
SM501	SM501	SCREW
SM130	SM130	BRACKET
OP209	OP209	SPRING
CR05J	CR05J	BRACKET
SM502	SM502	SCREW
MU01	MU01	BRACKET
SM401	SM401	SCREW
FR32	FR32	RING
SM501	SM501	SCREW
MV36	MV36	RING
CRL13J-E	CRL13J-E	BRACKET
SM501	SM501	SCREW
FR38J	FR38J	SHAFT
SM431	SM431	SCREW
CR16	CR16	RING
CRL13J	CRL13J	BRACKET
SM501	SM501	SCREW
FR32	FR32	RING
CRL14-E	CRL14-E	BRACKET
SM501*2	SM501*2	SCREW
MV41	MV41	SHAFT
MV37H	MV37H	BRACKET
SM511	SM511	SCREW
CRL12	CRL12	BRACKET
MV31H	MV31H	SHAFT
CRL11	CRL11	BRACKET
MT33	MT33	RING
OP206	OP206	SPRING
KQ34	KQ34	BRACKET
MT33	MT33	RING
NK26	NK26	RING
CRL13J-A	CRL13J-A	BRACKET
MV29H	MV29H	SHAFT
MV32D	MV32D	BRACKET

C007J PARTS LIST FOR CRA-H GROUP P.1/2 WM641 SM151 CR30 CRL42 MA19 SM132 MA19J MQ01J MQ17H MQ18 CR14J SM441 MQ19H WM400 SM131 CR12J SM150 CR03J SM441 CR11J SM432 CR10J CR17J CR51 * CR151 SM430 CR28J SM331 CR31 SK265 FR40J CR04J WM501 CR02J CR28 SM501 SM130 OP209 CR05J SM502 MU01 SM401 CR13J-E SM501 FR32 SM501 MV36 CRL13J FR38J SM431 CR16 SM501 MV41 FR32 CRL14-E MV37H SM511 CRL12 CRL14 MV31H MV29H CRL11 MT33 OP206 KQ34 MT33 NK26 CRL13J-A 1 2 3 4 5 FOR C007J/C007JD/C858J/C858JD 10/06/22 "USE FOR C007 JD/C858 JD From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 14 — C007J PARTS LIST FOR CRA-H GROUP P.2/2

Siruba C007J Attachments parts on page 14
Ref	Part number	Part name	Qty
	CR10J	CR10J
	OT2602	OT2602
	FD165-2	FD165-2
	JA048	JA048
	AP605	AP605
	NM615	NM615
	CR47D	CR47D
	CR46-2*2	CR46-2*2
	CR46-1	CR46-1
	SM412	SM412
	CR47D-A	CR47D-A
	CR41	CR41
	JA023	JA023
	CR46	CR46
	SM502	SM502
	FD165-2	FD165-2
	NM615	NM615
	CR47D	CR47D
	CR47D-A	CR47D-A
	CR42	CR42
	SM502	SM502
	TU20P-1	TU20P-1
	TU20P-4	TU20P-4
	TU20P-2	TU20P-2
	TU20P-3	TU20P-3
	TU20P-E	TU20P-E
	FD161-1	FD161-1
	SK270	SK270
	FD161-1-E	FD161-1-E
	CR43	CR43
	ALT104S	ALT104S
	UT54J-2	UT54J-2
	JA025	JA025
	SK392	SK392
	JA014	JA014
	UT54J	UT54J
	AP604	AP604
	CR41-A1	CR41-A1

C007J PARTS LIST FOR CRA-H GROUP P.2/2 A CR10J OT2602 FD165-2 JA048 AP605 NM615 CR47D CR46-2*2 CR46-1 SM412 B CR47D-A CR41 JA023 CR46 SM502 FD165-2 NM615 CR47D CR47D-A C CR42 SM502 D E 1 FOR C007J/C007JD/C858J/C858JD 2 3 TU20P-1 TU20P-4 TU20P-2 TU20P-3 TU20P-E FD161-1 SK270 FD161-1-E CR43 ALT104S UT54J-2 JA025 SK392 JA014 UT54J AP604 CR41-A1 4 5 11/07/07 From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 15 — C007J PARTS LIST FOR CRB-J GROUP P.1/2

Siruba C007J Attachments parts on page 15
Ref	Part number	Part name
A	WM641	SCREW
	CRL42	BRACKET
	SM151	SCREW
	CR30	COVER
	MA08JQ	MAIN FRAME
	MQ01J	COVER
	SM132	SCREW
	MA19J	BRACKET
	CR07J	COVER
	MQ18	SPRING
	MQ17H	SCREW
	MA19	BRACKET
	SM441	SCREW
	WM400-	WASHER
	MQ19H	BRACKET
	CR14J	PLATE
	CR12J	BRACKET
	SM441	SCREW
	CR11J	BRACKET
	SM131	SCREW
	SM150	SCREW
	CR03J	COVER
	SM432	SCREW
	CR02J-A	BRACKET
	SM130	SCREW
	CR209J	BRACKET
	SM441	SCREW
	CR26J	BRACKET
	SM331	SCREW
	CR04J	BRACKET
	WM5Q1	WASHER
	CR02J	BRACKET
	CR28	SHAFT
	SM501	SCREW
A	FR32-E	BRACKET
	SM401	SCREW
	FR32	RING
	CR05J	BRACKET
	SM502	SCREW
	MU01	BRACKET
	FR31	SPRING
	FR38J	BRACKET
	OP209	PIN
	SM441	SCREW
	SM501	SCREW
B	CRL13J-E	BRACKET
	SM501	SCREW
	MV36	COLLAR
	CRL19J	BRACKET
	SM501	SCREW
	CR16	COLLAR
E	CRL14-E	BRACKET
	SM501	SCREW
	CRL14	BRACKET
	MV41	COLLAR
	MV37H	SHAFT
	SM511	SCREW
	CRL12	SCREW
	MV31H	SHAFT
	MT33	COLLAR
	MV29H	SHAFT
	CRL11	BRACKET
	OP206	PIN
	CRL13J-A	BRACKET
	KQ34	COLLAR
	KQ331	BRACKET
	NK26	COLLAR
	MV32D	BRACKET

C007J PARTS LIST FOR CRB-J GROUP P.1/2 WM641 CRL42 SM151 CR30 MA08JQ MQ01J SM132 MA19J CR07J MQ18 MQ17H MA19 SM441 WM400- MQ19H CR14J CR12J SM441 CR11J SM131 SM150 CR03J SM432 CR02J-A SM130 CR209J SM441 CR26J SM331 CR04J WM5Q1 CR28 CR02J SM501 FR32-E A SM401 FR32 CR05J SM502 MU01 FR38J OP209 SM401 SM441 SM501 CRL13J-E SM501 SM501 MV36 CRL19J CR16 CRL14-E SM501 MV41 MV37H SM511 CRL12 MT33 MV31H MV29H CRL11 OP206 KQ34 KQ331 MV32D NK26 B 1 2 3 4 5 FOR C007J/C007JD/C858J/C858JD "*"USE FOR C007JD/C858JD 10/06/22 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 16 — C007J PARTS LIST FOR CRB-J GROUP P.2/2

Siruba C007J Attachments parts on page 16
Ref	Part number	Part name
A	SK391	SCREW
A	KX10E	COVER
A	KX05	SCREW
B	SM581	SPRING
B	MN08	BRACKET
B	SM531	SPRING
B	MN09	BRACKET
B	KX08*2	WASHER
B	MN02	BRACKET
B	WM850	GEAR
B	KX08	WASHER
B	WM810	WASHER
B	KX04	BOLT
D	SK392	SCREW
D	WK21	WASHER
D	KX12E	COVER
E	KX13E	COVER

C007J PARTS LIST FOR CRB-J GROUP P.2/2 SK391 KX10E A B C D SK392 WK21 KX12E E 1 FOR C007J/C007JD/C858J/C858JD *USE FOR C007JD/C858JD 2 3 4 5 10/07/01 KX05 SM581 MN08 SM531 MN09 KX08*2 MN02 WM850 KX08 WM810 KX04 KX13E From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 17 — C007J PARTS LIST FOR CRL-J GROUP P.1/3

Siruba C007J Attachments parts on page 17
Ref	Part number	Part name
1	WM641	SCREW
2	SM433	SCREW
3	CRL42	COVER
4	WM400	WASHER
5	SM035B	SCREW
6	CRL128-A	BRACKET
7	CRL128	BRACKET
8	CRL129	BRACKET
9	MQ01J	COVER
10	CRL51	BRACKET
11	CRL151	BRACKET
12	SM311	SCREW
13	SM135	SCREW
14	MR09J	BRACKET
15	SM433	SCREW
16	WM400	WASHER
17	SM138	SCREW
18	CRL135	BRACKET
19	SM138	SCREW
20	SM331	SCREW
21	MR114H	PLATE
22	SM151	SCREW
23	CRL140	BRACKET
24	MQ17H	PIN
25	MQ18	SPRING
26	CRL21J	BRACKET
27	SM430	SCREW
28	WM402	WASHER
29	CRL126	BRACKET
30	CRL126P	BRACKET
31	CRL143	BRACKET
32	SM460	SCREW
33	MA19J	BRACKET
34	MA19	BRACKET
35	SM132	SCREW
36	CRL24J	BRACKET
37	SM131	SCREW
38	PXXXX	BRACKET
39	CRL125	BRACKET
40	SM441	SCREW

C007J PARTS LIST FOR CRL-J GROUP P.1/3 WM641 SM433 CRL 42 WM400 SM035B CRL128-A CRL128 CRL129 MQ01J CRL51 * CRL151 SM311 SM311 SM135 MR09J SM433 WM400 SM138 CRL135 SM138 SM331 MR114H SM151 CRL140 MQ17H SM430 WM402 CRL126 CRL126P (FOR切替型用) CRL125 MQ18 CRL21J K CRL143 SM441 SM460 MA19J MQ19H SM132 MA19 CRL24J SM131 PXXXX 1 2 3 4 5 12/01/04 USE FOR C007JD/C858JD From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 18 — C007J PARTS LIST FOR CRL-J GROUP P.2/3

Siruba C007J Attachments parts on page 18
Ref	Part number	Part name	Qty
	MU01	MU01
	MV37H	MV37H
	SM501	SM501
	CRL145-A	CRL145-A
	MV41	MV41
	SM501	SM501
	PM402	PM402
	MV35	MV35
	CRL12	CRL12
	CRL145	CRL145
	SM401	SM401
	FR32-E	FR32-E
	FR32	FR32
	MT33	MT33
	OP206	OP206
	WM808	WM808
	FR31	FR31
	CRL08J-E	CRL08J-E
	SM533	SM533
	MT33	MT33
	NK26	NK26
	CRL11	CRL11
	CRL08J	CRL08J
	MV33H	MV33H
	SM050	SM050
	WM500	WM500
	NM511	NM511
	CRL137	CRL137
	CRL137P	CRL137P (FOR 切寛型用)
	CRL144	CRL144(FOR 813/823)
	ISM031	ISM031
	WM400	WM400
	CRL103-A	CRL103-A
	JA048	JA048
	AP605	AP605
	SM5050	SM5050
	CRL39	CRL39
	CRL36J	CRL36J
	CRL36J-A	CRL36J-A
	CRL17J	CRL17J
	CRL17J-A	CRL17J-A
	SM438	SM438
	CRL103	CRL103
	SK273	SK273
	WM411	WM411
	CRL15J	CRL15J
	SM436	SM436
	CRL09J	CRL09J
	SM512	SM512
	SM140	SM140
	CRL104	CRL104
	SM501	SM501
	CRL44	CRL44
	CRL141J	CRL141J
	CRL180	CRL180
	CRL180	CRL180

C007J PARTS LIST FOR CRL-J GROUP P.2/3 MU01 MV37H SM501 CRL145-A MV41 SM501 PM402 MV35 CRL12 CRL145 SM401 FR32-E FR32 MT33 OP206 WM808 FR31 CRL08J-E SM533 MT33 NK26 CRL11 CRL08J MV33H SM050 WM500 NM511 CRL137 CRL137P (FOR 切寛型用) CRL144(FOR 813/823) JA048 AP605 SM5050 CRL39 CRL36J CRL36J-A WM400 CRL103-A CRL20J SM438 SK273 SM411 CRL17J CRL15J SM436 CRL09J SM512 SM411 SM140 CRL104 CRL141J CRL180 SM501 CRL44 CRL180 1 2 3 4 5 11/07/11 FOR C007J/C007JD/C858J/C858JD 註:(1)CRL 針棒行程為34mm,CRL103 切布最高點時,刀尖離針板面為7mm. (2)訂購 CRL137P時,附贈CRL137/CRL126 From the library: Superior Sewing Machine & Supply LLC jintex.in

Page 19

Siruba C007J Attachments parts on page 19
Ref	Part number	Part name	Qty
	OT2602	OT2602
	TU20P-1	TU20P-1
	TU20P-4	TU20P-4
	NK74*2	NK74*2
	SW01	SW01
	FD165-2	FD165-2
	NM615	NM615
	CR47D	CR47D
	TU20P-2	TU20P-2
	TU20P-3	TU20P-3
	FD161-1-E	FD161-1-E
	FD161-1	FD161-1
	SK270*2	SK270*2
	CR43	CR43
	TU20P-E	TU20P-E
	CR46-2	CR46-2
	CR46-2	CR46-2
	CR46-1	CR46-1
	SM412*2	SM412*2
	CR41	CR41
	#CR41-A1	#CR41-A1
	CR42	CR42
	SM502	SM502
	ALT104S	ALT104S
	UT54J-2	UT54J-2
	JA023	JA023
	CR46	CR46
	CR47D	CR47D
	JA013	JA013
	JA025	JA025
	SK392	SK392
	JA014	JA014
	CR47D	CR47D
	NM615	NM615
	SW01	SW01
	FD165-2	FD165-2
	NK74*2	NK74*2
	UT54J	UT54J
	AP604	AP604

SIRUBA PARTS LIST C007J/C007JD C858J/C858JD Series Parts Group CRL-J Subclass / Remark # UTP/UTQ is not collocatec with Page 3/3 Date 2014/05/06 OT2602 TU20P-1 TU20P-4 NK74*2 SW01 FD165-2 NM615 CR47D FD161-1-E TU20P-2 TU20P-3 FD161-1 SK270*2 CR43 TU20P-E CR46-2 CR46-2 CR46-1 SM412*2 CR41 #CR41-A1 CR42 SM502 ALT104S UT54J-2 JA023 CR46 CR47D JA013 JA025 SK392 JA014 CR47D NM615 SW01 FD165-2 NK74*2 UT54J AP604 1 2 3 4 5 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 20 — C007J PARTS LIST FOR CR-J GROUP P.1/2

Siruba C007J Attachments parts on page 20
Ref	Part number	Part name	Qty
	WM641	washer
	CRL42	cover
	SM4850	screw
	CR117	bracket
	MQ01J	cover
	MQ17H	screw
	MQ18	spring
	CR14J	plate
	MQ19H	bracket
	SM131	screw
	MV123	lever
	MV32	lever
	SM402	screw
	CR111-A	frame
	SK269	screw
	CRL11	lever
	OP312	roller
	CR109	bracket
	CR111	lever
	SM102	screw
	MS12-4	pin
	OP204	pin
	WM504	washer
	SM540	screw
	FR40J	plate
	CR104	lever
	SK265	screw
	SM404	screw
	OP209	pin
	CR26J	bracket
	SM332	screw
	CR28	shaft
	CR105	bracket
	CR110	cover
	SM499	screw
	CR112	bracket
	CR115	washer
	CR131	bracket
	CR114	lever
	CR116	cover
	SM4650	screw
	CR118	bracket
	SM4652	screw
	SM4650	screw
	SM401	screw
	FR31	spring
	FR32	collar
	WM804-3	washer
	CR120	lever
	SM513	screw
	CR120-A	lever
	CR107	shaft
	SM151	screw
	CR102	cover
	MA19	bracket
	MA19J	bracket
	SM132	screw
	SM438	screw
	WM401	washer
	SM410	screw
	CR103	cover
	CR201	screw
	CR101	screw

C007J PARTS LIST FOR CR-J GROUP P.1/2 WM641 CRL42 SM4850 CR117 MQ17H MQ18 CR14J MQ19H SM131 MV123 MV32 SM402 CR111-A SK269 CRL11 OP312 CR109 CR111 SM102 (A) CR115 SM401 FR31 FR32 FR32-E WM804-3 CR120 SM513 CR120-A 1 FOR C007J/C007JD/C858J/C858JD "*" FOR C007JD/C858JD 2 CR107 FR40J CR104 WM504 SM540 SM431 CR114 SM510 CR116 SM4650 3 CR26J SK265 SM404 OP209 CR28 CR105 CR112 CR131 CR110 SM499 CR118 SM4652 SM4650 4 SM151 CR102 MA19 MA19J SM132 SM438 WM401 SM410 CR103 CR201 *CR101 MQ01J 5 10/06/21 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 21 — C007J PARTS LIST FOR CR-J GROUP P.2/2

Siruba C007J Attachments parts on page 21
Ref	Part number	Part name	Qty
	CR110	CR110
	OT2602	OT2602
	JA048	JA048
	AP605	AP605
	FD165-2	FD165-2
	NK74	NK74
	SW01	SW01
	NM615	NM615
	TU20P-1	TU20P-1
	TU20P-4	TU20P-4
	TU20P-2	TU20P-2
	TU20P-3	TU20P-3
	CR47D-A	CR47D-A
	CR47D	CR47D
	CR46-2*2	CR46-2*2
	CR46-1	CR46-1
	SM412	SM412
	FD161-1	FD161-1
	TU20P-E	TU20P-E
	FD161-1-E	FD161-1-E
	CR41	CR41
	SK270*2	SK270*2
	CR43	CR43
	CR42	CR42
	SM502	SM502
	JA023	JA023
	ALT104S	ALT104S
	UT54J-2	UT54J-2
	CR46	CR46
	CR47D	CR47D
	NM615	NM615
	FD165-2	FD165-2
	NK74	NK74
	SW01	SW01
	CR47D-A	CR47D-A
	JA013	JA013
	UT54J	UT54J
	JA025	JA025
	SK392	SK392
	JA014	JA014
	AP604	AP604
	CR41-A1	CR41-A1

C007J PARTS LIST FOR CR-J GROUP P.2/2 CR110 OT2602 JA048 AP605 FD165-2 NK74 SW01 NM615 TU20P-1 TU20P-4 TU20P-2 TU20P-3 CR47D-A CR47D CR46-2*2 CR46-1 SM412 FD161-1 TU20P-E FD161-1-E CR41 SK270*2 CR43 CR42 SM502 JA023 ALT104S UT54J-2 CR46 CR47D NM615 FD165-2 NK74 SW01 CR47D-A JA013 UT54J JA025 SK392 JA014 AP604 CR41-A1 1 2 3 4 5 FOR C007J/C007JD/C858J/C858JD 10/07/01 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 22 — C007J PARTS LIST FOR CW GROUP P.1/3

Siruba C007J Attachments parts on page 22
Ref	Part number	Part name	Qty
	GFW11	GFW11
	SM134	SM134
	GFW07	GFW07
	FW06	FW06
	GFW09	GFW09
	MA10K-E	MA10K-E
	GFW10E	GFW10E
	SM460	SM460
	PXXXX	PXXXX
	SM160	SM160
	SM630	SM630
	FW14K	FW14K
	EXXXX	EXXXX
	MXXXX	MXXXX
	GMH05	GMH05
	DXXXX	DXXXX
	HXXXX	HXXXX
	MT01B	MT01B

C007J PARTS LIST FOR CW GROUP P.1/3 A B GFW11 SM134 GFW07 FW06 GFW09 MA10K-E C SM460 GFW10E PXXXX SM160 SM630 FW14K D EXXXX E MXXXX GMH05 DX XXXX HXXXX MT01B 1 2 3 4 5 FOR C007J/C007JD/C858J/C858JD 11/01/28 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 23 — C007J PARTS LIST FOR CW GROUP P.2/3

Siruba C007J Attachments parts on page 23
Ref	Part number	Part name	Qty
	FW05J	FW05J
	MK37H	MK37H
	KN37	KN37
	SM430	SM430
	SM4803	SM4803
	SM432	SM432
	MK40	MK40
	FW01H	FW01H
	VK05	VK05
	KG07	KG07
	KG09	KG09
	KG06E	KG06E
	KG97	KG97
	KG05	KG05
	KG04F	KG04F
	VK09-B1	VK09-B1
	KG05-G1	KG05-G1
	FW04H	FW04H
	VK09-R1(H)	VK09-R1(H)
	VK09-E1(H)	VK09-E1(H)
	VK09-Y1(H)	VK09-Y1(H)
	KG05-G1(H)	KG05-G1(H)
	VK02J	VK02J
	VK10	VK10
	VK09-B1(M)	VK09-B1(M)
	VK09-B1(M)	VK09-B1(M)

C007J PARTS LIST FOR CW GROUP P.2/3 A B FW05J MK37H KN37 SM430 SM4803 SM432 MK40 FW01H FW04H VK09-R1(H) VK09-E1(H) VK09-Y1(H) KG05-G1 KG05-G1(H) VK09-B1(M) VK05 KG07 KG09 KG06E KG97 KG05 KG04F VK09-B1 KG05 KG04F VK02J VK10 VK09-B1(M) 1 2 3 4 5 FOR F007J/F007JD/C007J/C007JD/F858J/F858JD/C858J/C858JD 11/05/06 From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 24 — C007J PARTS LIST

Siruba C007J Attachments parts on page 24
Part number	Part name	Qty
SM6200	SCREW	4
KW05B	BRACKET	4
GKW26E	BRACKET	2
KW36B	BUSHING	1
SW01	WASHER	4
NK31B	NUT	4
GKW01E	POLE	1
KW32E	SCREW	6
KW17B	BRACKET	1
SK386B	BRACKET	1
SM4655	SCREW	2
KW23	BRACKET	1
KW20E	BRACKET	1
NK29B	NUT	2
SM4654	SCREW	1
KW14E	BRACKET	1
NK29B	NUT	2
GKWO3E	BRACKET	1
SM4656	SCREW	1
SK422	SCREW	1
KW22	BRACKET	1
GKWO2E	POLE	1
KW13E	BRACKET	6
GKWO9B	BRACKET	6
WK25B	WASHER	1
WMG10	WASHER	1
NK30B	NUT	1
KW16	BRACKET	6
NK29B	NUT	6
KW12E	BRACKET	6
SW04	WASHER	6
NK29B	NUT	1
SM4656	SCREW	1
KW24	BRACKET	1
SK422	SCREW	1

C007J PARTS LIST FOR CW GROUP P.3/3 GKW40E-A3 A KW36B SW01*4 NK31B*4 SM6200*4 KW05B*4 GKW26E*2 GKW01E KW32E*6 B KW17B SK386B SM4655 KW23 KW20E NK29B*2 SM4654 KW14E NK29B*2 C GKWO3E SM4656 SK422 KW22 GKWO2E KW13E*6 GKWO9B*6 D WK25B WMG10 NK30B KW16*6 NK29B*6 E KW12E*6 SW04*6 NK29B SM4656 KW24 SK422 1 2 3 4 5 FOR F007J/F007JD/C007J/C007JD/F858J/F858JD/C858J/C858JD 09/11/19 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 25 — PARTS LIST FOR CW GROUP SERIES DIAGRAM 4

Siruba C007J Attachments parts on page 25
Ref	Part number	Part name	Qty
	SM511	UT28H
	PM501	UT28H
	MK39H	UT34H
	EM040	UT34H
	VJO1-3	UT34H
	SM447	UT34H
	FW33	UT37-2
	UT37	UT37-2
	SM430	SK216
	SK216	SK216
	VK09-R1(H)	SK216
	VK09-E1(H)	SK216
	VK09-Y1(H)	SK216
	MK40	SM432
	SM432	FW31
	FW31	UT35H-1
	UT35H-1	UT35H-1
	VK09-B1(H)	KG05-G1(H)
	KG05-G1(H)	KG05-G1(H)
	VK02J	SM404
	SM330	FW34
	KG05-G1	FW34
	SM404	FW34
	VK09-B1(M)	VK09-B1(M)
	VK09-B1(M)	VK09-B1(M)
	VK05	VK09
	KG07	VK09
	KG06E	KG08
	KG08	KG05
	KG05	KG04F
	VK09	KG06E
	KG06E	KG96
	KG96	KG05
	KG05	KG04F
	VK09-B1	KG04F
	UT34-3	UT38
	UT38	UT38
	SK216	UT38

PARTS LIST FOR CW GROUP FW-K SERIES DIAGRAM 4 SM511 UT28H MK39H PM501 UT34H EM040 VJO1-3 SM447 FW33 UT37-2 FW32 SM430 SK216 VK09-R1(H) VK09-E1(H) VK09-Y1(H) MK40 SM432 FW31 UT35H-1 VK09-B1(H) KG05-G1(H) VK02J SM330 FW34 KG05-G1 SM404 VK09-B1(M) VK09-B1(M) VK05 VK09 UT34-3 KG07 KG06E KG08 KG05 KG04F VK09 KG06E KG96 KG05 VK09-B1 KG04F UT38 SK216 1 2 3 4 5 FOR CW-UT/FW-UT 09/06/08

Page 26 — PARTS LIST FOR CX-A GROUP

Siruba C007J Attachments parts on page 26
Ref	Part number	Part name
	PM503	PM503
	CX02	CX02
	SM401	SM401
	CX01	CX01
	KU61	KU61
	SK216T	SK216T
	WK07	WK07
	SM130	SM130
	SM136	SM136
	AC160-1A840C	AC160-1A840C
	CX04	CX04
	AC160-1	AC160-1
	CX03	CX03
	SM404	SM404
	CX08	CX08
	CX07	CX07
	CX06	CX06
	PM201	PM201
	SM401	SM401
	PM302	PM302
	CR24	CR24
	CX05	CX05
	SM352	SM352
	WM500	WM500
	SM534	SM534
	SM401	SM401
	SM511	SM511
	SM402	SM402
	LF24C	LF24C
	LF22C	LF22C
7	AP406	AP406
	JA091	JA091
	AC160	AC160
8	AP407	AP407
	JA091	JA091

PARTS LIST FOR CX-A GROUP CXA-K 1 PM503 CX02 SM401 CX01 KU61 SK216T WK07 SM130 SM136 AC160-1A840C CX04 AC160-1 CX03 SM404 CX08 CX07 CX06 PM201 SM401 PM302 CR24 CX05 SM352 WM500 SM534 SM401 SM511 SM402 LF24C LF22C AP406 7 JA091 AC160 8 AP407 JA091 B 1 2 FOR C007J/C007JD/C858J/C858JD "*" USE FOR C007JD/C858JD 3 4 5 11/07/08 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 27 — CX-A

Siruba C007J Attachments parts on page 27
Ref	Part number	Part name	Qty
	CY110	CY110
	WM600	WM600
	SK392	SK392
	SM415	SM415
	NM410	NM410
	SM438	SM438
	WM400	WM400
	CY107	CY107
	CY106	CY106
	CY111	CY111
	CY104	CY104
	JA011	JA011
	CY114-1	CY114-1
	CY108	CY108
	EM060*2	EM060*2
	CY112	CY112
	CY114-2	CY114-2
	CY114-3	CY114-3
	JA016	JA016

SIRUBA PARTS LIST Series C007JD/C007JD C858J/C858JD C007H Parts Group CX-A Subclass / Remark Page 2/3 Date 2012/12/27 CY110 WM600 SK392 SM415 NM410 SM438 WM400 CY107 CY106 CY111 CY104 JA011 CY114-1 CY108 EM060*2 CY112 CY114-2 CY114-3 JA016 E 1 2 3 4 5 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 28 — PARTS LIST FOR CX-A GROUP

Siruba C007J Attachments parts on page 28
Ref	Part number	Part name
A	SM623	SCREW
A	CY109	BRACKET
A	CY105	BRACKET
A	FD165-2	BOLT
A	AC211	CYLINDER
A	JA012	ELBOW
A	AP410	TUBE
A	JA012	ELBOW
B	SM623	SCREW
B	CY101	BRACKET
B	FD165-2	BOLT
B	NM615	NUT
A	UT41H	BRACKET
A	AP409	TUBE
A	WM600	WASHER
A	SM611	SCREW
B	CY115	ROD
B	MJ38	SCREW
A	AC211-3	NUT
A	UT43	CAP
A	AC211-4	NUT
A	UT45	BRACKET
A	NM610	NUT
A	SM432	SCREW
C	FD165-1	BOLT
C	NM615	NUT
D	JA016	ELBOW
C	CY114-1	VALVE
C	JA011	ELBOW
C	SK392	SCREW
A	ALT104S	PIN
D	GUT54J-2	BRACKET
A	JA025	NIPPLE
C	CY114-2	RING
C	CY114-3	NUT
E	GKY20D	BRACKET
E	AP604	PIN
D	GUT54J	BRACKET
D	AP603	PIN
C	JA131	JOINT
E	CY116	BRACKET
E	WM600	WASHER
E	AP603	PIN
E	NK610	NUT

PARTS LIST FOR CX-A GROUP 系列圖 3 CXA-K SM623 CY109 CY105 FD165-2 AC211 JA012 AP410 JA012 SM623 CY101 FD165-2 NM615 UT41H AP409 WM600 SM611 CY115 MJ38 AC211-3 UT43 AC211-4 UT45 NM610 SM432 FD165-1 NM615 JA016 CY114-1 JA011 SK392 ALT104S GUT54J-2 JA025 CY114-2 CY114-3 GKY20D AP604 GUT54J AP603 JA131 CY116 WM600 AP603 NK610 1 2 3 4 5 FOR C007H/C007J/C007JD/C858JD 11/04/26 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 29 — C007J PARTS LIST FOR CX-B GROUP P.1/1

Siruba C007J Attachments parts on page 29
Ref	Part number	Part name	Qty
	CX14	CX14
	SM502*4	SM502*4
	CX13	CX13
	FE36	FE36
	SM502	SM502
	CX17	CX17
	CX18	CX18
	NM610	NM610
	SM410	SM410
	SM402	SM402
	LF24C	LF24C
	SM501*2	SM501*2
	PM310	PM310
	CX12	CX12
	CX15	CX15
	CX06	CX06
	SM401	SM401
	CX07-E	CX07-E
	CX07	CX07
	PM302	PM302
	CX05	CX05
	SM352	SM352
	CX16	CX16
	CX10J	CX10J
	SM151	SM151
	SM510	SM510
	NM511	NM511
	CX19	CX19
	CX20	CX20
	SM132	SM132
	MA19J	MA19J
	WM500	WM500
	NM511	NM511
	CX11J	CX11J
	SM517	SM517

C007J PARTS LIST FOR CX-B GROUP P.1/1 CX14 SM502*4 CX13 FE36 SM502 CX17 CX18 NM610 A SM410 SM402 LF24C SM501*2 PM310 CX12 CX15 CX06 SM401 CX07-E CX07 PM302 CX05 SM352 CX16 CX10J SM151 SM510 NM511 A CX19 CX20 SM132 MA19J WM500 NM511 CX11J SM517 1 2 3 4 5 FOR C007J/C007JD/C858J/C858JD 10/07/01 From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 30 — PARTS LIST FOR CX-J GROUP

Siruba C007J Attachments parts on page 30
Ref	Part number	Part name	Qty
	CX108	薄布
	CX109	超薄布
	CX114	SM502
	CX13	SM502
	CX17	SM502
	CX107	SM502
	CX106	SM401
	CX115	SM501
	LF24C	SM402
	CX12	SM402
	CX116	SM352
	CX108	SM352
	CR118	NM511

PARTS LIST FOR CX-J GROUP CR-JK MODEL 薄布超薄布 1 PARTS NO CX108 CX109 A SM502 SM502 CX114 CX13 SM502 SM502 LF24C CX17 SM401 CX107 CX108 SM501 CX115 SM501 SM402 CX12 SM402 CX116 CX08 SM352 CX108 CR118 NM511 E 1 2 3 4 5 11/07/08 FOR C007J/C858J/CR-J/CX-J From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 31 — PARTS LIST FOR CY-H (CHP-H) GROUP 系列圖 1

Siruba C007J Attachments parts on page 31
Ref	Part number	Part name
A	SM431	WK27
A	CHP02	*CY08
A	SM441	WM400
A	CY09	CY09
A	CRL35	CRL35
A	CRL26H	CRL26H
A	SM441	WM400
A	CY03	CY03
A	SM496	CRL25
A	GCRL24	GCRL24
A	SM130	MA19E
A	CY14	CY14
A	SM433	SM433
A	CY06	CY06
A	SM310	A840C
A	CY13	CY13
A	AC131-2	AC131-2
A	CY11	CY11
A	CY12	CY12
A	AC131-1	AC131-1
A	JA043	JA043
B	AP416	AP416
A	AP417	AP417
A	JA043	JA043
A	AC131	AC131

PARTS LIST FOR CY-H (CHP-H) GROUP 系列圖 1 SM431 WK27 CHP02 *CY08 SM441 WM400 CY04 SM441 WM400 CY03 CY09 CRL35 CRL26H SM496 CRL25 GCRL24 SM130 MA19E CY14 SM433 CY06 SM310 A840C CY13 AC131-2 CY11 CY12 AC131-1 JA043 AP416 B AP417 A JA043 AC131 1 FOR C007J/C858J *USR FOR CY-H 2 3 4 5 11/08/13 From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 32 — C007J PARTS LIST FOR CY (CHP) GROUP P.2/4

Siruba C007J Attachments parts on page 32
Ref	Part number	Part name	Qty
	TU20P-1	TU20P-1
	TU20P-4	TU20P-4
	TU20P-2	TU20P-2
	TU20P-3	TU20P-3
	TU20P-E	TU20P-E
	OT2601	OT2601
	FD185-2	FD185-2
	NM615	NM615
	CRL18	CRL18
	NK74	NK74
	SW01	SW01
	FD165-1	FD165-1
	FD165-A	FD165-A
	CY113-A	CY113-A
	CY-H	CY-H
	CY101-A	CY101-A
	CY109	CY109
	SM623	SM623
	CY102	CY102
	CY103	CY103
	SM623	SM623
	CY101	CY101
	CY113-1	CY113-1
	FD165-1	FD165-1
	NM615	NM615
	NK74	NK74
	SW01	SW01
	FD165-2	FD165-2
	JA082	JA082
	AP605	AP605
	CY113-3	CY113-3
	CY113-2	CY113-2
	JA016	JA016
	JA026	JA026
	CY113-E	CY113-E

C007J PARTS LIST FOR CY (CHP) GROUP P.2/4 A TU20P-1 TU20P-4 TU20P-2 TU20P-3 B TU20P-E OT2601 FD185-2 NM615 CRL18 NK74 SW01 FD165-1 FD165-A CY113-A= A + B CY CY-H 系列系列 CY101-A CY109 SM623 CY102 CY103 SM623 CY101 CY113-1 FD165-1 NM615 NK74 SW01 FD165-2 JA082 AP605 CY113-3 CY113-2 JA016 JA026 CY113-E C D E 1 FOR C007J/C007JD/C858J/C858JD 2 3 4 5 10/07/01 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 33 — C007J PARTS LIST FOR CY (CHP) GROUP P.3/4

Siruba C007J Attachments parts on page 33
Ref	Part number	Part name	Qty
	CY110-E	CY110
	SK392	SK392
	SM415	SM415
	NM410	NM410
	SM438	SM438
	WM400	WM400
	CY107	CY107
	CY111-A	CY111-A
	CY106	CY106
	CY111	CY111
	CY104	CY104
	CY108	CY108
	EM060*2	EM060*2
	CY112	CY112
	JA011*2	JA011*2
	CY114-1	CY114-1
	CY114-2	CY114-2
	CY114-3	CY114-3
	JA016	JA016
	CY114-E	CY114-E

C007J PARTS LIST FOR CY (CHP) GROUP P.3/4 CY110 WM600*2-CY110-E SK392 SM415 NM410 SM438 WM400 CY107 CY111-A CY106 CY111 CY104 CY108 EM060*2 CY112 JA011*2 CY114-1 CY114-2 CY114-3 JA016 E CY114-E 1 2 3 4 5 FOR C007J/C007JD/C858J/C858JD From the library of: Superior Sewing Machine & Supply LLC Jinte.in 10/07/01

Page 34 — C007J PARTS LIST FOR CY-H(CHP-H) GROUP P.4/4

Siruba C007J Attachments parts on page 34
Ref	Part number	Part name	Qty
	CY105-A	BRACKET
	SM623	SCREW
	CY109	BRACKET
	CY101	BRACKET
	CY102	SPRING
	CY103	BRACKET
	FD165-2	ROD
	SW01	WASHER
	NK74*2	NUT
	NM615	NUT
	CY115	ROD
	CY115-A	BRACKET
	MJ38	SCREW
	MJ34H	PIN
	MJ35H	BRACKET
	CY113-A	BRACKET
	AC211	CYLINDER
	JA012	ELBOW
	AP410	PIN
	JA012	ELBOW
	AP409	PIN
	WM600	WASHER
	SM611	SCREW
	AC211-3	NUT
	UT43	BRACKET
	UT45	BRACKET
	UT41H-A	BRACKET
	CY114-1	CYLINDER
	JA011*2	ELBOW
	CY114-2	O-RING
	CY114-3	NUT
	FD165-A	BRACKET
	JA016	ELBOW
	KY20D	SCREW
	SW01	WASHER
	NK74	NUT
	CY116	BRACKET
	WM600*2	WASHER
	NM610	NUT
	CY116-E	BRACKET
	SM884	SCREW
	NM610	NUT
	SM432	SCREW
	ALT104S	TIE WRAP
	UT54J-2	BRACKET
	JA025	ELBOW
	CY114-E	BRACKET
	SK392	SCREW
	AP604	TUBE
	AP603	TUBE
	UT54	BRACKET
	JA131	TEE
	JA101	ELBOW
	UT70	CLAMP

C007J PARTS LIST FOR CY-H(CHP-H) GROUP P.4/4 CY105-A SM623 CY109 CY101 SM623 CY102 CY103 FD165-2 SW01 NK74*2 NM615 CY115 CY115-A MJ38 MJ34H MJ35H B (CY113-A) CY114-1 JA011*2 CY114-2 CY114-3 FD165-A JA016 KY20D SW01 NK74 CY116 WM600*2 NM610 CY116-E 1 FOR C007J/C007JD/C858J/C858JD 2 AC211 JA012 AP410 2 JA012 AP409 WM600 SM611 AC211-3 UT43 UT45 UT41H-A NM610 SM432 ALT104S UT54J-2 JA025 CY114-E SK392 AP604 E D C AP603 JA131 UT54 JA101 UT70 3 4 5 10/07/01 From the library: Superior Sewing Machine & Supply LLC Jinte.in

Page 35 — C007J PARTS LIST FOR CZ-J GROUP P.1/3

Siruba C007J Attachments parts on page 35
Ref	Part number	Part name	Qty
	CRL42	CRL42
	WM641	WM641
	SM183*2	SM183*2
	SM183	SM183
	SM183	SM183
	CZ06	CZ06
	CZ07	CZ07
	CZ09P	CZ09P
	CZ09	CZ09
	SM533	SM533
	CZ08PJ	CZ08PJ
	CZ08J	CZ08J
	CZ08J-A	CZ08J-A
	SM533	SM533
	SM151	SM151
	SM132	SM132
	MA19J	MA19J
	CZ04J	CZ04J
	MA19	MA19
	CZ01J	CZ01J
	CZ10	CZ10
	CZ03J	CZ03J
	SM533	SM533
	CZ02	CZ02
	SM410	SM410
	CZ15	CZ15
	MQ17H	MQ17H
	MQ18	MQ18
	CZ18J	CZ18J
	FD161-1-E	FD161-1-E
	CZ12	CZ12
	SK270	SK270
	FD161-1	FD161-1
	AC151	AC151
	SM510	SM510
	CZ11	CZ11
	CY102	CY102
	AC151-1	AC151-1
	A840C	A840C
	AP407	AP407
	JA043	JA043
	CZ13	CZ13
	AP406	AP406
	AC151-1	AC151-1
	SM136	SM136
	SM131	SM131
	MQ19H	MQ19H

C007J PARTS LIST FOR CZ-J GROUP P.1/3 CRL42 WM641 SM183*2 SM183 SM183 CZ06 CZ07 (CZ09P) CZ09 SM533 (CZ08PJ) CZ08J CZ08J-A SM533 SM151 SM132 MA19J CZ04J MA19 CZ10 CZ03J B SM533 B CZ02 SM410 CZ15 MQ17H FD161-1-E CZ12 CZ18J MQ18 SK270 FD161-1 AC151 SM510 CZ11 CY102 AC151-1 A840C AP407 JA043 CZ13 AP406 AC151-1 SM136 SM131 MQ19H 1 2 3 4 5 FOR C007J/C007JD/C858J/C858JD 10/07/01 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 36 — C007J PARTS LIST FOR CZ-J GROUP

Siruba C007J Attachments parts on page 36
Ref	Part number	Part name	Qty
	ALT104S	ALT104S
	CY110	CY110
	WM600	CY110-E
	SK392	SK392
	SM415	SM415
	NM410	NM410
	SM438	SM438
	WM400*2	WM400*2
	CY107	CY107
	CY106	CY106
	CY111	CY111
	CY108	CY108
	EM060*2	EM060*2
	CY112	CY112
	CY114-2	CY114-2
	CY114-3	CY114-3
	JA011*2	JA011*2
	CY114-1	CY114-1
	JA016	JA016
	CY114-E	CY114-E
	CY111-A	CY111-A

C007J PARTS LIST FOR CZ-J GROUP P.2/3 A B ALT104S CY110 WM600-CY110-E SK392 SM415 NM410 SM438 WM400*2 CY107 CY106 CY111 CY108 EM060*2 CY112 CY114-2 CY114-3 JA011*2 CY114-1 JA016 CY114-E CY111-A 1 2 FOR C007J/C007JD/C858J/C858JD 3 4 5 10/07/01 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 37 — C007J PARTS LIST FOR CZ-J GROUP P.3/3

Siruba C007J Attachments parts on page 37
Ref	Part number	Part name	Qty
	CY109	CY109
	SM623	SM623
	CY101	CY101
	SM623	SM623
	CY102	CY102
	CY103	CY103
	CY105	CY105
	FD165-2	FD165-2
	NM615	NM615
	SW01	SW01
	NK74	NK74
	CY115	CY115
	MJ34H	MJ34H
	CY115-A	CY115-A
	MJ38	MJ38
	CY105-A	CY105-A
	FD165-1	FD165-1
	NM615	NM615
	FD165-2	FD165-2
	NK74	NK74
	SW01	SW01
	CY116	CY116
	SM628	SM628
	WM600	WM600
	CY114-1	CY114-1
	JA016	JA016
	CY114-2	CY114-2
	CY114-3	CY114-3
	CY114-E	CY114-E
	WM600	WM600
	CY116-E	CY116-E
	NK610	NK610
	AC211	AC211
	AP410	AP410
	JA012	JA012
	AP409	AP409
	JA012	JA012
	UT41H	UT41H
	WM600	WM600
	SM611	SM611
	AC211-3	AC211-3
	AC211-4	AC211-4
	UT43	UT43
	UT45	UT45
	UT41H-A	UT41H-A
	NM610	NM610
	SM432	SM432
	UT54J-2	UT54J-2
	JA025	JA025
	SK392*2	SK392*2
	JA131	JA131
	UT54J-A1	UT54J-A1
	AP603	AP603
	UT54J	UT54J
	AP604	AP604

C007J PARTS LIST FOR CZ-J GROUP P.3/3 A CY109 SM623 CY101 SM623 CY102 CY103 CY105 FD165-2 NM615 SW01 NK74 B C CY105-A FD165-1 NM615 FD165-2 NK74 SW01 CY116 SM628 WM600 CY116-E NK610 E CY115 MJ34H CY115-A MJ38 CY114-1 JA016 CY114-2 CY114-3 CY114-E WM600 AC211 AP410 2 JA012 AP409 JA012 UT41H WM600 SM611 AC211-3 AC211-4 UT43 UT45 UT41H-A NM610 SM432 UT54J-2 JA025 SK392*2 JA131 UT54J-A1 AP603 UT54J (未端以ALT104S鎖式紮帶束緊) AP604 1 2 3 4 5 FOR C007J/C007JD/C858J/C858JD 10/07/01 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 38 — C007J PARTS LIST FOR CZP-J GROUP P.1/2

Siruba C007J Attachments parts on page 38
Ref	Part number	Part name
SM030	SM030	SCREW
CZ27	CZ27	BRACKET
WM001	WM001	WASHER
SM030*2	SM030*2	SCREW
SM533	SM533	SCREW
MQ17H	MQ17H	SPRING
MQ18	MQ18	SPRING
CZ18J	CZ18J	BRACKET
CRL42	CRL42	COVER
WM641	WM641	KNOB
MA81	MA81	PLATE
SM435	SM435	SCREW
WM300	WM300	WASHER
SM331	SM331	SCREW
CZ23	CZ23	BRACKET
MQ19H	MQ19H	SPRING
SM131	SM131	SCREW
CZ25	CZ25	COVER
CZ21	CZ21	BRACKET
CZ22	CZ22	BRACKET
SM151	SM151	SCREW
CZ21-A	CZ21-A	BRACKET
SM533	SM533	SCREW
CZ04J	CZ04J	BRACKET
CZ10	CZ10	BRACKET
CZ107	CZ107	BRACKET
SM132	SM132	SCREW
MA19J	MA19J	BRACKET
MA19	MA19	BRACKET
CZ01J	CZ01J	COVER
SM470	SM470	SCREW
CZP01	CZP01	BRACKET
SM410	SM410	SCREW
CZ02	CZ02	BRACKET
PM302	PM302	PIN
SM430	SM430	SCREW
SM480	SM480	SCREW
PP3053	PP3053	PIN
CZP02	CZP02	BRACKET
SM130	SM130	SCREW
WM100	WM100	WASHER
CZP05	CZP05	BRACKET
SM332	SM332	SCREW
BR1052	BR1052	BEARING
CZ105	CZ105	BRACKET
PM200	PM200	PIN
CZ114	CZ114	BRACKET
CZ106	CZ106	BRACKET
CZ102	CZ102	BRACKET
CZ103	CZ103	BRACKET
WM600	WM600	WASHER
CZP03	CZP03	BRACKET
SM590	SM590	SCREW
CZ111	CZ111	BRACKET
SM415	SM415	SCREW
SM4808	SM4808	SHAFT
SM133	SM133	SCREW
CZP06	CZP06	PULLEY
CZ113	CZ113	SPRING
WM402	WM402	WASHER
SM439	SM439	SCREW
CZ112	CZ112	BELT
SM101	SM101	SCREW

C007J PARTS LIST FOR CZP-J GROUP P.1/2 SM030 CZ27 WM001 SM030*2 SM533 MQ17H MQ18 CZ18J CRL42 WM641 MA81 SM435 WM300 CZ23 MQ19H SM131 CZ25 CZ21 CZ22 SM151 CZ21-A SM533 CZ04J CZ10 CZ107 SM132 MA19J MA19 CZ01J SM470 CZP01 B SM410 CZ02 PM302 SM430 SM480 PP3053 CZP02 SM130 WM100 CZP05 SM332 BR1052 CZ105 PM200 CZ114 CZ106 CZ102 CZ103 WM600 CZP03 SM590 CZ111 SM133 CZP06 CZ113 SM4808 WM402 SM439 CZ112 SM101 CZ113 CZ112 SM101 1 2 3 4 5 FOR C007J/C007JD/C858J/C858JD 10/07/01 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 39 — C007J PARTS LIST FOR CZP-J GROUP P.2/2

Siruba C007J Attachments parts on page 39
Ref	Part number	Part name	Qty
	SM883	SM883
	CZ116	CZ116
	CZ118	CZ118
	SM603*2	SM603*2
	PM502	PM502
	CZ127	CZ127
	CZ130	CZ130
	SM431	SM431
	PM210	PM210
	CZ118	CZ118
	SM402	SM402
	CZ126	CZ126
	SM4807	SM4807
	PM503	PM503
	SM490	SM490
	CZ123	CZ123
	SM470	SM470
	WM600	WM600
	KY21-1	KY21-1
	CZ115	CZ115
	SK392	SK392
	SM433*2	SM433*2
	CZ122	CZ122
	CZ28	CZ28
	EM040	EM040
	CZ119	CZ119
	WM500	WM500
	SM513	SM513
	CZ124	CZ124
	CZ117	CZ117
	CY112	CY112
	CZ116-A	CZ116-A

C007J PARTS LIST FOR CZP-J GROUP P.2/2 SM883 CZ116 CZ118 SM603*2 PM502 CZ127 CZ130 SM431 PM210 CZ118 SM402 CZ126 SM4807 PM503 SM490 CZ123 SM470 WM600 KY21-1 A CZ115 SK392 SM433*2 CZ122 CZ28 EM040 E CZ119 WM500 SM513 CZ124 CZ117 CY112 CZ116-A 1 2 3 4 5 FOR C007J/C007JD/C858J/C858JD 10/07/01 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 40 — C007J PARTS LIST FOR UTP-J(UTQ-J) GROUP P.1/12

Siruba C007J Attachments parts on page 40
Ref	Part number	Part name	Qty
	MY39	MY39
	SM4553B	SM4553B
	UT515J	UT515J
	UT508J	UT508J
	UT514H	UT514H
	UT963	UT963
	WM40B	WM40B
	SM231*2	SM231*2
	SM337B*2	SM337B*2
	SM4553B	SM4553B
	UT508K	UT508K
	UT507	UT507
	UT988	UT988
	UT520H	UT520H
	SM337B*2	SM337B*2
	WM304*2	WM304*2
	UT964	UT964
	UT514H	UT514H
	UT501J	UT501J
	SM233B	SM233B
	SM233B*2	SM233B*2
	UT977	UT977
	SM250*2	SM250*2
	UT962	UT962
	SM230*2	SM230*2
	UT519	UT519
	SM330	SM330
	WM40B	WM40B
	UT965	UT965
	WM304	WM304
	UT971	UT971
	SM450*8	SM450*8
	UT961	UT961
	UT967	UT967
	SM335*2	SM335*2
	UT518D	UT518D
	SM152*2	SM152*2
	UT961-A	UT961-A
	UT563	UT563
	UT969	UT969
	UT970	UT970
	SM331*2	SM331*2

C007J PARTS LIST FOR UTP-J(UTQ-J) GROUP P.1/12 MY39 UT508J SM4553B UT515J UT514H UT963 WM40B SM231*2 SM337B*2 SM4553B UT508K UT507 UT988 UT520H SM337B*2 WM304*2 UT964 UT514H UT501J SM233B SM233B*2 UT977 SM250*2 UT962 SM230*2 SM330 UT519 WM40B UT965 WM304 UT971 SM450*8 UT967 UT961 SM335*2 UT518D SM152*2 UT961-A UT563 UT969 UT970 SM331*2 1 2 3 4 5 FOR C007J/C007JD/C858J/C858JD 11/11/21 ★适用UTP/CR/CX, UTQ/CR/CX, UTR/CR/CX, UTS/CR/CX車型 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 41 — C007J PARTS LIST FOR UTP-J(UTQ-J) GROUP P. 2/12

Siruba C007J Attachments parts on page 41
Ref	Part number	Part name	Qty
	SM4819	SM4819
	UT514	UT514
	UT527	UT527
	NM511	NM511
	NM511	NM511
	SM596	SM596
	UT526	UT526
	UT531	UT531
	AP412	AP412
	JA041	JA041
	JA041	JA041
	AC040	AC040
	UT528	UT528
	UT524	UT524
	SM512	SM512
	SM532*2	SM532*2
	UT27-E	UT27-E
	UT27	UT27
	WM510*2	WM510*2
	OR12B	OR12B
	WM500*2	WM500*2
	SM432*2	SM432*2
	UT47-E	UT47-E
	SM511	SM511
	UT47	UT47
	UT28H	UT28H
	UT29H	UT29H
	SM810*2	SM810*2
	WM800*2	WM800*2
	SM430	SM430
	SM512	SM512
	UT34H	UT34H
	PM504	PM504
	SM441	SM441
	UT535	UT535
	UT30	UT30
	UT30-E	UT30-E
	SM516*2	SM516*2
	SM510	SM510
	UT523F	UT523F
	SK216*2	SK216*2
	UT529	UT529
	SK216*2	SK216*2
	MJ39-E	MJ39-E
	UT530P	UT530P
	MJ39	MJ39
	UT525-E	UT525-E
	UT525	UT525
	SM502	SM502
	NM810	NM810
	WM801	WM801
	NM810	NM810

C007J PARTS LIST FOR UTP-J(UTQ-J) GROUP P. 2/12 A SM4819 UT514 UT527 NM511 NM511 SM596 UT526 UT531 AP412 JA041 [3] JA041 [4] AC040 UT528 UT524 SM512 SM532*2 UT27-E UT27 WM510*2 OR12B WM500*2 SM432*2 UT47-E SM511 UT47 UT28H UT29H C SM810*2 WM800*2 SM430 SM512 UT34H PM504 TO SAFETY S.W. SM441 UT535 UT30 UT30-E D SM516*2 SM510 UT523F SK216*2 UT529 SK216*2 MJ39-E UT530P MJ39 UT525-E NM810 UT525 SM502 WM801 NM810 E 1 2 3 4 5 FOR C007J/C007JD/C858J/C858JD H FOR 操 P FOR 操 11/05/29 From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 42 — C007J PARTS LIST FOR UTP-J(UTQ-J) GROUP P.3/12

Siruba C007J Attachments parts on page 42
Ref	Part number	Part name	Qty
	MA08JQ	Main body
	MR51	Base
	MJ37-A	Bracket assembly
	SM511	Screw
	NM511	Nut
	MJ37	Bracket
	SM432x2	Screw
	MJ137-E	Bracket assembly
	SM513	Screw
	NM511	Nut
	MJ137	Bracket
	SM432x2	Screw
	LA58	Gear
	UT109	Shaft
	MB34	Bearing
	MJ34H	Handle assembly
	UT44	Handle
	MJ38	Shaft
	SM432	Screw
	SM432	Screw
	UT45	Bracket
	NM610	Nut
	MJ34H-A	Handle assembly
	AC211	Cylinder
	JA012	Elbow joint
	AP435	Tube
	CP103	Screw
	UT41H	Bracket
	SM432	Screw
	AC211-3	Nut
	AC211-4	Nut
	UT43	Cap
	WM600	Washer
	SM6104	Screw

C007J PARTS LIST FOR UTP-J(UTQ-J) GROUP P.3/12 MA08JQ MR51 USE FOR C007J MJ37-A A SM511 NM511 MJ37 SM432x2 USE FOR C007JD MJ137-E A SM513 NM511 MJ137 SM432x2 1 FOR C007J/C858J/C007JD/C858JD 2 3 4 5 10/11/03 LA58 UT109 MB34 MJ34H UT44 MJ38 SM432 UT45 NM610 MJ34H-A AC211 JA012 AP435 2 CP103 UT41H SM432 AC211-3 AC211-4 UT43 WM600 SM6104 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 43 — C007J PARTS LIST FOR UTP-J(UTQ-J) GROUP P.4/12

Siruba C007J Attachments parts on page 43
Ref	Part number	Part name	Qty
	UT950	UT950
	UT103E	UT103E
	UT103P	UT103P
	JC300	JC300
	TXxxxx	TXxxxx
	UT54J-2	UT54J-2
	T999	T999
	SM432	SM432
	SM3051	SM3051
	SK392	SK392
	UT549	UT549
	JA025	JA025
	CP101	CP101
	UT54J	UT54J
	AP604	AP604
	JA014	JA014
	JA062	JA062
	JA062	JA062
	UT523F	UT523F
	AP434	AP434
	JA053	JA053
	JA013	JA013
	AP433	AP433
	JA053	JA053
	JA042	JA042
	AP435	AP435
	JA018*2	JA018*2
	AP432	AP432
	JA021*2	JA021*2
	AP436	AP436
	UT950	UT950
	UT950P	UT950P

C007J PARTS LIST FOR UTP-J(UTQ-J) GROUP P.4/12 UT950 TO SYNCHRONIZER JC300 TXxxxx TO MAIN POWER UT54J-2 T999 SM432 SM3051 SK392 UT549 JA025 CP101 UT54J AP604 JA014 JA062 JA062 UT523F JA053 AP434 JA013 JA053 AP433 JA042 AP435 JA018*2 AP432 JA021*2 AP436 1 2 FOR C007J/C858J FOR H牌馬達 3 4 5 10/07/01 FOR R牌馬達 From the library of: Superior Sewing Machine & Supply LLC jintex.in 1 LIFT PRESSER FOOT 2 LOOP TRIMMER 3 TOP CUTTER (WIPER)

Page 44 — C007J PARTS LIST FOR UTP-J(UTQ-J) GROUP P.5/12

Siruba C007J Attachments parts on page 44
Ref	Part number	Part name	Qty
	UT54J-2	UT54J-2
	SK392	SK392
	JA025	JA025
	JA014	JA014
	GUT54J	GUT54J
	ALT255S×8	ALT255S×8
	SM432	SM432
	UT549	UT549
	CP101	CP101
	JA062	JA062
	JA014	JA014
	JA062	JA062
	UT951	UT951
	JA053	JA053
	AP434	AP434
	AP604	AP604
	JA018	JA018
	AP435	AP435
	AP433	AP433
	JA021	JA021
	JA018	JA018
	AP437	AP437
	JA053	JA053
	JA042	JA042
	AP432	AP432
	JA021	JA021
	JA192	JA192
	EP107	EP107
	AP438	AP438
	JA047	JA047
	UT523F	UT523F
	JA013	JA013
	JC150-A	JC150-A
	JC300-A	JC300-A
	JC161-A	JC161-A
	TU20P-E	TU20P-E
	TU20P-1	TU20P-1
	TU20P-4	TU20P-4
	TU20P-2	TU20P-2
	TU20P-3	TU20P-3
	JA019	JA019
	CRL41	CRL41
	AP605	AP605
	CR10J	CR10J
	JA082	JA082
	AP605	AP605

C007J PARTS LIST FOR UTP-J(UTQ-J) GROUP P.5/12 UT54J-2 SK392 JA025 JA014 GUT54J ALT255S×8 SM432 UT549 CP101 JA062 JA014 JA062 (T51XXX 用) UT951 JA053 AP434 AP604 A JA018 AP435 AP433 JA021 JA018 AP432 JA021 AP438 JA042 JA192 EP107 UT523F JA013 JC150-A TO MOTOR "SEWING MACHINE" RECEPTACLE HOUSING JC300-A TO MOTOR "FOOT LIFTER" RECEPTACLE HOUSING JC161-A TO MOTOR "OPTION" RECEPTACLE HOUSING TU20P-E CRL-J 系列 CRA-J 系列 TU20P-1 TU20P-4 TU20P-2 TU20P-3 JA019 CRL41 AP605 CR10J JA082 AP605 FOR C007J/C007JD/C858J/C858JD 1 2 3 4 5 11/05/03 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 45 — C007J PARTS LIST FOR UTP-J(UTQ-J) GROUP P.6/12

Siruba C007J Attachments parts on page 45
Ref	Part number	Part name	Qty
	UT54J-2	UT54J-2
	SK392	SK392
	JA025	JA025
	JA014	JA014
	GUT54J	GUT54J
	ALT255S×8	ALT255S×8
	SM432	SM432
	SM3051	SM3051
	UT549	UT549
	CP101	CP101
	UT955	UT955
	JA062	JA062
	JA062	JA062
	JA062	JA062
	AP434	AP434
	AP604	AP604
	UT523F	UT523F
	JA053	JA053
	AP435	AP435
	AP437	AP437
	JA018	JA018
	AP433	AP433
	JA013	JA013
	JC150-A	JC150-A
	JA021	JA021
	JA042	JA042
	JC300-A	JC300-A
	AP432	AP432
	JA021	JA021
	AP436	AP436
	AP438	AP438
	JA047	JA047
	EP107	EP107
	TU20P-E	TU20P-E
	TU20P-1	TU20P-1
	TU20P-4	TU20P-4
	TU20P-2	TU20P-2
	TU20P-3	TU20P-3
	JA019	JA019
	CRL41	CRL41
	AP605	AP605
	CR10J	CR10J
	JA082	JA082
	AP605	AP605

C007J PARTS LIST FOR UTP-J(UTQ-J) GROUP P.6/12 UT54J-2 SK392 JA025 JA014 GUT54J ALT255S×8 SM432 SM3051 UT549 CP101 UT955 (T84XXX 用) JA062 JA062 JA062 AP434 AP604 JA053 UT523F AP435 AP437 JA018 AP433 JA013 JC150-A TO MOTOR "SEWING MACHINE" RECEPTACLE HOUSING JA021 JA042 JC300-A TO MOTOR "FOOT LIFTER" RECEPTACLE Housing AP432 JA021 AP438 JA047 EP107 TU20P-E CRL-J 系列 CRA-J 系列 TU20P-1 TU20P-4 TU20P-2 TU20P-3 JA019 CRL41 AP605 CR10J JA082 AP605 1 2 3 4 5 FOR C007J/C007JD/C858J/C858JD FOR HVP-20) 11/05/03 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Part Books

Search
