Page 1

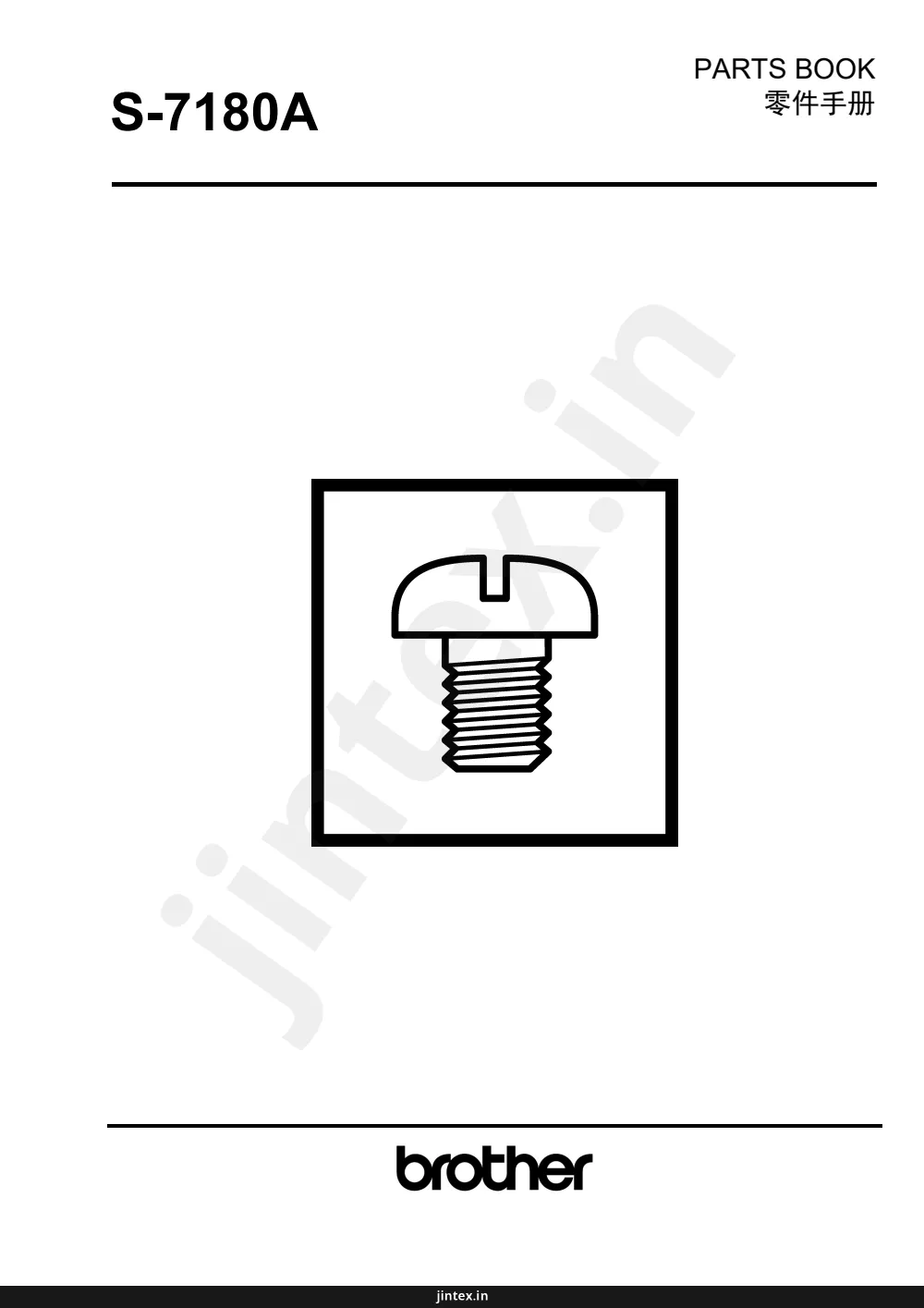

S-7180A PARTS BOOK 零件手册 brother jintex.in
Parts index — Brother S-7180Atap a row to open its page
Page 2 — Description of model plate
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 3 | Medium-weight materials | ||
| 5 | Heavy-weight materials |
Page 3 — CONTENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A | Machine frame & miscellaneous cover components | ||
| B | Main shaft & thread take-up components | ||
| C | Needlebar & thread tension components | ||
| D | Presser bar & tension release components | ||
| E | Hook of driving shaft components | ||
| F | Feed mechanism components | ||
| H | Thread trimmer components | ||
| I | Lubrication components | ||
| J | Presser foot components of oil plate knee lift | ||
| K | Components of thread-running stand | ||
| L | Accessories | ||
| M | Drive-by-wire Components | ||
| Wa. | Warning labels | ||
| Index | Index | ||
| A | 机壳分组件 | ||
| B | 上轴、挑线分组件 | ||
| C | 针杆、夹线分组件 | ||
| D | 压料、松线分组件 | ||
| E | 钩线分组件 | ||
| F | 送料分组件 | ||
| H | 剪线分组件 | ||
| I | 润滑分组件 | ||
| J | 油盘、膝抬压脚分组件 | ||
| K | 过线架分组件 | ||
| L | 附件 | ||
| M | 电控分组件 | ||
| Wa. | 警告标签 | ||
| 索引 | 索引 |
Page 4 — A. 机壳分组件 / Machine frame & miscellaneous cover components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A-1 | |||
| A-2 | |||
| A-3 | |||
| A-4 | |||
| A-5 | |||
| A-6 | |||
| A-7 | |||
| A-8 | |||
| A-9 | |||
| A-10 | |||
| A-11 | |||
| A-12 | |||
| A-13 | |||
| A-14 | |||
| A-15 | |||
| A-16 | |||
| A-17 | |||
| A-18 | |||
| A-19 | |||
| A-20 | |||
| A-21 | |||
| A-22 | |||
| A-23 | |||
| A-24 | |||
| A-25 | |||
| A-26 | |||
| A-27 | |||
| A-28 | |||
| A-29 | |||
| A-30 | |||
| A-31 | |||
| A-32 | |||
| A-33 | |||
| A-34 | |||
| A-35 | |||
| A-36 | |||
| A-37 |
Page 5 — A. 机壳分组件 / Machine frame & miscellaneous cover components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | DD0008972 | Screw | 9 |
| 2 | DE0025554 | Side plate | 1 |
| 3 | DD0066775 | Side plate gasket | 1 |
| 4 | DD00004380 | Cord holder | 1 |
| 5 | DD0004380 | Screw | 3 |
| 6 | DD0008934 | Screw | 1 |
| 7 | E00003021 | Thread take-up lever cover | 1 |
| 8 | D00003429 | Rubber plug | 2 |
| 9 | D00003428 | Rubber plug | 1 |
| 10 | D00003517 | Bobbin wider ASM | 1 |
| 11 | D00003456 | Rubber ring | 1 |
| 12 | D000050423 | Screw | 2 |
| 13 | D00011149 | Thread cutter | 1 |
| 14 | D00003430 | O-ring | 1 |
| 15 | D00003431 | Oil window | 1 |
| 16 | D00003435 | Rubber plug | 1 |
| 17 | DD0051431 | Bobbin thread tension ASM | 1 |
| 18 | DD0008972 | Screw | 3 |
| 19 | E00003519 | Face plate | 1 |
| 20 | D00002740 | Face plate gasket | 1 |
| 21 | D00003432 | Rubber plug | 2 |
| 22 | D00003235 | Arm thread guide left | 1 |
| 23 | DD0008973 | Screw | 2 |
| 24+ | DD0060708 | Needle plate | 1 |
| 24+ | DD0014459 | Needle plate | 1 |
| 25 | DD0012463 | Screw | 1 |
| 26 | DD0009005 | Screw | 1 |
| 27 | DD0004374 | Screw | 2 |
| 28 | DD0004373 | Ruler plate | 1 |
| 29 | DD0008940 | Arm thread guide right | 1 |
| 30 | D00003528 | Rubber plug | 1 |
| 31 | D00013706 | Side plate ASM | 1 |
| 32 | D00003960 | Side plate | 1 |
| 33 | D00010080 | Screw | 2 |
| 34 | D00003963 | Spring of side | 1 |
| 35 | D00002530 | Bed screw stud | 2 |
| 36 | D00003832 | Oil window | 1 |
| 37 | D00003529 | Feeding shaft hole plug | 2 |
Page 6 — B. Main shaft & thread take-up components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B-1 | B-1 | ||
| B-2 | B-2 | ||
| B-3 | B-3 | ||
| B-4 | B-4 | ||
| B-5 | B-5 | ||
| B-6 | B-6 | ||
| B-7 | B-7 | ||
| B-8 | B-8 | ||
| B-9 | B-9 | ||
| B-10 | B-10 | ||
| B-11 | B-11 | ||
| B-12 | B-12 | ||
| B-13 | B-13 | ||
| B-14 | B-14 | ||
| B-15 | B-15 | ||
| B-16 | B-16 | ||
| B-17 | B-17 | ||
| B-18 | B-18 | ||
| B-19 | B-19 | ||
| B-20 | B-20 | ||
| B-21 | B-21 | ||
| B-22 | B-22 | ||
| B-23 | B-23 | ||
| B-24 | B-24 | ||
| B-25 | B-25 | ||
| B-26 | B-26 | ||
| B-27 | B-27 | ||
| B-28 | B-28 | ||
| B-29 | B-29 | ||
| B-30 | B-30 | ||
| B-31 | B-31 | ||
| B-32 | B-32 |
Page 7 — B. 上轴、挑线分组件 / Main shaft & thread take-up components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DD0050672 | Thread take-up crank shaft | 1 | |
| DD0010083 | Screw | 1 | |
| DD0010535 | Thread take-up bar | 1 | |
| DD0004158 | Thread take-up lever Asm | 1 | |
| DD0038474 | Thread take-up lever Asm | 1 | |
| DD0003440 | Oil resistant cover | 1 | |
| DD0010545 | Screw | 1 | |
| DD0003438 | O-ring | 1 | |
| DD0010082 | Screw | 2 | |
| DD0010065 | Screw | 1 | |
| DD0010538 | O-ring | 1 | |
| DD0003439 | Sleeve of adjusting pin | 1 | |
| DD0010504 | Pin | 1 | |
| DD0012203 | Counter weight | 1 | |
| DD0012858 | Counter weight | 1 | |
| DD0014106 | Bearing | 2 | |
| DD0006844 | Needle bar crank | 1 | |
| DD0053104 | Needle bar crank rod | 1 | |
| DD0005940 | Needle bar crank | 1 | |
| DD0010592 | Needle bar crank rod | 1 | |
| DD0010537 | Screw | 1 | |
| DD0003513 | Take-up Bar Assembly | 1 | |
| DD0003703 | Take-up Bar Assembly | 1 | |
| DD0055615 | Bearing support | 1 | |
| DD0004472 | Wheel | 1 | |
| DD0010678 | Screw | 2 | |
| DD0010678 | Screw | 1 | |
| DD005020 | Screw | 2 | |
| DD0010542 | Thrust collar | 1 | |
| DD0003698 | Bearing support | 1 | |
| DD0007239 | Bearing support | 1 | |
| DD0003825 | Main shaft | 1 | |
| DD0002521 | Oil seal | 1 | |
| DNR003534 | Motor | 1 | |
| DD0059025 | Screw | 4 | |
| E00003671 | Head wheel | 1 | |
| DD0011232 | Screw | 2 |
Page 8 — C. 针杆、夹线分组件 / Needle bar & thread tension components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C-1 | C-1 | ||
| C-2 | C-2 | ||
| C-3 | C-3 | ||
| C-4 | C-4 | ||
| C-5 | C-5 | ||
| C-8 | C-8 | ||
| C-9 | C-9 | ||
| C-6 | C-6 | ||
| C-7 | C-7 | ||
| C-10 | C-10 | ||
| C-11 | C-11 | ||
| C-45 | C-45 | ||
| C-44 | C-44 | ||
| C-43 | C-43 | ||
| C-42 | C-42 | ||
| C-41 | C-41 | ||
| C-40 | C-40 | ||
| C-39 | C-39 | ||
| C-35 | C-35 | ||
| C-36 | C-36 | ||
| C-30 | C-30 | ||
| C-28 | C-28 | ||
| C-27 | C-27 | ||
| C-12 | C-12 | ||
| C-13 | C-13 | ||
| C-14 | C-14 | ||
| C-15 | C-15 | ||
| C-16 | C-16 | ||
| C-17 | C-17 | ||
| C-23 | C-23 | ||
| C-22 | C-22 | ||
| C-21 | C-21 | ||
| C-20 | C-20 | ||
| C-19 | C-19 | ||
| C-18 | C-18 | ||
| C-33 | C-33 | ||
| C-34 | C-34 | ||
| C-37 | C-37 | ||
| C-38 | C-38 | ||
| C-31 | C-31 | ||
| C-32 | C-32 | ||
| C-29 | C-29 | ||
| C-26 | C-26 | ||
| C-25 | C-25 |
Page 9 — C. 针杆、夹线分组件 / Needle bar & thread tension components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DD0003441 | Rubber plug | 1 | |
| DD0011063 | Bearing support | 1 | |
| DD0003789 | <For -[]03> Needle bar | 1 | |
| DD0003792 | <For -[]05> Needle bar | 1 | |
| DD0043360 | Screw | 1 | |
| DD0014117 | <For -[]03> Bearing support | 1 | |
| DD0010591 | Needle bar thread guide | 1 | |
| DD0038939 | Needle DB×1 | 1 | |
| DD0005916 | <For -[]05> Bearing support | 1 | |
| DD0005945 | Needle bar thread guide | 1 | |
| DD0003606 | Needle DB×5 | 1 | |
| DD0005943 | Needle bar thread guide | 1 | |
| DD0010588 | Screw | 1 | |
| DD0052735 | <For -[]03> Needle bar holder | 1 | |
| DD0010590 | <For -[]05> Needle bar holder | 1 | |
| DD0054140 | Slide block | 1 | |
| DD0004184 | Thread release pin | 1 | |
| DD0004183 | O-ring | 1 | |
| DD0004200 | Screw | 1 | |
| DD0039524 | Tension post socket | 1 | |
| DD0004201 | Spring | 1 | |
| DD0004177 | Screw | 1 | |
| DD0051457 | Nut | 1 | |
| DD0004199 | Tension disc stopper | 1 | |
| DD0004176 | <For -[]03> Spring | 1 | |
| DD0005941 | <For -[]05> Spring | 1 | |
| DD0004179 | Thread release disc | 1 | |
| DD0004180 | Tension disc holder | 2 | |
| DD0062637 | <For -[]03> Thread take-up device | 1 | |
| DD0003773 | <For -[]05> Thread take-up device | 1 | |
| DD0006264 | Screw | 1 | |
| DD0051458 | Nut | 1 | |
| DD0005838 | Spring | 1 | |
| DD0005839 | Tension disc holder | 2 | |
| DD0012589 | Threading plate | 1 | |
| DD0051703 | Thread take-up device | 1 | |
| DD0009074 | Screw | 1 | |
| DD0008934 | Screw | 1 | |
| DD0052992 | Needle tension guide | 1 | |
| DD0002401 | Tension release supporting pin | 1 | |
| DD0050348 | Spring | 1 |
Page 10 — C. 针杆、夹线分组件 / Needle bar & thread tension components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C-1 | C-1 | ||
| C-2 | C-2 | ||
| C-3 | C-3 | ||
| C-4 | C-4 | ||
| C-5 | C-5 | ||
| C-6 | C-6 | ||
| C-7 | C-7 | ||
| C-8 | C-8 | ||
| C-9 | C-9 | ||
| C-10 | C-10 | ||
| C-11 | C-11 | ||
| C-12 | C-12 | ||
| C-13 | C-13 | ||
| C-14 | C-14 | ||
| C-15 | C-15 | ||
| C-16 | C-16 | ||
| C-17 | C-17 | ||
| C-18 | C-18 | ||
| C-19 | C-19 | ||
| C-20 | C-20 | ||
| C-21 | C-21 | ||
| C-22 | C-22 | ||
| C-23 | C-23 | ||
| C-24 | C-24 | ||
| C-25 | C-25 | ||
| C-26 | C-26 | ||
| C-27 | C-27 | ||
| C-28 | C-28 | ||
| C-29 | C-29 | ||
| C-30 | C-30 | ||
| C-31 | C-31 | ||
| C-32 | C-32 | ||
| C-33 | C-33 | ||
| C-34 | C-34 | ||
| C-35 | C-35 | ||
| C-36 | C-36 | ||
| C-37 | C-37 | ||
| C-38 | C-38 | ||
| C-39 | C-39 | ||
| C-40 | C-40 | ||
| C-41 | C-41 | ||
| C-42 | C-42 | ||
| C-43 | C-43 | ||
| C-44 | C-44 | ||
| C-45 | C-45 |
Page 11 — C. 针杆、夹线组件 / Needlebar & thread tension components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DNR003524 | Electromagnet | 1 | |
| DD0009074 | Screw | 1 | |
| DD0009074 | Screw | 1 | |
| DD0038945 | Presser bar thread guide | 1 | |
| ENR003507 | Loose wire electromagnet assembly | 1 | |
| DD0005204 | Screw | 4 | |
| E00003534 | Mounting plate | 1 | |
| D00003530 | Loose wire electromagnet | 1 | |
| D00003538 | Electromagnet cover | 1 | |
| DD0008972 | Screw | 2 | |
| DD0043360 | Screw | 2 |
Page 12 — D. 压料、松线分组件 / Presser bar & tension release components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D-1 | |||
| D-2 | |||
| D-3 | |||
| D-4 | |||
| D-5 | |||
| D-6 | |||
| D-7 | |||
| D-8 | |||
| D-9 | |||
| D-10 | |||
| D-11 | |||
| D-12 | |||
| D-13 | |||
| D-14 | |||
| D-15 | |||
| D-16 | |||
| D-17 | |||
| D-18 | |||
| D-19 | |||
| D-20 | |||
| D-21 | |||
| D-20 | |||
| D-21 | |||
| D-22 | |||
| D-23 | |||
| D-24 | |||
| D-24 | |||
| D-25 | |||
| D-26 | |||
| D-27 | |||
| D-28 | |||
| D-29 | |||
| D-30 |
Page 13 — D. 压料、松线分组件 / Presser bar & tension release components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DD0051433 | Screw ASM | ||
| DD0051428 | Screw | ||
| DD0051429 | Nut | ||
| DD0004439 | Presser guide bar | ||
| DD0004473 | Spring | ||
| D00001627 | Presser guide bar bracket | ||
| D00004089 | Screw | ||
| D00003533 | Oil protector cover | ||
| DD0014118 | Bearing support | ||
| DD0052532 | Presser foot ASM | ||
| DD0005915 | Bearing support | ||
| DD0005982 | Presser foot ASM | ||
| DD0010650 | Screw | ||
| DD0010646 | Presser bar | ||
| DD0010016 | Screw | ||
| DD0051430 | Hand lifter | ||
| D00001027 | O-ring | ||
| D00001825 | Presser foot lifting boss assembly | ||
| DD0010653 | Pin | 2 | |
| D00003599 | Front bar of presser foot | ||
| D00003237 | Presser foot lifting plate | ||
| DD0013038 | Snap ring | 2 | |
| D00002662 | Lifting lever connecting rod | ||
| D00003651 | Screw | ||
| D00002652 | Screw | 2 | |
| D00003258 | Presser foot lifter connector plate | ||
| D00002664 | Lifing lever link | ||
| DD0009205 | Spring | ||
| D00002080 | Connecting rod verical | ||
| DD0000134 | Screw | 4 | |
| DNR003547 | Electromagn |
Page 14 — E. 钩线分组件 / Hook of driving shaft components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| E-1 | Hook of driving shaft components | ||
| E-2 | Screw | ||
| E-3 | Hook driver | ||
| E-4 | Washer | ||
| E-5 | Hook | ||
| E-6 | Screw | ||
| E-7 | Pin | ||
| E-8 | Washer | ||
| E-9 | Hook casing | ||
| E-10 | Gear | ||
| E-11 | Screw | ||
| E-12 | Screw | ||
| E-13 | Shaft sleeve | ||
| E-14 | Shaft | ||
| E-15 | Shaft | ||
| E-16 | Screw | ||
| E-17 | Shaft | ||
| E-18 | Gear | ||
| E-19 | Screw | ||
| E-20 | Gear | ||
| E-21 | Shaft | ||
| E-22 | Shaft sleeve | ||
| E-23 | Shaft | ||
| E-24 | Gear | ||
| E-25 | Gear |
Page 15 — E. 钩线分组件 / Hook of driving shaft components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | DD0031261 | Positioning finger | 1 |
| 2 | DD0011101 | Screw | 1 |
| 3 | DD0006924 | Bobbin case | 1 |
| 4 | DD0025484 | Bobbin | 1 |
| 5+ | DD0051397 | Hook | 1 |
| 5+ | DD0053595 | Hook | 1 |
| 6 | DD0003639 | Screw | 1 |
| 7 | DD0010063 | Oil wick | 1 |
| 8 | DD0013029 | Qil seal | 1 |
| 9 | DD0002379 | Bearing support | 1 |
| 10 | DD0008779 | Tubing joint | 2 |
| 11 | DD0041529 | Screw | 2 |
| 12 | DD0010059 | Screw | 2 |
| 13 | DD0010058 | Thrust collar | 1 |
| 14 | DD0007268 | Bearing support | 1 |
| 15 | DD0008821 | Hook driving shaft | 1 |
| 16 | DD0010030 | Screw | 1 |
| 17 | DD0001705 | Bearing support | 1 |
| 18 | DD0002560 | Gear Assy | 1 |
| 19 | DD0010065 | Screw | 8 |
| 20 | DD0002509 | Gear Assy | 1 |
| 21 | DD0007235 | Bearing support | 1 |
| 22 | DD0007236 | Bearing support | 1 |
| 23 | DD0010057 | Upright shaft | 1 |
| 24 | DD0002561 | Gear Assy | 1 |
| 25 | DD0002445 | Gear Assy | 1 |
Page 16
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| F-1 | F-1 | ||
| F-2 | F-2 | ||
| F-3 | F-3 | ||
| F-4 | F-4 | ||
| F-5 | F-5 | ||
| F-6 | F-6 | ||
| F-7 | F-7 | ||
| F-8 | F-8 | ||
| F-9 | F-9 | ||
| F-10 | F-10 | ||
| F-11 | F-11 | ||
| F-12 | F-12 | ||
| F-13 | F-13 | ||
| F-14 | F-14 | ||
| F-15 | F-15 | ||
| F-16 | F-16 | ||
| F-17 | F-17 | ||
| F-18 | F-18 | ||
| F-19 | F-19 | ||
| F-20 | F-20 | ||
| F-21 | F-21 | ||
| F-22 | F-22 | ||
| F-23 | F-23 | ||
| F-24 | F-24 | ||
| F-25 | F-25 | ||
| F-26 | F-26 | ||
| F-27 | F-27 | ||
| F-28 | F-28 | ||
| F-29 | F-29 | ||
| F-30 | F-30 | ||
| F-31 | F-31 | ||
| F-32 | F-32 | ||
| F-33 | F-33 | ||
| F-34 | F-34 | ||
| F-35 | F-35 | ||
| F-36 | F-36 | ||
| F-37 | F-37 | ||
| F-38 | F-38 | ||
| F-39 | F-39 | ||
| F-40 | F-40 | ||
| F-41 | F-41 | ||
| F-42 | F-42 | ||
| F-43 | F-43 | ||
| F-44 | F-44 | ||
| F-45 | F-45 | ||
| F-46 | F-46 | ||
| F-47 | F-47 | ||
| F-48 | F-48 | ||
| F-49 | F-49 | ||
| F-50 | F-50 | ||
| F-51 | F-51 | ||
| F-52 | F-52 | ||
| F-53 | F-53 |
Page 17 — F. 送料分组件 / Feed mechanism components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DD0010089 | Snap ring | 1 | |
| DD0010084 | Connecting rod | 1 | |
| DD0010115 | Feed drive eccentric cam | 1 | |
| DD0010072 | Connecting rod | 1 | |
| DD0010098 | Thrust cover | 1 | |
| DD0010643 | Screw | 2 | |
| DD0010092 | Screw | 2 | |
| DD0010096 | Pin | 1 | |
| DD0010076 | Feed rocker | 1 | |
| DD0010071 | Screw | 1 | |
| DD0010095 | Screw | 1 | |
| DD0048736 | Short link | 2 | |
| DD0048696 | Long link | 2 | |
| DD0010069 | Pin | 1 | |
| DD0010071 | Screw | 1 | |
| DD0010091 | Screw | 1 | |
| DD0001677 | Pin | 1 | |
| DD0001671 | Pin | 1 | |
| DD0010678 | Screw | 2 | |
| DD0010087 | Pin | 2 | |
| DD0010088 | Feed adjusting ASM | 1 | |
| DD0010071 | Screw | 2 | |
| DD0010649 | Snap ring | 2 | |
| D0001346 | Pin | 2 | |
| D0001348 | crank | 1 | |
| D0001355 | oil seal | 1 | |
| DD0065628 | Screw | 3 | |
| D0001347 | Connecting rod | 1 | |
| DD0065628 | Screw | 1 | |
| DD0003535 | Stepper motor | 1 | |
| DD0001696 | Bearing support | 2 | |
| DD003565 | oil seal | 2 | |
| DD0042079 | Lifing fork | 1 | |
| DD0004628 | Screw | 1 | |
| DD0052531 | Feed dog | 1 | |
| DD0007322 | Feed dog | 1 | |
| DD0010099 | Screw | 2 | |
| DD0063520 | Tooth base | 1 | |
| DD0004474 | Feed bar driving crank | 1 | |
| DD0004440 | Pin | 1 | |
| DD0010074 | Screw | 1 | |
| DD0004993 | Screw | 1 | |
| DD0010090 | Snap ring | 2 | |
| DD0014116 | Bearing support | 2 | |
| DD0001689 | Feed rocker shaft | 1 | |
| DD0010542 | Thrust collar | 2 | |
| DD0038073 | Screw | 4 | |
| DD0001690 | Feed lifting rocker shaft | 1 | |
| DD0010095 | Screw | 1 | |
| DD0010086 | Lifing rocker | 1 | |
| DD0004475 | Nut | 1 | |
| DNR003518 | Headlamp assembly | 1 | |
| DD0008934 | Screw | 1 | |
| DD0011168 | Washer | 1 |
Page 18 — H. 剪线分组件 / Thread trimmer components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| H-1 | H-1 | ||
| H-2 | H-2 | ||
| H-3 | H-3 | ||
| H-4 | H-4 | ||
| H-5 | H-5 | ||
| H-6 | H-6 | ||
| H-7 | H-7 | ||
| H-8 | H-8 | ||
| H-9 | H-9 | ||
| H-10 | H-10 | ||
| H-11 | H-11 | ||
| H-12 | H-12 | ||
| H-13 | H-13 | ||
| H-14 | H-14 | ||
| H-15 | H-15 | ||
| H-16 | H-16 | ||
| H-17 | H-17 | ||
| H-18 | H-18 | ||
| H-19 | H-19 | ||
| H-20 | H-20 | ||
| H-21 | H-21 | ||
| H-22 | H-22 | ||
| H-23 | H-23 | ||
| H-24 | H-24 | ||
| H-25 | H-25 | ||
| H-26 | H-26 | ||
| H-27 | H-27 | ||
| H-28 | H-28 | ||
| H-29 | H-29 | ||
| H-30 | H-30 | ||
| H-31 | H-31 | ||
| H-32 | H-32 | ||
| H-33 | H-33 | ||
| H-34 | H-34 | ||
| H-35 | H-35 | ||
| H-36 | H-36 | ||
| H-37 | H-37 | ||
| H-38 | H-38 | ||
| H-39 | H-39 | ||
| H-40 | H-40 | ||
| H-41 | H-41 | ||
| H-42 | H-42 | ||
| H-43 | H-43 | ||
| H-44 | H-44 | ||
| H-45 | H-45 | ||
| H-46 | H-46 | ||
| H-47 | H-47 | ||
| H-48 | H-48 | ||
| H-49 | H-49 | ||
| H-50 | H-50 | ||
| H-51 | H-51 | ||
| H-52 | H-52 | ||
| H-53 | H-53 | ||
| H-54 | H-54 | ||
| H-55 | H-55 | ||
| H-56 | H-56 | ||
| H-57 | H-57 |
Page 19 — H. 剪线分组件 / Thread trimmer components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DD0064326 | Trimming crank shaft | ||
| DD0011630 | Short bushing | ||
| DD0012454 | Short bushing | ||
| DD0011588 | Fastening screw | 3 | |
| DD0011662 | Lower knife | ||
| DD0011649 | Spring | ||
| DD0008865 | Washer | ||
| DD0064327 | Trimming crank | ||
| DD0064329 | Connecting rod | ||
| DD0064328 | Adjusting plate | ||
| DD0006624 | Screw | ||
| DD0011514 | Screw | 3 | |
| DD0031612 | Knife shaft crack rod | ||
| DD0011580 | Block | ||
| DD0064330 | Round knife bracket | ||
| DD0011578 | Nut | 2 | |
| DD0003931 | Screw | ||
| DD0001660 | Upper knife | ||
| DD0064331 | Fixed turret | ||
| DD0014196 | End cap | ||
| DD0008812 | Spring | ||
| DD0002348 | Trimming shaft | ||
| DD0050266 | Silencer plug | ||
| DD0011686 | Trimming cam crank Asm | ||
| DD0025577 | Screw | ||
| DD0011578 | Nut | 3 | |
| DD0004648 | Trimming cam crank Asm | ||
| DD0004707 | Roller Shaft | ||
| DD0004651 | Roller | ||
| DD0025576 | Washer | ||
| DD0004703 | Slide block | ||
| DD0004704 | Pin | ||
| DD0004705 | Roller | ||
| DD0011650 | Washer | ||
| DD003031 | Washer | ||
| DD0009654 | Snap ring | ||
| DD0003531 | Thread trimmer solenoid ASM | ||
| DD0009471 | Nut | 2 | |
| DD0002665 | Solenoid base | ||
| DD0011607 | Solenoid connecting shaft | ||
| DNR003991 | Thread trimmer solenoid | ||
| DD0011606 | Washer | ||
| DD0011845 | Washer | ||
| DD0028999 | Screw | ||
| DD0008862 | Screw | ||
| DD003077 | Washer | 2 | |
| DD0011605 | Screw | 2 | |
| DD0003705 | Cord holder | ||
| DD0010292 | Screw | ||
| DD0058067 | Shaft | ||
| DD0013154 | Washer | ||
| DD0014474 | Screw | ||
| DD0013465 | Screw | 2 | |
| DD0023739 | Cam collar | ||
| DD0010736 | Thread cutting cam | ||
| DD0009626 | Screw | 3 | |
| DD0013026 | Tool holder clamp |
Page 20 — I. 润滑分组件/ Lubrication components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| I-1 | Lubrication components | ||
| I-2 | |||
| I-3 | |||
| I-4 | |||
| I-5 | |||
| I-6 | |||
| I-7 | |||
| I-8 | |||
| I-9 | |||
| I-10 | |||
| I-11 | |||
| I-12 | |||
| I-13 | |||
| I-14 | |||
| I-15 | |||
| I-16 | |||
| I-17 | |||
| I-18 | |||
| I-19 | |||
| I-20 |
Page 21 — I. 润滑组分件 / Lubrication components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | DD0014197 | Foam rubber | 1 |
| 2 | DD0005558 | Screw | 1 |
| 3 | DD0002229 | Oil stoper | 1 |
| 4 | DD0041628 | Oil felt preser | 1 |
| 5 | DD0008934 | Screw | 1 |
| 6 | E00003573 | Oil return pipe assembly | 1 |
| 7 | DD0010294 | Felt clip | 1 |
| 8 | DD0048653 | Main shaft oil tube | 1 |
| 9 | D00003443 | Oil tube holder | 1 |
| 10 | DD0008817 | Screw | 1 |
| 11 | DD0008817 | Oil pump | 1 |
| 12 | DD0010066 | Screw | 1 |
| 13 | DD0050422 | Tube | 1 |
| 14 | D00003617 | Tube | 1 |
| 15 | DD0008779 | Oil tube holder | 2 |
| 16 | D00002561 | Oil control valve | 1 |
| 17 | DD0010027 | O-ring | 2 |
| 18 | DD0000566 | Oil regulating lever | 1 |
| 19 | DD0054136 | Screw | 1 |
Page 22 — J. 油盘、膝抬压脚组分组件 / Presser foot components of oil plate knee lift
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| J-1 | J-1 | ||
| J-2 | J-2 | ||
| J-3 | J-3 | ||
| J-4 | J-4 | ||
| J-5 | J-5 | ||
| J-6 | J-6 | ||
| J-7 | J-7 | ||
| J-8 | J-8 | ||
| J-9 | J-9 | ||
| J-10 | J-10 | ||
| J-11 | J-11 | ||
| J-12 | J-12 | ||
| J-13 | J-13 | ||
| J-14 | J-14 | ||
| J-15 | J-15 | ||
| J-16 | J-16 | ||
| J-17 | J-17 | ||
| J-18 | J-18 | ||
| J-19 | J-19 | ||
| J-20 | J-20 | ||
| J-21 | J-21 | ||
| J-22 | J-22 | ||
| J-23 | J-23 | ||
| J-24 | J-24 | ||
| J-25 | J-25 | ||
| J-26 | J-26 | ||
| J-27 | J-27 | ||
| J-28 | J-28 | ||
| J-29 | J-29 | ||
| J-30 | J-30 | ||
| J-31 | J-31 | ||
| J-32 | J-32 | ||
| J-33 | J-33 |
Page 23 — J. 油盘、膝抬脚组件 / Presser foot components of oil plate knee lift
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DD0001634 | buoy | 1 | |
| DD0008934 | Screw | 2 | |
| DD0009991 | Screw | 1 | |
| DD0003892 | Oil pan magnet | 1 | |
| DD0001682 | Pin | 1 | |
| DD0003512 | Oil baffle | 1 | |
| DD0001633 | Oil reservoir gasket | 1 | |
| DD0003215 | Oil reservoir | 1 | |
| DD0001703 | Oil supply nozzle | 1 | |
| DD0008779 | Oil tube holder | 1 | |
| DD0002028 | Screw | 6 | |
| DD0014461 | O-ring | 1 | |
| DD0002181 | Screw | 1 | |
| DD0002563 | Crank ASM | 1 | |
| DD0009987 | Crank | 1 | |
| DD0003890 | Nut | 3 | |
| DD0003898 | Screw | 1 | |
| DD0004047 | Screw | 1 | |
| DD0003895 | Screw | 1 | |
| DD0002559 | Snap ring | 1 | |
| DD0002350 | Spring | 1 | |
| DD0001687 | Knee pressing shaft | 1 | |
| DD0002562 | Bubber ring | 1 | |
| DD0003896 | Bracket ASM | 1 | |
| DD0002613 | Screw | 1 | |
| DD0002610 | Screw | 1 | |
| E0003503 | Knee pressing plate ASM | 1 | |
| DD0003901 | Knee pressing plate rod | 1 | |
| DD0003894 | Screw | 1 | |
| DD0003897 | Knee pressing plate holder | 1 | |
| DD0003445 | Knee pressing plate rubber | 1 | |
| DD0003891 | Knee pressing plate | 1 | |
| DD0003446 | Knee pressing cover | 1 | |
| DD0003753 | Lever as-control | 1 |
Page 24 — K. 过线架分组件 / Components of thread-running stand
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| K-1 | K-1 | ||
| K-2 | K-2 | ||
| K-3 | K-3 | ||
| K-4 | K-4 | ||
| K-5 | K-5 | ||
| K-6 | K-6 | ||
| K-7 | K-7 | ||
| K-8 | K-8 | ||
| K-9 | K-9 | ||
| K-10 | K-10 | ||
| K-11 | K-11 | ||
| K-12 | K-12 | ||
| K-13 | K-13 | ||
| K-14 | K-14 | ||
| K-15 | K-15 | ||
| K-16 | K-16 | ||
| K-17 | K-17 | ||
| K-18 | K-18 | ||
| K-19 | K-19 | ||
| K-20 | K-20 | ||
| K-21 | K-21 |
Page 25 — K. 过线架分组件 / Components of thread-running stand
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | DD0003447 | Column cap | 1 |
| 2 | DD0004293 | Column pipe(upper) | 1 |
| 3 | DD0002953 | Nut | 6 |
| 4 | DD003022 | Washer | 4 |
| 5 | DD0003301 | Screw | 3 |
| 6 | DD0004285 | Thread guide bushing | 4 |
| 7 | DD0004289 | Thread guide pipe | 4 |
| 8 | DD0004298 | Thread hanger(upper) | 2 |
| 9 | DD0004286 | Column pipe connector | 1 |
| 10 | DD0004291 | Column pipe(lower) | 1 |
| 11 | DD0004284 | Thread hanger(lower) | 1 |
| 12 | DD0003312 | Screw | 2 |
| 13 | DD0004288 | Spool pin | 2 |
| 14 | DD0004287 | Spool cushion | 2 |
| 15 | DD0004281 | Spool mat | 2 |
| 16 | DD0004299 | Spool seat disc | 2 |
| 17 | DD0004295 | Washer | 2 |
| 18 | DD0004290 | Washer | 2 |
| 19 | DD0002985 | Nut | 1 |
| 20 | DD0003447 | Column pipe(upper) | 1 |
| 21 | DD0003519 | Wire frame components | 1 |
Page 26 — L. 附件 / Accessories
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| L-1 | Screw | ||
| L-2 | Plastic part | ||
| L-3 | Plastic part | ||
| L-4 | Washer | ||
| L-5 | Plastic part | ||
| L-6 | Plastic part | ||
| L-7 | Plastic part | ||
| L-8 | Plastic part | ||
| L-9 | Plastic part | ||
| L-10 | Oil can | ||
| L-11 | Plastic part | ||
| L-12 | Screws |
Page 27 — L. 附件 / Accessories
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DD0003969 | Screw | 6 | |
| DD0003214 | Plastic oil pan | 1 | |
| DD0025484 | Bobbin | 1 | |
| DD0003892 | Oil reservoir magnet | 1 | |
| DD0003522 | Oil reservoir cushion | 2 | |
| DD0003523 | Oil reservoir seat | 2 | |
| DD0026033 | Frame support bar | 1 | |
| DD0004466 | Head connecting hook | 2 | |
| DD0003451 | Head connecting hook socket | 2 | |
| DD0060866 | Oil pot | 1 | |
| DD0003536 | Head cover | 1 | |
| DD0031426 | Screw | 1 |
Page 28 — M. 电控分组件 / Drive-by-wire Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M-1 | M-1 | M-1 | |
| M-2 | M-2 | M-2 | |
| M-3 | M-3 | M-3 | |
| M-4 | M-4 | M-4 | |
| M-5 | M-5 | M-5 | |
| M-6 | M-6 | M-6 | |
| M-7 | M-7 | M-7 | |
| M-8 | M-8 | M-8 | |
| M-9 | M-9 | M-9 | |
| M-10 | M-10 | M-10 | |
| M-11 | M-11 | M-11 | |
| M-12 | M-12 | M-12 | |
| M-13 | M-13 | M-13 | |
| M-14 | M-14 | M-14 | |
| M-15 | M-15 | M-15 |
Page 29 — M. 电控分组件 / Drive-by-wire Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DD0054287 | Screw | 4 | |
| DD0010899 | Screw | 1 | |
| D00002462 | Cord holder | 1 | |
| D0000480 | Washer | 1 | |
| D00002463 | Cord holder | 1 | |
| D00003992 | Motor housing | 1 | |
| DD0006115 | Snap ring | 1 | |
| DD0012080 | Screw | 1 | |
| DD0001943 | Screw | 3 | |
| DNR003466 | Control box | 1 | |
| DD0010899 | Screw | 1 | |
| DNR003467 | Key screen | 1 | |
| D00004088 | Screw | 1 | |
| DD0031424 | Pedal unit ASM | 1 | |
| DD0008934 | Screw | 2 |
Page 31 — Index / 索引
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D00001346 | F - 24 | ||
| D00001347 | F - 28 | ||
| D00001348 | F - 25 | ||
| D00001355 | D - 26 | ||
| D00001625 | D - 16 | ||
| D00001627 | D - 6 | ||
| D00001633 | J - 7 | ||
| D00001634 | J - 1 | ||
| D00001660 | H - 18 | ||
| D00001662 | H - 5 | ||
| D00001671 | F - 18 | ||
| D00001677 | F - 17 | ||
| D00001682 | J - 5 | ||
| D00001689 | F - 44 | ||
| D00001690 | F - 47 | ||
| D00001696 | F - 31 | ||
| D00001703 | J - 9 | ||
| D00001705 | E - 17 | ||
| D00002080 | D - 28 | ||
| D00002181 | J - 13 | ||
| D00002229 | D - 3 | ||
| D00002348 | H - 22 | ||
| D00002350 | J - 21 | ||
| D00002379 | E - 9 | ||
| D00002401 | C - 33 | ||
| D00002462 | M - 3 | ||
| D00002463 | M - 5 | ||
| D00002521 | B - 28 | ||
| D00002530 | A - 35 | ||
| D00002561 | I - 16 | ||
| D00002662 | D - 22 | ||
| D00002664 | D - 26 | ||
| D00002665 | H - 39 | ||
| D00002740 | A - 20 | ||
| D00003214 | L - 2 | ||
| D00003215 | J - 8 | ||
| D00003235 | A - 22 | ||
| D00003237 | D - 19 | ||
| D00003258 | D - 25 | ||
| D00003428 | A - 9 | ||
| D00003429 | A - 8 | ||
| D00003430 | A - 14 | ||
| D00003431 | A - 15 | ||
| D00003432 | A - 21 | ||
| D00003435 | A - 16 | ||
| D00003438 | B - 7 | ||
| D00003439 | B - 11 | ||
| D00003440 | B - 5 | ||
| D00003441 | C - 1 | ||
| D00003443 | I - 9 | ||
| D00003445 | J - 31 | ||
| D00003446 | J - 33 | ||
| D00003447 | K - 1 | ||
| D00003451 | L - 20 | ||
| D00003456 | A - 11 | ||
| D00003512 | J - 6 | ||
| D00003513 | B - 18+ | ||
| D00003517 | A - 10 | ||
| D00003519 | K - 21 | ||
| D00003522 | L - 5 | ||
| D00003523 | L - 6 | ||
| D00003528 | A - 30 | ||
| D00003529 | A - 37 | ||
| D00003530 | C - 42 | ||
| D00003531 | H - 37 | ||
| D00003533 | D - 8 | ||
| D00003535 | F - 30 | ||
| D00003536 | L - 11 | ||
| D00003538 | C - 43 | ||
| D00003565 | F - 32 | ||
| D00003599 | D - 18 | ||
| D00003606 | C - 7+ | ||
| D00003617 | I - 14 | ||
| D00003639 | E - 6 | ||
| D00003696 | A - 4 | ||
| D00003698 | B - 25 | ||
| D00003703 | B - 18+ | ||
| D00003705 | H - 48 | ||
| D00003753 | J - 34 | ||
| D00003773 | C - 23+ | ||
| D00003789 | C - 3+ | ||
| D00003792 | C - 3+ | ||
| D00003825 | B - 27 | ||
| D00003832 | A - 36 | ||
| D00003931 | H - 17 | ||
| D00003969 | L - 1 | ||
| D00003992 | M - 6 | ||
| D00004047 | J - 18 | ||
| D00004088 | M - 13 | ||
| D00004089 | D - 7 | ||
| D00004134 | D - 29 | ||
| D00004158 | B - 4+ | ||
| D00003890 | J - 16 | ||
| D00003891 | J - 32 | ||
| D00003892 | J - 4 | ||
| D00003893 | J - 29 | ||
| D00003894 | J - 19 | ||
| D00003895 | J - 24 | ||
| D00003896 | J - 17 | ||
| D00003897 | J - 30 | ||
| D00003898 | J - 17 | ||
| D00003901 | J - 28 | ||
| D00003963 | A - 32 | ||
| D00003963 | A - 34 | ||
| D00004158 | B - 4+ | ||
| DD0004176 | C - 20+ | ||
| DD0004177 | C - 17 | ||
| DD0004179 | C - 21 | ||
| DD0004180 | C - 22 | ||
| DD0004183 | C - 13 | ||
| DD0004184 | C - 12 | ||
| DD0004199 | C - 19 | ||
| DD0004200 | C - 14 | ||
| DD0004201 | C - 16 | ||
| DD0004281 | K - 15 | ||
| DD0004284 | K - 11 | ||
| DD0004285 | K - 6 | ||
| DD0004286 | K - 9 | ||
| DD0004287 | K - 14 | ||
| DD0004288 | K - 13 | ||
| DD0004289 | K - 7 | ||
| DD0004290 | K - 18 | ||
| DD0004291 | K - 10 | ||
| DD0004293 | K - 2 | ||
| DD0004295 | K - 17 | ||
| DD0004298 | K - 8 | ||
| DD0004299 | K - 16 | ||
| DD0004373 | A - 28 | ||
| DD0004374 | A - 27 | ||
| DD0004380 | A - 5 | ||
| DD0004439 | D - 4 | ||
| DD0004440 | F - 39 | ||
| DD0004466 | L - 8 | ||
| DD0004472 | B - 20 | ||
| DD0004473 | D - 5 | ||
| DD0004474 | F - 38 | ||
| DD0004475 | F - 50 | ||
| DD0004628 | F - 34 | ||
| DD0004648 | H - 27 | ||
| DD0004651 | H - 29 | ||
| DD0004703 | H - 31 | ||
| DD0004704 | H - 32 | ||
| DD0004705 | H - 33 | ||
| DD0004707 | H - 28 | ||
| DD0004993 | F - 41 | ||
| DD0005020 | B - 23 | ||
| DD0005558 | I - 2 | ||
| DD0005838 | C - 26 | ||
| DD0005839 | C - 27 | ||
| DD0005915 | D - 9+ | ||
| DD0005916 | C - 5+ | ||
| DD0005940 | B - 15+ | ||
| DD0005941 | C - 20+ | ||
| DD0005943 | C - 8 | ||
| DD0005945 | C - 6+ | ||
| DD0005982 | D - 10+ | ||
| DD0006115 | M - 7 | ||
| DD0006264 | C - 24 | ||
| DD0006624 | H - 11 | ||
| DD0006844 | B - 15+ | ||
| DD0006924 | E - 3 | ||
| DD0007235 | E - 21 | ||
| DD0007236 | E - 22 | ||
| DD0007239 | B - 26 | ||
| DD0007268 | E - 14 | ||
| DD0007322 | F - 35+ | ||
| DD0007779 | E - 10 | ||
| DD0008812 | H - 21 | ||
| DD0008817 | I - 11 | ||
| DD0008821 | E - 15 | ||
| DD0008862 | H - 45 | ||
| DD0008865 | H - 7 | ||
| DD0008934 | A - 6 | ||
| DD0009005 | A - 26 | ||
| DD0009074 | C - 30 | ||
| DD0009205 | D - 27 | ||
| DD0009471 | H - 38 | ||
| DD0009626 | H - 56 | ||
| DD0009654 | H - 36 | ||
| DD0009987 | J - 15 | ||
| DD0010016 | D - 13 | ||
| DD0010027 | D - 15 | ||
| DD0010030 | E - 16 | ||
| DD0010057 | E - 23 | ||
| DD0010058 | E - 13 | ||
| DD0010059 | E - 12 | ||
| DD0010063 | E - 7 | ||
| DD0010065 | B - 9 | ||
| DD0010066 | I - 19 | ||
| DD0010069 | F - 12 | ||
| DD0010071 | F - 14 | ||
| DD0010072 | F - 10 | ||
| DD0010074 | F - 15 | ||
| DD0010076 | F - 4 | ||
| DD0010080 | A - 40 | ||
| DD0010082 | B - 33 | ||
| DD0010083 | B - 2 | ||
| DD0010084 | F - 2 |
Page 32 — Index / 索引
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| - 49 | DD0010292 | H | |
| - 10 | DD0010293 | I | |
| - 12 | DD0010504 | B | |
| - 3 | DD0010535 | B | |
| - 17 | DD0010537 | B | |
| - 10 | DD0010538 | B | |
| - 4 | DD0010542 | B | |
| - 45 | DD0010542 | F | |
| - 6 | DD0010545 | B | |
| - 9 | DD0010588 | C | |
| - 10+ | DD0010590 | C | |
| - 6+ | DD0010591 | C | |
| - 16+ | DD0010592 | B | |
| - 6 | DD0010643 | F | |
| - 12 | DD0010646 | D | |
| - 11 | DD0010650 | D | |
| - 23 | DD0010651 | D | |
| - 24 | DD0010652 | D | |
| - 17 | DD0010653 | D | |
| - 21 | DD0010678 | B | |
| - 22 | DD0010678 | B | |
| - 55 | DD0010736 | H | |
| - 2 | DD0010899 | M | |
| - 11 | DD0010899 | M | |
| - 2 | DD0011063 | C | |
| - 2 | DD0011101 | E | |
| - 13 | DD0011149 | A | |
| - 53 | DD0011168 | F | |
| - 32 | DD0011232 | B | |
| - 12 | DD0011514 | H | |
| - 16 | DD0011578 | H | |
| - 26 | DD0011578 | H | |
| - 14 | DD0011580 | H | |
| - 4 | DD0011588 | H | |
| - 47 | DD0011605 | H | |
| - 42 | DD0011606 | H | |
| - 40 | DD0011607 | H | |
| - 2 | DD0011630 | H | |
| - 6 | DD0011649 | H | |
| - 34 | DD0011650 | H | |
| - 24 | DD0011686 | H | |
| - 43 | DD0011845 | H | |
| - 8 | DD0012080 | M | |
| - 13+ | DD0012203 | B | |
| - 3 | DD0012454 | H | |
| - 25 | DD0012463 | A | |
| - 28 | DD0012589 | C | |
| - 13+ | DD0012858 | B | |
| - 57 | DD0013026 | H | |
| - 8 | DD0013029 | E | |
| - 21 | DD0013038 | D | |
| - 51 | DD0013154 | H | |
| - 53 | DD0013465 | H | |
| - 31 | DD0013706 | A | |
| - 14 | DD0014106 | B | |
| - 43 | DD0014116 | F | |
| - 5+ | DD0014117 | C | |
| - 9+ | DD0014118 | D | |
| - 20 | DD0014196 | H | |
| - 1 | DD0014197 | I | |
| - 24+ | DD0014459 | A | |
| - 12 | DD0014461 | J | |
| - 54 | DD0023739 | H | |
| - 4 | DD0025484 | E | |
| - 3 | DD0025484 | L | |
| - 30 | DD0025576 | H | |
| - 7 | DD0026033 | L | |
| - 44 | DD0028999 | H | |
| - 1 | DD0031261 | E | |
| - 14 | DD0031424 | M | |
| - 12 | DD0031426 | L | |
| - 13 | DD0031612 | H | |
| - 46 | DD0038073 | F | |
| - 4+ | DD0038474 | B | |
| - 7+ | DD0038939 | C | |
| - 15 | DD0039524 | C | |
| - 11 | DD0041529 | E | |
| - 4 | DD0041628 | I | |
| - 33 | DD0042079 | F | |
| - 4 | DD0043360 | C | |
| - 45 | DD0048653 | C | |
| - 13 | DD0048696 | F | |
| - 12 | DD0048736 | F | |
| - 23 | DD0050266 | H | |
| - 34 | DD0050348 | C | |
| - 13 | DD0050422 | I | |
| - 12 | DD0050423 | A | |
| - 1 | DD0050672 | B | |
| - 5+ | DD0051397 | E | |
| - 2 | DD0051428 | D | |
| - 3 | DD0051429 | D | |
| - 14 | DD0051430 | D | |
| - 17 | DD0051431 | A | |
| - 1 | DD0051433 | D | |
| - 18 | DD0051457 | C | |
| - 25 | DD0051458 | C | |
| - 29 | DD0051703 | C | |
| - 35+ | DD0052531 | F | |
| - 10+ | DD0052532 | D | |
| - 10+ | DD0052735 | C | |
| - 32 | DD0052992 | C | |
| - 16+ | DD0053104 | B | |
| - 5+ | DD0053595 | E | |
| - 19 | DD0054136 | I | |
| - 11 | DD0054140 | C | |
| - 1 | DD0054287 | M | |
| - 19 | DD0055615 | B | |
| - 50 | DD0058067 | H | |
| - 30 | DD0059025 | B | |
| - 24+ | DD0060708 | A | |
| - 10 | DD0060866 | L | |
| - 23+ | DD0062637 | C | |
| - 37 | DD0063520 | F | |
| - 1 | DD0064326 | H | |
| - 8 | DD0064327 | H | |
| - 10 | DD0064328 | H | |
| - 9 | DD0064329 | H | |
| - 15 | DD0064330 | H | |
| - 19 | DD0064331 | H | |
| - 27 | DD0065628 | F | |
| - 29 | DD0065628 | F | |
| - 3 | DD0066775 | A | |
| - 2 | DE0025554 | A | |
| - 10 | DNR003466 | M | |
| - 12 | DNR003467 | M | |
| - 51 | DNR003518 | F | |
| - 35 | DNR003524 | C | |
| - 29 | DNR003534 | B | |
| - 30 | DNR003547 | D | |
| - 41 | DNR003991 | H | |
| - 7 | E00003021 | A | |
| - 27 | E00003503 | J | |
| - 19 | E00003519 | A | |
| - 41 | E00003534 | C | |
| - 6 | E00003573 | I | |
| - 31 | E00003671 | B | |
| - 39 | ENR003507 | C |
Brother S-7180A — parts catalog
- Page 1 (cover): This is the cover page for the Brother S-7180A Parts Book, featuring the Brother logo and a graphic of a screw.
- Page 2 (text): This page describes the model plate for the S-7180A-81P machine, explaining how to interpret the model number and its use with different material weights.
- Page 3 (toc): This page is a table of contents listing components and their corresponding page numbers in both English and Chinese.
- Page 4 (diagram): This page displays a diagram of machine frame and miscellaneous cover components, with various parts labeled with reference numbers and part numbers.
- Page 5 (parts_list): This page lists machine frame and miscellaneous cover components, including part numbers, descriptions, quantities, and Chinese translations.
- Page 6 (diagram): This page displays a diagram of main shaft and thread take-up components, with various parts labeled with reference numbers such as B-1 through B-32.
- Page 7 (parts_list): This page lists main shaft and thread take-up components for an industrial sewing machine, including part numbers, descriptions, quantities, and Chinese translations.
- Page 8 (diagram): This page displays a diagram of needle bar and thread tension components, with various parts labeled with reference numbers such as C-1 through C-45.
- Page 9 (parts_list): This page lists needle bar and thread tension components for industrial sewing machines, including part numbers, descriptions, and quantities.
- Page 10 (diagram): This page displays a diagram of needle bar and thread tension components, with various parts labeled with reference numbers such as C-1 through C-45.
- Page 11 (parts_list): This page lists needle bar, clamp, and thread tension components, including part numbers, descriptions, quantities, and Chinese translations.
- Page 12 (diagram): This page displays a diagram of presser bar and tension release components, with parts labeled D-1 through D-30.
- Page 13 (parts_list): This page lists parts for Presser bar & tension release components, including part numbers, names, quantities, and remarks.
- Page 14 (diagram): This page displays a diagram of hook of driving shaft components, with various parts labeled with reference numbers and part numbers.
- Page 15 (parts_list): This page lists parts for Hook of driving shaft components, including part numbers, names, and quantities.
- Page 16 (diagram): This page displays a diagram of feed mechanism components, with various parts labeled with reference numbers and part numbers.
- Page 17 (parts_list): This page lists feed mechanism components with their reference numbers, part codes, quantities, names, and Chinese descriptions.
- Page 18 (diagram): This page displays a diagram of thread trimmer components, with various parts labeled with reference numbers and part numbers.
- Page 19 (parts_list): This page lists thread trimmer components for an industrial sewing machine, including part numbers, descriptions, quantities, and Chinese translations.
- Page 20 (diagram): This page displays a diagram of lubrication components for an industrial sewing machine, with parts labeled from I-1 to I-20.
- Page 21 (parts_list): This page lists lubrication components with their reference numbers, codes, quantities, names in English and Chinese, and RM values.
- Page 22 (diagram): This page displays a diagram of presser foot components for oil plate knee lift machines, with various parts labeled with reference numbers and some part numbers.
- Page 23 (parts_list): This page lists parts for the oil plate and presser foot components of an oil plate knee lift, including part numbers, names, quantities, and remarks.
- Page 24 (diagram): This page displays a diagram of components for a thread-running stand, with parts labeled K-1 through K-21.
- Page 25 (parts_list): This page lists components for a thread-running stand, including part numbers, descriptions, quantities, and Chinese translations.
- Page 26 (diagram): This page displays a diagram of accessories for the sewing machine, with various parts labeled from L-1 to L-12.
- Page 27 (parts_list): This page lists accessories for the sewing machine, including screws, oil pans, bobbins, magnets, and covers, with their corresponding part numbers and quantities.
- Page 28 (diagram): This page displays a diagram of drive-by-wire components, with various parts labeled with reference numbers such as M-1 through M-15.
- Page 29 (parts_list): This page lists drive-by-wire components for electric control, including screws, cord holders, washers, motor housings, snap rings, control boxes, key screens, and pedal units, with their corresponding part numbers and quantities.
- Page 30 (text): This page contains warning labels and safety instructions for the Brother S-7180A sewing machine, including information on hazardous voltage, lubricating oil precautions, and operational symbols.
- Page 31 (index): This page contains an index of parts for an industrial sewing machine, listing part numbers, reference numbers, and page numbers where they can be found in the catalog.
- Page 32 (index): This page contains an index of part numbers and their corresponding reference numbers and page locations, organized into three columns.
- Page 33 (cover): This is the cover page of the Brother Parts Book, featuring the Brother logo, a graphic of a screw, and the title "PARTS BOOK 零件手册". It also includes contact information for Brother Industries, Ltd. and copyright details.
Page 2 — Description of model plate
Description of model plate S-7180A-81 P 3 5 Use Medium-weight materials Heavy-weight materials 型号牌的读解法 用 途 3 中厚布料 5 厚布料
Page 3 — CONTENTS
CONTENTS A Machine frame & miscellaneous cover components 1 B Main shaft & thread take-up components 3 C Needlebar & thread tension components 5 D Presser bar & tension release components 9 E Hook of driving shaft components 11 F Feed mechanism components 13 H Thread trimmer components 15 I Lubrication components 17 J Presser foot components of oil plate knee lift 19 K Components of thread-running stand 21 L Accessories 23 M Drive-by-wire Components 25 Wa. Warning labels 27 Index 28 目 录 A 机壳分组件 1 B 上轴、挑线分组件 3 C 针杆、夹线分组件 5 D 压料、松线分组件 9 E 钩线分组件 11 F 送料分组件 13 H 剪线分组件 15 I 润滑分组件 17 J 油盘、膝抬压脚分组件 19 K 过线架分组件 21 L 附件 23 M 电控分组件 25 Wa. 警告标签 27 索引 28
Page 4 — A. 机壳分组件 / Machine frame & miscellaneous cover components
A. 机壳分组件 / Machine frame & miscellaneous cover components A-1. A-2. A-3. A-4. A-5. A-6. A-7. A-8. A-9. A-10. A-11. A-12. A-13. A-14. A-15. A-16. A-17. A-18. A-19. A-20. A-21. A-22. A-23. A-24. A-25. A-26. A-27. A-28. A-29. A-30. A-31. A-32. A-33. A-34. A-35. A-35. A-36. A-37. A-37. 1 S-7180A jintex.in
Page 5 — A. 机壳分组件 / Machine frame & miscellaneous cover components
A. 机壳分组件 / Machine frame & miscellaneous cover components REF. NO CODE Q'TY NAME OF PARTS 零部件名称 RM 1 DD0008972 9 Screw 螺钉 2 DE0025554 1 Side plate 后窗板 3 DD0066775 1 Side plate gasket 后窗板垫 4 DD00004380 1 Cord holder 电线固定架 5 DD0004380 3 Screw 螺钉 6 DD0008934 1 Screw 螺钉 7 E00003021 1 Thread take-up lever cover 挑线杆护罩 8 D00003429 2 Rubber plug 橡胶塞 9 D00003428 1 Rubber plug 橡胶塞 10 D00003517 1 Bobbin wider ASM 绕线器 11 D00003456 1 Rubber ring 橡胶轮 12 D000050423 2 Screw 螺钉 13 D00011149 1 Thread cutter 绕线切刀 14 D00003430 1 O-ring O形圈 15 D00003431 1 Oil window 油窗 16 D00003435 1 Rubber plug 橡胶塞 17 DD0051431 1 Bobbin thread tension ASM 绕线夹线器组件 18 DD0008972 3 Screw 螺钉 19 E00003519 1 Face plate 面板 20 D00002740 1 Face plate gasket 面板垫 21 D00003432 2 Rubber plug 橡胶塞 22 D00003235 1 Arm thread guide left 左线钩 23 DD0008973 2 Screw 螺钉 <For -[]03> <用于-[]03> 24+ DD0060708 1 Needle plate 针板 <For -[]05> <用于-[]05> 24+ DD0014459 1 Needle plate 针板 25 DD0012463 1 Screw 螺钉 26 DD0009005 1 Screw 螺钉 27 DD0004374 2 Screw 螺钉 28 DD0004373 1 Ruler plate 限位挡片 29 DD0008940 1 Arm thread guide right 右线钩 30 D00003528 1 Rubber plug 电线过线套 31 D00013706 1 Side plate ASM 推板部件 32 D00003960 1 Side plate 推板 33 D00010080 2 Screw 螺钉 34 D00003963 1 Spring of side 推板簧 35 D00002530 2 Bed screw stud 底板支柱 36 D00003832 1 Oil window 油窗 37 D00003529 2 Feeding shaft hole plug 拾牙送布轴孔塞 S-7180A 2
Page 6 — B. Main shaft & thread take-up components
B. 上轴、挑线组件件 / Main shaft & thread take-up components B-1 B-2 B-3 B-4 B-5 B-6 B-7 B-8 B-9 B-10 B-11 B-12 B-13 B-14 B-15 B-16 B-17 B-18 B-19 B-20 B-21 B-22 B-23 B-24 B-25 B-26 B-27 B-28 B-29 B-30 B-31 B-32 3 jintex.in S-7180A
Page 7 — B. 上轴、挑线分组件 / Main shaft & thread take-up components
B. 上轴、挑线分组件 / Main shaft & thread take-up components REF.NO CODE Q'TY NAME OF PARTS 零部件名称 RM 1 DD0050672 1 Thread take-up crank shaft 挑线连杆销 2 DD0010083 1 Screw 螺钉 3 DD0010535 1 Thread take-up bar 挑线连杆 4+ DD0004158 1 <For -[]03> Thread take-up lever Asm <用于-[]03> 挑线杆分部件 4+ DD0038474 1 <For -[]05> Thread take-up lever Asm <用于-[]05> 挑线杆分部件 5 DD0003440 1 Oil resistant cover 挑线杆防油圈 6 DD0010545 1 Screw 螺钉 7 DD0003438 1 O-ring O形圈 8 DD0010082 2 Screw 螺钉 9 DD0010065 1 Screw 螺钉 10 DD0010538 1 O-ring O形圈 11 DD0003439 1 Sleeve of adjusting pin 曲柄油量调节销套 12 DD0010504 1 Pin 销 13+ DD0012203 1 <For -[]03> Counter weight <用于-[]03> 针杆曲柄 13+ DD0012858 1 <For -[]05> Counter weight <用于-[]05> 针杆曲柄 14 DD0014106 2 Bearing 轴承 15+ DD0006844 1 <For -[]03> Needle bar crank <用于-[]03> 挑线曲柄 16+ DD0053104 1 Needle bar crank rod 针杆连杆 15+ DD0005940 1 <For -[]05> Needle bar crank <用于-[]05> 挑线曲柄 16+ DD0010592 1 Needle bar crank rod 针杆连杆 17 DD0010537 1 Screw 螺钉 18+ DD0003513 1 <For -[]03> Take-up Bar Assembly <用于-[]03> 挑线杆组件 18+ DD0003703 1 <For -[]05> Take-up Bar Assembly <用于-[]05> 挑线杆组件 19 DD0055615 1 Bearing support 轴套 20 DD0004472 1 Wheel 绕线主动轮 21 DD0010678 2 Screw 螺钉 22 DD0010678 1 Screw 螺钉 23 DD005020 2 Screw 螺钉 24 DD0010542 1 Thrust collar 挡圈 25 DD0003698 1 Bearing support 上轴套后套 26 DD0007239 1 Bearing support 轴套 27 DD0003825 1 Main shaft 上轴 28 DD0002521 1 Oil seal 上轴后套油封 29 DNR003534 1 Motor 主轴电机 30 DD0059025 4 Screw 螺钉组件 31 E00003671 1 Head wheel 上轮 32 DD0011232 2 Screw 螺钉 S-7180A 4
Page 8 — C. 针杆、夹线分组件 / Needle bar & thread tension components
C. 针杆、夹线分组件 / Needle bar & thread tension components C-1 C-2 C-3 C-10 C-4 C-5 C-8 C-9 C-6 C-7 C-45 C-11 C-44 C-43 C-42 C-41 C-40 C-39 C-35 C-36 C-30 C-28 C-27 C-12 C-13 C-14 C-15 C-16 C-17 C-23 C-22 C-21 C-20 C-19 C-18 C-33 C-34 C-37 C-38 C-31 C-32 C-29 C-26 C-25 5 jintex.in S-7180A
Page 9 — C. 针杆、夹线分组件 / Needle bar & thread tension components
C. 针杆、夹线分组件 / Needle bar & thread tension components REF.NO CODE Q'TY NAME OF PARTS 零部件名称 RM 1 DD0003441 1 Rubber plug 橡胶塞 2 DD0011063 1 Bearing support 轴套 3+ DD0003789 1 <For -[]03> <用于-[]03> Needle bar 针杆 3+ DD0003792 1 <For -[]05> <用于-[]05> Needle bar 针杆 4 DD0043360 1 Screw 滑块导轨螺钉 5+ DD0014117 1 <For -[]03> <用于-[]03> Bearing support 轴套 6+ DD0010591 1 Needle bar thread guide 针杆线钩 7+ DD0038939 1 Needle DB×1 DB×1机针 5+ DD0005916 1 <For -[]05> <用于-[]05> Bearing support 轴套 6+ DD0005945 1 Needle bar thread guide 针杆线钩 7+ DD0003606 1 Needle DB×5 DB×5机针 8 DD0005943 1 Needle bar thread guide 线钩 9 DD0010588 1 Screw 螺钉 10+ DD0052735 1 <For -[]03> <用于-[]03> Needle bar holder 针杆连接柱 10+ DD0010590 1 <For -[]05> <用于-[]05> Needle bar holder 针杆连接柱 11 DD0054140 1 Slide block 滑块导轨组件 12 DD0004184 1 Thread release pin 松线钉 13 DD0004183 1 O-ring O形圈 14 DD0004200 1 Screw 螺钉 15 DD0039524 1 Tension post socket 排线簧调节座 16 DD0004201 1 Spring 弹簧 17 DD0004177 1 Screw 螺钉 18 DD0051457 1 Nut 松线器螺母 19 DD0004199 1 Tension disc stopper 夹线制动板 20+ DD0004176 1 <For -[]03> <用于-[]03> Spring 弹簧 20+ DD0005941 1 <For -[]05> <用于-[]05> Spring 弹簧 21 DD0004179 1 Thread release disc 松线板 22 DD0004180 2 Tension disc holder 夹线板 23+ DD0062637 1 <For -[]03> <用于-[]03> Thread take-up device 夹线器组件 23+ DD0003773 1 <For -[]05> <用于-[]05> Thread take-up device 夹线器组件 24 DD0006264 1 Screw 螺钉 25 DD0051458 1 Nut 上线器螺母 26 DD0005838 1 Spring 弹簧 27 DD0005839 2 Tension disc holder 上线板 28 DD0012589 1 Threading plate 上过线板 29 DD0051703 1 Thread take-up device 上夹线器部件 30 DD0009074 1 Screw 螺钉 31 DD0008934 1 Screw 螺钉 32 DD0052992 1 Needle tension guide 过线板 33 DD0002401 1 Tension release supporting pin 松线辅钉 34 DD0050348 1 Spring 弹簧 S-7180A 6 jintex.in
Page 10 — C. 针杆、夹线分组件 / Needle bar & thread tension components
C. 针杆、夹线分组件 / Needle bar & thread tension components C-1 C-2 C-3 C-4 C-5 C-6 C-7 C-10 C-11 C-45 C-8 C-9 C-44 C-43 C-42 C-41 C-40 C-39 C-36 C-35 C-33 C-34 C-23 C-12 C-13 C-14 C-15 C-16 C-17 C-22 C-21 C-20 C-19 C-18 C-28 C-27 C-26 C-25 C-30 C-31 C-32 C-29 C-37 C-38 7 S-7180A jintex.in
Page 11 — C. 针杆、夹线组件 / Needlebar & thread tension components
C. 针杆、夹线组件 / Needlebar & thread tension components REF.NO CODE Q'TY NAME OF PARTS 零件名称 RM 35 DNR003524 1 Electromagnet 电子夹线器 36 DD0009074 1 Screw 螺钉 37 DD0009074 1 Screw 螺钉 38 DD0038945 1 Presser bar thread guide 缓线钩 39 ENR003507 1 Loose wire electromagnet assembly 松线电磁铁组件 40 DD0005204 4 Screw 螺钉 41 E00003534 1 Mounting plate 电磁铁安装板 42 D00003530 1 Loose wire electromagnet 松线电磁铁 43 D00003538 1 Electromagnet cover 电磁铁罩 44 DD0008972 2 Screw 螺钉 45 DD0043360 2 Screw 螺钉 S-7180A 8 jintex.in
Page 12 — D. 压料、松线分组件 / Presser bar & tension release components
D. 压料、松线分组件 / Presser bar & tension release components D-1 D-2 D-3 D-4 D-5 D-6 D-7 D-8 D-9 D-10 D-11 D-12 D-13 D-14 D-15 D-16 D-17 D-18 D-19 D-20 D-21 D-20 D-21 D-22 D-23 D-24 D-24 D-25 D-26 D-27 D-28 D-29 D-30 9 S-7180A jintex.in
Page 13 — D. 压料、松线分组件 / Presser bar & tension release components
D. 压料、松线分组件 / Presser bar & tension release components REF.NO CODE Q'TY NAME OF PARTS 零部件名称 RM 1 DD0051433 1 Screw ASM 调压螺钉组件 2 DD0051428 1 Screw 螺钉 3 DD0051429 1 Nut 螺母 4 DD0004439 1 Presser guide bar 调压导杆 5 DD0004473 1 Spring 弹簧 6 D00001627 1 Presser guide bar bracket 压杆导架 7 D00004089 1 Screw 螺钉 8 D00003533 1 Oil protector cover 压紧杆防油罩 <For-[]03> <用于-[]03> 9+ DD0014118 1 Bearing support 轴套 10+ DD0052532 1 Presser foot ASM 压脚部件 9+ DD0005915 1 Bearing support 轴套 10+ DD0005982 1 Presser foot ASM 压脚部件 11 DD0010650 1 Screw 螺钉 12 DD0010646 1 Presser bar 压杆 13 DD0010016 1 Screw 螺钉 14 DD0051430 1 Hand lifter 压脚扳手 15 D00001027 1 O-ring ○形圈 16 D00001825 1 Presser foot lifting boss assembly 抬压脚凸块组件 17 DD0010653 2 Pin 销 18 D00003599 1 Front bar of presser foot 抬压脚前杠杆 19 D00003237 1 Presser foot lifting plate 压脚提升板 21 DD0013038 2 Snap ring 挡圈 22 D00002662 1 Lifting lever connecting rod 抬压脚拉杆 23 D00003651 1 Screw 螺钉 24 D00002652 2 Screw 螺钉 25 D00003258 1 Presser foot lifter connector plate 抬压脚连接板 26 D00002664 1 Lifing lever link 抬压脚杠杆 27 DD0009205 1 Spring 弹簧 28 D00002080 1 Connecting rod verical 抬压脚顶杆 29 DD0000134 4 Screw 螺钉 30 DNR003547 1 Electromagn 抬压电磁铁 S-7180A 10
Page 14 — E. 钩线分组件 / Hook of driving shaft components
E. 钩线分组件 / Hook of driving shaft components E-1 E-2 E-3 E-4 E-5 E-6 E-7 E-8 E-9 E-10 E-11 E-12 E-13 E-14 E-15 E-16 E-17 E-18 E-19 E-19 E-20 E-21 E-22 E-23 E-24 E-25 11 jintex.in S-7180A
Page 15 — E. 钩线分组件 / Hook of driving shaft components
E. 钩线分组件 / Hook of driving shaft components REF.NO CODE Q'TY NAME OF PARTS 零部件名称 RM 1 DD0031261 1 Positioning finger 旋检定位钩 2 DD0011101 1 Screw 螺钉 3 DD0006924 1 Bobbin case 梭壳 4 DD0025484 1 Bobbin 梭芯 5+ DD0051397 1 Hook <For-[]03> 旋梭 5+ DD0053595 1 Hook <For-[]05> 旋梭 6 DD0003639 1 Screw 螺钉 7 DD0010063 1 Oil wick 油封 8 DD0013029 1 Qil seal 油封 9 DD0002379 1 Bearing support 下轴前套 10 DD0008779 2 Tubing joint 油管接头 11 DD0041529 2 Screw 螺钉 12 DD0010059 2 Screw 螺钉 13 DD0010058 1 Thrust collar 挡圈 14 DD0007268 1 Bearing support 轴套 15 DD0008821 1 Hook driving shaft 下轴 16 DD0010030 1 Screw 螺钉 17 DD0001705 1 Bearing support 下轴中套 18 DD0002560 1 Gear Assy 齿轮组件 19 DD0010065 8 Screw 螺钉 20 DD0002509 1 Gear Assy 齿轮组件 21 DD0007235 1 Bearing support 轴套 22 DD0007236 1 Bearing support 轴套 23 DD0010057 1 Upright shaft 竖轴 24 DD0002561 1 Gear Assy 齿轮组件 25 DD0002445 1 Gear Assy 齿轮组件 S-7180A 12 jintex.in
Page 16
F. 送料分组件 / Feed mechanism components 13 jintex.in S-7180A
Page 17 — F. 送料分组件 / Feed mechanism components
F. 送料分组件 / Feed mechanism components REF.NO CODE Q'TY NAME OF PARTS 1 DD0010089 1 Snap ring 2 DD0010084 1 Connecting rod 3 DD0010115 1 Feed drive eccentric cam 4 DD0010072 1 Connecting rod 5 DD0010098 1 Thrust cover 6 DD0010643 2 Screw 7 DD0010092 2 Screw 8 DD0010096 1 Pin 9 DD0010076 1 Feed rocker 10 DD0010071 1 Screw 11 DD0010095 1 Screw 12 DD0048736 2 Short link 13 DD0048696 2 Long link 14 DD0010069 1 Pin 15 DD0010071 1 Screw 16 DD0010091 1 Screw 17 DD0001677 1 Pin 18 DD0001671 1 Pin 19 DD0010678 2 Screw 20 DD0010087 2 Pin 21 DD0010088 1 Feed adjusting ASM 22 DD0010071 2 Screw 23 DD0010649 2 Snap ring 24 D0001346 2 Pin 25 D0001348 1 crank 26 D0001355 1 oil seal 27 DD0065628 3 Screw 28 D0001347 1 Connecting rod 29 DD0065628 1 Screw 30 DD0003535 1 Stepper motor 31 DD0001696 2 Bearing support 32 DD003565 2 oil seal 33 DD0042079 1 Lifing fork 34 DD0004628 1 Screw 35+ DD0052531 1 Feed dog <For -[]03> 35+ DD0007322 1 Feed dog <For -[]05> 36 DD0010099 2 Screw 37 DD0063520 1 Tooth base 38 DD0004474 1 Feed bar driving crank 39 DD0004440 1 Pin 40 DD0010074 1 Screw 41 DD0004993 1 Screw 42 DD0010090 2 Snap ring 43 DD0014116 2 Bearing support 44 DD0001689 1 Feed rocker shaft 45 DD0010542 2 Thrust collar 46 DD0038073 4 Screw 47 DD0001690 1 Feed lifting rocker shaft 48 DD0010095 1 Screw 49 DD0010086 1 Lifing rocker 50 DD0004475 1 Nut 51 DNR003518 1 Headlamp assembly 52 DD0008934 1 Screw 53 DD0011168 1 Washer S-7180A 14 jintex.in 零部 件名称 RM 挡圈 拾牙连杆 送料偏心轮 送料连杆 送料偏心轮盖板 螺钉 螺钉 销 送布曲柄 螺钉 螺钉 送料短摆动板 送料长摆动板 销 螺钉 螺钉 销 销 螺钉 销 送料摆动板座组件 螺钉 挡圈 销 曲柄 油封 组合螺钉 连杆 螺钉组件 步进电机 送料拾牙轴中套 油封 拾牙叉形柄组件 螺钉 <用于-[]03> 送料牙 <用于-[]05> 送料牙 螺钉 牙架 牙架座 销 螺钉 螺钉 挡圈 轴套 送料轴 螺钉 拾牙轴 螺钉 拾牙后曲柄 螺母 机头灯组件 螺钉 垫圈
Page 18 — H. 剪线分组件 / Thread trimmer components
H. 剪线分组件 / Thread trimmer components H-1 H-2 H-3 H-4 H-5 H-6 H-7 H-8 H-9 H-10 H-11 H-12 H-13 H-14 H-15 H-16 H-17 H-18 H-19 H-20 H-21 H-22 H-23 H-24 H-25 H-26 H-27 H-28 H-29 H-30 H-31 H-32 H-33 H-34 H-35 H-36 H-37 H-38 H-39 H-40 H-41 H-42 H-43 H-44 H-45 H-46 H-47 H-48 H-49 H-50 H-51 H-52 H-53 H-54 H-55 H-56 H-57 15 jintex.in S-7180A
Page 19 — H. 剪线分组件 / Thread trimmer components
H. 剪线分组件 / Thread trimmer components REF.NO CODE Q'TY NAME OF PARTS 零件名称 RM 1 DD0064326 1 Trimming crank shaft 切刀驱动曲柄轴 2 DD0011630 1 Short bushing 轴套 3 DD0012454 1 Short bushing 轴套 4 DD0011588 3 Fastening screw 紧固螺钉 5 DD0011662 1 Lower knife 下动刀 6 DD0011649 1 Spring 弹簧 7 DD0008865 1 Washer 垫圈 8 DD0064327 1 Trimming crank 切线驱动曲柄 9 DD0064329 1 Connecting rod 定刀连杆 10 DD0064328 1 Adjusting plate 定刀调节板 11 DD0006624 1 Screw 螺钉 12 DD0011514 3 Screw 螺钉 13 DD0031612 1 Knife shaft crack rod 刀轴连杆 14 DD0011580 1 Block 切刀驱动曲柄止动块 15 DD0064330 1 Round knife bracket 动刀架 16 DD0011578 2 Nut 螺母 17 DD0003931 1 Screw 螺钉 18 DD0001660 1 Upper knife 上动刀 19 DD0064331 1 Fixed turret 定刀架 20 DD0014196 1 End cap 扭簧端盖 21 DD0008812 1 Spring 弹簧 22 DD0002348 1 Trimming shaft 切刀驱动轴 23 DD0050266 1 Silencer plug 消音塞 24 DD0011686 1 Trimming cam crank Asm 切线凸轮柄组件 25 DD0025577 1 Screw 螺钉 26 DD0011578 3 Nut 螺母 27 DD0004648 1 Trimming cam crank Asm 切线凸轮柄分组件 28 DD0004707 1 Roller Shaft 切线凸轮柄滚柱 29 DD0004651 1 Roller 滚柱 30 DD0025576 1 Washer 垫圈 31 DD0004703 1 Slide block 切线凸轮柄滑块 32 DD0004704 1 Pin 销 33 DD0004705 1 Roller 切线凸轮左柄滚柱 34 DD0011650 1 Washer 垫圈 35 DD003031 1 Washer 垫圈 36 DD0009654 1 Snap ring 挡圈 37 DD0003531 1 Thread trimmer solenoid ASM 剪线电磁铁组件 38 DD0009471 2 Nut 螺母 39 DD0002665 1 Solenoid base 剪线电磁铁安装座 40 DD0011607 1 Solenoid connecting shaft 剪线电磁铁连接体 41 DNR003991 1 Thread trimmer solenoid 剪线电磁铁 42 DD0011606 1 Washer 垫圈 43 DD0011845 1 Washer 垫圈 44 DD0028999 1 Screw 螺钉 45 DD0008862 1 Screw 螺钉 46 DD003077 2 Washer 垫圈 47 DD0011605 2 Screw 螺钉 48 DD0003705 1 Cord holder 挡线板 49 DD0010292 1 Screw 螺钉 50 DD0058067 1 Shaft 分线器 51 DD0013154 1 Washer 垫圈 52 DD0014474 1 Screw 螺钉 53 DD0013465 2 Screw 螺钉 54 DD0023739 1 Cam collar 剪线凸轮垫 55 DD0010736 1 Thread cutting cam 剪线凸轮 56 DD0009626 3 Screw 螺钉 57 DD0013026 1 Tool holder clamp 刀架压板 S-7180A 16 jintex.in
Page 20 — I. 润滑分组件/ Lubrication components
I. 润滑分组件/ Lubrication components I-1 I-2 I-3 I-4 I-5 I-6 I-7 I-8 I-9 I-10 I-11 I-12 I-13 I-14 I-15 I-16 I-17 I-18 I-19 I-20 17 S-7180A jintex.in
Page 21 — I. 润滑组分件 / Lubrication components
I. 润滑组分件 / Lubrication components REF.NO CODE Q'TY NAME OF PARTS 零件名称 RM 1 DD0014197 1 Foam rubber 挡油海绵 2 DD0005558 1 Screw 螺钉 3 DD0002229 1 Oil stoper 面部防油板部件 4 DD0041628 1 Oil felt preser 油管夹 5 DD0008934 1 Screw 螺钉 6 E00003573 1 Oil return pipe assembly 回油管组件 7 DD0010294 1 Felt clip 毛毡夹 8 DD0048653 1 Main shaft oil tube 油管 9 D00003443 1 Oil tube holder 供油管接头 10 DD0008817 1 Screw 油泵连接柱 11 DD0008817 1 Oil pump 油泵部件 12 DD0010066 1 Screw 螺钉 13 DD0050422 1 Tube 管 14 D00003617 1 Tube 油管 15 DD0008779 2 Oil tube holder 油管接头 16 D00002561 1 Oil control valve 油量调节阀 17 DD0010027 2 O-ring O形圈 18 DD0000566 1 Oil regulating lever 油量调节杆 19 DD0054136 1 Screw 螺钉 S-7180A 18 jintex.in
Page 22 — J. 油盘、膝抬压脚组分组件 / Presser foot components of oil plate knee lift
J. 油盘、膝抬压脚组分组件 / Presser foot components of oil plate knee lift J-1 J-5 J-3 J-2 J-4 J-6 J-7 J-8 J-9 J-10 J-11 J-12 J-13 J-14 J-15 J-16 J-17 J-19 J-18 J-20 J-21 J-22 J-23 J-24 J-25 J-26 J-27 J-28 J-29 J-30 J-31 J-32 J-33 19 S-7180A jintex.in
Page 23 — J. 油盘、膝抬脚组件 / Presser foot components of oil plate knee lift
J. 油盘、膝抬脚组件 / Presser foot components of oil plate knee lift REF.NO CODE Q'TY NAME OF PARTS 零部件名称 RM 1 DD0001634 1 buoy 浮球组件 2 DD0008934 2 Screw 螺钉 3 DD0009991 1 Screw 螺钉 4 DD0003892 1 Oil pan magnet 油盘磁铁 5 DD0001682 1 Pin 抬压脚顶销 6 DD0003512 1 Oil baffle 挡油板 7 DD0001633 1 Oil reservoir gasket 油盘密封垫 8 DD0003215 1 Oil reservoir 铝油盘 9 DD0001703 1 Oil supply nozzle 供油嘴 10 DD0008779 1 Oil tube holder 油管接头 11 DD0002028 6 Screw 螺钉 12 DD0014461 1 O-ring O形圈 13 DD0002181 1 Screw 放油螺钉 14 DD0002563 1 Crank ASM 抬压脚双向曲柄组件 15 DD0009987 1 Crank 抬压脚双向曲柄 16 DD0003890 3 Nut 螺母 17 DD0003898 1 Screw 螺钉 18 DD0004047 1 Screw 螺柱 19 DD0003895 1 Screw 螺钉 20 DD0002559 1 Snap ring 挡圈 21 DD0002350 1 Spring 弹簧 22 DD0001687 1 Knee pressing shaft 抬压脚轴 23 DD0002562 1 Bubber ring 抬压脚操纵杆接头组件 24 DD0003896 1 Bracket ASM 抬压脚操纵接头 25 DD0002613 1 Screw 螺栓 26 DD0002610 1 Screw 螺栓 27 E0003503 1 Knee pressing plate ASM 操纵杆部件 28 DD0003901 1 Knee pressing plate rod 操纵杆 29 DD0003894 1 Screw 螺钉 30 DD0003897 1 Knee pressing plate holder 操纵杆接头 31 DD0003445 1 Knee pressing plate rubber 操纵杆垫 32 DD0003891 1 Knee pressing plate 操纵板 33 DD0003446 1 Knee pressing cover 操纵板软垫 34 DD0003753 1 Lever as-control 操纵杆组件 S-7180A 20
Page 24 — K. 过线架分组件 / Components of thread-running stand
K. 过线架分组件 / Components of thread-running stand K-1 K-2 K-3 K-4 K-5 K-7 K-6 K-7 K-8 K-9 K-10 K-11 K-4 K-12 K-13 K-14 K-15 K-16 K-18 K-17 K-17 K-18 K-19 K-20 K-21 21 jintex.in S-7180A
Page 25 — K. 过线架分组件 / Components of thread-running stand
K. 过线架分组件 / Components of thread-running stand REF.NO CODE Q'TY NAME OF PARTS 零部件名称 RM 1 DD0003447 1 Column cap 线架上撑管套 2 DD0004293 1 Column pipe(upper) 线架上撑管 3 DD0002953 6 Nut 螺母 4 DD003022 4 Washer 垫圈 5 DD0003301 3 Screw 螺钉 6 DD0004285 4 Thread guide bushing 过线管套 7 DD0004289 4 Thread guide pipe 过线管 8 DD0004298 2 Thread hanger(upper) 上过线架 9 DD0004286 1 Column pipe connector 撑管夹 10 DD0004291 1 Column pipe(lower) 线架下撑管 11 DD0004284 1 Thread hanger(lower) 下过线架 12 DD0003312 2 Screw 螺钉 13 DD0004288 2 Spool pin 线轴 14 DD0004287 2 Spool cushion 线盘塑料压块 15 DD0004281 2 Spool mat 线盘软垫 16 DD0004299 2 Spool seat disc 线盘 17 DD0004295 2 Washer 垫圈 18 DD0004290 2 Washer 垫圈 19 DD0002985 1 Nut 螺母 20 DD0003447 1 Column pipe(upper) 线架上撑管套 21 DD0003519 1 Wire frame components 二线线架部件 S-7180A 22 jintex.in
Page 26 — L. 附件 / Accessories
L. 附件 / Accessories L-1 L-2 L-3 L-4 L-5 L-6 L-7 L-8 L-9 L-10 L-11 L-12 23 S-7180A jintex.in
Page 27 — L. 附件 / Accessories
L. 附件 / Accessories REF.NO CODE Q'TY NAME OF PARTS 零部件名称 RM 1 DD0003969 6 Screw 螺钉 2 DD0003214 1 Plastic oil pan 塑料油盘 3 DD0025484 1 Bobbin 梭芯 4 DD0003892 1 Oil reservoir magnet 油盘磁铁 5 DD0003522 2 Oil reservoir cushion 机头油盘座垫 6 DD0003523 2 Oil reservoir seat 油盘支座 7 DD0026033 1 Frame support bar 机头支柱 8 DD0004466 2 Head connecting hook 机头连接钩部件 9 DD0003451 2 Head connecting hook socket 机头连接钩座 10 DD0060866 1 Oil pot 油壶 11 DD0003536 1 Head cover 机头罩 12 DD0031426 1 Screw 螺钉组件 S-7180A jintex.in 24
Page 28 — M. 电控分组件 / Drive-by-wire Components
M. 电控分组件 / Drive-by-wire Components M-15 M-4 M-5 M-2 M-3 M-6 M-1 M-7 M-8 M-1 M-9 M-1 M-10 M-11 M-12 M-13 M-14 25 S-7180A jintex.in
Page 29 — M. 电控分组件 / Drive-by-wire Components
M. 电控分组件 / Drive-by-wire Components REF.NO CODE Q'TY NAME OF PARTS 零件名称 RM 1 DD0054287 4 Screw 螺钉 2 DD0010899 1 Screw 螺钉 3 D00002462 1 Cord holder 电线夹 4 D0000480 1 Washer 垫圈 5 D00002463 1 Cord holder 电线夹 6 D00003992 1 Motor housing 马达外罩 7 DD0006115 1 Snap ring 垫圈 8 DD0012080 1 Screw 螺钉 9 DD0001943 3 Screw 螺钉 10 DNR003466 1 Control box 电控 11 DD0010899 1 Screw 螺钉 12 DNR003467 1 Key screen 按键屏 13 D00004088 1 Screw 螺钉 14 DD0031424 1 Pedal unit ASM 踏板组件 15 DD0008934 2 Screw 螺钉 S-7180A jintex.in 26
Page 30
Wa. Warning labels / 警告标签 Warning labels / 警告标签 brother S-7180A PHASE 1 VOLTS AC200-240V HERTZ 50/60 Hz AMPS 2.0 A BROTHER INDUSTRIES, LTD. MADE IN CHINA ▲ 危险 触摸高电压部分, 会导致受伤。 在切断电源5分钟后, 再开启盖罩。 ▲ DANGER Hazardous voltage will cause injury. Turn off main switch and wait 5minutes before opening this cover. brother 机械润滑油 Lubricating Oil for Machining ▲ 注意 润滑油可能引起眼睛发炎。 吞食润滑油会引起腹泻和呕吐。 请勿吞食。 Eye contact: -请用冷水冲洗。 -寻求医疗救助。 如果 G 吞食: -请立即寻求医疗救助。 ▲ CAUTION Oil may cause inflammation to eye. Swallowing oil can cause diarrhoea and vomiting. Do not swallow. -Rinse with plenty of cold water. -Seek medical help. IF swallowed: -Seek medical help immediately. 1 2 OFF ON O 27 jintex.in
Page 31 — Index / 索引
Index / 索引 CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page D00001346 F - 24 14 D00003528 A - 30 2 DD0004176 C - 20+ 6 I - 15 18 D00001347 F - 28 14 D00003529 A - 37 2 DD0004177 C - 17 6 DD0008812 H - 21 16 D00001348 F - 25 14 D00003530 C - 42 8 DD0004179 C - 21 6 DD0008817 I - 11 16 D00001355 D - 26 14 D00003531 H - 37 16 DD0004180 C - 22 6 DD0008821 E - 15 12 D00001625 D - 16 10 D00003533 D - 8 10 DD0004183 C - 13 6 DD0008862 H - 45 16 D00001627 D - 6 10 D00003535 F - 30 14 DD0004184 C - 12 6 DD0008865 H - 7 16 D00001633 J - 7 20 D00003536 L - 11 24 DD0004199 C - 19 6 DD0008934 A - 6 2 D00001634 J - 1 20 D00003538 C - 43 8 DD0004200 C - 14 6 DD0009005 A - 26 2 D00001660 H - 18 16 D00003565 F - 32 14 DD0004201 C - 16 6 DD0009074 C - 30 6 D00001662 H - 5 16 D00003599 D - 18 10 DD0004281 K - 15 22 DD0009205 D - 27 10 D00001671 F - 18 14 D00003606 C - 7+ 6 DD0004284 K - 11 22 DD0009471 H - 38 16 D00001677 F - 17 14 D00003617 I - 14 18 DD0004285 K - 6 22 DD0009626 H - 56 16 D00001682 J - 5 20 D00003639 E - 6 12 DD0004286 K - 9 22 DD0009654 H - 36 16 D00001689 F - 44 14 D00003696 A - 4 2 DD0004287 K - 14 22 DD0009987 J - 15 20 D00001690 F - 47 14 D00003698 B - 25 4 DD0004288 K - 13 22 DD0010016 D - 13 10 D00001696 F - 31 14 D00003703 B - 18+ 4 DD0004289 K - 7 22 DD0010027 D - 15 10 D00001703 J - 9 20 D00003705 H - 48 16 DD0004290 K - 18 22 DD0010030 E - 16 12 D00001705 E - 17 12 D00003753 J - 34 20 DD0004291 K - 10 22 DD0010057 E - 23 12 D00002080 D - 28 10 D00003773 C - 23+ 6 DD0004293 K - 2 22 DD0010058 E - 13 12 D00002181 J - 13 20 D00003789 C - 3+ 6 DD0004295 K - 17 22 DD0010059 E - 12 12 D00002229 D - 3 18 D00003792 C - 3+ 6 DD0004298 K - 8 22 DD0010063 E - 7 12 D00002348 H - 22 16 D00003825 B - 27 4 DD0004299 K - 16 22 DD0010065 B - 9 4 D00002350 J - 21 20 D00003832 A - 36 2 DD0004373 A - 28 2 DD0010066 I - 19 12 D00002379 E - 9 12 D00003931 H - 17 16 DD0004374 A - 27 2 DD0010069 F - 14 14 D00002401 C - 33 6 D00003969 L - 1 24 DD0004380 A - 5 2 DD0010071 F - 10 14 D00002462 M - 3 26 D00003992 M - 6 26 DD0004439 D - 4 2 DD0010072 F - 15 14 D00002463 M - 5 26 D00004047 J - 18 20 DD0004440 F - 39 14 DD0010074 F - 4 14 D00002521 B - 28 4 D00004088 M - 13 20 DD0004466 L - 8 22 DD0010076 F - 40 14 D00002530 A - 35 2 D00004089 D - 7 10 DD0004472 B - 20 22 DD0010080 A - 33 14 D00002561 I - 16 18 D00004134 D - 29 10 DD0004473 D - 5 22 DD0010082 B - 8 4 D00002662 D - 22 10 D00004158 B - 4+ 4 DD0004474 F - 38 22 DD0010083 B - 2 4 D00002664 D - 26 10 DD0005661 I - 18 18 DD0004475 F - 50 14 DD0010084 F - 2 14 D00002665 H - 39 16 DD001943 M - 9 26 DD0004628 F - 34 14 D00002740 A - 20 2 DD002028 J - 11 20 DD0004648 H - 27 14 D00003214 L - 2 24 DD002445 E - 25 12 DD0004651 H - 29 14 D00003215 J - 8 20 DD002509 E - 20 12 DD0004703 H - 31 14 D00003235 A - 22 2 DD002559 J - 20 20 DD0004704 H - 32 14 D00003237 D - 19 10 DD002560 E - 18 12 DD0004705 H - 33 14 D00003258 D - 25 10 DD002561 E - 24 12 DD0004707 H - 28 14 D00003428 A - 9 2 DD002562 J - 23 20 DD0004993 F - 41 14 D00003429 A - 8 2 DD002563 J - 14 20 DD0005020 B - 23 14 D00003430 A - 14 2 DD002610 J - 26 20 DD0005558 I - 2 14 D00003431 A - 15 2 DD002613 J - 25 20 DD0005838 C - 26 22 D00003432 A - 21 2 DD002953 K - 3 22 DD0005839 C - 27 22 D00003435 A - 16 2 DD002985 K - 19 22 DD0005915 D - 9+ 6 D00003438 B - 7 4 DD003022 K - 4 22 DD0005916 C - 5+ 6 D00003439 B - 11 4 DD003031 H - 35 16 DD0005940 B - 15+ 4 D00003440 B - 5 4 DD003077 K - 46 16 DD0005941 C - 20+ 6 D00003441 C - 1 6 DD003301 K - 5 22 DD0005943 C - 8 22 D00003443 I - 9 18 DD003312 K - 12 22 DD0005945 C - 6+ 6 D00003445 J - 31 20 DD0003890 J - 16 20 DD0005982 D - 10+ 4 D00003446 J - 33 20 DD0003891 J - 32 20 DD0006115 M - 7 26 D00003447 K - 1 22 DD0003892 J - 4 24 DD0006264 C - 24 22 D00003451 L - 20 22 DD0003893 J - 29 20 DD0006624 H - 11 16 D00003456 A - 11 2 DD0003894 J - 19 20 DD0006844 B - 15+ 4 D00003512 J - 6 20 DD0003895 J - 24 20 DD0006924 E - 3 12 D00003513 B - 18+ 4 DD0003896 J - 17 20 DD0007235 E - 21 12 D00003517 A - 10 2 DD0003901 J - 28 20 DD0007236 E - 22 12 D00003519 K - 21 22 DD0003963 A - 32 2 DD0007239 B - 26 4 D00003522 L - 5 24 DD0003963 A - 34 2 DD0007268 E - 14 12 D00003523 L - 6 24 DD0004158 B - 4+ 4 DD0007322 F - 35+ 14 DD0007779 E - 10 12 jintex.in 28
Page 32 — Index / 索引
Index / 索引 CODE REF.NO Page CODE REF.NO Page CODE REF.NO Page DD0010292 H - 49 16 DD0014459 A - 24+ 2 DD0065628 F - 27 14 DD0010293 I - 10 18 DD0014461 J - 12 20 F - 29 14 DD0010504 B - 12 4 DD0023739 H - 54 16 DD0066775 A - 3 2 DD0010535 B - 3 4 DD0025484 E - 4 12 DE0025554 A - 2 2 DD0010537 B - 17 4 L - 3 24 DNR003466 M - 10 26 DD0010538 B - 10 4 DD0025576 H - 30 16 DNR003518 F - 51 14 DD0010542 B - 4 4 DD0026033 L - 7 24 DNR003524 C - 35 26 F - 45 14 DD0028999 H - 44 16 DNR003534 B - 29 14 DD0010545 B - 6 4 DNR003547 D - 30 10 DD0010588 C - 9 6 DD0031261 E - 1 12 DNR003991 H - 41 16 DD0010590 C - 10+ 6 DD0031424 M - 14 26 E00003021 A - 7 2 DD0010591 C - 6+ 6 DD0031426 L - 12 24 E00003503 J - 27 20 DD0010592 B - 16+ 4 DD0031612 H - 13 16 E00003519 A - 19 4 DD0010643 F - 6 14 DD0038073 F - 46 14 E00003534 C - 41 18 DD0010646 D - 12 10 DD0038474 B - 4+ 4 E00003573 I - 6 8 DD0010650 D - 11 10 DD0038939 C - 7+ 6 E00003671 B - 31 4 DD0010651 D - 23 10 DD0039524 C - 15 6 ENR003507 C - 39 8 DD0010652 D - 24 10 DD0041529 E - 11 12 DD0010653 D - 17 10 DD0041628 I - 4 18 DD0010678 B - 21 4 DD0042079 F - 33 14 B - 22 4 DD0043360 C - 4 6 DD0010736 H - 55 16 DD0048653 C - 45 8 DD0010899 M - 2 26 DD0048696 F - 13 14 M - 11 26 DD0048736 F - 12 14 DD0011063 C - 2 6 DD0050266 H - 23 16 DD0011101 E - 2 12 DD0050348 C - 34 6 DD0011149 A - 13 2 DD0050422 I - 13 18 DD0011168 F - 53 14 DD0050423 A - 12 2 DD0011232 B - 32 4 DD0050672 B - 1 4 DD0011514 H - 12 16 DD0051397 E - 5+ 12 DD0011578 H - 16 16 DD0051428 D - 2 10 H - 26 16 DD0051429 D - 3 10 DD0011580 H - 14 16 DD0051430 D - 14 10 DD0011588 H - 4 16 DD0051431 A - 17 2 DD0011605 H - 47 16 DD0051433 D - 1 10 DD0011606 H - 42 16 DD0051457 C - 18 6 DD0011607 H - 40 16 DD0051458 C - 25 6 DD0011630 H - 2 16 DD0051703 C - 29 6 DD0011649 H - 6 16 DD0052531 F - 35+ 14 DD0011650 H - 34 16 DD0052532 D - 10+ 10 DD0011686 H - 24 16 DD0052735 C - 10+ 6 DD0011845 H - 43 16 DD0052992 C - 32 6 DD0012080 M - 8 26 DD0053104 B - 16+ 4 DD0012203 B - 13+ 4 DD0053595 E - 5+ 12 DD0012454 H - 3 16 DD0054136 I - 19 18 DD0012463 A - 25 2 DD0054140 C - 11 6 DD0012589 C - 28 6 DD0054287 M - 1 26 DD0012858 B - 13+ 4 DD0055615 B - 19 4 DD0013026 H - 57 16 DD0058067 H - 50 16 DD0013029 E - 8 12 DD0059025 B - 30 4 DD0013038 D - 21 10 DD0060708 A - 24+ 2 DD0013154 H - 51 16 DD0060866 L - 10 24 DD0013465 H - 53 16 DD0062637 C - 23+ 6 DD0013706 A - 31 2 DD0063520 F - 37 14 DD0014106 B - 14 4 DD0064326 H - 1 16 DD0014116 F - 43 14 DD0064327 H - 8 16 DD0014117 C - 5+ 6 DD0064328 H - 10 16 DD0014118 D - 9+ 10 DD0064329 H - 9 16 DD0014196 H - 20 16 DD0064330 H - 15 16 DD0014197 I - 1 18 DD0064331 H - 19 16 29 jintex.in
Page 33 — PARTS BOOK 零件手册
brother PARTS BOOK 零件手册 BROTHER INDUSTRIES, LTD. http://www.brother.com/ 1-5, Kitajioyama, Noda-cho, Kariya 448-0803, Japan. Phone : 81-566-95-0088 © 2022 Brother Industries, Ltd. All Rights Reserved. jintex.in S-7180A 12031680Z C/E 2022.03.Z (1)
