Jack A6F-E Parts Book (PDF)
Text index — Jack A6F-E

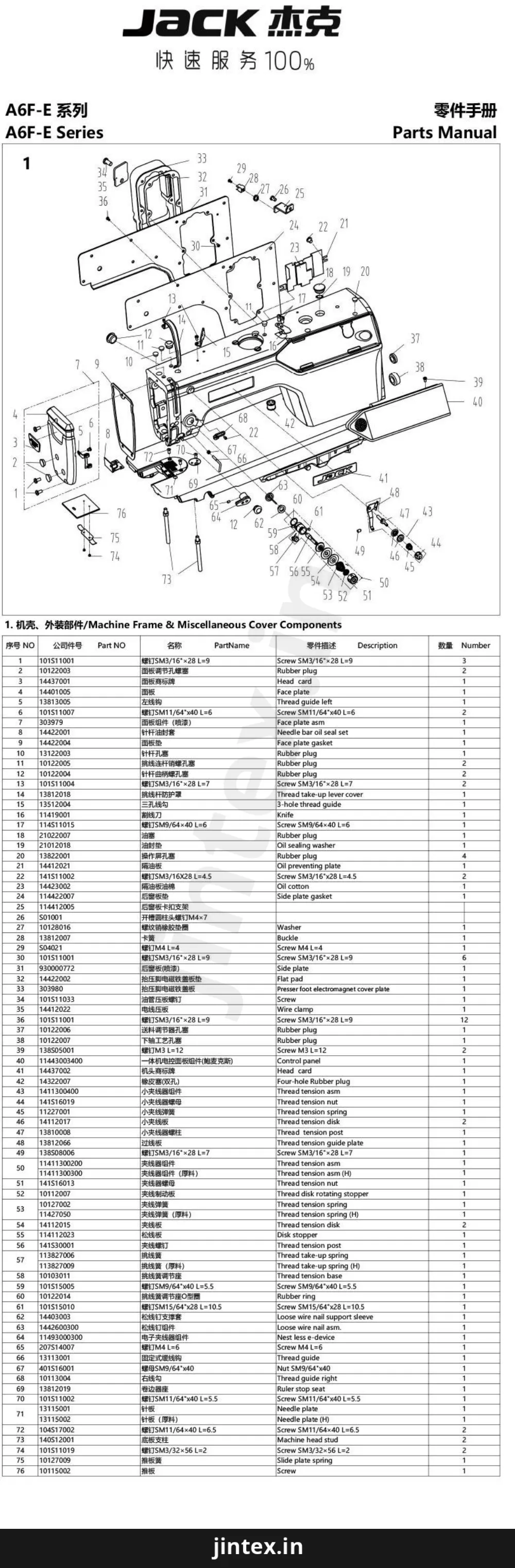

Page 1 — 1. 机壳、外装部件/Machine Frame & Miscellaneous Cover Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 101S11001 | Screw SM3/16"×28 L=9 | 3 |
| 2 | 10122003 | Rubber plug | 2 |
| 3 | 14437001 | Head card | 1 |
| 4 | 14401005 | Face plate | 1 |
| 5 | 13813005 | Thread guide left | 1 |
| 6 | 101S11007 | Screw SM11/64"×40 L=6 | 2 |
| 7 | 303979 | Face plate asm | 1 |
| 8 | 14422001 | Needle bar oil seal set | 1 |
| 9 | 14422004 | Face plate gasket | 1 |
| 10 | 113122003 | Rubber plug | 1 |
| 11 | 10122005 | Rubber plug | 2 |
| 12 | 10122004 | Rubber plug | 2 |
| 13 | 101S11004 | Screw SM3/16"×28 L=7 | 2 |
| 14 | 13812018 | Thread take-up lever cover | 1 |
| 15 | 13512004 | 3-hole thread guide | 1 |
| 16 | 11419001 | Knife | 1 |
| 17 | 114S11015 | Screw SM9/64×40 L=6 | 1 |
| 18 | 21022007 | Rubber plug | 1 |
| 19 | 21012018 | Oil sealing washer | 1 |
| 20 | 13822001 | Rubber plug | 4 |
| 21 | 14412021 | Oil preventing plate | 1 |
| 22 | 141S11002 | Screw SM3/16x28 L=4.5 | 2 |
| 23 | 14423002 | Oil cotton | 1 |
| 24 | 114422007 | Side plate gasket | 1 |
| 25 | 114412005 | ||
| 26 | S01001 | 开槽圆柱头螺钉M4×7 | |
| 27 | 10128016 | Washer | 1 |
| 28 | 13812007 | Buckle | 1 |
| 29 | S04021 | Screw M4 L=4 | 1 |
| 30 | 101S11001 | Screw SM3/16"×28 L=9 | 6 |
| 31 | 930000772 | Side plate | 1 |
| 32 | 14422002 | Flat pad | 1 |
| 33 | 303980 | Presser foot electromagnet cover plate | 1 |
| 34 | 101S11033 | Screw | 1 |
| 35 | 14412022 | Wire clamp | 1 |
| 36 | 101S11001 | Screw SM3/16"×28 L=9 | 12 |
| 37 | 10122006 | Rubber plug | 1 |
| 38 | 10122007 | Rubber plug | 1 |
| 39 | 138S05001 | Screw M3 L=12 | 2 |
| 40 | 11443003400 | Control panel | 1 |
| 41 | 14437002 | Head card | 1 |
| 42 | 14322007 | Four-hole Rubber plug | 1 |
| 43 | 1411300400 | Thread tension asm | 1 |
| 44 | 141S16019 | Thread tension nut | 1 |
| 45 | 11227001 | Thread tension spring | 1 |
| 46 | 14112017 | Thread tension disk | 2 |
| 47 | 13810008 | Thread tension post | 1 |
| 48 | 13812066 | Thread tension guide plate | 1 |
| 49 | 138S08006 | Screw SM3/16"×28 L=7 | 1 |
| 50 | 11411300200 | Thread tension asm | 1 |
| 51 | 141S16013 | Thread tension nut | 1 |
| 52 | 10112007 | Thread disk rotating stopper | 1 |
| 53 | 10127002 | Thread tension spring | 1 |
| 54 | 14112015 | Thread tension disk | 2 |
| 55 | 114112023 | Disk stopper | 1 |
| 56 | 141S30001 | Thread tension post | 1 |
| 57 | 113827006 | Thread take-up spring | 1 |
| 58 | 10103011 | Thread tension base | 1 |
| 59 | 101S15005 | Screw SM9/64"x40 L=5.5 | 1 |
| 60 | 10122014 | Rubber ring | 1 |
| 61 | 101S15010 | Screw SM15/64"×28 L=10.5 | 1 |
| 62 | 14403003 | Loose wire nail support sleeve | 1 |
| 63 | 1442600300 | Loose wire nail asm. | 1 |
| 64 | 11493000300 | Nest less e-device | 1 |
| 65 | 207S14007 | Screw M4 L=6 | 1 |
| 66 | 13113001 | Thread guide | 1 |
| 67 | 401S16001 | Nut SM9/64"x40 | 1 |
| 68 | 10113004 | Thread guide right | 1 |
| 69 | 13812019 | Ruler stop seat | 1 |
| 70 | 101S11002 | Screw SM11/64"×40 L=5.5 | 1 |
| 71 | 13115001 | Needle plate | 1 |
| 72 | 104S17002 | Screw SM11/64×40 L=6.5 | 2 |
| 73 | 140S12001 | Machine head stud | 2 |
| 74 | 101S11019 | Screw SM3/32×56 L=2 | 2 |
| 75 | 10127009 | Slide plate spring | 1 |
| 76 | 10115002 | Screw | 1 |
| 13122003 | |||
| 114412022 | |||
| 101S17002 | 螺钉SM11/64×40 L=6.5 |
Page 2 — 2. 上轴、挑线部件/Main Shaft & Thread Take-up Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 12226001 | Thread take-up connecting rod pin | 1 |
| 2 | 101S15001 | Screw SM15/64×28 L=13 | 1 |
| 3 | 11305010 | Thread take-up connecting rod (H) | 1 |
| 4 | 14422008 | Thread take-up lever rubber | 1 |
| 5 | 1133800200 | Thread take-up lever asm (H) | 1 |
| 13538003 | Thread take-up lever asm (HL) | 1 | |
| 6 | 10124001 | Needle bearing (H) | 2 |
| 7 | 11310010 | Thread take-up crank (H) | 1 |
| 9 | 101S17001 | Screw SM9/64*×40 (Left hand) L=4.8 | 1 |
| 10 | 1443800100 | Thread take-up lever asm | 1 |
| 11 | 10112003 | Needle bar crank protecting plate | 1 |
| 12 | 101S15004 | Screw SM9/32*x28 L=16 | 1 |
| 13 | 101S11003 | Screw SM9/32*×28L=11 | 1 |
| 14 | 13804001 | Needle bar crank | 1 |
| 10404001 | Needle bar crank (H) | 1 | |
| 15 | 101S15002 | Screw SM1/4*x40 L=6 | 2 |
| 16 | 14408001 | Needle bar crank snap ring | 1 |
| 17 | S10026 | Screw M3 L=3 | 2 |
| 18 | B10046 | Needle bearing | 1 |
| 19 | S10018 | Screw M6×0.75 L=6 | 2 |
| 20 | 14303008 | Bearing bush | 1 |
| 21 | 10108001 | Main shaft thrust collar | 1 |
| 22 | 101S14001 | Screw SM1/4*x40 L=6 | 2 |
| 23 | 14403001 | Main shaft bushing mid | 1 |
| 24 | 101S15006 | Screw SM15/64*x28 L=7 | 1 |
| 25 | H03002 | Snap ring 20 | 1 |
| 26 | 400811 | Feed eccentric cam (H) | 1 |
| 400092 | Feed eccentric cam | 2 | |
| 27 | 10112017 | Cover plate | 1 |
| 10812002 | Cover plate (H) | 1 | |
| 28 | 101S11013 | Screw SM1/4*x40 L=13 | 2 |
| 29 | 113S11003 | Screw SM9/64*x40 L=5 | 2 |
| 30 | 14422009 | Oil seal | 1 |
| 31 | 14403008 | Bearing bush | 1 |
| 32 | B06023 | Needle bearing | 1 |
| 33 | S10018 | Screw M6×0.75 L=6 | 2 |
| 34 | H03001 | Snap ring 15 | 1 |
| 35 | 114402003 | Main shaft | 1 |
| 36 | S10009 | Screw M6 L=8 | 2 |
| 37 | 113835001 | Hand wheel | 1 |
| 38 | 114411009 | 1 | |
| 39 | 12922015 | Rubber plug | 1 |
| 40 | 13826009 | Pin | 1 |
| 41 | 11503001400 | Electronic control box | 1 |
| 42 | W01009 | Washer 5 | 2 |
| 43 | 114S13001 | Screw M5 L=20 | 3 |
| 44 | 114S30001 | Screw M5 L=25 | 1 |
| 45 | 11503001300 | Electronic control box | 1 |
| 46 | 144S30001 | Screw | 1 |
| 47 | 113830001 | Servo motor | 1 |
| 48 | 951S15011 | Screw asm M3 L=12 | 5 |
| 49 | 95100172 | Encoder housing assembly | 1 |
| 50 | S09022 | Screw M3 L=4 | 1 |
| 51 | 95100116 | Motor grating sensor asm | 1 |
| 52 | S09162 | Screw M6 L=6 | 1 |
| 53 | 95100182 | Motor rotor | 1 |
| 54 | 95100171 | Motor stator,qixing | 1 |
| 55 | 13811060 | Insulating shield | 1 |
| 56 | W02058 | Washer d5 | 3 |
| 57 | S05901 | Screw M5 L=50 | 1 |
| 58 | 10122012 | Rubber plug | 1 |
| 1 | 1413104900 | Bobbin winder asm | 1 |
| 2 | 114S11008 | Screw M4 L=6 | 1 |
| 3 | W02863 | Washer 4 | 1 |
| 4 | W01142 | Washer 4 | 1 |
| 5 | 14113002 | Pressure line control board | 1 |
| 6 | 14112020 | Washer | 1 |
| 951515011 | 螺钉组合件M3 L=12 | ||
| 95100162 | 螺钉M6 L=6 |
Page 3 — 3. 绕线部件/ Bobbin Components (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 7 | 13812110 | Regulating plate | 1 |
| 8 | 13827013 | Reset spring | 1 |
| 9 | 1411000300 | Winding cam asm. | 1 |
| 10 | 11329020 | Ring 5 | 2 |
| 11 | 1141NS10001 | Screw SM9/64×40 L=11 | 1 |
| 12 | W02865 | Washer 3 | 1 |
| 13 | 14111004 | Winding wheel | 1 |
| 14 | 001110 | O ring 25x7 | 1 |
| 15 | S04090 | Screw M2 L=4 | 1 |
| 16 | 14119003 | Secant cutter | 1 |
| 17 | 113831003 | Winding gasket | 1 |
| 18 | 113831002 | The main seat | 1 |
| 19 | 10127061 | Drag spring | 2 |
| 20 | 14127060 | Spring | 1 |
| 21 | 14102003 | principal axis | 1 |
| 22 | 1410510600 | Bobbin connecting rod asm | 1 |
| 23 | 14111006 | Driven wheel | 1 |
| 24 | N07008 | Nut SM9/64"×40 | 1 |
| 25 | S09103 | Screw M4 L=4 | 2 |
| 26 | 11422062 | Washer | 1 |
| 27 | 114S11003 | Screw SM3/16"×28 L=10 | 3 |
| 28 | S10009 | Screw M6 L=8 | 2 |
| 29 | 11435013 | Driving wheel | 1 |
| 30 | 1411300600 | Bobbin thread tension asm. | 1 |
| 31 | 141S16019 | Thread tension nut | 1 |
| 32 | 11427006 | Spring | 1 |
| 33 | 14112015 | Thread tension disk | 2 |
| 34 | 11413022 | Thread tension guide plate | 1 |
Page 4 — 4. 针杆、竖轴、下轴部件/Needle bar & Upright Shaft & Hook Driving Shaft Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 10403019 | Hook driving shaft bushing back | 1 |
| 2 | 113S14020 | Screw SM11/64"×40 L=6 | 1 |
| 2 | 114S14001 | Screw SM11/64"×40 L=4 (HL) | 1 |
| 3 | 10108002 | Hook driving shaft snap ring | 1 |
| 4 | 101S11012 | Screw SM11/64"×40 L=4.8 | 2 |
| 5 | 14003004 | Lower shaft middle bushing | 1 |
| 6 | 11522001 | Oil seal 12 | 2 |
| 7 | 114122004 | Oil seal | 1 |
| 8 | 14103004 | Lower shaft before bushing asm | 1 |
| 9 | 14402003 | Hook driving shaft | 1 |
| 10 | 13823001 | Oil wick | 1 |
| 11 | 101S30005 | Set screw SM3/16×32 | 1 |
| 12 | 11418003 | Hook asm | 1 |
| 12 | 11418004 | Hook asm (H) | 1 |
| 12 | 13618005 | Hook asm (HL) | 1 |
| 12 | 113818002 | Hook asm (-P) | 1 |
| 13 | 10118003 | Bobbin | 1 |
| 13 | 10818501 | Bobbin (HL) | 1 |
| 13 | 13818002 | Bobbin (-P) | 1 |
| 14 | 11218504 | Bobbin case asm | 1 |
| 14 | 13618004 | Bobbin case asm (HL) | 1 |
| 14 | 13818003 | Bobbin case asm (-P) | 1 |
| 15 | 13817001 | Needle DBx1#14 | 1 |
| 15 | 10117002 | Needle DPx5#21 (H) | 1 |
| 16 | 10113002 | Needle bar thread guide | 1 |
| 16 | 11412063 | Needle bar thread guide (H) | 1 |
| 17 | 104S11006 | Screw SM1/8"x44 L=4.5 | 1 |
| 18 | 101S11005 | Screw SM9/64"x40 L=6 | 1 |
| 19 | 1440100100 | Needle bar support asm | 1 |
| 20 | 14402012 | Needle bar | 1 |
| 20 | 14402014 | Needle bar (H) | 1 |
| 21 | 14438002 | Needle bar connecting rod | 1 |
| 22 | 114409004 | Slide block | 1 |
| 23 | 14403006 | Needle bar stand collar | 1 |
| 24 | 138S08006 | Screw SM3/16"x28 L=7 | 2 |
| 25 | 13111002 | Plug | 4 |
| 26 | 131S01004 | Screw SM9/64"×40 L=6 | 2 |
| 27 | 14426007 | Driving connecting rod pin | 2 |
| 28 | 14405002 | Driving connecting rod | 1 |
| 29 | 14409004 | Needle bar guide | 1 |
| 30 | 101S11010 | ScrewSM9/64"×40 L=11 | 2 |
| 31 | 10112016 | Finger postioner | 1 |
| 31 | 10112032 | Finger postioner (H) | 1 |
| 32 | 116S11005 | Screw SM11/64"×40 L=13 | 1 |
| 33 | 144S13001 | Screw SM3/16"x28 L=20 | 1 |
| 34 | 131B07001 | Needle bearing | 1 |
| 35 | 14409003 | Sliding block guide rail | 1 |
| 36 | 14404001 | Sent front drive the crank pin | 1 |
| 37 | 101S11016 | Screw SM3/16"×28 L=14 | 2 |
| 38 | 14403004 | Before the needle swing axle sleeve | 1 |
| 39 | 14402009 | Needle bar swing axle | 1 |
| 40 | 135S15004 | Screw SM1/4"×40 L=4 | 4 |
| 41 | 13108002 | Ring | 2 |
| 42 | 14403005 | After the needle swing axle sleeve | 1 |
| 43 | 14404002 | After driving the crank | 1 |
| 44 | 10122006 | Rubber plug | 1 |
| 45 | 131N01002 | Nut SM15/64"×28 | 2 |
| 46 | 14405001 | Needle connecting rod | 1 |
| 47 | 144S20005 | After needle to drive the crank shaft screw | 1 |
| 48 | 144S01001 | Screw SM11/64×40 L=6 | 1 |
| 49 | 144S20006 | Driving crank adjustment screw | 1 |
| 50 | 40128013 | Washer 6.2x13x1 | 1 |
| 51 | 10102007 | Upright shaft | 1 |
| 54 | 113803004 | Upright shaft bushing lower | 1 |
| 55 | 10403020 | Upright shaft bushing upper | 1 |
| 54 | 113S11036 | Screw SM/5/64"×28 L=4.7 | 1 |
| 55 | 101S15014 | Screw SM1/4"x40 L=7 | 8 |
| 56 | 10425004 | Upper shaft bevel gear | 1 |
| 57 | 10425003 | Upper small bevel gear asm | 1 |
| 11412004 | |||
| 11411004 | |||
| 401280013 | 垫圈6.2x13x1 | ||
| 113B03004 | |||
| 10425002 |
Page 5 — 5. 送料部件 /Feed Mechanism Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 114905001 | Needle pitch rod | 1 |
| 2 | S10009 | Screw M6 L=8 | 4 |
| 3 | 114904001 | Needl gage crank | 1 |
| 4 | 114926001 | Needl gage crank pin | 2 |
| 5 | 114903001 | Stepper motor bushing | 1 |
| 6 | 115000113 | Stepper motor (Power Max) | 1 |
| 7 | 10126011 | Feed rocker crank pin | 1 |
| 8 | 14404004 | Crank | 1 |
| 9 | 144S14001 | Screw SM9/32"×28 L=8 | 2 |
| 10 | 101S11005 | Screw SM9/64"x40 L=6 | 4 |
| 11 | 114022002 | Rubber plug | 2 |
| 12 | 400083 | Rocker shaft connecting rod | 1 |
| 12 | 13805002 | Rocker shaft connecting rod (H) | 1 |
| 13 | 10126006 | Connecting rod pin | 1 |
| 14 | 400093 | Connecting rod | 1 |
| 15 | 101S16003 | Hinge Screw SM9/32"x28 | 1 |
| 16 | 10104004 | Feed driving shaft crank | 1 |
| 16 | 101516003 | 螺母SM9/32"x28 | |
| 17 | 101S11016 | Screw SM3/16"x28 L=14 | 1 |
| 18 | 101S20005 | Hinge Screw SM9/32"x28 | 1 |
| 19 | 114022001 | O ring | 2 |
| 20 | 14022008 | Plug | 2 |
| 21 | 14003002 | Axle sleeve | 2 |
| 21 | 14403002 | ||
| 22 | 1142200800 | Oil seal | 2 |
| 23 | 14402007 | Feed driving shaft | 1 |
| 24 | 14402008 | Feed rocker shaft | 1 |
| 25 | 101S15002 | Screw SM1/4"x40 L=6 | 4 |
| 26 | 10108003 | Feed rocker shaft snap ring | 2 |
| 27 | 10403015 | Bushing | 2 |
| 28 | H03001 | Snap ring 15 | 2 |
| 29 | 10104003 | Driving shaft crank | 1 |
| 30 | 1138NS30004 | Screw SM11/64"x40 L=10.5 | 1 |
| 31 | 101S11016 | Screw SM3/16"x28 L=14 | 1 |
| 32 | 10128003 | Washer | 1 |
| 33 | 14022003 | Spout plug | 1 |
| 34 | 1440700300 | Feed bar asm | 1 |
| 35 | 10401007 | Feed bar pin | 1 |
| 36 | 480095 | Feed bar bed | 1 |
| 37 | 101S11025 | Screw SM11/64"x40 L=7 | 1 |
| 38 | 14407003 | Feed bar | 1 |
| 39 | 13114001 | Feed dog | 1 |
| 39 | 13114003 | Feed dog (H) | 1 |
| 40 | 101S11018 | Screw SM1/8"x44 L=6 | 2 |
| 41 | 101S15010 | Screw SM15/64"x28 L=10.5 | 1 |
| 42 | 10126009 | Left pin | 1 |
| 43 | 10126007 | Connecting pin | 2 |
| 44 | 13809007 | Feed short shaking plate | 2 |
| 45 | 13809008 | Feed long shaking plate | 2 |
| 46 | 114901001 | Feed shaking plate bed components | 1 |
| 47 | 10126010 | Right pin | 1 |
| 48 | 113S14010 | Screw SM15/64"x28 L=12 | 1 |
| 49 | 13812081 | Fixed plate | 1 |
| 50 | 14022015 | Spout plug | 1 |
| 1 | 101S11004 | Screw SM3/16"×28 L=7 | 1 |
| 2 | 1443000700 | LED Light asm | 1 |
| 3 | 11443004000 | Double switch components | 1 |
| 4 | 131S02001 | Screw 3/16"×28 L=6.5 | 4 |
| 5 | 113811004 | Cable band | 9 |
| 6 | 141S16014 | Nut SM11/64"×40 | 1 |
| 7 | 1443000800 | Thread trimmer solenoid asm. | 1 |
| 8 | 14112002 | Bracket | 1 |
| 9 | 101S11026 | Screw SM15/64"X28 L=9 | 2 |
| 10 | N01005 | Nut M4 | 2 |
| 11 | 113822005 | Washer | 1 |
| 12 | 112S16006 | Nut SM1/4"X40 | 1 |
| 13 | W02002 | Washer 4 | 2 |
| 14 | 14126001 | Pin | 1 |
| 15 | 14105001 | Rod | 1 |
| 16 | 14127001 | Lower sensor | 1 |
Page 6 — 7. 自动剪线部件/Feed Mechanism Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 114S17001 | Screw M3 L=8.5 | 3 |
| 2 | 14112005 | Knife bracket press component | 1 |
| 3 | 14119002 | knife | 1 |
| 14119005 | knife (H) | 1 | |
| 4 | 1440700200 | Knife bracket | 1 |
| 5 | 113S17002 | Screw SM11/64"x40 L=4.4 | 1 |
| 6 | 131S01002 | Screw SM11/64"40 L=4 | 1 |
| 7 | 14119001 | knife | 1 |
| 8 | 113S17002 | Screw SM11/64"x40 L=4.4 | 2 |
| 9 | 14407001 | Knife bracket | 1 |
| 10 | 114S16004 | Nut SM11/64"x40 | 1 |
| 11 | 14112001 | Needle guard patch | 1 |
| 12 | 201S11009 | Screw SM9/64"x40 L=5.5 | 1 |
| 13 | 113S20001 | Screw SM11/64×40 L=6.5 | 1 |
| 14 | 114112013 | Connecting rod | 1 |
| 15 | 141S20002 | Screw | 1 |
| 16 | 14104003 | Crank | 1 |
| 17 | S10007 | Screw M4 L=4 | 1 |
| 18 | S05004 | Screw M5 L=14 | 1 |
| 19 | 11511001 | Stop block | 1 |
| 20 | 14104001 | Crank | 1 |
| 21 | 11327001 | Spring | 1 |
| 22 | 11230004 | Plug | 1 |
| 23 | 11230005 | Pin | 2 |
| 24 | 14130001 | Plug | 1 |
| 25 | 14103003 | Thread cutting shaft bushing | 1 |
| 26 | 11503005 | Crank drive shaft bushing | 1 |
| 27 | 113S14020 | Screw SM11/64"x40 L=6 | 1 |
| 28 | 11322002 | Spring cover | 1 |
| 29 | 11327002 | Spring | 1 |
| 30 | 14104002 | Crank shaft | 1 |
| 31 | 1400400100 | Thread trimmer drive asm | 1 |
| 32 | 101S14001 | Screw SM1/4"x40 L=6 | 1 |
| 33 | 11324001 | Roolling pin | 1 |
| 34 | 1138NS16007 | Nut SM11/64"x40 | 1 |
| 35 | 116S14005 | Screw SM1/4"x40 L=10 | 2 |
| 36 | 11309030 | Push rod | 2 |
| 37 | 11310004 | Cam | 1 |
| 11310011 | Cam (H) | 1 | |
| 38 | 14002004 | Shaft | 1 |
| 39 | H05013 | Snap ring 6 | 1 |
| 40 | 10112003 | Cunter weight protecting | 1 |
| 41 | 11322003 | Solenoid cushion rubber | 1 |
| 42 | N01005 | Nut M4 | 2 |
| 43 | W02002 | Washer 4 | 2 |
| 44 | 11309001 | Solenoid pin | 1 |
| 45 | 1401200200 | Bracket | 1 |
| 46 | S17002 | Screw M6 L=10 | 2 |
| 47 | 14112022 | Tangent lever | 1 |
| 48 | H03015 | Ring 8 | 1 |
| 49 | 10112003 | Needle bar crank protecting plate | 1 |
| 50 | 112S16006 | Nut SM1/4"X40 | 1 |
| 51 | 113822005 | Washer | 1 |
| 52 | 11493000500 | Thread trimmer solenoid asm. | 1 |
| 53 | 10112022 | Plate | 1 |
| 54 | / | Feed Mechanism Components (-HL) | / |
| 55 | 113S15002 | Screw SM1/8"x44 L=9.5 | 1 |
| 56 | 13119001 | Secant knife | 1 |
| 57 | 113S17001 | Screw SM9/64×40 L=6 | 1 |
| 58 | 11312003 | Needle guard patch | 1 |
| 59 | 201S11009 | Screw SM9/64"x40 L=5.5 | 1 |
| 60 | 113S11001 | Screw SM11/64"x40 L=12 | 1 |
| 61 | 10128003 | Washer | 2 |
| 62 | 14012004 | Knife bracket press component | 1 |
| 63 | 114412001 | Knife bracket press | 1 |
| 64 | 13803012 | Short bushing | 2 |
| 65 | 113S17002 | Screw SM11/64"x40 L=4.4 | 2 |
| 66 | 11319002 | Motorial knife | 1 |
| 67 | 114419001 | Knife bracket | 1 |
| 68 | 113S20001 | Screw SM11/64×40 L=6.5 | 2 |
| 69 | 11312005 | Connecting rod | 1 |
| 70 | 114S16004 | Nut SM11/64"x40 | 1 |
| 71 | 114404005 | Crank | 1 |
| 72 | 11322001 | Crank driver stopper block | 1 |
| 73 | S05004 | Screw M5 L=14 | 1 |
| 74 | 11327001 | Spring | 1 |
| 113520001 | 螺钉SM9/64"x40 L=5.5 | ||
| 11412013 | |||
| 11327004 | |||
| 14104004 | |||
| 1410400100 | |||
| 113S14007 | 螺钉SM11/64"x40 L=6 | ||
| 1138N516007 | 螺钉SM11/64"x40 | ||
| 112516006 | 螺钉SM11/4"x40 |
Page 7 — 8. 润滑、油量检测部件/Oil Lublication & Oil Measuring Components; 9. 油盘、膝控抬压脚部件/Oil Ceservoir & Knee Lifter Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 11211004 | Oil sight window | 1 |
| 2 | 10122019 | Rubber ring | 1 |
| 3 | 14021001 | Tubing Φ4xΦ6 | 0.6M |
| 4 | 14436001 | Aluminum tubing Φ4.5xΦ6 | 1 |
| 5 | 101530008 | Oil pump connecting stud | 1 |
| 6 | 11329010 | Snap ring 10 | 1 |
| 7 | 10121001 | Hook driving shaft oil tube | 1 |
| 8 | 10112020 | Oil pump installing base | 1 |
| 9 | W03002 | Spring washer | 1 |
| 10 | 209S12001 | Screw SM11/64"×40 L=10.5 | 1 |
| 11 | 10103022 | Oil pump bushing | 1 |
| 12 | 101S30007 | Plunger Screw | 1 |
| 13 | 10127013 | Plunger spring | 1 |
| 14 | 10122018 | Plunger | 1 |
| 15 | 10120001 | Oil pump | 1 |
| 16 | S04093 | Screw M3 L=6 | 3 |
| 17 | 10111003 | Oil pump impeller | 1 |
| 18 | 10112021 | Oil pump impeller cover | 1 |
| 19 | 10111007 | Lubricating oil pump cover | 1 |
| 20 | 101S30006 | Screw ST2.9 L=10 | 3 |
| 21 | 1012000100 | Lubricating oil pump component | 1 |
| 22 | 10136001 | Rubber joint | 1 |
| 23 | 14112007 | Over wire hook | 1 |
| 24 | W02004 | Spring Washer M6 | 1 |
| 25 | 116S30003 | Screw SM15/64"×28 L=14.5 | 1 |
| 26 | 14021003 | Aluminum tubing | 1 |
| 27 | 113811004 | Cable band | 4 |
| 28 | 14036004 | Oil nozzle | 1 |
| 29 | 14036002 | Oil nozzle | 3 |
| 30 | 20429001 | Oil pipe clamp spring 6.5 | 4 |
| 31 | 14021001 | Tubing Φ4xΦ6 | 0.15M |
| 32 | 30129007 | Oil pipe clamp spring 6 | 1 |
| 33 | 10123010 | Oil wick | 2 |
| 34 | 14036003 | Oil nozzle | 1 |
| 35 | 14022011 | Rubber ring | 1 |
| 36 | 140530001 | Oil volume adjusting screw | 1 |
| 37 | 14423001 | Oil felt felt | 1 |
| 38 | 14427003 | Asphalt felt clamp | 1 |
| 39 | 101S11004 | Screw SM3/16"×28 L=7 | 1 |
| 40 | 10112023 | Oil tube clamp | 1 |
| 41 | 10121007 | Oil return tube component | 1 |
| 42 | 10121008 | Oil return tube | 1 |
| 43 | 10112025 | Oil line fixing plate (H) | 1 |
| 44 | 101S11010 | Screw SM9/64"x40 L=11 (H) | 2 |
| 45 | 10123010 | Oil wick (H) | 1 |
| 46 | 11493000700 | Oil measuring device component | 1 |
| 47 | 140S16001 | Nut | 1 |
| 48 | 14028001 | Washer | 1 |
| 49 | 14012006 | Pull spring fixing plate | 1 |
| 50 | 14011004 | Shell | 1 |
| 51 | 14002005 | Guide pillar | 1 |
| 52 | 14030002-01 | Float | 1 |
| 53 | H05040 | Ring 6 | 1 |
| 54 | 101S11026 | Screw SM15/64"X28 L=9 | 2 |
| 55 | 11412200200 | Oil mark | 1 |
| 56 | 13811015 | Oil window | 1 |
| 1 | 114101010 | Oil reservoir | 1 |
| 2 | 14022001 | Seal | 1 |
| 3 | H05012 | Snap ring 4 | 1 |
| 4 | 40128013 | washer 6.2×13×1 | 2 |
| 5 | 14327002 | Knee lifter push rod Spring | 1 |
| 6 | 11211005 | Cable band | 1 |
| 7 | 114111012 | Knee lifter push rod component | 1 |
| 8 | 114122009 | Knee lifter push rod hat | 1 |
| 9 | 101S11023 | Screw SM3/16×28 L=6.5 | 1 |
| 10 | 10131001 | Oil reservoir magnet | 1 |
| 11 | 1401202700 | Lifting foot bidirectional crank asm | 1 |
| 12 | 10112027 | Knee lifter crank | 1 |
| 13 | 14027016 | Knee lifter spring | 1 |
| 14 | H05010 | Snap ring 9 | 1 |
| 15 | 1400200100 | Knee lifter shaft | 1 |
| 16 | S07020 | Screw M6 L=20 | 2 |
| 17 | 101S16004 | Nut M6 | 2 |
| 18 | 101S12002 | Screw M6 L=24.5 | 1 |
| 19 | S05240 | Screw M6 L=20 | 4 |
| 20 | 20528014 | Ring | 1 |
| 21 | 301S11015 | Screw SM3/8"×28 L=13 | 1 |
| 22 | 113S11004 | Screw M4 L=8 | 1 |
| 23 | 114112021 | Wire clamp | 1 |
| 209512001 | 螺钉SM11/64"×40 L=10.5 | ||
| 101530007 | |||
| 101530006 | 螺钉ST2.9 L=10 | ||
| 116530003 | 螺钉SM15/64"×28 L=14.5 | ||
| 101511004 | 螺钉SM3/16"×28 L=7 | ||
| 101511010 | 螺钉SM9/64"×40 L=11 (厚料) | ||
| 140516001 | |||
| 14082001 | |||
| 101511026 | 螺钉SM15/64"×28 L=9 | ||
| 101511023 | 螺钉SM3/16"×28 L=6.5 | ||
| 101516004 | 螺母M6 | ||
| 101512002 | 螺钉M6 L=24.5 | ||
| 301511015 | 螺钉SM3/8"×28 L=13 | ||
| 113511004 | 螺钉M4 L=8 |
Page 8 — 10. 压料、自动抬压脚部件 /Presser Bar & Auto Lifter Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 101S11010 | Screw SM9/64*x40 L=11 | 1 |
| 2 | 10128002 | Washer | 1 |
| 3 | 13811029 | Hand lifter | 1 |
| 4 | 001004 | Rubber ring | 1 |
| 5 | 1441000200 | Hand lifter cam asm | 1 |
| 6 | 131S20001 | Screw | 1 |
| 7 | 10128016 | Washer | 2 |
| 8 | 1441200300 | Front lever assembly | 1 |
| 9 | 1441200400 | Lift front lever component | 1 |
| 10 | 14428002 | Washer 6.5x13x0.8 | 1 |
| 11 | 14412005 | Lifting plate | 1 |
| 12 | H05003 | Snap ring 5 | 2 |
| 13 | 14412006 | Pull rod | 1 |
| 14 | 114S11015 | Screw SM9/64×40 L=6 | 1 |
| 15 | 13108001 | Ring | 1 |
| 16 | 114122006 | Oil seal | 1 |
| 17 | 11413001800 | Solenoid | 1 |
| 18 | H03054 | Snap ring 6 | 1 |
| 19 | 14128001 | Loose top gasket | 1 |
| 20 | 114401006 | Wire release plate | 1 |
| 21 | 114402005 | Pin | 1 |
| 22 | 114427003 | Spring | 1 |
| 23 | 114412006 | Presser foot lever | 1 |
| 24 | 14412012 | Knee control lever rear lever | 1 |
| 25 | 101S20004 | Screw SM3/16*x32 | 1 |
| 26 | 14422006 | Rubber pad | 1 |
| 27 | 144S20004 | Hinge screw | 1 |
| 28 | 14412015 | Knee lifter back lever | 1 |
| 29 | 14428001 | Flat washer 8.2×15×1 | 1 |
| 30 | 137S20001 | Axial screw | 1 |
| 31 | N01012 | Nut M6 | 1 |
| 32 | 14402006 | Knee lifter connecting rod | 1 |
| 33 | 14411001 | Whell | 1 |
| 34 | 11329020 | Snap ring 5 | 1 |
| 35 | 114426001 | Connector | 1 |
| 36 | 113S16004 | Flange nuts M8 | 1 |
| 37 | 11322008 | Washer | 1 |
| 38 | 11443004200 | Solenoid asm | 1 |
| 38 | 11443004200 | Solenoid asm (H) | 1 |
| 39 | 101S11001 | Screw SM3/16*X28 L=9 | 4 |
| 40 | 1311600100 | Presser foot asm | 1 |
| 40 | 1131600100 | Presser foot asm (H) | 1 |
| 41 | 101S11009 | Screw SM9/64*x40 L=10.5 | 1 |
| 42 | 11402009 | Presser bar | 1 |
| 43 | 10103012 | Presser bar bushing,lower | 1 |
| 44 | 10122112 | Pressure bar oil cover | 1 |
| 45 | 1440900200 | Strut guide asm | 1 |
| 46 | 14426002 | Push rod guide pin | 1 |
| 47 | H05002 | Snap ring 3 | 2 |
| 48 | 101S15007 | Screw SM1/4*x40 L=8 | 1 |
| 49 | 14409002 | Presser bar guide bracket | 1 |
| 50 | 10102003 | Press regulating guide bar | 1 |
| 51 | 113827010 | Press regulating spring | 1 |
| 51 | 10127024 | Press regulating spring (H) | 1 |
| 52 | 1138NS30003 | Screw SM1/2*x28 | 1 |
| 53 | 1138NS16005 | Nut SM1/2*x28 | 1 |
| 54 | 114428001 | Washer5×10×0.8 | 1 |
| 144520004 | |||
| 11426001 | |||
| 10103010 | |||
| 1138NS30005 | 调压螺钉SM1/2"x28 |
Page 9 — 11. 机头附件/Machine Head Accessories
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1011203100 | Hinge component | 2 |
| 2 | 14022022 | Die cushion | 2 |
| 3 | 101S30010 | Nail (P19) | 2 |
| 4 | 10131004 | Screw driver (small ) | 1 |
| 5 | 10131003 | Screw driver (medium) | 1 |
| 6 | 20731047 | Screw driver (large) | 1 |
| 7 | 10122060 | Head connecting rubber cushion | 2 |
| 8 | 14022023 | Nose support | 2 |
| 9 | 101S30014 | Screw M4 L=20 | 6 |
| 10 | 115011003 | Machine head rest pin | 1 |
| 11 | 13817001 | Needle DBx1#14 | 4 |
| 11 | 10117002 | Needle DPx5#21 (H) | 4 |
| 12 | 20131039 | Funnel | 1 |
| 13 | 10118003 | Bobbin | 2 |
| 13 | 10818501 | Bobbin (HL) | 2 |
| 13 | 13818002 | Bobbin (-P) | 2 |
| 14 | 1141NS30001 | Nail (P25) | 4 |
| 15 | 1381101200 | Oiler component | 1 |
| 16 | 14411002 | Disk tray | 1 |
| 17 | 114131001 | Dust cover | 1 |
| 18 | 11411029 | Syringe | 1 |
| 19 | 11431038 | Butter | 0.003Kg |
| 20 | 1383100300 | Thread stand asm. | 1 |
| 21 | 20131019 | Spool rest rod rubber cap | 1 |
| 22 | W01047 | Washer M5 | 2 |
| 23 | S04050 | Screw M5 L=16 | 3 |
| 24 | N01034 | Nut M5 | 4 |
| 25 | 13831022 | Spool rest arm upper | 1 |
| 26 | 10113011 | Thread guide ring | 2 |
| 27 | 10113010 | Thread guide ring | 2 |
| 28 | 13831019 | Spool rest rod upper | 1 |
| 29 | 13831021 | Spool rest rod joint | 1 |
| 30 | 13831020 | Spool rest rod lower | 1 |
| 31 | 10122106 | Spool rest rod rubber ring | 2 |
| 32 | W01052 | Washer M16 | 2 |
| 33 | N02008 | Nut M16 | 1 |
| 34 | S04051 | Screw M5 L=31.5 | 1 |
| 35 | N01034 | Nut M5 | 2 |
| 36 | W03002 | Spring washer M5 | 2 |
| 37 | 13831023 | Spool rest arm lower | 1 |
| 38 | 13831024 | Spool rest | 2 |
| 39 | 20131010 | Spool rest cushion | 2 |
| 40 | 20131006 | Spool pin | 2 |
| 41 | 13831025 | Spool retainer | 2 |
| 101530010 | 机头连接座钉(P19) | ||
| 10113003 | |||
| 101131003 | |||
| 101530014 | 螺钉M4 L=20 | ||
| 141NS30001 | 梭芯(-P) | ||
| W01023 | 螺钉M5 |
Jack A6F-E — parts catalog
- Page 1 (parts_list): This page lists machine frame and miscellaneous cover components for the JACK A6F-E Series, including part numbers, names, descriptions, and quantities.
- Page 2 (parts_list): This page lists components for the Main Shaft & Thread Take-up and Bobbin Components (1) of an industrial sewing machine, including part numbers, names, descriptions, and quantities.
- Page 3 (parts_list): This page lists bobbin components with part numbers, descriptions, and quantities, including items like regulating plates, reset springs, winding cam assemblies, and various screws and washers.
- Page 4 (diagram): This page displays a diagram of the needle bar and upright shaft & hook driving shaft components, along with a detailed parts list for these components.
- Page 5 (parts_list): This page contains two parts lists: "Feed Mechanism Components" with 50 items and "Automatic Reverse Feed Components" with 16 items, each listing part numbers, names, descriptions, quantities, and reference numbers.
- Page 6 (parts_list): This page lists the components of the Feed Mechanism, including part numbers, descriptions, and quantities.
- Page 7 (parts_list): This page contains parts lists and diagrams for Oil Lubrication & Oil Measuring Components (Figure 8) and Oil Reservoir & Knee Lifter Components (Figure 9).
- Page 8 (parts_list): This page lists components for the Presser Bar & Auto Lifter, including part numbers, names, descriptions, and quantities.
- Page 9 (parts_list): This page lists machine head accessories with part numbers, descriptions, and quantities. It includes items like hinge components, die cushions, screwdrivers, needles, bobbins, and spool retainers.
