Page 1 — 1. 机壳、外装部件/Machine Frame & Miscellaneous Cover Components

Jack A6F-E parts on page 1
RefPart numberPart nameQty
101S11001螺钉SM3/16"×28 L=9
10122003面镜调节孔螺塞
14437001面版商标牌
14401005面版
13813005左钱钩
101S11007螺钉SM11/64"×40 L=6
303979面版组件(喷漆)
14422001针杆油封套
14422004面版
13122003针杆孔盖
10122005挑线连杆锁孔螺塞
10122004针杆曲柄孔螺塞
101S11004螺钉SM3/16"×28 L=7
13812018挑线杆防护罩
13512004三孔线勾
11419001副线刀
114S11015螺钉SM9/64×40 L=6
21022007油塞
21012018油封垫
13822001操作屏盖板
14412021油隔板
141S11002螺钉SM3/16×28 L=4.5
14423002油棉
114422007后盖板
114412005后盖板卡扣架
S01001开槽圆柱头螺钉M4×7
10128016螺纹销驳胶圈
13812007卡簧
S04021螺钉M4 L=4
101S11001螺钉SM3/16"×28 L=9
930000772后盖板(喷漆)
14422002后压脚电磁铁盖板垫
303980后压脚电磁铁盖板
101S11033螺钉
114412022电线夹
101S11001螺钉SM3/16"×28 L=9
10122006送料调节孔螺塞
10122007下线孔压盖
138S05001螺钉M3 L=12
11443003400一体机电控面板组件(跑克麦斯)
14437002机头商标牌
14322007四孔橡胶孔塞
1411300400小夹线器组件
141S16019小夹线器螺母
11227001小夹线簧
14112017小夹线圆盘
13810008小夹线器柱
13812066过线槽
138S08006螺钉SM3/16"×28 L=7
11411300200夹线器组件
11411300300夹线器组件(厚料)
10112007夹线制动板
10127002夹线弹簧
14112015夹线板(厚料)
114112023松线板
141S30001夹线螺钉
113827006挑线簧
10103011夹线器调节座
101S15005螺钉SM9/64"×40 L=5.5
10122014挑线调节座O型圈
101S15010螺钉SM15/64"×28 L=10.5
14403003松线钉支撑套
1442600300松线钉挡套
11493000300电子夹线器组件
207S14007螺钉M4 L=6
13113001固定式缠线钩
401S16001螺母SM9/64"×40
10113004右线勾
13812019卷边器座
101S11002螺钉SM11/64"×40 L=5.5
13115002针板
13115002针板(厚料)
101S17002螺钉SM11/64×40 L=6.5
140S12001底板支柱
101S11019螺钉SM3/32×56 L=2
10115002推板

JACK 杰克 快速服务 100% 零件手册 Parts Manual A6F-E 系列 A6F-E Series 1. 机壳、外装部件/Machine Frame & Miscellaneous Cover Components 序号 NO 公司件号 Part NO 名称 PartName 零件描述 Description 数量 Number 1 101S11001 螺钉SM3/16"×28 L=9 Screw SM3/16"×28 L=9 3 2 10122003 面镜调节孔螺塞 Rubber plug 2 3 14437001 面版商标牌 Head card 1 4 14401005 面版 Face plate 1 5 13813005 左钱钩 Thread guide left 1 6 101S11007 螺钉SM11/64"×40 L=6 Screw SM11/64"×40 L=6 2 7 303979 面版组件(喷漆) Face plate asm 1 8 14422001 针杆油封套 Needle bar oil seal set 1 9 14422004 面版 Face plate gasket 1 10 13122003 针杆孔盖 Rubber plug 1 11 10122005 挑线连杆锁孔螺塞 Rubber plug 2 12 10122004 针杆曲柄孔螺塞 Rubber plug 2 13 101S11004 螺钉SM3/16"×28 L=7 Screw SM3/16"×28 L=7 2 14 13812018 挑线杆防护罩 Thread take-up lever cover 1 15 13512004 三孔线勾 3-hole thread guide 1 16 11419001 副线刀 Knife 1 17 114S11015 螺钉SM9/64×40 L=6 Screw SM9/64×40 L=6 1 18 21022007 油塞 Rubber plug 1 19 21012018 油封垫 Oil sealing washer 1 20 13822001 操作屏盖板 Rubber plug 4 21 14412021 油隔板 Oil preventing plate 1 22 141S11002 螺钉SM3/16×28 L=4.5 Screw SM3/16×28 L=4.5 2 23 14423002 油棉 Oil cotton 1 24 114422007 后盖板 Side plate gasket 1 25 114412005 后盖板卡扣架 Four-hole Rubber plug 1 26 S01001 开槽圆柱头螺钉M4×7 Screw M4×7 1 27 10128016 螺纹销驳胶圈 Washer 1 28 13812007 卡簧 Buckle 1 29 S04021 螺钉M4 L=4 Screw M4 L=4 1 30 101S11001 螺钉SM3/16"×28 L=9 Screw SM3/16"×28 L=9 6 31 930000772 后盖板(喷漆) Side plate 1 32 14422002 后压脚电磁铁盖板垫 Flat pad 1 33 303980 后压脚电磁铁盖板 Presser foot electromagnet cover plate 1 34 101S11033 螺钉 Screw 1 35 114412022 电线夹 Wire clamp 1 36 101S11001 螺钉SM3/16"×28 L=9 Screw SM3/16"×28 L=9 12 37 10122006 送料调节孔螺塞 Rubber plug 1 38 10122007 下线孔压盖 Rubber plug 1 39 138S05001 螺钉M3 L=12 Screw M3 L=12 2 40 11443003400 一体机电控面板组件(跑克麦斯) Control panel 1 41 14437002 机头商标牌 Head card 1 42 14322007 四孔橡胶孔塞 Four-hole Rubber plug 1 43 1411300400 小夹线器组件 Thread tension asm 1 44 141S16019 小夹线器螺母 Thread tension nut 1 45 11227001 小夹线簧 Thread tension spring 1 46 14112017 小夹线圆盘 Thread tension disk 2 47 13810008 小夹线器柱 Thread tension post 1 48 13812066 过线槽 Thread tension guide plate 1 49 138S08006 螺钉SM3/16"×28 L=7 Screw SM3/16"×28 L=7 1 50 11411300200 夹线器组件 Thread tension asm 1 51 11411300300 夹线器组件(厚料) Thread tension asm (H) 1 52 10112007 夹线制动板 Thread tension nut 1 53 10127002 夹线弹簧 Thread tension spring 1 54 14112015 夹线板(厚料) Thread tension disk 2 55 114112023 松线板 Disk stopper 1 56 141S30001 夹线螺钉 Thread tension post 1 57 113827006 挑线簧 Thread take-up spring 1 58 10103011 夹线器调节座 Thread tension base 1 59 101S15005 螺钉SM9/64"×40 L=5.5 Screw SM9/64"×40 L=5.5 1 60 10122014 挑线调节座O型圈 Rubber ring 1 61 101S15010 螺钉SM15/64"×28 L=10.5 Screw SM15/64"×28 L=10.5 1 62 14403003 松线钉支撑套 Loose wire nail support sleeve 1 63 1442600300 松线钉挡套 Loose wire nail asm. 1 64 11493000300 电子夹线器组件 Nest less e-device 1 65 207S14007 螺钉M4 L=6 Screw M4 L=6 1 66 13113001 固定式缠线钩 Thread guide 1 67 401S16001 螺母SM9/64"×40 Nut SM9/64"×40 1 68 10113004 右线勾 Thread guide right 1 69 13812019 卷边器座 Ruler stop seat 1 70 101S11002 螺钉SM11/64"×40 L=5.5 Screw SM11/64"×40 L=5.5 1 71 13115002 针板 Needle plate 1 72 13115002 针板(厚料) Needle plate (H) 1 73 101S17002 螺钉SM11/64×40 L=6.5 Screw SM11/64×40 L=6.5 2 74 140S12001 底板支柱 Machine head stud 2 75 101S11019 螺钉SM3/32×56 L=2 Screw SM3/32×56 L=2 2 76 10115002 推板 Screw 1 jintex.in

Page 2

Jack A6F-E parts on page 2
RefPart numberPart nameQty
12226001挑线连杆销
101S15001螺钉SM15/64"x28 L=13
11305010挑线连杆(厚料)
14422008挑线杆油橡胶
13538003挑线杆分组件(厚料)
10124001挑线杆组件(HL)
11310010挑线连杆(厚料)
11310010挑线连杆(厚料)
1443800100挑线组件
10112003挑线杆护板
101S15004螺钉SM9/32"x28 L=16
101S11003螺钉SM9/32"x28L=11
13804001针杆曲柄
10404001针杆曲柄(厚料)
101S15002螺钉SM1/4"x40 L=6
14408001针杆曲柄挡圈
S10026螺钉M3 L=3
B10046深沟球轴承
S10018螺钉M6x0.75 L=6
14303008上轴前轴承套
10108001上轴挡圈
101S14001螺钉SM1/4"x40 L=6
14403001上轴中轴套
101S15006螺钉SM15/64"x28 L=7
H03002挡圈20
400811送料针偏心轮(厚)
400092送料针偏心轮
10112017进料偏心轮盖板
10812002进料偏心轮盖板(厚料)
113S11003螺钉SM9/64"x40 L=5
14403008上轴轴承套
B06023GB/T276-2013 轴承61904-2RS
S10018螺钉M6x0.75 L=6
H03001挡圈15
114402003上轴
S10009螺钉M6 L=8
113835001手轮
114411009分侧盖
13826009圆売台阶销
11503001400一体机电控调组件
W01009GB/T 797.1-1985垫圈5
114S13001螺钉M5 L=20
114S30001螺钉M5 L=25
11503001300一体机电控组件
144S30001电控后侧盖螺钉
113830001光电伺服电机
951515011螺钉组合件M3 L=12
95100172编码器组件
S09022内六角平端紧定螺钉M3 L=4
95100116电机光栅组件
95100162螺钉M6 L=6
95100182电机转子总成
95100171电机定子总成
13811060绝缘防护罩
W02058垫圈d5
S05901螺钉M5 L=50
10122012上轴孔塞
1413104900绕线器组件
114S11008螺钉JM4 L=6
W02863GB/T 93单弹簧垫圈4
W01142GB/T 97.1平垫圈4
14113002压线控制板
14112020垫圈

2 2. 上轴、线轨部件/Main Shaft & Thread Take-up Components 序号 NO 公司件号 Part NO 名称 PartName 零件描述 Description 数量 Number 1 12226001 挑线连杆销 Thread take-up connecting rod pin 1 2 101S15001 螺钉SM15/64"x28 L=13 Screw SM15/64"x28 L=13 1 3 11305010 挑线连杆(厚料) Thread take-up connecting rod (H) 1 4 14422008 挑线杆油橡胶 Thread take-up lever rubber 1 5 13538003 挑线杆分组件(厚料) Thread take-up lever asm (H) 1 6 10124001 挑线杆组件(HL) Thread take-up lever asm (HL) 1 7 11310010 挑线连杆(厚料) Thread take-up connecting rod (H) 1 8 11310010 挑线连杆(厚料) Thread take-up connecting rod (H) 1 9 1443800100 挑线组件 Thread take-up lever asm 1 10 10112003 挑线杆护板 Needle bar crank 1 11 101S15004 螺钉SM9/32"x28 L=16 Screw SM9/32"x28 L=16 1 12 101S11003 螺钉SM9/32"x28L=11 Screw SM9/32"x28L=11 1 13 13804001 针杆曲柄 Needle bar crank 1 14 10404001 针杆曲柄(厚料) Needle bar crank (H) 1 15 101S15002 螺钉SM1/4"x40 L=6 Screw SM1/4"x40 L=6 2 16 14408001 针杆曲柄挡圈 Needle bar crank snap ring 1 17 S10026 螺钉M3 L=3 Screw M3 L=3 2 18 B10046 深沟球轴承 Needle bearing 1 19 S10018 螺钉M6x0.75 L=6 Screw M6x0.75 L=6 2 20 14303008 上轴前轴承套 Bearing bush 1 21 10108001 上轴挡圈 Main shaft thrust collar 1 22 101S14001 螺钉SM1/4"x40 L=6 Screw SM1/4"x40 L=6 2 23 14403001 上轴中轴套 Main shaft bushing collar 1 24 101S15006 螺钉SM15/64"x28 L=7 Screw SM15/64"x28 L=7 1 25 H03002 挡圈20 Snap ring 20 1 26 400811 送料针偏心轮(厚) Feed eccentric cam (H) 1 27 400092 送料针偏心轮 Feed eccentric cam 2 28 10112017 进料偏心轮盖板 Cover plate 1 29 10812002 进料偏心轮盖板(厚料) Cover plate (H) 1 30 113S11003 螺钉SM9/64"x40 L=5 Screw SM9/64"x40 L=5 2 31 14403008 上轴轴承套 Bearing bush 1 32 B06023 GB/T276-2013 轴承61904-2RS Needle bearing 1 33 S10018 螺钉M6x0.75 L=6 Screw M6x0.75 L=6 2 34 H03001 挡圈15 Snap ring 15 1 35 114402003 上轴 Main shaft 1 36 S10009 螺钉M6 L=8 Screw M6 L=8 2 37 113835001 手轮 Hand wheel 1 38 114411009 分侧盖 Rubber plug 1 39 13826009 圆売台阶销 Pin 1 40 11503001400 一体机电控调组件 Electronic control box 1 41 W01009 GB/T 797.1-1985垫圈5 Washer 5 2 42 114S13001 螺钉M5 L=20 Screw M5 L=20 3 43 114S30001 螺钉M5 L=25 Screw M5 L=25 1 44 11503001300 一体机电控组件 Electronic control box 1 45 144S30001 电控后侧盖螺钉 Screw 1 46 113830001 光电伺服电机 Servo motor 1 47 951515011 螺钉组合件M3 L=12 Screw asm M3 L=12 5 48 95100172 编码器组件 Encoder housing assembly 1 49 S09022 内六角平端紧定螺钉M3 L=4 Screw M3 L=4 1 50 95100116 电机光栅组件 Motor grating sensor asm 1 51 95100162 螺钉M6 L=6 Screw M6 L=6 1 52 95100182 电机转子总成 Motor rotor 1 53 95100171 电机定子总成 Motor stator, qixing 1 54 13811060 绝缘防护罩 Insulating shield 1 55 W02058 垫圈d5 Washer d5 3 56 S05901 螺钉M5 L=50 Screw M5 L=50 1 57 10122012 上轴孔塞 Rubber plug 1 3 3. 绕线部件/Bobbin Components (1) 序号 NO 公司件号 Part NO 名称 PartName 零件描述 Description 数量 Number 1 1413104900 绕线器组件 Bobbin winder asm 1 2 114S11008 螺钉JM4 L=6 Screw M4 L=6 1 3 W02863 GB/T 93单弹簧垫圈4 Washer 4 1 4 W01142 GB/T 97.1平垫圈4 Washer 4 1 5 14113002 压线控制板 Pressure line control board 1 6 14112020 垫圈 Washer 1 jintex.in

Page 3 — 3. 绕线部件/ Bobbin Components (2)

Jack A6F-E parts on page 3
RefPart numberPart nameQty
13812110调节板
13827013满线复位簧
1411000300绕线凸轮组件
11329020开口挡圈5
1141NS10001螺钉SM9/64"×40 L=11
W02865GB/T 93弹簧垫圈3
14111004绕线轮
001110O型圈25x7
S04090螺钉M2 L=4
14119003割线刀
113831003绕线衬垫
113831002绕线器装置主座
10127061复位板拉簧
14127060弹簧
14102003绕线器主轴
1410510600绕线器连杆组件
14111006止动轮
N07008螺母SM9/64"×40
S09103螺钉M4 L=4
11422062密封垫
114S11003螺钉SM3/16"×28 L=10
S10009螺钉M6 L=8
11435013绕线器驱动轮
1411300600底线夹线器
141S16019小夹线器螺母
11427006小夹线弹簧
14112015夹线板
11413022夹线过线板

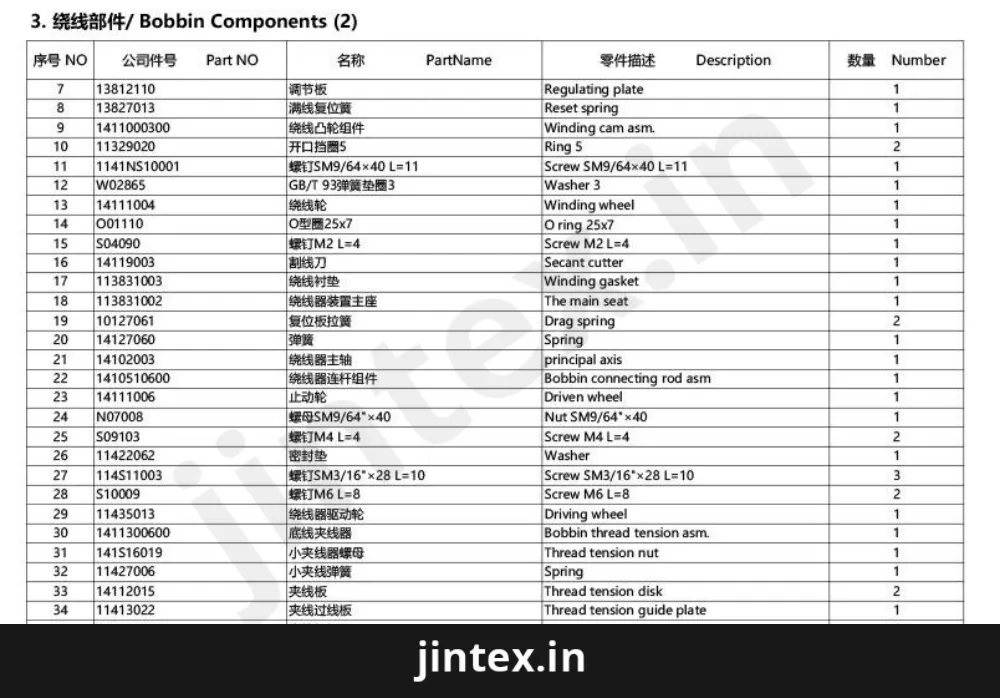

3. 绕线部件/ Bobbin Components (2) 序号 NO 公司件号 Part NO 名称 PartName 零件描述 Description 数量 Number 7 13812110 调节板 Regulating plate 1 8 13827013 满线复位簧 Reset spring 1 9 1411000300 绕线凸轮组件 Winding cam asm. 1 10 11329020 开口挡圈5 Ring 5 2 11 1141NS10001 螺钉SM9/64"×40 L=11 Screw SM9/64"×40 L=11 1 12 W02865 GB/T 93弹簧垫圈3 Washer 3 1 13 14111004 绕线轮 Winding wheel 1 14 001110 O型圈25x7 O ring 25x7 1 15 S04090 螺钉M2 L=4 Screw M2 L=4 1 16 14119003 割线刀 Secant cutter 1 17 113831003 绕线衬垫 Winding gasket 1 18 113831002 绕线器装置主座 The main seat 1 19 10127061 复位板拉簧 Drag spring 2 20 14127060 弹簧 Spring 1 21 14102003 绕线器主轴 principal axis 1 22 1410510600 绕线器连杆组件 Bobbin connecting rod asm 1 23 14111006 止动轮 Driven wheel 1 24 N07008 螺母SM9/64"×40 Nut SM9/64"×40 1 25 S09103 螺钉M4 L=4 Screw M4 L=4 2 26 11422062 密封垫 Washer 1 27 114S11003 螺钉SM3/16"×28 L=10 Screw SM3/16"×28 L=10 3 28 S10009 螺钉M6 L=8 Screw M6 L=8 2 29 11435013 绕线器驱动轮 Driving wheel 1 30 1411300600 底线夹线器 Bobbin thread tension asm. 1 31 141S16019 小夹线器螺母 Thread tension nut 1 32 11427006 小夹线弹簧 Spring 1 33 14112015 夹线板 Thread tension disk 2 34 11413022 夹线过线板 Thread tension guide plate 1 jintex.in

Page 4 — 4. 针杆、竖轴、下轴部件/Needle bar & Upright Shaft & Hook Driving Shaft Components

Jack A6F-E parts on page 4
RefPart numberPart nameQty
10403019下轴后轴套
113S14020螺钉SM11/64"x40 L=6
10108002下轴挡圈
101S11012螺钉SM11/64"x40 L=4.8
11522001下轴中套
11412004油封组件12
14103004下轴前油封组件
14402003下轴
101S30005螺钉SM3/16x32
11411004薄料旋梭
11418004广薄料旋梭(厚料)
113S14020旋梭组件
13618005旋梭组件(HL)
13818002旋梭(1.3倍)(-P)
10118003梭芯
11418004梭芯(HL)
13618005梭芯(1.3倍)(-P)
13818002梭芯(1.3倍)(-P)
11418004梭芯(HL)
13817001机针DBx1#14
10117002针杆DPx5#21 (厚料)
11412063针杆线钩
104S11006螺钉SM1/8"x44 L=4.5
101S11005螺钉SM9/64"x40 L=6
1440100100针杆支架组件
14402014针杆(DLC)
14409004针杆连接柱(DLC)
14403006针杆支架轴套
138S08006螺钉SM3/16"x28 L=7
13111002塞子
14426007驱动连杆销
14405002驱动连杆
101S11010螺钉SM9/64"x40 L=11
10112016手指定位销
10112032旋定位钩(厚料)
116S11005螺钉SM11/64"x40 L=13
131B07001滚针轴承
14409003滑块导轨
14404001针杆送前驱动曲柄
101S11016螺钉SM3/16"x28 L=14
14402009针杆摆动轴套
135S15004螺钉SM1/4"x40 L=4
13108002挡圈
14403005针杆送后驱动曲柄
14404002针杆送后驱动曲柄
10122006送料调节器孔盖
131N01002螺母SM15/64"x28
14405001针连杆
144S20005针杆送后驱动曲柄轴位螺钉
144S01001螺钉SM11/64"x40 L=6
144S20006区动曲柄调节螺柱
401280013垫圈6.2x13x1
10102007竖轴
113B03004竖轴下轴套
10403020竖轴上轴套
113S11036螺钉SM5/64"x28 L=4.7
101S15014螺钉SM1/4"x40 L=7
10425004上轴单个齿轮
10425003上轴小齿轮
10425002下轴大齿轮

4 60 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 37 36 25 27 26 25 28 29 30 31 32 35 34 33 39 38 55 56 57 58 59 55 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 24 23 22 21 24 23 24 24 4. 针杆、竖轴、下轴部件/Needle bar & Upright Shaft & Hook Driving Shaft Components 序号 NO 公司件号 Part NO 名称 PartName 零件描述 Description 数量 Number 1 10403019 下轴后轴套 Hook driving shaft bushing back 1 2 113S14020 螺钉SM11/64"x40 L=6 Screw SM11/64"x40 L=6 1 3 10108002 下轴挡圈 Hook driving shaft snap ring 1 4 101S11012 螺钉SM11/64"x40 L=4.8 Screw SM11/64"x40 L=4.8 2 5 11522001 下轴中套 Lower shaft middle bushing 1 6 11412004 油封组件12 Oil seal 12 2 7 14103004 下轴前油封组件 Lower shaft before bushing asm 1 8 14402003 下轴 Hook driving shaft 1 9 101S30005 螺钉SM3/16x32 Set screw SM3/16x32 1 10 11411004 薄料旋梭 Hook asm 1 11 11418004 广薄料旋梭(厚料) Hook asm (H) 1 12 113S14020 旋梭组件 Hook asm (HL) 1 13618005 旋梭组件(HL) Hook asm (HL) 1 13818002 旋梭(1.3倍)(-P) Bobbin (-P) 1 13 10118003 梭芯 Bobbin 1 11418004 梭芯(HL) Bobbin (HL) 1 13618005 梭芯(1.3倍)(-P) Bobbin (-P) 1 13818002 梭芯(1.3倍)(-P) Bobbin case asm 1 14 11418004 梭芯(HL) Bobbin case asm (HL) 1 13817001 机针DBx1#14 Bobbin DBx1#14 1 15 10117002 针杆DPx5#21 (厚料) Needle DPx5#21 (H) 1 16 11412063 针杆线钩 Needle bar thread guide 1 17 104S11006 螺钉SM1/8"x44 L=4.5 Screw SM1/8"x44 L=4.5 1 18 101S11005 螺钉SM9/64"x40 L=6 Screw SM9/64"x40 L=6 1 19 1440100100 针杆支架组件 Needle bar support asm 1 20 14402014 针杆(DLC) Needle bar (DLC) 1 21 14409004 针杆连接柱(DLC) Needle bar connecting rod 1 22 14403006 针杆支架轴套 Needle bar stand collar 1 23 138S08006 螺钉SM3/16"x28 L=7 Screw SM3/16"x28 L=7 2 24 13111002 塞子 Plug 4 25 14426007 驱动连杆销 Driving connecting rod pin 2 26 14405002 驱动连杆 Driving connecting rod 1 27 101S11010 螺钉SM9/64"x40 L=11 Screw SM9/64"x40 L=11 2 28 10112016 手指定位销 Finger positioner 1 29 10112032 旋定位钩(厚料) Finger positioner (H) 1 30 116S11005 螺钉SM11/64"x40 L=13 Screw SM11/64"x40 L=13 1 31 131B07001 滚针轴承 Needle bearing 1 32 14409003 滑块导轨 Sliding block guide rail 1 33 14404001 针杆送前驱动曲柄 Sent front drive the crank pin 1 34 101S11016 螺钉SM3/16"x28 L=14 Screw SM3/16"x28 L=14 2 35 14402009 针杆摆动轴套 Needle bar swing axle sleeve 1 36 135S15004 螺钉SM1/4"x40 L=4 Screw SM1/4"x40 L=4 4 37 13108002 挡圈 Ring 2 38 14403005 针杆送后驱动曲柄 After the needle swing axle sleeve 1 39 14404002 针杆送后驱动曲柄 After driving the crank 1 40 10122006 送料调节器孔盖 Rubber plug 1 41 131N01002 螺母SM15/64"x28 Nut SM15/64"x28 2 42 14405001 针连杆 Needle connecting rod 1 43 144S20005 针杆送后驱动曲柄轴位螺钉 After needle to drive the crank shaft screw 1 44 144S01001 螺钉SM11/64"x40 L=6 Screw SM11/64"x40 L=6 1 45 144S20006 区动曲柄调节螺柱 Driving crank adjustment screw 1 46 401280013 垫圈6.2x13x1 Washer 6.2x13x1 1 47 10102007 竖轴 Upright shaft 1 48 113B03004 竖轴下轴套 Upright shaft bushing lower 1 49 10403020 竖轴上轴套 Upright shaft bushing upper 1 50 113S11036 螺钉SM5/64"x28 L=4.7 Screw SM5/64"x28 L=4.7 1 51 101S15014 螺钉SM1/4"x40 L=7 Screw SM1/4"x40 L=7 8 52 10425004 上轴单个齿轮 Upper shaft bevel gear 1 53 10425003 上轴小齿轮 Upper small bevel gear asm 1 54 10425002 下轴大齿轮 lower large bevel gear asm 1 jintex.in

Page 6 — 7. 自动剪线部件/Feed Mechanism Components

Jack A6F-E parts on page 6
RefPart numberPart nameQty
114S17001螺钉M3 L=8.5
14112005刀架压板
14119002辅助剪线力
14119005辅助剪线力(厚料)
1440700200剪线辅刀架组件
113S17002螺钉SM11/64"x40 L=4.4
131S01002螺钉SM11/64"x40 L=4
14119001活动刀
113S17002螺钉SM11/64"x40 L=4.4
14407001剪线主刀架
114S16004螺母SM11/64"x40
14112001分线片
113520001螺钉SM9/64"x40 L=5.5
11412013连杆
141S20002螺钉SM11/64x40 L=6.5
14104003剪线辅刀柄
S10007螺钉M4 L=4
S05004螺钉M5 L=14
11511001驱动曲柄止动块
14104001剪线曲柄
11327004弹簧
1123000414孔接线器
11230005电线插针
1413000110孔接线器
14103003剪线辅套
11503005驱动曲柄轴衬套
113S14020螺钉SM11/64"x40 L=6
11322002扭簧端盖
14104004弹簧
1410400100剪线曲柄驱动组件
11324001滚柱
113S14007螺钉SM11/64"x40 L=6
1138N516007螺钉SM11/64"x40
116S14005螺钉SM11/64"x40 L=10
11309030凸轮顶柱
11310004凸轮
11310011凸轮(厚料)
14002004轴
H05013GB/T 1896-1986挡圈6
10112003针杆曲柄防护板
11322003电磁铁缓冲
N01005螺母 M4
W02002垫圈4
11309001切线电磁铁顶销
1401200200切线电磁铁支架组件
S17002螺钉M6 L=10
14112022切线杠杆
H03015GB/T 894.1卡黄8
10112003针杆曲柄保护板
112516006螺钉SM11/4"x40
113822005橡胶垫
11493000500剪线电磁铁组件
10112022旋接供油管压板
113S15002螺钉SM1/8"x44 L=9.5
13119001定刀
113S17001螺钉SM9/64"x40 L=6
11312003护针片
201S11009螺钉SM9/64"x40 L=5.5
113S11001螺钉SM11/64"x40 L=12
10128003牙架座螺钉垫圈
14012004刀架压板组件
114412001刀架压板
13803012短套
113S17002螺钉SM11/64"x40 L=4.4
11319002活动刀
14119001剪线刀架
113S20001螺钉SM11/64"x40 L=6.5
11312005连杆
114S16004螺母SM11/64"x40
114404005曲柄
11322001驱动曲柄止动块
S05004螺钉M5 L=14
11327001弹簧

7 7. 自动剪线部件/Feed Mechanism Components 序号 NO 公司件号 Part NO 名称 PartName 零件描述 Description 数量 Number 1 114S17001 螺钉M3 L=8.5 Screw M3 L=8.5 3 2 14112005 刀架压板 Knife bracket press component 1 3 14119002 辅助剪线力 knife 1 4 14119005 辅助剪线力(厚料) knife (H) 1 1440700200 剪线辅刀架组件 Knife bracket 1 6 113S17002 螺钉SM11/64"x40 L=4.4 Screw SM11/64"x40 L=4.4 1 7 131S01002 螺钉SM11/64"x40 L=4 Screw SM11/64"x40 L=4 1 8 14119001 活动刀 knife 1 9 113S17002 螺钉SM11/64"x40 L=4.4 Screw SM11/64"x40 L=4.4 2 10 14407001 剪线主刀架 Knife bracket 1 11 114S16004 螺母SM11/64"x40 Nut SM11/64"x40 1 12 14112001 分线片 Needle guard patch 1 13 113520001 螺钉SM9/64"x40 L=5.5 Screw SM9/64"x40 L=5.5 1 14 11412013 连杆 Connecting rod 1 15 141S20002 螺钉SM11/64x40 L=6.5 Screw SM11/64"x40 L=6.5 1 16 14104003 剪线辅刀柄 Crank 1 17 S10007 螺钉M4 L=4 Screw M4 L=4 1 18 S05004 螺钉M5 L=14 Screw M5 L=14 1 19 11511001 驱动曲柄止动块 Stop block 1 20 14104001 剪线曲柄 Crank 1 21 11327004 弹簧 Spring 1 22 11230004 14孔接线器 Plug 1 23 11230005 电线插针 Pin 2 24 14130001 10孔接线器 Plug 1 25 14103003 剪线辅套 Thread cutting shaft bushing 1 26 11503005 驱动曲柄轴衬套 Crank drive shaft bushing 1 27 113S14020 螺钉SM11/64"x40 L=6 Screw SM11/64"x40 L=6 1 28 11322002 扭簧端盖 Spring cover 1 29 14104004 弹簧 Spring 1 30 1410400100 剪线曲柄驱动组件 Thread trimmer drive asm 1 31 11324001 滚柱 Rooolling pin 1 32 113S14007 螺钉SM11/64"x40 L=6 Screw SM1/4"x40 L=6 1 33 1138N516007 螺钉SM11/64"x40 Nut SM11/64"x40 1 34 116S14005 螺钉SM11/64"x40 L=10 Screw SM11/64"x40 L=10 2 35 11309030 凸轮顶柱 Push rod 2 36 11310004 凸轮 Cam 1 37 11310011 凸轮(厚料) Cam (H) 1 38 14002004 轴 Shaft 1 39 H05013 GB/T 1896-1986挡圈6 Snap ring 6 1 40 10112003 针杆曲柄防护板 Cunter weight protecting 1 41 11322003 电磁铁缓冲 Solenoid cushion rubber 1 42 N01005 螺母 M4 Nut M4 2 43 W02002 垫圈4 Washer 4 2 44 11309001 切线电磁铁顶销 Solenoid pin 1 45 1401200200 切线电磁铁支架组件 Bracket 1 46 S17002 螺钉M6 L=10 Screw M6 L=10 2 47 14112022 切线杠杆 Tangent lever 1 48 H03015 GB/T 894.1卡黄8 Ring 8 1 49 10112003 针杆曲柄保护板 Needle bar crank protecting plate 1 50 112516006 螺钉SM11/4"x40 Nut SM1/4"x40 1 51 113822005 橡胶垫 Washer 1 52 11493000500 剪线电磁铁组件 Thread trimmer solenoid asm. 1 53 10112022 旋接供油管压板 Plate 1 54 自动剪线部件/(-HL用) Feed Mechanism Components (-HL) / 55 113S15002 螺钉SM1/8"x44 L=9.5 Screw SM1/8"x44 L=9.5 1 56 13119001 定刀 Secant knife 1 57 113S17001 螺钉SM9/64"x40 L=6 Screw SM9/64"x40 L=6 1 58 11312003 护针片 Needle guard patch 1 59 201S11009 螺钉SM9/64"x40 L=5.5 Screw SM9/64"x40 L=5.5 1 60 113S11001 螺钉SM11/64"x40 L=12 Screw SM11/64"x40 L=12 1 61 10128003 牙架座螺钉垫圈 Washer 2 62 14012004 刀架压板组件 Knife bracket press component 1 63 114412001 刀架压板 Knife bracket press 1 64 13803012 短套 Short bushing 2 65 113S17002 螺钉SM11/64"x40 L=4.4 Screw SM11/64"x40 L=4.4 2 66 11319002 活动刀 Motorial knife 1 67 14119001 剪线刀架 Knife bracket 1 68 113S20001 螺钉SM11/64"x40 L=6.5 Screw SM11/64"x40 L=6.5 2 69 11312005 连杆 Connecting rod 1 70 114S16004 螺母SM11/64"x40 Nut SM11/64"x40 1 71 114404005 曲柄 Crank 1 72 11322001 驱动曲柄止动块 Crank driver stopper block 1 73 S05004 螺钉M5 L=14 Screw M5 L=14 1 74 11327001 弹簧 Spring 1 jintex.in

Page 7

Jack A6F-E parts on page 7
RefPart numberPart nameQty
11211004油窗
10122019Rubber ring
14021001油管Φ4×Φ6
14436001铝油管Φ4.5×Φ6
101530008油泵连接螺柱
11329010Snap ring 10
10121001下供油管
10112020油泵安装板
W03002弹垫
209512001螺钉SM11/64"×40 L=10.5
10103022油泵衬套
101530007柱塞螺钉
10127013柱塞弹簧
10122018回油柱塞
10120001油泵
S04093螺钉M3 L=6
10111003油泵叶轮
10112021油泵叶轮托板
10111007油泵盖
101530006螺钉ST2.9 L=10
1012000100油泵分部件
10136001油管接头
14112007过线勾
W02004GB/T93-1987弹垫M6
116530003螺钉SM15/64"×28 L=14.5
14021003铝油管
113811004尼龙扎带
14036004油盘盘
14036002回油嘴
20429001油管卡簧6.5
14021001油管Φ4×Φ6
10123010油管卡簧6
14036003油盘
14022011O型圈
140530001油量调节螺钉
14423001油毡
14427003油毡夹
101511004螺钉SM3/16"×28 L=7
10112023油管夹
10121007油管回管部件
10121008油管回管
10112025油管固定板(厚料)
101511010螺钉SM9/64"×40 L=11 (厚料)
10123010油管(厚料)
11493000700油量检测装置组件
140516001螺母
14082001弹性垫圈
14012006油量检测装置固定板
14011004油量检测罩壳
14002005导向柱
H05040浮子
14030002-01开口挡圈6
101511026螺钉SM15/64"×28 L=9
11412200200油标
13811015油窗
114101010油盘
14022001油盘密封垫
H05012开口挡圈4(日标)
40128013垫圈6.2×13×1
14327002顶杆弹簧
11211005自锁式尼龙扎带
114111012顶杆组件
114122009顶杆防护帽
101511023螺钉SM3/16"×28 L=6.5
10131001油盘磁铁
1401202700抬压脚双向曲柄组件
10112027抬压脚双向曲柄
14027016双向曲柄挡簧
H05010挡圈9
1400200100抬压脚轴组件
S07020螺钉M6 L=20
101516004螺母M6
101512002螺钉M6 L=24.5
S05240螺钉M6 L=20
20528014油盘放油垫圈
301511015螺钉SM3/8"×28 L=13
113511004螺钉M4 L=8
114112021电线压板

8 8. 润滑、油量检测部件/Oil Lubrication & Oil Measuring Components 序号NO 公司件号 Part NO 名称 PartName 零件描述 Description 数量 Number 1 11211004 油窗 Oil sight window 1 2 10122019 Rubber ring 1 3 14021001 油管Φ4×Φ6 Tubing Φ4×Φ6 0.6M 4 14436001 铝油管Φ4.5×Φ6 Aluminum tubing Φ4.5×Φ6 1 5 101530008 油泵连接螺柱 Oil pump connecting stud 1 6 11329010 Snap ring 10 1 7 10121001 下供油管 Hook driving shaft oil tube 1 8 10112020 油泵安装板 Oil pump installing base 1 9 W03002 弹垫 Spring washer 1 10 209512001 螺钉SM11/64"×40 L=10.5 Screw SM11/64"×40 L=10.5 1 11 10103022 油泵衬套 Oil pump bushing 1 12 101530007 柱塞螺钉 Plunger screw 1 13 10127013 柱塞弹簧 Plunger spring 1 14 10122018 回油柱塞 Plunger 1 15 10120001 油泵 Oil pump 1 16 S04093 螺钉M3 L=6 Screw M3 L=6 3 17 10111003 油泵叶轮 Oil pump impeller 1 18 10112021 油泵叶轮托板 Oil pump impeller cover 1 19 10111007 油泵盖 Lubricating oil pump cover 1 20 101530006 螺钉ST2.9 L=10 Screw ST2.9 L=10 3 21 1012000100 油泵分部件 Lubricating oil pump component 1 22 10136001 油管接头 Rubber joint 1 23 14112007 过线勾 Over wire hook 1 24 W02004 GB/T93-1987弹垫M6 Spring Washer M6 1 25 116530003 螺钉SM15/64"×28 L=14.5 Screw SM15/64"×28 L=14.5 1 26 14021003 铝油管 Aluminum tubing 1 27 113811004 尼龙扎带 Cable band 4 28 14036004 油盘盘 Oil nozzle 1 29 14036002 回油嘴 Oil nozzle 3 30 20429001 油管卡簧6.5 Oil pipe clamp spring 6.5 4 31 14021001 油管Φ4×Φ6 Tubing Φ4×Φ6 0.15M 32 10123010 油管卡簧6 Oil pipe clamp spring 6 1 33 14036003 油盘 Oil nozzle 2 34 14022011 O型圈 Rubber ring 1 35 140530001 油量调节螺钉 Oil volume adjusting screw 1 36 14423001 油毡 Oil felt 1 37 14427003 油毡夹 Asphalt felt clamp 1 38 101511004 螺钉SM3/16"×28 L=7 Screw SM3/16"×28 L=7 1 39 10112023 油管夹 Oil tube clamp 1 40 10121007 油管回管部件 Oil return tube component 1 41 10121008 油管回管 Oil return tube 1 42 10112025 油管固定板(厚料) Oil line fixing plate (H) 1 43 101511010 螺钉SM9/64"×40 L=11 (厚料) Screw SM9/64"×40 L=11 (H) 2 44 10123010 油管(厚料) Oil wick (H) 1 45 11493000700 油量检测装置组件 Oil measuring device 1 46 140516001 螺母 Nut 1 47 14082001 弹性垫圈 Washer 1 48 14012006 油量检测装置固定板 Pull spring fixing plate 1 49 14011004 油量检测罩壳 Shell 1 50 14002005 导向柱 Guide pillar 1 51 H05040 浮子 Float 1 52 14030002-01 开口挡圈6 Ring 6 1 53 101511026 螺钉SM15/64"×28 L=9 Screw SM15/64"×28 L=9 2 54 11412200200 油标 Oil mark 1 55 13811015 油窗 Oil window 1 9 9. 油盘、膝控压脚部件/Oil Ceservoir & Knee Lifter Components 序号NO 公司件号 Part NO 名称 PartName 零件描述 Description 数量 Number 1 114101010 油盘 Oil reservoir 1 2 14022001 油盘密封垫 Seal 1 3 H05012 开口挡圈4(日标) Snap ring 4 1 4 40128013 垫圈6.2×13×1 washer 6.2×13×1 2 5 14327002 顶杆弹簧 Knee lifter push rod spring 1 6 11211005 自锁式尼龙扎带 Cable band 1 7 114111012 顶杆组件 Knee lifter push rod 1 8 114122009 顶杆防护帽 Knee lifter push rod hat 1 9 101511023 螺钉SM3/16"×28 L=6.5 Screw SM3/16"×28 L=6.5 1 10 10131001 油盘磁铁 Oil reservoir magnet 1 11 1401202700 抬压脚双向曲柄组件 Lifting foot bidirectional crank asm 1 12 10112027 抬压脚双向曲柄 Knee lifter crank 1 13 14027016 双向曲柄挡簧 Knee lifter spring 1 14 H05010 挡圈9 Snap ring 9 1 15 1400200100 抬压脚轴组件 Knee lifter shaft 1 16 S07020 螺钉M6 L=20 Screw M6 L=20 2 17 101516004 螺母M6 Nut M6 2 18 101512002 螺钉M6 L=24.5 Screw M6 L=24.5 1 19 S05240 螺钉M6 L=20 Screw M6 L=20 4 20 20528014 油盘放油垫圈 Ring 1 21 301511015 螺钉SM3/8"×28 L=13 Screw SM3/8"×28 L=13 1 22 113511004 螺钉M4 L=8 Screw M4 L=8 1 23 114112021 电线压板 Wire clamp 1 jintex.in

Page 8 — 10. 压料、自动抬压脚部件 /Presser Bar & Auto Lifter Components

Jack A6F-E parts on page 8
RefPart numberPart nameQty
101S11010螺钉SM9/64"x40 L=11
10128002压脚扳手
13811029压脚扳手
001004O型圈
1441000200压脚扳手凸轮分部件
131S20001螺钉
1441200300前杠螺纹垫圈
1441200300前杠组件
1441000200压脚前杠分部件
14412005垫圈6.5x13x0.8
14412006压脚升降板
H05003GB/T896-1986挡圈5
14412006拉杆
114S11015螺钉SM9/64×40 L=6
13108001挡圈
114122006油封
11413001800电磁铁组件
H03054挡圈6
14128001松线顶板垫片
114401006A6F-E-0331松线顶板
114402005ABFE-0351松线顶板连接销
114427003A6FE-0349松线顶板复位簧
14412012压脚顶杆
14412012缝纫机后杠杆
101S20004压脚后杠杆螺钉SM3/16"x32
14422006压脚后杠杆螺纹垫圈
144520004后杠杆螺纹销
14412015压脚后杠杆
14428001平垫圈8.2x15x1
137S20001压脚顶杆轴位螺钉
N01012螺母M6
14402006压脚顶柱
14411001塑料盖
11329020挡圈5
11426001电磁铁接头
113S16004法兰螺母M8
11322008电磁铁上垫片
11443004200压脚卸电磁铁组件
101S11001螺钉SM3/16"x28 L=9
1311600100压脚卸组件
1131600100压脚卸组件(厚料)
11402009螺钉SM9/64"x40 L=10.5
11402009压杆
1440900200压杆导架组件
H05002GB/T896-1986挡圈3
10103010压杆油封套
10122112压杆油封
1440900200压杆导架组件
10102003压杆导架
113827010压杆弹簧
10127024压弹簧(厚料)
1138NS30005调压螺钉SM1/2"x28
1138NS16005调压螺母SM1/2"x28
114428001平垫圈5x10x0.8

10. 压料、自动抬压脚部件 /Presser Bar & Auto Lifter Components 序号 NO 公司件号 Part NO 名称 PartName 零件描述 Description 数量 Number 1 101S11010 螺钉SM9/64"x40 L=11 Screw SM9/64"x40 L=11 1 2 10128002 压脚扳手 Hand lifter 1 3 13811029 压脚扳手 Hand lifter 1 4 001004 O型圈 Rubber ring 1 5 1441000200 压脚扳手凸轮分部件 Hand lifter cam asm 1 6 131S20001 螺钉 Screw 1 7 1441200300 前杠螺纹垫圈 Washer 2 8 1441200300 前杠组件 Front lever assembly 1 9 1441000200 压脚前杠分部件 Lift front lever component 1 10 14412005 垫圈6.5x13x0.8 Washer 6.5x13x0.8 1 11 14412006 压脚升降板 Lifting plate 1 12 H05003 GB/T896-1986挡圈5 Snap ring 5 2 13 14412006 拉杆 Pull rod 1 14 114S11015 螺钉SM9/64×40 L=6 Screw SM9/64×40 L=6 1 15 13108001 挡圈 Ring 1 16 114122006 油封 Oil seal 1 17 11413001800 电磁铁组件 Solenoid 1 18 H03054 挡圈6 Snap ring 6 1 19 14128001 松线顶板垫片 Loose top gasket 1 20 114401006 A6F-E-0331松线顶板 Wire release plate 1 21 114402005 ABFE-0351松线顶板连接销 Pin 1 22 114427003 A6FE-0349松线顶板复位簧 Spring 1 23 14412012 压脚顶杆 Presser foot lever 1 24 14412012 缝纫机后杠杆 Knee control lever rear lever 1 25 101S20004 压脚后杠杆螺钉SM3/16"x32 Screw SM3/16"x32 1 26 14422006 压脚后杠杆螺纹垫圈 Rubber pad 1 27 144520004 后杠杆螺纹销 Hinge screw 1 28 14412015 压脚后杠杆 Knee lifter back lever 1 29 14428001 平垫圈8.2x15x1 Flat washer 8.2x15x1 1 30 137S20001 压脚顶杆轴位螺钉 Axial screw 1 31 N01012 螺母M6 Nut M6 1 32 14402006 压脚顶柱 Knee lifter connecting rod 1 33 14411001 塑料盖 Whell 1 34 11329020 挡圈5 Snap ring 5 1 35 11426001 电磁铁接头 Connector 1 36 113S16004 法兰螺母M8 Flange nuts M8 1 37 11322008 电磁铁上垫片 Washer 1 38 11443004200 压脚卸电磁铁组件 Solenoid asm 1 39 101S11001 螺钉SM3/16"x28 L=9 Screw SM3/16"x28 L=9 4 40 1311600100 压脚卸组件 Presser foot asm 1 41 1131600100 压脚卸组件(厚料) Presser foot asm (H) 1 42 11402009 螺钉SM9/64"x40 L=10.5 Screw SM9/64"x40 L=10.5 1 43 11402009 压杆 Presser bar 1 44 1440900200 压杆导架组件 Strut guide asm 1 45 H05002 GB/T896-1986挡圈3 Snap ring 3 2 46 10103010 压杆油封套 Presser bar oil cover 1 47 10122112 压杆油封 Pressure oil seal 1 48 1440900200 压杆导架组件 Strut guide asm 1 49 10102003 压杆导架 Presser bar guide bracket 1 50 113827010 压杆弹簧 Press regulating guide bar 1 51 10127024 压弹簧(厚料) Press regulating spring (H) 1 52 1138NS30005 调压螺钉SM1/2"x28 Screw SM1/2"x28 1 53 1138NS16005 调压螺母SM1/2"x28 Nut SM1/2"x28 1 54 114428001 平垫圈5x10x0.8 Washer 5x10x0.8 1 jintex.in

Page 9 — 11. 机头附件/Machine Head Accessories

Jack A6F-E parts on page 9
RefPart numberPart nameQty
1011203100机头连接组件
14022022机头座垫
101530010机头连接座钉(P19)
10113003螺丝刀(小)
101131003螺丝刀(中)
20731047螺丝刀(大)
14022023机头连接座
14022023机头支架
101530014螺钉M4 L=20
115011003机头支柱
13817001机针DBx1#14
10117002机针DPx5#21 (厚料)
20131039漏斗
10118003梭芯
10818501梭芯(HL)
141NS30001梭芯(-P)
1141NS30001鞋钉(P25)
1381101200油箱组件
14411002油盘托盘
114131001防尘罩
11411029注射器
11431038进口黄油
1383100300线架组件
20131019线架杆顶防妒橡皮
W01047垫圈M5
S04050螺钉M5 L=16
N01034螺母M5
13831022上线架过线杆
10113011过线圈(内)
10113010过线圈(外)
13831019线架杆上节
13831021线架杆接头
13831020线架杆下节
W01052垫圈M16
N02008螺母M16
S04051螺钉M5 L=31.5
W01023螺钉M5
N01034螺母M5
W03002弹簧垫圈M5
13831023下线架过线杆
13831024线盘
13831025线盘垫
20131010线盘钉
20131006线盘钉
13831025线团防松垫

11. 机头附件/Machine Head Accessories 序号 NO 公司件号 Part NO 名称 Name 零件描述 Description 数量 Number 1 1011203100 机头连接组件 Hinge component 2 2 14022022 机头座垫 Die cushion 2 3 101530010 机头连接座钉(P19) Nail (P19) 2 4 10113003 螺丝刀(小) Screw driver (small) 1 5 101131003 螺丝刀(中) Screw driver (medium) 1 6 20731047 螺丝刀(大) Screw driver (large) 1 7 14022023 机头连接座 Head connecting rubber cushion 2 8 14022023 机头支架 Nose support 2 9 101530014 螺钉M4 L=20 Screw M4 L=20 6 10 115011003 机头支柱 Machine head rest pin 1 11 13817001 机针DBx1#14 Needle DBx1#14 4 10117002 机针DPx5#21 (厚料) Needle DPx5#21 (H) 4 12 20131039 漏斗 Funnel 1 10118003 梭芯 Bobbin 2 13 10818501 梭芯(HL) Bobbin (HL) 2 141NS30001 梭芯(-P) Bobbin (-P) 2 14 1141NS30001 鞋钉(P25) Nail (P25) 4 15 1381101200 油箱组件 Oiler component 1 16 14411002 油盘托盘 Disk tray 1 17 114131001 防尘罩 Dust cover 1 18 11411029 注射器 Syringe 1 19 11431038 进口黄油 Butter 0.003Kg 20 1383100300 线架组件 Thread stand asm. 1 20131019 线架杆顶防妒橡皮 Spool rest rod rubber cap 1 21 W01047 垫圈M5 Washer M5 2 22 S04050 螺钉M5 L=16 Screw M5 L=16 3 23 N01034 螺母M5 Nut M5 4 24 13831022 上线架过线杆 Spool rest arm upper 1 25 10113011 过线圈(内) Thread guide ring 2 26 10113010 过线圈(外) Thread guide ring 2 27 13831019 线架杆上节 Spool rest rod upper 1 28 13831021 线架杆接头 Spool rod rest joint 1 29 13831020 线架杆下节 Spool rest rod lower 1 30 W01052 垫圈M16 Washer M16 2 31 N02008 螺母M16 Nut M16 1 32 S04051 螺钉M5 L=31.5 Screw M5 L=31.5 1 33 W01023 螺钉M5 Screw M5 2 34 N01034 螺母M5 Nut M5 2 35 W03002 弹簧垫圈M5 Spring washer M5 2 36 13831023 下线架过线杆 Spool rest arm lower 1 37 13831024 线盘 Spool rest 2 38 13831025 线盘垫 Spool rest cushion 2 39 20131010 线盘钉 Spool pin 2 40 20131006 线盘钉 Spool pin 2 41 13831025 线团防松垫 Spool retainer 2 杰克缝纫机股份有限公司 杰克缝纫机 全球销量遥遥领先 公司地址:中国浙江省台州市椒江区三甲海大道东段1008号 NO.1008, DONGHAI AVENUE EAST, JIAOJIANG DISTRICT,TAIZHOU CITY, ZHEJIANG 邮编:318000 国内销售部: 电话:0086-0576-88177788 88177789 传真:0086-0576-88177758 免费售后服务电话:400-8876858 http://www.chinajack.com 资料如有更改,恕不另行通知,以实物为准。 You will be not informed if the file has been revised.Please set sample as standard. 日期:2020.12 jintex.in
