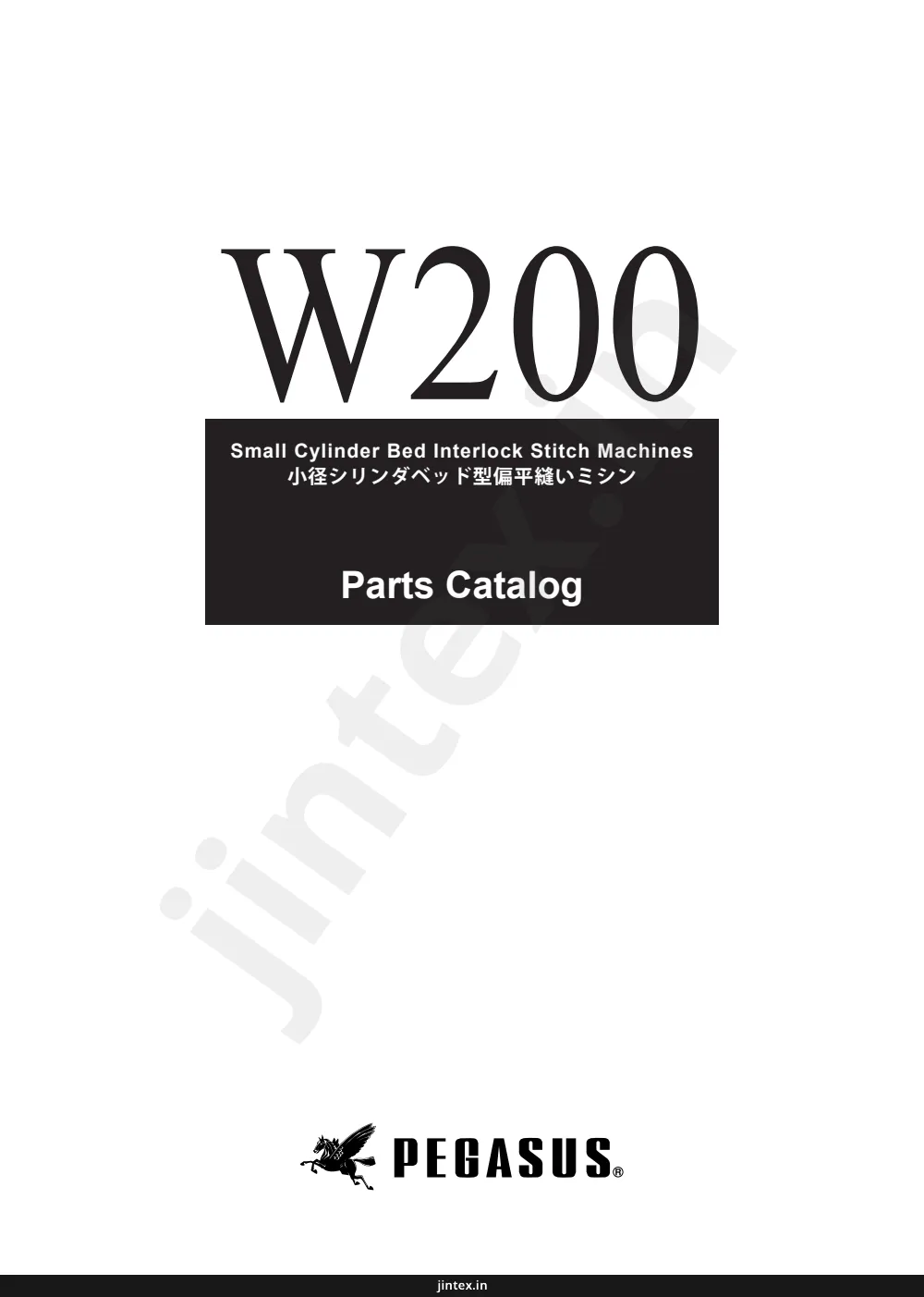

Page 1 — W200 Small Cylinder Bed Interlock Stitch Machines Parts Catalog
W200 Small Cylinder Bed Interlock Stitch Machines 小径シリンダベッド型偏平縫いミシン Parts Catalog PEGASUS jintex.in
Parts index — Pegasus W200tap a row to open its page
Page 2
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| W264-01CB,CC,EB,NC | W264 Series | ||
| W264-03FB,FC,GB,GC | W264 Series | ||
| W264-08AB,AC,BB,BC,MC | W264 Series |
Page 4
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | COVER | ||
| 2 | BOLT | ||
| 3 | WASHER | ||
| 4 | PLUG | ||
| 5 | SEAL | ||
| 6 | PLUG | ||
| 7 | COVER | ||
| 8 | SEAL | ||
| 9 | COVER | ||
| 10 | COVER | ||
| 11 | COVER | ||
| 12 | COVER | ||
| 13 | SCREW | ||
| 14 | SCREW | ||
| 15 | COVER | ||
| 16 | COVER | ||
| 17 | SCREW | ||
| 18 | WASHER | ||
| 19 | SCREW | ||
| 20 | BRACKET | ||
| 21 | COVER | ||
| 22 | COVER | ||
| 23 | COVER | ||
| 24 | COVER | ||
| 25 | COVER | ||
| 26 | BOLT | ||
| 27 | BRACKET | ||
| 28 | COVER |
Page 5 — MACHINE BED COVER
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2065900 | オイルゲージ | ||
| 2501170 | 足ピン | ||
| 2402280 | 栓 | ||
| 2400520 | 栓 | ||
| 2402270 | 栓 | ||
| 2401100 | 栓 | ||
| 2100031 | 栓 | ||
| 2090840 | 蓋 | ||
| 250158-910 | カバー | ||
| 2500200 | カバー | ||
| 2501570 | スポンジ | ||
| 007017A0 | 平ネジ/M4 × 5 | ||
| 2401270 | 合マーク | ||
| 2106790 | ピン | ||
| 2106790 | ピン | ||
| 2106790 | ピン | ||
| 007018A0 | 平ネジ/M4 × 6 | ||
| 3034480 | 座金 | ||
| 0045410 | 止ネジ/M6 × 8 | ||
| 0045390 | 止ネジ/M5 × 6 | ||
| 2503920 | 銘板 | ||
| 9A30670 | シール | ||
| 9A30690 | ケガ注意ラベル | ||
| 9A30710 | シール | ||
| 9A30720 | シール | ||
| 0045000 | 六角穴ボルト /M5 × 10 | ||
| 0070270 | 平ネジ/M5 × 8 | ||
| 2105860 | オイルシール |
Page 6
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 24 | W200-01N,08M | Outside W200-01N,08M | |
| 27 | W200-01N,08M | Outside W200-01N,08M | |
| 47 | Packed in accessory | 附属品に梱入 |
Page 7 — COVER (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 250150-PD0 | アームカバー (上) | ||
| 2402261 | 栓 | ||
| 179107-050 | オイル窓 | ||
| 2500190 | Oリング | ||
| 007021A0 | 平ネジ/M4 × 12 | ||
| 9A30810 | 取扱注意ラベル | ||
| 250151BTD0 | アームカバー (左) | ||
| 007021A0 | 平ネジ/M4 × 12 | ||
| 2501530 | Oリング | ||
| 0052420 | 平ネジ/H11 × 5 | ||
| 2402630 | 座金 | ||
| 2502570 | アイガード | ||
| 0070090 | 平ネジ/M3 × 5 | ||
| 2028750 | 座金 | ||
| 2502560 | ブラケット | ||
| 2103070 | 波板座金 | ||
| 0070660 | 段付ネジ/M4 | ||
| 2502550 | ブラケット | ||
| 007020A0 | 平ネジ/M4 × 6 | ||
| 3034480 | 座金 | ||
| 2501540 | アームカバー (後) | ||
| 2501550 | ガスケット | ||
| 0070520 | 平ネジ/M6 × 10 | ||
| 250224A0 | 針棒ガード | ||
| 007019A0 | 平ネジ/M4 × 8 | ||
| 250231A910 | 糸繰リガード (組) | ||
| 2502250 | 糸繰リガード | ||
| 2502260 | フィンガーガード | ||
| 0070180 | 平ネジ/M4 × 6 | ||
| 3034480 | 座金 | ||
| 250227A0 | ブラケット | ||
| 0070180 | 平ネジ/M4 × 6 | ||
| 3034480 | 座金 | ||
| 0070520 | 平ネジ/M6 × 10 | ||
| 250022ETB0 | プーリカバー | ||
| 0070750 | 平ネジ/M5 | ||
| 250397-PD1 | 前カバー (組) | ||
| 0070430 | 皿ネジ/M4 × 8 | ||
| 2500130 | ピン付ネジ/M4 | ||
| 2011910 | バネ座金 | ||
| 2401980 | 平行ピン | ||
| 0045540 | 止ネジ/M3 × 3 | ||
| 0070220 | 平ネジ/M4 × 14 | ||
| 2503010 | ピン付ネジ | ||
| 2500000 | 板バネ | ||
| 0070180 | 平ネジ/M4 × 6 | ||
| 2504250 | 補助カバー (前) | ||
| 2045850 | 座金 | ||
| 0045800 | 六角ボルト | ||
| 250234-TD0 | 下糸道カバー | ||
| 007019A0 | 平ネジ/M4 × 8 | ||
| 9A31260 | シール |
Page 8
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | PLATE | |
| 2 | 2 | PLATE | |
| 3 | 3 | SCREW | |
| 4 | 4 | SCREW | |
| 5 | 5 | PLATE | |
| 6 | 6 | SCREW | |
| 7 | 7 | SCREW | |
| 8 | 8 | WASHER | |
| 9 | 9 | PLATE | |
| 10 | 10 | PLATE | |
| 11 | 11 | SCREW | |
| 12 | 12 | SCREW | |
| 13 | 13 | BRACKET | |
| 14 | 14 | BRACKET | |
| 15 | 15 | SCREW | |
| 16 | 16 | BRACKET | |
| 17 | 17 | PIN | |
| 18 | 18 | SCREW | |
| 19 | 19 | BRACKET | |
| 20 | 20 | SCREW |
Page 9 — COVER (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2504010 | 上蓋 (右) | ||
| 2504020 | ガスケット | ||
| 0070820 | 平ネジ /M4 × 8 | ||
| 0070430 | 皿ネジ /M4 × 8 | ||
| 250411-PD0 | 平カバー | ||
| 0045240 | 六角穴ボルト /M4 × 10 | ||
| 007020A0 | 平ネジ /M4 × 6 | ||
| 2504210 | 防振ゴム | ||
| 2504030 | 上蓋 (左) | ||
| 2504040 | ガスケット | ||
| 0070820 | 平ネジ /M4 × 8 | ||
| 2504210 | 防振ゴム | ||
| 2504160 | シリンダーカバー | ||
| 2504170 | 板バネ | ||
| 0070610 | 平ネジ /M2 × 2.7 | ||
| 250413-9P0 | 横カバー (組) | ||
| 2501730 | 平行ピン | ||
| 0045270 | 六角穴ボルト /M4 × 8 | ||
| 251030-910 | 針板ブラケット (組) | ||
| 0070190 | 平ネジ /M4 × 8 |
Page 10
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | SHAFT | |
| 2 | 2 | SHAFT | |
| 3 | 3 | SCREW | |
| 4 | 4 | BEARING | |
| 5 | 5 | BRACKET | |
| 6 | 6 | BRACKET | |
| 7 | 7 | LINK | |
| 8 | 8 | SCREW | |
| 9 | 9 | PULLEY | |
| 10 | 10 | SCREW | |
| 11 | 11 | PULLEY | |
| 12 | 12 | SCREW | |
| 13 | 13 | PULLEY | |
| 14 | 14 | SCREW | |
| 15 | 15 | PULLEY | |
| 16 | 16 | PULLEY | |
| 17 | 17 | SCREW | |
| 18 | 18 | PULLEY | |
| 19 | 19 | SCREW | |
| 20 | 20 | SCREW | |
| 21 | 21 | SCREW | |
| 22 | 22 | PULLEY | |
| 23 | 23 | SCREW | |
| 24 | 24 | SCREW | |
| 25 | 25 | WASHER | |
| 26 | 26 | SCREW | |
| 27 | 27 | BELT |
Page 11 — 下軸機構
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 250572-910 | クランク軸 (組) | ||
| 250554-920 | クランク軸 | ||
| 0071280 | 止ネジ/M6 × 4 | ||
| 250573-910 | 下軸 (左) | ||
| 210091-920 | ロッド | ||
| 0053760 | 平ネジ/C4 × 12.5 | ||
| 252056-920 | クランク | ||
| 0045340 | 六角穴ボルト/M6 × 14 | ||
| 250557-910 | 軸受 (ブッシュ) | ||
| 0045470 | 止ネジ/M6 × 5 | ||
| 250529A910 | 軸受 (ブッシュ) | ||
| 0045470 | 止ネジ/M6 × 5 | ||
| 250545-910 | ギヤ (下) | ||
| 0045470 | 止ネジ/M6 × 5 | ||
| 250530-910 | 軸受 (ブッシュ) | ||
| 0045550 | 止ネジ/M6 × 8 | ||
| 0045470 | 止ネジ/M6 × 5 | ||
| 2505140 | 止メ板 | ||
| 0070820 | 平ネジ/M4 × 8 | ||
| 250565-910 | ギヤ | ||
| 0045480 | 止ネジ/M6 × 8 | ||
| 250561A0 | プーリー | ||
| 0045410 | 止ネジ/M6 × 8 | ||
| 0045560 | 止ネジ/M6 × 10 | ||
| 2401260 | 座金 | ||
| 0045000 | 六角穴ボルト/M5 × 10 | ||
| 206050C0 | タイミングベルト |
Page 12
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | 2 | SCREW | |
| 3 | 3 | SCREW | |
| 4 | 4 | NUT | |
| 5 | 5 | NUT | |
| 6 | 6 | PIN | |
| 7 | 7 | SHAFT | |
| 8 | 8 | COUPLING | |
| 9 | 9 | SCREW | |
| 10 | 10 | SCREW | |
| 11 | 11 | COUPLING | |
| 12 | 12 | SCREW | |
| 13 | 13 | COLLAR | |
| 14 | 14 | SCREW | |
| 15 | 15 | COLLAR | |
| 16 | 16 | SCREW | |
| 17 | 17 | SCREW | |
| 18 | 18 | SHAFT | |
| 19 | 19 | PULLEY | |
| 20 | 20 | SCREW | |
| 21 | 21 | MOTOR PULLEY | |
| 22 | 22 | SCREW | |
| 23 | 23 | PULLEY | |
| 24 | 24 | SCREW | |
| 25 | 25 | SCREW | |
| 26 | 26 | MOTOR | |
| 27 | 27 | SCREW | |
| 28 | 28 | SCREW | |
| 29 | 29 | SCREW | |
| 30 | 30 | SCREW |
Page 13 — ARM SHAFT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250526B910 | モーション (組) | 1 |
| 2 | 0070280 | 止ネジ /M5 × 10 | 2 |
| 3 | 0045920 | 止ネジ /M6 × 12 | 1 |
| 4 | 0071520 | 止ネジ /M6 × 4 | 1 |
| 5 | 0071530 | 止ネジ /M6 × 6 | 1 |
| 6 | 0072680 | 止ネジ /M8 × 10 | 1 |
| 7 | 250560A0 | クランク軸 | 1 |
| 8 | 253500-920 | ロッド (組) | 1 |
| 9 | 007021A0 | 平ネジ /M4 × 12 | 2 |
| 10 | 007015A0 | 平ネジ /M3.5 × 14 | 2 |
| 11 | 253501A920 | クランク (組) | 1 |
| 12 | 0045340 | 六角穴ボルト /M6 × 14 | 1 |
| 13 | 2505240 | バランスウエイト | 1 |
| 14 | 0045140 | 止ネジ /M5 × 5 | 2 |
| 15 | 2505060 | 継手 | 1 |
| 16 | 0045550 | 止ネジ /M6 × 8 | 2 |
| 17 | 0045470 | 止ネジ /M6 × 5 | 2 |
| 18 | 2505520 | 軸 | 1 |
| 19 | 250529-910 | 軸受 (ブッシュ) | 1 |
| 20 | 0045470 | 止ネジ /M6 × 5 | 2 |
| 21 | 250547A0 | ギヤ (上) | 1 |
| 22 | 0045470 | 止ネジ /M6 × 5 | 4 |
| 23 | 250528-910 | 軸受 (ブッシュ) | 1 |
| 24 | 0045550 | 止ネジ /M6 × 8 | 1 |
| 25 | 0045470 | 止ネジ /M6 × 5 | 1 |
| 26 | 250566-TD0 | ハンドホイール | 1 |
| 27 | 0045410 | 止ネジ /M6 × 8 | 1 |
| 28 | 0045560 | 止ネジ /M6 × 10 | 1 |
| 29 | 2045850 | 座金 | 1 |
| 30 | 0045010 | 六角穴ボルト /M5 × 14 | 1 |
Page 14
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | NEEDLE BAR BUSHING | ||
| 2 | NEEDLE BAR BUSHING | ||
| 3 | NEEDLE BAR BUSHING | ||
| 4 | NEEDLE BAR BUSHING | ||
| 5 | NEEDLE BAR BUSHING | ||
| 6 | NEEDLE BAR BUSHING | ||
| 7 | NEEDLE BAR BUSHING | ||
| 8 | NEEDLE BAR BUSHING | ||
| 9 | NEEDLE BAR BUSHING | ||
| 10 | NEEDLE BAR BUSHING | ||
| 11 | NEEDLE BAR BUSHING | ||
| 12 | NEEDLE BAR BUSHING | ||
| 13 | NEEDLE BAR BUSHING | ||
| 14 | NEEDLE BAR BUSHING | ||
| 15 | NEEDLE BAR BUSHING | ||
| 16 | NEEDLE BAR BUSHING | ||
| 17 | NEEDLE BAR BUSHING | ||
| 18 | NEEDLE BAR BUSHING | ||
| 19 | NEEDLE BAR BUSHING | ||
| 20 | NEEDLE BAR BUSHING | ||
| 21 | NEEDLE BAR BUSHING | ||
| 22 | NEEDLE BAR BUSHING | ||
| 23 | NEEDLE BAR BUSHING | ||
| 24 | NEEDLE BAR BUSHING | ||
| 25 | NEEDLE BAR BUSHING | ||
| 26 | NEEDLE BAR BUSHING | ||
| 27 | NEEDLE BAR BUSHING | ||
| 28 | NEEDLE BAR BUSHING | ||
| 29 | NEEDLE BAR BUSHING | ||
| 30 | NEEDLE BAR BUSHING | ||
| 31 | NEEDLE BAR BUSHING | ||
| 32 | NEEDLE BAR BUSHING | ||
| 33 | NEEDLE BAR BUSHING | ||
| 34 | NEEDLE BAR BUSHING | ||
| 35 | NEEDLE BAR BUSHING | ||
| 36 | NEEDLE BAR BUSHING | ||
| 37 | NEEDLE BAR BUSHING | ||
| 38 | NEEDLE BAR BUSHING | ||
| 39 | NEEDLE BAR BUSHING |
Page 15 — NEEDLE BAR, NEEDLE GUARD MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 251014-910 | 針棒 | ||
| 2060610 | 針棒キ | ||
| 0053250 | 平ネジ/C5 × 10 | ||
| 2510160 | リンク | ||
| 2060530 | 段付ピン | ||
| 240098-20 | ニードルベアリング | ||
| 2401010 | 座金 | ||
| 2060630 | 角駒 | ||
| 2510171 | 案内 | ||
| 007021A0 | 平ネジ/M4 × 12 | ||
| 2510180 | ラッチ | ||
| 007021A0 | 平ネジ/M4 × 12 | ||
| 179040-050 | スポンジ | ||
| 2065240 | 止メ金 | ||
| 2121860 | 給油紐 | ||
| XXXXXX | 針留 | ||
| 0045540 | 止ネジ/M3 × 3 | ||
| 0045540 | 止ネジ/M3 × 3 | ||
| XXXXXX | 針板 | ||
| 005511-HC0 | 皿ネジ/C4 × 6.5 | ||
| 251533-920 | エキセン | ||
| 0045430 | 止ネジ/M4 × 4 | ||
| 2515340 | ロッド | ||
| 2021760 | 給油紐 | ||
| 2107660 | 止ピン | ||
| 2515350 | クランク軸 | ||
| 2021750 | 給油紐 | ||
| 2079250 | フエルト | ||
| 2515370 | 継手 | ||
| 0045430 | 止ネジ/M4 × 4 | ||
| 240548-920 | カラー | ||
| 0045430 | 止ネジ/M4 × 4 | ||
| 2515360 | 針受台(後) | ||
| 2021750 | 給油紐 | ||
| 2079250 | フエルト | ||
| XXXXXX | 針受(後) | ||
| 0045990 | 止ネジ/M4X3 | ||
| XXXXXX | 針受(前) | ||
| 0070310 | 平ネジ/M2.5 × 6 |
Page 16
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 38 | W200-01N,08M | Outside W200-01N,08M |
Page 17 — LOOPER DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 252036-920 | エキセン | 1 |
| 2 | 0045470 | 止ネジ /M6 × 5 | 1 |
| 3 | 206172-20 | ニードルベアリング | 1 |
| 4 | 2520350 | ロッド | 1 |
| 5 | 252037-910 | 段付ピン (組) | 1 |
| 6 | 0048050 | 六角ナット /M5 | 1 |
| 7 | 2400620 | 座金 | 1 |
| 8 | 2520390 | ルーバー軸案内 | 1 |
| 9 | 201074A0 | 振止メ | 1 |
| 10 | 2022860 | バネ座金 | 1 |
| 11 | 0055460 | 平ネジ /C5 × 10 | 1 |
| 12 | 2520440 | 軸 | 1 |
| 13 | 2402320 | 座金 | 1 |
| 14 | 0045240 | 六角穴ボルト /M4 × 10 | 1 |
| 15 | 2012520 | バネ座金 | 1 |
| 16 | 2402310 | 座金 | 1 |
| 17 | 252046-920 | レバー | 1 |
| 18 | 0045340 | 六角穴ボルト /M6 × 14 | 1 |
| 19 | 252040-920 | ホルダー | 1 |
| 20 | 0070210 | 平ネジ /M4 × 12 | 1 |
| 21 | 2520410 | 座金 | 1 |
| 22 | 2520420 | スライダー | 1 |
| 23 | 2520430 | ピン | 1 |
| 24 | 0045430 | 止ネジ /M4 × 4 | 1 |
| 25 | 252045-920 | ホルダー | 1 |
| 26 | 0070210 | 平ネジ /M4 × 12 | 1 |
| 27 | 2520410 | 座金 | 1 |
| 28 | 2520470 | 座金 | 2 |
| 29 | 2520520 | ブッシュ | 1 |
| 30 | 0045220 | 止ネジ /M6 × 6 | 1 |
| 31 | 2520770 | ブッシュ | 1 |
| 32 | 0045220 | 止ネジ /M6 × 6 | 1 |
| 33 | 2520480 | 軸 | 1 |
| 34 | 252075-910 | ルーバー台 | 1 |
| 35 | 0071450 | 六角穴ボルト | 1 |
| 36 | XXXXXX | ルーバー | 1 |
| 37 | 0071290 | 止ネジ /M4 × 5 | 1 |
| 38 | 2405060 | 座金 | 1 |
Page 18
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SHAFT | ||
| 2 | COLLAR | ||
| 3 | BEARING | ||
| 4 | BEARING | ||
| 5 | RING | ||
| 6 | RING | ||
| 7 | SLEEVE | ||
| 8 | LINK | ||
| 9 | LINK | ||
| 10 | SPRING | ||
| 11 | SHAFT | ||
| 12 | SPRING | ||
| 13 | SPRING | ||
| 14 | SHAFT | ||
| 15 | SPRING | ||
| 16 | SHAFT | ||
| 17 | BRACKET | ||
| 18 | SPRING | ||
| 19 | BRACKET | ||
| 20 | SPRING | ||
| 21 | SHAFT | ||
| 22 | SPRING | ||
| 23 | SHAFT | ||
| 24 | SPRING | ||
| 25 | RING | ||
| 26 | SHAFT | ||
| 27 | LEVER | ||
| 28 | SCREW | ||
| 29 | PLATE | ||
| 30 | SPRING | ||
| 31 | SPRING | ||
| 32 | SHAFT | ||
| 33 | RING | ||
| 34 | RING | ||
| 35 | SHAFT | ||
| 36 | SPRING | ||
| 37 | SPRING | ||
| 38 | SPRING | ||
| 39 | SPRING | ||
| 40 | RING | ||
| 41 | SHAFT | ||
| 42 | PIN | ||
| 43 | SPRING | ||
| 44 | PIN | ||
| 45 | WASHER | ||
| 46 | SCREW | ||
| 47 | SHAFT | ||
| 48 | COLLAR | ||
| 49 | SPRING | ||
| 50 | SPRING | ||
| 51 | SPRING | ||
| 52 | SHAFT | ||
| 53 | SPRING | ||
| 54 | SHAFT | ||
| 55 | COLLAR | ||
| 56 | SPRING | ||
| 57 | SPRING | ||
| 58 | SHAFT | ||
| 59 | SHAFT | ||
| 60 | WASHER | ||
| 61 | SCREW | ||
| 62 | BRACKET | ||
| 63 | BRACKET | ||
| 64 | SPRING | ||
| 65 | LEVER | ||
| 66 | PIN | ||
| 67 | SPRING | ||
| 68 | SPRING |
Page 20
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | Lever | ||
| 2 | Lever | ||
| 3 | Shaft | ||
| 4 | Spring | ||
| 5 | Shaft | ||
| 6 | Shaft | ||
| 7 | Spring | ||
| 8 | Shaft | ||
| 9 | Screw | ||
| 10 | Shaft | ||
| 11 | Shaft | ||
| 12 | Shaft | ||
| 13 | Shaft | ||
| 14 | Shaft | ||
| 15 | Shaft | ||
| 16 | Shaft | ||
| 17 | Shaft | ||
| 18 | Shaft | ||
| 19 | Shaft | ||
| 20 | Shaft | ||
| 21 | Shaft | ||
| 22 | Shaft | ||
| 23 | Spring | ||
| 24 | Shaft | ||
| 25 | Shaft | ||
| 26 | Screw | ||
| 27 | Shaft | ||
| 28 | Shaft | ||
| 29 | Screw | ||
| 30 | Shaft | ||
| 31 | Shaft | ||
| 32 | Screw | ||
| 33 | Shaft | ||
| 34 | Shaft | ||
| 35 | Shaft | ||
| 36 | Screw | ||
| 37 | Shaft | ||
| 38 | Shaft | ||
| 39 | Shaft | ||
| 40 | Shaft | ||
| 41 | Shaft | ||
| 42 | Shaft | ||
| 43 | Shaft | ||
| 44 | Shaft | ||
| 45 | Shaft | ||
| 46 | Shaft | ||
| 47 | Shaft | ||
| 48 | Spring | ||
| 49 | Shaft | ||
| 50 | Shaft | ||
| 51 | Shaft | ||
| 52 | Screw | ||
| 53 | Lever | ||
| 54 | Shaft | ||
| 55 | Shaft | ||
| 56 | Screw | ||
| 57 | Lever | ||
| 58 | Shaft | ||
| 59 | Screw | ||
| 60 | Lever | ||
| 61 | Shaft | ||
| 62 | Screw | ||
| 63 | Shaft | ||
| 64 | Shaft | ||
| 65 | Shaft | ||
| 66 | Shaft | ||
| 67 | Screw | ||
| 68 | Shaft | ||
| 69 | Shaft | ||
| 70 | Screw |
Page 22
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | SHAFT | |
| 2 | 2 | BRACKET | |
| 3 | 3 | BEARING | |
| 4 | 4 | WASHER | |
| 5 | 5 | SCREW | |
| 6 | 6 | SHAFT | |
| 7 | 7 | BRACKET | |
| 8 | 8 | BEARING | |
| 9 | 9 | BRACKET | |
| 10 | 10 | SHAFT | |
| 11 | 11 | SHAFT | |
| 12 | 12 | SHAFT | |
| 13 | 13 | SHAFT | |
| 14 | 14 | BRACKET | |
| 15 | 15 | BRACKET | |
| 16 | 16 | BRACKET | |
| 17 | 17 | SHAFT | |
| 18 | 18 | BRACKET | |
| 19 | 19 | SHAFT | |
| 20 | 20 | SHAFT | |
| 21 | 21 | PIN | |
| 22 | 22 | BRACKET | |
| 23 | 23 | BRACKET | |
| 24 | 24 | BRACKET | |
| 25 | 25 | SHAFT | |
| 26 | 26 | BRACKET | |
| 27 | 27 | BEARING | |
| 28 | 28 | SCREW | |
| 29 | 29 | SHAFT | |
| 30 | 30 | BRACKET | |
| 31 | 31 | SHAFT | |
| 32 | 32 | SCREW | |
| 33 | 33 | SHAFT | |
| 34 | 34 | SHAFT | |
| 35 | 35 | BRACKET | |
| 36 | 36 | SHAFT | |
| 37 | 37 | SHAFT | |
| 38 | 38 | PIN | |
| 39 | 39 | BRACKET | |
| 40 | 40 | BRACKET | |
| 41 | 41 | BRACKET |
Page 23 — FEED MECHANISM (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2526080 | ロッド | ||
| 252609-920 | クランク | ||
| 0045310 | 六角穴ボルト /M5 × 12 | ||
| 2400550 | 座金 | ||
| 0070410 | 皿ネジ /M3 × 6 | ||
| 252610D0 | クランク軸 | ||
| 240235-920 | カラー | ||
| 0045470 | 止ネジ /M6 × 5 | ||
| 2526970 | 角駒 | ||
| 2526980 | クランク軸 | ||
| 2021760 | 給油紐 | ||
| 2021750 | 給油紐 | ||
| 2073580 | フェルト | ||
| 2079250 | フェルト | ||
| 2527160 | 継手 | ||
| 0045430 | 止ネジ /M4 × 4 | ||
| 2527130 | クランク軸 | ||
| 2073580 | フェルト | ||
| 2021760 | 給油紐 | ||
| 2021750 | 給油紐 | ||
| 240549-920 | カラー | ||
| 0045430 | 止ネジ /M4 × 4 | ||
| 2527150 | 角駒 | ||
| 2079250 | フェルト | ||
| 2527000 | 座金 | ||
| 2527030 | ロッド | ||
| 240544-20 | ニードルベアリング | ||
| 2041070 | 座金 | ||
| 0071430 | 平ネジ /M4 × 5.5 | ||
| 252694-920 | クランク | ||
| 0045000 | 六角ボルト /M5 × 10 | ||
| 2079250 | フェルト | ||
| 2021750 | 給油紐 | ||
| 2527140 | クランク軸 | ||
| 2079250 | フェルト | ||
| 2021760 | 給油紐 | ||
| 2021750 | 給油紐 | ||
| 240549-920 | カラー | ||
| 0045430 | 止ネジ /M4 × 4 | ||
| 2527150 | 角駒 | ||
| 2073580 | フェルト |
Page 24
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | Thread take-up lever assembly | ||
| 2 | Thread take-up lever spring | ||
| 3 | Presser bar spring | ||
| 4 | Presser bar | ||
| 5 | Presser bar guide | ||
| 6 | Presser bar holder | ||
| 7 | Presser bar spring collar | ||
| 8 | Presser bar spring collar | ||
| 9 | Presser bar support | ||
| 10 | Screw | ||
| 11 | Presser foot bar | ||
| 12 | Screw | ||
| 13 | Washer | ||
| 14 | Presser foot assembly | ||
| 15 | Screw | ||
| 16 | Upper shaft | ||
| 17 | Link | ||
| 18 | Screw | ||
| 19 | Screw | ||
| 20 | Screw | ||
| 21 | Spring | ||
| 22 | Bush | ||
| 23 | Screw | ||
| 24 | Lever | ||
| 25 | Screw | ||
| 26 | Lever | ||
| 27 | Screw | ||
| 28 | Lever | ||
| 29 | Screw | ||
| 30 | Bush | ||
| 31 | Lever | ||
| 32 | Screw | ||
| 33 | Lever | ||
| 34 | Screw | ||
| 35 | Lever | ||
| 36 | Screw | ||
| 37 | Lever |
Page 25
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 253000-910 | 調節棒 | ||
| 2530031 | 調節ナット | ||
| 2402520 | 圧縮バネ | ||
| 2402530 | 圧縮バネ | ||
| 2530260 | 押工棒 | ||
| 2530530 | 油除ケ | ||
| 2061390 | 押工棒抱キ | ||
| 0051180 | 平ネジ/C5 × 12 | ||
| 253005-910 | 案内 | ||
| 007025A0 | 平ネジ/M4 × 20 | ||
| 2530280 | フィンガーガード | ||
| 0070100 | 平ネジ/M3 × 6 | ||
| 2404740 | 座金 | ||
| XXXXXX | 押工(組) | ||
| 001170-30 | 平ネジ/C4 × 9 | ||
| 253008-910 | レバー | ||
| 1920240 | カラー | ||
| 0W00024-10 | 止ネジ/W2 × 4 | ||
| 2061570 | リンク | ||
| 0053860 | 段付ネジ/C7 | ||
| 2530100 | ネジリバネ | ||
| 2061560 | カラー | ||
| 0050840 | 六角ネジ/C5 × 5.5 | ||
| 2061490 | クランク(上) | ||
| 0051870 | 平ネジ/C5 × 14 | ||
| 2530270 | リンク | ||
| 0051840 | 段付ネジ/C5 | ||
| 2061480 | クランク(下) | ||
| 002022-40 | 六角ネジ/C10 × 9 | ||
| 2530130 | 軸 | ||
| 2530140 | レバー | ||
| 0070340 | 平ネジ/M5 × 10 | ||
| 2530150 | ブラケット | ||
| 007019A0 | 平ネジ/M4 × 8 | ||
| 0045810 | 六角ネジ/M5 × 20 | ||
| 0048050 | 六角ナット/M5 | ||
| 250230-RA0 | 足揚げレバーガード |
Page 26
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | Washer | ||
| 2 | Screw | ||
| 3 | Washer | ||
| 4 | Screw | ||
| 5 | Washer | ||
| 6 | Screw | ||
| 7 | Washer | ||
| 8 | Screw | ||
| 9 | Shaft | ||
| 10 | Washer | ||
| 11 | Washer | ||
| 12 | Lever | ||
| 13 | Shaft | ||
| 14 | Collar | ||
| 15 | Lever | ||
| 16 | Screw | ||
| 17 | Screw | ||
| 18 | O-ring | ||
| 19 | Collar | ||
| 20 | Screw | ||
| 21 | Lever | ||
| 22 | Screw | ||
| 23 | Screw | ||
| 24 | Lever |
Page 27 — SPREADER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 254501A920 | エキセン (組) | 1 | |
| 0045140 | 止ネジ/M5 × 5 | 2 | |
| 2545110 | ロッド | 1 | |
| 254503-920 | クランク | 1 | |
| 0045340 | 六角穴付ボルト/M6 × 14 | 1 | |
| 2545040 | ピン付ネジ/M5 | 1 | |
| 2400620 | 座金 | 1 | |
| 0048050 | 六角ナット/M5 | 1 | |
| 2545190 | 軸 | 1 | |
| 2061800 | 座金 | 1 | |
| 3066710 | 止メ輪 | 1 | |
| 254506B0 | クランク | 2 | |
| 0045470 | 止ネジ/M6 × 5 | 1 | |
| 2545070 | 駒 | 1 | |
| 2545180 | クランク軸 | 1 | |
| 2079250 | フェルト | 2 | |
| 2021760 | 給油紐 | 1 | |
| 2330200 | Oリング | 1 | |
| 2120390 | カラー | 1 | |
| 0012270 | 平ネジ/C × 3.7 | 2 | |
| 254516-920 | レバー (組) | 1 | |
| 0070200 | 平ネジ/M4 × 10 | 1 | |
| 0070220 | 平ネジ/M4 × 14 | 1 | |
| XXXXXX | スプレッダー | 1 |
Page 28
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 5 | 5 | Screw | |
| 4 | 4 | Washer | |
| 6 | 6 | Washer | |
| 1 | 1 | Shaft | |
| 2 | 2 | Shaft | |
| 3 | 3 | Screw | |
| 7 | 7 | Bracket | |
| 8 | 8 | Screw | |
| 9 | 9 | Shaft | |
| 10 | 10 | Shaft | |
| 11 | 11 | Shaft | |
| 12 | 12 | Shaft | |
| 13 | 13 | 2-needle | |
| 14 | 14 | 3-needle | |
| 15 | 15 | Base | |
| 16 | 16 | Base | |
| 17 | 17 | Roller | |
| 18 | 18 | Roller | |
| 19 | 19 | Roller | |
| 20 | 20 | Shaft | |
| 21 | 21 | Shaft | |
| 22 | 22 | Screw | |
| 23 | 23 | Spring | |
| 24 | 24 | Shaft | |
| 25 | 25 | Screw | |
| 26 | 26 | Shaft | |
| 27 | 27 | Washer | |
| 28 | 28 | Roller | |
| 29 | 29 | Roller | |
| 30 | 30 | Spring | |
| 31 | 31 | Roller | |
| 32 | 32 | Roller | |
| 33 | 33 | Spring |
Page 29
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 254000-910 | レバー | 1 | |
| 2540220 | カラー | 1 | |
| 002133-10 | 平ネジ /C5 × 12.5 | 1 | |
| 254003B910 | クランク | 1 | |
| 0045310 | 六角穴ボルト /M5 × 12 | 1 | |
| 2028680 | 座金 | 1 | |
| 2540080 | 糸道 | 1 | |
| 007019A0 | 平ネジ /M4 × 8 | 2 | |
| 1921200 | パイプ | 2 | |
| 2061150 | ブラケット | 2 | |
| 007018A0 | 平ネジ /M4 × 6 | 1 | |
| 3034480 | 座金 | 1 | |
| 254023C9T0 | テンション (組) | 1 | |
| 254023E9T0 | テンション (組) | 1 | |
| 2540190 | ブラケット | 1 | |
| 2540210 | 糸緩め | 1 | |
| 263542A9T0 | 糸調子 (組) | 1 | |
| 263542B9T0 | 糸調子 (組) | 1 | |
| 263542C9T0 | 糸調子 (組) | 1 | |
| 2540200 | 糸道 | 1 | |
| 2062030 | 糸道 | 1 | |
| 2062020 | スペーサー | 1 | |
| 3063010 | 引張リバネ | 2 | |
| 0054470 | 取付ネジ /C5 × 3 | 1 | |
| 007019A0 | 平ネジ /M4 × 8 | 2 | |
| 001817-2A0 | 調子棒 | 1 | |
| 2103190 | 調子皿 | 2 | |
| 263544-TA0 | 受皿 | 1 | |
| 2010370 | 圧縮バネ (強) | 1 | |
| 2084480 | ラチェット | 1 | |
| 263543-TA0 | 調子ナット | 1 | |
| 2010860 | 圧縮バネ (中) | 1 | |
| 2010680 | 圧縮バネ (弱) | 1 |
Page 30
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | ||
| 2 | 2 | ||
| 3 | 3 | ||
| 4 | 4 | ||
| 5 | 5 | ||
| 6 | 6 | ||
| 7 | 7 | ||
| 8 | 8 | ||
| 9 | 9 | ||
| 10 | 10 | ||
| 11 | 11 | ||
| 12 | 12 | ||
| 13 | 13 | ||
| 14 | 14 | ||
| 15 | 15 | ||
| 16 | 16 | ||
| 17 | 17 | ||
| 18 | 18 | ||
| 19 | 19 | ||
| 20 | 20 | ||
| 21 | 21 | ||
| 22 | 22 | ||
| 23 | 23 | ||
| 24 | 24 | ||
| 25 | 25 | ||
| 26 | 26 | ||
| 27 | 27 | ||
| 28 | 28 | ||
| 29 | 29 | ||
| 30 | 30 | ||
| 31 | 31 | ||
| 32 | 32 | ||
| 33 | 33 | ||
| 34 | 34 | ||
| 35 | 35 | ||
| 36 | 36 | ||
| 37 | 37 | ||
| 38 | 38 | ||
| 39 | 39 | ||
| 40 | 40 | ||
| 41 | 41 | ||
| 42 | 42 | ||
| 43 | 43 | ||
| 44 | 44 | ||
| 45 | 45 | ||
| 46 | 46 | ||
| 47 | 47 | ||
| 48 | 48 |
Page 31 — 針糸・飾り糸機構
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2535030 | 軸 | ||
| 2041070 | 座金 | ||
| 2012520 | バネ座金 | ||
| 0045270 | 六角穴ボルト/M4 × 8 | ||
| 2050610 | 止メ輪 | ||
| 204754A0 | カラー | ||
| 0021930 | 六角ネジ/C5 × 8.5 | ||
| 253504-920 | レバー | ||
| 0045010 | 六角穴ボルト/M5 × 14 | ||
| 3030670 | バネ座金 | ||
| 253505A1 | 糸繰り | ||
| 007019A0 | 平ネジ/M4 × 8 | ||
| 3034480 | 座金 | ||
| 2535440 | 糸道 | ||
| 007019A0 | 平ネジ/M4 × 8 | ||
| 3034480 | 座金 | ||
| 2535450 | ホルダー | ||
| 0070100 | 平ネジ/M3 × 6 | ||
| 2345210 | 糸道 | ||
| 0045350 | 止ネジ/M3 × 4 | ||
| 2535070 | 糸道 | ||
| 0070090 | 平ネジ/M3 × 5 | ||
| 253508A0 | 糸道 | ||
| 0070770 | 皿ネジ/M4 × 7 | ||
| 253509A0 | 糸受 | ||
| 0070080 | 平ネジ/M3 × 4 | ||
| 2404740 | 座金 | ||
| 2535160 | 糸調子台 | ||
| 007019A0 | 平ネジ/M4 × 8 | ||
| 2535930 | 小調子皿 | ||
| 2345610 | 糸案内 | ||
| 2535170 | 調子バネ | ||
| 0W09070-20 | 段付ネジ/W5 | ||
| 2535060 | 糸繰り | ||
| 2535150 | 糸道 | ||
| 007019A0 | 平ネジ/M4 × 8 | ||
| 2535140 | 糸道 | ||
| 007019A0 | 平ネジ/M4 × 8 | ||
| 25353880 | 糸案内 | ||
| 0070190 | 平ネジ/M4 × 8 | ||
| 3034480 | 座金 | ||
| 2535470 | 糸道 | ||
| 1371080 | 調子皿 | ||
| 2113880 | 圧縮バネ | ||
| 0071671 | 段付ネジ/M3 | ||
| 2750340 | ツマミ | ||
| 2536680 | 糸道 | ||
| 0045540 | 止ネジ/M3 × 3 |
Page 32
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 51 | 51 | Screw | |
| 50 | 50 | Lever | |
| 53 | 53 | Screw | |
| 52 | 52 | Bracket | |
| 48 | 48 | Shaft | |
| 49 | 49 | Lever | |
| 11 | 11 | Screw | |
| 12 | 12 | Washer | |
| 19 | 19 | Screw | |
| 17 | 17 | Washer | |
| 18 | 18 | Nut | |
| 16 | 16 | Screw | |
| 15 | 15 | Bracket | |
| 14 | 14 | Screw | |
| 13 | 13 | Bracket | |
| 41 | 41 | Screw | |
| 40 | 40 | Bush | |
| 39 | 39 | Lever | |
| 24 | 24 | Screw | |
| 23 | 23 | Bracket | |
| 22 | 22 | Screw | |
| 21 | 21 | Washer | |
| 20 | 20 | Screw | |
| 25 | 25 | Cover | |
| 26 | 26 | Screw | |
| 10 | 10 | Bracket | |
| 9 | 9 | Screw | |
| 8 | 8 | Bracket | |
| 7 | 7 | Screw | |
| 6 | 6 | Washer | |
| 5 | 5 | Needle Plate | |
| 4 | 4 | Bracket | |
| 1 | 1 | Base Plate | |
| 2 | 2 | Screw | |
| 3 | 3 | Screw | |
| 34 | 34 | Screw | |
| 33 | 33 | Screw | |
| 32 | 32 | Screw | |
| 35 | 35 | Pulley | |
| 36 | 36 | Pulley | |
| 37 | 37 | Screw | |
| 38 | 38 | Washer | |
| 31 | 31 | Shaft | |
| 27 | 27 | Pulley | |
| 28 | 28 | Screw | |
| 29 | 29 | Bracket | |
| 30 | 30 | Screw | |
| 43 | 43 | Bush | |
| 46 | 46 | Belt | |
| 47 | 47 | Belt | |
| 45 | 45 | Screw | |
| 44 | 44 | Screw | |
| 54 | 54 | Bush | |
| 55 | 55 | Shaft | |
| 56 | 56 | Bracket | |
| 57 | 57 | Screw | |
| 58 | 58 | Washer |
Page 33
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2536810 | ブラケット | ||
| 2103070 | 波板座金 | ||
| 0070660 | 段付ネジ /M4 | ||
| 253534A0 | 下糸道 (右) | ||
| 253533D0 | 糸道 | ||
| 2105850 | 座金 | ||
| 0070310 | 平ネジ /M2.5 × 6 | ||
| 2536320 | ブラケット | ||
| 0071960 | 平ネジ /M4 × 4 | ||
| 2536800 | 糸案内 | ||
| 3034480 | 座金 | ||
| 0043250 | 六角ボルト /M4 × 6 | ||
| 2536760 | 小調子台 | ||
| 007018A0 | 平ネジ /M4 × 6 | ||
| 2125030 | 小調子台 | ||
| 2125040 | 小調子皿 | ||
| 2107500 | 小調子皿案内 | ||
| 2107510 | 圧縮バネ | ||
| 0070820 | 平ネジ /M4 × 8 | ||
| 2536351 | ブラケット | ||
| 0043250 | 六角ボルト /M4 × 6 | ||
| 2103060 | 線細工バネ | ||
| 1379060 | 座金 | ||
| 0070120 | 平小ネジ /M3.5 × 6 | ||
| 253689-910 | 下糸繰り (組) | ||
| 0045430 | 止ネジ /M4 × 4 | ||
| 253625-9P0 | ブラケット (組) | ||
| 0045030 | 六角穴ボルト /M6 × 20 | ||
| 2536360 | 座金 | ||
| 0070190 | 平ネジ /M4 × 8 | ||
| 2536710 | 軸 | ||
| 2536230 | ギヤ | ||
| 0045480 | 止ネジ /M6 × 8 | ||
| 0045550 | 止ネジ /M6 × 8 | ||
| 2402790 | 座金 | ||
| 2402780 | 座金 | ||
| 2403080 | カラー | ||
| 0045430 | 止ネジ /M4 × 4 | ||
| 2536401 | カバー | ||
| 2403320 | スペーサー | ||
| 0072130 | 平ネジ /M4 × 16 | ||
| 2536740 | タイミングベルトカバー | ||
| 2403210 | スペーサー | ||
| 0070210 | 平ネジ /M4 × 12 | ||
| 2405600 | スペーサー | ||
| 0045290 | 六角穴ボルト /M4X16 | ||
| 253641A0 | タイミングベルト | ||
| 00711430 | 糸道パイプ (組) | ||
| 253685-910 | 平ネジ /M4 × 5.5 | ||
| 253687-910 | 糸道パイプ (組) | ||
| 0070820 | 平ネジ /M4 × 8 | ||
| 2536750 | 糸道 | ||
| 0070820 | 平ネジ /M4 × 8 | ||
| 2403320 | スペーサー | ||
| 2536790 | パイプ | ||
| 2061150 | ブラケット | ||
| 007025A0 | 平ネジ /M4 × 20 | ||
| 3034480 | 座金 |
Page 34
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | BRACKET | |
| 2 | 2 | BRACKET | |
| 3 | 3 | BRACKET | |
| 4 | 4 | BRACKET | |
| 5 | 5 | BRACKET | |
| 6 | 6 | BRACKET | |
| 7 | 7 | BRACKET | |
| 8 | 8 | BRACKET | |
| 9 | 9 | BRACKET | |
| 10 | 10 | BRACKET | |
| 11 | 11 | BRACKET | |
| 12 | 12 | BRACKET | |
| 13 | 13 | BRACKET | |
| 14 | 14 | BRACKET | |
| 15 | 15 | BRACKET | |
| 16 | 16 | BRACKET | |
| 17 | 17 | BRACKET | |
| 18 | 18 | BRACKET | |
| 19 | 19 | BRACKET | |
| 20 | 20 | BRACKET | |
| 21 | 21 | BRACKET | |
| 22 | 22 | BRACKET | |
| 23 | 23 | BRACKET | |
| 24 | 24 | BRACKET | |
| 25 | 25 | BRACKET | |
| 26 | 26 | BRACKET | |
| 27 | 27 | BRACKET | |
| 28 | 28 | BRACKET | |
| 29 | 29 | BRACKET | |
| 30 | 30 | BRACKET | |
| 31 | 31 | BRACKET | |
| 32 | 32 | BRACKET | |
| 33 | 33 | BRACKET | |
| 34 | 34 | BRACKET | |
| 35 | 35 | BRACKET | |
| 36 | 36 | BRACKET | |
| 37 | 37 | BRACKET | |
| 38 | 38 | BRACKET | |
| 39 | 39 | BRACKET | |
| 40 | 40 | BRACKET |
Page 35 — LUBRICATION MECHANISM (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 255035-910 | パイプ | 1 |
| 2 | 2550370 | 継手ネジ | 1 |
| 3 | 2401350 | チューブ | 1 |
| 4 | 2001360 | 継手 | 2 |
| 5 | 2021990 | クランプ | 2 |
| 6 | 2001520 | 継手ネジ | 2 |
| 7 | 2550030 | パイプ | 1 |
| 8 | 2401360 | フェルト | 1 |
| 9 | 2107660 | 止ピン | 1 |
| 10 | 0045140 | 止ネジ/M5 × 5 | 1 |
| 11 | 2550210 | フェルト | 1 |
| 12 | 2550390 | パイプ | 1 |
| 13 | 2550050 | ラッチ | 1 |
| 14 | 007018A0 | 平ネジ/M4 × 6 | 1 |
| 15 | 2401430 | チューブ | 1 |
| 16 | 2401440 | チューブ | 1 |
| 17 | 2550380 | 継手 | 1 |
| 18 | 2401450 | チューブ | 2 |
| 19 | 2021990 | クランプ | 1 |
| 20 | 2550990 | 油受 | 1 |
| 21 | 007018A0 | 平ネジ/M4 × 6 | 2 |
| 22 | 255097-910 | 噴油管 | 1 |
| 23 | 0048210 | 六角ナット/M4 | 1 |
| 24 | 2400060 | チューブ | 1 |
| 25 | 2021990 | クランプ | 2 |
| 26 | 255094-910 | 噴油管 | 1 |
| 27 | 007018A0 | 平ネジ/M4 × 6 | 1 |
| 28 | 200140A0 | チューブ | 1 |
| 29 | 2551230 | 継手 | 1 |
| 30 | 2001520 | 継手ネジ | 1 |
| 31 | 2021990 | クランプ | 1 |
| 32 | 2551390 | パイプ | 2 |
| 33 | 2405680 | チューブ | 1 |
| 34 | 2551370 | クランプ | 1 |
| 35 | 2550380 | 継手 | 1 |
| 36 | 2021990 | クランプ | 1 |
| 37 | 2057630 | チューブ | 1 |
| 38 | 2021990 | クランプ | 1 |
| 39 | 2551400 | フェルト | 1 |
| 40 | 2021760 | 給油紐 | 1 |
Page 36
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | 1 | |
| 2 | 2 | 2 | |
| 3 | 3 | 3 | |
| 4 | 4 | 4 | |
| 5 | 5 | 5 | |
| 6 | 6 | 6 | |
| 7 | 7 | 7 | |
| 8 | 8 | 8 | |
| 9 | 9 | 9 | |
| 10 | 10 | 10 | |
| 11 | 11 | 11 | |
| 12 | 12 | 12 | |
| 13 | 13 | 13 | |
| 14 | 14 | 14 | |
| 15 | 15 | 15 | |
| 16 | 16 | 16 | |
| 17 | 17 | 17 | |
| 18 | 18 | 18 | |
| 19 | 19 | 19 | |
| 20 | 20 | 20 | |
| 21 | 21 | 21 | |
| 22 | 22 | 22 | |
| 23 | 23 | 23 |
Page 37 — 給油機構 (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2550410 | オイルパン (組) | ||
| 202287A0 | 座金 | ||
| 005138B0 | 平ネジ/H11 × 12 | ||
| 0045040 | 六角穴ボルト /M8 × 20 | ||
| 2551440 | Oリング | ||
| 255091-910 | ポンプ (組) | ||
| 2550240 | 軸 | ||
| 2550250 | ローター | ||
| 2550260 | ローター | ||
| 2550270 | ローター | ||
| 2550280 | カバー | ||
| 0070260 | 平ネジ/M4 × 5 | ||
| 0070150 | 平ネジ/M3.5 × 14 | ||
| 2550190 | ウォームホイール | ||
| 0045140 | 止ネジ /M5 × 5 | ||
| 0045310 | 六角穴ボルト /M5 × 12 | ||
| 2550930 | 継手ネジ | ||
| 2060030 | エレメント | ||
| 2020000 | ブラケット/フィルタ | ||
| 2064310 | Oリング | ||
| 210201-PD1 | 蓋 | ||
| 007021A0 | 平ネジ/M4 × 12 | ||
| 9A30020 | フィルタシール |
Page 38
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | BRACKET | |
| 2 | 2 | PIN | |
| 3 | 3 | COVER | |
| 4 | 4 | PIN | |
| 5 | 5 | SCREW | |
| 6 | 6 | BRACKET |
Page 39 — HR DEVICE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 207065-9P0 | シリコンタンク上(組) | |
| 2 | 207066-PDO | シリコンタンク(上) | |
| 3 | 207067-PDO | 蓋 | |
| 4 | 2067810 | スプリングピン | |
| 5 | 0050530 | 平ネジ/C4 × 4.8 | |
| 6 | 2070680 | フェルト |
Page 40
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | 2 | Accessory | |
| 9 | 9 | Accessory | |
| 11 | 11 | Accessory | |
| 10 | 10 | Accessory | |
| 4 | 4 | Accessory | |
| 3 | 3 | Accessory | |
| 12 | 12 | Accessory | |
| 6 | 6 | Accessory | |
| 8 | 8 | Accessory | |
| 7 | 7 | Accessory | |
| 6 | 6 | Accessory | |
| 5 | 5 | Accessory | |
| 14 | 14 | Accessory | |
| 17 | 17 | Accessory | |
| 16 | 16 | Accessory | |
| 15 | 15 | Accessory | |
| 18 | 18 | Accessory | |
| 19 | 19 | Accessory | |
| 20 | 20 | Accessory | |
| 22 | 22 | Accessory | |
| 23 | 23 | Accessory | |
| 21 | 21 | Accessory |
Page 41 — INSTALLATIONS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 0090160 | クッションゴム (セット) | ||
| 2063380 | クッションゴム | ||
| 2063360 | 半沈用ナット /M8 | ||
| 2590000 | 据付台 | ||
| 0045120 | 六角穴ボルト /M8 × 55 | ||
| 2063370 | 座金 | ||
| 2057640 | 防振ゴム | ||
| 2057650 | ライナー | ||
| 0070930 | ピン付ネジ /M5 | ||
| 2063290 | 鎖案内 | ||
| 0070270 | 平ネジ /M5 × 8 | ||
| 2054670 | スペーサー | ||
| 0090160 | クッションゴム (セット) | ||
| 2063380 | クッションゴム | ||
| 0090320 | ネジ (セット) | ||
| 2070730 | 段付ネジ /C10 | ||
| 2070740 | 止メ輪 | ||
| 2007280 | 座金 | ||
| 2020450 | バネ座金 | ||
| 0050200 | 六角ナット /C10 | ||
| 259003ATB0 | ベルトガード | ||
| 0049060 | 木ネジ | ||
| 3033350 | 座金 |
Page 42
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 6-spool | ||
| 2 | 5-spool | ||
| 3 | 3 | ||
| 4 | 4 | ||
| 5 | 5 | ||
| 6 | 6 | ||
| 7 | 7 | ||
| 8 | 8 | ||
| 9 | 9 | ||
| 10 | 10 | ||
| 11 | 11 | ||
| 12 | 12 | ||
| 13 | 13 | ||
| 14 | 14 | ||
| 15 | 15 | ||
| 16 | 16 | ||
| 17 | 17 | ||
| 18 | 18 | ||
| 19 | 19 | ||
| 20 | 20 | ||
| 21 | 21 | ||
| 22 | 22 | ||
| 23 | 23 | ||
| 24 | 24 | ||
| 25 | 25 | ||
| 26 | 26 | ||
| 27 | 27 | ||
| 28 | 28 | ||
| 29 | 29 | ||
| 30 | 30 | ||
| 31 | 31 | ||
| 32 | 32 | ||
| 33 | 33 | ||
| 34 | 34 | ||
| 35 | 35 | ||
| 36 | 36 | ||
| 37 | 37 | ||
| 38 | 38 | ||
| 39 | 39 |
Page 43 — THREAD STAND
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 000100-9P0 | 糸立 (組) (6本立) | ||
| 000100A9P0 | 糸立 (組) (5本立) | ||
| 000101-PA0 | スタンド棒 (上) | ||
| 000102-PA0 | スタンド棒 (下) | ||
| 0001030 | ジョイント | ||
| 004066-HU0 | ネジ/M5 × 14 | ||
| 004067-HU0 | 六角ナット /M5 | ||
| 000104-PA0 | ブラケット (3本立) | ||
| 000104APA0 | ブラケット (2本立) | ||
| 0001160 | ホルダー | ||
| 004068-HU0 | ネジ/M6 × 16 | ||
| 0001050 | 糸立棒 | ||
| 303067A0 | バネ座金 | ||
| 004067-HU0 | 六角ナット /M5 | ||
| 000106-PA0 | 受皿 | ||
| 0001070 | ウレタン | ||
| 000108-PA0 | 揺止メ | ||
| 000109-PA0 | ブラケット | ||
| 0041130 | ネジ/M4 × 20 | ||
| 0048030 | 六角ナット /M5 | ||
| 0001100 | 糸道棒 | ||
| 004065-HU0 | ネジ/M4 × 25 | ||
| 0048030 | 六角ナット /M5 | ||
| 000111-PA0 | ブラケット | ||
| 004065-HU0 | ネジ/M4 × 25 | ||
| 0048030 | 六角ナット /M5 | ||
| 0001120 | 糸道棒 (6本立) | ||
| 000112A0 | 糸道棒 (5本立) | ||
| 004065-HU0 | ネジ/M4 × 25 | ||
| 0048030 | 六角ナット /M5 | ||
| 000104-PA0 | ブラケット (3本立) | ||
| 000104APA0 | ブラケット (2本立) | ||
| 0001160 | ホルダー | ||
| 004068-HU0 | ネジ/M6 × 16 | ||
| 0001130 | 糸道 | ||
| 0001140 | キャップ | ||
| 0001150 | 座金 | ||
| 0001170 | バネ座金 | ||
| 007370-HU0 | 六角ナット /M16 |
Page 44
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Packed in accessory | |
| 2 | 2 | Packed in accessory | |
| 3 | 3 | Packed in accessory | |
| 4 | 4 | W200-01E | |
| 5 | 5 | W200-01E | |
| 6 | 6 | W200-01E | |
| 7 | 7 | W200-01E | |
| 5 | 5 | W200-03F | |
| 8 | 8 | W200-03F | |
| 9 | 9 | W200-03F | |
| 7 | 7 | W200-03F | |
| 10 | 10 | W200-03G | |
| 11 | 11 | W200-03G | |
| 12 | 12 | W200-03G | |
| 13 | 13 | W200-03G | |
| 14 | 14 | W200-03G | |
| 15 | 15 | W200-03G | |
| 16 | 16 | W200-03G | |
| 17 | 17 | W200-03G |
Page 45 — SPECIFIC PARTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2581670 | 布案内 (右) | ||
| 2105850 | 座金 | ||
| 0071560 | 平ネジ /M2.5 × 3.4 | ||
| 2581760 | 布案内 (右) | ||
| 0071540 | 平ネジ /M3 × 3.5 | ||
| 2581770 | 布案内 (左) | ||
| 0071540 | 平ネジ /M3 × 3.5 | ||
| 2581690 | 布案内 (右) | ||
| 2581700 | 布案内 (左) | ||
| 2581740 | ブラケット | ||
| 0071540 | 平ネジ /M3 × 3.5 | ||
| 2581750 | ブラケット | ||
| 0070400 | 皿ネジ /M3 × 4 | ||
| 2575750 | 布案内 (左) | ||
| 0071540 | 平ネジ /M3 × 3.5 | ||
| 2575760 | 布案内 (右) | ||
| 0070110 | 平ネジ /M3 × 8 |
Page 46 — W200-08 W200-08B
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Packed in accessory | |
| 2 | 2 | Packed in accessory | |
| 3 | 3 | 附属品に梱入 | |
| 4 | 4 | 薄物用 For light weight fabric | |
| 5 | 5 | 厚物用 For heavy weight fabric 附属品に梱入 Packed in accessory | |
| 6 | 6 | 6 | |
| 7 | 7 | 狭巾(Narrow) | |
| 8 | 8 | 8 | |
| 9 | 9 | 広巾(Wide) 附属品に梱入 Packed in accessory |
Page 47 — SPECIFIC PARTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2581670 | 布案内 (右) | ||
| 2105850 | 座金 | ||
| 0071560 | 平ネジ/M2.5 × 3.4 | ||
| 2581780 | 布案内 (左) | ||
| 2581790 | 布案内 (左) | ||
| 0071540 | 平ネジ/M3 × 3.5 | ||
| 257761A0 | 押工補助板 | ||
| 0070310 | 平ネジ/M2.5 × 6 | ||
| 2577610 | 押工補助板 |
Page 48 — W200-01N,08M
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | 2 | Bracket | |
| 9 | 9 | Bracket | |
| 3 | 3 | Bracket | |
| 5 | 5 | Bracket | |
| 4 | 4 | Bracket | |
| 6 | 6 | Screw | |
| 7 | 7 | Washer | |
| 1 | 1 | Switch | |
| 8 | 8 | Guard |
Page 49 — SPECIFIC PARTS (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2536780 | ブラケット | ||
| 2536770 | 糸道 | ||
| 2536840 | 糸道 | ||
| 2536830 | ブラケット | ||
| 2536820 | 針糸カム | ||
| 0071540 | 平ネジ/M3 × 3.5 | ||
| 2028750 | 座金 | ||
| 2504340 | 糸繰リガード | ||
| 2504350 | 針棒ガード |
Page 50 — W200 GAUGE PARTS LIST(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 257541-321 | NEEDLE HOLDER | 232 | |
| 401 | NEEDLE HOLDER | 240 | |
| 481 | NEEDLE HOLDER | 248 | |
| 257542-561 | NEEDLE HOLDER | 256 | |
| 641 | NEEDLE HOLDER | 264 | |
| 561 | NEEDLE HOLDER | 356 | |
| 641 | NEEDLE HOLDER | 364 | |
| 259612B320 | NEEDLE PLATE | 232 | |
| 401 | NEEDLE PLATE | 240 | |
| B400 | NEEDLE PLATE | 240 | |
| 481 | NEEDLE PLATE | 248 | |
| B480 | NEEDLE PLATE | 248 | |
| 259613B560 | NEEDLE PLATE | 256 | |
| B640 | NEEDLE PLATE | 256 | |
| 259614B560 | NEEDLE PLATE | 356 | |
| B640 | NEEDLE PLATE | 356 | |
| 259614B560 | NEEDLE PLATE | 364 | |
| B640 | NEEDLE PLATE | 364 | |
| 259146-16F0 | MAIN FEED DOG | 232 | |
| 259254-16F1 | DIFF. FEED DOG | 232 | |
| 257460-320 | PRESSER FOOT | 232 | |
| 2575660 | LOOPER | 232 | |
| 2595720 | NEEDLE GUARD FRONT | 232 | |
| 259573-920 | NEEDLE GUARD REAR | 232 | |
| 2575650 | SPREADER | 232 | |
| 259146-16F0 | MAIN FEED DOG | 240 | |
| 259254-16F1 | DIFF. FEED DOG | 240 | |
| 400 | PRESSER FOOT | 240 | |
| 2575660 | LOOPER | 240 | |
| 2595720 | NEEDLE GUARD FRONT | 240 | |
| 259573-920 | NEEDLE GUARD REAR | 240 | |
| 2575650 | SPREADER | 240 | |
| 259146-16F0 | MAIN FEED DOG | 248 | |
| 259254-16F1 | DIFF. FEED DOG | 248 | |
| 480 | PRESSER FOOT | 248 | |
| 2575660 | LOOPER | 248 | |
| 2595720 | NEEDLE GUARD FRONT | 248 | |
| 259573-920 | NEEDLE GUARD REAR | 248 | |
| 2575650 | SPREADER | 248 | |
| 257542-561 | NEEDLE HOLDER | 256 | |
| 259613B560 | NEEDLE PLATE | 256 | |
| B640 | NEEDLE PLATE | 256 | |
| 259146-16F0 | MAIN FEED DOG | 256 | |
| 259255-16F1 | DIFF. FEED DOG | 256 | |
| 560 | PRESSER FOOT | 256 | |
| 2575660 | LOOPER | 256 | |
| 2595720 | NEEDLE GUARD FRONT | 256 | |
| 259573-920 | NEEDLE GUARD REAR | 256 | |
| 2575650 | SPREADER | 256 | |
| 257542-561 | NEEDLE HOLDER | 264 | |
| 259613C560 | NEEDLE PLATE | 264 | |
| C640 | NEEDLE PLATE | 264 | |
| 259148-16F0 | MAIN FEED DOG | 264 | |
| 259255-16F1 | DIFF. FEED DOG | 264 | |
| 640 | PRESSER FOOT | 264 | |
| 2575660 | LOOPER | 264 | |
| 2595720 | NEEDLE GUARD FRONT | 264 | |
| 259573-920 | NEEDLE GUARD REAR | 264 | |
| 2575650 | SPREADER | 264 | |
| 257542-561 | NEEDLE HOLDER | 356 | |
| 259614C560 | NEEDLE PLATE | 356 | |
| C640 | NEEDLE PLATE | 356 | |
| 259148-16F0 | MAIN FEED DOG | 356 | |
| 259255-16F1 | DIFF. FEED DOG | 356 | |
| 640 | PRESSER FOOT | 356 | |
| 2575660 | LOOPER | 356 | |
| 2595720 | NEEDLE GUARD FRONT | 356 | |
| 259573-920 | NEEDLE GUARD REAR | 356 | |
| 2575650 | SPREADER | 356 | |
| 257542-561 | NEEDLE HOLDER | 364 | |
| 259622C560 | NEEDLE PLATE | 356 | |
| C640 | NEEDLE PLATE | 364 | |
| 259148-16F0 | MAIN FEED DOG | 364 | |
| 259255-16F1 | DIFF. FEED DOG | 364 | |
| 640 | PRESSER FOOT | 364 | |
| 2575660 | LOOPER | 364 | |
| 2595720 | NEEDLE GUARD FRONT | 364 | |
| 259573-920 | NEEDLE GUARD REAR | 364 | |
| 2575650 | SPREADER | 364 | |
| 257541-481 | NEEDLE HOLDER | 248 | |
| 259616B480 | NEEDLE PLATE | 248 | |
| 259146-16F0 | MAIN FEED DOG | 248 | |
| 257471-480 | PRESSER FOOT | 248 | |
| 2575660 | LOOPER | 248 | |
| 2595720 | NEEDLE GUARD FRONT | 248 | |
| 259573-920 | NEEDLE GUARD REAR | 248 | |
| 2575650 | SPREADER | 248 | |
| 257542-561 | NEEDLE HOLDER | 356 | |
| 259617B560 | NEEDLE PLATE | 356 | |
| 259148-16F0 | MAIN FEED DOG | 356 | |
| 257472-560 | PRESSER FOOT | 356 | |
| 2575660 | LOOPER | 356 | |
| 2595720 | NEEDLE GUARD FRONT | 356 | |
| 259573-920 | NEEDLE GUARD REAR | 356 | |
| 2575650 | SPREADER | 356 | |
| 257542-561 | NEEDLE HOLDER | 364 | |
| 259622C560 | NEEDLE PLATE | 356 | |
| B640 | NEEDLE PLATE | 356 | |
| 259148-16F0 | MAIN FEED DOG | 356 | |
| 259259-16F1 | DIFF. FEED DOG | 356 | |
| 640 | PRESSER FOOT | 356 | |
| 2575660 | LOOPER | 356 | |
| 2595720 | NEEDLE GUARD FRONT | 356 | |
| 259573-920 | NEEDLE GUARD REAR | 356 | |
| 2575650 | SPREADER | 356 | |
| 257542-561 | NEEDLE HOLDER | 356 | |
| 259622C560 | NEEDLE PLATE | 356 | |
| 259148-16F0 | MAIN FEED DOG | 356 | |
| 257461-560 | PRESSER FOOT | 356 | |
| 2575660 | LOOPER | 356 | |
| 2595720 | NEEDLE GUARD FRONT | 356 | |
| 259573-920 | NEEDLE GUARD REAR | 356 | |
| 2575650 | SPREADER | 356 |
Page 51 — W200 GAUGE PARTS LIST (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 257541-401 | 259611B400 | ||
| 259615B480 | 259149-16F0 | ||
| 257542-561 | 259607B560 | ||
| 259608B560 | 259266-16F0 | ||
| 257541-401 | 259611C400 | ||
| 259615C480 | 259149-16F0 | ||
| 257542-561 | 259607C560 | ||
| 259608C560 | 259266-16F0 | ||
| 257541-401 | 259618B400 | ||
| 259619B560 | 259262-16F0 | ||
| 257542-561 | 259619B560 | ||
| 259619B640 | 257472-560 | ||
| 257541-401 | 259618C400 | ||
| 259619C560 | 259262-16F0 | ||
| 257542-561 | 259619C560 | ||
| 259619C640 | 257472-560 | ||
| 2575660 | 2595720 | ||
| 2575650 | UY128GAS #9S |
Page 52 — W200 GAUGE PARTS LIST (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 240 | 257541-401 | 259610B400 | |
| 356 | 257542-561 | 259609B560 | |
| 240 | 257541-401 | 259610C400 | |
| 356 | 257542-561 | 259609C560 | |
| 232 | 257541-321 | 259610B320 | |
| 240 | 257541-401 | 259610C400 | |
| 356 | 257542-561 | 259609C560 | |
| 240 | 257541-401 | 259610C400 | |
| 356 | 257542-561 | 259609C560 | |
| 356 | 257542-561 | 259623C560 |
Pegasus W200 — parts catalog
- Page 1 (cover): This is the cover page for the W200 Small Cylinder Bed Interlock Stitch Machines Parts Catalog from Pegasus.
- Page 2 (text): This page contains introductory information about the W200 series parts catalog, including how it is organized and how to order parts, followed by a list of models for the W264 Series.
- Page 3 (toc): This page contains the table of contents for the industrial sewing machine parts catalog, listing various mechanisms and components with their corresponding page numbers.
- Page 4 (diagram): This page displays a diagram of machine components with numbered parts, including a main engine block, various covers, and fasteners.
- Page 5 (parts_list): This page lists parts for the MACHINE BED COVER, including part numbers, descriptions, and quantities.
- Page 6 (diagram): This page displays a diagram of various machine components, including brackets, covers, screws, and bolts, with reference numbers for each part.
- Page 7 (parts_list): This page lists parts for COVER (1), including part numbers, descriptions, and quantities.
- Page 8 (diagram): This page displays a diagram of various machine components, including plates, screws, and brackets, with reference numbers for each part.
- Page 9 (parts_list): This page lists parts for the Cover (2) section, including various screws, gaskets, covers, and bolts with their corresponding part numbers and quantities.
- Page 10 (diagram): This page displays a diagram of various machine parts, including shafts, pulleys, bearings, and fasteners, with reference numbers for each component.
- Page 11 (parts_list): This page lists parts for the Crankshaft Drive Mechanism, including crankshafts, screws, bolts, bushings, gears, pulleys, and timing belts, with their corresponding part numbers and quantities.
- Page 12 (diagram): This page displays a diagram of various machine components, including shafts, couplings, pulleys, and motor parts, with reference numbers for each part.
- Page 13 (parts_list): This page lists parts for the ARM SHAFT MECHANISM, including part numbers, descriptions, and quantities.
- Page 14 (diagram): This page displays a diagram of various sewing machine components, including needles, presser feet, and other mechanical parts, with reference numbers for identification.
- Page 15 (parts_list): This page lists parts for the needle bar and needle guard mechanism, including part numbers, descriptions, and quantities.
- Page 16 (diagram): This page displays a diagram of various machine parts, including components labeled with reference numbers from 1 to 38. It also includes part numbers and descriptions for some items, such as W200-01N,08M.
- Page 17 (parts_list): This page lists parts for the Looper Drive Mechanism, including part numbers, descriptions, and quantities.
- Page 18 (diagram): This page displays a diagram of various sewing machine parts, including components like bearings, shafts, levers, springs, and fasteners, each identified by a reference number.
- Page 20 (diagram): This page displays a diagram of various sewing machine components, including levers, shafts, screws, and other hardware, with reference numbers for each part.
- Page 22 (diagram): This page displays a diagram of various machine parts, with reference numbers indicating their positions. It includes components such as shafts, bearings, linkages, and fasteners, numbered from 1 to 41.
- Page 23 (parts_list): This page lists parts for the feed mechanism (3), including rods, cranks, bolts, washers, screws, collars, blocks, oil strings, felt, joints, needle bearings, and felt washers, with their corresponding part numbers and quantities.
- Page 24 (diagram): This page displays a diagram of various sewing machine parts, with each part labeled with a reference number for easy identification.
- Page 25 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities.
- Page 26 (diagram): This page displays a diagram of various machine parts, including levers, shafts, screws, and washers, with reference numbers from 1 to 24.
- Page 27 (parts_list): This page lists parts for the Spreader Mechanism, including part numbers, descriptions, and quantities.
- Page 28 (diagram): This page displays diagrams of sewing machine parts, including components for 2-needle and 3-needle configurations, with reference numbers and labels for various parts.
- Page 29 (parts_list): This page lists parts for the Thread Tension Mechanism, including part numbers, descriptions, and quantities.
- Page 30 (diagram): This page displays a diagram of various sewing machine parts, including screws, washers, brackets, and other components, with reference numbers for identification.
- Page 31 (parts_list): This page lists parts for the Needle & Spreader Thread Handling mechanism, including part numbers, descriptions, and quantities.
- Page 32 (diagram): This page displays a diagram of various sewing machine components, including screws, brackets, pulleys, and a belt, with reference numbers for each part.
- Page 33 (parts_list): This page lists parts for the LOOPER THREAD HANDLING system, including brackets, washers, screws, thread guides, and other components with their corresponding part numbers and quantities.
- Page 34 (diagram): This page displays a diagram of various components of an industrial sewing machine, including part numbers and reference indicators for identification.
- Page 35 (parts_list): This page lists parts for the Lubrication Mechanism (1) with part numbers, descriptions, and quantities.
- Page 36 (diagram): This page displays a diagram of various machine components, including gears, shafts, screws, and a filter assembly, with numbered references for each part.
- Page 37 (parts_list): This page lists parts for the Lubrication Mechanism (2), including oil reservoir assembly, pump assembly, rotors, covers, screws, bolts, and filter components, with their respective part numbers and quantities.
- Page 38 (diagram): This page displays a diagram of various machine components, including brackets, covers, and fasteners, with reference numbers for identification.
- Page 39 (parts_list): This page lists parts for the HR DEVICE, including silicone oil reservoir assemblies, caps, spring pins, screws, and felt, with their corresponding part numbers and quantities.
- Page 40 (diagram): This page displays diagrams of accessory parts for an industrial sewing machine, with numbered components and their corresponding part numbers.
- Page 41 (parts_list): This page lists parts for installations, including part numbers, descriptions, and quantities. It contains 23 items, with part numbers ranging from 0090160 to 3033350.
- Page 42 (diagram): This page displays a diagram of accessory parts for a sewing machine, including spool holders and related hardware, with reference numbers for each component.
- Page 43 (parts_list): This page lists parts for the Thread Stand, including screws, nuts, brackets, and holders, with their corresponding part numbers and quantities.
- Page 44 (diagram): This page displays diagrams of parts for models W200-01E, W200-03F, and W200-03G, with numbered references to specific components.
- Page 45 (parts_list): This page lists specific parts for industrial sewing machines, including part numbers, descriptions, and quantities.
- Page 46 (diagram): This page displays diagrams of sewing machine parts, including components for light and heavy weight fabrics, and accessories packed with the machine, labeled with reference numbers 1 through 9.
- Page 47 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 48 (diagram): This page displays a diagram of machine components with reference numbers for parts W200-01N, 08M.
- Page 49 (parts_list): This page lists specific parts for a sewing machine, including part numbers, descriptions in both Japanese and English, and quantities.
- Page 50 (parts_list): This page contains a parts list for W200 gauge parts, listing part numbers and descriptions for various machine types and gauges.
- Page 51 (parts_list): This page contains a parts list for W200 gauge parts, including machine type, gauge, needle holder, needle plate, main feed dog, diff. feed dog, presser foot, looper, needle guard (front and rear), spreader, and needle. It lists part numbers and descriptions for various machine models.
- Page 52 (parts_list): This page lists parts for W200 gauge parts, including machine type/spec, gauge, needle holder, needle plate, main feed dog, diff. feed dog, presser foot, looper, needle guard (front and rear), spreader, and needle. It details part numbers and associated specifications for various machine types like W264-08AB, W264-08AC, W264-08BB, W264-08BC, and W264-08MC.
- Page 55 (unknown): This page contains a watermark with the text "jinttex.in" and a footer with the same text. There is no other discernible content on the page.
- Page 56 (cover): This is the cover page for the PEGASUS SEWING MACHINE MFG. CO., LTD. parts catalog, catalog number 97390, dated January 2003. It includes company contact information and a disclaimer about potential changes to catalog contents.
Page 2
パーツカタログの見方 ■このパーツカタログは、2003年1月製造中のW200シリーズのミシンを次の要領で編集しています。 ■2〜47頁には部品を機構別に収録し、左頁が部品の分解図、右頁がパーツリストになっています。また、部品分解図に付されている番号は、パーツリストのREF.NO. (参照番号) を示しています。 ■パーツリストの部品番号の表記がXXXXXXの部品は、特定形式(サブクラス)にのみ使用されているゲージパーツ部品で、形式によって変わります。形式ごとの部品番号はゲージパーツ表 (48〜50頁) に一括して記載しています。 ■巻末には部品番号インデックスを記載し、部品番号だけ で、その図解・名称などが容易に引き出せます。 ■部品を御注文いただく時は、部品番号を明示してくださ い。なお、このパーツカタログの記載事項は改良により、予告なく変更されることがありますので、あらかじめご了承ください。 INTRODUCTION This parts catalog covers the W200 series machine manufactured in January, 2003. The components of W200 series are arranged according to the mechanism on pages 2-47. The illustrations are on left pages and the part numbers on right pages. The illustrated part and its part number are assigned the same reference number. "XXXXXX" indicates gauge part numbers which vary depending on subclasses. Please refer to the gauge part list (pages 48-50). The index of part numbers are listed at the back of this book for quick reference. To place an order for any part, please specify the part number. Note that the contents of this book are subject to change for improvement without prior notice. 掲載機種 (Models inserted) W264 Series W264-01CB,CC,EB,NC W264-03FB,FC,GB,GC W264-08AB,AC,BB,BC,MC jintex.in
Page 3
目 次 TABLE OF CONTENTS page アームベッド機構 2~3 MACHINE BED COVER 2~3 カバー機構(1) 4~5 COVER (1) 4~5 カバー機構(2) 6~7 COVER (2) 6~7 下軸機構 8~9 CRANKSHAFT DRIVE MECHANISM 8~9 上軸機構 10~11 ARM SHAFT MECHANISM 10~11 針棒・針受機構 12~13 NEEDLE BAR, NEEDLE GUARD MECHANISM 12~13 ルーバー機構 14~15 LOOPER DRIVE MECHANISM 14~15 送り機構(1) 16~17 FEED MECHANISM (1) 16~17 送り機構(2) 18~19 FEED MECHANISM (2) 18~19 送り機構(3) 20~21 FEED MECHANISM (3) 20~21 押工機構 22~23 PRESSER FOOT MECHANISM 22~23 飾り振り機構 24~25 SPREADER MECHANISM 24~25 糸調子機構 26~27 THREAD TENSION MECHANISM 26~27 針糸・飾り糸機構 28~29 NEEDLE & SPREADER THREAD HANDLING 28~29 下糸繰り機構 30~31 LOOPER THREAD HANDLING 30~31 給油機構(1) 32~33 LUBRICATION MECHANISM (1) 32~33 給油機構(2) 34~35 LUBRICATION MECHANISM (2) 34~35 HR装置 36~37 HR DEVICE 36~37 据付付属品 38~39 INSTALLATIONS 38~39 糸立台 40~41 THREAD STAND 40~41 専用部品(1) W200-01E, 03F, 03G 42~43 SPECIFIC PARTS (1) W200-01E, 03F, 03G 42~43 専用部品(2) W200-08, 08B 44~45 SPECIFIC PARTS (2) W200-08, 08B 44~45 専用部品(3) W200-01N, 08M 46~47 SPECIFIC PARTS (3) W200-01N, 08M 46~47 ゲージパーツリスト 48~50 GAUGE PARTS LIST 48~50 部品番号インデックス 51~52 PARTS NUMBER INDEX 51~52 1 jintex.in
Page 4
2 jintex.in
Page 5 — MACHINE BED COVER
アームベッド機構 MACHINE BED COVER REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 2065900 オイルゲージ OIL SIGHT GAUGE 1 2 2501170 足ピン BED PIN 4 3 2402280 栓 PLUG 1 4 2400520 栓 PLUG 1 5 2402270 栓 PLUG 1 6 2401100 栓 PLUG 1 7 2100031 栓 PLUG 1 8 2090840 蓋 PLUG 1 9 250158-910 カバー COVER 1 10 2500200 カバー COVER 1 11 2501570 スポンジ SPONGE 1 12 007017A0 平ネジ/M4 × 5 SCREW 2 13 2401270 合マーク MARK 1 14 2106790 ピン PIN 2 15 2106790 ピン PIN 2 16 2106790 ピン PIN 2 17 007018A0 平ネジ/M4 × 6 SCREW 1 18 3034480 座金 WASHER 1 19 0045410 止ネジ/M6 × 8 SCREW 1 20 0045390 止ネジ/M5 × 6 SCREW 1 21 2503920 銘板 NAME PLATE 1 22 9A30670 シール SEAL 1 23 9A30690 ケガ注意ラベル CAUTION LABEL 1 24 9A30710 シール SEAL 1 25 9A30720 シール SEAL 1 26 0045000 六角穴ボルト /M5 × 10 BOLT 4 27 0070270 平ネジ/M5 × 8 SCREW 1 28 2105860 オイルシール OIL SEAL 1 3 jintex.in
Page 6
23 21 22 24 W200-01N,08Mを<br>Outside W200-01N,08M 25 9 8 7 10 11 17 16 19 20 18 15 12 14 13 2 3 6 5 26 29 30 28 27 W200-01N,08Mを除く<br>Outside W200-01N,08M 31 32 33 34 46 45 44 47 49 48 附属品に梱入 Packed in accessory 4 jintex.in 1 4 52 24 35 36 50 51 37 38 39 40 42 41 43
Page 7 — COVER (1)
COVER (1) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 250150-PD0 アームカバー (上) ARM COVER (TOP) 1 2 2402261 栓 PLUG 1 3 179107-050 オイル窓 OIL SIGHT WINDOW 1 4 2500190 Oリング O RING 1 5 007021A0 平ネジ/M4 × 12 SCREW 7 6 9A30810 取扱注意ラベル SEAL 1 7 250151BTD0 アームカバー (左) ARM COVER (LEFT) 1 8 007021A0 平ネジ/M4 × 12 SCREW 4 9 2501530 Oリング O RING 1 10 0052420 平ネジ/H11 × 5 SCREW 1 11 2402630 座金 WASHER 1 12 2502570 アイガード EYE GUARD 1 13 0070090 平ネジ/M3 × 5 SCREW 2 14 2028750 座金 WASHER 2 15 2502560 ブラケット BRACKET 1 16 2103070 波板座金 WASHER 1 17 0070660 段付ネジ/M4 SCREW 1 18 2502550 ブラケット BRACKET 2 19 007020A0 平ネジ/M4 × 6 SCREW 2 20 3034480 座金 WASHER 1 21 2501540 アームカバー (後) ARM COVER (REAR) 1 22 2501550 ガスケット GASKET 1 23 0070520 平ネジ/M6 × 10 SCREW 6 24 250224A0 針棒ガード NEEDLE BAR GUARD 1 25 007019A0 平ネジ/M4 × 8 SCREW 2 26 250231A910 糸繰リガード (組) THREAD TAKE-UP GUARD ASSEMBLY 1 27 2502250 糸繰リガード THREAD TAKE-UP GUARD 1 28 2502260 フィンガーガード FINGER GUARD 1 29 0070180 平ネジ/M4 × 6 SCREW 2 30 3034480 座金 WASHER 2 31 250227A0 ブラケット BRACKET 1 32 0070180 平ネジ/M4 × 6 SCREW 2 33 3034480 座金 WASHER 2 34 0070520 平ネジ/M6 × 10 SCREW 2 35 250022ETB0 プーリカバー PULLEY COVER 1 36 0070750 平ネジ/M5 SCREW 2 37 250397-PD1 前カバー (組) FRONT COVER ASSEMBLY 1 38 0070430 皿ネジ/M4 × 8 SCREW 4 39 2500130 ピン付ネジ/M4 SCREW 1 40 2011910 バネ座金 SPRING WASHER 2 41 2401980 平行ピン PIN 1 42 0045540 止ネジ/M3 × 3 SCREW 2 43 0070220 平ネジ/M4 × 14 SCREW 2 44 2503010 ピン付ネジ SCREW 2 45 2500000 板バネ FLAT SPRING 1 46 0070180 平ネジ/M4 × 6 SCREW 1 47 2504250 補助カバー (前) AUXILIARY COVER (FRONT) 1 48 2045850 座金 WASHER 3 49 0045800 六角ボルト BOLT 1 50 250234-TD0 下糸道カバー LOOPER THREAD GUIDE COVER 1 51 007019A0 平ネジ/M4 × 8 SCREW 1 52 9A31260 シール SEAL 1 5 jintex.in
Page 8
6 jintex.in
Page 9 — COVER (2)
COVER (2) REF.NO. PART NO. 部 品 名 称 DESCRIPTION QT. 1 2504010 上蓋 (右) TOP COVER (RIGHT) 1 2 2504020 ガスケット GASKET 1 3 0070820 平ネジ /M4 × 8 SCREW 5 4 0070430 皿ネジ /M4 × 8 SCREW 2 5 250411-PD0 平カバー BED COVER 1 6 0045240 六角穴ボルト /M4 × 10 BOLT 1 7 007020A0 平ネジ /M4 × 6 SCREW 3 8 2504210 防振ゴム CUSHION RUBBER 2 9 2504030 上蓋 (左) TOP COVER PLATE (LEFT) 1 10 2504040 ガスケット GASKET 1 11 0070820 平ネジ /M4 × 8 SCRSW 5 12 2504210 防振ゴム CUSHION RUBBER 2 13 2504160 シリンダーカバー CYLINDER COVER 1 14 2504170 板バネ FLAT SPRING 1 15 0070610 平ネジ /M2 × 2.7 SCREW 2 16 250413-9P0 横カバー (組) SIDE COVER ASSEMBLY 1 17 2501730 平行ピン PIN 1 18 0045270 六角穴ボルト /M4 × 8 BOLT 2 19 251030-910 針板ブラケット (組) NEEDLE PLATE BRACKET ASSEMBLY 1 20 0070190 平ネジ /M4 × 8 SCREW 2
Page 10
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 8 jintex.in
Page 11 — 下軸機構
下軸機構 CRANKSHAFT DRIVE MECHANISM REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 250572-910 クランク軸 (組) CRANKSHAFT ASSEMBLY 1 2 250554-920 クランク軸 CRANKSHAFT 1 3 0071280 止ネジ/M6 × 4 SCREW 2 4 250573-910 下軸 (左) CRANKSHAFT 1 5 210091-920 ロッド CONNECTION 1 6 0053760 平ネジ/C4 × 12.5 SCREW 4 7 252056-920 クランク CRANK 1 8 0045340 六角穴ボルト/M6 × 14 BOLT 1 9 250557-910 軸受 (ブッシュ) BUSHING 1 10 0045470 止ネジ/M6 × 5 SCREW 2 11 250529A910 軸受 (ブッシュ) BUSHING 1 12 0045470 止ネジ/M6 × 5 SCREW 2 13 250545-910 ギヤ (下) GEAR (LOWER) 1 14 0045470 止ネジ/M6 × 5 SCREW 4 15 250530-910 軸受 (ブッシュ) BUSHING 1 16 0045550 止ネジ/M6 × 8 SCREW 1 17 0045470 止ネジ/M6 × 5 SCREW 1 18 2505140 止メ板 SET PLATE 2 19 0070820 平ネジ/M4 × 8 SCREW 1 20 250565-910 ギヤ GEAR 1 21 0045480 止ネジ/M6 × 8 SCREW 2 22 250561A0 プーリー MACHINE PULLEY 1 23 0045410 止ネジ/M6 × 8 SCREW 1 24 0045560 止ネジ/M6 × 10 SCREW 1 25 2401260 座金 WASHER 1 26 0045000 六角穴ボルト/M5 × 10 BOLT 1 27 206050C0 タイミングベルト TIMING BELT 1 9 jintex.in
Page 12
10 jintex.in
Page 13 — ARM SHAFT MECHANISM
上軸機構 REF.NO. PART NO. 1 250526B910 2 0070280 3 0045920 4 0071520 5 0071530 6 0072680 7 250560A0 8 253500-920 9 007021A0 10 007015A0 11 253501A920 12 0045340 13 2505240 14 0045140 15 2505060 16 0045550 17 0045470 18 2505520 19 250529-910 20 0045470 21 250547A0 22 0045470 23 250528-910 24 0045550 25 0045470 26 250566-TD0 27 0045410 28 0045560 29 2045850 30 0045010 部品名称 モーション (組) 止ネジ /M5 × 10 止ネジ /M6 × 12 止ネジ /M6 × 4 止ネジ /M6 × 6 止ネジ /M8 × 10 クランク軸 ロッド (組) 平ネジ /M4 × 12 平ネジ /M3.5 × 14 クランク (組) 六角穴ボルト /M6 × 14 バランスウエイト 止ネジ /M5 × 5 継手 止ネジ /M6 × 8 止ネジ /M6 × 5 軸 軸受 (ブッシュ) 止ネジ /M6 × 5 ギヤ (上) 止ネジ /M6 × 5 軸受 (ブッシュ) 止ネジ /M6 × 8 止ネジ /M6 × 5 ハンドホイール 止ネジ /M6 × 8 止ネジ /M6 × 10 座金 六角穴ボルト /M5 × 14 DESCRIPTION QT. MOTION ASSEMBLY 1 SCREW 2 SCREW 1 SCREW 1 SCREW 1 SCREW 1 CRANKSHAFT 1 CONNECTION ASSEMBLY 1 SCREW 2 SCREW 2 CRANK ASSEMBLY 1 BOLT 1 BALANCE WEIGHT 1 SCREW 2 JOINT 1 SCREW 2 SCREW 2 SHAFT 1 BUSHING 1 SCREW 2 GEAR (UPPER) 1 SCREW 4 BUSHING 1 SCREW 1 SCREW 1 HANDWHEEL 1 SCREW 1 SCREW 1 WASHER 1 BOLT 1 ARM SHAFT MECHANISM 11 jintex.in
Page 14
2本針(2-needle) 3本針(3-needle) 12 jinteх.in
Page 15 — NEEDLE BAR, NEEDLE GUARD MECHANISM
針棒・針受機構 NEEDLE BAR, NEEDLE GUARD MECHANISM REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 251014-910 針棒 NEEDLE BAR 1 2 2060610 針棒キ NEEDLE BAR CLAMP 1 3 0053250 平ネジ/C5 × 10 SCREW 1 4 2510160 リンク LINK 1 5 2060530 段付ピン PIN 1 6 240098-20 ニードルベアリング NEEDLE BEARING 1 7 2401010 座金 WASHER 1 8 2060630 角駒 BLOCK 1 9 2510171 案内 GUIDE 1 10 007021A0 平ネジ/M4 × 12 SCREW 2 11 2510180 ラッチ LATCH 1 12 007021A0 平ネジ/M4 × 12 SCREW 1 13 179040-050 スポンジ SPONGE 1 14 2065240 止メ金 OIL STRING RETAINER 1 15 2121860 給油紐 OIL STRING 1 16 XXXXXX 針留 NEEDLE HOLDER 1 17 0045540 止ネジ/M3 × 3 SCREW 2 18 0045540 止ネジ/M3 × 3 SCREW 3 19 XXXXXX 針板 NEEDLE PLATE 1 20 005511-HC0 皿ネジ/C4 × 6.5 SCREW 2 21 251533-920 エキセン ECCENTRIC 1 22 0045430 止ネジ/M4 × 4 SCREW 2 23 2515340 ロッド ROD 1 24 2021760 給油紐 OIL STRING 1 25 2107660 止ピン PIN 2 26 2515350 クランク軸 CRANKSHAFT 1 27 2021750 給油紐 OIL STRING 2 28 2079250 フエルト FELT 4 29 2515370 継手 JOINT 1 30 0045430 止ネジ/M4 × 4 SCREW 3 31 240548-920 カラー COLLAR 1 32 0045430 止ネジ/M4 × 4 SCREW 1 33 2515360 針受台(後) NEEDLE GUARD (REAR) 1 34 2021750 給油紐 OIL STRING 1 35 2079250 フエルト FELT 2 36 XXXXXX 針受(後) NEEDLE GUARD (REAR) 1 37 0045990 止ネジ/M4X3 SCREW 1 38 XXXXXX 針受(前) NEEDLE GUARD (FRONT) 1 39 0070310 平ネジ/M2.5 × 6 SCREW 1 XXXXXX はゲージパーツです。 "XXXXXX" represents the gauge part. 部品番号は48~50頁のゲージパーツ表を Please refer to the gauge part list (page 48-50). 参照してください。 13 jintex.in
Page 16
36 38 W200-01N,08Mを除く Outside W200-01N,08M 33 1 2 3 4 5 6 7 22 8 31 32 30 29 14 15 13 16 9 10 11 12 24 23 21 19 20 28 27 26 25 17 18 14 jintex.in
Page 17 — LOOPER DRIVE MECHANISM
ルーバー機構 LOOPER DRIVE MECHANISM REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 252036-920 エキセン ECCENTRIC 1 2 0045470 止ネジ /M6 × 5 SCREW 1 3 206172-20 ニードルベアリング NEEDLE BEARING 1 4 2520350 ロッド ROD 1 5 252037-910 段付ピン (組) PIN ASSEMBLY 1 6 0048050 六角ナット /M5 NUT 1 7 2400620 座金 WASHER 1 8 2520390 ルーバー軸案内 LOOPER SHAFT GUIDE 1 9 201074A0 振止メ GUIDE 1 10 2022860 バネ座金 SPRING WASHER 1 11 0055460 平ネジ /C5 × 10 SCREW 1 12 2520440 軸 SHAFT 1 13 2402320 座金 WASHER 1 14 0045240 六角穴ボルト /M4 × 10 BOLT 1 15 2012520 バネ座金 SPRING WASHER 1 16 2402310 座金 WASHER 1 17 252046-920 レバー LEVER 1 18 0045340 六角穴ボルト /M6 × 14 BOLT 1 19 252040-920 ホルダー HOLDER 1 20 0070210 平ネジ /M4 × 12 SCREW 1 21 2520410 座金 WASHER 1 22 2520420 スライダー SLIDER 1 23 2520430 ピン PIN 1 24 0045430 止ネジ /M4 × 4 SCREW 1 25 252045-920 ホルダー HOLDER 1 26 0070210 平ネジ /M4 × 12 SCREW 1 27 2520410 座金 WASHER 1 28 2520470 座金 WASHER 2 29 2520520 ブッシュ BUSHING 1 30 0045220 止ネジ /M6 × 6 SCREW 1 31 2520770 ブッシュ BUSHING 1 32 0045220 止ネジ /M6 × 6 SCREW 1 33 2520480 軸 SHAFT 1 34 252075-910 ルーバー台 LOOPER HOLDER 1 35 0071450 六角穴ボルト BOLT 1 36 XXXXXX ルーバー LOOPER 1 37 0071290 止ネジ /M4 × 5 SCREW 1 38 2405060 座金 WASHER 1 XXXXXX はゲージパーツです。 "XXXXXX" represents the gauge part. 部品番号は 48~50 頁のゲージパーツ表を Please refer to the gauge part list (page 48-50). 参照してください。 15 jintex.in
Page 18
16 jintex.in
Page 20
18 jintex.in
Page 22
20 jintex.in
Page 23 — FEED MECHANISM (3)
送リ機構 (3) FEED MECHANISM (3) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 2526080 ロッド ROD 1 2 252609-920 クランク CRANK 1 3 0045310 六角穴ボルト /M5 × 12 BOLT 1 4 2400550 座金 WASHER 1 5 0070410 皿ネジ /M3 × 6 SCREW 1 6 252610D0 クランク軸 CRANKSHAFT 1 7 240235-920 カラー COLLAR 2 8 0045470 止ネジ /M6 × 5 SCREW 2 9 2526970 角駒 BLOCK 1 10 2526980 クランク軸 CRANKSHAFT 1 11 2021760 給油紐 OIL STRING 1 12 2021750 給油紐 OIL STRING 1 13 2073580 フェルト FELT 2 14 2079250 フェルト FELT 1 15 2527160 継手 JOINT 1 16 0045430 止ネジ /M4 × 4 SCREW 4 17 2527130 クランク軸 CRANKSHAFT 1 18 2073580 フェルト FELT 2 19 2021760 給油紐 OIL STRING 1 20 2021750 給油紐 OIL STRING 1 21 240549-920 カラー COLLAR 1 22 0045430 止ネジ /M4 × 4 SCREW 1 23 2527150 角駒 BLOCK 2 24 2079250 フェルト FELT 1 25 2527000 座金 WASHER 1 26 2527030 ロッド ROD 1 27 240544-20 ニードルベアリング NEEDLE BEARING 1 28 2041070 座金 WASHER 1 29 0071430 平ネジ /M4 × 5.5 SCREW 1 30 252694-920 クランク CRANK 1 31 0045000 六角ボルト /M5 × 10 BOLT 1 32 2079250 フェルト FELT 2 33 2021750 給油紐 OIL STRING 1 34 2527140 クランク軸 CRANKSHAFT 1 35 2079250 フェルト FELT 2 36 2021760 給油紐 OIL STRING 1 37 2021750 給油紐 OIL STRING 1 38 240549-920 カラー COLLAR 2 39 0045430 止ネジ /M4 × 4 SCREW 2 40 2527150 角駒 BLOCK 1 41 2073580 フェルト FELT 4 jintex.in
Page 24
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 22 jintex.in
Page 25
押工機構 PRESSER FOOT MECHANISM REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 253000-910 調節棒 ADJUSTING BAR 1 2 2530031 調節ナット NUT 1 3 2402520 圧縮バネ SPRING 1 4 2402530 圧縮バネ SPRING 1 5 2530260 押工棒 PRESSER BAR 1 6 2530530 油除ケ OIL SHIELD 1 7 2061390 押工棒抱キ PRESSER BAR CLAMP 1 8 0051180 平ネジ/C5 × 12 SCREW 1 9 253005-910 案内 GUIDE 1 10 007025A0 平ネジ/M4 × 20 SCREW 2 11 2530280 フィンガーガード FINGER GUARD 1 12 0070100 平ネジ/M3 × 6 SCREW 1 13 2404740 座金 WASHER 1 14 XXXXXX 押工(組) PRESSER FOOT ASSEMBLY 1 15 001170-30 平ネジ/C4 × 9 SCREW 1 16 253008-910 レバー LEVER 1 17 1920240 カラー COLLAR 1 18 0W00024-10 止ネジ/W2 × 4 SCREW 1 19 2061570 リンク LINK 1 20 0053860 段付ネジ/C7 SCREW 2 21 2530100 ネジリバネ SPRING 1 22 2061560 カラー COLLAR 1 23 0050840 六角ネジ/C5 × 5.5 SCREW 2 24 2061490 クランク(上) BELL CRANK (UPPER) 1 25 0051870 平ネジ/C5 × 14 SCREW 1 26 2530270 リンク LINK 1 27 0051840 段付ネジ/C5 SCREW 2 28 2061480 クランク(下) BELL CRANK (LOWER) 1 29 002022-40 六角ネジ/C10 × 9 SCREW 1 30 2530130 軸 SHAFT 1 31 2530140 レバー LEVER 1 32 0070340 平ネジ/M5 × 10 SCREW 1 33 2530150 ブラケット BRACKET 1 34 007019A0 平ネジ/M4 × 8 SCREW 2 35 0045810 六角ネジ/M5 × 20 SCREW 1 36 0048050 六角ナット/M5 NUT 1 37 250230-RA0 足揚げレバーガード FOOT LIFT LEVER GUARD 1 XXXXXX はゲージパーツです。 "XXXXXX" represents the gauge part. 部品番号は 48~50頁のゲージパーツ表を Please refer to the gauge part list (page 48-50). 参照してください。 23 jintex.in
Page 26
24 jintex.in W200-08は附属品に梱入 Packed in accessory for W200-08
Page 27 — SPREADER MECHANISM
飾り振り機構 REF.NO. PART NO. 1 254501A920 2 0045140 3 2545110 4 254503-920 5 0045340 6 2545040 7 2400620 8 0048050 9 2545190 10 2061800 11 3066710 12 254506B0 13 0045470 14 2545070 15 2545180 16 2079250 17 2021760 18 2330200 19 2120390 20 0012270 21 254516-920 22 0070200 23 0070220 24 XXXXXX 部品名称 エキセン (組) 止ネジ/M5 × 5 ロッド クランク 六角穴付ボルト/M6 × 14 ピン付ネジ/M5 座金 六角ナット/M5 軸 座金 止メ輪 クランク 止ネジ/M6 × 5 駒 クランク軸 フェルト 給油紐 Oリング カラー 平ネジ/C × 3.7 レバー (組) 平ネジ/M4 × 10 平ネジ/M4 × 14 スプレッダー DESCRIPTION ECCENTRIC ASSEMBLY SCREW CONNECTION CRANK BOLT SCREW WASHER NUT SHAFT WASHER RING CRANK SCREW BLOCK CRANKSHAFT FELT OIL STRING O RING COLLAR SCREW LEVER ASSEMBLY SCREW SCREW SPREADER QT. 1 2 1 1 1 1 1 1 1 1 1 2 1 1 1 2 1 1 1 2 1 1 1 1 SPREADER MECHANISM ● XXXXX はゲージパーツです。 部品番号は 48~50 頁のゲージパーツ表を 参照してください。 "XXXXXX" represents the gauge part. Please refer to the gauge part list (page 48-50). 25 jintex.in
Page 28
13 23 24 15 21 20 25 2本針(2-needle) 14 23 24 15 21 20 16 22 17 18 19 25 3本針(3-needle) 26 27 28 30 31 17 18 19 26 27 28 32 30 31 33 7 8 9 10 11 12 2 3 26 jintex.in 26
Page 29
糸調子機構 THREAD TENSION MECHANISM REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 254000-910 レバー LEVER 1 2 2540220 カラー COLLAR 1 3 002133-10 平ネジ /C5 × 12.5 SCREW 1 4 254003B910 クランク CRANK 1 5 0045310 六角穴ボルト /M5 × 12 BOLT 1 6 2028680 座金 WASHER 1 7 2540080 糸道 THREAD GUIDE 1 8 007019A0 平ネジ /M4 × 8 SCREW 2 9 1921200 パイプ PIPE 2 10 2061150 ブラケット BRACKET 2 11 007018A0 平ネジ /M4 × 6 SCREW 1 12 3034480 座金 WASHER 1 13 254023C9T0 テンション (組) TENSION CONTROL MECHANISM 1 14 254023E9T0 テンション (組) TENSION CONTROL MECHANISM 1 15 2540190 ブラケット BRACKET 1 16 2540210 糸緩め THREAD RELEASER 1 17 263542A9T0 糸調子 (組) TENSION SPRING ASSEMBLY 1 18 263542B9T0 糸調子 (組) TENSION SPRING ASSEMBLY 1 19 263542C9T0 糸調子 (組) TENSION SPRING ASSEMBLY 1 20 2540200 糸道 THREAD GUIDE 1 21 2062030 糸道 THREAD GUIDE 1 22 2062020 スペーサー SPACER 1 23 3063010 引張リバネ SPRING 2 24 0054470 取付ネジ /C5 × 3 SCREW 1 25 007019A0 平ネジ /M4 × 8 SCREW 2 26 001817-2A0 調子棒 SCREW STUD 1 27 2103190 調子皿 TENSION DISC 2 28 263544-TA0 受皿 CUP 1 29 2010370 圧縮バネ (強) SPRING (HEAVY) 1 30 2084480 ラチェット RATCHET 1 31 263543-TA0 調子ナット NUT 1 32 2010860 圧縮バネ (中) SPRING (MEDIUM) 1 33 2010680 圧縮バネ (弱) SPRING (LIGHT) 1 27 jintex.in
Page 30
2本針 3本針 2-Needle 3-Needle (19) x2 x3 (20) x2 x3 01N,08Mを除く Outside 01N,08M W200-01N,08Mは附属品に梱包 Packed in accessory for W200-01N,08M 28 jintex.in
Page 31 — 針糸・飾り糸機構
針糸・飾り糸機構 NEEDLE & SPREADER THREAD HANDLING REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 2535030 軸 SHAFT 1 2 2041070 座金 WASHER 1 3 2012520 バネ座金 SPRING WASHER 1 4 0045270 六角穴ボルト/M4 × 8 BOLT 1 5 2050610 止メ輪 RING 1 6 204754A0 カラー COLLAR 1 7 0021930 六角ネジ/C5 × 8.5 SCREW 2 8 253504-920 レバー LEVER 1 9 0045010 六角穴ボルト/M5 × 14 BOLT 1 10 3030670 バネ座金 SPRING WASHER 1 11 253505A1 糸繰り THREAD TAKE-UP 1 12 007019A0 平ネジ/M4 × 8 SCREW 2 13 3034480 座金 WASHER 1 14 2535440 糸道 THREAD GUIDE 1 15 007019A0 平ネジ/M4 × 8 SCREW 1 16 3034480 座金 WASHER 1 17 2535450 ホルダー HOLDER 1 18 0070100 平ネジ/M3 × 6 SCREW 2 19 2345210 糸道 THREAD GUIDE 2 20 0045350 止ネジ/M3 × 4 SCREW 2 21 2535070 糸道 THREAD GUIDE 1 22 0070090 平ネジ/M3 × 5 SCREW 1 23 253508A0 糸道 THREAD GUIDE 1 24 0070770 皿ネジ/M4 × 7 SCREW 1 25 253509A0 糸受 THREAD SUPPORT 1 26 0070080 平ネジ/M3 × 4 SCREW 1 27 2404740 座金 WASHER 1 28 2535160 糸調子台 THREAD TENSION BRACKET 1 29 007019A0 平ネジ/M4 × 8 SCREW 1 30 2535930 小調子皿 TENSION DISC 1 31 2345610 糸案内 THREAD GUIDE 1 32 2535170 調子バネ SPRING 1 33 0W09070-20 段付ネジ/W5 SCREW 1 34 2535060 糸繰り THREAD TAKE-UP 1 35 2535150 糸道 THREAD GUIDE 1 36 007019A0 平ネジ/M4 × 8 SCREW 1 37 2535140 糸道 THREAD GUIDE 1 38 007019A0 平ネジ/M4 × 8 SCREW 2 39 25353880 糸案内 THREAD GUIDE 1 40 0070190 平ネジ/M4 × 8 SCREW 2 41 3034480 座金 WASHER 2 42 2535470 糸道 THREAD GUIDE 1 43 1371080 調子皿 TENSION DISC 2 44 2113880 圧縮バネ SPRING 1 45 0071671 段付ネジ/M3 SCREW 1 46 2750340 ツマミ KNOB 1 47 2536680 糸道 THREAD GUIDE 1 48 0045540 止ネジ/M3 × 3 SCREW 1 29 jintex.in
Page 32
51 50 53 52 48 49 11 12 19 17 18 16 15 14 13 41 40 39 24 23 22 21 20 25 26 10 9 8 7 6 5 4 1 2 3 34 33 32 35 36 37 38 31 27 28 29 30 43 46 47 45 44 54 55 56 57 58 jintex.in 30
Page 33
下糸繰り機構 LOOPER THREAD HANDLING REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 2536810 ブラケット BRACKET 1 2 2103070 波板座金 WASHER 1 3 0070660 段付ネジ /M4 SCREW 1 4 253534A0 下糸道 (右) LOOPER THREAD GUIDE (RIGHT) 1 5 253533D0 糸道 THREAD GUIDE 1 6 2105850 座金 WASHER 2 7 0070310 平ネジ /M2.5 × 6 SCREW 2 8 2536320 ブラケット SET PLATE 1 9 0071960 平ネジ /M4 × 4 SCREW 1 10 2536800 糸案内 THREAD GUIDE 1 11 3034480 座金 WASHER 1 12 0043250 六角ボルト /M4 × 6 BOLT 1 13 2536760 小調子台 THREAD RETAINER BRACKET 1 14 007018A0 平ネジ /M4 × 6 SCREW 1 15 2125030 小調子台 THREAD RETAINER BRACKET 1 16 2125040 小調子皿 TENSION DISC 1 17 2107500 小調子皿案内 GUIDE 1 18 2107510 圧縮バネ SPRING 1 19 0070820 平ネジ /M4 × 8 SCREW 1 20 2536351 ブラケット SET PLATE 1 21 0043250 六角ボルト /M4 × 6 BOLT 1 22 2103060 線細工バネ SPRING 1 23 1379060 座金 WASHER 1 24 0070120 平小ネジ /M3.5 × 6 SCREW 1 25 253689-910 下糸繰り (組) THREAD TAKE-UP ASSEMBLY 1 26 0045430 止ネジ /M4 × 4 SCREW 2 27 253625-9P0 ブラケット (組) BRACKET ASSEMBLY 1 28 0045030 六角穴ボルト /M6 × 20 BOLT 1 29 2536360 座金 SET PLATE 2 30 0070190 平ネジ /M4 × 8 SCREW 1 31 2536710 軸 SHAFT 1 32 2536230 ギヤ GEAR 1 33 0045480 止ネジ /M6 × 8 SCREW 1 34 0045550 止ネジ /M6 × 8 SCREW 1 35 2402790 座金 WASHER 1 36 2402780 座金 WASHER 1 37 2403080 カラー COLLAR 2 38 0045430 止ネジ /M4 × 4 SCREW 1 39 2536401 カバー COVER 1 40 2403320 スペーサー SPACER 1 41 0072130 平ネジ /M4 × 16 SCREW 1 42 2536740 タイミングベルトカバー BELT COVER 1 43 2403210 スペーサー SPACER 1 44 0070210 平ネジ /M4 × 12 SCREW 1 45 2405600 スペーサー SPACER 1 46 0045290 六角穴ボルト /M4X16 BOLT 1 47 253641A0 タイミングベルト TIMING BELT 1 48 00711430 糸道パイプ (組) THREAD TUBE 1 49 253685-910 平ネジ /M4 × 5.5 SCREW 2 50 253687-910 糸道パイプ (組) THREAD TUBE 1 51 0070820 平ネジ /M4 × 8 SCREW 1 52 2536750 糸道 THREAD GUIDE 1 53 0070820 平ネジ /M4 × 8 SCREW 1 54 2403320 スペーサー SPACER 1 55 2536790 パイプ PIPE 1 56 2061150 ブラケット BRACKET 1 57 007025A0 平ネジ /M4 × 20 SCREW 1 58 3034480 座金 WASHER 1 31 jintex.in
Page 34
32 jintex.in
Page 35 — LUBRICATION MECHANISM (1)
給油機構 (1) LUBRICATION MECHANISM (1) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 255035-910 パイプ PIPE 1 2 2550370 継手ネジ JOINT SCREW 1 3 2401350 チューブ TUBE 1 4 2001360 継手 JOINT 2 5 2021990 クランプ CLAMP 2 6 2001520 継手ネジ JOINT SCREW 2 7 2550030 パイプ PIPE 1 8 2401360 フェルト FELT 1 9 2107660 止ピン PIN 1 10 0045140 止ネジ/M5 × 5 SCREW 1 11 2550210 フェルト FELT 1 12 2550390 パイプ PIPE 1 13 2550050 ラッチ LATCH 1 14 007018A0 平ネジ/M4 × 6 SCREW 1 15 2401430 チューブ TUBE 1 16 2401440 チューブ TUBE 1 17 2550380 継手 JOINT 1 18 2401450 チューブ TUBE 2 19 2021990 クランプ CLAMP 1 20 2550990 油受 OIL RELEASE PLATE 1 21 007018A0 平ネジ/M4 × 6 SCREW 2 22 255097-910 噴油管 OIL SPLASH PIPE 1 23 0048210 六角ナット/M4 NUT 1 24 2400060 チューブ TUBE 1 25 2021990 クランプ CLAMP 2 26 255094-910 噴油管 OIL SPLASH PIPE 1 27 007018A0 平ネジ/M4 × 6 SCREW 1 28 200140A0 チューブ OIL TUBE 1 29 2551230 継手 JOINT 1 30 2001520 継手ネジ JOINT SCREW 1 31 2021990 クランプ CLAMP 1 32 2551390 パイプ PIPE 2 33 2405680 チューブ TUBE 1 34 2551370 クランプ CLAMP 1 35 2550380 継手 JOINT 1 36 2021990 クランプ CLAMP 1 37 2057630 チューブ TUBE 1 38 2021990 クランプ CLAMP 1 39 2551400 フェルト FELT 1 40 2021760 給油紐 OIL STRING 1 33 jintex.in
Page 36
6 9 10 7 11 13 12 22 23 21 20 19 18 14 15 8 10 16 17 5 4 3 2 1 34 jintex.in
Page 37 — 給油機構 (2)
給油機構 (2) LUBRICATION MECHANISM (2) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 2550410 オイルパン (組) OIL RESERVOIR ASSEMBLY 1 2 202287A0 座金 WASHER 1 3 005138B0 平ネジ/H11 × 12 SCREW 1 4 0045040 六角穴ボルト /M8 × 20 BOLT 4 5 2551440 Oリング O RING 1 6 255091-910 ポンプ (組) OIL PUMP ASSEMBLY 1 7 2550240 軸 SHAFT 1 8 2550250 ローター ROTOR 1 9 2550260 ローター ROTOR 1 10 2550270 ローター ROTOR 2 11 2550280 カバー COVER 1 12 0070260 平ネジ/M4 × 5 SCREW 2 13 0070150 平ネジ/M3.5 × 14 SCREW 2 14 2550190 ウォームホイール WORM WHEEL 1 15 0045140 止ネジ /M5 × 5 SCREW 2 16 0045310 六角穴ボルト /M5 × 12 BOLT 2 17 2550930 継手ネジ JOINT SCREW 2 18 2060030 エレメント OIL FILTER 1 19 2020000 ブラケット/フィルタ OIL FILTER BRACKET 1 20 2064310 Oリング O RING 1 21 210201-PD1 蓋 COVER 1 22 007021A0 平ネジ/M4 × 12 SCREW 3 23 9A30020 フィルタシール FILTER SEAL 1 35 jinte.in
Page 38
36 jintex.in
Page 39 — HR DEVICE
HR 装置 REF.NO. PART NO. 1 207065-9P0 2 207066-PDO 3 207067-PDO 4 2067810 5 0050530 6 2070680 部品名称 シリコンタンク上(組) シリコンタンク(上) 蓋 スプリングピン 平ネジ/C4 × 4.8 フェルト HR DEVICE DESCRIPTION SILICONE OIL RESERVOIR (UPPER) ASSEMBLY SILICONE OIL RESERVOIR (UPPER) CAP SPRING PIN SCREW FELT QT. 1 1 1 2 2 1 37 jintex.in
Page 40
附属品に梱入 Put in accessory 1 2 x 4 2 9 11 10 4 3 12 6 8 7 6 5 附属品に梱入 Put in accessory 13 14 x 4 22 23 14 17 16 15 18 19 20 21 38 jintex.in
Page 41 — INSTALLATIONS
据付付属品 INSTALLATIONS REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 0090160 クッションゴム (セット) CUSHION RUBBER (SET) 1 2 2063380 クッションゴム CUSHION RUBBER 4 3 2063360 半沈用ナット /M8 NUT 4 4 2590000 据付台 REST BOARD 2 5 0045120 六角穴ボルト /M8 × 55 BOLT 4 6 2063370 座金 WASHER 12 7 2057640 防振ゴム CUSHION RUBBER 4 8 2057650 ライナー LINER 4 9 0070930 ピン付ネジ /M5 SCREW 4 10 2063290 鎖案内 TREADLE CHAIN GUIDE 1 11 0070270 平ネジ /M5 × 8 SCREW 2 12 2054670 スペーサー SPACER 4 13 0090160 クッションゴム (セット) CUSHION RUBBER (SET) 1 14 2063380 クッションゴム CUSHION RUBBER 4 15 0090320 ネジ (セット) SCREW (SET) 1 16 2070730 段付ネジ /C10 SCREW 4 17 2070740 止メ輪 RING 4 18 2007280 座金 WASHER 4 19 2020450 バネ座金 SPRING WASHER 4 20 0050200 六角ナット /C10 NUT 4 21 259003ATB0 ベルトガード BELT GUARD 1 22 0049060 木ネジ SCREW 3 23 3033350 座金 WASHER 3 39 jintex.in
Page 42
1 6本立 6-spool 2 5本立 5-spool 附属品に梱入 Packed in accessory 27 SET UP INSTRUCTIONS 取付説明書 36 3 9 35 10 8 19 20 11 22 18 23 21 5 7 29 25 24 26 30 4 17 12 16 15 31 13 14 32 13 14 33 34 37 38 39 40 jintex.in
Page 43 — THREAD STAND
糸立台 REF.NO. PART NO. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 000100-9P0 000100A9P0 000101-PA0 000102-PA0 0001030 004066-HU0 004067-HU0 000104-PA0 000104APA0 0001160 004068-HU0 0001050 303067A0 004067-HU0 000106-PA0 0001070 000108-PA0 000109-PA0 0041130 0048030 0001100 004065-HU0 0048030 000111-PA0 004065-HU0 0048030 0001120 000112A0 004065-HU0 0048030 000104-PA0 000104APA0 0001160 004068-HU0 0001130 0001140 0001150 0001170 007370-HU0 部品名称 糸立 (組) (6本立) 糸立 (組) (5本立) スタンド棒 (上) スタンド棒 (下) ジョイント ネジ/M5 × 14 六角ナット /M5 ブラケット (3本立) ブラケット (2本立) ホルダー ネジ/M6 × 16 糸立棒 バネ座金 六角ナット /M5 受皿 ウレタン 揺止メ ブラケット ネジ/M4 × 20 六角ナット /M5 糸道棒 ネジ/M4 × 25 六角ナット /M5 ブラケット ネジ/M4 × 25 六角ナット /M5 糸道棒 (6本立) 糸道棒 (5本立) ネジ/M4 × 25 六角ナット /M5 ブラケット (3本立) ブラケット (2本立) ホルダー ネジ/M6 × 16 糸道 キャップ 座金 バネ座金 六角ナット /M16 DESCRIPTION THREAD STAND ASSY.(6-SPOOL) THREAD STAND ASSY.(5-SPOOL) COLUMN PIPE (UPPER) COLUMN PIPE (LOWER) JOINT SCREW NUT BRACKET (3-SPOOL) BRACKET (2-SPOOL) HOLDER SCREW SPOOL PIN SPRING WASHER NUT SPOOL TRAY SPOOL MAT SPOOL RETAINING FIN BRACKET SCREW NUT THREAD GUIDE BAR SCREW NUT BRACKET SCREW NUT THREAD GUIDE BAR (6-SPOOL) THREAD GUIDE BAR (5-SPOOL) SCREW NUT BRACKET (3-SPOOL) BRACKET (2-SPOOL) HOLDER SCREW THREAD GUIDE ROD CAP WASHER SPRING WASHER NUT THREAD STAND QT. 1 1 1 1 1 2 2 1 1 2 2 5 5 5 5 5 5 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 5 1 2 1 1 41 jintex.in
Page 44
W200-01E 3 附属品に梱入 Packed in accessory 2 1 6 4 5 7 W200-03F 9 8 5 7 W200-03G 10 11 12 13 14 15 16 17 42 jintex.in
Page 45 — SPECIFIC PARTS (1)
専用部品 (1) SPECIFIC PARTS (1) REF.NO. PART NO. 部 品 名 称 DESCRIPTION QT. 1 2581670 布案内 (右) FABRIC GUIDE (RIGHT) 1 2 2105850 座金 WASHER 2 3 0071560 平ネジ /M2.5 × 3.4 SCREW 2 4 2581760 布案内 (右) FABRIC GUIDE (RIGHT) 1 5 0071540 平ネジ /M3 × 3.5 SCREW 1 6 2581770 布案内 (左) FABRIC GUIDE (LEFT) 1 7 0071540 平ネジ /M3 × 3.5 SCREW 1 8 2581690 布案内 (右) FABRIC GUIDE (RIGHT) 1 9 2581700 布案内 (左) FABRIC GUIDE (LEFT) 1 10 2581740 ブラケット BRACKET 1 11 0071540 平ネジ /M3 × 3.5 SCREW 2 12 2581750 ブラケット BRACKET 1 13 0070400 皿ネジ /M3 × 4 SCREW 1 14 2575750 布案内 (左) FABRIC GUIDE (LEFT) 1 15 0071540 平ネジ /M3 × 3.5 SCREW 1 16 2575760 布案内 (右) FABRIC GUIDE (RIGHT) 1 17 0070110 平ネジ /M3 × 8 SCREW 1 43 jintex.in
Page 46 — W200-08 W200-08B
W200-08 4 薄物用 For light weight fabric 6 5 厚物用 For heavy weight fabric 附属品に梱入 Packed in accessory 6 W200-08B 8 7 狭巾(Narrow) 9 広巾(Wide) 附属品に梱入 Packed in accessory 44 jintex.in
Page 47 — SPECIFIC PARTS (2)
專用部品 (2) SPECIFIC PARTS (2) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 2581670 布案内 (右) FABRIC GUIDE (RIGHT) 1 2 2105850 座金 WASHER 2 3 0071560 平ネジ/M2.5 × 3.4 SCREW 2 4 2581780 布案内 (左) FABRIC GUIDE (LEFT) 1 5 2581790 布案内 (左) FABRIC GUIDE (LEFT) 1 6 0071540 平ネジ/M3 × 3.5 SCREW 1 7 257761A0 押工補助板 FABRIC GUIDE 1 8 0070310 平ネジ/M2.5 × 6 SCREW 2 9 2577610 押工補助板 FABRIC GUIDE 1 45 jintex.in
Page 48 — W200-01N,08M
W200-01N,08M 2 9 3 5 4 6 7 1 8 46 jintex.in
Page 49 — SPECIFIC PARTS (3)
専用部品 (3) REF.NO. PART NO. 1 2536780 2 2536770 3 2536840 4 2536830 5 2536820 6 0071540 7 2028750 8 2504340 9 2504350 部品名称 ブラケット 糸道 糸道 ブラケット 針糸カム 平ネジ/M3 × 3.5 座金 糸繰リガード 針棒ガード SPECIFIC PARTS (3) DESCRIPTION BRACKET THREAD GUIDE THREAD GUIDE BRACKET NEEDLE THREAD CAM SCREW WASHER THREAD TAKE-UP GUARD NEEDLE BAR GUARD QT. 1 1 1 1 1 2 2 1 1 47 jintex.in
Page 50 — W200 GAUGE PARTS LIST(1)
W200ゲージパーツ表(1) W200 GAUGE PARTS LIST(1) MACHINE TYPE /SPEC. ゲ GAUGE ミシン形式 232 240 248 256 264 356 364 232 240 248 256 264 356 364 248 356 364 356 W264-01CB W264-01CC W264-01EB W264-01NC 48 針 NEEDLE HOLDER 257541-321 401 481 257542-561 641 561 641 257541-321 401 481 257542-561 641 561 641 257541-481 257542-561 641 257542-561 針板 NEEDLE PLATE 259612B320 401 B400 B480 259613B560 B640 259614B560 B640 259612C320 C400 C480 259613C560 C640 259614C560 C640 259616B480 259617B560 B640 259622C560 主送り歯 MAIN FEED DOG 259146-16F0 259254-16F1 259146-16F0 259255-16F1 259146-16F0 259254-16F1 259146-16F0 259255-16F1 259146-16F0 259258-16F0 259146-16F0 259259-16F1 259146-16F0 259255-16F1 差動送り歯 DIFF. FEED DOG 押エ PRESSER FOOT ルーバー LOOPER 針受け(前) NEEDLE GUARD FRONT 針受け(後) SPREADER SPREDDER 257460-320 400 480 560 2575660 2595720 259573-920 2575650 640 257461-560 640 257460-320 400 480 560 2575660 2595720 259573-920 2575650 640 257461-560 640 257471-480 257472-560 2575660 2595720 259573-920 2575650 640 257461-560 2575660 2595720 259573-920 2575650 針 NEEDLE UY128GAS #9S UY128GAS #10S UY128GAS #9S UY128GAS #10S UY128GAS #9S UY128GAS #10S UY128GAS #10S jinte.in
Page 51 — W200 GAUGE PARTS LIST (2)
W200ゲージパーツ表 (2) W200 GAUGE PARTS LIST (2) ミシン形式 ゲージ 針留 針板 主送り歯 差動送り歯 押工 ルーパー 針受け(前) 針受け(後) スプレッダー 針 MACHINE TYPE /SPEC. GAUGE NEEDLE HOLDER NEEDLE PLATE MAIN FEED DOG DIFF. FEED DOG PRESSER FOOT LOOPER NEEDLE GUARD FRONT REAR SPREADER NEEDLE 240 257541-401 259611B400 259146-16F0 259265-16F0 257467-400 UY128GAS #9S 248 // 481 259615B480 259149-16F0 // 480 W264-03FB 256 257542-561 259607B560 // 560 2575660 2595720 259573-920 2575650 264 // 641 // B640 // 640 356 // 561 259608B560 259147-16F0 259266-16F0 257468-560 UY128GAS #10S 364 // 641 // B640 // 640 240 257541-401 259611C400 259146-16F0 257467-400 UY128GAS 248 // 481 259615C480 259149-16F0 // 480 #9S W264-03FC 256 257542-561 259607C560 // 560 2575660 2595720 259573-920 2575650 264 // 641 // C640 // 640 UY128GAS 356 // 561 259608C560 259147-16F0 259266-16F0 257468-560 #10S 364 // 641 // C640 // 640 240 257541-401 259618B400 259146-16F0 257471-400 UY128GAS 248 // 481 // B480 259262-16F0 // 480 #9S W264-03GB 256 257542-561 259619B560 // 560 2575660 2595720 259573-920 2575650 264 // 641 259619B640 259263-16F0 // 640 UY128GAS 356 // 641 259619B640 257472-560 #10S 364 // 641 // B640 // 640 240 257541-401 259618C400 259146-16F0 257471-400 UY128GAS 248 // 481 // C480 259262-16F0 // 480 #9S W264-03GC 256 257542-561 259619C560 // 560 2575660 2595720 259573-920 2575650 264 // 641 259619C640 259263-16F0 // 640 UY128GAS 356 // 641 259619C640 257472-560 #10S 364 // 641 // C640 // 640 49 jinte x.in
Page 52 — W200 GAUGE PARTS LIST (3)
W200ゲージパーツ表 (3) W200 GAUGE PARTS LIST (3) MACHINE TYPE /SPEC. ゲージ GAUGE 針 NEEDLE HOLDER 針板 NEEDLE PLATE 主送り歯 MAIN FEED DOG 差動送り歯 DIFF. FEED DOG 押エ PRESSER FOOT ルーパー LOOPER 針受け(前) NEEDLE GUARD FRONT 針受け(後) NEEDLE GUARD REAR スプレッダー SPREADER 針 NEEDLE W264-08AB 240 257541-401 259610B400 259146-16F0 259252-16F1 257480-400 2575660 2595720 259573-920 2575650 UY128GAS #9S 248 " " B481 " " B480 " " 480 356 257542-561 259609B560 259146-16F0 259251-16F1 257461-560 UY128GAS #10S 364 " " 641 " " B640 " " 640 W264-08AC 240 257541-401 259610C400 259146-16F0 259252-16F1 257480-400 2595720 259573-920 2575650 UY128GAS #9S 248 " " C481 " " C480 " " 480 356 257542-561 259609C560 259146-16F0 259251-16F1 257461-560 UY128GAS #10S 364 " " C641 " " C640 " " 640 W264-08BB 232 257541-321 259610B320 257479-320 UY128GAS 240 " " 401 " " B400 259146-16F0 259252-16F1 " " 400 2595720 259573-920 2575650 #9S 248 " " 481 " " B480 " " 480 356 257542-561 259609B560 259146-16F0 257461-560 UY128GAS #10S 364 " " B641 " " B640 " " 640 W264-08BC 240 257541-401 259610C400 259146-16F0 259252-16F1 257479-400 2595720 259573-920 2575650 UY128GAS #9S 248 " " C481 " " C480 " " 480 356 257542-561 259609C560 259146-16F0 257480-560 UY128GAS #10S 364 " " C641 " " C640 " " 640 W264-08MC 356 257542-561 259623C560 259146-16F0 259251-16F1 257461-560 2575660 2595720 259573-920 2575650 UY128GAS #10S 50 jintex.in
Page 55
jinttex.in jinttex.in
Page 56
ペガサスミシン製造株式会社 本社 〒 553-0002 大阪市福島区鷺洲 5-7-2 TEL (06)6458-4739 FAX (06)6454-8785 PEGASUS SEWING MACHINE MFG. CO., LTD. 5-7-2, Sagisu, Fukushima-ku, Osaka 553-0002, Japan. Phone : (06)6458-4739 Telefax: (06)6454-8785 Cat. No. 97390 January, 2003 © 1996 PEGASUS SEWING MACHINE MFG. CO., LTD. このパーツカタログに記載されている内容は、改良のため予告なく変更することがあります。 The description in this PARTS CATALOG is subject to change without prior notice. jintex.in
