Pegasus W200 Parts Book (PDF)
Text index — Pegasus W200
Page 5 — MACHINE BED COVER
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2065900 | OIL SIGHT GAUGE | 1 |
| 2 | 2501170 | BED PIN | 4 |
| 3 | 2402280 | PLUG | 1 |
| 4 | 2400520 | PLUG | 1 |
| 5 | 2402270 | PLUG | 1 |
| 6 | 2401100 | PLUG | 1 |
| 7 | 2100031 | PLUG | 1 |
| 8 | 2090840 | PLUG | 1 |
| 9 | 250158-910 | COVER | 1 |
| 10 | 2500200 | COVER | 1 |
| 11 | 2501570 | SPONGE | 1 |
| 12 | 007017A0 | SCREW | 2 |
| 13 | 2401270 | MARK | 1 |
| 14 | 2106790 | PIN | 2 |
| 15 | 2106790 | PIN | 2 |
| 16 | 2106790 | PIN | 2 |
| 17 | 007018A0 | SCREW | 1 |
| 18 | 3034480 | WASHER | 1 |
| 19 | 0045410 | SCREW | 1 |
| 20 | 0045390 | SCREW | 1 |
| 21 | 2503920 | NAME PLATE | 1 |
| 22 | 9A30670 | SEAL | 1 |
| 23 | 9A30690 | CAUTION LABEL | 1 |
| 24 | 9A30710 | SEAL | 1 |
| 25 | 9A30720 | SEAL | 1 |
| 26 | 0045000 | BOLT | 4 |
| 27 | 0070270 | SCREW | 1 |
| 28 | 2105860 | OIL SEAL | 1 |
Page 7 — COVER (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250150-PD0 | ARM COVER (TOP) | 1 |
| 2 | 2402261 | PLUG | 1 |
| 3 | 179107-050 | OIL SIGHT WINDOW | 1 |
| 4 | 2500190 | O RING | 1 |
| 5 | 007021A0 | SCREW | 7 |
| 6 | 9A30810 | SEAL | 1 |
| 7 | 250151BTD0 | ARM COVER (LEFT) | 1 |
| 8 | 007021A0 | SCREW | 4 |
| 9 | 2501530 | O RING | 1 |
| 10 | 0052420 | SCREW | 1 |
| 11 | 2402630 | WASHER | 1 |
| 12 | 2502570 | EYE GUARD | 1 |
| 13 | 0070090 | SCREW | 2 |
| 14 | 2028750 | WASHER | 2 |
| 15 | 2502560 | BRACKET | 1 |
| 16 | 2103070 | WASHER | 1 |
| 17 | 0070660 | SCREW | 1 |
| 18 | 2502550 | BRACKET | 1 |
| 19 | 007020A0 | SCREW | 2 |
| 20 | 3034480 | WASHER | 2 |
| 21 | 2501540 | ARM COVER (REAR) | 1 |
| 22 | 2501550 | GASKET | 1 |
| 23 | 0070520 | SCREW | 6 |
| 24 | 250224A0 | NEEDLE BAR GUARD | 1 |
| 25 | 007019A0 | SCREW | 2 |
| 26 | 250231A910 | THREAD TAKE-UP GUARD ASSEMBLY | 1 |
| 27 | 2502250 | THREAD TAKE-UP GUARD | 1 |
| 28 | 2502260 | FINGER GUARD | 1 |
| 29 | 0070180 | SCREW | 2 |
| 30 | 3034480 | WASHER | 2 |
| 31 | 250227A0 | BRACKET | 1 |
| 32 | 0070180 | SCREW | 2 |
| 33 | 3034480 | WASHER | 2 |
| 34 | 0070520 | SCREW | 2 |
| 35 | 250022ETB0 | PULLEY COVER | 1 |
| 36 | 0070750 | SCREW | 2 |
| 37 | 250397-PD1 | FRONT COVER ASSEMBLY | 1 |
| 38 | 0070430 | SCREW | 4 |
| 39 | 2500130 | SCREW | 1 |
| 40 | 2011910 | SPRING WASHER | 2 |
| 41 | 2401980 | PIN | 1 |
| 42 | 0045540 | SCREW | 2 |
| 43 | 0070220 | SCREW | 2 |
| 44 | 2503010 | SCREW | 2 |
| 45 | 2503000 | FLAT SPRING | 1 |
| 46 | 0070180 | SCREW | 1 |
| 47 | 2504250 | AUXILIARY COVER (FRONT) | 1 |
| 48 | 2045850 | WASHER | 3 |
| 49 | 0045800 | BOLT | 3 |
| 50 | 250234-TD0 | LOOPER THREAD GUIDE COVER | 1 |
| 51 | 007019A0 | SCREW | 1 |
| 52 | 9A31260 | SEAL | 1 |
Page 9 — COVER (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2504010 | TOP COVER (RIGHT) | 1 |
| 2 | 2504020 | GASKET | 1 |
| 3 | 0070820 | SCREW | 5 |
| 4 | 0070430 | SCREW | 2 |
| 5 | 250411-PD0 | BED COVER | 1 |
| 6 | 0045240 | BOLT | 1 |
| 7 | 007020A0 | SCREW | 3 |
| 8 | 2504210 | CUSHION RUBBER | 2 |
| 9 | 2504030 | TOP COVER PLATE (LEFT) | 1 |
| 10 | 2504040 | GASKET | 1 |
| 11 | 0070820 | SCREW | 5 |
| 12 | 2504210 | CUSHION RUBBER | 2 |
| 13 | 2504160 | CYLINDER COVER | 1 |
| 14 | 2504170 | FLAT SPRING | 1 |
| 15 | 0070610 | SCREW | 2 |
| 16 | 250413-9P0 | SIDE COVER ASSEMBLY | 1 |
| 17 | 2501730 | PIN | 1 |
| 18 | 0045270 | BOLT | 2 |
| 19 | 251030-910 | NEEDLE PLATE BRACKET ASSEMBLY | 1 |
| 20 | 0070190 | SCREW | 2 |
Page 11 — 下軸機構
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250572-910 | CRANKSHAFT ASSEMBLY | 1 |
| 2 | 250554-920 | CRANKSHAFT | 1 |
| 3 | 0071280 | SCREW | 2 |
| 4 | 250573-910 | CRANKSHAFT | 1 |
| 5 | 210091-920 | CONNECTION | 1 |
| 6 | 0053760 | SCREW | 4 |
| 7 | 252056-920 | CRANK | 1 |
| 8 | 0045340 | BOLT | 1 |
| 9 | 250557-910 | BUSHING | 1 |
| 10 | 0045470 | SCREW | 2 |
| 11 | 250529A910 | BUSHING | 1 |
| 12 | 0045470 | SCREW | 2 |
| 13 | 250545-910 | GEAR (LOWER) | 1 |
| 14 | 0045470 | SCREW | 4 |
| 15 | 250530-910 | BUSHING | 1 |
| 16 | 0045550 | SCREW | 1 |
| 17 | 0045470 | SCREW | 1 |
| 18 | 2505140 | SET PLATE | 1 |
| 19 | 0070820 | SCREW | 2 |
| 20 | 250565-910 | GEAR | 1 |
| 21 | 0045480 | SCREW | 2 |
| 22 | 250561A0 | MACHINE PULLEY | 1 |
| 23 | 0045410 | SCREW | 1 |
| 24 | 0045560 | SCREW | 1 |
| 25 | 2401260 | WASHER | 1 |
| 26 | 0045000 | BOLT | 1 |
| 27 | 206050C0 | TIMING BELT | 1 |
Page 13 — ARM SHAFT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250526B910 | MOTION ASSEMBLY | 1 |
| 2 | 0070280 | SCREW | 2 |
| 3 | 0045920 | SCREW | 1 |
| 4 | 0071520 | SCREW | 1 |
| 5 | 0071530 | SCREW | 1 |
| 6 | 0072680 | SCREW | 1 |
| 7 | 250560A0 | CRANKSHAFT | 1 |
| 8 | 253500-920 | CONNECTION ASSEMBLY | 1 |
| 9 | 007021A0 | SCREW | 2 |
| 10 | 007015A0 | SCREW | 2 |
| 11 | 253501A920 | CRANK ASSEMBLY | 1 |
| 12 | 0045340 | BOLT | 1 |
| 13 | 2505240 | BALANCE WEIGHT | 1 |
| 14 | 0045140 | SCREW | 2 |
| 15 | 2505060 | JOINT | 1 |
| 16 | 0045550 | SCREW | 2 |
| 17 | 0045470 | SCREW | 2 |
| 18 | 2505520 | SHAFT | 1 |
| 19 | 250529-910 | BUSHING | 1 |
| 20 | 0045470 | SCREW | 2 |
| 21 | 250547A0 | GEAR (UPPER) | 1 |
| 22 | 0045470 | SCREW | 4 |
| 23 | 250528-910 | BUSHING | 1 |
| 24 | 0045550 | SCREW | 1 |
| 25 | 0045470 | SCREW | 1 |
| 26 | 250566-TD0 | HANDWHEEL | 1 |
| 27 | 0045410 | SCREW | 1 |
| 28 | 0045560 | SCREW | 1 |
| 29 | 2045850 | WASHER | 1 |
| 30 | 0045010 | BOLT | 1 |
Page 15 — NEEDLE BAR, NEEDLE GUARD MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 251014-910 | NEEDLE BAR | 1 |
| 2 | 2060610 | NEEDLE BAR CLAMP | 1 |
| 3 | 0053250 | SCREW | 1 |
| 4 | 2510160 | LINK | 1 |
| 5 | 2060530 | PIN | 1 |
| 6 | 240098-20 | NEEDLE BEARING | 1 |
| 7 | 2401010 | WASHER | 1 |
| 8 | 2060630 | BLOCK | 1 |
| 9 | 2510171 | GUIDE | 1 |
| 10 | 007021A0 | SCREW | 2 |
| 11 | 2510180 | LATCH | 1 |
| 12 | 007021A0 | SCREW | 1 |
| 13 | 179040-050 | SPONGE | 1 |
| 14 | 2065240 | OIL STRING RETAINER | 1 |
| 15 | 2121860 | OIL STRING | 1 |
| 16 | XXXXXX | NEEDLE HOLDER | 1 |
| 17 | 0045540 | SCREW | 2 |
| 18 | 0045540 | SCREW | 3 |
| 19 | XXXXXX | NEEDLE PLATE | 1 |
| 20 | 005511-HC0 | SCREW | 2 |
| 21 | 251533-920 | ECCENTRIC | 1 |
| 22 | 0045430 | SCREW | 2 |
| 23 | 2515340 | ROD | 1 |
| 24 | 2021760 | OIL STRING | 1 |
| 25 | 2107660 | PIN | 2 |
| 26 | 2515350 | CRANKSHAFT | 1 |
| 27 | 2021750 | OIL STRING | 2 |
| 28 | 2079250 | FELT | 4 |
| 29 | 2515370 | JOINT | 1 |
| 30 | 0045430 | SCREW | 3 |
| 31 | 240548-920 | COLLAR | 1 |
| 32 | 0045430 | SCREW | 1 |
| 33 | 2515360 | NEEDLE GUARD (REAR) | 1 |
| 34 | 2021750 | OIL STRING | 1 |
| 35 | 2079250 | FELT | 2 |
| 36 | XXXXXX | NEEDLE GUARD (REAR) | 1 |
| 37 | 0045990 | SCREW | 1 |
| 38 | XXXXXX | NEEDLE GUARD (FRONT) | 1 |
| 39 | 0070310 | SCREW | 1 |
Page 17 — LOOPER DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 252036-920 | ECCENTRIC | 1 |
| 2 | 0045470 | SCREW | 1 |
| 3 | 206172-20 | NEEDLE BEARING | 1 |
| 4 | 2520350 | ROD | 1 |
| 5 | 252037-910 | PIN ASSEMBLY | 1 |
| 6 | 0048050 | NUT | 1 |
| 7 | 2400620 | WASHER | 1 |
| 8 | 2520390 | LOOPER SHAFT GUIDE | 1 |
| 9 | 201074A0 | GUIDE | 1 |
| 10 | 2022860 | SPRING WASHER | 1 |
| 11 | 0055460 | SCREW | 1 |
| 12 | 2520440 | SHAFT | 1 |
| 13 | 2402320 | WASHER | 1 |
| 14 | 0045240 | BOLT | 1 |
| 15 | 2012520 | SPRING WASHER | 1 |
| 16 | 2402310 | WASHER | 1 |
| 17 | 252046-920 | LEVER | 1 |
| 18 | 0045340 | BOLT | 1 |
| 19 | 252040-920 | HOLDER | 1 |
| 20 | 0070210 | SCREW | 1 |
| 21 | 2520410 | WASHER | 1 |
| 22 | 2520420 | SLIDER | 1 |
| 23 | 2520430 | PIN | 1 |
| 24 | 0045430 | SCREW | 1 |
| 25 | 252045-920 | HOLDER | 1 |
| 26 | 0070210 | SCREW | 1 |
| 27 | 2520410 | WASHER | 1 |
| 28 | 2520470 | WASHER | 2 |
| 29 | 2520520 | BUSHING | 1 |
| 30 | 0045220 | SCREW | 1 |
| 31 | 2520770 | BUSHING | 1 |
| 32 | 0045220 | SCREW | 1 |
| 33 | 2520480 | SHAFT | 1 |
| 34 | 252075-910 | LOOPER HOLDER | 1 |
| 35 | 0071450 | BOLT | 1 |
| 36 | XXXXXX | LOOPER | 1 |
| 37 | 0071290 | SCREW | 1 |
| 38 | 2405060 | WASHER | 1 |
Page 19 — 送り機構 (1) / FEED MECHANISM (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 252607B921 | ECCENTRIC | 1 |
| 2 | 0045390 | SCREW | 2 |
| 3 | 204084-20 | NEEDLE BEARING | 1 |
| 4 | 240236-20 | NEEDLE BEARING | 1 |
| 5 | 2402340 | RING | 1 |
| 6 | 2402370 | RING | 1 |
| 7 | 2526120 | ROD | 1 |
| 8 | 2526140 | LINK | 1 |
| 9 | 2526150 | LINK | 1 |
| 10 | 0045370 | SCREW | 2 |
| 11 | 2526130 | PIN | 2 |
| 12 | 2021760 | OIL STRING | 2 |
| 13 | 2073580 | FELT | 6 |
| 14 | 2526160 | PIN | 1 |
| 15 | 2021760 | OIL STRING | 1 |
| 16 | 2079250 | FELT | 4 |
| 17 | 2526770 | CRANK | 1 |
| 18 | 0071420 | SCREW | 2 |
| 19 | 252618-910 | LINK | 1 |
| 20 | 0045470 | SCREW | 2 |
| 21 | 2526220 | GUIDE | 1 |
| 22 | 0045390 | SCREW | 1 |
| 23 | 2526200 | SPRING | 1 |
| 24 | 0071310 | SCREW | 1 |
| 25 | 2526210 | SHAFT | 1 |
| 26 | 2400170 | O RING | 1 |
| 27 | 2527020 | LEVER | 1 |
| 28 | 0070340 | SCREW | 1 |
| 29 | 2527010 | INDICATION PLATE | 1 |
| 30 | 0070830 | SCREW | 2 |
| 31 | 2403210 | SPACER | 2 |
| 32 | 2526250 | SCREW | 1 |
| 33 | 2016290 | RING | 1 |
| 34 | 2009830 | RING | 1 |
| 35 | 2402510 | O RING | 1 |
| 36 | 0045500 | SCREW | 1 |
| 37 | 0045370 | SCREW | 1 |
| 38 | 2526260 | LINER | 1 |
| 39 | 2526600 | NUT | 1 |
| 40 | 2526710 | SEAL | 1 |
| 41 | 2526780 | CRANKSHAFT | 1 |
| 42 | 2526790 | LINK | 1 |
| 43 | 2401390 | FELT | 1 |
| 44 | 2107660 | PIN | 1 |
| 45 | 2400550 | WASHER | 1 |
| 46 | 0070410 | SCREW | 1 |
| 47 | 2526800 | CRANKSHAFT | 1 |
| 48 | 2073580 | FELT | 4 |
| 49 | 2021760 | OIL STRING | 1 |
| 50 | 240549-920 | COLLAR | 1 |
| 51 | 0045430 | SCREW | 2 |
| 52 | 2527060 | CRANK | 1 |
| 53 | 0045430 | SCREW | 2 |
| 54 | 2527080 | SCREW | 1 |
| 55 | 2527090 | LINK | 1 |
| 56 | 2021760 | OIL STRING | 1 |
| 57 | 2400230 | FELT | 1 |
| 58 | 2107660 | PIN | 1 |
| 59 | 2527270 | SPACER | 1 |
| 60 | 2041150 | WASHER | 1 |
| 61 | 0073140 | SCREW | 1 |
| 62 | 252731-910 | FEED BAR ASSEMBLY | 1 |
| 63 | XXXXXX | MAIN FEED DOG | 1 |
| 64 | 0070200 | SCREW | 1 |
| 65 | 2526950 | GUIDE | 1 |
| 66 | 0045270 | BOLT | 2 |
| 67 | 252729-910 | GUIDE ASSEMBLY | 1 |
| 68 | 0071430 | SCREW | 2 |

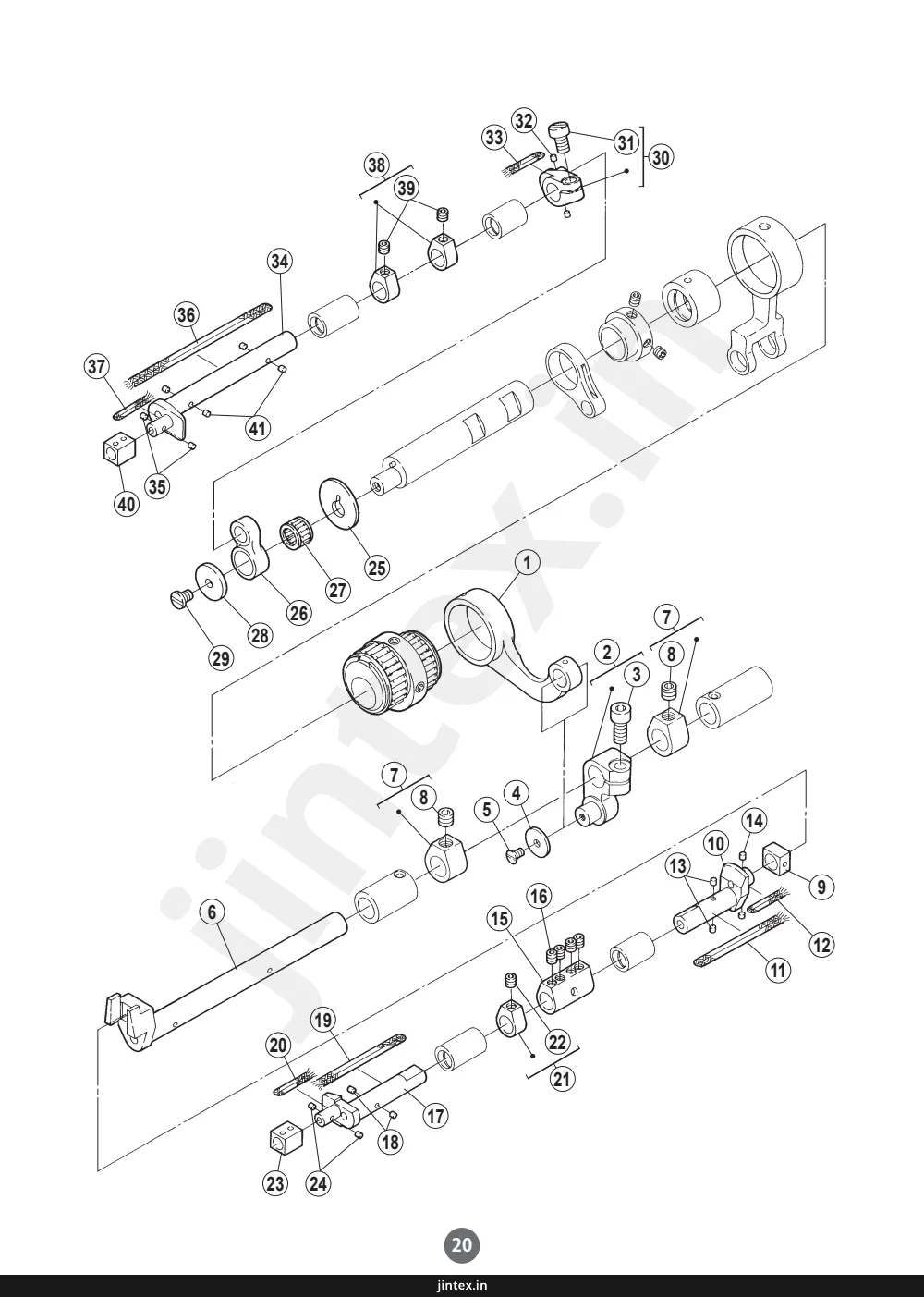

Page 21 — 送り機構 (2) / FEED MECHANISM (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2526810 | LINK | 1 |
| 2 | 0045430 | SCREW | 2 |
| 3 | 2526160 | PIN | 2 |
| 4 | 2021760 | OIL STRING | 2 |
| 5 | 2079250 | FELT | 8 |
| 6 | 252617A0 | CRANK | 1 |
| 7 | 0071420 | SCREW | 2 |
| 8 | 252682-910 | CRANKSHAFT | 1 |
| 9 | 0070410 | SCREW | 2 |
| 10 | 0070310 | SCREW | 1 |
| 11 | 2021760 | OIL STRING | 1 |
| 12 | 2073580 | FELT | 4 |
| 13 | 2526870 | LINK | 1 |
| 14 | 2527260 | LATCH | 2 |
| 15 | 2107660 | PIN | 2 |
| 16 | 2021760 | OIL STRING | 2 |
| 17 | 2400550 | WASHER | 1 |
| 18 | 0070410 | SCREW | 1 |
| 19 | 2526880 | CRANKSHAFT | 1 |
| 20 | 2021760 | OIL STRING | 1 |
| 21 | 2073580 | FELT | 2 |
| 22 | 2527160 | JOINT | 1 |
| 23 | 0045430 | SCREW | 4 |
| 24 | 2527100 | CRANKSHAFT | 1 |
| 25 | 2021760 | OIL STRING | 1 |
| 26 | 2073580 | FELT | 2 |
| 27 | 2067480 | FELT | 1 |
| 28 | 240549-920 | COLLAR | 1 |
| 29 | 0045430 | SCREW | 1 |
| 30 | 2527250 | SPACER | 1 |
| 31 | 2041150 | WASHER | 1 |
| 32 | 0073150 | SCREW | 1 |
| 33 | 2527110 | LINK | 1 |
| 34 | 2527200 | LATCH | 1 |
| 35 | 2021760 | OIL STRING | 1 |
| 36 | 2107660 | PIN | 2 |
| 37 | XXXXXX | DIFFERENTIAL FEED DOG | 1 |
| 38 | 2527120 | SCREW | 1 |
| 39 | 2526990 | GUIDE | 1 |
| 40 | 2401290 | O RING | 1 |
| 41 | 0045400 | SCREW | 1 |
| 42 | 2526410 | BLOCK | 1 |
| 43 | 2526860 | GUIDE | 1 |
| 44 | 2526850 | FEED BAR PIN | 1 |
| 45 | 2526910 | SHAFT | 1 |
| 46 | 2526930 | LEVER | 1 |
| 47 | 0070270 | SCREW | 1 |
| 48 | 2526920 | SPRING | 1 |
| 49 | 2025770 | RING | 1 |
| 50 | 2401020 | WASHER | 1 |
| 51 | 212035B920 | CRANK | 1 |
| 52 | 0045310 | BOLT | 1 |
| 53 | 2526900 | LINK | 1 |
| 54 | 0070580 | SCREW | 2 |
| 55 | 252689-920 | CRANK | 1 |
| 56 | 0045310 | BOLT | 1 |
| 57 | 252721-910 | LEVER ASSEMBLY | 1 |
| 58 | 240235-920 | COLLAR | 1 |
| 59 | 0045470 | SCREW | 1 |
| 60 | 2526570 | SPRING | 1 |
| 61 | 2520690 | NUT | 1 |
| 62 | 2113010 | SPRING WASHER | 1 |
| 63 | 0070590 | SCREW | 1 |
| 64 | 2400630 | OIL SEAL | 1 |
| 65 | 2527300 | GUIDE PLATE | 1 |
| 66 | 2527190 | SPACER | 2 |
| 67 | 007018A0 | SCREW | 2 |
| 68 | 2526580 | STOPPER | 2 |
| 69 | 3034480 | WASHER | 2 |
| 70 | 0070720 | SCREW | 2 |
Page 23 — FEED MECHANISM (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2526080 | ROD | 1 |
| 2 | 252609-920 | CRANK | 1 |
| 3 | 0045310 | BOLT | 1 |
| 4 | 2400550 | WASHER | 1 |
| 5 | 0070410 | SCREW | 1 |
| 6 | 252610D0 | CRANKSHAFT | 1 |
| 7 | 240235-920 | COLLAR | 2 |
| 8 | 0045470 | SCREW | 2 |
| 9 | 2526970 | BLOCK | 1 |
| 10 | 2526980 | CRANKSHAFT | 1 |
| 11 | 2021760 | OIL STRING | 1 |
| 12 | 2021750 | OIL STRING | 1 |
| 13 | 2073580 | FELT | 2 |
| 14 | 2079250 | FELT | 2 |
| 15 | 2527160 | JOINT | 1 |
| 16 | 0045430 | SCREW | 4 |
| 17 | 2527130 | CRANKSHAFT | 1 |
| 18 | 2073580 | FELT | 2 |
| 19 | 2021760 | OIL STRING | 1 |
| 20 | 2021750 | OIL STRING | 1 |
| 21 | 240549-920 | COLLAR | 1 |
| 22 | 0045430 | SCREW | 1 |
| 23 | 2527150 | BLOCK | 1 |
| 24 | 2079250 | FELT | 2 |
| 25 | 2527000 | WASHER | 1 |
| 26 | 2527030 | ROD | 1 |
| 27 | 240544-20 | NEEDLE BEARING | 1 |
| 28 | 2041070 | WASHER | 1 |
| 29 | 0071430 | SCREW | 1 |
| 30 | 252694-920 | CRANK | 1 |
| 31 | 0045000 | BOLT | 1 |
| 32 | 2079250 | FELT | 2 |
| 33 | 2021750 | OIL STRING | 1 |
| 34 | 2527140 | CRANKSHAFT | 1 |
| 35 | 2079250 | FELT | 2 |
| 36 | 2021760 | OIL STRING | 1 |
| 37 | 2021750 | OIL STRING | 1 |
| 38 | 240549-920 | COLLAR | 2 |
| 39 | 0045430 | SCREW | 2 |
| 40 | 2527150 | BLOCK | 1 |
| 41 | 2073580 | FELT | 4 |
Page 25 — 押エ機構 / PRESSER FOOT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 253000-910 | ADJUSTING BAR | 1 |
| 2 | 2530031 | NUT | 1 |
| 3 | 2402520 | SPRING | 1 |
| 4 | 2402530 | SPRING | 1 |
| 5 | 2530260 | PRESSER BAR | 1 |
| 6 | 2530530 | OIL SHIELD | 1 |
| 7 | 2061390 | PRESSER BAR CLAMP | 1 |
| 8 | 0051180 | SCREW | 1 |
| 9 | 253005-910 | GUIDE | 1 |
| 10 | 007025A0 | SCREW | 2 |
| 11 | 2530280 | FINGER GUARD | 1 |
| 12 | 0070100 | SCREW | 1 |
| 13 | 2404740 | WASHER | 1 |
| 14 | XXXXXX | PRESSER FOOT ASSEMBLY | 1 |
| 15 | 001170-30 | SCREW | 1 |
| 16 | 253008-910 | LEVER | 1 |
| 17 | 1920240 | COLLAR | 1 |
| 18 | 0W00024-10 | SCREW | 1 |
| 19 | 2061570 | LINK | 1 |
| 20 | 0053860 | SCREW | 2 |
| 21 | 2530100 | SPRING | 1 |
| 22 | 2061560 | COLLAR | 1 |
| 23 | 0050840 | SCREW | 2 |
| 24 | 2061490 | BELL CRANK (UPPER) | 1 |
| 25 | 0051870 | SCREW | 1 |
| 26 | 2530270 | LINK | 1 |
| 27 | 0051840 | SCREW | 2 |
| 28 | 2061480 | BELL CRANK (LOWER) | 1 |
| 29 | 002022-40 | SCREW | 1 |
| 30 | 2530130 | SHAFT | 1 |
| 31 | 2530140 | LEVER | 1 |
| 32 | 0070340 | SCREW | 1 |
| 33 | 2530150 | BRACKET | 1 |
| 34 | 007019A0 | SCREW | 2 |
| 35 | 0045810 | SCREW | 1 |
| 36 | 0048050 | NUT | 1 |
| 37 | 250230-RA0 | FOOT LIFT LEVER GUARD | 1 |
Page 27 — SPREADER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 254501A920 | ECCENTRIC ASSEMBLY | 1 |
| 2 | 0045140 | SCREW | 2 |
| 3 | 2545110 | CONNECTION | 1 |
| 4 | 254503-920 | CRANK | 1 |
| 5 | 0045340 | BOLT | 1 |
| 6 | 2545040 | SCREW | 1 |
| 7 | 2400620 | WASHER | 1 |
| 8 | 0048050 | NUT | 1 |
| 9 | 2545190 | SHAFT | 1 |
| 10 | 2061800 | WASHER | 1 |
| 11 | 3066710 | RING | 1 |
| 12 | 254506B0 | CRANK | 1 |
| 13 | 0045470 | SCREW | 2 |
| 14 | 2545070 | BLOCK | 1 |
| 15 | 2545180 | CRANKSHAFT | 1 |
| 16 | 2079250 | FELT | 2 |
| 17 | 2021760 | OIL STRING | 1 |
| 18 | 2330200 | O RING | 1 |
| 19 | 2120390 | COLLAR | 1 |
| 20 | 0012270 | SCREW | 2 |
| 21 | 254516-920 | LEVER ASSEMBLY | 1 |
| 22 | 0070200 | SCREW | 1 |
| 23 | 0070220 | SCREW | 1 |
| 24 | XXXXXX | SPREADER | 1 |
Page 29 — 糸調子機構 / THREAD TENSION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 254000-910 | LEVER | 1 |
| 2 | 2540220 | COLLAR | 1 |
| 3 | 002133-10 | SCREW | 1 |
| 4 | 254003B910 | CRANK | 1 |
| 5 | 0045310 | BOLT | 1 |
| 6 | 2028680 | WASHER | 1 |
| 7 | 2540080 | THREAD GUIDE | 1 |
| 8 | 007019A0 | SCREW | 2 |
| 9 | 1921200 | PIPE | 2 |
| 10 | 2061150 | BRACKET | 2 |
| 11 | 007018A0 | SCREW | 1 |
| 12 | 3034480 | WASHER | 1 |
| 13 | 254023C9T0 | TENSION CONTROL MECHANISM | 1 |
| 14 | 254023E9T0 | TENSION CONTROL MECHANISM | 1 |
| 15 | 2540190 | BRACKET | 1 |
| 16 | 2540210 | THREAD RELEASER | 1 |
| 17 | 263542A9T0 | TENSION SPRING ASSEMBLY | |
| 18 | 263542B9T0 | TENSION SPRING ASSEMBLY | |
| 19 | 263542C9T0 | TENSION SPRING ASSEMBLY | |
| 20 | 2540200 | THREAD GUIDE | |
| 21 | 2062030 | THREAD GUIDE | |
| 22 | 2062020 | SPACER | |
| 23 | 3063010 | SPRING | 1 |
| 24 | 0054470 | SCREW | 1 |
| 25 | 007019A0 | SCREW | 2 |
| 26 | 001817-2A0 | SCREW STUD | 1 |
| 27 | 2103190 | TENSION DISC | 2 |
| 28 | 263544-TA0 | CUP | 1 |
| 29 | 2010370 | SPRING (HEAVY) | 1 |
| 30 | 2084480 | RATCHET | 1 |
| 31 | 263543-TA0 | NUT | 1 |
| 32 | 2010860 | SPRING (MEDIUM) | 1 |
| 33 | 2010680 | SPRING (LIGHT) | 1 |
Page 31 — 針糸・飾り糸機構
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2535030 | SHAFT | 1 |
| 2 | 2041070 | WASHER | 1 |
| 3 | 2012520 | SPRING WASHER | 1 |
| 4 | 0045270 | BOLT | 1 |
| 5 | 2050610 | RING | 1 |
| 6 | 204754A0 | COLLAR | 1 |
| 7 | 0021930 | SCREW | 2 |
| 8 | 253504-920 | LEVER | 1 |
| 9 | 0045010 | BOLT | 1 |
| 10 | 3030670 | SPRING WASHER | 1 |
| 11 | 253505A1 | THREAD TAKE-UP | 1 |
| 12 | 007019A0 | SCREW | 2 |
| 13 | 3034480 | WASHER | 2 |
| 14 | 2535440 | THREAD GUIDE | 1 |
| 15 | 007019A0 | SCREW | 1 |
| 16 | 3034480 | WASHER | 1 |
| 17 | 2535450 | HOLDER | 1 |
| 18 | 0070100 | SCREW | 2 |
| 19 | 2345210 | THREAD GUIDE | 2 |
| 20 | 0045350 | SCREW | 2 |
| 21 | 2535070 | THREAD GUIDE | 1 |
| 22 | 0070090 | SCREW | 1 |
| 23 | 253508A0 | THREAD GUIDE | 1 |
| 24 | 0070770 | SCREW | 1 |
| 25 | 253509A0 | THREAD SUPPORT | 1 |
| 26 | 0070080 | SCREW | 1 |
| 27 | 2404740 | WASHER | 1 |
| 28 | 2535160 | THREAD TENSION BRACKET | 1 |
| 29 | 007019A0 | SCREW | 1 |
| 30 | 2535930 | TENSION DISC | 1 |
| 31 | 2345610 | THREAD GUIDE | 1 |
| 32 | 2535170 | SPRING | 1 |
| 33 | 0W09070-20 | SCREW | 1 |
| 34 | 2535060 | THREAD TAKE-UP | 1 |
| 35 | 2535150 | THREAD GUIDE | 1 |
| 36 | 007019A0 | SCREW | 1 |
| 37 | 2535140 | THREAD GUIDE | 1 |
| 38 | 007019A0 | SCREW | 2 |
| 39 | 253548B0 | THREAD GUIDE | 1 |
| 40 | 0070190 | SCREW | 2 |
| 41 | 3034480 | WASHER | 2 |
| 42 | 2535470 | THREAD GUIDE | 1 |
| 43 | 1371080 | TENSION DISC | 2 |
| 44 | 2113880 | SPRING | 1 |
| 45 | 0071671 | SCREW | 1 |
| 46 | 2750340 | KNOB | 1 |
| 47 | 2536680 | THREAD GUIDE | 1 |
| 48 | 0045540 | SCREW | 1 |
Page 33 — 下糸繰り機構 / LOOPER THREAD HANDLING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2536810 | BRACKET | 1 |
| 2 | 2103070 | WASHER | 1 |
| 3 | 0070660 | SCREW | 1 |
| 4 | 253534A0 | LOOPER THREAD GUIDE (RIGHT) | 1 |
| 5 | 253533D0 | THREAD GUIDE | 1 |
| 6 | 2105850 | WASHER | 2 |
| 7 | 0070310 | SCREW | 2 |
| 8 | 2536320 | SET PLATE | 1 |
| 9 | 0071960 | SCREW | 1 |
| 10 | 2536800 | THREAD GUIDE | 1 |
| 11 | 3034480 | WASHER | 1 |
| 12 | 0043250 | BOLT | 1 |
| 13 | 2536760 | THREAD RETAINER BRACKET | 1 |
| 14 | 007018A0 | SCREW | 1 |
| 15 | 2125030 | THREAD RETAINER BRACKET | 1 |
| 16 | 2125040 | TENSION DISC | 1 |
| 17 | 2107500 | GUIDE | 1 |
| 18 | 2107510 | SPRING | 1 |
| 19 | 0070820 | SCREW | 1 |
| 20 | 2536351 | SET PLATE | 1 |
| 21 | 0043250 | BOLT | 1 |
| 22 | 2103060 | SPRING | 1 |
| 23 | 1379060 | WASHER | 1 |
| 24 | 0070120 | SCREW | 1 |
| 25 | 253689-910 | THREAD TAKE-UP ASSEMBLY | 1 |
| 26 | 0045430 | SCREW | 2 |
| 27 | 253625-9P0 | BRACKET ASSEMBLY | 1 |
| 28 | 0045030 | BOLT | 2 |
| 29 | 2536360 | SET PLATE | 1 |
| 30 | 0070190 | SCREW | 1 |
| 31 | 2536710 | SHAFT | 1 |
| 32 | 2536230 | GEAR | 1 |
| 33 | 0045480 | SCREW | 1 |
| 34 | 0045550 | SCREW | 1 |
| 35 | 2402790 | WASHER | 1 |
| 36 | 2402780 | WASHER | 2 |
| 37 | 2403080 | COLLAR | 1 |
| 38 | 0045430 | SCREW | 2 |
| 39 | 2536401 | COVER | 1 |
| 40 | 2403320 | SPACER | 1 |
| 41 | 0072130 | SCREW | 1 |
| 42 | 2536740 | BELT COVER | 1 |
| 43 | 2403210 | SPACER | 1 |
| 44 | 0070210 | SCREW | 1 |
| 45 | 2405600 | SPACER | 1 |
| 46 | 0045290 | BOLT | 1 |
| 47 | 253641A0 | TIMING BELT | 1 |
| 48 | 253685-910 | THREAD TUBE | 1 |
| 49 | 0071430 | SCREW | 2 |
| 50 | 253687-910 | THREAD TUBE | 1 |
| 51 | 0070820 | SCREW | 1 |
| 52 | 2536750 | THREAD GUIDE | 1 |
| 53 | 0070820 | SCREW | 1 |
| 54 | 2403320 | SPACER | 1 |
| 55 | 2536790 | PIPE | 1 |
| 56 | 2061150 | BRACKET | 1 |
| 57 | 007025A0 | SCREW | 1 |
| 58 | 3034480 | WASHER | 1 |
Page 35 — LUBRICATION MECHANISM (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 255035-910 | PIPE | 1 |
| 2 | 2550370 | JOINT SCREW | 1 |
| 3 | 2401350 | TUBE | 1 |
| 4 | 2001360 | JOINT | 2 |
| 5 | 2021990 | CLAMP | 2 |
| 6 | 2001520 | JOINT SCREW | 2 |
| 7 | 2550030 | PIPE | 1 |
| 8 | 2401360 | FELT | 1 |
| 9 | 2107660 | PIN | 1 |
| 10 | 0045140 | SCREW | 1 |
| 11 | 2550210 | FELT | 1 |
| 12 | 2550390 | PIPE | 1 |
| 13 | 2550050 | LATCH | 1 |
| 14 | 007018A0 | SCREW | 1 |
| 15 | 2401430 | TUBE | 1 |
| 16 | 2401440 | TUBE | 1 |
| 17 | 2550380 | JOINT | 1 |
| 18 | 2401450 | TUBE | 1 |
| 19 | 2021990 | CLAMP | 2 |
| 20 | 2550990 | OIL RELEASE PLATE | 1 |
| 21 | 007018A0 | SCREW | 2 |
| 22 | 255097-910 | OIL SPLASH PIPE | 1 |
| 23 | 0048210 | NUT | 1 |
| 24 | 2400060 | TUBE | 1 |
| 25 | 2021990 | CLAMP | 2 |
| 26 | 255094-910 | OIL SPLASH PIPE | 1 |
| 27 | 007018A0 | SCREW | 1 |
| 28 | 200140A0 | OIL TUBE | 1 |
| 29 | 2551230 | JOINT | 1 |
| 30 | 2001520 | JOINT SCREW | 1 |
| 31 | 2021990 | CLAMP | 2 |
| 32 | 2551390 | PIPE | 1 |
| 33 | 2405680 | TUBE | 1 |
| 34 | 2551370 | CLAMP | 1 |
| 35 | 2550380 | JOINT | 1 |
| 36 | 2021990 | CLAMP | 1 |
| 37 | 2057630 | TUBE | 1 |
| 38 | 2021990 | CLAMP | 1 |
| 39 | 2551400 | FELT | 1 |
| 40 | 2021760 | OIL STRING | 1 |
Page 37 — 給油機構 (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2550410 | OIL RESERVOIR ASSEMBLY | 1 |
| 2 | 202287A0 | WASHER | 1 |
| 3 | 005138B0 | SCREW | 1 |
| 4 | 0045040 | BOLT | 4 |
| 5 | 2551440 | O RING | 1 |
| 6 | 255091-910 | OIL PUMP ASSEMBLY | 1 |
| 7 | 2550240 | SHAFT | 1 |
| 8 | 2550250 | ROTOR | 1 |
| 9 | 2550260 | ROTOR | 1 |
| 10 | 2550270 | ROTOR | 2 |
| 11 | 2550280 | COVER | 1 |
| 12 | 0070260 | SCREW | 2 |
| 13 | 0070150 | SCREW | 2 |
| 14 | 2550190 | WORM WHEEL | 1 |
| 15 | 0045140 | SCREW | 2 |
| 16 | 0045310 | BOLT | 2 |
| 17 | 2550930 | JOINT SCREW | 2 |
| 18 | 2062330 | OIL FILTER | 1 |
| 19 | 2102000 | OIL FILTER BRACKET | 1 |
| 20 | 2064310 | O RING | 1 |
| 21 | 210201-PD1 | COVER | 1 |
| 22 | 007021A0 | SCREW | 3 |
| 23 | 9A30020 | FILTER SEAL | 1 |
Page 39 — HR DEVICE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 207065-9P0 | SILICONE OIL RESERVOIR (UPPER) ASSEMBLY | 1 |
| 2 | 207066-PDO | SILICONE OIL RESERVOIR (UPPER) | 1 |
| 3 | 207067-PDO | CAP | 1 |
| 4 | 2067810 | SPRING PIN | 2 |
| 5 | 0050530 | SCREW | 2 |
| 6 | 2070680 | FELT | 1 |
Page 41 — INSTALLATIONS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 0090160 | CUSHION RUBBER (SET) | 1 |
| 2 | 2063380 | CUSHION RUBBER | 4 |
| 3 | 2063360 | NUT | 4 |
| 4 | 2590000 | REST BOARD | 2 |
| 5 | 0045120 | BOLT | 4 |
| 6 | 2063370 | WASHER | 12 |
| 7 | 2057640 | CUSHION RUBBER | 4 |
| 8 | 2057650 | LINER | 4 |
| 9 | 0070930 | SCREW | 4 |
| 10 | 2063290 | TREADLE CHAIN GUIDE | 1 |
| 11 | 0070270 | SCREW | 2 |
| 12 | 2054670 | SPACER | 4 |
| 13 | 0090160 | CUSHION RUBBER (SET) | 1 |
| 14 | 2063380 | CUSHION RUBBER | 4 |
| 15 | 0090320 | SCREW (SET) | 1 |
| 16 | 2070730 | SCREW | 4 |
| 17 | 2070740 | RING | 4 |
| 18 | 2007280 | WASHER | 4 |
| 19 | 2020450 | SPRING WASHER | 4 |
| 20 | 0050200 | NUT | 4 |
| 21 | 259003ATB0 | BELT GUARD | 1 |
| 22 | 0049060 | SCREW | 3 |
| 23 | 3033350 | WASHER | 3 |
Page 43 — THREAD STAND
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 000100-9P0 | THREAD STAND ASSY.(6-SPOOL) | 1 |
| 2 | 000100A9P0 | THREAD STAND ASSY.(5-SPOOL) | 1 |
| 3 | 000101-PA0 | COLUMN PIPE (UPPER) | 1 |
| 4 | 000102-PA0 | COLUMN PIPE (LOWER) | 1 |
| 5 | 0001030 | JOINT | 1 |
| 6 | 004066-HU0 | SCREW | 2 |
| 7 | 004067-HU0 | NUT | 2 |
| 8 | 000104-PA0 | BRACKET (3-SPOOL) | 1 |
| 9 | 000104APA0 | BRACKET (2-SPOOL) | 1 |
| 10 | 0001160 | HOLDER | 2 |
| 11 | 004068-HU0 | SCREW | 2 |
| 12 | 0001050 | SPOOL PIN | 5 |
| 13 | 303067A0 | SPRING WASHER | 5 |
| 14 | 004067-HU0 | NUT | 5 |
| 15 | 000106-PA0 | SPOOL TRAY | 5 |
| 16 | 0001070 | SPOOL MAT | 5 |
| 17 | 000108-PA0 | SPOOL RETAINING FIN | 5 |
| 18 | 000109-PA0 | BRACKET | 1 |
| 19 | 0041130 | SCREW | 1 |
| 20 | 0048030 | NUT | 1 |
| 21 | 0001100 | THREAD GUIDE BAR | 1 |
| 22 | 004065-HU0 | SCREW | 1 |
| 23 | 0048030 | NUT | 1 |
| 24 | 000111-PA0 | BRACKET | 1 |
| 25 | 004065-HU0 | SCREW | 1 |
| 26 | 0048030 | NUT | 1 |
| 27 | 0001120 | THREAD GUIDE BAR (6-SPOOL) | 1 |
| 28 | 000112A0 | THREAD GUIDE BAR (5-SPOOL) | 1 |
| 29 | 004065-HU0 | SCREW | 1 |
| 30 | 0048030 | NUT | 1 |
| 31 | 000104-PA0 | BRACKET (3-SPOOL) | 1 |
| 32 | 000104APA0 | BRACKET (2-SPOOL) | 1 |
| 33 | 0001160 | HOLDER | 2 |
| 34 | 004068-HU0 | SCREW | 2 |
| 35 | 0001130 | THREAD GUIDE | 5 |
| 36 | 0001140 | ROD CAP | 1 |
| 37 | 0001150 | WASHER | 2 |
| 38 | 0001170 | SPRING WASHER | 1 |
| 39 | 007370-HU0 | NUT | 1 |
Page 45 — SPECIFIC PARTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2581670 | FABRIC GUIDE (RIGHT) | 1 |
| 2 | 2105850 | WASHER | 2 |
| 3 | 0071560 | SCREW | 2 |
| 4 | 2581760 | FABRIC GUIDE (RIGHT) | 1 |
| 5 | 0071540 | SCREW | 1 |
| 6 | 2581770 | FABRIC GUIDE (LEFT) | 1 |
| 7 | 0071540 | SCREW | 1 |
| 8 | 2581690 | FABRIC GUIDE (RIGHT) | 1 |
| 9 | 2581700 | FABRIC GUIDE (LEFT) | 1 |
| 10 | 2581740 | BRACKET | 1 |
| 11 | 0071540 | SCREW | 2 |
| 12 | 2581750 | BRACKET | 1 |
| 13 | 0070400 | SCREW | 1 |
| 14 | 2575750 | FABRIC GUIDE (LEFT) | 1 |
| 15 | 0071540 | SCREW | 1 |
| 16 | 2575760 | FABRIC GUIDE (RIGHT) | 1 |
| 17 | 0070110 | SCREW | 1 |
Page 47 — SPECIFIC PARTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2581670 | FABRIC GUIDE (RIGHT) | 1 |
| 2 | 2105850 | WASHER | 2 |
| 3 | 0071560 | SCREW | 2 |
| 4 | 2581780 | FABRIC GUIDE (LEFT) | 1 |
| 5 | 2581790 | FABRIC GUIDE (LEFT) | 1 |
| 6 | 0071540 | SCREW | 1 |
| 7 | 257761A0 | FABRIC GUIDE | 1 |
| 8 | 0070310 | SCREW | 2 |
| 9 | 2577610 | FABRIC GUIDE | 1 |
Page 49 — SPECIFIC PARTS (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2536780 | BRACKET | 1 |
| 2 | 2536770 | THREAD GUIDE | 1 |
| 3 | 2536840 | THREAD GUIDE | 1 |
| 4 | 2536830 | BRACKET | 1 |
| 5 | 2536820 | NEEDLE THREAD CAM | 1 |
| 6 | 0071540 | SCREW | 2 |
| 7 | 2028750 | WASHER | 2 |
| 8 | 2504340 | THREAD TAKE-UP GUARD | 1 |
| 9 | 2504350 | NEEDLE BAR GUARD | 1 |
Page 50 — W200 GAUGE PARTS LIST(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 257541-321 | NEEDLE HOLDER | ||
| 259254-16F1 | NEEDLE HOLDER | ||
| 〃 481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 〃 641 | NEEDLE HOLDER | ||
| 〃 561 | NEEDLE HOLDER | ||
| 〃 641 | NEEDLE HOLDER | ||
| 257541-321 | NEEDLE HOLDER | ||
| 〃 401 | NEEDLE HOLDER | ||
| 〃 481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 〃 641 | NEEDLE HOLDER | ||
| 〃 561 | NEEDLE HOLDER | ||
| 〃 641 | NEEDLE HOLDER | ||
| 257541-481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 〃 641 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 259612B320 | NEEDLE PLATE | 232 | |
| B400 | NEEDLE PLATE | 240 | |
| B480 | NEEDLE PLATE | 248 | |
| 259613B560 | NEEDLE PLATE | 256 | |
| B640 | NEEDLE PLATE | 256 | |
| 259614B560 | NEEDLE PLATE | 356 | |
| 259146-16F0 | MAIN FEED DOG | 232 | |
| 257460-320 | PRESSER FOOT | 232 | |
| 2575660 | LOOPER | 232 | |
| 2595720 | NEEDLE GUARD FRONT | 232 | |
| 259573-920 | NEEDLE GUARD REAR | 232 | |
| 2575650 | SPREADER | 232 | |
| 259255-16F1 | DIFF. FEED DOG | 256 | |
| 259613C560 | NEEDLE PLATE | 264 | |
| C640 | NEEDLE PLATE | 264 | |
| 259148-16F0 | MAIN FEED DOG | 264 | |
| 259614C560 | NEEDLE PLATE | 356 | |
| 259622C560 | NEEDLE PLATE | 356 | |
| 259616B480 | NEEDLE PLATE | 248 | |
| 257471-480 | PRESSER FOOT | 248 | |
| 259617B560 | NEEDLE PLATE | 356 | |
| 257472-560 | PRESSER FOOT | 356 | |
| 259259-16F1 | DIFF. FEED DOG | 356 | |
| 257461-560 | PRESSER FOOT | 356 |
Page 51 — W200 GAUGE PARTS LIST (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 257541-401 | |||
| 481 | |||
| 257542-561 | |||
| 641 | |||
| 561 | |||
| 641 | |||
| 257541-401 | |||
| 259615C480 | |||
| 257542-561 | |||
| 641 | |||
| 561 | |||
| 641 | |||
| 257541-401 | |||
| 481 | |||
| 257542-561 | |||
| 641 | |||
| 257541-401 | |||
| W264-03GC | |||
| 257542-561 | |||
| 641 | |||
| 259615B480 | 259149-16F0 | ||
| 259608B560 | 259266-16F0 | ||
| 259608C560 | 259266-16F0 | ||
| 259619B560 | 259262-16F0 | ||
| 259619B640 | |||
| 259619C560 | 259262-16F0 | ||
| 259619C640 | |||
| 2575660 | |||
| 2575650 | UY128GAS #9S |
Page 52 — W200 GAUGE PARTS LIST (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 257541-401 | NEEDLE HOLDER | ||
| W264-08AB | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 〃 641 | NEEDLE HOLDER | ||
| 257541-401 | NEEDLE HOLDER | ||
| 〃 481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 〃 641 | NEEDLE HOLDER | ||
| 257541-321 | NEEDLE HOLDER | ||
| 〃 401 | NEEDLE HOLDER | ||
| 〃 481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 〃 641 | NEEDLE HOLDER | ||
| 257541-401 | NEEDLE HOLDER | ||
| W264-08BC | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 〃 641 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER |
Pegasus W200 — parts catalog
- Page 1 (cover): This is the cover page for the W200 Small Cylinder Bed Interlock Stitch Machines Parts Catalog from Pegasus.
- Page 2 (text): This page contains introductory information about the W200 series parts catalog, including how it is organized and how to order parts, followed by a list of models for the W264 Series.
- Page 3 (toc): This page contains the table of contents for the industrial sewing machine parts catalog, listing various mechanisms and components with their corresponding page numbers.
- Page 4 (diagram): This page displays a diagram of machine components with numbered parts, including a main engine block, various covers, and fasteners.
- Page 5 (parts_list): This page lists parts for the MACHINE BED COVER, including part numbers, descriptions, and quantities.
- Page 6 (diagram): This page displays a diagram of various machine components, including brackets, covers, screws, and bolts, with reference numbers for each part.
- Page 7 (parts_list): This page lists parts for COVER (1), including part numbers, descriptions, and quantities.
- Page 8 (diagram): This page displays a diagram of various machine components, including plates, screws, and brackets, with reference numbers for each part.
- Page 9 (parts_list): This page lists parts for the Cover (2) section, including various screws, gaskets, covers, and bolts with their corresponding part numbers and quantities.
- Page 10 (diagram): This page displays a diagram of various machine parts, including shafts, pulleys, bearings, and fasteners, with reference numbers for each component.
- Page 11 (parts_list): This page lists parts for the Crankshaft Drive Mechanism, including crankshafts, screws, bolts, bushings, gears, pulleys, and timing belts, with their corresponding part numbers and quantities.
- Page 12 (diagram): This page displays a diagram of various machine components, including shafts, couplings, pulleys, and motor parts, with reference numbers for each part.
- Page 13 (parts_list): This page lists parts for the ARM SHAFT MECHANISM, including part numbers, descriptions, and quantities.
- Page 14 (diagram): This page displays a diagram of various sewing machine components, including needles, presser feet, and other mechanical parts, with reference numbers for identification.
- Page 15 (parts_list): This page lists parts for the needle bar and needle guard mechanism, including part numbers, descriptions, and quantities.
- Page 16 (diagram): This page displays a diagram of various machine parts, including components labeled with reference numbers from 1 to 38. It also includes part numbers and descriptions for some items, such as W200-01N,08M.
- Page 17 (parts_list): This page lists parts for the Looper Drive Mechanism, including part numbers, descriptions, and quantities.
- Page 18 (diagram): This page displays a diagram of various sewing machine parts, including components like bearings, shafts, levers, springs, and fasteners, each identified by a reference number.
- Page 19 (parts_list): Parts list for the feed mechanism (1) section, giving reference numbers, part numbers, Japanese and English names, and quantities for items 1 to 68 of the sewing machine.
- Page 20 (diagram): This page displays a diagram of various sewing machine components, including levers, shafts, screws, and other hardware, with reference numbers for each part.
- Page 21 (parts_list): Parts list page for the feed mechanism (2) of the sewing machine, giving reference numbers, part numbers, Japanese and English names, and quantities for refs 1 to 70.
- Page 22 (diagram): This page displays a diagram of various machine parts, with reference numbers indicating their positions. It includes components such as shafts, bearings, linkages, and fasteners, numbered from 1 to 41.
- Page 23 (parts_list): This page lists parts for the feed mechanism (3), including rods, cranks, bolts, washers, screws, collars, blocks, oil strings, felt, joints, needle bearings, and felt washers, with their corresponding part numbers and quantities.
- Page 24 (diagram): This page displays a diagram of various sewing machine parts, with each part labeled with a reference number for easy identification.
- Page 25 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities.
- Page 26 (diagram): This page displays a diagram of various machine parts, including levers, shafts, screws, and washers, with reference numbers from 1 to 24.
- Page 27 (parts_list): This page lists parts for the Spreader Mechanism, including part numbers, descriptions, and quantities.
- Page 28 (diagram): This page displays diagrams of sewing machine parts, including components for 2-needle and 3-needle configurations, with reference numbers and labels for various parts.
- Page 29 (parts_list): This page lists parts for the Thread Tension Mechanism, including part numbers, descriptions, and quantities.
- Page 30 (diagram): This page displays a diagram of various sewing machine parts, including screws, washers, brackets, and other components, with reference numbers for identification.
- Page 31 (parts_list): This page lists parts for the Needle & Spreader Thread Handling mechanism, including part numbers, descriptions, and quantities.
- Page 32 (diagram): This page displays a diagram of various sewing machine components, including screws, brackets, pulleys, and a belt, with reference numbers for each part.
- Page 33 (parts_list): This page lists parts for the LOOPER THREAD HANDLING system, including brackets, washers, screws, thread guides, and other components with their corresponding part numbers and quantities.
- Page 34 (diagram): This page displays a diagram of various components of an industrial sewing machine, including part numbers and reference indicators for identification.
- Page 35 (parts_list): This page lists parts for the Lubrication Mechanism (1) with part numbers, descriptions, and quantities.
- Page 36 (diagram): This page displays a diagram of various machine components, including gears, shafts, screws, and a filter assembly, with numbered references for each part.
- Page 37 (parts_list): This page lists parts for the Lubrication Mechanism (2), including oil reservoir assembly, pump assembly, rotors, covers, screws, bolts, and filter components, with their respective part numbers and quantities.
- Page 38 (diagram): This page displays a diagram of various machine components, including brackets, covers, and fasteners, with reference numbers for identification.
- Page 39 (parts_list): This page lists parts for the HR DEVICE, including silicone oil reservoir assemblies, caps, spring pins, screws, and felt, with their corresponding part numbers and quantities.
- Page 40 (diagram): This page displays diagrams of accessory parts for an industrial sewing machine, with numbered components and their corresponding part numbers.
- Page 41 (parts_list): This page lists parts for installations, including part numbers, descriptions, and quantities. It contains 23 items, with part numbers ranging from 0090160 to 3033350.
- Page 42 (diagram): This page displays a diagram of accessory parts for a sewing machine, including spool holders and related hardware, with reference numbers for each component.
- Page 43 (parts_list): This page lists parts for the Thread Stand, including screws, nuts, brackets, and holders, with their corresponding part numbers and quantities.
- Page 44 (diagram): This page displays diagrams of parts for models W200-01E, W200-03F, and W200-03G, with numbered references to specific components.
- Page 45 (parts_list): This page lists specific parts for industrial sewing machines, including part numbers, descriptions, and quantities.
- Page 46 (diagram): This page displays diagrams of sewing machine parts, including components for light and heavy weight fabrics, and accessories packed with the machine, labeled with reference numbers 1 through 9.
- Page 47 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 48 (diagram): This page displays a diagram of machine components with reference numbers for parts W200-01N, 08M.
- Page 49 (parts_list): This page lists specific parts for a sewing machine, including part numbers, descriptions in both Japanese and English, and quantities.
- Page 50 (parts_list): This page contains a parts list for W200 gauge parts, listing part numbers and descriptions for various machine types and gauges.
- Page 51 (parts_list): This page contains a parts list for W200 gauge parts, including machine type, gauge, needle holder, needle plate, main feed dog, diff. feed dog, presser foot, looper, needle guard (front and rear), spreader, and needle. It lists part numbers and descriptions for various machine models.
- Page 52 (parts_list): This page lists parts for W200 gauge parts, including machine type/spec, gauge, needle holder, needle plate, main feed dog, diff. feed dog, presser foot, looper, needle guard (front and rear), spreader, and needle. It details part numbers and associated specifications for various machine types like W264-08AB, W264-08AC, W264-08BB, W264-08BC, and W264-08MC.
- Page 55 (unknown): This page contains a watermark with the text "jinttex.in" and a footer with the same text. There is no other discernible content on the page.
- Page 56 (cover): This is the cover page for the PEGASUS SEWING MACHINE MFG. CO., LTD. parts catalog, catalog number 97390, dated January 2003. It includes company contact information and a disclaimer about potential changes to catalog contents.
