Mitsubishi DU-100 Series Parts Book (PDF)
Text index — Mitsubishi DU-100 Series

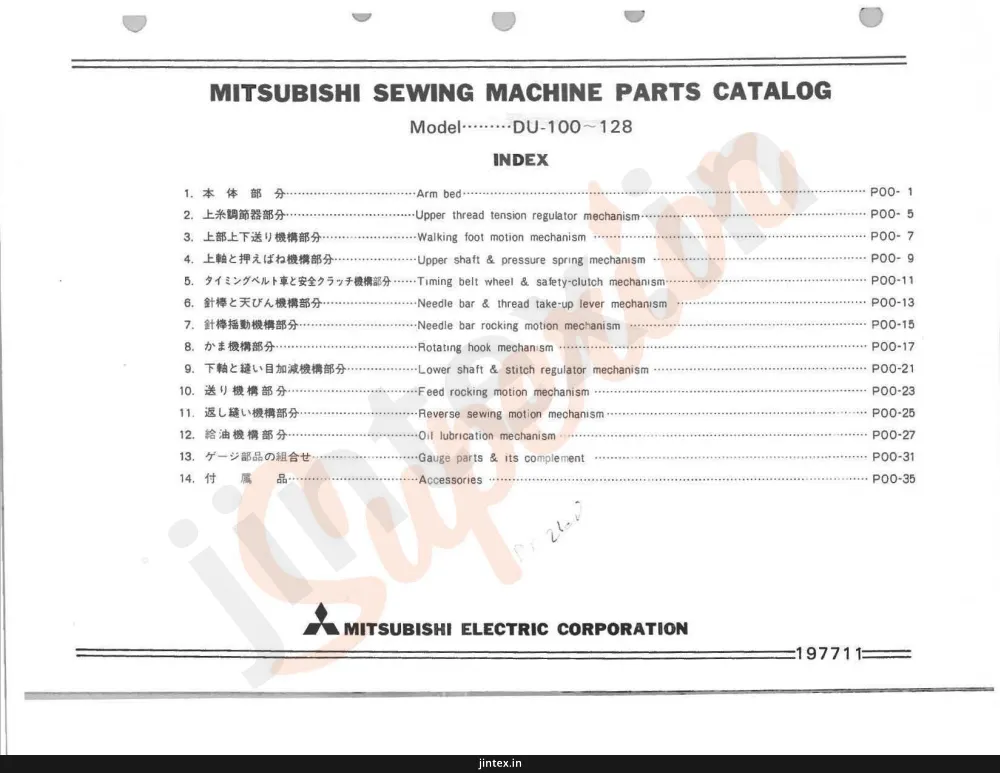

Page 1 — INDEX
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| POO- 1 | 本体部分 Arm bed | ||
| POO- 5 | 上糸調節器部分 Upper thread tension regulator mechanism | ||
| POO- 7 | 上部上下送り機構部分 Walking foot motion mechanism | ||
| POO- 9 | 上輪と押えばね機構部分 Upper shaft & pressure spring mechanism | ||
| POO- 11 | タイミングベルト車と安全クラッチ機構部分 Timing belt wheel & safety-clutch mechanism | ||
| POO- 13 | 針棒と天びん機構部分 Needle bar & thread take-up lever mechanism | ||
| POO- 15 | 針棒振動機構部分 Needle bar rocking motion mechanism | ||
| POO- 17 | かま機構部分 Rotating hook mechanism | ||
| POO- 21 | 下軸と縫い目加減機構部分 Lower shaft & stitch regulator mechanism | ||
| POO- 23 | 送り機構部分 Feed rocking motion mechanism | ||
| POO- 25 | 返し縫い機構部分 Reverse sewing motion mechanism | ||
| POO- 27 | 給油機構部分 Oil lubrication mechanism | ||
| POO- 31 | ゲージ部品の組合せ Gauge parts & its complement | ||
| POO- 35 | 付属品 Accessories |
Page 3 — DU-100形 本体部分 ARM BED
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | MP 03B0 584 | Thread take-up cover | |
| MN 10A0 584 | Thread take-up cover | ||
| 3 | M9 0916 003 | Screw(for Fig.2) | |
| M9 0935 002 | Screw | ||
| 4 | M9 0918 002 | Screw(for Fig.5,6) | |
| 5 | MP 00B1 600 | Armtop cover | |
| MP 00B0 600 | Arm top cover | ||
| 6 | MP 03B0 600 | Arm top cover | |
| 7 | MN 10A2 181 | Arm top cover thread guide | |
| 8 | M9 1202 045 | Arm top cover thread guide nut | |
| 9 | M9 0915 002 | Screw(for Fig.5,6) | |
| 22 | MN 10A0 800 | Arm side cover | |
| 23 | M9 1101 004 | Arm side cover set screw | |
| 30 | M9 0901 001 | Face plate set pin screw | |
| M9 1102 004 | Face plate set pin screw | ||
| 31 | MN 12B0 830 | Face plate | |
| MN 10A1 830 | Face plate | ||
| 32 | MP 03B0 830 | Face plate | |
| 33 | M9 0504 063 | Face plate set pin | |
| 34 | MP 00B0 605 | Face plate set spring | |
| 35 | M9 0503 063 | Face plate set pin | |
| 36 | MN 10A0 476 | Face plate set pin washer | |
| 37 | MN 10A0 131 | Oil plate | |
| 38 | M9 1201 011 | Arm thread guide(upper)set screw | |
| 39 | MN 10A0 181 | Arm thread guide(upper) | |
| 40 | M9 0402 060 | Tension releasing pin(large) | |
| 41 | M9 1110 002 | Tension regulator bracket screw | |
| 42 | MN 10A4 742 | CaP | |
| 43 | M9 1513 001 | Tension stud screw | |
| 44 | M9 1111 001 | Tension stud screw | |
| 45 | M9 0401 060 | Pin | |
| 46 | MN 10A0 572 | Spring | |
| 47 | MP 20B0 472 | Slide plate(front) | |
| 48 | M9 1301 001 | Slide plate(front)set screw | |
| 49 | MG 10B0 138 | Oil plug(in ball) | |
| M9 1001 004 | |||
| M9 20B0 472 |
Page 5 — ARM BED
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 50 | M9 0907 002 | Thread take-up sping stoper set screw | |
| 51 | MN 10A0 477 | Thread take-up spring stoper | |
| 52 | MP 00B0 181 | Arm thread guide(lower) | |
| 53 | MP 00B0 740 | Felt(for Fig.52) | |
| 54 | M9 0920 002 | Arm thread guide(lower)set screw | |
| 55 | M9 1106 011 | Needle plate set screw | |
| 56 | M9 0951 003 | Slide plate set screw | |
| 57 | M9 0904 011 | Arm thread guide(center)set screw | |
| 58 | MN 10A2 181 | Arm thread guide(center) |
Page 7 — UPPER THREAD TENSION REGULATOR MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 901 | MP 00E0 210 | Thread tension regulator complete | |
| 902 | MP 10E0 210 | Thread tension regulator complete | |
| 903 | MP 20E0 210 | Thread tension regulator complete | |
| 62 | MN 10A0 851 | Tension releasing spring | |
| 63 | M9 0902 015 | Tension releasing spring set screw | |
| 68 | W502213 | Thread guide bracket | |
| 69 | MN 10A1 555 | Thread guide disc | |
| 71 | M9 0930 016 | Thread tension releasing screw | |
| 72 | M9 0202 060 | Tension releasing pin(small) | |
| 73 | M9 1603 046 | Tension releasing thumb nut | |
| 74 | MF 23C0 245 | Tension spring | |
| 75 | MN 10A0 556 | Tension regulator presser disc | |
| 76 | MN 10A0 555 | Tension regulator disc | |
| 77 | M9 0602 003 | Thread controller disc screw | |
| 78 | M9 0603 003 | Thread controller disc screw | |
| 79 | MN 10E0 175 | Thread controller disc set | |
| 80 | MP 00B0 187 | Thread take-up spring | |
| 81 | MP 20B0 187 | Thread take-up spring | |
| 82 | MP 10B0 554 | Tension stud | |
| 83 | MN 10A0 554 | Tension stud | |
| W450020 | |||
| W445931 | |||
| W462908 | |||
| W462909 | |||
| W462823 | |||
| M9 0902 016 | |||
| MP 10B0 187 | |||
| W445856 |
Page 9 — DU-100形 上部下送り機構部分
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 120 | MN 10A0 263 | Presser bar guide | |
| 121 | M9 1653 001 | Presser bar guide set screw | |
| 122 | MN 10A0 265 | Presser bar holder | |
| 123 | M9 0903 003 | Presser bar holder set screw | |
| 124 | MN 10A0 267 | Presser bar bushing | |
| 125 | MP 00B0 268 | Feed lifting rock shaft | |
| 126 | M9 1802 045 | Feed lifting rock shaft nut | |
| 127 | MG 10B0 833 | Feed lifting rock shaft bushing | |
| 128 | MP 00B0 572 | Presser bar spring | |
| 129 | MP 00B0 221 | Upper thread releasing plate | |
| 130 | MG 10B0 325 | Square block | |
| 131 | MP 00B0 462 | Feed lifting rock shaft crank complete | |
| 132 | M9 1603 003 | Feed lifting rock shaft crank set screw | |
| 133 | MG 10B0 750 | Feed lifting rock shaft bushing | |
| 134 | MG 10B0 384 | Crank connecting rod | |
| 135 | M9 0607 050 | Crank connecting rod washer | |
| 136 | M9 1601 045 | Crank connecting rod nut | |
| 139 | MP 00B0 760 | Eccentric(for arm shaft) | |
| 140 | M9 1606 001 | Eccentric(for arm shaft)set screw | |
| 141 | M9 0851 015 | Presser foot set screw | |
| 142 | MN 10A0 262 | Presser bar | |
| 143 | MN 10A0 702 | Presser bar spring bracket | |
| 144 | M9 0905 002 | Presser bar spring bracket set screw | |
| 145 | MN 10A0 252 | Presser bar lifter | |
| 146 | M9 1201 033 | Presser bar lifter screwed pin | |
| 147 | M9 1151 003 | Bell crank screw | |
| 148 | MP 00B0 763 | Bell crank | |
| 149 | M9 1202 001 | Bell crank set screw | |
| 150 | M9 0602 060 | Upper feed lifting connecting pin | |
| 151 | MP 00B0 910 | Upper feed lifting connecting link | |
| 152 | M9 1805 015 | Upper feed lifting connecting link screw | |
| 153 | MP 00B0 764 | Bell crank bracket | |
| 154 | M9 1113 002 | Bell crank bracket set screw | |
| W445918 | |||
| W500478 | |||
| W445920 | |||
| B 509268 | |||
| W445929 | |||
| W461762 | |||
| B 508961 | |||
| W502463 | |||
| W502465 | |||
| W322744 | |||
| W502416 | |||
| W453576 | |||
| W501009 | |||
| W462911 | |||
| W453577 | |||
| W462759 | 座 金M6 | ||
| W501989 | |||
| W462912 | |||
| B 504010 | |||
| W459107 | |||
| W45919 | |||
| W45921 | |||
| W500470 | |||
| W459307 | |||
| W501024 | |||
| W502454 | |||
| W322716 | |||
| W500151 | |||
| W462916 | |||
| W502414 | |||
| W502398 | |||
| W322717 | |||
| W500182 |
Page 11 — UPPER SHAFT & PRESSURE SPRING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 160 | MN 10A0 383 | Needle bar crank | |
| 160 | MN 12B0 383 | Needle bar crank | |
| 161 | M9 1502 001 | Needle bar crank screw | |
| 162 | M9 1801 002 | Needle bar crank set screw | |
| 163 | M9 1508 001 | Needle bar crank screw | |
| 164 | M9 1802 006 | Needle bar crank set screw | |
| 165 | MN 10A0 482 | Needle bar crank ring | |
| 166 | M9 1654 001 | Arm shaft bushing(left)set screw | |
| 167 | MP 00B0 232 | Arm shaft bushing(left) | |
| 168 | MN 10A2 740 | Arm shaft bushing(left)felt | |
| 170 | MN 10A0 230 | Arm shaft | |
| 171 | M9 1601 016 | Knee lifter lifting lever(2)hinge screw | |
| 171 | MN 1601 016 | Knee lifter lifting lever(2)hinge screw | 1 |
| 172 | MN 10A1 725 | Knee lifter lifting lever(2) | |
| 173 | M9 0101 062 | Knee lifter lifting pin | |
| 174 | MN 10A0 511 | Lifting connecting rod | |
| 175 | MN 10A0 352 | Lifting connecting rod collar | |
| 176 | M9 1107 002 | Lifting connecting rod collar set screw | |
| 177 | MP 00B0 259 | Presser spring | |
| 904 | MN 10E0 970 | Roller complete | |
| 178 | M9 0901 016 | Roller bracket set screw | |
| 179 | MN 10A0 972 | Roller | |
| 180 | MN 10A0 970 | Roller bracket | |
| 181 | M9 1602 016 | Presser lever hinge screw | |
| 182 | M9 1601 033 | Presser adjustable screw | |
| 183 | MN 10A0 258 | Presser lever spring | |
| 184 | MP 00B0 725 | Knee lifter lifting lever(1) | |
| 185 | M9 1601 016 | Knee lifter lifting lever(1)hinge screw |
Page 13 — DU-100形 タイミングベルト車と安全クラッチ機構部分
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 201 | MN 10A0 767 | Belt pulley(upper)complete | |
| 202 | MN 10A1 851 | Spring flange | |
| 203 | M9 1511 001 | Belt pulley screw | |
| 204 | M9 1501 007 | Belt pulley set screw | |
| 205 | MP 00B0 523 | Connection belt | |
| 207 | MN 10E0 682 | Balance wheel | |
| 208 | MP 03E0 682 | Balance wheel | |
| 209 | MP 08E0 682 | Balance wheel | |
| 210 | M9 1502 002 | Balance wheel screw | |
| 905 | MP 00E0 768 | Belt Pulley(lower)complete | |
| 211 | MP 00B0 871 | Safety clutch spring plate | |
| 212 | M9 0605 063 | Safety clutch spring plate pin | |
| 213 | MP 00B1 910 | Safety clutch spring plate link | |
| 214 | M9 0502 065 | E-Washer | |
| 215 | MP 00B0 729 | Safety cutch spring | |
| 216 | MP 00B0 346 | Safety clutch plate | |
| 217 | M9 0604 063 | Safety clutch plate set pin | |
| 218 | MP 00B0 952 | Safety clutch plate rbacket | |
| 219 | MP 00B1 750 | Safety clutch bushing | |
| 220 | M9 1503 007 | Safety clutch bushing screw | |
| 221 | M9 1504 002 | Safety clutch bushing screw | |
| 222 | MP 00B0 768 | Belt Pulley(lower) | |
| 223 | M9 1503 001 | Belt pulley(lower)screw | |
| 224 | M9 0902 011 | Ball bealing cover plate set screw | |
| 225 | MN 10A0 771 | Ball bealing cover plate | |
| 226 | MN 10E0 456 | Ball bealing(lower shaft) | |
| 227 | M9 1603 001 | Ball bealing set screw | |
| 228 | M9 1602 001 | Ball bealing set screw | |
| 229 | MP 00B0 347 | Gear toothed wheel | |
| 265 | M9 1606 001 | Gear toothed wheel set screw | |
| 266 | M9 0570 065 | E-Washer | |
| 267 | MF 30A0 245 | Push button spring | |
| 268 | MN 10A0 270 | Push button | |
| W445869 |
Page 15 — DU-100形 針棒と天びん機構部分 NEEDLE BAR & THREAD TAKE-UP LEVER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 230 | MN 10A0 587 | Needle bar guide bracket rod | |
| 231 | MF 10E0 148 | Oil wick | |
| 232 | M9 1251 045 | Thumb screw nut | |
| 233 | M9 1201 035 | Thumb screw | |
| 234 | M9 1506 001 | Needle bar guide bracket rod screw | |
| 235 | MF 10E2 148 | Oil wick | |
| 236 | MP 00B0 582 | Thread take-up | |
| 236 | MP 02B0 582 | Thread take-up | |
| 237 | MP 03B0 582 | Thread take-up | |
| 238 | MN 10A0 588 | Thread take-up link | |
| 239 | MP 03B0 588 | Thread take-up link | |
| 240 | M9 1502 002 | Screw(for Fig.236,237) | |
| 241 | MN 10A0 387 | Needle bar crank pin | |
| 242 | MP 00B0 387 | Needle bar crank pin | |
| 243 | MN 10A1 740 | Felt(for Fig.241,242) | |
| 915 | MP 00E0 666 | Needle bar guide bracket(complete) | |
| 244 | MP 00B0 661 | Needle bar crank rod | |
| 245 | MP 00B0 666 | Needle bar guide bracket | |
| 246 | MP 00B0 476 | Spacer | |
| 247 | M9 0604 011 | Spacer set screw | |
| 248 | M9 0602 002 | Needle bar thread guide set screw | |
| 249 | M9 0801 002 | Needle bar thread guide set screw | |
| 250 | MP 00B1 181 | Needle bar thread guide | |
| 251 | MP 00B0 660 | Needle bar | |
| 252 | MP 20B0 660 | Needle bar | |
| 253 | MP 00B0 665 | Needle bar holder | |
| 254 | MN 10A0 740 | Felt(for Fig.244) | |
| 255 | M9 0905 002 | Needle bar holder set screw | |
| 256 | MP 00B0 881 | Vibrating presser bar | |
| 257 | MP 00B0 667 | Needle bar guide | |
| 258 | M9 1105 002 | Needle bar guide set screw | |
| 259 | MP 00B0 882 | Vibrating presser bar link | |
| 260 | M9 1113 002 | Vibrating presser bar guide set screw | |
| 261 | MP 00B0 883 | Vibrating presser bar guide | |
| 262 | MH 19A0 259 | Presser spring | |
| 263 | MP 00B0 884 | Vibrating presser spring guide | |
| 264 | MN 10A0 500 | Needle bar cap |
Page 17 — DU-100 Needle Bar Rocking Motion Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 271 | MN 25A0 325 | Square block | |
| 272 | M9 0509 063 | Needle bar vibrating crank pin | |
| 273 | MN 10A0 668 | Needle bar vibrating shaft | |
| 274 | MP 00B0 672 | Needle bar vibrating crank(left) | |
| 275 | M9 0401 061 | Taper pin | |
| 276 | M9 1653 001 | Needle bar vibrating shaft shaft bushing(left)set screw | |
| 277 | MN 10A0 669 | Needle bar vibrating shaft bushing(left) | |
| 278 | MN 10A1 669 | Needle bar vibrating shaft bushing(right) | |
| 279 | MP 00B1 672 | Needle bar vibrating crank(right) | |
| 280 | M9 1603 003 | Needle bar vibrating crank(right)set screw | |
| 281 | M9 2002 045 | Needle bar vibrating connecting rod nut | |
| 282 | MP 00B0 671 | Needle bar Vibrating connecting rod | |
| 283 | M9 2001 015 | Needle bar vibrating connecting rod hinge screw | |
| 284 | MF 10E2 148 | Oil wick | |
| MP 0080 672 | |||
| MP 0081 672 | |||
| MP 0080 671 |
Page 19 — ROTATING HOOK MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 301 | MP 00B0 643 | Hook driving shaft bevel gear(small) | |
| 302 | M9 1602 001 | Hook driving shaft bevel gear(small)set screw | |
| 303 | M9 1604 005 | Hook driving shaft bevel gear(small)set screw | |
| 304 | MP 00B0 642 | Hook driving shaft bevel gear(large) | |
| 305 | MP 0030 750 | Hook driving shaft bushing | |
| 306 | M9 1509 002 | Hook driving shaft bushing set screw | |
| 906 | MP 00B0 120 | Rotating hook | |
| 906 | MP 02B0 120 | Rotating hook | |
| 907 | MP 03B0 120 | Rotating hook | |
| 307 | MN 10A0 123 | Bobbin | |
| 307 | MN 02A0 123 | Bobbin | |
| 308 | MP 03B0 123 | Bobbin | |
| 309 | MN 10A0 302 | Rotating hook opener bracket shaft | |
| 310 | MF 10E2 148 | Oil wick | |
| 311 | M9 0910 003 | Screw | |
| 312 | M9 0401 050 | Washer | |
| 313 | MN 10A0 300 | Rotating hook opener | |
| 314 | MP 03B0 300 | Rotating hook opener | |
| 315 | MN 10A0 340 | Rotating hook connecting crank | |
| 316 | MP 03B0 340 | Rotating hook connecting crank | |
| 908 | MN 10E0 301 | Rotating hook opener bracket complete | |
| 908 | MN 12E0 301 | Rotating hook opener bracket complete | |
| 909 | MP 03E0 300 | Rotating hook opener bracket complete | |
| 317 | M9 1254 030 | Rotating hook opener bracket pin | |
| 318 | MN 10A0 301 | Rotating hook opener bracket | |
| 318 | MN 12B0 301 | Rotating hook opener bracket | |
| 319 | MP 03B0 301 | Rotating hook opener bracket | |
| 320 | M9 0501 051 | Teethed washer | |
| 321 | M9 1251 045 | Nut | |
| 322 | MN 10A0 250 | Oil gauge | |
| 323 | M9 1204 002 | Hook saddle(right)screw | |
| 324 | M9 0701 050 | Hook saddle(right)set screw washer | |
| 325 | M9 1652 002 | Hook saddle(right)set screw | |
| 326 | M9 1651 002 | Hook saddle(right)set screw | |
| MN 03B0 301 |
Page 21 — ROTATING HOOK MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 350 | M9 1251 045 | Hook saddle(right)set screw nut | |
| 351 | M9 1252 030 | Hook saddle(right)cock screw | |
| 352 | MN 10A0 345 | Hook saddle(right) | |
| 352 | MN 12B0 345 | Hook saddle(right) | |
| 353 | MP 03B0 345 | Hook saddle(right) | |
| 354 | MN 10A0 691 | Hook saddle gasket | |
| 355 | MP 00B0 134 | Oil reservoir cover(right) | |
| 356 | MP 03B0 132 | Oil reservoir cover(right) | |
| 357 | M9 1201 004 | Oil reservoir cover(right)set screw | |
| 358 | M9 1203 002 | Oil reservoir cover(right)set screw | |
| 359 | MN 10A0 342 | Hook shaft bushing(upper) | |
| 359 | MN 12B0 342 | Hook shaft bushing(upper) | |
| 361 | M9 0108 070 | Hook shaft bracket complete | |
| 362 | M9 1503 001 | Hook saddle(right)screw | |
| 363 | M9 1106 001 | Hook saddle(right)screw | |
| 364 | MN 10A0 343 | Hook shaft bushing(lower) | |
| 365 | M9 1001 050 | Hook shaft bushing(lower)washer | |
| 366 | MN 10A0 344 | Hook saddle(left) | |
| 366 | MN 12B0 344 | Hook saddle(left) | |
| 367 | MP 23B0 344 | Hook saddle | |
| 368 | MP 20B1 133 | Oil resevoir cover(left)(spacer) | |
| 369 | MP 20B0 133 | Oil resevoir cover(left) | |
| 370 | M9 9026 002 | Hook saddle(left)screw |
Page 23 — LOWER SHAFT & STITCH REGULATOR MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 380 | MN 10A0 451 | Lower shaft bushing(left) | |
| 381 | MP 10B0 451 | Lower shaft bushing(left) | |
| 382 | M9 1654 001 | Lower shaft bushing(left)set screw | |
| 383 | MF 10E0 148 | Oil wick | |
| 384 | MN 10A0 450 | Lower shaft | |
| 385 | MP 10B0 450 | Lower shaft | |
| 386 | MN 10A0 292 | Feed lifting cam | |
| 387 | M9 1652 001 | Feed lifting cam set screw | |
| 388 | MN 10A0 452 | Lower shaft bushing(right) | |
| 389 | M9 1654 001 | Lower shaft bushing(right)set screw | |
| 910 | MN 10E0 290 | Feed regulator complete | |
| 911 | MP 05E0 290 | Feed regulator complete | |
| 398 | M9 0901 015 | Clutch plate spring screw | |
| 402 | MN 10A0 951 | Lever bracket | |
| 403 | M9 0401 053 | Lever bracket set screw washer | |
| 404 | M9 1113 002 | Lever bracket set screw | |
| 405 | MN 10A0 270 | Push button | |
| 406 | M9 0505 065 | Bush button washer(E) | |
| 407 | MN 10A0 269 | Push button lever | |
| 408 | MN 10A2 729 | Push button lever spring | |
| 409 | M9 1104 015 | Push button lever set screw | |
| 410 | MF 10E3 148 | Oil wick | |
| 411 | M9 0707 063 | Feed connection rod set pin | |
| 412 | MN 10E0 293 | Feed connection rod complete | |
| 413 | MP 05E0 293 | Feed connection rod complete | |
| 414 | M9 1004 070 | Needle bearing | |
| W450960 | |||
| W500706 | |||
| W502945 | |||
| W453593 | |||
| W453594 | |||
| W501163 | |||
| W446370 | |||
| W446371 | |||
| W500791 | |||
| MN 10A0 851 |
Page 25 — FEED ROCKING MOTION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 420 | MF 10E3 148 | Oil wick | |
| 421 | M9 0707 063 | Feed connection crank pin | |
| 422 | MP 00B0 273 | Feed connection crank(right) | |
| 423 | M9 1603 003 | Feed connection crank(right)set screw | |
| 424 | M9 1203 002 | Feed connection crank pin set screw | |
| 425 | M9 1653 001 | Feed rock shaft bushing set screw | |
| 426 | MP 00B0 285 | Feed rock shaft bushing | |
| 427 | MP 00B0 352 | Feed rock shaft bushing collar | |
| 428 | M9 1503 001 | Feed rock shaft bushing collar set screw | |
| 429 | MP 00B0 273 | Feed connection crank(left) | |
| 430 | MP 00B0 274 | Feed connection crank(left) | |
| 431 | MP 00B0 352 | Feed rock shaft bushing collar | |
| 432 | M9 1602 045 | Nut | |
| 433 | M9 0601 051 | Teethed washer | |
| 434 | MN 10A0 284 | Feed rock shaft | |
| 435 | MP 00B0 281 | Feed bar | |
| 436 | MN 10A0 283 | Feed bar shaft | |
| 437 | M9 1503 002 | Feed bar screw | |
| 438 | M9 0604 050 | Feed bar washer | |
| 439 | MN 10A0 281 | Feed bar | |
| 440 | M9 0851 001 | Feed bar screw | |
| 441 | M9 0801 045 | Feed bar nut | |
| 442 | MN 10A0 282 | Feed bar forked connection | |
| 443 | MN 10A3 740 | Feed bar forked connection felt | |
| 444 | M9 0804 003 | Feed bar forked connection set screw | |
| 445 | M9 0851 002 | Feed dog set screw | |
| 446 | M9 1602 001 | Ball bearing set screw | |
| 447 | M9 1603 001 | Ball bearing set screw | |
| 448 | MN 10E0 456 | Ball bearing(for lower shaft) | |
| 449 | MN 10A0 771 | Ball bearing(for lower shaft)presser |
Page 27 — DU-105/115/125形 返し縫い機構部分 REVERSE SEWING MOTION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 450 | M9 0604 060 | Pin | |
| 451 | M9 0903 002 | Screw | |
| 452 | MN 15A0 953 | Reverse lever connecting plate | |
| 453 | MN 15A0 322 | Reverse stitch lever | |
| 454 | M9 1506 015 | Screw | |
| 455 | M9 0601 051 | Lock washer | |
| 456 | M9 1501 045 | Nut | |
| 457 | M9 0302 063 | Spring guide pin | |
| 458 | MN 15A0 708 | Spring guide pin bracket | |
| 459 | MN 15A0 572 | Spring | |
| 460 | M9 1101 030 | Spring guide pin | |
| 461 | M9 1201 010 | Screw | |
| 462 | MN 15A0 321 | Reverse stitch lever plate | |
| 463 | M9 0501 051 | Lock washer | |
| 464 | M9 1202 045 | Nut | |
| 465 | M9 1502 016 | Connecting plate set screw | |
| 466 | MN 15A0 324 | Reverse stitch shaft crank(right) | |
| 467 | M9 1117 002 | Reverse stitch shaft(right)set screw | |
| 468 | MM 11A0 352 | Reverse stitch shaft collar | |
| 469 | M9 1506 001 | Reverse stitch shaft collar set screw | |
| 470 | MP 05B0 320 | Reverse stitch shaft | |
| 471 | MN 15A0 323 | Reverse stitch shaft crank(left) | |
| 472 | M9 1501 007 | Set screw | |
| 473 | M9 1106 001 | Screw(for Fig.476) | |
| 474 | MN 15A0 886 | Bell crank | |
| 475 | M9 1202 001 | Bell crank set screw | |
| 476 | M9 0702 060 | Pin | |
| 477 | MF 10E2 148 | Oil wick | |
| 478 | M9 1653 001 | Set screw | |
| 479 | M9 0906 063 | Pin | |
| 480 | M9 0703 060 | Pin | |
| 481 | MF 10E2 148 | Oil wick | |
| 482 | MN 15A0 910 | Connecting link | |
| 483 | M9 0902 011 |
Page 29 — DU-100形 給油機構部分 OIL LUBRICATION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 500 | M9 0302 053 | Oil pipe holder washer | |
| 501 | M9 0903 002 | Oil pipe holder screw | |
| 502 | MF 10A0 689 | Oil pipe holder | |
| 503 | M9 0924 002 | Oil resevoir set screw | |
| 504 | M9 0804 002 | Oil resevoir set screw | |
| 505 | M9 0301 053 | Oil resevoir washer for set screw | |
| 506 | MN 10A1 192 | Oil pipe holder spring plate | |
| 507 | MF 10E2 148 | Oil wick | |
| 508 | MN 10A5 740 | Felt | |
| 509 | MP 00B0 731 | Oil pipe(vinyl) | |
| 510 | MF 10E2 148 | Oil wick | |
| 511 | MN 10A0 689 | Oil pipe holder | |
| 512 | MN 10A0 528 | Oil control plunger | |
| 513 | M9 0903 002 | Oil resevoir cover set screw | |
| 514 | MP 00B0 742 | Oil resevoir cover | |
| 515 | MN 10A2 697 | Oil resevoir gasket | |
| 516 | MN 10A0 139 | Oil resevoir | |
| 517 | MN 25A1 689 | Oil pipe holder | |
| 518 | MN 10A0 731 | Oil pipe(vinyl) | |
| 519 | M9 0924 002 | Oil resevoir set screw | |
| 520 | MP 00B0 691 | Oil indicator packing | |
| 521 | MN 25A0 841 | Oil indicator plate | |
| 522 | MN 25A0 135 | Oil indicator | |
| 523 | M9 7601 047 | Oil indicator ring nut | |
| 524 | MN 25A1 740 | Felt | |
| 525 | MN 10A1 731 | Oil pipe(vinyl) | |
| 526 | MN 10A1 689 | Oil pipe holder | |
| W464699 |
Page 31 — DU-100形 給油機構部分 / OIL LUBRICATION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MF 10E2 148 | Oil wick | ||
| MF 10E2 148 | Oil wick | ||
| MN 10A2 731 | Oil pipe(vinyl) | ||
| MN 10A1 691 | Gasket | ||
| MN 10A3 742 | Oil resevoir cover | ||
| M9 1117 002 | Oil resevoir cover set screw | ||
| M9 0302 053 | Oil pipe holder set washer | ||
| M9 0903 002 | Oil pipe holder set screw | ||
| MF 65B0 689 | Oil pipe holder | ||
| MF 10E3 148 | Oil wick | ||
| MN 10A3 731 | Oil pipe(vinyl) | ||
| MN 25A0 689 | Oil pipe holder | ||
| W453595 | Oil pipe(vinyl) | ||
| MF 10E2 148 | Oil wick | ||
| MN 10A5 731 | Oil pipe(vinyl) | ||
| MP 03B0 731 | Oil pipe(vinyl) | ||
| MF 10E2 148 | Oil wick | ||
| MF 10E2 148 | Oil wick | ||
| W446255 | Oil pipe holder | ||
| MF 10E2 148 | Oil wick | ||
| MN 10A7 689 | Oil pipe holder | ||
| MN 10A3 689 | Oil pipe holder | ||
| MN 10A6 731 | Oil pipe(vnyl) | ||
| MF 10E3 148 | Oil wick | ||
| MF 10E2 148 | Oil wick | ||
| W501201 | Oil pipe holder | ||
| MN 15A4 731 | Oil pipe(vinyl) | ||
| MF 10E2 148 | Oil wick | ||
| MN 15A0 731 | Oil pipe(vinyl) | ||
| MF 10E2 148 | Oil wick | ||
| MF 10E2 148 | Oil wick | ||
| W464003 | Oil wick | ||
| MN 15A1 731 | Oil pipe(vinyl) | ||
| MN 10A5 731 | Oil pipe(vinyl) | ||
| MF 10A0 689 | Oil pipe holder | ||
| MN 15A3 731 | Oil pipe(vinyl) | ||
| MF 10E2 148 | Oil wick |
Page 32 — DUクラス ゲージ部品の組合せ GAUGE PARTS & ITS COMPLEMENT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 701-704 | GAUGE PARTS & ITS COMPLEMENT | ||
| 705-706 | GAUGE PARTS & ITS COMPLEMENT | ||
| 707-709 | GAUGE PARTS & ITS COMPLEMENT | ||
| 710 | GAUGE PARTS & ITS COMPLEMENT | ||
| 711-714 | GAUGE PARTS & ITS COMPLEMENT | ||
| 715-716 | GAUGE PARTS & ITS COMPLEMENT | ||
| 717-719 | GAUGE PARTS & ITS COMPLEMENT | ||
| 720 | GAUGE PARTS & ITS COMPLEMENT | ||
| 721-724 | GAUGE PARTS & ITS COMPLEMENT | ||
| 725-726 | GAUGE PARTS & ITS COMPLEMENT | ||
| 727-729 | GAUGE PARTS & ITS COMPLEMENT |
Page 33 — DUクラス ゲージ部品の組合せ GAUGE PARTS & ITS COMPLEMENT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 701 | MP 20J5 102 | Needle clamp | |
| 702 | MP 20J4 102 | Needle clamp | |
| 703 | W457557 | Needle clamp | |
| 704 | W466841 | Needle clamp | |
| 705 | W462962 | Needle clamp | |
| 706 | W462963 | Needle clamp | |
| 707 | W462964 | Needle clamp | |
| 708 | W462969 | Needle clamp | |
| 709 | W462970 | Needle clamp | |
| 710 | MP 00B0 107 | Presser foot(inside) | |
| 711 | MP 20J5 107 | Presser foot(inside) | |
| 712 | W468536 | Presser foot(inside) | |
| 713 | W457562 | Presser foot(inside) | |
| 714 | W466839 | Presser foot(inside) | |
| 715 | W457559 | Presser foot(inside) | |
| 716 | W462965 | Presser foot(inside) | |
| 717 | W462966 | Presser foot(inside) | |
| 718 | W461030 | Presser foot(inside) | |
| 719 | W461971 | Presser foot(inside) | |
| 720 | W462958 | Presser foot(out side) | |
| 721 | W462961 | Presser foot(out side) | |
| 722 | MP 20J4 106 | Presser foot(out side) | |
| 723 | W457563 | Presser foot(out side) | |
| 724 | W466840 | Presser foot(out side) | |
| 725 | W457560 | Presser foot(out side) | |
| 726 | W462967 | Presser foot(out side) | |
| 727 | W462968 | Presser foot(out side) | |
| 728 | W461033 | Presser foot(out side) | |
| 729 | W462972 | Presser foot(out side) |
Page 35 — GAUGE RARTS & ITS COMPLEMENT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 741 | MP 20B0 104 | Feed dog | |
| 742 | MP 20J5 104 | Feed dog | |
| 743 | MP 20J4 104 | Feed dog | |
| 744 | MP 20J8 104 | Feed dog | |
| 745 | MP 20J9 104 | Feed dog | |
| 746 | MP 20K1 104 | Feed dog | |
| 747 | MP 20K3 104 | Feed dog | |
| 748 | MP 20K4 104 | Feed dog | |
| 749 | MP 20K5 104 | Feed dog | |
| 750 | MP 20K6 104 | Feed dog | |
| 751 | MP 00B0 101 | Needle plate | |
| 752 | MP 20J5 101 | Needle plate | |
| 753 | MP 20J4 101 | Needle plate | |
| 754 | MP 20J8 101 | Needle plate | |
| 755 | MP 20J9 101 | Needle plate | |
| 756 | MP 20K1 101 | Needle plate | |
| 757 | MP 20K3 101 | Needle plate | |
| 758 | MP 20K4 101 | Needle plate | |
| 759 | MP 20K5 101 | Needle plate | |
| 760 | MP 20K6 101 | Needle plate | |
| 761 | MP 00B0 474 | Slide plate(right) | |
| 762 | MP 10B0 474 | Slide plate(right) | |
| 763 | MP 10A0 474 | Slide plate(right) | |
| 764 | MP 20B0 474 | Slide plate(right) | |
| 765 | MP 20B1 474 | Slide plate(right) | |
| 766 | MP 20B2 474 | Slide plate(right) | |
| 767 | MP 10B0 473 | Slide plate(left) | |
| 768 | MP 10A0 473 | Slide plate(left) | |
| 769 | MP 20B1 473 | Slide plate(left) | |
| 770 | MP 00B0 473 | Slide plate(left) | |
| 771 | MP 20B3 473 | Slide plate(left) | |
| 772 | MP 20B2 473 | Slide plate(left) |
Page 37 — DU-100形 付属品 ACCESSORIES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 800 | MF 36A0 749 | Accessory box | |
| 801 | MF 60A0 419 | Vibration preventing rubber | |
| 802 | W990003 | Nail | 9 |
| 803 | MN 10A0 123 | Bobbin | |
| 803 | MN 12B0 123 | Bobbin | |
| 804 | MP 03B0 123 | Bobbin | |
| 805 | M9 0401 041 | Screw | |
| 806 | M9 0608 050 | Washer | |
| 808 | MF 60A0 562 | Hinge hook | |
| 809 | MN 10A0 561 | Hinge(1) | |
| 810 | M9 1602 003 | Hinge(1)set screw | |
| 811 | MN 10A0 561 | Hinge(2) | |
| 812 | M9 0501 040 | Hinge(2)set screw | |
| 904 | MN 10E0 970 | Roller complete | |
| 814 | MB 02A1 608 | Screw driver(middle) | |
| 815 | P 842003X01 | Screw driver(small) |
Page 39 — DU-100形 付属品 ACCESSORIES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 912 | MN 10E0 193 | Cotton stand | |
| 913 | MP 20E0 193 | Cotton stand | |
| 830 | MF 20A0 130 | Oil bottle | |
| 831 | M9 2001 047 | Screw bush | |
| 832 | MF 10A4 691 | Packing | |
| 833 | MF 36A0 731 | Vinyl pipe | |
| 914 | MP 00E0 727 | Knee lifter complete | |
| 915 | MF 20E0 190 | Bobbin winder | |
| 916 | MP 03E0 190 | Bobbin winder | |
| 836 | MN 10A1 131 | Oil resevoir | |
| 838 | MF 20A0 131 | Oil bottle bracket | |
| 839 | M9 1571 045 | Nut | |
| 840 | M9 0601 053 | Spring washer | |
| 841 | M9 0702 050 | washer | |
| 842 | M9 1551 045 | Bolt | |
| 843 | MF 10E0 149 | Oil can |
Mitsubishi DU-100 Series — parts catalog
- Page 1 (index): This page is an index for the Mitsubishi Sewing Machine Parts Catalog, model DU-100~128, listing 14 items with their corresponding part numbers.
- Page 2 (diagram): This page displays a diagram of the DU-100 sewing machine arm bed and its components, with various parts numbered for identification.
- Page 3 (parts_list): This page lists parts for the DU-100 form ARM BED section, including part numbers, descriptions, and quantities required for various models.
- Page 4 (diagram): This page displays a diagram of the DU-100 sewing machine's main body and arm bed components, with numbered parts indicated.
- Page 5 (parts_list): This page lists parts for the DU-100 ARM BED, including part numbers, descriptions, and quantities required for various models.
- Page 7 (parts_list): This page lists parts for the Upper Thread Tension Regulator Mechanism, including part numbers, descriptions, and quantities required for various machine models.
- Page 8 (diagram): This page displays a diagram of the walking foot motion mechanism for the DU-100 model, with various parts labeled with reference numbers.
- Page 9 (parts_list): This page lists parts for the DU-100 Walking Foot Motion Mechanism, including part numbers, descriptions, and quantities for various models.
- Page 10 (diagram): This page displays a diagram of the upper shaft and pressure spring mechanism for the DU-100 model sewing machine, with various parts numbered for identification.
- Page 11 (parts_list): This page lists parts for the DU-100 Upper Shaft & Pressure Spring Mechanism, including part numbers, descriptions, and quantities required for various models.
- Page 12 (diagram): This page displays a diagram of the DU-100 timing belt wheel and safety-clutch mechanism, with various parts labeled with reference numbers.
- Page 13 (parts_list): This page lists parts for the DU-100 timing belt and safety clutch mechanism, including part numbers, descriptions, and quantities required for various models.
- Page 14 (diagram): This page displays a diagram of the needle bar and thread take-up lever mechanism for the DU-100 sewing machine, with numbered parts.
- Page 15 (parts_list): This page lists parts for the DU-100 model sewing machine, including part numbers, descriptions, and quantities required for various models.
- Page 16 (diagram): This page displays a diagram of the needle bar rocking motion mechanism for the DU-100 sewing machine, with various parts labeled with reference numbers.
- Page 17 (parts_list): This page lists parts for the DU-100 Needle Bar Rocking Motion Mechanism, including part numbers, descriptions, and quantities for various models.
- Page 18 (diagram): This page displays a diagram of the DU Class Rotating Hook Mechanism, detailing various parts with reference numbers and some part numbers.
- Page 19 (parts_list): This page lists parts for the DU class rotating hook mechanism, including part numbers, descriptions, and quantities required for various models.
- Page 20 (diagram): This page displays a diagram of the rotating hook mechanism for DU class sewing machines, with various parts labeled with reference numbers and some part numbers listed.
- Page 21 (parts_list): This page lists parts for the DU Class Rotating Hook Mechanism, including part numbers, descriptions, and quantities for various models.
- Page 22 (diagram): This page displays a diagram of the lower shaft and stitch regulator mechanism for DU-100, 110, and 120 series sewing machines, with numbered parts indicated.
- Page 23 (parts_list): This page lists parts for the DU-100/110/120 model sewing machines, including part numbers, names, and quantities required for various machine models.
- Page 24 (diagram): This page displays a diagram of the feed rocking motion mechanism for DU-100/110/120 sewing machines, illustrating components for both one and two needle use.
- Page 25 (parts_list): This page lists parts for the FEED ROCKING MOTION MECHANISM for DU-100/110/120 models, including part numbers, names, and quantities for various machine models.
- Page 26 (diagram): This page displays a diagram of the reverse sewing motion mechanism for DU-105/115/125 sewing machines, with various parts labeled with reference numbers.
- Page 27 (parts_list): Parts list for the reverse sewing motion mechanism of the DU-105/115/125 series, giving part numbers, codes, names and quantities for ref. nos. 450 to 483.
- Page 28 (diagram): This page displays a diagram of the oil lubrication mechanism for the DU-100 model sewing machine, with various parts labeled with reference numbers.
- Page 29 (parts_list): This page lists parts for the DU-100 oil lubrication mechanism, including part numbers, descriptions, and quantities required for various models.
- Page 30 (diagram): This page displays a diagram of the oil lubrication mechanism for the DU-100 sewing machine, with various parts labeled with reference numbers.
- Page 31 (parts_list): Parts table for the oil lubrication mechanism of the DU-100 series, listing oil wicks, oil pipes, pipe holders, gasket, reservoir cover and screws with their part and code numbers and amounts required per model.
- Page 32 (diagram): This page displays a diagram of gauge parts and their complements for DU class sewing machines, categorized for one-needle and two-needle use, with reference numbers ranging from 701 to 729.
- Page 33 (parts_list): This page lists parts for DU Class Gauges & Its Complement, including part numbers, descriptions, and quantities for various models.
- Page 34 (diagram): This page displays a diagram of gauge parts and their complement for DU class sewing machines, with various part numbers and reference numbers indicated.
- Page 35 (parts_list): This page lists parts for DU Class Gauge Rarts & Its Complement, including figure number, part number, code number, name of part, and quantity required for various DU models.
- Page 36 (diagram): This page displays a diagram of accessories for the DU-100 sewing machine, including a case, screwdrivers, needles, bobbins, screws, and oil.
- Page 37 (parts_list): This page lists accessories for the DU-100 sewing machine, including part numbers, descriptions, and quantities required for various models.
- Page 38 (diagram): This page displays a diagram of accessories for the DU-100 sewing machine, with various parts labeled with reference numbers.
- Page 39 (parts_list): Accessories parts list for the DU-100 series showing fig numbers, service part codes, material codes, Japanese and English part names, and quantities per model.
- Page 40 (cover): This is the cover page of a Mitsubishi Electric parts catalog, featuring the company logo and slogan "未来を開発する" (Developing the Future).
