Jack MX-100A Parts Book (PDF)

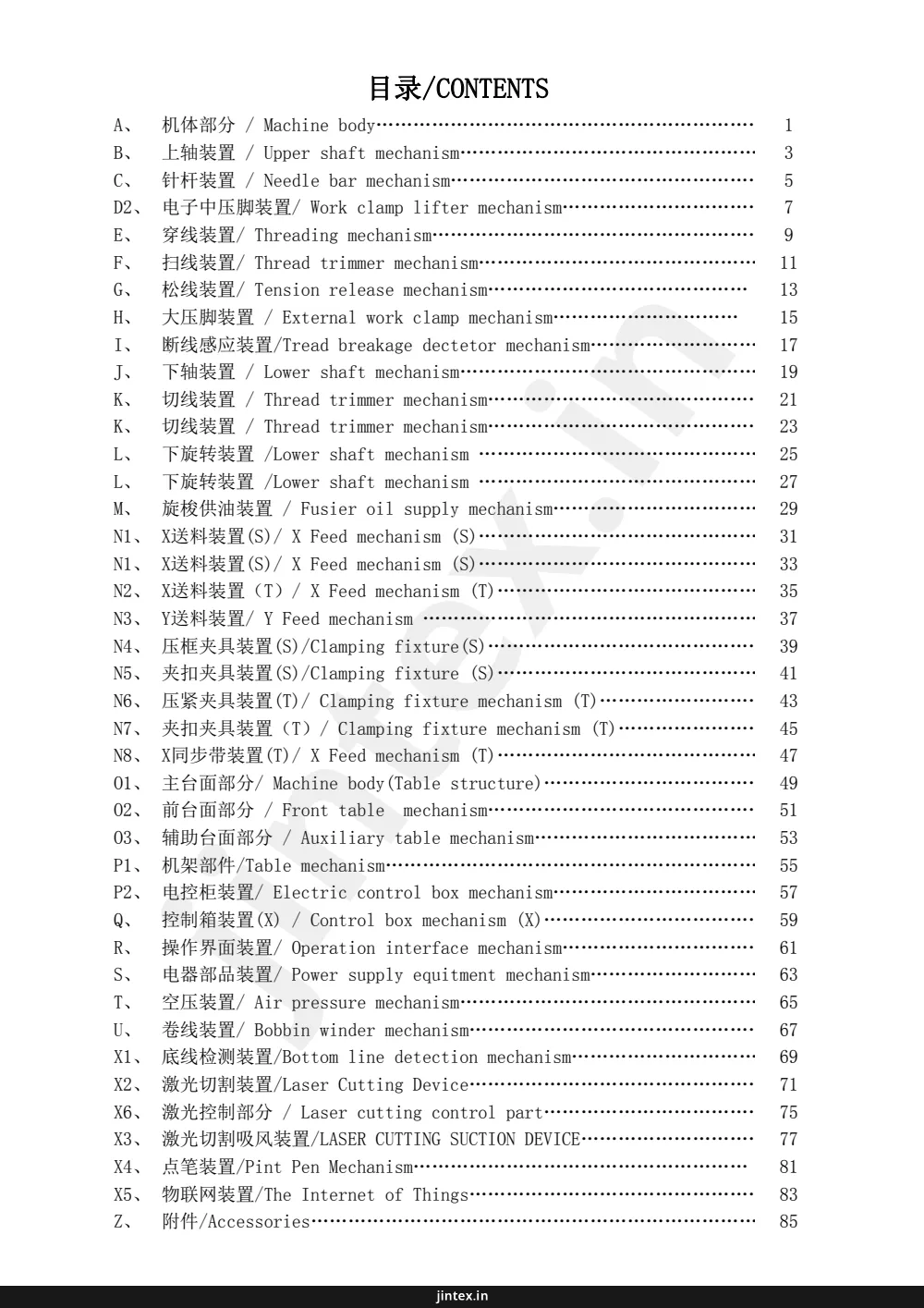

Text index — Jack MX-100A

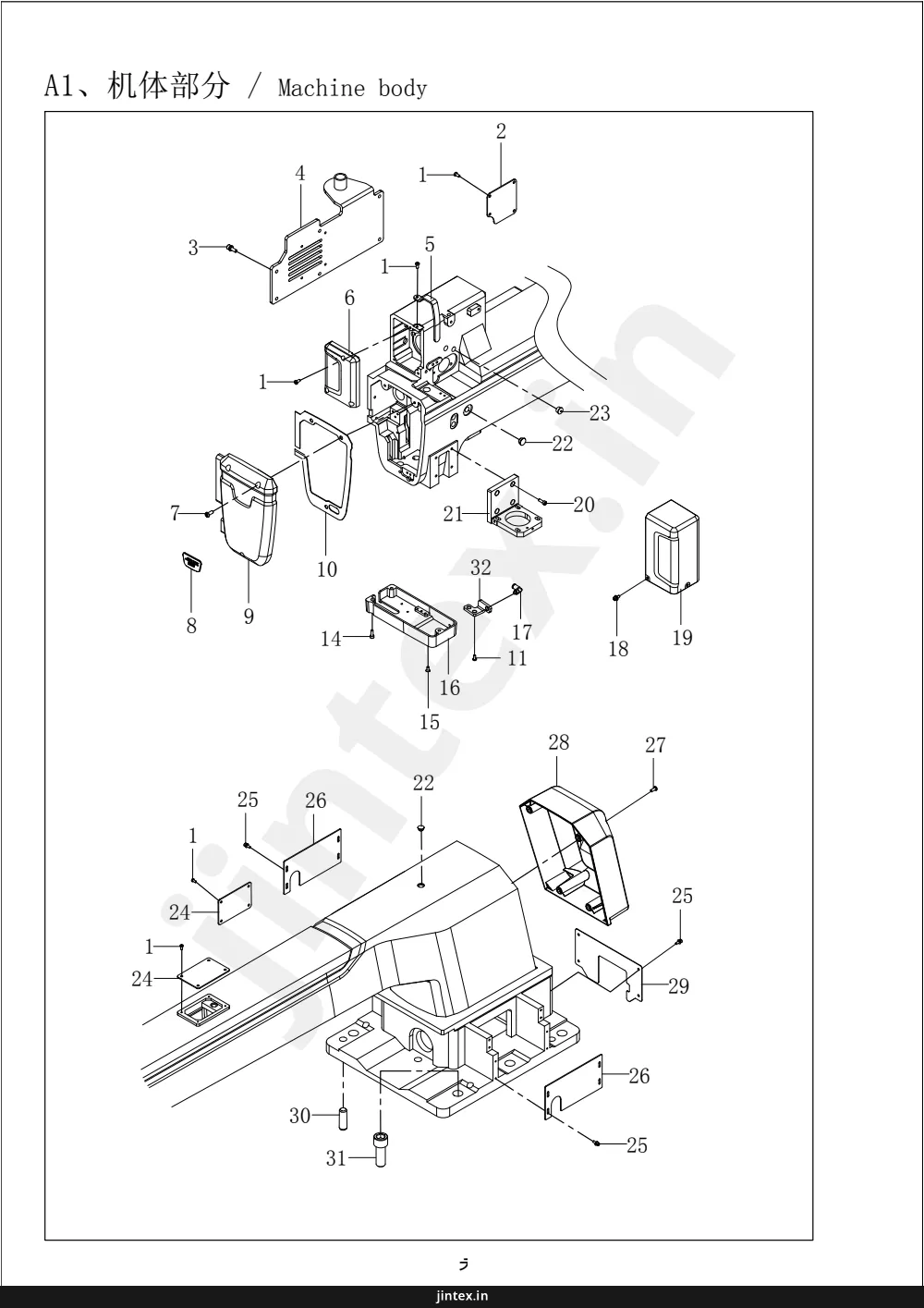

Page 3 — A、机体部分 / Machine body
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S04078 | Screw M4 x 8 | 16 |
| 2 | 930000811 | Side cover plate of take-up rod shaft | 1 |
| 3 | 417S30306 | Screw M5 * 12 | 6 |
| 4 | 930000812 | Side window cover | 1 |
| 5 | 141912078 | Wire rod protection cover | 1 |
| 6 | 930000813 | Wire rod housing | 1 |
| 7 | S04029 | Screw M5 * 12 | 3 |
| 8 | 14437001 | Panel trademark | 1 |
| 9 | 930000814 | Head front cover plate | 1 |
| 10 | 141922012 | Head panel gasket | 1 |
| 11 | 417S15008 | M4x 8 | 2 |
| 14 | S05133 | Screw M4 x 12 | 3 |
| 15 | S02918 | Screw M4 x 8 | 3 |
| 16 | 930000959 | Needle rod synchronous belt housing | 1 |
| 17 | 42536004 | Air pipe joint (right Angle) | 1 |
| 18 | 421S11011 | Screw M4 x 10 | 3 |
| 19 | 141944002 | Needle bar motor cover | 1 |
| 20 | S05123 | Screw M5 * 12 | 4 |
| 21 | 141901096 | Needle bar rotary motor mounting seat | 1 |
| 22 | 41722003 | Rubber plug 10.5 | 7 |
| 23 | 40622014 | Oil seal | 1 |
| 24 | 930000544 | Fuselage side cover | 2 |
| 25 | 421S13012 | Screw M4 x 10 | 12 |
| 26 | 930000478 | Fuselage side cover | 2 |
| 27 | S04029 | Screw M5 * 12 | 4 |
| 28 | 141944004 | Back cover | 1 |
| 29 | 930000444 | Rear cover plate of machine base | 1 |
| 30 | P02012 | pin | 2 |
| 31 | S05275 | Screw M20 x 55 | 6 |
| 32 | 141912182 | Air pipe connector mounting plate | 1 |
| 33 | 141937003 | Blue bar | 1 |
Page 5 — B、上轴装置 / Upper shaft mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 141902026 | Thread take-up shaft | 1 |
| 2 | 418S30218 | Screw M4 x 7 | 4 |
| 3 | B10014 | Deep groove ball bearing 6904-DDUNR | 2 |
| 4 | B06005 | Deep groove ball bearing 6904-DDU | 2 |
| 5 | 41803211 | Bearing sleeve | 2 |
| 6 | 141935008 | Upper axle synchronous belt | 1 |
| 7 | S10019 | Screw M6 x 6 | 14 |
| 8 | 141935009 | Needle bar synchronizer wheel | 1 |
| 9 | 141903019 | Bearing sleeve | 2 |
| 10 | B01024 | Deep groove ball bearing 6804Z | 4 |
| 11 | 141901101 | The handwheel | 1 |
| 12 | 403S11003 | Slotted large cylindrical head screw | 1 |
| 13 | 141902027 | Needle bar shaft | 1 |
| 14 | S05123 | Screw M5x12 | 2 |
| 15 | 141904011 | Upper Eccentric wheel plate | 1 |
| 16 | 141904010 | Upper Eccentric wheel | 1 |
| 17 | 14193500700 | Reel shaft synchronous wheel assembly | 1 |
| 18 | 141903014 | Spindle motor coupling | 1 |
| 19 | S05040 | Screw M6 x 16 | 2 |
| 20 | 141901102 | Tensioner adjusting seat | 1 |
| 21 | L02032 | Screw M6 x 12 | 2 |
| 22 | 141901104 | The tension wheel | 1 |
| 23 | 42528003 | Bearing washer | 1 |
| 24 | B03005 | Bearing | 2 |
| 25 | 141903018 | Tension wheel | 1 |
| 26 | 421S13057 | Hexagon socket cylindrical head screw | 1 |
| 27 | S05035 | Screw M5x 25 | 4 |
| 28 | 141901105 | Upper shaft motor mounting base | 1 |
| 29 | S05123 | Screw M5×12 | 4 |
| 31 | 141933013 | The shaft motor | 1 |
| 33 | 40322027 | Rubber plug | 1 |
| 34 | 421S13003 | Screw M4 x 8 | 2 |
| 35 | 14191101600 | Oil can | 1 |
| 36 | 10122005 | Rubber plug | 3 |
| 37 | 417S30036 | Screw M5×12 | 2 |
| 38 | 141912203 | Oil pot mounting bracket | 1 |
| 39 | 141902029 | Synchronous wheel top column | 2 |
Page 7 — C. 针杆装置 / Needle bar mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 14193800300 | Take-up lever assembly | 1 |
| 15 | 141904004 | Take up crank | 1 |
| 16 | 409s14003 | Needle bar crank screw | 4 |
| 17 | 141912201 | Needle bar crank washer | 1 |
| 18 | 101S15004 | Needle bar crank setting screw | 2 |
| 19 | 135S11002 | Needle bar crank setting screw | 2 |
| 20 | 141904005 | Needle bar crank | 1 |
| 21 | 41703005 | Needle bar position | 1 |
| 22 | 141902028 | Rotate needle bar | 1 |
| 23 | 201S15001 | Clamp screw fastening screw | 1 |
| 24 | 42217504 | needle | 1 |
| 25 | 141901076 | Needle bar tightening ring E | 2 |
| 26 | S05133 | Screw M4 x 12 | 2 |
| 27 | 141904013 | Pin connector assembly | 1 |
| 28 | 141912167 | Needle bar zero sensor | 1 |
| 29 | 141909013 | Rotate pin clamp | 1 |
| 30 | 141903029 | Needle bar under cover B | 1 |
| 33 | B06043 | 61902-2z | 1 |
| 34 | 141908005 | Needle bar rotate bearing retainer | 1 |
| 35 | B10051 | 6902LLUNR | 1 |
| 36 | 418S30218 | Spherical screw M4×7 | 2 |
| 37 | S10007 | Hexagon socket set screw M4×4 | 2 |
| 38 | S09012 | Inner hexangular set screw M4×5 | 1 |
| 39 | 141935027 | Needle bar synchronizer wheel | 1 |
| 40 | 141935022 | Needle bar rotate synchronous belt | 1 |
| 41 | 42230534 | Needle bar rotating motor | 1 |
| 43 | S05218 | Screw M5 * 22 | 4 |
| 44 | 14193502000 | Rotating motor synchronous wheel assembly | 1 |
| 45 | 421S13035 | Screw M4 x 8 | 3 |
| 46 | 141912237 | Sensor mounting plate | 1 |
| 47 | 41730851 | Sensor | 1 |
| 48 | S04076 | Screw M3 x 8 | 1 |
| 49 | 14193800400 | Pin rod connecting rod assembly | 1 |
| 50 | 41709001 | sider | 1 |
| 51 | 207S11008 | Screw M4 x 12 | 2 |
| 52 | 142009004 | Needle bar slider guide | 1 |
| 53 | 1419NS30001 | Slot screws M4 x 10 | 2 |
| 54 | 141912202 | pate nut | 2 |
| 55 | 41712069 | Oil line hook | 1 |
| 56 | 41712070 | Oil line support | 1 |
| 57 | 12923018 | Oil thread | 1.9 |
| 58 | 12921002 | Oil tube | 1.7 |
| 61 | S10006 | Screw M5 x 6 | 1 |
| 62 | 141912241 | Needle bar sensor protection plate | 1 |
| 63 | 40322031 | oil seal | 1 |
| 64 | H01118 | Circlip for hole | 1 |
Page 9 — D2、电子中压脚装置 / Work clamp lifter mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 141904007 | Middle presser foot rocker | 1 |
| 2 | B04036 | Bearing 61900 | 1 |
| 3 | 142003011 | Bearing block | 1 |
| 4 | S05124 | Screw the M5 * 16 | 4 |
| 5 | 141912152 | Middle presser foot motor mounting plate | 1 |
| 6 | 142033004 | Middle presser foot feed motor | 1 |
| 7 | S05123 | Screw M5 * 12 | 4 |
| 8 | S09019 | Locking screw M5×5 | 1 |
| 9 | S05004 | Screw M5 * 14 | 1 |
| 10 | 142026002 | The connecting rod pin | 1 |
| 11 | 142003006 | Engineering plastic shaft sleeve GLW-0709-05 | 2 |
| 12 | 142005001 | Middle presser foot link | 1 |
| 13 | 1420NS20001 | Axial screw M6×0.75 | 1 |
| 14 | 41822101 | Rubber sleeve | 1 |
| 15 | 421S13035 | Screw the M4 x 8 | 1 |
| 16 | 41709020 | Tighten rod joint | 1 |
| 17 | 141902011 | Middle presser foot bar A | 1 |
| 18 | 41803031 | Middle pressure shaft sleeve | 1 |
| 19 | 41822612 | Oil seal | 1 |
| 20 | 141901019 | Intermediate presser foot transfer block | 1 |
| 21 | 417S15011 | Screw SM9-64 | 2 |
| 22 | 41728025 | Flat washer | 1 |
| 23 | 141916003 | Middle presser foot | 1 |
| 24 | 14200500100 | Middle presser foot connecting rod assembly | 1 |
Page 11 — E, 穿线装置/ Threading mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40322027 | Rubber plug | 2 |
| 2 | 141945013 | Wire clamping cylinder B | 1 |
| 3 | 42536004 | Tracheal joint | 1 |
| 4 | 141912239 | Mounting plate of small wire clamping cylinder | 1 |
| 5 | S04078 | Screw M4 x 8 | 5 |
| 6 | 142345002 | Tracheal joint | 1 |
| 7 | 41712077 | Line guide plate | 1 |
| 8 | S04028 | Screw the M5 x 8 | 2 |
| 9 | 4171301400 | Auxiliary clamp assembly | 1 |
| 10 | S10019 | Screw M6 x 6 | 1 |
| 11 | 141901029 | Clamp mounting seat | 1 |
| 12 | S05962 | Screw M6 x 12 | 1 |
| 13 | 41813613 | Loose thread pin | 1 |
| 14 | 4181361200 | Thread clamp device | 1 |
| 15 | 41712079 | Wire passer C | 1 |
| 16 | 141912108 | Clamp wire hook | 1 |
| 17 | 141926012 | Wire passer column | 2 |
| 18 | S09019 | Screw M5 x 5 | 1 |
| 19 | S05192 | Screw M3 x 6 | 2 |
| 20 | 141912238 | support seat | 1 |
| 21 | 141945019 | Two way solenoid valve | 1 |
| 22 | 1421300100 | Upper threading assembly | 1 |
Page 13 — F、扫线装置/ Thread trimmer mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 141930029 | wiper electromagnet 2.9 | 1 |
| 4 | 41811213 | Electromagnet cover | 1 |
| 6 | W01002 | The M3 gasket | 1 |
| 7 | 4181226100 | Sweep electromagnet mounting plate assembly | 1 |
| 8 | 41822213 | Buffer block | 1 |
| 9 | W01002 | The M3 gasket | 4 |
| 10 | S04082 | Screw M3 * 6 | 4 |
| 11 | 41826215 | pin | 1 |
| 12 | 41803223 | Copper gaskets | 1 |
| 13 | 418S20213 | Shaft screw B | 1 |
| 14 | 41812264 | Drive the swinging rod | 1 |
| 15 | 41803225 | casing | 1 |
| 16 | 41827212 | Torsional spring | 1 |
| 17 | 418S20212 | Shaft screw A | 1 |
| 18 | 141912170 | Sweep line connecting rod | 1 |
| 19 | H03057 | Open retainer 3 | 1 |
| 20 | 4180421400 | Sweep crank assembly | 1 |
| 21 | H05006 | Retaining ring 5 | 1 |
| 22 | 41827211 | Sweep line wire | 1 |
| 23 | 41803220 | Spool retainer | 1 |
| 24 | 417S15013 | Screw the M4 x 5 | 1 |
| 25 | 417S30036 | Bolt (with washer)M5 x 12 | 2 |
| 26 | 41845232 | T-junction KJT04 | 1 |
| 27 | S01591 | Screw M3 by 18 | 1 |
| 28 | W01002 | The M3 gasket | 1 |
| 29 | 141912088 | Wire sweeping device bracket | 1 |
| 30 | S05123 | Screw M5 * 12 | 2 |
Page 15 — G、松线装置/ Tension release mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 417S30012 | 7-3 section of the screw | 2 |
| 2 | 41722021 | 0 ring P7 | 2 |
| 3 | 41711211 | Electromagnet cover | 1 |
| 4 | 141930030 | Loose wire electromagnet HV2.9m | 1 |
| 5 | 41712099 | Electromagnet mounting plate | 1 |
| 6 | W01001 | Flat washer M4 | 2 |
| 7 | W02008 | Spring washer 2-4 | 2 |
| 8 | L02031 | Bolt the M4 x 8 | 2 |
| 9 | 41722020 | Electromagnet buffer washer | 1 |
| 10 | W01001 | Flat washer M4 | 1 |
| 11 | N01024 | Hexagon nut M4 | 1 |
| 12 | L02036 | Bolt M4 x 14 | 1 |
| 13 | H05029 | Retaining ring E4 | 1 |
| 14 | W01009 | Flat washer M5 | 2 |
| 15 | 141926007 | Pine pole | 1 |
| 16 | 41727013 | spring | 1 |
Page 17 — H、大压脚装置 / External work clamp mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 141936002 | Exhaust gas speed regulating joint | 2 |
| 2 | 141945015 | Middle presser foot lift cylinder | 1 |
| 3 | S05123 | Screw M5 x 12 | 2 |
| 4 | 141912240 | Large presser foot cylinder mounting plate | 1 |
| 5 | 141902025 | Large presser foot rod | 1 |
| 6 | 4250400600 | Floating joint | 1 |
| 7 | 41709020 | Tighten rod joint | 1 |
| 8 | S05118 | Screw the M4 x 16 | 4 |
| 9 | 41801064 | Copper tube pressing plate | 1 |
| 10 | 141845007 | Hose tus0425n | 1 |
| 11 | 141921007 | Blowing copper pipe | 1 |
| 12 | 14191600400 | Big presser foot | 1 |
| 13 | S05192 | Screw M3 * 6 | 2 |
| 14 | S05115 | Screw M4 * 6 | 2 |
| 15 | 41703015 | Compression rod shaft sleeve | 1 |
| 16 | 421S13035 | Screw the M4 x 8 | 1 |
Page 19 — I、断线感应装置/Tread breakage dectetor mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41711054 | Sensor internal insulation sheet | 1 |
| 2 | 42212837 | Induction of copper | 1 |
| 3 | 141830008 | Single core wire (0.2mm) | 3 |
| 4 | 41711053 | Sensor outer insulation sheet | 1 |
| 5 | W01001 | The M4 gasket | 1 |
| 6 | S04078 | Screw M4 x 8 | 1 |
Page 21 — J、下轴装置 / Lower shaft mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 11510001 | CAM | 1 |
| 2 | 11309030 | CAM needle | 2 |
| 3 | 116S14005 | Screw SM1/4 x 10 (40) | 2 |
| 4 | H01106 | Elastic retainer for hole 24 | 1 |
| 5 | 113S14002 | Screw SM11/64 x 5.5 (40) | 2 |
| 6 | 141903007 | Lower shaft bearing sleeve | 1 |
| 7 | B01060 | Rz bearing 61901-2 | 2 |
| 8 | 413S14006 | Screw the M4 x 4 | 2 |
| 9 | 42508003 | Connecting rod pin tightening ring | 1 |
| 10 | 418S30218 | Screw the M4 x 7 | 2 |
| 11 | 42218002 | Bobbin sleeve assembly | 1 |
| 12 | 10818501 | The bobbin | 1 |
| 13 | 42218003 | Hook component | 1 |
| 14 | 11522001 | Oil seal | 1 |
| 15 | 42203509 | Lower shaft front sleeve | 1 |
| 16 | 1142201400 | Oil seal for lower shaft front sleeve | 1 |
| 17 | 141803006 | Lower shaft oil mandrel | 1 |
| 18 | 141822002 | o-ring | 1 |
| 19 | 141823001 | Lower shaft limiting oil core | 1 |
| 20 | 141902002 | The shaft | 1 |
| 21 | 141935001 | Lower section small sync wheel | 1 |
| 22 | S09019 | Screw M5 x5 | 3 |
| 23 | S05124 | Screw M5 * 16 | 4 |
| 24 | 141933013 | The shaft motor | 1 |
| 25 | 14193500200 | Next section large synchronous wheel assembly | 1 |
| 26 | S10009 | Screw M6 x 8 | 4 |
| 27 | 141935004 | The next section of the synchronous belt is 15-300-S3M | 1 |
| 28 | 141903008 | Lower section tensioning wheel shaft sleeve | 1 |
| 29 | 42528003 | Bearing washer | 1 |
| 30 | B03005 | Bearing 608 z | 2 |
| 31 | 141903018 | Tension wheel | 1 |
| 32 | 421S13057 | Screw the M8 by 30 | 1 |
| 33 | 421S13035 | Screw M3 * 6 | 4 |
| 34 | 930000423 | Lower shaft motor cover plate | 1 |
| 35 | 141912134 | The side cover | 1 |
| 36 | 421S13035 | Screw M4 x 8 | 4 |
Page 23 — K,切线装置 / Thread trimmer mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 141915001 | The needle plate | 1 |
| 2 | 41815011 | 1.8T2.0pinhole plate phi | 1 |
| 3 | 417S17001 | Screw SM2.38 | 2 |
| 4 | 417S15008 | Screw the M4 x 8 | 5 |
| 5 | 142001008 | Locating hook assembly mounting seat | 1 |
| 6 | 413S11003 | Screw the M5 * 16 | 3 |
| 7 | 13112007 | needle protection plate | 1 |
| 8 | 114S11009 | Hanging screw | 1 |
| 9 | 141812022 | Positioning hook | 1 |
| 10 | 402S11037 | Mounting screw M5×10 for winder | 1 |
| 11 | 142012085 | fixed knife gasket | 1 |
| 12 | 13119001 | fixed knife | 1 |
| 13 | 141909001 | fixed knife holder | 1 |
| 14 | 422S30514 | SM1/8 x 44 screw | 1 |
| 15 | 116S11005 | Bracket crank screw | 1 |
| 16 | 409S16025 | Nut SM1/8 x 44 | 1 |
| 17 | S02031 | Screw M3 x 5 | 3 |
| 18 | 42212668 | Special-shaped tool holder press plate | 1 |
| 19 | 13119004 | moving knife | 1 |
| 20 | 1419NS17001 | Movable knife fixing screw | 2 |
| 21 | 13107002 | Trimming knife rack | 1 |
| 22 | 421S13035 | Screw the M4 x 8 | 8 |
| 23 | 141909005 | trimming knife holder | 1 |
| 24 | 141912040 | trimming knife holder gasket | 1 |
| 25 | 11503004 | Cutter drive shaft sleeve | 1 |
| 26 | 11322002 | Torsional spring end cover | 1 |
| 27 | 141927001 | Trimming spring | 1 |
| 28 | 141902001 | Tangential drive shaft | 1 |
| 29 | 1150400200 | Tangential CAM crank assembly | 1 |
| 30 | 409S14003 | Needle bar crank pin setting screw | 1 |
| 31 | H05031 | Retaining ring E6 | 1 |
| 32 | 10112003 | Needle bar crank guard | 1 |
| 33 | 11322003 | Electromagnet cushion | 1 |
| 34 | S02039 | M4 x 9 screw | 4 |
| 35 | 141912110 | Wire cutting cylinder mounting plate | 1 |
| 36 | 141930005 | The tangent cylinder | 1 |
| 37 | 42230519 | Miniature connector M-5HLH-4 | 2 |
| 38 | 417S30036 | screw M5 * 12 | 2 |
Page 25 — K, 切线装置 / Thread trimmer mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 39 | 113S20001 | The connecting rod screws | 2 |
| 40 | 11505001 | Connecting rod | 1 |
| 41 | 13128003 | Connecting rod gasket | 1 |
| 42 | 141903024 | Shear line crank shaft stop B | 1 |
| 43 | S10019 | Screw M6 x 6 | 1 |
| 44 | 141904003 | Trimming the crank | 1 |
| 45 | S05004 | Trimming the crank | 1 |
| 46 | 141903002 | Tangent collar | 1 |
| 47 | 42203517 | Tangent crank shaft stub sleeve | 1 |
| 48 | 141903025 | Tangent CAM crank shaft B | 1 |
| 49 | 11527001 | Reset spring | 1 |
| 50 | 141912013 | Shear line crank reset spring mounting plate | 1 |
| 51 | 141922008 | cushion | 1 |
| 52 | N01021 | Nut M6 | 2 |
| 53 | S05073 | Screw M6 x 40 | 1 |
| 54 | 141912136 | Tangent adjustment cover plate | 1 |
| 55 | 141921003 | Blow brass left | 1 |
| 56 | 418S30218 | Screw the M4 x 7 | 6 |
| 57 | 141921002 | Blow brass right | 1 |
| 58 | 41711014 | Wire clip 6.4 | 1 |
| 59 | 417S30025 | Bolt (with washer)M4×10DB | 2 |
| 60 | 41711015 | Wire clip 13.2 | 1 |
| 61 | 141912205 | Tangent regulating cover gasket | 1 |
Page 27 — L, 下旋转装置 / Rotating mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S05085 | Screw M6 x 15 | 15 |
| 2 | S05123 | Screw M5 x 12 | 13 |
| 3 | 141912156 | Rotating flange C | 1 |
| 4 | 141903052 | Lower section rotary sleeve D | 1 |
| 5 | B04074 | Bearing 6013-2 - rs | 1 |
| 6 | 141935025 | Synchronous belt 615-5M-30 | 1 |
| 7 | 417S30002 | Screw M8 x 14 | 1 |
| 8 | S10025 | Screw M8 x 8 | 2 |
| 9 | 14193502400 | Next rotary Datong step wheel assembly | 1 |
| 10 | B06049 | Bearing | 1 |
| 11 | 418S30218 | Screw M4 x 7 | 11 |
| 12 | 141908002 | Lower nose rotary retainer ring | 1 |
| 13 | S10002 | Screw M6 x 6 | 3 |
| 14 | 141903012 | Lower slide ring adapter plate | 1 |
| 15 | 413S13011 | Screw M4x 12 | 4 |
| 16 | S05073 | Screw M6 x 40 | 2 |
| 17 | 413S13013 | Screw M6 x 25 | 2 |
| 18 | N01021 | Nut M6 | 10 |
| 19 | 141912143 | Adjustment plate C | 2 |
| 20 | S05993 | Bolt M6 x 55 | 4 |
| 21 | 417S30025 | Bolt (with washer) M4 × 10DB | 1 |
| 22 | 41311001 | Wire clip | 1 |
| 23 | 421S10005 | Screw M6 x 25 | 1 |
| 24 | 41730851 | The sensor | 1 |
| 25 | 421S13012 | Screw M4 x 10 | 16 |
| 26 | 41812023 | Y sensor mounting seat | 1 |
| 27 | 141912091 | Lower rotation sensor | 1 |
| 28 | 930000849 | Cover plate B of lower synchronous wheel box | 1 |
| 29 | 141912256 | Lower synchronous wheel box gasket | 1 |
| 30 | 12936004 | Tubing mouth | 1 |
| 31 | 141912259 | Timing belt measuring hole cover plate B | 1 |
| 32 | 421S13035 | Screw M4 x 8 | 4 |
| 33 | 930000834 | Small synchronous wheel seat cover plate | 1 |
| 34 | 141901110 | Small synchronous wheel bearing seat B | 1 |
| 35 | B04118 | Bearing 6005-2Z | 1 |
| 36 | 141935026 | Rotating small synchronous wheel B in the next section | 1 |
| 37 | S10019 | Screw M6 x 6 | 4 |
| 38 | 141933008 | Lower rotary motor B | 1 |
| 39 | S05111 | Screw M6 x 20 | 12 |
| 40 | S05118 | Screw M4 x 16 | 4 |
| 41 | 141930031 | Slip ring | 1 |
| 42 | 42536004 | Tracheal joint | 4 |
| 43 | 141912254 | Stop turning plate | 1 |
| 44 | N01011 | Nut M8 | 2 |
| 45 | 141926009 | Anti rotation rod | 1 |
| 46 | 141903017 | Non-rotating nylon sleeve | 1 |
| 47 | 13829001 | Circlip 6 for shaft | 1 |
| 48 | 141912090 | Adjusting plate B | 2 |
| 49 | S05998 | Screw M6 x 65 | 2 |
| 50 | 141903053 | Lower synchronous belt tensioner | 1 |
| 51 | H01011 | Circlip for hole 28 | 2 |
| 52 | B01058 | Bearing （6001-Z） | 2 |
Page 29 — L、下旋转装置 / Rotating mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 53 | 141901048 | Lower synchronous belt tensioner seat | 1 |
| 54 | 141912253 | Tensioning wheel adjusting plate B | 1 |
| 55 | 421S13065 | Screw M5 x 16 | 2 |
| 56 | 930000830 | Cover plate B of lower synchronous wheel box | 1 |
| 57 | S05110 | Screw M6 x 12 | 1 |
| 58 | W01021 | Washer6.3×18×1.2 | 1 |
| 59 | 930000821 | Lower synchronous wheel box B | 1 |
| 60 | 40736048 | Joint KJS4 - M5 | 4 |
| 61 | 141903041 | Slip ring mounting hole insulating flange | 4 |
| 62 | 141911024 | Slip ring insulating gasket | 1 |
| 63 | 41828013 | The big washer | 4 |
Page 31 — M、旋梭供油装置 / Fusier oil supply mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 10526003 | plunger | 1 |
| 2 | 11427021 | Plunger spring | 1 |
| 3 | 10122010 | o-ring | 1 |
| 4 | 114S30010 | Socket screws | 1 |
| 5 | 114S30009 | Lubricating connector | 3 |
| 6 | 11412055 | 5.7 Tubing spring | 5 |
| 7 | 12921002 | Vinylon tubing (3× 5) | 4 |
| 8 | 4183601700 | Filter elements | 1 |
| 9 | 41836015 | The line M5 | 2 |
| 10 | 142009002 | Regulating seat A | 1 |
| 11 | 001004 | o-ring | 1 |
| 12 | 418S30612 | Adjusting screw | 1 |
| 13 | S04030 | Composite slotted screw M5×6 | 1 |
| 14 | 141912249 | Oil pot mounting plate | 1 |
| 15 | S05120 | Screw the M5 x 8 | 2 |
| 16 | 421S13035 | Screw the M4 x 8 | 2 |
| 17 | 40322027 | Rubber plug | 5 |
| 18 | N01011 | Nut M8 | 1 |
| 19 | 141911029 | Oil can C | 1 |
| 20 | 915624 | The magnet 15 x 1 | 5 |
| 21 | 421S13003 | Screw the M4 x 8 | 6 |
| 22 | 12936004 | Tubing mouth | 2 |
| 23 | 12912038 | Tubing clamps | 3 |
| 24 | 12921006 | Vinylon tubing (6× 8) | 2 |
| 25 | 12923018 | Line 4 x 4 | 2 |
| 26 | 12921005 | Vinylon tubing (4× 6) | 1 |
| 27 | 41812014 | Waste oil pot mounting plate | 1 |
| 28 | 40311010 | The oil can joint | 1 |
| 29 | 421S10005 | Screw M3 x 6 | 4 |
| 30 | 40311011 | Oil return can | 1 |
| 31 | 421S13017 | Screw the M5 * 10 | 2 |
| 32 | 141937007 | Oil labeling | 1 |
| 33 | 41837101 | Fuel regulation label | 1 |
| 34 | 10123006 | Return felt | 1 |
| 35 | 12912326 | clamp | 1 |
| 36 | 421S13012 | Screw M5 x 8 | 1 |
Page 33 — N1、X送料装置(S) / X Feed mechanism (S)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 141801044 | Screw housing | 1 |
| 2 | 141801051 | End cap | 1 |
| 3 | S05124 | Screw M5×18 | 8 |
| 4 | 141812259 | Dust proof steel strip | 1 |
| 5 | 141812261 | Steel bar pressing plate | 1 |
| 6 | S02039 | Screw M4×9 | 4 |
| 7 | 141824012 | Guide | 2 |
| 8 | 141822019 | Soft magnetic stripe | 2 |
| 9 | 141801050 | Motor mounting base | 1 |
| 10 | 141812260 | Sensor mounting plate | 1 |
| 11 | 41730851 | Sensor | 1 |
| 12 | 421S10005 | Screw M3×6 | 1 |
| 13 | 930000441 | Motor housing | 1 |
| 14 | 417S30025 | Screw M4×10 | 3 |
| 15 | 141801045 | Bearing pedestal | 2 |
| 16 | 417S30036 | Screw M5×10 | 8 |
| 17 | B11011 | Bearing | 2 |
| 18 | 141812258 | Bearing baffle | 1 |
| 19 | 421S13035 | Screw M4×8 | 4 |
| 20 | 141824017 | Screw lock nut | 1 |
| 21 | 141824018 | Screw assembly | 1 |
| 22 | 141801046 | Screw nut mounting base | 1 |
| 23 | 141802030 | Screw M5 | 4 |
| 24 | W01001 | Washer 4 | 4 |
| 25 | B01058 | Bearing | 2 |
| 26 | 142003007 | Coupling | 1 |
| 27 | 142033005 | X screw motor | 1 |
| 28 | S05118 | Screw M4×12 | 4 |
| 29 | S02032 | Screw M3×5 | 8 |
| 30 | 141812281 | Oil box cover plate B | 1 |
| 31 | 141801067 | Oil box B | 1 |
| 32 | 141823006 | Asphalt felt | 4 |
| 33 | S05052 | Screw M3×10 | 4 |
| 34 | 141812280 | Oil box cover plate A | 1 |
| 35 | 141801066 | Oil box A | 1 |
| 36 | 141801054 | Steel strip pressing block | 2 |
| 37 | 421S13059 | Screw M5×20 | 1 |
| 38 | S05133 | Screw M4×12 | 14 |
| 39 | 141826009 | Cylindrical pin | 4 |
| 40 | W01002 | Washer 3 | 12 |
| 41 | 141844010 | Plastic bushing P210RLM-0309-50 | 4 |
| 42 | S09103 | Screw M4×4 | 8 |
| 43 | 141801048 | Moving block B | 1 |
| 44 | 141824014 | Axial screw | 8 |
| 45 | B01057 | Bearing | 8 |
| 46 | 141812263 | Washer | 8 |
| 47 | 141801047 | Moving block A | 1 |
| 48 | 141810001 | Adjusting nut | 4 |
| 49 | S10006 | Screw M5×6 | 4 |
| 50 | 141844011 | Plastic bushing GSM-0608-10 | 4 |
| 51 | 141801049 | Moving block cover plate | 1 |
| 52 | 141812262 | Sensor plate | 1 |
Page 35 — N1、X送料装置(S) / X Feed mechanism (S)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 53 | 421S13035 | Screw M4×8 | 4 |
| 54 | 41812146 | Mounting plate for grease box | 1 |
| 55 | S04076 | Screw M3×6 | 4 |
| 56 | 141801052 | Screw feed connection seat | 2 |
| 57 | 41728033 | Gasket M6 | 4 |
| 58 | S05111 | Screw M6×20 | 4 |
| 59 | 421S13065 | Screw (with washer) M5×16 | 8 |
| 61 | 417S30003 | Screw | 2 |
| 62 | 41722021 | O形圈P7 | 2 |
| 63 | 141912151 | Drag chain bracket | 1 |
| 64 | N01024 | Hexagon nut M4 | 1 |
| 65 | 141812169 | Beam regulating plate | 1 |
| 66 | S05133 | Screw the M4 x 12 | 1 |
| 67 | S05119 | Screw the M4 x 20 | 1 |
| 68 | S04125 | Cross grooved disc head screw M4/50 | 1 |
| 69 | N01024 | Hexagon nut M4 | 1 |
| 70 | S04076 | Screw M3X8 | 4 |
| 71 | 41812145 | Grease box cover plate | 1 |
| 72 | 41842042 | The live core | 1 |
| 73 | 41822016 | 17 * 2.65 o-rings | 2 |
| 74 | 41842041 | Y lead screw grease box | 1 |
| 75 | 41836011 | Copper clamped through tubing connector M6 | 1 |
| 76 | 141822015 | Composite gasket | 1 |
| 77 | S04038 | Screw M6 x 10 | 1 |
| 78 | 417S30302 | Screw the M4 x 12 | 8 |
| 79 | 417S15008 | Screw the M4 x 8 | 2 |
| 80 | S05124 | Screw M5×16 | 4 |
Page 37 — N2、X送料装置(T)/X Feed mechanism (T)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 141811006 | 40 l700 slot cover | 1 |
| 2 | S05115 | Bolt M4 x 6 | 5 |
| 3 | W01001 | Flat washer 4 | 3 |
| 4 | 61910026 | Adhesive wiring fixator HC-101WP | 1 |
| 5 | 141811005 | 4030 l120 slot | 1 |
| 6 | 141811004 | 4030 l480 slot | 1 |
| 10 | N08008 | Nut M3 | 4 |
| 11 | S02127 | Countersunk head screw M3×10 | 4 |
| 12 | 4184205000 | Synchronous belt feeding module | 1 |
| 14 | S05035 | Screw the M5 * 25 | 2 |
| 15 | S05124 | Screw the M5 * 16 | 2 |
| 16 | 142033003 | Module, motor | 1 |
| 17 | 10122005 | plug | 1 |
| 18 | 41837614 | Mechanical anti-collision labeling | 2 |
| 19 | 141842001 | X sensor mounting plate | 1 |
| 20 | W01001 | Flat washer 4 | 2 |
| 21 | 413S13011 | Screw the M4 x 12 | 2 |
| 22 | 41730851 | The sensor | 1 |
| 23 | S04076 | The M3 x 8 | 1 |
| 24 | 930000855 | Drag chain support plate (synchronous belt) | 1 |
| 25 | 421S13012 | Screw the M4 x 8 | 2 |
| 26 | 142011014 | Y-direction drag chain | 1 |
| 27 | 421S13035 | The M4 x 8 | 2 |
| 28 | S02032 | Screw M3×6(Nickel plating) | 4 |
| 29 | 141812035 | Grease box mounting plate (length) | 1 |
| 30 | 421S13003 | Bolt the M4 x 8 | 2 |
| 31 | S04125 | Cross grooved disc head screw M4/50 | 1 |
| 32 | N01024 | Hexagon nut M4 | 1 |
| 33 | S04076 | Screw M3X8 | 4 |
| 34 | 41812145 | Grease box cover plate | 1 |
| 35 | 41842042 | The live core | 1 |
| 36 | 41822016 | 17 * 2.65 o-rings | 2 |
| 37 | 41842041 | Y lead screw grease box | 1 |
| 38 | 41836011 | Copper clamped through tubing connector M6 | 1 |
| 39 | 141822015 | Composite gasket | 1 |
| 40 | S04038 | Screw M6 x 10 | 1 |
| 41 | 141801052 | Screw feed coupling seat | 2 |
| 42 | 41728033 | Gasket M6 | 4 |
| 43 | S05111 | Bolt M6 x 16 | 4 |
| 44 | 417S30034 | Bolt M4×14(with washer) | 8 |
| 45 | N01001 | Hexagon nut M4 | 2 |
| 46 | S05119 | Screw the M4 x 20 | 1 |
| 47 | 141812169 | Beam regulating plate | 1 |
| 48 | S05133 | Screw the M4 x 12 | 1 |
| 49 | 141912151 | Drag chain bracket | 1 |
| 50 | 417S30302 | Screw the M4 x 12 | 4 |
| 51 | 417S30302 | Screw the M4 x 12 | 2 |
| 52 | 407N01002 | self-locking nut | 2 |
Page 39 — N3、Y送料装置/ Y Feed mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41801044 | Y lead synchronous belt drive seat | 1 |
| 2 | 4181202900 | Y sensor board assembly | 1 |
| 3 | S05133 | Screw the M4 x 12 | 2 |
| 4 | 41801041 | Y-screw fixed end bearing assembly | 1 |
| 5 | 4180301200 | Plum coupler assembly | 1 |
| 6 | 142001016 | Y lead motor seat | 1 |
| 7 | 142033006 | Y servo motor | 1 |
| 8 | S05124 | Bolt M5 x 16 | 4 |
| 9 | S05074 | Bolt M8 x 20 | 8 |
| 10 | 41826224 | Pin 8 x 25 | 2 |
| 11 | H05031 | Retaining ring E6 | 2 |
| 12 | S05139 | Bolt M8 x 55 | 4 |
| 13 | 417S30025 | Bolt the M4 x 10 db | 1 |
| 14 | 417S30025 | Bolt (with washer)M4×10DB | 2 |
| 15 | 12912326 | Pipe clamp | 1 |
| 16 | 41812667 | Tubing stent | 1 |
| 17 | 41826011 | The cylindrical pin 6 x 15 | 1 |
| 18 | S05123 | Screw 5 x 12 | 16 |
| 19 | 41808011 | Retaining ring | 1 |
| 20 | 41801042 | Y lead rod support end bearing block | 1 |
| 21 | 141801015 | Front support for Y lead rod | 1 |
| 22 | S05133 | Screw the M4 x 12 | 1 |
| 23 | S05040 | Bolt M6 x 16 | 4 |
| 24 | B01033 | Bearing 6203 | 1 |
| 25 | 141821006 | The tubing | 1 |
| 26 | 41836011 | Copper clamped through tubing connector M6 | 1 |
| 27 | 421S13059 | Bolt the M5 * 20 | 4 |
| 28 | 141924001 | Y lead component | 1 |
| 29 | N01021 | M6 nut | 8 |
| 30 | 141822009 | Rubber head screw M6×65 | 4 |
| 31 | S05124 | Bolt the M5 * 16 | 22 |
| 32 | 142024001 | Y guide | 2 |
| 33 | 417S30036 | Screw the M5 * 12 | 8 |
| 34 | 142012057 | Y front limit plate | 2 |
| 35 | 41812028 | Y limit plate B | 2 |
| 36 | 41812023 | Y sensor mounting plate X | 1 |
| 37 | 417S30302 | The M4 x 12 | 2 |
| 38 | 421S10005 | Bolt M3 * 6 | 1 |
| 39 | 41730851 | The sensor | 1 |
| 40 | 141912250 | 1 | |
| 41 | S05085 | Screw 6 x 15 | 2 |
Page 41 — N4、压紧夹具装置(S) / Clamping fixture mechanism (S)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 142011014 | Y向拖链 | 1 |
| 2 | 421S13003 | screw M4×8 | 2 |
| 3 | 417S30036 | screw M5×12 | 2 |
| 4 | 930000569 | Y拖链支架C | 1 |
| 5 | 421S13003 | screw M4×8 | 2 |
| 6 | 141811001 | 1 | |
| 7 | 421S13035 | Screw M4×8 | 4 |
| 8 | 142012183 | Drag chain bracket | 1 |
| 9 | 141811018 | Wire slot3030L200 | 1 |
| 10 | 141811017 | Wire slot 3030L550 | 1 |
| 11 | 141811019 | Trunk cover30L845 | 1 |
| 12 | S05115 | Screw M4×6 | 5 |
| 13 | 42536004 | PIPE JOINTS | 2 |
| 14 | 41845223 | tube Φ4×2.5 transparent blue | 1 |
| 15 | 41845224 | tube Φ4×2.5 black | 1 |
| 16 | 42536003 | tube joint | 4 |
| 17 | 417S30023 | Screw M3×16 | 2 |
| 18 | 40736036 | tube joint | 2 |
| 19 | 142042021 | Pressure frame | 1 |
| 20 | 4254500400 | air cylinder | 4 |
| 21 | S05124 | screw M5×16 | 16 |
| 22 | 41728028 | washer 5 | 8 |
| 23 | S05123 | screw M4×12 | 8 |
| 24 | 42512028 | Limit bearing | 1 |
| 25 | S09019 | screw M5×5 | 1 |
| 26 | 42526008 | Limit pin | 1 |
| 27 | 417S30034 | screw M4×14 | 4 |
| 28 | 142045005 | Air cylinder MSD16×5 | 2 |
| 29 | S05119 | Screw M4×20 | 4 |
| 30 | 42230519 | Mini connector M-5HLH-4 | 2 |
| 31 | 141812199 | Top template cylinder mounting plate | 2 |
| 32 | 141812196 | Threaded plate | 2 |
| 33 | S05118 | Screw M4×16 | 4 |
| 34 | 41842038 | Rod | 2 |
| 35 | W01001 | Gasket | 9 |
| 36 | 41836501 | Weasand connector PU4 | 2 |
| 37 | 41845223 | tube Φ4×2.5 transparent blue | 1.2 |
| 38 | 41845224 | tube Φ4×2.5 black | 1.2 |
| 39 | 407N01002 | 4 |
Page 43 — N5、夹扣夹具装置 (S) / Clamping fixture mechanism (S)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 142011014 | Y向拖链 | 1 |
| 2 | 421S13003 | screw M4×8 | 2 |
| 3 | 417S30036 | screw M5×12 | 2 |
| 4 | 930000569 | Y拖链支架C | 1 |
| 5 | 421S13003 | screw M4×8 | 2 |
| 6 | 141811001 | 1 | |
| 7 | 421S13035 | Screw M4×8 | 4 |
| 8 | 142012183 | Drag chain bracket | 1 |
| 9 | 141811018 | Wire slot3030L200 | 1 |
| 10 | 141811017 | Wire slot 3030L550 | 1 |
| 11 | 141811019 | Trunk cover30L845 | 1 |
| 12 | S05115 | Screw M4×10 | 5 |
| 13 | 141845002 | Trachea joint | 2 |
| 14 | 407S04053 | Screw M3×25 | 2 |
| 16 | S05121 | Bolt M5×10 | 12 |
| 17 | 41842218 | Clamp Connection plate B | 2 |
| 18 | W01009 | Washer | 8 |
| 19 | S05124 | Bolt M5×16 | 8 |
| 20 | 42212607 | Press bar Baffle | 2 |
| 21 | 42212813 | Press bar | 2 |
| 22 | 42228811 | Moving washer | 6 |
| 23 | 42212538 | Clamp Installation board L | 2 |
| 24 | S05123 | Bolt M5×12 | 6 |
| 25 | 42226811 | Pin | 2 |
| 26 | 401727 | Connecter | 2 |
| 27 | 42128003 | Washer | 4 |
| 28 | W02008 | Spring Washer | 4 |
| 29 | S05065 | Screw M4×40 | 4 |
| 30 | 42536004 | Weasand connector | 4 |
| 31 | 41730441 | Cylinder CU16-15D | 2 |
| 32 | 41836501 | Weasand connector PU4 | 2 |
| 33 | 41845224 | Black weasand Φ4×2.5 | 2.2 |
| 34 | 41845223 | Blue weasand Φ4×2.5 | 2.2 |
| 35 | W01001 | Gasket | 5 |
Page 45 — N6、压紧夹具装置(T) / Clamping fixture mechanism (T)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41836501 | Pipe joint PU4 | 2 |
| 2 | 41845223 | Trachea 4×2.5 transparent blue | 1.2 |
| 3 | 41845224 | Trachea 4×2.5 black | 1.2 |
| 4 | 141811001 | A small tank chain | 1 |
| 5 | 421S13003 | Countersunk head screw M3×10 | 4 |
| 6 | 142012184 | 1 | |
| 9 | 407S17001 | Countersunk head screw M4 x 10 | 4 |
| 10 | 42536004 | Tracheal joint | 2 |
| 11 | S05124 | Screw the M5 * 16 | 16 |
| 12 | 41842510 | 4 | |
| 13 | 41845223 | Trachea 4×2.5 transparent blue | 1 |
| 14 | 41845224 | Trachea 4×2.5 black | 1 |
| 15 | 42536003 | Tracheal joint | 6 |
| 16 | 142042021 | Pressure framework | 1 |
| 17 | 4254500400 | cylinder | 4 |
| 18 | S09019 | Screw the M5 x5 | 1 |
| 19 | 42512028 | Limit bearing | 1 |
| 20 | 42526008 | Limit pin | 1 |
| 21 | 417S30034 | Screw the M4 x 12 | 4 |
| 22 | S05124 | Screw the M5 * 16 | 8 |
| 23 | 41728028 | Washer 5 | 8 |
| 24 | 141812196 | Thread plate | 2 |
| 25 | 141812199 | Top formwork cylinder mounting plate | 2 |
| 26 | 42230519 | Miniature connector M-5HLH-4 | 2 |
| 27 | 142045005 | cylinder | 2 |
| 28 | S05119 | Bolt the M4 x 20 | 4 |
| 29 | 41842038 | needle | 2 |
| 30 | S05118 | Screw the M4 x 16 | 4 |
| 31 | 40736036 | Air pipe connector APY4(Y-type tee) | 2 |
| 32 | 41845223 | Trachea 4×2.5 transparent blue | 5.8 |
Page 47 — N7、夹扣夹具装置 (T) / Clamping fixture mechanism (T)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41836501 | Pipe joint PU4 | 2 |
| 2 | 41845223 | Trachea 4×2.5 transparent blue | 1.2 |
| 3 | 41845224 | Trachea 4×2.5 black | 1.2 |
| 4 | 141811001 | A small tank chain | 1 |
| 5 | 421S13003 | Countersunk head screw M3×10 | 4 |
| 7 | 42536003 | Tracheal joint | 2 |
| 8 | S05121 | Bolt the M5 * 10 | 12 |
| 9 | 41842218 | Fixture connection plate B | 2 |
| 10 | W01001 | Washer 5 | 8 |
| 11 | S05123 | Bolt the M5 * 12 | 8 |
| 12 | 42212813 | The clamping lever | 2 |
| 13 | 42228811 | Turn the washer | 6 |
| 14 | 42212538 | Fixture mounting plate L | 2 |
| 15 | 42212607 | Clamp lever baffle | 2 |
| 16 | S05123 | Bolt the M5 * 12 | 6 |
| 17 | 42226811 | The joint pin | 2 |
| 18 | 401727 | joint | 2 |
| 19 | 41730441 | Cylinder CU16-15 d | 2 |
| 20 | 42536004 | Tracheal joint | 2 |
| 21 | 42128003 | The gasket | 4 |
| 22 | W02008 | Spring washer 2-4 | 4 |
| 23 | S05065 | Screw the M4 x 40 | 4 |
| 24 | 41711014 | Wire clip 6.4 | 3 |
| 25 | 417S30025 | Bolt (with washer)M4 x 10 | 3 |
| 26 | 41842510 | Special pad for clamp | 3 |
| 27 | 142012184 | 1 | |
| 28 | 407S04001 | Countersunk head screw M4×16 | 3 |
| 30 | 41845224 | Trachea 4×2.5 black | 1 |
| 31 | 41845223 | Trachea 4×2.5 transparent blue | 1 |
| 32 | 141812049 | plate | 1 |
| 33 | 141812048 | Clip sensor | 1 |
| 34 | 141842007 | brackets | 1 |
| 35 | 42128003 | The gasket | 2 |
| 36 | 421S13035 | Screw M4 x 8 | 2 |
| 37 | S02039 | Screw M4 x 9 | 1 |
Page 49 — N8, X同步带装置(T) / X Feed mechanism (T)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41842500 | Beam | 1 |
| 2 | S17013 | Screw M4×6 | 12 |
| 3 | 42512019 | Gear box cover plate | 3 |
| 4 | 42501008 | X Synchronizing wheel box | 1 |
| 5 | 41842501 | Press frame Connecting | 1 |
| 6 | 42526010 | Synchoronous belt pin | 2 |
| 7 | S05010 | Screw M4×12 | 2 |
| 8 | S05116 | Screw M4×8 | 8 |
| 9 | 42547003 | Magnet | 1 |
| 10 | S05059 | Screw M4×12 | 1 |
| 11 | 42526011 | Synchoronous belt pin | 2 |
| 12 | 42512020 | Synchoronous belt clasp | 2 |
| 13 | S05152 | Screw M6×65 | 2 |
| 14 | 41824500 | X Guide | 1 |
| 15 | S05058 | Screw M4×10 | 31 |
| 16 | 425S10001 | Square nut block | 31 |
| 17 | W03008 | Wave washer | 3 |
| 18 | 4253500700 | Driving Synchronizing wheel | 1 |
| 19 | B01010 | Bearing 6003 | 4 |
| 20 | 409S14001 | Screw SM1/4×40×6 | 3 |
| 21 | 42525004 | Driving gear | 1 |
| 22 | 42512023 | Bearing cover plate | 1 |
| 23 | S05034 | Screw M5×15 | 2 |
| 24 | 42525005 | Passive gear | 1 |
| 25 | 409S14001 | Screw SM1/4×40×6 | 2 |
| 26 | 42529001 | Washer | 1 |
| 27 | K01006 | Key 5×5×16 | 1 |
| 28 | 4253500900 | X Synchronizing wheel box | 1 |
| 29 | 41835500 | X Synchronizing | 1 |
| 30 | 42501007 | Gear box | 1 |
| 31 | 701S13045 | Screw M5×60 | 8 |
Page 51 — 01、主台面部分 / Machine body (Table structure)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 141932115 | Master surface | 1 |
| 2 | 141911005 | Shuttle back cover | 1 |
| 3 | S02039 | Screw the M4 x 9 | 12 |
| 4 | 141932044 | Circular plate | 2 |
| 5 | 142026004 | Knurled thread sleeve M4 | 10 |
| 6 | 141911006 | Shuttle front cover plate | 1 |
| 7 | 915624 | The magnet 15 x 1 | 6 |
| 8 | S05124 | Screw the M5 * 16 | 12 |
| 9 | 142031002 | Hinge A | 3 |
| 10 | 417S30036 | Screw (with washer)M5 x 12 | 12 |
| 11 | 930000413 | floor | 2 |
| 12 | 417S30306 | Screw (with washer)M5 x 15 | 32 |
| 13 | 930000513 | Supporting plate coupling B | 1 |
| 14 | 930000302 | Mesa support plate | 2 |
| 15 | 930000301 | Table plate bracket assembly | 2 |
| 16 | 417S30306 | Screw (with washer)M5 x 15 | 8 |
| 17 | 142026005 | Knurled thread sleeve M5 | 14 |
| 19 | 141932063 | Back table | 1 |
| 20 | S05123 | Screw the M5 * 12 | 20 |
| 21 | 41828611 | Flat washer M5 | 30 |
| 22 | 930000303 | Mesa left and right support plate | 4 |
| 23 | 142012031 | The M5 threaded board | 8 |
| 24 | 142001007 | Slide shaft support | 8 |
| 25 | S05035 | Screw the M5 * 25 | 16 |
| 26 | S09041 | Screw M6 x 5 | 16 |
| 27 | S05026 | Screw the M5 * 20 | 26 |
| 28 | 142002008 | Slide bar shaft | 2 |
Page 53 — 02、前台面部分 / Front table mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 142032002 | Front auxiliary mesa | 1 |
| 2 | 142031002 | Hinge A. | 2 |
| 3 | S16022 | Screw ST5×14 | 16 |
| 4 | 142032003 | Retractable table | 1 |
| 5 | 142012128 | Limit plate of Retractable table | 1 |
| 6 | 42231512 | Clamping fixture | 1 |
| 7 | 417S30036 | Screw (with washer)M5 x 12 | 12 |
| 9 | S05026 | Screw the M5 * 20 | 6 |
| 10 | 930000306 | Folding rod bracket B | 2 |
| 11 | 142012031 | The M5 thread board | 3 |
| 12 | 1420NS20003 | Shaft screw M5B | 4 |
| 13 | 41728028 | Washer 5 | 6 |
| 14 | 407N01001 | Self-locking nut M5 | 6 |
| 15 | 930000440 | Folding rod B | 2 |
| 16 | 930000439 | A folding stem | 2 |
| 17 | 930000304 | Folding rod bracket A | 2 |
| 18 | 1420NS20002 | Axial screw M5A | 2 |
| 19 | 141937004 | Unpacking debugging instructions label | 1 |
| 142012019 | 折叠杆支架B | ||
| 141912147 | 折叠杆B | ||
| 141912146 | 折叠杆A | ||
| 142012017 | 折叠杆支架A |
Page 55 — 03、辅助台面部分 / Auxiliary table mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 141932061 | 1 | |
| 2 | 141932062 | 1 | |
| 3 | S05035 | 螺钉M5×22 | 12 |
| 4 | 421S17009 | 螺钉M5×10 | 6 |
| 5 | 142012032 | 6 | |
| 6 | 141803017 | 8 | |
| 7 | 141803007 | 6 | |
| 8 | 407N01001 | 自锁螺母M5 | 32 |
| 9 | 142003016 | 工程塑料轴套GFM1214-20 | 4 |
| 10 | 41812624 | 4 | |
| 11 | S05035 | 螺钉M5×22 | 12 |
| 12 | 141831010 | 内六角螺钉M5防尘盖 | 30 |
| 13 | S05026 | 螺钉M5×20 | 8 |
| 14 | 41812080 | 4 | |
| 15 | 41728028 | 8 | |
| 16 | 417S30304 | 螺钉M6×20 | 8 |
| 17 | 930000225 | 4 | |
| 18 | 41832020 | 脚垫M12 | 4 |
Page 57 — P1、机架部件/Table mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 930000311 | Rack components | 1 |
| 2 | 930000818 | Rack front cover plate | 1 |
| 3 | 41812131 | Fixed plate B for rear cover of the rack | 8 |
| 4 | 421S13012 | Screw (with washer)M4 x 10 | 16 |
| 5 | 141912169 | Frame front cover bracket | 2 |
| 6 | S05123 | Screw (with washer)M5 x 12 | 4 |
| 7 | 1420NS10001 | Cross large flat head screw M5 x 10 | 10 |
| 8 | 141831042 | Mats M20 | 4 |
| 9 | 701S13002 | Screw the M8 x 12 | 16 |
| 10 | 42232502 | castor | 4 |
| 11 | 1420NS10003 | Cross large flat head screw M5 x 25 | 16 |
| 12 | 930000316 | Frame side cover | 4 |
| 13 | 930000321 | Front left cover of electric control cabinet | 1 |
| 14 | 930000320 | Rear left side cover of electric control cabinet | 1 |
| 15 | 1420NS10003 | Cross large flat head screw M5 x 20 | 8 |
| 16 | 407N01002 | Self-locking nut | 3 |
| 17 | 142012041 | Electric control threshold plate | 3 |
| 18 | 142047002 | Round magnet 15 | 3 |
| 19 | 407S17001 | Screw M4 x 10 | 3 |
| 20 | 421S13012 | Screw (with washer)M4 x 10 | 6 |
| 21 | 930000317 | Left door of electric control cabinet | 1 |
| 22 | 930000318 | Right door of electric control cabinet | 1 |
| 23 | 41831014 | Electric control cabinet lock | 1 |
| 24 | 417S17852 | Screw the M5 x 15 | 24 |
| 25 | 41831016 | Electronic control cabinet hinge | 6 |
| 26 | 41728028 | Washer 5 | 12 |
| 27 | 407N01001 | Self-locking nut M5 | 12 |
| 28 | 417S30025 | Screw (with washer)M4×10DB | 4 |
| 29 | 41831013 | Fan net | 1 |
| 30 | 304219 | Rack rear cover assembly | 1 |
| 31 | 930000319 | Door on the right side of the electric control cabinet | 1 |
| 32 | S05993 | Screw the M16 x 55 | 6 |
| 33 | 41828013 | The big washer | 6 |
| 34 | 142003018 | Locating sleeve | 6 |
| 35 | 41803019 | Pipe sleeve | 12 |
| 36 | 41822014 | Vibration damping rubber pad | 6 |
| 37 | 417S13301 | Screw M5 * 12 | 12 |
Page 59 — P2、电控柜装置 / Electric control box mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 407N01002 | self-locking nut | 4 |
| 2 | S02117 | Cross grooved countersunk head screw M4 x 50 | 4 |
| 3 | 41811013 | Fan dust cover assembly | 1 |
| 4 | 41830012 | fan | 1 |
| 5 | 142011008 | Trough. 5040-320 | 1 |
| 6 | 41845022 | The air pipe joint goes through PM8 | 1 |
| 7 | 41811215 | outlet | 1 |
| 8 | 142011009 | Trough. 5040-750 | 1 |
| 9 | 142011005 | Trough. 4040-300 | 1 |
| 10 | 417S30025 | Bolt (with washer)M4×10DB | 9 |
Page 61 — Q、控制箱装置(X) / Control box mechanism (X)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 141930042 | AK05-B high voltage electric control | 1 |
| 1 | 141930043 | BK05-B high voltage electric control | 1 |
| 2 | 141930021 | Control cabinet | 1 |
| 2 | 141930044 | Second-generation AK05 motherboard | 1 |
| 3 | 141930045 | Second-generation BK05 motherboard | 1 |
| 4 | 141930047 | Two-in-one low-pressure servo control panel | 1 |
| 5 | 141830022 | Fan V2BP | 1 |
| 6 | 141930048 | The power supply board | 1 |
| 6 | 141930024 | The power supply board | 1 |
| 7 | 141930046 | Two-in-one high-voltage servo drive plate | 1 |
| 8 | 141930026 | Control box cover plate | 1 |
| 9 | 417S30025 | Screw M4×10 | 6 |
| 10 | 41830641 | Display the V2CP | 1 |
| 11 | 142030004 | Radio frequency device | 1 |
| 12 | 417S30302 | Bolt (with washer)M4×12DB | 4 |
| 13 | S02039 | Screw M4×9(Nickel plating) | 4 |
| 14 | 42230512 | Main power switching wire (6M) | 1 |
| 15 | 41830213 | press button switch | 1 |
| 16 | 141947001 | Magnetic ring | 1 |
Page 63 — R、操作界面装置／ Operation interface mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 417S30306 | Bolt M5 * 12 | 4 |
| 2 | 417S30302 | Bolt M4 * 12 | 4 |
| 3 | 304058 | Operate screen V2 bracket | 1 |
| 4 | 417S15008 | Bolt M4 * 8 | 4 |
| 5 | 142012050 | Pressing plate | 2 |
| 6 | 142022003 | Damping pad | 2 |
| 7 | 142012051 | Pressing plate | 2 |
| 9 | 930000817 | Operate screen support | 1 |
| 10 | 417S30306 | Screw M5 * 15 | 4 |
| 11 | S05123 | Screw M5×12(Knurled) | 5 |
| 12 | 141912085 | Air on/off valve mounting plate | 1 |
| 13 | S05120 | Screw M5×8(Knurled) | 2 |
| 14 | 42536004 | Tracheal joint | 2 |
| 15 | 141930017 | Air on/off valve | 1 |
| 16 | 42230519 | Miniature connector M-5HLH-4 | 2 |
| 17 | 141945020 | Pressure regulator | 1 |
| 18 | S05115 | Screw M4×6(Knurled) | 2 |
| 19 | 41830214 | button switch | 2 |
| 20 | 41830215 | Emergency stop switch | 1 |
| 21 | 41811216 | Switch label frame assembly | 2 |
| 22 | 417S30302 | Bolt (with washer)M4 x 12 | 4 |
| 23 | 41811214 | Button switch box | 1 |
| 24 | 41811215 | outlet | 1 |
| 25 | 41812061 | Switch box mounting plate A | 1 |
| 26 | W01001 | M4 gasket (ordinary) | 3 |
| 27 | 142012031 | The M5 thread board | 1 |
| 28 | 421S13035 | Bolt M4×8(Knurled, Nickel plated) | 3 |
| 29 | 41812062 | Button box mounting plate B | 1 |
| 30 | S05026 | Hexagon socket screw M5 x 20 | 2 |
Page 65 — S、电器部品装置 / Power supply equitment mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 407N01002 | Self-locking nuts | 2 |
| 2 | 41812060 | Power switch bracket | 1 |
| 3 | 417S30036 | Bolt M5×16(with washer) | 2 |
| 4 | 99200037 | EC4 controller power cord | 0.4 |
| 5 | 41828611 | Flat washer M5 | 1 |
| 6 | 42212620 | hook | 1 |
| 7 | 41830021 | Lug plate A01 | 1 |
| 8 | 421S13012 | Bolt (with washer)M4×10DB | 2 |
| 9 | 417S30025 | Bolt (with washer)M4×10DB | 1 |
| 10 | S05118 | Bolt M4×16(Knurled, Nickel plated) | 1 |
| 11 | 142011007 | Trough. 4040-1300 | 3 |
| 12 | 417S30025 | Bolt (with washer)M4×10DB | 16 |
| 13 | 142011006 | Trough. 4040-750 | 1 |
| 14 | 142011005 | Trough. 4040-300 | 1 |
| 15 | 41711025 | Wire clip 19 | 2 |
| 16 | 417S30302 | Bolt (with washer)M4 x 12 | 1 |
| 17 | 142030001 | LED lights | 1 |
| 18 | 421S13003 | Screw with cushion M4 x 8 | 1 |
| 19 | 42311004 | Winding pipe φ10 | 1 |
Page 67 — T、空压装置 / Air pressure mechanismS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 14194501700 | Six-way solenoid valve assembly | 1 |
| 1 | 14204501400 | Six-bit five-way solenoid valve assembly | |
| 1 | 14194501800 | Six-bit six-way solenoid valve assembly | 1 |
| 1 | 14204501500 | Eight-bit seven-way solenoid valve assembly | 1 |
| 2 | 421S11013 | Screw M4 ×35 | 4 |
| 3 | 14204501200 | Gas source processing component components | 1 |
| 4 | 417S30025 | Bolt (with washer) M4×10DB | 2 |
| 5 | 41845220 | Air gun AG-B | 1 |
| 6 | 40736018 | Threads go straight through APC6-02 | 1 |
| 7 | 42211540 | Spiral trachea 6×4 | 1 |
| 8 | 40736022 | Trachea connector APG6 | 1 |
| 9 | 40736036 | Trachea connector API4 (Y-type tee) | 3 |
| 10 | 140736004 | Trachea connector PYW6-4 | 1 |
| 11 | 141936003 | Trachea connector PEG8-4 | 1 |
| 12 | 142045007 | Trachea connector tee | 1 |
| 13 | S01591 | Screw M3 × 18 | 1 |
| 14 | 41845232 | T-shaped takeover KJT04 | 1 |
| 15 | 41845223 | The trachea is 4×2.5 transparent blue | 22 |
| 16 | 41845224 | The trachea is 4× 2.5 black | 23 |
| 17 | 42221503 | Trachea 8 | 10 |
| 18 | 142045009 | Trachea 6 | 2 |
| 19 | 41730022 | Solenoid valve connection | 1 |
| 19 | 41730022 | Solenoid valve connection | 14 |
| 19 | 41730022 | Solenoid valve connection | 15 |
| 20 | 142122003 | Number tube 4 | 0.3 |
| 21 | 142144001 | Number tube ribbon | 0.3 |
Page 69 — U、卷线装置 / Bobbin winder mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41831222 | 1 | |
| 2 | S05026 | 螺栓M5×20 | 4 |
| 3 | 407N01001 | 自锁螺母M5 | 4 |
Page 71 — X1、底线检测装置/Bottom line detection mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 418S30218 | 螺钉M4x7 | 2 |
| 2 | 141921001 | 1 | |
| 3 | 41845224 | 0.1m | |
| 4 | N08008 | 六角锁紧螺母M3 | 1 |
| 5 | 141912020 | 1 | |
| 6 | S05116 | 螺钉M4×8 | 2 |
| 7 | 413S14012 | 螺钉M3x14 | 3 |
| 8 | 14183000400 | 1 | |
| 9 | 41818621 | 两倍梭芯 A | 5 |
| 10 | 42130028 | 20 |
Page 73 — X2、激光切割装置 / Laser cutting mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41822701 | Water pipe | 8 |
| 2 | 142032075 | Upper suction duct A | 1 |
| 3 | 142030020 | Laser tube A2S | 1 |
| 3 | 142030015 | Laser tube A4S | 1 |
| 4 | 930000536 | Upper cover of shell C | 1 |
| 4 | 930000537 | Upper cover of shell A | 1 |
| 5 | 421S10022 | Screw M4×6 | 26 |
| 6 | 930000538 | Upper cover of shell B | 1 |
| 7 | 142042008 | Chamber rear cover plate | 1 |
| 8 | S05118 | Screw M4×16 | 4 |
| 9 | 142042019 | Shell bottom plate 100W | 1 |
| 9 | 142042015 | Shell bottom plate | 1 |
| 10 | 421S13059 | Screw (with washer) M5×20 | 4 |
| 11 | 142042016 | Shell panel A | 1 |
| 12 | S05026 | Screw M5×20 | 2 |
| 13 | S05026 | Screw M5×20 | 4 |
| 14 | S05124 | Screw M5×16 | 4 |
| 15 | 142009008 | Cylinder mounting base | 1 |
| 16 | 142030019 | Cylinder | 1 |
| 17 | 41845231 | Connector ASL4-M5 | 2 |
| 18 | 142036002 | Floating joint | 1 |
| 19 | 142042005 | Floating joint connector | 1 |
| 20 | 421S17005 | Screw M5×16 | 2 |
| 21 | 142008001 | Guide | 2 |
| 22 | S05094 | Screw M3×8 | 8 |
| 23 | 142042007 | Guide rail linkage plate | 1 |
| 24 | 421S11001 | Screw | 8 |
| 25 | 1420NS20004 | Screw | 3 |
| 26 | 142009007 | Reflector mounting plate | 1 |
| 27 | 142008004 | Mirror fixing ring | 1 |
| 28 | 41811631 | Silicon mirror | 1 |
| 29 | S05064 | Screw M4×30 | 3 |
| 30 | 142027002 | Mirror spring | 3 |
| 31 | 142001017 | Reflector mounting base | 1 |
| 32 | 142042009 | Fixing seat of light output cylinder | 1 |
| 33 | S05124 | Screw M5×16 | 2 |
| 34 | S05124 | Screw M5×16 | 1 |
| 35 | S10019 | Screw M6×6 | 3 |
| 36 | 142042010 | Smoking hood A | 1 |
| 37 | 142002015 | Lens barrel A | 1 |
| 38 | 41830701 | Focusing lens | 1 |
| 39 | 42230519 | Mini connector | 1 |
| 40 | 142002014 | Light outlet A | 1 |
| 41 | 142008003 | Fixed ring of focusing lens | 1 |
| 42 | 142042011 | Smoking pipe connection | 1 |
| 43 | 41831409 | Hoop 25-38 | 1 |
| 44 | 142011017 | Hose 32 | 0.5 |
| 45 | 421S13059 | Screw (with washer) M5×20 | 8 |
| 46 | 142011015 | Laser tube bracket 80 | 2 |
| 47 | S05133 | Screw M4×12 | 8 |
| 48 | 142042014 | Smoking pipe mounting base B | 2 |
| 49 | 142042013 | Smoking pipe mounting base A | 2 |
| 50 | 142012105 | Mounting plate for smoking socket | 2 |
| 142012127 | |||
| 142012106(F11B) | 142012106(F11B) | ||
| 142012107 |
Page 75 — X2、激光切割装置 / Laser cutting mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 51 | 41828611 | Flat washer M5 | 4 |
| 52 | 417S30306 | Screw (with washer) M5×15 | 4 |
| 53 | 142042017 | Shell panel B | 1 |
| 54 | S05133 | Screw M4×12 | 3 |
| 55 | 142030011 | Integrated potentiometer | 1 |
| 56 | 142030014 | Inching switch | 1 |
| 57 | 142002016 | Light outlet B | 1 |
| 58 | 41845222 | 螺纹直通APC4-01 | 1 |
Page 77 — X6、激光切割控制部分 / Laser cutting control part
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41822012 | Damping washer | 6 |
| 2 | 930000323 | Cavity rear bracket | 1 |
| 3 | 417S30306 | Screw (with washer) M5×15 | 14 |
| 4 | 930000442 | Cavity front bracket | 1 |
| 5 | 930000539 | Laser power supply mounting plate | 1 |
| 6 | 142030016 | Laser power supply 120W | 1 |
| 7 | 417S30302 | Screw (with washer) M4×12 | 8 |
| 8 | 142011006 | Trunk 4040-850 | 1 |
| 9 | 417S30302 | Screw (with washer) M4×12 | 2 |
| 10 | 141830013 | Bull plug 3 jack | 1 |
| 11 | 417S30302 | Screw (with washer) M4×12 | 2 |
| 12 | 142030017 | Network cable | 1 |
| 13 | 417S30302 | Screw (with washer) M4×12 | 5 |
| 14 | 41711025 | Wire clip 19 | 5 |
| 15 | 417S30302 | Screw (with washer) M4×12 | 4 |
| 16 | 142011016 | Cable tie holder | 4 |
| 17 | 41845232 | Tracheal connector | 1 |
| 18 | S01591 | Screw M3×18 | 2 |
| 19 | 417S30302 | Screw (with washer) M4×12 | 2 |
| 20 | 142012052 | Electrical mounting plate | 1 |
| 21 | 141830037 | Card | 2 |
| 23 | 41830302 | Intermediate relay | 2 |
| 24 | 41830303 | Intermediate relay seat | 2 |
| 25 | 41830703 | 3000 type water tank | 1 |
| 26 | 930000326 | Water tank mounting plate assembly | 1 |
| 27 | 417S30036 | Screw (with washer) M5×12 | 8 |
| 28 | 142012084 | Hinge pad | 2 |
| 29 | 142031002 | Hinge A | 2 |
| 31 | 142012064 | Water tank lever bracket | 2 |
| 30 | 142012182 | Wire A | 2 |
| 32 | 421S17009 | Screw M5×10 | 8 |
| 33 | 41730059 | 扫线开关接插件A | 1 |
| 34 | 61807020 | 20 |
Page 79 — X3、激光切割吸风装置 / Laser cutting smoke exhaust part
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 141812017 | Suction port plate-medium thick material | 1 |
| 2 | 41831019 | Powerful magnet 6×12 | 4 |
| 3 | S05123 | Screw M5×12 | 4 |
| 4 | 930000327 | Dust box assembly M | 1 |
| 5 | 42230519 | Mini connector M-5HLH-4 | 1 |
| 6 | 417S30302 | Screw (with washer) M4×12 | 2 |
| 7 | 417S30302 | Screw (with washer) M4×12 | 2 |
| 8 | 142012070 | Dust box fixing plate | 1 |
| 9 | 930000328 | Dust collector | 1 |
| 10 | 141822006 | Rubber stopper 31 | 1 |
| 11 | 41830705 | Centrifugal fan 650W | 1 |
| 12 | 417S30037 | Screw (with washer) M6×14 | 4 |
| 13 | 930000325 | Fan mounting plate S | 1 |
| 14 | 40931008 | Motor base | 4 |
| 15 | 417S30306 | Screw (with washer) M5×15 | 6 |
| 16 | 41831408 | Steel wire hose Φ32 | 3M |
| 17 | 41831409 | Hoop 25-38 | 7 |
| 18 | 41831408 | Steel wire hose Φ32 | 1.5M |
| 19 | 417S30302 | Screw (with washer) M4×12 | 4 |
| 20 | 930000045 | Centrifugal fan air inlet assembly | 1 |
| 21 | 930000046 | Centrifugal fan outlet assembly | 1 |
| 22 | 407N01001 | Self-locking nut M5 | 4 |
| 23 | 41828611 | Flat washer M5 | 8 |
| 24 | S05124 | Screw M5×12 | 4 |
| 25 | 141831039 | Hoop 40-63 | 1 |
| 26 | 141831038 | Hose 50 | 5M |
| 27 | 41730022 | Solenoid valve wire | 15M |
| 28 | 62800019 | Single core wire | 5M |
| 29 | 41845223 | Trachea Φ4×2.5 transparent blue | 4M |
| 30 | 41845224 | Trachea Φ4×2.5 black | 4M |
| 31 | 41845224 | Trachea Φ4×2.5 black | 5M |
| 32 | 40736036 | Trachea joint APY4 (Y type tee) | 1 |
| 36 | 421S11013 | Screw M4×35 | 4 |
| 37 | 41812551 | Suction board | 1 |
| 38 | 142037003 | Laser label | 1 |
| 39 | 141823002 | Mirror cleaning paper | 5 |
| 40 | 41837617 | Precautions for laser equipment | 1 |
| 41 | 41837616 | Triangular high-pressure hazard label | 3 |
| 42 | 141837004 | In label | 2 |
| 43 | 141837005 | Out label | 2 |
| 44 | 42230512 | Main power switch line (5M) | 2 |
| 45 | 41830021 | Plug board A01 | 1 |
| 46 | 417S30302 | Screw (with washer) M4×12 | 10 |
| 47 | S02039 | Screw M4×9 | 4 |
| 48 | 142047002 | Round magnet 15 | 4 |
| 49 | 142012136 | Magnet mounting plate | 4 |
| 50 | 930000563 | Smoke filter box panel | 1 |
| 51 | 1420NS30002 | Plum blossom screw M5×15 | 1 |
| 52 | S02032 | Screw M3×6 | 8 |
| 53 | 41831012 | Copper hinge | 2 |
| 54 | 142022004 | Sealing strip | 1M |
| 55 | 930000562 | Smoke filter box | 1 |
| 56 | 417S30036 | Screw (with washer) M5×12 | 2 |
| 57 | 142022005 | Filter box plastic box | 1 |
| 58 | 14201213300 | Smoke filter 60 mesh | 1 |
Page 81 — X3、激光切割吸烟装置 / Laser cutting smoke exhaust part
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 59 | 142012173 | Light barrier | 1 |
| 60 | 142037005 | label | 1 |
Page 83 — X4、点笔装置/Pint Pen Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 41845231 | Joint ASL4 - M5 | 2 |
| 2 | S05119 | Hexagon socket head screw M4×20 | 2 |
| 3 | 142012009 | Mounting plate for pen - pointing device | 1 |
| 4 | S05133 | Hexagon socket head screw M4×12 | 2 |
| 5 | 41708002 | Tight circle B | 1 |
| 6 | S10019 | Screw M6×6 | 2 |
| 7 | 41722020 | Electromagnetic iron buffer washer | 1 |
| 8 | 142045001 | Cylinder CMDD16 x 25 | 1 |
| 9 | 141812215 | Cylinder adjusting piece | 1 |
| 10 | N02030 | Nut M8 x 1 | 1 |
| 11 | 41827032 | Point pen spring | 1 |
| 12 | 41811302 | Point pen ink | 1 |
| 13 | 418S16304 | Tap the penholder to lock the cap | 1 |
| 14 | 41845224 | Trachea 4×2.5 black | 3 |
| 15 | 41845223 | Trachea 4×2.5 transparent blue | 3 |
Page 85 — X5、物联网装置/The Internet of Things
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 61807032 | 16 mm copper column (10 mm + 6 mm) | 2 |
| 2 | 141830042 | Internet of Things circuit board | 1 |
| 3 | S04075 | Screw M3 * 5 | 2 |
| 4 | 141830044 | Power cord (Schematic Diagram) | 1 |
| 5 | 141830043 | Signal line (Schematic diagram) | 1 |
Page 87 — Z、附件/Accessories
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 10131004 | JK-5550-1018螺丝刀(小) | 1 |
| 2 | 10131003 | 1 | |
| 3 | 10131002 | 1 | |
| 4 | 30131007 | 内六角扳手(1.5mm) | 1 |
| 5 | 20131046 | JK-795-1911内六角扳手2mm | 1 |
| 6 | 30131010 | GB/T 5356内六角扳手2.5mm | 1 |
| 7 | 30131012 | GB/T 5356内六角扳手3mm | 1 |
| 8 | 20131047 | JK-800-1922内六角扳手4mm | 1 |
| 9 | 20131056 | JK-800-1912内六角扳手5mm | 1 |
| 10 | 30131005 | 扳手(6mm～7mm) | 1 |
| 11 | 30131006 | JK-8569-W21-3双开口扳手(8-10mm) | 1 |
| 12 | 41712355 | JK-T3020-31-065针板专用螺丝刀 | 1 |
| 13 | 20131051 | JK-795-1916镊子 | 1 |
| 14 | 11631008 | JK-58420-Z33油壶组件 | 1 |
| 15 | 20131038 | 1 | |
| 16 | 1011101200 | JK-5550-1022-00油壶组件 | 1 |
| 17 | 11411029 | JK-8990注射器 | 1 |
| 18 | 40730010 | JK-5878螺旋气管 | 6 |
| 19 | 40736001 | JK-5878-0115螺纹套管接头 | 1 |
| 20 | 41830017 | JK-T12090-21-005电子标签卡 | 30 |
| 21 | 417S30036 | JK-T1310-05-045螺栓(带垫圈)M5×12 | 4 |
| 22 | 407N01001 | JK-T5878-58B-0104-02自锁螺母M5 | 12 |
| 23 | S05124 | GB/T 70.1-2000螺栓M5×16(滚花,镀镍) | 12 |
| 24 | 42217504 | MS-90A-0532机针DP×5 8# | 4 |
| 25 | 10818501 | 3 | |
| 26 | 41815022 | MS-90A-03-022针孔板Φ1.7T2.5 | 1 |
| 27 | 20131076 | 7 | |
| 28 | 20131077 | 2 | |
| 29 | 61910003 | JK-T5878-58B-0812扎带(小) | 5 |
| 30 | 42130028 | JK-T5878-68-2611反射纸0.254m×45.72m(欧偌丽) | 10 |
| 31 | 141803006 | MT-90C-11-027下轴油芯套 | 2 |
| 32 | 141822002 | MT-90C-11-0240形圈3.6×0.8 | 2 |
| 33 | 141823001 | MT-90C-11-030下轴限油芯 | 2 |
| 34 | 141931002 | MX-100A-40-002水平泡 | 1 |
| 35 | 41726014 | JK-T2210-12-020针套 | 1 |
| 36 | 141931003 | MX-100A-ZP48内六角扳手14mm | 1 |
| 37 | 12921006 | 维尼龙油管(Φ6xΦ8)(进口) | 0.5 |
| 38 | 915305 | 0.5 | |
| 39 | 41731015 | JK-T2210-28-003花样机附件箱 | 1 |
| 40 | 141831017 | MT-90C-31-014X送料同步带模组附件箱 | 1 |
| 41 | 41837613 | MT-90C-31-009重心标贴 | 1 |
| 42 | 140237002 | JK-T781-FJ20警告牌(护手) | 1 |
| 43 | 41837615 | MT-90C-31-011电线警告标贴 | 1 |
| 44 | 41837102 | MS-90A-3702导轨注油标签 | 1 |
| 45 | 42131008 | 2 | |
| 46 | 142037004 | MS-100A-0232台面折叠注意标贴 | 2 |
| 47 | 141845007 | MT-90C-24-013软管TUS0425N | 0.2 |
| 48 | 20131063 | JK-8777-0111警告牌 | 3 |
| 49 | 141916005 | 大压脚B | 2 |
Jack MX-100A — parts catalog
- Page 1 (toc): This page contains the table of contents for the industrial sewing machine parts catalog, listing various machine parts and their corresponding page numbers.
- Page 2 (diagram): This page displays a diagram of machine body components, with numbered parts indicated by reference numbers.
- Page 3 (parts_list): This page lists machine body parts, including part numbers, descriptions, quantities, and remarks. It contains 33 items.
- Page 4 (diagram): This page displays a diagram of the upper shaft mechanism, illustrating various components with reference numbers for identification.
- Page 5 (parts_list): This page lists parts for the upper shaft mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 6 (diagram): This page displays a diagram of the needle bar mechanism, illustrating various components with reference numbers for identification.
- Page 7 (parts_list): This page lists parts for the C. Needle bar mechanism, including part numbers, names, quantities, and remarks.
- Page 8 (diagram): This page displays a diagram of the work clamp lifter mechanism, illustrating various components labeled with reference numbers.
- Page 9 (parts_list): This page lists parts for the D2, electronic middle presser foot clamp lifter mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 10 (diagram): This page displays a diagram of the threading mechanism, with numbered parts indicated by reference numbers.
- Page 11 (parts_list): This page lists parts for the E, Threading mechanism, including part numbers, names, quantities, and remarks.
- Page 12 (diagram): This page displays a diagram of the thread trimmer mechanism, with numbered parts indicated for identification.
- Page 13 (parts_list): This page lists parts for the F, thread trimmer mechanism, including part numbers, names, quantities, and remarks.
- Page 14 (diagram): This page displays a diagram of the tension release mechanism, with numbered parts including bolts, washers, a spring, and a shaft.
- Page 15 (parts_list): This page lists parts for the G, Tension release mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 16 (diagram): This page displays a diagram of the external work clamp mechanism, with numbered parts and their corresponding references.
- Page 17 (parts_list): This page lists parts for the external work clamp mechanism, including part numbers, names, quantities, and remarks.
- Page 18 (diagram): This page displays a diagram of the tread breakage detector mechanism, with numbered parts including a bracket, spring, and screw.
- Page 19 (parts_list): This page lists parts for the Tread breakage detector mechanism, including part numbers, names, quantities, and remarks.
- Page 20 (diagram): This page displays a diagram of the lower shaft mechanism, illustrating various components with reference numbers.
- Page 21 (parts_list): This page lists parts for the lower shaft mechanism, including part numbers, names, quantities, and remarks.
- Page 22 (diagram): This page displays a diagram of the thread trimmer mechanism, with numbered parts and their corresponding references.
- Page 23 (parts_list): This page lists parts for the K, cutting device / Thread trimmer mechanism, including part numbers, names, quantities, and remarks.
- Page 24 (diagram): This page displays a diagram of the thread trimmer mechanism, with numbered parts and their corresponding references.
- Page 25 (parts_list): This page lists parts for the K, cutting device / Thread trimmer mechanism, including part numbers, names, quantities, and remarks.
- Page 26 (diagram): This page displays a diagram of the rotating mechanism, with numbered parts and their corresponding labels.
- Page 27 (parts_list): This page lists parts for the L, Lower Rotating Mechanism, including part numbers, names, quantities, and remarks.
- Page 28 (diagram): This page displays a diagram of the rotating mechanism, with numbered parts and their corresponding labels.
- Page 29 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and some additional reference numbers.
- Page 30 (diagram): This page displays a diagram of the fusier oil supply mechanism, with numbered parts and their corresponding references.
- Page 31 (parts_list): This page lists parts for the M,旋梭供油装置 / Fusier oil supply mechanism, including part numbers, names, quantities, and remarks.
- Page 32 (diagram): This page displays a diagram of the N1, X Feed mechanism (S), showing various components with reference numbers for identification.
- Page 33 (parts_list): This page contains a parts list for the N1, X Feed mechanism (S) / X Feed mechanism (S) with part numbers, names, quantities, and remarks.
- Page 34 (diagram): This page displays a diagram of the N1, X Feed mechanism (S), illustrating various components with reference numbers for identification.
- Page 35 (parts_list): This page contains a parts list for various screws, nuts, gaskets, and other components, with part numbers, descriptions, and quantities.
- Page 36 (diagram): This page displays a diagram of the N2, X Feed mechanism (T), illustrating various components with reference numbers for identification.
- Page 37 (parts_list): This page lists parts for the N2, X Feed mechanism (T) / X Feed mechanism (T) with part numbers, descriptions, quantities, and remarks.
- Page 38 (diagram): This page displays a diagram of the N3, Y Feed mechanism, illustrating various components with reference numbers.
- Page 39 (parts_list): This page lists parts for the N3, Y Feed mechanism, including part numbers, names, quantities, and remarks.
- Page 40 (diagram): This page displays a diagram of the clamping fixture mechanism (S), with numbered parts indicated for identification.
- Page 41 (parts_list): This page lists parts for the N4, Clamping fixture mechanism (S) with part numbers, descriptions, quantities, and remarks.
- Page 42 (diagram): This page displays a diagram of the clamping fixture mechanism, illustrating various components with reference numbers.
- Page 43 (parts_list): This page contains a parts list for the N5, Clamping fixture mechanism (S) with columns for Part No., Part Name, Name of Parts, Quantity (Amt.), and Remarks.
- Page 44 (diagram): This page displays a diagram of the clamping fixture mechanism (T), with numbered parts indicated for reference.
- Page 45 (parts_list): This page lists parts for the N6, Clamping fixture mechanism (T), including part numbers, descriptions, quantities, and remarks.
- Page 46 (diagram): This page displays a diagram of the clamping fixture mechanism (T) with numbered parts. It includes components such as cylinders, brackets, screws, and rods, with reference numbers ranging from 1 to 37.
- Page 47 (parts_list): This page lists parts for the N7, Clamping fixture mechanism (T) / Clamping fixture mechanism (T) with part numbers, descriptions, quantities, and remarks.
- Page 48 (diagram): This page displays a diagram of the N8, X synchronous belt device (T) / X Feed mechanism (T), with numbered parts indicated.
- Page 49 (parts_list): This page lists parts for the N8, X synchronous belt device (T) / X Feed mechanism (T), including part numbers, descriptions, quantities, and remarks.
- Page 50 (diagram): This page displays a diagram of the machine body and table structure, with numbered parts indicated for identification.
- Page 51 (parts_list): This page lists parts for the main body/table structure of a sewing machine, including part numbers, names, quantities, and remarks.
- Page 52 (diagram): This page displays a diagram of the front table mechanism, with numbered parts and their corresponding references.
- Page 53 (parts_list): This page lists parts for the Front table mechanism, including part numbers, names, quantities, and remarks.
- Page 55 (parts_list): This page lists parts for the auxiliary table mechanism, including part numbers, names, quantities, and remarks.
- Page 56 (diagram): This page displays a diagram of the table mechanism and its components, with numbered parts for identification.
- Page 57 (parts_list): This page lists parts for the P1, machine frame/table mechanism, including part numbers, names, quantities, and remarks.
- Page 58 (diagram): This page displays a diagram of the electric control box mechanism, illustrating various components with reference numbers.
- Page 59 (parts_list): This page lists parts for the P2, Electric control box mechanism, including part numbers, names, quantities, and remarks.
- Page 60 (diagram): This page displays a diagram of the control box mechanism (X) with numbered components.
- Page 61 (parts_list): This page lists parts for the Control box mechanism (X), including part numbers, names, quantities, and remarks.
- Page 62 (diagram): This page displays a diagram of the operation interface mechanism, with numbered parts indicated by reference numbers.
- Page 63 (parts_list): This page lists parts for the R, Operation Interface Mechanism, including part numbers, names, quantities, and remarks.
- Page 64 (diagram): This page displays a diagram of power supply equipment mechanisms, illustrating various components with reference numbers.
- Page 65 (parts_list): This page lists parts for S, 电器部品装置 / Power supply equitment mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 66 (diagram): This page displays a diagram of air pressure mechanism components, with numbered parts and their corresponding references.
- Page 67 (parts_list): This page lists parts for the Air pressure mechanism, including solenoid valve assemblies, screws, connectors, and tubing, with their corresponding part numbers, names, quantities, and remarks.
- Page 68 (diagram): This page displays a diagram of the bobbin winder mechanism, with numbered parts indicating components.
- Page 69 (parts_list): This page lists parts for the U, Bobbin winder mechanism, including part numbers, names, quantities, and remarks.
- Page 70 (diagram): This page displays a diagram of the bottom line detection mechanism, illustrating various components labeled with reference numbers.
- Page 71 (parts_list): This page lists parts for the X1, Bottom line detection mechanism, including part numbers, names, quantities, and remarks.
- Page 72 (diagram): This page displays a diagram of the laser cutting mechanism for the X2 machine, with numbered parts indicated.
- Page 73 (parts_list): This page lists parts for the X2 Laser Cutting Mechanism, including part numbers, names, quantities, and remarks.
- Page 74 (diagram): This page displays a diagram of the laser cutting mechanism, with numbered parts indicated by reference numbers.
- Page 75 (parts_list): This page lists parts for a sewing machine, including flat washers, screws, shell panels, integrated potentiometers, inching switches, and light outlets, with their corresponding part numbers and quantities.
- Page 76 (diagram): This page displays a diagram of the X6 laser cutting control part, with numbered components and their corresponding parts.
- Page 77 (parts_list): This page contains a parts list for the X6, Laser cutting control part, listing part numbers, names, quantities, and remarks.
- Page 78 (diagram): This page displays a diagram of laser cutting smoke exhaust parts, with numbered components and their corresponding labels.
- Page 79 (parts_list): This page lists parts for the X3 Laser cutting smoke exhaust part, including part numbers, names, quantities, and remarks.
- Page 80 (diagram): This page displays a diagram of laser cutting smoke exhaust parts, with numbered components and their corresponding part numbers and descriptions.
- Page 81 (parts_list): This page lists parts with numbers 142012173 and 142037005, described as 'Light barrier' and 'label' respectively, with a quantity of 1 for each.
- Page 82 (diagram): This page displays a diagram of the point pen mechanism, with numbered parts indicated by reference numbers.
- Page 83 (parts_list): This page lists parts for the X4, Point Pen Mechanism, including part numbers, descriptions, quantities, and remarks.
- Page 84 (diagram): This page displays a diagram of the X5, Internet of Things components, including a circuit board, connectors, and cables, labeled with reference numbers 1 through 5.
- Page 85 (parts_list): This page lists parts for the X5, Internet of Things device, including part numbers, names, quantities, and remarks.
- Page 87 (parts_list): This page lists accessories for the sewing machine, including various tools, fasteners, and labels, with their corresponding part numbers and quantities.
