Page 1
JUKI High-speed 1-Needle, Cylinder Bed Lockstitch Bar Tacking Industrial Sewing Machine 高速一本針本縫筒形閂止めミシン LK-1850 Series PARTS LIST BE185030PJA No.0200-19 jintex.in
Juki LK-1850 — parts catalog

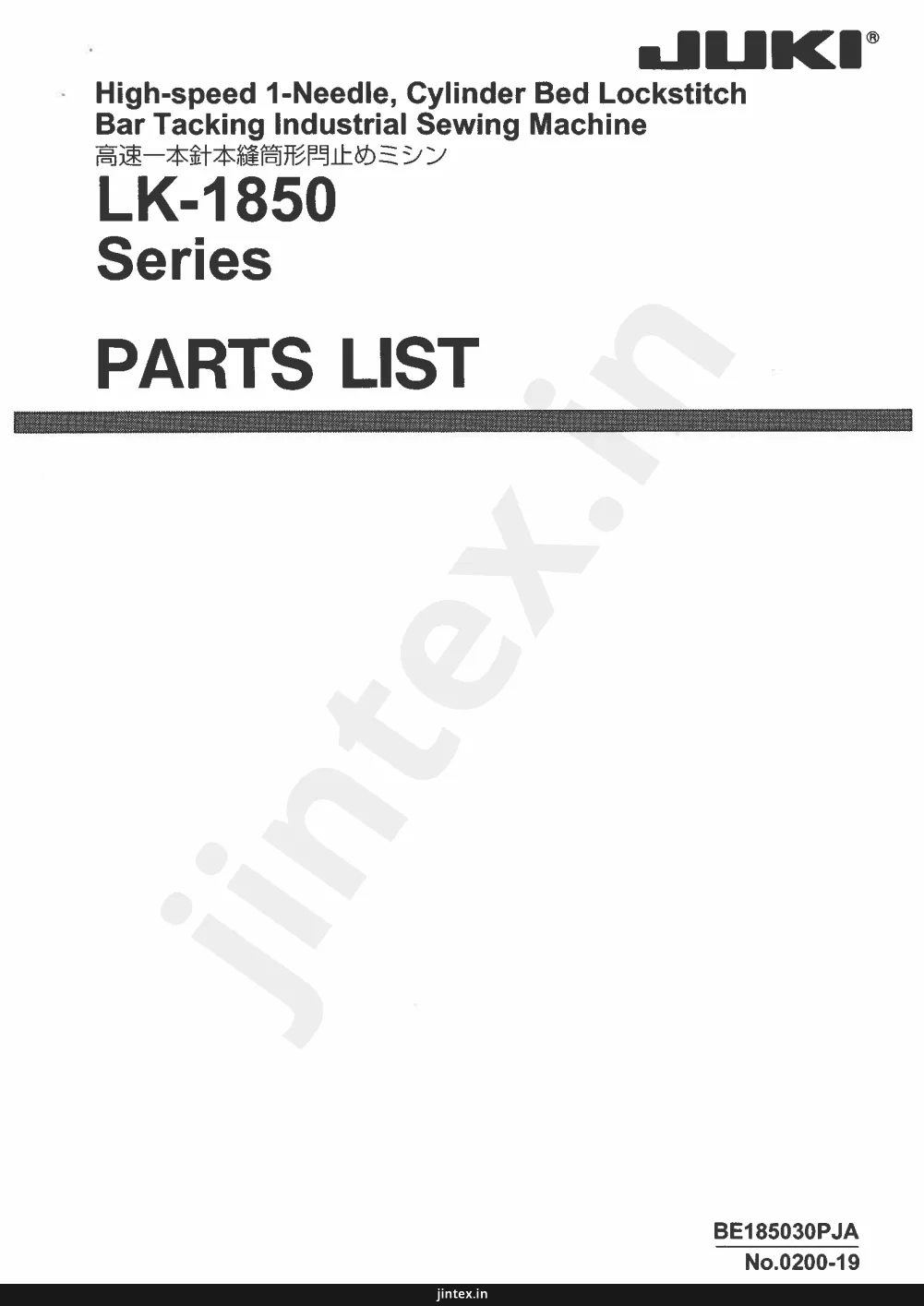

- Page 1 (cover): This is the cover page for the JUKI LK-1850 Series High-speed 1-Needle, Cylinder Bed Lockstitch Bar Tacking Industrial Sewing Machine Parts List.
- Page 2 (unknown): This page is blank except for a watermark and a footer.
- Page 3 (text): This page provides instructions on how to use the parts list, explaining codes, quantity column values, parentheses, and dotted lines in diagrams, along with Japanese explanations for the same.
- Page 4 (toc): This page is a table of contents for the Juki LK-1850 series parts catalog, listing various component sections and specific LK-1850 models with their corresponding page numbers.
- Page 5 (toc): This page is a table of contents listing sections for LK-1852T-20, LK-1852T-30, Thread Stand Components, List for Information of Change, and Numerical Index of Parts, with corresponding page numbers.
- Page 6 (diagram): This page displays a diagram of the frame and miscellaneous cover components of a sewing machine, with various parts labeled with reference numbers.
- Page 7 (parts_list): This page is a parts list detailing various components for a sewing machine, including screws, covers, guides, and other miscellaneous parts, with their respective part numbers, descriptions, and quantities.
- Page 8 (diagram): This page illustrates the main shaft components of an industrial sewing machine, showing an exploded view of various parts including gears, springs, and other shaft-related elements.
- Page 9 (parts_list): This page lists various parts including screws, shafts, pulleys, and springs, with their part numbers, descriptions, and quantities.
- Page 10 (diagram): This page illustrates the needle bar components of an industrial sewing machine with a detailed exploded view.
- Page 11 (parts_list): This page lists various parts for an industrial sewing machine, including components for the needle bar, bobbin winder, and thread cutting lever, with their part numbers, descriptions, and quantities.
- Page 12 (diagram): This page illustrates the thread tension release components with a detailed diagram showing various parts and their reference numbers.
- Page 13 (parts_list): This page lists various parts related to tension release, thread tension, and wiper connecting mechanisms, including screws, springs, arms, and links.
- Page 14 (diagram): This page illustrates the components of the shuttle driver shaft, including various gears, shafts, and associated hardware.
- Page 15 (parts_list): This page lists various parts for a sewing machine, including inner hook presser assemblies, bobbin cases, screws, shafts, and springs, with their corresponding part numbers, descriptions, and quantities.
- Page 16 (diagram): This page illustrates the feed mechanism components of an industrial sewing machine, showing various parts and their reference numbers.
- Page 17 (parts_list): This page is a parts list detailing various components for a sewing machine, including screws, washers, springs, levers, plates, and other related parts, with their respective part numbers, descriptions, and quantities.
- Page 18 (diagram): This page illustrates the thread trimming components of an industrial sewing machine, showing various parts and their interconnections with reference numbers.
- Page 19 (parts_list): This page lists various parts including tension springs, hinge screws, thread cutting links, rollers, washers, and connecting plates, along with their part numbers, descriptions, and quantities.
- Page 20 (diagram): This page illustrates the components of the pedal pressure decreasing unit, showing an exploded view of various parts and their reference numbers.
- Page 21 (parts_list): This page lists various parts including pressure decreasing devices, levers, screws, springs, shafts, bearings, collars, pulleys, and washers, with their corresponding part numbers, descriptions, and quantities.
- Page 22 (diagram): This page displays a diagram of the stop-motion mechanism components for an industrial sewing machine.
- Page 23 (parts_list): This page lists various parts including stop-motion components, washers, screws, nuts, springs, and levers, with their part numbers, descriptions, and quantities.
- Page 24 (diagram): This page displays a diagram of the lubrication mechanism components for an industrial sewing machine.
- Page 25 (parts_list): This page lists various parts including rubber plugs, vinyl pipes, oil wicks, screws, and other components for a machine, with their part numbers, descriptions, and quantities.
- Page 26 (diagram): This page illustrates the table components of an industrial sewing machine, showing various parts such as bolts, washers, and frame elements with their corresponding reference numbers.
- Page 27 (parts_list): This page lists various parts for an industrial sewing machine, including components for the table, stand, pedals, and motor, with their part numbers, descriptions, and quantities.
- Page 28 (diagram): This page displays a diagram of the LK-1852-1 subclass of the LK-1850 series, showing various components and their reference numbers.
- Page 29 (parts_list): This page lists various parts including screws, washers, springs, and assemblies, with their part numbers, descriptions, and quantities.
- Page 30 (parts_list): This page displays diagrams and a parts list for various components, including worm assemblies, screws, work clamp feet, feed plates, feed cams, stop-motion regulating cams, feed cam driving wheel assemblies, cloth presser plates, needle hole guides, and needles, with corresponding part numbers, descriptions, and quantities.
- Page 31 (diagram): This page displays diagrams for parts labeled (5) LK-1852-7 and (6) LK-1852-210, along with a detailed parts list including reference numbers, part numbers, descriptions, and quantities.
- Page 32 (diagram): This page displays a diagram of sewing machine parts, including various components like levers, springs, screws, and plates, with reference numbers for identification.
- Page 33 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It covers components from the cloth presser foot to the tension spring.
- Page 34 (diagram): This page displays a diagram of various sewing machine parts, including feed cams, screws, and hooks, along with a detailed parts list with corresponding part numbers and descriptions.
- Page 35 (diagram): This page displays a diagram of LK-1850-P components, with a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 36 (diagram): This page displays a diagram of sewing machine parts, including a feed mechanism, presser foot assembly, and various levers and covers, along with a corresponding parts list detailing part numbers and descriptions.
- Page 37 (parts_list): This page lists parts for the LK-1852P-30, including part numbers, descriptions, and quantities, with notes indicating parts common to other models.
- Page 38 (diagram): This page displays diagrams for parts of the LK-1852H-5 and LK-1852-22 sewing machines, along with a detailed parts list including part numbers, descriptions, and quantities.
- Page 39 (parts_list): This page lists parts for the LK-1852G-5, including part numbers, descriptions, and quantities.
- Page 40 (diagram): This page displays a diagram of sewing machine parts for the LK-1850H model, along with a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 41 (parts_list): This page lists parts for models (16) LK-1850G and (17) LK-1850T, including part numbers, descriptions, and quantities.
- Page 42 (diagram): This page displays a diagram of sewing machine parts with corresponding reference numbers, part numbers, descriptions, and quantities. It also includes notes about part compatibility.
- Page 43 (parts_list): This page lists parts for the LK-1852T-30 sewing machine, including part numbers, descriptions, and quantities, with notes on special order parts.
- Page 44 (diagram): This page displays the components of the thread stand, including part numbers, descriptions, and quantities, with a corresponding diagram for visual reference.
- Page 45 (parts_list): This page contains a list of parts with their corresponding revision numbers, page references, and part numbers. It includes information on added and obsolete parts, as well as errata.
Page 2
jintex.in
Page 3 — HOW TO MAKE USE OF THIS PARTS LIST
HOW TO MAKE USE OF THIS PARTS LIST 1.Explanation of codes 1) "*"mark..................means this part is changed from the previous parts book. As to the details of the change, refer to the "List for information of change". 2) "#01"..................refer to "Note" explanation at bottom of page. 2.Codes on the "Qty" column - Each numeral indicates the number of parts required. - "0.1" and "2.5" indicate the length (in meters) of the respective parts. 3.Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 4.Dotted lines on the Figures indicate assembly parts. パーツリストご利用に際して 1."注記"欄の記号説明 1) "*"印 ....................前回のパーツブックに比較して今回変更された部品を意味します。 変更内容は、"変更情報リスト"を参照してください。 2) "#01"....................ページ下の"注記"の説明を参照してください。 2.数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ(単位メートル)を表します。 3.数量欄の( )は、組部品を構成している子部品であることを意味します。 4.イラストページの一----一枠は、組構成であることを意味します。
Page 4
CONTENTS 目 次 1. FRAME & MISCELLANEOUS COVER COMPONENTS .................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
Page 5
(18) LK-1852T-20................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
Page 6 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS
1. FRAME & MISCELLANEOUS COVER COMPONENTS 頭部外装関係 66 59 64 9 28 8 11 13 10 15 65 2 61 3 18 63 17 60 39 40 41 42 46 45 43 43 44 48 49 50 46 16 37 14 23 22 20 19 21 36 58 36 47 51 47 26 27 24 25 58 38 12 29 30 31 32 6 33 34 35 52 54 55 53 56 57 - 1 - jintex.in
Page 7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| CM-3002000-01 | ATTENTION SEAL | 1 | |
| 262-11755 | FACE COVER ASM. | 1 | |
| SS-4111015-SP | SCREW 11/64-40 L=10 | 2 | |
| SD-0640471-SP | HINGE SCREW D=6.35 H=4.7 | 2 | |
| WZ-0641510-KP | WAVED WASHER 6.4X11X0.3 | 2 | |
| CM-6001001-01 | WEEE MARK LABEL S | 1 | |
| 262-11300 | BED COVER B | 1 | |
| 262-12308 | SCREW | 1 | |
| 138-16509 | TOP COVER | 1 | |
| 400-23026 | BELT COVER FIXING PLATE | 1 | |
| SS-4110915-SP | SCREW 11/64-40 L=9 | 2 | |
| CM-3012000-01 | SAFETY LABEL S | 1 | |
| 135-05805 | BELT COVER | 1 | |
| SS-4090715-SP | SCREW 9/64-40 L=7 | 2 | |
| 400-23027 | BELT COVER PLATE | 1 | |
| 262-11607 | BALANCE COVER | 1 | |
| SS-7110840-SP | SCREW 11/64-40 L=7.8 | 1 | |
| NS-6090310-SP | NUT 9/64-40 | 1 | |
| B3114-771-000 | THREAD GUIDE | 1 | |
| NS-6090310-SP | NUT 9/64-40 | 1 | |
| 262-12209 | L-SHAPED THREAD GUIDE | 1 | |
| 137-06601 | TAKE-UP THREAD GUIDE, A | 1 | |
| SS-3090610-SP | SCREW 9/64-40 L=6 | 1 | |
| 262-11805 | BED FITTING HOOK | 1 | |
| SS-1110821-TP | SCREW 11/64-40 L=8.3 | 2 | |
| 262-11904 | THREAD GUIDE PLATE | 1 | |
| SS-4150715-SP | SCREW 15/64-28 L=7 | 1 | |
| NS-6150540-SP | NUT 15/64-28 | 1 | |
| 262-12001 | FIRST THREAD GUIDE | 1 | |
| SS-8150822-TP | SCREW 15/64-28 L=8 | 2 | |
| 262-10708 | RUBBER WASHER | 2 | |
| PS-0800202-KH | SPRING PIN 8X20 | 2 | |
| 262-17703 | BASE CONNVETING PIN | 1 | |
| WP-1052000-SC | WASHER 10.5X18X2 | 1 | |
| RE-060000-KO | E-RING 6 | 1 | |
| SS-4150715-SP | SCREW 15/64-28 L=7 | 2 | |
| TA-1470704-R0 | RUBBER PLUG | 1 | |
| 262-11201 | BED COVER A | 1 | |
| 262-10203 | STAY | 1 | |
| 262-10500 | BED ROCKER | 1 | |
| 262-10302 | STAY ROCKER | 1 | |
| 262-10450 | STAY GUIDE COMPL. | 1 | |
| SD-0800341-SP | HINGE SCREW D=8 H=3.4 | 3 | |
| B2008-372-000 | THREAD TENSION SPRING | 1 | |
| SS-7151210-SP | SCREW 15/64-28 L=12 | 2 | |
| 262-10104 | VIBRATION PROOF RUBBER | 2 | |
| 262-10005 | RUBBER BUSH | 2 | |
| SM-0040601-SA | SCREW M4 L=6 | 1 | |
| WP-0450801-SD | WASHER 4.5X10X0.8 | 1 | |
| R0-0442401-00 | RUBBER RING | 1 | |
| 135-00319 | BED FITTING BASE | 1 | |
| 400-52806 | SAFETY PLATE ASM. | 1 | |
| 260-37200 | SAFETY PLATE | (1) | |
| SM-4040655-SP | SCREW M4 L=6 | (2) | |
| WP-0450801-SD | WASHER 4.5X10X0.8 | (2) | |
| SS-4110715-SP | SCREW 11/64-40 L=7 | (2) | |
| 400-51987 | SAFETY PLATE INSTALLING BASE | (1) | |
| 262-11409 | SPRING | 2 | |
| TA-2050408-R0 | RUBBER PLUG | 1 | |
| SD-0800681-SP | HINGE SCREW D=8 H=6.8 | 2 | |
| WP-0480856-SP | WASHER 4.8X8.4X0.8 | 2 | |
| TA-0750704-R0 | RUBBER PLUG | 1 | |
| 262-12100 | ARM THREAD GUIDE B | 1 | |
| SS-7110710-SP | SCREW 11/64-40 L=7 | 1 | |
| 135-02307 | FACE PACKING | 1 | |
| SS-6151220-SP | SCREW 15/64-28 L=11.5 | 5 |
REF.NO NOTE PART NO DESCRIPTION Qty 1 CM-3002000-01 ATTENTION SEAL 1 2 262-11755 FACE COVER ASM. 1 3 SS-4111015-SP SCREW 11/64-40 L=10 2 4 SD-0640471-SP HINGE SCREW D=6.35 H=4.7 2 5 WZ-0641510-KP WAVED WASHER 6.4X11X0.3 2 6 #01 CM-6001001-01 WEEE MARK LABEL S 1 7 262-11300 BED COVER B 1 8 262-12308 SCREW 1 9 138-16509 TOP COVER 1 10 400-23026 BELT COVER FIXING PLATE 1 11 SS-4110915-SP SCREW 11/64-40 L=9 2 12 CM-3012000-01 SAFETY LABEL S 1 13 135-05805 BELT COVER 1 14 SS-4090715-SP SCREW 9/64-40 L=7 2 15 400-23027 BELT COVER PLATE 1 16 262-11607 BALANCE COVER 1 17 SS-7110840-SP SCREW 11/64-40 L=7.8 1 18 NS-6090310-SP NUT 9/64-40 1 19 B3114-771-000 THREAD GUIDE 1 20 NS-6090310-SP NUT 9/64-40 1 21 262-12209 L-SHAPED THREAD GUIDE 1 22 137-06601 TAKE-UP THREAD GUIDE, A 1 23 SS-3090610-SP SCREW 9/64-40 L=6 1 24 262-11805 BED FITTING HOOK 1 25 SS-1110821-TP SCREW 11/64-40 L=8.3 2 26 262-11904 THREAD GUIDE PLATE 1 27 SS-4150715-SP SCREW 15/64-28 L=7 1 28 NS-6150540-SP NUT 15/64-28 1 29 262-12001 FIRST THREAD GUIDE 1 30 SS-8150822-TP SCREW 15/64-28 L=8 2 31 262-10708 RUBBER WASHER 2 32 PS-0800202-KH SPRING PIN 8X20 2 33 262-17703 BASE CONNVETING PIN 1 34 WP-1052000-SC WASHER 10.5X18X2 1 35 RE-060000-KO E-RING 6 1 36 SS-4150715-SP SCREW 15/64-28 L=7 2 37 TA-1470704-R0 RUBBER PLUG 1 38 262-11201 BED COVER A 1 39 262-10203 STAY 1 40 262-10500 BED ROCKER 1 41 262-10302 STAY ROCKER 1 42 262-10450 STAY GUIDE COMPL. 1 43 SD-0800341-SP HINGE SCREW D=8 H=3.4 3 44 B2008-372-000 THREAD TENSION SPRING 1 45 SS-7151210-SP SCREW 15/64-28 L=12 2 46 262-10104 VIBRATION PROOF RUBBER 2 47 262-10005 RUBBER BUSH 2 48 SM-0040601-SA SCREW M4 L=6 1 49 WP-0450801-SD WASHER 4.5X10X0.8 1 50 R0-0442401-00 RUBBER RING 1 51 135-00319 BED FITTING BASE 1 52 400-52806 SAFETY PLATE ASM. 1 53 260-37200 SAFETY PLATE (1) 54 SM-4040655-SP SCREW M4 L=6 (2) 55 WP-0450801-SD WASHER 4.5X10X0.8 (2) 56 SS-4110715-SP SCREW 11/64-40 L=7 (2) 57 400-51987 SAFETY PLATE INSTALLING BASE (1) 58 262-11409 SPRING 2 59 TA-2050408-R0 RUBBER PLUG 1 60 SD-0800681-SP HINGE SCREW D=8 H=6.8 2 61 WP-0480856-SP WASHER 4.8X8.4X0.8 2 62 TA-0750704-R0 RUBBER PLUG 1 63 262-12100 ARM THREAD GUIDE B 1 64 SS-7110710-SP SCREW 11/64-40 L=7 1 65 135-02307 FACE PACKING 1 66 SS-6151220-SP SCREW 15/64-28 L=11.5 5 NOTE(注記) #01....FOR JE JE用 - 2 - jintex.in
Page 8 — 2. MAIN SHAFT COMPONENTS
2. MAIN SHAFT COMPONENTS 上軸関係 18 19 20 12 17 11 3 16 10 21 15 14 39 9 38 8 37 5 36 56 3 7 1 33 32 55 32 56 29 30 35 2 34 51 25 23 31 22 50 28 49 24 27 32 55 48 26 46 47 35 54 37 40 52 46 36 56 53 44 43 40 42 41 - 3 - jintex.in
Page 9
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1223-771-000 | NEEDLE ROD CRANK WASHER | 1 |
| 2 | SS-6151412-TP | SCREW 15/64-28 L=14 | 1 |
| 3 | SS-8660530-TP | SCREW 1/4-40 L=4.5 | 1 |
| 4 | SS-6681712-TP | SCREW 9/32-28 L=16.5 | 1 |
| 5 | SS-8660610-TP | SCREW 1/4-40 L=6 | 1 |
| 6 | B1202-280-000 | COUNTER WEIGHT | 1 |
| 7 | 262-12704 | UPPER SHAFT FRONT METAL | 1 |
| 8 | 262-12605 | MAIN SHAFT | 1 |
| 9 | 262-12803 | UPPER SHAFT INNER METAL | 1 |
| 10 | 135-10367 | WORM ASM. | 1 |
| 11 | SS-7111410-TP | SCREW 11/64-40 L=14 | (1) |
| 12 | CS-1501118-TH | THRUST COLLAR ASM. D=15 W=10.8 | 1 |
| 13 | SS-6661110-SP | SCREW 1/4-40 L=11 | (1) |
| 14 | B1211-980-000 | UPPER SHAFT THRUST BEARING | 2 |
| 15 | B1208-980-00B | MAIN SHAFT NEEDLE BEARING B | 1 |
| 16 | 262-14403 | UPPER SHAFT REAR METAL | 1 |
| 17 | B1210-980-000 | SET SCREW | 1 |
| 18 | 135-03453 | THREAD CUTTING CAM ASM. | (1) |
| 19 | SS-8661012-TP | SCREW | (1) |
| 20 | SS-8661212-TP | SCREW | (1) |
| 21 | SS-8151230-SP | SCREW 15/64-28 L=12 | 1 |
| 22 | SS-6741512-TP | SCREW 3/8-28 L=14.5 | 1 |
| 23 | SS-6742012-TP | SCREW 3/8-28 L=19.5 | 1 |
| 24 | 135-03552 | STOP-MOTION CAM ASM. | 1 |
| 25 | 135-03503 | STOP-MOTION CAM | (1) |
| 26 | B1215-980-000 | STOP MOTION CAM LATCH | (1) |
| 27 | B1217-280-000 | SAFETY PLATE STOPPER SPRING | (1) |
| 28 | 135-03602 | PIN | (1) |
| 29 | 135-03750 | HIGH SPEED CLUTCH PLATE ASM. | 1 |
| 30 | SS-2110920-TP | SCREW 11/64-40 L=8.5 | 2 |
| 31 | SS-1110640-TP | SCREW 11/64-40 L=5.5 | 1 |
| 32 | 262-13306 | SPACER | 3 |
| 33 | 135-03909 | SPRING | 2 |
| 34 | 135-04204 | HIGH SPEED PULLEY | 1 |
| 35 | SB-1350002-00 | BEARING D=35X62 | 2 |
| 36 | 135-04907 | SHIM | 6 |
| 37 | 135-04303 | WASHER | 2 |
| 38 | RC-3221517-KP | RETAINING RING 32.2 | 1 |
| 39 | 135-04105 | SLOW SPEED PULLEY SPRING | 3 |
| 40 | RC-6622018-KP | RETAINING RING 66.2 | 2 |
| 41 | 135-04451 | PULLEY ASM. | (3) |
| 42 | SS-1110640-TP | SCREW 11/64-40 L=5.5 | (3) |
| 43 | 135-04402 | PULLEY | (1) |
| 44 | 135-04501 | PULLEY SHAFT | (1) |
| 45 | SS-8660612-TP | SCREW 1/4-40 L=6 | 1 |
| 46 | 135-04600 | SLOW SPEED PULLEY SHAFT | 1 |
| 47 | SS-8661112-TP | SCREW 1/4-40 L=11 | 1 |
| 48 | 135-04709 | SLOW SPEED PULLEY | 1 |
| 49 | 262-13801 | SLOW SPEED PULLEY PLATE | 1 |
| 50 | WS-0451040-KP | SPRING WASHER 4.5X8.5X1 | 2 |
| 51 | SS-7111120-TP | SCREW | 2 |
| 52 | 262-13900 | BALL RETAINER | 1 |
| 53 | SS-2090710-TP | SCREW 9/64-40 L=7.2 | 2 |
| 54 | B1253-980-000 | STOP-MOTION BALL | 1 |
| 55 | 262-14007 | PULLEY SPACER | 3 |
| 56 | 135-05102 | REGULATOR SHIM | 6 |
REF.NO NOTE PART NO DESCRIPTION Qty 1 B1223-771-000 NEEDLE ROD CRANK WASHER 1 2 SS-6151412-TP SCREW 15/64-28 L=14 1 3 SS-8660530-TP SCREW 1/4-40 L=4.5 1 4 SS-6681712-TP SCREW 9/32-28 L=16.5 1 5 SS-8660610-TP SCREW 1/4-40 L=6 1 6 B1202-280-000 COUNTER WEIGHT 1 7 262-12704 UPPER SHAFT FRONT METAL 1 8 * 262-12605 MAIN SHAFT 1 9 262-12803 UPPER SHAFT INNER METAL 1 10 135-10367 WORM ASM. 1 11 SS-7111410-TP SCREW 11/64-40 L=14 (1) 12 * CS-1501118-TH THRUST COLLAR ASM. D=15 W=10.8 1 13 SS-6661110-SP SCREW 1/4-40 L=11 (1) 14 B1211-980-000 UPPER SHAFT THRUST BEARING 2 15 #01 B1208-980-00B MAIN SHAFT NEEDLE BEARING B 1 16 262-14403 UPPER SHAFT REAR METAL 1 17 B1210-980-000 SET SCREW 1 18 135-03453 THREAD CUTTING CAM ASM. (1) 19 SS-8661012-TP SCREW (1) 20 SS-8661212-TP SCREW (1) 21 SS-8151230-SP SCREW 15/64-28 L=12 1 22 SS-6741512-TP SCREW 3/8-28 L=14.5 1 23 SS-6742012-TP SCREW 3/8-28 L=19.5 1 24 135-03552 STOP-MOTION CAM ASM. 1 25 135-03503 STOP-MOTION CAM (1) 26 B1215-980-000 STOP MOTION CAM LATCH (1) 27 B1217-280-000 SAFETY PLATE STOPPER SPRING (1) 28 135-03602 PIN (1) 29 135-03750 HIGH SPEED CLUTCH PLATE ASM. 1 30 SS-2110920-TP SCREW 11/64-40 L=8.5 2 31 SS-1110640-TP SCREW 11/64-40 L=5.5 1 32 #01 262-13306 SPACER 3 33 135-03909 SPRING 2 34 135-04204 HIGH SPEED PULLEY 1 35 SB-1350002-00 BEARING D=35X62 2 36 #02 135-04907 SHIM 6 37 135-04303 WASHER 2 38 RC-3221517-KP RETAINING RING 32.2 1 39 135-04105 SLOW SPEED PULLEY SPRING 3 40 RC-6622018-KP RETAINING RING 66.2 2 41 135-04451 PULLEY ASM. (3) 42 SS-1110640-TP SCREW 11/64-40 L=5.5 (3) 43 135-04402 PULLEY (1) 44 135-04501 PULLEY SHAFT (1) 45 SS-8660612-TP SCREW 1/4-40 L=6 1 46 135-04600 SLOW SPEED PULLEY SHAFT 1 47 SS-8661112-TP SCREW 1/4-40 L=11 1 48 135-04709 SLOW SPEED PULLEY 1 49 262-13801 SLOW SPEED PULLEY PLATE 1 50 WS-0451040-KP SPRING WASHER 4.5X8.5X1 2 51 SS-7111120-TP SCREW 2 52 262-13900 BALL RETAINER 1 53 SS-2090710-TP SCREW 9/64-40 L=7.2 2 54 B1253-980-000 STOP-MOTION BALL 1 55 #01 262-14007 PULLEY SPACER 3 56 #02 135-05102 REGULATOR SHIM 6 NOTE(注記) #01...SELECTIVE PARTS #02...UP TO 6 PCS OF THIS PLATE ARE USED AS REQUIRED. - 4 - jintex.in
Page 10 — 3. NEEDLE BAR COMPONENTS
3. NEEDLE BAR COMPONENTS 針棒関係 - 5 - jintex.in
Page 11
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1901-280-0B0 | LINK BALANCE ASM. | 1 |
| 2 | B1904-280-000 | BALANCE CRANK PIN | (1) |
| 3 | B1903-552-000 | LEFT SCREW | (1) |
| 4 | B1404-280-000 | NEEDLE BAR CRANK ROD | (1) |
| 5 | B1411-804-C00 | NEEDLE DRIVING LEVER BEARING C | (1) |
| 6 | B1203-280-000 | NEEDLE ROD CRANK | (1) |
| 7 | B1905-541-B00 | NEEDLE BEARING | (1) |
| 8 | B1901-280-0A0 | BALANCE ASM. | (1) |
| 9 | SS-7151120-SP | SCREW 15/64-28 L=11 | (1) |
| 10 | 262-03208 | NEEDLE ROD METAL | 1 |
| 11 | B1411-552-0A0 | NEEDLE BAR CONNECTING ASM. | 1 |
| 12 | SS-6090670-TP | SCREW 9/64-40 L=6 | (1) |
| 13 | 262-00006 | NEEDLE BAR | 1 |
| 14 | B1403-280-000 | NEEDLE ROD LOWER METAL | 1 |
| 15 | SS-2060510-SP | SCREW 3/32-56 L=4.5 | 1 |
| 16 | 262-15301 | NEEDLE BAR THREAD GUIDE | 1 |
| 17 | MDP-500B1400 | NEEDLE DPX5 #14 | 1 |
| 18 | MDP-500B1600 | NEEDLE DPX5 #16 | 1 |
| 19 | MC-2005010-00 | NEEDLE #100 | 1 |
| 20 | SS-6080340-SP | SCREW 1/8-44 L=2.9 | 1 |
| 21 | B1414-232-000 | SQUARE BLOCK | 1 |
| 22 | SS-4150915-SP | SCREW 15/64-28 L=9 | 2 |
| 23 | 262-03455 | THREAD GUIDE BRACKET COMPL. | 1 |
| 24 | NS-6110310-SP | NUT 11/64-40 | (1) |
| 25 | 262-03406 | THREAD GUIDE BRACKET | (1) |
| 26 | 262-16705 | BOBBIN WINDER TENSION POST | (1) |
| 27 | B3214-047-000 | BOBBIN WINDER TENSION DISC | (2) |
| 28 | 262-16606 | BOBBIN WINDER TENSION SPRING | (1) |
| 29 | 262-16507 | BOBBIN WINDER TENSION NUT | (1) |
| 30 | 262-01152 | BOBBIN WINDER ASM. | 1 |
| 31 | SD-0791331-SP | HINGE SCREW D=7.94 H=13.3 | (1) |
| 32 | 262-02705 | NUT | (1) |
| 33 | 262-02408 | NUT | (1) |
| 34 | 262-02309 | SCREW | (1) |
| 35 | 262-02101 | BRAKE PRESSER PLATE | (1) |
| 36 | 262-02002 | BOBBIN WINDER BRAKE | (1) |
| 37 | 262-01400 | BOBBIN WINDER WHEEL | (1) |
| 38 | 262-01103 | BOBBIN WINDER SHAFT HOLDER | (1) |
| 39 | 262-02309 | SCREW | (1) |
| 40 | 262-01608 | BOBBIN WINDER BELT SUPPORT | (1) |
| 41 | 262-02200 | SCREW | (1) |
| 42 | 262-01202 | BOBBIN WINDER TRIP LATCH | (1) |
| 43 | 262-01707 | BOBBIN WINDER SHAFT | (1) |
| 44 | 262-02507 | NUT | (1) |
| 45 | 262-01806 | SPRING | (1) |
| 46 | SD-0720193-SP | HINGE SCREW D=7.24 H=1.9 | (1) |
| 47 | 262-01301 | BOBBIN WINDER FITTING PLATE | (1) |
| 48 | 262-01905 | BOBBIN PRESSER BOSS | (1) |
| 49 | 262-01509 | BOBBIN PRESSER | (1) |
| 50 | SS-4110915-SP | SCREW 11/64-40 L=9 | 2 |
| 51 | SS-1110540-TP | SCREW 11/64-40 L=5.5 | 4 |
| 52 | 135-15556 | NEEDLE PLATE ASM. | 1 |
| 53 | B2421-280-0A0 | MOVING KNIFE ASM. | (1) |
| 54 | SD-0500091-TP | HINGE SCREW D=5.0 H=0.9 | (1) |
| 55 | B2426-280-000 | NEEDLE HOLE GUIDE | (1) |
| 56 | SS-6030220-SP | SCREW 3/32-56 L=2.2 | (2) |
| 57 | 135-15564 | NEEDLE PLATE ASM. | (1) |
| 58 | B2420-280-000 | FIXING KNIFE | (1) |
| 59 | SS-7090410-SP | SCREW 9/64-40 L=3.5 | (2) |
| 60 | B2418-280-000 | MOVING KNIFE LINK | (1) |
| 61 | B2416-280-000 | THREAD CUTTING LEVER RING | (1) |
| 62 | B2415-280-0A0 | THREAD CUTTER LEVER ASM., SMAL | (1) |
| 63 | B2414-280-0A0 | THREAD CUTTER LEVER ASM., LARG | (1) |
| 64 | SS-6110430-TP | SCREW 11/64-40 L=4 | (1) |
| 65 | WP-0400946-SP | WASHER | (2) |
| 66 | SS-7110740-TP | SCREW 11/64-40 L=7 | (1) |
| 67 | B2423-280-00C | MOVING KNIFE WASHER C | (1) |
REF.NO NOTE PART NO DESCRIPTION 品名 Qty 1 B1901-280-0B0 LINK BALANCE ASM. リンクテンビン クミ 1 2 B1904-280-000 BALANCE CRANK PIN テンビン クランクピン (1) 3 B1903-552-000 LEFT SCREW ヒダリネジ (1) 4 B1404-280-000 NEEDLE BAR CRANK ROD ハリボー クランクロッド (1) 5 B1411-804-C00 NEEDLE DRIVING LEVER BEARING C ハリ クドーレバー ベアリング C (1) 6 B1203-280-000 NEEDLE ROD CRANK ハリボー クランク (1) 7 B1905-541-B00 NEEDLE BEARING テンビン ニードルベアリング (1) 8 B1901-280-0A0 BALANCE ASM. テンビン クミ (1) 9 SS-7151120-SP SCREW 15/64-28 L=11 マルヒラネジ 15/64-28 L=11 (1) 10 262-03208 NEEDLE ROD METAL ハリボウウワメタル 1 11 B1411-552-0A0 NEEDLE BAR CONNECTING ASM. ハリボーダキ クミ 1 12 SS-6090670-TP SCREW 9/64-40 L=6 ヒラネジ 9/64-40 L=6 (1) 13 262-00006 NEEDLE BAR ハリボウ 1 14 B1403-280-000 NEEDLE ROD LOWER METAL ハリボウ シタメタル 1 15 SS-2060510-SP SCREW 3/32-56 L=4.5 マルサラネジ 3/32-56 L=4.5 1 16 262-15301 NEEDLE BAR THREAD GUIDE ハリボウイトアンナイ 1 17 #03 MDP-500B1400 NEEDLE DPX5 #14 ハリ DPX 5 #14 1 18 #03 MDP-500B1600 NEEDLE DPX5 #16 ハリ DPX 5 #16 1 19 #02 MC-2005010-00 NEEDLE #100 ハリ 134 100 1 20 SS-6080340-SP SCREW 1/8-44 L=2.9 ヒラネジ 1/8-44 L=2.9 1 21 B1414-232-000 SQUARE BLOCK カクコマ 1 22 SS-4150915-SP SCREW 15/64-28 L=9 ナベネジ 15/64-28 L=9 2 23 262-03455 THREAD GUIDE BRACKET COMPL. イトマキイトアンナイ (ケツゴウ) 1 24 NS-6110310-SP NUT 11/64-40 ロツカクナット 11/64-40 (1) 25 262-03406 THREAD GUIDE BRACKET イトマキイトアンナイ (1) 26 262-16705 BOBBIN WINDER TENSION POST イトマキチョウシボウ (1) 27 B3214-047-000 BOBBIN WINDER TENSION DISC イトマキチョウシ サラ (2) 28 262-16606 BOBBIN WINDER TENSION SPRING イトマキチョウシバネ (1) 29 262-16507 BOBBIN WINDER TENSION NUT イトマキチョウシツマミ (1) 30 262-01152 BOBBIN WINDER ASM. イトマキ (クミ) 1 31 SD-0791331-SP HINGE SCREW D=7.94 H=13.3 ダンネジ D=7.94 H=13.3 (1) 32 262-02705 NUT イトマキグルマメナット (1) 33 262-02408 NUT ボビンオサエボストナット (1) 34 262-02309 SCREW ボビンオサエイトメネジ (1) 35 262-02101 BRAKE PRESSER PLATE イトマキブレーキオサエイタ (1) 36 262-02002 BOBBIN WINDER BRAKE イトマキブレーキ (1) 37 262-01400 BOBBIN WINDER WHEEL イトマキグルマ (1) 38 262-01103 BOBBIN WINDER SHAFT HOLDER イトマキジクウケ (1) 39 262-02309 SCREW ブレーキオサエイトメネジ (1) 40 262-01608 BOBBIN WINDER BELT SUPPORT イトマキベルトササエ (1) 41 262-02200 SCREW イトマキチョウセツツイトメネジ (1) 42 262-01202 BOBBIN WINDER TRIP LATCH イトマキチョウセツツ (1) 43 262-01707 BOBBIN WINDER SHAFT イトマキジク (1) 44 262-02507 NUT イトマキジクウケナット (1) 45 262-01806 SPRING イトモドシバネ (1) 46 SD-0720193-SP HINGE SCREW D=7.24 H=1.9 ダンネジ D=7.24 H=1.9 (1) 47 262-01301 BOBBIN WINDER FITTING PLATE イトマキトリツケイタ (1) 48 262-01905 BOBBIN PRESSER BOSS ボビンオサエボス (1) 49 262-01509 BOBBIN PRESSER ボビンオサエ (1) 50 SS-4110915-SP SCREW 11/64-40 L=9 ナベネジ 11/64-40 L=9 2 51 SS-1110540-TP SCREW 11/64-40 L=5.5 サラネジ 11/64-40 L=5.5 4 52 135-15556 NEEDLE PLATE ASM. ハリイタ クミ 1 53 B2421-280-0A0 MOVING KNIFE ASM. ドウメス クミ (1) 54 SD-0500091-TP HINGE SCREW D=5.0 H=0.9 ダンネジ D=5.0 H=0.9 (1) 55 B2426-280-000 NEEDLE HOLE GUIDE ハリアナ ガイド (1) 56 SS-6030220-SP SCREW 3/32-56 L=2.2 ヒラネジ 3/32-56 L=2.2 (2) 57 135-15564 NEEDLE PLATE ASM. ハリイタ クミ (1) 58 B2420-280-000 FIXING KNIFE コテイメス (1) 59 SS-7090410-SP SCREW 9/64-40 L=3.5 マルヒラネジ 9/64-40 L=3.5 (2) 60 B2418-280-000 MOVING KNIFE LINK ドウメス リンク (1) 61 B2416-280-000 THREAD CUTTING LEVER RING イトキリ レバーリング (1) 62 B2415-280-0A0 THREAD CUTTER LEVER ASM., SMAL イトキリ レバー (ショウ) クミ (1) 63 B2414-280-0A0 THREAD CUTTER LEVER ASM., LARG イトキリ レバー (ダイ) クミ (1) 64 SS-6110430-TP SCREW 11/64-40 L=4 ヒラネジ 11/64-40 L=4 (1) 65 WP-0400946-SP WASHER ヒラザガネ (2) 66 SS-7110740-TP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 (1) 67 #01 B2423-280-00C MOVING KNIFE WASHER C ドウメス ザガネ C (1) NOTE(注記) #01....SELECTIVE PARTS 選択部品 #02....SPECIAL ORDER PARTS 特別注文部品 #03....FOR USE IN JAPAN 日本用 #04....EXPORT (EXCEPT JE) 輸出用 (JEは除く)
Page 12 — 4. THREAD TENSION RELEASE COMPONENTS
4. THREAD TENSION RELEASE COMPONENTS 糸調子関係 - 7 - jintex.in
Page 13
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2303-280-000 | TENSION RELEASE PIN | 1 |
| 2 | SS-9151740-CP | SCREW 15/64-28 L=17 | 1 |
| 3 | 262-18859 | WIPER ASM. | 1 |
| 4 | B2302-280-0A0 | SECOND THREAD TENSION ASM. | 1 |
| 5 | SS-8090610-SP | SCREW 9/64-40 L=5.9 | (1) |
| 6 | B2313-280-000 | THREAD TENSION ROD, LARGE | (1) |
| 7 | B2302-280-000 | SECOND THREAD TENSION ROD | (1) |
| 8 | B3112-761-000 | THREAD TAKE-UP SPRING | (1) |
| 9 | B3126-012-000 | THREAD TENSION DISK | (2) |
| 10 | B3132-552-000 | THREAD TENSION DISK PRESSER | (1) |
| 11 | B3107-804-000 | THREAD TENSION DISK PRESSER | (1) |
| 12 | B3114-232-000 | THREAD TENSION SPRING | (1) |
| 13 | B3120-125-000 | ROTATING STOPPER | (1) |
| 14 | B3119-771-000 | THREAD TENSION NUT | (1) |
| 15 | 262-18651 | FIRST THREAD TENSION ASM. | 1 |
| 16 | 262-20400 | THREAD TENSION ROD | (1) |
| 17 | B3126-012-000 | THREAD TENSION DISK | (2) |
| 18 | 262-18602 | FIRST THREAD TENSION SPRING | (1) |
| 19 | B3125-012-000 | THREAD TENSION NUT | (1) |
| 20 | SD-1000401-SP | HINGE SCREW D=10 H=4 | 2 |
| 21 | 262-17109 | CONNECTING LINK | 1 |
| 22 | 262-04602 | LOWERING FOOT | 1 |
| 23 | SD-0790601-SP | HINGE SCREW D=7.94 H=6 | 1 |
| 24 | NS-6150310-SP | NUT 15/64-28 | 1 |
| 25 | 135-06217 | LOWERING ARM | 1 |
| 26 | SM-6061802-TP | SCREW M6 L=18 | 1 |
| 27 | 135-13114 | TENSION RELEASE ARM | 1 |
| 28 | SM-6061802-TP | SCREW M6 L=18 | 1 |
| 29 | 262-16903 | SHAFT | 1 |
| 30 | SD-0530221-SP | HINGE SCREW D=5.3 H=2.2 | 1 |
| 31 | 265-01304 | TENSION RELEASE BAR | 1 |
| 32 | 262-18404 | THREAD TENSION ARM | 1 |
| 33 | SS-7090620-TP | SCREW 9/64-40 L=6.1 | 2 |
| 34 | NS-6150310-SP | NUT 15/64-28 | 1 |
| 35 | 135-06852 | LOWERING CONNECTING LEVER ASM. | 1 |
| 36 | SD-0901201-TP | HINGE SCREW D=9 H=3.2 | 1 |
| 37 | 262-17208 | LOWERING CONNECTING RING | 1 |
| 38 | RC-0740811-KP | C-RING 8 | 1 |
| 39 | SD-0720331-SP | HINGE SCREW D=7.24 H=3.3 | 1 |
| 40 | 135-06704 | TENSION SPRING | 1 |
| 41 | 262-20707 | SPRING HOOK | 1 |
| 42 | SD-0640391-TP | HINGE SCREW D=6.35 H=3.9 | 1 |
| 43 | 135-06415 | CONNECTING ARM | 1 |
| 44 | SM-6061802-TP | SCREW M6 L=18 | 1 |
| 45 | SD-0530221-SP | HINGE SCREW D=5.3 H=2.2 | 1 |
| 46 | 262-17802 | WIPER CONNECTING LINK | 1 |
| 47 | 262-18008 | SPRING | 1 |
| 48 | 262-04453 | WIPER CONNECTING ARM ASM. | 1 |
| 49 | RC-0470611-KP | RETAINING RING 4.7 | 2 |
| 50 | B2109-280-000 | WIPER CONNECTING SCREW | 1 |
| 51 | 135-09807 | OIL SHIELD CAP | 1 |
| 52 | 262-17901 | WIPER CONNECTING PLATE | 1 |
| 53 | B1229-232-000 | SNAP RING | 1 |
| 54 | 135-74009 | WIPER BASE PLATE | 1 |
| 55 | SS-4110815-SP | SCREW 11/64-40 L=8 | 1 |
| 56 | SD-0640211-SP | HINGE SCREW D=6.35 H=2.1 | 1 |
REF.NO NOTE PART NO DESCRIPTION Qty 1 B2303-280-000 TENSION RELEASE PIN 1 2 SS-9151740-CP SCREW 15/64-28 L=17 1 3 262-18859 WIPER ASM. 1 4 B2302-280-0A0 SECOND THREAD TENSION ASM. 1 5 SS-8090610-SP SCREW 9/64-40 L=5.9 (1) 6 B2313-280-000 THREAD TENSION ROD, LARGE (1) 7 B2302-280-000 SECOND THREAD TENSION ROD (1) 8 B3112-761-000 THREAD TAKE-UP SPRING (1) 9 B3126-012-000 THREAD TENSION DISK (2) 10 B3132-552-000 THREAD TENSION DISK PRESSER (1) 11 B3107-804-000 THREAD TENSION DISK PRESSER (1) 12 B3114-232-000 THREAD TENSION SPRING (1) 13 B3120-125-000 ROTATING STOPPER (1) 14 B3119-771-000 THREAD TENSION NUT (1) 15 262-18651 FIRST THREAD TENSION ASM. 1 16 262-20400 THREAD TENSION ROD (1) 17 B3126-012-000 THREAD TENSION DISK (2) 18 262-18602 FIRST THREAD TENSION SPRING (1) 19 B3125-012-000 THREAD TENSION NUT (1) 20 SD-1000401-SP HINGE SCREW D=10 H=4 2 21 262-17109 CONNECTING LINK 1 22 262-04602 LOWERING FOOT 1 23 SD-0790601-SP HINGE SCREW D=7.94 H=6 1 24 NS-6150310-SP NUT 15/64-28 1 25 135-06217 LOWERING ARM 1 26 SM-6061802-TP SCREW M6 L=18 1 27 135-13114 TENSION RELEASE ARM 1 28 SM-6061802-TP SCREW M6 L=18 1 29 262-16903 SHAFT 1 30 SD-0530221-SP HINGE SCREW D=5.3 H=2.2 1 31 265-01304 TENSION RELEASE BAR 1 32 262-18404 THREAD TENSION ARM 1 33 SS-7090620-TP SCREW 9/64-40 L=6.1 2 34 NS-6150310-SP NUT 15/64-28 1 35 135-06852 LOWERING CONNECTING LEVER ASM. 1 36 SD-0901201-TP HINGE SCREW D=9 H=3.2 1 37 262-17208 LOWERING CONNECTING RING 1 38 RC-0740811-KP C-RING 8 1 39 SD-0720331-SP HINGE SCREW D=7.24 H=3.3 1 40 135-06704 TENSION SPRING 1 41 262-20707 SPRING HOOK 1 42 SD-0640391-TP HINGE SCREW D=6.35 H=3.9 1 43 135-06415 CONNECTING ARM 1 44 SM-6061802-TP SCREW M6 L=18 1 45 SD-0530221-SP HINGE SCREW D=5.3 H=2.2 1 46 262-17802 WIPER CONNECTING LINK 1 47 262-18008 SPRING 1 48 262-04453 WIPER CONNECTING ARM ASM. 1 49 RC-0470611-KP RETAINING RING 4.7 2 50 B2109-280-000 WIPER CONNECTING SCREW 1 51 135-09807 OIL SHIELD CAP 1 52 262-17901 WIPER CONNECTING PLATE 1 53 B1229-232-000 SNAP RING 1 54 135-74009 WIPER BASE PLATE 1 55 SS-4110815-SP SCREW 11/64-40 L=8 1 56 SD-0640211-SP HINGE SCREW D=6.35 H=2.1 1 - 8 - jintex.in
Page 14
5. SHUTTLE DRIVER SHAFT COMPONENTS 下軸関係 12 11 10 9 8 7 6 2 36 3 4 5 16 32 34 37 45 38 39 40 24 25 26 27 12 15 14 13 20 20 19 18 35 34 33 21 22 23 31 29 28 30 41 42 43 44 47 47 46 48 49 50 52 51 - 9 - jintex.in
Page 15
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1817-280-0A0 | INNER HOOK PRESSER ASM. | 1 |
| 2 | B1828-980-0AB | BOBBIN CASE ASM. | 1 |
| 3 | 262-33106 | BOBBIN | 1 |
| 4 | 262-04909 | INNER HOOK | 1 |
| 5 | 400-28681 | DRIVER ASM. | 1 |
| 6 | SS-6121212-TP | SCREW 3/16-28 L=12.0 | (1) |
| 7 | B1813-980-000 | SHUTTLE NEEDLE OUTER RING | 1 |
| 8 | B1411-804-B00 | NEEDLE DRIVING LEVER BEARING B | 3 |
| 9 | WP-0952616-SD | WASHER 9.5X14.8X2.6 | 1 |
| 10 | B1814-980-000 | SHUTTLE | 1 |
| 11 | 262-22109 | SHUTTLE UPPER SPRING | 1 |
| 12 | SS-6060410-TP | SCREW 3/32-56 L=3.5 | 2 |
| 13 | SS-6151220-SP | SCREW 15/64-28 L=11.5 | 1 |
| 14 | 262-22208 | SHUTTLE RACEADJUSTING SHAFT | 1 |
| 15 | SS-6110480-SP | SCREW 11/64-40 L=4.3 | 1 |
| 16 | CS-080081C-SH | THRUST COLLAR ASM. D=8.0 W=8 | 1 |
| 17 | SS-8110520-TP | SCREW 11/64-40 L=4.5 | (2) |
| 18 | 135-08403 | LOWER SHAFT REAR METAL | 1 |
| 19 | B1808-980-000 | LOWER SHAFT THRUST WASHER | 1 |
| 20 | 135-09153 | LOWER SHAFT GEAR A ASM. | 1 |
| 21 | 135-08155 | CRANK ROD ASM. | 1 |
| 22 | SS-8110510-TP | SCREW 11/64-40 L=10.5 | (2) |
| 23 | SD-0801021-TP | HINGE SCREW D=8 H=10.2 | 1 |
| 24 | B1805-980-000 | OSCILLATOR | 1 |
| 25 | NS-6660430-SP | NUT 1/4-40 | 1 |
| 26 | CS-079101A-SH | THRUST COLLAR ASM. D=7.94 W=10 | 1 |
| 27 | SS-8110520-TP | SCREW 11/64-40 L=4.5 | (2) |
| 28 | 262-21804 | THRUST COLLAR | 1 |
| 29 | SS-8110520-TP | SCREW 11/64-40 L=4.5 | 2 |
| 30 | 262-03901 | OSCILLATING SHAFT | 1 |
| 31 | SS-8150822-TP | SCREW 15/64-28 L=8 | 1 |
| 32 | 262-22406 | INNER HOOK PRESSER, LEFT | 1 |
| 33 | 262-22307 | INNER HOOK PRESSER, RIGHT | 1 |
| 34 | 262-22505 | INNER HOOK PRESSURE SPRING | 2 |
| 35 | PS-0250162-KH | SPRING PIN 2.5X16 | 2 |
| 36 | B1828-980-0A0 | BOBBIN CASE ASM. | 1 |
| 37 | 138-16855 | CYLINDER ARM CAP ASM. | 1 |
| 38 | 262-21200 | HOOK COVER PRESSER SPRING B | 1 |
| 39 | SS-6111140-SP | SCREW 11/64-40 L=11 | 1 |
| 40 | 135-08700 | HOOK COVER PRESSER SPRING PIN | 1 |
| 41 | SS-6661110-SP | SCREW 1/4-40 L=11 | 1 |
| 42 | SS-6742012-TP | SCREW 3/8-28 L=19.5 | 1 |
| 43 | 135-10458 | WORM WHEEL ASM. | 1 |
| 44 | 135-10201 | WORM WHEEL SHAFT BUSHING | 1 |
| 45 | 262-21101 | HOOK COVER PRESSER SPRING A | 1 |
| 46 | CS-180121A-SH | THRUST COLLAR ASM. D=18 W=12 | 1 |
| 47 | SS-6660710-TP | SCREW 1/4-40 L=7 | (2) |
| 48 | NS-6660511-SP | NUT 1/4 | 1 |
| 49 | 262-21358 | WORM WHEEL SHAFT ASM. | 1 |
| 50 | 262-21507 | CAM GUIDE PIN | 1 |
| 51 | NS-6360810-SP | NUT 9/16-20 | 1 |
| 52 | 135-10607 | FEED CAM | 1 |
REF.NO NOTE PART NO DESCRIPTION 品 名 Qty 1 B1817-280-0A0 INNER HOOK PRESSER ASM. ナカガマ オサエ クミ 1 2 B1828-980-0AB BOBBIN CASE ASM. ボビンケース クミ 1 3 262-33106 BOBBIN ボビン 1 4 262-04909 INNER HOOK ナカガマ 1 5 400-28681 DRIVER ASM. ドライバクミ 1 6 SS-6121212-TP SCREW 3/16-28 L=12.0 ロツカクアナボルト 3/16-28 L=12 (1) 7 B1813-980-000 SHUTTLE NEEDLE OUTER RING オオガマ ニードルガイリン 1 8 #01 B1411-804-B00 NEEDLE DRIVING LEVER BEARING B ハリ クドー レバー ベアリング B 3 9 WP-0952616-SD WASHER 9.5X14.8X2.6 ヒラザガネ 9.5 X 14.8 X 2.6 1 10 B1814-980-000 SHUTTLE オオガマ 1 11 262-22109 SHUTTLE UPPER SPRING オオガマウワバネ 1 12 SS-6060410-TP SCREW 3/32-56 L=3.5 ヒラネジ 3/32-56 L=3.5 2 13 SS-6151220-SP SCREW 15/64-28 L=11.5 ヒラネジ 15/64-28 L=11.5 1 14 262-22208 SHUTTLE RACEADJUSTING SHAFT オオガマチョウセツジク 1 15 SS-6110480-SP SCREW 11/64-40 L=4.3 ヒラネジ 11/64-40 L=4.3 1 16 CS-080081C-SH THRUST COLLAR ASM. D=8.0 W=8 スラストウケ D=8 W=8 クミ 1 17 SS-8110520-TP SCREW 11/64-40 L=4.5 トメネジ 11/64-40 L=4.5 (2) 18 135-08403 LOWER SHAFT REAR METAL シタジク ウシロメタル 1 19 B1808-980-000 LOWER SHAFT THRUST WASHER シタジク スラストワッシャー 1 20 #01 135-09153 LOWER SHAFT GEAR A ASM. シタジク ハグルマ A クミ 1 21 135-08155 CRANK ROD ASM. クランクロッド クミ 1 22 SS-8110510-TP SCREW 11/64-40 L=10.5 マルヒラネジ 11/64-40 L=10 (2) 23 SD-0801021-TP HINGE SCREW D=8 H=10.2 ダンネジ D=8 H=10.2 1 24 B1805-980-000 OSCILLATOR オオフリコ 1 25 NS-6660430-SP NUT 1/4-40 ロツカクナット 1/4-40 1 26 CS-079101A-SH THRUST COLLAR ASM. D=7.94 W=10 スラストウケ D=7.94 W=10 クミ 1 27 SS-8110520-TP SCREW 11/64-40 L=4.5 トメネジ 11/64-40 L=4.5 (2) 28 262-21804 THRUST COLLAR オオフリコスラストカラー 1 29 SS-8110520-TP SCREW 11/64-40 L=4.5 トメネジ 11/64-40 L=4.5 2 30 262-03901 OSCILLATING SHAFT オオフリコジク 1 31 SS-8150822-TP SCREW 15/64-28 L=8 オオネジ 15/64-28 L=8 1 32 262-22406 INNER HOOK PRESSER, LEFT ナカガマオサエフック (ヒダリ) 1 33 262-22307 INNER HOOK PRESSER, RIGHT ナカガマオサエフック (ミギ) 1 34 262-22505 INNER HOOK PRESSURE SPRING ナカガマオサエフックバネ 2 35 PS-0250162-KH SPRING PIN 2.5X16 スプリングピン 2.5 X 16 2 36 #02 B1828-980-0A0 BOBBIN CASE ASM. ボビンケース (クミ) 1 37 138-16855 CYLINDER ARM CAP ASM. カマカバー (クミ) 1 38 262-21200 HOOK COVER PRESSER SPRING B カマカバーオサエバネ (B) 1 39 SS-6111140-SP SCREW 11/64-40 L=11 ヒラネジ 11/64-40 L=11 1 40 135-08700 HOOK COVER PRESSER SPRING PIN カマカバー オサエバネピン 1 41 SS-6661110-SP SCREW 1/4-40 L=11 ヒラネジ 1/4-40 L=11 1 42 SS-6742012-TP SCREW 3/8-28 L=19.5 ヒラネジ 3/8-28 L=19.5 1 43 135-10458 WORM WHEEL ASM. ウォームハグルマ クミ 1 44 135-10201 WORM WHEEL SHAFT BUSHING カムジクメタル 1 45 262-21101 HOOK COVER PRESSER SPRING A カマカバーオサエバネ (A) 1 46 CS-180121A-SH THRUST COLLAR ASM. D=18 W=12 スラストウケ D=18 W=12 クミ 1 47 SS-6660710-TP SCREW 1/4-40 L=7 ヒラネジ 1/4-40 L=7 (2) 48 NS-6660511-SP NUT 1/4 ロツカクナット 1/4-40 1 49 262-21358 WORM WHEEL SHAFT ASM. カムジクケツゴウズ 1 50 262-21507 CAM GUIDE PIN カムガイドピン 1 51 NS-6360810-SP NUT 9/16-20 ロツカクナット 9/16-20 1 52 135-10607 FEED CAM オクリカム 1 NOTE (注記) #01...SELECTIVE PARTS 選択部品 #02...FOR EXTRA THICK THREAD 極太糸用 (オプション) (OPTIONAL PARTS) - 10 - jintex.in
Page 16
6. FEED MECHANISM COMPONENTS 送り関係 - 11 - jintex.in
Page 17
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SS-7110740-TP | SCREW 11/64-40 L=7 | 4 |
| 2 | RE-0700000-K0 | E-RING 7 | 2 |
| 3 | B2557-280-00C | WASHER | 2 |
| 4 | 135-18352 | LEVER DRIVING PLATE ASM. | 2 |
| 5 | 135-18402 | TENSION SPRING | 2 |
| 6 | 262-04107 | LIFTING LEVER LEFT | 1 |
| 7 | 262-23701 | LIFTING LEVER SHAFT | 1 |
| 8 | 135-18907 | SUPPORT PLATE | 1 |
| 9 | SS-2110920-TP | SCREW 11/64-40 L=8.5 | 2 |
| 10 | B2549-280-000 | WORK CLAMP FOOT MOUNTING BASE | 7 |
| 11 | 262-24808 | BALL RETAINER | 1 |
| 12 | SM-6062002-TP | SCREW M6 L=20 | 1 |
| 13 | WP-0621016-SD | WASHER 6.2X13X1 | 1 |
| 14 | 135-18501 | SPRING SUSPENSION | 1 |
| 15 | 135-17800 | FEED BRACKET | 1 |
| 16 | SS-8150510-TP | SCREW 15/64-28 L=4.7 | 1 |
| 17 | 262-04008 | LIFTING LEVER RIGHT | 1 |
| 18 | SS-8080310-TP | SCREW 1/8-44 L=2.8 | 2 |
| 19 | 262-24204 | FINGER GUARD | 1 |
| 20 | SS-2110930-SP | SCREW 11/64-40 L=8.7 | 5 |
| 21 | 262-24105 | WORK CLAMP FOOT FACE PLATE | 1 |
| 22 | 135-18600 | WORK CLAMP FOOT, RIGHT | 1 |
| 23 | 135-18709 | WORK CLAMP FOOT, LEFT | 1 |
| 24 | SM-3061052-TP | SCREW M6 L=10 | 1 |
| 25 | WP-0650876-SD | WASHER 6.5X13X0.8 | 1 |
| 26 | 135-17701 | FEED PLATE | 1 |
| 27 | SS-2110920-TP | SCREW 11/64-40 L=8.5 | 4 |
| 28 | 262-23602 | FEED PLATE PRESSER PLATE | 1 |
| 29 | 135-17529 | FEED PLATE CARRIER BAR | 1 |
| 30 | 262-22703 | FEED DRIVING ARM SHAFT | 2 |
| 31 | SS-6151220-SP | SCREW 15/64-28 L=11.5 | 1 |
| 32 | SS-7701010-SP | SCREW 5/16-24 L=10 | 1 |
| 33 | NS-6150540-SP | NUT 15/64-28 | 2 |
| 34 | WP-0702026-SP | WASHER 7X15X2 | 1 |
| 35 | 135-16307 | FEED REGULATOR | 1 |
| 36 | 262-23503 | HINGE STUD | 1 |
| 37 | NS-6700320-SP | NUT 5/16-24 | 1 |
| 38 | 262-22901 | FEED REGULATOR STUD | 2 |
| 39 | 262-23008 | INDICATOR LEVER | 2 |
| 40 | SD-0530221-SP | HINGE SCREW D=5.3 H=2.2 | 2 |
| 41 | 135-16703 | SLIDE BLOCK B | 2 |
| 42 | NS-6960430-SP | NUT 1/4-40 | 2 |
| 43 | WP-0650876-SD | WASHER 6.5X13X0.8 | 2 |
| 44 | 262-24600 | FEED CAM ROLLER SHAFT | 2 |
| 45 | 262-39806 | FEED CAM ROLLER | 2 |
| 46 | 135-16109 | FEED DRIVING ARM | 1 |
| 47 | SS-9151440-CP | SCREW 15/64-28 L=14 | 1 |
| 48 | 135-50108 | FEED REGULATOR SHAFT | 2 |
| 49 | TA-0550604-R0 | RUBBER PLUG | 2 |
| 50 | 262-23404 | PLATE | 1 |
| 51 | SS-1110821-TP | SCREW 11/64-40 L=8.3 | 2 |
| 52 | SS-6151220-SP | SCREW 15/64-28 L=11.5 | 1 |
| 53 | WP-0704516-SP | WASHER 7X20X4.5 | 1 |
| 54 | 262-23305 | SLIDE BLOCK STUD | 1 |
| 55 | B1414-232-000 | SQUARE BLOCK | 1 |
| 56 | SS-6151050-TP | SCREW 15/64-28 L=10.5 | 1 |
| 57 | 135-17107 | FEED ACROSS DRIVING ARM | 1 |
| 58 | 135-17008 | FEED ACROSS REGULATOR | 1 |
| 59 | SS-6151220-SP | SCREW 15/64-28 L=11.5 | 1 |
| 60 | SS-4110615-SP | SCREW 11/64-40 L=6 | 1 |
REF.NO NOTE PART NO DESCRIPTION Qty 1 SS-7110740-TP SCREW 11/64-40 L=7 4 2 RE-0700000-K0 E-RING 7 2 3 #01 B2557-280-00C WASHER 2 4 135-18352 LEVER DRIVING PLATE ASM. 2 5 135-18402 TENSION SPRING 2 6 262-04107 LIFTING LEVER LEFT 1 7 262-23701 LIFTING LEVER SHAFT 1 8 135-18907 SUPPORT PLATE 1 9 SS-2110920-TP SCREW 11/64-40 L=8.5 2 10 B2549-280-000 WORK CLAMP FOOT MOUNTING BASE 7 11 262-24808 BALL RETAINER 1 12 SM-6062002-TP SCREW M6 L=20 1 13 WP-0621016-SD WASHER 6.2X13X1 1 14 135-18501 SPRING SUSPENSION 1 15 135-17800 FEED BRACKET 1 16 SS-8150510-TP SCREW 15/64-28 L=4.7 1 17 262-04008 LIFTING LEVER RIGHT 1 18 SS-8080310-TP SCREW 1/8-44 L=2.8 2 19 262-24204 FINGER GUARD 1 20 SS-2110930-SP SCREW 11/64-40 L=8.7 5 21 262-24105 WORK CLAMP FOOT FACE PLATE 1 22 135-18600 WORK CLAMP FOOT, RIGHT 1 23 135-18709 WORK CLAMP FOOT, LEFT 1 24 SM-3061052-TP SCREW M6 L=10 1 25 WP-0650876-SD WASHER 6.5X13X0.8 1 26 135-17701 FEED PLATE 1 27 SS-2110920-TP SCREW 11/64-40 L=8.5 4 28 262-23602 FEED PLATE PRESSER PLATE 1 29 135-17529 FEED PLATE CARRIER BAR 1 30 * 262-22703 FEED DRIVING ARM SHAFT 2 31 SS-6151220-SP SCREW 15/64-28 L=11.5 1 32 SS-7701010-SP SCREW 5/16-24 L=10 1 33 NS-6150540-SP NUT 15/64-28 2 34 WP-0702026-SP WASHER 7X15X2 1 35 135-16307 FEED REGULATOR 1 36 262-23503 HINGE STUD 1 37 NS-6700320-SP NUT 5/16-24 1 38 262-22901 FEED REGULATOR STUD 2 39 262-23008 INDICATOR LEVER 2 40 SD-0530221-SP HINGE SCREW D=5.3 H=2.2 2 41 #01 135-16703 SLIDE BLOCK B 2 42 NS-6960430-SP NUT 1/4-40 2 43 WP-0650876-SD WASHER 6.5X13X0.8 2 44 262-24600 FEED CAM ROLLER SHAFT 2 45 #01 262-39806 FEED CAM ROLLER 2 46 135-16109 FEED DRIVING ARM 1 47 SS-9151440-CP SCREW 15/64-28 L=14 1 48 135-50108 FEED REGULATOR SHAFT 2 49 TA-0550604-R0 RUBBER PLUG 2 50 262-23404 PLATE 1 51 SS-1110821-TP SCREW 11/64-40 L=8.3 2 52 SS-6151220-SP SCREW 15/64-28 L=11.5 1 53 WP-0704516-SP WASHER 7X20X4.5 1 54 262-23305 SLIDE BLOCK STUD 1 55 B1414-232-000 SQUARE BLOCK 1 56 SS-6151050-TP SCREW 15/64-28 L=10.5 1 57 135-17107 FEED ACROSS DRIVING ARM 1 58 135-17008 FEED ACROSS REGULATOR 1 59 SS-6151220-SP SCREW 15/64-28 L=11.5 1 60 SS-4110615-SP SCREW 11/64-40 L=6 1 NOTE(注記) #01...SELECTIVE PARTS - 12 - jintex.in
Page 18 — 7. THREAD TRIMMING COMPONENTS
7. THREAD TRIMMING COMPONENTS 糸切り関係 13 14 15 16 17 18 12 19 12 12 37 36 33 34 35 38 39 40 41 42 29 28 24 25 26 27 21 23 22 20 - 13 - jintex.in
Page 19
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 262-26407 | TENSION SPRING HOOK | |
| 2 | B2410-980-000 | TENSION SPRING | |
| 3 | SD-0650305-TP | HINGE SCREW D=6.5 H=3 | |
| 4 | 260-17400 | SPRING HOOK | |
| 5 | 262-25805 | THREAD CUTTING LINK | |
| 6 | 262-26100 | THREAD CUTTING RING | |
| 7 | SS-6151440-SP | SCREW 15/64-28 L=14 | |
| 8 | 262-26001 | THREAD CUTTING LINK WASHER | |
| 9 | 262-25904 | THREAD CUTTING LINK SHAFT | |
| 10 | RC-1021011-KP | RETAINING RING 10.2 | |
| 11 | 135-15408 | CONNECTING ROD, LARGE | |
| 12 | NS-6120310-SP | NUT 3/16-28 | |
| 13 | 262-25201 | ROLLER | |
| 14 | SD-0651301-TH | HINGE SCREW D=6.5 H=13 | |
| 15 | SS-8681950-SP | SCREW 9/32-28 L=19 | |
| 16 | 262-26704 | THREAD CUTTING CAM ROLLER | |
| 17 | 262-25102 | CAM STUD | |
| 18 | 135-34060 | THREAD CUTTING CAM COMPL. | |
| 19 | 262-25706 | CONNECTING ROD, SMALL | |
| 20 | 135-07058 | LOWERING LINK ASM. | |
| 21 | 262-17406 | LOWERING LINK | |
| 22 | SD-0790402-TP | HINGE SCREW D=7.94 H=4 | |
| 23 | 135-07157 | LOWERING LEVER ASM. | |
| 24 | NS-6150310-SP | NUT 15/64-28 | |
| 25 | 262-17505 | ROLLER | |
| 26 | 262-17604 | WASHER | |
| 27 | B2615-280-000 | STOP RING | |
| 28 | WP-0982616-SP | WASHER 9.8X24.0X2.6 | |
| 29 | SS-6741512-TP | SCREW 3/8-28 L=14.5 | |
| 30 | SD-0901101-SP | HINGE SCREW D=9 H=11 | |
| 31 | 262-25300 | AUXILIARY LEVER | |
| 32 | 262-25409 | SHAFT | |
| 33 | 135-14401 | THREAD TRIMMING AUXILIARY CAM | |
| 34 | RC-0740816-K0 | RETAINING RING 7.4 | |
| 35 | 262-25607 | CONNECTING PLATE B | |
| 36 | SD-0790802-TP | HINGE SCREW D=7.94 H=8 | |
| 37 | 262-26209 | SPRING | |
| 38 | 262-26506 | SPRING HOOK | |
| 39 | NS-6110420-SP | NUT 11/64-40 | |
| 40 | SS-7110910-TP | SCREW 11/64-40 L=8.5 | |
| 41 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | |
| 42 | 262-25508 | CONNECTING PLATE A |
REF.NO NOTE PART NO DESCRIPTION 品 名 Qty 1 262-26407 TENSION SPRING HOOK バネカケ 1 2 B2410-980-000 TENSION SPRING イトキリ ウデバネ 1 3 SD-0650305-TP HINGE SCREW D=6.5 H=3 ダンネジ D=6.5 H=3 2 4 260-17400 SPRING HOOK イトムスピウデバネカケ 1 5 262-25805 THREAD CUTTING LINK イトキリリンク 1 6 262-26100 THREAD CUTTING RING イトキリリング 1 7 SS-6151440-SP SCREW 15/64-28 L=14 ヒラネジ 15/64-28 L=14 1 8 262-26001 THREAD CUTTING LINK WASHER イトキリリンクザガネ 1 9 262-25904 THREAD CUTTING LINK SHAFT イトキリリンクジク 1 10 RC-1021011-KP RETAINING RING 10.2 C ガタトメワ 10.2 1 11 135-15408 CONNECTING ROD, LARGE イトキリレンケツボー ダイ 1 12 NS-6120310-SP NUT 3/16-28 ロツカクナツト 3/16-28 3 13 262-25201 ROLLER イトキリホシコロ 1 14 SD-0651301-TH HINGE SCREW D=6.5 H=13 ダンネジ D=6.5 H=13 1 15 SS-8681950-SP SCREW 9/32-28 L=19 トメネジ 9/32-28 L=19 1 16 262-26704 THREAD CUTTING CAM ROLLER イトキリカムコロ 1 17 262-25102 CAM STUD イトキリカムウデジク 1 18 135-34060 THREAD CUTTING CAM COMPL. イトキリカムウデケツゴウ 1 19 262-25706 CONNECTING ROD, SMALL イトキリレンケツボウ (ショウ) 1 20 135-07058 LOWERING LINK ASM. オシサゲリンク クミ 1 21 262-17406 LOWERING LINK オシサゲリンク (1) 22 SD-0790402-TP HINGE SCREW D=7.94 H=4 ダンネジ D=7.94 H=4 (1) 23 135-07157 LOWERING LEVER ASM. オシサゲレバー クミ (1) 24 NS-6150310-SP NUT 15/64-28 ロツカクナツト 15/64-28 (1) 25 262-17505 ROLLER オシサゲコロ (1) 26 262-17604 WASHER オシサゲコロザガネ (1) 27 B2615-280-000 STOP RING シヤダン セイギヨ カムコロトメワ (1) 28 WP-0982616-SP WASHER 9.8X24.0X2.6 ヒラザガネ 9.8 X 24.0 X 2.6 1 29 SS-6741512-TP SCREW 3/8-28 L=14.5 ロツカクアナボルト 3/8-28 1 30 SD-0901101-SP HINGE SCREW D=9 H=11 ダンネジ D=9 H=11 1 31 262-25300 AUXILIARY LEVER イトキリホジョレバー 1 32 262-25409 SHAFT イトキリサドウジク 1 33 135-14401 THREAD TRIMMING AUXILIARY CAM イトキリ ホジョカム 1 34 RC-0740816-K0 RETAINING RING 7.4 トメワ 7.4 1 35 262-25607 CONNECTING PLATE B イトキリホジョカムレンケツツイタ (B) 1 36 SD-0790802-TP HINGE SCREW D=7.94 H=8 ダンネジ D=7.94 H=8 1 37 262-26209 SPRING イトキリホジョカムモドシバネ 1 38 262-26506 SPRING HOOK ホジョカムモドシバネカケ 1 39 NS-6110420-SP NUT 11/64-40 ロツカクナツト 11/64-40 1 40 SS-7110910-TP SCREW 11/64-40 L=8.5 マルヒラネジ 11/64-40 L=8.5 2 41 WP-0480856-SP WASHER 4.8X8.4X0.8 ヒラザガネ 4.8 X 8.4 X 0.8 2 42 262-25508 CONNECTING PLATE A イトキリホジョカムレンケツツイタ (A) 1 - 14 - jintex.in
Page 20 — PEDAL PRESSURE DECREASING UNIT COMPONENTS
8. PEDAL PRESSURE DECREASING UNIT COMPONENTS 軽減装置関係 - 15 - jintex.in
Page 21
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 135-23188 | PRESSURE DECREASING DEVICE | 1 |
| 2 | 135-24608 | PRESSURE DECREASING LEVER | (2) |
| 3 | 135-25100 | STUD | (2) |
| 4 | 135-24707 | LEVER LATCH A | (1) |
| 5 | SS-2110920-TP | SCREW 11/64-40 L=8.5 | (2) |
| 6 | SS-7110910-TP | SCREW 11/64-40 L=8.5 | (2) |
| 7 | SD-0640321-SP | HINGE SCREW D=6.35 H=3.2 | (2) |
| 8 | 135-24806 | LEVER LATCH B | (1) |
| 9 | 135-25001 | SPRING | (1) |
| 10 | 135-24905 | PRESSURE DECREASING LEVER LINK | (1) |
| 11 | 260-17400 | SPRING HOOK | (2) |
| 12 | SS-8150710-SP | SCREW 15/64-28 L=7 | (1) |
| 13 | MAT-80116S00 | SUSPENSION PIN | (1) |
| 14 | 135-25605 | AUXILIARY CAM | (1) |
| 15 | SD-0720331-SP | HINGE SCREW D=7.24 H=3.3 | (1) |
| 16 | SS-6110710-TP | SCREW 11/64-40 L=6.5 | (1) |
| 17 | 135-25704 | SPRING | (1) |
| 18 | SM-6061002-TP | SCREW M6 L=10 | (2) |
| 19 | 135-23352 | PRESSURE DECREASING SHAFT ASM. | (1) |
| 20 | PS-0300162-KH | SPRING PIN 3X16 | (1) |
| 21 | 135-23121 | PRESSURE DECREASING UNIT FRAME | (1) |
| 22 | 135-23388 | ROTATION PREVENTING LATCH ASM. | (1) |
| 23 | 135-24418 | SPRING | (1) |
| 24 | SD-0600321-SP | HINGE SCREW D=6 H=3.2 | (1) |
| 25 | SS-8620610-SP | SCREW 3/16-32 L=6 | (1) |
| 26 | 135-24277 | DECREASING CLUTCH ASM. | (1) |
| 27 | 135-23808 | CLUTCH SPRING | (1) |
| 28 | SM-6051202-TP | SCREW M5X0.8 L=12 | (1) |
| 29 | 135-24129 | INNER SLEEVE | (1) |
| 30 | 135-24004 | OUTER SLEEVE | (1) |
| 31 | 135-23915 | OUTER SLEEV GUIDE | (1) |
| 32 | RC-1850001-KP | SNAP RING 18.5 | (1) |
| 33 | SB-1200003-00 | BEARING D=20X42 | (1) |
| 34 | 135-23428 | SHAFT | (1) |
| 35 | SB-3120001-00 | BEARING D=12X15 | (2) |
| 36 | 135-23519 | COLLAR A | (1) |
| 37 | 135-23600 | COLLAR B | (1) |
| 38 | 135-25308 | IDLER PULLEY INSTALLING PLATE | (1) |
| 39 | SS-6110810-TP | SCREW 11/64-40 L=8 | (3) |
| 40 | 135-25407 | SCREW | (1) |
| 41 | SS-8150822-TP | SCREW 15/64-28 L=8 | (2) |
| 42 | 135-23212 | DRIVING PULLEY | (1) |
| 43 | SS-8151550-SP | SCREW 15/64-28 L=15 | (1) |
| 44 | WP-0482086-SD | WASHER 4.8X11.5X2 | (2) |
| 45 | SS-8620850-SP | SCREW 3/16-32 L=8.0 | (1) |
| 46 | SM-6062002-TP | SCREW M6 L=20 | 3 |
| 47 | 135-32254 | IDLER PULLEY ASM. | 1 |
| 48 | SD-1201501-SP | HINGE SCREW D=12 H=15 | (1) |
| 49 | 262-35200 | IDLER BRACKET | (1) |
| 50 | WP-0621016-SD | WASHER 6.2X13X1 | (1) |
| 51 | SS-6150760-SN | SCREW 15/64-28 L=6.5 | (1) |
| 52 | NS-6150310-SP | NUT 15/64-28 | (1) |
| 53 | WP-0618506-SD | WASHER 6.1X18.5X2 | (1) |
| 54 | 262-35408 | IDLER RING | (1) |
| 55 | 135-32262 | IDLER PULLEY ASM. | (1) |
REF.NO NOTE PART NO DESCRIPTION 品 名 Qty 1 135-23188 PRESSURE DECREASING DEVICE ケイゲンソウチ クミ 1 2 135-24608 PRESSURE DECREASING LEVER オサエアゲレバー (2) 3 135-25100 STUD ケイゲンツメ チョウセツジク (2) 4 135-24707 LEVER LATCH A オサエアゲ レバーツメ A (1) 5 SS-2110920-TP SCREW 11/64-40 L=8.5 マルヒラネジ 11/64-40 L=8.5 (2) 6 SS-7110910-TP SCREW 11/64-40 L=8.5 マルヒラネジ 11/64-40 L=8.5 (2) 7 SD-0640321-SP HINGE SCREW D=6.35 H=3.2 ダンネジ D=6.35 H=3.2 (2) 8 135-24806 LEVER LATCH B オサエアゲ レバーツメ B (1) 9 135-25001 SPRING オサエアゲレバー カエシバネ (1) 10 135-24905 PRESSURE DECREASING LEVER LINK オサエアゲ レバーリンク (1) 11 260-17400 SPRING HOOK スピウデバネカケ (2) 12 SS-8150710-SP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 (1) 13 MAT-80116S00 SUSPENSION PIN ヒダトリ バネカケ ピン (1) 14 135-25605 AUXILIARY CAM ギャクテンボウシホジョカム (1) 15 SD-0720331-SP HINGE SCREW D=7.24 H=3.3 ダンネジ D=7.24 H=3.3 (1) 16 SS-6110710-TP SCREW 11/64-40 L=6.5 ヒラネジ 11/64-40 L=6.5 (1) 17 135-25704 SPRING ホンカム モドシバネ (1) 18 SM-6061002-TP SCREW M6 L=10 ロツカクアナボルト M6 L=10 (2) 19 135-23352 PRESSURE DECREASING SHAFT ASM. オシサゲジククミ (1) 20 PS-0300162-KH SPRING PIN 3X16 スプリングピン 3X16 (1) 21 135-23121 PRESSURE DECREASING UNIT FRAME ケイゲンソウチトリツケダイ (1) 22 135-23388 ROTATION PREVENTING LATCH ASM. ギャクテンボウシツメ (クミ) (1) 23 135-24418 SPRING ギャクテンボウシツメバネ (1) 24 SD-0600321-SP HINGE SCREW D=6 H=3.2 ダンネジ D=6 H=3.2 (1) 25 SS-8620610-SP SCREW 3/16-32 L=6 トメネジ 3/16-32 L=6 (1) 26 135-24277 DECREASING CLUTCH ASM. ケイゲンクラツチツメ (クミ) (1) 27 135-23808 CLUTCH SPRING クラツチバネ (1) 28 SM-6051202-TP SCREW M5X0.8 L=12 ロツカクアナボルト M5X0.8 L=12 (1) 29 135-24129 INNER SLEEVE ケイゲンインナースリーブ (1) 30 135-24004 OUTER SLEEVE ケイゲンアウタースリーブ (1) 31 135-23915 OUTER SLEEV GUIDE アウタースリーブガイドリング (1) 32 RC-1850001-KP SNAP RING 18.5 Cガタトメワ 18.5 (1) 33 SB-1200003-00 BEARING D=20X42 ベアリング D=20X42 (1) 34 135-23428 SHAFT ニュウリョクジク (1) 35 SB-3120001-00 BEARING D=12X15 ベアリング D=12X15 (2) 36 135-23519 COLLAR A オシサゲジクカラー A (1) 37 135-23600 COLLAR B オシサゲジクカラー B (1) 38 135-25308 IDLER PULLEY INSTALLING PLATE アイドラープーリ トリツケイタ (1) 39 SS-6110810-TP SCREW 11/64-40 L=8 ヒラネジ 11/64-40 L=8 (3) 40 135-25407 SCREW グリース チュウニュウネジ (1) 41 SS-8150822-TP SCREW 15/64-28 L=8 トメネジ 15/64-28 L=8 (2) 42 135-23212 DRIVING PULLEY ケイゲンブーリ (1) 43 SS-8151550-SP SCREW 15/64-28 L=15 トメネジ 15/64-28 L=15 (1) 44 WP-0482086-SD WASHER 4.8X11.5X2 ヒラザガネ 4.8X11.5X2 (2) 45 SS-8620850-SP SCREW 3/16-32 L=8.0 トメネジ 3/16-32 L=8.0 (1) 46 SM-6062002-TP SCREW M6 L=20 ロツカクアナボルト M6 L=20 3 47 135-32254 IDLER PULLEY ASM. アイドラープーリ クミ 1 48 SD-1201501-SP HINGE SCREW D=12 H=15 ダンネジ D=12 H=15 (1) 49 262-35200 IDLER BRACKET アイドラーブラケット (1) 50 WP-0621016-SD WASHER 6.2X13X1 ヒラザガネ 6.2X13X1 (1) 51 SS-6150760-SN SCREW 15/64-28 L=6.5 ヒラネジ 15/64-28 L=6.5 (1) 52 NS-6150310-SP NUT 15/64-28 ロツカクナット 15/64-28 (1) 53 WP-0618506-SD WASHER 6.1X18.5X2 ヒラザガネ 6.1X18.5X2 (1) 54 262-35408 IDLER RING アイドラーリング (1) 55 135-32262 IDLER PULLEY ASM. アイドラープーリ クミ (1) - 16 - jintex.in
Page 22 — 9. STOP-MOTION MECHANISM COMPONENTS
9. STOP-MOTION MECHANISM COMPONENTS 遮断制御関係 - 17 - jintex.in
Page 23
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 135-22008 | STOP-MOTION REGULATING CAM | 1 |
| 2 | WP-0482086-SD | WASHER 4.8X11.5X2 | 3 |
| 3 | SS-6121212-TP | SCREW 3/16-28 L=12.0 | 3 |
| 4 | RC-0470611-KP | RETAINING RING 4.7 | 1 |
| 5 | 262-28601 | ROLLER | 1 |
| 6 | 262-28502 | ROLLER SHAFT | 1 |
| 7 | NS-6150430-SP | NUT 15/64-28 | 1 |
| 8 | NS-6150430-SP | STOP-MOTION ARM B | 2 |
| 9 | 135-21505 | SCREW 9/32-28 L=16.5 | 1 |
| 10 | SS-6681720-TP | NUT 9/32-28 | 1 |
| 11 | NS-6680320-SP | HINGE SCREW D=8 H=4 | 2 |
| 12 | SD-0800402-TP | STOP-MOTION LINK | 1 |
| 13 | 262-28205 | LEVER ASM. | 1 |
| 14 | 135-21760 | REGULATING LEVER STUD | 1 |
| 15 | 262-28304 | SCREW 15/64-28 L=11 | 1 |
| 16 | SS-7151120-SP | RUBBER CUSHION | 2 |
| 17 | B2608-280-000 | WASHER | 3 |
| 18 | 262-29104 | PRESSURE SPRING | 2 |
| 19 | 262-29005 | WASHER 7.5X19X1.5 | 1 |
| 20 | WP-0751576-SD | STOP-MOTION PLUNGER ROD | 1 |
| 21 | B2605-372-000 | STOP MOTION HOOK | 1 |
| 22 | 262-28908 | PULLEY PRESSING PLATE | 1 |
| 23 | 135-20309 | SCREW 15/64-28 L=17.0 | 1 |
| 24 | SS-8151780-SP | NUT 15/64-28 | 1 |
| 25 | NS-6150430-SP | WASHER 6.2X13X1 | 1 |
| 26 | WP-0621016-SD | SCREW M6 L=18 | 1 |
| 27 | SM-6061802-TP | WASHER 6.1X18.5X2 | 1 |
| 28 | WP-0612056-SD | SPRING WASHER 6.4X11.9X1.5 | 1 |
| 29 | WS-0641560-KR | SCREW 15/64-28 L=13.0 | 2 |
| 30 | SS-6061402-TP | SCREW M6 L=14 | 1 |
| 31 | SM-6061402-TP | SAFETY PLATE | 2 |
| 32 | 135-20705 | STOP-MOTION LEVER | 1 |
| 33 | 135-20119 | WASHER 7.5X19X1.5 | 1 |
| 34 | WP-0751576-SD | NUT 9/32-28 | 1 |
| 35 | NS-6680410-SP | NUT 9/32-28 | 1 |
| 36 | NS-6680410-SP | STOP-MOTION LEVER PLATE SPRING | 1 |
| 37 | 262-27306 | SCREW 9/32-28 L=6.8 | 1 |
| 38 | SS-5680740-SP | GUIDE PIN | 1 |
| 39 | 262-27207 | DRIVING PLATE | 1 |
| 40 | 135-20408 | TENSION SPRING | 1 |
| 41 | 135-20804 | STOP-MOTION LEVER SHAFT | 1 |
| 42 | 262-02903 | STARTING SPRING HOOK | 1 |
| 43 | 262-28700 | NUT 15/64-28 | 1 |
| 44 | NS-6150310-SP | TENSION SPRING | 1 |
| 45 | 262-27900 | STARTING LEVER | 1 |
| 46 | 262-04701 | HINGE SCREW D=6.35 H=8.0 | 1 |
| 47 | SD-0640801-TP | SLIDE ROLLER | 1 |
| 48 | 262-28809 | WASHER 4.8X8.4X0.8 | 1 |
| 49 | WP-0480856-SP | NUT 11/64-40 | 1 |
| 50 | NS-6110420-SP | SUSPENSION SCREW | 1 |
| 51 | 262-29302 | HINGE SCREW D=8 H=4 | 1 |
| 52 | SD-0800402-TP | STOP-MOTION ARM SHAFT | 1 |
| 53 | 135-21406 | NUT 15/64-28 | 1 |
| 54 | NS-6150310-SP | SCREW 15/64-28 L=14 | 1 |
| 55 | SS-6151440-SP | STOP-MOTION ARM A | 1 |
| 56 | 135-21125 | SCREW M6 L=20 | 1 |
| 57 | SM-6062002-TP | HINGE SCREW D=8 H=3.5 | 1 |
| 58 | SD-0800352-SP | NUT | 1 |
| 59 | 262-27702 | STOP-MOTION CONNECTING LEVER | 1 |
| 60 | 262-27603 | E-RING 4 | 1 |
| 61 | RE-040000-KO |
REF.NO NOTE PART NO DESCRIPTION Qty 1 135-22008 STOP-MOTION REGULATING CAM 1 2 WP-0482086-SD WASHER 4.8X11.5X2 3 3 SS-6121212-TP SCREW 3/16-28 L=12.0 3 4 RC-0470611-KP RETAINING RING 4.7 1 5 262-28601 ROLLER 1 6 262-28502 ROLLER SHAFT 1 7 NS-6150430-SP NUT 15/64-28 1 8 NS-6150430-SP STOP-MOTION ARM B 2 9 135-21505 SCREW 9/32-28 L=16.5 1 10 SS-6681720-TP NUT 9/32-28 1 11 NS-6680320-SP HINGE SCREW D=8 H=4 2 12 SD-0800402-TP STOP-MOTION LINK 1 13 262-28205 LEVER ASM. 1 14 135-21760 REGULATING LEVER STUD 1 15 262-28304 SCREW 15/64-28 L=11 1 16 SS-7151120-SP RUBBER CUSHION 2 17 B2608-280-000 WASHER 3 18 262-29104 PRESSURE SPRING 2 19 262-29005 WASHER 7.5X19X1.5 1 20 WP-0751576-SD STOP-MOTION PLUNGER ROD 1 21 B2605-372-000 STOP MOTION HOOK 1 22 262-28908 PULLEY PRESSING PLATE 1 23 135-20309 SCREW 15/64-28 L=17.0 1 24 SS-8151780-SP NUT 15/64-28 1 25 NS-6150430-SP WASHER 6.2X13X1 1 26 WP-0621016-SD SCREW M6 L=18 1 27 * SM-6061802-TP WASHER 6.1X18.5X2 1 28 WP-0612056-SD SPRING WASHER 6.4X11.9X1.5 1 29 WS-0641560-KR SCREW 15/64-28 L=13.0 2 30 SS-6061402-TP SCREW M6 L=14 1 31 SM-6061402-TP SAFETY PLATE 2 32 135-20705 STOP-MOTION LEVER 1 33 135-20119 WASHER 7.5X19X1.5 1 34 WP-0751576-SD NUT 9/32-28 1 35 NS-6680410-SP NUT 9/32-28 1 36 NS-6680410-SP STOP-MOTION LEVER PLATE SPRING 1 37 262-27306 SCREW 9/32-28 L=6.8 1 38 SS-5680740-SP GUIDE PIN 1 39 262-27207 DRIVING PLATE 1 40 135-20408 TENSION SPRING 1 41 135-20804 STOP-MOTION LEVER SHAFT 1 42 262-02903 STARTING SPRING HOOK 1 43 262-28700 NUT 15/64-28 1 44 NS-6150310-SP TENSION SPRING 1 45 262-27900 STARTING LEVER 1 46 262-04701 HINGE SCREW D=6.35 H=8.0 1 47 SD-0640801-TP SLIDE ROLLER 1 48 262-28809 WASHER 4.8X8.4X0.8 1 49 WP-0480856-SP NUT 11/64-40 1 50 NS-6110420-SP SUSPENSION SCREW 1 51 262-29302 HINGE SCREW D=8 H=4 1 52 SD-0800402-TP STOP-MOTION ARM SHAFT 1 53 135-21406 NUT 15/64-28 1 54 NS-6150310-SP SCREW 15/64-28 L=14 1 55 SS-6151440-SP STOP-MOTION ARM A 1 56 135-21125 SCREW M6 L=20 1 57 SM-6062002-TP HINGE SCREW D=8 H=3.5 1 58 SD-0800352-SP NUT 1 59 262-27702 STOP-MOTION CONNECTING LEVER 1 60 262-27603 E-RING 4 1 61 RE-040000-KO - 18 - jintex.in
Page 24 — 10. LUBRICATION MECHANISM COMPONENTS
10. LUBRICATION MECHANISM COMPONENTS 給油関係 - 19 - jintex.in
Page 25
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | TA-2100904-R0 | RUBBER PLUG | |
| 2 | TA-1050504-R0 | RUBBER PLUG | |
| 3 | BP-6000000-00 | VINYL PIPE | |
| 4 | 262-30706 | OIL WICK PRESSER | |
| 5 | TA-1250406-R0 | RUBBER PLUG D=12.5 L=4 | |
| 6 | CQ-2522000-00 | OIL WICK | |
| 7 | 262-31209 | OIL WICK PRESSER | |
| 8 | TA-1250406-R0 | RUBBER PLUG D=12.5 L=4 | |
| 9 | B3507-280-00 | OIL FELT | |
| 10 | B3509-280-00 | NEEDLE ROD CRANK LUBRICATING | |
| 11 | B3518-280-00 | BALANCE LUBRICATING | |
| 12 | 262-31407 | BALANCE LUBRICATING PLATE | |
| 13 | SS-6091510-SP | SCREW 9/64-40 L=15.0 | |
| 14 | BP-3000001-00 | VINYL TUBE | |
| 15 | EA-9500B01-00 | CABLE BAND | |
| 16 | 262-30102 | LUBRICATING TANK | |
| 17 | SS-4090515-SP | SCREW 9/64-40 L=5 | |
| 18 | 135-01705 | SILICON OIL FELT | |
| 19 | SS-4110715-SP | SCREW 11/64-40 L=7 | |
| 20 | 262-30409 | LUBRICATING OIL WICK STOPPER | |
| 21 | TA-0750704-R0 | RUBBER PLUG | |
| 22 | 135-01408 | SILICON OIL POURING HOLE | |
| 23 | 135-29904 | LUBRICATING TANK FELT | |
| 24 | 262-30904 | GREASE CAP | |
| 25 | 135-28708 | REAR METAL BUSH | |
| 26 | 262-31605 | CRANK ROD LUBRICATING PLATE | |
| 27 | 135-29201 | CRANK LUBRICATING FELT | |
| 28 | 135-29102 | OIL FELT | |
| 29 | 262-29401 | OSCILLATOR LUBRICATION PLATE | |
| 30 | B3515-280-00 | OSCILLATOR LUBRICATING FELT | |
| 31 | TA-1450404-R0 | RUBBER PLUG D=14.5 L=4 | |
| 32 | WP-0621016-SD | WASHER 6.2X13X1 | |
| 33 | SS-6111140-SP | SCREW 11/64-40 L=11 | |
| 34 | SS-7110510-SP | SCREW 11/64-40 L=5 | |
| 35 | B3502-280-00 | LUBRICATING TANK FELT | |
| 36 | B3504-280-00 | SHUTTLE FELT | |
| 37 | 262-29609 | HOOK OIL WICK STOPPER A | |
| 38 | B3541-012-00 | OIL WICK | |
| 39 | 262-30003 | OIL FELT HOLDER | |
| 40 | SS-4110515-SP | SCREW 11/64-40 L=5 | |
| 41 | 262-31902 | OIL WICK PIPE STOPPER | |
| 42 | 135-01309 | SILICON OIL PIPE | |
| 43 | B1127-280-00 | SILICON OIL THREAD GUIDE | |
| 44 | 262-31100 | SHUTTLE LUBRICATING PLATE | |
| 45 | SS-4110515-SP | SCREW 11/64-40 L=5 | |
| 46 | SS-6090440-SP | SCREW 9/64-40 L=4.0 | |
| 47 | TA-1050504-R0 | RUBBER PLUG |
REF.NO NOTE PART NO DESCRIPTION 品名 Qty 1 TA-2100904-R0 RUBBER PLUG トメセン 5 2 TA-1050504-R0 RUBBER PLUG トメセン 6 3 BP-6000000-00 VINYL PIPE ビニールパイプ 0.7 4 262-30706 OIL WICK PRESSER ユシンオサエ 3 5 TA-1250406-R0 RUBBER PLUG D=12.5 L=4 トメセン D=12.5 L=4 2 6 CQ-2522000-00 OIL WICK ユシン 4,7 7 262-31209 OIL WICK PRESSER ハリボウクランクユシンオサエ 1 8 TA-1250406-R0 RUBBER PLUG D=12.5 L=4 トメセン D=12.5 L=4 1 9 B3507-280-00 OIL FELT メンブフェルト 1 10 B3509-280-00 NEEDLE ROD CRANK LUBRICATING ハリボー クランク キューユ パイリーン 4 11 B3518-280-00 BALANCE LUBRICATING テンビンキューユ 2 12 262-31407 BALANCE LUBRICATING PLATE テンビンキューユバン 1 13 SS-6091510-SP SCREW 9/64-40 L=15 ヒラネジ 9/64-40 L=15 1 14 BP-3000001-00 VINYL TUBE ビニールパイプ 2.5 15 EA-9500B01-00 CABLE BAND ソクセンバンド 2 16 262-30102 LUBRICATING TANK キュウユタンク 1 17 SS-4090515-SP SCREW 9/64-40 L=5 ナベネジ 9/64-40 L=5 2 18 #01 135-01705 SILICON OIL FELT エスレンフェルト 1 19 SS-4110715-SP SCREW 11/64-40 L=7 ナベネジ 11/64-40 L=7 9 20 262-30409 LUBRICATING OIL WICK STOPPER キュウユシンメ 1 21 TA-0750704-R0 RUBBER PLUG トメセン 1 22 #01 135-01408 SILICON OIL POURING HOLE エスレン チュニュウグチ 1 23 135-29904 LUBRICATING TANK FELT キュウユ タンクフェルト 1 24 262-30904 GREASE CAP グリースカップ 1 25 135-28708 REAR METAL BUSH ウシロメタル ブッシュ 1 26 262-31605 CRANK ROD LUBRICATING PLATE クランク ロッドキュウユバン 2 27 135-29201 CRANK LUBRICATING FELT クランク キュウユフェルト 1 28 135-29102 OIL FELT ウォーム キュウユフェルト 1 29 262-29401 OSCILLATOR LUBRICATION PLATE オオフリキュウユバン 1 30 B3515-280-00 OSCILLATOR LUBRICATING FELT オオフリキュウユフェルト 1 31 TA-1450404-R0 RUBBER PLUG D=14.5 L=4 トメセン D=14.5 L=4 1 32 WP-0621016-SD WASHER 6.2X13X1 ヒラザガネ 6.2X13X1 1 33 SS-6111140-SP SCREW 11/64-40 L=11 ヒラネジ 11/64-40 L=11 1 34 SS-7110510-SP SCREW 11/64-40 L=5 マルヒラネジ 11/64-40 L=5 1 35 B3502-280-00 LUBRICATING TANK FELT キュウユタンク フェルト 1 36 B3504-280-00 SHUTTLE FELT オオガマフェルト 2 37 262-29609 HOOK OIL WICK STOPPER A カマユシン トメ (A) 1 38 B3541-012-00 OIL WICK カンリュウ ユシン 1 39 262-30003 OIL FELT HOLDER カンリュウユシンフェルトオサエ 1 40 SS-4110515-SP SCREW 11/64-40 L=5 ナベネジ 11/64-40 L=5 1 41 262-31902 OIL WICK PIPE STOPPER ユシンパイプトメ 1 42 #01 135-01309 SILICON OIL PIPE エスレンパイプ 1 43 #01 B1127-280-00 SILICON OIL THREAD GUIDE エスレンイトアンナイ 1 44 262-31100 SHUTTLE LUBRICATING PLATE オオガマキュウユバン 1 45 #01 SS-4110515-SP SCREW 11/64-40 L=5 ナベネジ 11/64-40 L=5 1 46 SS-6090440-SP SCREW 9/64-40 L=4.0 ヒラネジ 9/64-40 L=4 2 47 #01 TA-1050504-R0 RUBBER PLUG トメセン 1 NOTE(注記) #01....SPECIAL ORDER PARTS 特別注文部品 - 20 - jintex.in
Page 26 — 11. TABLE COMPONENTS
11. TABLE COMPONENTS 脚卓関係 34 35 35 36 37 38 34 JUKI 39 40 41 42 43 47 44 48 45 49 46 1 57 50 ~ 56 5 2 4 2 3 8 7 20 20 67 69 66 68 71 70 19 20 11 6568 6 9 69 67 71 70 64 120 10 13 16 15 18 17 14 13 16 15 18 17 21 13 16 15 18 17 27 28 29 30 31 24 30 26 25 24 12 59 ~ 63 26 22 20 31 32 33 - 21 - jintex.in
Page 27
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 138-17507 | TABLE | 1 |
| 2 | 111-55207 | DRAWER SUPPORT | 2 |
| 3 | 111-55108 | DRAWER | 1 |
| 4 | D8204-555-D00 | DRAWER STOPPER | 1 |
| 5 | 135-08056 | T-STAND COMPL. | 1 |
| 6 | 111-57559 | T-STAND ASM. | (1) |
| 7 | 111-57658 | STAND UPPER, RIGHT | (1) |
| 8 | 111-57757 | STAND UPPER, LEFT | (1) |
| 9 | 111-57955 | STUD ASM., RIGHT | (1) |
| 10 | 111-58052 | STRUT JUNCTION (LEFT) | (1) |
| 11 | 111-58300 | STAND SIDE SUPPORT | (1) |
| 12 | 111-58409 | STAND SIDE SUPPORT | (1) |
| 13 | 111-58607 | RUBBER CAP | (4) |
| 14 | 170-07402 | NUT | (2) |
| 15 | WP-1302501-SE | WASHER M12 | (4) |
| 16 | WS-1253010-KN | SPRING WASHER 12.5X21.5X3 | (4) |
| 17 | B8108-555-0A0 | ADJUSTING SCREW ASM. WITH CAP | (4) |
| 18 | NM-6120003-SE | NUT M12 | (4) |
| 19 | 111-58508 | PLATE | (2) |
| 20 | SL-9082091-SE | WASHER HEXAGONAL BOLT | (12) |
| 21 | 138-17754 | Z-STAND PEDAL ASM. | (1) |
| 22 | GPF-06060A0 | PEDAL ASM. | (1) |
| 23 | GPF-0608000 | PEDAL ADJUSTING PLATE | (1) |
| 24 | 111-59001 | PEDAL SHAFT BRACKET | (2) |
| 25 | B8153-771-000 | PEDAL CONNECTING ROD | (1) |
| 26 | D8113-555-B00 | PEDAL BUSHING | (2) |
| 27 | SM-9061203-SE | SCREW M6 L=12 | (2) |
| 28 | WP-0671016-SE | WASHER 6.7X13X1 | (2) |
| 29 | WS-0621114-KR | SPRING WASHER 6.2X11.4X1.2 | (2) |
| 30 | SM-9082023-SE | SCREW M8 L=20 | (2) |
| 31 | WP-0871602-SE | WASHER 8.7X18X1.6 | (4) |
| 32 | WS-0861410-KR | SPRING WASHER 8.6X15X1.4 | (2) |
| 33 | NM-6080721-SE | NUT M8 | (2) |
| 34 | SS-9156830-SP | SCREW 15/64-28 L=68 | 3 |
| 35 | MTJ-MS090000 | MOUNTING BOLT | 4 |
| 36 | B8133-019-000 | S'SHAPED HOOK | 2 |
| 37 | SK-3311600-SE | WOOD SCREW D=3.1 L=16 | 3 |
| 38 | 262-34302 | OIL REMOVING FUNNEL | 1 |
| 39 | WP-0612056-SD | WASHER 6.1X18.5X2 | 3 |
| 40 | WP-0621016-SD | WASHER 6.2X13X1 | 3 |
| 41 | NS-6150310-SP | NUT 15/64-28 | 3 |
| 42 | B7130-761-0A0 | MOTOR BASE ASM. | 1 |
| 43 | NM-6060001-SE | NUT M6 | 4 |
| 44 | WS-0621210-KR | SPRING WASHER 6.2X11.4X1.2 | 4 |
| 45 | WP-0612056-SE | WASHER 6.1X18.5X2 | 8 |
| 46 | SM-9062003-SC | SCREW M6 L=20 | 4 |
| 47 | WP-0850002-SC | WASHER 8.5X18X1.6 | 4 |
| 48 | WS-0901520-KN | SPRING WASHER 9.0X15.0X2.0 | 4 |
| 49 | NS-6200710-SN | NUT 5/16-18 | 4 |
| 50 | 135-31108 | MOTOR PULLEY 50HZ 2300 SPM | 1 |
| 51 | 262-02804 | MOTOR PULLEY | 1 |
| 52 | 135-31306 | MOTOR PULLEY 50HZ 2000 RPM | 1 |
| 53 | 135-31405 | MOTOR PULLEY 60HZ 2300 SPM | 1 |
| 54 | 135-31504 | MOTOR PULLEY 60HZ 2000 SPM | 1 |
| 55 | 135-31603 | MOTOR PULLEY 60HZ 1800 SPM | 1 |
| 56 | 135-53706 | MOTOR PULLEY 60HZ 1500 SPM | 1 |
| 57 | SS-9150822-TP | SCREW 15/64-28 L=8 | 2 |
| 58 | B8131-019-000 | CHAIN | 1 |
| 59 | MTJ-VM00500 | V-BELT, 50INCH | 1 |
| 60 | MTJ-VM00490 | V-BELT, 49INCH | 1 |
| 61 | MTJ-VM00480 | V-BELT, 48INCH | 1 |
| 62 | MTJ-VM00470 | V-BELT, 47INCH | 1 |
| 63 | MTJ-VM00460 | V-BELT, 46INCH | 1 |
| 64 | 400-09458 | PULLEY COVER | 1 |
| 65 | B7272-781-000 | COVER MOUNTING BRACKET B | 1 |
| 66 | 262-36703 | COVER MOUNTING BRACKET C | 1 |
| 67 | SS-7110710-SP | SCREW 11/64-40 L=7 | 4 |
| 68 | NS-6110310-SP | NUT 11/64-40 | 4 |
| 69 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | 4 |
| 70 | SK-3452000-SC | WOOD SCREW D=4.5 L=20 | 2 |
| 71 | WP-0501016-SC | WASHER 5X10.5X1 | 2 |
REF.NO NOTE PART NO DESCRIPTION Qty 1 138-17507 TABLE 1 2 111-55207 DRAWER SUPPORT 2 3 111-55108 DRAWER 1 4 D8204-555-D00 DRAWER STOPPER 1 5 135-08056 T-STAND COMPL. 1 6 111-57559 T-STAND ASM. (1) 7 111-57658 STAND UPPER, RIGHT (1) 8 111-57757 STAND UPPER, LEFT (1) 9 111-57955 STUD ASM., RIGHT (1) 10 111-58052 STRUT JUNCTION (LEFT) (1) 11 111-58300 STAND SIDE SUPPORT (1) 12 111-58409 STAND SIDE SUPPORT (1) 13 111-58607 RUBBER CAP (4) 14 170-07402 NUT (2) 15 WP-1302501-SE WASHER M12 (4) 16 WS-1253010-KN SPRING WASHER 12.5X21.5X3 (4) 17 B8108-555-0A0 ADJUSTING SCREW ASM. WITH CAP (4) 18 NM-6120003-SE NUT M12 (4) 19 111-58508 PLATE (2) 20 SL-9082091-SE WASHER HEXAGONAL BOLT (12) 21 138-17754 Z-STAND PEDAL ASM. (1) 22 GPF-06060A0 PEDAL ASM. (1) 23 GPF-0608000 PEDAL ADJUSTING PLATE (1) 24 111-59001 PEDAL SHAFT BRACKET (2) 25 B8153-771-000 PEDAL CONNECTING ROD (1) 26 D8113-555-B00 PEDAL BUSHING (2) 27 SM-9061203-SE SCREW M6 L=12 (2) 28 WP-0671016-SE WASHER 6.7X13X1 (2) 29 WS-0621114-KR SPRING WASHER 6.2X11.4X1.2 (2) 30 SM-9082023-SE SCREW M8 L=20 (2) 31 WP-0871602-SE WASHER 8.7X16X1.6 (4) 32 WS-0861410-KR SPRING WASHER 8.6X15X1.4 (2) 33 NM-6080721-SE NUT M8 (2) 34 SS-9156830-SP SCREW 15/64-28 L=68 3 35 MTJ-MS090000 MOUNTING BOLT 4 36 B8133-019-000 S'SHAPED HOOK 2 37 SK-3311600-SE WOOD SCREW D=3.1 L=16 3 38 262-34302 OIL REMOVING FUNNEL 1 39 WP-0612056-SD WASHER 6.1X18.5X2 3 40 WP-0621016-SD WASHER 6.2X13X1 3 41 NS-6150310-SP NUT 15/64-28 3 42 B7130-761-0A0 MOTOR BASE ASM. 1 43 NM-6060001-SE NUT M6 4 44 WS-0621210-KR SPRING WASHER 6.2X11.4X1.2 4 45 WP-0612056-SE WASHER 6.1X18.5X2 8 46 SM-9062003-SC SCREW M6 L=20 4 47 WP-0850002-SC WASHER 8.5X18X1.6 4 48 WS-0901520-KN SPRING WASHER 9.0X15.0X2.0 4 49 NS-6200710-SN NUT 5/16-18 4 50 135-31108 MOTOR PULLEY 50HZ 2300 SPM 1 51 262-02804 MOTOR PULLEY (50 HZ) 1 52 135-31306 MOTOR PULLEY 50HZ 2000 RPM 1 53 135-31405 MOTOR PULLEY 60HZ 2300 SPM 1 54 135-31504 MOTOR PULLEY 60HZ 2000 SPM 1 55 135-31603 MOTOR PULLEY 60HZ 1800 SPM 1 56 135-53706 MOTOR PULLEY 60HZ 1500 SPM 1 57 SS-9150822-TP SCREW 15/64-28 L=8 2 58 B8131-019-000 CHAIN 1 59 #01 MTJ-VM00500 V-BELT, 50INCH 1 60 #02 MTJ-VM00490 V-BELT, 49INCH 1 61 #03 MTJ-VM00480 V-BELT, 48INCH 1 62 #04 MTJ-VM00470 V-BELT, 47INCH 1 63 #05 MTJ-VM00460 V-BELT, 46INCH 1 64 #06 400-09458 PULLEY COVER 1 65 #06 B7272-781-000 COVER MOUNTING BRACKET B 1 66 #06 262-36703 COVER MOUNTING BRACKET C 1 67 #06 SS-7110710-SP SCREW 11/64-40 L=7 4 68 #06 NS-6110310-SP NUT 11/64-40 4 69 #06 WP-0480856-SP WASHER 4.8X8.4X0.8 4 70 #06 SK-3452000-SC WOOD SCREW D=4.5 L=20 2 71 #06 WP-0501016-SC WASHER 5X10.5X1 2 NOTE(注記) #01...FOR 50HZ 2300SPM #02...FOR 50HZ 2000SPM. 60HZ 2300SPM #03...FOR 50HZ 1800SPM. 60HZ 2000SPM #04...FOR 60HZ 1800SPM #05...FOR SLOW SPEED #06...FOR DESTINATION ONLY ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850標準機種と同じです。 - 22 - jintex.in
Page 28 — LK-1850 SERIES SUBCLASS (1) LK-1852-1
12. LK-1850 SERIES SUBCLASS LK-1850シリーズサブクラス (1) LK-1852-1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 - 23 - jintex.in
Page 29
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 135-10862 | WORM ASM. | 1 |
| 2 | SS-7111410-TP | SCREW 11/64-40 L=14 | (4) |
| 3 | 135-10953 | FEED CAM DRIVING WHEEL ASM. | 1 |
| 4 | 135-41750 | FINGER GUARD ASM. | 1 |
| 5 | SS-7111120-SP | SCREW 11/64-40 L=10.5 | 1 |
| 6 | 135-40752 | WORK CLAMP FOOT BRACKET ASM. | (1) |
| 7 | 135-41206 | WORK CLAMP FOOT PLATE COVER | (1) |
| 8 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | (2) |
| 9 | 135-41404 | WORK CLAMP FOOT LIFTING PLATE | (1) |
| 10 | SS-9151120-CP | SCREW 15/64-28 L=11 | (2) |
| 11 | WP-0612516-SD | WASHER 6.1X15.2X2.5 | (2) |
| 12 | D2529-232-D00 | PRESSER SPRING | (1) |
| 13 | D2545-232-D0A | HINGE SCREW | (2) |
| 14 | D2513-232-DA0 | BRACKET GUIDE ASM. | (1) |
| 15 | NS-6110530-SP | NUT 11/64-40 | (1) |
| 16 | D2509-232-D00 | STATIONING LATCH | (1) |
| 17 | D2512-232-D00 | TORSION SPRING | (1) |
| 18 | D2511-232-D00 | SCREW | (1) |
| 19 | D2504-282-AB0-A | KNOB FOOT MOUNT BASE ASM. | (1) |
| 20 | D2502-232-D00 | SHAFT BLOCK SHAFT | (1) |
| 21 | RE-0700000-K0 | E-RING 7 | (2) |
| 22 | SS-9110920-CP | SCREW 11/64-40 L=9 | (1) |
| 23 | D2516-232-DA0 | WORK CLAMP FOOT REGULATOR | (1) |
| 24 | D2528-232-D00 | SHAFT | (1) |
| 25 | D2527-232-D00 | SLEEVE | (1) |
| 26 | B3117-352-000 | THREAD TENSION POST NUT | (2) |
| 27 | D2515-232-D00 | TORSION SPRING | (1) |
| 28 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | (2) |
| 29 | 135-41107 | WORK CLAMP FOOT SPRING HOLDER | (1) |
| 30 | 135-41057 | CLAMP GUIDE FOOT ASM. | (1) |
| 31 | D2520-232-DA0 | WORK CLAMP FOOT(LEFT)ASM. | (1) |
| 32 | SS-7110550-TP | SCREW 11/64-40 L=5.5 | (2) |
| 33 | D2521-232-DA0 | WORK CLAMP FOOT(RIGHT)ASM. | (1) |
| 34 | SD-0550271-TP | HINGE SCREW D=5.50 H=2.7 | (2) |
| 35 | D2519-232-D00 | WORK CLAMP FOOT PLATE CAM | (1) |
| 36 | NS-6120480-SP | NUT 3/16-28 | (2) |
| 37 | 135-41503 | FEED PLATE | (1) |
| 38 | SS-9110460-CP | SCREW 11/64-40 L=4 | (1) |
| 39 | WP-0501016-SD | WASHER 5X10.5X1 | (1) |
| 40 | SS-9110460-CP | SCREW 11/64-40 L=4 | (2) |
| 41 | 135-40802 | SHAFT BRACKET BASE | (1) |
| 42 | 135-40901 | STATIONING BLOCK SHAFT | (1) |
| 43 | D2548-232-D00 | SNAP RING,FOR CONNECTING ROD | (1) |
| 44 | D2507-232-D00 | STATIONING BLOCK | (1) |
| 45 | NS-6150310-SP | NUT 15/64-28 | (1) |
| 46 | SS-9151120-CP | SCREW 15/64-28 L=11 | (1) |
| 47 | WP-0612516-SD | WASHER 6.1X15.2X2.5 | (1) |
| 48 | 135-40703 | WORK CLAMP FOOT BRACKET ASM. | (1) |
| 49 | SM-6060802-TP | SCREW M6 L=8 | (1) |
| 50 | WP-0612066-SP | WASHER 6.1X11X2 | (1) |
| 51 | 135-41313 | CONNECTING ARM | 1 |
| 52 | SM-6061802-TP | SCREW M6 L=18 | 1 |
| 53 | SD-1201501-SP | HINGE SCREW D=12 H=15 | 1 |
| 54 | WP-0651056-SH | WASHER 6.5X11X1 | 1 |
| 55 | 135-40604 | DRIVING BAR B | 1 |
| 56 | PD-0201000-0B | SPLIT PIN | 2 |
| 57 | SS-7090610-SP | SCREW 9/64-40 L=6 | 2 |
| 58 | 135-40505 | DRIVING BAR A | 1 |
| 59 | SD-0900701-TP | HINGE SCREW D=9 H=7 | 1 |
| 60 | 135-40406 | WASHER | 1 |
| 61 | 135-40307 | LEVER | 1 |
| 62 | 135-40208 | LINK | 1 |
| 63 | SD-0640321-SP | HINGE SCREW D=6.35 H=3.2 | 1 |
| 64 | 135-40109 | STOP-MOTION REGULATING ARM B | 1 |
| 65 | SD-0640241-SP | HINGE SCREW D=6.35 H=2.4 | 1 |
| 66 | 135-41800 | FEED CAM | 1 |
| 67 | 135-38301 | STOP-MOTION REGULATING CAM | 1 |
| 68 | 135-47807 | FEED STOP WASHER | 1 |
| 69 | SS-6090510-SP | SCREW 9/64-40 L=5 | 1 |
| 70 | NS-6090310-SP | NUT 9/64-40 | 1 |
REF.NO NOTE PART NO DESCRIPTION 品 名 Qty 1 135-10862 WORM ASM. ウォーム クミ 1 2 SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネジ 11/64-40 L=14 (4) 3 135-10953 FEED CAM DRIVING WHEEL ASM. ウォームハグルマ クミ 1 4 135-41750 FINGER GUARD ASM. オサエバネケイタ ウエ クミ 1 5 SS-7111120-SP SCREW 11/64-40 L=10.5 マルヒラネジ 11/64-40 L=10.5 1 6 135-40752 WORK CLAMP FOOT BRACKET ASM. ツマミソーチ クミ (1) 7 135-41206 WORK CLAMP FOOT PLATE COVER オサエイタカバー (1) 8 SS-7110840-SP SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 (2) 9 135-41404 WORK CLAMP FOOT LIFTING PLATE オサエアゲ サドーイタ (1) 10 SS-9151120-CP SCREW 15/64-28 L=11 ロツカクボルト 15/64-28 L=11 (2) 11 WP-0612516-SD WASHER 6.1X15.2X2.5 ヒラザガネ 6.1X15.2X2.5 (2) 12 D2529-232-D00 PRESSER SPRING オシバネ (1) 13 #01 D2545-232-D0A HINGE SCREW イタカム ヒツパリイタ トメ ダンネジ (2) 14 D2513-232-DA0 BRACKET GUIDE ASM. イタカム ヒツパリイタ クミ (1) 15 NS-6110530-SP NUT 11/64-40 ロツカクナット 11/64-40 (1) 16 D2509-232-D00 STATIONING LATCH ヒツパリイタ コテイフツク (1) 17 D2512-232-D00 TORSION SPRING コテイフツク カエシバネ (1) 18 D2511-232-D00 SCREW コテイフツク トリツケネジ (1) 19 D2504-282-AB0-A KNOB FOOT MOUNT BASE ASM. ツマミアシトリツケダイクミ (1) 20 D2502-232-D00 SHAFT BLOCK SHAFT ツマミソーチ トリツケジク (1) 21 RE-0700000-K0 E-RING 7 Eガタトメワ 7 (2) 22 SS-9110920-CP SCREW 11/64-40 L=9 ロツカクボルト 11/64-40 L=9 (1) 23 D2516-232-DA0 WORK CLAMP FOOT REGULATOR ツマミリヨー チョーセツイタ クミ (1) 24 D2528-232-D00 SHAFT オサエバネ チョーセツジク (1) 25 D2527-232-D00 SLEEVE オサエバネ ササエイパイプ (1) 26 B3117-352-000 THREAD TENSION POST NUT イトチョーシナット (2) 27 D2515-232-D00 TORSION SPRING イタカム ヒツパリイタ カエシバネ (1) 28 SS-7110840-SP SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 (2) 29 135-41107 WORK CLAMP FOOT SPRING HOLDER バネウケイタシタ (1) 30 135-41057 CLAMP GUIDE FOOT ASM. ガイドアシ クミ (1) 31 D2520-232-DA0 WORK CLAMP FOOT(LEFT)ASM. ツマミアシ ヒダリ クミ (1) 32 SS-7110550-TP SCREW 11/64-40 L=5.5 サラネジ 11/64-40 L=5.5 (2) 33 D2521-232-DA0 WORK CLAMP FOOT(RIGHT)ASM. ツマミアシ ミギ クミ (1) 34 SD-0550271-TP HINGE SCREW D=5.50 H=2.7 ダンネジ D=5.5 H=2.7 (2) 35 D2519-232-D00 WORK CLAMP FOOT PLATE CAM ツマミアシ イタカム (1) 36 NS-6120480-SP NUT 3/16-28 ロツカクナット 3/16-28 (2) 37 135-41503 FEED PLATE アナカンヨウ オサエイタ (1) 38 SS-9110460-CP SCREW 11/64-40 L=4 ロツカクボルト 11/64-40 L=4 (1) 39 WP-0501016-SD WASHER 5X10.5X1 ヒラザガネ 5X10.5X1 (1) 40 SS-9110460-CP SCREW 11/64-40 L=4 ロツカクボルト 11/64-40 L=4 (2) 41 135-40802 SHAFT BRACKET BASE シンチユウトリツケイタ (1) 42 135-40901 STATIONING BLOCK SHAFT ヨコフリ レバーシチュウ (1) 43 D2548-232-D00 SNAP RING,FOR CONNECTING ROD ヨコフリ ボーシ ハシラ トメワ (1) 44 D2507-232-D00 STATIONING BLOCK ヨコフリ ボーシ カクゴマ (1) 45 NS-6150310-SP NUT 15/64-28 ロツカクナット 15/64-28 (1) 46 SS-9151120-CP SCREW 15/64-28 L=11 ロツカクボルト 15/64-28 L=11 (1) 47 WP-0612516-SD WASHER 6.1X15.2X2.5 ヒラザガネ 6.1X15.2X2.5 (1) 48 135-40703 WORK CLAMP FOOT BRACKET ASM. ツマミソーチ トリツケダイ (1) 49 SM-6060802-TP SCREW M6 L=8 ロツカクアナボルト M6 L=8 (1) 50 WP-0612066-SP WASHER 6.1X11X2 ヒラザガネ 6.1X11X2 (1) 51 135-41313 CONNECTING ARM レンドウレンケツウデ 1 52 SM-6061802-TP SCREW M6 L=18 ロツカクアナボルト 1 53 SD-1201501-SP HINGE SCREW D=12 H=15 ダンネジ D=12 H=15 1 54 WP-0651056-SH WASHER 6.5X11X1 ヒラザガネ 6.5X11X1 1 55 135-40604 DRIVING BAR B レンケツボー B 1 56 PD-0201000-0B SPLIT PIN ワリピン 2X10 2 57 SS-7090610-SP SCREW 9/64-40 L=6 マルヒラネジ 9/64-40 L=6 2 58 135-40505 DRIVING BAR A レンケツボー A 1 59 SD-0900701-TP HINGE SCREW D=9 H=7 ダンネジ D=9 N=7 1 60 135-40406 WASHER ヒツパリレバー ザガネ 1 61 135-40307 LEVER ヒツパリレバー 1 62 135-40208 LINK ヒツパリリンク 1 63 SD-0640321-SP HINGE SCREW D=6.35 H=3.2 ダンネジ D=6.35 H=3.2 1 64 135-40109 STOP-MOTION REGULATING ARM B シャダン セイギヨウデ B 1 65 SD-0640241-SP HINGE SCREW D=6.35 H=2.4 ダンネジ D=6.35 H=2.4 1 66 135-41800 FEED CAM フィードカム 1 67 135-38301 STOP-MOTION REGULATING CAM シャダン セイギヨカム 1 68 135-47807 FEED STOP WASHER オクリストツパ ザガネ 1 69 SS-6090510-SP SCREW 9/64-40 L=5 ヒラネジ 9/64-40 L=5 1 70 NS-6090310-SP NUT 9/64-40 ロツカクナット 9/64-40 1 NOTE(注記) #01....SELECTIVE PARTS 選択部品 ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850標準機種と同じです。 - 24 - jintex.in
Page 30
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 135-10862 | WORM ASM. | 1 |
| 2 | SS-7111410-TP | SCREW 11/64-40 L=14 | (4) |
| 3 | 135-42402 | WORK CLAMP FOOT, RIGHT | 1 |
| 4 | 135-42501 | WORK CLAMP FOOT, LEFT | 1 |
| 5 | 135-42303 | FEED PLATE | 1 |
| 6 | 135-41800 | FEED CAM | 1 |
| 7 | 135-38301 | STOP-MOTION REGULATING CAM | 1 |
| 8 | 135-10953 | FEED CAM DRIVING WHEEL ASM. | 1 |
| 9 | 135-10862 | WORM ASM. | 1 |
| 10 | SS-7111410-TP | SCREW 11/64-40 L=14 | (4) |
| 11 | 135-42915 | WORK CLAMP FOOT, RIGHT | 1 |
| 12 | 135-43012 | WORK CLAMP FOOT, LEFT | 1 |
| 13 | 135-42816 | CLOTH PRESSER PLATE | 1 |
| 14 | D2426-282-C00 | NEEDLE HOLE GUIDE | 1 |
| 15 | MDP-500B1100 | NEEDLE DPX5 #11 | 1 |
| 16 | MC-2005007-50 | NEEDLE 134 NM75 | 1 |
| 17 | 135-42709 | FEED CAM | 1 |
| 18 | 135-38301 | STOP-MOTION REGULATING CAM | 1 |
| 19 | 135-10953 | FEED CAM DRIVING WHEEL ASM. | 1 |
| 20 | 135-10862 | WORM ASM. | 1 |
| 21 | SS-7111410-TP | SCREW 11/64-40 L=14 | (4) |
| 22 | 135-10953 | FEED CAM DRIVING WHEEL ASM. | 1 |
| 23 | 135-43202 | FEED CAM | 1 |
| 24 | 135-38301 | STOP-MOTION REGULATING CAM | 1 |
(2) LK-1852-2 (4) LK-1852-5 (3) LK-1852-3 REF.NO NOTE PART NO DESCRIPTION Qty 1 135-10862 WORM ASM. 1 2 SS-7111410-TP SCREW 11/64-40 L=14 (4) 3 135-42402 WORK CLAMP FOOT, RIGHT 1 4 135-42501 WORK CLAMP FOOT, LEFT 1 5 135-42303 FEED PLATE 1 6 135-41800 FEED CAM 1 7 135-38301 STOP-MOTION REGULATING CAM 1 8 135-10953 FEED CAM DRIVING WHEEL ASM. 1 9 135-10862 WORM ASM. 1 10 SS-7111410-TP SCREW 11/64-40 L=14 (4) 11 135-42915 WORK CLAMP FOOT, RIGHT 1 12 135-43012 WORK CLAMP FOOT, LEFT 1 13 135-42816 CLOTH PRESSER PLATE 1 14 D2426-282-C00 NEEDLE HOLE GUIDE 1 15 MDP-500B1100 NEEDLE DPX5 #11 1 16 MC-2005007-50 NEEDLE 134 NM75 1 17 135-42709 FEED CAM 1 18 135-38301 STOP-MOTION REGULATING CAM 1 19 135-10953 FEED CAM DRIVING WHEEL ASM. 1 20 135-10862 WORM ASM. 1 21 SS-7111410-TP SCREW 11/64-40 L=14 (4) 22 135-10953 FEED CAM DRIVING WHEEL ASM. 1 23 135-43202 FEED CAM 1 24 135-38301 STOP-MOTION REGULATING CAM 1 NOTE(注記) ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850標準機種と同じです。 - 25 - jintex.in
Page 31
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| MDP-500B2100 | NEEDLE DPX5 #21 | 1 | |
| 135-19004 | TENSION SPRING | 1 | |
| 135-43202 | FEED CAM | 1 | |
| 135-10862 | WORM ASM. | 1 | |
| SS-7111410-TP | SCREW 11/64-40 L=14 | (4) | |
| 135-38301 | STOP-MOTION REGULATING CAM | 1 | |
| 135-10953 | FEED CAM DRIVING WHEEL ASM. | 1 | |
| D1818-282-N00 | SHUTTLE | 1 | |
| D1817-282-N00 | SHUTTLE RACE RING, THICK NEEDL | 1 | |
| B2426-280-00C | NEEDLE PLATE NEEDLE HOLE GUIDE | 1 | |
| B2302-205-0A0 | TENSION CONTROLLER NO.2 ASM. | 1 | |
| D3112-L4B-B00 | TAKE-UP SPRING (HEAVY) | (1) | |
| B3129-053-000 | TENSION SPRING | (1) | |
| 135-10862 | WORM ASM. | 1 | |
| SS-7111410-TP | SCREW 11/64-40 L=14 | (4) | |
| 135-10953 | FEED CAM DRIVING WHEEL ASM. | 1 | |
| 135-64901 | FEED CAM 1852-210 | 1 | |
| 135-38301 | STOP-MOTION REGULATING CAM | 1 |
(5) LK-1852-7 (6) LK-1852-210 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 REF.NO 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 NOTE PART NO. MDP-500B2100 135-19004 135-43202 135-10862 SS-7111410-TP 135-38301 135-10953 D1818-282-N00 D1817-282-N00 B2426-280-00C B2302-205-0A0 D3112-L4B-B00 B3129-053-000 135-10862 SS-7111410-TP 135-10953 135-64901 135-38301 DESCRIPTION NEEDLE DPX5 #21 TENSION SPRING FEED CAM WORM ASM. SCREW 11/64-40 L=14 STOP-MOTION REGULATING CAM FEED CAM DRIVING WHEEL ASM. SHUTTLE SHUTTLE RACE RING, THICK NEEDL NEEDLE PLATE NEEDLE HOLE GUIDE TENSION CONTROLLER NO.2 ASM. TAKE-UP SPRING (HEAVY) TENSION SPRING WORM ASM. SCREW 11/64-40 L=14 FEED CAM DRIVING WHEEL ASM. FEED CAM 1852-210 STOP-MOTION REGULATING CAM 品 名 Qty ハリ DPX5 #21 1 ヌノサエバネ 1 ヌノオクリカム 1 ウォーム クミ 1 マルヒラネジ 11/64-40 L=14 (4) シヤダン セイギヨカム 1 ウォームハグルマ クミ 1 ナカガマ (フトハリ ヨウ) 1 ナカガマ オサエ (フトハリ ヨウ) 1 ハリ アナガイド 1 フイトイヨウ タイ2 イドチョウシ ケツゴウ 1 イトトリバネ (キヤントツン) (1) イトチョーシバネ (1) ウォーム クミ 1 マルヒラネジ 11/64-40 L=14 (4) ウォームハグルマ クミ 1 ヌノオクリカム 1952-210 1 シヤダン セイギヨカム 1 - 26 - jintex.in
Page 32
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | Lever | ||
| 2 | Base | ||
| 3 | Bracket | ||
| 4 | Screw | ||
| 5 | Plate | ||
| 6 | Lever | ||
| 7 | Shaft | ||
| 8 | Roller | ||
| 9 | Screw | ||
| 10 | Bracket | ||
| 11 | Screw | ||
| 12 | Screw | ||
| 13 | Shaft | ||
| 14 | Screw | ||
| 15 | Lever | ||
| 16 | Screw | ||
| 17 | Spring | ||
| 18 | Screw | ||
| 19 | Shaft | ||
| 20 | Screw | ||
| 21 | Knob | ||
| 22 | Base | ||
| 23 | Bracket | ||
| 24 | Nut | ||
| 25 | Lever | ||
| 26 | Screw | ||
| 27 | Roller | ||
| 28 | Screw | ||
| 29 | Gear | ||
| 30 | Shaft Assembly | ||
| 31 | Screw | ||
| 32 | Nut | ||
| 33 | Screw | ||
| 34 | Screw | ||
| 35 | Spring | ||
| 36 | Spring | ||
| 37 | Lever | ||
| 38 | Screw | ||
| 39 | Screw | ||
| 40 | Screw | ||
| 41 | Lever | ||
| 42 | Screw | ||
| 43 | Screw | ||
| 44 | Lever | ||
| 45 | Wheel | ||
| 46 | Washer | ||
| 47 | Cover | ||
| 48 | Base | ||
| 49 | Plate | ||
| 50 | Screw | ||
| 51 | Washer | ||
| 52 | Screw | ||
| 53 | Lever | ||
| 54 | Base | ||
| 55 | Spring |
(7) LK-1852-20 - 27 - jintex.in
Page 33
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 135-44416 | CLOTH PRESSER FOOT | 1 | |
| 135-43764 | CLOTH FEED BASE ASM. | 1 | |
| 135-44465 | CLOTH PRESSER FOOT ASM. | (1) | |
| SS-7120910-SP | SCREW 3/16-28 L=9 | (4) | |
| 135-44614 | CLOTH FEED BASE COVER | (1) | |
| 135-43715 | CLOTH FEED BASE | (1) | |
| B2539-280-000 | STUD | (1) | |
| CS-087101B-SH | THRUST COLLAR ASM. D=8.73 W=10 | (1) | |
| SS-8150822-TP | SCREW 15/64-28 L=8 | (2) | |
| 135-43806 | BALL HOLDER | (1) | |
| SS-7151210-SP | SCREW 15/64-28 L=12 | (1) | |
| B2549-280-000 | WORK CLAMP FOOT MOUNTING BASE | (7) | |
| B2548-280-000 | BALL RETAINER | (1) | |
| SS-7110740-TP | SCREW 11/64-40 L=7 | (1) | |
| 135-43905 | SPRING SUSPENSION | (1) | |
| SS-6120940-SP | SCREW 3/16-28 L=9 | (2) | |
| 135-44705 | SPRING | (1) | |
| B3413-552-000 | SUSPENSION SCREW | (1) | |
| 135-44051 | LIFTING LEVER ASM. | (1) | |
| SS-8150822-TP | SCREW 15/64-28 L=8 | (2) | |
| 135-10953 | FEED CAM DRIVING WHEEL ASM. | 1 | |
| 400-38080 | TEREAD GUIDE BRACKET ASM. | (1) | |
| 262-03406 | THREAD GUIDE BRACKET | (1) | |
| NS-6110310-SP | NUT 11/64-40 | (1) | |
| 400-38078 | THREAD GUIDE | (1) | |
| 262-16705 | BOBBIN WINDER TENSION POST | (1) | |
| 229-45802 | THREAD TENSION DISK | (2) | |
| 262-16606 | BOBBIN WINDER TENSION SPRING | (1) | |
| 262-16507 | BOBBIN WINDER TENSION NUT | (1) | |
| 135-10862 | WORM ASM. | 1 | |
| SS-7111410-TP | SCREW 11/64-40 L=14 | (4) | |
| NS-6150540-SP | NUT 15/64-28 | 1 | |
| SS-2110930-SP | SCREW 11/64-40 L=8.7 | 4 | |
| 135-43509 | FEED PLATE HOLDER | 1 | |
| 400-60887 | CAHIN | 1 | |
| 131-60304 | S SHAPED HOOK | 2 | |
| 135-44952 | PEDAL LEVER ASM. | 1 | |
| 135-44903 | PEDAL SHAFT | (1) | |
| WP-1021016-SD | PEDAL | (1) | |
| RE-0900000-KO | E-RING 9 | (1) | |
| 135-45009 | PEDAL SHAFT BRACKET | (2) | |
| SK-3483200-SE | WOOD SCREW D=4.8 L=32 | (4) | |
| SS-6661110-SP | SCREW 1/4-40 L=11 | (2) | |
| 135-45157 | PEDAL LEVER ASM. (BELT LOOP) | (1) | |
| 135-45306 | FEED CAM | 1 | |
| 135-38301 | STOP-MOTION REGULATING CAM | 1 | |
| 135-43608 | FEED PLATE | 1 | |
| 400-52815 | SAFETY PLATE ASM. | 1 | |
| 138-89407 | SAFETY PLATE | (1) | |
| SM-4040655-SP | SCREW M4 L=6 | (2) | |
| WP-0450801-SD | WASHER 4.5X10X0.8 | (2) | |
| SS-4110715-SP | SCREW 11/64-40 L=7 | (2) | |
| 400-52810 | SAFETY PLATE INSTALLING BASE | (1) | |
| 135-09401 | TABLE (FOR BELT LOOP) | 1 | |
| 135-22503 | TENSION SPRING | 1 |
REF.NO NOTE PART NO DESCRIPTION 品 名 Qty 1 135-44416 CLOTH PRESSER FOOT ヌノオサエアシ 1 2 135-43764 CLOTH FEED BASE ASM. ヌノオクリダイ クミ 1 3 135-44465 CLOTH PRESSER FOOT ASM. ヌノオサエアシ クミ (1) 4 SS-7120910-SP SCREW 3/16-28 L=9 マルヒラネジ 3/16-28 L=9 (4) 5 135-44614 CLOTH FEED BASE COVER ヌノクリダイフタ (1) 6 135-43715 CLOTH FEED BASE ヌノオクリダイ (1) 7 B2539-280-000 STUD オサエアゲ レバー ジク (1) 8 CS-087101B-SH THRUST COLLAR ASM. D=8.73 W=10 スラストコウケ D=8.73 W=10 クミ (1) 9 SS-8150822-TP SCREW 15/64-28 L=8 トメネジ 15/64-28 L=8 (2) 10 135-43806 BALL HOLDER ヌノオクリダイ ボールウケダイ (1) 11 SS-7151210-SP SCREW 15/64-28 L=12 マルヒラネジ 15/64-28 L=12 (1) 12 B2549-280-000 WORK CLAMP FOOT MOUNTING BASE ヌノオクリダイ ボール (7) 13 B2548-280-000 BALL RETAINER ヌノオクリダイ ボールウケ (1) 14 SS-7110740-TP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 (1) 15 135-43905 SPRING SUSPENSION ヒラサエバネカケ (1) 16 SS-6120940-SP SCREW 3/16-28 L=9 ヒラネジ 3/16-28 L=9 (2) 17 135-44705 SPRING サエバネ (1) 18 B3413-552-000 SUSPENSION SCREW ゲ リンクウデ バネカケ ウデ (1) 19 135-44051 LIFTING LEVER ASM. サエアゲ レバー クミ (1) 20 SS-8150822-TP SCREW 15/64-28 L=8 トメネジ 15/64-28 L=8 (2) 21 135-10953 FEED CAM DRIVING WHEEL ASM. ウオーム ハグルマ クミ 1 22 400-38080 TEREAD GUIDE BRACKET ASM. イトマキイトアンナイケイケツゴウ (1) 23 262-03406 THREAD GUIDE BRACKET イトマキイトアンナイ (1) 24 NS-6110310-SP NUT 11/64-40 ロツカクナット 11/64-40 (1) 25 400-38078 THREAD GUIDE イトマキイトアンナイ (バンドンヨウ) (1) 26 262-16705 BOBBIN WINDER TENSION POST イトマキイトチョウシボウ (1) 27 229-45802 THREAD TENSION DISK ダイイチチョウシザラ (2) 28 262-16606 BOBBIN WINDER TENSION SPRING イトマキイトチョウシバネ (1) 29 262-16507 BOBBIN WINDER TENSION NUT イトマキイトチョウシツマミ (1) 30 135-10862 WORM ASM. ウオーム クミ 1 31 SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネジ 11/64-40 L=14 (4) 32 NS-6150540-SP NUT 15/64-28 ロツカクナット 15/64-28 1 33 SS-2110930-SP SCREW 11/64-40 L=8.7 マルサラネジ 11/64-40 L=8.7 4 34 135-43509 FEED PLATE HOLDER ヌノオクリケイタ 1 35 * 400-60887 CAHIN ククリ 1 36 131-60304 S SHAPED HOOK S ガタナカグナ 2 37 135-44952 PEDAL LEVER ASM. ペダルレバー クミ 1 38 135-44903 PEDAL SHAFT キドーペダルジク (1) 39 WP-1021016-SD PEDAL ペダル 10.2X18X1 (1) 40 RE-0900000-KO E-RING 9 E ガタトメワ 9 (1) 41 135-45009 PEDAL SHAFT BRACKET ペダルジク ジクウケ (2) 42 SK-3483200-SE WOOD SCREW D=4.8 L=32 マルモクネジ D=4.8 L=32 (4) 43 SS-6661110-SP SCREW 1/4-40 L=11 ヒラネジ 1/4-40 L=11 (2) 44 135-45157 PEDAL LEVER ASM. (BELT LOOP) キドーペダルレバー クミ (1) 45 135-45306 FEED CAM クリカム (1852-10) 1 46 135-38301 STOP-MOTION REGULATING CAM シヤダン セイギヨカム 1 47 135-43608 FEED PLATE ヌノオサエシタイタ 1 48 400-52815 SAFETY PLATE ASM. アンゼンプレート (クミ) ヨコオキヨウ 1 49 138-89407 SAFETY PLATE アンゼンプレート (1) 50 SM-4040655-SP SCREW M4 L=6 ナベコネジ M4 L=6 (2) 51 WP-0450801-SD WASHER 4.5X10X0.8 ヒラサガネ 4.5X10X0.8 (2) 52 SS-4110715-SP SCREW 11/64-40 L=7 ナベネジ 11/64-40 L=7 (2) 53 400-52810 SAFETY PLATE INSTALLING BASE アンゼンプレートトリツケダイ (ヨコオキヨウ) (1) 54 135-09401 TABLE (FOR BELT LOOP) ハンドループ テーブル 1 55 135-22503 TENSION SPRING ヒツパリバネ B 1 NOTE(注記) ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850 標準機種 と同じです。 - 28 - jintex.in
Page 34 — LK-1852-30
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 135-10953 | FEED CAM DRIVING WHEEL ASM. | |
| 2 | 135-10862 | WORM ASM. | |
| 3 | SS-7111410-TP | SCREW 11/64-40 L=14 | |
| 4 | 135-45611 | CLOTH PRESSER FOOT | |
| 5 | 135-51569 | CLOTH FEED BASE (ASM.) | |
| 6 | 135-45660 | WORK CLAMP FOOT ASM. | |
| 7 | 400-38080 | THREAD GUIDE BRACKET ASM. | |
| 8 | 400-38078 | THREAD GUIDE | |
| 9 | 135-45504 | FEED PLATE | |
| 10 | SS-2110930-SP | SCREW 11/64-40 L=8.7 | |
| 11 | 135-43509 | FEED PLATE HOLDER | |
| 12 | NS-6150540-SP | NUT 15/64-28 | |
| 13 | 400-52815 | SAFETY PLATE ASM. | |
| 14 | 135-09401 | TABLE (FOR BELT LOOP) | |
| 15 | 135-54100 | FEED CAM | |
| 16 | 135-54100 | FEED CAM | |
| 17 | 135-38301 | STOP-MOTION REGULATING CAM | |
| 18 | 135-44952 | PEDAL LEVER ASM. | |
| 19 | 400-60887 | CAHIN | |
| 20 | 131-60304 | S SHAPED HOOK | |
| 21 | 135-22503 | TENSION SPRING |
(8) LK-1852-30 REF.NO NOTE PART NO DESCRIPTION 1 135-10953 FEED CAM DRIVING WHEEL ASM. 2 135-10862 WORM ASM. 3 SS-7111410-TP SCREW 11/64-40 L=14 4 135-45611 CLOTH PRESSER FOOT 5 135-51569 CLOTH FEED BASE (ASM.) 6 135-45660 WORK CLAMP FOOT ASM. 7 #01 400-38080 THREAD GUIDE BRACKET ASM. 8 400-38078 THREAD GUIDE 9 135-45504 FEED PLATE 10 #01 SS-2110930-SP SCREW 11/64-40 L=8.7 11 #01 135-43509 FEED PLATE HOLDER 12 #01 NS-6150540-SP NUT 15/64-28 13 400-52815 SAFETY PLATE ASM. 14 135-09401 TABLE (FOR BELT LOOP) 15 135-54100 FEED CAM 16 #02 135-54100 FEED CAM 17 135-38301 STOP-MOTION REGULATING CAM 18 #01 135-44952 PEDAL LEVER ASM. 19 * #01 400-60887 CAHIN 20 #01 131-60304 S SHAPED HOOK 21 135-22503 TENSION SPRING NOTE(注記) #01...THE PARTS ARE THE SAME AS THOSE FOR LK-1852-20. #02...SPECIAL ORDER PART ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 品 名 ウオームハグルマ クミ ウオーム クミ マルヒラネジ 11/64-40 L=14 ヌノオクリダイ (クミ) ヌノオクリダイ (クミ) ヌノオクリダイ (クミ) イトマキイトアンナイダイケツゴウ イトマキイトアンナイ (バンドカンヨウ) フィードプレート マルサラネジ 11/64-40 L=8.7 フィードプレート ホルダ ロッカクナット 15/64-28 アンゼンプレート (クミ) ヨコオキヨウ バンドループ テーブル ヌノオクリカム ヌノオクリカム シャダン セイギヨカム ペダルレバー クミ クサイ S ガタカナグ ヒツパリハネ B この部品はLK-1852-20 と同じです。 特別注文部品 上記以外の部品は、LK-1850標準機と 同じです。 Qty 1 1 (4) 1 1 1 (1) (1) 1 1 1 1 1 1 1 1 1 1 2 1 - 29 - jintex.in
Page 35
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 135-47500 | STOP-MOTION SPRING | (1) | |
| 135-45959 | PEDAL TYPE PRESSER ASM. | (1) | |
| 135-45967 | PEDAL TYPE PRESSER ASM. | (1) | |
| 135-46007 | LOWERING LEVER | (1) | |
| NS-6110350-SP | NUT 11/64-40 | (4) | |
| 135-46106 | LOWERING LINK | (1) | |
| 135-46205 | LOWERING CONNECTING PLATE | (1) | |
| SD-0640324-TP | HINGE SCREW D= 6.35 H= 3.2 | (2) | |
| 135-45900 | INSTALLING BASE | (1) | |
| NS-6110310-SP | NUT 11/64-40 | (1) | |
| B1649-161-000 | TENSION SPRING ADJUSTING SCREW | (1) | |
| 135-21307 | TENSION SPRING | (1) | |
| SD-0640801-TP | HINGE SCREW D= 6.35 H= 8.0 | (1) | |
| B2007-372-000 | NiPPER BAR SPRING SCREW | (1) | |
| SS-9151210-TP | SCREW 15/64-28 L=11.8 | (1) | |
| SD-0640801-TP | HINGE SCREW D= 6.35 H= 8.0 | (1) | |
| 135-46403 | PULLEY SHAFT | (1) | |
| RC-1831018-K0 | RETAINING RING | (2) | |
| SB-1090002-00 | BALL BEARING | (2) | |
| 135-47401 | PULLEY SHAFT COLLAR | (2) | |
| SS-6121030-SP | SCREW 3/16-28 L=10 | (1) | |
| 135-46502 | PULLEY BUSHING | (1) | |
| 135-25308 | IDLER PULLEY INSTALLING PLATE | (1) | |
| SS-6110810-TP | SCREW 11/64-40 L=8 | (3) | |
| 135-23204 | DRIVING PULLEY | (1) | |
| SS-8150822-TP | SCREW 15/64-28 L=8 | (2) | |
| 131-60304 | S SHAPED HOOK | 1 | |
| 260-37903 | CHAIN | 1 | |
| 135-46601 | SAFETY PLATE | 1 | |
| 135-05904 | BELT COVER | 1 | |
| 138-17754 | Z-STAND PEDAL ASM. | (1) | |
| SM-9061203-SE | SCREW M6 L=12 | (2) | |
| WS-0621210-KR | SPRING WASHER 6.2X11.4X1.2 | (2) | |
| WP-0671016-SE | WASHER 6.7X13X1 | (2) | |
| B8125-260-000 | PEDAL ADJUSTING PLATE | (2) | |
| SM-9082023-SE | SCREW M8 L=20 | (2) | |
| WS-0861410-KR | SPRING WASHER 8.7X18X1.6 | (4) | |
| WP-0871602-SE | WASHER 8.7X18X1.6 | (2) | |
| NM-6080721-SE | NUT M8 | (2) | |
| D8114-555-B0E | PEDAL SHAFT BRACKET | (1) | |
| B8151-771-000 | PEDAL | (1) | |
| B8152-771-000 | PEDAL MAT | (1) | |
| B8153-771-000 | PEDAL CONNECTING ROD | (1) | |
| D8113-555-B00 | PEDAL BUSHING | (2) |
(9) LK-1850-P REF NO NOTE PART NO DESCRIPTION 品 名 Qty 1 135-47500 STOP-MOTION SPRING ヒヤハリバネ (1) 2 135-45959 PEDAL TYPE PRESSER ASM. オシサゲソーチ クミ (1) 3 135-45967 PEDAL TYPE PRESSER ASM. オシサゲソーチ クミ (1) 4 135-46007 LOWERING LEVER P ヨウ オシサゲレバー (1) 5 NS-6110350-SP NUT 11/64-40 ロツカクナツト 11/64-40 (4) 6 135-46106 LOWERING LINK オシサゲ アンゼンイタリンク (1) 7 135-46205 LOWERING CONNECTING PLATE オシサゲ アンゼンレンケツケイタ (1) 8 SD-0640324-TP HINGE SCREW D= 6.35 H= 3.2 ダンネジ D= 6.35 H= 3.2 (2) 9 135-45900 INSTALLING BASE オシサゲソーチ トリツケダイ (1) 10 NS-6110310-SP NUT 11/64-40 ロツカクナツト 11/64-40 (1) 11 B1649-161-000 TENSION SPRING ADJUSTING SCREW ヒヤハリバネ チヨーセツネジ (1) 12 135-21307 TENSION SPRING キドーレバー ヒツハリバネ (1) 13 SD-0640801-TP HINGE SCREW D= 6.35 H= 8.0 ダンネジ D= 6.35 H= 8 (1) 14 B2007-372-000 NiPPER BAR SPRING SCREW ニツパバネ ネジ (1) 15 SS-9151210-TP SCREW 15/64-28 L=11.8 ロツカクボルト 15/64-28 L=11.8 (1) 16 SD-0640801-TP HINGE SCREW D= 6.35 H= 8.0 ダンネジ D= 6.35 H= 8 (1) 17 135-46403 PULLEY SHAFT プーリジク (1) 18 RC-1831018-K0 RETAINING RING C ガタトメワ (2) 19 SB-1090002-00 BALL BEARING ベアリング D= 9 X 17 (2) 20 135-47401 PULLEY SHAFT COLLAR プーリジクカラー (2) 21 SS-6121030-SP SCREW 3/16-28 L=10 ヒラネジ 3/16-28 L=10 (1) 22 135-46502 PULLEY BUSHING プーリジクウケ (1) 23 135-25308 IDLER PULLEY INSTALLING PLATE アイドラ プーリ トツケイタ (1) 24 SS-6110810-TP SCREW 11/64-40 L=8 ヒラネジ 11/64-40 L=8 (3) 25 135-23204 DRIVING PULLEY ケイゲンブーリ (1) 26 SS-8150822-TP SCREW 15/64-28 L=8 トメネジ 15/64-28 L=8 (2) 27 131-60304 S SHAPED HOOK S ガタカケツ 1 28 260-37903 CHAIN チェーン 1 29 135-46601 SAFETY PLATE キドーアンゼンイタ 1 30 135-05904 BELT COVER P ヨウベルトカバー 1 31 #01 138-17754 Z-STAND PEDAL ASM. Z キヤクヨウ ペダル (ケツコウ) (1) 32 SM-9061203-SE SCREW M6 L=12 ロツカクボルト M6 L=12 (2) 33 WS-0621210-KR SPRING WASHER 6.2X11.4X1.2 バネザガネ 6.2 X 11.4 X 1.2 (2) 34 WP-0671016-SE WASHER 6.7X13X1 ワガネ 6.7 X 13 X 1 (2) 35 B8125-260-000 PEDAL ADJUSTING PLATE フミイタ チヨーセツケイタ (2) 36 SM-9082023-SE SCREW M8 L=20 ロツカクボルト M8 L=20 (2) 37 WS-0861410-KR SPRING WASHER 8.7X18X1.6 バネザガネ 8.7 X 18 X 1.6 (4) 38 WP-0871602-SE WASHER 8.7X18X1.6 ワガネ 8.7 X 18 X 1.6 (2) 39 NM-6080721-SE NUT M8 ロツカクナツト M8 (2) 40 D8114-555-B0E PEDAL SHAFT BRACKET フミイタジク ウケイタ (1) 41 B8151-771-000 PEDAL Z キヤクヨー ペダル (1) 42 B8152-771-000 PEDAL MAT ペダルマット (1) 43 B8153-771-000 PEDAL CONNECTING ROD ペダルジク (1) 44 D8113-555-B00 PEDAL BUSHING フミイタ ブツシユ (2) NOTE (注記) #01...THIS PART IS USED FOR A MACHINE この部品は脚付きの場合 使用します。 WITH TABLE. ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 上記以外の部品は、LK-1850標準機種と同じです。 STANDARD MODEL. - 30 - jintex.in
Page 36 — FIG. 10 LK-1852P-20
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 135-10953 | FEED CAM DRIVING WHEEL ASM. | 1 | |
| 135-10862 | WORM ASM. | 1 | |
| SS-7111410-TP | SCREW 11/64-40 L=14 | (4) | |
| 135-44416 | CLOTH PRESSER FOOT | 1 | |
| 135-43764 | CLOTH FEED BASE ASM. | 1 | |
| 135-44465 | CLOTH PRESSER FOOT ASM. | (1) | |
| 135-45306 | FEED CAM | 1 | |
| 135-38301 | STOP-MOTION REGULATING CAM | 1 | |
| 135-47500 | STOP-MOTION SPRING | 1 | |
| 135-46601 | SAFETY PLATE | 1 | |
| 135-45959 | PEDAL TYPE PRESSER ASM. | 1 | |
| 135-43608 | FEED PLATE | 1 | |
| NS-6150540-SP | NUT 15/64-28 | 1 | |
| 135-43009 | FEED PLATE HOLDER | 1 | |
| SS-2110930-SP | SCREW 11/64-40 L=8.7 | 4 | |
| 135-47658 | PEDAL SHAFT ASM. | 1 | |
| 135-09401 | TABLE (FOR BELT LOOP) | 1 | |
| 400-38080 | TEREAD GUIDE BRACKET ASM. | 1 | |
| 400-38078 | FEED GUIDE | (1) | |
| D8103-984-K00 | CHAIN | 1 | |
| 135-05904 | BELT COVER | 1 | |
| 131-60304 | S SHAPED HOOK | 4 | |
| 400-60887 | CAHIN | 1 | |
| 135-44952 | PEDAL LEVER ASM. | 1 | |
| 135-45315 | SAFETY PLATE ASM. | 1 | |
| 138-17754 | Z-STAND PEDAL ASM. | 1 |
(10) LK-1852P-20 REF.NO NOTE PART NO DESCRIPTION 品 名 Qty 1 135-10953 FEED CAM DRIVING WHEEL ASM. フィードカムクルマ クミ 1 2 135-10862 WORM ASM. ウォーム クミ 1 3 SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネジ 11/64-40 L=14 (4) 4 135-44416 CLOTH PRESSER FOOT ヌノオサエアシ 1 5 135-43764 CLOTH FEED BASE ASM. ヌノオサエダイ クミ 1 6 135-44465 CLOTH PRESSER FOOT ASM. ヌノオサエアシ クミ (1) 7 135-45306 FEED CAM フィードカム (1852-10) 1 8 135-38301 STOP-MOTION REGULATING CAM シャダン セイギヨカム 1 9 #01 135-47500 STOP-MOTION SPRING シャダン ヒツパリバネ 1 10 #01 135-46601 SAFETY PLATE キドーアンゼンイタ 1 11 #01 135-45959 PEDAL TYPE PRESSER ASM. オシサゲソーチ クミ 1 12 135-43608 FEED PLATE ヌノオサエシタイタ 1 13 NS-6150540-SP NUT 15/64-28 ロッカクナット 15/64-28 1 14 135-43009 FEED PLATE HOLDER ヌノオサエウケイタ 1 15 SS-2110930-SP SCREW 11/64-40 L=8.7 マルサラネジ 11/64-40 L=8.7 4 16 135-47658 PEDAL SHAFT ASM. ペダルジク クミ 1 17 135-09401 TABLE (FOR BELT LOOP) バンドループ テープル 1 18 400-38080 TEREAD GUIDE BRACKET ASM. イトマキイトアンナイダイケツゴウ 1 19 400-38078 FEED GUIDE イトマキイトアンナイ (バンドカンショウ) (1) 20 D8103-984-K00 CHAIN クサリ 1 21 135-05904 BELT COVER Pヨウベルトカバー 1 22 131-60304 S SHAPED HOOK Sガタカナグ 4 23 * 400-60887 CAHIN クサリ 1 24 135-44952 PEDAL LEVER ASM. ペダルレバー クミ 1 25 135-45315 SAFETY PLATE ASM. アンゼンプレート クミ ヨコオキクワ 1 26 138-17754 Z-STAND PEDAL ASM. Zキャクヨウ ペダル (ケツゴウ) 1 NOTE(注記) #01....THE PARTS ARE THE SAME AS この部品は、LK-1850-P THOSE FOR LK-1850-P. と同じです。 ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 上記以外の部品は、LK-1850 標準機種と同じです。 - 31 - Jinttex.in
Page 37 — LK-1852P-30
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 135-10953 | FEED CAM DRIVING WHEEL ASM. | 1 | |
| 135-10862 | WORM ASM. | 1 | |
| SS-7111410-TP | SCREW 11/64-40 L=14 | (4) | |
| 135-45611 | CLOTH PRESSER FOOT | 1 | |
| 135-51569 | CLOTH FEED BASE (ASM.) | 1 | |
| 135-45660 | WORK CLAMP FOOT ASM. | 1 | |
| 135-54100 | FEED CAM | 1 | |
| 135-38301 | STOP-MOTION REGULATING CAM | 1 | |
| 135-47500 | STOP-MOTION SPRING | ||
| 135-46601 | SAFETY PLATE | ||
| 135-45959 | PEDAL TYPE PRESSER ASM. | ||
| 400-60887 | CAHIN | ||
| 138-17754 | Z-STAND PEDAL ASM. | 1 | |
| NS-6150540-SP | NUT 15/64-28 | ||
| 135-43509 | FEED PLATE HOLDER | ||
| SS-2110930-SP | SCREW 11/64-40 L=8.75 | ||
| 135-45504 | FEED PLATE | 1 | |
| 135-45504 | FEED PLATE | ||
| D8103-984-K00 | CHAIN | ||
| 135-09401 | TABLE (FOR BELT LOOP) | 1 | |
| 400-38080 | TEREAD GUIDE BRACKET ASM. | ||
| 400-38078 | THREAD GUIDE | 1 | |
| 400-52815 | SAFETY PLATE ASM. | 1 | |
| 135-05904 | BELT COVER | 1 | |
| 135-44952 | PEDAL LEVER ASM. | ||
| 135-47658 | PEDAL SHAFT ASM. | ||
| 131-60304 | S SHAPED HOOK |
(11) LK-1852P-30 REF.NO NOTE PART NO DESCRIPTION 品 名 Qty 1 135-10953 FEED CAM DRIVING WHEEL ASM. ウオームハグルマ クミ 1 2 135-10862 WORM ASM. ウオーム クミ 1 3 SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネジ 11/64-40 L=14 (4) 4 135-45611 CLOTH PRESSER FOOT ヌノオサエダ 1 5 135-51569 CLOTH FEED BASE (ASM.) ヌノオサエダイ (クミ) 1 6 135-45660 WORK CLAMP FOOT ASM. ヌノオサエアシ グミ 1 7 135-54100 FEED CAM ヌノオクリカム 1 8 135-38301 STOP-MOTION REGULATING CAM シヤダン セイギヨカム 1 9 #02 135-47500 STOP-MOTION SPRING シヤダン ヒツツバリバネ 1 10 #02 135-46601 SAFETY PLATE キドーアンゼンイタ 1 11 #02 135-45959 PEDAL TYPE PRESSER ASM. オシサゲゾーチ クミ 1 12 * #01 400-60887 CAHIN ククリ 1 13 138-17754 Z-STAND PEDAL ASM. Z キャクヨウ ペダル (ケツゴウ) 1 14 #01 NS-6150540-SP NUT 15/64-28 ロツカクナツト 15/64-28 1 15 #01 135-43509 FEED PLATE HOLDER クリウケイタ 1 16 #01 SS-2110930-SP SCREW 11/64-40 L=8.75 マルサラネジ 11/64-40 L=8.75 4 17 135-45504 FEED PLATE ヌノオサエシタ 1 18 #03 135-45504 FEED PLATE ヌノオサエシタ 1 19 #01 D8103-984-K00 CHAIN ククリ 1 20 135-09401 TABLE (FOR BELT LOOP) バンドループ テーブル 1 21 #01 400-38080 TEREAD GUIDE BRACKET ASM. イトマキイトアンナイ(バンドカンヨウ) (1) 22 400-38078 THREAD GUIDE イトマキイトアンナイ (バンドカンヨウ) 1 23 400-52815 SAFETY PLATE ASM. アンゼンプレート (クミ) ヨコオキヨウ 1 24 135-05904 BELT COVER P.ヨウベルトカバー 1 25 #01 135-44952 PEDAL LEVER ASM. ペダルレバー クミ 1 26 #01 135-47658 PEDAL SHAFT ASM. ペダルジク クミ 4 27 #01 131-60304 S SHAPED HOOK Sガタクナク 1 NOTE(注記) #01....THE PARTS ARE THE SAME AS この部品はLK-1852P-20 THOSE FOR LK-1852P-20 と 同じです。 #02....THE PARTS ARE THE SAME AS この部品はLK-1850-P THOSE FOR LK-1850-P と 同じです。 #03....FOR HEAVY WEIGHT MATERIAL (特注部品) (SPECIAL ORDER) ALL PARTS OTHER THAN ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850標準機と 同じです。 - 32 - jintex.in
Page 38
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D1401-L7V-V00 | NEEDLE BAR | ||
| D1405-L7A-M00 | NEEDLE BAR THREAD GUIDE | ||
| SS-7080510-TP | SCREW 1/8-44 L=4.5 | ||
| MDI-300B2300 | NEEDLE DIX3 #23 | ||
| MC-3515016-00 | NEEDLE | ||
| 135-19004 | TENSION SPRING | ||
| 135-10854 | FEED CAM DRIVING WORM ASM. | ||
| SS-7111410-TP | SCREW 11/64-40 L=14 | ||
| 135-50702 | FEED CAM | ||
| 135-39705 | STOP-MOTION REGULATING CAM | ||
| 135-10953 | FEED CAM DRIVING WHEEL ASM. | ||
| 135-48409 | FEED PLATE | ||
| B2302-205-0A0 | TENSION CONTROLLER NO.2 ASM. | ||
| D3112-L4B-B00 | TAKE-UP SPRING (HEAVY) | ||
| B3129-053-000 | TENSION SPRING | ||
| D1818-282-N00 | SHUTTLE RACE | ||
| D1817-282-N00 | SHUTTLE RACE RING, THICK NEEDL | ||
| B2426-280-00C | NEEDLE PLATE NEEDLE HOLE GUIDE | ||
| D2101-L7A-MA0 | WIPER ASM. | ||
| 135-48508 | WORK CLAMP FOOT, RIGHT | ||
| 135-48607 | WORK CLAMP FOOT, LEFT | ||
| 135-50504 | FEED CAM | ||
| MC-5005007-50 | FEED CAM NM75 | ||
| 135-39002 | STOP-MOTION REGULATING CAM | ||
| 135-10953 | FEED CAM DRIVING WHEEL ASM. | ||
| 135-10854 | FEED CAM DRIVING WORM ASM. | ||
| SS-7111410-TP | SCREW 11/64-40 L=14 | ||
| 135-42907 | WORK CLAMP FOOT, RIGHT | ||
| 135-43004 | WORK CLAMP FOOT, LEFT | ||
| 135-42808 | FEED PLATE | ||
| D2426-282-C00 | NEEDLE HOLE GUIDE | ||
| MDP-500B1100 | NEEDLE DPX5 #11 |
(12) LK-1852H-5 (13) LK-1852-22 REF.NO NOTE PART NO DESCRIPTION 品 名 Qty 1 D1401-L7V-V00 NEEDLE BAR ハリボー 1 2 D1405-L7A-M00 NEEDLE BAR THREAD GUIDE ハリボー イトアンナイ 1 3 SS-7080510-TP SCREW 1/8-44 L=4.5 マルビラネジ 1/8-44 L=4.5 1 4 MDI-300B2300 NEEDLE DIX3 #23 ハリ DIX3 #23 1 5 #01 MC-3515016-00 NEEDLE ハリ 332 160 1 6 135-19004 TENSION SPRING ヌノオサエバネ 2 7 135-10854 FEED CAM DRIVING WORM ASM. ウオーム クミ 28シン 1 8 SS-7111410-TP SCREW 11/64-40 L=14 マルビラネジ 11/64-40 L=14 (4) 9 135-50702 FEED CAM ヌノオクリカム 1 10 135-39705 STOP-MOTION REGULATING CAM シャダン セイギヨカム 1 11 135-10953 FEED CAM DRIVING WHEEL ASM. ウオームハグルマ クミ 1 12 135-48409 FEED PLATE ヌノオサエシタ 1 13 B2302-205-0A0 TENSION CONTROLLER NO.2 ASM. フトイトヨウ タイ2イトチョウシ ケツゴウ 1 14 D3112-L4B-B00 TAKE-UP SPRING (HEAVY) イトトリバネ (ヘビー) (1) 15 B3129-053-000 TENSION SPRING イトデヨシバネ (1) 16 D1818-282-N00 SHUTTLE RACE ナカガマ (フトハリ ヨウ) 1 17 D1817-282-N00 SHUTTLE RACE RING, THICK NEEDL ナカガマ リング (フトハリ ヨウ) 1 18 B2426-280-00C NEEDLE PLATE NEEDLE HOLE GUIDE ハリ穴ガイド 1 19 D2101-L7A-MA0 WIPER ASM. ワイパ クミ 1 20 135-48508 WORK CLAMP FOOT, RIGHT ヌノオサエアシ ミギ 1 21 135-48607 WORK CLAMP FOOT, LEFT ヌノオサエアシ ヒダリ 1 22 135-50504 FEED CAM ヌノオクリカム 1 23 #01 MC-5005007-50 FEED CAM NM75 ハリ シュメツツ 134 NM 75 1 24 135-39002 STOP-MOTION REGULATING CAM シャダン セイギヨカム 1 25 135-10953 FEED CAM DRIVING WHEEL ASM. ウオームハグルマ クミ 1 26 135-10854 FEED CAM DRIVING WORM ASM. ウオーム クミ 28シン 1 27 SS-7111410-TP SCREW 11/64-40 L=14 マルビラネジ 11/64-40 L=14 (4) 28 135-42907 WORK CLAMP FOOT, RIGHT ヌノオサエアシ ミギ 1 29 135-43004 WORK CLAMP FOOT, LEFT ヌノオサエアシ ヒダリ 1 30 135-42808 FEED PLATE ヌノオサエシタ 1 31 D2426-282-C00 NEEDLE HOLE GUIDE メリヤスカンヨウ ハリアナ ガイド 1 32 MDP-500B1100 NEEDLE DPX5 #11 ハリ DPX5 #11 1 NOTE(注記) #01...FOR JE JE用 ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850 標準機種と同じです。 - 33 - jintex.in
Page 39
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | D1401-L7V-V00 | NEEDLE BAR | |
| 2 | D1405-L7A-M00 | NEEDLE BAR THREAD GUIDE | |
| 3 | SS-7080510-TP | SCREW 1/8-44 L=4.5 | |
| 4 | MDI-300B2300 | NEEDLE DIX3 #23 | |
| 5 | MC-3515016-00 | NEEDLE | |
| 6 | 135-19004 | TENSION SPRING | |
| 7 | 135-10854 | FEED CAM DRIVING WORM ASM. | |
| 8 | SS-7111410-TP | SCREW 11/64-40 L=14 | |
| 9 | 135-50702 | FEED CAM | |
| 10 | 135-39705 | STOP-MOTION REGULATING CAM | |
| 11 | 135-10953 | FEED CAM DRIVING WHEEL ASM. | |
| 12 | 135-54209 | FEED PLATE | |
| 13 | B2302-205-0A0 | TENSION CONTROLLER NO.2 ASM. | |
| 14 | B3112-L4B-B00 | TAKE-UP SPRING (HEAVY) | |
| 15 | B3129-053-000 | TENSION SPRING | |
| 16 | D1818-282-N00 | SHUTTLE | |
| 17 | D1817-282-N00 | SHUTTLE RACE RING, THICK NEEDL | |
| 18 | D2426-MMC-K00 | NEEDLE HOLE GUIDE | |
| 19 | D2101-L7A-MA0 | WIPER ASM. | |
| 20 | 135-54308 | WORK CLAMP FOOT. RIGHT | |
| 21 | 135-54407 | WORK CLAMP FOOT. LEFT |
(14) LK-1852G-5 REF.NO NOTE PART NO 1 D1401-L7V-V00 2 D1405-L7A-M00 3 SS-7080510-TP 4 MDI-300B2300 5 #01 MC-3515016-00 6 135-19004 7 135-10854 8 SS-7111410-TP 9 135-50702 10 135-39705 11 135-10953 12 135-54209 13 B2302-205-0A0 14 B3112-L4B-B00 15 B3129-053-000 16 D1818-282-N00 17 D1817-282-N00 18 D2426-MMC-K00 19 D2101-L7A-MA0 20 135-54308 21 135-54407 NOTE(注記) DESCRIPTION NEEDLE BAR NEEDLE BAR THREAD GUIDE SCREW 1/8-44 L=4.5 NEEDLE DIX3 #23 NEEDLE TENSION SPRING FEED CAM DRIVING WORM ASM. SCREW 11/64-40 L=14 FEED CAM STOP-MOTION REGULATING CAM FEED CAM DRIVING WHEEL ASM. FEED PLATE TENSION CONTROLLER NO.2 ASM. TAKE-UP SPRING (HEAVY) TENSION SPRING SHUTTLE SHUTTLE RACE RING, THICK NEEDL NEEDLE HOLE GUIDE WIPER ASM. WORK CLAMP FOOT. RIGHT WORK CLAMP FOOT. LEFT #01...FOR JE ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850標準機種と同じです。 - 34 - jintex.in 品 名 ハリボー ハリボー イトアンナイ マルヒラネジ 1/8-44 L=4.5 ハリ DIX3 #23 ハリ 332 160 ヌノオサエ ウオームクミ 28シン マルヒラネジ 11/64-40 L=14 ヌノオクリカム シャダン セイギヨカム ウオームハグルマ クミ ヌノオサエ シタイタ フトイトヨウ ダイ2イトチョウシ ケツゴウ イトリバネ (キャントン) イトチョーシバネ ナカガマ (フトハリ ヨウ) ナカガマ オサエ (フトハリ ヨウ) ハリアナガイド ワイパ クミ ヌノオサエ ミギ ヌノオサエ ヒタリ JE用 Qty 1 1 1 1 1 2 1 (4) 1 1 1 1 1 (1) (1) 1 1 1 1 1
Page 40 — LK-1850H
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D1401-L7V-V00 | NEEDLE BAR | 1 | |
| D1405-L7A-M00 | NEEDLE BAR THREAD GUIDE | 1 | |
| SS-7080510-TP | SCREW 1/8-44 L=4.5 | 1 | |
| MDI-300B2300 | NEEDLE DIX3 #23 | 1 | |
| MC-3515016-00 | NEEDLE | ||
| 135-19004 | TENSION SPRING | 2 | |
| D1817-282-N00 | SHUTTLE RACE RING, THICK NEEDL | 1 | |
| D1818-282-N00 | SHUTTLE | 1 | |
| 135-51403 | FEED CAM | 1 | |
| 135-39606 | STOP-MOTION REGULATING CAM | 1 | |
| 135-48409 | FEED PLATE | 1 | |
| B2302-205-0A0 | TENSION CONTROLLER NO.2 ASM. | 1 | |
| D3112-L4B-B00 | TAKE-UP SPRING (HEAVY) | (1) | |
| B3129-053-000 | TENSION SPRING | (1) | |
| B2426-280-00C | NEEDLE PLATE NEEDLE HOLE GUIDE | 1 | |
| D2101-L7A-MA0 | WIPER ASM. | 1 | |
| 135-48508 | WORK CLAMP FOOT. RIGHT | 1 | |
| 135-48607 | WORK CLAMP FOOT. LEFT | 1 |
(15) LK-1850H REF.NO NOTE PART NO DESCRIPTION 品 名 Qty 1 D1401-L7V-V00 NEEDLE BAR ハリボー 1 2 D1405-L7A-M00 NEEDLE BAR THREAD GUIDE ハリボー イトアンナイ 1 3 SS-7080510-TP SCREW 1/8-44 L=4.5 マルヒラネシ 1/8-44 L=4.5 1 4 MDI-300B2300 NEEDLE DIX3 #23 ハリ DIX3 #23 1 5 #01 MC-3515016-00 NEEDLE ハリ 332 160 1 6 135-19004 TENSION SPRING メノオサエバネ 2 7 D1817-282-N00 SHUTTLE RACE RING, THICK NEEDL ナカガマ オサエ (フトハリ ヨウ) 1 8 D1818-282-N00 SHUTTLE ナカガマ (フトハリ ヨウ) 1 9 135-51403 FEED CAM メノオクリカム 1 10 135-39606 STOP-MOTION REGULATING CAM シャダン セイギヨカム 1 11 135-48409 FEED PLATE メノオサエ シタイダ 1 12 B2302-205-0A0 TENSION CONTROLLER NO.2 ASM. フトイトヨウ ダイ2イトチョウシ ケツゴウ 1 13 D3112-L4B-B00 TAKE-UP SPRING (HEAVY) イトトリバネ (ヘビー) (1) 14 B3129-053-000 TENSION SPRING イトチョーシバネ (1) 15 B2426-280-00C NEEDLE PLATE NEEDLE HOLE GUIDE ハリ アナ ガイド 1 16 D2101-L7A-MA0 WIPER ASM. ワイパ クミ 1 17 135-48508 WORK CLAMP FOOT. RIGHT メノオサエアシ ミギ 1 18 135-48607 WORK CLAMP FOOT. LEFT メノオサエアシ ヒダリ 1 NOTE(注記) #01...FOR JE JE用 ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850標準機種と同じです。 - 35 - jintex.in
Page 41
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D1401-L7V-V00 | NEEDLE BAR | 1 | |
| D1405-L7A-M00 | NEEDLE BAR THREAD GUIDE | 1 | |
| SS-7080510-TP | SCREW 1/8-44 L=4.5 | 1 | |
| MDI-300B2300 | NEEDLE DIX3 #23 | 1 | |
| MC-3515016-00 | NEEDLE | ||
| 135-19004 | TENSION SPRING | 1 | |
| D1818-282-N00 | SHUTTLE RACE RING, THICK NEEDL | 1 | |
| D1818-282-N00 | SHUTTLE | 1 | |
| 135-51403 | FEED CAM | 1 | |
| 135-39606 | STOP-MOTION REGULATING CAM | 1 | |
| 135-54209 | FEED PLATE | 1 | |
| B2302-205-0A0 | TENSION CONTROLLER NO.2 ASM. | 1 | |
| D3112-L4B-B00 | TAKE-UP SPRING (HEAVY) | (1) | |
| B3129-053-000 | TENSION SPRING | (1) | |
| D2426-MMC-K00 | NEEDLE HOLE GUIDE | 1 | |
| D2101-L7A-MA0 | WIPER ASM. | 1 | |
| 135-54308 | WORK CLAMP FOOT, RIGHT | 1 | |
| 135-54407 | WORK CLAMP FOOT, LEFT | 1 | |
| 135-05904 | BELT COVER | 1 | |
| 135-26058 | LIFTING LEVER ASM. T | 1 | |
| 135-26009 | LIFTING LEVER. T | (1) | |
| 135-25803 | LEVER SPRING. T | (1) | |
| SD-0720331-SP | HINGE SCREW D=7.24 H=3.3 | (2) | |
| SS-9150730-SP | SCREW 15/64-28 L=7 | (1) | |
| NS-6150350-SP | NUT 15/64-28 | (1) | |
| 135-47500 | STOP-MOTION SPRING | 1 | |
| 138-17754 | Z-STAND PEDAL ASM. | 1 |
(16) LK-1850G (17) LK-1850T REF.NO NOTE PART NO DESCRIPTION 品 名 Qty 1 D1401-L7V-V00 NEEDLE BAR ハリボー 1 2 D1405-L7A-M00 NEEDLE BAR THREAD GUIDE ハリボーイ トアンナイ 1 3 SS-7080510-TP SCREW 1/8-44 L=4.5 マルヒラネジ 1/8-44 L=4.5 1 4 MDI-300B2300 NEEDLE DIX3 #23 ハリ DIX3 #23 1 5 #01 MC-3515016-00 NEEDLE ハリ 332 160 1 6 135-19004 TENSION SPRING ヌノオサエバネ 1 7 D1818-282-N00 SHUTTLE RACE RING, THICK NEEDL ナカガマ オサエ (フトハリ ヨウ) 1 8 D1818-282-N00 SHUTTLE ナカガマ (フトハリ ヨウ) 1 9 135-51403 FEED CAM ヌノオクリカム 1 10 135-39606 STOP-MOTION REGULATING CAM シヤダン セイギヨカム 1 11 135-54209 FEED PLATE フイード シイタダ 1 12 B2302-205-0A0 TENSION CONTROLLER NO.2 ASM. フトイトヨウ ダイ2イトチヨウシ ケツゴウ 1 13 D3112-L4B-B00 TAKE-UP SPRING (HEAVY) イトトリバネ (キヤントン) (1) 14 B3129-053-000 TENSION SPRING イトヨシバネ (1) 15 D2426-MMC-K00 NEEDLE HOLE GUIDE ハリヤナガイ ド 1 16 D2101-L7A-MA0 WIPER ASM. ワイバ クミ 1 17 135-54308 WORK CLAMP FOOT, RIGHT ヌノオサエ アシ ミギ 1 18 135-54407 WORK CLAMP FOOT, LEFT ヌノオサエ アシ ヒダリ 1 19 135-05904 BELT COVER ベルトカバー 1 20 135-26058 LIFTING LEVER ASM. T オサエレバー クミ 1 21 135-26009 LIFTING LEVER. T オサエレバー (1) 22 135-25803 LEVER SPRING. T オサエレバーカエシバネ (1) 23 SD-0720331-SP HINGE SCREW D=7.24 H=3.3 ダンネジ D=7.24 H=3.3 (2) 24 SS-9150730-SP SCREW 15/64-28 L=7 ロッカクボルト 15/64-28 L=7 (1) 25 NS-6150350-SP NUT 15/64-28 ロッカクナット 15/64-28 (1) 26 135-47500 STOP-MOTION SPRING シヤダン ヒツパリバネ 1 27 138-17754 Z-STAND PEDAL ASM. Z キヤクヨウ ペダル (ケツゴウ) 1 NOTE(注記) #01...FOR JE JE用 ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850標準機種と同じです。 - 36 - jintex.in
Page 42 — FIG. 18 LK-1852T-20
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 135-10953 | FEED CAM DRIVING WHEEL ASM. | 1 | |
| 135-10854 | FEED CAM DRIVING WORM ASM. | 1 | |
| SS-7111410-TP | SCREW 11/64-40 L=14 | (4) | |
| 135-44416 | CLOTH PRESSER FOOT | 1 | |
| 135-43764 | CLOTH FEED BASE ASM. | ||
| 135-44465 | CLOTH PRESSER FOOT ASM. | (1) | |
| 135-45306 | FEED CAM | ||
| 135-38301 | STOP-MOTION REGULATING CAM | ||
| 135-47500 | STOP-MOTION SPRING | ||
| 135-43608 | FEED PLATE | ||
| 135-26058 | LIFTING LEVER. T | ||
| 135-26009 | LIFTING LEVER. T | ||
| 135-25803 | LEVER SPRING. T | ||
| SD-0720331-SP | HINGE SCREW D=7.24 H=3.3 | (2) | |
| SS-9150730-SP | SCREW 15/64-28 L=7 | (1) | |
| NS-6150350-SP | NUT 15/64-28 | (1) | |
| NS-6150540-SP | NUT 15/64-28 | ||
| 135-43509 | FEED PLATE HOLDER | ||
| SS-2110930-SP | SCREW 11/64-40 L=8.75 | ||
| 135-47658 | PEDAL SHAFT ASM. | ||
| 135-09401 | TABLE (FOR BELT LOOP) | ||
| 400-38080 | THREAD GUIDE BRACKET ASM. | ||
| 400-36076 | THREAD GUIDE | ||
| D8103-984-K00 | CHAIN | ||
| 135-05904 | BELT COVER | ||
| 131-60304 | S-SHAPED HOOK | ||
| 400-60887 | CAHIN | ||
| 135-44952 | PEDAL LEVER ASM. | ||
| 400-52815 | SAFETY PLATE ASM. | ||
| 138-17754 | Z-STAND PEDAL ASM. |
(18) LK-1852T-20 REF.NO NOTE PART NO DESCRIPTION 品 名 Qty 1 135-10953 FEED CAM DRIVING WHEEL ASM. ウォームハグルマ クミ 1 2 135-10854 FEED CAM DRIVING WORM ASM. ウォーム クミ 28シン 1 3 SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネジ 11/64-40 L=14 (4) 4 135-44416 CLOTH PRESSER FOOT ヌノオサエアシ 1 5 #01 135-43764 CLOTH FEED BASE ASM. ヌノオサエダイ クミ 1 6 135-44465 CLOTH PRESSER FOOT ASM. ヌノオサエアシ クミ (1) 7 135-45306 FEED CAM ヌノオクリカム (1852-10) 1 8 135-38301 STOP-MOTION REGULATING CAM ダイヤダン セイギヨカム 1 9 #02 135-47500 STOP-MOTION SPRING ダイヤダン ヒツパリバネ 1 10 #01 135-43608 FEED PLATE ヌノオサエシタイタ 1 11 #02 135-26058 LIFTING LEVER. T オサエアゲレバー クミ 1 12 135-26009 LIFTING LEVER. T オサエアゲレバー 1 13 135-25803 LEVER SPRING. T オサエアゲレバーカエシバネ (1) 14 SD-0720331-SP HINGE SCREW D=7.24 H=3.3 ダンネジ D=7.24 H=3.3 (2) 15 SS-9150730-SP SCREW 15/64-28 L=7 ロッカクボルト 15/64-28 L=7 (1) 16 NS-6150350-SP NUT 15/64-28 ロッカクナット 15/64-28 (1) 17 #01 NS-6150540-SP NUT 15/64-28 ロッカクナット 15/64-28 1 18 #01 135-43509 FEED PLATE HOLDER ヌノオクリケイタ 1 19 #01 SS-2110930-SP SCREW 11/64-40 L=8.75 マルサラネジ 11/64-40 L=8.75 4 20 #01 135-47658 PEDAL SHAFT ASM. ペダルジク クミ 1 21 135-09401 TABLE (FOR BELT LOOP) ハンドループ テーブル 1 22 #01 400-38080 THREAD GUIDE BRACKET ASM. イトマキイトアンナイダイトケツゴウ 1 23 400-36076 THREAD GUIDE イトマキイトアンナイ (バンドカンヨウ) (1) 24 #01 D8103-984-K00 CHAIN クサリ 1 25 135-05904 BELT COVER P ヨウベルトカバー 1 26 #01 131-60304 S-SHAPED HOOK S カタナカギ 1 27 * #01 400-60887 CAHIN クサリ 1 28 #01 135-44952 PEDAL LEVER ASM. ペダルレバー クミ 1 29 400-52815 SAFETY PLATE ASM. アンゼンプレート (クミ) ヨコオキヨウ 1 30 138-17754 Z-STAND PEDAL ASM. Z キャキヨウ ペダル (ケツゴウ) 1 NOTE(注記) #01...THE PARTS ARE THE SAME AS THOSE FOR LK-1852T-20. #02...THE PARTS ARE THE SAME AS THOSE FOR LK-1850-T. この部品はLK-1852T-20と 同じです。 この部品はLK-1850-Tと 同じです。 ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850標準機種と同じです。 - 37 - jintex.in
Page 43
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 135-10953 | FEED CAM DRIVING WHEEL ASM. | 1 | |
| 135-10854 | FEED CAM DRIVING WORM ASM. | 1 | |
| SS-7111410-TP | SCREW 11/64-40 L=14 | (4) | |
| 135-45611 | CLOTH PRESSER FOOT | 1 | |
| 135-51569 | CLOTH FEED BASE (ASM.) | 1 | |
| 135-45660 | WORK CLAMP FOOT ASM. | 1 | |
| 135-54100 | FEED CAM | 1 | |
| 135-54100 | FEED CAM | ||
| 135-38301 | STOP-MOTION REGULATING CAM | 1 | |
| 135-47500 | STOP-MOTION SPRING | ||
| 135-26058 | LIFTING LEVER ASM. T | ||
| 135-26009 | LIFTING LEVER. T | (1) | |
| 135-25803 | LEVER SPRING. T | (1) | |
| SD-0720331-SP | HINGE SCREW D= 7.24 H= 3.3 | (2) | |
| SS-9150730-SP | SCREW 15/64-28 L=7 | (1) | |
| NS-6150350-SP | NUT 15/64-28 | (1) | |
| 400-60887 | CHAIN | 1 | |
| 138-17754 | Z-STAND PEDAL ASM. | 1 | |
| NS-6150540-SP | NUT 15/64-28 | 1 | |
| 135-43509 | FEED PLATE HOLDER | 1 | |
| SS-2110930-SP | SCREW 11/64-40 L=8.75 | 4 | |
| 135-45901 | FEED PLATE | 1 | |
| 135-45504 | FEED PLATE | ||
| D8103-984-K00 | CHAIN | 1 | |
| 135-09401 | TABLE (FOR BELT LOOP) | 1 | |
| 400-38078 | THREAD GUIDE BRACKET ASM. | 1 | |
| 400-38078 | THREAD GUIDE | (1) | |
| 400-52815 | SAFETY PLATE ASM. | 1 | |
| 135-05904 | BELT COVER | 1 | |
| 135-44952 | PEDAL LEVER ASM. | 1 | |
| 135-47658 | PEDAL SHAFT ASM. | 1 | |
| 131-60304 | S SHAPED HOOK | 8 |
(19) LK-1852T-30 REF.NO NOTE PART NO DESCRIPTION 品 名 Qty 1 135-10953 FEED CAM DRIVING WHEEL ASM. ウォームハグルマ クミ 1 2 135-10854 FEED CAM DRIVING WORM ASM. ウォーム クミ 28シン 1 3 SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネジ 11/64-40 L=14 (4) 4 135-45611 CLOTH PRESSER FOOT ヌノサエアシ 1 5 135-51569 CLOTH FEED BASE (ASM.) ヌノオクリダイ (クミ) 1 6 135-45660 WORK CLAMP FOOT ASM. ヌノサエアシ クミ 1 7 135-54100 FEED CAM ヌノオクリカム 1 8 #01 135-54100 FEED CAM ヌノオクリカム 1 9 135-38301 STOP-MOTION REGULATING CAM シャダン セイギヨカム 1 10 #02 135-47500 STOP-MOTION SPRING シャダン ヒツパリバネ 1 11 #02 135-26058 LIFTING LEVER ASM. T オサエアグレーバー クミ 1 12 135-26009 LIFTING LEVER. T オサエアグレーバー (1) 13 135-25803 LEVER SPRING. T オサエアグレーバーカエシバネ (1) 14 SD-0720331-SP HINGE SCREW D= 7.24 H= 3.3 ダンネジ D= 7.24 H= 3.3 (2) 15 SS-9150730-SP SCREW 15/64-28 L=7 ロッカクボルト 15/64-28 L=7 (1) 16 NS-6150350-SP NUT 15/64-28 ロッカクナット 15/64-28 (1) 17 * #04 400-60887 CHAIN クサリ 1 18 138-17754 Z-STAND PEDAL ASM. Z キャクヨウ ペダル (ケツゴウ) 1 19 #04 NS-6150540-SP NUT 15/64-28 ロッカクナット 15/64-28 1 20 #04 135-43509 FEED PLATE HOLDER ヌノオクリケイタ 1 21 #04 SS-2110930-SP SCREW 11/64-40 L=8.75 マルサラネジ 11/64-40 L=8.75 4 22 135-45901 FEED PLATE ヌノオシエシタイタ 1 23 #03 135-45504 FEED PLATE ヌノオシエシタイタ 1 24 #04 D8103-984-K00 CHAIN クサリ 1 25 135-09401 TABLE (FOR BELT LOOP) バンドループ テーブル 1 26 400-38078 THREAD GUIDE BRACKET ASM. イトマキイトアンナイ ダイケツコウ 1 27 400-38078 THREAD GUIDE イトマキイトアンナイ (バンドカンヨウ) (1) 28 400-52815 SAFETY PLATE ASM. アンゼンプレート (クミ) ヨコオキヨウ 1 29 135-05904 BELT COVER P ヨウベルトカバー 1 30 #04 135-44952 PEDAL LEVER ASM. ペダルレバー クミ 1 31 #04 135-47658 PEDAL SHAFT ASM. ペダルジク クミ 1 32 #04 131-60304 S SHAPED HOOK S ガタカナグ 8 NOTE(注記) #01...SPECIAL ORDER PART #02...THE PARTS ARE THE SAME AS THOSE FOR LK-1850-T. #03...FOR HEAVY WEIGHT MATERIAL (SPECIAL ORDER) #04...THE PARTS ARE THE SAME AS THOSE FOR LK-1852T-20. 特別注文部品 この部品はLK-1850-Tと 同じです。 厚物用(特注部品) この部品はLK-1852T-20と 同じです。 ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 上記以外の部品は、LK-1850標準機と 同じです。 - 38 - jintex.in
Page 44 — 13. THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 229-30358 | THREAD STAND ASM. | ||
| 229-31109 | SPOOL RETAINER | ||
| 229-31000 | SPOOL PIN | ||
| 229-30903 | SPOOL REST CUSHION | ||
| 229-30804 | SPOOL REST | ||
| SM-6061610-SC | SCREW M6 L=16 | ||
| 229-30705 | THREAD GUIDE ARM JOINT | ||
| 229-31406 | SPOOL REST ROD RUBBER CAP | ||
| 229-30507 | SPOOL REST ARM | ||
| 229-30408 | SPOOL REST ROD, UPPER | ||
| 229-31307 | SPOOL REST ROD JOINT | ||
| SM-4051405-SE | SCREW M5 L=14 | ||
| NM-6050001-SE | NUT M5 | ||
| 229-30309 | SPOOL REST ROD, LOWER | ||
| 229-31208 | THREAD GUIDE | ||
| WS-0510002-KN | SPRING WASHER | ||
| NM-6050001-SE | NUT M5 | ||
| NM-6160511-SE | NUT M16X1.5 | ||
| WP-1702600-SO | WASHER 17X30X2.6 |
13. THREAD STAND COMPONENTS 糸立装置関係 REF. NO NOTE PART NO DESCRIPTION 品 名 Qty 1 229-30358 THREAD STAND ASM. イトタテツクチ (クミ) (2) 2 229-31109 SPOOL RETAINER イトマキフレドメ (2) 3 229-31000 SPOOL PIN イトマキウケボウ (2) 4 229-30903 SPOOL REST CUSHION イトマキウケザクッション (2) 5 229-30804 SPOOL REST イトマキウケザ (2) 6 SM-6061610-SC SCREW M6 L=16 ヒラコネジ M6 L=15 (2) 7 229-30705 THREAD GUIDE ARM JOINT イトタテボウシメカク (2) 8 229-31406 SPOOL REST ROD RUBBER CAP イトタテボウゴムカプ (1) 9 229-30507 SPOOL REST ARM イトタテウデ (2) 10 229-30408 SPOOL REST ROD, UPPER イトタテボウ (ウエ) (1) 11 229-31307 SPOOL REST ROD JOINT イトタテボウツギテ (1) 12 SM-4051405-SE SCREW M5 L=14 ナベコネジ M5 L=14 (2) 13 NM-6050001-SE NUT M5 ロッカクナット M5 (2) 14 229-30309 SPOOL REST ROD, LOWER イトタテボウ (シタ) (1) 15 229-31208 THREAD GUIDE イトミチ (2) 16 WS-0510002-KN SPRING WASHER ハネヂガネ 5.1 X9.2 X1.3 (2) 17 NM-6050001-SE NUT M5 ロッカクナット M5 (2) 18 NM-6160511-SE NUT M16X1.5 ロッカクナット M16X1.5 1シュ (1) 19 WP-1702600-SO WASHER 17X30X2.6 ヒラザガネ 17 X 30 X 2.6 (2) 39 jintex.in
Page 45 — LIST FOR INFORMATION OF CHANGE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 8 | CM-3012000-01 | CM-3012000-01 | |
| 8 | 135-03107 | 135-03107 | |
| 12 | CS-150111A-TH | CS-150111A-TH | |
| 30 | 135-16208 | 135-16208 | |
| 27 | SM-6061402-TP | SM-6061402-TP | |
| 35 | D8103-284-K00 | D8103-284-K00 | |
| 19 | D8103-284-K00 | D8103-284-K00 | |
| 23 | D8103-284-K00 | D8103-284-K00 | |
| 12 | D8103-284-K00 | D8103-284-K00 | |
| 27 | D8103-284-K00 | D8103-284-K00 | |
| 17 | D8103-284-K00 | D8103-284-K00 | |
| 8 | 262-12605 | 262-12605 | |
| 12 | CS-150111B-TH | CS-150111B-TH | |
| 30 | 262-22703 | 262-22703 | |
| 27 | SM-6061802-TP | SM-6061802-TP | |
| 35 | 400-60887 | 400-60887 | |
| 19 | 400-60887 | 400-60887 | |
| 23 | 400-60887 | 400-60887 | |
| 12 | 400-60887 | 400-60887 | |
| 27 | 400-60887 | 400-60887 | |
| 17 | 400-60887 | 400-60887 |
14. LIST FOR INFORMATION OF CHANGE 変更情報リスト As to the place changed, refer to the corresponding Rev. No. When previous parts (Obsoleted parts) and new parts (Added parts) are not interchangeable with each other: In this case, even obsoleted parts (D.) can be ordered with the obsoleted part number, so select the parts with changed dates and place your orders. 変更箇所は、該当Rev. No. 版をご参照ください。 部品の互換性がない変更の場合は、削除された品番でも、ご注文できます。 BE185030PJA No. 0200-19 Rev. No. *A: Added parts 追加部品/D: Obsoleted parts 削除部品/E: Erratum訂正 Rev. Page Ref. Parts No. Rev. Page Ref. Parts No. No. No. No. No. D 18 2 8 CM-3012000-01 D 18 4 8 135-03107 A 19 4 8 262-12605 D 18 4 12 CS-150111A-TH A 19 4 12 CS-150111B-TH D 18 12 30 135-16208 A 19 12 30 262-22703 D 18 18 27 SM-6061402-TP A 19 18 27 SM-6061802-TP D 18 28 35 D8103-284-K00 A 19 28 35 400-60887 D 18 29 19 D8103-284-K00 A 19 29 19 400-60887 D 18 31 23 D8103-284-K00 A 19 31 23 400-60887 D 18 32 12 D8103-284-K00 A 19 32 12 400-60887 D 18 37 27 D8103-284-K00 A 19 37 27 400-60887 D 18 38 17 D8103-284-K00 A 19 38 17 400-60887 - 40 - jintex.in
