Parts index — Juki LK-1850tap a row to open its page

Page 7

Juki LK-1850 parts on page 7

Ref	Part number	Part name	Qty
	CM-3002000-01	ATTENTION SEAL	1
	262-11755	FACE COVER ASM.	1
	SS-4111015-SP	SCREW 11/64-40 L=10	2
	SD-0640471-SP	HINGE SCREW D=6.35 H=4.7	2
	WZ-0641510-KP	WAVED WASHER 6.4X11X0.3	2
	CM-6001001-01	WEEE MARK LABEL S	1
	262-11300	BED COVER B	1
	262-12308	SCREW	1
	138-16509	TOP COVER	1
	400-23026	BELT COVER FIXING PLATE	1
	SS-4110915-SP	SCREW 11/64-40 L=9	2
	CM-3012000-01	SAFETY LABEL S	1
	135-05805	BELT COVER	1
	SS-4090715-SP	SCREW 9/64-40 L=7	2
	400-23027	BELT COVER PLATE	1
	262-11607	BALANCE COVER	1
	SS-7110840-SP	SCREW 11/64-40 L=7.8	1
	NS-6090310-SP	NUT 9/64-40	1
	B3114-771-000	THREAD GUIDE	1
	NS-6090310-SP	NUT 9/64-40	1
	262-12209	L-SHAPED THREAD GUIDE	1
	137-06601	TAKE-UP THREAD GUIDE, A	1
	SS-3090610-SP	SCREW 9/64-40 L=6	1
	262-11805	BED FITTING HOOK	1
	SS-1110821-TP	SCREW 11/64-40 L=8.3	2
	262-11904	THREAD GUIDE PLATE	1
	SS-4150715-SP	SCREW 15/64-28 L=7	1
	NS-6150540-SP	NUT 15/64-28	1
	262-12001	FIRST THREAD GUIDE	1
	SS-8150822-TP	SCREW 15/64-28 L=8	2
	262-10708	RUBBER WASHER	2
	PS-0800202-KH	SPRING PIN 8X20	2
	262-17703	BASE CONNVETING PIN	1
	WP-1052000-SC	WASHER 10.5X18X2	1
	RE-060000-KO	E-RING 6	1
	SS-4150715-SP	SCREW 15/64-28 L=7	2
	TA-1470704-R0	RUBBER PLUG	1
	262-11201	BED COVER A	1
	262-10203	STAY	1
	262-10500	BED ROCKER	1
	262-10302	STAY ROCKER	1
	262-10450	STAY GUIDE COMPL.	1
	SD-0800341-SP	HINGE SCREW D=8 H=3.4	3
	B2008-372-000	THREAD TENSION SPRING	1
	SS-7151210-SP	SCREW 15/64-28 L=12	2
	262-10104	VIBRATION PROOF RUBBER	2
	262-10005	RUBBER BUSH	2
	SM-0040601-SA	SCREW M4 L=6	1
	WP-0450801-SD	WASHER 4.5X10X0.8	1
	R0-0442401-00	RUBBER RING	1
	135-00319	BED FITTING BASE	1
	400-52806	SAFETY PLATE ASM.	1
	260-37200	SAFETY PLATE	(1)
	SM-4040655-SP	SCREW M4 L=6	(2)
	WP-0450801-SD	WASHER 4.5X10X0.8	(2)
	SS-4110715-SP	SCREW 11/64-40 L=7	(2)
	400-51987	SAFETY PLATE INSTALLING BASE	(1)
	262-11409	SPRING	2
	TA-2050408-R0	RUBBER PLUG	1
	SD-0800681-SP	HINGE SCREW D=8 H=6.8	2
	WP-0480856-SP	WASHER 4.8X8.4X0.8	2
	TA-0750704-R0	RUBBER PLUG	1
	262-12100	ARM THREAD GUIDE B	1
	SS-7110710-SP	SCREW 11/64-40 L=7	1
	135-02307	FACE PACKING	1
	SS-6151220-SP	SCREW 15/64-28 L=11.5	5

Page 9

Juki LK-1850 parts on page 9

Ref	Part number	Part name	Qty
1	B1223-771-000	NEEDLE ROD CRANK WASHER	1
2	SS-6151412-TP	SCREW 15/64-28 L=14	1
3	SS-8660530-TP	SCREW 1/4-40 L=4.5	1
4	SS-6681712-TP	SCREW 9/32-28 L=16.5	1
5	SS-8660610-TP	SCREW 1/4-40 L=6	1
6	B1202-280-000	COUNTER WEIGHT	1
7	262-12704	UPPER SHAFT FRONT METAL	1
8	262-12605	MAIN SHAFT	1
9	262-12803	UPPER SHAFT INNER METAL	1
10	135-10367	WORM ASM.	1
11	SS-7111410-TP	SCREW 11/64-40 L=14	(1)
12	CS-1501118-TH	THRUST COLLAR ASM. D=15 W=10.8	1
13	SS-6661110-SP	SCREW 1/4-40 L=11	(1)
14	B1211-980-000	UPPER SHAFT THRUST BEARING	2
15	B1208-980-00B	MAIN SHAFT NEEDLE BEARING B	1
16	262-14403	UPPER SHAFT REAR METAL	1
17	B1210-980-000	SET SCREW	1
18	135-03453	THREAD CUTTING CAM ASM.	(1)
19	SS-8661012-TP	SCREW	(1)
20	SS-8661212-TP	SCREW	(1)
21	SS-8151230-SP	SCREW 15/64-28 L=12	1
22	SS-6741512-TP	SCREW 3/8-28 L=14.5	1
23	SS-6742012-TP	SCREW 3/8-28 L=19.5	1
24	135-03552	STOP-MOTION CAM ASM.	1
25	135-03503	STOP-MOTION CAM	(1)
26	B1215-980-000	STOP MOTION CAM LATCH	(1)
27	B1217-280-000	SAFETY PLATE STOPPER SPRING	(1)
28	135-03602	PIN	(1)
29	135-03750	HIGH SPEED CLUTCH PLATE ASM.	1
30	SS-2110920-TP	SCREW 11/64-40 L=8.5	2
31	SS-1110640-TP	SCREW 11/64-40 L=5.5	1
32	262-13306	SPACER	3
33	135-03909	SPRING	2
34	135-04204	HIGH SPEED PULLEY	1
35	SB-1350002-00	BEARING D=35X62	2
36	135-04907	SHIM	6
37	135-04303	WASHER	2
38	RC-3221517-KP	RETAINING RING 32.2	1
39	135-04105	SLOW SPEED PULLEY SPRING	3
40	RC-6622018-KP	RETAINING RING 66.2	2
41	135-04451	PULLEY ASM.	(3)
42	SS-1110640-TP	SCREW 11/64-40 L=5.5	(3)
43	135-04402	PULLEY	(1)
44	135-04501	PULLEY SHAFT	(1)
45	SS-8660612-TP	SCREW 1/4-40 L=6	1
46	135-04600	SLOW SPEED PULLEY SHAFT	1
47	SS-8661112-TP	SCREW 1/4-40 L=11	1
48	135-04709	SLOW SPEED PULLEY	1
49	262-13801	SLOW SPEED PULLEY PLATE	1
50	WS-0451040-KP	SPRING WASHER 4.5X8.5X1	2
51	SS-7111120-TP	SCREW	2
52	262-13900	BALL RETAINER	1
53	SS-2090710-TP	SCREW 9/64-40 L=7.2	2
54	B1253-980-000	STOP-MOTION BALL	1
55	262-14007	PULLEY SPACER	3
56	135-05102	REGULATOR SHIM	6

Page 11

Juki LK-1850 parts on page 11

Ref	Part number	Part name	Qty
1	B1901-280-0B0	LINK BALANCE ASM.	1
2	B1904-280-000	BALANCE CRANK PIN	(1)
3	B1903-552-000	LEFT SCREW	(1)
4	B1404-280-000	NEEDLE BAR CRANK ROD	(1)
5	B1411-804-C00	NEEDLE DRIVING LEVER BEARING C	(1)
6	B1203-280-000	NEEDLE ROD CRANK	(1)
7	B1905-541-B00	NEEDLE BEARING	(1)
8	B1901-280-0A0	BALANCE ASM.	(1)
9	SS-7151120-SP	SCREW 15/64-28 L=11	(1)
10	262-03208	NEEDLE ROD METAL	1
11	B1411-552-0A0	NEEDLE BAR CONNECTING ASM.	1
12	SS-6090670-TP	SCREW 9/64-40 L=6	(1)
13	262-00006	NEEDLE BAR	1
14	B1403-280-000	NEEDLE ROD LOWER METAL	1
15	SS-2060510-SP	SCREW 3/32-56 L=4.5	1
16	262-15301	NEEDLE BAR THREAD GUIDE	1
17	MDP-500B1400	NEEDLE DPX5 #14	1
18	MDP-500B1600	NEEDLE DPX5 #16	1
19	MC-2005010-00	NEEDLE #100	1
20	SS-6080340-SP	SCREW 1/8-44 L=2.9	1
21	B1414-232-000	SQUARE BLOCK	1
22	SS-4150915-SP	SCREW 15/64-28 L=9	2
23	262-03455	THREAD GUIDE BRACKET COMPL.	1
24	NS-6110310-SP	NUT 11/64-40	(1)
25	262-03406	THREAD GUIDE BRACKET	(1)
26	262-16705	BOBBIN WINDER TENSION POST	(1)
27	B3214-047-000	BOBBIN WINDER TENSION DISC	(2)
28	262-16606	BOBBIN WINDER TENSION SPRING	(1)
29	262-16507	BOBBIN WINDER TENSION NUT	(1)
30	262-01152	BOBBIN WINDER ASM.	1
31	SD-0791331-SP	HINGE SCREW D=7.94 H=13.3	(1)
32	262-02705	NUT	(1)
33	262-02408	NUT	(1)
34	262-02309	SCREW	(1)
35	262-02101	BRAKE PRESSER PLATE	(1)
36	262-02002	BOBBIN WINDER BRAKE	(1)
37	262-01400	BOBBIN WINDER WHEEL	(1)
38	262-01103	BOBBIN WINDER SHAFT HOLDER	(1)
39	262-02309	SCREW	(1)
40	262-01608	BOBBIN WINDER BELT SUPPORT	(1)
41	262-02200	SCREW	(1)
42	262-01202	BOBBIN WINDER TRIP LATCH	(1)
43	262-01707	BOBBIN WINDER SHAFT	(1)
44	262-02507	NUT	(1)
45	262-01806	SPRING	(1)
46	SD-0720193-SP	HINGE SCREW D=7.24 H=1.9	(1)
47	262-01301	BOBBIN WINDER FITTING PLATE	(1)
48	262-01905	BOBBIN PRESSER BOSS	(1)
49	262-01509	BOBBIN PRESSER	(1)
50	SS-4110915-SP	SCREW 11/64-40 L=9	2
51	SS-1110540-TP	SCREW 11/64-40 L=5.5	4
52	135-15556	NEEDLE PLATE ASM.	1
53	B2421-280-0A0	MOVING KNIFE ASM.	(1)
54	SD-0500091-TP	HINGE SCREW D=5.0 H=0.9	(1)
55	B2426-280-000	NEEDLE HOLE GUIDE	(1)
56	SS-6030220-SP	SCREW 3/32-56 L=2.2	(2)
57	135-15564	NEEDLE PLATE ASM.	(1)
58	B2420-280-000	FIXING KNIFE	(1)
59	SS-7090410-SP	SCREW 9/64-40 L=3.5	(2)
60	B2418-280-000	MOVING KNIFE LINK	(1)
61	B2416-280-000	THREAD CUTTING LEVER RING	(1)
62	B2415-280-0A0	THREAD CUTTER LEVER ASM., SMAL	(1)
63	B2414-280-0A0	THREAD CUTTER LEVER ASM., LARG	(1)
64	SS-6110430-TP	SCREW 11/64-40 L=4	(1)
65	WP-0400946-SP	WASHER	(2)
66	SS-7110740-TP	SCREW 11/64-40 L=7	(1)
67	B2423-280-00C	MOVING KNIFE WASHER C	(1)

Page 13

Juki LK-1850 parts on page 13

Ref	Part number	Part name	Qty
1	B2303-280-000	TENSION RELEASE PIN	1
2	SS-9151740-CP	SCREW 15/64-28 L=17	1
3	262-18859	WIPER ASM.	1
4	B2302-280-0A0	SECOND THREAD TENSION ASM.	1
5	SS-8090610-SP	SCREW 9/64-40 L=5.9	(1)
6	B2313-280-000	THREAD TENSION ROD, LARGE	(1)
7	B2302-280-000	SECOND THREAD TENSION ROD	(1)
8	B3112-761-000	THREAD TAKE-UP SPRING	(1)
9	B3126-012-000	THREAD TENSION DISK	(2)
10	B3132-552-000	THREAD TENSION DISK PRESSER	(1)
11	B3107-804-000	THREAD TENSION DISK PRESSER	(1)
12	B3114-232-000	THREAD TENSION SPRING	(1)
13	B3120-125-000	ROTATING STOPPER	(1)
14	B3119-771-000	THREAD TENSION NUT	(1)
15	262-18651	FIRST THREAD TENSION ASM.	1
16	262-20400	THREAD TENSION ROD	(1)
17	B3126-012-000	THREAD TENSION DISK	(2)
18	262-18602	FIRST THREAD TENSION SPRING	(1)
19	B3125-012-000	THREAD TENSION NUT	(1)
20	SD-1000401-SP	HINGE SCREW D=10 H=4	2
21	262-17109	CONNECTING LINK	1
22	262-04602	LOWERING FOOT	1
23	SD-0790601-SP	HINGE SCREW D=7.94 H=6	1
24	NS-6150310-SP	NUT 15/64-28	1
25	135-06217	LOWERING ARM	1
26	SM-6061802-TP	SCREW M6 L=18	1
27	135-13114	TENSION RELEASE ARM	1
28	SM-6061802-TP	SCREW M6 L=18	1
29	262-16903	SHAFT	1
30	SD-0530221-SP	HINGE SCREW D=5.3 H=2.2	1
31	265-01304	TENSION RELEASE BAR	1
32	262-18404	THREAD TENSION ARM	1
33	SS-7090620-TP	SCREW 9/64-40 L=6.1	2
34	NS-6150310-SP	NUT 15/64-28	1
35	135-06852	LOWERING CONNECTING LEVER ASM.	1
36	SD-0901201-TP	HINGE SCREW D=9 H=3.2	1
37	262-17208	LOWERING CONNECTING RING	1
38	RC-0740811-KP	C-RING 8	1
39	SD-0720331-SP	HINGE SCREW D=7.24 H=3.3	1
40	135-06704	TENSION SPRING	1
41	262-20707	SPRING HOOK	1
42	SD-0640391-TP	HINGE SCREW D=6.35 H=3.9	1
43	135-06415	CONNECTING ARM	1
44	SM-6061802-TP	SCREW M6 L=18	1
45	SD-0530221-SP	HINGE SCREW D=5.3 H=2.2	1
46	262-17802	WIPER CONNECTING LINK	1
47	262-18008	SPRING	1
48	262-04453	WIPER CONNECTING ARM ASM.	1
49	RC-0470611-KP	RETAINING RING 4.7	2
50	B2109-280-000	WIPER CONNECTING SCREW	1
51	135-09807	OIL SHIELD CAP	1
52	262-17901	WIPER CONNECTING PLATE	1
53	B1229-232-000	SNAP RING	1
54	135-74009	WIPER BASE PLATE	1
55	SS-4110815-SP	SCREW 11/64-40 L=8	1
56	SD-0640211-SP	HINGE SCREW D=6.35 H=2.1	1

Page 15

Juki LK-1850 parts on page 15

Ref	Part number	Part name	Qty
1	B1817-280-0A0	INNER HOOK PRESSER ASM.	1
2	B1828-980-0AB	BOBBIN CASE ASM.	1
3	262-33106	BOBBIN	1
4	262-04909	INNER HOOK	1
5	400-28681	DRIVER ASM.	1
6	SS-6121212-TP	SCREW 3/16-28 L=12.0	(1)
7	B1813-980-000	SHUTTLE NEEDLE OUTER RING	1
8	B1411-804-B00	NEEDLE DRIVING LEVER BEARING B	3
9	WP-0952616-SD	WASHER 9.5X14.8X2.6	1
10	B1814-980-000	SHUTTLE	1
11	262-22109	SHUTTLE UPPER SPRING	1
12	SS-6060410-TP	SCREW 3/32-56 L=3.5	2
13	SS-6151220-SP	SCREW 15/64-28 L=11.5	1
14	262-22208	SHUTTLE RACEADJUSTING SHAFT	1
15	SS-6110480-SP	SCREW 11/64-40 L=4.3	1
16	CS-080081C-SH	THRUST COLLAR ASM. D=8.0 W=8	1
17	SS-8110520-TP	SCREW 11/64-40 L=4.5	(2)
18	135-08403	LOWER SHAFT REAR METAL	1
19	B1808-980-000	LOWER SHAFT THRUST WASHER	1
20	135-09153	LOWER SHAFT GEAR A ASM.	1
21	135-08155	CRANK ROD ASM.	1
22	SS-8110510-TP	SCREW 11/64-40 L=10.5	(2)
23	SD-0801021-TP	HINGE SCREW D=8 H=10.2	1
24	B1805-980-000	OSCILLATOR	1
25	NS-6660430-SP	NUT 1/4-40	1
26	CS-079101A-SH	THRUST COLLAR ASM. D=7.94 W=10	1
27	SS-8110520-TP	SCREW 11/64-40 L=4.5	(2)
28	262-21804	THRUST COLLAR	1
29	SS-8110520-TP	SCREW 11/64-40 L=4.5	2
30	262-03901	OSCILLATING SHAFT	1
31	SS-8150822-TP	SCREW 15/64-28 L=8	1
32	262-22406	INNER HOOK PRESSER, LEFT	1
33	262-22307	INNER HOOK PRESSER, RIGHT	1
34	262-22505	INNER HOOK PRESSURE SPRING	2
35	PS-0250162-KH	SPRING PIN 2.5X16	2
36	B1828-980-0A0	BOBBIN CASE ASM.	1
37	138-16855	CYLINDER ARM CAP ASM.	1
38	262-21200	HOOK COVER PRESSER SPRING B	1
39	SS-6111140-SP	SCREW 11/64-40 L=11	1
40	135-08700	HOOK COVER PRESSER SPRING PIN	1
41	SS-6661110-SP	SCREW 1/4-40 L=11	1
42	SS-6742012-TP	SCREW 3/8-28 L=19.5	1
43	135-10458	WORM WHEEL ASM.	1
44	135-10201	WORM WHEEL SHAFT BUSHING	1
45	262-21101	HOOK COVER PRESSER SPRING A	1
46	CS-180121A-SH	THRUST COLLAR ASM. D=18 W=12	1
47	SS-6660710-TP	SCREW 1/4-40 L=7	(2)
48	NS-6660511-SP	NUT 1/4	1
49	262-21358	WORM WHEEL SHAFT ASM.	1
50	262-21507	CAM GUIDE PIN	1
51	NS-6360810-SP	NUT 9/16-20	1
52	135-10607	FEED CAM	1

Page 17

Juki LK-1850 parts on page 17

Ref	Part number	Part name	Qty
1	SS-7110740-TP	SCREW 11/64-40 L=7	4
2	RE-0700000-K0	E-RING 7	2
3	B2557-280-00C	WASHER	2
4	135-18352	LEVER DRIVING PLATE ASM.	2
5	135-18402	TENSION SPRING	2
6	262-04107	LIFTING LEVER LEFT	1
7	262-23701	LIFTING LEVER SHAFT	1
8	135-18907	SUPPORT PLATE	1
9	SS-2110920-TP	SCREW 11/64-40 L=8.5	2
10	B2549-280-000	WORK CLAMP FOOT MOUNTING BASE	7
11	262-24808	BALL RETAINER	1
12	SM-6062002-TP	SCREW M6 L=20	1
13	WP-0621016-SD	WASHER 6.2X13X1	1
14	135-18501	SPRING SUSPENSION	1
15	135-17800	FEED BRACKET	1
16	SS-8150510-TP	SCREW 15/64-28 L=4.7	1
17	262-04008	LIFTING LEVER RIGHT	1
18	SS-8080310-TP	SCREW 1/8-44 L=2.8	2
19	262-24204	FINGER GUARD	1
20	SS-2110930-SP	SCREW 11/64-40 L=8.7	5
21	262-24105	WORK CLAMP FOOT FACE PLATE	1
22	135-18600	WORK CLAMP FOOT, RIGHT	1
23	135-18709	WORK CLAMP FOOT, LEFT	1
24	SM-3061052-TP	SCREW M6 L=10	1
25	WP-0650876-SD	WASHER 6.5X13X0.8	1
26	135-17701	FEED PLATE	1
27	SS-2110920-TP	SCREW 11/64-40 L=8.5	4
28	262-23602	FEED PLATE PRESSER PLATE	1
29	135-17529	FEED PLATE CARRIER BAR	1
30	262-22703	FEED DRIVING ARM SHAFT	2
31	SS-6151220-SP	SCREW 15/64-28 L=11.5	1
32	SS-7701010-SP	SCREW 5/16-24 L=10	1
33	NS-6150540-SP	NUT 15/64-28	2
34	WP-0702026-SP	WASHER 7X15X2	1
35	135-16307	FEED REGULATOR	1
36	262-23503	HINGE STUD	1
37	NS-6700320-SP	NUT 5/16-24	1
38	262-22901	FEED REGULATOR STUD	2
39	262-23008	INDICATOR LEVER	2
40	SD-0530221-SP	HINGE SCREW D=5.3 H=2.2	2
41	135-16703	SLIDE BLOCK B	2
42	NS-6960430-SP	NUT 1/4-40	2
43	WP-0650876-SD	WASHER 6.5X13X0.8	2
44	262-24600	FEED CAM ROLLER SHAFT	2
45	262-39806	FEED CAM ROLLER	2
46	135-16109	FEED DRIVING ARM	1
47	SS-9151440-CP	SCREW 15/64-28 L=14	1
48	135-50108	FEED REGULATOR SHAFT	2
49	TA-0550604-R0	RUBBER PLUG	2
50	262-23404	PLATE	1
51	SS-1110821-TP	SCREW 11/64-40 L=8.3	2
52	SS-6151220-SP	SCREW 15/64-28 L=11.5	1
53	WP-0704516-SP	WASHER 7X20X4.5	1
54	262-23305	SLIDE BLOCK STUD	1
55	B1414-232-000	SQUARE BLOCK	1
56	SS-6151050-TP	SCREW 15/64-28 L=10.5	1
57	135-17107	FEED ACROSS DRIVING ARM	1
58	135-17008	FEED ACROSS REGULATOR	1
59	SS-6151220-SP	SCREW 15/64-28 L=11.5	1
60	SS-4110615-SP	SCREW 11/64-40 L=6	1

Page 19

Juki LK-1850 parts on page 19

Ref	Part number	Part name	Qty
1	262-26407	TENSION SPRING HOOK
2	B2410-980-000	TENSION SPRING
3	SD-0650305-TP	HINGE SCREW D=6.5 H=3
4	260-17400	SPRING HOOK
5	262-25805	THREAD CUTTING LINK
6	262-26100	THREAD CUTTING RING
7	SS-6151440-SP	SCREW 15/64-28 L=14
8	262-26001	THREAD CUTTING LINK WASHER
9	262-25904	THREAD CUTTING LINK SHAFT
10	RC-1021011-KP	RETAINING RING 10.2
11	135-15408	CONNECTING ROD, LARGE
12	NS-6120310-SP	NUT 3/16-28
13	262-25201	ROLLER
14	SD-0651301-TH	HINGE SCREW D=6.5 H=13
15	SS-8681950-SP	SCREW 9/32-28 L=19
16	262-26704	THREAD CUTTING CAM ROLLER
17	262-25102	CAM STUD
18	135-34060	THREAD CUTTING CAM COMPL.
19	262-25706	CONNECTING ROD, SMALL
20	135-07058	LOWERING LINK ASM.
21	262-17406	LOWERING LINK
22	SD-0790402-TP	HINGE SCREW D=7.94 H=4
23	135-07157	LOWERING LEVER ASM.
24	NS-6150310-SP	NUT 15/64-28
25	262-17505	ROLLER
26	262-17604	WASHER
27	B2615-280-000	STOP RING
28	WP-0982616-SP	WASHER 9.8X24.0X2.6
29	SS-6741512-TP	SCREW 3/8-28 L=14.5
30	SD-0901101-SP	HINGE SCREW D=9 H=11
31	262-25300	AUXILIARY LEVER
32	262-25409	SHAFT
33	135-14401	THREAD TRIMMING AUXILIARY CAM
34	RC-0740816-K0	RETAINING RING 7.4
35	262-25607	CONNECTING PLATE B
36	SD-0790802-TP	HINGE SCREW D=7.94 H=8
37	262-26209	SPRING
38	262-26506	SPRING HOOK
39	NS-6110420-SP	NUT 11/64-40
40	SS-7110910-TP	SCREW 11/64-40 L=8.5
41	WP-0480856-SP	WASHER 4.8X8.4X0.8
42	262-25508	CONNECTING PLATE A

Page 21

Juki LK-1850 parts on page 21

Ref	Part number	Part name	Qty
1	135-23188	PRESSURE DECREASING DEVICE	1
2	135-24608	PRESSURE DECREASING LEVER	(2)
3	135-25100	STUD	(2)
4	135-24707	LEVER LATCH A	(1)
5	SS-2110920-TP	SCREW 11/64-40 L=8.5	(2)
6	SS-7110910-TP	SCREW 11/64-40 L=8.5	(2)
7	SD-0640321-SP	HINGE SCREW D=6.35 H=3.2	(2)
8	135-24806	LEVER LATCH B	(1)
9	135-25001	SPRING	(1)
10	135-24905	PRESSURE DECREASING LEVER LINK	(1)
11	260-17400	SPRING HOOK	(2)
12	SS-8150710-SP	SCREW 15/64-28 L=7	(1)
13	MAT-80116S00	SUSPENSION PIN	(1)
14	135-25605	AUXILIARY CAM	(1)
15	SD-0720331-SP	HINGE SCREW D=7.24 H=3.3	(1)
16	SS-6110710-TP	SCREW 11/64-40 L=6.5	(1)
17	135-25704	SPRING	(1)
18	SM-6061002-TP	SCREW M6 L=10	(2)
19	135-23352	PRESSURE DECREASING SHAFT ASM.	(1)
20	PS-0300162-KH	SPRING PIN 3X16	(1)
21	135-23121	PRESSURE DECREASING UNIT FRAME	(1)
22	135-23388	ROTATION PREVENTING LATCH ASM.	(1)
23	135-24418	SPRING	(1)
24	SD-0600321-SP	HINGE SCREW D=6 H=3.2	(1)
25	SS-8620610-SP	SCREW 3/16-32 L=6	(1)
26	135-24277	DECREASING CLUTCH ASM.	(1)
27	135-23808	CLUTCH SPRING	(1)
28	SM-6051202-TP	SCREW M5X0.8 L=12	(1)
29	135-24129	INNER SLEEVE	(1)
30	135-24004	OUTER SLEEVE	(1)
31	135-23915	OUTER SLEEV GUIDE	(1)
32	RC-1850001-KP	SNAP RING 18.5	(1)
33	SB-1200003-00	BEARING D=20X42	(1)
34	135-23428	SHAFT	(1)
35	SB-3120001-00	BEARING D=12X15	(2)
36	135-23519	COLLAR A	(1)
37	135-23600	COLLAR B	(1)
38	135-25308	IDLER PULLEY INSTALLING PLATE	(1)
39	SS-6110810-TP	SCREW 11/64-40 L=8	(3)
40	135-25407	SCREW	(1)
41	SS-8150822-TP	SCREW 15/64-28 L=8	(2)
42	135-23212	DRIVING PULLEY	(1)
43	SS-8151550-SP	SCREW 15/64-28 L=15	(1)
44	WP-0482086-SD	WASHER 4.8X11.5X2	(2)
45	SS-8620850-SP	SCREW 3/16-32 L=8.0	(1)
46	SM-6062002-TP	SCREW M6 L=20	3
47	135-32254	IDLER PULLEY ASM.	1
48	SD-1201501-SP	HINGE SCREW D=12 H=15	(1)
49	262-35200	IDLER BRACKET	(1)
50	WP-0621016-SD	WASHER 6.2X13X1	(1)
51	SS-6150760-SN	SCREW 15/64-28 L=6.5	(1)
52	NS-6150310-SP	NUT 15/64-28	(1)
53	WP-0618506-SD	WASHER 6.1X18.5X2	(1)
54	262-35408	IDLER RING	(1)
55	135-32262	IDLER PULLEY ASM.	(1)

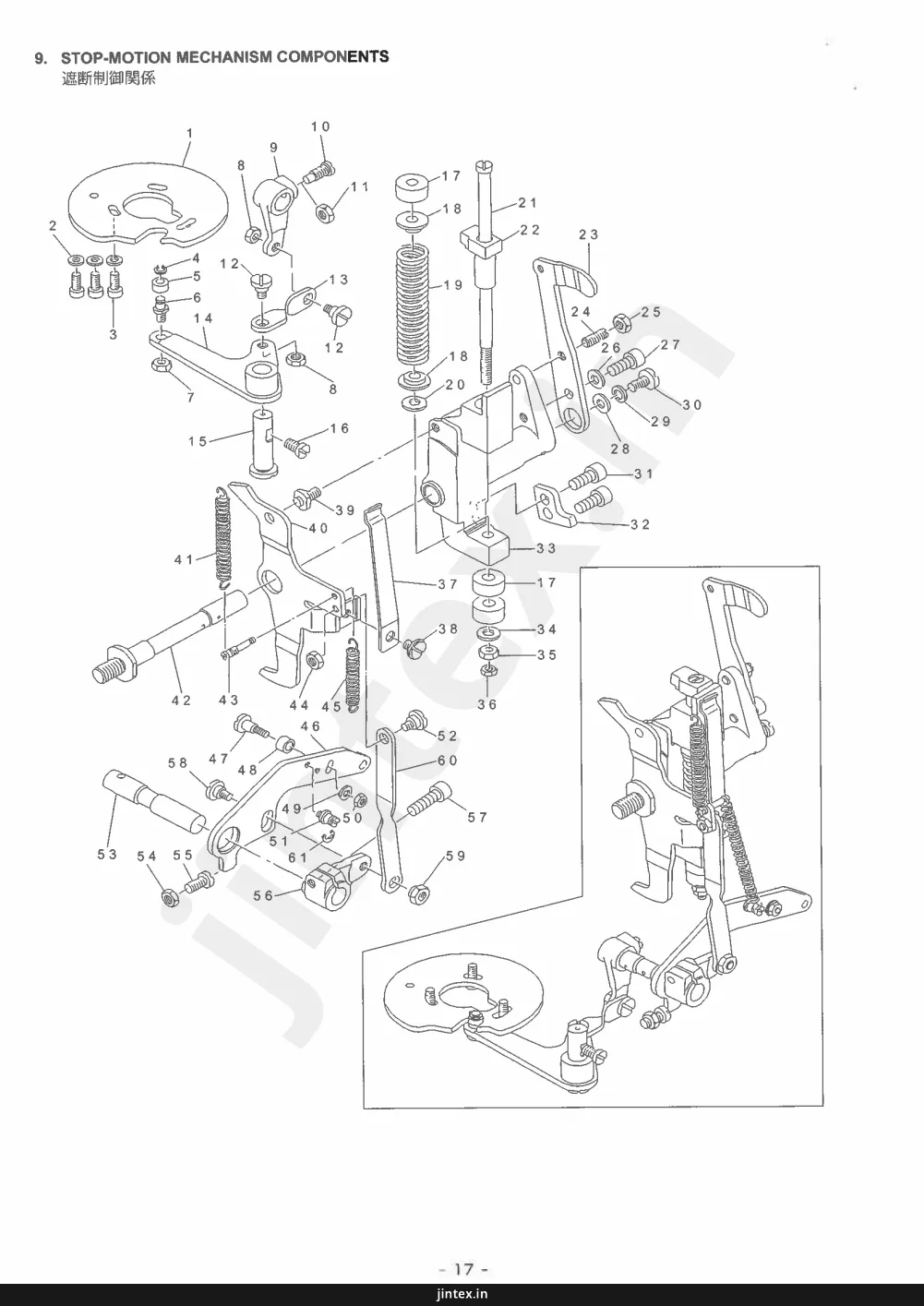

Page 23

Juki LK-1850 parts on page 23

Ref	Part number	Part name	Qty
1	135-22008	STOP-MOTION REGULATING CAM	1
2	WP-0482086-SD	WASHER 4.8X11.5X2	3
3	SS-6121212-TP	SCREW 3/16-28 L=12.0	3
4	RC-0470611-KP	RETAINING RING 4.7	1
5	262-28601	ROLLER	1
6	262-28502	ROLLER SHAFT	1
7	NS-6150430-SP	NUT 15/64-28	1
8	NS-6150430-SP	STOP-MOTION ARM B	2
9	135-21505	SCREW 9/32-28 L=16.5	1
10	SS-6681720-TP	NUT 9/32-28	1
11	NS-6680320-SP	HINGE SCREW D=8 H=4	2
12	SD-0800402-TP	STOP-MOTION LINK	1
13	262-28205	LEVER ASM.	1
14	135-21760	REGULATING LEVER STUD	1
15	262-28304	SCREW 15/64-28 L=11	1
16	SS-7151120-SP	RUBBER CUSHION	2
17	B2608-280-000	WASHER	3
18	262-29104	PRESSURE SPRING	2
19	262-29005	WASHER 7.5X19X1.5	1
20	WP-0751576-SD	STOP-MOTION PLUNGER ROD	1
21	B2605-372-000	STOP MOTION HOOK	1
22	262-28908	PULLEY PRESSING PLATE	1
23	135-20309	SCREW 15/64-28 L=17.0	1
24	SS-8151780-SP	NUT 15/64-28	1
25	NS-6150430-SP	WASHER 6.2X13X1	1
26	WP-0621016-SD	SCREW M6 L=18	1
27	SM-6061802-TP	WASHER 6.1X18.5X2	1
28	WP-0612056-SD	SPRING WASHER 6.4X11.9X1.5	1
29	WS-0641560-KR	SCREW 15/64-28 L=13.0	2
30	SS-6061402-TP	SCREW M6 L=14	1
31	SM-6061402-TP	SAFETY PLATE	2
32	135-20705	STOP-MOTION LEVER	1
33	135-20119	WASHER 7.5X19X1.5	1
34	WP-0751576-SD	NUT 9/32-28	1
35	NS-6680410-SP	NUT 9/32-28	1
36	NS-6680410-SP	STOP-MOTION LEVER PLATE SPRING	1
37	262-27306	SCREW 9/32-28 L=6.8	1
38	SS-5680740-SP	GUIDE PIN	1
39	262-27207	DRIVING PLATE	1
40	135-20408	TENSION SPRING	1
41	135-20804	STOP-MOTION LEVER SHAFT	1
42	262-02903	STARTING SPRING HOOK	1
43	262-28700	NUT 15/64-28	1
44	NS-6150310-SP	TENSION SPRING	1
45	262-27900	STARTING LEVER	1
46	262-04701	HINGE SCREW D=6.35 H=8.0	1
47	SD-0640801-TP	SLIDE ROLLER	1
48	262-28809	WASHER 4.8X8.4X0.8	1
49	WP-0480856-SP	NUT 11/64-40	1
50	NS-6110420-SP	SUSPENSION SCREW	1
51	262-29302	HINGE SCREW D=8 H=4	1
52	SD-0800402-TP	STOP-MOTION ARM SHAFT	1
53	135-21406	NUT 15/64-28	1
54	NS-6150310-SP	SCREW 15/64-28 L=14	1
55	SS-6151440-SP	STOP-MOTION ARM A	1
56	135-21125	SCREW M6 L=20	1
57	SM-6062002-TP	HINGE SCREW D=8 H=3.5	1
58	SD-0800352-SP	NUT	1
59	262-27702	STOP-MOTION CONNECTING LEVER	1
60	262-27603	E-RING 4	1
61	RE-040000-KO

Page 25

Juki LK-1850 parts on page 25

Ref	Part number	Part name	Qty
1	TA-2100904-R0	RUBBER PLUG
2	TA-1050504-R0	RUBBER PLUG
3	BP-6000000-00	VINYL PIPE
4	262-30706	OIL WICK PRESSER
5	TA-1250406-R0	RUBBER PLUG D=12.5 L=4
6	CQ-2522000-00	OIL WICK
7	262-31209	OIL WICK PRESSER
8	TA-1250406-R0	RUBBER PLUG D=12.5 L=4
9	B3507-280-00	OIL FELT
10	B3509-280-00	NEEDLE ROD CRANK LUBRICATING
11	B3518-280-00	BALANCE LUBRICATING
12	262-31407	BALANCE LUBRICATING PLATE
13	SS-6091510-SP	SCREW 9/64-40 L=15.0
14	BP-3000001-00	VINYL TUBE
15	EA-9500B01-00	CABLE BAND
16	262-30102	LUBRICATING TANK
17	SS-4090515-SP	SCREW 9/64-40 L=5
18	135-01705	SILICON OIL FELT
19	SS-4110715-SP	SCREW 11/64-40 L=7
20	262-30409	LUBRICATING OIL WICK STOPPER
21	TA-0750704-R0	RUBBER PLUG
22	135-01408	SILICON OIL POURING HOLE
23	135-29904	LUBRICATING TANK FELT
24	262-30904	GREASE CAP
25	135-28708	REAR METAL BUSH
26	262-31605	CRANK ROD LUBRICATING PLATE
27	135-29201	CRANK LUBRICATING FELT
28	135-29102	OIL FELT
29	262-29401	OSCILLATOR LUBRICATION PLATE
30	B3515-280-00	OSCILLATOR LUBRICATING FELT
31	TA-1450404-R0	RUBBER PLUG D=14.5 L=4
32	WP-0621016-SD	WASHER 6.2X13X1
33	SS-6111140-SP	SCREW 11/64-40 L=11
34	SS-7110510-SP	SCREW 11/64-40 L=5
35	B3502-280-00	LUBRICATING TANK FELT
36	B3504-280-00	SHUTTLE FELT
37	262-29609	HOOK OIL WICK STOPPER A
38	B3541-012-00	OIL WICK
39	262-30003	OIL FELT HOLDER
40	SS-4110515-SP	SCREW 11/64-40 L=5
41	262-31902	OIL WICK PIPE STOPPER
42	135-01309	SILICON OIL PIPE
43	B1127-280-00	SILICON OIL THREAD GUIDE
44	262-31100	SHUTTLE LUBRICATING PLATE
45	SS-4110515-SP	SCREW 11/64-40 L=5
46	SS-6090440-SP	SCREW 9/64-40 L=4.0
47	TA-1050504-R0	RUBBER PLUG

Page 27

Juki LK-1850 parts on page 27

Ref	Part number	Part name	Qty
1	138-17507	TABLE	1
2	111-55207	DRAWER SUPPORT	2
3	111-55108	DRAWER	1
4	D8204-555-D00	DRAWER STOPPER	1
5	135-08056	T-STAND COMPL.	1
6	111-57559	T-STAND ASM.	(1)
7	111-57658	STAND UPPER, RIGHT	(1)
8	111-57757	STAND UPPER, LEFT	(1)
9	111-57955	STUD ASM., RIGHT	(1)
10	111-58052	STRUT JUNCTION (LEFT)	(1)
11	111-58300	STAND SIDE SUPPORT	(1)
12	111-58409	STAND SIDE SUPPORT	(1)
13	111-58607	RUBBER CAP	(4)
14	170-07402	NUT	(2)
15	WP-1302501-SE	WASHER M12	(4)
16	WS-1253010-KN	SPRING WASHER 12.5X21.5X3	(4)
17	B8108-555-0A0	ADJUSTING SCREW ASM. WITH CAP	(4)
18	NM-6120003-SE	NUT M12	(4)
19	111-58508	PLATE	(2)
20	SL-9082091-SE	WASHER HEXAGONAL BOLT	(12)
21	138-17754	Z-STAND PEDAL ASM.	(1)
22	GPF-06060A0	PEDAL ASM.	(1)
23	GPF-0608000	PEDAL ADJUSTING PLATE	(1)
24	111-59001	PEDAL SHAFT BRACKET	(2)
25	B8153-771-000	PEDAL CONNECTING ROD	(1)
26	D8113-555-B00	PEDAL BUSHING	(2)
27	SM-9061203-SE	SCREW M6 L=12	(2)
28	WP-0671016-SE	WASHER 6.7X13X1	(2)
29	WS-0621114-KR	SPRING WASHER 6.2X11.4X1.2	(2)
30	SM-9082023-SE	SCREW M8 L=20	(2)
31	WP-0871602-SE	WASHER 8.7X18X1.6	(4)
32	WS-0861410-KR	SPRING WASHER 8.6X15X1.4	(2)
33	NM-6080721-SE	NUT M8	(2)
34	SS-9156830-SP	SCREW 15/64-28 L=68	3
35	MTJ-MS090000	MOUNTING BOLT	4
36	B8133-019-000	S'SHAPED HOOK	2
37	SK-3311600-SE	WOOD SCREW D=3.1 L=16	3
38	262-34302	OIL REMOVING FUNNEL	1
39	WP-0612056-SD	WASHER 6.1X18.5X2	3
40	WP-0621016-SD	WASHER 6.2X13X1	3
41	NS-6150310-SP	NUT 15/64-28	3
42	B7130-761-0A0	MOTOR BASE ASM.	1
43	NM-6060001-SE	NUT M6	4
44	WS-0621210-KR	SPRING WASHER 6.2X11.4X1.2	4
45	WP-0612056-SE	WASHER 6.1X18.5X2	8
46	SM-9062003-SC	SCREW M6 L=20	4
47	WP-0850002-SC	WASHER 8.5X18X1.6	4
48	WS-0901520-KN	SPRING WASHER 9.0X15.0X2.0	4
49	NS-6200710-SN	NUT 5/16-18	4
50	135-31108	MOTOR PULLEY 50HZ 2300 SPM	1
51	262-02804	MOTOR PULLEY	1
52	135-31306	MOTOR PULLEY 50HZ 2000 RPM	1
53	135-31405	MOTOR PULLEY 60HZ 2300 SPM	1
54	135-31504	MOTOR PULLEY 60HZ 2000 SPM	1
55	135-31603	MOTOR PULLEY 60HZ 1800 SPM	1
56	135-53706	MOTOR PULLEY 60HZ 1500 SPM	1
57	SS-9150822-TP	SCREW 15/64-28 L=8	2
58	B8131-019-000	CHAIN	1
59	MTJ-VM00500	V-BELT, 50INCH	1
60	MTJ-VM00490	V-BELT, 49INCH	1
61	MTJ-VM00480	V-BELT, 48INCH	1
62	MTJ-VM00470	V-BELT, 47INCH	1
63	MTJ-VM00460	V-BELT, 46INCH	1
64	400-09458	PULLEY COVER	1
65	B7272-781-000	COVER MOUNTING BRACKET B	1
66	262-36703	COVER MOUNTING BRACKET C	1
67	SS-7110710-SP	SCREW 11/64-40 L=7	4
68	NS-6110310-SP	NUT 11/64-40	4
69	WP-0480856-SP	WASHER 4.8X8.4X0.8	4
70	SK-3452000-SC	WOOD SCREW D=4.5 L=20	2
71	WP-0501016-SC	WASHER 5X10.5X1	2

Page 29

Juki LK-1850 parts on page 29

Ref	Part number	Part name	Qty
1	135-10862	WORM ASM.	1
2	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
3	135-10953	FEED CAM DRIVING WHEEL ASM.	1
4	135-41750	FINGER GUARD ASM.	1
5	SS-7111120-SP	SCREW 11/64-40 L=10.5	1
6	135-40752	WORK CLAMP FOOT BRACKET ASM.	(1)
7	135-41206	WORK CLAMP FOOT PLATE COVER	(1)
8	SS-7110840-SP	SCREW 11/64-40 L=7.8	(2)
9	135-41404	WORK CLAMP FOOT LIFTING PLATE	(1)
10	SS-9151120-CP	SCREW 15/64-28 L=11	(2)
11	WP-0612516-SD	WASHER 6.1X15.2X2.5	(2)
12	D2529-232-D00	PRESSER SPRING	(1)
13	D2545-232-D0A	HINGE SCREW	(2)
14	D2513-232-DA0	BRACKET GUIDE ASM.	(1)
15	NS-6110530-SP	NUT 11/64-40	(1)
16	D2509-232-D00	STATIONING LATCH	(1)
17	D2512-232-D00	TORSION SPRING	(1)
18	D2511-232-D00	SCREW	(1)
19	D2504-282-AB0-A	KNOB FOOT MOUNT BASE ASM.	(1)
20	D2502-232-D00	SHAFT BLOCK SHAFT	(1)
21	RE-0700000-K0	E-RING 7	(2)
22	SS-9110920-CP	SCREW 11/64-40 L=9	(1)
23	D2516-232-DA0	WORK CLAMP FOOT REGULATOR	(1)
24	D2528-232-D00	SHAFT	(1)
25	D2527-232-D00	SLEEVE	(1)
26	B3117-352-000	THREAD TENSION POST NUT	(2)
27	D2515-232-D00	TORSION SPRING	(1)
28	SS-7110840-SP	SCREW 11/64-40 L=7.8	(2)
29	135-41107	WORK CLAMP FOOT SPRING HOLDER	(1)
30	135-41057	CLAMP GUIDE FOOT ASM.	(1)
31	D2520-232-DA0	WORK CLAMP FOOT(LEFT)ASM.	(1)
32	SS-7110550-TP	SCREW 11/64-40 L=5.5	(2)
33	D2521-232-DA0	WORK CLAMP FOOT(RIGHT)ASM.	(1)
34	SD-0550271-TP	HINGE SCREW D=5.50 H=2.7	(2)
35	D2519-232-D00	WORK CLAMP FOOT PLATE CAM	(1)
36	NS-6120480-SP	NUT 3/16-28	(2)
37	135-41503	FEED PLATE	(1)
38	SS-9110460-CP	SCREW 11/64-40 L=4	(1)
39	WP-0501016-SD	WASHER 5X10.5X1	(1)
40	SS-9110460-CP	SCREW 11/64-40 L=4	(2)
41	135-40802	SHAFT BRACKET BASE	(1)
42	135-40901	STATIONING BLOCK SHAFT	(1)
43	D2548-232-D00	SNAP RING,FOR CONNECTING ROD	(1)
44	D2507-232-D00	STATIONING BLOCK	(1)
45	NS-6150310-SP	NUT 15/64-28	(1)
46	SS-9151120-CP	SCREW 15/64-28 L=11	(1)
47	WP-0612516-SD	WASHER 6.1X15.2X2.5	(1)
48	135-40703	WORK CLAMP FOOT BRACKET ASM.	(1)
49	SM-6060802-TP	SCREW M6 L=8	(1)
50	WP-0612066-SP	WASHER 6.1X11X2	(1)
51	135-41313	CONNECTING ARM	1
52	SM-6061802-TP	SCREW M6 L=18	1
53	SD-1201501-SP	HINGE SCREW D=12 H=15	1
54	WP-0651056-SH	WASHER 6.5X11X1	1
55	135-40604	DRIVING BAR B	1
56	PD-0201000-0B	SPLIT PIN	2
57	SS-7090610-SP	SCREW 9/64-40 L=6	2
58	135-40505	DRIVING BAR A	1
59	SD-0900701-TP	HINGE SCREW D=9 H=7	1
60	135-40406	WASHER	1
61	135-40307	LEVER	1
62	135-40208	LINK	1
63	SD-0640321-SP	HINGE SCREW D=6.35 H=3.2	1
64	135-40109	STOP-MOTION REGULATING ARM B	1
65	SD-0640241-SP	HINGE SCREW D=6.35 H=2.4	1
66	135-41800	FEED CAM	1
67	135-38301	STOP-MOTION REGULATING CAM	1
68	135-47807	FEED STOP WASHER	1
69	SS-6090510-SP	SCREW 9/64-40 L=5	1
70	NS-6090310-SP	NUT 9/64-40	1

Page 30

Juki LK-1850 parts on page 30

Ref	Part number	Part name	Qty
1	135-10862	WORM ASM.	1
2	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
3	135-42402	WORK CLAMP FOOT, RIGHT	1
4	135-42501	WORK CLAMP FOOT, LEFT	1
5	135-42303	FEED PLATE	1
6	135-41800	FEED CAM	1
7	135-38301	STOP-MOTION REGULATING CAM	1
8	135-10953	FEED CAM DRIVING WHEEL ASM.	1
9	135-10862	WORM ASM.	1
10	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
11	135-42915	WORK CLAMP FOOT, RIGHT	1
12	135-43012	WORK CLAMP FOOT, LEFT	1
13	135-42816	CLOTH PRESSER PLATE	1
14	D2426-282-C00	NEEDLE HOLE GUIDE	1
15	MDP-500B1100	NEEDLE DPX5 #11	1
16	MC-2005007-50	NEEDLE 134 NM75	1
17	135-42709	FEED CAM	1
18	135-38301	STOP-MOTION REGULATING CAM	1
19	135-10953	FEED CAM DRIVING WHEEL ASM.	1
20	135-10862	WORM ASM.	1
21	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
22	135-10953	FEED CAM DRIVING WHEEL ASM.	1
23	135-43202	FEED CAM	1
24	135-38301	STOP-MOTION REGULATING CAM	1

Page 31

Juki LK-1850 parts on page 31

Ref	Part number	Part name	Qty
	MDP-500B2100	NEEDLE DPX5 #21	1
	135-19004	TENSION SPRING	1
	135-43202	FEED CAM	1
	135-10862	WORM ASM.	1
	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
	135-38301	STOP-MOTION REGULATING CAM	1
	135-10953	FEED CAM DRIVING WHEEL ASM.	1
	D1818-282-N00	SHUTTLE	1
	D1817-282-N00	SHUTTLE RACE RING, THICK NEEDL	1
	B2426-280-00C	NEEDLE PLATE NEEDLE HOLE GUIDE	1
	B2302-205-0A0	TENSION CONTROLLER NO.2 ASM.	1
	D3112-L4B-B00	TAKE-UP SPRING (HEAVY)	(1)
	B3129-053-000	TENSION SPRING	(1)
	135-10862	WORM ASM.	1
	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
	135-10953	FEED CAM DRIVING WHEEL ASM.	1
	135-64901	FEED CAM 1852-210	1
	135-38301	STOP-MOTION REGULATING CAM	1

Page 32

Juki LK-1850 parts on page 32

Ref	Part number	Part name	Qty
	1	Lever
	2	Base
	3	Bracket
	4	Screw
	5	Plate
	6	Lever
	7	Shaft
	8	Roller
	9	Screw
	10	Bracket
	11	Screw
	12	Screw
	13	Shaft
	14	Screw
	15	Lever
	16	Screw
	17	Spring
	18	Screw
	19	Shaft
	20	Screw
	21	Knob
	22	Base
	23	Bracket
	24	Nut
	25	Lever
	26	Screw
	27	Roller
	28	Screw
	29	Gear
	30	Shaft Assembly
	31	Screw
	32	Nut
	33	Screw
	34	Screw
	35	Spring
	36	Spring
	37	Lever
	38	Screw
	39	Screw
	40	Screw
	41	Lever
	42	Screw
	43	Screw
	44	Lever
	45	Wheel
	46	Washer
	47	Cover
	48	Base
	49	Plate
	50	Screw
	51	Washer
	52	Screw
	53	Lever
	54	Base
	55	Spring

Page 33

Juki LK-1850 parts on page 33

Ref	Part number	Part name	Qty
	135-44416	CLOTH PRESSER FOOT	1
	135-43764	CLOTH FEED BASE ASM.	1
	135-44465	CLOTH PRESSER FOOT ASM.	(1)
	SS-7120910-SP	SCREW 3/16-28 L=9	(4)
	135-44614	CLOTH FEED BASE COVER	(1)
	135-43715	CLOTH FEED BASE	(1)
	B2539-280-000	STUD	(1)
	CS-087101B-SH	THRUST COLLAR ASM. D=8.73 W=10	(1)
	SS-8150822-TP	SCREW 15/64-28 L=8	(2)
	135-43806	BALL HOLDER	(1)
	SS-7151210-SP	SCREW 15/64-28 L=12	(1)
	B2549-280-000	WORK CLAMP FOOT MOUNTING BASE	(7)
	B2548-280-000	BALL RETAINER	(1)
	SS-7110740-TP	SCREW 11/64-40 L=7	(1)
	135-43905	SPRING SUSPENSION	(1)
	SS-6120940-SP	SCREW 3/16-28 L=9	(2)
	135-44705	SPRING	(1)
	B3413-552-000	SUSPENSION SCREW	(1)
	135-44051	LIFTING LEVER ASM.	(1)
	SS-8150822-TP	SCREW 15/64-28 L=8	(2)
	135-10953	FEED CAM DRIVING WHEEL ASM.	1
	400-38080	TEREAD GUIDE BRACKET ASM.	(1)
	262-03406	THREAD GUIDE BRACKET	(1)
	NS-6110310-SP	NUT 11/64-40	(1)
	400-38078	THREAD GUIDE	(1)
	262-16705	BOBBIN WINDER TENSION POST	(1)
	229-45802	THREAD TENSION DISK	(2)
	262-16606	BOBBIN WINDER TENSION SPRING	(1)
	262-16507	BOBBIN WINDER TENSION NUT	(1)
	135-10862	WORM ASM.	1
	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
	NS-6150540-SP	NUT 15/64-28	1
	SS-2110930-SP	SCREW 11/64-40 L=8.7	4
	135-43509	FEED PLATE HOLDER	1
	400-60887	CAHIN	1
	131-60304	S SHAPED HOOK	2
	135-44952	PEDAL LEVER ASM.	1
	135-44903	PEDAL SHAFT	(1)
	WP-1021016-SD	PEDAL	(1)
	RE-0900000-KO	E-RING 9	(1)
	135-45009	PEDAL SHAFT BRACKET	(2)
	SK-3483200-SE	WOOD SCREW D=4.8 L=32	(4)
	SS-6661110-SP	SCREW 1/4-40 L=11	(2)
	135-45157	PEDAL LEVER ASM. (BELT LOOP)	(1)
	135-45306	FEED CAM	1
	135-38301	STOP-MOTION REGULATING CAM	1
	135-43608	FEED PLATE	1
	400-52815	SAFETY PLATE ASM.	1
	138-89407	SAFETY PLATE	(1)
	SM-4040655-SP	SCREW M4 L=6	(2)
	WP-0450801-SD	WASHER 4.5X10X0.8	(2)
	SS-4110715-SP	SCREW 11/64-40 L=7	(2)
	400-52810	SAFETY PLATE INSTALLING BASE	(1)
	135-09401	TABLE (FOR BELT LOOP)	1
	135-22503	TENSION SPRING	1

Page 34 — LK-1852-30

Juki LK-1850 parts on page 34

Ref	Part number	Part name	Qty
1	135-10953	FEED CAM DRIVING WHEEL ASM.
2	135-10862	WORM ASM.
3	SS-7111410-TP	SCREW 11/64-40 L=14
4	135-45611	CLOTH PRESSER FOOT
5	135-51569	CLOTH FEED BASE (ASM.)
6	135-45660	WORK CLAMP FOOT ASM.
7	400-38080	THREAD GUIDE BRACKET ASM.
8	400-38078	THREAD GUIDE
9	135-45504	FEED PLATE
10	SS-2110930-SP	SCREW 11/64-40 L=8.7
11	135-43509	FEED PLATE HOLDER
12	NS-6150540-SP	NUT 15/64-28
13	400-52815	SAFETY PLATE ASM.
14	135-09401	TABLE (FOR BELT LOOP)
15	135-54100	FEED CAM
16	135-54100	FEED CAM
17	135-38301	STOP-MOTION REGULATING CAM
18	135-44952	PEDAL LEVER ASM.
19	400-60887	CAHIN
20	131-60304	S SHAPED HOOK
21	135-22503	TENSION SPRING

Page 35

Juki LK-1850 parts on page 35

Ref	Part number	Part name	Qty
	135-47500	STOP-MOTION SPRING	(1)
	135-45959	PEDAL TYPE PRESSER ASM.	(1)
	135-45967	PEDAL TYPE PRESSER ASM.	(1)
	135-46007	LOWERING LEVER	(1)
	NS-6110350-SP	NUT 11/64-40	(4)
	135-46106	LOWERING LINK	(1)
	135-46205	LOWERING CONNECTING PLATE	(1)
	SD-0640324-TP	HINGE SCREW D= 6.35 H= 3.2	(2)
	135-45900	INSTALLING BASE	(1)
	NS-6110310-SP	NUT 11/64-40	(1)
	B1649-161-000	TENSION SPRING ADJUSTING SCREW	(1)
	135-21307	TENSION SPRING	(1)
	SD-0640801-TP	HINGE SCREW D= 6.35 H= 8.0	(1)
	B2007-372-000	NiPPER BAR SPRING SCREW	(1)
	SS-9151210-TP	SCREW 15/64-28 L=11.8	(1)
	SD-0640801-TP	HINGE SCREW D= 6.35 H= 8.0	(1)
	135-46403	PULLEY SHAFT	(1)
	RC-1831018-K0	RETAINING RING	(2)
	SB-1090002-00	BALL BEARING	(2)
	135-47401	PULLEY SHAFT COLLAR	(2)
	SS-6121030-SP	SCREW 3/16-28 L=10	(1)
	135-46502	PULLEY BUSHING	(1)
	135-25308	IDLER PULLEY INSTALLING PLATE	(1)
	SS-6110810-TP	SCREW 11/64-40 L=8	(3)
	135-23204	DRIVING PULLEY	(1)
	SS-8150822-TP	SCREW 15/64-28 L=8	(2)
	131-60304	S SHAPED HOOK	1
	260-37903	CHAIN	1
	135-46601	SAFETY PLATE	1
	135-05904	BELT COVER	1
	138-17754	Z-STAND PEDAL ASM.	(1)
	SM-9061203-SE	SCREW M6 L=12	(2)
	WS-0621210-KR	SPRING WASHER 6.2X11.4X1.2	(2)
	WP-0671016-SE	WASHER 6.7X13X1	(2)
	B8125-260-000	PEDAL ADJUSTING PLATE	(2)
	SM-9082023-SE	SCREW M8 L=20	(2)
	WS-0861410-KR	SPRING WASHER 8.7X18X1.6	(4)
	WP-0871602-SE	WASHER 8.7X18X1.6	(2)
	NM-6080721-SE	NUT M8	(2)
	D8114-555-B0E	PEDAL SHAFT BRACKET	(1)
	B8151-771-000	PEDAL	(1)
	B8152-771-000	PEDAL MAT	(1)
	B8153-771-000	PEDAL CONNECTING ROD	(1)
	D8113-555-B00	PEDAL BUSHING	(2)

Page 36 — FIG. 10 LK-1852P-20

Juki LK-1850 parts on page 36

Ref	Part number	Part name	Qty
	135-10953	FEED CAM DRIVING WHEEL ASM.	1
	135-10862	WORM ASM.	1
	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
	135-44416	CLOTH PRESSER FOOT	1
	135-43764	CLOTH FEED BASE ASM.	1
	135-44465	CLOTH PRESSER FOOT ASM.	(1)
	135-45306	FEED CAM	1
	135-38301	STOP-MOTION REGULATING CAM	1
	135-47500	STOP-MOTION SPRING	1
	135-46601	SAFETY PLATE	1
	135-45959	PEDAL TYPE PRESSER ASM.	1
	135-43608	FEED PLATE	1
	NS-6150540-SP	NUT 15/64-28	1
	135-43009	FEED PLATE HOLDER	1
	SS-2110930-SP	SCREW 11/64-40 L=8.7	4
	135-47658	PEDAL SHAFT ASM.	1
	135-09401	TABLE (FOR BELT LOOP)	1
	400-38080	TEREAD GUIDE BRACKET ASM.	1
	400-38078	FEED GUIDE	(1)
	D8103-984-K00	CHAIN	1
	135-05904	BELT COVER	1
	131-60304	S SHAPED HOOK	4
	400-60887	CAHIN	1
	135-44952	PEDAL LEVER ASM.	1
	135-45315	SAFETY PLATE ASM.	1
	138-17754	Z-STAND PEDAL ASM.	1

Page 37 — LK-1852P-30

Juki LK-1850 parts on page 37

Ref	Part number	Part name	Qty
	135-10953	FEED CAM DRIVING WHEEL ASM.	1
	135-10862	WORM ASM.	1
	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
	135-45611	CLOTH PRESSER FOOT	1
	135-51569	CLOTH FEED BASE (ASM.)	1
	135-45660	WORK CLAMP FOOT ASM.	1
	135-54100	FEED CAM	1
	135-38301	STOP-MOTION REGULATING CAM	1
	135-47500	STOP-MOTION SPRING
	135-46601	SAFETY PLATE
	135-45959	PEDAL TYPE PRESSER ASM.
	400-60887	CAHIN
	138-17754	Z-STAND PEDAL ASM.	1
	NS-6150540-SP	NUT 15/64-28
	135-43509	FEED PLATE HOLDER
	SS-2110930-SP	SCREW 11/64-40 L=8.75
	135-45504	FEED PLATE	1
	135-45504	FEED PLATE
	D8103-984-K00	CHAIN
	135-09401	TABLE (FOR BELT LOOP)	1
	400-38080	TEREAD GUIDE BRACKET ASM.
	400-38078	THREAD GUIDE	1
	400-52815	SAFETY PLATE ASM.	1
	135-05904	BELT COVER	1
	135-44952	PEDAL LEVER ASM.
	135-47658	PEDAL SHAFT ASM.
	131-60304	S SHAPED HOOK

Page 38

Juki LK-1850 parts on page 38

Ref	Part number	Part name	Qty
	D1401-L7V-V00	NEEDLE BAR
	D1405-L7A-M00	NEEDLE BAR THREAD GUIDE
	SS-7080510-TP	SCREW 1/8-44 L=4.5
	MDI-300B2300	NEEDLE DIX3 #23
	MC-3515016-00	NEEDLE
	135-19004	TENSION SPRING
	135-10854	FEED CAM DRIVING WORM ASM.
	SS-7111410-TP	SCREW 11/64-40 L=14
	135-50702	FEED CAM
	135-39705	STOP-MOTION REGULATING CAM
	135-10953	FEED CAM DRIVING WHEEL ASM.
	135-48409	FEED PLATE
	B2302-205-0A0	TENSION CONTROLLER NO.2 ASM.
	D3112-L4B-B00	TAKE-UP SPRING (HEAVY)
	B3129-053-000	TENSION SPRING
	D1818-282-N00	SHUTTLE RACE
	D1817-282-N00	SHUTTLE RACE RING, THICK NEEDL
	B2426-280-00C	NEEDLE PLATE NEEDLE HOLE GUIDE
	D2101-L7A-MA0	WIPER ASM.
	135-48508	WORK CLAMP FOOT, RIGHT
	135-48607	WORK CLAMP FOOT, LEFT
	135-50504	FEED CAM
	MC-5005007-50	FEED CAM NM75
	135-39002	STOP-MOTION REGULATING CAM
	135-10953	FEED CAM DRIVING WHEEL ASM.
	135-10854	FEED CAM DRIVING WORM ASM.
	SS-7111410-TP	SCREW 11/64-40 L=14
	135-42907	WORK CLAMP FOOT, RIGHT
	135-43004	WORK CLAMP FOOT, LEFT
	135-42808	FEED PLATE
	D2426-282-C00	NEEDLE HOLE GUIDE
	MDP-500B1100	NEEDLE DPX5 #11

Page 39

Juki LK-1850 parts on page 39

Ref	Part number	Part name	Qty
1	D1401-L7V-V00	NEEDLE BAR
2	D1405-L7A-M00	NEEDLE BAR THREAD GUIDE
3	SS-7080510-TP	SCREW 1/8-44 L=4.5
4	MDI-300B2300	NEEDLE DIX3 #23
5	MC-3515016-00	NEEDLE
6	135-19004	TENSION SPRING
7	135-10854	FEED CAM DRIVING WORM ASM.
8	SS-7111410-TP	SCREW 11/64-40 L=14
9	135-50702	FEED CAM
10	135-39705	STOP-MOTION REGULATING CAM
11	135-10953	FEED CAM DRIVING WHEEL ASM.
12	135-54209	FEED PLATE
13	B2302-205-0A0	TENSION CONTROLLER NO.2 ASM.
14	B3112-L4B-B00	TAKE-UP SPRING (HEAVY)
15	B3129-053-000	TENSION SPRING
16	D1818-282-N00	SHUTTLE
17	D1817-282-N00	SHUTTLE RACE RING, THICK NEEDL
18	D2426-MMC-K00	NEEDLE HOLE GUIDE
19	D2101-L7A-MA0	WIPER ASM.
20	135-54308	WORK CLAMP FOOT. RIGHT
21	135-54407	WORK CLAMP FOOT. LEFT

Page 40 — LK-1850H

Juki LK-1850 parts on page 40

Ref	Part number	Part name	Qty
	D1401-L7V-V00	NEEDLE BAR	1
	D1405-L7A-M00	NEEDLE BAR THREAD GUIDE	1
	SS-7080510-TP	SCREW 1/8-44 L=4.5	1
	MDI-300B2300	NEEDLE DIX3 #23	1
	MC-3515016-00	NEEDLE
	135-19004	TENSION SPRING	2
	D1817-282-N00	SHUTTLE RACE RING, THICK NEEDL	1
	D1818-282-N00	SHUTTLE	1
	135-51403	FEED CAM	1
	135-39606	STOP-MOTION REGULATING CAM	1
	135-48409	FEED PLATE	1
	B2302-205-0A0	TENSION CONTROLLER NO.2 ASM.	1
	D3112-L4B-B00	TAKE-UP SPRING (HEAVY)	(1)
	B3129-053-000	TENSION SPRING	(1)
	B2426-280-00C	NEEDLE PLATE NEEDLE HOLE GUIDE	1
	D2101-L7A-MA0	WIPER ASM.	1
	135-48508	WORK CLAMP FOOT. RIGHT	1
	135-48607	WORK CLAMP FOOT. LEFT	1

Page 41

Juki LK-1850 parts on page 41

Ref	Part number	Part name	Qty
	D1401-L7V-V00	NEEDLE BAR	1
	D1405-L7A-M00	NEEDLE BAR THREAD GUIDE	1
	SS-7080510-TP	SCREW 1/8-44 L=4.5	1
	MDI-300B2300	NEEDLE DIX3 #23	1
	MC-3515016-00	NEEDLE
	135-19004	TENSION SPRING	1
	D1818-282-N00	SHUTTLE RACE RING, THICK NEEDL	1
	D1818-282-N00	SHUTTLE	1
	135-51403	FEED CAM	1
	135-39606	STOP-MOTION REGULATING CAM	1
	135-54209	FEED PLATE	1
	B2302-205-0A0	TENSION CONTROLLER NO.2 ASM.	1
	D3112-L4B-B00	TAKE-UP SPRING (HEAVY)	(1)
	B3129-053-000	TENSION SPRING	(1)
	D2426-MMC-K00	NEEDLE HOLE GUIDE	1
	D2101-L7A-MA0	WIPER ASM.	1
	135-54308	WORK CLAMP FOOT, RIGHT	1
	135-54407	WORK CLAMP FOOT, LEFT	1
	135-05904	BELT COVER	1
	135-26058	LIFTING LEVER ASM. T	1
	135-26009	LIFTING LEVER. T	(1)
	135-25803	LEVER SPRING. T	(1)
	SD-0720331-SP	HINGE SCREW D=7.24 H=3.3	(2)
	SS-9150730-SP	SCREW 15/64-28 L=7	(1)
	NS-6150350-SP	NUT 15/64-28	(1)
	135-47500	STOP-MOTION SPRING	1
	138-17754	Z-STAND PEDAL ASM.	1

Page 42 — FIG. 18 LK-1852T-20

Juki LK-1850 parts on page 42

Ref	Part number	Part name	Qty
	135-10953	FEED CAM DRIVING WHEEL ASM.	1
	135-10854	FEED CAM DRIVING WORM ASM.	1
	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
	135-44416	CLOTH PRESSER FOOT	1
	135-43764	CLOTH FEED BASE ASM.
	135-44465	CLOTH PRESSER FOOT ASM.	(1)
	135-45306	FEED CAM
	135-38301	STOP-MOTION REGULATING CAM
	135-47500	STOP-MOTION SPRING
	135-43608	FEED PLATE
	135-26058	LIFTING LEVER. T
	135-26009	LIFTING LEVER. T
	135-25803	LEVER SPRING. T
	SD-0720331-SP	HINGE SCREW D=7.24 H=3.3	(2)
	SS-9150730-SP	SCREW 15/64-28 L=7	(1)
	NS-6150350-SP	NUT 15/64-28	(1)
	NS-6150540-SP	NUT 15/64-28
	135-43509	FEED PLATE HOLDER
	SS-2110930-SP	SCREW 11/64-40 L=8.75
	135-47658	PEDAL SHAFT ASM.
	135-09401	TABLE (FOR BELT LOOP)
	400-38080	THREAD GUIDE BRACKET ASM.
	400-36076	THREAD GUIDE
	D8103-984-K00	CHAIN
	135-05904	BELT COVER
	131-60304	S-SHAPED HOOK
	400-60887	CAHIN
	135-44952	PEDAL LEVER ASM.
	400-52815	SAFETY PLATE ASM.
	138-17754	Z-STAND PEDAL ASM.

Page 43

Juki LK-1850 parts on page 43

Ref	Part number	Part name	Qty
	135-10953	FEED CAM DRIVING WHEEL ASM.	1
	135-10854	FEED CAM DRIVING WORM ASM.	1
	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
	135-45611	CLOTH PRESSER FOOT	1
	135-51569	CLOTH FEED BASE (ASM.)	1
	135-45660	WORK CLAMP FOOT ASM.	1
	135-54100	FEED CAM	1
	135-54100	FEED CAM
	135-38301	STOP-MOTION REGULATING CAM	1
	135-47500	STOP-MOTION SPRING
	135-26058	LIFTING LEVER ASM. T
	135-26009	LIFTING LEVER. T	(1)
	135-25803	LEVER SPRING. T	(1)
	SD-0720331-SP	HINGE SCREW D= 7.24 H= 3.3	(2)
	SS-9150730-SP	SCREW 15/64-28 L=7	(1)
	NS-6150350-SP	NUT 15/64-28	(1)
	400-60887	CHAIN	1
	138-17754	Z-STAND PEDAL ASM.	1
	NS-6150540-SP	NUT 15/64-28	1
	135-43509	FEED PLATE HOLDER	1
	SS-2110930-SP	SCREW 11/64-40 L=8.75	4
	135-45901	FEED PLATE	1
	135-45504	FEED PLATE
	D8103-984-K00	CHAIN	1
	135-09401	TABLE (FOR BELT LOOP)	1
	400-38078	THREAD GUIDE BRACKET ASM.	1
	400-38078	THREAD GUIDE	(1)
	400-52815	SAFETY PLATE ASM.	1
	135-05904	BELT COVER	1
	135-44952	PEDAL LEVER ASM.	1
	135-47658	PEDAL SHAFT ASM.	1
	131-60304	S SHAPED HOOK	8

Page 44 — 13. THREAD STAND COMPONENTS

Juki LK-1850 parts on page 44

Ref	Part number	Part name	Qty
	229-30358	THREAD STAND ASM.
	229-31109	SPOOL RETAINER
	229-31000	SPOOL PIN
	229-30903	SPOOL REST CUSHION
	229-30804	SPOOL REST
	SM-6061610-SC	SCREW M6 L=16
	229-30705	THREAD GUIDE ARM JOINT
	229-31406	SPOOL REST ROD RUBBER CAP
	229-30507	SPOOL REST ARM
	229-30408	SPOOL REST ROD, UPPER
	229-31307	SPOOL REST ROD JOINT
	SM-4051405-SE	SCREW M5 L=14
	NM-6050001-SE	NUT M5
	229-30309	SPOOL REST ROD, LOWER
	229-31208	THREAD GUIDE
	WS-0510002-KN	SPRING WASHER
	NM-6050001-SE	NUT M5
	NM-6160511-SE	NUT M16X1.5
	WP-1702600-SO	WASHER 17X30X2.6

Page 45 — LIST FOR INFORMATION OF CHANGE

Juki LK-1850 parts on page 45

Ref	Part number	Part name	Qty
8	CM-3012000-01	CM-3012000-01
8	135-03107	135-03107
12	CS-150111A-TH	CS-150111A-TH
30	135-16208	135-16208
27	SM-6061402-TP	SM-6061402-TP
35	D8103-284-K00	D8103-284-K00
19	D8103-284-K00	D8103-284-K00
23	D8103-284-K00	D8103-284-K00
12	D8103-284-K00	D8103-284-K00
27	D8103-284-K00	D8103-284-K00
17	D8103-284-K00	D8103-284-K00
8	262-12605	262-12605
12	CS-150111B-TH	CS-150111B-TH
30	262-22703	262-22703
27	SM-6061802-TP	SM-6061802-TP
35	400-60887	400-60887
19	400-60887	400-60887
23	400-60887	400-60887
12	400-60887	400-60887
27	400-60887	400-60887
17	400-60887	400-60887

Page 46 — NUMERICAL INDEX OF PARTS

Juki LK-1850 parts on page 46

Ref	Part number	Part name	Qty
14	BP-3000001-00
3	BP-6000000-00
43	B1127-280-000
6	B1202-280-000
6	B1203-280-000
15	B1208-980-00B
17	B1210-980-000
14	B1211-980-000
26	B1215-980-000
27	B1217-280-000
1	B1223-771-000
53	B1229-232-000
54	B1253-980-000
14	B1403-280-000
4	B1404-280-000
11	B1411-552-0A0
8	B1411-804-B00
5	B1411-804-C00
214	B1414-232-000
55	B1414-232-000
11	B1649-161-000
24	B1805-980-000
19	B1808-980-000
7	B1813-980-000
10	B1814-980-000
1	B1817-280-0A0
2	B1828-980-0AB
36	B1828-980-0A0
8	B1901-280-0A0
1	B1901-280-0B0
3	B1903-552-000
2	B1904-280-000
7	B1905-541-B00
14	B2007-372-000
44	B2008-372-000
50	B2109-280-000
11	B2302-205-0A0
13	B2302-205-0A0
13	B2302-205-0A0
12	B2302-205-0A0
12	B2302-205-0A0
4	B2302-280-0A0
7	62302-280-000
1	B2303-280-000
61	82313-280-000
2	B2410-980-000
63	B2414-280-0A0
62	B2415-280-0A0
61	B2416-280-000
60	B2418-280-000
53	B2421-280-CA0
67	B2423-280-00C
58	B2424-280-000
10	B2426-280-00C
18	B2426-280-00C
15	B2426-280-00C
55	B2426-280-000
7	B2539-280-000
13	B2548-280-000
10	B2549-280-000
12	B2549-280-000
3	B2557-280-00C
21	B2605-372-000
17	B2608-280-000
27	B2615-280-000
11	B3107-804-000
8	B31 142-761-000
12	B3114-232-000
19	B3114-771-000
26	83117-352-000
14	B3119-771-000
13	B3120-125-000
19	63125-012-000
9	B3126-012-000
17	B3126-012-000
13	B3129-053-000
15	B3129-053-000
15	B3129-053-000
14	B3129-053-000
14	B3129-053-000
10	B3132-552-000
6	83214-047-000
28	B3413-552-000
20	B3502-280-000
20	B3504-280-000
20	B3507-280-000
20	B3509-280-000
20	B3515-280-000
20	B3518-280-000
20	B3541-012-000
22	B7130-761-0A0
22	87272-781-000
22	B8108-555-0A0
30	B&8125-280-000
22	B8131-019-000
22	B8133-019-000
30	B8151-771-000
30	B8152-771-000
22	B8153-771-000
30	6B8153-771-000
24	02528-232-D00
24	02§29-232-D00
24	02545-232-D0A
24	02548-232-D00
26	03112-L4B-B00
33	03112-L4B-B00
34	03112-L4B-B00
35	03112-L4B-B00
36	D3112-L4B-B00
31	D8&103-984-K00
32	D8103-984-K00
37	D8103-984-K00
38	D8103-984-K00
22	D8113-555-BO00
30	D8113-555-B00
30	08114-555-B0E
22	08204-555-D00
20	EA-9500B01-00
22	GPF-O60600A0
22	GPF-06080000
16	MAT-80116S00
25	MC-2005007-50
33	MC-2005007-50
6	MC-2005010-00
33	MC-3515016-00
34	MC-3515016-00
35	MC-3515016-00
36	MC-3515016-00
2	CM-3002000-01
2	CM-3012000-01
2	CM-6001001-01
20	€Q-2522000-00
10	CS079101A-SH
10	CS-080081C-SH
28	CS087101B-SH
4	CS-150111B-TH
10	CS-180121A-SH
33	MDI-300B2300
34	MDI-300B2300
35	MDI-300B2300
36	MDI-300B2300
25	MDP-50081100
33	MDP-50081100
6	MDP-500B1400
6	MDP-50061600
26	MDP-500B2100
22	MTJ-MS000000
22	MTJ-VM004600
22	MTJ-VM004700
22	MTJ-VM004800
22	MTJ-VM004900
22	MTJ-VMO005000
33	D1401-L7V-VO0
34	B1401-L7V-V00
35	D1401-L7V-V00
36	D1401-L7V-V00
33	D1405-L7A-M00
34	D1405-L7A-M00
35	0D1405-L7A-M00
36	D1405-L7A-M00
26	D1817-282-N00
33	D1817-282-N00
34	0D1817-282-N00
35	D1817-282-NG0
36	D1817-282-N00
26	D1818-282-N00
33	D1818-282-N00
34	01818-282-N00
35	D1818-282-N00
36	01818-282-NC0
33	02101-L7A-MAO
34	02101-L7A-MAO0
35	D2101-L7A-MAO
36	D2101-L7A-MAO
34	02426-MMC-KO0O
36	D2426-MMC-K00
25	D2426-282-C00
33	02426-282-C00
24	02502-232-D00
24	02504-282-AB0-A
24	02507-232-D00
24	02509-232-D00
24	02511-232-D00
24	02512-232-D00
24	02513-232-DA0
24	02515-232-D00
24	02516-232-DA0
24	D2519-232-D00
24	D2520-232-DA0
24	D2521-232-DA0
24	D2527-232-D00
36	NS-6150350-SP
37	NS-6150350-SP
38	NS-6150350-SP
18	NS-6150430-SP
18	NS-6150430-SP
18	NS-6150430-SP
2	NS-6150540-SP
12	NS-6150540-SP
28	NS-6150540-SP
29	NS-6150540-SP
31	NS-6150540-SP
32	NS-6150540-SP
37	NS6150540-SP
38	NS-6150540-SP
22	NS—6200710-SN
10	NS-6360810-SP
10	NS-6660430-SP
12	NS-6660430-SP
10	NS-6660511-SP
18	NS-6680320-SP
18	NS-6680410-SP
18	NS6680410-SP
12	NS-6700320-SP
2	NS-6090310-SP
2	NS-6090310-SP
24	NS-6090310-SP
6	NS-6110310-SP
22	NS-6110310-SP
28	NS-6110310-SP
30	NS6110310-SP
30	NS-6110350-SP
14	NS6110420-SP
18	NS-6110420-SP
24	NS-6110530-SP
8	NS6150310-SP
8	NS-6150310-SP
14	NS-6150310-SP
16	NS-6150310-SP
18	NS-6150310-SP
18	NS-6150310-SP
22	NS-6150310-SP
24	NS-6150310-SP
24	NS-6150310-SP
24	NS-6150310-SP
24	NS-6150310-SP
24	NS-6150310-SP
24	NS-6150310-SP
14	NS6120310-SP
24	NS-6120480-SP
39	NM-6050001-SE
33	NM-6050001-SE
22	NM-6060001-SE
22	NM-6080721-SE
30	NM-6080721-SE
22	NM-6120003-SE
39	NM-6160511-SE
24	PD-0201000-0B
10	PS-0250162-KH
16	PS-0300162-KH
2	PS-0800202-KH
8	RC-0470611-KP
18	RC-0470611-KP
8	RC-0740811-KP
14	RC-0740816-KO
14	RC-1021011-KP
30	RC-1831018-K0
16	RC-1850001-KP
4	RC-3221517-KP
4	RC-6621517-KP
4	RC-6622018-KP
18	RE-0400000-K0
2	RE-0600000-K0
12	RE-0700000-K0
24	RE-0700000-KO
28	RE-0900000-K0
2	RO-0442401-00
30	SB-1090002-00
16	SB-1200003-00
4	SB-1350002-00
16	SB-3120001-00
6	SD-0500091-TP
8	$D-0530221-SP
8	$D-0530221-SP
12	SD-0530221-SP
24	$D-0550271-TP
16	S$0-0600321-SP
8	SD-0640211-SP
24	$D-0640241-SP
16	SD-0640321-SP
24	SD-0640321-SP
30	SD-0640324-TP
8	SD-0640391-TP
2	$D0640471-SP
18	SD-0640801-TP
30	SD-0640801-TP
30	SD-0640801-TP
14	SD-0650305-TP
14	$D-0651301-TH
6	$0-0720193-SP
8	$D-0720331-SP
16	$D-0720331-SP
36	$D0720331-SP
37	$D-0720331-SP
38	$D-0720331-SP
14	$D-0790402-TP
8	$0-0790601-SP

Page 47 — NUMERICAL INDEX OF PARTS

Juki LK-1850 parts on page 47

Ref	Part number	Part name	Qty
36	$D-0790802-TP
36	SS-4150715-SP
3	SS-7111410-TP
45	WP-0612056-SE
31	$D-0791331-SP
22	SS-4150915-SP
3	SS-7111410-TP
50	WP-0612066-SP
43	$D-0800341-SP
38	SS-5680740-SP
4	SS-7120910-SP
11	WP-0612516-SD
58	SD-0800352-SP
12	SS-6060410-TP
9	SS-7151420-SP
47	WP-0612516-SD
12	SD-0800402-TP
20	SS-6080340-SP
16	SS-7151120-SP
13	WP-0621016-SD
52	SD-0800402-TP
46	SS-6090440-SP
45	SS-7151210-SP
50	WP-0621016-SD
60	$D-0800681-SP
69	SS-6090510-SP
14	SS-7151210-SP
26	WP-0621016-SD
23	SD-0801021-TP
12	SS-6090670-TP
30	SS-7151330-SP
32	WP-0621016-SD
59	SD-0900701-TP
13	SS-6091510-SP
32	SS-7701010-SP
40	WP-0621016-SD
30	$D-0901101-SP
64	SS-6110430-TP
18	SS-8080310-TP
25	WP-0650876-SD
36	$D-0901201-TP
15	SS-6110480-SP
5	SS-8090610-SP
43	WP-0650876-SD
20	SD-1000401-SP
16	SS-6110710-TP
17	SS-8110520-TP
54	WP-0651056-SH
48	SD-1201501-SP
39	SS-6110810-TP
27	SS-8110520-TP
28	WP-0671016-SE
53	SD-1201501-SP
24	SS-6110810-TP
29	SS-8110520-TP
34	WP-0671016-SE
37	SK-3311600-SE
39	SS-6111140-SP
16	SS-8150510-TP
34	WP-0702026-SP
70	SK-3452000-SC
33	SS-6111140-SP
12	$S-8150710-SP
53	WP-0704516-SP
42	SK-3483200-SE
16	SS-6120940-SP
30	SS-8150822-TP
20	WP-0751576-SD
20	SL-9082091-SE
24	SS-6121030-SP
31	SS-8150822-TP
34	WP-0751576-SD
48	SM-0040601-SA
6	$S-6121212-TP
41	SS-8150822-TP
47	WP-0850002-SC
24	SM-3061052-TP
3	SS-6121212-TP
57	SS-8150822-TP
31	WP-0871602-SE
54	SM-4040655-SP
51	SS-6150760-SN
9	SS-8150822-TP
38	WP-0871602-SE
50	SM-4040655-SP
56	SS-6151142-TP
20	SS-8150822-TP
9	WP-0952616-SD
12	SM-4051405-SE
66	SS-6151220-SP
26	SS-8150822-TP
28	WP-0982616-SP
28	SM-6051202-TP
13	SS-6151220-SP
21	SS-8151230-SP
39	WP-1021016-SD
49	SM-6060802-TP
31	SS-6151220-SP
43	SS-8151550-SP
34	WP-1052000-SC
18	SM-6061002-TP
52	S$S-6151220-SP
24	SS-8151780-SP
15	WP-1302501-SE
31	$M-6061402-TP
59	S$46151220-SP
25	SS-8620610-SP
19	WP-1702600-S0
6	$M-6061610-SC
2	S$S-6151412-TP
45	SS-8620850-SP
50	WS-0451040-KP
26	SM-6061802-TP
7	SS-6151440-SP
3	SS-8660530-TP
16	WS-0510002-KN
28	SM-6061802-TP
55	SS-6151440-SP
5	SS-8660610-TP
29	WS-0621210-KR
44	SM-6061802-TP
47	SS-6660710-TP
45	SS-8660612-TP
44	WS-0621210-KR
27	SM-6061802-TP
13	$S-6661110-SP
19	SS-8661012-TP
33	WS-0621210-KR
52	SM-6061802-TP
41	SS-6661110-SP
47	SS-8661112-TP
29	WS-0641560-KR
12	SM-6062002-TP
43	SS-6661110-SP
20	SS-8661212-TP
32	WS-0861410-KR
46	SM-6062002-TP
4	SS-6681712-TP
15	SS-8681950-SP
37	WS-0861410-KR
57	SM-6062002-TP
10	SS-6681720-TP
38	SS-9110460-CP
48	WS-0902010-KN
27	SM-9061203-SE
22	SS-6741512-TP
40	SS-9110460-CP
16	WS-1253010-KN
32	SM-9061203-SE
29	SS-6741512-TP
22	$S-9110920-CP
5	W2Z-0641510-KP
46	SM-9062003-SC
23	SS-6742012-TP
24	SS-9150730-SP
3	1171-55108
30	$M-9082023-SE
42	SS-6742012-TP
15	SS-9150730-SP
2	1171-55207
36	SM-9082023-SE
3	SS-7080510-TP
15	SS-9150730-SP
6	1141-55759
56	$S-1060210-TP
3	SS-7080510-TP
10	$S-9151120-CP
7	111-57658
31	SS-1110640-TP
3	SS-7080510-TP
46	$S-9151120-CP
8	1411-57757
42	$S-1110640-TP
3	SS-7080510-TP
15	SS-9151210-TP
9	1711-57955
51	SS-1110640-TP
59	SS-7090410-SP
47	SS-9151440-CP
10	1141-58052
32	SS-1110640-TP
57	SS-7090610-SP
2	SS-9151740-CP
11	111-58300
25	SS-1110821-TP
33	SS-7090620-TP
34	SS-9156830-SP
12	111-58409
51	SS-1110821-TP
34	SS-7110510-SP
19	1114-58508
15	$S-2060510-SP
64	SS-7110710-SP
49	TA-0550604-RO
13	111-58607
53	SS-2090710-TP
67	SS-7110710-SP
62	TA-0750704-RO
24	111-59001
30	SS-2110920-TP
66	SS-7110740-TP
21	TA-0750704-RO
36	131-60304
9	$$-2110920-TP
1	SS-7110740-TP
1	TA-1050504-RO
20	131-60304
27	SS-2110920-TP
14	SS-7110740-TP
47	TA-1050504-RO
27	1371-60304
5	SS-2110920-TP
17	SS-7110840-SP
5	TA-1250406-RO
22	1371-60304
20	$S-2110930-SP
8	SS-7110840-SP
8	TA-1250406-RO
27	131-60304
33	$S-2110930-SP
28	SS-7110840-SP
31	TA-1450404-R0
26	1371-60304
10	SS-2110930-SP
40	SS-7110910-TP
37	TA-1470704-RO
32	131-60304
15	$S-2110930-SP
6	SS-7110910-TP
59	TA-2050406-RO0
51	135-00319
16	$S-2110930-SP
22	SS-7111110-TP
1	TA-2100904-RO
42	135-01309
19	SS-2110930-SP
5	SS-74111120-SP
22	135-01408
23	$S-3090610-SP
51	SS-7111120-TP
49	WP-0450801-SD
18	135-01705
17	$S-4090515-SP
11	SS-7111410-TP
55	WP-0450801-SD
65	135-02307
14	$S-4090715-SP
2	SS-7111410-TP
51	WP-0450801-SD
18	135-03453
40	$S-4110515-SP
21	SS-7111410-TP
65	WP-0450846-SP
25	135-03503
45	$S-4110515-SP
2	SS-7111410-TP
61	WP-0480856-SP
24	135-03552
60	S$S-4110615-SP
5	SS-7111410-TP
41	WP-0480856-SP
28	135-03602
56	$S-4110715-SP
15	SS-7111410-TP
49	WP-0480856-SP
29	1365-03750
19	$S-4110715-SP
31	SS-7111410-TP
69	WP-0480856-SP
33	135-03909
52	$S-4110715-SP
3	SS-7111410-TP
44	WP-0482086-SD
39	1356-04105
55	SS-4110815-SP
3	SS-7111410-TP
2	WP-0482086-SD
34	135-04204
11	SS-4110915-SP
8	SS-7111410-TP
71	WP-0501016-SC
37	135-04303
50	$S-4110915-SP
28	SS-7111410-TP
39	WP-0501016-SD
43	135-04402
3	SS-4111015-SP
31	SS-7111410-TP
53	WP-0612056-SD
41	135-04451
27	$S-4150715-SP
3	SS-7111410-TP
28	WP-0612056-SD
44	135-04501
2	$S-4150715-SP
8	SS-7111410-TP
39	WP-0612056-SD

Page 48 — NUMERICAL INDEX OF PARTS

Juki LK-1850 parts on page 48

Ref	Part number	Part name	Qty
46	135-04600		4
15	135-17800		12
24	135-38301		25
30	135-44952		38
48	135-04709		4
4	17135-18352		12
6	135-38301		26
4	1356-45009		28
36	4135-04907		4
5	135-18402		12
18	135-38301		26
44	135-45157		28
56	1365-05102		4
14	135-1850		12
46	135-38301		28
45	135-45306		28
13	1356-05805		2
22	135-18600		12
17	135-38301		29
7	135-45306		31
30	135-05904		30
23	135-18709		12
8	135-38301		31
7	135-45306		37
21	135-05904		34
8	135-18907		12
8	135-38301		32
9	135-45504		29
24	135-05904		32
2	135-19004		26
8	135-38301		37
17	135-45504		32
19	135-05904		36
6	135-19004		33
9	1365-38301		38
18	17135-45504		32
25	135-05904		37
6	135-19004		34
24	135-39002		33
23	135-45504		38
29	135-05904		38
6	135-19004		35
10	135-39606		35
4	135-45611		29
25	1356-06217		8
6	135-19004		36
10	135-39606		36
4	1435-45611		32
43	135-06415		8
33	135-20119		18
10	135-39705		33
4	135-45611		38
40	135-06704		8
23	135-20309		18
10	135-39705		34
6	135-45660		29
35	135-06852		8
40	135-20408		18
64	135-40109		24
6	135-45660		32
20	4135-07058		14
32	135-20705		18
62	135-40208		24
6	135-45660		38
23	135-07157		14
41	135-20804		18
61	135-40307		24
22	135-45801		38
5	135-08056		22
56	135-21125		18
60	135-40406		24
9	7135-45900		30
21	135-08155		10
12	1385-21307		30
58	135-40505		24
2	135-45959		30
18	4135-08403		10
53	135-21406		18
55	135-40604		24
11	135-45959		31
40	135-08700		10
9	135-21505		18
48	135-40703		24
11	135-45959		32
20	135-09153		10
14	135-21760		18
6	135-40752		24
3	14135-45967		30
54	135-09401		28
1	135-22008		18
44	135-40802		24
4	135-46007		30
141	135-09401		29
55	135-22503		28
42	135-40901		24
6	135-46106		30
17	135-09401		31
21	135-22503		29
30	135-41057		24
7	135-46205		30
20	135-09401		32
21	135-23121		16
29	135-41107		24
17	135-46403		30
21	135-09401		37
1	135-23188		16
7	1235-41206		24
22	135-46502		30
25	135-09401		38
25	135-23204		30
51	1435-41313		24
29	135-46601		30
51	135-09807		8
42	135-23212		16
9	135-41404		24
10	135-46601		31
44	4135-10201		10
49	135-23352		16
37	135-41503		24
10	135-46601		32
10	135-10367		4
34	135-23428		16
4	135-41750		24
20	135-47401		30
43	1356-10458		10
36	135-23519		16
66	135-41800		24
1	135-47500		30
52	135-10607		10
37	135-23600		16
6	135-41800		25
9	135-47500		31
7	135-10854		33
27	135-23808		16
57	135-42303		25
9	135-47500		32
26	1386-10854		33
31	135-23915		16
3	135-42402		25
26	135-47500		36
7	135-10854		34
30	135-24004		16
4	1435-42501		25
9	135-47500		37
2	135-10854		37
29	1368-24129		16
17	135-42709		25
10	135-47500		38
2	135-10854		38
26	135-24277		16
30	1356-42808		33
16	135-47658		31
1	135-10862		24
22	135-24368		16
13	1356-42816		25
26	135-47658		32
1	4135-10862		25
23	1365-24418		16
28	135-42907		33
20	135-47658		37
9	135-10862		25
2	135-24608		16
11	135-42915		25
31	135-47658		38
20	135-10862		25
4	135-24707		16
29	135-43004		33
68	135-47807		24
4	135-10862		26
8	1365-24806		16
12	135-43012		25
12	135-48409		33
14	135-10862		26
10	135-24905		16
23	135-43202		25
11	135-48409		35
30	1356-10862		28
9	7135-25001		16
3	1365-43202		26
20	135-48508		33
2	135-10862		29
3	135-25100		16
34	135-43509		28
17	135-48508		35
2	135-10862		31
38	135-25308		16
11	135-43509		29
21	135-48607		33
2	135-10862		32
23	135-25308		30
14	135-43509		31
18	1365-48607		35
3	135-10953		24
40	135-25407		16
15	135-43509		32
48	1356-50108		12
8	135-10953		25
14	135-25605		16
18	1356-43509		37
22	135-50504		33
19	4135-10953		25
17	135-25704		16
20	1385-43508		38
9	135-50702		33
22	135-10953		25
22	135-25803		36
47	135-43608		28
9	135-50702		34
7	1356-10953		26
13	135-25803		37
12	135-43608		31
3	1356-51403		35
16	135-10953		26
13	135-25803		38
10	135-43608		37
S	135-57403		36
21	1356-10953		28
21	7135-26009		36
6	135-43715		28
5	135-51569		29
1	135-10953		29
12	135-26009		37
2	135-43764		28
5	7135-51569		32
1	135-10953		31
12	135-26009		38
S	135-43764		31
5	135-51569		38
1	135-10953		32
20	1435-26058		36
5	135-43764		37
56	135-53706		22
14	135-10953		33
14	135-26058		37
10	135-43806		28
15	135-54100		29
25	1385-10953		33
11	135-26058		38
15	1356-43905		28
16	1365-54100		29
11	135-10953		34
25	135-28708		20
19	135-44051		28
7	1358-54100		32
1	135-10953		37
28	135-29402		20
11	135-44416		28
7	135-54100		38
1	1356-10953		38
27	135-29201		20
4	1365-44416		31
8	135-54100		38
27	135-13114		8
23	135-29904		20
4	135-44416		37
12	135-54209		34
33	135-14401		14
50	135-31108		22
3	135-44465		28
11	1356-54209		36
417	135-15408		14
52	135-31306		22
6	135-44465		31
20	135-54308		34
§2	135-15556		6
54	1365-31504		22
6	1356-44465		37
17	135-54308		36
57	135-15564		6
55	135-31603		22
5	17135-44614		28
21	135-54407		34
46	135-16109		12
47	1356-32254		16
17	135-44705		28
18	135-54407		36
35	135-16307		42
55	135-32262		16
38	135-44903		28
17	7135-64901		26
41	135-16703		12
18	135-34060		14
37	1358-44952		28
54	135-74009		8
58	135-17008		12
67	135-38301		24
18	1358-44952		29
22	137-06601		2
57	135-17107		12
7	135-38301		25
24	135-44952		31
9	14138-16509		2
29	135-17529		12
18	1435-38301		25
28	1356-44952		37
37	138-16855		10
26	135-17701		12
7	135-38301		25
25	135-44952		32
1	138-17507		22

Page 49 — NUMERICAL INDEX OF PARTS

Juki LK-1850 parts on page 49

Ref	Part number	Part name	Qty
21	138-17754	22
21	262-12209	2
13	262-28205	18
31	138-17754	30
8	262-12308	2
15	262-28304	18
26	138-17754	31
8	262-12605	4
6	262-28502	18
13.	138-17754	32
7	262-12704	4
5	262-28601	18
27	138-17754	36
32	262-13306	4
43	262-28700	18
30	138-17754	37
49	262-13801	4
22	262-28908	18
18	138-17754	38
52]	262-13900	4
19	262-29005	18
49	138-89407	28
55	262-14007	4
18	262-29104	18
14	170-07402	22
16	262-14403	4
51	262-29302	18
14]	229-30309	39
16	262-15301	6
29	262-29401	20
1	229-30358	39
29	262-16507	6
37	262-29609	20
10	229-30408	39
29	262-16507	28
so	262-30003	20
9}	229-30507	39
28	262-16606	6
16	262-30102	20
7}	229-30705	39
28	262-16606	28
20	262-30409	20
5}	229-30804	39
26	262-16705	6
4	262-30706	20
4}	229-30903	39
26	262-16705	28
24	262-30904	20
3}	229-31000	39
29	262-16903	8
44	262-31100	20
2|	229-31109	39
21	262-17109	8
7	262-31209	20
15	229-31 208	39
37	262-17208	8
12	262-31407	20
11	229-31 307	39
21	262-17406	14
26	262-31605	20
8	229-31 406	39
25	262-17505	14
41	262-31902	20
27	229-45802	28
26	262-17604	14
3	262-33106	10
4	260-17400	14
33	262-17703	2
38	262-34302	22
11	260-17400	16
46	262-17802	8
49	262-35200	16
53	260-37200	2
52	262-17901	8
54	262-35408	16
28	260-37903	30
47	262-18008	8
66	262-36703	22
13	262-00006	6
32	262-18404	8
45	262-39806	12
38	262-01 103	6
18	262-18602	8
31	265-01304	8
30	262-01152	6
15	262-18651	8
64	400-09458	22
42	262-01202	6
3	262-18859	8
10	400-23026	2
47	262-01 301	6
16	262-20400	8
15	400-23027	2
37	262-01400	6
41}	262-20707	8
5	400-28681	10
49	262-01509	6
45	262-21101	10
25	400-38078	28
40	262-01608	6
38	262-21200	10
8	400-38078	29
43	262-01707	6
49	262-21358	10
19	400-38078	31
45	262-01806	6
50	262-21507	10
22	400-38078	32
48	262-01905	6
28	262-21804	10
23	400-38078	37
36	262-02002	6
11	262-22109	10
27	400-38078	38
35	262-02101	6
14	262-22208	10
22	400-38080	28
41	262-02200	6
33	262-22307	10
7	400-38080	29
34	262-02309	6
32	262-22406	10
18	400-38080	31
39	262-02309	6
34	262-22505	10
21	400-38080	32
33	262-02408	6
30	262-22703	12
22	400-38080	37
44!	262-02507	6
38	262-22901	12
26	400-38080	38
32	262-02705	6
39	262-23008	12
57	400-51987	2
51	262-02804	22
54}	262-23305	12
52	400-52806	2
42	262-02903	18
50	262-23404	12
53	400-52810	28
10	262-03208	6
36	262-23503	12
48	400-52815	28
25	262-03406	6
28	262-23602	12
13	400-52815	29
23}	262-03406	28
7	262-23701	12
25	400-52815	31
23	262-03455	6
21	262-24105	12
23	400-52815	32
30}	262-03901	10
19	262-24204	12
29	400-52815	37
17	262-04008	12
44	262-24600	12
28	400-52815	38
6]	262-04107	12
11	262-24808	12
35	400-60887	28
48	262-04453	8
17	262-25102	14
19	400-60887	29
22}	262-04602	8
13	262-25201	14
23	400-60887	31
46]	262-04701	18
31	262-25300	14
12	400-60887	32
4]	262-04909	10
32	262-25409	14
27	400-60887	37
47	262-10005	2
42	262-25508	14
17	400-60887	38
46	262-10104	2
35	262-25607	14
39	262-10203	2
19	262-25706	14
41	262-10302	2
5	262-25805	14
42	262-10450	2
9	262-25904	14
40	262-10500	2
8	262-26001	14
311	262-10708	2
6	262-26100	14
38	262-11201	2
37	262-26209	14
7	262-11300	2
1	262-26407	14
58;	262-11409	2
38	262-26506	14
16	262-11607	2
16	262-26704	14
2]	262-11755	2
39	262-27207	18
24	262-11805	2
37	262-27306	18
26	262-11904	2
60	262-27603	18
29	262-12001	2
59	262-27702	18
63	262-12100	2
45	262-27900	18

Part BooksPartsSearchNotes

Part Books

×

Search

×

Juki LK-1850 — parts catalog

• Page 1 (cover): This is the cover page for the JUKI LK-1850 Series High-speed 1-Needle, Cylinder Bed Lockstitch Bar Tacking Industrial Sewing Machine Parts List.
• Page 2 (unknown): This page is blank except for a watermark and a footer.
• Page 3 (text): This page provides instructions on how to use the parts list, explaining codes, quantity column values, parentheses, and dotted lines in diagrams, along with Japanese explanations for the same.
• Page 4 (toc): This page is a table of contents for the Juki LK-1850 series parts catalog, listing various component sections and specific LK-1850 models with their corresponding page numbers.
• Page 5 (toc): This page is a table of contents listing sections for LK-1852T-20, LK-1852T-30, Thread Stand Components, List for Information of Change, and Numerical Index of Parts, with corresponding page numbers.
• Page 6 (diagram): This page displays a diagram of the frame and miscellaneous cover components of a sewing machine, with various parts labeled with reference numbers.
• Page 7 (parts_list): This page is a parts list detailing various components for a sewing machine, including screws, covers, guides, and other miscellaneous parts, with their respective part numbers, descriptions, and quantities.
• Page 8 (diagram): This page illustrates the main shaft components of an industrial sewing machine, showing an exploded view of various parts including gears, springs, and other shaft-related elements.
• Page 9 (parts_list): This page lists various parts including screws, shafts, pulleys, and springs, with their part numbers, descriptions, and quantities.
• Page 10 (diagram): This page illustrates the needle bar components of an industrial sewing machine with a detailed exploded view.
• Page 11 (parts_list): This page lists various parts for an industrial sewing machine, including components for the needle bar, bobbin winder, and thread cutting lever, with their part numbers, descriptions, and quantities.
• Page 12 (diagram): This page illustrates the thread tension release components with a detailed diagram showing various parts and their reference numbers.
• Page 13 (parts_list): This page lists various parts related to tension release, thread tension, and wiper connecting mechanisms, including screws, springs, arms, and links.
• Page 14 (diagram): This page illustrates the components of the shuttle driver shaft, including various gears, shafts, and associated hardware.
• Page 15 (parts_list): This page lists various parts for a sewing machine, including inner hook presser assemblies, bobbin cases, screws, shafts, and springs, with their corresponding part numbers, descriptions, and quantities.
• Page 16 (diagram): This page illustrates the feed mechanism components of an industrial sewing machine, showing various parts and their reference numbers.
• Page 17 (parts_list): This page is a parts list detailing various components for a sewing machine, including screws, washers, springs, levers, plates, and other related parts, with their respective part numbers, descriptions, and quantities.
• Page 18 (diagram): This page illustrates the thread trimming components of an industrial sewing machine, showing various parts and their interconnections with reference numbers.
• Page 19 (parts_list): This page lists various parts including tension springs, hinge screws, thread cutting links, rollers, washers, and connecting plates, along with their part numbers, descriptions, and quantities.
• Page 20 (diagram): This page illustrates the components of the pedal pressure decreasing unit, showing an exploded view of various parts and their reference numbers.
• Page 21 (parts_list): This page lists various parts including pressure decreasing devices, levers, screws, springs, shafts, bearings, collars, pulleys, and washers, with their corresponding part numbers, descriptions, and quantities.
• Page 22 (diagram): This page displays a diagram of the stop-motion mechanism components for an industrial sewing machine.
• Page 23 (parts_list): This page lists various parts including stop-motion components, washers, screws, nuts, springs, and levers, with their part numbers, descriptions, and quantities.
• Page 24 (diagram): This page displays a diagram of the lubrication mechanism components for an industrial sewing machine.
• Page 25 (parts_list): This page lists various parts including rubber plugs, vinyl pipes, oil wicks, screws, and other components for a machine, with their part numbers, descriptions, and quantities.
• Page 26 (diagram): This page illustrates the table components of an industrial sewing machine, showing various parts such as bolts, washers, and frame elements with their corresponding reference numbers.
• Page 27 (parts_list): This page lists various parts for an industrial sewing machine, including components for the table, stand, pedals, and motor, with their part numbers, descriptions, and quantities.
• Page 28 (diagram): This page displays a diagram of the LK-1852-1 subclass of the LK-1850 series, showing various components and their reference numbers.
• Page 29 (parts_list): This page lists various parts including screws, washers, springs, and assemblies, with their part numbers, descriptions, and quantities.
• Page 30 (parts_list): This page displays diagrams and a parts list for various components, including worm assemblies, screws, work clamp feet, feed plates, feed cams, stop-motion regulating cams, feed cam driving wheel assemblies, cloth presser plates, needle hole guides, and needles, with corresponding part numbers, descriptions, and quantities.
• Page 31 (diagram): This page displays diagrams for parts labeled (5) LK-1852-7 and (6) LK-1852-210, along with a detailed parts list including reference numbers, part numbers, descriptions, and quantities.
• Page 32 (diagram): This page displays a diagram of sewing machine parts, including various components like levers, springs, screws, and plates, with reference numbers for identification.
• Page 33 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It covers components from the cloth presser foot to the tension spring.
• Page 34 (diagram): This page displays a diagram of various sewing machine parts, including feed cams, screws, and hooks, along with a detailed parts list with corresponding part numbers and descriptions.
• Page 35 (diagram): This page displays a diagram of LK-1850-P components, with a corresponding parts list detailing part numbers, descriptions, and quantities.
• Page 36 (diagram): This page displays a diagram of sewing machine parts, including a feed mechanism, presser foot assembly, and various levers and covers, along with a corresponding parts list detailing part numbers and descriptions.
• Page 37 (parts_list): This page lists parts for the LK-1852P-30, including part numbers, descriptions, and quantities, with notes indicating parts common to other models.
• Page 38 (diagram): This page displays diagrams for parts of the LK-1852H-5 and LK-1852-22 sewing machines, along with a detailed parts list including part numbers, descriptions, and quantities.
• Page 39 (parts_list): This page lists parts for the LK-1852G-5, including part numbers, descriptions, and quantities.
• Page 40 (diagram): This page displays a diagram of sewing machine parts for the LK-1850H model, along with a corresponding parts list detailing part numbers, descriptions, and quantities.
• Page 41 (parts_list): This page lists parts for models (16) LK-1850G and (17) LK-1850T, including part numbers, descriptions, and quantities.
• Page 42 (diagram): This page displays a diagram of sewing machine parts with corresponding reference numbers, part numbers, descriptions, and quantities. It also includes notes about part compatibility.
• Page 43 (parts_list): This page lists parts for the LK-1852T-30 sewing machine, including part numbers, descriptions, and quantities, with notes on special order parts.
• Page 44 (diagram): This page displays the components of the thread stand, including part numbers, descriptions, and quantities, with a corresponding diagram for visual reference.
• Page 45 (parts_list): This page contains a list of parts with their corresponding revision numbers, page references, and part numbers. It includes information on added and obsolete parts, as well as errata.
• Page 46 (index): Numerical index of parts with part numbers, page references, and reference numbers.
• Page 47 (index): Numerical index of parts with part numbers, page references, and reference numbers.
• Page 48 (index): Numerical index of parts, listing part numbers, page numbers, and reference numbers.
• Page 49 (index): Numerical index of parts, listing part numbers, page references, and reference numbers.
• Page 50 (text): This page contains a memo section with lined paper for notes. It also includes a page number and website information at the bottom.
• Page 51 (unknown): This page contains a watermark and a website address at the bottom.
• Page 52 (cover): This is the cover page of the JUKI Corporation parts catalog, including contact information and copyright details.

Page 1

JUKI High-speed 1-Needle, Cylinder Bed Lockstitch Bar Tacking Industrial Sewing Machine 高速一本針本縫筒形閂止めミシン LK-1850 Series PARTS LIST BE185030PJA No.0200-19 jintex.in

Page 2

jintex.in

Page 3 — HOW TO MAKE USE OF THIS PARTS LIST

HOW TO MAKE USE OF THIS PARTS LIST 1.Explanation of codes 1) "*"mark..................means this part is changed from the previous parts book. As to the details of the change, refer to the "List for information of change". 2) "#01"..................refer to "Note" explanation at bottom of page. 2.Codes on the "Qty" column - Each numeral indicates the number of parts required. - "0.1" and "2.5" indicate the length (in meters) of the respective parts. 3.Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 4.Dotted lines on the Figures indicate assembly parts. パーツリストご利用に際して 1."注記"欄の記号説明 1) "*"印 ....................前回のパーツブックに比較して今回変更された部品を意味します。 変更内容は、"変更情報リスト"を参照してください。 2) "#01"....................ページ下の"注記"の説明を参照してください。 2.数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ(単位メートル)を表します。 3.数量欄の( )は、組部品を構成している子部品であることを意味します。 4.イラストページの一----一枠は、組構成であることを意味します。

Page 4

CONTENTS 目 次 1. FRAME & MISCELLANEOUS COVER COMPONENTS .................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

Page 5

(18) LK-1852T-20................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

Page 6 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS

1. FRAME & MISCELLANEOUS COVER COMPONENTS 頭部外装関係 66 59 64 9 28 8 11 13 10 15 65 2 61 3 18 63 17 60 39 40 41 42 46 45 43 43 44 48 49 50 46 16 37 14 23 22 20 19 21 36 58 36 47 51 47 26 27 24 25 58 38 12 29 30 31 32 6 33 34 35 52 54 55 53 56 57 - 1 - jintex.in

Page 7

REF.NO NOTE PART NO DESCRIPTION Qty 1 CM-3002000-01 ATTENTION SEAL 1 2 262-11755 FACE COVER ASM. 1 3 SS-4111015-SP SCREW 11/64-40 L=10 2 4 SD-0640471-SP HINGE SCREW D=6.35 H=4.7 2 5 WZ-0641510-KP WAVED WASHER 6.4X11X0.3 2 6 #01 CM-6001001-01 WEEE MARK LABEL S 1 7 262-11300 BED COVER B 1 8 262-12308 SCREW 1 9 138-16509 TOP COVER 1 10 400-23026 BELT COVER FIXING PLATE 1 11 SS-4110915-SP SCREW 11/64-40 L=9 2 12 CM-3012000-01 SAFETY LABEL S 1 13 135-05805 BELT COVER 1 14 SS-4090715-SP SCREW 9/64-40 L=7 2 15 400-23027 BELT COVER PLATE 1 16 262-11607 BALANCE COVER 1 17 SS-7110840-SP SCREW 11/64-40 L=7.8 1 18 NS-6090310-SP NUT 9/64-40 1 19 B3114-771-000 THREAD GUIDE 1 20 NS-6090310-SP NUT 9/64-40 1 21 262-12209 L-SHAPED THREAD GUIDE 1 22 137-06601 TAKE-UP THREAD GUIDE, A 1 23 SS-3090610-SP SCREW 9/64-40 L=6 1 24 262-11805 BED FITTING HOOK 1 25 SS-1110821-TP SCREW 11/64-40 L=8.3 2 26 262-11904 THREAD GUIDE PLATE 1 27 SS-4150715-SP SCREW 15/64-28 L=7 1 28 NS-6150540-SP NUT 15/64-28 1 29 262-12001 FIRST THREAD GUIDE 1 30 SS-8150822-TP SCREW 15/64-28 L=8 2 31 262-10708 RUBBER WASHER 2 32 PS-0800202-KH SPRING PIN 8X20 2 33 262-17703 BASE CONNVETING PIN 1 34 WP-1052000-SC WASHER 10.5X18X2 1 35 RE-060000-KO E-RING 6 1 36 SS-4150715-SP SCREW 15/64-28 L=7 2 37 TA-1470704-R0 RUBBER PLUG 1 38 262-11201 BED COVER A 1 39 262-10203 STAY 1 40 262-10500 BED ROCKER 1 41 262-10302 STAY ROCKER 1 42 262-10450 STAY GUIDE COMPL. 1 43 SD-0800341-SP HINGE SCREW D=8 H=3.4 3 44 B2008-372-000 THREAD TENSION SPRING 1 45 SS-7151210-SP SCREW 15/64-28 L=12 2 46 262-10104 VIBRATION PROOF RUBBER 2 47 262-10005 RUBBER BUSH 2 48 SM-0040601-SA SCREW M4 L=6 1 49 WP-0450801-SD WASHER 4.5X10X0.8 1 50 R0-0442401-00 RUBBER RING 1 51 135-00319 BED FITTING BASE 1 52 400-52806 SAFETY PLATE ASM. 1 53 260-37200 SAFETY PLATE (1) 54 SM-4040655-SP SCREW M4 L=6 (2) 55 WP-0450801-SD WASHER 4.5X10X0.8 (2) 56 SS-4110715-SP SCREW 11/64-40 L=7 (2) 57 400-51987 SAFETY PLATE INSTALLING BASE (1) 58 262-11409 SPRING 2 59 TA-2050408-R0 RUBBER PLUG 1 60 SD-0800681-SP HINGE SCREW D=8 H=6.8 2 61 WP-0480856-SP WASHER 4.8X8.4X0.8 2 62 TA-0750704-R0 RUBBER PLUG 1 63 262-12100 ARM THREAD GUIDE B 1 64 SS-7110710-SP SCREW 11/64-40 L=7 1 65 135-02307 FACE PACKING 1 66 SS-6151220-SP SCREW 15/64-28 L=11.5 5 NOTE(注記) #01....FOR JE JE用 - 2 - jintex.in

Page 8 — 2. MAIN SHAFT COMPONENTS

2. MAIN SHAFT COMPONENTS 上軸関係 18 19 20 12 17 11 3 16 10 21 15 14 39 9 38 8 37 5 36 56 3 7 1 33 32 55 32 56 29 30 35 2 34 51 25 23 31 22 50 28 49 24 27 32 55 48 26 46 47 35 54 37 40 52 46 36 56 53 44 43 40 42 41 - 3 - jintex.in

Page 9

REF.NO NOTE PART NO DESCRIPTION Qty 1 B1223-771-000 NEEDLE ROD CRANK WASHER 1 2 SS-6151412-TP SCREW 15/64-28 L=14 1 3 SS-8660530-TP SCREW 1/4-40 L=4.5 1 4 SS-6681712-TP SCREW 9/32-28 L=16.5 1 5 SS-8660610-TP SCREW 1/4-40 L=6 1 6 B1202-280-000 COUNTER WEIGHT 1 7 262-12704 UPPER SHAFT FRONT METAL 1 8 * 262-12605 MAIN SHAFT 1 9 262-12803 UPPER SHAFT INNER METAL 1 10 135-10367 WORM ASM. 1 11 SS-7111410-TP SCREW 11/64-40 L=14 (1) 12 * CS-1501118-TH THRUST COLLAR ASM. D=15 W=10.8 1 13 SS-6661110-SP SCREW 1/4-40 L=11 (1) 14 B1211-980-000 UPPER SHAFT THRUST BEARING 2 15 #01 B1208-980-00B MAIN SHAFT NEEDLE BEARING B 1 16 262-14403 UPPER SHAFT REAR METAL 1 17 B1210-980-000 SET SCREW 1 18 135-03453 THREAD CUTTING CAM ASM. (1) 19 SS-8661012-TP SCREW (1) 20 SS-8661212-TP SCREW (1) 21 SS-8151230-SP SCREW 15/64-28 L=12 1 22 SS-6741512-TP SCREW 3/8-28 L=14.5 1 23 SS-6742012-TP SCREW 3/8-28 L=19.5 1 24 135-03552 STOP-MOTION CAM ASM. 1 25 135-03503 STOP-MOTION CAM (1) 26 B1215-980-000 STOP MOTION CAM LATCH (1) 27 B1217-280-000 SAFETY PLATE STOPPER SPRING (1) 28 135-03602 PIN (1) 29 135-03750 HIGH SPEED CLUTCH PLATE ASM. 1 30 SS-2110920-TP SCREW 11/64-40 L=8.5 2 31 SS-1110640-TP SCREW 11/64-40 L=5.5 1 32 #01 262-13306 SPACER 3 33 135-03909 SPRING 2 34 135-04204 HIGH SPEED PULLEY 1 35 SB-1350002-00 BEARING D=35X62 2 36 #02 135-04907 SHIM 6 37 135-04303 WASHER 2 38 RC-3221517-KP RETAINING RING 32.2 1 39 135-04105 SLOW SPEED PULLEY SPRING 3 40 RC-6622018-KP RETAINING RING 66.2 2 41 135-04451 PULLEY ASM. (3) 42 SS-1110640-TP SCREW 11/64-40 L=5.5 (3) 43 135-04402 PULLEY (1) 44 135-04501 PULLEY SHAFT (1) 45 SS-8660612-TP SCREW 1/4-40 L=6 1 46 135-04600 SLOW SPEED PULLEY SHAFT 1 47 SS-8661112-TP SCREW 1/4-40 L=11 1 48 135-04709 SLOW SPEED PULLEY 1 49 262-13801 SLOW SPEED PULLEY PLATE 1 50 WS-0451040-KP SPRING WASHER 4.5X8.5X1 2 51 SS-7111120-TP SCREW 2 52 262-13900 BALL RETAINER 1 53 SS-2090710-TP SCREW 9/64-40 L=7.2 2 54 B1253-980-000 STOP-MOTION BALL 1 55 #01 262-14007 PULLEY SPACER 3 56 #02 135-05102 REGULATOR SHIM 6 NOTE(注記) #01...SELECTIVE PARTS #02...UP TO 6 PCS OF THIS PLATE ARE USED AS REQUIRED. - 4 - jintex.in

Page 10 — 3. NEEDLE BAR COMPONENTS

3. NEEDLE BAR COMPONENTS 針棒関係 - 5 - jintex.in

Page 11

REF.NO NOTE PART NO DESCRIPTION 品名 Qty 1 B1901-280-0B0 LINK BALANCE ASM. リンクテンビン クミ 1 2 B1904-280-000 BALANCE CRANK PIN テンビン クランクピン (1) 3 B1903-552-000 LEFT SCREW ヒダリネジ (1) 4 B1404-280-000 NEEDLE BAR CRANK ROD ハリボー クランクロッド (1) 5 B1411-804-C00 NEEDLE DRIVING LEVER BEARING C ハリ クドーレバー ベアリング C (1) 6 B1203-280-000 NEEDLE ROD CRANK ハリボー クランク (1) 7 B1905-541-B00 NEEDLE BEARING テンビン ニードルベアリング (1) 8 B1901-280-0A0 BALANCE ASM. テンビン クミ (1) 9 SS-7151120-SP SCREW 15/64-28 L=11 マルヒラネジ 15/64-28 L=11 (1) 10 262-03208 NEEDLE ROD METAL ハリボウウワメタル 1 11 B1411-552-0A0 NEEDLE BAR CONNECTING ASM. ハリボーダキ クミ 1 12 SS-6090670-TP SCREW 9/64-40 L=6 ヒラネジ 9/64-40 L=6 (1) 13 262-00006 NEEDLE BAR ハリボウ 1 14 B1403-280-000 NEEDLE ROD LOWER METAL ハリボウ シタメタル 1 15 SS-2060510-SP SCREW 3/32-56 L=4.5 マルサラネジ 3/32-56 L=4.5 1 16 262-15301 NEEDLE BAR THREAD GUIDE ハリボウイトアンナイ 1 17 #03 MDP-500B1400 NEEDLE DPX5 #14 ハリ DPX 5 #14 1 18 #03 MDP-500B1600 NEEDLE DPX5 #16 ハリ DPX 5 #16 1 19 #02 MC-2005010-00 NEEDLE #100 ハリ 134 100 1 20 SS-6080340-SP SCREW 1/8-44 L=2.9 ヒラネジ 1/8-44 L=2.9 1 21 B1414-232-000 SQUARE BLOCK カクコマ 1 22 SS-4150915-SP SCREW 15/64-28 L=9 ナベネジ 15/64-28 L=9 2 23 262-03455 THREAD GUIDE BRACKET COMPL. イトマキイトアンナイ (ケツゴウ) 1 24 NS-6110310-SP NUT 11/64-40 ロツカクナット 11/64-40 (1) 25 262-03406 THREAD GUIDE BRACKET イトマキイトアンナイ (1) 26 262-16705 BOBBIN WINDER TENSION POST イトマキチョウシボウ (1) 27 B3214-047-000 BOBBIN WINDER TENSION DISC イトマキチョウシ サラ (2) 28 262-16606 BOBBIN WINDER TENSION SPRING イトマキチョウシバネ (1) 29 262-16507 BOBBIN WINDER TENSION NUT イトマキチョウシツマミ (1) 30 262-01152 BOBBIN WINDER ASM. イトマキ (クミ) 1 31 SD-0791331-SP HINGE SCREW D=7.94 H=13.3 ダンネジ D=7.94 H=13.3 (1) 32 262-02705 NUT イトマキグルマメナット (1) 33 262-02408 NUT ボビンオサエボストナット (1) 34 262-02309 SCREW ボビンオサエイトメネジ (1) 35 262-02101 BRAKE PRESSER PLATE イトマキブレーキオサエイタ (1) 36 262-02002 BOBBIN WINDER BRAKE イトマキブレーキ (1) 37 262-01400 BOBBIN WINDER WHEEL イトマキグルマ (1) 38 262-01103 BOBBIN WINDER SHAFT HOLDER イトマキジクウケ (1) 39 262-02309 SCREW ブレーキオサエイトメネジ (1) 40 262-01608 BOBBIN WINDER BELT SUPPORT イトマキベルトササエ (1) 41 262-02200 SCREW イトマキチョウセツツイトメネジ (1) 42 262-01202 BOBBIN WINDER TRIP LATCH イトマキチョウセツツ (1) 43 262-01707 BOBBIN WINDER SHAFT イトマキジク (1) 44 262-02507 NUT イトマキジクウケナット (1) 45 262-01806 SPRING イトモドシバネ (1) 46 SD-0720193-SP HINGE SCREW D=7.24 H=1.9 ダンネジ D=7.24 H=1.9 (1) 47 262-01301 BOBBIN WINDER FITTING PLATE イトマキトリツケイタ (1) 48 262-01905 BOBBIN PRESSER BOSS ボビンオサエボス (1) 49 262-01509 BOBBIN PRESSER ボビンオサエ (1) 50 SS-4110915-SP SCREW 11/64-40 L=9 ナベネジ 11/64-40 L=9 2 51 SS-1110540-TP SCREW 11/64-40 L=5.5 サラネジ 11/64-40 L=5.5 4 52 135-15556 NEEDLE PLATE ASM. ハリイタ クミ 1 53 B2421-280-0A0 MOVING KNIFE ASM. ドウメス クミ (1) 54 SD-0500091-TP HINGE SCREW D=5.0 H=0.9 ダンネジ D=5.0 H=0.9 (1) 55 B2426-280-000 NEEDLE HOLE GUIDE ハリアナ ガイド (1) 56 SS-6030220-SP SCREW 3/32-56 L=2.2 ヒラネジ 3/32-56 L=2.2 (2) 57 135-15564 NEEDLE PLATE ASM. ハリイタ クミ (1) 58 B2420-280-000 FIXING KNIFE コテイメス (1) 59 SS-7090410-SP SCREW 9/64-40 L=3.5 マルヒラネジ 9/64-40 L=3.5 (2) 60 B2418-280-000 MOVING KNIFE LINK ドウメス リンク (1) 61 B2416-280-000 THREAD CUTTING LEVER RING イトキリ レバーリング (1) 62 B2415-280-0A0 THREAD CUTTER LEVER ASM., SMAL イトキリ レバー (ショウ) クミ (1) 63 B2414-280-0A0 THREAD CUTTER LEVER ASM., LARG イトキリ レバー (ダイ) クミ (1) 64 SS-6110430-TP SCREW 11/64-40 L=4 ヒラネジ 11/64-40 L=4 (1) 65 WP-0400946-SP WASHER ヒラザガネ (2) 66 SS-7110740-TP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 (1) 67 #01 B2423-280-00C MOVING KNIFE WASHER C ドウメス ザガネ C (1) NOTE(注記) #01....SELECTIVE PARTS 選択部品 #02....SPECIAL ORDER PARTS 特別注文部品 #03....FOR USE IN JAPAN 日本用 #04....EXPORT (EXCEPT JE) 輸出用 (JEは除く)

Page 12 — 4. THREAD TENSION RELEASE COMPONENTS

4. THREAD TENSION RELEASE COMPONENTS 糸調子関係 - 7 - jintex.in

Page 13

REF.NO NOTE PART NO DESCRIPTION Qty 1 B2303-280-000 TENSION RELEASE PIN 1 2 SS-9151740-CP SCREW 15/64-28 L=17 1 3 262-18859 WIPER ASM. 1 4 B2302-280-0A0 SECOND THREAD TENSION ASM. 1 5 SS-8090610-SP SCREW 9/64-40 L=5.9 (1) 6 B2313-280-000 THREAD TENSION ROD, LARGE (1) 7 B2302-280-000 SECOND THREAD TENSION ROD (1) 8 B3112-761-000 THREAD TAKE-UP SPRING (1) 9 B3126-012-000 THREAD TENSION DISK (2) 10 B3132-552-000 THREAD TENSION DISK PRESSER (1) 11 B3107-804-000 THREAD TENSION DISK PRESSER (1) 12 B3114-232-000 THREAD TENSION SPRING (1) 13 B3120-125-000 ROTATING STOPPER (1) 14 B3119-771-000 THREAD TENSION NUT (1) 15 262-18651 FIRST THREAD TENSION ASM. 1 16 262-20400 THREAD TENSION ROD (1) 17 B3126-012-000 THREAD TENSION DISK (2) 18 262-18602 FIRST THREAD TENSION SPRING (1) 19 B3125-012-000 THREAD TENSION NUT (1) 20 SD-1000401-SP HINGE SCREW D=10 H=4 2 21 262-17109 CONNECTING LINK 1 22 262-04602 LOWERING FOOT 1 23 SD-0790601-SP HINGE SCREW D=7.94 H=6 1 24 NS-6150310-SP NUT 15/64-28 1 25 135-06217 LOWERING ARM 1 26 SM-6061802-TP SCREW M6 L=18 1 27 135-13114 TENSION RELEASE ARM 1 28 SM-6061802-TP SCREW M6 L=18 1 29 262-16903 SHAFT 1 30 SD-0530221-SP HINGE SCREW D=5.3 H=2.2 1 31 265-01304 TENSION RELEASE BAR 1 32 262-18404 THREAD TENSION ARM 1 33 SS-7090620-TP SCREW 9/64-40 L=6.1 2 34 NS-6150310-SP NUT 15/64-28 1 35 135-06852 LOWERING CONNECTING LEVER ASM. 1 36 SD-0901201-TP HINGE SCREW D=9 H=3.2 1 37 262-17208 LOWERING CONNECTING RING 1 38 RC-0740811-KP C-RING 8 1 39 SD-0720331-SP HINGE SCREW D=7.24 H=3.3 1 40 135-06704 TENSION SPRING 1 41 262-20707 SPRING HOOK 1 42 SD-0640391-TP HINGE SCREW D=6.35 H=3.9 1 43 135-06415 CONNECTING ARM 1 44 SM-6061802-TP SCREW M6 L=18 1 45 SD-0530221-SP HINGE SCREW D=5.3 H=2.2 1 46 262-17802 WIPER CONNECTING LINK 1 47 262-18008 SPRING 1 48 262-04453 WIPER CONNECTING ARM ASM. 1 49 RC-0470611-KP RETAINING RING 4.7 2 50 B2109-280-000 WIPER CONNECTING SCREW 1 51 135-09807 OIL SHIELD CAP 1 52 262-17901 WIPER CONNECTING PLATE 1 53 B1229-232-000 SNAP RING 1 54 135-74009 WIPER BASE PLATE 1 55 SS-4110815-SP SCREW 11/64-40 L=8 1 56 SD-0640211-SP HINGE SCREW D=6.35 H=2.1 1 - 8 - jintex.in

Page 14

5. SHUTTLE DRIVER SHAFT COMPONENTS 下軸関係 12 11 10 9 8 7 6 2 36 3 4 5 16 32 34 37 45 38 39 40 24 25 26 27 12 15 14 13 20 20 19 18 35 34 33 21 22 23 31 29 28 30 41 42 43 44 47 47 46 48 49 50 52 51 - 9 - jintex.in

Page 15

REF.NO NOTE PART NO DESCRIPTION 品 名 Qty 1 B1817-280-0A0 INNER HOOK PRESSER ASM. ナカガマ オサエ クミ 1 2 B1828-980-0AB BOBBIN CASE ASM. ボビンケース クミ 1 3 262-33106 BOBBIN ボビン 1 4 262-04909 INNER HOOK ナカガマ 1 5 400-28681 DRIVER ASM. ドライバクミ 1 6 SS-6121212-TP SCREW 3/16-28 L=12.0 ロツカクアナボルト 3/16-28 L=12 (1) 7 B1813-980-000 SHUTTLE NEEDLE OUTER RING オオガマ ニードルガイリン 1 8 #01 B1411-804-B00 NEEDLE DRIVING LEVER BEARING B ハリ クドー レバー ベアリング B 3 9 WP-0952616-SD WASHER 9.5X14.8X2.6 ヒラザガネ 9.5 X 14.8 X 2.6 1 10 B1814-980-000 SHUTTLE オオガマ 1 11 262-22109 SHUTTLE UPPER SPRING オオガマウワバネ 1 12 SS-6060410-TP SCREW 3/32-56 L=3.5 ヒラネジ 3/32-56 L=3.5 2 13 SS-6151220-SP SCREW 15/64-28 L=11.5 ヒラネジ 15/64-28 L=11.5 1 14 262-22208 SHUTTLE RACEADJUSTING SHAFT オオガマチョウセツジク 1 15 SS-6110480-SP SCREW 11/64-40 L=4.3 ヒラネジ 11/64-40 L=4.3 1 16 CS-080081C-SH THRUST COLLAR ASM. D=8.0 W=8 スラストウケ D=8 W=8 クミ 1 17 SS-8110520-TP SCREW 11/64-40 L=4.5 トメネジ 11/64-40 L=4.5 (2) 18 135-08403 LOWER SHAFT REAR METAL シタジク ウシロメタル 1 19 B1808-980-000 LOWER SHAFT THRUST WASHER シタジク スラストワッシャー 1 20 #01 135-09153 LOWER SHAFT GEAR A ASM. シタジク ハグルマ A クミ 1 21 135-08155 CRANK ROD ASM. クランクロッド クミ 1 22 SS-8110510-TP SCREW 11/64-40 L=10.5 マルヒラネジ 11/64-40 L=10 (2) 23 SD-0801021-TP HINGE SCREW D=8 H=10.2 ダンネジ D=8 H=10.2 1 24 B1805-980-000 OSCILLATOR オオフリコ 1 25 NS-6660430-SP NUT 1/4-40 ロツカクナット 1/4-40 1 26 CS-079101A-SH THRUST COLLAR ASM. D=7.94 W=10 スラストウケ D=7.94 W=10 クミ 1 27 SS-8110520-TP SCREW 11/64-40 L=4.5 トメネジ 11/64-40 L=4.5 (2) 28 262-21804 THRUST COLLAR オオフリコスラストカラー 1 29 SS-8110520-TP SCREW 11/64-40 L=4.5 トメネジ 11/64-40 L=4.5 2 30 262-03901 OSCILLATING SHAFT オオフリコジク 1 31 SS-8150822-TP SCREW 15/64-28 L=8 オオネジ 15/64-28 L=8 1 32 262-22406 INNER HOOK PRESSER, LEFT ナカガマオサエフック (ヒダリ) 1 33 262-22307 INNER HOOK PRESSER, RIGHT ナカガマオサエフック (ミギ) 1 34 262-22505 INNER HOOK PRESSURE SPRING ナカガマオサエフックバネ 2 35 PS-0250162-KH SPRING PIN 2.5X16 スプリングピン 2.5 X 16 2 36 #02 B1828-980-0A0 BOBBIN CASE ASM. ボビンケース (クミ) 1 37 138-16855 CYLINDER ARM CAP ASM. カマカバー (クミ) 1 38 262-21200 HOOK COVER PRESSER SPRING B カマカバーオサエバネ (B) 1 39 SS-6111140-SP SCREW 11/64-40 L=11 ヒラネジ 11/64-40 L=11 1 40 135-08700 HOOK COVER PRESSER SPRING PIN カマカバー オサエバネピン 1 41 SS-6661110-SP SCREW 1/4-40 L=11 ヒラネジ 1/4-40 L=11 1 42 SS-6742012-TP SCREW 3/8-28 L=19.5 ヒラネジ 3/8-28 L=19.5 1 43 135-10458 WORM WHEEL ASM. ウォームハグルマ クミ 1 44 135-10201 WORM WHEEL SHAFT BUSHING カムジクメタル 1 45 262-21101 HOOK COVER PRESSER SPRING A カマカバーオサエバネ (A) 1 46 CS-180121A-SH THRUST COLLAR ASM. D=18 W=12 スラストウケ D=18 W=12 クミ 1 47 SS-6660710-TP SCREW 1/4-40 L=7 ヒラネジ 1/4-40 L=7 (2) 48 NS-6660511-SP NUT 1/4 ロツカクナット 1/4-40 1 49 262-21358 WORM WHEEL SHAFT ASM. カムジクケツゴウズ 1 50 262-21507 CAM GUIDE PIN カムガイドピン 1 51 NS-6360810-SP NUT 9/16-20 ロツカクナット 9/16-20 1 52 135-10607 FEED CAM オクリカム 1 NOTE (注記) #01...SELECTIVE PARTS 選択部品 #02...FOR EXTRA THICK THREAD 極太糸用 (オプション) (OPTIONAL PARTS) - 10 - jintex.in

Page 16

6. FEED MECHANISM COMPONENTS 送り関係 - 11 - jintex.in

Page 17

REF.NO NOTE PART NO DESCRIPTION Qty 1 SS-7110740-TP SCREW 11/64-40 L=7 4 2 RE-0700000-K0 E-RING 7 2 3 #01 B2557-280-00C WASHER 2 4 135-18352 LEVER DRIVING PLATE ASM. 2 5 135-18402 TENSION SPRING 2 6 262-04107 LIFTING LEVER LEFT 1 7 262-23701 LIFTING LEVER SHAFT 1 8 135-18907 SUPPORT PLATE 1 9 SS-2110920-TP SCREW 11/64-40 L=8.5 2 10 B2549-280-000 WORK CLAMP FOOT MOUNTING BASE 7 11 262-24808 BALL RETAINER 1 12 SM-6062002-TP SCREW M6 L=20 1 13 WP-0621016-SD WASHER 6.2X13X1 1 14 135-18501 SPRING SUSPENSION 1 15 135-17800 FEED BRACKET 1 16 SS-8150510-TP SCREW 15/64-28 L=4.7 1 17 262-04008 LIFTING LEVER RIGHT 1 18 SS-8080310-TP SCREW 1/8-44 L=2.8 2 19 262-24204 FINGER GUARD 1 20 SS-2110930-SP SCREW 11/64-40 L=8.7 5 21 262-24105 WORK CLAMP FOOT FACE PLATE 1 22 135-18600 WORK CLAMP FOOT, RIGHT 1 23 135-18709 WORK CLAMP FOOT, LEFT 1 24 SM-3061052-TP SCREW M6 L=10 1 25 WP-0650876-SD WASHER 6.5X13X0.8 1 26 135-17701 FEED PLATE 1 27 SS-2110920-TP SCREW 11/64-40 L=8.5 4 28 262-23602 FEED PLATE PRESSER PLATE 1 29 135-17529 FEED PLATE CARRIER BAR 1 30 * 262-22703 FEED DRIVING ARM SHAFT 2 31 SS-6151220-SP SCREW 15/64-28 L=11.5 1 32 SS-7701010-SP SCREW 5/16-24 L=10 1 33 NS-6150540-SP NUT 15/64-28 2 34 WP-0702026-SP WASHER 7X15X2 1 35 135-16307 FEED REGULATOR 1 36 262-23503 HINGE STUD 1 37 NS-6700320-SP NUT 5/16-24 1 38 262-22901 FEED REGULATOR STUD 2 39 262-23008 INDICATOR LEVER 2 40 SD-0530221-SP HINGE SCREW D=5.3 H=2.2 2 41 #01 135-16703 SLIDE BLOCK B 2 42 NS-6960430-SP NUT 1/4-40 2 43 WP-0650876-SD WASHER 6.5X13X0.8 2 44 262-24600 FEED CAM ROLLER SHAFT 2 45 #01 262-39806 FEED CAM ROLLER 2 46 135-16109 FEED DRIVING ARM 1 47 SS-9151440-CP SCREW 15/64-28 L=14 1 48 135-50108 FEED REGULATOR SHAFT 2 49 TA-0550604-R0 RUBBER PLUG 2 50 262-23404 PLATE 1 51 SS-1110821-TP SCREW 11/64-40 L=8.3 2 52 SS-6151220-SP SCREW 15/64-28 L=11.5 1 53 WP-0704516-SP WASHER 7X20X4.5 1 54 262-23305 SLIDE BLOCK STUD 1 55 B1414-232-000 SQUARE BLOCK 1 56 SS-6151050-TP SCREW 15/64-28 L=10.5 1 57 135-17107 FEED ACROSS DRIVING ARM 1 58 135-17008 FEED ACROSS REGULATOR 1 59 SS-6151220-SP SCREW 15/64-28 L=11.5 1 60 SS-4110615-SP SCREW 11/64-40 L=6 1 NOTE(注記) #01...SELECTIVE PARTS - 12 - jintex.in

Page 18 — 7. THREAD TRIMMING COMPONENTS

7. THREAD TRIMMING COMPONENTS 糸切り関係 13 14 15 16 17 18 12 19 12 12 37 36 33 34 35 38 39 40 41 42 29 28 24 25 26 27 21 23 22 20 - 13 - jintex.in

Page 19

REF.NO NOTE PART NO DESCRIPTION 品 名 Qty 1 262-26407 TENSION SPRING HOOK バネカケ 1 2 B2410-980-000 TENSION SPRING イトキリ ウデバネ 1 3 SD-0650305-TP HINGE SCREW D=6.5 H=3 ダンネジ D=6.5 H=3 2 4 260-17400 SPRING HOOK イトムスピウデバネカケ 1 5 262-25805 THREAD CUTTING LINK イトキリリンク 1 6 262-26100 THREAD CUTTING RING イトキリリング 1 7 SS-6151440-SP SCREW 15/64-28 L=14 ヒラネジ 15/64-28 L=14 1 8 262-26001 THREAD CUTTING LINK WASHER イトキリリンクザガネ 1 9 262-25904 THREAD CUTTING LINK SHAFT イトキリリンクジク 1 10 RC-1021011-KP RETAINING RING 10.2 C ガタトメワ 10.2 1 11 135-15408 CONNECTING ROD, LARGE イトキリレンケツボー ダイ 1 12 NS-6120310-SP NUT 3/16-28 ロツカクナツト 3/16-28 3 13 262-25201 ROLLER イトキリホシコロ 1 14 SD-0651301-TH HINGE SCREW D=6.5 H=13 ダンネジ D=6.5 H=13 1 15 SS-8681950-SP SCREW 9/32-28 L=19 トメネジ 9/32-28 L=19 1 16 262-26704 THREAD CUTTING CAM ROLLER イトキリカムコロ 1 17 262-25102 CAM STUD イトキリカムウデジク 1 18 135-34060 THREAD CUTTING CAM COMPL. イトキリカムウデケツゴウ 1 19 262-25706 CONNECTING ROD, SMALL イトキリレンケツボウ (ショウ) 1 20 135-07058 LOWERING LINK ASM. オシサゲリンク クミ 1 21 262-17406 LOWERING LINK オシサゲリンク (1) 22 SD-0790402-TP HINGE SCREW D=7.94 H=4 ダンネジ D=7.94 H=4 (1) 23 135-07157 LOWERING LEVER ASM. オシサゲレバー クミ (1) 24 NS-6150310-SP NUT 15/64-28 ロツカクナツト 15/64-28 (1) 25 262-17505 ROLLER オシサゲコロ (1) 26 262-17604 WASHER オシサゲコロザガネ (1) 27 B2615-280-000 STOP RING シヤダン セイギヨ カムコロトメワ (1) 28 WP-0982616-SP WASHER 9.8X24.0X2.6 ヒラザガネ 9.8 X 24.0 X 2.6 1 29 SS-6741512-TP SCREW 3/8-28 L=14.5 ロツカクアナボルト 3/8-28 1 30 SD-0901101-SP HINGE SCREW D=9 H=11 ダンネジ D=9 H=11 1 31 262-25300 AUXILIARY LEVER イトキリホジョレバー 1 32 262-25409 SHAFT イトキリサドウジク 1 33 135-14401 THREAD TRIMMING AUXILIARY CAM イトキリ ホジョカム 1 34 RC-0740816-K0 RETAINING RING 7.4 トメワ 7.4 1 35 262-25607 CONNECTING PLATE B イトキリホジョカムレンケツツイタ (B) 1 36 SD-0790802-TP HINGE SCREW D=7.94 H=8 ダンネジ D=7.94 H=8 1 37 262-26209 SPRING イトキリホジョカムモドシバネ 1 38 262-26506 SPRING HOOK ホジョカムモドシバネカケ 1 39 NS-6110420-SP NUT 11/64-40 ロツカクナツト 11/64-40 1 40 SS-7110910-TP SCREW 11/64-40 L=8.5 マルヒラネジ 11/64-40 L=8.5 2 41 WP-0480856-SP WASHER 4.8X8.4X0.8 ヒラザガネ 4.8 X 8.4 X 0.8 2 42 262-25508 CONNECTING PLATE A イトキリホジョカムレンケツツイタ (A) 1 - 14 - jintex.in

Page 20 — PEDAL PRESSURE DECREASING UNIT COMPONENTS

8. PEDAL PRESSURE DECREASING UNIT COMPONENTS 軽減装置関係 - 15 - jintex.in

Page 21

REF.NO NOTE PART NO DESCRIPTION 品 名 Qty 1 135-23188 PRESSURE DECREASING DEVICE ケイゲンソウチ クミ 1 2 135-24608 PRESSURE DECREASING LEVER オサエアゲレバー (2) 3 135-25100 STUD ケイゲンツメ チョウセツジク (2) 4 135-24707 LEVER LATCH A オサエアゲ レバーツメ A (1) 5 SS-2110920-TP SCREW 11/64-40 L=8.5 マルヒラネジ 11/64-40 L=8.5 (2) 6 SS-7110910-TP SCREW 11/64-40 L=8.5 マルヒラネジ 11/64-40 L=8.5 (2) 7 SD-0640321-SP HINGE SCREW D=6.35 H=3.2 ダンネジ D=6.35 H=3.2 (2) 8 135-24806 LEVER LATCH B オサエアゲ レバーツメ B (1) 9 135-25001 SPRING オサエアゲレバー カエシバネ (1) 10 135-24905 PRESSURE DECREASING LEVER LINK オサエアゲ レバーリンク (1) 11 260-17400 SPRING HOOK スピウデバネカケ (2) 12 SS-8150710-SP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 (1) 13 MAT-80116S00 SUSPENSION PIN ヒダトリ バネカケ ピン (1) 14 135-25605 AUXILIARY CAM ギャクテンボウシホジョカム (1) 15 SD-0720331-SP HINGE SCREW D=7.24 H=3.3 ダンネジ D=7.24 H=3.3 (1) 16 SS-6110710-TP SCREW 11/64-40 L=6.5 ヒラネジ 11/64-40 L=6.5 (1) 17 135-25704 SPRING ホンカム モドシバネ (1) 18 SM-6061002-TP SCREW M6 L=10 ロツカクアナボルト M6 L=10 (2) 19 135-23352 PRESSURE DECREASING SHAFT ASM. オシサゲジククミ (1) 20 PS-0300162-KH SPRING PIN 3X16 スプリングピン 3X16 (1) 21 135-23121 PRESSURE DECREASING UNIT FRAME ケイゲンソウチトリツケダイ (1) 22 135-23388 ROTATION PREVENTING LATCH ASM. ギャクテンボウシツメ (クミ) (1) 23 135-24418 SPRING ギャクテンボウシツメバネ (1) 24 SD-0600321-SP HINGE SCREW D=6 H=3.2 ダンネジ D=6 H=3.2 (1) 25 SS-8620610-SP SCREW 3/16-32 L=6 トメネジ 3/16-32 L=6 (1) 26 135-24277 DECREASING CLUTCH ASM. ケイゲンクラツチツメ (クミ) (1) 27 135-23808 CLUTCH SPRING クラツチバネ (1) 28 SM-6051202-TP SCREW M5X0.8 L=12 ロツカクアナボルト M5X0.8 L=12 (1) 29 135-24129 INNER SLEEVE ケイゲンインナースリーブ (1) 30 135-24004 OUTER SLEEVE ケイゲンアウタースリーブ (1) 31 135-23915 OUTER SLEEV GUIDE アウタースリーブガイドリング (1) 32 RC-1850001-KP SNAP RING 18.5 Cガタトメワ 18.5 (1) 33 SB-1200003-00 BEARING D=20X42 ベアリング D=20X42 (1) 34 135-23428 SHAFT ニュウリョクジク (1) 35 SB-3120001-00 BEARING D=12X15 ベアリング D=12X15 (2) 36 135-23519 COLLAR A オシサゲジクカラー A (1) 37 135-23600 COLLAR B オシサゲジクカラー B (1) 38 135-25308 IDLER PULLEY INSTALLING PLATE アイドラープーリ トリツケイタ (1) 39 SS-6110810-TP SCREW 11/64-40 L=8 ヒラネジ 11/64-40 L=8 (3) 40 135-25407 SCREW グリース チュウニュウネジ (1) 41 SS-8150822-TP SCREW 15/64-28 L=8 トメネジ 15/64-28 L=8 (2) 42 135-23212 DRIVING PULLEY ケイゲンブーリ (1) 43 SS-8151550-SP SCREW 15/64-28 L=15 トメネジ 15/64-28 L=15 (1) 44 WP-0482086-SD WASHER 4.8X11.5X2 ヒラザガネ 4.8X11.5X2 (2) 45 SS-8620850-SP SCREW 3/16-32 L=8.0 トメネジ 3/16-32 L=8.0 (1) 46 SM-6062002-TP SCREW M6 L=20 ロツカクアナボルト M6 L=20 3 47 135-32254 IDLER PULLEY ASM. アイドラープーリ クミ 1 48 SD-1201501-SP HINGE SCREW D=12 H=15 ダンネジ D=12 H=15 (1) 49 262-35200 IDLER BRACKET アイドラーブラケット (1) 50 WP-0621016-SD WASHER 6.2X13X1 ヒラザガネ 6.2X13X1 (1) 51 SS-6150760-SN SCREW 15/64-28 L=6.5 ヒラネジ 15/64-28 L=6.5 (1) 52 NS-6150310-SP NUT 15/64-28 ロツカクナット 15/64-28 (1) 53 WP-0618506-SD WASHER 6.1X18.5X2 ヒラザガネ 6.1X18.5X2 (1) 54 262-35408 IDLER RING アイドラーリング (1) 55 135-32262 IDLER PULLEY ASM. アイドラープーリ クミ (1) - 16 - jintex.in

Page 22 — 9. STOP-MOTION MECHANISM COMPONENTS

9. STOP-MOTION MECHANISM COMPONENTS 遮断制御関係 - 17 - jintex.in

Page 23

REF.NO NOTE PART NO DESCRIPTION Qty 1 135-22008 STOP-MOTION REGULATING CAM 1 2 WP-0482086-SD WASHER 4.8X11.5X2 3 3 SS-6121212-TP SCREW 3/16-28 L=12.0 3 4 RC-0470611-KP RETAINING RING 4.7 1 5 262-28601 ROLLER 1 6 262-28502 ROLLER SHAFT 1 7 NS-6150430-SP NUT 15/64-28 1 8 NS-6150430-SP STOP-MOTION ARM B 2 9 135-21505 SCREW 9/32-28 L=16.5 1 10 SS-6681720-TP NUT 9/32-28 1 11 NS-6680320-SP HINGE SCREW D=8 H=4 2 12 SD-0800402-TP STOP-MOTION LINK 1 13 262-28205 LEVER ASM. 1 14 135-21760 REGULATING LEVER STUD 1 15 262-28304 SCREW 15/64-28 L=11 1 16 SS-7151120-SP RUBBER CUSHION 2 17 B2608-280-000 WASHER 3 18 262-29104 PRESSURE SPRING 2 19 262-29005 WASHER 7.5X19X1.5 1 20 WP-0751576-SD STOP-MOTION PLUNGER ROD 1 21 B2605-372-000 STOP MOTION HOOK 1 22 262-28908 PULLEY PRESSING PLATE 1 23 135-20309 SCREW 15/64-28 L=17.0 1 24 SS-8151780-SP NUT 15/64-28 1 25 NS-6150430-SP WASHER 6.2X13X1 1 26 WP-0621016-SD SCREW M6 L=18 1 27 * SM-6061802-TP WASHER 6.1X18.5X2 1 28 WP-0612056-SD SPRING WASHER 6.4X11.9X1.5 1 29 WS-0641560-KR SCREW 15/64-28 L=13.0 2 30 SS-6061402-TP SCREW M6 L=14 1 31 SM-6061402-TP SAFETY PLATE 2 32 135-20705 STOP-MOTION LEVER 1 33 135-20119 WASHER 7.5X19X1.5 1 34 WP-0751576-SD NUT 9/32-28 1 35 NS-6680410-SP NUT 9/32-28 1 36 NS-6680410-SP STOP-MOTION LEVER PLATE SPRING 1 37 262-27306 SCREW 9/32-28 L=6.8 1 38 SS-5680740-SP GUIDE PIN 1 39 262-27207 DRIVING PLATE 1 40 135-20408 TENSION SPRING 1 41 135-20804 STOP-MOTION LEVER SHAFT 1 42 262-02903 STARTING SPRING HOOK 1 43 262-28700 NUT 15/64-28 1 44 NS-6150310-SP TENSION SPRING 1 45 262-27900 STARTING LEVER 1 46 262-04701 HINGE SCREW D=6.35 H=8.0 1 47 SD-0640801-TP SLIDE ROLLER 1 48 262-28809 WASHER 4.8X8.4X0.8 1 49 WP-0480856-SP NUT 11/64-40 1 50 NS-6110420-SP SUSPENSION SCREW 1 51 262-29302 HINGE SCREW D=8 H=4 1 52 SD-0800402-TP STOP-MOTION ARM SHAFT 1 53 135-21406 NUT 15/64-28 1 54 NS-6150310-SP SCREW 15/64-28 L=14 1 55 SS-6151440-SP STOP-MOTION ARM A 1 56 135-21125 SCREW M6 L=20 1 57 SM-6062002-TP HINGE SCREW D=8 H=3.5 1 58 SD-0800352-SP NUT 1 59 262-27702 STOP-MOTION CONNECTING LEVER 1 60 262-27603 E-RING 4 1 61 RE-040000-KO - 18 - jintex.in

Page 24 — 10. LUBRICATION MECHANISM COMPONENTS

10. LUBRICATION MECHANISM COMPONENTS 給油関係 - 19 - jintex.in

Page 25

REF.NO NOTE PART NO DESCRIPTION 品名 Qty 1 TA-2100904-R0 RUBBER PLUG トメセン 5 2 TA-1050504-R0 RUBBER PLUG トメセン 6 3 BP-6000000-00 VINYL PIPE ビニールパイプ 0.7 4 262-30706 OIL WICK PRESSER ユシンオサエ 3 5 TA-1250406-R0 RUBBER PLUG D=12.5 L=4 トメセン D=12.5 L=4 2 6 CQ-2522000-00 OIL WICK ユシン 4,7 7 262-31209 OIL WICK PRESSER ハリボウクランクユシンオサエ 1 8 TA-1250406-R0 RUBBER PLUG D=12.5 L=4 トメセン D=12.5 L=4 1 9 B3507-280-00 OIL FELT メンブフェルト 1 10 B3509-280-00 NEEDLE ROD CRANK LUBRICATING ハリボー クランク キューユ パイリーン 4 11 B3518-280-00 BALANCE LUBRICATING テンビンキューユ 2 12 262-31407 BALANCE LUBRICATING PLATE テンビンキューユバン 1 13 SS-6091510-SP SCREW 9/64-40 L=15 ヒラネジ 9/64-40 L=15 1 14 BP-3000001-00 VINYL TUBE ビニールパイプ 2.5 15 EA-9500B01-00 CABLE BAND ソクセンバンド 2 16 262-30102 LUBRICATING TANK キュウユタンク 1 17 SS-4090515-SP SCREW 9/64-40 L=5 ナベネジ 9/64-40 L=5 2 18 #01 135-01705 SILICON OIL FELT エスレンフェルト 1 19 SS-4110715-SP SCREW 11/64-40 L=7 ナベネジ 11/64-40 L=7 9 20 262-30409 LUBRICATING OIL WICK STOPPER キュウユシンメ 1 21 TA-0750704-R0 RUBBER PLUG トメセン 1 22 #01 135-01408 SILICON OIL POURING HOLE エスレン チュニュウグチ 1 23 135-29904 LUBRICATING TANK FELT キュウユ タンクフェルト 1 24 262-30904 GREASE CAP グリースカップ 1 25 135-28708 REAR METAL BUSH ウシロメタル ブッシュ 1 26 262-31605 CRANK ROD LUBRICATING PLATE クランク ロッドキュウユバン 2 27 135-29201 CRANK LUBRICATING FELT クランク キュウユフェルト 1 28 135-29102 OIL FELT ウォーム キュウユフェルト 1 29 262-29401 OSCILLATOR LUBRICATION PLATE オオフリキュウユバン 1 30 B3515-280-00 OSCILLATOR LUBRICATING FELT オオフリキュウユフェルト 1 31 TA-1450404-R0 RUBBER PLUG D=14.5 L=4 トメセン D=14.5 L=4 1 32 WP-0621016-SD WASHER 6.2X13X1 ヒラザガネ 6.2X13X1 1 33 SS-6111140-SP SCREW 11/64-40 L=11 ヒラネジ 11/64-40 L=11 1 34 SS-7110510-SP SCREW 11/64-40 L=5 マルヒラネジ 11/64-40 L=5 1 35 B3502-280-00 LUBRICATING TANK FELT キュウユタンク フェルト 1 36 B3504-280-00 SHUTTLE FELT オオガマフェルト 2 37 262-29609 HOOK OIL WICK STOPPER A カマユシン トメ (A) 1 38 B3541-012-00 OIL WICK カンリュウ ユシン 1 39 262-30003 OIL FELT HOLDER カンリュウユシンフェルトオサエ 1 40 SS-4110515-SP SCREW 11/64-40 L=5 ナベネジ 11/64-40 L=5 1 41 262-31902 OIL WICK PIPE STOPPER ユシンパイプトメ 1 42 #01 135-01309 SILICON OIL PIPE エスレンパイプ 1 43 #01 B1127-280-00 SILICON OIL THREAD GUIDE エスレンイトアンナイ 1 44 262-31100 SHUTTLE LUBRICATING PLATE オオガマキュウユバン 1 45 #01 SS-4110515-SP SCREW 11/64-40 L=5 ナベネジ 11/64-40 L=5 1 46 SS-6090440-SP SCREW 9/64-40 L=4.0 ヒラネジ 9/64-40 L=4 2 47 #01 TA-1050504-R0 RUBBER PLUG トメセン 1 NOTE(注記) #01....SPECIAL ORDER PARTS 特別注文部品 - 20 - jintex.in

Page 26 — 11. TABLE COMPONENTS

11. TABLE COMPONENTS 脚卓関係 34 35 35 36 37 38 34 JUKI 39 40 41 42 43 47 44 48 45 49 46 1 57 50 ~ 56 5 2 4 2 3 8 7 20 20 67 69 66 68 71 70 19 20 11 6568 6 9 69 67 71 70 64 120 10 13 16 15 18 17 14 13 16 15 18 17 21 13 16 15 18 17 27 28 29 30 31 24 30 26 25 24 12 59 ~ 63 26 22 20 31 32 33 - 21 - jintex.in

Page 27

REF.NO NOTE PART NO DESCRIPTION Qty 1 138-17507 TABLE 1 2 111-55207 DRAWER SUPPORT 2 3 111-55108 DRAWER 1 4 D8204-555-D00 DRAWER STOPPER 1 5 135-08056 T-STAND COMPL. 1 6 111-57559 T-STAND ASM. (1) 7 111-57658 STAND UPPER, RIGHT (1) 8 111-57757 STAND UPPER, LEFT (1) 9 111-57955 STUD ASM., RIGHT (1) 10 111-58052 STRUT JUNCTION (LEFT) (1) 11 111-58300 STAND SIDE SUPPORT (1) 12 111-58409 STAND SIDE SUPPORT (1) 13 111-58607 RUBBER CAP (4) 14 170-07402 NUT (2) 15 WP-1302501-SE WASHER M12 (4) 16 WS-1253010-KN SPRING WASHER 12.5X21.5X3 (4) 17 B8108-555-0A0 ADJUSTING SCREW ASM. WITH CAP (4) 18 NM-6120003-SE NUT M12 (4) 19 111-58508 PLATE (2) 20 SL-9082091-SE WASHER HEXAGONAL BOLT (12) 21 138-17754 Z-STAND PEDAL ASM. (1) 22 GPF-06060A0 PEDAL ASM. (1) 23 GPF-0608000 PEDAL ADJUSTING PLATE (1) 24 111-59001 PEDAL SHAFT BRACKET (2) 25 B8153-771-000 PEDAL CONNECTING ROD (1) 26 D8113-555-B00 PEDAL BUSHING (2) 27 SM-9061203-SE SCREW M6 L=12 (2) 28 WP-0671016-SE WASHER 6.7X13X1 (2) 29 WS-0621114-KR SPRING WASHER 6.2X11.4X1.2 (2) 30 SM-9082023-SE SCREW M8 L=20 (2) 31 WP-0871602-SE WASHER 8.7X16X1.6 (4) 32 WS-0861410-KR SPRING WASHER 8.6X15X1.4 (2) 33 NM-6080721-SE NUT M8 (2) 34 SS-9156830-SP SCREW 15/64-28 L=68 3 35 MTJ-MS090000 MOUNTING BOLT 4 36 B8133-019-000 S'SHAPED HOOK 2 37 SK-3311600-SE WOOD SCREW D=3.1 L=16 3 38 262-34302 OIL REMOVING FUNNEL 1 39 WP-0612056-SD WASHER 6.1X18.5X2 3 40 WP-0621016-SD WASHER 6.2X13X1 3 41 NS-6150310-SP NUT 15/64-28 3 42 B7130-761-0A0 MOTOR BASE ASM. 1 43 NM-6060001-SE NUT M6 4 44 WS-0621210-KR SPRING WASHER 6.2X11.4X1.2 4 45 WP-0612056-SE WASHER 6.1X18.5X2 8 46 SM-9062003-SC SCREW M6 L=20 4 47 WP-0850002-SC WASHER 8.5X18X1.6 4 48 WS-0901520-KN SPRING WASHER 9.0X15.0X2.0 4 49 NS-6200710-SN NUT 5/16-18 4 50 135-31108 MOTOR PULLEY 50HZ 2300 SPM 1 51 262-02804 MOTOR PULLEY (50 HZ) 1 52 135-31306 MOTOR PULLEY 50HZ 2000 RPM 1 53 135-31405 MOTOR PULLEY 60HZ 2300 SPM 1 54 135-31504 MOTOR PULLEY 60HZ 2000 SPM 1 55 135-31603 MOTOR PULLEY 60HZ 1800 SPM 1 56 135-53706 MOTOR PULLEY 60HZ 1500 SPM 1 57 SS-9150822-TP SCREW 15/64-28 L=8 2 58 B8131-019-000 CHAIN 1 59 #01 MTJ-VM00500 V-BELT, 50INCH 1 60 #02 MTJ-VM00490 V-BELT, 49INCH 1 61 #03 MTJ-VM00480 V-BELT, 48INCH 1 62 #04 MTJ-VM00470 V-BELT, 47INCH 1 63 #05 MTJ-VM00460 V-BELT, 46INCH 1 64 #06 400-09458 PULLEY COVER 1 65 #06 B7272-781-000 COVER MOUNTING BRACKET B 1 66 #06 262-36703 COVER MOUNTING BRACKET C 1 67 #06 SS-7110710-SP SCREW 11/64-40 L=7 4 68 #06 NS-6110310-SP NUT 11/64-40 4 69 #06 WP-0480856-SP WASHER 4.8X8.4X0.8 4 70 #06 SK-3452000-SC WOOD SCREW D=4.5 L=20 2 71 #06 WP-0501016-SC WASHER 5X10.5X1 2 NOTE(注記) #01...FOR 50HZ 2300SPM #02...FOR 50HZ 2000SPM. 60HZ 2300SPM #03...FOR 50HZ 1800SPM. 60HZ 2000SPM #04...FOR 60HZ 1800SPM #05...FOR SLOW SPEED #06...FOR DESTINATION ONLY ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850標準機種と同じです。 - 22 - jintex.in

Page 28 — LK-1850 SERIES SUBCLASS (1) LK-1852-1

12. LK-1850 SERIES SUBCLASS LK-1850シリーズサブクラス (1) LK-1852-1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 - 23 - jintex.in

Page 29

REF.NO NOTE PART NO DESCRIPTION 品 名 Qty 1 135-10862 WORM ASM. ウォーム クミ 1 2 SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネジ 11/64-40 L=14 (4) 3 135-10953 FEED CAM DRIVING WHEEL ASM. ウォームハグルマ クミ 1 4 135-41750 FINGER GUARD ASM. オサエバネケイタ ウエ クミ 1 5 SS-7111120-SP SCREW 11/64-40 L=10.5 マルヒラネジ 11/64-40 L=10.5 1 6 135-40752 WORK CLAMP FOOT BRACKET ASM. ツマミソーチ クミ (1) 7 135-41206 WORK CLAMP FOOT PLATE COVER オサエイタカバー (1) 8 SS-7110840-SP SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 (2) 9 135-41404 WORK CLAMP FOOT LIFTING PLATE オサエアゲ サドーイタ (1) 10 SS-9151120-CP SCREW 15/64-28 L=11 ロツカクボルト 15/64-28 L=11 (2) 11 WP-0612516-SD WASHER 6.1X15.2X2.5 ヒラザガネ 6.1X15.2X2.5 (2) 12 D2529-232-D00 PRESSER SPRING オシバネ (1) 13 #01 D2545-232-D0A HINGE SCREW イタカム ヒツパリイタ トメ ダンネジ (2) 14 D2513-232-DA0 BRACKET GUIDE ASM. イタカム ヒツパリイタ クミ (1) 15 NS-6110530-SP NUT 11/64-40 ロツカクナット 11/64-40 (1) 16 D2509-232-D00 STATIONING LATCH ヒツパリイタ コテイフツク (1) 17 D2512-232-D00 TORSION SPRING コテイフツク カエシバネ (1) 18 D2511-232-D00 SCREW コテイフツク トリツケネジ (1) 19 D2504-282-AB0-A KNOB FOOT MOUNT BASE ASM. ツマミアシトリツケダイクミ (1) 20 D2502-232-D00 SHAFT BLOCK SHAFT ツマミソーチ トリツケジク (1) 21 RE-0700000-K0 E-RING 7 Eガタトメワ 7 (2) 22 SS-9110920-CP SCREW 11/64-40 L=9 ロツカクボルト 11/64-40 L=9 (1) 23 D2516-232-DA0 WORK CLAMP FOOT REGULATOR ツマミリヨー チョーセツイタ クミ (1) 24 D2528-232-D00 SHAFT オサエバネ チョーセツジク (1) 25 D2527-232-D00 SLEEVE オサエバネ ササエイパイプ (1) 26 B3117-352-000 THREAD TENSION POST NUT イトチョーシナット (2) 27 D2515-232-D00 TORSION SPRING イタカム ヒツパリイタ カエシバネ (1) 28 SS-7110840-SP SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 (2) 29 135-41107 WORK CLAMP FOOT SPRING HOLDER バネウケイタシタ (1) 30 135-41057 CLAMP GUIDE FOOT ASM. ガイドアシ クミ (1) 31 D2520-232-DA0 WORK CLAMP FOOT(LEFT)ASM. ツマミアシ ヒダリ クミ (1) 32 SS-7110550-TP SCREW 11/64-40 L=5.5 サラネジ 11/64-40 L=5.5 (2) 33 D2521-232-DA0 WORK CLAMP FOOT(RIGHT)ASM. ツマミアシ ミギ クミ (1) 34 SD-0550271-TP HINGE SCREW D=5.50 H=2.7 ダンネジ D=5.5 H=2.7 (2) 35 D2519-232-D00 WORK CLAMP FOOT PLATE CAM ツマミアシ イタカム (1) 36 NS-6120480-SP NUT 3/16-28 ロツカクナット 3/16-28 (2) 37 135-41503 FEED PLATE アナカンヨウ オサエイタ (1) 38 SS-9110460-CP SCREW 11/64-40 L=4 ロツカクボルト 11/64-40 L=4 (1) 39 WP-0501016-SD WASHER 5X10.5X1 ヒラザガネ 5X10.5X1 (1) 40 SS-9110460-CP SCREW 11/64-40 L=4 ロツカクボルト 11/64-40 L=4 (2) 41 135-40802 SHAFT BRACKET BASE シンチユウトリツケイタ (1) 42 135-40901 STATIONING BLOCK SHAFT ヨコフリ レバーシチュウ (1) 43 D2548-232-D00 SNAP RING,FOR CONNECTING ROD ヨコフリ ボーシ ハシラ トメワ (1) 44 D2507-232-D00 STATIONING BLOCK ヨコフリ ボーシ カクゴマ (1) 45 NS-6150310-SP NUT 15/64-28 ロツカクナット 15/64-28 (1) 46 SS-9151120-CP SCREW 15/64-28 L=11 ロツカクボルト 15/64-28 L=11 (1) 47 WP-0612516-SD WASHER 6.1X15.2X2.5 ヒラザガネ 6.1X15.2X2.5 (1) 48 135-40703 WORK CLAMP FOOT BRACKET ASM. ツマミソーチ トリツケダイ (1) 49 SM-6060802-TP SCREW M6 L=8 ロツカクアナボルト M6 L=8 (1) 50 WP-0612066-SP WASHER 6.1X11X2 ヒラザガネ 6.1X11X2 (1) 51 135-41313 CONNECTING ARM レンドウレンケツウデ 1 52 SM-6061802-TP SCREW M6 L=18 ロツカクアナボルト 1 53 SD-1201501-SP HINGE SCREW D=12 H=15 ダンネジ D=12 H=15 1 54 WP-0651056-SH WASHER 6.5X11X1 ヒラザガネ 6.5X11X1 1 55 135-40604 DRIVING BAR B レンケツボー B 1 56 PD-0201000-0B SPLIT PIN ワリピン 2X10 2 57 SS-7090610-SP SCREW 9/64-40 L=6 マルヒラネジ 9/64-40 L=6 2 58 135-40505 DRIVING BAR A レンケツボー A 1 59 SD-0900701-TP HINGE SCREW D=9 H=7 ダンネジ D=9 N=7 1 60 135-40406 WASHER ヒツパリレバー ザガネ 1 61 135-40307 LEVER ヒツパリレバー 1 62 135-40208 LINK ヒツパリリンク 1 63 SD-0640321-SP HINGE SCREW D=6.35 H=3.2 ダンネジ D=6.35 H=3.2 1 64 135-40109 STOP-MOTION REGULATING ARM B シャダン セイギヨウデ B 1 65 SD-0640241-SP HINGE SCREW D=6.35 H=2.4 ダンネジ D=6.35 H=2.4 1 66 135-41800 FEED CAM フィードカム 1 67 135-38301 STOP-MOTION REGULATING CAM シャダン セイギヨカム 1 68 135-47807 FEED STOP WASHER オクリストツパ ザガネ 1 69 SS-6090510-SP SCREW 9/64-40 L=5 ヒラネジ 9/64-40 L=5 1 70 NS-6090310-SP NUT 9/64-40 ロツカクナット 9/64-40 1 NOTE(注記) #01....SELECTIVE PARTS 選択部品 ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850標準機種と同じです。 - 24 - jintex.in

Page 30

(2) LK-1852-2 (4) LK-1852-5 (3) LK-1852-3 REF.NO NOTE PART NO DESCRIPTION Qty 1 135-10862 WORM ASM. 1 2 SS-7111410-TP SCREW 11/64-40 L=14 (4) 3 135-42402 WORK CLAMP FOOT, RIGHT 1 4 135-42501 WORK CLAMP FOOT, LEFT 1 5 135-42303 FEED PLATE 1 6 135-41800 FEED CAM 1 7 135-38301 STOP-MOTION REGULATING CAM 1 8 135-10953 FEED CAM DRIVING WHEEL ASM. 1 9 135-10862 WORM ASM. 1 10 SS-7111410-TP SCREW 11/64-40 L=14 (4) 11 135-42915 WORK CLAMP FOOT, RIGHT 1 12 135-43012 WORK CLAMP FOOT, LEFT 1 13 135-42816 CLOTH PRESSER PLATE 1 14 D2426-282-C00 NEEDLE HOLE GUIDE 1 15 MDP-500B1100 NEEDLE DPX5 #11 1 16 MC-2005007-50 NEEDLE 134 NM75 1 17 135-42709 FEED CAM 1 18 135-38301 STOP-MOTION REGULATING CAM 1 19 135-10953 FEED CAM DRIVING WHEEL ASM. 1 20 135-10862 WORM ASM. 1 21 SS-7111410-TP SCREW 11/64-40 L=14 (4) 22 135-10953 FEED CAM DRIVING WHEEL ASM. 1 23 135-43202 FEED CAM 1 24 135-38301 STOP-MOTION REGULATING CAM 1 NOTE(注記) ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850標準機種と同じです。 - 25 - jintex.in

Page 31

(5) LK-1852-7 (6) LK-1852-210 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 REF.NO 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 NOTE PART NO. MDP-500B2100 135-19004 135-43202 135-10862 SS-7111410-TP 135-38301 135-10953 D1818-282-N00 D1817-282-N00 B2426-280-00C B2302-205-0A0 D3112-L4B-B00 B3129-053-000 135-10862 SS-7111410-TP 135-10953 135-64901 135-38301 DESCRIPTION NEEDLE DPX5 #21 TENSION SPRING FEED CAM WORM ASM. SCREW 11/64-40 L=14 STOP-MOTION REGULATING CAM FEED CAM DRIVING WHEEL ASM. SHUTTLE SHUTTLE RACE RING, THICK NEEDL NEEDLE PLATE NEEDLE HOLE GUIDE TENSION CONTROLLER NO.2 ASM. TAKE-UP SPRING (HEAVY) TENSION SPRING WORM ASM. SCREW 11/64-40 L=14 FEED CAM DRIVING WHEEL ASM. FEED CAM 1852-210 STOP-MOTION REGULATING CAM 品 名 Qty ハリ DPX5 #21 1 ヌノサエバネ 1 ヌノオクリカム 1 ウォーム クミ 1 マルヒラネジ 11/64-40 L=14 (4) シヤダン セイギヨカム 1 ウォームハグルマ クミ 1 ナカガマ (フトハリ ヨウ) 1 ナカガマ オサエ (フトハリ ヨウ) 1 ハリ アナガイド 1 フイトイヨウ タイ2 イドチョウシ ケツゴウ 1 イトトリバネ (キヤントツン) (1) イトチョーシバネ (1) ウォーム クミ 1 マルヒラネジ 11/64-40 L=14 (4) ウォームハグルマ クミ 1 ヌノオクリカム 1952-210 1 シヤダン セイギヨカム 1 - 26 - jintex.in

Page 32

(7) LK-1852-20 - 27 - jintex.in

Page 33

REF.NO NOTE PART NO DESCRIPTION 品 名 Qty 1 135-44416 CLOTH PRESSER FOOT ヌノオサエアシ 1 2 135-43764 CLOTH FEED BASE ASM. ヌノオクリダイ クミ 1 3 135-44465 CLOTH PRESSER FOOT ASM. ヌノオサエアシ クミ (1) 4 SS-7120910-SP SCREW 3/16-28 L=9 マルヒラネジ 3/16-28 L=9 (4) 5 135-44614 CLOTH FEED BASE COVER ヌノクリダイフタ (1) 6 135-43715 CLOTH FEED BASE ヌノオクリダイ (1) 7 B2539-280-000 STUD オサエアゲ レバー ジク (1) 8 CS-087101B-SH THRUST COLLAR ASM. D=8.73 W=10 スラストコウケ D=8.73 W=10 クミ (1) 9 SS-8150822-TP SCREW 15/64-28 L=8 トメネジ 15/64-28 L=8 (2) 10 135-43806 BALL HOLDER ヌノオクリダイ ボールウケダイ (1) 11 SS-7151210-SP SCREW 15/64-28 L=12 マルヒラネジ 15/64-28 L=12 (1) 12 B2549-280-000 WORK CLAMP FOOT MOUNTING BASE ヌノオクリダイ ボール (7) 13 B2548-280-000 BALL RETAINER ヌノオクリダイ ボールウケ (1) 14 SS-7110740-TP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 (1) 15 135-43905 SPRING SUSPENSION ヒラサエバネカケ (1) 16 SS-6120940-SP SCREW 3/16-28 L=9 ヒラネジ 3/16-28 L=9 (2) 17 135-44705 SPRING サエバネ (1) 18 B3413-552-000 SUSPENSION SCREW ゲ リンクウデ バネカケ ウデ (1) 19 135-44051 LIFTING LEVER ASM. サエアゲ レバー クミ (1) 20 SS-8150822-TP SCREW 15/64-28 L=8 トメネジ 15/64-28 L=8 (2) 21 135-10953 FEED CAM DRIVING WHEEL ASM. ウオーム ハグルマ クミ 1 22 400-38080 TEREAD GUIDE BRACKET ASM. イトマキイトアンナイケイケツゴウ (1) 23 262-03406 THREAD GUIDE BRACKET イトマキイトアンナイ (1) 24 NS-6110310-SP NUT 11/64-40 ロツカクナット 11/64-40 (1) 25 400-38078 THREAD GUIDE イトマキイトアンナイ (バンドンヨウ) (1) 26 262-16705 BOBBIN WINDER TENSION POST イトマキイトチョウシボウ (1) 27 229-45802 THREAD TENSION DISK ダイイチチョウシザラ (2) 28 262-16606 BOBBIN WINDER TENSION SPRING イトマキイトチョウシバネ (1) 29 262-16507 BOBBIN WINDER TENSION NUT イトマキイトチョウシツマミ (1) 30 135-10862 WORM ASM. ウオーム クミ 1 31 SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネジ 11/64-40 L=14 (4) 32 NS-6150540-SP NUT 15/64-28 ロツカクナット 15/64-28 1 33 SS-2110930-SP SCREW 11/64-40 L=8.7 マルサラネジ 11/64-40 L=8.7 4 34 135-43509 FEED PLATE HOLDER ヌノオクリケイタ 1 35 * 400-60887 CAHIN ククリ 1 36 131-60304 S SHAPED HOOK S ガタナカグナ 2 37 135-44952 PEDAL LEVER ASM. ペダルレバー クミ 1 38 135-44903 PEDAL SHAFT キドーペダルジク (1) 39 WP-1021016-SD PEDAL ペダル 10.2X18X1 (1) 40 RE-0900000-KO E-RING 9 E ガタトメワ 9 (1) 41 135-45009 PEDAL SHAFT BRACKET ペダルジク ジクウケ (2) 42 SK-3483200-SE WOOD SCREW D=4.8 L=32 マルモクネジ D=4.8 L=32 (4) 43 SS-6661110-SP SCREW 1/4-40 L=11 ヒラネジ 1/4-40 L=11 (2) 44 135-45157 PEDAL LEVER ASM. (BELT LOOP) キドーペダルレバー クミ (1) 45 135-45306 FEED CAM クリカム (1852-10) 1 46 135-38301 STOP-MOTION REGULATING CAM シヤダン セイギヨカム 1 47 135-43608 FEED PLATE ヌノオサエシタイタ 1 48 400-52815 SAFETY PLATE ASM. アンゼンプレート (クミ) ヨコオキヨウ 1 49 138-89407 SAFETY PLATE アンゼンプレート (1) 50 SM-4040655-SP SCREW M4 L=6 ナベコネジ M4 L=6 (2) 51 WP-0450801-SD WASHER 4.5X10X0.8 ヒラサガネ 4.5X10X0.8 (2) 52 SS-4110715-SP SCREW 11/64-40 L=7 ナベネジ 11/64-40 L=7 (2) 53 400-52810 SAFETY PLATE INSTALLING BASE アンゼンプレートトリツケダイ (ヨコオキヨウ) (1) 54 135-09401 TABLE (FOR BELT LOOP) ハンドループ テーブル 1 55 135-22503 TENSION SPRING ヒツパリバネ B 1 NOTE(注記) ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850 標準機種 と同じです。 - 28 - jintex.in

Page 34 — LK-1852-30

(8) LK-1852-30 REF.NO NOTE PART NO DESCRIPTION 1 135-10953 FEED CAM DRIVING WHEEL ASM. 2 135-10862 WORM ASM. 3 SS-7111410-TP SCREW 11/64-40 L=14 4 135-45611 CLOTH PRESSER FOOT 5 135-51569 CLOTH FEED BASE (ASM.) 6 135-45660 WORK CLAMP FOOT ASM. 7 #01 400-38080 THREAD GUIDE BRACKET ASM. 8 400-38078 THREAD GUIDE 9 135-45504 FEED PLATE 10 #01 SS-2110930-SP SCREW 11/64-40 L=8.7 11 #01 135-43509 FEED PLATE HOLDER 12 #01 NS-6150540-SP NUT 15/64-28 13 400-52815 SAFETY PLATE ASM. 14 135-09401 TABLE (FOR BELT LOOP) 15 135-54100 FEED CAM 16 #02 135-54100 FEED CAM 17 135-38301 STOP-MOTION REGULATING CAM 18 #01 135-44952 PEDAL LEVER ASM. 19 * #01 400-60887 CAHIN 20 #01 131-60304 S SHAPED HOOK 21 135-22503 TENSION SPRING NOTE(注記) #01...THE PARTS ARE THE SAME AS THOSE FOR LK-1852-20. #02...SPECIAL ORDER PART ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 品 名 ウオームハグルマ クミ ウオーム クミ マルヒラネジ 11/64-40 L=14 ヌノオクリダイ (クミ) ヌノオクリダイ (クミ) ヌノオクリダイ (クミ) イトマキイトアンナイダイケツゴウ イトマキイトアンナイ (バンドカンヨウ) フィードプレート マルサラネジ 11/64-40 L=8.7 フィードプレート ホルダ ロッカクナット 15/64-28 アンゼンプレート (クミ) ヨコオキヨウ バンドループ テーブル ヌノオクリカム ヌノオクリカム シャダン セイギヨカム ペダルレバー クミ クサイ S ガタカナグ ヒツパリハネ B この部品はLK-1852-20 と同じです。 特別注文部品 上記以外の部品は、LK-1850標準機と 同じです。 Qty 1 1 (4) 1 1 1 (1) (1) 1 1 1 1 1 1 1 1 1 1 2 1 - 29 - jintex.in

Page 35

(9) LK-1850-P REF NO NOTE PART NO DESCRIPTION 品 名 Qty 1 135-47500 STOP-MOTION SPRING ヒヤハリバネ (1) 2 135-45959 PEDAL TYPE PRESSER ASM. オシサゲソーチ クミ (1) 3 135-45967 PEDAL TYPE PRESSER ASM. オシサゲソーチ クミ (1) 4 135-46007 LOWERING LEVER P ヨウ オシサゲレバー (1) 5 NS-6110350-SP NUT 11/64-40 ロツカクナツト 11/64-40 (4) 6 135-46106 LOWERING LINK オシサゲ アンゼンイタリンク (1) 7 135-46205 LOWERING CONNECTING PLATE オシサゲ アンゼンレンケツケイタ (1) 8 SD-0640324-TP HINGE SCREW D= 6.35 H= 3.2 ダンネジ D= 6.35 H= 3.2 (2) 9 135-45900 INSTALLING BASE オシサゲソーチ トリツケダイ (1) 10 NS-6110310-SP NUT 11/64-40 ロツカクナツト 11/64-40 (1) 11 B1649-161-000 TENSION SPRING ADJUSTING SCREW ヒヤハリバネ チヨーセツネジ (1) 12 135-21307 TENSION SPRING キドーレバー ヒツハリバネ (1) 13 SD-0640801-TP HINGE SCREW D= 6.35 H= 8.0 ダンネジ D= 6.35 H= 8 (1) 14 B2007-372-000 NiPPER BAR SPRING SCREW ニツパバネ ネジ (1) 15 SS-9151210-TP SCREW 15/64-28 L=11.8 ロツカクボルト 15/64-28 L=11.8 (1) 16 SD-0640801-TP HINGE SCREW D= 6.35 H= 8.0 ダンネジ D= 6.35 H= 8 (1) 17 135-46403 PULLEY SHAFT プーリジク (1) 18 RC-1831018-K0 RETAINING RING C ガタトメワ (2) 19 SB-1090002-00 BALL BEARING ベアリング D= 9 X 17 (2) 20 135-47401 PULLEY SHAFT COLLAR プーリジクカラー (2) 21 SS-6121030-SP SCREW 3/16-28 L=10 ヒラネジ 3/16-28 L=10 (1) 22 135-46502 PULLEY BUSHING プーリジクウケ (1) 23 135-25308 IDLER PULLEY INSTALLING PLATE アイドラ プーリ トツケイタ (1) 24 SS-6110810-TP SCREW 11/64-40 L=8 ヒラネジ 11/64-40 L=8 (3) 25 135-23204 DRIVING PULLEY ケイゲンブーリ (1) 26 SS-8150822-TP SCREW 15/64-28 L=8 トメネジ 15/64-28 L=8 (2) 27 131-60304 S SHAPED HOOK S ガタカケツ 1 28 260-37903 CHAIN チェーン 1 29 135-46601 SAFETY PLATE キドーアンゼンイタ 1 30 135-05904 BELT COVER P ヨウベルトカバー 1 31 #01 138-17754 Z-STAND PEDAL ASM. Z キヤクヨウ ペダル (ケツコウ) (1) 32 SM-9061203-SE SCREW M6 L=12 ロツカクボルト M6 L=12 (2) 33 WS-0621210-KR SPRING WASHER 6.2X11.4X1.2 バネザガネ 6.2 X 11.4 X 1.2 (2) 34 WP-0671016-SE WASHER 6.7X13X1 ワガネ 6.7 X 13 X 1 (2) 35 B8125-260-000 PEDAL ADJUSTING PLATE フミイタ チヨーセツケイタ (2) 36 SM-9082023-SE SCREW M8 L=20 ロツカクボルト M8 L=20 (2) 37 WS-0861410-KR SPRING WASHER 8.7X18X1.6 バネザガネ 8.7 X 18 X 1.6 (4) 38 WP-0871602-SE WASHER 8.7X18X1.6 ワガネ 8.7 X 18 X 1.6 (2) 39 NM-6080721-SE NUT M8 ロツカクナツト M8 (2) 40 D8114-555-B0E PEDAL SHAFT BRACKET フミイタジク ウケイタ (1) 41 B8151-771-000 PEDAL Z キヤクヨー ペダル (1) 42 B8152-771-000 PEDAL MAT ペダルマット (1) 43 B8153-771-000 PEDAL CONNECTING ROD ペダルジク (1) 44 D8113-555-B00 PEDAL BUSHING フミイタ ブツシユ (2) NOTE (注記) #01...THIS PART IS USED FOR A MACHINE この部品は脚付きの場合 使用します。 WITH TABLE. ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 上記以外の部品は、LK-1850標準機種と同じです。 STANDARD MODEL. - 30 - jintex.in

Page 36 — FIG. 10 LK-1852P-20

(10) LK-1852P-20 REF.NO NOTE PART NO DESCRIPTION 品 名 Qty 1 135-10953 FEED CAM DRIVING WHEEL ASM. フィードカムクルマ クミ 1 2 135-10862 WORM ASM. ウォーム クミ 1 3 SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネジ 11/64-40 L=14 (4) 4 135-44416 CLOTH PRESSER FOOT ヌノオサエアシ 1 5 135-43764 CLOTH FEED BASE ASM. ヌノオサエダイ クミ 1 6 135-44465 CLOTH PRESSER FOOT ASM. ヌノオサエアシ クミ (1) 7 135-45306 FEED CAM フィードカム (1852-10) 1 8 135-38301 STOP-MOTION REGULATING CAM シャダン セイギヨカム 1 9 #01 135-47500 STOP-MOTION SPRING シャダン ヒツパリバネ 1 10 #01 135-46601 SAFETY PLATE キドーアンゼンイタ 1 11 #01 135-45959 PEDAL TYPE PRESSER ASM. オシサゲソーチ クミ 1 12 135-43608 FEED PLATE ヌノオサエシタイタ 1 13 NS-6150540-SP NUT 15/64-28 ロッカクナット 15/64-28 1 14 135-43009 FEED PLATE HOLDER ヌノオサエウケイタ 1 15 SS-2110930-SP SCREW 11/64-40 L=8.7 マルサラネジ 11/64-40 L=8.7 4 16 135-47658 PEDAL SHAFT ASM. ペダルジク クミ 1 17 135-09401 TABLE (FOR BELT LOOP) バンドループ テープル 1 18 400-38080 TEREAD GUIDE BRACKET ASM. イトマキイトアンナイダイケツゴウ 1 19 400-38078 FEED GUIDE イトマキイトアンナイ (バンドカンショウ) (1) 20 D8103-984-K00 CHAIN クサリ 1 21 135-05904 BELT COVER Pヨウベルトカバー 1 22 131-60304 S SHAPED HOOK Sガタカナグ 4 23 * 400-60887 CAHIN クサリ 1 24 135-44952 PEDAL LEVER ASM. ペダルレバー クミ 1 25 135-45315 SAFETY PLATE ASM. アンゼンプレート クミ ヨコオキクワ 1 26 138-17754 Z-STAND PEDAL ASM. Zキャクヨウ ペダル (ケツゴウ) 1 NOTE(注記) #01....THE PARTS ARE THE SAME AS この部品は、LK-1850-P THOSE FOR LK-1850-P. と同じです。 ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 上記以外の部品は、LK-1850 標準機種と同じです。 - 31 - Jinttex.in

Page 37 — LK-1852P-30

(11) LK-1852P-30 REF.NO NOTE PART NO DESCRIPTION 品 名 Qty 1 135-10953 FEED CAM DRIVING WHEEL ASM. ウオームハグルマ クミ 1 2 135-10862 WORM ASM. ウオーム クミ 1 3 SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネジ 11/64-40 L=14 (4) 4 135-45611 CLOTH PRESSER FOOT ヌノオサエダ 1 5 135-51569 CLOTH FEED BASE (ASM.) ヌノオサエダイ (クミ) 1 6 135-45660 WORK CLAMP FOOT ASM. ヌノオサエアシ グミ 1 7 135-54100 FEED CAM ヌノオクリカム 1 8 135-38301 STOP-MOTION REGULATING CAM シヤダン セイギヨカム 1 9 #02 135-47500 STOP-MOTION SPRING シヤダン ヒツツバリバネ 1 10 #02 135-46601 SAFETY PLATE キドーアンゼンイタ 1 11 #02 135-45959 PEDAL TYPE PRESSER ASM. オシサゲゾーチ クミ 1 12 * #01 400-60887 CAHIN ククリ 1 13 138-17754 Z-STAND PEDAL ASM. Z キャクヨウ ペダル (ケツゴウ) 1 14 #01 NS-6150540-SP NUT 15/64-28 ロツカクナツト 15/64-28 1 15 #01 135-43509 FEED PLATE HOLDER クリウケイタ 1 16 #01 SS-2110930-SP SCREW 11/64-40 L=8.75 マルサラネジ 11/64-40 L=8.75 4 17 135-45504 FEED PLATE ヌノオサエシタ 1 18 #03 135-45504 FEED PLATE ヌノオサエシタ 1 19 #01 D8103-984-K00 CHAIN ククリ 1 20 135-09401 TABLE (FOR BELT LOOP) バンドループ テーブル 1 21 #01 400-38080 TEREAD GUIDE BRACKET ASM. イトマキイトアンナイ(バンドカンヨウ) (1) 22 400-38078 THREAD GUIDE イトマキイトアンナイ (バンドカンヨウ) 1 23 400-52815 SAFETY PLATE ASM. アンゼンプレート (クミ) ヨコオキヨウ 1 24 135-05904 BELT COVER P.ヨウベルトカバー 1 25 #01 135-44952 PEDAL LEVER ASM. ペダルレバー クミ 1 26 #01 135-47658 PEDAL SHAFT ASM. ペダルジク クミ 4 27 #01 131-60304 S SHAPED HOOK Sガタクナク 1 NOTE(注記) #01....THE PARTS ARE THE SAME AS この部品はLK-1852P-20 THOSE FOR LK-1852P-20 と 同じです。 #02....THE PARTS ARE THE SAME AS この部品はLK-1850-P THOSE FOR LK-1850-P と 同じです。 #03....FOR HEAVY WEIGHT MATERIAL (特注部品) (SPECIAL ORDER) ALL PARTS OTHER THAN ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850標準機と 同じです。 - 32 - jintex.in

Page 38

(12) LK-1852H-5 (13) LK-1852-22 REF.NO NOTE PART NO DESCRIPTION 品 名 Qty 1 D1401-L7V-V00 NEEDLE BAR ハリボー 1 2 D1405-L7A-M00 NEEDLE BAR THREAD GUIDE ハリボー イトアンナイ 1 3 SS-7080510-TP SCREW 1/8-44 L=4.5 マルビラネジ 1/8-44 L=4.5 1 4 MDI-300B2300 NEEDLE DIX3 #23 ハリ DIX3 #23 1 5 #01 MC-3515016-00 NEEDLE ハリ 332 160 1 6 135-19004 TENSION SPRING ヌノオサエバネ 2 7 135-10854 FEED CAM DRIVING WORM ASM. ウオーム クミ 28シン 1 8 SS-7111410-TP SCREW 11/64-40 L=14 マルビラネジ 11/64-40 L=14 (4) 9 135-50702 FEED CAM ヌノオクリカム 1 10 135-39705 STOP-MOTION REGULATING CAM シャダン セイギヨカム 1 11 135-10953 FEED CAM DRIVING WHEEL ASM. ウオームハグルマ クミ 1 12 135-48409 FEED PLATE ヌノオサエシタ 1 13 B2302-205-0A0 TENSION CONTROLLER NO.2 ASM. フトイトヨウ タイ2イトチョウシ ケツゴウ 1 14 D3112-L4B-B00 TAKE-UP SPRING (HEAVY) イトトリバネ (ヘビー) (1) 15 B3129-053-000 TENSION SPRING イトデヨシバネ (1) 16 D1818-282-N00 SHUTTLE RACE ナカガマ (フトハリ ヨウ) 1 17 D1817-282-N00 SHUTTLE RACE RING, THICK NEEDL ナカガマ リング (フトハリ ヨウ) 1 18 B2426-280-00C NEEDLE PLATE NEEDLE HOLE GUIDE ハリ穴ガイド 1 19 D2101-L7A-MA0 WIPER ASM. ワイパ クミ 1 20 135-48508 WORK CLAMP FOOT, RIGHT ヌノオサエアシ ミギ 1 21 135-48607 WORK CLAMP FOOT, LEFT ヌノオサエアシ ヒダリ 1 22 135-50504 FEED CAM ヌノオクリカム 1 23 #01 MC-5005007-50 FEED CAM NM75 ハリ シュメツツ 134 NM 75 1 24 135-39002 STOP-MOTION REGULATING CAM シャダン セイギヨカム 1 25 135-10953 FEED CAM DRIVING WHEEL ASM. ウオームハグルマ クミ 1 26 135-10854 FEED CAM DRIVING WORM ASM. ウオーム クミ 28シン 1 27 SS-7111410-TP SCREW 11/64-40 L=14 マルビラネジ 11/64-40 L=14 (4) 28 135-42907 WORK CLAMP FOOT, RIGHT ヌノオサエアシ ミギ 1 29 135-43004 WORK CLAMP FOOT, LEFT ヌノオサエアシ ヒダリ 1 30 135-42808 FEED PLATE ヌノオサエシタ 1 31 D2426-282-C00 NEEDLE HOLE GUIDE メリヤスカンヨウ ハリアナ ガイド 1 32 MDP-500B1100 NEEDLE DPX5 #11 ハリ DPX5 #11 1 NOTE(注記) #01...FOR JE JE用 ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850 標準機種と同じです。 - 33 - jintex.in

Page 39

(14) LK-1852G-5 REF.NO NOTE PART NO 1 D1401-L7V-V00 2 D1405-L7A-M00 3 SS-7080510-TP 4 MDI-300B2300 5 #01 MC-3515016-00 6 135-19004 7 135-10854 8 SS-7111410-TP 9 135-50702 10 135-39705 11 135-10953 12 135-54209 13 B2302-205-0A0 14 B3112-L4B-B00 15 B3129-053-000 16 D1818-282-N00 17 D1817-282-N00 18 D2426-MMC-K00 19 D2101-L7A-MA0 20 135-54308 21 135-54407 NOTE(注記) DESCRIPTION NEEDLE BAR NEEDLE BAR THREAD GUIDE SCREW 1/8-44 L=4.5 NEEDLE DIX3 #23 NEEDLE TENSION SPRING FEED CAM DRIVING WORM ASM. SCREW 11/64-40 L=14 FEED CAM STOP-MOTION REGULATING CAM FEED CAM DRIVING WHEEL ASM. FEED PLATE TENSION CONTROLLER NO.2 ASM. TAKE-UP SPRING (HEAVY) TENSION SPRING SHUTTLE SHUTTLE RACE RING, THICK NEEDL NEEDLE HOLE GUIDE WIPER ASM. WORK CLAMP FOOT. RIGHT WORK CLAMP FOOT. LEFT #01...FOR JE ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850標準機種と同じです。 - 34 - jintex.in 品 名 ハリボー ハリボー イトアンナイ マルヒラネジ 1/8-44 L=4.5 ハリ DIX3 #23 ハリ 332 160 ヌノオサエ ウオームクミ 28シン マルヒラネジ 11/64-40 L=14 ヌノオクリカム シャダン セイギヨカム ウオームハグルマ クミ ヌノオサエ シタイタ フトイトヨウ ダイ2イトチョウシ ケツゴウ イトリバネ (キャントン) イトチョーシバネ ナカガマ (フトハリ ヨウ) ナカガマ オサエ (フトハリ ヨウ) ハリアナガイド ワイパ クミ ヌノオサエ ミギ ヌノオサエ ヒタリ JE用 Qty 1 1 1 1 1 2 1 (4) 1 1 1 1 1 (1) (1) 1 1 1 1 1

Page 40 — LK-1850H

(15) LK-1850H REF.NO NOTE PART NO DESCRIPTION 品 名 Qty 1 D1401-L7V-V00 NEEDLE BAR ハリボー 1 2 D1405-L7A-M00 NEEDLE BAR THREAD GUIDE ハリボー イトアンナイ 1 3 SS-7080510-TP SCREW 1/8-44 L=4.5 マルヒラネシ 1/8-44 L=4.5 1 4 MDI-300B2300 NEEDLE DIX3 #23 ハリ DIX3 #23 1 5 #01 MC-3515016-00 NEEDLE ハリ 332 160 1 6 135-19004 TENSION SPRING メノオサエバネ 2 7 D1817-282-N00 SHUTTLE RACE RING, THICK NEEDL ナカガマ オサエ (フトハリ ヨウ) 1 8 D1818-282-N00 SHUTTLE ナカガマ (フトハリ ヨウ) 1 9 135-51403 FEED CAM メノオクリカム 1 10 135-39606 STOP-MOTION REGULATING CAM シャダン セイギヨカム 1 11 135-48409 FEED PLATE メノオサエ シタイダ 1 12 B2302-205-0A0 TENSION CONTROLLER NO.2 ASM. フトイトヨウ ダイ2イトチョウシ ケツゴウ 1 13 D3112-L4B-B00 TAKE-UP SPRING (HEAVY) イトトリバネ (ヘビー) (1) 14 B3129-053-000 TENSION SPRING イトチョーシバネ (1) 15 B2426-280-00C NEEDLE PLATE NEEDLE HOLE GUIDE ハリ アナ ガイド 1 16 D2101-L7A-MA0 WIPER ASM. ワイパ クミ 1 17 135-48508 WORK CLAMP FOOT. RIGHT メノオサエアシ ミギ 1 18 135-48607 WORK CLAMP FOOT. LEFT メノオサエアシ ヒダリ 1 NOTE(注記) #01...FOR JE JE用 ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850標準機種と同じです。 - 35 - jintex.in

Page 41

(16) LK-1850G (17) LK-1850T REF.NO NOTE PART NO DESCRIPTION 品 名 Qty 1 D1401-L7V-V00 NEEDLE BAR ハリボー 1 2 D1405-L7A-M00 NEEDLE BAR THREAD GUIDE ハリボーイ トアンナイ 1 3 SS-7080510-TP SCREW 1/8-44 L=4.5 マルヒラネジ 1/8-44 L=4.5 1 4 MDI-300B2300 NEEDLE DIX3 #23 ハリ DIX3 #23 1 5 #01 MC-3515016-00 NEEDLE ハリ 332 160 1 6 135-19004 TENSION SPRING ヌノオサエバネ 1 7 D1818-282-N00 SHUTTLE RACE RING, THICK NEEDL ナカガマ オサエ (フトハリ ヨウ) 1 8 D1818-282-N00 SHUTTLE ナカガマ (フトハリ ヨウ) 1 9 135-51403 FEED CAM ヌノオクリカム 1 10 135-39606 STOP-MOTION REGULATING CAM シヤダン セイギヨカム 1 11 135-54209 FEED PLATE フイード シイタダ 1 12 B2302-205-0A0 TENSION CONTROLLER NO.2 ASM. フトイトヨウ ダイ2イトチヨウシ ケツゴウ 1 13 D3112-L4B-B00 TAKE-UP SPRING (HEAVY) イトトリバネ (キヤントン) (1) 14 B3129-053-000 TENSION SPRING イトヨシバネ (1) 15 D2426-MMC-K00 NEEDLE HOLE GUIDE ハリヤナガイ ド 1 16 D2101-L7A-MA0 WIPER ASM. ワイバ クミ 1 17 135-54308 WORK CLAMP FOOT, RIGHT ヌノオサエ アシ ミギ 1 18 135-54407 WORK CLAMP FOOT, LEFT ヌノオサエ アシ ヒダリ 1 19 135-05904 BELT COVER ベルトカバー 1 20 135-26058 LIFTING LEVER ASM. T オサエレバー クミ 1 21 135-26009 LIFTING LEVER. T オサエレバー (1) 22 135-25803 LEVER SPRING. T オサエレバーカエシバネ (1) 23 SD-0720331-SP HINGE SCREW D=7.24 H=3.3 ダンネジ D=7.24 H=3.3 (2) 24 SS-9150730-SP SCREW 15/64-28 L=7 ロッカクボルト 15/64-28 L=7 (1) 25 NS-6150350-SP NUT 15/64-28 ロッカクナット 15/64-28 (1) 26 135-47500 STOP-MOTION SPRING シヤダン ヒツパリバネ 1 27 138-17754 Z-STAND PEDAL ASM. Z キヤクヨウ ペダル (ケツゴウ) 1 NOTE(注記) #01...FOR JE JE用 ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850標準機種と同じです。 - 36 - jintex.in

Page 42 — FIG. 18 LK-1852T-20

(18) LK-1852T-20 REF.NO NOTE PART NO DESCRIPTION 品 名 Qty 1 135-10953 FEED CAM DRIVING WHEEL ASM. ウォームハグルマ クミ 1 2 135-10854 FEED CAM DRIVING WORM ASM. ウォーム クミ 28シン 1 3 SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネジ 11/64-40 L=14 (4) 4 135-44416 CLOTH PRESSER FOOT ヌノオサエアシ 1 5 #01 135-43764 CLOTH FEED BASE ASM. ヌノオサエダイ クミ 1 6 135-44465 CLOTH PRESSER FOOT ASM. ヌノオサエアシ クミ (1) 7 135-45306 FEED CAM ヌノオクリカム (1852-10) 1 8 135-38301 STOP-MOTION REGULATING CAM ダイヤダン セイギヨカム 1 9 #02 135-47500 STOP-MOTION SPRING ダイヤダン ヒツパリバネ 1 10 #01 135-43608 FEED PLATE ヌノオサエシタイタ 1 11 #02 135-26058 LIFTING LEVER. T オサエアゲレバー クミ 1 12 135-26009 LIFTING LEVER. T オサエアゲレバー 1 13 135-25803 LEVER SPRING. T オサエアゲレバーカエシバネ (1) 14 SD-0720331-SP HINGE SCREW D=7.24 H=3.3 ダンネジ D=7.24 H=3.3 (2) 15 SS-9150730-SP SCREW 15/64-28 L=7 ロッカクボルト 15/64-28 L=7 (1) 16 NS-6150350-SP NUT 15/64-28 ロッカクナット 15/64-28 (1) 17 #01 NS-6150540-SP NUT 15/64-28 ロッカクナット 15/64-28 1 18 #01 135-43509 FEED PLATE HOLDER ヌノオクリケイタ 1 19 #01 SS-2110930-SP SCREW 11/64-40 L=8.75 マルサラネジ 11/64-40 L=8.75 4 20 #01 135-47658 PEDAL SHAFT ASM. ペダルジク クミ 1 21 135-09401 TABLE (FOR BELT LOOP) ハンドループ テーブル 1 22 #01 400-38080 THREAD GUIDE BRACKET ASM. イトマキイトアンナイダイトケツゴウ 1 23 400-36076 THREAD GUIDE イトマキイトアンナイ (バンドカンヨウ) (1) 24 #01 D8103-984-K00 CHAIN クサリ 1 25 135-05904 BELT COVER P ヨウベルトカバー 1 26 #01 131-60304 S-SHAPED HOOK S カタナカギ 1 27 * #01 400-60887 CAHIN クサリ 1 28 #01 135-44952 PEDAL LEVER ASM. ペダルレバー クミ 1 29 400-52815 SAFETY PLATE ASM. アンゼンプレート (クミ) ヨコオキヨウ 1 30 138-17754 Z-STAND PEDAL ASM. Z キャキヨウ ペダル (ケツゴウ) 1 NOTE(注記) #01...THE PARTS ARE THE SAME AS THOSE FOR LK-1852T-20. #02...THE PARTS ARE THE SAME AS THOSE FOR LK-1850-T. この部品はLK-1852T-20と 同じです。 この部品はLK-1850-Tと 同じです。 ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 STANDARD MODEL. 上記以外の部品は、LK-1850標準機種と同じです。 - 37 - jintex.in

Page 43

(19) LK-1852T-30 REF.NO NOTE PART NO DESCRIPTION 品 名 Qty 1 135-10953 FEED CAM DRIVING WHEEL ASM. ウォームハグルマ クミ 1 2 135-10854 FEED CAM DRIVING WORM ASM. ウォーム クミ 28シン 1 3 SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネジ 11/64-40 L=14 (4) 4 135-45611 CLOTH PRESSER FOOT ヌノサエアシ 1 5 135-51569 CLOTH FEED BASE (ASM.) ヌノオクリダイ (クミ) 1 6 135-45660 WORK CLAMP FOOT ASM. ヌノサエアシ クミ 1 7 135-54100 FEED CAM ヌノオクリカム 1 8 #01 135-54100 FEED CAM ヌノオクリカム 1 9 135-38301 STOP-MOTION REGULATING CAM シャダン セイギヨカム 1 10 #02 135-47500 STOP-MOTION SPRING シャダン ヒツパリバネ 1 11 #02 135-26058 LIFTING LEVER ASM. T オサエアグレーバー クミ 1 12 135-26009 LIFTING LEVER. T オサエアグレーバー (1) 13 135-25803 LEVER SPRING. T オサエアグレーバーカエシバネ (1) 14 SD-0720331-SP HINGE SCREW D= 7.24 H= 3.3 ダンネジ D= 7.24 H= 3.3 (2) 15 SS-9150730-SP SCREW 15/64-28 L=7 ロッカクボルト 15/64-28 L=7 (1) 16 NS-6150350-SP NUT 15/64-28 ロッカクナット 15/64-28 (1) 17 * #04 400-60887 CHAIN クサリ 1 18 138-17754 Z-STAND PEDAL ASM. Z キャクヨウ ペダル (ケツゴウ) 1 19 #04 NS-6150540-SP NUT 15/64-28 ロッカクナット 15/64-28 1 20 #04 135-43509 FEED PLATE HOLDER ヌノオクリケイタ 1 21 #04 SS-2110930-SP SCREW 11/64-40 L=8.75 マルサラネジ 11/64-40 L=8.75 4 22 135-45901 FEED PLATE ヌノオシエシタイタ 1 23 #03 135-45504 FEED PLATE ヌノオシエシタイタ 1 24 #04 D8103-984-K00 CHAIN クサリ 1 25 135-09401 TABLE (FOR BELT LOOP) バンドループ テーブル 1 26 400-38078 THREAD GUIDE BRACKET ASM. イトマキイトアンナイ ダイケツコウ 1 27 400-38078 THREAD GUIDE イトマキイトアンナイ (バンドカンヨウ) (1) 28 400-52815 SAFETY PLATE ASM. アンゼンプレート (クミ) ヨコオキヨウ 1 29 135-05904 BELT COVER P ヨウベルトカバー 1 30 #04 135-44952 PEDAL LEVER ASM. ペダルレバー クミ 1 31 #04 135-47658 PEDAL SHAFT ASM. ペダルジク クミ 1 32 #04 131-60304 S SHAPED HOOK S ガタカナグ 8 NOTE(注記) #01...SPECIAL ORDER PART #02...THE PARTS ARE THE SAME AS THOSE FOR LK-1850-T. #03...FOR HEAVY WEIGHT MATERIAL (SPECIAL ORDER) #04...THE PARTS ARE THE SAME AS THOSE FOR LK-1852T-20. 特別注文部品 この部品はLK-1850-Tと 同じです。 厚物用(特注部品) この部品はLK-1852T-20と 同じです。 ALL PARTS OTHER THAN THE ABOVE ARE SAME AS THOSE USED IN LK-1850 上記以外の部品は、LK-1850標準機と 同じです。 - 38 - jintex.in

Page 44 — 13. THREAD STAND COMPONENTS

13. THREAD STAND COMPONENTS 糸立装置関係 REF. NO NOTE PART NO DESCRIPTION 品 名 Qty 1 229-30358 THREAD STAND ASM. イトタテツクチ (クミ) (2) 2 229-31109 SPOOL RETAINER イトマキフレドメ (2) 3 229-31000 SPOOL PIN イトマキウケボウ (2) 4 229-30903 SPOOL REST CUSHION イトマキウケザクッション (2) 5 229-30804 SPOOL REST イトマキウケザ (2) 6 SM-6061610-SC SCREW M6 L=16 ヒラコネジ M6 L=15 (2) 7 229-30705 THREAD GUIDE ARM JOINT イトタテボウシメカク (2) 8 229-31406 SPOOL REST ROD RUBBER CAP イトタテボウゴムカプ (1) 9 229-30507 SPOOL REST ARM イトタテウデ (2) 10 229-30408 SPOOL REST ROD, UPPER イトタテボウ (ウエ) (1) 11 229-31307 SPOOL REST ROD JOINT イトタテボウツギテ (1) 12 SM-4051405-SE SCREW M5 L=14 ナベコネジ M5 L=14 (2) 13 NM-6050001-SE NUT M5 ロッカクナット M5 (2) 14 229-30309 SPOOL REST ROD, LOWER イトタテボウ (シタ) (1) 15 229-31208 THREAD GUIDE イトミチ (2) 16 WS-0510002-KN SPRING WASHER ハネヂガネ 5.1 X9.2 X1.3 (2) 17 NM-6050001-SE NUT M5 ロッカクナット M5 (2) 18 NM-6160511-SE NUT M16X1.5 ロッカクナット M16X1.5 1シュ (1) 19 WP-1702600-SO WASHER 17X30X2.6 ヒラザガネ 17 X 30 X 2.6 (2) 39 jintex.in

Page 45 — LIST FOR INFORMATION OF CHANGE

14. LIST FOR INFORMATION OF CHANGE 変更情報リスト As to the place changed, refer to the corresponding Rev. No. When previous parts (Obsoleted parts) and new parts (Added parts) are not interchangeable with each other: In this case, even obsoleted parts (D.) can be ordered with the obsoleted part number, so select the parts with changed dates and place your orders. 変更箇所は、該当Rev. No. 版をご参照ください。 部品の互換性がない変更の場合は、削除された品番でも、ご注文できます。 BE185030PJA No. 0200-19 Rev. No. *A: Added parts 追加部品/D: Obsoleted parts 削除部品/E: Erratum訂正 Rev. Page Ref. Parts No. Rev. Page Ref. Parts No. No. No. No. No. D 18 2 8 CM-3012000-01 D 18 4 8 135-03107 A 19 4 8 262-12605 D 18 4 12 CS-150111A-TH A 19 4 12 CS-150111B-TH D 18 12 30 135-16208 A 19 12 30 262-22703 D 18 18 27 SM-6061402-TP A 19 18 27 SM-6061802-TP D 18 28 35 D8103-284-K00 A 19 28 35 400-60887 D 18 29 19 D8103-284-K00 A 19 29 19 400-60887 D 18 31 23 D8103-284-K00 A 19 31 23 400-60887 D 18 32 12 D8103-284-K00 A 19 32 12 400-60887 D 18 37 27 D8103-284-K00 A 19 37 27 400-60887 D 18 38 17 D8103-284-K00 A 19 38 17 400-60887 - 40 - jintex.in

Page 46 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS Fa | PART NO PAGE REF PART NO PAGE REF PART NO PAGE REF PART NO PAGE REF cue BONO aos BNO goes BNO anes R NO BP-3000001-00 20 14 | B3129-053-000 26 13 | 02528-232-D00 24 24] NS-6150350-SP 36 25 BP-6000000-00 20 3 | B3129-053-000 33 15 | 02§29-232-D00 24 12 | NS-6150350-SP 37 16 B1127-280-000 20 43 | B3129-053-000 34 15 | 02545-232-D0A 24 13 | NS-6150350-SP 38 16 B1202-280-000 4 6 | B3129-053-000 35 14 | 02548-232-D00 24 43 | NS-6150430-SP 18 7 B1203-280-000 6 6 | B3129-053-000 36 14] 03112-L4B-B00 26 12 | NS-6150430-SP 18 8 B1208-980-00B 4 15 | B3132-552-000 8 10 | 03112-L4B-B00 33 14] NS-6150430-SP 18 25 B1210-980-000 4 17 | 83214-047-000 6 27 | 03112-L4B-B00 34 14 | NS-6150540-SP 2 28 B1211-980-000 4 14] B3413-552-000 28 18 | 03112-L4B-B00 35 13] NS-6150540-SP 12 33 B1215-980-000 4 26 | B3502-280-000 20 35 | D3112-L4B-B00 36 13 | NS-6150540-SP 28 32 B1217-280-000 4 27 } B3504-280-000 20 36 | D8&103-984-K00 31 20} NS-6150540-SP 29 12 B1223-771-000 4 1 | B3507-280-000 20 9] D8103-984-K00 32 19 | NS-6150540-SP 31 13 B1229-232-000 8 53 | B3509-280-000 20 10] D8103-984-K00 37 24 | NS-6150540-SP 32 14 B1253-980-000 4 54 | B3515-280-000 20 30 | D8103-984-K00 38 241} NS6150540-SP 37 17 B1403-280-000 6 14} B3518-280-000 20 11} D8113-555-BO00 22 26 | NS-6150540-SP 38 19 B1404-280-000 6 4} B3541-012-000 20 38 | D8113-555-B00 30 441) NS—6200710-SN 22 49 B1411-552-0A0 6 11 | B7130-761-0A0 22 42 | 08114-555-B0E 30 40 | NS-6360810-SP 10 51 B1411-804-B00 10 8 | 87272-781-000 22 65 | 08204-555-D00 22 4 | NS-6660430-SP 10 25 B1411-804-C00 6 5; B8108-555-0A0 22 17 NS-6660430-SP 12 42 B1414-232-000 6 214 | B&8125-280-000 30 35 | EA-9500B01-00 20 15 | NS-6660511-SP 10 48 B1414-232-000 12 55 | B8131-019-000 22 58 NS-6680320-SP 18 11 B1649-161-000 30 11 | B8133-019-000 22 36 | GPF-O60600A0 22 22 | NS-6680410-SP 18 35 B1805-980-000 10 24} B8151-771-000 30 41 | GPF-06080000 22 23 | NS6680410-SP 18 36 B1808-980-000 10 19 | B8152-771-000 30 42 NS-6700320-SP 12 37 B1813-980-000 10 7 | B8153-771-000 22 25 | MAT-80116S00 16 13 B1814-980-000 10 10 | 6B8153-771-000 30 43 | MC-2005007-50 25 16 | PD-0201000-0B 24 56 B1817-280-0A0 10 1 | MC-2005007-50 33 23 | PS-0250162-KH 10 35 B1828-980-0AB 10 2) CM-3002000-01 2 1 | MC-2005010-00 6 19] PS-0300162-KH 16 20 B1828-980-0A0 10 36 | CM-3012000-01 2 12 | MC-3515016-00 33 5} PS-0800202-KH 2 32 B1901-280-0A0 6 8 | CM-6001001-01 2 6 | MC-3515016-00 34 5 | RC-0470611-KP 8 49 B1901-280-0B0 6 1} €Q-2522000-00 20 6 | MC-3515016-00 35 5 | RC-0470611-KP 18 4 B1903-552-000 6 3 | CS079101A-SH 10 26 | MC-3515016-00 36 5 | RC-0740811-KP 8 38 B1904-280-000 6 2| CS-080081C-SH 10 16 | MDI-300B2300 33 4] RC-0740816-KO 14 34 B1905-541-B00 6 7 | CS087101B-SH 28 8 | MDI-300B2300 34 4] RC-1021011-KP 14 10 B2007-372-000 30 14] CS-150111B-TH 4 12 | MDI-300B2300 35 4] RC-1831018-K0 30 18 B2008-372-000 2 44] CS-180121A-SH 10 46; MDI-300B2300 36 4] RC-1850001-KP 16 32 B2109-280-000 8 50 MDP-50081100 25 15 | RC-3221517-KP 4 38 B2302-205-0A0 26 11} D1401-L7V-VO0 33 17} MDP-50081100 33 32 | RC-6621517-KP 4 40 B2302-205-0A0 33 13 | B1401-L7V-V00 34 17 MDP-500B1400 6 17 | RC-6622018-KP 4 40 B2302-205-0A0 34 13; D1401-L7V-V00 35 17 MDP-50061600 6 18 | RE-0400000-K0 18 61 82302-205-0A0 35 12; D1401-L7V-V00 36 17 MDP-500B2100 26 1 | RE-0600000-K0 2 35 B2302-205-0A0 36 12 | D1405-L7A-M00 33 27] MTJ-MS000000 22 35 | RE-0700000-K0 12 2 B2302-280-0A0 8 4} D1405-L7A-M00 34 2) MTJ-VM004600 22 63 | RE-0700000-KO 24 21 62302-280-000 8 7 | 0D1405-L7A-M00 35 24) MTJ-VM004700 22 62 | RE-0900000-K0 28 40 B2303-280-000 8 1] D1405-L7A-M00 36 2) MTJ-VM004800 22 61 | RO-0442401-00 2 50 82313-280-000 8 61 D1817-282-N00 26 9) MTJ-VM004900 22 60 B2410-980-000 14 2] D1817-282-N00 33 17 | MTJ-VMO005000 22 59 | SB-1090002-00 30 19 B2414-280-0A0 6 63 | 0D1817-282-N00 34 17 NM-6050001-SE 39 13 | SB-1200003-00 16 33 B2415-280-0A0 6 62 | D1817-282-NG0 35 7 | NM-6050001-SE 33 17 | SB-1350002-00 4 35 B2416-280-000 6 61 | D1817-282-N00 36 71 NM-6060001-SE 22 43 | SB-3120001-00 16 35 B2418-280-000 6 60 | D1818-282-N00 26 8 | NM-6080721-SE 22 33 | SD-0500091-TP 6 54 B2421-280-CA0 6 53 | D1818-282-N00 33 16 | NM-6080721-SE 30 39 | $D-0530221-SP 8 30 B2423-280-00C 6 67 | 01818-282-N00 34 16 | NM-6120003-SE 22 18 | $D-0530221-SP 8 45 B2424-280-000 6 58 | D1818-282-N00 35 8 | NM-6160511-SE 39 18 | SD-0530221-SP 12 40 B2426-280-00C 26 10 | 01818-282-NC0 36 8] NM-6110310-SP 2 18 | $D-0550271-TP 24 34 B2426-280-00C 33 18 | 02101-L7A-MAO 33 19 | NS-6090310-SP 2 20 | S$0-0600321-SP 16 24 B2426-280-00C 35 15 | 02101-L7A-MAO0 34 19 | NS-6090310-SP 24 70} SD-0640211-SP 8 56 B2426-280-000 6 55 | D2101-L7A-MAO 35 16 | NS-6110310-SP 6 24 | $D-0640241-SP 24 65 B2539-280-000 28 7 | D2101-L7A-MAO 36 16 | NS-6110310-SP 22 68 | SD-0640321-SP 16 7 B2548-280-000 28 13 | 02426-MMC-KO0O 34 18 | NS-6110310-SP 28 24 | SD-0640321-SP 24 63 B2549-280-000 12 10 | D2426-MMC-K00 36 15 | NS6110310-SP 30 10 | SD-0640324-TP 30 8 B2549-280-000 28 12 | D2426-282-C00 25 14] NS-6110350-SP 30 5 | SD-0640391-TP 8 42 B2557-280-00C 12 3| 02426-282-C00 33 31] NS6110420-SP 14 39 | $D0640471-SP 2 4 B2605-372-000 18 21 | 02502-232-D00 24 20 | NS-6110420-SP 18 50 | SD-0640801-TP 18 47 B2608-280-000 18 17 | 02504-282-AB0-A 24 19 | NS-6110530-SP 24 15 | SD-0640801-TP 30 13 B2615-280-000 14 27 | 02507-232-D00 24 44] NS6150310-SP 14 12 | SD-0640801-TP 30 16 B3107-804-000 8 11 | 02509-232-D00 24 16 | NS-6150310-SP 8 24) SD-0650305-TP 14 3 B31 142-761-000 8 8} 02511-232-D00 24 18 | NS-6150310-SP 8 34 | $D-0651301-TH 14 14 B3114-232-000 8 12 | 02512-232-D00 24 17 | NS-6150310-SP 14 24 | $0-0720193-SP 6 46 B3114-771-000 2 19 | 02513-232-DA0 24 14] NS-6150310-SP 16 §2 | $D-0720331-SP 8 39 83117-352-000 24 26 | 02515-232-D00 24 27} NS-6150310-SP 18 44) $D-0720331-SP 16 15 B3119-771-000 8 14] 02516-232-DA0 24 23) NS-6150310-SP 18 54 | $D0720331-SP 36 23 B3120-125-000 8 13 | D2519-232-D00 24 35 | NS-6150310-SP 22 41 | $D-0720331-SP 37 14 63125-012-000 8 19 | D2520-232-DA0 24 31) NS-6150310-SP 24 45 | $D-0720331-SP 38 14 B3126-012-000 8 9} D2521-232-DA0 24 33 | NS-6150310-SP 24 41 | $D-0790402-TP 14 22 B3126-012-000 8 17 | D2527-232-D00 24 25 | NS-6150310-SP 24 45 | $0-0790601-SP 8 23 - 4] -

Page 47 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS FES | PART NO PAGE REF PART NO PAGE REF PART NO PAGE REF PART NO PAGE REF cots Rm NO sos A NO ont Rm NO anes BNO $D-0790802-TP 14 36 | SS-4150715-SP 2 36 | SS-7111410-TP 37 3] WP-0612056-SE 22 45 $D-0791331-SP 6 31 | SS-4150915-SP 6 22 | SS-7111410-TP 38 3 | WP-0612066-SP 24 50 $D-0800341-SP 2 43 | SS-5680740-SP 18 38 | SS-7120910-SP 28 4] WP-0612516-SD 24 11 SD-0800352-SP 18 58 | SS-6060410-TP 10 12 | SS-7151420-SP 6 9 | WP-0612516-SD 24 47 SD-0800402-TP 18 12 | SS-6080340-SP 6 20 | SS-7151120-SP 18 16 | WP-0621016-SD 12 13 SD-0800402-TP 18 52 | SS-6090440-SP 20 46 | SS-7151210-SP 2 45 | WP-0621016-SD 16 50 $D-0800681-SP 2 60 | SS-6090510-SP 24 69 | SS-7151210-SP 28 14 | WP-0621016-SD 18 26 SD-0801021-TP 10 23 | SS-6090670-TP 6 12 | SS-7151330-SP 18 30 | WP-0621016-SD 20 32 SD-0900701-TP 24 59; SS-6091510-SP 20 13 | SS-7701010-SP 12 32, WP-0621016-SD 22 40 $D-0901101-SP 14 30 | SS-6110430-TP 6 64 | SS-8080310-TP 12 18 | WP-0650876-SD 12 25 $D-0901201-TP 8 36 | SS-6110480-SP 10 15 | SS-8090610-SP 8 5 | WP-0650876-SD 12 43 SD-1000401-SP 8 20 | SS-6110710-TP 16 16 | SS-8110520-TP 10 17 | WP-0651056-SH 24 54 SD-1201501-SP 16 48 | SS-6110810-TP 16 39 | SS-8110520-TP 10 27 | WP-0671016-SE 22 28 SD-1201501-SP 24 53 | SS-6110810-TP 30 24] SS-8110520-TP 10 29 | WP-0671016-SE 30 34 SK-3311600-SE 22 37 | SS-6111140-SP 10 39} SS-8150510-TP 12 16 | WP-0702026-SP 12 34 SK-3452000-SC 22 70 | SS-6111140-SP 20 33 | $S-8150710-SP 16 12 | WP-0704516-SP 12 53 SK-3483200-SE 28 42 | SS-6120940-SP 28 16 | SS-8150822-TP 2 30 | WP-0751576-SD 18 20 SL-9082091-SE 22 20 | SS-6121030-SP 30 24 | SS-8150822-TP 10 31 | WP-0751576-SD 18 34 SM-0040601-SA 2 48 | $S-6121212-TP 10 6 | SS-8150822-TP 16 41} WP-0850002-SC 22 47 SM-3061052-TP 12 24} SS-6121212-TP 18 3] SS-8150822-TP 22 57 | WP-0871602-SE 22 31 SM-4040655-SP 2 54 | SS-6150760-SN 16 51] SS-8150822-TP 28 9 | WP-0871602-SE 30 38 SM-4040655-SP 28 50 | SS-6151142-TP 12 56 | SS-8150822-TP 28 20 | WP-0952616-SD 10 9 SM-4051405-SE 39 12 | SS-6151220-SP 2 66 | SS-8150822-TP 30 26 | WP-0982616-SP 14 28 SM-6051202-TP 16 28 | SS-6151220-SP 10 13 | SS-8151230-SP 4 21 | WP-1021016-SD 28 39 SM-6060802-TP 24 49 | SS-6151220-SP 12 31] SS-8151550-SP 16 43 | WP-1052000-SC 2 34 SM-6061002-TP 16 18; S$S-6151220-SP 12 52} SS-8151780-SP 18 24 | WP-1302501-SE 22 15 $M-6061402-TP 18 31 | S$46151220-SP 12 59 | SS-8620610-SP 16 25 | WP-1702600-S0 39 19 $M-6061610-SC 39 6; S$S-6151412-TP 4 2| SS-8620850-SP 16 45 | WS-0451040-KP 4 50 SM-6061802-TP 8 26 ; SS-6151440-SP 14 7 | SS-8660530-TP 4 3) WS-0510002-KN 39 16 SM-6061802-TP 8 28 | SS-6151440-SP 18 55 | SS-8660610-TP 4 5) WS-0621210-KR 22 29 SM-6061802-TP 8 44 | SS-6660710-TP 10 47 | SS-8660612-TP 4 45 | WS-0621210-KR 22 44 SM-6061802-TP 18 27 | $S-6661110-SP 4 13} SS-8661012-TP 4 19 | WS-0621210-KR 30 33 SM-6061802-TP 24 52] SS-6661110-SP 10 41 | SS-8661112-TP 4 47 | WS-0641560-KR 18 29 SM-6062002-TP 12 12 | SS-6661110-SP 28 43 | SS-8661212-TP 4 20 | WS-0861410-KR 22 32 SM-6062002-TP 16 46 | SS-6681712-TP 4 4] SS-8681950-SP 14 15 | WS-0861410-KR 30 37 SM-6062002-TP 18 57 | SS-6681720-TP 18 10 | SS-9110460-CP 24 38 | WS-0902010-KN 22 48 SM-9061203-SE 22 27 | SS-6741512-TP 4 22 | SS-9110460-CP 24 40 | WS-1253010-KN 22 16 SM-9061203-SE 30 32 | SS-6741512-TP 14 29 | $S-9110920-CP 24 22 | W2Z-0641510-KP 2 5 SM-9062003-SC 22 46 | SS-6742012-TP 4 23 | SS-9150730-SP 36 24 $M-9082023-SE 22 30 | SS-6742012-TP 10 42 | SS-9150730-SP 37 15] 1171-55108 22 3 SM-9082023-SE 30 36 | SS-7080510-TP 33 3] SS-9150730-SP 38 15 | 1171-55207 22 2 $S-1060210-TP 6 56 | SS-7080510-TP 34 3] $S-9151120-CP 24 10] 1141-55759 22 6 SS-1110640-TP 4 31 | SS-7080510-TP 35 3) $S-9151120-CP 24 46 | 111-57658 22 7 $S-1110640-TP 4 42 | SS-7080510-TP 36 3] SS-9151210-TP 30 15 | 1411-57757 22 8 SS-1110640-TP 6 51 | SS-7090410-SP 6 59 | SS-9151440-CP 12 47 | 1711-57955 22 9 SS-1110640-TP 24 32 | SS-7090610-SP 24 57 | SS-9151740-CP 8 2} 1141-58052 22 10 SS-1110821-TP 2 25 | SS-7090620-TP 8 33 | SS-9156830-SP 22 34 | 111-58300 22 11 SS-1110821-TP 12 51 | SS-7110510-SP 20 34 111-58409 22 12 $S-2060510-SP 6 15 | SS-7110710-SP 2 64 | TA-0550604-RO 12 49 | 1114-58508 22 19 SS-2090710-TP 4 53 | SS-7110710-SP 22 67 | TA-0750704-RO 2 62 | 111-58607 22 13 SS-2110920-TP 4 30] SS-7110740-TP 6 66 | TA-0750704-RO 20 21} 111-59001 22 24 $$-2110920-TP 12 9; SS-7110740-TP 12 1 | TA-1050504-RO 20 1] 131-60304 28 36 SS-2110920-TP 12 27 | SS-7110740-TP 28 14] TA-1050504-RO 20 47 | 131-60304 29 20 SS-2110920-TP 16 5 | SS-7110840-SP 2 17 | TA-1250406-RO 20 5} 1371-60304 30 27 $S-2110930-SP 12 20 | SS-7110840-SP 24 8] TA-1250406-RO 20 8] 1371-60304 31 22 $S-2110930-SP 28 33 | SS-7110840-SP 24 28 | TA-1450404-R0 20 31 | 131-60304 32 27 SS-2110930-SP 29 10 | SS-7110910-TP 14 40 | TA-1470704-RO 2 37 | 1371-60304 37 26 $S-2110930-SP 31 15 | SS-7110910-TP 16 6 | TA-2050406-RO0 2 59 | 131-60304 38 32 $S-2110930-SP 32 16 | SS-7111110-TP 10 22 | TA-2100904-RO 20 1] 135-00319 2 51 SS-2110930-SP 37 19 | SS-74111120-SP 24 5 135-01309 20 42 SS-2110930-SP 38 21 | SS-7111120-TP 4 51} WP-0450801-SD 2 49} 135-01408 20 22 $S-3090610-SP 2 23 | SS-7111410-TP 4 11 | WP-0450801-SD 2 55} 135-01705 20 18 $S-4090515-SP 20 17 | SS-7111410-TP 24 2} WP-0450801-SD 28 51] 135-02307 2 65 $S-4090715-SP 2 14 | SS-7111410-TP 25 2 | WP-0450846-SP 6 65} 135-03453 4 18 $S-4110515-SP 20 40 | SS-7111410-TP 25 10 | WP-0480856-SP 2 61} 135-03503 4 25 $S-4110515-SP 20 45 | SS-7111410-TP 25 21 | WP-0480856-SP 14 41] 135-03552 4 24 S$S-4110615-SP 12 60 | SS-7111410-TP 26 5 | WP-0480856-SP 18 49 | 135-03602 4 28 $S-4110715-SP 2 56 | SS-7111410-TP 26 15 | WP-0480856-SP 22 69 } 1365-03750 4 29 $S-4110715-SP 20 19 | SS-7111410-TP 28 31 | WP-0482086-SD 16 44} 135-03909 4 33 $S-4110715-SP 28 52 | SS-7111410-TP 29 3 | WP-0482086-SD 18 2| 1356-04105 4 39 SS-4110815-SP 8 55} SS-7111410-TP 31 3) WP-0501016-SC 22 71) 135-04204 4 34 SS-4110915-SP 2 11 | SS-7111410-TP 32 3 | WP-0501016-SD 24 39 | 135-04303 4 37 $S-4110915-SP 6 50 | SS-7111410-TP 33 8} WP-0612056-SD 16 53 | 135-04402 4 43 SS-4111015-SP 2 3] SS-7111410-TP 33 27 | WP-0612056-SD 18 28 | 135-04451 4 41 $S-4150715-SP 2 27 | SS-7111410-TP 34 8 | WP-0612056-SD 22 39 | 135-04501 4 44 - 42 -

Page 48 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS 5| PART NO PAGE REF PART NO PAGE REF PART NO PAGE REF PART NO PAGE REF aoe RB NO goes Rm NO cos RA NO soe R NO 135-04600 4 46 | 135-17800 12 15] 135-38301 25 24 | 135-44952 38 30 135-04709 4 48 | 17135-18352 12 4} 135-38301 26 6 | 1356-45009 28 4 4135-04907 4 36 | 135-18402 12 5 | 135-38301 26 18 | 135-45157 28 44 1365-05102 4 56 | 135-1850 12 14 | 135-38301 28 46 | 135-45306 28 45 1356-05805 2 13] 135-18600 12 22 | 135-38301 29 17 | 135-45306 31 7 135-05904 30 30 | 135-18709 12 23) 135-38301 31 8 | 135-45306 37 7 135-05904 34 21} 135-18907 12 8 | 135-38301 32 8 | 135-45504 29 9 135-05904 32 24] 135-19004 26 2) 135-38301 37 8 | 135-45504 32 17 135-05904 36 19] 135-19004 33 6 | 1365-38301 38 9} 17135-45504 32 18 135-05904 37 25 | 135-19004 34 6 | 135-39002 33 24] 135-45504 38 23 135-05904 38 29 | 135-19004 35 6] 135-39606 35 10] 135-45611 29 4 1356-06217 8 25} 135-19004 36 6| 135-39606 36 10] 1435-45611 32 4 135-06415 8 43} 135-20119 18 33) 135-39705 33 10; 135-45611 38 4 135-06704 8 40} 135-20309 18 23 | 135-39705 34 10] 135-45660 29 6 135-06852 8 35 | 135-20408 18 40 | 135-40109 24 64 | 135-45660 32 6 4135-07058 14 20 | 135-20705 18 32 | 135-40208 24 62 | 135-45660 38 6 135-07157 14 23} 135-20804 18 41} 135-40307 24 61] 135-45801 38 22 135-08056 22 5] 135-21125 18 56] 135-40406 24 60 | 7135-45900 30 9 135-08155 10 21) 1385-21307 30 12] 135-40505 24 58 | 135-45959 30 2 4135-08403 10 18 | 135-21406 18 53] 135-40604 24 55 | 135-45959 31 11 135-08700 10 40 | 135-21505 18 9] 135-40703 24 48] 135-45959 32 11 135-09153 10 20} 135-21760 18 14] 135-40752 24 6] 14135-45967 30 3 135-09401 28 54] 135-22008 18 1 | 135-40802 24 44 | 135-46007 30 4 135-09401 29 141 135-22503 28 55 | 135-40901 24 42 | 135-46106 30 6 135-09401 31 17 | 135-22503 29 21 | 135-41057 24 30 | 135-46205 30 7 135-09401 32 20 | 135-23121 16 21 | 135-41107 24 29 | 135-46403 30 17 135-09401 37 21 | 135-23188 16 1| 1235-41206 24 7 | 135-46502 30 22 135-09401 38 25 | 135-23204 30 25 | 1435-41313 24 51} 135-46601 30 29 135-09807 8 51] 135-23212 16 42 | 135-41404 24 9} 135-46601 31 10 4135-10201 10 44] 135-23352 16 49 | 135-41503 24 37 | 135-46601 32 10 135-10367 4 10} 135-23428 16 34} 135-41750 24 4] 135-47401 30 20 1356-10458 10 43 | 135-23519 16 36 | 135-41800 24 66 | 135-47500 30 1 135-10607 10 52 | 135-23600 16 37 | 135-41800 25 6} 135-47500 3t 9 135-10854 33 7 | 135-23808 16 27 | 135-42303 25 57 135-47500 32 9 1386-10854 33 26 | 135-23915 16 31 | 135-42402 25 3] 135-47500 36 26 135-10854 34 7 | 135-24004 16 30 | 1435-42501 25 4] 135-47500 37 9 135-10854 37 2] 1368-24129 16 29 | 135-42709 25 17 | 135-47500 38 10 135-10854 38 2| 135-24277 16 26 | 1356-42808 33 30 | 135-47658 31 16 135-10862 24 1 | 135-24368 16 22 | 1356-42816 25 13 | 135-47658 32 26 4135-10862 25 1] 1365-24418 16 23 | 135-42907 33 28 | 135-47658 37 20 135-10862 25 9] 135-24608 16 2] 135-42915 25 11 | 135-47658 38 31 135-10862 25 20] 135-24707 16 4}| 135-43004 33 29 | 135-47807 24 68 135-10862 26 4] 1365-24806 16 8] 135-43012 25 12 | 135-48409 33 12 135-10862 26 14] 135-24905 16 10 | 135-43202 25 23 | 135-48409 35 11 1356-10862 28 30 | 7135-25001 16 9] 1365-43202 26 3] 135-48508 33 20 135-10862 29 2! 135-25100 16 3] 135-43509 28 34] 135-48508 35 17 135-10862 31 2 | 135-25308 16 38 | 135-43509 29 11] 135-48607 33 21 135-10862 32 2] 135-25308 30 23 | 135-43509 31 14) 1365-48607 35 18 135-10953 24 3| 135-25407 16 40 | 135-43509 32 15 | 1356-50108 12 48 135-10953 25 8] 135-25605 16 14 | 1356-43509 37 18 | 135-50504 33 22 4135-10953 25 19 | 135-25704 16 17 | 1385-43508 38 20 | 135-50702 33 9 135-10953 25 22 | 135-25803 36 22 | 135-43608 28 47 | 135-50702 34 9 1356-10953 26 7 | 135-25803 37 13 | 135-43608 31 12 | 1356-51403 35 3 135-10953 26 16] 135-25803 38 13} 135-43608 37 10 | 135-57403 36 S 1356-10953 28 21] 7135-26009 36 21 | 135-43715 28 6 | 135-51569 29 5 135-10953 29 1] 135-26009 37 12 | 135-43764 28 2| 7135-51569 32 5 135-10953 31 1] 135-26009 38 12] 135-43764 31 S| 135-51569 38 5 135-10953 32 1] 1435-26058 36 20 | 135-43764 37 5] 135-53706 22 56 135-10953 33 14 | 135-26058 37 14 | 135-43806 28 10 | 135-54100 29 15 1385-10953 33 25} 135-26058 38 11] 1356-43905 28 15 | 1365-54100 29 16 135-10953 34 11} 135-28708 20 25 | 135-44051 28 19; 1358-54100 32 7 135-10953 37 1] 135-29402 20 28 | 135-44416 28 11 135-54100 38 7 1356-10953 38 1] 135-29201 20 27 | 1365-44416 31 4] 135-54100 38 8 135-13114 8 27 | 135-29904 20 23 | 135-44416 37 4| 135-54209 34 12 135-14401 14 33 | 135-31108 22 50} 135-44465 28 3} 1356-54209 36 11 135-15408 14 417 135-31306 22 52] 135-44465 31 6 | 135-54308 34 20 135-15556 6 §2 | 135-31405 22 53] 1356-44465 37 6 | 135-54308 36 17 135-15564 6 57 | 1365-31504 22 54] 17135-44614 28 5} 135-54407 34 21 135-16109 12 46 | 135-31603 22 55) 135-44705 28 17 | 135-54407 36 18 135-16307 42 35} 1356-32254 16 47 | 135-44903 28 38 | 7135-64901 26 17 135-16703 12 41 | 135-32262 16 55 | 1358-44952 28 37 | 135-74009 8 54 135-17008 12 58 | 135-34060 14 18 | 1358-44952 29 18 | 137-06601 2 22 135-17107 12 57 | 135-38301 24 67 | 135-44952 31 24] 14138-16509 2 9 135-17529 12 29] 135-38301 25 7 | 135-44952 32 25 | 138-16855 10 37 135-17701 12 26 | 1435-38301 25 18 | 1356-44952 37 28 | 138-17507 22 1 - 43 -

Page 49 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS | RSI PART NO PAGE REF PART NO PAGE REF PART NO PAGE REF PART NO PAGE REF ae BNO sas FR NO me BNO anes Rm NO 138-17754 22 21 | 262-12209 2 21 | 262-28205 18 13 138-17754 30 31 | 262-12308 2 8 | 262-28304 18 15 138-17754 31 26 | 262-12605 4 8 | 262-28502 18 6 138-17754 32 13. | 262-12704 4 7 | 262-28601 18 5 138-17754 36 27 | 262-12803 4 9 | 262-28700 18 43 138-17754 37 30 | 262-13306 4 32 | 262-28809 18 48 138-17754 38 18 | 262-13801 4 49 | 262-28908 18 22 138-89407 28 49 | 262-13900 4 52] 262-29005 18 19 170-07402 22 14 | 262-14007 4 55 | 262-29104 18 18 262-14403 4 16 | 262-29302 18 51 229-30309 39 14] 262-15301 6 16 | 262-29401 20 29 229-30358 39 1 | 262-16507 6 29 | 262-29609 20 37 229-30408 39 10 | 262-16507 28 29 | 262-30003 20 so 229-30507 39 9} 262-16606 6 28 | 262-30102 20 16 229-30705 39 7} 262-16606 28 28 | 262-30409 20 20 229-30804 39 5} 262-16705 6 26 | 262-30706 20 4 229-30903 39 4} 262-16705 28 26 | 262-30904 20 24 229-31000 39 3} 262-16903 8 29 | 262-31100 20 44 229-31109 39 2| 262-17109 8 21 | 262-31209 20 7 229-31 208 39 15 |} 262-17208 8 37 | 262-31407 20 12 229-31 307 39 11 | 262-17406 14 21 | 262-31605 20 26 229-31 406 39 8 | 262-17505 14 25 | 262-31902 20 41 229-45802 28 27 | 262-17604 14 26 | 262-33106 10 3 260-17400 14 4 | 262-17703 2 33 | 262-34302 22 38 260-17400 16 11 | 262-17802 8 46 | 262-35200 16 49 260-37200 2 53 | 262-17901 8 52 | 262-35408 16 54 260-37903 30 28 | 262-18008 8 47 | 262-36703 22 66 262-00006 6 13 | 262-18404 8 32 | 262-39806 12 45 262-01 103 6 38 | 262-18602 8 18 | 265-01304 8 31 262-01152 6 30 | 262-18651 8 15 262-01202 6 42 | 262-18859 8 3 | 400-09458 22 64 262-01 301 6 47 | 262-20400 8 16 | 400-23026 2 10 262-01400 6 37 | 262-20707 8 41} 400-23027 2 15 262-01509 6 49 | 262-21101 10 45 | 400-28681 10 5 262-01608 6 40 | 262-21200 10 38 | 400-38078 28 25 262-01707 6 43 | 262-21358 10 49 | 400-38078 29 8 262-01806 6 45 | 262-21507 10 50 | 400-38078 31 19 262-01905 6 48 | 262-21804 10 28 | 400-38078 32 22 262-02002 6 36 | 262-22109 10 11 | 400-38078 37 23 262-02101 6 35 | 262-22208 10 14 | 400-38078 38 27 262-02200 6 41 | 262-22307 10 33 | 400-38080 28 22 262-02309 6 34 | 262-22406 10 32 | 400-38080 29 7 262-02309 6 39 | 262-22505 10 34 | 400-38080 31 18 262-02408 6 33 | 262-22703 12 30 | 400-38080 32 21 262-02507 6 44! 262-22901 12 38 | 400-38080 37 22 262-02705 6 32 | 262-23008 12 39 | 400-38080 38 26 262-02804 22 51 | 262-23305 12 54} 400-51987 2 57 262-02903 18 42 | 262-23404 12 50 | 400-52806 2 52 262-03208 6 10 | 262-23503 12 36 | 400-52810 28 53 262-03406 6 25 | 262-23602 12 28 | 400-52815 28 48 262-03406 28 23} 262-23701 12 7 | 400-52815 29 13 262-03455 6 23 | 262-24105 12 21 | 400-52815 31 25 262-03901 10 30} 262-24204 12 19 | 400-52815 32 23 262-04008 12 17 | 262-24600 12 44 | 400-52815 37 29 262-04107 12 6] 262-24808 12 11 | 400-52815 38 28 262-04453 8 48 | 262-25102 14 17 | 400-60887 28 35 262-04602 8 22} 262-25201 14 13 | 400-60887 29 19 262-04701 18 46] 262-25300 14 31 | 400-60887 31 23 262-04909 10 4] 262-25409 14 32 | 400-60887 32 12 262-10005 2 47 | 262-25508 14 42 | 400-60887 37 27 262-10104 2 46 | 262-25607 14 35 | 400-60887 38 17 262-10203 2 39 | 262-25706 14 19 262-10302 2 41 | 262-25805 14 5 262-10450 2 42 | 262-25904 14 9 262-10500 2 40 | 262-26001 14 8 262-10708 2 311 262-26100 14 6 262-11201 2 38 | 262-26209 14 37 262-11300 2 7 {| 262-26407 14 1 262-11409 2 58; 262-26506 14 38 262-11607 2 16 | 262-26704 14 16 262-11755 2 2] 262-27207 18 39 262-11805 2 24 | 262-27306 18 37 262-11904 2 26 | 262-27603 18 60 262-12001 2 29 | 262-27702 18 59 262-12100 2 63 | 262-27900 18 45

Page 50

MEMO - 45 - Jinttex.in

Page 51

jinttex.in jintex.in

Page 52

JUKI JUKI 株式会社 〒 182-8655 東京都調布市国領町 8-2-1 TEL.03-3480-1111(代表) 営業本部 TEL.03-3480-2357.2358(ダイヤルイン) FAX.03-3430-4909 JUKI CORPORATION MARKETING & SALES H.Q. 8-2-1,KOKURYO-CHO,CHOFU-SHI TOKYO 182-8655,JAPAN PHONE:(81)3-3480-2357.2358 FAX:(81)3-3430-4909 Copyright© 1998-2007 JUKI CORP. 本書の内容を無断で転載、複写することを 禁止します。 All rights reserved throughout the world. お買い求め、ご相談は To order or for further information, please contact: ※このパーツリストは商品改良のため予告なく変更する事があります。 The description covered in this parts list is subject to change for improvement of the commodity without notice. ※このパーツリストは 2007 年 12 月現在の商品仕様で編集したものです。 This parts list is edited in accordance with the product specifications as of December 2007. Printed in Japan jintex.in
