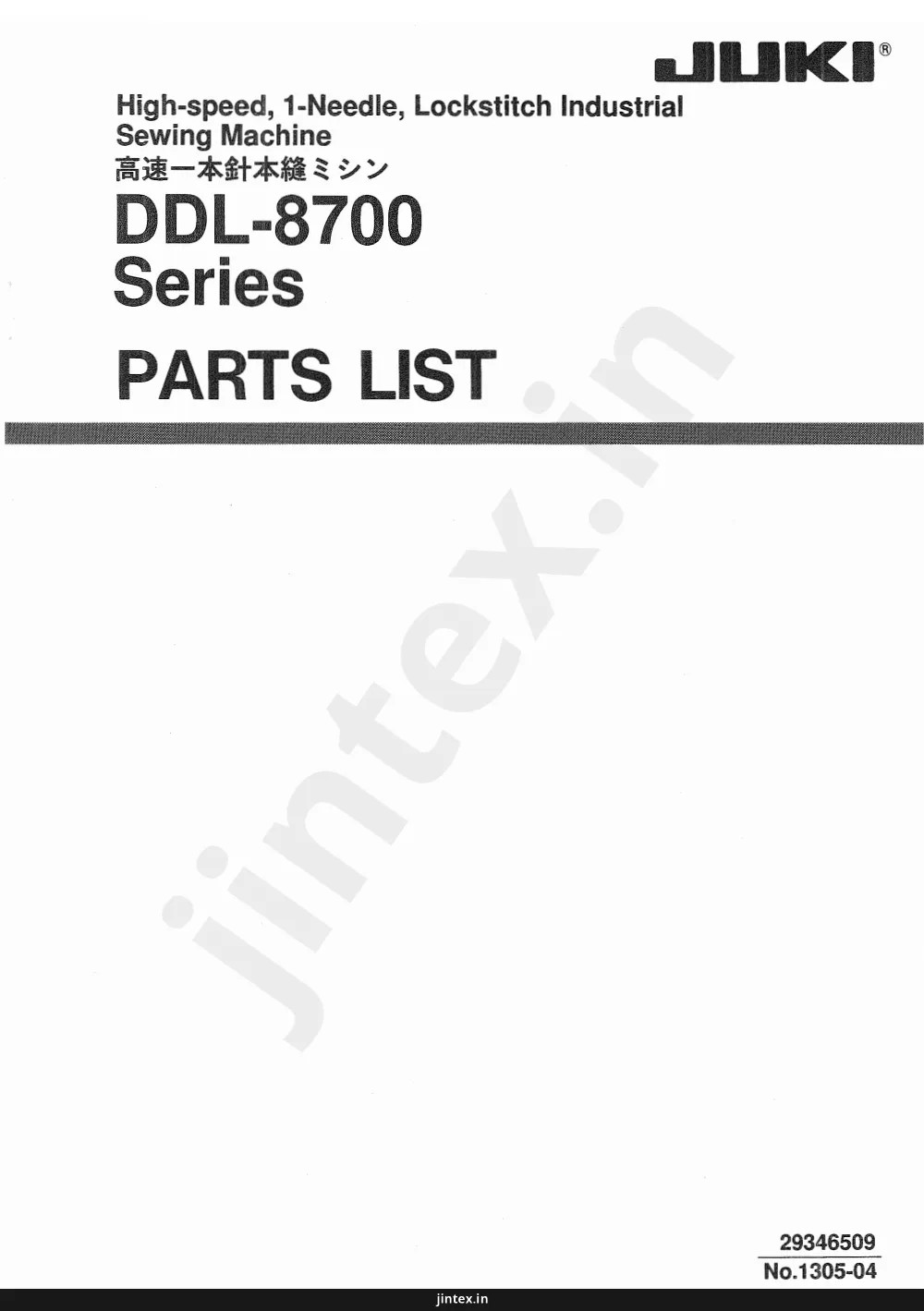

Juki DDL-8700 Parts Book (PDF)
Text index — Juki DDL-8700
Page 5 — 1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-02159 | FACE PLATE ASM. | 1 |
| 2 | 229-02209 | FACE PLATE GASKET | 1 |
| 3 | SS-6080410-SP | SCREW 1/8-44 L=4 | 1 |
| 4 | 229-00757 | FACE PLATE OIL SHIELD ASM. | 1 |
| 5 | TA-0850604-RO | RUBBER PLUG | 2 |
| 6 | TA-1250705-RO | RUBBER PLUG | 1 |
| 7 | SS-4120915-SP | SCREW 3/16-28 L=9 | 8 |
| 8 | 229-00401 | WINDOW PLATE | 1 |
| 9 | 110-00619 | GASKET | 1 |
| 10 | TA-2000502-RO | RUBBER PLUG | 1 |
| 11 | TA-2101002-RO | RUBBER PLUG | 1 |
| 12 | 229-32552 | NEEDLE THREAD GUIDE PIN ASM. | 1 |
| 13 | 229-32503 | THREAD GUIDE ROD | (1) |
| 14 | 229-32602 | THREAD GUIDE DISK | (2) |
| 15 | 229-32701 | THREAD GUIDE DISK SPRING | (1) |
| 16 | SD-0380552-SL | HINGE SCREW D=3.8 H=5.5 | (1) |
| 17 | 229-20706 | TWO EYELET | 1 |
| 18 | 229-00609 | THREAD TAKE-UP LEVER COVER | 1 |
| 19 | SS-4120615-SP | SCREW 3/16-28 L=6 | 1 |
| 20 | SS-4120615-SP | SCREW 3/16-28 L=6 | 1 |
| 21 | 229-20508 | ARM THREAD GUIDE A | 1 |
| 22 | 229-21001 | SCREW | 1 |
| 23 | 229-45356 | THREAD TENSION ASM. | 1 |
| 24 | 229-21308 | THREAD TENSION NUT | (1) |
| 25 | 229-21407 | ROTATION STOPPER | (1) |
| 26 | 229-21704 | THREAD TENSION SPRING, A | (1) |
| 27 | 229-21803 | DISK STOPPER | (1) |
| 28 | 229-21506 | THREAD TENSION DISK | (2) |
| 29 | 229-21209 | THREAD TENSION POST | (1) |
| 30 | 229-21605 | THREAD TAKE-UP SPRING | (1) |
| 31 | 229-45307 | THREAD TENSION POST BASE | (1) |
| 32 | SS-8090670-SP | SCREW 9/64-40 L= 5.5 | (1) |
| 33 | SS-8150710-TP | SCREW 15/64-28 L=7 | 1 |
| 34 | 229-20904 | PIN | 1 |
| 35 | B1109-552-000 | THROAT PLATE | 1 |
| 36 | SS-2110920-TP | SCREW 11/64-40 L=8.5 | 2 |
| 37 | 229-20607 | ARM THREAD GUIDE B | 1 |
| 38 | SS-6110610-TP | SCREW 11/64-40 L=6 | 1 |
| 39 | TA-1250406-RO | RUBBER PLUG D=12.5 L=4 | 2 |
| 40 | SS-4120915-SP | SCREW 3/16-28 L=9 | 3 |
| 41 | 229-01250 | SLIDE PLATE ASM. | 1 |
| 42 | 229-01201 | SLIDE PLATE | (1) |
| 43 | 229-01300 | SLIDE PLATE SPRING | (1) |
| 44 | SS-6060210-SP | SCREW 3/32-56 L= 1.9 | (2) |
| 45 | 229-01003 | BED SCREW STUD | 4 |
| 46 | 110-28008 | THROAT PLATE | 1 |
| 47 | 114-15205 | THREAD TAKE-UP LEVER COVER(JE) | 1 |
| 48 | CM-3002000-01 | ATTENTION SEAL | 1 |
| 49 | 229-02605 | RULER STOP SEAT | 1 |
| 50 | SS-7110540-SP | SCREW 11/64-40 L=5 | 2 |
| 51 | CM-3002001-A1 | SAFETY LABEL.,3 (SMALL). | 1 |
| 52 | 229-01805 | GROUND MARK | 1 |
Page 7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SS-8151150-TP | SCREW 15/64-28 L=10.5 | 1 |
| 2 | 229-19559 | THREAD TAKE-UP CRANK SHAFT ASM | 1 |
| 3 | 229-19203 | OIL PROTECTING RUBBER | 1 |
| 4 | 110-39070 | THREAD TAKE-UP LEVER ASM. | 1 |
| 5 | 110-39062 | THREAD TAKE-UP LEVER ASM. | (1) |
| 6 | B1905-541-B00 | NEEDLE BEARING | (2) |
| 7 | 110-05204 | NEEDLE BAR CRANK | (1) |
| 8 | B1408-552-000 | NEEDLE BAR CRANK ROD | (1) |
| 9 | B1903-552-000 | LEFT SCREW | (1) |
| 10 | 229-03157 | COUNTER WEIGHT ASM. | 1 |
| 11 | SS-8681650-TP | SCREW 9/32-28 L=16 | (1) |
| 12 | SS-8660610-TP | SCREW 1/4-40 L=6 | (2) |
| 13 | RO-0442401-00 | RUBBER RING | (1) |
| 14 | SS-7681650-TP | SCREW 9/32-28 L=16 | (1) |
| 15 | 229-03108 | COUNTER WEIGHT | (1) |
| 16 | 229-10053 | FEED DRIVE ECCENTRIC CAM ASM. | 1 |
| 17 | SS-6661110-SP | SCREW 1/4-40 L=11 | (2) |
| 18 | 229-10004 | FEED DRIVE ECCENTRIC CAM | (1) |
| 19 | SS-4090615-SP | SCREW 9/64-40 L=6 | 2 |
| 20 | 229-03405 | MAIN SHAFT BUSHING, REAR | 1 |
| 21 | 110-02508 | OIL SEAL | 1 |
| 22 | RC-1850001-KP | SNAP RING 18.5 | 1 |
| 23 | 229-04155 | MAIN SHAFT THRUST COLLAR ASM. | 1 |
| 24 | SS-8660610-TP | SCREW 1/4-40 L=6 | (2) |
| 25 | 229-03207 | MAIN SHAFT BUSHING, FRONT | 1 |
| 26 | B1215-552-000 | OIL ADJUSTING COLLAR | 1 |
| 27 | 229-03306 | BUSHING,INTERMEDIATE | 1 |
| 28 | 110-02904 | ROLLER FELT | 1 |
| 29 | 229-27206 | HAND WHEEL | 1 |
| 30 | SS-8151550-SP | SCREW 15/64-28 L=15 | 2 |
| 31 | 229-03009 | MAIN SHAFT | 1 |
| 32 | 229-03900 | ADJUSTING PIN | 1 |
| 33 | RO-0291801-00 | RUBBER RING | 1 |
| 34 | 229-10103 | THRUST COLLAR | 1 |
Page 9 — 3. NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-01409 | NEEDLE BAR UPPER BUSH CAP | 1 |
| 2 | 229-06101 | NEEDLE BAR BUSHING, UPPER | 1 |
| 3 | 229-06002 | NEEDLE BAR | 1 |
| 4 | 229-06457 | NEEDLE BAR HOLDER ASM. | 1 |
| 5 | SS-6090670-TP | SCREW 9/64-40 L=6 | (1) |
| 6 | B1414-555-000 | SLIDE BLOCK | 1 |
| 7 | 229-20805 | NEEDLE BAR THREAD GUIDE | 1 |
| 8 | 229-06200 | NEEDLE BAR BUSHING, LOWER | 1 |
| 9 | SS-7080510-TP | SCREW 1/8-44 L=4.5 | 1 |
| 10 | 229-06309 | NEEDLE BAR THREAD GUIDE | 1 |
| 11 | MDB-100B1400 | NEEDLE DBX1 #14 | 1 |
| 12 | B1306-155-0C0 | GEAR & PINION ASM. | 1 |
| 13 | B1306-155-0B0 | GEAR & PINION ASM., UPPER | (1) |
| 14 | B1305-012-0A0 | GEAR ASM. | (1) |
| 15 | SS-8660810-TP | SCREW 1/4-40 L=8 | (2) |
| 16 | B1306-155-0A0 | PINION ASM. | (1) |
| 17 | SS-8660810-TP | SCREW 1/4-40 L=8 | (2) |
| 18 | B1307-155-0B0 | GEAR & PINION ASM., LOWER | (1) |
| 19 | B1307-155-0A0 | GEAR ASM. LARGE | (1) |
| 20 | SS-8660810-TP | SCREW 1/4-40 L=8 | (2) |
| 21 | B1308-155-0A0 | PINION ASM. | (1) |
| 22 | SS-8660810-TP | SCREW 1/4-40 L=8 | (2) |
| 23 | 229-05004 | UPRIGHT SHAFT | 1 |
| 24 | B1830-127-0A0 | HOOK ASM. | 1 |
| 25 | 229-05103 | UPRIGHT SHAFT BUSHING, UPPER | 1 |
| 26 | 229-05202 | UPRIGHT SHAFT BUSHING, LOWER | 1 |
| 27 | 229-16308 | HOOK DRIVING SHAFT BUSH, REAR | 1 |
| 28 | SS-4120915-SP | SCREW 3/16-28 L=9 | 1 |
| 29 | 229-17157 | THRUST COLLAR ASM., REAR | 1 |
| 30 | SS-6110420-TP | SCREW 11/64-40 L=4.8 | (2) |
| 31 | 229-16001 | HOOK DRIVING SHAFT | 1 |
| 32 | 229-16407 | BOBBIN CASE POSITIONING FINGER | 1 |
| 33 | SS-4110915-TP | SCREW 11/64-40 L=9 | 1 |
| 34 | MC-2005009-00 | NEEDLE 134 90 | 1 |
| 35 | 229-16100 | HOOK DRIVING SHAFT BUSH, FRONT | 1 |
| 36 | 229-17058 | THRUST COLLAR ASM., FRONT | 1 |
| 37 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | (2) |
| 38 | 229-16555 | OIL SEAL SCREW ASM. | 1 |
| 39 | 110-15906 | OIL WICK | (1) |
| 40 | 229-16506 | SET SCREW | (1) |
| 41 | 229-32909 | BOBBIN | 1 |
| 42 | B1837-012-0A0 | BOBBIN CASE ASM. | 1 |
| 43 | 229-06705 | NEEDLE BAR B | 1 |
| 44 | 400-10007 | NEEDLE BAR | 1 |
| 45 | 400-12444 | NEEDLE BAR THREAD GUIDE | 1 |
Page 11 — 4. HAND LIFTER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-07802 | HAND LIFTER | 1 |
| 2 | B1521-555-000 | SCREW | 1 |
| 3 | RO-0371801-00 | RUBBER RING | 1 |
| 4 | 229-08552 | HAND LIFTER CAM ASM. | 1 |
| 5 | 229-07000 | PRESSER BAR | 1 |
| 6 | 229-07307 | THREAD GUIDE | 1 |
| 7 | 229-08701 | LINK SHAFT | 1 |
| 8 | SS-7091110-TP | SCREW 9/64-40 L=10.5 | 1 |
| 9 | RE-0500000-KO | E-RING | 3 |
| 10 | SS-8660810-TP | SCREW 1/4-40 L=8 | 1 |
| 11 | SS-6090910-SP | SCREW 9/64-40 L=9 | 2 |
| 12 | 229-08909 | HINGE SCREW | 1 |
| 13 | SD-0720331-SP | HINGE SCREW D= 7.24 H= 3.3 | 1 |
| 14 | 229-08800 | KNEE LIFTER LINK | 1 |
| 15 | 229-09006 | KNEE LIFTER CONNECTING ROD | 1 |
| 16 | 400-14007 | PRESSER BAR BUSHING LOWER | 1 |
| 17 | RE-0500000-KO | E-RING | 2 |
| 18 | 229-20201 | RETURN SPRING | 1 |
| 19 | 229-20409 | THREAD RELEASE PIN SPRING | 1 |
| 20 | B1524-012-OBA | PRESSER FOOT ASM. | 1 |
| 21 | 229-20300 | THREAD RELEASE SUPPORTING PIN | 1 |
| 22 | 229-20003 | THREAD RELEASE PLATE | 1 |
| 23 | 229-20102 | TENSION RELEASE SHAFT | 1 |
| 24 | 229-07554 | PRESSER SPRING REG NUT ASM. | 1 |
| 25 | 229-07604 | PRESSER SPRING REGULATOR NUT | |
| 26 | 229-07505 | PRESSER SPRING REGULATOR | |
| 27 | 229-07406 | PRESSER SPRING | 1 |
| 28 | 229-07208 | PRESSER BAR GUIDE BRACKET | 1 |
| 29 | 229-08354 | KNEE LIFTING CROSS ROD ASM. | 1 |
| 30 | 229-08156 | LIFTING LINK ASM. | |
| 31 | RE-0500000-KO | E-RING | (1) |
| 32 | 229-08008 | LIFTING PLATE | (1) |
| 33 | RE-0500000-KO | E-RING | (1) |
| 34 | 229-08305 | KNEE LIFTING CROSS ROD | (1) |
| 35 | 229-07703 | PRESSER GUIDE BAR | 1 |
Page 13 — 5. FEED MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-11408 | FEED REGULATOR CONNCTING ROD | 1 |
| 2 | 229-11507 | WALKING FOOT PIN C | 1 |
| 3 | SS-6090670-TP | SCREW 9/64-40 L=6 | 2 |
| 4 | 229-11606 | FEED REGULATOR | 1 |
| 5 | 229-11705 | FEED REGULATOR BUSHING | 1 |
| 6 | SS-7120770-SH | SCREW 3/16-28 L=7 | 1 |
| 7 | 229-11804 | FEED REGULATOR SCREW | 1 |
| 8 | 229-12109 | FEED REGULATOR PIN SPRING | 1 |
| 9 | 229-12000 | FEED REGULATOR PIN | 1 |
| 10 | 229-11903 | FEED DIAL | 1 |
| 11 | SS-6121860-SP | SCREW 3/16-28 L=18 | 1 |
| 12 | 229-10202 | ROCKER SHAFT CONNECTING ROD | 1 |
| 13 | 229-11101 | WALKING FOOT PIN C | 1 |
| 14 | SS-6090620-TP | SCREW | 1 |
| 15 | 229-15003 | CONNECTING ROD | 1 |
| 16 | RO-0922702-00 | RUBBER RING | 1 |
| 17 | 110-10311 | FEED LEVER SPRING | 1 |
| 18 | RE-0500000-K0 | E-RING | 1 |
| 18 | RE-050000-KO | E-RING | |
| 19 | 229-12257 | FEED REVERSE ARM ASM. | 1 |
| 20 | 229-12505 | FEED REVERSE ARM SCREW | 1 |
| 21 | RE-0500000-K0 | E-RING | 1 |
| 22 | 229-11309 | ADJUSTING LINK SPRING | 1 |
| 23 | 229-10806 | ADJUST LINK FULCRUM SHAFT A | 2 |
| 24 | 229-10905 | WALKING FOOT PIN A | 2 |
| 25 | 229-10707 | CONNECTING LINK B | 2 |
| 26 | 229-10608 | CONNECTING LINK A | 2 |
| 27 | 229-10459 | FEED ADJUSTING LINK ASM. | 1 |
| 28 | 229-12752 | FEED LEVER ASM. | 1 |
| 29 | SM-8061050-TP | SCREW | (1) |
| 30 | SM-8061010-TP | SCREW | (1) |
| 31 | 229-40803 | FEED BAR SHAFT | 1 |
| 32 | RC-0150001-KP | RETAINING RING 13.8 | 1 |
| 33 | B1613-012-A00 | FEED DOG A | 1 |
| 34 | SS-4080620-TP | SCREW 1/8-44 L=6 | 2 |
| 35 | 229-71857 | FEED BASE ASM. | 1 |
| 36 | 229-41306 | REGULATOR LINK SPRING HOOK | 1 |
| 37 | SS-4110515-SP | SCREW 11/64-40 L=5 | 2 |
| 38 | 229-13701 | FEED SPRING HOOK | 1 |
| 39 | 229-12901 | FEED ROCKER SHAFT | 1 |
| 40 | 229-11002 | WALKING FOOT PIN B | 1 |
| 41 | SS-6090620-TP | SCREW | 1 |
| 42 | NS-6680410-SP | NUT 9/32-28 | 1 |
| 43 | 229-10350 | FEED ROCKER SHAFT CRANK ASM. | 1 |
| 44 | SS-7121410-TP | SCREW 3/16-28 L=14 | (1) |
| 45 | 229-15151 | FEED ARM COMPL. | 1 |
| 46 | SS-7121610-SP | SCREW 3/16-28 L=15.5 | (1) |
| 47 | SD-1000801-SH | HINGE SCREW D=10 H=8 | 1 |
| 48 | 229-15201 | FEED DRIVING SHAFT | 1 |
| 49 | 229-04155 | MAIN SHAFT THRUST COLLAR ASM. | 1 |
| 50 | SS-8660610-TP | SCREW 1/4-40 L=6 | (2) |
| 51 | 229-13008 | FEED ROCKER SHAFT BUSHING | 1 |
| 52 | 229-14105 | BEARING C | 1 |
| 53 | SS-7110740-TP | SCREW 11/64-40 L=7 | 1 |
| 54 | RC-0150001-KP | RETAINING RING 13.8 | 1 |
| 55 | 229-40654 | FEED ROCKER ASM. | 1 |
| 56 | SS-7121410-TP | SCREW 3/16-28 L=14 | (1) |
| 57 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | (1) |
| 58 | 229-13800 | ROCKER SHAFT CONNECTING ROD B | 1 |
| 59 | B1613-012-I00 | FEED DOG 1 | 1 |
| 60 | 229-13008 | FEED ROCKER SHAFT BUSHING | 1 |
| 61 | 229-04155 | MAIN SHAFT THRUST COLLAR ASM. | 1 |
| 62 | SS-8660610-TP | SCREW 1/4-40 L=6 | (1) |
| 63 | RO-0781901-00 | RUBBER RING | 1 |
| 64 | 229-12604 | FEED REVERSE SHAFT | 1 |
| 65 | 229-12802 | FEED LEVER SHAFT BUSHING | 1 |
| 66 | SS-8150710-TP | SCREW 15/64-28 L=7 | 2 |
| 67 | SS-6090620-TP | SCREW | 2 |
| 68 | 229-15359 | DRIVING SHAFT CRANK ASM. | 1 |
| 69 | SS-7111120-SP | SCREW 11/64-40 L=10.5 | (1) |
Page 15 — 6. OIL LUBRICATION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-24708 | OIL SIGHT WINDOW | 1 |
| 2 | RO-1952401-00 | RUBBER RING | 1 |
| 3 | 229-24401 | MAIN SHAFT OIL TUBE | 1 |
| 4 | SS-4150915-SP | SCREW 15/64-28 L=9 | 1 |
| 5 | 229-24609 | RUBBER JOINT | 1 |
| 6 | SS-4120615-SP | SCREW 3/16-28 L=6 | 1 |
| 7 | 229-25101 | OIL FELT PRESSER | 1 |
| 8 | 229-24153 | RETURN PIPE ASM. | 1 |
| 9 | 229-24302 | RETURN PIPE HOLDER | (1) |
| 10 | CQ-2520000-00 | OIL WICK | 0.3 |
| 11 | 229-24500 | HOOK OIL TUBE | 1 |
| 12 | 229-24807 | PIPE HOLDER, LOWER | 1 |
| 13 | SS-4150915-SP | SCREW 15/64-28 L=9 | 1 |
| 14 | 229-24906 | OIL REGULATOR SCREW SPRING | 1 |
| 15 | 229-25002 | OIL REGULATOR SCREW | 1 |
| 16 | 229-23056 | OIL PUMP ASM. | 1 |
| 17 | 229-23304 | PUMP BODY INSTALLING PLATE | (1) |
| 18 | SL-4030851-SF | SCREW M3 L=8 | (3) |
| 19 | 229-23007 | PUMP BODY | (1) |
| 20 | 229-23700 | IMPELLER | (1) |
| 21 | SE-4301041-SR | SCREW D=3 L=10 | (3) |
| 22 | 229-23205 | PUMP BODY COVER | (1) |
| 23 | 229-23809 | PUMP BODY SUPPORT PLATE | (1) |
| 24 | 229-23403 | PLUNGER | (1) |
| 25 | 229-23601 | PLUNGER SPRING | (1) |
| 26 | 229-23502 | PLUNGER SCREW | (1) |
| 27 | 229-23908 | HOOK DRIVING SHAFT OILING PIPE | (1) |
| 28 | SS-6111010-TP | SCREW 11/64-40 L= 9.5 | 1 |
| 29 | 229-24005 | PUMP BODY STRUT | 1 |
Page 17
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-31851 | OIL RESERVOIR ASM. | 1 |
| 2 | 229-31802 | OIL RESERVOIR | (1) |
| 3 | 229-31901 | OIL RESERVOIR GASKET | (1) |
| 4 | 229-32008 | RUBBER CUSHION | (4) |
| 5 | SS-6700710-SH | SCREW 5/16-24 L=7 | (1) |
| 6 | RO-1082401-00 | RUBBER RING | (1) |
| 7 | 229-32156 | KNEE LIFTER ROTATION ARM ASM. | (1) |
| 8 | 229-32107 | KNEE LIFTING ROTATING ARM | (1) |
| 9 | NM-6060001-SE | NUT M6 | (2) |
| 10 | SM-8063012-TR | SCREW M6 L=30 | (2) |
| 11 | 229-32206 | SPRING | (1) |
| 12 | RE-1000000-KO | E-RING 10 | (1) |
| 13 | 229-32453 | BRACKET ASM. | (1) |
| 14 | 229-32404 | VERTICAL SHAFT FITTING ARM | (1) |
| 15 | 229-34707 | SCREW | (2) |
| 16 | SM-9061853-SR | SCREW M6 L=17.5 | (1) |
| 17 | 229-32305 | KNEE PRESS CROSS SHAFT | (1) |
| 18 | 229-34251 | KNEE PAD PLATE ASM. | 1 |
| 19 | 229-34509 | KNEE PAD PLATE COVER | (1) |
| 20 | 229-34608 | KNEE PAD UPRIGHT SHAFT | (1) |
| 21 | 229-34400 | KNEE PAD PLATE RUBBER | (1) |
| 22 | 229-34202 | KNEE PAD PLATE | (1) |
| 23 | 229-34301 | KNEE PAD PLATE SUPPORT | (1) |
| 24 | SM-9061203-SE | SCREW M6 L=12 | (1) |
| 25 | 229-31703 | KNEE LIFTER PUSH ROD | 1 |
| 26 | B8228-125-000 | OIL RESERVOIR MAGNET | 1 |
Page 18 — 8. BELT COVER & BOBBIN COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-33451 | BELT COVER ASM. | 1 |
| 2 | 229-33402 | BELT COVER A | (1) |
| 3 | 229-33501 | BELT COVER A CAP | (1) |
| 4 | 229-33659 | BELT COVER B COMPL. | (1) |
| 5 | 229-33600 | BELT COVER B | (1) |
| 6 | 229-33758 | BELT COVER B LID ASM. | (1) |
| 7 | 229-33907 | BELT COVER STRUT | (1) |
| 8 | 229-34004 | SET SCREW | (2) |
| 9 | SS-4121415-SP | SCREW 3/16-28 L=14 | (1) |
| 10 | WP-0501016-SD | WASHER 5X10.5X1 | (1) |
| 11 | SK-3412000-SC | WOOD SCREW D=4.1 L=20 | (2) |
| 12 | WP-0450826-SC | WASHER 4.5X10X0.8 | (2) |
| 13 | 229-27354 | BOBBIN WINDER COMPL. | 1 |
| 14 | 229-28501 | THREAD TENSION POST BASE | (1) |
| 15 | SS-4110515-SP | SCREW 11/64-40 L=5 | (1) |
| 16 | 229-28907 | THREAD TENSION DISK | (2) |
| 17 | 229-29004 | THREAD TENSION SPRING | (1) |
| 18 | 229-28808 | NUT | (1) |
| 19 | SS-7110350-SP | SCREW 11/64-40 L=3.5 | (1) |
| 20 | 229-28402 | CONTROL RUBBER HOLDING PLATE | (1) |
| 21 | 229-28303 | CONTROL RUBBER | (1) |
| 22 | 229-28105 | BOBBIN PRESSER | (1) |
| 23 | SD-0490261-SP | HINGE SCREW D=4.9 H=2.6 | (1) |
| 24 | SS-7081310-SP | SCREW 1/8-44 L=12.5 | (1) |
| 25 | SS-8110510-SP | SCREW 11/64-40 L=5 | (1) |
| 26 | 229-28709 | THREAD TENSION POST | (1) |
| 27 | 229-27305 | BOBBIN WINDER BASE | (1) |
| 28 | 229-27404 | BOBBIN WINDER | (1) |
| 29 | 229-27602 | BOBBIN WINDER SPINDLE | (1) |
| 30 | SK-3412000-SC | WOOD SCREW D=4.1 L=20 | 2 |
| 31 | WP-0450826-SC | WASHER 4.5X10X0.8 | 2 |
Page 19 — 9. THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-30358 | THREAD STAND ASM. | 1 |
| 2 | 229-31109 | SPOOL RETAINER | (2) |
| 3 | 229-31000 | SPOOL PIN | (2) |
| 4 | 229-30903 | SPOOL REST CUSHION | (2) |
| 5 | 229-30804 | SPOOL REST | (2) |
| 6 | SM-6061610-SC | SCREW M6 L=16 | (2) |
| 7 | 229-30705 | THREAD GUIDE ARM JOINT | (2) |
| 8 | 229-31406 | SPOOL REST ROD RUBBER CAP | (1) |
| 9 | 229-30507 | SPOOL REST ARM | (2) |
| 10 | 229-30408 | SPOOL REST ROD, UPPER | (1) |
| 11 | 229-31307 | SPOOL REST ROD JOINT | (1) |
| 12 | SM-4051405-SE | SCREW M5 L=14 | (2) |
| 13 | NM-6050001-SE | NUT M5 | (2) |
| 14 | 229-30309 | SPOOL REST ROD, LOWER | (1) |
| 15 | 229-31208 | THREAD GUIDE | (2) |
| 16 | WS-0510002-KN | SPRING WASHER | (2) |
| 17 | NM-6050001-SE | NUT M5 | (2) |
| 18 | NM-6160511-SE | NUT M16X1.5 | (1) |
| 19 | WP-1612616-SE | WASHER 16X30X2.6 | (2) |
| 20 | WS-1643202-KR | SPRING WASHER | (1) |
Page 20 — 10. EXCLUSIVE PARTS FOR DDL-8700H
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 110-91659 | LINK THREAD TAKE-UP LEVER ASM. | 1 |
| 2 | 110-91600 | NEEDLE BAR CRANK H | (1) |
| 3 | B1114-012-000 | THREAD GUIDE PIN | 1 |
| 4 | 229-70206 | NEEDLE BAR | 1 |
| 5 | B1505-552-000-A | PRESSER SPRING | 1 |
| 6 | 229-62054 | THREAD TENSION ASM. | 1 |
| 7 | 229-62005 | THREAD TENSION SPRING | (1) |
| 8 | 229-62203 | FEED SPRING RACK | 1 |
| 9 | 110-91204 | ADJUST LINK SPRING | 1 |
| 10 | 229-70313 | NEEDLE BAR BUSHING ,LOWER | 1 |
| 11 | B1419-553-000 | NEEDLE BAR THREAD GUIDE | 1 |
| 12 | 110-91709 | POSITIONING FINGER | 1 |
| 13 | B1109-555-H0B | THROAT PLATE (H) | 1 |
| 14 | B1613-555-H00 | FEED DOG (H) | 1 |
| 15 | B1213-552-000-A | OIL ADJUSTING PIN | 1 |
| 16 | 110-92459 | LUBRICATING BOBBIN ASM. | 1 |
| 17 | SS-6080320-SP | SCREW 1/8-44 L= 2.5 | 1 |
| 18 | MC-2005013-00 | NEEDLE 134 NM130 | 1 |
| 19 | MDB-100B2100 | NEEDLE DBX1 #21 | 1 |
| 20 | D1524-555-EBL | PRESSER FOOT ASM. | 1 |
Page 21 — EXCLUSIVE PARTS FOR DDL-8700A
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-40506 | FEED DIAL | 1 |
| 2 | B1613-012-I00 | FEED DOG I | 1 |
| 3 | 229-64001 | BOBBIN (A) | 1 |
| 4 | B1109-552-000 | THROAT PLATE | 1 |
| 5 | 110-92558 | HAND LIFTER CAM ASM. | 1 |
| 6 | B1505-227-T00-A | PRESSER SPRING T | 1 |
| 7 | MDA-100B0900 | NEEDLE DAX1 #9 | 1 |
| 8 | 400-11503 | THREAD TENSION ASM. | 1 |
| 9 | D3128-555-D00 | TAKE-UP SPRING | (1) |
| 10 | 229-45307 | THREAD TENSION POST BASE | (1) |
| 11 | D3129-555-D00 | THREAD TENSION SPRING | (1) |
Page 23 — 12. EXCLUSIVE PARTS FOR DDL-8700L
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 110-62858 | LINK THREAD TAKE-UP LEVER ASM. | 1 |
| 2 | 110-62809 | NEEDLE BAR CRANK | (1) |
| 3 | 229-58300 | NEEDLE THREAD GUIDE PIN | 1 |
| 4 | 110-62007 | THROAT PLATE, A | 1 |
| 5 | 110-23504 | BELT COVER SUPPORT, A | 1 |
| 6 | D1524-126-WBA | PRESSER FOOT ASM. | 1 |
| 7 | 110-62601 | FEED DOG | 1 |
| 8 | 229-70206 | NEEDLE BAR | 1 |
| 9 | 229-70313 | NEEDLE BAR BUSHING ,LOWER | 1 |
| 10 | 229-70404 | NEEDLE BAR THREAD HOOK | 1 |
| 11 | MDB-100B2100 | NEEDLE DBX1 #21 | 1 |
| 12 | SS-6080320-SP | SCREW 1/8-44 L= 2.5 | 1 |
| 13 | B1505-552-000-A | PRESSER SPRING | 1 |
| 14 | 229-62054 | THREAD TENSION ASM. | 1 |
| 15 | 229-62005 | THREAD TENSION SPRING | (1) |
| 16 | 114-03805 | THREAD GUIDE C FITTING PLATE | 1 |
| 17 | WP-0371016-SD | WASHER 3.7X8X1 | 1 |
| 18 | NS-6090310-SP | NUT 9/64-40 | 1 |
| 19 | 113-05513 | ARM THREAD GUIDE, C | 1 |
| 20 | 229-70958 | FEED ADJUST LINK ASM. | 1 |
| 21 | 110-23603 | BELT COVER COLLAR | 2 |
| 22 | SS-7120640-SP | SCREW 3/16-28 L=6 | 1 |
| 23 | 229-70552 | FEED ECCENTRIC CAM ASM. | 1 |
| 24 | 229-70503 | FEED ECCENTRIC CAM L | (1) |
| 25 | 229-72806 | FEED ECCENTRIC CAM SETSCREW | (2) |
| 26 | 229-45455 | THREAD TENSION ASM. ,NO.1 | 1 |
| 27 | 229-45406 | THREAD TENSION POST | (1) |
| 28 | 229-45604 | THREAD TENSION GUIDE | (1) |
| 29 | 229-45802 | THREAD TENSION DISK | (2) |
| 30 | 229-45505 | THREAD TENSION SPRING | (1) |
| 31 | 229-45703 | THREAD TENSION NUT | (1) |
| 32 | 229-71550 | FEED LEVER ARM ASM. | 1 |
| 33 | SS-7121410-TP | SCREW 3/16-28 L=14 | (1) |
| 34 | 229-71105 | FEED REGULATOR ROD | 1 |
| 35 | 229-71204 | FEED REGULATOR BASE PIN | 1 |
| 36 | 229-71303 | FEED REGULATOR BASE | 1 |
| 37 | 229-71402 | FEED DIAL | 1 |
| 38 | 113-02619 | SPRING | 1 |
| 39 | 229-71709 | FEED REVERSE SPRING | 1 |
| 40 | 229-70602 | FEED SPRING HOOK | 1 |
| 41 | 229-70701 | HORIZONTAL FEED ROD | 1 |
| 42 | 229-70859 | HORIZONTAL FEED ARM ASM. | 1 |
| 43 | SS-6121610-SP | SCREW 3/16-28 L=15.5 | (1) |
| 44 | 229-72251 | VERTICAL FEED ARM ASM. | 1 |
| 45 | SS-6121610-SP | SCREW 3/16-28 L=15.5 | (1) |
| 46 | 229-70156 | HAND WHEEL ASM. | 1 |
| 47 | 229-70107 | HAND WHEEL | (1) |
| 48 | SS-8151550-SP | SCREW 15/64-28 L=15 | (2) |
| 49 | 110-62759 | OIL HOOK ASM. | 1 |
| 50 | 110-72907 | BELT COVER, A | 1 |
| 51 | 110-73004 | BELT COVER, B | 1 |
| 52 | SS-4701415-SD | SCREW | 2 |
Page 24 — 13. LIST FOR INFORMATION OF CHANGE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22 | 110-01500 | Parts No. 品 番 | |
| 47 | 229-01904 | Parts No. 品 番 | |
| 49 | 229-01607 | Parts No. 品 番 | |
| 19 | SS-6090650-SP | Parts No. 品 番 | |
| 39 | 229-16605 | Parts No. 品 番 | |
| 7 | 110-06509 | Parts No. 品 番 | |
| 23 | 110-18108 | Parts No. 品 番 | |
| 14 | SS-6090620-SP | Parts No. 品 番 | |
| 28 | 229-12703 | Parts No. 品 番 | |
| 52 | B1636-581-C00 | Parts No. 品 番 | |
| 3 | B9117-552-A00 | Parts No. 品 番 | |
| 22 | 229-21001 | Parts No. 品 番 | |
| 47 | 114-15205 | Parts No. 品 番 | |
| 19 | SS-4090615-SP | Parts No. 品 番 | |
| 39 | 110-15906 | Parts No. 品 番 | |
| 7 | 229-08701 | Parts No. 品 番 | |
| 23 | 229-20102 | Parts No. 品 番 | |
| 14 | SS-6090620-TP | Parts No. 品 番 | |
| 28 | 229-12752 | Parts No. 品 番 | |
| 52 | 229-14105 | Parts No. 品 番 | |
| 7 | 229-32156 | Parts No. 品 番 | |
| 10 | 229-32453 | Parts No. 品 番 | |
| 26 | B8228-125-000 | Parts No. 品 番 | |
| 3 | 229-64001 | Parts No. 品 番 |
Page 25 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 35 | B1109-552-000 | ||
| 4 | B1109-552-000 | ||
| 13 | B1109-555-H0B | ||
| 3 | B1114-012-000 | ||
| 15 | B1213-552-000-A | ||
| 26 | B1215-552-000 | ||
| 14 | B1305-012-0A0 | ||
| 16 | B1306-155-0A0 | ||
| 13 | B1306-155-0B0 | ||
| 12 | B1306-155-0C0 | ||
| 19 | B1307-155-0A0 | ||
| 18 | B1307-155-0B0 | ||
| 21 | B1308-155-0A0 | ||
| 8 | B1408-552-000 | ||
| 6 | B1414-555-000 | ||
| 11 | B1419-553-000 | ||
| 6 | B1505-227-T00-A | ||
| 5 | B1505-552-000-A | ||
| 13 | B1505-552-000-A | ||
| 20 | B1521-555-000 | ||
| 33 | B1524-012-0BA | ||
| 59 | B1613-012-A00 | ||
| 2 | B1613-012-100 | ||
| 14 | B1613-012-100 | ||
| 24 | B1613-555-H00 | ||
| 42 | B1830-127-0A0 | ||
| 9 | B1837-012-0A0 | ||
| 6 | B1903-552-000 | ||
| 26 | B1905-541-B00 | ||
| 48 | B8228-125-000 | ||
| 51 | CM-3002000-01 | ||
| 10 | CM-3002001-A1 | ||
| 6 | CQ-2520000-00 | ||
| 20 | D1524-126-WBA | ||
| 9 | D1524-555-EBL | ||
| 11 | D3128-555-D00 | ||
| 34 | D3129-555-D00 | ||
| 18 | MC-2005009-00 | ||
| 7 | MC-2005013-00 | ||
| 11 | MDA-100B0900 | ||
| 19 | MDB-100B1400 | ||
| 13 | MDB-100B2100 | ||
| 17 | MDB-100B2100 | ||
| 9 | NM-6050001-SE | ||
| 18 | NM-6050001-SE | ||
| 18 | NM-6060001-SE | ||
| 42 | NM-6160511-SE | ||
| 32 | NS-6090310-SP | ||
| 54 | NS-6680410-SP | ||
| 22 | RC-0150001-KP | ||
| 9 | RC-0150001-KP | ||
| 17 | RC-1850001-KP | ||
| 31 | RE-0500000-K0 | ||
| 33 | RE-0500000-K0 | ||
| 18 | RE-0500000-K0 | ||
| 21 | RE-0500000-K0 | ||
| 33 | RE-0500000-K0 | ||
| 3 | RE-1000000-K0 | ||
| 10 | RO-0291801-00 | ||
| 63 | RO-0371801-00 | ||
| 16 | RO-0442401-00 | ||
| 6 | RO-0781901-00 | ||
| 2 | RO-0922702-00 | ||
| 16 | RO-1082401-00 | ||
| 23 | RO-1952401-00 | ||
| 13 | SD-0380552-SL | ||
| 47 | SD-0490261-SP | ||
| 21 | SD-0720331-SP | ||
| 11 | SD-1000801-SH | ||
| 30 | SE-4301041-SR | ||
| 18 | SK-3412000-SC | ||
| 12 | SK-3412000-SC | ||
| 6 | SL-4030851-SF | ||
| 30 | SM-4051405-SE | ||
| 10 | SM-6061610-SC | ||
| 24 | SM-8061010-TP | ||
| 16 | SM-8063012-TR | ||
| 34 | SM-9061203-SE | ||
| 19 | SM-9061853-SR | ||
| 37 | SS-4080620-TP | ||
| 33 | SS-4090615-SP | ||
| 19 | SS-4110515-SP | ||
| 20 | SS-4110915-TP | ||
| 6 | SS-4120615-SP | ||
| 7 | SS-4120615-SP | ||
| 28 | SS-4120915-SP | ||
| 9 | SS-4120915-SP | ||
| 4 | SS-4120915-SP | ||
| 13 | SS-4120915-SP | ||
| 52 | SS-4121415-SP | ||
| 44 | SS-4150915-SP | ||
| 17 | SS-4150915-SP | ||
| 12 | SS-4701415-SD | ||
| 3 | SS-6060210-SP | ||
| 14 | SS-6080320-SP | ||
| 41 | SS-6080320-SP | ||
| 67 | SS-6080410-SP | ||
| 5 | SS-6090620-TP | ||
| 3 | SS-6090620-TP | ||
| 11 | SS-6090670-TP | ||
| 30 | SS-6090670-TP | ||
| 38 | SS-6090910-SP | ||
| 28 | SS-6110610-TP | ||
| 43 | SS-6111010-TP | ||
| 45 | SS-6121610-SP | ||
| 11 | SS-6121610-SP | ||
| 17 | SS-6121860-SP | ||
| 5 | SS-6661110-SP | ||
| 9 | SS-6700710-SH | ||
| 24 | SS-7080510-TP | ||
| 8 | SS-7081310-SP | ||
| 19 | SS-7091110-TP | ||
| 50 | SS-7110350-SP | ||
| 53 | SS-7110540-SP | ||
| 69 | SS-7110740-TP | ||
| 22 | SS-7111120-SP | ||
| 6 | SS-7120640-SP | ||
| 44 | SS-7120770-SH | ||
| 56 | SS-7121410-TP | ||
| 33 | SS-7121410-TP | ||
| 46 | SS-7121610-SP | ||
| 14 | SS-7681650-TP | ||
| 32 | SS-8090670-SP | ||
| 37 | SS-8110410-TP | ||
| 25 | SS-8110510-SP | ||
| 33 | SS-8150710-TP | ||
| 66 | SS-8150710-TP | ||
| 1 | SS-8151150-TP | ||
| 30 | SS-8151550-SP | ||
| 48 | SS-8151550-SP | ||
| 12 | SS-8660610-TP | ||
| 24 | SS-8660610-TP | ||
| 50 | SS-8660610-TP | ||
| 62 | SS-8660610-TP | ||
| 15 | SS-8660810-TP | ||
| 17 | SS-8660810-TP | ||
| 20 | SS-8660810-TP | ||
| 10 | SS-8660810-TP | ||
| 11 | SS-8681650-TP | ||
| 5 | TA-0850604-R0 | ||
| 39 | TA-1250406-R0 | ||
| 10 | TA-1250705-R0 | ||
| 11 | TA-2000502-R0 | ||
| 17 | TA-2101002-R0 | ||
| 12 | WP-0371016-SD | ||
| 31 | WP-0450826-SC | ||
| 57 | WP-0480656-SP | ||
| 10 | WP-0501016-SD | ||
| 19 | WS-1612616-SE | ||
| 16 | WS-0510002-KN | ||
| 20 | WS-1643202-KR | ||
| 9 | 110-00619 | ||
| 21 | 110-02508 | ||
| 28 | 110-02904 | ||
| 7 | 110-05204 | ||
| 10 | 110-10311 | ||
| 17 | 110-15906 | ||
| 39 | 110-23504 | ||
| 5 | 110-23603 | ||
| 21 | 110-28008 | ||
| 46 | 110-39062 | ||
| 4 | 110-39070 | ||
| 7 | 110-62007 | ||
| 49 | 110-62601 | ||
| 1 | 110-62759 | ||
| 50 | 110-62809 | ||
| 51 | 110-62858 | ||
| 9 | 110-72907 | ||
| 1 | 110-73004 | ||
| 12 | 110-91204 | ||
| 16 | 110-91659 | ||
| 5 | 110-91709 | ||
| 38 | 110-92459 | ||
| 19 | 110-92558 | ||
| 16 | 113-02619 | ||
| 47 | 113-05513 | ||
| 8 | 114-03805 | ||
| 18 | 114-15205 | ||
| 4 | 229-00401 | ||
| 45 | 229-00609 | ||
| 42 | 229-00757 | ||
| 41 | 229-01003 | ||
| 43 | 229-01201 | ||
| 1 | 229-01250 | ||
| 52 | 229-01300 | ||
| 1 | 229-01409 | ||
| 49 | 229-01805 | ||
| 31 | 229-02159 | ||
| 15 | 229-02209 | ||
| 10 | 229-02605 | ||
| 25 | 229-03009 | ||
| 27 | 229-03108 | ||
| 32 | 229-03157 | ||
| 23 | 229-03207 | ||
| 49 | 229-03306 | ||
| 61 | 229-03405 | ||
| 23 | 229-03900 | ||
| 25 | 229-04155 | ||
| 26 | 229-04155 | ||
| 3 | 229-04155 | ||
| 2 | 229-05004 | ||
| 8 | 229-05103 | ||
| 10 | 229-05202 | ||
| 4 | 229-06002 | ||
| 229-06200 | 229-06101 | ||
| 43 | 229-06309 | ||
| 5 | 229-06457 | ||
| 28 | 229-06705 | ||
| 6 | 229-07000 | ||
| 27 | 229-07208 | ||
| 26 | 229-07307 | ||
| 24 | 229-07406 | ||
| 25 | 229-07505 | ||
| 35 | 229-07554 | ||
| 1 | 229-07604 | ||
| 32 | 229-07703 | ||
| 30 | 229-07802 | ||
| 31 | 229-08008 | ||
| 29 | 229-08156 | ||
| 4 | 229-08305 | ||
| 7 | 229-08354 | ||
| 14 | 229-08552 | ||
| 12 | 229-08701 | ||
| 15 | 229-08800 | ||
| 18 | 229-08909 | ||
| 16 | 229-09006 | ||
| 34 | 229-10004 | ||
| 12 | 229-10053 | ||
| 43 | 229-10103 | ||
| 27 | 229-10202 | ||
| 26 | 229-10350 | ||
| 25 | 229-10459 | ||
| 23 | 229-10608 | ||
| 24 | 229-10707 | ||
| 40 | 229-10806 | ||
| 13 | 229-10905 | ||
| 22 | 229-11002 | ||
| 1 | 229-11101 | ||
| 2 | 229-11309 | ||
| 4 | 229-11408 | ||
| 5 | 229-11507 | ||
| 7 | 229-11606 | ||
| 10 | 229-11705 | ||
| 9 | 229-11804 | ||
| 8 | 229-11903 | ||
| 19 | 229-12000 | ||
| 20 | 229-12109 | ||
| 64 | 229-12257 | ||
| 28 | 229-12505 | ||
| 65 | 229-12604 | ||
| 39 | 229-12752 | ||
| 51 | 229-12802 | ||
| 60 | 229-12901 | ||
| 38 | 229-13008 | ||
| 58 | 229-13008 | ||
| 52 | 229-13701 | ||
| 15 | 229-13800 | ||
| 45 | 229-14105 | ||
| 48 | 229-15003 | ||
| 68 | 229-15151 | ||
| 31 | 229-15201 | ||
| 35 | 229-15359 | ||
| 27 | 229-16001 | ||
| 32 | 229-16100 | ||
| 40 | 229-16308 | ||
| 38 | 229-16407 | ||
| 36 | 229-16506 | ||
| 29 | 229-16555 | ||
| 3 | 229-17058 | ||
| 2 | 229-17157 | ||
| 22 | 229-19203 | ||
| 18 | 229-19559 | ||
| 21 | 229-20003 | ||
| 19 | 229-20102 | ||
| 21 | 229-20201 | ||
| 37 | 229-20300 | ||
| 17 | 229-20409 | ||
| 7 | 229-20508 | ||
| 34 | 229-20607 | ||
| 22 | 229-20706 | ||
| 43 | 229-20805 | ||
| 5 | 229-20904 | ||
| 28 | 229-21001 |
Page 26 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 29 | 229-21209 | ||
| 24 | 229-21308 | ||
| 25 | 229-21407 | ||
| 28 | 229-21506 | ||
| 30 | 229-21605 | ||
| 26 | 229-21704 | ||
| 27 | 229-21803 | ||
| 17 | 229-22056 | ||
| 19 | 229-23007 | ||
| 16 | 229-23056 | ||
| 22 | 229-23205 | ||
| 17 | 229-23304 | ||
| 24 | 229-23403 | ||
| 26 | 229-23502 | ||
| 25 | 229-23601 | ||
| 20 | 229-23700 | ||
| 23 | 229-23809 | ||
| 27 | 229-23908 | ||
| 29 | 229-24005 | ||
| 8 | 229-24153 | ||
| 9 | 229-24302 | ||
| 3 | 229-24401 | ||
| 11 | 229-24500 | ||
| 5 | 229-24609 | ||
| 1 | 229-24708 | ||
| 12 | 229-24807 | ||
| 14 | 229-24906 | ||
| 15 | 229-25002 | ||
| 7 | 229-25101 | ||
| 29 | 229-27206 | ||
| 27 | 229-27305 | ||
| 13 | 229-27354 | ||
| 28 | 229-27404 | ||
| 29 | 229-27602 | ||
| 22 | 229-28105 | ||
| 21 | 229-28303 | ||
| 20 | 229-28402 | ||
| 14 | 229-28501 | ||
| 26 | 229-28709 | ||
| 18 | 229-28808 | ||
| 16 | 229-28907 | ||
| 17 | 229-29004 | ||
| 14 | 229-30309 | ||
| 1 | 229-30358 | ||
| 10 | 229-30408 | ||
| 9 | 229-30507 | ||
| 7 | 229-30705 | ||
| 5 | 229-30804 | ||
| 4 | 229-30903 | ||
| 3 | 229-31000 | ||
| 2 | 229-31109 | ||
| 15 | 229-31208 | ||
| 11 | 229-31307 | ||
| 8 | 229-31406 | ||
| 25 | 229-31703 | ||
| 2 | 229-31802 | ||
| 1 | 229-31851 | ||
| 3 | 229-31901 | ||
| 4 | 229-32008 | ||
| 8 | 229-32107 | ||
| 7 | 229-32156 | ||
| 11 | 229-32206 | ||
| 17 | 229-32305 | ||
| 14 | 229-32404 | ||
| 13 | 229-32453 | ||
| 13 | 229-32503 | ||
| 12 | 229-32552 | ||
| 14 | 229-32602 | ||
| 15 | 229-32701 | ||
| 41 | 229-32909 | ||
| 2 | 229-33402 | ||
| 1 | 229-33451 | ||
| 3 | 229-33501 | ||
| 5 | 229-33600 | ||
| 4 | 229-33659 | ||
| 6 | 229-33758 | ||
| 7 | 229-33907 | ||
| 8 | 229-34004 | ||
| 22 | 229-34202 | ||
| 18 | 229-34251 | ||
| 23 | 229-34301 | ||
| 21 | 229-34400 | ||
| 19 | 229-34509 | ||
| 20 | 229-34608 | ||
| 15 | 229-34707 | ||
| 1 | 229-40506 | ||
| 55 | 229-40654 | ||
| 31 | 229-40803 | ||
| 36 | 229-41306 | ||
| 31 | 229-45307 | ||
| 10 | 229-45356 | ||
| 27 | 229-45406 | ||
| 26 | 229-45455 | ||
| 30 | 229-45505 | ||
| 28 | 229-45604 | ||
| 31 | 229-45703 | ||
| 29 | 229-45802 | ||
| 3 | 229-58300 | ||
| 7 | 229-62005 | ||
| 15 | 229-62005 | ||
| 6 | 229-62054 | ||
| 14 | 229-62054 | ||
| 8 | 229-62203 | ||
| 3 | 229-64001 | ||
| 47 | 229-70107 | ||
| 46 | 229-70156 | ||
| 4 | 229-70206 | ||
| 8 | 229-70206 | ||
| 10 | 229-70313 | ||
| 9 | 229-70313 | ||
| 10 | 229-70404 | ||
| 24 | 229-70503 | ||
| 23 | 229-70552 | ||
| 40 | 229-70602 | ||
| 41 | 229-70701 | ||
| 42 | 229-70859 | ||
| 20 | 229-70958 | ||
| 34 | 229-71105 | ||
| 35 | 229-71204 | ||
| 36 | 229-71303 | ||
| 37 | 229-71402 | ||
| 32 | 229-71550 | ||
| 39 | 229-71709 | ||
| 35 | 229-71857 | ||
| 44 | 229-72251 | ||
| 25 | 229-72806 | ||
| 44 | 400-10007 | ||
| 8 | 400-11503 | ||
| 45 | 400-12444 | ||
| 16 | 400-14007 |
Juki DDL-8700 — parts catalog
- Page 1 (cover): This is the cover page for the JUKI DDL-8700 Series High-speed, 1-Needle, Lockstitch Industrial Sewing Machine Parts List.
- Page 2 (text): This page provides an explanation of codes and symbols used in the parts list, including how to interpret marks, quantity column codes, parentheses, and dotted lines in diagrams.
- Page 3 (toc): This page is a table of contents for a parts catalog, listing various components and their corresponding page numbers, including machine frame, main shaft, needle bar, hand lifter, feed mechanism, oil lubrication, oil reservoir, belt cover, thread stand, and exclusive parts for different DDL-8700 models.
- Page 4 (diagram): This page illustrates the machine frame and miscellaneous cover components with a detailed exploded view and corresponding reference numbers.
- Page 5 (parts_list): This page lists various parts including face plates, screws, rubber plugs, thread guides, and tension components, with their part numbers, descriptions, and quantities.
- Page 6 (diagram): This page illustrates the main shaft and thread-up lever components with a detailed diagram.
- Page 7 (parts_list): This page lists various parts including screws, shafts, rubbers, bearings, and bushings, with their part numbers, descriptions, and quantities.
- Page 8 (diagram): This page illustrates the components of the needle bar, upright shaft, and hook driving shaft, showing various parts and their assembly.
- Page 9 (parts_list): This page lists parts for a sewing machine, including needle bar components, gears, pinions, shafts, and various screws, with corresponding part numbers, descriptions, and quantities.
- Page 10 (diagram): This page illustrates the components of the hand lifter assembly, showing an exploded view of various parts such as screws, pins, levers, springs, and other related hardware.
- Page 11 (parts_list): This page lists various parts for a sewing machine, including hand lifters, screws, rings, presser bars, and springs, with their part numbers, descriptions, and quantities.
- Page 12 (diagram): This page illustrates the components of the feed mechanism for an industrial sewing machine, showing various parts and their interconnections.
- Page 13 (parts_list): This page lists parts for a sewing machine, including feed regulators, connecting rods, springs, and various screws, with their corresponding part numbers, descriptions, and quantities.
- Page 14 (diagram): This page displays a diagram of oil lubrication components for an industrial sewing machine.
- Page 15 (parts_list): This page is a parts list detailing various components related to the oiling system and pump body, including part numbers, descriptions, and quantities.
- Page 16 (diagram): This page illustrates the components of the oil reservoir for an industrial sewing machine, showing various parts such as the oil pan, oil gauge, and related fittings.
- Page 17 (parts_list): This page lists parts related to the oil reservoir, knee lifter, and knee pad components, including part numbers, descriptions, and quantities.
- Page 18 (diagram): This page illustrates and lists parts for the belt cover and bobbin components of a sewing machine.
- Page 19 (diagram): This page illustrates the components of a thread stand assembly, including various parts like the spool retainer, spool pin, spool rest, and associated hardware, with a corresponding parts list.
- Page 20 (parts_list): This page lists exclusive parts for the DDL-8700H sewing machine, including various links, needles, springs, plates, and screws, with their corresponding part numbers, descriptions, and quantities.
- Page 21 (diagram): This page displays an exploded diagram and a parts list for exclusive components of the DDL-8700A sewing machine, including feed dial, feed dog, bobbin, throat plate, hand lifter cam, presser spring, needle, thread tension assembly, take-up spring, thread tension post base, and thread tension spring.
- Page 22 (diagram): This page displays an exploded diagram of exclusive parts for the DDL-8700L sewing machine, showing various components with their corresponding reference numbers.
- Page 23 (parts_list): This page lists various parts for a sewing machine, including components for the link thread take-up lever, needle bar, feed mechanism, and belt covers.
- Page 24 (parts_list): This page provides a list of changes, including added, obsoleted, and erratum parts, with their corresponding revision numbers, page references, and part numbers.
- Page 25 (index): This page is a numerical index of parts, listing part numbers, their corresponding page numbers, and reference numbers.
- Page 26 (index): This page provides a numerical index of parts, listing part numbers along with their corresponding page and reference numbers.
- Page 27 (unknown): This page is blank except for a watermark and a footer.
- Page 28 (cover): This page contains contact information for JUKI Corporation and JUKI 株式会社, along with copyright details and notes regarding the parts list.
