Jack E4S Parts Book (PDF)
Text index — Jack E4S

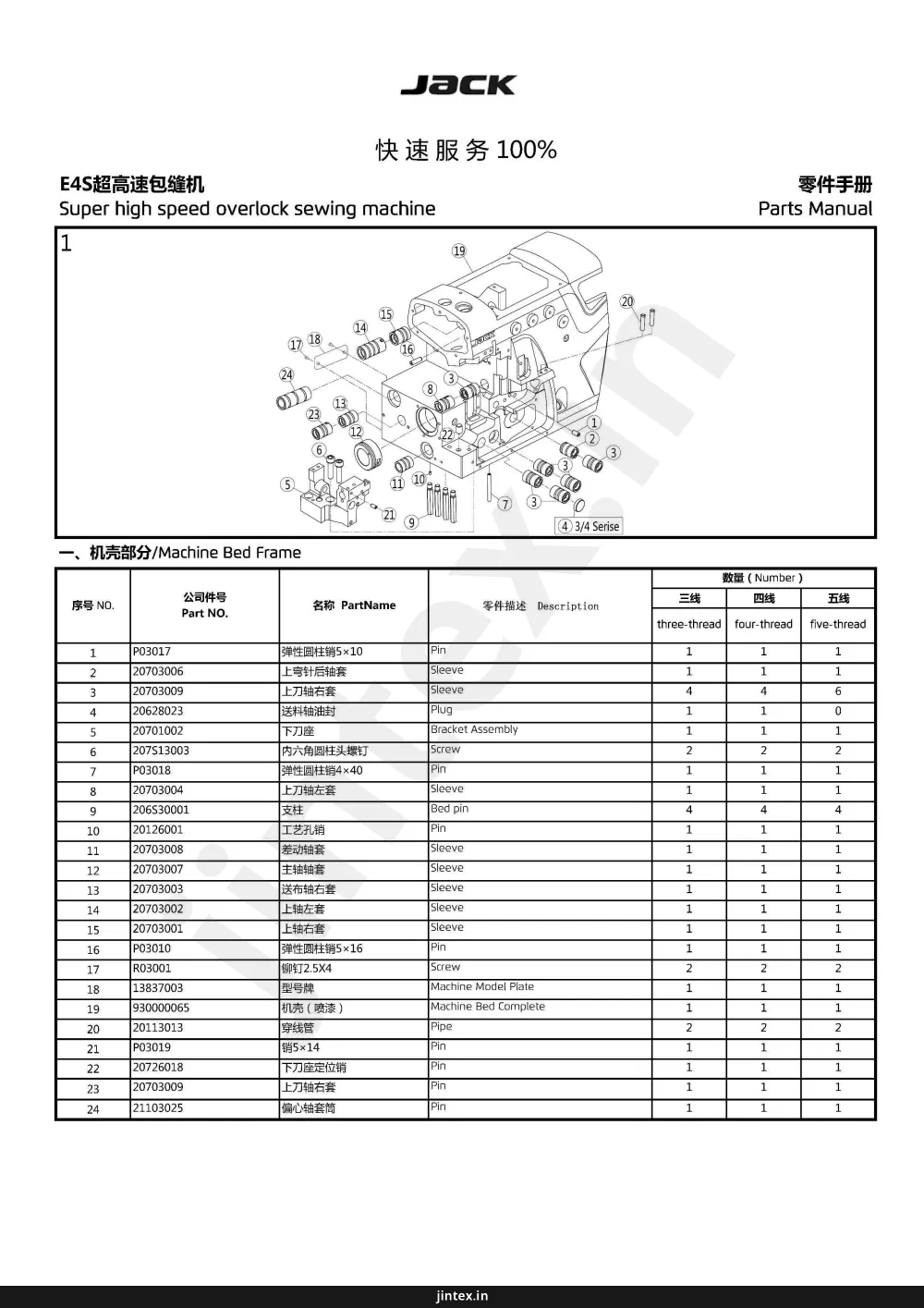

Page 1 — 一、机壳部分/Machine Bed Frame
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | P03017 | Pin | 1 / 1 / 1 |
| 2 | 20703006 | Sleeve | 1 / 1 / 1 |
| 3 | 20703009 | Sleeve | 4 / 4 / 6 |
| 4 | 20628023 | Plug | 1 / 1 / 0 |
| 5 | 20701002 | Bracket Assembly | 1 / 1 / 1 |
| 6 | 207S13003 | Screw | 2 / 2 / 2 |
| 7 | P03018 | Pin | 1 / 1 / 1 |
| 8 | 20703004 | Sleeve | 1 / 1 / 1 |
| 9 | 206S30001 | Bed pin | 4 / 4 / 4 |
| 10 | 20126001 | Pin | 1 / 1 / 1 |
| 11 | 20703008 | Sleeve | 1 / 1 / 1 |
| 12 | 20703007 | Sleeve | 1 / 1 / 1 |
| 13 | 20703003 | Sleeve | 1 / 1 / 1 |
| 14 | 20703002 | Sleeve | 1 / 1 / 1 |
| 15 | 20703001 | Sleeve | 1 / 1 / 1 |
| 16 | P03010 | Pin | 1 / 1 / 1 |
| 17 | R03001 | Screw | 2 / 2 / 2 |
| 18 | 13837003 | Machine Model Plate | 1 / 1 / 1 |
| 19 | 930000065 | Machine Bed Complete | 1 / 1 / 1 |
| 20 | 20113013 | Pipe | 2 / 2 / 2 |
| 21 | P03019 | Pin | 1 / 1 / 1 |
| 22 | 20726018 | Pin | 1 / 1 / 1 |
| 23 | 20703009 | Pin | 1 / 1 / 1 |
| 24 | 21103025 | Pin | 1 / 1 / 1 |
Page 2 — 二、机壳机罩部件(1)/Cover(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 207S17005 | 开槽沉头螺钉M4×8 | ||
| 302782 | |||
| 13837002 | |||
| S04060 | 十字槽盘头螺钉M4×10 | ||
| 20711210 | R型线夹 | ||
| 20612062 | |||
| 2123000300 | LED灯组件 | ||
| 21022007 | |||
| 21012018 | |||
| 21112001 | |||
| 207S11026 | 螺钉M6 | ||
| 20711055 | |||
| 21022003 | |||
| S04019 | 十字槽盘头螺钉M4×12 | ||
| 302706 | |||
| 121230002 | |||
| 20612004 | |||
| 207S11011 | |||
| 20712003 | |||
| 207S11008 | |||
| 20712002 | |||
| 413S11011 | |||
| 20626001 | |||
| 20712005 | |||
| 207S14003 | |||
| 207S14002 | |||
| XXXXXXXX | |||
| XXXXXXXX | |||
| S09103 | 内六角平端紧定螺钉M4×4 | ||
| 302780 | |||
| 20701006 | |||
| 20627001 | |||
| 207S11011 | |||
| 21112011 | |||
| 21112009 | |||
| 21222001 | |||
| 207S11007 | |||
| 30228009 | |||
| 207S13006 |
Page 3 — 三、机壳机罩部件(2)/Cover(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | L02003 | Screw | 1/1/1 |
| 2 | 207S12001 | Screw | 4/4/4 |
| 3 | 21101001 | Bed Cover Plate Assy. | 1/1/1 |
| 4 | S04060 | Screw | 4/4/4 |
| 5 | 2111202100 | Cover Plate | 1/1/1 |
| 6 | 207S20002 | Screw | 1/1/1 |
| 7 | 20128015 | Washer | 1/1/1 |
| 8 | 21212008 | Bracket | 1/1/1 |
| 9 | 21111051 | Eye Guide | 1/1/1 |
| 10 | W01011 | Washer | 2/2/2 |
| 11 | 207S11015 | Screw | 2/2/2 |
| 12 | 20712008 | Plate | 1/1/1 |
| 13 | 207S17003 | Screw | 2/2/2 |
| 14 | 20612016 | Latch | 1/1/1 |
| 15 | 207S11014 | Screw | 1/1/1 |
| 16 | 207S11016 | Screw | 1/1/1 |
| 17 | N01001 | Nut | 1/1/1 |
| 18 | 20712022 | Piate | 1/1/1 |
| 19 | 207S11007 | Screw | 3/3/3 |
| 20 | 20722016 | Cushion | 1/1/1 |
| 21 | 21212018 | Fabric Guide | 1/1/1 |
| 22 | 2121201300 | Cloth Plate | 1/1/1 |
| 23 | 20612019 | Bracket | 1/1/1 |
| 24 | 20622003 | Cushion Rubber | 2/2/2 |
| 25 | 20627002 | Lever | 1/1/1 |
| 26 | 20627003 | Spring | 1/1/1 |
| 27 | 206S20006 | Screw | 1/1/1 |
| 28 | 207S14007 | Screw | 1/1/1 |
| 29 | 20603016 | Bushing | 1/1/1 |
| 30 | 20628022 | Washer | 1/1/1 |
| 31 | 206S20004 | Screw | 1/1/1 |
| 32 | 21111060 | Side Cover(Wide) | 1/1/1 |
| 33 | 20528017 | Washer | 2/2/2 |
| 34 | 207S11013 | Screw | 1/1/1 |
| 35 | 403S11051 | Screw | 2/2/2 |
Page 4 — 四、主轴部件/Crankshaft Drive Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 207S11007 | Screw | 3 / 3 / 0 |
| 2 | 20712013 | Cover | 1 / 1 / 0 |
| 3 | 20722027 | O Ring | 1 / 1 / 1 |
| 4 | 207S11041 | Screw | 1 / 1 / 1 |
| 5 | 207S11042 | Screw | 1 / 1 / 1 |
| 6 | 001037 | O Ring | 2 / 2 / 2 |
| 7 | B04004 | Ball Bearing | 1 / 1 / 1 |
| 8 | 20725001 | Ratchet | 1 / 1 / 1 |
| 9 | 207S11047 | Screw | 1 / 1 / 0 |
| 10 | 20726002 | Pin | 1 / 1 / 1 |
| 11 | 20709035 | Blance Weight | 2 / 2 / 2 |
| 12 | 207S11017 | Screw | 4 / 4 / 4 |
| 13 | 20729001 | Ring | 1 / 1 / 1 |
| 14 | 21102025 | Crankshaft | 1 / 1 / 1 |
| 15 | 21102026 | Crankshaft | 0 / 1 / 0 |
| 16 | 21102027 | Crankshaft | 0 / 0 / 1 |
| 17 | B01005 | Ball Bearing | 2 / 2 / 2 |
| 18 | 20708020 | Spacer | 1 / 1 / 1 |
| 19 | 20725008 | Worm | 1 / 1 / 1 |
| 20 | 21203003 | Oil Seal | 1 / 1 / 1 |
| 21 | W03003 | Washer | 1 / 1 / 1 |
| 22 | 21222003 | O Ring | 1 / 1 / 1 |
| 23 | 20722027 | O Ring | 1 / 1 / 1 |
| 24 | 20708015 | Rigth Cover | 1 / 1 / 1 |
| 25 | S04060 | O Ring | 3 / 3 / 4 |
| 26 | 121233001 | Direct drive moter | 1 / 1 / 1 |
| 27 | 21228002 | Sleeve | 1 / 1 / 1 |
| 28 | W03002 | Washer | 4 / 4 / 4 |
| 29 | 114S13001 | Screw | 4 / 4 / 4 |
| 30 | 21203004 | Sleeve | 1 / 1 / 1 |
| 31 | W02004 | Washer | 1 / 1 / 1 |
| 32 | 20602002 | Pin | 0 / 0 / 1 |
| 33 | 207S13003 | Screw | 1 / 1 / 1 |
| 34 | 207S17005 | Screw | 0 / 0 / 2 |
| 35 | 20712046 | Pin | 0 / 0 / 1 |
| 36 | 930000980 | Hand Wheel | 1 / 1 / 1 |
Page 5 — 五、夹线部件/Thread Tension Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2111300500 | Tension Spring Assembly | 1 / 1 / 1 (three/four/five-thr |
| 2 | 121113014 | Screw Stud | 6 / 8 / 8 (three/four/five-thr |
| 3 | 20123018 | Felt | 3 / 4 / 4 (three/four/five-thr |
| 4 | 21311161 | Tension Disc | 6 / 8 / 8 (three/four/five-thr |
| 5 | 20111015 | Cup | 3 / 4 / 4 (three/four/five-thr |
| 6 | 20227001 | Spring | 1 / 2 / 2 (three/four/five-thr |
| 7 | 20111014 | Rachet | 3 / 4 / 4 (three/four/five-thr |
| 8 | 20101082 | Knob | 3 / 4 / 4 (three/four/five-thr |
| 9 | 2111300600 | Tension Spring Assembly | 1 / 1 / 1 (three/four/five-thr |
| 10 | 20227002 | Spring | 1 / 1 / 1 (three/four/five-thr |
| 11 | 2111300700 | Tension Spring Assembly | 1 / 1 / 1 (three/four/five-thr |
| 12 | 20227003 | Spring | 1 / 1 / 1 (three/four/five-thr |
| 13 | 21113003 | Tension Guide | 2 / 3 / 3 (three/four/five-thr |
| 14 | 2111300800 | Tension Spring Assembly | 0 / 1 / 1 (three/four/five-thr |
| 15 | 206S11005 | Screw | 1 / 0 / 0 (three/four/five-thr |
| 16 | 20712032 | Thread Guide | 1 / 1 / 1 (three/four/five-thr |
| 17 | 207S11007 | Screw | 2 / 2 / 2 (three/four/five-thr |
| 18 | 21213011 | Thread Guide | 1 / 1 / 1 (three/four/five-thr |
| 1 | 21101012 | Bracket | 0 / 0 / 1 (three/four/five-thr |
| 2 | 207S11019 | Screw | 0 / 0 / 2 (three/four/five-thr |
| 3 | S09103 | Screw | 0 / 0 / 2 (three/four/five-thr |
| 4 | 20701030 | Bracket | 0 / 0 / 1 (three/four/five-thr |
| 5 | 207S11011 | Screw | 0 / 0 / 3 (three/four/five-thr |
| 6 | 2111301000 | Thread Guide | 0 / 0 / 1 (three/four/five-thr |
| 7 | 21213007 | Thread Guide | 0 / 0 / 1 (three/four/five-thr |
| 8 | 21213010 | Thread Guide | 0 / 0 / 1 (three/four/five-thr |
| 9 | 20713021 | Thread Guide | 0 / 0 / 1 (three/four/five-thr |
| 10 | 21213004 | Thread Guide | 0 / 0 / 1 (three/four/five-thr |
| 11 | 20713006 | Bracket | 0 / 0 / 1 (three/four/five-thr |
Page 6 — 七、过线机构(2)/Thread Guide and Thread Takeup(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 12 | 20713007 | Thread Retainer | 0 / 0 / 1 |
| 13 | 20727002 | Spring | 0 / 0 / 1 |
| 14 | 207S20003 | Screw | 0 / 0 / 1 |
| 15 | 207S11015 | Screw | 0 / 0 / 2 |
| 16 | 21213008 | Thread Takeup | 0 / 0 / 1 |
| 17 | 121213001 | Thread Takeup | 0 / 0 / 1 |
| 1 | 21212029 | Bracket | 1 / 1 / 0 |
| 2 | 207S11019 | Screw | 2 / 2 / 0 |
| 3 | S09103 | Screw | 1 / 1 / 0 |
| 4 | 20713002 | Thread Guide | 1 / 0 / 0 |
| 5 | 20713003 | Thread Guide | 0 / 1 / 0 |
| 6 | 21213003 | Thread Guide | 1 / 0 / 0 |
| 7 | 21213002 | Thread Guide | 0 / 1 / 0 |
| 8 | 20713006 | Bracket | 1 / 1 / 0 |
| 9 | 20713007 | Thread Retainer | 1 / 1 / 0 |
| 10 | 20727002 | Spring | 1 / 1 / 0 |
| 11 | 207S20003 | Screw | 1 / 1 / 0 |
| 12 | 207S11015 | Screw | 2 / 2 / 0 |
| 13 | 21213009 | Thread Takeup | 1 / 0 / 0 |
| 14 | 21213013 | Thread Takeup | 0 / 1 / 0 |
Page 7 — 九、 针杆部件(1)/Needle Drive Mechanism(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20713054 | Thread Guide | 1/1/1 |
| 2 | 20713053 | Thread Guide | 0/0/1 |
| 3 | 20713012 | Thread Guide | 1/1/0 |
| 4 | 20113015 | Thread Guide | 3/3/3 |
| 5 | 20712016 | Bracket | 1/1/1 |
| 6 | W01011 | Washer | 3/3/3 |
| 7 | 201S11006 | Screw | 3/3/3 |
| 8 | 207S11007 | Screw | 1/1/1 |
| 9 | 207S11020 | Screw | 1/1/1 |
| 10 | 20713011 | Thread Guide | 1/1/1 |
| 11 | 20713010 | Thread Takeup | 1/1/1 |
| 12 | 207S11021 | Screw | 1/1/1 |
| 13 | 20713015 | Thread Takeup | 1/1/0 |
| 14 | 20713055 | Thread Takeup | 0/0/1 |
| 1 | 121205003 | Connection | 1/1/1 |
| 2 | S22007 | Screw | 2/2/2 |
| 3 | 207S14007 | Screw | 1/1/1 |
| 4 | H05008 | Ring | 1/1/1 |
| 5 | 20628014 | Washer | 1/1/1 |
| 6 | 207S14001 | Screw | 2/2/2 |
| 7 | 20708004 | Collar | 1/1/1 |
| 8 | 20626003 | Pin | 1/1/1 |
| 9 | S05018 | Screw | 1/1/1 |
| 10 | 20704037 | Crank | 1/1/1 |
| 11 | 20702002 | Shaft | 1/1/1 |
| 12 | 21111040 | Plug | 1/1/1 |
| 13 | 207S11043 | Screw | 1/1/1 |
| 14 | 20704002 | Lever | 1/1/1 |
| 15 | 2120200100 | Needle Bar Assembly | 1/1/1 |
| 16 | 20702003 | Needle Bar | 1/1/1 |
| 17 | 20726003 | Shaft | 1/1/1 |
| 18 | 20523005 | Oil wick | 0.033/0.033/0.033 |
| 19 | 21203001 | Bushing | 1/1/1 |
| 20 | 207S14008 | Screw | 1/1/1 |
| 21 | 001026 | O Ring | 1/1/1 |
| 22 | 20723003 | Oil Felt | 1/1/1 |
| 23 | 207S11023 | Screw | 1/1/1 |
| 24 | 20708031 | Ring | 1/1/1 |
| 20113006 | |||
| 201511006 | |||
| 207511007 | |||
| 207511020 | |||
| 207511021 | 开槽圆柱头螺钉M3.5×6 |
Page 8 — 十、针杆部件(2)/Needle Drive Mechanism(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20734003 | Needle Holder Assembly | 0/0/1 |
| 2 | 20734004 | Needle Holder Assembly | 0/0/1 |
| 3 | 20719056 | Needle Holder Assembly | 0/0/1 |
| 4 | 207S14014 | Screw | 1/2/2 |
| 5 | 20713017 | Thread Guide | 0/0/1 |
| 6 | 20713056 | Thread Guide | 0/0/1 |
| 7 | 207S11024 | Screw | 1/1/1 |
| 8 | XXXXXXXX | Needle | 0/0/2 |
| 9 | 20713038 | Thread Guide | 1/0/0 |
| 10 | 20734001 | Needle Holder Assembly | 1/0/0 |
| 11 | XXXXXXXX | Needle | 1/0/0 |
| 12 | 20713018 | Thread Guide | 0/1/0 |
| 13 | 20734002 | Needle Holder | 0/1/0 |
| 14 | XXXXXXXX | Needle | 0/2/0 |
| 1 | 207S17003 | Screw | 2/2/2 |
| 2 | XXXXXXXX | Needle Plate | 1/1/1 |
| 3 | 207S11007 | Screw | 5/5/5 |
| 4 | 20709003 | Bracket | 1/1/1 |
| 5 | 20709002 | Bracket | 1/1/1 |
| 6 | 20622003 | Cushion Rubber | 2/2/2 |
| 7 | 20701033 | Bracket | 0/0/1 |
| 8 | 207S11003 | Screw | 0/0/2 |
| 9 | XXXXXXXX | Needle Guard | 0/0/1 |
| 10 | S01027 | Screw | 0/0/4 |
| 11 | XXXXXXXX | Needle Guard | 0/0/1 |
| 12 | 20128019 | Spring | 1/1/1 |
| 13 | XXXXXXXX | Needle Guard | 1/1/1 |
Page 9 — 十二、上弯针部件/Upper Looper Drive Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 14 | 207S12005 | Screw | 1 / 1 / 1 |
| 15 | 207S11002 | Screw | 1 / 1 / 1 |
| 16 | W03004 | Spring | 1 / 1 / 1 |
| 17 | XXXXXXXX | Needle Guard | 1 / 1 / 1 |
| 1 | 207S11004 | Screw | 1 / 1 / 1 |
| 2 | W02001 | Spring Washer | 1 / 1 / 1 |
| 3 | 20628006 | Washer | 1 / 1 / 1 |
| 4 | 20702004 | Shaft | 1 / 1 / 1 |
| 5 | 20708007 | Spacer | 1 / 0 / 1 |
| 6 | 20703038 | Spacer | 0 / 1 / 0 |
| 7 | 20703060 | Spacer | 0 / 1 / 1 |
| 8 | 400036 | Crank | 1 / 0 / 0 |
| 9 | 400037 | Crank | 0 / 1 / 1 |
| 10 | S05018 | Screw | 1 / 1 / 1 |
| 11 | S02007 | Screw | 2 / 2 / 2 |
| 12 | 20712066 | Washer | 1 / 1 / 1 |
| 13 | 400043 | Connection | 1 / 1 / 1 |
| 14 | S22007 | Screw | 2 / 2 / 2 |
| 15 | S22007 | Screw | 2 / 2 / 2 |
| 16 | 20622019 | Oil Seal | 1 / 1 / 1 |
| 17 | 207S11043 | Screw | 1 / 1 / 1 |
| 18 | 20705003 | Lever | 1 / 1 / 1 |
| 19 | 207S14010 | Screw | 1 / 1 / 1 |
| 20 | 21323007 | Oil Weak | 0.04 / 0.04 / 0.04 |
| 21 | 20726004 | Pin Assy | 1 / 1 / 1 |
| 22 | 207S11025 | Screw | 1 / 1 / 1 |
| 23 | 2070400500 | Upper Looper Holder Assy | 1 / 1 / 1 |
| 24 | 2070403600 | Upper Looper Holder Assy | 0 / 1 / 1 |
| 25 | 20704005 | Upper Looper Slider | 1 / 1 / 1 |
| 26 | 20709004 | Upper Looper Slider | 1 / 1 / 1 |
| 27 | 21323005 | Felt | 1 / 1 / 1 |
| 28 | XXXXXXXX | Upper Looper | 1 / 1 / 1 |
| 29 | 207S17004 | Screw | 1 / 1 / 1 |
| 30 | 207S11027 | Screw | 1 / 1 / 1 |
| 31 | 400040 | Cover | 1 / 1 / 1 |
| 32 | 207S11026 | Screw | 2 / 2 / 2 |
| 33 | 20701051 | Upper Looper Bracket | 1 / 1 / 1 |
| 34 | 20701088 | Upper Looper Bracket | 0 / 1 / 1 |
| 35 | 121223001 | Filter plug | 0.04m / 0.04m / 0.04m |
| 36 | 21323006 | Felt | 1 / 1 / 1 |
| 37 | 207S11020 | Screw | 1 / 1 / 1 |
| 38 | 20712017 | Bracket | 1 / 1 / 1 |
| 39 | 20722019 | Plug | 1 / 1 / 1 |
Page 10 — 十三、下弯针部件/Lower Looper Drive Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 207S11004 | Screw | 1/1/1 |
| 2 | W02001 | Spring Washer | 1/1/1 |
| 3 | 20628006 | Washer | 1/1/1 |
| 4 | 20702004 | Shaft | 1/1/1 |
| 5 | 400329 | Crank | 1/1/0 |
| 6 | S05018 | Screw | 1/1/1 |
| 7 | S02007 | Screw | 2/2/2 |
| 8 | 20712066 | Washer | 1/1/1 |
| 9 | 121205002 | Connection | 1/1/1 |
| 10 | S22007 | Screw | 2/2/2 |
| 11 | S22007 | Screw | 2/2/2 |
| 12 | 20622019 | Oil Seal | 1/1/1 |
| 13 | 201S12007 | Screw | 1/1/1 |
| 14 | 20704007 | Lower Looper Holder | 1/1/1 |
| 15 | 207S15001 | Screw | 1/1/1 |
| 16 | XXXXXXXX | Lower Looper | 1/1/1 |
| 17 | 207S11028 | Screw | 1/1/1 |
| 18 | 400388 | Crank | 0/0/1 |
| 19 | 207S11042 | Screw | 0/0/1 |
| 20 | 20128021 | Washer | 1/1/1 |
| 20500005 |
Page 11 — 十四、二重环弯针机构(1)/Chainstitch Looper Drive Mechanism(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 207S13009 | Screw | 0 / 0 / 1 (3/4/5-thread) |
| 2 | W02001 | Spring Washer | 0 / 0 / 1 (3/4/5-thread) |
| 3 | 20628010 | Washer | 0 / 0 / 1 (3/4/5-thread) |
| 4 | 20710008 | Pin | 0 / 0 / 1 (3/4/5-thread) |
| 5 | 001027 | O Ring | 0 / 0 / 1 (3/4/5-thread) |
| 6 | 401031 | Slider | 0 / 0 / 1 (3/4/5-thread) |
| 7 | 401030 | Crank | 0 / 0 / 1 (3/4/5-thread) |
| 8 | 20705020 | Connection | 0 / 0 / 1 (3/4/5-thread) |
| 9 | 20703016 | Bushing | 0 / 0 / 1 (3/4/5-thread) |
| 10 | 30228008 | Washer | 0 / 0 / 2 (3/4/5-thread) |
| 11 | L01004 | Screw | 0 / 0 / 2 (3/4/5-thread) |
| 12 | 207S11028 | Screw | 0 / 0 / 1 (3/4/5-thread) |
| 13 | 20626017 | Shaft | 0 / 0 / 1 (3/4/5-thread) |
| 14 | 20701034 | Holder | 0 / 0 / 1 (3/4/5-thread) |
| 15 | S05018 | Screw | 0 / 0 / 2 (3/4/5-thread) |
| 16 | 20704015 | Crank | 0 / 0 / 1 (3/4/5-thread) |
| 17 | 20705009 | Link | 0 / 0 / 1 (3/4/5-thread) |
| 18 | 20703013 | Bushing | 0 / 0 / 1 (3/4/5-thread) |
| 19 | 20702018 | Shaft | 0 / 0 / 1 (3/4/5-thread) |
| 20 | 2072201700 | Oil Seal | 0 / 0 / 1 (3/4/5-thread) |
| 21 | 20701035 | Looper Holder | 0 / 0 / 1 (3/4/5-thread) |
| 22 | 207S15001 | Screw | 0 / 0 / 1 (3/4/5-thread) |
| 23 | 20728002 | Spacer | 0 / 0 / 1 (3/4/5-thread) |
| 24 | 207S20004 | Screw | 0 / 0 / 1 (3/4/5-thread) |
| 25 | XXXXXXXX | Double Chainstith Looper | 0 / 0 / 1 (3/4/5-thread) |
| 26 | 20128021 | Spacer | 0 / 0 / 1 (3/4/5-thread) |
Page 12 — 十五、二重环弯针机构(2)/Chainstitch Looper Drive Mechanism(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20713039 | Thread Guide | 1 |
| 2 | 20629003 | Holder | 2 |
| 3 | 20128021 | Washer | 1 |
| 4 | 207S11007 | Screw | 2 |
| 5 | 20713040 | Thread Guide | 1 |
| 6 | 2061205700 | Looper Thread Takeup Assy | 1 |
| 7 | 206S16004 | Knob | 1 |
| 8 | 30127016 | Spring | 1 |
| 9 | 20612055 | Tension Disc | 2 |
| 10 | 206S30015 | Screw | 1 |
| 11 | 20612057 | Looper Thread Takeup Assy | 1 |
| 12 | 20613017 | Thread Guide | 1 |
| 13 | 207S11020 | Screw | 2 |
| 14 | 20629004 | Thread Guide | 1 |
| 15 | 207S11011 | Screw | 1 |
| 16 | 20612056 | Thread Guide | 1 |
| 17 | 301S20001 | Screw | 1 |
| 18 | 20128015 | Washer | 1 |
| 19 | 20612058 | Looper Thread Takeup | 1 |
| 20 | 207S14014 | Screw | 2 |
| 21 | 20713026 | Tread Guide | 1 |
| 22 | 20629005 | Spring | 1 |
| 23 | 20729004 | Holder | 1 |
| 24 | S01060 | Screw | 1 |
Page 13 — 十六、差动调节机构/Feed Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2070500400 | Connection | 1 / 1 / 1 |
| 2 | 20710003 | Regulator | 1 / 1 / 1 |
| 3 | 207S11042 | Screw | 2 / 2 / 2 |
| 4 | 20710002 | Feed Eccent | 1 / 1 / 1 |
| 5 | 207S14003 | Screw | 2 / 2 / 2 |
| 6 | 20710001 | Eccent | 1 / 1 / 1 |
| 7 | 20712175 | Flat Spring | 1 / 1 / 1 |
| 8 | 20626003 | Pin | 1 / 1 / 1 |
| 9 | 20629006 | Ring | 1 / 1 / 1 |
| 10 | 20705004 | Connection | 1 / 1 / 1 |
| 11 | 207S14007 | Screw | 1 / 1 / 1 |
| 12 | B08001 | Needle Bearing | 1 / 1 / 1 |
| 13 | 20710004 | Eccent Assembly | 1 / 1 / 1 |
| 14 | 20727003 | Spring | 1 / 1 / 1 |
| 15 | 207S20005 | Screw | 1 / 1 / 1 |
| 16 | 20709006 | Ratchet | 1 / 1 / 1 |
| 17 | 20722005 | Gaket | 1 / 1 / 1 |
| 18 | 001027 | O Ring | 1 / 1 / 1 |
| 19 | 20728001 | Washer | 1 / 1 / 1 |
| 20 | 20727004 | Spring | 1 / 1 / 1 |
| 21 | H05002 | Ring | 1 / 1 / 1 |
| 22 | 20702005 | Push Button | 1 / 1 / 1 |
| 23 | 207S20006 | Screw | 1 / 1 / 1 |
| 24 | 20705005 | Link | 1 / 1 / 1 |
| 25 | S05018 | Screw | 1 / 1 / 1 |
| 26 | 20704008 | Lever | 1 / 1 / 1 |
| 27 | 20622010 | O Ring | 1 / 1 / 1 |
| 28 | 20128024 | Shaft | 1 / 1 / 1 |
| 29 | 20712160 | Lever | 1 / 1 / 1 |
| 30 | 20627006 | Spring | 1 / 1 / 1 |
| 31 | 207S20016 | Screw | 1 / 1 / 1 |
| 32 | 207S11008 | Screw | 2 / 2 / 2 |
| 33 | 20712033 | Regulator Plate | 1 / 1 / 1 |
| 34 | 20711007 | Spacer | 2 / 2 / 2 |
| 35 | 207S16002 | Stopper | 2 / 2 / 2 |
| 36 | 30228009 | Washer | 2 / 2 / 2 |
| 37 | 207S11011 | Screw | 2 / 2 / 2 |
| 38 | 20728003 | Spring Washer | 1 / 1 / 1 |
| 39 | 2071600100 | Nut | 1 / 1 / 1 |
| 40 | 207S30001 | Screw | 1 / 1 / 1 |
| 41 | W01006 | Spacer | 1 / 1 / 1 |
| 42 | 20702081 | Shaft | 1 / 1 / 1 |
Page 14 — 十七、送布机构/Feed Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20628023 | Plug | 1 / 1 / 1 |
| 2 | H05009 | Ring | 1 / 1 / 1 |
| 3 | 20702008 | Shaft | 1 / 1 / 1 |
| 4 | 20628011 | Washer | 2 / 2 / 2 |
| 5 | 2070400900 | Crank | 1 / 1 / 1 |
| 6 | 20704010 | Crank | 1 / 1 / 1 |
| 7 | S05018 | Screw | 2 / 2 / 2 |
| 8 | 207S11029 | Screw | 2 / 2 / 2 |
| 9 | 20709008 | Crank | 1 / 1 / 1 |
| 10 | 20709009 | Crank Pin | 1 / 1 / 1 |
| 11 | 20709034 | Block | 1 / 1 / 1 |
| 12 | 20710005 | Pin | 1 / 1 / 1 |
| 13 | 20704011 | Crank | 1 / 1 / 1 |
| 14 | 12928008 | Washer | 1 / 1 / 1 |
| 15 | N01004 | Nut | 1 / 1 / 1 |
| 16 | 207S14001 | Screw | 2 / 2 / 2 |
| 17 | 20708022 | Collar | 1 / 1 / 1 |
| 18 | 20628011 | Washer | 1 / 1 / 1 |
| 19 | 20708032 | Collar | 2 / 2 / 2 |
| 20 | H05009 | Ring | 1 / 1 / 1 |
| 21 | 20622010 | Seal ring | 1 / 1 / 1 |
| 22 | 207S14001 | Screw | 2 / 2 / 2 |
| 23 | 2070600100 | Feed Bar Assy. | 1 / 1 / 1 |
| 24 | 20706002 | Differentrial Feed Bar | 1 / 1 / 1 |
| 25 | 20709011 | Block | 1 / 1 / 1 |
| 26 | 20706001 | Main Feed Bar | 1 / 1 / 1 |
| 27 | 20709012 | Block | 1 / 1 / 1 |
| 28 | 20705008 | Link | 1 / 1 / 1 |
| 29 | 20703016 | Bushing | 1 / 1 / 1 |
| 30 | 30228008 | Washer | 1 / 1 / 1 |
| 31 | L01004 | Screw | 1 / 1 / 1 |
| 32 | XXXXXXXX | Main Feed Dog Complete | 1 / 1 / 1 |
| 33 | XXXXXXXX | Auxiliary | 1 / 1 / 1 |
| 34 | XXXXXXXX | Main Feed Dog | 1 / 1 / 1 |
| 35 | 207S11039 | Screw | 1 / 1 / 1 |
| 36 | S01029 | Screw | 2 / 2 / 2 |
| 37 | XXXXXXXX | Differentrial Feed Dog | 1 / 1 / 1 |
| 38 | 20701049 | Feed Bar Oil Seal | 1 / 1 / 1 |
| 39 | 20701048 | Feed Bar | 1 / 1 / 1 |
| 40 | 207S13006 | Screw | 4 / 4 / 4 |
| 41 | 20701013 | Feed Bar Oil Seal | 1 / 1 / 1 |
| 42 | 207S13007 | Screw | 2 / 2 / 2 |
| 43 | 20722007 | Oil Seal | 3 / 3 / 3 |
| 44 | 207S17005 | Screw | 1 / 1 / 1 |
Page 15 — 十八、剪切机构/Knife Drive Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 45 | 121102014 | Shaft | 1 / 1 / 1 |
| 46 | 121112015 | Bar | 1 / 1 / 1 |
| 47 | W01140 | Washer | 1 / 1 / 1 |
| 48 | 1211NS11001 | Screw | 1 / 1 / 1 |
| 49 | 207S11007 | Screw | 2 / 2 / 2 |
| 50 | 21112024 | Bar | 1 / 1 / 1 |
| 51 | 20728003 | Washer | 1 / 1 / 1 |
| 52 | 2071600100 | Nut | 1 / 1 / 1 |
| 53 | 207S30001 | Screw | 1 / 1 / 1 |
| 1 | 20726005 | Pin | 1 / 1 / 1 |
| 2 | 20702009 | Upper Knife Lever | 1 / 1 / 1 |
| 3 | 2072201700 | Oil Seal | 1 / 1 / 1 |
| 4 | 30208001 | Collar | 2 / 2 / 2 |
| 5 | S10003 | Screw | 2 / 2 / 2 |
| 6 | S22007 | Screw | 2 / 2 / 2 |
| 7 | 121205004 | Connection | 1 / 1 / 1 |
| 8 | 207S14007 | Screw | 1 / 1 / 1 |
| 9 | 20704038 | Crank | 1 / 1 / 0 |
| 10 | 20704039 | Crank | 0 / 0 / 1 |
| 11 | S05018 | Screw | 1 / 1 / 1 |
| 12 | 20626003 | Pin | 1 / 1 / 1 |
| 13 | 211S12002 | Screw | 1 / 1 / 1 |
| 14 | 20128020 | Washer | 1 / 1 / 1 |
| 15 | XXXXXXXX | Upper Knife | 1 / 1 / 1 |
| 16 | 20701107 | Upper Knife Clamp | 1 / 1 / 0 |
| 17 | 20701036 | Upper Knife Clamp | 0 / 0 / 1 |
| 18 | S04019 | Screw | 1 / 1 / 1 |
| 19 | 20701050 | Angled Upper Knife Clamp | 0 / 0 / 1 |
| 20 | XXXXXXXX | Angled Upper | 0 / 0 / 1 |
| 21 | W01011 | Washer | 0 / 0 / 1 |
| 22 | 207S11020 | Screw | 0 / 0 / 1 |
| 23 | 20712053 | Angled Upper Knife Gib | 0 / 0 / 1 |
| 24 | 20712051 | Waste Guard | 0 / 0 / 1 |
| 25 | S11025 | Screw | 0 / 0 / 1 |
| 26 | 207S12004 | Screw | 1 / 1 / 1 |
| 27 | 20709013 | Lower Knife Clamp | 1 / 1 / 1 |
| 28 | XXXXXXXX | Lower Knife | 1 / 1 / 1 |
| 29 | 20701015 | Lower Knife Holder | 1 / 1 / 0 |
| 30 | 20727006 | Spring | 1 / 1 / 1 |
| 31 | 20701037 | Lower Knife Holder | 0 / 0 / 1 |
| 32 | 20701052 | Upper Knife Clamp | 0 / 0 / 1 |
| 33 | 207S11019 | Screw | 2 / 2 / 2 |
| 34 | 20712021 | Lower Knife Holder Guard | 1 / 1 / 1 |
| 35 | 113S11004 | Screw | 1 / 1 / 1 |
Page 16 — 十九、拾压脚机构/Presser Foot Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 207S20008 | Screw | 1 / 1 / 1 |
| 2 | 20712023 | Lever | 1 / 1 / 1 |
| 3 | 20727007 | Spring | 1 / 1 / 1 |
| 4 | 20712025 | Link | 1 / 1 / 1 |
| 5 | N01004 | Nut | 1 / 1 / 1 |
| 6 | 207S11031 | Screw | 1 / 1 / 1 |
| 7 | S04060 | Screw | 2 / 2 / 2 |
| 8 | 20712024 | Stopper | 1 / 1 / 1 |
| 9 | S05017 | Screw | 1 / 1 / 1 |
| 10 | 12110800400 | Collar | 1 / 1 / 1 |
| 11 | 121212010 | Lever | 1 / 1 / 1 |
| 12 | 21127009 | Spring | 1 / 1 / 1 |
| 13 | 20703031 | Bearing | 2 / 2 / 2 |
| 14 | S10009 | Screw | 1 / 1 / 1 |
| 15 | 20703030 | Bushing | 1 / 1 / 1 |
| 16 | 20702010 | Shaft | 1 / 1 / 1 |
| 17 | S10011 | Screw | 1 / 1 / 1 |
| 18 | 20626016 | Pin | 1 / 1 / 1 |
| 19 | 21201001 | Presser Arm | 1 / 1 / 1 |
| 20 | 30119020 | Thread Cutter | 1 / 1 / 1 |
| 21 | 207S11020 | Screw | 2 / 2 / 2 |
| 22 | 21102011 | Adjusting Screw | 1 / 1 / 1 |
| 23 | 211S16002 | Nut | 1 / 1 / 1 |
| 24 | 001039 | O Ring | 1 / 1 / 1 |
| 25 | S09103 | Screw | 1 / 1 / 1 |
| 26 | 211S16001 | Thread Sleeve | 1 / 1 / 1 |
| 27 | 001008 | O Ring | 2 / 2 / 2 |
| 28 | 21211003 | Oil Proof Sleeve | 1 / 1 / 1 |
| 29 | 121227004 | Spring | 1 / 1 / 1 |
| 30 | 21103018 | Struth Sleeve | 1 / 1 / 1 |
| 31 | 2110301700 | Spring | 1 / 1 / 1 |
| 32 | 21212021 | Plate | 1 / 1 / 1 |
| 33 | 121112010 | Lever | 1 / 1 / 1 |
| 34 | 121127012 | Spring | 1 / 1 / 1 |
| 35 | 1211NS20001 | Screw | 1 / 1 / 1 |
| 36 | 207S11051 | Screw | 0 / 1 / 0 |
| 37 | 20427010 | Spring | 0 / 1 / 0 |
| 38 | 20616004 | Paw Pressur | 0 / 1 / 0 |
| 39 | 206S10004 | Screw | 0 / 1 / 0 |
| 40 | 120716001 | Auxiliary Presser Foot | 0 / 1 / 0 |
| 41 | 20716071 | Baseboard | 0 / 1 / 0 |
| 42 | 20716023 | Rack | 0 / 1 / 0 |
| 43 | 207S11030 | Screw | 0 / 1 / 0 |
Page 17 — 二十、供油机构(1)/Lubrication Mechanism(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 44 | 207S11034 | Screw | 0 | 1 | 0 |
| 45 | 20616016 | Auxiliary Plank | 0 | 1 | 0 |
| 46 | 12121605400 | Presser Foot Assy | 0 | 1 | 0 |
| 47 | 20712026 | Finger Guard | 0 | 1 | 0 |
| 48 | 20712048 | Stopper | 0 | 1 | 0 |
| 49 | 207S11009 | Screw | 0 | 1 | 0 |
| 50 | 20721011 | Tube | 0.017 | 0.017 | 0.017 |
| 51 | W01006 | Washer | 2 | 2 | 2 |
| 1 | 2072000400 | Pump | 1 | 1 | 1 |
| 2 | 20725007 | Worm Wheel | 1 | 1 | 1 |
| 3 | 207S14006 | Screw | 2 | 2 | 2 |
| 4 | S04019 | Screw | 3 | 3 | 3 |
| 5 | 300140 | Oil clearer | 1 | 1 | 1 |
| 6 | 001010 | Seal ring | 1 | 1 | 1 |
| 7 | 20736004 | Filter Element | 1 | 1 | 1 |
| 8 | 20736001 | Oil cljerner joint | 1 | 1 | 1 |
| 9 | 207S11007 | Screw | 2 | 2 | 2 |
| 10 | 21112028 | Oil guard | 1 | 1 | 1 |
| 11 | 206S30009 | Joint Screw | 4 | 4 | 4 |
| 12 | 20122033 | Washer | 12 | 12 | 12 |
| 13 | 21221001 | Upper screem | 1 | 1 | 1 |
| 14 | 20736007 | Joint | 2 | 2 | 2 |
| 15 | 20729005 | Clamp | 2 | 2 | 2 |
| 16 | 12921003 | Tube | 0.1m | 0.1m | 0.1m |
| 17 | S11025 | Screw | 2 | 2 | 2 |
| 18 | 12921005 | Tube | 0.15m | 0.15m | 0.15m |
| 19 | 21111095 | Oil sight | 1 | 1 | 1 |
| 20 | 20136007 | Joint | 2 | 2 | 2 |
| 21 | 30129007 | Clamp | 2 | 2 | 2 |
| 22 | 201S30004 | Joint Screw | 2 | 2 | 2 |
| 23 | 20727018 | Spring | 1 | 1 | 1 |
Page 18 — 二十一、供油机构(2)/Lubrication Mechanism(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2122100200 | Pipe | 1 / 1 / 1 |
| S09103 | 内六角平端紧定螺钉M4×4 | ||
| 121111004 | |||
| 21123001 | |||
| 21211001 | |||
| 20622010 | 差动扳手O型圈 | ||
| 20721011 | |||
| 2110101500 | |||
| 20121001 | |||
| 201514002 | |||
| 20709015 | |||
| 121226003 | |||
| 20123021 | |||
| 20136007 | |||
| 20722008 | |||
| 20701058 | |||
| 20528014 | |||
| 20628018 | |||
| 20429001 |
Page 19 — 二十二、HR装置机构部件/H.R.Device
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 21212011 | Cover | 1/1/1 |
| 2 | 21123002 | Felt | 1/1/0 |
| 3 | 21123003 | Felt | 0/0/1 |
| 4 | 21222002 | Cover | 1/1/1 |
| 5 | 21211002 | Silicone Oil Reservoir | 1/1/1 |
| 6 | 21212005 | Thread Guide | 1/1/0 |
| 7 | 21212006 | Thread Guide | 0/0/1 |
| 8 | S04060 | Screw | 1/1/1 |
| 9 | 2071101600 | Silicone Oil Reservoir | 1/1/0 |
| 10 | 20723009 | Oil Felt | 1/1/1 |
| 11 | 20726010 | Pin | 1/1/1 |
| 12 | 207S11008 | Screw | 2/2/0 |
| 13 | 20701027 | Needle Thread Lubricator | 1/1/0 |
| 14 | 20709014 | Plug | 1/1/1 |
| 15 | 20712041 | Clamp | 2/2/2 |
| 16 | 40123013 | Oil Wick | 1/1/1 |
| 17 | 40121002 | Tube | 1/1/1 |
| 18 | 20711017 | Cover | 1/1/1 |
| 19 | 20711016 | Silicone Oil Reservoir | 1/1/1 |
| 20 | 207S30003 | Screw | 1/1/1 |
| 21 | 207S11007 | Screw | 0/0/2 |
| 22 | 20701038 | Needle Thread Lubricator | 0/0/1 |
| 23 | 2070103000 | Silicone Oil Reservoir | 0/0/1 |
| 24 | 20612062 | Washer | 2/2/0 |
Page 20 — Thread Stand
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20131014 | Thread guide | 1/0/0 |
| 2 | 30113019 | Thread Guide | 0/0/1 |
| 3 | 20131019 | Rod cap | 1/1/1 |
| 4 | 121131009 | Upper thread column | 1/1/1 |
| 5 | 201S16006 | Thread Guide hook nut | 2/4/4 |
| 6 | 121131007 | Thread spool tray bracket | 0/2/1 |
| 7 | 20131018 | Thread Guide hook | 3/4/5 |
| 8 | 20131021 | Screw | 2/2/2 |
| 9 | 21131010 | Clamp plate | 1/1/1 |
| 10 | 201S16004 | Nut | 4/4/4 |
| 11 | 20131022 | Screw | 2/2/2 |
| 12 | 201S16004 | Nut | 4/4/4 |
| 13 | 21131011 | Thread Guide hook | 3/4/4 |
| 14 | 20131020 | Screw | 2/4/4 |
| 15 | 121113009 | Thread spool tray bracket | 1/0/1 |
| 16 | 21131007 | Thread Guide bar | 1/1/1 |
| 17 | 20131014 | Thread Guide | 0/1/0 |
| 18 | 21131013 | Thread Guide joint | 1/1/1 |
| 19 | S04050 | Screw | 2/2/2 |
| 20 | 21131014 | Bushing | 1/1/1 |
| 21 | N01030 | Nut | 2/2/2 |
| 22 | 21131015 | Spool Cushion | 3/4/5 |
| 23 | 20131006 | Spool pin | 3/4/5 |
| 24 | 20131010 | Spool tray Cushion | 3/4/5 |
| 25 | 21131016 | Screw tray | 3/4/5 |
| 26 | 21131012 | Thread spool tray bracket | 1/0/1 |
| 27 | N01114 | Nut | 3/4/5 |
| 28 | 20128018 | Washer | 3/4/5 |
| 29 | 21131018 | Lower thread cloumn | 1/1/1 |
| 30 | 201S16005 | Nut | 1/1/1 |
| 31 | 121128003 | Lower Washer | 2/2/2 |
| 32 | 21131009 | Thread spool tray bracket | 0/2/1 |
| 33 | 20122049 | Plate dog link washer | 0/2/1 |
| 34 | 2113101700 | Thread stand component | 1/0/0 |
| 201516004 |
Page 21 — 二十四、托盘部件/Part For Semi-Submerged Installation
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20131028 | Nut | 4 / 4 / 4 |
| 2 | 20722018 | Cushion Rubber | 4 / 4 / 4 |
| 3 | 20711058 | oil pan | 1 / 1 / 1 |
| 4 | 20712064 | Rest Board | 2 / 2 / 2 |
| 5 | 30122031 | Spring Washer | 4 / 4 / 4 |
| 6 | 20131030 | Washer | 4 / 4 / 4 |
| 7 | 20131029 | Spacer | 8 / 8 / 8 |
| 8 | 20131027 | Screw | 4 / 4 / 4 |
| 9 | 2123100400 | Waste Chute Assy. | 1 / 1 / 1 |
| 10 | 20131034 | Screw | 4 / 4 / 4 |
| 11 | 21231005 | Screw | 1 / 1 / 1 |
| 12 | 20131032 | Waste Chute | 1 / 1 / 1 |
| 13 | 21231007 | Waste Chute | 1 / 1 / 1 |
| 14 | 207S11046 | Screw | 4 / 4 / 4 |
| 15 | 207S13006 | Screw | 4 / 4 / 4 |
| 16 | 20728006 | Washer | 4 / 4 / 4 |
| 17 | 421S30004 | Screw | 4 / 4 / 4 |
| 2113101800 | |||
| 2113101900 | |||
| 2113102700 |
Page 22 — 二十五、专用零件/Specific Parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 12121601100 | Presser Foot Assy | 0/0/1 |
| 2 | 121216026 | Connection | 0/0/1 |
| 3 | S01029 | Screw | 0/0/1 |
| 4 | 121216025 | Pin | 0/0/1 |
| 5 | 101S11006 | Screw | 0/0/1 |
| 6 | 121216027 | Fabric Guard | 0/0/1 |
| 7 | 20701054 | Baseboard | 0/0/1 |
| 8 | 121216040 | Baseboard | 0/0/1 |
| 9 | 208S20002 | Pin | 0/0/3 |
| 10 | 20712052 | Finger Guard | 0/0/1 |
| 11 | 20719053 | Spring | 0/0/1 |
| 12 | 207S11020 | Screw | 0/0/1 |
| 13 | 207S20010 | Screw | 0/0/1 |
| 14 | xxxxxxxxx | Presser Foot Assy. | 0/0/1 |
| 15 | 207S11038 | Screw | 0/0/1 |
| 16 | 20716063 | Rack | 0/0/1 |
| 17 | 121216046 | Rack | 0/0/1 |
| 18 | 207S11034 | Screw | 0/0/1 |
| 19 | 121216047 | Fabric Guard | 0/0/1 |
| 20 | 20716061 | Baseboard | 0/0/1 |
| 21 | 20716065 | Baseboard | 0/0/1 |
| 22 | 207S20022 | Pin | 0/0/1 |
| 23 | 207S16011 | Nut | 0/0/1 |
| 24 | 207S20021 | Screw | 0/0/1 |
| 25 | 20727011 | Spring | 0/0/1 |
| 26 | 20727012 | Spring | 0/0/1 |
| 27 | 20716062 | Baseboard | 0/0/1 |
| 28 | 121216048 | Baseboard | 0/0/1 |
| 29 | 20712026 | Finger Guard | 0/0/1 |
| 30 | 20715057 | Spring | 0/0/1 |
| 31 | 207S11009 | Screw | 0/0/1 |
| 32 | 12121601200 | Presser Foot Assy. | 0/0/1 |
| 33 | 121216029 | Screw | 0/0/1 |
| 34 | 207S11051 | Screw | 0/0/1 |
| 35 | 20716092 | Plate Spring | 0/0/1 |
| 36 | 121216028 | Presser Foot | 0/0/1 |
| 37 | 207S30005 | Pin | 0/0/1 |
| 38 | P01025 | Pin | 0/0/1 |
| 39 | 20716079 | Baseboard | 0/0/1 |
| 40 | 207S16012 | Nut | 0/0/1 |
| 41 | 121216041 | Baseboard | 0/0/1 |
| 42 | 20727014 | Spring | 0/0/1 |
| 43 | 20727050 | Spring | 0/0/1 |
| XXXXXXXXXX | |||
| 207S20065 | |||
| 20712076 |
Page 23 — 二十六、随机附件部分/Accessories Assemblies
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20131044 | Hexagonal wrench/1.5mm | 1 / 1 / 1 |
| 2 | 10131004 | Screwdriver（S） | 1 / 1 / 1 |
| 3 | 121131002 | Machine head cover | 1 / 1 / 1 |
| 4 | 20731047 | screw driver（L） | 1 / 1 / 1 |
| 5 | 120111006 | Oil container | 1 / 1 / 1 |
| 6 | 20131048 | Oil container | 1 / 1 / 1 |
| 7 | 20131039 | Tundish | 1 / 1 / 1 |
| 8 | 20131051 | Tweezers | 1 / 1 / 1 |
| 9 | 20131043 | Wrench/8mm | 1 / 1 / 1 |
| 10 | 20131046 | Hexagonal wrench/2mm | 1 / 1 / 1 |
| 11 | 30131012 | Hexagonal wrench/4mm | 1 / 1 / 1 |
| 12 | 20131047 | Hexagonal wrench/5mm | 1 / 1 / 1 |
| 13 | 20131056 | Hexagonal wrench/6mm | 1 / 1 / 1 |
| 14 | 121230004 | Controller | 1 / 1 / 1 |
| 15 | 20131055 | Attachment box | 1 / 1 / 1 |
| 16 | 20131054 | Chain | 1 / 1 / 1 |
| 17 | 20131052 | Needle threader | 0 / 0 / 1 |
| 18 | 20131062 | Plastic machine head bag | 1 / 1 / 1 |
| 19 | S10005 | Screw | 4 / 4 / 4 |
| 20 | 见标准零件表 | Needle | 10 / 10 / 10 |
| 21 | 20730335 | Tie rod | 1 / 1 / 1 |
Page 24 — 二七、机架部件/machine stand table assy
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 13832113 | Drawer slider | 2 / 2 / 2 |
| 2 | S18002 | Screw | 6 / 6 / 6 |
| 3 | 13832114 | Plastic drawer | 1 / 1 / 1 |
| 4 | 1383211500 | Upper stand (left) | 1 / 1 / 1 |
| 5 | S15001 | Bolt washer assembly M8*11 | 12 / 12 / 12 |
| 6 | 1383211200 | Lower stand (left) | 1 / 1 / 1 |
| 7 | 13832104 | Rubber cover | 4 / 4 / 4 |
| 8 | 1012016 | Stand height adjusting base | 4 / 4 / 4 |
| 9 | 13832105 | Large pedal pad cushion | 1 / 1 / 1 |
| 10 | 13832110 | Large pedal bracket | 1 / 1 / 1 |
| 11 | 13832106 | Large pedal pad | 1 / 1 / 1 |
| 12 | L02075 | Bolt washer assembly M6*11 | 2 / 2 / 2 |
| 13 | 1383210700 | Pedal bracket | 4 / 4 / 4 |
| 14 | 13832108 | Lower bar | 1 / 1 / 1 |
| 15 | 13832116 | Bolt plate | 2 / 2 / 2 |
| 16 | 21232001 | Small pedal | 1 / 1 / 1 |
| 17 | 20112126 | Small pedal bracket | 1 / 1 / 1 |
| 18 | N01010 | Nut M8 | 4 / 4 / 4 |
| 19 | 1383210300 | Lower stand(right) | 1 / 1 / 1 |
| 20 | 13832111 | Front bar | 1 / 1 / 1 |
| 21 | 1383210100 | Upper stand (right) | 1 / 1 / 1 |
| 22 | S18001 | Screw | 6 / 6 / 6 |
| 23 | XXXXXXXX | Table | 1 / 1 / 1 |
| 24 | XXXXXXXX | Transmission | 1 / 1 / 1 |
| 25 | 2011111300 | Motor connecting rod | 1 / 1 / 1 |
| 26 | 2013105400 | Pedal chain components | 1 / 1 / 1 |
| 27 | 13832102 | Bolt plate | 2 / 2 / 2 |
| 28 | 13832129 | Table cover | 4 / 4 / 4 |
Page 25 — 二十八、毛巾机专用件/Specific Parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20702007 | Adjusting Bar | four-thread: 1 |
| 2 | 20712020 | Regulator Plate | four-thread: 1 |
| 3 | 20709007 | Pin | four-thread: 1 |
| 4 | 20728005 | Washer | four-thread: 1 |
| 5 | 20727005 | Spring | four-thread: 1 |
| 6 | H05018 | Ring | four-thread: 1 |
| 7 | 2070103000 | Silicone Oil Reservoir | four-thread: 1 |
| 8 | 20715045 | Needle Plate | four-thread: 1 |
| 9 | 2071609600 | Presser Foot Assy | four-thread: 1 |
| 10 | 20701036 | Upper Knife Clamp | four-thread: 1 |
| 11 | 2071402500 | Main Feed Dog Complete | four-thread: 1 |
| 12 | 20701033 | Bracket | four-thread: 1 |
| 13 | 20717023 | Lower Looper | four-thread: 1 |
| 14 | 20717022 | Upper Looper | four-thread: 1 |
| 15 | 207S11003 | Screw | four-thread: 2 |
| 16 | 20701037 | Lower Knife Holder | four-thread: 1 |
| 17 | 303800 | Front Cover(right) | four-thread: 1 |
| 18 | 21212020 | Front Cover(left) | four-thread: 1 |
| 19 | 207S11014 | Screw | four-thread: 2 |
| 20 | 206S11012 | Screw | four-thread: 1 |
| 21 | 21212014 | Binder Guide | four-thread: 1 |
| 22 | s04060 | Screw | four-thread: 1 |
| 23 | 20712057 | Binder(10) | four-thread: 1 |
| 24 | 20713057 | Tape Guide | four-thread: 1 |
| 25 | 2071104100 | Roller assembly | four-thread: 1 |
| 26 | 121212005 | Front Cover(left) | four-thread: 1 |
| 27 | 121212007 | Binder(10mm) | four-thread: 1 |
| 28 | 121212006 | Binder Guide | four-thread: 1 |
| 29 | 207S11009 | Regulator Plate | four-thread: 1 |
| 30 | 20712026 | Finger Guard | four-thread: 1 |
| 31 | 20715057 | Spring | four-thread: 1 |
Page 26 — 二十九、包布条专用件/Specific Parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20702007 | Adjusting Bar | 1 |
| 20712020 | |||
| 20709007 | |||
| 20728005 | |||
| 20727005 | |||
| H05018 | |||
| 12121601400 | |||
| 20715017 | |||
| 2071401800 | |||
| 21212014 | |||
| 21212020 | |||
| 303800 | |||
| 20712058 | |||
| 20713057 | |||
| 20531041 | |||
| 20531042 | |||
| 20531043 | |||
| 20531009 | |||
| S04060 | 十字槽盘头螺钉M4×10 |
Page 27 — E4SM04专用部件/Specific Parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20713055 | Thread Takeup | four:/ five:1 six:1 |
| 2 | 20713056 | Tension Guide | four:/ five:1 six:0 |
| 3 | 20713017 | Thread Guide | four:/ five:0 six:1 |
| 4 | 20117014 | Needle | four:/ five:2 six:3 |
| 5 | 121134001 | Needle Holder | four:/ five:1 six:0 |
| 21134001 | Needle Holder | four:/ five:0 six:1 | |
| 6 | 21213010 | Thread Guide | four:/ five:1 six:1 |
| 7 | 20703060 | Spacer | four:/ five:1 six:1 |
| 8 | 20713053 | Thread Guide | four:/ five:1 six:1 |
| 9 | 121227003 | Spring | four:/ five:1 six:1 |
| 10 | 20719053 | Spring | four:/ five:1 six:1 |
| 11 | 20712052 | Finger Guard | four:/ five:1 six:1 |
| 12 | 207S20010 | Screw | four:/ five:1 six:1 |
| 13 | 2061604100 | Presser Foot Assy | four:/ five:1 six:0 |
| 2111600500 | Presser Foot Assy | four:/ five:0 six:1 | |
| 14 | 207S11020 | Screw | four:/ five:1 six:1 |
| 15 | 2071405600 | Main Feed Dog Complete | four:/ five:1 six:1 |
| 16 | 20704030 | Crank | four:/ five:1 six:1 |
| 17 | 2070403600 | Upper Looper Holder Assy | four:/ five:1 six:1 |
| 18 | 21102026 | Crankshaft | four:/ five:1 six:1 |
| 19 | 20715081 | Needle Plate | four:/ five:1 six:0 |
| 121215003 | Needle Plate | four:/ five:0 six:1 | |
| 20 | 20717060 | Double Chainstith Looper | four:/ five:1 six:1 |
| 21 | 121119001 | Lower Knife | four:/ five:1 six:1 |
| 22 | 20619009 | Upper Knife | four:/ five:1 six:1 |
| 23 | 121213001 | Thread Takeup | four:/ five:1 six:0 |
| 121113003 | Thread Takeup | four:/ five:0 six:1 | |
| 24 | 20701052 | Lower Knife Holder | four:/ five:1 six:1 |
| 25 | 12111300200 | Thread Guide | four:/ five:0 six:1 |
| 26 | 21113014 | Thread Guide | four:/ five:0 six:1 |
| 27 | 201S16003 | Stopper | four:/ five:0 six:1 |
| 28 | 206S11005 | Screw | four:/ five:0 six:1 |
| 29 | 21113015 | Thread Guide | four:/ five:0 six:1 |
| 30 | 21311161 | Tension Disc | four:/ five:0 six:2 |
| 31 | 2111300800 | Tension Spring Assembly | four:/ five:0 six:1 |
| 32 | 21112064 | Clamp mounting plate | four:/ five:0 six:1 |
| 33 | 21213001 | Thread Guide | four:/ five:0 six:1 |
| 34 | 121101002 | Upper Knife Clamp | four:/ five:0 six:1 |
| 35 | 21113013 | Thread Guide | four:/ five:0 six:1 |
| 36 | 20717006 | Lower Looper | four:/ five:1 six:1 |
Page 28 — 三十一、E4SWF专用部件/Specific Parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 37 | 2120200200 | Needle Bar Assembly | / 1 1 |
| 38 | 121223001 | Filter plug | / 1 1 |
| 39 | 12123002400 | Controller | / 1 1 |
| 1 | 2070403500 | Upper Looper Holder Assy | 1 / / |
| 2 | 121223001 | Filter plug | 1 / / |
| 3 | 21111007 | Eye Guide | 1 / / |
| 4 | 21212026 | Thread Guide | 1 / / |
| 5 | S01063 | Screw | 2 / / |
| 6 | N01018 | Stopper | 2 / / |
| 7 | W01011 | Washer | 2 / / |
| 8 | 20703011 | Sleeve | 1 / / |
| 9 | 2111300600 | Tension Spring Assembly | 1 / / |
| 10 | 21311161 | Tension Disc | 2 / / |
| 11 | 20713048 | Thread Guide | 2 / / |
| 12 | 930000210 | Holder | 1 / / |
| 13 | 201S16003 | Stopper | 1 / / |
| 14 | 2071407100 | Main Feed Dog Complete | 1 / / |
| 15 | 20715070 | Needle Plate | 1 / / |
| 16 | 400037 | Crank | 1 / / |
| 17 | 20719005 | Lower Knife | 1 / / |
| 18 | 20801056 | Lower Knife Holder | 1 / / |
| 19 | 20701014 | Upper Knife Clamp | 1 / / |
| 20 | 20117013 | Needle | 1 / / |
| 21 | 20704051 | Lower Looper Holder | 1 / / |
| 22 | 121221002 | Non woven lower casing | 0.023 / / |
| 23 | 2071609000 | Presser Foot Assy | 1 / / |
| 24 | 21102023 | Crankshaft | 1 / / |
| 25 | 2070500500 | Connection | 1 / / |
| 26 | 2120200200 | Needle Bar Assembly | 1 / / |
| 27 | 20703060 | Spacer | 1 / / |
| 28 | 21213007 | Thread Guide | 1 / / |
| 29 | 20717012 | Lower Looper | 1 / / |
| 30 | 20619009 | Upper Knife | 1 / / |
| 31 | 121230007 | Controller | 1 / / |
| 32 | 208S15002 | Controller | 1 / / |
| 33 | 121128001 | Controller | 1 / / |
| 34 | 121202010 | Controller | 1 / / |
| 35 | 208040081 | Controller | 1 / / |
| 36 | 207S13006 | Controller | 1 / / |
Page 29 — 三十二、6线专用部件/Six-thread Specific Parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 20715061 | Needle Plate | 1 |
| 2 | 2071602000 | Presser Foot Assy | 1 |
| 3 | 21213014 | Thread Takeup | 1 |
| 4 | 21311161 | Tension Disc | 2 |
| 5 | 2071401700 | Main Feed Dog Complete | 1 |
| 6 | 20719057 | Needle Holder Assembly | 1 |
| 7 | 12111300200 | Thread Guide | 1 |
| 8 | 201S16003 | Nut | 2 |
| 9 | 2111300800 | Tension Spring Assembly | 1 |
| 10 | 21113013 | Thread Guide | 1 |
| 11 | 21113014 | Thread Guide | 1 |
| 12 | 21113012 | Clamp Mounting Plate | 1 |
| 13 | 206S11005 | Screw | 1 |
| 14 | 20117012 | Needle | 3 |
| 15 | 21213001 | Thread Guide | 1 |
| 16 | 21113015 | Thread Guide | 1 |
| 17 | 2113102700 | Thread Stand Component | 1 |
Page 30 — 三十三、E4倒回缝专用件/Specific Parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2071212100 | Cloth Plate | 3-thread 1, 4-thread 1, 5-thre |
| 2 | 20709021 | Bracket | 3-thread 1, 4-thread 1, 5-thre |
| 3 | 20715019 | Needle Plate | 3-thread 1, 4-thread 0, 5-thre |
| 4 | 20715021 | Needle Plate | 3-thread 0, 4-thread 1, 5-thre |
| 5 | 12121600700 | Presser Foot Assy | 3-thread 1, 4-thread 0, 5-thre |
| 6 | 12121600800 | Presser Foot Assy | 3-thread 0, 4-thread 1, 5-thre |
| 7 | 2071402000 | Main Feed Dog Complete | 3-thread 1, 4-thread 0, 5-thre |
| 8 | 2071402200 | Main Feed Dog Complete | 3-thread 0, 4-thread 1, 5-thre |
| 9 | 20713044 | Bracket | 3-thread 1, 4-thread 1, 5-thre |
| 10 | 205S30012 | Screw | 3-thread 1, 4-thread 1, 5-thre |
| 11 | 205S16003 | Nut | 3-thread 1, 4-thread 1, 5-thre |
| 12 | 205S30011 | Screw | 3-thread 1, 4-thread 1, 5-thre |
| 13 | 20512008 | Plate | 3-thread 1, 4-thread 1, 5-thre |
| 14 | 20528008 | Washer | 3-thread 1, 4-thread 1, 5-thre |
| 15 | 205S16002 | Nut | 3-thread 1, 4-thread 1, 5-thre |
| 16 | 21212019 | Front Cover(left) | 3-thread 1, 4-thread 1, 5-thre |
| 17 | 201S16003 | Nut | 3-thread 0, 4-thread 2, 5-thre |
| 18 | 21212013 | Dead Board | 3-thread 0, 4-thread 1, 5-thre |
| 19 | 205S16004 | Nut | 3-thread 0, 4-thread 1, 5-thre |
| 20 | 20101039 | connector | 3-thread 0, 4-thread 1, 5-thre |
| 21 | 201S14003 | Screw | 3-thread 0, 4-thread 2, 5-thre |
| 22 | 21228005 | Washer | 3-thread 0, 4-thread 1, 5-thre |
| 23 | 301S20019 | Screw | 3-thread 0, 4-thread 1, 5-thre |
| 24 | 20112059 | Wire Cable | 3-thread 0, 4-thread 1, 5-thre |
| 25 | 212S20006 | Screw | 3-thread 0, 4-thread 1, 5-thre |
| 26 | 21227004 | Spring | 3-thread 0, 4-thread 1, 5-thre |
| 27 | 212S20004 | Screw | 3-thread 0, 4-thread 1, 5-thre |
| 28 | 21212009 | Loose Wire Board | 3-thread 0, 4-thread 1, 5-thre |
| 29 | 205S16004 | Nut | 3-thread 1, 4-thread 0, 5-thre |
| 30 | 20512005 | Positioning Plate | 3-thread 1, 4-thread 0, 5-thre |
| 31 | 20512006 | Loose Wire Board | 3-thread 1, 4-thread 0, 5-thre |
| 32 | 205S30007 | Screw | 3-thread 1, 4-thread 1, 5-thre |
| 33 | 20512002 | Crimping Board | 3-thread 1, 4-thread 1, 5-thre |
| 34 | 20512004 | Blade Positioning Plate | 3-thread 1, 4-thread 1, 5-thre |
| 205S46012 |
Page 31 — 三十四、E4包兜机专用件/Specific Parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 35 | 20527003 | Spring | 3L 1 | 4L 1 | 5L / |
| 36 | 301S16007 | Nut | 3L 1 | 4L 1 | 5L / |
| 37 | 121219002 | Small Knife Holder | 3L 1 | 4L 1 | 5L / |
| 38 | 20512003 | Pressure Plate | 3L 1 | 4L 1 | 5L / |
| 39 | 20519002 | Knife | 3L 1 | 4L 1 | 5L / |
| 40 | S02007 | Screw | 3L 3 | 4L 3 | 5L / |
| 41 | 205S30009 | Screw | 3L 1 | 4L 0 | 5L / |
| 42 | 205S30014 | Screw | 3L 1 | 4L 0 | 5L / |
| 43 | 20527006 | Spring | 3L 1 | 4L 0 | 5L / |
| 44 | 205S16005 | Nut | 3L 1 | 4L 1 | 5L / |
| 45 | 2012600100 | Connector Screw Assembly | 3L 2 | 4L 2 | 5L / |
| 46 | 2051200900 | Loose Wire Assembly | 3L 1 | 4L 0 | 5L / |
| 1 | 303982 | Front Cover(right) | 3L / | 4L 1 | 5L / |
| 2 | 21212025 | Front Cover(left) | 3L / | 4L 1 | 5L / |
| 3 | 2071203400 | Front Cover Oil Baffle Assembly | 3L / | 4L 1 | 5L / |
| 4 | 206S11012 | Screw | 3L / | 4L 2 | 5L / |
| 5 | 20701113 | Curring Assembly | 3L / | 4L 1 | 5L / |
| 6 | 20712093 | Dead Board | 3L / | 4L 1 | 5L / |
| 7 | 20709023 | Heel Block | 3L / | 4L 1 | 5L / |
| 8 | 20701014 | Upper Knife Clamp | 3L / | 4L 1 | 5L / |
| 9 | S01032 | Screw | 3L / | 4L 1 | 5L / |
| 10 | 21202004 | Shaft | 3L / | 4L 1 | 5L / |
| 11 | 20704017 | Looper Holder | 3L / | 4L 1 | 5L / |
| 12 | 207S11048 | Screw | 3L / | 4L 2 | 5L / |
| 13 | 20717024 | Double Chainstith Looper | 3L / | 4L 2 | 5L / |
| 14 | S01027 | Screw | 3L / | 4L 2 | 5L / |
| 15 | 20717026 | Needle Guard | 3L / | 4L 1 | 5L / |
| 16 | 20717025 | Needle Guard | 3L / | 4L 1 | 5L / |
| 17 | 20704026 | Bracket | 3L / | 4L 1 | 5L / |
| 18 | 20701089 | Lower Knife Holder | 3L / | 4L 1 | 5L / |
| 19 | 20701031 | Bracket Assembly | 3L / | 4L 1 | 5L / |
| 20 | 20713025 | Thread Guide | 3L / | 4L 1 | 5L / |
| 21 | 20715078 | Needle Plate | 3L / | 4L 1 | 5L / |
| 22 | 20512012 | Link Stopper | 3L / | 4L 1 | 5L / |
| 23 | 20734008 | Needle Holder Assembly | 3L / | 4L 1 | 5L / |
| 24 | 12121601500 | Presser Foot Assy | 3L / | 4L 1 | 5L / |
| 25 | 2061205900 | Looper Thread Takeup Assy | 3L / | 4L 1 | 5L / |
Page 32 — E4S标准度量零件表
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 26 | 2071407400 | Main Feed Dog Complete | 1 |
| 27 | 20713028 | Thread Guide Assy | 1 |
| 28 | 20713029 | Thread Guide | 1 |
| 29 | 20711021 | Cover | 1 |
| 30 | 20713019 | Thread Guide | 1 |
| 31 | S04060 | Screw | 1 |
| 32 | 21102026 | Crankshaft | 1 |
| 33 | 3011101800 | Pallet | 1 |
| 20714006 | 20715009 | 4.5 | |
| 20714007 | 20715010 | 1.5 | |
| 20714008 | DCx27#9 | DCx27#9 | 1.5 |
| 20717004 | 12121600500 | 4 | |
| 20717004 | 12121600700 | 4 | |
| 20717004 | 2071600800 | 4.5 | |
| 20717004 | 12121600800 | 2 | |
| 20717004 | 12121605400 | 2 | |
| 20717004 | 12121601800 | 4 | |
| 20717004 | DCx27#14 | DCx27#14 | 4 |
| 20717006 | DCx27#11 | DCx27#11 | 4 |
| 20717022 | 12121601700 | 2 | |
| 20717052 | 12121601600 | 8 | |
| 20717113 | 21117002 | 4 | |
| 20719005 | 20619009 | 4 | |
| 20734001 | 20717006 | 4 | |
| 20734001 | 21317005 | 8 | |
| 20734002 | 21317001 | 2 | |
| 20734002 | 20717023 | 2 | |
| 20734002 | 20717012 | 4 | |
| 21317002 | 20719007 | 4 | |
| 2071400100 | 20715005 | 4 | |
| 2071400100 | 2121215004 | 2 | |
| 2071400100 | 20715070 | 4 | |
| 2071400100 | 20715072 | 8 | |
| 2071400100 | 20715002 | 2 | |
| 2071402000 | 20715019 | 4 | |
| 2071402200 | 20715021 | 2 | |
| 2071402500 | 20715045 | 2 |
Page 33
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| DCx27#11 | NEEDLE | ||
| DCx27#14 | NEEDLE | ||
| DCx27#14 | NEEDLE | ||
| DCx27#19 | NEEDLE | ||
| DCx27#11 | NEEDLE | ||
| DCx27#14 | NEEDLE | ||
| DCx27#14 | NEEDLE | ||
| DCx27#11 | NEEDLE | ||
| DCx27#19 | NEEDLE | ||
| DCx27#14 | NEEDLE | ||
| NG | 20715002 | NEEDLE PLATE | 4 |
| SW | 2071400100 | MAIN FEED DOG ASS | 4 |
| 12121605400 | PRESSER FOOT ASS | 4 | |
| 20717050 | UPPER LOOPER | 4 | |
| 20717006 | LOWER LOOPER | 4 | |
| 20712047 | CHAINSTITCH LOOPER | 4 | |
| 20734002 | NEEDLE HOLDER | 4 | |
| NG | 20715016 | NEEDLE PLATE | 5 |
| SW | 12111402100 | MAIN FEED DOG ASS | 5 |
| 12121601000 | PRESSER FOOT ASS | 5 | |
| 20717004 | UPPER LOOPER | 5 | |
| 20734004 | NEEDLE HOLDER | 5 | |
| NG | 20715008 | NEEDLE PLATE | 3 |
| SW | 12111402000 | MAIN FEED DOG ASS | 3 |
| 12121600900 | PRESSER FOOT ASS | 3 | |
| 20734003 | NEEDLE HOLDER | 3 | |
| NG | 20715050 | NEEDLE PLATE | 5 |
| SW | 2071405200 | MAIN FEED DOG ASS | 5 |
| 12121601100 | PRESSER FOOT ASS | 5 | |
| 20712051 | CHAINSTITCH LOOPER | 5 | |
| 20719056 | NEEDLE HOLDER | 5 | |
| NG | 20715051 | NEEDLE PLATE | 3 |
| SW | 2071405400 | MAIN FEED DOG ASS | 3 |
| 12121601200 | PRESSER FOOT ASS | 3 | |
| NG | 20715078 | NEEDLE PLATE | 5 |
| SW | 2071407400 | MAIN FEED DOG ASS | 5 |
| 12121601500 | PRESSER FOOT ASS | 5 | |
| 20717024 | CHAINSTITCH LOOPER | 5 | |
| 20734008 | NEEDLE HOLDER | 5 | |
| NG | 20715017 | NEEDLE PLATE | 3 |
| SW | 2071401800 | MAIN FEED DOG ASS | 3 |
| 12121601400 | PRESSER FOOT ASS | 3 | |
| NG | 20715061 | NEEDLE PLATE | 2 |
| 20719057 | NEEDLE HOLDER | 2 | |
| NG | 20715081 | NEEDLE PLATE | 5 |
| SW | 2071405600 | MAIN FEED DOG ASS | 5 |
| 2061604100 | PRESSER FOOT ASS | 5 | |
| 20717060 | CHAINSTITCH LOOPER | 5 | |
| 121134001 | NEEDLE HOLDER | 5 | |
| NG | 20719007 | UPPER KNIFE | 2 |
| SW | 21317002 | LOWER KNIFE | 2 |
| 21117002 | OVERLOCK NEEDLE GUARD REAR | 2 | |
| 20717113 | CHAINSTITCH NEEDLE FRONT | 2 | |
| 20717008 | OVERLOCK NEEDLE GUARD FRONT | 5 | |
| 20712045 | CHAINSTITCH NEEDLE FRONT | 5 | |
| 20701032 | CHAINSTITCH NEEDLE REAR | 5 | |
| NG | 20719050 | UPPER KNIFE | 5 |
| SW | 121119001 | LOWER KNIFE | 5 |
| NG | 20719001 | UPPER KNIFE | 3 |
| 20717025 | OVERLOCK NEEDLE GUARD FRONT | 5 | |
| NG | 20619009 | UPPER KNIFE | 5 |
Jack E4S — parts catalog
- Page 1 (parts_list): This page lists parts for the Machine Bed Frame of the E4S Super high speed overlock sewing machine, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 2 (cover): This page contains a diagram of machine cover components and a parts list for a sewing machine, detailing part numbers, descriptions, and quantities for different models.
- Page 3 (parts_list): This page lists parts for the machine cover and related components, including screws, plates, brackets, and washers, with quantities specified for three-thread, four-thread, and five-thread configurations.
- Page 4 (diagram): This page displays a diagram of the Crankshaft Drive Mechanism, along with a detailed parts list including part numbers, names, descriptions, and quantities for different series.
- Page 5 (diagram): This page contains a diagram of the thread tension mechanism and a parts list for the thread tension mechanism and thread guide and thread takeup.
- Page 6 (diagram): This page contains a diagram of the thread guide and thread takeup mechanism for 3/4 series and 5 series sewing machines, along with a parts list detailing components for these mechanisms.
- Page 7 (parts_list): This page contains two parts lists for the sewing machine. The first list details parts for a "Thread Takeup" mechanism, and the second list details parts for the "Needle Drive Mechanism (1)". Both lists include part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 8 (parts_list): This page lists parts for Needle Drive Mechanism (2) and Needle Drive Mechanism (3) for 5 Series, 3 Series, and 4 Series sewing machines, detailing part numbers, names, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 9 (diagram): This page contains a diagram of the upper looper drive mechanism and a parts list for various components including screws, washers, spacers, and levers.
- Page 10 (parts_list): This page lists parts for the Lower Looper Drive Mechanism, including part numbers, names, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 11 (diagram): This page displays a diagram and parts list for the Chainstitch Looper Drive Mechanism (1) for the 5 Series, detailing parts for three-thread, four-thread, and five-thread configurations.
- Page 12 (diagram): This page contains a diagram and parts list for the Chainstitch Looper Drive Mechanism (2) of a sewing machine, detailing components like thread guides, screws, and washers with their respective part numbers and quantities for three-thread, four-thread, and five-thread configurations.
- Page 13 (diagram): This page contains a diagram and parts list for the Feed Mechanism of an industrial sewing machine, detailing components with their part numbers, descriptions, and quantities for different machine types.
- Page 14 (parts_list): This page lists parts for the Feed Mechanism, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 15 (parts_list): This page contains a parts list for the Knife Drive Mechanism, detailing part numbers, names, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 16 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, names, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 17 (parts_list): This page contains a parts list for the Lubrication Mechanism (1) of an industrial sewing machine, detailing part numbers, names, and quantities for different thread types.
- Page 18 (parts_list): This page lists parts for the Lubrication Mechanism (2) with part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 19 (parts_list): This page contains a parts list for HR Device components, detailing part numbers, names, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 20 (parts_list): This page lists parts for the Thread Stand, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 21 (diagram): This page contains a diagram and parts list for semi-submerged installation, detailing components like nuts, rubber cushions, oil pans, and various screws with their corresponding part numbers and quantities for different machine configurations.
- Page 22 (parts_list): This page lists specific parts for the 25, 二十五, 专用零件/Specific Parts section, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 23 (parts_list): This page lists accessories and assemblies for an industrial sewing machine, including various tools like wrenches and screwdrivers, as well as specific components like an oil container, chain, and needle threader, with quantities specified for three-thread, four-thread, and five-thread configurations.
- Page 24 (parts_list): This page contains a parts list for machine stand table assembly, with part numbers, names, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 25 (parts_list): This page lists specific parts for a sewing machine, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations. It also includes a diagram of various machine components.
- Page 26 (parts_list): This page lists specific parts for a sewing machine, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations. It also includes a diagram of the parts.
- Page 27 (parts_list): This page lists specific parts for the E4SM04 model, including part numbers, names, descriptions, and quantities for four-thread, five-thread, and six-thread configurations.
- Page 28 (parts_list): This page lists specific parts for the E4SWF model, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 29 (diagram): Page 32 shows exploded views of six-thread specific parts for an industrial sewing machine with a parts table listing needle plate, presser foot, thread takeup, tension discs, feed dog, thread guides and thread stand component.
- Page 30 (parts_list): This page lists specific parts for the E4 overlock machine, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 31 (diagram): Exploded diagram 34 of E4 bag-closing machine specific parts (needle, looper, knife, presser foot, and handwheel assemblies) with a parts table of items 1-25 and a related table of items 35-46 above it.
- Page 32 (parts_list): This page contains a parts list for the E4S series sewing machines, detailing various components like needle plates, feed dogs, loopers, and needles with their corresponding part numbers and specifications.
- Page 33 (parts_list): This page lists parts for various sewing machine models, including needle plates, feed dogs, presser feet, loopers, needle guards, and needles, with their corresponding part numbers and specifications.
- Page 34 (cover): This is the cover page for JACK TECHNOLOGY CO.,LTD. industrial sewing machines, featuring the company name, slogan, and contact information.
