Jack E4S — parts catalog
- Page 1 (parts_list): This page lists parts for the Machine Bed Frame of the E4S Super high speed overlock sewing machine, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 2 (cover): This page contains a diagram of machine cover components and a parts list for a sewing machine, detailing part numbers, descriptions, and quantities for different models.
- Page 3 (parts_list): This page lists parts for the machine cover and related components, including screws, plates, brackets, and washers, with quantities specified for three-thread, four-thread, and five-thread configurations.
- Page 4 (diagram): This page displays a diagram of the Crankshaft Drive Mechanism, along with a detailed parts list including part numbers, names, descriptions, and quantities for different series.
- Page 5 (diagram): This page contains a diagram of the thread tension mechanism and a parts list for the thread tension mechanism and thread guide and thread takeup.
- Page 6 (diagram): This page contains a diagram of the thread guide and thread takeup mechanism for 3/4 series and 5 series sewing machines, along with a parts list detailing components for these mechanisms.
- Page 7 (parts_list): This page contains two parts lists for the sewing machine. The first list details parts for a "Thread Takeup" mechanism, and the second list details parts for the "Needle Drive Mechanism (1)". Both lists include part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 8 (parts_list): This page lists parts for Needle Drive Mechanism (2) and Needle Drive Mechanism (3) for 5 Series, 3 Series, and 4 Series sewing machines, detailing part numbers, names, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 9 (diagram): This page contains a diagram of the upper looper drive mechanism and a parts list for various components including screws, washers, spacers, and levers.
- Page 10 (parts_list): This page lists parts for the Lower Looper Drive Mechanism, including part numbers, names, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 11 (diagram): This page displays a diagram and parts list for the Chainstitch Looper Drive Mechanism (1) for the 5 Series, detailing parts for three-thread, four-thread, and five-thread configurations.
- Page 12 (diagram): This page contains a diagram and parts list for the Chainstitch Looper Drive Mechanism (2) of a sewing machine, detailing components like thread guides, screws, and washers with their respective part numbers and quantities for three-thread, four-thread, and five-thread configurations.
- Page 13 (diagram): This page contains a diagram and parts list for the Feed Mechanism of an industrial sewing machine, detailing components with their part numbers, descriptions, and quantities for different machine types.
- Page 14 (parts_list): This page lists parts for the Feed Mechanism, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 15 (parts_list): This page contains a parts list for the Knife Drive Mechanism, detailing part numbers, names, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 16 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, names, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 17 (parts_list): This page contains a parts list for the Lubrication Mechanism (1) of an industrial sewing machine, detailing part numbers, names, and quantities for different thread types.
- Page 18 (parts_list): This page lists parts for the Lubrication Mechanism (2) with part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 19 (parts_list): This page contains a parts list for HR Device components, detailing part numbers, names, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 20 (parts_list): This page lists parts for the Thread Stand, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 21 (diagram): This page contains a diagram and parts list for semi-submerged installation, detailing components like nuts, rubber cushions, oil pans, and various screws with their corresponding part numbers and quantities for different machine configurations.
- Page 22 (parts_list): This page lists specific parts for the 25, 二十五, 专用零件/Specific Parts section, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.

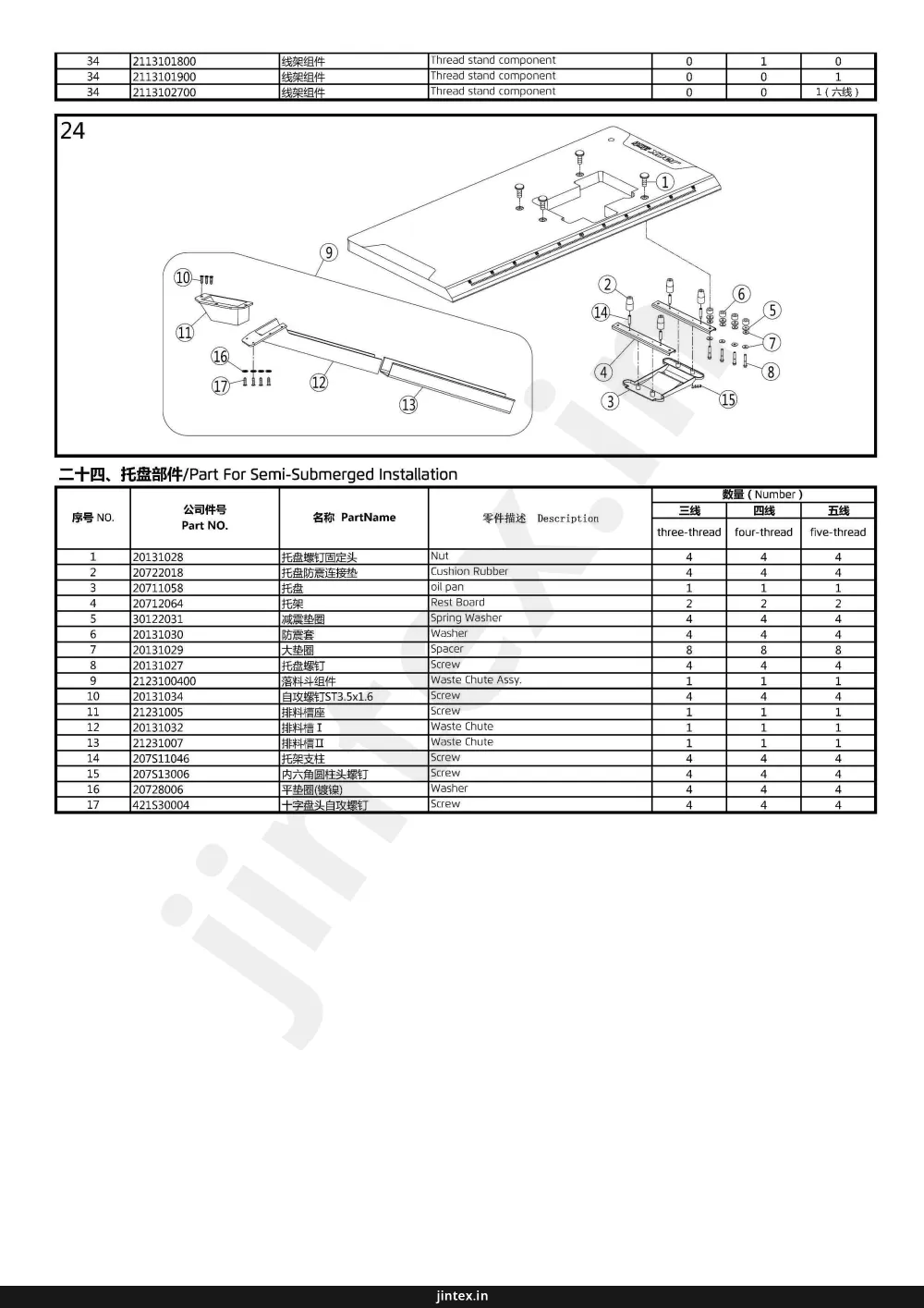

- Page 23 (parts_list): This page lists accessories and assemblies for an industrial sewing machine, including various tools like wrenches and screwdrivers, as well as specific components like an oil container, chain, and needle threader, with quantities specified for three-thread, four-thread, and five-thread configurations.
- Page 24 (parts_list): This page contains a parts list for machine stand table assembly, with part numbers, names, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 25 (parts_list): This page lists specific parts for a sewing machine, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations. It also includes a diagram of various machine components.
- Page 26 (parts_list): This page lists specific parts for a sewing machine, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations. It also includes a diagram of the parts.
- Page 27 (parts_list): This page lists specific parts for the E4SM04 model, including part numbers, names, descriptions, and quantities for four-thread, five-thread, and six-thread configurations.
- Page 28 (parts_list): This page lists specific parts for the E4SWF model, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 30 (parts_list): This page lists specific parts for the E4 overlock machine, including part numbers, descriptions, and quantities for three-thread, four-thread, and five-thread configurations.
- Page 32 (parts_list): This page contains a parts list for the E4S series sewing machines, detailing various components like needle plates, feed dogs, loopers, and needles with their corresponding part numbers and specifications.
- Page 33 (parts_list): This page lists parts for various sewing machine models, including needle plates, feed dogs, presser feet, loopers, needle guards, and needles, with their corresponding part numbers and specifications.
- Page 34 (cover): This is the cover page for JACK TECHNOLOGY CO.,LTD. industrial sewing machines, featuring the company name, slogan, and contact information.
Page 1 — 一、机壳部分/Machine Bed Frame
JACK
快速服务 100%
E4S超高速包缝机
Super high speed overlock sewing machine
零件手册
Parts Manual
1
一、机壳部分/Machine Bed Frame
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
数量 (Number)
三线
three-thread
四线
four-thread
五线
five-thread
1
P03017
弹性圆柱销5×10
Pin
1
1
1
2
20703006
上弯针后轴套
Sleeve
1
1
1
3
20703009
上刀轴右套
Sleeve
4
4
6
4
20628023
送料油封
Plug
1
1
0
5
20701002
下刀座
Bracket Assembly
1
1
1
6
207S13003
内六角圆柱头螺钉
Screw
2
2
2
7
P03018
弹性圆柱销4×40
Pin
1
1
1
8
20703004
上刀轴左套
Sleeve
1
1
1
9
206S30001
支柱
Bed pin
4
4
4
10
20126001
工艺孔销
Pin
1
1
1
11
20703008
差动轴套
Sleeve
1
1
1
12
20703007
主轴套
Sleeve
1
1
1
13
20703003
送布轴右套
Sleeve
1
1
1
14
20703002
上轴左套
Sleeve
1
1
1
15
20703001
上轴右套
Sleeve
1
1
1
16
P03010
弹性圆柱销5×16
Pin
1
1
1
17
R03001
铆钉2.5×4
Screw
2
2
2
18
13837003
型号牌
Machine Model Plate
1
1
1
19
93000065
机壳(喷漆)
Machine Bed Complete
1
1
1
20
20113013
穿线管
Pipe
1
2
2
21
P03019
销5×14
Pin
1
1
1
22
20726018
下刀座定位销
Pin
1
1
1
23
20703009
上刀轴右套
Pin
1
1
1
24
21103025
偏心轴套筒
Pin
1
1
1
jintex.in
Page 2 — 二、机壳机罩部件(1)/Cover(1)
2
二、机壳机罩部件(1)/Cover(1)
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
数量 (Number )
三线
three-thread
四线
four-thread
五线
five-thread
1
207S17005
开槽沉头螺钉M4×8
Screw
1
1
1
2
302782
侧盖(喷漆)
Side Cover
1
1
1
3
13837002
商标牌
Machine Model Plate
1
1
1
4
S04060
十字槽盘头螺钉M4×10
Screw
6
6
6
5
20711210
R型线夹
R thread clamp
3
3
2
6
20612062
油管螺钉垫圈
Washer
3
3
2
7
2123000300
LED灯组件
LED ASSY
1
1
1
8
21022007
油封
Oil Seal
2
2
2
9
21012018
油封垫
Oil Seal washer
2
2
2
10
21112001
油封垫
Gasket
1
1
1
11
207S11026
螺钉M6
Screw
3
3
3
12
20711055
油标盖
Oil sight window
1
1
1
13
21022003
油窗垫
Washer
1
1
1
14
S04019
十字槽盘头螺钉M4×12
Screw
4
4
4
15
302706
上盖(喷漆)
Top Cover
1
1
1
16
121230002
控制器
Controller
1
1
1
17
20612004
前罩板卡簧
Flat Spring
1
1
1
18
207S11011
开槽圆柱头螺钉
Screw
2
2
2
19
20712003
锁紧板
Latch
1
1
1
20
207S11008
开槽圆柱头螺钉
Screw
5
5
5
21
20712002
锁紧板
Latch
1
1
1
22
413S11011
开槽圆柱头螺钉
Screw
1
1
1
23
20626001
铰链销
Pin
1
1
1
24
20712005
前盖板
Side Cover
1
1
1
25
207S14003
内六角尖头紧定螺钉
Screw
1
1
1
26
207S14002
内六角螺钉
Screw
1
1
1
27
XXXXXXXX
穿线图
Threading diagram
1
1
1
28
XXXXXXXX
穿线图
Threading diagram
0
0
1
29
S09103
内六角平端紧定螺钉M4×4
Screw
2
2
2
30
302780
右前盖(喷漆)
Front Cover(right)
1
1
1
31
20701006
铰链
Hinge
1
1
1
32
20627001
铰链弹簧
Spring
1
1
1
33
207S11011
开槽圆柱头螺钉
Screw
2
2
2
34
21112011
左前盖(五线)
Front Cover(left)
0
0
1
35
21112009
左前盖
Front Cover(left)
1
1
0
36
21222001
侧盖密封垫
Washer
1
1
1
37
207S11007
十字槽圆头螺钉
Screw
2
2
2
38
30228009
垫片
Washer
1
1
1
39
207S13006
内六角圆头螺钉
Screw
1
1
1
jintex.in
Page 3 — 三、机壳机罩部件(2)/Cover(2)
3
三、机壳机罩部件(2)/Cover(2)
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
数量 (Number)
三线
three-thread
四线
four-thread
五线
five-thread
1
L02003
开槽六角头螺栓M4×7
Screw
1
1
1
2
207S12001
开槽六角头螺钉
Screw
4
4
4
3
21101001
左上盖
Bed Cover Plate Assy.
1
1
1
4
S04060
开槽圆柱头螺钉M4×10
Screw
4
4
4
5
2111202100
后窗板组件
Cover Plate
1
1
1
6
207S20002
开槽圆柱头轴位螺钉
Screw
1
1
1
7
20128015
波形垫圈
Washer
1
1
1
8
21212008
托架
Bracket
1
1
1
9
21111051
针杆防护罩
Eye Guide
1
1
1
10
W01011
垫圈3
Washer
2
2
2
11
207S11015
开槽圆柱头螺钉M3×6
Screw
2
2
2
12
20712008
挡板
Plate
1
1
1
13
207S17003
开槽半沉头螺钉
Screw
2
2
2
14
20612016
下刀座前垫护板
Latch
1
1
1
15
207S11014
开槽圆柱头螺钉
Screw
1
1
1
16
207S11016
十字圆槽头螺钉
Screw
1
1
1
17
N01001
六角螺母M4
Nut
1
1
1
18
20712022
挡板
Plate
1
1
1
19
207S11007
十字圆槽头螺钉
Screw
1
1
1
20
20722016
支撑垫
Cushion
1
1
1
21
21212018
布料挡板
Fabric Guide
1
1
1
22
2121201300
Cloth Plate
1
1
1
23
20612019
支架固定板
Bracket
1
1
1
24
20622003
减震垫
Cushion Rubber
1
1
1
25
20627002
撬台
Lever
1
1
1
26
20627003
撬台簧
Spring
1
1
1
27
206S20006
螺钉
Screw
1
1
1
28
207S14007
内六角凹端紧定螺钉
Screw
1
1
1
29
20603016
撬台轴套
Bushing
1
1
1
30
20628022
垫圈
Washer
1
1
1
31
206S20004
螺钉M4×3.7
Screw
1
1
1
32
21111060
撬台裙子(新颜色)
Side Cover(Wide)
1
1
1
33
20528017
垫片
Washer
2
2
2
34
207S11013
开槽圆柱头螺钉
Screw
1
1
1
35
403S11051
开槽圆柱头螺钉
Screw
2
2
2
jintex.in
Page 4 — 四、主轴部件/Crankshaft Drive Mechanism
4
四、主轴部件/Crankshaft Drive Mechanism
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
数量 (Number)
三线
three-thread
四线
four-thread
五线
five-thread
1
207S11007
十字槽圆头螺钉
Screw
3
3
0
2
20712013
轴承盖
Cover
1
1
0
3
20722027
O型圈40×2
O Ring
1
1
1
4
207S11041
螺钉M5×10
Screw
1
1
1
5
207S11042
螺钉M5×5
Screw
1
1
1
6
001037
O型圈30×1.2
O Ring
2
2
2
7
B04004
轴承6202LB
Ball Bearing
1
1
1
8
20725001
棘轮
Ratchet
1
1
1
9
207S11047
堵油螺钉
Screw
1
1
1
10
20726002
销
Pin
1
1
1
11
20709035
平衡块
Blance Weight
1
1
1
12
207S11017
螺钉M3×8
Screw
4
4
4
13
20729001
卡簧
Ring
1
1
1
14
21102025
主轴
Crankshaft
1
1
1
15
21102026
主轴
Crankshaft
0
1
0
16
21102027
主轴
Crankshaft
0
1
0
17
B01005
轴承6203Z
Ball Bearing
2
2
2
18
20708020
轴套
Spacer
4
4
4
19
20725008
蜗杆
Worm
1
1
1
20
21203003
主轴中轴套
Oil Seal
1
1
1
21
W03003
垫圈32
Washer
1
1
1
22
21222003
O型密封圈
O Ring
1
1
1
23
20722027
O型圈41×2
O Ring
1
1
1
24
20708015
轴承端盖
Rigth Cover
1
1
1
25
S04060
十字槽盘头螺钉M4×10
O Ring
1
1
4
26
12123001
直驱电机
Direct drive moter
1
1
1
27
21228002
垫片
Sleeve
1
1
1
28
W03002
M5波形垫片
Washer
3
3
4
29
114S13001
直驱电机螺钉M5×20
Screw
4
4
4
30
21203004
主轴挡圈
Sleeve
1
1
1
31
W02004
标准型弹垫圈6
Washer
1
1
1
32
20602002
主轴接轴
Pin
0
0
1
33
207S13003
内六角圆头螺钉
Screw
1
1
1
34
207S17005
开槽沉头螺钉M4X8
Screw
0
0
2
35
20712046
前轴承盖
Pin
0
0
1
36
930000980
手轮
Hand Wheel
1
1
1
jintex.in
Page 5 — 五、夹线部件/Thread Tension Mechanism
5
13
2
3
4
5
6
7
8
9
10
11
12
14 4/5 series
15 3 series
16
17
18
五、夹线部件/Thread Tension Mechanism
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
数量 (Number)
三线
three-thread
四线
four-thread
五线
five-thread
1
2111300500
夹线器组件(红点)
Tension Spring Assembly
1
1
1
2
121113014
夹线杆
Screw Stud
6
8
8
3
20123018
羊毛垫
Felt
3
4
4
4
20111161
夹线片
Tension Disc
6
8
8
5
20111015
调压止动盖
Cup
3
4
4
6
20227001
夹线簧(粗)
Spring
1
2
2
7
20111014
调压止动套
Rachet
3
4
4
8
20101082
夹线器螺母(手印)(红)
Knob
3
4
4
9
2111300600
夹线器组件(蓝点)
Tension Spring Assembly
1
1
1
10
20227002
夹线簧(细)
Spring
1
1
1
11
2111300700
夹线器组件(绿点)
Tension Spring Assembly
1
1
1
12
20227003
夹线簧(中)
Spring
1
1
1
13
21113003
过线板
Tension Guide
2
3
3
14
2111300800
夹线器组件(黄点)
Tension Spring Assembly
0
1
1
15
206S11005
螺钉SM11/64X40X7.3
Screw
1
0
0
16
20712032
过线片
Thread Guide
1
1
1
17
207S11007
十字槽圆柱头螺钉
Screw
2
2
2
18
21213011
上盖过线板
Thread Guide
1
1
1
6
5 Series
5 Series
六、过线机构(1)/Thread Guide and Thread Takeup(1)
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
数量 (Number)
三线
three-thread
四线
four-thread
五线
five-thread
1
21101012
托架
Bracket
0
0
1
2
207S11019
螺钉M4×7.5
Screw
0
0
2
3
S09103
内六角平头锁紧螺钉M4×4
Screw
0
0
2
4
20701030
托架
Bracket
0
0
1
5
207S11011
开槽圆柱头螺钉
Screw
0
0
3
6
2111301000
过线组件
Thread Guide
0
0
1
7
21213007
过线
Thread Guide
0
0
1
8
21213010
过线
Thread Guide
0
0
1
9
20713021
过线
Thread Guide
0
0
1
10
21213004
过线
Thread Guide
0
0
1
11
20713006
托架
Bracket
0
0
1
jintex.in
Page 6 — 七、过线机构(2)/Thread Guide and Thread Takeup(2)
12
20713007
Thread Retainer
0
0
1
13
20727002
Spring
0
0
1
14
207S20003
Screw
0
0
1
15
207S11015
Screw
0
0
2
16
21213008
Thread Takeup
0
0
1
17
121213001
Thread Takeup
0
0
1
7
3/4 Series
1
8
9
10
11
2
3
63 Series
4
74 Series
5
4 Series
12
13 3 Series
14 4 Series
七、过线机构(2)/Thread Guide and Thread Takeup(2)
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
数量 (Number)
三线
four-thread
四线
five-thread
three-thread
1
21212029
托架
Bracket
1
1
0
2
207S11015
螺钉(进口)
Screw
2
2
0
3
S09103
内六角平头沉头螺钉M4×4
Screw
1
1
0
4
20713002
过线
Thread Guide
1
0
0
5
20713003
过线
Thread Guide
1
0
0
6
21213003
过线
Thread Guide
0
0
0
7
21213002
过线
Thread Guide
1
0
0
8
20713006
托架
Bracket
1
1
0
9
20713007
压线板
Thread Retainer
1
1
0
10
20727002
压簧
Spring
1
1
0
11
207S20003
螺钉(进口)
Screw
1
1
0
12
207S11015
开槽圆柱头螺钉M3×6
Screw
2
2
0
13
21213009
挑线杆
Thread Takeup
0
0
0
14
121213013
挑线杆
Thread Takeup
1
1
0
8
1
25 Series
3 3/4 Series
3/4 Series
5 Series
14
八、过线机构(3)/Thread Guide and Thread Takeup(3)
jintex.in
Page 7 — 九、 针杆部件(1)/Needle Drive Mechanism(1)
序号 NO. 公司件号 Part NO. 名称 PartName 零件描述 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20713054 过线 Thread Guide 1 1 1 2 20713053 过线 Thread Guide 0 0 1 3 20713012 过线 Thread Guide 1 1 0 4 20113015 过线 Thread Guide 3 3 3 5 20712016 托架 Bracket 1 1 1 6 20113006 垫圈3 Washer 3 3 3 7 201511006 开槽圆柱头螺钉 Screw 1 1 1 8 207511007 十字槽圆柱头螺钉 Screw 1 1 1 9 207511020 开槽圆柱头螺钉 Screw 1 1 1 10 20713011 过线 Thread Guide 1 1 1 11 20713010 挑线架 Thread Takeup 1 1 1 12 207511021 开槽圆柱头螺钉M3.5×6 Screw 1 1 1 13 20713015 挑线架 Thread Takeup 1 1 1 14 20713055 挑线架 Thread Takeup 0 0 1 9 九、 针杆部件(1)/Needle Drive Mechanism(1) 序号 NO. 公司件号 Part NO. 名称 PartName 零件描述 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 121205003 针杆连杆 Connection 1 1 1 2 S22007 连杆螺丝 Screw 2 2 2 3 207S14007 内六角圆头紧定螺钉 Screw 1 1 1 4 H05008 挡圈8 Ring 1 1 1 5 20628014 上刀架垫片 Washer 1 1 1 6 207S14001 内六角平头紧定螺钉 Screw 2 2 2 7 20708004 上轴挡圈 Collar 1 1 1 8 20626003 曲柄销 Pin 1 1 1 9 S05018 内六角圆柱头螺钉M6×0.75×12 Screw 1 1 1 10 20704037 曲柄 Crank 1 1 1 11 20702002 上轴 Shaft 1 1 1 12 21111040 针杆油封 Plug 1 1 1 13 207S11043 螺钉 Screw 1 1 1 14 20704002 针杆曲柄 Lever 1 1 1 15 2120200100 针杆组件 Needle Bar Assembly 1 1 1 16 20702003 针杆 Needle Bar 1 1 1 17 20726003 曲柄销 Pin 1 1 1 18 20523005 油线 Oil wick 0.033 0.033 0.033 19 21203001 针杆套 Bushing 1 1 1 20 207S14008 螺钉M4×5 Screw 1 1 1 21 001026 O型圈φ11.5×1.5 O Ring 1 1 1 22 20723003 毛毡 Oil Felt 1 1 1 23 207S11023 螺钉M3×6 Screw 1 1 1 24 20708031 挡圈 Ring 1 1 1 jinttex.in
Page 8
10
2针(2-needle)
5 Series
15-03/333 Series
25-03/233 Series
35-A04 Series
1针(1-needle)
3 Series
2针(2-needle)
4 Series
十、针杆部件(2)/Needle Drive Mechanism(2)
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
数量(Number)
三线
四线
五线
three-thread
four-thread
five-thread
1
20734003
针夹头
Needle Holder Assembly
0
0
1
2
20734004
针夹头
Needle Holder Assembly
0
0
1
3
20719056
针夹头
Needle Holder Assembly
0
0
1
4
207S14014
内六角平端紧定螺钉
Screw
1
2
2
5
20713017
过线
Thread Guide
0
0
1
6
20713056
过线板
Thread Guide
0
0
1
7
207S11024
开槽圆柱头螺钉
Screw
1
1
1
8
XXXXXXXX
机针
Needle
0
0
2
9
20713038
过线(三线)
Thread Guide
1
0
0
10
20734001
针夹头(三线)
Needle Holder Assembly
1
0
0
11
XXXXXXXX
机针
Needle
1
0
0
12
20713018
过线
Thread Guide
0
1
0
13
20734002
(四线)针夹头
Needle Holder
0
1
0
14
XXXXXXXX
机针
Needle
0
2
0
11
5 Series
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
十一、针杆部件(3)/Needle Drive Mechanism(3)
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
数量(Number)
三线
四线
五线
three-thread
four-thread
five-thread
1
207S17003
开槽半沉头螺钉
Screw
2
2
2
2
XXXXXXXX
针板
Needle Plate
1
1
1
3
207S11007
十字槽圆头螺钉
Screw
5
5
5
4
20709003
针板垫块(后)
Bracket
1
1
1
5
20709002
针板垫块(前)
Bracket
1
1
1
6
20622003
减震垫
Cushion Rubber
2
2
2
7
20701033
托架
Bracket
0
0
1
8
207S11003
螺钉M4×10
Screw
0
0
2
9
XXXXXXXX
机针护针(后)
Needle Guard
0
0
1
10
S01027
开槽圆柱头螺钉M3×6
Screw
0
0
4
11
XXXXXXXX
链弯护针
Needle Guard
0
0
1
12
20128019
W07垫圈
Spring
1
1
1
13
XXXXXXXX
机针护针(前)
Needle Guard
1
1
1
jintex.in
Page 9 — 十二、上弯针部件/Upper Looper Drive Mechanism
12
33 3/4/5 Series
34 5-A04、4-H/M Series
(35)
(36)
(37)
(38)
(23) 3/4/5 Series
(24) 5-A04、4-H/M Series
(33)
(34)
(32)
(31)
(30)
(29)
(28)
(27)
(26)
(25)
(22)
(21)
(20)
(19)
(18)
(17)
(16)
(15)
(14)
(13)
(12)
(11)
(10)
(9)
(8)
(7)
(6)
(5)
(4)
(3)
(2)
(1)
3/5 Series
4 Series
5-A04、4-H/M Series
十二、上弯针部件/Upper Looper Drive Mechanism
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
数量 (Number)
三线
three-thread
四线
four-thread
五线
five-thread
1
207S11004
外六角螺钉M5×9.5
Screw
1
1
1
2
W02001
弹垫圈5
Spring Washer
1
1
1
3
20628006
垫圈
Washer
1
1
1
4
20702004
上弯针轴
Shaft
1
1
1
5
20708007
衬套A
Spacer
1
0
1
6
20703038
上弯针衬套
Spacer
0
1
0
7
20703060
衬套A
Spacer
1
1
1
8
400036
上弯针球柄
Crank
1
0
0
9
400037
上弯针球柄
Crank
0
1
1
10
S05018
内六角圆柱头螺钉M6×0.75×12
Screw
1
1
1
11
S02007
外槽沉头螺钉M3×5.4
Screw
1
1
1
12
20712066
连杆垫片
Washer
1
1
1
13
400043
弯针连杆
Connection
2
2
2
14
S22007
连杆螺丝
Screw
2
2
2
15
S22007
连杆螺丝
Screw
2
2
2
16
20622019
油封
Oil Seal
1
1
1
17
207S11043
螺钉
Screw
1
1
1
18
20705003
连杆
Lever
1
1
1
19
207S14010
内六角圆柱端紧定螺钉
Screw
1
1
1
20
21323007
油线
Oil Weak
0.04
0.04
0.04
21
20726004
曲柄销
Pin Assy
1
1
1
22
207S11025
开槽圆柱头螺钉
Screw
1
1
1
23
2070400500
上弯针滑块组件
Upper Looper Holder Assy
1
1
1
24
2070403600
上弯针滑块组件(厚料)
Upper Looper Holder Assy
0
1
1
25
20704005
上弯针滑块
Upper Looper Slider
1
1
1
26
20709004
上弯针滑块
Upper Looper Slider
1
1
1
27
XXXXXXXX
上弯针滑块油毡
Felt
1
1
1
28
XXXXXXXX
上弯针
Upper Looper
1
1
1
29
207S17004
开槽沉头螺钉
Screw
1
1
1
30
207S11027
开槽圆柱头螺钉M2.5×8
Screw
1
1
1
31
400040
盖板
Cover
1
1
1
32
207S11026
螺钉M6
Screw
1
2
2
33
20701051
上弯针滑块座
Upper Looper Bracket
1
1
1
34
20701088
上弯针滑块座(厚料)
Upper Looper Bracket
1
1
1
35
121223001
过滤塞
Filter plug
0.04m
0.04m
0.04m
36
21323006
上弯针滑块座油毡
Felt
1
1
1
37
207S11020
开槽圆柱头螺钉
Screw
1
1
1
38
20712017
压板
Bracket
1
1
1
39
20722019
滑孔塞
Plug
1
1
1
jintex.in
Page 10 — 十三、下弯针部件/Lower Looper Drive Mechanism
13
十三、下弯针部件/Lower Looper Drive Mechanism
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
数量 (Number )
三线
three-thread
四线
four-thread
五线
five-thread
1
207S11004
外六角螺钉M5×9.5
Screw
1
1
1
2
W02001
标准型弹簧垫圈5
Spring Washer
1
1
1
3
20628006
垫圈
Washer
1
1
1
4
20702004
下弯针轴
Shaft
1
1
1
5
400329
下弯针球柄
Crank
1
1
0
6
S05018
内六角圆柱头螺钉M6×0.75×12
Screw
1
1
2
7
S02007
开槽沉头螺钉M3×5.4
Screw
1
1
2
8
20712066
连杆垫片
Washer
1
1
1
9
20500005
连杆螺丝
Connection
2
2
2
10
S22007
连杆螺丝
Screw
2
2
2
11
S22007
连杆螺丝
Screw
1
1
1
12
20622019
油封
Oil Seal
1
1
1
13
201S12007
外角头特制螺钉
Screw
1
1
1
14
20704007
下弯针架
Lower Looper Holder
1
1
1
15
207S15001
开槽圆柱头螺钉
Screw
1
1
1
16
XXXXXXXX
下弯针
Lower Looper
1
1
1
17
207S11028
开槽圆柱头螺钉
Screw
1
1
1
18
400388
下弯针球柄(5线)
Crank
0
0
1
19
207S11042
螺钉M5×5
Screw
0
0
1
20
20128021
W12垫片
Washer
1
1
1
Page 11 — 十四、二重环弯针机构(1)/Chainstitch Looper Drive Mechanism(1)
14
5 Series
十四、二重环弯针机构(1)/Chainstitch Looper Drive Mechanism(1)
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
数量 (Number)
三线
three-thread
四线
four-thread
五线
five-thread
1
207S13009
内六角圆柱头螺钉
Screw
0
0
1
2
W02001
标准型弹簧垫圈5
Spring Washer
0
0
1
3
20628010
送布曲柄垫圈
Washer
0
0
1
4
20710008
偏心销
Pin
0
0
1
5
001027
O型圈φ4×1.3
O Ring
0
0
1
6
401031
滑块
Slider
0
0
1
7
401030
曲柄
Crank
0
0
1
8
20705020
连杆
Connection
0
0
1
9
20703016
连杆套
Bushing
0
0
1
10
30228008
垫圈
Washer
0
0
2
11
L01004
内六角螺钉M5×0.5×13
Screw
0
0
2
12
207S11028
开槽圆柱头螺钉
Screw
0
0
1
13
20626017
五线销
Shaft
0
0
1
14
20701034
支架
Holder
0
0
1
15
S05018
内六角圆柱头螺钉M6×0.75×12
Screw
0
0
1
16
20704015
链线曲柄
Crank
0
0
1
17
20705009
连杆
Link
0
0
1
18
20703013
连杆套
Bushing
0
0
1
19
20702018
链线轴
Shaft
0
0
1
20
2072201700
油封
Oil Seal
0
0
1
21
20701035
弯针架
Looper Holder
0
0
1
22
207S15001
开槽圆柱头螺钉
Screw
0
0
1
23
20728002
垫片
Spacer
0
0
1
24
207S20004
螺钉M5×13
Screw
0
0
1
25
XXXXXXXX
弯针
Double Chainstith Looper
0
0
1
26
20128021
W12垫片
Spacer
0
0
1
Page 12 — 十五、二重环弯针机构(2)/Chainstitch Looper Drive Mechanism(2)
15
5 Series
十五、二重环弯针机构(2)/Chainstitch Looper Drive Mechanism(2)
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
数量 (Number )
三线
three-thread
四线
four-thread
五线
five-thread
1
20713039
过线管
Thread Guide
0
0
1
2
20629003
过线夹
Holder
0
0
2
3
20128021
W12垫片
Washer
0
0
1
4
207S11007
十字槽圆柱头螺钉
Screw
0
0
2
5
20713040
过线管
Thread Guide
0
0
1
6
2061205700
打线凸轮架组件
Looper Thread Takeup Assy
0
0
1
7
206S16004
线夹螺母
Knob
0
0
1
8
30127016
线夹簧
Spring
0
0
1
9
20612055
线夹片
Tension Disc
0
0
2
10
206S30015
螺钉
Screw
0
0
1
11
20612057
打线凸轮架
Looper Thread Takeup Assy
0
0
1
12
20613017
凸轮架过线
Thread Guide
0
0
1
13
207S11020
十字槽圆柱头螺钉
Screw
0
0
2
14
20629004
打线架卡簧
Thread Guide
0
0
1
15
207S11011
十字槽圆柱头螺钉
Screw
0
0
1
16
20612056
分线板
Thread Guide
0
0
1
17
301S20001
护罩座固定螺钉
Screw
0
0
1
18
20128015
波形垫圈
Washer
0
0
1
19
20612058
打线凸轮
Looper Thread Takeup
0
0
2
20
207S14014
内六角平端紧定螺钉
Screw
0
0
2
21
20713026
过线管
Thread Guide
0
0
1
22
20629005
卡簧
Spring
0
0
1
23
20729004
线卡
Holder
0
0
1
24
S01060
螺钉M6×10
Screw
0
0
1
jintex.in
Page 13 — 十六、差动调节机构/Feed Mechanism
16
十六、差动调节机构/Feed Mechanism
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
数量 (Number)
三线
three-thread
四线
four-thread
五线
five-thread
1
2070500400
送料连杆组件
Connection
1
1
1
2
20710003
送布偏心
Regulator
1
1
1
3
207S11042
螺钉M5×5
Screw
2
2
2
4
20710002
小偏心轮
Feed Eccent
1
1
1
5
207S14003
内六角尖端紧定螺钉
Screw
2
2
2
6
20710001
偏心轮
Eccent
1
1
1
7
20712175
弹性垫片
Flat Spring
1
1
1
8
20626003
曲柄
Pin
1
1
1
9
20629006
卡簧6
Ring
1
1
1
10
20705004
送料连杆
Connection
1
1
1
11
207S14007
内六角凹端紧定螺钉
Screw
1
1
1
12
B08001
滚针轴承K22x26x10
Needle Bearing
1
1
1
13
20710004
开针偏心轮组件
Eccent Assembly
1
1
1
14
20727003
偏心凸轮弹簧
Spring
1
1
1
15
207S20005
螺钉
Screw
1
1
1
16
20709006
滑块
Ratchet
1
1
1
17
20722005
油封
Gaket
1
1
1
18
001027
O型圈φ4×1.3
O Ring
1
1
1
19
20728001
垫片
Washer
1
1
1
20
20727004
开针弹簧
Spring
1
1
1
21
H05002
开口挡圈3
Ring
1
1
1
22
20702005
开针推杆
Push Button
1
1
1
23
207S20006
开槽圆柱头螺钉
Screw
1
1
1
24
20705005
连杆
Link
1
1
1
25
S05018
内六角圆柱头螺钉M6×0.75×12
Screw
1
1
1
26
20704008
差动曲柄
Lever
1
1
1
27
20622010
差动扳手轴
O Ring
1
1
1
28
20128024
垫圈
Shaft
1
1
1
29
20712160
差动杆
Lever
1
1
1
30
20627006
差动扳手定位销
Spring
1
1
1
31
207S20016
开槽圆柱头螺钉
Screw
1
1
1
32
207S11008
开槽圆柱头螺钉
Screw
2
2
2
33
20712033
差动调节板
Regulator Plate
1
1
1
34
20711007
垫圈
Spacer
2
2
2
35
207S16002
差动限位螺母
Stopper
1
1
1
36
30228009
垫片
Washer
2
2
2
37
207S11011
开槽圆柱头螺钉
Screw
2
2
2
38
20728003
蝶形垫片
Spring Washer
2
2
2
39
2071600100
调节螺母
Nut
1
1
1
40
207S30001
开槽圆柱头螺钉
Screw
1
1
1
41
W01006
平垫圈
Spacer
1
1
1
42
20702081
差动轴
Shaft
1
1
1
jintex.in
Page 14 — 十七、送布机构/Feed Mechanism
17
十七、送布机构/Feed Mechanism
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
数量 (Number )
三线
three-thread
四线
four-thread
五线
five-thread
1
20628023
送料轴油封
Plug
1
1
1
2
H05009
开口挡圈 7
Ring
1
1
1
3
20702008
送布轴
Shaft
1
1
1
4
20628011
送布轴垫圈
Washer
2
2
2
5
2070400900
送料曲柄组件
Crank
1
1
1
6
20704010
送料曲柄
Crank
1
1
1
7
S05018
内六角圆柱头螺钉M6×0.75×
Screw
2
2
2
8
207S11029
螺钉M3×6
Screw
1
1
1
9
20709008
曲柄
Crank
1
1
1
10
20709009
曲柄销
Crank Pin
1
1
1
11
20709034
滑块
Block
1
1
1
12
20710005
偏心销
Pin
1
1
1
13
20704011
送料曲柄
Crank
1
1
1
14
12928008
平垫圈
Washer
1
1
1
15
N01004
六角螺母M5
Nut
1
1
1
16
207S14001
内六角平端紧定螺钉
Screw
1
1
1
17
20708022
挡圈
Collar
1
1
1
18
20628011
送布轴垫圈
Washer
1
1
1
19
20708032
挡圈
Collar
2
2
2
20
H05009
开口挡圈 7
Ring
1
1
1
21
20622010
差动手把O型圈
Seal ring
1
1
1
22
207S14001
内六角平端紧定螺钉
Screw
2
2
2
23
2070600100
牙架组件
Feed Bar Assy.
1
1
1
24
20706002
差动送牙架
Differential Feed Bar
1
1
1
25
20709011
滑块
Block
1
1
1
26
20706001
主送牙架
Main Feed Bar
1
1
1
27
20709012
滑块
Block
1
1
1
28
20705008
连杆
Link
1
1
1
29
20703016
连杆套
Bushing
1
1
1
30
30228008
垫圈
Washer
1
1
1
31
L01004
六角螺栓M5×0.5×13
Screw
1
1
1
32
XXXXXXXX
牙齿组件
Main Feed Dog Complete
1
1
1
33
XXXXXXXX
辅助齿
Auxiliary
1
1
1
34
XXXXXXXX
主送齿
Main Feed Dog
1
1
1
35
207S11039
开槽圆柱头螺钉M3×6
Screw
1
1
1
36
S01029
开槽圆柱头螺钉M3.5×7.5
Screw
2
2
2
37
XXXXXXXX
差动齿
Differential Feed Dog
1
1
1
38
20701049
牙架油板
Feed Bar Oil Seal
4
4
4
39
20701048
牙架挡块(一体)
Feed Bar
1
1
1
40
207S13006
内六角圆柱头螺钉
Screw
1
1
1
41
20701013
挡油板
Feed Bar Oil Seal
2
2
2
42
207S13007
内六角圆柱头螺钉
Screw
3
3
3
43
20722007
牙架油封
Oil Seal
1
1
1
44
207S17005
开槽沉头螺钉M4×8
Screw
1
1
1
jintex.in
Page 15 — 十八、剪切机构/Knife Drive Mechanism
45 121102014 偏心轴 Shaft 1 1 1 46 121112015 调节杆 Bar 1 1 1 47 W01140 平垫圈垫片 Washer 1 1 1 48 1211NS11001 开槽圆柱头螺钉 Screw 1 1 1 49 207S11007 十字槽圆柱头螺钉 Screw 2 2 2 50 21112024 锁紧板 Bar 2 2 2 51 20728003 蝶形垫片 Washer 1 1 1 52 2071600100 调节螺母 Nut 1 1 1 53 207S30001 开槽圆柱头螺钉 Screw 1 1 1 18 十八、剪切机构/Knife Drive Mechanism 序号 NO. 公司件号 Part NO. 名称 PartName 零件描述 Description 数量 (Number) 三线 three-thread 四线 four-thread 五线 five-thread 1 20726005 导向销 Pin 1 1 1 2 20702009 上刀架 Upper Knife Lever 1 1 1 3 2072201700 油封 Oil Seal 2 2 2 4 30208001 挡块 Collar 2 2 2 5 S10003 螺钉 M6×0.75×5 Screw 2 2 2 6 S22007 连杆螺丝 Screw 1 1 1 7 121205004 上刀连杆 Connection 1 1 1 8 207S14007 内六角凹端紧定螺钉 Screw 1 1 1 9 20704038 上刀曲柄 Crank 1 1 0 10 20704039 上刀曲柄 Crank 1 1 0 11 S05018 内六角圆柱头螺钉M6×0.75×12 Screw 1 1 1 12 20626003 曲柄柄 Pin 1 1 1 13 211S12002 螺钉M3.5 Screw 1 1 1 14 20128020 W11垫圈 Washer 1 1 1 15 XXXXXXXX 上刀 Upper Knife 1 1 1 16 20701107 上刀座 Upper Knife Clamp 1 1 0 17 20701036 上刀座 Upper Knife Clamp 0 0 1 18 S04019 十字槽盘头螺钉M4×12 Screw 1 1 1 19 20701050 绞刀安装板 Angled Upper Knife Clamp 1 1 1 20 XXXXXXXX 切刀 Angled Upper 0 0 1 21 W01011 垫圈3 Washer 0 0 1 22 207S11020 开槽圆柱头螺钉 Screw 0 0 1 23 20712053 上刀凹角切 Angled Upper Knife Gib 0 0 1 24 20712051 挡板 Waste Guard 0 0 1 25 S11025 螺钉M4×20 Screw 1 1 1 26 207S12004 下刀架 Lower Knife Clamp 1 1 1 27 20709013 压板 Lower Knife 1 1 1 28 XXXXXXXX 下刀架 Lower Knife Holder 1 1 0 29 20701015 弹簧 Spring 1 1 1 30 20727006 下刀架 Lower Knife Holder 1 1 0 31 20701037 下刀架 Upper Knife Clamp 1 1 0 32 20701052 下刀架 Upper Knife Clamp 0 0 1 33 207S11019 螺钉M4×7.5 Screw 2 2 2 34 20712021 挡板 Lower Knife Holder Guard 1 1 1 35 113S11004 松线导管压板螺钉 Screw 1 1 1 jintex.in
Page 16 — 十九、拾压脚机构/Presser Foot Mechanism
十九、拾压脚机构/Presser Foot Mechanism
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
数量 (Number)
三线
four-thread
四线
five-thread
three-thread
1
207S20008
拾压脚螺钉M10
Screw
1
1
1
2
20712023
拾压脚杠杆
Lever
1
1
1
3
20727007
弹簧
Spring
1
1
1
4
20712025
弯钩
Link
1
1
1
5
N01004
六角螺母M5
Nut
1
1
1
6
207S11031
开槽圆柱头螺钉
Screw
1
1
1
7
S04060
十字槽盘头螺钉M4×10
Screw
2
2
2
8
20712024
挡板
Stopper
1
1
1
9
S05017
内六角圆柱头螺钉M6×0.75×13.5
Screw
1
1
1
10
12110800400
拾压脚复位圈
Collar
1
1
1
11
121212010
拾压脚小杠杆
Lever
1
1
1
12
21127009
拾压脚杠杆挡簧(上孔)
Spring
1
1
1
13
20703031
滑动轴承
Bearing
2
2
2
14
S10009
内六角凹端紧定螺钉M6×8
Screw
1
1
1
15
20703030
压脚轴套筒
Bushing
1
1
1
16
20702010
压脚轴
Shaft
1
1
1
17
S10011
内六角凹端紧定螺钉M4×0.5×4
Screw
1
1
1
18
20626016
压脚管连杆销
Pin
1
1
1
19
21201001
压脚臂
Presser Arm
1
1
1
20
30119020
线缝割刀
Thread Cutter
1
1
1
21
207S11020
开槽圆柱头螺钉
Screw
2
2
2
22
21102011
调压螺柱
Adjusting Screw
1
1
1
23
211S16002
压杆调压螺母
Nut
1
1
1
24
001039
O型圈φ12.5×1.8
O Ring
1
1
1
25
S09103
内六角平端紧定螺钉M4×4
Screw
1
1
1
26
211S16001
螺纹套
Thread Sleeve
1
1
1
27
001008
O型橡胶密封圈9×1.8
O Ring
1
1
1
28
21211003
压杆防油套
Oil Proof Sleeve
1
1
1
29
121227004
压杆弹簧
Spring
1
1
1
30
21103018
压杆套筒
Struth Sleeve
1
1
1
31
2110301700
压杆组件
Spring
1
1
1
32
21212021
限位板
Plate
1
1
1
33
121112010
压杆扳手
Lever
1
1
1
34
121127012
压杆扳手挡簧
Spring
1
1
1
35
1211NS20001
轴位螺钉
Screw
0
1
0
36
207S11051
开槽圆柱头螺钉
Screw
0
1
0
37
20427010
弹簧片
Spring
0
1
0
38
20616004
压脚爪
Paw Pressur
0
1
0
39
206S10004
开槽圆柱头螺钉
Screw
0
1
0
40
120716001
辅助压脚
Auxiliary Presser Foot
0
1
0
41
20716071
压脚底板
Baseboard
0
1
0
42
20716023
压脚架
Rack
0
1
0
43
207S11030
开槽圆柱头螺钉
Screw
0
1
0
jintex.in
Page 17 — 二十、供油机构(1)/Lubrication Mechanism(1)
44
207S11034
螺钉
Screw
0
1
0
45
20616016
压脚辅助板
Auxiliary Plank
0
1
0
46
12121605400
压脚组件
Presser Foot Assy
0
1
0
47
20712026
压脚护手
Finger Guard
0
1
0
48
20712048
板簧
Stopper
0
1
0
49
207S11009
螺钉3×4.5
Screw
0
1
0
50
20721011
油管
Tube
0.017
0.017
0.017
51
W01006
垫片
Washer
2
2
2
20
二十、供油机构(1)/Lubrication Mechani
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
数量 (Number)
三线
three-thread
四线
four-thread
五线
five-thread
1
2072000400
油泵组件
Pump
1
1
1
2
20725007
蜗轮
Worm Wheel
1
1
1
3
207S14006
螺钉M5×5
Screw
2
2
2
4
S04019
开槽圆柱头螺钉
Screw
3
3
3
5
300140
油盖
Oil clearer
1
1
1
6
001010
O型圈38.7×3.55
Seal ring
1
1
1
7
20736004
油过滤器
Filter Element
1
1
1
8
20736001
油过滤器接头
Oil cleaner joint
1
1
1
9
207S11007
十字槽圆柱头螺钉
Screw
2
2
2
10
21112028
接油盘
Oil guard
1
1
1
11
206S30009
过油螺钉
Joint Screw
4
4
4
12
20122033
垫片(大)
Washer
12
12
12
13
21221001
一体喷油管
Upper screem
1
1
1
14
20736007
油管接头
Joint
2
2
2
15
20729005
油管卡簧Φ8.3
Clamp
2
2
2
16
12921003
维尼龙油管(φ5xφ8)
Tube
0.1m
0.1m
0.1m
17
S11025
螺钉M4×16
Screw
2
2
2
18
12921005
油管中4×φ6
Tube
0.15m
0.15m
0.15m
19
21111095
油标
Oil sight
1
1
1
20
20136007
油管接头
Joint
2
2
2
21
30129007
油管卡簧
Clamp
2
2
2
22
201S30004
螺钉
Joint Screw
2
2
2
23
20727018
油管弹簧
Spring
1
1
1
jintex.in
Page 18 — 二十一、供油机构(2)/Lubrication Mechanism(2)
21
二十一、供油机构(2)/Lubrication Mechanism(2)
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
数量 (Number )
三线
three-thread
四线
four-thread
五线
five-thread
1
2122100200
油管组件
Pipe
1
1
1
2
S09103
内六角平端紧定螺钉M4×4
Screw
1
1
1
3
121111004
橡胶塞
Rubber plug
1
1
1
4
21123001
油棉
Felt
1
1
1
5
21211001
吸油嘴
Joint
1
1
1
6
20622010
差动扳手O型圈
O Ring
1
1
1
7
20721011
油管Φ2×Φ4
Tube
0.038
0.038
0.038
8
2110101500
油管组件
Tube
1
1
1
9
20121001
针杆油管
Tube
1
1
1
10
207S13009
内六角圆头螺钉
Screw
2
2
2
11
201514002
内六角尖头紧定螺钉
Screw
2
2
2
12
20709015
滚珠
Rubber plug
1
1
1
13
121226003
上弯滑杆油路
Pipe Assy.
1
1
1
14
20123021
油线
Oil Wick
0.012
0.012
0.012
15
S09103
内六角平端紧定螺钉M4×4
Screw
1
1
1
16
20136007
油管接头
Joint
1
1
1
17
20722008
油盘垫
Gasket
1
1
1
18
20701058
油盘
Oil Reservoir
1
1
1
19
20528014
油盘放油垫圈
Washer
1
1
1
20
207S13002
开槽球面螺钉
Screw
1
1
1
21
20628018
垫片
Washer
4
4
4
22
207S11019
螺钉M4×7.5
Screw
1
1
1
23
20429001
油管卡簧
Clamp
1
1
1
Jinte.in
Page 19 — 二十二、HR装置机构部件/H.R.Device
22
3/4 Series
5 Series
63/4 Series
75 Series
3/4 Series
5 Series
二十二、HR装置机构部件/H.R.Device
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
数量 (Number)
三线
four-thread
四线
five-thread
three-thread
1
21212011
挡油板
Cover
1
1
1
2
21123002
油毡
Felt
1
1
0
3
21123003
毛毡
Felt
0
0
1
4
21222002
上硅油盒密封盖
Cover
1
1
1
5
21211002
上硅油盒
Silicone Oil Reservoir
1
1
1
6
21212005
过线架
Thread Guide
1
1
0
7
21212006
过线架
Thread Guide
0
0
1
8
S04060
十字槽盘头螺钉 M4×10
Screw
1
1
1
9
2071101600
下硅油盒
Silicone Oil Reservoir
1
1
0
10
20723009
毛毡
Oil Felt
1
1
1
11
20726010
别针
Pin
1
1
1
12
207S11008
开槽圆柱头螺钉
Screw
2
2
0
13
20701027
针线冷却器
Needle Thread Lubricator
1
1
0
14
20709014
滚珠
Plug
1
1
1
15
20712041
油管夹
Clamp
1
1
1
16
40123013
油线
Oil Wick
1
1
1
17
40121002
油管
Tube
1
1
1
18
20711017
下硅油盒盖
Cover
1
1
1
19
20711016
下硅油盒
Silicone Oil Reservoir
1
1
1
20
207S30003
组合螺钉 M4×12
Screw
1
1
1
21
207S11007
十字槽圆柱头螺钉
Screw
0
0
2
22
20701038
针线冷却器
Needle Thread Lubricator
0
0
1
23
2070103000
下硅油盒组件A
Silicone Oil Reservoir
0
0
1
24
20612062
油管螺钉垫圈
Washer
2
2
0
Page 20 — Thread Stand
23
Thread Stand
数量 (Number )
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
three-thread
four-thread
five-thread
1
20131014
过线棒
Thread guide
0
0
0
2
30113019
过线棒
Thread Guide
0
0
1
3
20131019
棒帽
Rod cap
1
1
1
4
12113009
上管
Upper thread column
1
1
1
5
201516006
导线环螺母
Thread Guide hook nut
1
1
1
6
12113007
过线架(短)
Thread spool tray bracket
2
4
4
7
20131018
过线环
Thread Guide hook
0
2
1
8
20131021
棒架螺钉
Screw
3
4
5
9
21131010
棒架
Clamp plate
1
1
1
10
201516004
螺母
Nut
4
4
4
11
20131022
棒架螺钉
Screw
2
2
2
12
201516004
螺母
Nut
4
4
4
13
21131011
导线环
Thread Guide hook
3
4
4
14
20131020
导线环螺钉
Screw
2
4
4
15
12113009
长过线架
Thread spool tray bracket
1
0
1
16
21131007
导线棒
Thread Guide bar
1
1
1
17
20131014
过线棒
Thread Guide
0
1
0
18
21131013
固定器
Thread Guide joint
1
1
1
19
S04050
螺钉M5X15
Screw
2
2
2
20
21131014
套
Bushing
1
1
1
21
N01030
套螺母
Nut
2
2
2
22
21131015
线圈定位套
Spool Cushion
3
4
5
23
20131006
线托棒
Spool pin
3
4
5
24
20131010
线盘垫
Spool tray Cushion
3
4
5
25
21131016
线盘
Screw tray
1
0
1
26
21131012
导线架(长)
Thread spool tray bracket
3
4
5
27
N01114
螺母
Nut
1
1
1
28
20128018
垫圈
Washer
3
4
5
29
21131018
下管
Lower thread cloumn
1
1
1
30
201516005
螺母
Nut
1
1
1
31
121128003
下管垫圈
Lower Washer
2
2
2
32
21131009
导线架(短)
Thread spool tray bracket
0
2
1
33
20122049
防震垫
Plate dog link washer
0
2
1
34
2113101700
线架组件
Thread stand component
1
0
0
jintex.in
Page 21 — 二十四、托盘部件/Part For Semi-Submerged Installation
34 2113101800 线架组件 Thread stand component 0 1 0
34 2113101900 线架组件 Thread stand component 0 0 1
34 2113102700 线架组件 Thread stand component 0 0 1(六线)
24
二十四、托盘部件/Part For Semi-Submerged Installation
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
数量 (Number)
三线
three-thread
四线
four-thread
五线
five-thread
1
20131028
托盘螺钉固定头
Nut
4
4
4
2
20722018
托盘防震垫块
Cushion Rubber
4
4
4
3
20711058
托盘
oil pan
1
1
1
4
20712064
托架
Rest Board
2
2
2
5
30122031
减震垫圈
Spring Washer
4
4
4
6
20131030
防震套
Washer
4
4
4
7
20131029
大垫圈
Spacer
8
8
8
8
20131027
托盘螺钉
Screw
4
4
4
9
2123100400
落料斗组件
Waste Chute Assy.
1
1
1
10
20131034
自攻螺钉ST3.5x1.6
Screw
4
4
4
11
21231005
排料槽座
Screw
1
1
1
12
20131032
排料槽I
Waste Chute
1
1
1
13
21231007
排料槽II
Waste Chute
1
1
1
14
207S11046
托架支柱
Screw
4
4
4
15
207S13006
内六角圆柱头螺钉
Screw
4
4
4
16
20728006
平垫圈(镀
Washer
4
4
4
17
421S30004
十字盘头自攻螺钉
Screw
4
4
4
Page 22
25
5-A04 Series
5-A02 Series
5-03 Series
二十五、专用零件/Specific Parts
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
数量 (Number)
三线
three-thread
四线
four-thread
五线
five-thread
1
12121601100
(五线厚料)压脚组件件
Presser Foot Assy.
0
0
1
2
121216026
压脚连接件
Connection
0
0
1
3
S01029
螺钉M3.5×7.5
Screw
0
0
1
4
121216025
压脚架
Pin
0
0
1
5
101S11006
螺钉M3×4.5
Screw
0
0
1
6
121216027
护料压板
Fabric Guard
0
0
1
7
20701054
压脚底板
Baseboard
0
0
1
8
121216040
小压脚底板
Baseboard
0
0
1
9
208S20002
开槽无头螺钉
Pin
0
0
3
10
20712052
压脚挡片
Finger Guard
0
0
1
11
20719053
压脚扭簧
Spring
0
0
1
12
207S11020
槽圆柱头螺钉
Screw
0
0
1
13
207S20010
轴位螺钉M3×8.5
Screw
0
0
1
14
XXXXXXXXXX
压脚组件
Presser Foot Assy.
0
0
1
15
207S11038
开槽圆柱头螺钉
Screw
0
0
1
16
20716063
压脚架
Rack
0
0
1
17
121216046
压脚架
Rack
0
0
1
18
207S11034
开槽圆柱头螺钉
Screw
0
0
1
19
121216047
辅助压脚
Fabric Guard
0
0
1
20
20716061
压脚底板
Baseboard
0
0
1
21
207S20065
压脚底板
Baseboard
0
0
1
22
207S20022
开槽无头螺钉
Pin
0
0
1
23
207S16011
螺母
Nut
0
0
1
24
207S20021
开槽圆柱头螺钉
Screw
0
0
1
25
20727011
压脚弹簧
Spring
0
0
1
26
20727012
压脚弹簧
Spring
0
0
1
27
20716062
小压脚
Baseboard
0
0
1
28
121216048
小压脚
Baseboard
0
0
1
29
20712076
压脚护手
Finger Guard
0
0
1
30
20715057
压脚弹簧
Spring
0
0
1
31
207S11009
开槽圆柱头螺钉
Screw
0
0
1
32
12121601200
压脚组件
Presser Foot Assy.
0
0
1
33
121216029
压脚架
Screw
0
0
1
34
207S11051
开槽圆柱头螺钉
Screw
0
0
1
35
20716092
弹簧片
Plate Spring
0
0
1
36
121216028
压脚爪
Presser Foot
0
0
1
37
207S30005
轴位螺钉
Pin
0
0
1
38
P01025
销φ1.5
Pin
0
0
1
39
20716079
压脚底板
Baseboard
0
0
1
40
207S16012
螺母
Nut
0
0
1
41
121216041
小压脚底板
Baseboard
0
0
1
42
20727014
弹簧
Spring
0
0
1
43
20727050
压脚弹簧
Spring
0
0
1
jintex.in
Page 23 — 二十六、随机附件部分/Accessories Assemblies
26
二十六、随机附件部分/Accessories Assemblies
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
数量 (Number)
三线
three-thread
四线
four-thread
五线
five-thread
1
20131044
直柄内六角扳手1.5mm
Hexagonal wrench/1.5mm
1
1
1
2
10131004
螺丝刀(小)
Screwdriver (S)
1
1
1
3
12113002
机头罩
Machine head cover
1
1
1
4
20731047
螺丝刀(大)
screw driver (L)
1
1
1
5
120111006
油袋(600ml)(22#)
Oil container
1
1
1
6
20131048
小油壶(尖嘴)
Oil container
1
1
1
7
20131039
漏斗
Tundish
1
1
1
8
20131051
镊子
Tweezers
1
1
1
9
20131043
扳手(8mm)
Wrench/8mm
1
1
1
10
20131046
内六角扳手(2mm)
Hexagonal wrench/2mm
1
1
1
11
30131012
内六角扳手(3mm)
Hexagonal wrench/3mm
1
1
1
12
20131047
内六角扳手(4mm)
Hexagonal wrench/4mm
1
1
1
13
20131056
内六角扳手(5mm)
Hexagonal wrench/5mm
1
1
1
14
121230004
塑壳调速器
Controller
1
1
1
15
20131055
附件箱
Attachment box
1
1
1
16
20131054
脚踏板链
Chain
0
1
1
17
20131052
线勾
Needle threader
1
1
1
18
20131062
机头塑料袋
Plastic machine head bag
1
1
1
19
S10005
内六角凹端紧定螺钉M3×3
Screw
4
4
4
20
见标准零件表
机针
Needle
10
10
10
21
20730335
拉杆
Tie rod
1
1
1
Jinttex.in
Page 24 — 二七、机架部件/machine stand table assy
27
二七、机架部件/machine stand table assy
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
数量 (Number )
三线
three-thread
四线
four-thread
五线
five-thread
1
13832113
零件导轨
Drawer slider
2
2
2
2
S18002
螺钉
Screw
6
6
6
3
13832114
零件盒
Plastic drawer
1
1
1
4
1383211500
机架上节左
Upper stand (left)
1
1
1
5
S15001
M8*11螺栓垫圈组合件
Bolt washer assembly M8*11
12
12
12
6
1383211200
机架下节左
Lower stand (left)
1
1
1
7
13832104
rubber cover
支座护罩
4
4
4
8
1012016
支座
Stand height adjusting base
4
4
4
9
13832105
脚踏板垫 (大)
Large pedal pad cushion
1
1
1
10
13832110
脚踏板连接件 (大)
Large pedal bracket
1
1
1
11
13832106
脚踏板 (大)
Large pedal pad
1
1
1
12
L02075
M6x11螺栓垫圈组合件
Bolt washer assembly M6*11
2
2
2
13
1383210700
脚踏板固定件
Pedal bracket
4
4
4
14
13832108
脚踏板安装板
Lower bar
1
1
1
15
13832116
踏板安装板固定板
Bolt plate
2
2
2
16
21232001
踏板板(小)
Small pedal
1
1
1
17
20112126
踏板连接件(小)
Small pedal bracket
1
1
1
18
N01010
螺母
Nut M8
4
4
4
19
1383210300
机架下节右
Lower stand(right)
1
1
1
20
13832111
机架连接板
Front bar
1
1
1
21
1383210100
机架上节右
Upper stand (right)
1
1
1
22
S18001
螺钉
Screw
6
6
6
23
XXXXXXXX
台板
Table
1
1
1
24
XXXXXXXX
变速器
Transmission
1
1
1
25
2011111300
拉杆组件
Motor connecting rod
1
1
1
26
2013105400
踏板链组件
Pedal chain components
1
1
1
27
13832102
机架固定板
Bolt plate
2
2
2
28
13832129
台板护套
Table cover
4
4
4
jintex.in
Page 25
28
二八、毛巾机专用件/Specific Parts
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
数量 (Number )
三线
四线
五线
three-thread
four-thread
five-thread
1
20702007
调节杆
Adjusting Bar
/
1
/
2
20712020
调节板
Regulator Plate
/
1
/
3
20709007
螺母
Pin
/
1
/
4
20728005
垫片
Washer
/
1
/
5
20727005
调节杆弹簧
Spring
/
1
/
6
H05018
开口挡圈3.5
Ring
/
1
/
7
2070103000
下硅油盒组件A
Silicone Oil Reservoir
/
1
/
8
20715045
针板(毛巾机)
Needle Plate
/
1
/
9
2071609600
压脚组件(毛巾机)
Presser Foot Assy
/
1
/
10
20701036
上刀座
Upper Knife Clamp
/
1
/
11
2071402500
后刀组件(MJ)
Main Feed Dog Complete
/
1
/
12
20701033
托架
Bracket
/
1
/
13
20717023
下弯针(MJ)
Lower Looper
/
1
/
14
20717022
上弯针(MJ)
Upper Looper
/
1
/
15
207S11003
螺丝M4X10
Screw
/
1
/
16
20701037
下刀架
Lower Knife Holder
/
1
/
17
303800
包布/毛巾机右前盖(喷漆)
Front Cover(right)
/
1
/
18
21212020
左前盖(包布/毛巾机)
Front Cover(left)
/
2
/
19
207S11014
开槽圆柱头螺钉M3.5×4
Screw
/
1
/
20
206S11012
开槽圆柱头螺钉M4×5.5
Screw
/
2
/
21
21212014
卷具固定板(包布/毛巾机)
Binder Guide
/
1
/
22
s04060
十字槽盘头螺钉M4×10
Screw
/
1
/
23
20712057
卷边器(10)
Binder(10)
/
1
/
24
20713057
过带导向
Tape Guide
/
1
/
25
2071104100
布条 the组件
Roller assembly
/
1
/
26
121212005
左前盖(毛巾机)
Front Cover(left)
/
1
/
27
121212007
卷边器(10mm)
Binder(10)
/
1
/
28
121212006
卷具固定座(毛巾机)
Binder Guide
/
1
/
29
207S11009
开槽圆柱头螺钉M3×4.5
Regulator Plate
/
1
/
30
20712026
压脚护手
Finger Guard
/
1
/
31
20715057
压脚弹簧
Spring
/
1
/
Jinteх.in
Page 26 — 二十九、包布条专用件/Specific Parts
29
二十九、包布条专用件/Specific Parts
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
数量 (Number )
三线
three-thread
四线
four-thread
五线
five-thread
1
20702007
调节杆
Adjusting Bar
/
1
/
2
20712020
调节板
Regulator Plate
/
1
/
3
20709007
螺母
Pin
/
1
/
4
20728005
垫片
Washer
/
1
/
5
20727005
调节弹簧
Spring
/
1
/
6
H05018
开口挡圈3.5
Ring
/
1
/
7
12121601400
(五线滚边带)压脚组件
Presser Foot Assy
/
1
/
8
20715017
(五线滚边带)针板
Needle Plate
/
1
/
9
2071401800
(五线滚边带)牙齿组件
Main Feed Dog Complete
/
1
/
10
21212014
左前盖(包布/毛巾机)
Front Cover(left)
/
1
/
11
21212020
右前盖(包布/毛巾机)
Front Cover(right)
/
1
/
12
303800
包布/毛巾机右前盖(喷漆)
Front Cover(right)
/
1
/
13
20712058
卷边器(8)
Binder(8)
/
1
/
14
20713057
过带导向
Tape Guide
/
2
/
15
207S11014
开口槽圆柱螺钉M3.5×4
Screw
/
1
/
16
20531041
轴
Shaft
/
1
/
17
20531042
紧圈
Straining ring
/
1
/
18
20531043
带子托盘
Tray
/
1
/
19
20531009
带子架座
Bracket
/
3
/
20
S10005
内六角凹端紧定螺钉M3×3
Screw
/
1
/
21
206S11012
开槽圆柱螺钉M4×5.5
Screw
/
1
/
22
S04060
十字槽盘头螺钉M4×10
Screw
/
1
/
Jinte.in
Page 27 — E4SM04专用部件/Specific Parts
30
E4SM04专用部件/Specific Parts
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
数量 (Number)
四线
five-thread
六线
six-thread
four-thread
1
20713055
挑线架
Thread Takeup
/
1
1
2
20713056
过线板
Tension Guide
/
1
0
3
20713017
过线
Thread Guide
/
0
1
4
20117014
19#针
Needle
/
2
3
5
121134001
针夹头(六线)
Needle Holder
/
1
1
6
21134001
针夹头(六线)
Needle Holder
/
0
1
7
21213010
过线
Thread Guide
/
1
1
8
20703060
衬套
Spacer
/
1
1
9
20713053
过线
Thread Guide
/
1
1
10
121227003
压杆弹簧(厚料)
Spring
/
1
1
11
20719053
压杆扭簧
Spring
/
1
1
12
20712052
压脚挡片
Finger Guard
/
1
1
13
207S20010
位螺钉M3×3.5
Screw
/
1
1
14
2111600500
压脚组件(五线厚料)
Presser Foot Assy
/
1
0
15
2111600500
压脚组件(六线)
Presser Foot Assy
/
0
1
16
207S11020
开槽圆柱头螺钉
Screw
/
1
1
17
2071405600
齿组件
Main Feed Dog Complete
/
1
1
18
20704030
上刀柄
Crank
/
1
1
19
2070403600
上弯针滑杆组件(厚料)
Upper Looper Holder Assy
/
1
1
20
21102026
曲轴(四线适应性精密)
Crankshaft
/
1
0
21
20715081
针板
Needle Plate
/
0
1
22
121215003
针板(六线厚料)
Needle Plate
/
1
1
23
20717060
链线弯针(厚料)
Double Chainstitch Looper
/
1
1
24
121119001
下刀(厚料)
Lower Knife
/
1
1
25
20619009
上刀(厚料)
Upper Knife
/
1
0
26
121213001
封闭式挑线杆(五线厚料)
Thread Takeup
/
0
1
27
21113013
挑线杆(六线)
Thread Takeup
/
1
1
28
20701052
下刀架
Lower Knife Holder
/
0
1
29
12111300200
过线
Thread Guide
/
0
1
30
21113014
过线片2(六线)
Thread Guide
/
1
1
31
201S16003
螺母
Stopper
/
0
1
32
206S11005
螺钉SM11/64X40X7.3
Screw
/
0
1
33
21113015
过线架(六线)
Thread Guide
/
0
1
34
21311161
夹线片
Tension Disc
/
0
2
35
211130800
夹线器组件(黄点)
Tension Spring Assembly
/
0
1
36
21112064
夹线器安装板(六线)
Clamp mounting plate
/
0
1
37
21213001
过线(六线)
Thread Guide
/
0
1
38
121101002
上刀座
Upper Knife Clamp
/
0
1
39
21113013
过线片1(六线)
Thread Guide
/
1
1
40
20717006
下弯针(JK)
Lower Looper
/
1
1
jintex.in
Page 28 — 三十一、E4SWF专用部件/Specific Parts
37 2120200200 针杆组件(DLC处理) Needle Bar Assembly
38 121223001 过滤塞 Filter plug
39 12123002400 控制器 Controller
31
三十一、E4SWF专用部件/Specific Parts
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
数量 (Number)
三线
四线
五线
three-thread
four-thread
five-thread
1
2070403500
上弯针杆组件DLC厚料
Upper Looper Holder Assy
1
/
/
2
121223001
过滤塞
Filter plug
1
/
/
3
21111007
防护罩(无纺布)
Eye Guide
1
/
/
4
21212026
过线
Thread Guide
1
/
/
5
S01063
开槽圆柱头螺钉M2.5×6
Screw
2
/
/
6
N01018
螺母
Stopper
2
/
/
7
W01011
垫圈
Washer
2
/
/
8
20703011
送布轴左套
Sleeve
1
/
/
9
2111300600
夹线器组件(蓝点)
Tension Spring Assembly
1
/
/
10
21311161
夹线片
Tension Disc
2
/
/
11
20713048
过线板(无纺布)
Thread Guide
2
/
/
12
930000210
夹线器支架
Holder
1
/
/
13
201S16003
螺母
Stopper
1
/
/
14
2071407100
主送布牙(无纺布)
Main Feed Dog Complete
1
/
/
15
20715070
针板(无纺布)
Needle Plate
1
/
/
16
400037
上弯针球柄
Crank
1
/
/
17
20719005
下刀
Lower Knife
1
/
/
18
20801056
下刀架(四线厚料)
Lower Knife Holder
1
/
/
19
20701014
上刀座
Upper Knife Clamp
1
/
/
20
20117013
14#机针
Needle
1
/
/
21
20704051
下弯针架(无纺布)
Lower Looper Holder
1
/
/
22
121221002
后方下刀套管φ7×φ9
Non woven lower casing
0.023
/
/
23
2071609000
压脚组件(无纺布)
Presser Foot Assy
1
/
/
24
21102023
曲轴(无纺布)
Crankshaft
1
/
/
25
2070500500
送料组件
Connection
1
/
/
26
2120200200
针杆组件DLC
Needle Bar Assembly
1
/
/
27
20703060
衬套
Spacer
1
/
/
28
21213007
过线
Thread Guide
1
/
/
29
20717012
下弯针(无纺布)
Lower Looper
1
/
/
30
20619009
上刀(厚料)
Upper Knife
1
/
/
31
121230007
控制器
Controller
1
/
/
32
208S15002
螺钉M4.5X8
Controller
1
/
/
33
121128001
垫片
Controller
1
/
/
34
121202010
送布轴
Controller
1
/
/
35
208040081
紧圈
Controller
1
/
/
36
207S13006
内六角圆柱头螺钉
Controller
1
/
/
jintex.in
Page 30 — 三十三、E4倒回缝专用件/Specific Parts
33
三十三、E4倒回缝专用件/Specific Parts
序号 NO.
公司件号
Part NO.
名称 PartName
零件描述 Description
数量 (Number)
三线
three-thread
四线
four-thread
五线
five-thread
1
2071212100
倒回缝台组件(宽)
Cloth Plate
1
1
/
2
20709021
针板块(前)
Bracket
1
1
/
3
20715019
(三线倒回缝)针板
Needle Plate
1
0
/
4
20715021
(四线倒回缝)针板(薄料)
Needle Plate
0
1
/
5
12121600700
(三线倒回缝)压脚组件
Presser Foot Assy
1
0
/
6
12121600800
(四线倒回缝)压脚组件
Presser Foot Assy
0
1
/
7
2071402000
(三线倒回缝)牙齿组件
Main Feed Dog Complete
1
0
/
8
2071402200
(四线倒回缝)牙齿组件
Main Feed Dog Complete
0
1
/
9
20713044
支架
Bracket
1
1
/
10
205S46012
吊板螺钉
Screw
1
1
/
11
205S16003
螺母
Nut
1
1
/
12
205S30011
带孔螺钉
Screw
1
1
/
13
20512008
吊板
Plate
1
1
/
14
20528008
夹线器垫片
Washer
1
1
/
15
205S16002
螺母
Nut
1
1
/
16
21212019
左前盖
Front Cover(left)
1
1
/
17
201S16003
螺母
Nut
0
2
/
18
21212013
松线固定板(四线倒回缝)
Dead Board
0
1
/
19
205S16004
螺母
Nut
0
1
/
20
20101039
钢丝接头
connector
1
1
/
21
201S14003
S009螺钉(进口)(删除)
Screw
0
2
/
22
21228005
垫片(倒回缝)
Washer
0
1
/
23
301S20019
螺钉
Screw
0
1
/
24
20112059
天线
Wire Cable
0
1
/
25
212S20006
二节轴位螺钉M4(倒回缝)
Screw
0
1
/
26
21227004
弹簧(四线倒回缝)
Spring
0
1
/
27
212S20004
轴位螺钉(四线倒回缝)
Screw
0
1
/
28
21212009
上线推板(四线倒回缝)
Loose Wire Board
0
1
/
29
205S16004
螺母
Nut
1
0
/
30
20512005
支座接头定位板
Positioning Plate
1
0
/
31
20512006
松线板
Loose Wire Board
1
0
/
32
205S30007
压线板螺钉
Screw
1
1
/
33
20512002
压线板
Crimping Board
1
1
/
34
20512004
刀片定位板
Blade Positioning Plate
1
1
/
jintex.in
Page 32 — E4S标准度量零件表
26 2071407400 牙齿组件 Main Feed Dog Complete 1 /
27 20713028 过线管组件 Thread Guide Assy 1 /
28 20713029 过线板 Thread Guide 1 /
29 20711021 上缝油盒 Cover 1 /
30 20713019 过线架 Thread Guide 1 /
31 S04060 螺钉M4×10 Screw 1 /
32 21102026 曲轴(四线适应性)(精密) Crankshaft 1 /
33 3011101800 (02带子托盘)托盘组件 Pallet 1 /
E4S标准度量零件表
型号 间距 针板 送牙齿组件 压脚组件 上弯针 下弯针 链线弯针 针夹 机针
MACHINE GAUGE NEEDLE MAIN FEED PRESSER UPPER LOWER CHAINSTITCH NEEDLE
TYPE/SPEC NG SW PLATE DOG ASS FOOT ASS LOOPER LOOPER HOLDER NEEDLE
E4S-3-02/233 - 4 20715005 2071400100 12121600500 20717004 20717006 - 20734001 DCx27#11
E4S-3-32R2/233 - 1.5 20715010 20714007 12121600600 20717004 20717006 - 20734001 DCx27#9
20714008
E4S-3-82/233 - 4 20715019 2071402000 12121600700 20717004 20717006 - 20734001 DCx27#11
E4S-3-12/233 - 4.5 20715009 20714006 2071600800 20717004 20717006 - 20734001 DCx27#11
E4S-4-83/323 2 4 20715021 2071402200 12121600800 20717004 21317001 - 20734002 DCx27#13
E4S-4-M03/333 2 4 2121215004 2071400100 12121605400 20717004 21317001 - 20734002 DCx27#11
E4SMJ-4-53/233 2 4 20715045 2071402500 12121601700 20717022 20717023 - 20734002 DCx27#11
E4SWF-3-02/213 - 4 20715070 2071400100 12121601800 20717004 20717012 - 20734002 DCx27#14
E4S-2 - 8 20715072 2071400100 12121601600 20717052 21317005 - 20734001 DCx27#11
M03/333/KS 2 4 20715002 2071400100 12121605400 20717004 21317001 - 20734002 DCx27#11
型号 间距 上刀 下刀 弯针护针
MACHINE GAUGE KNIFE KNIFE OVERLOCK NEEDLE GUARD CHAINSTITCH NEEDLE
TYPE/SPEC NG SW FRONT REAR FRONT REAR
E4S-3-02/233 - 4 20719007 21317002 - 21117002 20717113 -
E4S-3-32R2/233 - 1.5 20719007 21317002 - 21117002 20717113 -
E4S-3-82/233 - 4 20719007 21317002 - 21117002 20717113 -
E4S-3-12/233 - 4.5 20719007 21317002 - 21117002 20717113 -
E4S-4-83/323 2 4 20719007 21317002 - 21117002 20717113 -
E4S-4-M03/333 2 4 20719007 21317002 - 21117002 20717113 -
E4SMJ-4-53/233 2 4 20719007 21317002 - 21117002 20717113 -
E4SWF-3-02/213 - 4 20619009 20719005 - 21117002 20717113 -
E4S-2 - 8 20719007 21317002 - 21117002 20717113 -
MO3/333/KS 2 4 20719007 21317002 - 21117002 20717113 -
jintex.in
Page 33
型号
MACHINE
TYPE/SPEC
间距
GAUGE
NG
SW
针板
NEEDLE
PLATE
送布牙组件
MAIN FEED
DOG ASS
压脚组件
PRESSER
FOOT ASS
上弯针
UPPER
LOOPER
下弯针
LOWER
LOOPER
链线弯针
CHAINSTITCH
LOOPER
针夹
NEEDLE
HOLDER
机针
NEEDLE
E4S-4-
M03/333/H/M
2
4
20715002
2071400100
12121605400
20717050
20717006
20712047
20734002
DCx27#11
E4S-5-03/233
5
5
20715016
12111402100
12121601000
20717004
20717006
20712047
20734004
DCx27#14
E4S-5-03/333
3
4
20715008
12111402000
12121600900
20717004
20717006
20712047
20734003
DCx27#14
E4S-5-A04/435
5
6
20715050
2071405200
12121601100
20717050
20717006
20712051
20719056
DCx27#19
E4S-5-02A/223
3
4
20715051
2071405400
12121601200
20717004
20717006
20712047
20734004
DCx27#14
E4S-5-02X250
5
-
20715078
2071407400
12121601500
-
-
20717024
20734008
DCx27#14
E4S-5-53/233
3
5
20715017
2071401800
12121601400
20717004
20717006
20712047
20734003
DCx27#14
E4S-6-03/333
2
4
20715061
12111402100
12121601300
20717004
20717006
20712047
20719057
DCx27#11
E4S-5-M04/435
5
6
20715081
2071405600
2061604100
20717004
20717006
20717060
121134001
DCx27#19
03/333/KH
3
4
20715008
12111402000
12121600900
20717004
20717006
20712047
20734003
DCx27#14
型号
MACHINE
TYPE/SPEC
间距
GAUGE
NG
SW
上刀
UPPER
KNIFE
下刀
LOWER
KNIFE
弯针护针
OVERLOCK NEEDLE GUARD
FRONT
REAR
链线弯针
CHAINSTITCH NEEDLE
FRONT
REAR
E4S-4-
M03/333/H/M
2
4
20719007
21317002
21117002
20717113
E4S-5-03/233
5
5
20719007
21317002
20717008
21117002
20712045
20701032
E4S-5-03/333
3
4
20719007
21317002
20717008
21117002
20712045
20701032
E4S-5-A04/435
5
6
20719050
121119001
20717008
21117002
20712045
20701032
E4S-5-02A/223
3
4
20719001
21317002
20717008
21117002
20712045
20701032
E4S-5-02X250
5
-
20719007
21317002
20717025
21117002
20712045
20701032
E4S-5-53/233
3
5
20719007
21317002
20717008
21117002
20712045
20701032
E4S-6-03/333
2
4
20719007
21317002
20717008
21117002
20712045
20701032
E4S-5-M04/435
5
6
20619009
121119001
20717008
21117002
20712045
20701032
03/333/KH
3
4
20719007
21317002
20717008
21117002
20712045
20701032
