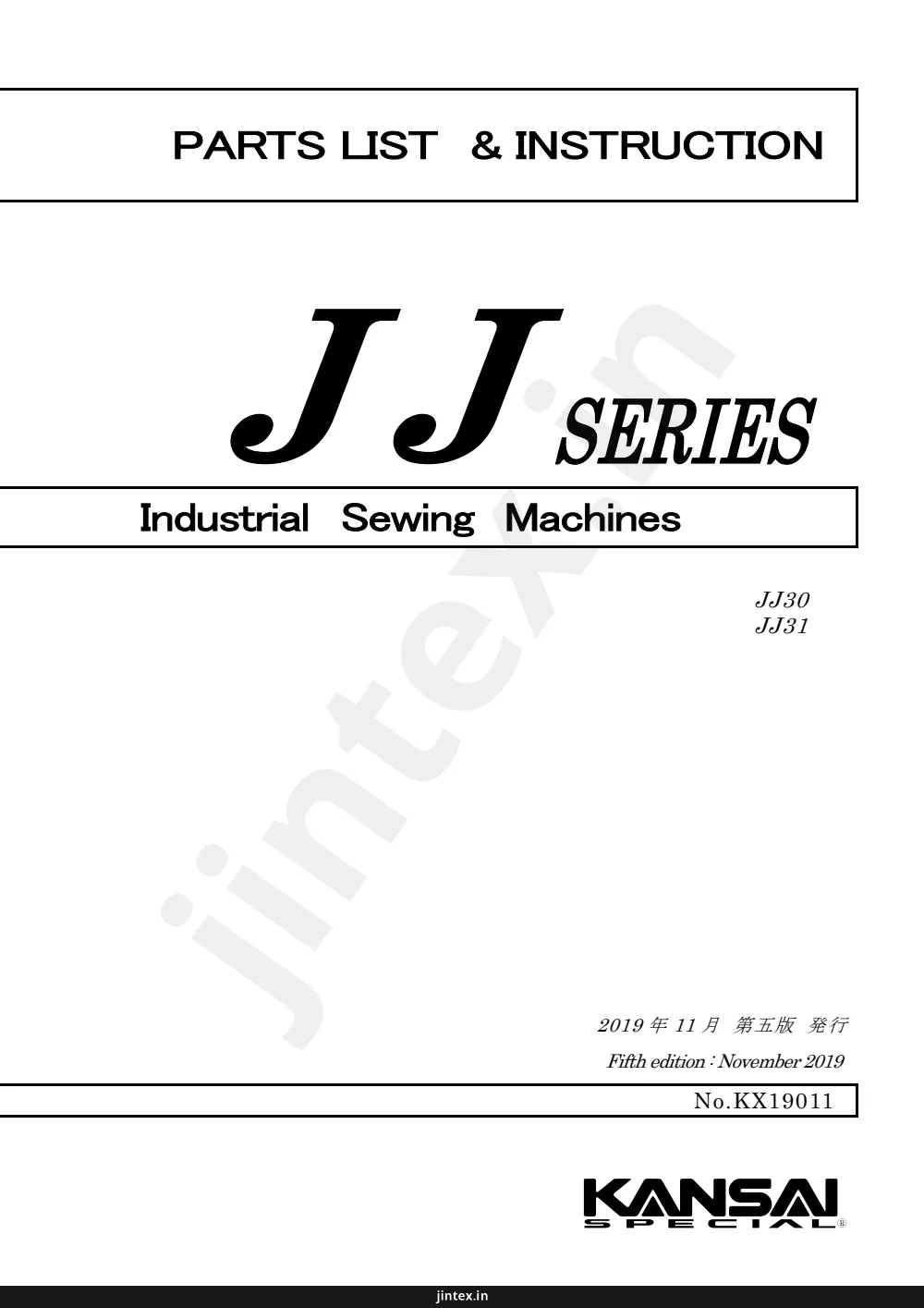

Page 1 — PARTS LIST & INSTRUCTION
PARTS LIST & INSTRUCTION JJ SERIES Industrial Sewing Machines JJ30 JJ31 2019 年 11 月 第五版 発行 Fifth edition : November 2019 No.KX19011 KANSAI SPECIAL jintex.in
Parts index — Kansai Special JJ-3300tap a row to open its page
Page 2
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 503 | 03 (1本針, 2本糸 サーシング) | ||
| 504 | 04 (1本針, 3本糸 地縫い) | ||
| 505 | 05 (1本針, 3本糸 裾引き) | ||
| 514 | 14 (2本針, 4本糸 地縫い) | ||
| 516 | 16 (2本針, 5本糸 安全縫い) | ||
| 401 | |||
| + :43 | (3本針, 6本糸 安全縫い) | ||
| 514 | |||
| 503 | :03 (1 needle, 2 threads Serging) | ||
| 504 | :04 (1 needle, 3 threads Plain seaming) | ||
| 505 | :05 (1 needle, 3 threads Blindstitch hemming) | ||
| 514 | :14 (2 needles, 4 threads Plain seaming) | ||
| 516 | :16 (2 needles, 5 threads Safety stitch) | ||
| 401 | |||
| + :43 | (3 needles, 6 threads Safety stitch) | ||
| 514 |
Page 3 — CONTENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | FRAME ASSEMBLY | ||
| 2 | COVER ASSEMBLY (1) | ||
| 3 | COVER ASSEMBLY (2) | ||
| 4 | BUSHING | ||
| 5 | CRANKSHAFT MECHANISM | ||
| 6 | NEEDLE BAR MECHANISM | ||
| 7 | UPPER LOOPER MECHANISM | ||
| 8 | LOWER LOOPER MECHANISM | ||
| 9 | FEED MECHANISM (1) | ||
| 10 | FEED MECHANISM (2) | ||
| 11 | KNIFE MECHANISM | ||
| 12 | PRESSER FOOT MECHANISM | ||
| 13 | LUBRICATION MECHANISM | ||
| 14 | THREAD TENSION (1) | ||
| 15 | THREAD TENSION (2) | ||
| 16 | THREAD TENSION (3) | ||
| 17 | CHAINSTITCH LOOPER MECHANISM (1) | ||
| 18 | CHAINSTITCH LOOPER MECHANISM (2) | ||
| 19 | NEEDLE COOLER DEVICE | ||
| 20 | THREAD STAND | ||
| 21 | EDGE GUIDE | ||
| 22 | ACCESSORIES | ||
| 23 | SPECIFIC PARTS (1) | ||
| 24 | SPECIFIC PARTS (2) | ||
| 25 | SPECIFIC PARTS (3) | ||
| 26 | SPECIFIC PARTS (4) | ||
| 27 | SPECIFIC PARTS (5) | ||
| 28 | SPECIFIC PARTS (6) | ||
| 29 | CRANKSHAFT SET PARTS TABLE | ||
| 30 | THREADING DIAGRAM | ||
| 31 | JJ31 GAUGE PARTS TABLE | ||
| 32 | JJ31 GAUGE PARTS TABLE | ||
| 33 | JJ31 GAUGE PARTS TABLE | ||
| 34 | JJ31 GAUGE PARTS TABLE |
Page 4 — 1. フレーム関係 FRAME ASSEMBLY
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01-0154-142 | 六角穴付きボルト | ||
| 01-0254-172 | ピン | ||
| 01-0354-191 | 銘板シール | ||
| 01-0454-312 | メス土台 | ||
| 01-0554-466 | 平行ピン | ||
| 01-0654-468 | 支柱ネジ | ||
| 01-0754-469 | スプリングピン | ||
| 01-0854-675 | 機番 | ||
| 01-0956-377 | 糸案内パイプ | ||
| 01-1054-111 | プラマイナベ小ネジM4×5L | ||
| 01-1156-811 | 底面カバー |
Page 5 — 2. カバー関係(1) COVER ASSEMBLY (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 02-0154-026 | 渡金 | ||
| 02-0254-108 | プラマイナベスリM3×5L | ||
| 02-0354-112 | プラマイナベスリM4×6L | ||
| 02-0454-113 | プラマイナベスリM4×8L | ||
| 02-0554-121 | プラマイナベスリM4×12L | ||
| 02-0654-130 | 段ネジ | ||
| 02-0754-133 | ネジ | ||
| 02-0854-137 | ネジ | ||
| 02-0954-144 | 六角付きボルト | ||
| 02-1054-303 | トップカバー | ||
| 02-1154-304 | 面板 | ||
| 02-1254-305 | カバーヒンジ | ||
| 02-1354-306 | フロントカバー | ||
| 02-1454-307 | 切層カバー (オーバー) | ||
| 02-1554-308 | 切層カバー (インター) | ||
| 02-1654-309 | プーリーカバー | ||
| 02-1754-314 | サイドカバー右 | ||
| 02-1854-315 | 布案内 | ||
| 02-1954-318 | 後カバー | ||
| 02-2054-332 | カバーラツチ (B) | ||
| 02-2154-333 | カバーラツチ (A) | ||
| 02-2254-334 | カバーフツク | ||
| 02-2354-335 | カバーヒンジ軸 | ||
| 02-2454-336 | 銘板 | ||
| 02-2554-337 | カバー取付板 | ||
| 02-2654-338 | アイガード | ||
| 02-2754-339 | カバー圧縮バネ | ||
| 02-2854-340 | 後カバーパツキン | ||
| 02-2954-341 | トップカバーパツキン | ||
| 02-3054-342 | オイルポット | ||
| 02-3154-343 | 平小ネジ | ||
| 02-3254-357 | 面板パツキン | ||
| 02-3354-359 | カバークツシヨン | ||
| 02-3454-362 | Oリング | ||
| 02-3554-482 | 六角穴付止めネジ | ||
| 02-3654-495 | 平小ネジ | ||
| 02-3754-498 | 六角穴付き皿小ネジ | ||
| 02-3854-573 | 平小ネジ | ||
| 02-3954-677 | スポンジゴム |
Page 6 — COVER ASSEMBLY (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 03-0154-026 | 渡金 | ||
| 03-0254-073 | バネ座金 4 | ||
| 03-0354-112 | プラマイナベ小ネジ M4×6L | ||
| 03-0454-113 | プラマイナベ小ネジ M4×8L | ||
| 03-0554-117 | 平小ネジ M3×3L | ||
| 03-0654-133 | ネジ | ||
| 03-0754-150 | 皿ネジ M4 | ||
| 03-0854-159 | 六角ナット | ||
| 03-0954-3100-1 | クロ プレート(幅広) | ||
| 03-1054-311 | サイドカバー(幅広) | ||
| 03-1154-313 | メス土台カバー | ||
| 03-1254-316 | ベッドカバー | ||
| 03-1354-328 | 偏心プッシュ | ||
| 03-1454-329 | 開閉レバー | ||
| 03-1554-330 | 段付ネジ | ||
| 03-1654-331 | コイルバネ | ||
| 03-1754-344 | ベッドカバーパッキン | ||
| 03-1854-359 | カバークッション | ||
| 03-1954-360 | 針板取付板前 | ||
| 03-2054-361 | 針板取付板後 | ||
| 03-2154-386 | スプリングピン | ||
| 03-2254-387 | ラッチ | ||
| 03-2354-439 | 段ネジ | ||
| 03-2454-483 | 平座金 | ||
| 03-2554-500 | 六角付きボルト | ||
| 03-2654-511 | プラマイナベ小ネジ | ||
| 03-2754-512 | 平小ネジ | ||
| 03-2854-654 | ブラケット | ||
| 03-2954-665 | ラッチ | ||
| 03-3054-3100-2 | クロ プレート(幅広) 組 |
Page 7 — 4. ブッシュ機構 BUSHING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 04-0154-320 | 押え棒ブッシュ | ||
| 04-0254-321 | 針振り軸前ブッシュ | ||
| 04-0354-322 | 針振り軸後ブッシュ | ||
| 04-0454-323 | 下ルーバー軸ブッシュ | ||
| 04-0554-324 | 上メス前ブッシュ | ||
| 04-0654-325 | 上ルーバー軸ブッシュ | ||
| 04-0754-326 | 差動レバー軸ブッシュ | ||
| 04-0854-327 | 主軸ブッシュ | ||
| 04-0954-385 | 上ルーバー軸前ブッシュ | ||
| 04-1054-398 | オイルシール | ||
| 04-1154-434 | オイルシール | ||
| 04-1254-577 | 盲栓 |
Page 8 — 5. 下軸機構 CRANKSHAFT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 05-0154-031 | Oリング 1017 | ||
| 05-0254-100 | 六角穴付メネジ | ||
| 05-0354-113 | プラマイナベ小ネジ M4x8L | ||
| 05-0454-114 | プラマイナベ小ネジ M4x10L | ||
| 05-0554-123 | 六角穴付ネジ M5x5L | ||
| 05-0654-136 | 六角穴付ボルト | ||
| 05-0754-148 | 六角穴付止めネジ | ||
| 05-0854-513 | クランクシヤフト (S. H) | ||
| 05-0954-514 | バランスウエイト | ||
| 05-1054-515 | 段付ピン | ||
| 05-1154-516 | 下駄カム軸 | ||
| 05-1254-517 | 蓋(オーバー) | ||
| 05-1354-518 | Oリング | ||
| 05-1454-519 | ボールベアリング | ||
| 05-1554-520 | ラチエット | ||
| 05-1554-521 | 止輪 | ||
| 05-1754-522 | ボールベアリング | ||
| 05-1854-523 | ボールベアリング | ||
| 05-1954-524 | 波座金 | ||
| 05-2054-954 | 油切カラー | ||
| 05-2154-955 | フランジ | ||
| 05-2254-527 | 冷却ファン | ||
| 05-2354-528 | プーリー | ||
| 05-2454-529 | 蓋(インター) | ||
| 05-2554-530 | スペーサー | ||
| 05-2654-531 | クランクシヤフト (E) | ||
| 05-2754-532 | スリワリ付皿ネジ | ||
| 05-2854-579 | 六角穴付ボルト | ||
| 05-2954-580 | バネ座金 | ||
| 05-3054-590 | 六角穴付止めネジ | ||
| 05-3154-630 | ウォーム | ||
| 05-3254-956 | オイルシール |
Page 9 — 6. 針棒機構 NEEDLE BAR MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 06-0154-133 | ネジ | ||
| 06-0254-195 | 六角穴付きボルト | ||
| 06-0354-193 | フェルト | ||
| 06-0454-964 | 針棒ブッシュ | ||
| 06-0554-345 | 針棒レバー | ||
| 06-0654-346 | 針棒 | ||
| 06-0754-347 | 針棒リンクピン | ||
| 06-0854-348 | 針振り駆動軸 | ||
| 06-0954-349 | 針棒クランクレバー | ||
| 06-1054-352 | スラストカラー | ||
| 06-1154-353 | スラストワッシャ | ||
| 06-1254-354 | E形止め輪 | ||
| 06-1354-355 | Oリング | ||
| 06-1454-9650-1 | 針棒(組) | ||
| 06-1554-484 | 六角穴付き止めネジ | ||
| 06-1654-489 | フランジ付き六角ボルト | ||
| 06-1754-7580-1 | 針棒クランクロッドセット | ||
| 06-1856-044 | ゴム栓 | ||
| 06-1956-293 | ピン | ||
| 06-2056-294 | 六角穴付ネジ M4×6L | ||
| 06-2156-295 | 六角穴付ボルトM6×0.75×12L | ||
| 06-2254-757 | 針棒クランクロッド | ||
| 06-2354-966 | 針棒オイルシール |
Page 10 — 7. 上ルーバー機構 UPPER LOOPER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 07-0154-119 | スリワリ付皿小ネジ M3x6L | ||
| 07-0254-195 | 六角穴付きボルト | ||
| 07-0354-147 | 六角穴付き止めネジ トガリ | ||
| 07-0454-193 | フェルト | ||
| 07-0554-392 | 段ネジ | ||
| 07-0654-394 | ルーバー軸 | ||
| 07-0754-397 | ロッド振れ止め | ||
| 07-0854-399 | ガイドプレート | ||
| 07-0954-4000-1 | 上ルーバー台 (組) | ||
| 07-1054-401 | フェルト | ||
| 07-1154-402 | ゴム栓 | ||
| 07-1254-403 | 上ルーバー案内土台 | ||
| 07-1354-404 | 上ルーバー案内玉 | ||
| 07-1454-405 | 上ルーバー振れ止めレバー | ||
| 07-1554-406 | 上ルーバー台 | ||
| 07-1654-407 | スペーサー | ||
| 07-1754-409 | 上ルーバーロット玉 (S) | ||
| 07-1854-410 | 上ルーバーロット玉 (H) | ||
| 07-1954-411 | フェルト | ||
| 07-2054-929 | 上ルーバー案内玉カバー | ||
| 07-2154-431 | Oリング | ||
| 07-2254-480 | 平座金 | ||
| 07-2354-481 | スプリングワッシャ | ||
| 07-2454-485 | 六角ボルト | ||
| 07-2554-486 | 平小ネジ | ||
| 07-2654-489 | フランジ付き六角ボルト | ||
| 07-2754-491 | 六角付きボルト | ||
| 07-2854-492 | 皿ネジ | ||
| 07-2954-493 | 平小ネジ | ||
| 07-3054-5990-1 | 上ルーバー・クランクロット セット | ||
| 07-3156-127 | 上ルーバー台締結ピン | ||
| 07-3256-295 | 六角穴付ボルト M6x0.75x12L | ||
| 07-3354-396 | 上ルーバーロッド |
Page 11 — 8. 下ルーパー機構 LOWER LOOPER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 08-0154-119 | スリワリ付皿小ネジ M3×6L | ||
| 08-0254-123 | 六角穴付止めネジ M5×5L | ||
| 08-0354-195 | 六角穴付きボルト | ||
| 08-0454-393 | 下ルーパー台 | ||
| 08-0554-394 | ルーパー軸 | ||
| 08-0654-395 | ルーパー・ロッド玉 | ||
| 08-0754-397 | ロッド振れ止め | ||
| 08-0854-421 | ルーパー・ロッド玉 | ||
| 08-0954-478 | スラストワッシャ | ||
| 08-1054-480 | 平座金 | ||
| 08-1154-481 | スプリングワッシャ | ||
| 08-1254-485 | 六角ボルト | ||
| 08-1354-486 | 平小ネジ | ||
| 08-1454-487 | 六角ボルト | ||
| 08-1554-488 | 平小ネジ | ||
| 08-1656-336 | 平小ネジ | ||
| 08-1754-504 | 皿ばね座金 | ||
| 08-1854-505 | 段付ネジ | ||
| 08-1954-5990-1 | 下ルーパー・クランクロット"セット | ||
| 08-2056-295 | 六角穴付ボルト M6×0.75×12L | ||
| 08-2154-396 | 上下ルーパー・ロッド |
Page 12
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 09-0154-060 | 皿バネ | ||
| 09-0254-063 | ストッパー | ||
| 09-0354-078 | ワッシャ | ||
| 09-0454-112 | プラマイナベ小ネジ M4×6L | ||
| 09-0554-121 | プラマイナベ小ネジ M4×12L | ||
| 09-0654-123 | 六角穴付止めネジ M5×5L | ||
| 09-0754-165 | 前メベ"ア リング | ||
| 09-0854-168 | Eリング | ||
| 09-0954-170 | E型止め輪 | ||
| 09-1054-182 | ネジ | ||
| 09-1154-534 | 送りロッド | ||
| 09-1254-535 | 送りエキセントリック | ||
| 09-1354-536 | ガイド/FEED ECCENTRIC | ||
| 09-1454-537 | FLAT SPRING | ||
| 09-1554-538 | 皿カラー | ||
| 09-1654-539 | ECCENTRIC | ||
| 09-1754-540 | スプリング | ||
| 09-1854-541 | ラチェット | ||
| 09-1954-541 | 差動連結リンク | ||
| 09-2054-542 | 段ネジ | ||
| 09-2154-543 | 差動連結レバー | ||
| 09-2254-544 | 段ネジ | ||
| 09-2354-545 | 段ネジ | ||
| 09-2454-546 | 差動レバー軸 | ||
| 09-2554-547 | 目盛り板 | ||
| 09-2654-548 | スペーサーカラー | ||
| 09-2754-549 | スプリングピン | ||
| 09-2854-550 | 平行ピン | ||
| 09-2954-552 | プッシュボタン | ||
| 09-3054-581 | 圧縮バネ | ||
| 09-3154-588 | ゴムリング | ||
| 09-3254-589 | ワッシャ | ||
| 09-3354-596 | 段ネジ | ||
| 09-3454-597 | Oリング | ||
| 09-3554-639 | 段ネジ | ||
| 09-3654-640 | ナット | ||
| 09-3756-293 | ピン | ||
| 09-3856-294 | 六角穴付止めネジ M4×6L | ||
| 09-3956-295 | 六角穴付ボルトM6×0.75×12L | ||
| 09-4056-624 | 差動レバー戻しバネ | ||
| 09-4154-5340-1 | 送りエキセントリックセット |
Page 13 — 10. 送り機構 (2) FEED MECHANISM (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 10-0154-079 | ワッシャ | ||
| 10-0254-111 | プラマイナベ小ネジ M4x5L | ||
| 10-0354-112 | プラマイナベ小ネジ M4x6L | ||
| 10-0454-113 | プラマイナベ小ネジ M4x8L | ||
| 10-0554-133 | ネジ | ||
| 10-0654-160 | ナット | ||
| 10-0754-355 | Oリング | ||
| 10-0854-428 | 連結リンク | ||
| 10-0954-478 | スラストワッシャ | ||
| 10-1054-553 | 送り軸 | ||
| 10-1154-554 | 差動調節レバー | ||
| 10-1254-555 | スライドカバーピン | ||
| 10-1354-556 | 差動調節スライド | ||
| 10-1454-5570-1 | 差動調節レバーセット | ||
| 10-1554-558 | 角駒 | ||
| 10-1654-559 | 主送りレバー | ||
| 10-1754-560 | 主送り連結ピン | ||
| 10-1854-561 | 送り歯調節ピン | ||
| 10-1954-562 | ゴムパッキン | ||
| 10-2054-563 | 止め輪 | ||
| 10-2154-564 | 角駒 | ||
| 10-2254-565 | カラー | ||
| 10-2354-566 | 主送りリンクピン | ||
| 10-2454-567 | 主送り台 | ||
| 10-2554-568 | 差動送り台 | ||
| 10-2654-569 | 送り台下角駒 | ||
| 10-2754-974 | 送り台ガイド | ||
| 10-2854-975 | 送り台シールカバー | ||
| 10-2954-572 | 送り台シール | ||
| 10-3054-573 | 平小ネジ | ||
| 10-3154-574 | 平小ネジ | ||
| 10-3254-575 | 六角小ネジ | ||
| 10-3354-576 | ワッシャ | ||
| 10-3454-578 | E形止め輪 | ||
| 10-3554-6090-1 | 送り台 (組) | ||
| 10-3656-295 | 六角穴付ボルトM6x0.75x12L |
Page 14 — 11. 上下メス機構 KNIFE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11-0154-112 | プラマイナベ小ネジ M4×6L | ||
| 11-0254-113 | プラマイナベ小ネジ M4×8L | ||
| 11-0354-114 | プラマイナベ小ネジ M4×10L | ||
| 11-0454-121 | プラマイナベ小ネジ M4×12L | ||
| 11-0554-195 | 六角穴付きボルト | ||
| 11-0654-574 | 平小ネジ | ||
| 11-0754-583 | 上メス クランク レバー | ||
| 11-0854-584 | 上メス クランク レバー | ||
| 11-0954-585 | カラー | ||
| 11-1054-586 | 上メス台 | ||
| 11-1154-587 | ピンネジ | ||
| 11-1254-591 | 下メス台 | ||
| 11-1354-592 | 下メス台 | ||
| 11-1454-593 | 下メス台ガイド | ||
| 11-1554-594 | 下メス圧縮バネ | ||
| 11-1654-595 | 下メスバネ受け | ||
| 11-1754-6000-1 | 上メスクランク ロッド"セット | ||
| 11-1854-627 | 六角ボルト | ||
| 11-1954-641 | 上メスホルダー (インター) | ||
| 11-2054-642 | 上メス | ||
| 11-2154-643 | 下メス | ||
| 11-2254-644 | 下メス押エ | ||
| 11-2354-645 | 上メスホルダー (オーバー) | ||
| 11-2454-672 | 六角穴付止めねじ | ||
| 11-2556-293 | ピン | ||
| 11-2656-294 | 六角穴付ボルト M6×0.75×12L | ||
| 11-2756-295 | 六角穴付ボルト M6×0.75×12L | ||
| 11-2856-854 | 上メスホルダー固定ピン | ||
| 11-2954-582 | 上メスロッド |
Page 16 — LUBRICATION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 13-0154-020 | フタネシ" | ||
| 13-0254-051 | 片口継手 | ||
| 13-0354-052 | 管継手ボルト | ||
| 13-0454-112 | プラマイナベ小ネジ M4×6L | ||
| 13-0554-113 | プラマイナベ小ネジ M4×8L | ||
| 13-0654-123 | 六角穴付止めネジ M5×5L | ||
| 13-0754-133 | ネジ | ||
| 13-0854-149 | 六角穴付きボルト | ||
| 13-0954-180 | フイルター | ||
| 13-1054-182 | ネジ | ||
| 13-1154-280 | パイプ継手 | ||
| 13-1254-195 | 六角穴付ボルト | ||
| 13-1354-391 | フエルト | ||
| 13-1454-500 | 六角穴付きボルト | ||
| 13-1554-6100-1 | ポンプセット | ||
| 13-1654-611 | ウオームホイル | ||
| 13-1754-612 | ポンプハウジング | ||
| 13-1854-613 | ポンプ軸 | ||
| 13-1954-614 | インナーローター | ||
| 13-2054-615 | アウターローター | ||
| 13-2154-616 | ハウジング | ||
| 13-2254-617 | ポンプ裏蓋 | ||
| 13-2354-618 | ポンプメツシユ | ||
| 13-2454-619 | ポンプメツシユ押工 | ||
| 13-2554-620 | 平小ネジ M4×25L | ||
| 13-2654-621 | フイルタータンク | ||
| 13-2754-622 | 蓋 | ||
| 13-2854-623 | Oリング | ||
| 13-2954-624 | 給油パイプ | ||
| 13-3054-626 | 油受け | ||
| 13-3154-628 | オイルタンク | ||
| 13-3254-629 | パツキン | ||
| 13-3354-631 | 針棒給油ピン | ||
| 13-3454-634 | ワツシヤ | ||
| 13-3554-635 | オイルゲージ | ||
| 13-3654-636 | 継手 | ||
| 13-3754-637 | ワツシヤ | ||
| 13-3854-638 | 詰金 | ||
| 13-3954-652 | 六角穴付ボルト | ||
| 13-4054-653 | 菅継手ボルト | ||
| 13-4154-934 | 給油ピン | ||
| 13-4256-771 | オイルタンクドレンシール | ||
| 13-4354-935 | 給油管 | ||
| 13-4454-667 | ビニールチューブ | ||
| 13-4554-668 | ビニールチューブ | ||
| 13-4654-670 | ビニールチューブ | ||
| 13-4754-935 | 油量調節ネジ | ||
| 13-4854-936 | Oリング | ||
| 13-4954-937 | 片口継手(小) | ||
| 13-5054-938 | 菅継手ボルト | ||
| 13-5154-939 | ビニールチューブ |
Page 17 — 14. 糸調子機構 (1) THREAD TENSION (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 14-0154-053 | チャンポン皿ラチェット | ||
| 14-0254-056 | チャンポン調子バネ強 | ||
| 14-0354-057 | チャンポン調子バネ弱 | ||
| 14-0454-160 | ナット | ||
| 14-0554-440 | 糸調子台プレート | ||
| 14-0654-441 | 糸調子台糸道 | ||
| 14-0754-662 | 糸調子台プレート | ||
| 14-0854-971 | クケース | ||
| 14-0954-977 | 糸調子ダイヤル | ||
| 14-1054-978 | 糸調子台 | ||
| 14-1154-9790-1 | 糸調子セット (強) | ||
| 14-1254-9810-1 | 糸調子セット (弱) | ||
| 14-1356-035 | スリワリ付キ皿小ネジ M4 | ||
| 14-1456-268 | 取付フェルト | ||
| 14-1556-270 | チャンポン皿 |
Page 18 — 15. 糸調子機構 (2) THREAD TENSION (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 15-0154-113 | プラマイナベ小ネジ M4x5L | ||
| 15-0254-111 | プラマイナベ小ネジ M4x8L | ||
| 15-0354-133 | ネジ | ||
| 15-0454-182 | ネジ | ||
| 15-0554-351 | 針棒クランプ台 | ||
| 15-0654-449 | 針糸捌き | ||
| 15-0754-450 | 針糸捌き | ||
| 15-0854-451 | 針糸捌き | ||
| 15-0954-452 | 上糸繰道ブラケット | ||
| 15-1054-453 | 上糸繰道ブラケット | ||
| 15-1154-454 | 上糸繰道 | ||
| 15-1254-456 | 糸道 | ||
| 15-1354-457 | 上糸繰道取付台 | ||
| 15-1454-458 | 上糸繰道 | ||
| 15-1554-459 | 糸道 | ||
| 15-1654-460 | 糸道 | ||
| 15-1754-461 | 糸道 | ||
| 15-1854-462 | 針糸道 | ||
| 15-1954-463 | 針糸道 | ||
| 15-2054-464 | 糸道 | ||
| 15-2154-473 | 針糸調子皿 | ||
| 15-2254-474 | 針糸調子板 | ||
| 15-2354-475 | 針糸調子ネジ | ||
| 15-2454-476 | 針糸調子バネ | ||
| 15-2554-496 | 平小ネジ | ||
| 15-2654-497 | すりわり付き皿小ネジ | ||
| 15-2754-499 | 平小ネジ | ||
| 15-2854-501 | 平小ネジ | ||
| 15-2954-502 | 平小ネジ | ||
| 15-3054-561 | 針糸捌き (3本針用) | ||
| 15-3154-663 | 上糸繰道 | ||
| 15-3256-765 | 上糸シリコンタンク | ||
| 15-3356-766 | 上糸フェルト押工 | ||
| 15-3456-767 | 上糸フェルト | ||
| 15-3556-768 | 上糸シリコンタンク蓋 |
Page 19 — 16. 糸調子機構 (3) THREAD TENSION (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 16-0154-069 | 座金 | ||
| 16-0254-108 | プラマイナベスリ | ||
| 16-0354-113 | プラマイナベスリ | ||
| 16-0454-114 | プラマイナベスリ | ||
| 16-0554-121 | プラマイナベスリ | ||
| 16-0654-128 | プラマイナベスリ | ||
| 16-0754-317 | 上ルーパーカバー | ||
| 16-0854-398 | オイルシール | ||
| 16-0954-442 | 上ルーパー糸道 | ||
| 16-1054-443 | 糸道ブラケット | ||
| 16-1154-444 | 上下ルーパー糸道 | ||
| 16-1254-445 | 上下ルーパー糸道 | ||
| 16-1354-446 | 糸道 | ||
| 16-1454-447 | 下ルーパー天秤 | ||
| 16-1554-448 | 下ルーパー天秤 | ||
| 16-1654-490 | 平小ネジ | ||
| 16-1754-494 | プラマイナベスリ | ||
| 16-1856-355 | 上ルーパー天秤 | ||
| 16-1956-356 | 下ルーパー天秤 A |
Page 20 — 17. CHAINSTITCH LOOPER MECHANISM (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 17-0154-079 | WASHER | 1 | |
| 17-0254-145 | BOLT | 1 | |
| 17-0354-163 | NEEDLE BEARING | 1 | |
| 17-0454-420 | SHAFT | 1 | |
| 17-0554-422 | CONNECTING ROD | 1 | |
| 17-0654-423 | LEVER | 1 | |
| 17-0754-424 | RACKET | 1 | |
| 17-0854-425 | PIN | 1 | |
| 17-0954-426 | HOLDER | 1 | |
| 17-1054-427 | PIN | 1 | |
| 17-1154-428 | LINK | 1 | |
| 17-1254-429 | LEVER | 1 | |
| 17-1354-430 | CHAINSTITCH LOOPER HOLDER | 1 | |
| 17-1454-431 | O-RING | 1 | |
| 17-1554-432 | WASHER | 1 | |
| 17-1654-481 | SPRING WASHER | 1 | |
| 17-1754-486 | SCREW | 1 | |
| 17-1854-487 | SCREW | 1 | |
| 17-1954-488 | SCREW | 2 | |
| 17-2054-566 | LINK PIN | 2 | |
| 17-2154-575 | SCREW | 2 | |
| 17-2254-576 | WASHER | 2 | |
| 17-2356-295 | Screw M6x0.75x12L | 2 |
Page 21 — 18. 二重環ルーバー機構 (2) CHAINSTITCH LOOPER MECHANISM (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 18-0154-026 | 波座金 | ||
| 18-0254-111 | プラマイナベスリM4×5L | ||
| 18-0354-112 | プラマイナベスリM4×6L | ||
| 18-0454-182 | ネジ | ||
| 18-0554-413 | 下糸カム | ||
| 18-0654-414 | ストッパーバネ | ||
| 18-0754-415 | 下糸糸道 | ||
| 18-0854-416 | 下糸糸道 | ||
| 18-0954-417 | 下糸カム案内 | ||
| 18-1054-418 | ブラケット | ||
| 18-1154-419 | 糸道パイプ | ||
| 18-1254-433 | 下糸糸道 | ||
| 18-1354-435 | ツマミ | ||
| 18-1454-436 | バネ | ||
| 18-1554-437 | チャンポン皿 | ||
| 18-1654-438 | 段ネジ | ||
| 18-1754-439 | 段ネジ | ||
| 18-1854-494 | プラマイナベスリネジ | ||
| 18-1956-550 | パイプ取付金具 | ||
| 18-2056-551 | 環縫い糸道 |
Page 22 — 19. 針冷却装置 H. R DEVICE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 19-0154-113 | プラマイナベスネジ M4x8L | ||
| 19-0254-114 | プラマイナベスネジ M4x10L | ||
| 19-0354-121 | プラマイナベスネジ M4x12L | ||
| 19-0454-171 | フェルトピン | ||
| 19-0554-192 | フェルト | ||
| 19-0654-363 | 針受け取付台 | ||
| 19-0754-507 | 平小ネジ | ||
| 19-0854-573 | 平小ネジ | ||
| 19-0954-625 | 鋼球 4 | ||
| 19-1054-647 | ニードルクーラー(オーバー) | ||
| 19-1154-647 | ニードルクーラー(インナー) | ||
| 19-1254-648 | シリコンタンク | ||
| 19-1354-649 | シリコンタンク蓋 | ||
| 19-1454-650 | フェルト (オーバー) | ||
| 19-1554-651 | フェルト (インナー) | ||
| 19-1656-817 | 止め金具 | ||
| 19-1754-666 | ビニールチューブ | ||
| 19-1854-343 | 平小ネジ | ||
| 19-1954-506 | すりわり付丸皿小ねじ |
Page 23 — 20. 糸立台 THREAD STAND
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20-0156-913 | 3本糸立セット | ||
| 20-0256-914 | 4本糸立セット | ||
| 20-0356-915 | 5本糸立セット | ||
| 20-0456-916 | 6本糸立セット |
Page 24 — 21. 当定規(オプション) EDGE GUIDE (Option)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 21-0156-9550-1 | クロスガイドセット | ||
| 21-0256-9550-1 | クロスガイドセット | ||
| 21-0456-958 | ガイドブラケット | ||
| 21-0556-959 | エッジガイドブラケット | ||
| 21-0656-960 | エッジガイド(インター) | ||
| 21-0656-961 | エッジガイド(オーバー) | ||
| 21-0856-962 | 板バネ | ||
| 21-0956-963 | ピン | ||
| 21-1056-964 | 段ネジ | ||
| 21-1156-965 | ストッパー | ||
| 21-1254-078 | ワッシャ | 3 | |
| 21-1354-084 | 皿バネ | ||
| 21-1454-096 | ネジ | 2 | |
| 21-1554-108 | プラマイナベスネジ M3×3L | ||
| 21-1654-111 | プラマイナベスネジ M4×5L | ||
| 21-1754-112 | プラマイナベスネジ M4×6L | ||
| 21-1854-113 | プラマイナベスネジ M4×8L | ||
| 21-1954-159 | ナット |
Page 25
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22-0154-036 | 警告ラベル 1 | ||
| 22-0254-037 | 警告ラベル 4 | ||
| 22-0354-038 | 警告ラベル 6 | ||
| 22-0454-039 | 警告ラベル 8 | ||
| 22-0554-040 | ピンセット | ||
| 22-0654-041 | 六角レンチ 2.5mm | ||
| 22-0754-042 | 六角レンチ 3mm | ||
| 22-0854-043 | 六角レンチ 5mm | ||
| 22-0954-044 | 柄付き六角レンチ 1.5mm | ||
| 22-1054-045 | オイル | ||
| 22-1154-046 | ジョウゴ | ||
| 22-1254-047 | ガイド・スレッド | ||
| 22-1354-048 | チェーン | ||
| 22-1454-058 | 本体据付ナット | ||
| 22-1554-070 | スプリングワッシャ | ||
| 22-1654-146 | 六角穴付ボルト | ||
| 22-1754-180 | フィルター | ||
| 22-1854-607 | 下メス(大) | ||
| 22-1954-643 | 下メス | ||
| 22-2056-902 | ダスターシュート(組) | ||
| 22-2156-906 | マウントベース | ||
| 22-2256-907 | クッションゴム | ||
| 22-2356-9100-1 | マウントベース止ネジセット | ||
| 22-2456-912 | ワッシャ | ||
| 22-2556-951 | ダストカバー | ||
| 22-2656-952 | 付属品箱 | ||
| 22-2756-953 | スパナ (7mm) | ||
| 22-2856-954 | スパナ (8mm) | ||
| 22-2956-966 | ドライバー大 |
Page 26 — 23. 専用部品(1) JJ3014GH-40M SPECIFIC PARTS (1) JJ3014GH-40M テープ付け (Tape attaching )
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 23-0154-026 | 波金 | ||
| 23-0254-439 | 段ネジ | ||
| 23-0354-673 | テープガイド A | ||
| 23-0454-674 | テープガイド B | ||
| 23-0556-741 | テープ操り | ||
| 23-0656-917 | テープ立てセット |
Page 27 — 24. 専用部品(2) SPECIFIC PARTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 24-0154-109 | プラマイナベ小ネジ M3x5L | ||
| 24-0254-407 | スペーサー | ||
| 24-0354-408 | スペーサー | ||
| 24-0454-455 | 針糸綱き | ||
| 24-0554-465 | 針糸綱道 | ||
| 24-0654-479 | 平座金 | ||
| 24-0754-494 | プラマイナベ小ネジ | ||
| 24-0854-497 | すりわり付き皿小ネジ | ||
| 24-0954-508 | 段付ネジ | ||
| 24-1054-606 | 上メス(大) | ||
| 24-1154-607 | 下メス(大) | ||
| 24-1254-608 | 下メス台(大) | ||
| 24-1354-681 | 上メス(小) | ||
| 24-1457-462 | フィンガーガード | ||
| 24-1557-570 | 安全カバー |
Page 28
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 25-0154-078 | ワッシャ | ||
| 25-0254-079 | ワッシャ | ||
| 25-0354-084 | 皿バネ | ||
| 25-0454-093 | 平小ネジ | ||
| 25-0554-095 | 平小ネジ | ||
| 25-0654-096 | ネジ | ||
| 25-0754-099 | 平小ネジ | ||
| 25-0854-101 | プラマイナベ小ネジ M3x3LxSL | ||
| 25-0954-108 | プラマイナベ小ネジ M4x5L | ||
| 25-1054-111 | プラマイナベ小ネジ M4x8L | ||
| 25-1154-113 | 平小ネジ | ||
| 25-1254-131 | 平小ネジ | ||
| 25-1354-159 | 六角ナット | ||
| 25-1456-7000-1 | 裾引規定台(組) | ||
| 25-1556-701 | 裾引ガイドブラケット | ||
| 25-1656-702 | ストッパー | ||
| 25-1756-703 | 裾引規定台 | ||
| 25-1856-704 | 裾引調節板 | ||
| 25-1956-705 | 調節ネジ | ||
| 25-2056-711 | 補助羽根 | ||
| 25-2156-712 | 板バネ | ||
| 25-2256-713 | 定規駒 | ||
| 25-2356-715 | 定規羽根ヒンジ | ||
| 25-2456-716 | ピン | ||
| 25-2556-717 | 定規羽根 | ||
| 25-2656-7200-1 | ブラケット(組) | ||
| 25-2756-957 | クロスガイドブラケット | ||
| 25-2856-958 | ガイドブラケット | ||
| 25-2956-962 | 板バネ | ||
| 25-3056-963 | ピン | ||
| 25-3156-964 | 段ネジ | ||
| 25-3256-965 | ストッパー |
Page 29 — 26. 専用部品(4) SPECIFIC PARTS JJ3116GS-30M, 30MP
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 26-0154-053 | チャンポン皿ラチェット | ||
| 26-0254-068 | 平座金 3.5 | 2 | |
| 26-0354-071 | ワッシャー | 2 | |
| 26-0454-075 | ワッシャー | 1 | |
| 26-0554-080 | ワッシャー | 1 | |
| 26-0654-082 | カラー | 1 | |
| 26-0754-088 | すりわり付平小ネジ | 3 | |
| 26-0854-094 | ネジ | 2 | |
| 26-0954-098 | ネジ | 2 | |
| 26-1054-111 | プラマイナベ小ネジ M4×5L | 2 | |
| 26-1154-115 | プラマイナベ小ネジ M4×16L | 1 | |
| 26-1254-121 | プラマイナベ小ネジ M4×12L | 4 | |
| 26-1354-123 | 六角付止めネジ M5×5L | 2 | |
| 26-1454-133 | ネジ | 2 | |
| 26-1554-152 | ネジ | 2 | |
| 26-1654-161 | 六角ナット | 1 | |
| 26-1754-162 | 六角ナット | 2 | |
| 26-1854-170 | E型止め輪 | 2 | |
| 26-1954-6830-2 | クロスペレート(幅広)セット | 1 | |
| 26-2054-684 | スペーサー | 1 | |
| 26-2154-6850-1 | ひだ取り装置(組) | 1 | |
| 26-2254-686 | ブラケット | 1 | |
| 26-2356-266 | 糸調子台 | 1 | |
| 26-2456-401 | ブラケット | 1 | |
| 26-2556-402 | ブラケット | 1 | |
| 26-2656-403 | 軸 | 1 | |
| 26-2756-404 | ブラケット | 1 | |
| 26-2956-406 | 圧縮バネ | 1 | |
| 26-3056-407 | 手揚げレバー | 1 | |
| 26-3156-408 | スペーサー | 1 | |
| 26-3256-409 | 圧縮バネ | 1 | |
| 26-3356-410 | 調子ダイヤル | 1 | |
| 26-3456-411 | ストッパー | 1 | |
| 26-3556-412 | 板バネ | 1 | |
| 26-3656-413 | 板バネ | 1 | |
| 26-3756-415 | 段ネジ | 1 | |
| 26-3856-416 | さらばね | 2 | |
| 26-3956-417 | ワッシャー | 1 | |
| 26-4056-418 | ワイヤーケーブル | 1 | |
| 26-4156-419 | ケーブル受け | 2 | |
| 26-4256-420 | 圧縮バネ | 1 | |
| 26-4356-421 | 段付ネジ | 1 | |
| 26-4456-422 | 連結板 | 1 | |
| 26-4556-423 | 連結ピン | 1 | |
| 26-4656-424 | 布案内 | 1 | |
| 26-4756-425 | ブレード | 1 | |
| 26-4856-428 | ワッシャー | 1 | |
| 26-4956-446 | ブラケット | 1 | |
| 26-5056-447 | パイピングホルダー(20) | 1 | |
| 26-5156-918 | テープ立て | 1 | |
| 26-5254-494 | プラマイナベ小ネジ | 2 | |
| 26-5357-570 | 安全カバー | 1 |
Page 30 — 27. 専用部品 (5) SPECIFIC PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 27-0154-075 | ワッシャー | ||
| 27-0254-092 | 六角穴付止めネジ | ||
| 27-0354-107 | 六角ナット | ||
| 27-0454-119 | スリワリ付皿小ネジ M3×6L | ||
| 27-0554-121 | プラマイナベ小ネジ M4×12L | ||
| 27-0654-159 | 六角ナット | ||
| 27-0754-160 | ナット | ||
| 27-0854-161 | 六角ナット | ||
| 27-0954-170 | E型止め輪 | ||
| 27-1054-497 | すりわり付き皿小ネジ | ||
| 27-1154-686 | ブラケット | ||
| 27-1254-687 | 下メス台 (50M) | ||
| 27-1354-6880-2 | クロスプレート (幅狭) セット | ||
| 27-1454-689 | 針板取付板前 (50M) | ||
| 27-1554-691 | サイドカバー (幅狭) | ||
| 27-1654-6920-1 | 糸締め装置 | ||
| 27-1754-693 | 糸調子プレート | ||
| 27-1854-6940-1 | バックタック装置 (組) | ||
| 27-1954-695 | 空環押え | ||
| 27-2054-696 | 段ネジ | ||
| 27-2154-697 | 圧縮バネ | ||
| 27-2254-698 | 丸ナット | ||
| 27-2354-699 | メス案内板 | ||
| 27-2454-700 | ラッチ | ||
| 27-2554-701 | ブラケット | ||
| 27-2654-702 | メス | ||
| 27-2756-253 | 糸調子台糸道 | ||
| 27-2856-419 | ケーブル受け | ||
| 27-2956-421 | 段ネジ | ||
| 27-3056-422 | 連結板 | ||
| 27-3156-423 | 連結ピン | ||
| 27-3256-428 | ワッシャー | ||
| 27-3356-472 | 糸締め板 | ||
| 27-3456-473 | 段ネジ | ||
| 27-3556-474 | 糸締めレバー | ||
| 27-3656-475 | 段ネジ | ||
| 27-3756-476 | 巻バネ | ||
| 27-3856-477 | 段ネジ | ||
| 27-3956-478 | 連結ブラケット | ||
| 27-4056-479 | 段ネジ | ||
| 27-4156-480 | ワイヤーケーブル | ||
| 27-4254-9790-1 | 糸調子セット (強) | ||
| 27-4354-9810-1 | 糸調子セット (弱) |
Page 31 — 28. 專用部品(6) SPECIFIC PARTS (6) JJ3014GE-60HK サージング (Serging)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 28-0154-053 | チャンポン皿ラチェット | ||
| 28-0254-074 | ワッシャ | ||
| 28-0354-128 | プラマイナベ小ネジ M4X14L | ||
| 28-0454-259 | 平小ネジ SM1/8, 4L | ||
| 28-0554-408 | スペーサー | ||
| 28-0654-447 | 下ルーパー天秤 | ||
| 28-0754-479 | 平座金 | ||
| 28-0854-607 | 下メス(大) | ||
| 28-0954-729 | 角メス抱キ(オーバー) | ||
| 28-1054-730 | 角メス | ||
| 28-1154-731 | 角メス押エ | ||
| 28-1254-732 | 切屑押シ | ||
| 28-1354-733 | 下メス台(大) | ||
| 28-1454-736 | チャンポン調子バネ(中) | ||
| 28-1554-9800-1 | 糸調子セット(中) | ||
| 28-1654-738 | 針糸棚き | ||
| 28-1754-739 | 上ルーパー糸道 | ||
| 28-1854-978 | 糸調子台 | ||
| 28-1956-268 | 取付フェルト | ||
| 28-2054-971 | 大ケース | ||
| 28-2156-270 | チャンポン皿 | ||
| 28-2254-977 | 糸調子ダイヤルA |
Page 32 — 29. 主軸セット一覧表 CRANKSHAFT SET PARTS TABLE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 54-7510-1 | 主軸セット CRANKSHAFT SET | ||
| 54-7520-1 | クランクシャフト CRANKSHAFT | ||
| 54-7530-1 | 上ルーバーロッド球 UPPER LOOPER ROD ASSY | ||
| 54-7540-1 | 上ルーバーロッド球 LOWER LOOPER CRANK | ||
| 54-7550-1 | 針棒クランクロッド NEEDLE BAR CRANK ROD |
Page 33 — 30. 糸通し図一覧表 THREADING DIAGRAM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 54-470 | JJ3004GS-01M, JJ3005GS-10M JJ3004GS-20F, JJ3004GS-50M | |
| 1 | 54-471 | JJ3014GH-01M, JJ3014GH-40M JJ3014GH-50M | |
| 1 | 54-728 | JJ3014GE-01H | |
| 1 | 54-740 | JJ3014GE-60HK | |
| 2 | 54-472 | JJ3116GS-01M, JJ3116GS-01H JJ3116GS-02M, JJ3116GH-01H JJ3116GS-30M, JJ3116GS-30MP | |
| 2 | 54-655 | JJ3116GE-03X | |
| 2 | 54-664 | JJ3143GH-90M |
Page 34 — 31. JJ30 GAUGE PARTS TABLE (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| NG | 57-171 | NEEDLE PLATE | 4 |
| SW | 57-2610-1 | MAIN FEED DOG ASS'Y | 4 |
| NG | 57-262 | MAIN FEED DOG | 4 |
| SW | 57-263 | AUXILIARY FEED DOG | 4 |
| NG | 57-269 | DIFFERENTIAL FEED DOG | 4 |
| SW | 57-5410-1 | PRESSER FOOT ASS'Y | 4 |
| NG | 57-548 | STOPPER | 4 |
| SW | 57-411 | UPPER LOOPER | 4 |
| NG | 57-414 | LOWER LOOPER | 4 |
| SW | 57-178 | NEEDLE PLATE | 3 |
| NG | 57-2790-1 | MAIN FEED DOG ASS'Y | 3 |
| SW | 57-272 | MAIN FEED DOG | 3 |
| NG | 57-263 | AUXILIARY FEED DOG | 3 |
| SW | 57-277 | DIFFERENTIAL FEED DOG | 3 |
| NG | 57-5840-1 | PRESSER FOOT ASS'Y | 3 |
| SW | 57-548 | STOPPER | 3 |
| NG | 57-411 | UPPER LOOPER | 3 |
| SW | 57-414 | LOWER LOOPER | 3 |
| SW | 57-179 | NEEDLE PLATE | 4 |
| NG | 57-2790-1 | MAIN FEED DOG ASS'Y | 4 |
| SW | 57-272 | MAIN FEED DOG | 4 |
| NG | 57-263 | AUXILIARY FEED DOG | 4 |
| SW | 57-277 | DIFFERENTIAL FEED DOG | 4 |
| NG | 57-5880-1 | PRESSER FOOT ASS'Y | 4 |
| SW | 57-548 | STOPPER | 4 |
| NG | 57-411 | UPPER LOOPER | 4 |
| SW | 57-414 | LOWER LOOPER | 4 |
| SW | 57-175 | NEEDLE PLATE | 1 |
| NG | 57-2730-1 | MAIN FEED DOG ASS'Y | 1 |
| SW | 57-272 | MAIN FEED DOG | 1 |
| NG | 57-274 | AUXILIARY FEED DOG | 1 |
| SW | 57-277 | DIFFERENTIAL FEED DOG | 1 |
| NG | 57-5710-1 | PRESSER FOOT ASS'Y | 1 |
| SW | 57-548 | STOPPER | 1 |
| NG | 57-411 | UPPER LOOPER | 1 |
| SW | 57-414 | LOWER LOOPER | 1 |
| SW | 57-188 | NEEDLE PLATE | 3 |
| NG | 57-2870-1 | MAIN FEED DOG ASS'Y | 3 |
| SW | 57-268 | MAIN FEED DOG | 3 |
| NG | 57-263 | AUXILIARY FEED DOG | 3 |
| SW | 57-269 | DIFFERENTIAL FEED DOG | 3 |
| NG | 57-5930-1 | PRESSER FOOT ASS'Y | 3 |
| SW | 57-548 | STOPPER | 3 |
| NG | 57-411 | UPPER LOOPER | 3 |
| SW | 57-414 | LOWER LOOPER | 3 |
| SW | 57-189 | NEEDLE PLATE | 4 |
| NG | 57-2870-1 | MAIN FEED DOG ASS'Y | 4 |
| SW | 57-268 | MAIN FEED DOG | 4 |
| NG | 57-263 | AUXILIARY FEED DOG | 4 |
| SW | 57-269 | DIFFERENTIAL FEED DOG | 4 |
| NG | 57-5950-1 | PRESSER FOOT ASS'Y | 4 |
| SW | 57-548 | STOPPER | 4 |
| NG | 57-411 | UPPER LOOPER | 4 |
| SW | 57-414 | LOWER LOOPER | 4 |
| SW | 57-180 | NEEDLE PLATE | 3 |
| NG | 57-2610-1 | MAIN FEED DOG ASS'Y | 3 |
| SW | 57-262 | MAIN FEED DOG | 3 |
| NG | 57-263 | AUXILIARY FEED DOG | 3 |
| SW | 57-269 | DIFFERENTIAL FEED DOG | 3 |
| NG | 57-5910-1 | PRESSER FOOT ASS'Y | 3 |
| SW | 57-548 | STOPPER | 3 |
| NG | 57-412 | UPPER LOOPER | 3 |
| SW | 57-414 | LOWER LOOPER | 3 |
| SW | 57-172 | NEEDLE PLATE | 4 |
| NG | 57-2610-1 | MAIN FEED DOG ASS'Y | 4 |
| SW | 57-262 | MAIN FEED DOG | 4 |
| NG | 57-263 | AUXILIARY FEED DOG | 4 |
| SW | 57-269 | DIFFERENTIAL FEED DOG | 4 |
| NG | 57-5500-1 | PRESSER FOOT ASS'Y | 4 |
| SW | 57-548 | STOPPER | 4 |
| NG | 57-412 | UPPER LOOPER | 4 |
| SW | 57-414 | LOWER LOOPER | 4 |
| SW | 57-417 | NEEDLE GUARD FRONT | 4 |
| NG | 57-419 | NEEDLE GUARD REAR | 4 |
| SW | 57-531 | NEEDLE HOLDER | 4 |
| NG | DCx27 #9 | NEEDLE | 4 |
| SW | 57-417 | NEEDLE GUARD FRONT | 3 |
| NG | 57-419 | NEEDLE GUARD REAR | 3 |
| SW | 57-531 | NEEDLE HOLDER | 3 |
| NG | DCx27 #9 | NEEDLE | 3 |
| SW | 57-417 | NEEDLE GUARD FRONT | 4 |
| NG | 57-419 | NEEDLE GUARD REAR | 4 |
| SW | 57-531 | NEEDLE HOLDER | 4 |
| NG | DCx27 #9 | NEEDLE | 4 |
| SW | 57-417 | NEEDLE GUARD FRONT | 1 |
| NG | 57-419 | NEEDLE GUARD REAR | 1 |
| SW | 57-531 | NEEDLE HOLDER | 1 |
| NG | DCx27 #11 | NEEDLE | 1 |
| SW | 57-417 | NEEDLE GUARD FRONT | 3 |
| NG | 57-419 | NEEDLE GUARD REAR | 3 |
| SW | 57-531 | NEEDLE HOLDER | 3 |
| NG | DCx27 #9 | NEEDLE | 3 |
| SW | 57-417 | NEEDLE GUARD FRONT | 4 |
| NG | 57-419 | NEEDLE GUARD REAR | 4 |
| SW | 57-531 | NEEDLE HOLDER | 4 |
| NG | DCx27 #9 | NEEDLE | 4 |
| SW | 57-417 | NEEDLE GUARD FRONT | 3 |
| NG | 57-419 | NEEDLE GUARD REAR | 3 |
| SW | 57-532 | NEEDLE HOLDER | 3 |
| NG | DCx27 #9 | NEEDLE | 3 |
| SW | 57-417 | NEEDLE GUARD FRONT | 4 |
| NG | 57-419 | NEEDLE GUARD REAR | 4 |
| SW | 57-532 | NEEDLE HOLDER | 4 |
| NG | DCx27 #9 | NEEDLE | 4 |
Page 35 — 32. JJ30 GAUGE PARTS TABLE (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 57-181 | NEEDLE PLATE | 2 | |
| 57-2610-1 | MAIN FEED DOG ASS'Y | 5 | |
| 57-262 | MAIN FEED DOG | 5 | |
| 57-263 | AUXILIARY FEED DOG | 5 | |
| 57-269 | DIFFERENTIAL FEED DOG | 5 | |
| 57-5500-1 | PRESSER FOOT ASS'Y | 5 | |
| 57-548 | STOPPER | 5 | |
| 57-412 | UPPER LOOPER | 5 | |
| 57-414 | LOWER LOOPER | 5 | |
| 57-180 | NEEDLE PLATE | 3 | |
| 57-2610-1 | MAIN FEED DOG ASS'Y | 3 | |
| 57-262 | MAIN FEED DOG | 3 | |
| 57-263 | AUXILIARY FEED DOG | 3 | |
| 57-269 | DIFFERENTIAL FEED DOG | 3 | |
| 57-4780-1 | PRESSER FOOT ASS'Y | 3 | |
| 57-548 | STOPPER | 3 | |
| 57-412 | UPPER LOOPER | 3 | |
| 57-414 | LOWER LOOPER | 3 | |
| 57-172 | NEEDLE PLATE | 4 | |
| 57-2610-1 | MAIN FEED DOG ASS'Y | 4 | |
| 57-262 | MAIN FEED DOG | 4 | |
| 57-263 | AUXILIARY FEED DOG | 4 | |
| 57-269 | DIFFERENTIAL FEED DOG | 4 | |
| 57-5740-1 | PRESSER FOOT ASS'Y | 4 | |
| 57-548 | STOPPER | 4 | |
| 57-412 | UPPER LOOPER | 4 | |
| 57-414 | LOWER LOOPER | 4 | |
| 57-190 | NEEDLE PLATE | 4 | |
| 57-2670-1 | MAIN FEED DOG ASS'Y | 4 | |
| 57-268 | MAIN FEED DOG | 4 | |
| 57-263 | AUXILIARY FEED DOG | 4 | |
| 57-269 | DIFFERENTIAL FEED DOG | 4 | |
| 57-5960-1 | PRESSER FOOT ASS'Y | 4 | |
| 57-548 | STOPPER | 4 | |
| 57-412 | UPPER LOOPER | 4 | |
| 57-414 | LOWER LOOPER | 4 | |
| 57-191 | NEEDLE PLATE | 5 | |
| 57-2670-1 | MAIN FEED DOG ASS'Y | 5 | |
| 57-268 | MAIN FEED DOG | 5 | |
| 57-263 | AUXILIARY FEED DOG | 5 | |
| 57-269 | DIFFERENTIAL FEED DOG | 5 | |
| 57-5960-1 | PRESSER FOOT ASS'Y | 5 | |
| 57-548 | STOPPER | 5 | |
| 57-412 | UPPER LOOPER | 5 | |
| 57-414 | LOWER LOOPER | 5 | |
| 57-172 | NEEDLE PLATE | 4 | |
| 57-2610-1 | MAIN FEED DOG ASS'Y | 4 | |
| 57-262 | MAIN FEED DOG | 4 | |
| 57-263 | AUXILIARY FEED DOG | 4 | |
| 57-269 | DIFFERENTIAL FEED DOG | 4 | |
| 57-5500-1 | PRESSER FOOT ASS'Y | 4 | |
| 57-548 | STOPPER | 4 | |
| 57-413 | UPPER LOOPER | 4 | |
| 57-414 | LOWER LOOPER | 4 | |
| 57-192 | NEEDLE PLATE | 4 | |
| 57-2920-1 | MAIN FEED DOG ASS'Y | 4 | |
| 57-290 | MAIN FEED DOG | 4 | |
| 57-291 | AUXILIARY FEED DOG | 4 | |
| 57-293 | DIFFERENTIAL FEED DOG | 4 | |
| 57-4760-1 | PRESSER FOOT ASS'Y | 4 | |
| 57-548 | STOPPER | 4 | |
| 57-413 | UPPER LOOPER | 4 | |
| 57-414 | LOWER LOOPER | 4 | |
| 57-417 | NEEDLE GUARD FRONT | 2 | |
| 57-419 | NEEDLE GUARD REAR | 2 | |
| 57-532 | NEEDLE HOLDER | 2 | |
| DCx27 #9 | NEEDLE | 2 | |
| 57-417 | NEEDLE GUARD FRONT | 3 | |
| 57-419 | NEEDLE GUARD REAR | 3 | |
| 57-532 | NEEDLE HOLDER | 3 | |
| DCx27 #9 | NEEDLE | 3 | |
| 57-417 | NEEDLE GUARD FRONT | 4 | |
| 57-419 | NEEDLE GUARD REAR | 4 | |
| 57-532 | NEEDLE HOLDER | 4 | |
| DCx27 #9 | NEEDLE | 4 | |
| 57-417 | NEEDLE GUARD FRONT | 5 | |
| 57-419 | NEEDLE GUARD REAR | 5 | |
| 57-532 | NEEDLE HOLDER | 5 | |
| DCx27 #9 | NEEDLE | 5 | |
| 57-417 | NEEDLE GUARD FRONT | 4 | |
| 57-419 | NEEDLE GUARD REAR | 4 | |
| 57-532 | NEEDLE HOLDER | 4 | |
| DCx27 #9 | NEEDLE | 4 | |
| 57-417 | NEEDLE GUARD FRONT | 5 | |
| 57-419 | NEEDLE GUARD REAR | 5 | |
| 57-532 | NEEDLE HOLDER | 5 | |
| DCx27 #9 | NEEDLE | 5 | |
| 57-417 | NEEDLE GUARD FRONT | 4 | |
| 57-419 | NEEDLE GUARD REAR | 4 | |
| 57-532 | NEEDLE HOLDER | 4 | |
| DCx27 #11 | NEEDLE | 4 | |
| 57-417 | NEEDLE GUARD FRONT | 4 | |
| 57-419 | NEEDLE GUARD REAR | 4 | |
| 57-537 | NEEDLE HOLDER | 4 | |
| DCx27 #18 | NEEDLE | 4 |
Page 36 — JJ31 GAUGE PARTS TABLE (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 4 | 57-173 | NEEDLE PLATE | 3 |
| 4 | 57-2640-1 | MAIN FEED DOG ASS'Y | 3 |
| 4 | 57-263 | MAIN FEED DOG | 3 |
| 4 | 57-270 | DIFFERENTIAL FEED DOG | 3 |
| 4 | 57-5520-1 | PRESSER FOOT ASS'Y | 3 |
| 4 | 57-561 | SPRING | 3 |
| 4 | 57-411 | UPPER LOOPER | 3 |
| 4 | 57-414 | LOWER LOOPER | 3 |
| 4 | 57-173 | NEEDLE PLATE | 3 |
| 4 | 57-2640-1 | MAIN FEED DOG ASS'Y | 3 |
| 4 | 57-263 | MAIN FEED DOG | 3 |
| 4 | 57-270 | DIFFERENTIAL FEED DOG | 3 |
| 4 | 57-4500-1 | PRESSER FOOT ASS'Y | 3 |
| 4 | 57-561 | SPRING | 3 |
| 4 | 57-411 | UPPER LOOPER | 3 |
| 4 | 57-414 | LOWER LOOPER | 3 |
| 5 | 57-182 | NEEDLE PLATE | 3 |
| 5 | 57-2750-1 | MAIN FEED DOG ASS'Y | 3 |
| 5 | 57-276 | MAIN FEED DOG | 3 |
| 5 | 57-280 | DIFFERENTIAL FEED DOG | 3 |
| 5 | 57-5520-1 | PRESSER FOOT ASS'Y | 3 |
| 5 | 57-561 | SPRING | 3 |
| 5 | 57-412 | UPPER LOOPER | 3 |
| 5 | 57-414 | LOWER LOOPER | 3 |
| 5 | 57-176 | NEEDLE PLATE | 5 |
| 5 | 57-2750-1 | MAIN FEED DOG ASS'Y | 5 |
| 5 | 57-276 | MAIN FEED DOG | 5 |
| 5 | 57-278 | DIFFERENTIAL FEED DOG | 5 |
| 5 | 57-5790-1 | PRESSER FOOT ASS'Y | 5 |
| 5 | 57-561 | SPRING | 5 |
| 5 | 57-412 | UPPER LOOPER | 5 |
| 5 | 57-414 | LOWER LOOPER | 5 |
| 4 | 57-183 | NEEDLE PLATE | 3 |
| 4 | 57-2750-1 | MAIN FEED DOG ASS'Y | 3 |
| 4 | 57-276 | MAIN FEED DOG | 3 |
| 4 | 57-280 | DIFFERENTIAL FEED DOG | 3 |
| 4 | 57-5520-1 | PRESSER FOOT ASS'Y | 3 |
| 4 | 57-561 | SPRING | 3 |
| 4 | 57-411 | UPPER LOOPER | 3 |
| 4 | 57-414 | LOWER LOOPER | 3 |
| 5 | 57-176 | NEEDLE PLATE | 5 |
| 5 | 57-2750-1 | MAIN FEED DOG ASS'Y | 5 |
| 5 | 57-276 | MAIN FEED DOG | 5 |
| 5 | 57-278 | DIFFERENTIAL FEED DOG | 5 |
| 5 | 57-5790-1 | PRESSER FOOT ASS'Y | 5 |
| 5 | 57-561 | SPRING | 5 |
| 5 | 57-411 | UPPER LOOPER | 5 |
| 5 | 57-414 | LOWER LOOPER | 5 |
| 4 | 57-185 | NEEDLE PLATE | 3 |
| 4 | 57-2810-1 | MAIN FEED DOG ASS'Y | 3 |
| 4 | 57-282 | MAIN FEED DOG | 3 |
| 4 | 57-263 | DIFFERENTIAL FEED DOG | 3 |
| 4 | 57-4630-1 | PRESSER FOOT ASS'Y | 3 |
| 4 | 57-561 | SPRING | 3 |
| 4 | 57-412 | UPPER LOOPER | 3 |
| 4 | 57-414 | LOWER LOOPER | 3 |
| 4 | 57-185 | NEEDLE PLATE | 3 |
| 4 | 57-2810-1 | MAIN FEED DOG ASS'Y | 3 |
| 4 | 57-282 | MAIN FEED DOG | 3 |
| 4 | 57-263 | DIFFERENTIAL FEED DOG | 3 |
| 4 | 57-4680-1 | PRESSER FOOT ASS'Y | 3 |
| 4 | 57-412 | UPPER LOOPER | 3 |
| 4 | 57-414 | LOWER LOOPER | 3 |
| 4 | 57-415 | CHAINSTITCH LOOPER | 3 |
| 4 | 57-418 | OVERLOCK NEEDLE GUARD FRONT | 3 |
| 4 | 57-419 | OVERLOCK NEEDLE GUARD REAR | 3 |
| 4 | 57-420 | CHAINSTITCH NEEDLE GUARD | 3 |
| 4 | 57-421 | NEEDLE HOLDER | 3 |
| 4 | 57-533 | NEEDLE | 3 |
| 4 | 57-415 | CHAINSTITCH LOOPER | 3 |
| 4 | 57-418 | OVERLOCK NEEDLE GUARD FRONT | 3 |
| 4 | 57-419 | OVERLOCK NEEDLE GUARD REAR | 3 |
| 4 | 57-420 | CHAINSTITCH NEEDLE GUARD | 3 |
| 4 | 57-421 | NEEDLE HOLDER | 3 |
| 4 | 57-533 | NEEDLE | 3 |
| 5 | 57-415 | CHAINSTITCH LOOPER | 3 |
| 5 | 57-418 | OVERLOCK NEEDLE GUARD FRONT | 3 |
| 5 | 57-419 | OVERLOCK NEEDLE GUARD REAR | 3 |
| 5 | 57-420 | CHAINSTITCH NEEDLE GUARD | 3 |
| 5 | 57-421 | NEEDLE HOLDER | 3 |
| 5 | 57-533 | NEEDLE | 3 |
| 5 | 57-415 | CHAINSTITCH LOOPER | 5 |
| 5 | 57-418 | OVERLOCK NEEDLE GUARD FRONT | 5 |
| 5 | 57-419 | OVERLOCK NEEDLE GUARD REAR | 5 |
| 5 | 57-420 | CHAINSTITCH NEEDLE GUARD | 5 |
| 5 | 57-535 | NEEDLE HOLDER | 5 |
| 5 | 57-533 | NEEDLE | 5 |
| 4 | 57-415 | CHAINSTITCH LOOPER | 3 |
| 4 | 57-418 | OVERLOCK NEEDLE GUARD FRONT | 3 |
| 4 | 57-419 | OVERLOCK NEEDLE GUARD REAR | 3 |
| 4 | 57-420 | CHAINSTITCH NEEDLE GUARD | 3 |
| 4 | 57-421 | NEEDLE HOLDER | 3 |
| 4 | 57-533 | NEEDLE | 3 |
| 5 | 57-415 | CHAINSTITCH LOOPER | 5 |
| 5 | 57-418 | OVERLOCK NEEDLE GUARD FRONT | 5 |
| 5 | 57-419 | OVERLOCK NEEDLE GUARD REAR | 5 |
| 5 | 57-420 | CHAINSTITCH NEEDLE GUARD | 5 |
| 5 | 57-421 | NEEDLE HOLDER | 5 |
| 5 | 57-533 | NEEDLE | 5 |
| 4 | 57-415 | CHAINSTITCH LOOPER | 3 |
| 4 | 57-418 | OVERLOCK NEEDLE GUARD FRONT | 3 |
| 4 | 57-419 | OVERLOCK NEEDLE GUARD REAR | 3 |
| 4 | 57-420 | CHAINSTITCH NEEDLE GUARD | 3 |
| 4 | 57-421 | NEEDLE HOLDER | 3 |
| 4 | 57-533 | NEEDLE | 3 |
| 4 | 57-415 | CHAINSTITCH LOOPER | 3 |
| 4 | 57-418 | OVERLOCK NEEDLE GUARD FRONT | 3 |
| 4 | 57-419 | OVERLOCK NEEDLE GUARD REAR | 3 |
| 4 | 57-420 | CHAINSTITCH NEEDLE GUARD | 3 |
| 4 | 57-421 | NEEDLE HOLDER | 3 |
| 4 | 57-533 | NEEDLE | 3 |
Page 37 — 34. JJ31 GAUGE PARTS TABLE (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 57-186 | NEEDLE PLATE | 5 | |
| 57-2830-1 | MAIN FEED DOG ASS'Y | 5 | |
| 57-284 | MAIN FEED DOG | 5 | |
| 57-263 | AUXILIARY FEED DOG | 5 | |
| 57-286 | DIFFERENTIAL FEED DOG | 5 | |
| 57-4660-1 | PRESSER FOOT ASS'Y | 5 | |
| 57-561 | SPRING | 5 | |
| 57-412 | UPPER LOOPER | 5 | |
| 57-414 | LOWER LOOPER | 5 | |
| 57-184 | NEEDLE PLATE | 5 | |
| 57-2660-1 | MAIN FEED DOG ASS'Y | 5 | |
| 57-287 | MAIN FEED DOG | 5 | |
| 57-268 | AUXILIARY FEED DOG | 5 | |
| 57-271 | DIFFERENTIAL FEED DOG | 5 | |
| 57-5630-1 | PRESSER FOOT ASS'Y | 5 | |
| 57-569 | SPRING | 5 | |
| 57-413 | UPPER LOOPER | 5 | |
| 57-414 | LOWER LOOPER | 5 | |
| 57-174 | NEEDLE PLATE | 5 | |
| 57-2660-1 | MAIN FEED DOG ASS'Y | 5 | |
| 57-287 | MAIN FEED DOG | 5 | |
| 57-268 | AUXILIARY FEED DOG | 5 | |
| 57-271 | DIFFERENTIAL FEED DOG | 5 | |
| 57-5630-1 | PRESSER FOOT ASS'Y | 5 | |
| 57-569 | SPRING | 5 | |
| 57-413 | UPPER LOOPER | 5 | |
| 57-414 | LOWER LOOPER | 5 | |
| 57-187 | NEEDLE PLATE | 5 | |
| 57-2660-1 | MAIN FEED DOG ASS'Y | 5 | |
| 57-287 | MAIN FEED DOG | 5 | |
| 57-268 | AUXILIARY FEED DOG | 5 | |
| 57-271 | DIFFERENTIAL FEED DOG | 5 | |
| 57-5630-1 | PRESSER FOOT ASS'Y | 5 | |
| 57-569 | SPRING | 5 | |
| 57-413 | UPPER LOOPER | 5 | |
| 57-414 | LOWER LOOPER | 5 | |
| 57-177 | NEEDLE PLATE | 3x2 | |
| 57-2750-1 | MAIN FEED DOG ASS'Y | 3x2 | |
| 57-276 | MAIN FEED DOG | 3x2 | |
| 57-263 | AUXILIARY FEED DOG | 3x2 | |
| 57-278 | DIFFERENTIAL FEED DOG | 3x2 | |
| 57-5820-1 | PRESSER FOOT ASS'Y | 3x2 | |
| 57-561 | SPRING | 3x2 | |
| 57-412 | UPPER LOOPER | 3x2 | |
| 57-414 | LOWER LOOPER | 3x2 | |
| 57-415 | CHAINSTITCH LOOPER | 5 | |
| 57-418 | OVERLOCK NEEDLE GUARD FRONT | 5 | |
| 57-419 | OVERLOCK NEEDLE GUARD REAR | 5 | |
| 57-420 | CHAINSTITCH NEEDLE GUARD FRONT | 5 | |
| 57-421 | CHAINSTITCH NEEDLE GUARD REAR | 5 | |
| 57-535 | NEEDLE HOLDER | 5 | |
| DCx27 | NEEDLE | 5 | |
| 57-416 | CHAINSTITCH LOOPER | 5 | |
| 57-418 | OVERLOCK NEEDLE GUARD FRONT | 5 | |
| 57-419 | OVERLOCK NEEDLE GUARD REAR | 5 | |
| 57-420 | CHAINSTITCH NEEDLE GUARD FRONT | 5 | |
| 57-421 | CHAINSTITCH NEEDLE GUARD REAR | 5 | |
| 57-534 | NEEDLE HOLDER | 5 | |
| DCx27 | NEEDLE | 5 | |
| 57-416 | CHAINSTITCH LOOPER | 5 | |
| 57-418 | OVERLOCK NEEDLE GUARD FRONT | 5 | |
| 57-419 | OVERLOCK NEEDLE GUARD REAR | 5 | |
| 57-420 | CHAINSTITCH NEEDLE GUARD FRONT | 5 | |
| 57-421 | CHAINSTITCH NEEDLE GUARD REAR | 5 | |
| 57-534 | NEEDLE HOLDER | 5 | |
| DCx27 | NEEDLE | 5 | |
| 57-416 | CHAINSTITCH LOOPER | 5 | |
| 57-418 | OVERLOCK NEEDLE GUARD FRONT | 5 | |
| 57-419 | OVERLOCK NEEDLE GUARD REAR | 5 | |
| 57-420 | CHAINSTITCH NEEDLE GUARD FRONT | 5 | |
| 57-421 | CHAINSTITCH NEEDLE GUARD REAR | 5 | |
| 57-534 | NEEDLE HOLDER | 5 | |
| DCx27 | NEEDLE | 5 | |
| 57-415 | CHAINSTITCH LOOPER | 3x2 | |
| 57-418 | OVERLOCK NEEDLE GUARD FRONT | 3x2 | |
| 57-419 | OVERLOCK NEEDLE GUARD REAR | 3x2 | |
| 57-420 | CHAINSTITCH NEEDLE GUARD FRONT | 3x2 | |
| 57-421 | CHAINSTITCH NEEDLE GUARD REAR | 3x2 | |
| 57-536 | NEEDLE HOLDER | 3x2 | |
| DCx27 | NEEDLE | 3x2 |
Page 39 — INDEX 2
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 25-22 | 56-713 | 25-22 | |
| 25-23 | 56-715 | 25-23 | |
| 25-24 | 56-716 | 25-24 | |
| 25-25 | 56-717 | 25-25 | |
| 25-26 | 56-7200-1 | 25-26 | |
| 23-05 | 56-741 | 23-05 | |
| 15-32 | 56-765 | 15-32 | |
| 15-33 | 56-766 | 15-33 | |
| 15-34 | 56-767 | 15-34 | |
| 15-35 | 56-768 | 15-35 | |
| 13-42 | 56-771 | 13-42 | |
| 01-11 | 56-811 | 01-11 | |
| 13-43 | 56-817 | 13-43 | |
| 19-16 | 56-817 | 19-16 | |
| 11-28 | 56-854 | 11-28 | |
| 22-20 | 56-902 | 22-20 | |
| 22-21 | 56-906 | 22-21 | |
| 22-22 | 56-907 | 22-22 | |
| 22-23 | 56-9100-1 | 22-23 | |
| 22-24 | 56-912 | 22-24 | |
| 20-01 | 56-913 | 20-01 | |
| 20-02 | 56-914 | 20-02 | |
| 20-03 | 56-915 | 20-03 | |
| 20-04 | 56-916 | 20-04 | |
| 23-06 | 56-917 | 23-06 | |
| 26-51 | 56-918 | 26-51 | |
| 22-25 | 56-951 | 22-25 | |
| 22-26 | 56-952 | 22-26 | |
| 22-27 | 56-953 | 22-27 | |
| 22-28 | 56-954 | 22-28 | |
| 21-01 | 56-9550-1 | 21-01 | |
| 21-02 | 56-9560-1 | 21-02 | |
| 21-03 | 56-957 | 21-03 | |
| 25-27 | 56-957 | 25-27 | |
| 21-04 | 56-958 | 21-04 | |
| 25-28 | 56-958 | 25-28 | |
| 21-05 | 56-959 | 21-05 | |
| 21-06 | 56-960 | 21-06 | |
| 21-07 | 56-961 | 21-07 | |
| 21-08 | 56-962 | 21-08 | |
| 25-29 | 56-962 | 25-29 | |
| 21-09 | 56-963 | 21-09 | |
| 25-30 | 56-963 | 25-30 | |
| 21-10 | 56-964 | 21-10 | |
| 25-31 | 56-964 | 25-31 | |
| 21-11 | 56-965 | 21-11 | |
| 25-32 | 56-965 | 25-32 | |
| 22-29 | 56-966 | 22-29 | |
| 24-14 | 57-462 | 24-14 | |
| 12-35 | 57-548 | 12-35 | |
| 12-36 | 57-549 | 12-36 | |
| 12-37 | 57-561 | 12-37 | |
| 12-38 | 57-562 | 12-38 | |
| 24-15 | 57-570 | 24-15 | |
| 26-53 | 57-570 | 26-53 |
Page 43
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JJ3004(G)S-01M | Nm65 | ||
| JJ3004(G)S-20F | Nm75 | ||
| JJ3004(G)S-50M | Nm65 | ||
| JJ3005(G)S-10M | Nm65 | ||
| JJ3014(G)H-01M | Nm65 | ||
| JJ3014(G)H-40M | Nm65 | ||
| JJ3014(G)H-50M | Nm65 | ||
| JJ3014GE-01H | Nm75 | ||
| JJ3014GE-60HK | Nm110 | ||
| JJ3116(G)S-01M | Nm75 | ||
| JJ3116(G)S-02M | Nm75 | ||
| JJ3116(G)S-01H | Nm90 | ||
| JJ3116(G)S-30M | Nm90 | ||
| JJ3116(G)S-30M-P | Nm90 | ||
| JJ3116(G)H-01H | Nm90 | ||
| JJ3116(G)E-03X | Nm120 | ||
| JJ3143(G)H-90M | Nm75 |
Page 44
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JJ3014GE-01H | STICH TYPE 514 | ||
| JJ3116(G)S-01M | STICH TYPE 516 | ||
| JJ3116(G)S-02M | STICH TYPE 516 | ||
| JJ3116(G)S-01H | STICH TYPE 516 | ||
| JJ3116(G)S-30M | STICH TYPE 516 | ||
| JJ3116(G)S-30M-P | STICH TYPE 516 | ||
| JJ3116(G)H-01H | STICH TYPE 516 | ||
| JJ3014GE-60HK | STICH TYPE 514 | ||
| JJ3143(G)H-90M | STICH TYPE 516 |
Page 45 — [2] MACHINE SPEED
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JJ3004(G)S | JJ3004(G)S | ||
| JJ3005(G)S | JJ3005(G)S | ||
| JJ3014(G)H | JJ3014(G)H | ||
| JJ3116(G)S | JJ3116(G)S | ||
| JJ3014GE | JJ3014GE | ||
| JJ3116(G)S-30M | JJ3116(G)S-30M | ||
| JJ3116(G)H-01H | JJ3116(G)H-01H | ||
| JJ3116(G)E-03X | JJ3116(G)E-03X | ||
| JJ3143(G)H | JJ3143(G)H |
Page 46 — 3 LUBRICATION
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 54-045 | Oil | ||
| 28-612 | Silicon oil |
Page 48
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JJ3004 | JJ3004 | ||
| JJ3005 | JJ3005 | ||
| JJ3014 | JJ3014 | ||
| JJ3116 | JJ3116 | ||
| JJ3143 | JJ3143 | ||
| JJ3004GS,JJ3005GS | JJ3004GS,JJ3005GS | ||
| JJ3014GH | JJ3014GH | ||
| JJ3014GE | JJ3014GE | ||
| JJ3116GS,JJ3116GH | JJ3116GS,JJ3116GH | ||
| JJ3143GH | JJ3143GH | ||
| JJ3116GE | JJ3116GE |
Page 49 — LOOPER AND NEEDLE TIMING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JJ3004GS,JJ3005GS | Model name | ||
| JJ3004GS,JJ3005GS | JJ3004GS,JJ3005GS | ||
| JJ3014GH | JJ3014GH | ||
| JJ3014GE-01H | JJ3014GE-01H | ||
| JJ3014GE-60HK | JJ3014GE-60HK | ||
| JJ3116GS,JJ3116GH | JJ3116GS,JJ3116GH | ||
| JJ3143GH | JJ3143GH | ||
| JJ3116GE | JJ3116GE | ||
| JJ3004GS,JJ3005GS | Model name | ||
| JJ3004GS,JJ3005GS | JJ3004GS,JJ3005GS | ||
| JJ3004GS,JJ3005GS | JJ3004GS,JJ3005GS | ||
| JJ3014GH | JJ3014GH | ||
| JJ3014GH | JJ3014GH | ||
| JJ3014GE-01H | JJ3014GE-01H | ||
| JJ3014GE-01H | JJ3014GE-01H | ||
| JJ3014GE-60HK | JJ3014GE-60HK | ||
| JJ3014GE-60HK | JJ3014GE-60HK | ||
| JJ3116GS,JJ3116GH | JJ3116GS,JJ3116GH | ||
| JJ3116GS,JJ3116GH | JJ3116GS,JJ3116GH | ||
| JJ3143GH | JJ3143GH | ||
| JJ3143GH | JJ3143GH | ||
| JJ3116GE | JJ3116GE | ||
| JJ3116GE | JJ3116GE |
Page 50
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JJ3116(G)E-03X | Looper gauge "a" |
Page 52 — 【11】 STICH FORMATION ADJUSTMENT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JJ3004 | 出荷時は調整済みです。 Already adjusted | ||
| JJ3005 | 出荷時は調整済みです。 Already adjusted | ||
| JJ3116 | 出荷時は調整済みです。 Already adjusted | ||
| JJ3143 | 出荷時は調整済みです。 Already adjusted |
Page 53 — 11-3 Looper thread take up adjustment
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JJ3004(G)S-01M | A | ||
| JJ3004(G)S-20F | B | ||
| JJ3005(G)S-10M | C | ||
| JJ3004(G)S-50M | D | ||
| JJ3014(G)H-01M | A | ||
| JJ3014(G)H-40M | B | ||
| JJ3014(G)H-50M | C | ||
| JJ3014GE-01H | D | ||
| JJ3014GE-60HK | E | ||
| JJ3116(G)E-01M | A | ||
| JJ3116(G)E-02M | B | ||
| JJ3116(G)E-03M | C | ||
| JJ3116(G)E-30M | D | ||
| JJ3116(G)H-01H | E | ||
| JJ3143(G)H-90M | A | ||
| JJ3143(G)H-90M | B | ||
| JJ3143(G)H-90M | C | ||
| JJ3143(G)H-90M | D | ||
| JJ3143(G)H-90M | E |
Page 55 — [14] SPECIFICATION
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JJ3004(G)S-01M | MODEL | ||
| JJ3004(G)S-20F | MODEL | ||
| JJ3004(G)S-50M | MODEL | ||
| JJ3005(G)S-10M | MODEL | 10.5 | |
| JJ3014(G)H-01M | MODEL | ||
| JJ3014(G)H-40M | MODEL | ||
| JJ3014(G)H-50M | MODEL | 0.8 | |
| JJ3014GE-01H | MODEL | 11.9 | |
| JJ3014GE-60HK | MODEL | 1.0 | |
| JJ3116(G)S-01M | MODEL | 10.5 | |
| JJ3116(G)S-02M | MODEL | ||
| JJ3116(G)S-01H | MODEL | 0.8 | |
| JJ3116(G)S-30M(P) | MODEL | ||
| JJ3116(G)H-01H | MODEL | 1.5 | |
| JJ3116(G)E-03X | MODEL | 11.9 | |
| JJ3143(G)H-90M | MODEL | 10.5 |
Kansai Special JJ-3300 — parts catalog
- Page 1 (cover): This is the cover page for the JJ Series Industrial Sewing Machines Parts List & Instruction manual, Fifth Edition, November 2019, with model numbers JJ30 and JJ31 listed, and catalog number No.KX19011.
- Page 2 (cover): This is the cover page of the JJ Series Parts Book, published in November 2019, providing an introduction and information on machine models and their specifications.
- Page 3 (toc): This page contains the table of contents for the parts catalog, listing 34 sections with their corresponding page numbers.
- Page 4 (diagram): This page displays a diagram of the frame assembly for an industrial sewing machine, with a corresponding parts list detailing components such as bolts, pins, plates, and covers.
- Page 5 (diagram): This page displays a diagram of cover assembly components for the JJ30 and JJ31 series sewing machines, along with a detailed parts list including part numbers, descriptions, and quantities.
- Page 6 (diagram): This page displays a diagram of cover assembly components, with a detailed parts list including part numbers, descriptions, and quantities.
- Page 7 (diagram): This page contains a diagram of the bushing mechanism, with a parts list detailing reference numbers, part numbers, descriptions, and quantities.
- Page 8 (diagram): This page displays a diagram of the crankshaft mechanism for JJ31 sewing machines, along with a detailed parts list including part numbers, descriptions, and quantities.
- Page 9 (diagram): This page contains a diagram and parts list for the Needle Bar Mechanism, including screws, bolts, pins, levers, and other components.
- Page 10 (diagram): This page displays a diagram of the upper looper mechanism, with a detailed parts list including part numbers, descriptions, and quantities.
- Page 11 (diagram): This page displays a diagram of the lower looper mechanism, with a parts list detailing components such as screws, bolts, washers, and the lower looper holder.
- Page 12 (parts_list): This page displays a parts list for the feed mechanism (1) of an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 13 (diagram): This page displays a diagram of the feed mechanism (2) with a parts list detailing reference numbers, part numbers, descriptions, and quantities.
- Page 14 (diagram): This page displays a diagram of the knife mechanism for JJ30 and JJ31 series sewing machines, along with a detailed parts list.
- Page 16 (parts_list): This page contains a parts list for the lubrication mechanism, detailing part numbers, descriptions, and quantities for various components.
- Page 17 (parts_list): This page lists parts for the thread tension mechanism (1) and includes diagrams for 1-needle, 2-needle, and 3-needle configurations.
- Page 18 (diagram): This page displays a diagram of the thread tension mechanism (2) for JJ30 and JJ31 series sewing machines, along with a detailed parts list.
- Page 19 (diagram): This page displays a diagram of thread tension components (3) with a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 20 (diagram): This page displays a diagram of the CHAINSTITCH LOOPER MECHANISM (1) with a corresponding parts list. The parts list includes reference numbers, part numbers, descriptions, and quantities for each component.
- Page 21 (diagram): This page displays a diagram of the CHAINSTITCH LOOPER MECHANISM (2) with associated parts listed in a table.
- Page 22 (parts_list): This page contains a parts list for the H.R. DEVICE, with parts for models JJ30 and JJ31 listed.
- Page 23 (parts_list): This page lists thread stand assemblies for JJ3004, JJ3014, JJ3116, and JJ3143 series machines, with part numbers, descriptions, and quantities.
- Page 24 (diagram): This page contains a parts diagram and list for the EDGE GUIDE (Option) for JJ30 and JJ31 models, detailing various components like brackets, screws, and nuts.
- Page 25 (parts_list): This page lists accessories for the sewing machine, including various tools, labels, oil, and fasteners, with their corresponding part numbers and descriptions.
- Page 26 (parts_list): This page contains a parts list for tape attaching components for the JJ3014GH-40M model, including part numbers, descriptions, and quantities.
- Page 27 (parts_list): This page lists specific parts for JJ3014GH, JJ3143GH, JJ3014GE-01H, and JJ3116GS-02M sewing machines, including part numbers, descriptions, and quantities.
- Page 28 (parts_list): This page contains a parts list for specific parts (3) for the JJ3005GS-10M model, specifically for blind hemming.
- Page 29 (parts_list): This page lists specific parts for the JJ3116GS-30M and JJ3116GS-30MP shirring machines, including part numbers, descriptions, quantities, and reference numbers.
- Page 30 (parts_list): This page lists specific parts for the JJ3004GS-50M and JJ3014GH-50M models, including various screws, nuts, washers, brackets, and specialized components like the back latching device.
- Page 31 (parts_list): This page contains a parts list for Serging specific parts for the JJ3014GE-60HK model, including part numbers, descriptions, and quantities.
- Page 32 (parts_list): This page contains a parts list for the CRANKSHAFT SET, detailing part numbers, descriptions, and model applicability.
- Page 33 (diagram): This page contains a threading diagram for a sewing machine, listing parts numbers and applicable machine models.
- Page 34 (parts_list): This page contains a parts list for JJ30 gauge parts, including part numbers, descriptions, and applicable machine models.
- Page 35 (parts_list): This page contains a parts list for JJ30 gauge parts, including machine type, gauge specifications, needle plate, feed dogs, presser foot, and needle information.
- Page 36 (parts_list): This page contains a parts list for JJ31 gauge parts, including machine types, part numbers, and descriptions for various components like needle plates, feed dogs, and loopers.
- Page 37 (parts_list): This page contains a parts list for JJ31 gauge parts, including part numbers, descriptions, and specifications for various machine models.
- Page 39 (index): This page is an index of parts for an industrial sewing machine, listing reference numbers and part numbers across multiple columns.
- Page 40 (cover): This is the cover page for the JJ Series Industrial Sewing Machines instruction manual, published in November 2019 by KANSAI SPECIAL.
- Page 41 (text): This page contains an introduction to the JJ series machine manual, including important notes on adjustments, maintenance, and safety precautions before operating the machine.
- Page 43 (text): This page contains information about needles, including standard needle recommendations and a table listing various needle part numbers with their corresponding Schmetz B-27 and Organ DCx27 sizes. It also includes diagrams for stitch types 504 and 514, and a note on needle replacement.
- Page 44 (diagram): This page displays diagrams of STICH TYPE 514 and STICH TYPE 516, with associated part numbers listed for each.
- Page 45 (text): This page details machine speed specifications and motor/belt information, including tables for machine speed based on model and motor pulley diameter, and a diagram illustrating belt adjustment.
- Page 46 (text): This page details lubrication procedures, including oil specifications, oiling methods, and oil and filter replacement instructions for the machine, accompanied by diagrams illustrating these processes.
- Page 47 (diagram): This page contains a diagram illustrating the standard table installation for a direct motor, with detailed dimensions and cross-sections.
- Page 48 (text): This page contains instructions for the installation process and initial needle bar height adjustment, including diagrams and a table of model names with corresponding measurements.
- Page 49 (text): This page contains information on looper and needle timing, including distance measurements for different models, and upper looper adjustment procedures.
- Page 50 (text): This page details the adjustment procedures for the double chain looper gauge and the feed dog height and inclination, including specific measurements and screw adjustments.
- Page 51 (text): This page details stitch length adjustment, differential feed dog adjustment, and presser foot adjustment, including specific steps and notes for each procedure, accompanied by diagrams illustrating the adjustments.
- Page 52 (text): This page details stitch formation adjustment, including thread tension adjustment and needle thread take-up & thread eyelet adjustment with diagrams and part numbers.
- Page 53 (diagram): This page details the adjustment of the looper thread take-up mechanism, including diagrams and a table of part numbers and their corresponding measurements for different machine models.
- Page 54 (text): This page contains instructions for adjusting the upper and lower knife and sharpening the lower knife, along with diagrams illustrating the adjustments.
- Page 55 (parts_list): This page contains parts lists for JJ30 and JJ31 series models, detailing specifications for various machine models.
- Page 56 (cover): This is the cover page for Morimoto Mfg. Co., Ltd., a manufacturer of industrial sewing machines. It includes the company name in both Japanese and English, its address and contact information in Japan, and a list of its foreign affiliated companies with their respective contact details.
Page 2
パーツブック御利用に際して INTRODUCTION ■このパーツブックは,2019年11月製造中のJJシリーズ のデーターに基づいて作成されたものです。 This parts book is based on data current November 2019. ■各機構別に収録され,左側のページに分解イラスト図,右側の ページに部品番号,名称,及び数量が記載されています。 Each mechanism is arranged on facing pages. You will find listed for parts number, names, and quantities. ■この本の最後に部品番号インデックスを記載しています。 部品番号からの図解,名称の検索に御利用下さい。 A parts number index is attached to the back of this book for convenience. ■部品は,予告なく変更される場合がありますので,あらかじめ 御了承下さい。 Parts are subject to change without notice. JJシリーズ 表示方法 JJ SERIES INFORMATION JJ3004GS-01MK-4/?/ ? モデルの分類 経目形式 (ISO) 縫容量 用途 ゲージ 特殊仕様 オーバーロック S:スタンダードリフト アタッチメント かがり幅 JJ30 503:03(1本針,2本糸 サーシング) H:ハイリフト 01-地縫 10-裾引き 針幅×かがり幅 省力装置 インターロック 504:04(1本針,3本糸 地縫い) E:超ハイリフト 20-下巻縫 その他 JJ31 30-ひだ取り 針幅×針幅×かがり幅 505:05(1本針,3本糸 裾引き) 40-テープ付 Sewing capacity 50-バックタック Special description 514:14(2本針,4本糸 地縫い) S:Standard lift 90-多用途 Seam width Attachment Model type 516:16(2本針,5本糸 安全縫い) H:High lift 02-小廻り仕様 Needle space Labor seving Overlock E:Extra High lift 03-トラクター押え付 x Seam width device JJ30 401 60-サージング Needle space Another Interlock + :43(3本針,6本糸 安全縫い) 514 x Needle space JJ31 Seam type Applications (ISO) 01-Plain seaming 生地の厚さ Material K:角メス付 503:03(1 needle, 2 threads Serging) 10-Blindstitch hemming F:薄物 thickness K:Angled knife 504:04(1 needle, 3 threads Plain seaming) 20-Turn down hemming F:Fine P:パイピング 505:05(1 needle, 3 threads Blindstitch hemming) 30-Shirring M:薄物~中厚 M:Fine~Medium P:Piping 514:14(2 needles, 4 threads Plain seaming) 40-Attaching tape H:厚物 H:Heavy 516:16(2 needles, 5 threads Safety stitch) 50-Backlatching X:極厚物 X:Extra heavy 90-Multi-use 401 02-Keen curved seaming available + :43(3 needles, 6 threads Safety stitch) 03-With tractor foot 60-Serging jintex.in
Page 3 — CONTENTS
目次 CONTENTS 1. フレーム関係 FRAME ASSEMBLY 1 2. カバー関係(1) COVER ASSEMBLY (1) 2 3. カバー関係(2) COVER ASSEMBLY (2) 3 4. ブツシユ機構 BUSHING 4 5. 下軸機構 CRANKSHAFT MECHANISM 5 6. 針棒機構 NEEDLE BAR MECHANISM 6 7. 上ルーバー機構 UPPER LOOPER MECHANISM 7 8. 下ルーバー機構 LOWER LOOPER MECHANISM 8 9. 送り機構(1) FEED MECHANISM (1) 9 10. 送り機構(2) FEED MECHANISM (2) 10 11. 上下メス機構 KNIFE MECHANISM 11 12. 押え揚げ機構 PRESSER FOOT MECHANISM 12 13. 給油機構 LUBRICATION MECHANISM 13 14. 糸調子機構(1) THREAD TENSION (1) 14 15. 糸調子機構(2) THREAD TENSION (2) 15 16. 糸調子機構(3) THREAD TENSION (3) 16 17. 二重環ルーバー機構(1) CHAINSTITCH LOOPER MECHANISM (1) 17 18. 二重環ルーバー機構(2) CHAINSTITCH LOOPER MECHANISM (2) 18 19. 針冷却装置 NEEDLE COOLER DEVICE 19 20. 糸立台 THREAD STAND 20 21. 規定 EDGE GUIDE 21 22. アクセサリー ACCESSORIES 22 23. 専用部品(1) SPECIFIC PARTS (1) JJ3014GH-40M 23 24. 専用部品(2) SPECIFIC PARTS (2) JJ3116GS-02M JJ3014GH, JJ3143GH, JJ3116GE 24 25. 専用部品(3) SPECIFIC PARTS (3) JJ3005GS-10M 25 26. 専用部品(4) SPECIFIC PARTS (4) JJ3116GS-30M 26 27. 専用部品(5) SPECIFIC PARTS (5) JJ30口口GE-50M 27 28. 専用部品(6) SPECIFIC PARTS (6) JJ3014GE-60HK 28 29. 主軸セット一覧表 CRANKSHAFT SET PARTS TABLE 29 30. 糸通し図一覧表 THREADING DIAGRAM 30 31. JJ30 ゲージ一覧表(1) JJ31 GAUGE PARTS TABLE 31 32. JJ30 ゲージ一覧表(2) JJ31 GAUGE PARTS TABLE 32 33. JJ31 ゲージ一覧表(1) JJ31 GAUGE PARTS TABLE 33 34. JJ31 ゲージ一覧表(2) JJ31 GAUGE PARTS TABLE 34 jintex.in
Page 4 — 1. フレーム関係 FRAME ASSEMBLY
1. フレーム関係 FRAME ASSEMBLY REF. NO. | PART NO. | 品 名 | DESCRIPTION | Q'TY 01-0154-142 | 六角穴付きボルト | BOLT | 2 01-0254-172 | ピン | PIN | 2 01-0354-191 | 銘板シール | BRAND NAME PLATE | 1 01-0454-312 | メス土台 | RACKET | 1 01-0554-466 | 平行ピン | PIN | 1 01-0654-468 | 支柱ネジ | PIN | 1 01-0754-469 | スプリングピン | SPRING PIN | 4 01-0854-675 | 機番 | PLATE | 1 01-0956-377 | 糸案内パイプ | PIPE | 2 01-1054-111 | プラマイナベ小ネジM4×5L | SCREW | 1 01-1156-811 | 底面カバー | COVER | 1 jntex.in
Page 5 — 2. カバー関係(1) COVER ASSEMBLY (1)
2. カバー関係(1) COVER ASSEMBLY (1) REF. NO. PART NO. 品 名 DESCRIPTION Q' TY 02-0154-026 渡金 WASHER 1 02-0254-108 プラマイナベスリM3×5L SCREW M3×5L 2 02-0354-112 プラマイナベスリM4×6L SCREW M4×6L 6 02-0454-113 プラマイナベスリM4×8L SCREW M4×8L 8 02-0554-121 プラマイナベスリM4×12L SCREW M4×12L 3 02-0654-130 段ネジ SCREW 1 02-0754-133 ネジ SCREW 1 02-0854-137 ネジ SCREW 2 02-0954-144 六角付きボルト BOLT 1 02-1054-303 トップカバー TOP COVER 1 02-1154-304 面板 HEAD COVER 1 02-1254-305 カバーヒンジ HINGE 1 02-1354-306 フロントカバー FRONT COVER 1 02-1454-307 切層カバー (オーバー) FRONT COVER LEFT (OVER) 1 02-1554-308 切層カバー (インター) FRONT COVER LEFT (INTER) 1 02-1654-309 プーリーカバー PULLEY COVER 1 02-1754-314 サイドカバー右 FAN COVER 1 02-1854-315 布案内 FABRIC GUARD 1 02-1954-318 後カバー COVER PLATE 1 02-2054-332 カバーラツチ (B) LATCH (B) 1 02-2154-333 カバーラツチ (A) LATCH (A) 1 02-2254-334 カバーフツク LATCH 1 02-2354-335 カバーヒンジ軸 PIN 1 02-2454-336 銘板 BRAND NAME PLATE 1 02-2554-337 カバー取付板 BRACKET 1 02-2654-338 アイガード EYE GUARD 1 02-2754-339 カバー圧縮バネ SPRING 1 02-2854-340 後カバーパツキン GASKET 1 02-2954-341 トップカバーパツキン GASKET 1 02-3054-342 オイルポット OIL SIGHT WINDOW 1 02-3154-343 平小ネジ SCREW 4 02-3254-357 面板パツキン GASKET 1 02-3354-359 カバークツシヨン RUBBER 1 02-3454-362 Oリング O-RING 1 02-3554-482 六角穴付止めネジ SCREW 1 02-3654-495 平小ネジ SCREW 3 02-3754-498 六角穴付き皿小ネジ SCREW 4 02-3854-573 平小ネジ SCREW 1 02-3954-677 スポンジゴム RUBBER 1 (14) JJ30 Series (15) JJ31 Series
Page 6 — COVER ASSEMBLY (2)
3. カバー関係(2) COVER ASSEMBLY (2) JJ3004GS-50M, JJ3014GH-50M JJ3116GS-30M, 30MPを除く Except JJ3004GS-50M JJ3014GH-50M, JJ3116GS-30M, 30MP REF. NO. PART NO. 品 名 DESCRIPTION Q'TY 03-0154-026 渡金 WASHER 1 03-0254-073 バネ座金 4 SPRING WASHER 1 03-0354-112 プラマイナベ小ネジ M4×6L SCREW M4×6L 2 03-0454-113 プラマイナベ小ネジ M4×8L SCREW M4×8L 9 03-0554-117 平小ネジ M3×3L SCREW M3×3L 1 03-0654-133 ネジ SCREW 1 03-0754-150 皿ネジ M4 SCREW M4 2 03-0854-159 六角ナット NUT 1 03-0954-3100-1 クロ プレート(幅広) CLOTH PLATE (WIDE) 1 03-1054-311 サイドカバー(幅広) SIDE COVER (WIDE) 1 03-1154-313 メス土台カバー COVER 1 03-1254-316 ベッドカバー BED COVER 1 03-1354-328 偏心プッシュ BUSHING 1 03-1454-329 開閉レバー LEVER 1 03-1554-330 段付ネジ SCREW 1 03-1654-331 コイルバネ SPRING 1 03-1754-344 ベッドカバーパッキン GASKET 1 03-1854-359 カバークッション RUBBER 5 03-1954-360 針板取付板前 NEEDLE SUPPORT BRACKET FRONT 1 03-2054-361 針板取付板後 NEEDLE SUPPORT BRACKET REAR 1 03-2154-386 スプリングピン SPRING PIN 1 03-2254-387 ラッチ LATCH 1 03-2354-439 段ネジ SCREW 1 03-2454-483 平座金 WASHER 2 03-2554-500 六角付きボルト SCREW 1 03-2654-511 プラマイナベ小ネジ SCREW 1 03-2754-512 平小ネジ SCREW 1 03-2854-654 ブラケット BRACKET 1 03-2954-665 ラッチ LATCH 1 03-3054-3100-2 クロ プレート(幅広) 組 CLOTH PLATE (WIDE) ASSY 1 jinte.in
Page 7 — 4. ブッシュ機構 BUSHING
4. ブッシュ機構 BUSHING REF. NO. PART NO. DESCRIPTION Q'TY 04-0154-320 押え棒ブッシュ BUSHING 1 04-0254-321 針振り軸前ブッシュ BUSHING 1 04-0354-322 針振り軸後ブッシュ BUSHING 1 04-0454-323 下ルーバー軸ブッシュ BUSHING 1 04-0554-324 上メス前ブッシュ BUSHING 7 04-0654-325 上ルーバー軸ブッシュ BUSHING 1 04-0754-326 差動レバー軸ブッシュ BUSHING 1 04-0854-327 主軸ブッシュ BUSHING 1 04-0954-385 上ルーバー軸前ブッシュ BUSHING 1 04-1054-398 オイルシール OIL SEAL 1 04-1154-434 オイルシール OIL SEAL 3 04-1254-577 盲栓 PLUG 2 FOR JJ31 -4-
Page 8 — 5. 下軸機構 CRANKSHAFT MECHANISM
5. 下軸機構 CRANKSHAFT MECHANISM FOR JJ31 (26) JJ3□□□GE (8) JJ3□□□GS, GH REF. NO. PART NO. 品名 DESCRIPTION Q'TY 05-0154-031 Oリング 1017 O-RING 1 05-0254-100 六角穴付メネジ SCREW 1 05-0354-113 プラマイナベ小ネジ M4x8L SCREW M4x8L 3 05-0454-114 プラマイナベ小ネジ M4x10L SCREW M4x10L 4 05-0554-123 六角穴付ネジ M5x5L SCREW M5x5L 1 05-0654-136 六角穴付ボルト SCREW 4 05-0754-148 六角穴付止めネジ SCREW 3 05-0854-513 クランクシヤフト (S. H) CRANKSHAFT (S. H) 1 05-0954-514 バランスウエイト BALANCE WEIGHT 2 05-1054-515 段付ピン PIN 1 05-1154-516 下駄カム軸 PIN 1 05-1254-517 蓋(オーバー) COVER 1 05-1354-518 Oリング O-RING 2 05-1454-519 ボールベアリング BALL BEARING 1 05-1554-520 ラチエット RATCHET 1 05-1554-521 止輪 RING 1 05-1754-522 ボールベアリング BALL BEARING 1 05-1854-523 ボールベアリング BALL BEARING 1 05-1954-524 波座金 WAVE WASHER 1 05-2054-954 油切カラー SEAL COLLAR 1 05-2154-955 フランジ FLANGE 1 05-2254-527 冷却ファン COOLING FAN 1 05-2354-528 プーリー MACHINE PULLEY 1 05-2454-529 蓋(インター) COVER (INTER) 1 05-2554-530 スペーサー SPACER 1 05-2654-531 クランクシヤフト (E) CRANKSHAFT (E) 1 05-2754-532 スリワリ付皿ネジ SCREW 2 05-2854-579 六角穴付ボルト BOLT 1 05-2954-580 バネ座金 WASHER 1 05-3054-590 六角穴付止めネジ SCREW 1 05-3154-630 ウォーム WORM 1 05-3254-956 オイルシール OIL SEAL 1 FOR JJ31 jintex.in
Page 9 — 6. 針棒機構 NEEDLE BAR MECHANISM
6. 針棒機構 NEEDLE BAR MECHANISM REF. NO. PART NO. 品 名 DESCRIPTION Q'TY 06-0154-133 ネジ SCREW 2 06-0254-195 六角穴付きボルト BOLT 2 06-0354-193 フェルト FELT 1 06-0454-964 針棒ブッシュ BUSHING 1 06-0554-345 針棒レバー NEEDLE DRIVE LEVER 1 06-0654-346 針棒 NEEDLE BAR 1 06-0754-347 針棒リンクピン LINK PIN 1 06-0854-348 針振り駆動軸 NEEDLE DRIVE SHAFT 1 06-0954-349 針棒クランクレバー NEEDLE CRANK LEVER 1 06-1054-352 スラストカラー COLLAR 1 06-1154-353 スラストワッシャ WASHER 1 06-1254-354 E形止め輪 E-RING 1 06-1354-355 Oリング O-RING 1 06-1454-9650-1 針棒(組) NEEDLE BAR ASS'Y 1 06-1554-484 六角穴付き止めネジ SCREW 1 06-1654-489 フランジ付き六角ボルト BOLT 1 06-1754-7580-1 針棒クランクロッドセット ROD ASSY 1 06-1856-044 ゴム栓 LUG 1 06-1956-293 ピン PIN 1 06-2056-294 六角穴付ネジ M4×6L SCREW M4×6L 1 06-2156-295 六角穴付ボルトM6×0.75×12L SCREW M6×0.75×12L 1 06-2254-757 針棒クランクロッド NEEDLE BAR ROD 1 06-2354-966 針棒オイルシール OIL SEAL 1
Page 10 — 7. 上ルーバー機構 UPPER LOOPER MECHANISM
7. 上ルーバー機構 UPPER LOOPER MECHANISM REF. NO. PART NO. 品 名 DESCRIPTION Q' TY 07-0154-119 スリワリ付皿小ネジ M3x6L SCREW M3x6L 2 07-0254-195 六角穴付きボルト BOLT 4 07-0354-147 六角穴付き止めネジ トガリ SCREW 1 07-0454-193 フェルト FELT 1 07-0554-392 段ネジ SCREW 1 07-0654-394 ルーバー軸 SHAFT 1 07-0754-397 ロッド振れ止め GUIDE 1 07-0854-399 ガイドプレート GUIDE PLATE 1 07-0954-4000-1 上ルーバー台 (組) UPPER LOOPER GUIDE ASSY 1 07-1054-401 フェルト FELT 2 07-1154-402 ゴム栓 LUG 1 07-1254-403 上ルーバー案内土台 UPPER LOOPER BRACKET 1 07-1354-404 上ルーバー案内玉 UPPER LOOPER HOLDER GUIDE 1 07-1454-405 上ルーバー振れ止めレバー LEVER 1 07-1554-406 上ルーバー台 UPPER LOOPER HOLDER 1 07-1654-407 スペーサー COLLAR 1 07-1754-409 上ルーバーロット玉 (S) CRANK (S) 1 07-1854-410 上ルーバーロット玉 (H) CRANK (H) 1 07-1954-411 フェルト FELT 1 07-2054-929 上ルーバー案内玉カバー COVER 1 07-2154-431 Oリング O-RING 1 07-2254-480 平座金 WASHER 1 07-2354-481 スプリングワッシャ SPRING WASHER 1 07-2454-485 六角ボルト SCREW 1 07-2554-486 平小ネジ SCREW 1 07-2654-489 フランジ付き六角ボルト BOLT 2 07-2754-491 六角付きボルト SCREW 1 07-2854-492 皿ネジ SCREW 1 07-2954-493 平小ネジ SCREW 1 07-3054-5990-1 上ルーバー・クランクロット セット ROD ASSY 1 07-3156-127 上ルーバー台締結ピン PIN 1 07-3256-295 六角穴付ボルト M6x0.75x12L SCREW M6x0.75x12L 1 07-3354-396 上ルーバーロッド UPPER LOOPER ROD 1 JJ3014GH, JJ3014GE JJ3116GE, JJ3143GH Except JJ3014GE JJ3143GH JJ3000GH, GE (18)
Page 11 — 8. 下ルーパー機構 LOWER LOOPER MECHANISM
8. 下ルーパー機構 LOWER LOOPER MECHANISM REF. NO. PART NO. 08-0154-119 08-0254-123 08-0354-195 08-0454-393 08-0554-394 08-0654-395 08-0754-397 08-0854-421 08-0954-478 08-1054-480 08-1154-481 08-1254-485 08-1354-486 08-1454-487 08-1554-488 08-1656-336 08-1754-504 08-1854-505 08-1954-5990-1 08-2056-295 08-2154-396 品 名 スリワリ付皿小ネジ M3×6L 六角穴付止めネジ M5×5L 六角穴付きボルト 下ルーパー台 ルーパー軸 ルーパー・ロッド玉 ロッド振れ止め ルーパー・ロッド玉 スラストワッシャ 平座金 スプリングワッシャ 六角ボルト 平小ネジ 六角ボルト 平小ネジ 平小ネジ 皿ばね座金 段付ネジ 下ルーパー・クランクロット"セット 六角穴付ボルト M6×0.75×12L 上下ルーパー・ロッド DESCRIPTION SCREW M3×6L SCREW M5×5L BOLT LOWER LOOPER HOLDER SHAFT CRANK GUIDE CRANK WASHER WASHER SPRING WASHER SCREW SCREW SCREW SCREW SCREW SPRING WASHER SCREW ROD ASSY SCREW M6×0.75×12L LOOPER ROD Q'TY 2 1 4 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 1 JJ31を除く Except JJ31 JJ30 Series 6 JJ31 Series 8 2 10 11 12 13 14 15 16 17 18 19 20 21 5 jintex.in
Page 12
9. 送り機構(1) FEED MECHANISM (1) REF. NO. PART NO. 品 名 DESCRIPTION Q'TY 09-0154-060 皿バネ SPRING 1 09-0254-063 ストッパー STOPPER 2 09-0354-078 ワッシャ WASHER 2 09-0454-112 プラマイナベ小ネジ M4×6L SCREW M4×6L 2 09-0554-121 プラマイナベ小ネジ M4×12L SCREW M4×12L 2 09-0654-123 六角穴付止めネジ M5×5L SCREW M5×5L 2 09-0754-165 前メベ"ア リング BEARING 1 09-0854-168 Eリング E-RING 1 09-0954-170 E型止め輪 E-RING 1 09-1054-182 ネジ SCREW 2 09-1154-534 送りロッド CONNECTING ROD 1 09-1254-535 送りエキセントリック ECCENTRIC 1 09-1354-536 ガイド/FEED ECCENTRIC 1 09-1454-537 FLAT SPRING 1 09-1554-538 皿カラー COLLAR 1 09-1654-539 ECCENTRIC 1 09-1754-540 スプリング SPRING 1 09-1854-541 ラチェット RATCHET 1 09-1954-541 差動連結リンク LINK 1 09-2054-542 段ネジ SCREW 1 09-2154-543 差動連結レバー LEVER 1 09-2254-544 段ネジ SCREW 1 09-2354-545 段ネジ SCREW 1 09-2454-546 差動レバー軸 SHAFT 1 09-2554-547 目盛り板 RACKET 1 09-2654-548 スペーサーカラー COLLAR 2 09-2754-549 スプリングピン SPRING PIN 2 09-2854-550 平行ピン PIN 1 09-2954-552 プッシュボタン PUSH BUTTON 1 09-3054-581 圧縮バネ SPRING 1 09-3154-588 ゴムリング RUBBER RING 1 09-3254-589 ワッシャ WASHER 1 09-3354-596 段ネジ SCREW 1 09-3454-597 Oリング O-RING 1 09-3554-639 段ネジ SCREW 1 09-3654-640 ナット NUT 1 09-3756-293 ピン PIN 1 09-3856-294 六角穴付止めネジ M4×6L SCREW M4×6L 1 09-3956-295 六角穴付ボルトM6×0.75×12L SCREW M6×0.75×12L 1 09-4056-624 差動レバー戻しバネ SPRING 1 09-4154-5340-1 送りエキセントリックセット FEED ECCENTRIC ASSY 1
Page 13 — 10. 送り機構 (2) FEED MECHANISM (2)
10. 送り機構 (2) FEED MECHANISM (2) REF. NO. PART NO. 品 名 DESCRIPTION Q'TY 10-0154-079 ワッシャ WASHER 1 10-0254-111 プラマイナベ小ネジ M4x5L SCREW M4x5L 2 10-0354-112 プラマイナベ小ネジ M4x6L SCREW M4x6L 1 10-0454-113 プラマイナベ小ネジ M4x8L SCREW M4x8L 4 10-0554-133 ネジ SCREW 2 10-0654-160 ナット NUT 1 10-0754-355 Oリング O-RING 1 10-0854-428 連結リンク LINK 1 10-0954-478 スラストワッシャ WASHER 2 10-1054-553 送り軸 SHAFT 1 10-1154-554 差動調節レバー ADJUST SLIDER LEVER 1 10-1254-555 スライドカバーピン CRANK PIN 1 10-1354-556 差動調節スライド DIFFERENTIAL LEVER SET 1 10-1454-5570-1 差動調節レバーセット BLOCK 1 10-1554-558 角駒 LOCK 1 10-1654-559 主送りレバー LEVER 1 10-1754-560 主送り連結ピン PIN 1 10-1854-561 送り歯調節ピン PIN 1 10-1954-562 ゴムパッキン GASKET 1 10-2054-563 止め輪 RING 1 10-2154-564 角駒 LOCK 1 10-2254-565 カラー COLLAR 2 10-2354-566 主送りリンクピン LINK PIN 1 10-2454-567 主送り台 MAIN FEED BAR 1 10-2554-568 差動送り台 DIFFERENTIAL FEED BAR 1 10-2654-569 送り台下角駒 LOCK 1 10-2754-974 送り台ガイド GUIDE BLOCK 1 10-2854-975 送り台シールカバー PLATE 1 10-2954-572 送り台シール OIL SEAL 3 10-3054-573 平小ネジ SCREW 2 10-3154-574 平小ネジ SCREW 2 10-3254-575 六角小ネジ SCREW 1 10-3354-576 ワッシャ WASHER 1 10-3454-578 E形止め輪 E-RING 1 10-3554-6090-1 送り台 (組) FEED BAR SET 1 10-3656-295 六角穴付ボルトM6x0.75x12L SCREW M6x0.75x12L 1 jinte.in
Page 14 — 11. 上下メス機構 KNIFE MECHANISM
11. 上下メス機構 KNIFE MECHANISM REF. NO. PART NO. DESCRIPTION Q'TY 11-0154-112 プラマイナベ小ネジ M4×6L SCREW M4×6L 1 11-0254-113 プラマイナベ小ネジ M4×8L SCREW M4×8L 2 11-0354-114 プラマイナベ小ネジ M4×10L SCREW M4×10L 1 11-0454-121 プラマイナベ小ネジ M4×12L SCREW M4×12L 1 11-0554-195 六角穴付きボルト BOLT 2 11-0654-574 平小ネジ SCREW 1 11-0754-583 上メス クランク レバー CRANK LEVER (OVER) 1 11-0854-584 上メス クランク レバー CRANK LEVER (INTER) 1 11-0954-585 カラー COLLAR 2 11-1054-586 上メス台 UPPER KNIFE LEVER 1 11-1154-587 ピンネジ SCREW 1 11-1254-591 下メス台 LOWER KNIFE HOLDER 1 11-1354-592 下メス台 LOWER KNIFE HOLDER 1 11-1454-593 下メス台ガイド LOWER KNIFE HOLDER GUIDE 1 11-1554-594 下メス圧縮バネ SPRING 1 11-1654-595 下メスバネ受け PLATE 1 11-1754-6000-1 上メスクランク ロッド"セット ROD ASSY 1 11-1854-627 六角ボルト BOLT 1 11-1954-641 上メスホルダー (インター) UPPER KNIFE HOLDER (INTER) 1 11-2054-642 上メス UPPER KNIFE 1 11-2154-643 下メス LOWER KNIFE 1 11-2254-644 下メス押エ LOWER KNIFE CLAMP 1 11-2354-645 上メスホルダー (オーバー) UPPER KNIFE HOLDER (OVER) 1 11-2454-672 六角穴付止めねじ SCREW 2 11-2556-293 ピン PIN 1 11-2656-294 六角穴付ボルト M6×0.75×12L SCREW M6×0.75×12L 1 11-2756-295 六角穴付ボルト M6×0.75×12L SCREW M6×0.75×12L 1 11-2856-854 上メスホルダー固定ピン PIN 1 11-2954-582 上メスロッド UPPER KNIFE ROD 1 (23)JJ30 Series (8)JJ31 Series (19)JJ31 Series (20) JJ3116GS-02M JJ3014GE-60HK, Except JJ3014GE-60HK JJ3116GE-03X Except JJ3116GE-03X JJ30 Series (12) (13)JJ31 Series JJ3116GE-03Xを除く Except JJ3116GE-03X (15) (21) (18) (22) (3) (1) (2) (16) (14) jinte.in
Page 16 — LUBRICATION MECHANISM
13. 給油機構 LUBRICATION MECHANISM REF. NO. PART NO. DESCRIPTION Q'TY 13-0154-020 フタネシ" SCREW 1 13-0254-051 片口継手 JOINT SCREW 4 13-0354-052 管継手ボルト JOINT SCREW 3 13-0454-112 プラマイナベ小ネジ M4×6L SCREW 1 13-0554-113 プラマイナベ小ネジ M4×8L SCREW 3 13-0654-123 六角穴付止めネジ M5×5L SCREW M5×5L 2 13-0754-133 ネジ SCREW 2 13-0854-149 六角穴付きボルト BOLT 4 13-0954-180 フイルター OIL FILTER 1 13-1054-182 ネジ SCREW 1 13-1154-280 パイプ継手 JOINT SCREW 1 13-1254-195 六角穴付ボルト BOLT 2 13-1354-391 フエルト FELT 2 13-1454-500 六角穴付きボルト SCREW 2 13-1554-6100-1 ポンプセット PUMP ASSY 1 13-1654-611 ウオームホイル WORM WHEEL 1 13-1754-612 ポンプハウジング PUMP BODY 1 13-1854-613 ポンプ軸 SHAFT 1 13-1954-614 インナーローター INNER ROTER 2 13-2054-615 アウターローター OUTER ROTER 2 13-2154-616 ハウジング HOUSING 1 13-2254-617 ポンプ裏蓋 PLATE 1 13-2354-618 ポンプメツシユ FILTER 1 13-2454-619 ポンプメツシユ押工 PLATE 1 13-2554-620 平小ネジ M4×25L SCREW 3 13-2654-621 フイルタータンク OIL FILTER TANK 1 13-2754-622 蓋 COVER 1 13-2854-623 Oリング O-RING 1 13-2954-624 給油パイプ PIPE 1 13-3054-626 油受け OIL RELEASER 1 13-3154-628 オイルタンク OIL TANK 1 13-3254-629 パツキン GASKET 1 13-3354-631 針棒給油ピン PIPE 1 13-3454-634 ワツシヤ WASHER 4 13-3554-635 オイルゲージ OIL SIGHT GAUGE 1 13-3654-636 継手 JOINT SCREW 2 13-3754-637 ワツシヤ WASHER 2 13-3854-638 詰金 PLUG 2 13-3954-652 六角穴付ボルト SCREW 2 13-4054-653 菅継手ボルト JOINT SCREW 1 13-4154-934 給油ピン PIN 1 13-4256-771 オイルタンクドレンシール SEAL WASHER 4 13-4354-935 給油管 CLAMP 1 13-4454-667 ビニールチューブ TUBE 1 13-4554-668 ビニールチューブ TUBE 1 13-4654-670 ビニールチューブ TUBE 1 13-4754-935 油量調節ネジ ADJUSTING SCREW 1 13-4854-936 Oリング O-RING 1 13-4954-937 片口継手(小) JOINT 1 13-5054-938 菅継手ボルト JOINT SCREW 1 13-5154-939 ビニールチューブ TUBE 1
Page 17 — 14. 糸調子機構 (1) THREAD TENSION (1)
14. 糸調子機構 (1) THREAD TENSION (1) REF. NO. PART NO. DESCRIPTION Q'TY 14-0154-053 チャンポン皿ラチェット SPRING POST 3~5 14-0254-056 チャンポン調子バネ強 SPRING (HEAVY) 1~3 14-0354-057 チャンポン調子バネ弱 SPRING (LIGHT) 2 14-0454-160 ナット NUT 3~5 14-0554-440 糸調子台プレート THREAD GUIDE 1 14-0654-441 糸調子台糸道 THREAD GUIDE 3~5 14-0754-662 糸調子台プレート THREAD GUIDE BRACKET 1 14-0854-971 クケース CUP 3~4 14-0954-977 糸調子ダイヤル POST NUT 3~4 14-1054-978 糸調子台 SCREW STUD 3~4 14-1154-9790-1 糸調子セット (強) TENSION SET (HEAVY) 1~3 14-1254-9810-1 糸調子セット (弱) TENSION SET (LIGHT) 2 14-1356-035 スリワリ付キ皿小ネジ M4 SCREW M4 2 14-1456-268 取付フェルト FELT 3~5 14-1556-270 チャンポン皿 TENSION DISC 6~10 ■1本針 (1-needle) JJ3004 ■2本針 (2-needle) JJ3014 JJ3116 JJ3014GE-60HKを除く Except JJ3014GE-60HK ■3本針 (3-needle) JJ3143 -14-
Page 18 — 15. 糸調子機構 (2) THREAD TENSION (2)
15. 糸調子機構 (2) THREAD TENSION (2) JJ30 Series JJ31 Series 4 19 JJ3004 20 JJ3014 28 6 JJ3014 JJ3014GE-60HKを除く Except JJ3014GE-60HK 12 2 8 JJ3004 9 2 3 11 10 29 13 1 14 JJ3116 15 16 17 30 JJ3143 31 JJ3143 REF. NO. PART NO. 品 名 DESCRIPTION Q'TY 15-0154-113 プラマイナベ小ネジ M4x5L SCREW M4x5L 3 15-0254-111 プラマイナベ小ネジ M4x8L SCREW M4x8L 3 15-0354-133 ネジ SCREW 3 15-0454-182 ネジ SCREW 1~3 15-0554-351 針棒クランプ台 NEEDLE BAR GUIDE 1 15-0654-449 針糸捌き NEEDLE THREAD TAKEU 1 15-0754-450 針糸捌き NEEDLE THREAD TAKEU 1 15-0854-451 針糸捌き NEEDLE THREAD TAKEU 1 15-0954-452 上糸繰道ブラケット THREAD EYELET BRACKET 1 15-1054-453 上糸繰道ブラケット THREAD EYELET BRACKET 1 15-1154-454 上糸繰道 THREAD EYELET 1 15-1254-456 糸道 THREAD EYELET 1 15-1354-457 上糸繰道取付台 BRACKET 1 15-1454-458 上糸繰道 THREAD EYELET 1 15-1554-459 糸道 THREAD EYELET 1 15-1654-460 糸道 THREAD EYELET 1 15-1754-461 糸道 THREAD EYELET 1 15-1854-462 針糸道 THREAD EYELET 1 15-1954-463 針糸道 THREAD EYELET 1 15-2054-464 糸道 THREAD EYELET 1 15-2154-473 針糸調子皿 THREAD NIPPER 1 15-2254-474 針糸調子板 THREAD NIPPER 1 15-2354-475 針糸調子ネジ SCREW 1 15-2454-476 針糸調子バネ SPRING 1 15-2554-496 平小ネジ SCREW 1 15-2654-497 すりわり付き皿小ネジ SCREW 1 15-2754-499 平小ネジ SCREW 1 15-2854-501 平小ネジ SCREW 4 15-2954-502 平小ネジ SCREW 2 15-3054-561 針糸捌き (3本針用) NEEDLE THREAD TAKEU 1 15-3154-663 上糸繰道 THREAD EYELET 1 15-3256-765 上糸シリコンタンク SILICONE TANK 1 15-3356-766 上糸フェルト押工 THREAD GUIDE 1 15-3456-767 上糸フェルト FELT 1 15-3556-768 上糸シリコンタンク蓋 COVER 1
Page 19 — 16. 糸調子機構 (3) THREAD TENSION (3)
16. 糸調子機構 (3) THREAD TENSION (3) REF. NO. PART NO. 品 名 DESCRIPTION Q'TY 16-0154-069 座金 WASHER 2 16-0254-108 プラマイナベスリ M3x3L SCREW M3x3L 1 16-0354-113 プラマイナベスリ M4x8L SCREW M4x8L 1 16-0454-114 プラマイナベスリ M4x10L SCREW M4x10L 2 16-0554-121 プラマイナベスリ M4x12L SCREW M4x12L 1 16-0654-128 プラマイナベスリ M4x14L SCREW M4x14L 1 16-0754-317 上ルーパーカバー COVER 1 16-0854-398 オイルシール OIL SEAL 1 16-0954-442 上ルーパー糸道 THREAD EYELET 1 16-1054-443 糸道ブラケット BRACKET 1 16-1154-444 上下ルーパー糸道 THREAD EYELET 2 16-1254-445 上下ルーパー糸道 THREAD EYELET 1 16-1354-446 糸道 THREAD EYELET 1 16-1454-447 下ルーパー天秤 THREAD TAKEUP 1 16-1554-448 下ルーパー天秤 THREAD TAKEUP 1 16-1654-490 平小ネジ SCREW 1 16-1754-494 プラマイナベスリ SCREW 2 16-1856-355 上ルーパー天秤 THREAD TAKEUP 1 16-1956-356 下ルーパー天秤 A THREAD TAKEUP (A) 1 7 JJ3014GE-60HKを除く Except JJ3014GE-60HK 13 JJ3□□GE 12 JJ3□□GS, GH -16- 9 8 4 6 3 2 1 10 5 11 19 15 14 16 17 18 jntex.in
Page 20 — 17. CHAINSTITCH LOOPER MECHANISM (1)
17. 二重環ルーバー機構 (1) CHAINSTITCH LOOPER MECHANISM (1) REF. NO. PART NO. DESCRIPTION Q'TY 17-0154-079 ワッシャー WASHER 1 17-0254-145 六角穴付きボルト BOLT 1 17-0354-163 ニードルゲージ NEEDLE BEARING 1 17-0454-420 二重環ルーバー軸 SHAFT 1 17-0554-422 前後駆動ロッド CONNECTING ROD 1 17-0654-423 前後調節レバー LEVER 1 17-0754-424 スライダー RACKET 1 17-0854-425 段付きピン PIN 1 17-0954-426 ホルダー HOLDER 1 17-1054-427 ピン PIN 1 17-1154-428 連結リンク LINK 1 17-1254-429 ルーバー左右振りレバー LEVER 1 17-1354-430 二重環ルーバー台 CHAINSTITCH LOOPER HOLDER 1 17-1454-431 Oリング O-RING 1 17-1554-432 スペーサー WASHER 1 17-1654-481 スプリングワッシャー SPRING WASHER 1 17-1754-486 平小ネジ SCREW 1 17-1854-487 六角ボルト SCREW 1 17-1954-488 平ネジ SCREW 2 17-2054-566 主送りリンクピン LINK PIN 2 17-2154-575 六角ボルト SCREW 2 17-2254-576 ワッシャー WASHER 2 17-2356-295 六角穴付ボルトM6x0.75x12LScrew M6x0.75x12L 2 -17- jinte.in
Page 21 — 18. 二重環ルーバー機構 (2) CHAINSTITCH LOOPER MECHANISM (2)
18. 二重環ルーバー機構 (2) CHAINSTITCH LOOPER MECHANISM (2) REF. NO. | PART NO. | 品 名 | DESCRIPTION | Q'TY 18-0154-026 | 波座金 | WASHER | 2 18-0254-111 | プラマイナベスリM4×5L | SCREW M4×5L | 1 18-0354-112 | プラマイナベスリM4×6L | SCREW M4×6L | 1 18-0454-182 | ネジ | SCREW | 2 18-0554-413 | 下糸カム | THREAD TAKEUIP | 1 18-0654-414 | ストッパーバネ | SPRING | 1 18-0754-415 | 下糸糸道 | THREAD EYELET | 1 18-0854-416 | 下糸糸道 | THREAD EYELET | 1 18-0954-417 | 下糸カム案内 | THREAD GUIDE | 1 18-1054-418 | ブラケット | BRACKET | 1 18-1154-419 | 糸道パイプ | IPE | 1 18-1254-433 | 下糸糸道 | THREAD EYELET | 1 18-1354-435 | ツマミ | KNOB | 1 18-1454-436 | バネ | SPRING | 1 18-1554-437 | チャンポン皿 | TENSION DISC | 2 18-1654-438 | 段ネジ | SCREW | 1 18-1754-439 | 段ネジ | SCREW | 1 18-1854-494 | プラマイナベスリネジ | SCREW | 2 18-1956-550 | パイプ取付金具 | LATCH | 2 18-2056-551 | 環縫い糸道 | THREAD EYELET | 1 -18-
Page 22 — 19. 針冷却装置 H. R DEVICE
19. 針冷却装置 H. R DEVICE FOR JJ30 FOR JJ31 REF. NO. PART NO. DESCRIPTION Q' TY 19-0154-113 プラマイナベスネジ M4x8L SCREW 2 19-0254-114 プラマイナベスネジ M4x10L SCREW M4x10L 1 19-0354-121 プラマイナベスネジ M4x12L SCREW M4x12L 2 19-0454-171 フェルトピン PIN 1 19-0554-192 フェルト FELT 1 19-0654-363 針受け取付台 BRACKET 1 19-0754-507 平小ネジ SCREW 2 19-0854-573 平小ネジ SCREW 4 19-0954-625 鋼球 4 LUG 1 19-1054-647 ニードルクーラー(オーバー) NEEDLE COOLER (OVER) 1 19-1154-647 ニードルクーラー(インナー) NEEDLE COOLER (INTER) 1 19-1254-648 シリコンタンク SILICONE TANK 1 19-1354-649 シリコンタンク蓋 COVER 1 19-1454-650 フェルト (オーバー) FELT (OVER) 1 19-1554-651 フェルト (インナー) FELT (INTER) 1 19-1656-817 止め金具 CLAMP 2 19-1754-666 ビニールチューブ TUBE 1 19-1854-343 平小ネジ SCREW 1 19-1954-506 すりわり付丸皿小ねじ SCREW 2 -19-
Page 23 — 20. 糸立台 THREAD STAND
20. 糸立台 THREAD STAND REF. NO. PART NO. DESCRIPTION Q'TY 20-0156-913 3本糸立セット THREAD STAND ASSEMBLY (3-SPOOLS) 1 20-0256-914 4本糸立セット THREAD STAND ASSEMBLY (4-SPOOLS) 1 20-0356-915 5本糸立セット THREAD STAND ASSEMBLY (5-SPOOLS) 1 20-0456-916 6本糸立セット THREAD STAND ASSEMBLY (6-SPOOLS) 1 1 JJ3004 Series 2 JJ3014 Series 3 JJ3116 Series 4 JJ3143 Series -20- jintex.in
Page 24 — 21. 当定規(オプション) EDGE GUIDE (Option)
21. 当定規(オプション) EDGE GUIDE (Option) FOR JJ30 REF. NO. PART NO. 品 名 DESCRIPTION Q'TY 21-0156-9550-1 クロスガイドセット CLOTH GUIDE ASSY (INTER) 1 21-0256-9550-1 クロスガイドセット CLOTH GUIDE ASSY (OVER) 1 21-0456-958 ガイドブラケット BRACKET 1 21-0556-959 エッジガイドブラケット BRACKET 1 21-0656-960 エッジガイド(インター) EDGE GUIDE (INTER) 1 21-0656-961 エッジガイド(オーバー) EDGE GUIDE (OVER) 1 21-0856-962 板バネ SPRING 1 21-0956-963 ピン PIN 1 21-1056-964 段ネジ SCREW 1 21-1156-965 ストッパー STOPPER 1 21-1254-078 ワッシャ WASHER 3 21-1354-084 皿バネ SPRING 1 21-1454-096 ネジ SCREW 2 21-1554-108 プラマイナベスネジ M3×3L SCREW M3×3L 1 21-1654-111 プラマイナベスネジ M4×5L SCREW M4×5L 1 21-1754-112 プラマイナベスネジ M4×6L SCREW M4×6L 1 21-1854-113 プラマイナベスネジ M4×8L SCREW M4×8L 1 21-1954-159 ナット NUT 1 FOR JJ31 -21-
Page 25
22. アクセサリー ACCESSORIES REF. NO. PART NO. 品 名 DESCRIPTION Q'TY 22-0154-036 警告ラベル 1 SEAL 1 22-0254-037 警告ラベル 4 SEAL 1 22-0354-038 警告ラベル 6 SEAL 1 22-0454-039 警告ラベル 8 SEAL 1 22-0554-040 ピンセット TWEEZERS 1 22-0654-041 六角レンチ 2.5mm ALLEN KEY (2.5mm) 1 22-0754-042 六角レンチ 3mm ALLEN KEY (3mm) 1 22-0854-043 六角レンチ 5mm ALLEN KEY (5mm) 1 22-0954-044 柄付き六角レンチ 1.5mm ALLEN KEY (1.5mm) 1 22-1054-045 オイル OIL 1 22-1154-046 ジョウゴ FUNNEL 1 22-1254-047 ガイド・スレッド GUIDE THREAD 1 22-1354-048 チェーン CHAIN 1 22-1454-058 本体据付ナット NUT 4 22-1554-070 スプリングワッシャ SPRING WASHER 4 22-1654-146 六角穴付ボルト BOLT 4 22-1754-180 フィルター OIL FILTER 1 22-1854-607 下メス(大) LOWER KNIFE 1 22-1954-643 下メス LOWER KNIFE 1 22-2056-902 ダスターシュート(組) WASTE CHUTE ASSEMBLY 1 22-2156-906 マウントベース REST BORAD 1 22-2256-907 クッションゴム CUSHION RUBBER 4 22-2356-9100-1 マウントベース止ネジセット SCREW SET 1 22-2456-912 ワッシャ WASHER 20 22-2556-951 ダストカバー DUST COVER 1 22-2656-952 付属品箱 TOOL BAG 1 22-2756-953 スパナ (7mm) WRENCH (7mm) 1 22-2856-954 スパナ (8mm) WRENCH (8mm) 1 22-2956-966 ドライバー大 DRIVER (L) 1 J3116GE-03X J3014GE-60HK テーブル板 35mm用 Use for table thickness 35mm -22- 12 5 6 7 8 9 27 28 11 19 18 10 13 29 25 26 24 14 15 16 23 22 21 1 2 3 4 20 -22- jinte .in
Page 26 — 23. 専用部品(1) JJ3014GH-40M SPECIFIC PARTS (1) JJ3014GH-40M テープ付け (Tape attaching )
23. 専用部品(1) JJ3014GH-40M SPECIFIC PARTS (1) JJ3014GH-40M テープ付け (Tape attaching ) REF. NO. PART NO. 品 名 DESCRIPTION Q'TY 23-0154-026 波金 WASHER 2 23-0254-439 段ネジ SCREW 1 23-0354-673 テープガイド A TAPE GUIDE A 1 23-0454-674 テープガイド B TAPE GUIDE B 1 23-0556-741 テープ操り TAPE TAKE-UP 1 23-0656-917 テープ立てセット TAPE STAND ASSY 1 6 オプション (Option) -23- jinte.in
Page 27 — 24. 専用部品(2) SPECIFIC PARTS (2)
24. 専用部品(2) SPECIFIC PARTS (2) JJ3014GH, JJ3143GH JJ3014GE-01H JJ3116GS-02M JJ3116GE-03X REF. NO. PART NO. 品 名 DESCRIPTION Q'TY 24-0154-109 プラマイナベ小ネジ M3x5L SCREW M3x5L 1 24-0254-407 スペーサー COLLAR 1 24-0354-408 スペーサー COLLAR 1 24-0454-455 針糸綱き NEEDLE THREAD TAKEU 1 24-0554-465 針糸綱道 THREAD EYELET 1 24-0654-479 平座金 WASHER 1 24-0754-494 プラマイナベ小ネジ SCREW 2 24-0854-497 すりわり付き皿小ネジ SCREW 1 24-0954-508 段付ネジ SCREW 1 24-1054-606 上メス(大) UPPER KNIFE 1 24-1154-607 下メス(大) LOWER KNIFE 1 24-1254-608 下メス台(大) LOWER KNIFE HOLDER 1 24-1354-681 上メス(小) UPPER KNIFE (S) 1 24-1457-462 フィンガーガード COVER 1 24-1557-570 安全カバー FINGER GUARD 1 -24-
Page 28
25. 專用部品(3) SPECIFIC PARTS JJ3005GS-10M 裾引き (Blind Hemming) REF. NO. PART NO. 25-0154-078 25-0254-079 25-0354-084 25-0454-093 25-0554-095 25-0654-096 25-0754-099 25-0854-101 25-0954-108 25-1054-111 25-1154-113 25-1254-131 25-1354-159 25-1456-7000-1 25-1556-701 25-1656-702 25-1756-703 25-1856-704 25-1956-705 25-2056-711 25-2156-712 25-2256-713 25-2356-715 25-2456-716 25-2556-717 25-2656-7200-1 25-2756-957 25-2856-958 25-2956-962 25-3056-963 25-3156-964 25-3256-965 品 名 ワッシャ ワッシャ 皿バネ 平小ネジ 平小ネジ ネジ 平小ネジ プラマイナベ小ネジ M3x3LxSL プラマイナベ小ネジ M4x5L プラマイナベ小ネジ M4x8L 平小ネジ 六角ナット 裾引規定台(組) 裾引ガイドブラケット ストッパー 裾引規定台 裾引調節板 調節ネジ 補助羽根 板バネ 定規駒 定規羽根ヒンジ ピン 定規羽根 ブラケット(組) クロスガイドブラケット ガイドブラケット 板バネ ピン 段ネジ ストッパー DESCRIPTION WASHER WASHER SPRING WASHER SCREW SCREW SCREW SCREW SCREW SCREW SCREW SCREW NUT BLIND HEMMING GUIDE ASSY BRACKET STOPPER CLOTH GUIDE ADJUSTING PLATE SCREW AUXILIARY PLATE FLAT SPRING GUIDE HINGE PIN REGULATOR BRACKET ASSY BRACKET BRACKET SPRING PIN SCREW STOPPER Q'TY 2 1 1 1 2 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 jinte.in
Page 29 — 26. 専用部品(4) SPECIFIC PARTS JJ3116GS-30M, 30MP
26. 専用部品(4) SPECIFIC PARTS JJ3116GS-30M, 30MP ヒダ取り (Shirring) JJ3116GS-30M JJ3116GS-30MP REF. NO. PART NO. 品名 DESCRIPTION Q'TY 26-0154-053 チャンポン皿ラチェット SPRING POST 1 26-0254-068 平座金 3.5 WASHER 3.5 2 26-0354-071 ワッシャー WASHER 2 26-0454-075 ワッシャー WASHER 1 26-0554-080 ワッシャー WASHER 1 26-0654-082 カラー COLLAR 1 26-0754-088 すりわり付平小ネジ SCREW 3 26-0854-094 ネジ SCREW 2 26-0954-098 ネジ SCREW 2 26-1054-111 プラマイナベ小ネジ M4×5L SCREW M4×5L 2 26-1154-115 プラマイナベ小ネジ M4×16L SCREW M4×16L 1 26-1254-121 プラマイナベ小ネジ M4×12L SCREW M4×12L 4 26-1354-123 六角付止めネジ M5×5L SCREW M5×5L 2 26-1454-133 ネジ SCREW 2 26-1554-152 ネジ SCREW 2 26-1654-161 六角ナット NUT 1 26-1754-162 六角ナット NUT 2 26-1854-170 E型止め輪 E-RING 2 26-1954-6830-2 クロスペレート(幅広)セット CLOTH PLATE ASSY 1 26-2054-684 スペーサー SPACER 1 26-2154-6850-1 ひだ取り装置(組) SHIRRING ATTACHMENT 1 26-2254-686 ブラケット RACKET 1 26-2356-266 糸調子台 SCREW STUD 1 26-2456-401 ブラケット RACKET 1 26-2556-402 ブラケット RACKET 1 26-2656-403 軸 HAFT 1 26-2756-404 ブラケット RACKET 1 26-2956-406 圧縮バネ SPRING GUIDE 1 26-3056-407 手揚げレバー SPRING 1 26-3156-408 スペーサー EVER 1 26-3256-409 圧縮バネ SPACER 1 26-3356-410 調子ダイヤル SPRING 1 26-3456-411 ストッパー POST NUT 1 26-3556-412 板バネ FLAT SPRING 1 26-3656-413 板バネ FLAT SPRING 1 26-3756-415 段ネジ SCREW 1 26-3856-416 さらばね SPRING WASHER 2 26-3956-417 ワッシャー WASHER 1 26-4056-418 ワイヤーケーブル ABLE 1 26-4156-419 ケーブル受け CABLE SUPPORT 2 26-4256-420 圧縮バネ SPRING 1 26-4356-421 段付ネジ SCREW 1 26-4456-422 連結板 PLATE 1 26-4556-423 連結ピン PIN 1 26-4656-424 布案内 CLOTH GUIDE 1 26-4756-425 ブレード BLADE 1 26-4856-428 ワッシャー WASHER 1 26-4956-446 ブラケット RACKET 1 26-5056-447 パイピングホルダー(20) PIPING FOLDER (20) 1 26-5156-918 テープ立て TAPE STAND 1 26-5254-494 プラマイナベ小ネジ SCREW 2 26-5357-570 安全カバー FINGER GUARD 1 -26- JJ3116GS-30MP jintex.in
Page 30 — 27. 専用部品 (5) SPECIFIC PARTS
27. 専用部品 (5) SPECIFIC PARTS バックタック (Back Latching) JJ3004GS-50M JJ3014GH-50M REF. NO. PART NO. 品 名 DESCRIPTION Q'TY 27-0154-075 ワッシャー WASHER 1 27-0254-092 六角穴付止めネジ SCREW 2 27-0354-107 六角ナット NUT 1 27-0454-119 スリワリ付皿小ネジ M3×6L SCREW M3×6L 4 27-0554-121 プラマイナベ小ネジ M4×12L SCREW M4×12L 2 27-0654-159 六角ナット NUT 1 27-0754-160 ナット NUT 4 27-0854-161 六角ナット NUT 1 27-0954-170 E型止め輪 E-RING 1 27-1054-497 すりわり付き皿小ネジ SCREW 1 27-1154-686 ブラケット BRACKET 1 27-1254-687 下メス台 (50M) LOWER KNIFE HOLDER 1 27-1354-6880-2 クロスプレート (幅狭) セット CLOTH PLATE ASSY (NARROW) 1 27-1454-689 針板取付板前 (50M) NEEDLE SUPPORT BRACKET FRONT 1 27-1554-691 サイドカバー (幅狭) SIDE COVER (NARROW) 1 27-1654-6920-1 糸締め装置 TENSION RELEASE DEVICE 1 27-1754-693 糸調子プレート BRACKET 1 27-1854-6940-1 バックタック装置 (組) BACK LATCHING DEVICE ASSY 1 27-1954-695 空環押え PLATE 1 27-2054-696 段ネジ SCREW 1 27-2154-697 圧縮バネ SPRING 1 27-2254-698 丸ナット NUT 1 27-2354-699 メス案内板 KNIFE GUIDE 1 27-2454-700 ラッチ LATCH 1 27-2554-701 ブラケット BRACKET 1 27-2654-702 メス KNIFE 1 27-2756-253 糸調子台糸道 THREAD GUIDE 4 27-2856-419 ケーブル受け CABLE SUPPORT 2 27-2956-421 段ネジ SCREW 1 27-3056-422 連結板 PLATE 1 27-3156-423 連結ピン PIN 1 27-3256-428 ワッシャー WASHER 1 27-3356-472 糸締め板 PLATE 1 27-3456-473 段ネジ SCREW 2 27-3556-474 糸締めレバー LEVER 1 27-3656-475 段ネジ SCREW 1 27-3756-476 巻バネ SPRING 1 27-3856-477 段ネジ SCREW 1 27-3956-478 連結ブラケット BRACKET 1 27-4056-479 段ネジ SCREW 1 27-4156-480 ワイヤーケーブル CABLE 1 27-4254-9790-1 糸調子セット (強) TENSION SET (HEAVY) 1~2 27-4354-9810-1 糸調子セット (弱) TENSION SET (LIGHT) 2
Page 31 — 28. 專用部品(6) SPECIFIC PARTS (6) JJ3014GE-60HK サージング (Serging)
28. 專用部品(6) SPECIFIC PARTS (6) JJ3014GE-60HK サージング (Serging) JJ3014GE-60HK REF. NO. PART NO. 品 名 DESCRIPTION Q'TY 28-0154-053 チャンポン皿ラチェット SPRING POST 1 28-0254-074 ワッシャ WASHER 1 28-0354-128 プラマイナベ小ネジ M4X14L SCREW M4X14L 1 28-0454-259 平小ネジ SM1/8, 4L SCREW SM1/8, 4L 1 28-0554-408 スペーサー COLLAR 1 28-0654-447 下ルーパー天秤 THREAD TAKEU 1 28-0754-479 平座金 WASHER 1 28-0854-607 下メス(大) LOWER KNIFE 1 28-0954-729 角メス抱キ(オーバー) ANGLED KNIFE HOLDER (OVER) 1 28-1054-730 角メス ANGLED KNIFE 1 28-1154-731 角メス押エ ANGLED KNIFE CLAMP 1 28-1254-732 切屑押シ WASTE GUARD 1 28-1354-733 下メス台(大) LOWER KNIFE HOLDER 1 28-1454-736 チャンポン調子バネ(中) SPRING (MEDIUM) 1 28-1554-9800-1 糸調子セット(中) TENSION SET (MIDDLE) 1 28-1654-738 針糸棚き NEEDLE THREAD TAKE-UP 1 28-1754-739 上ルーパー糸道 THREAD EYELET 1 28-1854-978 糸調子台 SCREW STUD 1 28-1956-268 取付フェルト FELT 1 28-2054-971 大ケース CUP 1 28-2156-270 チャンポン皿 TENSION DISC 2 28-2254-977 糸調子ダイヤルA POST NUT (A) 1 -28-
Page 32 — 29. 主軸セット一覧表 CRANKSHAFT SET PARTS TABLE
29. 主軸セット一覧表 CRANKSHAFT SET PARTS TABLE 主軸セット CRANKSHAFT SET クランクシャフト CRANKSHAFT 上ルーバーロッド球 UPPER LOOPER ROD ASSY 上ルーバーロッド球 LOWER LOOPER CRANK 針棒クランクロッド NEEDLE BAR CRANK ROD エミスクランクロッド UPPER KNIFE CRANK ROD モデル MODEL 54-7510-1 54-513 54-5990-1 54-395 54-421 54-410 54-7580-1 JJ3116GS 54-7520-1 54-513 54-5990-1 54-395 54-421 54-410 54-7580-1 JJ3116GH 54-7530-1 54-513 54-5990-1 54-395 54-421 54-409 54-7580-1 JJ3143GH 54-7540-1 54-513 54-5990-1 54-395 54-421 54-410 54-7580-1 JJ3004GS 54-7550-1 54-531 54-5990-1 54-421 54-410 54-6000-1 JJ3014GE -29-
Page 33 — 30. 糸通し図一覧表 THREADING DIAGRAM
30. 糸通し図一覧表 THREADING DIAGRAM 部品番号 適用機種 PARTS NO Applicable Machines 1 2 54-470 JJ3004GS-01M, JJ3005GS-10M JJ3004GS-20F, JJ3004GS-50M 54-471 JJ3014GH-01M, JJ3014GH-40M JJ3014GH-50M 54-728 JJ3014GE-01H 54-740 JJ3014GE-60HK 54-472 54-477 JJ3116GS-01M, JJ3116GS-01H JJ3116GS-02M, JJ3116GH-01H JJ3116GS-30M, JJ3116GS-30MP 54-655 54-477 JJ3116GE-03X 54-664 54-477 JJ3143GH-90M -30- jinte.in
Page 34 — 31. JJ30 GAUGE PARTS TABLE (1)
31. JJ30 GAUGE PARTS TABLE (1) ミシン形式 ゲージ 針板 主送り歯(組) 主送り歯 補助送り歯 差動送り歯 押え(組) 押えストッパー 上ルーバー 下ルーバー MACHINE TYPE /SPEC NG SW NEEDLE PLATE MAIN FEED DOG ASS'Y MAIN FEED DOG AUXILIARY FEED DOG DIFFERENTIAL FEED DOG PRESSER FOOT ASS'Y STOPPER UPPER LOOPER LOWER LOOPER JJ3004GS-01M - 4 57-171 57-2610-1 57-262 57-263 57-269 57-5410-1 57-548 57-411 57-414 JJ3005GS-10M - 3 57-178 57-2790-1 57-272 57-263 57-277 57-5840-1 57-548 57-411 57-414 JJ3005GS-10M - 4 57-179 57-2790-1 57-272 57-263 57-277 57-5880-1 57-548 57-411 57-414 JJ3004GS-20F - 1 57-175 57-2730-1 57-272 57-274 57-277 57-5710-1 57-548 57-411 57-414 JJ3004GS-50M - 3 57-188 57-2870-1 57-268 57-263 57-269 57-5930-1 57-548 57-411 57-414 JJ3004GS-50M - 4 57-189 57-2870-1 57-268 57-263 57-269 57-5950-1 57-548 57-411 57-414 JJ3014GH-01M 2 3 57-180 57-2610-1 57-262 57-263 57-269 57-5910-1 57-548 57-412 57-414 JJ3014GH-01M 2 4 57-172 57-2610-1 57-262 57-263 57-269 57-5500-1 57-548 57-412 57-414 ミシン形式 ゲージ 針受け 針 MACHINE TYPE /SPEC NG SW NEEDLE GUARD NEEDLE HOLDER NEEDLE FRONT REAR JJ3004GS-01M - 4 57-417 57-419 57-531 DCx27 #9 JJ3005GS-10M - 3 57-417 57-419 57-531 DCx27 #9 JJ3005GS-10M - 4 57-417 57-419 57-531 DCx27 #9 JJ3004GS-20F - 1 57-417 57-419 57-531 DCx27 #11 JJ3004GS-50M - 3 57-417 57-419 57-531 DCx27 #9 JJ3004GS-50M - 4 57-417 57-419 57-531 DCx27 #9 JJ3014GH-01M 2 3 57-417 57-419 57-532 DCx27 #9 JJ3014GH-01M 2 4 57-417 57-419 57-532 DCx27 #9 jintex.in
Page 35 — 32. JJ30 GAUGE PARTS TABLE (2)
32. JJ30 ゲージ部品一覧表 (2) JJ30 GAUGE PARTS TABLE (2) ミシン形式 MACHINE TYPE /SPEC ゲージ GAUGE NG SW 針板 NEEDLE PLATE 主送り歯(組) MAIN FEED DOG ASS'Y 主送り歯 MAIN FEED DOG 補助送り歯 AUXILIARY FEED DOG 差動送り歯 DIFFERENTIAL FEED DOG 押え(組) PRESSER FOOT ASS'Y ストッパー STOPPER 上ルーパー UPPER LOOPER 下ルーパー LOWER LOOPER JJ3014GH-01M 2 5 57-181 57-2610-1 57-262 57-263 57-269 57-5500-1 57-548 57-412 57-414 JJ3014GH-40M 2 3 57-180 57-2610-1 57-262 57-263 57-269 57-4780-1 57-548 57-412 57-414 JJ3014GH-40M 2 4 57-172 57-2610-1 57-262 57-263 57-269 57-5740-1 57-548 57-412 57-414 JJ3014GH-40M 2 5 57-181 57-2610-1 57-262 57-263 57-269 57-5740-1 57-548 57-412 57-414 JJ3014GH-50M 2 4 57-190 57-2670-1 57-268 57-263 57-269 57-5960-1 57-548 57-412 57-414 JJ3014GH-50M 2 5 57-191 57-2670-1 57-268 57-263 57-269 57-5960-1 57-548 57-412 57-414 JJ3014GE-01H 2 4 57-172 57-2610-1 57-262 57-263 57-269 57-5500-1 57-548 57-413 57-414 JJ3014GE-60HK 3 4 57-192 57-2920-1 57-290 57-291 57-293 57-4760-1 57-548 57-413 57-414 -32- ミシン形式 MACHINE TYPE /SPEC ゲージ GAUGE NG SW 針受け NEEDLE GUARD 前 FRONT 後 REAR 針 NEEDLE HOLDER 針 NEEDLE JJ3014GH-01M 2 5 57-417 57-419 57-532 DCx27 #9 JJ3014GH-40M 2 3 57-417 57-419 57-532 DCx27 #9 JJ3014GH-40M 2 4 57-417 57-419 57-532 DCx27 #9 JJ3014GH-40M 2 5 57-417 57-419 57-532 DCx27 #9 JJ3014GH-50M 2 4 57-417 57-419 57-532 DCx27 #9 JJ3014GH-50M 2 5 57-417 57-419 57-532 DCx27 #9 JJ3014GE-01H 2 4 57-417 57-419 57-532 DCx27 #11 JJ3014GE-60HK 3 4 57-417 57-419 57-537 DCx27 #18 jinte .in
Page 36 — JJ31 GAUGE PARTS TABLE (1)
33. JJ31 ゲージ部品一覧表 (1) JJ31 GAUGE PARTS TABLE (1) ミシン形式 MACHINE TYPE /SPEC ゲージ NG SW 針板 NEEDLE PLATE 主送り歯(組) MAIN FEED DOG ASS'Y 主送り歯 MAIN FEED DOG 補助送り歯 AUXILIARY FEED DOG 差動送り歯 DIFFERENTIAL FEED DOG 押え (組) PRESSER FOOT ASS'Y 押エ補助バネ SPRING 上ルーパー UPPER LOOPER 下ルーパー LOWER LOOPER JJ3116GS-01M 3 4 57-173 57-2640-1 57-263 57-270 57-5520-1 57-561 57-411 57-414 JJ3116GS-02M 3 4 57-173 57-2640-1 57-263 57-270 57-4500-1 57-561 57-411 57-414 JJ3116GS-01H 3 5 57-182 57-2750-1 57-276 57-263 57-280 57-5520-1 57-561 57-412 57-414 JJ3116GS-01H 5 5 57-176 57-2750-1 57-276 57-263 57-278 57-5790-1 57-561 57-412 57-414 JJ3116GH-01H 3 4 57-183 57-2750-1 57-276 57-263 57-280 57-5520-1 57-561 57-411 57-414 JJ3116GH-01H 5 5 57-176 57-2750-1 57-276 57-263 57-278 57-5790-1 57-561 57-411 57-414 JJ3116GS-30M 3 4 57-185 57-2810-1 57-282 57-263 57-285 57-4630-1 57-561 57-412 57-414 JJ3116GS-30MP 3 4 57-185 57-2810-1 57-282 57-263 57-285 57-4680-1 - 57-412 57-414 -33- ミシン形式 ゲージ 二重環ルーパー オーバー針受け 前 後 二重環受け 前 後 針糸 針 MACHINE TYPE /SPEC GAUGE CHAINSTITCH LOOPER OVERLOCK NEEDLE GUARD FRONT REAR CHAINSTITCH NEEDLE GUARD NEEDLE HOLDER NEEDLE JJ3116GS-01M 3 4 57-415 57-418 57-419 57-420 57-421 57-533 DCx27 #11 JJ3116GS-02M 3 4 57-415 57-418 57-419 57-420 57-421 57-533 DCx27 #11 JJ3116GS-01H 3 5 57-415 57-418 57-419 57-420 57-421 57-533 DCx27 #14 JJ3116GS-01H 5 5 57-415 57-418 57-419 57-420 57-421 57-535 DCx27 #14 JJ3116GH-01H 3 4 57-415 57-418 57-419 57-420 57-421 57-533 DCx27 #14 JJ3116GH-01H 5 5 57-415 57-418 57-419 57-420 57-421 57-533 DCx27 #14 JJ3116GS-30M 3 4 57-415 57-418 57-419 57-420 57-421 57-533 DCx27 #14 JJ3116GS-30MP 3 4 57-415 57-418 57-419 57-420 57-421 57-533 DCx27 #14 jintex.in
Page 37 — 34. JJ31 GAUGE PARTS TABLE (2)
34. JJ31 ゲージ部品一覧表(2) JJ31 GAUGE PARTS TABLE (2) ミシン形式 MACHINE TYPE /SPEC ゲージ GAUGE NG SW 針板 NEEDLE PLATE 主送り歯(組) MAIN FEED DOG ASS'Y 主送り歯 MAIN FEED DOG 補助送り歯 AUXILIARY FEED DOG 差動送り歯 DIFFERENTIAL FEED DOG 押え(組) PRESSER FOOT ASS'Y 押エバネ SPRING 上ルーパー UPPER LOOPER 下ルーパー LOWER LOOPER JJ3116GS-30M 5 5 57-186 57-2830-1 57-284 57-263 57-286 57-4660-1 57-561 57-412 57-414 JJ3116GE-03X 5 5 57-184 57-2660-1 57-287 57-268 57-271 57-5630-1 57-569 57-413 57-414 JJ3116GE-03X 5 6 57-174 57-2660-1 57-287 57-268 57-271 57-5630-1 57-569 57-413 57-414 JJ3116GE-03X 5 7 57-187 57-2660-1 57-287 57-268 57-271 57-5630-1 57-569 57-413 57-414 JJ3143GH-90M 3x2 4 57-177 57-2750-1 57-276 57-263 57-278 57-5820-1 57-561 57-412 57-414 -34- ミシン形式 ゲージ 二重環ルーパー オーバー針受け 前 後 チェーンステッチ受け 前 後 針挟 針 MACHINE TYPE /SPEC GAUGE CHAINSTITCH LOOPER OVERLOCK NEEDLE GUARD FRONT REAR CHAINSTITCH NEEDLE GUARD FRONT REAR NEEDLE HOLDER NEEDLE JJ3116GS-30M 5 5 57-415 57-418 57-419 57-420 57-421 57-535 DCx27 #14 JJ3116GE-03X 5 5 57-416 57-418 57-419 57-420 57-421 57-534 DCx27 #21 JJ3116GE-03X 5 6 57-416 57-418 57-419 57-420 57-421 57-534 DCx27 #21 JJ3116GE-03X 5 7 57-416 57-418 57-419 57-420 57-421 57-534 DCx27 #21 JJ3143GH-90M 3x2 4 57-415 57-418 57-419 57-420 57-421 57-536 DCx27 #11 jintex.in
Page 39 — INDEX 2
INDEX 2 REF. PART NO. NO. 品 番 25-22 56-713 25-23 56-715 25-24 56-716 25-25 56-717 25-26 56-7200-1 23-05 56-741 15-32 56-765 15-33 56-766 15-34 56-767 15-35 56-768 13-42 56-771 01-11 56-811 13-43 56-817 19-16 56-817 11-28 56-854 22-20 56-902 22-21 56-906 22-22 56-907 22-23 56-9100-1 22-24 56-912 20-01 56-913 20-02 56-914 20-03 56-915 20-04 56-916 23-06 56-917 26-51 56-918 22-25 56-951 22-26 56-952 22-27 56-953 22-28 56-954 21-01 56-9550-1 21-02 56-9560-1 21-03 56-957 25-27 56-957 21-04 56-958 25-28 56-958 21-05 56-959 21-06 56-960 21-07 56-961 21-08 56-962 25-29 56-962 21-09 56-963 25-30 56-963 21-10 56-964 25-31 56-964 21-11 56-965 25-32 56-965 22-29 56-966 24-14 57-462 12-35 57-548 12-36 57-549 12-37 57-561 12-38 57-562 24-15 57-570 26-53 57-570 REF. PART NO. NO. 品 番 REF. PART NO. NO. 品 番 REF. PART NO. NO. 品 番 REF. PART NO. NO. 品 番 MEMO jinte.in
Page 40 — INSTRUCTION
INSTRUCTION JJ SERIES Industrial Sewing Machines JJ30 JJ31 Third published: November 2019 No. KX19011 KANSAI SPECIAL jintex.in
Page 41 — INTRODUCTION
INTRODUCTION Thank you for purchasing Kansai Special's JJ series machine. Please study this instruction manual carefully before operating the machine. 1. This instruction manual describes adjustments and maintenance on this machine. 2. Before operating the machine, check the pulley cover and safety cover, etc. 3. Before adjusting, cleaning, threading the machine or replacing the needles, be sure to turn off the power. 4. Never operate the machine with no oil in the reservoir. 5. Refer to the parts list as well as this instruction manual before the preventive maintenance. 6. The contents described in this instruction manual are subject to change without notice. JJ series jintex.in
Page 43
【1】 INTRODUCTION 1-1 Needles Standard needles are Schmetz B-27 and Organ DCx27. Needle numbers vary in each model, so standard needles are highly recommended. < Needle maker & Needle number > M Schmetz Organ B-27 DCx27 JJ3004(G)S-01M Nm65 #9 JJ3004(G)S-20F Nm75 #11 JJ3004(G)S-50M Nm65 #9 JJ3005(G)S-10M Nm65 #9 JJ3014(G)H-01M Nm65 #9 JJ3014(G)H-40M Nm65 #9 JJ3014(G)H-50M Nm65 #9 JJ3014GE-01H Nm75 #11 JJ3014GE-60HK Nm110 #18 JJ3116(G)S-01M Nm75 #11 JJ3116(G)S-02M Nm75 #11 JJ3116(G)S-01H Nm90 #14 JJ3116(G)S-30M Nm90 #14 JJ3116(G)S-30M-P Nm90 #14 JJ3116(G)H-01H Nm90 #14 JJ3116(G)E-03X Nm120 #21 JJ3143(G)H-90M Nm75 #11 1-2 Needle replacement When replacing needles, make sure that needle scarf faces backward from the operator's view point. Refer to the illustration on the right. <Note> When replacing needles, be sure to turn off the machine. Regarding clutch motors, keep stepping on the pedal until the machine comes to a halt completely. 1 JJ series 1-3 Correct threading the machine Thread the machine correctly by referring to the illustrations below. Incorrect threading causes skipped stitch, thread breakage, and uneven stitch formation. Correct threading is dependant upon the number of threads, thread material and so on. Turn to the page 11 for further information. STITCH TYPE 504, 505 JJ3004(G)S-01M JJ3004(G)S-10M JJ3004(G)S-20F JJ3004(G)S-50M STITCH TYPE 514 JJ3014(G)H-01M JJ3014(G)H-40M JJ3014(G)H-50M 2 JJ series jintex.in
Page 44
STICH TYPE 514 JJ3014GE-01H STICH TYPE 516 JJ3116(G)S-01M JJ3116(G)S-02M JJ3116(G)S-01H JJ3116(G)S-30M JJ3116(G)S-30M-P JJ3116(G)H-01H STICH TYPE 514 JJ3014GE-60HK JJ3143(G)H-90M 3 JJ series 4 JJ series jintex.in
Page 45 — [2] MACHINE SPEED
JJ3116(G)E-03X STICH TYPE 401 [2] MACHINE SPEED 2.1 Machine speed & operating direction Refer to maximum and average speed of the machine at the table below. If your machine is new, you have to operate the machine at 15~20% less than maximum speed for the first 200 hours (about one month) so that you can break it in. After this period, operating the machine at average speed will increase the endurance. 2.2 Motor & belt Motor: 3 phase, 2 pole 400W clutch motor Belt: M type V belt Select the proper motor pulley according to the machine speed (refer to the motor pulley outer diameter on the table below). Adjust the position of the motor by pressing the middle of the belt with the index finger until the belt can bent 1~2cm inward. (See the illustration above) <Machine speed> Model Maximum speed Average speed JJ3004(G)S JJ3005(G)S 8500rpm 7500rpm JJ3014(G)H JJ3116(G)S 7500rpm 6500rpm JJ3014GE 6500rpm 5500rpm JJ3116(G)S-30M JJ3116(G)H-01H 7000rpm 6000rpm JJ3116(G)E-03X 6500rpm 5500rpm JJ3143(G)H 7000rpm 6000rpm <Motor pulley> Motor pulley Outer diameter (mm) Machine speed (rpm) 50Hz 60Hz 80 4200 4900 90 4700 5500 100 5200 6000 110 5800 6900 120 6300 7500 5 JJ series 6 JJ series jntex.in
Page 46 — 3 LUBRICATION
【3】 LUBRICATION 3-1 Oil specification Kansai Special's genuine oil is highly recommended. (Parts number 54-045 : 700cc) 3-2 Oiling Lubrication Take the Oil Pot A and fill the machine with the genuine oil until the indicator reaches the line H in the oil gauge B. Most of the time, fill up the oil until the indicator appears between the line H and L. Lubrication check When the lubrication is over, run the machine to check for oil splashing in the window A. 3-3 Oil & filter replacement To prolong machines' lifespan, replace the oil in 250 hour use. Follow the procedure below 1. Take the V belt off the motor pulley and then take the machine off the table. 2. Loosen the screw C and drain all the oil from the machine. 3. After the oil has been drained, tighten the screw C without fail. 4. Fill up the oil as instructed above. If filter E is dirty, the machine is not lubricated properly. Normally, it has to replace every 6 month. Check for proper function of the lubrication system and maintain the proper amount and type of oil periodically. In order to replace the filter E, loosen all the necessary screws (a ~ d). In case the filter is clogged, replace it with a new one. 3-4 Oiling respective parts Oiling respective parts is necessary when the machine runs either for the first time or for the first time in a long while. 3-5 Oiling HR device Oil in use Kansai Special's genuine silicon oil is highly recommended (part number 28-612 : 20cc) Oiling process Fill the silicon oil reservoir with Kansai Special's genuine oil. Periodical oil reservoir check is essential to prevent needle thread breakage and fabric damage. 7 JJ series 8 JJ series jintex.in
Page 47 — 4-1 Table diagram
【4】 INSTALLATION 4-1 Table diagram Standard Table For direct motor 9 JJ series 10 JJ series jntex.in
Page 48
4-2 Installation process Refer to the illustration below. Install the frame support plate underneath the table. Fit the rubber cushions onto the frame support plate. Mount the machine head on the rubber cushions correctly. For a table of thickness 35mm [5] NEEDLE BAR HEIGHT ADJUSTMENT 5-1 Initial needle bar height Initial needle bar height is set by the height between the needle plate and the tip of the center needle when the needle bar is at its highest position of travel. Refer to the illustration below. JJ3004 JJ3005 JJ3014 JJ3116 JJ3143 針板(Needle Plate) 針板(Needle Plate) 針板(Needle Plate) Model name a(mm) JJ3004GS,JJ3005GS 10.5 JJ3014GH 10.5 JJ3014GE 11.9 JJ3116GS,JJ3116GH 10.5 JJ3143GH 10.5 JJ3116GE 11.9 5-2 Needle bar height adjustment To make this adjustment, loosen screw "a" and take out top cover "b". Loosen screw A and move needle bar up or down as required. 11 JJ series 12 JJ series jintex.in
Page 49 — LOOPER AND NEEDLE TIMING
【6】 LOOPER AND NEEDLE TIMING 6-1 Distance between lower looper and needle The distance between the looper and the needle when the lower looper is at the extreme left of its travel. Distance varies according to models. Refer to the illustrations below. Before adjustment, loosen the screw A. Model name a(mm) JJ3004GS,JJ3005GS 3.8 JJ3014GH 3.8 JJ3014GE-01H 4.2 JJ3014GE-60HK 4.0 JJ3116GS,JJ3116GH 3.8 JJ3143GH 3.8 JJ3116GE 4.2 6-2 Clearance between the point of the lower looper and the center of the needle Bring the point of the lower looper to the center of the needle to have them allow clearance of 0~0.05mm. To make this adjustment, loosen screw A in the above illustration and move looper holder front or back as required by turning front-to-back adjusting screw B <Note> Care should be taken not to disturb the distance between the lower looper and the needle when the lower looper holder is moving. 13 JJ series 【7】 UPPER LOOPER ADJUSTMENT 7-1 Gauge of upper looper and needle The gauge of the upper looper and the needle is the distance between the point of the looper and the center needle when the upper looper is at the extreme left of its travel. Gauge varies according to models. Refer to the illustrations below. Model name a(mm) b(mm) JJ3004GS,JJ3005GS 4.4~4.7 10.8 JJ3014GH 5.4~5.7 10.5 JJ3014GE-01H 5.4~5.7 11 JJ3014GE-60HK 5.4~5.7 11.8 JJ3116GS,JJ3116GH 4.4~4.7 10.8 JJ3143GH 5.4~5.7 10.5 JJ3116GE 4.4~4.7 12 The gauge adjustment is made by loosening the clamp screw A and looper setting is made by loosening the clamp screw B. 7-2 looper relation (upper to lower) When upper looper crosses lower looper, certain amount of clearance is needed. Refer to the illustration on the right. To make this adjustment, loosen clamp screw B. <Note> Care should be taken not to disturb the upper looper setting when rotating upper looper. Upper looper Lower looper 14 JJ series jntex.in
Page 50
【8】 DOUBLE CHAIN LOOPER ADJUSTMENT 8-1 Double chain looper gauge Double chain looper gauge is the distance between the center point of the double chain looper and the center of the double chain stitch when the looper is at its farthest position to the left. Looper gauge is 1.5mm. Adjustment is made by the clamp screw A. <Note> Looper gauge "a" for JJ3116(G)E-03X is 1.7mm a=1.5mm 8-2 Clearance between Double chain looper and needle Bring the point of the double chain looper to the center of the double chain needle to have them allow certain amount of clearance. Different needle number requires different clearance so give clearance accordingly. To make this adjustment, loosen screw A and move looper holder front or back as required by turning front-to-back adjustment screw B. <Note> Care should be taken not to disturb the double chain looper gauge when adjusting double chain looper. Needle number #11 a=0~0.05mm #21 a=0~0.1mm 15 【9】 FEED DOG & STITCH LENGTH ADJUSTMENT -1 Feed dog height adjustment When the feed dogs are at the highest point of travel, 2 or 3 teeth from the back of the main feed dog have to rise 0.8~1.0mm(a) above the needle plate. The height of the differential feed dog is same as that of the main feed dog. The support feed dog should be set to rise 0.5mm(b) lower than the main feed dog should. Adjustment is made by loosening clamp screws A, B, C. B A C 主送り歯 9-2 Feed dog inclination adjustment Uncover the cloth plate and loosen screw A and then put a screw driver into the washer B and push it either upward or downward. Rotating the washer B clockwise brings the front of the feed dog down and vice versa. B A 16 JJ series
Page 51
9-3 Stitch length adjustment 1. Press the push-button A softly with your left hand on the front of the machine. 2. Rotate the pulley with your right hand while pressing the button A softly, the push-button A will stop at the notch inside making a click sound. 3. At that time, press the push-button A hard once again with rotating the pulley and set the stitch length referring to the starting mark B. For longer stitch, rotate the pulley clockwise and the other way around. <Note > Check if the motor stops completely before you change the stitch length. 9-4 Differential feed dog adjustment Stretching ratio (for gathering) Loosen the clamp nut A and adjust with lever B then tighten the clamp nut A at desired spot. Bring the lever B at spot C makes the ratio of the main feed dog and the differential feed dog 1 to 1. Bring it at lower than spot C makes a stretching ratio. Gathering ratio (for stretching) Bring the lever B at higher than spot C makes a gathering ratio. When requested to adjust the differential feed mechanism on and off while the machine is running, connect the foot pedal chain with the lever B. <Note > When applying a stretching ratio, be sure that the differential feed dog is in the right position. [ 10 ] PRESSER FOOT ADJUSTMENT 10-1 Presser foot pressure adjustment Maintain the presser foot pressure as light as possible on the condition that the machine feeds the fabric well and produces stable stitch. Turn the knob clockwise to increase pressure of the presser foot. (Refer to the illustration on the right.) 10-2 Position and maximum lift height Set the presser foot onto the presser bar properly so that the needle can drop to the center of the needle hole. Foot lift The initial height of the foot lift "a" is about 6mm from the surface of the needle plate In case of tractor foot, it is about 7mm. Set the proper height of the foot lift stopper B to hold the presser foot. 17 JJ series 18 JJ series jintex.in
Page 52 — 【11】 STICH FORMATION ADJUSTMENT
【11】 STICH FORMATION ADJUSTMENT 11-1 Thread tension adjustment Thread tension varies according to sewing conditions such as kinds of fabrics, threads, sewing width, and stitch length. Adjust thread tension by the thread tension release lever on the top cover and the double chain under thread tension release lever at the left cover. Rotate them clockwise to tighten the threads and vice versa. 11-2 The needle thread take-up & thread eyelet adjustment *Adjust place of the thread take-up & thread eyelet by referring to below illustration. Turn the handwheel until the needle thread take up is at its farthest position to the front. JJ3004 JJ3116 JJ3005 出 出荷時は調整済みです。 Already adjusted 出荷時は調整済みです。 Already adjusted 7 9.5 合わせます。 Adjust 合わせます。 Adjust 19 JJ series 20 JJ series jinte Turn the handwheel until the needle thread take up is at its farthest position to the front. JJ3143 Already adjusted 合わせます。 Adjust
Page 53 — 11-3 Looper thread take up adjustment
11-3 Looper thread take up adjustment 下ルーパー右死点 When Looper thread take up is at the right position A 33.5 21.5 11.5 E D 2.9 2.7 20 25 C 11-4 Double chain looper thread take-up The amount of double chain looper thread, adjust by thread eyelet A and B. Adjustment To increase the amount, move in the direction of (+). To decrease the amount, move in the direction of (-). A + B Timing of the double chain looper thread take-up cam When the needle is highest position, align hole of the take-up cam d's lower end and line "f" of the bracket E. E f d JJ3004(G)S-01M JJ3004(G)S-20F JJ3005(G)S-10M JJ3004(G)S-50M JJ3014(G)H-01M JJ3014(G)H-40M JJ3014(G)H-50M JJ3014GE-01H JJ3014GE-60HK JJ3116(G)E-01M JJ3116(G)E-02M JJ3116(G)E-03M JJ3116(G)E-30M JJ3116(G)H-01H JJ3143(G)H-90M A 11.5 21.5 21.5 21.5 B 17.5 14.5 17.5 17.5 14.5 C 20 20 20 20 25 D 29 29 29 29 29 E 11 13 15 13 11 JJ series 21 JJ series 22 jintex.in
Page 54
【12】 UPPER&LOWER KNIFE ADJUSTMENT 12-1 Upper and lower knife ■ Upper knife height There should be 0.5~1.0mm of clearance between the surface of the needle plate and the edge of the upper knife C by loosening the screw B when the upper knife folder is all the way down. ■ Lower knife height There should be 0mm of clearance between the surface of the needle plate and the edge of the lower knife E by loosening the screw D ■ Sewing width adjustment 1. Loose the screw F while pressing the lower knife folder G to keep its position. 2. After loosening the screw H, adjust the sewing width by moving the upper knife folder to the desired position. Do not forget to re-tighten the screw H securely after adjustment is made. 3. Bring the lower knife E to the bottom of its stroke and loosen the screw F while pressing the lower knife holder G allowing it to move to the right slowly. Keep the lower knife E sliding to the right until it touches the upper knife C with no deflection. Tighten the screw F securely. 【13】 NEEDLE GUARD ADJUSTMENT ■ Overlock Obtain 0.1~0.2mm of clearance between the needle and the needle guard A when the needle is at the bottom of its stroke. At the same time, obtain 0mm of clearance between the needle and the needle guard B when the lower looper reaches the center of the needle. ■ Interlock Obtain 0.1~0.2mm of clearance between the needle and the needle guard A, when the needle is at the bottom of its stroke. At the same time, obtain 0mm of clearance between the needle and the needle guard B when the lower looper reaches the center of the needle. With respect to the double chain stitch needle, maintain 0.05~0.1mm of clearance between the needle and the front needle guard C when the needle is at the bottom of its stroke, and allow 0mm of clearance between the needle and the rear needle guard D. 12-2 Lower knife sharpening The upper knife is made of super hard compound metals. When the knife gets blunt and cannot cut clean, it needs to be sharpened like the illustration on the right. When sharpening doesn't work anymore, replace the knife with a genuine Kansai Special's upper knife. 23 JJ series 24 JJ series
Page 55 — [14] SPECIFICATION
[14] SPECIFICATION < JJ30 > 型式 MODEL JJ3004(G)S-01M JJ3004(G)S-20F JJ3004(G)S-50M JJ3005(G)S-10M JJ3014(G)H-01M JJ3014(G)H-40M JJ3014(G)H-50M JJ3014GE-01H JJ3014GE-60HK 10.5 11.9 3.8 4.2 4.0 4.4~4.7 5.4~5.7 0.8 1.0 5 5.5 7 < JJ31 > 型式 MODEL JJ3116(G)S-01M JJ3116(G)S-02M JJ3116(G)S-01H JJ3116(G)S-30M(P) JJ3116(G)H-01H JJ3116(G)E-03X JJ3143(G)H-90M 10.5 11.9 10.5 3.8 4.2 3.8 4.4~4.7 5.4~5.7 0.8 1.1 0.8 5 5.5 7 1.5 1.7 1.5 25 JJ series jintex.in
Page 56
株式会社 森本製作所 MORIMOTO MFG. CO., LTD. 本社 〒575-0001 大阪府四条畷 一丁目4番17号 TEL: 072-877-1221 FAX: 072-878-9649 1-4-17, SUNA, SHIJONAWATE-CITY, OSAKA 575-0001, JAPAN TEL: +81-72-877-1221 FAX: +81-72-878-9649 E-MAIL: hqeigyo@kansai-special.com URL:www.kansai-special.com FOREIGN AFFILIATED COMPANIES KANSAI SPECIAL AMERICAN MACHINE CORP. 476 HAMPSHIRE DR., GAFFNEY, SC 29340. USA E-MAIL: ksam@kansaispecial.net KANSAI SPECIAL EUROPE GMBH QUIRINSTR. 19, 40545 DUSSELDORF, GERMANY TEL: +49-211-577-9090 FAX: +49-211-558-1477 E-MAIL: contact@kansai-special.de MORIMOTO SINGAPORE PTE LTD. NO.51 PENJURU ROAD #02-02 SINGAPORE 609143 TEL: +65-6334-1305 FAX: +65-6334-1365 E-MAIL: info@kansaispecial.com.sg MORIMOTO INDIA LIAISON OFFICE NO.11 SENTHIL NAGAR, PERRIYAR COLONY, AVINASHI ROAD, TIRUPUR, INDIA 641601 TEL: +91-421-4248229 FAX: +91-421-4286600 Tech Support TEL:+91-770-8300100 E-MAIL: india@kansaispecial.com.sg MORIMOTO BANGLADESH LIAISON OFFICE FLAT #2/B, HOUSE #16, ROAD #13, SECTOR #04 UTTARA, DHAKA-1230 BANGLADESH TEL: +88-02-8931702 FAX: +88-02-8931704 E-MAIL: bangladesh@kansaispecial.com.sg KANSAI (SHANG HAI) INDUSTRIAL SEWING MACHINE CO., LTD NO.55 LANE835, JIAXIN ROAD, MALU TOWN, JIADING DISTRICT, SHANGHAI 201818, CHINA TEL: +86-21-5990-1798 FAX: +86-21-5990-1538 E-MAIL: kansaish@spe.sina.net jintex.in
