Parts index — Juki DDL-8700-7tap a row to open its page

Page 3 — CONTENTS

Juki DDL-8700-7 parts on page 3

Ref	Part number	Part name	Qty
	1	MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
	3	MAIN SHAFT & THREAD-UP LEVER COMPONENTS
	5	NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS
	7	HAND LIFTER COMPONENTS
	9	FEED MECHANISM COMPONENTS
	11	THREAD TRIMMER COMPONENTS
	13	AUTOMATIC REVERSE FEED COMPONENTS
	14	WIPER COMPONENTS
	15	OIL LUBRICATION COMPONENTS
	17	OIL RESERVOIR COMPONENTS
	19	BELT COVER & BOBBIN COMPONENTS
	20	THREAD STAND COMPONENTS
	21	EXCLUSIVE PARTS FOR DDL-8700H-7
	23	EXCLUSIVE PARTS FOR DDL-8700J-7
	25	EXCLUSIVE PARTS FOR DDL-8700A-7
	26	LIST FOR INFORMATION OF CHANGE
	27	NUMERICAL INDEX OF PARTS

Page 4 — 1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Juki DDL-8700-7 parts on page 4

Ref	Part number	Part name	Qty
8	8	SCREW
9	9	BRACKET
10	10	SCREW
11	11	COVER
28-58	28-58	HANDLE
5	5	SCREW
27	27	SPRING
7	7	SHAFT
6	6	WASHER
2	2	GASKET
1	1	COVER
49	49	CAP
50	50	SCREW
4	4	BRACKET
3	3	BRACKET
45	45	SCREW
46	46	SCREW
62	62	WASHER
61	61	PLATE
44	44	BASE
51	51	BASE
52	52	PLATE
53	53	BRACKET
54	54	SCREW
12-70	12-70	COVER
42	42	BRACKET
30	30	SPRING
31	31	PIN
43	43	SHAFT
41	41	SPRING
40	40	COLLAR
39	39	SPRING
38	38	SHAFT
37	37	GEAR
36	36	WASHER
35	35	GEAR
34	34	GEAR
33	33	GEAR
32	32	SHAFT
55	55	BRACKET
57	57	COVER
60-65	60-65	NEEDLE PLATE
13-63	13-63	BASE
21	21	BRACKET
22	22	SHAFT
23	23	LEVER
24	24	WASHER
25-26	25-26	GEAR
14	14	SPRING
15	15	SCREW
56	56	WASHER
64	64	SCREW
66	66	WASHER
67-69	67-69	COVER
16	16	COLLAR
17	17	SCREW
18	18	COLLAR
19	19	COLLAR
20	20	SCREW

Page 5

Juki DDL-8700-7 parts on page 5

Ref	Part number	Part name	Qty
	229-02159	FACE PLATE ASM.	1
	229-02209	FACE PLATE AGSKET	1
	SS-6080410-SP	SCREW 1/8-44 L=4	1
	229-00757	ARM OIL SHIELD ASM.	1
	TA-0850604-RO	RUBBER PLUG	1
	TA-1250705-RO	RUBBER PLUG	1
	229-58300	THREAD GUIDE ROD	1
	SS-4120915-SP	SCREW 3/16-28 L=9	8
	229-54705	CORD HOLDER	1
	229-00401	SIDE PLATE	1
	110-00619	ATTENTION SEAL	1
	CM-3002000-01	SAFETY LABEL, 3 (SMALL).	1
	CM-3002001-A1	SAFETY LABEL, 3 (SMALL).	1
	229-01805	GROUND MARK	1
	SS-4120615-SP	SCREW 3/16-28 L=6	1
	TA-2000502-RO	RUBBER PLUG	1
	SS-6121840-SP	SCREW 3/16-28 L=18	1
	229-52501	REVERSE FEED LEVER STOPPER	1
	TA-2101002-RO	RUBBER PLUG	1
	111-00104	MAGNET CORD RUBBER	1
	229-45463	THREAD TENSION ASM.	(1)
	229-45414	THREAD TENSION POST	(1)
	229-45604	THREAD TENSION GUIDE	(1)
	229-45802	BOBBIN WINDER TENSION DISC	(2)
	229-45505	THREAD TENSION SPRING	(1)
	229-45703	THREAD TENSION NUT	(1)
	SS-4120615-SP	SCREW 3/16-28 L=6	(1)
	229-00609	THREAD TAKE-UP LEVER COVER	1
	SS-4120615-SP	SCREW 3/16-28 L=6	1
	229-20508	ARM THREAD GUIDE A	1
	229-21001	SCREW	1
	229-45356	THREAD TENSION ASM.	(1)
	229-21308	TENSION NUT	(1)
	229-21407	ROTATING STOPPER	(1)
	229-21704	TENSION SPRING A	(1)
	229-21803	THREAD TENSION DISK PRESSER	(1)
	229-1506	THREAD TENSION DISK	(2)
	229-21209	TENSION POST	(1)
	229-1605	TAKE-UP SPRING	(1)
	229-45307	TENSION POST SOCKET	(1)
	SS-8090670-SP	SCREW 9/64-40 L=5.5	1
	SS-8150710-TP	SCREW 15/64-28 L=7	1
	B3118-552-E00	TENSION RELEASING	1
	B1109-012-10B	THROAT PLATE (1)	1
	SS-2110920-TP	SCREW 11/64-40 L=8.5	1
	SS-2110915-SP	SCREW 11/64-40 L=8.5	1
	229-20607	ARM THREAD GUIDE B	1
	SS-6110610-TP	SCREW 11/64-40 L=6	1
	TA-1250406-RO	RUBBER PLUG D=12.5 L=4	2
	SS-4120915-SP	SCREW 3/16-28 L=9	3
	229-01250	SLIDE PLATE ASM.	(1)
	229-01201	SLIDE PLATE	(1)
	229-01300	BED SLIDE SPRING	(1)
	SS-6060210-SP	SCREW 3/32-56 L=1.9	(2)
	229-01003	BED SCREW STUD	4
	NT-0530002-KS	TOOTHED WASHER D=5.3	1
	229-35407	RUBBER PLATE	1
	114-15205	THREAD TAKE-UP LEVER COVER(JE)	1
	110-30202	RUBBER BUSHING	1
	B1109-552-000	THROAT PLATE	1
	229-02605	RULER STOPPER	1
	SS-7110540-SP	SCREW 11/64-40 L=5	2
	CM-3002001-01	SAFETY LABEL, 1 (SMALL).	1
	SS-4121215-SP	SCREW 3/16-28 L=12	1
	110-28008	THROAT PLATE	1
	WP-0501016-SD	WASHER 5X10.5X1	1
	229-90352	RESISTANCE PACK ASM. A	1
	229-90659	RESISTANCE PACK ASM. E	1
	229-90550	RESISTANCE PACK ASM. H	1
	CM-3002000-B1	LABEL(16)	1

Page 6 — 2. MAIN SHAFT & THREAD-UP LEVER COMPONENTS

Juki DDL-8700-7 parts on page 6

Ref	Part number	Part name	Qty
1	1	THREAD TAKE-UP LEVER SHAFT
2	2	THREAD TAKE-UP LEVER
3	3	SPRING PIN
4	4	THREAD TAKE-UP LEVER BRACKET
5	5	SHAFT
6	6	GEAR
7	7	COLLAR
8	8	SCREW
9	9	SCREW
10	10	MAIN SHAFT BRACKET
11	11	BEARING
12	12	MAIN SHAFT
13	13	WASHER
14	14	SCREW
15	15	BRACKET
16	16	SHAFT
17	17	SCREW
18	18	PULLEY
19	19	SCREW
20	20	BEARING
21	21	COLLAR
22	22	RING
23	23	COLLAR
24	24	SPRING
25	25	BEARING
26	26	PIN
27	27	BEARING
28	28	SCREW
29	29	NUT
30	30	SHAFT
31	31	SHAFT
32	32	WASHER
33	33	SPRING
34	34	DRUM
35	35	BRACKET
36	36	BRACKET
37	37	SCREW
38	38	BRACKET
39	39	BRACKET
40	40	SCREW
41	41	WASHER
42	42	PLATE
43	43	THREAD GUIDE
44	44	MAIN SHAFT
45	45	SCREW

Page 7

Juki DDL-8700-7 parts on page 7

Ref	Part number	Part name	Qty
	SS-8151150-TP	SCREW 15/64-28 L=10.5	1
	229-19559	THREAD TAKE-UP CRANK SHAFT ASM.	1
	110-02904	ROLLER FELT	1
	110-39070	THREAD TAKE-UP LEVER ASM.	1
	110-39062	THREAD TAKE-UP LEVER ASM.	(1)
	B1905-541-B00	NEEDLE BEARING	(1)
	110-05204	NEEDLE BAR CRANK	(1)
	B1408-552-000	NEEDLE BAR CRANK ROD	(1)
	B1903-552-000	LEFT SCREW	(1)
	229-03157	COUNTER WEIGHT ASM.	1
	SS-8681650-TP	SCREW 9/32-28 L=16	(1)
	SS-8660610-TP	SCREW 1/4-40 L=6	(2)
	RO-0442401-00	RUBBER RING	(1)
	SS-7681650-TP	SCREW 9/32-28 L=16	(1)
	229-03108	COUNTER WEIGHT	(1)
	229-10053	FEED DRIVE ECCENTRIC CAM ASM.	1
	SS-666110-SP	SCREW 1/4-40 L=11	(2)
	229-10004	FEED DRIVE ECCENTRIC CAM	(1)
	SS-4090615-SP	SCREW 9/64-40 L=6	2
	110-02409	MAIN SHAFT BUSHING, REAR	1
	110-02508	OIL SEAL	1
	RC-1850001-KP	SNAP RING 18.5	1
	229-04155	THRUST COLLAR ASM.	1
	SS-8660610-TP	SCREW 1/4-40 L=6	(2)
	229-03207	MAIN SHAFT FRONT BUSHING	1
	B1215-552-000	OIL ADJUSTING COLLAR	1
	229-03306	BUSHING, INTERMEDIATE	1
	EA-9500B01-00	CABLE BAND	1
	229-19203	RUBBER	1
	229-37064	HAND WHEEL COMPL.	1
02	400-17623	HAND WHEEL ASM.	1
	WP-0450801-SD	WASHER 4.5X10X0.8	(2)
	SS-8151550-SP	SCREW 15/64-28 L=15	(2)
	229-37056	HAND WHEEL ASM.	(1)
	229-37155	MAGNET FITTING BASE A ASM.	(1)
	229-37254	MAGNET FITTING BASE B ASM.	(1)
	SS-6111210-SP	SCREW 11/64-40 L=12	(2)
02	400-17625	MAGNET FITTING BASE B ASM.	(1)
02	400-17624	MAGNET FITTING BASE A ASM.	(1)
	229-03900	OIL AMOUNT ADJUSTING PIN	1
	RO-0291801-00	RUBBER RING	1
	229-10103	THRUST COLLAR	1
	229-37965	DYNAMO STATOR	1
	229-03009	MAIN SHAFT	1
	SL-4051001-MZ	SCREW M5 L=9.6	2

Page 8 — 3. NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS

Juki DDL-8700-7 parts on page 8

Ref	Part number	Part name	Qty
	1	NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS
	2	針棒・立軸・下軸関係
	3	44
	4
	5
	6
	7	46
	8
	9
	10
	11	28
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24	34
	25
	26
	27
	28
	29
	30
	31
	32
	33
	34
	35
	36
	37
	38
	39
	40
	41
	42
	43
	44
	45
	46

Page 9

Juki DDL-8700-7 parts on page 9

Ref	Part number	Part name	Qty
	229-01409	CAP	1
	229-06101	NEEDLE BAR BUSHING, UPPER	1
	229-39508	NEEDLE BAR	1
	229-06457	NEEDLE ROD HOLDER ASM.	1
	SS-6090670-TP	SCREW 9/64-40 L=6	(1)
	B1414-555-000	SLIDE BLOCK	1
	229-20805	NEEDLE BAR THREAD GUIDE	1
	229-06200	NEEDLE BAR BUSHING, LOWER	1
	SS-7080510-TP	SCREW 1/8-44 L=4.5	1
	229-06309	NEEDLE BAR THREAD GUIDE	1
	MDB-100B1400	NEEDLE DBX1 #14	1
	B1306-155-0CO	GEAR & PINION ASM.	1
	B1306-155-0BO	GEAR & PINION ASM., UPPER	(1)
	B1306-012-0A0	GEAR ASM.	(1)
	SS-8660810-TP	SCREW 1/4-40 L=8	(2)
	B1306-155-0A0	PINION ASM.	(1)
	SS-8660810-TP	SCREW 1/4-40 L=8	(2)
	B1307-155-0BO	GEAR & PINION ASM., LOWER	(1)
	B1307-155-0A0	GEAR ASM. LARGE	(1)
	SS-8660810-TP	SCREW 1/4-40 L=8	(2)
	B1308-155-0A0	PINION ASM.	(1)
	SS-8660810-TP	SCREW 1/4-40 L=8	(2)
	229-05004	UPRIGHT SHAFT	1
	111-41355	HOOK ASM.	1
	229-05103	UPRIGHT SHAFT BUSHING, LOWER	1
	229-05202	UPRIGHT SHAFT BUSHING, LOWER	1
	229-16308	BUSHING, REAR	1
	MC-2005009-00	NEEDLE 134 90	1
	229-17157	THRUST COLLAR ASM.	1
	SS-6110420-TP	SCREW 11/64-40 L=4.8	(2)
	229-16001	LOWER SHAFT	1
	229-42502	BOBBIN CASE HOLDER	1
	SS-4110915-TP	SCREW 11/64-40 L=9	1
	110-38650	HOOK ASM.	1
	229-16100	LOWER SHAFT FRONT METAL	1
	229-17058	THRUST COLLAR ASM.	1
	SS-8110410-TP	SCREW 11/64-40 L=3.5	(2)
	229-16555	OIL SEAL SCREW ASM.	1
	110-15906	OIL WICK	(1)
	229-16506	OIL SEAL SCREW	(1)
	229-32909	BOBBIN	1
	110-38759	BOBBIN CASE ASM.	1
	229-42601	OIL SHIELD	1
	229-39607	NEEDLE BAR B	1
	SS-4120915-SP	SCREW 3/16-28 L=9	1
	400-12444	NEEDLE BAR THREAD GUIDE	1

Page 10 — 4. HAND LIFTER COMPONENTS

Juki DDL-8700-7 parts on page 10

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45

Page 11

Juki DDL-8700-7 parts on page 11

Ref	Part number	Part name	Qty
	229-07802	HAND LIFTER
	B1521-555-000	SCREW
	RO-0371801-00	RUBBER RING
	229-08552	HAND LIFTER CAM ASM.
	400-14007	PRESSER BAR BUSHING LOWER
	SS-7091110-TP	SCREW 9/64-40 L=10.5
	229-08701	LINK SHAFT
	RE-0500000-KO	E-RING
	B1524-012-0BA	PRESSER FOOT ASM.
	229-44706	WIRE HOLDER BRACKET, LOWER
	229-08909	HINGE SCREW
	SD-0720331-SP	HINGE SCREW D= 7.24 H= 3.3
	229-09006	KNEE LIFTER CONNECTING ROD
	229-08800	LIFTING LEVER LINK
	SS-7110410-SP	SCREW 11/64-40 L=4
	SS-7110720-SP	SCREW 11/64-40 L=7
	SS-4150915-SP	SCREW 15/64-28 L=9
	229-44508	WIRE HOLDER A
	SS-4120615-SP	SCREW 3/16-28 L=6
	229-44607	WIRE HOLDER BRACKET, UPPER
	NS-6620310-SP	NUT 3/16-32
	RE-0500000-KO	E-RING
	229-20201	TENSION RELEASE RETURN SPRING
	229-24109	THREAD RELEASE PIN SPRING
	229-45109	WIRE CABLE HOLDER
	229-20300	TENSION RELEASE SUPPORTING PIN
	SS-4120615-SP	SCREW 3/16-28 L=6
	110-45952	THREAD TENSION RELEASE WIRE
	229-20102	TENSION RELEASE SHAFT
	229-07554	PRESSER SPRING REG NUT ASM.
	229-07604	PRESSER ADJUSTING SCREW NUT
	229-07605	PRESSER SPRING REGULATOR
	229-07406	PRESSER ADJUSTING SPRING
	229-07208	PRESSER BAR GUIDE BRACKET
	229-07000	PRESSER BAR
	229-07307	PRESSER BAR THREAD GUIDE
	SS-8660810-TP	SCREW 1/4-40 L=8
	SS-6090910-SP	SCREW 9/64-40 L=9
	229-08354	KNEE LIFTING CROSS ROD ASM.
	229-08156	HAND LIFTER LINK
	RE-0500000-KO	E-RING
	229-08008	LIFTING LEVER
	RE-0500000-KO	E-RING
	229-08305	KNEE LIFTING CROSS ROD
	229-07703	PRESSER GUIDE BAR

Page 12 — 5. FEED MECHANISM COMPONENTS

Juki DDL-8700-7 parts on page 12

Ref	Part number	Part name	Qty
1	1	NUT
2	2	WASHER
3	3	SCREW
4	4	LINK
5	5	BUSH
6	6	SCREW
7	7	SPRING
8	8	PIN
9	9	SPRING
10	10	PIN
11	11	SCREW
12	12	SHAFT
13	13	PIN
14	14	SCREW
15	15	COLLAR
16	16	RING
17	17	SPRING
18	18	NUT
19	19	BRACKET
20	20	SCREW
21	21	NUT
22	22	SPRING
24	24	PIN
25	25	LINK
26	26	PIN
27	27	BRACKET
28	28	PIN
29	29	SPRING
30	30	SCREW
31	31	SHAFT
32	32	RING
33	33	PLATE
34	34	SCREW
35	35	BRACKET
36	36	SCREW
37	37	SPRING
38	38	BRACKET
39	39	SHAFT
40	40	PIN
41	41	SCREW
42	42	NUT
43	43	BRACKET
44	44	SCREW
45	45	SHAFT
46	46	SCREW
47	47	SCREW
48	48	SHAFT
49	49	SHAFT
50	50	SPRING
51	51	SHAFT
52	52	COLLAR
53	53	SCREW
54	54	RING
55	55	SHAFT
56	56	SCREW
57	57	SPRING
58	58	SHAFT
59	59	SCREW
60	60	BRACKET
61	61	SHAFT
62	62	SPRING
63	63	RING
64	64	SHAFT
65	65	COLLAR
66	66	BRACKET
67	67	SPRING
68	68	SCREW
69	69	BEARING
70	70	PLATE
71	71	COLLAR

Page 13

Juki DDL-8700-7 parts on page 13

Ref	Part number	Part name	Qty
	229-41108	FEED ADJUST ROD
	229-11507	FEED REGULATOR PIN
	SS-6090670-TP	SCREW 9/64-40 L=6	2
	229-11606	FEED REGULATOR
02	229-11705	FEED REGULATOR BUSHING
	SS-7120770-SH	SCREW 3/16-28 L=7
	229-11804	FEED REGULATOR SCREW
	229-12109	SPRING
	229-12000	FEED ADJUST PIN
	229-40506	FEED DIAL
	SS-6090620-TP	SCREW 3/16-28 L=18
	229-10202	ROCKER SHAFT CONNECTING ROD
	229-11101	WALKING FOOT PIN C
	SS-6090620-TP	SCREW
	229-15003	CONNECTING ROD
	RO-0922702-00	RUBBER RING
	110-10311	FEED REVERSE SPRING
	RE-0500000-KO	E-RING
	229-12257	FEED REVERSE ARM ASM.
	229-12505	SCREW
	RE-0500000-KO	E-RING
	110-37405	SPRING
02	229-11408	FEED REGULATOR CONNECTING ROD
	229-10905	WALKING FOOT PIN A
	229-10707	CONNECTING LINK B
	229-10608	CONNECTING LINK A
01	229-40951	FEED ADJUST LINK ASM.
	229-10806	ADJUSTING LINK FULCRUM SHAFT A
	SS-8150710-TP	SCREW 15/64-28 L=7	2
	SS-6090620-TP	SCREW	2
	229-40803	FEED BAR SHAFT
	RC-0150001-KP	RETAINING RING 13.8
	B1613-012-100	FEED DOG I
	SS-4080620-TP	SCREW 1/8-44 L=6	2
	229-40753	FEED BAR ASM.
	229-41306	ADJUSTING LINK SPRING GUIDE
	SS-4110515-SP	SCREW 11/64-40 L=5	2
	229-13701	FEED SPRING HOOK
	229-12901	FEED ROCKER SHAFT
	229-11002	WALKING FOOT PIN B
	SS-6090620-TP	SCREW
	NS-6680410-SP	NUT 9/32-28
	229-10350	SCREW ROCKER SHAFT CRANK ASM.
	SS-6121610-SP	SCREW 3/16-28 L=15.5	(1)
	229-15151	FEED ARM COMPL.
	SS-7121610-SP	SCREW 3/16-28 L=15.5	(1)
	SD-1000801-SH	HINGE SCREW D=10 H=8
	229-15201	FEED DRIVING SHAFT
	229-04155	THRUST COLLAR ASM.
	SS-8660610-TP	SCREW 1/4-40 L=6	(2)
	229-13008	FEED ROCKER SHAFT BUSHING
03	229-13800	HORIZONTAL FEED ROD B
	SS-7110740-TP	SCREW 11/64-40 L=7	(1)
	RC-0150001-KP	RETAINING RING 13.8
	229-40654	FEED BAR CRANK ASM.
	SS-7121410-TP	SCREW 3/16-28 L=14	(1)
	WP-0480856-SP	WASHER 4.8X8.4X0.8	(1)
	229-15359	DRIVING SHAFT CRANK ASM.
	SS-7111120-SP	SCREW 11/64-40 L=10.5	(1)
02	229-10459	WALKING FOOT ADJUSTING LINK
	229-04155	THRUST COLLAR ASM.
	SS-8660610-TP	SCREW 1/4-40 L=6	(2)
	RO-0781901-00	RUBBER RING
	229-12604	FEED REVERSE SHAFT
	229-12802	FEED LEVER METAL
	229-12752	FEED LEVER ASM.
	SM-8061050-TP	SCREW	(1)
	SM-8061010-TP	SCREW
06	B1613-012-A00	FEED DOG A
*OT	IT0-00800	FEED REGULATOR BUSHING
	DDL-8700-7-0B,-WB	FOR DDL-8700-7-0B,-WB
02	DDL-8700-7-00	FOR DDL-8700-7-00
03	JE, JA	FOR JE, JA
04	SELECTIVE PARTS(FOR JE, JA)	SELECTIVE PARTS(FOR JE, JA)
05	EXCEPT USE IN JAPAN	EXCEPT USE IN JAPAN
06	FOR USE IN JAPAN	FOR USE IN JAPAN

Page 14 — 6. THREAD TRIMMER COMPONENTS

Juki DDL-8700-7 parts on page 14

Ref	Part number	Part name	Qty
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
9	9	9
10	10	10
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33
34	34	34
35	35	35
36	36	36
37	37	37
38	38	38
39	39	39
40	40	40
41	41	41
42	42	42
43	43	43
44	44	44
45	45	45
46	46	46
47	47	47
48	48	48
49	49	49
50	50	50
51	51	51
52	52	52
53	53	53
54	54	54
55	55	55
56	56	56
57	57	57
58	58	58
59	59	59
60	60	60
61	61	61
62	62	62
63	63	63
64	64	64
65	65	65
11	11	11

Page 15

Juki DDL-8700-7 parts on page 15

Ref	Part number	Part name	Qty
	110-40359	KNIFE UNIT	1
	SB-0460703-TP	HINGE SCREW D=4.6 H=7	(1)
	110-40508	FORKED BASE FOR KNIFE	(1)
	110-40409	MOVING KNIFE HINGE SCREW	(1)
	110-40052	MOVING KNIFE ASM.	(1)
	110-40300	KNIFE MOUNTING BASE	(1)
	110-40201	THREAD GUIDE FOR KNIFE	(1)
	SS-2060210-SP	SCREW 3/32-56 L=2,3	(1)
	SS-4080620-TP	SCREW 1/8-44 L=6	(2)
	D2406-555-DOH	COUNTER KNIFE	(1)
	HK-0346101-40	HOUSING 14P	(1)
	SS-4110715-SP	SCREW 11/64-40 L=7	1
	229-50257	PICKER ARM ASM.	1
	229-50208	PICKER ARM	(1)
	229-50356	THREAD TAKE-UP PICKER ASM.	(1)
	SS-6090510-TP	SCREW 9/64-40 L=5.0	(2)
	SD-0641451-SP	HINGE SCREW D= 6.35 H=14.5	1
	SD-0630275-SP	HINGE SCREW D= 6.35 H= 2.7	1
	110-42850	THREAD TRIMMER CAM ASM.	1
	SS-6660610-TP	SCREW 1/4-40 L=6	(2)
	229-50950	CAM COLLAR ASM.	(1)
	SS-8110520-TP	SCREW 11/64-40 L=4.5	(1)
	229-49762	THREAD TRIMMER DRIVING UNIT	1
	229-49754	BASE PLATE ASM.	(1)
	229-50703	DRIVING ARM STOPPE	(1)
	229-50000	PICKER LINK PIN	(1)
	RE-0600000-KO	E-RING 6	(1)
	SS-4110715-SP	SCREW 11/64-40 L=7	(2)
	229-49408	CLUTCH SPRING	(1)
	110-41852	CLUTCH PLATE ASM.	(1)
	229-50109	PICKER LINK	(1)
	WP-0621016-SH	WASHER	(2)
	NS-6150430-SP	NUT 15/64-28	(2)
	RE-0600000-KO	E-RING 6	(1)
	229-48301	MOVING KNIFE LINK	(1)
	RE-0500000-KO	E-RING	(1)
	229-48400	MOVING KNIFE LINK PIN	(1)
	229-49309	KNIFE RETURN SPRING B	(1)
	RE-0400000-KO	E-RING 4	(2)
	229-49101	ROLLER FULCRUM SHAFT	(1)
	229-49200	ROLLER FULCRUM SPRING	(1)
	SS-7090610-SP	SCREW 9/64-40 L=6	(1)
	229-49002	ROLLER ARM BRACKET	(1)
	110-40953	ROLLER ARM ASM.	(1)
	110-40854	KNIFE DRIVING ARM ASM.	(1)
	HK-0346400-0B	PIN CONTACT	2
	SS-4150915-SP	SCREW 15/64-28 L=9	2
	SD-0640631-TP	HINGE SCREW D=6.35 H=6.3	1
	229-51164	SOLENOID UNIT	1
	229-49903	CLUTCH LINK	(1)
	RE-0500000-KO	E-RING	(1)
	110-43205	SOLENOID RUBBER A	(1)
	110-43908	THREAD TRIMMER SOLENOID	(1)
	229-51404	SOLENOID BASE	(1)
	WP-0450000-SD	WASHER 4.5X8X0.5	(2)
	NM-6040000-SN	NUT M4	(2)
	110-43304	SOLENOID RUBBER	(1)
	NS-6660410-SN	NUT	(1)
	NS-6660430-SP	NUT 1/4-40	(1)
	229-51008	SOLENOID PIN	(1)
	SS-6110710-TP	SCREW 11/64-40 L=6.5	(1)
	SD-0600361-SP	HINGE SCREW D=6 H=3.6	1
	SS-4151215-SP	SCREW 15/64-28 L=12	2
	229-24807	TUBE HOLDER, LOWER	1
	229-51552	GROUND WIRE ASM.	1

Page 16 — 7. AUTOMATIC REVERSE FEED COMPONENTS

Juki DDL-8700-7 parts on page 16

Ref	Part number	Part name	Qty
	229-54150	REVERSE FEED SWITCH ASM.	1
	229-54606	REVERSE FEED SWITCH COVER	(1)
	SM-4040655-SP	SCREW M4 L=6	(1)
	229-54101	REVERSE FEED SWITCH BASE	(1)
	229-54200	REVERSE FEED SWITCH SHAFT	(1)
	229-54309	REVERSE FEED SWITCH SPRING	(1)
	SM-4041665-SP	SCREW M4 L=16	(1)
	SM-4031501-SC	SCREW M3 L=15	(2)
	HW-5000700-00	2-CORE CABTYRE CORD	(1.31)
	HK-0346400-0B	PIN CONTACT	(2)
	HIA-0019000-00	MICROSWITCH	1
	229-54408	SWITCH HOLDING PLATE	1
	229-54607	REVERSE FEED SWITCH LEVER	1
	RE-0500000-KP	E-RING 5	2
	229-53806	REVERSE FEED CONNECTING SHAFT	1
	RE-0900000-KD	E-RING 9	1
	229-53657	CONNECTING ARM ASM.	1
	RE-0400000-KP	E-RING 4	1
	229-53905	REVERSE FEED CONNECTING LINK	1
	RE-1200000-KO	E-RING 12	1
	WP-1602616-SZ	WASHER 16X24X2.6	2
	D2468-555-B00	RUBBER PLUNGER	1
	RE-0400000-KD	E-RING 4	2
	229-53509	PLUNGER ARM PIN	1
	111-02753	REVERSE FEED MAGNET ASM.	1
	SS-4T61215-SP	SCREW 15/64-28 L=12	2
	SS-4120915-SP	SCREW 3/16-28 L=9	1
	229-54002	PLUNGER SPRING	2
	HK-0346400-0B	PIN CONTACT	1
	SS-4120615-SP	SCREW 3/16-28 L=6	1

Page 17 — 8. WIPER COMPONENTS

Juki DDL-8700-7 parts on page 17

Ref	Part number	Part name	Qty
	229-55553	WIPER ASM.	(1)
	229-55504	WIPER COVER	(1)
	SL-4030631-SC	SCREW M3X6	(1)
	SD-0650321-TP	HINGE SCREW D=6.5 H=3.2	(1)
	NS-6090310-SP	NUT 9/64-40	(1)
	229-56106	WIPER LINK A	(1)
	229-66403	WIPER LINK B	(1)
	RE-0250000-KO	E-RING 2.5	(1)
	229-56908	WIPER LINK B, HINGE SCREW	(1)
	229-56205	WIPER HINGE SCREW COLLAR	(1)
	229-56304	WIPER SPRING	(1)
	NS-6110310-SP	NUT 11/64-40	(1)
	229-55900	WIPER RUBBER A	(1)
	229-56007	WIPER RUBBER B	(1)
	111-10301	WIPER SOLENOID	(1)
	229-57104	WIPER SOLENOID SHAFT	(1)
	HA-0005900-00	POWER SWITCH	(1)
	HW-2003900-00	ELECTRIC WIRE	(0.04)
	HW-5000700-00	2-CORE CABTYRE CORD	(1.33)
	111-10152	WIPER BASE ASM.	(1)
	229-57203	WIPER LINK COLLAR	(1)
	SL-4030641-SE	SCREW	(3)
	HK-0346400-OB	PIN CONTACT	(2)
	229-57005	WIPER	(1)
	SS-6090540-SP	SCREW 9/64-40 L=5.0	(1)
	229-56809	WIPER COLLAR	(1)
	RE-0500000-KO	E-RING	(1)
	111-11051	WIPER DRIVING SHAFT ASM.	(1)
	SS-4120915-SP	SCREW 3/16-28 L=9	1

Page 18 — 9. OIL LUBLICATION COMPONENTS

Juki DDL-8700-7 parts on page 18

Ref	Part number	Part name	Qty
	1	cap
	2	packing
	3	tube
	4	screw
	5	plate
	6	screw
	7	screw
	8	oil pump
	9	plug
	10	spring
	11	tube
	12	base
	13	bracket
	14	screw
	15	shaft
	16	gasket
	17	cover
	18	plate
	19	collar
	20	screw
	21	nut
	22	bearing
	23	screw
	24	needle
	25	screw
	26	tube
	27	washer
	28	oil cup
	29	screw
	30	tube
	31	washer

Page 19

Juki DDL-8700-7 parts on page 19

Ref	Part number	Part name	Qty
	229-47006	OIL SIGHT WINDOW	1
	RO-1952401-00	RUBBER RING	1
	229-24401	MAIN SHAFT OIL TUBE	1
	SS-4120615-SP	SCREW 3/16-28 L=6	1
	229-25101	OIL FELT PRESSER	1
	229-24153	OIL RETURN TUBE ASM.	1
	229-24302	HOLDER	(1)
	CQ-2520000-00	OIL WICK	0.3
	229-25002	OIL ADJUSTING SCREW	1
	229-24906	SPRING	1
	229-24500	OIL TUBE	1
	229-23056	LUBRICATING OIL PUMP ASM.	1
	229-23312	OIL PUMP INSTALLING BASE	(1)
	229-23015	OIL PUMP	(1)
	229-23700	OIL PUMP IMPELLER	(1)
	SE-4301041-SR	SCREW D=3 L=10	(3)
	229-23205	LUBRICATING OIL PUMP COVER	(1)
	229-23809	OIL PUMP IMPELLER COVER	(1)
	229-23403	PLUNGER	(1)
	229-23601	PLUNGER SPRING	(1)
	229-23502	PLUNGER SCREW	(1)
	229-23908	HOOK DRIVING SHAFT OIL TUBE	(1)
	SL-4030851-SF	SCREW M3 L=8	(3)
	SS-4150915-SP	SCREW 15/64-28 L=9	1
	SS-6111010-TP	SCREW 11/64-40 L=9.5	1
	229-47105	OIL PUMP SUPPORT	1
	SS-4151215-SP	SCREW 15/64-28 L=12	1
	229-24609	RUBBER JOINT	1
	WS-0451040-KP	SPRING WASHER 4.5X8.5X1	1
	229-24005	OIL PUMP SUPPORT	1
	WS-0651310-KP	SPRING WASHER 6.5X11X1.3	1

Page 20 — 10. OIL RESERVOIR COMPONENTS

Juki DDL-8700-7 parts on page 20

Ref	Part number	Part name	Qty
	1	OIL RESERVOIR
	2	GASKET
	3	BOLT
	4	WASHER
	5	BOLT
	6	OIL LEVEL GAUGE
	7	SHAFT
	8	BRACKET
	9	NUT
	10	SPRING
	11	LEVER
	12	PIN
	13	BRACKET
	14	PIN
	15	BOLT
	16	BOLT
	17	BRACKET
	18	COVER
	19	SCREW
	20	HANDLE
	21	SCREW
	22	WASHER
	23	SPRING
	24	BOLT
	25	PLUG
	26	PLUG

Page 22 — 11. BELT COVER & BOBBIN COMPONENTS

Juki DDL-8700-7 parts on page 22

Ref	Part number	Part name	Qty
	229-33451	BELT COVER ASM.
	229-33402	BELT COVER A
	229-33501	BELT COVER A CAP
	229-33659	BELT COVER B COMPL.
	229-33600	BELT COVER B
	229-33758	BELT COVER B CAP ASM.
	229-33907	BELT COVER SUPPORT
	229-34004	BELT COVER A SCREW
	SS-4121415-SP	SCREW 3/16-28 L=14
	WP-0501016-SD	WASHER 6X10.5X1
	SK-3412000-SC	WOOD SCREW D=4.1 L=20
	WP-0450826-SC	WASHER 4.5X10X0.8
	229-27354	BOBBIN WINDER CONPL.
	229-28501	BOBBIN WINDER BRACKET
	SS-4110515-SP	SCREW 11/64-40 L=5
	229-28709	THREAD TENSION SPRING
	229-29004	THREAD TENSION SPRING
	229-28808	THREAD TENSION SPRING
	SS-7110350-SP	SCREW 11/64-40 L=3.5
	229-26402	BRAKE PRESSER PLATE
	229-28303	RUBBER BRAKE
	SD-0490261-SP	BOBBIN WINDER FINGER
	SS-7081310-SP	HINGE SCREW D=4.9 H=2.6
	SS-8110510-SP	SCREW 1/8-44 L=12.5
	229-28709	THREAD TENSION SPRING
	229-27305	BOBBIN BASE
	229-27404	BOBBIN PULLEY
	229-27602	BOBBIN WINDER POST
	SK-3412000-SC	WOOD SCREW D=4.1 L=20
	WP-0450826-SC	WASHER 4.5X10X0.8

Page 23 — 12. THREAD STAND COMPONENTS

Juki DDL-8700-7 parts on page 23

Ref	Part number	Part name	Qty
1	229-30358	THREAD STAND ASM.
2	229-31109	SPOOL RETAINER
3	229-31000	SPOOL PIN
4	229-30903	SPOOL REST CUSHION
5	229-30804	SPOOL REST
6	SM-6061610-SC	SCREW M6 L=16
7	229-30705	THREAD GUIDE ARM JOINT
8	229-31406	SPOOL REST ROD RUBBER CAP
9	229-30507	SPOOL REST ARM
10	229-30408	SPOOL REST ROD, UPPER
11	229-31307	SPOOL REST ROD JOINT
12	SM-4051405-SE	SCREW M6 L=14
13	NM-6050001-SE	NUT M5
14	229-30309	SPOOL REST ROD, LOWER
15	229-31208	THREAD GUIDE
16	WS-0510002-KN	SPRING WASHER
17	NM-6050001-SE	NUT M16X1.5
18	WP-1612616-SE	WASHER 16X30X2.6
19	WS-1643202-KR	SPRING WASHER

Page 24 — 13. EXCLUSIVE PARTS FOR DDL-8700H-7

Juki DDL-8700-7 parts on page 24

Ref	Part number	Part name	Qty
	1	Lever
	2	Shaft
	3	Lever
	4	Bracket
	5	Lever
	6	Lever
	7	Screw
	8	Pin
	9	Screw
	10	Screw
	11	Screw
	12	Screw
	13	Pin
	14	Needle Plate
	15	Spring
	16	Screw
	17	Lever
	18	Screw
	19	Linkage
	20	Shaft
	21	Needle Bar
	22	Lever
	23	Shaft
	24	Lever
	25	Shaft
	26	Bracket
	27	Plate
	28	Spring
	29	Presser Foot
	30	Bracket
	31	Screw
	32	Cord
	33	Handwheel
	34	Spring
	35	Bracket
	36	Presser Foot
	37	Motor Housing
	38	Motor
	39	Roller
	40	Screw
	41	Nut
	42	Lever
	43	Rod
	44	Screw
	45	Lever
	46	Washer
	47	Bracket
	48	Nut
	49	Screw
	50	Needle
	51	Bobbin Winder
	52	Bracket
	53	Screw
	54	Washer
	55	Spring
	56	Lever
	58	Screw
	60	Shaft
	61	Screw
	62	Bobbin Winder
	63	Spring

Page 25

Juki DDL-8700-7 parts on page 25

Ref	Part number	Part name	Qty
	110-96062	THREAD CUTTING DRIVING UNIT	1
	110-95551	KNIFE UNIT	1
	114-09257	MOVING KNIFE J ASM.	1
	110-95502	KNIFE MOUNT BASE	1
	114-09604	FIX KNIFE	1
	110-95403	KNIFE THREAD GUIDE	1
	110-95601	KNIFE BRANCH	1
	SB-0500131-TP	HINGE SCREW D=5 H=1.25	1
	D2404-555-B00	COUNTER KNIFE SPACER	1
	SB-0460703-TP	HINGE SCREW D=4.6 H=7	1
	SS-2060210-SP	SCREW 3/32-56 L=2.3	1
	SS-4080620-TP	SCREW 1/8-44 L=6	2
02	400-10395	ADJUSTING LINK FULCRUM SHAFT B	1
	114-00801	THROAT PLATE J	1
	B1213-552-000-A	OIL ADJUSTING PIN	1
	SS-6080320-SP	SCREW 1/8-44 L=2.5	1
02	110-95254	LEVER STOPPER ASM.	1
02	SS-1120710-SP	SCREW 3/16-28 L=6.5	1
	110-91659	LINK THREAD TAKE-UP LEVER ASM.	1
	110-91600	NEEDLE BAR CRANK H	1
	MDB-100B2100	NEEDLE DBXT #21	1
	B1418-415-H00	NEEDLE BAR THREAD GUIDE	1
	229-70313	NEEDLE BAR BUSHING,LOWER	1
	B1419-553-000	NEEDLE BAR THREAD GUIDE	1
	229-70206	NEEDLE BAR	1
	110-92251	LUBRICATING BOBBIN ASM.	1
	110-93804	POSITIONING FINGER H	1
	B1505-552-000-A	PRESSER FOOT ASM.	1
	D1524-555-EBL	PRESSER FOOT ASM.	1
02	229-62807	WIRE PRESSER PLATE(LOWER),B	1
02	SS-7110740-TP	SCREW 11/64-40 L=7	1
	M6009-350-AAA	RESISTANCE PACK AA ASM.	1
	229-11903	FEED DIAL	1
	110-91204	ADJUST LINK SPRING	1
	229-62203	FEED SPRING HOOK	1
	114-03003	FEED J	1
02	110-96658	SOLENOID MOUNTING BASE ASM.	1
02	112-31503	OIL PUMP SUPPORT	1
02	229-62609	REVERSE FEED BASE COLLAR	1
02	229-62906	PLUNGER ARM PIN	1
02	NS-6110420-SP	NUT 11/64-40	2
02	229-62708	TUBE HOLDER, LOWER	1
	110-94109	OIL TUBE	1
02	SD-0700711-TP	HINGE SCREW D=7 H=7.1	1
02	229-62500	SOLENOID CONNECTING LINK, H	1
02	WP-0722316-SH	WASHER	1
02	111-01508	REVERSE FEED LINK	1
02	NS-6110420-SP	NUT 11/64-40	1
02	SB-0700511-TP	HINGE SCREW D=7 H=4.5	1
01	MC-2005013-00	NEEDLE 134 NM130	1
	229-62351	FEED DRIVE ECCENTRIC CAM ASM.	1
	114-03805	THREAD GUIDE C FITTING PLATE	1
	WP-0371016-SD	WASHER 3.7X8X1	1
	NS-6090310-SP	NUT 9/64-40	1
	113-05513	ARM THREAD GUIDE, C	1
	110-94604	CLUTCH LINK	1
	110-96500	THREAD TRIMMER SOLENOID	1
	SD-0550701-TP	STEP-SCREW D=5.5 H=7	1
	110-94901	SOLENOID BASE	1
	229-63458	THREAD TENSION ASM.	(1)
	229-63409	THREAD TENSION SPRING	(1)
	229-62054	THREAD TENSION ASM.	(1)
	229-62005	THREAD TENSION SPRING	(1)

Page 26 — 14. EXCLUSIVE PARTS FOR DDL-8700J-7

Juki DDL-8700-7 parts on page 26

Ref	Part number	Part name	Qty
	1	Lever assy.
	2	Presser bar lifter lever
	3	Lever
	4	Lever
	5	Lever
	6	Lever
	7	Lever
	8	Lever
	9	Lever
	10	Screw
	11	Screw
	12	Screw
	13	Shaft
	14	Needle plate
	15	Needle plate
	16	Bracket
	17	Lever
	18	Screw
	19	Shaft
	20	Shaft
	21	Needle bar
	22	Needle bar connecting ring
	23	Needle bar connecting ring
	24	Spring
	25	Shaft
	26	Rotary hook
	27	Feed dog
	28	Spring
	29	Presser foot
	30	Bracket
	31	Screw
	32	Cover
	33	Stitch regulator dial
	34	Screw
	35	Bracket
	36	Presser foot
	37	Motor
	38	Screw
	39	Roller
	40	Screw
	41	Nut
	42	Spring
	43	Wire
	44	Screw
	45	Washer
	46	Washer
	47	Lever
	48	Nut
	49	Screw
	50	Bracket
	51	Feed mechanism
	52	Feed mechanism
	53	Spring
	54	Screw
	55	Wire
	56	Lever
	57	Feed mechanism
	58	Screw
	59	Bracket
	60	Bobbin winder
	61	Screw
	62	Bobbin winder
	63	Spring
	64	Thread tension assembly
	65	Screw
	66	Bracket
	67	Spring
	68	Lever
	69	Screw
	70	Spring
	71	Lever
	72	Screw
	73	Bracket
	74	Lever
	75	Screw
	76	Clamp
	77	Spring

Page 27

Juki DDL-8700-7 parts on page 27

Ref	Part number	Part name	Qty
	110-96062	THREAD CUTTING DRIVING UNIT	1
	110-95551	KNIFE UNIT	(1)
	114-09257	MOVING KNIFE J ASM.	(1)
	110-95502	KNIFE MOUNT BASE	(1)
	114-09604	FIX KNIFE	(1)
	110-95503	KNIFE THREAD GUIDE	(1)
	110-95601	KNIFE BRANCH	(1)
	SD-0500131-TP	HINGE SCREW D=5 H=1.25	(1)
	D2404-555-B00	COUNTER KNIFE SPACER	(1)
	SD-0460703-TP	HINGE SCREW D=4.6 H=7	(1)
	SS-2060210-SP	SCREW 3/32-56 L=2.3	(1)
	SS-4080620-TP	SCREW 1/8-44 L=6	(2)
	400-10395	ADJUSTING LINK FULCRUM SHAFT B	1
	114-00801	THROAT PLATE J	1
	B1213-552-000-A	OIL ADJUSTING PIN	1
	SS-6080320-SP	SCREW 1/8-44 L=2.5	1
	110-95254	LEVER STOPPER ASM.	1
	SS-7110710-SP	SCREW 3/16-28 L=6.5	1
	110-62858	LINK THREAD TAKE-UP LEVER ASM.	1
	110-62809	NEEDLE BAR	(1)
	MDP-500B2100	NEEDLE DPX5 #21	(1)
	229-70404	NEEDLE BAR BUSHING, UPPER	1
	229-70313	NEEDLE BAR BUSHING, LOWER	1
	400-12444	NEEDLE BAR THREAD GUIDE	1
	229-70206	NEEDLE BAR	1
	400-35058	HOOK ASM.	1
	229-42502	INNER HOOK PRESSER	1
	B1505-552-000-A	PRESSER FOOT ASM.	1
	D1524-555-EBL	PRESSER FOOT ASM.	1
	229-62807	WIRE PRESSER PLATE(LOWER), B	1
	SS-7110740-TP	SCREW 11/64-40 L=7	1
	M6009-350-AAA	RESISTANCE PACK AA ASM.	1
	400-31345	FEED DIAL	1
	WP-0371016-SD	WASHER 3.7X8X1	1
	229-70602	FEED SPRING HOOK	1
	TT4-03003	FEED J	1
	110-96658	SOLENOID MOUNTING BASE ASM.	1
	112-31503	OIL PUMP SUPPORT	1
	229-62609	REVERSE FEED BASE COLLAR	1
	229-62906	PLUNGER ARM PIN	1
	NS-6110420-SP	NUT 11/64-40	2
	229-62708	TUBE HOLDER, LOWER	1
	110-94109	OIL TUBE	1
	SD-0700711-TP	HINGE SCREW D=7 H=7.1	1
	229-62500	SOLENOID CONNECTING LINK, H	1
	WP-07223T6-SD	WASHER	1
	111-01508	REVERSE FEED LINK	1
	NS-6110420-SP	NUT 11/64-40	1
	SD-0700451-TP	HINGE SCREW D=7 H=4.5	1
	114-03805	THREAD GUIDE C FITTING PLATE	1
	229-70552	FEED ECCENTRIC CAM ASM.	1
	229-70503	FEED ECCENTRIC CAM L	(1)
	229-72806	FEED ECCENTRIC CAM SETSCREW	(1)
	NS-6090310-SP	NUT 9/64-40	1
	113-05513	ARM THREAD GUIDE, C	1
	110-94604	CLUTCH LINK	1
	110-96600	THREAD TRIMMER SOLENOID	1
	SD-0550701-TP	STEP SCREW D=5.5 H=7	1
	110-94901	SOLENOID BASE	1
	229-63468	THREAD TENSION ASM.	1
	229-63409	THREAD TENSION SPRING	1
	229-62054	THREAD TENSION ASM.	(1)
	229-62005	THREAD TENSION SPRING	(1)
	229-70701	HORIZONTAL FEED ROD	1
	229-71204	FEED REGULATOR BASE PIN	1
	113-02619	SPRING	1
	229-71550	FEED LEVER ARM ASM.	1
	SS-7121410-TP	SCREW 3/16-28 L=14	1
	229-71909	FEED LEVER SPRING	1
	229-72251	VERTICAL FEED ARM ASM.	1
	SS-6121610-SP	SCREW 3/16-28 L=15.5	(1)
	400-31240	FEED ADJUST LINK ASM.	1
	400-31244	FEED ADJUST ROD	1
	400-31249	HINGE SCREW	1
	229-70859	HORIZONTAL FEED ARM ASM.	1
	SS-6121610-SP	SCREW 3/16-28 L=15.5	(1)

Page 28 — 15. EXCLUSIVE PARTS FOR DDL-8700A-7

Juki DDL-8700-7 parts on page 28

Ref	Part number	Part name	Qty
1	400-11503	THREAD TENSION ASM.	1
2	D3128-555-D00	TAKE-UP SPRING	(1)
3	D3129-555-D00	THREAD TENSION SPRING	(1)
4	M6018-350-AAA	RESISTANCE PACK AA ASM.	1
5	D1524-555-DBA	PRESSER FOOT ASM.	1
6	229-64001	BOBBIN (A)	1
7	B1837-012-0A0	BOBBIN CASE ASM.	1
8	B1505-227-T00-A	PRESSER SPRING T	1
9	MC-2005006-50	NEEDLE 134 NM65	1
10	MDA-100B0900	NEEDLE DAX1 #9	(1)
11	110-92558	HAND LIFTER CAM ASM.	1

Page 29 — 16. LIST FOR INFORMATION OF CHANGE

Juki DDL-8700-7 parts on page 29

Ref	Part number	Part name	Qty
31	110-01500	110-01500
31	229-21001	229-21001
58	229-01904	229-01904
58	114-15205	114-15205
63	M6008-350-AAC	M6008-350-AAC
65	0510002-KP	0510002-KP
19	SS-6090650-SP	SS-6090650-SP
19	SS-4090615-SP	SS-4090615-SP
39	229-16605	229-16605
39	110-15906	110-15906
7	110-06509	110-06509
7	229-08701	229-08701
29	110-18108	110-18108
29	229-20102	229-20102
59	B1636-581-C00	B1636-581-C00
69	229-14105	229-14105
68	229-12703	229-12703
66	229-12752	229-12752
71	110-09800	110-09800
3	SL-4030621-SS	SL-4030621-SS
3	SL-4030631-SC	SL-4030631-SC
3	229-32156	229-32156
7	229-32453	229-32453
13	B8228-125-000	B8228-125-000
57	110-09800	110-09800
24	ALL PARTS-全 部	ALL PARTS-全 部
6	B9117-552-A00	B9117-552-A00
6	229-64001	229-64001

Page 30 — NUMERICAL INDEX OF PARTS

Juki DDL-8700-7 parts on page 30

Ref	Part number	Part name	Qty
44	B1109-012-10B		2
60	B1109-552-000		2
15	B1213-552-000-A		22
15	B1213-552-000-A		24
26	B1215-552-000		4
14	B1305-012-0A0		6
16	B1306-155-0A0		6
13	B1306-155-0B0		6
12	B1306-155-0C0		6
19	B1307-155-0A0		6
18	B1307-155-0B0		6
21	B1308-155-0A0		6
8	B1408-552-000		4
6	B1414-555-000		6
24	B1418-415-H00		22
24	B1419-553-000		22
28	B1505-552-000-A		22
28	B1505-552-000-A		24
2	B1521-555-000		8
70	B1524-012-0BA		10
8	B1613-012-A00		8
33	B1613-012-A00		10
7	B1837-012-0A0		25
9	B1903-552-000		4
6	B1905-541-B00		4
43	B3118-552-E00		2
26	B8228-125-000		18
70	CM-3002000-B1		2
12	CM-3002001-B1		2
13	CM-3002001-A1		2
63	CM-3002001-01		2
8	CQ-2520000-00		16
5	D1524-555-DBA		25
29	D1524-555-EBL		24
9	D2404-555-B00		22
9	D2404-555-B00		24
10	D2406-555-D0H		12
22	D2468-555-B00		13
2	D3128-555-D00		25
3	D3129-555-D00		25
28	EA-9500B01-00		4
17	HA-0005900-00		14
11	HA-0019000-00		13
46	HK-0346401-RO		12
10	HK-0346400-0B		13
29	HK-0346400-0B		13
23	HK-0346400-0B		14
18	HW-2003900-00		14
9	HW-5000700-00		13
19	HW-5000700-00		14
9	MC-2005006-50		25
28	MC-2005009-00		6
10	MDA-100B0900		25
11	MDB-100B1400		6
21	MDB-100B2100		22
21	MDP-500B2100		24
32	M6009-350-AAA		22
32	M6009-350-AAA		24
4	M6018-350-AAA		25
56	NM-6040000-SN		12
13	NM-6050001-SE		20
17	NM-6050001-SE		20
9	NM-6060001-SE		18
18	NM-6160511-SE		20
5	NS-6090310-SP		14
54	NS-6090310-SP		22
54	NS-6090310-SP		24
54	NS-6110310-SP		24
41	NS-6110420-SP		22
41	NS-6110420-SP		22
48	NS-6110420-SP		24
48	NS-6110420-SP		24
32	NS-6620310-SP		10
58	NS-6660410-SP		12
42	NS-6680410-SP		10
32	RC-0150001-KP		10
32	RC-01850001-KP		10
32	RE-0250000-KP		10
18	RE-0400000-KO		13
54	RE-0500000-KO		10
39	RE-0500000-KO		12
8	RE-0500000-KO		14
14	RE-0500000-KO		13
39	RE-0500000-KO		13
22	RE-0500000-KO		8
41	RE-0500000-KO		8
43	RE-0500000-KO		8
18	RE-0500000-KO		10
21	RE-0500000-KO		10
36	RE-0500000-KO		12
51	RE-0500000-KO		12
27	RE-0600000-KO		12
27	RE-0600000-KO		12
16	RE-0900000-KO		13
20	RE-1000000-KO		13
13	RO-0291801-00		4
3	RO-0371801-00		4
63	RO-0781901-00		10
16	RO-0922702-00		10
6	RO-1082401-00		18
2	RO-1952401-00		16
19	SD-0460703-TP		22
19	SD-0460703-TP		24
23	SD-0490261-SP		19
10	SD-0500131-TP		22
8	SD-0500131-TP		24
58	SD-0550701-TP		22
58	SD-0550701-TP		24
62	SD-0600361-SP		12
18	SD-0630275-SP		12
12	SD-0640631-TP		12
4	SD-0641451-SP		14
17	SD-0650321-SP		12
49	SD-0700451-TP		12
29	SD-0700451-TP		14
49	SD-0706451-TP		22
49	SD-0707111-TP		22
49	SD-0707111-TP		24
44	SD-0720331-SP		24
47	SD-1000801-SP		10
11	SE-4301041-SR		16
30	SK-3412000-SP		19
3	SL-4030631-SP		14
22	SL-4030641-SP		16
45	SL-4051001-MZ		4
8	SL-4051001-SC		13
3	SM-4031501-SP		13
12	SM-4040655-SP		20
6	SM-4041655-SP		20
9	SM-6061610-SP		18
68	SM-8061010-TP		10
67	SM-8061050-TP		10
10	SM-8063012-TP		18
24	SM-9061203-SE		18
16	SM-9061853-SR		18
18	SS-1120710-SP		22
18	SS-1120710-SP		24
11	SS-2060210-SP		12
11	SS-2060210-SP		22
46	SS-2110915-SP		2
45	SS-2110920-TP		2
34	SS-4080620-TP		10
9	SS-4080620-TP		12
12	SS-4080620-TP		22
12	SS-4080620-TP		24
19	SS-4090615-SP		4
37	SS-4090615-SP		10
15	SS-4110515-SP		19
12	SS-4110515-SP		12
28	SS-4110715-SP		12
33	SS-4110915-TP		6
15	SS-4120615-SP		2
27	SS-4120615-SP		2
29	SS-4120615-SP		2
19	SS-4120615-SP		8
27	SS-4120615-SP		8
30	SS-4120615-SP		13
50	SS-4120915-SP		2
45	SS-4120915-SP		6
27	SS-4120915-SP		13
64	SS-4121215-SP		2
26	SS-4121215-SP		13
27	SS-4121215-SP		16
17	SS-4150915-SP		8
47	SS-4150915-SP		12
24	SS-4150915-SP		16
54	SS-6060210-SP		2
16	SS-6060210-SP		12
16	SS-6080320-SP		22
16	SS-6080320-SP		24
3	SS-6080410-SP		24
16	SS-6090510-SP		12
25	SS-6090540-SP		14
14	SS-6090620-TP		10
30	SS-6090620-TP		10
41	SS-6090620-TP		10
5	SS-6090670-TP		6
3	SS-6090670-TP		10
38	SS-6090910-SP		8
30	SS-6110420-TP		6
48	SS-6110610-TP		2
61	SS-6110710-TP		12
25	SS-6111010-TP		16
37	SS-6121610-SP		4
44	SS-6121610-SP		10
72	SS-6121610-SP		24
17	SS-6121840-SP		2
20	SS-6660610-TP		12
17	SS-6661110-SP		4
5	SS-6700710-SH		18
9	SS-7080510-TP		6
24	SS-7081310-SP		19
6	SS-7091110-SP		8
19	SS-7110350-SP		19
15	SS-7110410-SP		8
62	SS-7110540-SP		2
16	SS-7110720-SP		8
53	SS-7110740-TP		10
31	SS-7110740-TP		22
31	SS-7110740-TP		24
59	SS-7111120-SP		10
6	SS-7120770-SH		10
56	SS-7121410-TP		10
69	SS-7121410-TP		24
46	SS-7121610-SP		10
14	SS-7681650-TP		4
41	SS-8090670-SP		2
37	SS-8110410-TP		6
25	SS-8110510-SP		19
22	SS-8110520-TP		12
42	SS-8150710-TP		2
1	SS-8151150-TP		4
33	SS-8151550-SP		4
12	SS-8660610-TP		4
24	SS-8660610-TP		4
50	SS-8660610-TP		10
62	SS-8660610-TP		10
15	SS-8660810-TP		6
17	SS-8660810-TP		6
20	SS-8660810-TP		6
22	SS-8660810-TP		6
11	SS-8681650-TP		4
5	TA-0850604-RO		2
49	TA-1250406-RO		2
6	TA-1250705-RO		2
16	TA-2000502-RO		2
19	TA-2101002-RO		2
53	WP-0371016-SD		22
34	WP-0371016-SD		24
55	WP-0450000-SD		12
32	WP-0450801-SD		4
12	WP-0450826-SC		19
31	WP-0450826-SC		19
57	WP-0480856-SP		10
66	WP-0501016-SD		2
10	WP-0501016-SD		19
32	WP-0621016-SH		12
46	WP-0722316-SH		22
46	WP-0722316-SH		24
21	WP-1602616-SZ		13
19	WP-1612616-SE		20
29	WS-0451040-KP		16
16	WS-0510002-KN		20
31	WS-0651310-KP		16
20	WS-1643202-KR		20
56	WT-0530002-KS		2
11	110-00619		2
20	110-02409		4
21	110-02508		4
3	110-02904		4
7	110-05204		4
71	110-09800		10
17	110-10311		10
39	110-15906		6
65	110-28008		2
59	110-30202		2
22	110-37405		10
34	110-38650		6
42	110-38759		6
5	110-39062		4
4	110-39070		4
5	110-40052		12
7	110-40201		12
6	110-40300		12
1	110-40359		12
4	110-40409		12
3	110-40508		12
45	110-40854		12
44	110-40953		12
30	110-41852		12
19	110-42850		12
52	110-43205		12

Page 31 — NUMERICAL INDEX OF PARTS

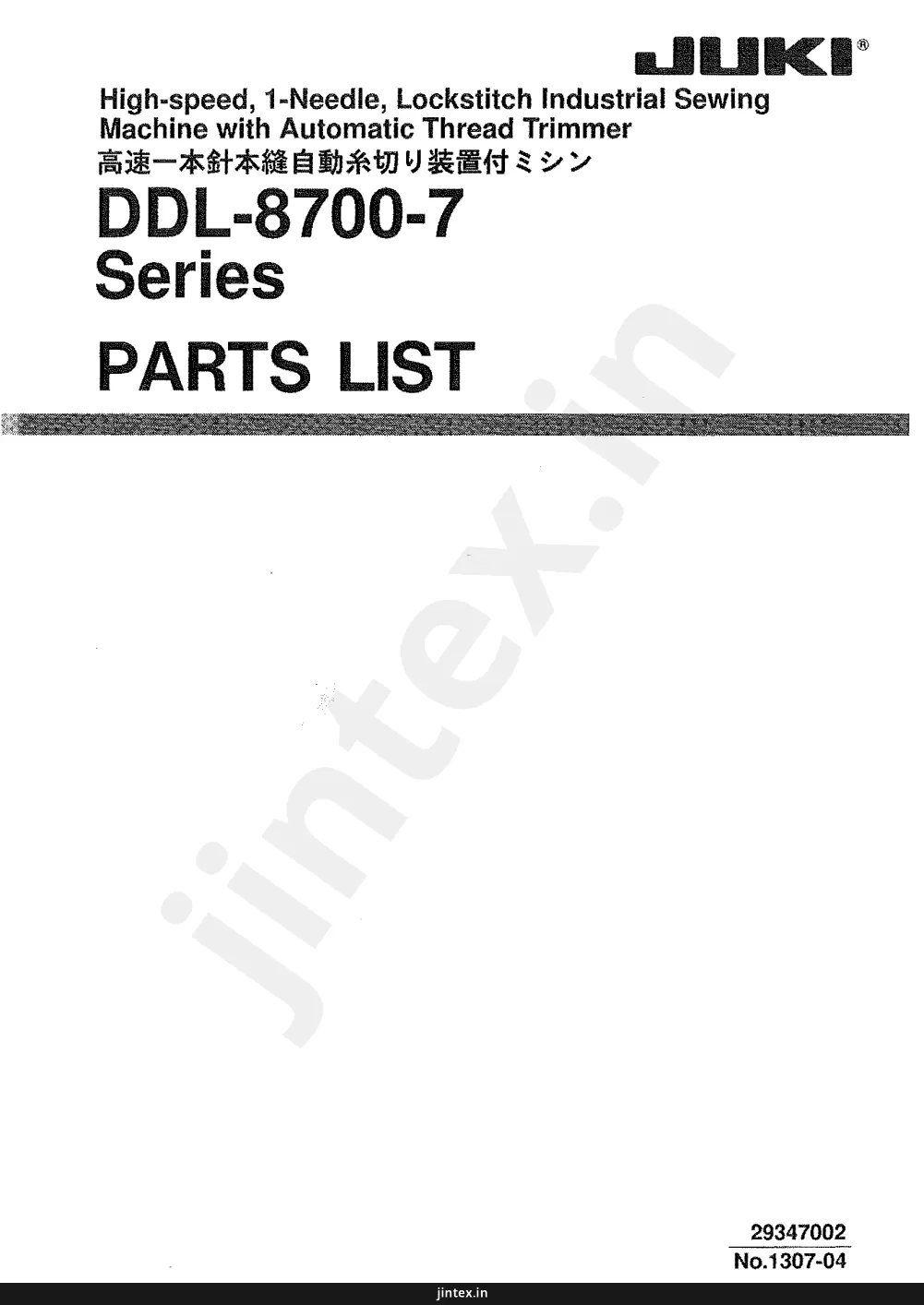

Juki DDL-8700-7 parts on page 31

Ref	Part number	Part name	Qty
57	110-43304	110-43304	12
53	110-43908	110-43908	12
28	110-45952	110-45952	8
20	110-62809	110-62809	24
19	110-62858	110-62858	24
34	110-91204	110-91204	22
26	110-91600	110-91600	22
19	110-92261	110-92261	22
11	110-92558	110-92558	25
27	110-93804	110-93804	22
43	110-94109	110-94109	22
43	110-94109	110-94109	24
56	110-94604	110-94604	22
56	110-94604	110-94604	24
59	110-94901	110-94901	22
59	110-94901	110-94901	24
17	110-95254	110-95254	22
17	110-95254	110-95254	24
6	110-95403	110-95403	22
4	110-95502	110-95502	22
4	110-95502	110-95502	24
2	110-95551	110-95551	22
2	110-95551	110-95551	24
7	110-95601	110-95601	22
7	110-95601	110-95601	24
1	110-96062	110-96062	22
1	110-96062	110-96062	24
57	110-96500	110-96500	22
57	110-96500	110-96500	24
37	110-96658	110-96658	22
37	110-96658	110-96658	24
20	111-00104	111-00104	2
47	111-01508	111-01508	22
47	111-01508	111-01508	24
20	111-10152	111-10152	14
15	111-10301	111-10301	14
28	111-10801	111-10801	14
24	111-41355	111-41355	6
38	112-31503	112-31503	22
38	112-31603	112-31603	24
67	113-02619	113-02619	24
55	113-05513	113-05513	22
55	113-05513	113-05513	24
14	114-00801	114-00801	22
14	114-00801	114-00801	24
36	114-03003	114-03003	22
36	114-03003	114-03003	24
52	114-03805	114-03805	22
50	114-03805	114-03805	24
3	114-09257	114-09257	22
3	114-09257	114-09257	24
5	114-09604	114-09604	22
5	114-09604	114-09604	24
58	114-15205	114-15205	2
10	229-00401	229-00401	2
28	229-00609	229-00609	2
55	229-01003	229-01003	2
52	229-01201	229-01201	2
51	229-01250	229-01250	2
53	229-01300	229-01300	2
1	229-01409	229-01409	6
14	229-01805	229-01805	2
1	229-02159	229-02159	2
2	229-02209	229-02209	2
61	229-02605	229-02605	2
44	229-03009	229-03009	4
15	229-03108	229-03108	4
10	229-03157	229-03157	4
25	229-03207	229-03207	4
40	229-03900	229-03900	4
23	229-04155	229-04155	4
49	229-04155	229-04155	10
61	229-04155	229-04155	10
23	229-05004	229-05004	6
25	229-05103	229-05103	6
26	229-05202	229-05202	6
2	229-06101	229-06101	6
8	229-06200	229-06200	6
10	229-06309	229-06309	6
4	229-06457	229-06457	6
35	229-07000	229-07000	8
34	229-07208	229-07208	8
33	229-07406	229-07406	8
32	229-07506	229-07506	8
30	229-07554	229-07554	8
31	229-07604	229-07604	8
45	229-07703	229-07703	8
1	229-07802	229-07802	8
42	229-08008	229-08008	8
40	229-08156	229-08156	8
44	229-08305	229-08305	8
30	229-08354	229-08354	8
4	229-08552	229-08552	8
7	229-08701	229-08701	8
14	229-08800	229-08800	8
13	229-09006	229-09006	8
18	229-10004	229-10004	4
16	229-10103	229-10103	4
12	229-10202	229-10202	10
43	229-10350	229-10350	10
60	229-10459	229-10459	10
26	229-10608	229-10608	10
25	229-10707	229-10707	10
28	229-10806	229-10806	10
24	229-10905	229-10905	10
40	229-11002	229-11002	10
13	229-11101	229-11101	10
23	229-11408	229-11408	10
2	229-11507	229-11507	10
4	229-11606	229-11606	10
5	229-11705	229-11705	10
7	229-11804	229-11804	10
33	229-11903	229-11903	22
9	229-12000	229-12000	10
8	229-12109	229-12109	10
19	229-12257	229-12257	10
20	229-12505	229-12505	10
64	229-12604	229-12604	10
66	229-12752	229-12752	10
65	229-12802	229-12802	10
39	229-12901	229-12901	10
51	229-13008	229-13008	10
38	229-13701	229-13701	10
52	229-13800	229-13800	10
69	229-14105	229-14105	10
15	229-15003	229-15003	10
45	229-15151	229-15151	10
58	229-15359	229-15359	10
31	229-16001	229-16001	6
35	229-16100	229-16100	6
27	229-16308	229-16308	6
40	229-16506	229-16506	6
38	229-16555	229-16555	6
36	229-17058	229-17058	6
29	229-17157	229-17157	6
29	229-19203	229-19203	4
2	229-19559	229-19559	4
29	229-20102	229-20102	8
23	229-20201	229-20201	8
26	229-20300	229-20300	8
24	229-20409	229-20409	8
30	229-20508	229-20508	2
47	229-20607	229-20607	2
31	229-21001	229-21001	2
38	229-21209	229-21209	2
33	229-21308	229-21308	2
34	229-21407	229-21407	2
37	229-21506	229-21506	2
39	229-21605	229-21605	2
35	229-21704	229-21704	2
36	229-21803	229-21803	2
14	229-23015	229-23015	16
12	229-23056	229-23056	16
17	229-23205	229-23205	16
13	229-23312	229-23312	16
19	229-23403	229-23403	16
21	229-23502	229-23502	16
20	229-23601	229-23601	16
15	229-23700	229-23700	16
18	229-23809	229-23809	16
22	229-23908	229-23908	16
30	229-24005	229-24005	16
6	229-24153	229-24153	16
7	229-24302	229-24302	16
3	229-24401	229-24401	16
11	229-24500	229-24500	16
64	229-24609	229-24609	12
10	229-24900	229-24900	16
9	229-25002	229-25002	16
5	229-25101	229-25101	19
27	229-27305	229-27305	19
13	229-27354	229-27354	19
28	229-27404	229-27404	19
29	229-27602	229-27602	19
21	229-28105	229-28105	19
20	229-28303	229-28303	19
20	229-28402	229-28402	19
18	229-28501	229-28501	19
16	229-28709	229-28709	19
1	229-28808	229-28808	19
17	229-28907	229-28907	19
14	229-29004	229-29004	19
1	229-30309	229-30309	20
10	229-30358	229-30358	20
9	229-30408	229-30408	20
7	229-30507	229-30507	20
5	229-30705	229-30705	20
4	229-30804	229-30804	20
3	229-30903	229-30903	20
2	229-31000	229-31000	20
15	229-31109	229-31109	20
11	229-31208	229-31208	20
8	229-31307	229-31307	20
15	229-31406	229-31406	20
2	229-31705	229-31705	18
1	229-31802	229-31802	18
3	229-31851	229-31851	18
4	229-31901	229-31901	18
8	229-32008	229-32008	18
7	229-32107	229-32107	18
13	229-32206	229-32206	18
19	229-32305	229-32305	18
14	229-32404	229-32404	18
13	229-32453	229-32453	18
41	229-32909	229-32909	6
2	229-33402	229-33402	19
3	229-33451	229-33451	19
5	229-33501	229-33501	19
4	229-33600	229-33600	19
6	229-33659	229-33659	19
7	229-33758	229-33758	19
8	229-33907	229-33907	19
13	229-34004	229-34004	19
18	229-34202	229-34202	18
18	229-34251	229-34251	18
23	229-34301	229-34301	18
19	229-34400	229-34400	18
20	229-34509	229-34509	18
15	229-34608	229-34608	18
57	229-34707	229-34707	18
34	229-35407	229-35407	4
35	229-37056	229-37056	4
36	229-37064	229-37064	4
36	229-37155	229-37155	4
43	229-37254	229-37254	4
3	229-37965	229-37965	6
44	229-39508	229-39508	6
10	229-40506	229-40506	10
55	229-40654	229-40654	10
35	229-40753	229-40753	10
31	229-40803	229-40803	10
27	229-40951	229-40951	10
1	229-41108	229-41108	10
36	229-41306	229-41306	10
32	229-42502	229-42502	6
27	229-42502	229-42502	24
43	229-42601	229-42601	6
18	229-44508	229-44508	8
20	229-44607	229-44607	8
10	229-44706	229-44706	8
25	229-45109	229-45109	8
40	229-45307	229-45307	2
32	229-45356	229-45356	2
22	229-45414	229-45414	2
25	229-45505	229-45505	2
26	229-45604	229-45604	2
24	229-45703	229-45703	2
26	229-45705	229-45705	2
1	229-47006	229-47006	16
26	229-47105	229-47105	16
35	229-48301	229-48301	12
37	229-48400	229-48400	12
43	229-49002	229-49002	12
40	229-49101	229-49101	12
41	229-49200	229-49200	12
38	229-49309	229-49309	12
29	229-49408	229-49408	12
24	229-49754	229-49754	12
23	229-49762	229-49762	12
50	229-49903	229-49903	12
26	229-50000	229-50000	12
31	229-50109	229-50109	12
14	229-50208	229-50208	12
13	229-50257	229-50257	12
15	229-50356	229-50356	12
25	229-50703	229-50703	12
21	229-50950	229-50950	12
60	229-51008	229-51008	12
49	229-51164	229-51164	12
54	229-51404	229-51404	12
65	229-51552	229-51552	12
18	229-52501	229-52501	2
24	229-53509	229-53509	13
17	229-53657	229-53657	13
15	229-53806	229-53806	13
19	229-53905	229-53905	13
28	229-54002	229-54002	13
4	229-54101	229-54101	13
1	229-54150	229-54150	13
5	229-54200	229-54200	13
6	229-54309	229-54309	13
12	229-54408	229-54408	13
13	229-54507	229-54507	13
2	229-54606	229-54606	13
9	229-54705	229-54705	2
2	229-55504	229-55504	14
1	229-55553	229-55553	14
13	229-55900	229-55900	14
14	229-56007	229-56007	14

Page 32 — NUMERICAL INDEX OF PARTS

Juki DDL-8700-7 parts on page 32

Ref	Part number	Part name	Qty
6	229-56106		14
10	229-56205		14
11	229-56304		14
7	229-56403		14
26	229-56809		14
9	229-56908		14
24	229-57005		14
16	229-57104		14
21	229-57203		14
7	229-58300		2
63	229-62005		22
63	229-62005		24
62	229-62054		22
62	229-62054		24
35	229-62203		22
51	229-62351		22
45	229-62500		22
45	229-62500		24
39	229-62609		22
39	229-62609		24
42	229-62708		22
42	229-62708		24
30	229-62807		22
30	229-62807		24
40	229-62906		22
40	229-62906		24
61	229-63409		22
61	229-63409		24
60	229-63458		22
60	229-63458		24
6	229-64001		25
25	229-70206		22
25	229-70206		24
23	229-70313		22
23	229-70313		24
22	229-70404		24
52	229-70503		24
51	229-70552		24
35	229-70602		24
64	229-70701		24
76	229-70859		24
65	229-71204		24
66	229-71303		24
68	229-71550		24
70	229-71909		24
71	229-72251		24
53	229-72806		24
67	229-90352		2
69	229-90550		2
68	229-90659		2
13	400-10395		22
13	400-10395		24
1	400-11503		25
46	400-12444		6
24	400-12444		24
5	400-14007		8
31	400-17524		4
39	400-17624		4
38	400-17625		4
73	400-31240		24
74	400-31244		24
33	400-31248		24
75	400-31249		24
26	400-35058		24

Part BooksPartsSearchNotes

Part Books

×

Search

×

Juki DDL-8700-7 — parts catalog

• Page 1 (cover): This is the cover page for the JUKI DDL-8700-7 Series parts list, which is a high-speed, 1-needle, lockstitch industrial sewing machine with an automatic thread trimmer.
• Page 2 (text): This page provides instructions on how to use the parts list, including explanations of codes, quantity notations, and how to interpret diagrams. It also includes Japanese text with similar explanations.
• Page 3 (toc): This page is a table of contents for a sewing machine parts catalog, listing sections from Machine Frame & Miscellaneous Cover Components to Numerical Index of Parts, along with their corresponding page numbers.
• Page 4 (diagram): This page displays a diagram of machine frame and miscellaneous cover components, with numbered parts indicated for identification.
• Page 5 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and notes.
• Page 6 (diagram): This page displays a diagram of main shaft and thread-up lever components, with numbered parts for identification.
• Page 7 (parts_list): This page contains a parts list for a sewing machine, detailing part numbers, descriptions, quantities, and remarks. It includes items like screws, bearings, and various assemblies.
• Page 8 (diagram): This page displays a diagram of needle bar, upright shaft, and hook driving shaft components, with numbered parts for identification.
• Page 9 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It details components like needle bars, gears, screws, and oil seals.
• Page 10 (diagram): This page displays a diagram of hand lifter components, with numbered parts and their corresponding references.
• Page 11 (parts_list): This page lists parts for the DDL-8700-7-00 model, including various screws, rings, shafts, and brackets, with their corresponding part numbers and descriptions.
• Page 12 (diagram): This page displays a diagram of the feed mechanism components, with numbered parts and their corresponding references.
• Page 13 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and notes.
• Page 14 (diagram): This page displays a diagram of thread trimmer components, with numbered parts and their corresponding references.
• Page 15 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including screws, pins, springs, and solenoids, with their corresponding part numbers and descriptions.
• Page 16 (diagram): This page displays a diagram of automatic reverse feed components, with a corresponding parts list detailing part numbers, descriptions, and quantities.
• Page 17 (parts_list): This page lists components for the wiper system, including various screws, nuts, links, springs, solenoids, and switches, along with their part numbers and descriptions.
• Page 18 (diagram): This page displays a diagram of oil lubrication components for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 19 (parts_list): This page lists parts for DDL-8700-7OB,-WB and DDL-8700-7-00, including oil sight windows, rubber rings, oil tubes, screws, and oil pumps.
• Page 20 (diagram): This page displays a diagram of oil reservoir components, with numbered parts and their corresponding details.
• Page 22 (parts_list): This page lists belt cover and bobbin components, including part numbers, descriptions, and quantities.
• Page 23 (diagram): This page displays a diagram and parts list for thread stand components, including part numbers, descriptions, and quantities.
• Page 24 (diagram): This page displays a diagram of exclusive parts for the DDL-8700H-7 sewing machine, with various components numbered for identification.
• Page 25 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and notes. It details components like knife units, screws, guides, and tension springs.
• Page 26 (diagram): This page displays a diagram of exclusive parts for the DDL-8700J-7 sewing machine, with numbered components and their corresponding part numbers and descriptions.
• Page 27 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and some Japanese text.
• Page 28 (parts_list): This page lists exclusive parts for the DDL-8700A-7 sewing machine, including part numbers, descriptions, and quantities.
• Page 29 (text): This page contains a list of changes to parts, indicating added parts (A) and obsolete parts (D), along with their corresponding revision numbers, page numbers, reference numbers, and part numbers.
• Page 30 (parts_list): This page contains a parts list for industrial sewing machines, with columns for part number, page number, and reference number, organized into three columns.
• Page 31 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, page numbers, and reference numbers.
• Page 32 (parts_list): This page contains a numerical index of parts for sewing machines, listing part numbers, page references, and reference numbers across two columns.
• Page 33 (text): This page is a memo page with lines for writing notes. It includes a watermark and a footer indicating it is from the library of Superior Sewing Machine & Supply LLC.
• Page 34 (text): This page is a memo with ruled lines for notes. It includes the title "MEMO" at the top left and a footer indicating it is from the library of Superior Sewing Machine & Supply LLC.
• Page 35 (cover): This is the cover page of a parts catalog from the library of Superior Sewing Machine & Supply LLC, featuring a large watermark of "jintex.in".
• Page 36 (cover): This is the cover page for a JUKI sewing machine parts catalog, including copyright information and contact details for orders or further information.

Page 1 — DDL-8700-7 Series PARTS LIST

High-speed, 1-Needle, Lockstitch Industrial Sewing Machine with Automatic Thread Trimmer 高速一本針自動糸切り装置付ミシン DDL-8700-7 Series PARTS LIST 29347002 No.1307-04 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 2

HOW TO MAKE USE OF THIS PARTS LIST 1. Explanation of codes 1) "*" mark................................means this part is changed from the previous parts book. As to the details of the change, refer to "List for information of change". 2) "01"....................................refer to "Note" explanation at bottom of page. 2. Codes on the "Qty" column Each numeral indicates the number of parts required. "0.1" and "2.5" indicate the length (in meters) of the respective parts. 3. Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 4. Dotted lines on the Figures indicate assembly parts. パーツリストご利用に際して 1. "注記"欄の記号説明 1) "*"印....................前回のパーツブックに比較して今回変更された部品を意味します。 変更内容は"変更情報リスト"を参照してください。 2) "01" ...................................."F/O" 注記"の規則を参照してください。 2. 数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ(単位メートル)を表します。 3. 数量欄の( )は、組部品を構成している子部品であることを意味します。 4. イラストページの－－－ 枠は、組構成であることを意味します。

Page 3 — CONTENTS

CONTENTS 目 次 1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS 頭部・外装関係 2. MAIN SHAFT & THREAD-UP LEVER COMPONENTS 上軸・天秤関係 3. NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS 針棒・立軸・下軸関係 4. HAND LIFTER COMPONENTS 押さえ上げ関係 5. FEED MECHANISM COMPONENTS 送り関係 6. THREAD TRIMMER COMPONENTS 糸切り装置関係 7. AUTOMATIC REVERSE FEED COMPONENTS 自動逆送り関係 8. WIPER COMPONENTS ワイパー関係 9. OIL LUBRICATION COMPONENTS 給油関係 10. OIL RESERVOIR COMPONENTS 油潤関係 11. BELT COVER & BOBBIN COMPONENTS ベルトカバー・糸巻関係 12. THREAD STAND COMPONENTS 糸立装置関係 13. EXCLUSIVE PARTS FOR DDL-8700H-7 DDL-8700H-7専用部品 14. EXCLUSIVE PARTS FOR DDL-8700J-7 DDL-8700J-7専用部品 15. EXCLUSIVE PARTS FOR DDL-8700A-7 DDL-8700A-7専用部品 16. LIST FOR INFORMATION OF CHANGE 変更情報リスト NUMERICAL INDEX OF PARTS 索引 1 3 5 7 9 11 13 14 15 17 19 20 21 23 25 26 27 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 4 — 1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS 頭部・外装関係 8 9 10 11 28-58 5 27 7 6 2 49 50 4 3 45 46 62 61 44 51 52 53 54 12-70 42 30 31 43 41 40 39 38 37 36 35 34 33 32 55 57 60-65 13-63 21 22 23 24 25-26 14 15 56 16 17 18 19 20 64 66 67-69 From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 5

REF. NO NOTE PART NO. D E S C R I P T I O NQty.1229-02159FACE PLATE ASM.メンイタ(クミ)12229-02209FACE PLATE AGSKETメンイタダキシン13SS-6080410-SPSCREW 1/8-44 L=4ヒラネジ 1/8-44 L=414229-00757ARM OIL SHIELD ASM.メンプアオイルシールド(クミ)15TA-0850604-RO RUBBER PLUGトメセン26TA-1250705-RO RUBBER PLUGトメセン17229-58300THREAD GUIDE RODイトツプナイナク18SS-4120915-SP SCREW 3/16-28 L=9ナベネジ 3/16-28 L=989229-54705CORD HOLDERコードトメナク910229-00401SIDE PLATEマドイタ11110-00619 ATTENTION SEALマクンコートゴム1201CM-3002000-01 SAFETY LABEL, 3 (SMALL).アンビシラベル 3 (ショウ)11306CM-3002001-A1 SAFETY LABEL, 3 (SMALL).アンビシラベル 3 (ショウ)114229-01805GROUND MARKクランドマーク15SS-4120615-SP SCREW 3/16-28 L=6ナベネジ 3/16-28 L=616TA-2000502-RO RUBBER PLUGトメセン117SS-6121840-SP SCREW 3/16-28 L=18ヒラネジ 3/16-28 L=1811802229-52501REVERSE FEED LEVER STOPPERリバースフィードレバーストップパー119TA-2101002-RO RUBBER PLUGトメセン12002111-00104 MAGNET CORD RUBBERマクンコートゴム121229-45463THREAD TENSION ASM.ダイイイトテンションクミ(1)122229-45414THREAD TENSION POSTダイイイトテンションポスト(1)123229-45604THREAD TENSION GUIDEダイイイトテンションガイド(1)124229-45802BOBBIN WINDER TENSION DISCダイイイトテンションディスク(2)125229-45505THREAD TENSION SPRINGダイイイトテンションスプリング(1)126229-45703THREAD TENSION NUTダイイイトテンションナット(1)127SS-4120615-SP SCREW 3/16-28 L=6ナベネジ 3/16-28 L=6(1)128229-00609THREAD TAKE-UP LEVER COVERテンピンカバー129SS-4120615-SP SCREW 3/16-28 L=6ナベネジ 3/16-28 L=6130229-20508ARM THREAD GUIDE AアームイトアンナイA131*229-21001SCREWアームイトアンナイA132229-45356THREAD TENSION ASM.イトヨウテンションクミ(1)133229-21308 TENSION NUTイトヨウテンションナット(1)134229-21407 ROTATING STOPPERイトヨウラカイテンドメ(1)135229-21704 TENSION SPRING AイトヨウテンションスプリングA(1)136229-21803 THREAD TENSION DISK PRESSERイトヨウテンションディスクプレッサー(1)137229-1506 THREAD TENSION DISKイトヨウテンションディスク(2)138229-21209 TENSION POSTイトヨウテンションポスト(1)139229-1605 TAKE-UP SPRINGイトヨウテイクアップスプリング(1)140229-45307 TENSION POST SOCKETイトヨウテンションポストソケット(1)141SS-8090670-SP SCREW 9/64-40 L=5.5トメネジ 9/64-40 L=5.5142SS-8150710-TP SCREW 15/64-28 L=7トメネジ 15/64-28 L=7143B3118-552-E00 TENSION RELEASINGピン14401B1109-012-10B THROAT PLATE (1)ハライタ I145SS-2110920-TP SCREW 11/64-40 L=8.5マルネジ 11/64-40 L=8.51146SS-2110915-SP SCREW 11/64-40 L=8.5マルネジ 11/64-40 L=8.51147229-20607 ARM THREAD GUIDE BアームイトアンナイB1148SS-6110610-TP SCREW 11/64-40 L=6ヒラネジ 11/64-40 L=61149TA-1250406-RO RUBBER PLUG D=12.5 L=4トメセン D=12.5 L=42150SS-4120915-SP SCREW 3/16-28 L=9ナベネジ 3/16-28 L=9351229-01250 SLIDE PLATE ASM.スライドアシ(クミ)(1)152229-01201 SLIDE PLATEスライドアシ(1)153229-01300 BED SLIDE SPRINGスライダネ(1)154SS-6060210-SP SCREW 3/32-56 L=1.9ヒラネジ 3/32-56 L=1.9(2)155229-01003 BED SCREW STUDベッドシチュウ4156NT-0530002-KS TOOTHED WASHER D=5.3ハツキガネ D=5.3157229-35407 RUBBER PLATEヘツドヨウゴムA158401114-15205 THREAD TAKE-UP LEVER COVER(JE)テンピンカバー-(JEショウ)115903110-30202 RUBBER BUSHINGマクンコートゴムA116006B1109-552-000 THROAT PLATEハリイタ1161229-02605 RULER STOPPERジヨウゲトメダキ1162SS-7110540-SP SCREW 11/64-40 L=5マルネジ 11/64-40 L=5216308CM-3002001-01 SAFETY LABEL, 1 (SMALL).アンビシラベル 1 (ショウ)1164SS-4121215-SP SCREW 3/16-28 L=12ナベネジ 3/16-28 L=12116508110-28008 THROAT PLATEハリイタ1166WP-0501016-SD WASHER 5X10.5X1ヒラガネ 5X10.5X11167229-90352 RESISTANCE PACK ASM. Aタイコウバンツク(クミ)A116801229-90659 RESISTANCE PACK ASM. Eタイコウバンツク(クミ)E116907229-90550 RESISTANCE PACK ASM. Hタイコウバンツク(クミ)H17008CM-3002000-B1 LABEL(16)ハサミコミチユウイワール(16)1NOTE (注記)01...FOR JEJE用02...FOR DDL-8700-7-DB, -WB DDL-8700-7-DB, -WB用03...FOR JAJA用04...FOR JAJA用05...EXCEPT DDL-8700-7-00DDL-8700-7-00を除く06...EXCEPT USE IN JAPAN, JE日本, JEを除く07...FOR ST,SH, USE IN JAPANST,SH,日本用08...FOR USE IN JAPAN日本用

Page 6 — 2. MAIN SHAFT & THREAD-UP LEVER COMPONENTS

2. MAIN SHAFT & THREAD-UP LEVER COMPONENTS 上軸・天秤関係 1 2 6 9 7 5 4 29 16 17 18 23 27 10 11 15 12 13 14 25 20 21 19 30 31 37 32 33 36 38 35 39 34 45 43 28 26 41 3 40 44 From the library of: Superior-Sewing Machine & Supply LLC jintex.in

Page 7

REF. NO. NOTE PART NO. D E S C R I P T I O N Qty 1 SS-8151150-TP SCREW 15/64-28 L=10.5 トメネジ 15/64-28 L=10.5 1 2 229-19559 THREAD TAKE-UP CRANK SHAFT ASM. テンピンササエジク(クミ) 1 3 110-02904 ROLLER FELT メンブ ユリヨウ チョウセツフェルト 1 4 110-39070 THREAD TAKE-UP LEVER ASM. リンクテンピン クミ 1 5 110-39062 THREAD TAKE-UP LEVER ASM. リンクテンピン クミ (1) 6 01 B1905-541-B00 NEEDLE BEARING テンピンニードルベアリング (1) 7 110-05204 NEEDLE BAR CRANK ハリホウ ウクランク (1) 8 B1408-552-000 NEEDLE BAR CRANK ROD ハリホウ クランク ロッド (1) 9 B1903-552-000 LEFT SCREW ヒダ リネシ (1) 10 229-03157 COUNTER WEIGHT ASM. ゲリアイシ(クミ) 1 11 SS-8681650-TP SCREW 9/32-28 L=16 トメネジ 9/32-28 L=16 (1) 12 SS-8660610-TP SCREW 1/4-40 L=6 トメネジ 1/4-40 L=6 (2) 13 RO-0442401-00 RUBBER RING Oリング (1) 14 SS-7681650-TP SCREW 9/32-28 L=16 マルヒラネジ 9/32-28 L=16 (1) 15 229-03108 COUNTER WEIGHT ゲリアイシ (1) 16 229-10053 FEED DRIVE ECCENTRIC CAM ASM. オクリヘンシンカム(クミ) 1 17 SS-666110-SP SCREW 1/4-40 L=11 ヒラネジ 1/4-40 L=11 (2) 18 229-10004 FEED DRIVE ECCENTRIC CAM オクリヘンシンカム (1) 19 SS-4090615-SP SCREW 9/64-40 L=6 ナベネジ 9/64-40 L=6 2 20 110-02409 MAIN SHAFT BUSHING, REAR ウワシ クウシクロメタル 1 21 110-02508 OIL SEAL メタル オイルシール 1 22 RC-1850001-KP SNAP RING 18.5 Cカ タトメネジ 18.5 1 23 229-04155 THRUST COLLAR ASM. ウワシ クラスラトウケ (クミ) 1 24 SS-8660610-TP SCREW 1/4-40 L=6 トメネジ 1/4-40 L=6 (2) 25 229-03207 MAIN SHAFT FRONT BUSHING ウワシ クマエメタル 1 26 B1215-552-000 OIL ADJUSTING COLLAR クランク ユリヨウ チョウセツカラー 1 27 229-03306 BUSHING, INTERMEDIATE ウワシ クナメタメタル 1 28 EA-9500B01-00 CABLE BAND ゾクセンバンド 1 29 229-19203 RUBBER テンビ ニアア ラギリコ 1 30 229-37064 HAND WHEEL COMPL. ハズ ミク ルマ(クミ) 1 31 02 400-17623 HAND WHEEL ASM. ハズ ミク ルマクミ 1 32 WP-0450801-SD WASHER 4.5X10X0.8 ヒラザガネ 4.5X10X0.8 (2) 33 SS-8151550-SP SCREW 15/64-28 L=15 トメネジ 15/64-28 L=15 (2) 34 229-37056 HAND WHEEL ASM. ハズ ミク ルマ(クミ) (1) 35 229-37155 MAGNET FITTING BASE A ASM. マク ネジトツリツクダイ(ケツゴウ)A (1) 36 229-37254 MAGNET FITTING BASE B ASM. マク ネジトツリツクダイ(ケツゴウ)B (1) 37 SS-6111210-SP SCREW 11/64-40 L=12 ヒラネジ 11/64-40 L=12 (2) 38 02 400-17625 MAGNET FITTING BASE B ASM. マク ネジトツリツクダイBケツゴウ (1) 39 02 400-17624 MAGNET FITTING BASE A ASM. マク ネジトツリツクダイAケツゴウ (1) 40 229-03900 OIL AMOUNT ADJUSTING PIN クランク ユリヨウチョウセツピン 1 41 RO-0291801-00 RUBBER RING Oリング 1 42 229-10103 THRUST COLLAR オクリヘンシンカム スラストウケ 1 43 229-37965 DYNAMO STATOR ハグデ シンキステータ-(クミ) 1 44 229-03009 MAIN SHAFT ウワシ ク 1 45 SL-4051001-MZ SCREW M5 L=9.6 ザガネネジ ナベコネジ M5 L=9.6 2 NOTE (注記) 01...SELECTIVE PARTS(A~D) 選択部品(A~D) 02...FOR SH SH用 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 8 — 3. NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS

3. NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS 針棒・立軸・下軸関係 1 2 3.44 4 5 6 7.46 8 9 10 11.28 13 14 15 16 17 19 20 21 22 12 18 25 23 26 27 29 30 31 35 36 38 39 40 41 42 24.34 32 33 43 45 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 9

REF. NO NOTE PART NO. DESCRIPTION Qty 1 229-01409 CAP ハリホウ ウワメタルキャアプ 1 2 229-06101 NEEDLE BAR BUSHING, UPPER ハリホウ ウワメタル 1 3 229-39508 NEEDLE BAR ハリホウ ウ 1 4 229-06457 NEEDLE ROD HOLDER ASM. ハリホウ ウタキ(クミ) 1 5 SS-6090670-TP SCREW 9/64-40 L=6 ヒラネジ 9/64-40 L=6 (1) 6 B1414-555-000 SLIDE BLOCK ハリホウ ウタキ アンナイコロ 1 7 229-20805 NEEDLE BAR THREAD GUIDE ハリホウ ウイトアンナイ 1 8 229-06200 NEEDLE BAR BUSHING, LOWER ハリホウ ウシタメタル 1 9 SS-7080510-TP SCREW 1/8-44 L=4.5 マルヒラネジ 1/8-44 L=4.5 1 10 229-06309 NEEDLE BAR THREAD GUIDE ハリホウ ウイトカク 1 11 MDB-100B1400 NEEDLE DBX1 #14 ハリホウ DBX1 #14 1 12 B1306-155-0CO GEAR & PINION ASM. カサハク ルマ ジョーグ クミ 1 13 B1306-155-0BO GEAR & PINION ASM., UPPER ウワカサハク ルマ クミ (1) 14 B1306-012-0A0 GEAR ASM. ウワカサハク ルマ ダイクミ (1) 15 SS-8660810-TP SCREW 1/4-40 L=8 トメネジ 1/4-40 L=8 (2) 16 B1306-155-0A0 PINION ASM. ウワカサハク ルマ ショウ クミ (1) 17 SS-8660810-TP SCREW 1/4-40 L=8 トメネジ 1/4-40 L=8 (2) 18 B1307-155-0BO GEAR & PINION ASM., LOWER シタカサハク ルマ クミ (1) 19 B1307-155-0A0 GEAR ASM. LARGE シタカサハク ルマ ダイクミ (1) 20 SS-8660810-TP SCREW 1/4-40 L=8 トメネジ 1/4-40 L=8 (2) 21 B1308-155-0A0 PINION ASM. シタカサハク ルマ ショウ クミ (1) 22 SS-8660810-TP SCREW 1/4-40 L=8 トメネジ 1/4-40 L=8 (2) 23 229-05004 UPRIGHT SHAFT タテジク 1 24 02 111-41355 HOOK ASM. キユウガマ クミ C 1 25 229-05103 UPRIGHT SHAFT BUSHING, LOWER タテジク クシタメタル 1 26 229-05202 UPRIGHT SHAFT BUSHING, LOWER タテジク クシタメタル 1 27 229-16308 BUSHING, REAR シモジク ウワメタル 1 28 02 MC-2005009-00 NEEDLE 134 90 ハリ シュメツツ 134 NM90 1 29 229-17157 THRUST COLLAR ASM. シモジク クスラストウケウシロ(クミ) 1 30 SS-6110420-TP SCREW 11/64-40 L=4.8 ヒラネジ 11/64-40 L=4.8 (2) 31 229-16001 LOWER SHAFT シモジク 1 32 229-42502 BOBBIN CASE HOLDER ナカマ オサエ 1 33 SS-4110915-TP SCREW 11/64-40 L=9 ナベネジ 11/64-40 L=9 1 34 01 110-38650 HOOK ASM. キユウガマ クミ 1 35 229-16100 LOWER SHAFT FRONT METAL シモジク クマエメタル 1 36 229-17058 THRUST COLLAR ASM. シモジク クスラストウケウマエ(クミ) 1 37 SS-8110410-TP SCREW 11/64-40 L=3.5 トメネジ 11/64-40 L=3.5 (2) 38 229-16555 OIL SEAL SCREW ASM. シモジク クマエトメネジ(クミ) 1 39 * 110-15906 OIL WICK シモジク クマエトメネジ ユシン (1) 40 229-16506 OIL SEAL SCREW シモジク クマエトメネジ (1) 41 229-32909 BOBBIN ボビン 1 42 110-38759 BOBBIN CASE ASM. ボビンケース(ハネイリ) 1 43 229-42601 OIL SHIELD シモジク クマエトメネジ ユウバン 1 44 02 229-39607 NEEDLE BAR B ハリホウ UB 1 45 SS-4120915-SP SCREW 3/16-28 L=9 ナベネジ 3/16-28 L=9 1 46 03 400-12444 NEEDLE BAR THREAD GUIDE ハリホウ ウイトアンナイ 1 NOTE (注記) 01...EXCEPT JE JEを除く 02...FOR JE JE用 03...FOR SH SH用 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 10 — 4. HAND LIFTER COMPONENTS

4. HAND LIFTER COMPONENTS 押さえ上げ関係 1 2 3 4 7 32 30 31 45 33 34 35 36 37 38 5 6 9 40 43 42 41 44 29 28 26 24 23 22 8 11 12 14 13 19 20 10 16 17 18 25 27 21 15 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 11

REF. NO NOTE PART NO. DESCRIPTION Qty. 1 229-07802 HAND LIFTER オサエアゲ レバー 1 2 B1521-555-000 SCREW オサエアゲ レバー トメネジ 1 3 RO-0371801-00 RUBBER RING Oリング 1 4 229-08552 HAND LIFTER CAM ASM. オサエアゲ カム(クミ) 1 5 400-14007 PRESSER BAR BUSHING LOWER オサエホウ ウシタメタル 1 6 SS-7091110-TP SCREW 9/64-40 L=10.5 マルヒラネジ 9/64-40 L=10.5 1 7 * 229-08701 LINK SHAFT ヒキアゲ リンク 2 8 RE-0500000-KO E-RING Eガ タトメツ 5 3 9 B1524-012-0BA PRESSER FOOT ASM. ジユウヨウカド"トツキ"クミ 1 10 229-44706 WIRE HOLDER BRACKET, LOWER ワイヤー オサエダ インター 1 11 229-08909 HINGE SCREW ヒダ アゲ ヨウホウ タツネシ 1 12 SD-0720331-SP HINGE SCREW D= 7.24 H= 3.3 タツネシ D= 7.24 H= 3.3 1 13 229-09006 KNEE LIFTER CONNECTING ROD ヒダ アゲ レンケツボウ 1 14 229-08800 LIFTING LEVER LINK ヒダ アゲ リンク 1 15 SS-7110410-SP SCREW 11/64-40 L=4 マルヒラネジ 11/64-40 L=4 1 16 SS-7110720-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 1 17 01 SS-4150915-SP SCREW 15/64-28 L=9 ナベネジ 15/64-28 L=9 2 18 229-44508 WIRE HOLDER A ワイヤー オサエ A 1 19 SS-4120615-SP SCREW 3/16-28 L=6 ナベネジ 3/16-28 L=6 1 20 229-44607 WIRE HOLDER BRACKET, UPPER ワイヤー オサエダ イウエ 1 21 NS-6620310-SP NUT 3/16-32 ロクカクナット 3/16-32 2 22 RE-0500000-KO E-RING Eガ タトメツ 5 2 23 229-20201 TENSION RELEASE RETURN SPRING イトユル メイモト シバ ネ 1 24 229-24109 THREAD RELEASE PIN SPRING イトユル ピンパネ 1 25 229-45109 WIRE CABLE HOLDER ワイヤー ケープ ルアデ 1 26 229-20300 TENSION RELEASE SUPPORTING PIN イトユル メホウ ヨピン 1 27 SS-4120615-SP SCREW 3/16-28 L=6 ナベネジ 3/16-28 L=6 1 28 110-45952 THREAD TENSION RELEASE WIRE イトユル ワイヤ クミ 1 29 * 229-20102 TENSION RELEASE SHAFT イトユル メイタク 1 30 229-07554 PRESSER SPRING REG NUT ASM. オクリチョウセツネジナツトクミ 1 31 229-07604 PRESSER ADJUSTING SCREW NUT オサエチョウセツネジナツト (1) 32 229-07605 PRESSER SPRING REGULATOR オサエチョウセツネジナツト (1) 33 229-07406 PRESSER ADJUSTING SPRING オサエチョウセツバネ 1 34 229-07208 PRESSER BAR GUIDE BRACKET オサエバ ガイド 1 35 229-07000 PRESSER BAR オサエバ 1 36 229-07307 PRESSER BAR THREAD GUIDE オサエバ ウタ ケイトアンナイ 1 37 SS-8660810-TP SCREW 1/4-40 L=8 トメネジ 1/4-40 L=8 1 38 SS-6090910-SP SCREW 9/64-40 L=9 ヒラネジ 9/64-40 L=9 2 39 229-08354 KNEE LIFTING CROSS ROD ASM. ヒザ アゲ ヨコボウ クミ (1) 40 229-08156 HAND LIFTER LINK ヒキアゲ リンク(クミ) (1) 41 RE-0500000-KO E-RING Eガ タトメツ 5 (1) 42 229-08008 LIFTING LEVER ヒキアゲ イタ (1) 43 RE-0500000-KO E-RING Eガ タトメツ 5 (1) 44 229-08305 KNEE LIFTING CROSS ROD ヒザ アゲ ヨコボウ ク 1 45 229-07703 PRESSER GUIDE BAR オサエアンナイボウ ク 1 NOTE (注記) 01...FOR DDL-8700-7-00 DDL-8700-7-00用

Page 12 — 5. FEED MECHANISM COMPONENTS

5. FEED MECHANISM COMPONENTS 送り関係 1 2 3 4 5-71 6 60 18 24 25 26 24 28 27 29 30 34 31 32 33-70 35 36 37 38 19 21 20 22 16 17 15 13 12-52 69 43 40 41 44 45 46 42 39 47 48 49 50 51 53 57 56 55 54 58 59 61 62 64 65 68 67 66 63 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 13

REF. NO NOTE PART NO. DESCRIPTION Qty. 1 01 229-41108 FEED ADJUST ROD オクリチョウセツロッド 1 2 229-11507 FEED REGULATOR PIN オクリチョウセツタインピン 1 3 SS-6090670-TP SCREW 9/64-40 L=6 ピラネジ 9/64-40 L=6 2 4 229-11606 FEED REGULATOR オクリチョウセツタイン 1 5 02 229-11705 FEED REGULATOR BUSHING オクリチョウセツタイメタル 1 6 SS-7120770-SH SCREW 3/16-28 L=7 マルネジ 3/16-28 L=7 1 7 229-11804 FEED REGULATOR SCREW オクリチョウセツネシ 1 8 229-12109 SPRING オクリチョウセツバネ 1 9 229-12000 FEED ADJUST PIN オクリチョウセツピン 1 10 229-40506 FEED DIAL オクリダイイヤ 1 11 SS-6090620-TP SCREW 3/16-28 L=18 ピラネジ 3/16-28 L=18 1 12 229-10202 ROCKER SHAFT CONNECTING ROD スイヘイオクリロッド 1 13 229-11101 WALKING FOOT PIN C スイヘイオクリピン C 1 14 SS-6090620-TP SCREW ピラネジ 1 15 229-15003 CONNECTING ROD シ・ヨウク オクリロッド 1 16 RO-0922702-00 RUBBER RING Oリング 1 17 110-10311 FEED REVERSE SPRING オクリレバーバネ 1 18 RE-0500000-KO E-RING Eガタタツメツ 1 19 229-12257 FEED REVERSE ARM ASM. オクリレバーウデ (クミ) 1 20 229-12505 SCREW オクリレバーウデトメネジ 1 21 RE-0500000-KO E-RING Eガタタツメツ 1 22 110-37405 SPRING チョウセツバネ B 1 23 02 229-11408 FEED REGULATOR CONNECTING ROD オクリチョウセツロッド 1 24 229-10905 WALKING FOOT PIN A スイヘイオクリピン A 1 25 229-10707 CONNECTING LINK B レンクグリンクB 2 26 229-10608 CONNECTING LINK A レンクグリンクA 2 27 01 229-40951 FEED ADJUST LINK ASM. オクリチョウセツリンク (クミ) 2 28 229-10806 ADJUSTING LINK FULCRUM SHAFT A チョウセツリンクフラクシムクミ A 2 29 SS-8150710-TP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 2 30 SS-6090620-TP SCREW ピラネジ 2 31 229-40803 FEED BAR SHAFT オクリダイイヤ 1 32 RC-0150001-KP RETAINING RING 13.8 Cガタトメツキ 13.8 1 33 B1613-012-100 FEED DOG I オクリバ I 1 34 SS-4080620-TP SCREW 1/8-44 L=6 ナベネジ 1/8-44 L=6 2 35 229-40753 FEED BAR ASM. オクリダイ (クミ) 1 36 229-41306 ADJUSTING LINK SPRING GUIDE チョウセツリンクバネ ネク 1 37 SS-4110515-SP SCREW 11/64-40 L=5 ナベネジ 11/64-40 L=5 2 38 229-13701 FEED SPRING HOOK オクリバネフック 1 39 229-12901 FEED ROCKER SHAFT スイヘイオクリジク 1 40 229-11002 WALKING FOOT PIN B スイヘイオクリピン B 1 41 SS-6090620-TP SCREW ピラネジ 1 42 NS-6680410-SP NUT 9/32-28 ロツカクナット 9/32-28 1 43 229-10350 SCREW ROCKER SHAFT CRANK ASM. スイヘイオクリジククランククミ 1 44 SS-6121610-SP SCREW 3/16-28 L=15.5 ヒラネジ 3/16-28 L=15.5 (1) 45 229-15151 FEED ARM COMPL. シヨウク オクリツケ (クミ) 1 46 SS-7121610-SP SCREW 3/16-28 L=15.5 マルネジ 3/16-28 L=15.5 (1) 47 SD-1000801-SH HINGE SCREW D=10 H=8 ダンネジ D=10 H=8 1 48 229-15201 FEED DRIVING SHAFT シヨウク オクリシク 1 49 229-04155 THRUST COLLAR ASM. ウツククラストクケ (クミ) 1 50 SS-8660610-TP SCREW 1/4-40 L=6 トメネジ 1/4-40 L=6 (2) 51 229-13008 FEED ROCKER SHAFT BUSHING オクリクメツクメツ 2 52 03 229-13800 HORIZONTAL FEED ROD B スイヘイオクリロッド (B) 1 53 SS-7110740-TP SCREW 11/64-40 L=7 マルネジ 11/64-40 L=7 (1) 54 RC-0150001-KP RETAINING RING 13.8 Cガタトメツキ 13.8 1 55 229-40654 FEED BAR CRANK ASM. オクリバクランククミ 1 56 SS-7121410-TP SCREW 3/16-28 L=14 マルネジ 3/16-28 L=14 (1) 57 WP-0480856-SP WASHER 4.8X8.4X0.8 ヒラザガネ 4.8X8.4X0.8 (1) 58 229-15359 DRIVING SHAFT CRANK ASM. シヨウククランククミ 1 59 SS-7111120-SP SCREW 11/64-40 L=10.5 マルネジ 11/64-40 L=10.5 (1) 60 02 229-10459 WALKING FOOT ADJUSTING LINK オクリデヨウセツリンク (クミ) 1 61 229-04155 THRUST COLLAR ASM. ウツククラストクケ (クミ) 1 62 SS-8660610-TP SCREW 1/4-40 L=6 トメネジ 1/4-40 L=6 (2) 63 RO-0781901-00 RUBBER RING Oリング 1 64 229-12604 FEED REVERSE SHAFT オクリレバーシク 1 65 229-12802 FEED LEVER METAL オクリレバーメタル 1 66 229-12752 FEED LEVER ASM. オクリレバー (クミ) 1 67 SM-8061050-TP SCREW トメネジ M6 L=10 (1) 68 * +04 SM-8061010-TP SCREW 1 69 06 B1613-012-A00 FEED DOG A オクリチョウセツバネ 1 70 *OT IT0-00800 FEED REGULATOR BUSHING オクリチョウセツタイメタル 1 NOTE (注記) 01...FOR DDL-8700-7-0B,-WB 02...FOR DDL-8700-7-00 03...FOR JE, JA 04...SELECTIVE PARTS(FOR JE, JA) 05...EXCEPT USE IN JAPAN 06...FOR USE IN JAPAN DDL-8700-7-0B,-WB用 DDL-8700-7-00用 JE, JA用 選択部品(JE, JA用) 日本を除く 日本用 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 14 — 6. THREAD TRIMMER COMPONENTS

6. THREAD TRIMMER COMPONENTS 糸切り装置関係 1 2 3 4 9 10 5 6 12 13 14 15 16 17 18 19 21 22 20 48 42 43 41 44 49 51 50 60 61 62 63 64 63 23 24 25 28 26 29 30 31 32 33 34 35 36 37 38 39 40 45 46 47 53 54 55 56 57 58 59 11 65 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 15

REF. NO NOTE PART NO. DESCRIPTION Qty 1 110-40359 KNIFE UNIT メス ユ 2 SB-0460703-TP HINGE SCREW D=4.6 H=7 ダンネジ D=4.6 H=7 (1) 3 110-40508 FORKED BASE FOR KNIFE メス フタマタ (1) 4 110-40409 MOVING KNIFE HINGE SCREW ドウメス ダンネジ (1) 5 110-40052 MOVING KNIFE ASM. トウメス クミ (1) 6 110-40300 KNIFE MOUNTING BASE メストリツケ ダイ (1) 7 110-40201 THREAD GUIDE FOR KNIFE メス イトアンナイ (1) 8 SS-2060210-SP SCREW 3/32-56 L=2,3 マルサラネジ 3/32-56 L=2,3 (1) 9 SS-4080620-TP SCREW 1/8-44 L=6 ナベネジ 1/8-44 L=6 (2) 10 D2406-555-DOH COUNTER KNIFE コテイメス (1) 11 HK-0346101-40 HOUSING 14P ハウジング 14P (1) 12 SS-4110715-SP SCREW 11/64-40 L=7 ナベネジ 11/64-40 L=7 1 13 229-50257 PICKER ARM ASM. ピツカーアームクミ 1 14 229-50208 PICKER ARM ピツカーアーム (1) 15 229-50356 THREAD TAKE-UP PICKER ASM. カイトオオエ(クミ) (1) 16 SS-6090510-TP SCREW 9/64-40 L=5.0 ビフネジ 9/64-40 L=5 (2) 17 SD-0641451-SP HINGE SCREW D= 6.35 H=14.5 ダンネジ D=6.35 H=14.5 1 18 SD-0630275-SP HINGE SCREW D= 6.35 H= 2.7 ダンネジ D=6.35 H=2.7 1 19 110-42850 THREAD TRIMMER CAM ASM. イトキリカム クミ 1 20 SS-6660610-TP SCREW 1/4-40 L=6 ヒラネジ 1/4-40 L=6 (2) 21 229-50950 CAM COLLAR ASM. カムカラー(クミ) (1) 22 SS-8110520-TP SCREW 11/64-40 L=4.5 トメネジ 11/64-40 L=4.5 (1) 23 229-49762 THREAD TRIMMER DRIVING UNIT イトキリツト ウニツト 1 24 229-49754 BASE PLATE ASM. ベースイタ(クミ) (1) 25 229-50703 DRIVING ARM STOPPE クトウデストツパー (1) 26 229-50000 PICKER LINK PIN ピツカーリンクピン (1) 27 RE-0600000-KO E-RING 6 Eガ タトメワ 6 (1) 28 SS-4110715-SP SCREW 11/64-40 L=7 ナベネジ 11/64-40 L=7 (2) 29 229-49408 CLUTCH SPRING クラツチバネ (1) 30 110-41852 CLUTCH PLATE ASM. クラツチイタアミ (1) 31 229-50109 PICKER LINK ピツカーリンク (1) 32 WP-0621016-SH WASHER ヒラガネ (2) 33 NS-6150430-SP NUT 15/64-28 ロツカクナット 15/64-28 (2) 34 RE-0600000-KO E-RING 6 Eガ タトメワ 6 (1) 35 229-48301 MOVING KNIFE LINK トドウメスリンク (1) 36 RE-0500000-KO E-RING Eガ タトメワ 5 (1) 37 229-48400 MOVING KNIFE LINK PIN トドウメスリンクピン (1) 38 229-49309 KNIFE RETURN SPRING B メスモトシヤネB (1) 39 RE-0400000-KO E-RING 4 Eガ タトメワ 4 (2) 40 229-49101 ROLLER FULCRUM SHAFT コロシテンジク (1) 41 229-49200 ROLLER FULCRUM SPRING コロモトシヤネ (1) 42 SS-7090610-SP SCREW 9/64-40 L=6 マルヒラネジ 9/64-40 L=6 (1) 43 229-49002 ROLLER ARM BRACKET コロツケザ (1) 44 110-40953 ROLLER ARM ASM. コロツケ(クミ) (1) 45 110-40854 KNIFE DRIVING ARM ASM. メスクドウテアミ (1) 46 HK-0346400-0B PIN CONTACT ピンコンタクト 2 47 SS-4150915-SP SCREW 15/64-28 L=9 ナベネジ 15/64-28 L=9 2 48 SD-0640631-TP HINGE SCREW D=6.35 H=6.3 ダンネジ D=6.35 H=6.3 1 49 229-51164 SOLENOID UNIT ソレノイドユニット 1 50 229-49903 CLUTCH LINK クラツチリンク (1) 51 RE-0500000-KO E-RING Eガ タトメワ 5 (1) 52 110-43205 SOLENOID RUBBER A ソレノイド ゴム A (1) 53 110-43908 THREAD TRIMMER SOLENOID イトキリソレノイド (1) 54 229-51404 SOLENOID BASE ソレノイド ダイ (1) 55 WP-0450000-SD WASHER 4.5X8X0.5 ヒラガネ 4.5X8X0.5 (2) 56 NM-6040000-SN NUT M4 ロツカクナット M4 (2) 57 110-43304 SOLENOID RUBBER ソレノイド ゴム (1) 58 NS-6660410-SN NUT ロツカクナット (1) 59 NS-6660430-SP NUT 1/4-40 ロツカクナット 1/4-40 (1) 60 229-51008 SOLENOID PIN ソレノイドピン (1) 61 SS-6110710-TP SCREW 11/64-40 L=6.5 ヒラネジ 11/64-40 L=6.5 (1) 62 SD-0600361-SP HINGE SCREW D=6 H=3.6 ダンネジ D=6 H=3.6 1 63 SS-4151215-SP SCREW 15/64-28 L=12 ナベネジ 15/64-28 L=12 2 64 229-24807 TUBE HOLDER, LOWER ヘイブ オタツエンタ 1 65 229-51552 GROUND WIRE ASM. ツースコード(クミ) 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 16 — 7. AUTOMATIC REVERSE FEED COMPONENTS

7. AUTOMATIC REVERSE FEED COMPONENTS 自動逆送り関係 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 30 28 29 REF. NO. NOTE PART NO. DESCRIPTION Qty 1 229-54150 REVERSE FEED SWITCH ASM. 1 2 229-54606 REVERSE FEED SWITCH COVER (1) 3 SM-4040655-SP SCREW M4 L=6 (1) 4 229-54101 REVERSE FEED SWITCH BASE (1) 5 229-54200 REVERSE FEED SWITCH SHAFT (1) 6 229-54309 REVERSE FEED SWITCH SPRING (1) 7 SM-4041665-SP SCREW M4 L=16 (1) 8 SM-4031501-SC SCREW M3 L=15 (2) 9 HW-5000700-00 2-CORE CABTYRE CORD (1.31) 10 HK-0346400-0B PIN CONTACT (2) 11 HIA-0019000-00 MICROSWITCH 1 12 229-54408 SWITCH HOLDING PLATE 1 13 229-54607 REVERSE FEED SWITCH LEVER 1 14 RE-0500000-KP E-RING 5 2 15 229-53806 REVERSE FEED CONNECTING SHAFT 1 16 RE-0900000-KD E-RING 9 1 17 229-53657 CONNECTING ARM ASM. 1 18 RE-0400000-KP E-RING 4 1 19 229-53905 REVERSE FEED CONNECTING LINK 1 20 RE-1200000-KO E-RING 12 1 21 WP-1602616-SZ WASHER 16X24X2.6 2 22 D2468-555-B00 RUBBER PLUNGER 1 23 RE-0400000-KD E-RING 4 2 24 229-53509 PLUNGER ARM PIN 1 25 111-02753 REVERSE FEED MAGNET ASM. 1 26 SS-4T61215-SP SCREW 15/64-28 L=12 2 27 SS-4120915-SP SCREW 3/16-28 L=9 1 28 229-54002 PLUNGER SPRING 2 29 HK-0346400-0B PIN CONTACT 1 30 01 SS-4120615-SP SCREW 3/16-28 L=6 1 NOTE (注記) 01...FOR DDL-8700-7-OB DDL-8700-7-OB用 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 17 — 8. WIPER COMPONENTS

8. WIPER COMPONENTS ワィパー関係 REF. NO. NOTE PART NO. D E S C R I P T I O N Qty 1 229-55553 WIPER ASM. ワィパー(クミ) (1) 2 229-55504 WIPER COVER ワィパーカバー (1) 3 * SL-4030631-SC SCREW M3X6 ザ カ ネ ツ キ ナ ベ コ シ M3 L=6 (1) 4 SD-0650321-TP HINGE SCREW D=6.5 H=3.2 ダ ン ネ ジ D=6.5 H=3.2 (1) 5 NS-6090310-SP NUT 9/64-40 ロツ カ ク ナ ツ ト 9/64-40 (1) 6 229-56106 WIPER LINK A ワィパーリンクA (1) 7 229-66403 WIPER LINK B ワィパーリンクB (1) 8 RE-0250000-KO E-RING 2.5 E カ タ ト メ ツ 2.5 (1) 9 229-56908 WIPER LINK B, HINGE SCREW ワィパーリンクBダ ン ネ ジ (1) 10 229-56205 WIPER HINGE SCREW COLLAR ワィパーダ ン ネ ジ カ ラ (1) 11 229-56304 WIPER SPRING ワィパーバネ (1) 12 NS-6110310-SP NUT 11/64-40 ロツ カ ク ナ ツ ト 11/64-40 (1) 13 229-55900 WIPER RUBBER A ワィパーゴAA (1) 14 229-56007 WIPER RUBBER B ワィパーゴAB (1) 15 111-10301 WIPER SOLENOID ワィパーソレノイド (1) 16 229-57104 WIPER SOLENOID SHAFT ワィパーソレノイドシ フ ク (1) 17 HA-0005900-00 POWER SWITCH デ ン ワ ン ス イ ツ チ (1) 18 HW-2003900-00 ELECTRIC WIRE ビ ニ ル デ ン セ ン 17-0.16 2 ロ (0.04) 19 HW-5000700-00 2-CORE CABTYRE CORD 2 ン キ ヤ ブ タ イ ヤ コ -ド (1.33) 20 111-10152 WIPER BASE ASM. ワィパーダイクミ (1) 21 229-57203 WIPER LINK COLLAR ワィパーリンクカラー (1) 22 SL-4030641-SE SCREW ザ カ ネ ツ キ ネ ジ (3) 23 HK-0346400-OB PIN CONTACT ピ ン コ ン タ ク ト (2) 24 229-57005 WIPER ワィパー (1) 25 SS-6090540-SP SCREW 9/64-40 L=5.0 ヒ ラ ネ ジ 9/64-40 L=5 (1) 26 229-56809 WIPER COLLAR ワィパーカラー (1) 27 RE-0500000-KO E-RING E カ タ ト メ ツ 5 (1) 28 111-11051 WIPER DRIVING SHAFT ASM. ワィパージクミ (1) 29 SS-4120915-SP SCREW 3/16-28 L=9 ナ ベ ネ ジ 3/16-28 L=9 1

Page 18 — 9. OIL LUBLICATION COMPONENTS

9. OIL LUBLICATION COMPONENTS 給油関係 1 2 3 4 5 6 7 8 11 10 9 13 22 26 30 27 24 28 31 14 23 15 12 16 17 18 29 25 20 21 19 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 19

REF. NO. NOTE PART NO. DESCRIPTION Qty. 1 229-47006 OIL SIGHT WINDOW 77'ラマド 1 2 RO-1952401-00 RUBBER RING Oリング 1 3 229-24401 MAIN SHAFT OIL TUBE ウワシクユウパイプ 1 4 SS-4120615-SP SCREW 3/16-28 L=6 ナベネジ 3/16-28 L=6 1 5 229-25101 OIL FELT PRESSER カンリユウフェルトオサエ 1 6 229-24153 OIL RETURN TUBE ASM. カンリユウパイプ(クミ) 1 7 229-24302 HOLDER カンリユウパイプ オサエ (1) 8 CQ-2520000-00 OIL WICK ユシン 0.3 9 229-25002 OIL ADJUSTING SCREW シモジ クマエメタルユリヨウチヨウセツネジ 1 10 229-24906 SPRING ユリヨウチヨウセツネジ 1 11 229-24500 OIL TUBE カマキユウパイプ 1 12 229-23056 LUBRICATING OIL PUMP ASM. キユウポンプ タイ(クミ) 1 13 229-23312 OIL PUMP INSTALLING BASE ポンプ タイトリツクタイ (1) 14 229-23015 OIL PUMP ポンプ タイ (1) 15 229-23700 OIL PUMP IMPELLER インペラー (1) 16 SE-4301041-SR SCREW D=3 L=10 タフネジ D=3 L=10 (3) 17 229-23205 LUBRICATING OIL PUMP COVER ポンプ タイワタ (1) 18 229-23809 OIL PUMP IMPELLER COVER ポンプ タイワタ (1) 19 229-23403 PLUNGER アラシヤ ヤー (1) 20 229-23601 PLUNGER SPRING アラシヤ ヤーバネ (1) 21 229-23502 PLUNGER SCREW アラシヤ ヤーネジ (1) 22 229-23908 HOOK DRIVING SHAFT OIL TUBE シモジ クキユウパイプ (1) 23 SL-4030851-SF SCREW M3 L=8 ザガネネジ M3 L=8 (3) 24 02 SS-4150915-SP SCREW 15/64-28 L=9 ナベネジ 15/64-28 L=9 1 25 SS-6111010-TP SCREW 11/64-40 L=9.5 ヒラネジ 11/64-40 L=9.5 1 26 01 229-47105 OIL PUMP SUPPORT ポンプ タイシユウ 1 27 01 SS-4151215-SP SCREW 15/64-28 L=12 ナベネジ 15/64-28 L=12 1 28 229-24609 RUBBER JOINT キユウハイヤダキデ 1 29 01 WS-0451040-KP SPRING WASHER 4.5X8.5X1 ハネガネ 4.5X8.5X1 1 30 02 229-24005 OIL PUMP SUPPORT ポンプ タイシユウ 1 31 01 WS-0651310-KP SPRING WASHER 6.5X11X1.3 ハネガネ 6.5X11X1.3 1 NOTE (注記) 01...FOR DDL-8700-7-OB,-WB DDL-8700-7-OB用 02...FOR DDL-8700-7-00 DDL-8700-7-00用 From the library of: Superior Sewing Machine & Supply LLC jntex.in

Page 20 — 10. OIL RESERVOIR COMPONENTS

10. OIL RESERVOIR COMPONENTS 油溜関係 1 2 26 25 3 4 5 6 SUZUKI 8188 2.8 7 8 10 9 16 11 12 13 17 14 15 19 20 24 23 22 21 18 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 22 — 11. BELT COVER & BOBBIN COMPONENTS

11. BELT COVER & BOBBIN COMPONENTS ベルトカバー・糸巻関係 REF. NO. NOTE PART NO. DESCRIPTION 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 229-33451 229-33402 229-33501 229-33659 229-33600 229-33758 229-33907 229-34004 SS-4121415-SP WP-0501016-SD SK-3412000-SC WP-0450826-SC 229-27354 229-28501 SS-4110515-SP 229-28709 229-29004 229-28808 SS-7110350-SP 229-26402 229-28303 SD-0490261-SP SS-7081310-SP SS-8110510-SP 229-28709 229-27305 229-27404 229-27602 SK-3412000-SC WP-0450826-SC BELT COVER ASM. BELT COVER A BELT COVER A CAP BELT COVER B COMPL. BELT COVER B BELT COVER B CAP ASM. BELT COVER SUPPORT BELT COVER A SCREW SCREW 3/16-28 L=14 WASHER 6X10.5X1 WOOD SCREW D=4.1 L=20 WASHER 4.5X10X0.8 BOBBIN WINDER CONPL. BOBBIN WINDER BRACKET SCREW 11/64-40 L=5 THREAD TENSION SPRING THREAD TENSION SPRING THREAD TENSION SPRING SCREW 11/64-40 L=3.5 BRAKE PRESSER PLATE RUBBER BRAKE BOBBIN WINDER FINGER HINGE SCREW D=4.9 H=2.6 SCREW 1/8-44 L=12.5 SCREW 11/64-40 L=5 BOBBIN WINDER POST BOBBIN BASE BOBBIN PULLEY BOBBIN WINDER POST WOOD SCREW D=4.1 L=20 WASHER 4.5X10X0.8 ヒン ヘルトカバー(クミ) ヘルトカバー-A ヘルトカバー-Aキャプ ヘルトカバー-B(クミゴワリ) ヘルトカバー-B ヘルトカバー-Bフタ(クミ) ヘルトカバー シチュウ ヘルトカバー Aトメネジ ナベネジ 3/16-28 L=14 ヒラザガネ 6X10.5X1 マルモクネジ D=4.1 L=20 ヒラザガネ 4.5X10X0.8 イトマキソウチ(クミゴワリ) イトマキソウチブラケット ナベネジ 11/64-40 L=5 イトチョウシンラ イトチョウシンラ イトチョウシンナット ナベネジ 11/64-40 L=3.5 マルヒラザガネ 11/64-40 L=5 セイキョウゴ アナ イトピンヌオオエ イトマキユビ ダンネジ D=4.9 H=2.6 マルヒラネジ 1/8-44 L=12.5 トメネジ 11/64-40 L=5 イトマキダイ イトマキクルマ イトマキシンク マルモクネジ D=4.1 L=20 ヒラザガネ 4.5X10X0.8 Qty 1 (1) (1) (1) (1) (1) (1) (2) (1) (1) (2) (2) 1 (1) (1) (2) (1) (1) (1) (1) (1) (1) (1) (1) (1) 2 2 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 23 — 12. THREAD STAND COMPONENTS

12. THREAD STAND COMPONENTS 糸立装置関係 REF. NO. NOTE PART NO. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 229-30358 229-31109 229-31000 229-30903 229-30804 SM-6061610-SC 229-30705 229-31406 229-30507 229-30408 229-31307 SM-4051405-SE NM-6050001-SE 229-30309 229-31208 WS-0510002-KN NM-6050001-SE WP-1612616-SE WS-1643202-KR D E S C R I P T I O N THREAD STAND ASM. SPOOL RETAINER SPOOL PIN SPOOL REST CUSHION SPOOL REST SCREW M6 L=16 THREAD GUIDE ARM JOINT SPOOL REST ROD RUBBER CAP SPOOL REST ARM SPOOL REST ROD, UPPER SPOOL REST ROD JOINT SCREW M6 L=14 NUT M5 SPOOL REST ROD, LOWER THREAD GUIDE SPRING WASHER NUT M16X1.5 WASHER 16X30X2.6 SPRING WASHER K イトタテソウチ(クミ) イトマキブレトメ イトマキウケボウ イトマキウケウラクシヨン イトマキウケサ ヒラコネジ M6 L=15 イトタテボウクメナケ イトタテウネゴマ A イトマキテウデ イトタテボウ(ウエ) イトタテボウワザテ ナベコネジ M5 L=14 ロツカクナット M5 イトタテボウ(シタ) イトミチ バネザガネ 5.1X9.2X1.3 ロツカクナット M16X1.5 1シュ ヒラサガネ バネザガネ 16.4X26.6X3.2 Qty 1 (2) (2) (2) (2) (2) (2) (1) (2) (1) (2) (2) (1) (2) (1) (2) (2) (1) From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 24 — 13. EXCLUSIVE PARTS FOR DDL-8700H-7

13. EXCLUSIVE PARTS FOR DDL-8700H-7 DDL-8700H-7 專用部品 1 2 14 3 4 5 6 7 8 9 10 11 12 15 19 20 32 35 25 23 24 27 22 21 50 26 33 57 59 34 37 30 31 28 29 36 39 13 43 41 42 44 45 46 47 48 49 51 52 53 54 55 40 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 25

REF. NO. NOTE PART NO. DESCRIPTION Qty. 1 110-96062 THREAD CUTTING DRIVING UNIT イトキカクトウユニット (1) 2 110-95551 KNIFE UNIT メスユニット (1) 3 114-09257 MOVING KNIFE J ASM. ドウメス J (クミ) (1) 4 110-95502 KNIFE MOUNT BASE メス トリツケダイ (1) 5 114-09604 FIX KNIFE フィクスナイフ (1) 6 110-95403 KNIFE THREAD GUIDE メスイットアンナイ (1) 7 110-95601 KNIFE BRANCH メス フタマク (1) 8 SB-0500131-TP HINGE SCREW D=5 H=1.25 タンネシ D=5 H=1.25 (1) 9 D2404-555-B00 COUNTER KNIFE SPACER コテイメス トリツケダイ (1) 10 SB-0460703-TP HINGE SCREW D=4.6 H=7 タンネシ D=4.6 H=7 (1) 11 SS-2060210-SP SCREW 3/32-56 L=2.3 マルククネジ 3/32-56 L=2,3 (1) 12 SS-4080620-TP SCREW 1/8-44 L=6 ナベネジ 1/8-44 L=6 (2) 13 02 400-10395 ADJUSTING LINK FULCRUM SHAFT B チョウヒツリツクテンジク (1) 14 114-00801 THROAT PLATE J ハリイタ J 1 15 B1213-552-000-A OIL ADJUSTING PIN クランクユシヨウ デーコーセツビツ (1) 16 SS-6080320-SP SCREW 1/8-44 L=2.5 ヒラネジ 1/8-44 L=2.5 1 17 02 110-95254 LEVER STOPPER ASM. サラネジ 3/16-28 L=6.7 1 18 02 SS-1120710-SP SCREW 3/16-28 L=6.5 リンクテンピンクミ (1) 19 110-91659 LINK THREAD TAKE-UP LEVER ASM. ハリイタウ クランク H (1) 20 110-91600 NEEDLE BAR CRANK H ハリイタデエツト #21 (1) 21 MDB-100B2100 NEEDLE DBXT #21 ハリイタ-イトカク 1 22 B1418-415-H00 NEEDLE BAR THREAD GUIDE ハリイタ ウツタメタル 1 23 229-70313 NEEDLE BAR BUSHING,LOWER ハリイタ-イトアンナイ 1 24 B1419-553-000 NEEDLE BAR THREAD GUIDE ハリイタウ 1 25 229-70206 NEEDLE BAR ハリイタ 1 26 110-92251 LUBRICATING BOBBIN ASM. キスウコウマクミ 1 27 110-93804 POSITIONING FINGER H ナカ ガマ オチエ H 1 28 B1505-552-000-A PRESSER FOOT ASM. オタエ ブヨーサバ 1 29 D1524-555-EBL PRESSER FOOT ASM. シユウオタエ (ハリガート・ツキ) 1 30 02 229-62807 WIRE PRESSER PLATE(LOWER),B ワイヤー オタエダイ イ(シタ)B 1 31 02 SS-7110740-TP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 1 32 M6009-350-AAA RESISTANCE PACK AA ASM. テイコウヘツ サクAAクミ 1 33 229-11903 FEED DIAL オクダ イヤル 1 34 110-91204 ADJUST LINK SPRING チョウフツリンク ハネ 1 35 229-62203 FEED SPRING HOOK オクリハネカケ 1 36 114-03003 FEED J オクリ J 1 37 02 110-96658 SOLENOID MOUNTING BASE ASM. ゾレノイド トリツケダイ クミ 1 38 02 112-31503 OIL PUMP SUPPORT ギヤクオクリダイ シチユウ 1 39 229-62609 REVERSE FEED BASE COLLAR ギヤクオクリダイ イカラー 1 40 02 229-62906 PLUNGER ARM PIN フランジヤウデ・ピン 1 41 02 NS-6110420-SP NUT 11/64-40 ロクアケナツト 11/64-40 (2) 42 02 229-62708 TUBE HOLDER, LOWER ギヤクオクリートオタエ 1 43 110-94109 OIL TUBE カマヤクオクリ 1 44 02 SD-0700711-TP HINGE SCREW D=7 H=7.1 タンネシ D=7 H=7.1 1 45 02 229-62500 SOLENOID CONNECTING LINK, H ジトウハツツクリンクH 1 46 02 WP-0722316-SH WASHER ヒラガネ 1 47 111-01508 REVERSE FEED LINK ジトウハツツクウデ 1 48 02 NS-6110420-SP NUT 11/64-40 ロクアケナツト 11/64-40 1 49 02 SB-0700511-TP HINGE SCREW D=7 H=4.5 タンネシ D=7 H=4.5 1 50 01 MC-2005013-00 NEEDLE 134 NM130 ハリ 134 130 1 51 229-62351 FEED DRIVE ECCENTRIC CAM ASM. オククリヘンシンカム(クミ) 1 52 114-03805 THREAD GUIDE C FITTING PLATE イトアンナイ C トサクウタイ 1 53 WP-0371016-SD WASHER 3.7X8X1 ヒラガネ 3.7X8X1 1 54 NS-6090310-SP NUT 9/64-40 ロクアケナツト 9/64-40 1 55 113-05513 ARM THREAD GUIDE, C アームイトアンナイ C 1 56 110-94604 CLUTCH LINK クラツチリンク 1 57 110-96500 THREAD TRIMMER SOLENOID イトキツリソレノイド 1 58 SD-0550701-TP STEP-SCREW D=5.5 H=7 タンネシ D=5.5 H=7 1 59 110-94901 SOLENOID BASE ゾレノイド ダイ 1 60 229-63458 THREAD TENSION ASM. ダイイイトチョウシン(クミ) (1) 61 229-63409 THREAD TENSION SPRING ダイイイトチョウシンハネ (1) 62 229-62054 THREAD TENSION ASM. イイトチョウシン(クミ) (1) 63 229-62005 THREAD TENSION SPRING イイトチョウシンハネ (1) NOTE (注記) 01... FOR JE JE用 02... FOR DDL-8700H-7-GB, -WB DDL-8700H-7-OB, -WB用 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 26 — 14. EXCLUSIVE PARTS FOR DDL-8700J-7

14. EXCLUSIVE PARTS FOR DDL-8700J-7 DDL-8700J-7専用部品 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 53 52 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 27

REF. NO. NOTE PART NO. DESCRIPTION QTY. 1 110-96062 THREAD CUTTING DRIVING UNIT 1 2 110-95551 KNIFE UNIT (1) 3 114-09257 MOVING KNIFE J ASM. (1) 4 110-95502 KNIFE MOUNT BASE (1) 5 114-09604 FIX KNIFE (1) 6 110-95503 KNIFE THREAD GUIDE (1) 7 110-95601 KNIFE BRANCH (1) 8 SD-0500131-TP HINGE SCREW D=5 H=1.25 (1) 9 D2404-555-B00 COUNTER KNIFE SPACER (1) 10 SD-0460703-TP HINGE SCREW D=4.6 H=7 (1) 11 SS-2060210-SP SCREW 3/32-56 L=2.3 (1) 12 SS-4080620-TP SCREW 1/8-44 L=6 (2) 13 400-10395 ADJUSTING LINK FULCRUM SHAFT B 1 14 114-00801 THROAT PLATE J 1 15 B1213-552-000-A OIL ADJUSTING PIN 1 16 SS-6080320-SP SCREW 1/8-44 L=2.5 1 17 110-95254 LEVER STOPPER ASM. 1 18 SS-7110710-SP SCREW 3/16-28 L=6.5 1 19 110-62858 LINK THREAD TAKE-UP LEVER ASM. 1 20 110-62809 NEEDLE BAR (1) 21 MDP-500B2100 NEEDLE DPX5 #21 (1) 22 229-70404 NEEDLE BAR BUSHING, UPPER 1 23 229-70313 NEEDLE BAR BUSHING, LOWER 1 24 400-12444 NEEDLE BAR THREAD GUIDE 1 25 229-70206 NEEDLE BAR 1 26 400-35058 HOOK ASM. 1 27 229-42502 INNER HOOK PRESSER 1 28 B1505-552-000-A PRESSER FOOT ASM. 1 29 D1524-555-EBL PRESSER FOOT ASM. 1 30 229-62807 WIRE PRESSER PLATE(LOWER), B 1 31 SS-7110740-TP SCREW 11/64-40 L=7 1 32 M6009-350-AAA RESISTANCE PACK AA ASM. 1 33 400-31345 FEED DIAL 1 34 WP-0371016-SD WASHER 3.7X8X1 1 35 229-70602 FEED SPRING HOOK 1 36 TT4-03003 FEED J 1 37 110-96658 SOLENOID MOUNTING BASE ASM. 1 38 112-31503 OIL PUMP SUPPORT 1 39 229-62609 REVERSE FEED BASE COLLAR 1 40 229-62906 PLUNGER ARM PIN 1 41 NS-6110420-SP NUT 11/64-40 2 42 229-62708 TUBE HOLDER, LOWER 1 43 110-94109 OIL TUBE 1 44 SD-0700711-TP HINGE SCREW D=7 H=7.1 1 45 229-62500 SOLENOID CONNECTING LINK, H 1 46 WP-07223T6-SD WASHER 1 47 111-01508 REVERSE FEED LINK 1 48 NS-6110420-SP NUT 11/64-40 1 49 SD-0700451-TP HINGE SCREW D=7 H=4.5 1 50 114-03805 THREAD GUIDE C FITTING PLATE 1 51 229-70552 FEED ECCENTRIC CAM ASM. 1 52 229-70503 FEED ECCENTRIC CAM L (1) 53 229-72806 FEED ECCENTRIC CAM SETSCREW (1) 54 NS-6090310-SP NUT 9/64-40 1 55 113-05513 ARM THREAD GUIDE, C 1 56 110-94604 CLUTCH LINK 1 57 110-96600 THREAD TRIMMER SOLENOID 1 58 SD-0550701-TP STEP SCREW D=5.5 H=7 1 59 110-94901 SOLENOID BASE 1 60 229-63468 THREAD TENSION ASM. 1 61 229-63409 THREAD TENSION SPRING 1 62 229-62054 THREAD TENSION ASM. (1) 63 229-62005 THREAD TENSION SPRING (1) 64 229-70701 HORIZONTAL FEED ROD 1 65 229-71204 FEED REGULATOR BASE PIN 1 66 113-02619 SPRING 1 67 229-71550 FEED LEVER ARM ASM. 1 68 SS-7121410-TP SCREW 3/16-28 L=14 1 69 229-71909 FEED LEVER SPRING 1 70 229-72251 VERTICAL FEED ARM ASM. 1 71 SS-6121610-SP SCREW 3/16-28 L=15.5 (1) 72 400-31240 FEED ADJUST LINK ASM. 1 73 400-31244 FEED ADJUST ROD 1 74 400-31249 HINGE SCREW 1 75 229-70859 HORIZONTAL FEED ARM ASM. 1 76 SS-6121610-SP SCREW 3/16-28 L=15.5 (1) From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 28 — 15. EXCLUSIVE PARTS FOR DDL-8700A-7

15. EXCLUSIVE PARTS FOR DDL-8700A-7 DDL-8700A-7 専用部品 REF. NO NOTE PART NO. DESCRIPTION Qty 1 400-11503 THREAD TENSION ASM. イトチョウクミ 1 2 D3128-555-D00 TAKE-UP SPRING イトトリバネ (1) 3 D3129-555-D00 THREAD TENSION SPRING イトチョウクミ (1) 4 M6018-350-AAA RESISTANCE PACK AA ASM. テイコウパツクAAクミ 1 5 D1524-555-DBA PRESSER FOOT ASM. オサエグミ 1 6 * 229-64001 BOBBIN (A) ホビン(A) 1 7 B1837-012-0A0 BOBBIN CASE ASM. ホビンケース 1 8 B1505-227-T00-A PRESSER SPRING T オサエチョウクミ 1 9 01 MC-2005006-50 NEEDLE 134 NM65 ハリ スメツケ 134 NM65 1 10 MDA-100B0900 NEEDLE DAX1 #9 ハリ DAX1 #9 (1) 11 110-92558 HAND LIFTER CAM ASM. オサエアゲ カム (クミ) 1 NOTE (注記) 01...FOR JE JE用

Page 29 — 16. LIST FOR INFORMATION OF CHANGE

16. LIST FOR INFORMATION OF CHANGE 変更情報リスト As to the place changed, refer to the corresponding Rev.No. When previous parts(Obsoleted part)and new parts(Added parts)are not interchangeable with each other: In this case,even obsoleted part(D,)can be ordered with the obsoleted part number,so select the parts with changed dates and place your orders. 変更箇所は、該当Rev.No.版をご参照ください。 部品の互換性がない変更の場合は、削除された品番でも、ご注文できます。 29347002 No.1307-04 Rev.No. *A:Added parts追加部品/D:Obsoleted parts削除部品/E:Erratum訂正 Rev. Page Ref. Parts No. No. 頁 No. 品 番 Rev. Page Ref. Parts No. No. 頁 No. 品 番 * D 03 2 31 110-01500 A 04 2 31 229-21001 D 03 2 58 229-01904 A 04 2 58 114-15205 D 03 2 63 M6008-350-AAC D 03 2 65 0510002-KP D 03 4 19 SS-6090650-SP A 04 4 19 SS-4090615-SP D 03 6 39 229-16605 A 04 6 39 110-15906 D 03 8 7 110-06509 A 04 8 7 229-08701 D 03 8 29 110-18108 A 04 8 29 229-20102 D 03 10 59 B1636-581-C00 A 04 10 69 229-14105 D 03 10 68 229-12703 A 04 10 66 229-12752 A 04 10 71 110-09800 D 03 14 3 SL-4030621-SS A 04 14 3 SL-4030631-SC A 04 14 3 229-32156 A 04 18 7 229-32453 A 04 18 13 B8228-125-000 D 03 22 57 110-09800 A 04 24 ALL PARTS-全 部 D 03 23 6 B9117-552-A00 A 04 25 6 229-64001 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 30 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO 品番 PAGE 頁 REF NO PART NO 品番 PAGE 頁 REF NO PART NO 品番 PAGE 頁 REF NO B1109-012-10B 2 44 NS-6090310-SP 24 54 SM-9061203-SE 18 24 SS-7120770-SH 10 6 B1109-552-000 2 60 NS-6110310-SP 24 54 SM-9061853-SR 18 16 SS-7121410-TP 10 56 B1213-552-000-A 22 15 NS-6110420-SP 22 41 SS-1120710-SP 22 18 SS-7121410-TP 24 69 B1213-552-000-A 24 15 NS-6110420-SP 22 41 SS-1120710-SP 24 18 SS-7121610-SP 10 46 B1215-552-000 4 26 NS-6110420-SP 24 48 SS-2060210-SP 12 11 SS-7681650-TP 4 14 B1305-012-0A0 6 14 NS-6110420-SP 24 48 SS-2060210-SP 22 11 SS-8090670-SP 2 41 B1306-155-0A0 6 16 NS-6620310-SP 10 32 SS-2110915-SP 2 46 SS-8110410-TP 6 37 B1306-155-0B0 6 13 NS-6660410-SP 12 58 SS-2110920-TP 2 45 SS-8110510-SP 19 25 B1306-155-0C0 6 12 NS-6680410-SP 10 42 SS-4080620-TP 10 34 SS-8110520-TP 12 22 B1307-155-0A0 6 19 RC-0150001-KP 10 32 SS-4080620-TP 12 9 SS-8150710-TP 2 42 B1307-155-0B0 6 18 RC-01850001-KP 10 32 SS-4080620-TP 22 12 SS-8151150-TP 4 1 B1308-155-0A0 6 21 RE-0250000-KP 10 32 SS-4080620-TP 24 12 SS-8151550-SP 4 33 B1408-552-000 4 8 RE-0400000-KO 13 18 SS-4090615-SP 4 19 SS-8660610-TP 4 12 B1414-555-000 6 6 RE-0500000-KO 10 54 SS-4090615-SP 10 37 SS-8660610-TP 4 24 B1418-415-H00 22 24 RE-0500000-KO 12 39 SS-4110515-SP 19 15 SS-8660610-TP 10 50 B1419-553-000 22 24 RE-0500000-KO 14 8 SS-4110515-SP 12 12 SS-8660610-TP 10 62 B1505-552-000-A 22 28 RE-0500000-KO 13 14 SS-4110715-SP 12 28 SS-8660810-TP 6 15 B1505-552-000-A 24 28 RE-0500000-KO 13 39 SS-4110915-TP 6 33 SS-8660810-TP 6 17 B1521-555-000 8 2 RE-0500000-KO 16 12 SS-4120615-SP 2 15 SS-8660810-TP 6 20 B1524-012-0BA 10 70 RE-0500000-KO 13 16 SS-4120615-SP 2 27 SS-8660810-TP 6 22 B1613-012-A00 8 8 RE-0500000-KO 13 20 SS-4120615-SP 2 29 SS-8681650-TP 4 11 B1613-012-A00 10 33 RE-0500000-KO 8 43 SS-4120615-SP 8 19 TA-0850604-RO 2 5 B1837-012-0A0 25 7 RE-0500000-KO 8 41 SS-4120615-SP 8 27 TA-1250406-RO 2 49 B1903-552-000 4 9 RE-0500000-KO 10 18 SS-4120615-SP 13 30 TA-1250705-RO 2 6 B1905-541-B00 4 6 RE-0500000-KO 10 21 SS-4120915-SP 2 50 TA-2000502-RO 2 16 B3118-552-E00 2 43 RE-0500000-KO 12 36 SS-4120915-SP 6 45 TA-2101002-RO 2 19 B8228-125-000 18 26 RE-0600000-KO 12 51 SS-4120915-SP 13 27 WP-0371016-SD 22 53 CM-3002000-B1 2 70 RE-0600000-KO 12 27 SS-4121215-SP 2 64 WP-0371016-SD 24 34 CM-3002001-B1 2 12 RE-0900000-KO 13 16 SS-4121215-SP 13 26 WP-0450000-SD 12 55 CM-3002001-A1 2 13 RE-1000000-KO 13 20 SS-4121215-SP 16 27 WP-0450801-SD 4 32 CM-3002001-01 2 63 RO-0291801-00 4 13 SS-4150915-SP 8 17 WP-0450826-SC 19 12 CQ-2520000-00 16 8 RO-0371801-00 4 3 SS-4150915-SP 12 47 WP-0450826-SC 19 31 D1524-555-DBA 25 5 RO-0781901-00 10 63 SS-4150915-SP 16 24 WP-0480856-SP 10 57 D1524-555-EBL 24 29 RO-0922702-00 10 16 SS-6060210-SP 2 54 WP-0501016-SD 2 66 D2404-555-B00 22 9 RO-1082401-00 18 6 SS-6060210-SP 12 16 WP-0501016-SD 19 10 D2404-555-B00 24 9 RO-1952401-00 16 2 SS-6080320-SP 22 16 WP-0621016-SH 12 32 D2406-555-D0H 12 10 SD-0460703-TP 22 19 SS-6080320-SP 24 16 WP-0722316-SH 22 46 D2468-555-B00 13 22 SD-0460703-TP 24 19 SS-6080410-SP 24 3 WP-0722316-SH 24 46 D3128-555-D00 25 2 SD-0490261-SP 19 23 SS-6090510-SP 12 16 WP-1602616-SZ 13 21 D3129-555-D00 25 3 SD-0500131-TP 22 10 SS-6090540-SP 14 25 WP-1612616-SE 20 19 SD-0500131-TP 24 8 SS-6090620-TP 10 14 WS-0451040-KP 16 29 EA-9500B01-00 4 28 SD-0550701-TP 22 58 SS-6090620-TP 10 30 WS-0510002-KN 20 16 SD-0550701-TP 24 58 SS-6090620-TP 10 41 WS-0651310-KP 16 31 HA-0005900-00 14 17 SD-0600361-SP 12 62 SS-6090670-TP 6 5 WS-1643202-KR 20 20 HA-0019000-00 13 11 SD-0630275-SP 12 18 SS-6090670-TP 10 3 WT-0530002-KS 2 56 HK-0346401-RO 12 46 SD-0640631-TP 12 12 SS-6090910-SP 8 38 HK-0346400-0B 13 10 SD-0641451-SP 14 4 SS-6110420-TP 6 30 110-00619 2 11 HK-0346400-0B 13 29 SD-0650321-SP 12 17 SS-6110610-TP 2 48 110-02409 4 20 HK-0346400-0B 14 23 SD-0700451-TP 12 49 SS-6110710-TP 12 61 110-02508 4 21 HW-2003900-00 14 18 SD-0700451-TP 14 29 SS-6111010-TP 16 25 110-02904 4 3 HW-5000700-00 13 9 SD-0706451-TP 22 49 SS-6121610-SP 4 37 110-039070 4 4 HW-5000700-00 14 19 SD-0707111-TP 22 49 SS-6121610-SP 10 44 110-09800 10 71 SD-0707111-TP 24 49 SS-6121610-SP 24 72 110-10311 10 17 MC-2005006-50 25 9 SD-0720331-SP 24 44 SS-6121840-SP 2 17 110-15906 6 39 MC-2005009-00 6 28 SD-1000801-SP 10 47 SS-6660610-TP 12 20 110-28008 2 65 MDA-100B0900 25 10 SE-4301041-SR 16 11 SS-6661110-SP 4 17 110-30202 2 59 MDB-100B1400 6 11 SK-3412000-SP 19 30 SS-6700710-SH 18 5 110-37405 10 22 MDB-100B2100 22 21 SL-4030631-SP 14 3 SS-7080510-TP 6 9 110-38650 6 34 MDP-500B2100 24 21 SL-4030641-SP 16 22 SS-7081310-SP 19 24 110-38759 6 42 M6009-350-AAA 22 32 SL-4051001-MZ 4 45 SS-7091110-SP 8 6 110-39062 4 5 M6009-350-AAA 24 32 SL-4051001-SC 13 8 SS-7110350-SP 19 19 110-39070 4 4 M6018-350-AAA 25 4 SM-4031501-SP 13 3 SS-7110410-SP 8 15 110-40201 12 7 NM-6040000-SN 12 56 SM-4040655-SP 20 12 SS-7110540-SP 2 62 110-40300 12 6 NM-6050001-SE 20 13 SM-4041655-SP 20 6 SS-7110720-SP 8 16 110-40359 12 1 NM-6050001-SE 20 17 SM-6061610-SP 18 9 SS-7110740-TP 10 53 110-40409 12 4 NM-6060001-SE 18 9 SM-8061010-TP 10 68 SS-7110740-TP 22 31 110-40508 12 3 NM-6160511-SE 20 18 SM-8061050-TP 10 67 SS-7110740-TP 24 31 110-40854 12 45 NS-6090310-SP 14 5 SM-8063012-TP 18 10 SS-7111120-SP 10 59 110-41852 12 30 NS-6090310-SP 22 54 110-42850 12 19 110-43205 12 52 From the library of: Super Sewing Machine & Supply LLC jintex.in

Page 31 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO 品番 PAGE 頁 REF NO PART NO 品番 PAGE 頁 REF NO PART NO 品番 PAGE 頁 REF NO 110-43304 12 57 229-04155 4 23 229-20607 2 47 229-34301 18 23 110-43908 12 53 229-04155 10 49 229-21001 2 31 229-34400 18 19 110-45952 8 28 229-04155 10 61 229-21209 2 38 229-34509 18 20 110-62809 24 20 229-05004 6 23 229-21308 2 33 229-34608 18 15 110-62858 24 19 229-05103 6 25 229-21407 2 34 229-34707 18 57 110-91204 22 34 229-05202 6 26 229-21506 2 37 229-35407 4 34 110-91600 22 26 229-06101 6 2 229-21605 2 39 229-37056 4 35 110-92261 22 19 229-06200 6 8 229-21704 2 35 229-37064 4 36 110-92558 25 11 229-06309 6 10 229-21803 2 36 229-37155 4 36 110-93804 22 27 229-06457 6 4 229-23015 16 14 229-37254 4 43 110-94109 22 43 229-07000 8 35 229-23056 16 12 229-37965 6 3 110-94109 24 43 229-07208 8 34 229-23205 16 17 229-39508 6 44 110-94604 22 56 229-07406 8 33 229-23312 16 13 229-40506 10 10 110-94604 24 56 229-07506 8 32 229-23403 16 19 229-40654 10 55 110-94901 22 59 229-07554 8 30 229-23502 16 21 229-40753 10 35 110-94901 24 59 229-07604 8 31 229-23601 16 20 229-40803 10 31 110-95254 22 17 229-07703 8 45 229-23700 16 15 229-40951 10 27 110-95254 24 17 229-07802 8 1 229-23809 16 18 229-41108 10 1 110-95403 22 6 229-08008 8 42 229-23908 16 22 229-42502 10 36 110-95502 22 4 229-08156 8 40 229-24005 16 6 229-42502 24 27 110-95502 24 4 229-08305 8 44 229-24153 16 7 229-42601 6 43 110-95551 22 2 229-08354 8 30 229-24302 16 3 229-44508 8 18 110-95551 24 2 229-08552 8 4 229-24401 16 11 229-44607 8 20 110-95601 22 7 229-08701 8 7 229-24500 16 28 229-44706 8 10 110-95601 24 7 229-08800 8 14 229-24609 12 64 229-45109 8 25 110-96062 22 1 229-09006 8 13 229-24900 16 10 229-45307 2 40 110-96062 24 1 229-10004 4 18 229-25002 16 9 229-45356 2 32 110-96500 22 57 229-10103 4 16 229-25101 19 5 229-45414 2 22 110-96500 24 57 229-10202 10 12 229-27305 19 27 229-45505 2 25 110-96658 22 37 229-10350 10 43 229-27354 19 13 229-45604 2 26 110-96658 24 37 229-10459 10 60 229-27404 19 28 229-45703 2 24 111-00104 2 20 229-10608 10 26 229-27602 19 29 229-45705 2 26 111-01508 22 47 229-10707 10 25 229-28105 19 21 229-47006 16 1 111-01508 24 47 229-10806 10 28 229-28303 19 20 229-47105 16 26 111-10152 14 20 229-10905 10 24 229-28402 19 20 229-48301 12 35 111-10301 14 15 229-11002 10 40 229-28501 19 18 229-48400 12 37 111-10801 14 28 229-11101 10 13 229-28808 19 16 229-49002 12 43 111-41355 6 24 229-11408 10 23 229-28907 19 17 229-49101 12 40 112-31503 22 38 229-11507 10 2 229-29004 19 14 229-49200 12 41 112-31603 24 38 229-11606 10 4 229-30309 20 1 229-49309 12 38 113-02619 24 67 229-11705 10 5 229-30358 20 10 229-49408 12 29 113-05513 22 55 229-11804 10 7 229-30408 20 9 229-49754 12 24 113-05513 24 55 229-11903 22 33 229-30507 20 7 229-49762 12 23 114-00801 22 14 229-12000 10 9 229-30705 20 5 229-49903 12 50 114-00801 24 14 229-12109 10 8 229-30804 20 4 229-50000 12 26 114-03003 22 36 229-12257 10 19 229-30903 20 3 229-50109 12 31 114-03003 24 36 229-12505 10 20 229-31000 20 2 229-50208 12 14 114-03805 22 52 229-12604 10 64 229-31109 20 15 229-50257 12 13 114-03805 24 50 229-12752 10 66 229-31208 20 11 229-50356 12 15 114-09257 22 3 229-12802 10 65 229-31307 20 8 229-50703 12 25 114-09257 24 3 229-12901 10 39 229-31406 20 15 229-50950 12 21 114-09604 22 5 229-13008 10 51 229-31705 18 2 229-51164 12 49 114-09604 24 5 229-13701 10 38 229-31802 18 1 229-51404 12 54 114-15205 2 58 229-13800 10 52 229-31851 18 3 229-51552 12 65 229-00401 2 10 229-14105 10 69 229-31901 18 4 229-52501 2 18 229-00609 2 28 229-15003 10 15 229-32008 18 8 229-53509 13 24 229-01003 2 55 229-15151 10 45 229-32107 18 7 229-53657 13 17 229-01201 2 52 229-15359 10 58 229-32206 18 13 229-53806 13 15 229-01250 2 51 229-16001 6 31 229-32305 18 19 229-53905 13 19 229-01300 2 53 229-16100 6 35 229-32404 18 14 229-54002 13 28 229-01409 6 1 229-16308 6 27 229-32453 18 13 229-54101 13 4 229-01805 2 14 229-16506 6 40 229-32909 6 41 229-54150 13 1 229-02159 2 1 229-16555 6 38 229-33402 19 2 229-54200 13 5 229-02209 2 2 229-17058 6 36 229-33451 19 3 229-54309 13 6 229-02605 2 61 229-17157 6 29 229-33501 19 5 229-54408 13 12 229-03009 4 44 229-19203 4 29 229-33600 19 4 229-54507 13 13 229-03108 4 15 229-19559 4 2 229-33659 19 6 229-54606 13 2 229-03157 4 10 229-20102 8 29 229-33758 19 7 229-54705 2 9 229-03207 4 25 229-20201 8 23 229-33907 19 8 229-55504 14 2 229-03900 4 40 229-20300 8 26 229-34004 19 13 229-55553 14 1 229-20409 8 24 229-34202 18 18 229-55900 14 13 229-20508 2 30 229-34251 18 18 229-56007 14 14 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 32 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS 索引 PART NO 品番 PAGE 頁 REF NO PART NO 品 PAGE 頁 REF NO 229-56106 14 6 229-56205 14 10 229-56304 14 11 229-56403 14 7 229-56809 14 26 229-56908 14 9 229-57005 14 24 229-57104 14 16 229-57203 14 21 229-58300 2 7 229-62005 22 63 229-62005 24 63 229-62054 22 62 229-62054 24 62 229-62203 22 35 229-62351 22 51 229-62500 22 45 229-62500 24 45 229-62609 22 39 229-62609 24 39 229-62708 22 42 229-62708 24 42 229-62807 22 30 229-62807 24 30 229-62906 22 40 229-62906 24 40 229-63409 22 61 229-63409 24 61 229-63458 22 60 229-63458 24 60 229-64001 25 6 229-70206 22 25 229-70206 24 25 229-70313 22 23 229-70313 24 23 229-70404 24 22 229-70503 24 52 229-70552 24 51 229-70602 24 35 229-70701 24 64 229-70859 24 76 229-71204 24 65 229-71303 24 66 229-71550 24 68 229-71909 24 70 229-72251 24 71 229-72806 24 53 229-90352 2 67 229-90550 2 69 229-90659 2 68 400-10395 22 13 400-10395 24 13 400-11503 25 1 400-12444 6 46 400-12444 24 24 400-14007 8 5 400-17524 4 31 400-17624 4 39 400-17625 4 38 400-31240 24 73 400-31244 24 74 400-31248 24 33 400-31249 24 75 400-35058 24 26 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 33 — MEMO

MEMO From the library of: Superior Sewing Machine & Supply LLC Jinte x.in

Page 34 — MEMO

MEMO From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 35

jintex.in From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 36

JUKI JUKI CORPORATION Copyright © 2001-2005 JUKI CORP. 本書の内容を無断で転載、複写すること を禁止します。 All rights reserved throughout the world. JUKI 株式会社 お買い求め、ご相談は To order or for further information, please contact: ※このパーツリストは商品改良のため予告なく変更する事があります。 * The description covered in this parts list is subject to change for improvement of the commodity without notice. ※このパーツリストは、2005年12月現在の商品仕様で編集したものです。 * This parts list is edited in accordance with the product specifications as of December 2005. From the library of: Superior Sewing Machine & Supply LLC jintex.in Printed in Japan
