Parts index — Brother KE-430C / KE-431C / KE-432Ctap a row to open its page

Page 2

Brother KE-430C / KE-431C / KE-432C parts on page 2

Ref	Part number	Part name	Qty

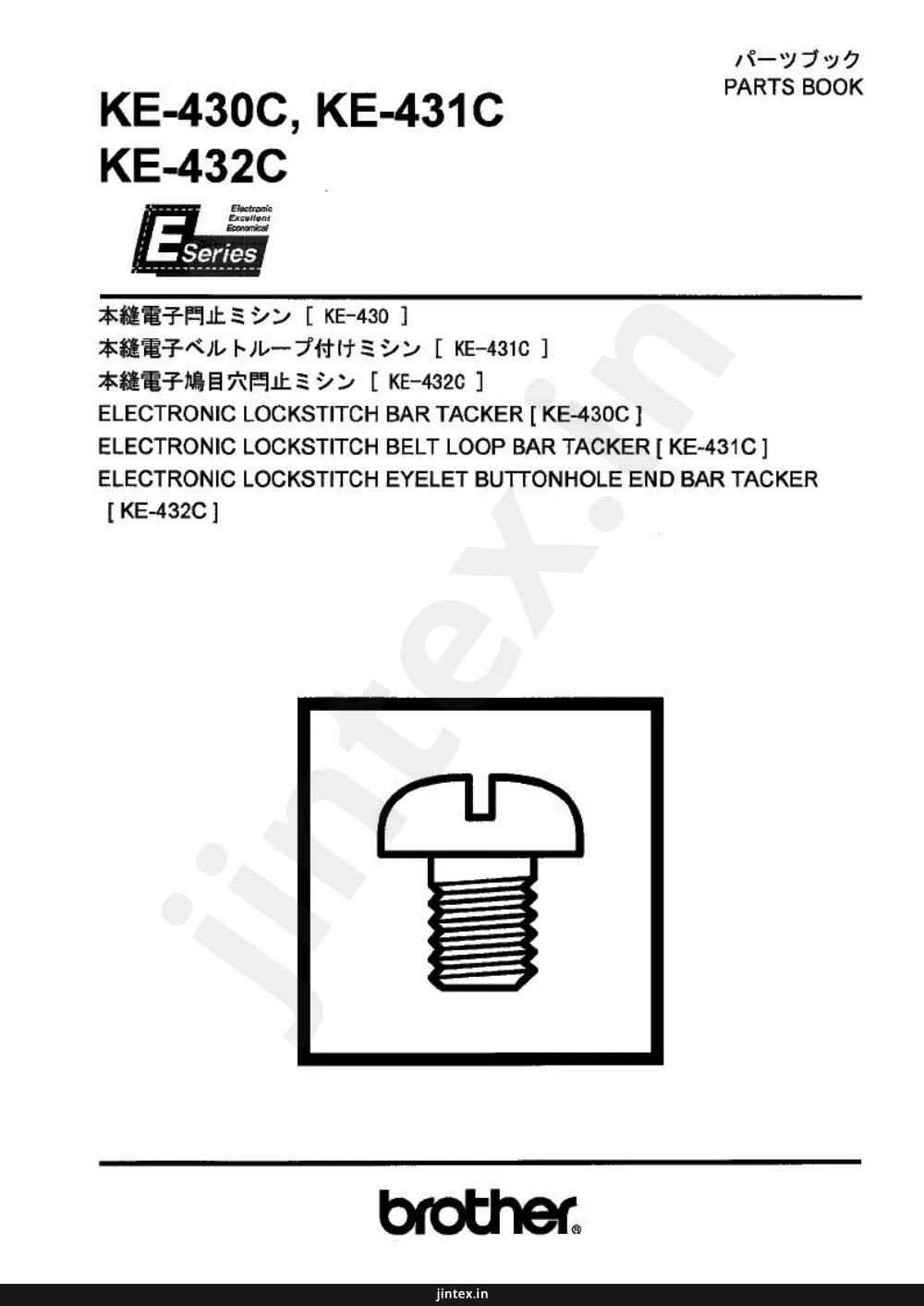

	KE-430C-0	BROTHER INDUSTRIES, LTD.
	KE-431C-0	BROTHER INDUSTRIES, LTD.
	KE-432C	BROTHER INDUSTRIES, LTD.

Page 4

Brother KE-430C / KE-431C / KE-432C parts on page 4

Ref	Part number	Part name	Qty
	A	Machine body
	B1	Upper shaft and needle bar mechanism
	B2	Upper shaft and needle bar mechanism
	C1	Feed mechanism
	C2	Feed mechanism (KE-430C)
	C3	Feed mechanism (KE-431C)
	C4	Feed mechanism (KE-432C)
	D1	Work clamp lifter mechanism
	KE-430C, KE-431C
	D2	Work clamp lifter mechanism (KE-432C
	E	Lower shaft mechanism
	F	Lubrication
	G	Threading mechanism
	H	Bobbin winder mechanism
	J	Thread trimmer mechanism
	K	Thread wiper mechanism
	L	Thread take-up mechanism
	M	Thread nipper mechanism
	N	Synchronizer
	P	Printed circuit board mechanism
	Q1	Control box mechanism
	Q2	Control box mechanism
	R	Power supply equipment mechanism
	S	Operation panel mechanism
	T	Power table
	U1	Foot switch pedal mechanism
	U2	Foot switch pedal mechanism
	(Option parts)
	U3	Foot switch pedal mechanism
	(Option parts)
	V	Attachment set (Option parts)
	Z1	Accessories
	Z2	Accessories
	Sp1	Different Parts list (KE-430C)
	Sp1	Different Parts list (KE-430C)
	Sp2	Different Parts list
	(KE-431C & KE-432C)
	Sp2	Different Parts list
	(KE-431C & KE-432C)
	Ga1	Gauge parts list (KE-430C)
	Ga1	Gauge parts list (KE-430C)
	Ga1	Gauge parts list (KE-430C)
	Ga2	Gauge parts list (KE-431C)
	Ga3	Gauge parts list
	Wa	Warning labels

Page 5

Brother KE-430C / KE-431C / KE-432C parts on page 5

Ref	Part number	Part name	Qty
	40	Machine body
	42
	13-1
	13-2
	14
	33
	15
	12
	41
	29
	30
	4
	5
	6
	28
	7
	11
	18
	17-3
	17-1
	17-2
	17
	101
	100
	10
	26
	34
	25
	31
	16
	35
	24
	23
	22-1
	22-2

Page 6 — A. 主体関係 / Machine body

Brother KE-430C / KE-431C / KE-432C parts on page 6

Ref	Part number	Part name	Qty
	104450101	ゴムセン8
	140392009	オイルフタ
	117934001	ゴムセン 13.5
	140392009	オイルフタ
	104450101	ゴムセン 8
	104449001	ゴムセン 15.5
	S37915009	ベッドカバー-R
	S53119001	ベッドカバー-LF
	S53120001	ベッドカバー-LR
	106629002	シメネジ 4.37
	017680512	ボルト 4.37X5
	S23337001	ゴムセン 18.5
	S49960109	メンイタクミ
	S49961109	メンイタ
	S49962000	メンイタパッキン
	117934001	ゴムセン 13.5
	060671212	バインド 3.57-40X12
	152842059	オオカマカバー
	S49681009	オオカマカバーC
	S57925001	ダンネジ 6.35
	109239002	ナミネジガネ
	S55208000	テンビンカバー
	062681012	ナベコ 437-40X10
	S20164001	ゴムセン 13
	150592001	ゴムセン 16
	104821001	ゴムセン 10.5
	S40101001	ゴムセン 11.5
	S51460009	グロメットMG-9
	100645003	ザガネ
	025080132	ヒラサガネショウ8
	S51098000	ワツメンカバー-IM
	S59920001	ベルトカバーサポートピラー
	062711012	ナベコ 476-32X10
	S49999201	ワインカーガード
	011679312	トメネジ 3.57ヒラ
	S44629001	Eマーク

Page 7 — B1. 上軸・針関係/Upper shaft and needle bar mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 7

Ref	Part number	Part name	Qty
2-1	2-1	screw
1	1	shaft
3	3	collar
4	4	collar
5	5	bearing
6	6	shaft
7	7	bearing
8	8	bearing
9	9	washer
2	2	needle bar connecting rod
12	12	cam
13	13	screw
14	14	screw
15	15	screw
16	16	needle bar connecting rod assembly
16-1	16-1	connecting rod
16-2	16-2	connecting rod
16-3	16-3	pin
16-4	16-4	connecting rod
16-5	16-5	screw
16-6	16-6	connecting rod
16-7	16-7	bracket
16-8	16-8	screw
16-9	16-9	collar
17	17	screw
18	18	collar
19	19	needle bar
20	20	screw
21	21	washer
22	22	needle bar
23	23	screw
24	24	needle bar
25	25	needle bar
26	26	needle

Page 8 — B1 . 上軸・針棒関係 / Upper shaft and needle bar mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 8

Ref	Part number	Part name	Qty
	S49688001	ウワジク
	S45147101	クランククロツドクミ
	144712001	シメナシ.4.76	2
	S49582001	ウワジクメタルF
	S49583001	スラストサカネ
	0147780622	アナトメネジ.6.35クホミ
	140726000	ウワジクメタルM
	072630260	ベアリング 6302VV	2
	116920001	オクリジク スラストリング
	048150142	トメワジククミC15
	S49584000	グリアイクランクD
	100250001	シメナシ.7.14
	014770632	アナトメネジ35-40X6	2
	S55877001	トメワジク.35クホミ
	S49585001	ハリボウウレンカンクミ
	S49587001	テンビンササエ
	S49588001	テンビンドウ
	S47091001	テンビンササエジク
	S49589001	ハリボウクランク
	145465001	シメナシ.3.57L
	S49689001	ハリボウレンカン
	S37926101	ハリボウダキ
	062660812	ナベコ437-40X8
	14777000	ニードルベアリング	2
	014780622	アナトメネジ.6.35クホミ
	102630001	ハリボウアンナイカクコマ
	S49590000	ハリボウアンナイ
	100242003	シメナシ.3.57	2
	155578000	ゴムセン7.2	2
	15220101	ハリボウA
	144458001	アナトメネジ3.57
	152242001	ハリボウメタルU
	152243001	ハリボウメタルD
	*	ミシンバリ

Page 9 — B2. Upper shaft and needle bar mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 9

Ref	Part number	Part name	Qty
30-1	30-1	30-1
30-2	30-2	30-2
30-3	30-3	30-3
30-4	30-4	30-4
30-5	30-5	30-5
31	31	31
35	35	35
36	36	36
37	37	37
38	38	38
39	39	39
40	40	40
41	41	41
42	42	42
43	43	43
44	44	44
47	47	47
48	48	48
49	49	49

Page 10 — B2 . 上軸・針棒関係 / Upper shaft and needle bar mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 10

Ref	Part number	Part name	Qty
	S52834201	Uタイミングプーリグミ
	S56017000	ウクシクプーリ
	S56018000	プーリスペーサ
	S56019001	プーリザガネ
	018401236	アナボルト4X12	3
	028040246	バネザガネ2-4	3
	S55572001	アナクボミ595-28X10	2
	S52838000	ウクシクタイミングベルト	1
	S52839200	IMモータブラケット	1
	018083022	アナボルト8X30	3
	028080242	バネザガネ2-8	3
	025080032	ヒラザガネネチュウ8	3
	S52840001	ベルトチヨウセツタイ	1
	018061022	アナボルト6X10	1
	018062522	アナボルト6X25	1
	021060102	ナット1シュ6	1
	S47270001	アナボルトザクミ6X30	4
	S52836000	モータタイミングプーリグミ	1
	S55572001	アナクボミ595-28X10	1
	017680512	ボルト4.37X5	1

Page 11 — C1 . 送り関係 / Feed mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 11

Ref	Part number	Part name	Qty
	1	FEED ROCK SHAFT
	1-1	FEED ROCK SHAFT
	1-2	COLLAR
	1-3	SCREW
	1-4	BRACKET
	1-5	COLLAR
	1-6	COLLAR
	1-7	COLLAR
	1-8	SCREW
	2	FEED ROCK SHAFT
	3	FEED ROCK SHAFT
	3-1	COLLAR
	3-2	SCREW
	4	FEED ROCK SHAFT
	4-1	BRACKET
	4-2	COLLAR
	4-3	COLLAR
	4-4	SCREW
	6	SCREW
	7	FEED ROCK SHAFT
	8	COLLAR
	9	COLLAR
	10	SCREW
	11	FEED ROCK SHAFT
	12	FEED CAM
	13	BRACKET
	14	FEED ROCK SHAFT
	15	SCREW
	16	COLLAR
	17	COLLAR
	18	SCREW
	19	FEED ROCK SHAFT
	20	FEED CAM
	21	BRACKET
	22	COLLAR
	23	SCREW
	24	COLLAR
	25	COLLAR
	26	SCREW
	27	FEED CAM
	28	COLLAR
	29	COLLAR
	30	COLLAR
	33	FEED CAM
	34	SCREW
	35	BRACKET
	36	SCREW
	49	COLLAR

Page 12 — C1 . 送り関係 / Feed mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 12

Ref	Part number	Part name	Qty
	S37930201	メクリバールーダ	1
	S37931101	メクリバール	1
	S59912001	ヨコオクリカクコマクミ	1
	151602002	トメネジ4.37	1
	153924001	フェルト	1
	108802001	クミヒモ4X4	1
	S37932101	オクリカムコロ	1
	S37933001	コロジック	1
	014760622	アナトメネジ5.95	1
	S37934001	メクリバールーメタル	1
	183493001	オクリジツクセットカラクーミ	1
	S09212001	セットカラー	1
	101706001	トメネジ6.35	2
	S59913001	ヨコオクリバールーミ	1
	S59914001	Yオクリバール	1
	S37932101	オクリカムコロ	1
	S37933001	コロジック	1
	014760622	アナトメネジ5.95	1
	014760622	アナトメネジ5.95	1
	152760051	タテオクリバールーシク	1
	048180142	トメワジクシヨウC18	1
	152756001	スラストザガネ18	2
	014760622	アナトメネジ5.95	1
	S37937001	オクリカムブラツケト	1
	S37938001	オクリカムX	1
	014760622	アナトメネジ5.95	2
	S37939001	カムジク	1
	048060342	トメワE6	1
	070688850	タマシクウケ688ZZNR	2
	S37940001	イチギメピン	2
	062681012	ナベコ437-40X10	2
	S37937001	オクリカムブラツケト	1
	S37941001	オクリカムY	1
	014760622	アナトメネジ5.95	2
	S37939001	カムジク	1
	048060342	トメワE6	1
	070688850	タマシクウケ688ZZNR	2
	S37940001	イチギメピン	2
	062681012	ナベコ437-40X10	2
	S37942100	カップリングハブ8	2
	S37943100	カップリングハブ6.3	2
	S37944000	カップリングスペーサ	2
	014760622	アナトメネジ5.95	8
	S49590001	オクリケントドク	2
	060300512	バインドM3X5	2
	S49683001	ケンテンサ-トツケイタ	2
	062680612	ナベコ4.37-40X8	2
	S23337001	ゴムセン18.5	1

Page 13 — C2 . 送り関係 (KE-430C) / Feed mechanism (KE-430C)

Brother KE-430C / KE-431C / KE-432C parts on page 13

Ref	Part number	Part name	Qty
46	46	PLATE, NEEDLE
47	47	SCREW
48	48	WASHER
37-1	37-1	ARM, FEED ROCK
37-2	37-2	ARM, FEED
37-3	37-3	SHAFT, FEED ROCK
37-4	37-4	PIN, FEED ROCK SHAFT
37-5	37-5	SPRING
37-6	37-6	PIN
37-7	37-7	SHAFT, FEED
37-8	37-8	BRACKET, FEED
37-9	37-9	BRACKET, FEED
37-10	37-10	PLATE, FEED
37-11	37-11	PLATE, FEED
37-12	37-12	SCREW
37-13	37-13	SHAFT, FEED
37-14	37-14	SCREW
37-15	37-15	WASHER
37-16	37-16	SHAFT, FEED
37-17	37-17	SCREW
37-18	37-18	SPRING
37-19	37-19	SPRING
37-20	37-20	SHAFT, FEED
37-21	37-21	ROD, FEED
37-22	37-22	SCREW
37-23	37-23	COLLAR
37-24	37-24	SCREW
37-25	37-25	SPRING
100	100	FEED PLATE
5	5	SCREW
31	31	BASE PLATE
32	32	SCREW
38	38	BRACKET
38-1	38-1	WASHER
39	39	SCREW
40	40	BRACKET
41	41	WASHER
42	42	SCREW
43	43	SCREW
44	44	WASHER
45	45	SCREW
50	50	ROLLER
51	51	SCREW
52	52	BRACKET
53	53	SCREW
500	500	OPTION PARTS
500-1	500-1	BRACKET
500-2	500-2	BRACKET
500-3	500-3	ARM
500-4	500-4	ARM
500-5	500-5	SCREW
500-6	500-6	WASHER
500-7	500-7	NUT

Page 14

Brother KE-430C / KE-431C / KE-432C parts on page 14

Ref	Part number	Part name	Qty
	S59915001	タテオリクシシク	1
	S59916001	オク リダイアンナイタ	1
	145318001	シメネジ4.37	8
	*	オサエウデ	1
	S49592200	オサエウデ	1
	S37949101	オサエウデレバー-R	1
	S37950101	オサエウデレバー-L	1
	S34839001	オサエウデレバーシク	1
	116629001	ザガネ	2
	048050342	トメワE5	2
	014760622	アナトメネジ5.95	1
	*	オサエウデ	1
	*	オサエウデ	1
	152783001	オサエウデサイエイタ	2
	152784001	オサエウデサイエイタB	1
	107038003	サラネジ3.57	4
	S37951101	オサエウデレバー	2
	146354001	ザガネ	2
	018500822	アナトボルト5X8	2
	153570101	オサエハネアンナイロッド	2
	14478101	ダンネジ4.76	2
	S48646001	オサエハネD	2
	152788000	オサエハネカンザ	2
	153567000	オサエハネカラー	2
	156495201	フィンガーガード	1
	062671012	ナベコ357-40X10	2
	S49595001	オサエウデササエジク	1
	014760622	アナトメネジ5.95	1
	S59927001	ササエジクオシハネ	1
	S59918001	オク リダイクミ	1
	152771000	オク リダイカンザ	2
	S59921001	カンザ4.8	2
	071047650	コウキュウ3/16	2
	025060232	ヒラサガネチュウ6	2
	017761412	ボルト5.95X14	2
	S49955001	オク リイタンメネジ	1
	153057101	オク リイタンメネジ	1
	153035000	オサエウデフェルト	1
	S59917001	オサエウデササエタ	1
	018400822	アナトボルト4X8	2
	071039750	コウキュウ5/32	3
	S59919000	ロッドエンドPB-8	1
	S10209101	シメネジ4.37	1
	S59923000	オク リダイカバー-R	1
	060680512	バインド437-40X5	2
	*	オク リイタ	1
	S41328101	オプション部品	1
	S41324001	QCオサエウデクシエンシセット	1
	S41325001	QCレバーササエ	2
	S41326101	QCオサエウデレバー	1
	S41327101	QCオサエウデレバー-L	1
	018501022	アナトボルト5X10	2
	028050242	バネザガネ2-5	2
	025050232	ヒラサガネ5	2

Page 15 — C3 . 送り関係 (KE-431C) / Feed mechanism (KE-431C)

Brother KE-430C / KE-431C / KE-432C parts on page 15

Ref	Part number	Part name	Qty
	46	Cover
	48	Screw
	47	Screw
	37	Feed mechanism
	37-4	Lever
	37-9	Screw
	37-8	Washer
	37-7	Screw
	37-19	Pin
	37-16	Spring
	37-21	Screw
	37-14	Rod
	37-2	Arm
	37-5	Shaft
	37-17	Screw
	37-18	Pin
	37-1-2	Guide
	37-1-1	Bracket
	37-1-3	Screw
	37-1-3	Screw
	37-1	Base
	37-10	Screw
	37-20	Screw
	37-11	Lever
	37-3	Screw
	37-15	Screw
	37-13	Screw
	37-12	Washer
	42	Screw
	41	Washer
	45	Screw
	44	Screw
	5	Pin
	43	Screw
	31	Base plate
	32	Screw
	100	Needle plate
	50	Roller
	53	Screw
	52	Washer
	40	Screw
	39	Bracket
	38-1	Lever
	38	Feed dog
	51	Screw

Page 16

Brother KE-430C / KE-431C / KE-432C parts on page 16

Ref	Part number	Part name	Qty
	S59915001	TACK WIDTH FEED SHAFT	1
	S59916001	FEED BRACKET GUIDE PLATE	1
	145318001	SCREW, SM4.37	8
	S51849101	WORK CLAMP ARM ASSY	1
	159825200	WORK CLAMP ARM, 431	1
	159827001	WORK CLAMP GUIDE BRACKET, B	1
	062671212	SCREW, PAN SM3.57-40X12	4
	154413001	WORK CLAMP LEVER, A	1
	S41230001	WORK CLAMP LEVER, B	1
	154415001	WORK CLAMP LEVER, C	1
	153944001	LEVER SHAFT BUSH	1
	014760622	SET SCREW, SOCKET SM5.95	1
	140407002	WASHER	1
	018500822	BOLT, SOCKET M5X8	1
	014770622	SET SCREW, SOCKET (CP) SM6.35	2
	*	WORK CLAMP, 431	1
	S37951101	WORK CLAMP ARM LEVER PLATE	1
	140407002	WASHER	1
	018500822	BOLT, SOCKET M5X8	1
	15988101	SPRING GUIDE ROD, B	1
	15478101	SHOULDER SCREW, SOCKET SM4.76	1
	153569001	PRESSER SPRING, B	1
	152788000	PRESSER SPRING COLLAR	1
	153567000	PRESSER SPRING COLLAR	1
	S49595001	WORK CLAMP ARM SUPPORT SHAFT	1
	014760622	SET SCREW, SOCKET SM5.95	1
	S59927001	SUPPORT SHAFT PUSH SPRING	1
	S59918001	FEED BRACKET ASSY	1
	15271000	FEED BRACKET SPACER	2
	S59921001	SPACER, 4.8	2
	071047650	BEARING BALL, 3/16	2
	025060232	WASHER, PLAIN M 6	2
	017761412	BOLT, SM5.95X14	2
	S4955001	SCREW, W/SOCKET SM4.37	1
	153057101	SCREW, W/SOCKET SM4.37	1
	153035000	WORK CLAMP FELT	1
	S59917001	WORK CLAMP ARM SUPPORT PLATE	1
	018400822	BOLT, SOCKET M4X8	2
	071039750	BEARING BALL, 5/32	3
	S59919000	ROD END, PB-8	1
	S10209101	SCREW, SM4.37	1
	S59923000	FEED BRACKET COVER, R	1
	060680512	SCREW, BIND SM4.37-40X5	2
	*	FEED PLATE, 431	1

Page 17 — C4 . 送り関係 (KE-432C) / Feed mechanism (KE-432C)

Brother KE-430C / KE-431C / KE-432C parts on page 17

Ref	Part number	Part name	Qty
212	212	Screw
213	213	Washer
210	210	Cover
211	211	Screw
213	213	Washer
219	219	Screw
230	230	Screw
231	231	Washer
209	209	Screw
232	232	Washer
206	206	Bolt
207	207	Washer
214	214	Bracket
208	208	Nut
200	200	Screw
201	201	Spring
202	202	Washer
37	37	Feed Mechanism
37-5	37-5	Screw
37-4	37-4	Lever
37-9	37-9	Washer
37-10	37-10	Screw
37-20	37-20	Screw
37-6	37-6	Screw
37-7	37-7	Washer
37-33	37-33	Washer
37-32	37-32	Shaft
37-26	37-26	Lever
37-23	37-23	Screw
37-22	37-22	Spring
37-27	37-27	Screw
37-24	37-24	Washer
37-25	37-25	Nut
37-21	37-21	Plate
37-31	37-31	Shaft
37-2	37-2	Base
37-15	37-15	Shaft
37-16	37-16	Screw
37-18	37-18	Washer
37-17	37-17	Screw
37-13	37-13	Washer
37-14	37-14	Washer
37-11	37-11	Screw
37-12	37-12	Washer
37-34	37-34	Washer
37-1	37-1	Feed Dog
37-36	37-36	Screw
37-35	37-35	Bracket
215	215	Bearing
225	225	Screw
223	223	Washer
222	222	Washer
224	224	Bracket
226	226	Washer
227	227	Clip
229	229	Screw
221	221	Screw
228	228	Screw
220	220	Rod
100	100	Base Plate
43	43	Screw
44	44	Screw
5	5	Screw
31	31	Screw
32	32	Washer
40	40	Screw
50	50	Shaft
53	53	Screw
52	52	Lever
39	39	Bracket
38-1	38-1	Shaft
38	38	Lever
205	205	Screw
204	204	Rod
51	51	Screw
42	42	Screw
41	41	Washer
203	203	Bracket
45	45	Washer
218	218	Screw
217	217	Clamp
216	216	Shaft

Page 18

Brother KE-430C / KE-431C / KE-432C parts on page 18

Ref	Part number	Part name	Qty
	S59915001	TACK WIDTH FEED SHAFT	1
	S59916001	FEED BRACKET GUIDE PLATE	1
	145318001	SCREW, SM4.37	8
	S41024100	WORK CLAMP ARM ASSY, Z32	1
	S41025100	WORK CLAMP FRAME, Z32	1
	150553001	NUT, SM5.95	1
	118258001	STOP LEVER SPRING	1
	118256001	STOP LEVER	1
	118257001	SHOULDER SCREW, SM5.95	1
	118259001	BOLT, SM4.37	1
	021680202	NUT, 2 SM4.37	1
	15562101	WORK CLAMP CARRIER PLATE	1
	018401622	BOLT, SOCKET M4X16	1
	025710232	WASHER, PLAIN M 4.76	1
	118247001	COLLAR	1
	117143001	COLLAR	1
	021400102	NUT, 1 M4	1
	155576001	ROLLER	1
	155577001	SCREW, SM4.76	1
	025710232	WASHER, PLAIN M 4.76	1
	048040342	RETAINING RING, E4	1
	021710212	NUT, 2 SM4.76	1
	S41265001	BUTTON HOLE GUIDE, Z32	1
	062761012	SCREW, PAN SM5.95-28X10	2
	118248101	STOP POSITION ADJUSTING PLATE	1
	S41288001	WORK CLAMP GUIDE PLATE, Z32	1
	118252001	SCREW	2
	025710132	WASHER, PLAIN S 4.76	2
	062681212	SCREW, PAN SM4.37-40X12	2
	118247001	COLLAR	2
	117143001	SCREW, FLAT SM4.37	2
	118244001	SHOULDER SCREW, SM5.95	2
	118249001	WORK CLAMP, R	1
	118250001	WORK CLAMP, L	1
	S06533001	PRESSER ADJUSTING PLATE ASSY	1
	025060232	WASHER, PLAIN M 6	1
	018061022	BOLT, SOCKET M6X10	1
	025710132	WASHER, PLAIN S 4.76	1
	S41011001	LEVER	1
	123882001	SHOULDER SCREW, SM4.37	1
	S59918001	FEED BRACKET ASSY	1
	152771000	FEED BRACKET SPACER	2
	S59921001	SPACER, 4.8	2
	071047650	BEARING BALL, 3/16	2
	025060232	WASHER, PLAIN M 6	2
	017761212	BOLT, SM5.95X12	2
	S49955001	SCREW, W/SOCKET SM4.37	1
	153057101	SCREW, W/SOCKET SM4.37	1
	153035000	WORK CLAMP FELT	1
	S59919000	ROD END, PB-8	1
	S10209101	SCREW, SM4.37	1
	S59923000	FEED BRACKET COVER, R	1
	060680512	SCREW, BIND SM4.37-40X5	1
	S51084001	FEED PLATE, 432	1
	155567001	ADJUSTING SCREW	1
	115147001	COMPRESSION SPRING	1
	146994001	NUT, ROUND SM6.35-40	2
	153834101	BUTTON CLAMP HOLDER SUPPORT	1
	153827001	BUTTON CLAMP HOLDER SHAFT	1
	014680622	SET SCREW, SOCKET (CP) SM4.37	2

Page 19 — C4 . 送り関係 (KE-432C) / Feed mechanism (KE-432C)

Brother KE-430C / KE-431C / KE-432C parts on page 19

Ref	Part number	Part name	Qty
	212	Screw
	213	Washer
	210	Bracket
	230	Screw
	231	Washer
	209	Screw
	232	Washer
	211	Screw
	213	Washer
	219	Screw
	206	Bolt
	207	Washer
	214	Screw
	208	Nut
	200	Screw
	202	Washer
	37	Feed mechanism
	37-5	Screw
	37-4	Lever
	37-3	Washer
	37-6	Screw
	37-33	Washer
	37-7	Screw
	37-32	Lever
	37-19	Screw
	37-20	Washer
	37-26	Lever
	37-28	Screw
	37-2	Base
	37-31	Shaft
	37-21	Plate
	37-23	Screw
	37-22	Washer
	37-27	Screw
	37-24	Washer
	37-25	Nut
	37-30	Screw
	37-29	Washer
	215	Bearing
	220	Rod
	223	Washer
	222	Washer
	224	Bracket
	229	Screw
	221	Bolt
	201	Spring
	225	Bolt
	226	Washer
	227	Clip
	228	Screw
	37-36	Screw
	37-35	Bracket
	37-13	Washer
	37-12	Washer
	37-11	Washer
	37-1	Base plate
	37-17	Screw
	37-34	Washer
	37-14	Washer
	37-15	Screw
	37-16	Washer
	37-18	Washer
	37-10	Screw
	37-9	Washer
	37-1	Base plate
	37-2	Base
	37-8	Screw
	37-16	Washer
	37-18	Washer
	37-15	Screw
	37-10	Screw
	37-9	Washer
	37-23	Screw
	37-28	Screw
	37-22	Washer
	37-27	Screw
	37-24	Washer
	37-25	Nut
	37-30	Screw
	37-29	Washer
	216	Bush
	100	Cover
	43	Screw
	44	Screw
	5	Pin
	31	Screw
	32	Washer
	53	Screw
	50	Washer
	52	Bracket
	40	Screw
	39	Washer
	38-1	Washer
	205	Screw
	38	Lever
	51	Screw
	204	Rod
	42	Screw
	41	Washer
	203	Bracket
	45	Washer
	218	Screw
	217	Clamp

Page 20 — C4. 送り関係 (KE-432C) / Feed mechanism (KE-432C)

Brother KE-430C / KE-431C / KE-432C parts on page 20

Ref	Part number	Part name	Qty
	017781412	ポルト6.35X14	1
	118735002	ザガネ	1
	150556001	ナット6.35	1
	S41290301	(YSトリツケイタパツキン	1
	S41060109	タケツケ	1
	062710812	ナベコ476-32X8	2
	062711012	ナベコ476-32X10	2
	025710232	ヒラザガネチユウ4.76	4
	152827001	オイルキリセン	1
	S23337001	ゴムセン18.5	1
	228475000	ケツクバンド1.9X80	1
	525664000	コードホルダ#6	1
	062680612	ナベコ4.37-40X6	1
	062710812	ナベコ476-32X8	2
	S41264001	オサエヨセロツトクミ	1
	018062036	アナボルト6X20	1
	118735002	ザガネ	1
	021060306	3シユナツト6	2
	S41010001	センサイタ	1
	S41012001	OYソレノイドピン	1
	140407001	ザガネ	1
	S19662001	スナツクピン5	1
	S18523001	オサエアゲバネ	1
	S41009001	OYソレノイドストツパー	1
	062710812	ナベコ476-32X8	2
	025710232	ヒラザガネチユウ4.76	2
	S52098201	OYソレノイドトリツケイタ	1

Page 21 — D1. 押工上ゲ関係 / Work clamp lifter mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 21

Ref	Part number	Part name	Qty
24	24	SCREW
20	20	SCREW
19	19	BRACKET
23	23	BRACKET
13	13	WASHER
16	16	SCREW
15	15	BRACKET
18	18	LEVER
17	17	PIN
1	1	BRACKET
8	8	WASHER
2	2	BRACKET
9	9	PIN
3	3	LEVER
4	4	SHAFT
5	5	SHAFT
14	14	SPRING
10	10	PIN
6	6	LEVER
12	12	SLEEVE
25	25	WASHER
11	11	SHAFT
21	21	BRACKET
22	22	SCREW
26	26	SCREW

Page 22 — Work clamp lifter mechanism (KE-430C, KE-431C)

Brother KE-430C / KE-431C / KE-432C parts on page 22

Ref	Part number	Part name	Qty
	S49630001	リンクA
	S49631001	リンクB
	S49632001	リンクCウミ
	S49635001	リンクシクA
	S49636001	リンクシクB
	S49637001	リンクシクC
	S49638001	リンクシクD
	100261001	ザガネ	4
	S37968001	スナップピン8	6
	S19662001	スナップピン5	2
	S58890001	オオエイタ	1
	S55157000	オオエイタヨウメタル	1
	014760622	アナトメジ 5.95	2
	S10105001	リンクドシバネ	2
	S49639001	センサトツケダイ	1
	062680612	ナベコ4.37-40X6	1
	S49640101	センサカンセイタ	1
	S55479001	アナボルトザクミ4X8	1
	S49641001	ソレノイドトリツケイタA	1
	060681212	バインド437-40X12	4
	S49642001	ソレノイドトリツケイタB	1
	060501016	バインドM5X10	2
	06064001	ガイド	1
	060680712	バインド437-40X7	2
	S59763000	オオエイアストツパーゴム	1
	018501422	アナボルト5X14	2

Page 23 — D2 . 押工上ゲ関係 (KE-432C) / Work clamp lifter mechanism (KE-432C)

Brother KE-430C / KE-431C / KE-432C parts on page 23

Ref	Part number	Part name	Qty
	1	Lever
	2	Link
	3	Shaft
	4	Pin
	5	Pin
	6	Shaft
	7	Lever
	8	Washer
	9	Clip
	10	Shaft
	11	Shaft
	12	Bush
	13	Screw
	14	Spring
	15	Bracket
	16	Screw
	17	Lever
	18	Screw
	19	Screw
	20	Screw
	21	Base
	22	Screw
	23	Plate
	24	Screw
	25	Washer
	26	Screw
	27	Washer
	28	Washer
	29	Screw
	30	Pin
	31	Screw
	32	Screw
	33	Screw
	34	Screw
	35	Screw
	36	Lever
	37	Screw
	38	Washer
	39	Screw

Page 24 — D2 . 押工上ゲ関係 (KE-432C) / Work clamp lifter mechanism (KE-432C)

Brother KE-430C / KE-431C / KE-432C parts on page 24

Ref	Part number	Part name	Qty
	S49630001	リンクA
	S49631001	リンクB
	S49632001	リンクCクミ
	S49635001	リンクシクA
	S49636001	リンクシクB
	S49637001	リンクシクC
	S49638001	リンクシクD
	100281001	ザガネ	4
	S37968001	スナップピン8	6
	S19662001	スナップピン5	2
	S41015101	オサエエアゲロッド	1
	S55157000	オサエエアゲロッド	1
	014760622	アナトメシ5.95	2
	S10105001	リンクモトシハネ	2
	S49639001	センサトリツケダイ	1
	062680612	ナベコ4.37-40X6	1
	S49640101	センサカンテイタ	1
	S55479001	アナボルトザクミ4X8	1
	S49641001	ソレノイドトリツケダイA	1
	060681212	バインド 437-40X12	4
	S49642001	ソレノイドトリツケダイB	1
	060501016	バインド M5X10	2
	S49643001	ガイド	1
	060680712	バインド 437-40X7	2
	120448001	ゴムワ	1
	018501422	アナボルト5X14	2
	150206002	ヒラガネ16	1
	015010142	トノウシクヨウC15	1
	153838001	コジク	1
	107744001	コジク	1
	153484001	ザガネ4.76	1
	105234003	ナット4.37	1
	S41014009	レバーホルダー	1
	018061622	アナボルト6X16	2
	025060232	ヒラガネチユウ6	2
	S41016001	オサエヤレバー	1
	153838001	ボタンツカミレバーシク	1
	014760622	アナトメシ5.95	1
	017821813	ボルト7.94X18	1

Page 25 — E. 下軸関係 / Lower shaft mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 25

Ref	Part number	Part name	Qty
	14-1	Lower shaft mechanism
	14-1-3
	14-1-2
	14-1-8
	14-1-10
	14-1-11
	14-1-4
	14-1-9
	14-1-6
	14-1-5
	24
	25
	21
	22
	19
	18
	20
	14-2	For supply parts
	14-2-1
	14-2-1-3
	14-2-1-2
	14-2-1-8
	14-2-2
	14-2-1-1
	14-2-2
	14-2-1-11
	14-2-1-6
	14-2-1-5
	14-2-1-4
	14-2-1-9
	14-2-2
	14-2-1-9
	14-2-2
	28
	27
	29
	32
	31
	30
	8
	13-1
	9
	13
	10
	11
	12
	6
	3
	2
	6-1
	6-1
	4
	5
	7
	7
	1

Page 26 — E . 下軸関係 / Lower shaft mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 26

Ref	Part number	Part name	Qty
	141786001	クランクロッドタンネジ	1
	100090004	ナット7.14	1
	014680622	アナトメネジ 4.37クホミ	1
	152245101	ヨウドウキヤ	1
	S37978251	ヨウドウキヤジク	1
	161995001	セットカラ一クミ	1
	101706001	アナトメネジ 6.35	2
	014760622	アナトメネジ 5.95	2
	S49605001	シンタククミ	1
	S55213001	シンタクメタル	1
	014760622	アナトメネジ 5.95	1
	152678201	カマナワセツク	1
	081003670	OリングPW3	1
	S49809001	セットカラ一クミ	1
	017770622	アナトメネジ 5.95クホミ	2
	S55927101	オオカマタイクミ	1
	S55216101	オオカマタイ	1
	S02429101	カマイトアンナイ	1
	062660412	ナベコ318-40X4	2
	152683101	オオカマトツケツメ	2
	152684101	オオカマトツケツハネ	2
	402887001	ザガネ3.2	2
	062660712	ナベコ318-40X7	2
	S09043000	フエルト	2
	S49981000	クミヒモ3X3	2
	S49828000	クミヒモ3X3	1
	S49685000	クミヒモ3X3	1
	014760622	アナトメネジ 5.95	1
	152678201	カマナワセツク	1
	081003670	OリングPW3	1
	048070342	トメワE7	1
	S55215001	ドライバーHR	1
	018501232	アナトボルト5X12	1
	*	オオカマ	1
	*	ナカカマハコウミ	1
	S16290001	ニードルローラー4X19.8	1
	*	ボビンケースクミ	1
	*	ボビンケースチヨウシバネ	1
	*	ボビンケーススバネ	1
	*	クウテンボウシバネ	1
	*	ボビン	1
	S55658000	カマエフエルト	1
	S55214000	カマエフエルトサシエ	1
	S55140001	サポート	1
	123882001	ダンネジ 4.37	1
	103010002	ナミカンタバネザガネ	1
	025770232	ヒラサガネチユウ6.35	1
	S59888001	オオカマタイクミセット
	S59885001	オオカマタイクミ	1
	S55216001	オオカマタイクミ	1
	S55216001	オオカマタイ	1
	S02429101	カマイトアンナイ	1
	062660412	ナベコ318-40X4	2
	152683101	オオカマトツケツメ	2
	152684101	オオカマトツケツハネ	2
	402887001	ザガネ3.2	2
	062660712	ナベコ318-40X7	2
	S09043000	フエルト	2

Page 27 — E. 下軸関係 / Lower shaft mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 27

Ref	Part number	Part name	Qty
14-1-3	14-1-3	SCREW
14-1-2	14-1-2	BRACKET
14-1-5	14-1-5	SHAFT
14-1-10	14-1-10	COLLAR
14-1-7	14-1-7	SPRING
14-1-6	14-1-6	WASHER
14-1-5	14-1-5	SHAFT
14-1-11	14-1-11	PIN
14-1-9	14-1-9	SPRING
14-1-4	14-1-4	SPRING
24	24	HOUSING
24-2	24-2	SHAFT
24-3	24-3	COLLAR
21	21	SHAFT
19	19	COLLAR
18	18	SPRING
20	20	SPRING
22	22	SHAFT
14-2-1	14-2-1	HOUSING
14-2-1-3	14-2-1-3	SCREW
14-2-1-2	14-2-1-2	BRACKET
14-2-1-8	14-2-1-8	SHAFT
14-2-1-1	14-2-1-1	SHAFT
14-2-2	14-2-2	COLLAR
14-2-1-10	14-2-1-10	SPRING
14-2-1-7	14-2-1-7	SPRING
14-2-1-6	14-2-1-6	WASHER
14-2-1-5	14-2-1-5	SPRING
14-2-1-4	14-2-1-4	SPRING
14-2-2	14-2-2	COLLAR
14-2-1-9	14-2-1-9	SPRING
14-2-2	14-2-2	COLLAR
14-2-1-4	14-2-1-4	SPRING
27	27	COVER
28	28	BRACKET
29	29	WASHER
32	32	SPRING
31	31	SPRING
30	30	SCREW
13-1	13-1	PIN
13	13	SHAFT
9	9	SHAFT
8	8	GEAR
10	10	SCREW
11	11	COLLAR
12	12	SPRING
6	6	SHAFT
3	3	COLLAR
2	2	COLLAR
7	7	SPRING
5	5	SHAFT
7	7	SPRING
6-1	6-1	COLLAR
6-1	6-1	COLLAR
1	1	SHAFT
4	4	SHAFT

Page 28 — E. 下軸関係 / Lower shaft mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 28

Ref	Part number	Part name	Qty
14-2-1-10	S57965000	WICK, 3X3 L=515	1
14-2-1-11	S59886001	FELT, L=360	1
14-2-2	S50529000	OIL TUBE, L=320	4

Page 29

Brother KE-430C / KE-431C / KE-432C parts on page 29

Ref	Part number	Part name	Qty
	45	Oil cup
	47	Oil wick
	19	Oil tube
	20	Oil tube
	44	Oil tube
	5	Oil tube
	12	Oil tube
	10	Oil tube
	11	Oil tube
	6	Oil tube
	13	Oil tube
	7	Screw
	9	Washer
	8	Washer
	17	Oil tube
	4	Oil tube
	2	Oil tube
	3	Oil tube
	31	Oil tube
	30	Oil tube
	46	Oil tube
	29	Oil tube
	1	Oil cup
	16	Oil tube
	18	Oil tube
	15	Oil tube
	14	Oil tube
	28	Oil tube
	21	Oil tube
	27	Oil tube
	25	Oil tube
	26	Oil tube
	41	Oil tube
	52	Screw
	40	Oil tube
	51	Screw
	32	Screw
	48	Oil tube
	22	Oil tube
	23	Oil tube
	24	Oil tube
	34	Oil tube
	54	Oil tube
	36	Oil tube
	35	Oil tube
	53	Screw
	39	Oil tube
	38	Oil tube
	49	Oil tube
	50	Oil tube
	42	Oil tube
	33	Oil cup

Page 30 — F. 給油潤滑関係 / Lubrication

Brother KE-430C / KE-431C / KE-432C parts on page 30

Ref	Part number	Part name	Qty
	S49992000	オイルポットマト
	S07333001	オイルクチパイプ S
	S07456000	ビニールチューブ
	148738000	タヒモ
	107149001	フェルト
	S37983001	ウツジクキュウササエ
	062680612	ナベコ 4.37-40X6
	025680232	ヒラザガネチュウ 4.37
	028680242	ヒラザガネ2-4.37
	S10478000	ロッド・キュウフェルト
	S34986000	ビニールチューブ
	S49982000	クミヒモ4X4
	107149001	フェルト
	S49959001	テンビンキュウササエ
	S10162201	ハリホウヒモササエ
	060670512	バインド 357-40X5
	S49620000	ビニールチューブ
	S49957000	クミヒモ4X4
	S49622000	クミヒモ4X4
	S49983000	クミヒモ4X4
	S49984000	ヒラタヒモ
	104567101	クミヒモササエ
	159565000	クミヒモ2.5X150
	S37985000	スイアゲフェルト
	S37986000	ビニールチューブ
	S18093100	クミヒモ4X4
	145547001	チューブホルダ
	062670512	ナベコ 357-40X5
	S37987001	シタジクキュウササエ
	S37988000	シタジクキュウフェルト
	062680612	ナベコ 4.37-40X6
	S09043000	フェルト
	152948001	オイルポットマト
	S49623000	ビニールチューブ
	S49624000	ビニールチューブ
	S49625000	ビニールチューブ
	152969001	コードササエネ
	062670512	ナベコ 357-40X5
	148738000	クミヒモ
	148738000	クミヒモ
	152956001	クミヒモ4X4
	228475000	ケツソクバンド 1.9X8
	153924001	フェルト
	S49957000	クミヒモ4X4
	S49958000	クミヒモ4X4
	S49985000	ビニールチューブ
	S49986000	ビニールチューブ
	S49987000	ビニールチューブ
	S49995001	コードササエネ
	062670512	ナベコ 357-40X5
	S49618000	ビニールチューブ
	S55659000	クミヒモ

Page 31 — G. 糸通シ関係 / Threading mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 31

Ref	Part number	Part name	Qty
	23	23
	24	24
	28	28
	31	31
	30	30
	29	29
	27	27
	19	19
	22	22
	21	21
	20	20
	32	32
	1	1
	2	2
	5	5
	6	6
	3	3
	4	4
	11	11
	17	17
	18	18
	8	8
	9	9
	10	10
	12	12
	16	16
	15	15
	14-1	14-1
	33	33
	13	13
	14-1	14-1
	14-2	14-2
	25-1	25-1
	25-2	25-2

Page 32

Brother KE-430C / KE-431C / KE-432C parts on page 32

Ref	Part number	Part name	Qty
	152869001	アームイトミチ	1
	062670612	ナベコ357-40X6	1
	S49627001	アームイトカケ	1
	060670612	バインド357-40X6	1
	S51859101	アームイトアンナイ	1
	060670612	バインド357-40X6	1
	152872001	Oリング	1
	114294001	イトリハネ	1
	*	イトユルメピン	1
	S12699000	イトチョウシボウ	1
	116922001	イトチョウシナット	1
	S31032001	イトチョウシナツト	1
	104525001	イトチョウシハネ	1
	107606001	イトチョウシハネ	1
	159805001	イトチョウシサラオサエ	1
	145446001	イトチョウシサラ	2
	100402004	イトメネジ 3.57	1
	S10469001	アナトメネジ 5.95	1
	115186001	シュイトチョウシボウ	1
	100136001	イトチョウシナツト	1
	115186001	シュイトチョウシハネ	1
	145446001	イトチョウシサラ	2
	152889001	ミツメイトカケ	1
	062670612	ナベコ357-40X6	2
	152890001	ハリボウイトアンナイA	1
	S41222101	ハリボウイトアンナイB	1
	152891101	ハリボウメタルDアンナ	1
	S12441001	チョウシハネウエザガネ	1
	152881001	エキレイトイタケ	1
	014760632	アナクボミ595-28X6	1
	152883000	フエルト8X15.5	1
	152884001	エキレイトカケ	1
	062670412	ナベコ357-40X4	1
	S45083001	メンイトアンナイ	1

Page 33 — H. 糸巻関係 / Bobbin winder mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 33

Ref	Part number	Part name	Qty
2	2	Screw
4	4	Washer
3	3	Screw
1-10	1-10	Spring
1-7	1-7	Pin
1-6	1-6	Lever
1-5	1-5	Shaft
1-15	1-15	Support
1-17	1-17	Plate
1-18	1-18	Screw
1-27	1-27	Washer
1-20	1-20	Cap
1-25	1-25	Shaft
1-23	1-23	Spring
1-21	1-21	Washer
1-22	1-22	Gear
1-26	1-26	Nut
1-19	1-19	Shaft
1-24	1-24	Spring
1-1	1-1	Base
1-9	1-9	Pin
1-8	1-8	Lever
1-11	1-11	Shaft
1-16	1-16	Spring
1-2	1-2	Support
1-4	1-4	Ring
1-3	1-3	Shaft
1-12	1-12	Bobbin
1-13	1-13	Ring
1-14	1-14	Screw
5	5	Shaft

Page 34 — H . 糸巻関係 / Bobbin winder mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 34

Ref	Part number	Part name	Qty
	S37991109	TOP COVER	1
	S37992100	BOBBIN WINDER ARM	1
	S37993000	PLATE SPRING	1
	048100142	RETAINING RING, EXTERNAL C10	1
	S37994001	BOBBIN WINDER CLAW STUD	1
	S37995101	BOBBIN PRESSER	1
	100402004	SET SCREW, SM3.57	1
	S37996001	BOBBIN WINDER CLAW	1
	014680622	SET SCREW, SOCKET (CP) SM4.37	1
	048050342	RETAINING RING, E5	1
	S37997001	BOBBIN WINDER SHAFT	1
	154528001	BOBBIN WINDER WHEEL	1
	120448001	RUBBER BAND	1
	120990001	SET SCREW, (CP) SM4.37-40X8	2
	S10174000	DUST GUARD PLATE	1
	S37998001	SPRING	1
	157968001	KNIFE	1
	062680512	SCREW, PAN SM4.37-40X5	1
	159574101	TENSION STUD	1
	100136001	TENSION NUT	1
	144110001	TENSION ADJUSTING SPRING	1
	145446001	TENSION DISC	2
	144105000	TENSION SPRING FLANGE WASHER	1
	021680202	NUT, 2 SM4.37	1
	141590001	THREADING BAR, U	1
	100022004	NUT, SM5.95	2
	025680232	WASHER, PLAIN M 4.37	1
	062681212	SCREW, PAN SM4.37-40X12	1
	062680612	SCREW, PAN SM4.37-40X6	1
	025680232	WASHER, PLAIN M 4.37	3
	S47335101	BOBBIN WINDER PULLEY ASSY	1

Page 35 — J. 糸切り関係 / Thread trimmer mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 35

Ref	Part number	Part name	Qty
1	1	HOOK DRIVING SHAFT
2	2	SCREW
3	3	BRACKET
5	5	SCREW
6	6	WASHER
7	7	WASHER
8	8	BRACKET
8-1	8-1	SPRING
8-2	8-2	SPRING
9	9	THREAD CUTTER
10	10	SCREW
11	11	BRACKET
12	12	SCREW
13	13	WASHER
14	14	SPRING
15	15	SPRING
16	16	SHAFT
17	17	COLLAR
18	18	SPRING
19	19	RING
20	20	WASHER
21	21	WASHER
22	22	BRACKET
22-1	22-1	COLLAR
22-2	22-2	COLLAR
22-3	22-3	COLLAR
22-4	22-4	COLLAR
22-5	22-5	COLLAR
22-6	22-6	COLLAR
23	23	BRACKET
24	24	SCREW
25	25	NUT
26	26	LINKAGE
26-1	26-1	LINKAGE
26-2	26-2	LINKAGE
26-3	26-3	NUT
29	29	SHAFT
30	30	SHAFT
31	31	COLLAR
32	32	SPRING
33	33	COLLAR
34	34	SPRING
35	35	SPRING
36	36	SCREW
37	37	NUT
38	38	NUT
40	40	SHAFT
41	41	SCREW
42	42	NUT
43-1	43-1	BASE PLATE
43-2	43-2	BASE PLATE
44	44	BRACKET
45	45	COLLAR
46	46	COLLAR
47	47	COLLAR
48	48	SCREW
49	49	BRACKET
50	50	SCREW
51	51	SCREW
52	52	SCREW
53	53	BRACKET
54	54	SCREW
55	55	SPRING

Page 36 — J. 糸切り関係 / Thread trimmer mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 36

Ref	Part number	Part name	Qty
	S49629201	イトキリカム
	014770622	アナトメシ 6.35クホミ	2
	S38002201	ソルノイドトリツケイタ
	060681212	バインド437-40X12	2
	154599000	ソルノイドクツション
	S02652001	ザガネ
	S23836001	ソルノイドレバークミ
	S02654001	ソルノイドレバー
	014680622	アナトメシ 4.37クホミ
	S38003101	クドウレバーオシレバー
	S49645001	ダンネジ 4.76
	S38004002	クドウレバーオシレバー
	S38004003	クドウレバーオシレバー
	S38004004	クドウレバーオシレバー
	S59893001	アナトボルト437-40X10	2
	148847001	ザガネ	2
	159905001	トメイツキヨウセツネジ
	105812003	ナット7.94
	S49644001	クドウレバーアンナイジク
	231071001	メタル8X15
	S3235001	ヌノサエバネ
	048070342	トメワE7
	153596001	ザガネ
	154596000	イトキリカムレバークツシヨン
	S49646101	イトキリクドウレバークミ
	S59874001	イトキリクドウレバー
	S59872001	イトキリロッド
	S59871001	ダンネジ 4.37
	S59873001	ザガネ	2
	SA0049001	ナット4.37	2
	028680242	バネザガネ2-4.37
	014770622	アナトメシ 6.35クホミ
	S02354001	タマツキダンネジ B	2
	100022005	ナット5.95	2
	S49648001	イトキリロッドクミ
	S49649001	イトキリロッド
	141492001	タマツキテツミ	2
	100022005	ナット5.95	2
	S49650001	イトキリルハ
	S10195101	イトキリルハーク
	110367001	ザガネ
	048060342	トメワE6
	014760622	アナトメシ 5.95
	S38011001	イトキリモドシハネ
	S49651001	ハネカケ
	110233001	ダンネジ 4.76
	110161004	ナット4.76
	S49994001	ザガネ4.76	2
	S38012001	レンカンレバークミ
	S10202001	レンカンレバーシク
	121007001	アマツキトメネジ 4.37
	S38015001	ヘリタ
	S40916001	ヘリタC
	S38016001	イトキリレンカン
	S49988001	イトドウハクミ
	S10208001	イトドウハカンザ
	S10208002	イトドウハカンザ
	S10208003	イトドウハカンザ

Page 37 — J. 糸切り関係 / Thread trimmer mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 37

Ref	Part number	Part name	Qty
	1	CAM
	2	SCREW
	3	BRACKET
	5	SCREW
	6	WASHER
	7	WASHER
	8	BRACKET
	8-1	BRACKET
	8-2	BRACKET
	9	BLADE
	10	SCREW
	11	BRACKET
	12	SCREW
	13	WASHER
	14	SPRING
	15	SPRING
	16	SHAFT
	17	COLLAR
	18	SPRING
	19	SPRING
	20	WASHER
	21	WASHER
	22	BRACKET
	22-1	BRACKET
	22-2	BRACKET
	22-3	BRACKET
	22-4	BRACKET
	22-5	BRACKET
	22-6	BRACKET
	23	SPRING
	24	SCREW
	25	NUT
	26	LEVER
	26-1	LEVER
	26-2	LEVER
	26-3	NUT
	29	PIN
	30	PIN
	31	WASHER
	32	SPRING
	33	PIN
	34	SPRING
	35	SPRING
	36	SCREW
	37	WASHER
	38	WASHER
	40	SHAFT
	41	SCREW
	42	SCREW
	43-1	BASE
	43-2	BASE
	44	BRACKET
	45	WASHER
	46	WASHER
	47	WASHER
	48	SCREW
	49	BRACKET
	50	SCREW
	51	SCREW
	52	SCREW
	53	BRACKET
	54	SCREW
	55	SPRING

Page 38 — J. 糸切り関係 / Thread trimmer mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 38

Ref	Part number	Part name	Qty
47	S00705001	MOVABLE KNIFE COLLAR	1
48	S10209101	SCREW, SM4.37	1
49	S10210201	FIXED KNIFE	1
50	111140002	SCREW, SM2.38	2
51	100032004	SCREW, FLAT SM4.37-40X8	2
52	S11244001	SCREW, SM4.37	2
53	*	NEEDLE HOLE PLATE	1
54	100360003	SCREW, FLAT SM2.38	2
55	228475000	FASTENING BAND, 1.9X80	2

Page 39

Brother KE-430C / KE-431C / KE-432C parts on page 39

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21

Page 40

Brother KE-430C / KE-431C / KE-432C parts on page 40

Ref	Part number	Part name	Qty
	S49652101	ワイパー ドウレバー
	15282101	ワイパーシク
	025770232	ヒラザガネチュウ6.35
	048040342	トメワE4
	014760622	アナトメシ5.95
	S36024001	ワイパー ロツドジク
	S36025001	ワイパー ロツドクミ
	145992001	アナツキトメシ4.37
	048060342	トメワE6
	116629001	ザガネ
	152823001	ワイパーデクミ
	S41284301	ワイパーデクミ
	048030342	トメワE3
	152827001	オイルキリセン
	014710522	アナトメシ4.76ホクロミ
	156206601	ワイパー-A
	062670512	ナベコ3.57-40X5.
	025350132	ヒラザガネシュウ
	S49659001	ソレノイド トリツケイタ
	062710812	ナベコ476-32X8
	S49660101	イトトリレバー
	107321003	ダンネジ 4.76
	S19748001	サトウクランククツシヨン
	047401442	スプリングピン AW4
	S49661101	ソレノイドツキテ
	S01998001	アナツキトメシ3.57
	110251001	ヌノオサエウデバネカケ
	021670102	ナツト1シュ3.57
	S34883001	イトキリハネ
	S19748001	サトウクランククツシヨン
	S49663001	ナツト3.57
	062671012	ナベコ3.57-40X10
	028350242	ハガネコ2-3.5
	025350332	ヒラザガネダイ3.5
	S49662001	イトトリレバークランク
	15559001	ヒラザガネ
	048030342	トメワE4
	S49664000	イトトリレノイドカパー
	062670612	ナベコ3.57-40X6

Page 41 — M . 糸締メ関係 / Thread nipper mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 41

Ref	Part number	Part name	Qty
5-1	5-1	5-1
5-2	5-2	5-2
5-3	5-3	5-3
5-4	5-4	5-4
5-5	5-5	5-5
5-6	5-6	5-6
1-1	1-1	1-1
1-2	1-2	1-2
1-3	1-3	1-3
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
17	17	17
18	18	18
19	19	19
21	21	21
22	22	22

Page 42 — M . 糸締メ関係 / Thread nipper mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 42

Ref	Part number	Part name	Qty
	S49665001	イトエルメロツドクミ
	S49666001	イトエルメロツド
	141492001	タマツギテ クミ
	100022005	ナット.5.95
	145478101	ダンネジ 4.76
	S02354001	タマツギテダンネジ B
	100022005	ナット.5.95
	S49655001	イトエルメロツドレバーク
	S49654001	イトエルメロツドレバー
	153597001	シタイトザハキカラー
	S30033001	ダンネジ 3.57
	S49655001	カラー
	106129002	ナット 3.57
	028350242	バネザガネー3.5
	S49656001	イトエルメレバー U
	S49657001	ユルメルレバーUストツパ
	00748001	サドウクランククツシヨン
	062680812	ナベコ437-40X8
	S38032001	イトエルメレバー
	S46734001	オサエケﾞレハ゛ーシク
	S01998001	アタマツキトメネジ 3.57
	S38033001	カラー-13
	048040342	トメワE4
	SA0703001	イトエルメレバーハネ
	S31006001	オサエケﾞテツ
	S39051001	ナヘ゛サクミ35X12
	S31952001	オサエケﾞクランク
	S10239001	イトエルメホウ

Page 43

Brother KE-430C / KE-431C / KE-432C parts on page 43

Ref	Part number	Part name	Qty
	1	Synchronizer
	2	Screw
	4	Bracket
	5	Bracket
	6	Screw
	7	Washer
	1-1	Connector
	1-2	Connector
	1-3	Connector
	1-4	Connector
	1-5	Connector
	1-6	Connector
	1-7	Screw
	1-8	Screw
	1-9	Connector
	1-10	Connector
	1-11	Connector
	1-12	Connector
	1-13	Screw
	1-14	Connector
	1-15	Cover

Page 44 — N. 針位置検出器関係 / Synchronizer P.プリント基板関係 / Printed circuit board mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 44

Ref	Part number	Part name	Qty
	S48666001	SYNCHRONIZER ASSY	1
	062400806	SCREW, PAN M4X8	2
	S38080001	NEEDLE LOWER MAGNET ASSY, D	1
	S38082001	NEEDLE UPPER MAGNET ASSY, U	2
	062681412	SCREW, PAN SM4.37-40X14	3
	025680132	WASHER, PLAIN S 4.37	3
	S49479001	MAIN PCB ASSY	1
	S29019000	IC:M54640P	4
	S43178000	PHOTO COUPLER:PC9231	6
	093650008	IC:74HC08F	1
	093650032	IC:74HC32F	1
	091170009	IC:74LS09F-T	2
	S49484000	TRANSISTOR, FET:FS10KMJ-2	8
	S49485000	TRANSISTOR, FET:FX6KMJ-2	8
	S49471000	TRANSISTOR, FET:FK18SM-12	6
	S38155000	TRANSISTOR, FET:2SK1306	3
	S50645000	TRANSISTOR, FET:2SK1307	1
	S49486000	TRANSISTOR, FET:2SJ222	1
	U32744000	DIP SWITCH:DSS708	1
	DA4301005	SCREW, PAN (S/P WASHER) M3X10	31
	S48578000	GLASS FUSE, 5A W/LEED WIRE	1
	Y51030150	CAPACITOR, POLYESTER 50B103	1

Page 45 — Q1 . コントロールボックス関係 / Control box mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 45

Ref	Part number	Part name	Qty
	1-5	bracket
	1-4	screw
	1-8	washer
	1-7	fan
	1-6	screw
	1-10	bracket
	1-20	plate
	10	switch
	10-1	washer
	1-21	plate
	12	hook
	11	switch
	11-1	washer
	54	plate
	1-23	screw
	1-2	plate
	1-25	screw
	1-9	screw
	1-19	plate
	1-3	plate
	1-22	screw
	1-17	screw
	1-24	clip
	1-1	base
	1-15	connector
	1-14	connector
	1-13	connector
	1-11	connector
	1-16	screw
	1-18	screw
	1-12	cable
	1-26-4	terminal
	1-26-3	terminal
	1-26-5	terminal
	1-26-19	wire
	1-26-18	screw
	1-26-10	terminal
	1-26-2	terminal
	1-26-22	terminal
	1-26-1	terminal
	1-26-13	terminal
	1-26-11	terminal
	1-26-16	terminal
	1-26-17	terminal
	1-26-9	terminal
	1-26-15	terminal
	1-26-6	terminal
	1-26-7	terminal
	1-26-20	terminal
	1-26-8	terminal
	1-26-12	terminal
	1-26-21	terminal
	1-26-14	terminal
	1-26	circuit board
	20	label
	21	label

Page 46 — Q1. コントロールボックス関係 / Control box mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 46

Ref	Part number	Part name	Qty
	S49467001	ボックスクミ
	S49468001	デンゲンボックス
	S49469001	メインパンドリウケイタ
	S38093000	ボックスフタ
	0A5401206	ナベザクミ4X12DB	2
	021400206	シュナット4	2
	S47692000	DCファンモータクミ
	0A5402006	ナベザクミ4X30DB	2
	0A5400806	ナベザクミ4X8DB	1
	0A5401206	ナベザクミ4X12DB	2
	S42260000	フットSWコード 434クミ
	S38107100	セイギヨウデンゲンコード
	S38108000	モータデンゲンコード
	S38109100	ゲートデンゲンコード
	S38110000	PERコード
	S11949000	ゴムブッシュ
	S00554000	サポート6NS	17
	S31760000	CKSクランプ 26L	2
	S43275000	コードクランプ WS2NS	6
	S43276000	コードクランプ WS3NS	4
	S43277000	コードクランプ WS4NS	1
	008400604	トラヌス4X6	12
	S38116000	ホウシンアミ
	S37059001	PEマーク
	S37060001	アースマーク
	S4999101	デンゲンキバンクミ
	S4177000	ICMA3830
	S49586000	MOSFET2SK1941	2
	S38203000	SBDYG802C04R	1
	SA0037000	ベリスタV14D511	2
	232384001	S777HSA362MA	1
	S49071000	DBRD25XB60	1
	S38205000	デンC250B182	1
	SA1034000	デンC63B562	1
	S43175000	トランスETS54AA159	1
	S43176000	トランスETS35AD199	1
	S43181000	コイルETS49AD289A	1
	S38208000	RYJW1AFSN/DC 5V	1
	153242000	ヒューズ 6A	2
	S08030000	GEヒューズ 5AFB	1
	S48580000	GFUSE7AFB	1
	0A4301005	ナベザクミ3X10DA	8
	S43189000	PCBE1コード	1
	S43187000	PCBE2コード	1
	S49472000	サーミスタ6D-22	1
	S49938000	ゼツエンシート	1
	UA4817000	PROMセイギヨクミ	1
	S53032000	MOSLSI27C2001	1
	S38143000	PROM-IMクミ	1
	228475000	CMOSLSI27C512	1
	S38352101	ケツツクバンド 1.9X8	2

Page 47 — Q1. コントロールボックス関係 / Control box mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 47

Ref	Part number	Part name	Qty
1-5	1-5	Screw
1-4	1-4	Screw
1-8	1-8	Screw
1-7	1-7	Screw
1-6	1-6	Screw
1-10	1-10	Screw
1-20	1-20	Screw
10	10	Cover
10-1	10-1	Cover
1-21	1-21	Screw
1-23	1-23	Fan
11	11	Cover
11-1	11-1	Cover
54	54	Cover
1-22	1-22	Screw
1-19	1-19	Cover
1-2	1-2	Cover
1-25	1-25	Screw
1-9	1-9	Screw
1-3	1-3	Cover
1-17	1-17	Screw
1-18	1-18	Screw
1-16	1-16	Cover
1-11	1-11	Connector
1-1	1-1	Cover
1-15	1-15	Wire
1-14	1-14	Wire
1-13	1-13	Connector
1-24	1-24	Label
1-12	1-12	Wire
1-26-4	1-26-4	Screw
1-26-3	1-26-3	Screw
1-26-1	1-26-1	Screw
1-26-5	1-26-5	Screw
1-26-18	1-26-18	Screw
1-26-10	1-26-10	Screw
1-26-2	1-26-2	Screw
1-26-22	1-26-22	Screw
1-26-12	1-26-12	Screw
1-26-21	1-26-21	Screw
1-26-14	1-26-14	Screw
1-26-13	1-26-13	Screw
1-26-11	1-26-11	Screw
1-26-16	1-26-16	Screw
1-26-17	1-26-17	Screw
1-26-15	1-26-15	Screw
1-26-6	1-26-6	Screw
1-26-8	1-26-8	Screw
1-26-7	1-26-7	Screw
1-26-20	1-26-20	Screw
1-26-19	1-26-19	Wire
1-26	1-26	Circuit Board
1-26-9	1-26-9	Screw

Page 48 — Q1. コントロールボックス関係 / Control box mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 48

Ref	Part number	Part name	Qty
	S38353101	<国内向用> デンゲラベル.フ	2
	S55627001	IMラベル	1
	S553031001	"補給用部品" <三相200V, 220V用> ボックスソウクミA1-IM	1
	S53033001	<単相200V, 230V用> ボックスソウクミA2-IM	1
	S53034001	<単相100V用> ボックスソウクミB1-IM
	S53035001	<単相110V, 120V用> ボックスソウクミB2-IM	1
	S53036001	<三相415V用> ボックスソウクミC1-IM	1
	S53037001	<三相380V用> ボックスソウクミC2-IM	1
	S53038001	<単相240V用> ボックスソウクミC3-IM	1
	S53039001	<三相400V用> ボックスソウクミE-IM	1
	S53040001	<単相240V用> ボックスソウクミF-IM	1

Page 49 — Q2. コントロールボックス関係 / Control box mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 49

Ref	Part number	Part name	Qty
	2-1-1	Wire harness
	2-1-2	Wire harness
	2-1-3	Control box
	2-1-4	Screw
	2-1-5	Washer
	3-1	Terminal block
	2-2-1	Wire harness
	2-2-2	Wire harness
	2-2-3	Control box
	2-2-4	Screw
	2-2-5	Washer
	3-2-1	Transformer
	3-2-2	Wire harness
	2-4-1	Wire harness
	2-4-2	Wire harness
	2-4-3	Control box
	2-4-4	Screw
	2-4-5	Washer
	3-1	Terminal block
	2-7-1	Wire harness
	2-7-2	Wire harness
	2-7-3	Control box
	2-7-4	Screw
	2-7-5	Washer
	3-2-1	Transformer
	3-2-2	Wire harness
	4	Screw
	5	Washer
	6	Nut
	7	Washer
	2-3-1	Wire harness
	2-3-2	Wire harness
	2-3-3	Control box
	2-3-4	Screw
	2-3-5	Washer
	3-3-1	Transformer
	3-3-2	Wire harness
	4	Screw
	5	Washer
	6	Nut
	7	Washer
	3-3-1	Transformer
	3-3-2	Wire harness
	4	Screw
	5	Washer
	6	Nut
	7	Washer
	2-5	Wire harness
	3-4	Wire harness
	40	Control box
	40-1	Mounting bracket
	41	Terminal block
	42	Screw
	43	Nut
	44	Washer
	45	Cable clamp
	46	Cable clamp
	47	Cable clamp
	48	Cable clamp
	49	Screw
	50	Screw
	51	Washer
	52	Nut

Page 50 — Q2. コントロールボックス関係 / Control box mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 50

Ref	Part number	Part name	Qty
	S38112001	デンゲンSWクミA
	S38113000	デンゲンINコードA
	S38133000	デンゲンコード
	J02657001	3PオシSW#17
	224514001	ゼツエンイタ
	218859001	バインダ M150
	S38114000	デンゲンSWクミB
	S38115000	デンゲンINコード B
	S38133000	デンゲンコード
	J02657001	3PオシSW#17
	224514001	ゼツエンイタ
	218859001	バインダ M150
	S38117000	デンゲンSWクミC
	S38115000	デンゲンINコード B
	S38133000	デンゲンコード
	J02657001	3PオシSW#17
	224514001	ゼツエンイタ
	218859001	バインダ M150
	S47592000	デンゲンSWクミD
	S38113000	デンゲンINコード A
	S47595000	デンゲンコードユシュツ
	J02657001	3PオシSW#17
	224514001	ゼツエンイタ
	218859001	バインダ M150
	S38120000	デンゲンINコードE
	S43188000	デンゲンINコードF
	S47594000	デンゲンSWクミG
	S38115000	デンゲンINコード B
	S47595000	デンゲンコードユシュツ
	J02657001	3PオシSW#17
	224514001	ゼツエンイタ
	218859001	バインダ M150
	S38123000	ACINコネクタクミ
	S49473000	ヘンカントランスBクミ
	S49474000	ヘンカントランスB
	S38126000	ACINコード

Page 51 — Q2. コントロールボックス関係 / Control box mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 51

Ref	Part number	Part name	Qty
	2-1-1	WIRE HARNESS
	2-1-2	TERMINAL BLOCK
	2-1-3	COVER
	2-1-4	SCREW
	2-1-5	WASHER
	3-1	BRACKET
	2-2-1	WIRE HARNESS
	2-2-2	TERMINAL BLOCK
	2-2-3	COVER
	2-2-4	SCREW
	2-2-5	WASHER
	3-2-1	TRANSFORMER
	3-2-2	BRACKET
	4	SCREW
	5	WASHER
	6	NUT
	7	BRACKET
	2-7-1	WIRE HARNESS
	2-7-2	TERMINAL BLOCK
	2-7-3	COVER
	2-7-4	SCREW
	2-7-5	WASHER
	3-2-1	TRANSFORMER
	3-2-2	BRACKET
	2-3-1	WIRE HARNESS
	2-3-2	TERMINAL BLOCK
	2-3-3	COVER
	2-3-4	SCREW
	2-3-5	WASHER
	3-3-1	TRANSFORMER
	3-3-2	BRACKET
	2-7-1	WIRE HARNESS
	2-7-2	TERMINAL BLOCK
	2-7-3	COVER
	2-7-4	SCREW
	2-7-5	WASHER
	3-3-1	TRANSFORMER
	3-3-2	BRACKET
	2-5	WIRE HARNESS
	2-6	WIRE HARNESS
	3-3-2	BRACKET
	3-3-1	TRANSFORMER
	40	TERMINAL BLOCK
	40-1	TERMINAL BLOCK
	41	COVER
	42	SCREW
	43	WASHER
	44	SCREW
	45	CLAMP
	46	NUT
	47	WASHER
	48	CLAMP
	49	BRACKET
	50	SCREW
	51	WASHER
	52	NUT
	3-4	BRACKET

Page 52 — Q2. コントロールボックス関係 / Control box mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 52

Ref	Part number	Part name	Qty
	S49475000	CONVERSION TRANSFORMER ASSY, C	1
	S49476000	CONVERSION TRANSFORMER, C	1
	S38126000	AC-IN HARNESS	1
	S43201000	AC-IN HARNESS, F	1
	018061436	BOLT, SOCKET M6X14	4
	025060236	WASHER, PLAIN M 6	8
	021060106	NUT, 1 M6	4
	028060246	WASHER, SPRING 2-6	4
	S40635001	NOISE FILTER ASSY, 430E	1
	S40616001	NOISE FILTER ASSY, EMC	1
	S40620000	PCB SETTING PLATE	1
	0A4400605	SCREW, PAN (S/P WASHER) M4X6	6
	S40621000	EMI CORE, ESD-SR-15	1
	S40622000	EMI CORE, ESD-SR-25	1
	149809000	BEAD BAND, L=200	2
	S40621000	EMI CORE, ESD-SR-15	3
	S40622000	EMI CORE, ESD-SR-25	2
	149809000	BEAD BAND, L=200	5
	S40623000	EMI CORE, TR-40-27	1
	0A5401606	SCREW, PAN (S/P WASHER) M4X16	1
	025040236	WASHER, PLAIN M 4	1
	021400108	NUT, 1 M4	1

Page 53 — R. 電装品関係 / Power supply equipment mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 53

Ref	Part number	Part name	Qty
14-1	14-1-114-1-2	14-1
14-4	14-4	14-4
36	36	36
37	37	37
35	35	35
34	34	34
18	18	18
20	20	20
19	19	19
6-4	6-4	6-4
205	205	205
206	206	206
203	203	203
204	204	204
201	201	201
202	202	202
200	200	200
30-2-1	30-2-1	30-2-1
30-2	30-2	30-2
30-1	30-1	30-1
30	30	30
31	31	31
30-2-2	30-2-2	30-2-2
33	33	33
32	32	32
15	15	15
14-2	14-2	14-2
1	1	1
3	3	3
2	2	2
6-1	6-1	6-1
8	8	8
6-2	6-2	6-2
9	9	9
6-3	6-3	6-3
13	13	13
12	12	12
40-5	40-5	40-5
40-6	40-6	40-6
40-1	40-1	40-1
40-4	40-4	40-4
40-8	40-8	40-8
40-7	40-7	40-7
40-10	40-10	40-10
40-3	40-3	40-3
40-9	40-9	40-9
40-2	40-2	40-2
40	40	40
10	10	10
11	11	11
16	16	16
17	17	17
43	43	43
42	42	42
25	25	25
41	41	41
4	4	4
5	5	5
24	24	24
23	23	23
21	21	21
22	22	22

Page 54

Brother KE-430C / KE-431C / KE-432C parts on page 54

Ref	Part number	Part name	Qty
	S38134100	PULSE MOTOR ASSY, X	1
	S38136100	PULSE MOTOR ASSY, Y	1
	0184012222	BOLT, SOCKET M4X12	8
	552907000	CORD HOLDER, 10N	2
	0A5401006	SCREW, PAN (S/P WASHER) M4X10	2
	S49463100	HEAD SENSOR ASSY	1
	S56167000	PROXIMITY SENSOR, GL-12NF	1
	S56167001	PROXIMITY SENSOR, GL-12NF	1
	S56167003	PROXIMITY SENSOR, GL-12NF	1
	S48582000	SENSOR HARNESS	1
	S48581100	HEAD SENSOR ASSY, 432	1
	S56167000	PROXIMITY SENSOR, GL-12NF	1
	S56167001	PROXIMITY SENSOR, GL-12NF	1
	S56167003	PROXIMITY SENSOR, GL-12NF	1
	S48582000	SENSOR HARNESS	1
	062300806	SCREW, PAN M3X8	2
	062300806	SCREW, PAN M3X8	1
	552907000	CORD HOLDER, 10N	2
	0A5401006	SCREW, PAN (S/P WASHER) M4X10	2
	152969001	CORD HOLDER	1
	062670512	SCREW, PAN SM3.57-40X5	1
	S49979400	PRESSER SOLENOID ASSY	1
	S59366000	SHOCK ABSORBER, 1	1
	S59367000	SHOCK ABSORBER, 2	1
	S38144100	THREAD TRIMMER SOLENOID ASSY	1
	S38145000	CONNECTOR :3191-04R	1
	S38147000	MARK TUBE, 5	1
	060501016	SCREW, BIND M5X10	4
	S38148000	GROUND WIRE, 1	1
	0A5400806	SCREW, PAN (S/P WASHER) M4X8	1
	S49464000	THREAD TAKE-UP SOLENOID ASSY	1
	S00460000	CORD HOLDER, 5N	3
	060670612	SCREW, BIND SM3.57-40X6	3
	S49465009	CONNECTOR ASSY, 430C	1
	S49465001	CONNECTOR ASSY, 431E	1
	S49465002	CONNECTOR ASSY, 432E	1
	228475000	FASTENING BAND, 1.9X80	1
	117150001	CORD HOLDER	1
	062670612	SCREW, PAN SM3.57-40X6	1
	218859001	BINDER, M150	1
	S00480000	CORD HOLDER, 5N	2
	060670612	SCREW, BIND SM3.57-40X6	2
	060670612	SCREW, BIND SM3.57-40X6	1
	060400616	SCREW, BIND M4X6	1
	S49934009	EM-LOCK SWITCH ASSY	1
	S37057001	EM-SWITCH SPACER, 3	1
	S49482000	EM-LOCK SWITCH & HARNESS ASSY	1
	S32335100	SWITCH :AVS311N	1

Page 55 — R. 電装品関係 / Power supply equipment mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 55

Ref	Part number	Part name	Qty
14-1	14-1	14-1-114-1-2
14-2	14-2	14-2
14-3	14-3	14-3
14-4	14-4	14-4
15	15	15
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6-1	6-1	6-1
6-2	6-2	6-2
6-3	6-3	6-3
6-4	6-4	6-4
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
30	30	30
30-1	30-1	30-1
30-2	30-2	30-2
30-2-1	30-2-1	30-2-1
30-2-2	30-2-2	30-2-2
31	31	31
32	32	32
33	33	33
34	34	34
35	35	35
36	36	36
37	37	37
40	40	40
40-1	40-1	40-1
40-2	40-2	40-2
40-3	40-3	40-3
40-4	40-4	40-4
40-5	40-5	40-5
40-6	40-6	40-6
40-7	40-7	40-7
40-8	40-8	40-8
40-9	40-9	40-9
40-10	40-10	40-10
41	41	41
42	42	42
43	43	43
200	200	200
201	201	201
202	202	202
203	203	203
204	204	204
205	205	205
206	206	206

Page 56

Brother KE-430C / KE-431C / KE-432C parts on page 56

Ref	Part number	Part name	Qty
	S49466000	EMSWハーネス	1
	062710812	ナベコ476-32X8	2
	149287000	ナイロンクランプ	3
	060670612	バインド357-40X6	3
	S55629101	トウプスイッチクミ	1
	S55630001	マイクロスイッチクミ	1
	S38744101	スイッチプレート	1
	S55632001	スイッチダイ	1
	062020806	ナベコ2X8	2
	140647101	コードオサエ	1
	062400616	ナベコM4X6	1
	062401216	ナベコM4X12	1
	026040236	ヒラガネミガキ#4	1
	154514001	スペーサー	1
	021400106	ナット1M4	1
	0A5401006	ナベコバネヒラ4X10	2
	552907000	コードネルダ#10	1
	0A5401006	ナベコバネヒラ4X10	1
	S48583001	オサエヘイソルノイドクミ	1
	062501212	ナベコ5X12	4
	025050232	ヒラガネナチュウ5	4
	S36048000	キンセツセンリE2R	1
	062300612	ナベコ3X6	1
	S10243000	ナイロンクランプNK-3N	1
	062300612	ナベコ3X8	1

Page 57

Brother KE-430C / KE-431C / KE-432C parts on page 57

Ref	Part number	Part name	Qty
	1-1-1	Operation panel mechanism
	1-1-3
	1-1-7
	1-1-5
	1-1-7-2
	1-1-7-3
	1-1-7-1
	1-1-7-3
	1-1-7-3
	1-1-7-5
	1-1-7-6
	1-1-7-4
	1-1-7-3
	1-1-8
	1-1-2
	1-1-6
	1-1-4
	1-1-9
	1-1-10
	1-2
	2	Power table
	1

Page 58 — S. 操作パネル関係 / Operation panel mechanism T. 動力台関係 / Power table

Brother KE-430C / KE-431C / KE-432C parts on page 58

Ref	Part number	Part name	Qty
	S55889001	OPERATION PANEL UNIT	1
	S55891000	OPERATION PANEL ASSY, IM	1
	S55891000	FRONT FRAME ASSY, IM	1
	S52091000	REAR FRAME ASSY	1
	S49495000	PANEL SIDE COVER	1
	S49496001	PANEL SIDE COVER GUIDE	1
	087310815	TAPTITE, CUP B M3X8	2
	0A4400805	SCREW, PAN (S/P WASHER) M4X8	1
	S49497001	PANEL PCB ASSY	1
	S29023000	LED :GL9P040	4
	S46703000	LED :PG5307S	7
	S48579000	SWITCH :B3F-4050	10
	U34870001	DIP SWITCH:KSP08	1
	S30280000	BUZZER :PKB24SPC36	1
	UL0025000	CONNECTOR:3429-6002SC	1
	S49510000	PANEL HARNESS ASSY	1
	087311015	TAPTITE, CUP B M3X10	2
	XA2220050	PCB HOLDER	2
	062300806	SCREW, PAN M3X8	4
	J80868001	CIM MOTOR ASSY, 430	1
	S53055100	HARNESS ASSY, IM	1

Page 59 — U1 . 踏板関係 / Foot switch pedal mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 59

Ref	Part number	Part name	Qty
	1-1-1-13	1-1-1-13
	1-1-1-9	1-1-1-9
	1-1-1-12	1-1-1-12
	1-1-1-10	1-1-1-10
	1-1-1-7	1-1-1-7
	1-1-1-7-1	1-1-1-7-1
	1-1-1-7-2	1-1-1-7-2
	1-1-1-8	1-1-1-8
	1-1-1-14	1-1-1-14
	1-1-1-17	1-1-1-17
	1-1-1-15	1-1-1-15
	1-1-1-18	1-1-1-18
	1-1-1-11	1-1-1-11
	1-1-1-19	1-1-1-19
	1-1-1-6	1-1-1-6
	1-1-1-1	1-1-1-1
	1-1-1-2	1-1-1-2
	1-1-1-16	1-1-1-16
	1-1-1-3	1-1-1-3
	1-1-1-4	1-1-1-4
	1-1-7	1-1-7
	1-1-8	1-1-8
	1-1-9	1-1-9
	1-1-1-5	1-1-1-5
	1-1-1	1-1-1
	1-1-4	1-1-4
	1-1-5	1-1-5
	1-1-6	1-1-6
	1-1-2	1-1-2
	1-1-3	1-1-3
	1-1-10	1-1-10
	1-1-11	1-1-11
	1-1-12	1-1-12

Page 60 — U1 . 踏板関係 / Foot switch pedal mechanism

Brother KE-430C / KE-431C / KE-432C parts on page 60

Ref	Part number	Part name	Qty
	S49667101	2-STEP FOOT SWITCH SET	1
	S49668101	2-STEP FOOT SWITCH ASSY	1
	S49669100	FOOT PEDAL BASE ASSY	1
	S49672001	2-STEP SWITCH PIN	1
	S38168001	SPRING, COMPRESSION 10X30	1
	S38169201	FOOT SWITCH SUPPORT PLATE, B	1
	004400603	SCREW, FLAT HEAD	2
	S38170001	FOOT PEDAL SPRING	1
	S54648000	FOOT SWITCH HARNESS ASSY	1
	S54646000	FOOT SWITCH HARNESS	1
	S54644000	TERMINAL, FEMALE	2
	S54645000	INSULATION COVER	2
	S36260000	MICRO SWITCH, VX:PIN BUTTON	2
	062302506	SCREW, PAN M3X25	2
	S51451000	FOOT PEDAL	1
	S49673000	PEDAL PROTECTION PLATE	1
	S49674001	SWITCH PRESSER SPRING	1
	S38177001	FOOT PEDAL SHAFT	1
	048050346	RETAINING RING, E5	2
	052400606	SCREW, PAN (S/P WASHER) M4X6	2
	025040236	WASHER, PLAIN M 4	1
	117936001	RUBBER CAP, 9.4	4
	S38180000	CONNECTOR :172169-1	1
	S36682000	CONNECTOR CAP	1
	S46694000	CORD BUSH :KR61A	1
	S38178101	FOOT SWITCH SUPPORT PLATE, A	1
	S38179101	FOOT SWITCH SUPPORT PLATE, C	1
	018082536	BOLT, SOCKET M8X25	2
	028080246	WASHER, SPRING 2-8	2
	025080236	WASHER, PLAIN M 8	2
	018501036	BOLT, SOCKET M5X10	2
	028050246	WASHER, SPRING 2-5	2
	025050236	WASHER, PLAIN M 5	2
	018401236	BOLT, SOCKET M4X12	2
	028040246	WASHER, SPRING 2-4	2
	025040236	WASHER, PLAIN M 4	2

Page 61 — U2 . 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts)

Brother KE-430C / KE-431C / KE-432C parts on page 61

Ref	Part number	Part name	Qty
	1-2-1-12	1-2-1-12
	1-2-1-8	1-2-1-8
	1-2-1-11	1-2-1-11
	1-2-1-9	1-2-1-9
	1-2-1-13	1-2-1-13
	1-2-1-5	1-2-1-5
	1-2-1-5-1	1-2-1-5-1
	1-2-1-5-1-1	1-2-1-5-1-1
	1-2-1-5-1-2	1-2-1-5-1-2
	1-2-1-6	1-2-1-6
	1-2-1-13	1-2-1-13
	1-2-1-14	1-2-1-14
	1-2-1-18	1-2-1-18
	1-2-1-10	1-2-1-10
	1-2-1-4	1-2-1-4
	1-2-1-1	1-2-1-1
	1-2-1-15	1-2-1-15
	1-2-1-7	1-2-1-7
	1-2-1-16	1-2-1-16
	1-2-1-2	1-2-1-2
	1-2-1-3	1-2-1-3
	1-2-1-17	1-2-1-17
	1-2-1	1-2-1
	1-2-7	1-2-7
	1-2-8	1-2-8
	1-2-9	1-2-9
	1-2-4	1-2-4
	1-2-5	1-2-5
	1-2-6	1-2-6
	1-2-2	1-2-2
	1-2-10	1-2-10
	1-2-11	1-2-11
	1-2-12	1-2-12
	1-2-3	1-2-3

Page 62 — U2 . 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts)

Brother KE-430C / KE-431C / KE-432C parts on page 62

Ref	Part number	Part name	Qty
	S49675101	2-PEDAL FOOT SWITCH SET	1
	S49676101	2-PEDAL FOOT SWITCH ASSY	1
	S49669100	FOOT PEDAL BASE ASSY	2
	S38169201	FOOT SWITCH SUPPORT PLATE, B	2
	004400603	SCREW, FLAT M4X6	4
	S38170001	FOOT PEDAL SPRING	2
	S54649000	2-PEDAL FOOT SW HARNESS ASSY	1
	S54647000	2-PEDAL FOOT SWITCH HARNESS	2
	S54644000	TERMINAL, FEMALE	4
	S54645000	INSULATION COVER	4
	S36260000	MICRO SWITCH, VX-PIN BUTTON	2
	062301205	SCREW, PAN M3X12	4
	228475000	FASTENING BAND, 1.9X8	8
	S51451000	FOOT PEDAL	2
	S49673000	PEDAL PROTECTION PLATE	2
	S49674001	SWITCH PRESSER SPRING	2
	S38177001	FOOT PEDAL SHAFT	2
	048050346	RETAINING RING, E5	4
	052400606	SCREW, PAN (S/P WASHER) M4X6	4
	025040236	WASHER, PLAIN M 4	2
	117936001	RUBBER CAP, 9.4	8
	S38180000	CONNECTOR :172169-1	1
	S38060000	CONNECTOR CAP, 18X19	1
	S46694000	CORD BUSH :KR61A	2
	S38178101	FOOT SWITCH SUPPORT PLATE, A	2
	S38179101	FOOT SWITCH SUPPORT PLATE, C	2
	018082536	BOLT, SOCKET M8X25	4
	028080246	WASHER, SPRING 2-5	4
	025080236	WASHER, PLAIN M 5	4
	018501036	BOLT, SOCKET M5X10	4
	028050236	WASHER, SPRING 2-5	4
	025050236	WASHER, PLAIN M 5	4
	018401236	BOLT, SOCKET M4X12	4
	028040236	WASHER, SPRING 2-4	4
	025040236	WASHER, PLAIN M 4	4

Page 63

Brother KE-430C / KE-431C / KE-432C parts on page 63

Ref	Part number	Part name	Qty
	2-1	FOOT SWITCH PEDAL MECHANISM
	2-1-1	BASE
	2-1-3	SCREW
	2-1-4	WASHER
	2-1-5	NUT
	2-1-6	SPRING
	2-1-7	CORD
	2-1-8	BRACKET
	2-1-9	SCREW
	2-1-10	WASHER
	2-1-11	SCREW
	2-1-12	BRACKET
	2-2	SCREW
	2-3	BRACKET
	2-4-1	PEDAL
	2-4-2	PIN
	2-4-3	BRACKET
	2-4-4	WASHER
	2-4-5	SCREW
	2-4-6	NUT
	2-4-7	WASHER
	2-4-8	WASHER
	3	SCREW

Page 64 — U3. 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts)

Brother KE-430C / KE-431C / KE-432C parts on page 64

Ref	Part number	Part name	Qty
	S46131001	2-STEP FOOT SWITCH SET, OP	1
	S46132001	2-STEP FOOT SWITCH ASSY, OP	1
	S46133001	SWITCH BRACKET	1
	S46134001	FOOT SWITCH LEVER	1
	148904001	SHOULDER SCREW, SM7.94	1
	025080236	WASHER, PLAIN M 8	1
	101268002	NUT, SM7.94	1
	S46135001	FOOT SWITCH SPRING	1
	S46136000	FOOT SWITCH HARNESS ASSY, OP	1
	UD2390001	SCREW, PAN (S/P WASHER) M3X20	4
	025030236	WASHER, PLAIN M 3	2
	021300206	NUT, 2 M3	2
	052400806	SCREW, PAN (S/P WASHER) M4X8	2
	S00480000	CORD HOLDER, #5	1
	100666002	WOOD SCREW, ROUND M5.5X20	2
	200190001	STAPLE	3
	S01603009	TREADLE ASSY	1
	S01199003	TREADLE PEDAL	1
	133188001	TREADLE SHAFT	1
	119707003	TREADLE SHAFT BRACKET	2
	119708001	TREASLE BUSHING COLLAR	2
	017082206	BOLT, M6X22	2
	116694001	NUT, SQUARE M8	2
	028080240	WASHER, SPRING 2-8	2
	025080236	WASHER, PLAIN M 8	2
	142656001	CHAIN ASSY	1
	S49443000	CONTACT: 170364-1	1

Page 65 — V. 付属装置関係(オプション部品) / Attachment set (Option parts)

Brother KE-430C / KE-431C / KE-432C parts on page 65

Ref	Part number	Part name	Qty
	20-5-7-1	20-5-7-1
	20-5-7-2	20-5-7-2
	20-5-8	20-5-8
	20-5-7	20-5-7
	20-5-12	20-5-12
	20-5-10	20-5-10
	20-5-9	20-5-9
	20-5-11	20-5-11
	20-5-6	20-5-6
	20-8	20-8
	20-9	20-9
	20-5-1	20-5-1
	20-5-5	20-5-5
	20-5-1-1	20-5-1-1
	20-5-13	20-5-13
	20-5-4	20-5-4
	20-5-3	20-5-3
	20-6	20-6
	20-7	20-7
	20-15	20-15
	20-16	20-16
	20-14	20-14
	20-5	20-5
	20-10	20-10
	20-11	20-11
	20-12	20-12
	20-1	20-1
	20-5-5	20-5-5
	20-5-2	20-5-2
	20-3	20-3
	20-2	20-2
	20-4	20-4
	20-13	20-13
	20-17	20-17

Page 66 — V. 付属装置関係 (オプション部品) / Attachment set (Option parts)

Brother KE-430C / KE-431C / KE-432C parts on page 66

Ref	Part number	Part name	Qty
	S49615009	デンジワイパーアツミ
	S41656001	イトハイレンカンクミ
	S44600001	ワイパーアームアツミ
	153112001	ダンネジ3.57
	021670202	ナツト2シュ3.57
	S49616009	ソレノイドボックスクミ
	S49619001	イトハイソレノイドクミ
	S41204050	プランジヤゴム
	062300612	ナベコ3X6	4
	S41205001	ヒラザガネ
	S41206001	イトハイラバネ
	S25456001	プランジヤピン	2
	S42017109	Wソレノイドトリケタ
	S49482000	EMロツクSWハーネスクミ
	S32335000	SW-AVS311N
	S49466000	EMSWハーネス
	S37057001	EMスイッチスペーサ3
	S42018109	Wソレノイドカバー
	008400604	+トラスコ4X6	2
	S37806109	ソレノイドカバーEフタ
	008400604	+トラスコ4X6	2
	115007001	ザガネ
	S41207000	スペーサゴム
	S25456001	プランジヤピン
	018400632	アナボルト4X6	2
	100645003	ザガネ	2
	S41657001	イトユルミロツドDW
	061350616	サラコ35X6
	062680812	ナベコ3437-40X8	2
	156206001	ワイパー-A
	S49947000	コネクタVHR-5N
	060670612	+バインド357-40X6	3
	149287000	ナイロンクランプ	3
	104449001	ゴムセン15.5

Page 67 — Z1 . 付属関係 / Accessories

Brother KE-430C / KE-431C / KE-432C parts on page 67

Ref	Part number	Part name	Qty
4	4	4-4
4-4	4-4	4-4
5	5	5
4-1	4-1	4-1
4-2	4-2	4-2
4-3	4-3	4-3
21	21	21
16	16	16
20	20	20
17	17	17
12	12	12
10	10	10
11	11	11
9	9	9
19	19	19
71	71	71
70	70	70
103	103	103
101	101	101
102	102	102
6	6	6
31	31	31
30	30	30
29	29	29
51	51	51
75	75	75
75-1	75-1	75-1
75-2	75-2	75-2
76	76	76
911	911	911
912	912	912
903	903	903
902	902	902
901	901	901
15	15	15
64	64	64
24	24	24
23	23	23
32	32	32
28	28	28
27	27	27
26	26	26
33	33	33
34	34	34
55	55	55
52	52	52
57	57	57
56	56	56
58	58	58
921	921	921
59	59	59
920	920	920
14	14	14
18	18	18
61	61	61
42	42	42
62	62	62

Page 68 — Z1 . 付属 品 関係 / Accessories

Brother KE-430C / KE-431C / KE-432C parts on page 68

Ref	Part number	Part name	Qty
	S38039209	オイルパンクミ	1
	S38040209	オイルパン	1
	154467001	ハイクユキヤツプ	1
	037301215	Vナベタツピン3X12	2
	S18093100	クミヒモ4X4	1
	109714000	クギ	5
	114486002	ポリ オイラータイ	1
	143882001	トウブヒンジ	2
	014760622	アナトメネジ 5.95	2
	S49603000	トウブヒンジ ウケゴム	2
	109714000	クギ	4
	122991001	フツクピンポリクロ	1
	*	ホビン	3
	S10208001	ハリ4 コイリクミ	1
	S10208001	イトウカンザ	1
	S10208002	イトウカンザ	1
	S10208003	イトウカンザ	1
	S36045109	マクラクミ	1
	S49604000	トウブウケゴム	2
	109714000	クギ	2
	114483002	ポリ オイラークミ	1
	S55663001	オイルタンククミ	1
	S08170001	Zクガタネジマワシ	1
	142443001	ネジ マワシ 1.9X52	1
	118837001	ネジ マワシ 3.4X70	1
	101572101	ネジ マワシ 5.5X190	1
	107779001	スパナ6X7	1
	100887001	スパナ8X9	1
	107780001	スパナ10X12	1
	142721001	6カク ボウスパナ 3	1
	118064001	6カク ボウスパナ 4	1
	200190001	ステップル	5
	144226001	トウブカバー	1
	S33006001	モータスペーサ	4
	133740006	カクネボルト 6X70	4
	021060106	シユナツト 6	8
	025060336	ヒラザガネダイ 6	4
	032461606	+ マルモクネジ 4.5X16	2
	S38044001	ヒンジオサエ	1
	031412506	マルモクネジ 4.1X25	4
	200190001	ステップル	3
	S41222101	ハリボウイトアンナイB	1
	S55633001	スイツチオンイタ	1
	032422003	+ マルモクネジ 4.1X20	2

Page 69 — Z1. 付属関係 / Accessories

Brother KE-430C / KE-431C / KE-432C parts on page 69

Ref	Part number	Part name	Qty
4	4	4
4-4	4-4	4-4
5	5	5
4-2	4-2	4-2
4-3	4-3	4-3
21	21	21
20	20	20
16	16	16
17	17	17
10	10	10
12	12	12
11	11	11
9	9	9
19	19	19
71	71	71
70	70	70
103	103	103
101	101	101
102	102	102
6	6	6
31	31	31
30	30	30
29	29	29
51	51	51
75	75	75
75-1	75-1	75-1
75-2	75-2	75-2
76	76	76
903	903	903
902	902	902
911	911	911
912	912	912
901	901	901
15	15	15
26	26	26
27	27	27
28	28	28
32	32	32
33	33	33
34	34	34
23	23	23
22	22	22
55	55	55
52	52	52
57	57	57
56	56	56
58	58	58
24	24	24
64	64	64
921	921	921
59	59	59
920	920	920
14	14	14
18	18	18
61	61	61
42	42	42
62	62	62

Page 70 — Z1 . 付属 品 関係 / Accessories

Brother KE-430C / KE-431C / KE-432C parts on page 70

Ref	Part number	Part name	Qty
	S55311001	ベルトカバーIMグミ	1
	S51097000	ベルトカバーIM	1
	S38350001	ソウサチュウイラベル.ワ	1
	S55311002	ベルトカバーIMグミ	1
	S51097000	ベルトカバーIM	1
	S38349001	ソウサチュウイラベル.エイ	1
	062401006	ナベコ4X10	2
	S08030000	GEューズ5AFB	1
	15322000	ヒューズ 6A	1
	S48580000	GFUSE7AFB	1
	018405032	アナボルト4X50	2
	021400102	ナット1シュ4	2
	S06706001	シコンオイル	1
	UA4817000	MOSLSI27C2001	1
	S60400000	トウデンパツト30X50	2
	S60711001	PROM イレハコ	1
	156006001	オサエアシ	2
	017680512	ボルト4.37X5	2

Page 71

Brother KE-430C / KE-431C / KE-432C parts on page 71

Ref	Part number	Part name	Qty
	35-1-5-1	35-1-5-1
	35-1-11-1	35-1-11-1
	35-1-10-2	35-1-10-2
	35-1-10-3	35-1-10-3
	35-1-5	35-1-5
	35-1-11-5	35-1-11-5
	35-1-11-2	35-1-11-2
	35-1-4-5	35-1-4-5
	35-1-10-1	35-1-10-1
	35-1	35-1
	35-1-11-1	35-1-11-1
	35-1-7	35-1-7
	35-1-8-1	35-1-8-1
	35-1-11-4	35-1-11-4
	35-1-3	35-1-3
	35-1-6	35-1-6
	35-1-2	35-1-2
	35-1-11-5	35-1-11-5
	35-1-11-3	35-1-11-3
	35-1-9	35-1-9
	35-1-8-2	35-1-8-2
	35-1-1	35-1-1
	35-1-8-3	35-1-8-3
	35-1-4-4	35-1-4-4
	35-1-4-2	35-1-4-2
	35-1-4-3	35-1-4-3
	67-1-1-1	67-1-1-1
	67-1-1-7	67-1-1-7
	67-1-1-6	67-1-1-6
	67-1-1-2	67-1-1-2
	67-1-1-5	67-1-1-5
	67-1-1-3	67-1-1-3
	67-1-1-4	67-1-1-4
	67-1-2	67-1-2
	35-2-7-1	35-2-7-1
	35-2-7	35-2-7
	35-2-15-1	35-2-15-1
	35-2-14-2	35-2-14-2
	35-2-15-5	35-2-15-5
	35-2-14-3	35-2-14-3
	35-2-15-2	35-2-15-2
	35-2-14-1	35-2-14-1
	35-2-6	35-2-6
	35-2-12	35-2-12
	35-2-15-1	35-2-15-1
	35-2-9	35-2-9
	35-2-15-4	35-2-15-4
	35-2-16-2	35-2-16-2
	35-2-15-3	35-2-15-3
	35-2-10-1	35-2-10-1
	35-2-15-1	35-2-15-1
	35-2-3	35-2-3
	35-2-11	35-2-11
	35-2-5	35-2-5
	35-2-8	35-2-8
	35-2-2	35-2-2
	35-2-15-5	35-2-15-5
	35-2-1	35-2-1
	35-2-15-3	35-2-15-3
	35-2-10-2	35-2-10-2
	35-2-13	35-2-13
	35-2-10-3	35-2-10-3
	67-2-1	67-2-1
	67-2-1-1	67-2-1-1
	67-2-2	67-2-2
	67-2-1-5	67-2-1-5
	67-2-1-2	67-2-1-2
	67-2-1-3	67-2-1-3
	67-2-1-4	67-2-1-4
	35-2-4-1	35-2-4-1
	35-2-4-2	35-2-4-2

Page 72 — Z2 . 付属 品 関係 / Accessories

Brother KE-430C / KE-431C / KE-432C parts on page 72

Ref	Part number	Part name	Qty
35-1	S02763402	COTTON STAND ASSY, 2DR	1
35-1-1	S51283001	SPOOL STAND BASE	2
35-1-2	150182000	SPOOL MAT	2
35-1-3	S51282001	SPOOL CUSHION	2
35-1-4	S02777001	PIPE (D) SCREW SET, B	1
35-1-4-1	150206002	WASHER, PLAIN 16	1
35-1-4-2	S38648001	NUT, U5/8-28	1
35-1-4-3	150174000	COLUMN CAP	1
35-1-4-4	S01005000	RUBBER WASHER	2
35-1-4-5	S02747101	SPRING	1
35-1-5	S40640001	COLUMN PIPE W/CAP	1
35-1-5-1	150174000	COLUMN CAP	1
35-1-6	156112003	COLUMN PIPE, D	1
35-1-7	150173003	COLUMN JOINT	1
35-1-8	S21798001	SPOOL & SCREW SET	2
35-1-8-1	150179002	SPOOL SHAFT, B	2
35-1-8-2	028050246	WASHER, SPRING 2-5	2
35-1-8-3	021500106	NUT, 1 M5	2
35-1-9	S02778002	SPOOL HOLDER, 2	1
35-1-10	S02786002	THREAD HANGER ASSY, 2	1
35-1-10-1	S02787002	THREAD HANGER, 2	1
35-1-10-2	150183000	THREAD HANGER BASE	2
35-1-10-3	142990001	THREAD BUSH	2
35-1-11	S40641001	SPOOL SHAFT & SCREW SET, A	1
35-1-11-1	021500106	NUT, 1 M5	4
35-1-11-2	062501406	SCREW, PAN M5X14	1
35-1-11-3	S59931001	SCREW, PAN M5X32	1
35-1-11-4	062501406	SCREW, PAN M5X14	2
35-1-11-5	026050136	WASHER, PLAIN S 5	2
67-1	S49602201	EYE GUARD SET, C	1
67-1-1	S44493101	EYE GUARD ASSY	1
67-1-1-1	S44483001	HINGE ASSY	1
67-1-1-2	S44485001	EYE GUARD	1
67-1-1-3	061660806	SCREW, FLAT SM3.18-40X8	2
67-1-1-4	021660102	NUT, 1 SM3.18	2
67-1-1-5	026070232	WASHER, PLAIN M 3	2
67-1-1-6	S44486101	EYE GUARD HOLDER, A	1
67-1-1-7	062670512	SCREW, PAN SM3.57-40X5	2
67-1-2	062671016	SCREW, PAN SM3.57-40X10	2
35-2	S40574109	COTTON STAND ASSY, 2DTHF	1
35-2-1	S51283001	SPOOL STAND BASE	2
35-2-2	150182000	SPOOL MAT	2
35-2-3	S51282001	SPOOL CUSHION	2
35-2-4	S02775001	PIPE SCREW SET, A	1
35-2-4-1	150206002	WASHER, PLAIN 16	1
35-2-4-2	S38648001	NUT, U5/8-28	1
35-2-5	S04109001	THREAD GUIDE SUPPORT BAR	1
35-2-6	142990001	THREAD GUIDE, 3	1
35-2-7	S40640001	COLUMN PIPE W/CAP	1
35-2-7-1	150174000	COLUMN CAP	1
35-2-8	156112003	COLUMN PIPE, D	1
35-2-9	150173003	COLUMN JOINT	1

Page 73 — Z2 . 付属 品 関 係 / Accessories

Brother KE-430C / KE-431C / KE-432C parts on page 73

Ref	Part number	Part name	Qty
	S21798001	SPOOL & SCREW SET	2
	150179002	SPOOL SHAFT, B	2
	028050246	WASHER, SPRING 2-5	2
	021500106	NUT, 1 M5	2
	150185009	THREAD GUIDE HOLDER	1
	138843001	JOINT	1
	S02778002	SPOOL HOLDER, 2	1
	S02786002	THREAD HANGER ASSY, 2	1
	S02787002	THREAD HANGER, 2	1
	150183000	THREAD HANGER BASE	2
	142990001	THREAD BUSH	2
	S40641001	SPOOL SHAFT & SCREW SET, A	1
	021500106	NUT, 1 M5	4
	062501406	SCREW, PAN M5X14	1
	S59931001	SCREW, PAN M5X32	1
	062501406	SCREW, PAN M5X14	2
	026050136	WASHER, PLAIN S 5	2
	S40643001	HOLDER JOINT & SCREW SET	1
	014060632	SET SCREW, SOCKET (CP) M6X6	2
	021500106	NUT, 1 M5	1
	S59931001	SCREW, PAN M5X32	1
	S50000201	EYE GUARD SET, D	1
	S36685101	EYE GUARD ASSY	1
	S36686101	EYE GUARD SUPPORT PLATE	1
	S52097001	EYE GUARD	1
	062660712	SCREW, PAN SM3.18-40X7	2
	025660132	WASHER, PLAIN S 3.18	2
	021660102	NUT, 1 SM3.18	2
	062671016	SCREW, PAN SM3.57-40X10	2

Page 78 — Ga1 .ゲージ部品一覧表 (KE-430C) / Gauge parts List (KE-430C)

Brother KE-430C / KE-431C / KE-432C parts on page 78

Ref	Part number	Part name	Qty
	S49594-301	Work clamp arm assy
	152777-001 < PM >	R
	152777-001 < PM >	L
	S49591-301	Work clamp arm assy
	153608-101	R
	S49698-001 < L >	Feed plate
	S49697-001	Feed plate
	S49590-301	Work clamp arm assy
	153201-001 < PL >	R
	S49597-301	Work clamp arm assy
	152781-001	R
	S49943-001 < PL >	Feed plate
	S49942-001	Feed plate
	S49596-301	Work clamp arm assy
	152779-001	R
	152780-001	L
	S49598-301	Work clamp arm assy
	S51095-301 < F >	Work clamp arm assy
	S49594-301	Work clamp arm assy
	153201-001 < PL >	R
	152778-001 < PM >	R
	S49700-001 < S >	Work clamp
	S49696-001 < F >	Work clamp
	S49943-001 (PL)	Feed plate
	S49596-301	Work clamp arm assy
	152779-001	R
	S49699-001	Feed plate

Page 79 — Ga1.ゲージ部品一覧表 (KE-430C) / Gauge parts List (KE-430C)

Brother KE-430C / KE-431C / KE-432C parts on page 79

Ref	Part number	Part name	Qty
10	153203-001 <PS >	R
11	S00906-001 (25.4mm)	R
12	S33747-001 (30mm)	R
13	S59903-001(AW / 30X26mm用)	R
10	153204-001 <PS >	L
11	S00907-001 (25.4mm)	L
12	S33748-001 (30mm)	L
13	S59909-001(W / 30X26mm用)	L
10	S49944-001 < PS >	(C2-100) 送り板 Feed plate
11	S49946-001 (25.4mm)	(C2-100) 送り板 Feed plate
12	S49948-001 (30mm)	(C2-100) 送り板 Feed plate
13	155994-000	(C2-212) 押えブランク Work clamp blank
13	155994-000	(C2-212) 穴ボルト 4.37x5 Bolt, socket SM 4.37x5
13	S49976-100	(C2) 送り板ブランク/ Feed plate blank
13	S49977-100	(C2) 送り板ブランク/ Feed plate blank
14	S46771-001	(線円止/ For straight bar tacking)
15	S46771-001	(線円止/ For straight bar tacking/submerged)
14	S46770-001	(線円止/ For straight bar tacking)
15	S46770-001	(線円止/ For straight bar tacking/submerged)
14	S49970-001	(線円止/ For straight bar tacking)
15	S49970-001	(線円止/ For straight bar tacking/submerged)
15	S49974-001	(線円・沈/ For straight bar tacking/submerged)
16	S49941-001 < PM >	16
17	S49945-001 < MS >	17
	S49978-100	17

Page 80 — Ga1 .ゲージ部品一覧表 (KE-430C) / Gauge parts List (KE-430C)

Brother KE-430C / KE-431C / KE-432C parts on page 80

Ref	Part number	Part name	Qty
18	S46774-001	(檢門止/For vertical bar tacking)
19	S46774-001	(檢門・次/For vertical bar tacking/submerged)
20	S46777-001	(檢穴/For circular stitching)
21	S46780-001	(半月円/For crescent bar tacking)
18	S46773-001	(檢門止/For vertical bar tacking)
19	S46773-001	(檢門・次/For vertical bar tacking/submerged)
20	S46776-001	(檢穴/For circular stitching)
21	S46779-001	(半月円/For crescent bar tacking)
18	S49971-001	(檢門止/For vertical bar tacking)
19	S49975-001	(檢門・次/For vertical bar tacking/submerged)
20	S49972-001	(檢穴/For circular stitching)
21	S49973-001	(半月円/For crescent bar tacking)
C	156006-001	Work clamp Bolt
C	017680-512	Work clamp Bolt
C	156006-001	Work clamp Bolt
C	017680-512	Work clamp Bolt
C	156006-001	Work clamp Bolt
C	017680-512	Work clamp Bolt

Page 81 — Ga2 . ゲージ部品一覧表 (KE-431C) / Gauge parts List (KE-431C)

Brother KE-430C / KE-431C / KE-432C parts on page 81

Ref	Part number	Part name	Qty
	S51848-101	< S >
	154416-201	< S >
	S51851-101	< L >
	154417-201	< L >
	S51853-001	< S >
	S51852-001	< L >
	S42902-001	< 438E >
	S42903-001
	S10352-101

Page 82 — Ga3. ゲージ部品一覧表 / Gauge parts List

Brother KE-430C / KE-431C / KE-432C parts on page 82

Ref	Part number	Part name	Qty
	S10211-001	Needle hole plate
	S51449-001	Needle hole plate
	S41013-001	Needle hole plate
	S29997-001	Needle hole plate
	S10212-101	Needle hole plate
	S30925-001	Needle hole plate
	S10213-001	Needle hole plate
	S30926-001	Needle hole plate
	S49980-001	Needle hole plate
	S59620-001	Needle hole plate
	S30450-001	Needle hole plate
	S25127-001	Needle hole plate
	S34348-001	Needle hole plate
	S40217-001	Needle hole plate
	S10212-101	Needle hole plate	-2
	S49980-001	Needle hole plate	-1
	S10211-001	Needle hole plate	-7
	S49980-001	Needle hole plate	-2
	S49980-001	Needle hole plate	-3

Page 83 — Wa. 警告ラベル / Warning labels

Brother KE-430C / KE-431C / KE-432C parts on page 83

Ref	Part number	Part name	Qty
	S38353-101	電撃ラベル・和 Label, elec. shock 4 lang.
	S38352-101	Label, elec. shock 4 lang.
	S38350-001	操作注意ラベル・和 Label, operation Eng.
	S38349-001	Label, operation Eng.
	S37059-001	PE マーク Label, PE
	S37060-001	アースマーク Label, grounding

Page 84 — 索引 / INDEX

Brother KE-430C / KE-431C / KE-432C parts on page 84

Ref	Part number	Part name	Qty
56	004400603	U1-1-1-1-5
42	008400604	01-1-22
62	008400604	V-20-5-10
62	008400604	V-20-5-12
2	011679312	A-101
69	014060632	Z2-35-2-16-1
14	014660622	C4-205
22	014660622	E-3
30	014660622	H-1-9
32	014660622	J-8-2
36	014710522	K-14
8	014760622	C1-1-6
8	014760622	C1-4-4
8	014760622	C1-6
8	014760622	C1-10
8	014760622	C1-13
8	014760622	C1-21
8	014760622	C1-30
10	014760622	C2-37-7
10	014760622	C2-37-24
12	014760622	C3-37-6
12	014760622	C3-37-20
18	014760622	D1-13
20	014760622	D2-13
20	014760622	D2-36
22	014760622	E-7
22	014760622	E-10
22	014760622	E-15
32	014760622	J-33
36	014760622	K-5
64	014760632	Z1-10
28	014760632	G-28
12	014770622	C3-37-9
22	014770622	E-13-1
32	014770622	J-2
32	014770622	J-23
4	014770632	B1-14
4	014770632	B1-5
4	014770632	B1-17
60	017060226	U3-2-4-5
2	017080512	A-15
6	017080512	B2-49
66	017080512	Z1-912
75	017080512	Ga1-211
14	017761212	C4-42
10	017761412	C2-42
12	017761412	C3-42
16	017781412	C4-206
20	017821813	D2-39
6	018061022	B2-41
14	018061022	C4-37-33
48	018061436	Q2-4
20	018061622	D2-34
16	018062036	C4-221
6	018062522	B2-42
56	018062536	U1-1-1-4
58	018062536	U2-1-2-4
6	018083022	B2-37
62	018400632	V-20-8
10	018400822	C2-47
12	018400822	C3-47
50	018401222	R-3
6	018401236	B2-30-4
56	018401236	U1-1-1-10
58	018401236	U2-1-2-10
14	018401622	C4-37-16
14	018401622	C4-37-34
10	018500822	C3-37-15
10	018501022	C2-500-5
56	018501036	U1-1-1-7
58	018501036	U2-1-2-7
22	018501232	E-20
18	018501422	D1-28
75	018501422	Ga1
6	021060306	B2-43
48	021060306	Q2-6
64	021060306	Z1-56
14	021300206	C4-223
10	021300206	U3-2-1-10
14	021400102	C4-37-13
66	021400102	Z1-921
48	021400106	Q2-52
52	021400106	R-40-10
42	021400206	Q1-1-6
68	021500106	Z2-35-1-6-3
68	021500106	Z2-35-1-11-1
69	021500106	Z2-35-2-10-3
69	021500106	Z2-35-2-15-1
69	021500106	Z2-35-2-16-2
66	021500106	Z2-67-1-1-4
56	021670122	U1-1-1-5
62	021670202	V-20-4
14	021680202	C4-37-7
30	021710212	H-1-24
14	021710212	C4-37-18
60	025030236	U3-2-1-9
48	025040236	Q2-51
56	025040236	U1-1-1-15
56	025040236	U1-1-12
58	025040236	U2-1-2-14
58	025040236	U2-1-2-12
10	025050232	C2-500-7
56	025050236	U1-1-1-9
58	025050236	U2-1-2-9
10	025060232	C2-41
12	025060232	C3-41
14	025060232	C4-37-32
14	025060232	C4-41
20	025060232	D2-35
48	025060236	Q2-5
2	025060236	A-35
56	025060236	U1-1-1-6
58	025060236	U2-1-2-6
60	025060236	U3-2-1-4
60	025060236	U3-2-4-8
36	025350132	K-17
36	025350332	L-16
69	025660132	Z2-67-2-1-4
26	025680132	N-7
26	025680232	F-8
30	025680232	H-1-27
14	025680232	H-4
14	025710132	C4-37-24
14	025710132	C4-37-34
14	025710132	C4-37-10
14	025710132	C4-37-16
14	025710132	C4-213
16	025710132	C4-231
22	025770232	E-27
36	025770232	K-3
20	02600236	D2-35
52	026040236	R-40-5
20	026040246	D2-35
56	026040246	U1-1-11
58	026040246	U2-1-2-11
10	026050242	C2-500-6
56	026050246	U1-1-1-8
58	026050246	U2-1-2-8
68	026050246	Z2-35-1-8-2
69	026050246	Z2-35-2-10-2
60	026060240	U3-2-4-7
6	026060242	B2-38
56	026060246	U1-1-1-5
58	026060246	U2-1-2-5
36	026060246	L-15
36	026060246	M-5-6
26	026060246	F-9
32	026060246	J-22-6
64	031412506	Z1-61
64	032422003	Z1-71
64	032461606	Z1-58
64	037301215	Z1-4-3
36	047401442	L-6
36	048030342	K-12
14	048030342	C4-37-17
36	048030342	K-4
36	048030342	L-19
32	048030342	M-15
56	048050346	U1-1-1-13
58	048050346	U2-1-2-12
8	048060342	C1-15
8	048060342	C1-23
22	048070342	E-18
32	048070342	J-19
4	048100142	H-1-4
4	048150142	B1-9
20	048150142	D2-28
8	048180142	C1-8
56	052400606	U1-1-1-14
58	052400606	U2-1-2-13
60	052400612	U3-2-1-11
8	060300512	C1-34
50	060400616	R-37
18	060501016	D1-22
20	060501016	D2-22
50	060501016	R-15
26	060670512	F-16
2	060670512	A-18
26	060670512	G-4
26	060670512	G-6
50	060670512	R-20
50	060670512	R-35
50	060670512	R-36
52	060670512	R-33
10	060670512	C2-53
12	060670512	C3-53
18	060670512	D1-24
20	060670512	D2-24
18	060670512	D1-20
20	060670512	D2-20
32	060670512	J-5
62	060670512	V-20-11
68	061660606	Z2-67-1-1-3
52	062020606	R-40-4
52	062300612	R-204
62	062300612	V-20-5-2
50	062300606	R-8
50	062300606	R-9
52	062300612	R-206
58	062301206	U2-1-2-1-6
56	062302506	U1-1-1-8
52	062400616	R-40-6
40	062400606	N-2
66	062401006	Z1-76
52	062401216	R-40-7
52	062501212	R-201
68	062501406	Z2-35-1-11-2
68	062501406	Z2-35-1-11-4
69	062501406	Z2-35-2-15-2
69	062501406	Z2-35-2-15-4
22	062660412	E-14-1-3
22	062660412	E-14-2-1-3
22	062660712	E-14-1-7
22	062660712	E-14-2-1-7
69	062660712	Z2-67-2-1-3
28	062670412	G-31
26	062670512	F-26
26	062670512	F-39
26	062670512	F-52
36	062670512	K-16
68	062670612	Z2-67-1-1-7
28	062670612	G-2
28	062670612	G-2
28	062670612	G-21
36	062670612	L-21
50	062670612	R-24
10	062671012	C2-37-22
36	062671012	L-14
68	062671016	Z2-67-1-2
69	062671016	Z2-67-2-2
12	062671212	C3-37-1-3
30	062671212	H-1-18
8	062680512	C1-36
16	062680512	C4-218

Page 86

Brother KE-430C / KE-431C / KE-432C parts on page 86

Ref	Part number	Part name	Qty
	082680612	D1-16
	082680612	D2-16
	082680612	F-7
	082680612	F-31
	082680612	H-3
	082680812	B1-16-8
	082680812	M-9
	082680812	V-20-12
	082681012	A-26
	082681012	C1-18
	082681012	C1-26
	082681212	C1-3-2
	082681412	N-6
	082710812	C4-211
	082710812	C4-219
	082710812	C4-230
	082710812	L-2
	082710812	R-31
	082711012	A-42
	082711012	C4-212
	082761012	C4-20
	070698950	C1-16
	070698950	C1-24
	071039750	C2-48
	071039750	C3-48
	071047650	C2-40
	071047650	C3-40
	071047650	C4-40
	072630260	B1-7
	081003670	E-12
	087310815	E-17
	087310815	S-1-1-5
	087311015	S-1-1-9
	091170009	P-1-5
	093650006	P-1-3
	093650032	P-1-4
	0A4301005	P-1-13
	0A4400605	Q1-1-26-17
	0A4400605	Q2-42
	0A4400605	S-1-1-6
	0A5400606	Q1-1-9
	0A5401006	R-17
	0A5401006	R-5
	0A5401006	R-11
	0A5401006	R-41
	0A5401006	R-43
	0A5401206	Q1-1-5
	0A5401206	Q1-1-10
	100022004	H-1-26
	100022005	J-25
	100022005	M-1-3
	100022005	M-4
	100032004	J-51
	100090004	E-2
	100135001	G-20
	100242003	B1-20
	100250001	B1-13
	100281001	D1-8
	100281001	D2-8
	100360003	J-54
	100402004	G-17
	100645003	A-34
	100645003	V-20-9
	100666002	U3-2-2
	100687001	Z1-30
	101268002	U3-2-1-5
	101572101	Z1-30
	101706001	E-6-1
	101706001	C1-3-2
	103610002	B1-18
	103810002	E-26
	104449001	A-11
	104449001	V-20-17
	10450101	A-4
	10450101	A-10
	104525001	G-14-1
	104525001	Sp1-G-14
	104525001	Sp1-G-14
	104525001	Sp1-G-14
	104525001	Sp2-G-14
	104525001	Sp2-G-14
	104525001	Sp2-G-14
	104967101	F-22
	105023003	D2-32
	105612003	J-15
	105912003	J-15
	107038003	C2-37-12
	107149001	F-5
	10721003	L-4
	107415009	Sp1-B1-26
	107415014	Sp1-B1-26
	107415014	Sp1-B1-26
	107415014	Sp1-B1-26
	107606001	G-14-2
	107744001	D2-30
	107779001	Z1-29
	107780001	Z1-31
	108802001	C1-5
	109239002	A-24
	109714000	Z1-5
	110161004	J-37
	110233001	J-36
	110251001	L-9
	110367001	J-31
	111140002	J-4
	114294001	G-9
	114483002	Z1-22
	114486002	Z1-6
	115007001	V-20-5-13
	115147001	C4-201
	115166001	G-19
	115188001	G-21
	116629001	C2-37-5
	116694001	K-10
	116694001	U3-2-4-6
	116920001	B1-8
	116922001	G-12
	117143001	C4-37-27
	117150001	R-23
	117934001	A-6
	117934001	A-17-3
	117936001	U1-1-1-16
	118064001	Z1-34
	118244001	C4-37-28
	118247001	C4-37-11
	118248101	C4-37-21
	118249001	C4-37-29
	118249001	Sp2-C4-37-29
	118250001	C4-37-30
	118250001	Sp2-C4-37-30
	118252001	C4-37-23
	118256001	C4-37-4
	118257001	C4-37-5
	118259001	C4-37-3
	118259001	C4-37-6
	118735002	C4-207
	118837001	C4-222
	119707003	U3-2-4-3
	119708001	U3-2-4-4
	120440001	D2-25
	120990001	H-1-13
	121007001	J-42
	122991001	Z1-14
	123882001	C4-37-36
	133188001	U3-2-4-2
	133740006	Z1-55
	138843001	Z2-35-2-12
	140392009	A-5
	140407001	C4-226
	140407002	C3-37-7
	140647101	R-40-5
	140726000	B1-6
	141492001	J-26-2
	141590001	M-1-2
	141786001	E-1
	142443001	Z1-26
	142656001	U3-2-5
	142721001	Z1-33
	142990001	Z2-35-1-10-3
	142997001	Z2-35-2-6
	143882001	Z1-9
	144105000	H-1-23
	144110001	H-1-21
	144226001	Z1-51
	144458001	B1-23
	144588001	Bpl-G-10
	144712001	Bpl-G-10
	145318001	C2-32
	145446001	C4-32
	145446001	G-22
	145446001	H-1-22
	145465001	B1-16-5
	145478101	C2-37-17
	145478101	C3-37-15
	145478101	M-2
	145819001	Sp1-G-10
	145819001	Sp1-G-10
	145819001	Sp2-G-10
	145819001	Sp2-G-10
	145819001	Sp2-G-10
	145992001	K-8
	146354001	C2-37-14
	146994001	C4-202
	14777000	B1-16-9
	148738000	F-4
	148738000	F-40
	148738000	F-41
	148847001	J-13
	148904001	U3-2-1-3
	149287000	R-32
	149809000	Q2-45
	149809000	Q2-48
	150173003	Z2-35-1-7
	150173003	Z2-35-2-9
	150174000	Z2-35-1-4-3
	150174000	Z2-35-1-5-1
	150179002	Z2-35-1-8-1
	150179002	Z2-35-2-10-1
	150182000	Z2-35-1-2
	150182000	Z2-35-2-2
	150183000	Z2-35-1-10-2
	150183000	Z2-35-2-14-2
	150185009	Z2-35-2-11
	150206002	D2-27
	150553001	Z2-35-1-4-1
	150553001	Z2-35-2-4-1
	150556001	C4-37-2
	150556001	C4-208
	150592001	A-29
	151602002	C1-1-3
	152240101	B1-22
	152242001	B1-24
	152243001	B1-25
	152245101	E-4
	152678201	E-11
	152678201	E-16
	152682101	Sp1-E-21
	152682101	Sp1-E-21
	152682101	Sp1-E-21
	152682101	Sp2-E-21
	152682101	Sp2-E-21
	152682101	Sp2-E-21
	152683101	E-14-1-4

Page 87 — INDEX

Brother KE-430C / KE-431C / KE-432C parts on page 87

Ref	Part number	Part name	Qty
	152683101	E-14-2-1-4
	152684101	E-14-1-5
	152688101	E-14-2-1-5
	152690401	Sp1-E-21
	152756001	C1-9
	152760051	C1-7
	15277000	C2-38-1
	15277000	C3-38-1
	15277000	C4-38-1
	152777001	Sp1-C2-37-8
	152777001	Sp1-C2-37-8
	152777001	Sp1-C2-37-8
	152778001	Ga1-C2-37-8
	152778001	Ga1-C2-37-9
	152778001	Ga1-C2-37-9
	152779001	Ga1-C2-37-8
	152779001	Ga1-C2-37-8
	152779001	Ga1-C2-37-9
	152780001	Ga1-C2-37-8
	152780001	Ga1-C2-37-9
	152780001	Ga1-C2-37-9
	152781001	C2-37-10
	152784001	C2-37-11
	152788000	C2-37-19
	152788000	C3-37-17
	15282101	K-2
	152823001	K-11
	152827001	C4-214
	152827001	K-13
	152842059	A-22-1
	15286001	G-1
	152872001	G-8
	152881001	G-27
	152883000	G-29
	152884001	G-30
	152889001	G-23
	152890001	G-25-1
	152890001	Sp1-G-25
	152891101	G-26
	152948001	F-33
	152956001	F-42
	152969001	F-38
	152969001	R-12
	153035000	C2-45
	153035000	C3-45
	153035000	C4-45
	153057101	C2-44
	153057101	C3-44
	153057101	C4-44
	153112001	C2-37-8
	153112001	Ga1-C2-37-8
	153112001	Ga1-C2-37-9
	153202001	Ga1-C2-37-8
	153202001	Ga1-C2-37-9
	153203001	Ga1-C2-37-8
	153204001	Ga1-C2-37-9
	153242000	Q1-1-26-14
	153484001	D2-31
	153567000	C2-37-20
	153567000	C3-37-18
	153569001	C3-37-16
	15357001	M-5-2
	153597001	M-5-2
	153608101	Sp1-C2-37-8
	153608101	Sp1-C2-37-8
	153627001	Ga1-C2-37-8
	153628001	Ga1-C2-37-8
	153629001	C1-4
	153634101	C4-203
	153638001	D2-37
	153639001	C1-4
	154339101	Sp1-E-24-1
	154339101	Sp1-E-24-1
	154339101	Sp1-E-24-1
	154340101	Sp1-E-24-1
	154341001	Sp1-E-24-1
	154341001	Sp1-E-24-1
	154341001	Sp1-E-24-2
	154341001	Sp1-E-24-2
	154342001	Sp1-E-24-3
	154343001	Sp1-E-24-3
	154416201	Sp2-C3-37-10
	154416201	Sp2-C3-37-10
	154416201	Ga2-C3-37-10
	154417201	Sp2-C3-37-10
	154417201	Sp2-C3-37-10
	154417201	Ga2-C3-37-10
	154457001	Z1-42
	154514001	R-40-9
	154527001	Sp1-C2-37-9
	154527001	Sp1-C2-37-9
	154527001	Ga1-C2-37-9
	154528001	J-21
	154596000	J-21
	154599000	J-6
	155559001	L-18
	155562101	C4-37-8
	155567001	C4-200
	155577001	C4-37-15
	155578000	B1-21
	155594000	Ga1-C2-212
	156006001	Z1-911
	156006001	Ga1-210
	156112003	Z2-35-1-6
	156112003	Z2-35-2-8
	156170001	C4-37-12
	156206001	V-20-13
	156206001	K-15
	156495201	C2-37-21
	157968001	H-1-17
	159565000	F-23
	159574101	H-1-19
	159610301	Sp1-E24
	159610301	Sp1-E24
	159610301	Sp1-E24
	159610301	Sp2-E24
	159610301	Sp2-E24
	159610301	Sp2-E24
	159612001	Sp1-E-24-3
	159612001	Sp1-E-24-3
	159612001	Sp1-E-24-3
	159612001	Sp2-E-24-3
	159612001	Sp2-E-24-3
	159612001	Sp2-E-24-3
	159613051	Sp1-E-25
	159613051	Sp1-E-25
	159613051	Sp1-E-25
	159613051	Sp2-E-25
	159613051	Sp2-E-25
	159613051	Sp2-E-25
	15985001	C1-4
	15985001	G-15
	159851001	C3-37-14
	159852001	C3-37-14
	159861001	C1-4
	18349001	C1-3
	200190001	U3-2-3
	200190001	Z1-42
	200190001	Z1-62
	218859001	Q2-2-1-5
	218859001	Q2-2-2-5
	218859001	Q2-2-3-5
	218859001	Q2-2-4-5
	218859001	Q2-2-5-5
	224514001	R-25
	224514001	Q2-2-1-4
	224514001	Q2-2-2-4
	224514001	Q2-2-3-4
	224514001	Q2-2-4-4
	224514001	Q2-2-5-4
	228475000	C4-216
	228475000	F-44
	228475000	J-55
	228475000	Q1-12
	228475000	R-22
	228475000	U2-1-2-1-7
	231071001	J-17
	232384001	Q1-1-26-6
	402887001	E-14-1-6
	402887001	E-14-2-1-6
	500554000	Q1-1-17
	500705001	J-47
	500906001	Ga1-C2-37-8
	501005000	Z2-35-1-4-4
	501199003	U3-2-4-1
	501603009	U3-2-4
	501998001	L-8
	501998001	M-13
	502354001	J-24
	502354001	M-3
	502429101	E-14-1-2
	502429101	E-14-1-2
	502852001	J-7
	502854001	J-8-1
	502747101	Z2-35-1-4-5
	502763402	Z2-35-1
	502775001	Z2-35-2-4
	502777001	Z2-35-1-4
	502778002	Z2-35-2-13
	502786002	Z2-35-1-10
	502786002	Z2-35-2-14
	502787002	Z2-35-1-10-1
	502787002	Z2-35-2-14-1
	504109001	Z2-35-2-5
	506533001	C4-37-31
	506706001	Z1-15
	507333001	F-2
	507456000	F-3
	508030000	Q1-1-26-15
	508170001	Z1-101
	509043000	E-14-1-8
	509043000	E-14-2-1-8
	509043000	F-32
	509212001	C1-3-1
	510105001	D1-14
	510105001	D2-14
	510162201	F-15
	510174000	H-1-15
	510195101	J-30
	510202201	J-41
	510208001	J-46
	510208001	Z1-18
	510208003	J-46
	510208003	Z1-18
	510209101	C2-51
	510209101	C3-51
	510209101	C4-51
	510209101	J-48
	510210201	J-49
	510211001	Sp1-J-53
	510211001	Ga3-J-53
	510212101	Sp1-J-53
	510212101	Ga3-J-53
	510213001	Ga3-J-53
	510239001	M-22
	510243000	R-205
	510352101	Ga2-C1-200-2
	510469001	G-18

Page 89 — 索引 / INDEX

Brother KE-430C / KE-431C / KE-432C parts on page 89

Ref	Part number	Part name	Qty
77	S42903001	Ga2-C1-200-1
42	S43175000	Q1-1-26-10
42	S43176000	Q1-1-26-11
42	S43177000	Q1-1-26-1
42	S43181000	Q1-1-26-12
42	S43184000	Q1-1-26-2
42	S43187000	Q1-1-26-15
46	S43188000	Q2-2-6
42	S43189000	Q1-1-26-18
48	S43201000	Q2-3-4
42	S43275000	Q1-1-19
42	S43276000	Q1-1-20
2	S44010001	A-31
68	S44483001	Z2-67-1-1-1
68	S44485001	Z2-67-1-1-2
68	S44486101	Z2-67-1-1-6
68	S44493101	Z2-67-1-1
62	S44600001	V-20-2
2	S44629001	A-920
28	S45083001	G-32
4	S45147101	B1-2
60	S46131001	U3-2
60	S46132001	U3-2-1
60	S46133001	U3-2-1-1
60	S46134001	U3-2-1-2
60	S46135001	U3-2-1-6
60	S46136000	U3-2-1-7
56	S46694000	U1-1-1-19
54	S46703000	S-1-1-7-3
38	S46734001	M-12
76	S46769001	Ga1-C2-190
76	S46770001	Ga1-C2-37-9
76	S46771001	Ga1-C2-37-8
76	S46772001	Ga1-C2-190
76	S46773001	Ga1-C2-37-9
76	S46774001	Ga1-C2-37-8
76	S46775001	Ga1-C2-190
76	S46776001	Ga1-C2-37-9
76	S46777001	Ga1-C2-37-8
76	S46778001	Ga1-C2-190
76	S46779001	Ga1-C2-37-9
76	S46780001	Ga1-C2-37-8
76	S46781001	Ga1-C2-190
76	S46782001	Ga1-C2-190
4	S47091001	B1-16-3
6	S47270001	B2-44
30	S47335101	H-5
46	S47592000	Q2-2-4
46	S47594000	Q2-2-7
46	S47595000	Q2-2-4-2
42	S47692000	Q1-1-7
40	S48578000	P-1-14
54	S48579000	S-1-1-7-4
42	S48580000	Q1-1-26-16
50	S48581100	R-6
50	S48582000	R-6.4
62	S48583001	R-200
10	S48646001	C2-37-16
70	S48664001	Sp1-E-24-1
40	S48666001	N-1
42	S49670001	Q1-1-26-7
50	S49670001	R-18
50	S49646001	R-18
50	S49650001	R-21
50	S4965002	R-21
50	S4965009	R-21
42	S49670001	Q1-1
42	S49670001	Q1-1-1
42	S49670001	Q1-1-2
42	S49670001	Q1-1-3
42	S49470001	Q1-1-3
42	S49472000	Q1-1-26-20
46	S49473000	Q2-3-2
46	S49474000	Q2-3-2-1
48	S49475000	Q2-3-3
48	S49476000	Q2-3-3-1
42	S49477000	Q1-10
40	S49479001	P-1
50	S49482000	R-30-2
40	S49484000	P-1-6
40	S49485000	P-1-7
40	S49486000	P-1-11
54	S49495000	S-1-1-3
54	S49496001	S-1-1-4
54	S49497001	S-1-1-7-1
54	S49510000	S-1-1-8
4	S49582001	B1-3
4	S49583001	B1-4
4	S49584000	B1-12
4	S49585001	B1-16
42	S49586000	Q1-1-26-3
4	S49587001	B1-16-1
4	S49590001	B1-16-2
4	S49591001	B1-16-4
8	S49653001	C1-33
71	S49659001	Sp1-C2-37
10	S49652200	C2-37-1
4	S49593000	B1-19
71	S49594001	Sp1-C2-37
10	S49695001	C2-37-23
71	S49696301	Sp1-C2-37
74	S49597301	Ga1-C2-37
50	S48581100	R-6
68	S49602201	Z2-67-1
64	S49603000	Z1-11
64	S49604000	Z1-20
22	S49605001	E-8
62	S49606001	V-20
62	S49615009	V-20
62	S49616009	V-20-5
26	S49618000	F-53
62	S49619001	V-20-5-1
26	S49620000	F-17
26	S49622000	F-19
26	S49623000	F-34
26	S49624000	F-35
26	S49625000	F-36
22	S49626000	E-14-1-10
32	S49629201	J-1
18	S49630001	D1-1
18	S49631001	D1-2
20	S49632001	D2-3
18	S49635001	D1-4
20	S49636001	D1-5
20	S49637001	D1-6
20	S49638001	D1-7
18	S49639001	D1-15
18	S49640101	D1-17
18	S49641001	D1-19
18	S49642001	D1-21
18	S49643001	D1-23
18	S49644001	D1-23
32	S49645001	J-16
32	S49646101	J-10
32	S49648001	J-22
32	S49649001	J-26
32	S49650001	J-26-1
32	S49650001	J-29
36	S49651001	J-35
36	S49652101	K-1
56	S49668101	U1-1-1-1
56	S49669100	U1-1-1-1-1
58	S49672001	U2-1-2-1-1
56	S49673000	U1-1-1-1-10
56	S49674001	U1-1-1-11
56	S49675001	U1-1-1-10
58	S49675101	U2-1-2
58	S49676101	U2-1-2-1
2	S49681009	A-22-2
8	S49683001	C1-35
22	S49685000	C1-14-11
4	S49689001	B1-16-6
71	S49694001	Sp1-C2-37-8
71	S49695001	Sp1-C2-37-9
71	S49696001	Sp1-C2-100
71	S49697001	Sp1-C2-100
71	S49698001	Sp1-C2-100
74	S49700001	Ga1-C2-100
78	S49900001	Ga1-FM
50	S49934009	R-30
42	S49938000	Q1-1-26-21
42	S49939101	Q1-1-26
75	S49940001	Ga1-C2-100
74	S49942001	Ga1-C2-100
74	S49943001	Ga1-C2-100
75	S49944001	Ga1-C2-100
75	S49945001	Ga1-C2-100
75	S49946001	Ga1-C2-100
62	S49947000	V-20-14
75	S49948001	Ga1-C2-100
10	S49955001	C2-43
26	S49957000	F-18
26	S49958000	F-47
26	S49959001	F-14
2	S49960109	A-17
2	S49961109	A-17-1
2	S49962000	A-17-2
75	S49970001	Ga1-C2-100
76	S49971001	Ga1-C2-100
76	S49972001	Ga1-C2-100
76	S49973001	Ga1-C2-100
75	S49974001	Ga1-C2-100
76	S49975001	Ga1-C2-100
74	S49976100	Ga1-C2-100

Page 90 — INDEX

Brother KE-430C / KE-431C / KE-432C parts on page 90

Ref	Part number	Part name	Qty
	S49977100	Ga1-C2-100
	S49978100	Ga1-C2-100
	S49979400	R-14-1
	S49980001	Sp1-J-53
	Sp2-J-53	Sp2-J-53
	Sp2-J-53	Sp2-J-53
	Ga3-J-53	Ga3-J-53
	S49981000	E-14-1-9
	S49982000	F-12
	S49984000	F-21
	S49985000	F-49
	S49986000	F-49
	S49987000	F-50
	S49988001	J-45
	S49992000	F-1
	S49994001	J-38
	S49995001	F-51
	S49999301	A-100
	S50000201	Z2-67-2
	S50520000	E-14-2-2
	S50645000	P-1-10
	S51064001	C4-100
	Sp2-C4-100	Sp2-C4-100
	Sp2-C4-100	Sp2-C4-100
	S51095301	Sp1-C2-37
	Ga1-C2-37	Ga1-C2-37
	S51097000	Z1-75-1
	S51098000	A-40
	S51282001	Z2-35-1-3
	Z2-35-2-3	Z2-35-2-3
	S51283001	Z2-35-1-1
	Z2-35-2-1	Z2-35-2-1
	S5144001	Ga3-J-53
	S51451000	U1-1-1-1-1-9
	U2-1-2-1-8	U2-1-2-1-8
	S51460009	A-33
	S51848101	Sp2-C3-37
	Ga2-C3-37	Ga2-C3-37
	S51849101	C3-37-1
	Sp2-C3-37	Sp2-C3-37
	Ga2-C3-37	Ga2-C3-37
	S51852001	Sp2-C3-100
	Sp2-C3-100	Sp2-C3-100
	Ga2-C3-100	Ga2-C3-100
	S51853001	Sp2-C3-100
	Sp2-C3-100	Sp2-C3-100
	S51859101	G-5
	S52091000	S-1-1-2
	S52097001	Z2-87-2-1-2
	S52098201	C4-232
	S52834201	B2-30
	S52836000	B2-47
	S52838000	B2-35
	S52839200	B2-36
	S52840001	B2-40
	S53031001	Q1-H-1
	S53032000	Q1-H-11
	S53033001	Q1-H-2
	S53034001	Q1-H-3
	S53035001	Q1-H-4
	S53036001	Q1-H-5
	S53037001	Q1-H-6
	S53038001	Q1-H-7
	S53039001	Q1-H-8
	S53040001	Q1-H-9
	S53055100	T-2
	S53119001	A-13-1
	S53120001	A-13-2
	S54450000	U1-1-1-7-1-1-1
	S54640000	U1-1-1-7-1-2
	S54645000	U1-1-1-7-1-3
	S54646000	U1-1-1-7-2
	S54647000	U2-1-2-1-5-1
	S54648000	U1-1-1-7-1-5
	S55140001	E-24
	S55157000	D1-12
	S55200000	Z2-12
	S55202000	A-25
	S55214000	E-23
	S55215001	E-19
	S55216001	E-14-2-1-1
	S55311001	E-14-1-1
	S55311002	Z1-75
	S55479001	Z1-75
	S55572001	D1-18
	S55630001	D2-18
	S55720001	B2-31
	S55725001	B2-46
	S55820001	Q1-54
	S55829001	R-40
	S55830001	R-40-1
	S55833001	R-40-3
	S55850000	E-22
	S55859001	F-54
	S55863001	Z1-23
	S55877001	B1-15
	S55889001	S-1
	S55890001	S-1-1
	S55891000	S-1-1-1
	S55927101	E-14-1
	S56017000	B2-30-1
	S56018000	B2-30-2
	S56019001	B2-30-3
	S56167000	R-6-1
	S56167001	R-6-2
	S56167002	R-6-2
	S56167003	R-6-3
	S57925001	A-23
	S57065000	E-14-2-1-10
	S58890001	D1-11
	S59360000	R-14-1-1
	S59387000	R-14-1-2
	S59620001	Ga3-J-53
	S59763000	D1-25
	S59871001	J-22-3
	S59872001	J-22-2
	S59873001	J-22-4
	S59874001	J-22-1
	S59885001	E-14-2-1
	S59886001	E-14-2-1-9
	S59888001	E-14-2-1-11
	S59890001	E-14-2
	S59893001	J-12
	S59900001	Ga1-C2-37
	S59903001	Ga1-C2-37-8
	S59910001	C1-1-2
	S59911001	C1-4
	S59914001	C1-4-1
	S59915001	C2-5
	C3-5	C3-5
	S59916001	C2-31
	C3-31	C3-31
	C4-31	C4-31
	S59917001	C2-46
	C3-46	C3-46
	C4-38	C4-38
	S59918001	C2-38
	C3-38	C3-38
	C4-38	C4-38
	S59919000	C2-50
	C3-50	C3-50
	C4-50	C4-50
	S59920001	A-41
	S59921001	C2-39
	C3-39	C3-39
	C4-39	C4-39
	S59922100	Sp1-E24
	Sp1-E24	Sp1-E24
	Sp1-E24	Sp1-E24
	S59923000	C2-52
	C3-52	C3-52
	C4-52	C4-52
	S59927001	C2-37-25
	C3-37-21	C3-37-21
	S59931001	Z2-35-1-11-3
	Z2-35-2-15-3	Z2-35-2-15-3
	Z2-35-2-16-3	Z2-35-2-16-3
	S60400000	Z1-902
	S60711001	Z1-903
	SA0037000	Q1-1-26-5
	SA0045001	J-22-5
	SA0703001	M-17
	SA1034000	Q1-1-26-9
	SA1570019	Sp1-Z1-17
	SA1752009	Sp1-Z1-17
	SA1752014	Sp1-Z1-17
	Sp1-Z1-17	Sp1-Z1-17
	Sp2-Z1-17	Sp2-Z1-17
	Sp2-Z1-17	Sp2-Z1-17
	Sp2-Z1-17	Sp2-Z1-17
	SA1881001	Sp1-E-22
	Sp1-E-22	Sp1-E-22
	Sp1-E-22	Sp1-E-22
	Sp2-E-22	Sp2-E-22
	Sp2-E-22	Sp2-E-22
	Sp2-E-22	Sp2-E-22
	SA1890001	Sp1-E-22
	U32744000	P-1-12
	U34870001	S-1-1-7-5
	UA4817000	Q1-10-1
	UA4817000	Z1-901
	UD025000	S-1-1-7-7
	UL0025000	S-1-1-7-7
	Y1030150	P-1-15

Part BooksPartsSearchNotes

Part Books

×

Search

×

Brother KE-430C / KE-431C / KE-432C — parts catalog

• Page 1 (cover): This is the cover page for the Brother Parts Book for the KE-430C, KE-431C, and KE-432C electronic lockstitch machines. It includes a diagram of a screw.
• Page 2 (parts_list): This page lists parts for Brother Industries, Ltd. electronic lock stitch bar tackers, including models KE-430C-0, KE-431C-0, and KE-432C, with descriptions for different material types and tacking lengths.
• Page 4 (toc): This page contains the table of contents for the parts book, listing various mechanisms and components with their corresponding page numbers.
• Page 5 (diagram): This page displays a diagram of the machine body and its associated components, including various screws, plates, and covers, with reference numbers for each part.
• Page 6 (parts_list): This page lists parts for the Machine body, including various rubber caps, oil caps, screws, bolts, and washers, with their corresponding part numbers and descriptions.
• Page 7 (diagram): This page displays a diagram of the upper shaft and needle bar mechanism, illustrating various components with reference numbers and labels.
• Page 8 (parts_list): This page lists parts for the Upper shaft and needle bar mechanism, including part numbers, descriptions, and quantities.
• Page 9 (diagram): This page displays a diagram of the upper shaft and needle bar mechanism, illustrating various components with reference numbers.
• Page 10 (parts_list): This page lists parts for the Upper shaft and needle bar mechanism, including timing pulleys, shafts, washers, bolts, and set screws, with their corresponding codes and names.
• Page 11 (diagram): This page displays a diagram of the feed mechanism for an industrial sewing machine, with numbered parts and their corresponding details.
• Page 12 (parts_list): This page lists parts for the Feed mechanism, including part numbers, descriptions, and quantities.
• Page 13 (diagram): This page displays a diagram of the feed mechanism for the KE-430C sewing machine, including various parts and their reference numbers, as well as a section for optional parts.
• Page 14 (parts_list): This page lists parts for the C2. Feed mechanism (KE-430C) including part numbers, descriptions, and quantities.
• Page 15 (diagram): This page displays a diagram of the feed mechanism for the KE-431C sewing machine, detailing various components with their reference numbers and part numbers.
• Page 16 (parts_list): This page lists parts for the Feed Mechanism (KE-431C) with reference numbers, codes, quantities, Japanese names, and English names of parts.
• Page 17 (diagram): This page displays a diagram of the feed mechanism (KE-432C) for an industrial sewing machine, with various components labeled with reference numbers and part numbers.
• Page 18 (parts_list): This page lists parts for the C4, Feed mechanism (KE-432C) including part numbers, quantities, descriptions in Japanese and English, and remarks.
• Page 19 (diagram): This page displays a diagram of the feed mechanism (KE-432C) with various numbered parts and their corresponding labels.
• Page 20 (parts_list): This page lists parts for the C4. 送り関係 (KE-432C) / Feed mechanism (KE-432C) with part numbers, descriptions, and quantities.
• Page 21 (diagram): This page displays a diagram of the work clamp lifter mechanism, with numbered parts and their corresponding details.
• Page 22 (parts_list): This page lists parts for the Work clamp lifter mechanism (KE-430C, KE-431C) with reference numbers, codes, quantities, Japanese names, and English names.
• Page 23 (diagram): This page displays a diagram of the work clamp lifter mechanism for the KE-432C model, with numbered parts indicated.
• Page 24 (parts_list): This page lists parts for the work clamp lifter mechanism (KE-432C), including part numbers, descriptions, quantities, and reference numbers.
• Page 25 (diagram): This page displays a diagram of the lower shaft mechanism, detailing various components and their assembly.
• Page 26 (parts_list): This page lists parts for the lower shaft mechanism, including part numbers, descriptions, quantities, and remarks.
• Page 27 (diagram): This page displays a diagram of the lower shaft mechanism, detailing various components with their corresponding part numbers and reference indicators.
• Page 28 (parts_list): This page lists parts for the lower shaft mechanism, including reference numbers, codes, quantities, and names such as WICK, FELT, and OIL TUBE.
• Page 29 (diagram): This page displays a diagram of lubrication components for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 30 (parts_list): This page lists lubrication-related parts for a sewing machine, including oil gauge windows, tubes, wicks, screws, washers, and felt components, with their corresponding part numbers and descriptions.
• Page 31 (diagram): This page displays a diagram of the threading mechanism, including various parts labeled with reference numbers and some with part numbers and descriptions. It also includes sections for "OPTION PARTS", "For Thread breakage detector", "For Denim", and "For Knitted & Ordinary materials".
• Page 32 (parts_list): This page lists parts for the threading mechanism, including part numbers, descriptions, and quantities. It details components like arm thread guides, screws, tension discs, and springs, with specific entries for knitted and denim materials.
• Page 33 (diagram): This page displays a diagram of the bobbin winder mechanism, detailing various components with reference numbers and part numbers.
• Page 34 (parts_list): This page lists parts for the Bobbin winder mechanism, including part numbers, descriptions, and quantities.
• Page 35 (diagram): This page displays a diagram of the thread trimmer mechanism for sewing machines, with numbered parts and their corresponding details.
• Page 36 (parts_list): This page lists parts for the J. 糸切り関係 / Thread trimmer mechanism, including part numbers, descriptions, and quantities.
• Page 37 (diagram): This page displays a diagram of the thread trimmer mechanism for J. sewing machines, including part numbers and reference numbers for various components.
• Page 38 (parts_list): This page lists parts for the thread trimmer mechanism, including part numbers, descriptions, quantities, and reference numbers.
• Page 39 (diagram): This page contains diagrams and parts lists for the thread wiper mechanism and the thread take-up mechanism.
• Page 40 (parts_list): This page lists parts for the Thread wiper mechanism and Thread take-up mechanism, including part numbers, descriptions, and quantities.
• Page 41 (diagram): This page displays a diagram of the thread nipper mechanism, with various parts labeled with reference numbers and some part numbers indicated.
• Page 42 (parts_list): This page contains a parts list for the Thread nipper mechanism, including part numbers, descriptions, and quantities.
• Page 43 (diagram): This page contains diagrams of synchronizer components and a printed circuit board mechanism, with numbered parts for identification.
• Page 44 (parts_list): This page lists parts for the Synchronizer and Printed circuit board mechanism, including part numbers, descriptions, and quantities.
• Page 45 (diagram): This page displays a diagram of the control box mechanism, detailing various components and their assembly.
• Page 46 (parts_list): This page lists parts for the Control box mechanism, including part numbers, names, quantities, and remarks.
• Page 47 (diagram): This page displays a diagram of the control box mechanism, illustrating various components and their interconnections with part numbers and reference indicators.
• Page 48 (parts_list): This page lists parts for the control box mechanism, including part numbers, descriptions, and quantities for various voltage requirements.
• Page 49 (diagram): This page displays diagrams of control box mechanisms for various voltage configurations, including 3-phase 200V/220V AC, 1-phase 220V/230V AC, 1-phase 100V (Japan only), 1-phase 110V/120V AC, 3-phase 415V/380V AC, 1-phase 240V AC, 3-phase 400V AC, and 1-phase 230V AC. It also includes a section for "OPTION PARTS".
• Page 50 (parts_list): This page lists parts for control box mechanisms, including power supply components, switches, and connectors for various voltage and phase configurations.
• Page 51 (diagram): This page displays diagrams of control box mechanisms for various voltage configurations, including 3-phase 200V/220V AC, 1-phase 220V/230V AC, 1-phase 100V, 1-phase 110V/120V AC, 3-phase 415V/380V AC, 1-phase 240V AC, 3-phase 400V AC, and 1-phase 230V AC, along with a section for optional parts.
• Page 52 (parts_list): This page lists parts for the control box mechanism, including various transformers, ACIN cords, nuts, washers, and EMI cores, with their corresponding part numbers and descriptions.
• Page 53 (diagram): This page displays a diagram of power supply equipment mechanisms, including various components labeled with reference numbers and part numbers.
• Page 54 (parts_list): This page lists parts for the power supply equipment mechanism, including various screws, sensors, connectors, and option parts, with their corresponding part numbers and descriptions.
• Page 55 (diagram): This page displays a diagram of the power supply equipment mechanism, detailing various components with their corresponding reference numbers and part numbers.
• Page 56 (parts_list): This page lists parts for the R. 電装部品関係 / Power supply equipment mechanism, including part numbers, descriptions, and quantities.
• Page 57 (diagram): This page contains diagrams of the operation panel mechanism and the power table, with associated part numbers and references.
• Page 58 (parts_list): This page contains two parts lists: one for the operation panel mechanism and another for the power table. Each list includes reference numbers, codes, quantities, and part names.
• Page 59 (diagram): This page displays a diagram of the foot switch pedal mechanism, illustrating various components with their corresponding part numbers and reference indicators.
• Page 60 (parts_list): This page lists parts for the foot switch pedal mechanism, including part numbers, descriptions, and quantities.
• Page 61 (diagram): This page displays a diagram of the foot switch pedal mechanism, including various components and their corresponding part numbers.
• Page 62 (parts_list): This page lists parts for the U2 Foot switch pedal mechanism (Option parts), including reference numbers, codes, quantities, and names of parts.
• Page 63 (diagram): This page displays a diagram of the foot switch pedal mechanism, including various components labeled with reference numbers and part numbers.
• Page 64 (parts_list): This page lists parts for the U3 Foot switch pedal mechanism (Option parts), including part numbers, descriptions, quantities, and reference numbers.
• Page 65 (diagram): This page displays a diagram of attachment set (option parts) with various components labeled with part numbers.
• Page 66 (parts_list): This page lists parts for the Attachment set (Option parts) with reference numbers, codes, quantities, Japanese names, and English names.
• Page 67 (diagram): This page displays a diagram of accessories and related parts for sewing machines, including various components like screws, oilers, and specialized attachments, with reference numbers and some part numbers indicated.
• Page 68 (parts_list): This page lists accessories for the Z1 sewing machine, including various screws, oilers, and other components with their part numbers and descriptions.
• Page 69 (diagram): This page displays a diagram of various accessories and parts for sewing machines, including items labeled with reference numbers from 4 to 921.
• Page 70 (parts_list): This page lists accessories for the sewing machine, including part numbers, descriptions in Japanese and English, and quantities.
• Page 71 (diagram): This page contains diagrams and parts lists for accessories for the KE-430C and KE-432C sewing machines, and for the KE-431C sewing machine.
• Page 72 (parts_list): This page lists parts for KE-430C and KE-431C models, including reference numbers, codes, quantities, Japanese names, and English names.
• Page 73 (parts_list): This page lists accessories for the KE-431C, including spool and screw sets, thread guide holders, and eye guards, with their corresponding part numbers and quantities.
• Page 78 (parts_list): This page lists gauge parts for the KE-430C sewing machine, including work clamps and feed plates with their corresponding part numbers and descriptions for different material types.
• Page 79 (parts_list): This page lists gauge parts for the KE-430C model, including various clamps, feed plates, and bolts with their corresponding part numbers and descriptions.
• Page 80 (parts_list): This page lists gauge parts for the KE-430C model, including part numbers, descriptions, and diagrams for various clamps and feed plates.
• Page 81 (parts_list): This page lists gauge parts for the KE-431C model, including work clamp assemblies, feed plates, and screws, with their corresponding part numbers and diagrams.
• Page 82 (parts_list): This page lists needle hole plates for various machine models, including their part numbers, specifications, and diagrams.
• Page 83 (parts_list): This page lists various warning and name labels for sewing machines, including their codes and sizes.
• Page 84 (index): This page is an index of part numbers and their corresponding reference numbers and page numbers. It is organized into columns for easy lookup.
• Page 85 (text): This page contains the number 150 and a watermark that says "jintex.in". It also has a footer that says "From the library of: Superior Sewing Machine & Supply LLC jintex.in".
• Page 86 (parts_list): This page lists parts with codes, reference numbers, and page numbers. It includes parts like 082680612, 100281001, and 116629001, with corresponding reference numbers and page references.
• Page 87 (index): This page is an index of sewing machine parts, listing part numbers, reference numbers, and corresponding page numbers.
• Page 89 (index): This page is an index of parts, listing part numbers, reference numbers, and corresponding page numbers.
• Page 90 (index): This page is an index of sewing machine parts, listing part codes, reference numbers, and corresponding page numbers.
• Page 91 (cover): This is the cover page of a Brother Industries, LTD parts book, featuring the Brother logo and contact information for their Nagoya, Japan office. It also includes a graphic of a screw and the text "PARTS BOOK".

Page 1

KE-430C, KE-431C KE-432C E Series Electronic Excellent Economical パーツブック PARTS BOOK 本縫電子門止ミシン [ KE-430 ] 本縫電子ベルトープ付けミシン [ KE-431C ] 本縫電子鳩目穴止ミシン [ KE-432C ] ELECTRONIC LOCKSTITCH BAR TACKER [ KE-430C ] ELECTRONIC LOCKSTITCH BELT LOOP BAR TACKER [ KE-431C ] ELECTRONIC LOCKSTITCH EYELET BUTTONHOLE END BAR TACKER [ KE-432C ] brother. From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 2

本縫電子閂止ミシン / Electronic Lock Stitch Bar Tacker BROTHER INDUSTRIES, LTD. KE-430C-0 MADE IN JAPAN 1: 被服 / Ordinary materials 2: デニム / Denim 7: メリヤス / Knitted materials 本縫電子ベルトループ付けミシン / Electronic Lock Stitch Belt Loop Bar Tacker BROTHER INDUSTRIES, LTD. KE-431C-0 MADE IN JAPAN 2: 閂止長さ 6~14 mm / Bar tacking length 6-14mm 3: 閂止長さ 14~25 mm / Bar tacking length 14-25mm 本縫電子鳩目穴止ミシン / Electronic Lock Stitch Eyelet Buttonhole End Bar Tacker BROTHER INDUSTRIES, LTD. KE-432C MADE IN JAPAN From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 4

Notes for using this parts book 1 This book was prepared based on information available in October 2002. 2 Parts are subject to changes in design without prior notice. 3 Parts supplied as complete assemblies are circled by a dotted line. 4 If the symbol * is found in the " Parts No." column, refer to the different parts lists, gauge parts list on page 70-78. CONTENTS A. Machine body. 1 S. Operation panel mechanism 53 B1. Upper shaft and needle bar mechanism 3 T. Power table 53 B2. Upper shaft and needle bar mechanism 5 U1. Foot switch pedal mechanism 55 C1. Feed mechanism. 7 U2. Foot switch pedal mechanism C2. Feed mechanism (KE-430C) 9 (Option parts) 57 C3. Feed mechanism (KE-431C) 11 U3. Foot switch pedal mechanism C4. Feed mechanism (KE-432C) 13 (Option parts) 59 D1. Work clamp lifter mechanism V. Attachment set (Option parts) 61 (KE-430C, KE-431C) 17 Z1. Accessories 63 D2. Work clamp lifter mechanism (KE-432C 19 Z2. Accessories 67 E. Lower shaft mechanism 21 Sp1. Different Parts list (KE-430C) 70 F. Lubrication 25 Sp1. Different Parts list (KE-430C) 71 G. Threading mechanism 27 Sp2. Different Parts list H. Bobbin winder mechanism 29 (KE-431C & KE-432C) 72 J. Thread trimmer mechanism 31 Sp2. Different Parts list K. Thread wiper mechanism 35 (KE-431C & KE-432C) 73 L. Thread take-up mechanism 35 Ga1. Gauge parts list (KE-430C) 74 M. Thread nipper mechanism 37 Ga1. Gauge parts list (KE-430C) 75 N. Synchronizer 39 Ga1. Gauge parts list (KE-430C) 76 P. Printed circuit board mechanism 39 Ga2. Gauge parts list (KE-431C) 77 Q1. Control box mechanism 41 Ga3. Gauge parts list 78 Q2. Control box mechanism 45 Wa. Warning labels 79 R. Power supply equipment mechanism 49 Index 80 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 5

A. 主体関係 / Machine body 13-1 13-2 14 33 15 40 42 14 13-1 12 41 29 30 4 5 6 4 28 7 11 18 17-3 17-1 17-2 10 101 100 < KE-431C, KE-432C用 / For KE-431C & export of KE-432C > 22-1 31 10 16 26 34 25 35 24 23 < KE-432C国内用 / For Japan only of KE-432C > 22-2 1 118-V30-050 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 6 — A. 主体関係 / Machine body

A. 主体関係 / Machine body REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 4 104450101 6 ゴムセン8 RUBBER CAP, 8 5 140392009 1 オイルフタ OIL CAP 6 117934001 1 ゴムセン 13.5 RUBBER CAP, 13.5 7 140392009 2 オイルフタ OIL CAP 10 104450101 3 ゴムセン 8 RUBBER CAP, 8 11 104449001 1 ゴムセン 15.5 RUBBER CAP, 15.5 12 S37915009 1 ベッドカバー-R BED COVER, R 13-1 S53119001 1 ベッドカバー-LF BED COVER, LF 13-2 S53120001 1 ベッドカバー-LR BED COVER, LR 14 106629002 9 シメネジ 4.37 SCREW, SM4.37 15 017680512 2 ボルト 4.37X5 BOLT, SM4.37X5 16 S23337001 1 ゴムセン 18.5 RUBBER CAP, 18.5 17 S49960109 1 メンイタクミ FACE PLATE ASSY 17-1 S49961109 1 メンイタ FACE PLATE 17-2 S49962000 1 メンイタパッキン FACE PLATE PACKING 17-3 117934001 1 ゴムセン 13.5 RUBBER CAP, 13.5 18 060671212 3 バインド 3.57-40X12 SCREW, BIND SM3.57-40X12 <KE-430C, 431C用> <For KE-430C & 431C> <KE-432C輸出用> <For Export of KE-432C> 22-1 152842059 1 オオカマカバー SHUTTLE RACE COVER ASSY <KE-432C国内用> <For Japan only of KE-432C> 22-2 S49681009 1 オオカマカバーC 23 S57925001 2 ダンネジ 6.35 SHOULDER SCREW, SM6.35 24 109239002 2 ナミネジガネ WAVE WASHER 25 S55208000 1 テンビンカバー THREAD TAKE-UP LEVER COVER 26 062681012 1 ナベコ 437-40X10 SCREW, PAN SM4.37-40X10 28 S20164001 1 ゴムセン 13 RUBBER CAP, 13 29 150592001 2 ゴムセン 16 RUBBER CAP, 16 30 104821001 1 ゴムセン 10.5 RUBBER CAP, 10.5 31 S40101001 1 ゴムセン 11.5 RUBBER CAP, 11.5 33 S51460009 1 グロメットMG-9 RUBBER CAP, MG-9 34 100645003 1 ザガネ WASHER 35 025080132 2 ヒラサガネショウ8 WASHER, PLAIN S 8 40 S51098000 1 ワツメンカバー-IM FRAME SIDE COVER, IM 41 S59920001 2 ベルトカバーサポートピラー BELT COVER SUPPORT PILLAR 42 062711012 4 ナベコ 476-32X10 SCREW, PAN SM4.76-32X10 <KE-431C, 432C用> <For KE-431C & 432C> 100 S49999201 1 ワインカーガード FINGER GUARD 101 011679312 2 トメネジ 3.57ヒラ SET SCREW, (FT) SM3.57 920 S44629001 1 Eマーク E MARK 118-V30-050 2 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 7 — B1. 上軸・針関係/Upper shaft and needle bar mechanism

B1. 上軸・針関係/Upper shaft and needle bar mechanism 2 2-1 1 3 4 5 6 7 8 9 12 14 13 15 16 16-1 16-2 16-3 16-4 16-5 16-6 16-7 16-8 16-9 17 18 19 20 21 22 23 24 25 26 118-V30-123 3 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 8 — B1 . 上軸・針棒関係 / Upper shaft and needle bar mechanism

B1 . 上軸・針棒関係 / Upper shaft and needle bar mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S49688001 1 ウワジク UPPER SHAFT 2 S45147101 1 クランククロツドクミ CRANK ROD ASSY 2-1 144712001 2 シメナシ.4.76 SCREW, SM4.76 3 S49582001 1 ウワジクメタルF UPPER SHAFT BUSH, F 4 S49583001 1 スラストサカネ THRUST WASHER 5 0147780622 1 アナトメネジ.6.35クホミ SET SCREW, SOCKET (CP) SM6.35 6 140726000 1 ウワジクメタルM UPPER SHAFT BUSH, M 7 072630260 2 ベアリング 6302VV BALL BEARING, 6302VV 8 116920001 1 オクリジク スラストリング RING, THRUST 9 048150142 1 トメワジククミC15 RETAINING RING, EXTERNAL C15 12 S49584000 1 グリアイクランクD THREAD TAKE-UP CRANK, D 13 100250001 1 シメナシ.7.14 SCREW, SM7.14 14 014770632 2 アナトメネジ35-40X6 SET SCREW, SOCKET (CP) SM6.35X6 15 S55877001 1 トメワジク.35クホミ SET SCREW, (CP) SM6.35 16 S49585001 1 ハリボウウレンカンクミ THREAD TAKE-UP LEVER SET 16-1 S49587001 1 テンビンササエ THREAD TAKE-UP SUPPORT 16-2 S49588001 1 テンビンドウ THREAD TAKE-UP LEVER 16-3 S47091001 1 テンビンササエジク THREAD TAKE-UP SUPPORT SHAFT 16-4 S49589001 1 ハリボウクランク NEEDLE BAR CRANK 16-5 145465001 1 シメナシ.3.57L SCREW, SM3.57-40X6 L 16-6 S49689001 1 ハリボウレンカン NEEDLE BAR CONNECTING ROD 16-7 S37926101 1 ハリボウダキ NEEDLE BAR CLAMP 16-8 062660812 1 ナベコ437-40X8 SCREW, PAN SM4.37-40X8 16-9 14777000 2 ニードルベアリング NEEDLE BEARING 17 014780622 1 アナトメネジ.6.35クホミ SET SCREW, SOCKET (CP) SM6.35 18 102630001 1 ハリボウアンナイカクコマ NEEDLE BAR GUIDE SLIDE BLOCK 19 S49590000 1 ハリボウアンナイ NEEDLE BAR GUIDE 20 100242003 2 シメナシ.3.57 SCREW, SM3.57-40X5 21 155578000 2 ゴムセン7.2 RUBBER CAP, 7.2 22 15220101 1 ハリボウA NEEDLE BAR, A 23 144458001 1 アナトメネジ3.57 SET SCREW, SM3.57-40X4.5 24 152242001 1 ハリボウメタルU NEEDLE BAR BUSH, U 25 152243001 1 ハリボウメタルD NEEDLE BAR BUSH, D 26 1 ミシンバリ NEEDLE 118-V30-123 From the library of: Superior Sewing Machine & Supply LLC jintex.in 4

Page 9 — B2. Upper shaft and needle bar mechanism

B2. 上軸・針棒関係 / Upper shaft and needle bar mechanism 30 30-4 30-5 31 30-2 30-1 30-3 44 48 47 35 36 39 38 37 43 40 49 41 42 5 118-V30-123 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 10 — B2 . 上軸・針棒関係 / Upper shaft and needle bar mechanism

B2 . 上軸・針棒関係 / Upper shaft and needle bar mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 30 S52834201 1 Uタイミングプーリグミ TIMING PULLEY ASSY, U 30-1 S56017000 1 ウクシクプーリ UPPER SHAFT PULLEY 30-2 S56018000 1 プーリスペーサ PULLEY SPACER 30-3 S56019001 1 プーリザガネ PULLEY WASHER 30-4 018401236 3 アナボルト4X12 BOLT, SOCKET M4X12 30-5 028040246 3 バネザガネ2-4 WASHER, SPRING 2-4 31 S55572001 2 アナクボミ595-28X10 SET SCREW, SOCKET(CP)SM5.95X10 35 S52838000 1 ウクシクタイミングベルト UPPER SHAFT TIMING BELT 36 S52839200 1 IMモータブラケット MOTOR BRACKET, IM 37 018083022 3 アナボルト8X30 BOLT, SOCKET M8X30 38 028080242 3 バネザガネ2-8 WASHER, SPRING 2-8 39 025080032 3 ヒラザガネネチュウ8 WASHER, PLAIN M 8 40 S52840001 1 ベルトチヨウセツタイ BELT ADJUSTING PLATE 41 018061022 1 アナボルト6X10 BOLT, SOCKET M6X10 42 018062522 1 アナボルト6X25 BOLT, SOCKET M6X25 43 021060102 1 ナット1シュ6 NUT, 1 M6 44 S47270001 4 アナボルトザクミ6X30 BOLT, SOCKET (S/P WASHER) M6X30 47 S52836000 1 モータタイミングプーリグミ MOTOR TIMING PULLEY ASSY 48 S55572001 1 アナクボミ595-28X10 SET SCREW, SOCKET(CP)SM5.95X10 49 017680512 1 ボルト4.37X5 BOLT, SM4.37X5 118-V30-123 6 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 11 — C1 . 送り関係 / Feed mechanism

C1 . 送り関係 / Feed mechanism 11B-V30-202 7 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 12 — C1 . 送り関係 / Feed mechanism

C1 . 送り関係 / Feed mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S37930201 1 メクリバールーダ X-FEED LEVER ASSY 1-1 S37931101 1 メクリバール X-FEED LEVER 1-2 S59912001 1 ヨコオクリカクコマクミ T-LENGTH FEED SLIDE BLOCK ASSY 1-3 151602002 1 トメネジ4.37 SET SCREW, SM4.37-40X5 1-4 153924001 1 フェルト FELT 1-5 108802001 1 クミヒモ4X4 WICK, 4X4 L=250 1-6 S37932101 1 オクリカムコロ FEED CAM ROLLER 1-7 S37933001 1 コロジック ROLLER SHAFT 1-8 014760622 1 アナトメネジ5.95 SET SCREW, SOCKET SM5.95 2 S37934001 1 メクリバールーメタル X-FEED LEVER BUSH 3 183493001 1 オクリジツクセットカラクーミ F-SHAFT SET SCREW COLLAR ASSY 3-1 S09212001 1 セットカラー SET COLLAR 3-2 101706001 2 トメネジ6.35 SET SCREW, SM6.35-40X5.5 4 S59913001 1 ヨコオクリバールーミ Y-FEED LEVER ASSY 4-1 S59914001 1 Yオクリバール Y-FEED LEVER 4-2 S37932101 1 オクリカムコロ FEED CAM ROLLER 4-3 S37933001 1 コロジック ROLLER SHAFT 4-4 014760622 1 アナトメネジ5.95 SET SCREW, SOCKET SM5.95 6 014760622 1 アナトメネジ5.95 SET SCREW, SOCKET SM5.95 7 152760051 1 タテオクリバールーシク TACK WIDTH FEED LEVER SHAFT 8 048180142 1 トメワジクシヨウC18 RETAINING RING, EXTERNAL C18 9 152756001 2 スラストザガネ18 WASHER, THRUST 18 10 014760622 1 アナトメネジ5.95 SET SCREW, SOCKET SM5.95 11 S37937001 1 オクリカムブラツケト FEED CAM BRACKET 12 S37938001 1 オクリカムX FEED CAM, X 13 014760622 2 アナトメネジ5.95 SET SCREW, SOCKET SM5.95 14 S37939001 1 カムジク CAM SHAFT 15 048060342 1 トメワE6 RETAINING RING, E6 16 070688850 2 タマシクウケ688ZZNR BALL BEARING, 688ZZNR 17 S37940001 2 イチギメピン POSITIONING PIN 18 062681012 2 ナベコ437-40X10 SCREW, PAN SM4.37-40X10 19 S37937001 1 オクリカムブラツケト FEED CAM BRACKET 20 S37941001 1 オクリカムY FEED CAM, Y 21 014760622 2 アナトメネジ5.95 SET SCREW, SOCKET SM5.95 22 S37939001 1 カムジク CAM SHAFT 23 048060342 1 トメワE6 RETAINING RING, E6 24 070688850 2 タマシクウケ688ZZNR BALL BEARING, 688ZZNR 25 S37940001 2 イチギメピン POSITIONING PIN 26 062681012 2 ナベコ437-40X10 SCREW, PAN SM4.37-40X10 27 S37942100 2 カップリングハブ8 COUPLING HUB, 8 28 S37943100 2 カップリングハブ6.3 COUPLING HUB, 6.35 29 S37944000 2 カップリングスペーサ COUPLING SPACER 30 014760622 8 アナトメネジ5.95 SET SCREW, SOCKET SM5.95 33 S49590001 2 オクリケントドク FEED HOME POSITION DOG 34 060300512 2 バインドM3X5 SCREW, BIND M3X5 35 S49683001 2 ケンテンサ-トツケイタ HOME SENSOR SETTING PLATE 36 062680612 2 ナベコ4.37-40X8 SCREW, PAN SM4.37-40X6 49 S23337001 1 ゴムセン18.5 RUBBER CAP, 18.5 118-V30-202 8 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 13 — C2 . 送り関係 (KE-430C) / Feed mechanism (KE-430C)

C2 . 送り関係 (KE-430C) / Feed mechanism (KE-430C) 46 37-3 37-6 37-5 48 47 37-3 37-25 37-1 37-12 37-10 37-11 37-22 37-21 37-4 37-19 37-18 37-13 37-23 37-7 37-24 37-8 37-2 42 41 43 100 " オプション部品 / OPTION PARTS " 500 500-5 500-2 500-6 500-4 500-3 500-1 500-7 500-6 500-5 37-16 37-20 37-17 37-14 37-15 45 44 5 31 32 50 53 52 40 39 38-1 38 51 118-V30-202 3 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 14

C2. 送り関係 (KE-430C) / Feed mechanism (KE-430C) REF. NO CODE QTY ヒンメイ NAME OF PARTS RM 5 S59915001 1 タテオリクシシク TACK WIDTH FEED SHAFT 31 S59916001 1 オク リダイアンナイタ FEED BRACKET GUIDE PLATE 32 145318001 8 シメネジ4.37 SCREW, SM4.37 37 1 オサエウデ WORK CLAMP ARM ASSY, 37-1 S49592200 1 オサエウデ WORK CLAMP ARM 37-2 S37949101 1 オサエウデレバー-R WORK CLAMP ARM LEVER, R 37-3 S37950101 1 オサエウデレバー-L WORK CLAMP ARM LEVER, L 37-4 S34839001 1 オサエウデレバーシク WORK CLAMP ARM LEVER SHAFT 37-5 116629001 2 ザガネ WASHER 37-6 048050342 2 トメワE5 RETAINING RING, E5 37-7 014760622 1 アナトメネジ5.95 SET SCREW, SOCKET SM5.95 37-8 1 オサエウデ WORK CLAMP RIGHT 37-9 1 オサエウデ WORK CLAMP LEFT 37-10 152783001 2 オサエウデサイエイタ WORK CLAMP GUIDE BRACKET, A 37-11 152784001 1 オサエウデサイエイタB WORK CLAMP GUIDE BRACKET, B 37-12 107038003 4 サラネジ3.57 SCREW, FLAT SM3.57 37-13 S37951101 2 オサエウデレバー WORK CLAMP ARM LEVER PLATE 37-14 146354001 2 ザガネ WASHER, PLAIN 5 37-15 018500822 2 アナトボルト5X8 BOLT, SOCKET M5X8 37-16 153570101 2 オサエハネアンナイロッド PRESSER SPRING GUIDE ROD 37-17 14478101 2 ダンネジ4.76 SHOULDER SCREW, SOCKET SM4.76 37-18 S48646001 2 オサエハネD PRESSER SPRING, D 37-19 152788000 2 オサエハネカンザ PRESSER SPRING SPACER 37-20 153567000 2 オサエハネカラー PRESSER SPRING COLLAR 37-21 156495201 1 フィンガーガード FINGER GUARD 37-22 062671012 2 ナベコ357-40X10 SCREW, PAN SM3.57-40X10 37-23 S49595001 1 オサエウデササエジク WORK CLAMP ARM SUPPORT SHAFT 37-24 014760622 1 アナトメネジ5.95 SET SCREW, SOCKET SM5.95 37-25 S59927001 1 ササエジクオシハネ SUPPORT SHAFT PUSH SPRING 38 S59918001 1 オク リダイクミ FEED BRACKET ASSY 38-1 152771000 2 オク リダイカンザ FEED BRACKET SPACER 39 S59921001 2 カンザ4.8 SPACER, 4.8 40 071047650 2 コウキュウ3/16 BEARING BALL, 3/16 41 025060232 2 ヒラサガネチュウ6 WASHER, PLAIN M 6 42 017761412 2 ボルト5.95X14 BOLT, SM5.95X14 43 S49955001 1 オク リイタンメネジ SCREW, W/SOCKET SM4.37 44 153057101 1 オク リイタンメネジ SCREW, W/SOCKET SM4.37 45 153035000 1 オサエウデフェルト WORK CLAMP FELT 46 S59917001 1 オサエウデササエタ WORK CLAMP ARM SUPPORT PLATE 47 018400822 2 アナトボルト4X8 BOLT, SOCKET M4X8 48 071039750 3 コウキュウ5/32 BEARING BALL, 5/32 50 S59919000 1 ロッドエンドPB-8 ROD END, PB-8 51 S10209101 1 シメネジ4.37 SCREW, SM4.37 52 S59923000 1 オク リダイカバー-R FEED BRACKET COVER, R 53 060680512 2 バインド437-40X5 SCREW, BIND SM4.37-40X5 100 1 オク リイタ FEED PLATE 500 S41328101 1 オプション部品 OPTION PARTS 500-1 S41324001 1 QCオサエウデクシエンシセット QC-WORK CLAMP QUICK CHANGE SET 500-2 S41325001 2 QCレバーササエ QC-WORK CLAMP ARM LEVER SHAFT 500-3 S41326101 1 QCオサエウデレバー QC-WORK CLAMP LEVER SUPPORT 500-4 S41327101 1 QCオサエウデレバー-L QC-WORK CLAMP ARM LEVER, L 500-5 018501022 2 アナトボルト5X10 BOLT, SOCKET M5X10 500-6 028050242 2 バネザガネ2-5 WASHER, SPRING 2-5 500-7 025050232 2 ヒラサガネ5 WASHER, PLAIN M 5 118-V30-202 10 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 15 — C3 . 送り関係 (KE-431C) / Feed mechanism (KE-431C)

C3 . 送り関係 (KE-431C) / Feed mechanism (KE-431C) 46 48 47 37 37-4 37-9 37-8 37-7 37-19 37-16 37-21 37-14 37-5 37-2 37-17 37-18 37-1-2 37-1-1 37-1-3 37-1-3 37-1 37-10 37-20 37-11 37-3 37-15 37-13 37-12 42 41 43 44 5 31 32 100 50 53 52 40 39 38-1 38 51 11 118-V30-202 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 16

C3. 送り関係 (KE-431C) / Feed mechanism (KE-431C) REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 5 S59915001 1 タテオリクシク TACK WIDTH FEED SHAFT 31 S59916001 1 オクリダイアンナイタ FEED BRACKET GUIDE PLATE 32 145318001 8 シメネジ 4.37 SCREW, SM4.37 37 1 オサエウデクミ431 WORK CLAMP ASSY, 431 37-1 S51849101 1 オサエウデクミコ WORK CLAMP ARM ASSY 37-1-1 159825200 1 オサエウデ 431 WORK CLAMP ARM, 431 37-1-2 159827001 1 オサエアシヨウセイタイタB WORK CLAMP GUIDE BRACKET, B 37-1-3 062671212 4 ナベコ357-40X12 SCREW, PAN SM3.57-40X12 37-2 154413001 1 オサエウデレバー-A WORK CLAMP LEVER, A 37-3 S41230001 1 オサエウデレバー-B WORK CLAMP LEVER, B 37-4 154415001 1 オサエウデレバー-C WORK CLAMP LEVER, C 37-5 153944001 1 レバーシクメタル LEVER SHAFT BUSH 37-6 014760622 1 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 37-7 140407002 1 ザガネ WASHER 37-8 018500822 1 アナボルト5X8 BOLT, SOCKET M5X8 37-9 014770622 2 アナトメネジ 6.35クボミ SET SCREW, SOCKET (CP) SM6.35 37-10 * 1 オサエウデクミ431 WORK CLAMP, 431 37-11 S37951101 1 オサエウデレバー-イタ WORK CLAMP ARM LEVER PLATE 37-13 140407002 1 ザガネ WASHER 37-13 018500822 1 アナボルト5X8 BOLT, SOCKET M5X8 37-14 15988101 1 オサエウデアンナイロツド B SPRING GUIDE ROD, B 37-14 15478101 1 ダンネジ 4.76 SHOULDER SCREW, SOCKET SM4.76 37-16 153569001 1 オサエバネB PRESSER SPRING, B 37-17 152788000 1 オサエバネカンザ PRESSER SPRING COLLAR 37-19 153567000 1 オサエバネカラー PRESSER SPRING COLLAR 37-19 S49595001 1 オサエウデサエジク WORK CLAMP ARM SUPPORT SHAFT 37-20 014760622 1 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 37-21 S59927001 1 ササエジククシバネ SUPPORT SHAFT PUSH SPRING 38 S59918001 1 オクリダイクミ FEED BRACKET ASSY 38-1 15271000 2 オクリダイカンザ FEED BRACKET SPACER 39 S59921001 2 カンザ 4.8 SPACER, 4.8 40 071047650 2 コウキュウ3/16 BEARING BALL, 3/16 41 025060232 2 ヒラザガネチユウ6 WASHER, PLAIN M 6 42 017761412 2 ボルト5.95X14 BOLT, SM5.95X14 43 S4955001 1 オクリダイメネジ SCREW, W/SOCKET SM4.37 44 153057101 1 オクリダイメネジ SCREW, W/SOCKET SM4.37 45 153035000 1 オサエウデフェルト WORK CLAMP FELT 46 S59917001 1 オサエウデサエジタ WORK CLAMP ARM SUPPORT PLATE 47 018400822 2 アナボルト4X8 BOLT, SOCKET M4X8 48 071039750 3 コウキュウ5/32 BEARING BALL, 5/32 50 S59919000 1 ロツドエンド PB-8 ROD END, PB-8 51 S10209101 1 シメネジ 4.37 SCREW, SM4.37 52 S59923000 1 オクリダイカバー-R FEED BRACKET COVER, R 53 060680512 2 ハインド437-40X5 SCREW, BIND SM4.37-40X5 100 * 1 オクリダイ431 FEED PLATE, 431 118-V31-202 12 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 17 — C4 . 送り関係 (KE-432C) / Feed mechanism (KE-432C)

C4 . 送り関係 (KE-432C) / Feed mechanism (KE-432C) 212 213 210 230231 209 232 211 213 219 206 207 214 208 200 201 202 37 37-5 37-4 37-10 37-20 37-6 37-7 37-33 37-32 37-9 37-26 37-23 37-22 37-27 37-24 37-25 37-21 37-31 37-2 37-15 37-16 37-18 37-17 37-13 37-14 37-11 37-12 37-34 37-1 37-36 37-35 215 225 223 222 224 226 227 229 221 228 220 100 43 44 39 5 31 32 40 50 53 52 205 38-1 38 204 51 42 41 203 45 118-V30-202 13 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 18

C4. 送り関係 (KE-432C) / Feed mechanism (KE-432C) REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 5 S59915001 1 タテオクリンシング TACK WIDTH FEED SHAFT 31 S59916001 1 オクリダイアンナイタ FEED BRACKET GUIDE PLATE 32 145318001 8 シメネジ 4.37 SCREW, SM4.37 37 S41024100 1 オサエウデクミZ32 WORK CLAMP ARM ASSY, Z32 37-1 S41025100 1 オサエフレームZ32 WORK CLAMP FRAME, Z32 37-2 150553001 1 ナット5.95 NUT, SM5.95 37-3 118258001 1 ストツプレバーハネ STOP LEVER SPRING 37-4 118256001 1 ストツプレバー STOP LEVER 37-5 118257001 1 ダンネジ 5.95 SHOULDER SCREW, SM5.95 37-6 118259001 1 ボルト4.37 BOLT, SM4.37 37-7 021680202 1 ナット2シュ4.37 NUT, 2 SM4.37 37-8 15562101 1 オサエヨセンレツケツイタ WORK CLAMP CARRIER PLATE 37-9 018401622 1 アナボルト4X16 BOLT, SOCKET M4X16 37-10 025710232 1 ヒラザガネチユウ4.76 WASHER, PLAIN M 4.76 37-11 118247001 1 カラー COLLAR 37-12 117143001 1 カラー COLLAR 37-13 021400102 1 ナット1シュ4 NUT, 1 M4 37-14 155576001 1 オサエヨコロ ROLLER 37-15 155577001 1 コロツクツキネジ 4.76 SCREW, SM4.76 37-16 025710232 1 ヒラザガネチユウ4.76 WASHER, PLAIN M 4.76 37-17 048040342 1 トメワE4 RETAINING RING, E4 37-18 021710212 1 ナット2シュ4.76 NUT, 2 SM4.76 37-19 S41265001 1 ボタンホールアンナイZ32 BUTTON HOLE GUIDE, Z32 37-20 062761012 2 ナベコ595-28X10 SCREW, PAN SM5.95-28X10 37-21 118248101 1 ストツプイチヨウセツイタ STOP POSITION ADJUSTING PLATE 37-22 S41288001 1 オサエアンナイタZ32 WORK CLAMP GUIDE PLATE, Z32 37-23 118252001 2 オサエアンナイネシ SCREW 37-24 025710132 2 ヒラザガネチユウ4.76 WASHER, PLAIN S 4.76 37-25 062681212 2 ナベコ437-40X12 SCREW, PAN SM4.37-40X12 37-26 118247001 2 カラー COLLAR 37-27 117143001 2 サラネジ 4.37 SCREW, FLAT SM4.37 37-28 118244001 2 ダンネジ 5.95 SHOULDER SCREW, SM5.95 37-29 118249001 1 オサエR WORK CLAMP, R 37-30 118250001 1 オサエL WORK CLAMP, L 37-31 S06533001 1 オサエヨウセツイタクミ PRESSER ADJUSTING PLATE ASSY 37-32 025060232 1 ヒラザガネチユウ6 WASHER, PLAIN M 6 37-33 018061022 1 アナボルト6X10 BOLT, SOCKET M6X10 37-34 025710132 1 ヒラザガネチユウ4.76 WASHER, PLAIN S 4.76 37-35 S41011001 1 オサエヨレバー LEVER 37-36 123882001 1 ダンネジ 4.37 SHOULDER SCREW, SM4.37 38 S59918001 1 オクリダイクミ FEED BRACKET ASSY 38-1 152771000 2 オクリダイカンザ FEED BRACKET SPACER 39 S59921001 2 カンザ 4.8 SPACER, 4.8 40 071047650 2 コウキユウ3/16 BEARING BALL, 3/16 41 025060232 2 ヒラザガネチユウ6 WASHER, PLAIN M 6 42 017761212 2 ボルト5.95X12 BOLT, SM5.95X12 43 S49955001 1 オクリイタンメネジ SCREW, W/SOCKET SM4.37 44 153057101 1 オクリイタンメネジ SCREW, W/SOCKET SM4.37 45 153035000 1 オサエウデフエルト WORK CLAMP FELT 50 S59919000 1 ロツドエンド PB-8 ROD END, PB-8 51 S10209101 1 シメネジ 4.37 SCREW, SM4.37 52 S59923000 1 オクリダイカバー-R FEED BRACKET COVER, R 53 060680512 1 バインドコ595-40X5 SCREW, BIND SM4.37-40X5 100 S51084001 1 オクリイタ432 FEED PLATE, 432 200 155567001 1 オサエバネチヨウセツネジ ADJUSTING SCREW 201 115147001 1 ボタンツカミオサエヨシハネ COMPRESSION SPRING 202 146994001 2 オサエバネチヨウシネジ NUT, ROUND SM6.35-40 203 153834101 1 ボタンツカミホルダーササエ BUTTON CLAMP HOLDER SUPPORT 204 153827001 1 ボタンツカミホルダーシク BUTTON CLAMP HOLDER SHAFT 205 014680622 2 アナトメネジ 4.37クボミ SET SCREW, SOCKET (CP) SM4.37 118-V32-202 14 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 19 — C4 . 送り関係 (KE-432C) / Feed mechanism (KE-432C)

C4 . 送り関係 (KE-432C) / Feed mechanism (KE-432C) 212 213 210 230231 209 232 211 213 219 206 207 214 208 200 202 37 37-5 37-4 37-3 37-6 37-33 37-7 37-32 37-19 37-26 37-28 37-2 37-31 37-21 37-23 37-22 37-27 37-24 37-25 215 220 223 222 224 229 221 201 225 226 227 228 37-36 37-35 37-13 37-12 37-11 37-1 37-17 37-34 37-14 37-15 37-16 37-18 37-10 37-9 37-1 37-2 37-8 37-16 37-18 37-15 37-10 37-9 37-23 37-28 37-22 37-27 37-24 37-25 37-30 37-29 216 100 43 40 39 38-1 205 38 204 51 44 5 31 32 53 50 52 42 41 203 45 118-V30-202 15 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 20 — C4. 送り関係 (KE-432C) / Feed mechanism (KE-432C)

C4. 送り関係 (KE-432C) / Feed mechanism (KE-432C) REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 206 017781412 1 ポルト6.35X14 BOLT, SM6.35X14 207 118735002 1 ザガネ WASHER, PLAIN 208 150556001 1 ナット6.35 NUT, SM6.35 209 S41290301 1 (YSトリツケイタパツキン OYS SETTING PLATE PACKING 210 S41060109 1 タケツケ BLIND PLATE 211 062710812 2 ナベコ476-32X8 SCREW, PAN SM4.76-32X8 212 062711012 2 ナベコ476-32X10 SCREW, PAN SM4.76-32X10 213 025710232 4 ヒラザガネチユウ4.76 WASHER, PLAIN M 4.76 214 152827001 1 オイルキリセン OIL CAP 215 S23337001 1 ゴムセン18.5 RUBBER CAP, 18.5 216 228475000 1 ケツクバンド1.9X80 FASTENING BAND, 1.9X80 217 525664000 1 コードホルダ#6 CORD HOLDER, 6N 218 062680612 1 ナベコ4.37-40X6 SCREW, PAN SM4.37-40X6 219 062710812 2 ナベコ476-32X8 SCREW, PAN SM4.76-32X8 220 S41264001 1 オサエヨセロツトクミ WORK CLAMP CARRIER ROD ASSY 221 018062036 1 アナボルト6X20 BOLT, SOCKET M6X20 222 118735002 1 ザガネ WASHER, PLAIN 223 021060306 2 3シユナツト6 NUT, 3 M6 224 S41010001 1 センサイタ SENSOR PLATE 225 S41012001 1 OYソレノイドピン OY SOLENOID PIN 226 140407001 1 ザガネ WASHER 227 S19662001 1 スナツクピン5 SNAP PIN, 5 228 S18523001 1 オサエアゲバネ SPRING, EXTENSION 229 S41009001 1 OYソレノイドストツパー OY SOLENOID STOPPER 230 062710812 2 ナベコ476-32X8 SCREW, PAN SM4.76-32X8 231 025710232 2 ヒラザガネチユウ4.76 WASHER, PLAIN M 4.76 232 S52098201 1 OYソレノイドトリツケイタ OY SOLENOID SETTING PLATE 118-V32-202 16 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 21 — D1. 押工上ゲ関係 / Work clamp lifter mechanism

D1. 押工上ゲ関係 / Work clamp lifter mechanism 24 20 19 23 13 16 15 18 17 1 8 2 8 9 3 9 4 9 5 14 10 6 12 25 11 21 22 26 118-V30-204 17 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 22 — Work clamp lifter mechanism (KE-430C, KE-431C)

D1 .押上ゲ関係 (KE-430C, KE-431C) / Work clamp lifter mechanism (KE-430C, KE-431C) REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S49630001 1 リンクA LINK, A 2 S49631001 1 リンクB LINK, B 3 S49632001 1 リンクCウミ LINK ASSY, C 4 S49635001 1 リンクシクA LINK SHAFT, A 5 S49636001 1 リンクシクB LINK SHAFT, B 6 S49637001 1 リンクシクC LINK SHAFT, C 7 S49638001 1 リンクシクD LINK SHAFT, D 8 100261001 4 ザガネ WASHER, PLAIN 9 S37968001 6 スナップピン8 SNAP PIN, 8 10 S19662001 2 スナップピン5 SNAP PIN, 5 11 S58890001 1 オオエイタ WORK CLAMP PLATE 12 S55157000 1 オオエイタヨウメタル BUSH 13 014760622 2 アナトメジ 5.95 SET SCREW, SOCKET SM5.95 14 S10105001 2 リンクドシバネ SPRING, EXTENSION 15 S49639001 1 センサトツケダイ SENSOR SETTING BASE 16 062680612 1 ナベコ4.37-40X6 SCREW, PAN SM4.37-40X6 17 S49640101 1 センサカンセイタ SENSOR PERCEIVE PLATE 18 S55479001 1 アナボルトザクミ4X8 BOLT, SOCKET (S/P WASHER) M4X8 19 S49641001 1 ソレノイドトリツケイタA SOLENOID SETTING PLATE, A 20 060681212 4 バインド437-40X12 SCREW, BIND SM4.37-40X12 21 S49642001 1 ソレノイドトリツケイタB SOLENOID SETTING PLATE, B 22 060501016 2 バインドM5X10 SCREW, BIND M5X10 23 06064001 1 ガイド GUIDE 24 060680712 2 バインド437-40X7 SCREW, BIND SM4.37-40X7 25 S59763000 1 オオエイアストツパーゴム W-CLAMP LIFTER STOPPER RUBBER 26 018501422 2 アナボルト5X14 BOLT, SOCKET M5X14 118-V30-204 18

Page 23 — D2 . 押工上ゲ関係 (KE-432C) / Work clamp lifter mechanism (KE-432C)

D2 . 押工上ゲ関係 (KE-432C) / Work clamp lifter mechanism (KE-432C) 24 20 19 23 13 15 16 21 22 26 37 36 39 33 38 35 34 12 25 27 28 11 32 31 30 29 18 17 9 7 1 8 8 14 10 6 14 3 9 4 5 118-V32-204 19 From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 24 — D2 . 押工上ゲ関係 (KE-432C) / Work clamp lifter mechanism (KE-432C)

D2 . 押工上ゲ関係 (KE-432C) / Work clamp lifter mechanism (KE-432C) REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S49630001 1 リンクA LINK, A 2 S49631001 1 リンクB LINK, B 3 S49632001 1 リンクCクミ LINK ASSY, C 4 S49635001 1 リンクシクA LINK SHAFT, A 5 S49636001 1 リンクシクB LINK SHAFT, B 6 S49637001 1 リンクシクC LINK SHAFT, C 7 S49638001 1 リンクシクD LINK SHAFT, D 8 100281001 4 ザガネ WASHER, PLAIN 9 S37968001 6 スナップピン8 SNAP PIN, 8 10 S19662001 2 スナップピン5 SNAP PIN, 5 11 S41015101 1 オサエエアゲロッド WORK CLAMP LIFTING ROD 12 S55157000 1 オサエエアゲロッド BUSH 13 014760622 2 アナトメシ5.95 SET SCREW, SOCKET SM5.95 14 S10105001 2 リンクモトシハネ SPRING, EXTENSION 15 S49639001 1 センサトリツケダイ SENSOR SETTING BASE 16 062680612 1 ナベコ4.37-40X6 SCREW, PAN SM4.37-40X6 17 S49640101 1 センサカンテイタ SENSOR PERCEIVE PLATE 18 S55479001 1 アナボルトザクミ4X8 BOLT, SOCKET (S/P WASHER) M4X8 19 S49641001 1 ソレノイドトリツケダイA SOLENOID SETTING PLATE, A 20 060681212 4 バインド 437-40X12 SCREW, BIND SM4.37-40X12 21 S49642001 1 ソレノイドトリツケダイB SOLENOID SETTING PLATE, B 22 060501016 2 バインド M5X10 SCREW, BIND M5X10 23 S49643001 1 ガイド GUIDE 24 060680712 2 バインド 437-40X7 SCREW, BIND SM4.37-40X7 25 120448001 1 ゴムワ RUBBER BAND 26 018501422 2 アナボルト5X14 BOLT, SOCKET M5X14 27 150206002 1 ヒラガネ16 WASHER, PLAIN 16 28 015010142 1 トノウシクヨウC15 RETAINING RING, EXTERNAL C15 29 153838001 1 コジク ROLLER SHAFT 30 107744001 1 コジク ROLLER 31 153484001 1 ザガネ4.76 WASHER, PLAIN 4.76 32 105234003 1 ナット4.37 NUT SM4.37 33 S41014009 1 レバーホルダー LEVER HOLDER 34 018061622 2 アナボルト6X16 BOLT, SOCKET M6X16 35 025060232 2 ヒラガネチユウ6 WASHER, PLAIN M 6 36 S41016001 1 オサエヤレバー WORK CLAMP LIFTER LEVER 37 153838001 1 ボタンツカミレバーシク B-CLAMP LEVER SHAFT 38 014760622 1 アナトメシ5.95 SET SCREW, SOCKET SM5.95 39 017821813 1 ボルト7.94X18 BOLT, SM7.94X18 118-V32-204 20 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 25 — E. 下軸関係 / Lower shaft mechanism

E. 下軸関係 / Lower shaft mechanism 14-1 23 14-1-3 14-1-2 14-1-8 14-1-10 14-1-11 14-1-4 14-1-9 14-1-6 14-1-5 24 25 21 22 19 18 20 <補給部品/For supply parts > 14-2 14-2-1 14-2-1-3 14-2-1-2 14-2-1-8 14-2-2 14-2-1-1 14-2-2 14-2-1-11 14-2-1-6 14-2-1-5 14-2-1-4 14-2-1-9 14-2-2 14-2-1-9 14-2-2 28 27 29 32 31 30 8 13-1 9 13 10 11 12 6 3 2 6-1 6-1 4 5 7 7 1 118-V30-305 21 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 26 — E . 下軸関係 / Lower shaft mechanism

E . 下軸関係 / Lower shaft mechanism REF. NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 141786001 1 クランクロッドタンネジ SHOULDER SCREW 2 100090004 1 ナット7.14 NUT, SM7.14 3 014680622 1 アナトメネジ 4.37クホミ SET SCREW, SOCKET (CP) SM4.37 4 152245101 1 ヨウドウキヤ ROCK GEAR 5 S37978251 1 ヨウドウキヤジク ROCK GEAR SHAFT 6 161995001 1 セットカラ一クミ SET SCREW COLLAR ASSY 6-1 101706001 2 アナトメネジ 6.35 SET SCREW, SM6.35-40X5.5 7 014760622 2 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 8 S49605001 1 シンタククミ LOWER SHAFT ASSY 9 S55213001 1 シンタクメタル LOWER SHAFT BUSH 10 014760622 1 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 11 152678201 1 カマナワセツク ADJUSTING STUD 12 081003670 1 OリングPW3 O-RING, PW3 13 S49809001 1 セットカラ一クミ SET SCREW COLLAR ASSY 13-1 017770622 2 アナトメネジ 5.95クホミ SET SCREW, SOCKET (CP) SM6.35 14-1 S55927101 1 オオカマタイクミ SHUTTLE RACE BASE ASSY 14-1-1 S55216101 1 オオカマタイ SHUTTLE RACE BASE 14-1-2 S02429101 1 カマイトアンナイ SHUTTLE RACE THREAD GUIDE 14-1-3 062660412 2 ナベコ318-40X4 SCREW, PAN SM3.18-40X4 14-1-4 152683101 2 オオカマトツケツメ S-RACE BASE SETTING CLAW 14-1-5 152684101 2 オオカマトツケツハネ SPRING, COMPRESSION 14-1-6 402887001 2 ザガネ3.2 WASHER, 3.2 14-1-7 062660712 2 ナベコ318-40X7 SCREW, PAN SM3.18-40X7 14-1-8 S09043000 2 フエルト FELT 14-1-9 S49981000 2 クミヒモ3X3 WICK, 3X3 L=360 14-1-10 S49828000 1 クミヒモ3X3 WICK, 3X3 L=300 14-1-11 S49685000 1 クミヒモ3X3 WICK, 3X3 L=100 15 014760622 1 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 16 152678201 1 カマナワセツク ADJUSTING STUD 17 081003670 1 OリングPW3 O-RING, PW3 18 048070342 1 トメワE7 RETAINING RING, E7 19 S55215001 1 ドライバーHR DRIVER, HR 20 018501232 1 アナトボルト5X12 BOLT, SOCKET M5X12 21 * 1 オオカマ SHUTTLE RACE BASE 22 * 1 ナカカマハコウミ SHUTTLE HOOK ASSY, W/BOX 23 S16290001 1 ニードルローラー4X19.8 NEEDLE ROLLER, 4X19.8 24 * 1 ボビンケースクミ BOBBIN CASE ASSY 24-1 * 1 ボビンケースチヨウシバネ TENSION SPRING 24-2 * 1 ボビンケーススバネ SPRING 24-3 * 1 クウテンボウシバネ ANTI-SPIN SPRING 25 * 1 ボビン BOBBIN 27 S55658000 1 カマエフエルト FELT 28 S55214000 1 カマエフエルトサシエ FELT HOLDER 29 S55140001 1 サポート SUPPORT 30 123882001 1 ダンネジ 4.37 SHOULDER SCREW, SM4.37 31 103010002 1 ナミカンタバネザガネ WAVE WASHER 32 025770232 1 ヒラサガネチユウ6.35 WASHER, PLAIN M 6.35 14-2 S59888001 “補給用部品” " For Supply parts " 14-2-1 S59885001 1 オオカマタイクミセット SHUTTLE RACE BASE SET 14-2-1-1 S55216001 1 オオカマタイクミ SHUTTLE RACE BASE ASSY 14-2-1-2 S55216001 1 オオカマタイ SHUTTLE RACE BASE 14-2-1-3 S02429101 1 カマイトアンナイ SHUTTLE RACE THREAD GUIDE 14-2-1-4 062660412 2 ナベコ318-40X4 SCREW, PAN SM3.18-40X4 14-2-1-5 152683101 2 オオカマトツケツメ S-RACE BASE SETTING CLAW 14-2-1-6 152684101 2 オオカマトツケツハネ SPRING, COMPRESSION 14-2-1-7 402887001 2 ザガネ3.2 WASHER, 3.2 14-2-1-8 062660712 2 ナベコ318-40X7 SCREW, PAN SM3.18-40X7 14-2-1-9 S09043000 2 フエルト FELT 118-V30-305 From the library of: Superior Sewing Machine & Supply LLC jintex.in 22

Page 27 — E. 下軸関係 / Lower shaft mechanism

E. 下軸関係 / Lower shaft mechanism 14-1 14-1-3 14-1-2 14-1-5 14-1-10 23 14-1-7 14-1-6 14-1-5 15 16 17 14-1-11 14-1-9 14-1-4 24 24-2 24-3 21 19 18 20 22 < 補給用部品 / For supply parts > 14-2 14-2-1 14-2-1-3 14-2-1-2 14-2-1-8 14-2-1-1 14-2-2 14-2-1-10 14-2-1-7 14-2-1-6 14-2-1-5 14-2-1-4 14-2-2 14-2-1-9 14-2-2 14-2-1-4 27 28 29 32 31 30 13-1 13 9 8 10 11 12 6 3 2 7 5 7 6-1 6-1 4 23 118-V30-305 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 28 — E. 下軸関係 / Lower shaft mechanism

E. 下軸関係 / Lower shaft mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 14-2-1-10 S57965000 1 クミモモ3X3 WICK, 3X3 L=515 14-2-1-11 S59886001 1 フエルト FELT, L=360 14-2-2 S50529000 4 ビニルチユーブ OIL TUBE, L=320 118-V30-305 24 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 29

F. 給油潤滑関係 / Lubrication 25 118-V30-350 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 30 — F. 給油潤滑関係 / Lubrication

F. 給油潤滑関係 / Lubrication REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 S49992000 1 オイルポットマト OIL GAUGE WINDOW 2 S07333001 1 オイルクチパイプ S PIPE, S 3 S07456000 1 ビニールチューブ OIL TUBE, L=160 4 148738000 1 タヒモ WICK, L=335 5 107149001 1 フェルト FELT 6 S37983001 1 ウツジクキュウササエ WICK SUPPORT 7 062680612 1 ナベコ 4.37-40X6 SCREW, PAN SM4.37-40X6 8 025680232 1 ヒラザガネチュウ 4.37 WASHER, PLAIN M 4.37 9 028680242 1 ヒラザガネ2-4.37 WASHER, SPRING 2-4.37 10 S10478000 1 ロッド・キュウフェルト FELT 11 S34986000 1 ビニールチューブ OIL TUBE, L=135 12 S49982000 1 クミヒモ4X4 WICK, 4X4 L=400 13 107149001 2 フェルト FELT 14 S49959001 1 テンビンキュウササエ WICK SUPPORT 15 S10162201 1 ハリホウヒモササエ WICK SUPPORT 16 060670512 1 バインド 357-40X5 SCREW, BIND SM3.57-40X5 17 S49620000 2 ビニールチューブ OIL TUBE, L=340 18 S49957000 1 クミヒモ4X4 WICK, 4X4 L=700 19 S49622000 1 クミヒモ4X4 WICK, 4X4 L=130 20 S49983000 1 クミヒモ4X4 WICK, 4X4 L=800 21 S49984000 1 ヒラタヒモ FLAT WICK, L=200 22 104567101 1 クミヒモササエ WICK SUPPORT 23 159565000 1 クミヒモ2.5X150 WICK, L=150 24 S37985000 1 スイアゲフェルト FELT 25 S37986000 1 ビニールチューブ OIL TUBE, L=440 26 S18093100 1 クミヒモ4X4 WICK, 4X4 L=1100 27 145547001 1 チューブホルダ TUBE HOLDER 28 062670512 1 ナベコ 357-40X5 SCREW, PAN SM3.57-40X5 29 S37987001 1 シタジクキュウササエ LOWER SHAFT WICK SUPPORT 30 S37988000 1 シタジクキュウフェルト LOWER SHAFT WICK FELT 31 062680612 1 ナベコ 4.37-40X6 SCREW, PAN SM4.37-40X6 32 S09043000 1 フェルト FELT 33 152948001 1 オイルポットマト OIL GAUGE WINDOW 34 S49623000 1 ビニールチューブ OIL TUBE, L=280 35 S49624000 1 ビニールチューブ OIL TUBE, L=260 36 S49625000 1 ビニールチューブ OIL TUBE, L=160 38 152969001 2 コードササエネ CORD HOLDER 39 062670512 2 ナベコ 357-40X5 SCREW, PAN SM3.57-40X5 40 148738000 1 クミヒモ WICK, L=335 41 148738000 1 クミヒモ WICK, L=335 42 152956001 1 クミヒモ4X4 WICK, 4X4 L=500 44 228475000 3 ケツソクバンド 1.9X8 FASTENING BAND, 1.9X80 45 153924001 1 フェルト FELT 46 S49957000 1 クミヒモ4X4 WICK, 4X4 L=700 47 S49958000 1 クミヒモ4X4 WICK, 4X4 L=70 48 S49985000 1 ビニールチューブ OIL TUBE, L=170 49 S49986000 1 ビニールチューブ OIL TUBE, L=110 50 S49987000 1 ビニールチューブ OIL TUBE, L=150 51 S49995001 1 コードササエネ CORD SUPPORT 52 062670512 1 ナベコ 357-40X5 SCREW, PAN SM3.57-40X5 53 S49618000 1 ビニールチューブ OIL TUBE, L=210 54 S55659000 1 クミヒモ WICK, L=300 118-V30-350 26 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 31 — G. 糸通シ関係 / Threading mechanism

G. 糸通シ関係 / Threading mechanism " オプション部品 / OPTION PARTS " 23 24 28 31 30 29 27 19 22 21 20 32 1 2 <糸切れ検知用 / For Thread breakage detector > 5 6 3 4 11 17 18 8 9 10 12 16 15 14-1 33 13 <デニム用 / For Denim > 14-1 <メリヤス、被服用 / For Knitted & Ordinary materials > 14-2 25-1 25-2 27 118-V30-401 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 32

G . 糸通シ関係 / Threading mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 152869001 1 アームイトミチ ARM THREAD GUIDE 2 062670612 1 ナベコ357-40X6 SCREW, PAN SM3.57-40X6 3 S49627001 1 アームイトカケ ARM THREAD GUIDE 4 060670612 1 バインド357-40X6 SCREW, BIND SM3.57-40X6 5 S51859101 1 アームイトアンナイ ARM THREAD GUIDE 6 060670612 1 バインド357-40X6 SCREW, BIND SM3.57-40X6 8 152872001 1 Oリング O-RING 9 114294001 1 イトリハネ THREAD TAKE-UP SPRING 10 * 1 イトユルメピン TENSION RELEASE PIN 11 S12699000 1 イトチョウシボウ TENSION STUD 12 116922001 1 イトチョウシナット TENSION NUT 13 S31032001 1 イトチョウシナツト TENSION NUT 14-1 104525001 1 <メリヤス、被服用> イトチョウシハネ <For Knitted & Ordinay materials> TENSION SPRING 14-2 107606001 1 <デニム用> イトチョウシハネ <For Denim> TENSION SPRING, H 15 159805001 1 イトチョウシサラオサエ TENSION DISC PRESSER 16 145446001 2 イトチョウシサラ TENSION DISC 17 100402004 1 イトメネジ 3.57 SET SCREW, SM3.57 18 S10469001 1 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 19 115186001 1 シュイトチョウシボウ MAIN TENSION STUD 20 100136001 1 イトチョウシナツト TENSION NUT 21 115186001 1 シュイトチョウシハネ MAIN TENSION SPRING 22 145446001 2 イトチョウシサラ TENSION DISC 23 152889001 1 ミツメイトカケ THREAD RETAINER 24 062670612 2 ナベコ357-40X6 SCREW, PAN SM3.57-40X6 25-1 152890001 1 <デニム用> ハリボウイトアンナイA <For Denim> NEEDLE BAR THREAD GUIDE, A 25-2 S41222101 1 <メリヤス、被服用> ハリボウイトアンナイB <For Knitted & Ordinay materials> NEEDLE BAR THREAD GUIDE, B 26 152891101 1 ハリボウメタルDアンナ N-BAR BUSH THREAD GUIDE, D 33 S12441001 1 チョウシハネウエザガネ WASHER 27 152881001 1 " オプション部品 " エキレイトイタケ " OPTION PATS " NEEDLE COOLER ASSY 28 014760632 1 アナクボミ595-28X6 SET SCREW, SOCKET (CP)SM5.95X6 29 152883000 1 フエルト8X15.5 FELT, 8X15.5 30 152884001 1 エキレイトカケ NEEDLE COOLER THREAD GUIDE 31 062670412 1 ナベコ357-40X4 SCREW, PAN SM3.57-40X4 32 S45083001 1 <糸切れ検知用> メンイトアンナイ <For Thread breakage detector> FACE PLATE THREAD GUIDE 118-V30-401 28 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 33 — H. 糸巻関係 / Bobbin winder mechanism

H. 糸巻関係 / Bobbin winder mechanism 2 4 1-10 1-7 1-6 1-5 1-15 1-27 1-18 1-17 1-2 1-4 1-3 1-12 1-13 1-9 1-8 1-11 1-16 3 4 1-20 1-25 1-23 1-21 1-22 1-26 1-19 1-24 1-1 5 118-V30-402 29 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 34 — H . 糸巻関係 / Bobbin winder mechanism

H . 糸巻関係 / Bobbin winder mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1-1 S37991109 1 ウワタ TOP COVER 1-2 S37992100 1 イトマキウデ BOBBIN WINDER ARM 1-3 S37993000 1 イタバネ PLATE SPRING 1-4 048100142 1 イトマキクミヨウC10 RETAINING RING, EXTERNAL C10 1-5 S37994001 1 イトマキツメジク BOBBIN WINDER CLAW STUD 1-6 S37995101 1 ホビンオサエ BOBBIN PRESSER 1-7 100402004 1 イトメネジ 3.57 SET SCREW, SM3.57 1-8 S37996001 1 イトマキツメ BOBBIN WINDER CLAW 1-9 014680622 1 アナトメネジ 4.37クボ SET SCREW, SOCKET (CP) SM4.37 1-10 048050342 1 イトメネジ E5 RETAINING RING, E5 1-11 S37997001 1 イトマキシンク BOBBIN WINDER SHAFT 1-12 154528001 1 イトマキクルマ BOBBIN WINDER WHEEL 1-13 120448001 1 ゴムワ RUBBER BAND 1-14 120990001 2 アナトメネジ 4.37 SET SCREW, (CP) SM4.37-40X8 1-15 S10174000 1 ホリヨケイタ DUST GUARD PLATE 1-16 S37998001 1 イトマキデハネ SPRING 1-17 157968001 1 メス KNIFE 1-18 062680512 1 ナベコ437-40X5 SCREW, PAN SM4.37-40X5 1-19 159574101 1 イトチョウシボウ TENSION STUD 1-20 100136001 1 イトチョウシナツト TENSION NUT 1-21 144110001 1 シタルーバイトチョウシハバ TENSION ADJUSTING SPRING 1-22 145446001 2 イトチョウシサラ TENSION DISC 1-23 144105000 1 チョウシハネヌエザガネ TENSION SPRING FLANGE WASHER 1-24 021680202 1 ナット 2 SM4.37 NUT, 2 SM4.37 1-25 141590001 1 イトトシボウ THREADING BAR, U 1-26 100022004 2 ナット5.95 NUT, SM5.95 1-27 025680232 1 ヒラザガネチユウ4.37 WASHER, PLAIN M 4.37 2 062681212 1 ナベコ4.37-40X12 SCREW, PAN SM4.37-40X12 3 062680612 1 ナベコ4.37-40X6 SCREW, PAN SM4.37-40X6 4 025680232 3 ヒラザガネチユウ4.37 WASHER, PLAIN M 4.37 5 S47335101 1 イトマキプーリクミ BOBBIN WINDER PULLEY ASSY 118-V30-402 30 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 35 — J. 糸切り関係 / Thread trimmer mechanism

J. 糸切り関係 / Thread trimmer mechanism 118-V30-403 31 From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 36 — J. 糸切り関係 / Thread trimmer mechanism

J. 糸切り関係 / Thread trimmer mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 S49629201 1 イトキリカム THREAD TRIMMER CAM 2 014770622 2 アナトメシ 6.35クホミ SET SCREW, SOCKET (CP) SM6.35 3 S38002201 1 ソルノイドトリツケイタ SOLENOID SETTING PLATE 5 060681212 2 バインド437-40X12 SCREW, BIND SM4.37-40X12 6 154599000 1 ソルノイドクツション SOLENOID CUSHION 7 S02652001 1 ザガネ WASHER 8 S23836001 1 ソルノイドレバークミ SOLENOID LEVER ASSY 8-1 S02654001 1 ソルノイドレバー SOLENOID LEVER 8-2 014680622 1 アナトメシ 4.37クホミ SET SCREW, SOCKET (CP) SM4.37 9 S38003101 1 クドウレバーオシレバー DRIVING LEVER PUSH LEVER 10 S49645001 1 ダンネジ 4.76 SHOULDER SCREW, SM4.76 11 S38004002 1 クドウレバーオシレバー <記号2> DRIVING LEVER STOPPER <Mraked in 2> 11 S38004003 1 クドウレバーオシレバー <記号3> DRIVING LEVER STOPPER <Mraked in 3> 11 S38004004 1 クドウレバーオシレバー <記号4> DRIVING LEVER STOPPER <Mraked in 4> 12 S59893001 2 アナトボルト437-40X10 BOLT, SOCKET SM4.37-40X10 13 148847001 2 ザガネ WASHER, PLAIN,4.76 14 159905001 1 トメイツキヨウセツネジ ADJUSTING SCREW 15 105812003 1 ナット7.94 NUT, SM7.94 16 S49644001 1 クドウレバーアンナイジク DRIVING LEVER GUIDE SHAFT 17 231071001 1 メタル8X15 BUSH, 8X15 18 S3235001 1 ヌノサエバネ SPRING, COMPRESSION 19 048070342 1 トメワE7 RETAINING RING, E7 20 153596001 1 ザガネ WASHER 21 154596000 1 イトキリカムレバークツシヨン CUSHION 22 S49646101 1 イトキリクドウレバークミ THREAD DRIVING LEVER ASSY 22-1 S59874001 1 イトキリクドウレバー THREAD DRIVING LEVER 22-2 S59872001 1 イトキリロッド THREAD TRIMMER ROD 22-3 S59871001 1 ダンネジ 4.37 SHOULDER SCREW, SM4.37 22-4 S59873001 2 ザガネ WASHER, PLAIN 22-5 SA0049001 2 ナット4.37 NUT, SM4.37 22-6 028680242 1 バネザガネ2-4.37 WASHER, SPRING 2-4.37 23 014770622 1 アナトメシ 6.35クホミ SET SCREW, SOCKET (CP) SM6.35 24 S02354001 2 タマツキダンネジ B SHOULDER SCREW, B 25 100022005 2 ナット5.95 NUT, SM5.95 26 S49648001 1 イトキリロッドクミ THREAD TRIMMER ROD ASSY 26-1 S49649001 1 イトキリロッド THREAD TRIMMER ROD 26-2 141492001 2 タマツキテツミ JOINT ASSY 26-3 100022005 2 ナット5.95 NUT, SM5.95 29 S49650001 1 イトキリルハ THREAD TRIMMER LEVER 30 S10195101 1 イトキリルハーク THREAD TRIMMER LEVER SHAFT 31 110367001 1 ザガネ WASHER, PLAIN SPECIAL 8 32 048060342 1 トメワE6 RETAINING RING, E6 33 014760622 1 アナトメシ 5.95 SET SCREW, SOCKET SM5.95 34 S38011001 1 イトキリモドシハネ SPRING, EXTENSION 35 S49651001 1 ハネカケ SPRING HOOK 36 110233001 1 ダンネジ 4.76 SHOULDER SCREW, SM4.76 37 110161004 1 ナット4.76 NUT, SM4.76 38 S49994001 2 ザガネ4.76 WASHER, PLAIN 4.76 40 S38012001 1 レンカンレバークミ CONNECTING ROD LEVER ASSY 41 S10202001 1 レンカンレバーシク LEVER SHAFT 42 121007001 1 アマツキトメネジ 4.37 SET SCREW, SM4.37 <KE-430C, 431C用> <For KE-430C & 431C> <KE-4320輸出用> <For Export of KE-432C> 43-1 S38015001 1 ヘリタ NEEDLE PLATE 43-2 S40916001 1 ヘリタC <For Japan only of KE-432C> 44 S38016001 1 イトキリレンカン THREAD CONNECTING ROD 45 S49988001 1 イトドウハクミ MOVABLE KNIFE ASSY, N 46 S10208001 1 イトドウハカンザ <t=0.4> MOVABLE KNIFE SPACER <t=0.4> 46 S10208002 1 イトドウハカンザ <t=0.5> MOVABLE KNIFE SPACER <t=0.5> 46 S10208003 1 イトドウハカンザ <t=0.6> MOVABLE KNIFE SPACER <t=0.6> 118-V30-403 32 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 37 — J. 糸切り関係 / Thread trimmer mechanism

J. 糸切り関係 / Thread trimmer mechanism 118-V30-403 33 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 38 — J. 糸切り関係 / Thread trimmer mechanism

J. 糸切り関係 / Thread trimmer mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 47 S00705001 1 イトウカラ MOVABLE KNIFE COLLAR 48 S10209101 1 シメネジ4.37 SCREW, SM4.37 49 S10210201 1 コテイハ FIXED KNIFE 50 111140002 2 シメネジ2.38 SCREW, SM2.38 51 100032004 2 サラネジ4.37 SCREW, FLAT SM4.37-40X8 52 S11244001 2 シメネジ4.37 SCREW, SM4.37 53 * 1 ハリナイタ NEEDLE HOLE PLATE 54 100360003 2 サラネジ2.38 SCREW, FLAT SM2.38 55 228475000 2 ケツクバンド1.9X80 FASTENING BAND, 1.9X80 118-V30-403 34

Page 39

K. 糸払イ関係 / Thread wiper mechanism 1 5 7 9 10 6 8 13 12 11 14 16 17 15 118-V30-405 L. 糸取り関係 / Thread take-up mechanism 21 2 1 13 9 10 20 14 15 16 7 11 9 12 8 19 18 17 3 5 4 118-V30-408 35 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 40

K. 糸払イ関係 / Thread wiper mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 S49652101 1 ワイパー ドウレバー THREAD WIPER DRIVING LEVER 2 15282101 1 ワイパーシク THREAD WIPER SHAFT 3 025770232 1 ヒラザガネチュウ6.35 WASHER, PLAIN M 6.35 4 048040342 1 トメワE4 RETAINING RING, E4 5 014760622 1 アナトメシ5.95 SET SCREW, SOCKET SM5.95 6 S36024001 1 ワイパー ロツドジク THREAD WIPER ROD SHAFT 7 S36025001 1 ワイパー ロツドクミ THREAD WIPER ROD ASSY 8 145992001 1 アナツキトメシ4.37 SET SCREW, SM4.37 9 048060342 1 トメワE6 RETAINING RING, E6 10 116629001 2 ザガネ WASHER 11 152823001 <KE-430C用> 1 ワイパーデクミ <For KE-430C, 432C用> <KE-430C & KE-432C> THREAD WIPER ARM ASSY 11 S41284301 1 ワイパーデクミ THREAD WIPER ARM ASSY 12 048030342 1 トメワE3 RETAINING RING, E3 13 152827001 1 オイルキリセン OIL CAP 14 014710522 1 アナトメシ4.76ホクロミ SEET SCREW, SOCKET (CP) SM4.76 15 156206601 1 ワイパー-A THREAD WIPER, A 16 062670512 2 ナベコ3.57-40X5. SCREW, PAN SM3.57X4.5 17 025350132 2 ヒラザガネシュウ WASHER, PLAIN S 3.5 118-V30-405 L. 系取り関係 / Thread take-up mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 S49659001 1 ソレノイド トリツケイタ SOLENOID SETTING PLATE 2 062710812 2 ナベコ476-32X8 SCREW, PAN SM4.76-32X8 3 S49660101 1 イトトリレバー THREAD TAKE-UP LEVER 4 107321003 2 ダンネジ 4.76 SHOULDER SCREW, SM4.76 5 S19748001 1 サトウクランククツシヨン CUSHION 6 047401442 1 スプリングピン AW4 PIN, SPRING ROLL AW4 7 S49661101 1 ソレノイドツキテ SOLENOID JOINT 8 S01998001 2 アナツキトメシ3.57 SET SCREW, SM3.57-40X6 9 110251001 2 ヌノオサエウデバネカケ SPRING HOOK 10 021670102 2 ナツト1シュ3.57 NUT, 1 SM3.57 11 S34883001 1 イトキリハネ SPRING, EXTENSION 12 S19748001 1 サトウクランククツシヨン CUSHION 13 S49663001 1 ナツト3.57 NUT, SM3.57 14 062671012 1 ナベコ3.57-40X10 SCREW, PAN SM3.57-40X10 15 028350242 1 ハガネコ2-3.5 WASHER, SPRING 2-3.5 16 025350332 1 ヒラザガネダイ3.5 WASHER, PLAIN 3.5 17 S49662001 1 イトトリレバークランク TREAD TAKE-UP LEVER CRANK 18 15559001 1 ヒラザガネ WASHER, PLAIN 19 048030342 1 トメワE4 RETAINING RING, E4 20 S49664000 1 イトトリレノイドカパー TREAD TAKE-UP SOLENOID COVER 21 062670612 2 ナベコ3.57-40X6 SCREW, PAN SM3.57-40X6 118V30-408 36 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 41 — M . 糸締メ関係 / Thread nipper mechanism

M . 糸締メ関係 / Thread nipper mechanism 37 From the library of: Superior Sewing Machine & Supply LLC jintex.in 118-V30-406 5 5-1 5-4 5-2 5-3 5-6 5-5 8 9 7 19 18 13 2 21 1-1 1-3 1-2 6 4 3 1 11 14 12 15 17 15 22

Page 42 — M . 糸締メ関係 / Thread nipper mechanism

M . 糸締メ関係 / Thread nipper mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 S49665001 1 イトエルメロツドクミ TENSION RELEASE ROD ASSY 1-1 S49666001 1 イトエルメロツド TENSION RELEASE ROD 1-2 141492001 1 タマツギテ クミ JOINT ASSY 1-3 100022005 1 ナット.5.95 NUT, SM5.95 1-5 145478101 1 ダンネジ 4.76 SHOULDER SCREW, SOCKET SM4.76 2 S02354001 1 タマツギテダンネジ B SHOULDER SCREW, B 3 100022005 1 ナット.5.95 NUT, SM5.95 4 S49655001 1 イトエルメロツドレバーク TR-RELEASE DRIVING LEVER ASSY 5 S49654001 1 イトエルメロツドレバー TENSION RELEASE DRIVING LEVER 5-1 153597001 1 シタイトザハキカラー LOWER THREAD RETAINER COLLAR 5-2 S30033001 1 ダンネジ 3.57 SHOULDER SCREW, SM3.57 5-3 S49655001 1 カラー COLLAR 5-4 106129002 1 ナット 3.57 NUT, SM3.57 5-5 028350242 1 バネザガネー3.5 WASHER, SPRING 2-3.5 5-6 S49656001 1 イトエルメレバー U TENSION RELEASE LEVER, U 6 S49657001 1 ユルメルレバーUストツパ TENSION RELEASE LEVER U STOPPER 7 00748001 1 サドウクランククツシヨン CUSHION 8 062680812 2 ナベコ437-40X8 SCREW, PAN SM4.37-40X8 9 S38032001 1 イトエルメレバー TENSION RELEASE LEVER 11 S46734001 1 オサエケﾞレハ゛ーシク W-CLAMP LEVER LIFTER SHAFT 12 S01998001 1 アタマツキトメネジ 3.57 SET SCREW, SM3.57-40X6 13 S38033001 1 カラー-13 COLLAR, 13 14 048040342 2 トメワE4 RETAINING RING, E4 15 SA0703001 1 イトエルメレバーハネ TENSION RELEASE LEVER SPRING 17 S31006001 1 オサエケﾞテツ LIFTING LEVER 18 S39051001 1 ナヘ゛サクミ35X12 SCREW, PAN (S/P W) M3.5X12 19 S31952001 1 オサエケﾞクランク LIFTING CRANK 21 S10239001 1 イトエルメホウ TENSION RELEASE STUD 118-V30-406 38 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 43

N. 針位置検出器関係 / Synchronizer P. プリント基板関係 / Printed circuit board mechanism 118-V30-501 1 2 5 4 7 6 1-13 1-6 1-13 1-9 1-8 1-10 1-11 1-15 1-14 1-5 1-3 1-4 1-5 1-1 1-7 1-13 1-2 1-12 39 118-V30-518 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 44 — N. 針位置検出器関係 / Synchronizer P.プリント基板関係 / Printed circuit board mechanism

N. 針位置検出器関係 / Synchronizer REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 S48666001 1 シンクロナイザクミ SYNCHRONIZER ASSY 2 062400806 2 ナベコ4X8 SCREW, PAN M4X8 4 S38080001 1 ハリシタンシャクミ NEEDLE LOWER MAGNET ASSY, D 5 S38082001 2 ハリウエシヤクミ NEEDLE UPPER MAGNET ASSY, U 6 062681412 3 ナベコ437-40X14 SCREW, PAN SM4.37-40X14 7 025680132 3 ヒラザガネシヨウ4.37 WASHER, PLAIN S 4.37 P.プリント基板関係 / Printed circuit board mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1-1 S49479001 1 メインキバンクミ MAIN PCB ASSY 1-2 S29019000 4 ICM54640P IC:M54640P 1-3 S43178000 6 PHカプラPC9231 PHOTO COUPLER:PC9231 1-4 093650008 1 CMOSIC74HC08F IC:74HC08F 1-5 093650032 1 CMOSIC74HC32F IC:74HC32F 1-6 091170009 2 BIPIC74LS09F IC:74LS09F-T 1-7 S49484000 8 MOSFETFS10KMJ-2 TRANSISTOR, FET:FS10KMJ-2 1-8 S49485000 8 MOSFETFX6KMJ-2 TRANSISTOR, FET:FX6KMJ-2 1-9 S49471000 6 MOSFETFK18SM-1 TRANSISTOR, FET:FK18SM-12 1-10 S38155000 3 MOSFET2SK1306 TRANSISTOR, FET:2SK1306 1-11 S50645000 1 MOSFET2SK1307 TRANSISTOR, FET:2SK1307 1-12 S49486000 1 MOSFET2SJ222 TRANSISTOR, FET:2SJ222 1-13 U32744000 1 DIPSWDSS708 DIP SWITCH:DSS708 1-14 DA4301005 31 +ナベザクミ3X10DA SCREW, PAN (S/P WASHER) M3X10 1-15 S48578000 1 GFUSE5AFBリードワイヤ GLASS FUSE, 5A W/LEED WIRE 1-16 Y51030150 1 ポリC50B103 CAPACITOR, POLYESTER 50B103 118-V30-501 118-V30-518 40 From the library of: Superior Sewing Machine & Supply LLC Jinteх.in

Page 45 — Q1 . コントロールボックス関係 / Control box mechanism

Q1 . コントロールボックス関係 / Control box mechanism 1-5 1-4 1-8 1-7 1-6 1-10 1-20 10 10-1 1-23 1-6 11 11-1 54 1-25 1-3 1-22 1-24 1-17 1-12 1-26-19 1-26-10 1-26-5 1-26-4 1-26-13 1-26-11 1-26-16 1-26-17 1-26-21 1-26-14 1-26-2 1-26-12 1-26-18 1-26-10 1-26-2 1-26-5 1-26-19 1-26-3 1-26-4 1-26-22 1-26-1 1-26-15 1-26-6 1-26-7 1-26-20 1-26-8 1-26-9 1-26-13 1-26-11 1-26-16 1-26-20 1-26 1-1 1-15 1-14 1-13 1-11 1-16 1-19 1-2 1-22 20 21 1-26-17 118-V30-502 41 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 46 — Q1. コントロールボックス関係 / Control box mechanism

Q1. コントロールボックス関係 / Control box mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 1 S49467001 1 ボックスクミ BOX ASSY 1-1 S49468001 1 デンゲンボックス POWER SUPPLY BOX 1-2 S49469001 1 メインパンドリウケイタ MAIN PCB SETTING PLATE 1-3 S38093000 1 ボックスフタ BOX COVER 1-4 0A5401206 2 ナベザクミ4X12DB SCREW, PAN (S/P WASHER) M4X12 1-5 021400206 2 シュナット4 NUT, 2 M4 1-6 S47692000 1 DCファンモータクミ FAN MOTOR ASSY, DC 1-7 0A5402006 2 ナベザクミ4X30DB SCREW, PAN (S/P WASHER) M4X30 1-8 0A5400806 1 ナベザクミ4X8DB SCREW, PAN (S/P WASHER) M4X8 1-9 0A5401206 2 ナベザクミ4X12DB SCREW, PAN (S/P WASHER) M4X12 1-10 S42260000 1 フットSWコード 434クミ FOOT SWITCH HARNESS ASSY, 434 1-11 S38107100 1 セイギヨウデンゲンコード CONTROL POWER SUPPLY HARNESS 1-12 S38108000 1 モータデンゲンコード MOTOR POWER SUPPLY HARNESS 1-13 S38109100 1 ゲートデンゲンコード H-P POWER SUPPLY HARNESS 1-14 S38110000 1 PERコード POWER HARNESS 1-15 S11949000 1 ゴムブッシュ RUBBER BUSH 1-16 S00554000 17 サポート6NS SUPPORT, 6NS 1-17 S31760000 2 CKSクランプ 26L CORD CLAMP, 26-L 1-18 S43275000 6 コードクランプ WS2NS CORD CLAMP, WS2NS 1-19 S43276000 4 コードクランプ WS3NS CORD CLAMP, WS3NS 1-20 S43277000 1 コードクランプ WS4NS CORD CLAMP, WS4NS 1-21 008400604 12 トラヌス4X6 SCREW, TRUSS M4X6 1-22 S38116000 1 ホウシンアミ FRAGMENT PROTECTOR NET 1-23 S37059001 1 PEマーク LABEL, PE 1-24 S37060001 1 アースマーク LABEL, GROUNDING 1-25 S4999101 1 デンゲンキバンクミ POWER SUPPLY PCB ASSY 1-26 S4177000 1 ICMA3830 IC :MA3830 1-26-1 S49586000 2 MOSFET2SK1941 TRANSISTOR, FET :2SK1941 1-26-2 S38203000 1 SBDYG802C04R DIODE :YG802C04R 1-26-3 SA0037000 2 ベリスタV14D511 VARISTOR:V14D511 1-26-4 232384001 1 S777HSA362MA SURGE ABSORBER :DSA362MA 1-26-5 S49071000 1 DBRD25XB60 DIODE BRIDGE :25XB60 1-26-6 S38205000 1 デンC250B182 CAPACITOR, ALUM-ELEC :250B182 1-26-7 SA1034000 1 デンC63B562 CAPACITOR, ALUM-ELEC :63B562 1-26-8 S43175000 1 トランスETS54AA159 TRANSFORMER :54AA159 1-26-9 S43176000 1 トランスETS35AD199 TRANSFORMER :35AD199 1-26-10 S43181000 1 コイルETS49AD289A COIL :49AD289AC 1-26-11 S38208000 1 RYJW1AFSN/DC 5V RELAY :JW1AFSN/DC 5V 1-26-12 153242000 2 ヒューズ 6A FUSE, 6A 1-26-13 S08030000 1 GEヒューズ 5AFB FUSE, 5A :FB 1-26-14 S48580000 1 GFUSE7AFB FUSE, 7A :FB 1-26-15 0A4301005 8 ナベザクミ3X10DA SCREW, PAN (S/P WASHER) M3X10 1-26-16 S43189000 1 PCBE1コード PCB E1 HARNESS 1-26-17 S43187000 1 PCBE2コード PCB E2 HARNESS 1-26-18 S49472000 1 サーミスタ6D-22 THERMISTOR :6D-22 10 S49938000 1 ゼツエンシート INSULATION SHEET 10-1 UA4817000 1 PROMセイギヨクミ PROM CONTROL ASSY 11 S53032000 1 MOSLSI27C2001 EPROM:27C2001 11-1 S38143000 1 PROM-IMクミ PROM ASSY, IM 12 228475000 1 CMOSLSI27C512 LSI:27C512 20 S38352101 2 ケツツクバンド 1.9X8 FASTENING BAND, 1.9X80 <輸出用> <For Export> LABEL, ELEC. SHOCK 4 LANG. 42 118-V30-502 RM欄に*が付いている部品をご注文いただきますと、基板等必要な部品がー式入ったセットになっています。 When ordering parts which have an (*) in the RM colum, these parts will be supplied as aset together with other neccessary parts such as sucuit boards. From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 47 — Q1. コントロールボックス関係 / Control box mechanism

Q1. コントロールボックス関係 / Control box mechanism 1-5 1-4 1-8 1-7 1-6 1-10 1-20 10 10-1 1-23 1-6 11 11-1 54 1-21 1-22 1-19 1-2 1-25 1-3 1-22 1-17 1-18 1-1 1-16 1-11 1-15 1-14 1-13 1-24 1-12 1-26-4 1-26-3 1-26-1 1-26-5 1-26-18 1-26-10 1-26-2 1-26-22 1-26-12 1-26-21 1-26-14 1-26-13 1-26-11 1-26-16 1-26-17 1-26-15 1-26-6 1-26-8 1-26-7 1-26-20 1-26-19 1-26 1-26-9 1-26-10 1-26-5 1-26-4 1-26-2 1-26-13 1-26-11 1-26-16 1-26-17 1-26-20 1-26-15 1-26-6 1-26-7 1-26-8 1-26-1 1-26-9 1-26-17 43 118-V30-502 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 48 — Q1. コントロールボックス関係 / Control box mechanism

Q1. コントロールボックス関係 / Control box mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 21 S38353101 2 <国内向用> デンゲラベル.フ <For Japsp only> 54 S55627001 1 IMラベル IM LABEL H-1 S553031001 1 "補給用部品" <三相200V, 220V用> ボックスソウクミA1-IM " For supply parts " <For "3-Phse 200V & 220V AC> BOX UNIT, A1-IM :3-P. 200/220V H-2 S53033001 1 <単相200V, 230V用> ボックスソウクミA2-IM <For "1-Phse 200V & 230V AC> BOX UNIT, A2-IM :1-P. 220/230V H-3 S53034001 1 <単相100V用> ボックスソウクミB1-IM <For Japan only> H-4 S53035001 1 <単相110V, 120V用> ボックスソウクミB2-IM <For "1-Phse 110V & 120V AC> BOX UNIT, B2-IM :1-P. 110V AC H-5 S53036001 1 <三相415V用> ボックスソウクミC1-IM <For "3-Phse 415V AC> BOX UNIT, C1-IM :3-P. 415V AC H-6 S53037001 1 <三相380V用> ボックスソウクミC2-IM <For "3-Phse 380V AC> BOX UNIT, C2-IM :3-P. 380V AC H-7 S53038001 1 <単相240V用> ボックスソウクミC3-IM <For "1-Phse 240V AC> BOX UNIT, C3-IM :1-P. 240V AC H-8 S53039001 1 <三相400V用> ボックスソウクミE-IM <For "3-Phse 400V AC> BOX UNIT, E-IM :3-P. 400V AC H-9 S53040001 1 <単相240V用> ボックスソウクミF-IM <For "1-Phse 240V AC> BOX UNIT, F-IM :1-P. 230V AC 118-V30-502 44 RM欄に*が付いている部品をご注文いただきますと、基板等必要な部品が一式入ったセットになっています。 When ordering parts which have an (*) in the RM colum, these parts will be supplied as aset together with other neccessary parts such as sucuit boards. From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 49 — Q2. コントロールボックス関係 / Control box mechanism

Q2. コントロールボックス関係 / Control box mechanism <三相 200V,220V用 / For "3-Phase 200V & 220V AC"> 2-1-3 2-1-1 2-1 2-1-4 2-1-5 2-1-2 3-1 <単相100V用 / For Japan only > 2-2 2-2-3 2-2-1 2-2-4 2-2-5 2-2-2 3-2-2 3-2-1 <単相220V,230V用 / For "1-Phase 220V & 230V AC"> 2-4-3 2-4-1 2-4 2-4-4 2-4-5 2-4-2 3-1 <単相110V,120V用 / For "1-Phase 110V & 120V AC"> 3-2-2 3-2-1 2-7 2-7-3 2-7-1 2-7-4 2-7-5 2-7-2 <三相415V,380V用 / For "3-Phase 415V & 380V AC"> 2-3 2-3-3 2-3-1 2-3-4 2-3-5 2-3-2 3-3-2 3-3-1 6 5 7 4 <単相240V用 / For "1-Phase 240V AC"> 3-3-2 3-3-1 6 5 7 4 " オプション部品 / OPTION PARTS " <三相400V / For "3-Phase 400V AC"> 3-3-2 3-3-1 6 5 7 4 <単相230V / For "1-Phase 230V AC"> 2-5 46 45 48 48 44 43 42 41 40 49 50 51 52 47 3-4 45 46 43 42 48 48 44 47 41 40-1 50 51 49 52 45 From the library of: Superior Sewing Machine & Supply LLC jintex.in 11B-V30-502

Page 50 — Q2. コントロールボックス関係 / Control box mechanism

Q2. コントロールボックス関係 / Control box mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 2-1 S38112001 1 <三相200V、220V用> <For "3-Phse 200V & 220V AC> 2-1-1 S38113000 1 デンゲンSWクミA POWER SUPPLY SWITCH ASSY, A 2-1-2 S38133000 1 デンゲンINコードA POWER SUPPLY IN HARNESS, A 2-1-3 J02657001 1 デンゲンコード POWER SUPPLY HARNESS 2-1-4 224514001 3PオシSW#17 3P. PUSH SWITCH, #17 2-1-5 218859001 2 ゼツエンイタ INSULATION PLATE 2 バインダ M150 BINDER, M150 2-2 S38114000 <単相100V用> <For Japan only> 1 デンゲンSWクミB 2-2-1 S38115000 1 デンゲンINコード B 2-2-2 S38133000 1 デンゲンコード 2-2-3 J02657001 1 3PオシSW#17 2-2-4 224514001 2 ゼツエンイタ 2-2-5 218859001 2 バインダ M150 2-3 S38117000 <三相415V、380V用> <For "3-Phse 415V & 380V AC> 1 デンゲンSWクミC POWER SUPPLY SWITCH ASSY, C 2-3-1 S38115000 1 デンゲンINコード B POWER SUPPLY IN HARNESS, B 2-3-2 S38133000 1 デンゲンコード POWER SUPPLY HARNESS 2-3-3 J02657001 1 3PオシSW#17 3P. PUSH SWITCH, #17 2-3-4 224514001 2 ゼツエンイタ INSULATION PLATE 2-3-5 218859001 2 バインダ M150 BINDER, M150 2-4 S47592000 <単相200V、230V用> <For "1-Phse 200V & 230V AC> 1 デンゲンSWクミD POWER SUPPLY SWITCH ASSY, D 2-4-1 S38113000 1 デンゲンINコード A POWER SUPPLY IN HARNESS, A 2-4-2 S47595000 1 デンゲンコードユシュツ POWER SUPPLY HARNESS, EXP. 2-4-3 J02657001 1 3PオシSW#17 3P. PUSH SWITCH, #17 2-4-4 224514001 2 ゼツエンイタ INSULATION PLATE 2-4-5 218859001 2 バインダ M150 BINDER, M150 2-5 S38120000 1

Page 51 — Q2. コントロールボックス関係 / Control box mechanism

Q2. コントロールボックス関係 / Control box mechanism < 三相200V,220V用 / For "3-Phase 200V & 220V AC" > 2-1-3 2-1-1 2-1 2-1-4 2-1-5 2-1-2 3-1 < 単相100V用 / For Japan only > 2-2 2-2-3 2-2-1 2-2-4 2-2-5 2-2-2 3-2-2 3-2-1 6 5 7 4 < 単相110V,120V用 / For "1-Phase 110V & 120V AC" > 2-7 3-2-1 2-7-3 2-7-1 2-7-4 2-7-5 2-7-2 6 5 7 4 < 三相415V,380V用 / For "3-Phase 415V & 380V AC" > 2-3 3-3-2 3-3-1 2-3-1 2-3-3 2-3-4 2-3-5 2-3-2 6 5 7 4 < 単相240V用 / For "1-Phase 240V AC" > 2-7 3-3-1 3-3-2 2-7-3 2-7-1 2-7-4 2-7-5 2-7-2 6 5 7 4 " オプション部品 / OPTION PARTS " < 三相400V / For "3-Phase 400V AC" > 2-5 45 46 43 42 41 40 48 48 44 47 50 51 49 52 < 単相230V / For "1-Phase 230V AC" > 2-6 46 43 42 41 40-1 48 44 47 50 51 3-4 49 52 47 118-V30-502 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 52 — Q2. コントロールボックス関係 / Control box mechanism

Q2. コントロールボックス関係 / Control box mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 3-3 S49475000 <単相240V <For "1-Phse 240V AC 3-3-1 S49476000 1 三相400V、415V、380V用> ヘンカトランスCグミ 3-Phse 400V, 415V & 380V AC> CONVERSION TRANSFORMER ASSY, C 3-3-2 S38126000 1 ヘンカトランスC CONVERSION TRANSFORMER, C 1 ACINコード AC-IN HARNESS 3-4 S43201000 " オプション部品 " <単相230V用> " OPTION PARTS " 1 ACINコードF <For "1-Phse 230V AC> AC-IN HARNESS, F 4 018061436 <単相200V, 220V, 230V以外> 4 アナルボルトM6X14 <Except for "200V, 220V & 230V AC> BOLT, SOCKET M6X14 5 025060236 8 ヒラザガネチュウ6 WASHER, PLAIN M 6 6 021060106 4 1シュナット6 NUT, 1 M6 7 028060246 4 バネザガネー6 WASHER, SPRING 2-6 40 S40635001 1 " オプション部品 " <三相400V用> ノイズフィルタ430Eグミ " OPTION PARTS " <For "3-Phse 400V AC> NOISE FILTER ASSY, 430E 40-1 S40616001 <単相230V用> 1 ノイズフィルタEMCグミ <For "1-Phse 230V AC> NOISE FILTER ASSY, EMC 41 S40620000 <単相230V, 三相400V用> 1 キハントリツケイタ <For "1-Phse 230V AC & 3-Phse 400V AC> PCB SETTING PLATE 42 0A4400605 6 +ナベザクミ4X6DA SCREW, PAN (S/P WASHER) M4X6 43 S40621000 1 EMIコアESD-SR-15 EMI CORE, ESD-SR-15 44 S40622000 1 EMIコアESD-SR-25 EMI CORE, ESD-SR-25 45 149809000 2 タイラップL BEAD BAND, L=200 46 S40621000 3 EMIコアESD-SR-15 EMI CORE, ESD-SR-15 47 S40622000 2 EMIコアESD-SR-25 EMI CORE, ESD-SR-25 48 149809000 5 タイラップL BEAD BAND, L=200 49 S40623000 1 EMIコアTR-40-27 EMI CORE, TR-40-27 50 0A5401606 1 +ナベザクミ4X16DB SCREW, PAN (S/P WASHER) M4X16 51 025040236 1 ヒラザガネチュウ4 WASHER, PLAIN M 4 52 021400108 1 ナット1シュ4 NUT, 1 M4 118-V30-502 48 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 53 — R. 電装品関係 / Power supply equipment mechanism

R. 電装品関係 / Power supply equipment mechanism 14-1-114-1-2 14-1 14-4 36 37 35 34 18 20 19 < KE-432C用 / For KE-432C > 6-4 205 203 206 201 202 200 " オプション部品 / OPTION PARTS " 30-2-1 30-2 30-1 30 31 30-2-2 33 32 15 14-2 6-1 8 14-3 13 12 6-3 9 24 23 1 3 2 40-5 40-6 40-1 40-4 40-8 40-7 40-10 40-3 40-9 40-2 40 10 11 16 17 43 42 25 21 22 41 4 5 118-V30-515 19 From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 54

R. 電装部品関係 / Power supply equipment mechanism REF.NO CODE ヒンメイ NAME OF PARTS RM 1 S38134100 1 パルスモータXグミ <For KE-430C, 431C & 432C> PULSE MOTOR ASSY, X 2 S38136100 1 パルスモータYグミ PULSE MOTOR ASSY, Y 3 0184012222 8 アナボルト4X12 BOLT, SOCKET M4X12 4 552907000 2 コードホルダ#10 CORD HOLDER, 10N 5 0A5401006 2 ナベコバネヒラ4X10 SCREW, PAN (S/P WASHER) M4X10 6 <KE-430C, 431C用> <For KE-430C & 431C> 6-1 S49463100 1 トウブセンサグミ HEAD SENSOR ASSY 6-1 S56167000 1 キンセツセンサGL-N12F PROXIMITY SENSOR, GL-12NF 6-2 S56167001 1 キンセツセンサGL-N12F PROXIMITY SENSOR, GL-12NF 6-3 S56167003 1 キンセツセンサGL-N12F PROXIMITY SENSOR, GL-12NF 6-4 S48582000 1 センサハーネス SENSOR HARNESS 6 <KE-432C用> <For KE-432C> 6-1 S48581100 1 トウブセンサ432グミ HEAD SENSOR ASSY, 432 6-1 S56167000 1 キンセツセンサGL-N12F PROXIMITY SENSOR, GL-12NF 6-2 S56167001 1 キンセツセンサGL-N12F PROXIMITY SENSOR, GL-12NF 6-3 S56167003 1 キンセツセンサGL-N12F PROXIMITY SENSOR, GL-12NF 6-4 S48582000 1 センサハーネス SENSOR HARNESS 8 062300806 2 ナベコ3X8 SCREW, PAN M3X8 9 062300806 1 ナベコ3X8 SCREW, PAN M3X8 10 552907000 2 コードホルダ#10 CORD HOLDER, 10N 11 0A5401006 2 ナベコバネヒラ4X10 SCREW, PAN (S/P WASHER) M4X10 12 152969001 1 コードサエカネ CORD HOLDER 13 062670512 1 ナベコ357-40X5 SCREW, PAN SM3.57-40X5 14-1 S49979400 1 オサエルノイドアッミ PRESSER SOLENOID ASSY 14-1-1 S59366000 1 ダンパ1 SHOCK ABSORBER, 1 14-1-2 S59367000 1 ダンパ2 SHOCK ABSORBER, 2 14-2 S38144100 1 イトキリツノイドアッミ THREAD TRIMMER SOLENOID ASSY 14-3 S38145000 1 コネクタ3191-04R CONNECTOR :3191-04R 14-4 S38147000 1 マークチューブ5 MARK TUBE, 5 15 060501016 4 バインドM5X10 SCREW, BIND M5X10 16 S38148000 1 アースセン1 GROUND WIRE, 1 17 0A5400806 1 ナベザクミ4X8DB SCREW, PAN (S/P WASHER) M4X8 18 S49464000 1 イトトリツルノイドアッミ THREAD TAKE-UP SOLENOID ASSY 19 S00460000 3 コードホルダ#5 CORD HOLDER, 5N 20 060670612 3 バインド357-40X6 SCREW, BIND SM3.57-40X6 21 <KE-430C用> <For KE-430C> 21 S49465009 1 ショウキリカエコネクタアッミ CONNECTOR ASSY, 430C 21 <KE-431C用> <For KE-431C> 21 S49465001 1 ショウキリカエコネクタアッミ CONNECTOR ASSY, 431E 21 <KE-432C用> <For KE-432C> 21 S49465002 1 ショウキリカエコネクタアッミ CONNECTOR ASSY, 432E 22 228475000 1 ケツソクバンド1.9X8 FASTENING BAND, 1.9X80 23 117150001 1 コードサエカネ CORD HOLDER 24 062670612 1 ナベコ357-40X6 SCREW, PAN SM3.57-40X6 25 218859001 1 バインドM150 BINDER, M150 34 S00480000 2 コードホルダ#5 CORD HOLDER, 5N 35 060670612 2 バインド357-40X6 SCREW, BIND SM3.57-40X6 36 060670612 1 バインド357-40X6 SCREW, BIND SM3.57-40X6 37 060400616 1 バインドM4X6 SCREW, BIND M4X6 "オプション部品" " OPTION PARTS " 30 S49934009 1 EMロックSWクミ EM-LOCK SWITCH ASSY 30-1 S37057001 1 EMスイツチスペーサ3 EM-SWITCH SPACER, 3 30-2 S49482000 1 EMロックSWハーネスクミ EM-LOCK SWITCH & HARNESS ASSY 30-2-1 S32335100 1 SW-AVS311N SWITCH :AVS311N 118-V30-515 From the library of: Superior Sewing Machine & Supply LLC 50 Jinteх.in

Page 55 — R. 電装品関係 / Power supply equipment mechanism

R. 電装品関係 / Power supply equipment mechanism 14-1-114-1-2 14-1 15 14-2 3 1 2 14-4 6-1 8 6-2 8 14-3 40-5 40-6 40-1 40-4 40-8 40-7 40-10 40-3 41 40-9 40-2 40 10 11 16 17 36 37 35 34 13 12 6-3 9 42 18 20 19 43 4 5 < KE-432C用 / For KE-432C > 6-4 205 206 203 204 25 201 202 200 " オプション部品 / OPTION PARTS " 30-2-1 30-2 30-1 30 30-2-2 31 33 32 21 22 118-V30-515 51 From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 56

R. 電装部品関係 / Power supply equipment mechanism REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 30-2-2 S49466000 1 "オプション部品" "OPTION PARTS" 31 062710812 2 EMSWハーネス EM-SWITCH HARNESS 32 149287000 3 ナベコ476-32X8 SCREW, PAN SM4.76-32X8 33 060670612 3 ナイロンクランプ CORD HOLDER, 7N 3 バインド357-40X6 SCREW, BIND SM3.57-40X6 40 S55629101 1 トウプスイッチクミ HEAD SEITCH ASSY 40-1 S55630001 1 マイクロスイッチクミ MICRO SWITCH ASSY 40-2 S38744101 1 スイッチプレート SWITCH PLATE SPRING 40-3 S55632001 1 スイッチダイ SWITCH BRACKET 40-4 062020806 2 ナベコ2X8 SCREW, PAN M2X8 40-5 140647101 1 コードオサエ CORD HOLDER 40-6 062400616 1 ナベコM4X6 SCREW, PAN M4X6 40-7 062401216 1 ナベコM4X12 SCREW, PAN M4X12 40-8 026040236 1 ヒラガネミガキ#4 WASHER, PLAIN #4 40-9 154514001 1 スペーサー SPACER 40-10 021400106 1 ナット1M4 NUT, 1 M4 41 0A5401006 2 ナベコバネヒラ4X10 SCREW, PAN (S/P WASHER) M4X10 42 552907000 1 コードネルダ#10 CORD HOLDER, 10N 43 0A5401006 1 ナベコバネヒラ4X10 SCREW, PAN (S/P WASHER) M4X10 200 S48583001 1 <KE-432C用> <For KE-432C> 201 062501212 4 オサエヘイソルノイドクミ ナベコ5X12 SOLENOID ASSY SCREW, PAN M5X12 202 025050232 4 ヒラガネナチュウ5 WASHER, PLAIN M 5 203 S36048000 1 キンセツセンリE2R PROXIMITY SENSOR, E2R 204 062300612 1 ナベコ3X6 SCREW, PAN M3X6 205 S10243000 1 ナイロンクランプNK-3N CORD HOLDER, NK-3N 206 062300612 1 ナベコ3X8 SCREW, PAN M3X8 118-V30-515 From the library of: Superior Sewing Machine & Supply LLC 52 Jinttex.in

Page 57

S. 操作パネル関係 / Operation panel mechanism 1-1-1 1-1-3 1-1-7 1-1-5 1-1-7-2 1-1-7-3 1-1-7-1 1-1-7-3 1-1-7-3 1-1-7-5 1-1-7-6 1-1-7-4 1-1-7-3 1-1-8 1-1-2 1-1-6 1-1-4 1-1-9 1-1-10 1-2 T. 動力台関係 / Power table 2 1 118-V30-530 118-V30-652 53 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 58 — S. 操作パネル関係 / Operation panel mechanism T. 動力台関係 / Power table

S. 操作パネル関係 / Operation panel mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 S55889001 1 ソウサパネルクミ OPERATION PANEL UNIT 1-1 S55891000 1 ソウサパネルIMクミ OPERATION PANEL ASSY, IM 1-1-1 S55891000 1 マエフレームIMクミ FRONT FRAME ASSY, IM 1-1-2 S52091000 1 ウシロフレームクミ REAR FRAME ASSY 1-1-3 S49495000 1 パネルヨコカバー PANEL SIDE COVER 1-1-4 S49496001 1 パネルヨコカバーガイド PANEL SIDE COVER GUIDE 1-1-5 087310815 2 カップBタイト3X8 TAPTITE, CUP B M3X8 1-1-6 0A4400805 1 +ナベザクミ4X8DA SCREW, PAN (S/P WASHER) M4X8 1-1-7-1 S49497001 1 パネルキバンクミ PANEL PCB ASSY 1-1-7-2 S29023000 4 LEDGL9P040 LED :GL9P040 1-1-7-3 S46703000 7 LEDPG5307S LED :PG5307S 1-1-7-4 S48579000 10 SWB3F-4050 SWITCH :B3F-4050 1-1-7-5 U34870001 1 DIPSW KSP08 DIP SWITCH:KSP08 1-1-7-6 S30280000 1 ブザー-PKB24SPC3 BUZZER :PKB24SPC36 1-1-7-7 UL0025000 1 コネクタ3429-6002S CONNECTOR:3429-6002SC 1-1-8 S49510000 1 パネルケーブルクミ PANEL HARNESS ASSY 1-1-9 087311015 2 カップBタイト3X10 TAPTITE, CUP B M3X10 1-1-10 XA2220050 2 キバンオサエ PCB HOLDER 1-2 062300806 4 ナベコ3X8 SCREW, PAN M3X8 118-V30-530 T. 動力台関係 / Power table REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1 J80868001 1 CIMモータ430クミ CIM MOTOR ASSY, 430 2 S53055100 1 IMハーネスクミ HARNESS ASSY, IM 118-V30-652 54 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 59 — U1 . 踏板関係 / Foot switch pedal mechanism

U1 . 踏板関係 / Foot switch pedal mechanism 1-1-1-13 1-1-1-9 1-1-1-12 1-1-1-10 1-1-1-7 1-1-1-7-1 1-1-1-7-2 1-1-1-8 1-1-1-14 1-1-1-17 1-1-1-15 1-1-1-18 1-1-1-11 1-1-1-19 1-1-1-6 1-1-1-1 1-1-1-2 1-1-1-16 1-1-1-3 1-1-1-4 1-1-7 1-1-8 1-1-9 1-1-1-5 1-1-1 1-1-4 1-1-5 1-1-6 1-1-2 1-1-3 1-1-10 1-1-11 1-1-12 55 From the library of: Superior Sewing Machine & Supply LLC jintex.in 118-V30-651

Page 60 — U1 . 踏板関係 / Foot switch pedal mechanism

U1 . 踏板関係 / Foot switch pedal mechanism REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1-1 S49667101 1 2ダンフットSWセット 2-STEP FOOT SWITCH SET 1-1-1 S49668101 1 2ダンフットSWクミ 2-STEP FOOT SWITCH ASSY 1-1-1-1 S49669100 1 フットペダルダイクミ FOOT PEDAL BASE ASSY 1-1-1-2 S49672001 1 2ダンSWピン 2-STEP SWITCH PIN 1-1-1-3 S38168001 1 アツシユクハネ SPRING, COMPRESSION 10X30 1-1-1-4 S38169201 1 フットSWジグイタB FOOT SWITCH SUPPORT PLATE, B 1-1-1-5 004400603 2 サラコネジシメ4X6 SCREW, FLAT HEAD 1-1-1-6 S38170001 1 フットペダルハネ FOOT PEDAL SPRING 1-1-1-7 S54648000 1 フットSWハーネスクミ FOOT SWITCH HARNESS ASSY 1-1-1-7-1 S54646000 1 フットSWハーネス FOOT SWITCH HARNESS 1-1-1-7-1-1 S54644000 2 サシコミタンシヌス TERMINAL, FEMALE 1-1-1-7-1-2 S54645000 2 ゼツエンカバー INSULATION COVER 1-1-1-7-2 S36260000 2 スイツチVXピンボタン MICRO SWITCH, VX:PIN BUTTON 1-1-1-8 062302506 2 ナベコ3X25 SCREW, PAN M3X25 1-1-1-9 S51451000 1 フットペダル FOOT PEDAL 1-1-1-10 S49673000 1 ペダルホゴイタ PEDAL PROTECTION PLATE 1-1-1-11 S49674001 1 スイツチオサエハネ SWITCH PRESSER SPRING 1-1-1-12 S38177001 1 フットペダルジク FOOT PEDAL SHAFT 1-1-1-13 048050346 2 トメワE5 RETAINING RING, E5 1-1-1-14 052400606 2 ナベコハネサラ4X6 SCREW, PAN (S/P WASHER) M4X6 1-1-1-15 025040236 1 ヒラザガネチユウ4 WASHER, PLAIN M 4 1-1-1-16 117936001 4 ゴムセン9.4 RUBBER CAP, 9.4 1-1-1-17 S38180000 1 コネクタ172169-1 CONNECTOR :172169-1 1-1-1-18 S36682000 1 コネクタキャップ CONNECTOR CAP 1-1-1-19 S46694000 1 コードブツシユKR61A CORD BUSH :KR61A 1-1-2 S38178101 1 フットSWジグイタA FOOT SWITCH SUPPORT PLATE, A 1-1-3 S38179101 1 フットSWジグイタC FOOT SWITCH SUPPORT PLATE, C 1-1-4 018082536 2 アナボルト8X25 BOLT, SOCKET M8X25 1-1-5 028080246 2 ハネガネ2-8 WASHER, SPRING 2-8 1-1-6 025080236 2 ヒラザガネチユウ8 WASHER, PLAIN M 8 1-1-7 018501036 2 アナボルト5X10 BOLT, SOCKET M5X10 1-1-8 028050246 2 ハネガネ2-5 WASHER, SPRING 2-5 1-1-9 025050236 2 ヒラザガネチユウ5 WASHER, PLAIN M 5 1-1-10 018401236 2 アナボルト4X12 BOLT, SOCKET M4X12 1-1-11 028040246 2 ハネガネ2-4 WASHER, SPRING 2-4 1-1-12 025040236 2 ヒラザガネチユウ4 WASHER, PLAIN M 4 118-V30-651 From the library of: Superior Sewing Machine & Supply LLC 56 jintex.in

Page 61 — U2 . 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts)

U2 . 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts) " オプション部品 / OPTION PARTS " 1-2-1-12 1-2-1-8 1-2-1-11 1-2-1-9 1-2-1-13 1-2-1-5 1-2-1-5-1 1-2-1-5-1-1 1-2-1-5-1-2 1-2-1-6 1-2-1-13 1-2-1-14 1-2-1-18 1-2-1-10 1-2-1-4 1-2-1-1 1-2-1-15 1-2-1-7 1-2-1-16 1-2-1-2 1-2-1-3 1-2-1-17 1-2-1 1-2-7 1-2-8 1-2-9 1-2-4 1-2-5 1-2-6 1-2-2 1-2-10 1-2-11 1-2-12 1-2-3 57 From the library of: Superior Sewing Machine & Supply LLC jintex.in 118-V38-651

Page 62 — U2 . 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts)

U2 . 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts) REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 1-2 S49675101 1 2レンペダルセット 2-PEDAL FOOT SWITCH SET 1-2-1 S49676101 1 2レンペダルクミ 2-PEDAL FOOT SWITCH ASSY 1-2-1-1 S49669100 2 フットペダルクミ FOOT PEDAL BASE ASSY 1-2-1-2 S38169201 2 フットSWジイタB FOOT SWITCH SUPPORT PLATE, B 1-2-1-3 004400603 4 +サラコネジ 4X6 SCREW, FLAT M4X6 1-2-1-4 S38170001 2 フットペダルバネ FOOT PEDAL SPRING 1-2-1-5 S54649000 1 2レンフットSWハーネスクミ 2-PEDAL FOOT SW HARNESS ASSY 1-2-1-5-1 S54647000 2 2レンフットSWハーネス 2-PEDAL FOOT SWITCH HARNESS 1-2-1-5-1-1 S54644000 4 サシコミタシメス TERMINAL, FEMALE 1-2-1-5-1-2 S54645000 4 ゼツエンカバー INSULATION COVER 1-2-1-5-2 S36260000 2 スイツチVXピンボタン MICRO SWITCH, VX-PIN BUTTON 1-2-1-6 062301205 4 ナベコ3X12 SCREW, PAN M3X12 1-2-1-7 228475000 8 ケツツクハンド1.9X8 FASTENING BAND, 1.9X8 1-2-1-8 S51451000 2 フットペダル FOOT PEDAL 1-2-1-9 S49673000 2 ペダルホゴイタ PEDAL PROTECTION PLATE 1-2-1-10 S49674001 2 スイツチオサエバネ SWITCH PRESSER SPRING 1-2-1-11 S38177001 2 フットペダルジク FOOT PEDAL SHAFT 1-2-1-12 048050346 4 トメワE5 RETAINING RING, E5 1-2-1-13 052400606 4 ナベコハネヒラ4X6 SCREW, PAN (S/P WASHER) M4X6 1-2-1-14 025040236 2 ヒラザガネチユウ4 WASHER, PLAIN M 4 1-2-1-15 117936001 8 ゴムセン9.4 RUBBER CAP, 9.4 1-2-1-16 S38180000 1 コネクタ172169-1 CONNECTOR :172169-1 1-2-1-17 S38060000 1 コネクタキャップ 18X19 CONNECTOR CAP, 18X19 1-2-1-18 S46694000 2 コードブツシユKR61A CORD BUSH :KR61A 1-2-2 S38178101 2 フットSWジイタA FOOT SWITCH SUPPORT PLATE, A 1-2-3 S38179101 2 フットSWジイタC FOOT SWITCH SUPPORT PLATE, C 1-2-4 018082536 4 アナボルト8X25 BOLT, SOCKET M8X25 1-2-5 028080246 4 バネザガネ2-5 WASHER, SPRING 2-5 1-2-6 025080236 4 ヒラザガネチユウ5 WASHER, PLAIN M 5 1-2-7 018501036 4 アナボルト5X10 BOLT, SOCKET M5X10 1-2-8 028050236 4 バネザガネ2-5 WASHER, SPRING 2-5 1-2-9 025050236 4 ヒラザガネチユウ5 WASHER, PLAIN M 5 1-2-10 018401236 4 アナボルト4X12 BOLT, SOCKET M4X12 1-2-11 028040236 4 バネザガネ2-4 WASHER, SPRING 2-4 1-2-12 025040236 4 ヒラザガネチユウ4 WASHER, PLAIN M 4 118-V30-651 From the library of: Superior Sewing Machine & Supply LLC 58 jintex.in

Page 63

U3 . 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts) " オプション部品 / OPTION PARTS " 2-1 2-1-9 2-1-10 2-1-8 2-1-11 2-1-7 2-1-12 2-1-5 2-1-1 2-1-6 2-1-4 2-2 2-1-3 2-1-2 2-5 2-3 2-4-1 2-4-2 2-4-4 2-4-5 2-4-7 2-4-8 2-4-3 < 補給部品 / For supply parts > 3 2-4-6 59 118-V30-651 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 64 — U3. 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts)

U3. 踏板関係 (オプション部品) / Foot switch pedal mechanism (Option parts) REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 2 S46131001 1 2ダンフットSWセットOP 2-STEP FOOT SWITCH SET, OP 2-1 S46132001 1 2ダンフットSWクミOP 2-STEP FOOT SWITCH ASSY, OP 2-1-1 S46133001 1 SWサエダイ SWITCH BRACKET 2-1-2 S46134001 1 フットSWレバー FOOT SWITCH LEVER 2-1-3 148904001 1 ダンネジ 7.94 SHOULDER SCREW, SM7.94 2-1-4 025080236 1 ヒラザガネチユウ8 WASHER, PLAIN M 8 2-1-5 101268002 1 ナット7.94 NUT, SM7.94 2-1-6 S46135001 1 フットSWハネ FOOT SWITCH SPRING 2-1-7 S46136000 1 フットSWハーネスクミOP FOOT SWITCH HARNESS ASSY, OP 2-1-8 UD2390001 4 +ナベセムス3X20DA SCREW, PAN (S/P WASHER) M3X20 2-1-9 025030236 2 ヒラザガネチユウ3 WASHER, PLAIN M 3 2-1-10 021300206 2 シュナット3 NUT, 2 M3 2-1-11 052400806 2 ナベコバネヒラ4X8 SCREW, PAN (S/P WASHER) M4X8 2-1-12 S00480000 1 コードホルダ #5 CORD HOLDER, #5 2-2 100666002 2 マルモクネジ 5.5X20 WOOD SCREW, ROUND M5.5X20 2-3 200190001 3 ステツプル STAPLE 2-4 S01603009 1 オサエアゲフミイタジ TREADLE ASSY 2-4-1 S01199003 1 オサエアゲフミイタ TREADLE PEDAL 2-4-2 133188001 1 オサエアゲフミイタジク TREADLE SHAFT 2-4-3 119707003 2 フミイタジウケ TREADLE SHAFT BRACKET 2-4-4 119708001 2 フミイタジウケカラー TREASLE BUSHING COLLAR 2-4-5 017082206 2 ボルト6X22 BOLT, M6X22 2-4-6 116694001 2 4カクナット8 NUT, SQUARE M8 2-4-7 028080240 2 バネザガネー8 WASHER, SPRING 2-8 2-4-8 025080236 2 ヒラザガネチユウ8 WASHER, PLAIN M 8 2-5 142656001 1 クリクリミ CHAIN ASSY <補給用部品> <For supply parts> 3 S49443000 1 コンタク ト170364-1 CONTACT: 170364-1 118-V30-651 60

Page 65 — V. 付属装置関係(オプション部品) / Attachment set (Option parts)

V. 付属装置関係(オプション部品) / Attachment set (Option parts) 20-5-7-1 20-5-7-2 20-5-8 20-5-7 20-5-12 20-5-10 20-5-9 20-5-11 20-5-6 20-8 20-9 20-5-1 20-5-5 20-5-1-1 20-5-13 20-5-4 20-5-3 20-6 20-7 20-15 20-16 20-14 20-5 20-10 20-11 20-12 20-1 20-5-5 20-5-2 20-3 20-2 20-4 20-13 20-17 51 From the library of: Superior Sewing Machine & Supply LLC jintex.in 118-V30-940

Page 66 — V. 付属装置関係 (オプション部品) / Attachment set (Option parts)

V. 付属装置関係 (オプション部品) / Attachment set (Option parts) REF. NO CODE QTY ヒンメイ NAME OF PARTS RM 20 S49615009 1 デンジワイパーアツミ SOL. TYPE THREAD WIPER ASSY 20-1 S41656001 1 イトハイレンカンクミ TR-WIPER CONNECTING ROD ASSY 20-2 S44600001 1 ワイパーアームアツミ THREAD WIPER ARM ASSY 20-3 153112001 1 ダンネジ3.57 SHOULDER SCREW, SM3.57 20-4 021670202 1 ナツト2シュ3.57 NUT, 2 SM3.57 20-5 S49616009 1 ソレノイドボックスクミ SOLENOID BOX ASSY 20-5-1 S49619001 1 イトハイソレノイドクミ TR-WIPER SOLENOID ASSY 20-5-1-1 S41204050 1 プランジヤゴム PLUNGER RUBBER 20-5-2 062300612 4 ナベコ3X6 SCREW, PAN M3X6 20-5-3 S41205001 1 ヒラザガネ WASHER, PLAIN 20-5-4 S41206001 1 イトハイラバネ THREAD WIPER SPRING 20-5-5 S25456001 2 プランジヤピン PLUNGER PIN 20-5-6 S42017109 1 Wソレノイドトリケタ W-SOLENOID SETTING PLATE 20-5-7 S49482000 1 EMロツクSWハーネスクミ EM-LOCK SWITCH & HARNESS ASSY 20-5-7-1 S32335000 1 SW-AVS311N SWITCH,AVS311N 20-5-7-2 S49466000 1 EMSWハーネス EM-SWITCH HARNESS 20-5-8 S37057001 1 EMスイッチスペーサ3 EM-SWITCH SPACER, 3 20-5-9 S42018109 1 Wソレノイドカバー WIPER SOLENOID COVER 20-5-10 008400604 2 +トラスコ4X6 SCREW, TRUSS M4X6 20-5-11 S37806109 1 ソレノイドカバーEフタ SOLENOID COVER LID, E 20-5-12 008400604 2 +トラスコ4X6 SCREW, TRUSS M4X6 20-5-13 115007001 1 ザガネ WASHER, PLAIN 13 20-6 S41207000 1 スペーサゴム SPACER RUBBER 20-7 S25456001 1 プランジヤピン PLUNGER PIN 20-8 018400632 2 アナボルト4X6 BOLT, SOCKET M4X6 20-9 100645003 2 ザガネ WASHER 20-10 S41657001 1 イトユルミロツドDW TENSION RELEASE ROD, DW 20-11 061350616 1 サラコ35X6 SCREW, FLAT M3.5X6 20-12 062680812 2 ナベコ3437-40X8 SCREW, PAN SM3.57-40X8 20-13 156206001 1 ワイパー-A THREAD WIPER, A 20-14 S49947000 1 コネクタVHR-5N CONNECTOR:VHR-5N 20-15 060670612 3 +バインド357-40X6 SCREW, BIND SM3.57-40X6 20-16 149287000 3 ナイロンクランプ CORD HOLDER, 7N 20-17 104449001 1 ゴムセン15.5 RUBBER CAP, 15.5 118-V30-940 62 From the library of: Superior Sewing Machine & Supply LLC Jinteх.in

Page 67 — Z1 . 付属関係 / Accessories

Z1 . 付属関係 / Accessories 4 4-4 5 4-1 4-2 4-3 21 16 20 17 12 10 11 9 19 71 70 103 101 102 6 31 30 29 51 75 75-1 75-2 76 <補給部品 / For Supply parts > 911 912 903 902 901 63 オプション部品 / OPTION PARTS " 15 < KE-430C デニム 用 / For Denim of KE-430C > 64 KE-431C 用 / For KE-431C > 24 23 32 28 27 26 33 34 55 52 57 56 58 921 59 920 14 18 61 42 62 118-V30-910 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 68 — Z1 . 付属 品 関係 / Accessories

Z1 . 付属 品 関係 / Accessories REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 4 S38039209 1 オイルパンクミ OIL PAN ASSY 4-1 S38040209 1 オイルパン OIL PAN 4-2 154467001 1 ハイクユキヤツプ DUSI OILER 4-3 037301215 2 Vナベタツピン3X12 TAPPING SCREW, PAN V M3X12 4-4 S18093100 1 クミヒモ4X4 WICK, 4X4 L=1100 5 109714000 5 クギ NAIL 6 114486002 1 ポリ オイラータイ OILER 9 143882001 2 トウブヒンジ HEAD HINGE 10 014760622 2 アナトメネジ 5.95 SET SCREW, SOCKET SM5.95 11 S49603000 2 トウブヒンジ ウケゴム RÜBBER CUSHION 12 109714000 4 クギ NAIL 14 122991001 1 フツクピンポリクロ ACCESSORY BAG 16 3 ホビン BOBBIN 17 1 ハリ4 コイリクミ NEEDLE 4 PIECE ASSY 18 S10208001 1 イトウカンザ <t=0.4> MOVABLE KNIFE SPACER <t=0.4> 18 S10208002 1 イトウカンザ <t=0.5> MOVABLE KNIFE SPACER <t=0.5> 18 S10208003 1 イトウカンザ <t=0.6> MOVABLE KNIFE SPACER <t=0.6> 19 S36045109 1 マクラクミ HEAD REST ASSY 20 S49604000 2 トウブウケゴム RÜBBER CUSHION 21 109714000 2 クギ NAIL 22 114483002 1 ポリ オイラークミ OILER ASSY 23 S55663001 1 オイルタンククミ OIL TANK ASSY 24 S08170001 1 Zクガタネジマワシ <KE-431C用> <For KE-431C> SCREW-DRIVER, Z-TYPE 26 142443001 1 ネジ マワシ 1.9X52 SCREW-DRIVER, 1.9X52 27 118837001 1 ネジ マワシ 3.4X70 SCREW-DRIVER, 3.4X70 28 101572101 1 ネジ マワシ 5.5X190 SCREW-DRIVER, 5.5X190 29 107779001 1 スパナ6X7 WRENCH, 6X7 30 100887001 1 スパナ8X9 WRENCH, 8X9 31 107780001 1 スパナ10X12 WRENCH, 10X12 33 142721001 1 6カク ボウスパナ 3 HEXAGONAL WRENCH, 3 34 118064001 1 6カク ボウスパナ 4 HEXAGONAL WRENCH, 4 42 200190001 5 ステップル STAPLE 51 144226001 1 トウブカバー HEAD COVER 52 S33006001 < コントロール Box取付用 > 4 モータスペーサ <Setting the control box> MOTOR SPACER 55 133740006 4 カクネボルト 6X70 BOLT, SQUARE M6X70 56 021060106 8 シユナツト 6 NUT, 1 M6 57 025060336 4 ヒラザガネダイ 6 WASHER, PLAIN L 6 58 032461606 < 電源 SW取付用 > 2 + マルモクネジ 4.5X16 <Setting the power switch> WOOD SCREW, ROUND M4.5X16 59 S38044001 1 ヒンジオサエ HINGE PRESSER 61 031412506 4 マルモクネジ 4.1X25 WOOD SCREW, ROUND M4.1X25 62 200190001 3 ステップル STAPLE 64 S41222101 <KE-430Cデニム用> 1 ハリボウイトアンナイB <For Denim of KE-430C> NEEDLE BAR THREAD GUIDE, B 70 S55633001 1 スイツチオンイタ SWITCHING PLATE 71 032422003 2 + マルモクネジ 4.1X20 WOOD SCREW, ROUND M4.1X20 118-V30-910 64 付属品の明細は変更することがあります。 The details of included accessories are subject to change. From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 69 — Z1. 付属関係 / Accessories

Z1. 付属関係 / Accessories 4 4-4 5 4-2 4-3 21 20 16 17 10 12 11 9 19 71 70 103 101 102 6 31 30 29 51 75 75-1 75-2 76 < 補給部品 / For Supply parts > 903 902 911 912 901 " オプション部品 / OPTION PARTS " 15 26 27 28 32 33 34 23 22 55 52 57 56 58 < KE-431C 用 / For KE-431C > 24 < KE-430C デニム用 / For Denim of KE-430C > 64 921 59 920 18 61 62 42 14 118-V30-910 35 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 70 — Z1 . 付属 品 関係 / Accessories

Z1 . 付属 品 関係 / Accessories REF.NO CODE QTY ヒンメイ NAME OF PARTS RM 75 S55311001 1 <国内用> <For Japan only> 75-1 S51097000 1 ベルトカバーIMグミ <For Japan only> 75-2 S38350001 1 ベルトカバーIM <For Japan only> 1 ソウサチュウイラベル.ワ <For Japan only> 75 S55311002 1 <輸出用> <For Export> 75-1 S51097000 1 ベルトカバーIMグミ BELT COVER ASSY, IM 75-2 S38349001 1 ベルトカバーIM BELT COVER, IM 1 ソウサチュウイラベル.エイ LABEL, OPERATION ENG. 76 062401006 2 ナベコ4X10 SCREW, PAN M4X10 101 S08030000 1 GEューズ5AFB FUSE, 5A :FB 102 15322000 1 ヒューズ 6A FUSE, 6A 103 S48580000 1 GFUSE7AFB FUSE, 7A :FB 020 018405032 2 アナボルト4X50 BOLT, SOCKET M4X50 021 021400102 2 ナット1シュ4 NUT, 1 M4 15 S06706001 1 “オプション部品” “OPTION PARTS” シコンオイル SILICONE OIL 901 UA4817000 1 “補給用部品” MOSLSI27C2001 "For supply parts" EPROM:27C2001 902 S60400000 2 トウデンパツト30X50 CONDUCTIVE PAD, 30X50 903 S60711001 1 PROM イレハコ PROM CARTON BOX <エリア30X10mm用> <For Area "30X10mm"> 911 156006001 2 オサエアシ WORK CLAMP, U 912 017680512 2 ボルト4.37X5 BOLT, SM4.37X5 118-V30-910 66 付属品の説明は変更することがあります。 The details of included accessories are subject to change. From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 71

Z2 . 付属関係 / Accessories < KE-430C, KE-432C用 / For KE-430C & KE-432C > 35-1-5-1 35-1-11-1 35-1-10-2 35-1-10-3 35-1-5 35-1-11-5 35-1-11-2 35-1-4-5 35-1-10-1 35-1 35-1-11-1 35-1-7 35-1-8-1 35-1-11-4 35-1-3 35-1-6 35-1-2 35-1-11-5 35-1-11-3 35-1-9 35-1-8-2 35-1-1 35-1-8-3 35-1-4-4 35-1-4-2 35-1-4-3 67-1-1-1 67-1-1-7 67-1-1-6 67-1-1-2 67-1-1-5 67-1-1-3 67-1-1-4 67-1-2 < KE-431C用 / For KE-431C > 35-2-7-1 35-2-7 35-2-15-1 35-2-14-2 35-2-15-5 35-2-14-3 35-2-15-2 35-2-14-1 35-2-6 35-2-12 35-2-15-1 35-2-9 35-2-15-4 35-2-16-2 35-2-15-3 35-2-10-1 35-2-15-1 35-2-3 35-2-11 35-2-5 35-2-8 35-2-2 35-2-15-5 35-2-1 35-2-15-3 35-2-10-2 35-2-13 35-2-10-3 67-2-1 67-2-1-1 67-2-2 67-2-1-5 67-2-1-2 67-2-1-3 67-2-1-4 35-2-4-1 35-2-4-2 67 From the library of: Superior Sewing Machine & Supply LLC 118-V30-910 jintex.in

Page 72 — Z2 . 付属 品 関係 / Accessories

Z2 . 付属 品 関係 / Accessories REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 35-1 S02763402 1 <KE-430C, KE-4320用> イトタダ イクミ2DR <For KE-430C & KE-4320> COTTON STAND ASSY, 2DR 35-1-1 S51283001 2 ウケザラ SPOOL STAND BASE 35-1-2 150182000 2 スプールマット SPOOL MAT 35-1-3 S51282001 2 スプールクッション SPOOL CUSHION 35-1-4 S02777001 1 パイプ"D"ネジセットB PIPE (D) SCREW SET, B 35-1-4-1 150206002 1 ヒラザガネ16 WASHER, PLAIN 16 35-1-4-2 S38648001 1 6カクナットU5/8 NUT, U5/8-28 35-1-4-3 150174000 1 コラムキャップ COLUMN CAP 35-1-4-4 S01005000 2 イトタゴム RUBBER WASHER 35-1-4-5 S02747101 1 イトカケバネ SPRING 35-1-5 S40640001 1 コラムパイプキャップツキ COLUMN PIPE W/CAP 35-1-5-1 150174000 1 コラムキャップ COLUMN CAP 35-1-6 156112003 1 コラムパイプ D COLUMN PIPE, D 35-1-7 150173003 1 コラムジョイント COLUMN JOINT 35-1-8 S21798001 2 スプールネジセット SPOOL & SCREW SET 35-1-8-1 150179002 2 スプールジクB SPOOL SHAFT, B 35-1-8-2 028050246 2 バネザガネ2-5 WASHER, SPRING 2-5 35-1-8-3 021500106 2 1シュナット5 NUT, 1 M5 35-1-9 S02778002 1 スプールホルダー-2 SPOOL HOLDER, 2 35-1-10 S02786002 1 スレッドハンガーグミ2 THREAD HANGER ASSY, 2 35-1-10-1 S02787002 1 スレッドハンガー-2 THREAD HANGER, 2 35-1-10-2 150183000 2 イトカケハンガーダイ THREAD HANGER BASE 35-1-10-3 142990001 2 スレッドブッシュ THREAD BUSH 35-1-11 S40641001 1 スプールジクネジセットA SPOOL SHAFT & SCREW SET, A 35-1-11-1 021500106 4 1シュナット5 NUT, 1 M5 35-1-11-2 062501406 1 ナベコM5X14 SCREW, PAN M5X14 35-1-11-3 S59931001 1 ナベコM5X32 SCREW, PAN M5X32 35-1-11-4 062501406 2 ナベコM5X14 SCREW, PAN M5X14 35-1-11-5 026050136 2 ヒラザガネコ5 WASHER, PLAIN S 5 67-1 S49602201 1 アイガードセットC EYE GUARD SET, C 67-1-1 S44493101 1 アイガードクミ EYE GUARD ASSY 67-1-1-1 S44483001 1 チョウハンクミ HINGE ASSY 67-1-1-2 S44485001 1 アイガード EYE GUARD 67-1-1-3 061660806 2 サラコ318-40X8 SCREW, FLAT SM3.18-40X8 67-1-1-4 021660102 2 ナット1シュ3.18 NUT, 1 SM3.18 67-1-1-5 026070232 2 ヒラザガネミキ3 WASHER, PLAIN M 3 67-1-1-6 S44486101 1 アイガードホルダー-A EYE GUARD HOLDER, A 67-1-1-7 062670512 2 ナベコ357-40X5 SCREW, PAN SM3.57-40X5 67-1-2 062671016 2 ナベコ357-40X10 SCREW, PAN SM3.57-40X10 35-2 S40574109 1 <KE-431C用> イトタダ イクミ2DTHF <For KE-431C> COTTON STAND ASSY, 2DTHF 35-2-1 S51283001 2 ウケザラ SPOOL STAND BASE 35-2-2 150182000 2 スプールマット SPOOL MAT 35-2-3 S51282001 2 スプールクッション SPOOL CUSHION 35-2-4 S02775001 1 パイプネジセットA PIPE SCREW SET, A 35-2-4-1 150206002 1 ヒラザガネ16 WASHER, PLAIN 16 35-2-4-2 S38648001 1 6カクナットU5/8 NUT, U5/8-28 35-2-5 S04109001 1 イトアンナイサエボウ THREAD GUIDE SUPPORT BAR 35-2-6 142990001 1 イトアンナイ3 THREAD GUIDE, 3 35-2-7 S40640001 1 コラムパイプキャップツキ COLUMN PIPE W/CAP 35-2-7-1 150174000 1 コラムキャップ COLUMN CAP 35-2-8 156112003 1 コラムパイプ D COLUMN PIPE, D 35-2-9 150173003 1 コラムジョイント COLUMN JOINT 118-V30-910 68 付属品の説明は変更することがあります。 The details of included accessories are subject to change. From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 73 — Z2 . 付属 品 関 係 / Accessories

Z2 . 付属 品 関 係 / Accessories REF.NO CODE Q'TY ヒンメイ NAME OF PARTS RM 35-2-10 S21798001 2 スプールネジセット <For KE-431C> SPOOL & SCREW SET 35-2-10-1 150179002 2 スプールクシB SPOOL SHAFT, B 35-2-10-2 028050246 2 バネザガネ2-5 WASHER, SPRING 2-5 35-2-10-3 021500106 2 シュウナット5 NUT, 1 M5 35-2-11 150185009 1 イトアンナイホルダー THREAD GUIDE HOLDER 35-2-12 138843001 1 サエボウツキ JOINT 35-2-13 S02778002 1 スプールホルダー-2 SPOOL HOLDER, 2 35-2-14 S02786002 1 スレッドハンガーアッシー2 THREAD HANGER ASSY, 2 35-2-14-1 S02787002 1 スレッドハンガー THREAD HANGER, 2 35-2-14-2 150183000 2 イトハンガーダイ THREAD HANGER BASE 35-2-14-3 142990001 2 レツトブシユ THREAD BUSH 35-2-15 S40641001 1 スプールクシネジセットA SPOOL SHAFT & SCREW SET, A 35-2-15-1 021500106 4 シュウナット5 NUT, 1 M5 35-2-15-2 062501406 1 ナベコ5X14 SCREW, PAN M5X14 35-2-15-3 S59931001 1 ナベコM5X32 SCREW, PAN M5X32 35-2-15-4 062501406 2 ナベコ5X14 SCREW, PAN M5X14 35-2-15-5 026050136 2 ヒラザガネコ5 WASHER, PLAIN S 5 35-2-16 S40643001 1 ホルダージヨイントクシネジセット HOLDER JOINT & SCREW SET 35-2-16-1 014060632 2 ナベコ6X6 SET SCREW, SOCKET (CP) M6X6 35-2-16-2 021500106 1 シュウナット5 NUT, 1 M5 35-2-16-3 S59931001 1 ナベコM5X32 SCREW, PAN M5X32 67-2 S50000201 1 アイガードセットD EYE GUARD SET, D 67-2-1 S36685101 1 アイガードクミ EYE GUARD ASSY 67-2-1-1 S36686101 1 アイガードササエイタ EYE GUARD SUPPORT PLATE 67-2-1-2 S52097001 1 アイガード EYE GUARD 67-2-1-3 062660712 2 ナベコ318-40X7 SCREW, PAN SM3.18-40X7 67-2-1-4 025660132 2 ヒラザガネコ3.18 WASHER, PLAIN S 3.18 67-2-1-5 021660102 2 ナツト1コ3.18 NUT, 1 SM3.18 67-2-2 062671016 2 ナベコ357-40X10 SCREW, PAN SM3.57-40X10 69 118-V30-910 付属品の説明は変更することがあります。 The details of included accessories are subject to change. From the library: Superior Sewing Machine & Supply LLC jintex.in

Page 78 — Ga1 .ゲージ部品一覧表 (KE-430C) / Gauge parts List (KE-430C)

Ga1 .ゲージ部品一覧表 (KE-430C) / Gauge parts List (KE-430C) <ゲージ部品> オプションのゲージ部品には次のものがあります。 押え足 (押え) と送り板は、上下の組合せになります。 ・押え足と送り板 (KE430C用) 1 2 3 4 (C2-37) 押え金組 Work clamp arm assy S49594-301 (被服/For ordinary materials) S49591-301 (デニム/For denim) S49590-301 (デニム AM / For denim AM) S49597-301 (デニム B / For denim B) R 152777-001 < PM > (被服/For ordinary materials) 153608-101 (デニム/For denim) 153201-001 < PL > (デニム/For denim) 152781-001 (デニム/For denim) L (被服/For ordinary materials) (C2-37-8, 37-9) 押え足 Work clamp 23 18 22 23 S49698-001 < L > S49697-001 (デニム/For denim) S49943-001 < PL > (デニム/For denim) S49942-001 (デニム/For denim) (C2-100) 送り板 Feed plate 31 1.4 0.2 30.2 1.4 0.6 23 18 5 6 7 8 (C2-37) 押え金組 Work clamp arm assy S49596-301 (メリヤス/For knitted materials) S49598-301 (デニム AM / For denim AM) S51095-301 < F > S49594-301 (被服/For ordinary materials) R 152779-001 (メリヤス/For knitted materials) 153201-001 < PL > (デニム/For denim) 152778-001 < PM > (被服/For ordinary materials) L 152780-001 (メリヤス/For knitted materials) (C2-37-8, 37-9) 押え足 Work clamp 12 22 15 S49700-001 < S > S49696-001 < F > S49943-001 (PL) (C2-100) 送り板 Feed plate 24 16 13.4 5.4 1 0.2 27 1 0.2 23 1 0.2 9 (C2-37) 押え金組 Work clamp arm assy S49596-301 (メリヤス/For knitted materials) R 152779-001 (メリヤス/For knitted materials) (C2-37-8, 37-9) 押え足 Work clamp 12 (C2-100) 送り板 Feed plate 1 0.2 13 118-V30-Ga1 From the library of: Superior Sewing Machine & Supply LLC 74

Page 79 — Ga1.ゲージ部品一覧表 (KE-430C) / Gauge parts List (KE-430C)

Ga1.ゲージ部品一覧表 (KE-430C) / Gauge parts List (KE-430C) 10 11 12 13 R 153203-001 <PS > S00906-001 (25.4mm) S33747-001 (30mm) (C2-37) 押え調整組 Work clamp assy S59903-001(AW / 30X26mm用) L 153204-001 <PS > S00907-001 (25.4mm) S33748-001 (30mm) S59909-001(W / 30X26mm用) (C2-37-8, 37-9) 押え足 Work clamp 12 28.4 33 (C2-37-8, 37-9) 押え足 Work clamp (C2-212) 押えブランク Work clamp blank (C2-212) 穴ボルト 4.37x5 Bolt, socket SM 4.37x5 S49944-001 < PS > S49946-001 (25.4mm) S49948-001 (30mm) 155994-000 20.4 36 155994-000 (C2-100) 送り板 Feed plate 13 0.2 32.9 21.2 1.4 0.6 33 (C2) 送り板ブランク/ Feed plate blank S49976-100 S49977-100 1.5 0.6 S49978-100 14 15 16 17 R S46771-001 (線円止/ For straight bar tacking) S46771-001 (線円止/ For straight bar tacking/submerged) - - L S46770-001 (線円止/ For straight bar tacking) S46770-001 (線円止/ For straight bar tacking/submerged) - - (C2-37-8, 37-9) 押え足 Work clamp 32.4 32.4 - - (線円止/ For straight bar tacking) S49970-001 (線円止/ For straight bar tacking/submerged) S49974-001 (線円・沈/ For straight bar tacking/submerged) S49941-001 < PM > S49945-001 < MS > (C2-100) 送り板 Feed plate 1 0.2 33 19 112.5 60 0.2 42 1.5 0.6 75 118-V30-Ga1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 80 — Ga1 .ゲージ部品一覧表 (KE-430C) / Gauge parts List (KE-430C)

Ga1 .ゲージ部品一覧表 (KE-430C) / Gauge parts List (KE-430C) 18 19 20 21 R S46774-001 (檢門止/For vertical bar tacking) S46774-001 (檢門・次/For vertical bar tacking/submerged) S46777-001 (檢穴/For circular stitching) S46780-001 (半月円/For crescent bar tacking) L S46773-001 (檢門止/For vertical bar tacking) S46773-001 (檢門・次/For vertical bar tacking/submerged) S46776-001 (檢穴/For circular stitching) S46779-001 (半月円/For crescent bar tacking) (C2-37-8, 37-9) 押え足 Work clamp 13 14.6 4.4 4.4 14.6 (C2-100) 送り板 Feed plate 1 0.2 2 15 1 0.2 13 1 0.2 14.6 (C) 押え足 Work clamp 156006-001 017680-512 156006-001 017680-512 156006-001 017680-512 156006-001 017680-512 ボルト Bolt *20については、別にプログラム作成が必要です。 * Separate programs must be created if using 20. 118-V30-Ga1 From the library of: Superior Sewing Machine & Supply LLC 76

Page 81 — Ga2 . ゲージ部品一覧表 (KE-431C) / Gauge parts List (KE-431C)

Ga2 . ゲージ部品一覧表 (KE-431C) / Gauge parts List (KE-431C) 1 2 (C3-37) 押え廻組 Work clamp arm assy S51848-101 < S > S51851-101 < L > 154416-201 < S > 154417-201 < L > (C3-37-10) 押え足 Work clamp 16 27 S51853-001 < S > S51852-001 < L > (C3-100) 送り板 Feed plate 0.2 17 28 < ゲージ部品 / Gauge parts > 3 S42902-001 < 438E > 原点基準板 送り板揃ねじ / Screw / Home position standard plate (C1-200) (C1-200-1) S42903-001 ゲージ組 Gauge assy (C1-200-2) S10352-101 50 170 77 118-V31-Ga1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 82 — Ga3. ゲージ部品一覧表 / Gauge parts List

Ga3. ゲージ部品一覧表 / Gauge parts List (J-53) 針穴板 / Needle hole plate A S10211-001 A-F S51449-001 BZ S41013-001 D S29997-001 E S10212-101 ED S30925-001 $1.6 $1.6 $2.2 $2.6 $4 $2.6 $10 $3.4 $2.6 3 3 3 3 3 4.8 2.8 (メリヤス用標準 / For knitted materials) F S10213-001 FD S30926-001 FM S49980-001 FZ S59620-001 H S30450-001 L S25127-001 $2.2 $10 $2.2 $2.3 $2.6 $4.7 $3.3 3 3 3 3 3 2.8 被服用標準 / For ordinary materials M S34348-001 3777 S40217-001 $6.5 $4 $6 $3 2.8 2.8 ◎標準の針穴板は、次のとおりです。 ◎ Standard needle hole plates are as follows. 機種 / Model KE-430C 仕様 / Spec. -2 -1 -7 E S10212-101 FM S49980-001 A S10211-001 針穴板 Needle hole plate $4 $2.6 $2.2 $1.6 2.8 3 3 3 機種 / Model KE-431C KE-432C 仕様 / Spec. -2 -3 FM S49980-001 FM S49980-001 FM S49980-001 針穴板 Needle hole plate $2.2 $2.2 3 3 118-V30-Ga3 From the library of: Superior Sewing Machine & Supply LLC 78

Page 83 — Wa. 警告ラベル / Warning labels

Wa. 警告ラベル / Warning labels 警告ラベル / Warning labels 品名 / Name of parts Size(mm) Code ▲ 危険 本機部分に触れると、 けがをすることが ある。 電気を切っ た後、5分 たってからカバーを はずすこと。 電撃ラベル・和 40×64 S38353-101 ▲DANGER AGEFAHR ADANGER AFELIGRO Label, elec. shock 4 lang. 45×118 S38352-101 ▲注意 動く部分でけがをする 恐れがあります。 安全保護装置をつけ て使用すること。 電気を切ってから、 はずし、カバーをはず すこと。 操作注意ラベル・和 40×64 S38350-001 ▲ CAUTION Moving parts may cause injury. Operate with safety devices attached. Turn off the machine switch before threading, changing bobbin and needle, cleaning etc. Label, operation Eng. 40×64 S38349-001 PE PE マーク Label, PE 7.5×12.5 S37059-001 アースマーク Label, grounding Φ 12 S37060-001 79 118-V30-Wa From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 84 — 索引 / INDEX

索引 / INDEX CODE REF.NO page CODE REF.NO page CODE REF.NO page CODE REF.NO page 004400603 U1-1-1-1-5 56 025680132 N-7 26 060501016 D2-22 20 008400604 01-1-22 42 018401236 B2-30-4 6 025680232 F-8 26 R-15 50 V-20-5-10 62 U1-1-1-10 56 H-1-27 30 060670512 F-16 26 V-20-5-12 62 U2-1-2-10 58 H-4 14 06070512 A-18 2 011679312 A-101 2 018401622 C4-37-16 14 025710132 C4-37-24 14 G-4 26 014060632 Z2-35-2-16-1 69 C4-37-34 14 G-6 26 014660622 C4-205 14 018500822 C3-37-15 10 C4-37-10 14 R-20 50 E-3 22 018501022 C2-500-5 10 C4-37-16 14 R-35 50 H-1-9 30 018501036 U1-1-1-7 56 C4-213 14 R-36 50 J-8-2 32 U2-1-2-7 58 C4-231 16 R-33 52 014710522 K-14 36 018501232 E-20 22 E-27 22 06080512 C2-53 10 014760622 C1-1-6 8 018501422 D1-28 18 02600236 K-3 36 C3-53 12 C1-4-4 8 Ga1 75 026040236 D2-35 20 06080712 D1-24 18 C1-6 8 026060102 B2-43 6 026040246 R-40-5 52 D2-24 20 C1-10 8 026100106 Q2-6 48 026040246 D2-35 20 06081212 D1-20 18 C1-13 8 Z1-56 64 U1-1-11 56 D2-20 20 C1-21 8 021060306 C4-223 14 U2-1-2-11 58 J-5 32 C2-37-7 10 021300206 U3-2-1-10 10 026050242 C2-500-6 10 061350616 V-20-11 62 C2-37-24 10 021400102 C4-37-13 14 026050246 U1-1-1-8 56 061660606 Z2-67-1-1-3 68 C3-37-6 12 Z1-921 66 U2-1-2-8 58 062020606 R-40-4 52 C3-37-20 12 021400106 Q2-52 48 Z2-35-1-8-2 68 062300612 R-204 52 D1-13 18 R-40-10 52 Z2-35-2-10-2 69 V-20-5-2 62 D2-13 20 021400206 Q1-1-6 42 Q2-7 48 062300606 R-8 50 D2-36 20 021500106 Z2-35-1-6-3 68 026060240 U3-2-4-7 60 R-9 50 E-7 22 Z2-35-1-11-1 68 026060242 B2-38 6 S-1-2 54 E-10 22 Z2-35-2-10-3 69 026060246 U1-1-1-5 56 062300612 R-206 52 E-15 22 Z2-35-2-15-1 69 U2-1-2-5 58 062301206 U2-1-2-1-6 58 J-33 32 Z2-35-2-16-2 69 026050242 L-15 36 062302506 U1-1-1-8 56 K-5 36 Z2-67-1-1-4 66 M-5-6 36 062400616 R-40-6 52 Z1-10 64 021670122 U1-1-1-5 56 026060242 F-9 26 062400606 N-2 40 014760632 G-28 28 021670202 V-20-4 62 J-22-6 32 062401006 Z1-76 66 014770622 C3-37-9 12 021680202 C4-37-7 14 031412506 Z1-61 64 062401216 R-40-7 52 E-13-1 22 021710212 H-1-24 30 032422003 Z1-71 64 062501212 R-201 52 J-2 32 C4-37-18 14 032461606 Z1-58 64 062501406 Z2-35-1-11-2 68 J-23 32 025030236 U3-2-1-9 60 037301215 Z1-4-3 64 Z2-35-1-11-4 68 014770632 B1-14 4 025040236 Q2-51 48 047401442 L-6 36 Z2-35-2-15-2 69 B1-5 4 U1-1-1-15 56 048030342 K-12 36 Z2-35-2-15-4 69 B1-17 4 U1-1-12 56 C4-37-17 14 062660412 E-14-1-3 22 017060226 U3-2-4-5 60 U2-1-2-14 58 K-4 36 E-14-2-1-3 22 017080512 A-15 2 U2-1-2-12 58 L-19 36 062660712 E-14-1-7 22 B2-49 6 025050232 C2-500-7 10 M-15 32 E-14-2-1-7 22 Z1-912 66 025050236 C2-500-7 10 C2-37-6 10 Z2-67-2-1-3 69 Ga1-211 75 R-202 52 H-1-10 30 062670412 G-31 28 017761212 C4-42 14 025050236 U1-1-1-9 56 048050346 U1-1-1-13 56 062670512 F-26 26 017761412 C2-42 10 U2-1-2-9 58 U2-1-2-12 58 F-39 26 C3-42 12 025060232 C2-41 10 048060342 C1-15 8 F-52 26 017781412 C4-206 16 C3-41 12 C1-23 8 K-16 36 017821813 D2-39 20 C4-37-32 14 J-32 32 062670612 Z2-67-1-1-7 68 018061022 B2-41 6 C4-41 14 K-9 36 G-2 28 C4-37-33 14 D2-35 20 048070342 E-18 22 062670612 G-2 28 018061436 Q2-4 48 025060236 Q2-5 48 J-19 32 G-21 28 018061622 D2-34 20 025060336 A-35 2 048100142 H-1-4 4 R-24 50 018062036 C4-221 16 025060132 A-35 2 048150142 B1-9 4 R-24 50 018062522 B2-42 6 025060232 B2-39 6 D2-28 20 062671012 C2-37-22 10 018062536 U1-1-1-4 56 025060236 U1-1-1-6 56 048180142 C1-8 8 L-14 36 U2-1-2-4 58 U2-1-2-6 58 052400606 U1-1-1-14 56 062671016 Z2-67-1-2 68 018083022 B2-37 6 U3-2-1-4 60 U2-1-2-13 58 Z2-67-2-2 69 018400632 V-20-8 62 U3-2-4-8 60 052400612 U3-2-1-11 60 062671212 C3-37-1-3 12 018400822 C2-47 10 025350132 K-17 36 060300512 C1-34 8 062680512 H-1-18 30 C3-47 12 025350332 L-16 36 060400616 R-37 50 062680612 C1-36 8 018401222 R-3 50 025660132 Z2-67-2-1-4 69 060501016 D1-22 18 C4-218 16 From the library of: Superior Sewing Machine & Supply LLC jintex.in 80

Page 85

150 jintex.in From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 86

CODE REF.NO page CODE REF.NO page CODE REF.NO page CODE REF.NO page 082680612 D1-16 18 100281001 D2-8 20 116629001 C2-37-5 10 144588001 Bpl-G-10 70 D2-16 20 100360003 J-54 34 116694001 K-10 36 144712001 Bpl-G-10 70 F-7 26 100402004 G-17 28 116694001 U3-2-4-6 60 145318001 C2-32 F-31 26 H-1-7 30 116920001 B1-8 4 145446001 C4-32 082680812 B1-16-8 30 100645003 A-34 2 116922001 G-12 28 G-22 M-9 36 V-20-9 62 117143001 C4-37-27 14 H-1-22 082681012 A-26 2 100666002 U3-2-2 60 117150001 R-23 28 145465001 B1-16-5 C1-18 8 100687001 Z1-30 64 117934001 A-6 14 145478101 C2-37-17 C1-26 8 101268002 U3-2-1-5 60 117936001 A-17-3 2 145478101 C3-37-15 082681212 C1-3-2 8 101706001 E-6-1 64 U1-1-1-16 58 M-2 14 103610002 B1-18 4 118064001 Z1-34 64 145819001 Sp1-G-10 082681412 N-6 16 103810002 E-26 22 118244001 C4-37-28 14 Sp1-G-10 082710812 C4-211 16 104449001 A-11 14 118247001 C4-37-11 14 Sp2-G-10 C4-219 16 V-20-17 62 118248101 C4-37-21 14 Sp2-G-10 C4-230 16 10450101 A-4 2 118249001 C4-37-29 14 Sp2-G-10 L-2 36 A-10 2 118249001 Sp2-C4-37-29 73 Sp2-G-10 R-31 52 104525001 G-14-1 2 118250001 C4-37-30 73 145992001 K-8 082711012 A-42 2 Sp1-G-14 70 118250001 Sp2-C4-37-30 73 146354001 C2-37-14 C4-212 16 Sp1-G-14 70 118252001 C4-37-23 14 146994001 C4-202 082761012 C4-20 14 Sp1-G-14 72 118256001 C4-37-4 14 14777000 B1-16-9 070698950 C1-16 8 Sp2-G-14 72 118257001 C4-37-5 14 148738000 F-4 C1-24 8 Sp2-G-14 72 118259001 C4-37-3 14 F-40 071039750 C2-48 10 Sp2-G-14 72 118259001 C4-37-6 14 148847001 J-13 C3-48 10 104967101 F-22 26 118735002 C4-207 16 148904001 U3-2-1-3 071047650 C2-40 10 105023003 D2-32 118837001 C4-222 16 149287000 R-32 C3-40 12 105612003 J-15 32 119707003 U3-2-4-3 60 149809000 Q2-45 C4-40 14 105912003 J-15 38 119708001 U3-2-4-4 60 072630260 B1-7 4 106629002 M-5-5 38 120440001 D2-25 20 150173003 Z2-35-1-7 081003670 E-12 22 107038003 C2-37-12 40 120990001 H-1-13 30 150174000 Z2-35-1-4-3 087310815 S-1-1-5 54 107149001 F-5 26 121007001 J-42 32 150174000 Z2-35-1-5-1 091170009 P-1-5 40 10721003 L-4 26 122991001 Z1-14 64 150179002 Z2-35-1-8-1 093650006 P-1-3 40 107415009 Sp1-B1-26 71 123882001 C4-37-36 14 150179002 Z2-35-2-10-1 093650032 P-1-4 40 107415014 Sp1-B1-26 71 133188001 U3-2-4-2 60 150182000 Z2-35-1-2 0A4301005 P-1-13 40 Sp1-B1-26 71 133740006 Z1-55 64 150183000 Z2-35-1-10-2 0A4400605 Q2-42 48 107606001 G-14-2 28 138843001 Z2-35-2-12 69 150185009 Z2-35-2-11 0A4400605 S-1-1-6 54 107744001 D2-30 20 140392009 A-5 2 150206002 D2-27 0A5400606 Q1-1-9 42 107779001 Z1-29 64 140407001 C4-226 16 150553001 C4-37-2 0A5401006 R-17 50 107780001 Z1-31 64 140407002 C3-37-7 12 150556001 C4-208 R-5 50 108802001 C1-5 8 140647101 R-40-5 52 150592001 A-29 R-11 50 109239002 A-24 2 140726000 B1-6 4 0A5401206 Q1-1-5 42 109714000 Z1-5 64 141492001 J-26-2 32 151602002 C1-1-3 Q1-1-10 42 110161004 J-37 32 141590001 M-1-2 38 152240101 B1-22 100022004 H-1-26 30 110233001 J-36 32 141786001 E-1 22 152242001 B1-24 100022005 J-25 32 110251001 L-9 36 142443001 Z1-26 64 152243001 B1-25 M-1-3 38 110367001 J-31 32 142656001 U3-2-5 64 152245101 E-4 100032004 J-51 34 111140002 J-4 34 142721001 Z1-33 64 152678201 E-11 100090004 E-2 38 114294001 G-9 28 142990001 Z2-35-1-10-3 68 152682101 Sp1-E-21 100135001 G-20 28 114483002 Z1-22 64 142997001 Z2-35-2-6 68 Sp1-E-21 100242003 B1-20 4 114486002 Z1-6 64 143882001 Z1-9 64 Sp1-E-21 100250001 B1-13 4 115007001 V-20-5-13 62 144105000 H-1-23 30 Sp2-E-21 100281001 D1-8 18 115147001 C4-201 14 144110001 H-1-21 30 Sp2-E-21 115166001 G-19 28 144226001 Z1-51 64 Sp2-E-21 115188001 G-21 28 144458001 B1-23 4 152683101 E-14-1-4 81 From the library: Superior Sewing Machine & Supply LLC jinte.x.in

Page 87 — INDEX

索引 / INDEX CODE REF.NO page CODE REF.NO page CODE REF.NO page CODE REF.NO page 152683101 E-14-2-1-4 22 15357001 M-5-2 10 159610301 Sp1-E24 70 S00554000 Q1-1-17 42 152684101 E-14-1-5 22 153597001 M-5-2 10 Sp1-E24 70 S00705001 J-47 34 152688101 E-14-2-1-5 22 153608101 Sp1-C2-37-8 71 Sp1-E24 70 S00906001 Ga1-C2-37-8 75 152690401 Sp1-E-21 70 Sp1-C2-37-8 71 Sp2-E24 72 S01005000 Z2-35-1-4-4 68 152756001 C1-9 8 153627001 Ga1-C2-37-8 74 Sp2-E24 72 S01199003 U3-2-4-1 60 152760051 C1-7 8 153628001 Ga1-C2-37-8 74 159612001 Sp1-E-24-3 70 S01603009 U3-2-4 60 15277000 C2-38-1 10 153629001 C1-4 20 159612001 Sp1-E-24-3 70 S01998001 L-8 36 C3-38-1 12 153634101 C4-203 14 Sp1-E-24-3 70 S01998001 M-13 38 C4-38-1 14 153638001 D2-37 20 Sp2-E-24-3 72 S02354001 J-24 32 152777001 Sp1-C2-37-8 71 153639001 C1-4 8 Sp2-E-24-3 72 M-3 38 Sp1-C2-37-8 71 F-45 26 Sp2-E-24-3 72 S02429101 E-14-1-2 22 Sp1-C2-37-8 74 154339101 Sp1-E-24-1 70 159613051 Sp1-E-25 70 E-14-1-2 22 152778001 Ga1-C2-37-8 74 154339101 Sp1-E-24-1 70 Sp1-E-25 70 S02852001 J-7 32 Ga1-C2-37-9 74 Sp1-E-24-1 70 Sp1-E-25 70 S02854001 J-8-1 32 Ga1-C2-37-9 74 Sp2-E-24-1 72 Sp2-E-25 72 S02747101 Z2-35-1-4-5 68 152779001 Ga1-C2-37-8 74 Sp2-E-24-1 72 Sp2-E-25 72 S02763402 Z2-35-1 68 Ga1-C2-37-8 74 Sp2-E-24-1 72 Sp2-E-25 72 S02775001 Z2-35-2-4 68 Ga1-C2-37-9 74 Sp2-E-24-1 72 Sp2-E-25 72 S02777001 Z2-35-1-4 68 152780001 Ga1-C2-37-8 74 15985001 C1-4 12 S02778002 Z2-35-2-13 69 Ga1-C2-37-9 74 154340101 Sp1-E-24-1 70 15985001 G-15 28 S02786002 Z2-35-1-10 68 Ga1-C2-37-9 74 154341001 Sp1-E-24-1 70 159851001 C3-37-14 12 Z2-35-2-14 69 152781001 C2-37-10 10 Sp1-E-24-1 70 159852001 C3-37-14 12 S02787002 Z2-35-1-10-1 68 152784001 C2-37-11 10 Sp2-E-24-1 72 159861001 C1-4 22 Z2-35-2-14-1 69 152788000 C2-37-19 10 Sp2-E-24-2 72 18349001 C1-3 8 S04109001 Z2-35-2-5 68 C3-37-17 12 Sp2-E-24-2 72 200190001 U3-2-3 60 S06533001 C4-37-31 14 15282101 K-2 36 Sp2-E-24-2 72 Z1-42 46 S06706001 Z1-15 66 152823001 K-11 36 154342001 Sp1-E-24-3 70 Z1-62 64 S07333001 F-2 26 152827001 C4-214 16 154343001 Sp1-E-24-3 70 218859001 Q2-2-1-5 46 S07456000 F-3 26 K-13 36 Sp1-E-24-3 70 Q2-2-2-5 46 S08030000 Q1-1-26-15 42 152842059 A-22-1 2 Sp2-E-24-3 72 Q2-2-3-5 46 15286001 G-1 28 154416201 Sp2-C3-37-10 73 Q2-2-4-5 46 S08170001 Z1-101 64 152872001 G-8 28 154416201 Sp2-C3-37-10 73 Q2-2-5-5 46 S09043000 E-14-1-8 22 152881001 G-27 28 Ga2-C3-37-10 77 224514001 R-25 50 E-14-2-1-8 22 152883000 G-29 28 154417201 Sp2-C3-37-10 73 Q2-2-1-4 46 F-32 26 152884001 G-30 28 Sp2-C3-37-10 73 Q2-2-2-4 46 S09212001 C1-3-1 8 152889001 G-23 28 Ga2-C3-37-10 77 Q2-2-3-4 46 S10105001 D1-14 18 152890001 G-25-1 28 154457001 Z1-42 64 Q2-2-4-4 46 D2-14 20 Sp1-G-25 71 154514001 R-40-9 52 Q2-2-5-4 46 S10162201 F-15 26 152891101 G-26 28 154527001 Sp1-C2-37-9 71 228475000 C4-216 74 S10174000 H-1-15 30 152948001 F-33 26 Sp1-C2-37-9 71 F-44 32 S10195101 J-30 32 152956001 F-42 26 Ga1-C2-37-9 74 J-55 32 S10202201 J-41 32 152969001 F-38 26 154528001 J-21 32 Q1-12 42 S10208001 J-46 32 R-12 50 154596000 J-21 32 228475000 R-22 50 Z1-18 64 153035000 C2-45 10 154599000 J-6 32 U2-1-2-1-7 58 J-46 32 C3-45 12 155559001 L-18 36 231071001 J-17 32 Z1-18 64 C4-45 14 155562101 C4-37-8 14 232384001 Q1-1-26-6 42 S10208003 J-46 32 153057101 C2-44 10 155567001 C4-200 14 402887001 E-14-1-6 22 Z1-18 64 C3-44 12 155577001 C4-37-15 14 402887001 E-14-2-1-6 22 S10209101 C2-51 10 C4-44 14 155578000 B1-21 4 5525664000 C4-217 16 C3-51 12 153112001 C2-37-8 74 155594000 Ga1-C2-212 75 552907000 R-10 50 C4-51 14 Ga1-C2-37-8 74 156006001 Z1-911 66 R-40 52 J-48 34 Ga1-C2-37-9 74 Ga1-210 75 J02657001 Q2-2-1-3 46 S10210201 J-49 34 153202001 Ga1-C2-37-8 74 156112003 Z2-35-1-6 68 Q2-2-2-3 46 S10211001 Sp1-J-53 70 Ga1-C2-37-9 74 Z2-35-2-8 68 Q2-2-3-3 46 Ga3-J-53 78 153203001 Ga1-C2-37-8 75 156170001 C4-37-12 14 Q2-2-4-3 46 S10212101 Sp1-J-53 70 153204001 Ga1-C2-37-9 75 156206001 V-20-13 62 Q2-2-5-3 46 Ga3-J-53 78 153242000 Q1-1-26-14 42 K-15 36 J80868001 R-19 50 S10213001 Ga3-J-53 78 153484001 D2-31 20 156495201 C2-37-21 10 S00480000 R-34 50 S10243000 R-205 52 153567000 C2-37-20 10 157968001 H-1-17 30 U3-2-1-12 60 S10352101 Ga2-C1-200-2 77 C3-37-18 12 159565000 F-23 26 S10469001 G-18 28 153569001 C3-37-16 12 159574101 H-1-19 30 From the library of: Superior Sewing Machine & Supply LLC 82 jintex.in

Page 89 — 索引 / INDEX

索引 / INDEX CODE REF.NO page CODE REF.NO page CODE REF.NO page CODE REF.NO page S42903001 Ga2-C1-200-1 77 S48581100 R-6 50 S49602201 Z2-67-1 68 S49668101 U1-1-1-1 56 S43175000 Q1-1-26-10 42 S48582000 R-6.4 50 S49603000 Z1-11 64 S49669100 U1-1-1-1-1 56 S43176000 Q1-1-26-11 42 S48583001 R-200 62 S49604000 Z1-20 64 S49672001 U2-1-2-1-1 58 S43177000 Q1-1-26-1 42 S48646001 C2-37-16 10 S49605001 E-8 22 S49673000 U1-1-1-1-10 56 S43181000 Q1-1-26-12 42 S48664001 Sp1-E-24-1 70 S49606001 V-20 62 S49674001 U1-1-1-11 56 S43181000 Q1-1-26-12 42 Sp1-E-24-1 70 S49615009 V-20 62 U2-1-2-1-9 58 S43184000 Q1-1-26-2 42 Sp1-E-24-1 70 S49616009 V-20-5 62 S49675001 U1-1-1-1-10 56 S43187000 Q1-1-26-15 42 Sp2-E-24-1 72 S49618000 F-53 26 U2-1-2-1-10 58 S43188000 Q2-2-6 46 Sp2-E-24-1 72 S49619001 V-20-5-1 62 S49675101 U2-1-2 58 S43189000 Q1-1-26-18 42 Sp2-E-24-1 72 S49620000 F-17 26 S49676101 U2-1-2-1 58 S43201000 Q2-3-4 48 S48666001 N-1 40 S49622000 F-19 26 S49681009 A-22-2 2 S43275000 Q1-1-19 42 S49670001 Q1-1-26-7 42 S49623000 F-34 26 S49683001 C1-35 8 S43276000 Q1-1-20 42 S49670001 R-18 50 S49624000 F-35 26 S49685000 C1-14-11 22 S44010001 A-31 2 S49646001 R-18 50 S49625000 F-36 26 S49689001 B1-16-6 4 S44483001 Z2-67-1-1-1 68 S49646001 R-18 50 S49626000 E-14-1-10 22 S49694001 Sp1-C2-37-8 71 S44485001 Z2-67-1-1-2 68 S49650001 R-21 50 S49629201 J-1 32 Sp1-C2-37-8 71 S44486101 Z2-67-1-1-6 68 S4965002 R-21 50 S49630001 D1-1 18 Ga1-C2-37-8 74 S44493101 Z2-67-1-1 68 S4965009 R-21 50 S49631001 D1-2 18 S49695001 Sp1-C2-37-9 71 S44600001 V-20-2 62 V-20-5-7-2 62 D2-2 20 Sp1-C2-37-9 71 S44629001 A-920 2 S49670001 Q1-1 42 D1-3 18 Ga1-C2-37-9 74 S45083001 G-32 28 S49670001 Q1-1-1 42 S49632001 D2-3 20 S49696001 Sp1-C2-100 71 S45147101 B1-2 4 S49670001 Q1-1-2 42 D1-4 18 Sp1-C2-100 71 S46131001 U3-2 60 S49670001 Q1-1-3 42 S49635001 D1-4 18 Ga1-C2-100 74 S46132001 U3-2-1 60 S49470001 Q1-1-3 42 D2-4 20 S49697001 Sp1-C2-100 71 S46133001 U3-2-1-1 60 S49472000 Q1-1-26-20 42 S49636001 D1-5 20 Sp1-C2-100 71 S46134001 U3-2-1-2 60 S49473000 Q2-3-2 46 D2-5 20 Ga1-C2-100 74 S46135001 U3-2-1-6 60 S49474000 Q2-3-2-1 46 S49637001 D1-6 20 S49698001 Sp1-C2-100 71 S46136000 U3-2-1-7 60 S49475000 Q2-3-3 48 D2-6 18 Sp1-C2-100 71 S46694000 U1-1-1-19 56 S49476000 Q2-3-3-1 48 S49638001 D1-7 20 Ga1-C2-100 74 S46694000 U1-1-1-19 56 S49477000 Q1-10 42 D2-7 18 S49700001 Ga1-C2-100 74 S46703000 S-1-1-7-3 54 S49479001 P-1 40 S49639001 D1-15 18 S49700001 Ga1-C2-100 74 S46734001 M-12 38 S49482000 R-30-2 50 D2-15 20 S49900001 Ga1-FM 78 S46769001 Ga1-C2-190 76 V-20-5-7 62 S49640101 D1-17 18 S49934009 R-30 50 S46770001 Ga1-C2-37-9 76 S49484000 P-1-6 40 D2-17 20 S49938000 Q1-1-26-21 42 Ga1-C2-37-9 76 S49485000 P-1-7 40 S49641001 D1-19 18 S49939101 Q1-1-26 42 S46771001 Ga1-C2-37-8 76 S49486000 P-1-11 40 D2-19 20 S49940001 Ga1-C2-100 75 Ga1-C2-37-8 76 S49495000 S-1-1-3 54 S49642001 D1-21 18 S49942001 Ga1-C2-100 74 S46772001 Ga1-C2-190 76 S49496001 S-1-1-4 54 D2-21 20 S49943001 Ga1-C2-100 74 S46773001 Ga1-C2-37-9 76 S49497001 S-1-1-7-1 54 S49643001 D1-23 18 S49944001 Ga1-C2-100 75 Ga1-C2-37-9 76 S49510000 S-1-1-8 54 S49644001 D1-23 18 S49945001 Ga1-C2-100 75 S46774001 Ga1-C2-37-8 76 S49582001 B1-3 4 S49645001 J-16 32 S49946001 Ga1-C2-100 75 Ga1-C2-37-8 76 S49583001 B1-4 4 S49646101 J-10 32 S49947000 V-20-14 62 S46775001 Ga1-C2-190 76 S49584000 B1-12 4 S49648001 J-22 32 S49948001 Ga1-C2-100 75 S46776001 Ga1-C2-37-9 76 S49585001 B1-16 4 S49649001 J-26 32 S49955001 C2-43 10 Ga1-C2-37-9 76 S49586000 Q1-1-26-3 42 S49650001 J-26-1 32 S49955001 C2-43 10 S46778001 Ga1-C2-190 76 S49587001 B1-16-1 4 S49650001 J-29 32 S49955001 C2-43 10 S46779001 Ga1-C2-37-9 76 S49590001 B1-16-2 4 S49651001 J-35 36 C3-43 12 S46780001 Ga1-C2-37-8 76 S49591001 B1-16-4 4 S49652101 K-1 36 C4-43 14 S46781001 Ga1-C2-190 76 S49653001 C1-33 8 S49653001 M-5 38 S49957000 F-18 26 S46782001 Ga1-C2-190 76 S49659001 Sp1-C2-37 71 S49654001 M-5-1 38 F-46 26 S47091001 B1-16-3 4 Ga1-C2-37 74 S49655001 M-5-4 38 S49958000 F-47 26 S47270001 B2-44 6 S49652200 C2-37-1 10 S49656001 M-7 38 S49959001 F-14 26 S47335101 H-5 30 S49593000 B1-19 4 S49657001 L-1 36 S49960109 A-17 2 S47592000 Q2-2-4 46 S49594001 Sp1-C2-37 71 S49660101 L-3 36 S49961109 A-17-1 2 S47594000 Q2-2-7 46 Ga1-C2-37 74 S49661101 L-7 36 S49962000 A-17-2 2 S47595000 Q2-2-4-2 46 Sp1-C2-37-19 71 S49662001 L-17 36 S49970001 Ga1-C2-100 75 Q2-2-7-2 46 S49695001 C2-37-23 10 S49663001 L-13 36 S49971001 Ga1-C2-100 76 S47692000 Q1-1-7 42 C3-37-19 12 S49664000 L-20 36 S49972001 Ga1-C2-100 76 S48578000 P-1-14 40 S49696301 Sp1-C2-37 71 S49665001 M-1 36 S49973001 Ga1-C2-100 76 S48579000 S-1-1-7-4 54 Ga1-C2-37 74 S49666001 M-1-1 38 S49974001 Ga1-C2-100 75 S48580000 Q1-1-26-16 42 Sp1-C2-37 71 S49667101 U1-1-1 56 S49975001 Ga1-C2-100 76 Z1-103 66 S49597301 Ga1-C2-37 74 S49676100 Ga1-C2-100 74 From the library: Superior Sewing Machine & Supply LLC 84 jintex.in

Page 90 — INDEX

索引 / INDEX CODE REF.NO page CODE REF.NO page CODE REF.NO page CODE REF.NO page S49977100 Ga1-C2-100 75 S53035001 Q1-H-4 44 S59873001 J-22-4 32 SA2173001 Sp1-E-22 70 S49978100 Ga1-C2-100 75 S53036001 Q1-H-5 44 S59874001 J-22-1 32 Sp1-E-22 70 S49979400 R-14-1 50 S53037001 Q1-H-6 44 S59885001 E-14-2-1 22 Sp1-E-22 70 S49980001 Sp1-J-53 72 S53038001 Q1-H-7 44 S59886001 E-14-2-1-9 22 Sp2-E-22 72 Sp2-J-53 72 S53039001 Q1-H-8 44 S59888001 E-14-2-1-11 22 Sp2-E-22 72 Sp2-J-53 72 S53040001 Q1-H-9 44 S59890001 E-14-2 22 Sp2-E-22 72 Ga3-J-53 78 S53055100 T-2 54 S59893001 J-12 32 U32744000 P-1-12 40 S49981000 E-14-1-9 22 S53119001 A-13-1 2 S59900001 Ga1-C2-37 74 U34870001 S-1-1-7-5 54 S49982000 F-12 26 S53120001 A-13-2 2 S59903001 Ga1-C2-37-8 74 UA4817000 Q1-10-1 42 S49984000 F-21 26 S54450000 U1-1-1-7-1-1-1 56 S59910001 C1-1-2 8 UA4817000 Z1-901 66 S49985000 F-49 26 S54640000 U1-1-1-7-1-2 56 S59911001 C1-4 8 UD025000 S-1-1-7-7 54 S49986000 F-49 26 S54645000 U1-1-1-7-1-3 56 S59914001 C1-4-1 10 UL0025000 S-1-1-7-7 54 S49987000 F-50 26 S54646000 U1-1-1-7-2 56 S59915001 C2-5 10 Y1030150 P-1-15 40 S49988001 J-45 26 S54647000 U2-1-2-1-5-1 58 C3-5 14 S49992000 F-1 26 S54648000 U1-1-1-7-1-5 58 S59916001 C2-31 14 S49994001 J-38 32 S55140001 E-24 22 C3-31 14 S49995001 F-51 26 S55157000 D1-12 20 C4-31 14 S49999301 A-100 2 S55200000 Z2-12 22 S59917001 C2-46 10 S50000201 Z2-67-2 69 S55202000 A-25 2 C3-46 10 S50520000 E-14-2-2 24 S55214000 E-23 22 C4-38 10 S50645000 P-1-10 40 S55215001 E-19 22 S59919000 C2-50 10 S51064001 C4-100 14 S55216001 E-14-2-1-1 22 C3-50 10 Sp2-C4-100 73 S55311001 E-14-1-1 22 C4-50 14 Sp2-C4-100 73 S55311002 Z1-75 66 S59920001 A-41 2 S51095301 Sp1-C2-37 71 S55479001 Z1-75 66 S59921001 C2-39 12 Ga1-C2-37 74 S55572001 D1-18 18 C3-39 12 S51097000 Z1-75-1 66 S55630001 D2-18 20 C4-39 14 S51098000 A-40 2 S55720001 B2-31 6 S59922100 Sp1-E24 70 S51282001 Z2-35-1-3 68 S55725001 B2-46 6 Sp1-E24 70 Z2-35-2-3 68 S55820001 Q1-54 44 Sp1-E24 70 S51283001 Z2-35-1-1 68 S55829001 R-40 52 Sp2-E24 72 S51283001 Z2-35-2-1 68 S55830001 R-40-1 52 Sp2-E24 72 S5144001 Ga3-J-53 78 S55833001 R-40-3 52 S59923000 C2-52 10 S51451000 U1-1-1-1-1-9 56 S55850000 E-22 22 C3-52 10 U2-1-2-1-8 58 S55859001 F-54 26 C4-52 14 S51460009 A-33 2 S55863001 Z1-23 64 S59927001 C2-37-25 10 S51848101 Sp2-C3-37 73 S55877001 B1-15 4 C3-37-21 10 Ga2-C3-37 77 S55889001 S-1 54 S59931001 Z2-35-1-11-3 68 S51849101 C3-37-1 12 S55890001 S-1-1 54 S59931001 Z2-35-2-15-3 69 Sp2-C3-37 73 S55891000 S-1-1-1 54 S60400000 Z1-902 66 Ga2-C3-37 77 S55927101 E-14-1 22 S60711001 Z1-903 66 S51852001 Sp2-C3-100 73 S56017000 B2-30-1 6 SA0037000 Q1-1-26-5 42 Ga2-C3-100 77 S56018000 B2-30-2 6 SA0045001 J-22-5 32 Sp2-C3-100 73 S56019001 B2-30-3 6 SA0703001 M-17 38 Ga2-C3-100 77 S56167000 R-6-1 50 SA1034000 Q1-1-26-9 42 S51853001 Sp2-C3-100 73 S56167001 R-6-2 50 SA1570019 Sp1-Z1-17 71 Sp2-C3-100 73 S56167002 R-6-2 50 SA1752009 Sp1-Z1-17 71 S51859101 G-5 28 S56167003 R-6-3 50 SA1752014 Sp1-Z1-17 71 S52091000 S-1-1-2 54 Sp1-Z1-17 71 S52097001 Z2-87-2-1-2 69 SA1881001 Sp1-E-22 70 S52098201 C4-232 16 Sp1-E-22 70 S52834201 B2-30 6 Sp1-E-22 70 S52836000 B2-47 6 Sp2-E-22 72 S52838000 B2-35 6 Sp2-E-22 72 S52839200 B2-36 6 Sp2-E-22 72 S52840001 B2-40 6 SA1890001 Sp1-E-22 70 S53031001 Q1-H-1 44 S55976000 A-23 2 S53032000 Q1-H-11 42 S55978001 E-14-2-1-10 24 S53033001 Q1-H-2 44 S55987001 J-22-3 32 S53034001 Q1-H-3 44 S55987201 J-22-2 32 85 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 91

brother. パーツブック PARTS BOOK ブラザー工業株式会社 〒467-8561 名古屋市瑞穂区苗代町 15 番 1 号 TEL (052) 824-2392 BROTHER INDUSTRIES, LTD 15-1, Naeshiro-cho, Mizuho-ku, Nagoya 467-8561, Japan. Phone : 81-52-824-2177 Printed in Japan 118-V30, 118-V31, 118-V32 S96V30-401 2002.10. H (1) From the library of: Superior Sewing Machine & Supply LLC jintex.in
