Page 16
Brother KE-430C / KE-431C / KE-432C parts on page 16| Ref | Part number | Part name | Qty |
|---|
| S59915001 | TACK WIDTH FEED SHAFT | 1 |
| S59916001 | FEED BRACKET GUIDE PLATE | 1 |
| 145318001 | SCREW, SM4.37 | 8 |
| S51849101 | WORK CLAMP ARM ASSY | 1 |
| 159825200 | WORK CLAMP ARM, 431 | 1 |
| 159827001 | WORK CLAMP GUIDE BRACKET, B | 1 |
| 062671212 | SCREW, PAN SM3.57-40X12 | 4 |
| 154413001 | WORK CLAMP LEVER, A | 1 |
| S41230001 | WORK CLAMP LEVER, B | 1 |
| 154415001 | WORK CLAMP LEVER, C | 1 |
| 153944001 | LEVER SHAFT BUSH | 1 |
| 014760622 | SET SCREW, SOCKET SM5.95 | 1 |
| 140407002 | WASHER | 1 |
| 018500822 | BOLT, SOCKET M5X8 | 1 |
| 014770622 | SET SCREW, SOCKET (CP) SM6.35 | 2 |
| * | WORK CLAMP, 431 | 1 |
| S37951101 | WORK CLAMP ARM LEVER PLATE | 1 |
| 140407002 | WASHER | 1 |
| 018500822 | BOLT, SOCKET M5X8 | 1 |
| 15988101 | SPRING GUIDE ROD, B | 1 |
| 15478101 | SHOULDER SCREW, SOCKET SM4.76 | 1 |
| 153569001 | PRESSER SPRING, B | 1 |
| 152788000 | PRESSER SPRING COLLAR | 1 |
| 153567000 | PRESSER SPRING COLLAR | 1 |
| S49595001 | WORK CLAMP ARM SUPPORT SHAFT | 1 |
| 014760622 | SET SCREW, SOCKET SM5.95 | 1 |
| S59927001 | SUPPORT SHAFT PUSH SPRING | 1 |
| S59918001 | FEED BRACKET ASSY | 1 |
| 15271000 | FEED BRACKET SPACER | 2 |
| S59921001 | SPACER, 4.8 | 2 |
| 071047650 | BEARING BALL, 3/16 | 2 |
| 025060232 | WASHER, PLAIN M 6 | 2 |
| 017761412 | BOLT, SM5.95X14 | 2 |
| S4955001 | SCREW, W/SOCKET SM4.37 | 1 |
| 153057101 | SCREW, W/SOCKET SM4.37 | 1 |
| 153035000 | WORK CLAMP FELT | 1 |
| S59917001 | WORK CLAMP ARM SUPPORT PLATE | 1 |
| 018400822 | BOLT, SOCKET M4X8 | 2 |
| 071039750 | BEARING BALL, 5/32 | 3 |
| S59919000 | ROD END, PB-8 | 1 |
| S10209101 | SCREW, SM4.37 | 1 |
| S59923000 | FEED BRACKET COVER, R | 1 |
| 060680512 | SCREW, BIND SM4.37-40X5 | 2 |
| * | FEED PLATE, 431 | 1 |
C3. 送り関係 (KE-431C) / Feed mechanism (KE-431C)
REF.NO
CODE
Q'TY
ヒンメイ
NAME OF PARTS
RM
5
S59915001
1 タテオリクシク
TACK WIDTH FEED SHAFT
31
S59916001
1 オクリダイアンナイタ
FEED BRACKET GUIDE PLATE
32
145318001
8 シメネジ 4.37
SCREW, SM4.37
37
1 オサエウデクミ431
WORK CLAMP ASSY, 431
37-1
S51849101
1 オサエウデクミコ
WORK CLAMP ARM ASSY
37-1-1
159825200
1 オサエウデ 431
WORK CLAMP ARM, 431
37-1-2
159827001
1 オサエアシヨウセイタイタB
WORK CLAMP GUIDE BRACKET, B
37-1-3
062671212
4 ナベコ357-40X12
SCREW, PAN SM3.57-40X12
37-2
154413001
1 オサエウデレバー-A
WORK CLAMP LEVER, A
37-3
S41230001
1 オサエウデレバー-B
WORK CLAMP LEVER, B
37-4
154415001
1 オサエウデレバー-C
WORK CLAMP LEVER, C
37-5
153944001
1 レバーシクメタル
LEVER SHAFT BUSH
37-6
014760622
1 アナトメネジ 5.95
SET SCREW, SOCKET SM5.95
37-7
140407002
1 ザガネ
WASHER
37-8
018500822
1 アナボルト5X8
BOLT, SOCKET M5X8
37-9
014770622
2 アナトメネジ 6.35クボミ
SET SCREW, SOCKET (CP) SM6.35
37-10
*
1 オサエウデクミ431
WORK CLAMP, 431
37-11
S37951101
1 オサエウデレバー-イタ
WORK CLAMP ARM LEVER PLATE
37-13
140407002
1 ザガネ
WASHER
37-13
018500822
1 アナボルト5X8
BOLT, SOCKET M5X8
37-14
15988101
1 オサエウデアンナイロツド B
SPRING GUIDE ROD, B
37-14
15478101
1 ダンネジ 4.76
SHOULDER SCREW, SOCKET SM4.76
37-16
153569001
1 オサエバネB
PRESSER SPRING, B
37-17
152788000
1 オサエバネカンザ
PRESSER SPRING COLLAR
37-19
153567000
1 オサエバネカラー
PRESSER SPRING COLLAR
37-19
S49595001
1 オサエウデサエジク
WORK CLAMP ARM SUPPORT SHAFT
37-20
014760622
1 アナトメネジ 5.95
SET SCREW, SOCKET SM5.95
37-21
S59927001
1 ササエジククシバネ
SUPPORT SHAFT PUSH SPRING
38
S59918001
1 オクリダイクミ
FEED BRACKET ASSY
38-1
15271000
2 オクリダイカンザ
FEED BRACKET SPACER
39
S59921001
2 カンザ 4.8
SPACER, 4.8
40
071047650
2 コウキュウ3/16
BEARING BALL, 3/16
41
025060232
2 ヒラザガネチユウ6
WASHER, PLAIN M 6
42
017761412
2 ボルト5.95X14
BOLT, SM5.95X14
43
S4955001
1 オクリダイメネジ
SCREW, W/SOCKET SM4.37
44
153057101
1 オクリダイメネジ
SCREW, W/SOCKET SM4.37
45
153035000
1 オサエウデフェルト
WORK CLAMP FELT
46
S59917001
1 オサエウデサエジタ
WORK CLAMP ARM SUPPORT PLATE
47
018400822
2 アナボルト4X8
BOLT, SOCKET M4X8
48
071039750
3 コウキュウ5/32
BEARING BALL, 5/32
50
S59919000
1 ロツドエンド PB-8
ROD END, PB-8
51
S10209101
1 シメネジ 4.37
SCREW, SM4.37
52
S59923000
1 オクリダイカバー-R
FEED BRACKET COVER, R
53
060680512
2 ハインド437-40X5
SCREW, BIND SM4.37-40X5
100
*
1 オクリダイ431
FEED PLATE, 431
118-V31-202
12
From the library of: Superior Sewing Machine & Supply LLC
jintex.in

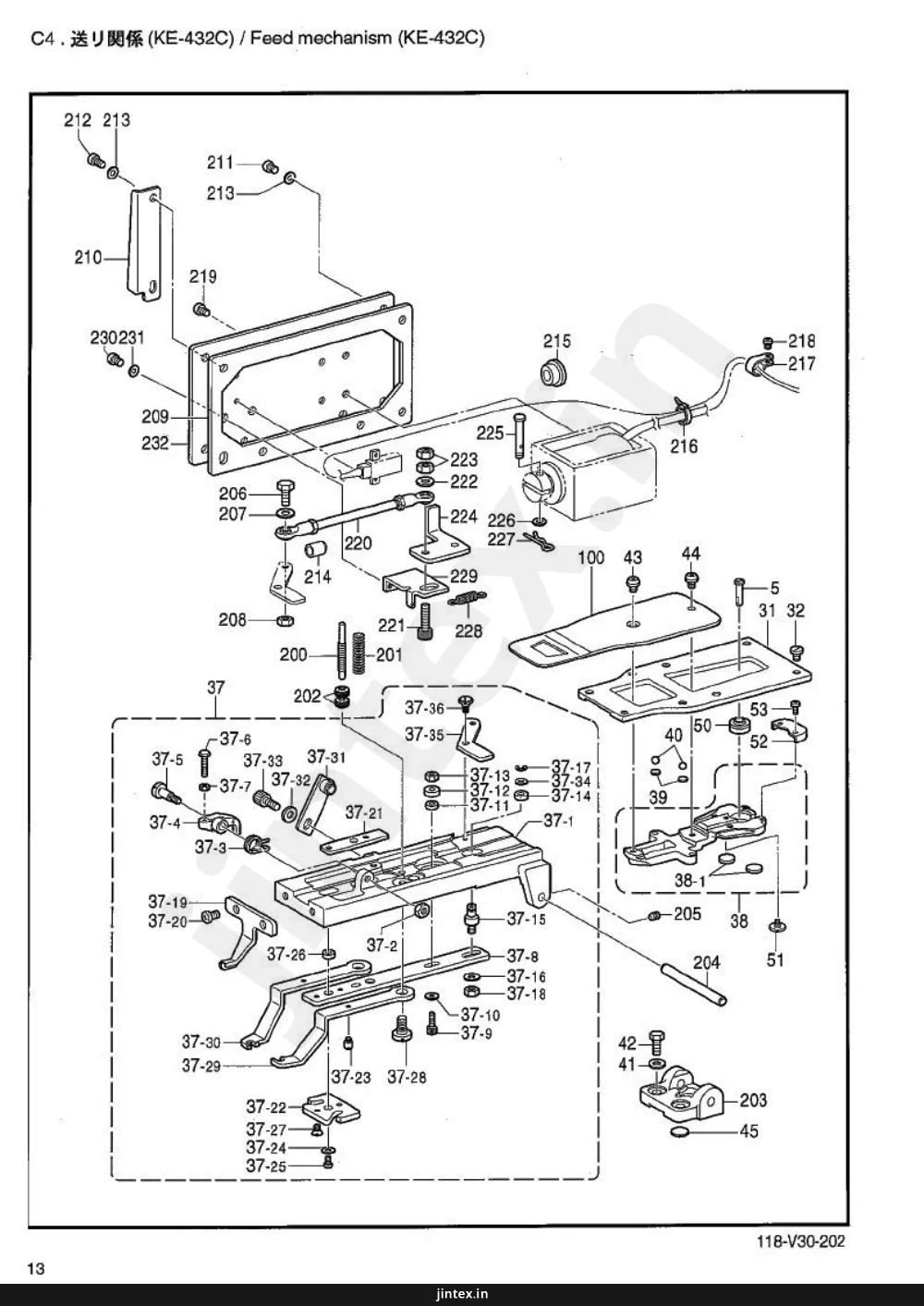

Page 17 — C4 . 送り関係 (KE-432C) / Feed mechanism (KE-432C)
Brother KE-430C / KE-431C / KE-432C parts on page 17| Ref | Part number | Part name | Qty |
|---|
| 212 | 212 | Screw | |
| 213 | 213 | Washer | |
| 210 | 210 | Cover | |
| 211 | 211 | Screw | |
| 213 | 213 | Washer | |
| 219 | 219 | Screw | |
| 230 | 230 | Screw | |
| 231 | 231 | Washer | |
| 209 | 209 | Screw | |
| 232 | 232 | Washer | |
| 206 | 206 | Bolt | |
| 207 | 207 | Washer | |
| 214 | 214 | Bracket | |
| 208 | 208 | Nut | |
| 200 | 200 | Screw | |
| 201 | 201 | Spring | |
| 202 | 202 | Washer | |
| 37 | 37 | Feed Mechanism | |
| 37-5 | 37-5 | Screw | |
| 37-4 | 37-4 | Lever | |
| 37-9 | 37-9 | Washer | |
| 37-10 | 37-10 | Screw | |
| 37-20 | 37-20 | Screw | |
| 37-6 | 37-6 | Screw | |
| 37-7 | 37-7 | Washer | |
| 37-33 | 37-33 | Washer | |
| 37-32 | 37-32 | Shaft | |
| 37-26 | 37-26 | Lever | |
| 37-23 | 37-23 | Screw | |
| 37-22 | 37-22 | Spring | |
| 37-27 | 37-27 | Screw | |
| 37-24 | 37-24 | Washer | |
| 37-25 | 37-25 | Nut | |
| 37-21 | 37-21 | Plate | |
| 37-31 | 37-31 | Shaft | |
| 37-2 | 37-2 | Base | |
| 37-15 | 37-15 | Shaft | |
| 37-16 | 37-16 | Screw | |
| 37-18 | 37-18 | Washer | |
| 37-17 | 37-17 | Screw | |
| 37-13 | 37-13 | Washer | |
| 37-14 | 37-14 | Washer | |
| 37-11 | 37-11 | Screw | |
| 37-12 | 37-12 | Washer | |
| 37-34 | 37-34 | Washer | |
| 37-1 | 37-1 | Feed Dog | |
| 37-36 | 37-36 | Screw | |
| 37-35 | 37-35 | Bracket | |
| 215 | 215 | Bearing | |
| 225 | 225 | Screw | |
| 223 | 223 | Washer | |
| 222 | 222 | Washer | |
| 224 | 224 | Bracket | |
| 226 | 226 | Washer | |
| 227 | 227 | Clip | |
| 229 | 229 | Screw | |
| 221 | 221 | Screw | |
| 228 | 228 | Screw | |
| 220 | 220 | Rod | |
| 100 | 100 | Base Plate | |
| 43 | 43 | Screw | |
| 44 | 44 | Screw | |
| 5 | 5 | Screw | |
| 31 | 31 | Screw | |
| 32 | 32 | Washer | |
| 40 | 40 | Screw | |
| 50 | 50 | Shaft | |
| 53 | 53 | Screw | |
| 52 | 52 | Lever | |
| 39 | 39 | Bracket | |
| 38-1 | 38-1 | Shaft | |
| 38 | 38 | Lever | |
| 205 | 205 | Screw | |
| 204 | 204 | Rod | |
| 51 | 51 | Screw | |
| 42 | 42 | Screw | |
| 41 | 41 | Washer | |
| 203 | 203 | Bracket | |
| 45 | 45 | Washer | |
| 218 | 218 | Screw | |
| 217 | 217 | Clamp | |
| 216 | 216 | Shaft | |
C4 . 送り関係 (KE-432C) / Feed mechanism (KE-432C)
212 213
210
230231
209
232
211
213
219
206
207
214
208
200
201
202
37
37-5
37-4
37-10
37-20
37-6
37-7
37-33
37-32
37-9
37-26
37-23
37-22
37-27
37-24
37-25
37-21
37-31
37-2
37-15
37-16
37-18
37-17
37-13
37-14
37-11
37-12
37-34
37-1
37-36
37-35
215
225
223
222
224
226
227
229
221
228
220
100
43
44
39
5
31 32
40
50
53
52
205
38-1
38
204
51
42
41
203
45
118-V30-202
13
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
Page 18
Brother KE-430C / KE-431C / KE-432C parts on page 18| Ref | Part number | Part name | Qty |
|---|
| S59915001 | TACK WIDTH FEED SHAFT | 1 |
| S59916001 | FEED BRACKET GUIDE PLATE | 1 |
| 145318001 | SCREW, SM4.37 | 8 |
| S41024100 | WORK CLAMP ARM ASSY, Z32 | 1 |
| S41025100 | WORK CLAMP FRAME, Z32 | 1 |
| 150553001 | NUT, SM5.95 | 1 |
| 118258001 | STOP LEVER SPRING | 1 |
| 118256001 | STOP LEVER | 1 |
| 118257001 | SHOULDER SCREW, SM5.95 | 1 |
| 118259001 | BOLT, SM4.37 | 1 |
| 021680202 | NUT, 2 SM4.37 | 1 |
| 15562101 | WORK CLAMP CARRIER PLATE | 1 |
| 018401622 | BOLT, SOCKET M4X16 | 1 |
| 025710232 | WASHER, PLAIN M 4.76 | 1 |
| 118247001 | COLLAR | 1 |
| 117143001 | COLLAR | 1 |
| 021400102 | NUT, 1 M4 | 1 |
| 155576001 | ROLLER | 1 |
| 155577001 | SCREW, SM4.76 | 1 |
| 025710232 | WASHER, PLAIN M 4.76 | 1 |
| 048040342 | RETAINING RING, E4 | 1 |
| 021710212 | NUT, 2 SM4.76 | 1 |
| S41265001 | BUTTON HOLE GUIDE, Z32 | 1 |
| 062761012 | SCREW, PAN SM5.95-28X10 | 2 |
| 118248101 | STOP POSITION ADJUSTING PLATE | 1 |
| S41288001 | WORK CLAMP GUIDE PLATE, Z32 | 1 |
| 118252001 | SCREW | 2 |
| 025710132 | WASHER, PLAIN S 4.76 | 2 |
| 062681212 | SCREW, PAN SM4.37-40X12 | 2 |
| 118247001 | COLLAR | 2 |
| 117143001 | SCREW, FLAT SM4.37 | 2 |
| 118244001 | SHOULDER SCREW, SM5.95 | 2 |
| 118249001 | WORK CLAMP, R | 1 |
| 118250001 | WORK CLAMP, L | 1 |
| S06533001 | PRESSER ADJUSTING PLATE ASSY | 1 |
| 025060232 | WASHER, PLAIN M 6 | 1 |
| 018061022 | BOLT, SOCKET M6X10 | 1 |
| 025710132 | WASHER, PLAIN S 4.76 | 1 |
| S41011001 | LEVER | 1 |
| 123882001 | SHOULDER SCREW, SM4.37 | 1 |
| S59918001 | FEED BRACKET ASSY | 1 |
| 152771000 | FEED BRACKET SPACER | 2 |
| S59921001 | SPACER, 4.8 | 2 |
| 071047650 | BEARING BALL, 3/16 | 2 |
| 025060232 | WASHER, PLAIN M 6 | 2 |
| 017761212 | BOLT, SM5.95X12 | 2 |
| S49955001 | SCREW, W/SOCKET SM4.37 | 1 |
| 153057101 | SCREW, W/SOCKET SM4.37 | 1 |
| 153035000 | WORK CLAMP FELT | 1 |
| S59919000 | ROD END, PB-8 | 1 |
| S10209101 | SCREW, SM4.37 | 1 |
| S59923000 | FEED BRACKET COVER, R | 1 |
| 060680512 | SCREW, BIND SM4.37-40X5 | 1 |
| S51084001 | FEED PLATE, 432 | 1 |
| 155567001 | ADJUSTING SCREW | 1 |
| 115147001 | COMPRESSION SPRING | 1 |
| 146994001 | NUT, ROUND SM6.35-40 | 2 |
| 153834101 | BUTTON CLAMP HOLDER SUPPORT | 1 |
| 153827001 | BUTTON CLAMP HOLDER SHAFT | 1 |
| 014680622 | SET SCREW, SOCKET (CP) SM4.37 | 2 |
C4. 送り関係 (KE-432C) / Feed mechanism (KE-432C)
REF.NO
CODE
QTY
ヒンメイ
NAME OF PARTS
RM
5
S59915001
1
タテオクリンシング
TACK WIDTH FEED SHAFT
31
S59916001
1
オクリダイアンナイタ
FEED BRACKET GUIDE PLATE
32
145318001
8
シメネジ 4.37
SCREW, SM4.37
37
S41024100
1
オサエウデクミZ32
WORK CLAMP ARM ASSY, Z32
37-1
S41025100
1
オサエフレームZ32
WORK CLAMP FRAME, Z32
37-2
150553001
1
ナット5.95
NUT, SM5.95
37-3
118258001
1
ストツプレバーハネ
STOP LEVER SPRING
37-4
118256001
1
ストツプレバー
STOP LEVER
37-5
118257001
1
ダンネジ 5.95
SHOULDER SCREW, SM5.95
37-6
118259001
1
ボルト4.37
BOLT, SM4.37
37-7
021680202
1
ナット2シュ4.37
NUT, 2 SM4.37
37-8
15562101
1
オサエヨセンレツケツイタ
WORK CLAMP CARRIER PLATE
37-9
018401622
1
アナボルト4X16
BOLT, SOCKET M4X16
37-10
025710232
1
ヒラザガネチユウ4.76
WASHER, PLAIN M 4.76
37-11
118247001
1
カラー
COLLAR
37-12
117143001
1
カラー
COLLAR
37-13
021400102
1
ナット1シュ4
NUT, 1 M4
37-14
155576001
1
オサエヨコロ
ROLLER
37-15
155577001
1
コロツクツキネジ 4.76
SCREW, SM4.76
37-16
025710232
1
ヒラザガネチユウ4.76
WASHER, PLAIN M 4.76
37-17
048040342
1
トメワE4
RETAINING RING, E4
37-18
021710212
1
ナット2シュ4.76
NUT, 2 SM4.76
37-19
S41265001
1
ボタンホールアンナイZ32
BUTTON HOLE GUIDE, Z32
37-20
062761012
2
ナベコ595-28X10
SCREW, PAN SM5.95-28X10
37-21
118248101
1
ストツプイチヨウセツイタ
STOP POSITION ADJUSTING PLATE
37-22
S41288001
1
オサエアンナイタZ32
WORK CLAMP GUIDE PLATE, Z32
37-23
118252001
2
オサエアンナイネシ
SCREW
37-24
025710132
2
ヒラザガネチユウ4.76
WASHER, PLAIN S 4.76
37-25
062681212
2
ナベコ437-40X12
SCREW, PAN SM4.37-40X12
37-26
118247001
2
カラー
COLLAR
37-27
117143001
2
サラネジ 4.37
SCREW, FLAT SM4.37
37-28
118244001
2
ダンネジ 5.95
SHOULDER SCREW, SM5.95
37-29
118249001
1
オサエR
WORK CLAMP, R
37-30
118250001
1
オサエL
WORK CLAMP, L
37-31
S06533001
1
オサエヨウセツイタクミ
PRESSER ADJUSTING PLATE ASSY
37-32
025060232
1
ヒラザガネチユウ6
WASHER, PLAIN M 6
37-33
018061022
1
アナボルト6X10
BOLT, SOCKET M6X10
37-34
025710132
1
ヒラザガネチユウ4.76
WASHER, PLAIN S 4.76
37-35
S41011001
1
オサエヨレバー
LEVER
37-36
123882001
1
ダンネジ 4.37
SHOULDER SCREW, SM4.37
38
S59918001
1
オクリダイクミ
FEED BRACKET ASSY
38-1
152771000
2
オクリダイカンザ
FEED BRACKET SPACER
39
S59921001
2
カンザ 4.8
SPACER, 4.8
40
071047650
2
コウキユウ3/16
BEARING BALL, 3/16
41
025060232
2
ヒラザガネチユウ6
WASHER, PLAIN M 6
42
017761212
2
ボルト5.95X12
BOLT, SM5.95X12
43
S49955001
1
オクリイタンメネジ
SCREW, W/SOCKET SM4.37
44
153057101
1
オクリイタンメネジ
SCREW, W/SOCKET SM4.37
45
153035000
1
オサエウデフエルト
WORK CLAMP FELT
50
S59919000
1
ロツドエンド PB-8
ROD END, PB-8
51
S10209101
1
シメネジ 4.37
SCREW, SM4.37
52
S59923000
1
オクリダイカバー-R
FEED BRACKET COVER, R
53
060680512
1
バインドコ595-40X5
SCREW, BIND SM4.37-40X5
100
S51084001
1
オクリイタ432
FEED PLATE, 432
200
155567001
1
オサエバネチヨウセツネジ
ADJUSTING SCREW
201
115147001
1
ボタンツカミオサエヨシハネ
COMPRESSION SPRING
202
146994001
2
オサエバネチヨウシネジ
NUT, ROUND SM6.35-40
203
153834101
1
ボタンツカミホルダーササエ
BUTTON CLAMP HOLDER SUPPORT
204
153827001
1
ボタンツカミホルダーシク
BUTTON CLAMP HOLDER SHAFT
205
014680622
2
アナトメネジ 4.37クボミ
SET SCREW, SOCKET (CP) SM4.37
118-V32-202
14
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
Page 19 — C4 . 送り関係 (KE-432C) / Feed mechanism (KE-432C)
Brother KE-430C / KE-431C / KE-432C parts on page 19| Ref | Part number | Part name | Qty |
|---|
| 212 | Screw | |
| 213 | Washer | |
| 210 | Bracket | |
| 230 | Screw | |
| 231 | Washer | |
| 209 | Screw | |
| 232 | Washer | |
| 211 | Screw | |
| 213 | Washer | |
| 219 | Screw | |
| 206 | Bolt | |
| 207 | Washer | |
| 214 | Screw | |
| 208 | Nut | |
| 200 | Screw | |
| 202 | Washer | |
| 37 | Feed mechanism | |
| 37-5 | Screw | |
| 37-4 | Lever | |
| 37-3 | Washer | |
| 37-6 | Screw | |
| 37-33 | Washer | |
| 37-7 | Screw | |
| 37-32 | Lever | |
| 37-19 | Screw | |
| 37-20 | Washer | |
| 37-26 | Lever | |
| 37-28 | Screw | |
| 37-2 | Base | |
| 37-31 | Shaft | |
| 37-21 | Plate | |
| 37-23 | Screw | |
| 37-22 | Washer | |
| 37-27 | Screw | |
| 37-24 | Washer | |
| 37-25 | Nut | |
| 37-30 | Screw | |
| 37-29 | Washer | |
| 215 | Bearing | |
| 220 | Rod | |
| 223 | Washer | |
| 222 | Washer | |
| 224 | Bracket | |
| 229 | Screw | |
| 221 | Bolt | |
| 201 | Spring | |
| 225 | Bolt | |
| 226 | Washer | |
| 227 | Clip | |
| 228 | Screw | |
| 37-36 | Screw | |
| 37-35 | Bracket | |
| 37-13 | Washer | |
| 37-12 | Washer | |
| 37-11 | Washer | |
| 37-1 | Base plate | |
| 37-17 | Screw | |
| 37-34 | Washer | |
| 37-14 | Washer | |
| 37-15 | Screw | |
| 37-16 | Washer | |
| 37-18 | Washer | |
| 37-10 | Screw | |
| 37-9 | Washer | |
| 37-1 | Base plate | |
| 37-2 | Base | |
| 37-8 | Screw | |
| 37-16 | Washer | |
| 37-18 | Washer | |
| 37-15 | Screw | |
| 37-10 | Screw | |
| 37-9 | Washer | |
| 37-23 | Screw | |
| 37-28 | Screw | |
| 37-22 | Washer | |
| 37-27 | Screw | |
| 37-24 | Washer | |
| 37-25 | Nut | |
| 37-30 | Screw | |
| 37-29 | Washer | |
| 216 | Bush | |
| 100 | Cover | |
| 43 | Screw | |
| 44 | Screw | |
| 5 | Pin | |
| 31 | Screw | |
| 32 | Washer | |
| 53 | Screw | |
| 50 | Washer | |
| 52 | Bracket | |
| 40 | Screw | |
| 39 | Washer | |
| 38-1 | Washer | |
| 205 | Screw | |
| 38 | Lever | |
| 51 | Screw | |
| 204 | Rod | |
| 42 | Screw | |
| 41 | Washer | |
| 203 | Bracket | |
| 45 | Washer | |
| 218 | Screw | |
| 217 | Clamp | |
C4 . 送り関係 (KE-432C) / Feed mechanism (KE-432C)
212 213
210
230231
209
232
211
213
219
206
207
214
208
200
202
37
37-5
37-4
37-3
37-6
37-33
37-7
37-32
37-19
37-26
37-28
37-2
37-31
37-21
37-23
37-22
37-27
37-24
37-25
215
220
223
222
224
229
221
201
225
226
227
228
37-36
37-35
37-13
37-12
37-11
37-1
37-17
37-34
37-14
37-15
37-16
37-18
37-10
37-9
37-1
37-2
37-8
37-16
37-18
37-15
37-10
37-9
37-23
37-28
37-22
37-27
37-24
37-25
37-30
37-29
216
100
43
40
39
38-1
205
38
204
51
44
5
31 32
53
50
52
42
41
203
45
118-V30-202
15
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
Page 20 — C4. 送り関係 (KE-432C) / Feed mechanism (KE-432C)
Brother KE-430C / KE-431C / KE-432C parts on page 20| Ref | Part number | Part name | Qty |
|---|
| 017781412 | ポルト6.35X14 | 1 |
| 118735002 | ザガネ | 1 |
| 150556001 | ナット6.35 | 1 |
| S41290301 | (YSトリツケイタパツキン | 1 |
| S41060109 | タケツケ | 1 |
| 062710812 | ナベコ476-32X8 | 2 |
| 062711012 | ナベコ476-32X10 | 2 |
| 025710232 | ヒラザガネチユウ4.76 | 4 |
| 152827001 | オイルキリセン | 1 |
| S23337001 | ゴムセン18.5 | 1 |
| 228475000 | ケツクバンド1.9X80 | 1 |
| 525664000 | コードホルダ#6 | 1 |
| 062680612 | ナベコ4.37-40X6 | 1 |
| 062710812 | ナベコ476-32X8 | 2 |
| S41264001 | オサエヨセロツトクミ | 1 |
| 018062036 | アナボルト6X20 | 1 |
| 118735002 | ザガネ | 1 |
| 021060306 | 3シユナツト6 | 2 |
| S41010001 | センサイタ | 1 |
| S41012001 | OYソレノイドピン | 1 |
| 140407001 | ザガネ | 1 |
| S19662001 | スナツクピン5 | 1 |
| S18523001 | オサエアゲバネ | 1 |
| S41009001 | OYソレノイドストツパー | 1 |
| 062710812 | ナベコ476-32X8 | 2 |
| 025710232 | ヒラザガネチユウ4.76 | 2 |
| S52098201 | OYソレノイドトリツケイタ | 1 |
C4. 送り関係 (KE-432C) / Feed mechanism (KE-432C)
REF.NO
CODE
Q'TY
ヒンメイ
NAME OF PARTS
RM
206
017781412
1
ポルト6.35X14
BOLT, SM6.35X14
207
118735002
1
ザガネ
WASHER, PLAIN
208
150556001
1
ナット6.35
NUT, SM6.35
209
S41290301
1
(YSトリツケイタパツキン
OYS SETTING PLATE PACKING
210
S41060109
1
タケツケ
BLIND PLATE
211
062710812
2
ナベコ476-32X8
SCREW, PAN SM4.76-32X8
212
062711012
2
ナベコ476-32X10
SCREW, PAN SM4.76-32X10
213
025710232
4
ヒラザガネチユウ4.76
WASHER, PLAIN M 4.76
214
152827001
1
オイルキリセン
OIL CAP
215
S23337001
1
ゴムセン18.5
RUBBER CAP, 18.5
216
228475000
1
ケツクバンド1.9X80
FASTENING BAND, 1.9X80
217
525664000
1
コードホルダ#6
CORD HOLDER, 6N
218
062680612
1
ナベコ4.37-40X6
SCREW, PAN SM4.37-40X6
219
062710812
2
ナベコ476-32X8
SCREW, PAN SM4.76-32X8
220
S41264001
1
オサエヨセロツトクミ
WORK CLAMP CARRIER ROD ASSY
221
018062036
1
アナボルト6X20
BOLT, SOCKET M6X20
222
118735002
1
ザガネ
WASHER, PLAIN
223
021060306
2
3シユナツト6
NUT, 3 M6
224
S41010001
1
センサイタ
SENSOR PLATE
225
S41012001
1
OYソレノイドピン
OY SOLENOID PIN
226
140407001
1
ザガネ
WASHER
227
S19662001
1
スナツクピン5
SNAP PIN, 5
228
S18523001
1
オサエアゲバネ
SPRING, EXTENSION
229
S41009001
1
OYソレノイドストツパー
OY SOLENOID STOPPER
230
062710812
2
ナベコ476-32X8
SCREW, PAN SM4.76-32X8
231
025710232
2
ヒラザガネチユウ4.76
WASHER, PLAIN M 4.76
232
S52098201
1
OYソレノイドトリツケイタ
OY SOLENOID SETTING PLATE
118-V32-202
16
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
Page 21 — D1. 押工上ゲ関係 / Work clamp lifter mechanism
Brother KE-430C / KE-431C / KE-432C parts on page 21| Ref | Part number | Part name | Qty |
|---|
| 24 | 24 | SCREW | |
| 20 | 20 | SCREW | |
| 19 | 19 | BRACKET | |
| 23 | 23 | BRACKET | |
| 13 | 13 | WASHER | |
| 16 | 16 | SCREW | |
| 15 | 15 | BRACKET | |
| 18 | 18 | LEVER | |
| 17 | 17 | PIN | |
| 1 | 1 | BRACKET | |
| 8 | 8 | WASHER | |
| 2 | 2 | BRACKET | |
| 9 | 9 | PIN | |
| 3 | 3 | LEVER | |
| 4 | 4 | SHAFT | |
| 5 | 5 | SHAFT | |
| 14 | 14 | SPRING | |
| 10 | 10 | PIN | |
| 6 | 6 | LEVER | |
| 12 | 12 | SLEEVE | |
| 25 | 25 | WASHER | |
| 11 | 11 | SHAFT | |
| 21 | 21 | BRACKET | |
| 22 | 22 | SCREW | |
| 26 | 26 | SCREW | |
D1. 押工上ゲ関係 / Work clamp lifter mechanism
24
20
19
23
13
16
15
18
17
1
8
2
8
9
3
9
4
9
5
14
10
6
12
25
11
21
22
26
118-V30-204
17
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
Page 22 — Work clamp lifter mechanism (KE-430C, KE-431C)
Brother KE-430C / KE-431C / KE-432C parts on page 22| Ref | Part number | Part name | Qty |
|---|
| S49630001 | リンクA | |
| S49631001 | リンクB | |
| S49632001 | リンクCウミ | |
| S49635001 | リンクシクA | |
| S49636001 | リンクシクB | |
| S49637001 | リンクシクC | |
| S49638001 | リンクシクD | |
| 100261001 | ザガネ | 4 |
| S37968001 | スナップピン8 | 6 |
| S19662001 | スナップピン5 | 2 |
| S58890001 | オオエイタ | 1 |
| S55157000 | オオエイタヨウメタル | 1 |
| 014760622 | アナトメジ 5.95 | 2 |
| S10105001 | リンクドシバネ | 2 |
| S49639001 | センサトツケダイ | 1 |
| 062680612 | ナベコ4.37-40X6 | 1 |
| S49640101 | センサカンセイタ | 1 |
| S55479001 | アナボルトザクミ4X8 | 1 |
| S49641001 | ソレノイドトリツケイタA | 1 |
| 060681212 | バインド437-40X12 | 4 |
| S49642001 | ソレノイドトリツケイタB | 1 |
| 060501016 | バインドM5X10 | 2 |
| 06064001 | ガイド | 1 |
| 060680712 | バインド437-40X7 | 2 |
| S59763000 | オオエイアストツパーゴム | 1 |
| 018501422 | アナボルト5X14 | 2 |
D1 .押上ゲ関係 (KE-430C, KE-431C) / Work clamp lifter mechanism (KE-430C, KE-431C)
REF.NO
CODE
QTY
ヒンメイ
NAME OF PARTS
RM
1
S49630001
1 リンクA
LINK, A
2
S49631001
1 リンクB
LINK, B
3
S49632001
1 リンクCウミ
LINK ASSY, C
4
S49635001
1 リンクシクA
LINK SHAFT, A
5
S49636001
1 リンクシクB
LINK SHAFT, B
6
S49637001
1 リンクシクC
LINK SHAFT, C
7
S49638001
1 リンクシクD
LINK SHAFT, D
8
100261001
4 ザガネ
WASHER, PLAIN
9
S37968001
6 スナップピン8
SNAP PIN, 8
10
S19662001
2 スナップピン5
SNAP PIN, 5
11
S58890001
1 オオエイタ
WORK CLAMP PLATE
12
S55157000
1 オオエイタヨウメタル
BUSH
13
014760622
2 アナトメジ 5.95
SET SCREW, SOCKET SM5.95
14
S10105001
2 リンクドシバネ
SPRING, EXTENSION
15
S49639001
1 センサトツケダイ
SENSOR SETTING BASE
16
062680612
1 ナベコ4.37-40X6
SCREW, PAN SM4.37-40X6
17
S49640101
1 センサカンセイタ
SENSOR PERCEIVE PLATE
18
S55479001
1 アナボルトザクミ4X8
BOLT, SOCKET (S/P WASHER) M4X8
19
S49641001
1 ソレノイドトリツケイタA
SOLENOID SETTING PLATE, A
20
060681212
4 バインド437-40X12
SCREW, BIND SM4.37-40X12
21
S49642001
1 ソレノイドトリツケイタB
SOLENOID SETTING PLATE, B
22
060501016
2 バインドM5X10
SCREW, BIND M5X10
23
06064001
1 ガイド
GUIDE
24
060680712
2 バインド437-40X7
SCREW, BIND SM4.37-40X7
25
S59763000
1 オオエイアストツパーゴム
W-CLAMP LIFTER STOPPER RUBBER
26
018501422
2 アナボルト5X14
BOLT, SOCKET M5X14
118-V30-204
18
Page 23 — D2 . 押工上ゲ関係 (KE-432C) / Work clamp lifter mechanism (KE-432C)
Brother KE-430C / KE-431C / KE-432C parts on page 23| Ref | Part number | Part name | Qty |
|---|
| 1 | Lever | |
| 2 | Link | |
| 3 | Shaft | |
| 4 | Pin | |
| 5 | Pin | |
| 6 | Shaft | |
| 7 | Lever | |
| 8 | Washer | |
| 9 | Clip | |
| 10 | Shaft | |
| 11 | Shaft | |
| 12 | Bush | |
| 13 | Screw | |
| 14 | Spring | |
| 15 | Bracket | |
| 16 | Screw | |
| 17 | Lever | |
| 18 | Screw | |
| 19 | Screw | |
| 20 | Screw | |
| 21 | Base | |
| 22 | Screw | |
| 23 | Plate | |
| 24 | Screw | |
| 25 | Washer | |
| 26 | Screw | |
| 27 | Washer | |
| 28 | Washer | |
| 29 | Screw | |
| 30 | Pin | |
| 31 | Screw | |
| 32 | Screw | |
| 33 | Screw | |
| 34 | Screw | |
| 35 | Screw | |
| 36 | Lever | |
| 37 | Screw | |
| 38 | Washer | |
| 39 | Screw | |
D2 . 押工上ゲ関係 (KE-432C) / Work clamp lifter mechanism (KE-432C)
24
20
19
23
13
15
16
21
22
26
37
36
39
33
38
35
34
12
25
27
28
11
32
31
30
29
18
17
9
7
1
8
8
14
10
6
14
3
9
4
5
118-V32-204
19
From the library of: Superior Sewing Machine & Supply LLC
JIntex.in
Page 24 — D2 . 押工上ゲ関係 (KE-432C) / Work clamp lifter mechanism (KE-432C)
Brother KE-430C / KE-431C / KE-432C parts on page 24| Ref | Part number | Part name | Qty |
|---|
| S49630001 | リンクA | |
| S49631001 | リンクB | |
| S49632001 | リンクCクミ | |
| S49635001 | リンクシクA | |
| S49636001 | リンクシクB | |
| S49637001 | リンクシクC | |
| S49638001 | リンクシクD | |
| 100281001 | ザガネ | 4 |
| S37968001 | スナップピン8 | 6 |
| S19662001 | スナップピン5 | 2 |
| S41015101 | オサエエアゲロッド | 1 |
| S55157000 | オサエエアゲロッド | 1 |
| 014760622 | アナトメシ5.95 | 2 |
| S10105001 | リンクモトシハネ | 2 |
| S49639001 | センサトリツケダイ | 1 |
| 062680612 | ナベコ4.37-40X6 | 1 |
| S49640101 | センサカンテイタ | 1 |
| S55479001 | アナボルトザクミ4X8 | 1 |
| S49641001 | ソレノイドトリツケダイA | 1 |
| 060681212 | バインド 437-40X12 | 4 |
| S49642001 | ソレノイドトリツケダイB | 1 |
| 060501016 | バインド M5X10 | 2 |
| S49643001 | ガイド | 1 |
| 060680712 | バインド 437-40X7 | 2 |
| 120448001 | ゴムワ | 1 |
| 018501422 | アナボルト5X14 | 2 |
| 150206002 | ヒラガネ16 | 1 |
| 015010142 | トノウシクヨウC15 | 1 |
| 153838001 | コジク | 1 |
| 107744001 | コジク | 1 |
| 153484001 | ザガネ4.76 | 1 |
| 105234003 | ナット4.37 | 1 |
| S41014009 | レバーホルダー | 1 |
| 018061622 | アナボルト6X16 | 2 |
| 025060232 | ヒラガネチユウ6 | 2 |
| S41016001 | オサエヤレバー | 1 |
| 153838001 | ボタンツカミレバーシク | 1 |
| 014760622 | アナトメシ5.95 | 1 |
| 017821813 | ボルト7.94X18 | 1 |
D2 . 押工上ゲ関係 (KE-432C) / Work clamp lifter mechanism (KE-432C)
REF.NO
CODE
QTY
ヒンメイ
NAME OF PARTS
RM
1
S49630001
1
リンクA
LINK, A
2
S49631001
1
リンクB
LINK, B
3
S49632001
1
リンクCクミ
LINK ASSY, C
4
S49635001
1
リンクシクA
LINK SHAFT, A
5
S49636001
1
リンクシクB
LINK SHAFT, B
6
S49637001
1
リンクシクC
LINK SHAFT, C
7
S49638001
1
リンクシクD
LINK SHAFT, D
8
100281001
4
ザガネ
WASHER, PLAIN
9
S37968001
6
スナップピン8
SNAP PIN, 8
10
S19662001
2
スナップピン5
SNAP PIN, 5
11
S41015101
1
オサエエアゲロッド
WORK CLAMP LIFTING ROD
12
S55157000
1
オサエエアゲロッド
BUSH
13
014760622
2
アナトメシ5.95
SET SCREW, SOCKET SM5.95
14
S10105001
2
リンクモトシハネ
SPRING, EXTENSION
15
S49639001
1
センサトリツケダイ
SENSOR SETTING BASE
16
062680612
1
ナベコ4.37-40X6
SCREW, PAN SM4.37-40X6
17
S49640101
1
センサカンテイタ
SENSOR PERCEIVE PLATE
18
S55479001
1
アナボルトザクミ4X8
BOLT, SOCKET (S/P WASHER) M4X8
19
S49641001
1
ソレノイドトリツケダイA
SOLENOID SETTING PLATE, A
20
060681212
4
バインド 437-40X12
SCREW, BIND SM4.37-40X12
21
S49642001
1
ソレノイドトリツケダイB
SOLENOID SETTING PLATE, B
22
060501016
2
バインド M5X10
SCREW, BIND M5X10
23
S49643001
1
ガイド
GUIDE
24
060680712
2
バインド 437-40X7
SCREW, BIND SM4.37-40X7
25
120448001
1
ゴムワ
RUBBER BAND
26
018501422
2
アナボルト5X14
BOLT, SOCKET M5X14
27
150206002
1
ヒラガネ16
WASHER, PLAIN 16
28
015010142
1
トノウシクヨウC15
RETAINING RING, EXTERNAL C15
29
153838001
1
コジク
ROLLER SHAFT
30
107744001
1
コジク
ROLLER
31
153484001
1
ザガネ4.76
WASHER, PLAIN 4.76
32
105234003
1
ナット4.37
NUT SM4.37
33
S41014009
1
レバーホルダー
LEVER HOLDER
34
018061622
2
アナボルト6X16
BOLT, SOCKET M6X16
35
025060232
2
ヒラガネチユウ6
WASHER, PLAIN M 6
36
S41016001
1
オサエヤレバー
WORK CLAMP LIFTER LEVER
37
153838001
1
ボタンツカミレバーシク
B-CLAMP LEVER SHAFT
38
014760622
1
アナトメシ5.95
SET SCREW, SOCKET SM5.95
39
017821813
1
ボルト7.94X18
BOLT, SM7.94X18
118-V32-204
20
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
Page 25 — E. 下軸関係 / Lower shaft mechanism
Brother KE-430C / KE-431C / KE-432C parts on page 25| Ref | Part number | Part name | Qty |
|---|
| 14-1 | Lower shaft mechanism | |
| 14-1-3 | | |
| 14-1-2 | | |
| 14-1-8 | | |
| 14-1-10 | | |
| 14-1-11 | | |
| 14-1-4 | | |
| 14-1-9 | | |
| 14-1-6 | | |
| 14-1-5 | | |
| 24 | | |
| 25 | | |
| 21 | | |
| 22 | | |
| 19 | | |
| 18 | | |
| 20 | | |
| 14-2 | For supply parts | |
| 14-2-1 | | |
| 14-2-1-3 | | |
| 14-2-1-2 | | |
| 14-2-1-8 | | |
| 14-2-2 | | |
| 14-2-1-1 | | |
| 14-2-2 | | |
| 14-2-1-11 | | |
| 14-2-1-6 | | |
| 14-2-1-5 | | |
| 14-2-1-4 | | |
| 14-2-1-9 | | |
| 14-2-2 | | |
| 14-2-1-9 | | |
| 14-2-2 | | |
| 28 | | |
| 27 | | |
| 29 | | |
| 32 | | |
| 31 | | |
| 30 | | |
| 8 | | |
| 13-1 | | |
| 9 | | |
| 13 | | |
| 10 | | |
| 11 | | |
| 12 | | |
| 6 | | |
| 3 | | |
| 2 | | |
| 6-1 | | |
| 6-1 | | |
| 4 | | |
| 5 | | |
| 7 | | |
| 7 | | |
| 1 | | |
E. 下軸関係 / Lower shaft mechanism
14-1
23
14-1-3
14-1-2
14-1-8
14-1-10
14-1-11
14-1-4
14-1-9
14-1-6
14-1-5
24
25
21
22
19
18
20
<補給部品/For supply parts >
14-2
14-2-1
14-2-1-3
14-2-1-2
14-2-1-8
14-2-2
14-2-1-1
14-2-2
14-2-1-11
14-2-1-6
14-2-1-5
14-2-1-4
14-2-1-9
14-2-2
14-2-1-9
14-2-2
28
27
29
32
31
30
8
13-1
9
13
10
11
12
6
3 2
6-1
6-1
4
5
7
7
1
118-V30-305
21
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
Page 26 — E . 下軸関係 / Lower shaft mechanism
Brother KE-430C / KE-431C / KE-432C parts on page 26| Ref | Part number | Part name | Qty |
|---|
| 141786001 | クランクロッドタンネジ | 1 |
| 100090004 | ナット7.14 | 1 |
| 014680622 | アナトメネジ 4.37クホミ | 1 |
| 152245101 | ヨウドウキヤ | 1 |
| S37978251 | ヨウドウキヤジク | 1 |
| 161995001 | セットカラ一クミ | 1 |
| 101706001 | アナトメネジ 6.35 | 2 |
| 014760622 | アナトメネジ 5.95 | 2 |
| S49605001 | シンタククミ | 1 |
| S55213001 | シンタクメタル | 1 |
| 014760622 | アナトメネジ 5.95 | 1 |
| 152678201 | カマナワセツク | 1 |
| 081003670 | OリングPW3 | 1 |
| S49809001 | セットカラ一クミ | 1 |
| 017770622 | アナトメネジ 5.95クホミ | 2 |
| S55927101 | オオカマタイクミ | 1 |
| S55216101 | オオカマタイ | 1 |
| S02429101 | カマイトアンナイ | 1 |
| 062660412 | ナベコ318-40X4 | 2 |
| 152683101 | オオカマトツケツメ | 2 |
| 152684101 | オオカマトツケツハネ | 2 |
| 402887001 | ザガネ3.2 | 2 |
| 062660712 | ナベコ318-40X7 | 2 |
| S09043000 | フエルト | 2 |
| S49981000 | クミヒモ3X3 | 2 |
| S49828000 | クミヒモ3X3 | 1 |
| S49685000 | クミヒモ3X3 | 1 |
| 014760622 | アナトメネジ 5.95 | 1 |
| 152678201 | カマナワセツク | 1 |
| 081003670 | OリングPW3 | 1 |
| 048070342 | トメワE7 | 1 |
| S55215001 | ドライバーHR | 1 |
| 018501232 | アナトボルト5X12 | 1 |
| * | オオカマ | 1 |
| * | ナカカマハコウミ | 1 |
| S16290001 | ニードルローラー4X19.8 | 1 |
| * | ボビンケースクミ | 1 |
| * | ボビンケースチヨウシバネ | 1 |
| * | ボビンケーススバネ | 1 |
| * | クウテンボウシバネ | 1 |
| * | ボビン | 1 |
| S55658000 | カマエフエルト | 1 |
| S55214000 | カマエフエルトサシエ | 1 |
| S55140001 | サポート | 1 |
| 123882001 | ダンネジ 4.37 | 1 |
| 103010002 | ナミカンタバネザガネ | 1 |
| 025770232 | ヒラサガネチユウ6.35 | 1 |
| S59888001 | オオカマタイクミセット | |
| S59885001 | オオカマタイクミ | 1 |
| S55216001 | オオカマタイクミ | 1 |
| S55216001 | オオカマタイ | 1 |
| S02429101 | カマイトアンナイ | 1 |
| 062660412 | ナベコ318-40X4 | 2 |
| 152683101 | オオカマトツケツメ | 2 |
| 152684101 | オオカマトツケツハネ | 2 |
| 402887001 | ザガネ3.2 | 2 |
| 062660712 | ナベコ318-40X7 | 2 |
| S09043000 | フエルト | 2 |
E . 下軸関係 / Lower shaft mechanism
REF. NO
CODE
Q'TY
ヒンメイ
NAME OF PARTS
RM
1
141786001
1
クランクロッドタンネジ
SHOULDER SCREW
2
100090004
1
ナット7.14
NUT, SM7.14
3
014680622
1
アナトメネジ 4.37クホミ
SET SCREW, SOCKET (CP) SM4.37
4
152245101
1
ヨウドウキヤ
ROCK GEAR
5
S37978251
1
ヨウドウキヤジク
ROCK GEAR SHAFT
6
161995001
1
セットカラ一クミ
SET SCREW COLLAR ASSY
6-1
101706001
2
アナトメネジ 6.35
SET SCREW, SM6.35-40X5.5
7
014760622
2
アナトメネジ 5.95
SET SCREW, SOCKET SM5.95
8
S49605001
1
シンタククミ
LOWER SHAFT ASSY
9
S55213001
1
シンタクメタル
LOWER SHAFT BUSH
10
014760622
1
アナトメネジ 5.95
SET SCREW, SOCKET SM5.95
11
152678201
1
カマナワセツク
ADJUSTING STUD
12
081003670
1
OリングPW3
O-RING, PW3
13
S49809001
1
セットカラ一クミ
SET SCREW COLLAR ASSY
13-1
017770622
2
アナトメネジ 5.95クホミ
SET SCREW, SOCKET (CP) SM6.35
14-1
S55927101
1
オオカマタイクミ
SHUTTLE RACE BASE ASSY
14-1-1
S55216101
1
オオカマタイ
SHUTTLE RACE BASE
14-1-2
S02429101
1
カマイトアンナイ
SHUTTLE RACE THREAD GUIDE
14-1-3
062660412
2
ナベコ318-40X4
SCREW, PAN SM3.18-40X4
14-1-4
152683101
2
オオカマトツケツメ
S-RACE BASE SETTING CLAW
14-1-5
152684101
2
オオカマトツケツハネ
SPRING, COMPRESSION
14-1-6
402887001
2
ザガネ3.2
WASHER, 3.2
14-1-7
062660712
2
ナベコ318-40X7
SCREW, PAN SM3.18-40X7
14-1-8
S09043000
2
フエルト
FELT
14-1-9
S49981000
2
クミヒモ3X3
WICK, 3X3 L=360
14-1-10
S49828000
1
クミヒモ3X3
WICK, 3X3 L=300
14-1-11
S49685000
1
クミヒモ3X3
WICK, 3X3 L=100
15
014760622
1
アナトメネジ 5.95
SET SCREW, SOCKET SM5.95
16
152678201
1
カマナワセツク
ADJUSTING STUD
17
081003670
1
OリングPW3
O-RING, PW3
18
048070342
1
トメワE7
RETAINING RING, E7
19
S55215001
1
ドライバーHR
DRIVER, HR
20
018501232
1
アナトボルト5X12
BOLT, SOCKET M5X12
21
*
1
オオカマ
SHUTTLE RACE BASE
22
*
1
ナカカマハコウミ
SHUTTLE HOOK ASSY, W/BOX
23
S16290001
1
ニードルローラー4X19.8
NEEDLE ROLLER, 4X19.8
24
*
1
ボビンケースクミ
BOBBIN CASE ASSY
24-1
*
1
ボビンケースチヨウシバネ
TENSION SPRING
24-2
*
1
ボビンケーススバネ
SPRING
24-3
*
1
クウテンボウシバネ
ANTI-SPIN SPRING
25
*
1
ボビン
BOBBIN
27
S55658000
1
カマエフエルト
FELT
28
S55214000
1
カマエフエルトサシエ
FELT HOLDER
29
S55140001
1
サポート
SUPPORT
30
123882001
1
ダンネジ 4.37
SHOULDER SCREW, SM4.37
31
103010002
1
ナミカンタバネザガネ
WAVE WASHER
32
025770232
1
ヒラサガネチユウ6.35
WASHER, PLAIN M 6.35
14-2
S59888001
“補給用部品”
" For Supply parts "
14-2-1
S59885001
1
オオカマタイクミセット
SHUTTLE RACE BASE SET
14-2-1-1
S55216001
1
オオカマタイクミ
SHUTTLE RACE BASE ASSY
14-2-1-2
S55216001
1
オオカマタイ
SHUTTLE RACE BASE
14-2-1-3
S02429101
1
カマイトアンナイ
SHUTTLE RACE THREAD GUIDE
14-2-1-4
062660412
2
ナベコ318-40X4
SCREW, PAN SM3.18-40X4
14-2-1-5
152683101
2
オオカマトツケツメ
S-RACE BASE SETTING CLAW
14-2-1-6
152684101
2
オオカマトツケツハネ
SPRING, COMPRESSION
14-2-1-7
402887001
2
ザガネ3.2
WASHER, 3.2
14-2-1-8
062660712
2
ナベコ318-40X7
SCREW, PAN SM3.18-40X7
14-2-1-9
S09043000
2
フエルト
FELT
118-V30-305
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
22
Page 27 — E. 下軸関係 / Lower shaft mechanism
Brother KE-430C / KE-431C / KE-432C parts on page 27| Ref | Part number | Part name | Qty |
|---|
| 14-1-3 | 14-1-3 | SCREW | |
| 14-1-2 | 14-1-2 | BRACKET | |
| 14-1-5 | 14-1-5 | SHAFT | |
| 14-1-10 | 14-1-10 | COLLAR | |
| 14-1-7 | 14-1-7 | SPRING | |
| 14-1-6 | 14-1-6 | WASHER | |
| 14-1-5 | 14-1-5 | SHAFT | |
| 14-1-11 | 14-1-11 | PIN | |
| 14-1-9 | 14-1-9 | SPRING | |
| 14-1-4 | 14-1-4 | SPRING | |
| 24 | 24 | HOUSING | |
| 24-2 | 24-2 | SHAFT | |
| 24-3 | 24-3 | COLLAR | |
| 21 | 21 | SHAFT | |
| 19 | 19 | COLLAR | |
| 18 | 18 | SPRING | |
| 20 | 20 | SPRING | |
| 22 | 22 | SHAFT | |
| 14-2-1 | 14-2-1 | HOUSING | |
| 14-2-1-3 | 14-2-1-3 | SCREW | |
| 14-2-1-2 | 14-2-1-2 | BRACKET | |
| 14-2-1-8 | 14-2-1-8 | SHAFT | |
| 14-2-1-1 | 14-2-1-1 | SHAFT | |
| 14-2-2 | 14-2-2 | COLLAR | |
| 14-2-1-10 | 14-2-1-10 | SPRING | |
| 14-2-1-7 | 14-2-1-7 | SPRING | |
| 14-2-1-6 | 14-2-1-6 | WASHER | |
| 14-2-1-5 | 14-2-1-5 | SPRING | |
| 14-2-1-4 | 14-2-1-4 | SPRING | |
| 14-2-2 | 14-2-2 | COLLAR | |
| 14-2-1-9 | 14-2-1-9 | SPRING | |
| 14-2-2 | 14-2-2 | COLLAR | |
| 14-2-1-4 | 14-2-1-4 | SPRING | |
| 27 | 27 | COVER | |
| 28 | 28 | BRACKET | |
| 29 | 29 | WASHER | |
| 32 | 32 | SPRING | |
| 31 | 31 | SPRING | |
| 30 | 30 | SCREW | |
| 13-1 | 13-1 | PIN | |
| 13 | 13 | SHAFT | |
| 9 | 9 | SHAFT | |
| 8 | 8 | GEAR | |
| 10 | 10 | SCREW | |
| 11 | 11 | COLLAR | |
| 12 | 12 | SPRING | |
| 6 | 6 | SHAFT | |
| 3 | 3 | COLLAR | |
| 2 | 2 | COLLAR | |
| 7 | 7 | SPRING | |
| 5 | 5 | SHAFT | |
| 7 | 7 | SPRING | |
| 6-1 | 6-1 | COLLAR | |
| 6-1 | 6-1 | COLLAR | |
| 1 | 1 | SHAFT | |
| 4 | 4 | SHAFT | |
E. 下軸関係 / Lower shaft mechanism
14-1
14-1-3
14-1-2
14-1-5
14-1-10
23
14-1-7
14-1-6
14-1-5
15 16 17
14-1-11
14-1-9
14-1-4
24
24-2
24-3
21
19
18
20
22
< 補給用部品 / For supply parts >
14-2
14-2-1
14-2-1-3
14-2-1-2
14-2-1-8
14-2-1-1
14-2-2
14-2-1-10
14-2-1-7
14-2-1-6
14-2-1-5
14-2-1-4
14-2-2
14-2-1-9
14-2-2
14-2-1-4
27
28
29
32
31
30
13-1
13
9
8
10
11
12
6
3 2
7
5
7
6-1
6-1
4
23
118-V30-305
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
Page 28 — E. 下軸関係 / Lower shaft mechanism
Brother KE-430C / KE-431C / KE-432C parts on page 28| Ref | Part number | Part name | Qty |
|---|
| 14-2-1-10 | S57965000 | WICK, 3X3 L=515 | 1 |
| 14-2-1-11 | S59886001 | FELT, L=360 | 1 |
| 14-2-2 | S50529000 | OIL TUBE, L=320 | 4 |
E. 下軸関係 / Lower shaft mechanism
REF.NO
CODE
Q'TY
ヒンメイ
NAME OF PARTS
RM
14-2-1-10
S57965000
1
クミモモ3X3
WICK, 3X3 L=515
14-2-1-11
S59886001
1
フエルト
FELT, L=360
14-2-2
S50529000
4
ビニルチユーブ
OIL TUBE, L=320
118-V30-305
24
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
Page 29
Brother KE-430C / KE-431C / KE-432C parts on page 29| Ref | Part number | Part name | Qty |
|---|
| 45 | Oil cup | |
| 47 | Oil wick | |
| 19 | Oil tube | |
| 20 | Oil tube | |
| 44 | Oil tube | |
| 5 | Oil tube | |
| 12 | Oil tube | |
| 10 | Oil tube | |
| 11 | Oil tube | |
| 6 | Oil tube | |
| 13 | Oil tube | |
| 7 | Screw | |
| 9 | Washer | |
| 8 | Washer | |
| 17 | Oil tube | |
| 4 | Oil tube | |
| 2 | Oil tube | |
| 3 | Oil tube | |
| 31 | Oil tube | |
| 30 | Oil tube | |
| 46 | Oil tube | |
| 29 | Oil tube | |
| 1 | Oil cup | |
| 16 | Oil tube | |
| 18 | Oil tube | |
| 15 | Oil tube | |
| 14 | Oil tube | |
| 28 | Oil tube | |
| 21 | Oil tube | |
| 27 | Oil tube | |
| 25 | Oil tube | |
| 26 | Oil tube | |
| 41 | Oil tube | |
| 52 | Screw | |
| 40 | Oil tube | |
| 51 | Screw | |
| 32 | Screw | |
| 48 | Oil tube | |
| 22 | Oil tube | |
| 23 | Oil tube | |
| 24 | Oil tube | |
| 34 | Oil tube | |
| 54 | Oil tube | |
| 36 | Oil tube | |
| 35 | Oil tube | |
| 53 | Screw | |
| 39 | Oil tube | |
| 38 | Oil tube | |
| 49 | Oil tube | |
| 50 | Oil tube | |
| 42 | Oil tube | |
| 33 | Oil cup | |
F. 給油潤滑関係 / Lubrication
25
118-V30-350
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
Page 30 — F. 給油潤滑関係 / Lubrication
Brother KE-430C / KE-431C / KE-432C parts on page 30| Ref | Part number | Part name | Qty |
|---|
| S49992000 | オイルポットマト | |
| S07333001 | オイルクチパイプ S | |
| S07456000 | ビニールチューブ | |
| 148738000 | タヒモ | |
| 107149001 | フェルト | |
| S37983001 | ウツジクキュウササエ | |
| 062680612 | ナベコ 4.37-40X6 | |
| 025680232 | ヒラザガネチュウ 4.37 | |
| 028680242 | ヒラザガネ2-4.37 | |
| S10478000 | ロッド・キュウフェルト | |
| S34986000 | ビニールチューブ | |
| S49982000 | クミヒモ4X4 | |
| 107149001 | フェルト | |
| S49959001 | テンビンキュウササエ | |
| S10162201 | ハリホウヒモササエ | |
| 060670512 | バインド 357-40X5 | |
| S49620000 | ビニールチューブ | |
| S49957000 | クミヒモ4X4 | |
| S49622000 | クミヒモ4X4 | |
| S49983000 | クミヒモ4X4 | |
| S49984000 | ヒラタヒモ | |
| 104567101 | クミヒモササエ | |
| 159565000 | クミヒモ2.5X150 | |
| S37985000 | スイアゲフェルト | |
| S37986000 | ビニールチューブ | |
| S18093100 | クミヒモ4X4 | |
| 145547001 | チューブホルダ | |
| 062670512 | ナベコ 357-40X5 | |
| S37987001 | シタジクキュウササエ | |
| S37988000 | シタジクキュウフェルト | |
| 062680612 | ナベコ 4.37-40X6 | |
| S09043000 | フェルト | |
| 152948001 | オイルポットマト | |
| S49623000 | ビニールチューブ | |
| S49624000 | ビニールチューブ | |
| S49625000 | ビニールチューブ | |
| 152969001 | コードササエネ | |
| 062670512 | ナベコ 357-40X5 | |
| 148738000 | クミヒモ | |
| 148738000 | クミヒモ | |
| 152956001 | クミヒモ4X4 | |
| 228475000 | ケツソクバンド 1.9X8 | |
| 153924001 | フェルト | |
| S49957000 | クミヒモ4X4 | |
| S49958000 | クミヒモ4X4 | |
| S49985000 | ビニールチューブ | |
| S49986000 | ビニールチューブ | |
| S49987000 | ビニールチューブ | |
| S49995001 | コードササエネ | |
| 062670512 | ナベコ 357-40X5 | |
| S49618000 | ビニールチューブ | |
| S55659000 | クミヒモ | |
F. 給油潤滑関係 / Lubrication
REF.NO
CODE
Q'TY
ヒンメイ
NAME OF PARTS
RM
1
S49992000
1
オイルポットマト
OIL GAUGE WINDOW
2
S07333001
1
オイルクチパイプ S
PIPE, S
3
S07456000
1
ビニールチューブ
OIL TUBE, L=160
4
148738000
1
タヒモ
WICK, L=335
5
107149001
1
フェルト
FELT
6
S37983001
1
ウツジクキュウササエ
WICK SUPPORT
7
062680612
1
ナベコ 4.37-40X6
SCREW, PAN SM4.37-40X6
8
025680232
1
ヒラザガネチュウ 4.37
WASHER, PLAIN M 4.37
9
028680242
1
ヒラザガネ2-4.37
WASHER, SPRING 2-4.37
10
S10478000
1
ロッド・キュウフェルト
FELT
11
S34986000
1
ビニールチューブ
OIL TUBE, L=135
12
S49982000
1
クミヒモ4X4
WICK, 4X4 L=400
13
107149001
2
フェルト
FELT
14
S49959001
1
テンビンキュウササエ
WICK SUPPORT
15
S10162201
1
ハリホウヒモササエ
WICK SUPPORT
16
060670512
1
バインド 357-40X5
SCREW, BIND SM3.57-40X5
17
S49620000
2
ビニールチューブ
OIL TUBE, L=340
18
S49957000
1
クミヒモ4X4
WICK, 4X4 L=700
19
S49622000
1
クミヒモ4X4
WICK, 4X4 L=130
20
S49983000
1
クミヒモ4X4
WICK, 4X4 L=800
21
S49984000
1
ヒラタヒモ
FLAT WICK, L=200
22
104567101
1
クミヒモササエ
WICK SUPPORT
23
159565000
1
クミヒモ2.5X150
WICK, L=150
24
S37985000
1
スイアゲフェルト
FELT
25
S37986000
1
ビニールチューブ
OIL TUBE, L=440
26
S18093100
1
クミヒモ4X4
WICK, 4X4 L=1100
27
145547001
1
チューブホルダ
TUBE HOLDER
28
062670512
1
ナベコ 357-40X5
SCREW, PAN SM3.57-40X5
29
S37987001
1
シタジクキュウササエ
LOWER SHAFT WICK SUPPORT
30
S37988000
1
シタジクキュウフェルト
LOWER SHAFT WICK FELT
31
062680612
1
ナベコ 4.37-40X6
SCREW, PAN SM4.37-40X6
32
S09043000
1
フェルト
FELT
33
152948001
1
オイルポットマト
OIL GAUGE WINDOW
34
S49623000
1
ビニールチューブ
OIL TUBE, L=280
35
S49624000
1
ビニールチューブ
OIL TUBE, L=260
36
S49625000
1
ビニールチューブ
OIL TUBE, L=160
38
152969001
2
コードササエネ
CORD HOLDER
39
062670512
2
ナベコ 357-40X5
SCREW, PAN SM3.57-40X5
40
148738000
1
クミヒモ
WICK, L=335
41
148738000
1
クミヒモ
WICK, L=335
42
152956001
1
クミヒモ4X4
WICK, 4X4 L=500
44
228475000
3
ケツソクバンド 1.9X8
FASTENING BAND, 1.9X80
45
153924001
1
フェルト
FELT
46
S49957000
1
クミヒモ4X4
WICK, 4X4 L=700
47
S49958000
1
クミヒモ4X4
WICK, 4X4 L=70
48
S49985000
1
ビニールチューブ
OIL TUBE, L=170
49
S49986000
1
ビニールチューブ
OIL TUBE, L=110
50
S49987000
1
ビニールチューブ
OIL TUBE, L=150
51
S49995001
1
コードササエネ
CORD SUPPORT
52
062670512
1
ナベコ 357-40X5
SCREW, PAN SM3.57-40X5
53
S49618000
1
ビニールチューブ
OIL TUBE, L=210
54
S55659000
1
クミヒモ
WICK, L=300
118-V30-350
26
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
