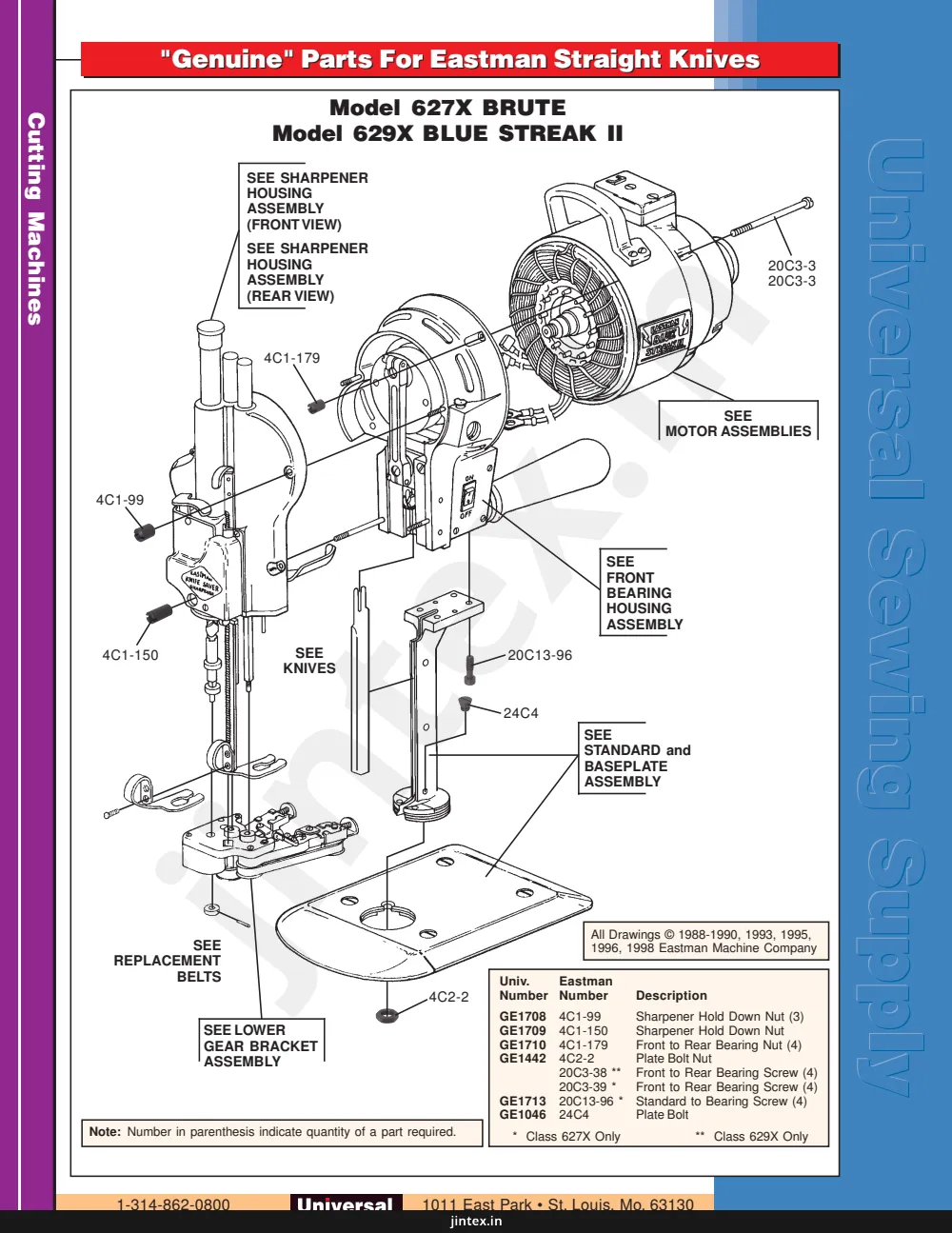

Page 1 — Model 627X BRUTE
Model 629X BLUE STREAK II
"Genuine" Parts For Eastman Straight Knives
Model 627X BRUTE
Model 629X BLUE STREAK II
SEE SHARPENER
HOUSING
ASSEMBLY
(FRONT VIEW)
SEE SHARPENER
HOUSING
ASSEMBLY
(REAR VIEW)
4C1-179
4C1-99
4C1-150
SEE
KNIVES
SEE
REPLACEMENT
BELTS
SEE LOWER
GEAR BRACKET
ASSEMBLY
Note: Number in parenthesis indicate quantity of a part required.
20C3-3
20C3-3
SEE
MOTOR ASSEMBLIES
20C13-96
24C4
SEE
FRONT
BEARING
HOUSING
ASSEMBLY
SEE
STANDARD and
BASE PLATE
ASSEMBLY
All Drawings 1988-1990, 1993, 1995,
1998 Eastman Machine Company
Univ.
Number
Eastman
Number
Description
GE1708
4C1-99
Sharperner Hold Down Nut (3)
GE1709
4C1-150
Sharperner Hold Down Nut
GE1710
4C1-179
Front to Rear Bearing Nut (4)
GE1442
4C2-2
Plate Bolt Nut
20C3-38
Front to Rear Bearing Screw (4)
20C3-39
Front to Rear Bearing Screw (4)
GE1713
20C13-96
Standard to Bearing Screw (4)
GE1046
24C4
Plate Bolt
* Class 627X Only
** Class 629X Only
1-314-862-0800
Universal
1011 East Park St. Louis, Mo. 63130
jintex.in
Page 2 — Bevel Bloc Shoe Assembly
"Genuine" Parts For Eastman Straight Knives
Model 627X BRUTE
Model 629X BLUE STREAK II
Sharpening Assembly
Bevel Bloc Shoe Assembly
Subassembly 743C3-1 includes:
Univ.
Number
Eastman
Number
Description
GE1696
20C13-63
766C1-1
308C10-1
Socket Set Screw
Bevel Bloc Assembly (L.H.)
Socket Set Screw
(6-32 x 5/16") (2)
OPTIONAL
EQUIPMENT
BEVEL BLOC
SHOES SPECIAL
ORDER ONLY
4C2-63 REF.
20C6-25
95C5-3
12C15-93
20C13-63
103C2-35
21C14-7
12C15-93
34C10-145
20C12-153
308C10-1
95C5-5
820C1-40
REF. - LOWER
GEAR AND
PULLEY
BRACKET
12C15-93
103C2-35
21C14-7
12C15-93
34C10-146
20C12-153
308C10-1
95C5-5
Univ.
Number
GE1561
GE1115
GE1654
GE1495
GE1657
GE1696
GE1697
GE1699
GE1700
GE1701
GE1119
Eastman
Number
4C2-63
715C1-16
715C1-18
820C1-40
12C15-93
20C6-25
20C12-153
20C13-63
21C14-7
34C10-145
34C10-146
308C10-1
95C5-5
103C2-35
103C2-36
308C10-1
820C1-39
Description
Nut (L.H.) (2)
Lower Gear Bracket (5"-10" Knife, Complete)
Lwr. Gear Brkt. (11-1/2"-13" Knife, Complete)
Conversion Kit (R.H. & L.H. Shoes)
Conversion Kit includes the following:
Washer Shoe (4)
Adjusting Screw
Screw For Sharpener Shoe (2)
Socket Set Screw
Shoe Bushing (2)
Shoe (R.H.)
Spring Shoe (R.H.)
Allen Wrench
Allen Wrench
Sharpener Shoe (R.H.)
Sharpener Shoe (L.H.)
Socket Set Screw (6-32 x 5/16") (2)
Conversion Kit (includes * parts above)
Note: 766C1 and 766C1-1 are sold in pairs with kits only.
Note: Number in parenthesis indicate quantity of a part required.
All Drawings 1988-1990, 1993, 1995, 1996, 1998
Eastman Machine Company
Cutting Machines 187
1011 East Park St. Louis, Mo. 63130
Universal
1-314-862-0800
jintex.in
Page 3 — "Genuine" Parts For Eastman Straight Knives
"Genuine" Parts For Eastman Straight Knives
Model 627X BRUTE
Model 629X BLUE STREAK II
SINGLE & THREE PHASE
MOTOR ASSEMBLIES
(Single & Dual Speed)
Univ.
Number
Eastman
Number
Description
GE1349
1C4-8 ***
Cutout Sleeve
GE1352
4C1-145
Shaft Lock Nut
GE1352
4C2-87
Clutch Nut
GE1353
8C5-10 ***
Automatic Switch Insulation
GE1343
8C12-4 ***
Lead Wire Insulation
GE1353
10C1-41
Rotor Fan
GE1347
12C1-32
Lock Washer
GE1351
18C6-16
Turning Knob
22C1-24 **
Retaining Ring
GE1348
30C1-8
Carrying Handle
34C1-51
Dust Cap
47C4-79 ***
Terminal
47C4-80 ***
Terminal
GE1714
53C7-35
Fan Cover
GE1356
67C1-10 ***
Cutout Mount
73C7-121
Terminal Wire Tubing
79C2-26 ***
Direction Arrow Plate
GE1582
90C1-146
Rear Ball Bearing
90C6-46
Rear Ball Bearing
199C1-23 ***
Wire Lug (3)
GE1574
254C1
Cable Tie (4")
GE2015
300C12-3 ***
Round Head Screw (8-32 x 3/8") (2)
300C12-6
Round Head Screw (4)
GE1715
301C8-1
Fillister Head Screw (4-40 x 1/2") (3)
301C12-3 ***
Fillister Head Screw (8-32 x 3/8") (2)
GE1350
305C8-1
Binding Head Screw (10)
305C10-1
Binding Head Screw
513C3-206 **
Rotor w/Shaft
514C5-109 *&***
Stator w/Band
514C5-114 *&***
Stator w/Band (110V, 60Hz, 3600RPM)
514C5-127 **&***
Stator w/Band (220V, 60Hz, 1800/3600RPM)
514C5-129 **&***
Stator w/Band (110V, 60Hz, 3600RPM)
514C5-146 **&***
Stator w/Band (220V, 60Hz, 3600RPM)
514C5-147 *&***
Stator w/Band (220V, 60Hz, 1800/3600RPM)
514C5-155 *&***
Stator w/Band (220V, 60Hz, 3600RPM)
514C5-158 *&***
Stator w/Band (220V, 60Hz, 1800/3600RPM)
GE1338
580C1-191 ***
Cutout Switch (Single Speed)
GE1337
580C1-192 ***
Cutout Switch (Single Speed)
GE1345
597C2-14 ***
Cutout Assembly (60C, 3600RPM)
GE1716
597C2-25 ***
Cutout Assembly (60C, 1500/3000RPM)
783C1-3
Grounding Wire Assembly
* Class 627X Only
** Class 629X Only
*** One Phase Motor Assemblies Only
*** Three Phase Motor Assemblies Only
All Drawings © 1988-1990, 1993, 1995,
1996, 1998 Eastman Machine Company
Note: Number in parenthesis indicate quantity of a part required.
1-314-862-0800
Universal
1011 East Park • St. Louis, Mo. 63130
jintex.in
Page 4
"Genuine" Parts For Eastman Straight Knives
WARNING
Attach ground wire to ground terminal "E" on Terminal Block.
Failure to ground Terminal Block may result electrocution or other serious
personal injuries.
SEE ATTACHMENT
PLUG TERMINAL
BLOCK
STATOR WITH BAND
SINGLE-PHASE SINGLE-SPEED
514C5-109 514C5-127
STATOR WITH BAND
SINGLE-PHASE DUAL-SPEED
514C5-114 514C5-129
STATOR WITH BAND
THREE-PHASE SINGLE-SPEED
514C5-146 514C5-155
STATOR WITH BAND
THREE-PHASE DUAL-SPEED
514C5-148 514C5-158
22C1-24
300C12-6
73C7-121
L.H.
199C1-23
47C4-80
47C4-79
254C1
79C2-26
305C8-1
783C1-3.
12C1-32
305C10-1.
12C1-12
90C6-46
513C3-240
513C3-241
79C2-26
CUTOUT SWITCH
(1-Phase)
580C1-192 Single Speed
580C1-191 Dual Speed
8C12-4
67C1-10
8C5-10
300C12-3
301C12-3
1C4-8
90C1-146
73C7-121
(3/4" Long)
CUTOUT ASSY. (1-Phase)
SINGLE SPEED
597C2-14 60HZ. 3600 R.P.M.
DUAL SPEED
597C2-25 60CY. 1800/3600R.P.M.
13C1-9
34C1-51
301C8-1
53C7-35
18C6-16
L.H.
4C2-87
4C1-145
L.H.
10C1-41
Note: L.H. indicates left-handed
thread. All others are right-handed
All Drawings 1988-1990, 1993, 1995, 1996, 1998 Eastman Machine Company
1011 East Park St. Louis, Mo. 63130
jintex.in
Universal
1-314-862-0800
Cutting Machines
Page 5 — FRONT BEARING HOUSING (90C2-162) with Oiler Assembly
"Genuine" Parts For Eastman Straight Knives
Model 627X BRUTE
Model 629X BLUE STREAK II
FRONT BEARING HOUSING (90C2-162)
with Oiler Assembly
Univ.
Number
Eastman
Number
Description
Univ.
Number
Eastman
Number
Description
GE1717
4C1-111
Operating Handle Lock Nut
GE1457
191C1-21
Crosshead Felt Pad
GE1378
4C1-190
Crank Ball Bearing Lock Nut
GE1730
191C1-38
Wrist Pin Felt Pad
GE1374
4C2-91
Lock Nut For Shaft
191C1-42
Oil Felt Wicking, Long
GE1377
11C12-92
Stop Nut
191C1-43
Oil Felt Wicking, Short
GE1385
12C1-21
Guide Adjustment Nut (3)
191C1-45
Oil Felt Wicking (.187" x .44")
GE1719
12C1-24
Shaft For Ball Bearing
201C1-11
Eyelet
GE1382
12C10-2
Knife Lock Washer
222C1-7
TV Sealer
12C15-14
Washer (3)
GE1415
300C3-2
Round Head Screw (2-56 x 1/8") (4)
GE1384
12C15-53
Connecting Rod Washer
GE1691
300C8-2
Round Head Screw (6-32 x 3/8") (2)
GE1369
15C13-23
Upper Stud (2)
GE1350
302C8-2
Flat Head Screw (4-40 x 3/4") (7)
GE1375
15C13-34
Lower LH Mounting Stud
305C8-1
Binding Head Screw (4-40 x 1/4") (7)
GE1376
15C13-39
Lower RH Mounting Stud
308C1-1
Screw
GE1720
17C4-6
Wrist Pin
GE1379
308C14-1
Socket Head Screw (8-32 x 3/8") (3)
18C6-79
Lock Ring
GE1732
309C15-5
Guide Hold Down Screw (4)
18C6-80
O-Ring
GE1390
525C1-4
Guide Adjustment Screw (3)
GE1386
20C5-17
Connecting Rod Clamp Screw (2)
GE1389
525C1-5
LH & RH Guides (1-3/4" Stroke)
20C12-62
Front Housing Plug Screw
GE1915
525C1-1
LH & RH Guides (1-1/2" Stroke)
20C12-79
Screw For Handle Bracket
525C1-6
LH & RH Guides (1-1/2" Stroke)
GE1724
20C12-122
Guide Hold Down Screw
GE1181
525C1-6
LH & RH Guides (1-1/2" Stroke)
GE1722
24C1-3
Knife Lock Bolt
GE1733
531C1-53
Operating Handle
GE1362
52C5-142
Spring For Capacitor
531C1-76
Cushion Grip Handle
52C10-142
Switch Plate (Dual Speed, 3 Ph.)
GE1381
579C2-17
Crosshead W/Lock Washer & Bolt
52C5-235
Switch Plate (Single Speed)
GE1361
580C1-100
Switch, Dual Speed (3 Phase)
52C5-236
Switch Plate (Dual Speed, 1 Ph.)
GE1167
580C1-198
Switch, Single Speed (1 & 3 Phase)
53C2-111
Switch Cover
GE1391
580C1-199
Switch, Dual Speed (1 Phase)
53C6-2
Oil Tube Cover
GE1215
607C1-31
Oiling Device
53C11-91
Capacitor Cover
GE1910
607C1-31
Oiling Device - One Shot (For Old
GE1914
54C4-32
Wrist Pin Plug
Style 625 Model Only)
GE1366
62C1-140
Handle Bracket
GE1373
664C1-3
Connecting Rod (1-3/4" Stroke)
GE1725
71C3-18
Front Bearing Retainer
GE1372
664C1-4
Connecting Rod (1-1/2" Stroke)
GE1364
72C4-28
Oil Hole Cover
GE1371
664C1-5
Connecting Rod (1-1/4" Stroke)
73C7-203
Oil Tube, Clear
GE1370
664C1-6
Connecting Rod (1-1/8" Stroke)
73C7-204
Oiler Tube
GE1357
706C1-4 *
Capacitor (220 Volt)
GE1729
85C1-44
Crank (1-3/4" Stroke)
GE1358
706C1-5 *
Capacitor (110 Volt)
GE1728
85C1-45
Crank (1-1/2" Stroke)
706C1-13 *
Capacitor (220 Volt)
GE1727
85C1-46
Crank (1-1/4" Stroke)
706C1-18 *
Capacitor (220 Volt)
GE1726
85C1-52
Crank (1-1/8" Stroke)
* Class 627X Only
** Class 629X Only
GE1368
90C6-38
Front Bearing Housing
Note: Number in parenthesis indicate quantity of a part required.
90C6-46
Sealed Crank Ball Bearing
91C4-25
Rivet Crosshead (2)
141C1-46
Gauge, Clear
1-314-862-0800
Universal
1011 East Park St. Louis, Mo. 63110
jintex.in
No. 63130
Page 6
"Genuine" Parts For Eastman Straight Knives
Note: Certain 220 volt machines will use these capacitors. Please check the capacitor number on the label of your machine to order.
706C1-4 110 Volt
706C1-5 220 Volt
706C1-13 110 Volt
706C1-18 220 Volt
Dual Speed 3 Phase
580C1-100
305C8-1
308C12-1
52C5-194
34C10-142
300C10-4
90C2-162
72C4-28
307C18-1
4C2-110
62C1-140
20C12-79
12C10-2
18C6-80
90C6-38
53C11-91
305C8-1
53C1-76
53C2-111
4C1-111
531C1-87
309C15-5
531C1-88
2C10-4
71C3-18
Single Speed 1 & 3 Phase
141C1-46
15C13-23
308C12-1
52C5-235
4C3-8
305C8-1
15C13-34
664C1-6 Crank 1-1/8 Stroke
664C1-5 Crank 1-1/4 Stroke
664C1-4 Crank 1-1/2 Stroke
664C1-3 Crank 1-3/4 Stroke
300C3-2
53C6-2
607C1-31
580C1-198
11C12-92
4C1-132
191C1-42
191C1-43
90C6-46
4C1-190
201C1-11
308C2-3
73C7-203
191C1-21
579C2-17
222C1-7
20C12-122
17C4-6
191C1-45
308C14-1
73C7-204
Dual Speed 1 Phase
12C15-14
607C1-35
52C5-236
191C1-38
24C1-3
54C4-32
12C1-24
12C1-21
91C4-25
20C5-17
12C15-53
WARNING
220/3-phase dual-speed only switch
must be grounded. Failure to ground
this switch may cause electrocution
or serious personal injuries.
580C1-199
525C1-7 Crank 1-1/8 Stroke
525C1-6 Crank 1-1/4 Stroke
525C1-5 Crank 1-1/2 Stroke
525C1-1 Crank 1-1/2 Stroke
525C1-4 Crank 1-3/4 Stroke
Notes: L.H. indicates left-hand thread. All others are right-hand.
Slip large lug over switch before replacing switch base. Secure switch to
base tightly to ensure positive ground.
All Drawings © 1988-1990, 1993, 1995, 1996, 1998 Eastman Machine Company
1011 East Park St. Louis, Mo. 63130 Universal 1-314-862-0800
jintex.in
Cutting Machines
Page 7 — "Genuine" Parts For Eastman Straight Knives
"Genuine" Parts For Eastman Straight Knives
Model 627X BRUTE
Model 629X BLUE STREAK II
SHARPENER HOUSING
ASSEMBLY
(Front View)
Univ.
Number
Eastman
Number
Description
GE1735
4C1-149
Nut, Elastic
GE1917
4C2-111
Nut, Locking
GE1736
4C2-112
R.H. Nut For Screw Shaft
GE1737
4C2-113
L.H. Nut For Screw Shaft
GE1738
5C5-16
Collar, Lower
GE1408
11C12-54
Shaft For Cam
GE1663
12C15-57
Spring Washer For Release Lever
GE1912
12C15-69
Washer For Lock Bracket
GE1739
12C15-74
Washer, Flat (4)
GE1740
12C15-91
Thrust Washer, Upper Nut (2)
GE1489
17C15-106
Roll Pin For Collar
GE1414
20C4-17
Pressure Foot Screw
GE1412
20C12-113
Cam Shaft Screw
GE1404
20C12-117
Screw For Latch
GE1416
20C12-156
Screw For Pressure Foot Shoe (2)
GE1741
20C12-166
Screw For Release Lever
GE1906
20C12-137
Screw For Knife Guard Lock
GE1742
22C3-2
Lift Handle For Knife Guard Lock
GE1411
34C1-20
Tension Spring
GE1833
34C8-12
Spring For Pressure Foot Lock
GE1413
34C10-179
Spring For Pressure Foot Lever
GE1403
34C10-107
Spring For Latch
GE1743
53C11-72
Cover For Cam
53C11-103
Vinyl Cover For Handle
GE1407
55C4-49
Spacer For Knife Guard Lock Bracket
GE1417
68C1-192
Pressure Foot Shoe (All Strokes)
GE1744
71C3-15
Thrust Ball Bearing (3)
GE1745
86C7-34
Cap For Tube
GE1406
90C4-47
Bearing For Cam Shaft
GE1397
97C3-35
Latch For Cam
GE1746
147C1-26
Extension For Screw Shaft
GE1916
171C1-16
Lock (Only) For Pressure Foot
GE1453
300C10-1
Round Head Screw (6-32 x 3/16") (2)
GE1415
300C10-4
Round Head Screw (6-32 x 3/8") (4)
GE1661
302C10-4
Flat Head Screw (6-32 x 5/16")
GE1747
302C10-8
Flat Head Screw (6-32 x 3/4")
309C15-7
Set Screw For Cam
GE1410
553C1-7
Pressure Foot Lock Bracket, Complete
GE1920
553C1-8
Knife Guard Lock Bracket Only
GE1400
605C1-36
Knife Guard Rod (7-8" Knife)
GE1399
605C1-35
Knife Guard Rod (6" Knife)
GE1401
605C1-33
Knife Guard Rod (11-1/2" Knife)
GE1402
605C1-34
Knife Guard Rod (13" Knife)
GE1396
621C1-7
Release Lever w/Cam
GE1409
683C1-17
Pressure Foot Lever
GE1392
713C4-4
Screw Shaft w/Extension
(R & L Hand Nuts (5"-8" Knife))
GE1393
713C4-5
Screw Shaft w/Extension
(R & L Hand Nuts (9"-10" Knife))
GE1241
713C4-6
Screw Shaft w/Extension
(R & L Hand Nuts (11-1/2" Knife))
713C4-7
Screw Shaft w/Extension
(R & L Hand Nuts (13" Knife))
GE1749
732C1-11
Sharpening Housing
w/Bushings & Tubes Only (5-8" Knife)
GE1750
732C1-12
Sharpening Housing
w/Bushings & Tubes Only (9-10" Knife)
732C1-17
Sharpening Housing
w/Bushings & Tubes Only (13" Knife)
Note: Number in parenthesis indicate quantity of a part required.
All Drawings © 1988-1990, 1993, 1995, 1998 Eastman Machine Company
1-314-862-0800
Universal
1011 East Park • St. Louis, Mo. 63130
jintex.in
Page 8
"Genuine" Parts For Eastman Straight Knives
* THESE PARTS SOLD ONLY IN ASSEMBLIES AS FOLLOWS
713C4-4 Screw Shaft with Extension, R. & L. Hand Nuts 5"-8"
713C4-5 Screw Shaft with Extension, R. & L. Hand Nuts 9"-10"
713C4-6 Screw Shaft with Extension, R. & L. Hand Nuts 11-1/2"
713C4-7 Screw Shaft with Extension, R. & L. Hand Nuts 13"
For
Spacer
Chart
(See
Sharpen er
Housing
Assembly
(Drawing)
(Rear View)
Note: L.H. indicates left-hand thread.
All others are right-hand.
Screw Shaft
71C3-15
732C1-11 5"-8" Knife
732C1-12 9"-10" Knife
732C1-17 13" Knife
12C15-91
*4C2-113-
12C15-74
71C3-15-
12C15-74
*4C2-112-
12C15-74
71C3-15-
12C15-74
300C10-1
22C3-2
605C1-36 6"-8" Knife
605C1-37 9"-10" Knife
605C1-33 11-1/2" Knife
605C1-34 13" Knife
171C1-16
4C1-161
553C1-8
20C12-137-
12C15-69
553C1-7-
34C8-12-
302C10-4
300C10-4
20C12-117
53C11-72
All Drawings 1988-1990, 1993, 1995, 1996, 1998 Eastman Machine Company
1011 East Park St. Louis, Mo. 63130
jintex.in
Universal
1-314-862-0800
Cutting Machines
L.H.
147C1-26
17C15-106
12C15-57
621C1-7
97C3-35
309C15-7
34C10-107
90C4-47
20C12-113
11C12-54
55C4-49
34C1-20
20C12-13
34C10-179 5"-13" Knife
68C1-192 5"-13" Knife All Strokes
20C4-17
53C11-103
683C1-17
5C5-16
Page 9
"Genuine" Parts For Eastman Straight Knives
Model 627X BRUTE
Model 629X BLUE STREAK II
SHARPENER HOUSING
ASSEMBLY
(Rear View)
Univ.
Number
Eastman
Number
Description
GE1442
4C2-2
Lock Nut For Shaft
GE1753
4C2-85
RH Follower Nut
GE1754
4C2-86
LH Follower Nut
GE1418
11C12-58
RH Square Shaft (5-8" Knife)
GE1419
11C12-59
RH Square Shaft (9-10" Knife)
GE1005
11C12-81
RH Square Shaft (11-1/2" Knife)
GE1430
11C12-85
RH Square Shaft (13" Knife)
GE1431
11C12-56
LH Square Shaft (5-8" Knife)
GE1004
11C12-57
LH Square Shaft (9-10" Knife)
11C12-80
LH Square Shaft (11-1/2" Knife)
11C12-84
LH Square Shaft (13" Knife)
GE1467
11C12-64
Shaft For Crank
GE1755
12C11-74
Thrust Washer
GE1462
12C15-29
Thrust Washer (2)
GE1447
12C15-30
Thrust Washer For Bottom Plate (2)
17C15-78
Pin For Bell Crank
GE1443
17C15-79
Pin For Bell Crank
17C15-103
Roll Pin For Push Rod
GE1472
17C15-113
Spreader Pin
GE1472
18C6-81
Retaining Ring For Shaft
GE1473
18C6-26
Retaining Ring For Bell Crank
GE1444
34C10-89
Spring For Bell Crank
GE1907
53C11-60
Cover Drive Pulley (For Old Style 625,
627 & 629 Models Only)
GE1469
55C4-41
Spacer For Ball Bearings
GE1756
62C16-151
Sharpener Housing Only
GE1448
65C6-75
Push Rod
GE1458
71C1-10
Idler Gear Oil Retainer
GE1422
73C7-46
Tube For Square Shaft (4-8" Knife)
GE1423
73C7-47
Tube For Square Shaft (9-10" Knife)
73C7-86
Tube For Square Shaft (11-1/2" Knife)
73C7-88
Tube For Square Shaft (13" Knife)
GE1426
73C7-48
Tube For Screw Shaft
GE1427
73C7-49
Tube For Screw Shaft (9-10" Knife)
73C7-87
Tube For Screw Shaft (11-1/2" Knife)
73C7-59
Tube For Screw Shaft (13" Knife)
GE1450
79C12-163
Bottom Plate, Sharpener Housing
85C3-6E
Bell Crank Only
GE1461
87C3-8
Spiral Gear
GE1446
87C3-44
Gear (2)
GE1757
87C3-53
Gear & Shaft
GE1464
90C4-29
Bearing For Drive Shaft
GE1471
90C4-33
Bearing For Gears (2)
GE1445
90C4-34
Bearing For Bell Crank
GE1463
90C4-42
Bearing For Drive Shaft
GE1758
90C4-48
Bearing For Screw Shaft
GE1454
90C4-58
Bear For Screw Shaft
GE1470
90C6-24
Pulley w/Driver (For (2)
GE1466
142C1-7
Key For Gear
GE1457
191C1-21
Felt Pad For Cross Head
GE1459
300C7-1
Round Head Screw (4-36 x 1/8")
GE1460
300C7-2
Screw
GE1453
300C10-1
Round Head Screw (6-32 x 3/16") (2)
GE1451
302C10-6
Flat Head Screw (6-32 x 1/2")
302C12-3
Flat Head Screw (6-32 x 3/8") (5)
GE1759
584C3-16
Bell Crank, Complete w/Lever
GE1474
602C1-7
Bell Crank, Complete w/Lever
GE1475
602C1-9
Driver Pulley w/Driver
GE1468
627C1-10
Idler Gear w/Driver
GE1465
716C1-12
Driver Shaft w/Gear
GE1452
727C1-6
Oil Pad & Bushing
1C13-12
15/16" Spacer Length, 1-1/8-1-1/4" Stroke
GE1441
1C13-13
1" Spacer Length, 1-1/8-1-1/4" Stroke
73C7-55
3-7/8" Spacer Length, 1-1/8-1-1/4" Stroke
73C7-56
4-1/4" Spacer Length, 1-1/8-1-1/4" Stroke
73C7-57
2-7/8" Spacer Length, 1-1/8-1-1/4" Stroke
73C7-58
3-1/4" Spacer Length, 1-1/8-1-1/4" Stroke
GE1074
73C7-59
1-7/8" Spacer Length, 1-1/8-1-1/4" Stroke
73C7-60
2-1/4" Spacer Length, 1-1/8-1-1/4" Stroke
All Drawings © 1988-1990, 1993, 1995, 1996, 1998 Eastman Machine Company
Note: Number in parenthesis indicate quantity of a part required.
1-314-862-0800
Universal
1011 East Park • St. Louis, Mo. 63130
jintex.in
Page 10 — "Genuine" Parts For Eastman Straight Knives
"Genuine" Parts For Eastman Straight Knives
SPACER GAUGE CHART
(For Automatic Sharpeners)
R.H. SQUARE SHAFTS
11C12-58
5"-8" Knife
11C12-59
9"-10" Knife
11C12-81
11-1/2" Knife
11C12-85
13" Knife
TUBES FOR SQUARE SHAFTS
73C7-46
5"-8" Knife
73C7-47
9"-10" Knife
73C7-86
11-1/2" Knife
73C7-88
13" Knife
TUBES FOR SCREW SHAFTS
73C7-48
5"-8" Knife
73C7-49
9"-10" Knife
73C7-85
11-1/2" Knife
73C7-87
13" Knife
L.H. SQUARE SHAFTS
11C12-56
5"-8" Knife
11C12-57
9"-10" Knife
11C12-80
11-1/2" Knife
11C12-84
13" Knife
STROKE
KNIFE
SIZE
SPACER
NUMBER
SPACER
LENGTH
1-1/8-1-1/4
5
73C7-55
3-7/8
1-1/2-1-3/4
5
73C7-56
4-1/4
1-1/8-1-1/4
6
73C7-57
2-7/8
1-1/2-1-3/4
6
73C7-58
3-1/4
1-1/8-1-1/4
7
73C7-59
1-7/8
1-1/2-1-3/4
7
73C7-60
2-1/4
1-1/8-1-1/4
8
1C13-12
15/16
1-1/2-1-3/4
8
1C13-13
1-1/4
1-1/8-1-1/4
9
73C7-59
1-7/8
1-1/2-1-3/4
9
73C7-60
2-1/4
1-1/8-1-1/4
10
1C13-12
15/16
1-1/2-1-3/4
10
1C13-13
1-1/4
1-1/8-1-1/4
11-1/2
1C13-12
15/16
1-1/2-1-3/4
11-1/2
1C13-13
1-1/4
1-1/8-1-1/4
13
1C13-12
15/16
1-1/2-1-3/4
13
1C13-13
1-1/4
Note: L.H. indicates left-hand thread.
All others are right-hand.
4C2-85
L.H.
4C2-86
62C16-151
191C1-21
71C1-10
300C7-2
53C11-60
584C3-16
Bell Crank Complete
584C2-3
Bell Crank with Pin & Brg. Only
85C3-6
Bell Crank Only
L.H.
12C11-74
90C6-24
90C4-48
18C6-26
12C15-29
87C3-8
602C1-7
142C1-7
12C15-29
602C1-9
90C4-34
87C3-44
12C15-30
90C4-42
18C6-81
90C4-33
90C4-29
87C3-44
17C15-78
12C15-30
716C1-12
65C6-75
NOTE: For special shoes, if the machine is not an 1800
RPM or a dual-speed unit, it must be equipped with a
#584C3-14 slow-speed driver, including the following
parts:
Univ.
Number
Eastman
Number
Description
GE1474
87C3-12
Gear Shaft
602C1-7
Slow-Speed Driver Assembly
17C15-103
90C6-24
Bell Crank
GE1470
90C6-24
Ball Bearings
4C1-14
Retainer
GE1469
55C4-41
Spacer For Ball Bearings
79C12-163
302C10-6
727C1-6
17C15-113
300C10-1
All Drawings 1988-1990, 1993, 1995, 1996, 1998 Eastman Machine Company
1011 East Park St. Louis, Mo. 63130
Jinttex.in
Universal
1-314-862-0800
Cutting Machines
Page 11 — LOWER GEAR BRACKET ASSEMBLY
"Genuine" Parts For Eastman Straight Knives
Model 627X BRUTE
Model 629X BLUE STREAK II
LOWER GEAR BRACKET
ASSEMBLY
Univ.
Number
Eastman
Number
Description
Complete Sharpener Assembly Numbers: 637C10-*
Machine Stroke
1-1/8"
1-1/4"
1-1/2"
1-3/4"
Height of Machine
5"
-20
-21
-22
-23
6"
-24
-25
-26
-27
7"
-28
-29
-30
-31
8"
-32
-33
-34
-35
9"
-36
-37
-38
-39
10"
-40
-41
-42
-43
11-1/2"
-
-45
-46
-47
13"
-48
-49
-50
-51
GE1491
GE1561
GE1654
GE1489
GE1495
GE1501
GE1657
GE1761
GE1504
GE1508
GE1554
GE1499
GE1762
GE1763
GE1500
GE1477
GE1482
GE1483
GE1479
GE1540
GE1507
GE1765
GE1766
GE1492
GE1506
4C1-189
4C2-63
12C15-93
17C15-106
20C6-25
20C12-57
20C12-143
20C12-153
21C14-14
34C10-45
34C10-47
34C10-57
34C10-123
34C10-148
34C10-149
35C7-28
53C4-78
54C4-35
62C6-31
728C1-5
743C1-26
743C1-27
743C1-28
743C1-29
820C1-7
820C1-8
Jam Nut (8-32)
Nut For Sharpener Shoe Screw (2)
Washer, Shoe (2)
Roll Pin (For Pulley #152C1-19) (2)
Adjusting Screw
Screw For Sharpener Shoe (Wave Knife Only) (2)
Screw For Clamping Arm
Bearing For Sharpener Shoe (2)
Bushing For Sharpener Shoe (2)
Spring For Pulley Shoe (2)
Spring For LH Shoe (Wave Knife Only)
Spring For RH Shoe (Wave Knife Only)
Spring For Arm
Spring For RH Sharpener Shoe
Spring For RH Sharpener Shoe
Clamping Arm For Shoe
Gear Cover
Oil Hole Plug
Bracket, Lower Gear
Guide Back Of Standard
Wear Plate (2)
Gear On Screw Shaft
Bearing For Shaft Extension (2)
Bearing For Intermediate Gear
Bearing For Shaft Extension (2)
RH Shaft Extension
LH Shaft Extension
Front Pulley Bolt (2)
Round Head Screw (4-36 x 1/4") (4)
Round Head Screw (6-32 x 1/4") (2)
Round Head Screw (6-32 x 1/2") (3)
Fillister Head Screw (4-36 x 3/16") (2)
Fillister Head Screw (6-32 x 3/8")
RH Slide w/Pulley
LH Slide w/Pulley
Lower Gear Bracket w/Cover, Bearings,
Screws & Wear Plate (5"-13" Knives)
Lower Gear Bracket, Complete
Sleeve Assembly (2)
LH Shoe (Wave Knife Only)
RH Shoe (Wave Knife Only)
LH Pre-Set Sharpener Shoe Only
RH Pre-Set Sharpener Shoe Only
LH Complete Shoe Assembly
RH Complete Shoe Assembly
Note: Number in parenthesis indicates quantity of a part required.
All Drawings 1988-1990, 1993, 1995, 1996 Eastman Machine Company
1-314-862-0800
Universal
1011 East Park • St. Louis, Mo. 63130
jintex.in
Page 12 — "Genuine" Parts For Eastman Straight Knives
"Genuine" Parts For Eastman Straight Knives
147C1-29
L.H. 147C1-28
20C6-25
301C10-3
300C10-6
53C4-78
300C7-3
728C1-5
87C5-13
87C3-50
54C4-35
62C6-31
715C1-19
90C4-51
90C4-47
152C1-19
17C15-106
209C1
820C1-7
715C1-23 Lower Gear Bracket Assembly Complete
Wave knives require special shoes & related parts listed below.
Univ.
Number
GE1507
GE1508
GE1501
Eastman
Number
743C1-27
34C10-47
20C12-143
Description
L.H. Shoe
L.H. Spring
Screw For Shoe
300C10-2
70C4-32
Note:
L.H. indicates left-handed
thread. All others are
right-handed.
34C10-123
35C7-28
20C12-143
712C1-1
34C10-45
4C2-63
301C7-2
12C15-93
743C1-28
21C14-14
12C15-93
34C10-149
20C12-153
309C12-2
12C15-93
743C1-29
21C14-14
12C15-93
34C10-148
20C12-153
4C1-189
209C1
SEE BELT
LISTING
715C1-23 Lower Gear Bracket Assembly Complete
When using these Special Shoes the following parts
must be removed from the Lower Gear Bracket.
Univ.
Number
GE1500
GE1499
GE1501
Eastman
Number
35C7-28
34C10-123
20C12-143
Description
Clamping Arm
Spring
Screw
All Drawings © 1988-1990, 1993, 1995, 1996, 1998 Eastman Machine Company
1011 East Park St. Louis, Mo. 63130
jintex.in
Universal
1-314-862-0800
Cutting Machines
Page 13
"Genuine" Parts For Eastman Straight Knives
Model 627X BRUTE
Model 629X BLUE STREAK II
Univ.
Number
Eastman
Number
Description
STANDARD & BASE
PLATE ASSEMBLY
GE1531
12C1-35
Lock Washer (4)
12C15-77
Washer
GE1605
17C1-4
Taper Pin (#0 x 3/4") (2)
GE1528
17C6-9
Taper Pin (2)
GE1768
20C5-12
Clamp Screw For Rollers (8)
GE1517
20C12-19
Knife Slide Screw
GE1532
20C13-51
Hinge Pin Clamp Screw (4)
GE1769
34C1-57
Plate Wing Tension Spring (2)
GE1529
60C1-55
Plate Wing (For Small Plates)
GE1530
60C1-56
Plate Wing (For Large Plates)
GE1770
79C4-12
Throat Plates w/Screws & Pins
79C4-24
Spaced & Relieved Throat Plates Assembly
GE1527
213C1-1
Fibre Shim (6)
GE1451
302C12-3
Flat Head Screw (8-32 x 3/8") (3)
GE1772
505C3-223
Small Plate Base, Complete (5"-8" Knives)
GE1773
505C3-224
Large Plate Base, Complete (9"-13" Knives)
GE1118
505C3-226
Small Plate Base, Complete (5"-8" Knives)
For 50 Cycle 1500 RPM & Dual-Speed Only
GE1124
505C3-227
Large Plate Base, Complete (9"-13" Knives)
For 50 Cycle 1500 RPM & Dual-Speed Only
505C3-243
Small Plate Base, Complete (5"-8" Knives)
Used with Swivel Roller Assembly Only
505C3-244
Large Plate Base, Complete (9"-13" Knives)
Used with Swivel Roller Assembly Only
528C1-112
Micro Fog Standard (Complete
w/Slides & Throat Plates) (6" Knife)
GE1509
528C1-123
Standard (Complete
w/Slides & Throat Plates) (5" Knife)
GE1510
528C1-120
Standard (Complete
w/Slides & Throat Plates) (6" Knife)
GE1511
528C1-122
Standard (Complete
w/Slides & Throat Plates) (7" Knife)
GE1512
528C1-121
Standard (Complete
w/Slides & Throat Plates) (8" Knife)
GE1183
528C1-115
Standard (Complete
w/Slides & Throat Plates) (9" Knife)
GE1514
528C1-116
Standard (Complete
w/Slides & Throat Plates) (10" Knife)
GE1184
528C1-124
Standard (Complete
w/Slides & Throat Plates) (11-1/2" Knife)
GE1185
528C1-125
Standard (Complete
w/Slides & Throat Plates) (13" Knife)
GE1533
532C2-3
Rubber Mounted Roller, Complete (4)
GE1534
532C2-5
Rubber Mounted Roller, Complete (4)
GE1918
532C2-7
Rubber Mounted Roller, Complete (4)
GE1776
619C1-31
Roller Shell, Complete (4)
GE1518
643C1-44
Knife Slides, Complete w/Screws (5" Knife)
GE1519
643C1-41
Knife Slides, Complete w/Screws (6" Knife)
GE1229
643C1-42
Knife Slides, Complete w/Screws (7" Knife)
643C1-46
Knife Slides, Complete w/Screws (8" Knife)
GE1522
643C1-47
Knife Slides, Complete w/Screws (9" Knife)
GE1523
643C1-51
Knife Slides, Complete w/Screws (10" Knife)
GE1524
643C1-53
Knife Slides, Complete w/Screws (11-1/2" Knife)
GE1525
643C1-45
Knife Slides, Complete w/Screws (13" Knife)
643C1-51
Knife Slides, Complete w/Screws (6" Micro Fog)
GE1778
619C1-32
Swivel Roller Assembly
Note: Number in parenthesis indicate quantity of a part required.
All Drawings 1988-1990, 1993, 1995, 1996, 1998 Eastman Machine Company
1-314-862-0800
Universal
1011 East Park St. Louis, Mo. 63130
jintex.in
Page 14 — Genuine" Parts For Eastman Straight Knives
"Genuine" Parts For Eastman Straight Knives
STANDARDS
COMPLET EW/SLIDES
528C1-123 5" Standard
528C1-120 6" Standard
528C1-122 7" Standard
528C1-121 8" Standard
528C1-115 9" Standard
528C1-116 10" Standard
528C1-124 11-1/2" Standard
528C1-125 13" Standard
KNIFE SLIDES
643C1-44 5" Knife
643C1-41 6" Knife
643C1-42 7" Knife
643C1-43 8" Knife
643C1-46 9" Knife
643C1-47 10" Knife
643C1-53 11-1/2" Knife
643C1-45 13" Knife
643C1-51 6" Micro Fog
213C1-1 (2)
17C8-9
34C1-57
60C1-55 For Small Plates
60C1-56 For Large Plate
12C1-35
20C13-51
528C1-112
Micro Fog
6" Standard
12C15-77
20C12-19
79C4-12
79C4-24
302C12-3
17C1-4
213C1-1
Fibre Shim
CAUTION
Do not oil the plate roller shells or you may
damage
them.
Place the plate on blocks and press out the roller
shell from the ring assembly.
NOTE: A roller shell (complete with shaft and
bearings) may be ordered as required. Specify
part number 619C1-30.
To install a new roller shell, invert the baseplate
and press the roller shell into the ring assembly.
OPTIONAL
Univ.
Number
Eastman
Number
Description
GE1778
619C1-32
Swivel Roller Assembly
GE1533
532C2-3
Rubber Mounted Wide Roller
GE1534
532C2-5
Rubber Mounted Roller
(For all machines except
noted below)
GE1918
532C2-7
Rubber Mounted Roller
(For 50 cycle 1500 RPM &
dual-speed machines only)
619C1-32
532C2-3
20C5-12
532C2-5
532C2-7
619C1-31
20C5-12
Univ.
Number
Eastman
Number
Description
GE1772
505C3-223
Small Plate For 5"-8" Knives
GE1773
505C3-224
Large Plate For 9"-13" Knives
FOR 50 CYCLE 1500 RPM & DUAL-SPEED MACHINES ONLY
GE1118
505C3-226
Small Plate For 5"-8" Knives
GE1124
505C3-227
Large Plate For 9"-13" Knives
FOR PLATES WITH SWIVEL ROLLERS
GE1772
505C3-223
Small Plate For 5"-8" Knives
GE1773
505C3-224
Large Plate For 9"-13" Knives
All Drawings 1988-1990, 1993, 1995, 1996, 1998 Eastman Machine Company
1011 East Park St. Louis, Mo. 63130
jintex.in
Universal
1-314-862-0800
Cutting Machines
