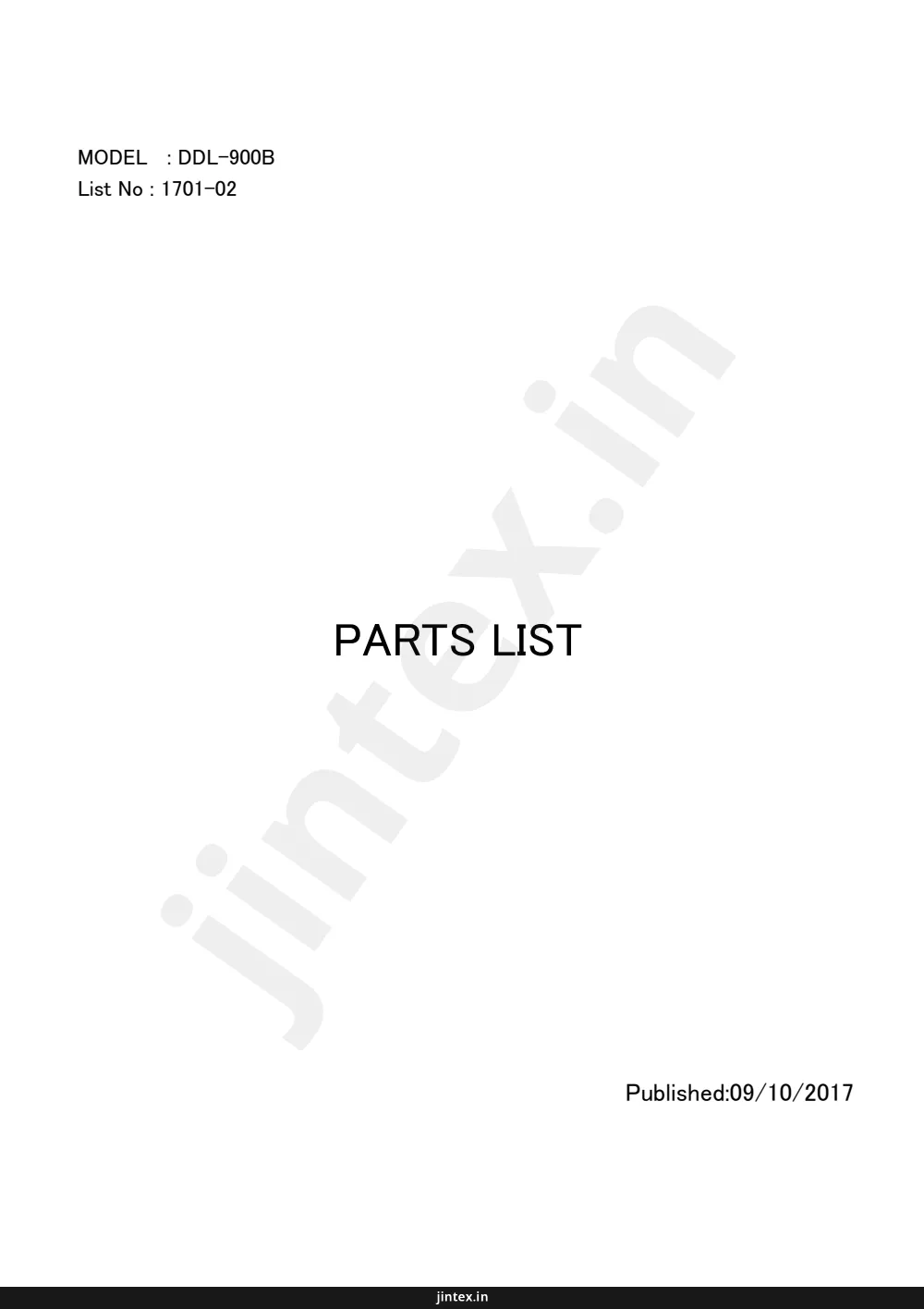

Page 1 — PARTS LIST
MODEL : DDL-900B List No : 1701-02 PARTS LIST Published:09/10/2017 jintex.in
Parts index — Juki DDL-900Btap a row to open its page
Page 4 — FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40102097 | FACE_PLATE_ASM. | |
| 2 | 40012126 | FACE PLATE PACKING | |
| 3 | SS6080410SP | SCREW 1/8-44 L=4 | |
| 4 | 40156677 | ARM OIL SHIELD ASSY | |
| 5 | TA0850604R0 | RUBBER PLUG | |
| 6 | TA1250705R0 | RUBBER PLUG | |
| 7 | 22958300 | NEEDLE THREAD GUIDE PIN | |
| 8 | SS4120925SP | SCREW 3/16-28 L=9 | |
| 9 | TA2100904R0 | RUBBER PLUG | |
| 10 | 22900401 | WINDOW PLATE | |
| 11 | 40012129 | SIDE PLATE PACKING | |
| 12 | CM300200001 | FINGER INJURY CAUTION LABLE (16) | |
| 13 | 40102261 | SAFETY_LABEL_S | |
| 14 | 22901805 | GROUND MARK | |
| 15 | SS4120615SP | SCREW 3/16-28 L=6 | |
| 16 | TA2000002R0 | RUBBER PLUG | |
| 17 | SS6121840SP | SCREW 3/16-28 L=18 | |
| 18 | 22952501 | BACK LEVER STOPPER | |
| 19 | TA2101002R0 | RUBBER PLUG | |
| 20 | 11415205 | THREAD TAKE-UP LEVER COVER(JE) | |
| 21 | 22945463 | THREAD TENSION ASM. NO.1 | |
| 22 | 22945414 | THREAD TENSION POST | |
| 23 | 22945604 | THREAD TENSION GUIDE | |
| 24 | 22945802 | THREAD TENSION DISK | |
| 25 | 22945505 | THREAD TENSION SPRING | |
| 26 | 22945703 | THREAD TENSION NUT | |
| 27 | SS4120615SP | SCREW 3/16-28 L=6 | |
| 28 | 22900609 | THREAD TAKE-UP LEVER COVER | |
| 29 | SS4120615SP | SCREW 3/16-28 L=6 | |
| 30 | 22920508 | ARM THREAD GUIDE A | |
| 31 | 22921001 | SCREW | |
| 32 | 22945356 | THREAD TENSION ASM. | |
| 33 | 22921308 | THREAD TENSION NUT | |
| 34 | 22921407 | ROTATION STOPPER | |
| 35 | 22921704 | THREAD TENSION SPRING A | |
| 36 | 22921803 | DISK STOPPER | |
| 37 | 22921506 | THREAD TENSION DISK | |
| 38 | 22921209 | THREAD TENSION POST | |
| 39 | 22921605 | THREAD TAKE-UP SPRING | |
| 40 | 22945307 | THREAD TENSION POST BASE | |
| 41 | SS8090670SP | SCREW 9/64-40 L=5.5 | |
| 42 | SS8150710TP | SCREW 15/64-28 L=7 | |
| 43 | 22920904 | TENSION RELEASING | |
| 44 | B1109552000 | THROAT PLATE | |
| 45 | SS2110920TP | SCREW 11/64-40 L=8.5 | |
| 46 | SS2110915SP | SCREW 11/64-40 L=8.5 |
Page 6 — FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22920607 | ARM THREAD GUIDE B | 1 | |
| SS6110610TP | SCREW 11/64-40 L=6 | 1 | |
| TA1250406R0 | RUBBER PLUG D=12.5 L=4 | 2 | |
| SS4120925SP | SCREW 3/16-28 L=9 | 3 | |
| 22901250 | SLIDE PLATE ASM. | 1 | |
| 22901201 | SLIDE PLATE | ||
| 22901300 | SLIDE PLATE SPRING | ||
| SS6060210SP | SCREW 3/32-56 L=1.9 | ||
| 22901003 | BED SCREW STUD | 3 | |
| WT0530002KS | TOOTHED WASHER D=5.3 | 1 | |
| 40188851 | AK85B_DEVICE_900B | 1 | |
| 40099083 | RULER STOP SEAT | 1 | |
| SS7110720SP | SCREW 11/64-40 L=7 | 2 | |
| 40126308 | CORD_CLAMP | 1 | |
| CM300200001 | FINGER INJURY CAUTION LABLE (16) | 1 | |
| SS4120615SP | SCREW 3/16-28 L=6 | 1 | |
| 40132099 | BED_STD_R | 1 | |
| SS4151215SP | SCREW 15/64-28 L=12 | 1 | |
| 40182291 | THROAT_PLATE_G | 1 | |
| 40140080 | FACE_PLATE_ASSY | 1 | |
| 40136258 | CORD_HOLDER | 1 | |
| 40022407 | CORD HOLDER | 1 |
Page 8 — BOBBIN WINDER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40110976 | BOBBIN_WINDER_UNIT | |
| 2 | 26260109 | BTW_BASE | |
| 3 | 26260208 | BTW_CAM_PLATE | |
| 4 | 26260307 | BTW_BASE_SHAFT | |
| 5 | 26260406 | BTW_SHAFT_BASE | |
| 6 | 26260505 | BTW_CAM_LEVER | |
| 7 | 26260604 | BTW_WHEEL | |
| 8 | 26260802 | BTW_BEARING_SPACER | |
| 9 | 26261008 | BTW_LEVER_SHAFT | |
| 10 | 26261206 | BTW_SPACER | |
| 11 | 26261305 | BTW_BEARING | |
| 12 | 26261503 | BTW_WHEEL_RUBBER | |
| 13 | 26261602 | BOBBIN_SPRING | |
| 14 | 26261701 | BTW_SPRING | |
| 15 | 40011144 | BTW_TORSION_SPRING | |
| 16 | 40110975 | BTW_SHAFT | |
| 17 | 40021933 | BTW_LEVER | |
| 18 | RC0560711KP | RETAINING RING | |
| 19 | RE0400000K0 | E-RING 4 | |
| 20 | SM5040655SN | SCREW | |
| 21 | SM8040802TP | SCREW M4X8 | |
| 22 | SM8050502TP | SCREW M5 L=5 | |
| 23 | WP0450826SC | WASHER 4.5X10X0.8 | |
| 24 | 40119475 | OIL_GUARD | |
| 25 | 40110731 | BOBBIN_THREAD_TENSION_ASSY | |
| 26 | 40110734 | BOBBIN_THREAD_ROD_ASSY | |
| 27 | NS6120630SP | NUT 3/16-28 | |
| 28 | 22921506 | THREAD_TENSION_DISK | |
| 29 | D7133555B00 | CONNECTING ROD SPRING | |
| 30 | 22945703 | THREAD_TENSION_NUT | |
| 31 | SM0050801SC | SCREW | |
| 32 | 40037008 | THREAD_CUTTER | |
| 33 | 40163521 | PACKING | |
| 34 | 40113241 | BTW SPACER | |
| 35 | SM0050801SC | SCREW |
Page 10 — MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SS8151150TP | SCREW 15/64-28 L=10.5 | 1 | |
| 22919559 | THREAD TAKE-UP CRANK SHAFT ASM. | 1 | |
| 11002904 | ROLLER FELT | 1 | |
| 22918072 | THREAD TAKE-UP LEVER COMPL. | 1 | |
| 22918064 | THREAD TAKE-UP LEVER ASM. | ||
| 22918304 | LEFT SCREW | ||
| 22918106 | NEEDLE BAR CRANK | ||
| 22906606 | NEEDLE BAR CRANK ROD | ||
| 22918403 | NEEDLE BEARING A | ||
| 22918502 | NEEDLE BEARING B | ||
| 22918601 | NEEDLE BEARING C | ||
| 22918700 | NEEDLE BEARING D | ||
| 22910103 | THRUST COLLAR | 1 | |
| 22903900 | ADJUSTING PIN | 1 | |
| 40110977 | MAIN_SHAFT | 1 | |
| 22910053 | FEED DRIVE ECCENTRIC CAM ASM. | 1 | |
| SS6661110SP | SCREW 1/4-40 L=11 | ||
| 22910004 | FEED DRIVE ECCENTRIC CAM | ||
| SS4090615SP | SCREW 9/64-40 L=6 | 2 | |
| 40110978 | MAIN_SHAFT_BUSHING | 1 | |
| 40086740 | OIL SEAL | 1 | |
| RC1850001KP | SNAP RING 18.5 | 1 | |
| 40137504 | THRUST_COLLAR_ASM | 1 | |
| SS8660610TP | SCREW 1/4-40 L=6 | ||
| 22903207 | MAIN SHAFT BUSHING FRONT | 1 | |
| B1215552000 | OIL ADJUSTING COLLAR | 1 | |
| 22903306 | BUSHING INTERMEDIATE | 1 | |
| 40110979 | MAIN_MOTOR_BASE_76 | 1 | |
| 22919203 | OIL PROTECTING RUBBER | 1 | |
| 22538805 | DRIVING WHEEL | 1 | |
| SS8660610TP | SCREW 1/4-40 L=6 | 2 | |
| 40111424 | FILTER | 1 | |
| SM80608A2TP | SCREW M6 L=8 | 2 | |
| 40111872 | HAND_PULLEY | 1 | |
| RO029180100 | RUBBER RING | 1 | |
| 40111025 | COUPLING_ASM. | 1 | |
| 40140419 | SERVO MOTOR | 1 | |
| SL6052592TN | BOLT | 3 | |
| SL6051492TN | BOLT | 3 | |
| 40110390 | COUNTER_WEIGHT_ASM. | 1 | |
| SS8681650TP | SCREW 9/32-28 L=16 | ||
| SS8660610TP | SCREW 1/4-40 L=6 | ||
| RO044240100 | RUBBER RING | ||
| SS7681650TP | SCREW 9/32-28 L=16 | ||
| 40110376 | COUNTER_WEIGHT | ||
| 40156681 | FILTER | 1 |
Page 12
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| TA0850604R0 | RUBBER PLUG | 1 | |
| 22906101 | NEEDLE BAR BUSHING UPPER | 1 | |
| 22939508 | NEEDLE BAR | 1 | |
| 22906457 | NEEDLE BAR HOLDER ASM. | 1 | |
| SS6090670TP | SCREW 9/64-40 L=6 |
Page 14 — NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 47 | RO036080200 | RUBBER RING | 1 |
| 48 | RO036080200 | RUBBER RING | 1 |
| 49 | 40126849 | HOOK ASM. | 1 |
| 50 | 22890008 | HOOK DRIVING SHAFT OIL SEAL | 1 |
Page 16 — HAND LIFTER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22907802 | HAND LIFTER | 1 | |
| B1521555000 | SCREW | 1 | |
| R0037180100 | RUBBER RING | 1 | |
| 22908552 | HAND LIFTER CAM ASM. | 1 | |
| 40060989 | PRESSER BAR BUSHING LOWER | 1 | |
| SS7091110TP | SCREW 9/64-40 L=10.5 | ||
| 22908701 | LINK SHAFT | 2 | |
| RE050000K0 | E-RING | 3 | |
| B15240120BA | PRESSER FOOT ASM. | 1 | |
| 40050314 | OUTER_HOLDER_BASE | 1 | |
| 22908909 | HINGE SCREW | 1 | |
| SD0720331SP | HINGE SCREW D=7.24 H=3.3 | 1 | |
| 22909006 | KNEE LIFTER CONNECTING ROD | 1 | |
| 22908800 | KNEE LIFTER LINK | 1 | |
| D3164555B00 | OUTER PRESSER PLATE | 1 | |
| SS4110515SP | SCREW 11/64-40 L=5 | 1 | |
| SM4050855SP | SCREW | 1 | |
| 40186696 | WIRE_HOLDER | 1 | |
| SS4120615SP | SCREW 3/16-28 L=6 | 1 | |
| 40187308 | WIRE PRESSER BASE | 1 | |
| NS6620310SP | NUT 3/16-32 | 2 | |
| RE050000K0 | E-RING | 2 | |
| 22920201 | RETURN SPRING | 1 | |
| 22920409 | THREAD RELEASE PIN SPRING | 1 | |
| 22907703 | PRESSER GUIDE BAR | 1 | |
| 22920300 | THREAD RELEASE SUPPORTING PIN | 1 | |
| CQ202000000 | OIL WICK | 0.2 | |
| 40184541 | THREAD_RELEASE_WIRE_ASM | 1 | |
| 22920102 | TENSION RELEASE SHAFT | 1 | |
| 22907554 | PRESSER SPRING REGULATOR ASM. | 1 | |
| 22907604 | PRESSER SPRING REGULATOR NUT | ||
| 22907505 | PRESSER SPRING REGULATOR | ||
| 22907406 | PRESSER SPRING | 1 | |
| 40098388 | PRESSER BAR GUIDE BRACKET | 1 | |
| 40017805 | PRESSER BAR | 1 | |
| 22907307 | THREAD GUIDE | 1 | |
| SS8660810TP | SCREW 1/4-40 L=8 | 1 | |
| SS6090910SP | SCREW 9/64-40 L=9 | 2 | |
| 22908354 | KNEE LIFTING CROSS ROD ASM. | 1 | |
| 22908156 | LIFTING LINK ASM. | ||
| RE050000K0 | E-RING | ||
| 22908008 | LIFTING PLATE | ||
| RE050000K0 | E-RING | ||
| 22908305 | KNEE LIFTER SIDE ROD | ||
| 11243763 | PRESSER LIFTING DEVICE ASM. | ||
| WP0482086SD | WASHER 4.8X11.5X2 | ||
| 23611106 | HAND LIFTER |
Page 18 — HAND LIFTER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 11244209 | STOPPER BASE | 1 |
| 49 | 23610652 | STOPPER SCREW ASM. | 1 |
| 50 | 11244019 | STOPPER COLLAR | 1 |
| 51 | 23610702 | STOPPER SCREW NUT | 1 |
| 52 | 11433802 | SET SCREW | 1 |
| 53 | BT1000651EB | POLYURETHANE TUBE | 0.22 |
| 54 | HX00065000A | CABLE CLIP | 2 |
Page 20 — FEED MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22911408 | FEED REGULATOR CONNNCTING ROD | 1 | |
| 22911507 | WALKING FOOT PIN C | 1 | |
| SS6090670TP | SCREW 9/64-40 L=6 | 2 | |
| 22911606 | FEED REGULATOR | 1 | |
| SS6121860SP | SCREW 3/16-28 L=18 | 1 | |
| SS7120770SH | SCREW 3/16-28 L=7 | 1 | |
| 22911804 | FEED REGULATOR SCREW | 1 | |
| 22912109 | FEED REGULATOR PIN SPRING | 1 | |
| 22912000 | FEED REGULATOR PIN | 1 | |
| 22940506 | FEED DIAL | 1 | |
| 22910251 | CONNECTING ROD ASM. | 1 | |
| 22913859 | ROCKER SHAFT CONNECTING ROD B ASM. | 1 | |
| 22911101 | WALKING FOOT PIN C | 1 | |
| SS6090620TP | SCREW | 1 | |
| 22910202 | ROCKER SHAFT CONNECTING ROD | 1 | |
| 22913800 | ROCKER SHAFT CONNECTING ROD B | 1 | |
| 13887005 | THRUST WASHER | 1 | |
| RE0500000K0 | E-RING | 1 | |
| 22912257 | FEED REVERSE ARM ASM. | 1 | |
| 22912505 | FEED REVERSE ARM SCREW | 1 | |
| RE0500000K0 | E-RING | 1 | |
| 11037405 | SPRING | 1 | |
| 11009800 | FEED REGULATOR BUSHING | 1 | |
| 22910905 | WALKING FOOT PIN A | 2 | |
| 40089548 | CONNECTING LINK B | 2 | |
| 40093417 | CONNECTING LINK A | 2 | |
| 22910459 | FEED ADJUSTING LINK ASM. | 1 | |
| 22910806 | ADJUST LINK FULCRUM SHAFT A | 2 | |
| SS6151220SP | SCREW 15/64-28 L=11.5 | 2 | |
| SS6090620TP | SCREW | 2 | |
| 40125485 | FEED_BASE_SHAFT | 1 | |
| RC0150001KP | RETAINING RING 13.8 | 1 | |
| B1613012I00 | FEED DOG I | 1 | |
| SS4080620TP | SCREW 1/8-44 L=6 | 2 | |
| 22940753 | FEED BAR ASM. | 1 | |
| 22941306 | REGULATOR LINK SPRING HOOK | 1 | |
| SS4110515SP | SCREW 11/64-40 L=5 | 2 | |
| 22913701 | FEED SPRING HOOK | 1 | |
| 40156684 | FEED ROCKER SHAFT | 1 | |
| 22911002 | WALKING FOOT PIN B | 1 | |
| SS6090620TP | SCREW | 1 | |
| NS6800410SP | NUT 9/32-28 | 1 | |
| 40110379 | ASSY_FEED_ROCKER_ARM | 1 | |
| SS6121610SP | SCREW 3/16-28 L=15.5 | 1 | |
| 40109422 | FEED_ARM_ASM | 1 | |
| SS7121610SP | SCREW 3/16-28 L=15.5 | 1 |
Page 22 — FEED MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 47 | SD1000801SH | HINGE SCREW D=10 H=8 | 1 |
| 48 | 40186644 | FEED DRIVING SHAFT | 1 |
| 49 | 40137504 | THRUST_COLLAR_ASM | 1 |
| 50 | SS8660610TP | SCREW 1/4-40 L=6 | 2 |
| 51 | 40162859 | FEED_ROCKER_SHAFT BUSHING | 1 |
| 52 | 40111897 | BEARING | 1 |
| 53 | SS7110740TP | SCREW 11/64-40 L=7 | 1 |
| 54 | RC0150001KP | RETAINING RING 13.8 | 1 |
| 55 | 22940654 | FEED ROCKER ASM. | 1 |
| 56 | SS7121410TP | SCREW 3/16-28 L=14 | 1 |
| 57 | WP0480856SP | WASHER 4.8X8.4X0.8 | 1 |
| 58 | 22915359 | DRIVING SHAFT CRANK ASM. | 1 |
| 59 | SS711120SP | SCREW 11/64-40 L=10.5 | 1 |
| 60 | 40184533 | FEED LEVER | 1 |
| 61 | 22888507 | OIL SEAL | 1 |
| 62 | 22904155 | MAIN SHAFT THRUST COLLAR ASM. | 1 |
| 63 | SS8660610TP | SCREW 1/4-40 L=6 | 2 |
| 64 | 40156758 | FEED SHAFT RUBBER | 2 |
| 65 | TA0950806R0 | RUBBER PLUG | 1 |
| 66 | 40029963 | OIL SEAL | 1 |
| 67 | 40186209 | THRUST_WASHER_B | 1 |
| 68 | 40184531 | REVERSE_FEED_LEVER_SHAFT | 1 |
| 69 | 40184535 | REVERSE_FEED_LEVER_SHAFT_METAL | 1 |
| 70 | WP0611626SP | WASHER 15X6X1.6 | 1 |
| 71 | 40158189 | BUSHING | 1 |
| 72 | 40184532 | REVERSE_FEED_LEVER_SHAFT_PLATE | 1 |
| 73 | 22915003 | CONNECTING ROD | 1 |
| 74 | RO092270200 | RUBBER RING | 1 |
| 75 | 22913008 | FEED ROCKER SHAFT BUSHING | 1 |
| 76 | 40184537 | REVERSE_FEED_LEVER_SPRING | 1 |
| 77 | SS7620750SP | SCREW 3/16-32 L= 6.5 | 1 |
| 78 | TA2351004R0 | RUBBER PLUG | 1 |
| 79 | 40029960 | OIL SEAL | 1 |
| 80 | 40133950 | FEED_DOG_M | 1 |
| 81 | RO133170100 | RUBBER RING | 2 |
| 82 | 22953400 | RUBBER PLUNGER | 2 |
| 83 | 40190682 | RUBBER | 1 |
Page 24 — THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40127152 | THREAD_TRIMMER_CAM | 1 |
| 2 | 40127153 | SPACER | 2 |
| 3 | SS8661012TP | SCREW | 2 |
| 4 | 40127154 | COUNTER_KNIFE | 1 |
| 5 | SS1090520TP | SCREW 9/64-40 L=5 | 1 |
| 6 | 40127155 | LOWER_THREAD_FINGER | 1 |
| 7 | WP0371016SD | WASHER 3.7X8X1 | 1 |
| 8 | SS7090610SP | SCREW 9/64-40 L=6 | 1 |
| 9 | 40184554 | MOVING_KNIFE_BASE | 1 |
| 10 | 40127157 | KNIFE_HOLDER_PRESSER_ASSY | 1 |
| 11 | WP0450826SC | WASHER 4.5X10X0.8 | 2 |
| 12 | SS4111415SP | SCREW 11/64-40 L=14 | 2 |
| 13 | 40127160 | MOVING_KNIFE | 1 |
| 14 | 11351806 | SCREW | 2 |
| 15 | 40184555 | THREAD_TRIMMER_ROD | 1 |
| 16 | SD0600291TP | HINGE SCREW D=6 H=2.9 | 2 |
| 17 | NS6110350SP | NUT 11/64-40 | 1 |
| 18 | 40184556 | THREAD_TRIMMER_ARM | 1 |
| 19 | 40127163 | LEVER_STOPPER | 1 |
| 20 | SS4121415SP | SCREW 3/16-28 L=14 | 1 |
| 21 | 40127164 | SPRING | 1 |
| 22 | 40187734 | FORKED_SHAFT | 1 |
| 23 | R0078190100 | RUBBER RING | 1 |
| 24 | 40127167 | FORKED_SHAFT_BUSH | 1 |
| 25 | SS8110422TP | SCREW 11/64-40 L=4 | 1 |
| 26 | 40127168 | THREAD_TRIMMER_CAM_LEVER_ASSY | 1 |
| 27 | SS8660612TP | SCREW 1/4-40 L=6 | 1 |
| 28 | 40127180 | THREAD_TRIMMER_CAMLEVER_SHAFT | 1 |
| 29 | 40187306 | THREAD_TRIMMER SPRING COLLAR | 1 |
| 30 | 40127182 | SPRING | 1 |
| 31 | 40127183 | CUSHION | 1 |
| 32 | WP0820816SD | WASHER 8.2X16X0.8 | 1 |
| 33 | RE060000K0 | E-RING 6 | 1 |
| 34 | 40186203 | THREAD_TRIMMER_SOLENOID_ASM | 1 |
| 35 | SS4151215SP | SCREW 15/64-28 L=12 | 1 |
| 36 | SD0850751SP | HINGE SCREW D=8.50 H=7.5 | 1 |
| 37 | HK034610140 | HOUSING 14P | 1 |
| 38 | 40112907 | GROUND WIRE ASM | 1 |
| 39 | 40184558 | THREAD_RELEASE_LEVER | 1 |
| 40 | 40127190 | RETURN_SPRING | 1 |
Page 26 — AUTOMATIC REVERSE FEED COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40148382 | LED_BT_SWITCH_ASSY | 1 | |
| 40139771 | LED_BASE | 1 | |
| 40140191 | LED_SCREW | 2 | |
| 40140306 | CONNECTOR_COVER | 1 | |
| 40149069 | LED_BT_SWITCH | 1 | |
| 23632102 | REVERSE FEED SWITCH BASE GUIDE | 1 | |
| SS7110740TP | SCREW 11/64-40 L=7 | 1 | |
| HK03464000B | PIN CONTACT | 4 | |
| HK034610140 | HOUSING 14P | 1 | |
| SS4130615SP | SCREW 3/16-28 L=6 | 1 | |
| 40184562 | REVERSE_FEED_ARM | 1 | |
| RC0260415K0 | C-RING | 1 | |
| 11217114 | ROLLER SHAFT | 1 | |
| 11217213 | ROLLER | 2 | |
| SM6051602TP | SCREW M5X0.8 L=16 | 1 | |
| 40184560 | REVERSE_FEED_SOLENOID_PACKING | 1 | |
| 40184559 | REVERSE_FEED_SOLENOID | 1 | |
| 40187304 | STUD | 4 | |
| HX00065000A | CABLE CLIP | 1 | |
| SM6051002TP | SCREW M5X0.8 L=10 | 2 | |
| RO555200200 | O-RING | 1 | |
| 40187307 | SOLENOID CAP | 1 | |
| SL4052001SC | SCREW M5X0.8 L=20 | 4 | |
| TA0400301M0 | PLUG D=4X4.5 L=3 | 1 | |
| SQ2050453MZ | CONNECTING SCREW | 1 | |
| 23630007 | TUBE | 0.02 | |
| 23629306 | PIPE STOPPER A | 1 | |
| B3510205000 | RUBBER PLUG | 1 | |
| 40186847 | REVERSE FEED SOLENOID PIPE | 1 |
Page 28 — WIPER COMPONENTS (WB)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40140992 | WIPER_ASSY | 1 | |
| 40140994 | WIPER_BASE_ASSY | 1 | |
| 40110999 | WIPER SOLENOID | 1 | |
| 22955900 | WIPER RUBBER A | 1 | |
| 22956007 | WIPER RUBBER B | 1 | |
| 22956106 | WIPER LINK A | 1 | |
| 22956205 | WIPER HINGE SCREW COLLAR | 1 | |
| 22956304 | WIPER SPRING | 1 | |
| 22956403 | WIPER LINK B | 1 | |
| 40041419 | WIPER LINK C ASM. | 1 | |
| 22956809 | WIPER COLLAR | 1 | |
| 22955504 | WIPER COVER | 1 | |
| 22956908 | WIPER LINK B HINGE SCREW | 1 | |
| 40140991 | WIPER | 1 | |
| 40086678 | WIPER_SW_RUBBER | 1 | |
| 40077852 | WIPER SOLENOID SHAFT | 1 | |
| NS6090310SP | NUT 9/64-40 | 1 | |
| NS6110310SP | NUT 11/64-40 | 1 | |
| RE0250000K0 | E-RING 2.5 | 1 | |
| RE0500000K0 | E-RING | 1 | |
| SD0650321TP | HINGE SCREW D=6.5 H=3.2 | 1 | |
| SL4030641SE | SCREW | 3 | |
| SL4030691SC | SCREW M3 L=6 | 1 | |
| SS6090540SP | SCREW 9/64-40 L=5.0 | 1 | |
| 22957203 | WIPER LINK COLLAR | 1 | |
| 40077851 | WIPER SOLENOID SHAFT GUIDE | 1 | |
| SS4110615SP | SCREW 11/64-40 L=6 | 2 | |
| 40086679 | WIPER_STOPPER_RUBBER | 1 | |
| 40037500 | RUBBER_HOLDER | 1 | |
| SS4120925SP | SCREW 3/16-28 L=9 | 1 | |
| WP0482086SD | WASHER 4.8X11.5X2 | 1 |
Page 29 — OIL LUBRICATION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | Oil filler cap | ||
| 2 | Washer | ||
| 3 | Gasket | ||
| 4 | Screw | ||
| 5 | Bracket | ||
| 6 | Oil pump assembly | ||
| 7 | Gasket | ||
| 8 | Screw | ||
| 9 | Screw | ||
| 10 | Washer | ||
| 11 | Oil pan | ||
| 12 | Oil filter assembly | ||
| 13 | Oil filter bracket | ||
| 14 | Screw | ||
| 15 | Oil filter | ||
| 16 | Screw | ||
| 17 | Oil filter housing | ||
| 18 | Gasket | ||
| 19 | Screw | ||
| 20 | Washer | ||
| 21 | Washer | ||
| 22 | Oil pump cover | ||
| 23 | Screw | ||
| 24 | Screw | ||
| 25 | Washer | ||
| 26 | Oil level sensor | ||
| 27 | Washer | ||
| 28 | Screw | ||
| 29 | Oil return pipe | ||
| 30 | Oil drain plug | ||
| 31 | Screw | ||
| 32 | Washer | ||
| 33 | Washer | ||
| 34 | Oil plug | ||
| 35 | Washer | ||
| 36 | Screw | ||
| 37 | Oil filter screen | ||
| 38 | Screw | ||
| 39 | Washer | ||
| 40 | Dipstick tube | ||
| 41 | Dipstick | ||
| 42 | Oil supply pipe | ||
| 43 | Oil supply pipe | ||
| 44 | Screw | ||
| 45 | Washer | ||
| 46 | Oil pan gasket | ||
| 47 | Oil pump drive shaft | ||
| 48 | Screw | ||
| 49 | Washer | ||
| 50 | Oil filler cap | ||
| 51 | Bracket | ||
| 52 | Screw | ||
| 53 | Screw | ||
| 54 | Washer | ||
| 55 | Washer | ||
| 56 | Hose clamp | ||
| 57 | Screw | ||
| 58 | Oil pipe | ||
| 59 | Washer | ||
| 60 | Screw | ||
| 61 | Hose clamp | ||
| 62 | Bracket | ||
| 63 | Screw | ||
| 64 | Screw | ||
| 65 | Bracket | ||
| 66 | Oil pipe | ||
| 67 | Screw | ||
| 68 | Label |
Page 30 — OIL LUBRICATION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22924708 | OIL SIGHT WINDOW | 1 | |
| RO195240100 | RUBBER RING | 1 | |
| 40184543 | MAIN_SHAFT_OIL_TUBE | 1 | |
| SS4120615SP | SCREW 3/16-28 L=6 | 1 | |
| 22925101 | OIL FELT PRESSER | 1 | |
| 22924153 | OIL RETURN TUBE ASM. | 1 | |
| 22924302 | HOLDER | ||
| WS0451040KP | SPRING WASHER 4.5X8.5X1 | 0.3 | |
| 40037502 | OIL ADJUSTING SCREW | 1 | |
| RO037180100 | RUBBER RING | 1 | |
| 40184575 | HOOK_OIL_PIPE | 1 | |
| 22923056 | LUBRICATING OIL PUMP ASM. | 1 | |
| 22923312 | OIL PUMP INSTALLING BASE | ||
| 22923015 | OIL PUMP | ||
| 22923700 | OIL PUMP IMPELLER | ||
| SE4301041SR | SCREW D=3 L=10 | ||
| 22923205 | LUBRICATING OIL PUMP COVER | ||
| 22923809 | OIL PUMP IMPELLER COVER | ||
| 22923403 | PLUNGER | ||
| 22923601 | PLUNGER SPRING | ||
| 22923502 | PLUNGER SCREW | ||
| 22923908 | HOOK DRIVING SHAFT OIL TUBE | ||
| SL4030851SF | SCREW M3 L=8 | ||
| SS4150915SP | SCREW 15/64-28 L=9 | 1 | |
| SS6111010TP | SCREW 11/64-40 L=9.5 | 1 | |
| 22947105 | OIL PUMP SUPPORT | 1 | |
| WS0651310KP | SPRING WASHER 6.5X11X1.3 | 1 | |
| 22924609 | RUBBER JOINT | 1 | |
| 40184544 | OIL_SHIELD_ASSY | 1 | |
| 40184545 | OIL_SHIELD | ||
| SQ2050453MZ | CONNECTING SCREW | ||
| 13170105 | RUBBER RING | ||
| 13171004 | DRAIN SCREW | ||
| B8228125000 | OIL RESERVOIR MAGNET | ||
| 40024644 | MAGNET WASHER | ||
| SM4040655SP | SCREW M4 L=6 | ||
| GAK30005000 | SPRING | ||
| RE0400000K0 | E-RING 4 | ||
| WP0621016SD | WASHER 6.2X13X1 | ||
| EA9500B0100 | CABLE BAND | ||
| 40184547 | KNEE_LIFTER_PUSH_COMP | ||
| 23630007 | TUBE | ||
| 23630007 | TUBE | ||
| WP0501016SD | WASHER 5X10.5X1 | 13 | |
| SM6051402TP | SCREW M5X0.8 L=14 | 13 | |
| 40184546 | OIL_SHIELD_PACKING | ||
| 11039203 | FELT | 1 |
Page 31 — OIL LUBRICATION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | OIL FILLER CAP | |
| 2 | 2 | GASKET | |
| 3 | 3 | BREATHER CAP | |
| 4 | 4 | BRACKET | |
| 5 | 5 | BRACKET | |
| 6 | 6 | BRACKET | |
| 7 | 7 | BRACKET | |
| 8 | 8 | WASHER | |
| 9 | 9 | BRACKET | |
| 10 | 10 | BRACKET | |
| 11 | 11 | BRACKET | |
| 12 | 12 | OIL PUMP COVER | |
| 13 | 13 | OIL PUMP COVER | |
| 14 | 14 | OIL PUMP COVER | |
| 15 | 15 | OIL PUMP COVER | |
| 16 | 16 | OIL PUMP COVER | |
| 17 | 17 | OIL PUMP COVER | |
| 18 | 18 | OIL PUMP COVER | |
| 19 | 19 | SCREW | |
| 20 | 20 | WASHER | |
| 21 | 21 | WASHER | |
| 22 | 22 | OIL PUMP COVER | |
| 23 | 23 | SCREW | |
| 24 | 24 | WASHER | |
| 25 | 25 | WASHER | |
| 26 | 26 | OIL FILTER | |
| 27 | 27 | WASHER | |
| 28 | 28 | OIL FILTER HOUSING | |
| 29 | 29 | OIL PAN | |
| 30 | 30 | OIL PAN | |
| 31 | 31 | DRAIN PLUG | |
| 32 | 32 | WASHER | |
| 33 | 33 | WASHER | |
| 34 | 34 | DRAIN PLUG | |
| 35 | 35 | WASHER | |
| 36 | 36 | WASHER | |
| 37 | 37 | OIL STRAINER | |
| 38 | 38 | BRACKET | |
| 39 | 39 | WASHER | |
| 40 | 40 | DIPSTICK TUBE | |
| 41 | 41 | DIPSTICK | |
| 42 | 42 | OIL LEVEL SENSOR | |
| 43 | 43 | OIL LINE | |
| 44 | 44 | CLAMP | |
| 45 | 45 | CLAMP | |
| 46 | 46 | BRACKET | |
| 47 | 47 | BRACKET | |
| 48 | 48 | CLAMP | |
| 49 | 49 | CLAMP | |
| 50 | 50 | BRACKET | |
| 51 | 51 | BRACKET | |
| 52 | 52 | SCREW | |
| 53 | 53 | BRACKET | |
| 54 | 54 | BRACKET | |
| 55 | 55 | BRACKET | |
| 56 | 56 | CLAMP | |
| 57 | 57 | CLAMP | |
| 58 | 58 | BRACKET | |
| 59 | 59 | BRACKET | |
| 60 | 60 | BRACKET | |
| 61 | 61 | CLAMP | |
| 62 | 62 | BRACKET | |
| 63 | 63 | SCREW | |
| 64 | 64 | SCREW | |
| 65 | 65 | BRACKET | |
| 66 | 66 | BRACKET | |
| 67 | 67 | BRACKET | |
| 68 | 68 | BRACKET |
Page 32 — OIL LUBRICATION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 26231902 | OIL WICK PIPE STOPPER | 2 |
| 49 | SQ2050453MZ | CONNECTING SCREW | 2 |
| 50 | 40017215 | OIL_SIGHT_WINDOW | 1 |
| 51 | 13101407 | LOOPER COVER PRESSER PLATE | 1 |
| 52 | SM4040655SP | SCREW M4 L=6 | 1 |
| 53 | 40028281 | FEED_ADJUSTING_STOPPER | 1 |
| 54 | WP0501016SD | WASHER 5X10.5X1 | 1 |
| 55 | SS4110615SP | SCREW 11/64-40 L=6 | 1 |
| 56 | 23629306 | PIPE STOPPER A | 2 |
| 57 | 40162044 | PIPE STOPPER | 2 |
| 58 | 40184550 | FLOATER_ASM | 1 |
| 59 | 40184552 | FLOATER_GUIDE | 1 |
| 60 | SS4120615SP | SCREW 3/16-28 L=6 | 1 |
| 61 | TA0971101R0 | PLUG | 1 |
| 62 | 40187485 | OIL BRACKET ASM | 1 |
| 63 | SM4050855SP | SCREW | 1 |
| 64 | SS6111210SP | SCREW 11/64-40 L=12 | 1 |
| 65 | 40187736 | FELT | 1 |
| 66 | 40136258 | CORD_HOLDER | 1 |
| 67 | SM4050655SP | SCREW M5 L=6 | 1 |
| 68 | 21345905 | FACE ONCE THROUGH FELT | 1 |
Page 33 — UNDER COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 3 | 3 | 3 | |
| 3 | 3 | 3 | |
| 5 | 5 | 5 | |
| 6 | 6 | 6 | |
| 7 | 7 | 7 | |
| 7 | 7 | 7 | |
| 8 | 8 | 8 | |
| 9 | 9 | 9 | |
| 10 | 10 | 10 | |
| 11 | 11 | 11 | |
| 12 | 12 | 12 | |
| 13 | 13 | 13 | |
| 14 | 14 | 14 | |
| 15 | 15 | 15 | |
| 16 | 16 | 16 | |
| 17 | 17 | 17 | |
| 18 | 18 | 18 | |
| 19 | 19 | 19 | |
| 20 | 20 | 20 | |
| 21 | 21 | 21 | |
| 22 | 22 | 22 | |
| 23 | 23 | 23 | |
| 24 | 24 | 24 | |
| 25 | 25 | 25 |
Page 34
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40184563 | UNDER_COVER_ASSY | 1 | |
| 40184564 | UNDER_COVER |
Page 35 — PSC UNIT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 41 | 41 | PSC UNIT | |
| 39 | 39 | PSC UNIT | |
| 40 | 40 | PSC UNIT | |
| 42 | 42 | PSC UNIT | |
| 36~38 | 36~38 | PSC UNIT | |
| 43 | 43 | PSC UNIT | |
| 44 | 44 | PSC UNIT | |
| 1.2 | 1.2 | PSC UNIT | |
| 35 | 35 | PSC UNIT | |
| 15.22 | 15.22 | PSC UNIT | |
| 16 | 16 | PSC UNIT | |
| 33 | 33 | PSC UNIT | |
| 10.24 | 10.24 | PSC UNIT | |
| 9 | 9 | PSC UNIT | |
| 7 | 7 | PSC UNIT | |
| 12.29 | 12.29 | PSC UNIT | |
| 4.25 | 4.25 | PSC UNIT | |
| 13 | 13 | PSC UNIT | |
| 14.27 | 14.27 | PSC UNIT | |
| 21 | 21 | PSC UNIT | |
| 31 | 31 | PSC UNIT | |
| 11.28 | 11.28 | PSC UNIT | |
| 3.26 | 3.26 | PSC UNIT | |
| 32 | 32 | PSC UNIT | |
| 8 | 8 | PSC UNIT | |
| 34 | 34 | PSC UNIT | |
| 20.30 | 20.30 | PSC UNIT | |
| 17 | 17 | PSC UNIT | |
| 18 | 18 | PSC UNIT | |
| 19 | 19 | PSC UNIT |
Page 36 — PSC UNIT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40156704 | CONTROL BOX | 1 | |
| 40163109 | CONTROL_BOX_CE | 1 | |
| 40141200 | AC INPUT CORD ASSY | 1 | |
| 40141201 | FLT PCB ASSY | 1 | |
| 40141203 | INPUT CHECK CORD ASSY | 1 | |
| 40141204 | PWR PCB ASSY | 1 | |
| 40141205 | PWR PCB FILM SHEET | 1 | |
| 40141206 | RESISTANCE_A_ASSY | 1 | |
| 40141207 | DC POWER SUPPLY CORD ASSY | 1 | |
| 40141208 | CTL PCB ASSY | 1 | |
| 40141209 | PEDAL CORD ASSY | 1 | |
| 40141210 | SOL POWER CORD ASSY | 1 | |
| 40141211 | SOL SIGNAL CORD ASSY | 1 | |
| 40141212 | SOL PCB ASSY | 1 | |
| 40156706 | RATING LABEL A DRAWING | 1 | |
| 40141217 | PSC COVER | 1 | |
| 40141214 | PANEL COVER ASSY | 1 | |
| 40141215 | PANEL COVER | 1 | |
| 40141216 | MEMBRANE SWITCH | 1 | |
| 40141213 | PNL PCB ASSY | 1 | |
| 40141199 | FRAME | 1 | |
| 40156707 | RATING LABEL C DRAWING | 1 | |
| 40145554 | PWR-CE PCB ASSY | 1 | |
| 40145555 | CTL-CE PCB ASSY | 1 | |
| 40145553 | FLT-CE PCB ASSY | 1 | |
| 40149316 | AC INPUT CORD ASSY | 1 | |
| 40145556 | SOL-CE PCB ASSY | 1 | |
| 40145557 | PEDAL CORD CE ASSY | 1 | |
| 40145558 | SOL POWER CORD CE ASSY | 1 | |
| 40145921 | PNL-CE PCB ASSY | 1 | |
| 40145944 | EMI GASKET | 1 | |
| 40157011 | CONNECTOR COVER | 1 | |
| 40145540 | PRT CORD ASSY | 1 | |
| CM300200001 | FINGER INJURY CAUTION LABLE (16) | 1 | |
| 40183785 | SWITCH DUSTPROOF CAOER ASSY | 1 | |
| 40141225 | SLO-BLO FUSE | 1 | |
| 40141226 | SLO-BLO FUSE | 1 | |
| 40141227 | SLO-BLO FUSE | 1 | |
| 40162159 | AC POWER CORD ASSY CE | 1 | |
| 40141220 | AC POWER CORD ASSY | 1 | |
| 40141219 | PEDAL_SENSOR_A_ASSY | 1 | |
| 40042134 | CONNECING_ROD_ASSY | 1 |
Page 37 — PSC UNIT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 41 | 41 | PSC UNIT | |
| 39 | 39 | Cable | |
| 40 | 40 | Cable | |
| 36~38 | 36~38 | Screw | |
| 44 | 44 | Screw | |
| 43 | 43 | Screw | |
| 1.2 | 1.2 | Main Board | |
| 35 | 35 | Cover | |
| 15.22 | 15.22 | Cover | |
| 16 | 16 | Housing | |
| 33 | 33 | Screw | |
| 10.24 | 10.24 | Screw | |
| 9 | 9 | Connector | |
| 7 | 7 | Bracket | |
| 12.29 | 12.29 | Screw | |
| 4.25 | 4.25 | Bracket | |
| 13 | 13 | Filter | |
| 14.27 | 14.27 | Screw | |
| 21 | 21 | Heat Sink | |
| 31 | 31 | Screw | |
| 11.28 | 11.28 | Screw | |
| 20.30 | 20.30 | Screw | |
| 17 | 17 | Control Panel | |
| 18 | 18 | Display Board | |
| 19 | 19 | Keypad | |
| 3.26 | 3.26 | Connector | |
| 32 | 32 | Screw | |
| 8 | 8 | Bracket | |
| 34 | 34 | Screw | |
| 42 | 42 | Cable Assembly |
Page 38 — PSC UNIT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 43 | 40141223 | CORD STAPLE | 3 |
| 44 | 40141224 | SCREW | 3 |
Page 40 — THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40096354 | THREAD STAND ASM. | 1 | |
| 40085784 | SPOOL REST ROD LOWER | 1 | |
| 40085785 | SPOOL REST ROD UPPER | 1 | |
| 40085786 | SPOOL REST ARM LOWER | 1 | |
| 40085787 | SPOOL REST ARM UPPER | 1 | |
| 40085788 | SPOOL REST | 2 | |
| 40085789 | SPOOL REST CUSHION | 2 | |
| 40085790 | SPOOL PIN | 2 | |
| 40085791 | SPOOL RETAINER | 2 | |
| 40085792 | SPOOL REST ROD JOINT | 1 | |
| 40085793 | SPOOL REST ROD RUBBER CAP | 1 | |
| 40085794 | THREAD GUIDE | 2 | |
| 40085795 | THREAD GUIDE BUSHING | 2 | |
| 40096325 | SPOOL REST ROD NUT | 1 | |
| WP1612616SE | WASHER 16X30X2.6 | 2 | |
| 40085796 | SPOOL REST ROD RUBBER CUSHION | 2 | |
| 40096326 | SPOOL REST ARM LOWER SCREW | 1 | |
| NM6050001SE | NUT M5 | 2 | |
| 40096327 | SPOOL REST ARM UPPER SCREW | 1 | |
| NM6050001SE | NUT M5 | 2 | |
| WS0510002KN | SPRING WASHER M5 | 2 | |
| WP0531001SC | WASHER M5 | 2 | |
| SM4051405SE | SCREW M5 L=14 | 2 | |
| NM6050001SE | NUT M5 | 2 |
Page 42 — ACCESSORIE PARTS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40184578 | ACCESSORY_BAG_ASSY | 1 |
| 2 | 22932800 | ACCESSORIE BAG | 1 |
| 3 | B8216271000 | FRAME SUPPORT BAR | 1 |
| 4 | 22932909 | BOBBIN | 1 |
| 5 | 22933105 | SCREW DRIVER MIDDLE | 1 |
| 6 | 22933204 | SCREW DRIVER SMALL | 1 |
| 7 | 22958300 | NEEDLE THREAD GUIDE PIN | 1 |
| 8 | 22958052 | RUBBER HINGE ASM. | 1 |
| 9 | 22926000 | RUBBER CUSHION | 2 |
| 10 | 22958003 | FRAME BUBBER CUSHION | 2 |
| 11 | 22926208 | NAIL | 8 |
| 12 | 22926356 | HINGE COMPL. | 2 |
| 13 | 22926505 | WASHER | 2 |
| 14 | 13160601 | FUNNEL | 1 |
| 15 | 40187727 | REVERSF FEED SOLENOID COVER | 1 |
| 16 | MML007600CA | JUKI MACHINE OIL 7 | 1 |
| 17 | MDB100B1402 | NEEDLE DBX1#14-2 | 1 |
| 18 | MC200500902 | NEEDLE 134 #90-2 | 1 |
| 19 | 40135803 | HEAD COVER | 1 |
| 20 | CM600100201 | WEEE INFORMATION SHEET | 1 |
| 21 | 40186378 | SAFETY_INSTRUCTION_MANUAL(EG) | 1 |
| 22 | SS4121415SP | SCREW 3/16-28 L=14 | 2 |
Page 43 — EXCLUSIVE PARTS FOR H
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | ||
| 2 | 2 | ||
| 3 | 3 | ||
| 4 | 4 | ||
| 5 | 5 | ||
| 6 | 6 | ||
| 7 | 7 | ||
| 8 | 8 | ||
| 9 | 9 | ||
| 10 | 10 | ||
| 11 | 11 | ||
| 12 | 12 | ||
| 13 | 13 | ||
| 14 | 14 | ||
| 15 | 15 | ||
| 16 | 16 | ||
| 17 | 17 | ||
| 18 | 18 | ||
| 19 | 19 | ||
| 20 | 20 | ||
| 21 | 21 | ||
| 22 | 22 | ||
| 23 | 23 | ||
| 24 | 24 | ||
| 25 | 25 | ||
| 26 | 26 | ||
| 27 | 27 | ||
| 28 | 28 | ||
| 29 | 29 | ||
| 30 | 30 | ||
| 31 | 31 | ||
| 32 | 32 |
Page 44 — EXCLUSIVE PARTS FOR H
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22962054 | THREAD TENSION ASM. | 1 | |
| 22962005 | THREAD TENSION SPRING | ||
| 22963458 | THREAD TENSION ASM | 1 | |
| 22963409 | THREAD TENSION SPRING | ||
| 40103560 | LINK THREAD TAKE-UP LEVER ASM. | 1 | |
| 22962351 | FEED DRIVE ECCENTRIC CAM ASM. | 1 | |
| B1213552000A | OIL ADJUSTING PIN | 1 | |
| MDB100B2100 | NEEDLE DBX1 #21 | 1 | |
| B1418415H00 | NEEDLE BAR THREAD GUIDE | 1 | |
| 22970313 | NEEDLE BAR BUSHING LOWER | 1 | |
| 22970206 | NEEDLE BAR | 1 | |
| 11091006 | ARM THREAD GUIDE (HA) | 1 | |
| 40101726 | FEED_DIAL | 1 | |
| 40174353 | INNER_HOOK_HOLDER_H | 1 | |
| B1505552000A | PRESSER SPRING | 1 | |
| D1524555EBL | PRESSER FOOT ASM. | 1 | |
| 40190609 | ADJUSTING_LINK_SPRING | 1 | |
| 40184565 | FEED_SPRING_HOOK | 1 | |
| 22971204 | FEED REGULATOR BASE PIN | 1 | |
| 40141076 | WIPER_ASSY_H | 1 | |
| 40023223 | NEEDLE BAR THREAD GUIDE | 1 | |
| 11400801 | THROAT PLATE J | 1 | |
| 11403003 | FEED J | 1 | |
| 40115888 | LEVER_STOPPER_ASSY | 1 | |
| 11092251 | HOOK ASM. | 1 | |
| 11403805 | THREAD GUIDE C FITTING PLATE | 1 | |
| WP0371016SD | WASHER 3.7X8X1 | 1 | |
| NS6090310SP | NUT 9/64-40 | 1 | |
| 22972608 | ARM THREAD GUIDE C | 1 | |
| 40010395 | ADJUSTING LINK FULCRUM SHAFT B | 1 | |
| SS6080320SP | SCREW 1/8-44 L= 2.5 | 1 | |
| HX001890000 | SPIRAL TUBE | 1 |
Page 45 — EXCLUSIVE PARTS TYPE NB
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | BRACKET | |
| 2 | 2 | SCREW | |
| 3 | 3 | WASHER | |
| 4 | 4 | BRACKET | |
| 5 | 5 | BRACKET | |
| 6 | 6 | NUT | |
| 7 | 7 | WASHER | |
| 8 | 8 | BRACKET | |
| 9 | 9 | BRACKET | |
| 10 | 10 | GASKET | |
| 11 | 11 | BRACKET | |
| 12 | 12 | BRACKET |
Page 46 — EXCLUSIVE PARTS TYPE NB
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40190699 | THREAD_NIPPER_SET | 1 |
| 2 | SS1110640TP | SCREW 11/64-40 L= 5.5 | 1 |
| 3 | SS1110840SP | SCREW 11/64-40 L=8 | 1 |
| 4 | M8002430000 | STOPPER | 1 |
| 5 | 22972608 | ARM THREAD GUIDE C | 1 |
| 6 | NS6090310SP | NUT 9/64-40 | 1 |
| 7 | WP0371026SD | WASHER 3.7X7X1 | 1 |
| 8 | 11403805 | THREAD GUIDE C FITTING PLATE | 1 |
| 9 | CQ202000000 | COTTON OIL WICK D=2 | 0.2 |
| 10 | G1164870000 | SUCTION O RING | 1 |
| 11 | 13403605 | RUBBER_PLATE | 1 |
| 12 | 40187311 | ARM THREAD GUIDE B | 1 |
Page 47 — LIST FOR INFORMATION OF CHANGE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 12 | 401-84566 | ||
| 82 | 229-53400 | ||
| 83 | 401-90682 | ||
| 17 | 401-90609 | ||
| 32 | HX-0018900-00 | ||
| 12 | 401-87311 |
Page 48 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 8 | 11002904 | 3 | |
| 8 | 22903900 | 14 | |
| 18 | 22913701 | 38 | |
| 18 | 11009800 | 23 | |
| 20 | 22904155 | 62 | |
| 18 | 22913800 | 15･16 | |
| 10 | 11015906 | 37 | |
| 10 | 22905004 | 23 | |
| 18 | 22913859 | 11･12 | |
| 18 | 11037405 | 22 | |
| 10 | 22905103 | 25 | |
| 20 | 22915003 | 73 | |
| 10 | 11038650 | 34 | |
| 10 | 22905202 | 26 | |
| 20 | 22915359 | 58 | |
| 10 | 11038759 | 24 | |
| 10 | 22906101 | 2 | |
| 10 | 22916308 | 27 | |
| 28 | 11039203 | 47 | |
| 10 | 22906200 | 8 | |
| 10 | 22916506 | 38 | |
| 10 | 11079506 | 40 | |
| 10 | 22906309 | 10 | |
| 10 | 22916555 | 36 | |
| 42 | 11091006 | 12 | |
| 10 | 22906457 | 4 | |
| 10 | 22917157 | 29 | |
| 42 | 11092251 | 25 | |
| 8 | 22906606 | 8 | |
| 8 | 22918064 | 5 | |
| 24 | 11217114 | 13 | |
| 14 | 22907307 | 36 | |
| 8 | 22918072 | 4 | |
| 24 | 11217213 | 14 | |
| 14 | 22907406 | 33 | |
| 8 | 22918106 | 7 | |
| 14 | 11243763 | 45 | |
| 14 | 22907505 | 32 | |
| 8 | 22918304 | 6 | |
| 16 | 11244019 | 50 | |
| 14 | 22907554 | 30 | |
| 8 | 22918403 | 9～12 | |
| 16 | 11244209 | 48 | |
| 14 | 22907604 | 31 | |
| 8 | 22918502 | 9～12 | |
| 22 | 11351806 | 14 | |
| 14 | 22907703 | 25 | |
| 8 | 22918601 | 9～12 | |
| 42 | 11400801 | 22 | |
| 14 | 22907802 | 1 | |
| 8 | 22918700 | 9～12 | |
| 42 | 11403003 | 23 | |
| 14 | 22908008 | 42 | |
| 8 | 22919203 | 29 | |
| 42 | 11403805 | 26 | |
| 14 | 22908156 | 40 | |
| 8 | 22919559 | 2 | |
| 44 | 11403805 | 8 | |
| 14 | 22908305 | 44 | |
| 14 | 22920102 | 29 | |
| 2 | 11415205 | 20 | |
| 14 | 22908354 | 39 | |
| 14 | 22920201 | 23 | |
| 16 | 11433802 | 52 | |
| 14 | 22908552 | 4 | |
| 14 | 22920300 | 26 | |
| 30 | 13101407 | 51 | |
| 14 | 22908701 | 7 | |
| 14 | 22920409 | 24 | |
| 40 | 13160601 | 14 | |
| 14 | 22908800 | 14 | |
| 2 | 22920508 | 30 | |
| 28 | 13170105 | 32 | |
| 14 | 22908909 | 11 | |
| 4 | 22920607 | 47 | |
| 28 | 13171004 | 33 | |
| 14 | 22909006 | 13 | |
| 2 | 22920904 | 43 | |
| 44 | 13403605 | 11 | |
| 8 | 22910004 | 18 | |
| 2 | 22921001 | 31 | |
| 18 | 13887005 | 17 | |
| 8 | 22910053 | 16 | |
| 2 | 22921209 | 38 | |
| 30 | 21345905 | 68 | |
| 8 | 22910103 | 13 | |
| 2 | 22921308 | 33 | |
| 8 | 22538805 | 30 | |
| 18 | 22910202 | 15･16 | |
| 2 | 22921407 | 34 | |
| 20 | 22888507 | 61 | |
| 18 | 22910251 | 11･12 | |
| 2 | 22921506 | 37 | |
| 12 | 22890008 | 50 | |
| 18 | 22910459 | 27 | |
| 6 | 22921506 | 28 | |
| 10 | 22890206 | 42～44 | |
| 18 | 22910806 | 28 | |
| 2 | 22921605 | 39 | |
| 10 | 22890305 | 42～44 | |
| 18 | 22910905 | 24 | |
| 2 | 22921704 | 35 | |
| 10 | 22890404 | 42～44 | |
| 18 | 22911002 | 40 | |
| 2 | 22921803 | 36 | |
| 10 | 22896252 | 46 | |
| 18 | 22911101 | 13 | |
| 28 | 22923015 | 14 | |
| 2 | 22900401 | 10 | |
| 18 | 22911408 | 1 | |
| 28 | 22923056 | 12 | |
| 2 | 22900609 | 28 | |
| 18 | 22911507 | 2 | |
| 28 | 22923205 | 17 | |
| 4 | 22901003 | 55 | |
| 18 | 22911606 | 4 | |
| 28 | 22923312 | 13 | |
| 4 | 22901201 | 52 | |
| 18 | 22911804 | 7 | |
| 28 | 22923403 | 19 | |
| 4 | 22901250 | 51 | |
| 18 | 22912000 | 9 | |
| 28 | 22923502 | 21 | |
| 4 | 22901300 | 53 | |
| 18 | 22912109 | 8 | |
| 28 | 22923601 | 20 | |
| 2 | 22901805 | 14 | |
| 18 | 22912257 | 19 | |
| 28 | 22923700 | 15 | |
| 8 | 22903207 | 25 | |
| 18 | 22912505 | 20 | |
| 28 | 22923809 | 18 | |
| 8 | 22903306 | 27 | |
| 20 | 22913008 | 75 | |
| 28 | 22923908 | 22 |
Page 49 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 6 | 22924153 | 28 | |
| 6 | 22956106 | 26 | |
| 15 | 40011144 | 6 | |
| 7 | 22924302 | 28 | |
| 7 | 22956205 | 26 | |
| 2 | 40012126 | 2 | |
| 28 | 22924609 | 28 | |
| 8 | 22956304 | 26 | |
| 11 | 40012129 | 2 | |
| 1 | 22924708 | 28 | |
| 9 | 22956403 | 26 | |
| 50 | 40017215 | 30 | |
| 5 | 22925101 | 28 | |
| 11 | 22956809 | 26 | |
| 35 | 40017805 | 14 | |
| 9 | 22926000 | 40 | |
| 13 | 22956908 | 26 | |
| 17 | 40021933 | 6 | |
| 11 | 22926208 | 40 | |
| 25 | 22957203 | 26 | |
| 68 | 40022407 | 4 | |
| 12 | 22926356 | 40 | |
| 10 | 22958003 | 40 | |
| 21 | 40023223 | 42 | |
| 13 | 22926505 | 40 | |
| 8 | 22958052 | 40 | |
| 35 | 40024644 | 28 | |
| 5 | 22932107 | 32 | |
| 7 | 22958300 | 2 | |
| 53 | 40028281 | 30 | |
| 11 | 22932404 | 32 | |
| 7 | 22958300 | 40 | |
| 79 | 40029963 | 20 | |
| 10 | 22932453 | 32 | |
| 2 | 22962005 | 42 | |
| 32 | 40037008 | 6 | |
| 2 | 22932800 | 40 | |
| 1 | 22962054 | 42 | |
| 29 | 40037500 | 26 | |
| 18 | 22932909 | 10 | |
| 6 | 22962351 | 42 | |
| 9 | 40037502 | 28 | |
| 4 | 22932909 | 40 | |
| 4 | 22963409 | 42 | |
| 10 | 40041419 | 26 | |
| 5 | 22933105 | 40 | |
| 3 | 22963458 | 42 | |
| 42 | 40042134 | 34 | |
| 6 | 22933204 | 40 | |
| 11 | 22970206 | 42 | |
| 10 | 40050314 | 14 | |
| 25 | 22934202 | 32 | |
| 10 | 22970313 | 42 | |
| 5 | 40060989 | 14 | |
| 19 | 22934251 | 32 | |
| 19 | 22971204 | 42 | |
| 26 | 40077851 | 26 | |
| 20 | 22934301 | 32 | |
| 29 | 22972608 | 42 | |
| 16 | 40077852 | 26 | |
| 24 | 22934400 | 32 | |
| 5 | 22972608 | 44 | |
| 2 | 40085784 | 38 | |
| 22 | 22934509 | 32 | |
| 49 | 23610652 | 16 | |
| 3 | 40085785 | 38 | |
| 23 | 22934608 | 32 | |
| 51 | 23610702 | 16 | |
| 4 | 40085786 | 38 | |
| 12 | 22934707 | 32 | |
| 47 | 23611106 | 14 | |
| 5 | 40085787 | 38 | |
| 3･41 | 22939508 | 10 | |
| 12 | 23620206 | 10 | |
| 6 | 40085788 | 38 | |
| 3･41 | 22939607 | 10 | |
| 27 | 23629306 | 24 | |
| 7 | 40085789 | 38 | |
| 10 | 22940506 | 18 | |
| 56 | 23629306 | 30 | |
| 8 | 40085790 | 38 | |
| 55 | 22940654 | 20 | |
| 26 | 23630007 | 24 | |
| 9 | 40085791 | 38 | |
| 35 | 22940753 | 18 | |
| 43 | 23630007 | 28 | |
| 10 | 40085792 | 38 | |
| 36 | 22941306 | 18 | |
| 6 | 23632102 | 24 | |
| 11 | 40085793 | 38 | |
| 40 | 22945307 | 2 | |
| 48 | 26231902 | 30 | |
| 12 | 40085794 | 38 | |
| 32 | 22945356 | 2 | |
| 2 | 26260109 | 6 | |
| 13 | 40085795 | 38 | |
| 22 | 22945414 | 2 | |
| 3 | 26260208 | 6 | |
| 16 | 40085796 | 38 | |
| 21 | 22945463 | 2 | |
| 4 | 26260307 | 6 | |
| 15 | 40086678 | 26 | |
| 25 | 22945505 | 2 | |
| 5 | 26260406 | 6 | |
| 28 | 40086679 | 26 | |
| 23 | 22945604 | 2 | |
| 6 | 26260505 | 6 | |
| 21 | 40086740 | 8 | |
| 26 | 22945703 | 2 | |
| 7 | 26260604 | 6 | |
| 25 | 40089548 | 18 | |
| 30 | 22945703 | 6 | |
| 8 | 26260802 | 6 | |
| 14 | 40090002 | 10 | |
| 24 | 22945802 | 2 | |
| 9 | 26261008 | 6 | |
| 16 | 40090003 | 10 | |
| 26 | 22947105 | 28 | |
| 10 | 26261206 | 6 | |
| 19 | 40090004 | 10 | |
| 18 | 22952501 | 2 | |
| 11 | 26261305 | 6 | |
| 21 | 40090005 | 10 | |
| 82 | 22953400 | 20 | |
| 12 | 26261503 | 6 | |
| 6 | 40090058 | 10 | |
| 12 | 22955504 | 26 | |
| 13 | 26261602 | 6 | |
| 26 | 40093417 | 18 | |
| 4 | 22955900 | 26 | |
| 14 | 26261701 | 6 | |
| 14 | 40096325 | 38 | |
| 5 | 22956007 | 26 | |
| 30 | 40010395 | 42 | |
| 17 | 40096326 | 38 |
Page 50 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 19 | 40096327 | 38 | |
| 40 | 40127190 | 22 | |
| 4･25 | 40145553 | 34 | |
| 1 | 40096354 | 38 | |
| 31 | 40127192 | 10 | |
| 6･23 | 40145554 | 34 | |
| 34 | 40098388 | 14 | |
| 63 | 40132099 | 4 | |
| 10･24 | 40145555 | 34 | |
| 58 | 40099083 | 4 | |
| 80 | 40133950 | 20 | |
| 14･27 | 40145556 | 34 | |
| 9 | 40101541 | 32 | |
| 19 | 40135803 | 40 | |
| 11･28 | 40145557 | 34 | |
| 13 | 40101726 | 42 | |
| 67 | 40136258 | 4 | |
| 12･29 | 40145558 | 34 | |
| 1 | 40102097 | 2 | |
| 66 | 40136258 | 30 | |
| 20･30 | 40145921 | 34 | |
| 13 | 40102261 | 2 | |
| 23 | 40137504 | 8 | |
| 31 | 40145944 | 34 | |
| 5 | 40103560 | 42 | |
| 49 | 40137504 | 20 | |
| 1 | 40148382 | 24 | |
| 45 | 40109422 | 18 | |
| 2 | 40139771 | 24 | |
| 5 | 40149069 | 24 | |
| 45 | 40110376 | 8 | |
| 66 | 40140080 | 4 | |
| 3･26 | 40149316 | 34 | |
| 43 | 40110379 | 18 | |
| 3 | 40140191 | 24 | |
| 4 | 40156677 | 2 | |
| 40 | 40110390 | 8 | |
| 4 | 40140306 | 24 | |
| 46 | 40156681 | 8 | |
| 25 | 40110731 | 6 | |
| 37 | 40140419 | 8 | |
| 39 | 40156684 | 18 | |
| 26 | 40110734 | 6 | |
| 14 | 40140991 | 26 | |
| 1･2 | 40156704 | 34 | |
| 16 | 40110975 | 6 | |
| 1 | 40140992 | 26 | |
| 15･22 | 40156706 | 34 | |
| 1 | 40110976 | 6 | |
| 2 | 40140994 | 26 | |
| 15･22 | 40156707 | 34 | |
| 15 | 40110977 | 8 | |
| 20 | 40141076 | 42 | |
| 4 | 40156725 | 32 | |
| 20 | 40110978 | 8 | |
| 21 | 40141199 | 34 | |
| 8 | 40156726 | 32 | |
| 28 | 40110979 | 8 | |
| 3･26 | 40141200 | 34 | |
| 64 | 40156758 | 20 | |
| 3 | 40110999 | 26 | |
| 4･25 | 40141201 | 34 | |
| 32 | 40157011 | 34 | |
| 36 | 40111025 | 8 | |
| 5 | 40141203 | 34 | |
| 71 | 40158189 | 20 | |
| 32 | 40111424 | 8 | |
| 6･23 | 40141204 | 34 | |
| 57 | 40162044 | 30 | |
| 34 | 40111872 | 8 | |
| 7 | 40141205 | 34 | |
| 39 | 40162159 | 34 | |
| 52 | 40111897 | 20 | |
| 8 | 40141206 | 34 | |
| 51 | 40162859 | 20 | |
| 38 | 40112907 | 22 | |
| 9 | 40141207 | 34 | |
| 1･2 | 40163109 | 34 | |
| 34 | 40113241 | 6 | |
| 10･24 | 40141208 | 34 | |
| 33 | 40163521 | 6 | |
| 24 | 40115888 | 42 | |
| 11･28 | 40141209 | 34 | |
| 32 | 40174351 | 10 | |
| 24 | 40119475 | 6 | |
| 12･29 | 40141210 | 34 | |
| 14 | 40174353 | 42 | |
| 31 | 40125485 | 18 | |
| 13 | 40141211 | 34 | |
| 65 | 40182291 | 4 | |
| 60 | 40126308 | 4 | |
| 14･27 | 40141212 | 34 | |
| 35 | 40183785 | 34 | |
| 49 | 40126849 | 12 | |
| 20･30 | 40141213 | 34 | |
| 68 | 40184531 | 20 | |
| 1 | 40127152 | 22 | |
| 17 | 40141214 | 34 | |
| 72 | 40184532 | 20 | |
| 2 | 40127153 | 22 | |
| 18 | 40141215 | 34 | |
| 60 | 40184533 | 20 | |
| 4 | 40127154 | 22 | |
| 19 | 40141216 | 34 | |
| 69 | 40184535 | 20 | |
| 6 | 40127155 | 22 | |
| 16 | 40141217 | 34 | |
| 76 | 40184537 | 20 | |
| 10 | 40127157 | 22 | |
| 41 | 40141219 | 34 | |
| 35 | 40184538 | 10 | |
| 13 | 40127160 | 22 | |
| 40 | 40141220 | 34 | |
| 13 | 40184540 | 10 | |
| 19 | 40127163 | 22 | |
| 43 | 40141223 | 36 | |
| 28 | 40184541 | 14 | |
| 21 | 40127164 | 22 | |
| 44 | 40141224 | 36 | |
| 3 | 40184543 | 28 | |
| 24 | 40127167 | 22 | |
| 36～38 | 40141225 | 34 | |
| 29 | 40184544 | 28 | |
| 26 | 40127168 | 22 | |
| 36～38 | 40141226 | 34 | |
| 30 | 40184545 | 28 | |
| 28 | 40127180 | 22 | |
| 36～38 | 40141227 | 34 | |
| 46 | 40184546 | 28 | |
| 30 | 40127182 | 22 | |
| 7 | 40141523 | 10 | |
| 41 | 40184547 | 28 | |
| 31 | 40127183 | 22 | |
| 33 | 40145540 | 34 | |
| 58 | 40184550 | 30 |
Page 51 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 59 | 40184552 | 30 | |
| 53 | BT1000651EB | 16 | |
| 38 | RE0400000K0 | 28 | |
| 9 | 40184554 | 22 | |
| 61 | CM300200001 | 2 | |
| 43 | RE0500000K0 | 14 | |
| 15 | 40184555 | 22 | |
| 61 | CM300200001 | 4 | |
| 21 | RE0500000K0 | 18 | |
| 18 | 40184556 | 22 | |
| 34 | CM300200001 | 34 | |
| 20 | RE0500000K0 | 26 | |
| 39 | 40184558 | 22 | |
| 20 | CM600100201 | 40 | |
| 33 | RE0600000K0 | 22 | |
| 17 | 40184559 | 24 | |
| 27 | CQ202000000 | 14 | |
| 13 | RE1000000K0 | 32 | |
| 16 | 40184560 | 24 | |
| 9 | CQ202000000 | 44 | |
| 35 | RO029180100 | 8 | |
| 11 | 40184562 | 24 | |
| 28 | CQ220000000 | 10 | |
| 48 | RO036080200 | 12 | |
| 1 | 40184563 | 32 | |
| 16 | D1524555EBL | 42 | |
| 3 | RO037180100 | 14 | |
| 2 | 40184564 | 32 | |
| 15 | D3164555B00 | 14 | |
| 10 | RO037180100 | 28 | |
| 18 | 40184565 | 42 | |
| 29 | D7133555B00 | 6 | |
| 43 | RO044240100 | 8 | |
| 11 | 40184575 | 28 | |
| 40 | EA9500B0100 | 28 | |
| 23 | RO078190100 | 22 | |
| 1 | 40184578 | 40 | |
| 10 | G1164870000 | 44 | |
| 74 | RO092270200 | 20 | |
| 34 | 40186203 | 22 | |
| 37 | GAK30005000 | 28 | |
| 18 | RO098240100 | 32 | |
| 67 | 40186209 | 20 | |
| 37 | HK034610140 | 22 | |
| 81 | RO133170100 | 20 | |
| 21 | 40186378 | 40 | |
| 9 | HK034610140 | 24 | |
| 2 | RO195240100 | 28 | |
| 48 | 40186644 | 20 | |
| 8 | HK03464000B | 24 | |
| 21 | RO555200200 | 24 | |
| 18 | 40186696 | 14 | |
| 54 | HX00065000A | 16 | |
| 16 | SD0600291TP | 22 | |
| 29 | 40186847 | 24 | |
| 19 | HX00065000A | 24 | |
| 21 | SD0650321TP | 26 | |
| 18 | 40187304 | 24 | |
| 32 | HX001890000 | 42 | |
| 12 | SD0720331SP | 14 | |
| 29 | 40187306 | 22 | |
| 16 | HX00669000A | 32 | |
| 36 | SD0850751SP | 22 | |
| 22 | 40187307 | 24 | |
| 4 | M8002430000 | 44 | |
| 47 | SD1000801SH | 20 | |
| 20 | 40187308 | 14 | |
| 17･18 | MC200500902 | 40 | |
| 16 | SE4301041SR | 28 | |
| 12 | 40187311 | 44 | |
| 11 | MDB100B1400 | 10 | |
| 22 | SL4030641SE | 26 | |
| 62 | 40187485 | 30 | |
| 17･18 | MDB100B1402 | 40 | |
| 23 | SL4030691SC | 26 | |
| 15 | 40187727 | 40 | |
| 8 | MDB100B2100 | 42 | |
| 23 | SL4030851SF | 28 | |
| 22 | 40187734 | 22 | |
| 16 | MML007600CA | 40 | |
| 23 | SL4052091SC | 24 | |
| 65 | 40187736 | 30 | |
| 24 | NM6050001SE | 38 | |
| 39 | SL6051492TN | 8 | |
| 57 | 40188851 | 4 | |
| 15 | NM6060001SE | 32 | |
| 38 | SL6052592TN | 8 | |
| 17 | 40190609 | 42 | |
| 7 | NM6060003SC | 32 | |
| 35 | SM0050801SC | 6 | |
| 83 | 40190682 | 20 | |
| 17 | NS6090310SP | 26 | |
| 52 | SM4040655SP | 28 | |
| 1 | 40190699 | 44 | |
| 28 | NS6090310SP | 42 | |
| 52 | SM4040655SP | 30 | |
| 44 | B1109552000 | 2 | |
| 6 | NS6090310SP | 44 | |
| 67 | SM4050655SP | 30 | |
| 3 | B1116210D00 | 32 | |
| 18 | NS6110310SP | 26 | |
| 17 | SM4050855SP | 14 | |
| 7 | B1213552000A | 42 | |
| 17 | NS6110350SP | 22 | |
| 63 | SM4050855SP | 30 | |
| 26 | B1215552000 | 8 | |
| 27 | NS6120630SP | 6 | |
| 23 | SM4051405SE | 38 | |
| 9 | B1418415H00 | 42 | |
| 21 | NS6620310SP | 14 | |
| 20 | SM5040655SN | 6 | |
| 15 | B1505552000A | 42 | |
| 42 | NS6680410SP | 18 | |
| 20 | SM6051002TP | 24 | |
| 2 | B1521555000 | 14 | |
| 54 | RC0150001KP | 18 | |
| 45 | SM6051402TP | 28 | |
| 9 | B15240120BA | 14 | |
| 54 | RC0150001KP | 20 | |
| 15 | SM6051602TP | 24 | |
| 33 | B1613012I00 | 18 | |
| 12 | RC0260415K0 | 24 | |
| 21 | SM8040802TP | 6 | |
| 28 | B3510205000 | 24 | |
| 18 | RC0560711KP | 6 | |
| 22 | SM8050502TP | 6 | |
| 3 | B8216271000 | 40 | |
| 22 | RC1850001KP | 8 | |
| 33 | SM80608A2TP | 8 | |
| 34 | B8228125000 | 28 | |
| 19 | RE0250000K0 | 26 | |
| 6 | SM8061612TP | 32 | |
| 45 | B9117552A00 | 10 | |
| 19 | RE0400000K0 | 6 | |
| 21 | SM9061203SE | 32 |
Page 52 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 14 | SM9061853SR | SM9061853SR | |
| 17 | SS6121840SP | SS6121840SP | |
| 46 | WP0482086SD | WP0482086SD | |
| 25 | SQ2050453MZ | SQ2050453MZ | |
| 5 | SS6121860SP | SS6121860SP | |
| 31 | WP0482086SD | WP0482086SD | |
| 49 | SQ2050453MZ | SQ2050453MZ | |
| 29 | SS6151220SP | SS6151220SP | |
| 54 | WP0501016SD | WP0501016SD | |
| 49 | SQ2050453MZ | SQ2050453MZ | |
| 17 | SS6661110SP | SS6661110SP | |
| 54 | WP0501016SD | WP0501016SD | |
| 5 | SS1090520TP | SS1090520TP | |
| 17 | SS6700710SH | SS6700710SH | |
| 22 | WP0531001SC | WP0531001SC | |
| 2 | SS1110640TP | SS1110640TP | |
| 9 | SS7080510TP | SS7080510TP | |
| 70 | WP0611626SP | WP0611626SP | |
| 3 | SS1110840SP | SS1110840SP | |
| 8 | SS7090610SP | SS7090610SP | |
| 39 | WP0621016SD | WP0621016SD | |
| 46 | SS2110915SP | SS2110915SP | |
| 6 | SS7091110TP | SS7091110TP | |
| 32 | WP0820816SD | WP0820816SD | |
| 45 | SS2110920TP | SS2110920TP | |
| 59 | SS7110720SP | SS7110720SP | |
| 15 | WP1612616SE | WP1612616SE | |
| 34 | SS4080620TP | SS4080620TP | |
| 53 | SS7110740TP | SS7110740TP | |
| 8 | WS0451040KP | WS0451040KP | |
| 19 | SS4090615SP | SS4090615SP | |
| 7 | SS7110740TP | SS7110740TP | |
| 21 | WS0510002KN | WS0510002KN | |
| 16 | SS4110515SP | SS4110515SP | |
| 59 | SS7111120SP | SS7111120SP | |
| 27 | WS0651310KP | WS0651310KP | |
| 37 | SS4110515SP | SS4110515SP | |
| 6 | SS7120770SH | SS7120770SH | |
| 56 | WT0530002KS | WT0530002KS | |
| 27 | SS4110615SP | SS4110615SP | |
| 56 | SS7121410TP | SS7121410TP | |
| 55 | SS4110615SP | SS4110615SP | |
| 46 | SS7121610SP | SS7121610SP | |
| 12 | SS4111415SP | SS4111415SP | |
| 77 | SS7620750SP | SS7620750SP | |
| 62 | SS4120615SP | SS4120615SP | |
| 44 | SS7681650TP | SS7681650TP | |
| 62 | SS4120615SP | SS4120615SP | |
| 41 | SS8090670SP | SS8090670SP | |
| 19 | SS4120615SP | SS4120615SP | |
| 25 | SS8110422TP | SS8110422TP | |
| 10 | SS4120615SP | SS4120615SP | |
| 42 | SS8150710TP | SS8150710TP | |
| 60 | SS4120615SP | SS4120615SP | |
| 1 | SS8151150TP | SS8151150TP | |
| 60 | SS4120615SP | SS4120615SP | |
| 42 | SS8660610TP | SS8660610TP | |
| 50 | SS4120925SP | SS4120925SP | |
| 63 | SS8660610TP | SS8660610TP | |
| 50 | SS4120925SP | SS4120925SP | |
| 27 | SS8660612TP | SS8660612TP | |
| 39 | SS4120925SP | SS4120925SP | |
| 22 | SS8660810TP | SS8660810TP | |
| 30 | SS4120925SP | SS4120925SP | |
| 37 | SS8660810TP | SS8660810TP | |
| 20 | SS4121415SP | SS4121415SP | |
| 3 | SS8661012TP | SS8661012TP | |
| 22 | SS4121415SP | SS4121415SP | |
| 41 | SS8681650TP | SS8681650TP | |
| 24 | SS4150915SP | SS4150915SP | |
| 24 | TA0400301M0 | TA0400301M0 | |
| 64 | SS4151215SP | SS4151215SP | |
| 5 | TA0850604R0 | TA0850604R0 | |
| 35 | SS4151215SP | SS4151215SP | |
| 1 | TA0850604R0 | TA0850604R0 | |
| 54 | SS6060210SP | SS6060210SP | |
| 65 | TA0950806R0 | TA0950806R0 | |
| 31 | SS6080320SP | SS6080320SP | |
| 61 | TA0971101R0 | TA0971101R0 | |
| 3 | SS6080410SP | SS6080410SP | |
| 49 | TA1250406R0 | TA1250406R0 | |
| 24 | SS6090540SP | SS6090540SP | |
| 6 | TA1250705R0 | TA1250705R0 | |
| 41 | SS6090620TP | SS6090620TP | |
| 16 | TA2000502R0 | TA2000502R0 | |
| 5 | SS6090670TP | SS6090670TP | |
| 9 | TA2100904R0 | TA2100904R0 | |
| 3 | SS6090670TP | SS6090670TP | |
| 19 | TA2101002R0 | TA2101002R0 | |
| 38 | SS6090910SP | SS6090910SP | |
| 78 | TA2351004R0 | TA2351004R0 | |
| 30 | SS6110420TP | SS6110420TP | |
| 7 | WP0371016SD | WP0371016SD | |
| 48 | SS6110610TP | SS6110610TP | |
| 27 | WP0371016SD | WP0371016SD | |
| 25 | SS6111010TP | SS6111010TP | |
| 7 | WP0371026SD | WP0371026SD | |
| 33 | SS6111210SP | SS6111210SP | |
| 23 | WP0450826SC | WP0450826SC | |
| 64 | SS6111210SP | SS6111210SP | |
| 11 | WP0450826SC | WP0450826SC | |
| 44 | SS6121610SP | SS6121610SP | |
| 57 | WP0480856SP | WP0480856SP |
Juki DDL-900B — parts catalog
- Page 1 (cover): This is the cover page for the parts list of the DDL-900B model, published on October 9, 2017.
- Page 2 (toc): This page is a table of contents for a parts catalog, listing various components and their corresponding page numbers.
- Page 3 (diagram): This page illustrates the frame and miscellaneous cover components of a sewing machine, showing an exploded view with numbered parts.
- Page 4 (parts_list): This page lists frame and miscellaneous cover components, including part numbers, names, and quantities.
- Page 5 (diagram): This page illustrates the frame and miscellaneous cover components of an industrial sewing machine, with various parts labeled with reference numbers.
- Page 6 (parts_list): This page lists frame and miscellaneous cover components, including part numbers, names, and quantities.
- Page 7 (diagram): This page illustrates the components of a bobbin winder for an industrial sewing machine, showing an exploded view of various parts and their reference numbers.
- Page 8 (parts_list): This page lists the components for a bobbin winder, including part numbers, names, and quantities.
- Page 9 (diagram): This page illustrates the components of the main shaft and thread take-up lever, showing an exploded view of various parts with their corresponding reference numbers.
- Page 10 (parts_list): This page lists the components for the main shaft and thread take-up lever, including part numbers, names, and quantities.
- Page 11 (diagram): This page illustrates the components of the needle bar, upright shaft, and hook driving shaft, with various parts numbered for identification.
- Page 12 (parts_list): This page lists the components for the needle bar, upright shaft, and hook driving shaft, including part numbers, names, and quantities.
- Page 13 (diagram): This page illustrates the components of the needle bar, upright shaft, and hook driving shaft, showing an exploded view of various parts with their reference numbers.
- Page 14 (parts_list): This page lists parts for the needle bar, upright shaft, and hook driving shaft components, including rubber rings, hook assembly, and hook driving shaft oil seal.
- Page 15 (diagram): This page illustrates the components of a hand lifter assembly for an industrial sewing machine, showing various parts and their reference numbers.
- Page 16 (parts_list): This page lists the components of the hand lifter, including part numbers, names, and quantities.
- Page 17 (diagram): This page illustrates the components of a hand lifter assembly for an industrial sewing machine, showing various parts such as levers, springs, rods, and fasteners with their corresponding reference numbers.
- Page 18 (parts_list): This page lists components for a hand lifter, including part numbers, names, and quantities.
- Page 19 (diagram): This page displays a diagram of feed mechanism components for an industrial sewing machine.
- Page 20 (parts_list): This page lists the components of the feed mechanism, including part numbers, names, and quantities for various screws, pins, rods, and other parts.
- Page 21 (diagram): This page illustrates the components of the feed mechanism for an industrial sewing machine, showing various parts and their reference numbers.
- Page 22 (parts_list): This page lists feed mechanism components with their part numbers, names, and quantities.
- Page 23 (diagram): This page illustrates the components of a thread trimmer assembly for an industrial sewing machine, showing various parts such as shafts, levers, springs, and electrical connectors.
- Page 24 (parts_list): This page lists the components for a thread trimmer, including part numbers, names, and quantities.
- Page 25 (diagram): This page displays a diagram of automatic reverse feed components with various parts labeled with reference numbers.
- Page 26 (parts_list): This page lists the components for the automatic reverse feed mechanism, including part numbers, names, and quantities.
- Page 27 (diagram): This page displays a diagram of wiper components, labeled with reference numbers from 1 to 31.
- Page 28 (parts_list): This page lists wiper components with part numbers, names, and quantities. It includes items like WIPER_ASSY, WIPER_BASE_ASSY, and various screws and nuts.
- Page 29 (diagram): This page displays a diagram of oil lubrication components, with numbered parts and their corresponding references.
- Page 30 (parts_list): This page lists oil lubrication components, including part numbers, names, quantities, and remarks for various parts like oil sight windows, rubber rings, screws, and pump assemblies.
- Page 31 (diagram): This page displays a diagram of oil lubrication components, with numbered parts and their corresponding references.
- Page 32 (parts_list): This page lists oil lubrication components with their part numbers, names, and quantities. It includes items like oil wick pipe stoppers, connecting screws, oil sight windows, and various other screws and fittings.
- Page 33 (diagram): This page displays a diagram of under cover components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 34 (parts_list): This page lists under cover components for a sewing machine, including part numbers, names, and quantities.
- Page 35 (diagram): This page displays a diagram of the PSC UNIT with various components labeled with reference numbers.
- Page 36 (parts_list): This page lists parts for the PSC UNIT, including control boxes, various PCB assemblies, cords, covers, and fuses, with part numbers, names, and quantities.
- Page 37 (diagram): This page displays a diagram of the PSC UNIT with various parts labeled with reference numbers.
- Page 38 (parts_list): This page lists parts for the PSC UNIT, including CORD STAPLE and SCREW, with their respective part numbers and quantities.
- Page 39 (diagram): This page contains a diagram illustrating the components of a thread stand, with various parts numbered for reference.
- Page 40 (parts_list): This page lists components for the THREAD STAND ASM., including spool rest rods, arms, pins, guides, and various fasteners, with part numbers, names, and quantities.
- Page 41 (diagram): This page contains a diagram illustrating the components and accessories of a sewing machine, with reference numbers pointing to various parts.
- Page 42 (parts_list): This page lists accessory parts and components for sewing machines, including part numbers, names, quantities, and remarks.
- Page 43 (diagram): This page displays a diagram of exclusive parts for model H, with numbered components.
- Page 44 (parts_list): This page lists exclusive parts for model H, including thread tension assemblies, springs, levers, needles, and various guides and plates, with part numbers, names, and quantities.
- Page 45 (diagram): This page displays a diagram of exclusive parts for Type NB, with numbered components indicating various parts and their assembly.
- Page 46 (parts_list): This page lists exclusive parts for Type NB, including thread nipper sets, screws, nuts, washers, and thread guides, with their corresponding part numbers and quantities.
- Page 47 (text): This page provides information about changes to parts, including how to identify added or obsoleted parts and how to order them. It also lists specific part number changes with their corresponding revision numbers and page references.
- Page 48 (index): Numerical index of parts with part numbers, page references, and reference numbers.
- Page 49 (index): Numerical index of parts, listing part numbers, corresponding page numbers, and reference numbers.
- Page 50 (index): Numerical index of parts with part numbers, corresponding page numbers, and reference numbers.
- Page 51 (index): This page contains a numerical index of parts, listing part numbers, their corresponding page numbers in the catalog, and reference numbers from diagrams.
- Page 52 (index): Numerical index of parts with part numbers, page references, and reference numbers.
Page 2 — CONTENTS
CONTENTS FRAME & MISCELLANEOUS COVER COMPONENTS................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
Page 3 — FRAME & MISCELLANEOUS COVER COMPONENTS
FRAME & MISCELLANEOUS COVER COMPONENTS jintex.in
Page 4 — FRAME & MISCELLANEOUS COVER COMPONENTS
FRAME & MISCELLANEOUS COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40102097 FACE_PLATE_ASM. 1 2 40012126 FACE PLATE PACKING 1 3 SS6080410SP SCREW 1/8-44 L=4 1 4 40156677 ARM OIL SHIELD ASSY 1 5 TA0850604R0 RUBBER PLUG 2 6 TA1250705R0 RUBBER PLUG 1 7 22958300 NEEDLE THREAD GUIDE PIN 1 8 SS4120925SP SCREW 3/16-28 L=9 8 9 TA2100904R0 RUBBER PLUG 1 10 22900401 WINDOW PLATE 1 11 40012129 SIDE PLATE PACKING 1 12 CM300200001 FINGER INJURY CAUTION LABLE (16) 2 13 40102261 SAFETY_LABEL_S 1 14 22901805 GROUND MARK 1 15 SS4120615SP SCREW 3/16-28 L=6 1 16 TA2000002R0 RUBBER PLUG 1 17 SS6121840SP SCREW 3/16-28 L=18 1 18 22952501 BACK LEVER STOPPER 1 19 TA2101002R0 RUBBER PLUG 1 20 11415205 THREAD TAKE-UP LEVER COVER(JE) VARIOUS NOS. FOR DESTINATIONS 1 21 22945463 THREAD TENSION ASM. NO.1 1 22 22945414 THREAD TENSION POST * 1 23 22945604 THREAD TENSION GUIDE * 1 24 22945802 THREAD TENSION DISK * 2 25 22945505 THREAD TENSION SPRING * 1 26 22945703 THREAD TENSION NUT * 1 27 SS4120615SP SCREW 3/16-28 L=6 1 28 22900609 THREAD TAKE-UP LEVER COVER VARIOUS NOS. FOR DESTINATIONS 1 29 SS4120615SP SCREW 3/16-28 L=6 1 30 22920508 ARM THREAD GUIDE A 1 31 22921001 SCREW 1 32 22945356 THREAD TENSION ASM. 1 33 22921308 THREAD TENSION NUT * 1 34 22921407 ROTATION STOPPER * 1 35 22921704 THREAD TENSION SPRING A * 1 36 22921803 DISK STOPPER * 1 37 22921506 THREAD TENSION DISK * 2 38 22921209 THREAD TENSION POST * 1 39 22921605 THREAD TAKE-UP SPRING * ☆ 1 40 22945307 THREAD TENSION POST BASE * 1 41 SS8090670SP SCREW 9/64-40 L=5.5 * 1 42 SS8150710TP SCREW 15/64-28 L=7 1 43 22920904 TENSION RELEASING 1 44 B1109552000 THROAT PLATE 1 45 SS2110920TP SCREW 11/64-40 L=8.5 1 46 SS2110915SP SCREW 11/64-40 L=8.5 1 jintex.in
Page 5 — FRAME & MISCELLANEOUS COVER COMPONENTS
FRAME & MISCELLANEOUS COVER COMPONENTS 8 67 62 60 10 11 8 68 57 29 28 20 15 56 27 5 6 5 7 14 9 16 19 17 18 B 12 13 42 30 31 3 4 59 58 43 21 22 24 25 26 23 55 41 40 39 38 37 36 35 34 33 32 61 63 2 1 B 64 66 46 45 51 44 49 47 48 50 52 53 54 A 65 jintex.in
Page 6 — FRAME & MISCELLANEOUS COVER COMPONENTS
FRAME & MISCELLANEOUS COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 47 22920607 ARM THREAD GUIDE B 1 48 SS6110610TP SCREW 11/64-40 L=6 1 49 TA1250406R0 RUBBER PLUG D=12.5 L=4 2 50 SS4120925SP SCREW 3/16-28 L=9 3 51 22901250 SLIDE PLATE ASM. 1 52 22901201 SLIDE PLATE * 1 53 22901300 SLIDE PLATE SPRING * 1 54 SS6060210SP SCREW 3/32-56 L=1.9 * 2 55 22901003 BED SCREW STUD 3 56 WT0530002KS TOOTHED WASHER D=5.3 1 57 40188851 AK85B_DEVICE_900B OPTIONAL PARTS 1 58 40099083 RULER STOP SEAT 1 59 SS7110720SP SCREW 11/64-40 L=7 2 60 40126308 CORD_CLAMP 1 61 CM300200001 FINGER INJURY CAUTION LABLE (16) 1 62 SS4120615SP SCREW 3/16-28 L=6 1 63 40132099 BED_STD_R 1 64 SS4151215SP SCREW 15/64-28 L=12 1 65 40182291 THROAT_PLATE_G OPTIONAL PARTS 1 66 40140080 FACE_PLATE_ASSY OPTIONAL PARTS 1 67 40136258 CORD_HOLDER 1 68 40022407 CORD HOLDER 1 Jintex.in
Page 7 — BOBBIN WINDER COMPONENTS
BOBBIN WINDER COMPONENTS 20 23 17 10 24 2 9 13 1 16 4 3 14 22 11 6 8 15 11 5 31 18 19 32 21 7 35 21 34 12 33 30 29 28 25 26 27 jintex.in
Page 8 — BOBBIN WINDER COMPONENTS
BOBBIN WINDER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40110976 BOBBIN_WINDER_UNIT 1 2 26260109 BTW_BASE * 1 3 26260208 BTW_CAM_PLATE * 1 4 26260307 BTW_BASE_SHAFT * 1 5 26260406 BTW_SHAFT_BASE * 1 6 26260505 BTW_CAM_LEVER * 1 7 26260604 BTW_WHEEL * 1 8 26260802 BTW_BEARING_SPACER * 1 9 26261008 BTW_LEVER_SHAFT * 1 10 26261206 BTW_SPACER * 1 11 26261305 BTW_BEARING * 2 12 26261503 BTW_WHEEL_RUBBER * ☆ 1 13 26261602 BOBBIN_SPRING * ☆ 1 14 26261701 BTW_SPRING * 1 15 40011144 BTW_TORSION_SPRING * 1 16 40110975 BTW_SHAFT * 1 17 40021933 BTW_LEVER * 1 18 RC0560711KP RETAINING RING * 1 19 RE0400000K0 E-RING 4 * 1 20 SM5040655SN SCREW * 1 21 SM8040802TP SCREW M4X8 * 2 22 SM8050502TP SCREW M5 L=5 * 1 23 WP0450826SC WASHER 4.5X10X0.8 * 1 24 40119475 OIL_GUARD * 1 25 40110731 BOBBIN_THREAD_TENSION_ASSY * 1 26 40110734 BOBBIN_THREAD_ROD_ASSY * 1 27 NS6120630SP NUT 3/16-28 * 1 28 22921506 THREAD_TENSION_DISK * 2 29 D7133555B00 CONNECTING ROD SPRING * 1 30 22945703 THREAD_TENSION_NUT * 1 31 SM0050801SC SCREW 1 32 40037008 THREAD_CUTTER 1 33 40163521 PACKING 1 34 40113241 BTW SPACER 1 35 SM0050801SC SCREW 3 jintex.in
Page 9 — MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS
MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS 1 2 9~12 8 6 7 5 4 29 32 27 31 30 46 25 40 41 45 42 43 44 21 20 13 A 19 26 35 14 3 15 28 39 36 37 38 34 33 16 17 18 A 23 24 22 jintex.in
Page 10 — MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS
MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 SS8151150TP SCREW 15/64-28 L=10.5 1 2 22919559 THREAD TAKE-UP CRANK SHAFT ASM. 1 3 11002904 ROLLER FELT 1 4 22918072 THREAD TAKE-UP LEVER COMPL. 1 5 22918064 THREAD TAKE-UP LEVER ASM. * 1 6 22918304 LEFT SCREW * 1 7 22918106 NEEDLE BAR CRANK * 1 8 22906606 NEEDLE BAR CRANK ROD * 1 9 22918403 NEEDLE BEARING A SELECTIVE PARTS * 2 10 22918502 NEEDLE BEARING B SELECTIVE PARTS * 2 11 22918601 NEEDLE BEARING C SELECTIVE PARTS * 2 12 22918700 NEEDLE BEARING D SELECTIVE PARTS * 2 13 22910103 THRUST COLLAR 1 14 22903900 ADJUSTING PIN 1 15 40110977 MAIN_SHAFT 1 16 22910053 FEED DRIVE ECCENTRIC CAM ASM. 1 17 SS6661110SP SCREW 1/4-40 L=11 * 2 18 22910004 FEED DRIVE ECCENTRIC CAM * 1 19 SS4090615SP SCREW 9/64-40 L=6 2 20 40110978 MAIN_SHAFT_BUSHING 1 21 40086740 OIL SEAL 1 22 RC1850001KP SNAP RING 18.5 1 23 40137504 THRUST_COLLAR_ASM 1 24 SS8660610TP SCREW 1/4-40 L=6 * 2 25 22903207 MAIN SHAFT BUSHING FRONT 1 26 B1215552000 OIL ADJUSTING COLLAR 1 27 22903306 BUSHING INTERMEDIATE 1 28 40110979 MAIN_MOTOR_BASE_76 1 29 22919203 OIL PROTECTING RUBBER 1 30 22538805 DRIVING WHEEL 1 31 SS8660610TP SCREW 1/4-40 L=6 2 32 40111424 FILTER 1 33 SM80608A2TP SCREW M6 L=8 2 34 40111872 HAND_PULLEY 1 35 RO029180100 RUBBER RING 1 36 40111025 COUPLING_ASM. 1 37 40140419 SERVO MOTOR 1 38 SL6052592TN BOLT 3 39 SL6051492TN BOLT 3 40 40110390 COUNTER_WEIGHT_ASM. 1 41 SS8681650TP SCREW 9/32-28 L=16 * 1 42 SS8660610TP SCREW 1/4-40 L=6 * 2 43 RO044240100 RUBBER RING * 1 44 SS7681650TP SCREW 9/32-28 L=16 * 1 45 40110376 COUNTER_WEIGHT * 1 46 40156681 FILTER 1 jintex.in
Page 11 — NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS
NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS 15 14 17 16 25 23 26 1 2 28 3.41 6 4 5 8 7 20 19 21 27 29 22 9 30 50 10 39 13 31 11 35 32 12 33 48 34 37 38 SET 42~44 47 18 45 40 36 49 24 46 jintex.in
Page 12
NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 TA0850604R0 RUBBER PLUG 1 2 22906101 NEEDLE BAR BUSHING UPPER 1 3 22939508 NEEDLE BAR 1 4 22906457 NEEDLE BAR HOLDER ASM. 1 5 SS6090670TP SCREW 9/64-40 L=6 * 1 6 40090058 SLIDE BLOCK 1 7 40141523 NEEDLE BAR THREAD GUIDE P 1 8 22906200 NEEDLE BAR BUSHING LOWER 1 9 SS7080510TP SCREW 1/8-44 L=5 * ☆ 1 10 22906309 NEEDLE BAR THREAD GUIDE 1 11 MDB100B1400 NEEDLE DBX1 #14 ☆ 1 12 23620206 OIL SEAL 2 13 40184540 HOOK,SHAFT,MIDDLE,METAL 1 14 40090002 UPPER LARGE BEVEL GEAR ASM. 1 15 SS8660810TP SCREW 1/4-40 L=8 * 2 16 40090003 UPPER SMALL BEVEL GEAR ASM. 1 17 SS8660810TP SCREW 1/4-40 L=8 * 2 18 22932909 BOBBIN ☆ 1 19 40090004 LOWER LARGE BEVEL GEAR ASM. 1 20 SS8660810TP SCREW 1/4-40 L=8 * 2 21 40090005 LOWER SMALL BEVEL GEAR ASM. 1 22 SS8660810TP SCREW 1/4-40 L=8 * 2 23 22905004 UPRIGHT SHAFT 1 24 11038759 BOBBIN CASE ASM. ☆ 1 25 22905103 UPRIGHT SHAFT BUSHING UPPER 1 26 22905202 UPRIGHT SHAFT BUSHING LOWER 1 27 22916308 HOOK DRIVING SHAFT BUSH REAR 1 28 CQ22000000 OIL WICK 0.3 29 22917157 THRUST COLLAR ASM. REAR 1 30 SS61110420TP SCREW 11/64-40 L=4.8 * 2 31 40127192 HOOK_DRIVING_SHAFT 1 32 40174351 INNER_HOOK_HOLDER 1 33 SS6111210SP SCREW 11/64-40 L=12 1 34 11038650 HOOK ASM. ☆ 1 35 40184538 HOOK_SHAFT,FRONT,METAL,ASM 1 36 22916555 OIL SEAL SCREW ASM. ☆ 1 37 11015906 OIL WICK * 1 38 22916506 SET SCREW * 1 39 SS4120925SP SCREW 3/16-28 L=9 1 40 11079506 FRONT SCREW OPTIONAL PARTS 1 41 22939607 NEEDLE BAR B ACCORDING TO DESTINATIONS 1 42 22890404 RP HOOK C OPTIONAL PARTS ☆ 1 43 22890206 RP HOOK OPTIONAL PARTS ☆ 1 44 22890305 RP HOOK S OPTIONAL PARTS ☆ 1 45 B9117552A00 BOBBIN OPTIONAL PARTS ☆ 1 46 22896252 BOBBIN CASE ASM. OPTIONAL PARTS ☆ 1 jintex.in
Page 13 — NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS
NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS 15 14 17 16 25 23 26 1 2 28 3.41 6 4 5 8 7 20 19 21 27 29 30 22 9 50 10 13 39 31 11 35 32 12 33 48 37 34 38 SET 42~44 47 18 45 40 36 49 24 46 jintex.in
Page 14 — NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS
NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 47 RO036080200 RUBBER RING OPTIONAL PARTS 1 48 RO036080200 RUBBER RING 1 49 40126849 HOOK ASM. OPTIONAL PARTS 1 50 22890008 HOOK DRIVING SHAFT OIL SEAL 1 jintex.in
Page 15 — HAND LIFTER COMPONENTS
HAND LIFTER COMPONENTS 1 2 3 4 7 30 32 31 25 33 36 34 38 37 27 5 35 6 9 47 48 51 49 52 40 44 41 42 43 39 28 29 22 23 22 8 8 18 16 26 24 21 45 50 11 12 14 13 54 19 20 53 54 10 18 15 17 jintex.in
Page 16 — HAND LIFTER COMPONENTS
HAND LIFTER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 22907802 HAND LIFTER 1 2 B1521555000 SCREW 1 3 R0037180100 RUBBER RING 1 4 22908552 HAND LIFTER CAM ASM. 1 5 40060989 PRESSER BAR BUSHING LOWER 1 6 SS7091110TP SCREW 9/64-40 L=10.5 ☆ 1 7 22908701 LINK SHAFT 2 8 RE050000K0 E-RING 3 9 B15240120BA PRESSER FOOT ASM. 1 10 40050314 OUTER_HOLDER_BASE 1 11 22908909 HINGE SCREW 1 12 SD0720331SP HINGE SCREW D=7.24 H=3.3 1 13 22909006 KNEE LIFTER CONNECTING ROD 1 14 22908800 KNEE LIFTER LINK 1 15 D3164555B00 OUTER PRESSER PLATE 1 16 SS4110515SP SCREW 11/64-40 L=5 1 17 SM4050855SP SCREW 1 18 40186696 WIRE_HOLDER 1 19 SS4120615SP SCREW 3/16-28 L=6 1 20 40187308 WIRE PRESSER BASE 1 21 NS6620310SP NUT 3/16-32 2 22 RE050000K0 E-RING 2 23 22920201 RETURN SPRING 1 24 22920409 THREAD RELEASE PIN SPRING 1 25 22907703 PRESSER GUIDE BAR 1 26 22920300 THREAD RELEASE SUPPORTING PIN 1 27 CQ202000000 OIL WICK 0.2 28 40184541 THREAD_RELEASE_WIRE_ASM 1 29 22920102 TENSION RELEASE SHAFT 1 30 22907554 PRESSER SPRING REGULATOR ASM. 1 31 22907604 PRESSER SPRING REGULATOR NUT * 1 32 22907505 PRESSER SPRING REGULATOR * 1 33 22907406 PRESSER SPRING 1 34 40098388 PRESSER BAR GUIDE BRACKET 1 35 40017805 PRESSER BAR 1 36 22907307 THREAD GUIDE 1 37 SS8660810TP SCREW 1/4-40 L=8 1 38 SS6090910SP SCREW 9/64-40 L=9 2 39 22908354 KNEE LIFTING CROSS ROD ASM. 1 40 22908156 LIFTING LINK ASM. * 1 41 RE050000K0 E-RING * 1 42 22908008 LIFTING PLATE * 1 43 RE050000K0 E-RING * 1 44 22908305 KNEE LIFTER SIDE ROD * 1 45 11243763 PRESSER LIFTING DEVICE ASM. OPTIONAL PARTS * 1 46 WP0482086SD WASHER 4.8X11.5X2 * 1 47 23611106 HAND LIFTER * 1 jintex.in
Page 17 — HAND LIFTER COMPONENTS
HAND LIFTER COMPONENTS 2 1 3 4 7 32 30 31 25 33 36 34 38 37 27 5 35 6 9 47 48 51 49 52 40 44 41 42 43 39 28 29 22 23 26 22 24 8 8 A 18 16 21 45 50 11 12 14 13 54 19 20 53 54 10 18 15 17 jintex.in
Page 18 — HAND LIFTER COMPONENTS
HAND LIFTER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 11244209 STOPPER BASE * 1 49 23610652 STOPPER SCREW ASM. * 1 50 11244019 STOPPER COLLAR * 1 51 23610702 STOPPER SCREW NUT * 1 52 11433802 SET SCREW * 1 53 BT1000651EB POLYURETHANE TUBE 0.22 54 HX00065000A CABLE CLIP 2 jintex.in
Page 19 — FEED MECHANISM COMPONENTS
FEED MECHANISM COMPONENTS 52 11-12 3 4 23 6 15-16 18 8 9 1 13 19 7 B 74 82 83 5 14 72 70 77 25 26 65 -20 10 60 24 27 28 24 21 67 A 76 22 28 61 30 38 29 69 36 37 68 64 71 40 A 34 80 35 33 39 -73 45 42 78 66 81 46 32 51 41 47 43 49 50 48 55 79 31 57 56 54 53 62 63 58 75 59 jintex.in
Page 20 — FEED MECHANISM COMPONENTS
FEED MECHANISM COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 22911408 FEED REGULATOR CONNNCTING ROD 1 2 22911507 WALKING FOOT PIN C 1 3 SS6090670TP SCREW 9/64-40 L=6 2 4 22911606 FEED REGULATOR 1 5 SS6121860SP SCREW 3/16-28 L=18 1 6 SS7120770SH SCREW 3/16-28 L=7 1 7 22911804 FEED REGULATOR SCREW 1 8 22912109 FEED REGULATOR PIN SPRING 1 9 22912000 FEED REGULATOR PIN 1 10 22940506 FEED DIAL 1 11 22910251 CONNECTING ROD ASM. 1 12 22913859 ROCKER SHAFT CONNECTING ROD B ASM. ACCORDING TO DESTINATIONS * 1 13 22911101 WALKING FOOT PIN C 1 14 SS6090620TP SCREW * 1 15 22910202 ROCKER SHAFT CONNECTING ROD * 1 16 22913800 ROCKER SHAFT CONNECTING ROD B ACCORDING TO DESTINATIONS * 1 17 13887005 THRUST WASHER 1 18 RE0500000K0 E-RING 1 19 22912257 FEED REVERSE ARM ASM. 1 20 22912505 FEED REVERSE ARM SCREW 1 21 RE0500000K0 E-RING 1 22 11037405 SPRING 1 23 11009800 FEED REGULATOR BUSHING 1 24 22910905 WALKING FOOT PIN A 2 25 40089548 CONNECTING LINK B 2 26 40093417 CONNECTING LINK A 2 27 22910459 FEED ADJUSTING LINK ASM. 1 28 22910806 ADJUST LINK FULCRUM SHAFT A 2 29 SS6151220SP SCREW 15/64-28 L=11.5 2 30 SS6090620TP SCREW 2 31 40125485 FEED_BASE_SHAFT 1 32 RC0150001KP RETAINING RING 13.8 1 33 B1613012I00 FEED DOG I 1 34 SS4080620TP SCREW 1/8-44 L=6 2 35 22940753 FEED BAR ASM. 1 36 22941306 REGULATOR LINK SPRING HOOK 1 37 SS4110515SP SCREW 11/64-40 L=5 2 38 22913701 FEED SPRING HOOK 1 39 40156684 FEED ROCKER SHAFT 1 40 22911002 WALKING FOOT PIN B 1 41 SS6090620TP SCREW 1 42 NS6800410SP NUT 9/32-28 1 43 40110379 ASSY_FEED_ROCKER_ARM 1 44 SS6121610SP SCREW 3/16-28 L=15.5 * 1 45 40109422 FEED_ARM_ASM 1 46 SS7121610SP SCREW 3/16-28 L=15.5 * 1 jintex.in
Page 21 — FEED MECHANISM COMPONENTS
FEED MECHANISM COMPONENTS 52 11-12 3 4 23 6 15-16 18 8 9 1 13 19 7 B 74 82 83 5 14 72 70 77 25 26 20 65 10 60 17 24 27 28 24 21 67 28 22 76 61 30 38 29 36 37 69 68 64 40 71 B 34 41 35 80 44 33 39 43 66 73 45 42 78 32 46 51 47 49 50 55 81 79 48 31 57 56 54 53 62 63 58 75 59 jintex.in
Page 22 — FEED MECHANISM COMPONENTS
FEED MECHANISM COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 47 SD1000801SH HINGE SCREW D=10 H=8 1 48 40186644 FEED DRIVING SHAFT 1 49 40137504 THRUST_COLLAR_ASM 1 50 SS8660610TP SCREW 1/4-40 L=6 * 2 51 40162859 FEED_ROCKER_SHAFT BUSHING 1 52 40111897 BEARING ACCORDING TO DESTINATIONS 1 53 SS7110740TP SCREW 11/64-40 L=7 1 54 RC0150001KP RETAINING RING 13.8 1 55 22940654 FEED ROCKER ASM. * 1 56 SS7121410TP SCREW 3/16-28 L=14 * 1 57 WP0480856SP WASHER 4.8X8.4X0.8 * 1 58 22915359 DRIVING SHAFT CRANK ASM. 1 59 SS711120SP SCREW 11/64-40 L=10.5 * 1 60 40184533 FEED LEVER 1 61 22888507 OIL SEAL 1 62 22904155 MAIN SHAFT THRUST COLLAR ASM. 1 63 SS8660610TP SCREW 1/4-40 L=6 * 2 64 40156758 FEED SHAFT RUBBER 2 65 TA0950806R0 RUBBER PLUG 1 66 40029963 OIL SEAL 1 67 40186209 THRUST_WASHER_B 1 68 40184531 REVERSE_FEED_LEVER_SHAFT 1 69 40184535 REVERSE_FEED_LEVER_SHAFT_METAL 1 70 WP0611626SP WASHER 15X6X1.6 1 71 40158189 BUSHING 1 72 40184532 REVERSE_FEED_LEVER_SHAFT_PLATE 1 73 22915003 CONNECTING ROD 1 74 RO092270200 RUBBER RING 1 75 22913008 FEED ROCKER SHAFT BUSHING 1 76 40184537 REVERSE_FEED_LEVER_SPRING 1 77 SS7620750SP SCREW 3/16-32 L= 6.5 1 78 TA2351004R0 RUBBER PLUG 1 79 40029960 OIL SEAL ACCORDING TO DESTINATIONS 1 80 40133950 FEED_DOG_M 1 81 RO133170100 RUBBER RING 2 82 22953400 RUBBER PLUNGER 2 83 40190682 RUBBER 1 jintex.in
Page 23 — THREAD TRIMMER COMPONENTS
THREAD TRIMMER COMPONENTS jintex.in
Page 24 — THREAD TRIMMER COMPONENTS
THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40127152 THREAD_TRIMMER_CAM 1 2 40127153 SPACER 2 3 SS8661012TP SCREW 2 4 40127154 COUNTER_KNIFE 1 5 SS1090520TP SCREW 9/64-40 L=5 1 6 40127155 LOWER_THREAD_FINGER 1 7 WP0371016SD WASHER 3.7X8X1 1 8 SS7090610SP SCREW 9/64-40 L=6 1 9 40184554 MOVING_KNIFE_BASE 1 10 40127157 KNIFE_HOLDER_PRESSER_ASSY 1 11 WP0450826SC WASHER 4.5X10X0.8 2 12 SS4111415SP SCREW 11/64-40 L=14 2 13 40127160 MOVING_KNIFE 1 14 11351806 SCREW 2 15 40184555 THREAD_TRIMMER_ROD 1 16 SD0600291TP HINGE SCREW D=6 H=2.9 2 17 NS6110350SP NUT 11/64-40 1 18 40184556 THREAD_TRIMMER_ARM 1 19 40127163 LEVER_STOPPER 1 20 SS4121415SP SCREW 3/16-28 L=14 1 21 40127164 SPRING 1 22 40187734 FORKED_SHAFT 1 23 R0078190100 RUBBER RING 1 24 40127167 FORKED_SHAFT_BUSH 1 25 SS8110422TP SCREW 11/64-40 L=4 1 26 40127168 THREAD_TRIMMER_CAM_LEVER_ASSY 1 27 SS8660612TP SCREW 1/4-40 L=6 1 28 40127180 THREAD_TRIMMER_CAMLEVER_SHAFT 1 29 40187306 THREAD_TRIMMER SPRING COLLAR 1 30 40127182 SPRING 1 31 40127183 CUSHION 1 32 WP0820816SD WASHER 8.2X16X0.8 1 33 RE060000K0 E-RING 6 1 34 40186203 THREAD_TRIMMER_SOLENOID_ASM 1 35 SS4151215SP SCREW 15/64-28 L=12 1 36 SD0850751SP HINGE SCREW D=8.50 H=7.5 1 37 HK034610140 HOUSING 14P 1 38 40112907 GROUND WIRE ASM 1 39 40184558 THREAD_RELEASE_LEVER 1 40 40127190 RETURN_SPRING 1 jintex.in
Page 25 — AUTOMATIC REVERSE FEED COMPONENTS
AUTOMATIC REVERSE FEED COMPONENTS 1 9 4 6 10 2 3-4 8 5 7 17 13 14 18 19 23 22 21 20 25 26 27 8-24 16 14 12 11 15 29 28 jintex.in
Page 26 — AUTOMATIC REVERSE FEED COMPONENTS
AUTOMATIC REVERSE FEED COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40148382 LED_BT_SWITCH_ASSY ☆ 1 2 40139771 LED_BASE * 1 3 40140191 LED_SCREW * 2 4 40140306 CONNECTOR_COVER * 1 5 40149069 LED_BT_SWITCH * 1 6 23632102 REVERSE FEED SWITCH BASE GUIDE * 1 7 SS7110740TP SCREW 11/64-40 L=7 * 1 8 HK03464000B PIN CONTACT * 4 9 HK034610140 HOUSING 14P * 1 10 SS4130615SP SCREW 3/16-28 L=6 1 11 40184562 REVERSE_FEED_ARM 1 12 RC0260415K0 C-RING 1 13 11217114 ROLLER SHAFT 1 14 11217213 ROLLER 2 15 SM6051602TP SCREW M5X0.8 L=16 1 16 40184560 REVERSE_FEED_SOLENOID_PACKING 1 17 40184559 REVERSE_FEED_SOLENOID 1 18 40187304 STUD 4 19 HX00065000A CABLE CLIP 1 20 SM6051002TP SCREW M5X0.8 L=10 2 21 RO555200200 O-RING 1 22 40187307 SOLENOID CAP 1 23 SL4052001SC SCREW M5X0.8 L=20 4 24 TA0400301M0 PLUG D=4X4.5 L=3 1 25 SQ2050453MZ CONNECTING SCREW 1 26 23630007 TUBE 0.02 27 23629306 PIPE STOPPER A 1 28 B3510205000 RUBBER PLUG 1 29 40186847 REVERSE FEED SOLENOID PIPE 1 jintex.in
Page 27 — WIPER COMPONENTS (WB)
WIPER COMPONENTS (WB)
Page 28 — WIPER COMPONENTS (WB)
WIPER COMPONENTS (WB) No. Parts No. Parts name Remarks Level Cons Qty 1 40140992 WIPER_ASSY 1 2 40140994 WIPER_BASE_ASSY * 1 3 40110999 WIPER SOLENOID * 1 4 22955900 WIPER RUBBER A * 1 5 22956007 WIPER RUBBER B * 1 6 22956106 WIPER LINK A * 1 7 22956205 WIPER HINGE SCREW COLLAR * 1 8 22956304 WIPER SPRING * 1 9 22956403 WIPER LINK B * 1 10 40041419 WIPER LINK C ASM. * 1 11 22956809 WIPER COLLAR * 1 12 22955504 WIPER COVER * 1 13 22956908 WIPER LINK B HINGE SCREW * 1 14 40140991 WIPER * 1 15 40086678 WIPER_SW_RUBBER * 1 16 40077852 WIPER SOLENOID SHAFT * 1 17 NS6090310SP NUT 9/64-40 * 1 18 NS6110310SP NUT 11/64-40 * 1 19 RE0250000K0 E-RING 2.5 * 1 20 RE0500000K0 E-RING * 1 21 SD0650321TP HINGE SCREW D=6.5 H=3.2 * 1 22 SL4030641SE SCREW * 3 23 SL4030691SC SCREW M3 L=6 * 1 24 SS6090540SP SCREW 9/64-40 L=5.0 * 1 25 22957203 WIPER LINK COLLAR * 1 26 40077851 WIPER SOLENOID SHAFT GUIDE * 1 27 SS4110615SP SCREW 11/64-40 L=6 * 2 28 40086679 WIPER_STOPPER_RUBBER * 1 29 40037500 RUBBER_HOLDER * 1 30 SS4120925SP SCREW 3/16-28 L=9 1 31 WP0482086SD WASHER 4.8X11.5X2 1 - 26 -
Page 29 — OIL LUBRICATION COMPONENTS
OIL LUBRICATION COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 jintex.in
Page 30 — OIL LUBRICATION COMPONENTS
OIL LUBRICATION COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 22924708 OIL SIGHT WINDOW 1 2 RO195240100 RUBBER RING 1 3 40184543 MAIN_SHAFT_OIL_TUBE 1 4 SS4120615SP SCREW 3/16-28 L=6 1 5 22925101 OIL FELT PRESSER 1 6 22924153 OIL RETURN TUBE ASM. 1 7 22924302 HOLDER * 1 8 WS0451040KP SPRING WASHER 4.5X8.5X1 0.3 9 40037502 OIL ADJUSTING SCREW 1 10 RO037180100 RUBBER RING 1 11 40184575 HOOK_OIL_PIPE 1 12 22923056 LUBRICATING OIL PUMP ASM. 1 13 22923312 OIL PUMP INSTALLING BASE * 1 14 22923015 OIL PUMP * 1 15 22923700 OIL PUMP IMPELLER * 1 16 SE4301041SR SCREW D=3 L=10 * 1 17 22923205 LUBRICATING OIL PUMP COVER * 1 18 22923809 OIL PUMP IMPELLER COVER * 1 19 22923403 PLUNGER * 1 20 22923601 PLUNGER SPRING * 1 21 22923502 PLUNGER SCREW * 1 22 22923908 HOOK DRIVING SHAFT OIL TUBE * 1 23 SL4030851SF SCREW M3 L=8 * 3 24 SS4150915SP SCREW 15/64-28 L=9 1 25 SS6111010TP SCREW 11/64-40 L=9.5 1 26 22947105 OIL PUMP SUPPORT 1 27 WS0651310KP SPRING WASHER 6.5X11X1.3 1 28 22924609 RUBBER JOINT 1 29 40184544 OIL_SHIELD_ASSY 1 30 40184545 OIL_SHIELD * 1 31 SQ2050453MZ CONNECTING SCREW * 1 32 13170105 RUBBER RING * 1 33 13171004 DRAIN SCREW * 1 34 B8228125000 OIL RESERVOIR MAGNET * 1 35 40024644 MAGNET WASHER * 1 36 SM4040655SP SCREW M4 L=6 * 1 37 GAK30005000 SPRING * 1 38 RE0400000K0 E-RING 4 * 1 39 WP0621016SD WASHER 6.2X13X1 * 2 40 EA9500B0100 CABLE BAND * 1 41 40184547 KNEE_LIFTER_PUSH_COMP * 1 42 23630007 TUBE SELECTIVE PARTS 0.1 43 23630007 TUBE SELECTIVE PARTS 0.1 44 WP0501016SD WASHER 5X10.5X1 13 45 SM6051402TP SCREW M5X0.8 L=14 13 46 40184546 OIL_SHIELD_PACKING ☆ 1 47 11039203 FELT 1 - 28 -
Page 31 — OIL LUBRICATION COMPONENTS
OIL LUBRICATION COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 jintex.in
Page 32 — OIL LUBRICATION COMPONENTS
OIL LUBRICATION COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 26231902 OIL WICK PIPE STOPPER 2 49 SQ2050453MZ CONNECTING SCREW 2 50 40017215 OIL_SIGHT_WINDOW 1 51 13101407 LOOPER COVER PRESSER PLATE 1 52 SM4040655SP SCREW M4 L=6 1 53 40028281 FEED_ADJUSTING_STOPPER 1 54 WP0501016SD WASHER 5X10.5X1 1 55 SS4110615SP SCREW 11/64-40 L=6 1 56 23629306 PIPE STOPPER A 2 57 40162044 PIPE STOPPER 2 58 40184550 FLOATER_ASM 1 59 40184552 FLOATER_GUIDE 1 60 SS4120615SP SCREW 3/16-28 L=6 1 61 TA0971101R0 PLUG 1 62 40187485 OIL BRACKET ASM 1 63 SM4050855SP SCREW 1 64 SS6111210SP SCREW 11/64-40 L=12 1 65 40187736 FELT 1 66 40136258 CORD_HOLDER 1 67 SM4050655SP SCREW M5 L=6 1 68 21345905 FACE ONCE THROUGH FELT 1 - 30 -
Page 33 — UNDER COVER COMPONENTS
UNDER COVER COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 jintex.in
Page 34
UNDER COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40184563 UNDER_COVER_ASSY 1 2 40184564 UNDER_COVER * 1 3 B1116210D00 FRAME SUPPORT RUBBER * 4 4 40156725 KNEE LIFTER ROTATION ARM ASM. * 1 5 22932107 KNEE LIFTER ROTATING ARM * 1 6 SM8061612TP SCREW M6X16 * 2 7 NM6060003SC NUT M6 * 2 8 40156726 KNEE LIFTER SPRING * 1 9 40101541 KNEE_PRESS_CROSS_SHAFT * 1 10 22932453 BRACKET ASM. * 1 11 22932404 BRACKET * 1 12 22934707 SCREW * 2 13 RE1000000K0 E-RING 10 * 1 14 SM9061853SR SCREW M6 L=17.5 * 1 15 NM6060001SE NUT M6 * 1 16 HX00669000A GROMMET * 2 17 SS6700710SH SCREW 5/16-24 L=7 * 1 18 RO098240100 O-RING * 1 19 22934251 KNEE PAD PLATE ASM. 1 20 22934301 KNEE PAD PLATE SUPPORT * 1 21 SM9061203SE SCREW M6 L=12 * 1 22 22934509 KNEE PAD PLATE COVER * 1 23 22934608 KNEE PAD UPRIGHT SHAFT * 1 24 22934400 KNEE PAD PLATE RUBBER * 1 25 22934202 KNEE PAD PLATE * 1 - 32 -
Page 35 — PSC UNIT
PSC UNIT 36~38 41 39 40 44 43 1.2 33 10.24 9 35 15.22 16 7 12.29 4.25 13 14.27 21 31 11.28 3.26 32 8 34 20.30 17 18 19 A A jintex.in
Page 36 — PSC UNIT
PSC UNIT No. Parts No. Parts name Remarks Level Cons Qty VARIOUS NOS. FOR 1 40156704 CONTROL BOX 1 DESTINATIONS 2 40163109 CONTROL_BOX_CE FOR CE 1 VARIOUS NOS. FOR 3 40141200 AC INPUT CORD ASSY * 1 DESTINATIONS VARIOUS NOS. FOR 4 40141201 FLT PCB ASSY * 1 DESTINATIONS 5 40141203 INPUT CHECK CORD ASSY * 1 VARIOUS NOS. FOR 6 40141204 PWR PCB ASSY * 1 DESTINATIONS 7 40141205 PWR PCB FILM SHEET * 1 8 40141206 RESISTANCE_A_ASSY * 1 9 40141207 DC POWER SUPPLY CORD ASSY * 1 VARIOUS NOS. FOR 10 40141208 CTL PCB ASSY * 1 DESTINATIONS VARIOUS NOS. FOR 11 40141209 PEDAL CORD ASSY * 1 DESTINATIONS VARIOUS NOS. FOR 12 40141210 SOL POWER CORD ASSY * 1 DESTINATIONS 13 40141211 SOL SIGNAL CORD ASSY * 1 14 40141212 SOL PCB ASSY VARIOUS NOS. FOR * 1 DESTINATIONS VARIOUS NOS. FOR 15 40156706 RATING LABEL A DRAWING * 1 DESTINATIONS 16 40141217 PSC COVER * 1 17 40141214 PANEL COVER ASSY * 1 18 40141215 PANEL COVER * 1 19 40141216 MEMBRANE SWITCH * 1 VARIOUS NOS. FOR 20 40141213 PNL PCB ASSY * 1 DESTINATIONS 21 40141199 FRAME * 1 22 40156707 RATING LABEL C DRAWING FOR CE * 1 23 40145554 PWR-CE PCB ASSY FOR CE * 1 24 40145555 CTL-CE PCB ASSY FOR CE * 1 25 40145553 FLT-CE PCB ASSY FOR CE * 1 26 40149316 AC INPUT CORD ASSY FOR CE * 1 27 40145556 SOL-CE PCB ASSY FOR CE * 1 28 40145557 PEDAL CORD CE ASSY FOR CE * 1 29 40145558 SOL POWER CORD CE ASSY FOR CE * 1 30 40145921 PNL-CE PCB ASSY FOR CE * 1 31 40145944 EMI GASKET FOR CE * 1 32 40157011 CONNECTOR COVER * 1 33 40145540 PRT CORD ASSY * 1 34 CM300200001 FINGER INJURY CAUTION LABLE (16) * 1 35 40183785 SWITCH DUSTPROOF CAOER ASSY * 1 VARIOUS NOS. FOR 36 40141225 SLO-BLO FUSE 1 DESTINATIONS VARIOUS NOS. FOR 37 40141226 SLO-BLO FUSE 1 DESTINATIONS VARIOUS NOS. FOR 38 40141227 SLO-BLO FUSE 1 DESTINATIONS 39 40162159 AC POWER CORD ASSY CE FOR CE 1 40 40141220 AC POWER CORD ASSY FOR CE 1 41 40141219 PEDAL_SENSOR_A_ASSY 1 42 40042134 CONNECING_ROD_ASSY 1 - 34 -
Page 37 — PSC UNIT
PSC UNIT 41 39 40 36~38 44 43 1.2 35 15.22 16 33 10.24 9 7 12.29 4.25 13 14.27 21 31 11.28 20.30 17 18 19 3.26 32 8 34 jintex.in
Page 38 — PSC UNIT
PSC UNIT No. Parts No. Parts name Remarks Level Cons Qty VARIOUS NOS. FOR 43 40141223 CORD STAPLE 3 DESTINATIONS 44 40141224 SCREW 3 - 36 -
Page 39 — THREAD STAND COMPONENTS
THREAD STAND COMPONENTS 1 19 11 9 5 9 18 8 13 8 3 12 24 10 7 17 23 7 4 6 18 6 22 2 21 22 21 20 20 15 16 16 15 14 - 37 -
Page 40 — THREAD STAND COMPONENTS
THREAD STAND COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40096354 THREAD STAND ASM. 1 2 40085784 SPOOL REST ROD LOWER * 1 3 40085785 SPOOL REST ROD UPPER * 1 4 40085786 SPOOL REST ARM LOWER * 1 5 40085787 SPOOL REST ARM UPPER * 1 6 40085788 SPOOL REST * 2 7 40085789 SPOOL REST CUSHION * 2 8 40085790 SPOOL PIN * 2 9 40085791 SPOOL RETAINER * 2 10 40085792 SPOOL REST ROD JOINT * 1 11 40085793 SPOOL REST ROD RUBBER CAP * 1 12 40085794 THREAD GUIDE * 2 13 40085795 THREAD GUIDE BUSHING * 2 14 40096325 SPOOL REST ROD NUT * 1 15 WP1612616SE WASHER 16X30X2.6 * 2 16 40085796 SPOOL REST ROD RUBBER CUSHION * 2 17 40096326 SPOOL REST ARM LOWER SCREW * 1 18 NM6050001SE NUT M5 * 2 19 40096327 SPOOL REST ARM UPPER SCREW * 1 20 NM6050001SE NUT M5 * 2 21 WS0510002KN SPRING WASHER M5 * 2 22 WP0531001SC WASHER M5 * 2 23 SM4051405SE SCREW M5 L=14 * 2 24 NM6050001SE NUT M5 * 2 - 38 -
Page 41 — ACCESSORIE PARTS COMPONENTS
ACCESSORIE PARTS COMPONENTS 1 8 17･18 2 9 12 7 4 3 10 11 13 6 5 21 20 15 14 22 16 19 22 - 39 -
Page 42 — ACCESSORIE PARTS COMPONENTS
ACCESSORIE PARTS COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40184578 ACCESSORY_BAG_ASSY 1 2 22932800 ACCESSORIE BAG * 1 3 B8216271000 FRAME SUPPORT BAR * 1 4 22932909 BOBBIN * ☆ 1 5 22933105 SCREW DRIVER MIDDLE * 1 6 22933204 SCREW DRIVER SMALL * 1 7 22958300 NEEDLE THREAD GUIDE PIN * 1 8 22958052 RUBBER HINGE ASM. 1 9 22926000 RUBBER CUSHION * 2 10 22958003 FRAME BUBBER CUSHION * 2 11 22926208 NAIL * 8 12 22926356 HINGE COMPL. * 2 13 22926505 WASHER * 2 14 13160601 FUNNEL 1 15 40187727 REVERSF FEED SOLENOID COVER 1 ACCORDING TO 16 MML007600CA JUKI MACHINE OIL 7 MANUFACTURING BASE ☆ 1 ACCORDING TO 17 MDB100B1402 NEEDLE DBX1#14-2 MANUFACTURING BASE ☆ 1 ACCORDING TO 18 MC200500902 NEEDLE 134 #90-2 MANUFACTURING BASE ☆ 1 19 40135803 HEAD COVER 1 ACCORDING TO 20 CM600100201 WEEE INFORMATION SHEET 1 MANUFACTURING BASE 21 40186378 SAFETY_INSTRUCTION_MANUAL(EG) 1 22 SS4121415SP SCREW 3/16-28 L=14 2 - 40 -
Page 43 — EXCLUSIVE PARTS FOR H
EXCLUSIVE PARTS FOR H 1 3 5 7 12 13 2 4 6 18 21 19 11 15 17 14 16 20 10 22 26 27 28 29 23 24 25 30 31 32 8 9 jintex.in
Page 44 — EXCLUSIVE PARTS FOR H
EXCLUSIVE PARTS FOR H No. Parts No. Parts name Remarks Level Cons Qty 1 22962054 THREAD TENSION ASM. 1 2 22962005 THREAD TENSION SPRING * 1 3 22963458 THREAD TENSION ASM 1 4 22963409 THREAD TENSION SPRING * 1 5 40103560 LINK THREAD TAKE-UP LEVER ASM. 1 6 22962351 FEED DRIVE ECCENTRIC CAM ASM. 1 7 B1213552000A OIL ADJUSTING PIN 1 8 MDB100B2100 NEEDLE DBX1 #21 1 9 B1418415H00 NEEDLE BAR THREAD GUIDE 1 10 22970313 NEEDLE BAR BUSHING LOWER 1 11 22970206 NEEDLE BAR 1 12 11091006 ARM THREAD GUIDE (HA) 1 13 40101726 FEED_DIAL 1 14 40174353 INNER_HOOK_HOLDER_H 1 15 B1505552000A PRESSER SPRING 1 16 D1524555EBL PRESSER FOOT ASM. 1 17 40190609 ADJUSTING_LINK_SPRING 1 18 40184565 FEED_SPRING_HOOK 1 19 22971204 FEED REGULATOR BASE PIN 1 20 40141076 WIPER_ASSY_H 1 21 40023223 NEEDLE BAR THREAD GUIDE 1 22 11400801 THROAT PLATE J 1 23 11403003 FEED J 1 24 40115888 LEVER_STOPPER_ASSY 1 25 11092251 HOOK ASM. 1 26 11403805 THREAD GUIDE C FITTING PLATE 1 27 WP0371016SD WASHER 3.7X8X1 1 28 NS6090310SP NUT 9/64-40 1 29 22972608 ARM THREAD GUIDE C 1 30 40010395 ADJUSTING LINK FULCRUM SHAFT B 1 31 SS6080320SP SCREW 1/8-44 L= 2.5 1 32 HX001890000 SPIRAL TUBE 1 - 42 -
Page 45 — EXCLUSIVE PARTS TYPE NB
EXCLUSIVE PARTS TYPE NB 8 4 9 12 11 10 7 6 5 1 3 2 jintex.in
Page 46 — EXCLUSIVE PARTS TYPE NB
EXCLUSIVE PARTS TYPE NB No. Parts No. Parts name Remarks Level Cons Qty 1 40190699 THREAD_NIPPER_SET 1 2 SS1110640TP SCREW 11/64-40 L= 5.5 1 3 SS1110840SP SCREW 11/64-40 L=8 1 4 M8002430000 STOPPER 1 5 22972608 ARM THREAD GUIDE C 1 6 NS6090310SP NUT 9/64-40 1 7 WP0371026SD WASHER 3.7X7X1 1 8 11403805 THREAD GUIDE C FITTING PLATE 1 9 CQ202000000 COTTON OIL WICK D=2 0.2 10 G1164870000 SUCTION O RING 1 11 13403605 RUBBER_PLATE 1 12 40187311 ARM THREAD GUIDE B 1 - 44 -
Page 47 — LIST FOR INFORMATION OF CHANGE
LIST FOR INFORMATION OF CHANGE As to the place changed,refer to the corresponding Rev.No. When previous parts(Obsoleted part)and new parts(Added parts)are not interchangeable with each other: In this case,even obsoleted parts(D.)can be ordered with the obsoleted part number,so select the parts with changed dates and place your orders. 変更箇所は,該当Rev.No.版をご参照ください。 部品の互換性がない変更の場合は,削除された品番でも,ご注文できます。 *** No.1701-02･･･Rev.No. *A:Added parts追加部品/D:Obsoleted parts削除部品/E:Erratum訂正 Rev. Page Ref. Parts No. Rev. Page Ref. Parts No. No. 頁 No. 品 番 No. 頁 No. 品 番 D 00 26 12 401-84566 A 01 12 82 229-53400 A 01 26 17 401-90609 A 01 26 32 HX-0018900-00 A 01 27 12 401-87311 - 45 -
Page 48 — NUMERICAL INDEX OF PARTS
NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 11002904 8 3 22903900 8 14 22913701 18 38 11009800 18 23 22904155 20 62 22913800 18 15･16 11015906 10 37 22905004 10 23 22913859 18 11･12 11037405 18 22 22905103 10 25 22915003 20 73 11038650 10 34 22905202 10 26 22915359 20 58 11038759 10 24 22906101 10 2 22916308 10 27 11039203 28 47 22906200 10 8 22916506 10 38 11079506 10 40 22906309 10 10 22916555 10 36 11091006 42 12 22906457 10 4 22917157 10 29 11092251 42 25 22906606 8 8 22918064 8 5 11217114 24 13 22907307 14 36 22918072 8 4 11217213 24 14 22907406 14 33 22918106 8 7 11243763 14 45 22907505 14 32 22918304 8 6 11244019 16 50 22907554 14 30 22918403 8 9～12 11244209 16 48 22907604 14 31 22918502 8 9～12 11351806 22 14 22907703 14 25 22918601 8 9～12 11400801 42 22 22907802 14 1 22918700 8 9～12 11403003 42 23 22908008 14 42 22919203 8 29 11403805 42 26 22908156 14 40 22919559 8 2 11403805 44 8 22908305 14 44 22920102 14 29 11415205 2 20 22908354 14 39 22920201 14 23 11433802 16 52 22908552 14 4 22920300 14 26 13101407 30 51 22908701 14 7 22920409 14 24 13160601 40 14 22908800 14 14 22920508 2 30 13170105 28 32 22908909 14 11 22920607 4 47 13171004 28 33 22909006 14 13 22920904 2 43 13403605 44 11 22910004 8 18 22921001 2 31 13887005 18 17 22910053 8 16 22921209 2 38 21345905 30 68 22910103 8 13 22921308 2 33 22538805 8 30 22910202 18 15･16 22921407 2 34 22888507 20 61 22910251 18 11･12 22921506 2 37 22890008 12 50 22910459 18 27 22921506 6 28 22890206 10 42～44 22910806 18 28 22921605 2 39 22890305 10 42～44 22910905 18 24 22921704 2 35 22890404 10 42～44 22911002 18 40 22921803 2 36 22896252 10 46 22911101 18 13 22923015 28 14 22900401 2 10 22911408 18 1 22923056 28 12 22900609 2 28 22911507 18 2 22923205 28 17 22901003 4 55 22911606 18 4 22923312 28 13 22901201 4 52 22911804 18 7 22923403 28 19 22901250 4 51 22912000 18 9 22923502 28 21 22901300 4 53 22912109 18 8 22923601 28 20 22901805 2 14 22912257 18 19 22923700 28 15 22903207 8 25 22912505 18 20 22923809 28 18 22903306 8 27 22913008 20 75 22923908 28 22 INDEX - 1
Page 49 — NUMERICAL INDEX OF PARTS
NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 22924153 28 6 22956106 26 6 40011144 6 15 22924302 28 7 22956205 26 7 40012126 2 2 22924609 28 28 22956304 26 8 40012129 2 11 22924708 28 1 22956403 26 9 40017215 30 50 22925101 28 5 22956809 26 11 40017805 14 35 22926000 40 9 22956908 26 13 40021933 6 17 22926208 40 11 22957203 26 25 40022407 4 68 22926356 40 12 22958003 40 10 40023223 42 21 22926505 40 13 22958052 40 8 40024644 28 35 22932107 32 5 22958300 2 7 40028281 30 53 22932404 32 11 22958300 40 7 40029963 20 79 22932453 32 10 22962005 42 2 40037008 6 32 22932800 40 2 22962054 42 1 40037500 26 29 22932909 10 18 22962351 42 6 40037502 28 9 22932909 40 4 22963409 42 4 40041419 26 10 22933105 40 5 22963458 42 3 40042134 34 42 22933204 40 6 22970206 42 11 40050314 14 10 22934202 32 25 22970313 42 10 40060989 14 5 22934251 32 19 22971204 42 19 40077851 26 26 22934301 32 20 22972608 42 29 40077852 26 16 22934400 32 24 22972608 44 5 40085784 38 2 22934509 32 22 23610652 16 49 40085785 38 3 22934608 32 23 23610702 16 51 40085786 38 4 22934707 32 12 23611106 14 47 40085787 38 5 22939508 10 3･41 23620206 10 12 40085788 38 6 22939607 10 3･41 23629306 24 27 40085789 38 7 22940506 18 10 23629306 30 56 40085790 38 8 22940654 20 55 23630007 24 26 40085791 38 9 22940753 18 35 23630007 28 43 40085792 38 10 22941306 18 36 23632102 24 6 40085793 38 11 22945307 2 40 26231902 30 48 40085794 38 12 22945356 2 32 26260109 6 2 40085795 38 13 22945414 2 22 26260208 6 3 40085796 38 16 22945463 2 21 26260307 6 4 40086678 26 15 22945505 2 25 26260406 6 5 40086679 26 28 22945604 2 23 26260505 6 6 40086740 8 21 22945703 2 26 26260604 6 7 40089548 18 25 22945703 6 30 26260802 6 8 40090002 10 14 22945802 2 24 26261008 6 9 40090003 10 16 22947105 28 26 26261206 6 10 40090004 10 19 22952501 2 18 26261305 6 11 40090005 10 21 22953400 20 82 26261503 6 12 40090058 10 6 22955504 26 12 26261602 6 13 40093417 18 26 22955900 26 4 26261701 6 14 40096325 38 14 22956007 26 5 40010395 42 30 40096326 38 17 INDEX - 2
Page 50 — NUMERICAL INDEX OF PARTS
NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 40096327 38 19 40127190 22 40 40145553 34 4･25 40096354 38 1 40127192 10 31 40145554 34 6･23 40098388 14 34 40132099 4 63 40145555 34 10･24 40099083 4 58 40133950 20 80 40145556 34 14･27 40101541 32 9 40135803 40 19 40145557 34 11･28 40101726 42 13 40136258 4 67 40145558 34 12･29 40102097 2 1 40136258 30 66 40145921 34 20･30 40102261 2 13 40137504 8 23 40145944 34 31 40103560 42 5 40137504 20 49 40148382 24 1 40109422 18 45 40139771 24 2 40149069 24 5 40110376 8 45 40140080 4 66 40149316 34 3･26 40110379 18 43 40140191 24 3 40156677 2 4 40110390 8 40 40140306 24 4 40156681 8 46 40110731 6 25 40140419 8 37 40156684 18 39 40110734 6 26 40140991 26 14 40156704 34 1･2 40110975 6 16 40140992 26 1 40156706 34 15･22 40110976 6 1 40140994 26 2 40156707 34 15･22 40110977 8 15 40141076 42 20 40156725 32 4 40110978 8 20 40141199 34 21 40156726 32 8 40110979 8 28 40141200 34 3･26 40156758 20 64 40110999 26 3 40141201 34 4･25 40157011 34 32 40111025 8 36 40141203 34 5 40158189 20 71 40111424 8 32 40141204 34 6･23 40162044 30 57 40111872 8 34 40141205 34 7 40162159 34 39 40111897 20 52 40141206 34 8 40162859 20 51 40112907 22 38 40141207 34 9 40163109 34 1･2 40113241 6 34 40141208 34 10･24 40163521 6 33 40115888 42 24 40141209 34 11･28 40174351 10 32 40119475 6 24 40141210 34 12･29 40174353 42 14 40125485 18 31 40141211 34 13 40182291 4 65 40126308 4 60 40141212 34 14･27 40183785 34 35 40126849 12 49 40141213 34 20･30 40184531 20 68 40127152 22 1 40141214 34 17 40184532 20 72 40127153 22 2 40141215 34 18 40184533 20 60 40127154 22 4 40141216 34 19 40184535 20 69 40127155 22 6 40141217 34 16 40184537 20 76 40127157 22 10 40141219 34 41 40184538 10 35 40127160 22 13 40141220 34 40 40184540 10 13 40127163 22 19 40141223 36 43 40184541 14 28 40127164 22 21 40141224 36 44 40184543 28 3 40127167 22 24 40141225 34 36～38 40184544 28 29 40127168 22 26 40141226 34 36～38 40184545 28 30 40127180 22 28 40141227 34 36～38 40184546 28 46 40127182 22 30 40141523 10 7 40184547 28 41 40127183 22 31 40145540 34 33 40184550 30 58 INDEX - 3
Page 51 — NUMERICAL INDEX OF PARTS
NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 40184552 30 59 BT1000651EB 16 53 RE0400000K0 28 38 40184554 22 9 CM300200001 2 61 RE0500000K0 14 43 40184555 22 15 CM300200001 4 61 RE0500000K0 18 21 40184556 22 18 CM300200001 34 34 RE0500000K0 26 20 40184558 22 39 CM600100201 40 20 RE0600000K0 22 33 40184559 24 17 CQ202000000 14 27 RE1000000K0 32 13 40184560 24 16 CQ202000000 44 9 RO029180100 8 35 40184562 24 11 CQ220000000 10 28 RO036080200 12 48 40184563 32 1 D1524555EBL 42 16 RO037180100 14 3 40184564 32 2 D3164555B00 14 15 RO037180100 28 10 40184565 42 18 D7133555B00 6 29 RO044240100 8 43 40184575 28 11 EA9500B0100 28 40 RO078190100 22 23 40184578 40 1 G1164870000 44 10 RO092270200 20 74 40186203 22 34 GAK30005000 28 37 RO098240100 32 18 40186209 20 67 HK034610140 22 37 RO133170100 20 81 40186378 40 21 HK034610140 24 9 RO195240100 28 2 40186644 20 48 HK03464000B 24 8 RO555200200 24 21 40186696 14 18 HX00065000A 16 54 SD0600291TP 22 16 40186847 24 29 HX00065000A 24 19 SD0650321TP 26 21 40187304 24 18 HX001890000 42 32 SD0720331SP 14 12 40187306 22 29 HX00669000A 32 16 SD0850751SP 22 36 40187307 24 22 M8002430000 44 4 SD1000801SH 20 47 40187308 14 20 MC200500902 40 17･18 SE4301041SR 28 16 40187311 44 12 MDB100B1400 10 11 SL4030641SE 26 22 40187485 30 62 MDB100B1402 40 17･18 SL4030691SC 26 23 40187727 40 15 MDB100B2100 42 8 SL4030851SF 28 23 40187734 22 22 MML007600CA 40 16 SL4052091SC 24 23 40187736 30 65 NM6050001SE 38 24 SL6051492TN 8 39 40188851 4 57 NM6060001SE 32 15 SL6052592TN 8 38 40190609 42 17 NM6060003SC 32 7 SM0050801SC 6 35 40190682 20 83 NS6090310SP 26 17 SM4040655SP 28 52 40190699 44 1 NS6090310SP 42 28 SM4040655SP 30 52 B1109552000 2 44 NS6090310SP 44 6 SM4050655SP 30 67 B1116210D00 32 3 NS6110310SP 26 18 SM4050855SP 14 17 B1213552000A 42 7 NS6110350SP 22 17 SM4050855SP 30 63 B1215552000 8 26 NS6120630SP 6 27 SM4051405SE 38 23 B1418415H00 42 9 NS6620310SP 14 21 SM5040655SN 6 20 B1505552000A 42 15 NS6680410SP 18 42 SM6051002TP 24 20 B1521555000 14 2 RC0150001KP 18 54 SM6051402TP 28 45 B15240120BA 14 9 RC0150001KP 20 54 SM6051602TP 24 15 B1613012I00 18 33 RC0260415K0 24 12 SM8040802TP 6 21 B3510205000 24 28 RC0560711KP 6 18 SM8050502TP 6 22 B8216271000 40 3 RC1850001KP 8 22 SM80608A2TP 8 33 B8228125000 28 34 RE0250000K0 26 19 SM8061612TP 32 6 B9117552A00 10 45 RE0400000K0 6 19 SM9061203SE 32 21 INDEX - 4
Page 52 — NUMERICAL INDEX OF PARTS
NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. SM9061853SR 32 14 SS6121840SP 2 17 WP0482086SD 14 46 SQ2050453MZ 24 25 SS6121860SP 18 5 WP0482086SD 26 31 SQ2050453MZ 28 49 SS6151220SP 18 29 WP0501016SD 28 54 SQ2050453MZ 30 49 SS6661110SP 8 17 WP0501016SD 30 54 SS1090520TP 22 5 SS6700710SH 32 17 WP0531001SC 38 22 SS1110640TP 44 2 SS7080510TP 10 9 WP0611626SP 20 70 SS1110840SP 44 3 SS7090610SP 22 8 WP0621016SD 28 39 SS2110915SP 2 46 SS7091110TP 14 6 WP0820816SD 22 32 SS2110920TP 2 45 SS7110720SP 4 59 WP1612616SE 38 15 SS4080620TP 18 34 SS7110740TP 20 53 WS0451040KP 28 8 SS4090615SP 8 19 SS7110740TP 24 7 WS0510002KN 38 21 SS4110515SP 14 16 SS7111120SP 20 59 WS0651310KP 28 27 SS4110515SP 18 37 SS7120770SH 18 6 WT0530002KS 4 56 SS4110615SP 26 27 SS7121410TP 20 56 SS4110615SP 30 55 SS7121610SP 18 46 SS4111415SP 22 12 SS7620750SP 20 77 SS4120615SP 2 62 SS7681650TP 8 44 SS4120615SP 4 62 SS8090670SP 2 41 SS4120615SP 14 19 SS8110422TP 22 25 SS4120615SP 24 10 SS8150710TP 2 42 SS4120615SP 28 60 SS8151150TP 8 1 SS4120615SP 30 60 SS8660610TP 8 42 SS4120925SP 2 50 SS8660610TP 20 63 SS4120925SP 4 50 SS8660612TP 22 27 SS4120925SP 10 39 SS8660810TP 10 22 SS4120925SP 26 30 SS8660810TP 14 37 SS4121415SP 22 20 SS8661012TP 22 3 SS4121415SP 40 22 SS8681650TP 8 41 SS4150915SP 28 24 TA0400301M0 24 24 SS4151215SP 4 64 TA0850604R0 2 5 SS4151215SP 22 35 TA0850604R0 10 1 SS6060210SP 4 54 TA0950806R0 20 65 SS6080320SP 42 31 TA0971101R0 30 61 SS6080410SP 2 3 TA1250406R0 4 49 SS6090540SP 26 24 TA1250705R0 2 6 SS6090620TP 18 41 TA2000502R0 2 16 SS6090670TP 10 5 TA2100904R0 2 9 SS6090670TP 18 3 TA2101002R0 2 19 SS6090910SP 14 38 TA2351004R0 20 78 SS6110420TP 10 30 WP0371016SD 22 7 SS6110610TP 4 48 WP0371016SD 42 27 SS6111010TP 28 25 WP0371026SD 44 7 SS6111210SP 10 33 WP0450826SC 6 23 SS6111210SP 30 64 WP0450826SC 22 11 SS6121610SP 18 44 WP0480856SP 20 57 INDEX - 5 Powered by TCPDF (www.tcpdf.org)
