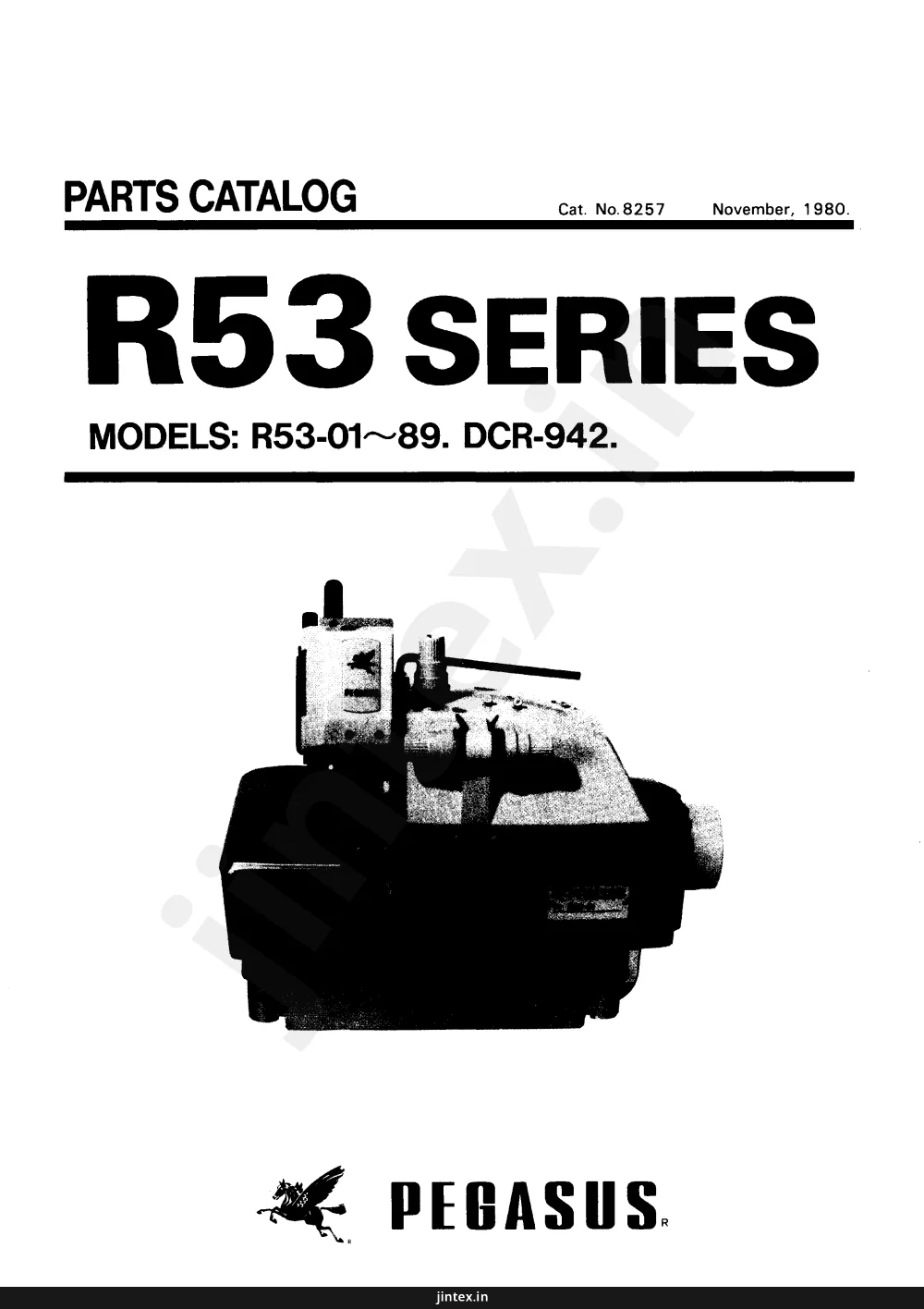

Pegasus R53 Parts Book (PDF)
Text index — Pegasus R53
Page 4 — MACHINE BED FRAME
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 521013 | SCREW | |
| 2 | 521013 | SCREW | |
| 3 | 521013 | SCREW | |
| 4 | 521013 | SCREW | |
| 5 | 521013 | SCREW | |
| 6 | 521013 | SCREW | |
| 7 | 521013 | SCREW | |
| 8 | 521013 | SCREW | |
| 9 | 521013 | SCREW | |
| 10 | 521013 | SCREW | |
| 11 | 521013 | SCREW | |
| 12 | 521013 | SCREW | |
| 13 | 521013 | SCREW | |
| 14 | 521013 | SCREW | |
| 15 | 521013 | SCREW | |
| 16 | 521013 | SCREW | |
| 17 | 521013 | SCREW | |
| 18 | 521013 | SCREW | |
| 19 | 521013 | SCREW | |
| 20 | 521013 | SCREW | |
| 21 | 521013 | SCREW | |
| 22 | 521013 | SCREW | |
| 23 | 521013 | SCREW | |
| 24 | 521013 | SCREW | |
| 25 | 521013 | SCREW | |
| 26 | 521013 | SCREW | |
| 27 | 521013 | SCREW | |
| 28 | 521013 | SCREW | |
| 29 | 521013 | SCREW | |
| 30 | 521013 | SCREW | |
| 31 | 521013 | SCREW | |
| 32 | 521013 | SCREW | |
| 33 | 521013 | SCREW | |
| 34 | 521013 | SCREW | |
| 35 | 521013 | SCREW |
Page 5 — MACHINE BED FRAME
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 205689-FD | MACHINE ARM (RIGHT) | 1 |
| 2 | 202716 | GASKET | 1 |
| 3 | 5078 | SCREW | 6 |
| 4 | 201002 | PIN | 2 |
| 5 | 205690-FD | MACHINE ARM (LEFT) | 1 |
| 6 | 5237 | SCREW | 1 |
| 7 | 5163 | SCREW | 2 |
| 8 | 201002 | PIN | 2 |
| 9 | 205691 | OIL SHIELD | 1 |
| 10 | 205692 | GASKET | 1 |
| 11 | 202648C | COVER | 1 |
| 12 | 202649A | GASKET | 1 |
| 13 | 5117 | SCREW | 7 |
| 14 | 5198 | SCREW | 1 |
| 15 | 202687 | SCREW | 1 |
| 16 | 202354 | PIN | 4 |
| 17 | 202662 | FILTER SCREEN | 1 |
| 18 | 202663D | PLATE | 1 |
| 19 | 1175-2 | SCREW | 2 |
| 20 | 201330 | OIL LEVEL SIGHT GAUGE | 1 |
| 21 | 205693-FD | BELT GUARD | 1 |
| 22 | 5117 | SCREW | 3 |
| 23 | 212279 | TYPE PLATE | 1 |
| 24 | 210679 | TYPE PLATE PIN | 2 |
| 25 | 202526 | NAME PLATE | 1 |
| 26 | 205828 | MACHINE BED | 1 |
| 27 | 201004 | OIL FILTER SCREEN | 1 |
| 28 | 205708 | OIL FILTER SCREEN PLATE | 1 |
| 29 | 1189 | SCREW | 3 |
| 30 | 205829 | MACHINE BED | 1 |
| 31 | 202355 | FILTER SCREEN | 1 |
| 32 | 212279 | TYPE PLATE | 1 |
| 33 | 205830 | MACHINE BED | 1 |
| 34 | 202355 | FILTER SCREEN | 1 |
| 35 | 212279 | TYPE PLATE | 1 |
Page 7 — カバー機構(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 202686B-HD | TOP COVER | 1 |
| 2 | 5095 | SCREW | 3 |
| 3 | 205694 | NEEDLE BAR COVER | 1 |
| 4 | 202653 | HINGE PIN | 2 |
| 5 | 202689 | LOCK SPRING | 1 |
| 6 | 1234 | SCREW | 2 |
| 7 | 201404 | LATCH | 1 |
| 8 | 4009-1 | SCREW | 1 |
| 9 | 208724 | NAME PLATE | 1 |
| 10 | 198192 | CUSHION RUBBER | 1 |
| 11 | 208747 | EYE GUARD COMPLETE | 1 |
| 12 | 205685 | EYE GUARD | 1 |
| 13 | 208744 | EYE GUARD BRACKET COMPLETE | 1 |
| 14 | 1175-3 | SCREW | 2 |
| 15 | 3091 | NUT | 2 |
| 16 | 137906 | WASHER | 2 |
| 17 | 208430 | FACE PLATE | 1 |
| 18 | 4009-1 | SCREW | 1 |
| 19 | 205767 | REAR COVER | 1 |
| 20 | 1206 | SCREW | 2 |
| 21 | 201200-FD | FRONT COVER (RIGHT) | 1 |
| 22 | 201201 | HINGE | 1 |
| 23 | 1216 | SCREW | 2 |
| 24 | 201202 | PIN | 1 |
| 25 | 201203 | LOCK SPRING | 1 |
| 26 | 1216 | SCREW | 1 |
| 27 | 202660 | CHIP GUARD | 1 |
| 28 | 205399 | FRONT COVER EXTENSION | 1 |
| 29 | 2921 | SCREW | 2 |
| 30 | 202680 | CHIP GUARD | 1 |
| 31 | 202750 | CHIP GUARD | 1 |
| 32 | 202755 | CHIP GUARD | 1 |
| 33 | 202741 | CHIP GUARD | 1 |
| 34 | 205398 | CHIP GUARD | 1 |
| 35 | 1216 | SCREW | 1 |
| 36 | 2905 | SCREW | 1 |
| 37 | 202937 | COVER | 1 |
| 38 | 205296 | COVER | 1 |
| 39 | 1216 | SCREW | 2 |
| 40 | 205400 | UPPER LOOPER COVER | 1 |
| 41 | 1216 | SCREW | 1 |
| 42 | 202942 | THREAD PLATE | 1 |
| 43 | 1216 | SCREW | 3 |
| 44 | 202651A | FABRIC GUARD | 1 |
| 45 | 202796 | FABRIC GUARD | 1 |
| 46 | 205518 | FABRIC GUARD | 1 |
| 47 | 1216 | SCREW | 2 |
| 48 | 205714 | FEED BAR COVER | 1 |
| 49 | 205544 | SCREW | 1 |
| 50 | 201191 | WASHER | 3 |
| 51 | 205545 | FLAT SPRING | 1 |
| 52 | 205859 | STOPPER | 1 |
| 53 | 1216 | SCREW | 1 |
Page 9 — COVERS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 202466 | CLOTH PLATE COMPLETE | 1 |
| 2 | 201181C | CLOTH PLATE | 1 |
| 3 | 202467-FD | SIDE COVER | 1 |
| 4 | 201184 | BRACKET | 4 |
| 5 | 1216 | SCREW | 4 |
| 6 | 1202 | SCREW | 4 |
| 7 | 201185 | WASHER | 4 |
| 8 | 200159A | HINGE | 1 |
| 9 | 5095 | SCREW | 2 |
| 10 | 200183 | THRUST WASHER | 1 |
| 11 | 201221A | HINGE PIN | 1 |
| 12 | 5099 | NUT | 1 |
| 13 | 200821 | WASHER | 1 |
| 14 | 202865 | STOPPER | 1 |
| 15 | 5293 | SCREW | 1 |
| 16 | 201186 | FLAT SPRING | 1 |
| 17 | 1216 | SCREW | 2 |
| 18 | 200162A | WASHER | 1 |
| 19 | 200163A | LATCH PIN | 1 |
| 20 | 1435 | SCREW | 1 |
| 21 | 1435 | SCREW | 1 |
| 22 | 3044 | NUT | 1 |
| 23 | 205382 | FEED ECCENTRIC COVER | 1 |
| 24 | 1216 | SCREW | 2 |
| 25 | 205387 | FEED BAR COVER COMPLETE | 1 |
| 26 | 205388-FD | FEED BAR COVER | 1 |
| 27 | 205389 | OIL SHIELD | 1 |
| 28 | 5434 | SCREW | 2 |
| 29 | 205390 | GASKET | 1 |
| 30 | 2213-1 | SCREW | 5 |
| 31 | 205391 | COVER PLATE/FEED ECCENTRIC | 1 |
| 32 | 205392 | O RING | 1 |
| 33 | 1326 | SCREW | 4 |
| 34 | 205393 | LOOPER COVER | 1 |
| 35 | 205394 | PIN (LONG) | 1 |
| 36 | 205395 | PIN (SHORT) | 1 |
| 37 | 205383 | LOWER LOOPER COVER | 1 |
| 38 | 5142 | SCREW | 3 |
| 39 | 205396 | CLOTH PLATE | 1 |
| 40 | 4009-1 | SCREW | 2 |
| 41 | 205836-FD | OIL SHIELD | 1 |
| 42 | 5422 | SCREW | 1 |
| 43 | 211301 | SPRING WASHER | 1 |
| 44 | 205840 | FLAT SPRING | 1 |
| 45 | 1234 | SCREW | 1 |
| 46 | 205841 | BRACKET | 1 |
| 47 | 5117 | SCREW | 1 |
| 48 | 202439-FD | FEED BAR COVER | 1 |
| 49 | 5117 | SCREW | 2 |
Page 11 — CRANKSHAFT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 202940 | RETAINER | 1 |
| 2 | 1175-2 | SCREW | 3 |
| 3 | 202908 | OIL SEAL | 1 |
| 4 | 202907 | PACKING | 1 |
| 5 | 202902 | NEEDLE BEARING | 1 |
| 6 | 202901 | RETAINING RING | 1 |
| 7 | 202903 | PLUG | 1 |
| 8 | 202990 | OIL FELT | 1 |
| 9 | 202081 | OIL FELT | 2 |
| 10 | 205261 | CRANKSHAFT | 1 |
| 11 | 201009 | KEY | 1 |
| 12 | 205402A | BUSHING (LEFT) | 1 |
| 13 | 1175-2 | SCREW | 3 |
| 14 | 205448 | OIL FELT | 1 |
| 15 | 1892 | SCREW | 2 |
| 16 | 202175 | OIL WICK | 1 |
| 17 | 201009 | KEY | 1 |
| 18 | 205401 | CRANKSHAFT | 1 |
| 19 | 205846 | BUSHING (LEFT) | 1 |
| 20 | 1175-2 | SCREW | 3 |
| 21 | 204273 | OIL FELT | 1 |
| 22 | 202864 | OIL FELT | 1 |
| 23 | 202730 | CRANKSHAFT | 1 |
| 24 | 201212D | BUSHING (CENTER) | 1 |
| 25 | 201010A | COUNTERWEIGHT | 1 |
| 26 | 5060 | SCREW | 2 |
| 27 | 201298 | WORM | 1 |
| 28 | 5060 | SCREW | 2 |
| 29 | 202902 | NEEDLE BEARING | 1 |
| 30 | 205526 | OIL SEAL RING | 1 |
| 31 | 205700 | RETAINER | 1 |
| 32 | 202905 | GASKET | 1 |
| 33 | 1175-2 | SCREW | 3 |
| 34 | 205701 | OIL SHIELD | 1 |
| 35 | 205720 | BUSHING (RIGHT) | 1 |
| 36 | 205713 | OIL SHIELD | 1 |
| 37 | 208272 | O RING | 1 |
| 38 | 205698 | FAN | 1 |
| 39 | 205711 | FAN | 1 |
| 40 | 5149A | SCREW | 1 |
| 41 | 1458 | SCREW | 1 |
| 42 | 201017A | PULLEY | 1 |
| 43 | 5080 | SCREW | 1 |
| 44 | 5081 | SCREW | 1 |
| 45 | 205471 | PULLEY CAP | 1 |
| 46 | 5010 | SCREW | 3 |
Page 13 — NEEDLE DRIVE MECHANISM(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 202999 | THREAD GUIDE | 1 |
| 2 | 5185 | SCREW | 1 |
| 3 | 202605 | CONNECTION | 1 |
| 4 | 5233 | SCREW | 2 |
| 5 | 205495 | PIN | 1 |
| 6 | 5234 | SCREW | 1 |
| 7 | 201360B | CRANK (REAR) | 1 |
| 8 | 201441B | CRANK (REAR) | 1 |
| 9 | 5381 | SCREW | 1 |
| 10 | 201356A | BUSHING (LEFT) | 1 |
| 11 | 201115A | BUSHING (RIGHT) | 1 |
| 12 | 201117 | COLLAR | 1 |
| 13 | 5328 | SCREW | 2 |
| 14 | 202606 | SHAFT | 1 |
| 15 | 208424 | NEEDLE BAR DRIVE CRANK | 1 |
| 16 | 5312 | SCREW | 1 |
| 17 | 2022-4 | SCREW | 1 |
| 18 | 208425 | LINK | 1 |
| 19 | 200654 | PIN | 2 |
| 20 | 5292 | SCREW | 2 |
| 21 | 202176 | OIL WICK | 2 |
| 22 | 208427 | NEEDLE BAR CLAMP | 1 |
| 23 | 1170-3 | SCREW | 1 |
| 24 | 208621 | CAP | 1 |
| 25 | 1457 | SCREW | 1 |
| 26 | 200030 | RUBBER RING | 1 |
| 27 | 204625A | BUSHING (UPPER) | 1 |
| 28 | 204627 | BUSHING (LOWER) | 1 |
| 29 | 212186 | OIL WICK | 2 |
| 30 | 205697 | DUST GUARD | 1 |
| 31 | 5053 | SCREW | 2 |
| 32 | 208617 | OIL RELEASE FELT | 1 |
| 33 | 204623 | NEEDLE BAR COMPLETE | 1 |
| 34 | 3119 | NUT | 1 |
| 35 | 208903 | NEEDLE BAR | 1 |
| 36 | 208904 | NEEDLE HOLDER/1.5MM | 1 |
| 37 | 208905 | NEEDLE HOLDER/2MM | 1 |
| 38 | 5292 | SCREW | 2 |
| 39 | DCX1 | NEEDLE | |
| 40 | DCX3 | NEEDLE |
Page 15 — NEEDLE DRIVE MECHANISM(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | XXXXXX | NEEDLE PLATE | 1 |
| 2 | 4009-1HC | SCREW | 2 |
| 3 | 201034A | KEY | 1 |
| 4 | 5053 | SCREW | 1 |
| 5 | 201092A | BRACKET | 1 |
| 6 | 1175-2 | SCREW | 2 |
| 7 | 205479 | SUPPORT | 1 |
| 8 | 1175-3 | SCREW | 1 |
| 9 | 201252 | WASHER | 1 |
| 10 | XXXXXX | NEEDLE PLATE | 1 |
| 11 | 1732 | SCREW | 1 |
| 12 | 205406 | BRACKET | 1 |
| 13 | 206215 | PIN | 2 |
| 14 | 5381 | SCREW | 2 |
| 15 | 205407 | BRACKET | 1 |
| 16 | 1175-2 | SCREW | 2 |
| 17 | 202403 | NEEDLE PLATE | 1 |
| 18 | 205832 | NEEDLE PLATE/4MM | 1 |
| 19 | 5328-HC | SCREW | 1 |
| 20 | 202404 | BRACKET | 1 |
| 21 | 1156 | SCREW | 2 |
| 22 | 202405 | PIN | 1 |
| 23 | 202490 | NEEDLE GUARD | 1 |
| 24 | 1175-2 | SCREW | 1 |
| 25 | 202437 | GUIDE | 1 |
| 26 | 1202 | SCREW | 1 |
| 27 | 202474A | NEEDLE GUARD (REAR) | 1 |
| 28 | 202688 | NEEDLE GUARD (REAR) | 1 |
| 29 | 201453B | NEEDLE GUARD (FRONT) | 1 |
| 30 | 201454B | NEEDLE GUARD (FRONT) | 1 |
| 31 | 5364 | SCREW | 2 |
| 32 | 202491 | BRACKET | 1 |
| 33 | 202724 | BRACKET | 1 |
| 34 | 1175-3 | SCREW | 2 |
| 35 | 202749 | MOVABLE NEEDLE GUARD | 1 |
| 36 | 1186 | SCREW | 1 |
Page 17 — NEEDLE DRIVE MECHANISM(3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 208488 | THREAD TENSION COMPLETE | 1 |
| 2 | 208447 | POST NUT | 1 |
| 3 | 208448 | SPRING BUSHING | 1 |
| 4 | 201037 | TENSION SPRING (HEAVY) | 1 |
| 5 | 208450 | CAP | 1 |
| 6 | 201482 | DISC | 2 |
| 7 | 208449 | FELT | 1 |
| 8 | 5082A | POST | 1 |
| 9 | 208488 | THREAD TENSION COMPLETE | 1 |
| 10 | 208489 | THREAD TENSION COMPLETE | 1 |
| 11 | 201086 | TENSION SPRING (MEDIUM) | 1 |
| 12 | 208490 | THREAD TENSION COMPLETE | 1 |
| 13 | 201068 | TENSION SPRING (LIGHT) | 1 |
| 14 | 205770 | GUIDE | 1 |
| 15 | 5137 | NUT | 1 |
| 16 | 4009-1 | SCREW | 1 |
| 17 | 201243A | BRACKET | 1 |
| 18 | 5137 | NUT | 1 |
| 19 | 1732 | SCREW | 1 |
| 20 | 208568 | COVER COMPLETE/NEEDLE BAR LINK | 1 |
| 21 | 208560 | COVER | 1 |
| 22 | 208561 | OIL FELT | 1 |
| 23 | 208562 | OIL FELT | 1 |
| 24 | 208563 | OIL FELT PLATE | 1 |
| 25 | 208713 | PIN | 2 |
| 26 | 200555 | RETAINING RING | 2 |
| 27 | 205703 | WASHER | 1 |
| 28 | 5117 | SCREW | 2 |
| 29 | 202705A | RETAINER BRACKET | 1 |
| 30 | 202495 | GUIDE | 1 |
| 31 | 5359 | SCREW | 1 |
| 32 | 200041 | GUIDE | 1 |
| 33 | 200205 | SPRING | 1 |
| 34 | 9070-2 | SCREW | 1 |
| 35 | 202706A | THREAD TAKEUP | 1 |
| 36 | 5299 | SCREW | 2 |
| 37 | 208777 | NEEDLE THREAD GUIDE | 1 |
| 38 | 4009-1 | SCREW | 1 |
Page 19 — UPPER LOOPER DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 201048A | THREAD EYELET | 1 |
| 2 | 201048A | THREAD EYELET | 1 |
| 3 | 1459 | SCREW | 1 |
| 4 | 208490 | THREAD TENSION COMPLETE | 1 |
| 5 | 208447 | TENSION NUT | 1 |
| 6 | 208448 | SPRING BUSHING | 1 |
| 7 | 201068 | TENSION SPRING (LIGHT) | 1 |
| 8 | 208450 | CAP | 1 |
| 9 | 201482 | DISC | 2 |
| 10 | 208449 | FELT | 1 |
| 11 | 5082A | POST | 1 |
| 12 | 202849 | TENSION GUIDE PLATE | 1 |
| 13 | 202619A | CONNECTION | 1 |
| 14 | 5002 | SCREW | 2 |
| 15 | 205495 | PIN | 1 |
| 16 | 5084 | SCREW | 1 |
| 17 | 202709A | LINK | 1 |
| 18 | 202712A | PIN | 1 |
| 19 | 5084 | SCREW | 1 |
| 20 | 5373 | SCREW | 1 |
| 21 | 202757A | WASHER | 1 |
| 22 | 202710A | CRANK | 1 |
| 23 | 2022-4 | SCREW | 2 |
| 24 | 202623A | BUSHING | 1 |
| 25 | 202922 | WASHER | 1 |
| 26 | 210125 | BUSHING (REAR) | 1 |
| 27 | 202622B | SHAFT | 1 |
| 28 | 202177 | OIL WICK | 1 |
| 29 | 202081 | OIL WICK | 1 |
| 30 | 202626A | CRANKSHAFT | 1 |
| 31 | 5219 | SCREW | 1 |
| 32 | 202176 | OIL WICK | 1 |
| 33 | 202827 | UPPER LOOPER HOLDER | 1 |
| 34 | 202625 | PIN | 1 |
| 35 | 202176 | OIL WICK | 1 |
| 36 | 5146 | SCREW | 1 |
| 37 | XXXXXX | UPPER LOOPER | 1 |
| 38 | 5220 | SCREW | 1 |
| 39 | 205408 | BASE | 1 |
| 40 | 5095 | SCREW | 2 |
| 41 | 202917 | BUSHING (FRONT) | 1 |
| 42 | 5305 | SCREW | 1 |
| 43 | 202286 | WASHER | 1 |
| 44 | 202914 | GUIDE | 1 |
| 45 | 202915 | OIL WICK | 1 |
| 46 | 202916 | PLATE | 1 |
| 47 | 1231 | SCREW | 1 |
| 48 | 202175 | OIL WICK | 2 |
| 49 | 202919 | BUSHING (REAR) | 1 |
| 50 | 202920 | RING | 1 |
| 51 | 202921 | PLUG | 1 |
| 52 | 202174 | OIL WICK | 1 |
| 53 | 202631A | THREAD TAKEUP | 1 |
| 54 | 5064 | SCREW | 1 |
| 55 | 201089 | THREAD GUIDE | 1 |
| 56 | 5519 | SCREW | 1 |
| 57 | 202875 | WASHER | 1 |
| 58 | 205441 | THREAD TUBE | 1 |
| 59 | 5328 | SCREW | 1 |
| 60 | 205295 | THREAD GUIDE | 1 |
| 61 | 205771 | UPPER LOOPER HOLDER COMPLETE | 1 |
Page 21 — LOWER LOOPPER DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 201048A | THREAD EYELET | 1 |
| 2 | 201048A | THREAD EYELET | 1 |
| 3 | 1459 | SCREW | 1 |
| 4 | 208489 | THREAD TENSION COMPLETE | 1 |
| 5 | 208447 | TENSION NUT | 1 |
| 6 | 208448 | SPRING BUSHING | 1 |
| 7 | 201086 | TENSION SPRING (MEDIUM) | 1 |
| 8 | 208450 | CAP | 1 |
| 9 | 201482 | DISC | 2 |
| 10 | 208449 | FELT | 1 |
| 11 | 5082A | POST | 1 |
| 12 | 202849 | TENSION GUIDE PLATE | 1 |
| 13 | 201073B | CONNECTION | 1 |
| 14 | 5002 | SCREW | 2 |
| 15 | 1170-1 | SCREW | 2 |
| 16 | 201074A | CONNECTION GUIDE | 1 |
| 17 | 202790 | CONNECTION GUIDE | 1 |
| 18 | 202286 | WASHER | 1 |
| 19 | 1156 | SCREW | 1 |
| 20 | 201075 | BALL STUD | 1 |
| 21 | 5048 | SCREW | 1 |
| 22 | 201079A | CRANK/LOWER LOOPER DRIVE | 1 |
| 23 | 5048 | SCREW | 2 |
| 24 | 201080 | SHAFT | 1 |
| 25 | 205778 | BUSHING | 2 |
| 26 | 202923 | RETAINER | 1 |
| 27 | 201438A | LOWER LOOPER HOLDER | 1 |
| 28 | 202728 | LOWER LOOPER HOLDER | 1 |
| 29 | 205409 | LOWER LOOPER HOLDER | 1 |
| 30 | 202736 | LOWER LOOPER HOLDER | 1 |
| 31 | 5274 | SCREW | 1 |
| 32 | 202703 | LOWER LOOPER | 1 |
| 33 | 202408 | LOWER LOOPER | 1 |
| 34 | 5328 | SCREW | 1 |
| 35 | 202633 | THREAD TAKEUP | 1 |
| 36 | 202732 | THREAD TAKEUP | 1 |
| 37 | 2921 | SCREW | 1 |
| 38 | 201088 | BRACKET | 1 |
| 39 | 1202 | SCREW | 1 |
| 40 | 201809 | COVER | 1 |
| 41 | 5519 | SCREW | 1 |
| 42 | 202875 | WASHER | 1 |
Page 23 — FEED MECHANISM(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 202941B | FEED BAR GUIDE (FRONT) | 1 |
| 2 | 2022-3 | SCREW | 1 |
| 3 | 205421A | FEED BAR GUIDE (FRONT) | 1 |
| 4 | 5328 | SCREW | 2 |
| 5 | 201109 | FEED BAR GUIDE (RIGHT) | 1 |
| 6 | 205420 | FEED BAR GUIDE (RIGHT) | 1 |
| 7 | 1175-3 | SCREW | 2 |
| 8 | 167066 | WASHER | 2 |
| 9 | 201110 | OIL TUBE | 1 |
| 10 | 1435 | SCREW | 1 |
| 11 | 202181 | OIL WICK | 1 |
| 12 | 202201A | FEED BAR GUIDE (LEFT) | 1 |
| 13 | 205422 | FEED BAR GUIDE (LEFT) | 1 |
| 14 | 5095 | SCREW | 2 |
| 15 | 202202 | OIL TUBE | 1 |
| 16 | 202176 | OIL WICK | 1 |
| 17 | 202203 | HOLDER | 1 |
| 18 | 1196 | SCREW | 1 |
| 19 | 202200 | PIN | 1 |
| 20 | 205419 | PIN | 1 |
| 21 | 2022 | SCREW | 1 |
| 22 | 201093A | MAIN FEED BAR | 1 |
| 23 | XXXXXX | MAIN FEED DOG | 1 |
| 24 | 1202 | SCREW | 1 |
| 25 | XXXXXX | AUX. FEED DOG | 1 |
| 26 | 5086 | SCREW | 1 |
| 27 | 201096A | DIFF. FEED BAR | 1 |
| 28 | XXXXXX | DIFF. FEED DOG | 1 |
| 29 | 1202 | SCREW | 1 |
| 30 | 201106 | BLOCK/FEED BAR LIFT | 1 |
| 31 | 205857 | BLOCK/FEED BAR GUIDE | 1 |
| 32 | 205410 | MAIN FEED BAR | 1 |
| 33 | XXXXXX | MAIN FEED DOG | 1 |
| 34 | 1202 | SCREW | 1 |
| 35 | 205414 | DIFF. FEED BAR | 1 |
| 36 | XXXXXX | DIFF. FEED DOG | 1 |
| 37 | 1175-2 | SCREW | 1 |
| 38 | 205417 | BLOCK/FEED BAR LIFT | 1 |
| 39 | 205418 | BLOCK/FEED BAR GUIDE | 1 |
| 40 | 205850 | LINK | 1 |
| 41 | 202175 | OIL WICK | 2 |
| 42 | 201099 | BUSHING | 1 |
| 43 | 201154 | BUSHING | 1 |
| 44 | 201100 | SCREW | 1 |
| 45 | 3044 | NUT | 1 |
| 46 | 200098 | WASHER | 1 |
| 47 | 201101 | LINK | 1 |
| 48 | 201099 | BUSHING | 1 |
| 49 | 206119 | BUSHING | 1 |
| 50 | 201100 | SCREW | 1 |
| 51 | 206120 | SCREW | 1 |
| 52 | 3044 | NUT | 1 |
| 53 | 200098 | WASHER | 1 |
| 54 | 201103B- | FEED ECCENTRIC | 1 |
| 55 | 201103B- | FEED ECCENTRIC | 1 |
| 56 | 5213 | NUT | 1 |
| 57 | 202924 | WASHER | 1 |
Page 25 — 送り機構(2) / FEED MECHANISM(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 202412 | CONNECTION/FEED DRIVE | 1 |
| 2 | 2213-1 | SCREW | 2 |
| 3 | 205495 | PIN | 1 |
| 4 | 1458 | SCREW | 1 |
| 5 | 202416 | CRANK (RIGHT)/FEED DRIVE | 1 |
| 6 | 5002 | SCREW | 2 |
| 7 | 202414A | BUSHING | 2 |
| 8 | 201139 | COLLAR | 1 |
| 9 | 5084 | SCREW | 2 |
| 10 | 202413 | SHAFT/FEED BAR | 1 |
| 11 | 201110 | OIL PIPE | 1 |
| 12 | 1435 | SCREW | 1 |
| 13 | 202176 | OIL WICK | 1 |
| 14 | 205842 | PIPE | 1 |
| 15 | 200174 | CLAMP | 1 |
| 16 | 5091 | SCREW | 1 |
| 17 | 205843 | OIL FELT | 1 |
| 18 | 205844 | CLAMP | 1 |
| 19 | 1227 | SCREW | 1 |
| 20 | 205845 | FEED BAR GUIDE (CENTER) | 1 |
| 21 | 5095 | SCREW | 2 |
| 22 | 202420B | FEED BAR GUIDE (FRONT) | 1 |
| 23 | 2022-3 | SCREW | 1 |
| 24 | 202422 | FEED BAR GUIDE (REAR) | 1 |
| 25 | 1175-3 | SCREW | 2 |
| 26 | 167066 | WASHER | 2 |
| 27 | 201096A | FEED BAR | 1 |
| 28 | 202733 | FEED DOG | 1 |
| 29 | 1202 | SCREW | 1 |
| 30 | 202734 | AUX. FEED DOG | 1 |
| 31 | 5003 | SCREW | 1 |
| 32 | 205417 | BLOCK/FEED BAR LIFT | 1 |
| 33 | 201107 | BLOCK/FEED BAR GUIDE | 1 |
| 34 | 202417 | CONNECTING LINK | 1 |
| 35 | 202309 | BUSHING | 1 |
| 36 | 202310 | SCREW | 1 |
| 37 | 3044 | NUT | 1 |
| 38 | 200098 | WASHER | 1 |
| 39 | 202395A | CRANK (LEFT)/FEED DRIVE | 1 |
| 40 | 2237 | SCREW | 2 |
| 41 | 202781 | PIN | 1 |
| 42 | 202418 | PIN | 1 |
| 43 | 200098 | WASHER | 1 |
| 44 | 3044 | NUT | 1 |
Page 27 — FEED MECHANISM(3) FOR DCR-942 ONLY
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 202438 | BUSHING | 1 |
| 2 | 1174 | SCREW | 2 |
| 3 | 202426 | PIN | 1 |
| 4 | 202425 | BRACKET | 1 |
| 5 | 1457 | SCREW | 2 |
| 6 | 202427 | COLLAR | 1 |
| 7 | 1457 | SCREW | 2 |
| 8 | 205892 | SCREW | 1 |
| 9 | 201185 | WASHER | 2 |
| 10 | 3044 | NUT | 2 |
| 11 | 202428 | SPRING | 1 |
| 12 | 137906 | WASHER | 1 |
| 13 | 1216 | SCREW | 1 |
| 14 | 202423 | FEED ROLLER (FRONT) | 1 |
| 15 | 202429 | WORM/FABRIC GUIDE | 1 |
| 16 | 200821 | WASHER | 2 |
| 17 | 2928 | SCREW | 1 |
| 18 | 202430 | FEED ROLLER (REAR) | 1 |
| 19 | 202442 | SCREW | 1 |
| 20 | 202449 | FEED ROLLER (LOWER) | 1 |
| 21 | 202433 | WASHER | 2 |
| 22 | 5092 | SCREW | 1 |
| 23 | 202431-1 | FEED BELT/118 PITCHES | 1 |
| 24 | 202431-2 | FEED BELT/123 PITCHES/YELLOW | 1 |
| 25 | 202431-3 | FEED BELT/128 PITCHES/RED | 1 |
| 26 | 202431-4 | FEED BELT/144 PITCHES/WHITE | 1 |
| 27 | 205893 | COLLER | 1 |
| 28 | 5292 | SCREW | 1 |
Page 29 — UPPER AND LOWER KNIFE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 202925 | CONNECTION/UPPER KNIFE DRIVE | 1 |
| 2 | 5187 | SCREW | 2 |
| 3 | 205495 | PIN | 1 |
| 4 | 5084 | SCREW | 1 |
| 5 | 201381A | CRANK/UPPER KNIFE DRIVE | 1 |
| 6 | 5381 | SCREW | 1 |
| 7 | 201115A | BUSHING | 2 |
| 8 | 202927 | OIL SEAL | 1 |
| 9 | 201117 | COLLAR | 1 |
| 10 | 5328 | SCREW | 2 |
| 11 | 205292 | LEVER | 1 |
| 12 | 202638B | GUIDE | 1 |
| 13 | 1189 | SCREW | 1 |
| 14 | 201121A | UPPER KNIFE | 1 |
| 15 | 205258 | UPPER KNIFE | 1 |
| 16 | 5088 | SCREW | 1 |
| 17 | 211376 | WASHER | 1 |
| 18 | 202637B | UPPER KNIFE HOLDER | 1 |
| 19 | 1175-2 | SCREW | 1 |
| 20 | 202636 | GUIDE | 1 |
| 21 | 2022 | SCREW | 1 |
| 22 | 201125 | PIN | 1 |
| 23 | 202295 | LOWER KNIFE | 1 |
| 24 | 201127 | LOWER KNIFE | 1 |
| 25 | 205423 | LOWER KNIFE | 1 |
| 26 | 202739 | LOWER KNIFE HOLDER | 1 |
| 27 | 4009-1 | SCREW | 1 |
| 28 | 201129 | SPRING | 1 |
| 29 | 201130A | RETAINER | 1 |
| 30 | 1175-3 | SCREW | 1 |
| 31 | 201131A | GUIDE/LOWER KNIFE HOLDER | 1 |
| 32 | 205424 | GUIDE/LOWER KNIFE HOLDER | 1 |
| 33 | 1175-3 | SCREW | 2 |
| 34 | 201132B | LOWER KNIFE CLAMP STUD | 1 |
| 35 | 5260 | NUT | 1 |
| 36 | 201134 | WASHER | 1 |
| 37 | 5111 | NUT | 1 |
Page 31 — PRESSER FOOT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 201160B | FOOT LIFT LEVER | 1 |
| 2 | 201161 | STUD | 1 |
| 3 | 2022-3 | SCREW | 1 |
| 4 | 201162A | SPRING | 1 |
| 5 | 202868 | WASHER | 1 |
| 6 | 205702 | PIN | 1 |
| 7 | 201167A | BRACKET | 1 |
| 8 | 5142 | SCREW | 2 |
| 9 | 5097 | SCREW | 2 |
| 10 | 3044 | NUT | 2 |
| 11 | 205719 | SCREW | 1 |
| 12 | 208773 | PRESSER BAR SPRING | 1 |
| 13 | 202641 | PLUNGER | 1 |
| 14 | 202642 | GUIDE | 1 |
| 15 | 5053 | SCREW | 2 |
| 16 | 208598 | HAND LIFT LEVER | 1 |
| 17 | 202647A | HINGE PIN | 1 |
| 18 | 208599 | BUSHING | 1 |
| 19 | 5029 | SCREW | 1 |
| 20 | 201395 | SPRING | 1 |
| 21 | 202645 | PLUNGER | 1 |
| 22 | 202639 | ARM | 1 |
| 23 | 5164 | SCREW | 1 |
| 24 | 201141 | BUSHING | 1 |
| 25 | 202640A | SHAFT/FOOT LIFT | 1 |
| 26 | 202756 | COLLAR | 1 |
| 27 | 5084 | SCREW | 2 |
| 28 | 202589 | BUSHING | 3 |
| 29 | 201164A | COLLAR | 1 |
| 30 | 2022-4 | SCREW | 1 |
| 31 | 2022 | SCREW | 1 |
| 32 | 205704 | INTERMEDIATE LEVER | 1 |
| 33 | 205705 | SPRING | 1 |
| 34 | 202683 | REGULATOR | 1 |
| 35 | 5345 | SCREW | 1 |
| 36 | 202451 | CHAINCUTTER | 1 |
| 37 | 2921 | SCREW | 1 |
| 38 | 201152E | PRESSER FOOT | 1 |
| 39 | 201155C | PRESSER FOOT FINGER | 1 |
| 40 | 202434 | PRESSER FOOT | 1 |
| 41 | 202453A | FINGER | 1 |
| 42 | 201156 | SPRING | 1 |
| 43 | 5089 | SCREW | 1 |
| 44 | 210584 | UNCURLER | 1 |
| 45 | 5030 | SCREW | 1 |
| 46 | 210585 | WASHER | 1 |
| 47 | 201265B | FABRIC GUARD | 1 |
| 48 | 1231 | SCREW | 1 |
| 49 | 202682A | PRESSER FOOT REGULATOR | 1 |
| 50 | 1196 | SCREW | 1 |
Page 33 — 給油機構 LUBRICATING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 205378 | GEAR PUMP | 1 |
| 2 | 2213-1 | SCREW | 4 |
| 3 | 201288A | CASING COMPLETE | 1 |
| 4 | 201293A | PLATE | 1 |
| 5 | 5117 | SCREW | 4 |
| 6 | 205887 | PUMP GEAR (RIGHT) | 1 |
| 7 | 201295 | PUMP GEAR | 1 |
| 10 | 201297 | SHAFT | 1 |
| 11 | 1458 | SCREW | 2 |
| 12 | 201299 | WORM WHEEL | 1 |
| 13 | 5060 | SCREW | 2 |
| 14 | 201338 | FILTER COMPLETE | 1 |
| 15 | 201341 | FILTER FRAME | 1 |
| 16 | 1175-2 | SCREW | 3 |
| 17 | 201300A | OIL SPLASH JOINT | 1 |
| 18 | 201301 | OIL SPLASH SCREW | 1 |
| 19 | 201319A | TUBE | 1 |
| 20 | 201304 | SPRING | 1 |
| 21 | 201303 | TUBE CLAMP | 2 |
| 22 | 201300A | OIL SPLASH JOINT | 2 |
| 23 | 201301 | OIL SPLASH SCREW | 2 |
| 24 | 202928 | DISTRIBUTOR | 1 |
| 25 | 1156 | SCREW | 1 |
| 26 | 200136 | OIL SPLASH JOINT | 2 |
| 27 | 200152 | OIL SPLASH SCREW | 2 |
| 28 | 205763 | OIL TUBE | 1 |
| 29 | 202199 | TUBE CLAMP | 2 |
| 30 | 202193 | VINYL TUBE | 1 |
| 31 | 205294 | CLAMP SPRING | 1 |
| 32 | 201303 | TUBE CLAMP. | 2 |
| 33 | 202929 | OIL TUBE | 1 |
| 34 | 202930 | CLAMP | 1 |
| 35 | 2014228 | DISTRIBUTOR | 1 |
| 36 | 201423 | GASKET | 1 |
| 37 | 5095 | SCREW | 3 |
| 38 | 202794 | INDICATOR COMPLETE | 1 |
| 39 | 201328 | OIL SIGHT WINDOW | 1 |
| 40 | 201329 | GASKET | 1 |
| 41 | 202777 | WASHER | 1 |
| 42 | 1175-3 | SCREW | 3 |
| 43 | 200136 | OIL SPLASH JOINT | 1 |
| 44 | 200137 | OIL SPLASH SCREW | 1 |
| 45 | 201426A | OIL TUBE | 1 |
| 46 | 202199 | TUBE CLAMP | 2 |
| 47 | 201424A | OIL SPLASH PIPE | 1 |
| 48 | 5261 | SCREW | 1 |
| 49 | 202775 | BUSHING | 1 |
| 50 | 202776 | WASHER | 2 |
| 51 | 5020 | NUT | 1 |
| 52 | 205833 | OIL RESERVOIR COMPLETE | 1 |
| 53 | 205768 | OIL RESERVOIR | 1 |
| 55 | 51389 | SCREW | 1 |
| 56 | 202287A | WASHER | 1 |
| 57 | 209150 | AIR GUIDE | 1 |
| 58 | 5441 | STOP SCREW | 2 |
| 59 | 202286 | WASHER | 2 |
| 60 | 201335 | GASKET | 1 |
| 61 | 205440 | OIL PAN GASKET | 1 |
| 62 | 51503 | BOLT | 4 |
| 63 | 52085 | BOLT | 4 |
| 64 | 204806 | WASHER | 4 |
| 65 | 202737 | REGULATOR | 1 |
| 66 | 5113 | SCREW | 1 |
| 67 | 200138 | GASKET | 2 |
Page 35 — HR装置 HR DEVICE (Needle and Thread Lubricators)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 202476-1 | SILICONE OIL RESERVOIR | 1 |
| 2 | 202476-2 | BRACKET | 1 |
| 3 | 202476-3 | SILICONE OIL REGULATOR | 1 |
| 4 | 202476-4 | CAP COVER | 1 |
| 5 | 1216 | SCREW | 2 |
| 6 | 2193 | SCREW | 1 |
| 7 | 202461 | SCREW STUD | 1 |
| 8 | 208446 | THREAD LUBRICATOR | 1 |
| 9 | 4009-1 | SCREW | 1 |
| 10 | 208487 | PLATE | 1 |
| 11 | 5012 | SCREW | 1 |
| 12 | 202030A | OIL TUBE | 1 |
| 13 | 200633 | OIL WICK | 1 |
| 14 | 202455 | SILICONE OIL RESERVOIR | 1 |
| 15 | 5117 | SCREW | 1 |
| 16 | 202456 | CAP COVER | 1 |
| 17 | 5184 | SCREW | 1 |
| 18 | 201191 | WASHER | 2 |
| 19 | 202745A | NEEDLE COOLER | 1 |
| 20 | 4009-1 | SCREW | 1 |
| 21 | 202472 | OIL TUBE | 1 |
| 22 | 200633 | OIL WICK | 1 |
| 23 | 210766 | OIL FELT PIN | 1 |
| 24 | 202199 | HOLDER | 2 |
Page 37 — アタッチメント/特別注文品 ATTACHMENTS/SPECIAL ORDER PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 201206A | WELT GUIDE HOLDER | 1 |
| 2 | 1175-2 | SCREW | 1 |
| 3 | 201211B | FOLDER/40MM | 1 |
| 4 | 205457 | FOLDER/14MM | 1 |
| 5 | 205678 | FOLDER/21MM | 1 |
| 6 | 205679 | FOLDER/26MM | 1 |
| 7 | 205456 | FOLDER/51MM | 1 |
| 8 | 2905 | SCREW | 1 |
| 9 | 137142 | WASHER | 1 |
| 10 | 205835 | AUXILIARY | 1 |
| 11 | 5299 | SCREW | 1 |
| 12 | 303312A | FOLDER REGULATOR | 1 |
| 13 | 303313 | CLAMP | 1 |
| 14 | 201500 | EDGE GUIDE COMPLETE | 1 |
| 15 | 201232A | BRACKET | 1 |
| 16 | 1202 | SCREW | 2 |
| 17 | 201485 | BRACKET | 1 |
| 18 | 201191 | WASHER | 1 |
| 19 | 5184 | SCREW | 1 |
| 20 | 3044 | NUT | 1 |
| 21 | 201233A | EDGE GUIDE | 1 |
| 22 | 1202 | SCREW | 1 |
| 23 | 137906 | WASHER | 1 |
| 24 | 208915 | TAPE GUIDE (UPPER) | 1 |
| 25 | 1175-3 | SCREW | 2 |
| 26 | 137906 | WASHER | 4 |
| 27 | 3091 | NUT | 2 |
| 28 | 208916 | TAPE GUIDE (LOWER) | 1 |
| 29 | 1216 | SCREW | 2 |
| 30 | 137906 | WASHER | 2 |
| 31 | 205319 | TAPE TAKEUP | 1 |
| 32 | 209402-91 | TAPE GUIDE COMPLETE | 1 |
Page 39 — ACCESSORIES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 908 | DUST COVER | |
| 2 | 452 | OIL CONTAINER | |
| 3 | 485 | OILER | |
| 4 | 484 | FUNNEL | |
| 5 | DCX1 | NEEDLE | |
| 6 | 282 | WRENCH/5MM | |
| 7 | 283 | WRENCH/6MM | |
| 8 | 284 | WRENCH/7MM | |
| 9 | 286 | WRENCH/9.5MM | |
| 10 | 200 | WRENCH/4.76MM | |
| 11 | 152 | WRENCH/7MM | |
| 12 | 127 | DRIVER | |
| 13 | 128 | DRIVER | |
| 14 | 129 | DRIVER | |
| 15 | 131 | TWEEZERS | |
| 17 | 126 | CHAIN | |
| 18 | 478 | TREADLE | |
| 19 | 482 | ACCESSARY BAG | |
| 20 | 201103B | FEED ECCENTRIC | |
| 21 | 130A | WRENCH(12X14) | |
| 22 | 179 | ALLEN KEY DRIVER/1.56MM | |
| 23 | 154 | EXTRACTOR/FEED ECCENTRIC | |
| 24 | 272 | ALLEN KEY | |
| 25 | 178 | CONTAINER - SILICONE | |
| 26 | 201127 | LOWER KNIFE | |
| 27 | 202295 | LOWER KNIFE | |
| 28 | 205423 | LOWER KNIFE | |
| 29 | 201480 | CUSHION PLUG | |
| 30 | 201479 | PLATE | |
| 31 | 4909 | SCREW | |
| 32 | 202431-3 | FEED BELT | |
| 33 | 202431-2 | FEED BELT | |
| 34 | 202431-4 | FEED BELT |
Page 40 — R53-01(81),02,17
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 202616 | |||
| 202617 | |||
| 202618 | |||
| 202542E | |||
| 202546E | |||
| 202596E | |||
| 202597E | |||
| 201094B | |||
| 202543D | |||
| 202634A | |||
| 201097C | |||
| 202544D | |||
| 201152E | |||
| 201473B | |||
| 201230C | |||
| 201155C | |||
| 201224B | |||
| 201265B | |||
| 210584 |
Page 41 — Common parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 17 | R53-03 | Common parts | |
| 204623 | |||
| 202828 | |||
| 202295 | |||
| 201127 | |||
| 202703 | |||
| 201453B | |||
| 202474A | |||
| 201121A | |||
| R53-02 | 504 | ||
| R53-17 | 504 | ||
| R53-81 | 合繊の薄生地、中厚生地の裾引及び地縫 ●H.R装置付 婦人用下着(スリップ、ネグリジェ) | 505 |
Page 42 — R53-03, 53, 54, 57 GAUGE PARTS CONSTRUCTION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 205320 | |||
| 205321 | |||
| 205322 | |||
| 205323 | |||
| 205235 | |||
| 205236 | |||
| 205237 | |||
| 205238 | |||
| 205324 | |||
| 205325 | |||
| 205326 | |||
| 205327 | |||
| 205248 | |||
| 202798 | |||
| 205249 | |||
| 205250 | |||
| 202854A | |||
| 202535C | |||
| 202544D | |||
| 202799 | |||
| 205252 | |||
| 205253 | |||
| 201224B | |||
| 201265B | |||
| 210584 |
Page 44 — R53-05,09,15,55,59 (85) (89) GAUGE PARTS CONSTRUCTION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 202674 | |||
| 202702 | |||
| 202675 | |||
| 202981 | |||
| 202982 | |||
| 202983 | |||
| 201094B | |||
| 202798 | |||
| 202634A | |||
| 202854A | |||
| 201230C | |||
| 202799 | |||
| 201396B | |||
| 201310A | |||
| 201265B | |||
| 210584 |
Page 45 — 共通パーツ Common parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 512 | R53-09 | 2 | |
| 512 | R53-59 | 2 | |
| 512 | R53-89 | 合繊の薄生地、中厚生地の地縫 HR装置付 (水着、ドレス、ブラウス、カッターシャツ) | 2 |
| 514 | R53-05 | 2 | |
| 514 | R53-15 | 2 | |
| 514 | R53-55 | 薄生地、中厚生地の地縫 (メリヤス肌着、U首シャツ、ランニング、スリーマー) | 1.5, 2 |
| 514 | R53-85 | 1.5, 2 | |
| 208904 | |||
| 208905 | |||
| 202719 | |||
| 202828 | |||
| 202703 | |||
| 201454B | |||
| 202749 | |||
| 205258 | |||
| 202295 |
Page 46 — R53-11,12,51,52
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 205255 | |||
| 202554E | |||
| 202499E | |||
| 205243 | |||
| 205244 | |||
| 202543D | |||
| 205250 | |||
| 202634A | |||
| 202544 D | |||
| 201230C | |||
| 205253 | |||
| 201396B | |||
| 201310A | |||
| 201265B | |||
| 210584 | |||
| 20250 |
Page 47
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 3,4,5 | R53-11 | 2 | |
| 3,4 | R53-12 | 2 | |
| 4,5 | R53-51 | 2 | |
| 4 | R53-52 | 2 | |
| 208905 | |||
| 202719 | |||
| 202828 |
Page 48 — DCR-942, R53-25, 41, 49 GAUGE PARTS CONSTRUCTION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 202403 | |||
| 205832 | |||
| 205403 | |||
| 205404 | |||
| 205405 | |||
| 205432 | |||
| 205436 | |||
| 205437 | |||
| 205256 | |||
| 205257 | |||
| 202733 | |||
| 202734 | |||
| 202434 | |||
| 202453 | |||
| 205413 | |||
| 205416 | |||
| 205433 | |||
| 205434 | |||
| 201094B | |||
| 202634A | |||
| 201097C | |||
| 201230C | |||
| 201265B | |||
| 201152E | |||
| 201155C | |||
| 201310A | |||
| 201396B | |||
| 210584 |
Page 49 — Common parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 504 | DCR-942 | Part | 3,4 |
| 505 | R53-41 | Part | 2,3,4 |
| 512 | R53-49 | Part | 2 |
| 514 | R53-25 | Part | 2 |
| 204623 | |||
| 208905 | |||
| 201453B | |||
| 201454B | |||
| 202490 | |||
| 202474A | |||
| 202749 | |||
| 205891 | |||
| 202828 | |||
| 202719 | |||
| 201121A | |||
| 205258 | |||
| 205423 | |||
| 201127 | |||
| 202703 | |||
| 202408 |
Page 50 — GAUGE PARTS LIST FOR I-NEEDLE MACHINES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 202703 | Lower looper | ||
| 202408 | Lower looper For R53-41, DCR-942 only. | ||
| 201453B | Needle guard (front) | ||
| 202474A | Needle guard (rear) | ||
| 202490 | Needle guard (rear) For DCR-942 only. | ||
| 201121A | Upper knife |
Page 51 — GAUGE PARTS LIST FOR 2-NEEDLE MACHINES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 202674 | NEEDLE PLATE | ||
| 201094B | MAIN FEED DOG | ||
| 202634A | AUX. FEED DOG | ||
| 202854A | DIFF. FEED DOG | ||
| 201230C | PRESSER BODY | ||
| 201396B | PRESSER FOOT FINGER | ||
| 210584 | UNCURLER | ||
| 201265B | FAB.GRD | ||
| 202295 | LOWER KNIFE | ||
| 202719 | UPPER LOOPER | ||
| 208904 | NEEDLE HOLDER | ||
| 202702 | |||
| 202554E | |||
| 202675 | |||
| 205256 | 201094B | ||
| 205257 | |||
| 205243 | |||
| 202798 | |||
| 205255 | 202543D | ||
| 205244 | |||
| 202982 | |||
| 202983 | |||
| 205432 | |||
| 205436 | |||
| 205437 | |||
| 202703 | Lower looper | ||
| 202749 | Needle guard (rear) (movable type) |
Page 52 — SPECIFIC PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 212799 | TYPE PLATE | ||
| 201360B | NEEDLE BAR CRANK (REAR) | ||
| 201441B | NEEDLE BAR CRANK (REAR) | ||
| 201037 | NDL THREAD TEN.SPRING | ||
| 201086 | NDL THREAD TEN.SPRING | ||
| 201068 | NDL THREAD TEN.SPRING | ||
| 201099 | MAIN FEED LINK BUSH. | ||
| 201154 | MAIN FEED LINK BUSH. | ||
| 202309 | MAIN FEED LINK BUSH. | ||
| 202651A | CLOTH PLATE FAB. GUARD | ||
| 202796 | CLOTH PLATE FAB. GUARD | ||
| 205518 | CLOTH PLATE FAB. GUARD | ||
| 205770 | |||
| 201243A | |||
| 201438A | |||
| 202728 | |||
| 205409 | |||
| 202736 | |||
| 202680 | |||
| 202755 | |||
| 205398 | |||
| 202937 | |||
| 205296 | |||
| 205400 | |||
| 205295 | |||
| 205441 | |||
| 201074A | |||
| 202790 |
Page 55 — PART NUMBER INDEX
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 7 | 205479 | ||
| 5 | 205495 | ||
| 10 | 205495 | ||
| 3 | 205495 | ||
| 3 | 205495 | ||
| 46 | 205518 | ||
| 30 | 205526 | ||
| 49 | 205544 | ||
| 51 | 205545 | ||
| 5 | 205678 | ||
| 6 | 205679 | ||
| 12 | 205685 | ||
| 1 | 205689-FD | ||
| 5 | 205690-FD | ||
| 9 | 205691 | ||
| 10 | 205692 | ||
| 21 | 205693-FD | ||
| 3 | 205694 | ||
| 30 | 205697 | ||
| 38 | 205698 | ||
| 31 | 205700 | ||
| 34 | 205701 | ||
| 6 | 205702 | ||
| 27 | 205703 | ||
| 32 | 205704 | ||
| 33 | 205705 | ||
| 28 | 205708 | ||
| 39 | 205711 | ||
| 36 | 205713 | ||
| 48 | 205714 | ||
| 11 | 205719 | ||
| 35 | 205720 | ||
| 28 | 205763 | ||
| 5 | 205764 | ||
| 6 | 205765 | ||
| 19 | 205767 | ||
| 53 | 205768 | ||
| 14 | 205770 | ||
| 25 | 205778 | ||
| 26 | 205828 | ||
| 30 | 205829 | ||
| 33 | 205830 | ||
| 18 | 205832 | ||
| 1 | 205833 | ||
| 10 | 205835 | ||
| 41 | 205836-FD | ||
| 44 | 205840 | ||
| 46 | 205841 | ||
| 14 | 205842 | ||
| 17 | 205843 | ||
| 18 | 205844 | ||
| 20 | 205845 | ||
| 19 | 205846 | ||
| 40 | 205850 | ||
| 31 | 205857 | ||
| 52 | 205859 | ||
| 6 | 205887 | ||
| 205891 | |||
| 8 | 205892 | ||
| 27 | 205893 | ||
| 49 | 206119 | ||
| 51 | 206120 | ||
| 13 | 206215 | ||
| 1 | 206336 | ||
| 2 | 206337 | ||
| 4 | 206337 | ||
| 37 | 208272 | ||
| 15 | 208424 | ||
| 18 | 208425 | ||
| 22 | 208427 | ||
| 17 | 208430 | ||
| 8 | 208446 | ||
| 2 | 208447 | ||
| 5 | 208447 | ||
| 5 | 208447 | ||
| 3 | 208448 | ||
| 6 | 208448 | ||
| 6 | 208448 | ||
| 7 | 208449 | ||
| 10 | 208449 | ||
| 5 | 208450 | ||
| 8 | 208450 | ||
| 8 | 208450 | ||
| 10 | 208450 | ||
| 1 | 208487 | ||
| 9 | 208488 | ||
| 10 | 208489 | ||
| 4 | 208489 | ||
| 12 | 208489 | ||
| 4 | 208490 | ||
| 21 | 208560 | ||
| 22 | 208561 | ||
| 23 | 208562 | ||
| 24 | 208563 | ||
| 20 | 208568 | ||
| 16 | 208598 | ||
| 18 | 208599 | ||
| 32 | 208617 | ||
| 24 | 208621 | ||
| 25 | 208713 | ||
| 9 | 208725 | ||
| 13 | 208744 | ||
| 11 | 208747 | ||
| 12 | 208773 | ||
| 37 | 208777 | ||
| 35 | 208903 | ||
| 36 | 208904 | ||
| 47 | 208904 | ||
| 37 | 208905 | ||
| 12 | 208905 | ||
| 24 | 208915 | ||
| 28 | 208916 | ||
| 57 | 209150 | ||
| 26 | 210125 | ||
| 44 | 210584 | ||
| 48 | 210584 | ||
| 46 | 210585 | ||
| 23 | 210679 | ||
| 43 | 211301 | ||
| 17 | 212186 | ||
| 29 | 212279 | ||
| 23 | 212279 | ||
| 32 | 212279 | ||
| 35 | 303312A | ||
| 12 | 303313 | ||
| 13 | 305456 | ||
| 7 | 305456 |
Page 57 — SEMI-SUBMERGED INSTALLATION PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 206336 | NUT | 4 |
| 2 | 206337 | WASHER | 8 |
| 3 | 205467 | SPACER | 8 |
| 4 | 206337 | WASHER | 4 |
| 5 | 205764 | RUBBER | 4 |
| 6 | 205765 | LINER | 4 |
| 7 | 4513 | HANGER BOLT | 4 |
| 8 | 205466 | MACHINE REST BOARD | 4 |
| 9 | 205473 | CUSHION RUBBER | 4 |
| 10 | 205470-JA | WASTE CHUTE TOP | 1 |
| 11 | 4904 | SCREW | 3 |
| 12 | 9050 | WASTE CHUTE SET | 1 |
| 13 | 205468-JA | WASTE CHUTE | 1 |
| 14 | 205469-JA | WASTE CHUTE EXTENSION | 1 |
| 15 | 4905 | SCREW | 3 |
Page 59 — THREAD STAND
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 486C9C | THREAD STAND ASSEMBLY | 1 (3-spools) | |
| 486B9C | THREAD STAND ASSEMBLY | 1 (4-spools) | |
| 1 | 503-CA | THEAD STAND ROD | 1 / 1 |
| 2 | 509 | WASHER | 1 / 1 |
| 3 | 5476 | NUT | 1 / 1 |
| 4 | 505-CA | BRACKET | 1 / - |
| 5 | 505ACA | BRACKET | - / 2 |
| 6 | 380A | SPOOL PIN | 3 / 4 |
| 7 | 201252 | WASHER | 3 / 4 |
| 8 | 4803 | NUT | 3 / 4 |
| 9 | 381-CA | SPOOL TRAY | 3 / 4 |
| 10 | 507 | CUSHION | 3 / 4 |
| 11 | 382-CA | SPPOOL RETAINING FIN | 3 / 4 |
| 12 | 7102 | SCREW | 1 / 2 |
| 13 | 512 | WASHER | 1 / 2 |
| 14 | 4022 | SCREW | 1 / 2 |
| 15 | 502-CA | THREAD STAND ROD | 1 / 1 |
| 16 | 504-CA | JOINT | 1 / 1 |
| 17 | 4021 | SCREW | 2 / 2 |
| 18 | 4805 | NUT | 2 / 2 |
| 19 | 383-CA | BRACKET | 1 / 1 |
| 20 | 384 | THREAD GUIDE BAR ROD | 1 / 1 |
| 21 | 4014 | SCREW | 1 / 1 |
| 22 | 4803 | NUT | 1 / 1 |
| 23 | 233-CA | HOLDER | 1 / 1 |
| 24 | 4012 | SCREW | 2 / 2 |
| 25 | 4803 | NUT | 2 / 2 |
| 26 | 293C | THREAD GUIDE BAR | 1 / - |
| 27 | 293B | THREAD GUIDE BAR | - / 1 |
| 28 | 4012 | SCREW | 1 / 1 |
| 29 | 4803 | NUT | 1 / 1 |
| 30 | 505-CA | BRACKET | 1 / - |
| 31 | 505ACA | BRACKET | - / 2 |
| 32 | 506 | THREAD EYELET | 3 / 4 |
| 33 | 7102 | SCREW | 1 / 2 |
| 34 | 512 | WASHER | 1 / 2 |
| 35 | 4022 | SCREW | 1 / 2 |
| 36 | 386 | ROD CAP | 1 / 1 |
Pegasus R53 — parts catalog
- Page 1 (cover): This is the cover page for the R53 Series Parts Catalog, published in November 1980, catalog number 8257. It lists the applicable models as R53-01 through R53-89 and DCR-942.
- Page 2 (cover): This is the cover page of a parts catalog from the library of Superior Sewing Machine & Supply LLC, featuring a watermark of "jintex.in".
- Page 3 (toc): This page contains the table of contents for the parts catalog, listing various machine mechanisms, attachments, and indexes with corresponding page numbers.
- Page 4 (diagram): This page displays a diagram of various machine components, including screws, covers, and internal parts, with reference numbers for identification.
- Page 5 (parts_list): This page lists parts for the MACHINE BED FRAME, including part numbers, names, and quantities.
- Page 6 (diagram): This page displays a diagram of various machine parts, including part numbers, descriptions, and reference numbers, with some parts specified for R53 chaining land configurations.
- Page 7 (parts_list): This page lists parts for Covers (1), including part numbers, names, and quantities.
- Page 9 (parts_list): This page lists parts for COVERS (2), including part numbers, descriptions, and quantities.
- Page 10 (diagram): This page displays a diagram of various sewing machine parts, including components labeled R53, DCR-942, and R53-41,49, with reference numbers from 1 to 46.
- Page 11 (parts_list): This page lists parts for the CRANKSHAFT MECHANISM, including part numbers, names, and quantities.
- Page 12 (diagram): This page displays a diagram of various sewing machine components, including needles, shafts, and linkages, with reference numbers for each part. It also indicates that parts 7 and 8 are detailed on page 50.
- Page 13 (parts_list): This page lists parts for the Needle Drive Mechanism (1) of an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 14 (diagram): This page displays diagrams of various sewing machine parts, including components for R53, R53-41, 49, and DCR-942 models, along with a movable needle guard.
- Page 15 (parts_list): This page lists parts for the Needle Drive Mechanism (2), including part numbers, descriptions, and quantities.
- Page 16 (diagram): This page displays a diagram of various sewing machine parts, including a bobbin winder assembly, needle bar components, and other miscellaneous parts, with a table listing part numbers, descriptions, and applicable machine models.
- Page 17 (parts_list): This page lists parts for the Needle Drive Mechanism (3) of an industrial sewing machine, including part numbers, names, and quantities.
- Page 18 (diagram): This page displays a diagram of various sewing machine parts, including components for the needle guard, with reference numbers and some part numbers indicated.
- Page 19 (parts_list): This page lists parts for the Upper Looper Drive Mechanism, including part numbers, names, and quantities.
- Page 20 (diagram): This page displays a diagram of various sewing machine parts, including needle guards, screws, and other components, with corresponding reference numbers and part numbers.
- Page 21 (parts_list): This page lists parts for the Lower Looper Drive Mechanism, including part numbers, descriptions, and quantities.
- Page 22 (diagram): This page displays diagrams of various sewing machine parts, including components labeled R53 and R53-41,49, with reference numbers from 1 to 57.
- Page 23 (parts_list): This page lists parts for the FEED MECHANISM (1) with part numbers, descriptions, and quantities.
- Page 24 (diagram): This page displays a diagram of DCR-942 machine parts, with numbered components indicating their positions.
- Page 25 (parts_list): This page lists parts for the FEED MECHANISM (2) with part numbers, names, and quantities.
- Page 26 (diagram): This page displays a diagram of sewing machine parts for model DCR-942, with various components numbered for identification.
- Page 27 (parts_list): This page lists parts for the FEED MECHANISM (3) FOR DCR-942 ONLY, including part numbers, descriptions, and quantities.
- Page 28 (diagram): This page displays a diagram of various sewing machine parts, including needles, screws, and other components, with reference numbers and some part numbers indicated.
- Page 29 (parts_list): This page lists parts for the Upper and Lower Knife Mechanism, including part numbers, names, and quantities.
- Page 30 (diagram): This page displays a diagram of various sewing machine parts, including levers, screws, springs, and presser feet, with reference numbers for identification.
- Page 31 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, names, and quantities.
- Page 32 (diagram): This page displays a diagram of various sewing machine components, including part numbers and reference numbers for identification.
- Page 33 (parts_list): This page lists parts for the Lubricating Mechanism, including part numbers, names, quantities, and references.
- Page 34 (diagram): This page displays a diagram of various sewing machine parts, including screws, rods, and a base assembly, with reference numbers for each component.
- Page 35 (parts_list): This page lists parts for the HR DEVICE (Needle and Thread Lubricators) with part numbers, names, and quantities.
- Page 36 (diagram): This page displays a diagram of various sewing machine parts, including presser feet, brackets, and screws, with reference numbers for identification.
- Page 37 (parts_list): This page lists attachments and special order parts, including part numbers, descriptions, and quantities for various components like screws, folders, and guides.
- Page 38 (diagram): This page displays a diagram of various sewing machine accessories and tools, including wrenches, screwdrivers, oil cans, and other small components, with reference numbers for each item.
- Page 39 (parts_list): This page lists accessories for sewing machines, including various wrenches, drivers, chains, and feed belts, along with their part numbers and descriptions.
- Page 40 (diagram): This page displays a construction chart for gauge parts, including part numbers, diagrams, and dimensions. It lists parts such as 202616, 202617, 202618, 202542E, 202546E, 202596E, 202597E, 201094B, 202543D, 202634A, 201097C, 202544D, 201152E, 201473B, 201230C, 201155C, 201224B, 210584, and 201265B.
- Page 41 (parts_list): This page lists common parts for sewing machines, including part numbers, descriptions, and applications for different fabric types and operations.
- Page 42 (diagram): This page displays a construction chart for gauge parts, showing various part numbers and their corresponding diagrams, with SW indicating seam width.
- Page 43 (parts_list): This page lists parts for sewing machines, including part numbers, descriptions, and applications for various fabric types and garment constructions.
- Page 44 (diagram): This page displays a construction chart for gauge parts, showing various part numbers and their corresponding diagrams, with dimensions and model applicability indicated.
- Page 45 (parts_list): This page lists common parts for sewing machines, including part numbers, dimensions, and descriptions of their applications, along with diagrams of various machine components.
- Page 46 (diagram): This page displays a construction chart for gauge parts, showing various part numbers and their corresponding diagrams, including dimensions and references to SW (Seam Width) and NG (Needle Gauge).
- Page 47 (diagram): This page contains a diagram illustrating sewing machine parts and a parts list with part numbers, descriptions, and applications for various models.
- Page 48 (diagram): This page displays a construction chart for gauge parts, including diagrams and part numbers for various components such as seam width and needle gauge parts.
- Page 49 (diagram): This page displays a diagram of various sewing machine parts, including common parts, and a table listing part numbers and their corresponding applications and descriptions.
- Page 50 (parts_list): Gauge parts list for I-needle machines showing needle plate, feed dog, presser body, foot finger, uncurler, lower knife and upper looper part numbers for each machine type, plus common gauge parts for the above machines.
- Page 51 (parts_list): This page contains a parts list for gauge parts for 2-needle machines, including various machine types, part numbers, and descriptions, as well as a section on feed eccentrics.
- Page 52 (parts_list): This page contains a parts list for specific parts of sewing machines, including machine type, type plate, needle bar crank, thread spring, main feed link, and cloth plate guard. It lists part numbers and descriptions for various machine models.
- Page 55 (parts_list): This page contains a part number index with columns for Part No., Page No., and Ref. No. It lists part numbers such as 205479, 208449, and 210584, along with their corresponding page and reference numbers.
- Page 56 (diagram): This page displays a diagram of sewing machine components, with numbered parts and their corresponding references.
- Page 57 (parts_list): This page lists semi-submerged installation parts including nuts, washers, spacers, rubber components, liners, hanger bolts, machine rest boards, and screws with their corresponding part numbers and quantities.
- Page 58 (diagram): This page displays a diagram of various sewing machine parts, including spools, posts, brackets, and fasteners, with reference numbers for each component.
- Page 59 (parts_list): This page lists parts for the Thread Stand, including various screws, nuts, brackets, and other components, with quantities specified for 3-spools and 4-spools configurations.
- Page 60 (cover): This is the cover page of the Pegasus Sewing Machine Mfg. Co., Ltd. parts catalog, detailing the first, second, and third editions with their respective dates and part numbers.
