Page 5 — 1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-02159 | FACE PLATE ASM. | 1 |
| 2 | 229-02209 | FACE PLATE AGSKET | 1 |
| 3 | SS-6080410-SP | SCREW 1/8-44 L=4 | 1 |
| 4 | 229-00757 | ARM OIL SHIELD ASM. | 1 |
| 5 | TA-0850604-RO | RUBBER PLUG | 2 |
| 6 | TA-1250705-RO | RUBBER PLUG | 1 |
| 7 | 229-58300 | THREAD GUIDE ROD | 1 |
| 8 | SS-4120915-SP | SCREW 3/16-28 L=9 | 8 |
| 9 | 229-54705 | CORD HOLDER | 1 |
| 10 | 229-00401 | SIDE PLATE | 1 |
| 11 | 110-00619 | GASKET | 1 |
| 12 | CM-3002000-01 | ATTENTION SEAL | 1 |
| 13 | CM-3002001-A1 | SAFETY LABEL.,3 (SMALL). | 1 |
| 14 | 229-01805 | GROUND MARK | 1 |
| 15 | SS-4120615-SP | SCREW 3/16-28 L=6 | 1 |
| 16 | TA-2000502-RO | RUBBER PLUG | 1 |
| 17 | SS-6121840-SP | SCREW 3/16-28 L=18 | 1 |
| 18 | 229-52501 | REVERSE FEED LEVER STOPPER | 1 |
| 19 | TA-2101002-RO | RUBBER PLUG | 1 |
| 20 | 111-00104 | MAGNET CORD RUBBER | 1 |
| 21 | 229-45463 | THREAD TENSION ASM. | 1 |
| 22 | 229-45414 | THREAD TENSION POST | (1) |
| 23 | 229-45604 | THREAD TENSION GUIDE | (1) |
| 24 | 229-45802 | BOBBIN WINDER TENSION DISC | (2) |
| 25 | 229-45505 | THREAD TENSION SPRING | (1) |
| 26 | 229-45703 | THREAD TENSION NUT | (1) |
| 27 | SS-4120615-SP | SCREW 3/16-28 L=6 | 1 |
| 28 | 229-00609 | THREAD TAKE-UP LEVER COVER | 1 |
| 29 | SS-4120615-SP | SCREW 3/16-28 L=6 | 1 |
| 30 | 229-20508 | ARM THREAD GUIDE A | 1 |
| 31 | 229-21001 | SCREW | 1 |
| 32 | 229-45356 | THREAD TENSION ASM. | 1 |
| 33 | 229-21308 | TENSION NUT | (1) |
| 34 | 229-21407 | ROTATING STOPPER | (1) |
| 35 | 229-21704 | TENSION SPRING A | (1) |
| 36 | 229-21803 | THREAD TENSION DISK PRESSER | (1) |
| 37 | 229-21506 | THREAD TENSION DISK | (2) |
| 38 | 229-21209 | TENSION POST | (1) |
| 39 | 229-21605 | TAKE-UP SPRING | (1) |
| 40 | 229-45307 | TENSION POST SOCKET | (1) |
| 41 | SS-8090670-SP | SCREW 9/64-40 L=5.5 | (1) |
| 42 | SS-8150710-TP | SCREW 15/64-28 L=7 | 1 |
| 43 | B3118-552-E00 | TENSION RELEASING | 1 |
| 44 | B1109-012-10B | THROAT PLATE (I) | 1 |
| 45 | SS-2110920-TP | SCREW 11/64-40 L=8.5 | 1 |
| 46 | SS-2110915-SP | SCREW 11/64-40 L=8.5 | 1 |
| 47 | 229-20607 | ARM THREAD GUIDE B | 1 |
| 48 | SS-6110610-TP | SCREW 11/64-40 L=6 | 1 |
| 49 | TA-1250406-RO | RUBBER PLUG D=12.5 L=4 | 2 |
| 50 | SS-4120915-SP | SCREW 3/16-28 L=9 | 3 |
| 51 | 229-01250 | SLIDE PLATE ASM. | 1 |
| 52 | 229-01201 | SLIDE PLATE | (1) |
| 53 | 229-01300 | BED SLIDE SPRING | (1) |
| 54 | SS-6060210-SP | SCREW 3/32-56 L=1.9 | (2) |
| 55 | 229-01003 | BED SCREW STUD | 4 |
| 56 | WT-0530002-KS | TOOTHED WASHER D=5.3 | 1 |
| 57 | 229-35407 | RUBBER PLATE | 1 |
| 58 | 114-15205 | THREAD TAKE-UP LEVER COVER(JE) | 1 |
| 59 | 110-30202 | RUBBER BUSHING | 1 |
| 60 | B1109-552-000 | THROAT PLATE | 1 |
| 61 | 229-02605 | RULER STOPPER | 1 |
| 62 | SS-7110540-SP | SCREW 11/64-40 L=5 | 2 |
| 63 | CM-3002001-01 | SAFETY LABEL, 1(SMALL). | 1 |
| 64 | SS-4121215-SP | SCREW 3/16-28 L=12 | 1 |
| 65 | 110-28008 | THROAT PLATE | 1 |
| 66 | WT-0501016-SD | WASHER 5X10.5X1 | 1 |
| 67 | 229-90352 | RESISTANCE PACK ASM. A | 1 |
| 68 | 229-90659 | RESISTANCE PACK ASM. E | 1 |
| 69 | 229-90550 | RESISTANCE PACK ASM. H | 1 |
| 70 | CM-3002000-B1 | LABEL(16) | 1 |
| 229-1506 | THREAD TENSION DISK | (2) | |
| 229-1605 | TAKE-UP SPRING | (1) | |
| NT-0530002-KS | TOOTHED WASHER D=5.3 | 1 | |
| WP-0501016-SD | WASHER 5X10.5X1 | 1 |
Page 7 — 2. MAIN SHAFT & THREAD-UP LEVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SS-8151150-TP | SCREW 15/64-28 L=10.5 | 1 |
| 2 | 229-19559 | THREAD TAKE-UP CRANK SHAFT ASM | 1 |
| 3 | 110-02904 | ROLLER FELT | 1 |
| 4 | 110-39070 | THREAD TAKE-UP LEVER ASM. | 1 |
| 5 | 110-39062 | THREAD TAKE-UP LEVER ASM. | (1) |
| 6 | B1905-541-B00 | NEEDLE BEARING | (1) |
| 7 | 110-05204 | NEEDLE BAR CRANK | (1) |
| 8 | B1408-552-000 | NEEDLE BAR CRANK ROD | (1) |
| 9 | B1903-552-000 | LEFT SCREW | (1) |
| 10 | 229-03157 | COUNTER WEIGHT ASM. | 1 |
| 11 | SS-8681650-TP | SCREW 9/32-28 L=16 | (1) |
| 12 | SS-8660610-TP | SCREW 1/4-40 L=6 | (2) |
| 13 | RO-0442401-00 | RUBBER RING | (1) |
| 14 | SS-7681650-TP | SCREW 9/32-28 L=16 | (1) |
| 15 | 229-03108 | COUNTER WEIGHT | (1) |
| 16 | 229-10053 | FEED DRIVE ECCENTRIC CAM ASM. | 1 |
| 17 | SS-6661110-SP | SCREW 1/4-40 L=11 | (2) |
| 18 | 229-10004 | FEED DRIVE ECCENTRIC CAM | (1) |
| 19 | SS-4090615-SP | SCREW 9/64-40 L=6 | 2 |
| 20 | 110-02409 | MAIN SHAFT BUSHING, REAR | 1 |
| 21 | 110-02508 | OIL SEAL | 1 |
| 22 | RC-1850001-KP | SNAP RING 18.5 | 1 |
| 23 | 229-04155 | THRUST COLLAR ASM. | 1 |
| 24 | SS-8660610-TP | SCREW 1/4-40 L=6 | (2) |
| 25 | 229-03207 | MAIN SHAFT FRONT BUSHING | 1 |
| 26 | B1215-552-000 | OIL ADJUSTING COLLAR | 1 |
| 27 | 229-03306 | BUSHING,INTERMEDIATE | 1 |
| 28 | EA-9500B01-00 | CABLE BAND | 1 |
| 29 | 229-19203 | RUBBER | 1 |
| 30 | 229-37064 | HAND WHEEL COMPL. | 1 |
| 31 | 400-17623 | HAND WHEEL ASM. | 1 |
| 32 | WP-0450801-SD | WASHER 4.5X10X0.8 | (2) |
| 33 | SS-8151550-SP | SCREW 15/64-28 L=15 | (2) |
| 34 | 229-37056 | HAND WHEEL ASM. | (1) |
| 35 | 229-37155 | MAGNET FITTING BASE A ASM. | (1) |
| 36 | 229-37254 | MAGNET FITTING BASE B ASM. | (1) |
| 37 | SS-6111210-SP | SCREW 11/64-40 L=12 | (2) |
| 38 | 400-17625 | MAGNET FITTING BASE B ASM. | (1) |
| 39 | 400-17624 | MAGNET FITTING BASE A ASM. | (1) |
| 40 | 229-03900 | OIL AMOUNT ADJUSTING PIN | 1 |
| 41 | RO-0291801-00 | RUBBER RING | 1 |
| 42 | 229-10103 | THRUST COLLAR | 1 |
| 43 | 229-37965 | DYNAMO STATOR | 1 |
| 44 | 229-03009 | MAIN SHAFT | 1 |
| 45 | SL-4051001-MZ | SCREW M5 L=9.6 | 2 |
Page 9 — 3. NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-01409 | CAP | 1 |
| 2 | 229-06101 | NEEDLE BAR BUSHING, UPPER | 1 |
| 3 | 229-39508 | NEEDLE BAR | 1 |
| 4 | 229-06457 | NEEDLE ROD HOLDER ASM. | 1 |
| 5 | SS-6090670-TP | SCREW 9/64-40 L=6 | (1) |
| 6 | B1414-555-000 | SLIDE BLOCK | 1 |
| 7 | 229-20805 | NEEDLE BAR THREAD GUIDE | 1 |
| 8 | 229-06200 | NEEDLE BAR BUSHING, LOWER | 1 |
| 9 | SS-7080510-TP | SCREW 1/8-44 L=4.5 | 1 |
| 10 | 229-06309 | NEEDLE BAR THREAD GUIDE | 1 |
| 11 | MDB-100B1400 | NEEDLE DBX1 #14 | 1 |
| 12 | B1306-155-0CO | GEAR & PINION ASM. | 1 |
| 13 | B1306-155-0BO | GEAR & PINION ASM., UPPER | (1) |
| 14 | B1305-012-0A0 | GEAR ASM. | (1) |
| 15 | SS-8660810-TP | SCREW 1/4-40 L=8 | (2) |
| 16 | B1306-155-0A0 | PINION ASM. | (1) |
| 17 | SS-8660810-TP | SCREW 1/4-40 L=8 | (2) |
| 18 | B1307-155-0BO | GEAR & PINION ASM., LOWER | (1) |
| 19 | B1307-155-0A0 | GEAR ASM. LARGE | (1) |
| 20 | SS-8660810-TP | SCREW 1/4-40 L=8 | (2) |
| 21 | B1308-155-0A0 | PINION ASM. | (1) |
| 22 | SS-8660810-TP | SCREW 1/4-40 L=8 | (2) |
| 23 | 229-05004 | UPRIGHT SHAFT | 1 |
| 24 | 111-41355 | HOOK ASM. | 1 |
| 25 | 229-05103 | UPRIGHT SHAFT BUSHING, LOWER | 1 |
| 26 | 229-05202 | UPRIGHT SHAFT BUSHING, LOWER | 1 |
| 27 | 229-16308 | BUSHING, REAR | 1 |
| 28 | MC-2005009-00 | NEEDLE 134 90 | 1 |
| 29 | 229-17157 | THRUST COLLAR ASM. | 1 |
| 30 | SS-6110420-TP | SCREW 11/64-40 L=4.8 | (2) |
| 31 | 229-16001 | LOWER SHAFT | 1 |
| 32 | 229-42502 | BOBBIN CASE HOLDER | 1 |
| 33 | SS-4110915-TP | SCREW 11/64-40 L=9 | 1 |
| 34 | 110-38650 | HOOK ASM. | 1 |
| 35 | 229-16100 | LOWER SHAFT FRONT METAL | 1 |
| 36 | 229-17058 | THRUST COLLAR ASM. | 1 |
| 37 | SS-8110410-TP | SCREW 11/64-40 L= 3.5 | (2) |
| 38 | 229-16555 | OIL SEAL SCREW ASM. | 1 |
| 39 | 110-15906 | OIL WICK | (1) |
| 40 | 229-16506 | OIL SEAL SCREW | (1) |
| 41 | 229-32909 | BOBBIN | 1 |
| 42 | 110-38759 | BOBBIN CASE ASM. | 1 |
| 43 | 229-42601 | OIL SHIELD | 1 |
| 44 | 229-39607 | NEEDLE BAR B | 1 |
| 45 | SS-4120915-SP | SCREW 3/16-28 L=9 | 1 |
| 46 | 400-12444 | NEEDLE BAR THREAD GUIDE | 1 |
| B1306-012-0A0 | GEAR ASM. | (1) |
Page 11 — 4. HAND LIFTER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-07802 | HAND LIFTER | 1 |
| 2 | B1521-555-000 | SCREW | 1 |
| 3 | RO-0371801-00 | RUBBER RING | 1 |
| 4 | 229-08552 | HAND LIFTER CAM ASM. | 1 |
| 5 | 400-14007 | PRESSER BAR BUSHING LOWER | 1 |
| 6 | SS-7091110-TP | SCREW 9/64-40 L=10.5 | 1 |
| 7 | 229-08701 | LINK SHAFT | 2 |
| 8 | RE-0500000-KO | E-RING | 3 |
| 9 | B1524-012-0BA | PRESSER FOOT ASM. | 1 |
| 10 | 229-44706 | WIRE HOLDER BRACKET, LOWER | 1 |
| 11 | 229-08909 | HINGE SCREW | 1 |
| 12 | SD-0720331-SP | HINGE SCREW D= 7.24 H= 3.3 | 1 |
| 13 | 229-09006 | KNEE LIFTER CONNECTING ROD | 1 |
| 14 | 229-08800 | LIFTING LEVER LINK | 1 |
| 15 | SS-7110410-SP | SCREW 11/64-40 L=4 | 1 |
| 16 | SS-7110720-SP | SCREW 11/64-40 L=7 | 1 |
| 17 | SS-4150915-SP | SCREW 15/64-28 L=9 | 1 |
| 18 | 229-44508 | WIRE HOLDER A | 2 |
| 19 | SS-4120615-SP | SCREW 3/16-28 L=6 | 1 |
| 20 | 229-44607 | WIRE HOLDER BRACKET, UPPER | 1 |
| 21 | NS-6620310-SP | NUT 3/16-32 | 2 |
| 22 | RE-0500000-KO | E-RING | 2 |
| 23 | 229-20201 | TENSION RELEASE RETURN SPRING | 1 |
| 24 | 229-20409 | THREAD RELEASE PIN SPRING | 1 |
| 25 | 229-45109 | WIRE CABLE HOLDER | 1 |
| 26 | 229-20300 | TENSION RELEASE SUPPORTING PIN | 1 |
| 27 | SS-4120615-SP | SCREW 3/16-28 L=6 | 1 |
| 28 | 110-45952 | THREAD TENSION RELEASE WIRE | 1 |
| 29 | 229-20102 | TENSION RELEASE SHAFT | 1 |
| 30 | 229-07554 | PRESSER SPRING REG NUT ASM. | 1 |
| 31 | 229-07604 | PRESSER ADJUSTING SCREW NUT | (1) |
| 32 | 229-07505 | PRESSER SPRING REGULATOR | (1) |
| 33 | 229-07406 | PRESSER ADJUSTING SPRING | 1 |
| 34 | 229-07208 | PRESSER BAR GUIDE BRACKET | 1 |
| 35 | 229-07000 | PRESSER BAR | 1 |
| 36 | 229-07307 | PRESSER BAR THREAD GUIDE | 1 |
| 37 | SS-8660810-TP | SCREW 1/4-40 L=8 | 1 |
| 38 | SS-6090910-SP | SCREW 9/64-40 L=9 | 2 |
| 39 | 229-08354 | KNEE LIFTING CROSS ROD ASM. | 1 |
| 40 | 229-08156 | HAND LIFTER LINK | (1) |
| 41 | RE-0500000-KO | E-RING | (1) |
| 42 | 229-08008 | LIFTING LEVER | (1) |
| 43 | RE-0500000-KO | E-RING | (1) |
| 44 | 229-08305 | KNEE LIFTING CROSS ROD | (1) |
| 45 | 229-07703 | PRESSER GUIDE BAR | 1 |
| 229-24109 | THREAD RELEASE PIN SPRING | ||
| 229-07605 | PRESSER SPRING REGULATOR |
Page 13 — 5. FEED MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-41108 | FEED ADJUST ROD | 1 |
| 2 | 229-11507 | FEED REGULATOR PIN | 1 |
| 02 | DDL-8700-7-00 | FOR DDL-8700-7-00 | |
| 3 | SS-6090670-TP | SCREW 9/64-40 L=6 | 2 |
| 03 | JE, JA | FOR JE, JA | |
| 4 | 229-11606 | FEED REGULATOR | 1 |
| 04 | SELECTIVE PARTS(FOR JE, JA) | SELECTIVE PARTS(FOR JE, JA) | |
| 5 | 229-11705 | FEED REGULATOR BUSHING | 1 |
| 05 | EXCEPT USE IN JAPAN | EXCEPT USE IN JAPAN | |
| 6 | SS-7120770-SH | SCREW 3/16-28 L=7 | 1 |
| 06 | FOR USE IN JAPAN | FOR USE IN JAPAN | |
| 7 | 229-11804 | FEED REGULATOR SCREW | 1 |
| 8 | 229-12109 | SPRING | 1 |
| 9 | 229-12000 | FEED ADJUST PIN | 1 |
| 10 | 229-40506 | FEED DIAL | 1 |
| 11 | SS-6121860-SP | SCREW 3/16-28 L=18 | 1 |
| 12 | 229-10202 | ROCKER SHAFT CONNECTING ROD | 1 |
| 13 | 229-11101 | WALKING FOOT PIN C | 1 |
| 14 | SS-6090620-TP | SCREW | 1 |
| 15 | 229-15003 | CONNECTING ROD | 1 |
| 16 | RO-0922702-00 | RUBBER RING | 1 |
| 17 | 110-10311 | FEED REVERSE SPRING | 1 |
| 18 | RE-0500000-KO | E-RING | 1 |
| 19 | 229-12257 | FEED REVERSE ARM ASM. | 1 |
| 20 | 229-12505 | SCREW | 1 |
| 21 | RE-0500000-KO | E-RING | 1 |
| 22 | 110-37405 | SPRING | 1 |
| 23 | 229-11408 | FEED REGULATOR CONNCTING ROD | 1 |
| 24 | 229-10905 | WALKING FOOT PIN A | 2 |
| 25 | 229-10707 | CONNECTING LINK B | 2 |
| 26 | 229-10608 | CONNECTING LINK A | 2 |
| 27 | 229-40951 | FEED ADJUST LINK ASM. | 1 |
| 28 | 229-10806 | ADJUSTING LINK FULCRUM SHAFT A | 2 |
| 29 | SS-8150710-TP | SCREW 15/64-28 L=7 | 2 |
| 30 | SS-6090620-TP | SCREW | 2 |
| 31 | 229-40803 | FEED BAR SHAFT | 1 |
| 32 | RC-0150001-KP | RETAINING RING 13.8 | 1 |
| 33 | B1613-012-100 | FEED DOG I | 1 |
| 34 | SS-4080620-TP | SCREW 1/8-44 L=6 | 2 |
| 35 | 229-40753 | FEED BAR ASM. | 1 |
| 36 | 229-41306 | ADJUSTING LINK SPRING GUIDE | 1 |
| 37 | SS-4110515-SP | SCREW 11/64-40 L=5 | 2 |
| 38 | 229-13701 | FEED SPRING HOOK | 1 |
| 39 | 229-12901 | FEED ROCKER SHAFT | 1 |
| 40 | 229-11002 | WALKING FOOT PIN B | 1 |
| 41 | SS-6090620-TP | SCREW | 1 |
| 42 | NS-6680410-SP | NUT 9/32-28 | 1 |
| 43 | 229-10350 | FEED ROCKER SHAFT CRANK ASM. | 1 |
| 44 | SS-6121610-SP | SCREW 3/16-28 L=15.5 | (1) |
| 45 | 229-15151 | FEED ARM COMPL. | 1 |
| 46 | SS-7121610-SP | SCREW 3/16-28 L=15.5 | (1) |
| 47 | SD-1000801-SH | HINGE SCREW D=10 H=8 | 1 |
| 48 | 229-15201 | FEED DRIVING SHAFT | 1 |
| 49 | 229-04155 | THRUST COLLAR ASM. | 1 |
| 50 | SS-8660610-TP | SCREW 1/4-40 L=6 | (2) |
| 51 | 229-13008 | FEED ROCKER SHAFT BUSHING | 2 |
| 52 | 229-13800 | HORIZONTAL FEED ROD B | 1 |
| 53 | SS-7110740-TP | SCREW 11/64-40 L=7 | 1 |
| 54 | RC-0150001-KP | RETAINING RING 13.8 | 1 |
| 55 | 229-40654 | FEED BAR CRANK ASM. | 1 |
| 56 | SS-7121410-TP | SCREW 3/16-28 L=14 | (1) |
| 57 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | (1) |
| 58 | 229-15359 | DRIVING SHAFT CRANK ASM. | 1 |
| 59 | SS-7111120-SP | SCREW 11/64-40 L=10.5 | (1) |
| 60 | 229-10459 | WALKING FOOT ADJUSTING LINK | 1 |
| 61 | 229-04155 | THRUST COLLAR ASM. | 1 |
| 62 | SS-8660610-TP | SCREW 1/4-40 L=6 | (2) |
| 63 | RO-0781901-00 | RUBBER RING | 1 |
| 64 | 229-12604 | FEED REVERSE SHAFT | 1 |
| 65 | 229-12802 | FEED LEVER METAL | 1 |
| 66 | 229-12752 | FEED LEVER ASM. | 1 |
| 67 | SM-8061050-TP | SCREW | (1) |
| 68 | SM-8061010-TP | SCREW | (1) |
| 69 | 229-14105 | BEARING C | 1 |
| 70 | B1613-012-A00 | FEED DOG A | 1 |
| 71 | 110-09800 | FEED REGULATOR BUSHING | 1 |
| *OT | IT0-00800 | FEED REGULATOR BUSHING | |
| DDL-8700-7-0B,-WB | FOR DDL-8700-7-0B,-WB |
Page 15 — 6. THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 110-40359 | KNIFE UNIT | 1 |
| 2 | SD-0460703-TP | HINGE SCREW D=4.6 H=7 | (1) |
| 3 | 110-40508 | FORKED BASE FOR KNIFE | (1) |
| 4 | 110-40409 | MOVING KNIFE HINGE SCREW | (1) |
| 5 | 110-40052 | MOVING KNIFE ASM. | (1) |
| 6 | 110-40300 | KNIFE MOUNTING BASE | (1) |
| 7 | 110-40201 | THREAD GUIDE FOR KNIFE | (1) |
| 8 | SS-2060210-SP | SCREW 3/32-56 L=2.3 | (1) |
| 9 | SS-4080620-TP | SCREW 1/8-44 L=6 | (2) |
| 10 | D2406-555-DOH | COUNTER KNIFE | (1) |
| 11 | HK-0346101-40 | HOUSING 14P | 1 |
| 12 | SS-4110715-SP | SCREW 11/64-40 L=7 | 1 |
| 13 | 229-50257 | PICKER ARM ASM. | 1 |
| 14 | 229-50208 | PICKER ARM | (1) |
| 15 | 229-50356 | THREAD TAKE-UP PICKER ASM. | (1) |
| 16 | SS-6090510-TP | SCREW 9/64-40 L= 5.0 | (2) |
| 17 | SD-0641451-SP | HINGE SCREW D= 6.35 H=14.5 | 1 |
| 18 | SD-0630275-SP | HINGE SCREW D= 6.35 H= 2.7 | 1 |
| 19 | 110-42850 | THREAD TRIMMER CAM ASM. | 1 |
| 20 | SS-6660610-TP | SCREW 1/4-40 L=6 | (2) |
| 21 | 229-50950 | CAM COLLAR ASM. | 1 |
| 22 | SS-8110520-TP | SCREW 11/64-40 L= 4.5 | (1) |
| 23 | 229-49762 | THREAD TRIMMER DRIVING UNIT | 1 |
| 24 | 229-49754 | BASE PLATE ASM. | (1) |
| 25 | 229-50703 | DRIVING ARM STOPPE | (1) |
| 26 | 229-50000 | PICKER LINK PIN | (1) |
| 27 | RE-0600000-KO | E-RING 6 | (1) |
| 28 | SS-4110715-SP | SCREW 11/64-40 L=7 | (2) |
| 29 | 229-49408 | CLUTCH SPRING | (1) |
| 30 | 110-41852 | CLUTCH PLATE ASM. | (1) |
| 31 | 229-50109 | PICKER LINK | (1) |
| 32 | WP-0621016-SH | WASHER | (2) |
| 33 | NS-6150430-SP | NUT 15/64-28 | (2) |
| 34 | RE-0600000-KO | E-RING 6 | (1) |
| 35 | 229-48301 | MOVING KNIFE LINK | (1) |
| 36 | RE-0500000-KO | E-RING | (1) |
| 37 | 229-48400 | MOVING KNIFE LINK PIN | (1) |
| 38 | 229-49309 | KNIFE RETURN SPRING B | (1) |
| 39 | RE-0400000-KO | E-RING 4 | (2) |
| 40 | 229-49101 | ROLLER FULCRUM SHAFT | (1) |
| 41 | 229-49200 | ROLLER FULCRUM SPRING | (1) |
| 42 | SS-7090610-SP | SCREW 9/64-40 L=6 | (1) |
| 43 | 229-49002 | ROLLER ARM BRACKET | (1) |
| 44 | 110-40953 | ROLLER ARM ASM. | (1) |
| 45 | 110-40854 | KNIFE DRIVING ARM ASM. | (1) |
| 46 | HK-0346400-0B | PIN CONTACT | 2 |
| 47 | SS-4150915-SP | SCREW 15/64-28 L=9 | 2 |
| 48 | SD-0640631-TP | HINGE SCREW D=6.35 H=6.3 | 1 |
| 49 | 229-51164 | SOLENOID UNIT | 1 |
| 50 | 229-49903 | CLUTCH LINK | (1) |
| 51 | RE-0500000-KO | E-RING | (1) |
| 52 | 110-43205 | SOLENOID RUBBER A | (1) |
| 53 | 110-43908 | THREAD TRIMMER SOLENOID | (1) |
| 54 | 229-51404 | SOLENOID BASE | (1) |
| 55 | WP-0450000-SD | WASHER 4.5X8X0.5 | (2) |
| 56 | NM-6040000-SN | NUT M4 | (2) |
| 57 | 110-43304 | SOLENOID RUBBER | (1) |
| 58 | NS-6660410-SH | NUT | (1) |
| 59 | NS-6660430-SP | NUT 1/4-40 | (1) |
| 60 | 229-51008 | SOLENOID PIN | (1) |
| 61 | SS-6110710-TP | SCREW 11/64-40 L= 6.5 | (1) |
| 62 | SD-0600361-SP | HINGE SCREW D=6 H=3.6 | 1 |
| 63 | SS-4151215-SP | SCREW 15/64-28 L=12 | 2 |
| 64 | 229-24807 | TUBE HOLDER, LOWER | 1 |
| 65 | 229-51552 | GROUND WIRE ASM. | 1 |
Page 16 — 7. AUTOMATIC REVERSE FEED COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-54150 | REVERSE FEED SWITCH ASM. | 1 |
| SM-4040655-SP | SCREW M4 L=6 | (1) | |
| 229-54101 | REVERSE FEED SWITCH BASE | (1) | |
| 229-54309 | REVERSE FEED SWITCH SPRING | (1) | |
| HK-0346400-0B | PIN CONTACT | (2) | |
| 229-54408 | SWITCH HOLDING PLATE | 1 | |
| RE-0500000-KP | E-RING 5 | 2 | |
| 229-53806 | REVERSE FEED CONNECTING SHAFT | 1 | |
| 229-53657 | CONNECTING ARM ASM. | 1 | |
| RE-0400000-KP | E-RING 4 | 1 | |
| RE-1200000-KO | E-RING 12 | 1 | |
| D2468-555-B00 | RUBBER PLUNGER | 1 | |
| 229-53509 | PLUNGER ARM PIN | 1 | |
| SS-4120915-SP | SCREW 3/16-28 L=9 | 1 | |
| 229-54002 | PLUNGER SPRING | 2 | |
| SS-4120615-SP | SCREW 3/16-28 L=6 | 1 |
Page 17 — 8. WIPER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-55553 | WIPER ASM. | 1 |
| 2 | 229-55504 | WIPER COVER | (1) |
| 3 | SL-4030631-SC | SCREW M3X6 | (1) |
| 4 | SD-0650321-TP | HINGE SCREW D=6.5 H=3.2 | (1) |
| 5 | NS-6090310-SP | NUT 9/64-40 | (1) |
| 6 | 229-56106 | WIPER LINK A | (1) |
| 7 | 229-56403 | WIPER LINK B | (1) |
| 8 | RE-0250000-KO | E-RING 2.5 | (1) |
| 9 | 229-56908 | WIPER LINK B, HINGE SCREW | (1) |
| 10 | 229-56205 | WIPER HINGE SCREW COLLAR | (1) |
| 11 | 229-56304 | WIPER SPRING | (1) |
| 12 | NS-6110310-SP | NUT 11/64-40 | (1) |
| 13 | 229-55900 | WIPER RUBBER A | (1) |
| 14 | 229-56007 | WIPER RUBBER B | (1) |
| 15 | 111-10301 | WIPER SOLENOID | (1) |
| 16 | 229-57104 | WIPER SOLENOID SHAFT | (1) |
| 17 | HA-0005900-00 | POWER SWITCH | (1) |
| 18 | HW-2003900-00 | ELECTRIC WIRE | (0.04) |
| 19 | HW-5000700-00 | 2-CORE CABTYRE CORD | (1.33) |
| 20 | 111-10152 | WIPER BASE ASM. | (1) |
| 21 | 229-57203 | WIPER LINK COLLAR | (1) |
| 22 | SL-4030641-SE | SCREW | (3) |
| 23 | HK-0346400-OB | PIN CONTACT | (2) |
| 24 | 229-57005 | WIPER | (1) |
| 25 | SS-6090540-SP | SCREW 9/64-40 L= 5.0 | (1) |
| 26 | 229-56809 | WIPER COLLAR | (1) |
| 27 | RE-0500000-KO | E-RING | (1) |
| 28 | 111-11051 | WIPER DRIVING SHAFT ASM. | (1) |
| 29 | SS-4120915-SP | SCREW 3/16-28 L=9 | 1 |
Page 19 — 9. OIL LUBLICATION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-47006 | OIL SIGHT WINDOW | 1 |
| 2 | RO-1952401-00 | RUBBER RING | 1 |
| 3 | 229-24401 | MAIN SHAFT OIL TUBE | 1 |
| 4 | SS-4120615-SP | SCREW 3/16-28 L=6 | 1 |
| 5 | 229-25101 | OIL FELT PRESSER | 1 |
| 6 | 229-24153 | OIL RETURN TUBE ASM. | 1 |
| 7 | 229-24302 | HOLDER | (1) |
| 8 | CQ-2520000-00 | OIL WICK | 0.3 |
| 9 | 229-25002 | OIL ADJUSTING SCREW | 1 |
| 10 | 229-24906 | SPRING | 1 |
| 11 | 229-24500 | OIL TUBE | 1 |
| 12 | 229-23056 | LUBRICATING OIL PUMP ASM. | 1 |
| 13 | 229-23312 | OIL PUMP INSTALLING BASE | (1) |
| 14 | 229-23015 | OIL PUMP | (1) |
| 15 | 229-23700 | OIL PUMP IMPELLER | (1) |
| 16 | SE-4301041-SR | SCREW D=3 L=10 | (3) |
| 17 | 229-23205 | LUBRICATING OIL PUMP COVER | (1) |
| 18 | 229-23809 | OIL PUMP IMPELLER COVER | (1) |
| 19 | 229-23403 | PLUNGER | (1) |
| 20 | 229-23601 | PLUNGER SPRING | (1) |
| 21 | 229-23502 | PLUNGER SCREW | (1) |
| 22 | 229-23908 | HOOK DRIVING SHAFT OIL TUBE | (1) |
| 23 | SL-4030851-SF | SCREW M3 L=8 | (3) |
| 24 | SS-4150915-SP | SCREW 15/64-28 L=9 | 1 |
| 25 | SS-6111010-TP | SCREW 11/64-40 L= 9.5 | 1 |
| 26 | 229-47105 | OIL PUMP SUPPORT | 1 |
| 27 | SS-4151215-SP | SCREW 15/64-28 L=12 | 1 |
| 28 | 229-24609 | RUBBER JOINT | 1 |
| 29 | WS-0451040-KP | SPRING WASHER 4.5X8.5X1 | 1 |
| 30 | 229-24005 | OIL PUMP SUPPORT | 1 |
| 31 | WS-0651310-KP | SPRING WASHER 6.5X11X1.3 | 1 |

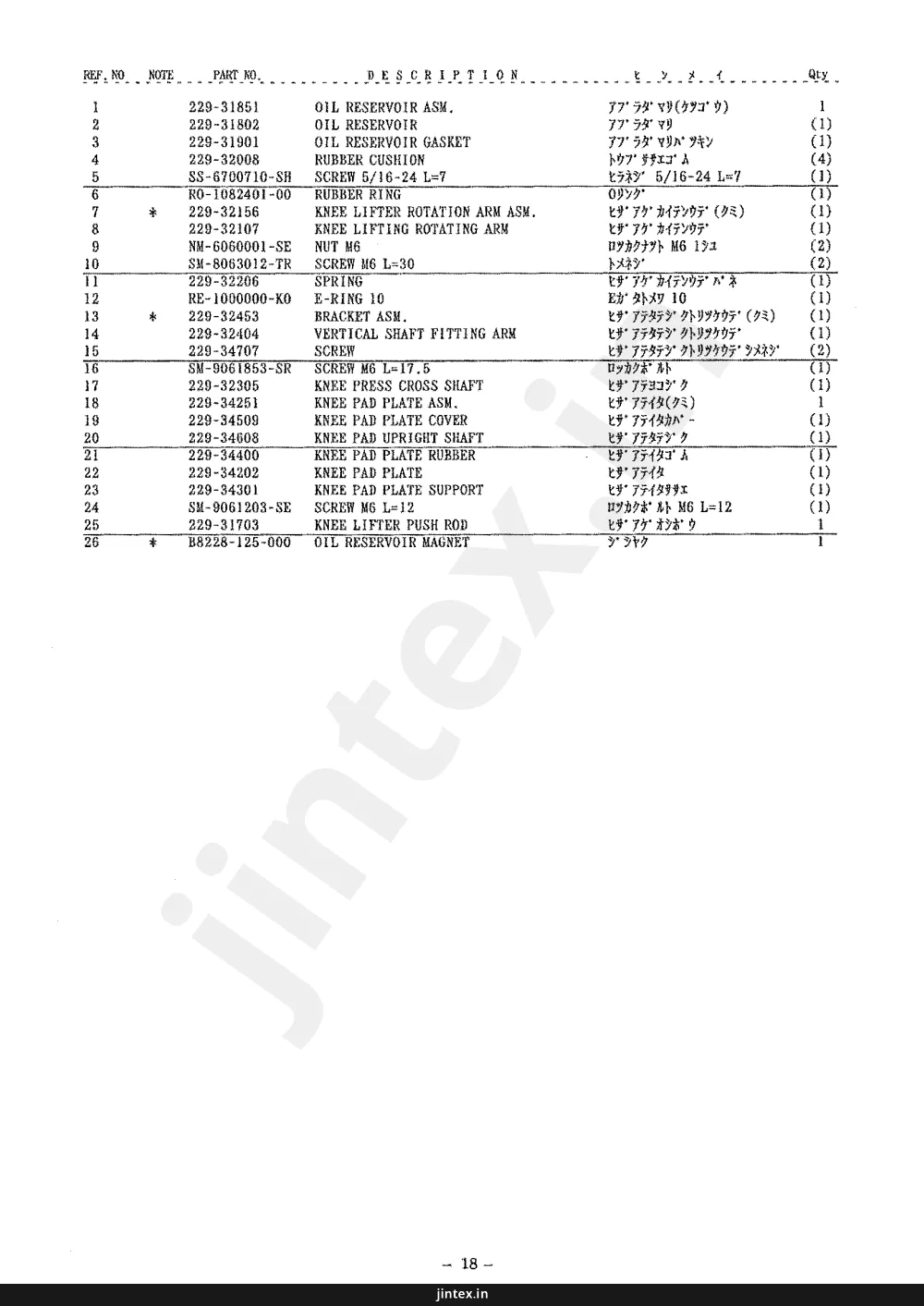

Page 21 — 10. OIL RESERVOIR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-31851 | OIL RESERVOIR ASM. | 1 |
| 2 | 229-31802 | OIL RESERVOIR | (1) |
| 3 | 229-31901 | OIL RESERVOIR GASKET | (1) |
| 4 | 229-32008 | RUBBER CUSHION | (4) |
| 5 | SS-6700710-SH | SCREW 5/16-24 L=7 | (1) |
| 6 | RO-1082401-00 | RUBBER RING | (1) |
| 7 | 229-32156 | KNEE LIFTER ROTATION ARM ASM. | (1) |
| 8 | 229-32107 | KNEE LIFTING ROTATING ARM | (1) |
| 9 | NM-6060001-SE | NUT M6 | (2) |
| 10 | SM-8063012-TR | SCREW M6 L=30 | (2) |
| 11 | 229-32206 | SPRING | (1) |
| 12 | RE-1000000-KO | E-RING 10 | (1) |
| 13 | 229-32453 | BRACKET ASM. | (1) |
| 14 | 229-32404 | VERTICAL SHAFT FITTING ARM | (1) |
| 15 | 229-34707 | SCREW | (2) |
| 16 | SM-9061853-SR | SCREW M6 L=17.5 | (1) |
| 17 | 229-32305 | KNEE PRESS CROSS SHAFT | (1) |
| 18 | 229-34251 | KNEE PAD PLATE ASM. | 1 |
| 19 | 229-34509 | KNEE PAD PLATE COVER | (1) |
| 20 | 229-34608 | KNEE PAD UPRIGHT SHAFT | (1) |
| 21 | 229-34400 | KNEE PAD PLATE RUBBER | (1) |
| 22 | 229-34202 | KNEE PAD PLATE | (1) |
| 23 | 229-34301 | KNEE PAD PLATE SUPPORT | (1) |
| 24 | SM-9061203-SE | SCREW M6 L=12 | (1) |
| 25 | 229-31703 | KNEE LIFTER PUSH ROD | 1 |
| 26 | B8228-125-000 | OIL RESERVOIR MAGNET | 1 |
Page 22 — 11. BELT COVER & BOBBIN COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-33451 | BELT COVER ASM. | 1 |
| 229-33402 | BELT COVER A | ||
| 229-33501 | BELT COVER A CAP | ||
| 229-33659 | BELT COVER B COMPL. | ||
| 229-33600 | BELT COVER B | ||
| 229-33758 | BELT COVER B CAP ASM. | ||
| 229-33907 | BELT COVER SUPPORT | ||
| 229-34004 | BELT COVER A SCREW | ||
| WP-0501016-SD | WASHER 6X10.5X1 | ||
| SK-3412000-SC | WOOD SCREW D=4.1 L=20 | ||
| WP-0450826-SC | WASHER 4.5X10X0.8 | ||
| 229-27354 | BOBBIN WINDER CONPL. | ||
| 229-28501 | BOBBIN WINDER BRACKET | ||
| 229-28709 | THREAD TENSION SPRING | ||
| 229-29004 | THREAD TENSION SPRING | ||
| 229-28808 | THREAD TENSION SPRING | ||
| SS-7110350-SP | SCREW 11/64-40 L=3.5 | ||
| 229-27305 | BOBBIN BASE | ||
| 229-27404 | BOBBIN PULLEY | ||
| 229-27602 | BOBBIN WINDER POST |
Page 23 — 12. THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-30358 | THREAD STAND ASM. | 1 |
| 2 | 229-31109 | SPOOL RETAINER | (2) |
| 3 | 229-31000 | SPOOL PIN | (2) |
| 4 | 229-30903 | SPOOL REST CUSHION | (2) |
| 5 | 229-30804 | SPOOL REST | (2) |
| 6 | SM-6061610-SC | SCREW M6 L=16 | (2) |
| 7 | 229-30705 | THREAD GUIDE ARM JOINT | (2) |
| 8 | 229-31406 | SPOOL REST ROD RUBBER CAP | (1) |
| 9 | 229-30507 | SPOOL REST ARM | (2) |
| 10 | 229-30408 | SPOOL REST ROD, UPPER | (1) |
| 11 | 229-31307 | SPOOL REST ROD JOINT | (1) |
| 12 | SM-4051405-SE | SCREW M5 L=14 | (2) |
| 13 | NM-6050001-SE | NUT M5 | (2) |
| 14 | 229-30309 | SPOOL REST ROD, LOWER | (1) |
| 15 | 229-31208 | THREAD GUIDE | (2) |
| 16 | WS-0510002-KN | SPRING WASHER | (2) |
| 17 | NM-6050001-SE | NUT M5 | (2) |
| 18 | NM-6160511-SE | NUT M16X1.5 | (1) |
| 19 | WP-1612616-SE | WASHER 16X30X2.6 | (2) |
| 20 | WS-1643202-KR | SPRING WASHER | (1) |
Page 25 — 13. EXCLUSIVE PARTS FOR DDL-8700H-7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 110-96062 | THREAD CUTTING DRIVING UNIT | 1 |
| 2 | 110-95551 | KNIFE UNIT | 1 |
| 02 | SB-0700511-TP | HINGE SCREW D=7 H=4.5 | 1 |
| 3 | 114-09257 | MOVING KNIFE J ASM. | (1) |
| 4 | 110-95502 | KNIFE MOUNT BASE | (1) |
| 5 | 114-09604 | FIX KNIFE | (1) |
| 6 | 110-95403 | KNIFE THREAD GUIDE | (1) |
| 7 | 110-95601 | KNIFE BRANCH | (1) |
| 8 | SD-0500131-TP | HINGE SCREW D=5 H=1.25 | (1) |
| 9 | D2404-555-B00 | COUNTER KNIFE SPACER | (1) |
| 10 | SD-0460703-TP | HINGE SCREW D=4.6 H=7 | (1) |
| 11 | SS-2060210-SP | SCREW 3/32-56 L=2.3 | (1) |
| 12 | SS-4080620-TP | SCREW 1/8-44 L=6 | (2) |
| 13 | 400-10395 | ADJUSTING LINK FULCRUM SHAFT B | 1 |
| 14 | 114-00801 | THROAT PLATE J | 1 |
| 15 | B1213-552-000-A | OIL ADJUSTING PIN | 1 |
| 16 | SS-6080320-SP | SCREW 1/8-44 L= 2.5 | 1 |
| 17 | 110-95254 | LEVER STOPPER ASM. | 1 |
| 18 | SS-1120710-SP | SCREW 3/16-28 L=6.5 | 1 |
| 19 | 110-91659 | LINK THREAD TAKE-UP LEVER ASM. | 1 |
| 20 | 110-91600 | NEEDLE BAR CRANK H | (1) |
| 21 | MDB-100B2100 | NEEDLE DBX1 #21 | 1 |
| 22 | B1418-415-H00 | NEEDLE BAR THREAD GUIDE | 1 |
| 23 | 229-70313 | NEEDLE BAR BUSHING,LOWER | 1 |
| 24 | B1419-553-000 | NEEDLE BAR THREAD GUIDE | 1 |
| 25 | 229-70206 | NEEDLE BAR | 1 |
| 26 | 110-92251 | LUBRICATING BOBBIN ASM. | 1 |
| 27 | 110-93804 | POSITIONING FINGER H | 1 |
| 28 | B1505-552-000-A | PRESSER SPRING | 1 |
| 29 | D1524-555-EBL | PRESSER FOOT ASM. | 1 |
| 30 | 229-62807 | WIRE PRESSER PLATE(LOWER),B | 1 |
| 31 | SS-7110740-TP | SCREW 11/64-40 L=7 | 1 |
| 32 | M6009-350-AAA | RESISTANCE PACK AA ASM. | 1 |
| 33 | 229-11903 | FEED DIAL | 1 |
| 34 | 110-91204 | ADJUST LINK SPRING | 1 |
| 35 | 229-62203 | FEED SPRING HOOK | 1 |
| 36 | 114-03003 | FEED J | 1 |
| 37 | 110-96658 | SOLENOID MOUNTING BASE ASM. | 1 |
| 38 | 112-31503 | OIL PUMP SUPPORT | 1 |
| 39 | 229-62609 | REVERSE FEED BASE COLLAR | 1 |
| 40 | 229-62906 | PLUNGER ARM PIN | 1 |
| 41 | NS-6110420-SP | NUT 11/64-40 | 2 |
| 42 | 229-62708 | TUBE HOLDER, LOWER | 1 |
| 43 | 110-94109 | OIL TUBE | 1 |
| 44 | SD-0700711-TP | HINGE SCREW D=7 H=7.1 | 1 |
| 45 | 229-62500 | SOLENOID CONNECTING LINK,H | 1 |
| 46 | WP-0722316-SH | WASHER | 1 |
| 47 | 111-01508 | REVERSE FEED LINK | 1 |
| 48 | NS-6110420-SP | NUT 11/64-40 | 1 |
| 49 | SD-0700451-TP | HINGE SCREW D=7 H=4.5 | 1 |
| 50 | MC-2005013-00 | NEEDLE 134 NM130 | 1 |
| 51 | 229-62351 | FEED DRIVE ECCENTRIC CAM ASM. | 1 |
| 52 | 114-03805 | THREAD GUIDE C FITTING PLATE | 1 |
| 53 | WP-0371016-SD | WASHER 3.7X8X1 | 1 |
| 54 | NS-6090310-SP | NUT 9/64-40 | 1 |
| 55 | 113-05513 | ARM THREAD GUIDE, C | 1 |
| 56 | 110-94604 | CLUTCH LINK | 1 |
| 57 | 110-96500 | THREAD TRIMMER SOLENOID | 1 |
| 58 | SD-0550701-TP | STEP-SCREW D=5.5 H=7 | 1 |
| 59 | 110-94901 | SOLENOID BASE | 1 |
| 60 | 229-63458 | THREAD TENSION ASM. | 1 |
| 61 | 229-63409 | THREAD TENSION SPRING | (1) |
| 62 | 229-62054 | THREAD TENSION ASM. | 1 |
| 63 | 229-62005 | THREAD TENSION SPRING | (1) |
| SB-0500131-TP | HINGE SCREW D=5 H=1.25 | 1 | |
| SB-0460703-TP | HINGE SCREW D=4.6 H=7 | 1 |
Page 27 — 14. EXCLUSIVE PARTS FOR DDL-8700J-7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 110-96062 | THREAD CUTTING DRIVING UNIT | 1 |
| 2 | 110-95551 | KNIFE UNIT | 1 |
| 3 | 114-09257 | MOVING KNIFE J ASM. | (1) |
| 4 | 110-95502 | KNIFE MOUNT BASE | (1) |
| 5 | 114-09604 | FIX KNIFE | (1) |
| 6 | 110-95403 | KNIFE THREAD GUIDE | (1) |
| 7 | 110-95601 | KNIFE BRANCH | (1) |
| 8 | SD-0500131-TP | HINGE SCREW D=5 H=1.25 | (1) |
| 9 | D2404-555-B00 | COUNTER KNIFE SPACER | (1) |
| 10 | SD-0460703-TP | HINGE SCREW D=4.6 H=7 | (1) |
| 11 | SS-2060210-SP | SCREW 3/32-56 L=2.3 | (1) |
| 12 | SS-4080620-TP | SCREW 1/8-44 L=6 | (2) |
| 13 | 400-10395 | ADJUSTING LINK FULCRUM SHAFT B | 1 |
| 14 | 114-00801 | THROAT PLATE J | 1 |
| 15 | B1213-552-000-A | OIL ADJUSTING PIN | 1 |
| 16 | SS-6080320-SP | SCREW 1/8-44 L=2.5 | 1 |
| 17 | 110-95254 | LEVER STOPPER ASM. | 1 |
| 18 | SS-1120710-SP | SCREW 3/16-28 L=6.5 | 1 |
| 19 | 110-62858 | LINK THREAD TAKE-UP LEVER ASM. | 1 |
| 20 | 110-62809 | NEEDLE BAR CRANK | (1) |
| 21 | MDP-500B2100 | NEEDLE DPX5 #21 | 1 |
| 22 | 229-70404 | NEEDLE BAR THREAD HOOK | 1 |
| 23 | 229-70313 | NEEDLE BAR BUSHING,LOWER | 1 |
| 24 | 400-12444 | NEEDLE BAR THREAD GUIDE | 1 |
| 25 | 229-70206 | NEEDLE BAR | 1 |
| 26 | 400-35058 | HOOK ASM. | 1 |
| 27 | 229-42502 | INNER HOOK PRESSER | 1 |
| 28 | B1505-552-000-A | PRESSER SPRING | 1 |
| 29 | D1524-555-EBL | PRESSER FOOT ASM. | 1 |
| 30 | 229-62807 | WIRE PRESSER PLATE(LOWER),B | 1 |
| 31 | SS-7110740-TP | SCREW 11/64-40 L=7 | 1 |
| 32 | M6009-350-AAA | RESISTANCE PACK AA ASM. | 1 |
| 33 | 400-31248 | FEED DIAL | 1 |
| 34 | WP-0371016-SD | WASHER 3.7X8X1 | 1 |
| 35 | 229-70602 | FEED SPRING HOOK | 1 |
| 36 | 114-03003 | FEED J | 1 |
| 37 | 110-96658 | SOLENOID MOUNTING BASE ASM. | 1 |
| 38 | 112-31503 | OIL PUMP SUPPORT | 1 |
| 39 | 229-62609 | REVERSE FEED BASE COLLAR | 1 |
| 40 | 229-62906 | PLUNGER ARM PIN | 1 |
| 41 | NS-6110420-SP | NUT 11/64-40 | 2 |
| 42 | 229-62708 | TUBE HOLDER, LOWER | 1 |
| 43 | 110-94109 | OIL TUBE | 1 |
| 44 | SD-0700711-TP | HINGE SCREW D=7 H=7.1 | 1 |
| 45 | 229-62500 | SOLENOID CONNECTING LINK,H | 1 |
| 46 | WP-0722316-SH | WASHER | 1 |
| 47 | 111-01508 | REVERSE FEED LINK | 1 |
| 48 | NS-6110420-SP | NUT 11/64-40 | 1 |
| 49 | SD-0700451-TP | HINGE SCREW D=7 H=4.5 | 1 |
| 50 | 114-03805 | THREAD GUIDE C FITTING PLATE | 1 |
| 51 | 229-70552 | FEED ECCENTRIC CAM ASM. | 1 |
| 52 | 229-70503 | FEED ECCENTRIC CAM L | (1) |
| 53 | 229-72806 | FEED ECCENTRIC CAM SETSCREW | (2) |
| 54 | NS-6090310-SP | NUT 9/64-40 | 1 |
| 55 | 113-05513 | ARM THREAD GUIDE, C | 1 |
| 56 | 110-94604 | CLUTCH LINK | 1 |
| 57 | 110-96500 | THREAD TRIMMER SOLENOID | 1 |
| 58 | SD-0550701-TP | STEP-SCREW D=5.5 H=7 | 1 |
| 59 | 110-94901 | SOLENOID BASE | 1 |
| 60 | 229-63458 | THREAD TENSION ASM. | 1 |
| 61 | 229-63409 | THREAD TENSION SPRING | (1) |
| 62 | 229-62054 | THREAD TENSION ASM. | 1 |
| 63 | 229-62005 | THREAD TENSION SPRING | (1) |
| 64 | 229-70701 | HORIZONTAL FEED ROD | 1 |
| 65 | 229-71204 | FEED REGULATOR BASE PIN | 1 |
| 66 | 229-71303 | FEED REGULATOR BASE | 1 |
| 67 | 113-02619 | SPRING | 1 |
| 68 | 229-71550 | FEED LEVER ARM ASM. | 1 |
| 69 | SS-7121410-TP | SCREW 3/16-28 L=14 | (1) |
| 70 | 229-71909 | FEED LEVER SPRING | 1 |
| 71 | 229-72251 | VERTICAL FEED ARM ASM. | 1 |
| 72 | SS-6121610-SP | SCREW 3/16-28 L=15.5 | (1) |
| 73 | 400-31240 | FEED ADJUST LINK ASM. | 1 |
| 74 | 400-31244 | FEED ADJUST ROD | 1 |
| 75 | 400-31249 | HINGE SCREW | 1 |
| 76 | 229-70859 | HORIZONTAL FEED ARM ASM. | 1 |
| 77 | SS-6121610-SP | SCREW 3/16-28 L=15.5 | (1) |
| 110-95503 | KNIFE THREAD GUIDE | (1) | |
| SS-7110710-SP | SCREW 3/16-28 L=6.5 | 1 | |
| 400-31345 | FEED DIAL | 1 | |
| TT4-03003 | FEED J | 1 | |
| WP-07223T6-SD | WASHER | 1 | |
| 110-96600 | THREAD TRIMMER SOLENOID | 1 | |
| 229-63468 | THREAD TENSION ASM. | 1 |
Page 28 — 15. EXCLUSIVE PARTS FOR DDL-8700A-7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-11503 | THREAD TENSION ASM. | 1 |
| 2 | D3128-555-D00 | TAKE-UP SPRING | (1) |
| 3 | D3129-555-D00 | THREAD TENSION SPRING | (1) |
| 4 | M6018-350-AAA | RESISTANCE PACK AA ASM. | 1 |
| 5 | D1524-555-DBA | PRESSER FOOT ASM. | 1 |
| 6 | 229-64001 | BOBBIN (A) | 1 |
| 7 | B1837-012-0A0 | BOBBIN CASE ASM. | 1 |
| 8 | B1505-227-T00-A | PRESSER SPRING T | 1 |
| 9 | MC-2005006-50 | NEEDLE 134 NM65 | 1 |
| 10 | MDA-100B0900 | NEEDLE DAX1 #9 | 1 |
| 11 | 110-92558 | HAND LIFTER CAM ASM. | 1 |
Page 29 — 16. LIST FOR INFORMATION OF CHANGE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 31 | 110-01500 | ||
| 31 | 229-21001 | ||
| 58 | 229-01904 | ||
| 58 | 114-15205 | ||
| 63 | M6008-350-AAC | M6008-350-AAC | |
| 65 | 0510002-KP | 0510002-KP | |
| 19 | SS-6090650-SP | SS-6090650-SP | |
| 19 | SS-4090615-SP | SS-4090615-SP | |
| 39 | 229-16605 | ||
| 39 | 110-15906 | ||
| 7 | 110-06509 | ||
| 7 | 229-08701 | ||
| 29 | 110-18108 | ||
| 29 | 229-20102 | ||
| 59 | B1636-581-C00 | B1636-581-C00 | |
| 69 | 229-14105 | ||
| 68 | 229-12703 | ||
| 66 | 229-12752 | ||
| 71 | 110-09800 | ||
| 3 | SL-4030621-SS | SL-4030621-SS | |
| 3 | SL-4030631-SC | SL-4030631-SC | |
| 3 | 229-32156 | ||
| 7 | 229-32453 | ||
| 13 | B8228-125-000 | B8228-125-000 | |
| 57 | 110-09800 | ||
| 24 | ALL PARTS-全 部 | ALL PARTS-全 部 | |
| 6 | B9117-552-A00 | B9117-552-A00 | |
| 6 | 229-64001 |
Page 30 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 44 | B1109-012-10B | 2 | |
| 60 | B1109-552-000 | 2 | |
| 15 | B1213-552-000-A | 22 | |
| 15 | B1213-552-000-A | 24 | |
| 26 | B1215-552-000 | 4 | |
| 14 | B1305-012-0A0 | 6 | |
| 16 | B1306-155-0A0 | 6 | |
| 13 | B1306-155-0B0 | 6 | |
| 12 | B1306-155-0C0 | 6 | |
| 19 | B1307-155-0A0 | 6 | |
| 18 | B1307-155-0B0 | 6 | |
| 21 | B1308-155-0A0 | 6 | |
| 8 | B1408-552-000 | 4 | |
| 6 | B1414-555-000 | 6 | |
| 24 | B1418-415-H00 | 22 | |
| 24 | B1419-553-000 | 22 | |
| 28 | B1505-552-000-A | 22 | |
| 28 | B1505-552-000-A | 24 | |
| 2 | B1521-555-000 | 8 | |
| 70 | B1524-012-0BA | 10 | |
| 8 | B1613-012-A00 | 8 | |
| 33 | B1613-012-A00 | 10 | |
| 7 | B1837-012-0A0 | 25 | |
| 9 | B1903-552-000 | 4 | |
| 6 | B1905-541-B00 | 4 | |
| 43 | B3118-552-E00 | 2 | |
| 26 | B8228-125-000 | 18 | |
| 70 | CM-3002000-B1 | 2 | |
| 12 | CM-3002001-B1 | 2 | |
| 13 | CM-3002001-A1 | 2 | |
| 63 | CM-3002001-01 | 2 | |
| 8 | CQ-2520000-00 | 16 | |
| 5 | D1524-555-DBA | 25 | |
| 29 | D1524-555-EBL | 24 | |
| 9 | D2404-555-B00 | 22 | |
| 9 | D2404-555-B00 | 24 | |
| 10 | D2406-555-D0H | 12 | |
| 22 | D2468-555-B00 | 13 | |
| 2 | D3128-555-D00 | 25 | |
| 3 | D3129-555-D00 | 25 | |
| 28 | EA-9500B01-00 | 4 | |
| 17 | HA-0005900-00 | 14 | |
| 11 | HA-0019000-00 | 13 | |
| 46 | HK-0346401-RO | 12 | |
| 10 | HK-0346400-0B | 13 | |
| 29 | HK-0346400-0B | 13 | |
| 23 | HK-0346400-0B | 14 | |
| 18 | HW-2003900-00 | 14 | |
| 9 | HW-5000700-00 | 13 | |
| 19 | HW-5000700-00 | 14 | |
| 9 | MC-2005006-50 | 25 | |
| 28 | MC-2005009-00 | 6 | |
| 10 | MDA-100B0900 | 25 | |
| 11 | MDB-100B1400 | 6 | |
| 21 | MDB-100B2100 | 22 | |
| 21 | MDP-500B2100 | 24 | |
| 32 | M6009-350-AAA | 22 | |
| 32 | M6009-350-AAA | 24 | |
| 4 | M6018-350-AAA | 25 | |
| 56 | NM-6040000-SN | 12 | |
| 13 | NM-6050001-SE | 20 | |
| 17 | NM-6050001-SE | 20 | |
| 9 | NM-6060001-SE | 18 | |
| 18 | NM-6160511-SE | 20 | |
| 5 | NS-6090310-SP | 14 | |
| 54 | NS-6090310-SP | 22 | |
| 54 | NS-6090310-SP | 24 | |
| 54 | NS-6110310-SP | 24 | |
| 41 | NS-6110420-SP | 22 | |
| 41 | NS-6110420-SP | 22 | |
| 48 | NS-6110420-SP | 24 | |
| 48 | NS-6110420-SP | 24 | |
| 32 | NS-6620310-SP | 10 | |
| 58 | NS-6660410-SP | 12 | |
| 42 | NS-6680410-SP | 10 | |
| 32 | RC-0150001-KP | 10 | |
| 32 | RC-01850001-KP | 10 | |
| 32 | RE-0250000-KP | 10 | |
| 18 | RE-0400000-KO | 13 | |
| 54 | RE-0500000-KO | 10 | |
| 39 | RE-0500000-KO | 12 | |
| 8 | RE-0500000-KO | 14 | |
| 14 | RE-0500000-KO | 13 | |
| 39 | RE-0500000-KO | 13 | |
| 22 | RE-0500000-KO | 8 | |
| 41 | RE-0500000-KO | 8 | |
| 43 | RE-0500000-KO | 8 | |
| 18 | RE-0500000-KO | 10 | |
| 21 | RE-0500000-KO | 10 | |
| 36 | RE-0500000-KO | 12 | |
| 51 | RE-0500000-KO | 12 | |
| 27 | RE-0600000-KO | 12 | |
| 27 | RE-0600000-KO | 12 | |
| 16 | RE-0900000-KO | 13 | |
| 20 | RE-1000000-KO | 13 | |
| 13 | RO-0291801-00 | 4 | |
| 3 | RO-0371801-00 | 4 | |
| 63 | RO-0781901-00 | 10 | |
| 16 | RO-0922702-00 | 10 | |
| 6 | RO-1082401-00 | 18 | |
| 2 | RO-1952401-00 | 16 | |
| 19 | SD-0460703-TP | 22 | |
| 19 | SD-0460703-TP | 24 | |
| 23 | SD-0490261-SP | 19 | |
| 10 | SD-0500131-TP | 22 | |
| 8 | SD-0500131-TP | 24 | |
| 58 | SD-0550701-TP | 22 | |
| 58 | SD-0550701-TP | 24 | |
| 62 | SD-0600361-SP | 12 | |
| 18 | SD-0630275-SP | 12 | |
| 12 | SD-0640631-TP | 12 | |
| 4 | SD-0641451-SP | 14 | |
| 17 | SD-0650321-SP | 12 | |
| 49 | SD-0700451-TP | 12 | |
| 29 | SD-0700451-TP | 14 | |
| 49 | SD-0706451-TP | 22 | |
| 49 | SD-0707111-TP | 22 | |
| 49 | SD-0707111-TP | 24 | |
| 44 | SD-0720331-SP | 24 | |
| 47 | SD-1000801-SP | 10 | |
| 11 | SE-4301041-SR | 16 | |
| 30 | SK-3412000-SP | 19 | |
| 3 | SL-4030631-SP | 14 | |
| 22 | SL-4030641-SP | 16 | |
| 45 | SL-4051001-MZ | 4 | |
| 8 | SL-4051001-SC | 13 | |
| 3 | SM-4031501-SP | 13 | |
| 12 | SM-4040655-SP | 20 | |
| 6 | SM-4041655-SP | 20 | |
| 9 | SM-6061610-SP | 18 | |
| 68 | SM-8061010-TP | 10 | |
| 67 | SM-8061050-TP | 10 | |
| 10 | SM-8063012-TP | 18 | |
| 24 | SM-9061203-SE | 18 | |
| 16 | SM-9061853-SR | 18 | |
| 18 | SS-1120710-SP | 22 | |
| 18 | SS-1120710-SP | 24 | |
| 11 | SS-2060210-SP | 12 | |
| 11 | SS-2060210-SP | 22 | |
| 46 | SS-2110915-SP | 2 | |
| 45 | SS-2110920-TP | 2 | |
| 34 | SS-4080620-TP | 10 | |
| 9 | SS-4080620-TP | 12 | |
| 12 | SS-4080620-TP | 22 | |
| 12 | SS-4080620-TP | 24 | |
| 19 | SS-4090615-SP | 4 | |
| 37 | SS-4090615-SP | 10 | |
| 15 | SS-4110515-SP | 19 | |
| 12 | SS-4110515-SP | 12 | |
| 28 | SS-4110715-SP | 12 | |
| 33 | SS-4110915-TP | 6 | |
| 15 | SS-4120615-SP | 2 | |
| 27 | SS-4120615-SP | 2 | |
| 29 | SS-4120615-SP | 2 | |
| 19 | SS-4120615-SP | 8 | |
| 27 | SS-4120615-SP | 8 | |
| 30 | SS-4120615-SP | 13 | |
| 50 | SS-4120915-SP | 2 | |
| 45 | SS-4120915-SP | 6 | |
| 27 | SS-4120915-SP | 13 | |
| 64 | SS-4121215-SP | 2 | |
| 26 | SS-4121215-SP | 13 | |
| 27 | SS-4121215-SP | 16 | |
| 17 | SS-4150915-SP | 8 | |
| 47 | SS-4150915-SP | 12 | |
| 24 | SS-4150915-SP | 16 | |
| 54 | SS-6060210-SP | 2 | |
| 16 | SS-6060210-SP | 12 | |
| 16 | SS-6080320-SP | 22 | |
| 16 | SS-6080320-SP | 24 | |
| 3 | SS-6080410-SP | 24 | |
| 16 | SS-6090510-SP | 12 | |
| 25 | SS-6090540-SP | 14 | |
| 14 | SS-6090620-TP | 10 | |
| 30 | SS-6090620-TP | 10 | |
| 41 | SS-6090620-TP | 10 | |
| 5 | SS-6090670-TP | 6 | |
| 3 | SS-6090670-TP | 10 | |
| 38 | SS-6090910-SP | 8 | |
| 30 | SS-6110420-TP | 6 | |
| 48 | SS-6110610-TP | 2 | |
| 61 | SS-6110710-TP | 12 | |
| 25 | SS-6111010-TP | 16 | |
| 37 | SS-6121610-SP | 4 | |
| 44 | SS-6121610-SP | 10 | |
| 72 | SS-6121610-SP | 24 | |
| 17 | SS-6121840-SP | 2 | |
| 20 | SS-6660610-TP | 12 | |
| 17 | SS-6661110-SP | 4 | |
| 5 | SS-6700710-SH | 18 | |
| 9 | SS-7080510-TP | 6 | |
| 24 | SS-7081310-SP | 19 | |
| 6 | SS-7091110-SP | 8 | |
| 19 | SS-7110350-SP | 19 | |
| 15 | SS-7110410-SP | 8 | |
| 62 | SS-7110540-SP | 2 | |
| 16 | SS-7110720-SP | 8 | |
| 53 | SS-7110740-TP | 10 | |
| 31 | SS-7110740-TP | 22 | |
| 31 | SS-7110740-TP | 24 | |
| 59 | SS-7111120-SP | 10 | |
| 6 | SS-7120770-SH | 10 | |
| 56 | SS-7121410-TP | 10 | |
| 69 | SS-7121410-TP | 24 | |
| 46 | SS-7121610-SP | 10 | |
| 14 | SS-7681650-TP | 4 | |
| 41 | SS-8090670-SP | 2 | |
| 37 | SS-8110410-TP | 6 | |
| 25 | SS-8110510-SP | 19 | |
| 22 | SS-8110520-TP | 12 | |
| 42 | SS-8150710-TP | 2 | |
| 1 | SS-8151150-TP | 4 | |
| 33 | SS-8151550-SP | 4 | |
| 12 | SS-8660610-TP | 4 | |
| 24 | SS-8660610-TP | 4 | |
| 50 | SS-8660610-TP | 10 | |
| 62 | SS-8660610-TP | 10 | |
| 15 | SS-8660810-TP | 6 | |
| 17 | SS-8660810-TP | 6 | |
| 20 | SS-8660810-TP | 6 | |
| 22 | SS-8660810-TP | 6 | |
| 11 | SS-8681650-TP | 4 | |
| 5 | TA-0850604-RO | 2 | |
| 49 | TA-1250406-RO | 2 | |
| 6 | TA-1250705-RO | 2 | |
| 16 | TA-2000502-RO | 2 | |
| 19 | TA-2101002-RO | 2 | |
| 53 | WP-0371016-SD | 22 | |
| 34 | WP-0371016-SD | 24 | |
| 55 | WP-0450000-SD | 12 | |
| 32 | WP-0450801-SD | 4 | |
| 12 | WP-0450826-SC | 19 | |
| 31 | WP-0450826-SC | 19 | |
| 57 | WP-0480856-SP | 10 | |
| 66 | WP-0501016-SD | 2 | |
| 10 | WP-0501016-SD | 19 | |
| 32 | WP-0621016-SH | 12 | |
| 46 | WP-0722316-SH | 22 | |
| 46 | WP-0722316-SH | 24 | |
| 21 | WP-1602616-SZ | 13 | |
| 19 | WP-1612616-SE | 20 | |
| 29 | WS-0451040-KP | 16 | |
| 16 | WS-0510002-KN | 20 | |
| 31 | WS-0651310-KP | 16 | |
| 20 | WS-1643202-KR | 20 | |
| 56 | WT-0530002-KS | 2 | |
| 11 | 110-00619 | 2 | |
| 20 | 110-02409 | 4 | |
| 21 | 110-02508 | 4 | |
| 3 | 110-02904 | 4 | |
| 7 | 110-05204 | 4 | |
| 71 | 110-09800 | 10 | |
| 17 | 110-10311 | 10 | |
| 39 | 110-15906 | 6 | |
| 65 | 110-28008 | 2 | |
| 59 | 110-30202 | 2 | |
| 22 | 110-37405 | 10 | |
| 34 | 110-38650 | 6 | |
| 42 | 110-38759 | 6 | |
| 5 | 110-39062 | 4 | |
| 4 | 110-39070 | 4 | |
| 5 | 110-40052 | 12 | |
| 7 | 110-40201 | 12 | |
| 6 | 110-40300 | 12 | |
| 1 | 110-40359 | 12 | |
| 4 | 110-40409 | 12 | |
| 3 | 110-40508 | 12 | |
| 45 | 110-40854 | 12 | |
| 44 | 110-40953 | 12 | |
| 30 | 110-41852 | 12 | |
| 19 | 110-42850 | 12 | |
| 52 | 110-43205 | 12 |
Page 31 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 57 | 110-43304 | 12 | |
| 53 | 110-43908 | 12 | |
| 28 | 110-45952 | 8 | |
| 20 | 110-62809 | 24 | |
| 19 | 110-62858 | 24 | |
| 34 | 110-91204 | 22 | |
| 26 | 110-91600 | 22 | |
| 19 | 110-92261 | 22 | |
| 11 | 110-92558 | 25 | |
| 27 | 110-93804 | 22 | |
| 43 | 110-94109 | 22 | |
| 43 | 110-94109 | 24 | |
| 56 | 110-94604 | 22 | |
| 56 | 110-94604 | 24 | |
| 59 | 110-94901 | 22 | |
| 59 | 110-94901 | 24 | |
| 17 | 110-95254 | 22 | |
| 17 | 110-95254 | 24 | |
| 6 | 110-95403 | 22 | |
| 4 | 110-95502 | 22 | |
| 4 | 110-95502 | 24 | |
| 2 | 110-95551 | 22 | |
| 2 | 110-95551 | 24 | |
| 7 | 110-95601 | 22 | |
| 7 | 110-95601 | 24 | |
| 1 | 110-96062 | 22 | |
| 1 | 110-96062 | 24 | |
| 57 | 110-96500 | 22 | |
| 57 | 110-96500 | 24 | |
| 37 | 110-96658 | 22 | |
| 37 | 110-96658 | 24 | |
| 20 | 111-00104 | 2 | |
| 47 | 111-01508 | 22 | |
| 47 | 111-01508 | 24 | |
| 20 | 111-10152 | 14 | |
| 15 | 111-10301 | 14 | |
| 28 | 111-10801 | 14 | |
| 24 | 111-41355 | 6 | |
| 38 | 112-31503 | 22 | |
| 38 | 112-31603 | 24 | |
| 67 | 113-02619 | 24 | |
| 55 | 113-05513 | 22 | |
| 55 | 113-05513 | 24 | |
| 14 | 114-00801 | 22 | |
| 14 | 114-00801 | 24 | |
| 36 | 114-03003 | 22 | |
| 36 | 114-03003 | 24 | |
| 52 | 114-03805 | 22 | |
| 50 | 114-03805 | 24 | |
| 3 | 114-09257 | 22 | |
| 3 | 114-09257 | 24 | |
| 5 | 114-09604 | 22 | |
| 5 | 114-09604 | 24 | |
| 58 | 114-15205 | 2 | |
| 10 | 229-00401 | 2 | |
| 28 | 229-00609 | 2 | |
| 55 | 229-01003 | 2 | |
| 52 | 229-01201 | 2 | |
| 51 | 229-01250 | 2 | |
| 53 | 229-01300 | 2 | |
| 1 | 229-01409 | 6 | |
| 14 | 229-01805 | 2 | |
| 1 | 229-02159 | 2 | |
| 2 | 229-02209 | 2 | |
| 61 | 229-02605 | 2 | |
| 44 | 229-03009 | 4 | |
| 15 | 229-03108 | 4 | |
| 10 | 229-03157 | 4 | |
| 25 | 229-03207 | 4 | |
| 40 | 229-03900 | 4 | |
| 23 | 229-04155 | 4 | |
| 49 | 229-04155 | 10 | |
| 61 | 229-04155 | 10 | |
| 23 | 229-05004 | 6 | |
| 25 | 229-05103 | 6 | |
| 26 | 229-05202 | 6 | |
| 2 | 229-06101 | 6 | |
| 8 | 229-06200 | 6 | |
| 10 | 229-06309 | 6 | |
| 4 | 229-06457 | 6 | |
| 35 | 229-07000 | 8 | |
| 34 | 229-07208 | 8 | |
| 33 | 229-07406 | 8 | |
| 32 | 229-07506 | 8 | |
| 30 | 229-07554 | 8 | |
| 31 | 229-07604 | 8 | |
| 45 | 229-07703 | 8 | |
| 1 | 229-07802 | 8 | |
| 42 | 229-08008 | 8 | |
| 40 | 229-08156 | 8 | |
| 44 | 229-08305 | 8 | |
| 30 | 229-08354 | 8 | |
| 4 | 229-08552 | 8 | |
| 7 | 229-08701 | 8 | |
| 14 | 229-08800 | 8 | |
| 13 | 229-09006 | 8 | |
| 18 | 229-10004 | 4 | |
| 16 | 229-10103 | 4 | |
| 12 | 229-10202 | 10 | |
| 43 | 229-10350 | 10 | |
| 60 | 229-10459 | 10 | |
| 26 | 229-10608 | 10 | |
| 25 | 229-10707 | 10 | |
| 28 | 229-10806 | 10 | |
| 24 | 229-10905 | 10 | |
| 40 | 229-11002 | 10 | |
| 13 | 229-11101 | 10 | |
| 23 | 229-11408 | 10 | |
| 2 | 229-11507 | 10 | |
| 4 | 229-11606 | 10 | |
| 5 | 229-11705 | 10 | |
| 7 | 229-11804 | 10 | |
| 33 | 229-11903 | 22 | |
| 9 | 229-12000 | 10 | |
| 8 | 229-12109 | 10 | |
| 19 | 229-12257 | 10 | |
| 20 | 229-12505 | 10 | |
| 64 | 229-12604 | 10 | |
| 66 | 229-12752 | 10 | |
| 65 | 229-12802 | 10 | |
| 39 | 229-12901 | 10 | |
| 51 | 229-13008 | 10 | |
| 38 | 229-13701 | 10 | |
| 52 | 229-13800 | 10 | |
| 69 | 229-14105 | 10 | |
| 15 | 229-15003 | 10 | |
| 45 | 229-15151 | 10 | |
| 58 | 229-15359 | 10 | |
| 31 | 229-16001 | 6 | |
| 35 | 229-16100 | 6 | |
| 27 | 229-16308 | 6 | |
| 40 | 229-16506 | 6 | |
| 38 | 229-16555 | 6 | |
| 36 | 229-17058 | 6 | |
| 29 | 229-17157 | 6 | |
| 29 | 229-19203 | 4 | |
| 2 | 229-19559 | 4 | |
| 29 | 229-20102 | 8 | |
| 23 | 229-20201 | 8 | |
| 26 | 229-20300 | 8 | |
| 24 | 229-20409 | 8 | |
| 30 | 229-20508 | 2 | |
| 47 | 229-20607 | 2 | |
| 31 | 229-21001 | 2 | |
| 38 | 229-21209 | 2 | |
| 33 | 229-21308 | 2 | |
| 34 | 229-21407 | 2 | |
| 37 | 229-21506 | 2 | |
| 39 | 229-21605 | 2 | |
| 35 | 229-21704 | 2 | |
| 36 | 229-21803 | 2 | |
| 14 | 229-23015 | 16 | |
| 12 | 229-23056 | 16 | |
| 17 | 229-23205 | 16 | |
| 13 | 229-23312 | 16 | |
| 19 | 229-23403 | 16 | |
| 21 | 229-23502 | 16 | |
| 20 | 229-23601 | 16 | |
| 15 | 229-23700 | 16 | |
| 18 | 229-23809 | 16 | |
| 22 | 229-23908 | 16 | |
| 30 | 229-24005 | 16 | |
| 6 | 229-24153 | 16 | |
| 7 | 229-24302 | 16 | |
| 3 | 229-24401 | 16 | |
| 11 | 229-24500 | 16 | |
| 64 | 229-24609 | 12 | |
| 10 | 229-24900 | 16 | |
| 9 | 229-25002 | 16 | |
| 5 | 229-25101 | 19 | |
| 27 | 229-27305 | 19 | |
| 13 | 229-27354 | 19 | |
| 28 | 229-27404 | 19 | |
| 29 | 229-27602 | 19 | |
| 21 | 229-28105 | 19 | |
| 20 | 229-28303 | 19 | |
| 20 | 229-28402 | 19 | |
| 18 | 229-28501 | 19 | |
| 16 | 229-28709 | 19 | |
| 1 | 229-28808 | 19 | |
| 17 | 229-28907 | 19 | |
| 14 | 229-29004 | 19 | |
| 1 | 229-30309 | 20 | |
| 10 | 229-30358 | 20 | |
| 9 | 229-30408 | 20 | |
| 7 | 229-30507 | 20 | |
| 5 | 229-30705 | 20 | |
| 4 | 229-30804 | 20 | |
| 3 | 229-30903 | 20 | |
| 2 | 229-31000 | 20 | |
| 15 | 229-31109 | 20 | |
| 11 | 229-31208 | 20 | |
| 8 | 229-31307 | 20 | |
| 15 | 229-31406 | 20 | |
| 2 | 229-31705 | 18 | |
| 1 | 229-31802 | 18 | |
| 3 | 229-31851 | 18 | |
| 4 | 229-31901 | 18 | |
| 8 | 229-32008 | 18 | |
| 7 | 229-32107 | 18 | |
| 13 | 229-32206 | 18 | |
| 19 | 229-32305 | 18 | |
| 14 | 229-32404 | 18 | |
| 13 | 229-32453 | 18 | |
| 41 | 229-32909 | 6 | |
| 2 | 229-33402 | 19 | |
| 3 | 229-33451 | 19 | |
| 5 | 229-33501 | 19 | |
| 4 | 229-33600 | 19 | |
| 6 | 229-33659 | 19 | |
| 7 | 229-33758 | 19 | |
| 8 | 229-33907 | 19 | |
| 13 | 229-34004 | 19 | |
| 18 | 229-34202 | 18 | |
| 18 | 229-34251 | 18 | |
| 23 | 229-34301 | 18 | |
| 19 | 229-34400 | 18 | |
| 20 | 229-34509 | 18 | |
| 15 | 229-34608 | 18 | |
| 57 | 229-34707 | 18 | |
| 34 | 229-35407 | 4 | |
| 35 | 229-37056 | 4 | |
| 36 | 229-37064 | 4 | |
| 36 | 229-37155 | 4 | |
| 43 | 229-37254 | 4 | |
| 3 | 229-37965 | 6 | |
| 44 | 229-39508 | 6 | |
| 10 | 229-40506 | 10 | |
| 55 | 229-40654 | 10 | |
| 35 | 229-40753 | 10 | |
| 31 | 229-40803 | 10 | |
| 27 | 229-40951 | 10 | |
| 1 | 229-41108 | 10 | |
| 36 | 229-41306 | 10 | |
| 32 | 229-42502 | 6 | |
| 27 | 229-42502 | 24 | |
| 43 | 229-42601 | 6 | |
| 18 | 229-44508 | 8 | |
| 20 | 229-44607 | 8 | |
| 10 | 229-44706 | 8 | |
| 25 | 229-45109 | 8 | |
| 40 | 229-45307 | 2 | |
| 32 | 229-45356 | 2 | |
| 22 | 229-45414 | 2 | |
| 25 | 229-45505 | 2 | |
| 26 | 229-45604 | 2 | |
| 24 | 229-45703 | 2 | |
| 26 | 229-45705 | 2 | |
| 1 | 229-47006 | 16 | |
| 26 | 229-47105 | 16 | |
| 35 | 229-48301 | 12 | |
| 37 | 229-48400 | 12 | |
| 43 | 229-49002 | 12 | |
| 40 | 229-49101 | 12 | |
| 41 | 229-49200 | 12 | |
| 38 | 229-49309 | 12 | |
| 29 | 229-49408 | 12 | |
| 24 | 229-49754 | 12 | |
| 23 | 229-49762 | 12 | |
| 50 | 229-49903 | 12 | |
| 26 | 229-50000 | 12 | |
| 31 | 229-50109 | 12 | |
| 14 | 229-50208 | 12 | |
| 13 | 229-50257 | 12 | |
| 15 | 229-50356 | 12 | |
| 25 | 229-50703 | 12 | |
| 21 | 229-50950 | 12 | |
| 60 | 229-51008 | 12 | |
| 49 | 229-51164 | 12 | |
| 54 | 229-51404 | 12 | |
| 65 | 229-51552 | 12 | |
| 18 | 229-52501 | 2 | |
| 24 | 229-53509 | 13 | |
| 17 | 229-53657 | 13 | |
| 15 | 229-53806 | 13 | |
| 19 | 229-53905 | 13 | |
| 28 | 229-54002 | 13 | |
| 4 | 229-54101 | 13 | |
| 1 | 229-54150 | 13 | |
| 5 | 229-54200 | 13 | |
| 6 | 229-54309 | 13 | |
| 12 | 229-54408 | 13 | |
| 13 | 229-54507 | 13 | |
| 2 | 229-54606 | 13 | |
| 9 | 229-54705 | 2 | |
| 2 | 229-55504 | 14 | |
| 1 | 229-55553 | 14 | |
| 13 | 229-55900 | 14 | |
| 14 | 229-56007 | 14 |
Page 32 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 6 | 229-56106 | 14 | |
| 10 | 229-56205 | 14 | |
| 11 | 229-56304 | 14 | |
| 7 | 229-56403 | 14 | |
| 26 | 229-56809 | 14 | |
| 9 | 229-56908 | 14 | |
| 24 | 229-57005 | 14 | |
| 16 | 229-57104 | 14 | |
| 21 | 229-57203 | 14 | |
| 7 | 229-58300 | 2 | |
| 63 | 229-62005 | 22 | |
| 63 | 229-62005 | 24 | |
| 62 | 229-62054 | 22 | |
| 62 | 229-62054 | 24 | |
| 35 | 229-62203 | 22 | |
| 51 | 229-62351 | 22 | |
| 45 | 229-62500 | 22 | |
| 45 | 229-62500 | 24 | |
| 39 | 229-62609 | 22 | |
| 39 | 229-62609 | 24 | |
| 42 | 229-62708 | 22 | |
| 42 | 229-62708 | 24 | |
| 30 | 229-62807 | 22 | |
| 30 | 229-62807 | 24 | |
| 40 | 229-62906 | 22 | |
| 40 | 229-62906 | 24 | |
| 61 | 229-63409 | 22 | |
| 61 | 229-63409 | 24 | |
| 60 | 229-63458 | 22 | |
| 60 | 229-63458 | 24 | |
| 6 | 229-64001 | 25 | |
| 25 | 229-70206 | 22 | |
| 25 | 229-70206 | 24 | |
| 23 | 229-70313 | 22 | |
| 23 | 229-70313 | 24 | |
| 22 | 229-70404 | 24 | |
| 52 | 229-70503 | 24 | |
| 51 | 229-70552 | 24 | |
| 35 | 229-70602 | 24 | |
| 64 | 229-70701 | 24 | |
| 76 | 229-70859 | 24 | |
| 65 | 229-71204 | 24 | |
| 66 | 229-71303 | 24 | |
| 68 | 229-71550 | 24 | |
| 70 | 229-71909 | 24 | |
| 71 | 229-72251 | 24 | |
| 53 | 229-72806 | 24 | |
| 67 | 229-90352 | 2 | |
| 69 | 229-90550 | 2 | |
| 68 | 229-90659 | 2 | |
| 13 | 400-10395 | 22 | |
| 13 | 400-10395 | 24 | |
| 1 | 400-11503 | 25 | |
| 46 | 400-12444 | 6 | |
| 24 | 400-12444 | 24 | |
| 5 | 400-14007 | 8 | |
| 31 | 400-17524 | 4 | |
| 39 | 400-17624 | 4 | |
| 38 | 400-17625 | 4 | |
| 73 | 400-31240 | 24 | |
| 74 | 400-31244 | 24 | |
| 33 | 400-31248 | 24 | |
| 75 | 400-31249 | 24 | |
| 26 | 400-35058 | 24 |
Juki DDL-8700-7 — parts catalog
- Page 1 (cover): This is the cover page for the JUKI DDL-8700-7 Series parts list, which is a high-speed, 1-needle, lockstitch industrial sewing machine with an automatic thread trimmer.
- Page 2 (text): This page provides instructions on how to use the parts list, including explanations of codes, quantity notations, and how to interpret diagrams. It also includes Japanese text with similar explanations.
- Page 3 (toc): This page is a table of contents for a sewing machine parts catalog, listing sections from Machine Frame & Miscellaneous Cover Components to Numerical Index of Parts, along with their corresponding page numbers.
- Page 4 (diagram): This page displays a diagram of machine frame and miscellaneous cover components, with numbered parts indicated for identification.
- Page 5 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and notes.
- Page 6 (diagram): This page displays a diagram of main shaft and thread-up lever components, with numbered parts for identification.
- Page 7 (parts_list): This page contains a parts list for a sewing machine, detailing part numbers, descriptions, quantities, and remarks. It includes items like screws, bearings, and various assemblies.
- Page 8 (diagram): This page displays a diagram of needle bar, upright shaft, and hook driving shaft components, with numbered parts for identification.
- Page 9 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It details components like needle bars, gears, screws, and oil seals.
- Page 10 (diagram): This page displays a diagram of hand lifter components, with numbered parts and their corresponding references.
- Page 11 (parts_list): This page lists parts for the DDL-8700-7-00 model, including various screws, rings, shafts, and brackets, with their corresponding part numbers and descriptions.
- Page 12 (diagram): This page displays a diagram of the feed mechanism components, with numbered parts and their corresponding references.
- Page 13 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and notes.
- Page 14 (diagram): This page displays a diagram of thread trimmer components, with numbered parts and their corresponding references.
- Page 15 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including screws, pins, springs, and solenoids, with their corresponding part numbers and descriptions.
- Page 16 (diagram): This page displays a diagram of automatic reverse feed components, with a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 17 (parts_list): This page lists components for the wiper system, including various screws, nuts, links, springs, solenoids, and switches, along with their part numbers and descriptions.
- Page 18 (diagram): This page displays a diagram of oil lubrication components for an industrial sewing machine, with numbered parts and their corresponding references.
- Page 19 (parts_list): This page lists parts for DDL-8700-7OB,-WB and DDL-8700-7-00, including oil sight windows, rubber rings, oil tubes, screws, and oil pumps.
- Page 20 (diagram): This page displays a diagram of oil reservoir components, with numbered parts and their corresponding details.
- Page 21 (parts_list): Parts list page of a sewing machine catalog showing reference numbers, part numbers, English and Japanese descriptions, and quantities for oil reservoir, knee lifter, and knee pad plate components.
- Page 22 (parts_list): This page lists belt cover and bobbin components, including part numbers, descriptions, and quantities.
- Page 23 (diagram): This page displays a diagram and parts list for thread stand components, including part numbers, descriptions, and quantities.
- Page 24 (diagram): This page displays a diagram of exclusive parts for the DDL-8700H-7 sewing machine, with various components numbered for identification.
- Page 25 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and notes. It details components like knife units, screws, guides, and tension springs.
- Page 26 (diagram): This page displays a diagram of exclusive parts for the DDL-8700J-7 sewing machine, with numbered components and their corresponding part numbers and descriptions.
- Page 27 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, quantities, and some Japanese text.
- Page 28 (parts_list): This page lists exclusive parts for the DDL-8700A-7 sewing machine, including part numbers, descriptions, and quantities.
- Page 29 (text): This page contains a list of changes to parts, indicating added parts (A) and obsolete parts (D), along with their corresponding revision numbers, page numbers, reference numbers, and part numbers.
- Page 30 (parts_list): This page contains a parts list for industrial sewing machines, with columns for part number, page number, and reference number, organized into three columns.
- Page 31 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, page numbers, and reference numbers.
- Page 32 (parts_list): This page contains a numerical index of parts for sewing machines, listing part numbers, page references, and reference numbers across two columns.
- Page 33 (text): This page is a memo page with lines for writing notes. It includes a watermark and a footer indicating it is from the library of Superior Sewing Machine & Supply LLC.
- Page 34 (text): This page is a memo with ruled lines for notes. It includes the title "MEMO" at the top left and a footer indicating it is from the library of Superior Sewing Machine & Supply LLC.
- Page 35 (cover): This is the cover page of a parts catalog from the library of Superior Sewing Machine & Supply LLC, featuring a large watermark of "jintex.in".
- Page 36 (cover): This is the cover page for a JUKI sewing machine parts catalog, including copyright information and contact details for orders or further information.
