Kansai Special JJ-3300 Parts Book (PDF)

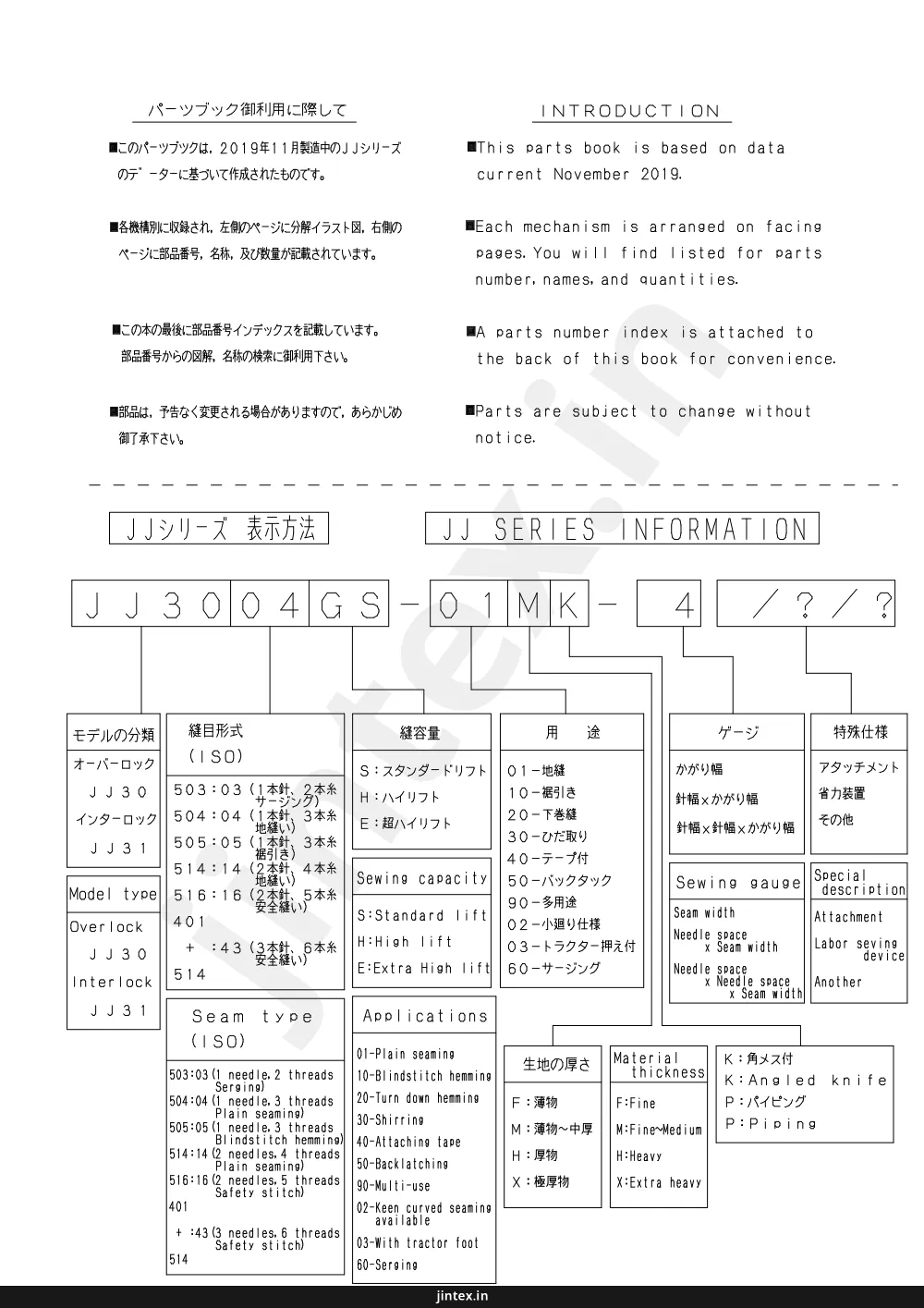

Text index — Kansai Special JJ-3300
Page 4 — 1. フレーム関係 FRAME ASSEMBLY
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01-01 | 54-142 | BOLT | 2 |
| 01-0154-142 | |||
| 01-0254-172 | |||
| 01-0354-191 | |||
| 01-0454-312 | |||
| 01-0554-466 | |||
| 01-0654-468 | |||
| 01-0754-469 | |||
| 01-0854-675 | |||
| 01-0956-377 | |||
| 01-1054-111 | プラマイナベ小ネジM4×5L | ||
| 01-1156-811 |
Page 5 — 2. カバー関係(1) COVER ASSEMBLY (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 02-01 | 54-026 | WASHER | 1 |
| 02-02 | 54-109 | SCREW M3x5L | 2 |
| 02-03 | 54-112 | SCREW M4x6L | 6 |
| 02-04 | 54-113 | SCREW M4x8L | 8 |
| 02-05 | 54-121 | SCREW M4x12L | 3 |
| 02-06 | 54-130 | SCREW | 1 |
| 02-07 | 54-133 | SCREW | 2 |
| 02-08 | 54-137 | SCREW | 1 |
| 02-09 | 54-144 | BOLT | 4 |
| 02-10 | 54-303 | TOP COVER | 1 |
| 02-11 | 54-304 | HEAD COVER | 1 |
| 02-12 | 54-305 | HINGE | 1 |
| 02-13 | 54-306 | FRONT COVER | 1 |
| 02-14 | 54-307 | FRONT COVER LEFT(OVER) | 1 |
| 02-15 | 54-308 | FRONT COVER LEFT(INTER) | 1 |
| 02-16 | 54-309 | PULLEY COVER | 1 |
| 02-17 | 54-314 | FAN COVER | 1 |
| 02-18 | 54-315 | FABRIC GUARD | 1 |
| 02-19 | 54-318 | COVER PLATE | 1 |
| 02-20 | 54-332 | LATCH(B) | 1 |
| 02-21 | 54-333 | LATCH(A) | 1 |
| 02-22 | 54-334 | LATCH | 1 |
| 02-23 | 54-335 | PIN | 1 |
| 02-24 | 54-336 | BRAND NAME PLATE | 1 |
| 02-25 | 54-337 | BRACKET | 1 |
| 02-26 | 54-338 | EYE GUARD | 1 |
| 02-27 | 54-339 | SPRING | 1 |
| 02-28 | 54-340 | GASKET | 1 |
| 02-29 | 54-341 | GASKET | 1 |
| 02-30 | 54-342 | OIL SIGHT WINDOW | 1 |
| 02-31 | 54-343 | SCREW | 4 |
| 02-32 | 54-357 | GASKET | 1 |
| 02-33 | 54-359 | RUBBER | 1 |
| 02-34 | 54-362 | O-RING | 1 |
| 02-35 | 54-482 | SCREW | 1 |
| 02-36 | 54-495 | SCREW | 3 |
| 02-37 | 54-498 | SCREW | 4 |
| 02-38 | 54-573 | SCREW | 1 |
| 02-39 | 54-677 | RUBBER | 1 |
| 02-0154-026 | |||
| 02-0254-108 | プラマイナベスリM3×5L | ||
| 02-0354-112 | プラマイナベスリM4×6L | ||
| 02-0454-113 | プラマイナベスリM4×8L | ||
| 02-0554-121 | プラマイナベスリM4×12L | ||
| 02-0654-130 | |||
| 02-0754-133 | |||
| 02-0854-137 | |||
| 02-0954-144 | |||
| 02-1054-303 | |||
| 02-1154-304 | |||
| 02-1254-305 | |||
| 02-1354-306 | |||
| 02-1454-307 | |||
| 02-1554-308 | |||
| 02-1654-309 | |||
| 02-1754-314 | |||
| 02-1854-315 | |||
| 02-1954-318 | |||
| 02-2054-332 | カバーラツチ (B) | ||
| 02-2154-333 | カバーラツチ (A) | ||
| 02-2254-334 | |||
| 02-2354-335 | |||
| 02-2454-336 | |||
| 02-2554-337 | |||
| 02-2654-338 | |||
| 02-2754-339 | |||
| 02-2854-340 | |||
| 02-2954-341 | |||
| 02-3054-342 | |||
| 02-3154-343 | |||
| 02-3254-357 | |||
| 02-3354-359 | |||
| 02-3454-362 | Oリング | ||
| 02-3554-482 | |||
| 02-3654-495 | |||
| 02-3754-498 | |||
| 02-3854-573 | |||
| 02-3954-677 |
Page 6 — COVER ASSEMBLY (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 03-01 | 54-026 | WASHER | 1 |
| 03-0154-026 | |||
| 03-0254-073 | |||
| 03-0354-112 | プラマイナベ小ネジ M4×6L | ||
| 03-0454-113 | プラマイナベ小ネジ M4×8L | ||
| 03-0554-117 | 平小ネジ M3×3L | ||
| 03-0654-133 | |||
| 03-0754-150 | 皿ネジ M4 | ||
| 03-0854-159 | |||
| 03-0954-3100-1 | |||
| 03-1054-311 | |||
| 03-1154-313 | |||
| 03-1254-316 | |||
| 03-1354-328 | |||
| 03-1454-329 | |||
| 03-1554-330 | |||
| 03-1654-331 | |||
| 03-1754-344 | |||
| 03-1854-359 | |||
| 03-1954-360 | |||
| 03-2054-361 | |||
| 03-2154-386 | |||
| 03-2254-387 | |||
| 03-2354-439 | |||
| 03-2454-483 | |||
| 03-2554-500 | |||
| 03-2654-511 | |||
| 03-2754-512 | |||
| 03-2854-654 | |||
| 03-2954-665 | |||
| 03-3054-3100-2 |
Page 7 — 4. ブッシュ機構 BUSHING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 04-01 | 54-320 | BUSHING | 1 |
| 04-02 | 54-321 | BUSHING | 1 |
| 04-03 | 54-322 | BUSHING | 1 |
| 04-04 | 54-323 | BUSHING | 7 |
| 04-05 | 54-324 | BUSHING | 1 |
| 04-06 | 54-325 | BUSHING | 1 |
| 04-07 | 54-326 | BUSHING | 1 |
| 04-08 | 54-327 | BUSHING | 1 |
| 04-09 | 54-385 | BUSHING | 1 |
| 04-10 | 54-398 | OIL SEAL | 1 |
| 04-11 | 54-434 | OIL SEAL | 3 |
| 04-12 | 54-577 | PLUG | 2 |
| 04-0154-320 | |||
| 04-0254-321 | |||
| 04-0354-322 | |||
| 04-0454-323 | |||
| 04-0554-324 | |||
| 04-0654-325 | |||
| 04-0754-326 | |||
| 04-0854-327 | |||
| 04-0954-385 | |||
| 04-1054-398 | |||
| 04-1154-434 | |||
| 04-1254-577 |
Page 8 — 5. 下軸機構 CRANKSHAFT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 05-01 | 54-031 | O-RING | 1 |
| 05-02 | 54-100 | SCREW | 1 |
| 05-03 | 54-113 | SCREW M4x8L | 3 |
| 05-04 | 54-114 | SCREW M4x10L | 4 |
| 05-05 | 54-123 | SCREW M5x5L | 1 |
| 05-06 | 54-136 | SCREW | 4 |
| 05-07 | 54-148 | SCREW | 3 |
| 05-08 | 54-513 | CRANKSHAFT(S.H) | 1 |
| 05-09 | 54-514 | BALANCE WEIGHT | 2 |
| 05-10 | 54-515 | PIN | 1 |
| 05-11 | 54-516 | PIN | 1 |
| 05-12 | 54-517 | COVER | 1 |
| 05-13 | 54-518 | O-RING | 2 |
| 05-14 | 54-519 | BALL BEARING | 1 |
| 05-15 | 54-520 | RATCHET | 1 |
| 05-16 | 54-521 | RING | 1 |
| 05-17 | 54-522 | BALL BEARING | 1 |
| 05-18 | 54-523 | BALL BEARING | 1 |
| 05-19 | 54-524 | WAVE WASHER | 1 |
| 05-20 | 54-954 | SEAL COLLAR | 1 |
| 05-21 | 54-955 | FLANGE | 1 |
| 05-22 | 54-527 | COOLING FAN | 1 |
| 05-23 | 54-528 | MACHINE PULLEY | 1 |
| 05-24 | 54-529 | COVER(INTER) | 1 |
| 05-25 | 54-530 | SPACER | 1 |
| 05-26 | 54-531 | CRANKSHAFT(E) | 1 |
| 05-27 | 54-532 | SCREW | 2 |
| 05-28 | 54-579 | BOLT | 1 |
| 05-29 | 54-580 | WASHER | 1 |
| 05-30 | 54-590 | SCREW | 1 |
| 05-31 | 54-630 | WORM | 1 |
| 05-32 | 54-956 | OIL SEAL | 1 |
| 05-0154-031 | Oリング 1017 | ||
| 05-0254-100 | |||
| 05-0354-113 | プラマイナベ小ネジ M4x8L | ||
| 05-0454-114 | プラマイナベ小ネジ M4x10L | ||
| 05-0554-123 | 六角穴付ネジ M5x5L | ||
| 05-0654-136 | |||
| 05-0754-148 | |||
| 05-0854-513 | クランクシヤフト (S. H) | ||
| 05-0954-514 | |||
| 05-1054-515 | |||
| 05-1154-516 | |||
| 05-1254-517 | |||
| 05-1354-518 | Oリング | ||
| 05-1454-519 | |||
| 05-1554-520 | |||
| 05-1554-521 | |||
| 05-1754-522 | |||
| 05-1854-523 | |||
| 05-1954-524 | |||
| 05-2054-954 | |||
| 05-2154-955 | |||
| 05-2254-527 | |||
| 05-2354-528 | |||
| 05-2454-529 | |||
| 05-2554-530 | |||
| 05-2654-531 | クランクシヤフト (E) | ||
| 05-2754-532 | |||
| 05-2854-579 | |||
| 05-2954-580 | |||
| 05-3054-590 | |||
| 05-3154-630 | |||
| 05-3254-956 |
Page 9 — 6. 針棒機構 NEEDLE BAR MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 06-01 | 54-133 | SCREW | 2 |
| 06-0154-133 | |||
| 06-0254-195 | |||
| 06-0354-193 | |||
| 06-0454-964 | |||
| 06-0554-345 | |||
| 06-0654-346 | |||
| 06-0754-347 | |||
| 06-0854-348 | |||
| 06-0954-349 | |||
| 06-1054-352 | |||
| 06-1154-353 | |||
| 06-1254-354 | E形止め輪 | ||
| 06-1354-355 | Oリング | ||
| 06-1454-9650-1 | |||
| 06-1554-484 | |||
| 06-1654-489 | |||
| 06-1754-7580-1 | |||
| 06-1856-044 | |||
| 06-1956-293 | |||
| 06-2056-294 | 六角穴付ネジ M4×6L | ||
| 06-2156-295 | 六角穴付ボルトM6×0.75×12L | ||
| 06-2254-757 | |||
| 06-2354-966 |
Page 10 — 7. 上ルーバー機構 UPPER LOOPER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 07-01 | 54-119 | SCREW M3x6L | 2 |
| 07-02 | 54-195 | BOLT | 4 |
| 07-03 | 54-147 | SCREW | 1 |
| 07-04 | 54-193 | FELT | 1 |
| 07-05 | 54-392 | SCREW | 1 |
| 07-06 | 54-394 | SHAFT | 1 |
| 07-07 | 54-397 | GUIDE | 1 |
| 07-08 | 54-399 | GUIDE PLATE | 1 |
| 07-09 | 54-4000-1 | UPPER LOOPER GUIDE ASSY | 1 |
| 07-10 | 54-401 | FELT | 2 |
| 07-11 | 54-402 | PLUG | 1 |
| 07-12 | 54-403 | UPPER LOOPER BRACKET | 1 |
| 07-13 | 54-404 | UPPER LOOPER HOLDER GUIDE | 1 |
| 07-14 | 54-405 | LEVER | 1 |
| 07-15 | 54-406 | UPPER LOOPER HOLDER | 1 |
| 07-16 | 54-407 | COLLAR | 1 |
| 07-17 | 54-409 | CRANK (S) | 1 |
| 07-18 | 54-410 | CRANK (H) | 1 |
| 07-19 | 54-411 | FELT | 1 |
| 07-20 | 54-929 | COVER | 1 |
| 07-21 | 54-431 | O-RING | 1 |
| 07-22 | 54-480 | WASHER | 1 |
| 07-23 | 54-481 | SPRING WASHER | 1 |
| 07-24 | 54-485 | SCREW | 1 |
| 07-25 | 54-486 | SCREW | 1 |
| 07-26 | 54-489 | BOLT | 1 |
| 07-27 | 54-491 | SCREW | 2 |
| 07-28 | 54-492 | SCREW | 1 |
| 07-29 | 54-493 | SCREW | 1 |
| 07-30 | 54-5990-1 | ROD ASSY | 1 |
| 07-31 | 56-127 | PIN | 1 |
| 07-32 | 56-295 | SCREW M6x0.75x12L | 1 |
| 07-33 | 54-396 | UPPER LOOPER ROD | 1 |
| 07-0154-119 | スリワリ付皿小ネジ M3x6L | ||
| 07-0254-195 | |||
| 07-0354-147 | |||
| 07-0454-193 | |||
| 07-0554-392 | |||
| 07-0654-394 | |||
| 07-0754-397 | |||
| 07-0854-399 | |||
| 07-0954-4000-1 | |||
| 07-1054-401 | |||
| 07-1154-402 | |||
| 07-1254-403 | |||
| 07-1354-404 | |||
| 07-1454-405 | |||
| 07-1554-406 | |||
| 07-1654-407 | |||
| 07-1754-409 | 上ルーバーロット玉 (S) | ||
| 07-1854-410 | 上ルーバーロット玉 (H) | ||
| 07-1954-411 | |||
| 07-2054-929 | |||
| 07-2154-431 | Oリング | ||
| 07-2254-480 | |||
| 07-2354-481 | |||
| 07-2454-485 | |||
| 07-2554-486 | |||
| 07-2654-489 | |||
| 07-2754-491 | |||
| 07-2854-492 | |||
| 07-2954-493 | |||
| 07-3054-5990-1 | |||
| 07-3156-127 | |||
| 07-3256-295 | 六角穴付ボルト M6x0.75x12L | ||
| 07-3354-396 |
Page 11 — 8. 下ルーパー機構 LOWER LOOPER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 08-01 | 54-119 | SCREW M3x6L | 2 |
| 08-0154-119 | スリワリ付皿小ネジ M3×6L | ||
| 08-0254-123 | 六角穴付止めネジ M5×5L | ||
| 08-0354-195 | |||
| 08-0454-393 | |||
| 08-0554-394 | |||
| 08-0654-395 | |||
| 08-0754-397 | |||
| 08-0854-421 | |||
| 08-0954-478 | |||
| 08-1054-480 | |||
| 08-1154-481 | |||
| 08-1254-485 | |||
| 08-1354-486 | |||
| 08-1454-487 | |||
| 08-1554-488 | |||
| 08-1656-336 | |||
| 08-1754-504 | |||
| 08-1854-505 | |||
| 08-1954-5990-1 | |||
| 08-2056-295 | 六角穴付ボルト M6×0.75×12L | ||
| 08-2154-396 |
Page 12 — 9. 送り機構 (1) FEED MECHANISM (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 09-01 | 54-060 | SPRING | 1 |
| 09-0154-060 | |||
| 09-0254-063 | |||
| 09-0354-078 | |||
| 09-0454-112 | プラマイナベ小ネジ M4×6L | ||
| 09-0554-121 | プラマイナベ小ネジ M4×12L | ||
| 09-0654-123 | 六角穴付止めネジ M5×5L | ||
| 09-0754-165 | |||
| 09-0854-168 | Eリング | ||
| 09-0954-170 | E型止め輪 | ||
| 09-1054-182 | |||
| 09-1154-534 | |||
| 09-1254-535 | |||
| 09-1354-536 | ガイド/FEED ECCENTRIC | ||
| 09-1454-537 | FLAT SPRING | ||
| 09-1554-538 | |||
| 09-1654-539 | ECCENTRIC | ||
| 09-1754-540 | |||
| 09-1854-541 | |||
| 09-1954-541 | |||
| 09-2054-542 | |||
| 09-2154-543 | |||
| 09-2254-544 | |||
| 09-2354-545 | |||
| 09-2454-546 | |||
| 09-2554-547 | |||
| 09-2654-548 | |||
| 09-2754-549 | |||
| 09-2854-550 | |||
| 09-2954-552 | |||
| 09-3054-581 | |||
| 09-3154-588 | |||
| 09-3254-589 | |||
| 09-3354-596 | |||
| 09-3454-597 | Oリング | ||
| 09-3554-639 | |||
| 09-3654-640 | |||
| 09-3756-293 | |||
| 09-3856-294 | 六角穴付止めネジ M4×6L | ||
| 09-3956-295 | 六角穴付ボルトM6×0.75×12L | ||
| 09-4056-624 | |||
| 09-4154-5340-1 |
Page 13 — 10. 送り機構 (2) FEED MECHANISM (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 10-01 | 54-079 | WASHER | 1 |
| 10-0154-079 | |||
| 10-0254-111 | プラマイナベ小ネジ M4x5L | ||
| 10-0354-112 | プラマイナベ小ネジ M4x6L | ||
| 10-0454-113 | プラマイナベ小ネジ M4x8L | ||
| 10-0554-133 | |||
| 10-0654-160 | |||
| 10-0754-355 | Oリング | ||
| 10-0854-428 | |||
| 10-0954-478 | |||
| 10-1054-553 | |||
| 10-1154-554 | |||
| 10-1254-555 | |||
| 10-1354-556 | |||
| 10-1454-5570-1 | |||
| 10-1554-558 | |||
| 10-1654-559 | |||
| 10-1754-560 | |||
| 10-1854-561 | |||
| 10-1954-562 | |||
| 10-2054-563 | |||
| 10-2154-564 | |||
| 10-2254-565 | |||
| 10-2354-566 | |||
| 10-2454-567 | |||
| 10-2554-568 | |||
| 10-2654-569 | |||
| 10-2754-974 | |||
| 10-2854-975 | |||
| 10-2954-572 | |||
| 10-3054-573 | |||
| 10-3154-574 | |||
| 10-3254-575 | |||
| 10-3354-576 | |||
| 10-3454-578 | E形止め輪 | ||
| 10-3554-6090-1 | |||
| 10-3656-295 | 六角穴付ボルトM6x0.75x12L |
Page 14 — 11. 上下メス機構 KNIFE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11-01 | 54-112 | SCREW M4x6L | 1 |
| 11-0154-112 | プラマイナベ小ネジ M4×6L | ||
| 11-0254-113 | プラマイナベ小ネジ M4×8L | ||
| 11-0354-114 | プラマイナベ小ネジ M4×10L | ||
| 11-0454-121 | プラマイナベ小ネジ M4×12L | ||
| 11-0554-195 | |||
| 11-0654-574 | |||
| 11-0754-583 | |||
| 11-0854-584 | |||
| 11-0954-585 | |||
| 11-1054-586 | |||
| 11-1154-587 | |||
| 11-1254-591 | |||
| 11-1354-592 | |||
| 11-1454-593 | |||
| 11-1554-594 | |||
| 11-1654-595 | |||
| 11-1754-6000-1 | |||
| 11-1854-627 | |||
| 11-1954-641 | |||
| 11-2054-642 | |||
| 11-2154-643 | |||
| 11-2254-644 | |||
| 11-2354-645 | |||
| 11-2454-672 | |||
| 11-2556-293 | |||
| 11-2656-294 | 六角穴付ボルト M6×0.75×12L | ||
| 11-2756-295 | 六角穴付ボルト M6×0.75×12L | ||
| 11-2856-854 | |||
| 11-2954-582 |
Page 15 — 12. 押え揚げ機構 PRESSER FOOT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 12-01 | 54-079 | WASHER | 1 |
Page 16 — LUBRICATION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 13-01 | 54-020 | SCREW | 1 |
| 13-02 | 54-051 | JOINT | 4 |
| 13-03 | 54-052 | JOINT SCREW | 3 |
| 13-04 | 54-112 | SCREW M4x6L | 1 |
| 13-05 | 54-113 | SCREW M4x8L | 3 |
| 13-06 | 54-123 | SCREW M5x5L | 2 |
| 13-07 | 54-133 | SCREW | 2 |
| 13-08 | 54-149 | BOLT | 4 |
| 13-09 | 54-180 | OIL FILTER | 1 |
| 13-10 | 54-182 | SCREW | 1 |
| 13-11 | 54-280 | JOINT SCREW | 1 |
| 13-12 | 54-195 | BOLT | 2 |
| 13-13 | 54-391 | FELT | 2 |
| 13-14 | 54-500 | SCREW | 2 |
| 13-15 | 54-6100-1 | PUMP ASSY | 1 |
| 13-16 | 54-611 | WORM WHEEL | 1 |
| 13-17 | 54-612 | PUMP BODY | 1 |
| 13-18 | 54-613 | SHAFT | 1 |
| 13-19 | 54-614 | INNER ROTER | 2 |
| 13-20 | 54-615 | OUTER ROTER | 2 |
| 13-21 | 54-616 | HOUSING | 1 |
| 13-22 | 54-617 | PLATE | 1 |
| 13-23 | 54-618 | FILTER | 1 |
| 13-24 | 54-619 | PLATE | 1 |
| 13-25 | 54-620 | SCREW | 3 |
| 13-26 | 54-621 | OIL FILTER TANK | 1 |
| 13-27 | 54-622 | COVER | 1 |
| 13-28 | 54-623 | O-RING | 1 |
| 13-29 | 54-624 | PIPE | 1 |
| 13-30 | 54-626 | OIL RELEASER | 1 |
| 13-31 | 54-628 | OIL TANK | 1 |
| 13-32 | 54-629 | GASKET | 1 |
| 13-33 | 54-631 | PIPE | 1 |
| 13-34 | 54-634 | WASHER | 4 |
| 13-35 | 54-635 | OIL SIGHT GAUGE | 1 |
| 13-36 | 54-636 | JOINT SCREW | 2 |
| 13-37 | 54-637 | WASHER | 2 |
| 13-38 | 54-638 | PLUG | 2 |
| 13-39 | 54-652 | SCREW | 2 |
| 13-40 | 54-653 | JOINT SCREW | 1 |
| 13-41 | 54-934 | PIN | 1 |
| 13-42 | 56-771 | SEAL WASHER | 1 |
| 13-43 | 56-817 | CLAMP | 4 |
| 13-44 | 54-667 | TUBE | 1 |
| 13-45 | 54-668 | TUBE | 1 |
| 13-46 | 54-670 | TUBE | 1 |
| 13-47 | 54-935 | ADJUSTING SCREW | 1 |
| 13-48 | 54-936 | O-RING | 1 |
| 13-49 | 54-937 | JOINT | 1 |
| 13-50 | 54-938 | JOINT SCREW | 1 |
| 13-51 | 54-939 | TUBE | 1 |
| 13-0154-020 | |||
| 13-0254-051 | |||
| 13-0354-052 | |||
| 13-0454-112 | プラマイナベ小ネジ M4×6L | ||
| 13-0554-113 | プラマイナベ小ネジ M4×8L | ||
| 13-0654-123 | 六角穴付止めネジ M5×5L | ||
| 13-0754-133 | |||
| 13-0854-149 | |||
| 13-0954-180 | |||
| 13-1054-182 | |||
| 13-1154-280 | |||
| 13-1254-195 | |||
| 13-1354-391 | |||
| 13-1454-500 | |||
| 13-1554-6100-1 | |||
| 13-1654-611 | |||
| 13-1754-612 | |||
| 13-1854-613 | |||
| 13-1954-614 | |||
| 13-2054-615 | |||
| 13-2154-616 | |||
| 13-2254-617 | |||
| 13-2354-618 | |||
| 13-2454-619 | |||
| 13-2554-620 | 平小ネジ M4×25L | ||
| 13-2654-621 | |||
| 13-2754-622 | |||
| 13-2854-623 | Oリング | ||
| 13-2954-624 | |||
| 13-3054-626 | |||
| 13-3154-628 | |||
| 13-3254-629 | |||
| 13-3354-631 | |||
| 13-3454-634 | |||
| 13-3554-635 | |||
| 13-3654-636 | |||
| 13-3754-637 | |||
| 13-3854-638 | |||
| 13-3954-652 | |||
| 13-4054-653 | |||
| 13-4154-934 | |||
| 13-4256-771 | |||
| 13-4354-935 | |||
| 13-4454-667 | |||
| 13-4554-668 | |||
| 13-4654-670 | |||
| 13-4754-935 | |||
| 13-4854-936 | Oリング | ||
| 13-4954-937 | |||
| 13-5054-938 | |||
| 13-5154-939 |
Page 17 — 14. 糸調子機構 (1) THREAD TENSION (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 14-01 | 54-053 | SPRING POST | 3~5 |
| 14-02 | 54-056 | SPRING(HEAVY) | 1~3 |
| 14-03 | 54-057 | SPRING(LIGHT) | 2 |
| 14-04 | 54-160 | NUT | 3~5 |
| 14-05 | 54-440 | THREAD GUIDE | 1 |
| 14-06 | 54-441 | THREAD GUIDE | 3~5 |
| 14-07 | 54-662 | THREAD GUIDE BRACKET | 1 |
| 14-08 | 54-971 | CUP | 3~4 |
| 14-09 | 54-977 | POST NUT | 3~4 |
| 14-10 | 54-978 | SCREW STUD | 3~4 |
| 14-11 | 54-9790-1 | TENSION SET (HEAVY) | 1~3 |
| 14-12 | 54-9810-1 | TENSION SET (LIGHT) | 2 |
| 14-13 | 56-035 | SCREW M4 | 2 |
| 14-14 | 56-268 | FELT | 3~5 |
| 14-15 | 56-270 | TENSION DISC | 6~10 |
| 14-0154-053 | |||
| 14-0254-056 | |||
| 14-0354-057 | |||
| 14-0454-160 | |||
| 14-0554-440 | |||
| 14-0654-441 | |||
| 14-0754-662 | |||
| 14-0854-971 | |||
| 14-0954-977 | |||
| 14-1054-978 | |||
| 14-1154-9790-1 | |||
| 14-1254-9810-1 | |||
| 14-1356-035 | スリワリ付キ皿小ネジ M4 | ||
| 14-1456-268 | |||
| 14-1556-270 |
Page 18 — 15. 糸調子機構 (2) THREAD TENSION (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 15-01 | 54-111 | SCREW M4x5L | 3 |
| 15-02 | 54-113 | SCREW M4x8L | 3 |
| 15-03 | 54-133 | SCREW | 3 |
| 15-04 | 54-182 | SCREW | 1~3 |
| 15-05 | 54-351 | NEEDLE BAR GUIDE | 1 |
| 15-06 | 54-449 | NEEDLE THREAD TAKEUP | 1 |
| 15-07 | 54-450 | NEEDLE THREAD TAKEUP | 1 |
| 15-08 | 54-451 | NEEDLE THREAD TAKEUP | 1 |
| 15-09 | 54-452 | BRACKET | 1 |
| 15-10 | 54-453 | THREAD EYELET BRACKET | 1 |
| 15-11 | 54-454 | THREAD EYELET | 1 |
| 15-12 | 54-456 | THREAD EYELET | 1 |
| 15-13 | 54-457 | BRACKET | 1 |
| 15-14 | 54-458 | THREAD EYELET | 1 |
| 15-15 | 54-459 | THREAD EYELET | 1 |
| 15-16 | 54-460 | THREAD EYELET | 1 |
| 15-17 | 54-461 | THREAD EYELET | 1 |
| 15-18 | 54-462 | THREAD GUIDE BRACKET | 1 |
| 15-19 | 54-463 | THREAD EYELET | 1 |
| 15-20 | 54-464 | THREAD EYELET | 1 |
| 15-21 | 54-473 | THREAD NIPPER | 1 |
| 15-22 | 54-474 | THREAD NIPPER | 1 |
| 15-23 | 54-475 | SCREW | 1 |
| 15-24 | 54-476 | SPRING | 1 |
| 15-25 | 54-496 | SCREW | 1 |
| 15-26 | 54-497 | SCREW | 1 |
| 15-27 | 54-499 | SCREW | 1 |
| 15-28 | 54-501 | SCREW | 4 |
| 15-29 | 54-502 | SCREW | 2 |
| 15-30 | 54-661 | NEEDLE THREAD TAKEUP | 1 |
| 15-31 | 54-663 | THREAD EYELET | 1 |
| 15-32 | 56-765 | SILICONE TANK | 1 |
| 15-33 | 56-766 | THREAD GUIDE | 1 |
| 15-34 | 56-767 | FELT | 1 |
| 15-35 | 56-768 | COVER | 1 |
| 15-0154-113 | プラマイナベ小ネジ M4x5L | ||
| 15-0254-111 | プラマイナベ小ネジ M4x8L | ||
| 15-0354-133 | |||
| 15-0454-182 | |||
| 15-0554-351 | |||
| 15-0654-449 | |||
| 15-0754-450 | |||
| 15-0854-451 | |||
| 15-0954-452 | |||
| 15-1054-453 | |||
| 15-1154-454 | |||
| 15-1254-456 | |||
| 15-1354-457 | |||
| 15-1454-458 | |||
| 15-1554-459 | |||
| 15-1654-460 | |||
| 15-1754-461 | |||
| 15-1854-462 | |||
| 15-1954-463 | |||
| 15-2054-464 | |||
| 15-2154-473 | |||
| 15-2254-474 | |||
| 15-2354-475 | |||
| 15-2454-476 | |||
| 15-2554-496 | |||
| 15-2654-497 | |||
| 15-2754-499 | |||
| 15-2854-501 | |||
| 15-2954-502 | |||
| 15-3054-561 | |||
| 15-3154-663 | |||
| 15-3256-765 | |||
| 15-3356-766 | |||
| 15-3456-767 | |||
| 15-3556-768 |
Page 19 — 16. 糸調子機構 (3) THREAD TENSION (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 16-01 | 54-069 | WASHER | 2 |
| 16-02 | 54-108 | SCREW M3x3L | 1 |
| 16-03 | 54-113 | SCREW M4x8L | 1 |
| 16-04 | 54-114 | SCREW M4x10L | 2 |
| 16-05 | 54-121 | SCREW M4x12L | 1 |
| 16-06 | 54-128 | SCREW M4X14L | 1 |
| 16-07 | 54-317 | COVER | 1 |
| 16-08 | 54-398 | OIL SEAL | 1 |
| 16-09 | 54-442 | THREAD EYELET | 1 |
| 16-10 | 54-443 | BRACKET | 1 |
| 16-11 | 54-444 | THREAD EYELET | 2 |
| 16-12 | 54-445 | THREAD EYELET | 1 |
| 16-13 | 54-446 | THREAD EYELET | 1 |
| 16-14 | 54-447 | THREAD TAKEUP | 1 |
| 16-15 | 54-448 | THREAD TAKEUP | 1 |
| 16-16 | 54-490 | SCREW | 1 |
| 16-17 | 54-494 | SCREW | 2 |
| 16-18 | 56-355 | THREAD TAKEUP | 1 |
| 16-19 | 56-356 | THREAD TAKEUP (A) | 1 |
| 16-0154-069 | |||
| 16-0254-108 | |||
| 16-0354-113 | |||
| 16-0454-114 | |||
| 16-0554-121 | |||
| 16-0654-128 | |||
| 16-0754-317 | |||
| 16-0854-398 | |||
| 16-0954-442 | |||
| 16-1054-443 | |||
| 16-1154-444 | |||
| 16-1254-445 | |||
| 16-1354-446 | |||
| 16-1454-447 | |||
| 16-1554-448 | |||
| 16-1654-490 | |||
| 16-1754-494 | |||
| 16-1856-355 | |||
| 16-1956-356 | 下ルーパー天秤 A |
Page 20 — 17. CHAINSTITCH LOOPER MECHANISM (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 17-01 | 54-079 | WASHER | 1 |
| 17-02 | 54-149 | BOLT | 1 |
| 17-03 | 54-163 | NEEDLE BEARING | 1 |
| 17-04 | 54-420 | SHAFT | 1 |
| 17-05 | 54-422 | CONNECTING ROD | 1 |
| 17-06 | 54-423 | LEVER | 1 |
| 17-07 | 54-424 | BRACKET | 1 |
| 17-08 | 54-425 | PIN | 1 |
| 17-09 | 54-426 | HOLDER | 1 |
| 17-10 | 54-427 | PIN | 1 |
| 17-11 | 54-428 | LINK | 1 |
| 17-12 | 54-429 | LEVER | 1 |
| 17-13 | 54-430 | CHAINSTITCH LOOPER HOLDER | 1 |
| 17-14 | 54-431 | O-RING | 1 |
| 17-15 | 54-432 | WASHER | 1 |
| 17-16 | 54-481 | SPRING WASHER | 1 |
| 17-17 | 54-486 | SCREW | 1 |
| 17-18 | 54-487 | SCREW | 1 |
| 17-19 | 54-488 | SCREW | 1 |
| 17-20 | 54-566 | LINK PIN | 2 |
| 17-21 | 54-575 | SCREW | 2 |
| 17-22 | 54-576 | WASHER | 2 |
| 17-23 | 56-295 | SCREW M6x0.75x12L | 2 |
| 17-0154-079 | WASHER | 1 | |
| 17-0254-145 | BOLT | 1 | |
| 17-0354-163 | NEEDLE BEARING | 1 | |
| 17-0454-420 | SHAFT | 1 | |
| 17-0554-422 | CONNECTING ROD | 1 | |
| 17-0654-423 | LEVER | 1 | |
| 17-0754-424 | RACKET | 1 | |
| 17-0854-425 | PIN | 1 | |
| 17-0954-426 | HOLDER | 1 | |
| 17-1054-427 | PIN | 1 | |
| 17-1154-428 | LINK | 1 | |
| 17-1254-429 | LEVER | 1 | |
| 17-1354-430 | CHAINSTITCH LOOPER HOLDER | 1 | |
| 17-1454-431 | O-RING | 1 | |
| 17-1554-432 | WASHER | 1 | |
| 17-1654-481 | SPRING WASHER | 1 | |
| 17-1754-486 | SCREW | 1 | |
| 17-1854-487 | SCREW | 1 | |
| 17-1954-488 | SCREW | 2 | |
| 17-2054-566 | LINK PIN | 2 | |
| 17-2154-575 | SCREW | 2 | |
| 17-2254-576 | WASHER | 2 | |
| 17-2356-295 | Screw M6x0.75x12L | 2 |
Page 21 — 18. 二重環ルーバー機構 (2) CHAINSTITCH LOOPER MECHANISM (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 18-01 | 54-026 | WASHER | 2 |
| 18-02 | 54-111 | SCREW M4x5L | 1 |
| 18-03 | 54-112 | SCREW M4x6L | 2 |
| 18-04 | 54-182 | SCREW | 2 |
| 18-05 | 54-413 | THREAD TAKEUP | 1 |
| 18-06 | 54-414 | SPRING | 1 |
| 18-07 | 54-415 | THREAD EYELET | 1 |
| 18-08 | 54-416 | THREAD EYELET | 1 |
| 18-09 | 54-417 | THREAD GUIDE | 1 |
| 18-10 | 54-418 | BRACKET | 1 |
| 18-11 | 54-419 | PIPE | 1 |
| 18-12 | 54-433 | THREAD EYELET | 1 |
| 18-13 | 54-435 | KNOB | 1 |
| 18-14 | 54-436 | SPRING | 1 |
| 18-15 | 54-437 | TENSION DISC | 2 |
| 18-16 | 54-438 | SCREW | 1 |
| 18-17 | 54-439 | SCREW | 1 |
| 18-18 | 54-494 | SCREW | 2 |
| 18-19 | 56-550 | LATCH | 2 |
| 18-20 | 56-551 | THREAD EYELET | 1 |
| 18-0154-026 | |||
| 18-0254-111 | プラマイナベスリM4×5L | ||
| 18-0354-112 | プラマイナベスリM4×6L | ||
| 18-0454-182 | |||
| 18-0554-413 | |||
| 18-0654-414 | |||
| 18-0754-415 | |||
| 18-0854-416 | |||
| 18-0954-417 | |||
| 18-1054-418 | |||
| 18-1154-419 | |||
| 18-1254-433 | |||
| 18-1354-435 | |||
| 18-1454-436 | |||
| 18-1554-437 | |||
| 18-1654-438 | |||
| 18-1754-439 | |||
| 18-1854-494 | |||
| 18-1956-550 | |||
| 18-2056-551 |
Page 22 — 19. 針冷却装置 H. R DEVICE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 19-01 | 54-113 | SCREW M4x8L | 2 |
| 19-02 | 54-114 | SCREW M4x10L | 1 |
| 19-03 | 54-121 | SCREW M4x12L | 2 |
| 19-04 | 54-171 | PIN | 1 |
| 19-05 | 54-192 | FELT | 1 |
| 19-06 | 54-363 | BRACKET | 1 |
| 19-07 | 54-507 | SCREW | 2 |
| 19-08 | 54-573 | SCREW | 4 |
| 19-09 | 54-625 | PLUG | 1 |
| 19-10 | 54-646 | NEEDLE COOLER (OVER) | 1 |
| 19-11 | 54-647 | NEEDLE COOLER (INTER) | 1 |
| 19-12 | 54-648 | SILICONE TANK | 1 |
| 19-13 | 54-649 | COVER | 1 |
| 19-14 | 54-650 | FELT(OVER) | 1 |
| 19-15 | 54-651 | FELT(INTER) | 1 |
| 19-16 | 56-817 | CLAMP | 2 |
| 19-17 | 54-666 | TUBE | 1 |
| 19-18 | 54-343 | SCREW | 1 |
| 19-19 | 54-506 | SCREW | 2 |
| 19-0154-113 | プラマイナベスネジ M4x8L | ||
| 19-0254-114 | プラマイナベスネジ M4x10L | ||
| 19-0354-121 | プラマイナベスネジ M4x12L | ||
| 19-0454-171 | |||
| 19-0554-192 | |||
| 19-0654-363 | |||
| 19-0754-507 | |||
| 19-0854-573 | |||
| 19-0954-625 | |||
| 19-1054-647 | |||
| 19-1154-647 | |||
| 19-1254-648 | |||
| 19-1354-649 | |||
| 19-1454-650 | |||
| 19-1554-651 | |||
| 19-1656-817 | |||
| 19-1754-666 | |||
| 19-1854-343 | |||
| 19-1954-506 |
Page 23 — 20. 糸立台 THREAD STAND
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20-01 | 56-913 | THREAD STAND ASSEMBLY(3-SPOOLS) | 1 |
| 20-02 | 56-914 | THREAD STAND ASSEMBLY(4-SPOOLS) | 1 |
| 20-03 | 56-915 | THREAD STAND ASSEMBLY(5-SPOOLS) | 1 |
| 20-04 | 56-916 | THREAD STAND ASSEMBLY(6-SPOOLS) | 1 |
| 20-0156-913 | |||
| 20-0256-914 | |||
| 20-0356-915 | |||
| 20-0456-916 |
Page 24 — 21. 当定規(オプション) EDGE GUIDE (Option)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 21-01 | 56-9550-1 | CLOTH GUIDE ASSY (INTER) | 1 |
| 21-02 | 56-9560-1 | CLOTH GUIDE ASSY (OVER) | 1 |
| 21-03 | 56-957 | BRACKET | 1 |
| 21-04 | 56-958 | BRACKET | 1 |
| 21-05 | 56-959 | BRACKET | 1 |
| 21-06 | 56-960 | EDGE GUIDE (INTER) | 1 |
| 21-07 | 56-961 | EDGE GUIDE (OVER) | 1 |
| 21-08 | 56-962 | SPRING | 1 |
| 21-09 | 56-963 | PIN | 1 |
| 21-10 | 56-964 | SCREW | 1 |
| 21-11 | 56-965 | STOPPER | 1 |
| 21-12 | 54-078 | WASHER | 3 |
| 21-13 | 54-084 | SPRING | 1 |
| 21-14 | 54-096 | SCREW | 2 |
| 21-15 | 54-108 | SCREW M3x3L | 1 |
| 21-16 | 54-111 | SCREW M4x5L | 1 |
| 21-17 | 54-112 | SCREW M4x6L | 1 |
| 21-18 | 54-113 | SCREW M4x8L | 1 |
| 21-19 | 54-159 | NUT | 1 |
| 21-0156-9550-1 | |||
| 21-0256-9550-1 | |||
| 21-0456-958 | |||
| 21-0556-959 | |||
| 21-0656-960 | |||
| 21-0656-961 | |||
| 21-0856-962 | |||
| 21-0956-963 | |||
| 21-1056-964 | |||
| 21-1156-965 | |||
| 21-1254-078 | 3 | ||
| 21-1354-084 | |||
| 21-1454-096 | 2 | ||
| 21-1554-108 | プラマイナベスネジ M3×3L | ||
| 21-1654-111 | プラマイナベスネジ M4×5L | ||
| 21-1754-112 | プラマイナベスネジ M4×6L | ||
| 21-1854-113 | プラマイナベスネジ M4×8L | ||
| 21-1954-159 |
Page 25 — 22. アクセサリー ACCESSORIES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22-01 | 54-036 | SEAL | 1 |
| 22-02 | 54-037 | SEAL | 1 |
| 22-03 | 54-038 | SEAL | 1 |
| 22-04 | 54-039 | SEAL | 1 |
| 22-05 | 54-040 | TWEZERS | 1 |
| 22-06 | 54-041 | ALLEN KEY(2.5mm) | 1 |
| 22-07 | 54-042 | ALLEN KEY(3mm) | 1 |
| 22-08 | 54-043 | ALLEN KEY(5mm) | 1 |
| 22-09 | 54-044 | ALLEN KEY(1.5mm) | 1 |
| 22-10 | 54-045 | OIL | 1 |
| 22-11 | 54-046 | OIL FUNNEL | 1 |
| 22-12 | 54-047 | GUIDE THREAD | 1 |
| 22-13 | 54-048 | CHAIN | 1 |
| 22-14 | 54-058 | NUT | 4 |
| 22-15 | 54-070 | SPRING WASHER | 4 |
| 22-16 | 54-146 | BOLT | 4 |
| 22-17 | 54-180 | OIL FILTER | 1 |
| 22-18 | 54-607 | LOWER KNIFE | 1 |
| 22-19 | 54-643 | LOWER KNIFE | 1 |
| 22-20 | 56-902 | WASTE CHUTE ASSEMBLY | 1 |
| 22-21 | 56-906 | REST BORAD | 1 |
| 22-22 | 56-907 | CUSHION RUBBER | 4 |
| 22-23 | 56-9100-1 | SCREW SET | 1 |
| 22-24 | 56-912 | WASHER | 20 |
| 22-25 | 56-951 | DUST COVER | 1 |
| 22-26 | 56-952 | TOOL BAG | 1 |
| 22-27 | 56-953 | WRENCH(7mm) | 1 |
| 22-28 | 56-954 | WRENCH(8mm) | 1 |
| 22-29 | 56-966 | DRIVER(L) | 1 |
| 22-0154-036 | |||
| 22-0254-037 | |||
| 22-0354-038 | |||
| 22-0454-039 | |||
| 22-0554-040 | |||
| 22-0654-041 | 六角レンチ 2.5mm | ||
| 22-0754-042 | 六角レンチ 3mm | ||
| 22-0854-043 | 六角レンチ 5mm | ||
| 22-0954-044 | 柄付き六角レンチ 1.5mm | ||
| 22-1054-045 | |||
| 22-1154-046 | |||
| 22-1254-047 | |||
| 22-1354-048 | |||
| 22-1454-058 | |||
| 22-1554-070 | |||
| 22-1654-146 | |||
| 22-1754-180 | |||
| 22-1854-607 | |||
| 22-1954-643 | |||
| 22-2056-902 | |||
| 22-2156-906 | |||
| 22-2256-907 | |||
| 22-2356-9100-1 | |||
| 22-2456-912 | |||
| 22-2556-951 | |||
| 22-2656-952 | |||
| 22-2756-953 | スパナ (7mm) | ||
| 22-2856-954 | スパナ (8mm) | ||
| 22-2956-966 |
Page 26 — 23. 専用部品(1) JJ3014GH-40M SPECIFIC PARTS (1) JJ3014GH-40M テープ付け (Tape attaching )
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 23-01 | 54-026 | WASHER | 2 |
| 23-02 | 54-439 | SCREW | 1 |
| 23-03 | 54-673 | TAPE GUIDE A | 1 |
| 23-04 | 54-674 | TAPE GUIDE B | 1 |
| 23-05 | 56-741 | TAPE TAKE-UP | 1 |
| 23-06 | 56-917 | TAPE STAND ASSY | 1 |
| 23-0154-026 | |||
| 23-0254-439 | |||
| 23-0354-673 | テープガイド A | ||
| 23-0454-674 | テープガイド B | ||
| 23-0556-741 | |||
| 23-0656-917 |
Page 27 — 24. 専用部品(2) SPECIFIC PARTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 24-01 | 54-109 | SCREW M3x5L | 1 |
| 24-02 | 54-407 | COLLAR | 1 |
| 24-03 | 54-408 | COLLAR | 1 |
| 24-04 | 54-455 | NEEDLE THREAD TAKEUP | 1 |
| 24-05 | 54-465 | THREAD EYELET | 1 |
| 24-06 | 54-479 | WASHER | 1 |
| 24-07 | 54-494 | SCREW | 2 |
| 24-08 | 54-497 | SCREW | 1 |
| 24-09 | 54-508 | SCREW | 1 |
| 24-10 | 54-606 | UPPER KNIFE | 1 |
| 24-11 | 54-607 | LOWER KNIFE | 1 |
| 24-12 | 54-608 | LOWER KNIFE HOLDER | 1 |
| 24-13 | 54-681 | UPPER KNIFE(S) | 1 |
| 24-14 | 57-462 | COVER | 1 |
| 24-15 | 57-570 | FINGER GUARD | 1 |
| 24-0154-109 | プラマイナベ小ネジ M3x5L | ||
| 24-0254-407 | |||
| 24-0354-408 | |||
| 24-0454-455 | |||
| 24-0554-465 | |||
| 24-0654-479 | |||
| 24-0754-494 | |||
| 24-0854-497 | |||
| 24-0954-508 | |||
| 24-1054-606 | |||
| 24-1154-607 | |||
| 24-1254-608 | |||
| 24-1354-681 | |||
| 24-1457-462 | |||
| 24-1557-570 |
Page 28 — 25. 専用部品(3) SPECIFIC PARTS(3) JJ3005GS-10M / 裾引き (Blind Hemming)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 25-01 | 54-078 | WASHER | 2 |
| 25-0154-078 | |||
| 25-0254-079 | |||
| 25-0354-084 | |||
| 25-0454-093 | |||
| 25-0554-095 | |||
| 25-0654-096 | |||
| 25-0754-099 | |||
| 25-0854-101 | プラマイナベ小ネジ M3x3LxSL | ||
| 25-0954-108 | プラマイナベ小ネジ M4x5L | ||
| 25-1054-111 | プラマイナベ小ネジ M4x8L | ||
| 25-1154-113 | |||
| 25-1254-131 | |||
| 25-1354-159 | |||
| 25-1456-7000-1 | |||
| 25-1556-701 | |||
| 25-1656-702 | |||
| 25-1756-703 | |||
| 25-1856-704 | |||
| 25-1956-705 | |||
| 25-2056-711 | |||
| 25-2156-712 | |||
| 25-2256-713 | |||
| 25-2356-715 | |||
| 25-2456-716 | |||
| 25-2556-717 | |||
| 25-2656-7200-1 | |||
| 25-2756-957 | |||
| 25-2856-958 | |||
| 25-2956-962 | |||
| 25-3056-963 | |||
| 25-3156-964 | |||
| 25-3256-965 |
Page 29 — 26. 専用部品(4) SPECIFIC PARTS JJ3116GS-30M, 30MP
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 26-01 | 54-053 | SPRING POST | 1 |
| 26-02 | 54-068 | WASHER 3.5 | 2 |
| 26-03 | 54-071 | WASHER | 2 |
| 26-04 | 54-075 | WASHER | 1 |
| 26-05 | 54-080 | WASHER | 1 |
| 26-06 | 54-082 | COLLAR | 1 |
| 26-07 | 54-088 | SCREW | 3 |
| 26-08 | 54-094 | SCREW | 2 |
| 26-09 | 54-098 | SCREW | 2 |
| 26-10 | 54-111 | SCREW M4x5L | 2 |
| 26-11 | 54-115 | SCREW M4x16L | 1 |
| 26-12 | 54-121 | SCREW M4x12L | 4 |
| 26-13 | 54-123 | SCREW M5x5L | 2 |
| 26-14 | 54-133 | SCREW | 2 |
| 26-15 | 54-152 | SCREW | 2 |
| 26-16 | 54-161 | NUT | 1 |
| 26-17 | 54-162 | NUT | 2 |
| 26-18 | 54-170 | E-RING | 2 |
| 26-19 | 54-6830-2 | CLOTH PLATE ASSY | 1 |
| 26-20 | 54-684 | SPACER | 1 |
| 26-21 | 54-6850-1 | SHIRRING ATTACHMENT | 1 |
| 26-22 | 54-686 | BRACKET | 1 |
| 26-23 | 56-266 | SCREW STUD | 1 |
| 26-24 | 56-401 | BRACKET | 1 |
| 26-25 | 56-402 | BRACKET | 1 |
| 26-26 | 56-403 | SHAFT | 1 |
| 26-27 | 56-404 | BRACKET | 1 |
| 26-28 | 56-405 | SPRING GUIDE | 1 |
| 26-29 | 56-406 | SPRING | 1 |
| 26-30 | 56-407 | LEVER | 1 |
| 26-31 | 56-408 | SPACER | 1 |
| 26-32 | 56-409 | SPRING | 1 |
| 26-33 | 56-410 | POST NUT | 1 |
| 26-34 | 56-411 | STOPPER | 1 |
| 26-35 | 56-412 | FLAT SPRING | 1 |
| 26-36 | 56-413 | FLAT SPRING | 1 |
| 26-37 | 56-415 | SCREW | 1 |
| 26-38 | 56-416 | SPRING WASHER | 2 |
| 26-39 | 56-417 | WASHER | 1 |
| 26-40 | 56-418 | CABLE | 1 |
| 26-41 | 56-419 | CABLE SUPPORT | 2 |
| 26-42 | 56-420 | SPRING | 1 |
| 26-43 | 56-421 | SCREW | 1 |
| 26-44 | 56-422 | PLATE | 1 |
| 26-45 | 56-423 | PIN | 1 |
| 26-46 | 56-424 | CLOTH GUIDE | 1 |
| 26-47 | 56-425 | BLADE | 1 |
| 26-48 | 56-428 | WASHER | 1 |
| 26-49 | 56-446 | BRACKET | 1 |
| 26-50 | 56-447 | PIPING FOLDER (20) | 1 |
| 26-51 | 56-918 | TAPE STAND | 1 |
| 26-52 | 54-494 | SCREW | 2 |
| 26-53 | 57-570 | FINGER GUARD | 1 |
| 26-0154-053 | |||
| 26-0254-068 | 2 | ||
| 26-0354-071 | 2 | ||
| 26-0454-075 | 1 | ||
| 26-0554-080 | 1 | ||
| 26-0654-082 | 1 | ||
| 26-0754-088 | 3 | ||
| 26-0854-094 | 2 | ||
| 26-0954-098 | 2 | ||
| 26-1054-111 | プラマイナベ小ネジ M4×5L | 2 | |
| 26-1154-115 | プラマイナベ小ネジ M4×16L | 1 | |
| 26-1254-121 | プラマイナベ小ネジ M4×12L | 4 | |
| 26-1354-123 | 六角付止めネジ M5×5L | 2 | |
| 26-1454-133 | 2 | ||
| 26-1554-152 | 2 | ||
| 26-1654-161 | 1 | ||
| 26-1754-162 | 2 | ||
| 26-1854-170 | E型止め輪 | 2 | |
| 26-1954-6830-2 | 1 | ||
| 26-2054-684 | 1 | ||
| 26-2154-6850-1 | 1 | ||
| 26-2254-686 | 1 | ||
| 26-2356-266 | 1 | ||
| 26-2456-401 | 1 | ||
| 26-2556-402 | 1 | ||
| 26-2656-403 | 1 | ||
| 26-2756-404 | 1 | ||
| 26-2956-406 | 1 | ||
| 26-3056-407 | 1 | ||
| 26-3156-408 | 1 | ||
| 26-3256-409 | 1 | ||
| 26-3356-410 | 1 | ||
| 26-3456-411 | 1 | ||
| 26-3556-412 | 1 | ||
| 26-3656-413 | 1 | ||
| 26-3756-415 | 1 | ||
| 26-3856-416 | 2 | ||
| 26-3956-417 | 1 | ||
| 26-4056-418 | 1 | ||
| 26-4156-419 | 2 | ||
| 26-4256-420 | 1 | ||
| 26-4356-421 | 1 | ||
| 26-4456-422 | 1 | ||
| 26-4556-423 | 1 | ||
| 26-4656-424 | 1 | ||
| 26-4756-425 | 1 | ||
| 26-4856-428 | 1 | ||
| 26-4956-446 | 1 | ||
| 26-5056-447 | 1 | ||
| 26-5156-918 | 1 | ||
| 26-5254-494 | 2 | ||
| 26-5357-570 | 1 |
Page 30 — 27. 専用部品 (5) SPECIFIC PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 27-01 | 54-075 | WASHER | 1 |
| 27-0154-075 | |||
| 27-0254-092 | |||
| 27-0354-107 | |||
| 27-0454-119 | スリワリ付皿小ネジ M3×6L | ||
| 27-0554-121 | プラマイナベ小ネジ M4×12L | ||
| 27-0654-159 | |||
| 27-0754-160 | |||
| 27-0854-161 | |||
| 27-0954-170 | E型止め輪 | ||
| 27-1054-497 | |||
| 27-1154-686 | |||
| 27-1254-687 | 下メス台 (50M) | ||
| 27-1354-6880-2 | |||
| 27-1454-689 | 針板取付板前 (50M) | ||
| 27-1554-691 | |||
| 27-1654-6920-1 | |||
| 27-1754-693 | |||
| 27-1854-6940-1 | |||
| 27-1954-695 | |||
| 27-2054-696 | |||
| 27-2154-697 | |||
| 27-2254-698 | |||
| 27-2354-699 | |||
| 27-2454-700 | |||
| 27-2554-701 | |||
| 27-2654-702 | |||
| 27-2756-253 | |||
| 27-2856-419 | |||
| 27-2956-421 | |||
| 27-3056-422 | |||
| 27-3156-423 | |||
| 27-3256-428 | |||
| 27-3356-472 | |||
| 27-3456-473 | |||
| 27-3556-474 | |||
| 27-3656-475 | |||
| 27-3756-476 | |||
| 27-3856-477 | |||
| 27-3956-478 | |||
| 27-4056-479 | |||
| 27-4156-480 | |||
| 27-4254-9790-1 | |||
| 27-4354-9810-1 |
Page 31 — 28. 專用部品(6) SPECIFIC PARTS (6) JJ3014GE-60HK サージング (Serging)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 28-01 | 54-053 | SPRING POST | 1 |
| 28-02 | 54-074 | WASHER | 1 |
| 28-03 | 54-128 | SCREW M4X14L | 1 |
| 28-04 | 54-259 | SCREW SM1/8,4L | 1 |
| 28-05 | 54-408 | COLLAR | 1 |
| 28-06 | 54-447 | THREAD TAKEUP | 1 |
| 28-07 | 54-479 | WASHER | 1 |
| 28-08 | 54-607 | LOWER KNIFE | 1 |
| 28-09 | 54-729 | ANGLED KNIFE HOLDER(OVER) | 1 |
| 28-10 | 54-730 | ANGLED KNIFE | 1 |
| 28-11 | 54-731 | ANGLED KNIFE CLAMP | 1 |
| 28-12 | 54-732 | WASTE GUARD | 1 |
| 28-13 | 54-733 | LOWER KNIFE HOLDER | 1 |
| 28-14 | 54-736 | SPRING(MEDIUM) | 1 |
| 28-15 | 54-9800-1 | TENSION SET(MIDDLE) | 1 |
| 28-16 | 54-738 | NEEDLE THREAD TAKE-UP | 1 |
| 28-17 | 54-739 | THREAD EYELET | 1 |
| 28-18 | 54-978 | SCREW STUD | 1 |
| 28-19 | 56-268 | FELT | 1 |
| 28-20 | 54-971 | CUP | 1 |
| 28-21 | 56-270 | TENSION DISC | 2 |
| 28-22 | 54-977 | POST NUT(A) | 1 |
| 28-0154-053 | |||
| 28-0254-074 | |||
| 28-0354-128 | プラマイナベ小ネジ M4X14L | ||
| 28-0454-259 | 平小ネジ SM1/8, 4L | ||
| 28-0554-408 | |||
| 28-0654-447 | |||
| 28-0754-479 | |||
| 28-0854-607 | |||
| 28-0954-729 | |||
| 28-1054-730 | |||
| 28-1154-731 | |||
| 28-1254-732 | |||
| 28-1354-733 | |||
| 28-1454-736 | |||
| 28-1554-9800-1 | |||
| 28-1654-738 | |||
| 28-1754-739 | |||
| 28-1854-978 | |||
| 28-1956-268 | |||
| 28-2054-971 | |||
| 28-2156-270 | |||
| 28-2254-977 | 糸調子ダイヤルA |
Page 32 — 29. 主軸セット一覧表 CRANKSHAFT SET PARTS TABLE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 54-7510-1 | CRANKSHAFT SET | |
| 1 | 54-7520-1 | CRANKSHAFT SET | |
| 1 | 54-7560-1 | CRANKSHAFT SET | |
| 1 | 54-7530-1 | CRANKSHAFT SET | |
| 1 | 54-7540-1 | CRANKSHAFT SET | |
| 1 | 54-7550-1 | CRANKSHAFT SET | |
| 2 | 54-513 | CRANKSHAFT | |
| 2 | 54-513 | CRANKSHAFT | |
| 2 | 54-531 | CRANKSHAFT | |
| 2 | 54-513 | CRANKSHAFT | |
| 2 | 54-513 | CRANKSHAFT | |
| 2 | 54-531 | CRANKSHAFT | |
| 3 | 54-5990-1 | LOOPER ROD ASSY | |
| 3 | 54-5990-1 | LOOPER ROD ASSY | |
| 3 | 54-5990-1 | LOOPER ROD ASSY | |
| 3 | 54-5990-1 | LOOPER ROD ASSY | |
| 3 | 54-5990-1 | LOOPER ROD ASSY | |
| 3 | 54-5990-1 | LOOPER ROD ASSY | |
| 4 | 54-395 | LOWER LOOPER CRANK | |
| 4 | 54-395 | LOWER LOOPER CRANK | |
| 4 | 54-395 | LOWER LOOPER CRANK | |
| 4 | 54-421 | LOWER LOOPER CRANK | |
| 4 | 54-421 | LOWER LOOPER CRANK | |
| 4 | 54-421 | LOWER LOOPER CRANK | |
| 5 | 54-410 | UPPER LOOPER CRANK | |
| 5 | 54-410 | UPPER LOOPER CRANK | |
| 5 | 54-410 | UPPER LOOPER CRANK | |
| 5 | 54-409 | UPPER LOOPER CRANK | |
| 5 | 54-410 | UPPER LOOPER CRANK | |
| 5 | 54-409 | UPPER LOOPER CRANK | |
| 6 | 54-7580-1 | NEEDLE BAR CRANK ROD | |
| 6 | 54-7580-1 | NEEDLE BAR CRANK ROD | |
| 6 | 54-7580-1 | NEEDLE BAR CRANK ROD | |
| 6 | 54-7580-1 | NEEDLE BAR CRANK ROD | |
| 6 | 54-7580-1 | NEEDLE BAR CRANK ROD | |
| 6 | 54-7580-1 | NEEDLE BAR CRANK ROD | |
| 7 | 54-6000-1 | UPPER KNIFE CRANK ROD | |
| 7 | 54-6000-1 | UPPER KNIFE CRANK ROD | |
| 7 | 54-6000-1 | UPPER KNIFE CRANK ROD | |
| 7 | 54-6000-1 | UPPER KNIFE CRANK ROD | |
| 7 | 54-6000-1 | UPPER KNIFE CRANK ROD | |
| 7 | 54-6000-1 | UPPER KNIFE CRANK ROD |
Page 33 — 30. 糸通し図一覧表 THREADING DIAGRAM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 54-470 | |||
| 54-471 | |||
| 54-728 | |||
| 54-740 | |||
| 54-472 | |||
| 54-655 | |||
| 54-664 |
Page 34 — 31. JJ30 GAUGE PARTS TABLE (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 57-171 | NEEDLE PLATE | ||
| 57-2610-1 | MAIN FEED DOG ASS'Y | ||
| 57-262 | MAIN FEED DOG | ||
| 57-263 | AUXILIARY FEED DOG | ||
| 57-269 | DIFFERENTIAL FEED DOG | ||
| 57-5410-1 | PRESSER FOOT ASS'Y | ||
| 57-548 | STOPPER | ||
| 57-411 | UPPER LOOPER | ||
| 57-414 | LOWER LOOPER | ||
| SW | 57-178 | NEEDLE PLATE | 3 |
| NG | 57-2790-1 | MAIN FEED DOG ASS'Y | 3 |
| SW | 57-272 | MAIN FEED DOG | 3 |
| SW | 57-277 | DIFFERENTIAL FEED DOG | 3 |
| NG | 57-5840-1 | PRESSER FOOT ASS'Y | 3 |
| SW | 57-179 | NEEDLE PLATE | 4 |
| NG | 57-5880-1 | PRESSER FOOT ASS'Y | 4 |
| SW | 57-175 | NEEDLE PLATE | 1 |
| NG | 57-2730-1 | MAIN FEED DOG ASS'Y | 1 |
| NG | 57-274 | AUXILIARY FEED DOG | 1 |
| NG | 57-5710-1 | PRESSER FOOT ASS'Y | 1 |
| SW | 57-188 | NEEDLE PLATE | 3 |
| NG | 57-2870-1 | MAIN FEED DOG ASS'Y | 3 |
| SW | 57-268 | MAIN FEED DOG | 3 |
| NG | 57-5930-1 | PRESSER FOOT ASS'Y | 3 |
| SW | 57-189 | NEEDLE PLATE | 4 |
| NG | 57-5950-1 | PRESSER FOOT ASS'Y | 4 |
| SW | 57-180 | NEEDLE PLATE | 3 |
| NG | 57-5910-1 | PRESSER FOOT ASS'Y | 3 |
| NG | 57-412 | UPPER LOOPER | 3 |
| SW | 57-172 | NEEDLE PLATE | 4 |
| NG | 57-5500-1 | PRESSER FOOT ASS'Y | 4 |
| SW | 57-417 | NEEDLE GUARD FRONT | 4 |
| NG | 57-419 | NEEDLE GUARD REAR | 4 |
| SW | 57-531 | NEEDLE HOLDER | 4 |
| NG | DCx27 #9 | NEEDLE | 4 |
| NG | DCx27 #11 | NEEDLE | 1 |
| SW | 57-532 | NEEDLE HOLDER | 3 |
Page 35 — 32. JJ30 GAUGE PARTS TABLE (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 57-181 | NEEDLE PLATE | ||
| 57-2610-1 | MAIN FEED DOG ASS'Y | 5 | |
| 57-262 | MAIN FEED DOG | 5 | |
| 57-263 | AUXILIARY FEED DOG | 5 | |
| 57-269 | DIFFERENTIAL FEED DOG | 5 | |
| 57-5500-1 | PRESSER FOOT ASS'Y | 5 | |
| 57-548 | STOPPER | 5 | |
| 57-412 | UPPER LOOPER | 5 | |
| 57-414 | LOWER LOOPER | 5 | |
| 57-180 | NEEDLE PLATE | 3 | |
| 57-4780-1 | PRESSER FOOT ASS'Y | 3 | |
| 57-172 | NEEDLE PLATE | 4 | |
| 57-5740-1 | PRESSER FOOT ASS'Y | 4 | |
| 57-190 | NEEDLE PLATE | 4 | |
| 57-2670-1 | MAIN FEED DOG ASS'Y | 4 | |
| 57-268 | MAIN FEED DOG | 4 | |
| 57-5960-1 | PRESSER FOOT ASS'Y | 4 | |
| 57-191 | NEEDLE PLATE | 5 | |
| 57-413 | UPPER LOOPER | 4 | |
| 57-192 | NEEDLE PLATE | 4 | |
| 57-2920-1 | MAIN FEED DOG ASS'Y | 4 | |
| 57-290 | MAIN FEED DOG | 4 | |
| 57-291 | AUXILIARY FEED DOG | 4 | |
| 57-293 | DIFFERENTIAL FEED DOG | 4 | |
| 57-4760-1 | PRESSER FOOT ASS'Y | 4 | |
| 57-417 | NEEDLE GUARD FRONT | 2 | |
| 57-419 | NEEDLE GUARD REAR | 2 | |
| 57-532 | NEEDLE HOLDER | 2 | |
| DCx27 #9 | NEEDLE | 2 | |
| DCx27 #11 | NEEDLE | 4 | |
| 57-537 | NEEDLE HOLDER | 4 | |
| DCx27 #18 | NEEDLE | 4 |
Page 36 — JJ31 GAUGE PARTS TABLE (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 4 | 57-2640-1 | MAIN FEED DOG ASS'Y | 3 |
| 4 | 57-263 | MAIN FEED DOG | 3 |
| 4 | 57-270 | DIFFERENTIAL FEED DOG | 3 |
| 4 | 57-5520-1 | PRESSER FOOT ASS'Y | 3 |
| 4 | 57-561 | SPRING | 3 |
| 4 | 57-411 | UPPER LOOPER | 3 |
| 4 | 57-414 | LOWER LOOPER | 3 |
| 4 | 57-4500-1 | PRESSER FOOT ASS'Y | 3 |
| 4 | 57-2810-1 | MAIN FEED DOG ASS'Y | 3 |
| 4 | 57-282 | MAIN FEED DOG | 3 |
| 4 | 57-4630-1 | PRESSER FOOT ASS'Y | 3 |
| 4 | 57-4680-1 | PRESSER FOOT ASS'Y | 3 |
| 4 | 57-415 | CHAINSTITCH LOOPER | 3 |
| 4 | 57-418 | OVERLOCK NEEDLE GUARD FRONT | 3 |
| 4 | 57-419 | OVERLOCK NEEDLE GUARD REAR | 3 |
| 4 | 57-420 | CHAINSTITCH NEEDLE GUARD | 3 |
| 4 | 57-421 | NEEDLE HOLDER | 3 |
| 4 | 57-533 | NEEDLE | 3 |
| 5 | 57-2750-1 | MAIN FEED DOG ASS'Y | 3 |
| 5 | 57-276 | MAIN FEED DOG | 3 |
| 5 | 57-280 | DIFFERENTIAL FEED DOG | 3 |
| 5 | 57-412 | UPPER LOOPER | 3 |
| 5 | 57-278 | DIFFERENTIAL FEED DOG | 5 |
| 5 | 57-5790-1 | PRESSER FOOT ASS'Y | 5 |
| 5 | 57-535 | NEEDLE HOLDER | 5 |
| 57-173 | NEEDLE PLATE | ||
| 57-173 | NEEDLE PLATE | ||
| 57-182 | NEEDLE PLATE | ||
| 57-176 | NEEDLE PLATE | ||
| 57-183 | NEEDLE PLATE | ||
| 57-176 | NEEDLE PLATE | ||
| 57-185 | NEEDLE PLATE | ||
| 57-185 | NEEDLE PLATE |
Page 37 — 34. JJ31 GAUGE PARTS TABLE (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 57-186 | NEEDLE PLATE | ||
| 57-184 | NEEDLE PLATE | ||
| 57-174 | NEEDLE PLATE | ||
| 57-187 | NEEDLE PLATE | ||
| 57-177 | NEEDLE PLATE | ||
| 57-415 | CHAINSTITCH LOOPER | ||
| 57-416 | CHAINSTITCH LOOPER | ||
| 57-416 | CHAINSTITCH LOOPER | ||
| 57-416 | CHAINSTITCH LOOPER | ||
| 57-415 | CHAINSTITCH LOOPER | ||
| 57-2830-1 | MAIN FEED DOG ASS'Y | 5 | |
| 57-284 | MAIN FEED DOG | 5 | |
| 57-263 | AUXILIARY FEED DOG | 5 | |
| 57-286 | DIFFERENTIAL FEED DOG | 5 | |
| 57-4660-1 | PRESSER FOOT ASS'Y | 5 | |
| 57-561 | SPRING | 5 | |
| 57-412 | UPPER LOOPER | 5 | |
| 57-414 | LOWER LOOPER | 5 | |
| 57-2660-1 | MAIN FEED DOG ASS'Y | 5 | |
| 57-287 | MAIN FEED DOG | 5 | |
| 57-268 | AUXILIARY FEED DOG | 5 | |
| 57-271 | DIFFERENTIAL FEED DOG | 5 | |
| 57-5630-1 | PRESSER FOOT ASS'Y | 5 | |
| 57-569 | SPRING | 5 | |
| 57-413 | UPPER LOOPER | 5 | |
| 57-2750-1 | MAIN FEED DOG ASS'Y | 3x2 | |
| 57-276 | MAIN FEED DOG | 3x2 | |
| 57-278 | DIFFERENTIAL FEED DOG | 3x2 | |
| 57-5820-1 | PRESSER FOOT ASS'Y | 3x2 | |
| 57-418 | OVERLOCK NEEDLE GUARD FRONT | 5 | |
| 57-419 | OVERLOCK NEEDLE GUARD REAR | 5 | |
| 57-420 | CHAINSTITCH NEEDLE GUARD FRONT | 5 | |
| 57-421 | CHAINSTITCH NEEDLE GUARD REAR | 5 | |
| 57-535 | NEEDLE HOLDER | 5 | |
| DCx27 | NEEDLE | 5 | |
| 57-534 | NEEDLE HOLDER | 5 | |
| 57-536 | NEEDLE HOLDER | 3x2 |
Page 39 — INDEX 2
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 25-22 | 56-713 | ||
| 25-23 | 56-715 | ||
| 25-24 | 56-716 | ||
| 25-25 | 56-717 | ||
| 25-26 | 56-7200-1 | ||
| 23-05 | 56-741 | ||
| 15-32 | 56-765 | ||
| 15-33 | 56-766 | ||
| 15-34 | 56-767 | ||
| 15-35 | 56-768 | ||
| 13-42 | 56-771 | ||
| 01-11 | 56-811 | ||
| 13-43 | 56-817 | ||
| 19-16 | 56-817 | ||
| 11-28 | 56-854 | ||
| 22-20 | 56-902 | ||
| 22-21 | 56-906 | ||
| 22-22 | 56-907 | ||
| 22-23 | 56-9100-1 | ||
| 22-24 | 56-912 | ||
| 20-01 | 56-913 | ||
| 20-02 | 56-914 | ||
| 20-03 | 56-915 | ||
| 20-04 | 56-916 | ||
| 23-06 | 56-917 | ||
| 26-51 | 56-918 | ||
| 22-25 | 56-951 | ||
| 22-26 | 56-952 | ||
| 22-27 | 56-953 | ||
| 22-28 | 56-954 | ||
| 21-01 | 56-9550-1 | ||
| 21-02 | 56-9560-1 | ||
| 21-03 | 56-957 | ||
| 25-27 | 56-957 | ||
| 21-04 | 56-958 | ||
| 25-28 | 56-958 | ||
| 21-05 | 56-959 | ||
| 21-06 | 56-960 | ||
| 21-07 | 56-961 | ||
| 21-08 | 56-962 | ||
| 25-29 | 56-962 | ||
| 21-09 | 56-963 | ||
| 25-30 | 56-963 | ||
| 21-10 | 56-964 | ||
| 25-31 | 56-964 | ||
| 21-11 | 56-965 | ||
| 25-32 | 56-965 | ||
| 22-29 | 56-966 | ||
| 24-14 | 57-462 | ||
| 12-35 | 57-548 | ||
| 12-36 | 57-549 | ||
| 12-37 | 57-561 | ||
| 12-38 | 57-562 | ||
| 24-15 | 57-570 | ||
| 26-53 | 57-570 |
Page 44 — STICH TYPE 514
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JJ3014GE-01H | STICH TYPE 514 | ||
| JJ3116(G)S-01M | STICH TYPE 516 | ||
| JJ3116(G)S-02M | STICH TYPE 516 | ||
| JJ3116(G)S-01H | STICH TYPE 516 | ||
| JJ3116(G)S-30M | STICH TYPE 516 | ||
| JJ3116(G)S-30M-P | STICH TYPE 516 | ||
| JJ3116(G)H-01H | STICH TYPE 516 | ||
| JJ3014GE-60HK | STICH TYPE 514 | ||
| JJ3143(G)H-90M | STICH TYPE 516 |
Page 52 — 【11】 STICH FORMATION ADJUSTMENT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JJ3004 | 出荷時は調整済みです。 Already adjusted | ||
| JJ3005 | 出荷時は調整済みです。 Already adjusted | ||
| JJ3116 | 出荷時は調整済みです。 Already adjusted | ||
| JJ3143 | 出荷時は調整済みです。 Already adjusted |
Page 55 — [14] SPECIFICATION
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| JJ3004(G)S-01M | MODEL | ||
| JJ3004(G)S-20F | MODEL | ||
| JJ3004(G)S-50M | MODEL | ||
| JJ3005(G)S-10M | MODEL | 10.5 | |
| JJ3014(G)H-01M | MODEL | ||
| JJ3014(G)H-40M | MODEL | ||
| JJ3014(G)H-50M | MODEL | 0.8 | |
| JJ3014GE-01H | MODEL | 11.9 | |
| JJ3014GE-60HK | MODEL | 1.0 | |
| JJ3116(G)S-01M | MODEL | 10.5 | |
| JJ3116(G)S-02M | MODEL | ||
| JJ3116(G)S-01H | MODEL | 0.8 | |
| JJ3116(G)S-30M(P) | MODEL | ||
| JJ3116(G)H-01H | MODEL | 1.5 | |
| JJ3116(G)E-03X | MODEL | 11.9 | |
| JJ3143(G)H-90M | MODEL | 10.5 |
Kansai Special JJ-3300 — parts catalog
- Page 1 (cover): This is the cover page for the JJ Series Industrial Sewing Machines Parts List & Instruction manual, Fifth Edition, November 2019, with model numbers JJ30 and JJ31 listed, and catalog number No.KX19011.
- Page 2 (cover): This is the cover page of the JJ Series Parts Book, published in November 2019, providing an introduction and information on machine models and their specifications.
- Page 3 (toc): This page contains the table of contents for the parts catalog, listing 34 sections with their corresponding page numbers.
- Page 4 (diagram): This page displays a diagram of the frame assembly for an industrial sewing machine, with a corresponding parts list detailing components such as bolts, pins, plates, and covers.
- Page 5 (diagram): This page displays a diagram of cover assembly components for the JJ30 and JJ31 series sewing machines, along with a detailed parts list including part numbers, descriptions, and quantities.
- Page 6 (diagram): This page displays a diagram of cover assembly components, with a detailed parts list including part numbers, descriptions, and quantities.
- Page 7 (diagram): This page contains a diagram of the bushing mechanism, with a parts list detailing reference numbers, part numbers, descriptions, and quantities.
- Page 8 (diagram): This page displays a diagram of the crankshaft mechanism for JJ31 sewing machines, along with a detailed parts list including part numbers, descriptions, and quantities.
- Page 9 (diagram): This page contains a diagram and parts list for the Needle Bar Mechanism, including screws, bolts, pins, levers, and other components.
- Page 10 (diagram): This page displays a diagram of the upper looper mechanism, with a detailed parts list including part numbers, descriptions, and quantities.
- Page 11 (diagram): This page displays a diagram of the lower looper mechanism, with a parts list detailing components such as screws, bolts, washers, and the lower looper holder.
- Page 12 (parts_list): This page displays a parts list for the feed mechanism (1) of an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 13 (diagram): This page displays a diagram of the feed mechanism (2) with a parts list detailing reference numbers, part numbers, descriptions, and quantities.
- Page 14 (diagram): This page displays a diagram of the knife mechanism for JJ30 and JJ31 series sewing machines, along with a detailed parts list.
- Page 15 (diagram): Exploded diagram of the presser foot mechanism with a parts table listing reference numbers, part numbers, Japanese and English names, and quantities for items 12-01 to 12-39.
- Page 16 (parts_list): This page contains a parts list for the lubrication mechanism, detailing part numbers, descriptions, and quantities for various components.
- Page 17 (parts_list): This page lists parts for the thread tension mechanism (1) and includes diagrams for 1-needle, 2-needle, and 3-needle configurations.
- Page 18 (diagram): This page displays a diagram of the thread tension mechanism (2) for JJ30 and JJ31 series sewing machines, along with a detailed parts list.
- Page 19 (diagram): This page displays a diagram of thread tension components (3) with a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 20 (diagram): This page displays a diagram of the CHAINSTITCH LOOPER MECHANISM (1) with a corresponding parts list. The parts list includes reference numbers, part numbers, descriptions, and quantities for each component.
- Page 21 (diagram): This page displays a diagram of the CHAINSTITCH LOOPER MECHANISM (2) with associated parts listed in a table.
- Page 22 (parts_list): This page contains a parts list for the H.R. DEVICE, with parts for models JJ30 and JJ31 listed.
- Page 23 (parts_list): This page lists thread stand assemblies for JJ3004, JJ3014, JJ3116, and JJ3143 series machines, with part numbers, descriptions, and quantities.
- Page 24 (diagram): This page contains a parts diagram and list for the EDGE GUIDE (Option) for JJ30 and JJ31 models, detailing various components like brackets, screws, and nuts.
- Page 25 (parts_list): This page lists accessories for the sewing machine, including various tools, labels, oil, and fasteners, with their corresponding part numbers and descriptions.
- Page 26 (parts_list): This page contains a parts list for tape attaching components for the JJ3014GH-40M model, including part numbers, descriptions, and quantities.
- Page 27 (parts_list): This page lists specific parts for JJ3014GH, JJ3143GH, JJ3014GE-01H, and JJ3116GS-02M sewing machines, including part numbers, descriptions, and quantities.
- Page 28 (parts_list): This page contains a parts list for specific parts (3) for the JJ3005GS-10M model, specifically for blind hemming.
- Page 29 (parts_list): This page lists specific parts for the JJ3116GS-30M and JJ3116GS-30MP shirring machines, including part numbers, descriptions, quantities, and reference numbers.
- Page 30 (parts_list): This page lists specific parts for the JJ3004GS-50M and JJ3014GH-50M models, including various screws, nuts, washers, brackets, and specialized components like the back latching device.
- Page 31 (parts_list): This page contains a parts list for Serging specific parts for the JJ3014GE-60HK model, including part numbers, descriptions, and quantities.
- Page 32 (parts_list): This page contains a parts list for the CRANKSHAFT SET, detailing part numbers, descriptions, and model applicability.
- Page 33 (diagram): This page contains a threading diagram for a sewing machine, listing parts numbers and applicable machine models.
- Page 34 (parts_list): This page contains a parts list for JJ30 gauge parts, including part numbers, descriptions, and applicable machine models.
- Page 35 (parts_list): This page contains a parts list for JJ30 gauge parts, including machine type, gauge specifications, needle plate, feed dogs, presser foot, and needle information.
- Page 36 (parts_list): This page contains a parts list for JJ31 gauge parts, including machine types, part numbers, and descriptions for various components like needle plates, feed dogs, and loopers.
- Page 37 (parts_list): This page contains a parts list for JJ31 gauge parts, including part numbers, descriptions, and specifications for various machine models.
- Page 39 (index): This page is an index of parts for an industrial sewing machine, listing reference numbers and part numbers across multiple columns.
- Page 40 (cover): This is the cover page for the JJ Series Industrial Sewing Machines instruction manual, published in November 2019 by KANSAI SPECIAL.
- Page 41 (text): This page contains an introduction to the JJ series machine manual, including important notes on adjustments, maintenance, and safety precautions before operating the machine.
- Page 43 (text): This page contains information about needles, including standard needle recommendations and a table listing various needle part numbers with their corresponding Schmetz B-27 and Organ DCx27 sizes. It also includes diagrams for stitch types 504 and 514, and a note on needle replacement.
- Page 44 (diagram): This page displays diagrams of STICH TYPE 514 and STICH TYPE 516, with associated part numbers listed for each.
- Page 45 (text): This page details machine speed specifications and motor/belt information, including tables for machine speed based on model and motor pulley diameter, and a diagram illustrating belt adjustment.
- Page 46 (text): This page details lubrication procedures, including oil specifications, oiling methods, and oil and filter replacement instructions for the machine, accompanied by diagrams illustrating these processes.
- Page 47 (diagram): This page contains a diagram illustrating the standard table installation for a direct motor, with detailed dimensions and cross-sections.
- Page 48 (text): This page contains instructions for the installation process and initial needle bar height adjustment, including diagrams and a table of model names with corresponding measurements.
- Page 49 (text): This page contains information on looper and needle timing, including distance measurements for different models, and upper looper adjustment procedures.
- Page 50 (text): This page details the adjustment procedures for the double chain looper gauge and the feed dog height and inclination, including specific measurements and screw adjustments.
- Page 51 (text): This page details stitch length adjustment, differential feed dog adjustment, and presser foot adjustment, including specific steps and notes for each procedure, accompanied by diagrams illustrating the adjustments.
- Page 52 (text): This page details stitch formation adjustment, including thread tension adjustment and needle thread take-up & thread eyelet adjustment with diagrams and part numbers.
- Page 53 (diagram): This page details the adjustment of the looper thread take-up mechanism, including diagrams and a table of part numbers and their corresponding measurements for different machine models.
- Page 54 (text): This page contains instructions for adjusting the upper and lower knife and sharpening the lower knife, along with diagrams illustrating the adjustments.
- Page 55 (parts_list): This page contains parts lists for JJ30 and JJ31 series models, detailing specifications for various machine models.
- Page 56 (cover): This is the cover page for Morimoto Mfg. Co., Ltd., a manufacturer of industrial sewing machines. It includes the company name in both Japanese and English, its address and contact information in Japan, and a list of its foreign affiliated companies with their respective contact details.
