Page 7 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS

Juki LK-1850 parts on page 7
Ref	Part number	Part name	Qty
1	CM-3002000-01	ATTENTION SEAL	1
2	262-11755	FACE COVER ASM.	1
3	SS-4111015-SP	SCREW 11/64-40 L=10	2
4	SD-0640471-SP	HINGE SCREW D= 6.35 H= 4.7	2
5	WZ-0641510-KP	WAVED WASHER 6.4X11X0.3	2
6	CM-6001001-01	WEEE MARK LABEL S	1
7	262-11300	BED COVER B	1
8	262-12308	SCREW	1
9	138-16509	TOP COVER	1
10	400-23026	BELT COVER FIXING PLATE	1
11	SS-4110915-SP	SCREW 11/64-40 L=9	2
12	CM-3012000-01	SAFETY LABEL_S	1
13	135-05805	BELT COVER	1
14	SS-4090715-SP	SCREW 9/64-40 L=7	2
15	400-23027	BELT COVER PLATE	1
16	262-11607	BALANCE COVER	1
17	SS-7110840-SP	SCREW 11/64-40 L=7.8	1
18	NS-6090310-SP	NUT 9/64-40	1
19	B3114-771-000	THREAD GUIDE	1
20	NS-6090310-SP	NUT 9/64-40	1
21	262-12209	L-SHAPED THREAD GUIDE	1
22	137-06601	TAKE-UP THREAD GUIDE, A	1
23	SS-3090610-SP	SCREW 9/64-40 L=6	1
24	262-11805	BED FITTING HOOK	1
25	SS-1110821-TP	SCREW 11/64-40 L=8.3	2
26	262-11904	THREAD GUIDE PLATE	1
27	SS-4150715-SP	SCREW 15/64-28 L=7	1
28	NS-6150540-SP	NUT 15/64-28	1
29	262-12001	FIRST THREAD GUIDE	1
30	SS-8150822-TP	SCREW 15/64-28 L=8	2
31	262-10708	RUBBER WASHER	2
32	PS-0800202-KH	SPRING PIN 8X20	2
33	262-17703	BASE CONNEVTING PIN	2
34	WP-1052000-SC	WASHER 10.5X18X2	1
35	RE-0600000-K0	E-RING 6	1
36	SS-4150715-SP	SCREW 15/64-28 L=7	2
37	TA-1470704-R0	RUBBER PLUG	1
38	262-11201	BED COVER A	1
39	262-10203	STAY	1
40	262-10500	BED ROCKER	1
41	262-10302	STAY ROCKER	1
42	262-10450	STAY GUIDE COMPL.	1
43	SD-0800341-SP	HINGE SCREW D=8 H=3.4	3
44	B2008-372-000	THREAD TENSION SPRING	1
45	SS-7151210-SP	SCREW 15/64-28 L=12	2
46	262-10104	VIBRATION PROOF RUBBER	2
47	262-10005	RUBBER BUSH	2
48	SM-0040601-SA	SCREW M4 L=6	1
49	WP-0450801-SD	WASHER 4.5X10X0.8	1
50	R0-0442401-00	RUBBER RING	1
51	135-00319	BED FITTING BASE	1
52	400-52806	SAFETY PLATE ASM.	1
53	260-37200	SAFETY PLATE	(1)
54	SM-4040655-SP	SCREW M4 L=6	(2)
55	WP-0450801-SD	WASHER 4.5X10X0.8	(2)
56	SS-4110715-SP	SCREW 11/64-40 L=7	(2)
57	400-51987	SAFETY PLATE INSTALLING BASE	(1)
58	262-11409	SPRING	2
59	TA-2050406-R0	RUBBER PLUG	1
60	SD-0800681-SP	HINGE SCREW D=8 H=6.8	2
61	WP-0480856-SP	WASHER 4.8X8.4X0.8	2
62	TA-0750704-R0	RUBBER PLUG	1
63	262-12100	ARM THREAD GUIDE B	1
64	SS-7110710-SP	SCREW 11/64-40 L=7	1
65	135-02307	FACE PACKING	1
66	SS-6151220-SP	SCREW 15/64-28 L=11.5	5
	RE-060000-KO	E-RING 6	1
	TA-2050408-R0	RUBBER PLUG	1

Page 9 — 2. MAIN SHAFT COMPONENTS

Juki LK-1850 parts on page 9
Ref	Part number	Part name	Qty
1	B1223-771-000	NEEDLE ROD CRANK WASHER	1
2	SS-6151412-TP	SCREW 15/64-28 L=14	1
3	SS-8660530-TP	SCREW 1/4-40 L= 4.5	1
4	SS-6681712-TP	SCREW 9/32-28 L=16.5	1
5	SS-8660610-TP	SCREW 1/4-40 L=6	1
6	B1202-280-000	COUNTER WEIGHT	1
7	262-12704	UPPER SHAFT FRONT METAL	1
8	262-12605	MAIN SHAFT	1
9	262-12803	UPPER SHAFT INNER METAL	1
10	135-10367	WORM ASM.	1
11	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
12	CS-150111B-TH	THRUST COLLAR ASM. D=15 W=10.8	1
13	SS-6661110-SP	SCREW 1/4-40 L=11	(1)
14	B1211-980-000	UPPER SHAFT THRUST BEARING	2
15	B1208-980-00B	MAIN SHAFT NEEDLE BEARING B	1
16	262-14403	UPPER SHAFT REAR METAL	1
17	B1210-980-000	SET SCREW	1
18	135-03453	THREAD CUTTING CAM ASM.	1
19	SS-8661012-TP	SCREW	(1)
20	SS-8661212-TP	SCREW	(1)
21	SS-8151230-SP	SCREW 15/64-28 L=12	1
22	SS-6741512-TP	SCREW 3/8-28 L=14.5	1
23	SS-6742012-TP	SCREW 3/8-28 L=19.5	1
24	135-03552	STOP-MOTION CAM ASM.	1
25	135-03503	STOP-MOTION CAM	(1)
26	B1215-980-000	STOP MOTION CAM LATCH	(1)
27	B1217-280-000	SAFETY PLATE STOPPER SPRING	(1)
28	135-03602	PIN	(1)
29	135-03750	HIGH SPEED CLUTCH PLATE ASM.	1
30	SS-2110920-TP	SCREW 11/64-40 L=8.5	2
31	SS-1110640-TP	SCREW 11/64-40 L= 5.5	1
32	262-13306	SPACER	3
33	135-03909	SPRING	2
34	135-04204	HIGH SPEED PULLEY	1
35	SB-1350002-00	BEARING D=35X62	2
36	135-04907	SHIM	6
37	135-04303	WASHER	2
38	RC-3221517-KP	RETAINING RING 32.2	1
39	135-04105	SLOW SPEED PULLEY SPRING	3
40	RC-6622018-KP	RETAINING RING 66.2	2
41	135-04451	PULLEY ASM.	1
42	SS-1110640-TP	SCREW 11/64-40 L= 5.5	3
43	135-04402	PULLEY	1
44	135-04501	PULLEY SHAFT	1
45	SS-8660612-TP	SCREW 1/4-40 L=6	1
46	135-04600	SLOW SPEED PULLEY SHAFT	1
47	SS-8661112-TP	SCREW 1/4-40 L=11	1
48	135-04709	SLOW SPEED PULLEY	1
49	262-13801	SLOW SPEED PULLEY PLATE	1
50	WS-0451040-KP	SPRING WASHER 4.5X8.5X1	2
51	SS-7111120-TP	SCREW	2
52	262-13900	BALL RETAINER	1
53	SS-2090710-TP	SCREW 9/64-40 L=7.2	2
54	B1253-980-000	STOP-MOTION BALL	1
55	262-14007	PULLEY SPACER	3
56	135-05102	REGULATOR SHIM	6

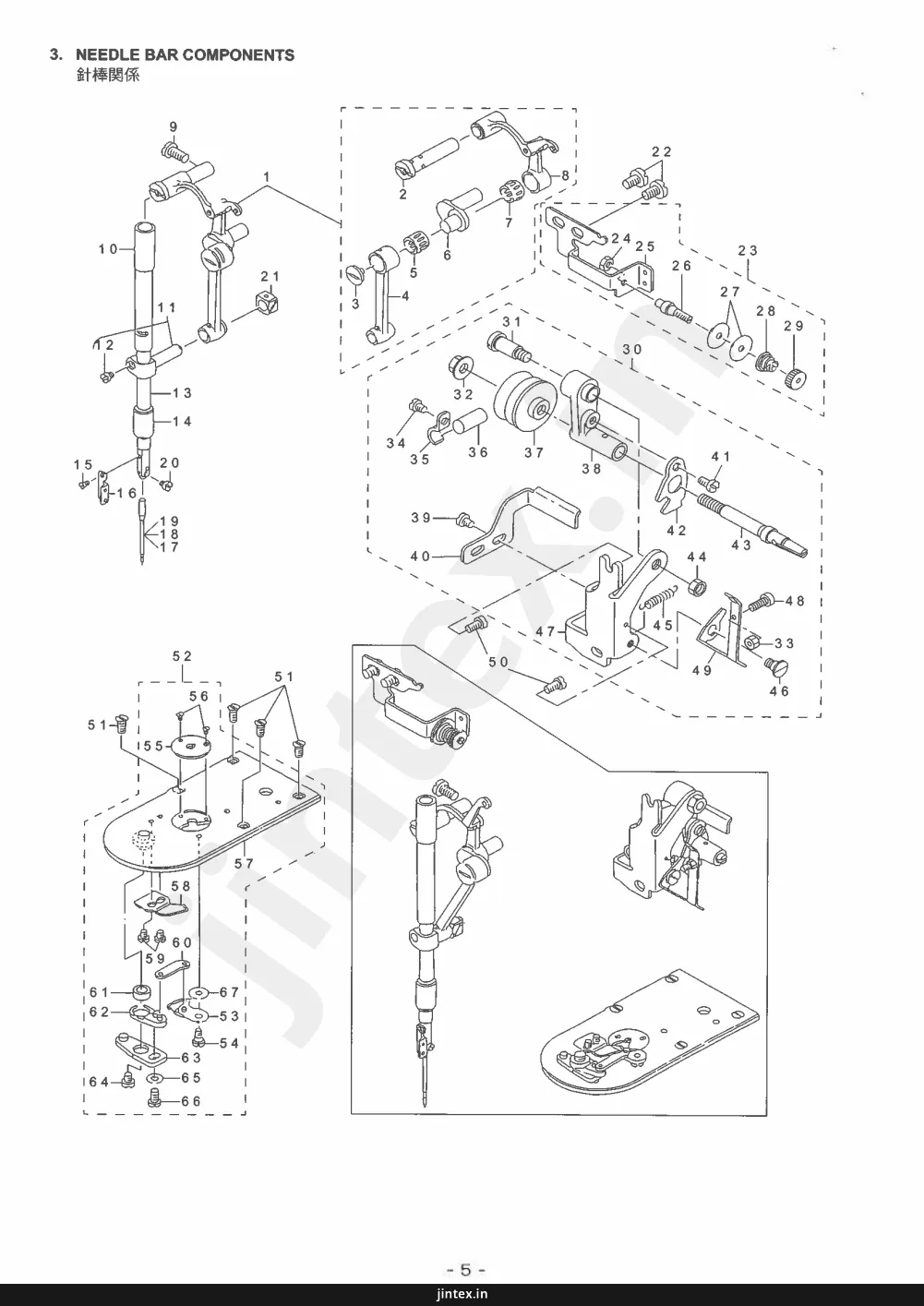

Page 11 — 3. NEEDLE BAR COMPONENTS

Juki LK-1850 parts on page 11
Ref	Part number	Part name	Qty
1	B1901-280-0B0	LINK BALANCE ASM.	1
2	B1904-280-000	BALANCE CRANK PIN	(1)
3	B1903-552-000	LEFT SCREW	(1)
4	B1404-280-000	NEEDLE BAR CRANK ROD	(1)
5	B1411-804-C00	NEEDLE DRIVING LEVER BEARING C	(1)
6	B1203-280-000	NEEDLE ROD CRANK	(1)
7	B1905-541-B00	NEEDLE BEARING	(1)
8	B1901-280-0A0	BALANCE ASM.	(1)
9	SS-7151120-SP	SCREW 15/64-28 L=11	1
10	262-03208	NEEDLE ROD METAL	1
11	B1411-552-0A0	NEEDLE BAR CONNECTING ASM.	1
12	SS-6090670-TP	SCREW 9/64-40 L=6	(1)
13	262-00006	NEEDLE BAR	1
14	B1403-280-000	NEEDLE ROD LOWER METAL	1
15	SS-2060510-SP	SCREW 3/32-56 L=4.5	1
16	262-15301	NEEDLE BAR THREAD GUIDE	1
17	MDP-500B1400	NEEDLE DPX5 #14	1
18	MDP-500B1600	NEEDLE DPX5 #16	1
19	MC-2005010-00	NEEDLE #100	1
20	SS-6080340-SP	SCREW 1/8-44 L=2.9	1
21	B1414-232-000	SQUARE BLOCK	1
22	SS-4150915-SP	SCREW 15/64-28 L=9	2
23	262-03455	THREAD GUIDE BRACKET COMPL.	1
24	NS-6110310-SP	NUT 11/64-40	(1)
25	262-03406	THREAD GUIDE BRACKET	(1)
26	262-16705	BOBBIN WINDER TENSION POST	(1)
27	B3214-047-000	BOBBIN WINDER TENSION DISC	(2)
28	262-16606	BOBBIN WINDER TENSION SPRING	(1)
29	262-16507	BOBBIN WINDER TENSION NUT	(1)
30	262-01152	BOBBIN WINDER ASM.	1
31	SD-0791331-SP	HINGE SCREW D=7.94 H=13.3	(1)
32	262-02705	NUT	(1)
33	262-02408	NUT	(1)
34	262-02309	SCREW	(1)
35	262-02101	BRAKE PRESSER PLATE	(1)
36	262-02002	BOBBIN WINDER BRAKE	(1)
37	262-01400	BOBBIN WINDER WHEEL	(1)
38	262-01103	BOBBIN WINDER SHAFT HOLDER	(1)
39	262-02309	SCREW	(1)
40	262-01608	BOBBIN WINDER BELT SUPPORT	(1)
41	262-02200	SCREW	(1)
42	262-01202	BOBBIN WINDER TRIP LATCH	(1)
43	262-01707	BOBBIN WINDER SHAFT	(1)
44	262-02507	NUT	(1)
45	262-01806	SPRING	(1)
46	SD-0720193-SP	HINGE SCREW D=7.24 H=1.9	(1)
47	262-01301	BOBBIN WINDER FITTING PLATE	(1)
48	262-01905	BOBBIN PRESSER BOSS	(1)
49	262-01509	BOBBIN PRESSER	(1)
50	SS-4110915-SP	SCREW 11/64-40 L=9	2
51	SS-1110640-TP	SCREW 11/64-40 L=5.5	4
52	135-15556	NEEDLE PLATE ASM.	1
53	B2421-280-0A0	MOVING KNIFE ASM.	(1)
54	SD-0500091-TP	HINGE SCREW D=5.0 H=0.9	(1)
55	B2426-280-000	NEEDLE HOLE GUIDE	(1)
56	SS-1060210-TP	SCREW 3/32-56 L=2.2	(2)
57	135-15564	NEEDLE PLATE ASM.	(1)
58	B2424-280-000	FIXING KNIFE	(1)
58	B2420-280-000	FIXING KNIFE	(1)
59	SS-7090410-SP	SCREW 9/64-40 L=3.5	(2)
60	B2418-280-000	MOVING KNIFE LINK	(1)
61	B2416-280-000	THREAD CUTTING LEVER RING	(1)
62	B2415-280-0A0	THREAD CUTTER LEVER ASM., SMAL	(1)
63	B2414-280-0A0	THREAD CUTTER LEVER ASM., LARG	(1)
64	SS-6110430-TP	SCREW 11/64-40 L=4.0	(1)
65	WP-0450846-SP	WASHER	(2)
65	WP-0400946-SP	WASHER	(2)
66	SS-7110740-TP	SCREW 11/64-40 L=7	(1)
67	B2423-280-00C	MOVING KNIFE WASHER C	(1)

Page 13 — 4. THREAD TENSION RELEASE COMPONENTS

Juki LK-1850 parts on page 13
Ref	Part number	Part name	Qty
1	B2303-280-000	TENSION RELEASE PIN	1
2	SS-9151740-CP	SCREW 15/64-28 L=17	1
3	262-18859	WIPER ASM.	1
4	B2302-280-0A0	SECOND THREAD TENSION ASM.	1
5	SS-8090610-SP	SCREW 9/64-40 L=5.9	(1)
6	B2313-280-000	THREAD TENSION ROD, LARGE	(1)
7	B2302-280-000	SECOND THREAD TENSION ROD	(1)
8	B3112-761-000	THREAD TAKE-UP SPRING	(1)
9	B3126-012-000	THREAD TENSION DISK	(2)
10	B3132-552-000	THREAD TENSION DISK PRESSER	(1)
11	B3107-804-000	THREAD TENSION DISK PRESSER	(1)
12	B3114-232-000	THREAD TENSION SPRING	(1)
13	B3120-125-000	ROTATING STOPPER	(1)
14	B3119-771-000	THREAD TENSION NUT	(1)
15	262-18651	FIRST THREAD TENSION ASM.	1
16	262-20400	THREAD TENSION ROD	(1)
17	B3126-012-000	THREAD TENSION DISK	(2)
18	262-18602	FIRST THREAD TENSION SPRING	(1)
19	B3125-012-000	THREAD TENSION NUT	(1)
20	SD-1000401-SP	HINGE SCREW D=10 H=4	2
21	262-17109	CONNECTING LINK	1
22	262-04602	LOWERING FOOT	1
23	SD-0790601-SP	HINGE SCREW D=7.94 H=6	1
24	NS-6150310-SP	NUT 15/64-28	1
25	135-06217	LOWERING ARM	1
26	SM-6061802-TP	SCREW M6 L=18	1
27	135-13114	TENSION RELEASE ARM	1
28	SM-6061802-TP	SCREW M6 L=18	1
29	262-16903	SHAFT	1
30	SD-0530221-SP	HINGE SCREW D=5.3 H=2.2	1
31	265-01304	TENSION RELEASE BAR	1
32	262-18404	THREAD TENSION ARM	1
33	SS-7090620-TP	SCREW 9/64-40 L=6.1	2
34	NS-6150310-SP	NUT 15/64-28	1
35	135-06852	LOWERING CONNECTING LEVER ASM.	1
36	SD-0901201-TP	HINGE SCREW D=9 H=3.2	1
37	262-17208	LOWERING CONNECTING RING	1
38	RC-0740811-KP	C-RING	1
39	SD-0720331-SP	HINGE SCREW D=7.24 H=3.3	1
40	135-06704	TENSION SPRING	1
41	262-20707	SPRING HOOK	1
42	SD-0640391-TP	HINGE SCREW D=6.35 H=3.9	1
43	135-06415	CONNECTING ARM	1
44	SM-6061802-TP	SCREW M6 L=18	1
45	SD-0530221-SP	HINGE SCREW D=5.3 H=2.2	1
46	262-17802	WIPER CONNECTING LINK	1
47	262-18008	SPRING	1
48	262-04453	WIPER CONNECTING ARM ASM.	1
49	RC-0470611-KP	RETAINING RING 4.7	2
50	B2109-280-000	WIPER CONNECTING SCREW	1
51	135-09807	OIL SHIELD CAP	1
52	262-17901	WIPER CONNECTING PLATE	1
53	B1229-232-000	SNAP RING	1
54	135-74009	WIPER BASE PLATE	1
55	SS-4110815-SP	SCREW 11/64-40 L=8	1
56	SD-0640211-SP	HINGE SCREW D=6.35 H=2.1	1

Page 15

Juki LK-1850 parts on page 15
Ref	Part number	Part name	Qty
1	B1817-280-0A0	INNER HOOK PRESSER ASM.	1
2	B1828-980-0AB	BOBBIN CASE ASM.	1
3	262-33106	BOBBIN	1
4	262-04909	INNER HOOK	1
5	400-28681	DRIVER ASM.	1
6	SS-6121212-TP	SCREW 3/16-28 L=12.0	(1)
7	B1813-980-000	SHUTTLE NEEDLE OUTER RING	1
8	B1411-804-B00	NEEDLE DRIVING LEVER BEARING B	3
9	WP-0952616-SD	WASHER 9.5X14.8X2.6	1
10	B1814-980-000	SHUTTLE	1
11	262-22109	SHUTTLE UPPER SPRING	1
12	SS-6060410-TP	SCREW 3/32-56 L= 3.5	2
13	SS-6151220-SP	SCREW 15/64-28 L=11.5	1
14	262-22208	SHUTTLE RACEVADJUSTING SHAFT	1
15	SS-6110480-SP	SCREW 11/64-40 L=4.3	1
16	CS-080081C-SH	THRUST COLLAR ASM. D=8.0 W=8	1
17	SS-8110520-TP	SCREW 11/64-40 L= 4.5	(2)
18	135-08403	LOWER SHAFT REAR METAL	1
19	B1808-980-000	LOWER SHAFT THRUST WASHER	1
20	135-09153	LOWER SHAFT GEAR A ASM.	1
21	135-08155	CRANK ROD ASM.	1
22	SS-7111110-TP	SCREW 11/64-40 L=10.5	(2)
22	SS-8110510-TP	SCREW 11/64-40 L=10.5	(2)
23	SD-0801021-TP	HINGE SCREW D= 8 H=10.2	1
24	B1805-980-000	OSCILLATOR	1
25	NS-6660430-SP	NUT 1/4-40	1
26	CS-079101A-SH	THRUST COLLAR ASM. D=7.94 W=10	1
27	SS-8110520-TP	SCREW 11/64-40 L= 4.5	(2)
28	262-21804	THRUST COLLAR	1
29	SS-8110520-TP	SCREW 11/64-40 L= 4.5	2
30	262-03901	OSCILLATING SHAFT	1
31	SS-8150822-TP	SCREW 15/64-28 L=8	1
32	262-22406	INNER HOOK PRESSER, LEFT	1
33	262-22307	INNER HOOK PRESSER, RIGHT	1
34	262-22505	INNER HOOK PRESSURE SPRING	2
35	PS-0250162-KH	SPRING PIN 2.5X16	2
36	B1828-980-0A0	BOBBIN CASE ASM.	1
37	138-16855	CYLINDER ARM CAP ASM.	1
38	262-21200	HOOK COVER PRESSER SPRING B	1
39	SS-6111140-SP	SCREW 11/64-40 L=11	1
40	135-08700	HOOK COVER PRESSER SPRING PIN	1
41	SS-6661110-SP	SCREW 1/4-40 L=11	1
42	SS-6742012-TP	SCREW 3/8-28 L=19.5	1
43	135-10458	WORM WHEEL ASM.	1
44	135-10201	WORM WHEEL SHAFT BUSHING	1
45	262-21101	HOOK COVER PRESSER SPRING A	1
46	CS-180121A-SH	THRUST COLLAR ASM. D=18 W=12	1
47	SS-6660710-TP	SCREW 1/4-40 L=7	(2)
48	NS-6660511-SP	NUT 1/4	1
49	262-21358	WORM WHEEL SHAFT ASM.	1
50	262-21507	CAM GUIDE PIN	1
51	NS-6360810-SP	NUT 9/16-20	1
52	135-10607	FEED CAM	1

Page 17

Juki LK-1850 parts on page 17
Ref	Part number	Part name	Qty
1	SS-7110740-TP	SCREW 11/64-40 L=7	4
2	RE-0700000-K0	E-RING 7	2
3	B2557-280-00C	WASHER	2
4	135-18352	LEVER DRIVING PLATE ASM.	2
5	135-18402	TENSION SPRING	2
6	262-04107	LIFTING LEVER LEFT	1
7	262-23701	LIFTING LEVER SHAFT	1
8	135-18907	SUPPORT PLATE	1
9	SS-2110920-TP	SCREW 11/64-40 L=8.5	2
10	B2549-280-000	WORK CLAMP FOOT MOUNTING BASE	7
11	262-24808	BALL RETAINER	1
12	SM-6062002-TP	SCREW M6 L=20	1
13	WP-0621016-SD	WASHER 6.2X13X1	1
14	135-18501	SPRING SUSPENSION	1
15	135-17800	FEED BRACKET	1
16	SS-8150510-TP	SCREW 15/64-28 L=4.7	1
17	262-04008	LIFTING LEVER RIGHT	1
18	SS-8080310-TP	SCREW 1/8-44 L=2.8	2
19	262-24204	FINGER GUARD	1
20	SS-2110930-SP	SCREW 11/64-40 L=8.7	5
21	262-24105	WORK CLAMP FOOT FACE PLATE	1
22	135-18600	WORK CLAMP FOOT, RIGHT	1
23	135-18709	WORK CLAMP FOOT, LEFT	1
24	SM-3061052-TP	SCREW M6 L=10	1
25	WP-0650876-SD	WASHER 6.5X13X0.8	1
26	135-17701	FEED PLATE	1
27	SS-2110920-TP	SCREW 11/64-40 L=8.5	4
28	262-23602	FEED PLATE PRESSER PLATE	1
29	135-17529	FEED PLATE CARRIER BAR	1
30	262-22703	FEED DRIVING ARM SHAFT	2
31	SS-6151220-SP	SCREW 15/64-28 L=11.5	1
32	SS-7701010-SP	SCREW 5/16-24 L=10	1
33	NS-6150540-SP	NUT 15/64-28	2
34	WP-0702026-SP	WASHER 7X15X2	1
35	135-16307	FEED REGULATOR	1
36	262-23503	HINGE STUD	1
37	NS-6700320-SP	NUT 5/16-24	1
38	262-22901	FEED REGULATOR STUD	2
39	262-23008	INDICATOR LEVER	2
40	SD-0530221-SP	HINGE SCREW D=5.3 H=2.2	2
41	135-16703	SLIDE BLOCK B	2
42	NS-6660430-SP	NUT 1/4-40	2
42	NS-6960430-SP	NUT 1/4-40	2
43	WP-0650876-SD	WASHER 6.5X13X0.8	2
44	262-24600	FEED CAM ROLLER SHAFT	2
45	262-39806	FEED CAM ROLLER	2
46	135-16109	FEED DRIVING ARM	1
47	SS-9151440-CP	SCREW 15/64-28 L=14	1
48	135-50108	FEED REGULATOR SHAFT	2
49	TA-0550604-R0	RUBBER PLUG	2
50	262-23404	PLATE	1
51	SS-1110821-TP	SCREW 11/64-40 L=8.3	2
52	SS-6151220-SP	SCREW 15/64-28 L=11.5	1
53	WP-0704516-SP	WASHER 7X20X4.5	1
54	262-23305	SLIDE BLOCK STUD	1
55	B1414-232-000	SQUARE BLOCK	1
56	SS-6151142-TP	SCREW 15/64-28 L=10.5	1
57	135-17107	FEED ACROSS DRIVING ARM	1
58	135-17008	FEED ACROSS REGULATOR	1
59	SS-6151220-SP	SCREW 15/64-28 L=11.5	1
60	SS-4110615-SP	SCREW 11/64-40 L=6	1

Page 19 — 7. THREAD TRIMMING COMPONENTS

Juki LK-1850 parts on page 19
Ref	Part number	Part name	Qty
1	262-26407	TENSION SPRING HOOK	1
2	B2410-980-000	TENSION SPRING	1
3	SD-0650305-TP	HINGE SCREW D= 6.5 H= 3	2
4	260-17400	SPRING HOOK	1
5	262-25805	THREAD CUTTING LINK	1
6	262-26100	THREAD CUTTING RING	1
7	SS-6151440-SP	SCREW 15/64-28 L=14	1
8	262-26001	THREAD CUTTING LINK WASHER	1
9	262-25904	THREAD CUTTING LINK SHAFT	1
10	RC-1021011-KP	RETAINING RING 10.2	1
11	135-15408	CONNECTING ROD, LARGE	1
12	NS-6120310-SP	NUT 3/16-28	3
13	262-25201	ROLLER	1
14	SD-0651301-TH	HINGE SCREW D=6.5 H=13	1
15	SS-8681950-SP	SCREW 9/32-28 L=19	1
16	262-26704	THREAD CUTTING CAM ROLLER	1
17	262-25102	CAM STUD	1
18	135-34060	THREAD CUTTING CAM COMPL.	1
19	262-25706	CONNECTING ROD SMALL	1
20	135-07058	LOWERING LINK ASM.	1
21	262-17406	LOWERING LINK	(1)
22	SD-0790402-TP	HINGE SCREW D= 7.94 H= 4	(1)
23	135-07157	LOWERING LEVER ASM.	(1)
24	NS-6150310-SP	NUT 15/64-28	(1)
25	262-17505	ROLLER	(1)
26	262-17604	WASHER	(1)
27	B2615-280-000	STOP RING	(1)
28	WP-0982616-SP	WASHER 9.8X24.0X2.6	1
29	SS-6741512-TP	SCREW 3/8-28 L=14.5	1
30	SD-0901101-SP	HINGE SCREW D= 9 H=11	1
31	262-25300	AUXILIARY LEVER	1
32	262-25409	SHAFT	1
33	135-14401	THREAD TRIMMING AUXILIARY CAM	1
34	RC-0740816-K0	RETAINING RING	1
35	262-25607	CONNECTING PLATE B	1
36	SD-0790802-TP	HINGE SCREW D=7.94 H=8	1
37	262-26209	SPRING	1
38	262-26506	SPRING HOOK	1
39	NS-6110420-SP	NUT 11/64-40	1
40	SS-7110910-TP	SCREW 11/64-40 L=8.5	2
41	WP-0480856-SP	WASHER 4.8X8.4X0.8	2
42	262-25508	CONNECTING PLATE A	1

Page 21 — PEDAL PRESSURE DECREASING UNIT COMPONENTS

Juki LK-1850 parts on page 21
Ref	Part number	Part name	Qty
1	135-23188	PRESSURE DECREASING DEVICE	1
2	135-24608	PRESSURE DECREASING LEVER	(2)
3	135-25100	STUD	(2)
4	135-24707	LEVER LATCH A	(1)
5	SS-2110920-TP	SCREW 11/64-40 L=8.5	(2)
6	SS-7110910-TP	SCREW 11/64-40 L=8.5	(2)
7	SD-0640321-SP	HINGE SCREW D= 6.35 H= 3.2	(2)
8	135-24806	LEVER LATCH B	(1)
9	135-25001	SPRING	(1)
10	135-24905	PRESSURE DECREASING LEVER LINK	(1)
11	260-17400	SPRING HOOK	(2)
12	SS-8150710-SP	SCREW 15/64-28 L=7	(1)
13	MAT-80116S00	SUSPENSION PIN	(1)
14	135-25605	AUXILIARY CAM	(1)
15	SD-0720331-SP	HINGE SCREW D= 7.24 H= 3.3	(1)
16	SS-6110710-TP	SCREW 11/64-40 L= 6.5	(1)
17	135-25704	SPRING	(1)
18	SM-6061002-TP	SCREW M6 L=10	(2)
19	135-23352	PRESSURE DECREASING SHAFT ASM.	(1)
20	PS-0300162-KH	SPRING PIN 3X16	(1)
21	135-23121	PRESSURE DECREASING UNIT FRAME	(1)
22	135-24368	ROTATION PREVENTING LATCH ASM.	(1)
22	135-23388	ROTATION PREVENTING LATCH ASM.	(1)
23	135-24418	SPRING	(1)
24	SD-0600321-SP	HINGE SCREW D=6 H=3.2	(1)
25	SS-8620610-SP	SCREW 3/16-32 L=6	(1)
26	135-24277	DECREASING CLUTCH ASM.	(1)
27	135-23808	CLUTCH SPRING	(1)
28	SM-6051202-TP	SCREW M5X0.8 L=12	(1)
29	135-24129	INNER SLEEVE	(1)
30	135-24004	OUTER SLEEVE	(1)
31	135-23915	OUTER SLEEV GUIDE	(1)
32	RC-1850001-KP	SNAP RING 18.5	(1)
33	SB-1200003-00	BEARING D=20X42	(1)
34	135-23428	SHAFT	(1)
35	SB-3120001-00	BEARING D=12X15	(2)
36	135-23519	COLLAR A	(1)
37	135-23600	COLLAR B	(1)
38	135-25308	IDLER PULLEY INSTALLING PLATE	(1)
39	SS-6110810-TP	SCREW 11/64-40 L=8	(3)
40	135-25407	SCREW	(1)
41	SS-8150822-TP	SCREW 15/64-28 L=8	(2)
42	135-23212	DRIVING PULLEY	(1)
43	SS-8151550-SP	SCREW 15/64-28 L=15	(1)
44	WP-0482086-SD	WASHER 4.8X11.5X2	(2)
45	SS-8620850-SP	SCREW 3/16-32 L= 8.0	(1)
46	SM-6062002-TP	SCREW M6 L=20	3
47	135-32254	IDLER PULLEY ASM.	1
48	SD-1201501-SP	HINGE SCREW D=12 H=15	(1)
49	262-35200	IDLER BRACKET	(1)
50	WP-0621016-SD	WASHER 6.2X13X1	(1)
51	SS-6150760-SN	SCREW 15/64-28 L=6.5	(1)
52	NS-6150310-SP	NUT 15/64-28	(1)
53	WP-0612056-SD	WASHER 6.1X18.5X2	(1)
53	WP-0618506-SD	WASHER 6.1X18.5X2	(1)
54	262-35408	IDLER RING	(1)
55	135-32262	IDLER PULLEY ASM.	(1)

Page 23 — 9. STOP-MOTION MECHANISM COMPONENTS

Juki LK-1850 parts on page 23
Ref	Part number	Part name	Qty
1	135-22008	STOP-MOTION REGULATING CAM	1
2	WP-0482086-SD	WASHER 4.8X11.5X2	3
3	SS-6121212-TP	SCREW 3/16-28 L=12.0	3
4	RC-0470611-KP	RETAINING RING 4.7	1
5	262-28601	ROLLER	1
6	262-28502	ROLLER SHAFT	1
7	NS-6150430-SP	NUT 15/64-28	1
8	NS-6150430-SP	NUT 15/64-28	2
9	135-21505	STOP-MOTION ARM B	1
10	SS-6681720-TP	SCREW 9/32-28 L=16.5	1
11	NS-6680320-SP	NUT 9/32-28	1
12	SD-0800402-TP	HINGE SCREW D= 8 H= 4	2
13	262-28205	STOP-MOTION LINK	1
14	135-21760	LEVER ASM.	1
15	262-28304	REGULATING LEVER STUD	1
16	SS-7151120-SP	SCREW 15/64-28 L=11	1
17	B2608-280-000	RUBBER CUSHION	3
18	262-29104	WASHER	2
19	262-29005	PRESSURE SPRING	1
20	WP-0751576-SD	WASHER 7.5X19X1.5	1
21	B2605-372-000	STOP MOTION PLUNGER ROD	1
22	262-28908	STOP MOTION HOOK	1
23	135-20309	PULLEY PRESSING PLATE	1
24	SS-8151780-SP	SCREW 15/64-28 L=17.0	1
25	NS-6150430-SP	NUT 15/64-28	1
26	WP-0621016-SD	WASHER 6.2X13X1	1
27	SM-6061802-TP	SCREW M6 L=18	1
28	WP-0612056-SD	WASHER 6.1X18.5X2	1
29	WS-0641560-KR	SPRING WASHER 6.4X11.9X1.5	1
30	SS-7151330-SP	SCREW 15/64-28 L=13.0	1
31	SM-6061402-TP	SCREW M6 L=14	2
32	135-20705	SAFETY PLATE	1
33	135-20119	STOP-MOTION LEVER	1
34	WP-0751576-SD	WASHER 7.5X19X1.5	1
35	NS-6680410-SP	NUT 9/32-28	1
36	NS-6680410-SP	NUT 9/32-28	1
37	262-27306	STOP-MOTION LEVER PLATE SPRING	1
38	SS-5680740-SP	SCREW 9/32-28 L= 6.8	1
39	262-27207	GUIDE PIN	1
40	135-20408	DRIVING PLATE	1
41	135-20804	TENSION SPRING	1
42	262-02903	STOP-MOTION LEVER SHAFT	1
43	262-28700	STARTING SPRING HOOK	1
44	NS-6150310-SP	NUT 15/64-28	1
45	262-27900	TENSION SPRING	1
46	262-04701	STARTING LEVER	1
47	SD-0640801-TP	HINGE SCREW D= 6.35 H= 8.0	1
48	262-28809	SLIDE ROLLER	1
49	WP-0480856-SP	WASHER 4.8X8.4X0.8	1
50	NS-6110420-SP	NUT 11/64-40	1
51	262-29302	SUSPENSION SCREW	1
52	SD-0800402-TP	HINGE SCREW D= 8 H= 4	1
53	135-21406	STOP-MOTION ARM SHAFT	1
54	NS-6150310-SP	NUT 15/64-28	1
55	SS-6151440-SP	SCREW 15/64-28 L=14	1
56	135-21125	STOP-MOTION ARM A	1
57	SM-6062002-TP	SCREW M6 L=20	1
58	SD-0800352-SP	HINGE SCREW D=8 H=3.5	1
59	262-27702	NUT	1
60	262-27603	STOP-MOTION CONNECTING LEVER	1
61	RE-0400000-K0	E-RING 4	1

Page 25 — 10. LUBRICATION MECHANISM COMPONENTS

Juki LK-1850 parts on page 25
Ref	Part number	Part name	Qty
1	TA-2100904-R0	RUBBER PLUG	5
2	TA-1050504-R0	RUBBER PLUG	6
3	BP-6000000-00	VINYL PIPE	0.7
4	262-30706	OIL WICK PRESSER	3
5	TA-1250406-R0	RUBBER PLUG D=12.5 L=4	2
6	CQ-2522000-00	OIL WICK	4.7
7	262-31209	OIL WICK PRESSER	1
8	TA-1250406-R0	RUBBER PLUG D=12.5 L=4	1
9	B3507-280-000	OIL FELT	1
10	B3509-280-000	NEEDLE ROD CRANK LUBRICATING	4
11	B3518-280-000	BALANCE LUBRICATING	2
12	262-31407	BALANCE LUBRICATING PLATE	1
13	SS-6091510-SP	SCREW 9/64-40 L=15.0	1
14	BP-3000001-00	VINYL TUBE	2.5
15	EA-9500B01-00	CABLE BAND	2
16	262-30102	LUBRICATING TANK	1
17	SS-4090515-SP	SCREW 9/64-40 L=5	2
18	135-01705	SILICON OIL FELT	1
19	SS-4110715-SP	SCREW 11/64-40 L=7	9
20	262-30409	LUBRICATING OIL WICK STOPPER	1
21	TA-0750704-R0	RUBBER PLUG	1
22	135-01408	SILICON OIL POURING HOLE	1
23	135-29904	LUBRICATING TANK FELT	1
24	262-30904	GREASE CAP	1
25	135-28708	REAR METAL BUSH	1
26	262-31605	CRANK ROD LUBRICATING PLATE	2
27	135-29201	CRANK LUBRICATING FELT	1
28	135-29102	OIL FELT	1
29	262-29401	OSCILLATOR LUBRICATION PLATE	1
30	B3515-280-000	OSCILLATOR LUBRICATING FELT	1
31	TA-1450404-R0	RUBBER PLUG D=14.5 L=4	1
32	WP-0621016-SD	WASHER 6.2X13X1	1
33	SS-6111140-SP	SCREW 11/64-40 L=11	1
34	SS-7110510-SP	SCREW 11/64-40 L=5	1
35	B3502-280-000	LUBRICATING TANK FELT	1
36	B3504-280-000	SHUTTLE FELT	2
37	262-29609	HOOK OIL WICK STOPPER A	1
38	B3541-012-000	OIL WICK	1
39	262-30003	OIL FELT HOLDER	1
40	SS-4110515-SP	SCREW 11/64-40 L=5	1
41	262-31902	OIL WICK PIPE STOPPER	1
42	135-01309	SILICON OIL PIPE	1
43	B1127-280-000	SILICON OIL THREAD GUIDE	1
44	262-31100	SHUTTLE LUBRICATING PLATE	1
45	SS-4110515-SP	SCREW 11/64-40 L=5	1
46	SS-6090440-SP	SCREW 9/64-40 L=4.0	2
47	TA-1050504-R0	RUBBER PLUG	1

Page 27 — 11. TABLE COMPONENTS

Juki LK-1850 parts on page 27
Ref	Part number	Part name	Qty
1	138-17507	TABLE	1
2	111-55207	DRAWER SUPPORT	2
3	111-55108	DRAWER	1
4	D8204-555-D00	DRAWER STOPPER	1
5	135-08056	T-STAND COMPL.	1
6	111-57559	T-STAND ASM.	(1)
7	111-57658	STAND UPPER, RIGHT	(1)
8	111-57757	STAND UPPER, LEFT	(1)
9	111-57955	STUD ASM., RIGHT	(1)
10	111-58052	STRUT JUNCTION (LEFT)	(1)
11	111-58300	STAND SIDE SUPPORT	(1)
12	111-58409	STAND SIDE SUPPORT	(1)
13	111-58607	RUBBER CAP	(4)
14	170-07402	NUT	(2)
15	WP-1302501-SE	WASHER M12	(4)
16	WS-1253010-KN	SPRING WASHER 12.5X21.5X3	(4)
17	B8108-555-0A0	ADJUSTING SCREW ASM. WITH CAP	(4)
18	NM-6120003-SE	NUT M12	(4)
19	111-58508	PLATE	(2)
20	SL-9082091-SE	WASHER HEXAGONAL BOLT	(12)
21	138-17754	Z-STAND PEDAL ASM.	(1)
22	GPF-060600A0	PEDAL ASM.	(1)
22	GPF-06060A0	PEDAL ASM.	(1)
23	GPF-06080000	PEDAL ADJUSTING PLATE	(1)
23	GPF-0608000	PEDAL ADJUSTING PLATE	(1)
24	111-59001	PEDAL SHAFT BRACKET	(2)
25	B8153-771-000	PEDAL CONNECTING ROD	(1)
26	D8113-555-B00	PEDAL BUSHING	(2)
27	SM-9061203-SE	SCREW M6 L=12	(2)
28	WP-0671016-SE	WASHER 6.7X13X1	(2)
29	WS-0621210-KR	SPRING WASHER 6.2X11.4X1.2	(2)
29	WS-0621114-KR	SPRING WASHER 6.2X11.4X1.2	(2)
30	SM-9082023-SE	SCREW M8 L=20	(2)
31	WP-0871602-SE	WASHER 8.7X18X1.6	(4)
32	WS-0861410-KR	SPRING WASHER 8.6X15X1.4	(2)
33	NM-6080721-SE	NUT M8	(2)
34	SS-9156830-SP	SCREW 15/64-28 L=68	3
35	MTJ-MS000000	MOUNTING BOLT	4
35	MTJ-MS090000	MOUNTING BOLT	4
36	B8133-019-000	S SHAPED HOOK	2
37	SK-3311600-SE	WOOD SCREW D=3.1 L=16	3
38	262-34302	OIL REMOVING FUNNEL	1
39	WP-0612056-SD	WASHER 6.1X18.5X2	3
40	WP-0621016-SD	WASHER 6.2X13X1	3
41	NS-6150310-SP	NUT 15/64-28	3
42	B7130-761-0A0	MOTOR BASE ASM.	1
43	NM-6060001-SE	NUT M6	4
44	WS-0621210-KR	SPRING WASHER 6.2X11.4X1.2	4
45	WP-0612056-SE	WASHER 6.1X18.5X2	8
46	SM-9062003-SC	SCREW M6 L=20	4
47	WP-0850002-SC	WASHER 8.5X18X1.6	4
48	WS-0902010-KN	SPRING WASHER 9.0X15.0X2.0	4
48	WS-0901520-KN	SPRING WASHER 9.0X15.0X2.0	4
49	NS-6200710-SN	NUT 5/16-18	4
50	135-31108	MOTOR PULLEY 50HZ 2300 SPM	1
51	262-02804	MOTOR PULLEY	1
52	135-31306	MOTOR PULLEY 50HZ 1800 SPM	1
53	135-31405	MOTOR PULLEY 60HZ 2300 SPM	1
54	135-31504	MOTOR PULLEY 60HZ 2000 SPM	1
55	135-31603	MOTOR PULLEY 60HZ 1800 SPM	1
56	135-53706	MOTOR PULLEY 60HZ 1500 SPM	1
57	SS-8150822-TP	SCREW 15/64-28 L=8	2
58	B8131-019-000	CHAIN	1
59	MTJ-VM005000	V-BELT, 50INCH	1
60	MTJ-VM004900	V-BELT, 49 INCH	1
60	MTJ-VM00490	V-BELT, 49INCH	1
61	MTJ-VM004800	V-BELT, 48 INCH	1
61	MTJ-VM00480	V-BELT, 48INCH	1
62	MTJ-VM004700	V-BELT, 47 INCH	1
62	MTJ-VM00470	V-BELT, 47INCH	1
63	MTJ-VM004600	V-BELT, 46 INCH	1
63	MTJ-VM00460	V-BELT, 46INCH	1
64	400-09458	PULLEY COVER	1
65	B7272-781-000	COVER MOUNTING BRACKET B	1
66	262-36703	COVER MOUNTING BRACKET C	1
67	SS-7110710-SP	SCREW 11/64-40 L=7	4
68	NS-6110310-SP	NUT 11/64-40	4
69	WP-0480856-SP	WASHER 4.8X8.4X0.8	4
70	SK-3452000-SC	WOOD SCREW D=4.5 L=20	2
71	WP-0501016-SC	WASHER 5X10.5X1	2

Page 29 — LK-1850 SERIES SUBCLASS (1) LK-1852-1

Juki LK-1850 parts on page 29
Ref	Part number	Part name	Qty
1	135-10862	WORM ASM.	1
2	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
3	135-10953	FEED CAM DRIVING WHEEL ASM.	1
4	135-41750	FINGER GUARD ASM.	1
5	SS-7111120-SP	SCREW 11/64-40 L=10.5	1
6	135-40752	WORK CLAMP FOOT BRACKET ASM.	1
7	135-41206	WORK CLAMP FOOT PLATE COVER	(1)
8	SS-7110840-SP	SCREW 11/64-40 L=7.8	(2)
9	135-41404	WORK CLAMP FOOT LIFTING PLATE	(1)
10	SS-9151120-CP	SCREW 15/64-28 L=11	(2)
11	WP-0612516-SD	WASHER 6.1X15.2X2.5	(2)
12	D2529-232-D00	PRESSER SPRING	(1)
13	D2545-232-D0A	HINGE SCREW	(2)
14	D2513-232-DA0	BRACKET GUIDE ASM.	(1)
15	NS-6110530-SP	NUT 11/64-40	(1)
16	D2509-232-D00	STATIONING LATCH	(1)
17	D2512-232-D00	TORSION SPRING	(1)
18	D2511-232-D00	SCREW	(1)
19	D2504-282-AB0-A	KNOB FOOT MOUNT BASE ASM.	(1)
20	D2502-232-D00	SHAFT BLOCK SHAFT	(1)
21	RE-0700000-K0	E-RING 7	(2)
22	SS-9110920-CP	SCREW 11/64-40 L=9	(1)
23	D2516-232-DA0	WORK CLAMP FOOT REGULATOR	(1)
24	D2528-232-D00	SHAFT	(1)
25	D2527-232-D00	SLEEVE	(1)
26	B3117-352-000	THREAD TENSION POST NUT	(2)
27	D2515-232-D00	TORSION SPRING	(1)
28	SS-7110840-SP	SCREW 11/64-40 L=7.8	(2)
29	135-41107	WORK CLAMP FOOT SPRING HOLDER	(1)
30	135-41057	CLAMP GUIDE FOOT ASM.	(1)
31	D2520-232-DA0	WORK CLAMP FOOT(LEFT)ASM.	(1)
32	SS-1110640-TP	SCREW 11/64-40 L= 5.5	(2)
32	SS-7110550-TP	SCREW 11/64-40 L=5.5	(2)
33	D2521-232-DA0	WORK CLAMP FOOT(RIGHT)ASM.	(1)
34	SD-0550271-TP	HINGE SCREW D= 5.50 H= 2.7	(2)
35	D2519-232-D00	WORK CLAMP FOOT PLATE CAM	(1)
36	NS-6120480-SP	NUT 3/16-28	(2)
37	135-41503	FEED PLATE	(1)
38	SS-9110460-CP	SCREW 11/64-40 L=4	(1)
39	WP-0501016-SD	WASHER 5X10.5X1	(1)
40	SS-9110460-CP	SCREW 11/64-40 L=4	(2)
41	135-40802	SHAFT BRACKET BASE	(1)
42	135-40901	STATIONING BLOCK SHAFT	(1)
43	D2548-232-D00	SNAP RING,FOR CONNECTING ROD	(1)
44	D2507-232-D00	STATIONING BLOCK	(1)
45	NS-6150310-SP	NUT 15/64-28	(1)
46	SS-9151120-CP	SCREW 15/64-28 L=11	(1)
47	WP-0612516-SD	WASHER 6.1X15.2X2.5	(1)
48	135-40703	WORK CLAMP FOOT BRACKET ASM.	(1)
49	SM-6060802-TP	SCREW M6 L=8	(1)
50	WP-0612066-SP	WASHER 6.1X11X2	(1)
51	135-41313	CONNECTING ARM	1
52	SM-6061802-TP	SCREW M6 L=18	1
53	SD-1201501-SP	HINGE SCREW D=12 H=15	1
54	WP-0651056-SH	WASHER 6.5X11X1	1
55	135-40604	DRIVING BAR B	1
56	PD-0201000-0B	SPLIT PIN	2
57	SS-7090610-SP	SCREW 9/64-40 L=6	2
58	135-40505	DRIVING BAR A	1
59	SD-0900701-TP	HINGE SCREW D= 9 H= 7	1
60	135-40406	WASHER	1
61	135-40307	LEVER	1
62	135-40208	LINK	1
63	SD-0640321-SP	HINGE SCREW D= 6.35 H= 3.2	1
64	135-40109	STOP-MOTION REGULATING ARM B	1
65	SD-0640241-SP	HINGE SCREW D= 6.35 H= 2.4	1
66	135-41800	FEED CAM	1
67	135-38301	STOP-MOTION REGULATING CAM	1
68	135-47807	FEED STOP WASHER	1
69	SS-6090510-SP	SCREW 9/64-40 L=5	1
70	NS-6090310-SP	NUT 9/64-40	1

Page 30 — (2)LK-1852-2, (4)LK-1852-5, (3)LK-1852-3

Juki LK-1850 parts on page 30
Ref	Part number	Part name	Qty
1	135-10862	WORM ASM.	1
2	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
3	135-42402	WORK CLAMP FOOT, RIGHT	1
4	135-42501	WORK CLAMP FOOT, LEFT	1
5	135-42303	FEED PLATE	1
6	135-41800	FEED CAM	1
7	135-38301	STOP-MOTION REGULATING CAM	1
8	135-10953	FEED CAM DRIVING WHEEL ASM.	1
9	135-10862	WORM ASM.	1
10	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
11	135-42915	WORK CLAMP FOOT, RIGHT	1
12	135-43012	WORK CLAMP FOOT, LEFT	1
13	135-42816	CLOTH PRESSER PLATE	1
14	D2426-282-C00	NEEDLE HOLE GUIDE	1
15	MDP-500B1100	NEEDLE DPX5 #11	1
16	MC-2005007-50	NEEDLE 134 NM75	1
17	135-42709	FEED CAM	1
18	135-38301	STOP-MOTION REGULATING CAM	1
19	135-10953	FEED CAM DRIVING WHEEL ASM.	1
20	135-10862	WORM ASM.	1
21	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
22	135-10953	FEED CAM DRIVING WHEEL ASM.	1
23	135-43202	FEED CAM	1
24	135-38301	STOP-MOTION REGULATING CAM	1

Page 31 — (5) LK-1852-7 and (6) LK-1852-210

Juki LK-1850 parts on page 31
Part number	Part name	Qty
MDP-500B2100	NEEDLE DPX5 #21	1
135-19004	TENSION SPRING	1
135-43202	FEED CAM	1
135-10862	WORM ASM.	1
SS-7111410-TP	SCREW 11/64-40 L=14	(4)
135-38301	STOP-MOTION REGULATING CAM	1
135-10953	FEED CAM DRIVING WHEEL ASM.	1
D1818-282-N00	SHUTTLE	1
D1817-282-N00	SHUTTLE RACE RING, THICK NEEDL	1
B2426-280-00C	NEEDLE PLATE NEEDLE HOLE GUIDE	1
B2302-205-0A0	TENSION CONTROLLER NO.2 ASM.	1
D3112-L4B-B00	TAKE-UP SPRING (HEAVY)	(1)
B3129-053-000	TENSION SPRING	(1)
135-10862	WORM ASM.	1
SS-7111410-TP	SCREW 11/64-40 L=14	(4)
135-10953	FEED CAM DRIVING WHEEL ASM.	1
135-64901	FEED CAM 1852-210	1
135-38301	STOP-MOTION REGULATING CAM	1

Page 33

Juki LK-1850 parts on page 33
Ref	Part number	Part name	Qty
1	135-44416	CLOTH PRESSER FOOT	1
2	135-43764	CLOTH FEED BASE ASM.	1
3	135-44465	CLOTH PRESSER FOOT ASM.	(1)
4	SS-7120910-SP	SCREW 3/16-28 L=9	(4)
5	135-44614	CLOTH FEED BASE COVER	(1)
6	135-43715	CLOTH FEED BASE	(1)
7	B2539-280-000	STUD	(1)
8	CS-087101B-SH	THRUST COLLAR ASM. D=8.73 W=10	(1)
9	SS-8150822-TP	SCREW 15/64-28 L=8	(2)
10	135-43806	BALL HOLDER	(1)
11	SS-7151210-SP	SCREW 15/64-28 L=12	(1)
12	B2549-280-000	WORK CLAMP FOOT MOUNTING BASE	(7)
13	B2548-280-000	BALL RETAINER	(1)
14	SS-7110740-TP	SCREW 11/64-40 L=7	(1)
15	135-43905	SPRING SUSPENSION	(1)
16	SS-6120940-SP	SCREW 3/16-28 L=9	(2)
17	135-44705	SPRING	(1)
18	B3413-552-000	SUSPENSION SCREW	(1)
19	135-44051	LIFTING LEVER ASM.	(1)
20	SS-8150822-TP	SCREW 15/64-28 L=8	(2)
21	135-10953	FEED CAM DRIVING WHEEL ASM.	1
22	400-38080	TEREAD GUIDE BRACKET ASM.	1
23	262-03406	THREAD GUIDE BRACKET	(1)
24	NS-6110310-SP	NUT 11/64-40	(1)
25	400-38078	THREAD GUIDE	(1)
26	262-16705	BOBBIN WINDER TENSION POST	(1)
27	229-45802	THREAD TENSION DISK	(2)
28	262-16606	BOBBIN WINDER TENSION SPRING	(1)
29	262-16507	BOBBIN WINDER TENSION NUT	(1)
30	135-10862	WORM ASM.	1
31	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
32	NS-6150540-SP	NUT 15/64-28	1
33	SS-2110930-SP	SCREW 11/64-40 L=8.7	4
34	135-43509	FEED PLATE HOLDER	1
35	400-60887	CAHIN	1
36	131-60304	S SHAPED HOOK	2
37	135-44952	PEDAL LEVER ASM.	1
38	135-44903	PEDAL SHAFT	(1)
39	WP-1021016-SD	WASHER	(1)
40	RE-0900000-KO	E-RING 9	(1)
41	135-45009	PEDAL SHAFT BRACKET	(2)
42	SK-3483200-SE	WOOD SCREW D=4.8 L=32	(4)
43	SS-6661110-SP	SCREW 1/4-40 L=11	(2)
44	135-45157	PEDAL LEVER ASM. (BELT LOOP)	(1)
45	135-45306	FEED CAM	1
46	135-38301	STOP-MOTION REGULATING CAM	1
47	135-43608	FEED PLATE	1
48	400-52815	SAFETY PLATE ASM.	1
49	138-89407	SAFETY PLATE	(1)
50	SM-4040655-SP	SCREW M4 L=6	(2)
51	WP-0450801-SD	WASHER 4.5X10X0.8	(2)
52	SS-4110715-SP	SCREW 11/64-40 L=7	(2)
53	400-52810	SAFETY PLATE INSTALLING BASE	(1)
54	135-09401	TABLE (FOR BELT LOOP)	1
55	135-22503	TENSION SPRING	1

Page 34 — LK-1852-30

Juki LK-1850 parts on page 34
Ref	Part number	Part name	Qty
1	135-10953	FEED CAM DRIVING WHEEL ASM.	1
2	135-10862	WORM ASM.	1
3	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
4	135-45611	CLOTH PRESSER FOOT	1
5	135-51569	CLOTH FEED BASE (ASM.)	1
6	135-45660	WORK CLAMP FOOT ASM.	(1)
7	400-38080	TEREAD GUIDE BRACKET ASM.	1
8	400-38078	THREAD GUIDE	(1)
9	135-45504	FEED PLATE	1
10	SS-2110930-SP	SCREW 11/64-40 L=8.7	4
11	135-43509	FEED PLATE HOLDER	1
12	NS-6150540-SP	NUT 15/64-28	1
13	400-52815	SAFETY PLATE ASM.	1
14	135-09401	TABLE (FOR BELT LOOP)	1
15	135-54100	FEED CAM	1
16	135-54100	FEED CAM	1
17	135-38301	STOP-MOTION REGULATING CAM	1
18	135-44952	PEDAL LEVER ASM.	1
19	400-60887	CAHIN	1
20	131-60304	S SHAPED HOOK	2
21	135-22503	TENSION SPRING	1

Page 35 — (9) LK-1850-P

Juki LK-1850 parts on page 35
Ref	Part number	Part name	Qty
1	135-47500	STOP-MOTION SPRING	1
2	135-45959	PEDAL TYPE PRESSER ASM.	1
3	135-45967	PEDAL TYPE PRESSER ASM.	(1)
4	135-46007	LOWERING LEVER	(1)
5	NS-6110350-SP	NUT 11/64-40	(4)
6	135-46106	LOWERING LINK	(1)
7	135-46205	LOWERING CONNECTING PLATE	(1)
8	SD-0640324-TP	HINGE SCREW D= 6.35 H= 3.2	(2)
9	135-45900	INSTALLING BASE	(1)
10	NS-6110310-SP	NUT 11/64-40	(1)
11	B1649-161-000	TENSION SPRING ADJUSTING SCREW	(1)
12	135-21307	TENSION SPRING	(1)
13	SD-0640801-TP	HINGE SCREW D= 6.35 H= 8.0	(1)
14	B2007-372-000	NIPPER BAR SPRING SCREW	(1)
15	SS-9151210-TP	SCREW 15/64-28 L=11.8	(1)
16	SD-0640801-TP	HINGE SCREW D= 6.35 H= 8.0	(1)
17	135-46403	PULLEY SHAFT	(1)
18	RC-1831018-K0	RETAINING RING	(2)
19	SB-1090002-00	BALL BEARING	(2)
20	135-47401	PULLEY SHAFT COLLAR	(1)
21	SS-6121030-SP	SCREW 3/16-28 L=10	(1)
22	135-46502	PULLEY BUSHING	(1)
23	135-25308	IDLER PULLEY INSTALLING PLATE	(1)
24	SS-6110810-TP	SCREW 11/64-40 L=8	(3)
25	135-23204	DRIVING PULLEY	(1)
26	SS-8150822-TP	SCREW 15/64-28 L=8	(2)
27	131-60304	S SHAPED HOOK	1
28	260-37903	CHAIN	1
29	135-46601	SAFETY PLATE	1
30	135-05904	BELT COVER	1
31	138-17754	Z-STAND PEDAL ASM.	1
32	SM-9061203-SE	SCREW M6 L=12	(2)
33	WS-0621210-KR	SPRING WASHER 6.2X11.4X1.2	(2)
34	WP-0671016-SE	WASHER 6.7X13X1	(2)
35	B8125-280-000	PEDAL ADJUSTING PLATE	(1)
36	SM-9082023-SE	SCREW M8 L=20	(2)
37	WS-0861410-KR	SPRING WASHER 8.6X15X1.4	(2)
38	WP-0871602-SE	WASHER 8.7X18X1.6	(4)
39	NM-6080721-SE	NUT M8	(2)
40	D8114-555-B0E	PEDAL SHAFT BRACKET	(1)
41	B8151-771-000	PEDAL	(1)
42	B8152-771-000	PEDAL MAT	(1)
43	B8153-771-000	PEDAL CONNECTING ROD	(1)
44	D8113-555-B00	PEDAL BUSHING	(2)
	B8125-260-000	PEDAL ADJUSTING PLATE	(2)

Page 36 — FIG. 10 LK-1852P-20

Juki LK-1850 parts on page 36
Ref	Part number	Part name	Qty
1	135-10953	FEED CAM DRIVING WHEEL ASM.	1
2	135-10862	WORM ASM.	1
3	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
4	135-44416	CLOTH PRESSER FOOT	1
5	135-43764	CLOTH FEED BASE ASM.	1
6	135-44465	CLOTH PRESSER FOOT ASM.	(1)
7	135-45306	FEED CAM	1
8	135-38301	STOP-MOTION REGULATING CAM	1
9	135-47500	STOP-MOTION SPRING	1
10	135-46601	SAFETY PLATE	1
11	135-45959	PEDAL TYPE PRESSER ASM.	1
12	135-43608	FEED PLATE	1
13	NS-6150540-SP	NUT 15/64-28	1
14	135-43509	FEED PLATE HOLDER	1
15	SS-2110930-SP	SCREW 11/64-40 L=8.7	4
16	135-47658	PEDAL SHAFT ASM.	1
17	135-09401	TABLE (FOR BELT LOOP)	1
18	400-38080	TEREAD GUIDE BRACKET ASM.	1
19	400-38078	THREAD GUIDE	(1)
20	D8103-984-K00	CHAIN	1
21	135-05904	BELT COVER	1
22	131-60304	S SHAPED HOOK	4
23	400-60887	CAHIN	1
24	135-44952	PEDAL LEVER ASM.	1
25	400-52815	SAFETY PLATE ASM.	1
26	138-17754	Z-STAND PEDAL ASM.	1
	135-43009	FEED PLATE HOLDER	1
	135-45315	SAFETY PLATE ASM.	1

Page 37 — LK-1852P-30

Juki LK-1850 parts on page 37
Ref	Part number	Part name	Qty
1	135-10953	FEED CAM DRIVING WHEEL ASM.	1
2	135-10862	WORM ASM.	1
3	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
4	135-45611	CLOTH PRESSER FOOT	1
5	135-51569	CLOTH FEED BASE (ASM.)	1
6	135-45660	WORK CLAMP FOOT ASM.	(1)
7	135-54100	FEED CAM	1
8	135-38301	STOP-MOTION REGULATING CAM	1
9	135-47500	STOP-MOTION SPRING	1
10	135-46601	SAFETY PLATE	1
11	135-45959	PEDAL TYPE PRESSER ASM.	1
12	400-60887	CAHIN	1
13	138-17754	Z-STAND PEDAL ASM.	1
14	NS-6150540-SP	NUT 15/64-28	1
15	135-43509	FEED PLATE HOLDER	1
16	SS-2110930-SP	SCREW 11/64-40 L=8.7	4
17	135-45504	FEED PLATE	1
18	135-45504	FEED PLATE	1
19	D8103-984-K00	CHAIN	1
20	135-09401	TABLE (FOR BELT LOOP)	1
21	400-38080	TEREAD GUIDE BRACKET ASM.	1
22	400-38078	THREAD GUIDE	(1)
23	400-52815	SAFETY PLATE ASM.	1
24	135-05904	BELT COVER	1
25	135-44952	PEDAL LEVER ASM.	1
26	135-47658	PEDAL SHAFT ASM.	1
27	131-60304	S SHAPED HOOK	4

Page 38 — (12) LK-1852H-5 / (13) LK-1852-22

Juki LK-1850 parts on page 38
Ref	Part number	Part name	Qty
1	D1401-L7V-V00	NEEDLE BAR	1
2	D1405-L7A-M00	NEEDLE BAR THREAD GUIDE	1
3	SS-7080510-TP	SCREW 1/8-44 L=4.5	1
4	MDI-300B2300	NEEDLE DIX3 #23	1
5	MC-3515016-00	NEEDLE	1
6	135-19004	TENSION SPRING	2
7	135-10854	FEED CAM DRIVING WORM ASM.	1
8	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
9	135-50702	FEED CAM	1
10	135-39705	STOP-MOTION REGULATING CAM	1
11	135-10953	FEED CAM DRIVING WHEEL ASM.	1
12	135-48409	FEED PLATE	1
13	B2302-205-0A0	TENSION CONTROLLER NO.2 ASM.	1
14	D3112-L4B-B00	TAKE-UP SPRING (HEAVY)	(1)
15	B3129-053-000	TENSION SPRING	(1)
16	D1818-282-N00	SHUTTLE	1
17	D1817-282-N00	SHUTTLE RACE RING, THICK NEEDL	1
18	B2426-280-00C	NEEDLE PLATE NEEDLE HOLE GUIDE	1
19	D2101-L7A-MA0	WIPER ASM.	1
20	135-48508	WORK CLAMP FOOT. RIGHT	1
21	135-48607	WORK CLAMP FOOT. LEFT	1
22	135-50504	FEED CAM	1
23	MC-2005007-50	NEEDLE 134 NM75	1
24	135-39002	STOP-MOTION REGULATING CAM	1
25	135-10953	FEED CAM DRIVING WHEEL ASM.	1
26	135-10854	FEED CAM DRIVING WORM ASM.	1
27	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
28	135-42907	WORK CLAMP FOOT, RIGHT	1
29	135-43004	WORK CLAMP FOOT, LEFT	1
30	135-42808	FEED PLATE	1
31	D2426-282-C00	NEEDLE HOLE GUIDE	1
32	MDP-500B1100	NEEDLE DPX5 #11	1
	MC-5005007-50	FEED CAM NM75

Page 39 — (14) LK-1852G-5

Juki LK-1850 parts on page 39
Ref	Part number	Part name	Qty
1	D1401-L7V-V00	NEEDLE BAR	1
2	D1405-L7A-M00	NEEDLE BAR THREAD GUIDE	1
3	SS-7080510-TP	SCREW 1/8-44 L=4.5	1
4	MDI-300B2300	NEEDLE DIX3 #23	1
5	MC-3515016-00	NEEDLE	1
6	135-19004	TENSION SPRING	2
7	135-10854	FEED CAM DRIVING WORM ASM.	1
8	SS-7111410-TP	SCREW 11/64-40 L=14	4
9	135-50702	FEED CAM	1
10	135-39705	STOP-MOTION REGULATING CAM	1
11	135-10953	FEED CAM DRIVING WHEEL ASM.	1
12	135-54209	FEED PLATE	1
13	B2302-205-0A0	TENSION CONTROLLER NO.2 ASM.	1
14	D3112-L4B-B00	TAKE-UP SPRING (HEAVY)	(1)
15	B3129-053-000	TENSION SPRING	(1)
16	D1818-282-N00	SHUTTLE	1
17	D1817-282-N00	SHUTTLE RACE RING, THICK NEEDL	1
18	D2426-MMC-K00	NEEDLE HOLE GUIDE	1
19	D2101-L7A-MA0	WIPER ASM.	1
20	135-54308	WORK CLAMP FOOT. RIGHT	1
21	135-54407	WORK CLAMP FOOT. LEFT	1

Page 40 — LK-1850H

Juki LK-1850 parts on page 40
Ref	Part number	Part name	Qty
1	D1401-L7V-V00	NEEDLE BAR	1
2	D1405-L7A-M00	NEEDLE BAR THREAD GUIDE	1
3	SS-7080510-TP	SCREW 1/8-44 L=4.5	1
4	MDI-300B2300	NEEDLE DIX3 #23	1
5	MC-3515016-00	NEEDLE	1
6	135-19004	TENSION SPRING	2
7	D1817-282-N00	SHUTTLE RACE RING, THICK NEEDL	1
8	D1818-282-N00	SHUTTLE	1
9	135-51403	FEED CAM	1
10	135-39606	STOP-MOTION REGULATING CAM	1
11	135-48409	FEED PLATE	1
12	B2302-205-0A0	TENSION CONTROLLER NO.2 ASM.	(1)
13	D3112-L4B-B00	TAKE-UP SPRING (HEAVY)	(1)
14	B3129-053-000	TENSION SPRING	1
15	B2426-280-00C	NEEDLE PLATE NEEDLE HOLE GUIDE	1
16	D2101-L7A-MA0	WIPER ASM.	1
17	135-48508	WORK CLAMP FOOT. RIGHT	1
18	135-48607	WORK CLAMP FOOT. LEFT	1

Page 41 — (16) LK-1850G / (17) LK-1850T

Juki LK-1850 parts on page 41
Ref	Part number	Part name	Qty
1	D1401-L7V-V00	NEEDLE BAR	1
2	D1405-L7A-M00	NEEDLE BAR THREAD GUIDE	1
3	SS-7080510-TP	SCREW 1/8-44 L=4.5	1
4	MDI-300B2300	NEEDLE DIX3 #23	1
5	MC-3515016-00	NEEDLE	1
6	135-19004	TENSION SPRING	2
7	D1817-282-N00	SHUTTLE RACE RING, THICK NEEDL	1
8	D1818-282-N00	SHUTTLE	1
9	135-51403	FEED CAM	1
10	135-39606	STOP-MOTION REGULATING CAM	1
11	135-54209	FEED PLATE	1
12	B2302-205-0A0	TENSION CONTROLLER NO.2 ASM.	1
13	D3112-L4B-B00	TAKE-UP SPRING (HEAVY)	(1)
14	B3129-053-000	TENSION SPRING	(1)
15	D2426-MMC-K00	NEEDLE HOLE GUIDE	1
16	D2101-L7A-MA0	WIPER ASM.	1
17	135-54308	WORK CLAMP FOOT. RIGHT	1
18	135-54407	WORK CLAMP FOOT. LEFT	1
19	135-05904	BELT COVER	1
20	135-26058	LIFTING LEVER ASM. T	1
21	135-26009	LIFTING LEVER. T	(1)
22	135-25803	LEVER SPRING. T	(1)
23	SD-0720331-SP	HINGE SCREW D= 7.24 H= 3.3	(2)
24	SS-9150730-SP	SCREW 15/64-28 L=7	(1)
25	NS-6150350-SP	NUT 15/64-28	(1)
26	135-47500	STOP-MOTION SPRING	1
27	138-17754	Z-STAND PEDAL ASM.	1

Page 42 — FIG. 18 LK-1852T-20

Juki LK-1850 parts on page 42
Ref	Part number	Part name	Qty
1	135-10953	FEED CAM DRIVING WHEEL ASM.	1
2	135-10854	FEED CAM DRIVING WORM ASM.	1
3	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
4	135-44416	CLOTH PRESSER FOOT	1
5	135-43764	CLOTH FEED BASE ASM.	1
6	135-44465	CLOTH PRESSER FOOT ASM.	(1)
7	135-45306	FEED CAM	1
8	135-38301	STOP-MOTION REGULATING CAM	1
9	135-47500	STOP-MOTION SPRING	1
10	135-43608	FEED PLATE	1
11	135-26058	LIFTING LEVER ASM. T	1
12	135-26009	LIFTING LEVER. T	(1)
13	135-25803	LEVER SPRING. T	(1)
14	SD-0720331-SP	HINGE SCREW D=7.24 H=3.3	(2)
15	SS-9150730-SP	SCREW 15/64-28 L=7	(1)
16	NS-6150350-SP	NUT 15/64-28	(1)
17	NS-6150540-SP	NUT 15/64-28	1
18	135-43509	FEED PLATE HOLDER	1
19	SS-2110930-SP	SCREW 11/64-40 L=8.7	4
20	135-47658	PEDAL SHAFT ASM.	1
21	135-09401	TABLE (FOR BELT LOOP)	1
22	400-38080	TEREAD GUIDE BRACKET ASM.	1
23	400-38078	THREAD GUIDE	(1)
24	D6103-984-K00	CHAIN	1
25	135-05904	BELT COVER	1
26	131-60304	S SHAPED HOOK	8
27	400-60887	CAHIN	1
28	135-44952	PEDAL LEVER ASM.	1
29	400-52815	SAFETY PLATE ASM.	1
30	138-17754	Z-STAND PEDAL ASM.	1
	400-36076	THREAD GUIDE
	D8103-984-K00	CHAIN

Page 43 — (19) LK-1852T-30

Juki LK-1850 parts on page 43
Ref	Part number	Part name	Qty
1	135-10953	FEED CAM DRIVING WHEEL ASM.	1
2	135-10854	FEED CAM DRIVING WORM ASM.	1
3	SS-7111410-TP	SCREW 11/64-40 L=14	(4)
4	135-45611	CLOTH PRESSER FOOT	1
5	135-51569	CLOTH FEED BASE (ASM.)	1
6	135-45660	WORK CLAMP FOOT ASM.	(1)
7	135-54100	FEED CAM	1
8	135-54100	FEED CAM	1
9	135-38301	STOP-MOTION REGULATING CAM	1
10	135-47500	STOP-MOTION SPRING	1
11	135-26058	LIFTING LEVER ASM. T	1
12	135-26009	LIFTING LEVER. T	(1)
13	135-25803	LEVER SPRING. T	(1)
14	SD-0720331-SP	HINGE SCREW D=7.24 H=3.3	(2)
15	SS-9150730-SP	SCREW 15/64-28 L=7	(1)
16	NS-6150350-SP	NUT 15/64-28	(1)
17	400-60887	CAHIN	1
18	138-17754	Z-STAND PEDAL ASM.	1
19	NS-6150540-SP	NUT 15/64-28	1
20	135-43509	FEED PLATE HOLDER	1
21	SS-2110930-SP	SCREW 11/64-40 L=8.7	4
22	135-45801	FEED PLATE	1
23	135-45504	FEED PLATE	1
24	D8103-984-K00	CHAIN	1
25	135-09401	TABLE (FOR BELT LOOP)	1
26	400-38080	TEREAD GUIDE BRACKET ASM.	1
27	400-38078	THREAD GUIDE	(1)
28	400-52815	SAFETY PLATE ASM.	1
29	135-05904	BELT COVER	1
30	135-44952	PEDAL LEVER ASM.	1
31	135-47658	PEDAL SHAFT ASM.	1
32	131-60304	S SHAPED HOOK	8
	135-45901	FEED PLATE	1

Page 44 — 13. THREAD STAND COMPONENTS

Juki LK-1850 parts on page 44
Ref	Part number	Part name	Qty
1	229-30358	THREAD STAND ASM.	1
2	229-31109	SPOOL RETAINER	(2)
3	229-31000	SPOOL PIN	(2)
4	229-30903	SPOOL REST CUSHION	(2)
5	229-30804	SPOOL REST	(2)
6	SM-6061610-SC	SCREW M6 L=16	(2)
7	229-30705	THREAD GUIDE ARM JOINT	(2)
8	229-31406	SPOOL REST ROD RUBBER CAP	(1)
9	229-30507	SPOOL REST ARM	(2)
10	229-30408	SPOOL REST ROD, UPPER	(1)
11	229-31307	SPOOL REST ROD JOINT	(1)
12	SM-4051405-SE	SCREW M5 L=14	(2)
13	NM-6050001-SE	NUT M5	(2)
14	229-30309	SPOOL REST ROD, LOWER	(1)
15	229-31208	THREAD GUIDE	(2)
16	WS-0510002-KN	SPRING WASHER	(2)
17	NM-6050001-SE	NUT M5	(2)
18	NM-6160511-SE	NUT M16X1.5	(1)
19	WP-1702600-SO	WASHER 17X30X2.6	(2)

Page 45 — LIST FOR INFORMATION OF CHANGE

Juki LK-1850 parts on page 45
Ref	Part number	Part name
8	CM-3012000-01	CM-3012000-01
8	135-03107
12	CS-150111A-TH	CS-150111A-TH
30	135-16208
27	SM-6061402-TP	SM-6061402-TP
35	D8103-284-K00	D8103-284-K00
19	D8103-284-K00	D8103-284-K00
23	D8103-284-K00	D8103-284-K00
12	D8103-284-K00	D8103-284-K00
27	D8103-284-K00	D8103-284-K00
17	D8103-284-K00	D8103-284-K00
8	262-12605
12	CS-150111B-TH	CS-150111B-TH
30	262-22703
27	SM-6061802-TP	SM-6061802-TP
35	400-60887
19	400-60887
23	400-60887
12	400-60887
27	400-60887
17	400-60887

Page 46 — NUMERICAL INDEX OF PARTS

Juki LK-1850 parts on page 46
Ref	Part number	Part name	Qty
14	BP-3000001-00
3	BP-6000000-00
43	B1127-280-000
6	B1202-280-000
6	B1203-280-000
15	B1208-980-00B
17	B1210-980-000
14	B1211-980-000
26	B1215-980-000
27	B1217-280-000
1	B1223-771-000
53	B1229-232-000
54	B1253-980-000
14	B1403-280-000
4	B1404-280-000
11	B1411-552-0A0
8	B1411-804-B00
5	B1411-804-C00
214	B1414-232-000
55	B1414-232-000
11	B1649-161-000
24	B1805-980-000
19	B1808-980-000
7	B1813-980-000
10	B1814-980-000
1	B1817-280-0A0
2	B1828-980-0AB
36	B1828-980-0A0
8	B1901-280-0A0
1	B1901-280-0B0
3	B1903-552-000
2	B1904-280-000
7	B1905-541-B00
14	B2007-372-000
44	B2008-372-000
50	B2109-280-000
11	B2302-205-0A0
13	B2302-205-0A0
13	B2302-205-0A0
12	B2302-205-0A0
12	B2302-205-0A0
4	B2302-280-0A0
7	62302-280-000
1	B2303-280-000
61	82313-280-000
2	B2410-980-000
63	B2414-280-0A0
62	B2415-280-0A0
61	B2416-280-000
60	B2418-280-000
53	B2421-280-CA0
67	B2423-280-00C
58	B2424-280-000
10	B2426-280-00C
18	B2426-280-00C
15	B2426-280-00C
55	B2426-280-000
7	B2539-280-000
13	B2548-280-000
10	B2549-280-000
12	B2549-280-000
3	B2557-280-00C
21	B2605-372-000
17	B2608-280-000
27	B2615-280-000
11	B3107-804-000
8	B31 142-761-000
12	B3114-232-000
19	B3114-771-000
26	83117-352-000
14	B3119-771-000
13	B3120-125-000
19	63125-012-000
9	B3126-012-000
17	B3126-012-000
13	B3129-053-000
15	B3129-053-000
15	B3129-053-000
14	B3129-053-000
14	B3129-053-000
10	B3132-552-000
6	83214-047-000
28	B3413-552-000
20	B3502-280-000
20	B3504-280-000
20	B3507-280-000
20	B3509-280-000
20	B3515-280-000
20	B3518-280-000
20	B3541-012-000
22	B7130-761-0A0
22	87272-781-000
22	B8108-555-0A0
30	B&8125-280-000
22	B8131-019-000
22	B8133-019-000
30	B8151-771-000
30	B8152-771-000
22	B8153-771-000
30	6B8153-771-000
24	02528-232-D00
24	02§29-232-D00
24	02545-232-D0A
24	02548-232-D00
26	03112-L4B-B00
33	03112-L4B-B00
34	03112-L4B-B00
35	03112-L4B-B00
36	D3112-L4B-B00
31	D8&103-984-K00
32	D8103-984-K00
37	D8103-984-K00
38	D8103-984-K00
22	D8113-555-BO00
30	D8113-555-B00
30	08114-555-B0E
22	08204-555-D00
20	EA-9500B01-00
22	GPF-O60600A0
22	GPF-06080000
16	MAT-80116S00
25	MC-2005007-50
33	MC-2005007-50
6	MC-2005010-00
33	MC-3515016-00
34	MC-3515016-00
35	MC-3515016-00
36	MC-3515016-00
2	CM-3002000-01
2	CM-3012000-01
2	CM-6001001-01
20	€Q-2522000-00
10	CS079101A-SH
10	CS-080081C-SH
28	CS087101B-SH
4	CS-150111B-TH
10	CS-180121A-SH
33	MDI-300B2300
34	MDI-300B2300
35	MDI-300B2300
36	MDI-300B2300
25	MDP-50081100
33	MDP-50081100
6	MDP-500B1400
6	MDP-50061600
26	MDP-500B2100
22	MTJ-MS000000
22	MTJ-VM004600
22	MTJ-VM004700
22	MTJ-VM004800
22	MTJ-VM004900
22	MTJ-VMO005000
33	D1401-L7V-VO0
34	B1401-L7V-V00
35	D1401-L7V-V00
36	D1401-L7V-V00
33	D1405-L7A-M00
34	D1405-L7A-M00
35	0D1405-L7A-M00
36	D1405-L7A-M00
26	D1817-282-N00
33	D1817-282-N00
34	0D1817-282-N00
35	D1817-282-NG0
36	D1817-282-N00
26	D1818-282-N00
33	D1818-282-N00
34	01818-282-N00
35	D1818-282-N00
36	01818-282-NC0
33	02101-L7A-MAO
34	02101-L7A-MAO0
35	D2101-L7A-MAO
36	D2101-L7A-MAO
34	02426-MMC-KO0O
36	D2426-MMC-K00
25	D2426-282-C00
33	02426-282-C00
24	02502-232-D00
24	02504-282-AB0-A
24	02507-232-D00
24	02509-232-D00
24	02511-232-D00
24	02512-232-D00
24	02513-232-DA0
24	02515-232-D00
24	02516-232-DA0
24	D2519-232-D00
24	D2520-232-DA0
24	D2521-232-DA0
24	D2527-232-D00
36	NS-6150350-SP
37	NS-6150350-SP
38	NS-6150350-SP
18	NS-6150430-SP
18	NS-6150430-SP
18	NS-6150430-SP
2	NS-6150540-SP
12	NS-6150540-SP
28	NS-6150540-SP
29	NS-6150540-SP
31	NS-6150540-SP
32	NS-6150540-SP
37	NS6150540-SP
38	NS-6150540-SP
22	NS—6200710-SN
10	NS-6360810-SP
10	NS-6660430-SP
12	NS-6660430-SP
10	NS-6660511-SP
18	NS-6680320-SP
18	NS-6680410-SP
18	NS6680410-SP
12	NS-6700320-SP
2	NS-6090310-SP
2	NS-6090310-SP
24	NS-6090310-SP
6	NS-6110310-SP
22	NS-6110310-SP
28	NS-6110310-SP
30	NS6110310-SP
30	NS-6110350-SP
14	NS6110420-SP
18	NS-6110420-SP
24	NS-6110530-SP
8	NS6150310-SP
8	NS-6150310-SP
14	NS-6150310-SP
16	NS-6150310-SP
18	NS-6150310-SP
18	NS-6150310-SP
22	NS-6150310-SP
24	NS-6150310-SP
24	NS-6150310-SP
24	NS-6150310-SP
24	NS-6150310-SP
24	NS-6150310-SP
24	NS-6150310-SP
14	NS6120310-SP
24	NS-6120480-SP
39	NM-6050001-SE
33	NM-6050001-SE
22	NM-6060001-SE
22	NM-6080721-SE
30	NM-6080721-SE
22	NM-6120003-SE
39	NM-6160511-SE
24	PD-0201000-0B
10	PS-0250162-KH
16	PS-0300162-KH
2	PS-0800202-KH
8	RC-0470611-KP
18	RC-0470611-KP
8	RC-0740811-KP
14	RC-0740816-KO
14	RC-1021011-KP
30	RC-1831018-K0
16	RC-1850001-KP
4	RC-3221517-KP
4	RC-6621517-KP
4	RC-6622018-KP
18	RE-0400000-K0
2	RE-0600000-K0
12	RE-0700000-K0
24	RE-0700000-KO
28	RE-0900000-K0
2	RO-0442401-00
30	SB-1090002-00
16	SB-1200003-00
4	SB-1350002-00
16	SB-3120001-00
6	SD-0500091-TP
8	$D-0530221-SP
8	$D-0530221-SP
12	SD-0530221-SP
24	$D-0550271-TP
16	S$0-0600321-SP
8	SD-0640211-SP
24	$D-0640241-SP
16	SD-0640321-SP
24	SD-0640321-SP
30	SD-0640324-TP
8	SD-0640391-TP
2	$D0640471-SP
18	SD-0640801-TP
30	SD-0640801-TP
30	SD-0640801-TP
14	SD-0650305-TP
14	$D-0651301-TH
6	$0-0720193-SP
8	$D-0720331-SP
16	$D-0720331-SP
36	$D0720331-SP
37	$D-0720331-SP
38	$D-0720331-SP
14	$D-0790402-TP
8	$0-0790601-SP

Page 47 — NUMERICAL INDEX OF PARTS

Juki LK-1850 parts on page 47
Ref	Part number	Part name	Qty
36	$D-0790802-TP
36	SS-4150715-SP
3	SS-7111410-TP
45	WP-0612056-SE
31	$D-0791331-SP
22	SS-4150915-SP
3	SS-7111410-TP
50	WP-0612066-SP
43	$D-0800341-SP
38	SS-5680740-SP
4	SS-7120910-SP
11	WP-0612516-SD
58	SD-0800352-SP
12	SS-6060410-TP
9	SS-7151420-SP
47	WP-0612516-SD
12	SD-0800402-TP
20	SS-6080340-SP
16	SS-7151120-SP
13	WP-0621016-SD
52	SD-0800402-TP
46	SS-6090440-SP
45	SS-7151210-SP
50	WP-0621016-SD
60	$D-0800681-SP
69	SS-6090510-SP
14	SS-7151210-SP
26	WP-0621016-SD
23	SD-0801021-TP
12	SS-6090670-TP
30	SS-7151330-SP
32	WP-0621016-SD
59	SD-0900701-TP
13	SS-6091510-SP
32	SS-7701010-SP
40	WP-0621016-SD
30	$D-0901101-SP
64	SS-6110430-TP
18	SS-8080310-TP
25	WP-0650876-SD
36	$D-0901201-TP
15	SS-6110480-SP
5	SS-8090610-SP
43	WP-0650876-SD
20	SD-1000401-SP
16	SS-6110710-TP
17	SS-8110520-TP
54	WP-0651056-SH
48	SD-1201501-SP
39	SS-6110810-TP
27	SS-8110520-TP
28	WP-0671016-SE
53	SD-1201501-SP
24	SS-6110810-TP
29	SS-8110520-TP
34	WP-0671016-SE
37	SK-3311600-SE
39	SS-6111140-SP
16	SS-8150510-TP
34	WP-0702026-SP
70	SK-3452000-SC
33	SS-6111140-SP
12	$S-8150710-SP
53	WP-0704516-SP
42	SK-3483200-SE
16	SS-6120940-SP
30	SS-8150822-TP
20	WP-0751576-SD
20	SL-9082091-SE
24	SS-6121030-SP
31	SS-8150822-TP
34	WP-0751576-SD
48	SM-0040601-SA
6	$S-6121212-TP
41	SS-8150822-TP
47	WP-0850002-SC
24	SM-3061052-TP
3	SS-6121212-TP
57	SS-8150822-TP
31	WP-0871602-SE
54	SM-4040655-SP
51	SS-6150760-SN
9	SS-8150822-TP
38	WP-0871602-SE
50	SM-4040655-SP
56	SS-6151142-TP
20	SS-8150822-TP
9	WP-0952616-SD
12	SM-4051405-SE
66	SS-6151220-SP
26	SS-8150822-TP
28	WP-0982616-SP
28	SM-6051202-TP
13	SS-6151220-SP
21	SS-8151230-SP
39	WP-1021016-SD
49	SM-6060802-TP
31	SS-6151220-SP
43	SS-8151550-SP
34	WP-1052000-SC
18	SM-6061002-TP
52	S$S-6151220-SP
24	SS-8151780-SP
15	WP-1302501-SE
31	$M-6061402-TP
59	S$46151220-SP
25	SS-8620610-SP
19	WP-1702600-S0
6	$M-6061610-SC
2	S$S-6151412-TP
45	SS-8620850-SP
50	WS-0451040-KP
26	SM-6061802-TP
7	SS-6151440-SP
3	SS-8660530-TP
16	WS-0510002-KN
28	SM-6061802-TP
55	SS-6151440-SP
5	SS-8660610-TP
29	WS-0621210-KR
44	SM-6061802-TP
47	SS-6660710-TP
45	SS-8660612-TP
44	WS-0621210-KR
27	SM-6061802-TP
13	$S-6661110-SP
19	SS-8661012-TP
33	WS-0621210-KR
52	SM-6061802-TP
41	SS-6661110-SP
47	SS-8661112-TP
29	WS-0641560-KR
12	SM-6062002-TP
43	SS-6661110-SP
20	SS-8661212-TP
32	WS-0861410-KR
46	SM-6062002-TP
4	SS-6681712-TP
15	SS-8681950-SP
37	WS-0861410-KR
57	SM-6062002-TP
10	SS-6681720-TP
38	SS-9110460-CP
48	WS-0902010-KN
27	SM-9061203-SE
22	SS-6741512-TP
40	SS-9110460-CP
16	WS-1253010-KN
32	SM-9061203-SE
29	SS-6741512-TP
22	$S-9110920-CP
5	W2Z-0641510-KP
46	SM-9062003-SC
23	SS-6742012-TP
24	SS-9150730-SP
3	1171-55108
30	$M-9082023-SE
42	SS-6742012-TP
15	SS-9150730-SP
2	1171-55207
36	SM-9082023-SE
3	SS-7080510-TP
15	SS-9150730-SP
6	1141-55759
56	$S-1060210-TP
3	SS-7080510-TP
10	$S-9151120-CP
7	111-57658
31	SS-1110640-TP
3	SS-7080510-TP
46	$S-9151120-CP
8	1411-57757
42	$S-1110640-TP
3	SS-7080510-TP
15	SS-9151210-TP
9	1711-57955
51	SS-1110640-TP
59	SS-7090410-SP
47	SS-9151440-CP
10	1141-58052
32	SS-1110640-TP
57	SS-7090610-SP
2	SS-9151740-CP
11	111-58300
25	SS-1110821-TP
33	SS-7090620-TP
34	SS-9156830-SP
12	111-58409
51	SS-1110821-TP
34	SS-7110510-SP
19	1114-58508
15	$S-2060510-SP
64	SS-7110710-SP
49	TA-0550604-RO
13	111-58607
53	SS-2090710-TP
67	SS-7110710-SP
62	TA-0750704-RO
24	111-59001
30	SS-2110920-TP
66	SS-7110740-TP
21	TA-0750704-RO
36	131-60304
9	$$-2110920-TP
1	SS-7110740-TP
1	TA-1050504-RO
20	131-60304
27	SS-2110920-TP
14	SS-7110740-TP
47	TA-1050504-RO
27	1371-60304
5	SS-2110920-TP
17	SS-7110840-SP
5	TA-1250406-RO
22	1371-60304
20	$S-2110930-SP
8	SS-7110840-SP
8	TA-1250406-RO
27	131-60304
33	$S-2110930-SP
28	SS-7110840-SP
31	TA-1450404-R0
26	1371-60304
10	SS-2110930-SP
40	SS-7110910-TP
37	TA-1470704-RO
32	131-60304
15	$S-2110930-SP
6	SS-7110910-TP
59	TA-2050406-RO0
51	135-00319
16	$S-2110930-SP
22	SS-7111110-TP
1	TA-2100904-RO
42	135-01309
19	SS-2110930-SP
5	SS-74111120-SP
22	135-01408
23	$S-3090610-SP
51	SS-7111120-TP
49	WP-0450801-SD
18	135-01705
17	$S-4090515-SP
11	SS-7111410-TP
55	WP-0450801-SD
65	135-02307
14	$S-4090715-SP
2	SS-7111410-TP
51	WP-0450801-SD
18	135-03453
40	$S-4110515-SP
21	SS-7111410-TP
65	WP-0450846-SP
25	135-03503
45	$S-4110515-SP
2	SS-7111410-TP
61	WP-0480856-SP
24	135-03552
60	S$S-4110615-SP
5	SS-7111410-TP
41	WP-0480856-SP
28	135-03602
56	$S-4110715-SP
15	SS-7111410-TP
49	WP-0480856-SP
29	1365-03750
19	$S-4110715-SP
31	SS-7111410-TP
69	WP-0480856-SP
33	135-03909
52	$S-4110715-SP
3	SS-7111410-TP
44	WP-0482086-SD
39	1356-04105
55	SS-4110815-SP
3	SS-7111410-TP
2	WP-0482086-SD
34	135-04204
11	SS-4110915-SP
8	SS-7111410-TP
71	WP-0501016-SC
37	135-04303
50	$S-4110915-SP
28	SS-7111410-TP
39	WP-0501016-SD
43	135-04402
3	SS-4111015-SP
31	SS-7111410-TP
53	WP-0612056-SD
41	135-04451
27	$S-4150715-SP
3	SS-7111410-TP
28	WP-0612056-SD
44	135-04501
2	$S-4150715-SP
8	SS-7111410-TP
39	WP-0612056-SD

Page 48 — NUMERICAL INDEX OF PARTS

Juki LK-1850 parts on page 48
Ref	Part number	Qty
46	135-04600	4
15	135-17800	12
24	135-38301	25
30	135-44952	38
48	135-04709	4
4	17135-18352	12
6	135-38301	26
4	1356-45009	28
36	4135-04907	4
5	135-18402	12
18	135-38301	26
44	135-45157	28
56	1365-05102	4
14	135-1850	12
46	135-38301	28
45	135-45306	28
13	1356-05805	2
22	135-18600	12
17	135-38301	29
7	135-45306	31
30	135-05904	30
23	135-18709	12
8	135-38301	31
7	135-45306	37
21	135-05904	34
8	135-18907	12
8	135-38301	32
9	135-45504	29
24	135-05904	32
2	135-19004	26
8	135-38301	37
17	135-45504	32
19	135-05904	36
6	135-19004	33
9	1365-38301	38
18	17135-45504	32
25	135-05904	37
6	135-19004	34
24	135-39002	33
23	135-45504	38
29	135-05904	38
6	135-19004	35
10	135-39606	35
4	135-45611	29
25	1356-06217	8
6	135-19004	36
10	135-39606	36
4	1435-45611	32
43	135-06415	8
33	135-20119	18
10	135-39705	33
4	135-45611	38
40	135-06704	8
23	135-20309	18
10	135-39705	34
6	135-45660	29
35	135-06852	8
40	135-20408	18
64	135-40109	24
6	135-45660	32
20	4135-07058	14
32	135-20705	18
62	135-40208	24
6	135-45660	38
23	135-07157	14
41	135-20804	18
61	135-40307	24
22	135-45801	38
5	135-08056	22
56	135-21125	18
60	135-40406	24
9	7135-45900	30
21	135-08155	10
12	1385-21307	30
58	135-40505	24
2	135-45959	30
18	4135-08403	10
53	135-21406	18
55	135-40604	24
11	135-45959	31
40	135-08700	10
9	135-21505	18
48	135-40703	24
11	135-45959	32
20	135-09153	10
14	135-21760	18
6	135-40752	24
3	14135-45967	30
54	135-09401	28
1	135-22008	18
44	135-40802	24
4	135-46007	30
141	135-09401	29
55	135-22503	28
42	135-40901	24
6	135-46106	30
17	135-09401	31
21	135-22503	29
30	135-41057	24
7	135-46205	30
20	135-09401	32
21	135-23121	16
29	135-41107	24
17	135-46403	30
21	135-09401	37
1	135-23188	16
7	1235-41206	24
22	135-46502	30
25	135-09401	38
25	135-23204	30
51	1435-41313	24
29	135-46601	30
51	135-09807	8
42	135-23212	16
9	135-41404	24
10	135-46601	31
44	4135-10201	10
49	135-23352	16
37	135-41503	24
10	135-46601	32
10	135-10367	4
34	135-23428	16
4	135-41750	24
20	135-47401	30
43	1356-10458	10
36	135-23519	16
66	135-41800	24
1	135-47500	30
52	135-10607	10
37	135-23600	16
6	135-41800	25
9	135-47500	31
7	135-10854	33
27	135-23808	16
57	135-42303	25
9	135-47500	32
26	1386-10854	33
31	135-23915	16
3	135-42402	25
26	135-47500	36
7	135-10854	34
30	135-24004	16
4	1435-42501	25
9	135-47500	37
2	135-10854	37
29	1368-24129	16
17	135-42709	25
10	135-47500	38
2	135-10854	38
26	135-24277	16
30	1356-42808	33
16	135-47658	31
1	135-10862	24
22	135-24368	16
13	1356-42816	25
26	135-47658	32
1	4135-10862	25
23	1365-24418	16
28	135-42907	33
20	135-47658	37
9	135-10862	25
2	135-24608	16
11	135-42915	25
31	135-47658	38
20	135-10862	25
4	135-24707	16
29	135-43004	33
68	135-47807	24
4	135-10862	26
8	1365-24806	16
12	135-43012	25
12	135-48409	33
14	135-10862	26
10	135-24905	16
23	135-43202	25
11	135-48409	35
30	1356-10862	28
9	7135-25001	16
3	1365-43202	26
20	135-48508	33
2	135-10862	29
3	135-25100	16
34	135-43509	28
17	135-48508	35
2	135-10862	31
38	135-25308	16
11	135-43509	29
21	135-48607	33
2	135-10862	32
23	135-25308	30
14	135-43509	31
18	1365-48607	35
3	135-10953	24
40	135-25407	16
15	135-43509	32
48	1356-50108	12
8	135-10953	25
14	135-25605	16
18	1356-43509	37
22	135-50504	33
19	4135-10953	25
17	135-25704	16
20	1385-43508	38
9	135-50702	33
22	135-10953	25
22	135-25803	36
47	135-43608	28
9	135-50702	34
7	1356-10953	26
13	135-25803	37
12	135-43608	31
3	1356-51403	35
16	135-10953	26
13	135-25803	38
10	135-43608	37
S	135-57403	36
21	1356-10953	28
21	7135-26009	36
6	135-43715	28
5	135-51569	29
1	135-10953	29
12	135-26009	37
2	135-43764	28
5	7135-51569	32
1	135-10953	31
12	135-26009	38
S	135-43764	31
5	135-51569	38
1	135-10953	32
20	1435-26058	36
5	135-43764	37
56	135-53706	22
14	135-10953	33
14	135-26058	37
10	135-43806	28
15	135-54100	29
25	1385-10953	33
11	135-26058	38
15	1356-43905	28
16	1365-54100	29
11	135-10953	34
25	135-28708	20
19	135-44051	28
7	1358-54100	32
1	135-10953	37
28	135-29402	20
11	135-44416	28
7	135-54100	38
1	1356-10953	38
27	135-29201	20
4	1365-44416	31
8	135-54100	38
27	135-13114	8
23	135-29904	20
4	135-44416	37
12	135-54209	34
33	135-14401	14
50	135-31108	22
3	135-44465	28
11	1356-54209	36
417	135-15408	14
52	135-31306	22
6	135-44465	31
20	135-54308	34
§2	135-15556	6
54	1365-31504	22
6	1356-44465	37
17	135-54308	36
57	135-15564	6
55	135-31603	22
5	17135-44614	28
21	135-54407	34
46	135-16109	12
47	1356-32254	16
17	135-44705	28
18	135-54407	36
35	135-16307	42
55	135-32262	16
38	135-44903	28
17	7135-64901	26
41	135-16703	12
18	135-34060	14
37	1358-44952	28
54	135-74009	8
58	135-17008	12
67	135-38301	24
18	1358-44952	29
22	137-06601	2
57	135-17107	12
7	135-38301	25
24	135-44952	31
9	14138-16509	2
29	135-17529	12
18	1435-38301	25
28	1356-44952	37
37	138-16855	10
26	135-17701	12
7	135-38301	25
25	135-44952	32
1	138-17507	22

Page 49 — NUMERICAL INDEX OF PARTS

Juki LK-1850 parts on page 49
Ref	Part number	Part name	Qty
21	138-17754
21	262-12209
13	262-28205
31	138-17754
8	262-12308
15	262-28304
26	138-17754
8	262-12605
6	262-28502
13.	138-17754
7	262-12704
5	262-28601
27	138-17754
32	262-13306
43	262-28700
30	138-17754
49	262-13801
22	262-28908
18	138-17754
52]	262-13900
19	262-29005
49	138-89407
55	262-14007
18	262-29104
14	170-07402
16	262-14403
51	262-29302
14]	229-30309
16	262-15301
29	262-29401
1	229-30358
29	262-16507
37	262-29609
10	229-30408
29	262-16507
so	262-30003
9}	229-30507
28	262-16606
16	262-30102
7}	229-30705
28	262-16606
20	262-30409
5}	229-30804
26	262-16705
4	262-30706
4}	229-30903
26	262-16705
24	262-30904
3}	229-31000
29	262-16903
44	262-31100
2\|	229-31109
21	262-17109
7	262-31209
15	229-31 208
37	262-17208
12	262-31407
11	229-31 307
21	262-17406
26	262-31605
8	229-31 406
25	262-17505
41	262-31902
27	229-45802
26	262-17604
3	262-33106
4	260-17400
33	262-17703
38	262-34302
11	260-17400
46	262-17802
49	262-35200
53	260-37200
52	262-17901
54	262-35408
28	260-37903
47	262-18008
66	262-36703
13	262-00006
32	262-18404
45	262-39806
38	262-01 103
18	262-18602
31	265-01304
30	262-01152
15	262-18651
64	400-09458
42	262-01202
3	262-18859
10	400-23026
47	262-01 301
16	262-20400
15	400-23027
37	262-01400
41}	262-20707
5	400-28681
49	262-01509
45	262-21101
25	400-38078
40	262-01608
38	262-21200
8	400-38078
43	262-01707
49	262-21358
19	400-38078
45	262-01806
50	262-21507
22	400-38078
48	262-01905
28	262-21804
23	400-38078
36	262-02002
11	262-22109
27	400-38078
35	262-02101
14	262-22208
22	400-38080
41	262-02200
33	262-22307
7	400-38080
34	262-02309
32	262-22406
18	400-38080
39	262-02309
34	262-22505
21	400-38080
33	262-02408
30	262-22703
22	400-38080
44!	262-02507
38	262-22901
26	400-38080
32	262-02705
39	262-23008
57	400-51987
51	262-02804
54}	262-23305
52	400-52806
42	262-02903
50	262-23404
53	400-52810
10	262-03208
36	262-23503
48	400-52815
25	262-03406
28	262-23602
13	400-52815
23}	262-03406
7	262-23701
25	400-52815
23	262-03455
21	262-24105
23	400-52815
30}	262-03901
19	262-24204
29	400-52815
17	262-04008
44	262-24600
28	400-52815
6]	262-04107
11	262-24808
35	400-60887
48	262-04453
17	262-25102
19	400-60887
22}	262-04602
13	262-25201
23	400-60887
46]	262-04701
31	262-25300
12	400-60887
4]	262-04909
32	262-25409
27	400-60887
47	262-10005
42	262-25508
17	400-60887
46	262-10104
35	262-25607
39	262-10203
19	262-25706
41	262-10302
5	262-25805
42	262-10450
9	262-25904
40	262-10500
8	262-26001
311	262-10708
6	262-26100
38	262-11201
37	262-26209
7	262-11300
1	262-26407
58;	262-11409
38	262-26506
16	262-11607
16	262-26704
2]	262-11755
39	262-27207
24	262-11805
37	262-27306
26	262-11904
60	262-27603
29	262-12001
59	262-27702
63	262-12100
45	262-27900

Juki LK-1850 Parts Book (PDF)

Page 7 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS

Page 9 — 2. MAIN SHAFT COMPONENTS

Page 11 — 3. NEEDLE BAR COMPONENTS

Page 13 — 4. THREAD TENSION RELEASE COMPONENTS

Page 15

Page 17

Page 19 — 7. THREAD TRIMMING COMPONENTS

Page 21 — PEDAL PRESSURE DECREASING UNIT COMPONENTS

Page 23 — 9. STOP-MOTION MECHANISM COMPONENTS

Page 25 — 10. LUBRICATION MECHANISM COMPONENTS

Page 27 — 11. TABLE COMPONENTS

Page 29 — LK-1850 SERIES SUBCLASS (1) LK-1852-1

Page 30 — (2)LK-1852-2, (4)LK-1852-5, (3)LK-1852-3

Page 31 — (5) LK-1852-7 and (6) LK-1852-210

Page 33

Page 34 — LK-1852-30

Page 35 — (9) LK-1850-P

Page 36 — FIG. 10 LK-1852P-20

Page 37 — LK-1852P-30

Page 38 — (12) LK-1852H-5 / (13) LK-1852-22

Page 39 — (14) LK-1852G-5

Page 40 — LK-1850H

Page 41 — (16) LK-1850G / (17) LK-1850T

Page 42 — FIG. 18 LK-1852T-20

Page 43 — (19) LK-1852T-30

Page 44 — 13. THREAD STAND COMPONENTS

Page 45 — LIST FOR INFORMATION OF CHANGE

Page 46 — NUMERICAL INDEX OF PARTS

Page 47 — NUMERICAL INDEX OF PARTS

Page 48 — NUMERICAL INDEX OF PARTS

Page 49 — NUMERICAL INDEX OF PARTS

Part Books

Search

Parts on page 1

Parts on page 1

Page 7 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS

Page 9 — 2. MAIN SHAFT COMPONENTS

Page 11 — 3. NEEDLE BAR COMPONENTS

Page 13 — 4. THREAD TENSION RELEASE COMPONENTS

Page 15

Page 17

Page 19 — 7. THREAD TRIMMING COMPONENTS

Page 21 — PEDAL PRESSURE DECREASING UNIT COMPONENTS

Page 23 — 9. STOP-MOTION MECHANISM COMPONENTS

Page 25 — 10. LUBRICATION MECHANISM COMPONENTS

Page 27 — 11. TABLE COMPONENTS

Page 29 — LK-1850 SERIES SUBCLASS (1) LK-1852-1

Page 30 — (2)LK-1852-2, (4)LK-1852-5, (3)LK-1852-3

Page 31 — (5) LK-1852-7 and (6) LK-1852-210

Page 33

Page 34 — LK-1852-30

Page 35 — (9) LK-1850-P

Page 36 — FIG. 10 LK-1852P-20

Page 37 — LK-1852P-30

Page 38 — (12) LK-1852H-5 / (13) LK-1852-22

Page 39 — (14) LK-1852G-5

Page 40 — LK-1850H

Page 41 — (16) LK-1850G / (17) LK-1850T

Page 42 — FIG. 18 LK-1852T-20

Page 43 — (19) LK-1852T-30

Page 44 — 13. THREAD STAND COMPONENTS

Page 45 — LIST FOR INFORMATION OF CHANGE

Page 46 — NUMERICAL INDEX OF PARTS

Page 47 — NUMERICAL INDEX OF PARTS

Page 48 — NUMERICAL INDEX OF PARTS

Page 49 — NUMERICAL INDEX OF PARTS

Juki LK-1850 — parts catalog
