Brother S-7180A Parts Book (PDF)
Text index — Brother S-7180A
Page 5 — A. 机壳分组件 / Machine frame & miscellaneous cover components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | DD0008972 | Screw | 9 |
| 2 | DE0025554 | Side plate | 1 |
| 3 | DD0066775 | Side plate gasket | 1 |
| 4 | D00003696 | Cord holder | 1 |
| 5 | DD0004380 | Screw | 3 |
| 6 | DD0008934 | Screw | 1 |
| 7 | E00003021 | Thread take-up lever cover | 1 |
| 8 | D00003429 | Rubber plug | 2 |
| 9 | D00003428 | Rubber plug | 1 |
| 10 | D00003517 | Bobbin wider ASM | 1 |
| 11 | D00003456 | Rubber ring | 1 |
| 12 | DD0050423 | Screw | 2 |
| 13 | DD0011149 | Thread cutter | 1 |
| 14 | D00003430 | O-ring | 1 |
| 15 | D00003431 | Oil window | 1 |
| 16 | D00003435 | Rubber plug | 1 |
| 17 | DD0051431 | Bobbin thread tension ASM | 1 |
| 18 | DD0008972 | Screw | 3 |
| 19 | E00003519 | Face plate | 1 |
| 20 | D00002740 | Face plate gasket | 1 |
| 21 | D00003432 | Rubber plug | 2 |
| 22 | D00003235 | Arm thread guide left | 1 |
| 23 | DD0008973 | Screw | 2 |
| 24+ | DD0060708 | Needle plate | 1 |
| 24+ | DD0014459 | Needle plate | 1 |
| 25 | DD0012463 | Screw | 1 |
| 26 | DD0009005 | Screw | 1 |
| 27 | DD0004374 | Screw | 2 |
| 28 | DD0004373 | Ruler plate | 1 |
| 29 | DD0008940 | Arm thread guide right | 1 |
| 30 | D00003528 | Rubber plug | 1 |
| 31 | DD0013706 | Side plate ASM | 1 |
| 32 | DD0003960 | Side plate | 1 |
| 33 | DD0010080 | Screw | 2 |
| 34 | DD0003963 | Spring of side | 1 |
| 35 | D00002530 | Bed screw stud | 2 |
| 36 | D00003832 | Oil window | 1 |
| 37 | D00003529 | Feeding shaft hole plug | 2 |
Page 7 — B. 上轴、挑线分组件 / Main shaft & thread take-up components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | DD0050672 | Thread take-up crank shaft | 1 |
| 2 | DD0010083 | Screw | 1 |
| 3 | DD0010535 | Thread take-up bar | 1 |
| 4+ | DD0004158 | Thread take-up lever Asm | 1 |
| 4+ | DD0038474 | Thread take-up lever Asm | 1 |
| 5 | D00003440 | Oil resistant cover | 1 |
| 6 | DD0010545 | Screw | 1 |
| 7 | D00003438 | O-ring | 1 |
| 8 | DD0010082 | Screw | 1 |
| 9 | DD0010065 | Screw | 2 |
| 10 | DD0010538 | O-ring | 1 |
| 11 | D00003439 | Sleeve of adjusting pin | 1 |
| 12 | DD0010504 | Pin | 1 |
| 13+ | DD0012203 | Counter weight | 1 |
| 13+ | DD0012858 | Counter weight | 1 |
| 14 | DD0014106 | Bearing | 2 |
| 15+ | DD0006844 | Needle bar crank | 1 |
| 16+ | DD0053104 | Needle bar crank rod | 1 |
| 15+ | DD0005940 | Needle bar crank | 1 |
| 16+ | DD0010592 | Needle bar crank rod | 1 |
| 17 | DD0010537 | Screw | 1 |
| 18+ | D00003513 | Take-up Bar Assembly | 1 |
| 18+ | D00003703 | Take-up Bar Assembly | 1 |
| 19 | DD0055615 | Bearing support | 1 |
| 20 | DD0004472 | Wheel | 1 |
| 21 | DD0010678 | Screw | 2 |
| 22 | DD0010678 | Screw | 1 |
| 23 | DD0005020 | Screw | 2 |
| 24 | DD0010542 | Thrust collar | 1 |
| 25 | D00003698 | Bearing support | 1 |
| 26 | DD0007239 | Bearing support | 1 |
| 27 | D00003825 | Main shaft | 1 |
| 28 | D00002521 | Oil seal | 1 |
| 29 | DNR003534 | Motor | 1 |
| 30 | DD0059025 | Screw | 4 |
| 31 | E00003671 | Head wheel | 1 |
| 32 | DD0011232 | Screw | 2 |

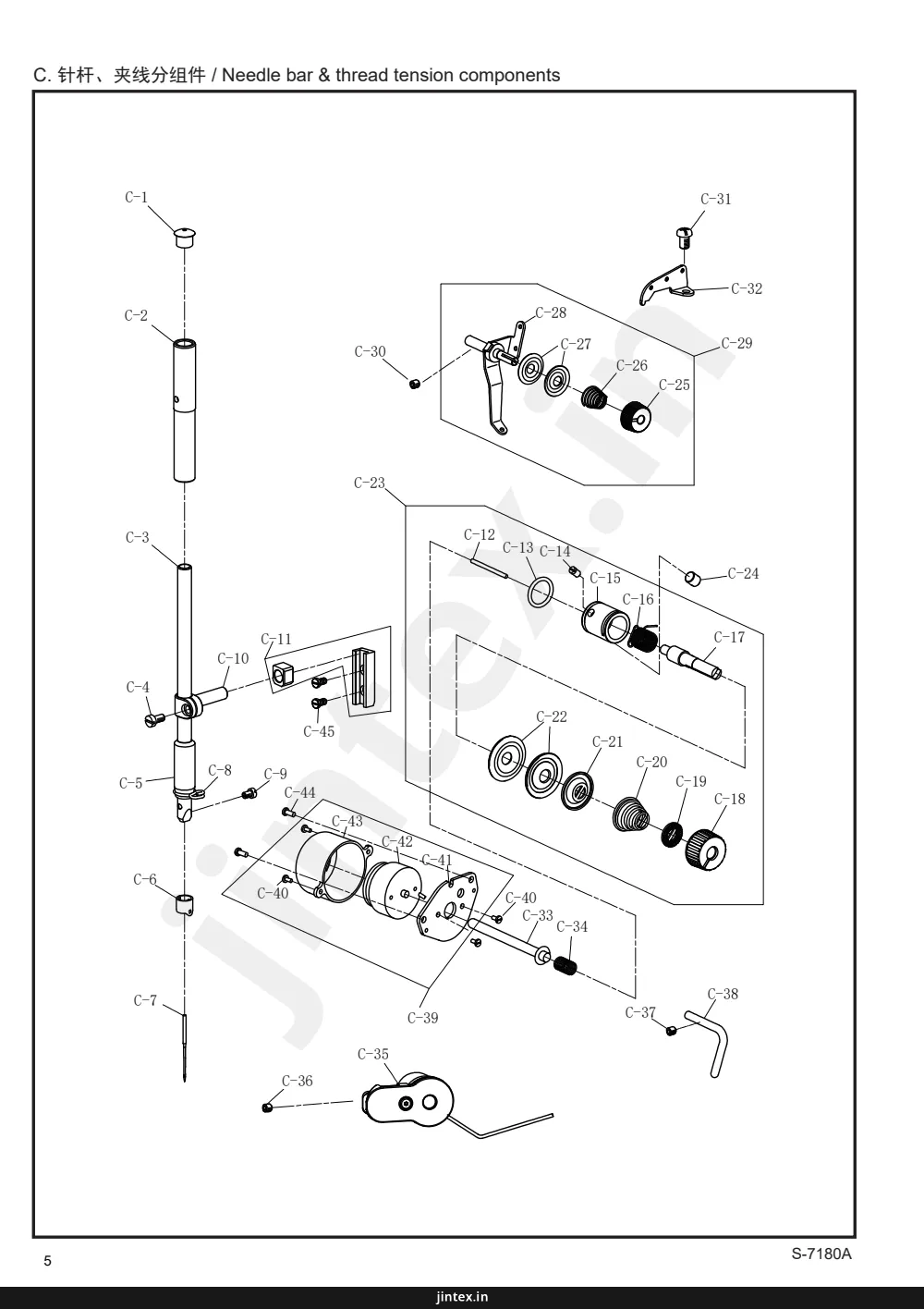

Page 9 — C. 针杆、夹线分组件 / Needle bar & thread tension components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | D00003441 | Rubber plug | 1 |
| 2 | DD0011063 | Bearing support | 1 |
| 3+ | D00003789 | Needle bar | 1 |
| 3+ | D00003792 | Needle bar | 1 |
| 4 | DD0043360 | Screw | 1 |
| 5+ | DD0014117 | Bearing support | 1 |
| 6+ | DD0010591 | Needle bar thread guide | 1 |
| 7+ | DD0038939 | Needle DB×1 | 1 |
| 5+ | DD0005916 | Bearing support | 1 |
| 6+ | DD0005945 | Needle bar thread guide | 1 |
| 7+ | D00003606 | Needle DB×5 | 1 |
| 8 | DD0005943 | Needle bar thread guide | 1 |
| 9 | DD0010588 | Screw | 1 |
| 10+ | DD0052735 | Needle bar holder | 1 |
| 10+ | DD0010590 | Needle bar holder | 1 |
| 11 | DD0054140 | Slide block | 1 |
| 12 | DD0004184 | Thread release pin | 1 |
| 13 | DD0004183 | O-ring | 1 |
| 14 | DD0004200 | Screw | 1 |
| 15 | DD0039524 | Tension post socket | 1 |
| 16 | DD0004201 | Spring | 1 |
| 17 | DD0004177 | Screw | 1 |
| 18 | DD0051457 | Nut | 1 |
| 19 | DD0004199 | Tension disc stopper | 1 |
| 20+ | DD0004176 | Spring | 1 |
| 20+ | DD0005941 | Spring | 1 |
| 21 | DD0004179 | Thread release disc | 1 |
| 22 | DD0004180 | Tension disc holder | 2 |
| 23+ | DD0062637 | Thread take-up device | 1 |
| 23+ | D00003773 | Thread take-up device | 1 |
| 24 | DD0006264 | Screw | 1 |
| 25 | DD0051458 | Nut | 1 |
| 26 | DD0005838 | Spring | 1 |
| 27 | DD0005839 | Tension disc holder | 2 |
| 28 | DD0012589 | Threading plate | 1 |
| 29 | DD0051703 | Thread take-up device | 1 |
| 30 | DD0009074 | Screw | 1 |
| 31 | DD0008934 | Screw | 1 |
| 32 | DD0052992 | Needle tension guide | 1 |
| 33 | D00002401 | Tension release supporting pin | 1 |
| 34 | DD0050348 | Spring | 1 |
Page 11 — C. 针杆、夹线组件 / Needlebar & thread tension components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 35 | DNR003524 | Electromagnet | 1 |
| 36 | DD0009074 | Screw | 1 |
| 37 | DD0009074 | Screw | 1 |
| 38 | DD0038945 | Presser bar thread guide | 1 |
| 39 | ENR003507 | Loose wire electromagnet assembly | 1 |
| 40 | DD0005204 | Screw | 4 |
| 41 | E00003534 | Mounting plate | 1 |
| 42 | D00003530 | Loose wire electromagnet | 1 |
| 43 | D00003538 | Electromagnet cover | 1 |
| 44 | DD0008972 | Screw | 2 |
| 45 | DD0043360 | Screw | 2 |
Page 13 — D. 压料、松线分组件 / Presser bar & tension release components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | DD0051433 | Screw ASM | 1 |
| 2 | DD0051428 | Screw | 1 |
| 3 | DD0051429 | Nut | 1 |
| 4 | DD0004439 | Presser guide bar | 1 |
| 5 | DD0004473 | Spring | 1 |
| 6 | D00001627 | Presser guide bar bracket | 1 |
| 7 | D00004089 | Screw | 1 |
| 8 | D00003533 | Oil protector cover | 1 |
| 9+ | DD0014118 | Bearing support | 1 |
| 10+ | DD0052532 | Presser foot ASM | 1 |
| 9+ | DD0005915 | Bearing support | 1 |
| 10+ | DD0005982 | Presser foot ASM | 1 |
| 11 | DD0010650 | Screw | 1 |
| 12 | DD0010646 | Presser bar | 1 |
| 13 | DD0010016 | Screw | 1 |
| 14 | DD0051430 | Hand lifter | 1 |
| 15 | DD0010027 | O-ring | 1 |
| 16 | D00001625 | Presser foot lifting boss assembly | 1 |
| 17 | DD0010653 | Pin | 2 |
| 18 | D00003599 | Front bar of presser foot | 1 |
| 19 | D00003237 | Presser foot lifting plate | 1 |
| 21 | DD0013038 | Snap ring | 2 |
| 22 | D00002662 | Lifting lever connecting rod | 1 |
| 23 | DD0010651 | Screw | 1 |
| 24 | DD0010652 | Screw | 2 |
| 25 | D00003258 | Presser foot lifter connector plate | 1 |
| 26 | D00002664 | Lifing lever link | 1 |
| 27 | DD0009205 | Spring | 1 |
| 28 | D00002080 | Connecting rod verrical | 1 |
| 29 | DD0000134 | Screw | 4 |
| 30 | DNR003547 | Electromagnes | 1 |
Page 15 — E. 钩线分组件 / Hook of driving shaft components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | DD0031261 | Positioning finger | 1 |
| 2 | DD0011101 | Screw | 1 |
| 3 | DD0006924 | Bobbin case | 1 |
| 4 | DD0025484 | Bobbin | 1 |
| 5+ | DD0051397 | Hook | 1 |
| 5+ | DD0053595 | Hook | 1 |
| 6 | D00003639 | Screw | 1 |
| 7 | DD0010063 | Oil wick | 1 |
| 8 | DD0013029 | oil seal | 3 |
| 9 | D00002379 | Bearing support | 1 |
| 10 | DD0008779 | Tubing joint | 2 |
| 11 | DD0041529 | Screw | 2 |
| 12 | DD0010059 | Screw | 2 |
| 13 | DD0010058 | Thrust collar | 1 |
| 14 | DD0007268 | Bearing support | 1 |
| 15 | DD0008821 | Hook driving shaft | 1 |
| 16 | DD0010030 | Screw | 1 |
| 17 | D00001705 | Bearing support | 1 |
| 18 | DD0002560 | Gear Assy | 1 |
| 19 | DD0010065 | Screw | 8 |
| 20 | DD0002509 | Gear Assy | 1 |
| 21 | DD0007235 | Bearing support | 1 |
| 22 | DD0007236 | Bearing support | 1 |
| 23 | DD0010057 | Upright shaft | 1 |
| 24 | DD0002561 | Gear Assy | 1 |
| 25 | DD0002445 | Gear Assy | 1 |
Page 17 — F. 送料分组件 / Feed mechanism components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | DD0010089 | Snap ring | 1 |
| 2 | DD0010084 | Connecting rod | 1 |
| 3 | DD0010115 | Feed drive eccentric cam | 1 |
| 4 | DD0010072 | Connecting rod | 1 |
| 5 | DD0010098 | Thrust cover | 1 |
| 6 | DD0010643 | Screw | 2 |
| 7 | DD0010092 | Screw | 2 |
| 8 | DD0010096 | Pin | 1 |
| 9 | DD0010076 | Feed rocker | 1 |
| 10 | DD0010071 | Screw | 1 |
| 11 | DD0010095 | Screw | 1 |
| 12 | DD0048736 | Short link | 2 |
| 13 | DD0048696 | Long link | 2 |
| 14 | DD0010069 | Pin | 1 |
| 15 | DD0010071 | Screw | 1 |
| 16 | DD0010091 | Screw | 1 |
| 17 | D00001677 | Pin | 1 |
| 18 | D00001671 | Pin | 1 |
| 19 | DD0010678 | Screw | 2 |
| 20 | DD0010087 | Pin | 2 |
| 21 | DD0010088 | Feed adjusting ASM | 1 |
| 22 | DD0010071 | Screw | 2 |
| 23 | DD0010649 | Snap ring | 2 |
| 24 | D00001346 | Pin | 2 |
| 25 | D00001348 | crank | 1 |
| 26 | D00001355 | oil seal | 1 |
| 27 | DD0065628 | Screw | 3 |
| 28 | D00001347 | connecting rod | 1 |
| 29 | DD0065628 | Screw | 1 |
| 30 | D00003535 | Stepper motor | 1 |
| 31 | D00001696 | Bearing support | 2 |
| 32 | D00003565 | oil seal | 2 |
| 33 | DD0042079 | Lifing fork | 1 |
| 34 | DD0004628 | Screw | 1 |
| 35+ | DD0052531 | Feed dog | 1 |
| 35+ | DD0007322 | Feed dog | 1 |
| 36 | DD0010099 | Screw | 2 |
| 37 | DD0063520 | Tooth base | 1 |
| 38 | DD0004474 | Feed bar driving crank | 1 |
| 39 | DD0004440 | Pin | 1 |
| 40 | DD0010074 | Screw | 1 |
| 41 | DD0004993 | Screw | 1 |
| 42 | DD0010090 | Snap ring | 2 |
| 43 | DD0014116 | Bearing support | 2 |
| 44 | D00001689 | Feed rocker shaft | 1 |
| 45 | DD0010542 | Thrust collar | 2 |
| 46 | DD0038073 | Screw | 4 |
| 47 | D00001690 | Feed lifting rocker shaft | 1 |
| 48 | DD0010095 | Screw | 1 |
| 49 | DD0010086 | Lifing rocker | 1 |
| 50 | DD0004475 | Nut | 1 |
| 51 | DNR003518 | Headlamp assembly | 1 |
| 52 | DD0008934 | Screw | 1 |
| 53 | DD0011168 | Washer | 1 |
Page 19 — H. 剪线分组件 / Thread trimmer components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | DD0064326 | Trimming crank shaft | 1 |
| 2 | DD0011630 | Short bushing | 1 |
| 3 | DD0012454 | Short bushing | 1 |
| 4 | DD0011588 | Fastening screw | 3 |
| 5 | D00001662 | Lower knife | 1 |
| 6 | DD0011649 | Spring | 1 |
| 7 | DD0008865 | Washer | 1 |
| 8 | DD0064327 | Trimming crank | 1 |
| 9 | DD0064329 | Connecting rod | 1 |
| 10 | DD0064328 | Adjusting plate | 1 |
| 11 | DD0006624 | Screw | 1 |
| 12 | DD0011514 | Screw | 3 |
| 13 | DD0031612 | Knife shaft crack rod | 1 |
| 14 | DD0011580 | Block | 1 |
| 15 | DD0064330 | Round knife bracket | 1 |
| 16 | DD0011578 | Nut | 2 |
| 17 | D00003931 | Screw | 1 |
| 18 | D00001660 | Upper knife | 1 |
| 19 | DD0064331 | Fixed turret | 1 |
| 20 | DD0014196 | End cap | 1 |
| 21 | DD0008812 | Spring | 1 |
| 22 | D00002348 | Teimming shaft | 1 |
| 23 | DD0050266 | Silencer plug | 1 |
| 24 | DD0011686 | Trimming cam crank Asm | 1 |
| 25 | DD0025577 | Screw | 1 |
| 26 | DD0011578 | Nut | 3 |
| 27 | DD0004648 | Trimming cam crank Asm | 1 |
| 28 | DD0004707 | Roller Shaft | 1 |
| 29 | DD0004651 | Roller | 1 |
| 30 | DD0025576 | Washer | 1 |
| 31 | DD0004703 | Slide block | 1 |
| 32 | DD0004704 | Pin | 1 |
| 33 | DD0004705 | Roller | 1 |
| 34 | DD0011650 | Washer | 1 |
| 35 | DD0003031 | Washer | 1 |
| 36 | DD0009654 | Snap ring | 1 |
| 37 | D00003531 | Thread trimmer solenoid ASM | 1 |
| 38 | DD0009471 | Nut | 2 |
| 39 | D00002665 | Solenoid base | 1 |
| 40 | DD0011607 | Solenoid connecting shaft | 1 |
| 41 | DNR003991 | Thread trimmer solenoid | 1 |
| 42 | DD0011606 | Washer | 1 |
| 43 | DD0011845 | Washer | 1 |
| 44 | DD0028999 | Screw | 1 |
| 45 | DD0008862 | Screw | 1 |
| 46 | DD0003077 | Washer | 2 |
| 47 | DD0011605 | Screw | 2 |
| 48 | D00003705 | Cord holder | 1 |
| 49 | DD0010292 | Screw | 1 |
| 50 | DD0058067 | Dispart | 1 |
| 51 | DD0013154 | Washer | 1 |
| 52 | DD0014474 | Screw | 1 |
| 53 | DD0013465 | Screw | 2 |
| 54 | DD0023739 | Cam collar | 1 |
| 55 | DD0010736 | Thread cutting cam | 1 |
| 56 | DD0009626 | Screw | 3 |
| 57 | DD0013026 | Tool holder clamp | 1 |
Page 21 — I. 润滑组分件 / Lubrication components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | DD0014197 | Foam rubber | 1 |
| 2 | DD0005558 | Screw | 1 |
| 3 | D00002229 | Oil stoper | 1 |
| 4 | DD0041628 | Oil felt preser | 1 |
| 5 | DD0008934 | Screw | 1 |
| 6 | E00003573 | Oil return pipe assembly | 1 |
| 7 | DD0010294 | Felt clip | 1 |
| 8 | DD0048653 | Main shaft oil tube | 1 |
| 9 | D00003443 | Oil tube holder | 1 |
| 10 | DD0010293 | Screw | 1 |
| 11 | DD0008817 | Oil pump | 1 |
| 12 | DD0010066 | Screw | 1 |
| 13 | DD0050422 | Screw | 1 |
| 14 | D00003617 | Tube | 1 |
| 15 | DD0008779 | Oil tube holder | 2 |
| 16 | D00002561 | Oil control valve | 1 |
| 17 | DD0010027 | O-ring | 2 |
| 18 | DD0000566 | Oil regulating lever | 1 |
| 19 | DD0054136 | Screw | 1 |
Page 23 — J. 油盘、膝抬脚组件 / Presser foot components of oil plate knee lift
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | D00001634 | buoy | 1 |
| 2 | DD0008934 | Screw | 2 |
| 3 | DD0009991 | Screw | 1 |
| 4 | DD0003892 | Oil pan magnet | 1 |
| 5 | D00001682 | Pin | 1 |
| 6 | D00003512 | Oil baffle | 1 |
| 7 | D00001633 | Oil reservoir gasket | 1 |
| 8 | D00003215 | Oil reservoir | 1 |
| 9 | D00001703 | Oil supply nozzle | 1 |
| 10 | DD0008779 | Oil tube holder | 1 |
| 11 | DD0002028 | Screw | 6 |
| 12 | DD0014461 | O-ring | 1 |
| 13 | D00002181 | Screw | 1 |
| 14 | DD0002563 | Crank ASM | 1 |
| 15 | DD0009987 | Crank | 1 |
| 16 | DD0003890 | Nut | 3 |
| 17 | DD0003898 | Screw | 1 |
| 18 | D00004047 | Screw | 1 |
| 19 | DD0003895 | Screw | 1 |
| 20 | DD0002559 | Snap ring | 1 |
| 21 | D00002350 | Spring | 1 |
| 22 | D00001687 | Knee pressing shaft | 1 |
| 23 | DD0002562 | Bubber ring | 1 |
| 24 | DD0003896 | Bracket ASM | 1 |
| 25 | DD0002613 | Screw | 1 |
| 26 | DD0002610 | Screw | 1 |
| 27 | E00003503 | Knee pressing plate ASM | 1 |
| 28 | DD0003901 | Knee pressing plate rod | 1 |
| 29 | DD0003894 | Screw | 1 |
| 30 | DD0003897 | Knee pressing plate holder | 1 |
| 31 | D00003445 | Knee pressing plate rubber | 1 |
| 32 | DD0003891 | Knee pressing plate | 1 |
| 33 | D00003446 | Knee pressing cover | 1 |
| 34 | D00003753 | Lever as-control | 1 |
Page 25 — K. 过线架分组件 / Components of thread-running stand
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | D00003447 | Column cap | 1 |
| 2 | DD0004293 | Column pipe(upper) | 1 |
| 3 | DD0002953 | Nut | 6 |
| 4 | DD0003022 | Washer | 4 |
| 5 | DD0003301 | Screw | 3 |
| 6 | DD0004285 | Thread guide bushing | 4 |
| 7 | DD0004289 | Thread guide pipe | 4 |
| 8 | DD0004298 | Thread hanger(upper) | 2 |
| 9 | DD0004286 | Column pipe connector | 1 |
| 10 | DD0004291 | Column pipe(lower) | 1 |
| 11 | DD0004284 | Thread hanger(lower) | 1 |
| 12 | DD0003312 | Screw | 2 |
| 13 | DD0004288 | Spool pin | 2 |
| 14 | DD0004287 | Spool cushion | 2 |
| 15 | DD0004281 | Spool mat | 2 |
| 16 | DD0004299 | Spool seat disc | 2 |
| 17 | DD0004295 | Washer | 2 |
| 18 | DD0004290 | Washer | 2 |
| 19 | DD0002985 | Nut | 1 |
| 20 | D00003447 | Column pipe(upper) | 1 |
| 21 | D00003519 | Wire frame components | 1 |
Page 27 — L. 附件 / Accessories
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | D00003969 | Screw | 6 |
| 2 | D00003214 | Plastic oil pan | 1 |
| 3 | DD0025484 | Bobbin | 1 |
| 4 | DD0003892 | Oil reservoir magnet | 1 |
| 5 | D00003522 | Oil reservoir cushion | 2 |
| 6 | D00003523 | Oil reservoir seat | 2 |
| 7 | DD0026033 | Frame support bar | 1 |
| 8 | DD0004466 | Head connecting hook | 2 |
| 9 | D00003451 | Head connecting hook socket | 2 |
| 10 | DD0060866 | Oil pot | 1 |
| 11 | D00003536 | Head cover | 1 |
| 12 | DD0031426 | Screw | 1 |
Page 29 — M. 电控分组件 / Drive-by-wire Components
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | DD0054287 | Screw | 4 |
| 2 | DD0010899 | Screw | 1 |
| 3 | D00002462 | Cord holder | 1 |
| 4 | DD0000480 | Washer | 1 |
| 5 | D00002463 | Cord holder | 1 |
| 6 | D00003992 | Motor housing | 1 |
| 7 | DD0006115 | Snap ring | 1 |
| 8 | DD0012080 | Screw | 1 |
| 9 | DD0001943 | Screw | 3 |
| 10 | DNR003466 | Control box | 1 |
| 11 | DD0010899 | Screw | 1 |
| 12 | DNR003467 | Key screen | 1 |
| 13 | D00004088 | Screw | 2 |
| 14 | DD0031424 | Pedal unit ASM | 1 |
| 15 | DD0008934 | Screw | 2 |
Page 31 — Index / 索引
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D00001346 | F - 24 | ||
| D00001347 | F - 28 | ||
| D00001348 | F - 25 | ||
| D00001355 | D - 26 | ||
| D00001625 | D - 16 | ||
| D00001627 | D - 6 | ||
| D00001633 | J - 7 | ||
| D00001634 | J - 1 | ||
| D00001660 | H - 18 | ||
| D00001662 | H - 5 | ||
| D00001671 | F - 18 | ||
| D00001677 | F - 17 | ||
| D00001682 | J - 5 | ||
| D00001689 | F - 44 | ||
| D00001690 | F - 47 | ||
| D00001696 | F - 31 | ||
| D00001703 | J - 9 | ||
| D00001705 | E - 17 | ||
| D00002080 | D - 28 | ||
| D00002181 | J - 13 | ||
| D00002229 | D - 3 | ||
| D00002348 | H - 22 | ||
| D00002350 | J - 21 | ||
| D00002379 | E - 9 | ||
| D00002401 | C - 33 | ||
| D00002462 | M - 3 | ||
| D00002463 | M - 5 | ||
| D00002521 | B - 28 | ||
| D00002530 | A - 35 | ||
| D00002561 | I - 16 | ||
| D00002662 | D - 22 | ||
| D00002664 | D - 26 | ||
| D00002665 | H - 39 | ||
| D00002740 | A - 20 | ||
| D00003214 | L - 2 | ||
| D00003215 | J - 8 | ||
| D00003235 | A - 22 | ||
| D00003237 | D - 19 | ||
| D00003258 | D - 25 | ||
| D00003428 | A - 9 | ||
| D00003429 | A - 8 | ||
| D00003430 | A - 14 | ||
| D00003431 | A - 15 | ||
| D00003432 | A - 21 | ||
| D00003435 | A - 16 | ||
| D00003438 | B - 7 | ||
| D00003439 | B - 11 | ||
| D00003440 | B - 5 | ||
| D00003441 | C - 1 | ||
| D00003443 | I - 9 | ||
| D00003445 | J - 31 | ||
| D00003446 | J - 33 | ||
| D00003447 | K - 1 | ||
| D00003451 | L - 20 | ||
| D00003456 | A - 11 | ||
| D00003512 | J - 6 | ||
| D00003513 | B - 18+ | ||
| D00003517 | A - 10 | ||
| D00003519 | K - 21 | ||
| D00003522 | L - 5 | ||
| D00003523 | L - 6 | ||
| D00003528 | A - 30 | ||
| D00003529 | A - 37 | ||
| D00003530 | C - 42 | ||
| D00003531 | H - 37 | ||
| D00003533 | D - 8 | ||
| D00003535 | F - 30 | ||
| D00003536 | L - 11 | ||
| D00003538 | C - 43 | ||
| D00003565 | F - 32 | ||
| D00003599 | D - 18 | ||
| D00003606 | C - 7+ | ||
| D00003617 | I - 14 | ||
| D00003639 | E - 6 | ||
| D00003696 | A - 4 | ||
| D00003698 | B - 25 | ||
| D00003703 | B - 18+ | ||
| D00003705 | H - 48 | ||
| D00003753 | J - 34 | ||
| D00003773 | C - 23+ | ||
| D00003789 | C - 3+ | ||
| D00003792 | C - 3+ | ||
| D00003825 | B - 27 | ||
| D00003832 | A - 36 | ||
| D00003931 | H - 17 | ||
| D00003969 | L - 1 | ||
| D00003992 | M - 6 | ||
| D00004047 | J - 18 | ||
| D00004088 | M - 13 | ||
| D00004089 | D - 7 | ||
| D00004134 | D - 29 | ||
| D00004158 | B - 4+ | ||
| D00003890 | J - 16 | ||
| D00003891 | J - 32 | ||
| D00003892 | J - 4 | ||
| D00003893 | J - 29 | ||
| D00003894 | J - 19 | ||
| D00003895 | J - 24 | ||
| D00003896 | J - 17 | ||
| D00003897 | J - 30 | ||
| D00003898 | J - 17 | ||
| D00003901 | J - 28 | ||
| D00003963 | A - 32 | ||
| D00003963 | A - 34 | ||
| D00004158 | B - 4+ | ||
| DD0004176 | C - 20+ | ||
| DD0004177 | C - 17 | ||
| DD0004179 | C - 21 | ||
| DD0004180 | C - 22 | ||
| DD0004183 | C - 13 | ||
| DD0004184 | C - 12 | ||
| DD0004199 | C - 19 | ||
| DD0004200 | C - 14 | ||
| DD0004201 | C - 16 | ||
| DD0004281 | K - 15 | ||
| DD0004284 | K - 11 | ||
| DD0004285 | K - 6 | ||
| DD0004286 | K - 9 | ||
| DD0004287 | K - 14 | ||
| DD0004288 | K - 13 | ||
| DD0004289 | K - 7 | ||
| DD0004290 | K - 18 | ||
| DD0004291 | K - 10 | ||
| DD0004293 | K - 2 | ||
| DD0004295 | K - 17 | ||
| DD0004298 | K - 8 | ||
| DD0004299 | K - 16 | ||
| DD0004373 | A - 28 | ||
| DD0004374 | A - 27 | ||
| DD0004380 | A - 5 | ||
| DD0004439 | D - 4 | ||
| DD0004440 | F - 39 | ||
| DD0004466 | L - 8 | ||
| DD0004472 | B - 20 | ||
| DD0004473 | D - 5 | ||
| DD0004474 | F - 38 | ||
| DD0004475 | F - 50 | ||
| DD0004628 | F - 34 | ||
| DD0004648 | H - 27 | ||
| DD0004651 | H - 29 | ||
| DD0004703 | H - 31 | ||
| DD0004704 | H - 32 | ||
| DD0004705 | H - 33 | ||
| DD0004707 | H - 28 | ||
| DD0004993 | F - 41 | ||
| DD0005020 | B - 23 | ||
| DD0005558 | I - 2 | ||
| DD0005838 | C - 26 | ||
| DD0005839 | C - 27 | ||
| DD0005915 | D - 9+ | ||
| DD0005916 | C - 5+ | ||
| DD0005940 | B - 15+ | ||
| DD0005941 | C - 20+ | ||
| DD0005943 | C - 8 | ||
| DD0005945 | C - 6+ | ||
| DD0005982 | D - 10+ | ||
| DD0006115 | M - 7 | ||
| DD0006264 | C - 24 | ||
| DD0006624 | H - 11 | ||
| DD0006844 | B - 15+ | ||
| DD0006924 | E - 3 | ||
| DD0007235 | E - 21 | ||
| DD0007236 | E - 22 | ||
| DD0007239 | B - 26 | ||
| DD0007268 | E - 14 | ||
| DD0007322 | F - 35+ | ||
| DD0007779 | E - 10 | ||
| DD0008812 | H - 21 | ||
| DD0008817 | I - 11 | ||
| DD0008821 | E - 15 | ||
| DD0008862 | H - 45 | ||
| DD0008865 | H - 7 | ||
| DD0008934 | A - 6 | ||
| DD0009005 | A - 26 | ||
| DD0009074 | C - 30 | ||
| DD0009205 | D - 27 | ||
| DD0009471 | H - 38 | ||
| DD0009626 | H - 56 | ||
| DD0009654 | H - 36 | ||
| DD0009987 | J - 15 | ||
| DD0010016 | D - 13 | ||
| DD0010027 | D - 15 | ||
| DD0010030 | E - 16 | ||
| DD0010057 | E - 23 | ||
| DD0010058 | E - 13 | ||
| DD0010059 | E - 12 | ||
| DD0010063 | E - 7 | ||
| DD0010065 | B - 9 | ||
| DD0010066 | I - 19 | ||
| DD0010069 | F - 12 | ||
| DD0010071 | F - 14 | ||
| DD0010072 | F - 10 | ||
| DD0010074 | F - 15 | ||
| DD0010076 | F - 4 | ||
| DD0010080 | A - 40 | ||
| DD0010082 | B - 33 | ||
| DD0010083 | B - 2 | ||
| DD0010084 | F - 2 |
Page 32 — Index / 索引
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| - 49 | DD0010292 | H | |
| - 10 | DD0010293 | I | |
| - 12 | DD0010504 | B | |
| - 3 | DD0010535 | B | |
| - 17 | DD0010537 | B | |
| - 10 | DD0010538 | B | |
| - 4 | DD0010542 | B | |
| - 45 | DD0010542 | F | |
| - 6 | DD0010545 | B | |
| - 9 | DD0010588 | C | |
| - 10+ | DD0010590 | C | |
| - 6+ | DD0010591 | C | |
| - 16+ | DD0010592 | B | |
| - 6 | DD0010643 | F | |
| - 12 | DD0010646 | D | |
| - 11 | DD0010650 | D | |
| - 23 | DD0010651 | D | |
| - 24 | DD0010652 | D | |
| - 17 | DD0010653 | D | |
| - 21 | DD0010678 | B | |
| - 22 | DD0010678 | B | |
| - 55 | DD0010736 | H | |
| - 2 | DD0010899 | M | |
| - 11 | DD0010899 | M | |
| - 2 | DD0011063 | C | |
| - 2 | DD0011101 | E | |
| - 13 | DD0011149 | A | |
| - 53 | DD0011168 | F | |
| - 32 | DD0011232 | B | |
| - 12 | DD0011514 | H | |
| - 16 | DD0011578 | H | |
| - 26 | DD0011578 | H | |
| - 14 | DD0011580 | H | |
| - 4 | DD0011588 | H | |
| - 47 | DD0011605 | H | |
| - 42 | DD0011606 | H | |
| - 40 | DD0011607 | H | |
| - 2 | DD0011630 | H | |
| - 6 | DD0011649 | H | |
| - 34 | DD0011650 | H | |
| - 24 | DD0011686 | H | |
| - 43 | DD0011845 | H | |
| - 8 | DD0012080 | M | |
| - 13+ | DD0012203 | B | |
| - 3 | DD0012454 | H | |
| - 25 | DD0012463 | A | |
| - 28 | DD0012589 | C | |
| - 13+ | DD0012858 | B | |
| - 57 | DD0013026 | H | |
| - 8 | DD0013029 | E | |
| - 21 | DD0013038 | D | |
| - 51 | DD0013154 | H | |
| - 53 | DD0013465 | H | |
| - 31 | DD0013706 | A | |
| - 14 | DD0014106 | B | |
| - 43 | DD0014116 | F | |
| - 5+ | DD0014117 | C | |
| - 9+ | DD0014118 | D | |
| - 20 | DD0014196 | H | |
| - 1 | DD0014197 | I | |
| - 24+ | DD0014459 | A | |
| - 12 | DD0014461 | J | |
| - 54 | DD0023739 | H | |
| - 4 | DD0025484 | E | |
| - 3 | DD0025484 | L | |
| - 30 | DD0025576 | H | |
| - 7 | DD0026033 | L | |
| - 44 | DD0028999 | H | |
| - 1 | DD0031261 | E | |
| - 14 | DD0031424 | M | |
| - 12 | DD0031426 | L | |
| - 13 | DD0031612 | H | |
| - 46 | DD0038073 | F | |
| - 4+ | DD0038474 | B | |
| - 7+ | DD0038939 | C | |
| - 15 | DD0039524 | C | |
| - 11 | DD0041529 | E | |
| - 4 | DD0041628 | I | |
| - 33 | DD0042079 | F | |
| - 4 | DD0043360 | C | |
| - 45 | DD0048653 | C | |
| - 13 | DD0048696 | F | |
| - 12 | DD0048736 | F | |
| - 23 | DD0050266 | H | |
| - 34 | DD0050348 | C | |
| - 13 | DD0050422 | I | |
| - 12 | DD0050423 | A | |
| - 1 | DD0050672 | B | |
| - 5+ | DD0051397 | E | |
| - 2 | DD0051428 | D | |
| - 3 | DD0051429 | D | |
| - 14 | DD0051430 | D | |
| - 17 | DD0051431 | A | |
| - 1 | DD0051433 | D | |
| - 18 | DD0051457 | C | |
| - 25 | DD0051458 | C | |
| - 29 | DD0051703 | C | |
| - 35+ | DD0052531 | F | |
| - 10+ | DD0052532 | D | |
| - 10+ | DD0052735 | C | |
| - 32 | DD0052992 | C | |
| - 16+ | DD0053104 | B | |
| - 5+ | DD0053595 | E | |
| - 19 | DD0054136 | I | |
| - 11 | DD0054140 | C | |
| - 1 | DD0054287 | M | |
| - 19 | DD0055615 | B | |
| - 50 | DD0058067 | H | |
| - 30 | DD0059025 | B | |
| - 24+ | DD0060708 | A | |
| - 10 | DD0060866 | L | |
| - 23+ | DD0062637 | C | |
| - 37 | DD0063520 | F | |
| - 1 | DD0064326 | H | |
| - 8 | DD0064327 | H | |
| - 10 | DD0064328 | H | |
| - 9 | DD0064329 | H | |
| - 15 | DD0064330 | H | |
| - 19 | DD0064331 | H | |
| - 27 | DD0065628 | F | |
| - 29 | DD0065628 | F | |
| - 3 | DD0066775 | A | |
| - 2 | DE0025554 | A | |
| - 10 | DNR003466 | M | |
| - 12 | DNR003467 | M | |
| - 51 | DNR003518 | F | |
| - 35 | DNR003524 | C | |
| - 29 | DNR003534 | B | |
| - 30 | DNR003547 | D | |
| - 41 | DNR003991 | H | |
| - 7 | E00003021 | A | |
| - 27 | E00003503 | J | |
| - 19 | E00003519 | A | |
| - 41 | E00003534 | C | |
| - 6 | E00003573 | I | |
| - 31 | E00003671 | B | |
| - 39 | ENR003507 | C |
Brother S-7180A — parts catalog
- Page 1 (cover): This is the cover page for the Brother S-7180A Parts Book, featuring the Brother logo and a graphic of a screw.
- Page 2 (text): This page describes the model plate for the S-7180A-81P machine, explaining how to interpret the model number and its use with different material weights.
- Page 3 (toc): This page is a table of contents listing components and their corresponding page numbers in both English and Chinese.
- Page 4 (diagram): This page displays a diagram of machine frame and miscellaneous cover components, with various parts labeled with reference numbers and part numbers.
- Page 5 (parts_list): This page lists machine frame and miscellaneous cover components, including part numbers, descriptions, quantities, and Chinese translations.
- Page 6 (diagram): This page displays a diagram of main shaft and thread take-up components, with various parts labeled with reference numbers such as B-1 through B-32.
- Page 7 (parts_list): This page lists main shaft and thread take-up components for an industrial sewing machine, including part numbers, descriptions, quantities, and Chinese translations.
- Page 8 (diagram): This page displays a diagram of needle bar and thread tension components, with various parts labeled with reference numbers such as C-1 through C-45.
- Page 9 (parts_list): This page lists needle bar and thread tension components for industrial sewing machines, including part numbers, descriptions, and quantities.
- Page 10 (diagram): This page displays a diagram of needle bar and thread tension components, with various parts labeled with reference numbers such as C-1 through C-45.
- Page 11 (parts_list): This page lists needle bar, clamp, and thread tension components, including part numbers, descriptions, quantities, and Chinese translations.
- Page 12 (diagram): This page displays a diagram of presser bar and tension release components, with parts labeled D-1 through D-30.
- Page 13 (parts_list): This page lists parts for Presser bar & tension release components, including part numbers, names, quantities, and remarks.
- Page 14 (diagram): This page displays a diagram of hook of driving shaft components, with various parts labeled with reference numbers and part numbers.
- Page 15 (parts_list): This page lists parts for Hook of driving shaft components, including part numbers, names, and quantities.
- Page 16 (diagram): This page displays a diagram of feed mechanism components, with various parts labeled with reference numbers and part numbers.
- Page 17 (parts_list): This page lists feed mechanism components with their reference numbers, part codes, quantities, names, and Chinese descriptions.
- Page 18 (diagram): This page displays a diagram of thread trimmer components, with various parts labeled with reference numbers and part numbers.
- Page 19 (parts_list): This page lists thread trimmer components for an industrial sewing machine, including part numbers, descriptions, quantities, and Chinese translations.
- Page 20 (diagram): This page displays a diagram of lubrication components for an industrial sewing machine, with parts labeled from I-1 to I-20.
- Page 21 (parts_list): This page lists lubrication components with their reference numbers, codes, quantities, names in English and Chinese, and RM values.
- Page 22 (diagram): This page displays a diagram of presser foot components for oil plate knee lift machines, with various parts labeled with reference numbers and some part numbers.
- Page 23 (parts_list): This page lists parts for the oil plate and presser foot components of an oil plate knee lift, including part numbers, names, quantities, and remarks.
- Page 24 (diagram): This page displays a diagram of components for a thread-running stand, with parts labeled K-1 through K-21.
- Page 25 (parts_list): This page lists components for a thread-running stand, including part numbers, descriptions, quantities, and Chinese translations.
- Page 26 (diagram): This page displays a diagram of accessories for the sewing machine, with various parts labeled from L-1 to L-12.
- Page 27 (parts_list): This page lists accessories for the sewing machine, including screws, oil pans, bobbins, magnets, and covers, with their corresponding part numbers and quantities.
- Page 28 (diagram): This page displays a diagram of drive-by-wire components, with various parts labeled with reference numbers such as M-1 through M-15.
- Page 29 (parts_list): This page lists drive-by-wire components for electric control, including screws, cord holders, washers, motor housings, snap rings, control boxes, key screens, and pedal units, with their corresponding part numbers and quantities.
- Page 30 (text): This page contains warning labels and safety instructions for the Brother S-7180A sewing machine, including information on hazardous voltage, lubricating oil precautions, and operational symbols.
- Page 31 (index): This page contains an index of parts for an industrial sewing machine, listing part numbers, reference numbers, and page numbers where they can be found in the catalog.
- Page 32 (index): This page contains an index of part numbers and their corresponding reference numbers and page locations, organized into three columns.
- Page 33 (cover): This is the cover page of the Brother Parts Book, featuring the Brother logo, a graphic of a screw, and the title "PARTS BOOK 零件手册". It also includes contact information for Brother Industries, Ltd. and copyright details.
