Juki LH-3568 Parts Book (PDF)
Text index — Juki LH-3568
Page 7 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SM-4051055-SP | SCREW | 6 |
| 2 | 400-28766 | REAR_PLATE | 1 |
| 3 | D2112-555-B00 | CORD HOLDER, LARGE | 3 |
| 4 | SM-4050855-SP | SCREW | 4 |
| 5 | 236-01057 | EARTH CORD ASM. | 1 |
| 6 | SM-4050855-SP | SCREW | 1 |
| 7 | WT-0530002-KS | TOOTHED WASHER D=5.3 | 1 |
| 8 | 226-19100 | CAP | 1 |
| 9 | TA-0800504-RO | PLUG D=8 L=4.5 | 2 |
| 10 | TA-1250406-RO | RUBBER PLUG D=12.5 L=4 | 6 |
| 11 | TA-1250406-RO | RUBBER PLUG D=12.5 L=4 | 5 |
| 12 | SM-6060800-SP | SCREW M6 L=8 | 2 |
| 13 | 400-28245 | THREAD_TAKE_UP_LEVER_COVER | 1 |
| 14 | 400-30299 | ASSY_FACE_COVER_G8 | 1 |
| 15 | TA-1600406-RO | PLUG | (2) |
| 16 | 400-29972 | FACE_COVER_G8 | (1) |
| 17 | TA-1250705-RO | RUBBER PLUG | 1 |
| 18 | 229-20706 | TWO EYELET | 2 |
| 19 | SM-8050412-TP | SCREW M5 L=4 | 2 |
| 20 | 400-29078 | THREAD_GUIDE_UPPER | 1 |
| 21 | SM-1040750-TP | SCREW M4 L=7 | 1 |
| 22 | 400-29347 | THREAD_GUIDE_WIRE | 1 |
| 23 | SM-8040402-TP | SCREW M4X0.7 L=4 | 1 |
| 24 | 400-28707 | THREAD_GUIDE_LOWER | 1 |
| 25 | SM-1040750-TP | SCREW M4 L=7 | 1 |
| 26 | B1104-051-000 | THROAT PLATE PIN | 1 |
| 27 | 400-28731 | PLATE | 1 |
| 28 | SM-9040603-SC | SCREW M4 L=6 | 2 |
| 29 | 229-01805 | GROUND MARK | 1 |
| 30 | SM-1040750-TP | SCREW M4 L=7 | 2 |
| 31 | SM-6040655-TP | SCREW M4 L=6 | 1 |
| 32 | SM-2040750-TP | SCREW M4 L=7.4 | 1 |
| 33 | 226-01058 | BED SLIDE LEFT, ASM., A | 1 |
| 34 | 400-25247 | ASSY_SLIDE_PLATE-L-A | 1 |
| 35 | 226-25503 | THROAT PLATE 1/4 | 1 |
| 36 | 400-25492 | THROAT_PLATE_TRIM-1/4 | 1 |
| 37 | 226-00555 | BED SLIDE RIGHT, ASM., A | 1 |
| 38 | 400-25235 | ASSY_SLIDE_PLATE-R-A | 1 |
| 39 | 400-42880 | ASSY_SLIDE_PLATE_F | 1 |
| 40 | 400-42874 | ASSY_SLIDE_PLATE_F_STANDARD | 1 |
| 41 | 400-28555 | STUD | 3 |
| 42 | 400-34675 | THREAD_GUIDE_ASM_E | 1 |
| 43 | 400-32896 | THREAD_GUIDE_FELT | 1 |
| 44 | 226-03708 | FELT | 1 |
| 45 | 400-28706 | AUXILIARY_COVER | 1 |
| 46 | 226-57803 | RUBBER PLUG | 1 |
| 47 | 400-34053 | RESISTANCE PACK AA ASM. | 1 |
| 48 | SM-4041055-SP | SCREW | 1 |
| 49 | CM-3002001-A1 | SAFETY LABEL.,3 (SMALL). | 2 |
| 50 | WP-0430800-SD | WASHER M4 | 1 |
| 51 | 400-35180 | BED_SCREW_STUD_B | 1 |
| 52 | CM-2002002-01 | LABEL_02_C | 1 |
| 53 | CM-2002002-02 | LABEL_02 | 1 |
| 54 | CM-1001000-01 | OIL INJECTION PROHIBITION LABE | 1 |
| 55 | CM-3011001-02 | LABEL_03 | 1 |
| 56 | CM-3011001-01 | LABEL_03_C | 1 |
| 57 | TA-1470704-RO | RUBBER PLUG | 1 |
| 58 | TA-0950806-RO | RUBBER PLUG | 1 |
| 59 | TA-1650406-RO | PRUG | 1 |
| 60 | 400-26811 | THREADING_DIAGRAM | 1 |
| 61 | 400-36690 | WASHER | 1 |
| 62 | EA-9502B02-00 | CABLE CLIP C | 2 |
| 63 | SM-6040552-TP | SCREW M4 L=4.5 | 2 |
| 64 | 236-01305 | AIR-DISCHARGING CAP | 1 |
| 65 | 236-29900 | AIR-DISCHARGING | 1 |
| 66 | RO-0801502-00 | RUBBER RING | 1 |
| 67 | SM-4051055-SP | SCREW | 3 |
| 68 | CM-2001001-02 | LABEL_01 | 1 |
| 69 | CM-2001001-01 | LABEL_01_C | 1 |
| 70 | CM-3002000-01 | ATTENTION SEAL | 1 |
| 71 | TA-1030402-RO | RUBBER PLUG D=10.3 L=4 | 1 |
| 72 | TA-0750704-RO | RUBBER PLUG | 2 |
| 73 | TA-1250406-RO | RUBBER PLUG D=12.5 L=4 | 3 |
| 74☆ | 400-06323 | JUKI GREASE A TUBE | 1 |
| 75 | 400-22407 | CORD HOLDER | 1 |
Page 9 — 2. MAIN SHAFT & THREAD TAKE-UP COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | TA-0750404-R0 | PLUG D=7.5 L=3.5 | 1 |
| 2 | 226-05307 | THREAD TAKE-UP LEVER PIN | 1 |
| 3 | CQ-2020000-00 | OIL WICK | 0.15 |
| 4 | 400-24093 | THREAD_TAKE_UP_LEVER_C | 1 |
| 5 | CQ-2020000-00 | OIL WICK | 0.04 |
| 6 | 400-22678 | TAKE_UP_LEVER_THRUST_PIN | 1 |
| 7 | CQ-2520000-00 | OIL WICK | 0.02 |
| 8 | 228-10907 | RUBBER PLUG | 1 |
| 9 | SM-8060612-TP | SCREW M6 L=6 | 2 |
| 10 | 226-22401 | SYNCRO FRNGE | 1 |
| 11 | 400-29964 | NEEDLE_BAR_CRANK_PIN | 1 |
| 12 | CQ-3030000-00 | OIL WICK | 0.02 |
| 13 | 400-31864 | ASSY_COUNTER_WEIGHT | 1 |
| 14 | SM-8060552-TP | SCREW M6 L=5 | (1) |
| 15 | SM-8060612-TP | SCREW M6 L=6 | (1) |
| 16 | 400-04171 | COUNTER_WEIGHT_SCREW | (1) |
| 17 | SM-8081652-TP | SCREW M8 L=16 | (1) |
| 18 | 400-24436 | MAINSHAFT | 1 |
| 19 | 400-28117 | LOWER_SPROCKET | 1 |
| 20 | SM-6061010-TP | SCREW M6 L=10 | 2 |
| 21 | 400-32987 | HAND_WHEEL | 1 |
| 22 | SM-8061550-TP | SCREW M6 L=15 | 2 |
| 23 | 400-32993 | COMP_HAND_WHEEL_TRIM | 1 |
| 24 | 400-32994 | ASSY_HAND_WHEEL_TRIM | (1) |
| 25 | 400-27099 | HAND_WHEEL | (1) |
| 26 | M4002-110-000 | GENERATOR ROTOR | (1) |
| 27 | 400-17624 | MAGNET FITTING BASE A ASM. | (1) |
| 28 | 400-17625 | MAGNET FITTING BASE B ASM. | (1) |
| 29 | SM-8061550-TP | SCREW M6 L=15 | (2) |
| 30 | SS-6111210-SP | SCREW 11/64-40 L=12 | (2) |
| 31 | WP-0450801-SD | WASHER 4.5X10X0.8 | (2) |
| 32 | 229-37965 | DYNAMO STATOR | 1 |
| 33 | SL-4051001-MZ | SCREW M5 L=9.6 | 2 |
| 34 | 400-32142 | SENSOR_SUPPORT_SHAFT_ASM | 1 |
| 35 | 400-29048 | ASSY_MAINSHAFT_BEARING_2 | 1 |
| 36 | 400-28116 | MAIN_SHAFT_SPROCKET | (1) |
| 37 | SB-1200025-00 | BEARING | (1) |
| 38 | SM-8060612-TP | SCREW M6 L=6 | (2) |
| 39 | 400-29047 | ASSY_MAINSHAFT_BEARING | 1 |
| 40 | SM-8060612-TP | SCREW M6 L=6 | (2) |
| 41 | 400-28652 | TIMING_BELT | 1 |
| 42 | TA-0490601-R0 | PLUG D=4.9X5.5 L=6 | 1 |
| 43 | 400-29049 | ASSY_MAINSHAFT_BEARING_3 | 1 |
| 44 | 400-33667 | BEARING_BUSH_C_ASM | (1) |
| 45 | SM-8060812-TP | SCREW M6 L=8 | (2) |
| 46 | SB-1200020-00 | BEARING | (1) |
| 47 | 400-26920 | SYNCHRONIZER ASM | 1 |
| 48 | TA-0500301-R0 | PLUG.5X5.8 L=3 | 1 |
| 49 | TA-0370301-R0 | PLUG D-3.7X4.4 L=3 | 1 |
Page 11 — 3. NEEDLE BAR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-03702 | ROLLER FELT | 2 |
| 2 | 226-81209 | FELT COVER | 1 |
| 3 | 400-26402 | NEEDLE BAR ROCKING BASE ASM | 1 |
| 4 | 400-26401 | NEEDLE ROD ROCKING BASE | (1) |
| 5 | 400-25329 | NEEDLE BAR SHAFT | (1) |
| 6 | PT-0502700-SO | TAPERED PIN | (1) |
| 7 | 226-82702 | NEEDLE BAR SWIVEL STOPPER | 1 |
| 8 | 226-81712 | STOPPER SCREW | 2 |
| 9 | 400-35629 | FELT | 1 |
| 10 | 226-81951 | SLIDER BLOCK ASM. A | 1 |
| 11 | 226-82058 | SLIDER BLOCK ASM. B | 1 |
| 12 | 226-82157 | SLIDER BLOCK | 1 |
| 13 | 226-82256 | SLIDER BLOCK ASM. D | 1 |
| 14 | 226-82355 | SLIDER BLOCK ASM. E | 1 |
| 15 | 226-81803 | SLIDE BLOCK GUIDE PLATE | 1 |
| 16 | SS-4090715-SP | SCREW 9/64-40 L=7 | 2 |
| 17 | 226-85903 | FELT GUIDE | 1 |
| 18 | WP-0450000-SD | WASHER 4.5X8X0.5 | 1 |
| 19 | SS-7110710-SP | SCREW 11/64-40 L=7 | 1 |
| 20 | 226-86000 | NEEDLE BAR OIL SEAL FELT, A | 1 |
| 21 | 226-85804 | NEEDLE BAR OIL SEAL PLATE | 1 |
| 22 | SS-6060510-TP | SCREW 3/32-56 L=4.5 | 1 |
| 23 | 226-86109 | NEEDLE BAR OIL SEAL FELT, B | 1 |
| 24 | 226-81407 | NEEDLE BAR STOPPER | 2 |
| 25 | 226-81506 | SPRING | 2 |
| 26 | 226-81316 | STOPPER SPRING COVER | 1 |
| 27 | SS-6080410-SP | SCREW 1/8-44 L=4 | 1 |
| 28 | SS-4090415-SP | SCREW 9/64-40 L=4 | 1 |
| 29 | 400-26983 | NEEDLE BAR ASM LEFT | 1 |
| 30 | 400-26982 | NEEDLE BAR LEFT | (1) |
| 31 | 226-85200 | SEESAW PLATE | (1) |
| 32 | 226-85408 | NEEDLE BAR PIN | (1) |
| 33 | 131-02702 | THROAT PLATE COVER | 2 |
| 34 | B1425-526-000 | SCREW 1/8-44 L=6 | 4 |
| 35 | 400-29561 | ASSY NEEDLE CLAMP L(1/4) | 1 |
| 36 | 400-28668 | RING A | 4 |
| 37 | SS-4090715-SP | SCREW 9/64-40 L=7 | 2 |
| 38 | 400-26984 | NEEDLE BAR ASM RIGHT | 1 |
| 39 | 400-26981 | NEEDLE BAR RIGHT | (1) |
| 40 | 226-85200 | SEESAW PLATE | (1) |
| 41 | 226-85408 | NEEDLE BAR PIN | (1) |
| 42 | 226-82504 | SPRING BEARING | 2 |
| 43 | B1402-528-FAR-A | NEEDLE CLAMP ASM. 1/4 | 1 |
| 44 | 232-04506 | ROCKING ROD SQUARE BLOCK A | 1 |
| 45 | 232-04605 | ROCKING ROD SQUARE BLOCK B | 1 |
| 46 | 232-04704 | ROCKING ROD SQUARE BLOCK C | 1 |
| 47 | 226-06206 | SPACER Y | 1 |
| 48 | 226-06305 | SPACER Z | 1 |
| 49 | 226-07600 | SPACER A | 1 |
| 50 | 226-07709 | SPACER B | 1 |
| 51 | B1438-512-B00 | WASHER 17.1X28X1.5 | 1 |
| 52 | 226-07808 | SPACER D | 1 |
| 53 | 226-07907 | SPACER E | 1 |
| 54 | 226-06404 | SPACER F | 1 |
| 55 | 400-32147 | NEEDLE BAR CONNECTION ASM | 1 |
| 56 | 226-83205 | RELEASE PIN COVER | (1) |
| 57 | 226-83304 | SPRING | (1) |
| 58 | 400-24473 | RELEASE PIN | (1) |
| 59 | 226-83809 | SPRING | (2) |
| 60 | 400-28679 | NEEDLE BAR CONNECTION | (1) |
| 61 | 226-83403 | NEEDLE BAR CONNECTION PIN | (1) |
| 62 | 226-84104 | SPRING | (2) |
| 63 | SS-6080340-SP | SCREW 1/8-44 L=2.9 | (2) |
| 64 | 226-84203 | SPRING BRACKET | (1) |
| 65 | 226-83908 | CLUTCH STOPPER, LEFT | (1) |
| 66 | 226-84005 | CLUTCH STOPPER, RIGHT | (1) |
| 67 | 400-24064 | NEEDLE BAR CLUTCH | (2) |
| 68 | B1705-850-000 | STOPPER PIN | (2) |
| 69 | 226-83601 | CLUTCH LEVER | (2) |
| 70 | CQ-2520000-00 | OIL WICK | (0.03) |
| 71 | 400-15144 | NEEDLE BAR CONNECTION PIN | (1) |
| 72 | SS-7060310-SP | SCREW 3/32-56 L=3 | (1) |
| 73 | 400-23568 | BUSHING | 1 |
| 74 | 400-23569 | BUSHING | 1 |
| 75 | 400-33669 | ASSY REAR ARM | 1 |
| 76 | SX-6062502-TP | SCREW M6 L=25 | (1) |
| 77 | 226-85705 | OIL GUARD RUBBER | 1 |
| 78 | 400-26482 | SHOULDER SCREW | 2 |
| 79 | 400-32124 | DRIVING ROD ASM | 1 |
| 80 | 400-28853 | ASSY DRIVING ARM | 1 |
| 81 | SX-6051600-SP | SCREW M5 L=16 | (1) |
| 82 | 400-28200 | NEEDLE BAR CRANK ROD | 1 |
| 83☆ | MDP-50081400 | NEEDLE DPX5 #14 | 2 |
| 84☆ | MDP-17082100 | NEEDLE DPX17 #21 | 2 |
Page 13 — 4. TENSION POST COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-32710 | COMP_THREAD_TENSION_68S | 1 |
| 2 | 400-32711 | COMP_THREAD_TENSION_68G | 1 |
| 3 | 400-28250 | ASSY_TENSION_BASE_PLATE | (1) |
| 4 | 400-52366 | ASSY_THREAD_TENSION | (2) |
| 5 | 110-72402 | THREAD TENSION NUT | (1) |
| 10 | 236-26062 | THREAD TENSION ASM., H | (2) |
| 12 | 229-21209 | THREAD TENSION POST | (1) |
| 14 | 229-21407 | ROTATION STOPPER | (1) |
| 15 | 229-21506 | THREAD TENSION DISK | (2) |
| 17 | 229-21704 | THREAD TENSION SPRING, A | (1) |
| 18 | 229-62005 | THREAD TENSION SPRING | (1) |
| 19 | 229-21803 | DISK STOPPER | (1) |
| 20 | SS-8090670-SP | SCREW 9/64-40 L= 5.5 | (1) |
| 22 | 228-11301 | THREAD GUIDE(UPPER), RIGHT | (1) |
| 23 | 232-03201 | TAKE-UP THREAD GUIDE | (2) |
| 24 | 400-34660 | DISK RELEASE PLATE | (1) |
| 25 | 232-03300 | THREAD GUIDE COLLAR | (2) |
| 29 | SM-8050612-TP | SCREW M5X6 | (2) |
| 33 | 400-34840 | RELEASE LEVER | (1) |
| 34 | SS-6090520-SP | SCREW 9/64-40 L= 5.0 | (1) |
| 37 | 400-15699 | SPRING GUIDE | (1) |
| 38 | 400-28258 | REPOSITIONING LEVER BASE | (1) |
| 43 | WP-0450801-SP | WASHER | (1) |
| 48 | 400-28259 | ASSY. REPOSITIONING LEVER | 1 |
| 49 | SM-6050450-TP | SCREW M5 L=4 | 1 |
| 50 | SM-4040855-SP | SCREW | 1 |
| 52 | 400-28844 | REPOSITIONING LEVER SHAFT | 1 |
| 53 | 400-32327 | ASSY. REPOSITIONING ARM | 1 |
| 54 | SM-6051202-TP | SCREW M5X0.8 L=12 | (1) |
| 57 | 226-87503 | SPRING | 2 |
| 58 | 226-87701 | SPRING SHAFT | 1 |
| 59 | RE-0700000-K0 | E-RING 7 | 2 |
| 60 | 226-87602 | SPRING BASE | 1 |
| 62 | 226-87107 | REPOSITIONING PLATE | 1 |
| 65 | SS-9110460-CP | SCREW 11/64-40 L=4 | 1 |
| 67 | 226-15702 | OIL ADJUSTING BALL | 1 |
Page 15 — 5. HOOK & HOOK DRIVING SHAFT COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-42121 | HOOK_UPPER_BUSH | 2 |
| 2 | 400-28491 | HOOK_LOWER_BUSH | 2 |
| 3 | 400-36684 | ASSY-CAP_HOOK | 2 |
| 4 | 400-36685 | ASSY-CAP_HOOK_TRIM | 2 |
| 5 | 400-36687 | OUTER_HOOK_TRIM | (1) |
| 6 | 226-12709 | BOBBIN BASKET | (1) |
| 7 | 400-39391 | CAP_INNERHOOK | (1) |
| 8 | 226-12204 | HOOK GIB | (1) |
| 9 | 400-36689 | HOOK_GIB_TRIM | (1) |
| 10 | 226-12303 | NEEDLE POSITIONER | (1) |
| 11 | 101-12803 | SCREW | (2) |
| 12 | 400-12085 | OIL_PLUG | (1) |
| 13 | 101-12902 | SCREW | (2) |
| 14☆ | 110-15906 | OIL WICK | (1) |
| 15☆ | 226-88105 | BOBBIN CASE | (1) |
| 16 | 226-88402 | TENSION ADJUSTING SPRING | (1) |
| 17 | 226-88204 | SPRING | (1) |
| 18 | 101-10500 | TENSION SPRING INSTALLING SCRE | (1) |
| 19 | 226-12907 | TENSION ADJUSTING SCREW | (1) |
| 20 | SS-6560150-SH | SCREW 3/32-80 L=1.3 | (1) |
| 21 | TA-0290301-MO | PLUG | (1) |
| 22 | 226-14002 | THRUST WASHER, A | 2 |
| 23 | 226-14101 | THRUST WASHER, B | 2 |
| 24 | 226-14200 | SPACER, C | 2 |
| 25 | 101-12605 | THRUST WASHER 1.7 | 2 |
| 26 | 101-12704 | THRUST WASHER 1.8 | 2 |
| 27 | B1822-051-000 | OPENING LEVER CRANK | 2 |
| 28 | B1820-563-000 | BOBBIN CASE OPENING LEVER LINK | 2 |
| 29 | B1821-051-000 | CRANK SCREW STUD | 2 |
| 30 | 226-13509 | BOBBIN CASE OPENING LEVER | 2 |
| 31 | SS-6090810-TP | SCREW 9/64-40 L=7.5 | 2 |
| 32 | WP-0371016-SD | WASHER 3.7X8X1 | 2 |
| 33 | CQ-2020000-00 | OIL WICK | 0.3 |
| 34 | CQ-2020000-00 | OIL WICK | 0.3 |
| 35 | NS-6110420-SP | NUT 11/64-40 | 2 |
| 36 | B1823-051-000 | OPENING LEVER CRANK PIN | 2 |
| 37☆ | B9117-051-000 | BOBBIN | 2 |
| 38☆ | 102-10805 | HARD ALUMITE BOBBIN | 2 |
| 39☆ | 226-53802 | SHEET | 2 |
| 40☆ | 101-11508 | SPRING | 2 |
| 41 | 400-28560 | HOOK_SHAFT_GEAR-A | 2 |
| 42 | 400-28561 | HOOK_SHAFT_GEAR-B | 2 |
| 43 | 400-28562 | HOOK_SHAFT_GEAR-C | 2 |
| 44 | 400-28563 | HOOK_SHAFT_GEAR-D | 2 |
| 45 | 400-40549 | HOOK_SHAFT_GEAR-E | 2 |
| 46 | 400-40550 | HOOK_SHAFT_GEAR-F | 2 |
| 47 | SM-8060550-TP | SCREW M6 L=4.5 | 6 |
| 226-14001 | THRUST WASHER, A | 2 | |
| 101-12905 | THRUST WASHER 1.7 | 2 |
Page 17 — 6. HOOK & HOOK DRIVING SHAFT COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-28271 | LOWER_SHAFT | 1 |
| 2 | 400-28851 | LOWER_SHAFT_BUSH-F | 1 |
| 3 | 400-30915 | LOWER_SHAFT_BUSH-M | 1 |
| 4 | 400-31351 | ASSY-LOWER_SHAFT_COLLAR | 1 |
| 5 | SM-8060612-TP | SCREW M6 L=6 | (2) |
| 6 | 400-13061 | THRUST_WASHER | 1 |
| 7 | 236-18804 | OIL SEAL | 1 |
| 8 | 400-28485 | HOOK_SHAFT_BASE-L | 1 |
| 9 | 400-28487 | HOOK_SHAFT_BASE-L-TRIM | 1 |
| 10 | 400-34969 | HOOK_SHAFT_BASE_L | 1 |
| 11 | 400-34971 | HOOK_SHAFT_BASE_L-TRIM | 1 |
| 12 | 400-22589 | BOTTOM_COVER | 2 |
| 13 | 400-22590 | BOTTOM_COVER_GASKET | 2 |
| 14 | SM-4050855-SP | SCREW | 8 |
| 15 | SQ-2050453-MZ | CONNECTING SCREW | 4 |
| 16 | 400-42141 | OIL_ADJUSTING_SCREW | 2 |
| 17 | RO-0442401-00 | RUBBER RING | 2 |
| 18 | 400-29570 | OIL_ADJUSTING_SPRING | 2 |
| 19 | TA-0290301-MO | PLUG | 6 |
| 20 | SM-8051002-TP | SCREW M5 L=10 | 2 |
| 21 | 101-09908 | SADDLE INSTALLING BLOCK, UPPER | 2 |
| 22 | 101-12407 | SADDLE INSTALLING BLOCK, LOWER | 2 |
| 23 | SS-6153040-SP | SCREW 15/64-28 L=30 | 2 |
| 24 | SM-6063502-TP | SCREW M6 L=35 | 1 |
| 25 | WP-0621016-SD | WASHER 6.2X13X1 | 2 |
| 26 | 400-28486 | HOOK_SHAFT_BASE-R | 1 |
| 27 | 400-28488 | HOOK_SHAFT_BASE-R-TRIM | 1 |
| 28 | 400-34970 | HOOK_SHAFT_BASE_R | 1 |
| 29 | 400-34972 | HOOK_SHAFT_BASE_R-TRIM | 1 |
| 30 | TA-0290301-MO | PLUG | 6 |
| 31 | SM-6062502-TP | SCREW M6 L=25 | 1 |
| 32 | 400-28495 | GEAR_GUIDE-L | 1 |
| 33 | 400-28496 | GEAR_GUIDE-R | 1 |
| 34 | SM-4050655-SP | SCREW M5 L=6 | 4 |
| 35 | SQ-2060451-MZ | CONNECTING SCREW | 2 |
| 36 | 400-28489 | LOWER_SHAFT_GEAR | 2 |
| 37 | SM-8060610-TP | SCREW | 4 |
| 38 | SM-8060612-TP | SCREW M6 L=6 | 1 |
| 39 | SM-8060612-TP | SCREW M6 L=6 | 1 |
| 40 | 400-28656 | ASSY-LOWER_SHAFT_BEARING | 1 |
| 41 | SM-8060612-TP | SCREW M6 L=6 | (2) |
| 42 | RO-2573501-00 | O-RING | 1 |
| 43 | 228-88507 | OIL SEAL | 2 |
| 44 | 400-11947 | LOWER_PLUNGER_BUSH | 1 |
| 45 | SQ-2050453-MZ | CONNECTING SCREW | 2 |
Page 19 — 7. FEED MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SM-6050800-SP | SCREW M5 L=8 | 2 |
| 2 | 400-28293 | FEED_REGULATOR_ROD_PIN | 1 |
| 3 | 400-28284 | FEED_REGULATOR_ROD | 1 |
| 4 | SD-0900426-TP | SHOULDER SCREW D=9 H=4.2 | 1 |
| 5 | 400-28864 | ASSY_FEED_REGULATOR | 1 |
| 6 | SM-6051600-SP | SCREW M5 L=16 | (1) |
| 7 | 400-11935 | VERTICAL_FEED_LINK | 1 |
| 8 | 226-10307 | FEED REGULATOR SPRING | 1 |
| 9 | 400-28286 | REVERSE_FEED_SHAFT | 1 |
| 10 | 400-32269 | THRUST COLLAR | 1 |
| 11 | SM-8050412-TP | SCREW M5 L=4 | (2) |
| 12 | 400-26673 | VERTICAL_F_LINK_SHAFT_M | 1 |
| 13 | RE-0900009-KO | E-RING 9 | 1 |
| 14 | SM-6051000-SP | SCREW | 1 |
| 15 | 400-33995 | REVERSE_FEED_LEVER | 1 |
| 16 | 235-33904 | FEED ADJUSTING SCREW | 1 |
| 17 | 235-34506 | FEED DIAL SPRING | 1 |
| 18 | 400-36433 | FEED_DIAL | 1 |
| 19 | SS-6121860-SP | SCREW 3/16-28 L=18 | 1 |
| 20 | 400-29079 | SPRING_BRACKET | 1 |
| 21 | SM-6050800-SP | SCREW M5 L=8 | 2 |
| 22 | 400-32293 | ASSY_FEED_ROCKER_ROD | 1 |
| 23 | SM-8040412-TP | SET SCREW M4 L=4 | (1) |
| 24 | B1653-470-000 | PIN | (1) |
| 25 | SM-6750690-TP | SCREW M3.5 L=6 | 1 |
| 26 | 400-31348 | ASSY_FD_ECCENTRIC_CAM | 1 |
| 27 | SM-4051255-SP | SCREW M5 L=12 | (1) |
| 28 | NM-6050001-SP | NUT M5 | (1) |
| 29 | SM-6061150-TP | SCREW M6 L=11 | (2) |
| 30 | PS-0300122-KH | SPRING PIN 3X12 | 1 |
| 31 | SM-4040655-SP | SCREW M4 L=6 | 2 |
| 32 | 400-11906 | FD_CAM_LID | 1 |
| 33 | B1636-581-B00 | NEEDLE BEARING B | 1 |
| 34 | SM-6030672-TP | SCREW M3 L=6 | 2 |
| 35 | 400-11946 | FEED_BASE | 1 |
| 36 | 400-11934 | FEED_BASE_TRIM | 1 |
| 37 | 400-11932 | FEED_BASE_SHAFT | 1 |
| 38 | SM-8040612-TP | SCREW M4 L=6 | 1 |
| 39 | 400-28279 | FEED_ROCKER_SHAFT | 1 |
| 40 | 400-31349 | ASSY_FEED_BASE_ARM | 1 |
| 41 | SM-6051300-SP | SCREW | (1) |
| 42 | 235-33805 | FEED ADJUSTING SHAFT | 1 |
| 43 | 400-11939 | FEED_SHAFT_BUSH_F | 1 |
| 44 | SM-8060612-TP | SCREW M6 L=6 | 1 |
| 45 | 400-32268 | THRUST COLLAR | 2 |
| 46 | SM-8050412-TP | SCREW M5 L=4 | (2) |
| 47 | 235-34019 | FEED ADJUSTING BASE | 1 |
| 48 | SM-7050850-TP | SCREW M5 L=8 | 4 |
| 49 | 400-28277 | FEED_ADJUSTING_PLATE | 2 |
| 50 | 400-35704 | FEED_ADJUSTING_BLOCK | 2 |
| 51 | 400-28852 | ASSY_FEED_ROCKER_ARM | 1 |
| 52 | SM-6051600-SP | SCREW M5 L=16 | (1) |
| 53 | SM-2040750-TP | SCREW M4 L=7.4 | 2 |
| 54 | NM-6060001-CP | NUT M6 | 1 |
| 55 | SD-0900706-TP | SHOULDER SCREW D=9 H=7 | 1 |
| 56 | 400-36679 | FEED_ROCKER_ARM_ROD | 1 |
| 57 | 400-28274 | ASSY_FEED_ADJUSTING | 1 |
| 58 | 400-28275 | FEED_ADJUSTING | (1) |
| 59 | 400-28276 | FEED_ADJUSTING_ARM | (1) |
| 60 | SM-7050850-TP | SCREW M5 L=8 | (2) |
| 61 | SM-6050800-SP | SCREW M5 L=8 | 1 |
| 62 | 400-28281 | FEED_ADJUSTING_STOPPER | 1 |
| 63 | 400-28280 | FEED_SHAFT_BUSH_R | 1 |
| 64 | 400-13362 | FEED_SHAFT_OIL_SEAL_A | 1 |
| 65 | 400-25316 | FEED_SHAFT_OIL_SEAL_B | 1 |
| 66 | 400-28291 | FEED_ADJUSTING_OIL_SEAL | 1 |
| 67 | 400-28294 | FEED_ADJUSTING_CAP | 1 |
| 68 | 400-11926 | SPRING_HOOK | 1 |
| 69 | NM-6040001-SP | NUT M4X0.7 | 1 |
| 70 | 400-28287 | REVERSE_FEED_SHAFT_BUSH | 2 |
| 71 | SM-6050550-TP | SCREW M5 L=6 | 1 |
| 72 | 400-28855 | ASSY_REVERSE_FEED_ARM | 1 |
| 73 | 133-19405 | MAIN FEED ROCKER PIN | (1) |
| 74 | SM-6051600-SP | SCREW M5 L=16 | (1) |
| 75 | 400-31350 | ASSY_FEED_BASE_SAHFT_COLLAR | 1 |
| 76 | SM-8040412-TP | SET SCREW M4 L=4 | (2) |
| 77 | SM-8031612-TP | SET SCREW M3X16 | 1 |
| 78 | WP-1751616-SD | WASHER 17.5X24X1.6 | 2 |
| 79 | NM-6030001-SN | NUT | 1 |
| 80 | 400-33668 | ASSY_VERTICAL_FEED_CAM | 1 |
| 81 | SM-8060552-TP | SCREW M6 L=5 | (1) |
| 82 | 400-28285 | FEED_REGULATOR_SHAFT | 1 |
| 83 | SM-6051850-TP | SCREW M5 L=18 | 1 |
| 84 | 229-52501 | BACK LEVER STOPPER | 1 |
| 85 | SM-4050655-SP | SCREW M5 L=6 | 1 |
| 86 | 226-56003 | SPRING SUSPENSION | 1 |
| 87 | 400-40924 | SPRING | 1 |
| 88 | 400-29257 | SPRING_HOOK_B | 1 |
| 89 | NM-6050001-SP | NUT M5 | 1 |
| 90 | WP-0520656-SA | WASHER 5.2X9.5X0.6 | 1 |
| 91 | BT-0500300-EA | OIL TUBE | 0.09 |
| 400-28894 | ASSY FEED REGULATOR | ||
| SM-6051800-SP | SCREW M5 L=16 | (1) | |
| SM-6050412-TP | SCREW M5 L=16 | (2) | |
| RE-0900000-KO | E-RING 9 | ||
| 400-32995 | REVERSE FEED LEVER | ||
| 235-34566 | FEED DIAL SPRING | ||
| SM-6040112-TP | SCREW M4 L=6 | (1) | |
| 400-31318 | ASSY FEED ECCENTRIC CAM | ||
| SM-6051255-SP | SCREW M5 L=12 | (1) | |
| SM-6050001-SP | NUT M5 | (1) | |
| SM-6051150-SP | SCREW M6 L=11 | (2) | |
| FS-0300122-KM | SPRING PIN 3X12 | ||
| B1636-681-500 | NEEDLE BEARING B | ||
| 400-11931 | FEED BASE | ||
| SM-6051400-SP | SCREW | ||
| SM-8050112-TP | SCREW M5 L=4 | (2) | |
| 400-29852 | ASSY FEED ROCKER ARM | (1) | |
| SM-6060001-CP | NUT M6 | ||
| 400-23280 | FEED SHAFT OIL SEAL A | ||
| 400-13352 | FEED SHAFT OIL SEAL A | ||
| NR-6040001-SP | NUT M4X0.7 | ||
| SM-8031512-TP | SET SCREW | ||
| WP-6030001-SD | NUT | ||
| 400-33689 | ASSY VERTICAL FEED CAM | ||
| 400-29295 | FEED REGULATOR SHAFT |
Page 21 — 8. PRESSER BAR & TENSION RELEASE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-07802 | HAND LIFTER | 1 |
| 2 | B1521-555-000 | SCREW | 1 |
| 3 | RO-0371801-00 | RUBBER RING | 1 |
| 4 | 400-35394 | HAND_LIFTER_CAM_ASM. | 1 |
| 5 | 400-28868 | ASSY_LIFTING_CONNECT_ROD | 1 |
| 6 | 236-09605 | PLATE | (1) |
| 7 | SM-6040602-TP | SCREW M4 L=6 | (1) |
| 8 | 400-28264 | ASSY_HAND_LIFTER_LINK | (1) |
| 9 | 229-08008 | LIFTING PLATE | (1) |
| 10 | RE-0500000-KO | E-RING | (2) |
| 11 | 400-35151 | LIFTING_CONNECTING_ROD | (1) |
| 12 | 400-28545 | LINK_SHAFT | 2 |
| 13 | RE-0500000-KO | E-RING | 6 |
| 14 | SD-0640357-TP | SHOULDER SCREW | 1 |
| 15 | SD-0900356-TP | SHOULDER SCREW D=9 H=3.5 | 1 |
| 16 | 400-35181 | LIFTING_LEVER_LINK | 1 |
| 17 | 400-28268 | CONNECTING_ROD_A | 1 |
| 18 | SM-8050612-TP | SCREW M5X6 | 1 |
| 19 | 229-20201 | RETURN SPRING | 1 |
| 20 | 400-28546 | TENSION_RELEASE_SHAFT | 1 |
| 21 | 400-35298 | TENSION_RELEASE_PLATE | 1 |
| 22 | 400-35828 | ASSY_TENSION_RELEASE_PLATE | 1 |
| 23 | 400-35298 | TENSION_RELEASE_PLATE | (1) |
| 24 | 400-33434 | THREAD_TENSION_RELEASE_WIRE | (1) |
| 25 | 400-33435 | WIRE_TUBE | (1) |
| 26 | 229-44904 | SET SCREW | (1) |
| 27 | NS-6620310-SP | NUT 3/16-32 | 2 |
| 28 | SM-4040855-SP | SCREW | 1 |
| 29 | SS-4110715-SP | SCREW 11/64-40 L=7 | 1 |
| 30 | D3163-555-B00-A | FLEXIBLE TUBE SUPPORT PLATE | 1 |
| 31 | SS-4111215-SP | SCREW 11/64-40 L=12 | 2 |
| 32 | 400-34974 | TENSION_RELEASE_SHAFT | 1 |
| 33 | 236-09209 | PRESSER SPRING REGULATOR | 1 |
| 34 | 229-07604 | PRESSER SPRING REGULATOR NUT | 1 |
| 35 | 229-07703 | PRESSER GUIDE BAR | 1 |
| 36 | 229-07406 | PRESSER SPRING | 1 |
| 37 | B1501-581-000 | PRESSER BAR | 1 |
| 38 | 400-32272 | ASSY_PRESSER BAR HOLDER | 1 |
| 39 | SM-6060800-SP | SCREW M6 L=8 | (1) |
| 40 | 400-28269 | LIFTER_ADJUSTING_PIN | 1 |
| 41 | 236-09001 | BUSHING | 1 |
| 42 | 226-40551 | PRESSER FOOT ASM. | 1 |
| 43 | SS-7090910-TP | SCREW 9/64-40 L= 8.5 | 1 |
| 44 | SM-4040655-SP | SCREW M4 L=6 | 1 |
| 45 | D3164-555-B00 | OUTER PRESSER PLATE | 2 |
| 46 | 400-50314 | OUTER_HOLDER_BASE | 1 |
Page 23 — 9. THREAD TRIMMER MECHANISM COMPONENTS (FOR LH-3568-7)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-17353 | ASSY_BASE_PLATE | 1 |
| 2 | 400-17394 | ASSY_TRM_PUSH_LINK | 1 |
| 3 | RC-0650811-KP | RETAINING RING | 1 |
| 4 | 400-36359 | THREAD_TRIMMER_SOLENOID | 1 |
| 5 | SM-4040601-SC | SCREW M4X0.7 L=6 | 4 |
| 6 | 235-42418 | CLUTCH LINK PIN | 1 |
| 7 | NM-6030001-SC | NUT M3 | 2 |
| 8 | 400-17399 | ASSY_TRM_ROLLER_ARM | 1 |
| 9 | 400-10434 | THRUST_COLLAR_ASM | 1 |
| 10 | 110-40854 | KNIFE DRIVING ARM ASM. | 1 |
| 11 | RE-0600000-KO | E-RING 6 | 1 |
| 12 | 400-17400 | ROLLER_ARM_SPRING | 1 |
| 13 | 400-17361 | TRM_DRIVING_ARM_STOPPER | 1 |
| 14 | SM-4050855-SP | SCREW | 2 |
| 15 | 400-17401 | TRM_DRIVING_LINK_PIN | 1 |
| 16 | 400-17402 | TRM_DRIVING_LINK_BUSH | 1 |
| 17 | WP-0621046-SP | WASHER | 1 |
| 18 | NM-6060003-SC | NUT M6 | 1 |
| 19 | 400-12505 | CONNECTING_ROD_B | 1 |
| 20 | 400-12506 | CONNECTING_ROD_C | 1 |
| 21 | SM-9050850-SP | SCREW | 2 |
| 22 | WP-0531000-SD | WASHER M5 | 2 |
| 23 | 400-17403 | TRM_DRIVING_ARM_SPRING | 1 |
| 24 | 400-15669 | ASSY_THREAD_RELEASE_ARM | 1 |
| 25 | 400-17362 | RELEASE_ARM_STOPPER | 1 |
| 26 | SM-4050855-SP | SCREW | 2 |
| 27 | 113-05901 | SPRING | 1 |
| 28 | SM-6061200-SP | SCREW | 3 |
| 29 | 400-12504 | CONNECTING_ROD_A | 1 |
| 30 | 400-12505 | CONNECTING_ROD_B | 1 |
| 31 | SM-9050850-SP | SCREW | 2 |
| 32 | WP-0531000-SD | WASHER M5 | 2 |
| 33 | 400-31352 | ASSY_KNIFE_DRIVING_ARM_R | 1 |
| 34 | SM-6051202-TP | SCREW M5X0.8 L=12 | (1) |
| 35 | 400-12503 | KNIFE_DRIVING_ARM_PIN | 2 |
| 36 | 400-36446 | ASSY_KNIFE_DRIVING_ARM_L | 1 |
| 37 | SM-6051202-TP | SCREW M5X0.8 L=12 | (1) |
| 38 | 400-12497 | ASSY_KNIFE_BASE_SHAFT | 2 |
| 39 | 400-12492 | D_KNIFE_BASE_GUIDE_L | 1 |
| 40 | 400-21883 | D_KNIFE_BASE_GUIDE_R | 1 |
| 41 | SM-1030501-SN | SCREW M3 L=5 | 4 |
| 42 | 400-21899 | D_KNIFE_SUPPORT_R | 1 |
| 43 | 400-21898 | D_KNIFE_SUPPORT_L | 1 |
| 44 | SM-1030501-SN | SCREW M3 L=5 | 4 |
| 45 | 400-12488 | DRIVING_KNIFE_BASE_R | 1 |
| 46 | 400-12487 | DRIVING_KNIFE_BASE_L | 1 |
| 47 | SS-1090520-TP | SCREW 9/64-40 L=5 | 6 |
| 48 | SS-6090580-TP | SCREW 9/64-40 L=4.5 | 2 |
| 49☆ | 400-12403 | DRIVING_KNIFE | 2 |
| 50 | 400-12495 | CLAMP_SPRING_BASE | 2 |
| 51☆ | 400-44393 | CLAMP | 2 |
| 52☆ | 400-33160 | CLAMP_SPRING | 2 |
| 53 | SM-6850400-SP | SCREW M2.5 L=4 | 6 |
| 54 | SM-8030312-TP | SCREW M3 L=3 | 2 |
| 55 | 400-12489 | FIXED_KNIFE_BASE | 2 |
| 56 | 400-12496 | FIXED_KNIFE_BASE_ADJUST | 2 |
| 57 | SM-9051203-CP | SCREW M5 L=12 | 2 |
| 58☆ | 400-12404 | FIXED_KNIFE | 2 |
| 59 | EA-9500B01-00 | CABLE BAND | 2 |
| 60 | 400-13316 | THREAD_TRIMMER_CAM | 1 |
| 61 | SM-8061010-TP | SCREW | 2 |
| 62 | SM-6052502-TP | SCREW M5X0.8 L=25 | 1 |
| 63 | B3538-112-000 | OIL RETURN TUBE HOLDER | 1 |
| 64 | SM-6040552-TP | SCREW M4 L=4.5 | 1 |
| 65 | SD-0700346-TP | SHOULDER SCREW D=7 H=3.4 | 3 |
| 66 | WP-0531000-SD | WASHER M5 | 2 |
| NH-6030001-SC | NUT M3 | 2 | |
| NH-6060003-SC | NUT M6 | 1 | |
| SM-9051263-CP | SCREW M5 L=12 | 2 |
Page 25 — 10. AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3568-7)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-35167 | ASSY_REVERSE_FEED_SWITCH_68 | 1 |
| 2 | 229-54606 | REVERSE FEED SWITCH COVER | (1) |
| 3 | SS-4110615-SP | SCREW 11/64-40 L=6 | (1) |
| 4 | 226-56508 | REVERSE FEED SWITCH BASE | (1) |
| 5 | 229-54200 | REVERSE FEED SWITCH SHAFT | (1) |
| 6 | 229-54309 | REVERSE FEED SWITCH SPRING | (1) |
| 7 | SM-4041655-SP | SCREW M4 L=16 | (1) |
| 8 | SM-4031501-SC | SCREW M3 L=15 | (2) |
| 9 | HW-5000700-00 | 2-CORE CABTYRE CORD | (1.2) |
| 10 | HA-0019000-00 | MICROSWITCH | (1) |
| 11 | 229-54408 | STOPPER PLATE | (1) |
| 12 | 400-35168 | REVERSE_FEED_SWITCH_LEVER_68 | (1) |
| 13 | HK-0346400-0B | PIN CONTACT | (2) |
| 14 | SM-4050855-SP | SCREW | 2 |
| 15 | SS-7110710-SP | SCREW 11/64-40 L=7 | 4 |
| 16 | WP-0501016-SD | WASHER 5X10.5X1 | 4 |
| 17 | 101-61305 | SOLENOID COVER | 1 |
| 18 | 400-36360 | REVERSE_FEED_SOLENOID | 1 |
| 19 | HK-0346400-0B | PIN CONTACT | (2) |
| 20 | WP-0501016-SD | WASHER 5X10.5X1 | 4 |
| 21 | SS-9111010-SP | SCREW 11/64-40 L=9.5 | 4 |
| 22 | D2464-555-B00 | LINK DRIVING MAGNET PIN | 1 |
| 23 | RE-0400000-KO | E-RING 4 | 2 |
| 24 | SM-6061002-TP | SCREW M6 L=10 | 2 |
| 25 | WS-0631510-KP | SPRING WASHER | 2 |
| 26 | WP-0621016-SD | WASHER 6.2X13X1 | 2 |
| 27 | 400-30856 | LINK_FULCULUM | 1 |
| 28 | 400-29350 | REVERSE_FEED_LINK_L | 1 |
| 29 | SM-6063002-TP | SCREW M6 L=30 | 1 |
| 30 | WS-0610002-KP | SPRING WASHER | 1 |
| 31 | WP-0612056-SD | WASHER 6.1X18.5X2 | 1 |
| 32 | 400-35278 | REVERSE_FEED_LINK_B | 1 |
| 33 | 400-35277 | REVERSE_FEED_LINK_A | 1 |
| 34 | SD-0700328-TP | SHOULDER SCREW D=7 H=3.2 | 2 |
| 35 | SM-6050650-TP | SCREW M5 L=6 | 1 |
| 36 | 101-19204 | SOLENOID INSTALLING PLATE | 1 |
| 37 | NM-6050001-SP | NUT M5 | 2 |
| 38 | HK-0346101-40 | HOUSING 14P | 1 |
| HA-00190000-00 | MICROSWITCH | (1) |
Page 27 — 11. WIPER MECHANISM COMPONENTS (FOR LH-3568-7)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-33437 | WIPER_SOLENOID_ASM | 1 |
| 2 | 229-55504 | WIPER COVER | (1) |
| 3 | SL-4030631-SC | SCREW M3X6 | (1) |
| 4 | SD-0650321-TP | HINGE SCREW D=6.5 H=3.2 | (1) |
| 5 | 226-57209 | WIPER LINK, A | (1) |
| 6 | 400-09196 | SUSPENSION SCREW | (1) |
| 7 | 229-56205 | WIPER HINGE SCREW COLLAR | (1) |
| 8 | 226-57308 | WIPER SPRING | (1) |
| 9 | NS-6110310-SP | NUT 11/64-40 | (1) |
| 10 | 229-55900 | WIPER RUBBER A | (1) |
| 11 | 229-56007 | WIPER RUBBER B | (1) |
| 12 | 400-30956 | WIPER_SOLENOID | (1) |
| 13 | 229-57104 | WIPER SOLENOID SHAFT | (1) |
| 14 | HA-0005900-00 | POWER SWITCH | (1) |
| 15 | HW-2003900-00 | ELECTRIC WIRE | (0.04) |
| 16 | HW-5000700-00 | 2-CORE CABTYRE CORD | (1.04) |
| 17 | 400-42151 | WIPER_SOLENOID_BASE | (1) |
| 18 | SL-4030641-SE | SCREW | (3) |
| 19 | 229-57203 | WIPER LINK COLLAR | (1) |
| 20 | HK-0346400-0B | PIN CONTACT | (2) |
| 21 | SM-4050855-SP | SCREW | 2 |
| 22 | NS-6090310-SP | NUT 9/64-40 | 1 |
| 23 | SD-0500301-SP | HINGE SCREW D= 5 H= 3 | 1 |
| 24 | 400-28797 | ASSY_WIPER_LINK_2 | 1 |
| 25 | 400-28799 | ASSY_WIPER_BASE | 1 |
| 26 | SM-6050802-TP | SCREW M5X0.8 L=8 | 2 |
| 27 | RE-0300000-KO | E-RING 3 | 2 |
| 28 | 102-08700 | WIPER LINK SHAFT | 1 |
| 29 | SS-7090610-SP | SCREW 9/64-40 L=6 | 2 |
| 30 | WP-0371016-SD | WASHER 3.7X8X1 | 2 |
| 31 | 102-09203 | WIPER 3/32"-3/8" | 1 |
| 32 | 102-09500 | WIPER | 1 |
| 33 | 102-09807 | WIPER | 1 |
| 34 | 102-09906 | WIPER | 1 |
| 35 | WP-0531000-SD | WASHER M5 | 2 |
| 36 | WS-0410002-KP | SPRING WASHER | 2 |
| HW-0005900-00 | POWER SWITCH | (1) | |
| HW-2003000-00 | ELECTRIC WIRE | (0.04) |
Page 29 — 12. LUBRICATION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-28689 | SCREW | 1 |
| 2 | 400-34926 | OIL_TANK_ASM. | 1 |
| 3 | 400-34649 | OIL_TANK_PLATE | 1 |
| 4 | SL-6040892-TN | BOLT | 2 |
| 5 | R0-0982401-00 | RUBBER RING | 1 |
| 4M-3492U | O!L_TANK_ASij_ | l | |
| SL-5040892- Hi | ROLT | 2 | |
| RU-2HI2titil-00 | RUBB'£R RING | l | |
| 400-28705 | ASSYJLOATER | l | |
| 41J0-361S7 | OIL GMlE | I | |
| S!o!-6D5Hl02-1P | SCREW M5X0.8 L"IO | 2 | |
| WP-0550800-SP | WASHER 5.5X10X0.8 | 2 | |
| 236-293tl6 | PIP£ STOPPER A | !5 | |
| 2.36-283-33 | PLUNGER | 2 | |
| 236-289[12 | PLUNGER SPRING | 2 | |
| 400-135{}9 | PtUNG£R,.SCR£W | 2 | |
| R0-u48!901 OD | R- | l | |
| 4-G0-28773 | BOX COVE.R | l | |
| 400-28774 | BOX=COVER_PACK.lNG | l | |
| SM.-!051255-SP | SCRI:.l'i'. ,MS L"l2 | 8 | |
| 236-30106 | lUBE B | 0,2 | |
| 400-·29075 | LUBRICATING INLET | l | |
| 400-00344 | LtiBRICATING-INLETCAP | 1 | |
| R0-0481901-00 | RUBBER RING | 1 | |
| 400-42287 | ASSY OIL FILTER R | l | |
| 236-30601 | OtL fILlER JOINt | (ll | |
| 236-29405 | PIPE STO-PPER B | (2) | |
| 23£--30106 | TUBE B | (0 ,(}35) | |
| 23G-30G50 | OIL FILTER JOINT ASM" | ( l) | |
| 236-29306 | PIPE STOPPER A | l | |
| 400-42286 | ASSY OIL FILTER L | l | |
| 40fi·l6-749 | TUBE HOLDER | l | |
| 40lJ-3424ll | OIL SIGHT WJNnOw | l | |
| RO·l9S24!H·OO | RusBr:R RING | 1 | |
| B35l:1-009-000 | OIL F'E.LT Rf.AR | l | |
| EA · 9500B!'Jl-00 | CABLE BAND | 3 | |
| SIHW4.0650-TP | SCREW | t | |
| 2.35··4tt30S | fLOATER CASE CAP | l | |
| 2J6w30007 | TUBE | 0.23 | |
| 236<H!007 | TUBE | O,Z | |
| 236 • 30001 | TUBE | 0.38 | |
| 236-30007 | TUBE | 0,07 | |
| SCREW 1!4 L"G | SCREW 1!4 L"G | 2 | |
| DISTRIBUTOR | DISTRIBUTOR | 4 | |
| RUBBERJ'LATE | RUBBERJ'LATE | 2 | |
| OlL_SHIELD_PLATE | OlL_SHIELD_PLATE | 4 |
Page 30 — BELT COVER & BOBBIN WINDER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-33409 | ASSY_BELT_COVER | 1 |
| 2 | 400-29905 | BELT_COVER_A | (1) |
| 3 | SM-4062001-SC | SCREW M6 L=20 | (2) |
| 4 | SM·4051601·SC | SCREW M5X0.8 L=16 | (1) |
| 5 | WS-0521010-KN | SPRING WASHER 5.2X8.2X1 | (1) |
| 6 | WP-0531001-SC | WASHER | (1) |
| 7 | WP-0641600-SC | WASHEW 6.4X12.5X1.6 | (2) |
| 8 | 400-34267 | ASSY_BELT_COVER_B | 1 |
| 9 | 229-33659 | BELT COVER B COMPL. | (1) |
| 10 | 229-33758 | BELT COVER B LID ASM. | (1) |
| 11 | 229-33600 | BELT COVER B | (1) |
| 12 | SK-3412000-SC | WOOD SCREW D=4.1 L=20 | (2) |
| 13 | WP-0501016-SD | WASHER 5X10.5X1 | (2) |
| 14 | 229·27354 | BOBBIN WINDER COMPL. | 1 |
| 15 | SS-4110515-SP | SCREW 11/64-40 L=5 | (1) |
| 16 | 229-28907 | THREAD TENSION DISK | (2) |
| 17 | 229-29004 | THREAD TENSION SPRING | (1) |
| 18 | 22.9-28808 | NUT | (1) |
| 19 | SS-7110350-SP | SCREW 11/64-40 L=3.5 | (1) |
| 20 | 229· 28402 | CONTROL RUBBER HOLDING PLATE | (1) |
| 21 | 229--28303 | CONTROL RUBBER | (1) |
| 22 | 229-28105 | BOBBIN PRESSER | (1) |
| 23 | SD-0490251-SP | HINGE SCREW D=4.9 H=2.6 | (1) |
| 24 | SS-7081310-SP | SCREW 1/8-44 L=12.5 | (1) |
| 25 | SS-8110510-SP | SCREW 11/64-40 L=5 | (1) |
| 26 | 229-28501 | THREAD TENSION POST BASE | (1) |
| 27 | 226-21155 | THREAD WINDER ASM. | 1 |
| 28 | 226-21056 | TENSION BAR BASE | (1) |
| 29 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | (1) |
| 30 | 229-28907 | THREAD TENSION DISK | (4) |
| 31 | 229-29004 | THREAD TENSION SPRING | (2) |
| 32 | 22.9-28808 | NUT | (2) |
| 33 | SS-4110515-SP | SCREW 11/64-40 L=5 | (1) |
| 34 | 229· 28402 | CONTROL RUBBER HOLDING PLATE | (1) |
| 35 | 229--28303 | CONTROL RUBBER | (1) |
| 36 | 226-21106 | BOBBIN PRESSER | (1) |
| 37 | SD-0490261-SP | HINGE SCREW D=4.9 H=2.6 | (1) |
| 38 | WP-0480856-SP | WASHER 4.8X8.4X0.8 | (1) |
| 39 | SM-8040502-TP | SCREW M4X0.7 L=5 | (1) |
| 40 | SS-7081310-SP | SCREW 1/8-44 L=12.5 | (1) |
| 400-33109 | ASS¥ BELT COVER | 1 | |
| Slf-40fi200l·SC | SCREW MG Loo2C | (2) | |
| SPRIXGWASIIER | 5,2X8.2:Xl | (l) | |
| WAS!!ER | 6.4ll2.5Xl.6 | (2) | |
| 4(10-342:67 | ASSY BELT COVER B | 1 | |
| SELT-COVERII- cowPL, | SELT-COVERII- cowPL, | (!) | |
| 229-33158 | BELT COVE.R B LID ASli, | (I) | |
| WP-050Hllfi-SD | WASHER 5Xl0.5X.i | (2) | |
| SCREW | 11/64·40 Lo:5 | (l) | |
| SS·71Hl350·SP | SCREW ll/64-40 1."3.5 | {I) | |
| 229-28!.05 | l!OBBI!\ PRESS£R | {1) | |
| SS·10!il310·SP | SCREW bl2..5 | ('0 | |
| 22Il-2850l | IRR£AIJ | ||
| 22G-2J155 | THR£?.D\Yl1\D£RASM. | 1 | |
| BAR BAS£ | BAR BAS£ | (l) | |
| SCR£11' | \1/£4-40 V"7.8 | {l) | |
| 229-2$907 | THREAD TENS:loti OJSR | (·i) | |
| - t.90d4 | lHRr.AD I£S11 SPRh:t | ||
| 22!1-23308 | li'VT | {2) | |
| SS·4ll0515-SP | SCR£W ll/64-40 L"'S | (l) | |
| SD-O-l.9026H>P | Hll\G£ SCREW fi,·L9 Hz2.5 | (l) | |
| WP·041HlS5! SP | WASHER 4.8X3AX0.8 | (I) | |
| S'H10405D2·H' | SCREW MHL1.7 L"'5 | (l) |
Page 31 — 14. BOTTOM COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-32107 | ASSY_BOTTOM_COVER_A | 1 |
| 2 | 400-28778 | BOTTOM_COVER | (1) |
| 3 | 400-34853 | CONNECTING_ROD_ASM | (1) |
| 4 | 229-32107 | KNEE LIFTING ROTATING ARM | (1) |
| 5 | NM-6060001-SE | NUT M6 | (2) |
| 6 | SM-8063012-TR | SCREW M6 L=30 | (2) |
| 7 | 400-25191 | KNEE_PRESS_ROD | (1) |
| 8 | 229-32206 | SPRING | (1) |
| 9 | 101-62600 | RUBBER CUSHION | (4) |
| 10 | 229-32453 | BRACKET ASM. | (1) |
| 11 | 229-32404 | BRACKET | (1) |
| 12 | 229-34707 | SCREW | (2) |
| 13 | RE-1000000-KO | E-RING 10 | (1) |
| 14 | SM-9061853-SR | SCREW M6 L=17.5 | (1) |
| 15 | 229-34251 | KNEE PAD PLATE ASM. | 1 |
| 16 | 229-34301 | KNEE PAD PLATE SUPPORT | (1) |
| 17 | 229-34400 | KNEE PAD PLATE RUBBER | (1) |
| 18 | 229-34509 | KNEE PAD PLATE COVER | (1) |
| 19 | 229-34608 | KNEE PAD UPRIGHT SHAFT | (1) |
| 20 | SM-9061203-SE | SCREW M6 L=12 | (1) |
| 21 | 229-34202 | KNEE PAD PLATE | (1) |

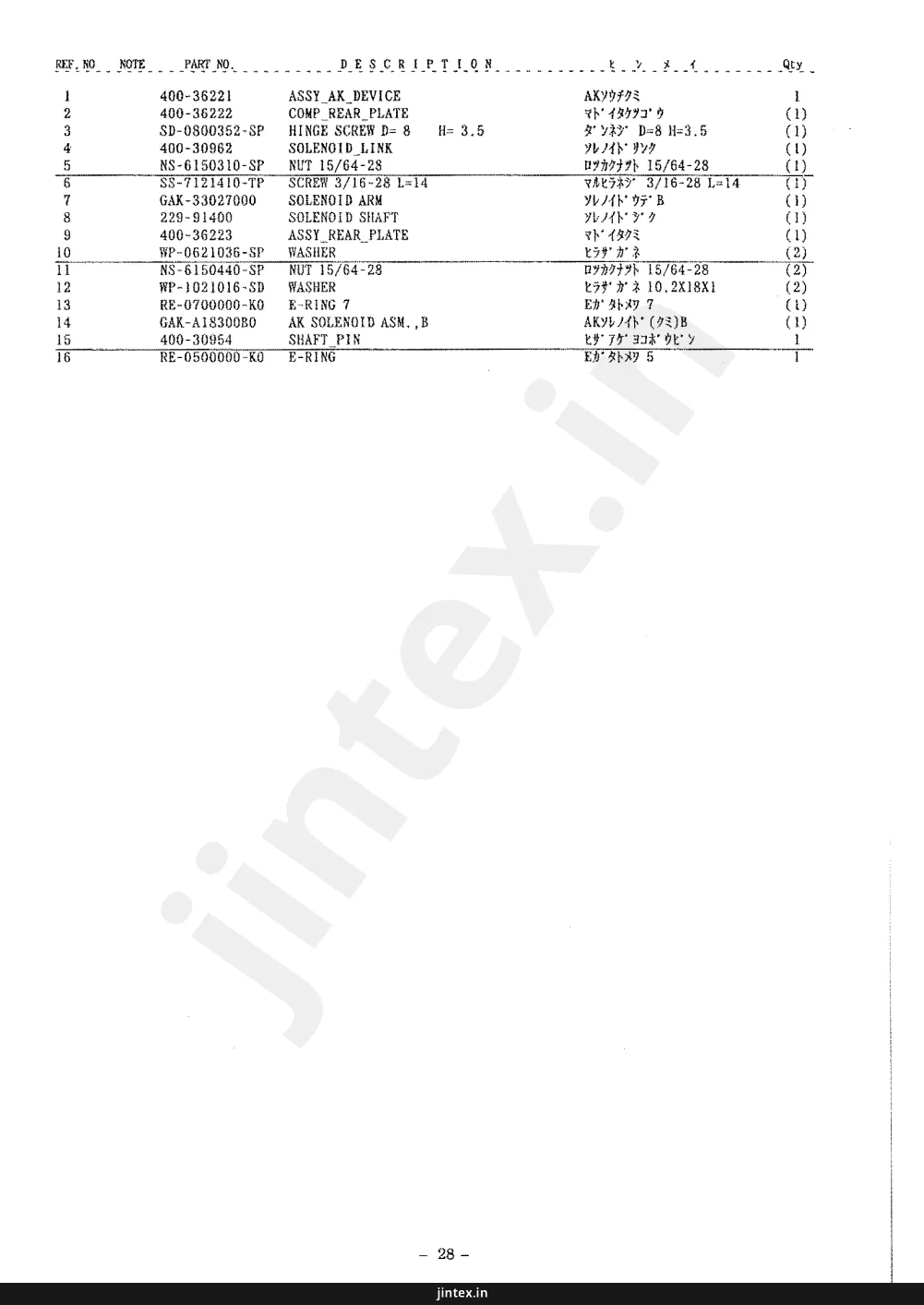

Page 33 — 15. AK DEVICE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-36221 | ASSY_AK_DEVICE | 1 |
| 2 | 400-36222 | COMP_REAR_PLATE | (1) |
| 3 | SD-0800352-SP | HINGE SCREW D= 8 H= 3.5 | (1) |
| 4 | 400-30962 | SOLENOID_LINK | (1) |
| 5 | NS-6150310-SP | NUT 15/64-28 | (1) |
| 6 | SS-7121410-TP | SCREW 3/16-28 L=14 | (1) |
| 7 | GA.K-33027000 | SOLENOID ARM | (1) |
| 8 | 229-91400 | SOLENOID SHAFT | (1) |
| 9 | 400-36223 | ASSY_REAR_PLATE | (1) |
| 10 | WP-0621036-SP | WASHER | (2) |
| 11 | NS-6150440--SP | NUT 15/64-28 | (2) |
| 12 | WP-1021016-SD | WASHER | (2) |
| 13 | RE-0700000-KO | E-RING 7 | (1) |
| 14 | GAK-A18300BO | AK SOLENOID ASM.,B | (1) |
| 15 | 400-30954 | SHAFT_PIN | 1 |
| 16 | RE-0500000-KO | E-RING | 1 |
Page 35 — 16. THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 131-67556 | THREAD STANDING DEVICE ASM. | 1 |
| 2 | 229-30556 | SPOOL REST ARM ASM. | (2) |
| 3 | 229-30507 | SPOOL REST ARM | (2) |
| 4 | 229-30705 | THREAD GUIDE ARM JOINT | (4) |
| 5 | 229-31406 | THREAD STANDING ROD RUBBER CAP | (1) |
| 6 | 229-30408 | THREAD STANDING ROD, UPPER | (1) |
| 7 | 229-31307 | THREAD STANDING ROD JOINT | (1) |
| 8 | 131-67903 | THREAD STANDING THREAD GUIDE | (1) |
| 9 | 131-68000 | THREAD STANDING GUIDE BASE | (1) |
| 10 | 131-68109 | THREAD STANDING GUIDE ARM | (1) |
| 11 | 131-68208 | THREAD STANDING GUIDE ARM BASE | (1) |
| 12 | 229-30309 | THREAD STANDING ROD, LOWER | (1) |
| 13 | 229-31109 | SPOOL RETAINER | (4) |
| 14 | 229-31000 | SPOOL PIN | (4) |
| 15 | 229-30903 | SPOOL REST CUSHION | (4) |
| 16 | 229 30804 | SPOOL REST | (4) |
| 17 | SM-6061610-SC | SCREW M6 L=16 | (4) |
| 18 | SM-4051405-SE | SCREW M5 L=14 | (2) |
| 19 | NM-6050001-SE | NUT M5 | (2) |
| 20 | SM-4041001-SC | SCREW M4X0.7 L=10 | (2) |
| 21 | NM-6040002-SE | NUT M4X0.7 | (2) |
| 22 | SM-4041201-SC | SCREW M4 L=12 | (1) |
| 23 | SM-4042001-SC | SCREW M4 X 20 | (1) |
| 24 | NM-6040002-SE | NUT M4X0.7 | (2) |
| 25 | WP-1612616-SE | WASHER 16X30X2.6 | (2) |
| 26 | WS-1643202 KR | SPRING WASHER | (1) |
| 27 | NM-6160511-SE | NUT M16X1.5 | (1) |
| 28 | NM-6050001-SE | NUT M5 | (4) |
| 29 | WS-0510002-KN | SPRING WASHER | (4) |
| 229-313()7 | THREAD STANDING ROD JOINT | (l) | |
| N!!-6050001-SE | NUT M5 | (2) | |
| Sli-4041201-SC | SCREW M4 | (I) | |
| \YP-1612616-SE | WASHER 16X30X2.6 | (2) | |
| NM-61605ll-SE | NUT li16Xl. 5 | (1) |
Page 37 — ACCESSORI E_BAGASM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 400-33439 | ACCESSORIE_BAG_ASM | 1 |
| 2 | SK-3482501-SE | WOOD SCREW D=4.8 L=25 | (2) |
| 3 | 229-31604 | FRAME SUPPORT BAR | (1) |
| 4 | 236-39701 | KNEE LIFTER PRESSER ROD | (1) |
| 5 | 229-32800 | ACCESSORIE BAG | (1) |
| 6 | 229-33105 | SCREW DRIVER,MIDDLE | (1) |
| 7 | 229-33204 | SCREW DRIVER,SMALL | (1) |
| 8 | B9101-490-000 | DRIVER | (1) |
| 9 | 124-55507 | HEXAGONAL WRENCH, 1.5 | (1) |
| 10 | 124-55705 | HEXAGONAL WRENCH, 2.5 | (1) |
| 11 | B9141-372-000 | HEXAGONAL WRENCH, LARGE | (1) |
| 12 | 131-60106 | SPANNER (5X6) | (1) |
| 13 | 260-34801 | WRENCH (7X8) | (1) |
| 14 | 262·33700 | WRENCH (10X11) | (1) |
| 15 | 260-34702 | WRENCH (14X11) | (1) |
| 16 | WP-0501016-SC | WASHER 5X10.5X1 | (2) |
| 17☆ | MDP-500B1002 | NEEDLE DPX5 #10-2 | 1 |
| 18☆ | MDP-500B1402 | NEEDLE DPX5#14-2 | 2 |
| 19☆ | MDP-500B2102 | DPX5#21-2 | 1 |
| 20☆ | MDP-500B0902 | NEEDLE DPX5#9-2 | 1 |
| 21☆ | 226-53802 | SHEET | 1 |
| 22☆ | 101-11508 | SPRING | 1 |
| 23☆ | 102-10805 | HARD ALUMITE BOBBIN | 2 |
| 24☆ | B9117-051-000 | BOBBIN | 2 |
| 25 | 229-33006 | SCREW DRIVER,LARGE | 1 |
| 26 | 229-33303 | VINYL COVER | 1 |
| 27 | B9121-012-0A0 | OILER ASM. | 1 |
| 28☆ | MML-007600CA | JUKI MACHINE OIL 7 | 1 |
| 29☆ | 400-35873 | FILTER_B | 1 |
| 30 | 229-26059 | RUBBER HINGE ASM. | 1 |
| 31 | 229-26000 | RUBBER CUSHION | (2) |
| 32 | 229-26109 | FRAME RUBBER CUSHION | (2) |
| 33 | 229-26208 | NAIL | (8) |
| 34 | 229-26505 | WASHER | (2) |
| 35 | 229-26356 | HINGE COMPL. | (2) |
| 36 | CM-6001002-01 | WEEE INFORMATION SHEET | 2 |
| 37 | 400-37488 | SHEET | 1 |
| 38 | 400-30768 | OIL_FILTER | 1 |
| 39 | 400-36428 | ASSY_FILTER_A | 1 |
| 40☆ | 400-36125 | FILTER | (1) |
| 41 | 236-40006 | SHEET | 1 |
| MDP-500111002 | NEEDLE DPX5 #10-2 | I | |
| !lDP·500Bl402 | NEEDLE DPX5.14-2 | 2 | |
| B9tl7-051-000 | BOBBIN | 2 | |
| B9121-0!2-0AO | OILER ASM. | l | |
| Cl!-6001002-01 | IVEEE INFORMATION SHEET | 2 |
Page 38 — 18. TABLE Qh' EXCHANGING GAUGE PARTS (FOR LH -3568}
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 228-25101 | tie | 1 |
| 1 | 400-35611 | Nq, | l"l>'t |
| 1 | 40-Q--3S878 | l'f<'r. | 1 |
| 1 | 41}0-35763 | 1 | |
| 1 | 400·260&3 | I | 400·2:6086 |
| 1 | 400-35174 | 400-261}67 | |
| 1 | 226-25 | 400-26072 | |
| 1 | 400-2$QH | 1 | |
| 1 | 400-2601B | 400-2$091 | |
| 1 | 226-26!05 | 4(Hl<35769 | Hlll-35719 |
| 1 | 4!}0-2:£091} | 1 | |
| 1 | 400-26(l81J | on | 400·26l01 |
| 1 | Spec. | CQII!il!On | 1 |
| 1 | 400-nsaJ | 400·35895 | |
| 1 | 400-257lH | 1 | |
| 1 | 400-zsH5 | 4GO·i!!J786 | BHi13-51"2-00H |
| 1 | 22S-Cl0S8 | Z26- 005$5 | 1 |
| 1 | 22fi-01157 | 1 | |
| 226-25107 | Throat plate | ||
| 226-25206 | Throat plate | ||
| 226-25305 | Throat plate | ||
| 226-25404 | Throat plate | ||
| 226-25503 | Throat plate | ||
| 226-25602 | Throat plate | ||
| 226-25701 | Throat plate | ||
| 226-25800 | Throat plate | ||
| 226-26006 | Throat plate | ||
| 226-26105 | Throat plate | ||
| 226-26204 | Throat plate | ||
| 400-35761 | Needle clamp asm. (Left) | ||
| 400-35762 | Needle clamp asm. (Left) | ||
| 400-35763 | Needle clamp asm. (Left) | ||
| 400-35764 | Needle clamp asm. (Left) | ||
| 400-29561 | Needle clamp asm. (Left) | ||
| 400-35765 | Needle clamp asm. (Left) | ||
| 400-35766 | Needle clamp asm. (Left) | ||
| 400-35767 | Needle clamp asm. (Left) | ||
| 400-35768 | Needle clamp asm. (Left) | ||
| 400-35769 | Needle clamp asm. (Left) | ||
| 400-35770 | Needle clamp asm. (Left) | ||
| 400-35771 | Needle clamp asm. (Right) | ||
| 400-35772 | Needle clamp asm. (Right) | ||
| 400-35773 | Needle clamp asm. (Right) | ||
| 400-35774 | Needle clamp asm. (Right) | ||
| 400-29562 | Needle clamp asm. (Right) | ||
| 400-35775 | Needle clamp asm. (Right) | ||
| 400-35776 | Needle clamp asm. (Right) | ||
| 400-35777 | Needle clamp asm. (Right) | ||
| 400-35778 | Needle clamp asm. (Right) | ||
| 400-35779 | Needle clamp asm. (Right) | ||
| 400-35780 | Needle clamp asm. (Right) | ||
| 400-35877 | Needle clamp asm. (Left) | ||
| 400-26063 | Needle clamp asm. (Left) | ||
| 400-26065 | Needle clamp asm. (Left) | ||
| 400-26067 | Needle clamp asm. (Left) | ||
| 400-26069 | Needle clamp asm. (Left) | ||
| 400-26070 | Needle clamp asm. (Left) | ||
| 400-26072 | Needle clamp asm. (Left) | ||
| 400-26074 | Needle clamp asm. (Left) | ||
| 400-26076 | Needle clamp asm. (Left) | ||
| 400-26078 | Needle clamp asm. (Left) | ||
| 400-26080 | Needle clamp asm. (Left) | ||
| 400-35878 | Needle clamp asm. (Right) | ||
| 400·26084 | Needle clamp asm. (Right) | ||
| 400-26086 | Needle clamp asm. (Right) | ||
| 400-26088 | Needle clamp asm. (Right) | ||
| 400-26090 | Needle clamp asm. (Right) | ||
| 400-26091 | Needle clamp asm. (Right) | ||
| 400-26093 | Needle clamp asm. (Right) | ||
| 400-26095 | Needle clamp asm. (Right) | ||
| 400-26097 | Needle clamp asm. (Right) | ||
| 400-26099 | Needle clamp asm. (Right) | ||
| 400-26101 | Needle clamp asm. (Right) | ||
| 400-33563 | Feed dog | ||
| 400-25784 | Feed dog | ||
| 400-25785 | Feed dog | ||
| 400-25786 | Feed dog | ||
| 400-25787 | Feed dog | ||
| 400-25788 | Feed dog | ||
| 400-25789 | Feed dog | ||
| 400-25790 | Feed dog | ||
| 400-25792 | Feed dog | ||
| 400-25793 | Feed dog | ||
| B1613-512-00H | Feed dog (Feed dog 2) | ||
| B1613-512-F0H | Feed dog (Feed dog 2) | ||
| B1613-512-K0H | Feed dog (Feed dog 2) | ||
| B1613-512-N0H | Feed dog (Feed dog 2) | ||
| 400-25801 | Feed dog (Option) | ||
| 400-25803 | Feed dog (Option) | ||
| 400-25806 | Feed dog (Option) | ||
| 400-25810 | Feed dog (Option) | ||
| 400-35896 | Presser foot asm. (Tip-divided) | ||
| 400-35897 | Presser foot asm. (Tip-divided) | ||
| 226-40353 | Presser foot asm. (Tip-divided) | ||
| 226-40452 | Presser foot asm. (Tip-divided) | ||
| 226-40551 | Presser foot asm. (Tip-divided) | ||
| 226-40759 | Presser foot asm. (Tip-divided) | ||
| 226-40858 | Presser foot asm. (Tip-divided) | ||
| 226-40957 | Presser foot asm. (Tip-divided) | ||
| 226-41252 | Presser foot asm. (Tip-divided) | ||
| 226-41351 | Presser foot asm. (Tip-divided) | ||
| 228-16557 | Presser foot asm. (Tip-divided, 2) | ||
| 228-16755 | Presser foot asm. (Tip-divided, 2) | ||
| 228-17050 | Presser foot asm. (Tip-divided, 2) | ||
| 400-33947 | Presser foot asm. (Tip-divided, 2) | ||
| 226-01058 | Sliding plate asm. (Left) | ||
| 226-01157 | Sliding plate asm. (Left) | ||
| 226-00555 | Sliding plate asm. (Right) | ||
| 226-00654 | Sliding plate asm. (Right) | ||
| 400·42874 | Sliding plate asm. (Front) |
Page 39 — 19. TABLE OF EXCHANGING GAUGE PARTS (FOR LH-3568-7)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 3 | 400·35890 | ||
| 3 | .oo·2061s | ||
| 4 | 400·35762 | ||
| 4 | 400-26063 | ||
| 4 | <00·25ui'. | ||
| 4 | 400-2956i | ||
| 4 | 400·260$9 | ||
| 4 | .. 400-26090 | 400- 357ss | |
| 5 | 400·35:75 | ||
| 5 | 400-26070 | ||
| 5 | 400-26074 | ||
| 5 | 400-26093 | ||
| 5 | 400·3S89 | ||
| 5A | 228-4055 | ||
| 8 | 35881 | 40o-isus | |
| 8 | 400·35761 | ||
| 8 | 400-3581 | ||
| 8.4 | 4()-0-25241 | 400-Z5235 | |
| 8.4 | 400-42880 | ||
| 15 | <Oo-25ua | ||
| 15 | 400.351$8 | 400·JS709 | |
| 15 | 400·35: 78 | ||
| 15 | i00·26076 | ||
| 15 | 400· 28099 | ||
| 15 | 400·2··;., | 400:as11il | |
| 15 | 4oo:35780 | ||
| 15 | 400-20080 | ||
| 15.9 | 400.25236 | ||
| B | 400-35881 | ||
| C | 400-25485 | ||
| D | 400-25480 | ||
| E | 400-25491 | ||
| F | 400-25492 | ||
| G | 400-25493 | ||
| H | 400-25494 | ||
| K | 400-25495 | ||
| L | 400-25498 | ||
| M | 400-25499 | ||
| N | 400-25500 | ||
| P | 400-25502 | ||
| Q | 400-25503 | ||
| R | 400-25504 | ||
| S | 400-25505 | ||
| V, | 400·25822 | ||
| V, | 228· 7050 | ||
| V, | -,,,.,4135 |
Page 40
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 39 | 400-42880 | ||
| 40 | 400-42874 | ||
| 67 | SM-4051055-SP | ||
| 71 | TA-1030402-RO | ||
| 20 | SM-8080612-TP | ||
| 20 | SM-6061010-TP | ||
| 29 | SM-8080615-0 | ||
| 46 | SB-1200002-00 | ||
| 47 | 226-06206 | ||
| 48 | 226-06305 | ||
| 50 | 226-07709 | ||
| 48 | 84138-512-BOO | ||
| 49 | 226-07600 | ||
| 52 | 226-07808 | ||
| 5 | 226-06404 | ||
| 71 | St-60.6.180.2.TP | ||
| 76 | SM-6062502-TP | ||
| 4 | 400-22427 | ||
| 4 | 400-52366 | ||
| 26 | 83118-552-AOO | ||
| 26 | 83118-552-000 | ||
| 27 | 831-c18.5.52 | ||
| 8 | 118-415-000 | ||
| 1 | 400-28271 | ||
| 24 | 400-2885-1 | ||
| 3 | 400-30915 | ||
| 4 | 400-31351 | ||
| Sj | 400-36687 | ||
| 2 | 226-12709 | ||
| 71 | 400-39391 | ||
| B | 226-12204 | ||
| 10 | 11101-12803 | ||
| 12 | 400-12045 | ||
| 13 | 101-12902 | ||
| 14 | 110-15906 |
Page 41
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 15 | 226-88105 | ||
| 16 | 226-88402 | ||
| 17 | 226-88204 | ||
| 18 | 101-10500 | ||
| 19 | 226-12907 | ||
| 20 | SS-6560150-SH | ||
| 21 | TA-0290301-MO | ||
| 5 | SM-8060612-TP | ||
| 6 | 400-13061 | ||
| 7 | 236-18804 | ||
| 8 | 400-28485 | ||
| 9 | 400-28487 | ||
| 10 | 400-34969 | ||
| 11 | 400-34971 | ||
| 16 | SQ-2050453-MZ | ||
| 22 | 400-22589 | ||
| 23 | 400-22590 | ||
| 24 | SM-4050855-SP | ||
| 25 | SQ-2050453-MZ | ||
| 26 | 400-16748 | ||
| 27 | RO-0442401-00 | ||
| 28 | 400-29570 | ||
| 29 | TA-0290301-MO | ||
| 30 | 400-28494 | ||
| 39 | SM-8051002-TP | ||
| 40 | 101-09908 | ||
| 41 | 101-12407 | ||
| 42 | SS-6153040-SP | ||
| 43 | SM-6063502-TP | ||
| 44 | WP-0621016-SD | ||
| 45 | 400-28486 | ||
| 46 | 400-28488 | ||
| 47 | 400-34970 | ||
| 48 | 400-34972 | ||
| 49 | TA-0290301-MO | ||
| 50 | SM-6062502-TP | ||
| 51 | 400-28495 | ||
| 52 | 400-28496 | ||
| 53 | SM-4050655-SP | ||
| 60 | SQ-2060451-MZ | ||
| 61 | 400-28489 | ||
| 62 | SM-8060612-TP | ||
| 69 | SM-8060612-TP | ||
| 70 | SM-8060612-TP | ||
| 71 | 400-28656 | ||
| 72 | SM-8060612-TP | ||
| 73 | RO-2573501-00 |
Page 42 — ALL PARTS-全部
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 12 | ALL PARTS-全 部 | ||
| 74 | 228-88507 | ||
| 76 | 400-11947 | ||
| 60 | SM-4051055-SP | ||
| 28 | 229-44508 | ||
| 36 | B1505-227-T00-A | ||
| 44 | SM-6040552-TP | ||
| 51 | 400-17033 | ||
| 57 | SM-9051003-SD | ||
| 61 | SM-8060612-TP | ||
| 17 | 226-57100 | ||
| 27 | RE-0320000-KO | ||
| 29 | SS-3090520-SP | ||
| 25 | 400-22449 | ||
| 32 | 400-22450 | ||
| 63 | D2112-655-B00 | ||
| 64 | 137-65607 | ||
| 13 | WP-0501016-SC | ||
| 11 | 400-36707 | ||
| 60 | SM-7050850-TP | ||
| 91 | BT-0500300-EA | ||
| 28 | SM-4040855-SP | ||
| 36 | 229-07406 | ||
| 44 | SM-4040655-SP | ||
| 46 | 400-50314 | ||
| 51 | 400-44393 | ||
| 57 | SM-9051203-CP | ||
| 61 | SM-8061010-TP | ||
| 66 | WP-0531000-SD | ||
| 17 | 400-42151 | ||
| 27 | RE-0300000-KO | ||
| 29 | SS-7090610-SP | ||
| 36 | WS-0410002-KP | ||
| 25 | 400-42287 | ||
| 32 | 400-42286 | ||
| 63 | SM-6040655-TP | ||
| 64 | 236-29504 | ||
| 82 | 400-41578 | ||
| 83 | 400-41579 | ||
| 13 | WP-0501016-SD | ||
| 11 | B9141-372-000 | ||
| 41 | 236-40006 |
Juki LH-3568 — parts catalog
- Page 1 (cover): This is the cover page for the JUKI LH-3568-7 and LH-3568 parts list, detailing a 2-Needle, Needle-feed, Lockstitch Machine with Organized Split Needle Bar and an Automatic Thread Trimmer (without Thread Trimmer).
- Page 2 (unknown): This page is blank except for a watermark and a footer.
- Page 3 (text): This page provides an explanation of codes and symbols used in the parts list, including how to interpret part changes, quantity column values, subparts, assembly parts, consumable parts, and optional parts.
- Page 4 (toc): This page is a table of contents for a sewing machine parts catalog, listing 17 sections with their corresponding page numbers. The sections cover various components like frame, shafts, needle bar, feed mechanism, and accessories.
- Page 5 (toc): This page is a table of contents listing sections related to exchanging gauge parts for models LH-3568 and LH-3568-7, information on changes, and a numerical index of parts.
- Page 6 (diagram): This page displays a diagram of the frame and miscellaneous cover components for an industrial sewing machine.
- Page 7 (parts_list): This page lists various parts including screws, plugs, holders, washers, labels, and other components with their part numbers, descriptions, and quantities.
- Page 8 (diagram): This page illustrates the main shaft and thread take-up components of an industrial sewing machine, showing an exploded view of various parts and their reference numbers.
- Page 9 (parts_list): This page lists various parts including plugs, pins, wicks, screws, shafts, sprockets, bearings, and other components, along with their part numbers, descriptions, and quantities.
- Page 10 (diagram): This page illustrates the components of the needle bar assembly for an industrial sewing machine, showing various parts and their reference numbers.
- Page 11 (parts_list): This page lists various parts including rollers, felts, needles, screws, spacers, and other components for a machine, with their corresponding part numbers and quantities.
- Page 12 (diagram): This page illustrates the tension post components of an industrial sewing machine, showing an exploded view of various parts and their reference numbers.
- Page 13 (parts_list): This page lists parts related to the thread tension and repositioning mechanisms, including screws, springs, levers, and other components, with their part numbers, descriptions, and quantities.
- Page 14 (diagram): This page illustrates the components of the hook and hook driving shaft, showing various parts with their corresponding reference numbers.
- Page 15 (parts_list): This page lists parts for a sewing machine, including hook upper bush, hook lower bush, cap hook, and various screws and washers, with part numbers, descriptions, and quantities.
- Page 16 (diagram): This page displays a diagram of hook and hook driving shaft components, with various parts numbered for identification.
- Page 17 (parts_list): This page lists parts for sewing machines, including part numbers, descriptions, quantities, and notes, with specific parts designated for LH-3568 and LH-3568-7 models.
- Page 18 (diagram): This page displays a diagram of the feed mechanism components, including various levers, shafts, springs, and fasteners, with reference numbers for each part.
- Page 19 (parts_list): This page lists parts for the sewing machine, including screws, pins, shafts, and various adjusting components, with their corresponding part numbers and descriptions.
- Page 20 (diagram): This page displays a diagram of presser bar and tension release components, with numbered parts and their corresponding references.
- Page 21 (parts_list): This page lists parts for the LH-3568 and LH-3568-7 models, including hand lifters, screws, plates, and springs, with their corresponding part numbers and descriptions.
- Page 22 (diagram): This page displays a diagram of thread trimmer mechanism components for the LH-3568-7 model, with numbered parts and their corresponding details.
- Page 23 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It details components such as screws, washers, and various assemblies like the knife base and driving arms.
- Page 24 (diagram): This page displays a diagram of the automatic reverse feed mechanism components for the LH-3568-7 model, with numbered parts indicated.
- Page 25 (parts_list): This page lists parts for a sewing machine, including various screws, switches, covers, and links, with their corresponding part numbers and descriptions.
- Page 26 (diagram): This page displays a diagram of wiper mechanism components for the LH-3568-7 model, with numbered parts indicated.
- Page 27 (parts_list): This page lists parts for a wiper system, including solenoids, covers, screws, springs, and washers, with their corresponding part numbers and descriptions.
- Page 28 (diagram): This page displays a diagram of lubrication components, including various parts like filters, tubes, and fittings, with corresponding reference numbers.
- Page 29 (parts_list): This page lists various parts for a sewing machine, including screws, oil tanks, rubber rings, plungers, springs, and filters, along with their part numbers and quantities.
- Page 30 (parts_list): This page lists components for the Belt Cover & Bobbin Winder, including various screws, washers, and assemblies, with part numbers, names, and quantities.
- Page 31 (parts_list): This page lists components for the bottom cover, including part numbers, names, and quantities for items like the bottom cover assembly, connecting rod, screws, and knee pad plate.
- Page 32 (diagram): This page displays a diagram of AK device components, with numbered parts and their corresponding details.
- Page 33 (parts_list): This page lists parts for an assembly, including part numbers, names, quantities, and reference numbers. It contains 16 items.
- Page 34 (diagram): This page displays a diagram of thread stand components, with numbered parts and their corresponding references.
- Page 35 (parts_list): This page lists parts for a thread standing device assembly, including various thread guides, spool rests, and hardware like screws, nuts, and washers, with quantities specified for each item.
- Page 36 (diagram): This page displays a diagram of accessory parts components for a sewing machine, including various tools, fasteners, and accessories with corresponding reference numbers.
- Page 37 (parts_list): This page lists various accessories and parts for sewing machines, including screws, wrenches, needles, filters, and information sheets, with part numbers, descriptions, and quantities.
- Page 38 (parts_list): This page lists gauge parts for the LH-3568 machine, including needle gauges, throat plates, and related components with their corresponding part numbers and sizes.
- Page 39 (diagram): This page contains a diagram illustrating the exchange of gauge parts for the LH-3568-7 sewing machine, with various part numbers listed.
- Page 40 (text): This page lists changes to parts, indicating added or obsoleted items with their corresponding part numbers and revision information. It also provides a table detailing these changes, including reference numbers, part numbers, and revision details.
- Page 41 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 42 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including part numbers, descriptions, and revision information.
- Page 43 (index): This page is a numerical index of parts, listing part numbers and their corresponding page references.
- Page 44 (index): Numerical index of parts with part numbers and their corresponding page references.
- Page 45 (index): This page is a numerical index of parts, listing part numbers and their corresponding page references within the catalog.
- Page 46 (text): This page contains the heading "ME MO" and is otherwise blank with horizontal lines, suggesting it is a memo or notes page.
- Page 47 (unknown): This page contains a watermark and no other discernible information.
- Page 48 (cover): This is the cover page of a JUKI CORPORATION parts catalog, featuring the company logo and contact information for further inquiries. It also includes copyright information and a statement about the parts list being subject to change.
